Microbial Protein Production Using Lignocellulosic Biomass (Switchgrass) and Klebsiella oxytoca M5A1—A Nitrogen Fixer

Abstract

The expanding global population has increased the demand for sustainable protein sources, and microbial protein (MP) has emerged as a promising alternative. However, conventional carbon (glucose) and nitrogen (ammonia, urea) sources needed for MP production pose environmental and economic issues. This study aims to produce protein using lignocellulosic biomass (LCB) as a carbon source and the nitrogen fixation ability of Klebsiella oxytoca M5A1 as a nitrogen source. The study investigates the pretreatment of LCB (switchgrass), enzymatic hydrolysis, protein quantification, nitrogen fixation, glucose utilization and organic acids production. K. oxytoca M5A1 harnessed free nitrogen from the atmosphere and used abundant, cheap glucose from LCB to produce MP and organic acids as by-products. Protein production occurred in two phases: first within the initial 8 h and secondly, within the last 16 h. The highest protein concentration was at 40 h, with approximately 683.46 µg/mL protein content. High-performance liquid chromatography system (HPLC) analysis revealed a dynamic profile of glucose utilization and organic acids (Lactic acid, Propionic acid, Acetic acid, and Succinic acid) production. K. oxytoca M5A1 exhibited an early high rate of glucose consumption, and conversion to organic acids, that were later used for second-phase protein production. The acids profile revealed intra-conversion from one acid to another via metabolic pathways (glycolysis and tricarboxylic acid cycle). Overall, leveraging LCB and the nitrogen-fixing ability of K. oxytoca M5A1 for MP production offers an eco-friendly and cost-effective alternative to traditional protein sources, contributing to a sustainable circular economy.

1. Introduction

With the rapid growth of the world population, there’s an increasing demand for sustainable and efficient protein sources. This demand stems from the global need for both feed and food, as well as the environmental considerations associated with traditional agriculture and livestock production [1]. While traditional sources such as plant-based and animal-based proteins have long been the cornerstone of human nutrition, they are increasingly facing challenges ranging from environmental impact to scalability and cost efficiency. Plant-based protein production often requires extensive land use, water consumption, and chemical inputs, leading to deforestation, soil degradation, and habitat loss [2]. Additionally, livestock farming contributes significantly to greenhouse gas emissions, water pollution, and biodiversity loss [2]. In recent years, significant biodiversity loss and deforestation are observed due to forest conversion. About 30–50% of arable land, 20% of global energy production and 70% of fresh water are used for this purpose [3]. Therefore, in response to these challenges, microbial protein (MP) production has emerged as a promising alternative, offering significant advantages in terms of sustainability, low carbon footprint, and cost-effectiveness.

MP production involves the cultivation of microorganisms, such as bacteria, fungi, algae, and yeast, under controlled conditions to yield high-quality protein [4]. These microorganisms can be engineered or naturally occurring and can efficiently convert simple raw materials into valuable products. MP products may contain amino acids, carbohydrates, lipids, vitamins, and minerals, offering a highly nutritious alternative to animal or plant proteins [5]. It finds diverse applications across agricultural and commercial sectors, serving as a protein source in fish meals [6], animal feed supplements [7], foam stabilizers [8], and potential packaging materials [9].

The production of protein requires sugar, especially glucose, as a carbon and energy source [10]. Traditionally, conventional sugars have been the primary choice for this purpose. However, sugar production is often costly and relies on intensive agricultural practices that can lead to environmental degradation and increased carbon footprint [11]. High demand for these sugars in various industries can lead to competition for limited resources, potentially driving up prices and exacerbating issues of food security and affordability. In addition to carbon sources, nitrogen is also essential for MP synthesis, typically supplied in the form of ammonia or urea. However, the production of these nitrogen sources is non-renewable, energy-intensive, and can lead to environmental pollution if not properly managed [12]. Leveraging lignocellulosic biomass (LCB) as a carbon source and harnessing the nitrogen-fixing abilities of bacteria, such as K. oxytoca M5A1, offers a revolutionary approach to meet the rising demand for protein while addressing concerns related to sustainability, carbon footprint, and cost efficiency. LCB are agricultural residues that holds significant promise as a renewable and abundant feedstock, which offers a sustainable substrate for MP production, and eliminate the need for conventional glucose.

Over the years, several works have been done, specifically on the utilization of LCB or agro-waste materials for protein production, as well as other valuable chemicals. Rajoka et al. [13] used mixed substrates containing beet pulp hydrolysate supplemented with molasses and glucose for fermentation of Candida utilis and Brevibacterium lactofermentum during MP production. MP has been synthesized using soybean hull biomass feedstock obtained from soya bean oil extraction as substrate [14]. Our study utilizes switchgrass, a versatile and sustainable agricultural residue, as the primary feedstock for MP production. Additionally, we use K. oxytoca M5A1 that have the unique ability to fix atmospheric nitrogen using inherent Nitrogenase. Nitrogenase reduces atmospheric nitrogen (N₂) by breaking the strong triple bond between nitrogen atoms, resulting in the formation of ammonia (NH₃) [15]. K. oxytoca M5A is of interest because it exhibits potential in producing beneficial chemicals and biofuels from a wide range of sugars, and it also plays a role in nitrogen fixation [16]. It is acknowledged as a nonpathogenic species of Klebsiella [17,18,19]. Additionally, K. oxytoca produces fewer capsules, fimbriae, and lipopolysaccharides compared to other Klebsiella strains. These characteristics could facilitate the removal of cells through centrifugation techniques from fermentation broth for subsequent purification steps, thereby enhancing its competitiveness in industrial applications [19]. We envisage that the use switchgrass as substrates reduces the cost of raw materials, while the nitrogen-fixing capability of bacteria eliminates the need nitrogen sources, thereby lowering the fermentation costs during MP synthesis. This approach would potentially not only makes MP production more economically viable but also aligns with global efforts to reduce the environmental footprint of food/feed production.

2. Methodology

2.1. Media

Luria-Bertani agar (LB agar) contains (in 500 mL) 5 g tryptone, 7.5 g agar, 2.5 g yeast extract and 5 g sodium chloride (NaCl). All the reagents were initially mixed in 400 mL distilled water, and the pH was adjusted to 7.0 by using sodium hydroxide (NaOH) solution (1 N). The mixture was then top up to 500 mL and autoclaved for 20 min. After autoclaving, the media cooled in a water bath and poured into petri dishes under aseptic conditions. The plate was stored in the fridge for further use. The minimal medium used for fermentation was prepared without sucrose and contains 0.1 g of CaCl₂ − 2H₂O, 25 g of Na₂HPO₄·7H₂O, 0.25 g of MgSO₄·7H₂O, 3 g of KH₂PO₄, 0.25 mg of Na₂MoO₄·2H₂O, 1 g of NaCl, and 2.9 mg of FeCl₂·4H₂O in 1 L distilled water. Sucrose solution was prepared for control experiment. Super Optimal Broth (SOB) medium used as inoculum medium contains 0.5 g of NaCl, 2.4 g of MgSO₄, 5 g of yeast extract, 0.186 g of KCl, and 20 g of Peptone in 1 L distilled water.

2.2. Culturing of Klebsiella oxytoca M5A1

A fresh culture of K. oxytoca M5A1 (obtained from Microbiology department, North Dakota State University) was sub-cultured on LB agar plate. Using a sterile wire loop, a distinct colony of K. oxytoca M5A1 was carefully streaked on the LB agar plate under aseptic condition and the plates were incubated for 24 h at 30 °C. After incubation the overnight culture was prepared by aseptically introducing a swab of K. oxytoca M5A1 into 10 mL SOB broth and incubated for 24 h (30 °C, 200 rpm).

2.3. Biomass Pretreatment

The LCB (Switchgrass) was pretreated in alkaline using aqueous ammonia. According to Hammed et al. [20], a 1-L screw-capped Pyrex bottle, 1:6 solid-liquid ratio of 10% (w/v) aqueous ammonia and biomass sample was mixed together and placed at 60 °C for 24 h. After 24 h, the pretreated samples were washed (using vacuum filtration method) with distilled water until the pH reached approximately 7.5. The washed pretreated biomass was spread on the workbench and left to air dry for few h.

2.4. Enzymatic Hydrolysis of Biomass

Alkaline pretreated switchgrass was enzymatically hydrolyzed with enzyme cellulase (Cellic HTec, Novozymes, Bagsværd, Denmark) in 250 mL Erlenmeyer flasks. The mixtures contained the pretreated switchgrass in sodium citrate buffer, supplemented with 0.04% sodium azide to prevent an unwanted growth of microorganisms, and 3% (of biomass loading) enzyme cellulase. The mixture was hydrolyzed for 72 h at 50 °C (130 rpm). After hydrolysis, the Switchgrass hydrolysate was separated by filtration to remove residues from the mixture and autoclaved for 20 min to prevent contamination.

2.5. Analytical Methods: Glucose Utilization and Organic Acids Production

The glucose content in the hydrolyzed biomass, glucose utilization and organic acids produced during fermentation were analyzed and quantified with HPLC system using LabSolutions Software (version 5.57) for Shimadzu (Tokyo, Japan) LC-2050C HPLC. The mobile phase was sulfuric acid (0.01 N) at a flow rate of 1.0 mL/min. The samples were filtered through a 0.45 µm nylon filter then injected into the column. The microcentrifuge tube and 2 mL autosampler vial with sample identifier(s) were prepared and labeled accordingly. The sample container was inverted for mixing and 2 mL of homogenous solution was transferred to the labeled microcentrifuge tube. The sample aliquot was centrifuge for minimum of 3.5 min at 10,000 rpm. The supernatants were filtered through a 1 cc syringe connected to a 0.45 µm nylon filter into a 2 mL autosampler vial. Different concentrations of glucose and organic acids were equally run to generate standard curves, respectively. The samples (glucose and organic acids) were quantified using external standards and results were reported in g/L.

2.6. Fermentation Conditions and Growth Profiling

The fermentation media was prepared using minimal salt solution and switchgrass hydrolysate. The solutions were separately prepared, autoclaved and placed in a water bath to cool. After cooling, the minimal salt solution and switchgrass hydrolysate (approximately 10 g/L) were mixed in 1:1 v/v ratio in an Erlenmeyer flask, with pH of 6.5–7.5. The fermentation media consisting biomass hydrolysate was inoculated with 5% of overnight culture and incubated for 48 h (30 °C, 200 rpm). The samples were collected at 0, 8, 16, 24, 32, 40, and 48 h. The optical density of each collected samples were taken (OD 600 nm) and microbial growth was determined, with the use of microplate Spectrophotometer, Infinite M Nano by Tecan Group Ltd (Seestrasse Männedorf, Switzerland).

2.7. Protein Quantification

At each time interval, the amount of protein produced by K. oxytoca M5A1 was quantified using Bradford assay protein quantification protocol. Additionally, a control experiment was performed using sucrose as a carbon source. This comparison aims to assess the efficiency of protein yield from K. oxytoca M5A1 when grown on switchgrass hydrolysate compared to traditional methods of microbial protein production. The protein standard curve was established using the Bovine Serum Albumin (BSA) assay [21]. The sample was pipetted in a test-tube and Bradford reagent was added in ration 1:5 v/v. The mixture was mixed and incubated at room temperature for 20 min and the absorbance was taken at wavelength of 595 nm using Tecan infinite M Nano microplate reader.

2.8. Acetylene Reduction Assay

Nitrogen fixing ability of K. oxytoca M5A1 was determined by acetylene reduction assay (ARA) as described by Wen et al. [22] with some modifications. Overnight culture was prepared in SOB and incubated for 24 h (30 °C, 200 rpm). For nitrogen fixation activity, the microbe was cultured in two substrates; fermentation with switchgrass hydrolysate (FwSH), and fermentation with sucrose (FwS) as control. The overnight culture (2.5 mL) was added to 50 mL of each media in 140 mL airtight culture reactors and incubated for 1 h 30 min (30 °C, 200 rpm). A 10% portion of the headspace was replaced with an equal volume of acetylene, and the incubation continued. The first testing was done at 6 h after the start of fermentation with 2 min interval for each sample and replicate. A gas tight syringe was used to remove 100 µl of headspace from the bottles and analysis was done by HP 6890 gas chromatography system (Agilent Technologies, Inc., Santa Clara, CA, USA) with a flame ionization detector. The quantity of ethylene produced was determined by using the ethylene peak area for ARA calculations, and then converted to molar concentration of ethylene.

2.9. Statistical Analysis

The findings were presented as the mean ± standard deviation of three replicates, and statistical analyses were conducted using the Minitab statistical software (Version 21). Data were subjected to Analysis of variance (ANOVA), followed by Tukey’s multiple comparison test to identify significant differences at a significance level of p < 0.05. Kruskal-Wallis test, followed by Mann-Whitney U tests with Bonferroni correction were used where normality assumptions were not met.

3. Result and Discussion

3.1. Growth Profile K. oxytoca M5A1 in Switchgrass Hydrolysate

K. oxytoca strains as a nitrogen-fixing microorganisms require glucose in their fermentation media as a carbon source. However, the traditional production and price of refined glucose that is utilized during fermentation is expensive and may have a negative impact on the environment. In order to cost-effectively culture K. oxytoca, biomass hydrolysate is employed as an alternative source of carbon, substituting refined glucose. Biomass hydrolysates are more economical and derived from renewable sources that align with sustainability development [23]. To demonstrate the suitability of K. oxytoca M5A1 for industrial fermentation processes, its ability to grow in biomass hydrolysate is of paramount importance. Therefore, we conducted this experiment to observe how K. oxytoca M5A1 will thrive in the presence of an alternative source of carbon such as switch grass hydrolysate.

Following the preliminary experiment and the assurance that nitrogen-fixing K. oxytoca M5A1 is able to utilize hydrolysate as a carbon source during fermentation, we decided to further our experiment on the activity of hydrolysate and the response of K. oxytoca M5A1. Fermentation process was carried out at 30 °C for 48 h, under the pH of 6.5 and 200 rpm. The medium contained 10 g/L equivalent of glucose from the hydrolysate, and we monitored the growth profile of the bacterial strain with 8 h intervals for 48 h (Figure 1).

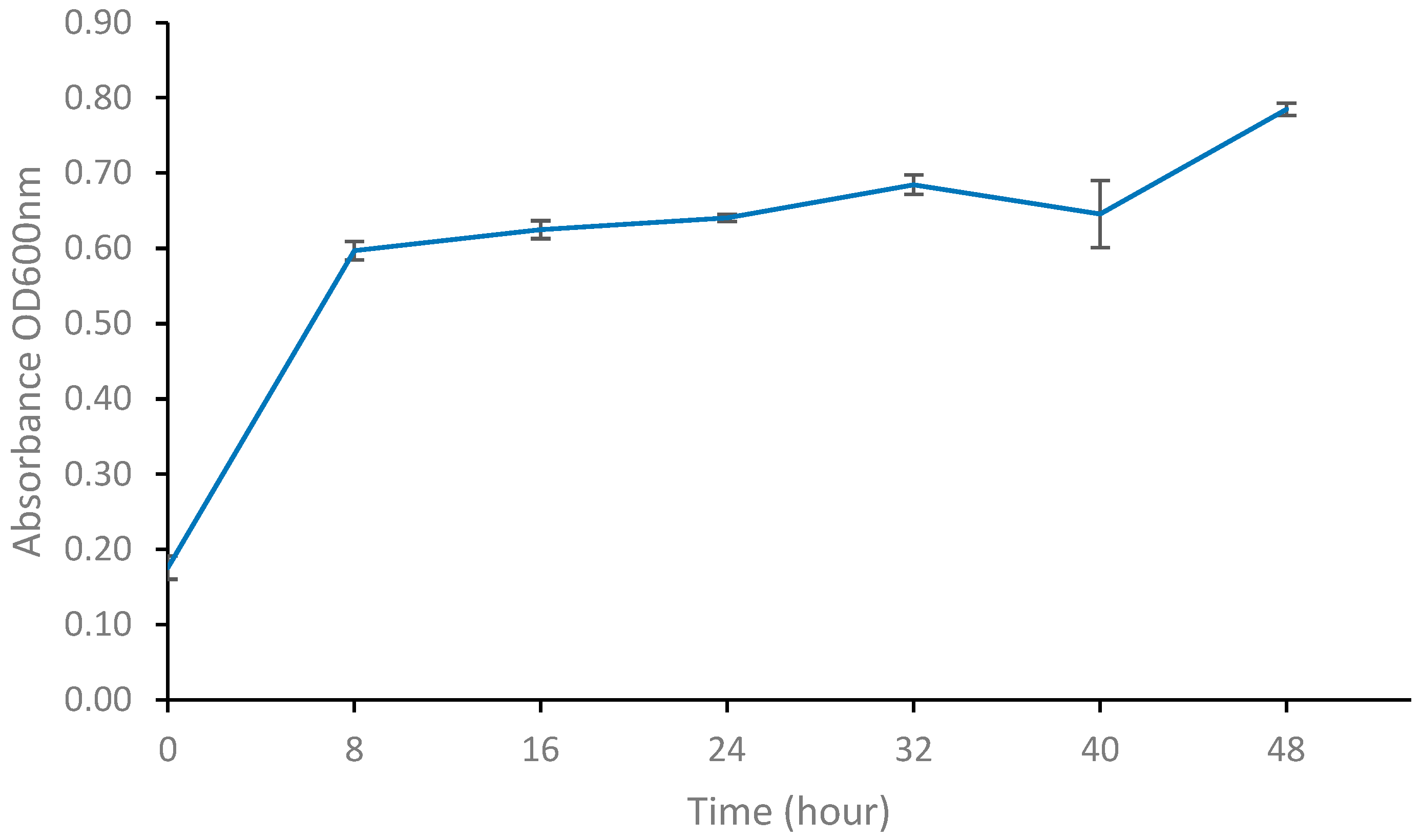

The analysis of the growth rate provides a dynamic perspective on how the K. oxytoca M5A1 responds to the conditions in the fermentation broth. We discovered that from 0 to 8 h, there is a substantial increase in the average absorbance at OD600 nm from 0.18 to 0.60. This indicates a rapid growth rate during the initial phase. Beyond 8 h, the growth rate appears to slow down, with a consistent and steady increase in the average values. The highest average value was observed at 48 h with absorbance of 0.78. Absorbance values at time points 0, 8, 16, and 24 were significantly lower compared to time points 32, 40, and 48 (p < 0.05). The initial phase of rapid growth is attributed to the easy access to bioavailable nutrients, while the slow growth phase is a result of nutrient depletion in the fermentation chamber.

The obtained result in our study is similar to previous work on K. oxytoca strains. Cha et al. [24] reported that a substantial increase in growth of K. oxytoca KCTC1686 strains (CHA004) was experienced between 0–10 h during cultivation with sunflower stalk hydrolysate. Similar to this, we also experienced a substantial increase in growth rate of K. oxytoca M5A1 between 0–8 h, using switch grass hydrolysate. Park et al. [25] reported that engineered K. oxytoca MAK01 strains could grow using the microalgae hydrolysate as the main substrate, and all clones experienced exponential growth at 4 h and the stationary phase at 10 h. Contrary to this, our strain of interest K. oxytoca M5A1 experienced slower growth between 16 h and 24 h. In another study conducted by Cheng et al. [26], it was observed that K. oxytoca M5A1 could grow in corncob hydrolysate. The strains of K. oxytoca M5A1 used in this study demonstrated proliferation in switchgrass hydrolysate. However, a thorough understanding of the observed variation in the growth phase may be achieved by studying the changes in glucose utilization and organic acid concentrations.

3.2. Glucose Utilization of K. oxytoca M5A during Fermentation

Glucose is a common carbon source for microorganisms. Research has demonstrated that the production of microbial biomass is closely linked to the availability of reducing sugars during fermentation [10]. Microorganisms assimilate glucose to build cellular components, such as amino acids, nucleotides, and other organic molecules required for growth and reproduction. Therefore, glucose utilization efficiency of K. oxytoca M5A1 is essential for the production of protein and organic acids. To ascertain whether the previously documented rapid growth correlated with the glucose utilization rate of our strain, we monitored the glucose consumption rate of K. oxytoca M5A1 utilizing an HPLC system. The samples were taken at time intervals (every 8 h) and the glucose concentration was estimated using external standards (Figure 2).

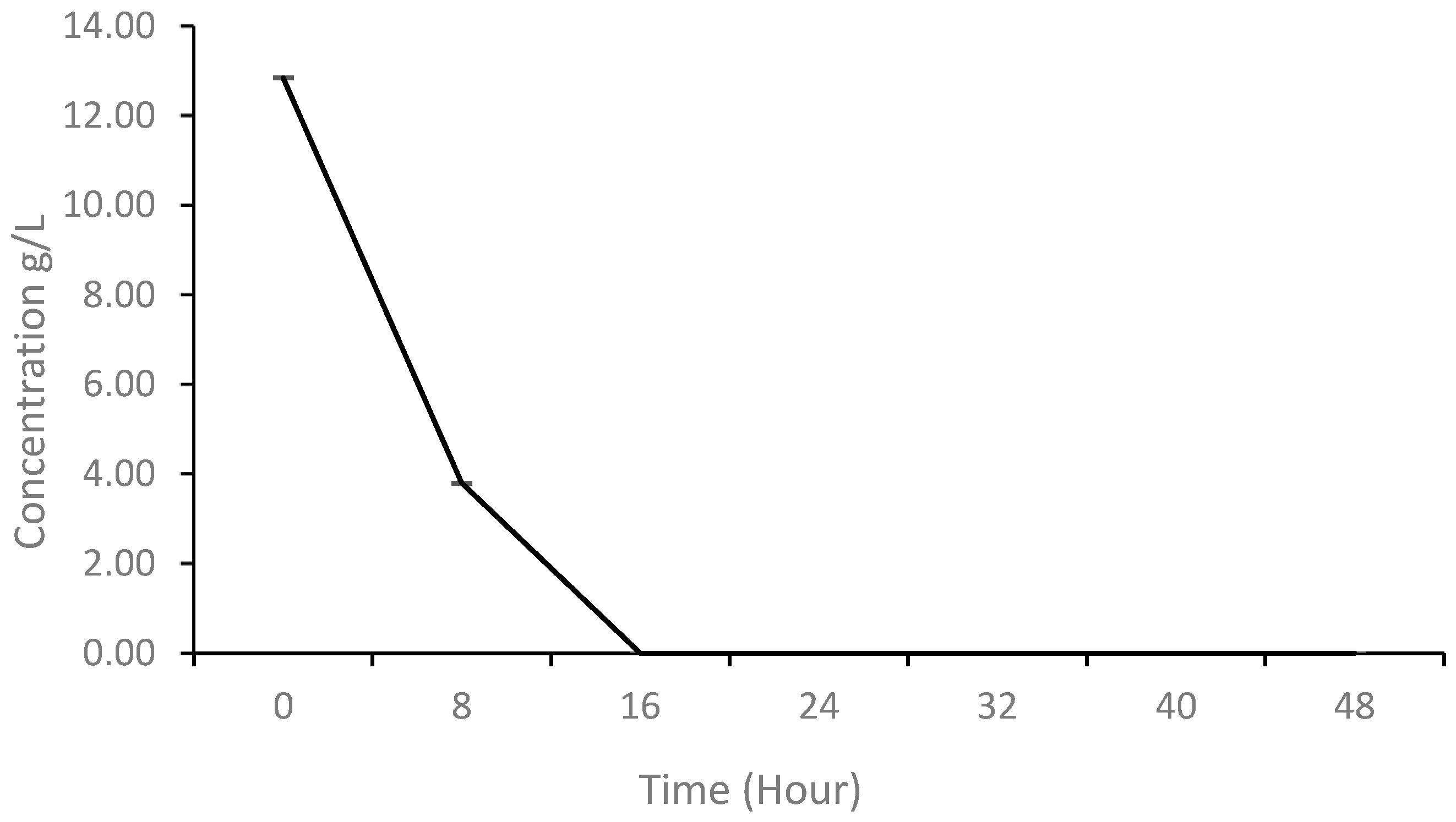

The results obtained indicated a significant decrease in glucose concentration from 12.83 g/L to 3.80 g/L within the first 8 h. This observation suggests active glucose consumption by K. oxytoca M5A1, which aligns with the previously observed growth pattern. This phase is typically characterized by rapid growth and metabolic activity of microorganisms, as they utilize available nutrients for energy and biomass production. Consequently, a faster rate of glucose utilization is generally associated with accelerated cell division. By 16 h, the glucose concentration had decreased to 0 g/L, indicating that K. oxytoca M5A1 had exhausted the available glucose resources. This stage coincides with the slowdown experienced during their growth. Additionally, we investigated the differences in glucose values among multiple time points and the analysis revealed a significant difference in glucose concentration among the time points (p < 0.05). However, subsequent pairwise comparisons did not identify any statistically significant differences between specific pairs of time points.

In the context of sugar utilization, several studies have highlighted the capabilities of different microorganisms. Yu et al. [27] reported in their work that T. dermatis 32,903 exhibited a sugar utilization preference for glucose compared to xylose, as glucose utilization rate was higher in the first 24 h. Abdel-Rahman et al. [28] reported that Bacillus coagulans Azu-10 completely consumed glucose within 4–8 h. Another study using glucose from Golenkinia sp. hydrolysate reported that glucose was completely used by K. oxytoca MAK01 within 7.5 h [25]. A study also reported that lignocellulosic biomass glucose was completely utilized within 8–12 h of fermentation by K.oxytoca KCTC1686 strains [24].

Overall, K. oxytoca M5A1 effectively utilized glucose in switchgrass hydrolysate, with a rapid initial consumption followed by complete exhaustion. This utilization occur through metabolic pathways such as glycolysis and fermentation [29]. Bacteria can absorb multiple sugars into the cytoplasm and utilize them for ATP (Adenosine triphosphate) production (the energy currency of the cell) via glycolysis. Glycolysis is the most primitive metabolic system for energy acquisition and is responsible for the breakdown of glucose into organic acids such as pyruvic acid and lactic acid [30]. The fermentation pathway can lead to the production of various end products such as protein, depending on the conditions and strains used.

3.3. MP Content of K. oxytoca M5A1

K. oxytoca M5A1 simultaneously fix nitrogen during fermentation. This involves the conversion of atmospheric nitrogen (N₂) into ammonia (NH₃) or other nitrogen compounds. This ammonia can then be utilized in the synthesis of amino acids, the building blocks of proteins. However, could nitrogen fixation capability of K. oxytoca M5A1 influence its protein synthesis efficiency, particularly when utilizing glucose from switchgrass hydrolysate? To address this question, we use sucrose as a control experiment for a direct comparison with switchgrass hydrolysate. The production of MP was carefully monitored at time interval using Bradford protein quantification assay at wavelength of 595 nm. MP concentration of K. oxytoca M5A1 in switchgrass hydrolysate (FwSH) and sucrose (FwS) Figure 3.

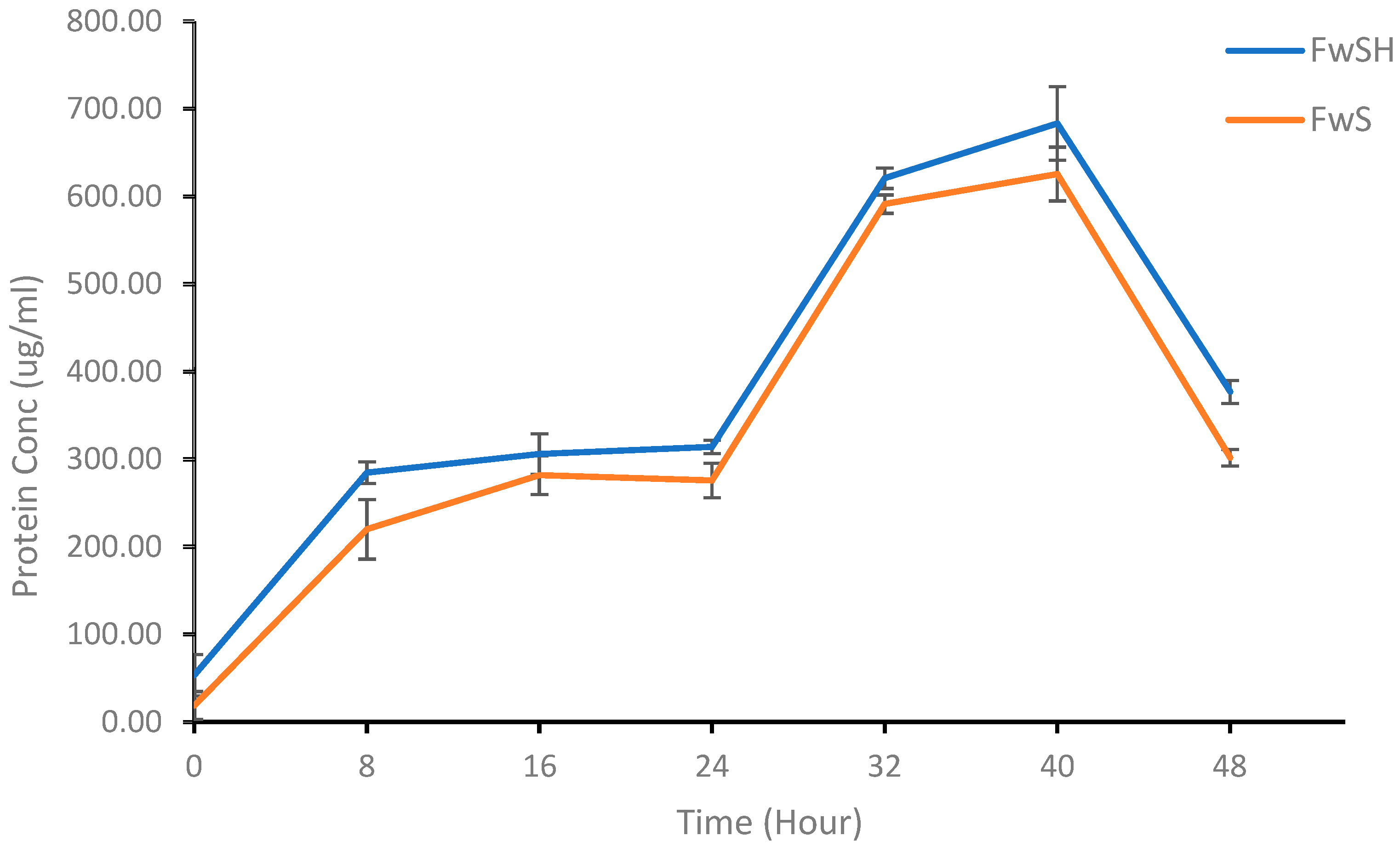

During the initial phase of glucose utilization (0–8 h), there is a noticeable increase in protein concentration from 53.41 µg/mL to 284.73 µg/mL for FwSH and 18.86 µg/mL to 220.05 µg/mL for FwS. This suggests active protein synthesis during the early growth phase when glucose is being consumed. The protein concentration continues to rise for both carbon sources (FwSH and FwS), but at a slower rate between 8 h and 24 h (except FwS that experienced a little reduction at 24 h). This is the point where glucose utilization plateaus, but protein production is still occurring (slowly) as the microbes adjust to changing metabolic conditions. As glucose is completely consumed, the protein concentration continues to increase through 32 h for both carbon sources, reaching a peak at 40 h (FwSH: 683.46 µg/mL, FwS: 625.65 µg/mL). This marks the second phase of protein production, suggesting that K. oxytoca M5A1 may be utilizing alternative carbon sources present in the hydrolysate or organic acids produced in FwSH and FwS chambers. At 48 h, the protein concentration in the samples have diminished to 376.98 µg/mL for FwSH and 301.83 µg/mL for FwS, suggesting the occurrence of protein degradation or precipitation. This observed reduction may be attributed to alterations in the pH level, which are likely induced by the metabolic processes.

In addition to the ANOVA test, subsequent post hoc analysis revealed that protein concentrations at time points 8, 16, 32, 40, and 48 were significantly different from each other (p < 0.05) for both carbon sources. A paired samples t-test was also conducted to compare the mean protein concentrations of FwSH and FwS. Specifically, the mean difference across all time points was found to be 46.31 µg/mL (95% CI: 35.90, 56.73), t = 9.275, with a p-value of p < 0.05. This indicates that, on average, FwSH had a significantly higher protein concentration than FwS. This difference could be attributed to the diverse sugar composition resulting from the hydrolysis of switchgrass, which provide broad range of nutrients that support protein synthesis. Although, we only accounted for glucose in our study, previous research has shown that cellulosic biomasses display considerable diversity in their sugar composition upon hydrolysis, resulting in a range of sugar mixtures. This variability is expected to influence the utilization of sugars [31], explaining why FwSH protein concentrations generally remain higher than FwS. Additionally, using sucrose as a control experiment demonstrated that K. oxytoca M5A1 can produce protein without any added nitrogen source, regardless of the type of carbon source present.

Previous research has demonstrated the utilization of various substrates for microbial protein production, highlighting the importance of substrate selection in achieving desirable protein yields. Rajoka et al. [13] reported in their study that the total sugars in the hydrolysate of beet pulp, along with glucose and molasses, were almost completely consumed by Candida utilis and B. lactofermentum, which resulted in production of more cell mass and crude proteins. Thiviya et al. [10] also conducted a comparative study using different fruit peel wastes as substrate for palmyrah toddy yeast, and concluded that papaya peel waste is a suitable substrate for protein biomass production. Two strains of Bacillus subtilis MR10 and TK8 were cultured in Soybean hull obtained from soya bean oil extraction, and the protein content after fermentation was 25.6% for MR10 and 26.6% for strain TK8 [14]. Kunasundari et al. [32] utilized a synthetic growth medium for cultivation of Cupriavidus necator to produce microbial protein. Zheng et al. [33] reported that protein content of Candida arborea AS1.257 cells produced from the rice straw hydrolysate was improved by adding nitrogen source such as ammonia solution and urea to fermentation medium.

Unlike these studies, such as that by Kunasundari et al. [32] and Zheng et al. [33], which utilize urea as a source of nitrogen for protein production, our study is unique in that we do not employ additional nitrogen sources in our fermentation medium. Instead, we have taken advantage of nitrogen-fixing bacteria, specifically K. oxytoca M5A1, to utilize free nitrogen from the atmosphere. In our study, we cultured nitrogen-fixing K. oxytoca M5A1 while utilizing switchgrass hydrolysate as a substrate for protein production. The protein content varied significantly across different studies. This variation was influenced by both the substrate composition and the microbial strain employed. Studies utilizing nitrogen-rich substrates or supplemented with nitrogen sources tended to yield higher protein contents. In our study, we observed that K. oxytoca M5A1 efficiently fixed atmospheric nitrogen, leading to protein formation without requiring additional nitrogen supplementation.

Overall, the data suggests a dynamic relationship between glucose utilization and protein production. K. oxytoca M5A1 demonstrates the capability to fix nitrogen from the atmosphere, and utilize sugars derived from hydrolyzed biomass, such as switchgrass, for protein synthesis. The ability to leverage cheap and readily available biomass sugars and use free nitrogen for protein production will significantly reduce the cost of industrial-scale production. Furthermore, the availability of biomass as a substrate enhances the sustainability and renewability of MP production compared to traditional refined sugars. This innovative approach not only contributes to a reduction in the carbon footprint but also promotes an environmentally friendly and economically viable protein production process.

3.4. Nitrogen-Fixing Capability of K. oxytoca M5A1

ARA is a widely used technique for quantifying biological nitrogen fixation (BNF). It measures the activity of the nitrogenase enzyme, which reduces acetylene to ethylene [34]. This reaction mimics the nitrogenase-catalyzed reduction of nitrogen to ammonia, except that acetylene is used instead of nitrogen. The rationale behind using acetylene is that it is a simpler molecule than nitrogen and reacts with nitrogenase to produce ethylene, which can be easily measured. The technique uses gas chromatography to measure the reduction to ethylene in a simple, quick, and cost-effective manner [35]. Here, we conducted ARA to measure the nitrogen-fixing activity of K. oxytoca M5A1 cultured in Switchgrass hydrolysate (FwSH) and sucrose (FwS) to investigate how different carbon sources affect the efficiency of nitrogen fixation (Figure 4).

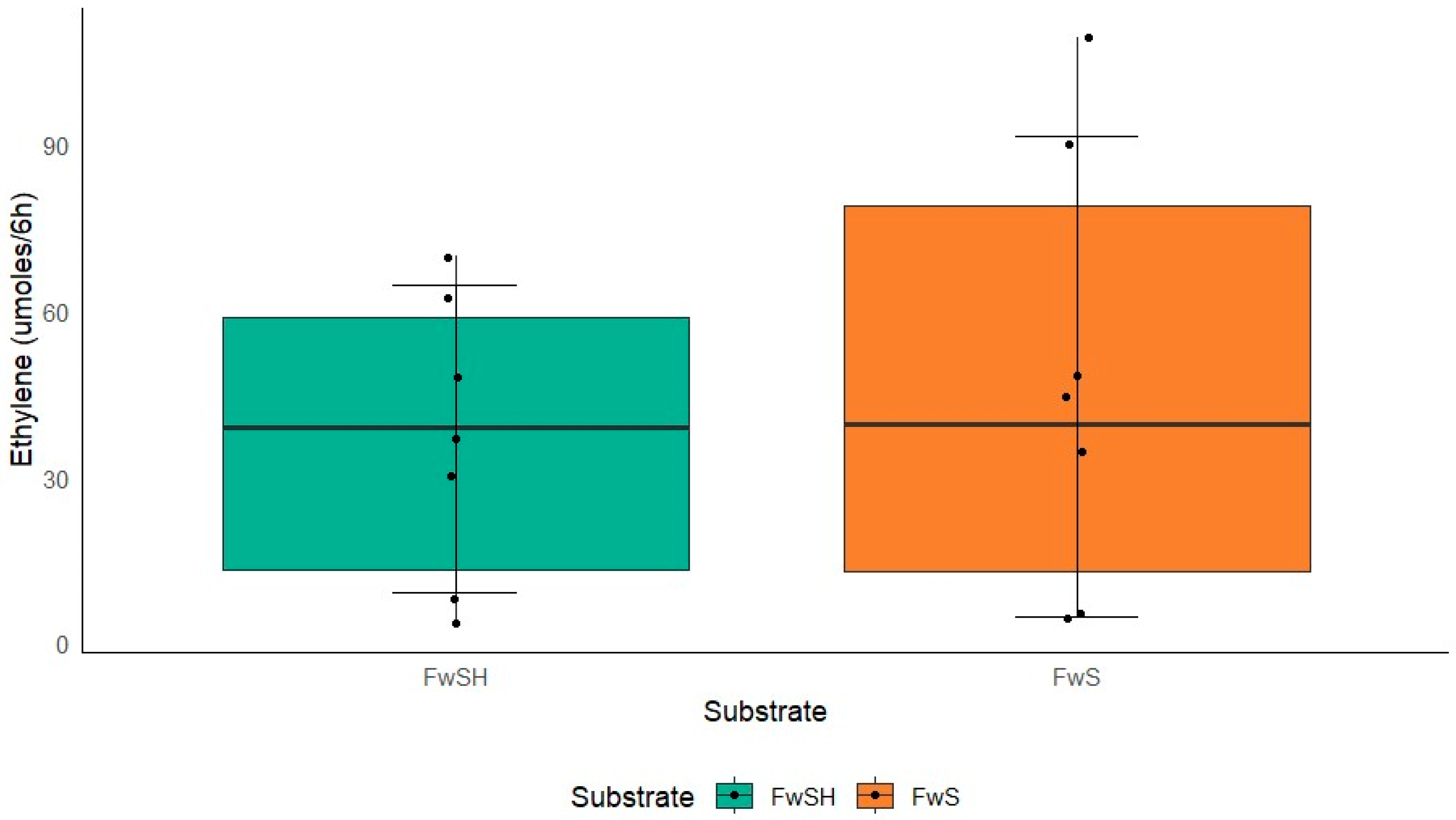

The sampling was done at 6 h interval for over 30 h using HP 6890 GC system (2 min method). No Ethylene was present in both treatments at 6 h. Acetylene reduction to ethylene was first observed in both FwSH and FwS cultures at 12 h and continued through to the end of the experiment. The data collected indicated that FwS reduced more acetylene to Ethylene compared to FwSH, ranging from 4.62–109.43 µmoles to 3.65–69.82 µmoles respectively. However, statistical analysis using ANOVA and Tukey’s HSD test indicate no significant differences in ethylene production between these substrates. Additionally, given that p-value from ANOVA and the adjusted p-value from Tukey’s HSD test are well above the significance level (α = 0.05), this suggest that substrate type/carbon source (FwSH or FwS) does not significantly affect Ethylene production or influence nitrogen-fixing efficiency. This findings confirms that K. oxytoca M5A1 is capable of nitrogen fixation, due to its ability to reduce acetylene to ethylene in both FwSH and FwS cultures.

3.5. Organic Acids Profile during Fermentation to Protein

During fermentation, microorganisms utilize substrates through enzymatic reactions, leading to the production of organic acids as metabolic by-products. Various organic acids can be produced, including but not limited to acetic acid, lactic acid, succinic acid, propionic acid, citric acid, and formic acid [36]. The specific types and quantities of organic acids produced depend on factors such as the microbial strains used, fermentation conditions (e.g., pH, temperature, nutrient availability), and the substrate [37,38]. An understanding of organic acid profile during fermentation will reveal the active metabolic pathway and activities. Since the metabolic dynamics of organic acid during nitrogen fixation of K. oxytoca M5A1 is unclear, we studied the production of organic acid over the course of fermentation (Figure 5).

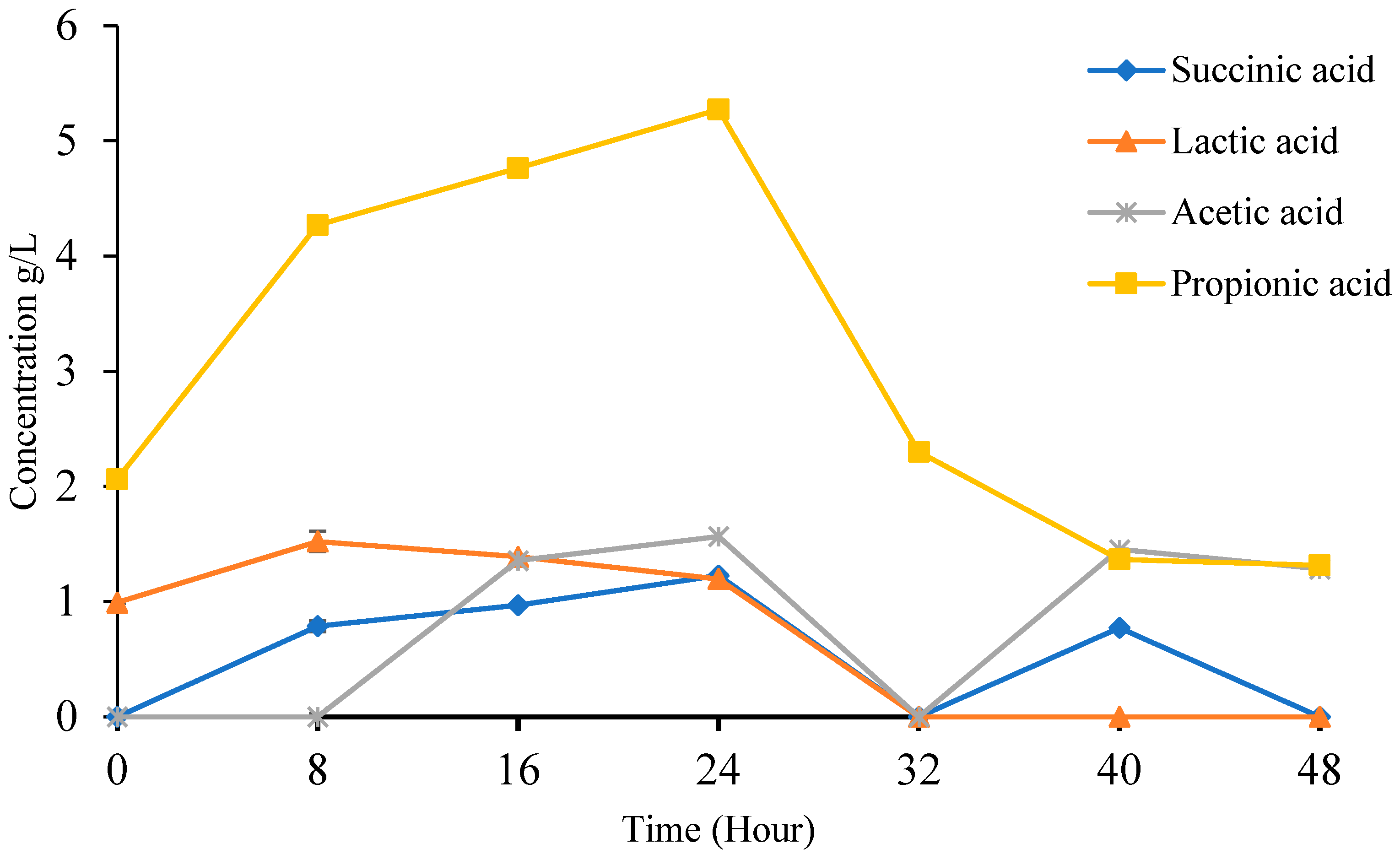

We observed the presence of lactic acid (LA), succinic acid (SA), acetic acid (AA), and propionic acid (PA) during the fermentation process. Unlike SA and AA without noticeable quantity at 0 h, LA and PA started at moderate concentrations of 0.99 g/L and 2.06 g/L, respectively, suggesting a relatively stable environment. During the course of fermentation, the organic acid profile follow different patterns. PA production was highest and continue to increase until 24 h, LA increase slightly till 24 h, SA increase steadily till 24 h and then decline. AA synthesis started after 8 h and continue to increase until 24 h. Although LA, SA and AA were undetectable at 32 h, SA and AA were detected after.

Earlier findings have affirmed that these organic acids can be a primary product or by-product of many microorganisms. Phosriran et al. [39] reported that an engineered strain of K. oxytoca M5A1 (KMS006) produced SA at a concentration of 4.82 g/L, while the wild-type K. oxytoca M5A1 strain produced 1.47 g/L SA. The engineered strain’s significant higher yield may be attributed to its specific modifications for enhanced SA production, which highlights the impact of genetic engineering on metabolic pathways. The highest concentration of SA produced in our study was 1.2 g/L at 24 h, primarily as a by-product rather than a primary product. This observation could account for the slightly lower concentration of SA observed in our study, compared to the SA produced by wild-type K. oxytoca M5A1 strain in Phosriran et al.’s work. Moreover, several other factors may contribute to the differences in SA concentration between the two studies. These factors include variations in the fermentation environment (such as pH, temperature, and fermentation duration), differences in substrate composition, variations in fermentation parameters (such as inoculum size, agitation rate, and bioreactor design), and discrepancies in analytical methods for product quantification.

Abdel-Rahman et al. [28] in their study reported that Bacillus coagulans Azu-10 exhibits potential in the production of LA from substrates of xylose and glucose derived from cellulosic biomass. In contrast to our study, Abdel-Rahman et al. [31] obtained as high as 50–102 g/L LA and 0.280–2.61 g/L AA as a by-product. However, they utilized a higher concentration of sugar ranging from 50 to 150 g/L, compared to 10 g/L used in our study.

The dynamic production of organic acids during fermentation with K. oxytoca M5A1 is through various metabolic pathways, including glycolysis, the TCA cycle, and amino acid metabolism. K. oxytoca, like other lactic acid bacteria, can produce lactic acid via homolactic fermentation, where glucose is converted into pyruvate via glycolysis, and then into lactic acid by lactate dehydrogenase [40]. Similar to lactic acid, succinic acid is also synthesized from pyruvate through the tricarboxylic acid (TCA) cycle [39]. During succinate synthesis, a significant amount of NADH (Nicotinamide adenine dinucleotide) is consumed. This process may also result in the generation of acetic acid through the conversion of acetyl-CoA to NADH, thereby co-occurring with succinic acid formation [41]. Propionic acid is produced through the deamination of amino acids, which involves the removal of an amino group from the amino acid molecule such as threonine, methionine, isoleucine and valine [42].

Similar to the rate at which K. oxytoca M5A1 consumes sugar, it also utilizes alternative carbon sources. The growth and protein synthesis was not inhibited by the presence of the organic acids, rather they utilized them as carbon source. This can be as a result of K.oxytoca species capability of growing in acidic conditions, as low as pH of 5 [43]. The time point at 32 h appears crucial, as all the acids exhibit decrease in concentration, and this concise with the beginning of second phase of protein production. At this time, K. oxytoca M5A1 completely consumed lactic acid, acetic acid, succinic acid, and a large percentage of propionic acid.

In the second phase of protein synthesis the concentration doubled. When the supply of sugars is exhausted, bacteria can metabolize these organic acids to generate ATP. This process is facilitated by enzymes that catalyze the reduction of organic acids, converting them back into simpler molecules that can be further metabolized for energy production [44]. Overall, the observed trend in this study indicates that organic acids are been produced as a by-product and utilized as energy sources during fermentation after the complete depletion of glucose. Presumably, K. oxytoca M5A1 synthesis of organic acid occur for different reasons: (1) to produce acids that create an unfavorable environment for the growth of other microbes, (2) to make glucose unavailable for other microbes and (3) to produce acids for energy storage and survival when glucose is completely depleted.

4. Conclusions

Nitrogen-fixing bacteria K. oxytoca M5A1 demonstrated efficiency in utilizing lignocellulosic switchgrass hydrolysate as a carbon source for microbial protein production while harnessing free nitrogen. This offers a sustainable alternative to the use of conventional glucose and nitrogen in microbial protein synthesis. The dynamic patterns observed in organic acid profile highlight the complex interplay of microbial metabolism during fermentation. The metabolic activity of K. oxytoca M5A1 is governed by various metabolic pathways involved in glucose utilization, protein synthesis, and organic acid production. The transition from rapid growth to a slower growth phase is likely influenced by the shift in metabolic priorities as glucose becomes depleted and alternative carbon sources are utilized. The availability of nutrients, particularly glucose, directly impacts microbial growth and protein synthesis. The initial rapid growth phase corresponds to the period of abundant nutrient availability, while the subsequent slower growth phase occurs as nutrients are consumed.

This study does not only advance our understanding of microbial behavior in response to different carbon sources but also holds promising implications for industrial applications. However, as bioprocesses are scaled up from laboratory to industrial scale, factors such as mass transfer limitations, mixing efficiency, and reactor designs can affect growth dynamics and metabolic performance. Scaling considerations may necessitate adjustments to fermentation parameters to maintain optimal conditions. The utilization of Switchgrass hydrolysate presents itself as a sustainable and economically viable strategy, aligning with global initiatives to reduce environmental impact and promote the circular economy. Future research endeavors should further investigate the underlying mechanisms governing the observed dynamics, optimization of microbial fermentation processes, MP toxicity, molecular engineering, and techno- economic analysis of the procedures for enhanced productivity and efficiency.
