A Review of Model Predictive Control for the Municipal Solid Waste Incineration Process
Abstract
:1. Introduction
2. Description of Municipal Solid Waste Incineration (MSWI) Process and the Model Predictive Control (MPC) Method

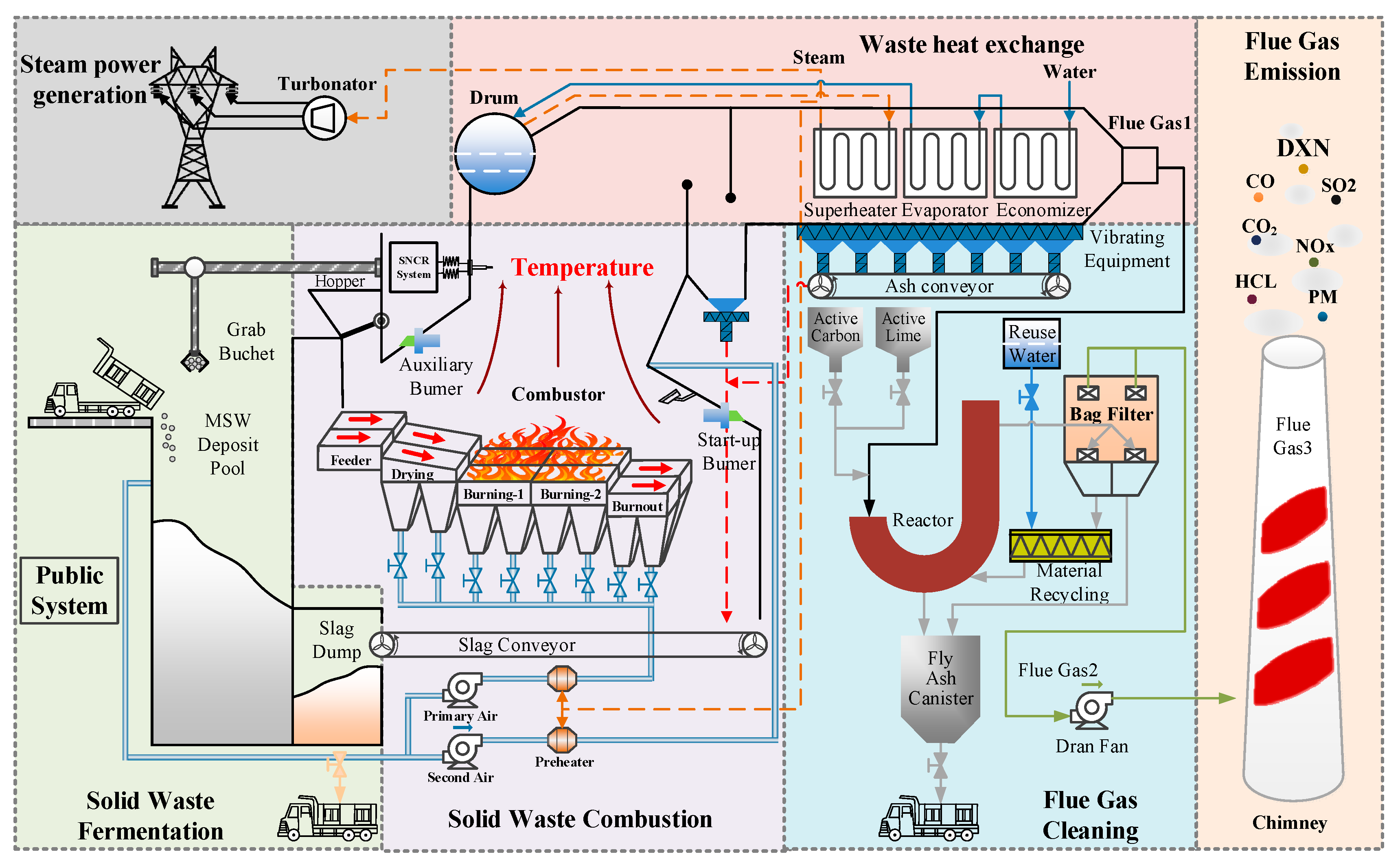

2.1. Typical Process Flow Description
2.1.1. Solid Waste Fermentation Subsystem
2.1.2. Solid Waste Combustion Subsystem
2.1.3. Waste Heat Exchange Subsystem
2.1.4. Steam Power Generation Subsystem
2.1.5. Flue Gas Cleaning Subsystem
2.1.6. Flue Gas Emission Subsystem
2.2. Control Problem Description and Control Target Analysis
2.3. Control Difficulties and Complexities Analysis
- (1)
- Online real-time detection of key EIs
- (2)
- Multivariable coupling characteristics
- (3)
- Nonlinear and time-varying characteristics
- (4)
- Time-lag characteristics
- (5)
- Multi-source disturbed and uncertain dynamic characteristics

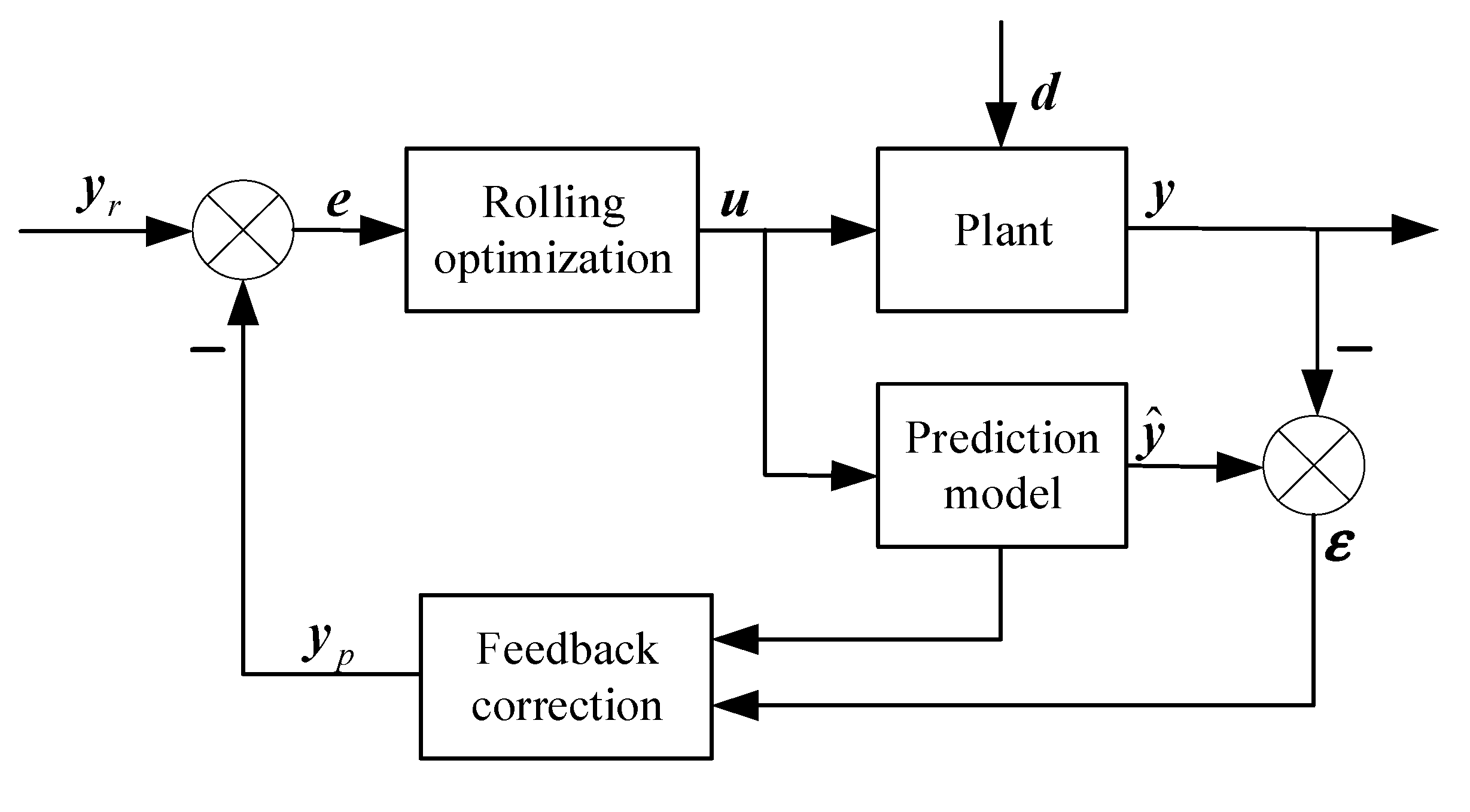

2.4. Model Predictive Control (MPC) Method and Its Advantages
- (1)
- Predictive model: It is used to predict the future behavior of the system. By establishing a mathematical model of the system, the predictive model can estimate future outputs based on current and past data for use in subsequent rolling optimizations. Its inputs are the historical and current state, and its output is the predicted future CV. For data-driven controlled variable predictive models, it is typically described as a nonlinear autoregressive exogenous (NARX) system:
- (2)
- Rolling optimization: It is used to minimize a predefined objective function by optimizing the future control input sequence. Rolling optimization is performed at each sampling instant, and only the first optimized control input is executed, with the remaining parts being re-optimized at the next instant. The implementation of the optimization algorithm is based on the accurate prediction of controlled variables by the predictive model and the design of the optimization algorithm. As a necessary condition for MPC, the objective function describes various error metrics and energy usage as a quadratic function. In classic MPC, the objective function is usually set as follows:
- (3)
- Feedback correction: It is used to adjusts the predictive model output at each control instant to address model mismatches and external disturbances. Through real-time measured feedback, MPC can correct the predictive model’s error, thereby maintaining system stability and performance. The general form of feedback correction can be expressed as
3. Current Status of Incinerator Modeling for Control
Method | MSWI Parameters | Comments and Summary | Author/Year | Reference |
---|---|---|---|---|
System identification and dynamic models based on first principles | · MVs: MSW inlet flow rate, grate speed, primary air flow rate, secondary air flow rate · CVs: Steam flow rate, flue gas oxygen content | · Model verification through system identification ensures the success of the model in practical applications; dynamic models contribute to optimizing process operational performance | Leskens et al., 2002 | [94] |
Auto-regressive with extra inputs (ARX) models | · MVs: MSW inlet flow rate, grate speed, primary air flow rate, secondary air flow rate · CVs: Steam flow rate, flue gas oxygen content | · Model reduction is applied to each transfer function of the MIMO ARX model separately, which simplifies the model while maintaining its essential dynamics | Leskens et al., 2002 | [95] |
System identification, state–space models | · MVs: Input mass flow rate of Ca (OH)2 · CVs/EIs: Outlet concentration of HCl, pressure drop across the baghouse filter | · Verified through system identification techniques, reliable and suitable for control, capable of reducing reagent consumption and optimizing control performance | Riccardo et al., 2022 | [96] |
Dynamic process and disturbance models obtained experimentally | · MVs: MSW inlet flow rate, grate speed, primary air flow rate, secondary air flow rate · CVs: Steam flow rate, flue gas oxygen content | · Capable of handling multivariable interactive processes, multiple conflicting objectives, and constraint conditions | Leskens et al., 2005 | [97] |
Neural networks models | · MVs: MSW inlet flow rate, grate speed, primary air flow rate, secondary air flow rate · CVs: Steam flow rate, flue gas oxygen content | · Data-driven neural network models can capture and describe the unique dynamic behavior of each controlled object | Qin et al., 2008 | [98] |
Multi-zone, zero-dimensional modeling approach | · MVs: Air flow rate, MSW supply rate, steam valve · CVs: Oxygen mole fraction in exhaust gas, steam generation rate, steam pressure | · Capable of simulating real plant operation data, accurately predicting system behavior, with relatively low computational resource requirements | Cho et al., 2017 | [99] |
Ensemble decision tree | · MVs: Air flow rate, MSW feed rate · CVs: Furnace temperature, flue gas oxygen concentration, steam flow | · Combines random forest and gradient boosting decision tree to construct a MIMO controlled object model with historical data | Wang et al., 2021 | [100] |
Cascaded transfer tunction, particle swarm optimization (PSO) | · MVs: Primary air flow rate · CVs: Furnace temperature, flue gas oxygen content, steam flow | · The predictive values of the established system model are consistent with the actual situation, capable of reflecting the dynamic characteristics of the system under actual working conditions | Chen et al., 2023 | [101] |
Random forest (RF) and gradient boosting decision tree (GBDT) | · MVs: Air flow rate of the left 1 drying grate, drying grate, right 1 air flow rate, total 37 variables · CVs: Furnace temperature, flue gas oxygen concentration, and steam flow | · Developed for actual industrial processes, provides a reliable engineering verification environment, and considers the MIMO characteristics of the MSWI process | Wang et al., 2023 | [102] |
Linear regression decision tree (LRDT) | · MVs: Primary air flow, secondary air flow, drying grate average speed, feeder average speed · CVs: Furnace temperature | · Furnace temperature model based on LRDT with leaf predictions based on a single path as the final output, and it has high interpretability | Xia et al., 2023 | [103] |
LRDT | · MVs: Primary air flow, secondary air flow, average drying grate speed, average feeder speed · CVs: Furnace temperature, flue gas oxygen content, and boiler steam flow rate | · Realize multivariable coupled control based on off-site data simulation | Wang et al., 2023 | [104] |
Mechanistic modeling based on material and energy balance | · MVs: MSW grab quantity, MSW push quantity, drying grate speed, combustion grate 1 speed, combustion grate 2 speed, ash grate speed, primary air flow and its branch flows, secondary air flow, induced draft fan flow · CVs: Furnace temperature, flue gas oxygen content, and steam flow | · Provides a mechanistic modeling based on material and energy balance, enabling independent analysis of the internal characteristics, and achieving dynamic simulation of the whole process by calculating the inputs and outputs of each subprocess | Ding et al., 2023 | [105] |
T-S FNN | · MVs: Primary air flow, secondary air pressure, primary air heating temperature · CVs: Furnace temperature | · Capable of reflecting the trend of furnace temperature changes with high fitting accuracy and realize furnace temperature control based on off-site data simulation | He et al., 2023 | [106] |
XGBoost-based serial-parallel ensemble model | · MVs: Feeder average speed, drying grate average speed, ammonia water injection amount, activated carbon injection amount, lime injection amount · CVs/EIs: Furnace temperature, boiler steam flow rate, flue gas oxygen content of G1 and G3, NOx, CO, CO2 | · Provides a whole-process MSWI model in terms of MVs as inputs | Wang et al., 2024 | [107] |
4. Current Status of Intelligent Controller Design for the MSWI Process
4.1. Expert Systems and Human-Simulated Intelligent Control
4.2. Fuzzy Logic Control
4.3. Machine Learning Control
4.3.1. Neural Network Control
4.3.2. Fuzzy Neural Network Control
4.4. Self-Tuning PID Control
Controller Type | Process Model | MSWI Parameter | Inference | Author/Year | Reference |
---|---|---|---|---|---|
Expert systems and human-simulated intelligent control | Transfer function | · MVs/AVs: Furnace temperature, mixing degree of MSW, flue gas residence time, excess air ratio · CVs/EIs: Dioxin-like organic chloride, particulate matter, NOx, and CO, etc. | · Integrated control strategy, based on HSIC and integrated with expert knowledge · With high control accuracy, good dynamic and steady-state quality, and strong robustness | Ni et al., 2014 | [118] |
Second-order lag transfer function | · MVs/AVs: MSW quantity, air flow volume · CVs: Furnace temperature | · Demonstrated strong anti-interference capability, good control quality, fast response, and small steady-state error | Xiao et al., 2015 | [119] | |
Transfer function | · MVs/AVs: Oxygen concentration, etc. · CVs: Furnace temperature, furnace pressure | · HSIC combined with PSO algorithm · The improved PSO algorithm enhances the ability to resist external pulse interference, showing strong robustness even when process parameters change significantly | Wu Qian et al., 2018 | [120] | |
Transfer function | · MVs: (Not explicitly mentioned) · CVs: Furnace temperature | · Strong robustness, small overshoot and oscillation, control quality superior to traditional PID control | Li et al., 2019 | [116] | |
(Not explicitly mentioned) | · MVs: (Not explicitly mentioned) · CVs: Furnace temperature | · HSIC combined with an improved PSO algorithm · Intelligent optimization control during the incineration process is achieved, improving control accuracy and the system’s dynamic stability | Ju et al., 2022 | [117] | |
Fuzzy logic control | Neural network | · MVs/AVs: Pile material speed, air flow volume · CVs: Steam flow, furnace temperature, flue gas oxygen content | · Improves control performance, solves the delay problem of moisture content estimation in traditional control methods | Qian et al., 1993 | [135] |
Transfer function | · MVs/AVs: MSW feeding quantity · CVs: Furnace temperature | · Fuzzy adaptive control for furnace temperature · Designed a basic fuzzy controller and an intelligent synchronous modification weight factor module | Chang et al., 2004 | [138] | |
Shenzhen 150 t/d MSWI power plant | · MVs/AVs: MSW feeding quantity (feeding time and stopping time) · CVs: Furnace temperature | · Fuzzy adaptive control strategy and parameter correction module to ensure the effectiveness of the adaptive factor | Shen et al., 2004 | [136] | |
Shenzhen 150 t/d MSWI power plant | · MVs/AVs: Waste feeding amount (feeding time and stopping time) · CVs: Furnace temperature | · Adaptive fuzzy control strategy and combining genetic algorithms and neural network technology to optimize control parameters | Shen et al., 2005 | [137] | |
Neural network control | Second-order inertia transfer function and lag delay transfer function | · MVs/AVs: (Not explicitly mentioned) · CVs: Furnace temperature | · Combining BPNN with PID for adjusting PID parameters · Optimizing the BPNN through PSO to improve the global optimality of control parameters | Luo et al., 2023 | [147] |
BPNN | · MVs: Lime slurry flow · CVs/EIs: Emission concentration of acidic gases (SO2 and HCl) | · Using a BPNN genetic algorithm strategy, replacing manual control by training an artificial neural network · The control output is smoother than the PID mode, can achieve the effect of manual control, and can reduce workload at the same time | You et al., 2024 | [146] | |
Fuzzy neural control | LRDT | · MVs: Primary air flow, secondary air flow, average feeder speed, average drying grate speed, and ammonia water injection amount · CVs: Furnace temperature | · Adaptive TS-FNN controller · Good decoupling performance, robustness, and anti-interference capabilities | Tian et al., 2023 | [155] |
TS-FNN | · MVs: Secondary air pressure, primary air heating temperature · CVs: Furnace temperature | · Event-triggered self-organizing FNN control | He et al., 2023 | [156] | |
TS-FNN | · MVs: Primary air flow, drying grate speed · CVs: Furnace temperature | · Event-triggering mechanism · Controller convergence based on Lyapunov’s second law | Ding et al., 2023 | [157] | |
MISO-LRDT | · MVs: Primary air flow, secondary air flow, feeder average speed, drying grate average speed, ammonia water injection amount · CVs: Furnace temperature | · Interval type-2 FNN controller · Stability analysis | Tang et al., 2023 | [158] | |
MIMO-TSFNN | · MVs: Primary air flow, drying grate speed, secondary air flow · CVs: Furnace temperature, flue gas oxygen content | · Data-driven modeling and self-organizing control method · Effectiveness of the model and controller was verified | Ding et al., 2023 | [159] | |
MIMO-TSFNN | · MVs: Primary air flow, drying grate speed · CVs: Furnace temperature, flue gas oxygen content | · Event-triggered FNN multivariable controller | Ding et al., 2023 | [160] | |
MIMO-TSFNN | · MVs: Primary air flow, drying grate speed · CVs: Furnace temperature, flue gas oxygen content | · Dynamic self-organizing mechanism | Ding et al., 2023 | [161] | |
Self-tuning PID control | Transfer function | · MVs: MSW feeding quantity (feeding time and stopping time), primary air flow · CVs: Furnace temperature | · Fuzzy control method, rule base established based on operator experience · Compare fuzzy control with PID control algorithms | Dai et al., 2019 | [168] |
TS-FNN | · MVs: Primary air flow · CVs: Furnace temperature | · Event-triggered RBF–PID controller · Online updating of network parameters through gradient descent algorithm and recursive least squares algorithm | He et al., 2022 | [167] | |
MIMO-TSFNN | · MVs: Primary air flow, secondary air flow, drying grate speed · CVs: Flue gas oxygen content, furnace temperature, steam flow | · Multi-loop PID controller based on quasi-diagonal recurrent neural network · Adaptively adjusting PID parameters | Ding et al., 2022 | [169] | |
Tikhonov-LRDT | · MVs: Primary air flow, secondary air flow, feeder average speed, drying grate average speed · CVs: Furnace temperature, steam flow, flue gas oxygen content | · Multi-input multi-output control method based on single-neuron adaptive PID controller · Online continuous adjustment of neuron weight coefficients through supervised Hebb learning algorithm to achieve set-point tracking control | Wang et al., 2023 | [104] |
- (1)
- Multi-dimensional and conflicting objectives: In the MSWI process, economic, environmental, and production indicators must be considered simultaneously, often leading to conflicting objectives. For instance, in furnace temperature control, increasing the combustion temperature can enhance energy recovery efficiency but may also damage the incineration equipment and increase emissions of harmful gases. This multi-objective optimization problem makes it challenging for a single control algorithm to find the optimal balance among all objectives.
- (2)
- Multivariable and interaction characteristics: The MSWI process involves multiple interacting process variables, and the complex coupling relationships between these variables make multi-loop control difficult to achieve. Existing intelligent controllers have limitations in handling multivariable interactions and must rely on advanced MIMO methods to effectively manage these complex relationships [117].
- (3)
- Constraints on process variables: Most process variables have strict operating ranges, and exceeding these ranges can lead to equipment damage or safety issues. Therefore, control algorithms must consider these constraints during execution to ensure that all MVs remain within safe limits. This requires control algorithms suitable for the MSWI process to have strong constraint-handling capabilities [44].
5. Current Status of Model Predictive Controller for the MSWI Process
5.1. MPC Controller Design
Prediction Model Type | Prediction Model Design | Objective Function Form | Special Term | Reference |
---|---|---|---|---|
Mechanism driven | Rolling time-domain state estimator, nonlinear state–space equations | Output terms | \ | [174] |
Linear state–space equations | Input and output terms | \ | [97,175,179] | |
Subspace identification, partial differential equations | Input and output terms | \ | [180] | |
Linear state–space equations | Input and output terms | Terminal constraint terms | [181] | |
Data driven | IT2FNN | Output terms | \ | [158] |
SOFNN | Input and output terms | \ | [182] | |
Improved long short-term memory (LSTM) | Input and output terms | \ | [183] | |
Improved LSTM | Input and output terms | \ | [184] | |
Improved random weight neural network (RWNN) | Input and output terms | \ | [185] | |
RWNN | Input and output terms | \ | [186] | |
LSTM | Input and output terms | \ | [187] | |
RBFNN | Input and output terms | \ | [188] | |
BPNN | Output terms | \ | [189] |

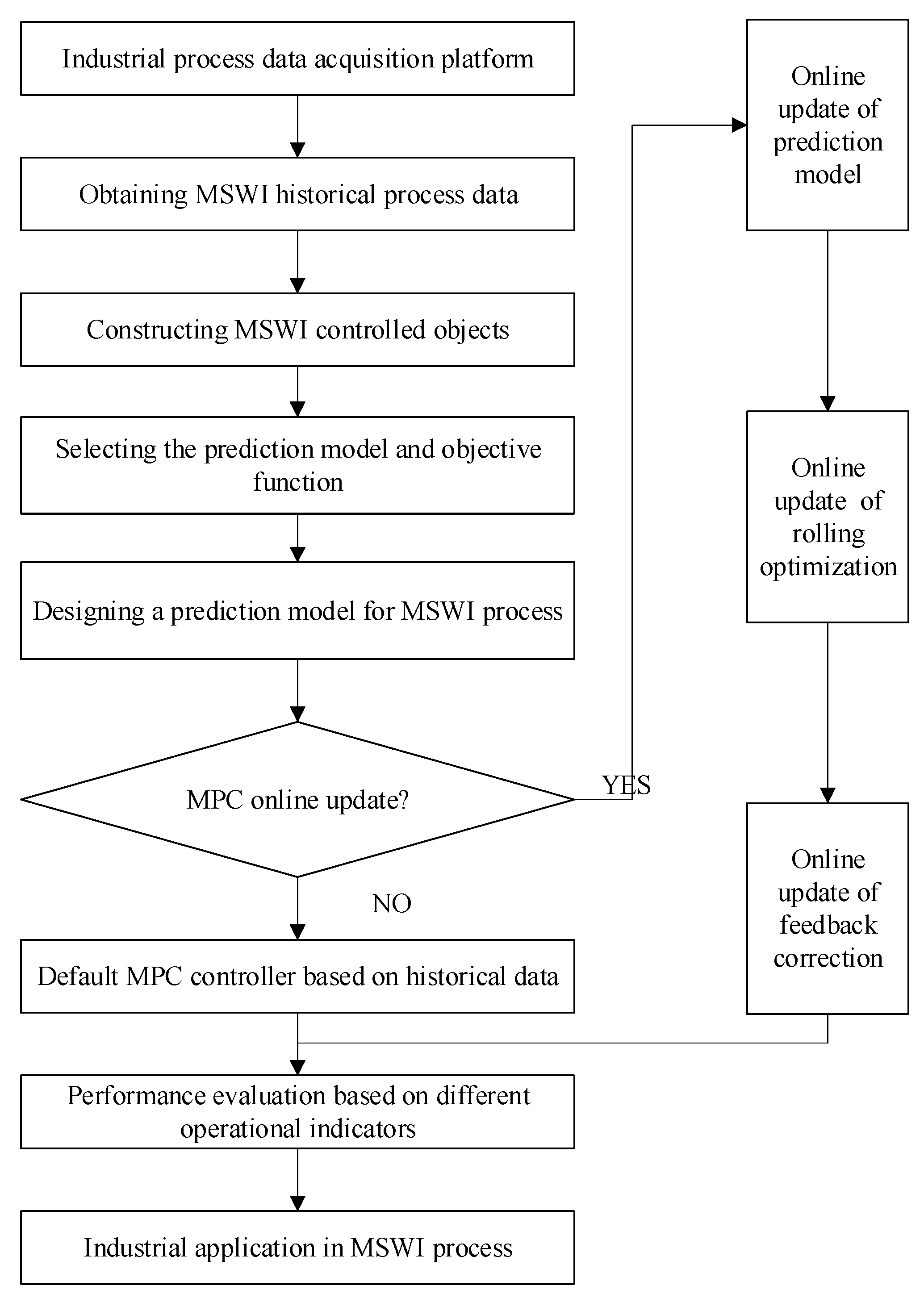

5.2. MPC Controller Online Update
5.2.1. Online Update of Prediction Model
5.2.2. Online Update of Rolling Optimization
5.2.3. Online Update of Feedback Correction
6. Conclusions
Author Contributions
Funding
Conflicts of Interest
Abbreviations
Abbreviations | Detailed Meaning |
MSWI | Municipal solid waste incineration |
APC | Advanced process control |
MPC | Model predictive control |
MSW | Municipal solid waste |
WTE | Waste-to-energy |
NIMBY | Not in my backyard |
EI | Environmental indicator |
MV | Manipulated variables |
CV | Controlled variable |
AV | Auxiliary variable |
ACC | Automatic combustion control |
AI | Arifical intelligence |
WoS | Web of Science |
SNCR | Selective non-catalytic reduction |
CEMS | Continuous emission monitoring system |
FT | Furnace temperature |
FGOC | Flue gas oxygen content |
SF | Steam flow |
DXN | Dioxin |
HRGC/HRMS | High-resolution gas chromatography/high-resolution mass spectrometry |
MIMO | Multile input multiple output |
ARX | Auto-regressive with extra inputs |
NARX | Nonlinear auto-regressive with extra inputs |
T-S FNN | T-S fuzzny neural network |
PSO | Particle swarm optimization |
RF | Random forest |
GBDT | Gradient boosting decision tree |
LRDT | Linear regression decision tree |
HSIC | Human simulated intelligent control |
FLC | Fuzzy logic control |
TSK | Takagi–Sugeno–Kang |
LMPC | Linear MPC |
NMPC | Nonlinear MPC |
LSTM | Long short-term memory |
RWNN | Random weight neural network |
GD | Gradient descent |
LM | Levenberg–Marquardt |
QP | Quadratic programming |
SQP | Sequential quadratic programming |
