Modeling and Analysis of BESS Operations in Electricity Markets: Prediction and Strategies for Day-Ahead and Continuous Intra-Day Markets

Abstract

In recent years, the global energy sector has seen significant transformation, particularly in Europe, with a notable increase in intermittent renewable energy integration. Italy and the European Union (EU) have been among the leaders in this transition, with renewables playing a substantial role in electricity generation as of the mid-2020s. The adoption of Battery Energy Storage Systems (BESS) has become crucial for enhancing grid efficiency, sustainability, and reliability by addressing intermittent renewable sources. This paper investigates the feasibility and economic viability of batteries in wholesale electricity markets as per EU regulation, focusing on the dynamics of very different markets, namely the Day-Ahead Market (DAM) based on system marginal price and the Cross-Border Intra-day Market (XBID) based on continuous trading. A novel model is proposed to enhance BESS operations, leveraging price arbitrage strategies based on zonal price predictions, levelized cost of storage (LCOS), and uncertain bid acceptance in continuous trading. Machine learning and deep learning techniques are applied for price forecasting and bid acceptance prediction, respectively. This study finds that data-driven techniques outperform reference models in price forecasting and bid acceptance prediction (+7–14% accuracy). Regarding market dynamics, this study reveals higher competitiveness in the continuous market compared to the DAM, particularly with increased risk factors in bids leading to higher profits. This research provides insights into compatibility between continuous markets and BESS, showing substantial improvements in economic profitability and the correlation between risk and profits in the bidding strategy (EUR +9 M yearly revenues are obtained with strategic behavior that reduces awarded energy by 60%).

1. Introduction

1.1. Motivation

In recent years, the global energy sector has undergone a radical transformation, with an increasing penetration of renewable energy sources into the production mix. In 2023, renewables accounted for 30.2% of global electricity generation, a figure projected to rise to 41.6% in the coming years according to estimates [1]. In Italy, as well as across Europe, this trend is even more pronounced due to the environmental policies promoted by the European Union (EU). In 2023, renewable energy generation in the EU accounted for 44% of total electricity production, surpassing the 40% mark for the first time. Wind and solar energy continue to drive this growth, producing a record 27% of the EU’s electricity in 2023 and achieving their highest annual capacity increments ever [2]. Similarly, in Italy, renewable electricity generation represented 36.8% of demand, aligning with EU data [3].

This shift has spurred the search for innovative technologies to enhance the efficiency, sustainability, and security of the electrical grid.

Most of these challenges can be addressed with the installation of storage technologies, which enable the decoupling of energy production and consumption over time. Storage allows for smoothing out fluctuations in electricity supply by variable renewable energy (VRE), decreasing the reliance on conventional thermal power plants for meeting peak load and reducing renewable curtailment. Additionally, storage technologies can increase power system flexibility by offering ancillary services. Electrochemical batteries, specifically Lithium-Ion Batteries (LIBs), will play a crucial role in the energy transition. LIBs exhibit high energy (75–250 Wh/kg) and power density (150–315 W/kg), high round-trip efficiency (85–95%), a low self-discharge rate (0.1–0.3%), and a good lifespan (5–15 years) [4]. Moreover, LIBs have an incredibly low response time (20 milliseconds to seconds [4]), making them ideal for providing ancillary services such as primary frequency regulation [5]. Their widespread adoption is further facilitated by technological maturity and a significant cost reduction (−90% from 2010 to 2023 [6]), driven by their use in electronic devices and electric vehicles.

The maturity of LIB technology, coupled with their technical attributes and decreasing costs, positions them as a critical component in the energy transition, facilitating the integration of renewable energy sources and the enhancement of grid reliability.

The opening of these systems to new markets, such as wholesale electricity markets, presents opportunities to capitalize on price fluctuations during periods of high volatility, increasing the potential for value stacking. This means participating in multiple markets to generate diverse revenue streams, thereby maximizing investment.

Recognizing the importance of storage systems in the energy transition, it becomes crucial to build models capable of optimizing their design and real-time operations to develop an efficient bidding strategy in these markets. These models are essential for assessing the techno-economic benefits arising from optimal storage implementation and guiding the decisions of investors and policymakers.

1.2. Literature Review and Research Gaps

Numerous studies focus on the integration of energy storage systems in renewable energy power systems, such as hybrid PV/wind/BESS configurations. Datta et al. [7] describe various configurations of hybrid systems and their potential to mitigate adverse effects of VRE and to smooth PV output. Rana et al. [8] present comprehensive and significant research conducted on the state-of-the-art hybrid PV–BESS system, giving insights into future directions for further advancement of these types of systems.

Other studies develop optimization models that consider the interaction of storage systems with the ancillary services market (ASM) to understand their technical and economic potential in this context. In the study by Abiodun et al. [9], the profitability of a Concentrating Solar Power (CSP) plant providing a spinning reserve in the ASM is analyzed. The model optimizes system operations within both the Day Ahead Market (DAM) and the ASM, employing a 72 h rolling-horizon framework where perfect knowledge of day-ahead pricing and solar resource availability is assumed. Kumar et al. [10] evaluate the suitability of a dual energy storage system (DESS) made by battery bank storage (BBS) and pump hydro storage (PHS) integrated into a grid-connected microgrid (MG) for providing frequency ancillary services to the utility grid. Four different operating cases were considered to achieve the optimal design of the DESS from an economic and technical perspective.

Some studies introduce the possibility of storage systems interacting with different electricity markets. Schwidtal et al. [11] describe a MILP model to optimize the operations of a P2G (Power-to-Gas) system aggregated with PV, considering varying degrees of interaction with the electricity markets. In particular, the revenue coming from the DAM, IDM (Intra-day Market), secondary reserve, tertiary reserve, and passive balancing are contemplated. To formulate the aggregated bidding strategy across these diverse markets, a multi-stage and multi-period optimization approach is used. Fusco et al. [12] deal with the development of a hierarchical Energy Management System (EMS) for the Unit Commitment of a single-bus system (PV-BESS) that can participate in the Italian Electricity Day-Ahead (DAM) and Intra-Day (IDM) markets while simultaneously satisfying an internal load. However, the most recent EU platform of the Intra-day market, the cross-border intra-day market (XBID), is neglected and the model focuses only on the auction-based sessions of the IDM.

On the other hand, other studies aim to achieve an efficient bidding strategy in the Intra-day market, including the continuous trading sessions on the XBID platform. Algarvio et al. [13] describe a strategic process for retailers bidding in a wholesale market composed of a day-ahead market, an intra-day market, and a balancing market. It considers a market design that involves a hybrid model for the intra-day market, based on daily auctions and a continuous procedure. The paper also presents a computational study to illustrate and evaluate both the market design and the strategic bidding process of retailers. Alternatively, Boukas et al. [14] introduce a novel reinforcement learning (RL) framework for the participation of a storage device operator in the continuous Intra-day market. In this study, the storage device operator is considered a price-taker, and the strategy aims to maximize the profits received over the entire trading horizon while considering the operational constraints of the unit, although there are no considerations regarding the acceptance probabilities of new bids.

From the literature review, it is evident that BESS design and operations optimization in the case of ancillary services provision have been frequently studied. However, few studies have implemented the possibility for storage devices, particularly BESS, to operate in the wholesale markets, especially the Intra-day market. Furthermore, none of the studies identified have investigated a bidding strategy for the continuous Intra-day market XBID platform, considering the opportunity to submit profitable bids while considering their acceptance probability to function as a price-maker.

1.3. Contribution and Novelty

This work aims to demonstrate the economic profitability and technical feasibility of BESS participation in the wholesale electricity markets common to the EU framework. Specifically, the goal is to model BESS operations in the Italian electricity markets with particular attention to the DAM, with a focus on the optimization of the effectiveness of the arbitrage via zonal price (P_z) prediction, which refers to the electricity price in a specific electrical zone determined through the System Marginal Price mechanism, as described in the following chapter, and the new platform XBID with continuous trading, reproducing its behavior and the uncertainty of bid acceptance.

To address these challenges, a literature BESS model [15] has been included in a Python suite that includes a newly developed market model for price predictions, a bid award/rejection model, and control strategies for BESS in the DAM and IDM.

For P_z prediction, various machine learning and deep learning models are introduced to develop an efficient arbitrage strategy on the DAM, predicting the most suitable hours to operate in the market. Additionally, neural network models are introduced to predict the acceptance of bids submitted by the storage device operator in XBID. These models are used to determine BESS strategy and real-life operations during a year of activity.

Compared to the works found in the literature, the main novel aspects and contributions provided by this study are as follows:

• A control strategy capable of concurrently representing participation in the DAM and XBID is developed, considering the fluctuations in both market prices and the uncertainty given by different price formation mechanisms and bid awards. This model investigates various critical aspects, including the identification of the most economically advantageous market and bidding strategy for BESS and the economic assessment of uncertainties of the two main markets common to the EU, particularly the new XBID initiative, based on statistical analyses.
• An enhanced tool for predicting P_z is developed to achieve a more realistic simulation of the BESS strategy, avoiding critical assumptions such as perfect knowledge of DAM prices a priori or the use of a persistence model that assumes that the zonal price for a specific delivery hour remains unchanged from the zonal price set the previous day for the same hour:

  $${\mathrm{P}}_{\mathrm{z}}\left({\mathrm{d}\mathrm{a}\mathrm{y}}_{\mathrm{i}},{\mathrm{h}\mathrm{o}\mathrm{u}\mathrm{r}}_{\mathrm{i}}\right)={\mathrm{P}}_{\mathrm{z}}\left({\mathrm{d}\mathrm{a}\mathrm{y}}_{\mathrm{i}-1},{\mathrm{h}\mathrm{o}\mathrm{u}\mathrm{r}}_{\mathrm{i}}\right)$$
• A tool to determine the acceptance probability of an offer in XBID to represent the uncertainty in this context is proposed. This tool introduces:
  • the possibility for the operator to submit new offers, not limited to accepting offers already present in the order book (price-maker).
  • the ability to overcome the limitations of statistical data, given that this market was recently added and the data are insufficient to determine significant trends.

Although this study considers a LIB operating in the Italian electricity markets, its contributions can be extended to other electrical energy storage technologies and other EU Member States since BESS modeling is explained in detail and can be applied to other storage technologies and the regulatory framework for DAM and XBID is common to the EU (Italian price and bid data are adopted).

The remaining sections of this paper are organized as follows. Section 2 provides an overview of the Italian electricity market’s structure and regulation. Section 3 introduces the modeling of the battery and its interactions with the electricity markets and prediction tools. Section 4 presents the analyzed case studies and discusses the obtained results. Finally, Section 5 lists the main findings and offers suggestions for future research.

2. Italian Electricity Markets

The Italian scenario is considered in this research. The scope of this section is to give an overview of the regulations governing the Italian energy markets, the DAM and MI. Our focus will be on highlighting the requirements for participating in these markets and their function, as well as describing the mechanisms behind the economic compensation of both.

2.1. Structure

The Italian Spot Electricity Market (MPE) facilitates the buying and selling of electricity with physical delivery occurring either on the same calendar day as the negotiation or the following calendar day. This market is managed by the Gestore dei Mercati Energetici (GME).

The MPE consists of [16]:

• Mercato del giorno prima (DAM)—Day-Ahead Market (DAM): this market is the one where most of the transactions for electrical energy trading occur.
• Mercato Infragiornaliero (MI)—Intra-day Market (IDM): This is the energy market where consumers and producers can modify the dispatch programs defined at DAM closure. Trading on the MI takes place through three MI-A auction sessions and one MI-XBID continuous trading session.
• Mercato dei prodotti giornalieri (MPEG)—Daily Products Market: this is the venue for the trading of daily products with the obligation of energy delivery.
• Mercato del servizio di dispacciamento (MSD)—Ancillary Services Market (ASM): This is the market utilized by the Italian System Operator (SO) Terna to procure the resources that it requires for managing and monitoring the system relief of intra-zonal congestions, creating energy reserves, and real-time balancing. The MSD consists of a scheduling substage (ex ante MSD) and a Balancing Market (MB).

In Italy, the energy markets DAM and IDM are organized with an hourly resolution [17]. On the other hand, for the ASM, offers are submitted on an hourly basis during the programming phase (MSD ex ante), while for the Balancing Market (BM), offers are activated on a quarter-hourly basis [17].

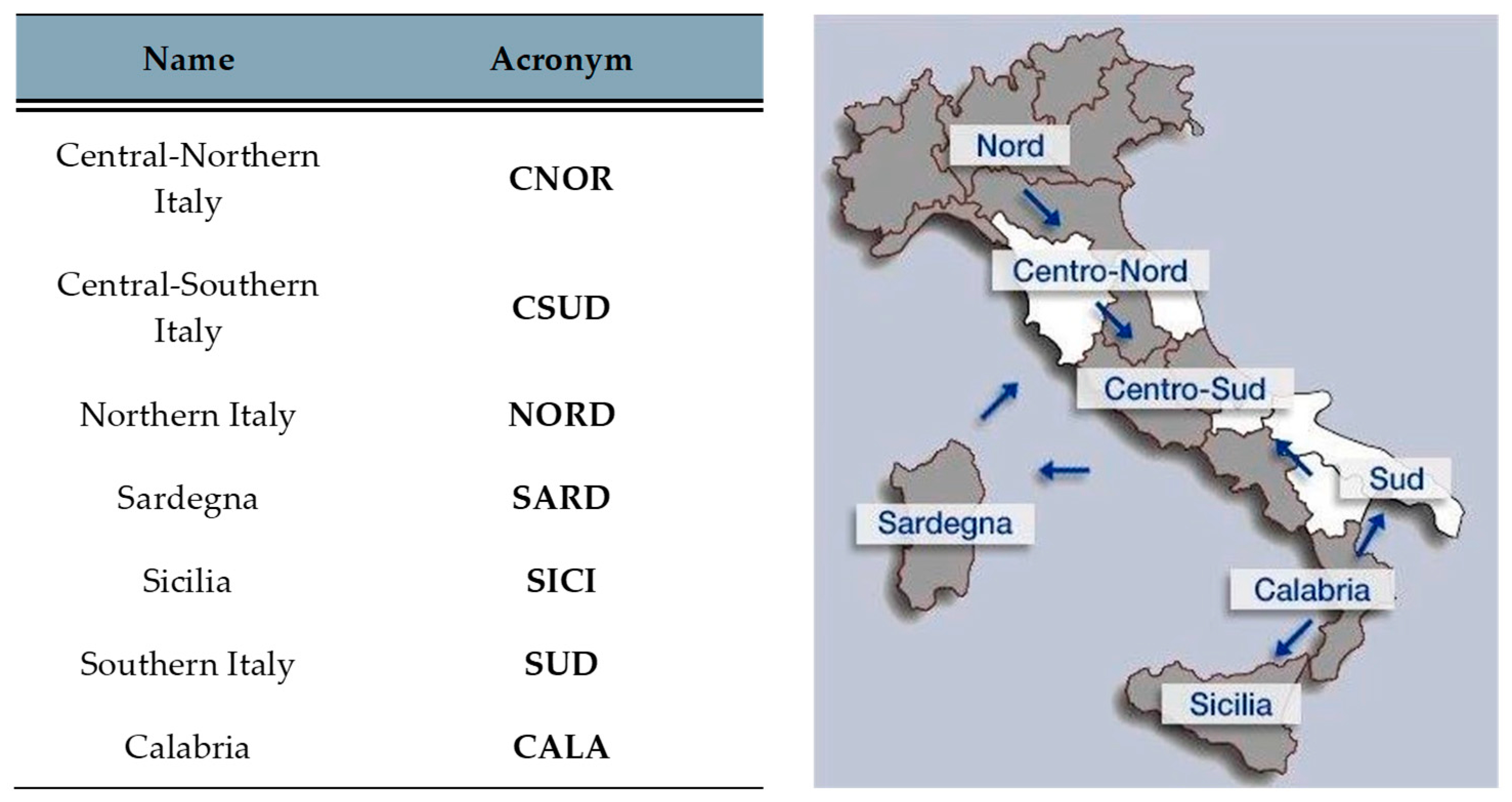

Regarding spatial granularity, the Italian electricity market is divided into seven geographical zones [18], as illustrated in Figure 1.

This research will take the NORD area as the market zone where the analyzed BESS is operating, and the DAM and IDM operations are considered.

2.2. Day-Ahead Market

The Day-Ahead Market (DAM) is the primary platform for electricity sale and purchase transactions. In the DAM, trading is conducted using hourly energy blocks scheduled for delivery the next day. Market participants submit bids and asks, specifying the quantity of electricity and the minimum or maximum price at which they are willing to sell or purchase.

The market operation follows a precise schedule. The DAM sitting opens at 8 a.m. on the ninth day before the delivery day and closes at 12 p.m. on the day preceding the delivery day. The results of the DAM are announced by 12:58 p.m. on the day before delivery. Upon closure, bids and asks are accepted based on the economic merit-order criterion while also considering the transmission capacity limits between different zones. This structured approach classifies the DAM as an auction market.

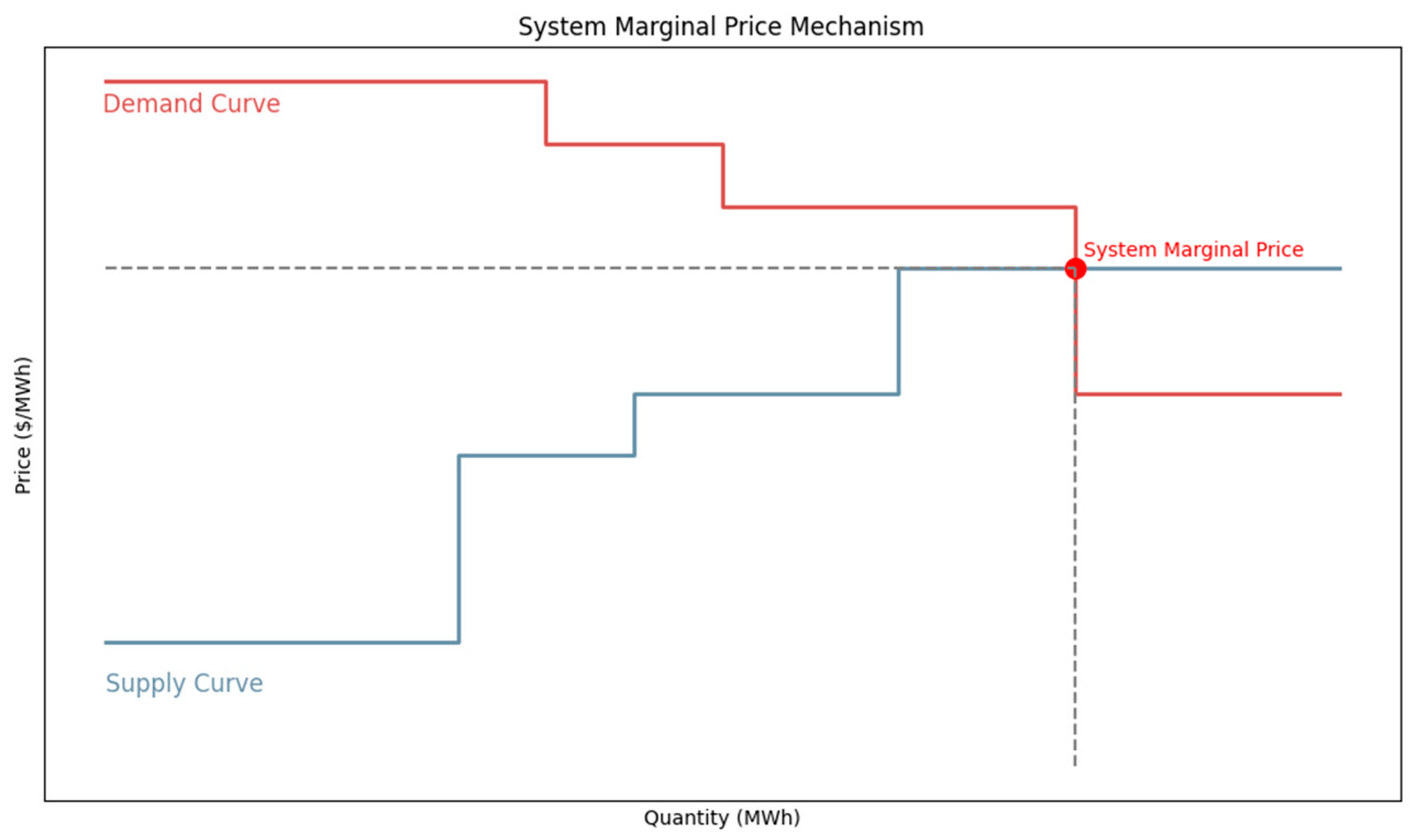

Pricing within the DAM is determined by the marginal clearing price [16], which varies by zone and is established for each hour through the intersection of demand and supply curves [19], as shown in Figure 2. This pricing mechanism is called System Marginal Pricing.

When transmission capacity limits are reached, these prices are differentiated across zones. Supply offers are valued at their respective zone’s marginal clearing price.

In the DAM, the Gestore dei Mercati Energetici (GME) functions as the central counterparty, ensuring the integrity and smooth operation of the market. This role includes managing the financial transactions and ensuring that all participants meet their contractual obligations, thereby maintaining market stability and trust.

2.3. Intra-Day Market

The Intra-day Market (IDM) allows participants to adjust their schedules set in the DAM through additional buy or sell bids. Trading in the IDM occurs via three auction sessions (MI-A and CRIDA) and a continuous trading session, MI-XBID.

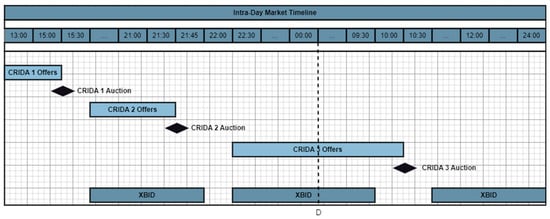

The three auction sessions are distributed during the day. The selection of buy and sell bids follows the same criteria described for DAM, with all accepted bids valued at the zonal price.

The MI-XBID continuous trading session is divided into three phases, wherein buy and sell bids are traded, and intra-day interconnection capacity is allocated between all zones of the Italian market and interconnected geographical areas active in XBID. Energy can be traded for every relevant period (hourly) until one hour before each relevant period begins (h⁻¹). Buy and sell bids can be submitted by unit and by portfolio. For each phase of continuous trading in MI-XBID, the GME organizes a trading book segmented by geographical and/or virtual zones. Every offer is accepted following a first-come, first-served criterion. Once an available offer (e.g., to buy) is selected by another resource (e.g., aiming to sell), the buyer pays the exact price of the available offer to the seller.

Sequential Conduct of Sessions

The MI-A auction sessions and the phases of the MI-XBID continuous trading session are conducted sequentially in the following order (also presented in Figure 3) and do not overlap:

(a)

MI-A1

(b)

Phase I MI-XBID

(c)

MI-A2

(d)

Phase II MI-XBID

(e)

MI-A3

(f)

Phase III MI-XBID

The aim of this sequence is that the auction takes care of fixing the zonal exchanges previously allocated in the continuous trading.

The GME acts as the central counterparty. This research will focus only on the operations of the MI-XBID Continuous Trading Session and not on the MI-A auction sessions.

3. System Modeling

The objective of this section is to delineate the modeling of the battery and its interactions with electricity markets, as well as the models for the prediction of zonal price P_z and the determination of the acceptance probability in the Intra-Day Market. It is worth anticipating that the BESS, here modeled as described in Section 3.1, is considered a participant in the DAM and XBID. Regarding the DAM, it is modeled as presented in Section 3.2, where a zonal price prediction tool is developed to estimate the price profile and highlight the most convenient bidding slots for the BESS. Alternatively, the XBID market requires a deeper statistical analysis and a bid award/rejection prediction model, as described in Section 3.3. In that market, the BESS control strategy is to behave as a price-taker for buying and a price-maker for selling.

3.1. BESS Model

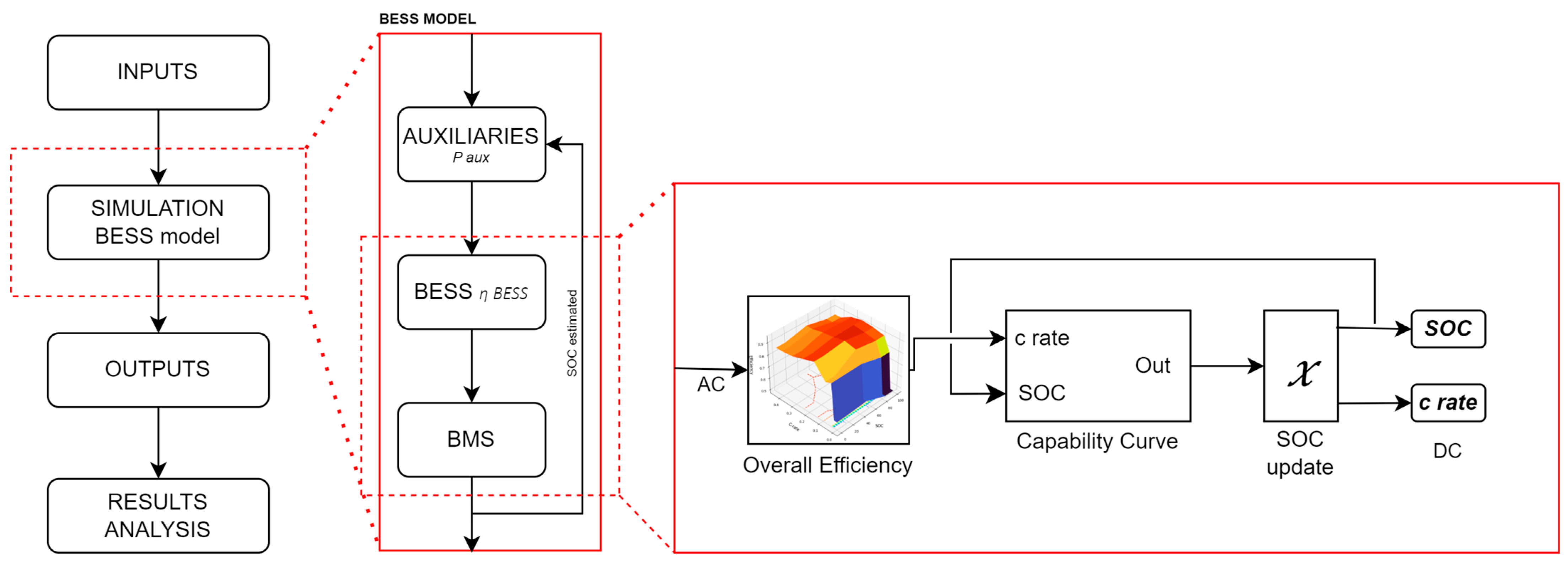

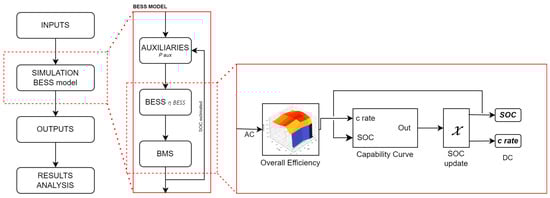

The numerical model of the BESS aims at accurately representing the operation of the BESS while participating in the markets. The model receives and conveniently processes real-world input data, such as electricity market prices and quantities. To optimally represent a real BESS, the model must provide accurate estimates even when the BESS operates at its limits, i.e., power and SOC saturation limits. This will enable the coherent evaluation of the gap between the performance requested from the grid side and the actual provision of the BESS (e.g., in terms of energy provided and energy requested). Given these premises, the proposed layout of the model [15] is presented in Figure 4.

Input comes from the bidding strategy and is fed to the BESS model. The model considers the presence of electric loads acting as auxiliaries of the operation, as described in Figure 5. As can be seen, the electric demand depends on the ambient temperature and the BESS’ power.

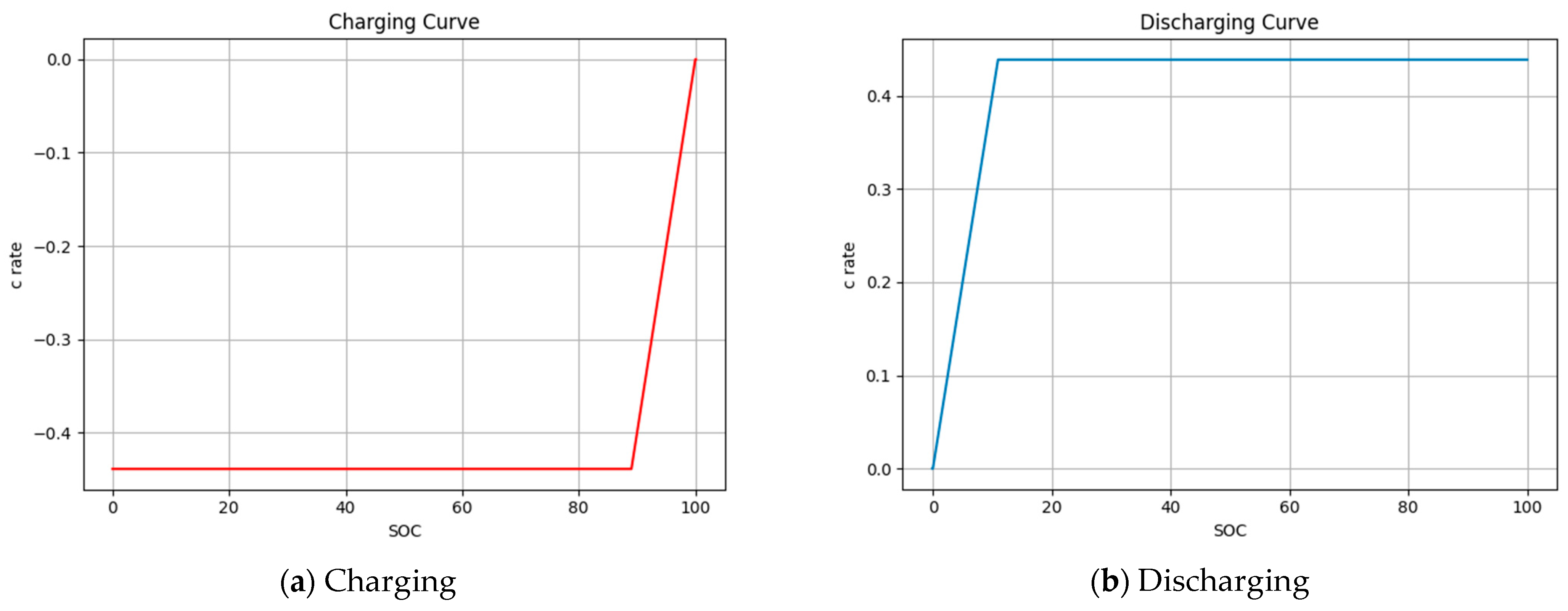

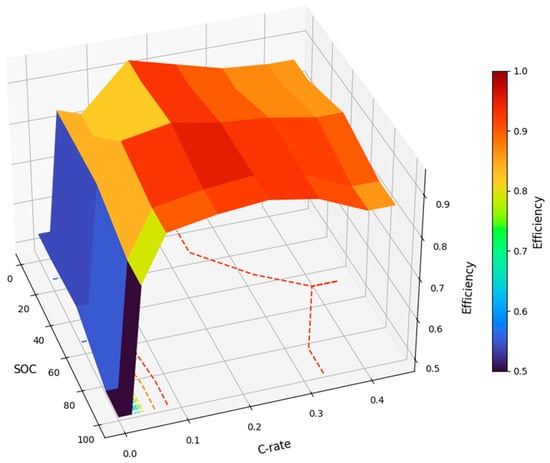

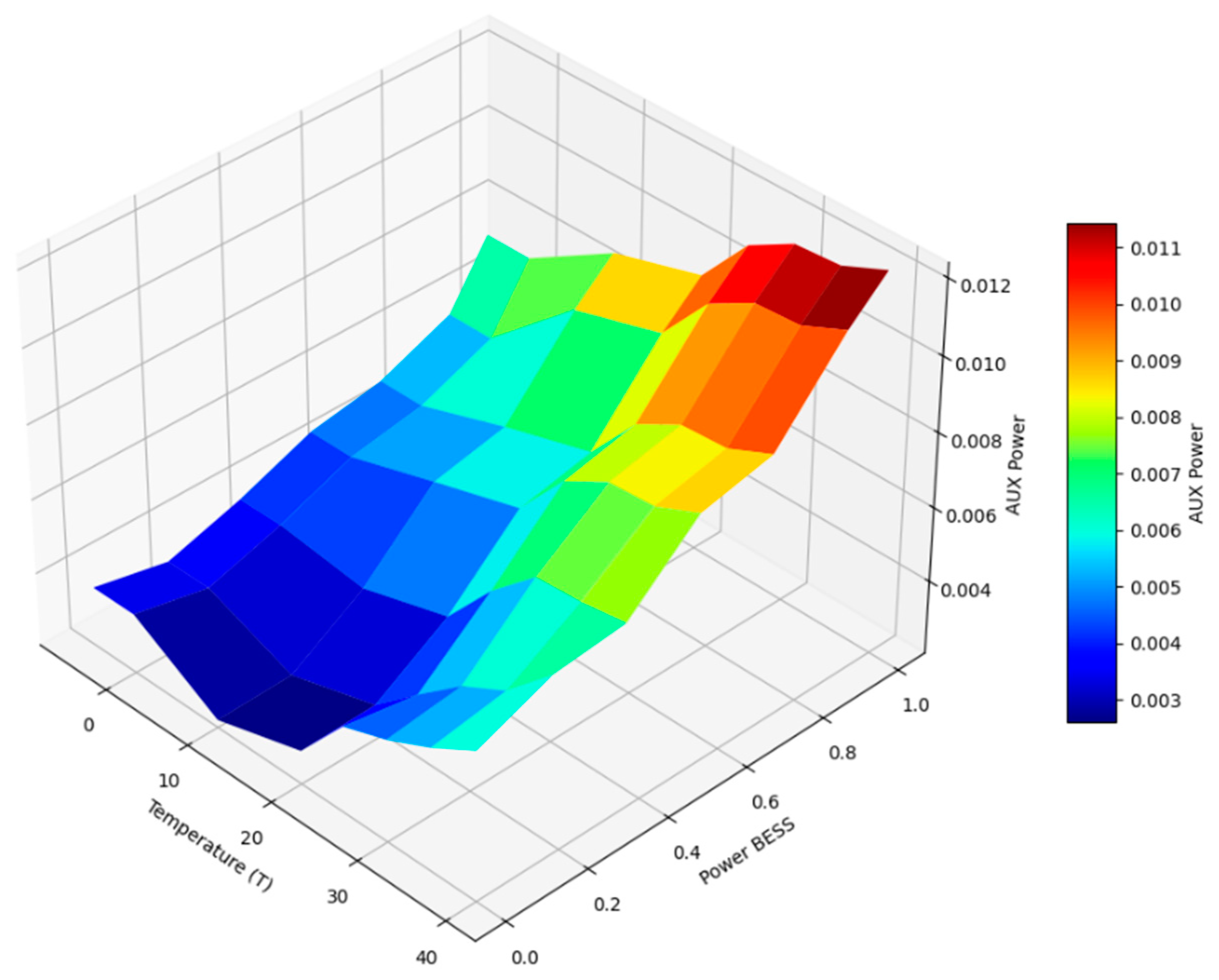

The input is a power setpoint fed to the BESS empirical model. The setpoint is transformed considering η_BESS (considering both the PCS and battery pack), illustrated in Figure 6, and capability curves (representing the maximum charging and discharging power achievable for each SOC), shown in Figure 7. The SOC is updated accordingly, as described in Equation (1). The outputs are the power requested by the DC side and the updated SOC. These are fed to a simplified battery management system (BMS) that modifies the inputs conveniently to stay within the operational boundaries (safe operating area [20]). The main outputs of the model are the SOC and the power provided by the AC side. This process is repeated for each timestep of the simulation. The outputs are elaborated to support the analysis of the results.

$${\mathrm{S}\mathrm{O}\mathrm{C}}_{\mathrm{i}}^{\mathrm{B}\mathrm{E}\mathrm{S}\mathrm{S}}={\mathrm{S}\mathrm{O}\mathrm{C}}_{\mathrm{i}-1}^{\mathrm{B}\mathrm{E}\mathrm{S}\mathrm{S}}+{\mathrm{p}}_{\mathrm{i}}^{\mathrm{c}\mathrm{h}\mathrm{a}} \times {\displaystyle \frac{\mathrm{s}\mathrm{a}\mathrm{m}\mathrm{p}\mathrm{l}\mathrm{i}\mathrm{n}{\mathrm{g}}_{\mathrm{t}\mathrm{i}\mathrm{m}\mathrm{e}} \times {\mathsf{\eta }}_{\mathrm{B}\mathrm{E}\mathrm{S}\mathrm{S}}}{3600}}-{\mathrm{p}}_{\mathrm{i}}^{\mathrm{d}\mathrm{i}\mathrm{s}} \times {\displaystyle \frac{\mathrm{s}\mathrm{a}\mathrm{m}\mathrm{p}\mathrm{l}\mathrm{i}\mathrm{n}{\mathrm{g}}_{\mathrm{t}\mathrm{i}\mathrm{m}\mathrm{e}}}{3600 \times {\mathsf{\eta }}_{\mathrm{B}\mathrm{E}\mathrm{S}\mathrm{S}}}}$$

(1)

3.2. Day-Ahead Market Model

The main goal of the DAM model is to develop an efficient strategy for energy arbitrage. The term energy arbitrage refers to the possibility of storage systems exploiting DAM spread to generate profits. To achieve this control, the algorithm identifies, by means of a predictive tool based on a deep learning model, the minimum and maximum prices of the market each day to set up the proper control logic. To enhance the chances of achieving a positive economic profit, the procedure has a feedback control that checks whether the predicted daily profit is greater than zero, not considering the Levelized Cost of Storage (LCOS). If it is not, the BESS will not submit any bid for that day.

The LCOS is a metric used to evaluate the overall cost of storing energy over the lifetime of an energy storage system. It is a valuable measure for comparing the economic viability of different energy storage technologies. The LCOS is calculated as the total cost of the storage system divided by the total amount of energy stored and released by the system over its lifetime, as expressed in Equation (2):

$$\mathrm{L}\mathrm{C}\mathrm{O}\mathrm{S}={\displaystyle \frac{\mathrm{C}\mathrm{A}\mathrm{P}\mathrm{E}\mathrm{X}+\sum \mathrm{O}\mathrm{P}\mathrm{E}\mathrm{X}}{\sum _{\mathrm{V}\mathrm{U}}{\mathrm{E}}_{\mathrm{t}\mathrm{o}\mathrm{t}}^{\mathrm{y}}}}$$

(2)

This control logic heavily impacts the arbitrage provision. Algorithm 1 describes the structure of the energy arbitrage in the day-ahead market algorithm in detail.

Algorithm 1 Day-Ahead Market Energy Arbitrage

$\mathbf{Input}\mathbf{:} {\mathrm{P}}_{\mathrm{nom}}, {\mathrm{E}}_{\mathrm{nom}}, {\mathrm{SOC}}_{\mathrm{initial}}, {\mathrm{SOC}}_{\max }, {\mathrm{SOC}}_{\min }, {\mathrm{Cycles}}_{\max }, {\mathsf{\eta }}_{\mathrm{BESS}}, {\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}\mathrm{s}}_{\mathrm{D}\mathrm{A}\mathrm{M}}^{\mathrm{p}\mathrm{r}\mathrm{e}\mathrm{d}}$ Output: Pcha, Pdis, ProfitDAM CHARGE PHASE $\mathbf{while} {\mathrm{E}}_{\mathrm{cha},\mathrm{daily}} < {\mathrm{E}}_{\mathrm{c}\mathrm{h}\mathrm{a},\mathrm{d}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{y}}^{\mathrm{m}\mathrm{a}\mathrm{x}}$   $\mathrm{i}=\mathrm{find}(\min ({\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}\mathrm{s}}_{\mathrm{D}\mathrm{A}\mathrm{M}}^{\mathrm{p}\mathrm{r}\mathrm{e}\mathrm{d}}))$   ${\mathrm{E}}_{\mathrm{missing}}=({\mathrm{SOC}}_{\max }-{\mathrm{SOC}}_{\mathrm{i}}) \times$ Enom   $\mathbf{if} {\mathrm{E}}_{\mathrm{missing}} > ({\mathrm{P}}_{\mathrm{nom}} \times$ EPR) (only full charging cycles)     ${\mathrm{P}}_{\mathrm{cha}}[\mathrm{i} : \mathrm{i}+(\mathrm{EPR}-1)]={\displaystyle \frac{{\mathrm{P}}_{\mathrm{n}\mathrm{o}\mathrm{m}}}{{\mathsf{\eta }}_{\mathrm{B}\mathrm{E}\mathrm{S}\mathrm{S}}}}$     ${\mathrm{P}}_{\mathrm{cha}}[\mathrm{i}+(\mathrm{EPR}-1) : \mathrm{i}+\mathrm{EPR}]=({\mathrm{E}}_{\mathrm{missing}} \times {\displaystyle \frac{\mathrm{s}\mathrm{a}\mathrm{m}\mathrm{p}\mathrm{l}\mathrm{i}\mathrm{n}\mathrm{g}\_\mathrm{t}\mathrm{i}\mathrm{m}\mathrm{e}}{3600(\mathrm{s}\mathrm{e}\mathrm{c}\mathrm{o}\mathrm{n}\mathrm{d}\mathrm{s} \mathrm{i}\mathrm{n} \mathrm{a} \mathrm{h}\mathrm{o}\mathrm{u}\mathrm{r})}}$$)/{\mathsf{\eta }}_{\mathrm{B}\mathrm{E}\mathrm{S}\mathrm{S}}$   else     ${\mathrm{P}}_{\mathrm{cha}}[\mathrm{i} : \mathrm{i}+\mathrm{EPR} ]={\displaystyle \frac{{\mathrm{P}}_{\mathrm{n}\mathrm{o}\mathrm{m}}}{{\mathsf{\eta }}_{\mathrm{B}\mathrm{E}\mathrm{S}\mathrm{S}}}}$  ${\mathrm{E}}_{\mathrm{cha},\mathrm{daily}}={\mathrm{E}}_{\mathrm{cha},\mathrm{daily}}+{\displaystyle \frac{{\mathrm{P}}_{\mathrm{c}\mathrm{h}\mathrm{a}} \times \mathrm{s}\mathrm{a}\mathrm{m}\mathrm{p}\mathrm{l}\mathrm{i}\mathrm{n}\mathrm{g}\_\mathrm{t}\mathrm{i}\mathrm{m}\mathrm{e}}{3600}}$$\times {\mathsf{\eta }}_{\mathrm{B}\mathrm{E}\mathrm{S}\mathrm{S}}$ end while DISCHARGE PHASE $\mathbf{while} {\mathrm{E}}_{\mathrm{dis},\mathrm{daily}} < {\mathrm{E}}_{\mathrm{d}\mathrm{i}\mathrm{s},\mathrm{d}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{y}}^{\mathrm{m}\mathrm{a}\mathrm{x}}$   $\mathrm{i}=\mathrm{find}(\max ({\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}\mathrm{s}}_{\mathrm{D}\mathrm{A}\mathrm{M}}^{\mathrm{p}\mathrm{r}\mathrm{e}\mathrm{d}}))$   ${\mathrm{E}}_{\mathrm{available}}=({\mathrm{SOC}}_{\mathrm{i}}-{\mathrm{SOC}}_{\min }) \times$Enom   $\mathbf{if} {\mathrm{E}}_{\mathrm{available}} > ({\mathrm{P}}_{\mathrm{nom}} \times$EPR) (only full charging cycles)     ${\mathrm{P}}_{\mathrm{dis}}[\mathrm{i} : \mathrm{i}+(\mathrm{EPR}-1)]={\mathrm{P}}_{\mathrm{nom}} \times$${\mathsf{\eta }}_{\mathrm{B}\mathrm{E}\mathrm{S}\mathrm{S}}$     ${\mathrm{P}}_{\mathrm{dis}}[\mathrm{i}+(\mathrm{EPR}-1) : \mathrm{i}+\mathrm{EPR}]=({\mathrm{E}}_{\mathrm{available}} \times {\displaystyle \frac{\mathrm{s}\mathrm{a}\mathrm{m}\mathrm{p}\mathrm{l}\mathrm{i}\mathrm{n}\mathrm{g}\_\mathrm{t}\mathrm{i}\mathrm{m}\mathrm{e}}{3600(\mathrm{s}\mathrm{e}\mathrm{c}\mathrm{o}\mathrm{n}\mathrm{d}\mathrm{s} \mathrm{i}\mathrm{n} \mathrm{a} \mathrm{h}\mathrm{o}\mathrm{u}\mathrm{r})}}$$) \times$${\mathsf{\eta }}_{\mathrm{B}\mathrm{E}\mathrm{S}\mathrm{S}}$   else       ${\mathrm{P}}_{\mathrm{dis}}[\mathrm{i} : \mathrm{i}+\mathrm{EPR} ]={\mathrm{P}}_{\mathrm{nom}} \times$${\mathsf{\eta }}_{\mathrm{B}\mathrm{E}\mathrm{S}\mathrm{S}}$   ${\mathrm{E}}_{\mathrm{dis},\mathrm{daily}}={\mathrm{E}}_{\mathrm{dis},\mathrm{daily}}+{\displaystyle \frac{{\mathrm{P}}_{\mathrm{d}\mathrm{i}\mathrm{s}} \times \mathrm{s}\mathrm{a}\mathrm{m}\mathrm{p}\mathrm{l}\mathrm{i}\mathrm{n}{\mathrm{g}}_{\mathrm{t}\mathrm{i}\mathrm{m}\mathrm{e}}}{3600}}$${\mathsf{\eta }}_{\mathrm{B}\mathrm{E}\mathrm{S}\mathrm{S}}$ end while INITIAL SOC RESTORATION if i last charge > i last discharge   if 24 ≥ i last charge + EPR     ${\mathrm{E}}_{\mathrm{available}}=({\mathrm{SOC}}_{\mathrm{i}}-{\mathrm{SOC}}_{\min })\times$Enom     $\mathbf{if} {\mathrm{E}}_{\mathrm{available}} > ({\mathrm{P}}_{\mathrm{nom}} \times$EPR) (only full charging cycles)       ${\mathrm{P}}_{\mathrm{dis}}[\mathrm{i} : \mathrm{i}+(\mathrm{EPR}-1)]={\mathrm{P}}_{\mathrm{nom}} \times$${\mathsf{\eta }}_{\mathrm{B}\mathrm{E}\mathrm{S}\mathrm{S}}$       ${\mathrm{P}}_{\mathrm{dis}}[\mathrm{i}+(\mathrm{EPR}-1) : \mathrm{i}+\mathrm{EPR}]=({\mathrm{E}}_{\mathrm{available}} \times {\displaystyle \frac{\mathrm{s}\mathrm{a}\mathrm{m}\mathrm{p}\mathrm{l}\mathrm{i}\mathrm{n}\mathrm{g}\_\mathrm{t}\mathrm{i}\mathrm{m}\mathrm{e}}{3600(\mathrm{s}\mathrm{e}\mathrm{c}\mathrm{o}\mathrm{n}\mathrm{d}\mathrm{s} \mathrm{i}\mathrm{n} \mathrm{a} \mathrm{h}\mathrm{o}\mathrm{u}\mathrm{r})}}$$) \times$${\mathsf{\eta }}_{\mathrm{B}\mathrm{E}\mathrm{S}\mathrm{S}}$     ${\mathrm{E}}_{\mathrm{dis},\mathrm{daily}}={\mathrm{E}}_{\mathrm{dis},\mathrm{daily}}+{\displaystyle \frac{{\mathrm{P}}_{\mathrm{d}\mathrm{i}\mathrm{s}} \times \mathrm{s}\mathrm{a}\mathrm{m}\mathrm{p}\mathrm{l}\mathrm{i}\mathrm{n}\mathrm{g}\_\mathrm{t}\mathrm{i}\mathrm{m}\mathrm{e}}{3600}}/{\mathsf{\eta }}_{\mathrm{B}\mathrm{E}\mathrm{S}\mathrm{S}}$     else       ${\mathrm{P}}_{\mathrm{dis}}[\mathrm{i} : \mathrm{i}+\mathrm{EPR} ]={\mathrm{P}}_{\mathrm{nom}} \times$${\mathsf{\eta }}_{\mathrm{B}\mathrm{E}\mathrm{S}\mathrm{S}}$   ${\mathrm{E}}_{\mathrm{dis},\mathrm{daily}}={\mathrm{E}}_{\mathrm{dis},\mathrm{daily}}+{\displaystyle \frac{{\mathrm{P}}_{\mathrm{d}\mathrm{i}\mathrm{s}} \times \mathrm{s}\mathrm{a}\mathrm{m}\mathrm{p}\mathrm{l}\mathrm{i}\mathrm{n}\mathrm{g}\_\mathrm{t}\mathrm{i}\mathrm{m}\mathrm{e}}{3600}}/{\mathsf{\eta }}_{\mathrm{B}\mathrm{E}\mathrm{S}\mathrm{S}}$ SOC CONTROL $\mathbf{for} \mathrm{i} \mathrm{in} (24 \times$${\displaystyle \frac{3600}{\mathrm{s}\mathrm{a}\mathrm{m}\mathrm{p}\mathrm{l}\mathrm{i}\mathrm{n}\mathrm{g}\_\mathrm{t}\mathrm{i}\mathrm{m}\mathrm{e}}}$) do   ${\mathrm{SOC}}_{\mathrm{i}}={\mathrm{SOC}}_{\mathrm{i}-1}+({\mathrm{P}}_{\mathrm{i}}^{\mathrm{c}\mathrm{h}\mathrm{a}}-{\mathrm{P}}_{\mathrm{i}}^{\mathrm{d}\mathrm{i}\mathrm{s}}) \times {\displaystyle \frac{\mathrm{s}\mathrm{a}\mathrm{m}\mathrm{p}\mathrm{l}\mathrm{i}\mathrm{n}\mathrm{g}\_\mathrm{t}\mathrm{i}\mathrm{m}\mathrm{e}}{3600}}$   if SOCi > SOCmax     SOCi = SOCmax     ${\mathrm{P}}_{\mathrm{i}}^{\mathrm{c}\mathrm{h}\mathrm{a}}={\displaystyle \frac{{\mathrm{S}\mathrm{O}\mathrm{C}}_{\mathrm{m}\mathrm{a}\mathrm{x}}-{\mathrm{S}\mathrm{O}\mathrm{C}}_{\mathrm{i}-1}}{{\mathrm{E}}_{\mathrm{n}\mathrm{o}\mathrm{m}}}} \times {\displaystyle \frac{\mathrm{s}\mathrm{a}\mathrm{m}\mathrm{p}\mathrm{l}\mathrm{i}\mathrm{n}\mathrm{g}\_\mathrm{t}\mathrm{i}\mathrm{m}\mathrm{e}}{3600}}$   else if SOCi < SOCmin     SOCi = SOCmin     ${\mathrm{P}}_{\mathrm{i}}^{\mathrm{d}\mathrm{i}\mathrm{s}}={\displaystyle \frac{{\mathrm{S}\mathrm{O}\mathrm{C}}_{\mathrm{i}-1}-{\mathrm{S}\mathrm{O}\mathrm{C}}_{\mathrm{m}\mathrm{i}\mathrm{n}}}{{\mathrm{E}}_{\mathrm{n}\mathrm{o}\mathrm{m}}}} \times {\displaystyle \frac{\mathrm{s}\mathrm{a}\mathrm{m}\mathrm{p}\mathrm{l}\mathrm{i}\mathrm{n}\mathrm{g}\_\mathrm{t}\mathrm{i}\mathrm{m}\mathrm{e}}{3600}}$ PROFITS PER CYCLE CONTROL $\mathbf{for} \mathrm{i} \mathrm{in} (24 \times$${\displaystyle \frac{3600}{\mathrm{s}\mathrm{a}\mathrm{m}\mathrm{p}\mathrm{l}\mathrm{i}\mathrm{n}\mathrm{g}\_\mathrm{t}\mathrm{i}\mathrm{m}\mathrm{e}}}$) do   $\mathrm{daily}\_\mathrm{predicted}\_\mathrm{profit}={\displaystyle \frac{\left({\mathrm{P}}_{\mathrm{i}}^{\mathrm{d}\mathrm{i}\mathrm{s}}-{\mathrm{P}}_{\mathrm{i}}^{\mathrm{c}\mathrm{h}\mathrm{a}}\right) \times \mathrm{s}\mathrm{a}\mathrm{m}\mathrm{p}\mathrm{l}\mathrm{i}\mathrm{n}\mathrm{g}\_\mathrm{t}\mathrm{i}\mathrm{m}\mathrm{e}}{3600}} \times {\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}\mathrm{s}}_{\mathrm{D}\mathrm{A}\mathrm{M}\mathrm{i}}^{\mathrm{p}\mathrm{r}\mathrm{e}\mathrm{d}}$ if daily_predicted_profit < 0 (or LCOS)   ${\mathrm{P}}_{1:\mathrm{e}\mathrm{n}\mathrm{d}}^{\mathrm{d}\mathrm{i}\mathrm{s}}=0$   ${\mathrm{P}}_{1:\mathrm{e}\mathrm{n}\mathrm{d}}^{\mathrm{c}\mathrm{h}\mathrm{a}}=0$

If the outcome is profitable, offers on the DAM are structured as follows:

• Selling at a significantly reduced price to secure acceptance of the offer.
• Buying at a substantially higher price to ensure acceptance of the offer.

As already mentioned, the energy arbitrage strategy is based on predicted zonal prices via a neural network model that will be described in the following section.

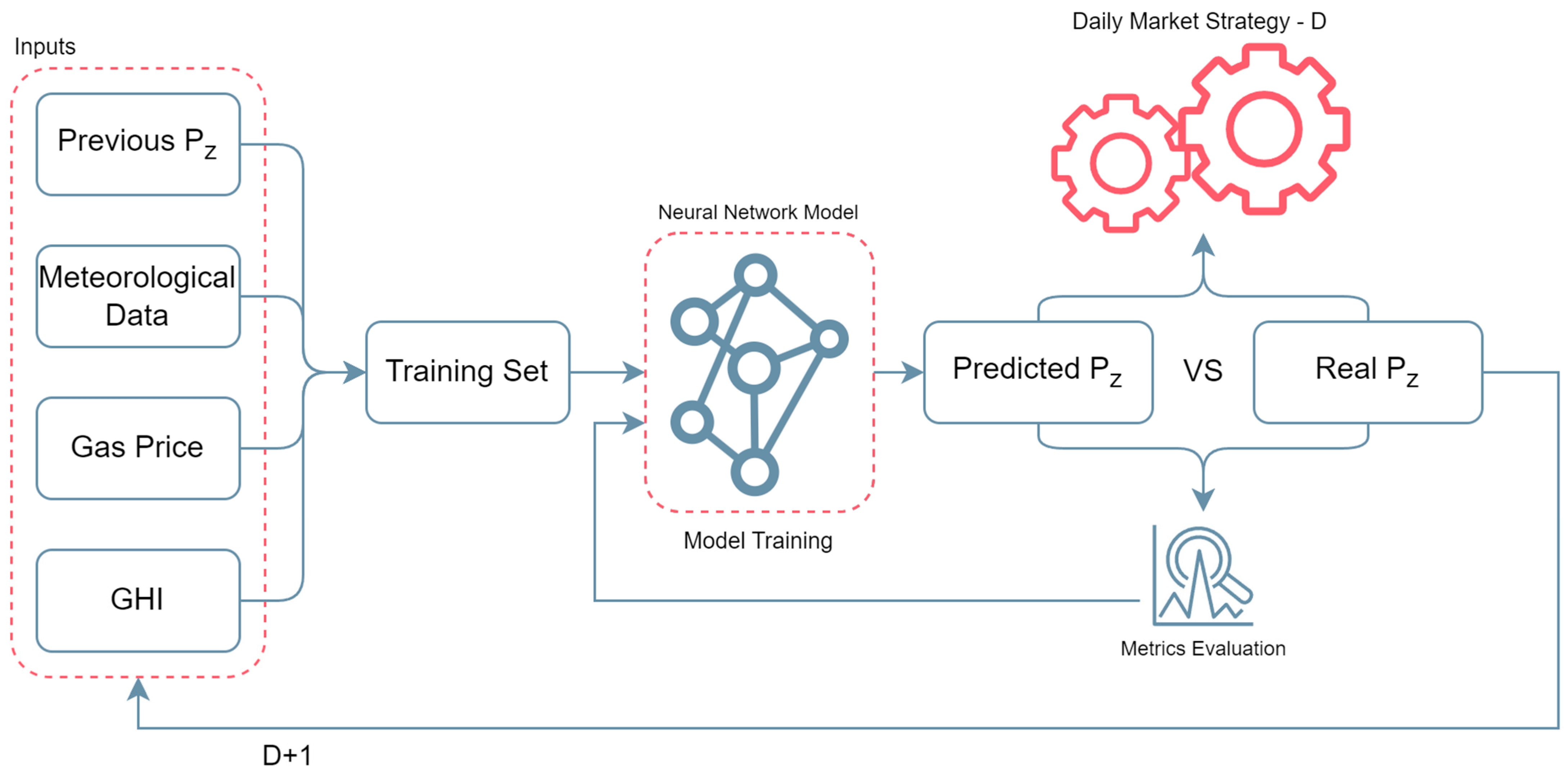

The DL model implemented is a hybrid neural network model that leverages both Long Short-Term Memory (LSTM) and Convolutional Neural Networks (CNNs) to capture the temporal dynamics and spatial features of the data [21]. The 83 features used for training the model are listed in

Table 1. Features for the Zonal Price Prediction DL Tool.

FEATURES
HOUR	Specifies the time of day
PREVIOUS DAY Pz	A number of features contain the hourly zonal price values for the NORD region for all days up to a week before the given day
MEAN Pz	This feature contains the weighted average of the hourly zonal price values of the previous week
SEASON	Specifies the season of the day in question
TYPE OF DAY	HOLI: holiday, WEEK: weekday
DAY NUMBER	Progressive number of the day in the year
MONTH	Specifies the month of the day in question
GAS PUN	This feature reports the daily Unique National Price (PUN) of gas on the given day
TEMPERATURE	For each electrical zone into which Italy is divided, the temperature is reported for the hour and the day in question
PRECIPITATION	For each electrical zone into which Italy is divided, the precipitation is reported for the hour and the day in question
CLOUD COVER	For each electrical zone into which Italy is divided, the cloud coverage is reported for the hour and the day in question
WIND SPEED	For each electrical zone into which Italy is divided, the wind speed is reported for the hour and the day in question
GHI	For the day in question and the hour, the global horizontal irradiation is reported for the south of Italy

.

The architecture includes layers of bidirectional LSTM, useful for capturing long-term relationships in sequential data [22], and CNNs, used to extract local features from sequential data. Batch normalization [23] and dropout layers [24] are added to prevent overfitting and improve generalization.

A distinctive feature of this model is the incremental training of the model. Each day of the simulation, the training set is expanded with newly available data, continuously improving the model’s predictive capability. This incremental process allows the model to quickly adapt to changes in the energy market. The process is shown in Figure 8.

The model was trained using mean squared error (MSE) (see Equation (3)) as the loss function, along with the Adam optimizer [25]. Early stopping was implemented to prevent overfitting [26], and a learning rate scheduler was used to improve convergence [27].

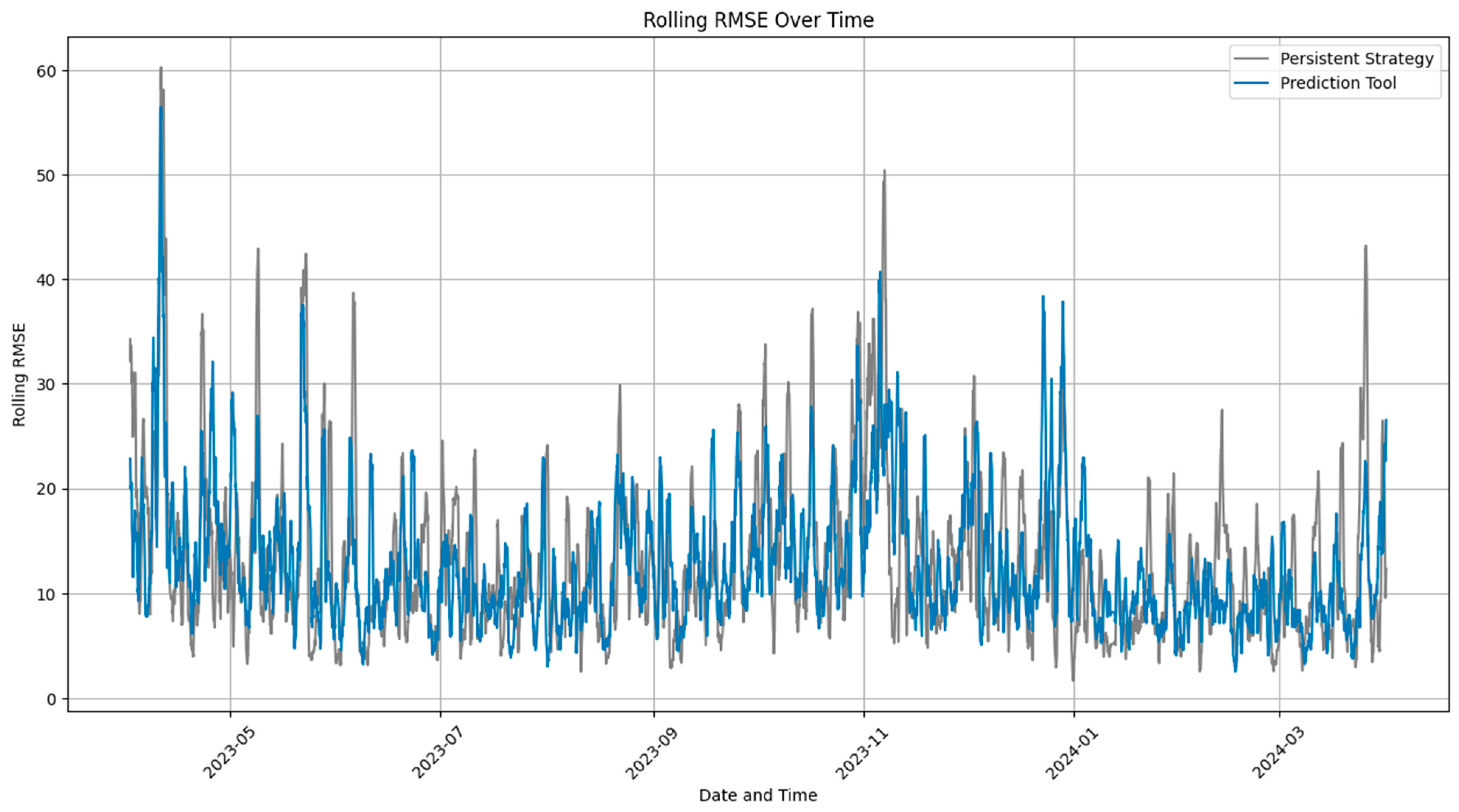

To assess the model’s efficiency, various metrics are monitored during the tool’s utilization. Additionally, the model’s performance is compared with a Persistence Model, evaluating both against the actual P_z values. In particular, the metrics evaluated are the Mean Squared Error (MSE, Equation (3)), the Root Mean Squared Error (RMSE, Equation (4)), and the R² factor (Equation (5)).

Mean Squared Error—MSE:

$$\mathrm{M}\mathrm{S}\mathrm{E}={\displaystyle \frac{1}{\mathrm{n}}}\sum _{\mathrm{i}=1}^{\mathrm{n}}{({\mathrm{y}}_{\mathrm{i}}-\widehat{{\mathrm{y}}_{\mathrm{i}}})}^2$$

(3)

Root Mean Squared Error—RMSE:

$$\mathrm{R}\mathrm{M}\mathrm{S}\mathrm{E}=\sqrt{\mathrm{M}\mathrm{S}\mathrm{E}}$$

(4)

R² Factor:

$${\mathrm{R}}^2=1-{\displaystyle \frac{\sum _{\mathrm{i}=1}^{\mathrm{n}}{({\mathrm{y}}_{\mathrm{i}}-\widehat{{\mathrm{y}}_{\mathrm{i}}})}^2}{\sum _{\mathrm{i}=1}^{\mathrm{n}}{({\mathrm{y}}_{\mathrm{i}}-\overline{{\mathrm{y}}_{\mathrm{i}}})}^2}}$$

(5)

3.3. Intra-Day Market—Continuous Trading Market XBID

XBID represents a new opportunity for energy resources since it occurs slightly before real-time, and it is characterized by continuous trading where a bid is awarded at the bid price as soon as it is accepted by another resource. This opens to various bidding strategies. This is a new market, having gone live in many EU Member States in 2021; therefore, a statistical analysis of its early stage could be beneficial. It is presented in the next paragraph.

3.3.1. Comprehensive Statistical Analysis

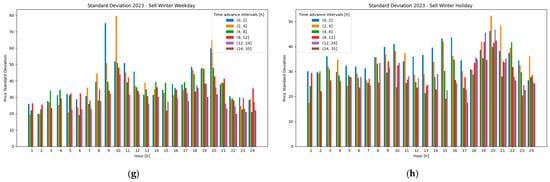

Particular emphasis has been placed on studying and modeling the continuous trading session of the Intra-Day Market. Initially, an extensive statistical analysis of XBID data for the Italian wholesale market was conducted, reviewing all the public offers submitted. As of the time of authoring this article, these offers total almost fifty million. This analysis is crucial for the subsequent modeling of XBID and the development of a strategy for the participation of the BESS in this market. The analysis involves a detailed examination of various statistical measures, including the means μ and standard deviations σ of the bid prices, described in Equations (7) and (8), to understand the central tendencies and variability in the data. Additionally, acceptance rates of offers by price range (Equation (6)) were analyzed to identify the price ranges for successful transactions. Distributions of accepted offers by price were also constructed using Kernel Density Estimation (KDE) to visualize the frequency and likelihood of different prices being accepted and to better understand the underlying distribution pattern (Equation (9)).

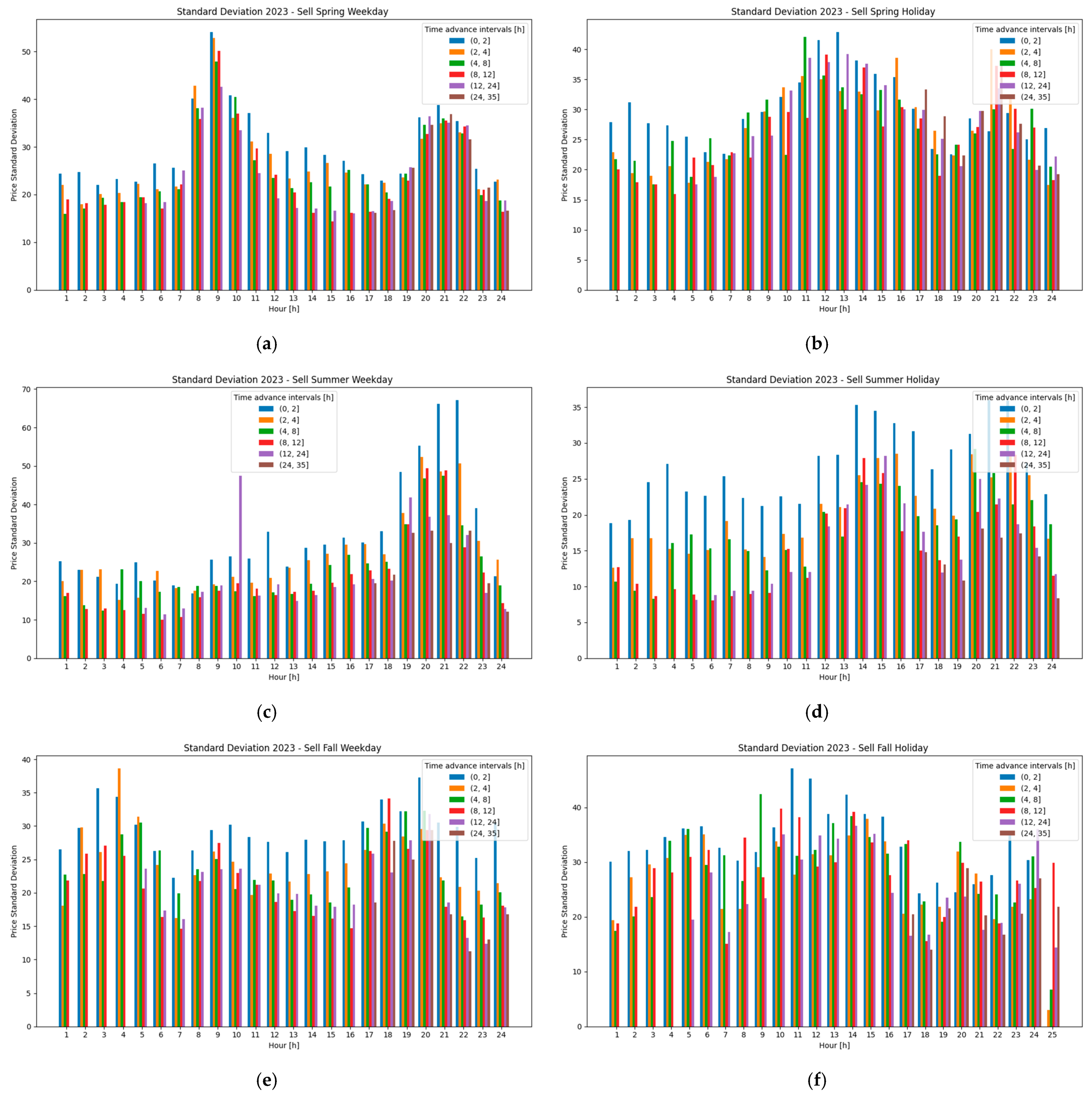

Furthermore, to capture the nuances of the market, these statistics were categorized based on several factors:

• Type of day—D_t: Weekday or Holiday, to account for variations in market behavior due to differences in demand and operational patterns.
• Hour of the day—h_D: electricity consumption and prices can vary significantly throughout the day, necessitating a time-based analysis.
• Season—S: different seasons impact electricity demand and supply conditions, which were factored into the analysis.
• Hours in advance of the offer publication—h_A: the timing of offer submissions was examined to understand its effect on offer acceptance.
• Type of offer—o_t: Selling or Buying, to distinguish the different dynamics in the market for sellers and buyers.

$${\mathrm{A}\mathrm{R}}_{\mathrm{r}\mathrm{a}\mathrm{n}\mathrm{g}\mathrm{e}}={\displaystyle \frac{\sum {\mathrm{o}}_{\mathrm{r}\mathrm{a}\mathrm{n}\mathrm{g}\mathrm{e}}^{\mathrm{A}\mathrm{C}\mathrm{C}}}{\sum {\mathrm{o}}_{\mathrm{r}\mathrm{a}\mathrm{n}\mathrm{g}\mathrm{e}}^{\mathrm{T}\mathrm{O}\mathrm{T}}}}$$

(6)

$$\mathsf{\mu }={\displaystyle \frac{1}{\mathrm{N}}}\sum _{\mathrm{i}=1}^{\mathrm{N}}{\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{i}}^{\mathrm{A}\mathrm{C}\mathrm{C}}$$

(7)

$$\mathsf{\sigma }=\sqrt{{\displaystyle \frac{1}{\mathrm{N}}}\sum _{\mathrm{i}=1}^{\mathrm{N}}{({\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{i}}^{\mathrm{A}\mathrm{C}\mathrm{C}}-\mathsf{\mu })}^2}$$

(8)

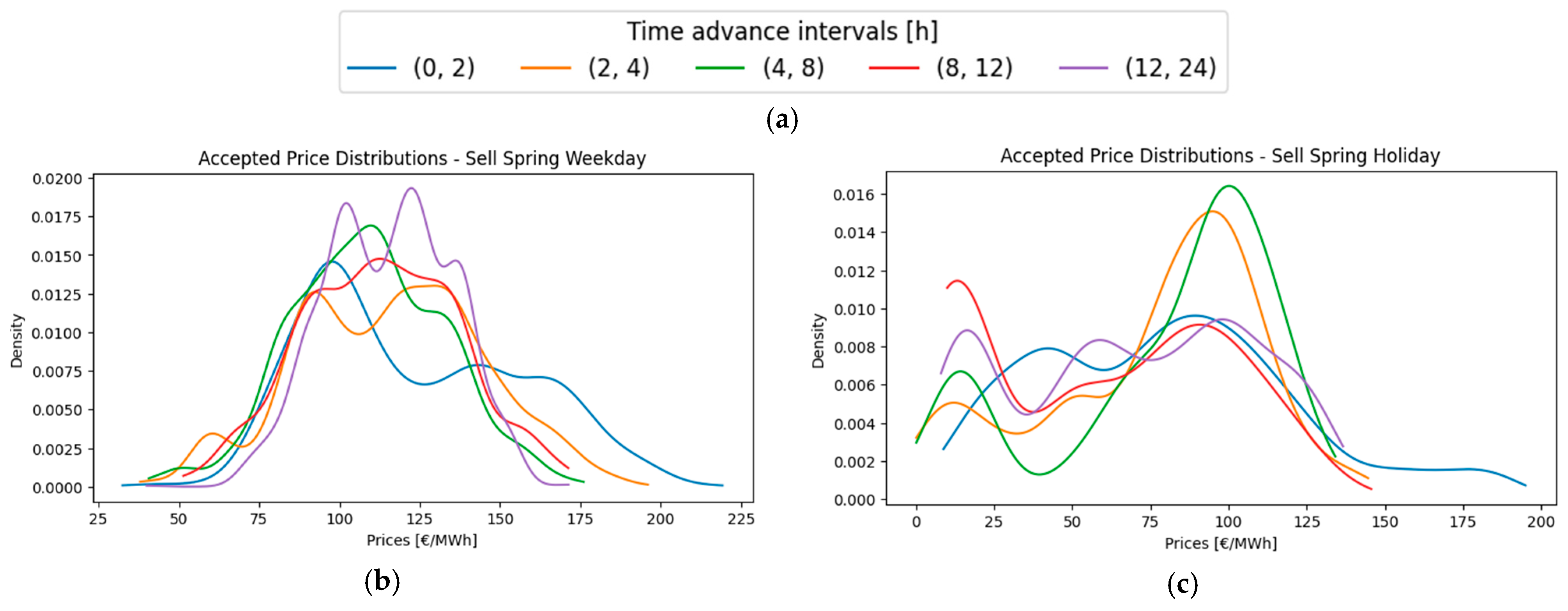

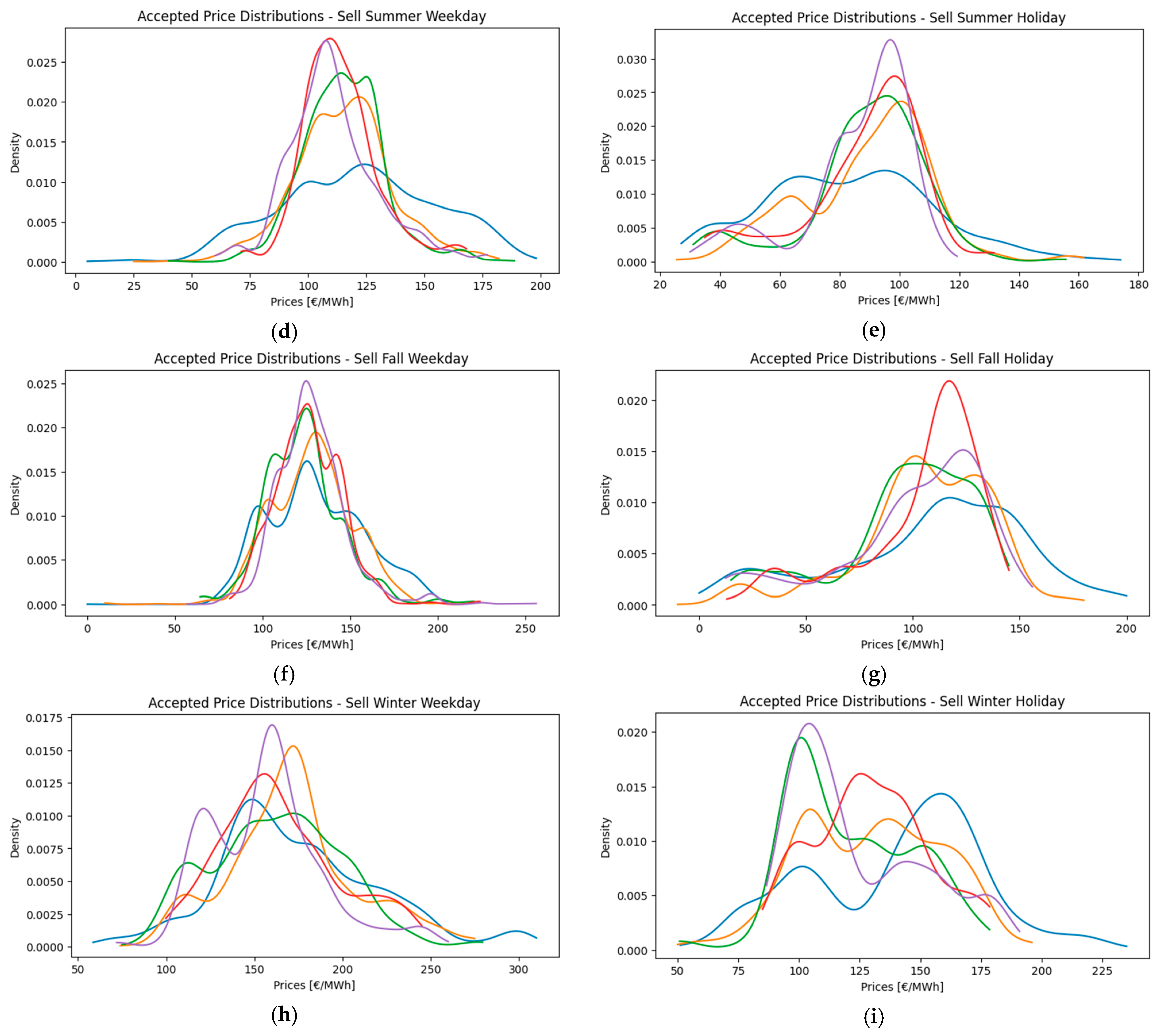

$$\widehat{\mathrm{f}}\left(\mathrm{x}\right)={\displaystyle \frac{1}{\mathrm{N}\mathrm{h}}}\sum _{\mathrm{i}=1}^{\mathrm{N}}\mathrm{K}({\displaystyle \frac{\mathrm{x}-{\mathrm{x}}_{\mathrm{i}}}{\mathrm{h}}})$$

(9)

where K is the kernel function, h is the bandwidth, ${\mathrm{x}}_{\mathrm{i}}$ are the data points.

This detailed and multifaceted analysis provides a thorough understanding of market dynamics, enabling the development of an informed and strategic approach to participating in the XBID market. It allows for the identification of optimal times and conditions for submitting offers, helps in tailoring strategies to maximize the efficiency and profitability of a BESS in the electricity market, and is central in the strategy of price formation for the bidding strategy.

3.3.2. Deep Learning Acceptance Probability Prediction Tool

To model a realistic bidding strategy, as already mentioned, a tool for acceptance probability prediction has been developed.

The implemented deep learning model is a neural network that combines Bidirectional Long Short-Term Memory (BiLSTM) layers and Convolutional Neural Networks (CNNs). This hybrid architecture effectively captures both temporal dynamics and spatial features present in the data [21].

The dataset used for training the model includes various features such as historical offer data, market data, and categorical data, with detailed descriptions provided in

Table 2. Features for the Acceptance Probability Prediction DL Tool.

FEATURES
HOUR	Specifies the time of day
OFFER TYPE	BID: offer to buy, OFF: offer to sell
PRICE	Offer price
ZONE	Specifies the zone of relevance for the offer
TYPE OF DAY	HOLI: holiday, WEEK: weekday
INTERVAL	The number of hours in advance of the delivery time when the bid was made
SEASON	Specifies the season of the day in question
PUN	Specifies the PUN for the day in the exam

.

The model architecture leverages the following components:

• Bidirectional LSTM Layers: by processing data bidirectionally, the BiLSTM layers enhance the model’s ability to understand complex temporal patterns.
• Conv1D Layer: the convolution operation helps in identifying significant patterns and trends within smaller windows of the data sequence.
• Batch Normalization and Dropout: Batch normalization layers stabilize and accelerate training by normalizing the input of each layer, as described in Equation (10). Dropout layers randomly deactivate a fraction of neurons during training, making the model more robust.
  Batch Normalization:

  $$\widehat{{\mathrm{h}}_{\mathrm{t}}}={\displaystyle \frac{{\mathrm{h}}_{\mathrm{t}}-\mathsf{\mu }}{\sqrt{{\mathsf{\sigma }}^2+\mathsf{\epsilon }}}}·\mathsf{\gamma }+\mathsf{\beta }$$

  (10)

  where ${\mathrm{h}}_{\mathrm{t}}$ is the input value for batch normalization at time t, $\mathsf{\mu }$ is the mean of the batch of input h_t, ${\mathsf{\sigma }}^2$ is the variance of the batch of input h_t, $\mathsf{\epsilon }$ is a small positive value added to avoid division by zero during normalization, $\mathsf{\gamma } \mathrm{a}\mathrm{n}\mathrm{d} \mathsf{\beta }$ are parameters learned and optimized during training.
• Dense Layer: The output layer is a dense layer with a sigmoid activation function, used for binary classification. This layer outputs the probability of offer acceptance and can be represented by Equation (11), which encapsulates the fundamental operation of a neural network layer:

  $$\widehat{\mathrm{y}}=\mathsf{\sigma }(\mathrm{W}·{\mathrm{h}}_{\mathrm{t}}+\mathrm{b})$$

  (11)

  where: $\widehat{\mathrm{y}}$ is the output of the neural network layer after applying the activation function σ; σ is the activation function, squashing the input to a range between 0 and 1, in this case the Sigmoid: $\mathsf{\sigma }\left(\mathrm{x}\right)={\displaystyle \frac{1}{1+{\mathrm{e}}^{-\mathrm{x}}}}$; W represents the weight matrix, containing the weights that are learned during the training process; ${\mathrm{h}}_{\mathrm{t}}$ is the input vector to the layer at time t; b represents the bias vector.

The model utilizes the Binary cross-entropy loss function (Equation (12)) as a metric to optimize the metric that is the most suitable for binary classification tasks. Model accuracy is monitored during the training process.

$$\mathrm{L}=-{\displaystyle \frac{1}{\mathrm{N}}}\sum _{\mathrm{i}=1}^{\mathrm{N}}[{\mathrm{y}}_{\mathrm{i}}\log \left(\widehat{{\mathrm{y}}_{\mathrm{i}}}\right)+(1-{\mathrm{y}}_{\mathrm{i}})\log (1-\widehat{{\mathrm{y}}_{\mathrm{i}}})$$

(12)

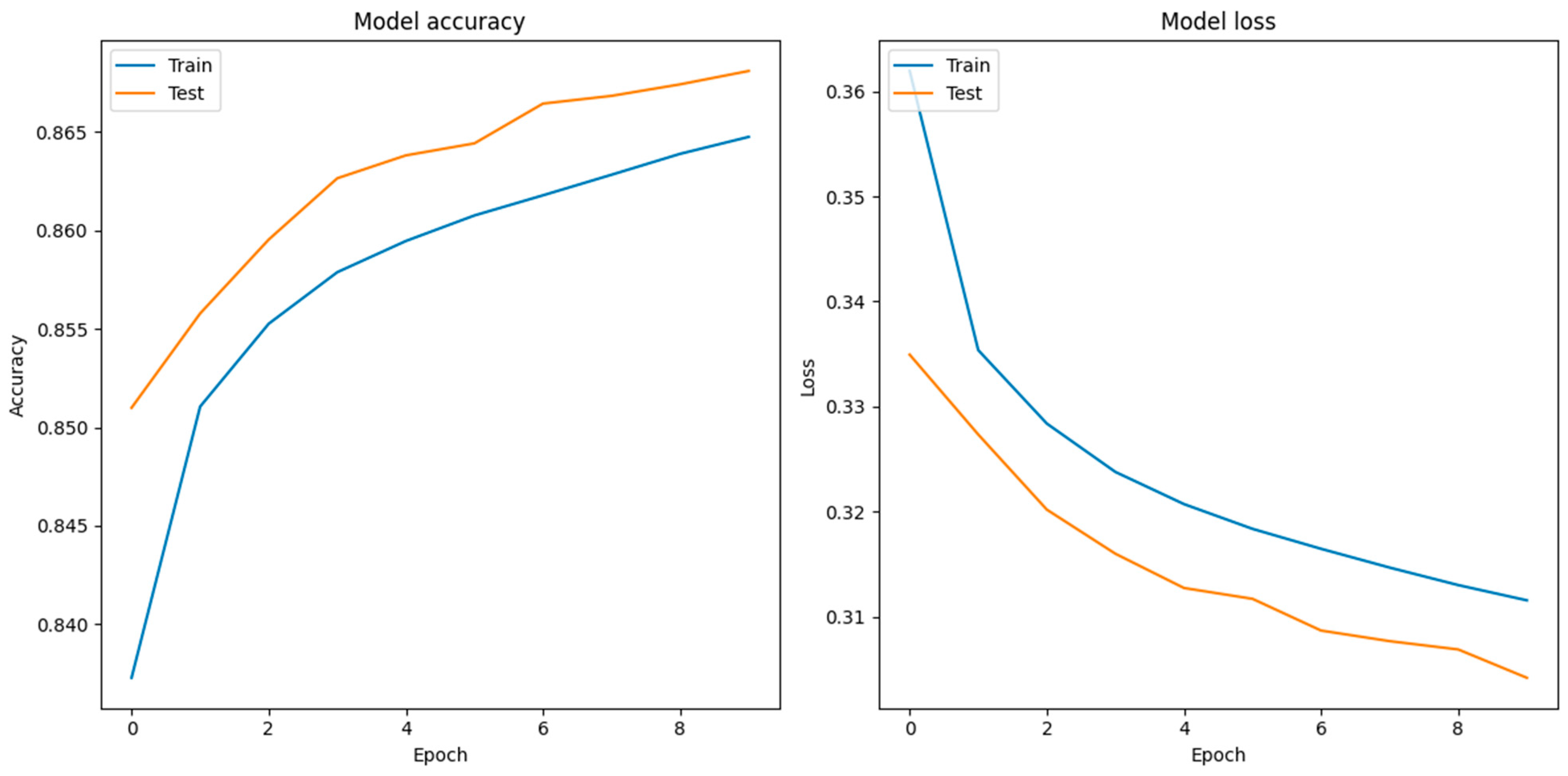

The model undergoes training over multiple epochs with large batch sizes, utilizing the dataset’s full potential to ensure stable updates and efficient convergence. Validation data are used to monitor the model’s performance and make necessary adjustments to prevent overfitting.

To evaluate the efficiency of the model, relevant metrics are stochastically monitored. Evaluated metrics include Accuracy, which measures the fraction of correctly predicted instances out of total instances (Equation (13)), Precision, which measures the fraction of true positives among all positive predictions (Equation (14)), Recall (or Sensitivity), which measures the fraction of true positives that were correctly identified (Equation (15)), and the F1-score, which is the harmonic mean of precision and recall and balances these two metrics, see Equation (16)

Accuracy:

$$\mathrm{A}\mathrm{c}\mathrm{c}\mathrm{u}\mathrm{r}\mathrm{a}\mathrm{c}\mathrm{y}={\displaystyle \frac{\mathrm{T}\mathrm{P}+\mathrm{T}\mathrm{N}}{\mathrm{T}\mathrm{P}+\mathrm{T}\mathrm{N}+\mathrm{F}\mathrm{P}+\mathrm{F}\mathrm{N}}}$$

(13)

Precision:

$$\mathrm{P}\mathrm{r}\mathrm{e}\mathrm{c}\mathrm{i}\mathrm{s}\mathrm{i}\mathrm{o}\mathrm{n}={\displaystyle \frac{\mathrm{T}\mathrm{P}}{\mathrm{T}\mathrm{P}+\mathrm{F}\mathrm{P}}}$$

(14)

Recall:

$$\mathrm{R}\mathrm{e}\mathrm{c}\mathrm{a}\mathrm{l}\mathrm{l}={\displaystyle \frac{\mathrm{T}\mathrm{P}}{\mathrm{T}\mathrm{P}+\mathrm{F}\mathrm{N}}}$$

(15)

F1-Score:

$$\mathrm{F}1\mathrm{S}\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}=2·{\displaystyle \frac{\mathrm{P}\mathrm{r}\mathrm{e}\mathrm{c}\mathrm{i}\mathrm{s}\mathrm{i}\mathrm{o}\mathrm{n} \times \mathrm{R}\mathrm{e}\mathrm{c}\mathrm{a}\mathrm{l}\mathrm{l}}{\mathrm{P}\mathrm{r}\mathrm{e}\mathrm{c}\mathrm{i}\mathrm{s}\mathrm{i}\mathrm{o}\mathrm{n}+\mathrm{R}\mathrm{e}\mathrm{c}\mathrm{a}\mathrm{l}\mathrm{l}}}$$

(16)

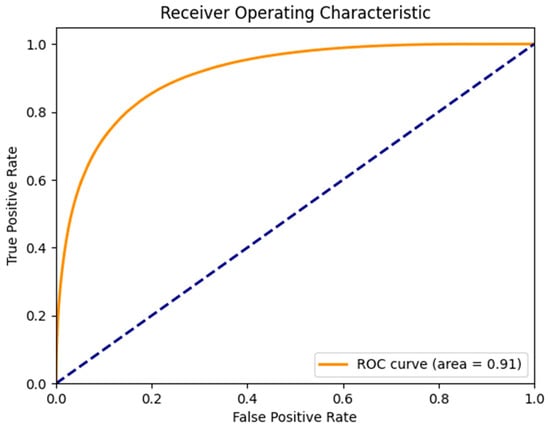

Given the future strategy of using predicted probabilities for decision-making, it is crucial to evaluate the model in a manner that aligns with this operational context. This involves conducting multiple simulations of stochastic predictions, which mimic how the model would function in the XBID simulation. By measuring the variation in metrics across these simulations, we can gauge the model’s resilience to fluctuations in predicted probabilities.

The optimal number of simulations needed to assess these metrics is determined through an iterative process where the number of stochastic simulations is incrementally increased. This continues until a specified metric variation (Equation (17)) falls below a predefined tolerance (ε). This iterative approach ensures that the metrics stabilize sufficiently amidst the variability introduced by different stochastic predictions. Ultimately, it strikes a balance between computational efficiency and the thoroughness needed for robust metric evaluation.

Condition:

$$\mathrm{M}\mathrm{e}\mathrm{t}\mathrm{r}\mathrm{i}{\mathrm{c}}_{\mathrm{v}\mathrm{a}\mathrm{r}\mathrm{i}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}}={\mathsf{\sigma }}_{\mathrm{A}\mathrm{c}\mathrm{c}\mathrm{u}\mathrm{r}\mathrm{a}\mathrm{c}\mathrm{y}}+{\mathsf{\sigma }}_{\mathrm{P}\mathrm{r}\mathrm{e}\mathrm{c}\mathrm{i}\mathrm{s}\mathrm{i}\mathrm{o}\mathrm{n}}+{\mathsf{\sigma }}_{\mathrm{R}\mathrm{e}\mathrm{c}\mathrm{a}\mathrm{l}\mathrm{l}}+{\mathsf{\sigma }}_{\mathrm{F}1-\mathrm{s}\mathrm{c}\mathrm{o}\mathrm{r}\mathrm{e}}\le \mathsf{\epsilon }$$

(17)

where ${\sigma }_i$ is the Standard Deviation of the metric values calculated for each simulation.

This methodical evaluation is essential for ensuring the reliability and effectiveness of the model in practical applications, where decisions hinge on probabilistic predictions.

3.3.3. XBID Offer Price Decision Mechanism

With data from the statistical analysis and with the prediction tool, a model of a bidding strategy on XBID has been developed.

Through the historical data analyzed in the previous statistical analysis, an appropriate price for the bid is established; for each hour, considering the season and the year, the optimal bid submission interval is identified. Subsequently, the corresponding average price is determined. Using the previously constructed distributions, the price with the highest probability of acceptance is evaluated. In fact, to determine the optimal discharging price, the price range where the probability density is maximized has to be identified. This involves integrating the Kernel Density Estimation (KDE) over different intervals and finding the interval with the maximum integrated density.

The initial lower bound is set equal to the mean price of the selected submission interval augmented by the LCOS and the price ranges are identified as:

$${\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e} \mathrm{R}\mathrm{a}\mathrm{n}\mathrm{g}\mathrm{e}}_{\mathrm{i}}={(\mathrm{l}\mathrm{o}\mathrm{w}\mathrm{e}\mathrm{r}}_{\mathrm{b}\mathrm{o}\mathrm{u}\mathrm{n}\mathrm{d}}^{\mathrm{i}},{\mathrm{l}\mathrm{o}\mathrm{w}\mathrm{e}\mathrm{r}}_{\mathrm{b}\mathrm{o}\mathrm{u}\mathrm{n}\mathrm{d}}^{\mathrm{i}}+\mathsf{\delta })$$

(18)

where delta is set to EUR 10/MWh and ${\mathrm{l}\mathrm{o}\mathrm{w}\mathrm{e}\mathrm{r}}_{\mathrm{b}\mathrm{o}\mathrm{u}\mathrm{n}\mathrm{d}}^{\mathrm{i}+1}={\mathrm{l}\mathrm{o}\mathrm{w}\mathrm{e}\mathrm{r}}_{\mathrm{b}\mathrm{o}\mathrm{u}\mathrm{n}\mathrm{d}}^{\mathrm{i}}+\mathsf{\delta }$.

The KDE is integrated over each price range, as described in Equation (19):

$$\mathrm{A}\mathrm{r}\mathrm{e}\mathrm{a}={\int }_{{\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{r}\mathrm{a}\mathrm{n}\mathrm{g}\mathrm{e}}^{\mathrm{i}}}\widehat{\mathrm{f}}\left(\mathrm{x}\right)\mathrm{d}\mathrm{x}$$

(19)

and from the price range with the highest Area, the optimal discharging price is obtained as in Equation (20):

$${\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{o}\mathrm{f}\mathrm{f}\mathrm{e}\mathrm{r}}={\displaystyle \frac{{\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{r}\mathrm{a}\mathrm{n}\mathrm{g}\mathrm{e}}\left({\mathrm{A}\mathrm{r}\mathrm{e}\mathrm{a}}_{\mathrm{m}\mathrm{a}\mathrm{x}}\right)}{2}}$$

(20)

Before submitting the offer, profit control is introduced, securing a profit downstream from the strategy. This is possible by introducing the hypothesis that, for charging offers, the battery acts as a price-taker, accepting the offer with the price closest to the average present on the XBID order book for the hour selected for charging. Furthermore, if the spread between ${\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{o}\mathrm{f}\mathrm{f}\mathrm{e}\mathrm{r}}$ and ${\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{c}\mathrm{h}\mathrm{a}\mathrm{r}\mathrm{g}\mathrm{e}}$ is non-profitable, ${\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{o}\mathrm{f}\mathrm{f}\mathrm{e}\mathrm{r}}$ is adjusted as in Equation (21):

$${\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{o}\mathrm{f}\mathrm{f}\mathrm{e}\mathrm{r}}=\left\{\begin{array}{ll}{\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{o}\mathrm{f}\mathrm{f}\mathrm{e}\mathrm{r}}& \mathrm{if} {\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{o}\mathrm{f}\mathrm{f}\mathrm{e}\mathrm{r}}>\left({\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{c}\mathrm{h}\mathrm{a}\mathrm{r}\mathrm{g}\mathrm{e}}+{\displaystyle \frac{\mathrm{L}\mathrm{C}\mathrm{O}\mathrm{S}}{\mathsf{\eta }}}\right)\\ {\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{c}\mathrm{h}\mathrm{a}\mathrm{r}\mathrm{g}\mathrm{e}}& \mathrm{if} {\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{o}\mathrm{f}\mathrm{f}\mathrm{e}\mathrm{r}}<\left({\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{c}\mathrm{h}\mathrm{a}\mathrm{r}\mathrm{g}\mathrm{e}}+{\displaystyle \frac{\mathrm{L}\mathrm{C}\mathrm{O}\mathrm{S}}{\mathsf{\eta }}}\right)\mathrm{and} \mathrm{LCOS}=0\\ {\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{c}\mathrm{h}\mathrm{a}\mathrm{r}\mathrm{g}\mathrm{e}}+{\displaystyle \frac{\mathrm{L}\mathrm{C}\mathrm{O}\mathrm{S}}{\mathsf{\eta }}}& \mathrm{if} {\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{o}\mathrm{f}\mathrm{f}\mathrm{e}\mathrm{r}}<\left({\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{c}\mathrm{h}\mathrm{a}\mathrm{r}\mathrm{g}\mathrm{e}}+{\displaystyle \frac{\mathrm{L}\mathrm{C}\mathrm{O}\mathrm{S}}{\mathsf{\eta }}}\right)\mathrm{and} \mathrm{LCOS}\ne 0\end{array}\right.$$

(21)

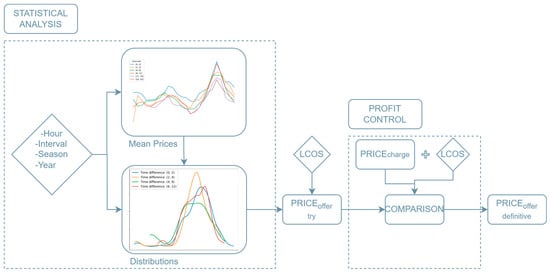

The flow of the bidding strategy can be seen in Figure 9.

3.3.4. XBID Control Strategy

Energy arbitrage in the XBID market is an advanced strategy designed to profit from energy price fluctuations.

The implemented control strategy combines predictive models, statistical price analysis, and operational enhancement of the Battery Energy Storage System (BESS). By precisely managing charging and discharging operations, this strategy aims to maximize profits from energy arbitrage, effectively capitalizing on market dynamics.

The strategy introduced firstly ensures the feasibility of the battery’s program considering the constraints on the state of charge (SOC) of the battery and adhering to the schedule established in the Day-Ahead Market (DAM). In fact, if the initial SOC is too low, it is adjusted to fall within the operational range to ensure the operability of the BESS. Additionally, the charging phase following an accepted discharging phase must commence within two hours after the discharge. This ensures that the battery capacity is available throughout the day, allowing for multiple discharging phases to occur.

For each hour, the arbitrage opportunity is identified by maximizing the spread between the average price during the discharge period and the bid price during the charging period, which must occur within two hours of the discharge period, ensuring that the operations defined on the DAM do not overlap. For the selected hour, a sell bid is submitted, and the probability of its acceptance is evaluated using the previously defined DL Tool. If the bid is accepted, the Battery Energy Storage System (BESS) begins the discharge phase, considering the available energy and system capacity. Simultaneously, a charge offer is accepted from the order book, assuming it is reasonable to accept an offer at an average price, and, at the identified hour, the SOC is restored to prepare the BESS for further arbitrage opportunities.

The control strategy can be summarized by Algorithm 2.

Algorithm 2 XBID Market Energy Arbitrage

$\mathrm{Input}: {\mathrm{P}}_{\mathrm{nom}}, {\mathrm{E}}_{\mathrm{nom}}, {\mathrm{SOC}}_{\mathrm{initial}}, {\mathrm{SOC}}_{\max }, {\mathrm{SOC}}_{\min }, {\mathrm{Cycles}}_{\max }, {\mathsf{\eta }}_{\mathrm{BESS}}, {\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}\mathrm{s}}_{\mathrm{D}\mathrm{A}\mathrm{M}}^{\mathrm{p}\mathrm{r}\mathrm{e}\mathrm{d}}$$, {\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}\mathrm{s}}_{\mathrm{X}\mathrm{B}\mathrm{I}\mathrm{D}}^{\mathrm{s}\mathrm{t}\mathrm{a}\mathrm{t}\mathrm{s}}$$, {\mathrm{K}\mathrm{D}\mathrm{E}}_{\mathrm{X}\mathrm{B}\mathrm{I}\mathrm{D}}^{\mathrm{o}\mathrm{f}\mathrm{f},\mathrm{s}\mathrm{t}\mathrm{a}\mathrm{t}\mathrm{s}}$ Output: Pcha, Pdis, ProfitXBID ARBITRAGE $\mathrm{while} {\mathrm{E}}_{\mathrm{c}\mathrm{h}\mathrm{a},\mathrm{d}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{y}}$$<{\mathrm{E}}_{\mathrm{c}\mathrm{h}\mathrm{a},\mathrm{d}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{y}}^{\mathrm{m}\mathrm{a}\mathrm{x}}$$\mathrm{and} {\mathrm{E}}_{\mathrm{d}\mathrm{i}\mathrm{s},\mathrm{d}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{y}}$$< {\mathrm{E}}_{\mathrm{d}\mathrm{i}\mathrm{s},\mathrm{d}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{y}}^{\mathrm{m}\mathrm{a}\mathrm{x}}$ and counter < 24 $\mathrm{calculate} {\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{s}\mathrm{p}\mathrm{r}\mathrm{e}\mathrm{a}\mathrm{d}}^{\mathrm{o}\mathrm{p}\mathrm{t}}$ for possible charging/discharging intervals (h < 24, jmax = 2, no charge or discharge from DAM)     for each valid interval i, j do      ${\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{s}\mathrm{p}\mathrm{r}\mathrm{e}\mathrm{a}\mathrm{d}}^{\mathrm{n}\mathrm{e}\mathrm{w}}$$={\overline{\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}}_{\mathrm{o}\mathrm{f}\mathrm{f}}^{\mathrm{s},\mathrm{d},\mathrm{h},\mathrm{i}}\left[\mathrm{i}\right]$$-{\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{b}\mathrm{i}\mathrm{d}}^{\mathrm{s},\mathrm{d},\mathrm{h},\mathrm{i}}$[i + 1 + j]      $\mathrm{if} {\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{s}\mathrm{p}\mathrm{r}\mathrm{e}\mathrm{a}\mathrm{d}}^{\mathrm{n}\mathrm{e}\mathrm{w}}$$> {\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{s}\mathrm{p}\mathrm{r}\mathrm{e}\mathrm{a}\mathrm{d}}^{\mathrm{i}-1}$ and no charging or discharging in the interval       ${\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{s}\mathrm{p}\mathrm{r}\mathrm{e}\mathrm{a}\mathrm{d}}^{\mathrm{o}\mathrm{p}\mathrm{t}}$$={\mathrm{P}\mathrm{r}\mathrm{i}\mathrm{c}\mathrm{e}}_{\mathrm{s}\mathrm{p}\mathrm{r}\mathrm{e}\mathrm{a}\mathrm{d}}^{\mathrm{n}\mathrm{e}\mathrm{w}}$       Index_discharge = i       Index_charge = j Offer Price Decision Mechanism → Offer Price Probability = Model.predict(Offer) Acc_status = random_choice([0, 1], p = [1-Probability, Probability]) if acc_status = 1   if SOCi >= SOCmin + (Pnom/Enom) * 100     Eavail = Pnom   elif SOCi < SOCmin + (Pnom/Enom) * 100 and SOCi > SOCmin     ${\mathrm{E}}_{\mathrm{avail}}=({\mathrm{SOC}}_{\mathrm{i}} – {\mathrm{SOC}}_{\min }) \times {\displaystyle \frac{{\mathrm{E}}_{\mathrm{n}\mathrm{o}\mathrm{m}}}{100}}$   else     Eavail = 0   if Eavail > 0     Pdis[i] = Eavail × ηBESS     discharge[i] = 1     ${\mathrm{E}}_{\mathrm{d}\mathrm{i}\mathrm{s}}^{\mathrm{c}\mathrm{y}\mathrm{c}\mathrm{l}\mathrm{e}}$ = Eavail     ${\mathrm{E}}_{\mathrm{d}\mathrm{i}\mathrm{s},\mathrm{d}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{y}}$ += Eavail   Pcha[j] = Eavail / ηBESS   charge[j] = 1   ${\mathrm{E}}_{\mathrm{c}\mathrm{h}\mathrm{a},\mathrm{d}\mathrm{a}\mathrm{i}\mathrm{l}\mathrm{y}}$ += Eavail   counter += 1

4. Case Studies and Results

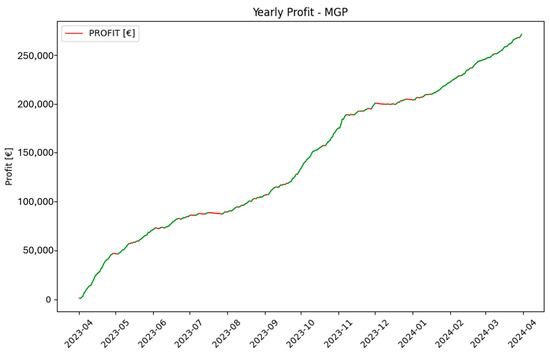

All models and simulations consider the period from 1 April 2023 to 31 March 2024 as the simulation period. Data for zonal prices on DAM, prices and quantities traded on XBID, and public offers on XBID were collected from the GME website [16]. The considered BESS is a utility-scale stand-alone BESS with a nominal power of 10 MW and a nominal capacity of 30 MWh, resulting in an Energy-to-Power Ratio (EPR) of three (Equation (22)), following the model developed by Rancilio et al. [15], as previously introduced.

$$\mathrm{E}\mathrm{P}\mathrm{R}={\displaystyle \frac{{\mathrm{E}}_{\mathrm{n}\mathrm{o}\mathrm{m}}\left[\mathrm{M}\mathrm{W}\mathrm{h}\right]}{{\mathrm{P}}_{\mathrm{n}\mathrm{o}\mathrm{m}}\left[\mathrm{M}\mathrm{W}\right]}}$$

(22)

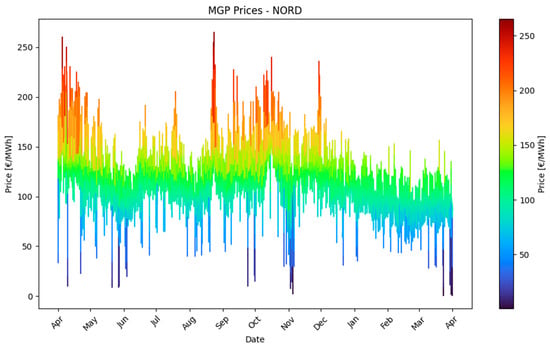

During this simulation period, market behaviors vary notably due to seasonal price fluctuations. Additionally, the average behavior in 2023 differs significantly from that in 2024. This is evident by simply observing the zonal price trends for the NORD electricity area during the simulation period, as depicted in Figure 10.

Indeed, it is easy to observe that in 2023, the average zonal prices for the NORD electrical zone are much higher compared to 2024, specifically at 127.78 EUR/MWh and 92.32 EUR/MWh respectively. These characteristics provide a broader understanding of how the models respond to variations in boundary conditions. Furthermore, the analysis of the data highlights not only significant differences in average prices between 2023 and 2024 but also substantial variations in price volatility and frequency of price spike events. These observations are crucial for understanding how forecasting models and simulations respond to dynamic market scenarios, influencing strategic decisions concerning the optimization of energy resources and long-term risk management.

This study’s fundamental analysis involves evaluating operational and profitability aspects in two main scenarios: the DAM alone and XBID combined with the DAM for SOC restoration. Each scenario is further divided into two cases: one with a negligible LCOS and the other where the LCOS significantly impacts the operational strategy.

For the evaluation of the LCOS, described in Equation (2), the data used are shown in

Table 3. Economic Variables for calculation of the LCOS.

KEY	VALUE	REFERENCE
$\mathrm{C}\mathrm{A}\mathrm{P}\mathrm{E}\mathrm{X}={\mathrm{k}}_{\mathrm{e}}·{\mathrm{E}}_{\mathrm{B}\mathrm{E}\mathrm{S}\mathrm{S}}$	9 MEUR	/
${\mathrm{k}}_{\mathrm{e}}$	300 kEUR/MWh	[28]
$\mathrm{O}\mathrm{P}\mathrm{E}\mathrm{X}$	2% CAPEX in kEUR/MWh/year	[29]
${\mathrm{n}° \mathrm{c}\mathrm{y}\mathrm{c}\mathrm{l}\mathrm{e}\mathrm{s}}_{\mathrm{B}\mathrm{E}\mathrm{S}\mathrm{S}}^{\mathrm{m}\mathrm{a}\mathrm{x}}$	3500	[30]
${\mathrm{n}° \mathrm{c}\mathrm{y}\mathrm{c}\mathrm{l}\mathrm{e}\mathrm{s}}_{\mathrm{B}\mathrm{E}\mathrm{S}\mathrm{S}}^{\mathrm{y}\mathrm{e}\mathrm{a}\mathrm{r}\mathrm{l}\mathrm{y}}$	300

.

Considering these data, the equivalent LCOS is estimated to be equal to 53.14 EUR/MWh.

4.1. Day-Ahead Market—DAM

This study initially focused on the investigation and analysis of DAM simulation and the development and implementation of the Deep Learning (DL) Tool for zonal price prediction. The primary objective was to assess the effectiveness and feasibility of BESS operations in the DAM under varying market conditions and the influence of advanced price prediction methodologies.

4.1.1. Deep Learning P_z Prediction Tool

The hybrid neural network model developed for zonal price (P_z) prediction demonstrates notable improvements over the Persistence Model (D-1), although these enhancements do not fully align with the actual P_z values. The performance of the model was assessed using three primary metrics: Mean Squared Error (MSE), Root Mean Squared Error (RMSE), and the R² factor. These metrics provide a comprehensive understanding of the model’s accuracy and reliability in predicting P_z values.

The Mean Squared Error (MSE) metric served as both the loss function during the training process and a primary evaluation metric for assessing the performance of the hybrid neural network model. The MSE measures the average of the squares of the errors, representing the differences between the predicted and actual zonal price (P_z) values. Lower MSE values indicate a more accurate model as they reflect smaller discrepancies between the predicted outcomes and the actual values.

In this evaluation, the hybrid model achieved an MSE of 326.97, which is lower than the Persistence Model’s MSE of 378.85. This represents a 13.69% improvement, underscoring the hybrid model’s effectiveness. This substantial reduction in MSE can be attributed to several key factors. Firstly, the hybrid model leverages a comprehensive set of features, including historical P_z prices, meteorological data, gas prices, and the Global Horizontal Irradiance (GHI) index. This extensive feature set allows the model to capture the complex interactions and dependencies that influence zonal prices, leading to more accurate predictions. The continuous learning process ensures that the model remains relevant and effective, even as market conditions evolve. Despite these improvements, the remaining MSE of 326.9744 indicates that there is still room for further enhancement of the model’s accuracy. While the hybrid architecture improves prediction accuracy, increasing the model’s complexity can also lead to overfitting, where the model performs well on training data but less effectively on unseen data. Furthermore, zonal prices are influenced by a wide range of external factors, including regulatory changes, geopolitical events, and economic conditions, which may not be fully captured by the model.

The Root Mean Squared Error (RMSE) offers an interpretable measure of the prediction errors. The hybrid model’s RMSE was 18.08, while the Persistence Model’s RMSE was 19.46, reflecting a 7.1% improvement. Despite this reduction in prediction errors, the deviations between the predicted and actual values indicate that the model’s predictions are not yet perfectly accurate. The slightly better performance of the hybrid model is shown in Figure 11.

The R² factor, representing the proportion of the variance in the dependent variable that is predictable from the independent variables, further validates the model’s performance. The hybrid model achieved an R² of 0.624, compared to the Persistence Model’s R² of 0.5643, indicating a 10.58% improvement. While the higher R² value demonstrates that the hybrid model captures more of the underlying patterns and temporal dynamics in the data, the gap between the model predictions and actual values suggests that some variance remains unexplained.

The hybrid model consistently outperformed the Persistence Model across all evaluation metrics, as seen in

Table 4. Metrics Evaluation of P_z Prediction Tool.

PREDICTION TOOL vs. PERSISTENT STRATEGY Performances
	MSE	RMSE	R2
DL Tool	326.97	18.08	0.62
Persistence Strategy	378.85	19.46	0.56
Improvement	+13.69%	+7.1%	+10.58%

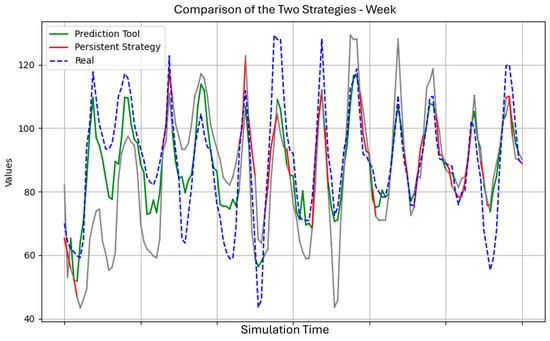

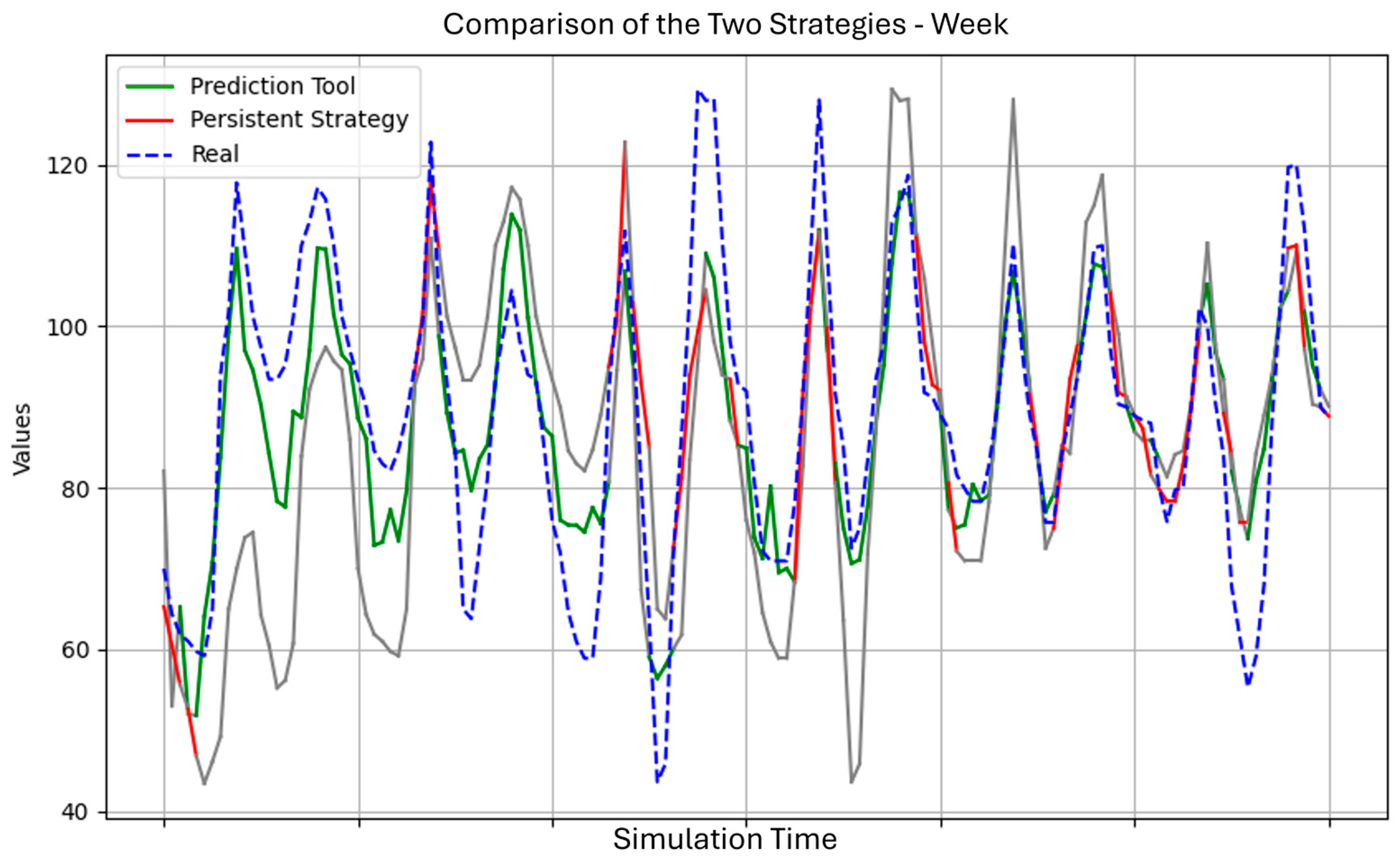

. An example of comparison is given in Figure 12.

The significant reduction in MSE and RMSE values highlights the enhanced predictive capability of the hybrid model. Additionally, the higher R² values indicate that the hybrid model provides a better fit to the data, capturing more variance and offering more accurate predictions. However, the improvements, while significant, do not completely align the predicted values with the actual P_z values, indicating that further refinement is necessary.

The results obtained from the hybrid neural network model have several important implications for energy market forecasting and decision-making. The inclusion of meteorological data, such as temperature, precipitation, and wind speed, significantly enhances the model’s predictive accuracy. These factors, which influence energy demand and supply, are crucial for accurate P_z predictions. The model’s ability to integrate and learn from these diverse data sources underscores its comprehensive approach to forecasting.

Another significant insight from the analysis is that while the DL model does not perfectly predict the exact zonal price values, it identifies trends and price peaks on the DAM. The peaks are crucial for devising an effective arbitrage strategy on the DAM. Indeed, the price predictions will be used to define the charging/discharging times of the BESS, while the bid price will not be influenced by the price model. This is better clarified in the following section.

4.1.2. Energy Arbitrage Strategies

To analyze the scenarios on the DAM, the energy purchased and sold during the simulation period was examined along with the resulting cycles completed within the same period. Additionally, the profits generated were considered, also considering any energy purchases required to meet the power demanded by auxiliaries in cases where the SOC was insufficient.

To provide a more comprehensive financial analysis, we introduce Net Present Value (NPV) analysis for the scenarios under discussion. This metric is used to evaluate the profitability of the investment and represents the difference between the present value of cash inflows and the present value of cash outflows over the service life of the BESS. NPV is a widely used tool in capital budgeting and investment planning because it accounts for the time value of money, allowing for the comparison of different investment scenarios. NPV can be calculated using Equation (23):

$$NPV=-CAPEX+{\sum }_{i=1}^{SL}\left({\displaystyle \frac{Revenues\left[\frac{\mathrm{€}}{year}\right]-OPEX}{{(1+i)}^t}}\right)$$

(23)

where:

$\mathrm{S}\mathrm{L}:$	$\mathrm{It} \mathrm{is} \mathrm{the} \mathrm{service} \mathrm{life} \mathrm{of} \mathrm{the} \mathrm{BESS} \mathrm{and} \mathrm{can} \mathrm{be} \mathrm{calculated} \mathrm{as} SL={\displaystyle \frac{{n° cycles}_{BESS}^{max}}{{n° cycles}_{BESS}^{yearly}}}$
$\mathrm{i}:$	It is the discount rate, considered fixed and hypothesized to be 5% [28].

As previously mentioned, the two cases analyzed were:

• Negligible LCOS: LCOS = 0
• Significant LCOS: LCOS = 53.14 EUR/MWh

The initial conditions were kept constant for both scenarios and are summarized in

Table 5. Initial Conditions for DAM Simulations.

	CASE A	CASE B
Simulation Period	From 1 April 2023 to 31 March 2024
Pnom	10 MW
Enom	30 MWh
SOCmin	5%
SOCmax	95%
SOCinitial, 0	5%
LCOS	0 EUR/MWh	53.14 EUR/MWh

below.

The two simulations yielded significantly different results, highlighting the substantial impact of the LCOS on DAM market strategy. Specifically, the profits decreased by 92.86% due to the effect of the LCOS. This is shown in

Table 6. DAM CASE A.

CASE A
Operative Days	313
${\mathrm{E}}_{\mathrm{b}\mathrm{u}\mathrm{y}}^{\mathrm{y}\mathrm{e}\mathrm{a}\mathrm{r}\mathrm{l}\mathrm{y}}$	13,434.87 MWh
${\mathrm{E}}_{\mathrm{s}\mathrm{e}\mathrm{l}\mathrm{l}}^{\mathrm{y}\mathrm{e}\mathrm{a}\mathrm{r}\mathrm{l}\mathrm{y}}$	11,438.03 MWh
N° Total Cycles	414.55
${\mathrm{P}\mathrm{R}\mathrm{O}\mathrm{F}\mathrm{I}\mathrm{T}}_{\mathrm{t}\mathrm{o}\mathrm{t}}^{\mathrm{y}\mathrm{e}\mathrm{a}\mathrm{r}\mathrm{l}\mathrm{y}}$	271,085.25 EUR/year

and

Table 7. DAM CASE B.

CASE B
Operative Days	42
${\mathrm{E}}_{\mathrm{b}\mathrm{u}\mathrm{y}}^{\mathrm{y}\mathrm{e}\mathrm{a}\mathrm{r}\mathrm{l}\mathrm{y}}$	1918.92 MWh
${\mathrm{E}}_{\mathrm{s}\mathrm{e}\mathrm{l}\mathrm{l}}^{\mathrm{y}\mathrm{e}\mathrm{a}\mathrm{r}\mathrm{l}\mathrm{y}}$	1348.6 MWh
N° Total Cycles	54.46
${\mathrm{P}\mathrm{R}\mathrm{O}\mathrm{F}\mathrm{I}\mathrm{T}}_{\mathrm{t}\mathrm{o}\mathrm{t}}^{\mathrm{y}\mathrm{e}\mathrm{a}\mathrm{r}\mathrm{l}\mathrm{y}}$	19,359.36 EUR/year

.

This decrease with the introduction of the LCOS constraint is primarily attributable to the zonal price trends on the DAM, which do not present favorable conditions for battery application. During the simulation period, the average daily spread between the highest and lowest prices was 70.9 EUR/MWh, with peaks of 159.44 EUR/MWh on 22 April 2023 and a low of 9.48 EUR/MWh on 12 November 2023. This trend is even more pronounced when considering price trends in 2024, where the average spread reaches only 54.94 EUR/MWh. The reduced profitability under the LCOS constraint underscores the critical influence of price volatility on the economic viability of battery storage in the DAM market. Furthermore, a high number of inactive days increases the relevance of auxiliaries’ power on the profit loss; this can be seen in Figure 13 and Figure 14.

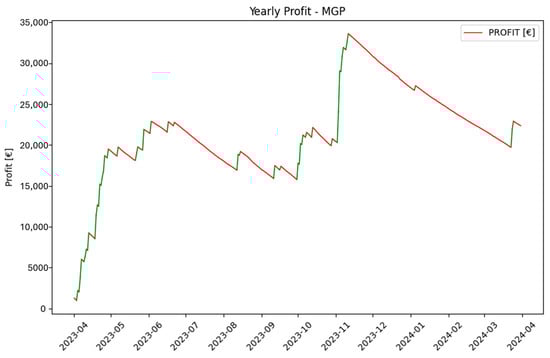

In these graphs, the red lines represent sessions where the profit is negative, clearly illustrating the aforementioned trend.

The resulting NPV, −8.4 MEUR for Case A and −10.03 MEUR for Case B, is widely negative and demonstrates the unprofitability of energy arbitrage on the DAM with the considered prices. This is due to the limitations caused by low volatility in DAM zonal prices, as the discounted revenues and operating costs do not cover the initial investment in the battery.

This led to the exploration of new revenue opportunities in the Intra-Day market, particularly with a focus on XBID.

4.2. Intra-Day Market—XBID

The Intra-Day market, and more specifically the XBID market, presents a promising alternative for generating revenue. The XBID market allows for continuous trading and takes advantage of real-time price fluctuations, providing opportunities to capitalize on higher price volatility. This market’s Pay-As-Bid remuneration system further enhances the potential for profitability, as it enables more strategic bidding and better alignment of revenues with the actual market conditions.

4.2.1. Comprehensive Statistical Analysis

The Intra-Day Market has established itself as a crucial tool for operators in planning their production schedules, reaching an all-time high in traded volumes in 2023 (29.1 TWh, up by 3.1 TWh from 2022). As in 2022, these trades were mainly concentrated in auction trading (22.3 TWh, up by 0.4 TWh from 2022), particularly in the MI-A1 segment. However, it was the XBID market that drove overall growth, with over 3.5 million matched trades (more than double from 2022) and nearly 6.8 TWh traded (up by 2.8 TWh). Within the Intra-Day Market, XBID has become the second most liquid segment, accounting for 23% of the total volume (up by eight percentage points). Regarding the different zones, the modest increase in auction trading volumes was concentrated in both purchasing and selling in the North, which remains the most significant zone in terms of traded quantities, and in the Central North. On the other hand, XBID saw substantial growth on both sides of the market across all zones.

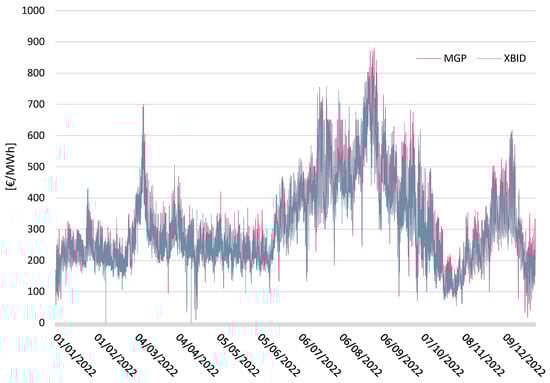

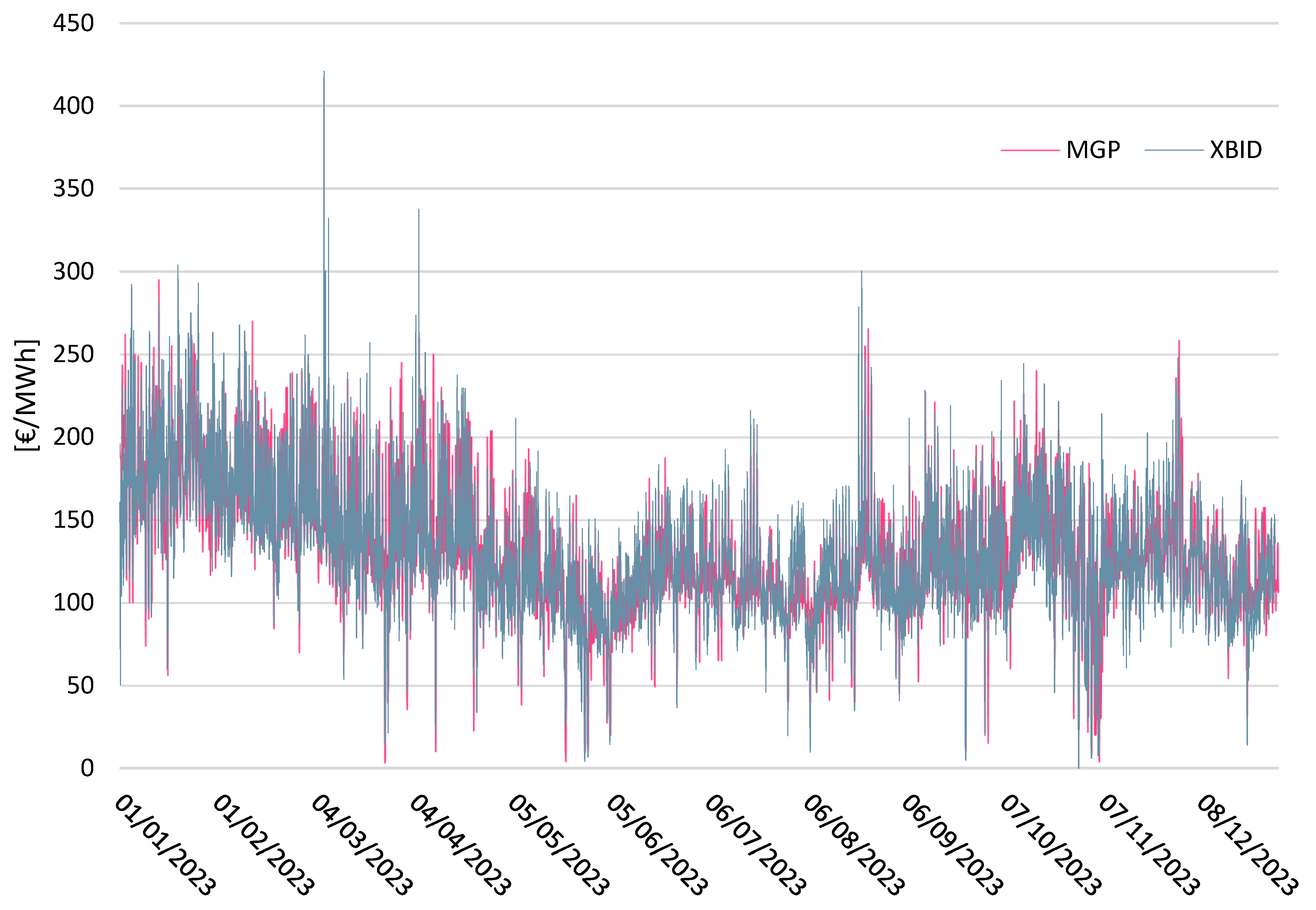

The dynamics and average global price levels on XBID are consistent with those observed on the DAM, as shown in Figure 15 and Figure 16.

However, more interesting results that can leverage the potential of this market can be observed by examining the variance in accepted prices. By considering the classification described in Section 3.3.1 and focusing on the year 2023, which is more useful for simulation purposes and more representative compared to 2022 (which shows abnormal trends), the results are shown in Figure 17.

From this initial analysis, it is evident that the variance already suggests additional earning potential. Furthermore, the analysis indicates that, in all examined cases, the most optimal submission intervals to exploit this advantage are (0, 2] and (2, 4] hours. These intervals consistently show higher deviations, with peaks of up to EUR 80, compared to other intervals, indicating greater price volatility. In the context of energy arbitrage, particularly for a BESS, this represents a significant opportunity. For further confirmation of this opportunity, the probabilities of acceptance based on the deviation from the average price were also analyzed.

From the analysis conducted, it emerged that, due to statistical gaps, this acceptance prediction mechanism is unusable in a realistic simulation. Therefore, the price distributions of accepted offers are constructed to serve as a tool for the bidding price decision mechanism. These distributions are created for each hour based on the previously introduced classification and are reported in Figure 18 (for simplicity, they are shown only for hour 12 of each category).

This statistical analysis is an important baseline for future detailed analysis.

4.2.2. Deep Learning Acceptance Probability Prediction Tool

This Deep Learning Acceptance Probability Prediction Tool was developed to address the limitations identified in the statistical analysis described in Section 4.2.1. This tool leverages deep learning techniques to overcome these limitations and achieve a more accurate prediction of acceptance probability.

The training process reveals good performance, and it is evident from the results (Figure 19) that the model does not suffer from overfitting. This favorable outcome can be attributed to the incorporation of batch normalization and dropout layers in the neural network architecture. Batch normalization helps in stabilizing and accelerating the training process by normalizing the input layer by adjusting and scaling the activations. Dropout layers, on the other hand, prevent overfitting by randomly dropping units during the training process, ensuring that the network does not become overly reliant on specific nodes and promoting generalization.

The evaluated metrics are reported in

Table 8. Model Metrics.

Model Performance Metrics Performances
Accuracy	Precision	Recall	F1-Score
0.81	0.58	0.57	0.58

. To ensure a comprehensive view of the model’s performance, the evaluation of the Area Under the ROC Curve (AUC) is added [31]. The ROC or Receiver Operating Characteristic curve plots the true positive rate against the false positive rate at various threshold settings, and its result is shown in Figure 20.

The evaluation metrics reveal a mixed performance of the neural network. The accuracy of 0.81 is relatively high, suggesting good overall performance. However, the precision of 0.58 and recall of 0.57 are moderate, indicating potential issues with false positives and false negatives, respectively. The F1-Score of 0.58 reflects a balance but also highlights that there is room for improvement in both precision and recall. Notably, the AUC value of 0.91 is very high, indicating that the model performs exceptionally well in distinguishing between the classes. This suggests that while the threshold for classification might need adjustment to improve precision and recall, the underlying model has a strong capacity for classification.

In conclusion, while the neural network demonstrates promising capabilities, particularly in its discrimination power, further refinements are necessary to enhance precision and recall. These adjustments will ensure a more robust performance across various scenarios, ultimately improving the model’s reliability and effectiveness in practical applications.

4.2.3. XBID Arbitrage Strategy

Similarly to the DAM simulation, two scenarios are considered and the initial conditions for both scenarios are provided in

Table 9. Initial Conditions for XBID.

	CASE C	CASE D
Simulation Period	From 1 April 2023 to 31 March 2024
Pnom	10 MW
Enom	30 MWh
SOCmin 1	5%
SOCmax 1	95%
SOCinitial,	50%
LCOS	0 EUR/MWh	53.14 EUR/MWh

¹ SOC_min and SOC_max are introduced to avoid trespassing the BESS’ capability limits.

.

In XBID simulations, the energy acquired to satisfy auxiliary power demand is considered as being bought on the DAM to ensure the satisfaction of the overall system’s energy requirements. By treating auxiliary power as a separate purchase on the DAM, the simulation can accurately reflect real-world conditions, providing a more realistic assessment of the system’s performance and potential market impacts.

The two scenarios’ simulations provided the results described in

Table 10. XBID Case C.

CASE C
Operative Days	366
${\mathrm{E}}_{\mathrm{b}\mathrm{u}\mathrm{y}}^{\mathrm{y}\mathrm{e}\mathrm{a}\mathrm{r}\mathrm{l}\mathrm{y}}$	8691.41 MWh
${\mathrm{E}}_{\mathrm{s}\mathrm{e}\mathrm{l}\mathrm{l}}^{\mathrm{y}\mathrm{e}\mathrm{a}\mathrm{r}\mathrm{l}\mathrm{y}}$	7436.59 MWh
N° Total Cycles	268.8
${\mathrm{P}\mathrm{R}\mathrm{O}\mathrm{F}\mathrm{I}\mathrm{T}}_{\mathrm{t}\mathrm{o}\mathrm{t}}^{\mathrm{y}\mathrm{e}\mathrm{a}\mathrm{r}\mathrm{l}\mathrm{y}}$	2,188,421.27 EUR/year

and

Table 11. XBID Case D.

CASE D
Operative Days	366
${\mathrm{E}}_{\mathrm{b}\mathrm{u}\mathrm{y}}^{\mathrm{y}\mathrm{e}\mathrm{a}\mathrm{r}\mathrm{l}\mathrm{y}}$	8702.8 MWh
${\mathrm{E}}_{\mathrm{s}\mathrm{e}\mathrm{l}\mathrm{l}}^{\mathrm{y}\mathrm{e}\mathrm{a}\mathrm{r}\mathrm{l}\mathrm{y}}$	7446.33 MWh
N° Total Cycles	269.15
${\mathrm{P}\mathrm{R}\mathrm{O}\mathrm{F}\mathrm{I}\mathrm{T}}_{\mathrm{t}\mathrm{o}\mathrm{t}}^{\mathrm{y}\mathrm{e}\mathrm{a}\mathrm{r}\mathrm{l}\mathrm{y}}$	226,517.09 EUR/year

below.

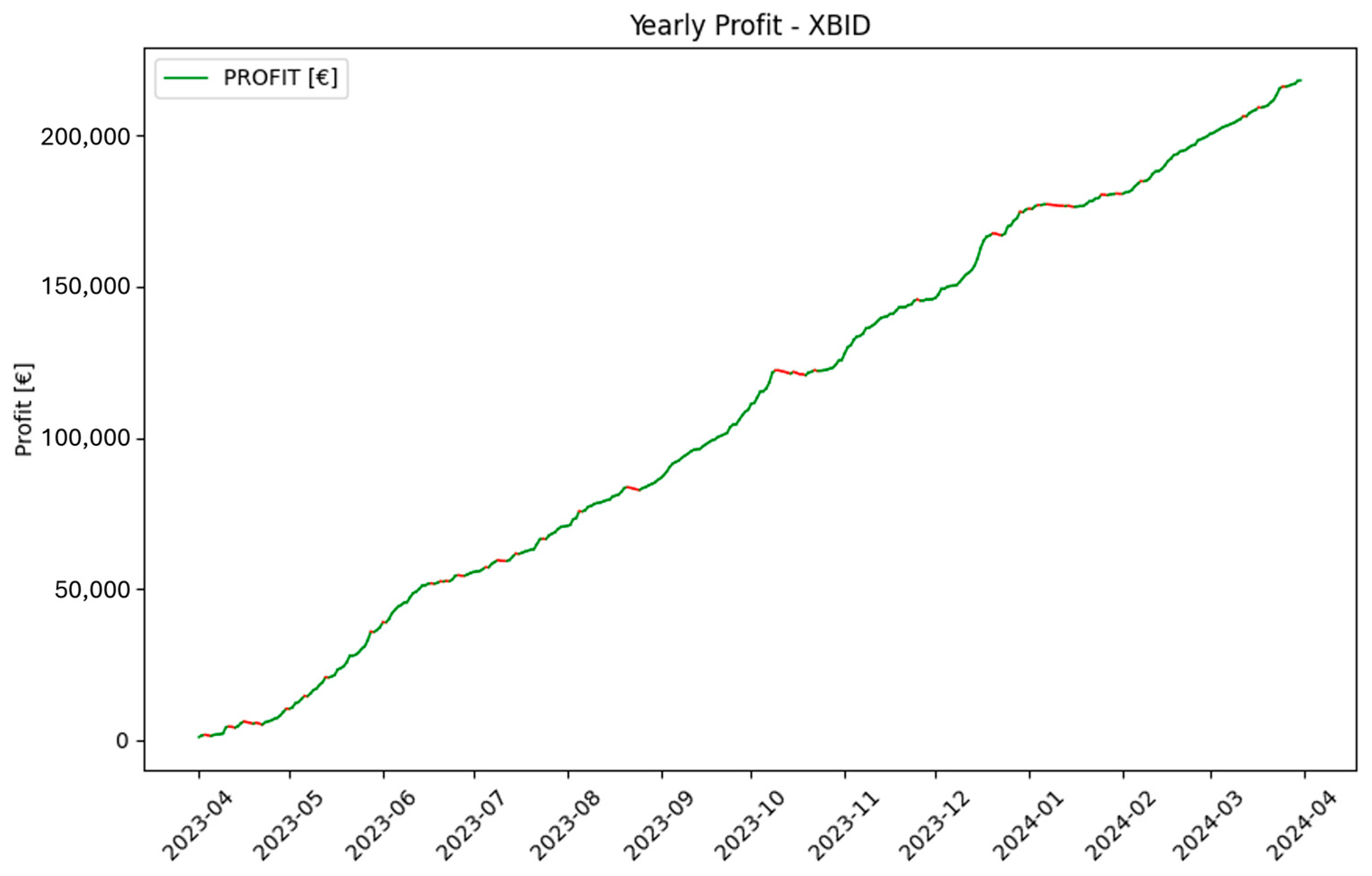

In comparison to the findings for the DAM, there is an immediately noticeable increase in the number of active days in both scenarios, which span the entire simulation period. This extended activity period results in a substantial increase in the traded volumes. Consequently, the annual cycles rise significantly, reaching 268.8 and 269.15, respectively. Moreover, unlike the results observed for the DAM, it appears that the most profitable scenario is Case D, where the LCOS is not negligible. The primary reason for the higher profitability in Case D is attributed to the greater risk assumed in this scenario. By taking on higher risks, the scenario leverages the potential for higher returns, resulting in a considerably higher profit margin. The Revenues from the two scenarios are represented in Figure 21 and Figure 22.

However, the NPVs resulting from Case C and Case D are, respectively, −8.53 MEUR and −8.54 MEUR. The persistent negative NPVs in both scenarios indicate that the project is still not financially feasible under the given conditions. These results can partly be explained by a very conservative bidding strategy in both cases, which tends to optimize the probability of acceptance with a minimal profit-risk factor. This cautious approach, while increasing the likelihood of bid acceptance, significantly impacts the project’s overall profitability.

To address this, a sensitivity analysis of the bid price was conducted by increasing the risk factor to evaluate its impact and the opportunities it opens for optimizing the bidding strategy on XBID. The analysis aimed to find a balance between bid acceptance probability and potential profitability. By adjusting the risk factor, we explored various scenarios to determine how higher bid prices could improve the financial outlook of the project.

Bid Price Sensitivity Analysis

The analysis considered five different scenarios to evaluate the impact of varying bid prices. The first scenario, referred to as the base case (Case D), served as a benchmark for comparison. In the subsequent scenarios, the selling bids on XBID were incrementally increased by one to five LCOS, respectively. By systematically increasing the bid prices, the analysis aimed to understand the influence of higher bid levels on the overall bidding strategy. This incremental approach allowed us to observe the corresponding changes in bid acceptance probabilities and potential profitability across different price points. The base case provided a reference point to measure the deviations and improvements observed in the other scenarios.

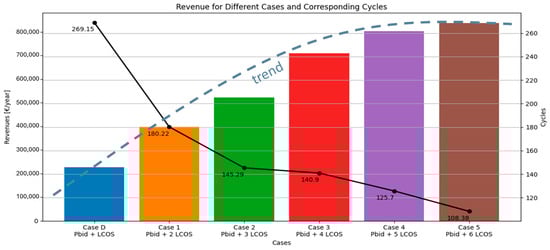

The results of the sensitivity analysis (

Table 12. Sensitivity Analysis Results.

Sensitivity Analysis Results
	CASE D	CASE 1	CASE 2	CASE 3	CASE 4	CASE 5
Operative Days	366	366	366	366	366	366
${\mathrm{E}}_{\mathrm{b}\mathrm{u}\mathrm{y}}^{\mathrm{y}\mathrm{e}\mathrm{a}\mathrm{r}\mathrm{l}\mathrm{y}}$	8702.8 MWh	5827.24 MWh	4697.76 MWh	4555.8 MWh	4064.34 MWh	3504.36 MWh
${\mathrm{E}}_{\mathrm{s}\mathrm{e}\mathrm{l}\mathrm{l}}^{\mathrm{y}\mathrm{e}\mathrm{a}\mathrm{r}\mathrm{l}\mathrm{y}}$	7446.33 MWh	4985.94 MWh	4019.52 MWh	3898.05 MWh	3477.55 MWh	2998.42 MWh
N° Total Cycles	269.15	180.22	145.29	140.9	125.7	108.38
${\mathrm{P}\mathrm{R}\mathrm{O}\mathrm{F}\mathrm{I}\mathrm{T}}_{\mathrm{t}\mathrm{o}\mathrm{t}}^{\mathrm{y}\mathrm{e}\mathrm{a}\mathrm{r}\mathrm{l}\mathrm{y}}$	226,517.09 EUR/year	396,822.9 EUR/year	522,604.39 EUR/year	710,443.95 EUR/year	803,124.87 EUR/year	838,510.4 EUR/year
NPV	−8.54 MEUR	−6.3 MEUR	−4.17 MEUR	−1.52 MEUR	0.28 MEUR	1.54 MEUR

) reveal a clear and consistent trend. As the bid price increases, there is a noticeable reduction in the amount of energy both bought and sold on the XBID market, with a subsequent reduction in the number of operational yearly cycles, from 269.15 in Case D to 108.38 in Case 5. This trend indicates that higher bid prices result in fewer transactions and less frequent cycling of the storage system. The reduction in operational activity can be attributed to the less frequent engagement of the system in the market at higher price points, as higher prices reduce the likelihood of bid acceptance. However, despite the decrease in operational activity, there is a significant increase in profitability with each increment in the bid price. This is evidenced by the substantial rise in total yearly profit and the improvement in NPV, as the yearly profit grows from EUR 227 k for Case D to EUR 839 k, as shown in Figure 23, and NPV improves from −8.54 MEUR to +1.54 MEUR.

These results highlight that while higher bid prices reduce the volume of energy traded and the number of operational cycles, they significantly enhance the financial outcomes of the project. This is likely due to the higher revenue per unit of energy sold, which outweighs the reduction in volume. Consequently, this analysis suggests that adopting a strategy with higher bid prices can make the project more economically viable. By optimizing the bid price, the project can achieve a better balance between operational activity and profitability, ensuring a positive financial return and a sustainable business model in the competitive XBID market.

5. Conclusions and Future Work

This research has developed multiple tools and strategies aimed at modeling an efficient approach to operating within the Italian Wholesale Market. The primary focus has been on analyzing the feasibility and profitability of BESS operations in various scenarios.

First and foremost, the study reveals that the Intra-Day Market, particularly XBID, offers significant opportunities to exploit the arbitrage capabilities of a battery. The transition from a strategy centered solely on the DAM (Case A and Case B) to a strategy centered on XBID (Case C and Case D) demonstrates a remarkable increase in potential annual earnings—from EUR 19,359.36/year to EUR 226,517.09/year. The first key finding is the complete unprofitability of the DAM due to its price distribution and spreads. Additionally, the results highlight the fundamental impact of the Bid Price Decision Mechanism on the economic performance of the battery. Optimal scenarios emerge when considering an elevated risk factor (moving from Case 1 to 5), which shows high yearly earnings and an increase in NPV. In fact, Cases 4 and 5 are the only scenarios with sufficient profitability, resulting in a positive NPV (0.28 and 1.54 MEUR), making these strategies the only economically viable ones. Increasing the risk factor further could potentially lead to enhanced outcomes, such as higher profits and greater returns on investment. However, it also reduces the acceptance probability of bids, thereby exposing battery operations to higher levels of uncertainty. As a result, while the potential for greater rewards exists, the risks associated with these scenarios could outweigh the benefits, making the operations less stable and predictable. It is worth noting that the analysis was carried out on the northern zone of the Italian electricity market, which shows historically lower price spreads due to lower RES penetration. This was a cautious selection for testing the control strategies on a harsher framework. Better results could be achieved by locating the BESS in southern Italy or in other Member States.

Looking at the strategies developed for BESS operations, the study reveals that they heavily depend on the efficiency and accuracy of the predictive models introduced. Two key models analyzed in the study are the P_z Prediction Tool and the Acceptance Probability Prediction Tool. This modeling suite can be adopted by BESS managers for both the planning and operation of new assets, since it allows, on one side, estimation of the behavior of the BESS over a long period, even considering market uncertainties. On the other hand, this means that it is possible to fine-tune the control strategy to improve revenue. This comment has been added to the conclusions. The findings indicate that these tools, while capable of outperforming basic strategies, still require further investigation and refinement. The P_z Prediction Tool has shown promise in enhancing decision-making processes for battery operations. Similarly, the Acceptance Probability Prediction Tool aims to predict the likelihood of bid acceptance, thereby optimizing bidding strategies. However, both tools have limitations that need to be addressed to maximize their effectiveness. Further refinement of these predictive models could involve incorporating more comprehensive data sets, improving algorithmic accuracy, and conducting extensive testing across different market conditions. By enhancing these models, the strategies for BESS operations can become more robust, leading to increased profitability and reduced risk. Given the shared market design at the European level, the considered electricity markets are common to the EU; therefore, the proposed study is replicable for all EU Member States, subject to data availability.

In future research, market models incorporating quarter-hourly products could be developed to align with the new regulations set to be introduced in the Italian electricity market in 2025 [17]. This shift is significant, as the current study has focused solely on hourly products. By adopting quarter-hourly products, market participants could potentially capitalize on the increased granularity and precision in trading.

The introduction of quarter-hourly products is expected to enhance the ability to exploit the continuous trading market and its inherent price volatility. Furthermore, future simulations could explore a hybrid strategy that engages in arbitrage across both major spot markets, potentially capitalizing on the optimal operational windows of each. This is how operators manage the BESS today, with a revenue-stacking logic: the industrial verification of the elaborate control strategies could be included in further works. Additionally, implementing an aging model for studying the impact of aging induced by each cycle on the bidding strategy could improve price selection with respect to using the LCOS.

It is worth noting that, in recent years, new awareness has arisen of the pivotal role of energy storage system deployment. This led governments to propose mechanisms to assure stable and sufficient remuneration for fostering new projects. Another future development could involve integrating the entire process of market participation into the model, including these long-term agreements such as the new mechanism for procurement of storage capacity (MACSE—Meccanismo di Approvvigionamento di Capacità di Stoccaggio Elettrico), which the spot market has already considered, and ASM, using a revenue-stacking approach. This holistic approach would provide a comprehensive view of market dynamics and enhance the strategy’s ability to optimize across multiple market segments, thereby potentially increasing profitability and operational efficiency for BESS operations.
