Small Wind Technology Diffusion in Suburban Areas of Sicily

Abstract

Among renewable energy resources, wind energy became more attractive in the last decade. Wind farm installations dramatically increased in areas where climatic conditions, topography, and environment have allowed their development. The installation of wind turbines, usually carried out in remote areas, recently began to cover areas identified by a complex terrain such as urban and suburban zones. Although these new plant choices are characterized by lower productivity, there is increasing interest in wind energy production in both urban and suburban areas. In this work the authors have carried out an energy analysis developed from a sample of small wind turbines available on the market. This study shows how variable the energy production of a small wind turbine can be according to many design and context parameters: wind profiles, installation height, land use, and characteristics of the turbine.

1. Introduction

In the last years, due to the boom of renewable energy, the attention researchers have paid to wind power has had a rapid increase. The knowledge of the wind system in a site is crucial for exploiting wind energy. Many studies, reported in the literature, have focused on the estimation of the potential of wind power in different parts of the world and concern the calculation of wind speed frequency distribution [1,2,3,4,5]. In the literature are also present others studies focused on extrapolation of the vertical profile of wind speeds. However, these articles have focused on large-scale turbines and few are the examples on the potential of wind energy production in urban and suburban areas. As is well known, wind energy can be used not only in large systems but also in small installations [6,7]. Thanks to advances in this technology, and to the recent introduction of specific economic incentives, these systems of power generation are showing a real opportunity to grow. However, the efficacy of an energy policy based on the use of these systems is not possible without a preliminary analysis of the sites aimed at addressing the use of financial resources instead of sites characterized by good energetic potential [8,9,10]. The choice and location of a small turbine in a place where air velocity may be strongly influenced by the presence of natural or artificial obstacles is not an easy task. Reliable evaluation of the energy production requires good information about wind and site characteristics. The aim of this study is to present an energy analysis developed from a set of small-scale turbines available on the market be inserted in the suburban areas of Sicily.

2. Italian Regulatory Framework

The first norms suitable for regulatory authorization procedures for the encouragement of systems to produce electricity from small wind turbines (power systems less than or equal to 200 kW), were introduced in Italy with the Financial Law 2008 and the Ministerial Decree, dated 18 December 2008, on incentives of electricity generation from renewable sources. By the establishment of regional energy plans and documents of territorial planning, the Financial Law 2008 refers to the regional wind power regulating the opportunity to decide the sites in which it is possible to build wind farms and regulate the size of the system, requiring a procedure for environmental impact assessments. The Italian legislation provides that the systems in size up to 60 kW, installed in areas in which there is no Special Protection Area or Sites of Community Importance is authorized by a simple declaration of the opening activity (DIA) by the municipality that it located near the installation site. For systems over 60 kW, or if the installation is in proximity of protected areas, the regions and provinces established the need to perform an environmental impact assessment process in order to obtain the necessary qualifying title: DIA/Unique Authorization. For lines from 6 MW partner for the practice of connecting is the local power distributor who, after doing an inspection, must agree to connect according to the electrical standards of the wind turbine. The local distribution company must also provide the details of expenditures to be incurred during the authorization process and for any works to be carried out in order to adjust the network connection. The Finance Law indicates the incentive recognized for systems between 1 kW and 200 kW, in the form of the Energy Account, is 300 €/MWh for energy produced and fed into the network (in low or medium voltage). This incentive, comprehensive of quota sale, replaces the green certificate (GC), which was not always advantageous. The GC should be treated as a title on the appropriate market and it is often realized at a figure less than the nominal value. The opportunities offered by the new Italian regulatory framework allow one to address greater attention to a potential market of larger size compared to what was done until today and promised a significant spread of wind turbines to small and medium size until now neglected. It is assumed that this will lead to reduced costs of industrial development, distribution and greater competitiveness of the technology.

3. Small Wind Turbines Available on the Market

Wind turbines convert the kinetic energy in the wind into mechanical power [11]. It consists of a certain number of blades (usually three) fixed to a crankshaft. There are two kinds of wind turbines, the vertical axis wind turbine (VAWT) and the horizontal axis wind turbine (HAWT). The small horizontal axis turbines have benefited from the advancements made by machines of larger size. Generally, the smaller turbines are fixed blades and regulated for tilt or yaw, while the slightly larger sizes are often equipped with control systems for pitch control [12]. The VAWT, helped by a low environmental impact, are better adapted to be installed near residential and urban areas because they have lower start-up speed and low noise levels. These are also appropriate to be installed in areas with strong winds; the VAWT are indifferent to wind direction.

In this paper will be analyzed a set of wind turbines (horizontal and vertical axis) subdivided into six size classes (0.5–1.8 kW class, 2–3.5 kW class, 5–6 kW class, 10–12.5 kW class, 15–17.5 kW class, and 20–25 kW class). The models considered are shown in Table 1 and data sheets are available on the producers’ websites. The total number of analyzed products (wind turbines) is 14.

As an example, Table 2 summarizes the technical data for the Soma 1000 turbine shown in Figure 1 and has a power curve represented in Figure 2.

Table 1. Set of wind turbines subdivided into power class.

Power Classes	Wind Turbine Model	Producers
Class 0.5–1.8 kW	Soma 1000—1 kW (HAWT)	Sunrise Solar
	Windspire 1.2 G—1.2 kW (VAWT)	Mariah Power
Class 2–3.5 kW	Inclin 3000—3 kW (HAWT)	J. Bornay
	Windfox—3 kW (HAWT)	Italkero s.r.l
	WindRotor WRE.030—3 kW (VAWT)	Ropatek
	Cleanfield—3.5 kW (VAWT)	Cleanfield Energy
Class 5–6 kW	EasyWind 6 AC—6 kW (HAWT)	Conergy
	Maxy Vertical Wre 0.62—6 kW (VAWT)	Ropatec
Class 10–12.5 kW	BWC Excel-S—10 kW (HAWT)	Bergey Windpower
	Windpower Gyro—10 kW (VAWT)	Four Seasons Windpower
Class 15–17.5 kW	WT 15000—15 kW (HAWT)	Proven Energy Ltd
	Baywinds 24–15—15 kW (HAWT)	Baywinds
Class 20–25 kW	FL—20 kW (HAWT)	Flexyenergy
	Big Star Vertical—20 kW (VAWT)	Ropatek

Table 1. Set of wind turbines subdivided into power class.

Power Classes	Wind Turbine Model	Producers
Class 0.5–1.8 kW	Soma 1000—1 kW (HAWT)	Sunrise Solar
	Windspire 1.2 G—1.2 kW (VAWT)	Mariah Power
Class 2–3.5 kW	Inclin 3000—3 kW (HAWT)	J. Bornay
	Windfox—3 kW (HAWT)	Italkero s.r.l
	WindRotor WRE.030—3 kW (VAWT)	Ropatek
	Cleanfield—3.5 kW (VAWT)	Cleanfield Energy
Class 5–6 kW	EasyWind 6 AC—6 kW (HAWT)	Conergy
	Maxy Vertical Wre 0.62—6 kW (VAWT)	Ropatec
Class 10–12.5 kW	BWC Excel-S—10 kW (HAWT)	Bergey Windpower
	Windpower Gyro—10 kW (VAWT)	Four Seasons Windpower
Class 15–17.5 kW	WT 15000—15 kW (HAWT)	Proven Energy Ltd
	Baywinds 24–15—15 kW (HAWT)	Baywinds
Class 20–25 kW	FL—20 kW (HAWT)	Flexyenergy
	Big Star Vertical—20 kW (VAWT)	Ropatek

Table 2. Technical data for turbine Soma 1000.

Wind Turbine	Technical Data
Soma 1000—1 kW (HAWT)	Nominal Power	1 Kw
	Numbers. Blades and material,	2, fiberglass
	Rotor diameter	2.7 m
	Cut-in wind speed	3.5 m/s
	Cut-off wind speed	50 m/s
	Rated wind speed	10 m/s
	Security wind speed	50 m/s
	Weight nacelle	50 Kg
	Weight tower	45 Kg
	Price per kW	1.980 €/kW

Table 2. Technical data for turbine Soma 1000.

Wind Turbine	Technical Data
Soma 1000—1 kW (HAWT)	Nominal Power	1 Kw
	Numbers. Blades and material,	2, fiberglass
	Rotor diameter	2.7 m
	Cut-in wind speed	3.5 m/s
	Cut-off wind speed	50 m/s
	Rated wind speed	10 m/s
	Security wind speed	50 m/s
	Weight nacelle	50 Kg
	Weight tower	45 Kg
	Price per kW	1.980 €/kW

Figure 1. HAWT Soma 1000.

Figure 1. HAWT Soma 1000.

Figure 2. Power curve of Soma 1000.

Figure 2. Power curve of Soma 1000.

4. Techno—Economic Analysis

4.1. Siting

The study of the geographical distribution of the wind is often carried out through the building of wind maps. With these maps, however, you lose the ability to take into account the local phenomena related, for example, the orography of the area. Consequently, the knowledge of the territory, combined with analysis of detected wind data, are essential for the correct choice of site, for choice of turbine to be installed, for the electricity production and, therefore, for the validity of project. The statistical distribution of wind speeds was considered in two different sites of Sicily (Enna and Gela identified by red marker in Figure 3) for two different land types: “rural area” and “suburban area”.

Figure 3. Anemometric stations.

Figure 3. Anemometric stations.

4.2. Energy Analysis

In the evaluation of energy capability of a system are two key aspects: the characteristics of wind at the sites under consideration and the features of the turbine to be installed [13]. In order to calculate the power from a wind turbine over a range of wind speeds a generalized expression is needed for the probability density distribution. An expression which gives a good fit to wind data is known as the Weibull distribution [14]:

$$t(v)=\frac{k}{c}{\left(\frac{v}{c}\right)}^{k-1}exp\left[-{\left(\frac{v}{c}\right)}^k\right]$$

(1)

where v is the wind speed (m/s), c is the scale factor (m/s), and k is the shape factor (dimensionless).

The scale parameter is related in a univocal way to the average speed, is directly proportional to it, and from which does not differ much in numerical terms. The shape factor is a dimensionless term that characterizes the amplitude of the wind speed dispersion around the mean. This parameter, such as that of scale, is typical of a site under investigation and should be obtained by a measurement campaign. When this is not possible, one should take a guide value based on the climatic conditions of the area under study or similarity to other sites in the same climatic area. The shape factor is, therefore, an irregularity index of the wind regime.

Mountain areas and urban areas characterized by very irregular winds have values of k between 1 and 1.5, ocean areas with very regular winds have a value between 2.5 and 4, and the coastal areas in temperate areas have a value of k around 2.

The Weibull distribution expressed by Equation (1) falls into default when the wind speed is null. In order to take this into account the calm wind frequency (“s” in percentage) must be considered. The parameters used in this study are summarized in Table 3.

Table 3. Parameters for Enna e Gela.

Stations	c (m/s)	k	s %
Enna	6.23	1.83	11.39
Gela	4.65	1.46	7.22

Table 3. Parameters for Enna e Gela.

Stations	c (m/s)	k	s %
Enna	6.23	1.83	11.39
Gela	4.65	1.46	7.22

Due to the fact that each turbine can be installed on towers at different lengths, it is necessary to calculate the trend of the wind speed v according to quota h (vertical velocity profile). This trend is usually expressed by the following relationship:

$$v=v_0{\left(\frac{h}{h_0}\right)}^{\alpha }$$

(2)

where v is the wind speed at the height to be extrapolated, v₀ is the wind speed recorded by meteorological station from the ground level h₀ (10 m), and the power law exponent α is the wind shear exponent. This parameter is generally between 0.1 and 0.4 and depends on the surface roughness, atmospheric stability, and height range

Figure 4 and Figure 5 show the speed profiles for the two locations under investigation regarding both types of soil analyzed. In red is the speed measured in the region of 10 m above ground level.

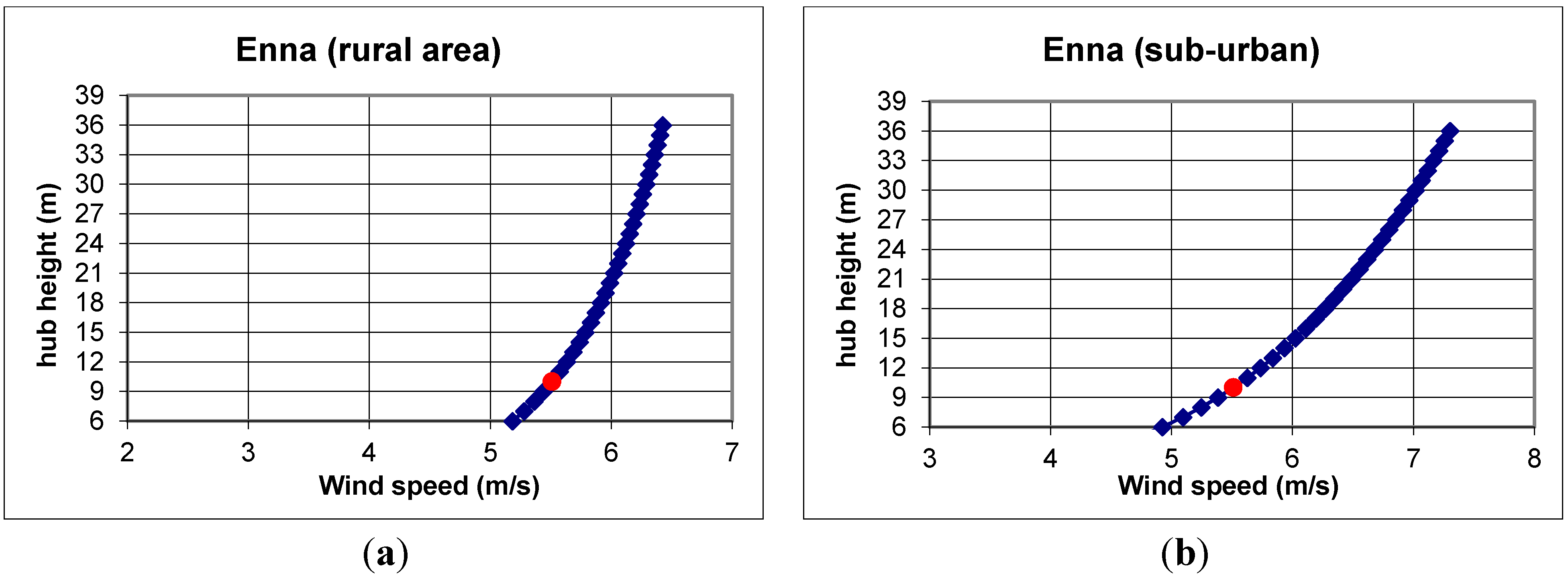

Figure 4. (a) Wind velocity profile for Enna rural area; (b) Wind velocity profile for Enna sub urban area.

Figure 4. (a) Wind velocity profile for Enna rural area; (b) Wind velocity profile for Enna sub urban area.

Figure 5. (a) Wind velocity profile for Gela rural area; (b) Wind velocity profile for Gela sub urban area.

Figure 5. (a) Wind velocity profile for Gela rural area; (b) Wind velocity profile for Gela sub urban area.

From knowledge of the parameters of the Weibull distribution and of the profile of wind speed at different heights for the two types of terrain the curves t(vi), where the index i is relative to the height for which the curve was plotted (Figure 6, Figure 7, Figure 8 and Figure 9). The heights considered (10, 15, 20, 25, and 30 m) are those set out by producers, themselves, s to the towers of the respective turbines. Figure 6 and Figure 7 (relating the station of Enna) show a flattening with respect to the curves in Figure 8 and Figure 9 (relating the station of Gela). This flattening is more important, the higher the shape parameter k. This is due to an increase in average wind speed according to the quota [15].

Figure 6. Wind speed distribution for different heights (Enna rural area).

Figure 6. Wind speed distribution for different heights (Enna rural area).

Figure 7. Wind speed distribution for different heights (Enna sub urban area).

Figure 7. Wind speed distribution for different heights (Enna sub urban area).

Figure 8. Wind speed distribution for different heights (Gela rural area).

Figure 8. Wind speed distribution for different heights (Gela rural area).

Figure 9. Wind speed distribution for different heights (Gela suburban area).

Figure 9. Wind speed distribution for different heights (Gela suburban area).

Constructed for each site, the curves’ t(v) calculated the electrical production of each turbine, considering for each of them the different heights of the tower, as suggested by the producers.

If the measured site wind speed data is available, then the energy yield of a wind turbine can be estimated by combining the binned wind speed distribution with the power curve:

$$Energy={\displaystyle \sum _{i=1}^{i=n}H(U_i)P(U_i)}$$

(3)

where H(U_i) is the number of hours in wind speed bin U_i, P(U_i) is the power output at that wind speed and there are n wind speed bins.

Table 4 and Table 5 show the values of energy production of small systems, subdivided by power rating.

Table 4. Energy production kWh (Enna).

	Enna Sub-Urban Area				Enna Rural Area
Class 0.5–1.8 kW	height (m)				height (m)
Turbine	10	15	20	25	10	15	20	25
Soma 1000—1 kW (HAWT)	2550	2957	3256	3490	2550	2770	2929	3055
Windspire 1.2 G—1.2 kW (VAWT)	1159	1459	1693	1884	1159	1318	1438	1534
Class 2–3.5 kW	height (m)				height (m)
Turbine	10	15	20	25	10	15	20	25
Inclin 3000—3 kW (HAWT)	7259	8260	8999	9584	7259	7798	8191	8500
Windfox—3 kW (HAWT)	8540	9715	10577	11259	8540	9174	9634	9995
WindRotor WRE.030—3 kW (VAWT)	2569	3186	3683	4101	2569	2893	3141	3343
Cleanfield—3.5 kW (VAWT)	4327	5309	6080	6716	4327	4846	5238	5555
Class 5–6 kW	height (m)				height (m)
Turbine	10	15	20	25	10	15	20	25
EasyWind 6 AC—6 kW (HAWT)	13572	15708	17247	18443	13572	14730	15562	16212
Maxy Vertical Wre 0.62—6 kW (VAWT)	5406	6760	7861	8792	5406	6115	6661	7108
Class 10–12.5 kW	height (m)				height (m)
Turbine	15	20	25	30	15	20	25	30
BWC Excel-S—10 kW (HAWT)	9179	10807	12212	13453	8243	9035	9690	10253
Windpower Gyro—10 kW (VAWT)	16123	18719	20868	22702	14575	15888	16951	17849
Class 15–17.5 kW	height (m)				height (m)
Turbine	15	20	25	30	15	20	25	30
WT 15000—15 kW (HAWT)	35745	39490	42418	44805	33387	35392	36966	38262
Baywinds 24–15—15 kW (HAWT)	22633	26003	28773	31121	20607	22325	23711	24877
Class 20–25 kW	height (m)				height (m)
Turbine	15	20	25	30	15	20	25	30
FL—20 kW (HAWT)	57902	63288	67381	70647	54416	57385	59679	61541
Big Star Vertical—20 kW (VAWT)	24074	27756	30870	33571	21920	23744	25239	26512

Table 4. Energy production kWh (Enna).

	Enna Sub-Urban Area				Enna Rural Area
Class 0.5–1.8 kW	height (m)				height (m)
Turbine	10	15	20	25	10	15	20	25
Soma 1000—1 kW (HAWT)	2550	2957	3256	3490	2550	2770	2929	3055
Windspire 1.2 G—1.2 kW (VAWT)	1159	1459	1693	1884	1159	1318	1438	1534
Class 2–3.5 kW	height (m)				height (m)
Turbine	10	15	20	25	10	15	20	25
Inclin 3000—3 kW (HAWT)	7259	8260	8999	9584	7259	7798	8191	8500
Windfox—3 kW (HAWT)	8540	9715	10577	11259	8540	9174	9634	9995
WindRotor WRE.030—3 kW (VAWT)	2569	3186	3683	4101	2569	2893	3141	3343
Cleanfield—3.5 kW (VAWT)	4327	5309	6080	6716	4327	4846	5238	5555
Class 5–6 kW	height (m)				height (m)
Turbine	10	15	20	25	10	15	20	25
EasyWind 6 AC—6 kW (HAWT)	13572	15708	17247	18443	13572	14730	15562	16212
Maxy Vertical Wre 0.62—6 kW (VAWT)	5406	6760	7861	8792	5406	6115	6661	7108
Class 10–12.5 kW	height (m)				height (m)
Turbine	15	20	25	30	15	20	25	30
BWC Excel-S—10 kW (HAWT)	9179	10807	12212	13453	8243	9035	9690	10253
Windpower Gyro—10 kW (VAWT)	16123	18719	20868	22702	14575	15888	16951	17849
Class 15–17.5 kW	height (m)				height (m)
Turbine	15	20	25	30	15	20	25	30
WT 15000—15 kW (HAWT)	35745	39490	42418	44805	33387	35392	36966	38262
Baywinds 24–15—15 kW (HAWT)	22633	26003	28773	31121	20607	22325	23711	24877
Class 20–25 kW	height (m)				height (m)
Turbine	15	20	25	30	15	20	25	30
FL—20 kW (HAWT)	57902	63288	67381	70647	54416	57385	59679	61541
Big Star Vertical—20 kW (VAWT)	24074	27756	30870	33571	21920	23744	25239	26512

Table 5. Energy production kWh (Gela).

	Gela Sub-Urban Area				Gela Rural Area
Class 0.5–1.8 kW	height (m)				height (m)
Turbine	10	15	20	25	10	15	20	25
Soma 1000—1 kW (HAWT)	1678	1982	2213	2399	1678	1841	1961	2057
Windspire 1.2 G—1.2 kW (VAWT)	689	881	1037	1167	689	790	867	931
Class 2–3.5 kW	height (m)				height (m)
Turbine	10	15	20	25	10	15	20	25
Inclin 3000—3 kW (HAWT)	5079	5841	6419	6886	5079	5486	5787	6027
Windfox—3 kW (HAWT)	5830	6751	7444	8002	5830	6324	6687	6975
WindRotor WRE.030—3 kW (VAWT)	1617	2017	2344	2623	1617	1827	1988	2120
Cleanfield—3.5 kW (VAWT)	2759	3400	3916	4351	2759	3096	3353	3563
Class 5–6 kW	height (m)				height (m)
Turbine	10	15	20	25	10	15	20	25
EasyWind 6 AC—6 kW (HAWT)	8815	10438	11657	12634	8815	9685	10324	10832
Maxy Vertical Wre 0.62—6 kW (VAWT)	3420	4281	4991	5601	3420	3870	4218	4504
Class 10–12.5 kW	height (m)				height (m)
Turbine	15	20	25	30	15	20	25	30
BWC Excel-S—10 kW (HAWT)	5675	6716	7622	8428	5080	5583	6001	8428
Windpower Gyro—10 kW (VAWT)	9917	11622	13067	14324	8920	9765	10457	14324
Class 15–17.5 kW	height (m)				height (m)
Turbine	15	20	25	30	15	20	25	30
WT 15000—15 kW (HAWT)	23819	26657	28950	30872	22082	23557	24734	30872
Baywinds 24–15—15 kW (HAWT)	14199	16460	18362	20008	12866	13995	14916	20008
Class 20–25 kW	height (m)				height (m)
Turbine	15	20	25	30	15	20	25	30
FL—20 kW (HAWT)	38120	42542	46042	48932	35361	37706	39556	48932
Big Star Vertical—20 kW (VAWT)	15615	18020	20081	21891	14219	15400	16373	21891

Table 5. Energy production kWh (Gela).

	Gela Sub-Urban Area				Gela Rural Area
Class 0.5–1.8 kW	height (m)				height (m)
Turbine	10	15	20	25	10	15	20	25
Soma 1000—1 kW (HAWT)	1678	1982	2213	2399	1678	1841	1961	2057
Windspire 1.2 G—1.2 kW (VAWT)	689	881	1037	1167	689	790	867	931
Class 2–3.5 kW	height (m)				height (m)
Turbine	10	15	20	25	10	15	20	25
Inclin 3000—3 kW (HAWT)	5079	5841	6419	6886	5079	5486	5787	6027
Windfox—3 kW (HAWT)	5830	6751	7444	8002	5830	6324	6687	6975
WindRotor WRE.030—3 kW (VAWT)	1617	2017	2344	2623	1617	1827	1988	2120
Cleanfield—3.5 kW (VAWT)	2759	3400	3916	4351	2759	3096	3353	3563
Class 5–6 kW	height (m)				height (m)
Turbine	10	15	20	25	10	15	20	25
EasyWind 6 AC—6 kW (HAWT)	8815	10438	11657	12634	8815	9685	10324	10832
Maxy Vertical Wre 0.62—6 kW (VAWT)	3420	4281	4991	5601	3420	3870	4218	4504
Class 10–12.5 kW	height (m)				height (m)
Turbine	15	20	25	30	15	20	25	30
BWC Excel-S—10 kW (HAWT)	5675	6716	7622	8428	5080	5583	6001	8428
Windpower Gyro—10 kW (VAWT)	9917	11622	13067	14324	8920	9765	10457	14324
Class 15–17.5 kW	height (m)				height (m)
Turbine	15	20	25	30	15	20	25	30
WT 15000—15 kW (HAWT)	23819	26657	28950	30872	22082	23557	24734	30872
Baywinds 24–15—15 kW (HAWT)	14199	16460	18362	20008	12866	13995	14916	20008
Class 20–25 kW	height (m)				height (m)
Turbine	15	20	25	30	15	20	25	30
FL—20 kW (HAWT)	38120	42542	46042	48932	35361	37706	39556	48932
Big Star Vertical—20 kW (VAWT)	15615	18020	20081	21891	14219	15400	16373	21891

To obtain an additional comparative assessment of the different performance of turbines, the capacity factor will be evaluated. Capacity factor is the energy generated during the year divided by the rated power multiplied by the number of hours in the year.

To calculate the capacity factor has been considered the share of 25 meters for the rural area (Figure 10 and Figure 11) and 15 meters in the case of sub-urban area (Figure 12 and Figure 13).

Figure 10. Capacity factor h = 25 m (Enna rural area).

Figure 10. Capacity factor h = 25 m (Enna rural area).

Figure 11. Capacity factor h = 25 m (Enna suburban area).

Figure 11. Capacity factor h = 25 m (Enna suburban area).

Figure 12. Capacity factor h = 25 m (Gela rural area).

Figure 12. Capacity factor h = 25 m (Gela rural area).

Figure 13. Capacity factor h = 25 m (Gela suburban area).

Figure 13. Capacity factor h = 25 m (Gela suburban area).

The graphs show that for both stations and for each type of terrain the horizontal axis wind turbines produced more energy than the vertical axis. Only in the class from 10 to 12.5 kW the VAWT produces about10% in more than HAWT (this percentage is reduced at the Gela site).

This difference depends from power curves (Figure 14) of two turbines; in fact Windpower Gyro is characterized by a cut-in wind speed of 3.2 m/s and by a cut-off wind speed of 24 m/s while the BWC Excel-S has a higher starting speed (3.6 m/s) and a smaller stop speed (16.1 m/s).

Comparing all classes it follows that the turbine with the major capacity factor is the Windfox 3 kW; the one that presents a lower capacity is the BWC Excel-S (either with horizontal axis).

Figure 14. Power Curves.

Figure 14. Power Curves.

4.3. Economic Analysis

The following economic analysis has used values derived from market research on the cost of small turbines previously analyzed, obtained by the companies that work in the sector.

In the first phase the final expenditure commitments for each turbine was computed, given by the sum of the costs of various components (generator, inverter, control panel, etc.). However, frequently producers do not provide the cost of the accessories and, therefore, it is impossible to do a real evaluation of costs and, in particular, their comparison [16]. Therefore, in order to make a comparable cost of the turbines, the authors have considered the specific costs for every kW installed.

In order to obtain the payback return the annual revenues obtainable for every value of productivity have been calculated, such as the amount of the tariff that is accessed. In this study an all-inclusive rate was applied that provides an incentive payment of €0.30 per kWh transferred to the electricity grid.

The relationship between the specific cost and revenues allowed to obtain the payback period are found in Figure 15 and Figure 16. Figure 15 and Figure 16, respectively, show the payback period for Windfox 3 kW turbines (major capacity factor) and for the BWC Excel-S (lower capacity factor).

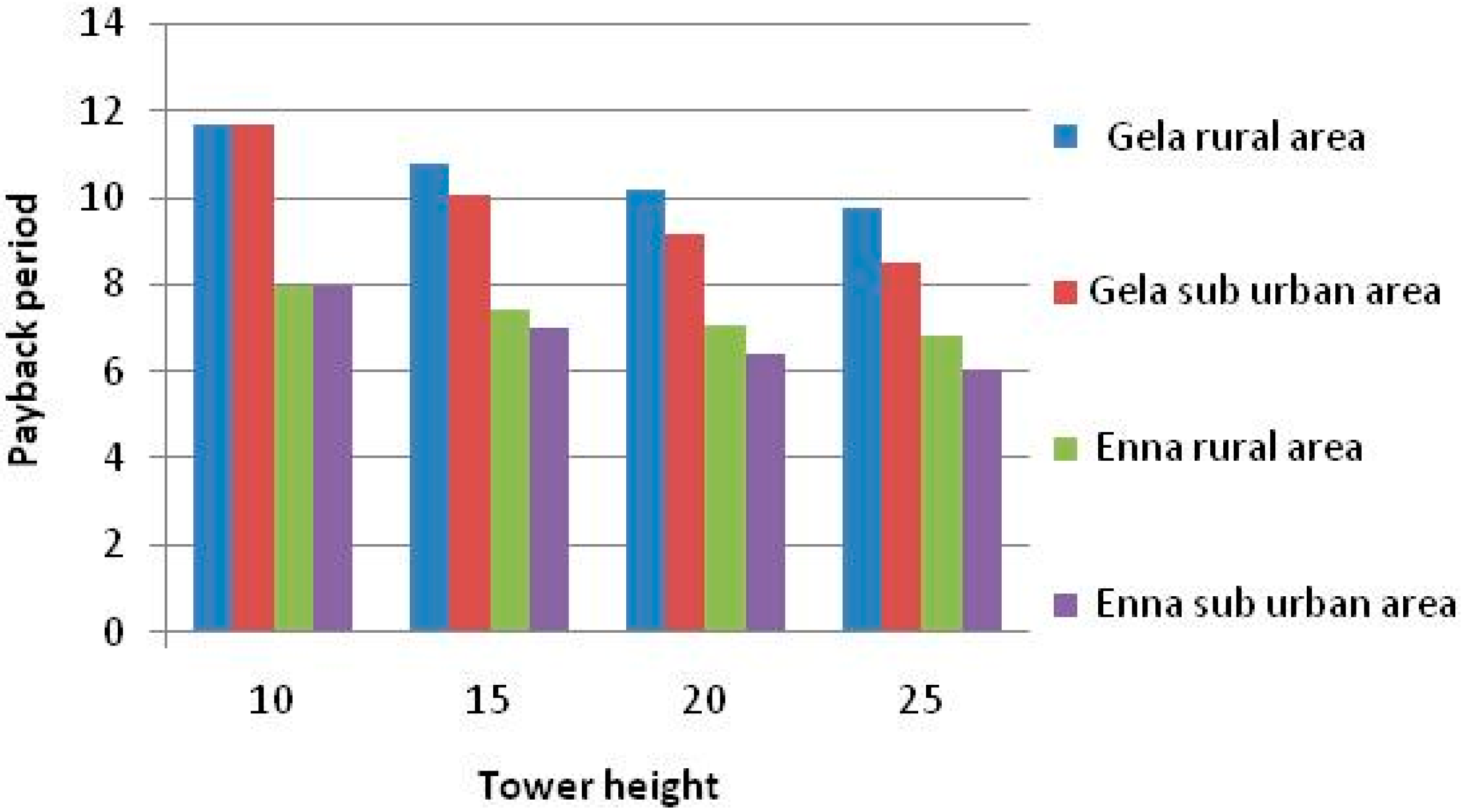

Figure 15. Payback Period Windfox 3 kW.

Figure 15. Payback Period Windfox 3 kW.

Figure 16. Payback Period BWC Excel-S.

Figure 16. Payback Period BWC Excel-S.

Figure 16 (BWC Excel-S) shows an increase in payback period resulting (except for the station of Enna for both terrains) in higher than the maximum period of incentive. In this case after expiry of 15 years, you can continue to sell energy to the grid with the procedures and the prices guaranteed by the simplified purchase and resale arrangements with small producers. Under these arrangements, producers—with plants of a capacity not exceeding 10 MVA or non-schedulable renewable electricity generation plants of any capacity—may sell the electricity injected into the grid to ESM (Energy Services Manager is the publicly-owned company which promotes and supports renewable energy sources in Italy), as an alternative to bilateral (or over-the-counter) contracts or direct trading in the power exchange. The electricity price that ESM pays to these producers is set every hour in the power exchange, in the market zones where their plants are located.

5. Conclusions

Modern large turbines, used mainly in wind farms to produce electricity, represent a mature technology. Small wind turbines have, to date, not received the same attention as their large counterparts.

This work fits in this framework by developing an energy and economic analysis developed through the exercise of certain micro turbines available on the market.

This study showed that the choice of turbine is closely related to the wind conditions and to the type of terrain.

Due to the high cost of small systems, their diffusion is closely related to financing and government incentives. As with European countries, Italy has recently introduced economic incentives lead to increased consumption of wind power.

The Ministerial Decree of 18 December 2008 have introduced measures, in particular, the wind farm whit a annual average production ranging from 1 to 200 kW can sell the electricity at a price of 0.30 €/kWh for a maximum period of 15 years.

The opportunity offered by the Italian legislative framework allows more attention to be drawn to a new potential market: the urban areas.
