Life Cycle Assessment Modelling of Greenhouse Gas Emissions from Existing and Proposed Municipal Solid Waste Management System of Lahore, Pakistan

by
Adila Batool Syeda
1,*,
Anwar Jadoon
2 and
Mahuammad Nawaz Chaudhry
2
1
Department of Space Science, Punjab University, Lahore 54590, Pakistan
2
College of Earth and Environmental Sciences, University of the Punjab, Lahore 54590, Pakistan
*
Author to whom correspondence should be addressed.
Sustainability 2017, 9(12), 2242; https://doi.org/10.3390/su9122242
Submission received: 30 September 2017 / Revised: 15 November 2017 / Accepted: 16 November 2017 / Published: 5 December 2017
Browse Figures
Versions Notes

Abstract

:
Open Dumping of indiscriminate municipal solid waste (MSW) remarkably contributes to global warming (GW). Life Cycle Assessment modelling may be a useful tool for assessing the best waste management option regarding GW potential. The current study evaluates the contribution of an existing MSW management (MSWM) system to greenhouse gases in Gulberg Town, Lahore, Pakistan. This research also presents a comparison of scenarios with different waste management options. Life Cycle Assessment methodology has been used to conduct the study. EASETECH has been used for modelling. The short-term scenarios (STSs) have been developed to promote the thinking of integration of treatment technologies in the current waste management system within a few months. The results show that the major contribution to the total emissions comes from the anaerobic digestion of organic material from open waste dumps. Currently, recycling is the best treatment option for reducing the CO2-eq values in the study area. It was clarified that recycling is the best option for reducing the CO2-eq values, whereas biogasification comes in second in terms of savings and reduction. The integration of recycling and biogasification techniques would be a good solution.

1. Introduction

Pakistan is facing very serious environmental problems due to poor municipal solid waste management systems (MSWMSs). Waste management is an essential component of overall environment planning [1,2,3,4]. The emission of greenhouse gases and associated global warming is one of those problems. Global warming is one of today’s most politically important global environmental issues. It has been shown by the Intergovernmental Panel on Climate Change (IPCC) that the release of certain compounds known as greenhouse gasses (GHGs) can lead to an increase in the global average temperature, as well as climate change at a regional level [5]. According to [6,7], the waste management sector contributes 5% to global greenhouse gases emission. There are many studies which have investigated the waste management system and the emission of greenhouse gases [8,9,10,11,12,13]. A study was conducted by [14,15] to quantify carbon emission and emission reductions related to waste management activities. Authors in [16,17] worked on the quantification of methane emissions from waste disposal sites. Some researchers discussed the use of Life Cycle Assessment (LCA)/Life Cycle Inventory (LCI) methodology for the evaluation of greenhouse gas emissions from waste management [18,19,20,21,22].
The current study presents and evaluates the global warming potential of the current waste management system of Gulberg Town, Lahore, Pakistan (Figure 1). Gulberg Town is one of the nine towns in Lahore city, with a population of 851,709. It comprises 15 administrative units which are called union councils.

2. Materials and Methods

Life Cycle Assessment methodology has been used to assess the global warming potential (GWP) associated with the municipal solid waste management (MSWM) system of Gulberg Town, Lahore, Pakistan. The LCA modelling was guided and controlled by the Intergovernmental Panel on Climate Change (IPCC) [24,25]. The GWPs were calculated using a timeline of 100 years using the IPCC guidelines. The emission of greenhouse gasses is regulated by the Kyoto Protocol [26] under the Climate Convention [27].
The functional unit for this LCA study was the amount of MSW generated in Gulberg Town, Lahore. The EASETECH model developed by the Technical University of Denmark [28] has been used to conduct this LCA study. Scenario S0 represents the existing situation and acts as a baseline scenario. The poor MSW management condition of the study area requires quick actions to reduce its environmental impacts. Therefore, three other scenarios have been developed on a short-term basis to improve the current situation and to promote the thinking of integration of treatment technologies in the sector of waste management. The proposed options can be incorporated with the current waste management system within a few months. In short-term scenario (STS) 1, it was assumed that all waste arising is sent to a material recovery facility (MRF) at a 10 km average distance from collection points. The rate of recycling is the same as in the existing scenario (i.e., 17.94%). Residual waste (12.08%) (mostly kitchen and yard waste) is sent to a compost plant with improved quality of compost, and remaining waste is sent to a dump site with a clay cover. STS 2 was just like STS 1, and the only change introduced was that residual waste (12.08%) (mostly kitchen and yard waste) is sent to a biogasification plant with digestate that is used on land for soil conditioning, and the remaining waste goes to a dump site with a clay cover. STS 3 is like STS 2, except remaining waste is sent as refuse-derived fuel (RDF) to a cement plant for energy recovery.
The system boundaries include all components of the waste management system from collection and transportation to its final disposal. Figure 2 shows the system boundaries for the study. Storage of waste in domestic as well as in commercial containers is not included. Collection of waste is assumed to be the transportation of waste from MRF to the treatment plant or disposal site. Primary collection of waste is carried out by the private sweepers with donkey carts or handcarts.
As far as MRF is concerned, it is considered to be just like a transfer station. Energy consumption is related to the conveyor belt system and the office electricity.
No construction and maintenance of the treatment or disposal system was included. In the case of landfilling, carbon sequestration was taken into account. The biogenic carbon that enters the landfill is considered as sequestered carbon and it gives savings to global warming (savings are indicated by a negative sign). The system is credited for this sequestrated carbon, with a characterization factor of 44/12 kg CO2-eq/kg C [28]; this is a value used by EASETECH.
The data used in EASETECH has been collected through questionnaire survey. A number of field visits have been carried out for the primary and secondary data collection.

3. Results and Discussion

According to questionnaire and field survey, it was found that two treatment technologies exist in the study area: recycling (17.94%) and composting (12.08%). The 1.64% of the remaining waste has been reused, and 68.34% was openly dumped (without clay cover). The EASETECH landfill module gives the options of landfill gas collection and leachate collection. In order to represent the true picture of study area it was assumed that generated landfill gas went to the atmosphere and all leachate to groundwater. The generation and composition of waste has been analyzed as shown in Figure 3. The calculated amount of MSW generated in study area was 283,387 tons/year.
The major contribution to global warming in the study area comes from the dumping of waste (i.e., 146%). These contributions mainly consist of the continuous release of CH4, CO2 and N2O to the atmosphere. Only CO2 from fossil fuel is considered for the estimation of GHG emissions with CH4 and N2O, because CO2 from the decomposition of waste is biogenic in origin and therefore cannot add to the overall GHG emissions. Methane-oxidizing bacteria are responsible for the release of N2O to the atmosphere [29,30]. Therefore, N2O may also be generated and emitted from landfill sites, not only due to the process of nitrification and denitrification, but also from CH4-related phenomena. The process of disposal is not organized in the study area. Waste is dumped anywhere on the ground. There are no proper cells and lifts as in proper sanitary landfills. Different stages of microbial activity are running at the same time. So, a continuous emission of greenhouse gases was found at the dumpsite.
Recycling contribution was −50%. A closer look reveals that the recycling of paper gives the maximum savings with 30%, while 10% savings come from recycling of metal. The contribution of the recycling of plastics is approximately 8%.
Composting is also in practice in the study area. Composting gives 3% to the net emission of greenhouse gases. Currently, it does not give any savings to GWP because of the poor maintenance and improper management system of the compost plant. The waste that is used for composting is not properly segregated. The compost that is being prepared in the existing compost plant is just the stabilization of organic waste and not a proper compost. It was found during the field survey that farmers were not ready to use this type of compost.
Collection and transportation of waste is another source of GHG. The combustion of fuel is the major environmental load from waste collection and transportation. The comparison between the STSs is shown in Figure 4. STS 3 gives the maximum while STS 2 gives the minimum value of GWP in terms of CO2-eq.
It was also observed that the collection and transportation of waste does matter, but the main problematic region is the use of RDF and dumping of waste without landfill gas collection and a leachate control system (Figure 5). The high moisture content (i.e., 75%) and lower heating value (i.e., 4.7374 GJ/ton waste) is the major problem with the RDF technology. The residual waste contains many inert materials, such as glass, soil, concrete etc., which lowers its value.
The changes made to the existing scenario were (1) introduction of a material recovery facility (MRF); (2) better quality of compost production compared to the existing scenario; and (3) a clay cover over the dumpsite, and significantly respond to the GWP. The fuel consumption in the process of collection was decreased with the reduction in the amount of waste to the dumping site, and consequently decreases in GHG emission (i.e., 0.0002%) were found. The increase in GHG emission was found due to the energy consumption in the form of electricity at MRF and energy consumption in the form of fuel consumption due to the external clay movement to the landfill site for covering the dump. The electricity was produced mainly by using thermal power plants (gas (25.7%), coal (0.2%), oil (38.5%)), whereas other sources of electricity generation include hydro power plants (30.7%) and nuclear (4.9%) [31]. By improving the quality of compost, it was found that the value of global warming decreased by 53% of composting in the existing scenario. Overall, global warming was decreased by 1.58% in STS1 as compared with the baseline scenario.
It was found that the main problem is the handling of the organic portion of household waste. So, we compare the techniques of composting with biogasification. Portable biogas plants are easily available on the market, so it would be a good option for organic waste handling. There was no change in the results of MRF, transportation and dumping of waste; the values were the same as in the existing scenario or STS 0. It was found that biogasification gave more savings towards GHG emissions. It saved the GHGs through the biogasification process, by replacing the burning of fossil fuel in electricity generation and by the use of digestate on the ground as soil conditioner. When compared with the composting process, the biogasification process gives 371% reduction in GW in the form of CO2-eq. Further reduction was found by the use of digestate in fields or gardens (i.e., 7%). It also reduced the amount from the landfilling process by 0.03%, and an overall decrease of 18.5% was found from STS 1. Short-term scenario 3 represents results from the use of RDF in cement factories and the use of compost just as in STS 1 but with improved quality. It is assumed in this scenario that all the residual waste which was going to dump site will be used in the cement plant as a substitution for coal. This scenario is same as STS 0, the only difference is of dumping. This scenario gives 70% more CO2-eq as compared to the existing scenario, with improved quality of compost (Table 1). The negative numbers in Table 1 mean that the specific treatments (e.g., biogasification and recycling) in STS 2 replace more polluting processes, meaning that the scenario gives a saving of environmental emissions. The calorific value of the residual waste calculated by the model is 4.7473 GJ/ton. The value of GW increased due to two processes: (1) the increased distance to the cement plant (i.e., approximately 300 km compared to just 50 km to dumpsite), and (2) the poor quality of RDF (i.e., calorific value).
This value cannot compensate or be the substitute for coal used in the RDF plant, so high emission was found. The field survey for compost reveals that farmers were not willing to use the compost as a substitute for chemical fertilizer. In addition, the process of composting that is being used in the study area was not appropriate, affecting its quality. Composting can be a good treatment, but only if the product is useful and substitutes in part for chemical fertilizer, otherwise it is a large source of greenhouse gases

4. Conclusions

The current MSWM system contributes to global warming at rate of 0.17 metric tons/person/year. Life Cycle Assessment methodology has been used to conduct the study. The processes considered for LCA of existing waste management system were collection of waste, transportation of waste, composting, and finally dumping of waste directly on the ground without any leachate collection and gas collection systems. The scenarios were developed to get the best scenario with the smallest change in the current waste management system in a shorter time period.
The process of open dumping without landfill gas collection and leachate collection system contributes to global warming the most. Recycling and biogasification are the most favorable processes regarding greenhouse gases emission, whereas composting and the use of waste as RDF in cement plants would not be a good option regarding GWP.
The analysis and comparison of STS show that the integration of waste management options results in more savings from greenhouse gases emissions.

Acknowledgments

No funding was received for this paper.

Author Contributions

Adila Batool and Myhammad Nawaz Chaudhry conceived and design the experiments; Anwar Jadoon performed the experiments. Adila Batool and Muhammad Nawaz Chaudhry analyzed the data; Anwar jadoon contributed materials; Adila Batool wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Weber, G.; Calaf-Forn, M.; Puig-Ventosa, I.; Cabras, I.; D’Alisa, G. The role of environmental organisations on urban transformation: The case of waste management in Esporles (Mallorca). J. Clean. Prod. 2017, in press. [Google Scholar] [CrossRef]
  2. Acuff, K.; Kaffine, D.T. Greenhouse gas emissions, waste and recycling policy. J. Environ. Econ. Manag. 2013, 65, 74–86. [Google Scholar] [CrossRef]
  3. Assamoi, B.; Lawryshyn, Y. The environmental comparison of landfilling vs. incineration of MSW accounting for waste diversion. Waste Manag. 2012, 32, 1019–1030. [Google Scholar] [CrossRef] [PubMed]
  4. Aye, L.; Widjaya, E.R. Environmental and economic analyses of waste disposal options for traditional markets in Indonesia. Waste Manag. 2006, 26, 1180–1191. [Google Scholar] [CrossRef] [PubMed]
  5. Intergovernmental Panel on Climate Change (IPCC). Fourth Assessment Report Climate Change 2007; Synthesis Report; Intergovernmental Panel on Climate Change: Geneva, Switzerland, 2007. [Google Scholar]
  6. Bogner, J.; Pipatti, R.; Hashimoto, R.; Diaz, C.; Mareckova, K.; Diaz, L.; Kjeldsen, P.S.; Faaij, A.; Gao, Q.; Zhang, T.; et al. Mitigation of Global Greenhouse Gas Emissions from Waste: Conclusions and Strategies from the Intergovernmental Panel on Climate Change (IPCC) Fourth Assessment Report. Working Group III (Mitigation). Waste Manag. Res. 2008, 26, 11–32. [Google Scholar] [CrossRef] [PubMed]
  7. Jensen, M.B.; Møller, J.; Mønster, J.; Scheutz, C. Quantification of greenhouse gas emissions from a biological waste treatment facility. Waste Manag. 2017, 67, 375–384. [Google Scholar] [CrossRef] [PubMed]
  8. Chang, N.-B.; Qi, C.; Islam, K.; Hossain, F. Comparisons between global warming potential and cost-benefit criteria for optimal planning of a municipal solid waste management system. J. Clean. Prod. 2012, 20, 1–13. [Google Scholar] [CrossRef]
  9. Friedrich, E.; Trois, C. Quantification of greenhouse gas emissions from waste management processes for municipalities—A comparative review focusing on Africa. Waste Manag. 2011, 31, 1585–1596. [Google Scholar] [CrossRef] [PubMed]
  10. Friedrich, E.; Trois, C. GHG emission factors developed for the collection, transport and landfilling of municipal waste in South African municipalities. Waste Manag. 2013, 33, 1013–1026. [Google Scholar] [CrossRef] [PubMed]
  11. Habib, K.; Schmidt, J.H.; Christensen, P. A historical perspective of Global Warming Potential from Municipal Solid Waste Management. Waste Manag. 2013, 33, 1926–1933. [Google Scholar] [CrossRef] [PubMed]
  12. He, L.; Huang, G.H.; Lu, H. Greenhouse gas emissions control in integrated municipal solid waste management through mixed integer bilevel decision-making. J. Hazard. Mater. 2011, 193, 112–119. [Google Scholar] [CrossRef] [PubMed]
  13. Oyoo, R.; Leemans, R.; Mol, A.P.J. Comparison of environmental performance for different waste management scenarios in East Africa: The case of Kampala City, Uganda. Habitat Int. 2014, 44, 349–357. [Google Scholar] [CrossRef]
  14. Wang, Y.; Yan, Y.; Chen, G.; Zuo, J.; Yan, B.; Yin, P. Effectiveness of waste-to-energy approaches in China: From the perspective of greenhouse gas emission reduction. J. Clean. Prod. 2017, 163, 99–105. [Google Scholar] [CrossRef]
  15. Couth, R.; Trois, C.; Parkin, J.; Strachan, L.J.; Gilder, A.; Wright, M. Delivery and viability of landfill gas CDM projects in Africa—A South African experience. Renew. Sustain. Energy Rev. 2011, 15, 392–403. [Google Scholar] [CrossRef]
  16. Liu, Y.; Sun, W.; Liu, J. Greenhouse gas emissions from different municipal solid waste management scenarios in China: Based on carbon and energy flow analysis. Waste Manag. 2017, 68, 653–661. [Google Scholar] [CrossRef] [PubMed]
  17. Talyan, V.; Dahiya, R.P.; Anand, S.; Sreekrishnan, T.R. Quantification of methane emission from municipal solid waste disposal in Delhi. Resour. Conserv. Recycl. 2007, 50, 240–259. [Google Scholar] [CrossRef]
  18. Björklund, A.; Finnveden, G. Recycling revisited—Life cycle comparisons of global warming impact and total energy use of waste management strategies. Resour. Conserv. Recycl. 2005, 44, 309–317. [Google Scholar] [CrossRef]
  19. Cleary, J. Life cycle assessments of municipal solid waste management systems: A comparative analysis of selected peer-reviewed literature. Environ. Int. 2009, 35, 1256–1266. [Google Scholar] [CrossRef] [PubMed]
  20. Kim, M.-H.; Song, Y.-E.; Song, H.-B.; Kim, J.-W.; Hwang, S.-J. Evaluation of food waste disposal options by LCC analysis from the perspective of global warming: Jungnang case, South Korea. Waste Manag. 2011, 31, 2112–2120. [Google Scholar] [CrossRef] [PubMed]
  21. Kim, M.-H.; Kim, J.-W. Comparison through a LCA evaluation analysis of food waste disposal options from the perspective of global warming and resource recovery. Sci. Total Environ. 2010, 408, 3998–4006. [Google Scholar] [CrossRef] [PubMed]
  22. Houghton, R.A.; Hackler, J.L. Carbon flux to the atmosphere from landuse changes. In In Trends: A Ompendium of Data on Global Change; Oak Ridge National Laboratory: Oak Ridge, TN, USA, 2002. [Google Scholar]
  23. Jadoon, A.; Batool, S.A.; Chaudhry, M.N. Assessment of factors affecting household solid waste generation and its composition in Gulberg Town, Lahore, Pakistan. J. Mater. Cycles Waste Manag. 2014, 16, 73–81. [Google Scholar] [CrossRef]
  24. Houghton, J.T.; Ding, Y.; Griggs, D.J.; Noguer, M.; van der Linden, P.J.; Dai, X.; Maskell, K.; Johnson, C.A. Climate Change 2001: The Scientific Basis; Earthprint Ltd.: Stevenage, UK, 2001. [Google Scholar]
  25. United Nations (UN). United Nations Framework Convention on Climate Change; United Nations: New York, NY, USA, 1992. [Google Scholar]
  26. United Nations (UN). Kyoto Protocol to the United Nations Framework Convention on Climate Change; United Nations: New York, NY, USA, 1997. [Google Scholar]
  27. Harvey, D. Global Warming the Hard Science; Dorling Kindersley: Agra, India, 2010. (In Indian) [Google Scholar]
  28. Kirkeby, J.T.; Birgisdottir, H.; Bhander, G.S.; Hauschild, M.; Christensen, T.H. Modelling of environmental impacts of solid waste landfilling within the life-cycle analysis program EASEWASTE. Waste Manag. 2007, 27, 961–970. [Google Scholar] [CrossRef] [PubMed]
  29. Knowles, R. Denitrifiers associated with methanotrophs and their potential impact on the nitrogen cycle. Ecol. Eng. 2005, 24, 441–446. [Google Scholar] [CrossRef]
  30. Mandernack, K.W.; Kinney, C.A.; Coleman, D.; Huang, Y.S.; Freeman, K.H.B.J. The biogeochemical controls of N2O production and emission in landfill cover soils: The role of methanotrophs in the nitrogen cycle. Environ. Microbiol. 2000, 2, 298–309. [Google Scholar] [CrossRef] [PubMed]
  31. Valasi, G.D.; Uqaili, M.A.; Memon, R.H.; Samoo, S.R.; Mirjat, N.H.; Harijan, K. Overcoming electricity crisis in Pakistan: A review of sustainable electricity options. Renew. Sustain. Energy Rev. 2017, 72, 734–745. [Google Scholar] [CrossRef]
Sustainability 09 02242 g001 550
Figure 1. Map of the study area (Source: [23]).
Figure 1. Map of the study area (Source: [23]).
Sustainability 09 02242 g001
Sustainability 09 02242 g002 550

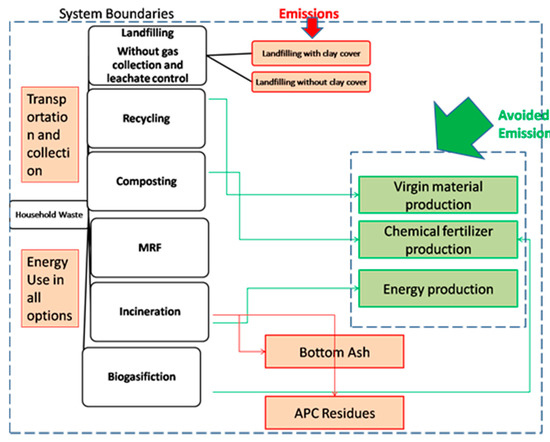

Figure 2. System boundaries for the study. MRF: material recovery facility.
Figure 2. System boundaries for the study. MRF: material recovery facility.
Sustainability 09 02242 g002
Sustainability 09 02242 g003 550
Figure 3. Generation and composition of municipal solid waste (MSW) of the study area.
Figure 3. Generation and composition of municipal solid waste (MSW) of the study area.
Sustainability 09 02242 g003
Sustainability 09 02242 g004 550

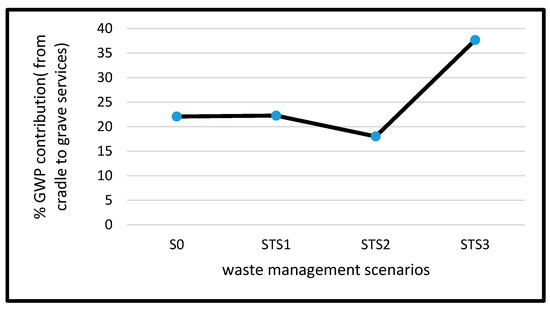

Figure 4. Comparison of existing and short-term scenarios (STSs) for global warming potential (GWP) contribution from cradle to grave services.
Figure 4. Comparison of existing and short-term scenarios (STSs) for global warming potential (GWP) contribution from cradle to grave services.
Sustainability 09 02242 g004
Sustainability 09 02242 g005 550

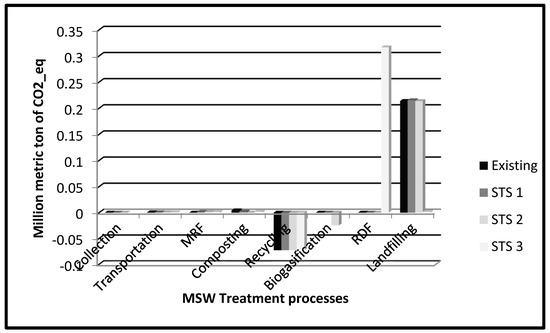

Figure 5. Comparison between MSW management processes for GWP.
Figure 5. Comparison between MSW management processes for GWP.
Sustainability 09 02242 g005
Table
Table 1. Life Cycle Inventory for GWP.
Table 1. Life Cycle Inventory for GWP.
Substance NameS0STS 1STS 2STS 3
Carbon Dioxide (CO2—Biological with impact) −352,093 −352,093
Carbon Sequestered −54,572,532−53,068,261−53,068,261
HCFC 21 (Dichlorofluoromethane)75,62775,62775,184444
1,1,1-Trichloroethane 693682681659
Hydrocarbons (HC) −176,051−176,262−180,207−176,631
Carbon Monoxide (CO) −264,323−264,692−270,280−270,923
Carbon Dioxide (CO2—Fossil) −58,836,893−58,965,960−80,709,327258,009,697
Methane (CH4) 250,206,040250,332,345246,710,315−9,675,849
Nitrous Oxide (Laughing Gas) (N2O)952,067921,994−2,031,7521,659,785
Dichloromethane (Methylene chloride)15,00515,00514,91788
CFC 11 (Trichlorofluoromethane)1,380,4971,380,4971,372,3998098
CFC 12 (Dichlorodifluoromethane)6,362,2886,362,2886,324,96837,320
HFC 134a (Tetrafluoroethane)3333
HCFC 22 (Chlorodifluoromethane)663,239663,239659,3483890
Carbon tetrachloride 16211621161110
CFC 113 (Trichlorotrifluoroethane)180,065180,065179,0091056
Halon (1301) −744−870−870−744
Total145,986,601147,105,226119,077,738249,244,808
