IHS-GTF: A Fusion Method for Optical and Synthetic Aperture Radar Data

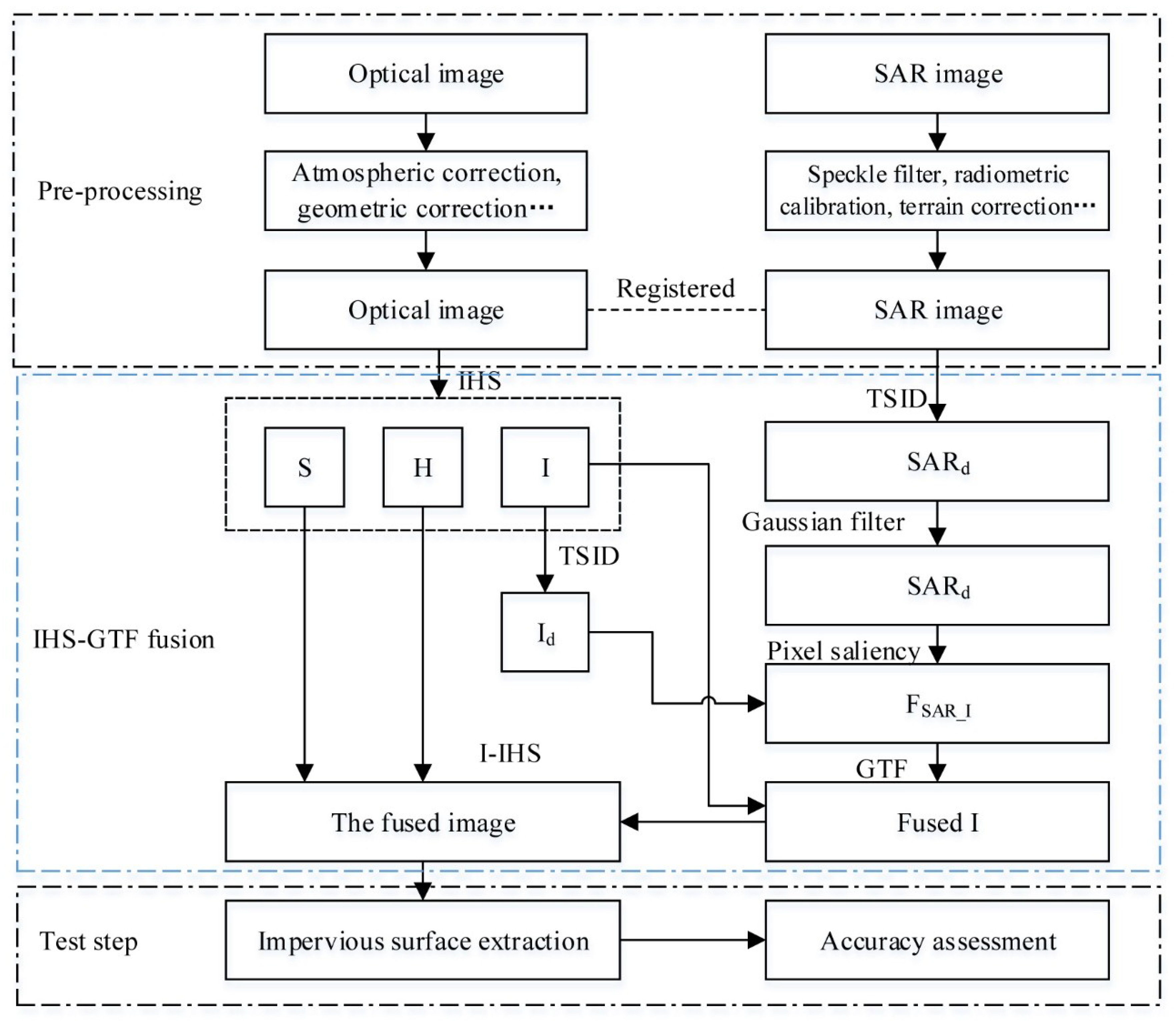

Optical and Synthetic Aperture Radar (SAR) fusion is addressed in this paper. Intensity–Hue–Saturation (IHS) is an easily implemented fusion method and can separate Red–Green–Blue (RGB) images into three independent components; however, using this method directly for optical and SAR images fusion will cause spectral distortion. The Gradient Transfer Fusion (GTF) algorithm is proposed firstly for infrared and gray visible images fusion, which formulates image fusion as an optimization problem and keeps the radiation information and spatial details simultaneously. However, the algorithm assumes that the spatial details only come from one of the source images, which is inconsistent with the actual situation of optical and SAR images fusion. In this paper, a fusion algorithm named IHS-GTF for optical and SAR images is proposed, which combines the advantages of IHS and GTF and considers the spatial details from the both images based on pixel saliency. The proposed method was assessed by visual analysis and ten indices and was further tested by extracting impervious surface (IS) from the fused image with random forest classifier. The results show the good preservation of spatial details and spectral information by our proposed method, and the overall accuracy of IS extraction is 2% higher than that of using optical image alone. The results demonstrate the ability of the proposed method for fusing optical and SAR data effectively to generate useful data.
