The Multifrequency Future for Remote Sensing of Sea Surface Salinity from Space

Abstract

Passive microwave remote sensing of sea surface salinity from space is done with measurements in the 27 MHz wide spectral window at 1.413 GHz (L-band) which is protected for passive use only. The frequency, 1.413 GHz, is near the peak in sensitivity to changes in salinity and modern L-band instruments, such as the radiometers on SMOS and Aquarius, have demonstrated the feasibility of monitoring surface salinity from space. They have also demonstrated the need for better accuracy, especially in cold water. Proposals to improve accuracy have largely involved adding more frequencies. For example, adding higher frequencies to improve the correction for sea surface temperature and lower frequencies to improve the sensitivity to salinity in cold water. These strategies involve trade-offs, some obvious such as the effects of interference outside the protected band and loss of spatial resolution at lower frequencies, but some are more subtle because of the interdependence of the measurement on other parameters of the ocean surface, in particular, the interdependence of salinity, water temperature and roughness (wind speed). The objective of this manuscript is to describe these interdependencies in a quantitative way with documented assumptions to support the design of future instruments for remote sensing of salinity.

1. Introduction

1.1. Passive Microwave Remote Sensing Frequencies

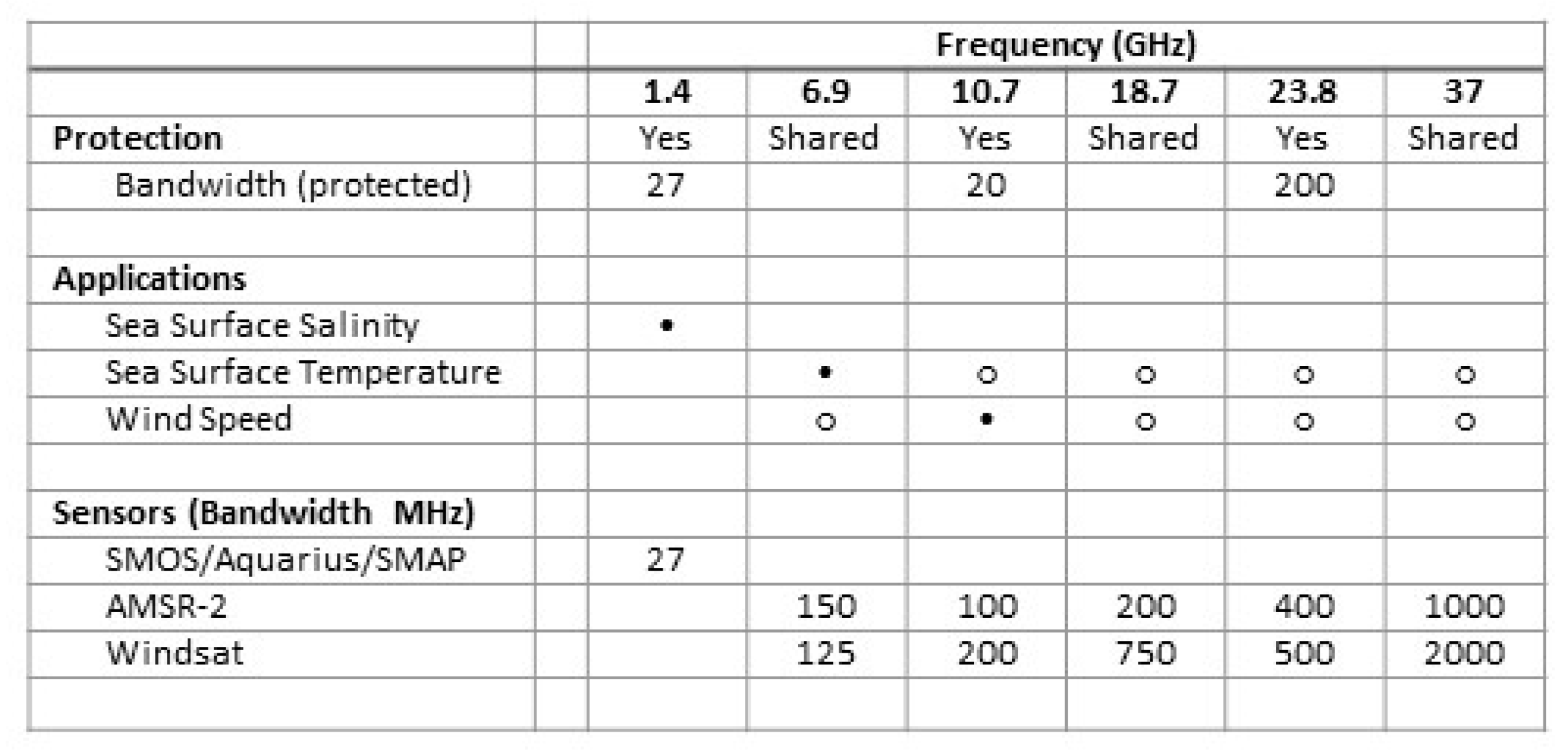

Passive microwave remote sensing of the ocean surface from space is done at a small set of frequencies selected for a combination of protection from radio frequency interference (RFI) and sensitivity to parameters of importance. This is illustrated in Figure 1 [1] which lists the frequencies used in contemporary passive remote sensing of the ocean surface. For example, the spectral window at 1.413 GHz is near the peak in sensitivity to sea surface salinity (SSS) and protected for passive use only, and a frequency near 6.9 GHz is close to the peak in response to sea surface temperature (SST). However, algorithms to retrieve these parameters generally employ more than one frequency. The solid circles in Figure 1 indicate the primary frequency (best sensitivity to the parameter desired) and the open circles indicate other frequencies employed in the retrieval algorithms to help correct for competing effects such attenuation by the atmosphere or the role of surface roughness (wind driven waves) on emission. An exception is remote sensing of SSS which has only employed measurements in the window at 1.413 GHz [2]. However, the demand for better retrieval accuracy, especially in cold water, is driving change. Systems are being investigated with lower frequencies to improve sensitivity and with higher frequencies to reduce dependence on ancillary data needed for SST and wind speed [3,4,5]. The goal of the work presented here is to provide information to guide in the choice of additional frequencies for a future generation of instruments to retrieve SSS from space.

1.2. Remote Sensing of Sea Surface Salinity

Salinity of ocean water is important to understand ocean circulation and the associated movement of heat and to help understand the global hydrological cycle (e.g., the balance between evaporation and precipitation). Sensors such as on the Soil Moisture and Ocean Salinity (SMOS) mission [6], deployed by the European Space Agency (ESA), and Aquarius [7] and on the Soil Moisture Active Passive (SMAP) mission [8], deployed by the National Aeronautics and Space Administration (NASA), have demonstrated the feasibility of measuring SSS from space (e.g., [9,10]). However, while these L-band radiometers have demonstrated the feasibility of monitoring salinity, they have also demonstrated the need for better accuracy, especially at high latitude and cold water [9,11,12,13,14]. These areas are dynamic with high wind and melting ice and the location of turning points in ocean circulation [15,16], all of which are of increasing importance in understanding the consequences of climate change. While winds (roughness) and changing sea ice contribute to error, the substantial decrease in radiometric sensitivity to salinity in cold water is an important part of the increase in Root Mean Square (RMS) error observed in the retrieved salinity.

The radiometers on SMOS, SMAP and Aquarius all operate in a narrow, 27 MHz wide, spectral window at 1.413 GHz protected for passive use only (Appendix D). Proposals to improve accuracy have largely involved adding more frequencies (e.g., measurements near 3–6 GHz to improve the correction for SST) and moving to lower frequencies to improve the sensitivity to salinity in cold water. Examples are instrument studies recently reported at NASA’s Jet Propulsion Laboratory [3] and Goddard Space Flight Center [4,5]. These strategies involve trade-offs, some obvious such as the potential increase in RFI when moving out of the protected band and the poorer spatial resolution that likely comes with lower frequencies, but some are more subtle. More subtle issues arise because of the dependence of the remote sensing measurement on other parameters of the surface, a dependence which must be included in the retrieval algorithm. An example is SST, which in current algorithms to retrieve salinity is obtained as ancillary data from other sources [17]. As will be shown below, moving to a lower frequency to improve sensitivity to salinity also slightly decreases the sensitivity to roughness (a source of uncertainty) but can dramatically increase the sensitivity to SST. Increased sensitivity to SST also increases the sensitivity of the retrieval to error in the ancillary data available to provide SST.

2. Methods

This manuscript will examine the changes in sensitivity of radiometric brightness temperature (TB) to SSS, SST and wind speed (WS) in the context of future instruments for remote sensing of SSS that may operate outside the protected spectral band at 1.413 GHz. To a first approximation, one could represent the change of TB (SSS, SST, WS) in the form:

ΔTB = dTB/dSSS ΔSSS + dTB/dSST ΔSST + dTB/dWS ΔWS

(1)

The objective of the discussion below is to examine each of the derivative terms in this expansion to provide insight into how the three sensitivities depend on frequency and on the parameters SSS, SST and WS themselves. From the perspective of remote sensing of salinity, one would like to operate in a regime where the sensitivity, dTB/dSSS, is large and the other terms are small. The goal of the analysis below is to present quantitative estimates based on documented assumptions about how these terms change to provide the insight needed to optimize choices and to better support the design of a future instrument to measure SSS.

This manuscript consists of several parts which taken together will build a documented description of the response of the ocean surface to SSS, SST and WS. In Section 3.1, the sensitivity of TB to changes in salinity will be discussed (e.g., as a function of frequency, polarization and temperature). In Section 3.2, the sensitivity of TB to changes in SST will be discussed as a function of SSS, temperature and polarization and incidence angle. Both of these sections will assume a flat surface (no sea surface roughness). In Section 3.3, the effect of roughness and the sensitivity of TB to changes in roughness (wind speed, WS) will be discussed, using a combination of theory and empirical model. Finally, in Section 4, this information will be put together to create a figure summarizing these effects and to provide insight into the potential choice of new frequencies to improve accuracy of SSS in future remote sensing instruments.

The figures in Section 4 are a modern and documented version of a figure that has been used to explain the rationale behind the choice of frequencies employed in passive microwave remote sensing of the ocean surface. The original figure [18] is more notional than quantitative and did not have a scale for sensitivity nor mention differences in polarization. One objective of this manuscript is to present an alternative, with appropriate background and detail that will be more useful for this purpose in the future.

3. Results

3.1. Sensitivity of Brightness Temperature (TB) to Changes in Salinity: dTB/dSSS

This section reports the sensitivity of the observable, TB, to changes in the ocean variable of primary interest, SSS: dTB/dSSS. The sensitivity is strongly dependent on frequency, water temperature and incidence angle. This is illustrated below in Figure 2, Figure 3, Figure 4 and Figure 5.

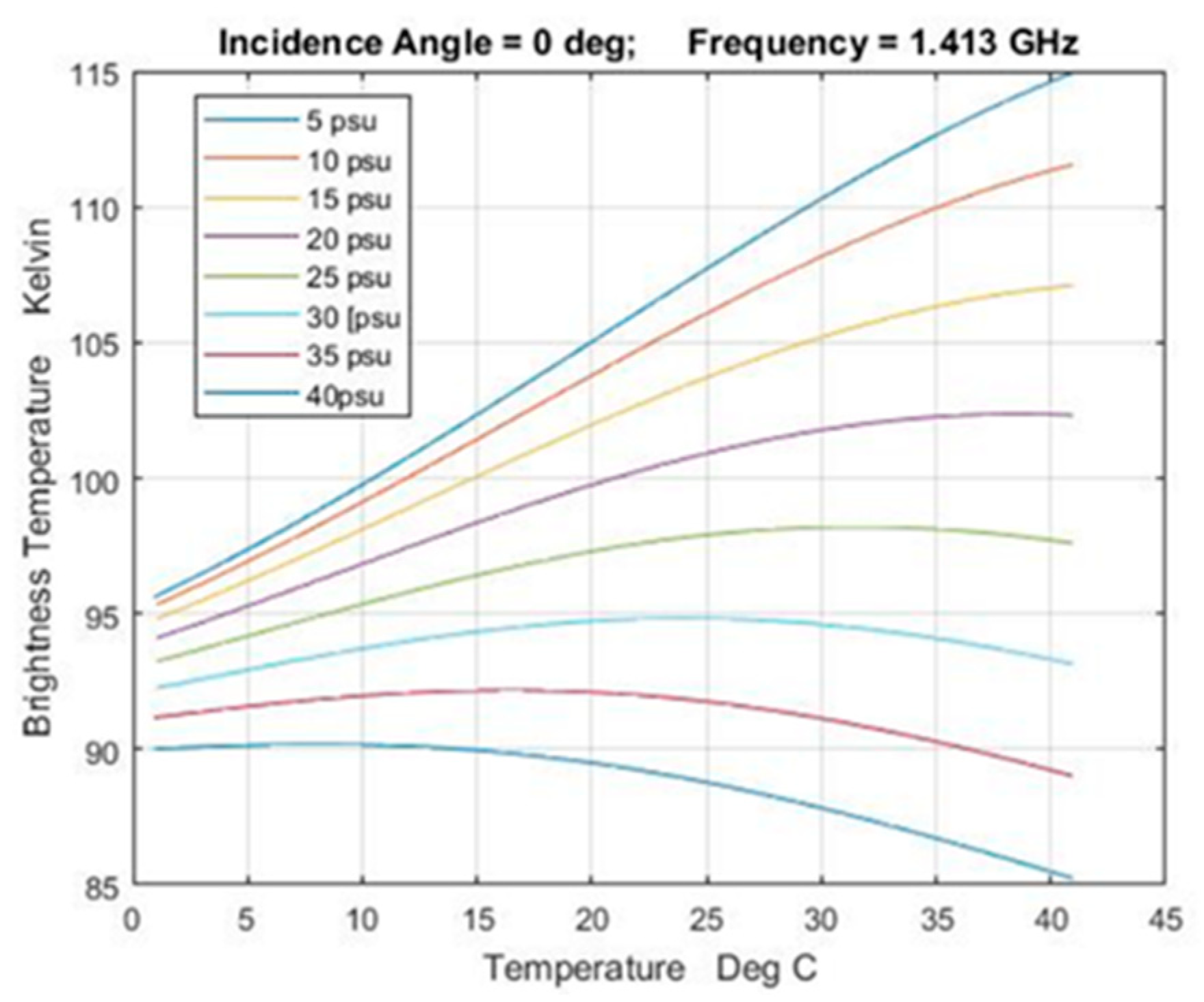

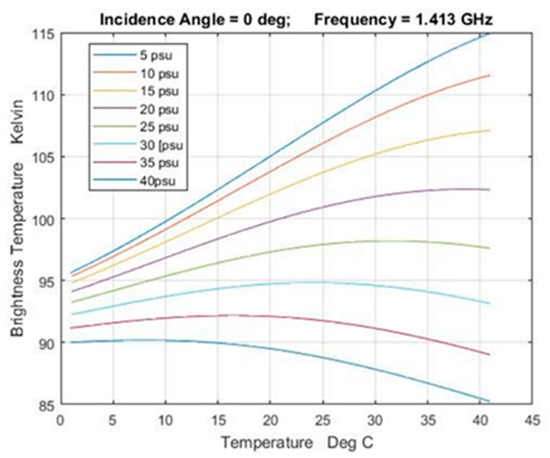

The dependence on water temperature is illustrated in Figure 2 which is a set of level curves of constant salinity as a function of brightness temperature (vertical axis) and water temperature (horizontal axis). The top curve is for SSS = 5 psu and the salinity increases in steps of 5 psu toward the bottom-most curve at SSS = 40 psu. Typical values of SSS in the open ocean are between 33 and 36 psu. The sensitivity of TB to changes in salinity at fixed temperature is approximately the vertical distance between curves in kelvin divided by the difference in salinity.

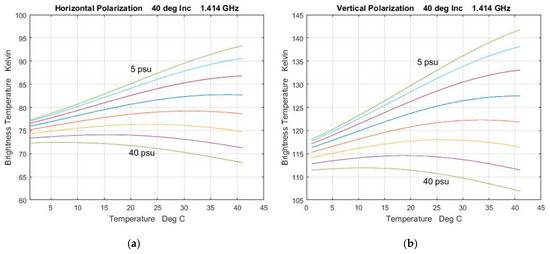

The sensitivity of TB to SSS is negative (i.e., the brightness temperature decreases as the salinity increases) for all temperatures and salinities in the ocean. The sensitivity also depends on polarization. This is illustrated in Figure 3 which shows the same data at 40° incidence angle for horizontal polarization (Figure 3a) and vertical polarization (Figure 3b). The shape of the curves and dependence on salinity is similar, but the distance between curves is larger at vertical polarization (easily noticeable at warm temperatures).

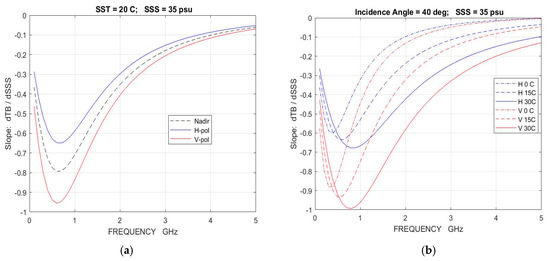

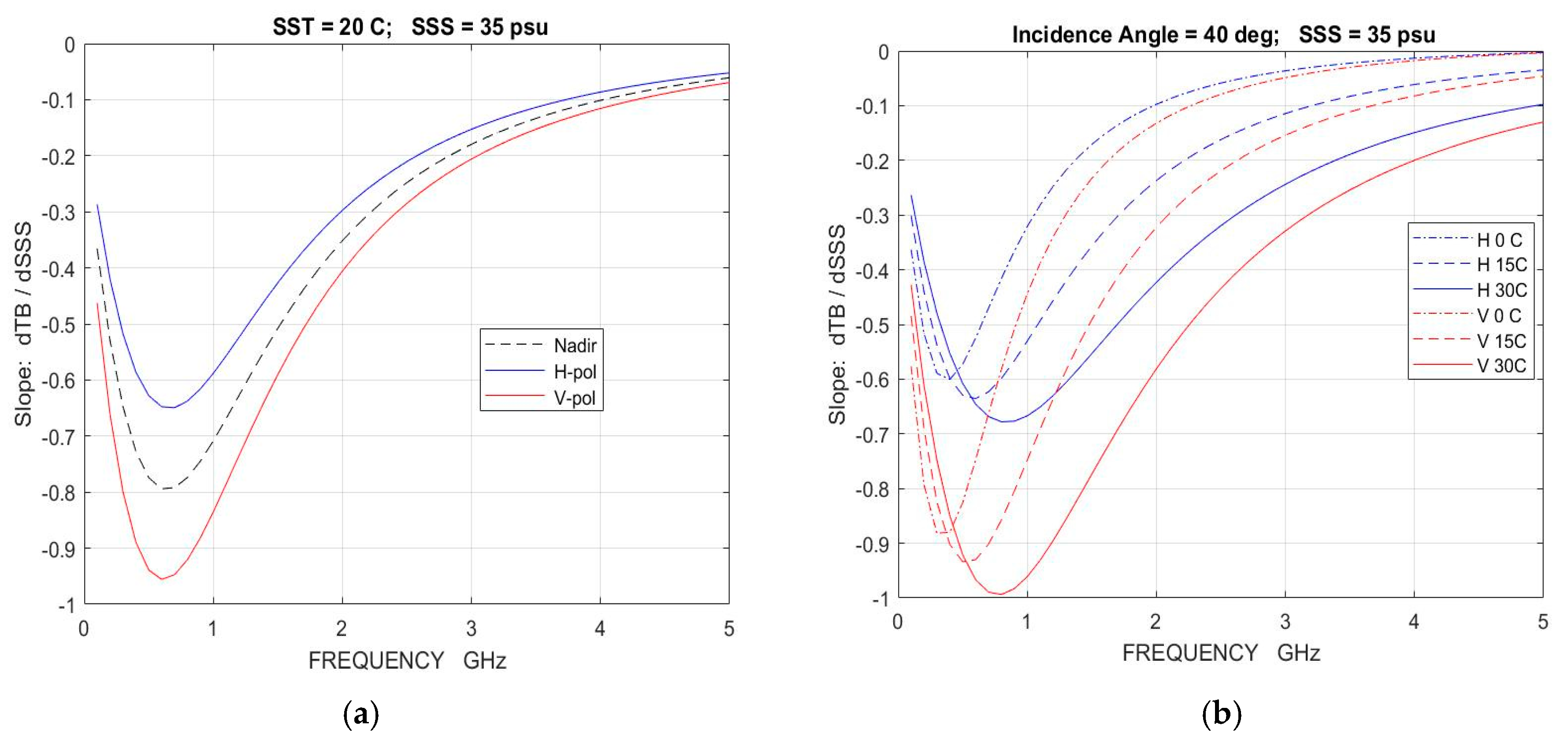

The sensitivity itself, dTB/dSSS, is shown in Figure 4 as a function of frequency. Figure 4a also illustrates the dependence on incidence angle, and Figure 4b illustrates how the sensitivity varies with temperature. It is clear from the two examples in Figure 4 that the sensitivity depends on incidence angle and temperature and, for incidence angles other than nadir, that sensitivity depends on polarization and is larger at vertical polarization. It is also clear from Figure 4 that the sensitivity is small except for a relatively narrow range of frequencies from about 300 MHz to 3.0 GHz and peaks between 500 MHz and 1 GHz, depending on SST.

3.1.1. Background

The curves in Figure 2, Figure 3 and Figure 4 were generated using the Klein-Swift model function for the dielectric constant of seawater [19] evaluated at 1.413 GHz, the center frequency of the band in which the measurements from space are currently being made. Assuming a flat surface (no waves) and a homogeneous ocean in thermal equilibrium, one can show [20] that the emissivity of the surface is:

Є = 1 − |R_p|²

(2)

where R_p is the Fresnel reflection coefficient at polarization, p:

$${\mathrm{R}}_{\mathrm{v}}=\frac{\mathsf{\epsilon }\cos \mathsf{\theta }-\sqrt{\mathsf{\epsilon }-{\sin }^2\mathsf{\theta }}}{\mathsf{\epsilon }\cos \mathsf{\theta }+\sqrt{\mathsf{\epsilon }-{\sin }^2\mathsf{\theta }}}$$

(3a)

$${\mathrm{R}}_{\mathrm{h}}=\frac{\cos \mathsf{\theta }-\sqrt{\mathsf{\epsilon }-{\sin }^2\mathsf{\theta }}}{\cos \mathsf{\theta }+\sqrt{\mathsf{\epsilon }-{\sin }^2\mathsf{\theta }}}$$

(3b)

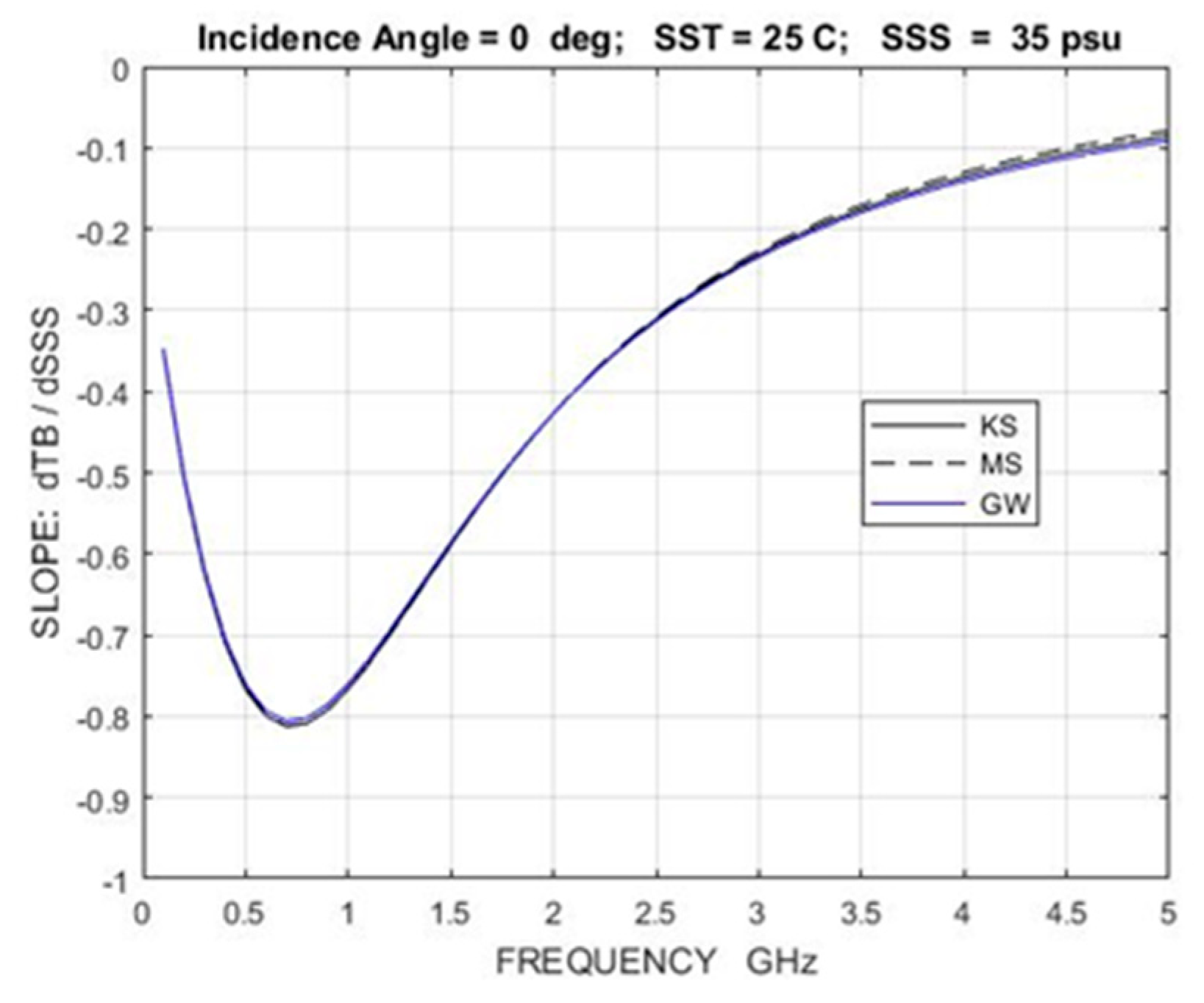

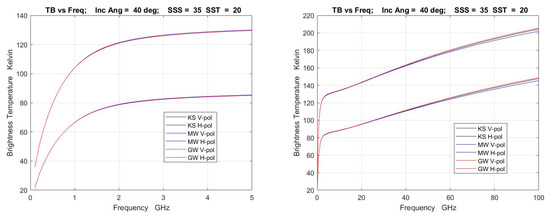

and by definition (of microwave emissivity) the brightness temperature, TB = Є × T where T is the physical temperature. In Equation (3) for the reflection coefficient, ε is the dielectric constant of sea water, θ is the local incidence angle and [h,v] indicate polarization (horizontal, vertical, respectively). There has been recent work on the model function, ε(S,T), that gives the dielectric constant of seawater as a function of salinity, S, and physical temperature, T. For example, Meissner and Wentz [21,22] made adjustments based on observations at higher frequencies; and Zhou et al. [23] produced a new model function based on extensive measurements at 1.413 GHz [24]. However, the Klein-Swift model function [19] is still widely used and the difference in the context of the discussion presented here is not significant (Appendix A).

3.1.2. Dependence of Sensitivity, dTB/dSSS, on Temperature

The sensitivity to salinity, dTB/dSSS is strongly dependent on water temperature, SST, as shown in Figure 4b. Figure 4b shows the sensitivity at 40° incidence and SSS = 35 psu for several temperatures: SST = 0 °C, 15 °C, 30 °C. The red curves are for vertical polarization and the blue curves for horizontal polarization. Two changes occur with a change in temperature: as temperature decreases, the peak value decreases and moves toward lower frequency. In addition, the frequency range where the sensitivity is largest (i.e., the width of the peak) becomes narrower with decreasing temperature. This makes the effect of temperature for a sensor operating at a fixed frequency more significant. For example, at 1.4 GHz (currently used by SMOS and SMAP to monitor salinity), the sensitivity dTB/dSSS dramatically decreases with decreasing temperature. Using 1.5 GHz as an example, the change at vertical polarization would be from a sensitivity of about −0.8 K/psu at SST = 30 °C to about −0.25 K/psu at SST = 0 °C. This is representative of the difference in sensitivity between measurements of SSS made at low latitude in the open ocean (warm water) and those made near melting ice in the Arctic.

3.1.3. Dependence of dTB/dSSS on Salinity

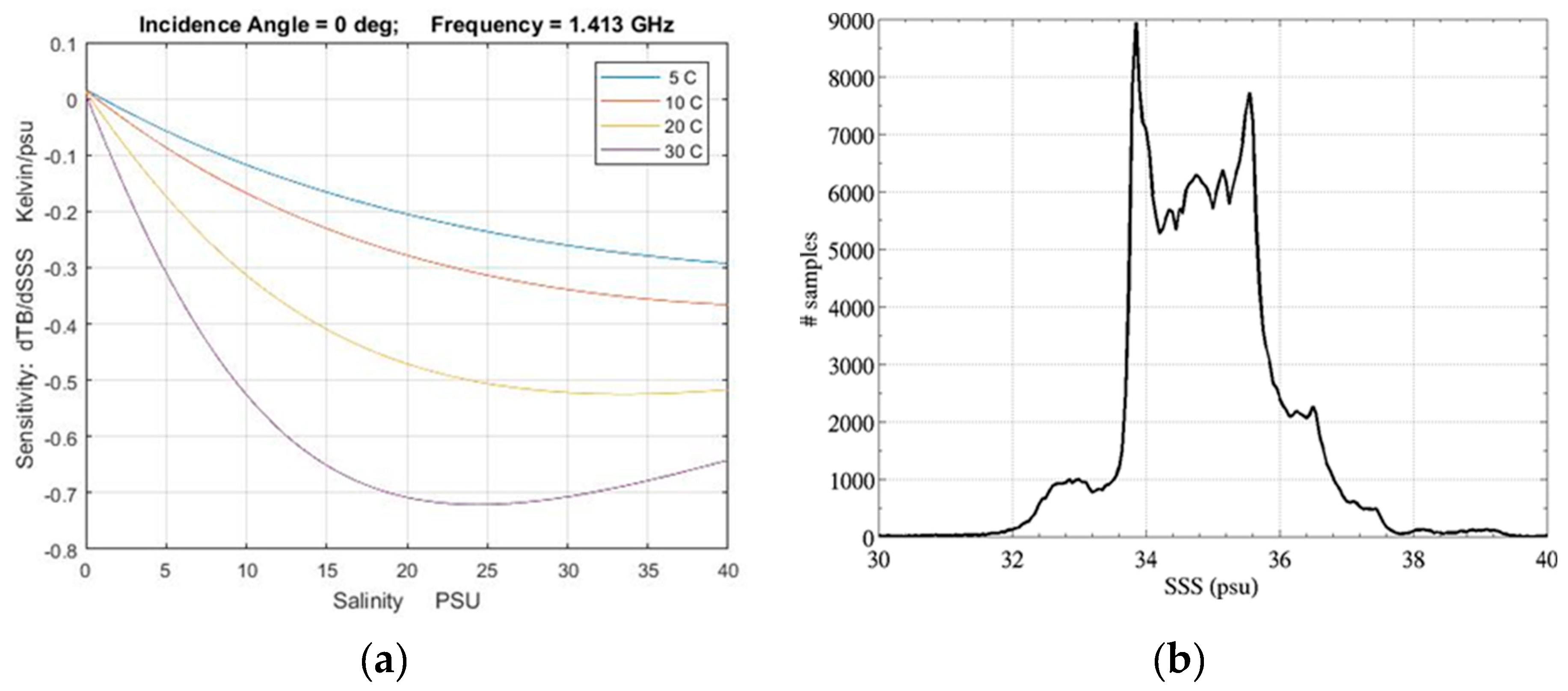

At 1.4 GHz there is also a dependence of the sensitivity, dTB/dSSS, on salinity, but this is mostly important only at low values of salinity well outside the range of values common in the open ocean. This is illustrated in Figure 5. Figure 5a shows the sensitivity, dTB/dSSS, on the vertical axis as a function of salinity on the horizontal axis for several values of SST (at nadir and 1.413 GHz). Figure 5b is a histogram showing the distribution of SSS in the open ocean. The ocean data were taken from in situ measurements made by the global network of Argo floats [25]. Figure 5b shows that the vast majority of measurements are between 33 and 37 psu and from Figure 5a one sees that the sensitivity of brightness temperature to changes in SSS varies relatively little with SSS in this range. Lower salinity can occur in the very cold waters of the Arctic ocean, but even in these regions of extremely fresh ocean waters, SSS is above 25 psu where (Figure 5a) there is limited change in sensitivity with SSS.

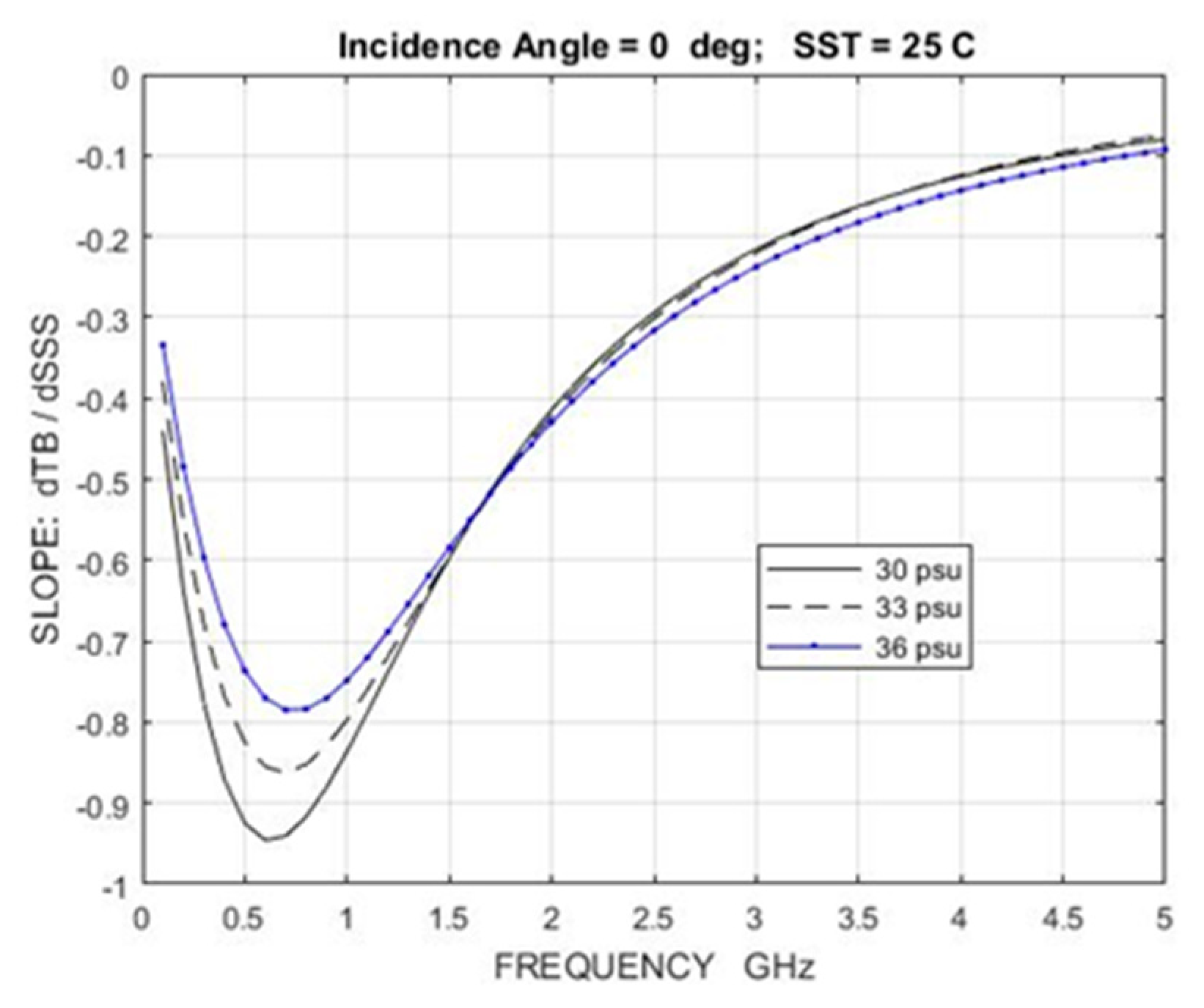

However, the dependence of the sensitivity, dTB/dSSS, on salinity is dependent on frequency. In particular, the dependence of the sensitivity on SSS is stronger near the peak of dTB/dSSS (e.g., near 700 MHz in Figure 4a) than on the shoulders as described above for 1.4 GHz. In fact, 1.4 GHz is near a null in the dependence of dTB/dSSS on salinity. This is illustrated in Appendix B where an example (Figure A4) is presented showing the dependence of dTB/dSSS on SSS as a function of frequency for SST = 25 °C.

3.2. Sensitivity of TB to Changes in Temperature: dTB/dSST

This section reports the dependence on frequency, temperature, salinity and polarization of the sensitivity of brightness temperature, TB, to changes in ocean water temperature: dTB/dSST. As in the preceding section, the analysis is for a flat surface and an ocean with uniform SST and SSS (i.e., Equation (3) applies) and using the model of Klein-Swift [19] for the dielectric constant of sea water.

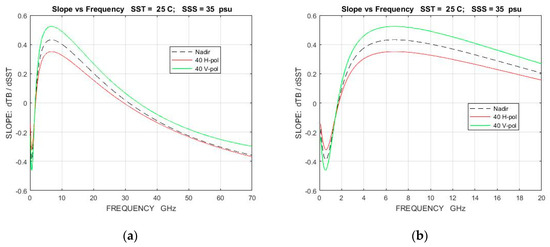

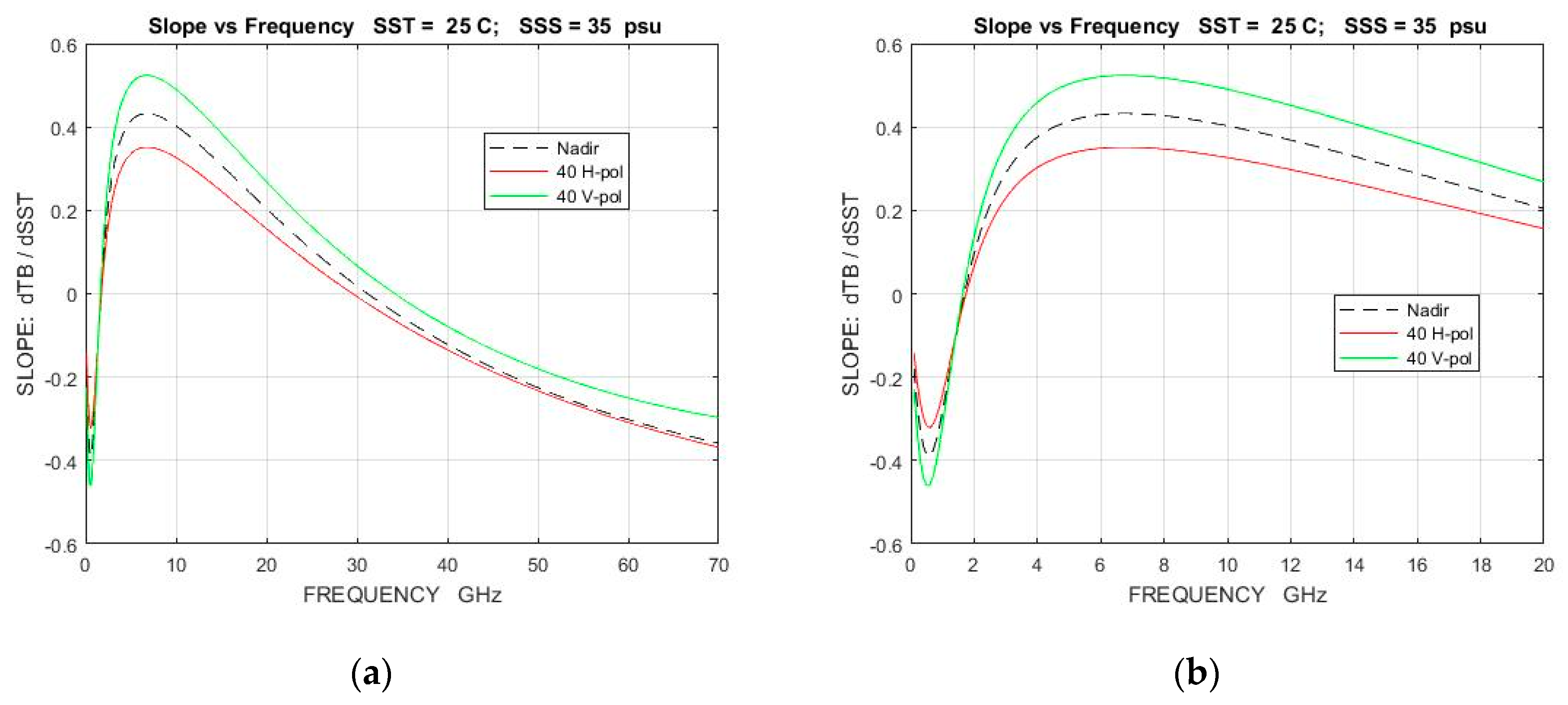

The sensitivity of brightness temperature to changes in SST is reported as a function of frequency and incidence angle in Figure 6 and as a function of frequency and SST in Figure 7. Figure 6 shows the sensitivity, dTB/dSST, at nadir (dashed) and at 40° incidence angle for horizontal polarization (red) and vertical polarization (green). An angle of 40° was chosen because it is SMAP’s incidence angle and close to Aquarius’ middle beam’s incidence angle. The example in Figure 6 is for SST = 25 °C and, although it is representative of the effect of incidence angle, there is a strong dependence on SST. This is illustrated in Figure 7 which shows the dependence on SST as a function of frequency at nadir. Figure 6b and Figure 7b are the same data as Figure 6a and Figure 7a, respectively, but with expanded scale to show better the behavior below 20 GHz.

Figure 6 illustrates the general trends of dTB/dSST with frequency. The sensitivity changes rapidly with frequency below 10 GHz, with a positive peak near 6 GHz and a negative peak near 600 MHz. The sensitivity passes through zero twice, once near 2 GHz and again in the range near 30 GHz, which varies widely with temperature. The negative peak in sensitivity near 600 MHz is about the same magnitude as the positive peak near 6 GHz. After this positive peak, the sensitivity decreases, crosses zero near 30 GHz and then begins to increase in magnitude again (but negative in sign), eventually reaching a magnitude similar to that at the lower frequency peaks.

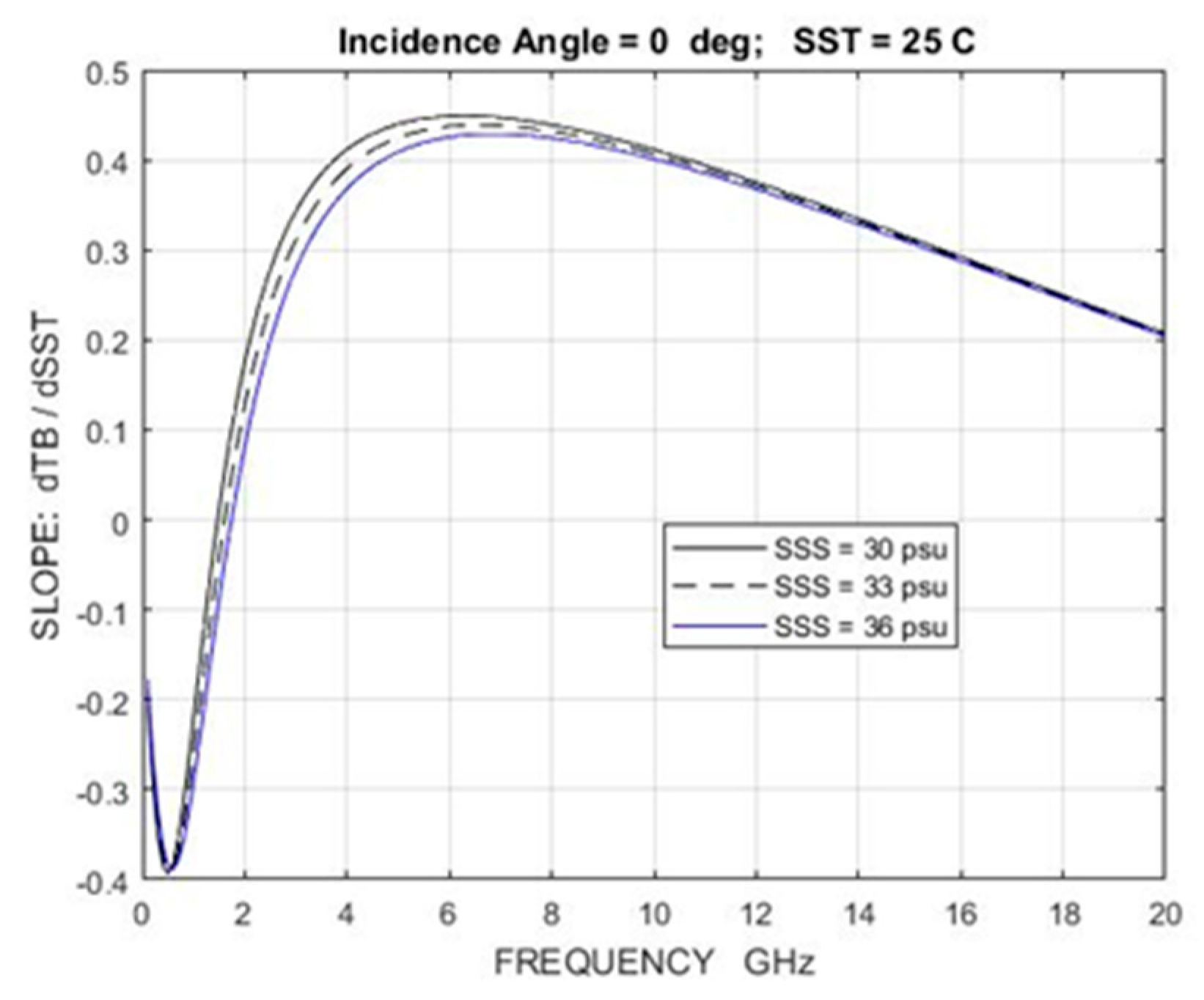

The curves in Figure 6 explain the common choice of 6–7 GHz as the primary frequency to measure SST (Figure 1), because in this frequency range the sensitivity to SST is close to the maximum over a wide range of temperatures (Figure 7) and SSS has a very small impact (Figure 4). At low frequency (e.g., below 6 GHz) the sensitivity shown in Figure 7 depends on salinity. However, the change in sensitivity is small at values of SSS representative of the open ocean (e.g., 32 psu < SSS < 37 psu). An example of the dependence of dTB/dSST on salinity is given in Figure A3 in Appendix B.

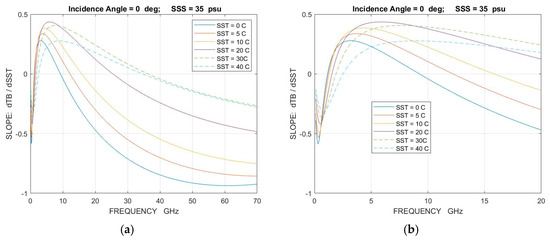

The examples of dTB/dSST shown in Figure 6 are for a single temperature, SST = 25 °C. However, the sensitivity, dTB/dSST, has a strong dependence on SST at all frequencies. This is illustrated in Figure 7 which shows the sensitivity at nadir as a function of SST and frequency. As temperature decreases, the sensitivity curves compress, becoming narrower in frequency and with larger amplitude at the low frequency peak (Figure 7b near 1 GHz) and smaller amplitude at the positive peak. For example, at 5 °C the low frequency negative peak is about −0.5 K/°C and the positive peak is about 0.3 K/°C and occurs at about 3 GHz. However, at 30 °C the low frequency negative peak is about −0.4 K/°C and the positive peak is about +0.4 K/°C and occurs near 8 GHz.

The rapid change in dTB/dSST in the frequency range 300 MHz–3.0 GHz is an important consideration for remote sensing of salinity. The frequency of 1.4 GHz where measurements of SSS are currently made (e.g., SMOS and SMAP) is very near the zero of dTB/dSST for water temperature in the range 15–20 °C. This can be seen in Figure 7b and also in the level curves of Figure 2 and Figure 3 which are relatively flat for values of salinity representative of the open ocean (e.g., 33–37 psu) and for temperatures in the range 15–30 °C. However, moving away from 1.413 GHz in the direction of either higher or lower frequency could significantly increase the magnitude of dTB/dSST and impose a requirement for more accurate information on water temperature in the retrieval algorithm (i.e., require a smaller ΔSST in Equation (1) to compensate for a larger dTB/dSST). This could especially be a problem in cold water, where moving to a lower frequency to improve sensitivity to salinity (Figure 4) would also incur an increase in the sensitivity to SST.

3.3. Sensitivity of TB to Wind Speed (WS): dTB/dWS

3.3.1. Background

The radiometric response of the ocean surface in the presence of waves and the relationship of waves to wind is complex and only incompletely modelled. Theories for scattering from the surface suffer from an incomplete description of the surface and the need to integrate over the full range of incidence angles and the entire field-of-view to obtain the radiometric response [20]. Experiments have been made to measure the radiometric response of rough water surfaces (e.g., [22,26,27,28]) but the experiments are limited to selected frequencies and/or incidence angles and tend to have large error bars, although they do reveal the general behavior with polarization, incidence angle and frequency.

For purposes of this study, the empirical model developed by Meissner and Wentz [22] is used to model the emissivity as a function of wind speed for frequencies above 6 GHz, and a two-scale scattering model developed for SMOS by Yin et al. [29] is used for frequencies below 6 GHz. The empirical model [22] was chosen because it is based on radiometric measurements, covers a large range of frequencies (6–90 GHz), and because it appears to agree reasonably well with available observations ([22] Section 7). This model will be used at the frequencies to which it is matched to the data (6.9, 10.7, 18.7, 37 and 85 GHz) to provide insight into the behavior with incidence angle and SST as a function of frequency. The two-scale model [29] is a physical optics model assuming tilted planes (tilted in two dimensions) with small scale roughness (Bragg scatter) superimposed on each planar facet and modified to include foam. The Yin et al. model agrees well with data from Aquarius, SMOS and SMAP at 1.4 GHz [30]. It will be used for frequencies below 6 GHz and for the examples at 1.4 GHz in Figure 8, Figures 10 and 11.

In both models, the effect of roughness is included explicitly by expressing the emissivity as the sum of two parts:

Є = Єo + ΔЄ

(4)

where Єo is the flat-surface emissivity given by Equations (2) and (3) and ΔЄ is the addition due to wind driven roughness. The wind-dependent correction, ΔЄ, used here is taken from Equations (14)–(18) in [22] for frequencies above 6 GHz. The dependence on wind direction has not been included here. For frequency below 6 GHz, the wind-dependent correction is taken from the two-scale model reported by Yin et al. [29]. At L-band (1.4 GHz) and wind speed below about 15–20 m/s, it agrees well with the empirical correction for wind speed (i.e., geophysical model function) developed from Aquarius and SMAP data [29,31]. Foam is included in the Yin et al. [29] model, and the total emissivity, Є_t, is computed from the weighted sum of the rough surface emissivity and the foam emissivity as

Є_t = Fr × Є_f + (1 − Fr) × Є

(5)

where Fr is the foam fraction, Є_f is the foam emissivity and Є is the rough surface emissivity computed from Equation (4).

3.3.2. Dependence of TB on WS

In general, roughness and foam increase emission (i.e., brightness temperature), and both increase with wind speed. Hence, in general, as wind speed increases, TB also increases, but the sensitivity of TB to wind speed depends on frequency, incidence angle and polarization, being larger for horizontal polarization. These general characteristics are discussed in more detail in the paragraphs below.

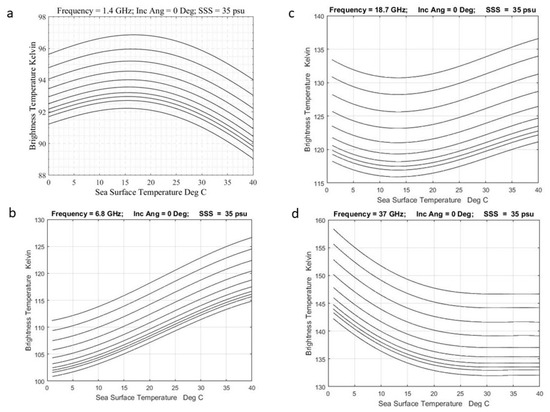

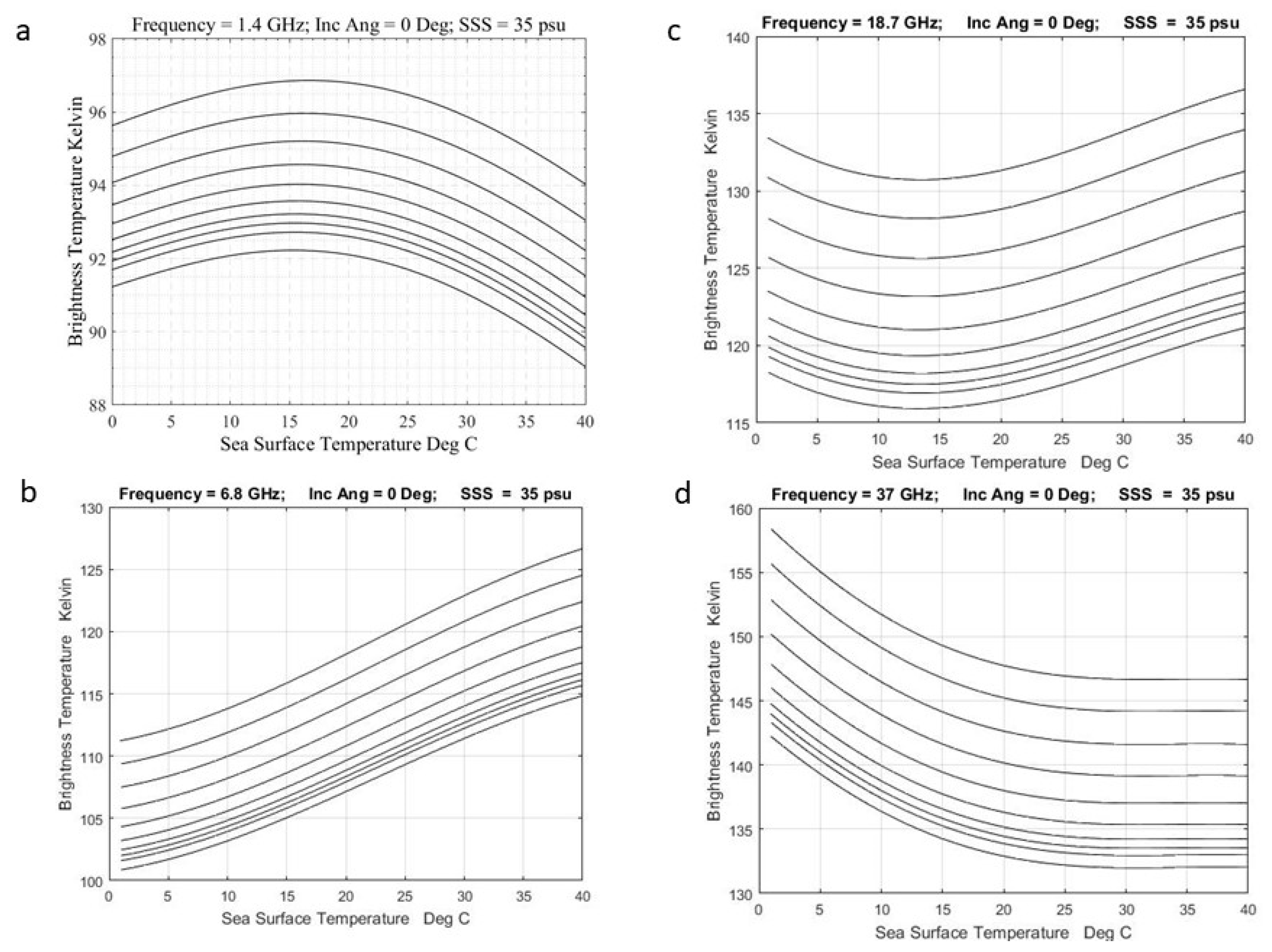

The increase of TB as a function of wind speed is illustrated in Figure 8 for frequencies of 1.4 GHz, 6.8 GHz, 18.7 GHz and 37 GHz. Figure 8 is a set of level curves of constant wind speed plotted as a function of brightness temperature on the vertical axis and SST on the horizontal axis. The curves are for zero incidence angle (nadir) and a salinity of 35 psu. The salinity, 35 psu, is typical of the open ocean (Figure 5b), although with the exception of 1.4 GHz the dependence on salinity is negligible (Figure 4). Each curve in Figure 8 represents a constant wind speed, starting at WS = 0 m/s at the bottom and increasing in steps of 2 m/s up to 18 m/s for the top curve. At all frequencies there is a monotonic increase in brightness temperature with increasing wind speed. Furthermore, the increase is greater at high wind speed (top curves) than at low wind speed (bottom curves). The transition occurs near a wind speed of 8 m/s.

The shape of the curves as a function of SST is different for each frequency. However, for a fixed frequency the shape is stable and relatively independent of WS (i.e., the level curves in each example in Figure 8 are roughly parallel). The general shape of the curves depends on the bulk properties of water and is not a wind driven feature. This can be seen by comparing the shape when WS > 0 m/s with the lowest curve for which WS = 0 m/s. The curve for WS = 0 m/s is determined, by definition in Equation (4), by Єo (i.e., TB = Єo × T when WS = 0 m/s). In turn, Єo is determined by the Fresnel reflection coefficients of a flat surface (i.e., Equations (2) and (3)) and is strongly dependent on both frequency and water temperature (Section 3.2 above). This is further illustrated in Figure 9a which shows brightness temperature, TB, at nadir as function of frequency for WS = 0 m/s and for temperatures of 1 °C, 10 °C, 20 °C and 30 °C. The curves in Figure 8 at WS = 0 m/s are essentially vertical cuts through Figure 9a at fixed frequency. For example, at 6.8 GHz it is clear that TB increases as a function of temperature but at 35 GHz and higher, the behavior is reversed and TB decreases with an increase in temperature. This behavior can be seen in the change of slope of the level curves in Figure 8 from positive at 6.8 GHz (Figure 8b) to negative at 37 GHz (Figure 8d).

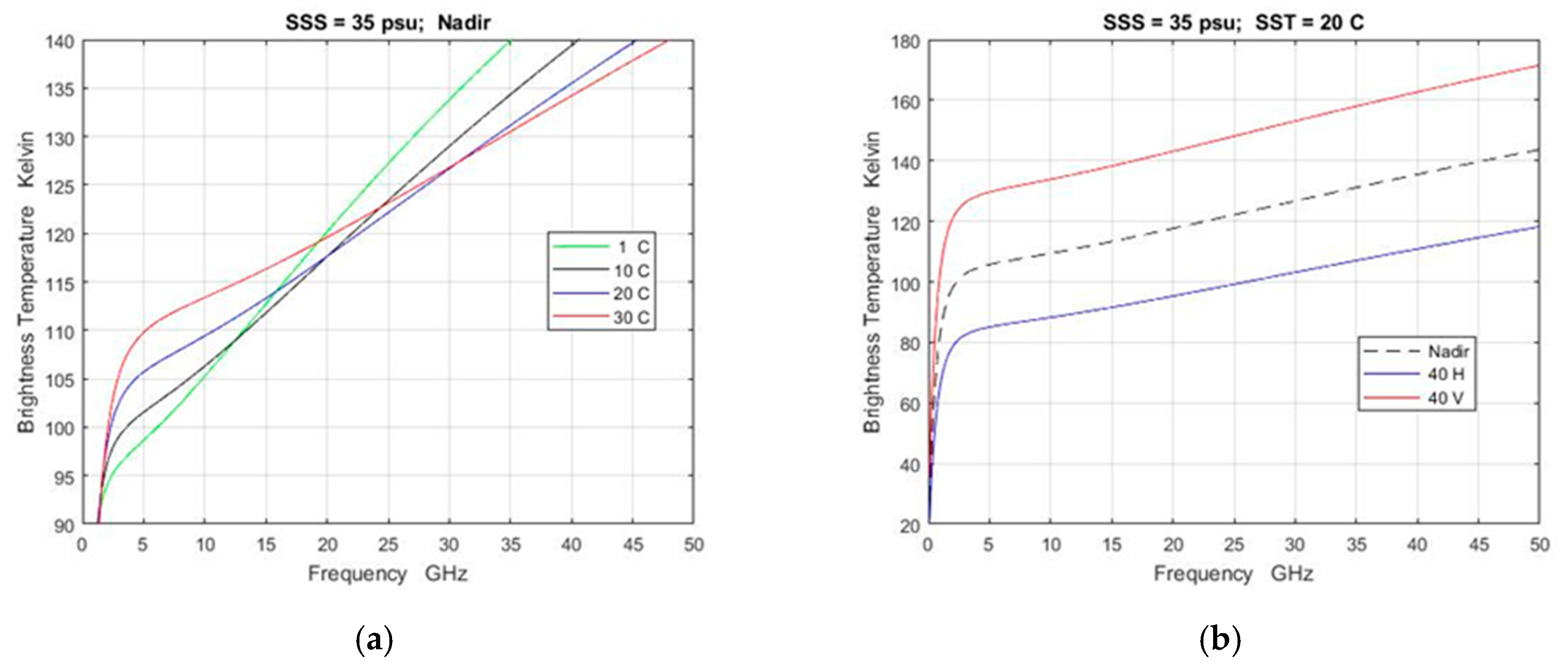

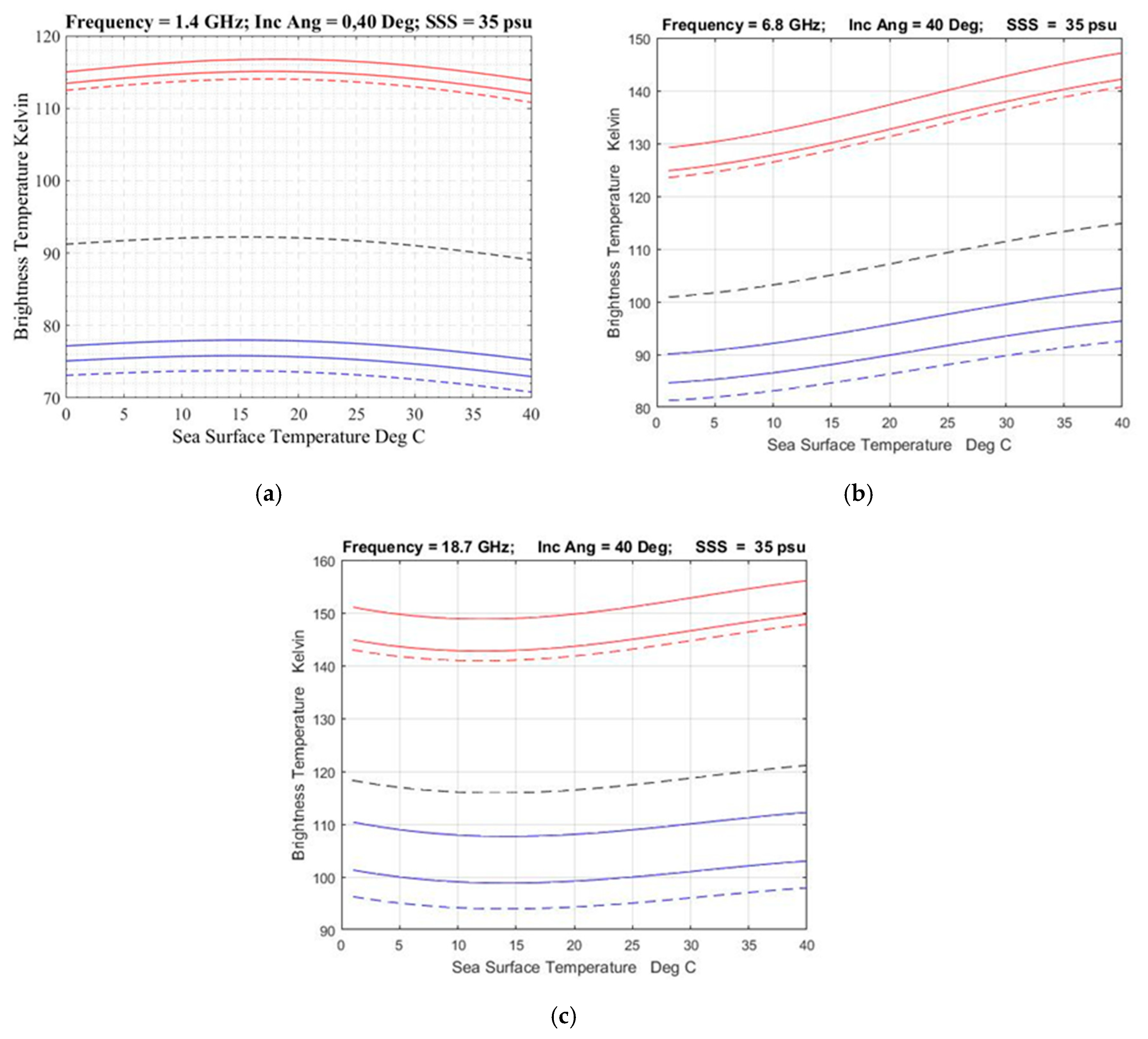

Figure 9b and Figure 10 illustrate the behavior with incidence angle and frequency. Figure 9b shows the dependence of TB with frequency at nadir (dashed curve) and 40° incidence angle (red for vertical polarization and blue for horizontal polarization). The dashed curve (nadir) behaves as a function of wind speed and SST as shown in Figure 8 for selected frequencies. Off nadir, horizontal (blue) and vertical (red) polarization behave similarly but with amplitude that depends on polarization. This is illustrated further in Figure 10 which shows brightness temperature as a function of SST at nadir and 40° incidence angle for frequencies, 1.4 GHz (Figure 10a), 6.8 GHz (Figure 10b) and 18.7 GHz (Figure 10c). The red curves are for vertical polarization and the blue curves for horizontal polarization at an incidence angle of 40°. The dashed blue and red curves are for WS = 0 m/s and the solid curves for WS = 7 m/s and 14 m/s. The dashed black curve is for nadir and WS = 0 m/s and is the same as the lowest curve (WS = 0 m/s) in Figure 8a–d. The effect of wind speed is to increase the emissivity and brightness temperature at both polarizations. Comparing the shape of the dashed curves in Figure 10 (zero wind speed) shows that the shape (change with SST) is, to a good approximation, independent of incidence angle; however, comparing the spacing between red lines with spacing between blue lines indicates that the sensitivity to WS does vary with polarization. In particular, the distance between the blue curves (horizontal polarization) is greater than between the red curves (vertical polarization) indicating that the sensitivity to WS is greater at horizontal polarization.

3.3.3. Sensitivity of TB to Changes in WS: dTB/dWS

The sensitivity, dTB/dWS, is approximately the change between the level curves in Figure 8 at fixed SST divided by the change in wind speed. From Figure 8 one can see qualitatively that the sensitivity increases with wind speed but not uniformly because the spacing is different at very low wind speed (below 2 m/s) and changes again above about 8 m/s. It also is clear from Figure 10 that the spacing depends on polarization, being noticeably larger at horizontal polarization.

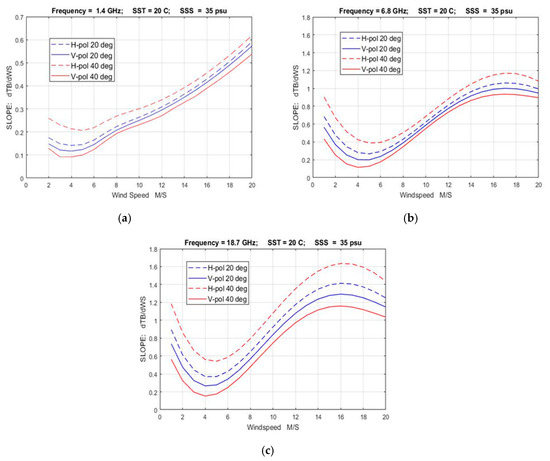

Figure 11 reports quantitative values of dTB/dWS computed from the empirical model of Meissner and Wentz [22] for 6.8 GHz (Figure 11b) and 18.7 GHz (Figure 11c) and the model of Yin et al. [29] for 1.4 GHz. The figure reports the sensitivity of brightness temperature to wind speed plotted on the vertical axis as a function of wind speed on the horizontal axis. In each case, SST = 20 °C and SSS = 35 psu which are close to the average values for the open ocean. The dashed curves are for horizontal polarization and solid curves are for vertical polarization and examples are given for incidence angles of 20° (blue) and 40° (red). For wind speed in the range of about 5 m/s < WS < 15 m/s, the sensitivity increases almost linearly with WS at these frequencies and the shape of the curve is almost independent of polarization. However, the value of sensitivity depends on polarization, being larger for horizontal polarization at all three frequencies. The sensitivity also increases with frequency and for a given polarization and incidence angle, the sensitivity is greater the higher the frequency. At a given frequency, the sensitivity increases with incidence angle at horizontal polarization and decreases with incidence angle at vertical polarization. A similar behavior was observed at L-band in the Aquarius data (e.g., see. Figure 2 in [31]).

Figure 11 indicates that for WS < 4 m/s the sensitivity, dTB/dWS, stops decreasing and for lower wind speed begins to increase as the wind speed decreases. Evidence of this can be seen in Figure 8 where the distance between the level curves at WS = 0 m/s and WS = 2 m/s (the lowest two curves) is larger than distance between the level curves for the next steps in WS. This is independent of frequency and is a characteristic of theory (e.g., at 1.4 GHz from the model of Yin et al. [29]) and also from the empirical data at 6.8 GHz and 18.7 GHz from Meissner and Wentz [22]. On the other hand, at high wind speed, Figure 11 shows that for WS > 15 m/s, the sensitivity at 6.8 GHz and 18.7 GHz begins to level out and decrease, but this is not true at 1.4 GHz where the sensitivity continues to increase. The Yin et al. model [29] suggests that this may be an effect of foam. Foam increases with wind speed in the model, and it may be that at WS > 15 m/s the higher frequencies are beginning to show the effect of saturation due to attenuation by foam which has not yet become significant at 1.4 GHz because of its much longer wavelength.

3.3.4. Frequency Dependence of Sensitivity: dTB/dWS

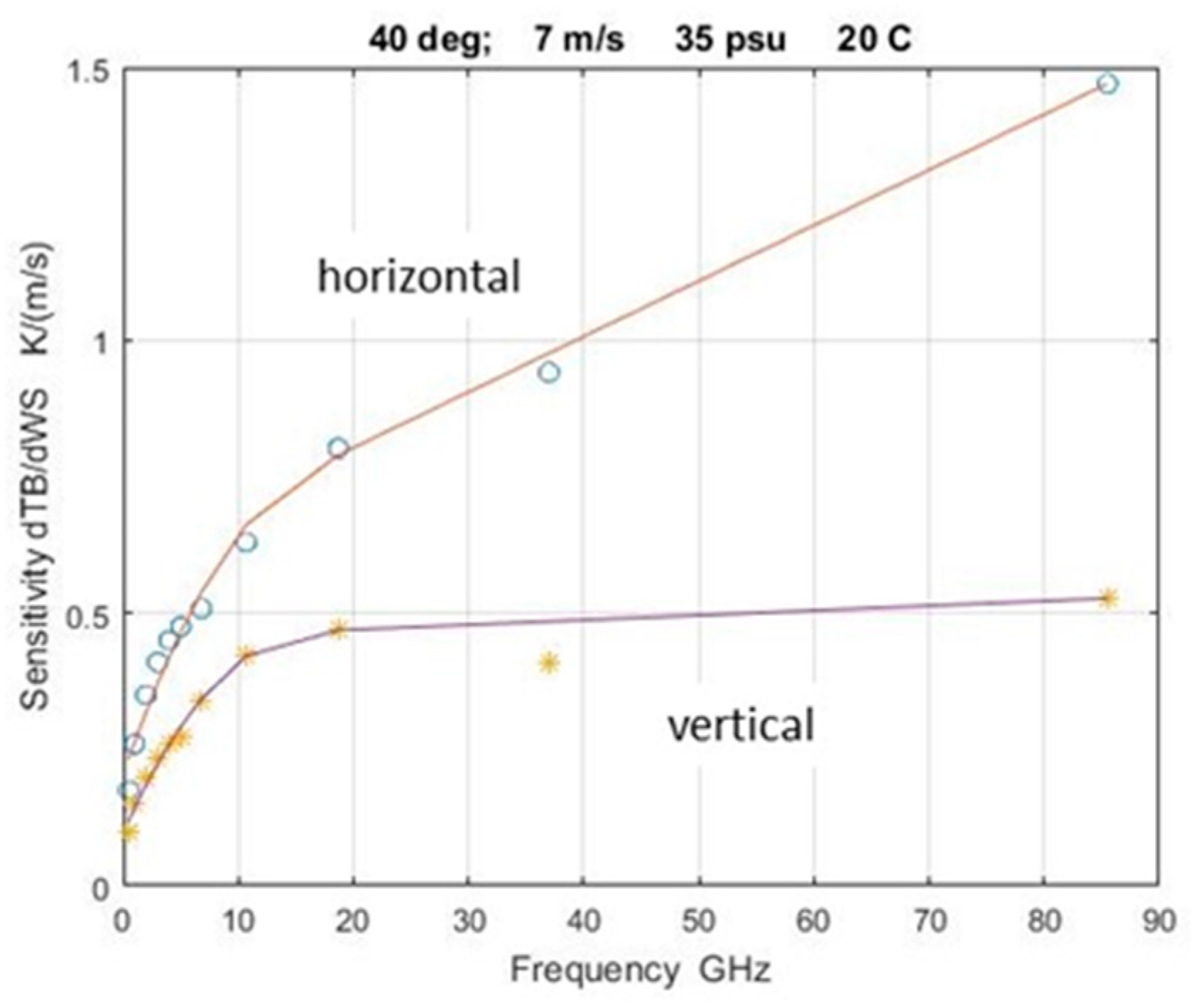

The calculations of the sensitivity, dTB/dWS, at selected frequencies, such as shown in Figure 11, have been collected to produce a summary showing how the sensitivity varies with frequency. This is reported in Figure 12 which shows dTB/dWS as a function of frequency for a wind speed of 7 m/s and an incidence angle of 40°. This example is for SST = 20 °C and SSS = 35 psu and covers the frequency range 500 MHz to 85.5 GHz. The solid curves (magenta for vertical polarization and orange for horizontal polarization) are smooth fits to the “data” points (circles and stars). The data above 5 GHz was taken from the Meissner-Wentz empirical model [22] which provides fits to the data at five frequencies (6.8, 10.7, 18.7, 37.0 and 85.5 GHz), and the data at frequencies below 5 GHz was computed from the Yin et al. model [29]. The Yin et al. model uses a two-scale model for the surface with the Durden and Vesecky [32] wave spectrum multiplied by 1.25. It includes a foam model that results in a reduced foam fraction compared to higher frequencies to account for the larger penetration depth at L-band. The foam model has been fitted to the radiometric observations of SMOS at multiple incidence angles [29]. It shows a good agreement with the Aquarius (empirical) model function for the dependence of TB on wind speed and the empirical model function developed for SMAP [29,30,31]. It is worth noting that the data from both theory and empirical models seem to fit well to a single smooth curve (the solid curves in Figure 12). The only noticeable outlier is the point for vertical polarization at 37 GHz.

Figure 12 is for a single wind speed (7 m/s) and single incidence angle (40°). On the basis of the discussion above, the curves of sensitivity at vertical and horizontal polarization will move toward each other at smaller incidence angle (e.g., Figure 10 and Figure 11) converging to a single curve at nadir. On the basis of the examples shown in Figure 11, one would expect the change to scale proportionately with wind speed for at least WS < 15 m/s. Based on the parallel nature of the curves in Figure 8, one would expect only minor changes with SST, and at frequencies above a few GHz one would expect no change with SSS (Figure 4).

4. Discussion

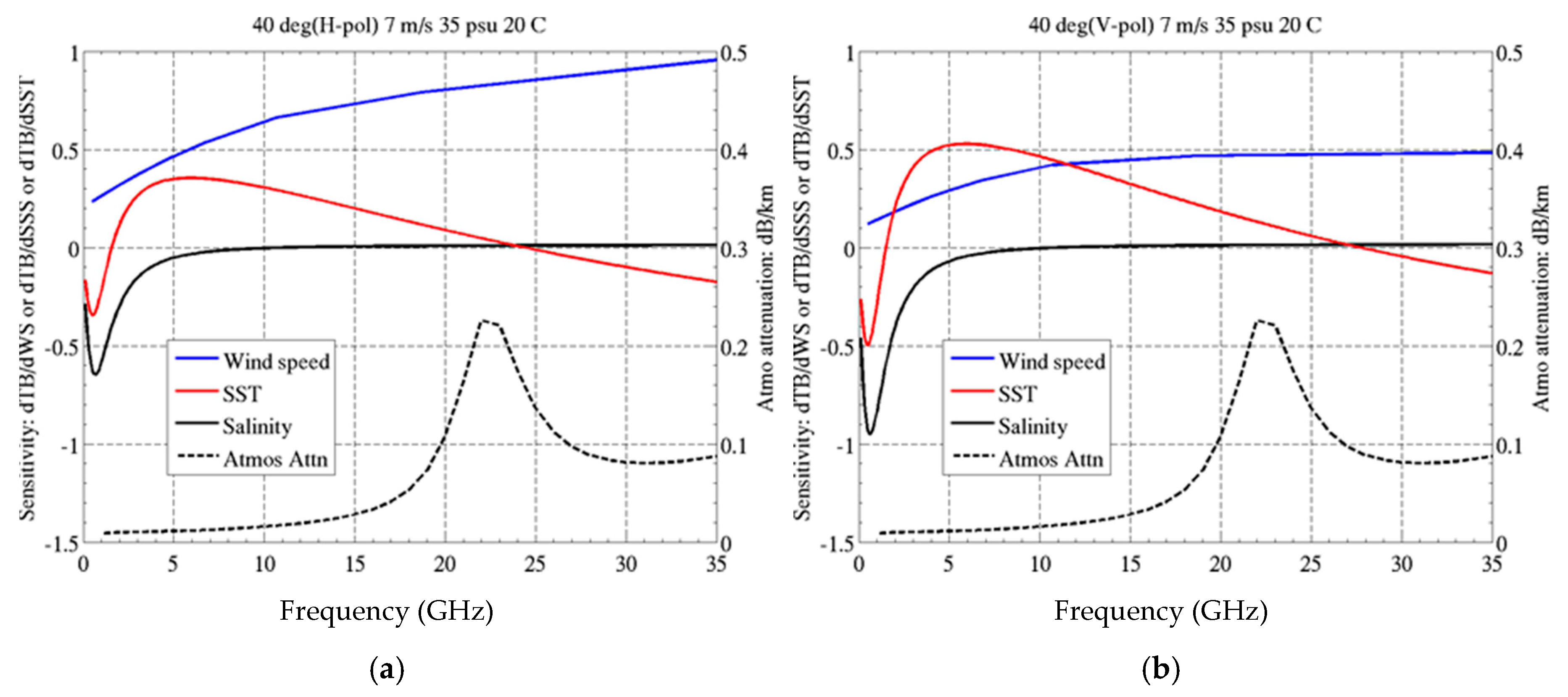

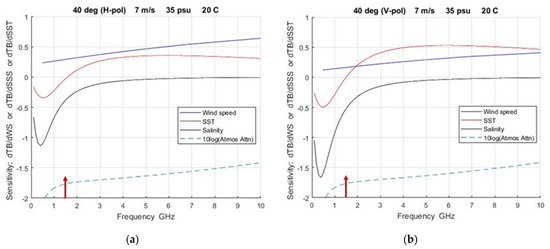

The characteristics of the sensitivities, defined in Equation (1), needed to understand how brightness temperature, TB, changes with salinity, water temperature and wind speed are summarized in Figure 13 and Figure 14. Figure 13 is a composite showing the sensitivity of brightness temperature to changes in sea surface salinity (dTB/dSSS, black), to changes in sea surface temperature (dTB/dSST, red) and to changes in wind speed (dTB/dWS, blue) plotted together on the same scale. This example is for an incidence angle of 40°; Figure 13a shows the results for horizontal polarization, and Figure 13b gives the results for vertical polarization. The figures also include an indication of the attenuation by the atmosphere (dashed line) over this frequency range (see Appendix C for a description of the model used).

The sensitivities in Figure 13 are plotted on a common scale for the three parameters (i.e., the range on the vertical scale represents sensitivity to SSS, SST or WS depending on the parameter). For example, at 5 GHz and horizontal polarization, dTB/dSSS ≈ 0 K/psu (solid black curve), dTB/dSST ≈ 0.4 K/°C (red curve) and dTB/dWS ≈ 0.5 K/(m/s) (blue curve). Using the same data plotted with expanded scale (Figure 14), it can be seen that the change in TB due to a change in SSS is negligible at 5 GHz, but at 1 GHz an increase in SSS of 1 psu results in a decrease in TB on the order of 0.6 K at horizontal polarization and 0.9 K at vertical polarization. On the other hand, the sensitivity to changes in SST at 5 GHz is on the order of 0.5 K/°C at vertical polarization, meaning that a change of 1 °C results in a change of TB of 0.5 K. Of course, whether these changes are significant or not depends on the science requirements for the particular parameter: For example, a typical requirement for remote sensing of SSS from space is 0.2 psu whereas the requirement for SST to meet this goal in the retrieval is on the order of 0.5 °C.

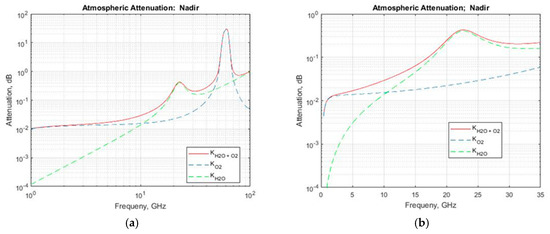

The atmospheric attenuation (dashed line) is assumed to be independent of polarization and the value reported in Figure 13 is the attenuation/km at the bottom of the atmosphere for an atmosphere with 60% relative humidity and a surface temperature of 20 °C. The peak in attenuation near 22 GHz is due to water vapor. The attenuation is small at frequencies important for remote sensing of salinity, although significant enough to be included in the retrieval [16]. Additional details are provided in Appendix C.

Figure 14 shows the data in Figure 13 with expanded frequency scale for frequency below 10 GHz, which are more representative of those likely to be used for remote sensing of salinity. It can be seen from Figure 14 that using frequencies lower than the 1.413 GHz currently employed for remote sensing from space (i.e., by SMOS, Aquarius and SMAP) will improve sensitivity to salinity (black curve) and decrease sensitivity to wind speed (blue curve). However, there is also a negative consequence because such a change increases the sensitivity to SST (red curve). The protected band at 1.413 GHz (arrow) is almost ideal for its small sensitivity to changes in SST. Thus, moving to a lower frequency to improve sensitivity to SSS will also increase the sensitivity to SST, and a higher sensitivity to SST means a requirement for a more accurate value of SST in the retrieval (see Equation (1)). To counter this need for more accuracy in SST, a frequency more sensitive to SST might be added. For example, something in the vicinity of 3 GHz would provide good sensitivity to SST, independence of SSS and not a large increase in the effect of wind speed (blue). Studies have been reported of sensor designs to accommodate such changes [3,4,5] but as mentioned above, the challenges of such instruments are significant, including the need for bigger antennas at lower frequencies to mitigate the loss in spatial resolution and the presence of radio frequency interference (RFI) in shared and/or unprotected bands (Appendix D). Hopefully, data such as presented in Figure 13 and Figure 14 will help in making the trades necessary in the design of a future instrument.

5. Conclusions

Figure 13 and Figure 14 summarize the detailed analysis in Section 3 of the relative role of sea surface salinity (SSS), sea surface temperature and wind speed in determining the change in brightness temperature observed from the ocean surface. Understanding how the brightness temperature responds to each of these parameters is important for evaluating the potential for adding new frequencies to improve remote sensing of sea surface salinity from space and especially to improve accuracy in cold water, which is of increasing importance in the era of climate change. Figure 13 and Figure 14 provide a guide to help understand the algorithm trades involved in choosing new and/or alternate frequencies for remote sensing in the future.
