Identification of Aerosol Pollution Hotspots in Jiangsu Province of China

Abstract

Aerosol optical depth (AOD) is an important atmospheric parameter for climate change assessment, human health, and for total ecological situation studies both regionally and globally. This study used 21-year (2000–2020) high-resolution (1 km) Multiangle Implementation of Atmospheric Correction (MAIAC) algorithm-based AOD from the Moderate Resolution Imaging Spectroradiometer (MODIS) sensor onboard the Terra and Aqua satellites. MAIAC AOD was evaluated against Aerosol Robotic Network (AERONET) data across three sites (Xuzhou-CUMT, NUIST, and Taihu) located in Jiangsu Province. The study also investigated the spatiotemporal distributions and variations in AOD, with associated trends, and measured the impact of meteorology on AOD in the 13 cities of Jiangsu Province. The evaluation results demonstrated a high correlation (r = 0.867~0.929) between MAIAC AOD and AERONET data, with lower root mean squared error (RMSE = 0.130~0.287) and mean absolute error (MAE = 0.091~0.198). In addition, the spatial distribution of AOD was higher (>0.60) in most cities except the southeast of Nantong City (AOD < 0.4). Seasonally, higher AOD was seen in summer (>0.70) than in spring, autumn, and winter, whereas monthly AOD peaked in June (>0.9) and had a minimum in December (<0.4) for all the cities. Frequencies of 0.3 ≤ AOD < 0.4 and 0.4 ≤ AOD < 0.5 were relatively common, indicating a turbid atmosphere, which may be associated with anthropogenic activities, increased emissions, and changes in meteorological circumstances. Trend analysis showed significant increases in AOD during 2000–2009 for all the cities, perhaps reflecting a booming economy and industrial development, with significant emissions of sulfur dioxide (SO₂), and primary aerosols. China’s strict air pollution control policies and control of vehicular emissions helped to decrease AOD from 2010 to 2019, enhancing air quality throughout the study area. A notably similar pattern was observed for AOD and meteorological parameters (LST: land surface temperature, WV: water vapor, and P: precipitation), signifying that meteorology plays a role in terms of increasing and decreasing AOD.

1. Introduction

Aerosols are mixtures of tiny solid and liquid particles suspended in the atmosphere, with a typical particle radius ranging from 0.001 to 100 μm [1]. They are generated from many different sources across the world and released into the atmosphere as mineral dust, volcanic dust and ash, biomass ash, mist fog, smoke, sea salt, and particulate pollution from both natural and anthropogenic activities [2,3,4,5,6]. Aerosols severely impact human health, the climate, atmospheric visibility, air quality, and agricultural production [7,8,9,10]. They also play a significant role in the environment and climate, so that their long-term fluctuations and trends are crucial for climate change assessment [11,12,13]. According to the Fifth Assessment Report (AR5) of the Intergovernmental Panel on Climate Change [14], aerosols are the main source of uncertainty in climate change modeling and assessment. They directly lessen the amount of solar radiation that reaches the Earth’s surface by absorbing and scattering the radiation, altering the balance of the Earth–atmosphere energy budget [15,16,17]. The IPCC [14] reported that absorption of radiant energy by aerosols leads to warming of the troposphere and cooling of the surface, potentially altering atmospheric visibility and the relative humidity, thereby affecting precipitation and cloud formation. In addition, aerosols indirectly affect climate change through aerosol–cloud interactions [18,19].

Aerosol optical properties are significant factors affecting atmospheric radiation and climate change; therefore, studies of long-term variations in these properties with the high spectral and temporal resolution are necessary. Such studies could explore important information for climate change prediction and estimation [14,20,21]. In this regard, extensive efforts have already been devoted to monitoring atmospheric aerosols with aerosol optical depth (AOD) globally. AOD is the key optical parameter used to estimate aerosol loading in the atmosphere [22]. Aerosols from natural and anthropogenic sources and transported by meteorological circumstances can sharply impact AOD distribution, which can form the basis for investigations of regional aerosol loading to show its effect on climate change and radiation [23,24].

Ground-based networks such as the Aerosol Robotic Network (AERONET) and the China Aerosol Remote Sensing Network (CARSNET) have been widely used to obtain the long-term measurements of national, regional, and global aerosol optical properties around the world [25,26]. These networks provide an accurate and detailed description of atmospheric aerosols, offering insights into the temporal distributions of aerosol optical properties and their effect on the climate [27,28,29,30]. However, the limitations of the ground-based networks are the sparse station cover and scantiness of AOD spatial distributions [29].

Satellite remote sensing, for its part, allows long-term aerosol observation of national, regional, and global aerosol optical properties, overcoming the limitations of ground-based networks in providing regular near-real-time AOD measurements as well as the long-term aerosol variations at low-to-high spatial resolutions. Various satellite sensors such as the Total Ozone Monitoring Instrument (TOMS) [31], the Advanced Very High Resolution Radiometer (AVHRR) [32], MODIS (Moderate Resolution Imaging Spectroradiometer) [33,34,35,36], the Ozone Monitoring Instrument (OMI) [37], the Sea-Viewing Wide-Field of View Sensor (SeaWiFS) [38], GOES (Geostationary Operational Environmental Satellite) [39], GOCI (Geostationary Ocean Color Image) [40], and the Visible Infrared Imaging Radiometer (VIIRS) [41] provide long-term spatiotemporal aerosol data, which have been extensively used to investigate aerosol loading both regionally and globally. MODIS is the most popular and widely used and provides continuous long-term aerosol data allowing regular aerosol observation at national, regional, and global scales [33,42,43,44]. The MODIS instrument onboard the Terra and Aqua satellites provides AOD at 10 km spectral resolution over land using the Dark Target (DT) and Deep Blue (DB) and at 1 km using the Multiangle Implementation of atmospheric correction (MAIAC) algorithm. The DT algorithm was designed for vegetation and moist surfaces but has limitations over bright-reflecting surfaces [45], so Hsu et al. [46] proposed the DB algorithm to estimate AOD over bright-reflecting surfaces. To increase AOD retrieval accuracy and coverage with high-resolution (1 km) over different aerosol climatology and surface cover conditions, Lyapustin et al. [36,47,48] proposed the MAIAC algorithm, which is more accurate than DT and DB over vegetation, moist surfaces, and bright-reflecting surfaces. Even so, the effects of surface albedo, geography and elevation, and retrieval algorithms, mean that satellite datasets need continuous improvement to achieve higher accuracy [49,50,51,52,53].

Recently, aerosol products have been widely evaluated over land, including the American continents [54,55] and South Asia [56], using the MODIS MAIAC algorithm. Although a few validation studies have also been conducted over China [57,58,59], the performance of the MAIAC algorithm is still unclear in China due to high levels of aerosol loading, and heterogeneity. Due to China’s rapid social and economic development in recent years, the country is in line with serious aerosol pollution. According to China’s Environmental Status Bulletin 2015, more than 70 prefecture-level cities of the BTH (Beijing-Tianjin-Hebei) region had 1710 severe and above pollution days and were given 154 heavy pollution weather warnings. Moreover, about 73 prefecture-level cities showed ambient air quality standards, and the rest of the cities (265) failed to reach the urban environmental air quality standards. According to the Environmental Performance Index Report (2016) announced by Yale University, the air quality of China ranked the second last in the world, only better than Bangladesh [60,61]. However, air quality problems are very noticeable in Jiangsu province, an economically developed province in eastern China covering a concentrated area of metropolises and large rural areas. This leads to the release of air pollutants from urban constructions, transportation, industrial production, and the burning of straw in agricultural production. This province is located in the climate transition zone between the northern and southern regions of China. It is a buffer zone between the BTH and the Yangtse River Delta, resulting in severe air pollution. Jiangsu’s Environmental Status Bulletin (2012–2015) reported that 13 cities of Jiangsu Province did not meet the second level of national air quality standard; therefore, a study related to identifying aerosol pollution hotspots in the Jiangsu Province of China is important. To the best of our knowledge, no study has evaluated the MAIAC AOD against AERONET AOD at the local scale (e.g., Jiangsu Province), while analyzing long-term spatiotemporal distribution and variations in AOD and calculating its trend to find out the hotspots of aerosol pollution. Accordingly, evaluation of the MAIAC algorithm in Jiangsu Province is needed to investigate the spatiotemporal distribution and variations in AOD, shedding light on aerosols’ effects on climate and pollution meteorology. The main objectives of this study are: (1) to evaluate the MAIAC AOD against AERONET AOD (NUIST, Taihu, and Xuzhou-CUMT); (2) to analyze the long-term spatiotemporal distribution of and variations in AOD, while calculating its trend; and (3) to study the relationship between AOD and meteorological parameters (LST, WV, and P) in the 13 cities of Jiangsu Province from 2000 to 2020. This study contributes to the literature by revealing city-level aerosol pollution distribution in Jiangsu Province based on the MODIS high-resolution MAIAC aerosol products, offering detailed data on the interactions between atmospheric pollutants for use in improving air quality at the city level.

2. Materials and Methods

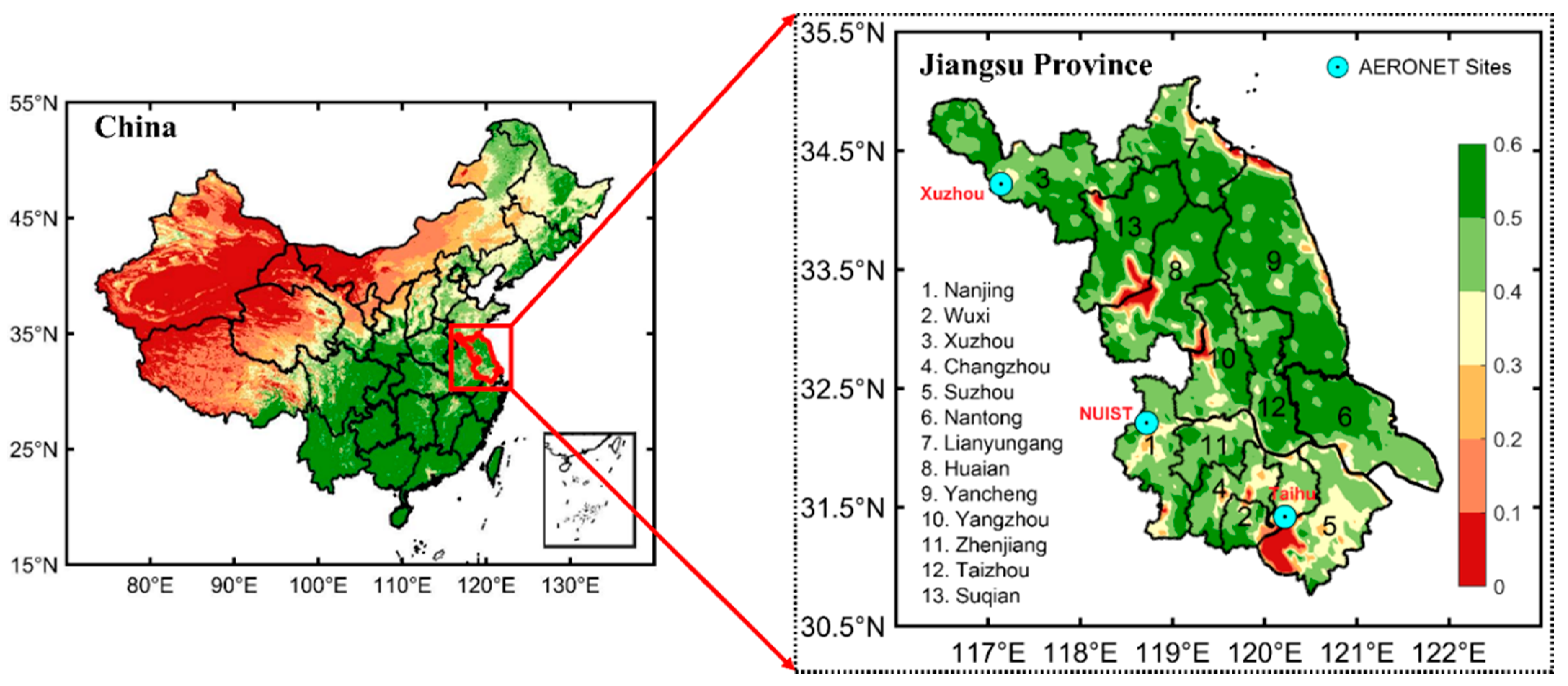

2.1. Study Area

China, the largest Asian country, also has the largest population of any country in the world. It has 23 Provinces, 5 autonomous regions, 4 municipalities (Chongqing, Beijing, Shanghai, and Tianjin), and 2 administrative regions (Hong Kong and Macau). Jiangsu Province (116°18′–121°57′ E, 30°45′–35°20′ N), which has historically been China’s most politically, economically, and culturally developed region, covers about 102,600 square kilometers. Located in the east of China and encompassing much of the Yangtse River Delta (YRD), with its many rivers and lakes, Jiangsu is the most densely populated and agriculturally fertile region of China. About 70% of its populace of 80 million live in urban areas. After the economic reforms in 1990, it became a hotspot for economic development and now has the highest per-capita GDP of China’s 23 Provinces. Jiangsu is the home of many of the world’s leading exporters of chemical, textiles, and electronic equipment, which are located in its 13 major cities (Figure 1).

Most parts of Jiangsu Province have a humid subtropical climate that begins to transition into a humid continental climate in the far north. The annual mean temperature varies from 13 °C to 16 °C, and precipitation from 782 mm to 1150 mm. There are four distinct seasons: winter (December, January, February); spring (March, April, May); summer (June, July, August); and autumn (September, October, November). In January, the average temperature ranges from −1 °C to 4 °C, while in June this range is from 26 °C to 29 °C. Besides, the most frequent rainfall happens in spring and summer, while rainstorms with typhoons occur in the late summer and autumn.

2.2. MAIAC AOD

The MAIAC algorithm assumes that the surface reflectance evolves smoothly over time and displays high variability over space, while the aerosol changes smoothly (low variability) over space [46]. To retrieve aerosol and surface parameters: Firstly, the algorithm resamples MODIS L1B radiances into a 1 km fixed grid. Then, the gridded data are split into 1200 km titles and placed in a queue containing from 5 (over the pole) to 16 (over the equator) days. This gives a time dimension for each 1 km grid cell. The cloud mask combined with discriminating absorbing aerosols (dust or smoke) enables MAIAC to distinguish most aerosol emission sources at 1 km resolution, including high intensity plumes, without masking them as clouds [46]. The MAIAC aerosol retrieval algorithm uses minimum reflectance technique to characterize surface reflectance with spectral surface reflectance ratios (SRC) such as 0.47/2.13 (µm) and 0.47/0.55 (µm) [46]. Notably, this code runs dynamically and continuously updates the SRC. The angular dependence of SRC is estimated based on three angular bins. Finally, the AOD retrieval algorithm uses different band combinations such as 0.47, 0.55, 0.65, and 2.13 μm, depending on the surface brightness and defined regional aerosol models for the MAIAC look-up table (see Lyapustin et al. [46]). The MAIAC AOD product is a long-term dataset that offers a good spatio-temporal resolution to monitor aerosols from local to global scale and this dataset has been widely used by researchers [49,52,54,57]. The algorithm also provides cloud masks and water vapor at NIR bands. In this paper, we used the MAIAC AOD (550 nm) over Jiangsu Province to study spatio-temporal variations of AOD and its evaluation against ground measurements from 2000 to 2020 [49]. The data were downloaded from the NASA website (link: https://search.earthdata.nasa.gov/search?q=MCD19A2; accessed on 1 March 2021).

2.3. AERONET AOD

The Aerosol Robotic Network (AERONET) provides AOD that is calculated from direct solar radiation measurements under cloud-free conditions at different wavelengths, with high temporal resolution (15 min) and low uncertainty (~0.01–0.02) [25]. The AERONET data holds three levels, namely Level 1 for unscreened, Level 1.5 for cloud-screened, and Level 2.0 for quality-assured. This data network has been verified as the standard source due to its high quality and accuracy, global range, free cost, and easy access. Data (e.g., AOD and water vapor) from AERONET are widely used for evaluation and bias corrections of satellite-based water vapor and aerosol products [35,62,63,64]. There are three AERONET sites, namely NUIST, Taihu, and Xuzhou, located in Jiangsu Province (Figure 1 and

Table 1. AERONET sites information and data availability.

Sites	Latitude (N)	Longitude (E)	Altitude (m)	Period
NUIST	32.20648°	118.71715°	62	2007–2010
Taihu	31.42100°	120.21533°	20	2001–2018
Xuzhou-CUMT	34.21667°	117.14167°	59.7	2013–2019

). Due to less available data at 550 nm, the present study used both Level 1.5 and 2 AOD at 440 nm to estimate AOD at 550 nm based on the Ångström empirical methods (Equation (1)):

$${\mathrm{AOD}}_{550}={\mathrm{AOD}}_{440}\times {\left(\frac{550}{440}\right)}^{-{\mathrm{AE}}_{440-670}}.$$

(1)

Here, AE_{440–670 (nm)} is the Ångström Exponent and AOD_{550 (nm)} indicates the aerosol optical depth at 550 nm. The data were downloaded from the NASA AERONET site (link: https://aeronet.gsfc.nasa.gov/; accessed on 10 March 2021).

2.4. Meteorological Data

To investigate the relationship between meteorological parameters and satellite-based MAIAC AOD, this study used meteorological parameters such as land surface temperature (LST: MOD11C3v006 and MYD11C3v006) and Wwter vapor (WV: MOD08_M3v6.1 and MYD08_M3v6.1) from the MODIS sensor, and precipitation from Global Precipitation Measurement (GPM: GPM_3IMERGM_06). The 20 years (2000–2020) data were downloaded from the link: https://giovanni.gsfc.nasa.gov/; accessed on 15 March 2021.

2.5. Research Methodology

In this study, several statistical methods were used to evaluate the MAIAC AOD against AEROENT AOD. Details include the following:

• The study extracted point data from MAIAC AOD using the spatial widow of 3 × 3 pixels surrounding the AERONET sites, which were averaged if at least 2 pixels out of the 9 pixels were available. The AERONET AOD was averaged within a ±60 minute time window from the satellite local time (Terra: 10:30 am, Aqua: 01:30 pm).
• A reduced major axis (RMA) method was used to calculate slope and intercept between the satellite-based MAIAC and AERONET AODs [65]. The slope defines the inaccuracy related to using an imperfect aerosol model, while the intercept implies the inaccuracy related to incorrect surface reflectance calculation [3,66]. In RMA, the following Equations (2) and (3) are used to calculate the slope (β) and intercept (α):

  $$\mathsf{\beta }=\frac{{\mathsf{\sigma }}_{\mathrm{y}}}{{\mathsf{\sigma }}_{\mathrm{x}}}.$$

  (2)

  $$\mathsf{\alpha }=\overline{\mathrm{Y}}-\left(\frac{{\mathsf{\sigma }}_{\mathrm{y}}}{{\mathsf{\sigma }}_{\mathrm{x}}}\right)\overline{\mathrm{X}}$$

  (3)

  where $\overline{\mathrm{X}} \mathrm{and} \overline{\mathrm{Y}}$ are defined as the means of X and Y, and ${\mathsf{\sigma }}_{\mathrm{x}}{ \mathrm{and} \mathsf{\sigma }}_{\mathrm{y}}$ indicate the standard deviation of X and Y, respectively. A perfect estimation of satellite-based MAIAC AOD is indicated by values of β (=1) and α (=0).
• To determine the uncertainty and accuracy of the satellite-based MAIAC AOD products, this study used the following Equations (4)−(8) for Pearson’s correlation (r), root mean squared error (RMSE), mean absolute error (MAE), relative mean bias (RMB), and expected error envelope (EE) [5,27,67].

  $$\mathrm{r}=\frac{{{\displaystyle \sum }}_{\mathrm{i}=1}^{\mathrm{n}}\left({\mathrm{x}}_{\mathrm{i}}-\overline{\mathrm{x}}\right)\left({\mathrm{y}}_{\mathrm{i}}-\overline{\mathrm{y}}\right)}{\sqrt{{{\displaystyle \sum }}_{\mathrm{i}=1}^{\mathrm{n}}{\left({\mathrm{x}}_{\mathrm{i}}-\overline{\mathrm{x}}\right)}^2}{{\displaystyle \sum }}_{\mathrm{i}=1}^{\mathrm{n}}{\left({\mathrm{y}}_{\mathrm{i}}-\overline{\mathrm{y}}\right)}^2}.$$

  (4)

  $$\mathrm{RMSE}=\sqrt{\frac{1}{\mathrm{n}}{{\displaystyle \sum }}_{\mathrm{i}=1}^{\mathrm{n}}{\left({\mathrm{AOD}}_{\mathrm{Satellite}}-{\mathrm{AOD}}_{\mathrm{AERONET}}\right)}^2}.$$

  (5)

  $$\mathrm{MAE}=\frac{1}{\mathrm{n}}{{\displaystyle \sum }}_{\mathrm{i}=1}^{\mathrm{n}}\left|\left({\mathrm{AOD}}_{\mathrm{Satellite}}-{\mathrm{AOD}}_{\mathrm{AERONET}}\right)\right|.$$

  (6)

  $$\mathrm{RMB}=\left|\frac{\overline{{\mathrm{AOD}}_{\mathrm{Satellite}}}}{\overline{{\mathrm{AOD}}_{\mathrm{AERONET}}}}\right|.$$

  (7)

  $$\mathrm{EE}=\pm \left(0.05+0.15\times {\mathrm{AOD}}_{\mathrm{AERONET}}\right).$$

  (8)

  Here, RMB = 1 defines the normal estimation of MAIAC AOD, while RMB < 1 and > 1 indicates underestimation and overestimation, respectively.
• The Mann–Kendal test was used to calculate the significance of any AOD trends (increasing or decreasing), while Sen’s slope method was used to calculate the magnitude of AOD trends. The methods used in this study are discussed below.

If ${\mathrm{x}}_1$,${ \mathrm{x}}_2$,${ \mathrm{x}}_3$ …… ${\mathrm{x}}_{\mathrm{i}}$ represent n data points where ${\mathrm{x}}_{\mathrm{j}}$ represents the data point at time j, then the Mann–Kendall statistic, Sen’s slope ($\mathrm{S}$) is given by Mann and Kendall [68,69]

$$\mathrm{S}={{\displaystyle \sum }}_{\mathrm{k}=1}^{\mathrm{n}-1}{{\displaystyle \sum }}_{\mathrm{j}=\mathrm{k}+1}^{\mathrm{n}}\mathrm{sign}\left({\mathrm{x}}_{\mathrm{j}}-{\mathrm{x}}_{\mathrm{k}}\right).$$

(9)

where

$$\mathrm{sign}\left({\mathrm{x}}_{\mathrm{j}}-{\mathrm{x}}_{\mathrm{k}}\right)=\left\{\begin{array}{ccc}\hfill 1,& & \mathrm{if} \left({\mathrm{x}}_{\mathrm{j}}-{\mathrm{x}}_{\mathrm{k}}\right)>0\\ \hfill 0,& & \mathrm{if} \left({\mathrm{x}}_{\mathrm{j}}-{\mathrm{x}}_{\mathrm{k}}\right)=0\\ \hfill -1,& & \mathrm{if} \left({\mathrm{x}}_{\mathrm{j}}-{\mathrm{x}}_{\mathrm{k}}\right)<0\end{array}\right..$$

(10)

S is associated with normally distributed probability and the sample size, n, were calculated to statistically quantify the significance of AOD trends. Normalized statistics (Z) were calculated using the following equation:

$$\mathrm{Z}=\left\{\begin{array}{ccc}\hfill \frac{\mathrm{S}-1}{\sqrt{\mathrm{VAR}\left(\mathrm{S}\right)}},& & \mathrm{if} S>0\\ \hfill 0,& & \mathrm{if} S=0\\ \hfill \frac{\mathrm{S}-1}{\sqrt{\mathrm{VAR}\left(\mathrm{S}\right)}},& & \mathrm{if} S<0\end{array}\right..$$

(11)

At the 95% significance level, the null hypothesis of no trend is rejected if $\left|\mathrm{Z}\right| > 1.96$.

Sen’s slope technique [70] was used to calculate the slope as a change in measurement per unit change in time

$${\mathrm{Q}}^{\prime }=\frac{{\mathrm{x}}_{{\mathrm{t}}^{\prime }}-{\mathrm{x}}_{\mathrm{t}}}{{\mathrm{t}}^{\prime }-\mathrm{t}}.$$

(12)

where, ${\mathrm{Q}}^{\prime }$ = slope between data points ${\mathrm{x}}_{{\mathrm{t}}^{\prime }}$ and ${\mathrm{x}}_{\mathrm{t}}$

${\mathrm{x}}_{{\mathrm{t}}^{\prime }}$ = data measurement at a time ${\mathrm{t}}^{\prime }$

${\mathrm{x}}_{\mathrm{t}}$ = data measurement at time $\mathrm{t}$

Sen’s estimator of the slope is attained by the median slope

$$\begin{array}{c}\mathrm{Q}={\mathrm{Q}}^{\prime }\left[\mathrm{N}+1/2\right] \mathrm{if} \mathrm{N} \mathrm{is} \mathrm{odd} \\ =\left({{\mathrm{Q}}^{\prime }}_{\left[\mathrm{N}/2\right]}+{{\mathrm{Q}}^{\prime }}_{\left[\left(\mathrm{N}+2\right)/2\right]}\right)/2 \mathrm{if} \mathrm{N} \mathrm{is} \mathrm{even}\end{array}$$

(13)

where $\mathrm{N}$ is the number of calculated slopes.

3. Results and Discussion

3.1. Evaluations of MAIAC AOD against AERONET AOD

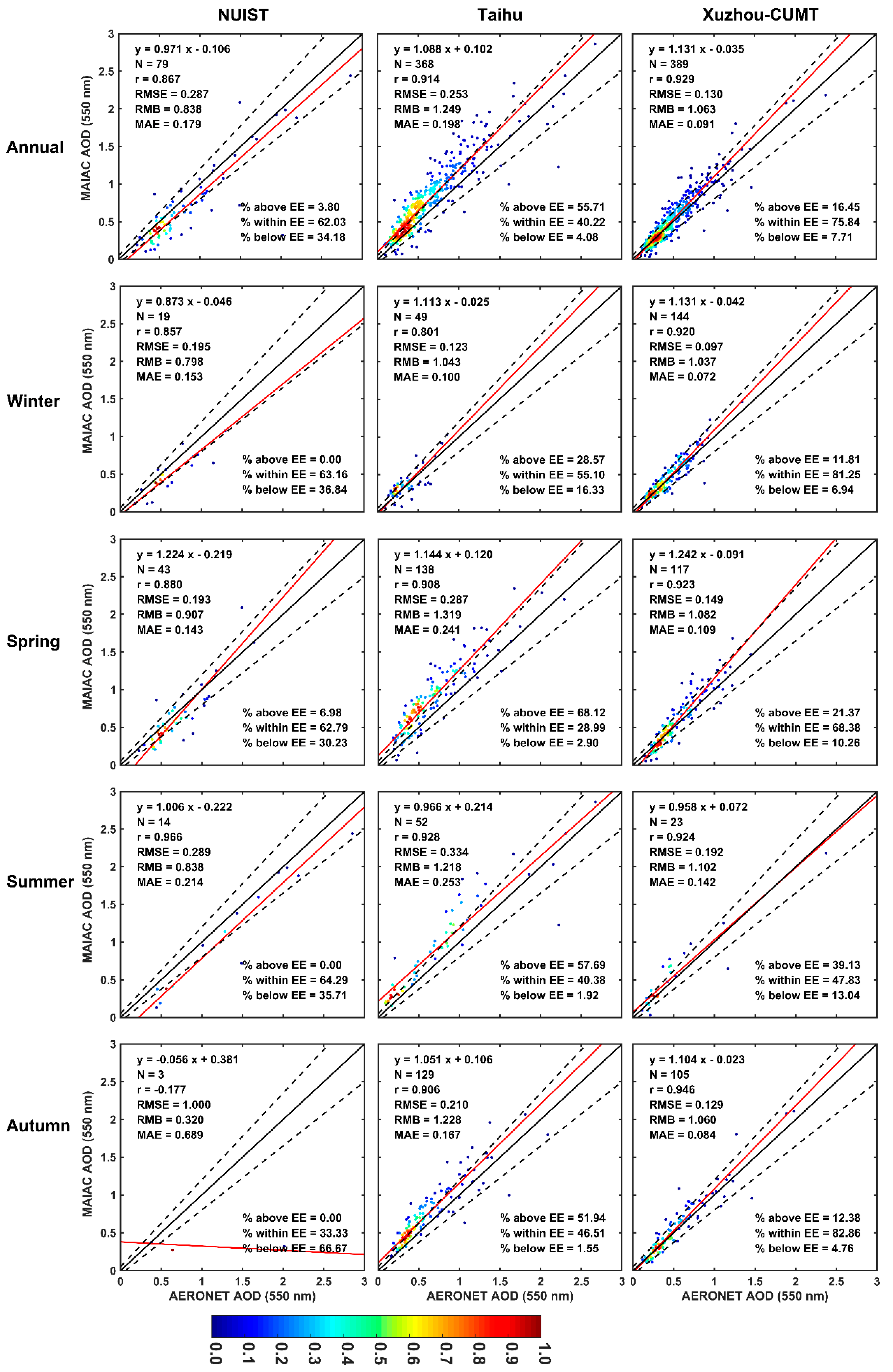

Figure 2 and Table S1 show the evaluation of MODIS mean (Terra and Aqua) MAIAC AOD against ground-based AERONET data for three sites in Jiangsu Province during 2000–2020. The MODIS MAIAC and AERONET AOD showed good consistency in that at the Xuzhou-CUMT site, they have a higher correlation (r = 0.929), more retrievals falling within the EE envelope (75.84%), and lower errors (RMSE = 0.130, MAE = 0.091) than at the NUIST (0.867, 62.03%, 0.287, 0.179) or Taihu (0.914, 40.22%, 0.253, 0.198) sites (Figure 2 and Table S1). Moreover, the RMB value (1.063) at the Xuzhou-CUMT site is closer to unity compared to the NUIST (0.838) and Taihu (1.249) sites. This suggests that AOD errors estimated by the MAIAC algorithm were smaller at the Xuzhou-CUMT site (6.3% overestimation) than at the Taihu site (24.9% overestimation), or the NUIST site (16.2% underestimation). Under- and overestimation of AOD occur when using imperfect aerosol models and surface reflectance parameterizations in the look-up table, as indicated by the slope and intercept values [3,5,66,67,71]. Seasonally, the MAIAC algorithm, as with an annual one, produced more consistent results at the Xuzhou-CUMT site than at the NUIST and Taihu sites (Figure 2 and Table S1). Overall, the MAIAC algorithm showed a good agreement with AERONET data, making these data valuable for the study of long-term spatiotemporal distributions of and variations in AOD along with associated trends, revealing aerosol pollution distribution at a finer scale globally. However, in this study, we used the mean (Terra and Aqua) MODIS-MAIAC AOD product for its higher spatial and temporal coverage in Jiangsu Province.

3.2. Spatial Distributions of MAIAC AOD

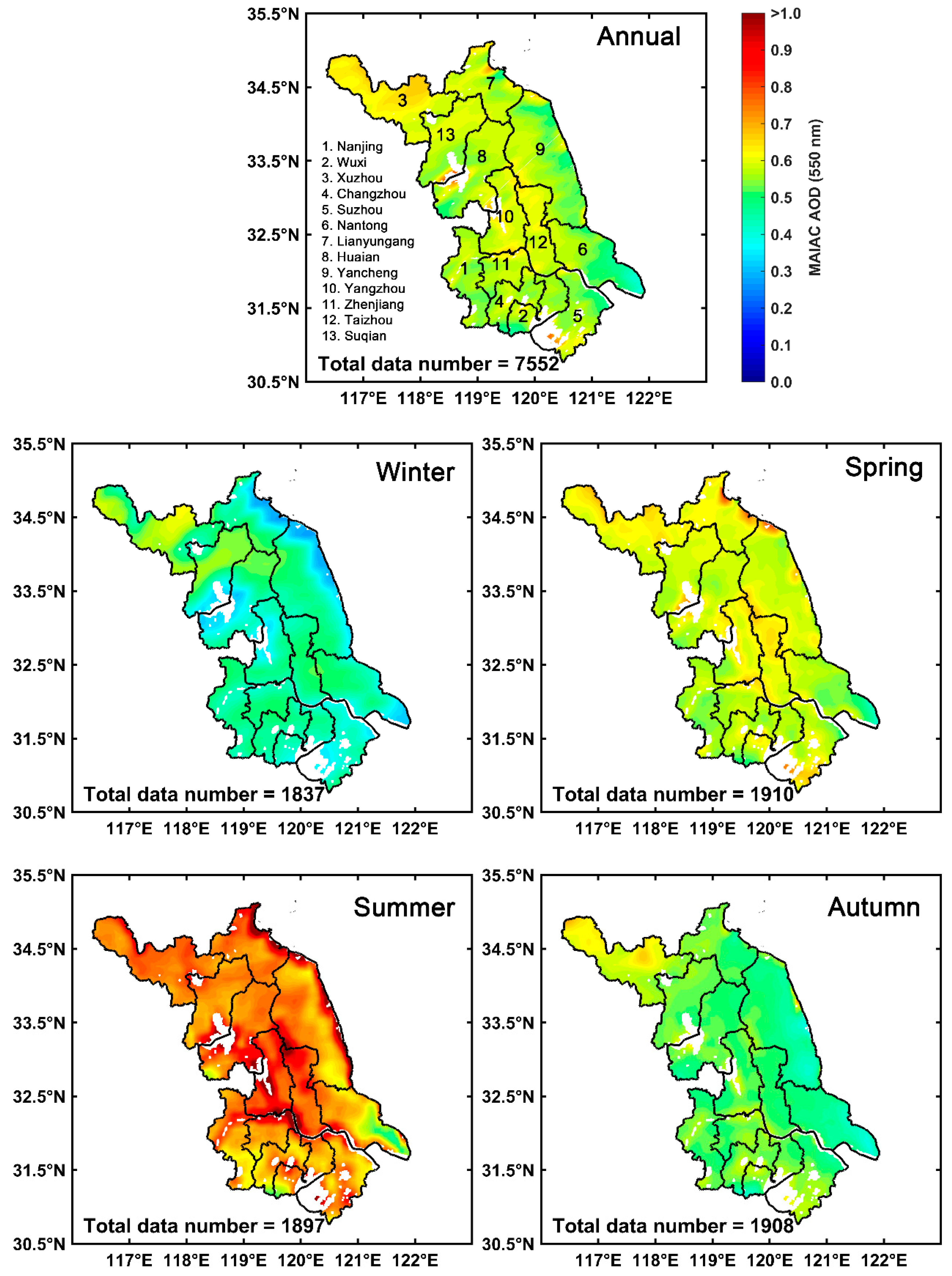

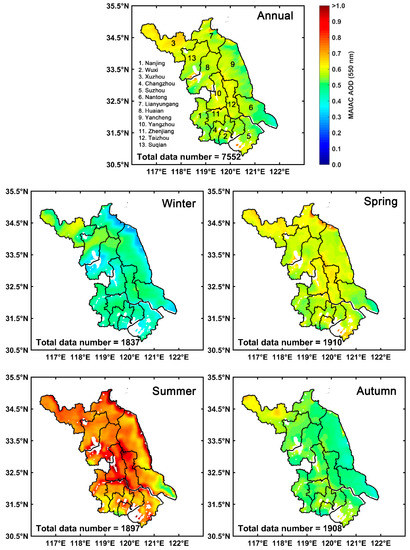

Figure 3 represents the annual and seasonal spatial distribution of AOD obtained from the mean (Terra and Aqua) MAIAC algorithm in Jiangsu Province from 2000 to 2020. It is important to mention that due to the limitations of the MAIAC algorithm over the body of water, we have masked the body of water from the AOD map, resulting in that place appearing to be white (Figure 3). The spatial distribution of annual mean AOD was high (>0.60) in most cities of Jiangsu Province except for the southeast of Nantong city (<0.4) (Figure 3). For the 13 studied cities, the 21-year city-level annual mean AOD was highest in Xuzhou (0.73 ± 0.10), followed by Lianyungang (0.70 ± 0.10), Suqian and Taizhou (0.66 ± 0.09), Yangzhou (0.65 ± 0.09), Huaian (0.65 ± 0.08), Nanjing (0.63 ± 0.09), Changzhou (0.62 ± 0.09), Zhenjiang (0.61 ± 0.10), Suzhou and Wuxi (0.61 ± 0.09), Yancheng (0.61 ± 0.08), and Nantong (0.59 ± 0.08) (Figure 4 and

Table 2. City averaged monthly, seasonal and annual mean AOD (± STD) obtained from mean (Terra and Aqua) MODIS MAIAC algorithm from 2000 to 2020 in 13 cities in Jiangsu Province.

Time	Nanjing	Wuxi	Xuzhou	Changzhou	Suzhou	Nantong	Lianyungang	Huaian	Yancheng	Yangzhou	Zhenjiang	Taizhou	Suqian	Jiangsu Province
Jan	0.55 ± 0.11	0.52 ± 0.09	0.68 ± 0.12	0.53 ± 0.09	0.50 ± 0.09	0.57 ± 0.12	0.59 ± 0.14	0.57 ± 0.12	0.56 ± 0.09	0.55 ± 0.09	0.54 ± 0.10	0.57 ± 0.10	0.60 ± 0.13	0.63 ± 0.10
Feb	0.62 ± 0.14	0.56 ± 0.17	0.71 ± 0.18	0.59 ± 0.16	0.53 ± 0.14	0.59 ± 0.16	0.67 ± 0.15	0.62 ± 0.16	0.60 ± 0.13	0.62 ± 0.21	0.59 ± 0.15	0.61 ± 0.17	0.63 ± 0.16	0.67 ± 0.17
Mar	0.65 ± 0.14	0.62 ± 0.11	0.74 ± 0.10	0.63 ± 0.12	0.63 ± 0.12	0.64 ± 0.13	0.70 ± 0.12	0.67 ± 0.12	0.66 ± 0.12	0.67 ± 0.13	0.63 ± 0.11	0.68 ± 0.11	0.69 ± 0.16	0.70 ± 0.11
Apr	0.62 ± 0.10	0.63 ± 0.12	0.71 ± 0.13	0.64 ± 0.13	0.66 ± 0.11	0.63 ± 0.09	0.72 ± 0.13	0.65 ± 0.09	0.65 ± 0.09	0.68 ± 0.10	0.63 ± 0.12	0.69 ± 0.09	0.67 ± 0.12	0.69 ± 0.10
May	0.63 ± 0.14	0.66 ± 0.12	0.68 ± 0.16	0.65 ± 0.13	0.69 ± 0.18	0.59 ± 0.11	0.67 ± 0.12	0.66 ± 0.13	0.64 ± 0.10	0.69 ± 0.15	0.64 ± 0.15	0.70 ± 0.12	0.65 ± 0.13	0.67 ± 0.10
Jun	0.97 ± 0.32	0.88 ± 0.30	0.99 ± 0.29	0.89 ± 0.34	0.87 ± 0.27	0.86 ± 0.29	1.00 ± 0.28	0.99 ± 0.31	0.85 ± 0.27	1.07 ± 0.35	0.89 ± 0.36	1.07 ± 0.48	0.92 ± 0.25	0.92 ± 0.23
Jul	0.64 ± 0.25	0.67 ± 0.25	0.87 ± 0.23	0.67 ± 0.31	0.68 ± 0.25	0.70 ± 0.26	0.96 ± 0.28	0.83 ± 0.27	0.83 ± 0.28	0.79 ± 0.27	0.64 ± 0.29	0.81 ± 0.28	0.83 ± 0.28	0.75 ± 0.20
Aug	0.64 ± 0.22	0.62 ± 0.21	0.72 ± 0.20	0.61 ± 0.20	0.63 ± 0.21	0.52 ± 0.17	0.71 ± 0.25	0.60 ± 0.19	0.57 ± 0.18	0.63 ± 0.21	0.64 ± 0.25	0.60 ± 0.20	0.63 ± 0.16	0.60 ± 0.16
Sep	0.57 ± 0.16	0.57 ± 0.14	0.65 ± 0.16	0.60 ± 0.17	0.57 ± 0.16	0.42 ± 0.11	0.59 ± 0.19	0.52 ± 0.14	0.45 ± 0.11	0.50 ± 0.13	0.52 ± 0.17	0.50 ± 0.12	0.58 ± 0.16	0.58 ± 0.12
Oct	0.57 ± 0.13	0.55 ± 0.12	0.76 ± 0.22	0.56 ± 0.12	0.53 ± 0.12	0.46 ± 0.12	0.62 ± 0.17	0.57 ± 0.15	0.50 ± 0.12	0.53 ± 0.12	0.56 ± 0.10	0.55 ± 0.11	0.62 ± 0.18	0.59 ± 0.15
Nov	0.55 ± 0.09	0.55 ± 0.11	0.66 ± 0.12	0.56 ± 0.09	0.55 ± 0.10	0.56 ± 0.12	0.63 ± 0.12	0.58 ± 0.09	0.57 ± 0.10	0.57 ± 0.08	0.55 ± 0.10	0.59 ± 0.10	0.62 ± 0.09	0.61 ± 0.08
Dec	0.51 ± 0.10	0.50 ± 0.10	0.58 ± 0.11	0.52 ± 0.09	0.51 ± 0.10	0.50 ± 0.08	0.50 ± 0.08	0.51 ± 0.10	0.51 ± 0.10	0.50 ± 0.09	0.51 ± 0.10	0.52 ± 0.10	0.54 ± 0.09	0.54 ± 0.09
Winter	0.56 ± 0.08	0.52 ± 0.09	0.66 ± 0.10	0.54 ± 0.08	0.51 ± 0.08	0.55 ± 0.08	0.58 ± 0.09	0.56 ± 0.09	0.55 ± 0.08	0.56 ± 0.09	0.54 ± 0.08	0.56 ± 0.10	0.59 ± 0.10	0.61 ± 0.09
Spring	0.63 ± 0.09	0.64 ± 0.08	0.71 ± 0.09	0.64 ± 0.09	0.66 ± 0.10	0.62 ± 0.08	0.70 ± 0.08	0.66 ± 0.08	0.65 ± 0.08	0.68 ± 0.09	0.63 ± 0.10	0.69 ± 0.08	0.67 ± 0.10	0.69 ± 0.08
Summer	0.75 ± 0.21	0.72 ± 0.21	0.86 ± 0.22	0.73 ± 0.20	0.72 ± 0.18	0.70 ± 0.18	0.89 ± 0.24	0.80 ± 0.20	0.75 ± 0.19	0.83 ± 0.22	0.72 ± 0.25	0.82 ± 0.24	0.79 ± 0.18	0.76 ± 0.17
Autumn	0.56 ± 0.09	0.56 ± 0.09	0.69 ± 0.12	0.57 ± 0.09	0.55 ± 0.10	0.48 ± 0.08	0.61 ± 0.12	0.56 ± 0.08	0.51 ± 0.08	0.53 ± 0.08	0.55 ± 0.09	0.54 ± 0.08	0.60 ± 0.10	0.59 ± 0.10
Annual	0.63 ± 0.09	0.61 ± 0.09	0.73 ± 0.10	0.62 ± 0.09	0.61 ± 0.09	0.59 ± 0.08	0.70 ± 0.10	0.65 ± 0.08	0.61 ± 0.08	0.65 ± 0.09	0.61 ± 0.10	0.66 ± 0.09	0.66 ± 0.09	0.66 ± 0.08

). The AOD values for the 13 cities were notably close to one another, indicating the presence of substantial aerosol emissions in Jiangsu Province (0.66 ± 0.08), which are strongly influenced by anthropogenic activities, resulting in high AOD. Che et al. [23] reported that urban areas are strongly impacted by anthropogenic activities, leading to high AOD in northeast China. Similar results were documented by [72]. High AOD may also result because the geographical position of the Yellow Sea is favorable for the formation of sea–land breezes and the associated mesoscale atmospheric circulation, which together influence the aerosol transport, producing high AOD in the 13 cities of Jiangsu Province.

Seasonally, spatial AOD was highest in summer followed by spring, autumn, and winter (Figure 3), in line with the findings of two earlier studies over China as a whole and the Sichuan Basin in particular [73,74]. In summer, spatially high AOD (>0.7) was found throughout Jiangsu Province except in the southeast of Nantong City (0.45). Most photochemical reactions occur at higher temperatures, when plenty of water vapor and droplets are suspended in the atmosphere, likely creating high AOD over the study area [75,76]. Furthermore, influence from the East Asian summer monsoon produces higher relative humidity during the summer season, resulting in high AOD [77,78]. The higher summer AOD may also be associated with increased emissions of anthropogenic aerosol from agricultural waste and biomass burning [71]. The second peak in AOD (0.50~0.70) was observed during spring in most of Jiangsu’s cities, perhaps as a result of frequent sand and dust storms originating from the Taklamakan Desert, abundant biomass-burning activities, and lower levels of vegetation [74,79,80]. High spring winds could also substantially pick up and carry soil, dust, and biological particulate matter into the atmosphere, resulting in high AOD [81,82]. Notably, all the 13 studied cities had higher AOD in summer than in spring, autumn, and winter (Figure 4 and Table 2). Specifically, in summer, the 21-year city-level seasonal mean AOD was highest in Lianyungang (0.89 ± 0.24) and lowest in Nantong (0.70 ± 0.18), whereas spring city-level mean AOD was highest in Xuzhou (0.71 ± 0.09) and lowest in Nantong (0.62 ± 0.08) (Figure 4 and Table 2). Autumn mean AOD was highest in Xuzhou (0.69 ± 0.12) and lowest in Nantong (0.48 ± 0.08), whereas winter AOD peaked in Xuzhou (0.66 ± 0.10) and reached its lowest in Suzhou (0.51 ± 0.08). Interestingly, Jiangsu Province had a higher AOD in winter (0.61 ± 0.09) than in autumn (0.59 ± 0.10) (Figure 4 and Table 2).

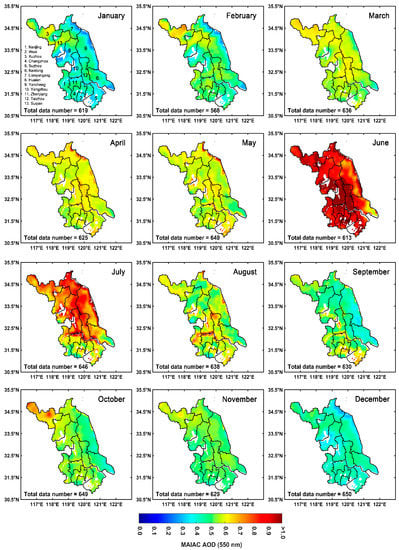

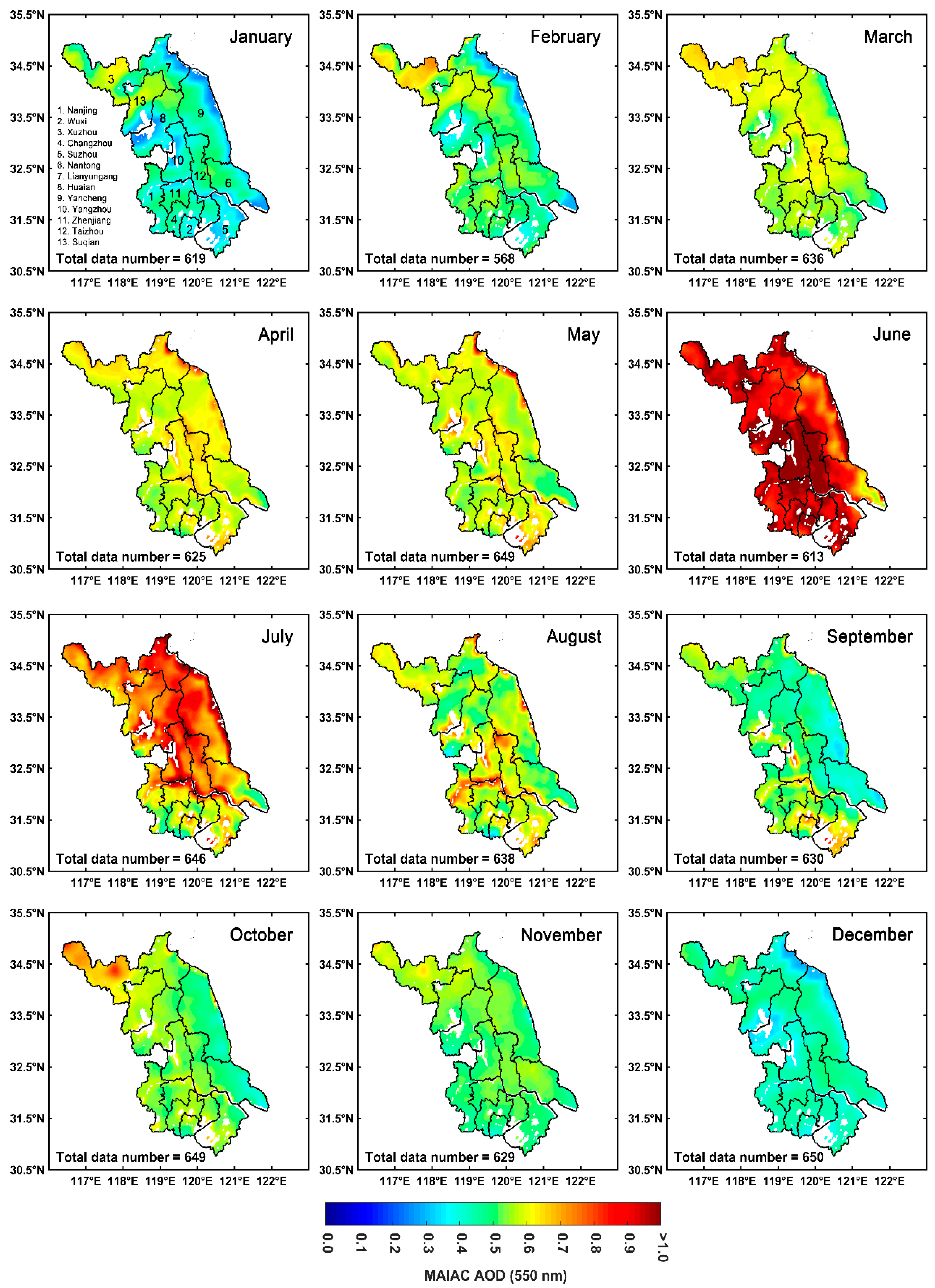

Over the long-term, the monthly and spatial mean AOD rose gradually from January and peaked in June (>0.9), then generally declined with some fluctuations until December (low: <0.4) throughout Jiangsu Province (Figure 5). This fluctuation was attributed to variations in aerosol load and particle size originating from various source regions [82,83]. High AOD is associated with heavy emissions caused by the burning of summer agricultural waste [71,84]. The city-level monthly mean AOD also peaked in June and was lowest in December for the 13 cities of Jiangsu Province (Figure S1 and Table 2).

3.3. Frequency Distribution of AOD

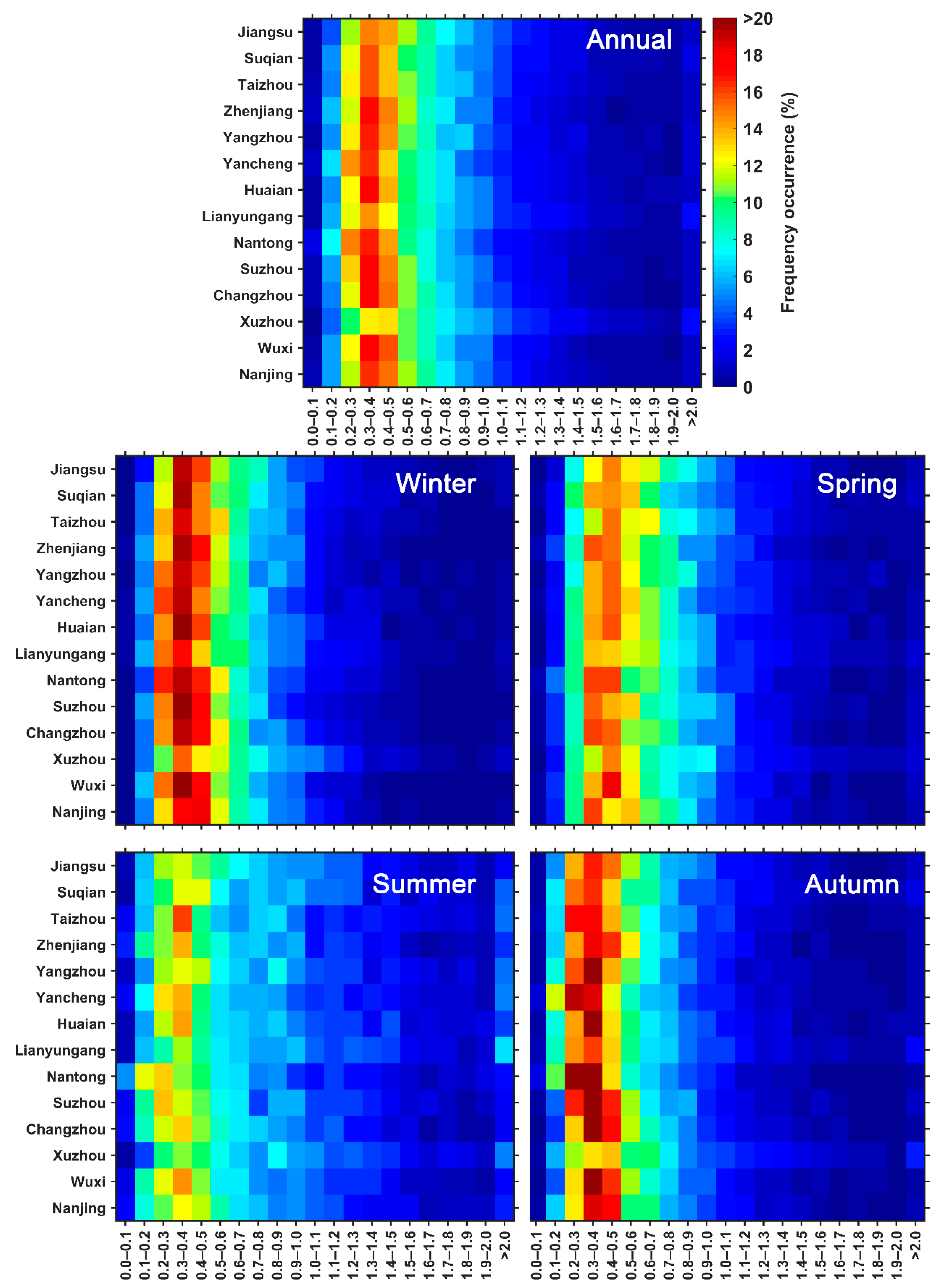

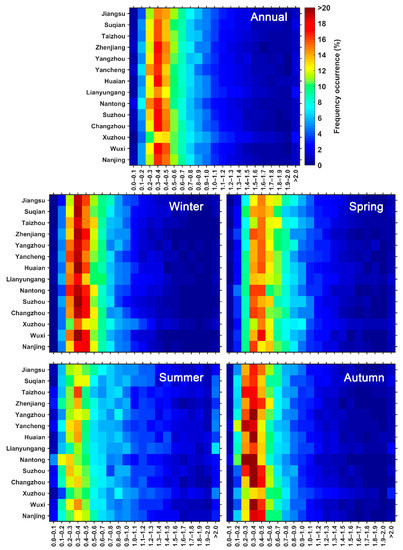

Figure 6 shows the annual and seasonal frequency distribution of AOD based on daily datasets for the 13 cities of Jiangsu Province from 2000 to 2020. During the study period, at an annual scale, AOD occurrence frequency was least for the 0.0 ≤ AOD < 0.1 bin, being < 1.79% for the 13 cities of Jiangsu Province, indicating extremely clean conditions (Figure 6). Specifically, the occurrence frequency of 0.0 ≤ AOD < 0.1 was comparatively high in Nantong (1.79%), Zhenjiang (1.12%), and Yancheng (1.05%), but the other cities in Jiangsu Province had AOD frequencies of less than 0.80%. Moreover, compared with the 0.0 ≤ AOD < 0.1 bin, AOD occurrence frequencies substantially increased, peaking in the 0.3 ≤ AOD < 0.4 bin (12.76% to 17.86%), and then gradually decreasing from the 0.4 ≤ AOD < 0.5 bin (12.41% to 15.90%), reaching their lowest in the AOD > 2.0 bin (0.97% to 2.55%) for the 13 cities of Jiangsu Province. Specifically, the occurrence frequencies of 0.3 ≤ AOD < 0.4 were comparatively highest in Wuxi (17.86%) and lowest in Xuzhou (12.76%), whereas the occurrence frequencies of 0.4 ≤ AOD < 0.5 were highest in Wuxi (15.90%) and lowest in Lianyungang (12.41%). For AOD > 2.0, the occurrence frequencies were highest in Xuzhou (2.55%), and lowest in Changzhou (0.97%). Zhao et al. [72] conducted a similar study and reported an AOD bin of 0.0 to 0.1, indicating extremely clean conditions and the bins of 0.3 ≤ AOD < 0.4 and 0.4 ≤ AOD < 0.5, signifying severe of aerosol extinction (scattering and absorption) in the 14 cities of Liaoning Province in Northeast China. As with annual frequency distribution, the seasonal severity of aerosol extinction in the 13 cities of Jiangsu Province, as indicated by bins of 0.3 ≤ AOD < 0.4 and 0.4 ≤ AOD < 0.5, exhibited the highest AOD occurrence frequencies in winter, followed by autumn, spring, and summer (Figure 6). A few earlier studies of seasonal AOD frequency distribution also reported that light and heavy aerosols were loaded in winter and spring, respectively [3,85,86,87]. As with the annual and seasonal frequency distributions, monthly severity of aerosol extinction, as indicated by a bin of 0.3 ≤ AOD < 0.4, for the 13 cities of Jiangsu Province had the highest AOD frequency occurrences in September (20.85%) and lowest and bottommost in June (8.77%) (Figure 7). For 0.4 ≤ AOD < 0.5, the highest AOD occurrence frequencies occurred in December (17.56%) and bottommost in June (9.49%) for the 13 cities of Jiangsu Province. Notably, monthly extreme aerosol extinction, as indicated by bin AOD > 2.0, was highest in June, fluctuating between 04.02% and 10.21% in the 13 cities of Jiangsu Province (Figure 7). The foregoing indicates that AOD values between 0.3 to 0.5 occurred comparatively often in the 13 cities of Jiangsu Province and that with increases in AOD, occurrence frequency decreased. Tiwari et al. [88] and Filonchyk et al. [89] conducted similar studies and reported that AOD values of 0.4−0.6 indicate a turbid atmosphere, which might be linked to increases in emissions and anthropogenic activity, as well as changes in meteorological circumstances.

3.4. AOD Trends

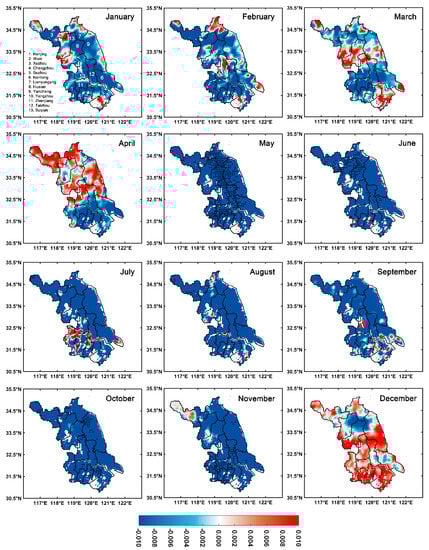

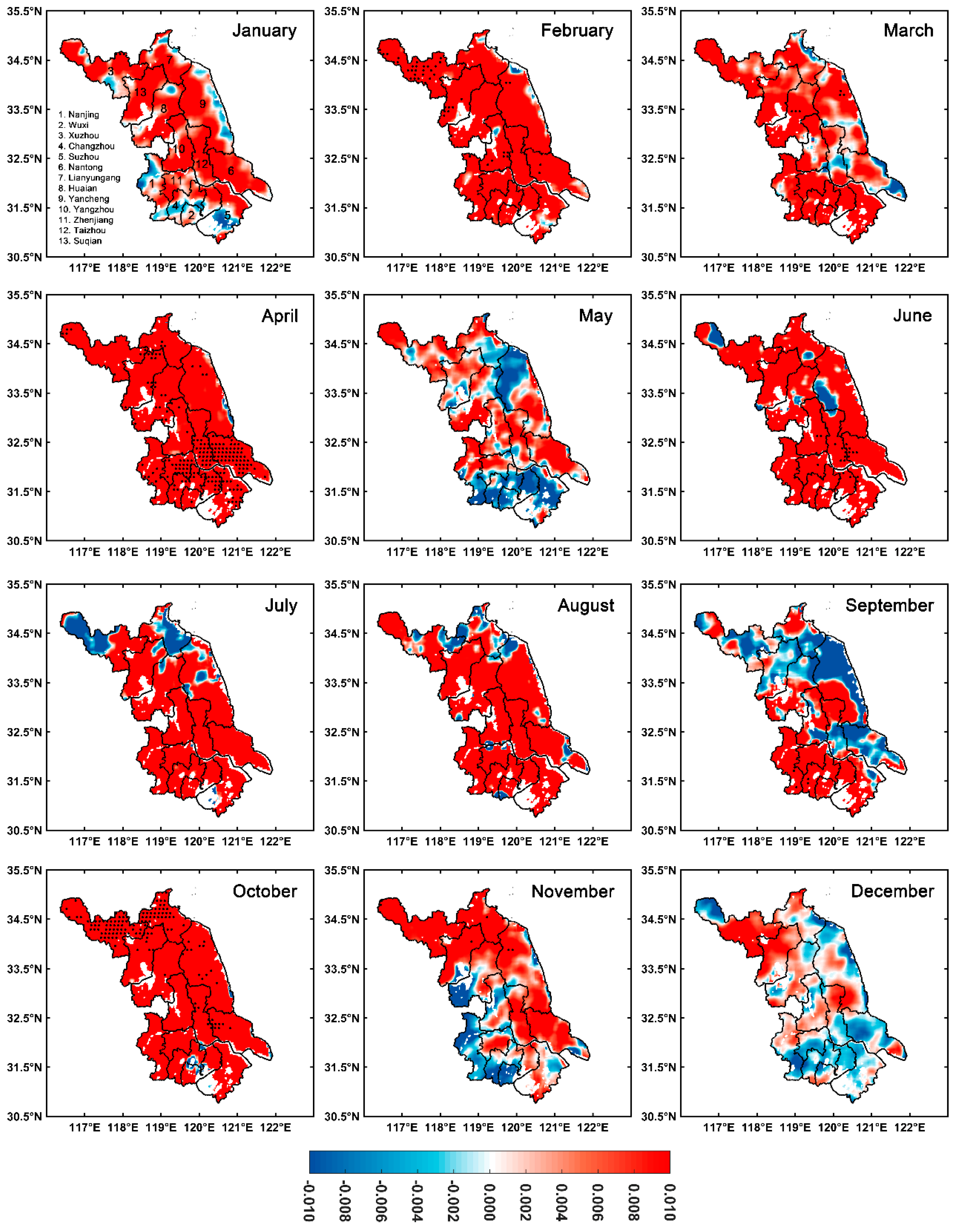

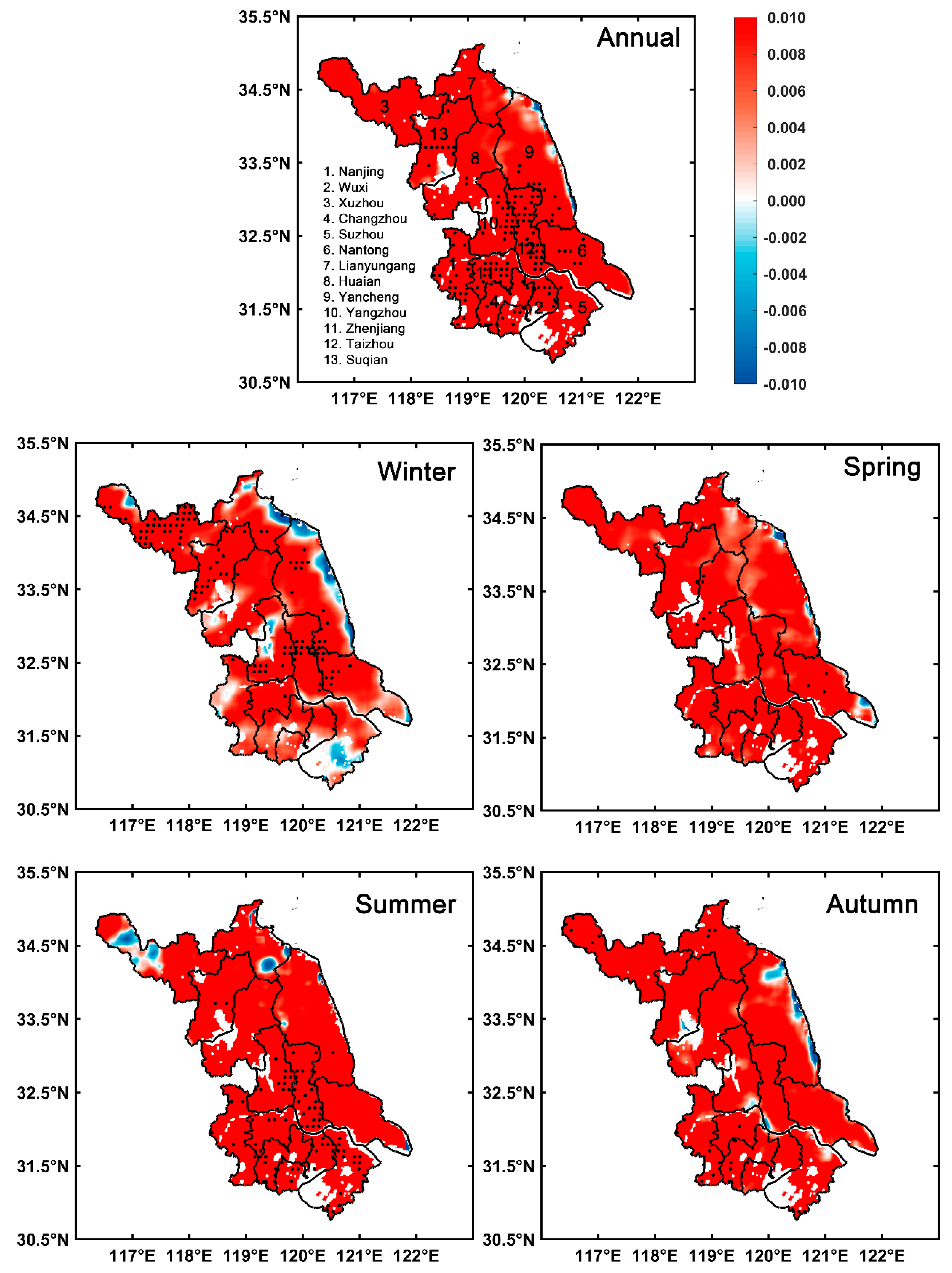

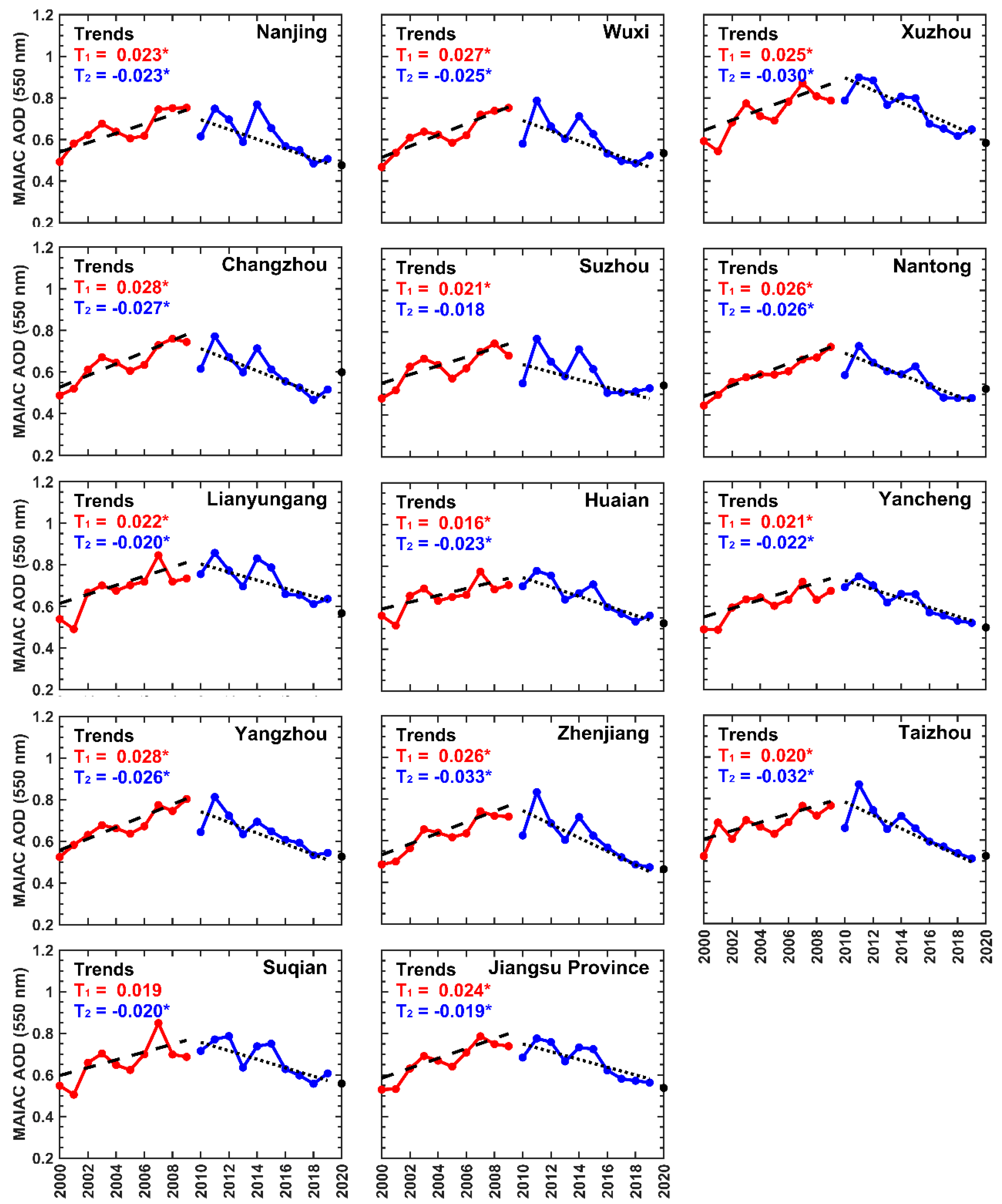

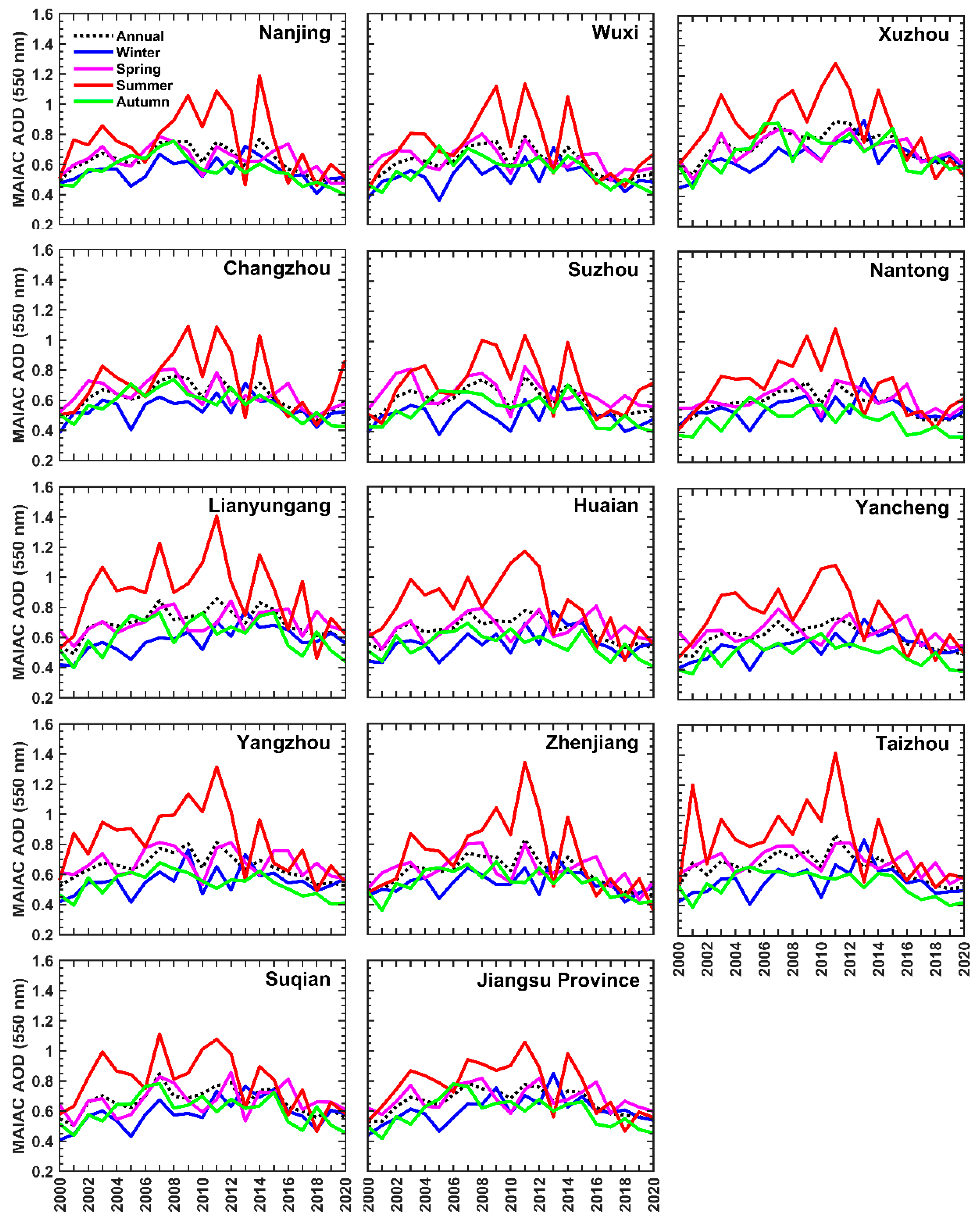

To gain a comprehensive understanding of changes in AOD, our study calculated both spatial and city-level trends from 2000 to 2009 and from 2010 to 2019 for the 13 cities of Jiangsu Province (Figure 8, Figure 9, Figure 10, Figure 11 and Figure 12 and Tables S2 and S3). Tests of significance for AOD trends are indicated with black dots at a 95% confidence level. Substantial spatial contrasts in upward AOD trends were seen for the 13 cities of Jiangsu Province from 2000 to 2009 annually and seasonally (Figure 8). Upward AOD trends were also seen for all months except May, September, November, and December, which had both upward and downward AOD trends across the study area (Figure 9). However, annually, significant upward AOD trends (per year) were varied between 0.016 to 0.028 for the 13 studied cities from 2000 to 2009, with the highest in Changzhou and Yangzhou and lowermost in Huaian (Figure 12). Seasonally, both significant and insignificant upward AOD trends (per year) were evident for all seasons in the 13 cities of Jiangsu Province from 2000 to 2009 (Table S2). Furthermore, the significant upward AOD trends (per year) were highest in both June and July, whereas those upward trends were lowest in December for all cities of Jiangsu Province except Taizhou and Zhenjiang, which had downward trends. However, these AOD trends were insignificant at a 95% confidence level. In light of the foregoing, the increases in AOD from 2000 to 2009 in the 13 cities of Jiangsu Province could have been caused by a booming economy and industrial development, with substantial emissions of sulfur dioxide (SO₂), and primary aerosols [90,91]. In addition, Hu et al. [85] reported that rapid urbanization and burning of biomass could increase AOD.

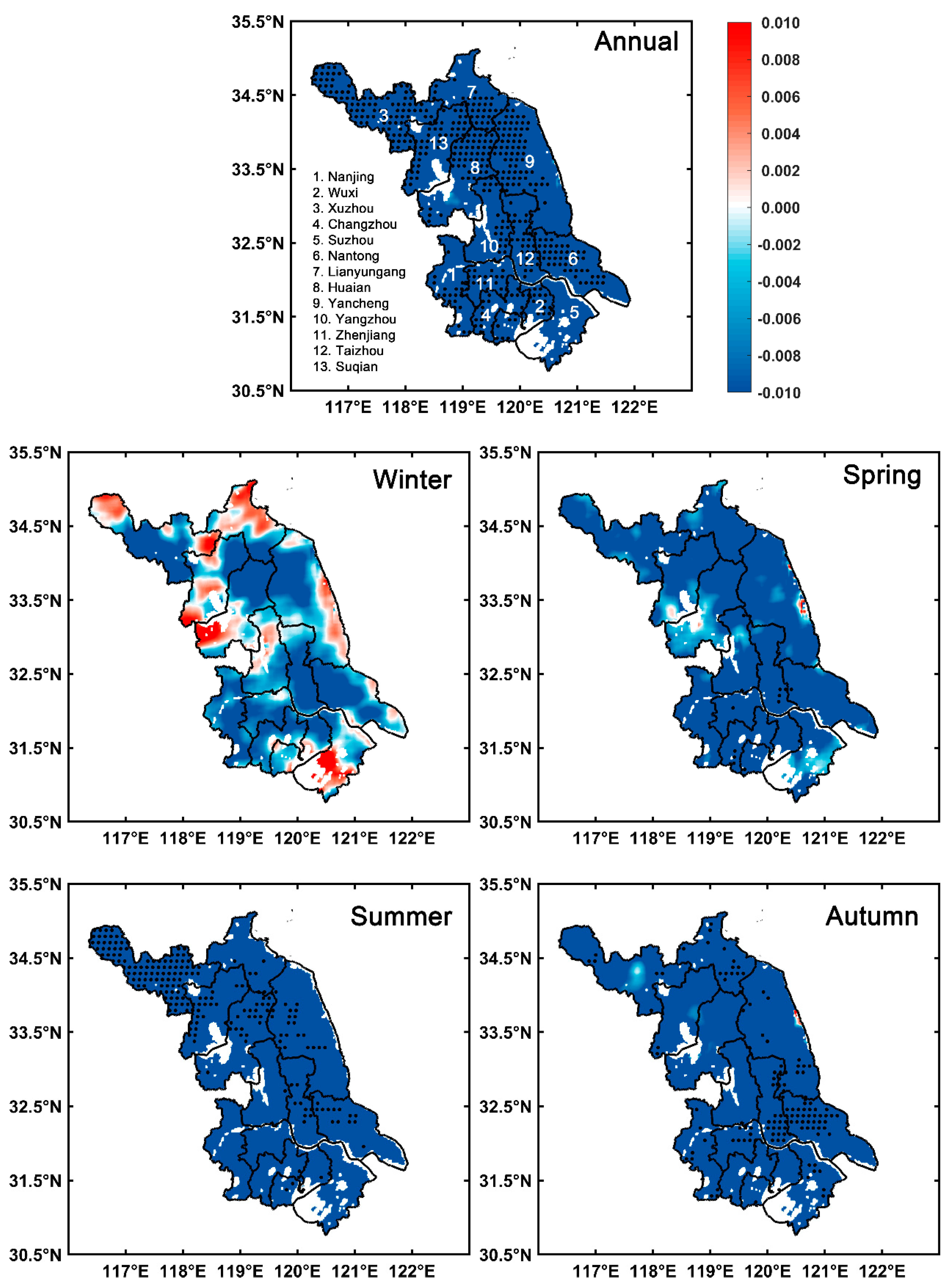

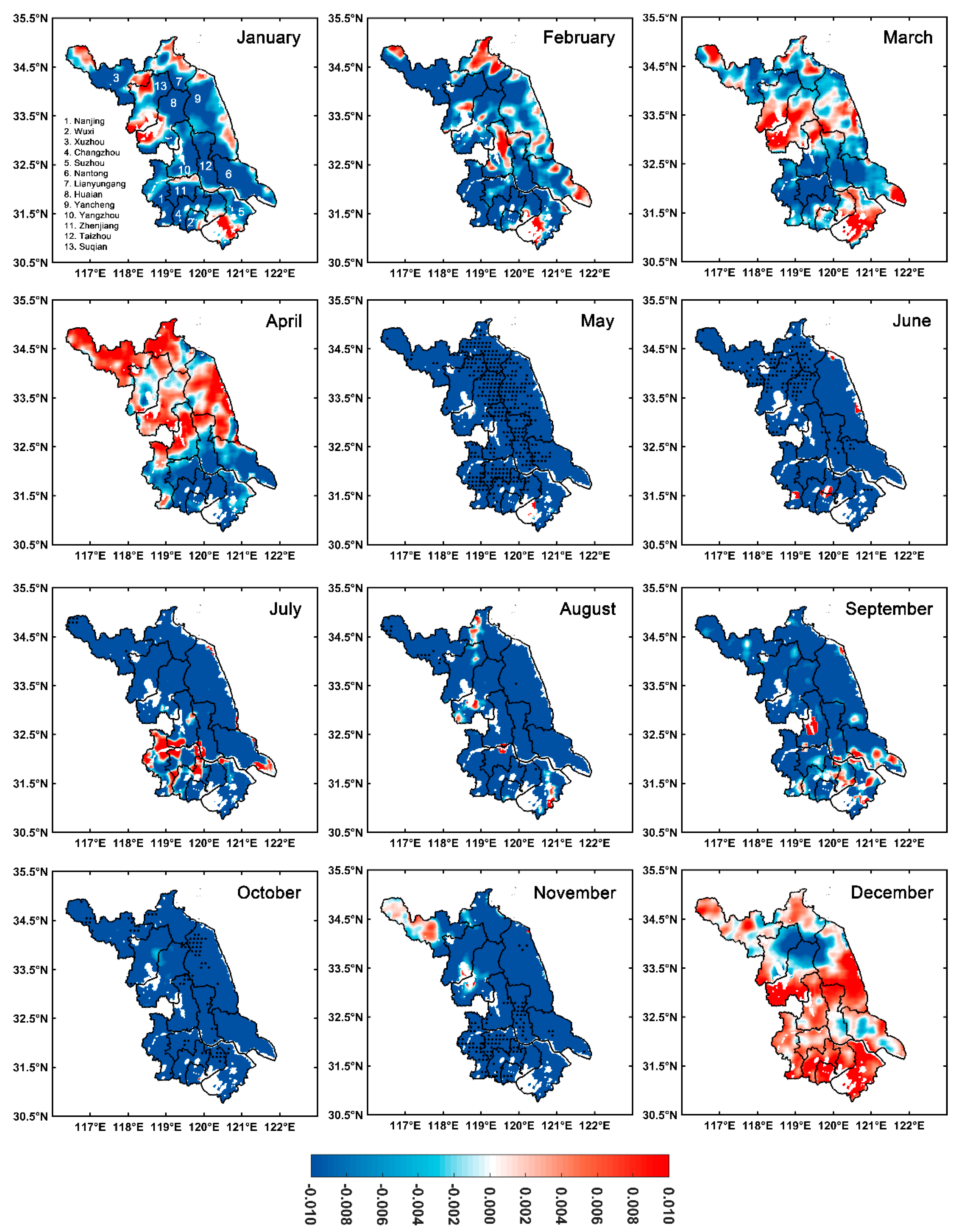

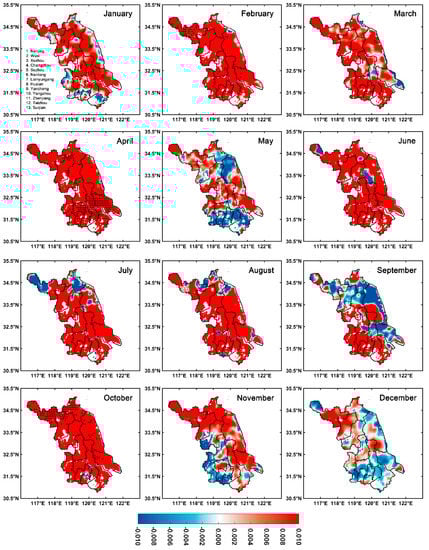

Furthermore, a substantial spatial contrast in downward AOD trends was evident in Jiangsu Province both annually and seasonally from 2010 to 2019 (Figure 10). At the city-level, annually significant downward AOD trends (per year) ranged from 0.019 to 0.033, with the highest found in Zhenjiang and the lowest in Lianyungang and Suqian—except for Suzhou, which presented an insignificant downward trend of 0.018 (Figure 12). Significant and insignificant downward AOD trends (per year) were apparent in all seasons for the 13 cities of Jiangsu Province from 2010 to 2019 (Table S3). Notably, most cities in Jiangsu Province presented both significant and insignificant downward AOD trends in all months from 2010 to 2019 (Table S3). Significant downward AOD trends (per year) were found to be highest in June, whereas insignificant downward AOD trends (per year) were lowest in March for all cities of Jiangsu Province except Huaian (Figure 11). The downward AOD trends may be attributed to several factors, such as China’s strict air pollution control policies, increased control of vehicular emissions, strict benzene measurement, and increased use of CNG (compressed natural gas) vehicles [73,79,85,92,93,94]. In addition, Ma et al. [95] and Mehta et al. [96] reported that downward AOD trends indicate a reduction in aerosol loading, which is consistent with air quality improvement over the study area.

3.5. Relationship between AOD and Meteorological Parameters

To understand the relationship between AOD and meteorological parameters at seasonal scale, this study firstly discusses AOD with land surface temperature (LST), water vapor (WV), and precipitation (P) for the 13 cities of Jiangsu Province (Figure 13). In addition, the study has calculated the correlation between AOD and meteorological parameters from 2000 to 2009 and from 2010 to 2020 at a seasonal scale (

Table 3. Correlation between AOD and meteorological parameters (LST, WV, and P) over the 13 cities of Jiangsu Province. The symbol asterisk (*) represents change at a 95% significance level.

	LST				WV				P
	Winter	Spring	Summer	Autumn	Winter	Spring	Summer	Autumn	Winter	Spring	Summer	Autumn
2000–2009
Nanjing	0.38	0.57	0.25	0.32	0.22	−0.1	0.43	0.45	0.08	0.05	0.56	0.11
Wuxi	0.23	0.49	0.67 *	0.55	0.74 *	−0.41	0.31	0.45	0.31	0.06	0.55	0.43
Xuzhou	0.1	−0.22	−0.53	0.35	−0.11	−0.32	0.43	0.005	−0.33	0.61	0.24	0.15
Changzhou	0.18	0.68 *	0.69 *	0.5	0.66 *	−0.07	0.42	0.49	0.4	0.24	0.66 *	0.37
Suzhou	0.36	0.59	0.6	0.4	0.58	−0.004	0.11	0.26	0.22	0.4	0.08	0.4
Nantong	0.18	0.75 *	0.76 *	0.44	0.68 *	−0.47	0.38	0.06	0.29	−0.02	0.13	0.27
Lianyungang	0.15	−0.1	−0.27	0.44	0.19	−0.48	0.64 *	0.34	−0.33	0.71 *	−0.06	0.54
Huaian	0.49	0.05	0.52	0.43	0.37	−0.37	0.79 *	0.24	−0.25	0.6	0.22	0.44
Yancheng	0.15	−0.21	0.41	0.35	0.53	−0.39	0.70 *	0.1	−0.11	0.52	0.05	0.54
Yangzhou	0.25	0.46	0.6	0.63	0.57	−0.15	0.48	0.23	0.11	0.25	0.26	0.3
Zhenjiang	0.58	0.56	0.25	0.5	0.36	−0.18	0.53	0.24	−0.01	0.02	0.70 *	0.48
Taizhou	0.37	0.25	0.3	0.55	0.53	−0.1	0.35	0.24	0.07	0.23	0.3	0.59
Suqian	0.22	−0.26	−0.2	0.51	0.18	−0.32	0.78 *	0.21	−0.14	0.63	0.15	0.46
Jiangsu	0.18	−0.06	0.38	0.6	0.61	−0.15	0.61	0.17	0.09	0.38	0.14	0.53
2010–2020
Nanjing	0.07	−0.34	−0.34	−0.38	−0.11	0.4	−0.13	−0.42	−0.72 *	0.04	0.1	−0.04
Wuxi	−0.09	−0.15	−0.49	−0.48	−0.25	0.26	0.19	−0.28	−0.64 *	−0.16	0.36	−0.37
Xuzhou	−0.36	−0.1	−0.60 *	−0.62*	−0.5	0.1	−0.07	−0.23	−0.57	−0.22	−0.58	0.05
Changzhou	0.08	−0.16	−0.75 *	−0.44	0.001	0.004	0.25	−0.45	−0.69 *	−0.12	0.47	−0.21
Suzhou	−0.25	0.04	−0.56	−0.36	−0.2	0.33	0.14	−0.31	−0.59	−0.5	0.46	−0.53
Nantong	−0.12	−0.15	−0.77 *	−0.25	−0.3	−0.06	0.42	−0.52	−0.44	−0.11	0.36	−0.4
Lianyungang	−0.34	0.28	−0.43	−0.71 *	−0.59	0.24	0.06	−0.13	−0.60 *	−0.001	−0.19	0.38
Huaian	−0.13	0.03	−0.73 *	−0.59	−0.31	0.37	0.08	−0.23	−0.62 *	0.25	0.02	−0.13
Yancheng	−0.16	−0.09	−0.59	−0.70 *	−0.48	0.22	0.36	−0.13	−0.76 *	0.18	−0.08	−0.11
Yangzhou	−0.1	0.05	−0.48	−0.47	−0.09	0.27	0.43	−0.38	−0.61 *	−0.05	0.14	−0.04
Zhenjiang	0.09	−0.04	0.29	−0.27	−0.29	0.31	0.27	−0.31	−0.73 *	0.09	0.15	0.08
Taizhou	−0.36	−0.25	−0.6	−0.77 *	−0.36	0.2	0.42	−0.24	−0.67 *	0.01	0.28	−0.2
Suqian	0.15	−0.02	−0.34	−0.68 *	−0.3	0.54	0.05	−0.31	−0.62 *	0.09	−0.1	−0.11
Jiangsu	−0.39	−0.02	−0.58	−0.71 *	−0.58	0.27	0.11	−0.35	−0.59	0.06	0.08	−0.23

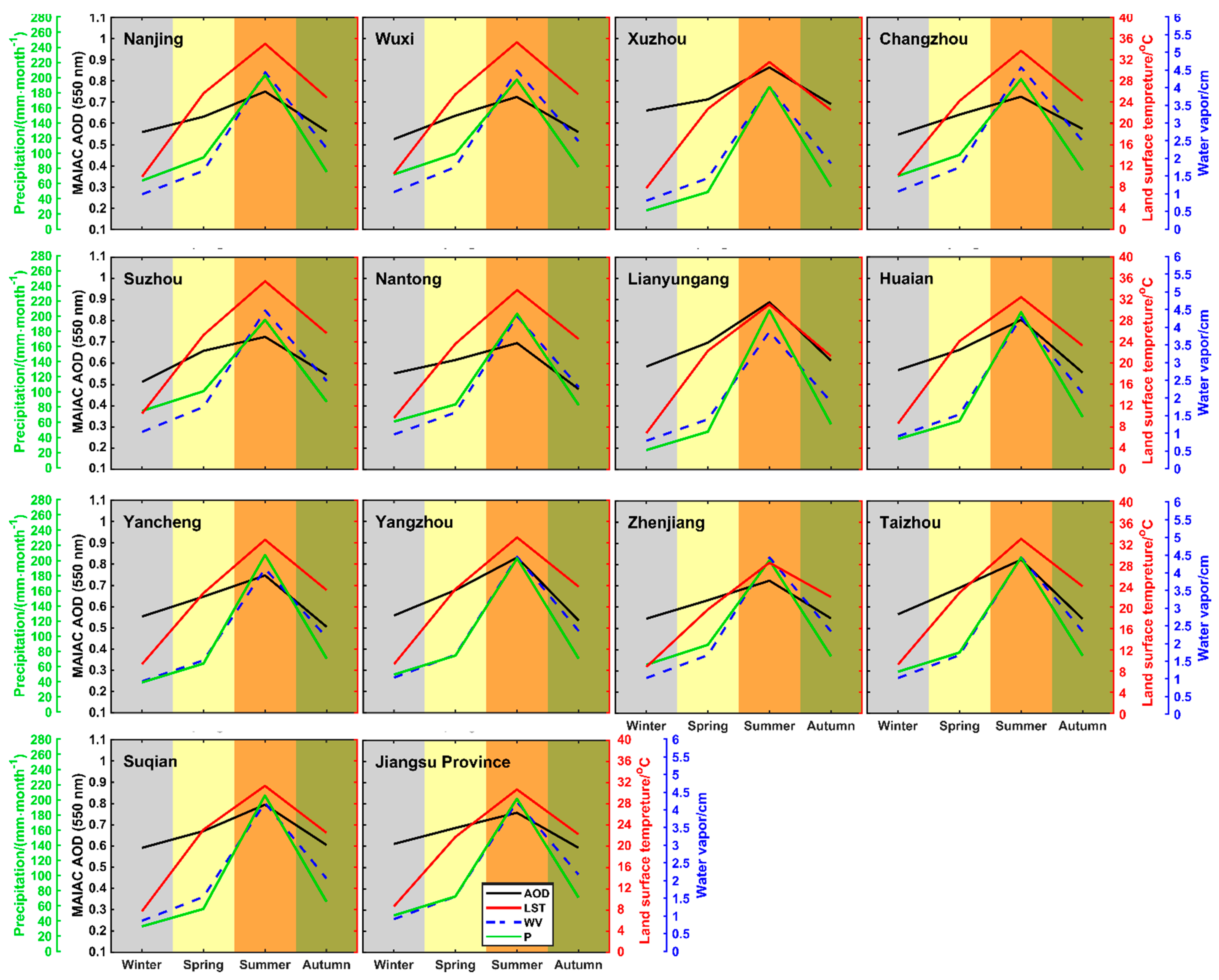

). Notably, AOD and meteorological parameters (LST, WV, and P) showed a very similar pattern for all the cities from 2000 to 2020 (Figure 13). AOD showed insignificant positive correlations with LST in winter (0.1~0.58) and autumn (0.32~0.63) from 2000 to 2009 (Table 3), excluding spring and summer. In spring, AOD and LST showed a correlation from 0.05 to 0.75 for most cities except for Xuzhou, Lianyungang, Yancheng, Suqian, and the whole of Jiangsu (Table 3). In summer, AOD and LST also showed a correlation from 0.25 to 0.76 overJiangsu Province except for Xuzhou, Lianyungang, and Suqian (Table 3). During the 2010-2020 period, AOD and LST demonstrated mostly negative correlations over most cities of Jiangsu Province. This result is comparable with [97]. Furthermore, AOD and P (precipitation) demonstrated mostly insignificant positive correlations in all seasons over most cities from 2000 to 2009 but a negative correlation in a few areas, signifying that precipitation does not perform geographically consistent washout effects on the aerosol distribution. During the 2010–2020 period, the negative correlation between AOD and P was seen in winter and autumn over most cities, whereas both positive and negative correlations were found in spring and summer (Table 3). Several factors might be responsible for a weak or insignificant correlation between AOD and P over the study area. For example, atmospheric humidity leads to AOD values becoming high in summer [78,98,99]. MA and GUAN [100] reported that aerosol also influences the precipitation intensity. The aerosol concentration and its distribution [101], the size and properties of the aerosol particles [102,103,104], and monsoon circulation patterns [12,105] might be responsible for the weak correlation between AOD and precipitation. The abovementioned factors complicate the relation between AOD and precipitation and make it uncertain in different regions of China; thus, further investigations are needed in the future. Finally, AOD and WV demonstrated mostly insignificant positive correlations in winter, summer, and autumn over most cities from 2000 to 2009, whilst a negative correlation was found only in spring (Table 3). During the 2010–2020 period, insignificant negative correlations between AOD and WV were evident in winter and autumn for all 13 cities, and positive correlations appeared in spring and summer (Table 3). The stronger positive correlation in summer (signifying that the high prevalence of water vapor in summer) may boost gas-to-particle conversion and hygroscopic growth of aerosols, leading to the assembly of secondary aerosols resulting in high AOD [7,76,106,107]. Several researchers [108,109,110,111] reported that June is marked by the burning of straw and the harvesting of grain across the Yangtse River Delta, including parts of Jiangsu, which release significant amounts of aerosols, corresponding to maximum AOD (1.07) in this month. Thus, high AOD values were observed in summer, and low values in winter (Figure 13). In winter, low levels of precipitation, temperature, and water vapor may lead to low AOD throughout the study area. In addition, the Asian winter monsoon helps to reduce AOD by carrying dry and clean air into the region [73F]. Notably, AOD was found to be more impacted by meteorological parameters (LST, WV, and P) during the 2000–2009 period than in the 2010-2020 period across the 13 cities of Jiangsu Province, in line with the findings of Wang and Chen [13].

4. Conclusions

We based this paper on MODIS level 2 high-resolution (1 km) MAIAC AOD (550 nm) from the Terra and Aqua satellites for 2000–2020, evaluated against ground-based AERONET data across three sites (Xuzhou-CUMT, NUIST, and Taihu) in Jiangsu Province. We also examined the spatiotemporal distributions of and variations in AOD, frequency distributions, and trends, while exploring the impact of meteorology on AOD in the 13 cities of Jiangsu Province. Our major findings are as follows:

• The evaluation study showed a consistent result between the MAIAC AOD and AERONET AOD with a high Pearson’s correlation coefficient (r: 0.867~0.929), and lower RMSE (0.130~0.287) and MAE (0.091~0.198). These findings indicate that MODIS high-resolution MAIAC aerosol products can effectively reveal city-level aerosol pollution scenarios.
• The spatial distribution of annual mean AOD showed high values (over 0.60) in most cities, excluding the southeast of Nantong City, which was characterized by a low AOD value (<0.40). Moreover, the 21-year city-level annual mean AOD was highest in Xuzhou (0.73 ± 0.10) and lowest in Nantong (0.59 ± 0.08).
• The spatial distribution of seasonal mean AOD showed higher values in summer (>0.70) than in spring, autumn, and winter for most cities. In particular, the 21-year city-level summer mean AOD was highest in Lianyungang (0.89 ± 0.24) and lowest in Nantong (0.70 ± 0.18), whereas the spring mean AOD was highest in Xuzhou (0.71 ± 0.09) and lowest in Nantong (0.62 ± 0.08). The autumn mean AOD was also highest in Xuzhou (0.69 ± 0.12) and lowest in Nantong (0.48 ± 0.08), whereas winter AOD was highest in Xuzhou (0.66 ± 0.10) and lowest in Suzhou (0.51 ± 0.08). Furthermore, the spatial mean AOD peaked in June (>0.9) and was lowest in December (<0.4) throughout Jiangsu Province.
• The occurrence frequencies of 0.3 ≤ AOD < 0.4 and 0.4 ≤ AOD < 0.5 were commonly observed, indicating a turbid atmosphere, perhaps associated with anthropogenic activities, increased emissions, and changes in meteorological circumstances.
• Annually, significant upward AOD trends ranged from 0.016 to 0.028 (per year) in all the 13 cities during 2000–2009, being highest in Changzhou and Yangzhou and lowest in Huaian. Moreover, for 2010–2019, annually, significant downward AOD trends (per year) varied between 0.020 and 0.033, being highest in Zhenjiang and lowermost in Lianyungang and Suqian. These downward trends indicate the enhancement of air quality throughout the study area, perhaps because of implementing China’s strict air pollution control policies and proper control of vehicular emissions.
• The AOD and meteorological parameters (LST, WV, and P) presented a very similar pattern, signifying that meteorology plays a role in AOD.
