Individual Tree Detection and Qualitative Inventory of a Eucalyptus sp. Stand Using UAV Photogrammetry Data

Abstract

Digital aerial photogrammetry (DAP) data acquired by unmanned aerial vehicles (UAV) have been increasingly used for forest inventory and monitoring. In this study, we evaluated the potential of UAV photogrammetry data to detect individual trees, estimate their heights (ht), and monitor the initial silvicultural quality of a 1.5-year-old Eucalyptus sp. stand in northeastern Brazil. DAP estimates were compared with accurate tree locations obtained with real time kinematic (RTK) positioning and direct height measurements obtained in the field. In addition, we assessed the quality of a DAP-UAV digital terrain model (DTM) derived using an alternative ground classification approach and investigated its performance in the retrieval of individual tree attributes. The DTM built for the stand presented an RMSE of 0.099 m relative to the RTK measurements, showing no bias. The normalized 3D point cloud enabled the identification of over 95% of the stand trees and the estimation of their heights with an RMSE of 0.36 m (11%). However, ht was systematically underestimated, with a bias of 0.22 m (6.7%). A linear regression model, was fitted to estimate tree height from a maximum height metric derived from the point cloud reduced the RMSE by 20%. An assessment of uniformity indices calculated from both field and DAP heights showed no statistical difference. The results suggest that products derived from DAP-UAV may be used to generate accurate DTMs in young Eucalyptus sp. stands, detect individual trees, estimate ht, and determine stand uniformity with the same level of accuracy obtained in traditional forest inventories.

1. Introduction

Brazil has one of the world’s largest areas (~9 million ha) of rapid-growth forest plantations. Of these, around 77% are Eucalyptus stands. The derived forest products supply domestic and foreign markets, with an estimated US$ 11.3 billion of exports in 2019 [1]. Beyond its economic importance to the country, representing 1.2% of the national gross primary product (GPP), these plantations also play a key role in the promotion of ecosystem services such as carbon sequestration and reduction of the pressure on native forests.

The productivity of rapid-growth commercial stands, such as Eucalyptus, is defined by the environment, genetic material and silvicultural treatments applied during the production cycle [2]. Initial silvicultural quality has a direct impact on the productivity observed at the end of the growth cycle, highlighting the importance of its monitoring [3]. Silvicultural quality can be assessed by metrics that describe uniformity, such as the Gini index and the Lorenz curve [4,5,6,7]. Traditionally, these metrics are estimated from dendrometric characteristics of the trees (height, diameter at breast height, basal area, crown area, among others), measured during the initial growth of the stand [3]. Large planted areas with high growth rates subject to extreme climate change effects require even more attention in early-stage monitoring in order to maximize productivity at the end of the production cycle [8,9].

In recent decades, remote sensing techniques provided an effective and reliable means of forest monitoring [10,11,12,13,14]. Three-dimensional (3D) remote sensing instruments such as light detection and ranging (LiDAR) stand out because of their precise measurements of vertical profiles of the forests, from which structural metrics are extracted and used to estimate the main dendrometric characteristics. Despite encouraging results in the characterization of forest plantations in Brazil [15,16,17], LiDAR data still incur high costs, hampering their operational use. As an alternative, digital aerial photogrammetry (DAP) data have been utilized by the scientific community in recent decades [18,19,20,21], as they have become more accessible with the popularization of unmanned aerial vehicles (UAV). Besides the lower costs, DAP-UAV products present similarities to LiDAR data and are generated at a higher point density in a shorter time interval [22,23]. Some studies indicate that the performance of UAV photogrammetry data is adequate for estimating the characteristics of Eucalyptus stands [24,25], thus making them a feasible alternative to forest monitoring [26,27].

Despite their potential and similarity to LiDAR data, some UAV photogrammetry products have limitations within vegetated areas, which may compromise their usage [28,29]. In digital terrain models (DTMs), for example, UAVs commonly overestimate elevation under the forest, leading to an underestimation of tree heights [30,31]. In contrast with LiDAR, DAP-UAV products cannot penetrate the forest canopy and describe the vertical profile of the vegetation in detail [23]. It is noteworthy that the capacity to penetrate the forest’s vertical structure depends on the type of vegetation, age, canopy structure, disturbance history, and terrain characteristics [32,33].

In addition to forest characteristics, the capacity of UAV photogrammetry to model terrain under vegetation also relies on the structure from motion (SfM) algorithm utilized, the point density, and the classification of the 3D point cloud [20,34,35]. The point cloud classification process can be carried out both manually and automatically. Once classified, terrain points may be interpolated to generate a DTM [36]. However, few studies have assessed the quality of the DTM acquired by different classification procedures and its potential to estimate the structural features of forest stands during initial growth stages [37].

One may utilize two approaches to estimate vegetation characteristics from 3D remote sensing products and traditional field survey data: (i) the area-based approach (ABA) [38] and (ii) individual tree detection (ITD) [39,40]. Both approaches have benefits and drawbacks, as their usage is dictated by 3D data properties, available field data, allometric models and vegetation type. For ABA, each field plot is considered as a unit of analysis. On the other hand, for ITD, each tree is considered a unit of analysis, and direct/derived estimates of their characteristics are determined by metrics extracted from the point cloud of each identified tree [41]. Subsequently, their estimates may be extrapolated to plot or stand levels [17].

Given the high quality of current 3D remote sensing products (LiDAR and DAP) and the unprecedented processing capabilities provided by cloud-based platforms, applications focused on individual tree detection and height estimation are becoming increasingly more common [16,42,43]. However, in most studies published to date, the validation of tree detection is not performed with accurate location data obtained directly in the field by real-time kinematic (RTK) positioning or total station (see Guerra et al. [24] and Krause et al. [44] for exceptions). In addition, tree heights are usually compared with indirect field-based estimates subject to measurement errors, which are usually not quantified [45,46]. Few studies have shown the DAP-UAV’s potential to detect individual trees and estimate height in young Eucalyptus plantations for the purpose of qualitative forest inventory. Hentz et al. [37] explored this gap, but precise measurements of tree location and direct tree height measurements were not used to validate the results. Studies that evaluate the quality of DTMs and other DAP-UAV products in young Eucalyptus stands are also missing.

In this study, we assessed the potential of UAV photogrammetry data to detect individual trees, estimate their heights, and monitor the initial silvicultural quality of a young Eucalyptus sp. stand in northeastern Brazil. DAP estimates were compared with accurate tree locations obtained with RTK positioning and direct height measurements obtained in the field, with known measurement errors. In addition, we assessed the quality of a DAP-UAV DTM derived with an alternative ground classification approach and investigated its performance in the retrieval of tree attributes.

2. Materials and Methods

2.1. Study Area

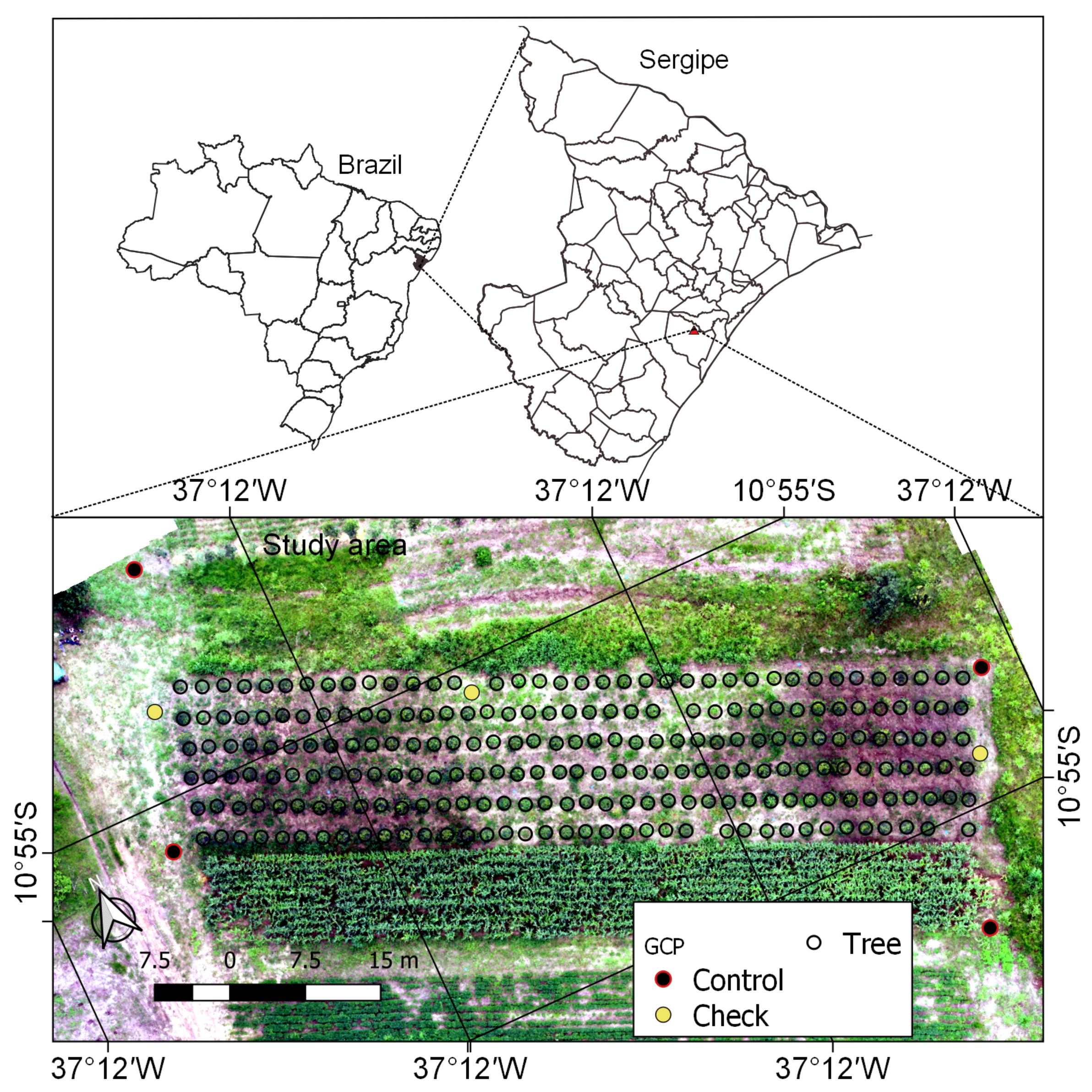

The study area comprised a 0.15 ha Eucalyptus grandis stand located in the municipality of São Cristóvão, Sergipe, Brazil (−10.924°S, −37.196°W) (Figure 1). The tree spacing was 3 m × 2 m and the stand was 1.5 years old at the time of data collection. The region’s climate is classified as tropical wet and dry (As), with a dry summer and the driest month with a rainfall of less than 60 mm (less than 4% of the total annual precipitation) [47]. In the region, the mean annual precipitation is 1200 mm, concentrated between April and September, and the mean air temperature is 30 °C [48]. The soil is classified as red yellow argisol [49], and the terrain is considered smooth, with an elevation of 11.8 m above sea level and a slope of less than 5%.

2.2. Forest Inventory Data

For this study, 214 trees were measured in August 2018. All trees were geolocated using a Trimble® R8s Integrate GNSS System Antenna with a dual-frequency real time kinematic (RTK) receiver (Trimble, Sunnyvale, CA, USA) (https://geospatial.trimble.com/, accessed on 25 March 2021). Coordinates of the basis of the trees ($X_{RTK}$, $Y_{RTK}$ and $Z_{RTK}$) were recorded following the UTM projection (zone 24 S), with the SIRGAS2000 Datum.

The mean root mean square error (RMSE) of tree geolocation was ±0.017 m for $X_{RTK}$ and $Y_{RTK}$ (horizontal position) and ±0.024 m for $Z_{RTK}$ (elevation). A DTM of the stand was derived by the interpolation of the 214 measures of $Z_{RTK}$ and was labelled as DTM_RTK. The values of $Z_{RTK}$ were interpolated using the triangulated irregular network (TIN) method, which was available on the open-source software QGIS [50].

The total height ($h{t}_{Field}$, m) of each tree in the field was measured with the aid of a graduated ruler of 6 m. The ruler was placed vertically beside each plant by a field assistant and the readings were carried out at a distance of approximately 5 m by an experienced observer. The maximum tree height measured was 5.4 m (

Table 1. Summary of total heights (ht) measured in the young Eucalyptus stand and the associated measurement errors (all values in meters).

${ht}_{Field}$ Statistics
Measurements		Errors
Minimum	0.6	Range	0.8–4.6
Median	3.35	RMSD ${}^1$	0.08 (3.0%)
Mean	3.34	Bias	0.02 (0.7%)
Maximum	5.4	SD ${}^2$	0.08 (2.9%)

${}^1$ Root Mean Square Deviation; ${}^2$ Standard Deviation.

) and all tree tops were clearly visible to the observer, who stood between planting lines. At the end of the inventory, 37 trees (17%) were randomly selected and had their $h{t}_{Field}$ remeasured by the same observer. The paired measures were used to estimate the measurement error for $h{t}_{Field}$, following the methods of Gonçalves et al. [51]. Errors were estimated and described in total (root mean square deviation, RMSD), systematic (bias) and random (standard deviation, SD) terms. Table 1 presents a summary of ht values measured in the field and the associated errors.

2.3. Silvicultural Quality of the Stand

Silvicultural quality was estimated using uniformity indices calculated from ht values. Four indices were utilized to describe the uniformity of the stand: coefficient of variation (CV) of the total heights, Gini index (Gini), canopy relief ratio (CRR), and percentage of cumulative heights for the 50% lowest trees (PV50). A plot with a Lorenz curve was also utilized to assess the silvicultural quality of the stand [4].

In general, stand uniformity is related to lower coefficients of variation. The CV was estimated as:

$$CV=\frac{\sqrt{\frac{{\sum }_{i=1}^n{\left(h{t}_i-h{t}_{mean}\right)}^2}{(n-1)}}}{h{t}_{mean}}$$

(1)

where i is the tree index, n is the number of trees in the plot, $h{t}_{mean}$ is the mean plot-level height, and $h{t}_i$ is the height of the i-th tree.

The Gini is also utilized to estimate the variance in tree heights in a forest stand. In its minimal value (zero), all trees have the same height, while in its maximum value (one), all trees except one have the same height [52,53,54]. The Gini index was estimated as:

$$Gini=\frac{{\sum }_{r=1}^n\left(2t-n-1\right)h{t}_r}{{\sum }_{r=1}^{n}h{t}_r\left(n-1\right)}$$

(2)

where $h{t}_r$ is the height of the tree in rank r, where r is the rank of all trees ordered by total height (1, 2, 3, …, n) [52,55,56].

The CRR describes the relationship between total height extremes (minimum and maximum) and the mean value of all heights. The closer to its maximum value (one), the more uniform the stand; the closer to the minimum value (zero), the less uniform the stand. CRR was estimated as:

$$CRR=\frac{h{t}_{mean}-h{t}_{min}}{h{t}_{max}-h{t}_{min}}$$

(3)

where $h{t}_{mean}$, $h{t}_{min}$, and $h{t}_{max}$ are, respectively, mean, minimum, and maximum tree total heights.

The PV50 can be utilized to describe the uniformity of the stand [3]. The closer the index is to its maximum value (50%), the more uniform the stand. PV50 was estimated by sorting ht in ascending order, and using the equation:

$$PV50=\frac{{\sum }_{i=1}^{n/2}h{t}_{r50}}{{\sum }_{i=1}^{n}h{t}_{r50}}$$

(4)

where $h{t}_{r50}$ is the total height of the tree in rank r50, where r50 is the rank of the 50 smallest trees ordered by height.

The Lorenz curve was plotted as the cumulative frequency of the number of trees in the stand (horizontal axis) by the cumulative percentage of ht values, from the smallest tree to the tallest one (vertical axis).

2.4. Digital Aerial Photogrammetry

2.4.1. UAV Data Collection

Using a DJI Phantom 4 PRO quadcopter UAV (SZ DJI Technology Co., Ltd., Shenzhen, China), 70 high-resolution aerial photographs were taken during a field campaign. Imagery were acquired on August 1st 2018 (10:00 a.m local time), using a compact RGB digital camera with a 20 megapixel CMOS sensor and a resolution of 5472 × 3648. The camera was installed on a stabilized gimbal to reduce the impact of mechanical vibrations. Meteorological conditions were clear sky (cloud cover <5%) and light winds (<10 m s${}^{-1}$), following the recommendations of Dandois et al. [30]. The flight was performed 50 m above ground, using the visual line of sight (VLOS) method, as determined by the Brazilian UAV piloting standards (https://www.anac.gov.br, accessed on 11 March 2021). Photographs were recorded using the JPG format, with 85% frontal and side overlap rates. The flight duration was about six minutes, representing almost half of the maximum duration of a flight with a fully charged battery. With one hectare of mapped area, the setup achieved a performance of two hectares per flight/battery.

2.4.2. Structure from Motion Processing

Structure from motion (SfM) processing was performed using the Agisoft Metashape Professional Edition 1.6 (https://www.agisoft.com, accessed on 15 April 2021) software. For photo alignment, the accuracy parameter was set as “high”, with pair pre-selection as “generic” and limits of 40,000 key points and 7000 tie points. Four ground control points (GCPs) were used to georeference the aerial photographs and three complementary GCPs were used to determine the geolocation accuracy (Figure 1). GCPs were randomly distributed throughout the stand. All GCPs were measured using an RTK system, following the UTM projection (zone 24 S) with SIRGAS2000 Datum. The RMSE obtained for point geolocation was ±0.016 m for x and y, and ±0.023 m for z. After alignment, the georeferencing error was ±0.03 m for x and y, ±0.1 m for z, and ±0.11 m for the total error (x, y and z).

To create the dense cloud point (around 2200 points m${}^{-2}$), the parameters were set as “high” for quality and “mild” for depth filtering mode. The mean theoretical ground sample distance (GSD) obtained was approximately 2 cm. The point cloud was then exported following the public 3D Point cloud format LAS (https://www.asprs.org, accessed on 15 April 2021).

2.4.3. Digital Terrain Model

The first DTM UAV, labelled as DTM_UAV${}_1$, was generated using the TIN interpolation of 3D cloud points identified as terrain by an unsupervised classifier. For this step, we used an unsupervised classification algorithm developed by Axelsson et al. [36], which is available on the Agisoft metashape software (“Classify Ground Points” function). The algorithm divides the point cloud into regular grids, and the lowest points within the grid area are processed using the TIN method. Next, the remaining points within the grid are classified in relation to the linear distance to the face of the nearest triangle and the angle formed with the vertices of the initial TIN triangular faces. Points with distances and angles lower than a given threshold are labeled as terrain and a new TIN is generated based on the initial TIN. New TINs are iteratively created until no more points are labeled as terrain. For this procedure, we adopted a cell size of 5 m, a horizontal distance threshold of 1 m, and an angle of 15°.

The second DTM UAV, labeled as DTM_UAV${}_2$, was generated by the interpolation of 3D point clouds manually classified as terrain. Using the function “Select Points by Color”, available on the Agisoft Metashape software, 30 representative ground points were selected in the point cloud and used as a training set for the automatic classification of terrain. Points were classified as terrain if they presented an absolute difference (tolerance) in the RGB values of less than two units. The DTM was then generated using the TIN method. All UAV_DTMs were exported as raster files with a spatial resolution of 0.2 m.

2.4.4. Tree Tops Detection

To accurately detect trees and determine their heights, the point cloud must undergo a normalization process. The normalization compensates for terrain effects and provides an elevation baseline to retrieve the heights of each detected tree. The point cloud is normalized by subtracting the elevations of a DTM from the elevations of each point within the point cloud. In this study, the point cloud was normalized by subtracting the DTM_RTK, DTM_UAV${}_1$ and DTM_UAV${}_2$, generating the normalized point clouds (NPC) NPC_RTK, NPC_UAV${}_1$, and NPC_UAV${}_2$, respectively. Tree tops (X${}_{UAV}$ and Y${}_{UAV}$), and their total heights ($H_{max}$), were then identified on each NPC utilizing the local maximum filter (LMF) algorithm [57] implemented on the lidR package [58] of the R programming language [59]. The algorithm received each NPC, a 1.5 m × 1.5 m circular detection window and a minimum tree height of 0.6 m (minimum ht measured in the field, Table 1) as input. In order to validate the tree detection step, a map of tree crowns was generated through visual interpretation of an RGB orthomosaic of the study area by an experienced GIS analyst. An orthomosaic was generated using the DTM_UAV${}_1$ and exported following a raster format with spatial resolution of 0.2 m.

2.5. Digital Aerial Photogrammetry Assessment

2.5.1. DTM_UAV

To assess the quality of the DTMs generated from the point cloud, we used elevation measurements obtained in the field with the aid of an RTK system. The measurements reflect the elevations of 214 trees recorded during the tree geolocation step. Measured (RTK) and estimated (DTMs) values were compared using a paired sample t-test with a significance level of 5%, along with the determination of RMSE and bias, as well as descriptive statistics of the differences. A DTM generated from the RTK measurements was also subtracted from each DTM in the point cloud. The results were then compiled as maps for further evaluation.

2.5.2. Tree Tops Detection

The quality of each NPC was assessed by determining the accuracy of the detection of the tree tops, calculating the percentage of the correctly detected trees (CD) and the relative omission (OE) and commission (CE) errors:

$$CD=\frac{N_{\mathrm{detected}}}{N_{\mathrm{observed}}}$$

(5)

$$OE=\frac{N_{\mathrm{missed}}}{N_{\mathrm{observed}}}$$

(6)

$$CE=\frac{N_{\mathrm{extra}}}{N_{\mathrm{observed}}}$$

(7)

where $N_{\mathrm{detected}}$ is the number of correctly detected trees, $N_{\mathrm{missed}}$ is the number of undetected trees, $N_{\mathrm{extra}}$ is the number of trees detected where there were no trees in the field, and $N_{\mathrm{observed}}$ is the number of trees observed in the field.

A tree top was considered correctly detected when the LMF algorithm placed it inside the polygon representing the crown of the given tree. In cases where more than one tree was placed inside a crown polygon, the point closest to the field location was considered for the CD calculation. The detection step was also assessed by the RMSE between the positional coordinate values (X${}_{RTK}$ and Y${}_{RTK}$) of each tree and the estimated coordinates of their tops (X${}_{UAV}$ and Y${}_{UAV}$).

2.5.3. Tree Height

The total heights of trees automatically identified by each cloud point ($H_{max}$) were compared to the respective heights measured in the field ($h{t}_{Field}$). The accuracy was assessed using R${}^2$, RMSE, and bias metrics, along with the mean, maximum, minimum, median, and standard deviation of the differences.

2.6. Modeled Heights

A linear regression model ($h{t}_{UAV}$ = $\alpha$ + $\beta$ $H_{max}$ + ${\epsilon }_i$) was used to estimate ht values as a function of the $H_{max}$ obtained from the best NPC, all in meters. The normality of the residuals was evaluated using the Shapiro–Wilks test with a significance level of 5%.

2.7. Stand Silvicultural Quality via DAP-UAV

Using $H_{max}$ and $h{t}_{UAV}$ values estimated from the best UAV NPC, the silvicultural quality of the stand was estimated (CV, Gini, CRR, PV50 and Lorenz curve) and compared to values obtained in the traditional field inventory. In addition, maps of individual heights were generated for the entire stand: (i) plotting X${}_{RTK}$ and Y${}_{RTK}$ coordinates of each tree, associated with $h{t}_{Field}$ values, and (ii and iii) plotting X${}_{UAV}$ and Y${}_{UAV}$ coordinates associated with $H_{max}$ and $h{t}_{UAV}$ values, respectively. The visual quality of the estimates and the spatial distribution pattern of tree heights were analyzed and compared to values found in the field.

3. Results

3.1. DAP Assessment

3.1.1. DTM_UAV

Table 2. Statistics for differences between altitudes collected in the field using an RTK system (Z${}_{RTK}$, n = 214) and those estimated from two UAV DTMs of a young Eucalyptus stand.

Statistic	Elevation Difference (${\mathit{Z}}_{\mathit{RTK}}$−${\mathit{Z}}_{\mathit{DTM}\_\mathit{UAV}}$)
	DTM_UAV${}_1$ ${}^1$	DTM_UAV${}_2$ ${}^2$
Minimum difference (m)	−0.931	−0.192
Maximum difference (m)	0.283	0.289
RMSE (m)	0.286 (2.43%)	0.120 (1.01%)
Bias (m)	−0.127 (−1.07%)	0.067 (0.56%)
Standard deviation (m)	0.257 (2.18%)	0.099 (0.84%)

${}^1$ DTM generated from terrain points extracted from the point cloud using unsupervised classification; ${}^2$ DTM generated from terrain points extracted from the point cloud using supervised classification.

presents statistics for differences between altitude collected in the field using an RTK system (Z${}_{RTK}$, n = 214) and that estimated from the two DTM_UAVs. Paired sample t-tests indicated that RTK and DTM_UAV altitudes did not show statistical differences (p-value < 0.05). Overall, DTM_UAV${}_2$ performed better in estimating Z${}_{RTK}$. The comparison between measured and estimated altitude values indicated an overestimation for DTM_UAV${}_1$, with an average bias of −0.127 m (−1.07%) and an RMSE of 0.286 m (2.43%). For DTM_UAV${}_2$, in addition to a lower RMSE value (0.120 m or 1.01%), we observed a negligible underestimation of the altitude values (bias = 0.067 m or 0.56%).

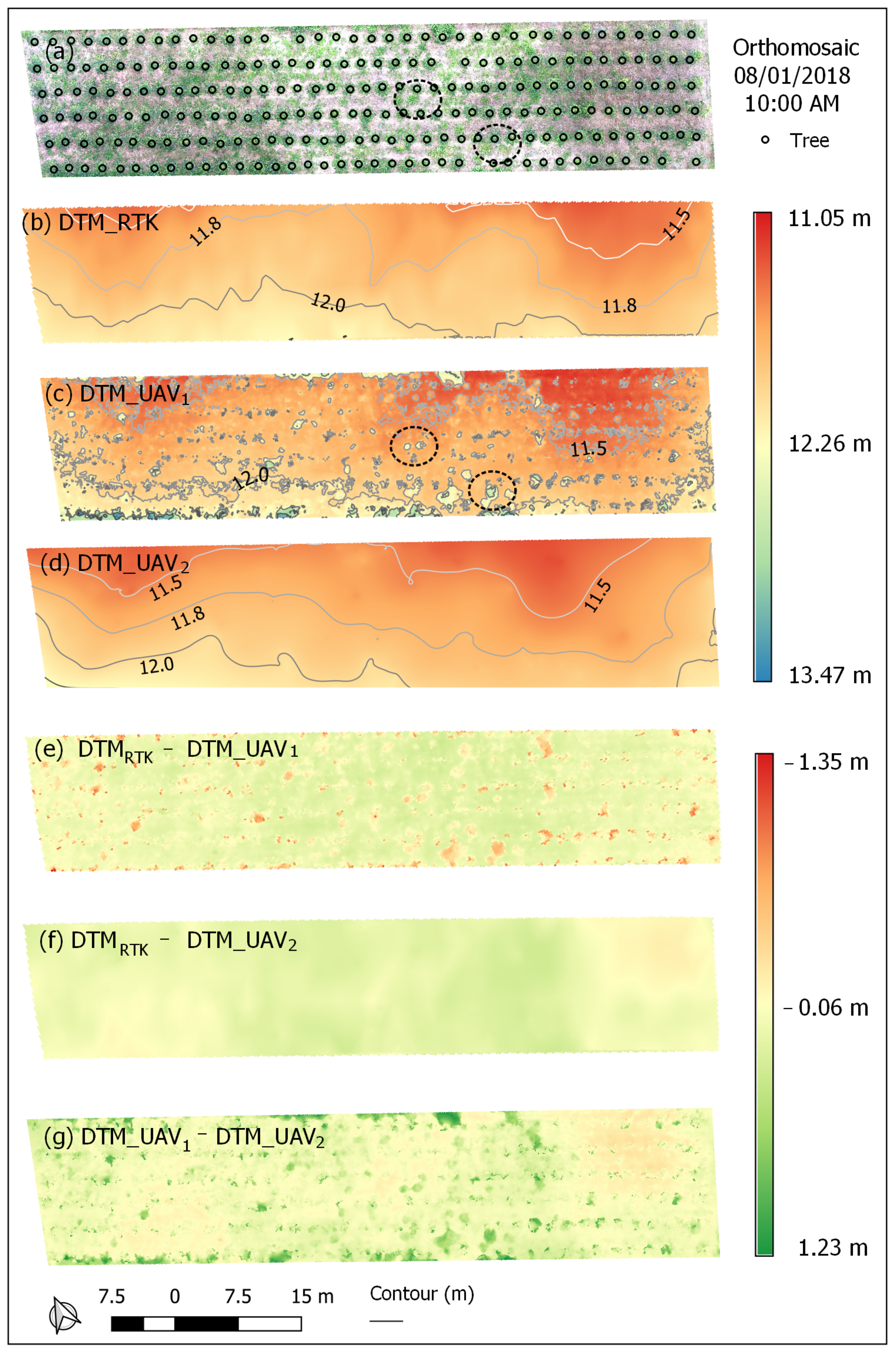

The three selected DTMs and the spatial distribution of the differences between them are shown in Figure 2. The DTM_RTK and DTM_UAV${}_2$ had similar performances, showing similar elevation values (Figure 2b,d). DTM_UAV${}_1$ contains vegetation points misclassified as terrain, represented as circular contours. This result may be observed in greater detail by comparing the ellipses in Figure 2a,c.

While Figure 2b,d highlight a clear correspondence between DTM_RTK and DTM_UAV${}_2$, one may notice a greater dispersion for DTM_UAV${}_1$ elevation values (range = 2.42 m), as presented in Figure 2c. The largest differences (0.58 to −1.35 m) were found between DTM_RTK and DTM_UAV${}_1$ (Figure 2e), and the smallest ones (−0.255 to 0.312 m) between DTM_RTK and DTM_UAV${}_2$ (Figure 2f).

3.1.2. Tree Tops Detection

The LMF algorithm was able to identify over 95% of the stand trees within the DAP point cloud (

Table 3. Tree detection metrics for each normalized point cloud (NPC) analyzed.

Point Cloud	CD${}^1$	OE${}^2$	CE${}^3$	Duplicated Trees
NPC_RTK	208(97.2%)	6(2.8%)	0(0.0%)	0(0.0%)
NPC_UAV${}_1$	204(95.3%)	10(4.6%)	2(0.9%)	2(0.9%)
NPC_UAV${}_2$	209(97.6%)	5(2.3%)	0(0.0%)	0(0.0%)

${}^1$ Percentage of correctly detected trees; ${}^2$ Omission error; ${}^3$ Commission error.

and Figure 3). Among the NPC${}_s$, NPC_RTK and NPC_UAV${}_2$ had the best performance, with approximately 97% of correctly identified trees (208 and 209 plants, respectively) and virtually no omission and tree duplication errors. Despite its lower performance, NPC_UAV${}_1$ presented a small OE (5.0%) and CE (1.0%). The smallest tree detected in the plantation was 0.75 m tall, while the smallest tree measured in the field was 0.58 m.

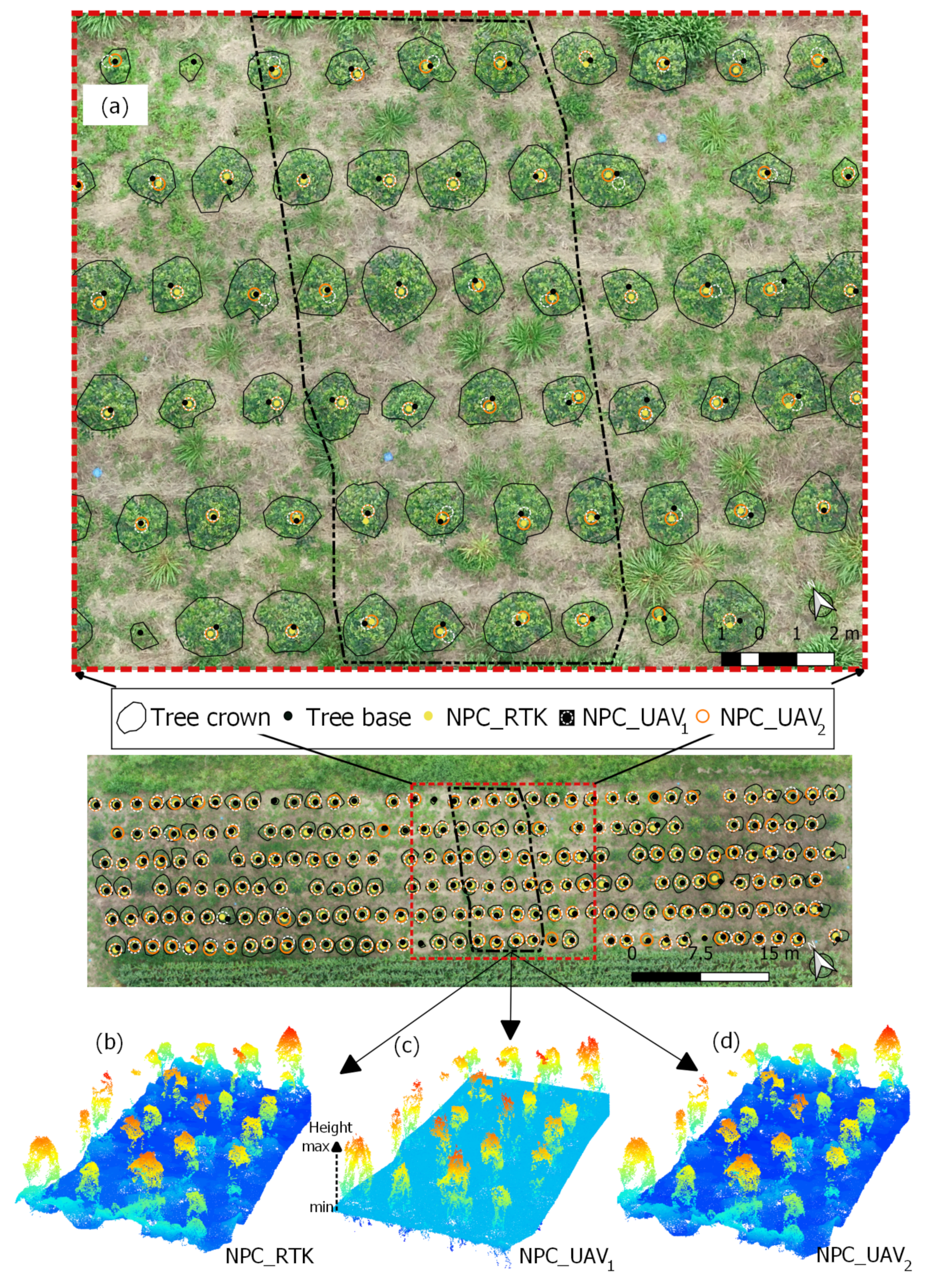

Figure 3a displays a subset of the stand, indicating tree base locations (X${}_{RTK}$, Y${}_{RTK}$) obtained in the field with RTK (black dots) and their automatically detected tops using each NPC: NPC_RTK (yellow dots), NPC_UAV${}_1$ (white circles), and NPC_UAV${}_2$ (orange circles). Crown areas for each tree, retrieved by visual interpretation of the orthomosaic, are shown as black outlined polygons. Figure 3 presents a high correspondence between tree tops estimated by NPC_RTK (yellow dots) and NPC_UAV${}_2$ (orange circles). RMSE values between tree base and tree top coordinates estimated from NPC_RTK, NPC_UAV${}_1$, and NPC_UAV${}_2$ were 0.25, 0.17, and 0.15 m, respectively. Figure 3b–d present subsets of these NPCs, which were able to properly represent the vertical structure of the trees.

3.1.3. Tree Height

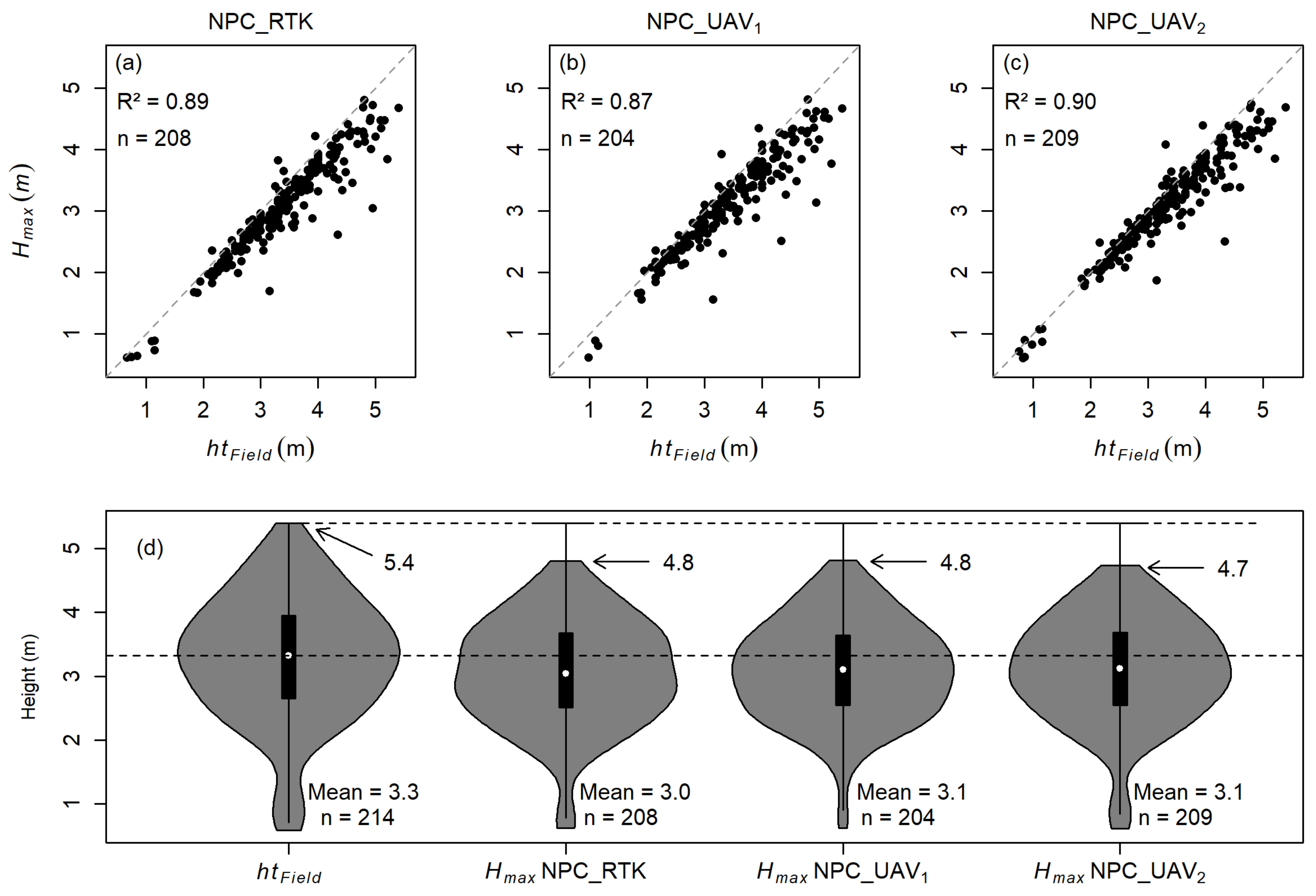

$H_{max}$ values obtained from each NPC were compared to $h{t}_{Field}$ values (

Table 4. Statistics of tree height estimates, considering each normalized point cloud (NPC) analyzed.

Statistic	${\mathit{ht}}_{\mathit{Field}}$−${\mathit{H}}_{\mathit{max}}$
	NPC_RTK	NPC_UAV${}_1$	NPC_UAV${}_2$
Mean difference (m)	0.30	0.29	0.22
Standard deviation (m)	0.28 (8.3%)	0.34 (9.1%)	0.27 (8.3%)
Median difference (m)	0.25	0.24	0.17
Minimum difference (m)	−0.51	−0.62	−0.78
Maximum difference (m)	1.46	1.82	1.35
BIAS (m)	0.30 (8.9%)	0.29 (8.2%)	0.22 (6.7%)
RMSE (m)	0.41 (12.4%)	0.43 (12.9%)	0.36 (10.9%)

and Figure 4). All UAV photogrammetry products led to ht underestimation, with bias ranging from 0.2 to 0.3 m (Table 4). Underestimation of ht, as well as the underestimation of the mean and maximum values for the stand, is also evident on scatterplos and boxplots shown in Figure 4. The worst performance was observed for estimates derived from the NPC_UAV${}_1$, which presented greater scattering and limitations in the retrieval of the heights of the smallest trees (Figure 4b,d). Overall, the best estimates were achieved by the NPC_UAV${}_2$, which showed smaller RMSE (0.36 m or 10.9%) and bias (0.22 m or 6.7%) (Table 4 and Figure 4).

3.2. Modelled Tree Height

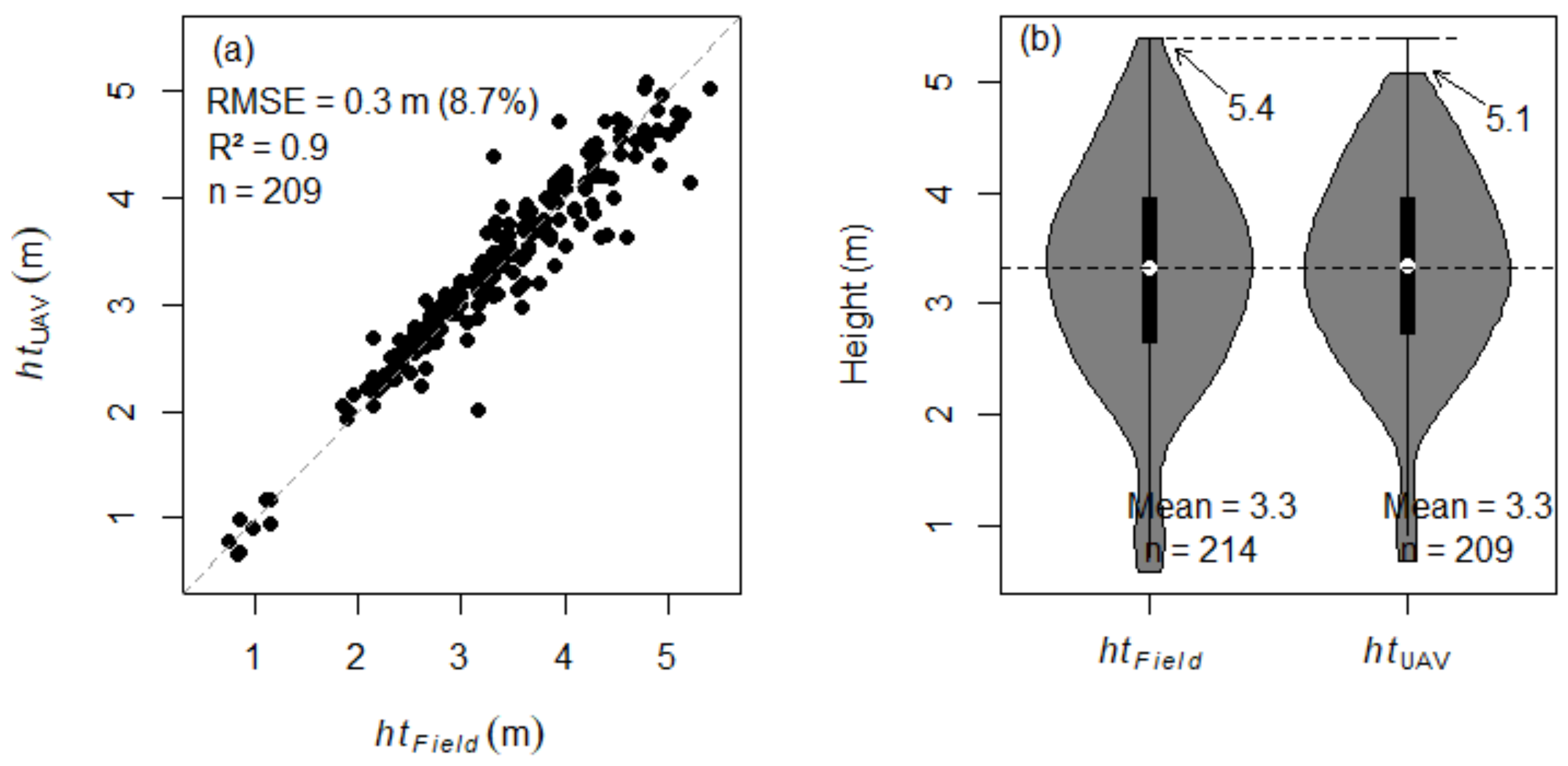

A linear regression model was built to estimate ht as a function of $H_{max}$ values obtained from the NPC_UAV${}_2$. The predicted ht values were termed $h{t}_{UAV}$. Compared to heights estimated directly with DAP-UAV (i.e., $H_{max}$), the adjusted regression model improved the accuracy, reducing the RMSE by 20% (Figure 5a). In addition, the model improved the height estimates for the largest trees of the stand (Figure 5b) and delivered height estimates that were unbiased relative to the field heights.

3.3. Silvicultural Quality of the Stand

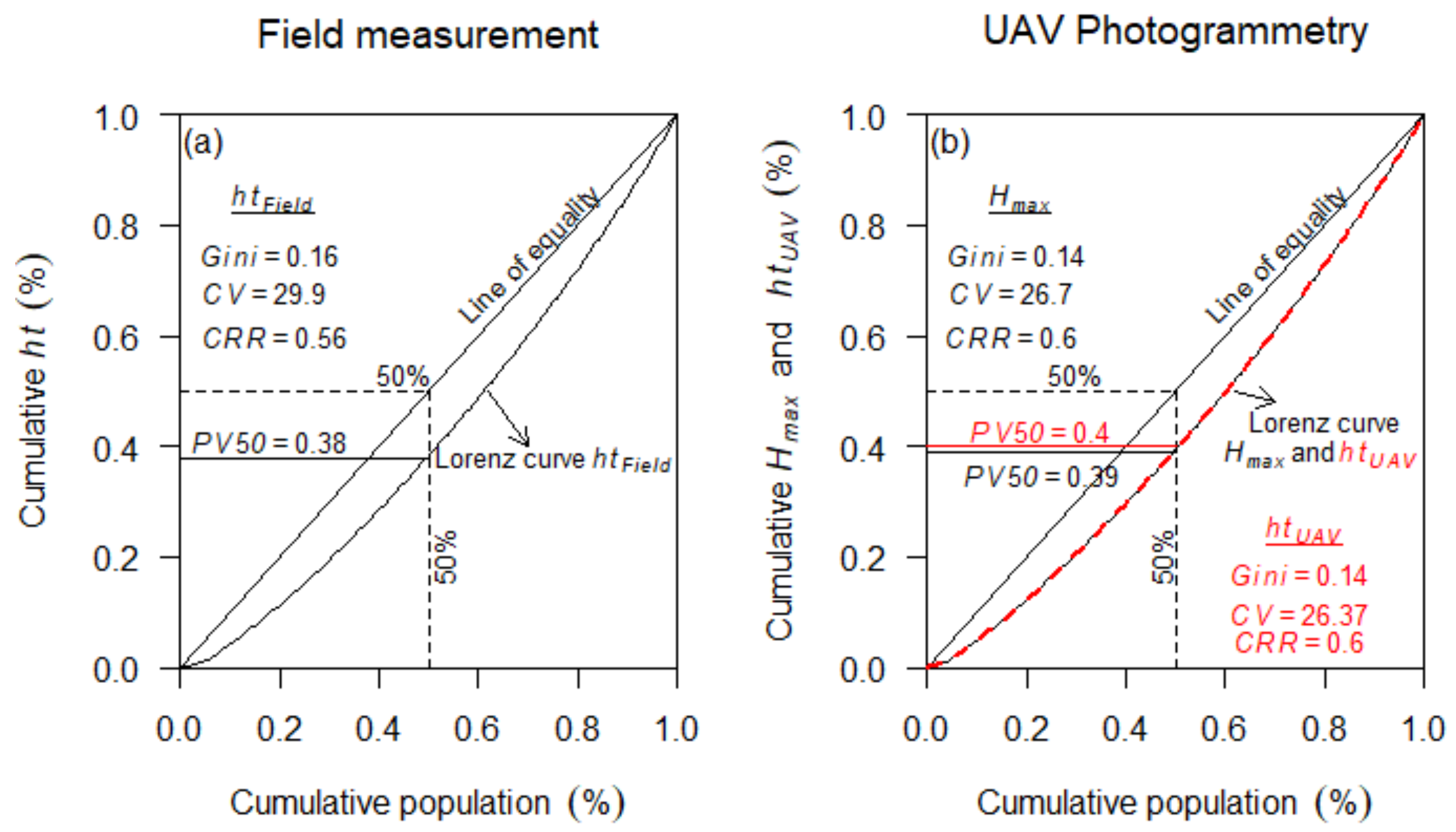

Figure 6 presents the Lorenz curve and stand uniformity metrics estimated from $h{t}_{Field}$ (Figure 6a), $H_{max}$ and $h{t}_{UAV}$ (Figure 6b). The stand presents a Lorenz curve close to its optimum (line of equality), Gini values close to zero (Gini = 0.16), low coefficient of variation (CV = 30%), and a PV50 of 38% (close to its maximum value of 50%). There were no significant differences between the silvicultural quality estimated from $h{t}_{Field}$ and that estimated from $H_{max}$ and $h{t}_{UAV}$.

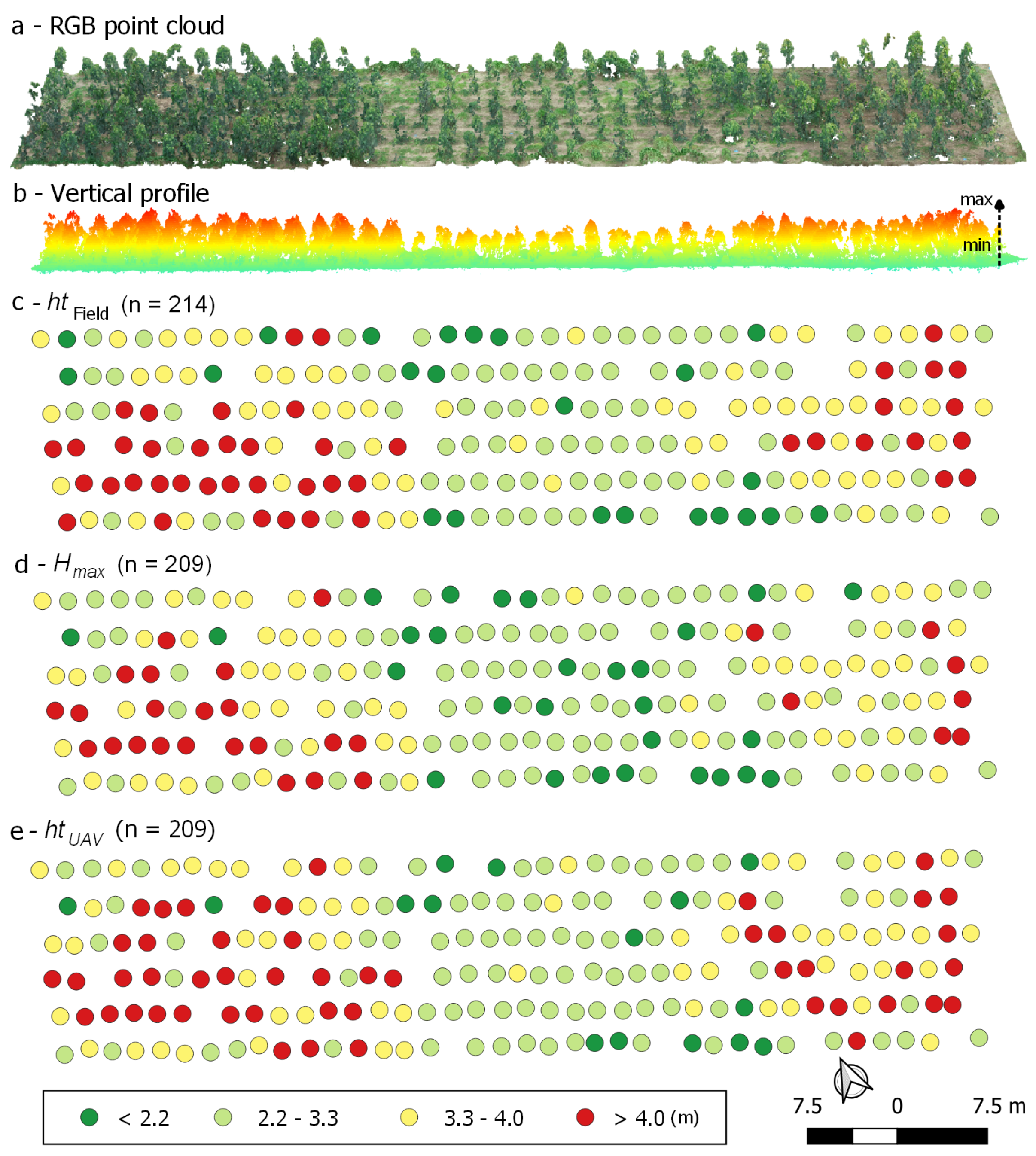

Tree height maps generated from field inventory measurements ($h{t}_{Field}$) and NPC_UAV${}_2$ data ($H_{max}$ and $h{t}_{UAV}$) are presented in Figure 7c–e, along with a RGB point cloud (Figure 7a) and a vertical profile (Figure 7b). The maps highlight the conformity of heights measured in the field and estimated via UAV photogrammetry, suggesting a better performance of $h{t}_{UAV}$ compared to $H_{max}$.

4. Discussion

In this study, we evaluated the potential of UAV photogrammetry products to carry out the initial qualitative inventory of a Eucalyptus stand in northeastern Brazil. To retrieve forest structural information from DAP-UAV products, we utilized an approach based on individual tree detection (ITD) [39,40]. Its success relies on the correct identification of tree tops and a precise estimation of their heights [44,60,61]. Therefore, the method is sensitive to the quality of the DAP products, the efficiency of the identification method, and the physical properties of the area under analysis [62,63,64,65].

4.1. DTMs Assessment

Our results indicate the efficacy of DAP-UAV products to model terrain in young Eucalyptus stands. UAV photogrammetry products may present limitations to modelling the terrain under vegetation [29,66,67,68,69,70], with DTMs commonly overestimating the elevation under the forest, leading to underestimation of tree heights [30,31]. In contrast to LiDAR, DAP cannot penetrate the forest canopy and describe the vertical profile of the vegetation in detail [23]. Limitations emerge from different sources, such as hardware (cameras), software (SfM algorithms), flight parameters (height, overlap rate, viewing angle), and physical properties of the area (terrain and vegetation) [30,71]. Therefore, knowledge of the accuracy of DAP-UAV products is crucial for success in forest applications [72].

The low canopy relief ratio (CRR = 0.56) of the stand, primarily determined by its wide plant spacing (3 m × 2 m), led to an adequate representation of the terrain and lower estimation errors. Several studies indicate that DAP-UAV products are suitable for modelling terrain under sparse forest formations [28,71,73,74]. Similar results were observed by Aguilar et al. [75] in a survey conducted to assess the quality of DTMs generated with DAP data for a Tectona grandis stand located in the coastal region of Ecuador. In addition to the low CRR, the smooth terrain (<5%) of the study area contributed to the quality of the DAP-UAV products, as studies have shown that UAV photogrammetry products perform better in flat areas [71,74].

Proper identification of terrain points has a direct impact on the quality of the generated DTMs [35,76]. In this study, terrain models generated from supervised classification of the 3D point cloud (DTM_UAV${}_2$) achieved the highest compatibility (RMSE = 0.12 m or 1.01%) with data collected in the field (Figure 2f) using an RTK system (DTM_RTK). In the absence of LiDAR, DTMs generated from RTK surveys may be employed to normalize 3D point clouds [66]. However, RTK data may not be cost-effective because limitations on GNSS signal reception may compromise its usage under dense vegetation conditions [44]. The supervised classification procedure (DTM_UAV${}_2$) described in this study enabled accurate identification of terrain points and reduction in errors introduced by artifacts from misclassified vegetation points (DTM_UAV${}_1$, Figure 2c). Elevation values of both models did not show a statistically significant difference (p-value > 0.05, paired t-test) in relation to the RTK elevations obtained in the field.

The supervised classification increased the quality of DAP products, highlighting the potential of DAP-UAV data for areas with sparse vegetation. Nevertheless, in sites with different types and colors of soils, this method may not represent the variation well if a small number of points is used for training. However, although not tested in this study, we expect that a large sample size, covering all the color variation in an area, may still produce good results. In these cases, setting a higher tolerance limit (>2) may also help with the ground classification. The supervised classification requires an extra step that cannot be easily automated and will unavoidably increase the processing time. Although the added time may not be significant for occasional or small-area inventories, it will add up in continuous, large-scale inventories. However, for the operational inventory of Eucalyptus stands, alternatives can be used to reduce the total processing time. For instance, once the terrain is mapped when the soil is visible during pre-planting operations, the DTM generated by either supervised or unsupervised classification can be used as the reference for the normalization of point clouds generated in future acquisitions, when the vegetation is present. In addition, if a good LiDAR, InSAR or topography-based DTM is available, it can also be used as the reference surface for normalization in future UAV acquisitions.

Small shrubs and decomposing organic material compromised the proper representation of the terrain in the DTM_UAV${}_1$ (contour lines in Figure 2c). This behavior is similar to that found by Fawcett et al. [77] when generating a DTM from DAP-UAV data in a stand of Elaeis guineensis in the state of Sarawak, Malaysian Borneo. The terrain reconstruction errors found in our study are also similar to those observed for LiDAR data in areas with deciduous forest and small shrubs and trees in South Carolina, United States [78]. The cost of a UAV photogrammetry survey represents one third to half the cost of a LiDAR survey [79,80]. This economical aspect, together with its enormous potential, makes UAV surveys an important alternative to terrain mapping in forest plantation areas. Goodbody et al. [23] point out that strengths of DAP products include their ability to acquire data at high flight altitudes and speeds, increasing the mapped area and reducing costs. The lower costs of UAV data allow for the continuous monitoring of forests [81], thus supporting planning and management practices and filling gaps between strategic, tactical, and operational aspects of the inventory [79,82].

4.2. Tree Tops Detection

The normalization process transforms elevation into height by subtracting the DTM from the 3D point cloud [83]. Tree tops and their respective heights can then be automatically located and estimated using normalized point clouds and segmentation algorithms [57,84]. Therefore, the quality of the generated DTMs directly influences tree identification [35]. The NPC and LMF algorithms employed in this study were capable of identifying tree tops (X${}_{UAV}$, Y${}_{UAV}$) in the stand with over 95% accuracy (Table 3 and Figure 3a). This result is similar to that observed by Hentz et al. [37] (CD = 93.5%) in a study to identify young plants (∼1.5 years old) in Pinus and Eucalyptus stands in Paraná, Brazil, and better than that found by Fawcett et al. [77] (CD = 80.4%) for the identification of trees in a two-year-old palm plantation in Sarawak, Malaysian Borneo.

The quality of the tree top identification process (Figure 3a) was supported by the low RMSE values (<0.25 m) observed between estimated (X${}_{UAV}$, Y${}_{UAV}$) and measured (X${}_{RTK}$, Y${}_{RTK}$) coordinates. Yu et al. [85], using LiDAR to identify trees in a boreal forest in southern Finland, found smaller location differences than those observed in our study (RMSE = 0.04 m). The overall better performance of LiDAR is related to its penetration capacity, reaching the ground and the baseline plant level.

The best performance in tree top detection was achieved through the cloud normalized by DTM_UAV${}_2$ (Table 3). The performance is directly related to low errors observed in DTM_UAV${}_2$ achieved by the supervised classification of terrain points. It is noteworthy that in contrast to previous studies [31,37,43], the effect of the tree top detection window parameters were not assessed. For future research, we suggest the assessment of different DAP-UAV point cloud densities, crown shapes, and detection window sizes, as well as different identification methods.

4.3. Tree Height

All UAV photogrammetry products delivered adequate tree height estimates (bias < 0.3 m and RMSE < 0.43 m or 13%). However, ht values were systematically underestimated, even with the point cloud normalized using the DTM generated with RTK measures (NPC_RTK). The accuracy of ht estimated in our study was similar to that found by Hentz et al. [37] while estimating tree heights of a young Eucalyptus plantation using DAP-UAV data (RMSE = 0.44 m). In a 7-year-old Eucalyptus plantation, Guerra-Hernández et al. [25] also observed an underestimation of individual ht values, with an RMSE and bias of 2.84 m and 2.67 m, respectively. Our results were also similar to those observed by Krause et al. [44] (RMSE = 0.49 m or 2.78% and bias = 0.365 m or 2.21%), who estimated individual ht using DAP-UAV and a DTM obtained by RTK in a wild pine stand in northeastern Berlin, Germany. In that study, photogrammetric tree height measurements were validated using destructive methods. Studies conducted with LiDAR data also show a tendency to underestimate ht values [17,25,81]. Comparing ht values derived by LiDAR with field measurements of young Eucalyptus stands (<4 years) in southeastern Brazil, Leite et al. [17] found a RMS error of 11.98% and a bias of 11.17%.

Despite being able to explain about 90% (R${}^2$ = 0.87) of the ht variation, the NPC_UAV${}_1$ performed worse (OE = 10 trees or 4.6%) in identifying and estimating the height of the smallest trees (ht < 1 m), as a result of the inferior quality of the DTM_UAV${}_1$ (Table 2 and Figure 2c,e). We, therefore, recommend the use of the DAP point cloud normalized by a DTM generated with a supervised classification of terrain points. The low accuracy of DTMs is considered by many authors to be the main source of uncertainty regarding tree height estimation using DAP-UAV data [28,66,69,86]. Given the reduced bias for elevations (Z${}_{RTK}$) measured at the base of each plant (−1.07% in DTM_UAV${}_1$ and 0.56% in DTM_UAV${}_2$, Table 2), there is no evidence that the DTMs generated in this study were responsible for the underestimation of tree heights (ht). The uncertainties associated with $h{t}_{Field}$ measures can also be discarded as a source of the observed errors (Table 1). The underestimation of ht is likely related to difficulties in reconstructing the upper part of the tree tops using DAP techniques [87]. This hypothesis is supported by the small differences between the maximum ht and the maximum heights estimated with each NPC (0.65 m in average) (Figure 4d). Cunliffe et al. [87] also reported issues with dense 3D point clouds when modelling vegetation heights in the semiarid region of New Mexico, United States. Studies show that height underestimation is more frequent when DAP-UAV products are collected in sparse areas, such as forest stands in early stages of development [88,89]. Evaluating different techniques to collect and process 3D vegetation data, Crespo-Peremarch et al. [90] found that the SfM algorithm and the parameters used influence the quality of the DTM and, consequently, the subsequent UAV photogrammetry products. Therefore, we suggest that different SfM algorithms and parameters are tested upon photo alignment.

Crown movements caused by wind may have led to failures in the identification of key and tie points. In consonance with the study by Dandois et al. [30], we suggest that UAV surveys are performed only when the wind speed is under 8 m/s. We also suggest further research into methods to identify tree tops that utilize unnormalized point clouds as input data, since the normalization process may impact the reconstruction of tree tops [91]. We also expect that angular and rotational variation in UAV imaging has the potential to improve tree identification and DTM quality because different viewing angles increase the chance of seeing the ground and facilitate the identification of key and tie points. Therefore, we recommend that this feature be evaluated.

Diverging from the observed by Krause et al. [44], we found that ht estimated directly from the DAP-UAV point cloud ($H_{max}$) led to a higher RMSE and bias than those found for the field inventory, as estimated from repeat measures (Table 1). Nevertheless, it is noteworthy that the measurement errors observed in our study are low because of the small scale of the experiment and the usage of a graduated ruler to measure ht directly. Given that tree heights are usually estimated from indirect methods that are less accurate than that used in our study [92,93,94], the errors for estimates generated from DAP-UAV can be considered satisfactory.

4.4. Modelled Tree Height

Regression models are widely used to estimate heights from 3D remote sensing metrics that represent the vertical structure of a forest [17,31,85,86,89]. Studies suggest that the use of linear regression models may eliminate biased predictions found in the ITD approach [60,85]. Using $H_{max}$ values estimated from the NPC_UAV${}_2$, a simple linear regression model was fitted to estimate ht values ($h{t}_{UAV}$) for the analyzed Eucalyptus stand (Figure 5). The model was able to explain 90% of the ht variation, reducing the RMSE by 20% (Figure 5a). Additionally, the model was able to improve height estimates for the tallest trees (Figure 5b). The performance of the regression model, marked by small errors and unbiased estimates of tree heights, highlights the enormous potential of UAV photogrammetry data to monitor the initial silvicultural quality of Eucalyptus stands.

4.5. Stand Silvicultural Quality

Traditionally, the initial silvicultural quality of forest plantations is determined by means of data collected in field campaigns [3,27,95]. The usage of DAP-UAV data is still reduced for this purpose, especially for Eucalyptus stands [37,96]. In this study, we found that, regardless of the height estimation procedure (directly via $H_{max}$ or indirectly via $h{t}_{UAV}$), the uniformity estimated by DAP-UAV is similar to that found in traditional inventory (Figure 6).

However, a slight tendency to overestimate stand uniformity was found, with lower values for Gini and CV and higher values for CRR and PV50 (Figure 6b). The trend is related to difficulties presented by the DAP technique to identify small trees and estimate maximum ht values (Table 4 and Figure 4), as discussed in the sections above. Figure 7d,e illustrate the quality of the 3D point cloud and the underestimation of heights, especially for the largest height classes (yellow and red points). One may also verify the improvement in height estimation (Figure 7e) brought by the regression model between ht and $H_{max}$, particularly for the largest height classes (4.20 to 5.4 m).

Finally, we can observe the flexibility of the approach used, allowing for stand characteristics to be estimated and mapped at the tree level. The approach presented in our study may support management and initial protection activities of the stand, assisting rescue, enrichment, and protection activities, in addition to general assessments of the quality in the field. DAP-UAV surveys are low-cost and highly accurate, being a suitable tool for precision silviculture activities in developing countries, such as Brazil.

5. Conclusions

In this study, we assessed an approach to estimate forest attributes at the tree level using UAV photogrammetry data. The approach allows for a direct connection between DAP-UAV data and tree-level measurements obtained in the field. An alternative would be an area-based approach, which inherits the setback of establishing an indirect relation between UAV data and average forest attribute values at the plot level. The results are promising, indicating that UAV photogrammetry data can be employed to identify individual trees, estimate their heights, and evaluate the initial silvicultural quality of Eucalyptus stands. From the results, we conclude that: (i) The terrain model generated from supervised classification of the 3D point cloud achieved the best performance; thus, it is recommended as the preferred approach for terrain modelling by UAV photogrammetry. (ii) The point cloud normalized with the DTM generated from the supervised classification led to the best performance in the automatic detection of tree tops. (iii) Tree heights derived directly from UAV point clouds resulted in underestimation when compared to field measurements. However, a linear regression model based on the maximum UAV heights reduced the RMSE and improved height estimates for the tallest trees. (iv) There were no differences between silvicultural quality metrics estimated from DAP-UAV and field data.

In future research, we suggest evaluating the technique presented in this study for stands on sloping terrain conditions. It is also important that the approach is explored for stands with different ages, plant spacing, management regimes, and genetic materials. We also suggest that studies are carried out with angular and rotational variation in UAV imaging in order to evaluate its impacts on product quality.
