Real-Time Detection of Daytime and Night-Time Fire Hotspots from Geostationary Satellites

Abstract

This paper introduces an enhanced version of the Biogeographical Region and Individual Geostationary HHMMSS Threshold (BRIGHT) algorithm. The algorithm runs in real-time and operates over 24 h to include both daytime and night-time detections. The algorithm was executed and tested on 12 months of Himawari-8 data from 1 April 2019 to 31 March 2020, for every valid 10-min observation. The resulting hotspots were compared to those from the Visible Infrared Imaging Radiometer Suite (VIIRS) and the Moderate Resolution Imaging Spectroradiometer (MODIS). The modified BRIGHT hotspots matched with fire detections in VIIRS 96% and MODIS 95% of the time. The number of VIIRS and MODIS hotspots with matches in the coincident modified BRIGHT dataset was lower (at 33% and 46%, respectively). This paper demonstrates a clear link between the number of VIIRS and MODIS hotspots with matches and the minimum fire radiative power considered.

1. Introduction

Data from multi-channel satellites, carrying instruments that observe mid-infrared (3–8 µm; hereafter MIR) and thermal-infrared (8–15 µm; hereafter TIR) bands can be used to detect fires. In the absence of cloud, an increase in MIR (compared to some representative value), along with an increase in MIR minus TIR can indicate fire [1]. While many satellites can be used to detect fire, their orbits, along with the specific characteristics of their instruments, impact the sensitivity and frequency of their fire detections. For large and fire-prone continents such as Australia, the sensitivity, frequency, and timeliness of satellite fire surveillance is critical for the detection, monitoring. and tracking of fires. As the instruments carried onboard satellites have evolved, satellite fire surveillance has become more sensitive, frequent, and timely.

Satellite instruments differ in terms of the number of bands they observe, their central wavelengths (and response functions), and orbital characteristics. Instruments carried onboard Low Earth Observation (LEO) and Very Low Earth Observation (VLEO) satellites systematically observe the globe, with specific locations typically observed no more than two times per day. Cross-over times are not optimized for fire detection (i.e., late afternoon fires in Australia) [2,3]. Instruments onboard LEO and VLEO satellites used to detect fire include the Advanced Very High Resolution Radiometer [4,5,6,7,8], Visible Infrared Imaging Radiometer Suite (VIIRS) [9,10], Moderate Resolution Imaging Spectrometer (MODIS) [11,12,13,14], and Bi-spectral InfraRed Detection Hot Spot Recognition System [15,16]. Instruments onboard Geostationary Earth Observation (GEO) satellites scan broad spatial regions (full-disk), but with a lower spatial resolution (compared to contemporary LEO systems). Repeated scans from GEO instruments ensure updates within minutes (instead of 12 or more hours). Instruments onboard GEO satellites used to detect fire include the Visible Infrared Spin Scan Radiometer Atmospheric Sounder [17], different versions of the Geostationary Operational Environment Satellite Imager [18,19,20,21,22,23], the Advanced Baseline Imager [24,25], the Spinning Enhanced Visible and Infrared Imager [26,27,28,29,30], and the Advanced Himawari-Imager (AHI) [31,32,33,34]. While the higher spatial resolution of data from LEO and VLEO satellites can be an advantage for detecting smaller and/or lower intensity fires, the lower spatial resolution of data from GEO satellites can be an advantage when tracking and characterizing the properties of stronger fires. Hence, fire information from LEO, VLEO, and GEO satellites can complement each other.

The pixel size of satellite observations impact the fire brightness temperatures recorded and are linked to the fire size and intensity, which are can be retrieved through fire detection algorithms. Current variations in pixel sizes (such as (at ~4 µm) AHI/Himawari-8 2 km, MODIS/Terra 1 km and VIIRS/Suomi-NPP 375 m resolution) mean that fire brightness temperature will differ between satellite and instrument combinations. For example, for MIR readings below 350 K in [13,14], fires were detected using statistics, with potential fire pixels compared to samples of data. Data samples typically need to be fire-free for statistically-based fire detection algorithms as samples derived from fire-affected data may cause missed detections. Data samples also typically need to be cloud-free as clouds can block outgoing radiation, reflect sunlight, and/or artificially lower statistics [1]. Cloud detection algorithms are also sensitive to pixel size [35], and gross checks for fire and/or cloud in data samples are likely to degrade with increases in satellite pixel size. Hence, the quality of ancillary information such as cloud masks (and coarse fire thresholds) can impact the design of fire algorithms, with workarounds required when they are not available [32,34].

Routine scans of the full disk from GEO satellite instruments create an abundance of data for use in statistics. Such data allows for a new generation of fire detection algorithms [33,34]. Traditional LEO contextual algorithms compare potential fire pixels to cloud-free and fire-free pixels from spatiotemporally similar data (data within the same scan and within a given area typically defined using expanding boxes) [4,13,14]. Some GEO algorithms define data samples similarly [17,19,24,27,28]. Larger temporal windows of data are used for cloud-detection in [21,32], but the same scan (spatially co-located using a similar methodology outlined in [13,14]) is then used for fire detection. The concept of multi-day temporal data for fire detection for LEO data was used in [36,37], while [25] used multi-day regression for fire detection in GEO data. Single value decomposition temperature fitting (using up to thirty days of prior data for training data) was used in [29,33] to detect fires in GEO data. While sophisticated cloud-detection algorithms developed for LEO data [38,39] could be adapted to GEO data, they were not considered here due to the additional lag-time they could introduce to the computation of active-fire hotspot detections.

Recently, an algorithm was proposed that combined concepts of biogeographical regionality, seasonality, and time-of-day to detect fires in cloud- and fire-affected GEO data [34]: Biogeographical Region and Individual Geostationary HHMMSS Threshold (BRIGHT). BRIGHT derived biogeographical, seasonal, and time-of-day statistics from GEO data, allowing adaptive thresholds to be determined and fires to be detected—despite cloud-mask (and fire-masking) information being unavailable. The simplicity of the algorithm permitted the research to be done easily at scale, with a 12-month, Australia-wide study conducted. BRIGHT hotspots were found to match the MODIS hotspots 88% of the time. While MODIS hotspots were found to match with coincident BRIGHT hotspots only 39% of the time, the undetected MODIS hotspots were shown to have low radiative power [34]. However, the algorithm was restricted to post-event analysis during the daytime.

This paper details the work undertaken to adapt the BRIGHT algorithm to make it capable of working continuously in real-time over daytime and night-time conditions. The algorithm utilizes a rolling window (rather than a fixed sub-seasonal definition) with instantaneous final MIR statistics rather than a sub-seasonal estimation. The algorithm was tested on 12-months of AHI/Himawari-8 data, with the period including the catastrophic Black Summer fires that occurred in 2019/2020 in southeast Australia. The resulting active fire detections were compared to those from the MODIS and VIIRS fire detection systems. Fire burning patterns were explored, along with the number of matches.

The rest of the paper is organized as follows. First, the input data and algorithm are detailed in Section 2. The results are compared with active fire hotspots from the MODIS and VIIRS fire detection systems in Section 3. The discussion and concluding remarks are made in Section 4 and Section 5.

2. Materials and Methods

2.1. Study Area and Data

The Australian continent was chosen as a case study area due to its large size (over 7.6 million km²) and biogeographically diverse areas. Regions across Australia were defined using the Interim Biogeographic Regionalization for Australia (IBRA) sub-regions [40]. In total, there were 419 IBRA sub-regions. Higher level aggregation into IBRA bioregions, referred to in this paper as biodomains, were also used. In total, there were 89 IBRA biodomains.

AHI/Himawari-8 [31] 0.64 µm (channel #3) (reflectance; hereafter $\rho$), 3.9- ($T_{MIR}$), and 10.4 µm ($T_{TIR}$) brightness temperature (channels #7 and #13) values were used at 2 km resolution every 10-min over Australia to execute the algorithm. An ancillary AHI/IBRA reference grid was produced to assign all AHI pixels to one of the 419 IBRA sub-regions. From this, BRIGHT hotspots were produced from the AHI dataset for 12-months starting 1 April 2019 and ending on 31 March 2020 (inclusive).

Archival quality MODIS (Collection 6) and VIIRS hotspots were downloaded from the Fire Information for Resource Management System (FIRMS) website (https://firms.modaps.eosdis.nasa.gov/, accessed on 2 October 2018) for comparative purposes. MODIS hotspots from 1 April 2019 to 30 September 2019 were downloaded on 15 January 2020, while MODIS hotspots from 1 October 2019 to 31 March 2020 were downloaded on 27 July 2020. VIIRS hotspots from 1 April 2019 to 31 March 2020 were downloaded on 24 September 2020. FIRMS hotspots were restricted to those with an along scan pixel size multiplied by the along track pixel size value of less than 1.7 km [32,34] and a presumed vegetation fire inferred hot spot type. FIRMS hotspots were assigned the nearest AHI scan time (after the hotspot) and AHI pixel location prior to further processing.

2.2. Algorithm Overview

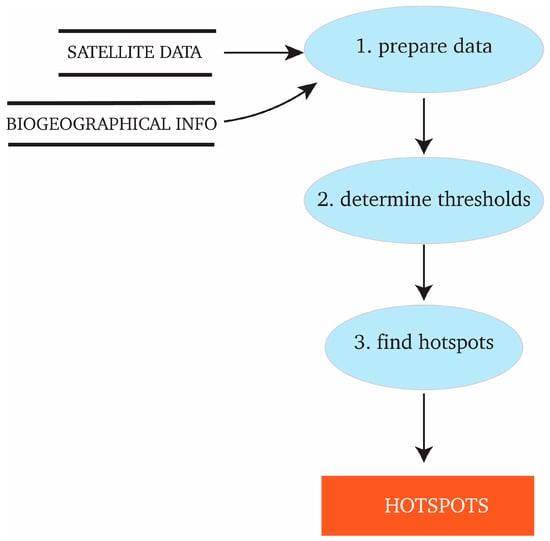

Here, a new algorithm is introduced that extracts geostationary satellite data for a relevant biogeographical region, for the current day and the 28 days preceding. Dynamic thresholds are calculated using full or partial samples depending on the variable being investigated. The thresholds are then used to determine active fire hotspots (see Figure 1 for an overview of the modified BRIGHT algorithm).

2.3. Prepare Geostationary Satellite Data

For the given biogeographic regions (R), consider all pixels with number identifier R, in other words,

$$L_R=\mathrm{set} \left\{ \left(x,\mathrm{y}\right) | \left(\mathrm{x},\mathrm{y}\right) \in {\mathrm{I}}^2 \wedge B\left(x,y\right)=\mathrm{R}\right\}$$

(1)

where I² is the set of all AHI full-disk vertices, and B is a reference grid with each geostationary satellite data pixel assigned to a specific biogeographical region.

“Day” or “night” categories are assigned using reflectance data. Active fire algorithms use different equations for daytime and night-time [13,14]. The real-time BRIGHT algorithm defines the day or night period using reflectance data. The geographic region of interest is defined as a box that encapsulates all $L_R$ pixels, plus the surrounding 50 pixels. If any row of reflectance data (within the box) has more than nine invalid pixels, the region is assigned to the “night” category. Otherwise, the region is assigned to the “day” category. While day/night assignments may be more robust using solar zenith angle, the method described was chosen due to the speed of processing to enable faster delivery of active fire information to resource managers. Once the day/night assignment is complete, data are then collected as follows.

For the date and time combination t_s, consider all times in the set T, with T defined as

$$\mathrm{T} =\mathrm{set} \left\{t_s-\mathrm{i}\Delta | \mathrm{i}=\mathrm{N}, \mathrm{N}-1 \dots , 0\right\} \text{where} \Delta =24\ast 60\ast 60 \left[\sec \right] \mathrm{and} \mathrm{N}=28 \mathrm{days}.$$

(2)

For each time t in T, take the $\rho$, $T_{MIR}$, and $T_{TIR}$ matrices and construct a set of spatiotemporally co-located variables D(t) specific to time t and region R, with:

$$D\left(t\right)=\mathrm{set} \left\{\left(\rho \left(x,y,t\right), T_{MIR}\left(x,y,t\right),T_{TIR}\left(x,y,t\right)\right)| \left(x,y\right)\in L_R\right\}.$$

(3)

2.4. Determine Thresholds

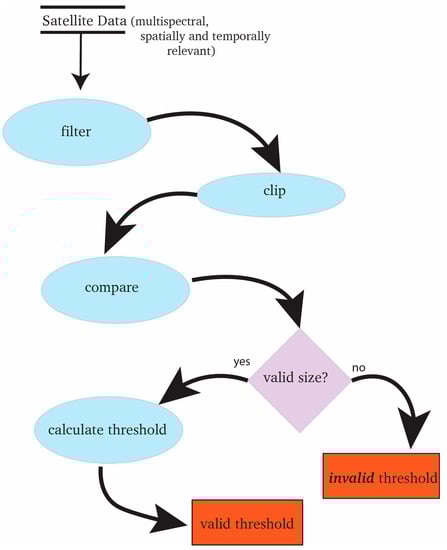

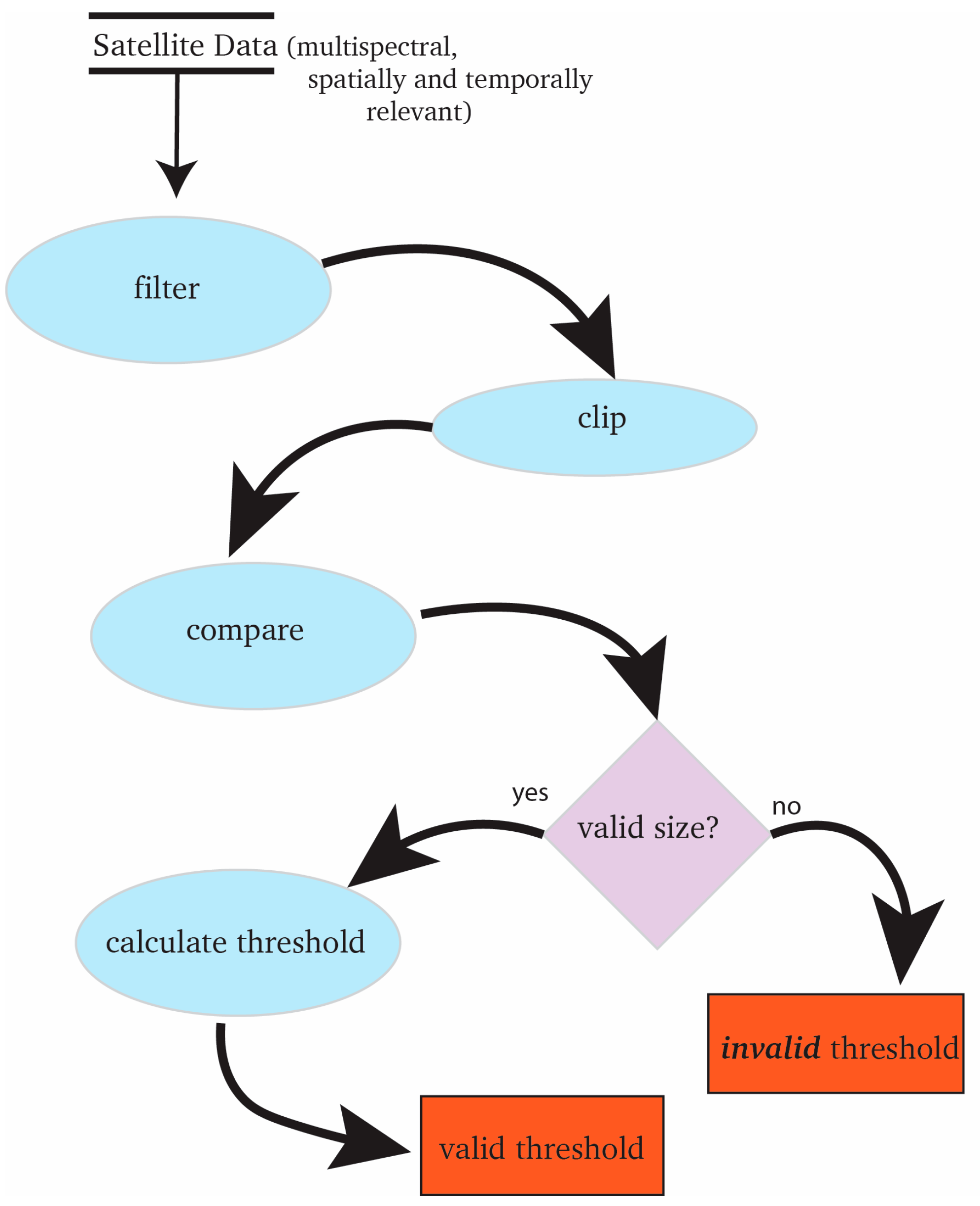

Thresholds for $\rho$, $T_{MIR}$, and $T_{TIR}$ are processed separately with some results feeding into subsequent calculations (Figure 2). Bearing in mind the order of processing, $\rho$, $T_{MIR}$, and $T_{TIR}$ thresholds were calculated using the five steps shown in Figure 3: filtering, clipping, comparing, size checking, and the final threshold calculation.

During the day, if V denotes $\rho$, $T_{MIR}$, or $T_{TIR},$ the filtered data are:

$$D_V\left(t\right)=\mathrm{set} \left\{V| \left(\rho ,T_{MIR},T_{TIR}\right)\in D\left(t\right) \wedge \rho <C\left(V\right)\right\}$$

(4)

where the condition C(V) is

$$C\left(V\right)=\{\begin{array}{cc}0.4 BRF;& V={\rho }_{}\\ {\rho }_{}^{MID};& \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}V=T_{MIR} or T_{TIR}\end{array}.$$

(5)

During the night, if V denotes $T_{MIR}$ or $T_{TIR},$ the filtered data are

$$D_V\left(t\right)=\mathrm{set} \left\{V| \left(\rho ,T_{MIR},T_{TIR}\right)\in D\left(t\right)\wedge T_{TIR}>C\left(V\right)\right\},$$

(6)

where the condition C(V) is

$$C\left(V\right)=\{\begin{array}{cc}250 \mathrm{K};& V=T_{TIR} \\ T_{TIR}^{LO}K;& V=T_{MIR} \end{array}.$$

(7)

The ${\rho }_{}^{MID}$ and $T_{TIR}^{LO}$ terms are the data-defined reflectance and TIR threshold calculated using reflectance and TIR data (defined later in this section).

Each set-member is clipped with:

$${D_V\left(t\right)|}_{}^{clipped}=\mathrm{set}\left\{\begin{array}{c}d | d\in D_V\left(t\right) \wedge \\ d>{\left[D_V\left(t\right)\right]}^{MIN}\\ d<{\left[D_V\left(t\right)\right]}^{MAX}\end{array}\wedge \right\}.$$

(8)

where $S^{X\text{th}}$ means the Xth percentile of the set, and

$$S^{MIN}=S^{25\text{th}}-1.5\left(S^{75\text{th}}-S^{25\text{th}}\right)$$

(9)

and

$$S^{MAX}=S^{75\text{th}}+1.5\left(S^{75\text{th}}-S^{25\text{th}}\right).$$

(10)

A set of median values (M) is created, with

$$M=\mathrm{set} \left\{{\left[{D_V\left(t\right)|}_{}^{clipped}\right]}^{50\text{th}} |t \in T\right\}.$$

(11)

Clipped set members are then compared, with clipped set members discarded if their corresponding ${\left[{D_V\left(t\right)|}_{}^{clipped}\right]}^{50\text{th}}$ value falls above $M^{MAX}$ or below $M^{MIN}$.

If the variable is $T_{MIR}$, or $T_{TIR}$, the remaining set members are compared again using the set of inter-quartile range (IQR) values I, with

$$\mathrm{I}=\mathrm{set} \left\{{\left[{D_V\left(t\right)|}_{}^{clipped}\right]}^{75\text{th}}-{\left[{D_V\left(t\right)|}_{}^{clipped}\right]}^{25\text{th}}|t \in T\right\}.$$

(12)

Set members are discarded if their corresponding I(t) value fall above $I^{MAX}$or below $I^{MIN}$.

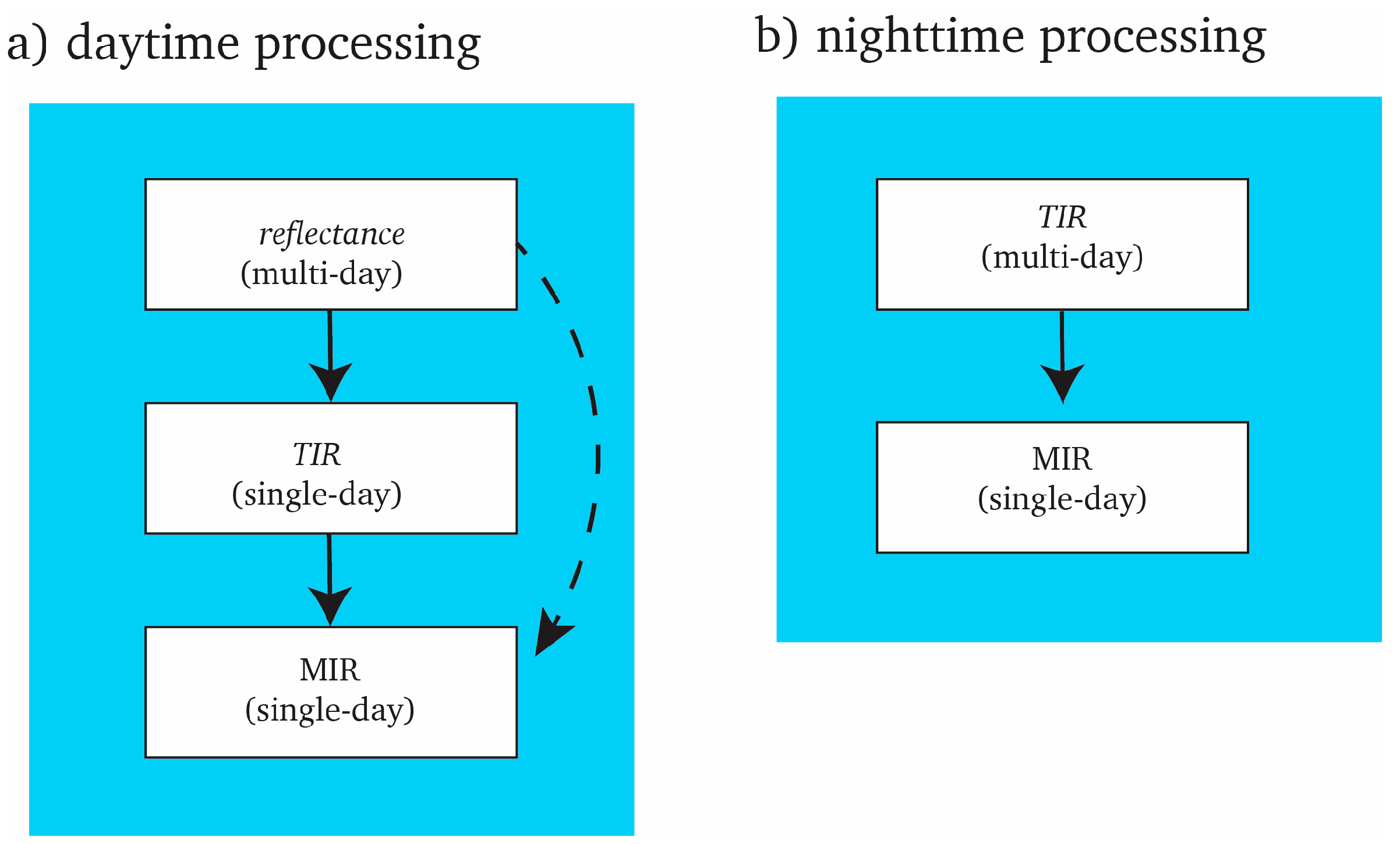

Multi-day thresholds are then used for $\rho$during the day and $T_{TIR}$ during the night. Multi-day thresholds are calculated by collapsing all the remaining members into one sample. ${\rho }_{}^{MID}$ during the day is calculated using a histogram of $\rho$values binned in 0.03 BRF bins from 0 BRF to 0.33 BRF (as in [24]). The ${\rho }_{}^{MID}$ is defined using the edge of the maximum bin + 0.06 (with a maximum 0.33 value). The multi-day $T_{TIR}$ thresholds during the night are calculated $T_{TIR}^{LOW}$ = S^25th − 1.0 $\times$ (S^75th − S^25th) and $T_{TIR}^{50}$ as the median of the collapsed sample.

Single-day thresholds are used for all remaining thresholds, based on the remaining data from the current day alone ($t_0$). If ${D_V\left(t_0\right)|}_{}^{clipped}$ after prior screening had less than 30% of the original raw data sample size (for that one day), an invalid threshold is recorded. Otherwise, single-day thresholds are calculated as follows.

Current-day BRIGHT statistics are derived as

$$V^{50}={\left[{D_V\left(t_0\right)|}_{}^{clipped}\right]}^{50\text{th}},$$

(13)

$$V^{HI}={\left[{D_V\left(t_0\right)|}_{}^{clipped}\right]}^{MAX},$$

(14)

and

$$V^{LO}={\left[{D_V\left(t_0\right)|}_{}^{clipped}\right]}^{MIN} \mathrm{if} \mathrm{day}$$

(15)

or

$$\begin{gathered} V^{LO}={\left[{D_V\left(t_0\right)|}_{}^{clipped}\right]}^{25\text{th}}-1.0\left(-{\left[{D_V\left(t_0\right)|}_{}^{clipped}\right]}^{25\text{th}}\right) \\ \text{if} \text{night.} \end{gathered}$$

(16)

2.5. Hotspots

During the day, pixels in D(t₀) are considered as fire if either condition (17) or conditions (18)–(20) are met, along with (21) and (22) with R = 5-, 7-, 15 K, respectively, and (17)–(22) are defined as follows:

$$T_{MIR}>350 K,$$

(17)

$${\rho }_{} <={\rho }_{}^{50},$$

(18)

$${\rho }_{}^{50}<{\rho }_{}<{\rho }_{}^{50}+0.05 BRF,$$

(19)

$${\rho }_{}^{50}+0.05 BRF<{\rho }_{0.65}<0.3,$$

(20)

$$T_{MIR}-T_{TIR}> \max \left\{\left(T_{MIR}^{50}-T_{TIR}^{50}\right), 2 \mathrm{K}\right\}+\mathrm{R}, \mathrm{and}$$

(21)

$$T_{MIR}>T_{MIR}^{\mathrm{HI}}+ \mathrm{R}.$$

(22)

During the night, pixels in D(t₀) are considered fire if either condition (23) or conditions (24), (25) and (26) are met, with conditions (23)–(26) defined as follows.

$$T_{MIR}>340 K,$$

(23)

$$T_{TIR}>T_{TIR}^{50},$$

(24)

$$T_{MIR}>T_{MIR}^{\mathrm{HI}}+5 \mathrm{K}, \mathrm{and}$$

(25)

$$T_{MIR}-T_{TIR}>\max \left\{\left(T_{MIR}^{50}-T_{TIR}^{50}\right), 2 \mathrm{K}\right\}+5 \mathrm{K}.$$

(26)

In the absence of a valid sample size, only conditions (17) or (23) apply.

2.6. Confidence

To assign confidence levels, conditions (27) and (28) were defined as:

$$T_{MIR}-T_{TIR}<10 \mathrm{and}$$

(27)

$$T_{TIR}-T_{TIR}^{HI}>0.$$

(28)

Hotspots that satisfied either (17) or (23) were assigned an absolute threshold indicator (ABS). Hotspots that did not satisfy (17) or (23) were assigned a lower confidence (LO) if they satisfied (27) and (28), and a higher confidence (HI) otherwise.

3. Results

3.1. Continental Comparison

BRIGHT (AHI/IBRA) hotspots were compared to VIIRS and MODIS hotspots predicated by the assumption that those sources with a higher spatial resolution provided the more accurate dataset. VIIRS and MODIS swaths were reconstructed using the methodology defined in study [34]. The process is summarized here for clarity. Hotspots from VIIRS or MODIS with the same observation time were used to define a reconstructed swath box (for that one sensor). BRIGHT hotspots that fell within that box, and within +/− 10 min were compared to the reconstructed swath hotspots. Hotspots were declared “matched” if one or more hotspots from the opposing dataset were found within +/− 1 pixel, otherwise the hotspot was declared “unmatched”.

Duplicates were defined as hotspots with the same sensor, time, and location, but included in different swath reconstructions. Duplicate hotspots were counted only once. A hotspot was counted as “matched” if the hotspot was designated as “matched” in any reconstructed swath (this process compensates for sub-optimal VIIRS swath reconstructions).

The pixel sizes for AHI, MODIS, and VIIRS at ~4 µm differ. The channel closest to 4 µm has 2 km spatial resolution for AHI, 1 km for MODIS and 375 m for VIIRS. An AHI pixel would cover the same area as roughly four MODIS pixels, or 25 VIIRS pixels. The variation in spatial resolution for a given pixel affects the rise in radiance above that of the thermal emission coming from Earth, and hence the sensor/algorithm sensitivity. The impact of a sensor’s spatial resolution on the number of matches are discussed in the following sections.

BRIGHT-to-VIIRS and BRIGHT-to-MODIS comparisons were assessed in terms of BRIGHT-to-LEO(BRIGHT) and BRIGHT-to-LEO(LEO) unmatched hotspots. The BRIGHT-to-VIIRS (BRIGHT) and BRIGHT-to-MODIS (BRIGHT) comparisons had 4% and 5% unmatched hotspots for the day and night hotspots combined (

Table 1. Comparison of BRIGHT-to-VIIRS and BRIGHT-to-MODIS statistics for day, night, and day/night samples over the full study.

LEO Sensor	VIIRS			MODIS
Time Period	Day	Night	Both	Day	Night	Both
Number of BRIGHT hotspots in the LEO reconstructed swaths	69,759	31,300	100,879	30,674	20,413	51,087
Number of BRIGHT hotspots detected within 1 pixel of a LEO hotspot	65,734	30,869	96,603	29,088	19,221	48,309
BRIGHT-to-LEO (BRIGHT) % unmatched hotspots	6%	1%	4%	5%	6%	5%
Number of LEO hotspots (collated on the AHI grid)	253,220	172,387	425,607	80,035	34,259	114,249
Number of LEO hotspots (collated on the AHI grid) detected within 1 pixel of a BRIGHT-to-LEO (LEO)	90,081	49,381	139,462	33,737	19,196	52,933
% unmatched hotspots	65%	71%	67%	58%	44%	54%

). In contrast, BRIGHT-to-VIIRS (VIIRS) and BRIGHT-to-MODIS (MODIS) comparisons had 67% and 54% (Table 1) unmatched hotspots for day and night hotspots combined, respectively.

3.2. Unmatched LEO Hotspots

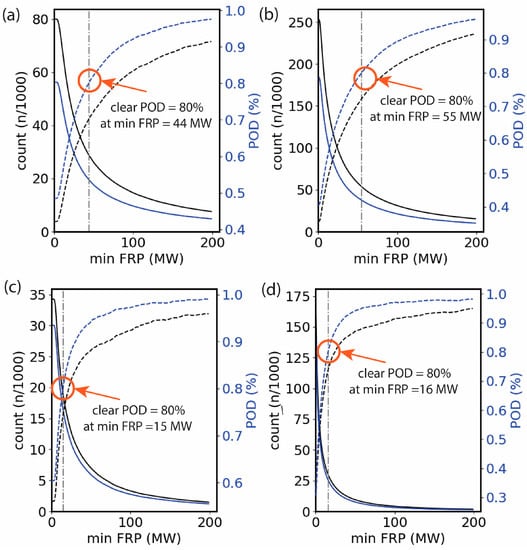

Fire radiative power (FRP) values indicate the amount of energy being released by wildfires by comparing the brightness temperature of the fire-affected pixel to that of a cloud-free and fire-free representative pixel [15]. The amount of energy released affects whether a fire is detectable or not for a given pixel size. The number of VIIRS/MODIS hotspots decreased non-linearly with rising minimum FRP value (as reported in FIRMS) (Figure 4, solid black lines). The same was true for the sample containing only hotspots with a valid BRIGHT $T_{MIR}^{HI}$ threshold (Figure 4, solid blue lines). As the minimum FRP increased, so did the probability of detection (POD). Higher PODs at higher minimum FRPs (Figure 4; all hotspots (dashed black lines); hotspots with valid BRIGHT $T_{MIR}^{HI}$ thresholds (dashed blue lines)) suggested that BRIGHT had greater utility in detecting stronger fires, although the significant difference in sample sizes should also be considered. When considering only hotspots with a valid BRIGHT $T_{MIR}$threshold PODs were greater than 80% at 55 MW (MODIS-day), 44 MW (VIIRS-day), 16 MW (MODIS-night), and 15 MW (VIIRS-night) (Figure 4; dashed blue lines, red circles and accompanying text).

During the day, 99% of unmatched MODIS hotspots had AHI values below the level of detection. The high-frequency full-disk AHI observations allowed for AHI values to be obtained at ALL MODIS hotspot times and locations. AHI $T_{MIR}$ and BRIGHT $T_{MIR}^{HI}$ values were obtained at all unmatched MODIS hotspot locations (Figure 5). Unmatched MODIS hotspots with BRIGHT $T_{MIR}-T_{MIR}^{HI}$ < 5 were undetectable with the current algorithm settings (due to conditions (22) and (25)). While conditions (22) and (25) can be relaxed, potential false alarms need to be considered (see next section). A total of 17,129 (3110) unmatched MODIS hotspots had no valid BRIGHT threshold during the day (night). During the day, only 263 out of 28,628 (<1%) of the remaining unmatched MODIS hotspots had AHI values with BRIGHT $T_{MIR}-T_{MIR}^{HI}$ < 5. During the night, 1136 out of 11,532 (10%) unmatched MODIS hotspots had AHI values that satisfied condition (25). The remaining sample failed the other algorithmic thresholds.

3.3. Disagreements during Burning Periods

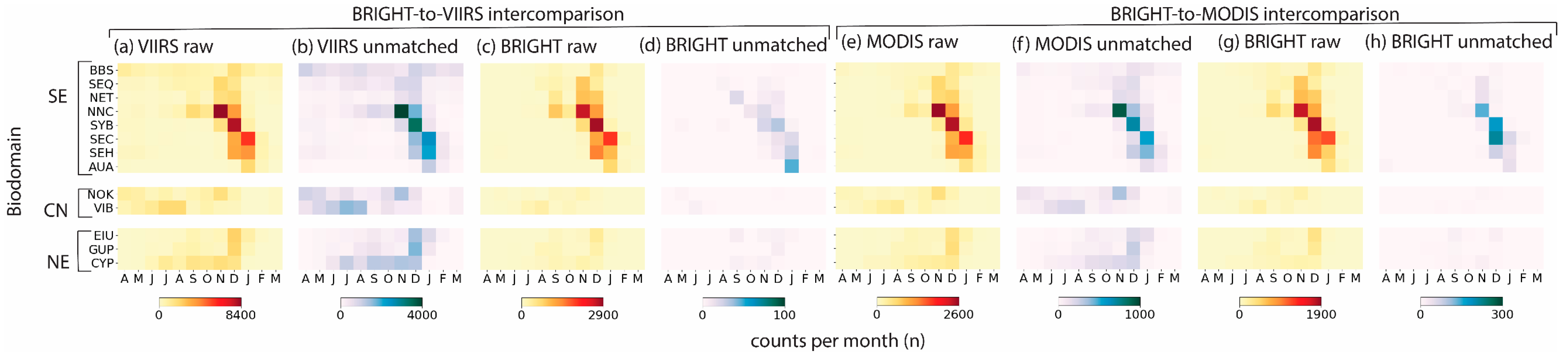

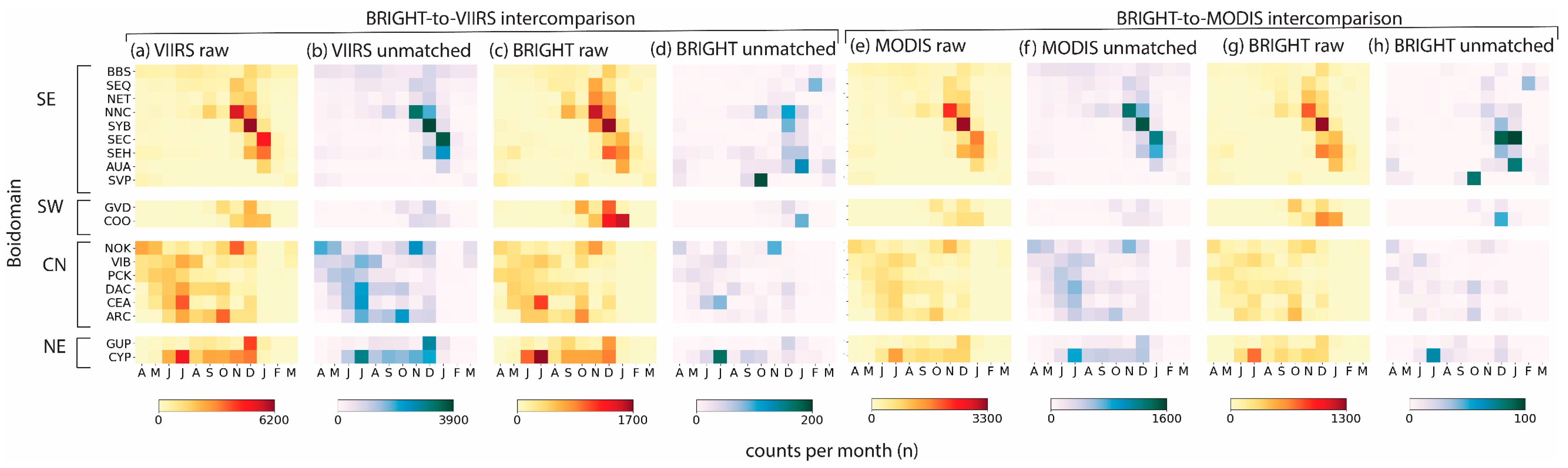

Hotspot counts were collated for individual biodomains (using ancillary IBRA information) and calendar months. Counts were calculated for all BRIGHT-to-VIIRS, BRIGHT-to-MODIS daytime (night-time) combinations. The results were sorted in descending order, according to the number of raw hotspots. Biodomain identifiers were then collected until at least 50% of the raw hotspot activity (for each BRIGHT-to-VIIRS, BRIGHT-to-MODIS, day/night combination, separately) were accounted for. The biodomain identifiers were reduced to one set (Figure 6; white and grey regions). The counting and sorting processes were repeated for unmatched hotspots. The unmatched hotspot regional identifiers included most of the raw fire activity regions, plus some additional ones (Figure 6; white and pink regions; for a description of the biodomains see Figure 6).

The biodomains were grouped into spatial regions (southeast, southwest, central-north, and northeast Australia) against which raw and unmatched counts per month were plotted (see Figure 7 and Figure 8). The monthly patterns remained relatively stable within each of the four distinct spatial biodomains, but varied between them.

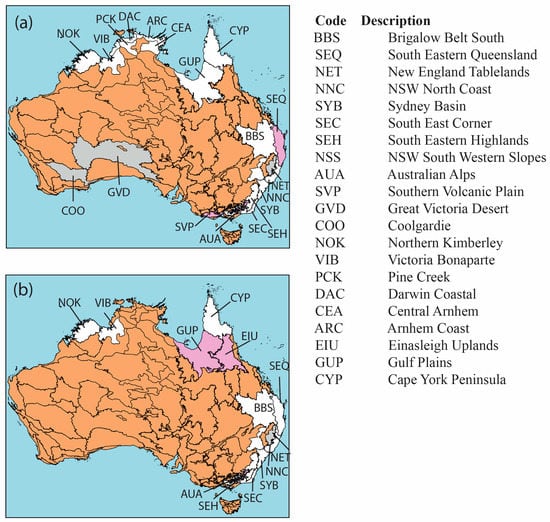

The fire activity in southeastern Australia (BBS, SEQ, NET, NNC, SYB, SEC, and SEH; Figure 6) began in September 2019 and continued through to February 2020. The peak fire activity occurred in the Sydney Basin during December 2019 for all comparisons. BRIGHT-to-VIIRS (VIIRS) (Figure 7a), and BRIGHT-to-VIIRS (BRIGHT) (Figure 7c) showed similar patterns of daytime fire activity in southeastern Australia, however, BRIGHT-to-VIIRS (BRIGHT) had lower raw counts (Figure 7c, see color bar). The same can be said for the BRIGHT-to-MODIS comparison (Figure 7e,g). Night-time BRIGHT-to-VIIRS (VIIRS) raw counts were higher than daytime BRIGHT-to-VIIRS (VIIRS) raw counts (Figure 7a versus Figure 8a). While night-time BRIGHT-to-MODIS (MODIS) raw counts were lower than daytime BRIGHT-to-MODIS (MODIS) raw counts (Figure 7e versus Figure 8e). Hence, VIIRS and MODIS may differ in their respective daytime/night-time sensitivity.

The per-month unmatched counts for southeastern Australia were also informative. The BRIGHT-to-VIIRS (VIIRS) and BRIGHT-to-MODIS (MODIS) per-month unmatched hotspot counts had patterns that reflected the raw hotspot counts (Figure 7a,b,e,f): note the high level of maximum unmatched hotspot counts. This is consistent with the BRIGHT-to-VIIRS (VIIRS) and BRIGHT-to-MODIS (MODIS) unmatched hotspots discussed in Section 3.2; but shows that the omitted hotspots were spread across the burning periods and were not concentrated in one biodomain/month combination. In Figure 7d,h and Figure 8d,h, apart from AUA, SVP, SEQ, and NSS (which will be discussed in the next section), the BRIGHT-to-VIIRS (BRIGHT) and BRIGHT-to-MODIS (BRIGHT) per-month unmatched counts were significantly lower (max 200) and occurred during times of high raw counts (across all sensor combinations). These results indicate that some of the BRIGHT-to-VIIRS (BRIGHT) and BRIGHT-to-MODIS (BRIGHT) unmatched hotspots may have occurred during times of high fire activity and may signify disagreement rather than outright error.

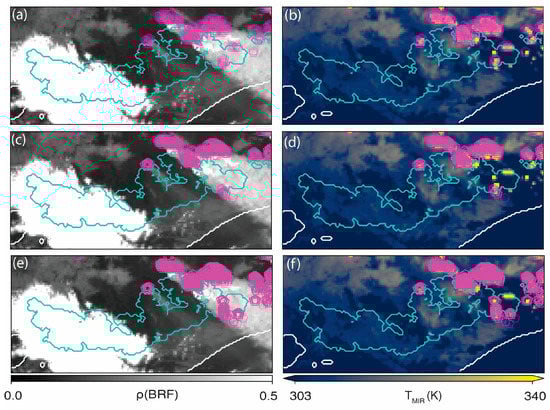

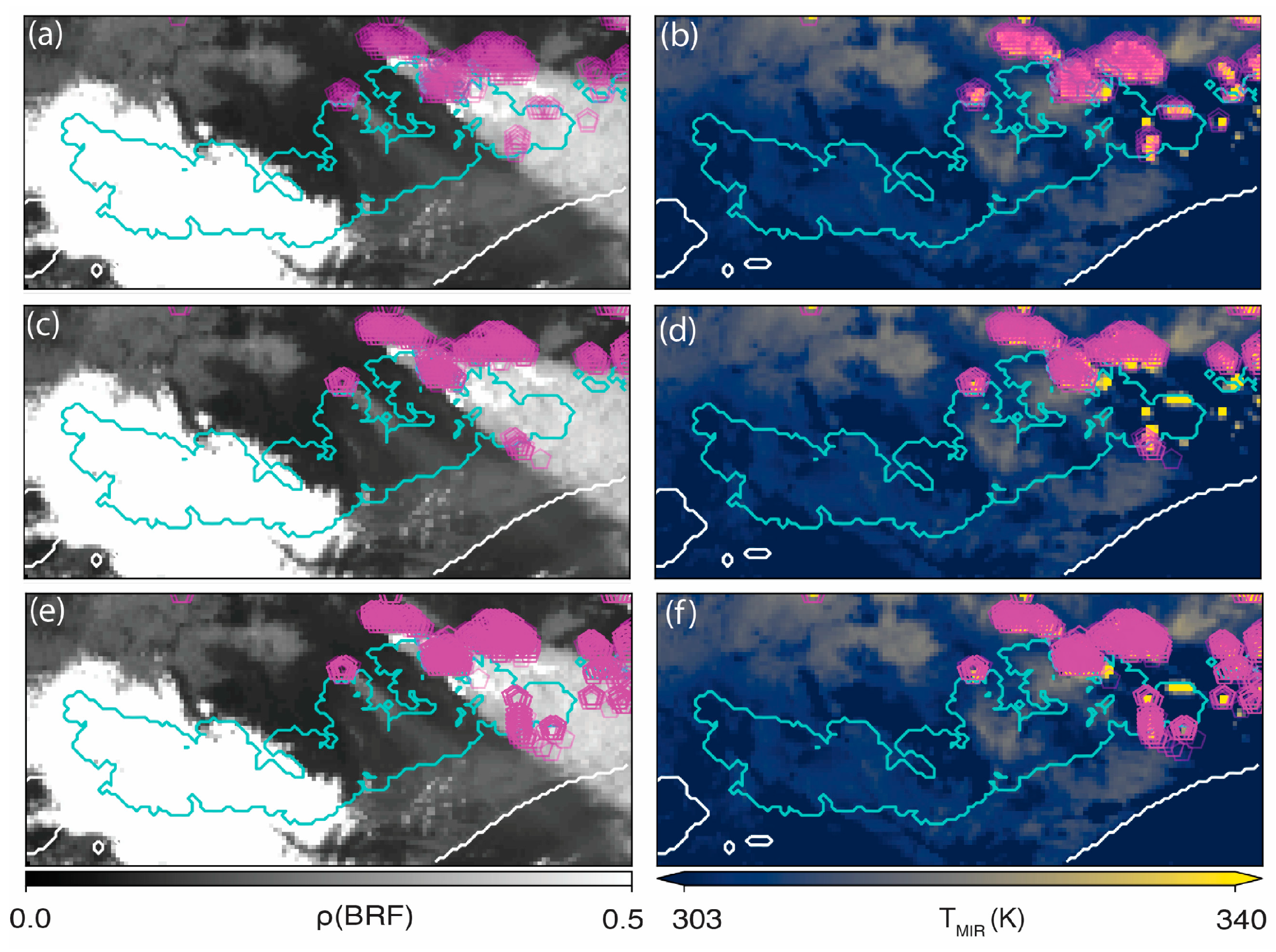

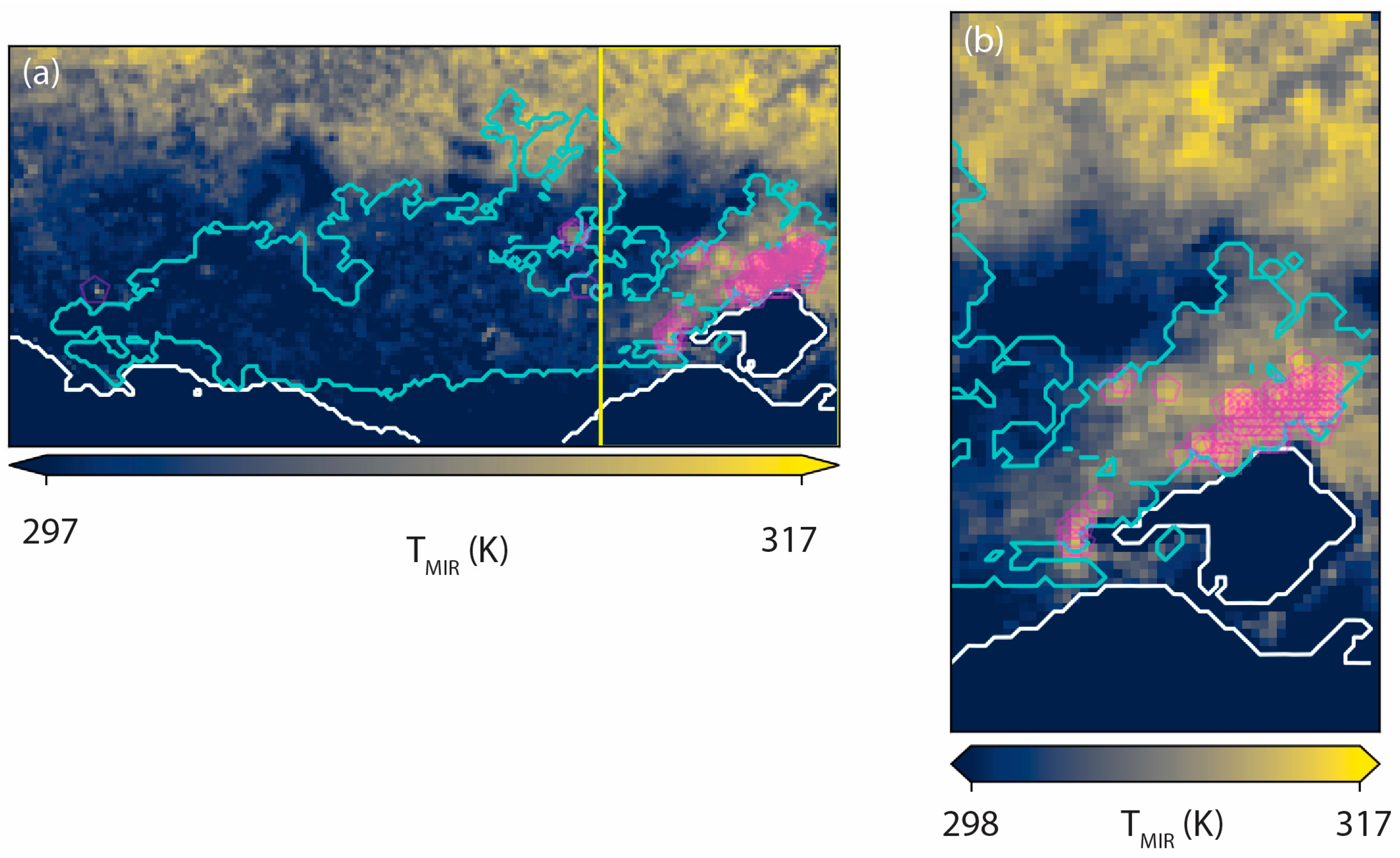

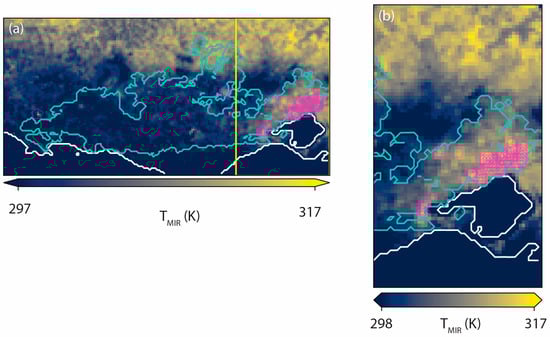

Figure 9 shows an example of disagreements during high fire activity. In the SEH01 region (within biodomain SEH; Figure 6) BRIGHT, MODIS, and VIIRS fire detections are shown when both MODIS and VIIRS were crossing Australia at the same time (04 UTC 4 January 2020). While all three satellites detected fires, there were differences most likely due to the heavy smoke occurring at that time. In this example, the BRIGHT algorithm was capable of detecting fires in areas covered with heavy smoke/cloud due to SEH01 thresholds calculated using the remaining cloud-free and smoke-free data in the SEH01 region on that day at that timepoint (Figure 9, aqua outline, SEH01 includes both clear and cloudy data).

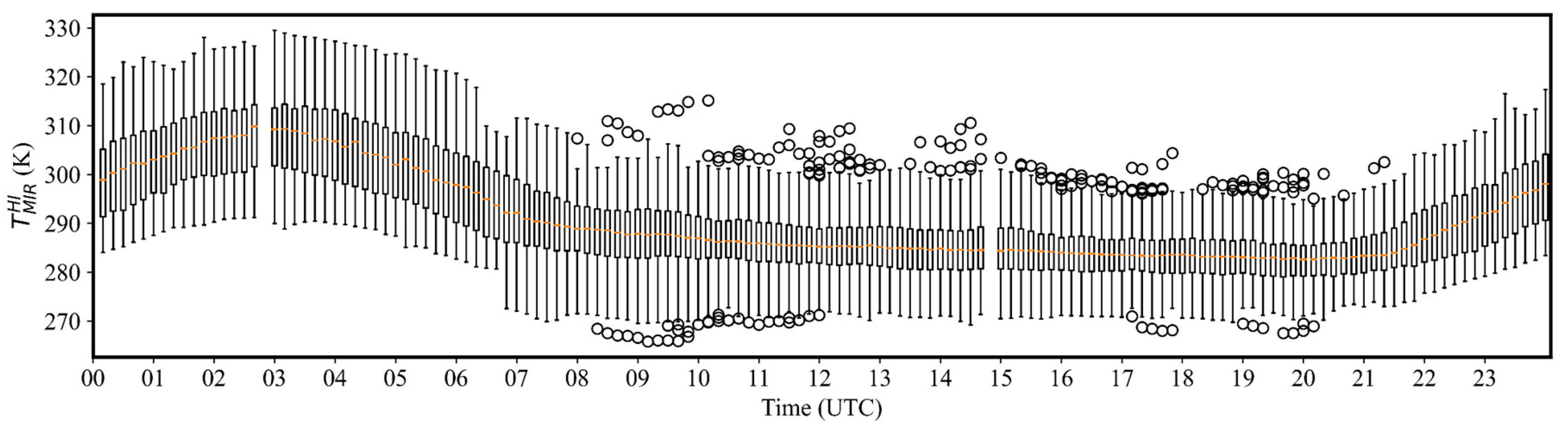

Furthermore, Figure 10 demonstrates how dynamic the BRIGHT SEH01 BRIGHT $T_{MIR}^{HI}$thresholds were. BRIGHT $T_{MIR}^{HI}$ thresholds for region SEH01 varied significantly within each AHI timepoint, with noticeable differences between AHI timepoints in line with the diurnal cycle. Other regions (not shown) also demonstrated similar levels of variability. The variance of the BRIGHT $T_{MIR}^{HI}$ thresholds highlight the dynamic nature of the BRIGHT algorithm.

The fire activity in southwestern Australia (GVD and COO; Figure 6) occurred during similar months as southeastern Australia, but with less intensity (i.e., VIIRS, MODIS, and BRIGHT had similar patterns of fire activity, but with lower raw counts comparatively). The BRIGHT-to-VIIRS (BRIGHT) and BRIGHT-to-MODIS (BRIGHT) unmatched counts again peaked in times of high raw counts for all sensor combinations.

The burning patterns of north-central Australia differed in intensity and monthly pattern. North-central Australia had consistent fire activity from April 2019 to December 2019. For NOK, VIB, PCK, DAC, CEA, and ARC (Figure 6), the burning patterns of VIIRS, MODIS, and BRIGHT were similar, with BRIGHT peak raw counts lower than those of VIIRS or MODIS.

Finally, in northeastern Australia, Cape York Peninsula (CYP) had a prolonged fire season, while Gulf Plains (GUP) had fires that occurred mainly in December 2019 (Figure 6, Figure 7 and Figure 8). Einasleigh (EIU) also had fires that occurred mainly in December 2019 though it only made the top 50% unmatched counts at night-time (Figure 6 and Figure 8). Cape York Peninsula (CYP) dominated the raw and unmatched counts for BRIGHT-to-VIIRS (VIIRS) during the daytime (Figure 7a,b). Cape York Peninsula (CYP) had similar fire burning patterns in BRIGHT-to-MODIS (MODIS) and BRIGHT-to-VIIRS (VIIRS) (during the daytime), but with lower raw counts (Figure 7e,f). The BRIGHT-to-VIIRS (BRIGHT) and BRIGHT-to-MODIS (BRIGHT) patterns were again similar to those of BRIGHT-to-VIIRS (VIIRS) and BRIGHT-to-MODIS (MODIS), but with lower raw counts (Figure 7 and Figure 8). BRIGHT-to-VIIRS (BRIGHT) and BRIGHT-to-MODIS (BRIGHT) peak unmatched counts Figure 7d,h and Figure 8d,h occurred at the same time as the peak BRIGHT-to-MODIS (MODIS) and BRIGHT-to-VIIRS (VIIRS) total counts Figure 7a,d and Figure 8a,d.

The biodomains with high levels of raw or unmatched hotspots over the entire time period varied between day (Figure 6a) and night (Figure 6b). Across daytime (night-time), at least 50% of the fire activity occurred in 16 (10) biodomains. Over 50% of the unmatched hotspots fell within 13 (9) of those biodomains, plus an additional three (three) biodomain (s). The night-time fire activity of north-central Australia was concentrated in less biodomains than in the daytime) (Figure 6, Figure 7 and Figure 8).

Note that AUA, SVP, and SEQ were included for high unmatched activity only in the daytime (AUA, EIU, and GUP for night-time); these will be discussed in the following section).

3.4. BRIGHT Confidence Measures

PODs varied with the confidence measures as defined in Section 2.6. When fires cause high satellite brightness temperatures, they can be detected using simpler measures (as in Equations (17) and (23)). Otherwise, detecting the fires requires thresholds and Equations (18)–(22) or (24)–(26). Analysis of PODs according to whether an outright threshold ((17) or (23)) was used, or if fire stood out strongly or weakly against the thresholds (Section 2.6; ABS, HI, and LO definitions) gave a different indication of the performance of the BRIGHT algorithm according to fire size and characteristics. There were 69,759 BRIGHT-to-VIIRS (BRIGHT) daytime hotspots: 27% ABS, 72% HI, and 1% LO. Of the 18,814 ABS hotspots, 96% had a match within the VIIRS dataset. Out of the 50,090 HI hotspots, 95% had a match with the VIIRS dataset. Of the 855 LO hotspots, only 16% had a match within the VIIRS dataset (see

Table 2. Day-time BRIGHT-to-VIIRS (BRIGHT) and BRIGHT-to-MODIS (BRIGHT) raw counts and PODs separated by sample and confidence; separately for Australia and for the problematic subset (Victorian Volcanic Plain (SVP01), Victorian Alps (AUA02), Barrington (NNC13), and Brisbane-Barambah Volcanics (SEQ05)). For the definition of ABS, HI, and LO, see Section 2.6).

Sample	Confidence	Raw Count	POD
BRIGHT-to-VIIRS (BRIGHT) Australia	ABS	18,814	96%
	HI	50,090	95%
	LO	855	15%
BRIGHT-to-VIIRS (BRIGHT) Problematic Region Subset	ABS	145	97%
	HI	849	69%
	LO	525	2%
BRIGHT-to-MODIS (BRIGHT) Australia	ABS	8353	95%
	HI	22,092	95%
	LO	229	24%
BRIGHT-to-MODIS (BRIGHT) Problematic Region Subset	ABS	92	90%
	HI	301	70%
	LO	131	2%

). Hence, BRIGHT hotspots with higher confidence (ABS or HI) had higher PODs.

To investigate further, the BRIGHT-to-VIIRS (BRIGHT) and BRIGHT-to-MODIS (BRIGHT) biodomains included in the top 50% unmatched counts (Section 3.3) were analyzed by region (for a description of regions and biodomains, see Section 2.1). Of those regions, the ones with the highest unmatched counts and less than 70% matched counts (and a minimum of 30 counts) were chosen for further analysis. The problematic regional subset included the Victorian Volcanic Plain (SVP01), Victorian Alps (AUA02), Barrington (NNC13), and Brisbane-Barambah Volcanics (SEQ05). Please note that the first three letters in the region correspond to the biodomain. For a spatial understanding of the relevant biodomains, see Figure 6.

The problematic region sample had a lower POD than the Australian sample. For BRIGHT-to-VIIRS (BRIGHT), the problematic regions together had 849 HI and 525 LO hotspots. The HI hotspots had a POD of 69%, and LO hotspots had a POD of 2%. The problematic regions alone accounted for 525 out of the 855 BRIGHT-to-VIIRS (BRIGHT) LO unmatched hotspots (Table 2).

The problematic regions stand out in terms of their sizes and/or the non-uniformity of their landscapes. The Victorian Volcanic Plain (SVP01) is 23.6 thousand km² and is dominated by volcanic deposits, with unmatched BRIGHT hotspots occurring near urban areas [41] (Figure 11). The Victorian Alps (AUA02) is 5.2 thousand km², and is both mountainous and discontinuous. Barrington (NNC13) is 1.1 thousand km² with a sharp boundary between forested and cleared areas including the Barrington Tops National Park within it. Brisbane-Barambah Volcanics (SEQ05) is eight thousand km² with 60% artificial and highly modified and 38.3% riverine areas. The LO confidence measure identified these problematic (large and mixed) regions.

4. Discussion

The BRIGHT algorithm was adapted to make it real-time, day-specific, and capable of running across both daytime and night-time. This was necessary because the original algorithm was designed for post-analysis over sub-seasonal periods and was defined only over the daytime. The adapted real-time BRIGHT algorithm was implemented and tested on 12-months of AHI/Himawari-8 data using IBRA region definitions. While real-time BRIGHT hotspots exist across the whole 12-month period, every 10-min over Australia, the challenge here was in collating coincident observations between geostationary (AHI) satellite temporal/spatial coverage and that of polar-orbiting (MODIS and VIIRS) satellites. The comparative analysis of fire detection was restricted to times when either VIIRS or MODIS were imaging Australia.

The BRIGHT-to-MODIS comparison of this study had a 5% unmatched BRIGHT-to-MODIS (BRIGHT) and 54% unmatched BRIGHT-to-MODIS (MODIS) hotspots (across both daytime and night-time). Again, this paper included a 12-month, Australia-wide dataset with both daytime and night-time periods. In addition, the 12-month period overlapped with the 2020 Black Summer fires. To put these results into context, they were compared to other geostationary fire detection algorithms (that also compared their hotspots against MODIS). For example, [34] had 12% BRIGHT-to-MODIS (BRIGHT) and 61% BRIGHT-to-MODIS (MODIS) unmatched hotspots (12-months, Australia-wide during daytime). The decrease in unmatched hotspots of this study in comparison to [34] is most likely due to having thresholds that adapt to specific date/time combinations (rather than over the sub-season). [32] applied the fire thermal anomaly (FTA) algorithm to AHI data and compared the hotspots to those from MODIS. [32] found 8% FTA-to-MODIS (FTA) and 66% FTA-to-MODIS (MODIS) unmatched hotspots (AHI full disk, June 2015). [42] compared Spinning Enhanced Visible and Infrared Imager (SEVIRI) FRP-PIXEL hotspots to those from MODIS. [42] found 6% FRP-PIXEL-to-MODIS (FRP-PIXEL) and 65% FRP-PIXEL-to-MODIS (MODIS) unmatched hotspots (for one-week over Northern Africa). The results from this study are comparable, if not slightly better. That said, it is not possible to draw definitive comparisons on such different datasets.

Unmatched BRIGHT-to-LEO (LEO) hotspots are expected when comparing sensors with differing spatial resolutions. As mentioned in the introduction, spatial resolution is particularly important for fire detection given the non-linear response of satellite brightness temperature to the additional radiance coming from fires. In Section 3.2 of this paper, the BRIGHT-to-MODIS (MODIS) daytime unmatched hotspots were linked to AHI observations (at those times and places) being below the level of detection using this algorithm. This finding confirms the intuitive understanding that fire algorithms operating on satellite datasets with lower spatial resolution cannot match the sensitivity of those with higher resolution. However, the POD of MODIS or VIIRS hotspots changed non-linearly with minimum FRP, particularly at night-time. Hence, restricting the minimum FRP when comparing (lower-resolution) geostationary datasets to a (higher-resolution) polar-orbiting dataset may be a fairer comparison.

The BRIGHT-to-VIIRS (BRIGHT) (daytime) 4% unmatched hotspots were achieved despite complex burning patterns (Section 3.1), reliance upon BRIGHT adaptive statistics, and no external cloud-mask being available. The different burning patterns across southeast, southwest, central-north, and northeast Australia was highlighted in Section 3.3. Only 27% of hotspots being detected using outright thresholds (Section 3.3) (i.e., only 27% of BRIGHT-to-VIIRS (VIIRS) fire detections) came from AHI pixels that satisfied Equation (17) or (23). The BRIGHT-to-VIIRS(BRIGHT) 4% unmatched hotspot rate was achieved despite the complex burning patterns, and over 73% of hotspots were detected using the BRIGHT adaptive (statistical) thresholds. Since AHI has a lower spatial resolution than both MODIS and VIIRS, the low % unmatched BRIGHT hotspots were achieved despite MODIS and VIIRS both being more likely to have registered outright threshold hotspots more often than AHI. The 5% or lower BRIGHT-to-VIIRS(BRIGHT) and BRIGHT-to-MODIS (BRIGHT) unmatched hotspot rates are particularly interesting given no AHI cloud mask being available.

The simple confidence measures defined in Section 2.6 demonstrate the potential to further improve real-time BRIGHT statistics by flagging hotspots for possible exclusion from analysis or identify problematic regional definitions. While problematic region definitions were identified using the confidence measures (Section 2.6 and Section 3.4), the overall area of the four identified regions flagged in this study represents less than 0.5% of the area of Australia. Therefore 99.5% of Australia was well served by the AHI/IBRA BRIGHT combination (compared to the MODIS and VIIRS datasets available). The identification of problematic regional definitions raises questions though about landscapes that may require further attention: as in Volcanic land types and urban areas [41]. In fact, it questions the inclusion of urban areas at all and indicates that the algorithm may be better served by masking urban areas out, as was done in [43].

This algorithm has also been tested in a trial operational setting, producing continental-wide fire detection in around 30 s from receipt of AHI imagery (using an Intel(R) Xeon(R) CPU E5-2670 v2 @ 2.50 GHz with 5 CPUs) for fire management agencies across Australia.

While this paper established the performance of real-time BRIGHT against the known MODIS and VIIRS fire detection systems, the real-advantage of real-time BRIGHT is that it can provide observations 24-h a day (e.g., not just daytime and night-time LEO crossings). The utility of BRIGHT over all times periods will be explored in upcoming papers.

5. Conclusions

This paper demonstrated that it is possible to adapt the BRIGHT algorithm to make it work continuously in real-time over daytime and night-time conditions. The rolling window (rather than seasonal) not only allowed real-time reporting of active fire hotspot locations, but resulted in lower levels of unmatched hotspots (when compared to MODIS/VIIRS) datasets. The real-time BRIGHT algorithm not only compared well against MODIS and VIIRS but also ran at speeds that may prove useful for resource managers. Thus, the BRIGHT algorithm may prove not only useful, but practical.
