3D Reconstruction and Geostatic Analysis of an Early Medieval Cemetery (Olonne-sur-Mer, France)

by
Rozenn Colleter
1,2,* and
Jean-Baptiste Barreau
3
1
French National Institute for Preventive Archaeological Research (INRAP), 37 rue du Bignon, 35577 Cesson-Sévigné, France
2
Centre for Anthropobiology and Genomics of Toulouse (CAGT), Forensic Sciences and the Study of Image Libraries (Team FOSSIL), CNRS, UMR 5288, Faculté de Médecine Purpan, University of Toulouse, Bat A37 Allées Jules Guesde, 31000 Toulouse, France
3
CReAAH, CNRS, University of Rennes, UMR 6566, Campus de Beaulieu Bât24 RDC P009, Avenue du Général Leclerc, 35000 Rennes, France
*
Author to whom correspondence should be addressed.
Remote Sens. 2021, 13(9), 1688; https://doi.org/10.3390/rs13091688
Submission received: 8 March 2021 / Revised: 22 April 2021 / Accepted: 23 April 2021 / Published: 27 April 2021
(This article belongs to the Special Issue 3D Virtual Reconstruction for Cultural Heritage)

Abstract

:
A preventive excavation performed in 2018 prior to development work led to the discovery of more than 213 subjects buried from the 4th to the 11th centuries in the 1850 m2 dug area. This is a cemetery located in Olonne-sur-Mer in France (46.53723, −1.77603). The complex is limited to the south by a ditch. To the north, no limits were observed during the excavation and, to the west, ancient archaeological surveys suggest an extension of the burial area. Biological analysis of the skeletons reveals a demographic characterizing a natural community, with an under-representation of children under 5 and with subjects under 20 appearing to be grouped together in the center of the area. The place where the youngest are buried often testifies to a strategic position in Christian contexts (near church doors, under sub stillicidio gutters, etc.). Funeral practices are characterized by numerous skeletal alterations, especially in the western area of the site where their concentrations are particularly significant. These are not ossuaries but rather supernumerary bones present in the fills of graves of subjects in place or old tombs where no skeletons in place are preserved. These alterations mark the areas where burials are most frequent. The 3D reconstruction is coupled with geostatistical analyses (heatmap and Moran’s index), considering the digging of the land, the concentration of residual artefacts found in the graves, but also the biological characteristics of the sample and the funeral practices uncovered. From 2D entities generated with GIS software, the process of the elevation and sculpture of the volumes is innovative, because even if it is carried out by precise but classical computer graphics techniques, it is led by advanced taphonomical and anthropological reflections. This makes it possible to propose empty spaces, a potential gathering area for the village community and circulation paths. These elements are essential in order to go beyond the storytelling often proposed in archaeology and propose a vision based on the coherence of the observed facts. Even when the archaeological remains are only sunken (no preserved elevation), the integration of multisource archaeological data (biological anthropology, funerary, artefacts and pit size) allows relevant 3D reconstructions as a formidable tool for discussing past occupations. Three-dimensional technologies make it possible to recreate a lost environment to allow a better understanding of the site. They are didactic and help to share data between researchers and/or the public, especially when they are invisible such as the presence of empty space.

1. Introduction

Many major archaeological discoveries are now made using digital terrain models (DTMs), often based on surveys derived from LiDAR scans that allow the observation of remains hidden under dense vegetation [1,2]. This work generally covers large areas and allows a proper diagnosis of monumental remains, as the identification of small structures [3], or even hollow structures, can be problematic. These approaches are interesting in areas that are difficult to access and with a high forest cover, such as the Mayan rainforests [4] or the mountains of China [5]. Archaeology also exploits images taken from aircraft for decades, or more recently from drones, to detect buried structures [6,7]. At the scale of preventive archaeological excavations, limited to land development projects, the range of remote sensing methods is mainly based on topographic surveys of structures to create DTMs with databases and GIS. These analysis tools are powerful, but still little used, especially for the 3D reconstruction of burial sites.
The study of ancient cemeteries and the problematics associated have considerably evolved over the last few decades. In the 19th century and until the development of biological anthropology and the archeological sciences, it was mainly the small finds that were coveted [8,9]. The human skeletons thus occupied only a marginal place in the research, there were little or no studies. We had to wait until the development of anthropological biometric techniques and the appearance of radiocarbon dating from bones during the 1950s [10] that the human remains could really be considered as a source of information. Today, aiming for a “total archaeology”, the studies are at times, based on in depth biological research (characterization of samples, recruitment, DNA, isotopes, forensics, pathology, etc.) [11,12,13,14], a funerary archaeology, which is very descriptive about the tomb to reconstituted funeral practices [15,16,17,18] and the precise analysis of contexts, sediments and associated artefacts [19,20,21,22]. The objectives cover the reconstitution of past populations (diets, mortality and morbidity, relatives, migration, etc.) and their beliefs (notably by the study of the diversity of their funeral practices) [23]. Despite the new cyber tools, which are available to archaeologists and anthropologists, the general environment of cemeteries and burial grounds are often found to be neglected and the contexts are sometimes forgotten about in the framework of large surveys due to the change of the scales made (i.e., look at the studies at the continental scale on DNA, which are not always applied to the context of tombs [24,25]). Bearing in mind, at the local analysis of a cemetery, the spatial elements could lead us to the social status of the dead according to the emplacement of the tomb [26,27,28]. Effectively and notably in Christianity contexts, the position of the tomb is not by hazard [28,29,30]. The study of a DTM with archaeological and anthropological databases is an interesting perspective for discussing the installation of cemeteries, notably by the observation of empty spaces.
Based on a recent rescue archaeological excavation, we propose to link the biological and funerary information with the spatial environment to reconstitute the invisible and propose a spatial interpretation from information based on analytical techniques. We propose notably to observe the MNI (minimum number of individuals) by tomb, in the primary position and secondary to evaluate the places the most sought after, with a more important breakdown. In confronting the biological results geolocated on the DTM, we observe the spaces reserved for certain biological characteristics (age at death). From the elements of residual artifacts, we can determine the places most visited by the living, the passage ways. The creation of a 3D environment coupled to a database allow the researcher to propose the hypothesis for which geostatistical analysis allows one to release the facts and numerical trends. Beyond the simple description of the remains, the 3D reconstitution of the invisible allows the proposal of pertinent and measurable hypotheses, for the installation of a funerary ensemble of the early Middle Ages because no cemetery installs or grows by hazard [31].

2. Materials and Methods

2.1. Description of the Site

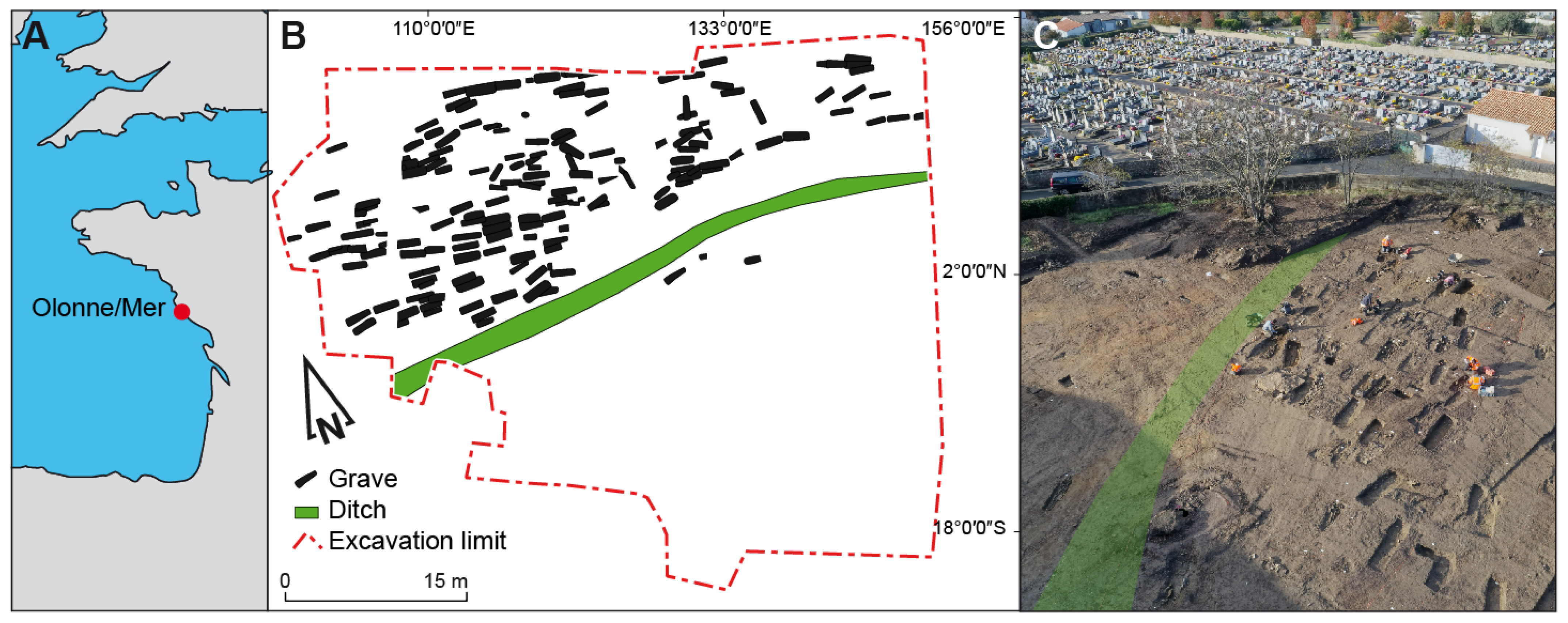

A rescue excavation before the proposed construction work at 14 Rue de la Paix, Olonne-sur-Mer (west of France) revealed a part of a funerary space dating to the Early Middle Ages with a surface of about 1850 m2 (Figure 1A,B) [32]. Given the context of preventive archaeology and the limited time available for excavations, we did not have the entire cemetery, nor its limits, but still a good and sufficiently representative sample. Distributed into 174 sepulchral pits were 213 subjects, 165 adults and 48 children were buried on the site during 6 centuries (from the 5th century until the 10th century) of which 140 were in their primary position, which is to say their bodies had decomposed where the archaeologist found them. No multiple simultaneous deposit was observed, the tombs were all strictly individual even if 73 individuals come from secondary burials characterized by the body then the skeleton being deposited at several times and places [15]. The incomplete character of the remains of bones indicates the dismantling of tombs and the manipulation of bones, without doubt related to the management of the funerary area throughout time [33]. There were only inhumations, no cremations were found, which conforms to the Christian rituals used in Gaul since the early Middle Ages [34]. The tombs are limited, in the south by a ditch, with several sepulchral pits taking the same orientation, but without any intercutting, despite the dense concentration of tombs, which may well suggest that they were contemporary (Figure 1C).

2.2. Anthropological Methods

The method used for excavation and the lifting of the skeletons is classic, putting into operation the techniques that have been developed over the past twenty years in archaeo-anthropology [35,36]. Three survey (topographical) points were systematically recorded on the body, skull, pelvis, and ankles, to see the general altitude of the inhumation, the orientation of the body and to georeference the skeleton. The contour of the sepulchral pit is also surveyed. The excavation of sepulchral ensembles implies the treatment of numerous details for the study of each burial (archaeology, taphonomy and biology). For the efficient recording and exploitation of the results, the information was recorded on a database management system (DBMS) called HumanOS, for storing, the recording, modification, sorting and interrogating the information [37]. The input of the data is also more secure, minimizing the risk of error (entry constraints). The elaboration of the anthropological database is coupled with the georeferencing of the primary individuals for spatial queries. The exports that may be generated by this database concerns, the catalogue of the tombs, the skeletons (vectorized format) or the tables (csv format) allowing to easily import the data to a geographic information system like QGIS.
The determination of funeral practices is based on archaeo-thanatological observations in the field [38]. The preservation or not of all anatomical connections, the observation of any preserved volumes, the unstable balances or linear effects on human skeletons, all provide information about the burial method and funeral architecture. Age at death was estimated for adults from observations of the sacropelvic surface [39], completed by the evaluation of the degree of dental wear, an indicator that seems quite pertinent at a population level according to Owen and Lovejoy [40,41]. For the adolescents and children, the age at death was mainly attributed by the observation of the stages of dental mineralization [42,43]. When this was impossible (absence of observation and teeth included) the diaphasia length of long bones or the maturation stage of the bones was used depending on the estimated age of the dead [44,45,46,47,48,49].

2.3. Statistics

To assess the degree of chance in the spatial distribution of graves and to highlight significant neighbor-to-neighbor relationships with the rest of the group, systematic exploratory mapping analyses were conducted. From a statistical point of view, the process is based on the assumption of independence between variables. Thus, if a variable is spatially self-correlated, the independence hypothesis (H0) is not respected (random dispersion). Geostatistical processing can then spatially quantify the data to support interpretations and usefully complements simple graphic representations.
The Moran’s index (Moran’s I) was chosen for its robustness and is defined as the ratio of covariance to variance [50,51]. The calculations were made with the R “ape” package [52]. By default, the index determines that the higher the neighbor number, the more weight the individual has in the weight matrix. A distance between these neighbors can be defined to influence the covariance of this point and its neighbors in relation to the variance of all points. The result of the calculation of Moran’s I is interpreted as a correlation coefficient, ranging from −1 (negative spatial self-correlation: negative association, avoidance and repulsion) to 1 (positive spatial self-correlation involving notions of aggregation and attraction), the zero-value marking the absence of spatial self-correlation (random distribution). The value of the Moran’s index can then be interpreted as part of the variance explicable by the neighborhood, so a Moran’s I with I = 0.25 would attribute 25% of the variance to the values in the neighborhood. Combined with this index, p-value (p) indicates the significance of self-correlation.
To complete these indices and obtain a spatialized reading of statistical results, choropleth heatmap maps were generated with QGIS.

2.4. Creation of Successive DTM

2.4.1. The “Bottom of Form” DTM

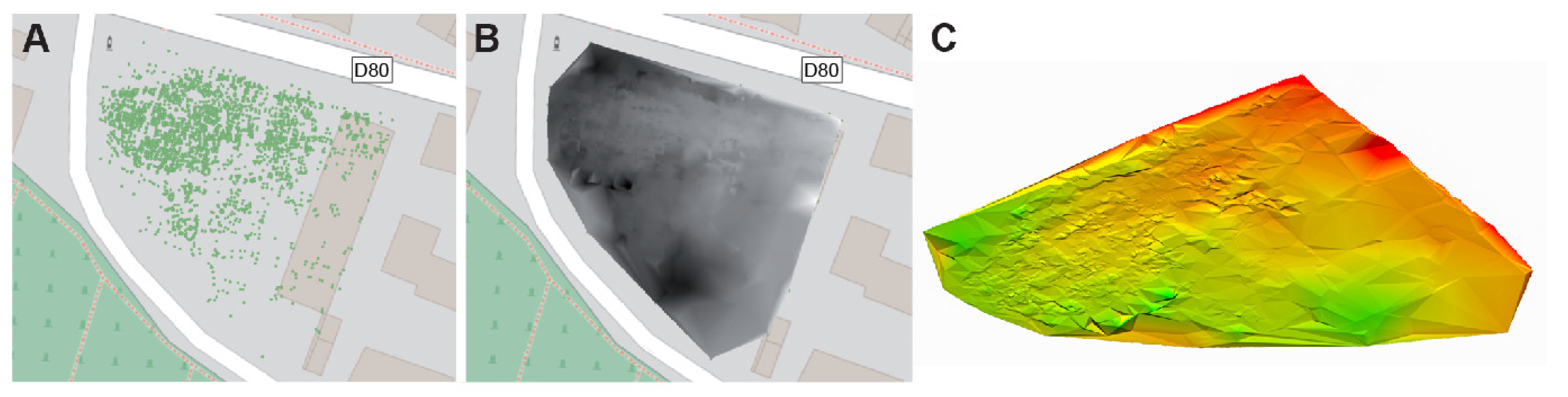

As this was a rescue excavation with a limited budget and timeframe, no UAV or LiDAR surveys were performed. However, some topographic points were surveyed with a tacheometer and, given the scientific interest, we nevertheless wished to create DTMs that could bring knowledge to archaeological reasoning, even if their resolution could be improved by the use of dedicated technologies. Three DTM were built from the many topographical points survey in the field and data from Geoportail. The distribution statistics according to these two methods are summarized in Table 1.
The first DTM presents the “bottom of form”, the second, the “surface” of the archaeological field before stripping and the last restores the ground level in the early Middle Ages (the “funeral mound” DTM). The first was created from the survey points in the field and using the QGIS 3.16.1-Hannover software (Figure 2A). A black and white raster illustrates the elevations from the TIN interpolation method (Figure 2B), and then the 3D model is created with the DTM to3D plugin [54] (Figure 2C).

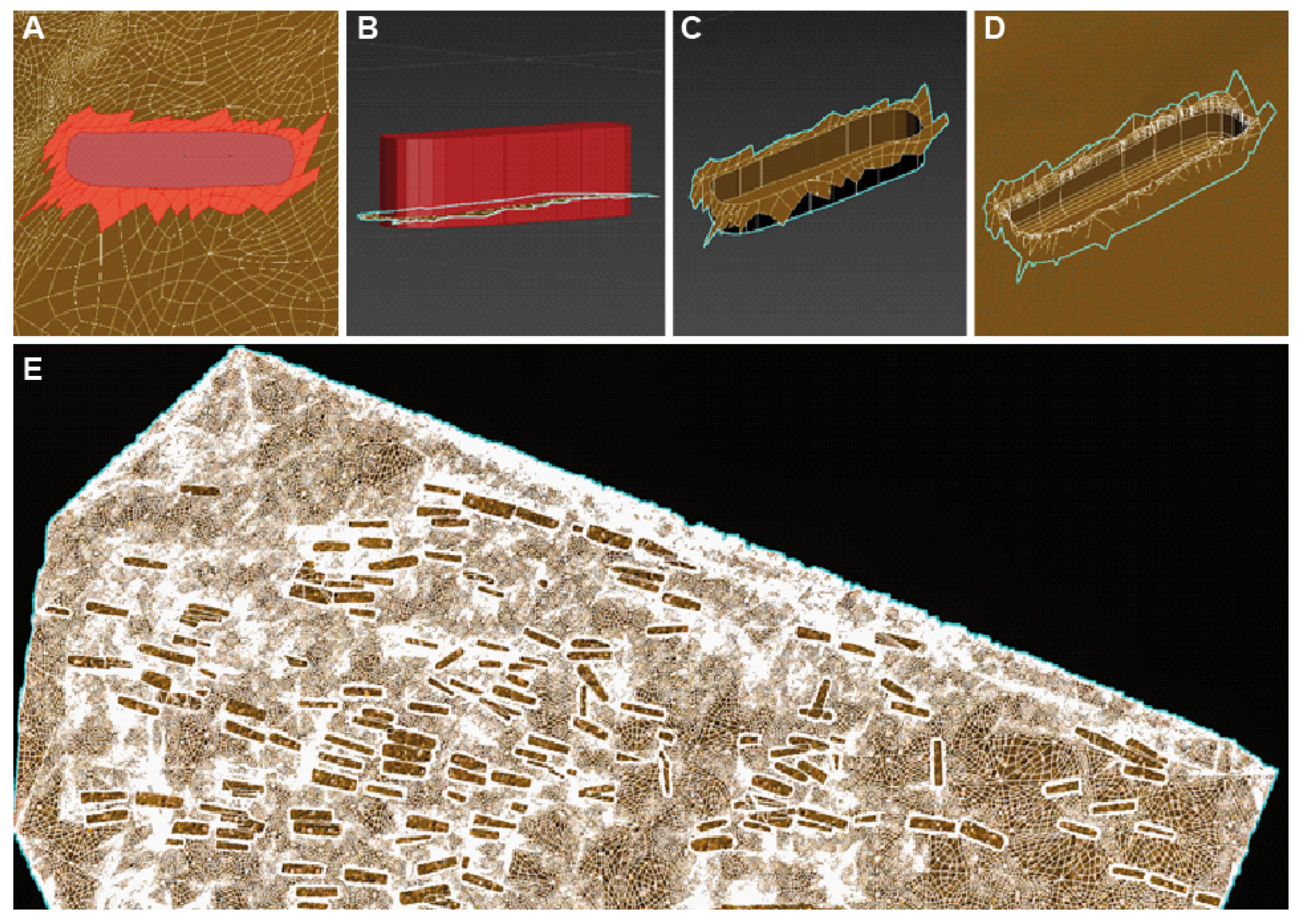

Once integrated into the 3dsmax software, the mesh was smoothed with the Turbosmooth modifier, implementing the Catmull–Clark algorithm [55]. The reconstruction of the tombs was carried out by following 4 steps (Figure 3A–D). (i) Cutting an area encompassing the vicinity of the burial and detachment from that area of the main mesh. (ii) Extrusion of the shape of the burial, directed downwards and expected to pass entirely below the surface of the DTM cutout. The depth is determined using the values shown in Table A1 in Appendix A. (iii) Application of the ProBoolean modifier [56] with subtraction operation to dig the grave. In case of overlapping excavations, we also applied a ProBoolean modifier with overprint option to delineate the bottoms limits. (iv) Application of the Chanfrein modifier [57] on the edges bordering the bottom and upper edges, to smooth out them, and then attached to the main mesh (Figure 3E).

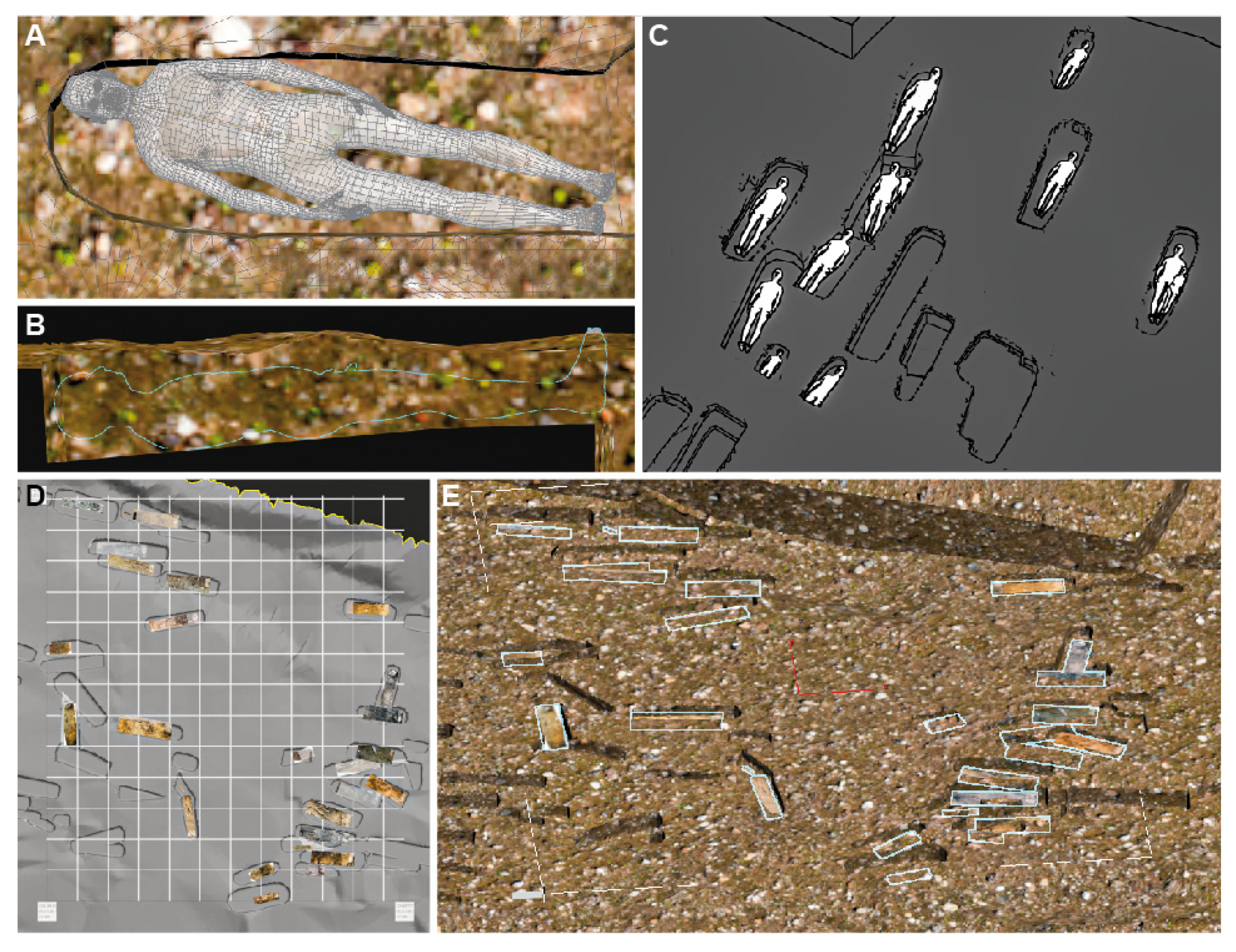

The generation of rigged virtual humans is now relatively easy due to open-source software like MakeHuman [58]. With this software, we generated a generic 3D mannequin, whose rigging allows its easy positioning from the survey points recorded under the skull, pelvis and between the ankles. Obtaining the precise depths of tombs is deducted from this same information (Figure 4A,B). These points were addressed with the point cloud object module, which is directly integrated into the 3dsmax software. This same software also allows the rapid generation of stylized views such as “ink”, allowing the enhancement of the contours, and thus an easy reading of the geometries (Figure 4C). Some burials around an empty space had already been processed with Virtualanthropy [59] software, which allowed us to 3D position photos taken on site. The set fits correctly into the overall scene (Figure 4D,E).

2.4.2. The “Surface” DTM

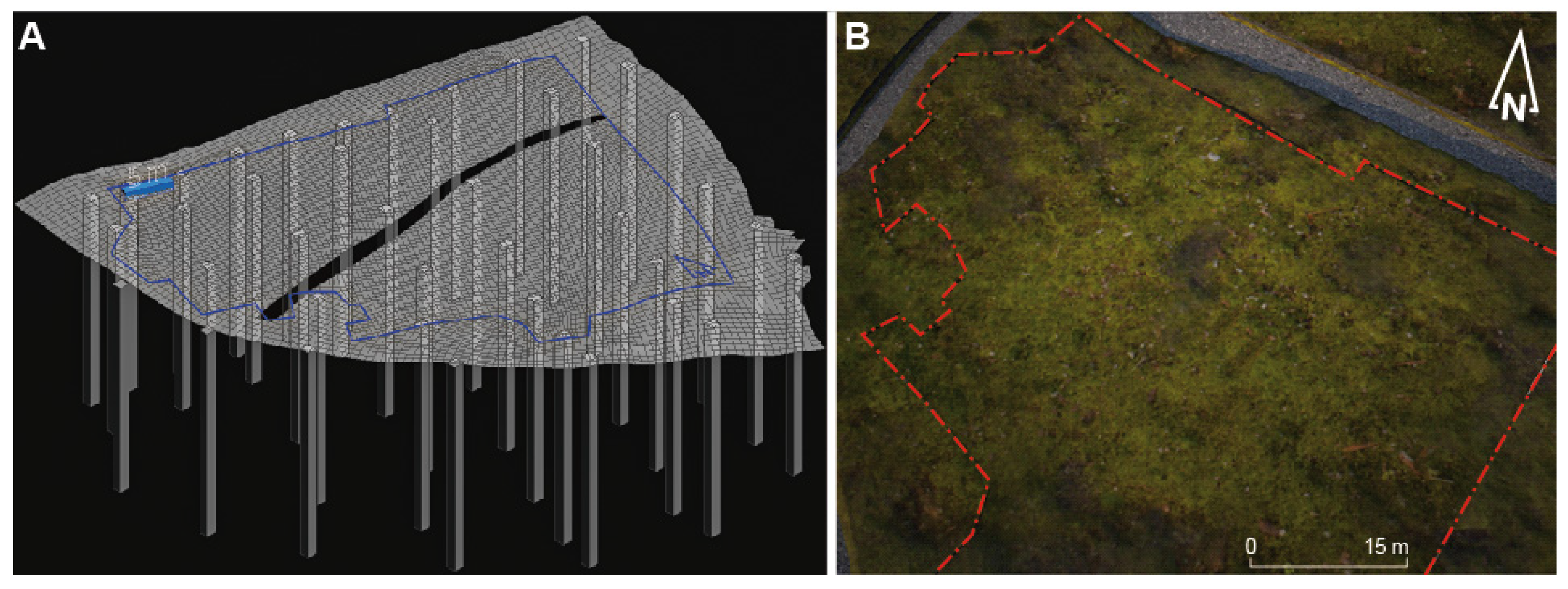

A second DTM was built, it restored the stripped topsoil and archaeological sediments filling the burial pits and archaeological features. The surface level was restored from Geoportail’s survey points (Figure 5A). This “surface” DTM provides more accurate topographical information than the NGF information (French spot heights) from Geoportail and shows a flat area with a very slight dip from the terrain to the west. This DTM could also accurately calculate the volume of soil impacted by each archaeological structure from the soil trodden by past populations since no geomorphological changes were recorded (Figure 5B).

2.4.3. The “Funeral Mound” DTM

The last DTM restores the topography of the soil at the time of its burial occupation. Without descriptive information of surface development due to soil erosion and successive post-cemetery occupations on this plot, we based this restitution on the assumption that the volumes of excavated soil are left more or less in place. In the absence of suitable mechanical means for the early Middle Ages, the parsimony leads researchers to base their reasoning on the simplest patterns, namely here the constitution of a mound above the funerary features. The DTM then takes into account both the volume of land excavated (V0) (subsoil and topsoil) and the bulking factor (Vb). When the soil is disturbed due to the excavation of a sepulchral pit or the digging of a ditch, the removed soil grows in volume. An excavated cubic meter never results in a cubic meter of discharged soil and depending on the soil types and humidity, the multiplication is more or less strong: a sandy earth, for example, produces less volume than a marly soil [60,61]. In Olonne-sur-Mer, the fills of the sepulchral pits are characterized by a clayey-sandy sediment, even silty in the lowest topographic areas. It is a mixture of small rocks linked to the degradation of geological substrates (here metarhyolite [54]) with topsoil covering the structures. Anthropogenic limestone blocks also sometimes dot the fills, the ultimate remnants of ancient forms of tombs and/or the presence of stone in the tumular mound. Based on these elements, we considered for this soil a bulking factor (k) of 1.25.
Vb = V0 * k
(Vb: bulking volume; V0: compacted volume in situ; k: bulking factor).

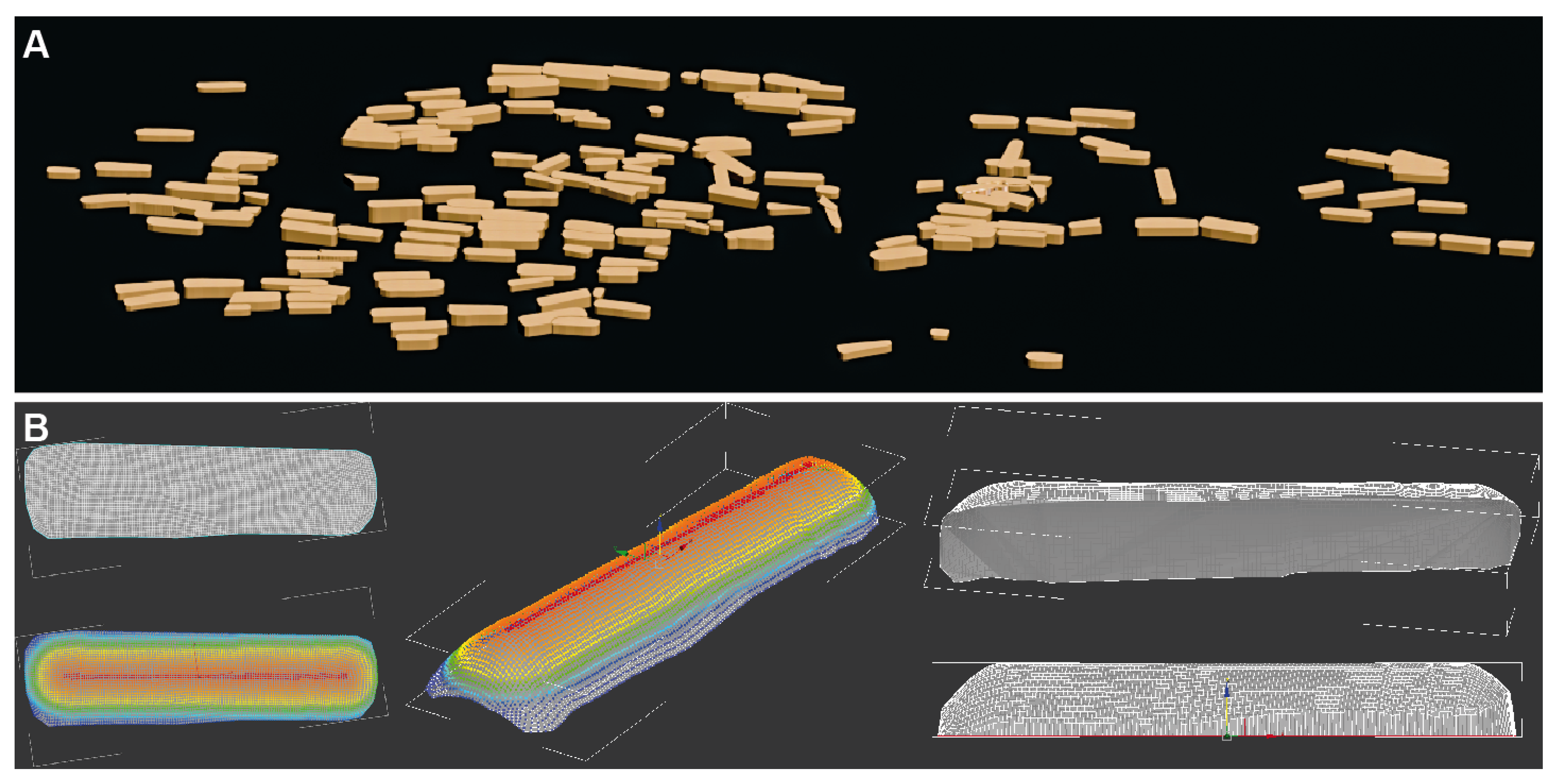

In addition to the bulking volume, the burial mound (Vm) must also take into account the empty spaces of the tomb created by the containers (coffin, sarcophagus and encasing of the pits) and/or the volume of the body deposited before its decomposition (Vc). Depending on the determination of the funerary architectures and the size of the tomb, the volume of the container is then between 0.068 (small child’s grave) and 0.78 m3 (large square pit) (Appendix A, Table A1). A minimum and arbitrary height of 40 cm for these structures was applied for the calculation. In the absence of a container, voids observed around the body during excavation and the interpretation of the deposit of the corpse directly into the pit, a volume of 0.075 m3 for adults and 0.037 m3 for children was arbitrarily applied corresponding to body volume. From these calculations, the mounds can then be easily restored and the monumentality of the tombs brought back.
The volume of the mounds was therefore calculated according to the following formula:
Vm = Vb + Vc
(Vm: volume of the mound; Vb: bulked volume; Vc: volume of the container/body).

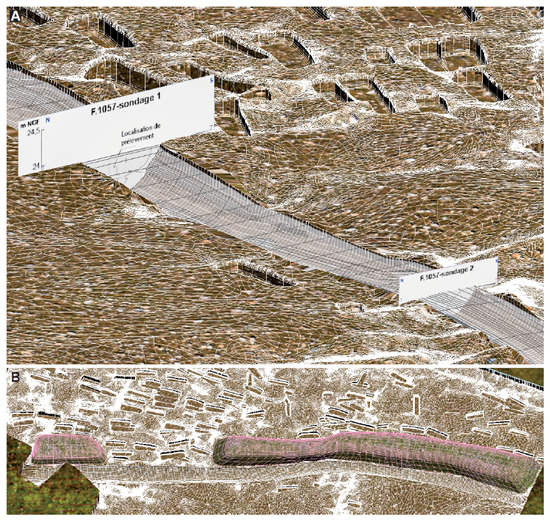

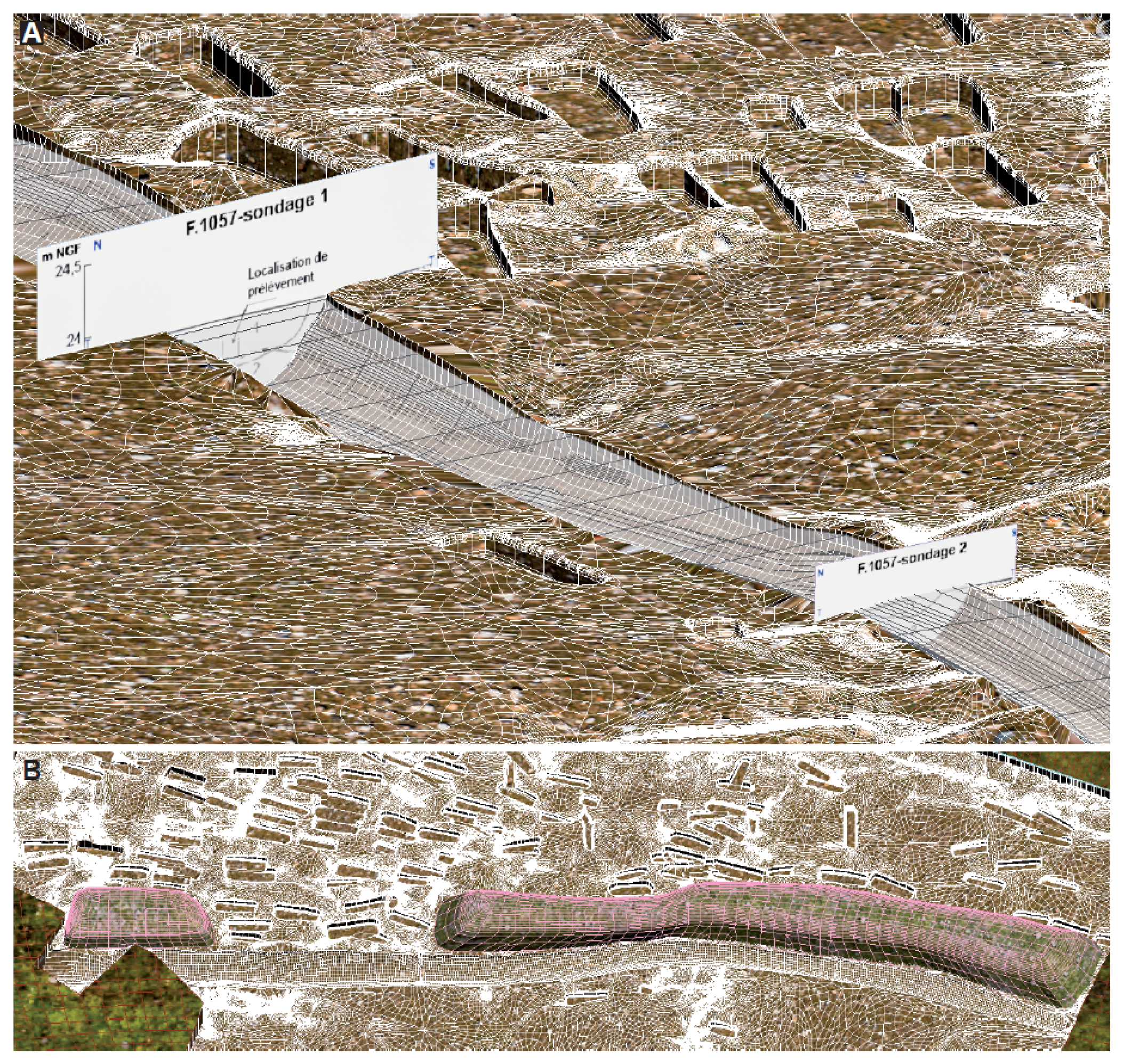

The ditch modeling was carried out by initially extruding the 3 vertical sections along its 2D surface originally drawn under QGIS. Due to the new integrations of recent retopology algorithms into the 3dsmax software, we applied the Quadriflow algorithm [62] to the resulting volume to make it clean, easy to use and obtain a relevant estimate of 115.23 m3. Given the complexity of the mesh of the “bottom of form” terrain, the Boolean operation of digging like those of the tombs could not be carried out. Hand-cutting of the 2D surface on the “bottom of form” mesh and a union with the bottom of the extruded volume of the ditch content resulted in a satisfactory result (Figure 6A). The embankment to the south was restored from the strata of the ditch fill and the observation of the presence of an empty space 3–4 m wide immediately north of this structure, the last vestige of a possible embankment in the cemetery. The ditch has a rounded to ‘V’ profile, with a maximum width of 2 m and a depth of 50 cm. It crosses the entire site from east to west, in the direction of the slope, for nearly 49 m. Several stratigraphic units make up the fill, betraying regular maintenance of the sides. Traces of waterlogging (ferro-manganic concretions, white marbled orange coloration, etc.) indicate a rather open, collector-type operation, probably to collect water (Figure 6B). The reconstruction of the edge embankment was carried out with an extrusion of its 2D limits, also originally drawn under QGIS, which then underwent a “turbosmooth” shaking and smoothing. Its volume from 115.23 × 1.25 = 144.04 m3 was obtained geometrically by adjusting its vertical scale to obtain the correct value indicated by the 3dsmax measure utility (Figure 6B).

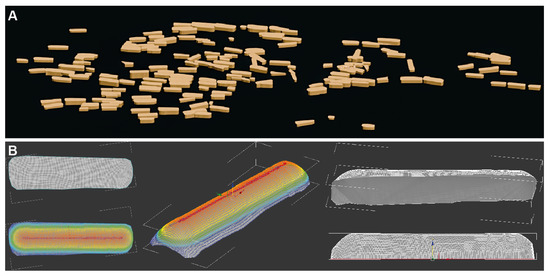

The 3D reconstruction of the mounds was the most time-consuming step of this work because its automation was too complex to implement due to the variety of forms of the tombs. For each of the 174 polygons illustrating the contours of the graves, we extruded them downwards to the minimum altitude of the corresponding head-basin-foot points (Figure 7A). We then retopologized these same contours by applying the Quadriflow algorithm [63] to mesh them strongly. We then selected a longitudinal slice of vertex with the soft selection tool [64] to bulge the shape. This slice selection had to be made visually to best match the shape of the graves. To obtain a closed volume, we used the “cap” tool [65] on the lower edge, flattened the resulting face with the “make planar” tool along Z and lowered this polygon to the minimum altitude of the border (Figure 7B). Finally, we rescaled this mesh resulting along Z, so that its volume corresponds to that calculated theoretically by the formula mentioned above.

2.5. Data and Geostatic Confrontation

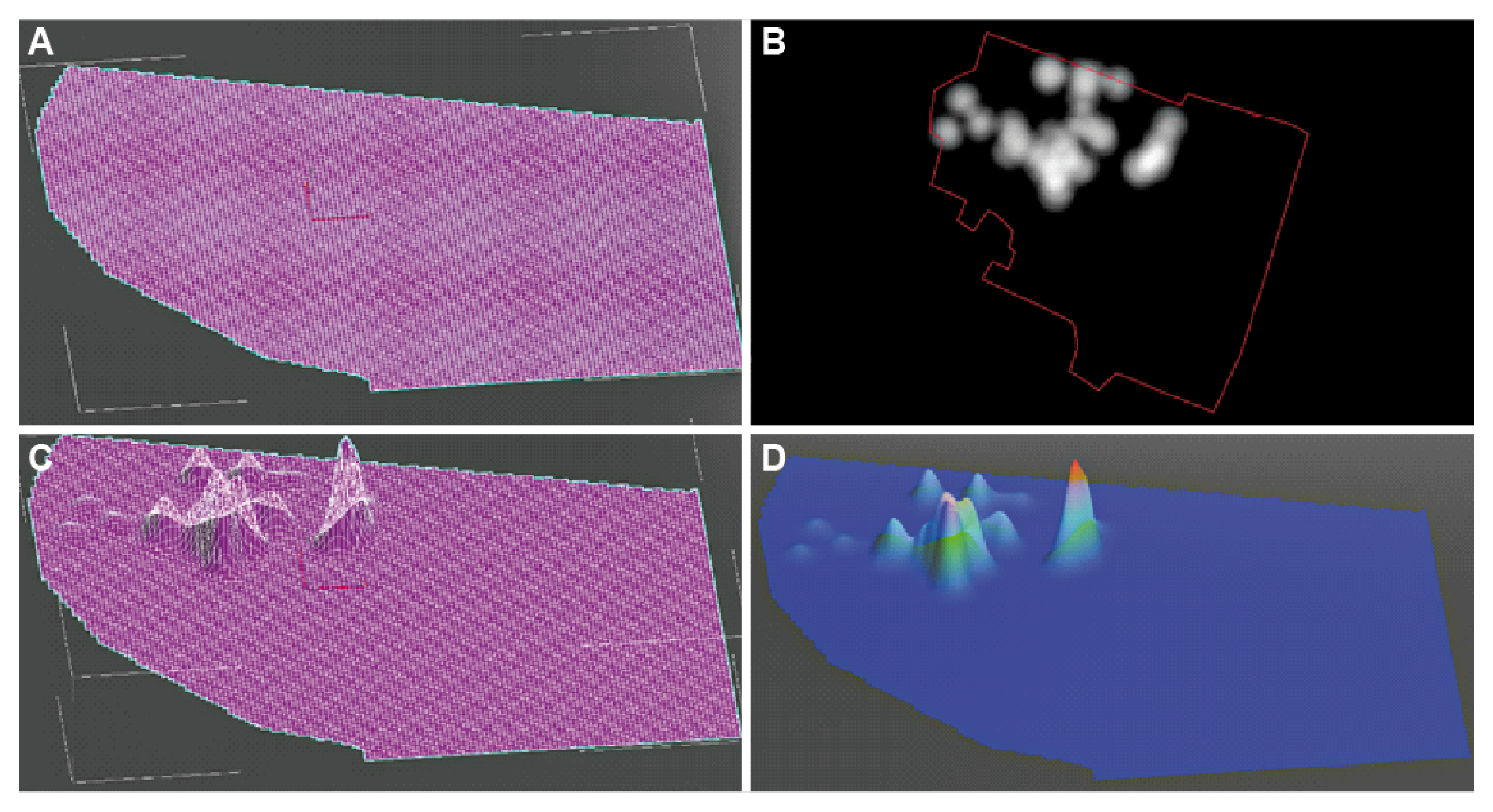

The creation of 3D heatmaps was done by finely retopologizing [63] a plane (Figure 8A), then applying a displace modifier (Figure 8C) [56] from a black and white image produced by QGIS with an outline for recalibration on site (Figure 8B). Extensive scaling was done to clearly distinguish the concentrations, including the lowest. The heights thus represent only a concentration level based on the highest and lowest. This volumetric representation has the advantage of a quick reading of the concentration levels when the 3D camera is at human height, and regardless of its position. We also applied, using a planar UVW Map modifier, a material with a gradient on the diffuse map and a smooth opaque opacity map (Figure 8D). Three heatmaps were carried out to represent distributions for artifacts, individuals under 15 years of age and individuals in secondary positions.

3. Results: Towards a Restitution of the Invisible

3.1. The 3D Tool for Landscape Description

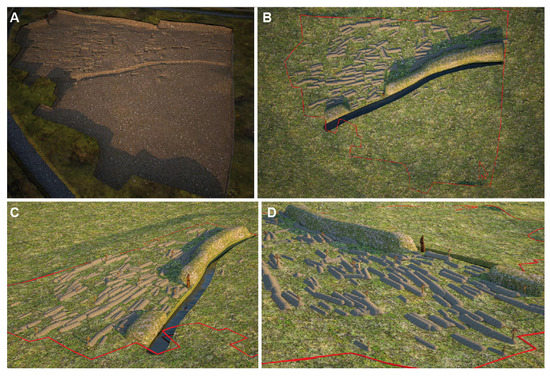

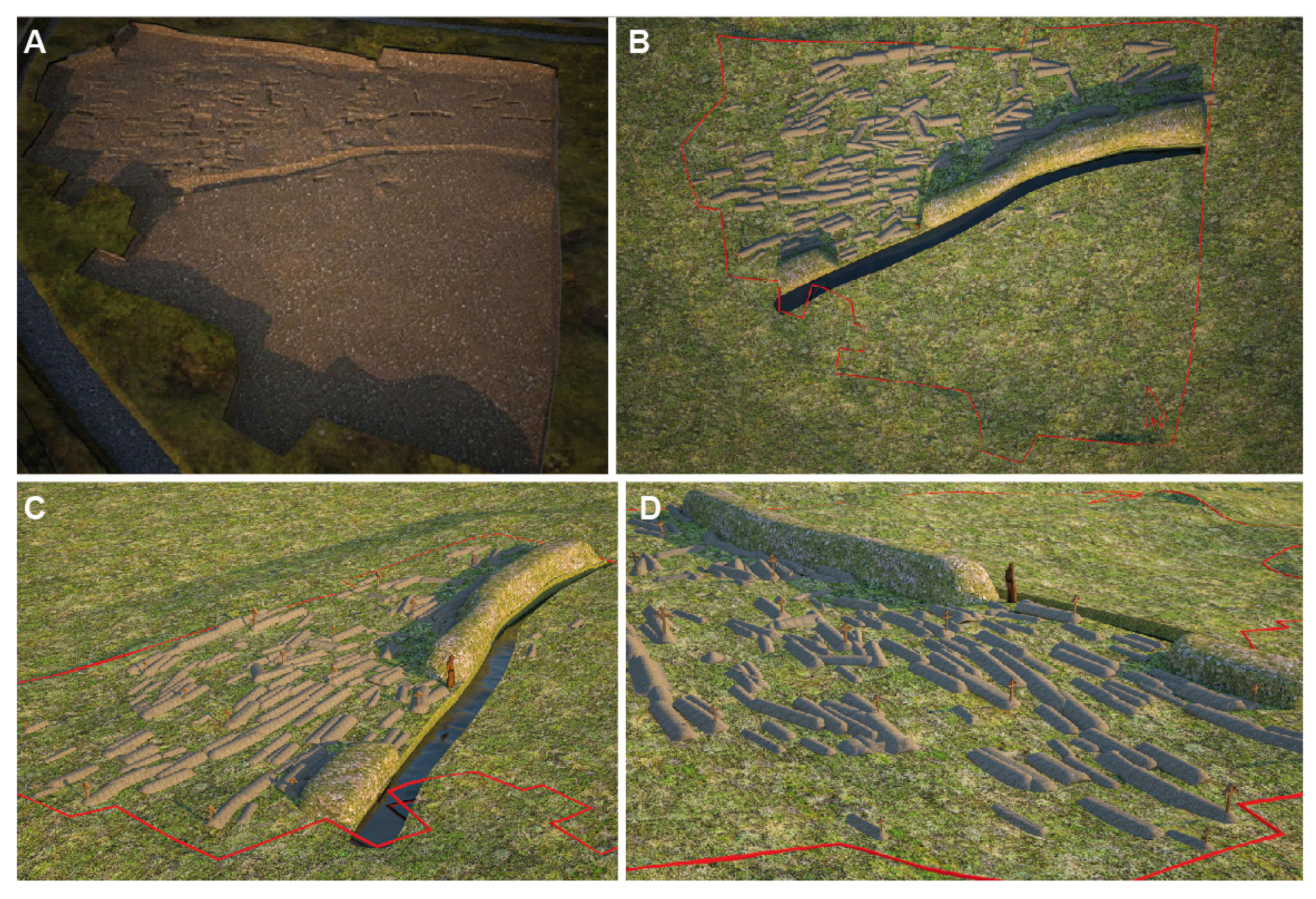

The first numerical model of the “bottom of form” terrain allowed a visualization of the site at the time of the archaeological excavation (Figure 9A). It represents the appearance of the substrate after mechanical stripping and the bottom of the sepulchral pits. It is already an interpretive document compared to a snapshot seen from the sky since it allowed one to select the graphic information. Here, only the remains belonging to the occupation phase of the cemetery were selected. The tombs were well delineated topographically to the north of the ditch. Only three pits, resuming somewhat of its orientation, were present immediately to the south. Secondly, and in the absence of preserved superstructures, the restoration of the alto-medieval soil level was only achievable from 3D tools (Figure 9B–D). The position of the tombs, the calculation of their total volume and the stratigraphic reading of their fills makes it possible to propose more or less important stone and soil mounds.
Some liturgical crosses indicating the funerary mounds were added, although no archaeological element allowed us to affirm their presence except for two holes for wedging posts. Their morphology was reconstructed from later illustrations (15th century) [66].
The most popular areas were those where the mounds overlapped the most. The volumes of the mounds appeared more or less identical while their orientations, if the deposits aligned with the underlying excavation, were variable with a west/east dominant. This standardization of grave orientation reflects the will and beliefs of the living [34] where shifts can occur if gravediggers settle on the position of sunrise [67]. In addition to superstructures, empty spaces are identifiable, especially in the center of the area surrounded by mounds with divergent orientations (north/south) compared to the majority of tombs (west/east). An interruption of the edge embankment over a 10 m long section was also clearly visible. It could mark either (i) a chronology of deposits with later burials gradually colonizing the embankment, or (ii) a gateway to the cemetery with a crossing of the ditch, or (iii) a particular burial space, landlocked in the embankment. Finally, the large final volume of the embankment, thrown in its entirety north of the ditch, appeared to be disproportionate to the whole, suggesting that some of the sediments were stored elsewhere. However, despite the care given to the creation of this image, the spatial reading of the 3D representation of the cemetery can only reflect reality since it is only a fixed image of the landscape without the possibility of taking into account the centuries-old evolution of the site.

3.2. Subject Distribution (MNI) and Funeral Space Prioritization

The 213 subjects were divided into 140 primary and 73 secondary depots. Nine empty graves bore witness to the post-cemetery layouts. Overall, these changes were numerous, affecting more than one third of the subjects found (73/213 or 34%). The observed secondary deposits were not a true ossuary defined by clusters of bones whose relationship with each subject is forgotten [68]. These deposits were found (i) either in the fills of tombs with subjects in place; (ii) or in ancient tombs according to their shapes and dimensions but where no skeleton in place is preserved; (iii) or finally in archaeological structures not related to funeral events and later. Overall, they concentrated significantly in the northern area of the site, around and in a limestone sarcophagus and at the ditch interruption to a lesser extent (Figure 10A,B). The Moran’s secondary burial index attributed 18.6% of the variance explicable by nearby graves of less than 2 m (I = 0.186; p = 0.0005), it confirms that these aggregations were therefore neither random nor the result of chance. The establishment of these apparently messy deposits [69] arguably marks the most sought-after locations of the site with a greater breakdown of the premises and more burials in the same place. These places have the most attraction during the time of the site’s occupation. The use of limestone sarcophagi is quite rare on the site as it concerns only six subjects in the primary position (and seven secondary deposits), the bodies being mainly deposited either directly in the pits (34 individuals) or in wooden containers, presumably casings (74 individuals). The presence of sarcophagus can characterize prestigious topographical situations (i.e., interior of a cult building) that potentially mark spaces dedicated to the memory of the deceased belonging to a specific aristocratic group [70,71,72]. Their use and reuse by members of the same family have even been demonstrated through DNA [73]. The sarcophagi therefore have an important power of attraction. On the scale of a funeral complex, the spaces are highly codified and possess very different symbolic values from one place to another [28]. In Christian society, the care given to the future of the dead is not limited to that given to the body, the location of the tomb, its depth and its layout are also important social markers [29,30]. Like the theoretical model of central locations [74], the prioritization of spaces probably determines larger services, we were unable to understand the object at this stage of the results, especially for small concentrations observed at the rupture of the border embankment.

3.3. Reading the Concentration of Residual Finds

Apart from the secondary deposits, the location of the residual artefacts found in the tombs seemed to us an important element to observe the areas most frequented by the living, where objects are used, broken, forgotten and get lost. These are mostly ceramic shards (27 tombs), fragments of animal bones (6) and a few rare metal objects (8). Of the graves 16% contain them in their fills (35/213 subjects), which produces a background noise representing a diffuse occupation throughout the site. For the most part they are objects in the secondary position, or even residual in the tombs that show more attendance of the living on the graves than real funeral practices. Even the few shroud or clothing pins found come from fills. No burial structure contained all of these materials, but six of them contained two different types. We interpreted the presence of these objects as a witness to the fossilization of a subsynchronous level of circulation linked to domestic or ceremonial activities carried out on the surface in the cemetery, a level dismantled by the excavation of the tombs. The place where these artefacts were found also shows us probably the most used places, the places of passage for the living. Moreover, the distribution of these pits is not coincidental since the Moran’s index shows that more than 8% of the variance was explained by concentrations of finds within 3 m, aggregations that were not random (I = 0.0826; p = 0.01533). Topographically, two large concentrations spaced about ten meters apart (Figure 11A). (i) The most important was near the ditch interruption and about quarantine square meters. It characterized a batch of about ten pits where many subjects are in secondary deposits. (ii) The second center was also located on a dozen graves. These tombs were lined up against a more or less empty space of tombs of nearly 70 m². This second pole may outline an ancient square in the heart of the cemetery, resulting from the choice to preserve a place from the promiscuity of the graves for non-funeral activities (Figure 11B). Indeed, the historical or archaeological sources of later Christian burial practices clearly show the possible presence of a meeting place, places to preach and pray [28,75]. This coexistence between secular and funeral activities is also well documented in cemeteries in the Middle Ages, where they serve as both a public place, a market and a place of burial [76]. Funeral spaces in the Middle Ages are often considered areas of life and activity, as the historian Philippe Ariès reports, for example, where the ecclesiastical authorities between the 13th and 16th centuries even frequently had to forbid “any person from dancing in the cemetery, from playing any game; forbidden to mimes, jugglers, mask watchers, popular musicians, charlatans to do their suspicious trades there” [77]. Historical sources are less loquacious for the early Middle Ages, but the presence of these soil levels may indicate that these practices are well earlier. Indeed, without historical sources, the statistical 3D reading of the concentration of residual artefacts sheds new light on the organization of the burial space and reinforces the hypothesis of synchronous activities on the surface (circulation?) of the cemetery in some places.

3.4. The Organization of the Sepulchral Space by Age at Death

Children under the age of 5 are under-represented in the Olonne-sur-Mer sample, but the rest of the demographic corresponds to a rather natural mortality characteristic of pre-Jennerian parish cemeteries [13,78]. The absence or minimal lack of deficiency of the very young is a recurrent observation in archaeological bone collections [79]. Taphonomic arguments, conservation problems, depth of sepulchral pits or the specialization of spaces according to age at death are often mentioned to explain this phenomenon [9]. Here, the 44 subjects under the age of 15 concentrated significantly in the center of the field, around the empty space already observed previously, spread over several poles. More than 10% of the variance was explained by the search for distant neighbors within 2.5 m (Moran’s I = 0.1017; p = 0.0151) (Figure 12A,B). These positively correlated self-correlated aggregates suggest a restriction of certain burial spaces by age at death with children who are therefore not systematically buried with their respective families. It is interesting to note that on the periphery of these concentration zones and on the edge of the central empty space, some sepulchral pits had divergent orientations (north/south) compared to the majority of the population, buried west/east. This observation reinforces the determination of an important attractiveness of the place, since the subjects position graves in defiance of the liturgical rules in force.
In similar archaeological contexts, the tombs of the youngest are usually found in privileged places, around churches, under water gutters, sub stillicidio, these sites being considered sacred due to the sprinkling of water blessed by the roof [80,81,82,83]. In the absence of an identified building foundation, statistical reading of the distribution of children supports the interpretation of the use of this central empty space as genuine liturgical or meeting place for the living. This interpretation also helps to identify more central spaces than others, more favorable for services and offerings.

4. Discussion

The 3D reading coupled with the statistics of the site of Olonne-sur-Mer revealed an interesting archaeological grid, with strengths for the interpretation of spatial data but also weaknesses, especially because of the problems of a dynamic spatial reading. Indeed, the proposed representations accumulate the data recorded over six centuries and did not take into account the evolution of the landscape during the phased period. It is a limitation to keep in mind for the interpretation of spatial elements; possible changes in the vocation of space over time are perfectly possible. This is the case of the interruption observed in the border embankment and the installation of burials closer to the ditch at this location. Perhaps these tombs indicate a chronological underphasing not perceptible at the excavation with a change in the use of this place over time.
Raising the burial mounds and border ditch makes the visualization of a multisecular occupation easy and shows spatial inconsistencies. Although the volume of the embankment appeared disproportionate, it suggests that the soil excavated from the ditch was not entirely thrown up on its edges or that it was regularly maintained with successive digs that were not observed during the excavation. Spots of tombs seemed to sign intentional clusters of subjects, but the anarchical development of superstructures modeled on the variable orientations of the tombs dug into the ground probably did not represent the reality at the extreme end of the use of the cemetery. The burial mounds must have shrunk over time, some graves may have been lost in the collective memory, and the visible part of the tombs must have been more in harmony with each other. The question of the management of these constrained funerary spaces (because here circumscribed by a ditch) is certainly very important, contrary to open field cemeteries with a less durable use in time and without a defined spatial limit [84,85,86].

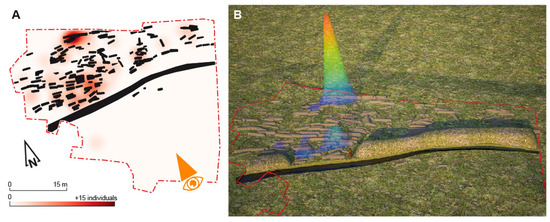

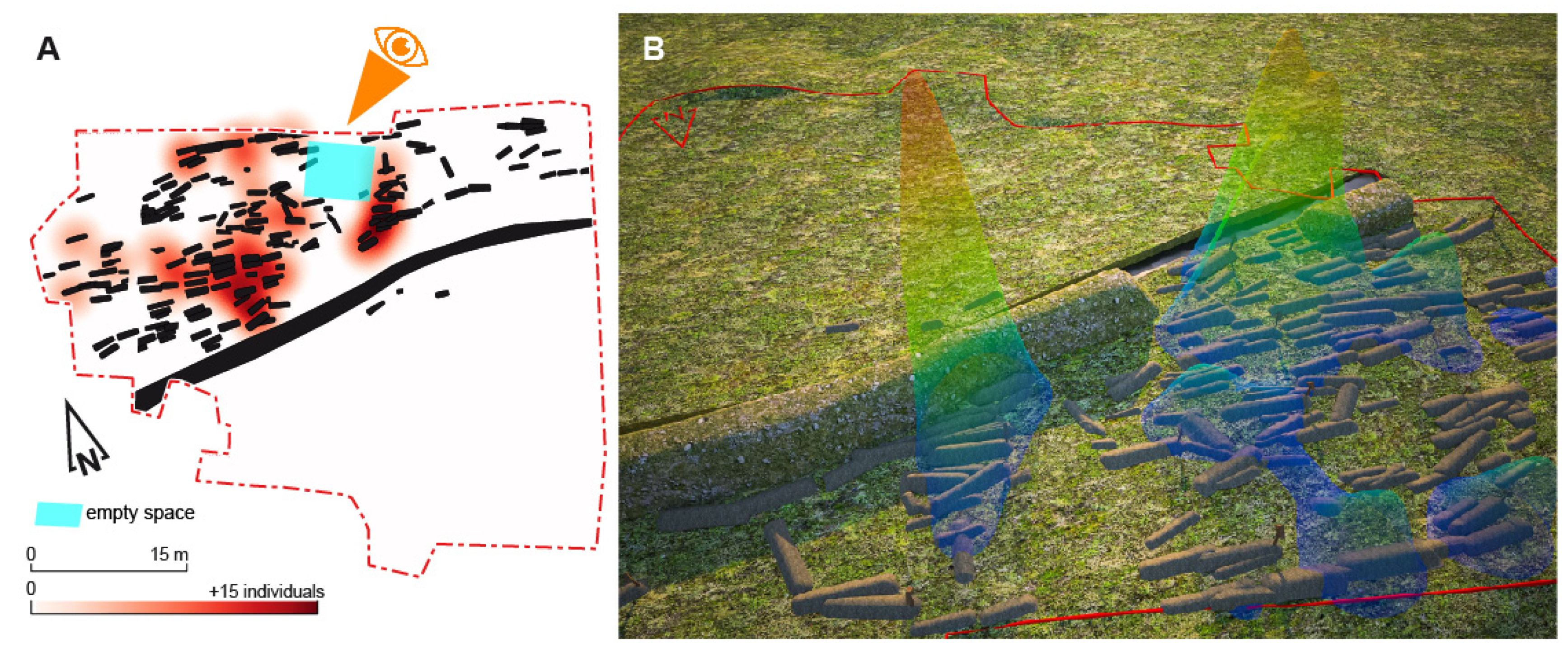

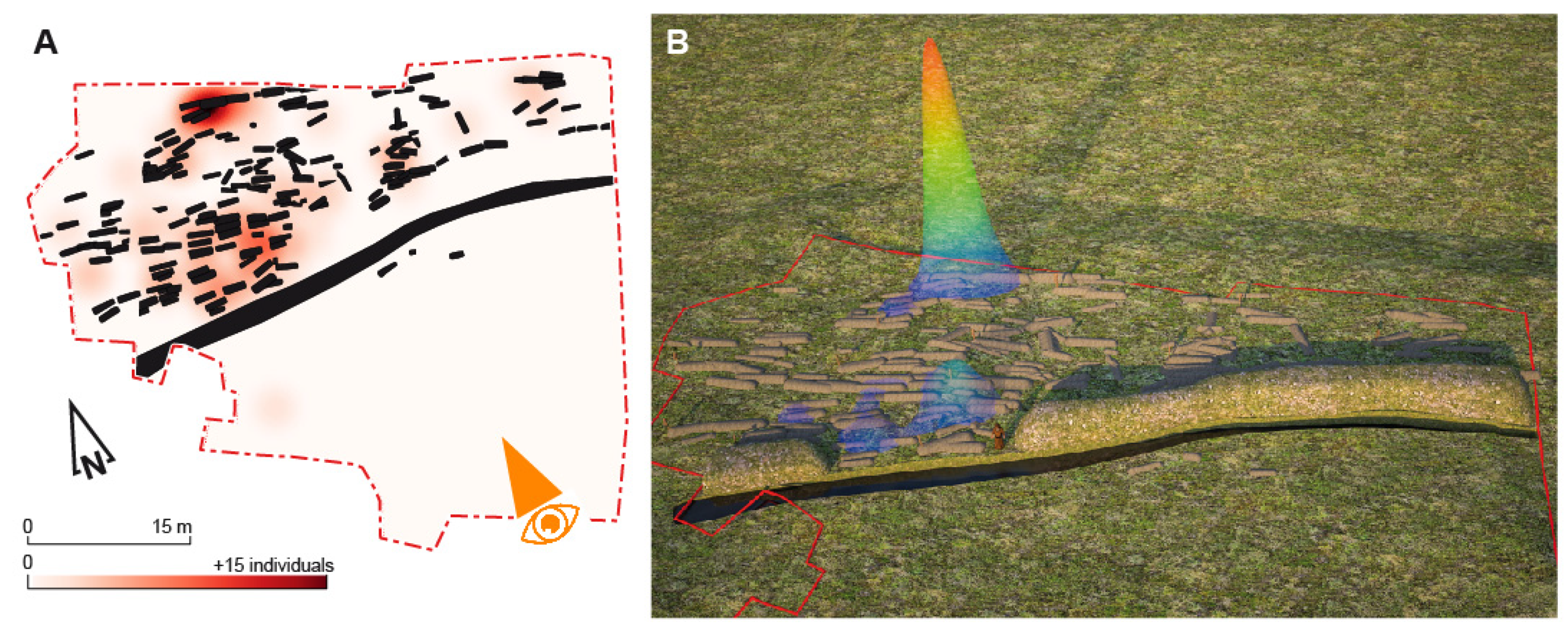

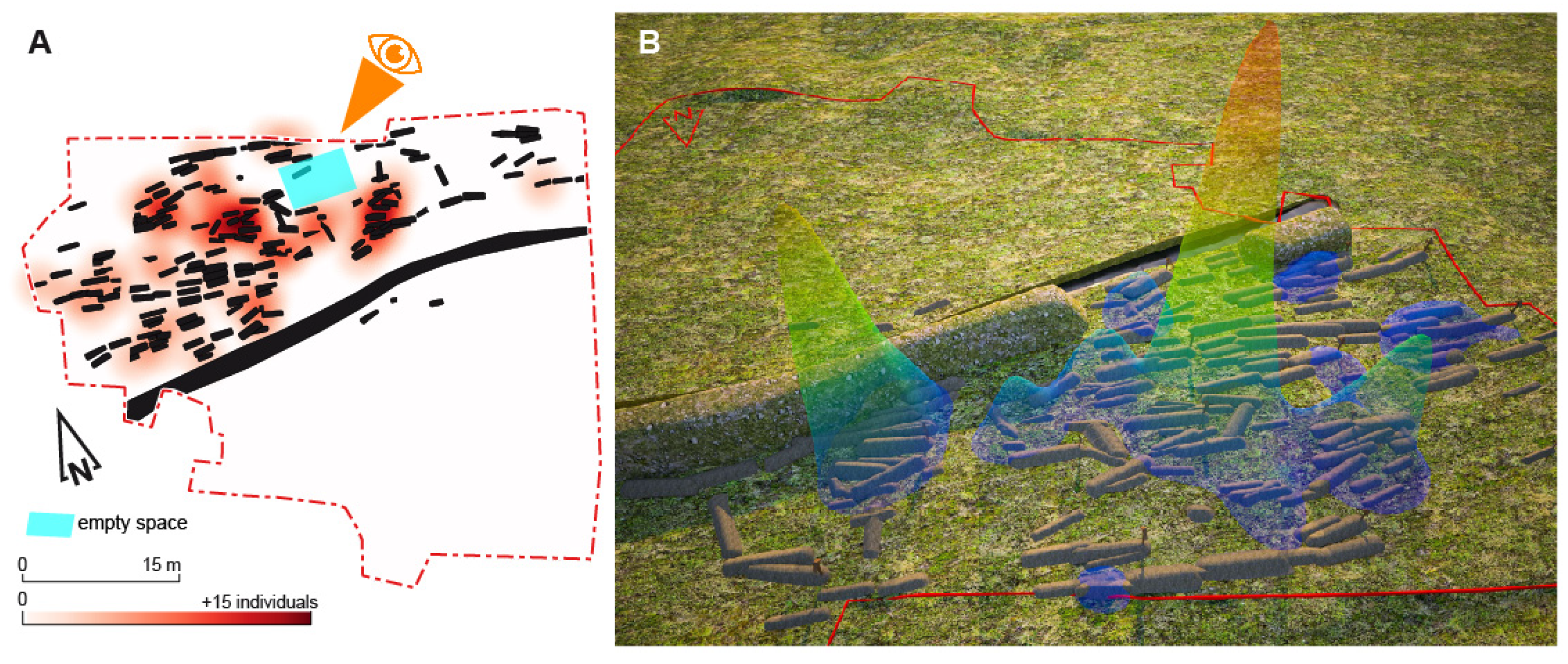

Blank spaces were undoubtedly visible (Figure 11A and Figure 12A), and the statistical analysis allowed us to propose a religious function (i.e., liturgical use as a place to preach) based on the identification of the most sought-after spaces for the dead (secondary and children’s burials) and the living (presence of residual furniture). The correlations observed from Moran’s index were low (between I = 0.18 and 0.08) and explained only a small proportion of the observations. Global and local of spatial autocorrelation analysis have been common in archaeology since the development of GIS, but is currently of limited use in anthropological studies [87,88,89,90]. While spatial data are always correlated with each other according to Tobler’s First Law of Geography [91,92,93], the Moran’s index represents one of the first developments for reading these correlations [51]. Here, the simplicity of the implementation of this statistical tool, without setting up polygonal geometry, confirms the contribution of this type of approach even if other methods such as HLC (historic landscape characterization) [94,95] or LICD (local indicators for categorical data) could certainly complete and validate the established results [90].
The showcasing of this 3D production to the general public is an aspect that we considered carefully. For this we were considering the use of virtual reality systems for the exploration of this environment, following the example of many other works [96,97]. For some years now, we have had some practice in the use of virtual reality [98,99], but because it belongs to the funerary domain, this type of site is particular and requires a pedagogical support beyond the simple illustration. Before anything else, we think that it is necessary to start an important reflection on what we can or cannot show to a public with heterogeneous sensibilities [100,101].

5. Conclusions

While reality-based 3D surveying and modeling is already widely used in archaeology to calculate precise surfaces, visualize, describe and share information with the public [102,103], their coupling with geostatic tools is still in its early stages in anthropobiology. Beyond the description, this method allows us to go beyond the simple characterization of the data by providing a real interpretation of the management of space by ancient populations. For the Olonne-sur-Mer site, the significant concentrations recorded around an empty space (residual artefacts and younger subjects) are an important argument for a probably liturgical use of this space as a place to preach. The interruption of the edge embankment and the multiple concentrations observed (residual artefacts and secondary deposits) testify to numerous passages and disturbances. These elements also support the interpretation of this space as a place of passage or entrance to the cemetery with a crossing of the ditch, which was not found during the excavation.
Confronting spatial, biological (age at death) and cultural (furniture in secondary position in the tombs) data allows us to test hypotheses of cemetery occupation in an innovative way. Mathematical indices (here Moran’s I) allow us to validate this holistic approach for relevant statistical results. The objective of validating or invalidating the hypotheses posed then allows for more detailed work on the archaeological populations, particularly when historical sources are not available [104]. Far from storytelling, these tools allow to support the reasoning by serendipity of archaeologists to reach real conclusions on the evolution of mentalities [27,28].

Author Contributions

Conceptualization, R.C. and J.-B.B.; methodology, R.C. and J.-B.B.; software J.-B.B.; validation, R.C. and J.-B.B.; formal analysis, R.C. and J.-B.B.; investigation, R.C.; resources, R.C.; data curation, R.C.; writing—original draft preparation, R.C. and J.-B.B.; writing—review and editing, R.C. and J.-B.B.; visualization, R.C. and J.-B.B.; supervision, R.C. and J.-B.B.; project administration, R.C.; funding acquisition, R.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research has received funding from the European Union’s Horizon 2020 research and innovation programme under the Marie Skłodowska-Curie grant agreement (No 897565).

Institutional Review Board Statement

Ethical review and approval were waived for archaeological human remains in accordance with French law. The archaeological excavation was the subject of an administrative authorization from the French state on September 14, 2018 (N°2018-714).

Informed Consent Statement

Not applicable.

Data Availability Statement

Human skeletons and all the documentation of the archaeological excavation (primary documentation and excavation report) are preserved by the Regional Archaeological Service of the Pays de la Loire, department of the Vendée, 1 rue Stanislas Baudry BP 63518, 44035 NANTES Cedex 1.

Acknowledgments

This work was supported by the French Regional Archaeology Service of Pays de la Loire (authorization 2018-714), the French National Institute for Preventive Archaeological Research, the UMR 6566 of CNRS and the Marie Sklodowska-Curie individual fellowship, AIDE project for Rozenn Colleter (grant 897565). We are grateful to the reviewers for their commentaries and Philip Miller for editing the English of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. The 14 Rue de la Paix, Olonne-sur-Mer graves characteristics.
Table A1. The 14 Rue de la Paix, Olonne-sur-Mer graves characteristics.
GraveLengthWidthDepthAgeDepositFuneral ArchitectureArea of DecompositionVolume of the Container/BodyCompacted vol. In SituMound VolumeTypeBlock
1150368kidPrimaryCoffinMixed0.2160.210.2685Containeryes
22204614adultPrimaryCoffinMixed0.40480.450.5173Containeryes
3200608adultPrimaryCoffinEmpty0.480.370.5725Containeryes
4163643kidPrimaryCoffinEmpty0.417280.20.46728Containerno
51704018adultPrimaryPitClogged0.0750.210.1275Adult bodyyes
6178633adultPrimaryUnknownUnknown0.0750.190.1225Adult bodyyes
780282kidPrimaryPitMixed0.0370.080.057Kid bodyno
8167421adultPrimaryUnknownUnknown0.0750.170.1175Adult bodyno
9164459kidPrimaryUnknownUnknown0.0370.180.082Kid bodyyes
101807024adultPrimaryCoffinMixed0.5040.220.559Containeryes
111946324adultPrimaryPitClogged0.0750.380.17Adult bodyno
121957012adultPrimaryCoffinEmpty0.5460.390.6435Containeryes
1356351kidPrimaryUnknownUnknown0.0370.080.057Kid bodyno
14160402adultPrimaryPitClogged0.0750.10.1Adult bodyno
15110402kidPrimaryPitMixed0.0370.160.077Kid bodyno
161756212adultPrimaryCoffinMixed0.4340.370.5265Containeryes
17176602adultPrimaryUnknownUnknown0.0750.180.12Adult bodyyes
181808030kidPrimaryCoffinEmpty0.5760.610.7285Containeryes
19210602adultPrimaryCoffinEmpty0.5040.290.5765Containeryes
202005816adultPrimaryPitClogged0.0750.230.1325Adult bodyyes
21164502noneEmptyUnknownEmpty0.3280.240.388Containerno
22345514kidPrimaryUnknownUnknown0.0370.160.077Kid bodyno
231707321adultPrimaryCoffinEmpty0.49640.160.5364Containerno
24100451adultPrimaryUnknownUnknown0.0750.090.0975Adult bodyno
2570502adultSecondaryPitClogged0.0750.050.0875Adult bodyno
262205214adultPrimaryCoffinEmpty0.45760.290.5301Containerno
2740403kidPrimaryUnknownUnknown0.0370.080.057Kid bodyno
28190604adultPrimaryPitClogged0.0750.250.1375Adult bodyyes
291605510adultPrimaryCoffinEmpty0.3520.230.4095Containeryes
302505530adultPrimaryPitMixed0.0750.290.1475Adult bodyyes
312007526adultPrimaryCoffinEmpty0.60.590.7475Containeryes
3260502adultSecondaryUnknownUnknown0.0750.050.0875Adult bodyyes
33170558adultPrimaryCoffinEmpty0.3740.240.434Containeryes
341806324adultPrimaryPitClogged0.0750.40.175Adult bodyyes
35100452kidPrimaryCoffinMixed0.180.080.2Containeryes
362108024adultSecondarySarcophagusEmpty0.6720.530.8045Containeryes
37223655adultPrimaryPitMixed0.0750.40.175Adult bodyno
38154405kidPrimaryCoffinEmpty0.24640.070.2639Containerno
39190555adultPrimaryUnknownUnknown0.0750.190.1225Adult bodyyes
401845610adultPrimarySarcophagusClogged0.412160.310.48966Containeryes
411885040adultPrimaryPitClogged0.0750.420.18Adult bodyyes
421785612adultPrimaryPitClogged0.0750.20.125Adult bodyyes
43130401adultPrimaryPitClogged0.0750.110.1025Adult bodyno
44130441adultPrimaryUnknownClogged0.0750.070.0925Adult bodyno
452166125adultPrimaryCoffinEmpty0.527040.50.65204Containerno
471956517adultPrimaryCoffinEmpty0.5070.390.6045Containeryes
48185659adultPrimaryPitClogged0.0750.130.1075Adult bodyno
491265624kidPrimaryCoffinEmpty0.282240.290.35474Containeryes
50180601adultSecondaryUnknownUnknown0.0750.10.1Adult bodyyes
51200705adultSecondarySarcophagusEmpty0.560.230.6175Containerno
521936015adultPrimaryCoffinEmpty0.46320.30.5382Containeryes
53100365kidPrimaryPitClogged0.0370.210.0895Kid bodyyes
5472303kidPrimaryUnknownUnknown0.0370.070.0545Kid bodyno
552066015adultPrimaryCoffinClogged0.0750.470.1925Adult bodyyes
5648377kidPrimaryUnknownUnknown0.0370.050.0495Kid bodyno
5780605adultPrimaryUnknownUnknown0.0750.090.0975Adult bodyno
58200602adultSecondarySarcophagusEmpty0.480.350.5675Containeryes
591857010adultPrimaryCoffinClogged0.0750.420.18Adult bodyyes
60185637adultPrimaryCoffinEmpty0.46620.230.5237Containerno
611435010kidPrimaryCoffinEmpty0.2860.170.3285Containerno
62190625adultSecondaryUnknownUnknown0.0750.570.2175Adult bodyyes
63175667adultSecondaryUnknownUnknown0.0750.540.21Adult bodyno
64133488kidPrimaryCoffinClogged0.0370.110.0645Kid bodyyes
65168505adultPrimaryPitClogged0.0750.140.11Adult bodyyes
66260503adultPrimaryCoffinEmpty0.520.250.5825Containeryes
67200634adultSecondaryUnknownUnknown0.0750.340.16Adult bodyyes
681905020adultPrimaryCoffinEmpty0.380.290.4525Containeryes
691635012adultPrimaryCoffinMixed0.3260.320.406Containeryes
70186684adultPrimaryPitEmpty0.505920.370.59842Containerno
7160456adultPrimaryUnknownClogged0.0750.040.085Adult bodyno
721905013adultPrimaryPitMixed0.0750.270.1425Adult bodyno
731206012kidPrimaryCoffinEmpty0.2880.230.3455Containeryes
74306012noneEmptyUnknownEmpty0.0720.030.0795Containeryes
752005540kidPrimaryCoffinEmpty0.440.590.5875Containeryes
761404810kidPrimaryCoffinEmpty0.26880.20.3188Containeryes
772105612adultPrimaryCoffinEmpty0.47040.290.5429Containerno
78174603adultPrimaryPitClogged0.0750.190.1225Adult bodyyes
79195643adultSecondaryUnknownUnknown0.0750.160.115Adult bodyyes
801976835adultPrimaryCoffinClogged0.0750.50.2Adult bodyyes
81200753adultSecondaryUnknownUnknown0.0750.330.1575Adult bodyyes
82200603adultSecondaryUnknownUnknown0.0750.280.145Adult bodyyes
831204511kidPrimaryUnknownClogged0.0370.150.0745Kid bodyyes
84115501kidPrimaryCoffinEmpty0.230.060.245Containeryes
852056613adultSecondaryUnknownUnknown0.0750.340.16Adult bodyyes
86260628adultSecondaryUnknownUnknown0.0750.340.16Adult bodyno
872087022adultSecondaryUnknownUnknown0.0750.60.225Adult bodyyes
881404423kidPrimaryPitClogged0.0370.260.102Kid bodyyes
89110453adultPrimaryUnknownEmpty0.1980.070.2155Containeryes
90146428kidPrimaryCoffinEmpty0.245280.140.28028Containeryes
912407726adultPrimaryPitEmpty0.73920.650.9017Containerno
92180601adultPrimaryUnknownUnknown0.0750.160.115Adult bodyyes
931366017adultPrimaryCoffinEmpty0.32640.250.3889Containeryes
9475502adultPrimaryPitClogged0.0750.10.1Adult bodyyes
952007518adultPrimaryCoffinEmpty0.60.440.71Containeryes
962007230adultPrimaryCoffinEmpty0.5760.580.721Containeryes
971706044adultSecondaryUnknownUnknown0.0750.630.2325Adult bodyyes
982458016adultPrimarySarcophagusEmpty0.7840.410.8865Containeryes
99158605noneEmptyUnknownEmpty0.37920.160.4192Containeryes
100120385kidSecondaryUnknownUnknown0.0370.090.0595Kid bodyyes
1011064512noneEmptyUnknownEmpty0.19080.090.2133Containeryes
102195702adultPrimaryCoffinEmpty0.5460.240.606Containeryes
1031233010kidPrimaryPitClogged0.0370.090.0595Kid bodyno
104190702adultPrimaryUnknownUnknown0.0750.210.1275Adult bodyno
1061936020adultPrimaryCoffinEmpty0.46320.210.5157Containeryes
1072054410adultPrimaryCoffinEmpty0.36080.130.3933Containeryes
1081984811adultPrimaryCoffinEmpty0.380160.230.43766Containeryes
109196635noneEmptyUnknownEmpty0.493920.320.57392Containeryes
11050349kidPrimaryCoffinEmpty0.0680.040.078Containeryes
1112308010adultSecondaryUnknownUnknown0.0750.270.1425Adult bodyno
1122505420adultPrimaryUnknownUnknown0.0750.490.1975Adult bodyyes
113200542noneEmptyUnknownEmpty0.4320.340.517Containeryes
114220632adultPrimaryCoffinEmpty0.55440.20.6044Containerno
115110327kidPrimaryPitClogged0.0370.10.062Kid bodyyes
1162107816adultPrimaryCoffinEmpty0.65520.40.7552Containeryes
1171805024adultPrimaryCoffinEmpty0.360.170.4025Containeryes
118236505adultSecondaryUnknownUnknown0.0750.230.1325Adult bodyno
1191876215adultPrimaryCoffinEmpty0.463760.180.50876Containeryes
1201867510adultPrimaryUnknownUnknown0.0750.110.1025Adult bodyyes
121656220adultPrimaryCoffinEmpty0.16120.030.1687Containeryes
1221995411adultPrimaryCoffinEmpty0.429840.270.49734Containeryes
123130608adultPrimaryCoffinEmpty0.3120.180.357Containerno
124151432adultPrimaryUnknownEmpty0.259720.10.28472Containeryes
1251956030adultPrimaryCoffinEmpty0.4680.360.558Containeryes
126804010adultPrimaryPitClogged0.0750.080.095Adult bodyyes
127120507kidPrimaryUnknownMixed0.0370.150.0745Kid bodyyes
128140688kidPrimaryUnknownUnknown0.0370.120.067Kid bodyyes
129707010adultPrimaryUnknownUnknown0.0750.080.095Adult bodyyes
130220552adultPrimaryUnknownUnknown0.0750.020.08Adult bodyyes
1312105528adultPrimaryPitEmpty0.4620.530.5945Containeryes
132180802adultPrimaryPitClogged0.0750.220.13Adult bodyyes
133704010kidPrimaryUnknownUnknown0.0370.050.0495Kid bodyno
134180507adultSecondaryUnknownEmpty0.360.230.4175Containeryes
135196602adultPrimaryUnknownEmpty0.47040.260.5354Containeryes
1361807010noneEmptyUnknownEmpty0.5040.280.574Containerno
1371404428kidPrimaryCoffinEmpty0.24640.110.2739Containeryes
138200505kidPrimaryUnknownUnknown0.0370.240.097Kid bodyyes
1392115017adultPrimaryCoffinEmpty0.4220.330.5045Containeryes
1402306030adultPrimaryCoffinEmpty0.5520.370.6445Containeryes
1412306620adultPrimaryPitClogged0.0750.290.1475Adult bodyyes
1421904416adultPrimaryCoffinEmpty0.33440.330.4169Containeryes
1432155516adultPrimaryCoffinEmpty0.4730.340.558Containeryes
14490405adultPrimaryCoffinEmpty0.1440.20.194Containeryes
1451854010adultPrimaryCoffinEmpty0.2960.160.336Containeryes
14670502adultPrimaryUnknownEmpty0.140.220.195Containerno
1471507710adultSecondaryUnknownUnknown0.0750.320.155Adult bodyyes
148140382noneEmptyUnknownEmpty0.21280.180.2578Containeryes
1491805620adultPrimaryCoffinEmpty0.40320.310.4807Containeryes
1501205720adultPrimaryCoffinEmpty0.27360.190.3211Containeryes
1512107325adultPrimaryCoffinEmpty0.61320.530.7457Containeryes
1521885516adultPrimaryCoffinEmpty0.41360.310.4911Containeryes
1531855014adultPrimaryCoffinEmpty0.370.170.4125Containeryes
1541804060adultPrimaryUnknownUnknown0.0750.120.105Adult bodyno
155160548adultPrimaryCoffinEmpty0.34560.210.3981Containeryes
1561507525kidPrimaryUnknownUnknown0.0370.220.092Kid bodyyes
1572205817adultPrimaryPitClogged0.0750.240.135Adult bodyyes
158220657adultPrimaryCoffinEmpty0.5720.490.6945Containeryes
1591737030kidPrimaryUnknownUnknown0.0370.250.0995Kid bodyyes
1602207116adultPrimaryCoffinEmpty0.62480.570.7673Containeryes
1611806030adultPrimaryCoffinEmpty0.4320.180.477Containeryes
1621504624kidPrimaryCoffinEmpty0.2760.220.331Containeryes
163180458adultPrimaryPitClogged0.0750.270.1425Adult bodyno
164165635kidPrimaryUnknownUnknown0.0370.30.112Kid bodyyes
1652205525adultPrimaryPitClogged0.0750.530.2075Adult bodyyes
1662308030adultSecondaryUnknownUnknown0.0750.950.3125Adult bodyyes
1672108010adultSecondarySarcophagusEmpty0.6720.30.747Containeryes
168806010adultPrimaryPitClogged0.0750.060.09Adult bodyyes
1691756025adultPrimaryCoffinEmpty0.420.20.47Containeryes
1701204018kidPrimaryCoffinEmpty0.1920.130.2245Containeryes
1711805020adultPrimaryPitClogged0.0750.250.1375Adult bodyyes
17290556adultPrimaryUnknownUnknown0.0750.210.1275Adult bodyyes
1731404520kidPrimaryCoffinEmpty0.2520.20.302Containeryes
17422065 noneEmptyUnknownEmpty0.5720.30.647Containerno

References

  1. Meyer-Heß, M.F. Identification of Archaeologically Relevant Areas Using Open Geodata. KN J. Cartogr. Geogr. Inf. 2020, 70, 107–125. [Google Scholar] [CrossRef]
  2. Canuto, M.A.; Estrada-Belli, F.; Garrison, T.G.; Houston, S.D.; Acuña, M.J.; Kováč, M.; Marken, D.; Nondédéo, P.; Auld-Thomas, L.; Castanet, C.; et al. Ancient lowland Maya complexity as revealed by airborne laser scanning of northern Guatemala. Science 2018, 361, eaau0137. [Google Scholar] [CrossRef] [Green Version]
  3. Inomata, T.; Pinzón, F.; Ranchos, J.L.; Haraguchi, T.; Nasu, H.; Fernandez-Diaz, J.C.; Aoyama, K.; Yonenobu, H. Archaeological Application of Airborne LiDAR with Object-Based Vegetation Classification and Visualization Techniques at the Lowland Maya Site of Ceibal, Guatemala. Remote Sens. 2017, 9, 563. [Google Scholar] [CrossRef] [Green Version]
  4. Chase, A.F.; Chase, D.Z.; Weishampel, J.F.; Drake, J.B.; Shrestha, R.L.; Slatton, K.C.; Awe, J.J.; Carter, W.E. Airborne LiDAR, archaeology, and the ancient Maya landscape at Caracol, Belize. J. Archaeol. Sci. 2011, 38, 387–398. [Google Scholar] [CrossRef]
  5. Wang, S.; Hu, Q.; Wang, F.; Ai, M.; Zhong, R. A Microtopographic Feature Analysis-Based LiDAR Data Processing Approach for the Identification of Chu Tombs. Remote Sens. 2017, 9, 880. [Google Scholar] [CrossRef] [Green Version]
  6. Evers, R.; Masters, P. The application of low-altitude near-infrared aerial photography for detecting clandestine burials using a UAV and low-cost unmodified digital camera. Forensic Sci. Int. 2018, 289, 408–418. [Google Scholar] [CrossRef] [Green Version]
  7. Poirier, N.; Hautefeuille, F.; Calastrenc, C. Low Altitude Thermal Survey by Means of an Automated Unmanned Aerial Vehicle for the Detection of Archaeological Buried Structures. Archaeol. Prospect. 2013, 20, 303–307. [Google Scholar] [CrossRef] [Green Version]
  8. Cochet, A. La Normandie Souterraine Ou Notice Sur des Cimetières Romains et Des Cimetières Francs Explorés En Normandie; Derache: Paris, France, 1855. [Google Scholar]
  9. Bonnabel, L. Archéologie de La Mort En France; La Découverte: Paris, France, 2012. [Google Scholar]
  10. Bowman, S. Interpreting the Past. In Radiocarbon Dating; University of California Press: Berkeley, CA, USA, 1990; ISBN 978-0-520-07037-0. [Google Scholar]
  11. Schoeninger, M.J.; Moore, K. Bone stable isotope studies in archaeology. J. World Prehistory 1992, 6, 247–296. [Google Scholar] [CrossRef]
  12. Handt, O.; Höss, M.; Krings, M.; Pääbo, S. Ancient DNA: Methodological challenges. Cell. Mol. Life Sci. 1994, 50, 524–529. [Google Scholar] [CrossRef] [PubMed]
  13. Hoppa, R.D.; Vaupel, J.W. Paleodemography: Age Distributions from Skeletal Samples; Cambridge University Press: Cambridge, UK, 2008; ISBN 978-1-139-44155-1. [Google Scholar]
  14. Colleter, R.; Bataille, C.P.; Dabernat, H.; Pichot, D.; Hamon, P.; Duchesne, S.; Labaune-Jean, F.; Jean, S.; Le Cloirec, G.; Milano, S.; et al. The Last Battle of Anne of Brittany: Solving Mass Grave through an Interdisciplinary Approach (Paleopathology, Biological anthropology, History, Multiple Isotopes and Radiocarbon Dating). bioRxiv 2021. [Google Scholar] [CrossRef]
  15. Duday, H.; Cipriani, A.; Pearce, J. The Archaeology of the Dead: Lectures in Archaeothanatology; Oxbow Books: Oxford, UK; Oakville, ON, Canada, 2009. [Google Scholar] [CrossRef]
  16. Metcalf, P.; Huntington, R. Celebrations of Death: The Anthropology of Mortuary Ritual; Cambridge University Press: Cambridge, UK, 1995; ISBN 978-0-521-42375-5. [Google Scholar]
  17. Haglund, W.D.; Sorg, M.H. Advances in Forensic Taphonomy: Method, Theory, and Archaeological Perspectives; CRC Press: Boca Raton, FL, USA, 2001; ISBN 978-1-4200-5835-2. [Google Scholar]
  18. Duday, H. Archaeothantology or the Archaeology of Death. In The Social Archaeology of Funerary Remains; Oxbow Books: Oxford, UK, 2009; pp. 30–56. ISBN 978-1-78297-270-9. [Google Scholar]
  19. Kazanski, M.; Périn, P.; Vallet, F. L’Or des Princes Barbares: Du Caucase à la Gaule, Ve siècle après J.-C.: [expositions] Musée des antiquités nationales, Château de Saint-Germain-en-Laye, 26 septembre 2000-8 janvier 2001, Reiss-Museum Mannheim, 11 février-4 juin 2001; Éditions de la Réunion des Musées Nationaux: Paris, France, 2000; ISBN 978-2-7118-3660-4. [Google Scholar]
  20. Holliday, V.T.; Gartner, W.G. Methods of soil P analysis in archaeology. J. Archaeol. Sci. 2007, 34, 301–333. [Google Scholar] [CrossRef]
  21. Cowley, D. Remote Sensing for Archaeological Heritage Management. In Proceedings of the 11th EAC Heritage Management Symposium, Reykjavík, Iceland, 25–27 March 2010; Europae Archaeologia Consilium: Brussel, Belgium, 2011; Volume 5, ISBN 978-963-9911-20-8. [Google Scholar]
  22. Bayliss, A. Anglo-Saxon Graves and Grave Goods of the 6th and 7th Centuries AD: A Chronological Framework; Routledge: London, UK, 2017; ISBN 978-1-351-57646-8. [Google Scholar]
  23. Steckel, R.H. What Can Be Learned from Skeletons that Might Interest Economists, Historians, and Other Social Scientists? Am. Econ. Rev. 2003, 93, 213–220. [Google Scholar] [CrossRef]
  24. Allentoft, M.E.; Sikora, M.; Sjögren, K.-G.; Rasmussen, S.; Rasmussen, M.; Stenderup, J.; Damgaard, P.D.B.; Schroeder, H.; Ahlström, T.; Vinner, L.; et al. Population genomics of Bronze Age Eurasia. Nat. Cell Biol. 2015, 522, 167–172. [Google Scholar] [CrossRef] [PubMed]
  25. Margaryan, A.; Lawson, D.J.; Sikora, M.; Racimo, F.; Rasmussen, S.; Moltke, I.; Cassidy, L.M.; Jørsboe, E.; Ingason, A.; Pedersen, M.W.; et al. Population genomics of the Viking world. Nat. Cell Biol. 2020, 585, 390–396. [Google Scholar] [CrossRef]
  26. Testart, A. Les Morts d’accompagnement. La Servitude Volontaire I; Errance: Paris, France, 2004. [Google Scholar]
  27. Crubézy, É.; Nikolaeva, D. Vainqueurs Ou Vaincus? L’énigme de La Iakoutie; Odile Jacob: Paris, France, 2017; ISBN 978-2-7381-3791-3. [Google Scholar]
  28. Colleter, R. Pratiques Funéraires, Squelettes et Inégalités Sociales. Étude d’un Echantillon des Elites Bretonnes à l’Époque Moderne. Ph.D. Thesis, Université Paul Sabatier Toulouse III, Toulouse, France, 2018. [Google Scholar]
  29. Croix, A. La Bretagne Aux XVIe et XVIIe Siècles. La vie, La Mort, La Foi; Maloine: Paris, France, 1981. [Google Scholar]
  30. Vovelle, M. La Mort et l’Occident. De 1300 à Nos Jours. In Bibliothèque des Histoires, Série illustrée; Gallimard: Paris, France, 2000. [Google Scholar]
  31. Pearson, M.P. The Archaeology of Death and Burial; Sutton Publishing Ltd.: Glouchestershire, UK, 1999; ISBN 978-0-7509-1777-3. [Google Scholar]
  32. Colleter, R.; Chauveau, C.; Coffineau, E.; Cotté, O.; Deloze, V.; Hinguant, S.; Labaune-Jean, F.; Leboucher, F.; Peytremann, E. Du Cimetière du Haut Moyen Âge au Bourg Prioral: Olonne-sur-Mer (85), 14 Rue de la Paix. Volume 1, Texte et Inventaire; Inrap Grand-Ouest: Cesson-Sévigné, France, 2020; p. 337. [Google Scholar]
  33. Noterman, A.; Cervel, M. Ritualiser, Gérer, Piller. Rencontre Autour des Réouvertures de Tombes et de La Manipulation Des Ossements. Actes de La 9e Rencontre Du Gaaf, 10–12 Mai 2017, Poitiers; Publications du Gaaf: Poitiers, France, 2020. [Google Scholar]
  34. Lorans, E. Le monde des morts de l’Antiquité tardive à l’époque moderne (IVe-XIXe s.). In Archéologie Funéraire; Ferdière, A., Ed.; Éditions Errance: Paris, France, 2000; pp. 155–197. [Google Scholar]
  35. Crubézy, É.; Duday, H.; Sellier, P.; Tillier, A.-M. Anthropologie et Archéologie: Dialogue Sur Les Ensembles Funéraires. Bull. Mémoires Société Anthropologie Paris 1990, 2, 5–12. [Google Scholar]
  36. Duday, H. L’archéothanatologie ou l’archéologie de la mort. In Objets et Méthodes en Paléoanthropologie; Comité des Travaux Historiques et Scientifique: Paris, France, 2005; pp. 153–207. [Google Scholar]
  37. Colleter, R.; Romain, J.-B.; Barreau, J.-B. HumanOS: An open source nomadic software database for physical anthropology and archaeology. Virtual Archaeol. Rev. 2020, 11, 94–105. [Google Scholar] [CrossRef]
  38. Duday, H.; Courtaud, P.; Crubezy, É.; Sellier, P.; Tillier, A.-M. L’Anthropologie «de terrain»: Reconnaissance et interprétation des gestes funéraires. Bull. Mém. Soc. d’Anthropol. Paris 1990, 2, 29–49. [Google Scholar] [CrossRef]
  39. Schmitt, A. Une nouvelle méthode pour estimer l’âge au décès des adultes à partir de la surface sacro-pelvienne iliaque. Bull. Mém. Soc. Anthropol. Paris 2005, 17, 89–101. [Google Scholar]
  40. Lovejoy, C.O. Dental wear in the Libben population: Its functional pattern and role in the determination of adult skeletal age at death. Am. J. Phys. Anthr. 1985, 68, 47–56. [Google Scholar] [CrossRef] [PubMed]
  41. Lovejoy, C.O.; Meindl, R.S.; Mensforth, R.P.; Barton, T.J. Multifactorial determination of skeletal age at death: A method and blind tests of its accuracy. Am. J. Phys. Anthr. 1985, 68, 1–14. [Google Scholar] [CrossRef] [PubMed]
  42. Moorrees, C.F.; Fanning, E.A.; Hunt, E.E. Age Variation of Formation Stages for Ten Permanent Teeth. J. Dent. Res. 1963, 42, 1490–1502. [Google Scholar] [CrossRef]
  43. Moorrees, C.F.A.; Fanning, E.A.; Hunt, E.E. Formation and resorption of three deciduous teeth in children. Am. J. Phys. Anthr. 1963, 21, 205–213. [Google Scholar] [CrossRef]
  44. Stloukal, M.; Hanàkovà, M. Die Längeder Langsknocher Altawisher Bevölkerungen Unter Besonderer Berücksichtigung von Wachstum Fragen. Homo 1978, 29, 53–59. [Google Scholar]
  45. Birkner, R. L’image Radiologique Typique du Squelette: Aspect Normal et Variantes chez l’Adulte et l’Enfant; pour Médecins, Etudiants et Manipulateurs; Maloine: Paris, France, 1980; ISBN 2-224-00568-7. [Google Scholar]
  46. Owings Webb, P.A.; Myers Suchey, J. Epiphyseal Union of the Anterior Iliac Cret and Medial Clavicule in a Modern Multiracial Sample of American Males and Females. Am. J. Phys. Anthropol. 1985, 68, 457–466. [Google Scholar] [CrossRef]
  47. Sellier, P. L’estimation de l’âge des foetus et des enfants morts en période périnatale: Une révision de Fazekas et Kosa (1978). In Proceedings of the Croissance et Vieillissement, Actes du 21 ème Colloque du Groupement des Anthropologistes de Langue Française, Bordeaux, France, 13–15 May 1993. [Google Scholar]
  48. Sellier, P.; Tillier, A.-M.; Bruzek, J. A la recherche d’une référence pour l’estimation de l’âge des foetus, nouveau-nés et nour-rissons des populations archéologiques européennes. Anthropol. Préhistoire 1997, 108, 75–87. [Google Scholar]
  49. Scheuer, L.; Black, S.M. Developmental Juvenile Osteology; Academic Press: San Diego, CA, USA, 2000; ISBN 0-12-624000-0. [Google Scholar]
  50. Oliveau, S. Autocorrélation spatiale: Leçons du changement d’échelle. L’Espace Géographique 2010, 39, 51–64. [Google Scholar] [CrossRef]
  51. Moran, P.A.P. The Interpretation of Statistical Maps. J. R. Stat. Soc. Ser. B 1948, 10, 243–251. [Google Scholar] [CrossRef]
  52. Guisan, A.; Thuiller, W.; Zimmermann, N.E. Habitat Suitability and Distribution Models with Applications in R; Cambridge University Press: Cambridge, UK, 2017. [Google Scholar]
  53. Sillero, N.; Gomes, V. Living in clusters: The local spatial segregation of a lizard community. Basic Appl. Herpetol. 2016, 30, 61–75. [Google Scholar] [CrossRef] [Green Version]
  54. Simon, F.J.V. DEMto3D, Impresión 3D de Modelos Del Terreno. Available online: https://demto3d.com/ (accessed on 8 February 2021).
  55. Halstead, M.; Kass, M.; Derose, T. Efficient, fair interpolation using Catmull-Clark surfaces. In Proceedings of the 20th annual conference on Computer graphics and interactive techniques—SIGGRAPH ’93, Anaheim, CA, USA, 9–13 August 1993; pp. 35–44. [Google Scholar]
  56. Baojun, W.; Bin, S.; Zhen, S. A simple approach to 3D geological modelling and visualization. Bull. Int. Assoc. Eng. Geol. 2009, 68, 559–565. [Google Scholar] [CrossRef]
  57. Diana, A. Edge Chamfering Algorithm. Master’s Thesis, Institute of Computer Science Computer Science Curriculum, University of Tartu, Tartu, Estonia, 2018. [Google Scholar]
  58. Barreau, J.-B.; Gaugne, R.; Olivier, A.-H.; Llinares, S.; Gouranton, V. Reconstitution de la vie à bord d’un navire de la Compagnie des Indes orientales au xviiie siècle. In Situ 2020. [Google Scholar] [CrossRef]
  59. Barreau, J.-B.; Colleter, R. Virtualanthropy: Towards an Open-Source Tool for the Visualization of 2D Anthropology Images Positioned In 3D. Open Access J. Arch. Anthropol. 2020, 2, 3. [Google Scholar]
  60. Betoux, J. Les Terrassements: Première Partie (Suite); Revue Générale des Routes et des Aérodromes: Paris, France, 1979. [Google Scholar]
  61. Delfaut, A. Méthode d’évaluation Des Hauteurs de Montée d’un Fontis En Sol Meuble. Bull. Lab. Ponts Chaussées 2007, 20, 3–22. [Google Scholar]
  62. Goujou, J.-C.; Debrand-Passard, S.; Hantzpergue, P.; Lebret, P. Carte Géologique de La France à 1/50000, Notice de La Feuille des Sables d’Olonne/Longeville (584); Editions du BRGM: Orléans, France, 1994. [Google Scholar]
  63. Huang, J.; Zhou, Y.; Niessner, M.; Shewchuk, J.R.; Guibas, L.J. QuadriFlow: A Scalable and Robust Method for Quadrangulation. Comput. Graph. Forum 2018, 37, 147–160. [Google Scholar] [CrossRef]
  64. Schuh, A.; Dutailly, B.; Nogueira, D.C.; Santos, F.; Arensburg, B.; Vandermeersch, B.; Coqueugniot, H.; Tillier, A.-M. La Mandibule de l’adulte Qafzeh 25 (Paléolithique Moyen), Basse Galilée. Reconstruction Virtuelle 3D et Analyse Morphométrique. Paléorient 2017, 43, 49–59. [Google Scholar] [CrossRef]
  65. Sabati, Z.; Bernik, A.; Jovanovska, D. 3D Modelling Functions and Algorithms. In Proceedings of the Central European Conference on Information and Intelligent Systems, Varazdin, Croatia, 22–24 September 2010; pp. 327–334. [Google Scholar]
  66. Alexandre-Bidon, D. Images du cimetière chrétien au Moyen Age. In Archéologie du Cimetière Chrétien—Actes du 2e Colloque ARCHEA (Orléans, 29 septembre–1er octobre 1994); Galinié, H., Zadora-Rio, E., Eds.; 11e supplément à la Revue Archéologique de Centre de la France—Conseil Régional du Centre: Paris, France, 1996; pp. 79–93. [Google Scholar]
  67. Rahtz, P. Grave Orientation. Archaeol. J. 1978, 135, 1–14. [Google Scholar] [CrossRef]
  68. Blaizot, F. L’apport des méthodes de la paléo-anthropologie funéraire à l’interprétation des os en situation secondaire dans les nécropoles historiques—Problèmes relatifs au traitement et à l’interprétation des amas d’ossements. Archéologie Médi Eacute Val. 1996, 26, 1–22. [Google Scholar] [CrossRef]
  69. Duday, H. Notes et Documents—Observations Ostéologiques et Décomposition Du Cadavre: Sépulture Colmatée Ou Espace Vide. Rev. Archéologique Cent. Fr. 1990, 29, 193–196. [Google Scholar] [CrossRef]
  70. Salin, Édouard Les tombes gallo-romaines et mérovingiennes de la basilique de Saint-Denis (fouilles de janvier-février 1957). Mémoires Inst. Natl. Fr. 1960, 44, 169–264. [CrossRef]
  71. Périn, P.; Calligaro, T.; Buchet, L.; Cassiman, J.J.; Darton, Y.; Gallien, V.; Poirot, J.P.; Rast, A.; Rücker, C.; Vallet, F. La Tombe d’Arégonde. Nouvelles analyses en laboratoire du mobilier métallique et des restes organiques de la défunte du sarcophage 49 de la basilique de Saint-Denis. Antiq. Natl. 2005, 37, 181–206. [Google Scholar]
  72. Jouneau, D.; Colleter, R.; Gryspeirt, N.; Rolland, N.; Guillon, M. Mise en terre et mise en pierre dans le cimetière de Saint-Crespin: Diversité du sarcophage à Romilly-sur-Andelle (Eure). In Les Sarcophages de l’Antiquité tardive et du haut Moyen Age: Fabrication, Utilisation, Diffusion; Cartron, I., Henrion, F., Scuiller, C., Eds.; Suppl. Aquitania: Bordeaux, France, 2015; Volume 34, pp. 361–378. [Google Scholar]
  73. Deguilloux, M.; Pemonge, M.; Mendisco, F.; Thibon, D.; Cartron, I.; Castex, D. Ancient DNA and kinship analysis of human remains deposited in Merovingian necropolis sarcophagi (Jau Dignac et Loirac, France, 7th–8th century AD). J. Archaeol. Sci. 2014, 41, 399–405. [Google Scholar] [CrossRef]
  74. Christaller, W. Die zentralen Orte in Süddeutschland: Eine ökonomisch-geographische Untersuchung über die Gesot-zmässigkeit der Verbreitung und Entwicklung der Siedlungen mit städtischen Funktionen; Gustav Fischer: Jena, Germany, 1933. [Google Scholar]
  75. Zadora-Rio, E.; Galinié, H. Les changements dans l’organisation spatiale du cimetière paroissial de Rigny, Indre-et-Loire, (XIe/XIIe—XIXe siècle). In Archéologie du Cimetière Chrétien—Actes du 2e Colloque A.R.C.H.E.A. (Orléans, 29 septembre-1er octobre 1994); Galinié, H., Zadora-Rio, E., Eds.; 11e supplément à la Revue Archéologique de Centre de la France—Conseil Régional du Centre: Tours, France, 1996; pp. 172–182. [Google Scholar]
  76. Boissavit-Camus, B.; Zadora-Rio, E. L’organisation spatiale des cimetières paroissiaux. In Archéologie du Cimetière Chrétien—Actes du 2ème Colloque A.R.C.H.E.A. Orléans, 29 septembre-1er octobre 1994; Galinié, H., Zadora-Rio, E., Eds.; 11e supplément à la Revue Archéologique de Centre de la France—Conseil Régional du Centre: Tours, France, 1996; pp. 49–53. [Google Scholar]
  77. Ariès, P. L’homme Devant La Mort; Editions du Seuil: Paris, France, 1977. [Google Scholar]
  78. Séguy, I.; Buchet, L.; Belaigues-Rossard, M.; Couvert, N.; Perraut, C.; Beurmier, P.; Bringé, A. Tables-Types de Mortalité Pour Les Populations Pré-Industrielles et Leurs Applications En Paléodémographie. In Proceedings of the XXVe Congrès International de la Population de l’UIESP, Tours, France, 18–23 July 2005; pp. 1–17. [Google Scholar]
  79. Castex, D. Identification and Interpretation of Historical Cemeteries Linked to Epidemics. In Paleomicrobiology: Past Human Infections; Raoult, D., Drancourt, M., Eds.; Springer: Berlin/Heidelberg, Germany, 2008; pp. 23–48. ISBN 978-3-540-75855-6. [Google Scholar]
  80. Ligou, D. L’Évolution Des Cimetières. Arch. Sci. Soc. Relig. 1975, 20, 61–77. [Google Scholar] [CrossRef]
  81. Treffort, C. L’Eglise Carolingienne et la Mort: Christianisme, Rites Funéraires et Pratiques Commémoratives; Collection d’Histoire et d’Archéologie Médiévales; Presses Universitaires de Lyon: Lyon, France, 1996; ISBN 2-7297-0558-9. [Google Scholar]
  82. Colleter, R.; Le Boulanger, F.; Pichot, D. Église, Cimetière et Paroissiens. Bréal-sous-Vitré (Ille-et-Vilaine), Etude Historique, Archéologique et Anthropologique (VIIe-XVIIIe siècle); Archéologie Aujourd’hui; Errance: Paris, France, 2012; ISBN 978-2-87772-490-6. [Google Scholar]
  83. Melilli, V. Sepolture in Chiesa e sub Stillicidio in età Medievale. La Toscana Settentrionale (V-XV secolo). Ph.D. Thesis, Universita di Pisa, Pisa, Italy, 2019. [Google Scholar]
  84. Colleter, R. Les Cimetières Mérovingiens en Mayenne (VIe—VIIe siècle) La Mayenne: Archèologie, Histoire Suppl; Soc. d’Archéologie et d’Histoire de la Mayenne: Laval, France, 2003; ISBN 978-2-913201-03-3. [Google Scholar]
  85. Urlacher, J.-P.; Passard-Urlacher, F.; Gizard, S. Saint-Vit Les Champs Traversains—Doubs—Nécropole Mérovingienne, VIe-VIIe Siècle Ap. J.-C. et Enclos Protohistorique, IXe-Ve Siècle Av.J.-C.; Presses Universitaires de Franche-Comté: Besançon, France, 2009. [Google Scholar]
  86. Legoux, R. La Nécropole Mérovingienne de Bulles (Oise); Mémoires de l’Association Française d’archéologie Mérovingienne: Saint-Germain-en-Laye, France, 2011; Volume 2, ISBN 978-2-9524032-9-0. [Google Scholar]
  87. Fletcher, R. Some spatial analyses of Chalcolithic settlement in Southern Israel. J. Archaeol. Sci. 2008, 35, 2048–2058. [Google Scholar] [CrossRef]
  88. Carrer, F. Interpreting Intra-site Spatial Patterns in Seasonal Contexts: An Ethnoarchaeological Case Study from the Western Alps. J. Archaeol. Method Theory 2015, 24, 303–327. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  89. Bachagha, N.; Wang, X.; Luo, L.; Li, L.; Khatteli, H.; Lasaponara, R. Remote sensing and GIS techniques for reconstructing the military fort system on the Roman boundary (Tunisian section) and identifying archaeological sites. Remote Sens. Environ. 2020, 236, 111418. [Google Scholar] [CrossRef]
  90. Carrer, F.; Kossowski, T.M.; Wilk, J.; Pietrzak, M.B.; Bivand, R.S. The application of Local Indicators for Categorical Data (LICD) to explore spatial dependence in archaeological spaces. J. Archaeol. Sci. 2021, 126, 105306. [Google Scholar] [CrossRef]
  91. Tobler, W.R. A Computer Movie Simulating Urban Growth in the Detroit Region. Econ. Geogr. 1970, 46, 234. [Google Scholar] [CrossRef]
  92. Anselin, L. Spatial Econometrics: Methods and Models; Kluwer Academic Publishers: Boston, MA, USA, 1988. [Google Scholar]
  93. Getis, A. A History of the Concept of Spatial Autocorrelation: A Geographer’s Perspective. Geogr. Anal. 2008, 40, 297–309. [Google Scholar] [CrossRef]
  94. Turner, S. Historic Landscape Characterisation: A landscape archaeology for research, management and planning. Landsc. Res. 2006, 31, 385–398. [Google Scholar] [CrossRef]
  95. Herring, P.C. Framing Perceptions of the Historic Landscape: Historic Landscape Characterisation (HLC) and Historic Land-Use Assessment (HLA). Scott. Geogr. J. 2009, 125, 61–77. [Google Scholar] [CrossRef]
  96. Medyńska-Gulij, B.; Zagata, K. Experts and Gamers on Immersion into Reconstructed Strongholds. ISPRS Int. J. Geo-Inform. 2020, 9, 655. [Google Scholar] [CrossRef]
  97. Büyüksalih, G.; Kan, T.; Özkan, G.E.; Meriç, M.; Isın, L.; Kersten, T.P. Preserving the Knowledge of the Past Through Virtual Visits: From 3D Laser Scanning to Virtual Reality Visualisation at the Istanbul Çatalca İnceğiz Caves. PFGJ. Photogramm. Remote Sens. Geoinform. Sci. 2020, 88, 133–146. [Google Scholar] [CrossRef]
  98. Barreau, J.-B.; Gaugne, R.; Bernard, Y.; Le Cloirec, G.; Gouranton, V. Virtual reality tools for the west digital conservatory of archaeological heritage. In Proceedings of the Proceedings of the 2014 Virtual Reality International Conference ACM, Laval, France, 9–11 April 2014; pp. 1–4. [Google Scholar]
  99. Barreau, J.-B. Techniques de Production, d’Exploration et d’Analyse d’Environnements Archéologiques Virtuels. Ph.D. Thesis, INSA, Rennes, France, 2017. [Google Scholar]
  100. Memmi, D. Le corps mort dans l’histoire des sensibilités. Communications 2015, 97, 131–145. [Google Scholar]
  101. Colleter, R.; Adèle, P.-A. Les restes humains archéologiques en France: Entre objets de science et sujets de droit. Can. J. Bioeth. 2019, 2, 97–108. [Google Scholar] [CrossRef] [Green Version]
  102. Remondino, F. Heritage Recording and 3D Modeling with Photogrammetry and 3D Scanning. Remote Sens. 2011, 3, 1104–1138. [Google Scholar] [CrossRef] [Green Version]
  103. Barsanti, S.G.; Remondino, F.; Visintini, D. 3D Surveing and Modeling of Archaeological Sites—Some Critical Issues. ISPRS Ann. Photogramm. Remote. Sens. Spat. Inf. Sci. 2013, II-5/W1, 145–150. [Google Scholar] [CrossRef] [Green Version]
  104. Colleter, R.; Dabernat, H.; Aubert, G.; Duchesne, S.; Dedouit, F.; Mokrane, F.-Z.; Telmon, N.; Crubézy, É. Avec ou sans hypothèse? Qu’attendre de la paléoépidémiologie? Exemple à partir de l’étude d’un couvent breton des ordres mendiants. In Archéologie de La Santé, Anthropologie Du Soin, (La Découverte, Inrap); La Découverte: Paris, France, 2019; pp. 145–158. [Google Scholar]
Figure 1. (A) Location of the French city of Olonne-sur-Mer; (B) Location of the graves and the ditch at the south; (C) Drone photography of the digging site.
Figure 1. (A) Location of the French city of Olonne-sur-Mer; (B) Location of the graves and the ditch at the south; (C) Drone photography of the digging site.
Remotesensing 13 01688 g001
Figure 2. Process of creating the numerical “bottom of form” field model from survey points. (A) survey point recorded in the field; (B) raster generated from survey points; (C) 3D model.
Figure 2. Process of creating the numerical “bottom of form” field model from survey points. (A) survey point recorded in the field; (B) raster generated from survey points; (C) 3D model.
Remotesensing 13 01688 g002
Figure 3. (AD) Four steps in the process of rebuilding a grave; (E) Wired mesh of the “bottom of form” with the tombs north of the embankment.
Figure 3. (AD) Four steps in the process of rebuilding a grave; (E) Wired mesh of the “bottom of form” with the tombs north of the embankment.
Remotesensing 13 01688 g003
Figure 4. (A,B) A dummy’s head-to-head positioning process in burial 114 to position the bottom more precisely; (C) Stylized 3D view of the same process in progress on burials 104, 105, 110, 114, 115, 122, 123, 125, 126, 136, 170 and 174; (D,E) Integrating photos taken on-site with Virtualanthropy software.
Figure 4. (A,B) A dummy’s head-to-head positioning process in burial 114 to position the bottom more precisely; (C) Stylized 3D view of the same process in progress on burials 104, 105, 110, 114, 115, 122, 123, 125, 126, 136, 170 and 174; (D,E) Integrating photos taken on-site with Virtualanthropy software.
Remotesensing 13 01688 g004
Figure 5. (A) Creating the surface DTM from Geoportail data; (B) rendering a 3D topographical framework of the site prior to the excavation.
Figure 5. (A) Creating the surface DTM from Geoportail data; (B) rendering a 3D topographical framework of the site prior to the excavation.
Remotesensing 13 01688 g005
Figure 6. 3dsmax viewport showing the reconstruction of the border embankment. (A) digging the edge ditch on the mesh; (B) return of the volume of the ditch.
Figure 6. 3dsmax viewport showing the reconstruction of the border embankment. (A) digging the edge ditch on the mesh; (B) return of the volume of the ditch.
Remotesensing 13 01688 g006
Figure 7. (A) Reconstruction of pit volumes; (B) steps in the process of reconstructing the mounds.
Figure 7. (A) Reconstruction of pit volumes; (B) steps in the process of reconstructing the mounds.
Remotesensing 13 01688 g007
Figure 8. The process of creating a 3D heatmap in 3dsmax. (A) Fine retopologization of the plane intended to undergo the displace modifier; (B) black and white image used for the displace, with contour for recalibration on site; (C) application of the displace modifier; (D) application of a material with a gradient (diffuse map) and an opacity map using a planar UVW map modifier.
Figure 8. The process of creating a 3D heatmap in 3dsmax. (A) Fine retopologization of the plane intended to undergo the displace modifier; (B) black and white image used for the displace, with contour for recalibration on site; (C) application of the displace modifier; (D) application of a material with a gradient (diffuse map) and an opacity map using a planar UVW map modifier.
Remotesensing 13 01688 g008
Figure 9. (A) The “bottom of form” DTM. The graves are concentrated north of the border ditch; (B) Zenithal and northwest view of the “funeral mound” DTM graves of different orientations are concentrated north of the bordering ditch; (C,D) View from the west and northwest of the burial mound DTM.
Figure 9. (A) The “bottom of form” DTM. The graves are concentrated north of the border ditch; (B) Zenithal and northwest view of the “funeral mound” DTM graves of different orientations are concentrated north of the bordering ditch; (C,D) View from the west and northwest of the burial mound DTM.
Remotesensing 13 01688 g009
Figure 10. Heatmap representing the concentrations of individuals in secondary positions. Heat map in plan (A) and 3D (B). The eye indicates the direction angle for the 3D restitution.
Figure 10. Heatmap representing the concentrations of individuals in secondary positions. Heat map in plan (A) and 3D (B). The eye indicates the direction angle for the 3D restitution.
Remotesensing 13 01688 g010
Figure 11. Concentration of all residual artefacts in the tombs. Heat map in plan (A) and 3D (B). The eye indicates the direction angle for the 3D restitution.
Figure 11. Concentration of all residual artefacts in the tombs. Heat map in plan (A) and 3D (B). The eye indicates the direction angle for the 3D restitution.
Remotesensing 13 01688 g011
Figure 12. Heatmap for children under the age of 15. Heat map in plan (A) and 3D (B). The eye indicates the direction angle for the 3D restitution.
Figure 12. Heatmap for children under the age of 15. Heat map in plan (A) and 3D (B). The eye indicates the direction angle for the 3D restitution.
Remotesensing 13 01688 g012
Table 1. Results of the nearest neighbor analysis algorithm obtained with QGIS [53].
Table 1. Results of the nearest neighbor analysis algorithm obtained with QGIS [53].
Acquisition MethodObserved Mean DistanceExpected Mean DistanceNearest Neighbour IndexNumber of PointsZ-Score
Topographic points0.2460.4740.5193684−55.803
Geoportail7.3670142,943.904421,772,222.02
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Colleter, R.; Barreau, J.-B. 3D Reconstruction and Geostatic Analysis of an Early Medieval Cemetery (Olonne-sur-Mer, France). Remote Sens. 2021, 13, 1688. https://doi.org/10.3390/rs13091688

AMA Style

Colleter R, Barreau J-B. 3D Reconstruction and Geostatic Analysis of an Early Medieval Cemetery (Olonne-sur-Mer, France). Remote Sensing. 2021; 13(9):1688. https://doi.org/10.3390/rs13091688

Chicago/Turabian Style

Colleter, Rozenn, and Jean-Baptiste Barreau. 2021. "3D Reconstruction and Geostatic Analysis of an Early Medieval Cemetery (Olonne-sur-Mer, France)" Remote Sensing 13, no. 9: 1688. https://doi.org/10.3390/rs13091688

APA Style

Colleter, R., & Barreau, J. -B. (2021). 3D Reconstruction and Geostatic Analysis of an Early Medieval Cemetery (Olonne-sur-Mer, France). Remote Sensing, 13(9), 1688. https://doi.org/10.3390/rs13091688

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
