Channel Evolution Triggered by Large Flash Flood at an Earthquake-Affected Catchment

Abstract

Earthquakes–induced landslides generally provide abundant loose materials at hillslopes, possibly triggering morphological reshaping processes at river channels and riverbeds during the large flash flood hydrograph and bringing huge risk downstream. Therefore, in a Wenchuan earthquake-affected catchment, the collected hydro-meteorological data and high-precision small Unmanned Aerial Vehicle (sUAV) data were used to quantitatively analyze channel evolution by a large flash flood event on 25 and 26 June 2018. It was found that the stable riverbed structure formed by the armour layer appeared in the tenth year after the Wenchuan earthquake. In a confined channel, the layer can protect the channel and resist the drastic change after the flash flood event with only a small bed elevation from 0.2 m to 2 m. Without the protection of the armour, the change could reach 6 m in the unconfined channel. Meanwhile, more materials with a deposition volume of about 7450 m³ from tributaries were generally taken to the main channel, and more intense erosion with a volume of 10⁵ m³ mostly occurred downstream of tributaries. It was noted that, in the cross-section, the increased channel width could lead to a significant change with the large volume of 35 m³. Additionally, a conceptual diagram of the generalized channel response to large flash floods was provided during multi-stage periods after the Wenchuan earthquake. It determined the rebalance processes of channel evolution in the tenth year after the earthquake. This study will contribute to understanding the post-earthquake long-term channel evolutions and could provide decision-makers of assessing the mitigation strategies for higher-magnitude flood disasters triggered by channel change in earthquake-affected watersheds.

1. Introduction

Earthquakes often generate landslides with an uplift of the surface and increase the loose debris on the watershed slopes [1,2]. Earthquake-triggered landslides remain confined to hillslopes at first, and subsequent downslope sediment transport occurs from hillslopes into the channel network during storm-triggered landslides, debris flows, and flash floods as episodic sediment pulses [3]. Over decadal periods, the loose materials migrate from the hillslope towards the channel [4], thus inducing significant river topographic disturbance and rapidly changing riverbed material textures [5]. The change of channel might increase the flood runoff volume and peak discharge and decrease the time to peak discharge leading to a huge risk downstream [6]. After concentrated debris flows following an earthquake, the mass transport triggered by subsequent flash floods will be the most common event in the earthquake-affected area and can repeatedly interrupt the channel’s gradual recovery [7,8].

Flash floods are one of the most dangerous natural hazards in mountainous regions, which are generally triggered by extreme precipitation, or by a sudden release of water due to a dam break [9,10]. Extreme rainfall events are the common cause of flash floods worldwide. Numerous studies have documented that extreme floods induce geomorphological channel changes and fluvial landscape development [11,12], such as widening the channel [13,14] and changes in channel patterns due to erosion and deposition [15,16]. A range of methods has been used to analyze the geomorphic responses to large floods, including the reconstruction of the hydrological event [17], analysis of hydraulic flood variables [14,18], mapping of loose deposits [19], transportation of deposits [20] and quantification of channel changes using field or remotely-sensed data [21,22,23,24]. Based on the previous research [21], high-quality and quantitative morphological change indicators that relate to and integrate various data sources and methods could provide a deep analysis of the hydrodynamic condition of channel changes. The development of small Unmanned Aerial Vehicles (sUAV) provides an opportunity for quantifying geomorphic response to flash floods and provides more detailed and rapid data to be retrieved on morphological responses in the channel [21].

Previous studies suggested that channels with different geometries respond differently to hydrodynamic conditions [25,26]. According to the classification system given by Montgomery and Buffington [27], different scales reflect differences in processes and controls on channel morphology: geomorphic province, watershed, valley segment, channel reach, and channel unit scales. Specifically, the geomorphic province helps distinguish watersheds subject to similar hydrologic, erosional, and tectonic processes [27]. And the watershed level and segment scale were used to classify hillslope, colluvial and alluvial valleys by the relationship between drainage area and slope [28,29]. Furthermore, the system’s behavior at the valley segment level could provide insight into the spatial linkages, including the coupling stages and sediment transportation between different segments, which govern watershed response to disturbance and the capacity of sediment supply and transport [30,31,32,33]. Significant research has focused on the classification of the valley at the watershed scale. However, few studies have quantitatively considered the different geomorphic changes that might occur in different valley segments within the same watershed.

This study utilized sUAV and ground surveys to analyze the channel evolution due to a large flash flood that occurred on 25 and 26 June 2018. The sUAV survey aimed to identify the impact of flash floods on the catchment-wide transportation of co-seismic material and subsequent channel evolution since the 2008 Ms8.0 Wenchuan Earthquake. The objectives of this paper include: (1) quantify the channel evolution by the large flash flood within an earthquake-affected catchment; (2) evaluate the influence of post-earthquake coarsening layer, channel width, and tributaries on channel changes after a flash flood; (3) understand the post-earthquake long-term channel evolution triggered by large flash floods in an earthquake-affected watershed.

2. Materials and Methods

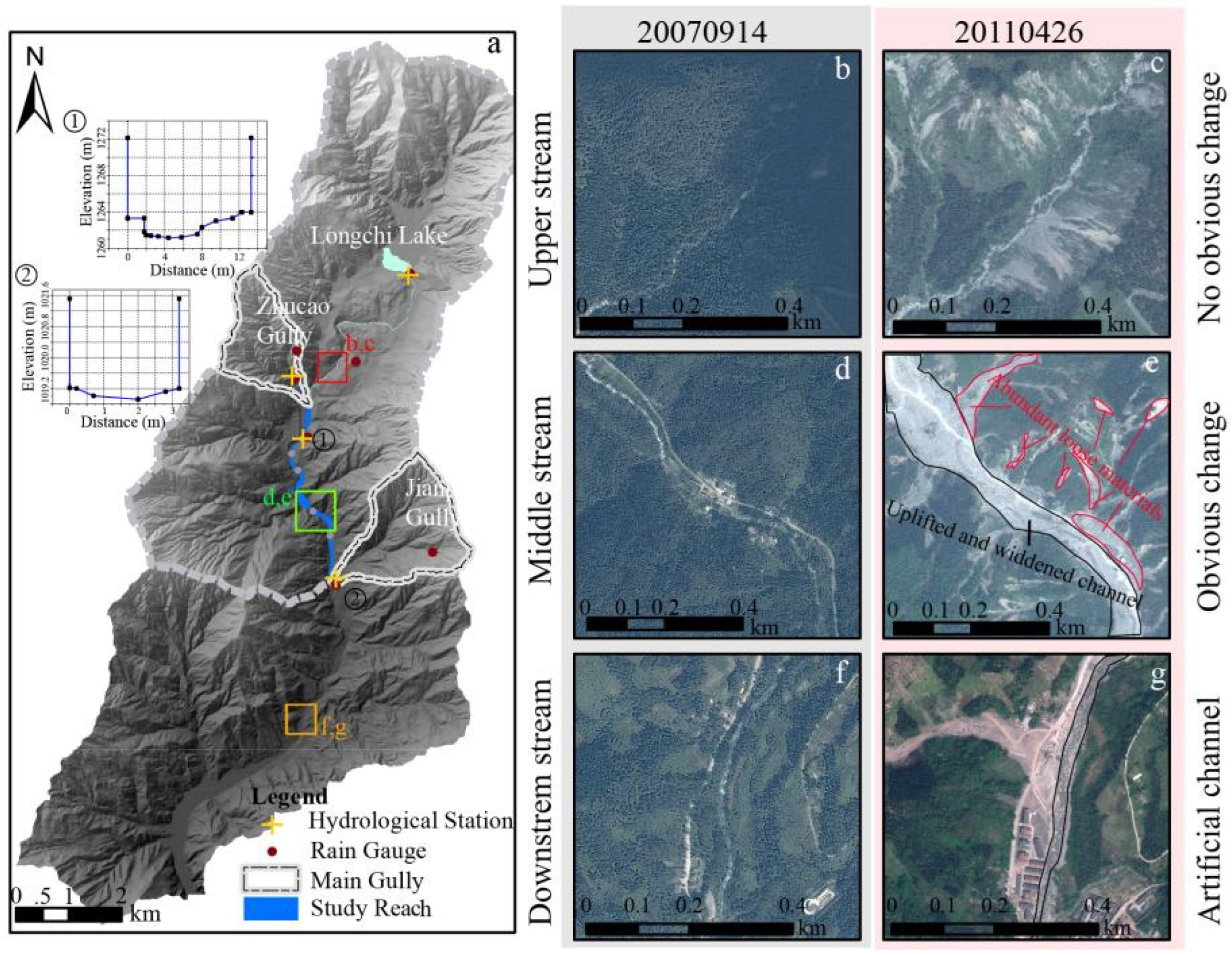

The Longxi River was selected as a typical watershed to quantify the impact of flash floods on channel evolution within a strong earthquake-affected area. Several materials were collected, and methods were applied to summarize the differences within channel evolution with varied channel morphology.

2.1. Study Site

The Longxi River is a tributary of the Minjiang River, located in Chengdu, Sichuan Province, China (31°N, 103°E). The mountainous location is 10 km from the epicenter of the 2008 Ms8.0 Wenchuan Earthquake and within a zone termed ‘the XI intensity area’ [34] (Figure 1a), wherein the Wenchuan Earthquake caused destabilized slopes and vegetation damage over an area of 19.3 km². The watershed of Longxi has an area of 78.3 km² with a channel length of 18.2 km from the divide at Longchigang to the Zipingpu reservoir (Figure 1a). The elevation of the catchment ranges from 3284 m to 877 m. The average slope above the mainstream is around 0.68 (34.31°), while the mean mainstream channel gradient is 0.13 (7.4°). According to the field observations, most of the landslides with damaged vegetation were distributed along both sides of the river (Figure 1b), which will provide the loose materials to the generation of the debris flow.

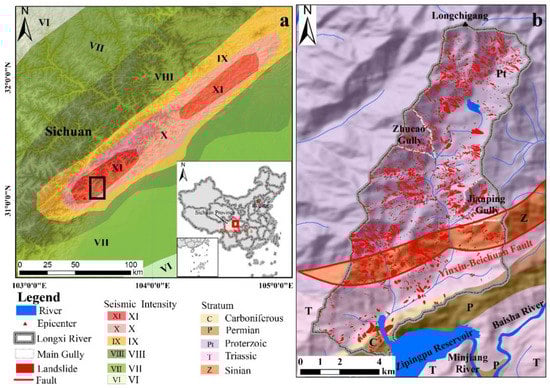

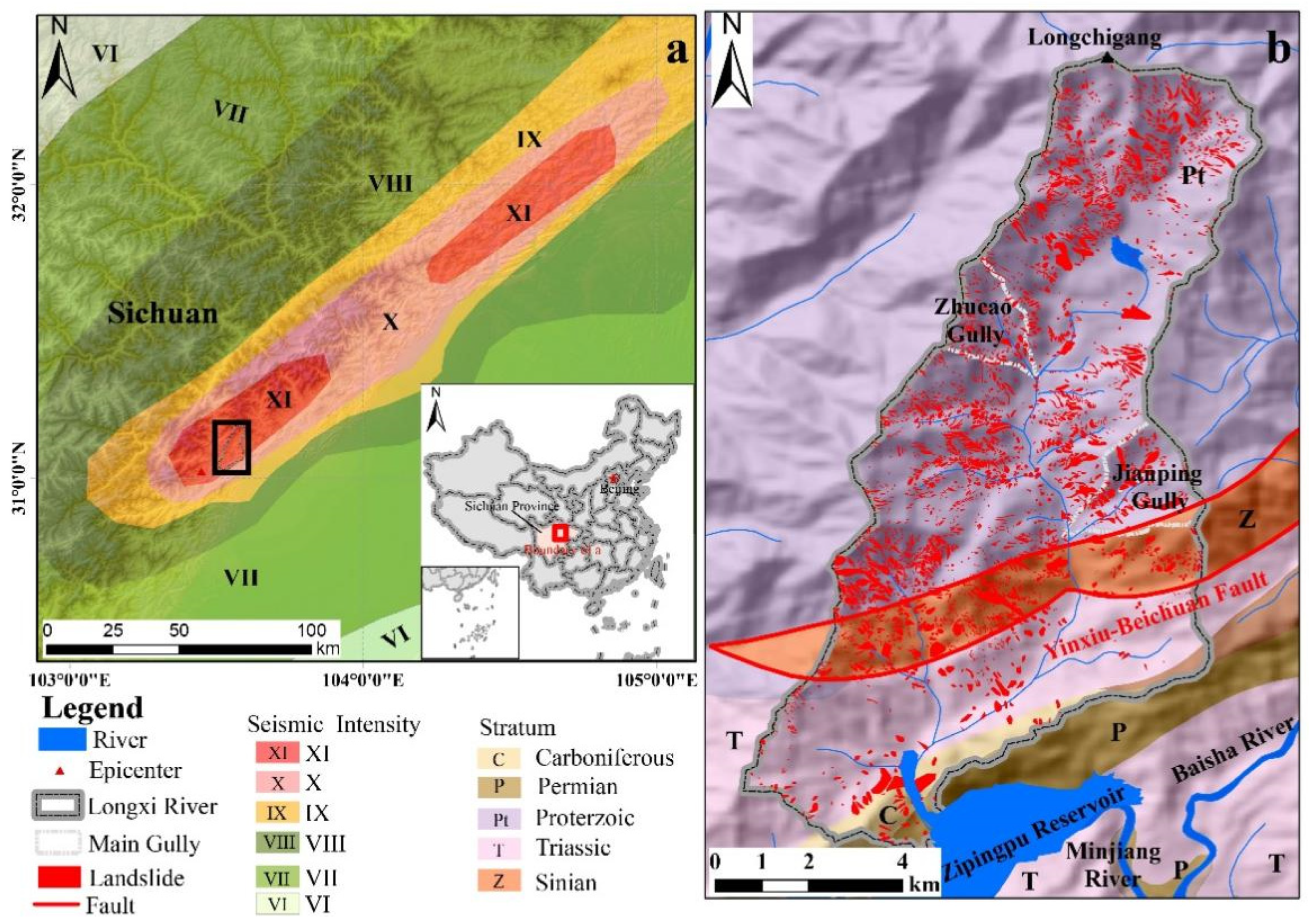

The Yingxiu-Beichuan Fault crosses the watershed and is one of the seismogenic faults active during the 2008 Wenchuan Earthquake (Figure 1b). The Yingxiu-Beichuan Fault is a deep fracture trending in the northeast direction, inclined northwest with a dip angle of 50–60° [35]. The upper basin consists mainly of exposed Proterozoic strata composed of granite. Sinian and Triassic strata are exposed downstream, and a small area of Carboniferous and Permian strata is exposed near the reach outlet. And the coverage of vegetation in Longxi River was about 45.39 km² after the earthquake [6,17].

This region has a subtropical monsoon climate with an average annual rainfall of approximately 1135 mm [17]. Due to the influence of topographic fluctuation and the Zipingpu reservoir, the spatiotemporal difference in rainfall in this area is evident. Moreover, the average flow discharge in the watershed is 3.44 m³/s, with a maximum flow discharge of 300 m³/s and a minimum flow discharge of 0.2 m³/s [36]. Earthquake-induced vegetation loss and the high flow discharge lead to high sediment transportation rates, resulting in significant riverbed geomorphological changes.

From 2008 to 2020, several catastrophic flash floods and debris flows delivered abundant material to this reach and raised the riverbed. For example, the debris flow, which occurred on 13 August 2010, carried about 7.78 × 10⁶ m³ debris material to the channel [37]. Comparing the images from 14 September 2007 and 26 April 2011, there was little change in the upper stream (Figure 2a,b), the change in the middle change was most apparent (Figure 2c,d), and the change of lower stream was influenced by humans with artificial channel and reservoir (Figure 2e,f). Based on this preliminary assessment, in this study, the main channel in the Longxi River from the outlet of Zhucao Gully to the mouth of Jianping Gully was selected to analyze the post-earthquake evolution of the channel (Figure 2c,d,f), as both gullies provided slope-derived material for transportation leading to significant geomorphic change after the flash flood (Figure 2c,d).

2.2. Classification of Channel Based on the Hydrodynamic Analysis

The channel changes in the Longxi River are controlled by the movement of the bedload, which is related to the shear stress of the channel flows. The effective shear stress may be expressed as the ratio of the shear stress $\tau$ and the critical Shields shear stress $\tau$_c for particle motion [38,39] (

Table A1. Parameters Description in this paper.

Parameters	Meaning
$\tau$	Shear stress
$\gamma$	Specific gravity for water
${\gamma }_s$	Specific gravity for water and solid material
H	Hydraulic radius
S	Stream gradient or slope
v	Mean velocity in the cross-section
n	Manning roughness coefficient
D90	Grain size such that 90% is finer
Q	Discharge from the upstream
W	Width of the channel
Dc	Critical size of the movement
$\tau$c	Critical Shields shear stress
${\tau }_{*}$	Dimensionless shear stress
A	Upstream drainage area
ksn	Steepness index
$\theta$	Concavity index
DoDs	Difference of DSMs
$\delta E$	Change of the elevation
Epre	Elevation before the flash flood occurs
Epost	Elevation after the flash flood occurs
E	Total change of the dods
N	The pixels combined the cross section or reach section
${\epsilon }_{DoDs}$	Error of dods
${\epsilon }_{pre}$	RMS error of the pre-flash flood DSM
${\epsilon }_{post}$	RMS error of the post-flash flood DSM

).

$$\tau =\gamma HS$$

(1)

$$v=\frac{1}{n}{H}^{2/3}{S}^{1/2}=\frac{1}{{(D_{90})}^{1/6}}{H}^{2/3}{S}^{1/2}$$

(2)

$$Q=WHvt$$

(3)

$${\tau }_{\ast }=\frac{{\tau }_c}{({\gamma }_s-\gamma )D_c}$$

(4)

where $\gamma$ and ${\gamma }_s$ are the specific gravity for water and solid material, respectively. In Longxi River, $\gamma$ is set to 1.0, and the ${\gamma }_s$ is set to 2.7 as the lithology is mainly composed of granite. H is the hydraulic radius which is calculated by the ratio of the cross-sectional area to the wetted perimeter and replaced by depth in the study area. S is the stream gradient. v is the mean velocity in the cross-section. n is the manning roughness coefficient, which is substituted by D₉₀ in this study. And D₉₀ is the grain size such that 90% is finer. Q represents the discharge from the upstream, which is usually regarded as a power function of the upstream drainage area (A) [40,41]. W is the width of the channel, and D_c is the critical size of the movement. ${\tau }_{*}$ is the dimensionless shear stress, and the critical ${\tau }_{*}$ for moving the bedload is selected as 0.047 [39].

Based on Equations (1)–(4), the main factors affecting the movement of bed load include the cross-section of the channel (W), the profile of the channel (upstream area A and gradient S), and the typical grain size of the channel (D) (Equation (5)) (Table A1).

$$\frac{\tau }{{\tau }_c}=\frac{\gamma }{{\tau }_{\ast }({\gamma }_s-\gamma )D_c}{(\frac{Q}{W})}^{3/5}{S}^{7/10}{(D_{90})}^{1/10}=f(W,D,A,S)$$

(5)

Based on previous methods of classifying the channel [27,42,43], the classification considering the characteristics of the transverse section and longitudinal profile is developed and used in this paper. And it helps understand the different responses of the channel reaches to flash floods. Because the channel’s hydrodynamic condition is mainly related to the channel’s morphology, the variation in the hydrodynamic conditions for different locations in the study reach is a focus of the study. The classification of the channel relates to the morphology without considering the particle size.

With respect to the cross-section, the degree of valley confinement is used to describe the extent to which bounding topographic features limit the lateral extent of the valley floor and the floodplain along the river. Thus an index of valley confinement, which is the ratio between the width of the valley and floodplain, might reflect the capacity for channel adjustment, whether vertically, laterally, or wholesale; i.e., it is a measure of freedom to adjust and sensitivity [44]. In this paper, a Valley Confinement Algorithm (VCA) based on the Digital Elevation Model released by David, et al. [30] was used to assess the degree of valley confinement. The definition of the valley floor is based on cost-weighted distance, and the width of the floodplain is based on the flood height and ground slope.

Concerning the longitudinal profile, several researchers have divided the sediment cascade into hillslope, channeled valley, debris-flow-dominated channels, and alluvial channels using relationships between drainage area (A) and slope (S) [28,29,45]. According to the classification system given by Montgomery and Buffington [27], analysis at the valley segment level can distinguish valley morphologies based on the dominant sediment transport process and general sediment flux characteristics. The steepness index (k_sn) was selected to divide the channel into reaches to progress analysis at the valley segment level. The values of k_sn were determined using a detachment-limited incision model that scales with the relationship between the upstream drainage area and the gradient [46,47,48,49] (Equation (6)). The detachment-limited incision model is predicated on the fact that the river incision rate is proportional as a power function of the mean bed shear stress [47] for steady-state conditions [46,47,49]. This study used the steepness index code calculation method developed by [50,51] (https://topotoolbox.wordpress.com/ (accessed on 29 November 2022)):

$$S=k_{sn}{A}^{-\theta }$$

(6)

where $\theta$ is referred to as the concavity index and represents the rate of change of channel gradient with increasing drainage area (Table A1).

2.3. High-Resolution DSM Acquiring and Processing

Topographic surveys by sUAV were conducted across the study region of the river through Longxi River on 1 April and 4 June 2018 for quantitative analysis of a flash flood that occurred on 25 and 26 June 2018. A sUAV (DJI quadcopter) was used to obtain multiple aerial photographs of each study reach at 5 s intervals to ensure sufficient spatial coverage and a minimum 80% image overlap [52,53,54]. Flights were at a low uniform height (~125 m above the surface) to generate high-resolution (about 0.05 m) imagery and allow accurate DSM reconstruction during post-processing. Overlapping images were mosaicked together using PhotoScan with Structure from Motion (SfM) photogrammetry approach, where rasterized three-dimensional representations are constructed from two-dimensional images [55,56]. The resolution of DSM obtained on 1 April was 0.046 m, and the resolution of DSM obtained on 4 June was 0.025 m. To calculate the differences between these two DSMs, the DSMs were resampled, and the resolution of these two DSM was set to 0.05 m. To georeference these two DEMs, the ground control points (GCPs), which did not move during the study period, were found and verified in the field, and the coordinate of GCPs was obtained by real-time kinematics (RTK). After obtaining the DSMs and GCPs, the two DEMs were georeferenced relative to one another. According to the accuracy analysis in the processing software, the RMS (Root Mean Square) error of the DSM on 1 April is 1.316 m, and the RMS (Root Mean Square) error of the DSM on 4 June is 0.186 m.

2.4. Determination of Morphological Channel Response

Geomorphic Change Detection (GCD) [57] can either be applied volumetrically, using DEMs [58,59] or in the plan, where geomorphological features are delimited from remote sensing imagery or cartography [59,60]. Considering the volumetric GCD, two DSMs that share the same geodetic controls are subtracted from one another to reveal a mosaic of morphological change; the output termed the Difference of DSMs (DoDs) (Equation (7)):

$$\delta E=E_{post}-E_{pre}$$

(7)

$$E={\displaystyle \sum _{}^N\delta }E\times resolution\times resolution$$

(8)

where $\delta E$ is the change of the elevation; E_pre is the elevation before the flash flood occurs, and E_post is the elevation after the flash flood occurs. The total change of the DoDs (E) is quantified by summing the change in cross-section and reach part, respectively (Equation (8)). The N represents the pixels combined with the cross section for cross-sections and the N for reach is also calculated in this way (Table A1). Negative and positive values on a DoDs map show erosion and deposition, respectively. Meanwhile, the volumetric change was calculated by the integration of the elevation difference in the unit area. In this study, the unit area is the square of the resolution of the high-resolution DSM. The error of DoDs (${\epsilon }_{DoDs}$) is estimated by the error propagation of Equation (9), where ${\epsilon }_{pre}$ is the RMS error of the pre-flash flood DSM and ${\epsilon }_{post}$ is the RMS error of the post-flash flood DSM [22,61] (Table A1).

$${\epsilon }_{DoDs}=\sqrt{{\epsilon }_{pre}^2+{\epsilon }_{post}^2}$$

(9)

2.5. Hydro-Meteorological Analysis

To monitor the post-earthquake evolution of debris flows and flash floods, a monitoring network system was established in Longxi River, including two flow gauges and seven rain gauges in the study area [17]. Longxi River has almost complete hydrological data with a 5-min sampling interval compared with another steep mountain catchment (Figure 2). According to the monitoring system, the hourly precipitation, the water level and surface flow velocity from 25 June to 26 June 2018 in Longxi River were obtained. Besides, the geometry of two monitoring cross-sections was obtained (Figure 2a) to calculate the discharge hydrograph in this event according to the equation from Zhang, et al. [17].

3. Results

3.1. Rainstorm Characterization and Flood Response Analysis

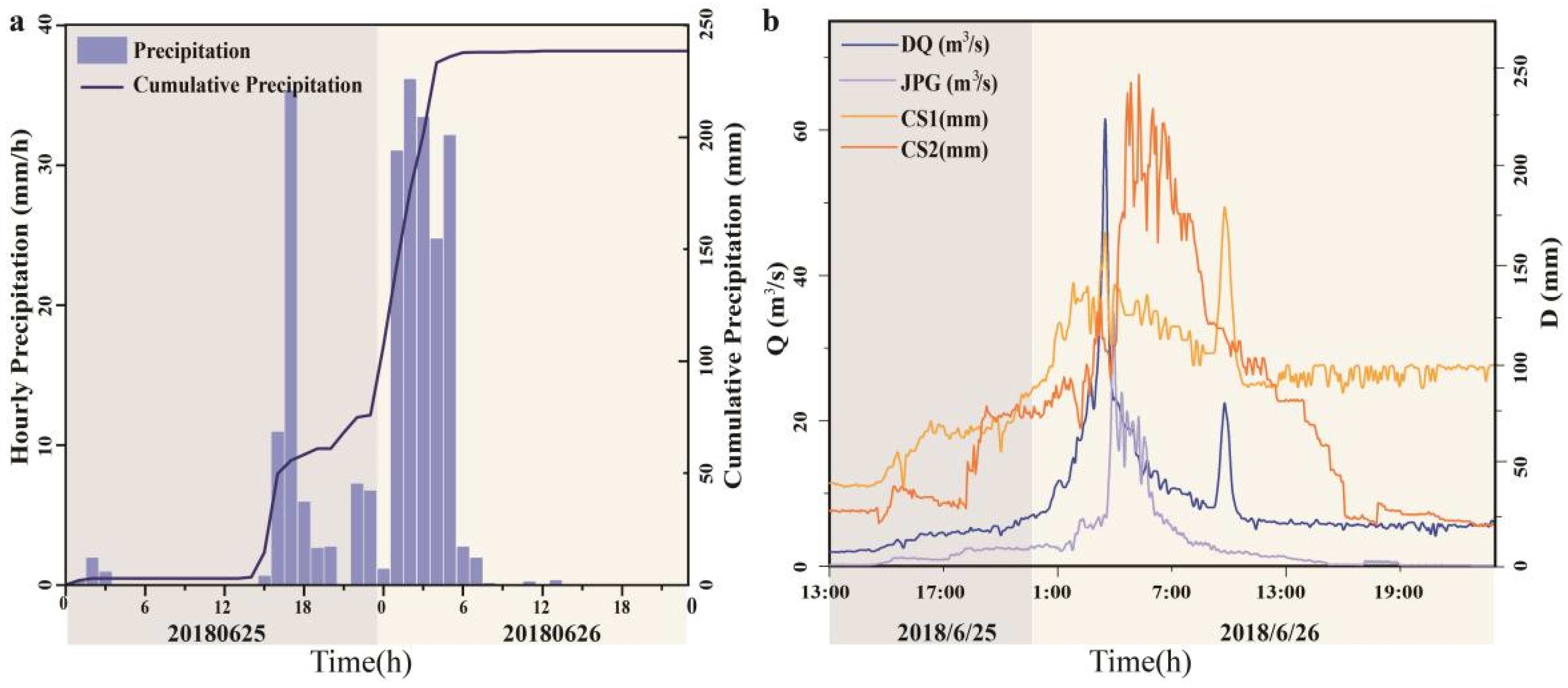

From inspection of the precipitation record, a large flash flood event on 25 and 26 June 2018, in Longxi River were selected for analysis, with the maximum hourly rainfall intensity of 37.2 mmh⁻¹ and cumulated values up to 219.7 mm in 13 h (Figure 3).

Based on field observations and the measurement, the peak velocities are 2.19 m/s and 6.07 m/s, respectively, located at the middle of the study reach (CS1, in Figure 2a) and the outlet of Jianping Gully (CS2, in Figure 2a) [17]. The peak discharge values in these places are 65.25 m³/s and 39.02 m³/s, and the values of unit peak discharge range from 1.59 to 10.96 m³/(s km²). According to the hydrological data of the gauge stations in the study region, the shear stress ($\tau$) and the critical size of movement (D_c) were calculated during the flash flood by Equation (1) and Equation (2). The result (Figure 3) shows the maximum shear stress at CS1 and CS2 (Figure 2) could carry away about 0.22~0.25 m of materials during this flash flood.

3.2. Classification of Channels

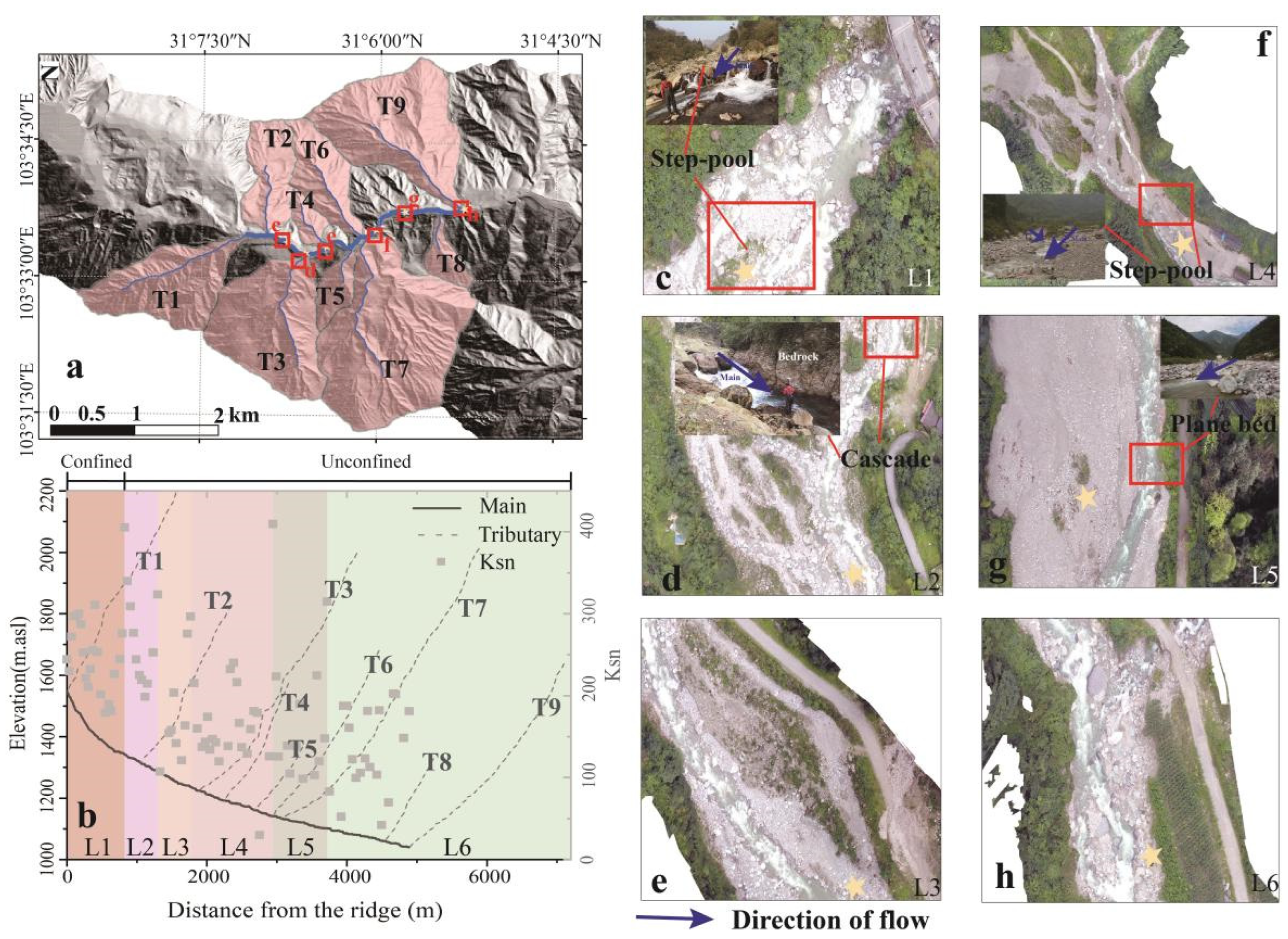

According to the division method given in Section 2.2, the studied channel could be divided into six parts (Figure 4a). First, according to the VCA, the channel could be divided into a confined channel (L1) and an unconfined channel (L2–L6). Besides, according to the steepness index analysis, there is a knickpoint in the longitudinal profile at the junction of the confined channel and unconfined channel (Figure 4b,c). A boulder-filled riverbed and a high cohesion alluvial bank which consist of clay materials, limited the channel’s expansion and the bed’s erosion, leading to the local knickpoint. In the unconfined channel, because of the channel’s topology and the inflows of the water and material from the tributaries, four local knickpoint were generated, which divided the unconfined channel into five parts. These four knickpoints were located downstream of the main channel and tributaries (Figure 4b,d) because the mass of materials, including boulders, were transported by the previous events, such as landslide, collapse, and debris flow, limiting the erosion of channel. The result of division by the transverse and longitudinal aspects was compared with the aerial photographs taken in the field (Figure 4c–h).

Summary characteristics of the different reaches of the study channel of Longxi River, including gradient and width, are shown in

Table 1. Characteristics of different parts.

	Type	Structure of Riverbed	Mean Gradient of the Valley		Range of Width (m)
			1 April 2018 (‰)	4 July 2018 (‰)
L1	Confined	Step-pool	94.05	93.22	4.56–28.55
L2	Unconfined	Step-pool and cascade	102.13	92.07	7.73–44.98
L3	Unconfined	Step-pool and plane bed	77.95	79.12	27.61–52.13
L4	Unconfined	Step-pool and plane bed	64.22	70.73	17.39–62.78
L5	Unconfined	Plane bed	50.39	39.71	59.14–79.78
L6	Unconfined	Plane bed	62.64	51.83	18.85–53.96

. The channel’s width in the unconfined channel is more significant than that in the confined channel and with a broader range of values. And the gradient is lower in the unconfined channel than in the confined channel, which was further reduced by the accumulation of debris flow in the channel (Table 1).

The riverbed structure and the composition of the riverbed have an important influence on the redistribution of energy in the dynamic flow system. The structure of the riverbed in different parts of the Longxi River varies. In the confined channel, the step-pools occur with a height of 0.5–1.4 m and lengths of 5.97–6.98 m (Figure 4c). The unconfined channel structure plane beds dominate with few cascades and step-pools. Cascades are found in the L2 because of the bedrock control (Figure 4d). Step-pools mainly occur in the unconfined channel at the junction of the main channel of Longxi River and tributaries, such as within L3 and L4 (Figure 4f). Because of the channel expansion and deposition by the previous debris flows, the channel’s gradient immediately downstream was relatively low, with plane beds predominating, such as within L5 and L6 (Figure 4g).

3.3. Morphological Response of the Channel to the Flash Flood

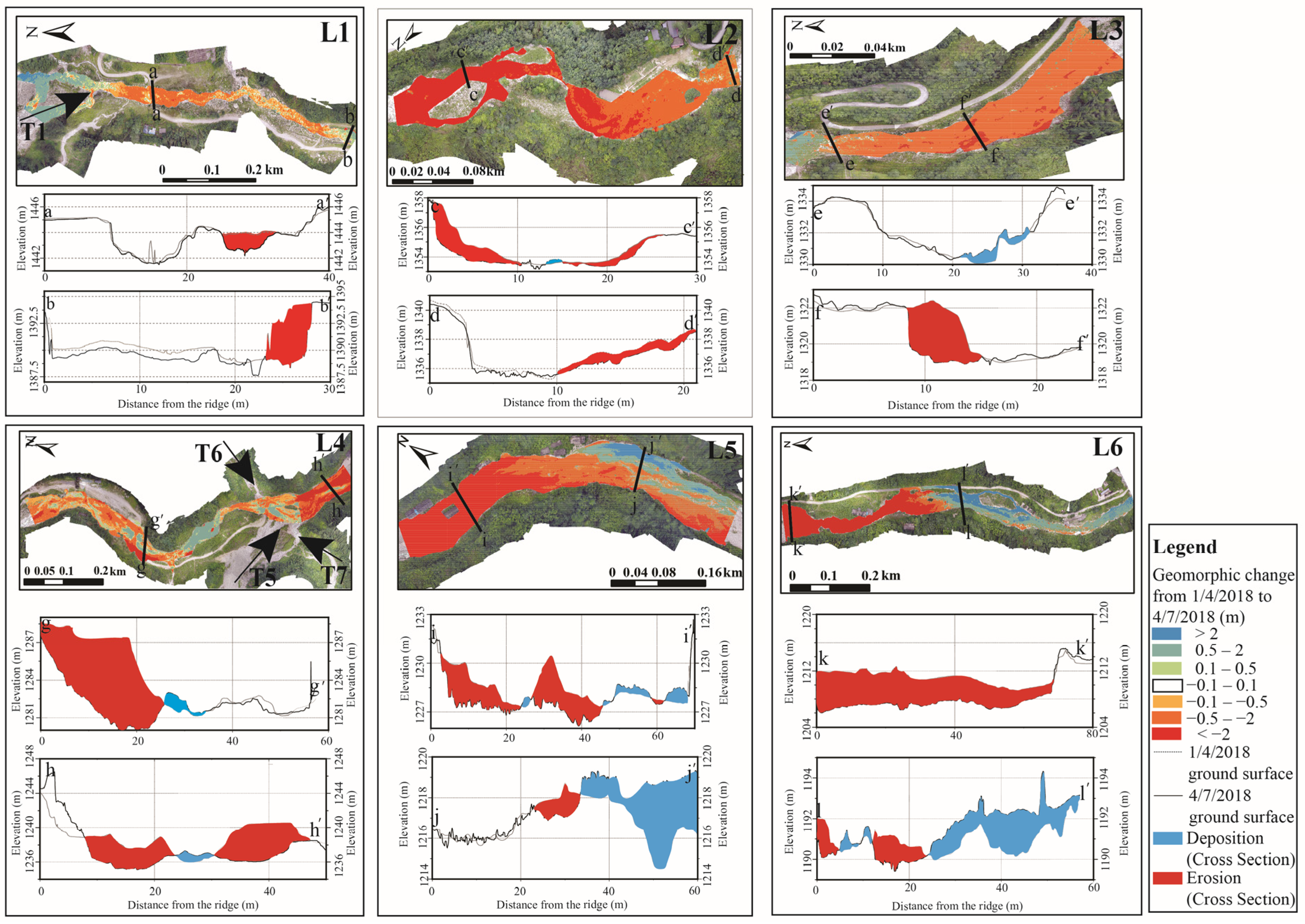

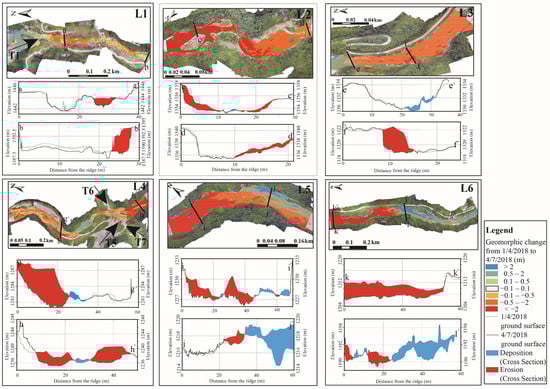

After a flash flood, the response of different reaches has differed. For the first part (confined channel) (Figure 5L1), the undercutting of the river banks and basal scour were both limited by the resistant bank materials and by boulders in the riverbed, which were introduced by the earthquake and subsequent debris flows. Riverbank destabilizing occurred mainly when the original road, composed of finer gravel, was adjacent to the river channel. Further, the lateral extension of the channel just occurred in only a few areas by basal erosion of adjacent hillslope, exacerbated by the disruption of vegetation cover (Figure 5L1,

Table 2. Characteristics of channel changes in the different parts of the channel.

	Volumetric Change (m3)	Average Height Change of Materials in Part (m)	Cause of Change
L1	1300	0.0133	Inflow of tributaries and basal erosion
L2	−26,523	−0.3770	Basal erosion
L3	7450	0.1013	Deposition by the inflow of tributaries
L4	−109,314	−0.3688	Lateral erosion
L5	−107,035	−0.5664	Lateral erosion by the inflow of tributaries
L6	−45,742	−0.4227	Basal erosion

). According to DoDs analysis, cross-section profiles highlighted the pronounced basal incision with an elevation change of about 2 m (Figure 5L1 a–a′) and lateral erosion of about 3 m (Figure 5L1 b–b′) along the main channel. The results showed about 7300 m³ of deposition within the confined reach close to the junction of the main channel and tributary, but there was a loss of about 6000 m³ of sediment along the main channel from the junction to the end of this part (Figure 5L1, Table 2). The erosion within the confined channel was primarily basal, with the change of bed elevation ranging from 0.2 m to 2 m, and lateral erosion carried away loose material which had been deposited in previous debris flows. Overall, the confined channel mainly displayed little change, with an average change height of 0.0133 m.

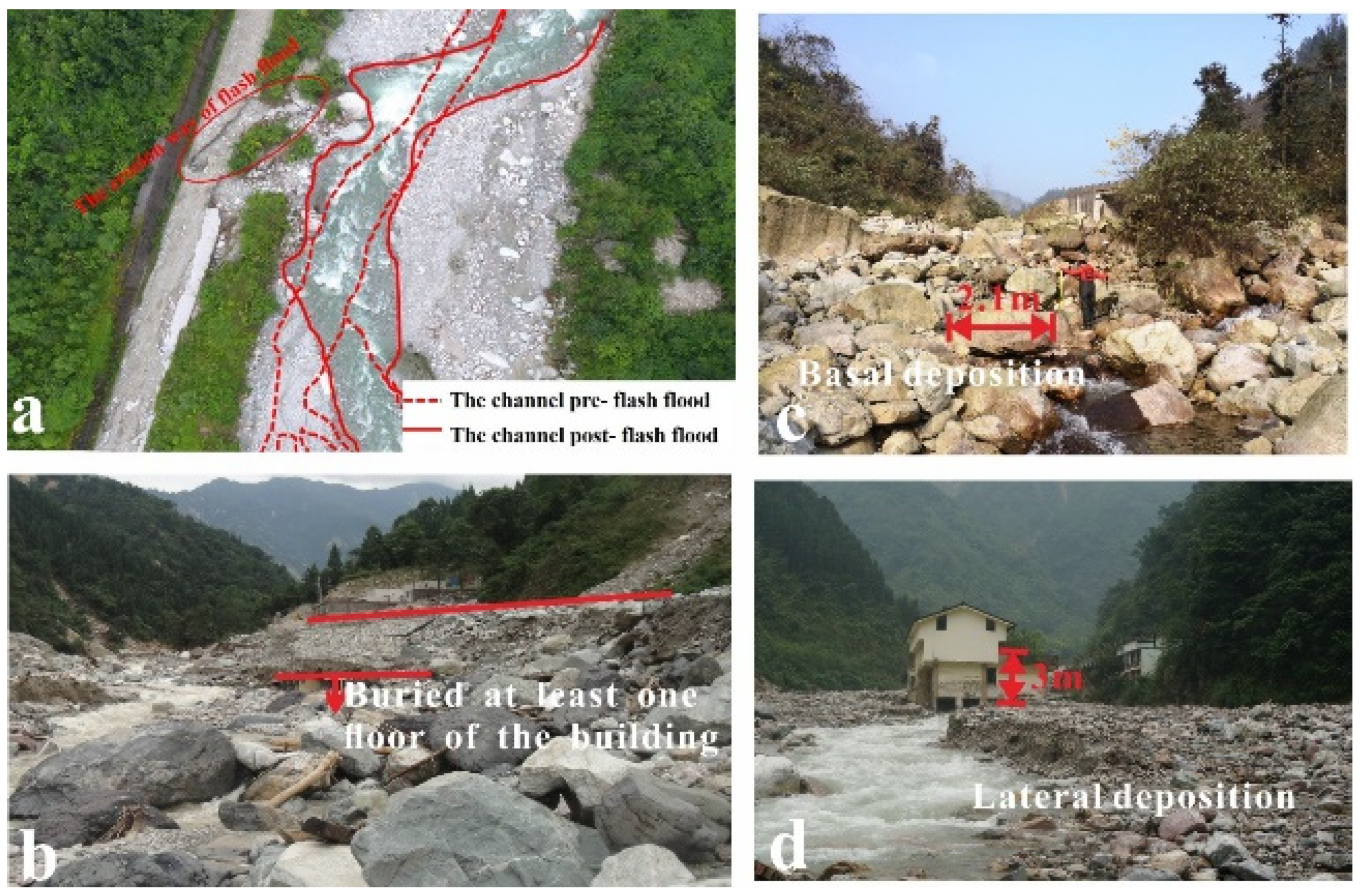

In contrast, the unconfined channel showed a more noticeable change in the degree of lateral channel migration because of different hydrological and topographic conditions. The changes of average parts in these parts range from 0.1013 m to 0.5664 m, and the process of erosion and deposition was more severe than that in confined channels. Based on the overall analysis of the unconfined channel, it was found that the unconfined channel widened significantly under the action of the flash flood (Figure 6a), and the lateral erosion was severe. As a result of previous debris flows, the Longxi River has been significantly elevated, especially in the unconfined channel, by about 10 m (Figure 6b). The existing channel is located on the body of debris flow, composed of loose materials on both banks and the bottom of the channel. However, the loose material at the bottom of the riverbed becomes armored, so the surface cover is not easily entrained (Figure 6c). However, at the channel margins, the finer debris flow materials are without the protection of the armour layer and are readily mobilized after a flash flood, resulting in significant lateral erosion (Figure 6d).

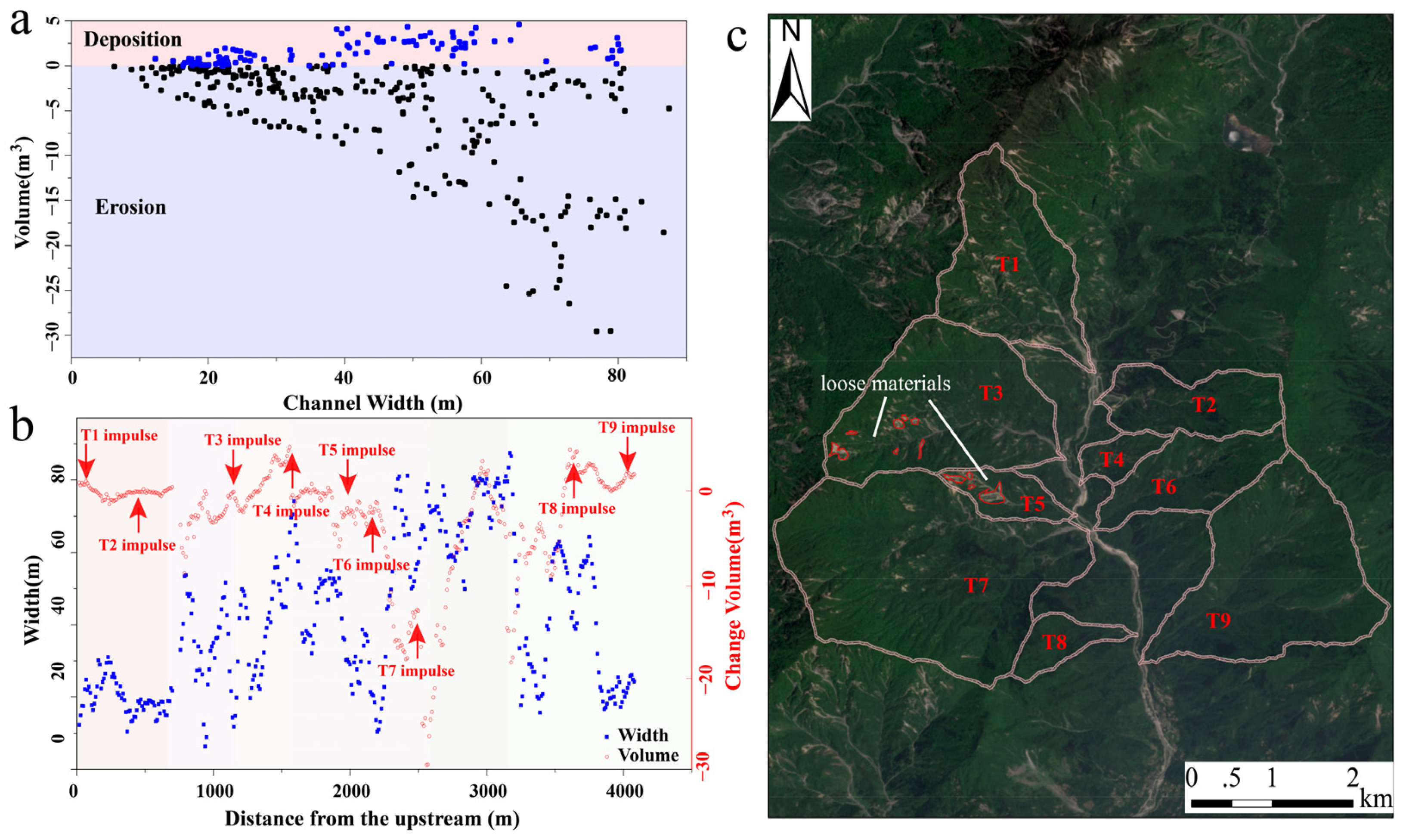

According to the DoDs analysis, the inflows of tributaries influenced the response in the different parts. For example, the inflow of T3 led to the 7450 m³ deposition in the L3, and the inflow of T4–T7 intensified the lateral erosion of the riverbed in the L4 and L5 (Figure 5).

4. Discussion

4.1. Effects of the Armour Layer on the Channel Response

Hydraulic conditions directly affect the transportation of material and the intensity and evolution of the channel. Because of the limitation of the hydrological monitoring section, the dynamic conditions of the most dramatic position of channel change were not discussed. According to other researchers [32,62], the higher shear stress will take away more materials, which will form new lateral channels within the floodplain and extend the channel, especially in the unconfined channel.

The earthquake and subsequent landslides would take the large materials from upstream and slope to the main channel, which leads to the riverbed being poorly sorted. After the washing by perennial flow, flash flood, and debris flow move down the small grains to fill gaps vacated by the entrainment of large grains, which might generate a layer in the channel by kinetic sieving [63,64,65,66] (Figure 5b,c). Based on the data obtained in Longxi River, the armour layer effect generated by the earthquake on the channel response was analyzed in this part.

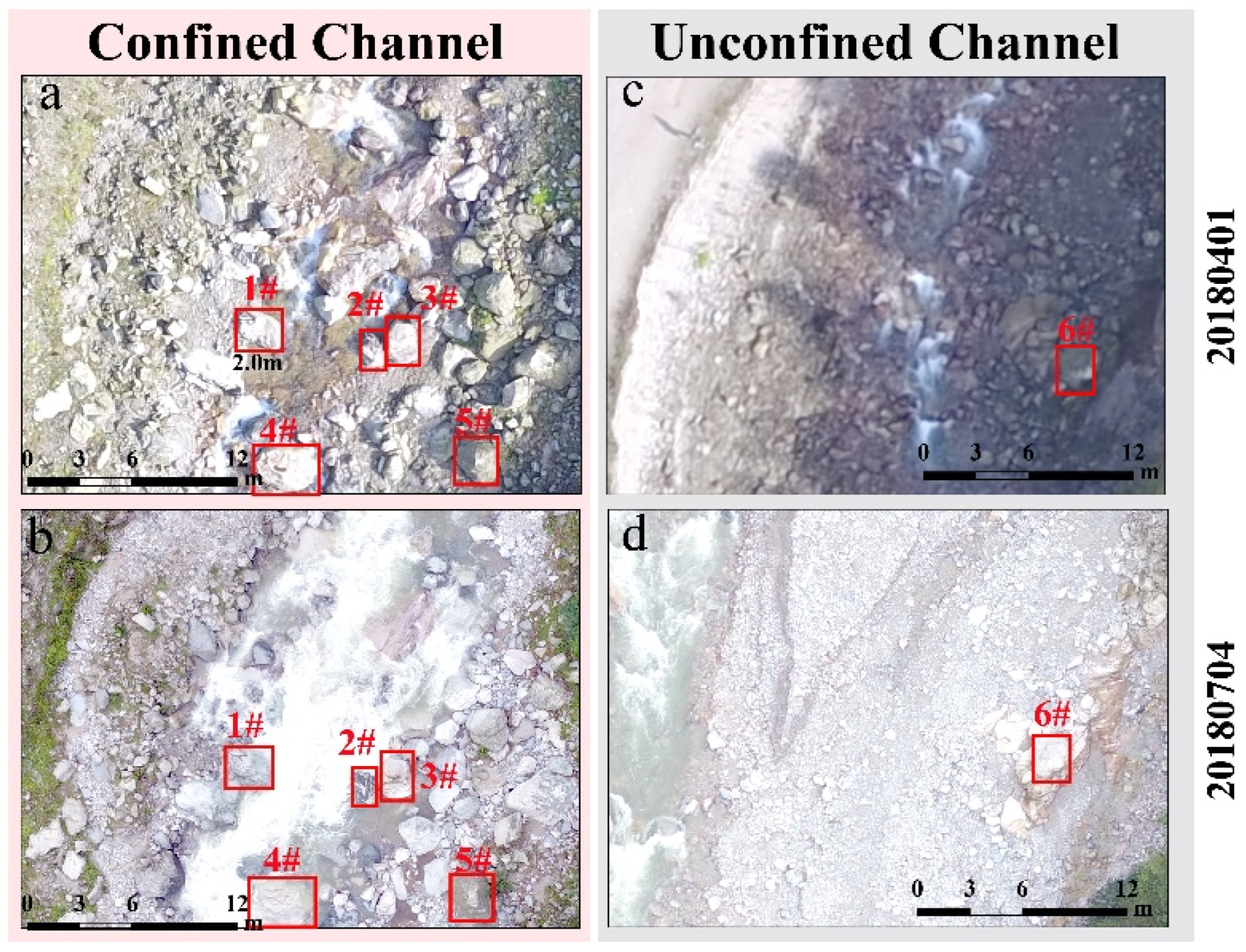

The effect of the coarse layer on the channel response was more evident in the confined channel. According to the division of the channel and the computation of hydrodynamic conditions, it could be found the confined channel has a more significant shear stress with a larger capacity of basal transportation than the unconfined channel because of the smaller channel width. However, analyzing the channel change response after a flash flood, it was found that the change of the confined channel is slighter than the unconfined channel, which is mainly due to the steeper slope and the confined bankfull. Broad slopes are not conducive to the long-term retention of loose material, and the material tends to move towards a smoother slope [67,68]. Due to the scouring ability of the confined channel and the relatively less accumulated material, it is easy to transport the fine material from the bottom of the riverbed downstream under the action of post-earthquake debris flow and flash flood. A decade after the Wenchuan Earthquake, the basal riverbed of the confined channel was composed of about 1 m large rocks, making the riverbed structure of the confined channel mainly composed of step-pool, and the supply-limited process controlled the transportation in the confined channel (Figure 4 and Figure 7a,b).

By contrast, the coarse layer did not generate in the unconfined channel, and the channel change response to a flash flood was more severe. The extension of the channel in the unconfined channel is significant after the earthquake. Under the same flow conditions, the shear stress of unconfined channels is less than that of confined channels because of the extended channel. In other words, the discharge of moving rocks of the same size needs to be larger. However, according to the law of material transportation in mountainous areas, the particle size in the lower reaches of the channel is smaller than that in the upper reaches by sorting (Figure 7c,d) [69,70,71]. Due to the less confinement of the unconfined channel, many debris flow materials were deposited here after the Wenchuan earthquake. So, the transportation of material in this region is dominated by the transport-limited process. It is more comfortable to cause drastic erosion and deposition or the channel’s migration (Figure 6).

4.2. Effect of the Tributary and Channel width on the Channel Response

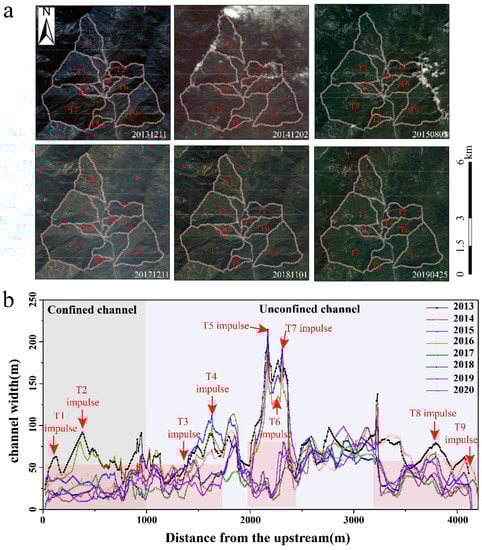

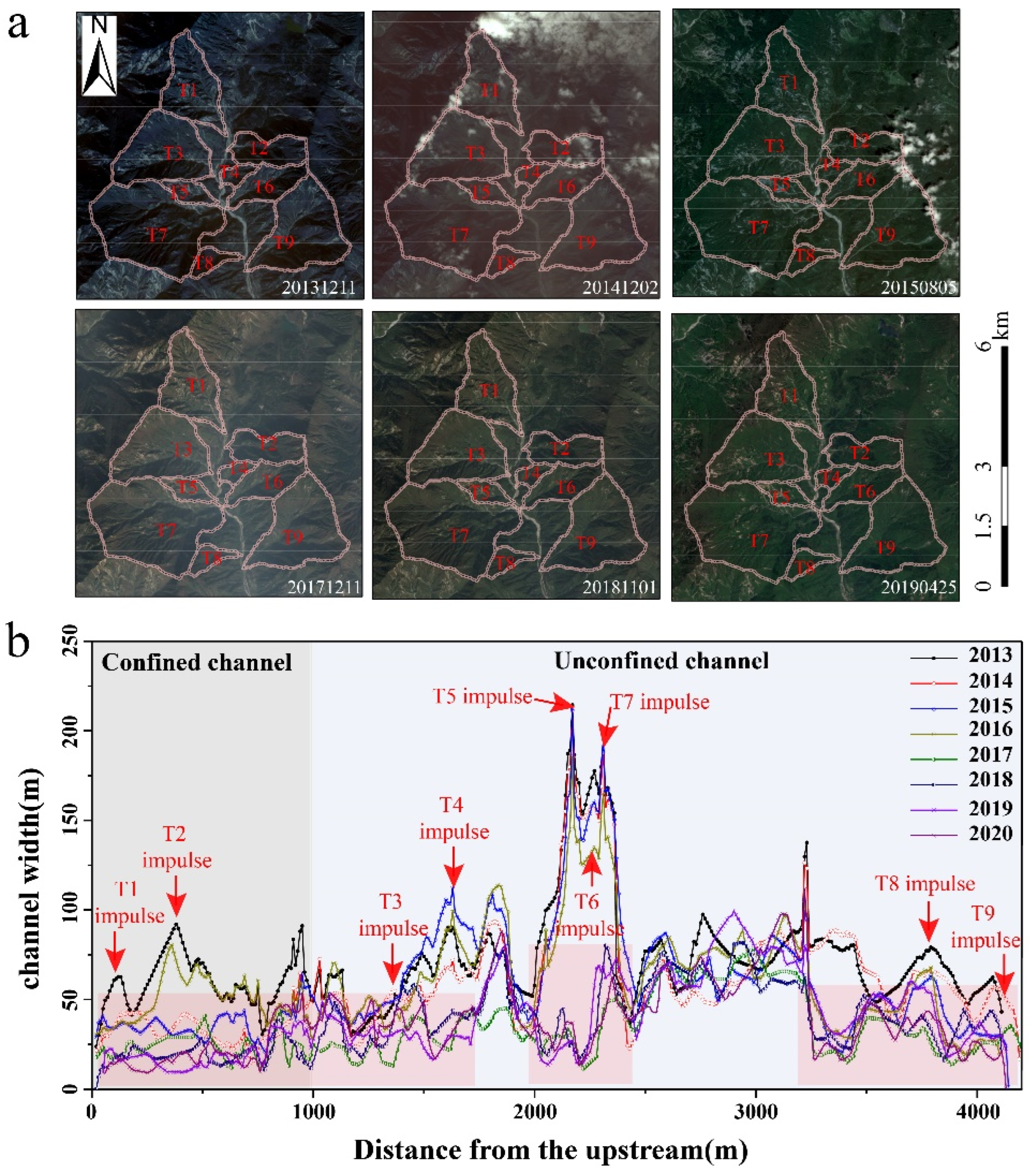

Due to the complex distribution of the tributary and different channel widths in the Longxi River, different channel responses occurred, such as L1, L3, and L4. In order to analyze the effect of the channel width, the relationship between channel width and the volumetric change by this flash flood was obtained (Figure 8a). It was found that channel width controlled the change of channel. The larger channel width would have more space for deposition and accommodate more loose material to be eroded. By contrast, the erosion and deposition showed a slight change post-flash flood in the channel with a small width. According to the simulation result by Cook et al. [72], the effects of channel width are different in different discharges. Wide channels have a higher transport capacity than narrow ones with the same bed slope at high discharges, corresponding with the channel volumetric change post-flash flood in the Longxi River. Besides, the increasing channel width wasn’t evident, corresponding with the increasing volumetric change, which might be influenced by the impulse of the tributary, which might increase the supply of loose materials and the discharge.

Complex tributaries provided generous impulse of water and sediment for the main channel. Longxi River is a watershed with complex tributaries that significantly influence the geomorphic response of flash flood in different parts. The channel width and volume of change in the confluence were increased by the composition of tributary mass supply or erosion by increasing discharge from the tributary (Figure 8b). Due to the different water and sediment supply, the confluences in different parts had different responses during a flash flood. In part L3, the tributary (T3) provides more sediment than water, making the deposition occur and increasing the channel width and elevation in the confluence (Figure 8). In part L4, tributaries (T6 and T7) along the Longxi channel provided more water than mass for the main channel, increasing the main flow’s capacity to erode the channel. Besides, T5 also provides more sediment for the main channel and leads to deposition in the main channel before T6 inflow to the main channel. To analyze the effect of the tributary to the channel change during this flash flood, the satellite images obtained by Sentinel 2 were selected to analyze the capacity of loose material supply in different tributaries. The image shows that the loose materials in T3 and T5 were relatively more than in T6 and T7. T6 and T7 were covered by vegetation (Figure 8c).

4.3. Geomorphological Evolutions Triggered by the Flash Flood in the Strong Earthquake-Affected Catchment

Several researches have shown that the loose soil deposits in earthquake-affected catchments have covered from hillslope to channel and the channel has experienced evolution several times [4,73]. According to the previous study and the satellite images from GaoFen-1 and Sentinel-2, the events of mass transformation were collected. It was found that there was a milestone in the transformation of mass transportation from the post-earthquake debris flow to the flash flood. Before 2013, several debris flow events occurred at Longxi River recorded by the previous study [74,75]. To analyze the evolution of the debris flow, several satellite images from 2013 to 2020 were obtained. And the images showed that the land cover remained unchanged after the debris flow occurred on 8 August 2013 (Figure 9a). It shows the mass supply in this period was limited by vegetation recovery. The debris flow was substituted by the flash flood to transport the mass deposited in the channel, which is also supported by the monitoring data [17]. And according to the extraction of channel width along the main channel at different periods, it shows the channel width was up the maximum after the debris flow occurred on 8 August 2013, and kept this width until 2016. After 2016, the vegetation was recovered at the accumulative body in the channel, and the channel width was reduced. Besides, the tributary influence was also reduced because of the reduced capacity of mass supply from a tributary.

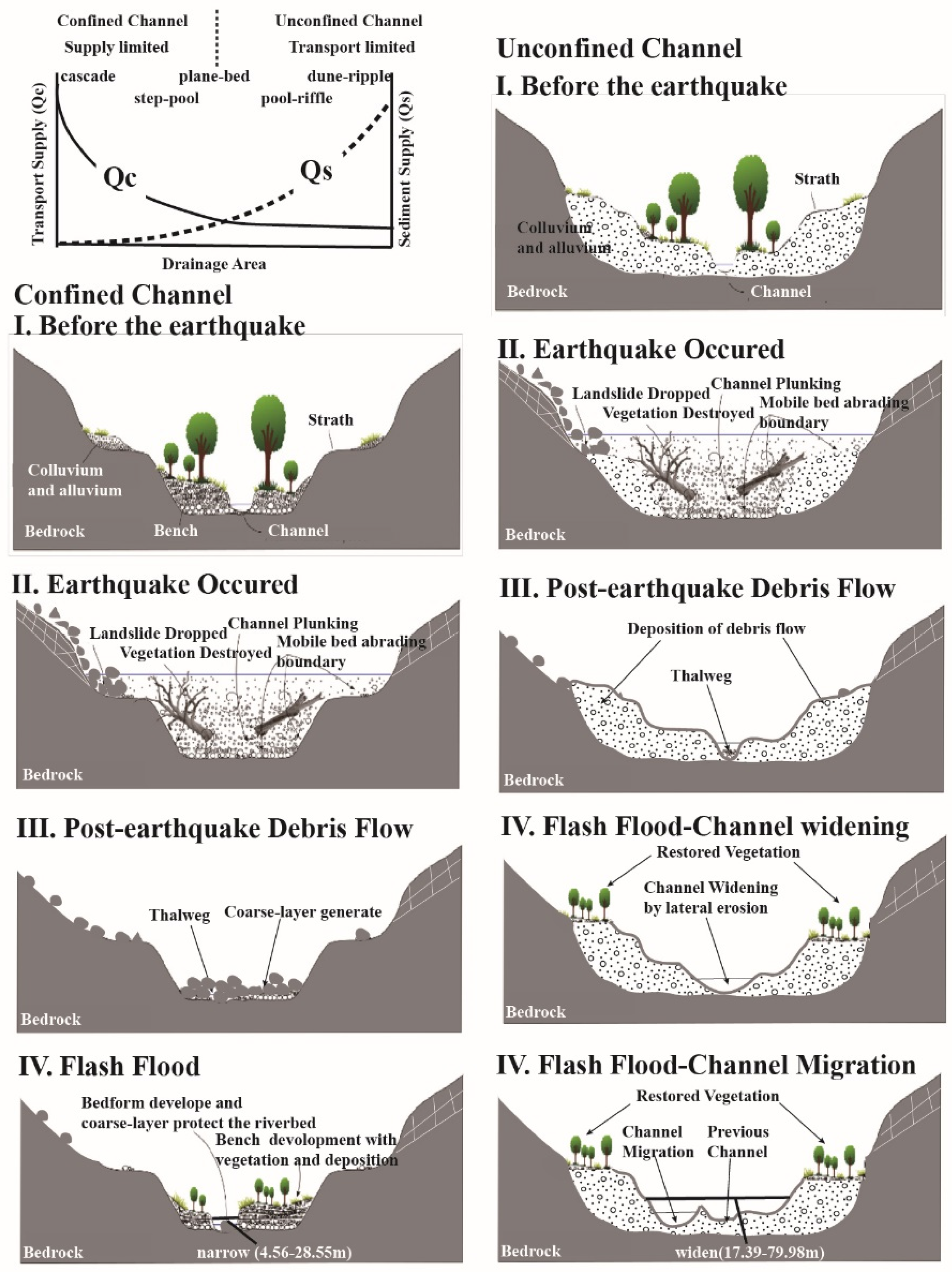

One conceptual model of generalized channel response to floods in an earthquake-affected catchment was put forward based on the Longxi River analysis. The influence of the earthquake on channel evolution can be divided into three stages. In the first stage, a large amount of loose material was produced and transported to the main channel through post-earthquake debris flow, which caused and blocked the channel and consequently uplifted the riverbed. In the second stage, under the effect of post-earthquake debris flow, part of the debris flow material deposited in the channel was removed. The transport-limited process controlled the channel evolution. In the third stage, which has passed a long time after the earthquake, the flash flood was the main external force of erosion or channel accumulation, leading to the loose materials generated by earthquake transport to downstream even outside of the watershed. Because of the difference in supply and transport capacity, the conceptual model divides the post-earthquake geomorphological response of flash floods into three main categories (Figure 10).

The first kind of channel mainly occurred in the confined channel without typical knickpoint, such as the L1 in Longxi River (Figure 5). The structure of the riverbed is mainly composed of the step-pool, which is hard to be destroyed and keep stable during a flash flood [76,77,78]. After a flash flood, the gradient in this kind of channel tends to be flatter from 94.05‰ to 93.22‰, and the width of the channel was narrow with a minimum value of 4.5 m. But the change is not evident with the average height of 0.0133 m due to the protection of the coarse layer generated by the earthquake and post-earthquake debris flow (Figure 8). The capacity of transportation is stronger than the capacity of supply, and the main channel change in the confined channel is erosion.

The second kind of channel has mainly occurred in the unconfined channel without the inflow of tributaries, such as L2 in Longxi River (Figure 5). The lateral erosion would remove the bench composed of the loose material of post-earthquake debris flow during a flash flood, and the channel would be widened and the width of the channel was more than the first type with the maximum value of 44.98 m. And the supply capacity is stronger than the transportation capacity in this type, and the transportation capacity controls the movement of materials. During a flash flood, the water depth is not over the bank and just swept away the deposition of the bottom, which led the slope to slump and the channel to widen (Figure 10).

The third is mainly distributed in the unconfined channel with the inflow of tributaries, such as L3~L6 in Longxi River (Figure 5). Because of the inflow of tributaries and the widened channel with a width range from 17.39 m to 79.78 m, the level of water during the flash flood would be uplifted and spilled over the bank. The material would be spilled away along the flow path, generating a new thalweg (Figure 10).

4.4. Limitations

DSM derived by sUAV, as one of the key data for quantitative analysis in this study, was processed and analyzed using uniform error analysis [22,61]. It has little effect on the overall trend and location distribution of channel evolution. However, the limitations of uniform error estimates were confirmed by overestimating errors, especially on more complex, sloping surfaces [79]. And it will lead to overestimation of net erosion and deposition in DSM-based sediment budget estimates [80,81,82]. Therefore, in the analysis of this paper, the analysis of channel evolution at different locations under the action of flash floods cannot better establish the quantitative relationship in watershed scale and only analyze the changes and trends of local sections or cross-sections. This brings constraints to the quantitative analysis of transport between different parts in this paper.

5. Conclusions

A high-magnitude flash flood, which occurred on 25 and 26 June 2018 in Longxi River with elaborated meteorological, hydrological, and sUAV data, was selected to quantify the channel evolution by the flash flood in an earthquake-affected region. The event was characterized by intense bedload transport with basal erosion and lateral erosion. Six sections and two types (confined and unconfined channels) with exclusive channel characteristics were distinguished based on the confinement index and steepness index, analyzing the geomorphic channel response in more detail.

The controls on channel changes triggered by the large flash flood were determined and evaluated, such as the coarsening layer, channel width, and river confluence. At the basin scale, the confined channel is with little change under this flash flood and the channel evolution of the unconfined channel is sensitive to the flash flood. The coarsening layer can protect the channel and resist the drastic change after the event with only a little channel bed change. In an unconfined channel, the change could reach 6 m without the protection of the coarsening layer. In river confluences, higher intense erosion with a large volume of about 10⁵ m³ mostly appeared in downstream of tributaries. In the cross-sections, the increased channel width could lead to significant deposition and erosion with a large volume of 35 m³.

We proposed a conceptual diagram of the generalized channel response to large flash floods explaining the multi-stage of post-earthquake channel evolutions and determined its rebalance stage in the tenth year after the earthquake. These findings will contribute to understanding the post-earthquake long-term channel evolutions triggered by large flash floods in the earthquake-affected watershed. Meanwhile, the development of sUAV processing could provide us with more opportunities to strengthen 3D morphological analysis in the future.
