Understanding the Present-Day Spatiotemporal Variability of Precipitable Water Vapor over Ethiopia: A Comparative Study between ERA5 and GPS

by
Abdisa Kawo Koji
1,*,
Roeland Van Malderen
2,
Eric Pottiaux
3 and
Bert Van Schaeybroeck
2
1
Department of Geodesy and Geodynamics, Ethiopian Space Science and Technology Institute, Addis Ababa P.O. Box 33679, Ethiopia
2
Royal Meteorological Institute of Belgium (RMIB), Avenue Circulaire 3, 1180 Uccle, Belgium
3
Royal Observatory of Belgium (ROB), Avenue Circulaire 3, 1180 Uccle, Belgium
*
Author to whom correspondence should be addressed.
Remote Sens. 2022, 14(3), 686; https://doi.org/10.3390/rs14030686
Submission received: 18 January 2022 / Accepted: 29 January 2022 / Published: 31 January 2022
(This article belongs to the Special Issue Climate Modelling and Monitoring Using GNSS)

Abstract

:
Atmospheric water vapor plays a crucial role in atmospheric, climate change, meteorological, and hydrological processes. In a country like Ethiopia, with its complex topography and synoptic-scale spatiotemporal circulation patterns, the analysis of the spatiotemporal variability of precipitable water vapor (PWV) is very challenging, and is hampered by the lack of long observational datasets. In this study, we process the PWV over eight Ethiopian global positioning system (GPS) sites and one close to the Ethiopian eastern border, for the available common period 2013–2020, and compare with the PWV retrieved from the state-of-the-art ERA5 reanalysis. Both PWV datasets agree very well at our sample, with correlation coefficients between 0.96 and 0.99, GPS-PWV show a moderate wet bias compared to ERA5-PWV for the majority of the sites, and an overall root mean square error of 3.4 mm. Seasonal and diurnal cycles are also well captured by these datasets. The seasonal variations of PWV and precipitation at the sites agree very well. Maximum diurnal PWV amplitudes are observed for stations near water bodies or dense vegetation, such as Arbaminch (ARMI) and Bahir Dar (BDMT). At those stations, the PWV behavior at heavy rainfall events has been investigated and an average 25% increase (resp. decrease) from 12 h before (resp. 12 h after) the start of the rainfall event, when the PWV peaks, has been observed.

1. Introduction

Water vapor is a very important constituent of the atmosphere, as it contributes strongly to the atmospheric energy budget by transporting moisture and energy as latent heat through the troposphere and lower stratosphere. Being the most important natural greenhouse gas, water vapor also affects the atmospheric radiation and circulation, and is therefore critical in the analysis and prediction of short and long-term changes in the global climate [1]. As a consequence, a good representation of water vapor concentrations in climate models is essential [2]. Water vapor is also the source of clouds and precipitation, and therefore of crucial importance in many meteorological and hydrological processes. In any column of air, the amount of water vapor, or precipitable water vapor (PWV), provides an upper limit to the potential precipitation which could fall from that column of air [1]. In particular, many studies have confirmed that PWV variations can effectively reveal the occurrences and the life cycles of precipitation events [3,4,5,6].
The amount of atmospheric water vapor is highly variable, both in space and time [7]. It can be measured from ground-based, in-situ and by space-based instruments. Ground-based global positioning system (GPS) receiver networks have proved to be reliable for estimating PWV with root mean square error (RMSE) values of 1–3 mm [8,9]. Previous studies have already shown that GPS can estimate PWV with the same level of accuracy as traditional water vapor measurement devices such as radiosondes and water vapor radiometers (WVRs) [10,11,12,13,14].
In this paper, we focus on the characteristics of the PWV above Ethiopia. This East-African country in the (sub)tropics features a high population density and has a highly complex topography, with highlands (up to ~4500 m) in the north-western and central parts, and the lowland (down to ~−130 m, i.e., below sea level) of the East African Rift Valley which traverses the country from the north to the southwest, see Figure 1a. The Ethiopian climate is highly affected by this topography, but also by its location in the tropics and its proximity to the Indian Ocean [15]. As in other (sub)tropical African countries, Ethiopia’s economy relies on rain fed agriculture, water and energy, thus being very vulnerable to the impact of climate variability and change [16]. Apart from the spatial variability, the temporal variability of rainfall over Ethiopia, however, is also known to be very large and linked to several large-scale systems such as ENSO [17,18]. The region has therefore been subject to severe droughts and floods with substantial socio-economic impacts [19]. Climate-change projections for the Ethiopian highlands indeed foresee an overall drying trend [20], but also an increase in extreme precipitation [21] by the end of this century.
Depending on their topography, Ethiopian regions have different climate vulnerability. The lowlands are vulnerable to increased temperatures and prolonged droughts that may affect livestock rearing. The highlands generally suffer from intense and irregular rainfall, leading to erosion, which together with higher temperatures may result in lower agricultural production. This combined with an increasing population and conflicts, may lead to greater food insecurity in some areas [19]. Because of its complex orography, the prevalence of synoptic convective rainfall and synoptic-scale spatiotemporal circulation patterns, Ethiopia is a challenging region and regional climate models (as opposed to global circulation models) are necessary in order to provide a reasonable representation of atmospheric water and rainfall for climate-change projections [20,22]. Prior to the climate-change impact assessment, however, the reliability of climate models is typically assessed by model validation [2]. Thereby reanalysis data is mostly used as reference. However, since reanalysis data has a strong underlying modeling component, the question can be posed to what extend these can be trusted in such difficult region. Moreover, the accuracy of the data assimilation used in these reanalyses relies strongly on the availability and quality of the observational input [16].
Because of the relatively low cost and limited maintenance compared to other ground-based devices like radiosondes and microwave radiometers [1,9,14], measuring PWV with ground-based GPS stations is gaining importance in Ethiopia. In particular, the East African tropical region has also recently benefited from the Africa-Array (AA), which has created a multidisciplinary research network for the broader Earth science community, by installing continuous GPS instruments fitted with meteorological sensors [23]. However, the Ethiopian GPS network remains sparse, has incomplete spatial coverage, with a poor representativeness in mountainous areas, suffers from data continuity, and has a lot of missing values. For instance, only two Ethiopian GPS stations, (Addis-Ababa or ADIS and Arbaminch town or ARMI) have a long time series of data, starting in 2007. Other Ethiopian stations whose PWV data have been described in earlier studies [24,25] have been decommissioned in 2011 (with the data no longer available); they have been set up along the two opposite sides of Ethiopian Great Rift Valley to study the geodynamical processes of this region, with the possibility to retrieve PWV from the data being only a by-product.
In this study, we used a network of GPS sites to process the PWV retrievals at eight Ethiopian GPS sites and one nearby site at Djibouti, close to the eastern border of Ethiopia, for their common observation period of 2013–2017/2020. Those sites are located in distinct geographical regions; see Figure 1a. We compare the PWV time series at those sites with the PWV output from the most recent European Centre for Medium-Range Weather Forecasts (ECMWF) reanalysis model, ERA5 [26], at the site locations. In particular, we compare the PWV seasonal and diurnal cycles between both datasets, but also between the different sites to assess their spatial distributions. Our study differs from previous PWV comparisons at Ethiopia involving GPS by the considered time period (2007–2011 in [24,25]), the used subset of Ethiopian GPS sites [24,25,27], and the use of previous versions of ECMWF reanalysis models in [24,25,27]. Those analyses concluded that the GPS PWV had a dry bias compared to ERA-Interim [28] over Ethiopian lowlands, and a wet bias over the highlands. Moreover, although the ERA5 temperature and precipitation fields have been already evaluated over Ethiopia [16,29], the precipitable water vapor, closely related with them, has not so far.
Given its wide spatial and temporal availability, ERA5 is a very valuable dataset to study the spatiotemporal variability of PWV [30]. The reliability and accuracy of ERA-PWV has already been comprehensively evaluated at a global [31] and European [30] scale. However, in regions with few observations or complex terrain such as Ethiopia, ERA5-PWV might be severely biased [16]. GPS-PWV, which is not assimilated in ERA5, has the advantage of high local accuracy, but is more limited in space and time compared to ERA5-PWV. Therefore, in this paper, we investigate the spatial and temporal PWV variability of ERA5 over Ethiopia, a country with a very complex orography and different spatiotemporal climate patterns. We therefore address the following questions: (1) Are there potential systematic PWV biases that depend on the orography? (2) Does the increased spatial and temporal resolution of ERA5 with respect to its predecessor ERA-Interim amount to a closer agreement with GPS in terms of the PWV seasonal and diurnal cycle? Finally, given the high spatial and temporal resolution of the GPS-PWV dataset, we explore a potential relationship between GPS-PWV and severe rainfall events at two Ethiopian sites in areas that are sensitive to flooding.
The paper is organized as follows. In Section 2, we describe the different datasets used and the processing that is needed to retrieve PWV. In Section 3, we validate our GPS processing by comparing with the processing carried out at the International GNSS Service (IGS), and with the radiosonde observations at Addis Ababa. Then, we compare the PWV at the GPS stations with ERA5-PWV in terms of biases, seasonal and diurnal cycle in Section 4. An application of the GPS-PWV time series in predicting severe rainfall events is illustrated in Section 5. Finally, conclusions are drawn in Section 6.

2. Datasets and Processing Strategies

The following datasets are used in this study: GPS observations, surface meteorological measurements, ERA5 model output [26], the International GNSS Service (IGS) troposphere product [32], and radiosonde data. They are described below.

2.1. GPS Observations and GAMIT-PWV

In this study, to obtain PWV at the eight Ethiopian dual-frequency geodetic GPS receivers over the period 2013–2017/2020, Figure 1a, we used a network composed of these eight stations and of 26 surrounding IGS stations, see Figure 1b. Unfortunately, four out of the eight Ethiopian GPS stations (ARMI, DEBK, BDMT, and SHIS) suffer from significant observation gaps (see Table 1) and no Ethiopian station was available during the study period in the eastern part of the country (only during 2007–2011, see [24]). To compensate for this, we used the neighboring IGS station Djibouti (DJIG) instead. As already mentioned in the introduction, more GPS stations have been available in Ethiopia before 2011, and two of the GPS stations used here (ADIS and ARMI) have an extended time series since 2007 [24,25]. However, the common data period 2013–2017/2020 is used for the analysis in this paper. Although spatially limited, our GPS network covers different geographical areas with different climatological conditions, as also outlined in Table 1.
GPS data were processed using the GNSS at Massachusetts Institute of Technology (GAMIT) software v10.71 [33,34] in ionosphere-free double-difference mode to estimate the ZTDs, from which the PWVs are derived. IGS stations are included in the data processing (1) to enhance the absolute tropospheric estimation by introducing long baselines between GPS stations [11], and (2) to assess the precision of our GAMIT-ZTDs. The main processing options are summarized in Table 2. The time resolution of the GAMIT-ZTDs is 2 h.

2.1.1. Tropospheric Modelling in GPS Data Processing

The troposphere causes an excess delay in the propagation of the GPS signals as well as a bending of its path in the atmosphere. The delay L along the slant path(s) between the GPS satellite and the ground receiving antenna can be expressed as:
L = 10 6 S N h s + N w s   d s
where Nh and Nw represent the hydrostatic and wet refractivity, respectively. Equation (1) can be decomposed into hydrostatic, wet, and horizontal gradient delay components [40] as follows:
L = m h ε   Z H D + m w ε   Z W D + m h ε   c o t ε   G N c o s α + G e   s i n α
where ε   and   α are respectively the elevation angle and the azimuth. Each component of the total delay is usually considered as the delay in the zenith direction (the zenith hydrostatic delay (ZHD) and the zenith wet delay (ZWD)) and the first-order north-south and east-west gradients terms G N and G e [41,42,43] multiplied by the hydrostatic and wet mapping functions m h ε and m w ε (e.g., [44,45,46]). A mapping function represents the ratio of the excess path delay at the elevation angle ε to the path delay in the zenith direction. The hydrostatic mapping function accounts for the bending effect. The sum of the ZHD and ZWD is called zenith total delay (ZTD):
Z T D = Z H D + Z W D

2.1.2. PWV Retrieval from GPS Observations

In GPS data processing, ZTD is estimated and ZHD is modelled to access the ZWD. ZHD can be modelled using e.g., the Saastamoinen [47] formula, which is a function of surface pressure Ps:
Z H D = 2.279 ± 0.0024 f φ , H · P s
where f φ , H accounts for the variations in the gravitational acceleration at the station with latitude φ and height H above a reference ellipsoid:
f φ , H = 1 0.00266 cos 2 φ 0.00028 ·   H
The ZWD can then be converted to PWV using the formula [48]:
P W V = Q · Z W D
Following [49], the conversion factor Q is calculated using measurements of weighted mean temperature Tm as:
Q = 10 6 ρ v R v k 3 T m + k 2
where ρ v is the density of water and R v is the specific gas constant of water vapor (461.5 J.kg−1k−1). In this study, we used Tm and Ps estimates at the site locations from the empirical global pressure and temperature model GPT2w [39], computed from ECMWF ERA-Interim temperature and humidity profiles.

2.2. Radiosonde Data

Radiosonde data are often used to validate GPS-PWV, as they provide accurate vertical profile measurements of water vapor pressure (humidity) and temperature, from which PWV can be calculated. In this study, we used high-resolution sounding data at Addis Ababa station covering the period 2013–2020 to validate our GAMIT-PWV retrievals at this site. Addis Ababa radiosonde station, the only available radiosonde station in Ethiopia, is located at a horizontal separation less than 4 km and an elevation difference less than 80 m from the ADIS IGS station.
The radiosonde sounding data were collected from the Integrated Global Radiosonde Archive (IGRA) [50] and have a temporal resolution of 12 h. The data quality control strategy that we implemented is the same as in [51]. Radiosonde temperature and humidity profiles are required to reach at least 300 hPa for the top level and have data available at the surface and at least five (resp. four) standard pressure levels above the surface for stations below (resp. above) 1000 hPa. In addition, profiles with large gaps (i.e., larger than 200 hPa) in pressure between consecutive records of temperature or humidity are rejected.
The method described in [52] is used for the (small) altitude offset correction between GPS and radiosonde station. The hydrostatic and ideal gas equations are used to adjust radiosonde pressure to the GPS station height as described in [53]. Finally, PWV from the GPS antenna level P 0 to the top of the radiosonde records is calculated by integration over height as described in the following equation (PWV in units of kg/m2 or mm):
P W V = 1 g 0 P 0 P t o p q P d P
where q(P), the specific humidity as a function of atmospheric pressure P, is given in units of kg/kg and g0 = 9.80665 m/s2.

2.3. ERA5 Reanalysis Data

ERA5 is the fifth generation ECMWF atmospheric reanalysis of the global climate [26]. Compared with the previous reanalysis generation (ERA-Interim, [28]), ERA5 reanalysis improves both the spatial resolution from ~80 km to ~31 km (0.25° × 0.25°) and the temporal resolution from 6 h to 1 h [54]. In this study, we extracted 1 h temporal resolution of total column precipitable water vapor (TCWV) from the ERA5 surface grid at the GPS station locations. Because GPS antenna heights and reanalysis model surface heights are not identical (see height differences h in Table 3), the ERA5-PWV estimates were adjusted for the height difference h based on an empirical formulation derived by [55]: P W V = 4 × 10 4 × P W V × h , with h in meters. The height differences between the GPS stations and surface heights in the reanalysis range from −468.88 m to +1218 m (negative values indicate that the GPS station is below ERA5 surface grid).

2.4. IGS Tropospheric Product

The IGS produces its troposphere product dataset [32] that includes ZTDs and horizontal gradients for all IGS stations. This product has a temporal resolution of 5 min and a nominal accuracy of ~4 mm [32]. In this study, we used this dataset, referred hereafter as IGS-ZTD, to validate the tropospheric delay outputs from our own processing strategy (see Section 3.1) at the 26 IGS sites surrounding Ethiopia (including DJIG) over the period 2013–2020 (see Table 4). Additionally, this product is also available for the Ethiopian station ADIS (Addis-Ababa), as it is also an IGS station.

2.5. Surface Meteorological Measurements

Rainfall rate and surface temperature data for six Ethiopian stations (ADIS, ABOO, NEGE, ASOS, BDMT, and ARMI) for the periods 2013–2019 were collected (see Table 4). The surface temperature and rainfall records are used in this study to understand the spatiotemporal variations of the PWV in Ethiopia. The rainfall data will also enable us to investigate a possible link between GAMIT-PWV and heavy rain (see Section 5).

3. Validation of GPS Processing

In this section, we shortly validate our GPS processing strategy by comparing the calculated ZTDs of our network with the ZTDs processed by the IGS on common GPS sites (Section 3.1) and by studying the correlation of our GAMIT-PWV with radiosonde PWVs at Addis-Ababa (Section 3.2).

3.1. Validation of the GAMIT-ZTD Based on the IGS-ZTD

We first validated our GPS data processing by comparing the GAMIT-ZTD and the IGS-ZTD at the 27 IGS stations used in our network for the time span 2013–2020. In this comparison, we only retain the 18 IGS stations that have observation data above 50% of the processing time span. IGS ZTD products at 5-min sampling rate are averaged to 2 h intervals to be directly comparable with the GAMIT-ZTD estimates in this study. The results show a good agreement with biases between GAMIT-ZTD and IGS-ZTD ranging from −2.76 mm to 1.83 mm (IGS-ZTD taken as reference), RMSE ranging from 2.46 mm to 4.79 mm, and correlation coefficients between 0.93 to 1.0. These values are in agreement with the nominal precision of the IGS-ZTD announced by IGS central Bureau (~4 mm).

3.2. Validation of GAMIT-PWV with Radiosonde Observations

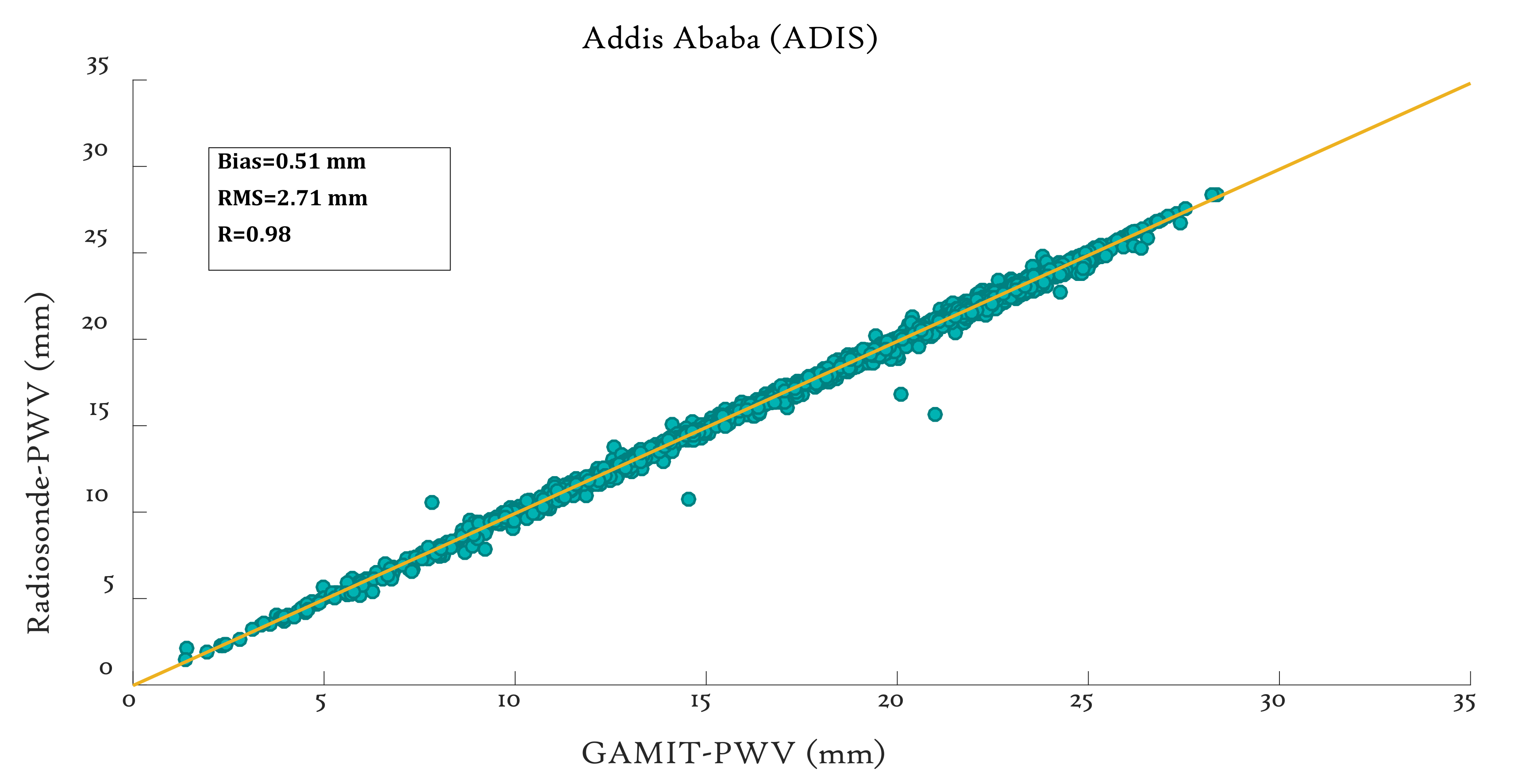

We compared GAMIT-PWV to radiosonde-PWV at Addis Ababa for the period 2013–2020. We obtained a high correlation (0.98), a small wet GAMIT-PWV bias of 0.51 mm w.r.t. radiosonde PWV and a RMSE of 2.71 mm (Figure 2). Analyzing the GPS and radiosonde-PWV observations at the same station, but for a different time period (2007–2011), Mengistu et al. [25] found a wet bias of 3.3 mm (RMSE 4.3 mm) between the GPS-PWV and the 12:00 UTC radiosonde observations, when the GPT surface pressure was used for the ZTD to PWV conversion, but only a bias of 0.1 mm (RMSE 2.5 mm) when making use of the observed surface pressure at the site. The better agreement between both datasets in our study might be explained by the different GPS processing, the use of the GPT2w surface pressure for the ZTD to PWV conversion, and including radiosonde observations at 00:00 UTC, which might impact the comparison with GPS-PWV retrievals as well, due to the known radiation dry bias in radiosonde daytime humidity observations (e.g., [56]).

4. Spatiotemporal PWV Variability in Ethiopia from GPS and ERA5 PWV

In this section, we assess to which extent both GAMIT-PWV and ERA5-PWV represent the spatiotemporal variability of PWV in a country with a very complex orography as Ethiopia.

4.1. Comparison of GAMIT-PWV and ERA5-PWV over Ethiopia

Table 3 shows the mean differences, RMSE, and correlation coefficients between the GAMIT-PWV and ERA5-PWV datasets at the eight Ethiopian GPS stations, plus DJIG (Djibouti), during the period 2013–2020. To calculate these statistical parameters, we time matched the ERA5-PWVs to the 2-h time resolution of GAMIT-PWV by averaging the 1-h sampled ERA5-PWVs to 2 h intervals. A first thing to note is that the two datasets highly correlate, with correlation coefficients ranging between 0.96–0.99. Mean PWV differences between both datasets are in the range of −0.21 mm to 3.62 mm, with the largest (absolute) values reached for ASOS (3.62 mm) and DEBK (2.84 mm) stations. For most of the stations, GAMIT-PWV has positive (moist) biases with respect to ERA5-PWV, except for SHIS (−0.21 mm) and ADIS (−0.04 mm) stations.
RMSE values between the two datasets range from 0.57 mm to 3.78 mm, with again the largest values for ASOS (3.78 mm) and DEBK (2.94 mm) stations. The higher mean difference and RMSE values at ASOS and DEBK stations are attributed to the large height difference between the ERA5 model surface grid and the GPS antenna height, which are 864 m and 1218.47 m, respectively (see Table 3). The correction method that we applied to account for these height differences, seems therefore not very successful for these sites.
The mean differences and RMSE found here between GAMIT-PWV and ERA5-PWV are lower than those reported in [25] for the period 2007–2011 between GAMIT-PWV and ERA-Interim-PWV for the common three stations in both studies. In particular, the biases (resp. RMSE) of GAMIT-PWV w.r.t. ERA5-PWV for ADIS, ARMI and BDMT stations are respectively −0.04 mm, 0.08 mm and 1.25 mm (0.62 mm, 0.57 mm and 2.05 mm), whereas the biases (resp. RMSE) of GAMIT-PWV w.r.t. ERA-interim for these stations were −4.55, 3.78 and 4.47 mm (5.7, 5.6 and 6.3 mm) in [25]. The better agreement in our study might be ascribed to (1) the higher spatiotemporal resolution of ERA5 compared to ERA-Interim, (2) improved data assimilation and physical representation of processes in ERA5, (3) the use of GPT2w surface pressure and weighted mean temperature to convert ZTD to PWV, as [25] used the older GPT model [57] based on the ERA40 reanalysis.
The earlier analyses [24,25] concluded that the GAMIT-PWV had a dry bias compared to ERA-Interim over Ethiopian lowlands, and a wet bias over the highlands. With respect to ERA5, we do not observe such a clear relation between bias and the station’s altitude. However, other factors such as the location of GPS stations near water bodies and related representativeness differences with gridded datasets like reanalyses may contribute to discrepancies [24]. For instance, Bahir Dar (BDMT), a site in the Ethiopian northern highlands, is located near Lake Tana on its southward side, the largest highland lake in the region. The high evaporation rate from the lake may be responsible for the relatively high value of GAMIT-PWV record with respect to ERA-interim [25] and ERA5 (our study). Those reanalysis gridded datasets with lower spatial (horizontal) resolution might not capture satisfactorily the higher evaporation rates due to the presence of a lake and related impact on the PWV field at the GPS site. The same explanation might be given for Djibouti (DJIG), located near the Red Sea and the Gulf of Aden.

4.2. Seasonal Cycle

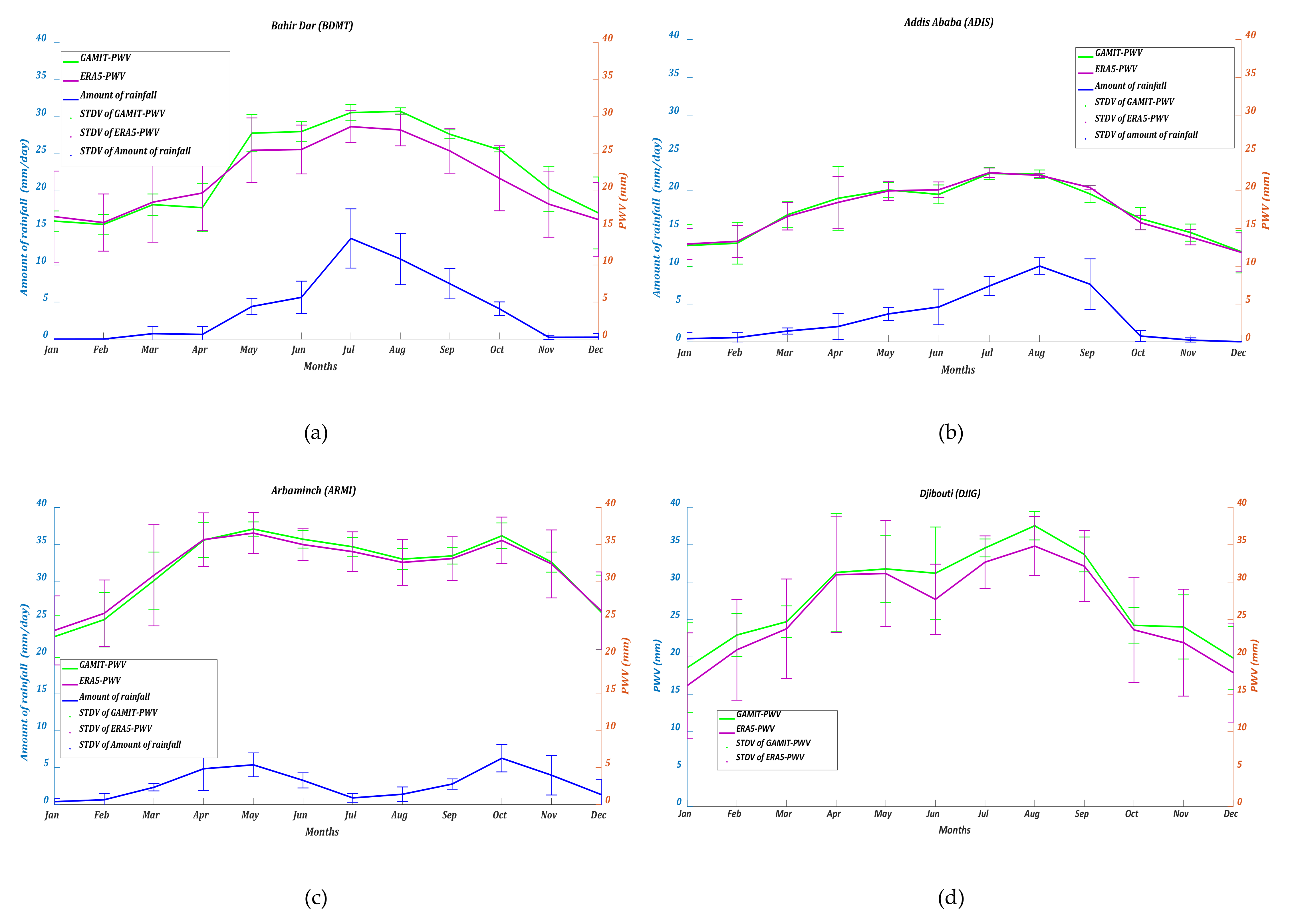

We studied the seasonal cycle of the atmospheric water vapor over Ethiopia based on GAMIT-PWV and ERA5-PWV datasets, with the precipitation and surface temperature time series as auxiliary tools. As the distribution of rainfall in the country depends both on the regional topography and on the seasonal variation of the atmospheric circulation [58], Ethiopia can be divided in three main regions based on the seasonal rainfall cycle: (i) northern and central-western areas with one rainy season that peaks in July/August; (ii) the southern part with two seasons of short rainfall (September–November) and long rainfall (March–May) respectively; and (iii) the eastern and central parts with two rainy periods called spring (February–May) and summer (June–September) rainy seasons. We will use this classification in discussing the seasonal PWV cycle as well. For stations in the northern part of the country (BDMT, DEBK and SHIS), and for the station ASOS in the western part of the country, PWV peaks during the months May/June-August, which corresponds to the summer season. An example is given in Figure 3a with station BDMT. During this season, the air flow is dominated by a zone of convergence in low-pressure systems accompanied by the oscillatory Inter-Tropical Convergence Zone (ITCZ) extending from West Africa towards India through Ethiopia or north of it [59], bringing a sufficient amount of PWV and rainfall in the northern and western part of Ethiopia. On the other hand, the lowest values of PWV in these parts of the country are observed during the months December-February, corresponding to the driest season for these areas, with little or no precipitation. During this season, Ethiopia is predominantly influenced by dry air masses originated from the Saharan Anticyclone as well as cool and dry air masses originated from the Siberian and Arabian Anticyclones [59].
In the central part of the country (stations ADIS and ABOO, see Figure 3b for ADIS), the lowest PWVs are recorded during the months February-May and the highest values during the months June-July. In this region of the country, a regime of a mono-modal summer rainfall cycle (June–September) arises, with peak rainfall especially in July/August, which is also reflected in the PWV seasonal variation of those two sites.
In the southern part of the country (stations NEGE and ARMI, see Figure 3c for ARMI), the highest PWV values are recorded once during the months September–November and once during the period March–May. The south of Ethiopia undergoes short rainfalls in September-November and long rainfalls in March-May. The (double) PWV peaks have a clear link with two precipitation periods. The seasonal cycle of both rainfall and PWV is strongly created by north–south movements of the ITCZ across the region [23].
The seasonal cycle is also captured at the station DJIG, see Figure 3d, which is located to the east of Ethiopia. This station exhibits a peak of PWV around August and the lowest PWV values in December. In terms of rainfall, August is known to be the wet season (summer season) and December is the driest month in this region [60]. Unfortunately, we lack rainfall data for this site during the time period of our study.
In general, Figure 3 shows that both the ERA5-PWV and GAMIT-PWV seasonal variations have nearly identical patterns, in particular for the ARMI and ADIS stations. The seasonal variations of both datasets for the stations BDMT and DJIG are also very similar, but the PWV monthly mean values are biased between both datasets, with this bias being non-constant over the months. As shown in Table 5, both datasets reveal very similar amplitudes of the seasonal PWV variation at the sites. This is compliant with the finding that ERA5 is able to capture the seasonal cycles of temperature (Figure 4 and [16]) and rainfall in Ethiopia [16,29] reasonably well, even if the peak in temperature is shifted by a month (Figure 4), and despite the difference in rainfall amounts (wet bias of ERA5 compared to observations). From Figure 4, it can be noted that the temperature variation within a year is rather low for the Ethiopian sites, with a maximum difference between the monthly mean temperatures around 5 °C. Overall, the summer (monsoon) seasons are wet, quite cloudy with often afternoon thunderstorms occurring and therefore characterized by relatively low temperatures compared to the other seasons. The winter and spring seasons are dry and warm, with the month of May often being the hottest month of the year. Fall has moderate temperatures.
We analyzed the year-to-year variability of the seasonal cycle of PWV using the standard deviation (STDV) of the monthly anomalies. The highest PWV inter-annual variability in terms of STDV is observed for DJIG station (with a peak of 6.24 mm in April). Given its particular location near the Red Sea and the Gulf of Aden, the transport of moisture to this region is sensitive to a large inter-annual variability, which is also illustrated by its irregular rain pattern [60]. Larger standard deviations are also obtained for the stations located in the southern part of Ethiopia (ARMI and NEGE), ranging from 2.80 mm to 4.9 mm, during the driest winter and early spring season (November to April). This large year-to-year PWV variability might be associated to the large year-to-year rainfall variability of winter rains over south-eastern Ethiopia, dominated by large scale changes in the Indian Ocean and its coupled atmosphere with a clear link to the Indian Ocean Dipole (IOD). Winter rainfall over south-eastern parts of Ethiopia is increased during positive IOD events [15,59]. On the other hand, stations located in the central and southern parts of the country (ADIS, ABOO, NEGE, and ARMI) show low PWV monthly anomalies STDV during summer season, ranging from 0.4 mm to 1.18 mm. The small year-to-year variability during the summer season for this region is due to the rain pattern being during the wet season almost similar from year to year and from station to station (see the small STDV of the rainfall amounts in Figure 3). From Figure 4, we can see that the inter-annual variability of temperature is low for most of stations, especially during the summer season.

4.3. Diurnal Cycle

Many processes can induce diurnal variations in atmospheric water vapor. These include e.g., (1) surface evapotranspiration, which peaks around noon [61], (2) atmospheric large-scale vertical motion, which tends to be downward from late morning to afternoon and upward from midnight to early morning [62], (3) atmospheric low-level moisture convergence and precipitation, which occurs more frequently around midnight [62].

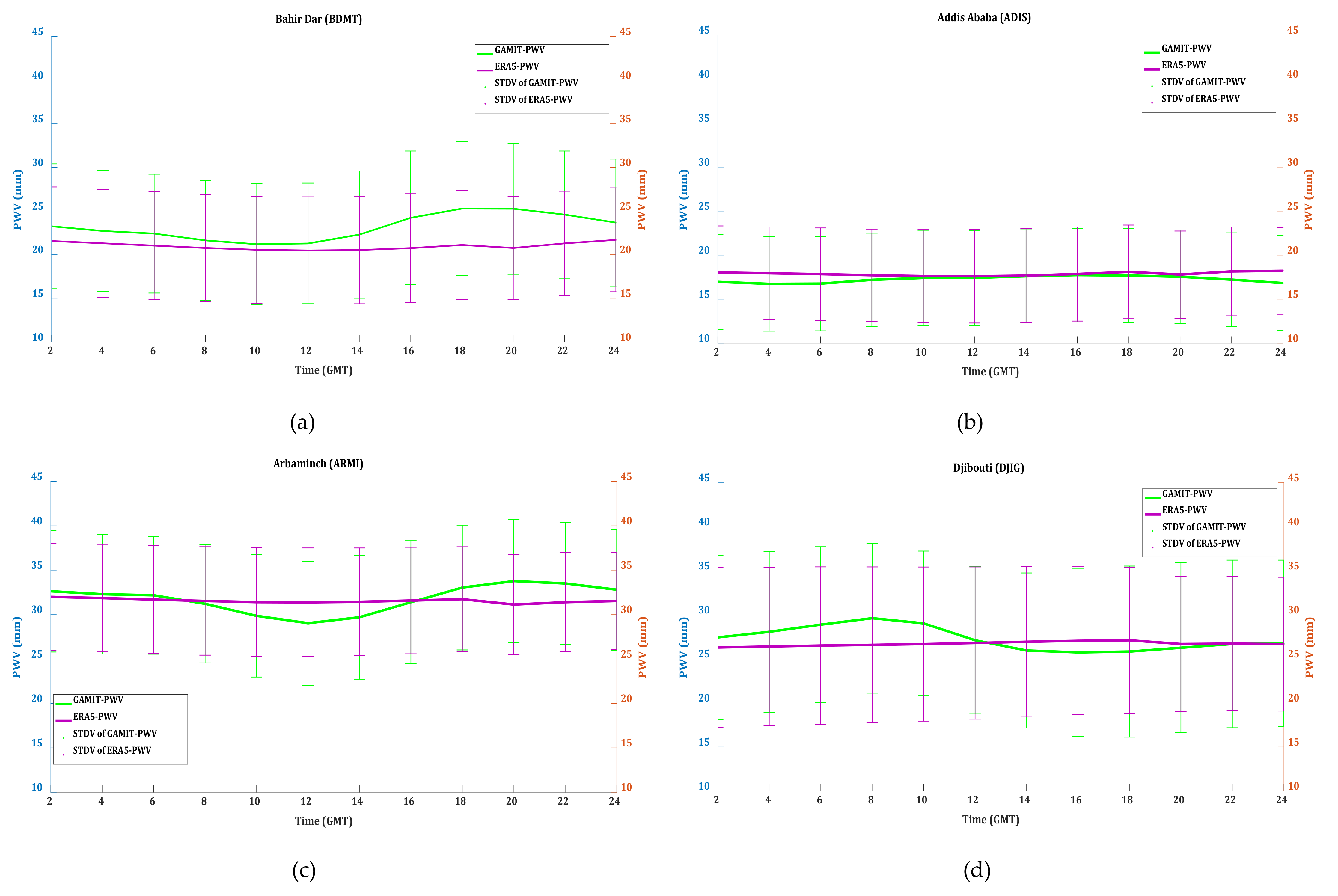

As we have the GAMIT-PWV datasets available at 2-h temporal resolution and the ERA5-PWV at 1 h resolution, we can investigate the presence of a diurnal PWV cycle at our Ethiopian sites. Mengistu et al. [25] and Yehun et al. [27] already pointed out the presence of a diurnal PWV cycle in some Ethiopian sites (including ADIS, ARMI, DEBK, and BDMT). We found that the amplitude of the diurnal PWV cycles varies from 0.99 mm (ADIS) to 4.74 mm (ARMI), with ARMI, BDMT and DJIG stations having the strongest diurnal cycle with mean amplitude between 3 and 5 mm (Figure 5 and Table 5), which corresponds to ~15% in terms of relative amplitude (Table 5). These three sites are located near water bodies and dense vegetation. BDMT is located near Lake Tana; ARMI is surrounded by many water bodies (e.g., Lake Chamo and Lake Abiyata) and near dense vegetation, whereas DJIG is located near the Red Sea. For these three stations surface evapotranspiration is the main factor driving the diurnal variations. The stations ADIS, ABOO, ASOS, and NEGE have much lower diurnal cycles, less than about 1.5 mm (less than 7.5% relative amplitude, Table 5). Although the ERA5-PWV dataset has a higher temporal resolution, the amplitude of the diurnal cycle is for most of the sites smaller for ERA5-PWV than for GAMIT-PWV, with the only clear exception being the SHIS site (with diurnal amplitude of 0.4 mm or 2% higher for ERA5 than for GAMIT-PWV). Apparently, the gridded ERA5-PWV dataset smoothens out the local diurnal variations at the GPS site locations.
Because of the stronger diurnal cycle in the GPS-PWV dataset, we have also investigated the GPS-PWV diurnal cycle over Ethiopia for all seasons separately. We concentrate here only on the sites with a clear, significant diurnal variation (i.e., BDMT, ARMI, DJIG, and DEBK). We found that the amplitude of the diurnal cycle depends on the season. Maximum amplitudes between 5 and 6 mm are observed during fall and spring seasons. As rainfall events occur in these seasons, they are characterized by a very green environment at these sites, more water on the surfaces (more water bodies) and with plenty of sunlight. The evapotranspiration from the green plants and water bodies results in the largest observed diurnal cycle in this season. On the other hand, minimum amplitudes of the diurnal cycle (only a few mm) at those sites arise during winter and summer seasons. The winter season is characterized with little observed surface moisture and hence low evapotranspiration, whereas the summer season is characterized with relatively low temperature (Figure 4) with little sunlight, which result in less evapotranspiration from the surface. In this analysis, we do not notice a clear link in the similarity between the diurnal cycles for the sites that have similar seasons (see previous Section 4.2). Clearly, the diurnal variation of the PWV is more governed by local processes and vegetation.
The PWV diurnal cycle peaks in the late evening (18:00 or 20:00 GMT, 21:00–23:00 LT) for the stations ARMI and BDMT, with the peak at 18:00 GMT only at BDMT for June, July and August (JJA) and September, October and November (SON). The minimum is reached around 10:00 GMT at BDMT (12:00 GMT for SON), and around 12:00 GMT at ARMI (14:00 GMT for JJA). Hence, these stations only show a small dependence of the phase of the diurnal cycle on the season. The phase of the maximum of the diurnal cycle at DEBK shifts every season with 2 hours, from 14:00 GMT (SON) to 20:00 GMT during March, April and May (MAM), and back, while the minimum values are obtained during the morning (04:00 GMT or 06:00 GMT, so 07:00 or 09:00 LT). At DJIG, it is the phase of the minimum of the diurnal cycle that shifts every season with 2 hours, from 14:00 in Jun, July and August (JJA) to 18:00 GMT in December, January and February (DJF), and back. The phase of the maximum falls in the late morning (08:00 GMT), except during the summer (04:00 GMT, early morning: 07:00 LT). The diurnal cycle at DJIG is hence more or less reversed as compared to the other sites.

5. Analysis of the Relationship between GPS-PWV and Heavy Rainfall

Ethiopia has a high degree of risk to natural disasters such as flooding as well as drought. For instance, in our time period considered here, 2013, 2016, 2019, and 2020 were years marked with major flooding events in the country, while 2015 was a drought year [63,64]. In this section, we want to elaborate on the potential of a GPS network in Ethiopia for nowcasting applications to predict heavy rainfall events. Zhang et al. [65] stated, generally, that PWV could be used to complement conventional meteorological observations for the monitoring and predictions of severe weather events. Indeed, many studies have confirmed that PWV variations can effectively reveal the occurrences and the life cycles of precipitation events [3,4,5]. For example, Priego et al. [4] found that three GPS stations on the Spanish Mediterranean coasts show a quick and clear increase in PWV (around 30 kg/m2) a few hours before the onset of heavy precipitation. In addition, the maximum value of PWV occurs almost simultaneously with the peak intensity of rain. Based on the analysis of a number of case studies of intense precipitation in the Lisbon area, Benevides et al. [66] found that most intense rainfall events occur after steep ascents in PWV and developed a simple algorithm that forecasts rain in the 6 h after a steep ascent of the GPS-PWV in a single station. Those sharp increases in the GPS-PWV before very intense rainfall events were termed GPS-PWV “jumps” in [5], probably associated with water vapor convergence and the continued formation of cloud condensate and precipitation particles. They explored the pattern in the GPS-PWV time-derivation before a heavy rainfall event for use in nowcasting applications.

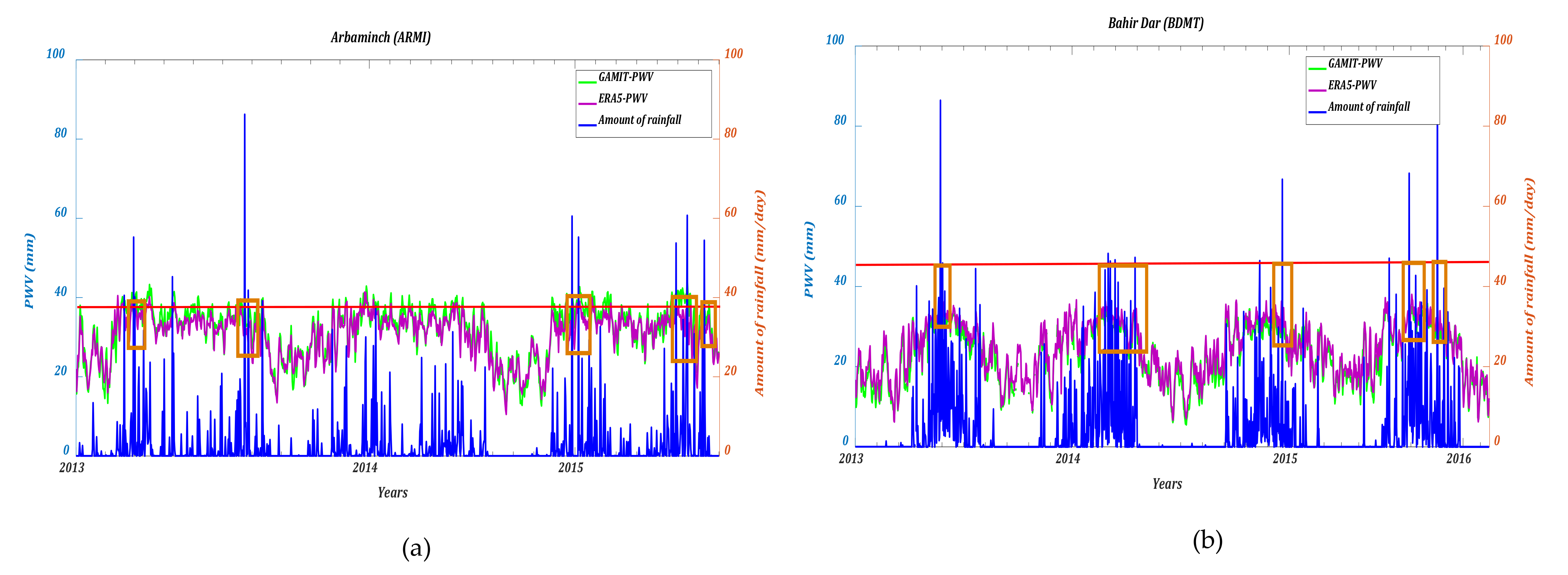

In this study, we investigate heavy rainfall events over the entire periods of available data for the BDMT (2013–2016) and ARMI (2013–2015) sites. These sites lie in regions which are sensitive to flooding events, and those have the largest number of heavy rainfall events, as compared to the other sites of our sample. Therefore, Figure 6 presents the time series of GAMIT-PWV, ERA5-PWV and precipitation for the two sites. This figure shows that periods of intense rainfall (indicated by horizontal red line and orange rectangle) are typically associated with a PWV peak, while a PWV peak does not necessarily mean that there is or will be precipitation. Therefore, we analyzed the time-varying characteristics of PWV from about 12 h before, during, and 12 h after heavy rainfall events. Based on the standard deviation of the rainfall records at these stations, we set a threshold value of 5 times the standard deviations to characterize heavy rainfall periods. This yields a threshold value of 46.34 and 38.38 mm for BDMT and ARMI respectively. Based on this criterion, we determined nine periods of heavy rainfall for BDMT and twelve periods for ARMI. We first discuss two specific cases. The maximum amount of rainfall recorded at ARMI was 86.2 mm on 15 October 2013. On that day, the GAMIT-PWV started to rise 12 h before the occurrence of the heavy rain from 31.34 to 37.17 mm (i.e., a relative change of 16%) and then dropped to 30.23 mm (i.e., −18%) 12 h after the heavy rainfall event. As another example, we mention the maximum amount of rainfall recorded at BDMT (90.8 mm) that happened on 2 September 2016. Also, for this case, we observed a rise in PWV (starting from 29.68 to 36.36 mm i.e., an increase of 18%) during 12 h before the rainfall to reach a peak at 36.36 mm and then a decrease down to 22.59 mm (i.e., −38%) 12 h after the start of the rainfall event.
This analysis was carried out for all 21 heavy rainfall cases identified. In these cases, we observed a steady rise in PWV from 12 hours before the start of the rainfall (with around 25% on average), when the PWV reaches its peak value, followed by a steady PWV decrease, to obtain again the initial PWV value after about 12 h (relative decrease of almost 25% again). Hence, for these extreme rainfall cases, there is a steady build-up of water vapor in the atmosphere before the heavy rainfall starts at the peak value of PWV. Afterwards, the pouring rain dries out the atmosphere again. As such, monitoring the PWV could be used as an indicator in a nowcasting tool for heavy precipitation, for the two Ethiopian sites considered here.

6. Conclusions and Outlook

Due to its complex topography and synoptic-scale spatiotemporal circulation patterns, Ethiopia is a very challenging country for studying the spatiotemporal variability of temperature, rainfall, and precipitable water vapor. Unfortunately, observational weather and climate data are sparse in the country, due to availability and accessibility problems, and a lack of data continuity. Although relatively low cost and with limited maintenance, ground-based GPS devices retrieving the PWV are rather limited in space and time as well in Ethiopia. In this paper, we relied on a sample consisting of eight sites in Ethiopia and one site close to the eastern Ethiopian border (Djibouti) during a maximum common time period of 2013–2020. Only two of our sites have data before 2013, other Ethiopian GPS sites with data in 2007–2011 [24,25] were decommissioned. Over data-sparse regions, reanalysis products are often taken as an alternative solution to assess the spatiotemporal variability of essential climate variables like water vapor, but a proper evaluation of their strengths and weaknesses, especially when data assimilation is rather restricted, should not be overlooked.
Compared to earlier studies over Ethiopia, we used the latest ECMWF reanalysis product, ERA5, to retrieve PWV values. We evaluated the ERA5-PWV output at the nine GPS site locations in (or close to) Ethiopia to assess whether the improvement of ERA5 with respect to previous reanalyses in terms of temperature and rainfall is also reflected in terms of the precipitable water vapor. More specifically, the following two questions were addressed: (1) Are there potential systematic PWV biases that depend on the very complex orography? (2) Does the higher spatial and temporal resolution of ERA5 compared to his predecessor ERA-Interim amount to a closer agreement with GPS in terms of the PWV seasonal and diurnal cycle? This is the first study assessing the ERA5-PWV in Ethiopia.
First, we validated our GAMIT ZTD retrievals with the IGS ZTD product at 18 IGS sites with long data series (2013–2020). Additionally, both the ZTD processing and the ZTD to PWV conversion at Addis Ababa have been evaluated with radiosonde observations. Those comparisons confirmed the good quality of our GAMIT-PWV processing, giving confidence in the reliability of the generated GAMIT-PWV dataset at the Ethiopian sites. The GAMIT-PWV achieves a good correlation with the ERA5-PWV at the Ethiopian GPS sites, with correlations exceeding 0.96. For the majority of the sites, GAMIT-PWV shows a wet bias (within 2 mm) with respect to ERA5-PWV. The largest wet biases for GAMIT-PWV are obtained for stations with a significant height difference between the GPS site and the ERA5 surface grid (ASOS: 3.62 mm wet bias, 865 m height difference, and DEBK: 2.84 mm wet bias, 1218 m height difference). An improvement of the height difference correction scheme (between the GPS site and the ERA5 surface grid at the site location) is therefore envisaged. Here, as opposed to earlier analyses [24,25] that concluded that GPS-PWV had a dry bias compared to ERA5’s predecessor ERA-Interim over Ethiopian lowlands, and a wet bias over the highlands, we do not find such a clear link between the ERA5-GPS PWV mean differences and station height. Furthermore, the RMSE obtained between GPS and ERA5 in our study are also significantly reduced compared to the values reported in those previous studies between GPS and ERA-Interim.
Making use of the GAMIT-PWV and ERA5-PWV datasets, we also investigated their similarity in capturing the spatiotemporal PWV variability in Ethiopia. Given the rather limited time length of the GPS datasets at our small sample of stations, we restricted ourselves to comparing the seasonal and diurnal PWV cycles in both datasets. We found that the PWV seasonal variability is represented similarly by the two datasets and is also clearly linked with the seasonal cycle of precipitation. This result for PWV is compliant with the finding that ERA5 is able to capture the seasonal cycles of temperature [16] and rainfall in Ethiopia [16,29] very well. In Ethiopia, the variation of temperature within a year is rather modest, and its direct link with the PWV seasonal cycle is less clear. Because of the high temporal resolution of the GAMIT-PWV and ERA5-PWV datasets compared to e.g., [24,25], we also had a closer look at the mean PWV diurnal cycle at the Ethiopian stations. Stations like ARMI and BDMT have higher diurnal amplitudes than the stations in the highlands. These former stations are located in an area where evapotranspiration is high, with very high temperatures.
In the last section, the data of two stations ARMI and BDMT were used to explore the potential of GPS-PWV monitoring for nowcasting severe rainfall events. The larger areas around those stations have been frequently affected by flooding events. We therefore selected heavy rainfall events in the daily precipitation time series at those stations and analyzed the GPS-PWV behavior preceding and following such an event. We found that GPS-PWV tends to increase from several hours before heavy rainfall (about 25% on average from 12 h before the rainfall starts), reaches a peak during rainfall, and decrease after the heavy rainfall (also by about -25% on average at 12 h after the start of the rainfall). This study illustrates the opportunity that a denser network of GPS sites in Ethiopia can provide for setting up a warning system for heavy rainfall.
While ERA5 is much closer to observations than its predecessor, the horizontal resolution of 0.25° × 0.25° can still be considered too coarse for assessing the PWV variability over Ethiopia. Additionally, in order to obtain reliable climate projections, especially for extreme precipitation, climate simulations at convection-permitting resolutions are necessary [21,67]. In this study, in which we wanted to assess the present-day representation of PWV by GPS and ERA5, we are spatially limited by the coverage of the GPS network in Ethiopia, which are mainly “point” observations. However, the use of a gridded dataset like ERA5 would enable us to better investigate the spatial variability of the PWV over the entire country of Ethiopia.
Moreover, ERA5 is available since 1979, giving the opportunity to study both PWV and rainfall at Ethiopia over the past decades. In a follow-up study, we will use ERA5 to validate an ensemble of regional climate models over Ethiopia [20,22] in terms of PWV and rainfall. In a next step, we will then investigate the impact of climate change on PWV and extreme rainfall.

Author Contributions

Conceptualization, A.K.K.; Formal analysis, A.K.K., R.V.M. and E.P.; Funding acquisition, R.V.M. and E.P.; Methodology, A.K.K., R.V.M., E.P.; Resources, A.K.K., R.V.M., E.P.; Software, A.K.K.; Supervision, R.V.M., E.P. & B.V.S.; Validation, A.K.K., R.V.M. & E.P.; Writing original draft, A.K.K., R.V.M., E.P. and B.V.S.; All authors have read and agreed to the published version of the manuscript.

Funding

This work has been partly funded by the Solar-Terrestrial Centre of Excellence (STCE), supported by the Belgian Federal Science Policy Office.

Data Availability Statement

The surface meteorological data were obtained from the Ethiopian meteorological agency. Local GPS station data were obtained from UNAVCO (ftp://data-out.unavco.org/pub/rinex/obs/, accessed on 1 June 2021) and the ERA5 data was obtained from ECMWF (https://www.ecmwf.int/en/forecasts/datasets/reanalysis-datasets/era5, accessed on 1 June 2021). The GNSS data was obtained from IGS (https://cddis.nasa.gov/archive/gnss/ products/troposphere/zpd/, accessed on 1 September 2021) and the radio sounding data were collected from the Integrated Global Radiosonde Archive (https://www.ncei.noaa.gov/products/weather-balloon/integrated-global-radiosonde-archive, accessed on 1 April 2021). GPT2w is computed from ECMWF ERA-Interim temperature and humidity profiles and made available by the Technical University of Vienna. (http://ggosatm.hg.tuwien.ac.at/DELAY/, accessed on 1 June 2021).

Acknowledgments

We acknowledge Copernicus C3S/CAMS, CDDIS, UNAVCO, NCDC/NOAA, IGS, and Ethiopian National Meteorological Agency for providing the data used in this study. We are also particularly grateful to the Ethiopian Space Science and Technology Institute and Madda Walabu University for their support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jones, J.; Guerova, G.; Douša, J.; Dick, G.; de Haan, S.; Pottiaux, E.; Van Malderen, R. Advanced GNSS Tropospheric Products for Monitoring Severe Weather Events and Climate. COST Action ES1206 Final Action Dissemination Report; Springer: Berlin/Heidelberg, Germany, 2019; p. 563. [Google Scholar] [CrossRef]
  2. Ning, T.; Elgered, G.; Willén, U.; Johansson, J.M. Evaluation of the atmospheric water vapour content in a regional climate model using ground-based GPS measurements. J. Geophys. Res. Atmos. 2013, 118, 329–339. [Google Scholar] [CrossRef] [Green Version]
  3. Bonafoni, S.; Biondi, R.; Brenot, H.; Anthes, R. Radio occultation and ground-based GNSS products for observing, understanding and predicting extreme events. Atmos. Res. 2019, 230, 104624. [Google Scholar] [CrossRef]
  4. Priego, E.; Jones, J.; Porres, M.J.; Seco, A. Monitoring water vapour with GNSS during a heavy rainfall event in the Spanish Mediterranean area. Geomat. Nat. Hazards Risk 2017, 8, 282–294. [Google Scholar] [CrossRef]
  5. Sapucci, L.F.; Machado, L.A.T.; de Souza, E.M.; Campos, T.B. Global Positioning System precipitable water vapour (GPS-PWV) jumps before intense rain events: A potential application to nowcasting. Meteorol. Appl. 2018, 26, 49–63. [Google Scholar] [CrossRef] [Green Version]
  6. Li, H.; Wang, X.; Wu, S.; Zhang, K.; Chen, X.; Qiu, C.; Zhang, S.; Zhang, J.; Xie, M.; Li, L. Development of an Improved Model for Prediction of Short-Term Heavy Precipitation Based on GNSS-Derived PWV. Remote Sens. 2020, 12, 4101. [Google Scholar] [CrossRef]
  7. Kämpfer, N. Monitoring Atmospheric Water Vapour; ISSI Scientific Report Series; Springer: New York, NY, USA, 2013. [Google Scholar] [CrossRef]
  8. Gui, K.; Che, H.; Chen, Q.; Zeng, Z.; Liu, H.; Wang, Y.; Zheng, Y.; Sun, T.; Liao, T.; Wang, H.; et al. Evaluation of radiosonde, MODIS-NIR-Clear, and AERONET precipitable water vapor using IGS ground-based GPS measurements over China. Atmos. Res. 2017, 197, 461–473. [Google Scholar] [CrossRef]
  9. Guerova, G.; Jones, J.; Douša, J.; Dick, G.; de Haan, S.; Pottiaux, E.; Bock, O.; Pacione, R.; Elgered, G.; Vedel, H.; et al. Review of the state of the art and future prospects of the ground-based GNSS meteorology in Europe. Atmos. Meas. Tech. 2016, 9, 5385–5406. [Google Scholar] [CrossRef] [Green Version]
  10. Elgered, G.; Davis, J.L.; Herring, T.A.; Shapiro, I. Geodesy by radio interferometry: Water vapour radiometry for estimation of the wet delay. J. Geophys. Res. 1991, 96, 6541–6555. [Google Scholar] [CrossRef]
  11. Duan, J.P.; Bevis, M.; Fang, P.; Bock, Y.; Chiswell, S.; Businger, S.; Rocken, C.; Solheim, F.; van Hove, T.; Ware, R.; et al. GPS meteorology: Direct estimation of the absolute value of precipitable water. J. Appl. Meteorol. 1996, 35, 830–838. [Google Scholar] [CrossRef] [Green Version]
  12. Pérez-Ramírez, D.; Whiteman, D.N.; Smirnov, A.; Lyamani, H.; Holben, B.N.; Pinker, R.; Andrade, M.; Alados-Arboledas, L. Evaluation of AERONET precipitable water vapor versus microwave radiometry, GPS, and radiosondes at ARM sites. J. Geophys. Res. Atmos. 2014, 119, 9596–9613. [Google Scholar] [CrossRef] [Green Version]
  13. Van Malderen, R. IWV Intercomparisons. In Advanced GNSS Tropospheric Products for Monitoring Severe Weather Events and Climate: COST Action ES1206 Final Action Dissemination Report; Jones, J., Guerova, G., Douša, J., Dick, G., de Haan, S., Pottiaux, E., Bock, O., Pacione, R., Van Malderen, R., Eds.; Springer International Publishing: Cham, Switzerland, 2020; Chapter 5; pp. 339–358. [Google Scholar] [CrossRef]
  14. Vaquero-Martinez, J.; Anton, M. Review on the Role of GNSS Meteorology in Monitoring Water Vapor for Atmospheric Physics. Remote Sens. 2021, 13, 2287. [Google Scholar] [CrossRef]
  15. Dubache, G.; Ogwang, B.A.; Ongoma, V. The effect of Indian Ocean on Ethiopian seasonal rainfall. Meteorol. Atmos. Phys. 2019, 131, 1753–1761. [Google Scholar] [CrossRef]
  16. Gleixner, S.; Demissie, T.; Diro, G.T. Did ERA5 Improve Temperature and Precipitation Reanalysis over East Africa? Atmosphere 2020, 11, 996. [Google Scholar] [CrossRef]
  17. Seleshi, Y.; Demaree, G.R. Rainfall variability in the Ethiopian and Eritrean highlands and its links with the Southern Oscillation Index. J. Biogeogr. 1995, 22, 945–952. [Google Scholar] [CrossRef]
  18. Zeleke, T.T.; Giorgi, F.; Diro, G.T.; Zaitchik, B.F. Trend and periodicity of drought over Ethiopia. Int. J. Climatol. 2017, 37, 4733–4748. [Google Scholar] [CrossRef]
  19. McSweeney, C.; New, M.; Lizcano, G. UNDP Climate Change Country Profiles: Ethiopia. 2008. Available online: http://ncsp.undp.org/sites/default/files/Ethiopia.oxford.report.pdf (accessed on 5 September 2021).
  20. Dosio, A.; Jones, R.G.; Jack, C.; Lennard, C.; Nikulin, G.; Hewitson, B. What Can We Know about Future Precipitation in Africa? Robustness, Significance and Added Value of Projections from a Large Ensemble of Regional Climate Models. Clim. Dyn. 2019, 53, 5833–5858. [Google Scholar] [CrossRef] [Green Version]
  21. Kendon, E.J.; Stratton, R.A.; Tucker, S.; Marsham, J.H.; Berthou, S.; Rowell, D.P.; Senior, C.A. Enhanced future changes in wet and dry extremes over Africa at convection-permitting scale. Nat. Commun. 2019, 10, 1794. [Google Scholar] [CrossRef] [Green Version]
  22. Van Vooren, S.; Van Schaeybroeck, B.; Nyssen, J.; Van Ginderachter, M.; Termonia, P. Evaluation of CORDEX rainfall in northwest Ethiopia: Sensitivity to the model representation of the orography. Int. J. Climatol. 2019, 39, 2569–2586. [Google Scholar] [CrossRef]
  23. Ssenyunzi, R.C.; Oruru, B.; D’ujanga, F.M.; Realini, E.; Barindelli, S.; Tagliaferro, G.; von Engeln, A.; van de Giesen, N. Performance of ERA5 data in retrieving Precipitable Water Vapour over East African tropical region. Adv. Space Res. 2020, 65, 1877–1893. [Google Scholar] [CrossRef]
  24. Abraha, K.E.; Lewi, E.; Masson, F.; Boy, J. Spatial-temporal variations of water vapour content over Ethiopia: A study using GPS observations and the ECMWF model. GPS Solut. 2017, 21, 89–99. [Google Scholar] [CrossRef] [Green Version]
  25. Mengistu, T.G.; Blumenstock, T.; Hase, F. Observations of precipitable water vapour over complex topography of Ethiopia from ground-based GPS, FTIR, radiosonde and ERA-Interim reanalysis. Atmos. Meas. Tech. 2015, 8, 3277–3295. [Google Scholar] [CrossRef] [Green Version]
  26. Hersbach, H.; Bell, B.; Berrisford, P.; Hirahara, S.; Horányi, A.; Muñoz-Sabater, J.; Thépaut, J.N. The ERA5 global reanalysis. Q. J. R. Meteorol. Soc. 2020, 146, 1999–2049. [Google Scholar] [CrossRef]
  27. Yehun, A.; Gogie, T.; Vermeer, M.; Hunegnaw, A. Estimating precipitable water vapour using the global positioning system and radio occultation over Ethiopian regions. Int. J. Remote Sens. 2021, 42, 6577–6602. [Google Scholar] [CrossRef]
  28. Dee, D. The ERA-Interim reanalysis: Configuration and performance of the data assimilation system. Q. J. R. Meteorol. Soc. 2011, 137, 553–597. [Google Scholar] [CrossRef]
  29. Dubache, G.; Asmerom, B.; Ullah, W.; Ogwang, B.A.; Amiraslani, F.; Weijun, Z.; Gul, C. Testing the accuracy of high-resolution satellite-based and numerical model output precipitation products over Ethiopia. Theor. Appl. Climatol. 2021, 146, 1127–1142. [Google Scholar] [CrossRef]
  30. Yuan, P.; Hunegnaw, A.; Alshawaf, F.; Awange, J.; Klos, A.; Teferle, F.N.; Kutterer, H. Feasibility of ERA5 integrated water vapor trends for climate change analysis in continental Europe: An evaluation with GPS (1994–2019) by considering statistical significance. Remote Sens. Environ. 2021, 260, 112416. [Google Scholar] [CrossRef]
  31. Wang, S.; Xu, T.; Nie, W.; Jiang, C.; Yang, Y.; Fang, Z.; Li, M.; Zhang, Z. Evaluation of Precipitable Water Vapor from Five Reanalysis Products with Ground-Based GNSS Observations. Remote Sens. 2020, 12, 1817. [Google Scholar] [CrossRef]
  32. Hackman, C.; Byram, S. IGS Troposphere Working Group 2012. Int. GPS Serv. Tech. Rep. 2012, 195–199. Available online: ftp://igs.org/pub/resource/pubs/2012_techreport.pdf (accessed on 12 June 2021).
  33. Herring, T.A.; King, R.W.; Floyd, M.A.; McCluskey, S.C. Introduction to GAMIT/GLOBK; MIT: Cambridge, MA, USA, 2018. [Google Scholar]
  34. Wessel, P.; Luis, J.F.; Uieda, L.; Scharroo, R.; Wobbe, F.; Smith, W.H.F.; Tian, D. The Generic Mapping Tools version 6. Geochem. Geophy. Geosyst. 2019, 20, 5556–5564. [Google Scholar] [CrossRef] [Green Version]
  35. Zuheir, A.; Paul, R.; Laurent, M.; Xavier, C. ITRF2014: A new release of the International Terrestrial Reference Frame modeling nonlinear station motions. J. Geophys. Res. Solid Earth 2016, 121, 6109–6131. [Google Scholar] [CrossRef] [Green Version]
  36. Petit, G.; Luzum, B. (Eds.) IERS Technical Note, 36; Verlag des Bundesamts für Kartographie und Geodäsie: Frankfurt am Main, Germany, 2010; p. 179. ISBN 3-89888-989-6. [Google Scholar]
  37. Letellier, T.; Lyard, F.; Lefevre, F. The new global tidal solution: Fes2004. In Proceedings of the Ocean Surface Topography Science Team Meeting, St. Petersburg, FL, USA, 4–6 November 2004. [Google Scholar]
  38. Kouba, J. Implementation and testing of the gridded Vienna Mapping Function 1 (VMF1). J. Geod. 2008, 82, 193–205. [Google Scholar] [CrossRef]
  39. Böhm, J.; Möller, G.; Schindelegger, M.; Pain, G.; Weber, R. Development of an improved empirical model for slant delays in the troposphere (GPT2w). GPS Solut. 2015, 19, 433–441. [Google Scholar] [CrossRef] [Green Version]
  40. Davis, J.L.; Elgered, G.; Niell, A.E.; Kuehn, C.E. Ground-based measurements of gradients in the “wet” radio refractivity of air. Radio Sci. 1993, 28, 1003–1018. [Google Scholar] [CrossRef]
  41. MacMillan, D.S. Atmospheric gradients from very long baseline interferometry observations. Geophys. Res. Lett. 1995, 22, 1041–1044. [Google Scholar] [CrossRef]
  42. Bar-Sever, Y.E.; Kroger, P.M.; Borjesson, J.A. Estimating horizontal gradients of tropospheric path delay with a single GPS receiver. J. Geophys. Res. 1998, 103, 5019–5035. [Google Scholar] [CrossRef] [Green Version]
  43. Chen, G.; Herring, T.A. Effects of atmospheric azimuthal asymmetry on the analysis from space geodetic data. J. Geophys. Res. 1997, 102, 20489–20502. [Google Scholar] [CrossRef]
  44. Marini, J.W. Correction of satellite tracking data for an arbitrary tropospheric profile. Radio Sci. 1972, 7, 223–231. [Google Scholar] [CrossRef]
  45. Niell, A.E. Global mapping functions for the atmosphere delay at radio wavelengths. J. Geophys. Res. 1996, 101, 3227–3246. [Google Scholar] [CrossRef]
  46. Böhm, J.; Werl, B.; Schuh, H. Troposphere mapping functions for GPS and very long baseline interferometry from European Center for Medium-Range Weather Forecasts operational analysis data. J. Geophys. Res. 2006, 111, B02406. [Google Scholar] [CrossRef]
  47. Saastamoinen, J. Atmospheric correction for the troposphere and stratosphere in radio ranging of satellites. Geophys. Monogr. 1972, 15, 247–251. [Google Scholar] [CrossRef]
  48. Bevis, M.; Businger, S.; Chiswell, S. GPS meteorology: Mapping zenith wet delays onto precipitable water. J. Appl. Meteorol. 1994, 33, 379–386. [Google Scholar] [CrossRef]
  49. Askne, J.; Nordius, H. Estimation of tropospheric delay for microwaves from surface weather data. Radio Sci. 1987, 22, 379–386. [Google Scholar] [CrossRef]
  50. Durre, I.; Vose, S.; Wuertz, D. Overview of the integrated global radiosonde archive. J. Clim. 2006, 19, 53–68. [Google Scholar] [CrossRef] [Green Version]
  51. Wang, J.; Zhang, L. Systematic errors in global radiosonde precipitable water data from comparisons with ground-based GPS measurements. J. Clim. 2008, 21, 2218–2238. [Google Scholar] [CrossRef]
  52. Haase, J.S.; Ge, M.; Vedel, H.; Calais, E. Accuracy and variability of GPS tropospheric delay measurements of water vapour in the western Mediterranean. J. Appl. Meteorol. 2003, 42, 1547–1568. [Google Scholar] [CrossRef]
  53. Wang, J.; Zhang, L.; Dai, A.; Hove, T.V.; Baelen, J.V. A near global, 2-hourly data set of atmospheric precipitable water from ground-based GPS measurements. J. Geophys. Res. 2007, 112. [Google Scholar] [CrossRef] [Green Version]
  54. Albergel, C.; Dutra, E.; Munier, S.; Calvet, J.C.; Munoz-Sabater, J.; de Rosnay, P.; Balsamo, G. ERA5 and ERA-Interim driven ISBA land surface model simulations: Which one performs better? Hydrol. Earth Syst. Sci. 2018, 22, 3515–3532. [Google Scholar] [CrossRef] [Green Version]
  55. Bock, O.; Keil, C.; Richard, E.; Flamant, C.; Bouin, M.N. Validation of precipitable water from ECMWF model analyses with GPS and radiosonde data during the MAP SOP. Q. J. R. Meteorol. Soc. 2005, 131, 3013–3036. [Google Scholar] [CrossRef]
  56. Vömel, H.; Selkirk, H.; Miloshevich, L.; Valverde, J.; Valdés, J.; Kyrö, E.; Kivi, R.; Stolz, W.; Peng, G.; Diaz, J.A. Radiation dry bias of the Vaisala RS92 humidity sensor. J. Atmos. Ocean. Tech. 2007, 24, 953–963. [Google Scholar] [CrossRef] [Green Version]
  57. Böhm, J.; Heinkelmann, R.; Schuh, H. A global model of pressure and temperature for geodetic applications. J. Geod. 2007, 81, 679–683. [Google Scholar] [CrossRef]
  58. Diro, G.T.; Toniazzo, T.; Shaffrey, L. Ethiopian rainfall in climate models. In African Climate and Climate Change; Springer: Dordrecht, The Netherlands, 2011; pp. 51–69. [Google Scholar] [CrossRef]
  59. Takele, R.; Tesfaye, K.; Traore, P.C.S. Seasonal Climate Predictability in Ethiopia: Identifying Best Predictor Sets for Subseasonal to Seasonal Forecasting; CCAFS Working Paper No. 301; CGIAR Research Program on Climate Change, Agriculture and Food Security (CCAFS): Wageningen, The Netherlands, 2020. [Google Scholar]
  60. Dabar, A.; Silah-Eddine, C.; Pohl, W. Spatial and temporal variability of rainfall over the Republic of Djibouti from 1946 to 2017. Int. J. Climatol. 2021, 41, 2729–2748. [Google Scholar] [CrossRef]
  61. Dai, A.; Trenberth, K.E.; Karl, T.R. Effects of clouds, soil moisture, precipitation and water vapour on diurnal temperature range. J. Clim. 1999, 12, 2451–2473. [Google Scholar] [CrossRef]
  62. Dai, A.; Giorgi, F.; Trenberth, K.E. Observed and model-simulated precipitation diurnal cycle over the contiguous United States. J. Geophys. Res. 1999, 104, 6377–6402. [Google Scholar] [CrossRef]
  63. World Bank Group. Climate Change Knowledge Portal. 2021. Available online: https://climateknowledgeportal.worldbank.org/country/ethiopia/vulnerability (accessed on 24 December 2021).
  64. Bayable, G.; Gedamu, A.; Getenet, A.; Temesgen, G. Spatiotemporal variability and trends of rainfall and its association with Pacific Ocean Sea surface temperature in West Harerge Zone, Eastern Ethiopia. Environ. Syst. Res. 2021, 10, 7. [Google Scholar] [CrossRef]
  65. Zhang, T.; Manning, S.W.; Rohm, S.C. Capturing the signature of severe weather events in Australia using GPS measurements. IEEE J. Sele. Top. Appl. Earth Obs. Remote Sens. 2015, 8, 1839–1847. [Google Scholar] [CrossRef]
  66. Benevides, P.; Catalao, J.S.; Miranda, P. On the inclusion of GPS precipitable water vapour in the nowcasting of rainfall. Nat. Hazards Earth Syst. Sci. 2015, 15, 2605–2616. [Google Scholar] [CrossRef] [Green Version]
  67. Van den Hende, C.; Van Schaeybroeck, B.; Nyssen, J.; Van Vooren, S.; Van Ginderachter, M.; Termonia, P. Analysis of rain-shadows in the Ethiopian Mountains using climatological model data. Clim. Dyn. 2021, 56, 1663–1679. [Google Scholar] [CrossRef]

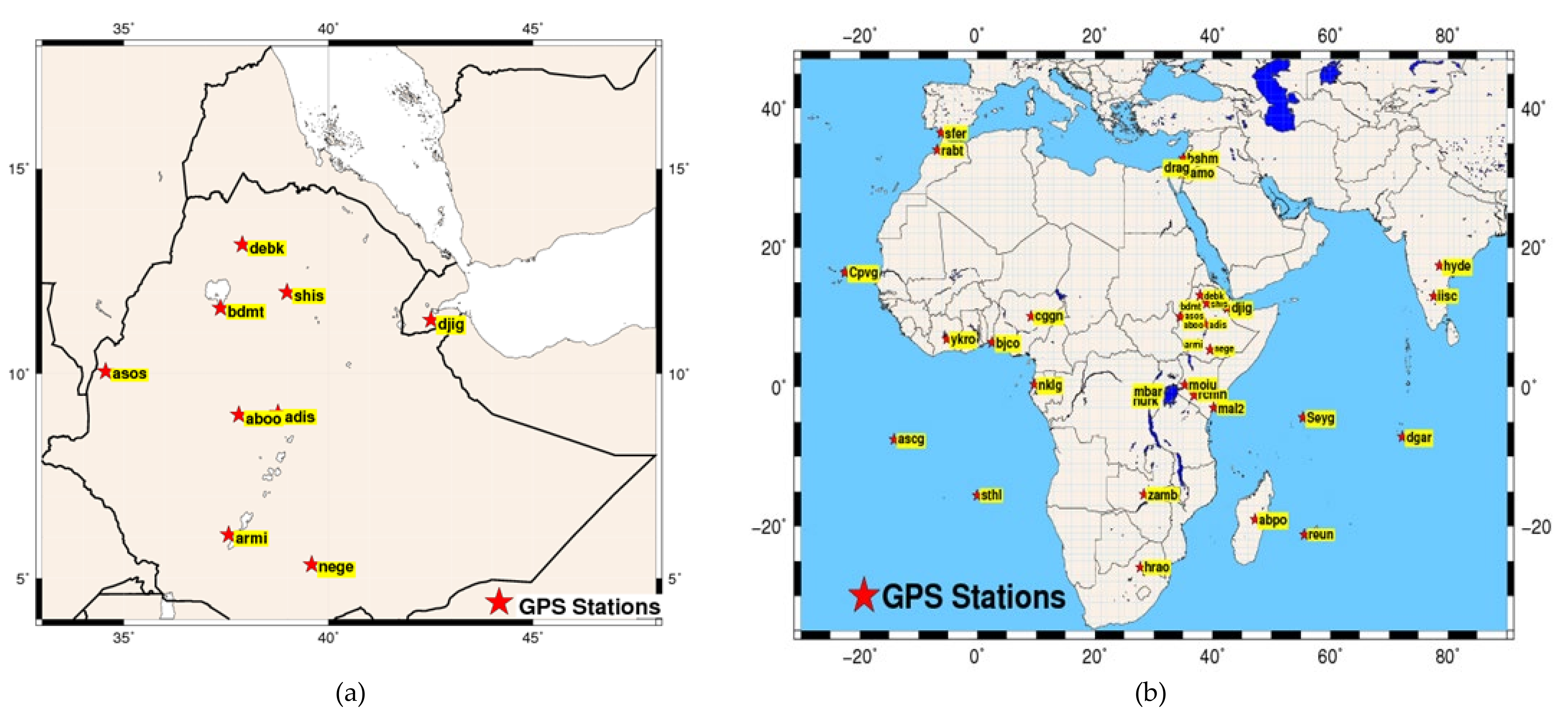

Figure 1. Maps of GPS stations in this study: (a) 8 Ethiopian GPS stations and the station Djibouti (DJIG) for which the PWV was retrieved and analyzed and (b) the entire network of stations used here for the processing of the zenith total delays (ZTD) at the Ethiopian GPS stations and DJIG. In total, we used the data from 26 IGS stations surrounding the country (including DJIG) and 8 Ethiopian stations (ADIS being also an IGS site) sites.
Figure 1. Maps of GPS stations in this study: (a) 8 Ethiopian GPS stations and the station Djibouti (DJIG) for which the PWV was retrieved and analyzed and (b) the entire network of stations used here for the processing of the zenith total delays (ZTD) at the Ethiopian GPS stations and DJIG. In total, we used the data from 26 IGS stations surrounding the country (including DJIG) and 8 Ethiopian stations (ADIS being also an IGS site) sites.
Remotesensing 14 00686 g001
Figure 2. Scatter plot of radiosonde-PWV versus GAMIT-PWV for Addis-Ababa (ADIS) during the 2013–2020.
Figure 2. Scatter plot of radiosonde-PWV versus GAMIT-PWV for Addis-Ababa (ADIS) during the 2013–2020.
Remotesensing 14 00686 g002
Figure 3. Seasonal variations of GAMIT-PWV (green), ERA5-PWV (purple) and rainfall rate (blue) for the (a) BDMT (b) ADIS (c) ARMI, and (d) DJIG stations. The inter-annual variability is represented with the 1 sigma error bars and denoted by STDV (standard deviation).
Figure 3. Seasonal variations of GAMIT-PWV (green), ERA5-PWV (purple) and rainfall rate (blue) for the (a) BDMT (b) ADIS (c) ARMI, and (d) DJIG stations. The inter-annual variability is represented with the 1 sigma error bars and denoted by STDV (standard deviation).
Remotesensing 14 00686 g003

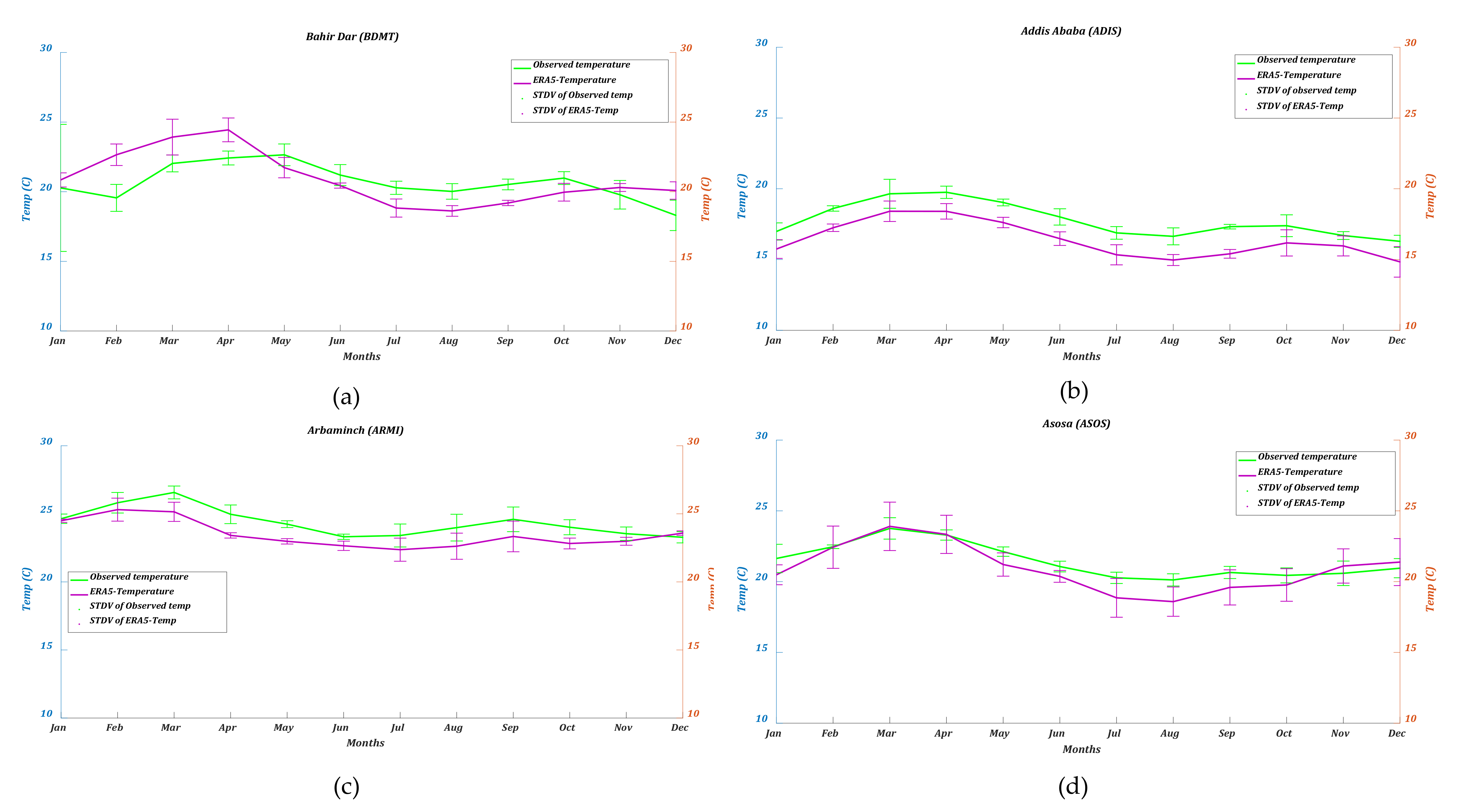

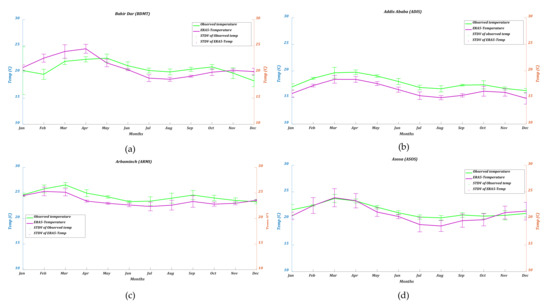

Figure 4. Seasonal variations of ERA5 and observed temperatures for the (a) BDMT, (b) ADIS, (c) ARMI, and (d) ASOS stations. The inter-annual variability is represented with vertical bars and denoted by STDV.
Figure 4. Seasonal variations of ERA5 and observed temperatures for the (a) BDMT, (b) ADIS, (c) ARMI, and (d) ASOS stations. The inter-annual variability is represented with vertical bars and denoted by STDV.
Remotesensing 14 00686 g004
Figure 5. Diurnal cycles in the GAMIT-PWV and ERA5-PWV datasets at the (a) BDMT,(b) ADIS, (c) ARMI, and (d) DJIG stations. The inter-day variability is represented with vertical bars and denoted by STDV.
Figure 5. Diurnal cycles in the GAMIT-PWV and ERA5-PWV datasets at the (a) BDMT,(b) ADIS, (c) ARMI, and (d) DJIG stations. The inter-day variability is represented with vertical bars and denoted by STDV.
Remotesensing 14 00686 g005
Figure 6. Time series of GAMIT-PWV, ERA5-PWV and amount of rainfall for the stations (a) ARMI and (b) BDMT. The horizontal red line shows the threshold value we determined for the heavy rainfall events and the orange rectangle shows that PWV values are maximum during heavy rain events.
Figure 6. Time series of GAMIT-PWV, ERA5-PWV and amount of rainfall for the stations (a) ARMI and (b) BDMT. The horizontal red line shows the threshold value we determined for the heavy rainfall events and the orange rectangle shows that PWV values are maximum during heavy rain events.
Remotesensing 14 00686 g006
Table 1. GPS stations in Ethiopia with geographic area information and duration of observations time. Stations marked with 1 have surface observations of temperature and precipitation.
Table 1. GPS stations in Ethiopia with geographic area information and duration of observations time. Stations marked with 1 have surface observations of temperature and precipitation.
StationLatitude (°)Longitude (°)Altitude (m)City/Town Station LocationGeographical AreaObservation Period
ADIS 19.0238.462439.15Addis-AbabaSubtropical highland climate, located in the central highland2013–2020
ABOO 18.5937.481979Ambo townsubtropical highland, located in the central highland2013–2018
ARMI 16.0337.331201.8Arbaminch townVery warm temperature, low land and surrounded by many water bodies and located in the African great rift valley in the southern part of Ethiopia2013–2015
ASOS 110.0334.331626Asosa townWarm temperature and located in the western part of the country2013–2017
BDMT 111.3637.211793.38Bahir Dar cityhighland and near lake Tana and located in the north-western part of the country2013–2017
DEBK13.0937.532862Debark townCold temperature, highland and near the high peak mountain, Ras-Dashin, located in the northern part of the country2013–2017
NEGE 15.2039.351554Negele-Borena townWarm area, Arid climate and located in the southern part of Ethiopia2013–2020
SHIS11.5938.592010.5Shimsheha townHighland, located in the northern part of the country2013–2017
DJIG11.3142.50711Djiboutiwarm and located near the Red Sea 2016–2020
Table 2. GPS data processing options.
Table 2. GPS data processing options.
Software UsedGAMIT v10.71 [33,34]
Processing ModeMulti-epoch joint least squares adjustment
Sampling Interval30 s
Frame of ReferenceInternational terrestrial reference frame ITRF2014 [35]
Antenna PCO/PCV ModelIGS14.ATX
Solid Earth CorrectionsSolid earth tides, ocean loading induced earth tides, and polar motion induced earth tides according to the IERS 2010 convention [36]
Ocean Loading ModelFinite element solution FES2004 [37]
Ionospheric ModelIonospheric-free
Observation Elevation Cut-off10 degree
Mapping FunctionsVienna mapping function VMF1(grid) [38]
A priori Hydrostatic and Wet Tropospheric Model
y
VMF1(grid) [38]
Initial hydrostatic delay estimated with Saastamoinen model using the global pressure and temperature (GPT2w) as input [39]
Orbits and Satellite Clocks
Time Resolution
IGS Final
2 h
Table 3. GAMIT-PWV compared to ERA5-PWV (ERA5-PWV used as reference). The different columns denote the number of ERA5-PWV and GAMIT-PWV observation pairs, the mean differences between GAMIT-PWV and ERA5-PWV (GAMIT-PWV minus ERA5-PWV) in mm, the Root Mean Square Errors (RMSE) in mm, the correlation coefficient R, the altitude of the GPS station in m, and the height difference Δh in m between GPS receiver antenna height and ERA5 model grid surface height. The comparisons between the two datasets are made at 2 h resolution over the period 2013–2020, when available.
Table 3. GAMIT-PWV compared to ERA5-PWV (ERA5-PWV used as reference). The different columns denote the number of ERA5-PWV and GAMIT-PWV observation pairs, the mean differences between GAMIT-PWV and ERA5-PWV (GAMIT-PWV minus ERA5-PWV) in mm, the Root Mean Square Errors (RMSE) in mm, the correlation coefficient R, the altitude of the GPS station in m, and the height difference Δh in m between GPS receiver antenna height and ERA5 model grid surface height. The comparisons between the two datasets are made at 2 h resolution over the period 2013–2020, when available.
StationNo. Obs.Mean Difference (mm)RMSE (mm)RAltitude (m) h
(m)
ADIS31194−0.040.620.992439.1558.31
ABOO217100.140.630.98197976.37
ARMI142260.080.570.991200−468.88
ASOS189103.623.800.961626864.6
BDMT172351.252.050.971793.38−353.16
DEBK182402.842.940.9828621218.47
NEGE274521.271.420.981554397
SHIS18913−0.211.150.972010−225.46
DJIG180121.721.940.99711.41303.2
Table 4. Summary of the datasets and their characteristics.
Table 4. Summary of the datasets and their characteristics.
DatasetsObs. TypeTime ResolutionObs. StartObs. EndNb. Sites
GAMIT-ZTD/PWVPoint2 h20132017/2020ZTD: 34
PWV: 9 (8 Ethiopian+ DJIG)
IGS-ZTDPoint5 min2013202027 (26 outside Ethiopia + ADIS)
ERA5-PWVGridded1 h201320209
Radiosonde-PWVVertical profiles12 h201320201
Surface temperaturePointMax and min201320196
Rainfall amountPointDaily201320196
Table 5. Absolute and relative amplitude of the seasonal and diurnal cycles for GAMIT-PWV and ERA5-PWV datasets.
Table 5. Absolute and relative amplitude of the seasonal and diurnal cycles for GAMIT-PWV and ERA5-PWV datasets.
SiteSeasonal CycleDiurnal Cycle
GAMIT-PWVERA5-PWVGAMIT-PWVERA5-PWV
Abs. Ampl. (mm)Rel. Ampl. (%)Abs. Ampl. (mm)Rel. Ampl. (%)Abs. Ampl. (mm)Rel. Ampl. (%)Abs. Ampl. (mm)Rel. Ampl. (%)
ADIS10.3459.6610.5460.850.995.761.146.29
ABOO12.2153.6313.0557.651.707.451.878.25
ASOS17.1566.4014.6465.941.505.700.462.08
ARMI14.4845.5013.1041.264.7414.911.213.81
BDMT15.2566.6012.9459.784.1017.612.3310.74
DEBK10.9376.659.0379.182.8720.601.2711.15
DJIG18.9768.0918.6571.343.8914.242.0717.92
NEGE12.4750.4113.1155.881.516.120.853.64
SHIS15.2577.9712.6864.131.949.902.3511.88
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Koji, A.K.; Van Malderen, R.; Pottiaux, E.; Van Schaeybroeck, B. Understanding the Present-Day Spatiotemporal Variability of Precipitable Water Vapor over Ethiopia: A Comparative Study between ERA5 and GPS. Remote Sens. 2022, 14, 686. https://doi.org/10.3390/rs14030686

AMA Style

Koji AK, Van Malderen R, Pottiaux E, Van Schaeybroeck B. Understanding the Present-Day Spatiotemporal Variability of Precipitable Water Vapor over Ethiopia: A Comparative Study between ERA5 and GPS. Remote Sensing. 2022; 14(3):686. https://doi.org/10.3390/rs14030686

Chicago/Turabian Style

Koji, Abdisa Kawo, Roeland Van Malderen, Eric Pottiaux, and Bert Van Schaeybroeck. 2022. "Understanding the Present-Day Spatiotemporal Variability of Precipitable Water Vapor over Ethiopia: A Comparative Study between ERA5 and GPS" Remote Sensing 14, no. 3: 686. https://doi.org/10.3390/rs14030686

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
