Imaging Parameters-Considered Slender Target Detection in Optical Satellite Images

Abstract

The existing slender target detection methods based on optical satellite images are greatly affected by the satellite perspective and the solar perspective. Due to limited data sources, it is difficult to implement a fully data-driven approach. This work introduces the imaging parameters of optical satellite images, which greatly reduces the influence of the satellite perspectives and the solar perspectives, and reduces the demand for the amount of data. We improve the oriented bounding box (OBB) detector based on faster R-CNN (region convolutional neural networks) and propose an imaging parameters-considered detector (IPC-Det) which is more suitable for our task. Specifically, in the first stage, the umbra and the shadow are extracted by horizontal bounding box (HBB), respectively, and then the matching of the umbra and the shadow is realized according to the imaging parameters. In the second stage, the paired umbra and shadow features are used to complete the classification and regression, and the target is obtained by OBB. In experiments, after introducing imaging parameters, our detection accuracy is improved by 3.9% (up to 87.5%), proving that this work is a successful attempt to introduce imaging parameters for slender target detection.

1. Introduction

Slender targets refer to special targets whose height is much larger than their length and width, and are more prominent in remote sensing images, such as high-voltage transmission towers, wind power towers, industrial chimneys, and single high-rise buildings. They generally have special purposes and are an indispensable part of production and life, and it is of great significance to effectively detect and supervise them. In the early days, people generally used manual inspection methods for detection, which was time-consuming and labor-intensive, and also had great risks in some special areas. The introduction of drones has greatly improved detection speed and supervision efficiency. However, slender targets generally have a wide distribution range, the overall distribution is sparse, and the coverage of UAV single-view images is limited [1,2,3], so it is still difficult to achieve large-scale target monitoring. In recent years, with the development of satellite remote sensing, aerospace monitoring methods have become more and more mature, and the data volume and resolution of space images have been continuously improved. Combined with its broad coverage of a single scene, it provides a foundation for monitoring large-scale sparse targets.

Currently, deep learning is still the mainstream method for object detection [4,5,6,7]. In the field of remote sensing, object detection based on deep learning can be divided into two categories according to the type of bounding box: HBB detection [8,9,10,11,12,13,14] and OBB detection [15,16,17,18,19,20]. HBB detection is the most commonly used object detection method. It does not distinguish the orientation of the targets and is generally applicable to images in natural scenes. In remote sensing image object detection and text recognition, the use of horizontal boxes may erroneously contain multiple object instances. OBB detection is based on HBB detection and adds the direction detection of the targets. In remote sensing scenes and text recognition, the region where the target is located can be described more accurately, and robust features such as rotation, scale, and aspect ratio in space can be extracted. This paper improves the OBB detector based on faster R-CNN [8] to make it more suitable for our task and greatly improves the detection accuracy.

OBB detectors are widely used in aerial images and ship detection [16,17,19,20,21,22,23,24]. Rotated RoI Align (RRoI Align) is used to extract rotation-invariant features, which can warp region features precisely according to the bounding boxes of Rotated RoI (RRoI) in the 2D planar [17]. Ref. [20] introduces a novel end-to-end trained ship detection system capable of detecting ships in arbitrary orientations. It utilizes a rotation proposal network ($R^{2}RN$) to generate multidirectional proposal boxes. Ref. [24] proposed a simple yet effective framework to detect multi-oriented object. Instead of returning four vertices directly, it slides the vertices of the horizontal bounding box on each corresponding edge to accurately describe an oriented object, further solving the confusion of objects that are close to horizontal. Ref. [25] incorporates a rotation-equivariant network in the detector to extract rotation-equivariant features, which can accurately predict orientation and lead to a huge reduction in model size. Based on the rotation-equivariant features, a rotation-invariant RoI alignment (RiRoI Align) is also proposed, which adaptively extracts rotation-invariant features from the equivariant features according to the orientation of the RoI.

A lot of research has been carried out on the detection of slender targets in remote sensing images at home and abroad. Zhou et al. [26] used machine learning methods to achieve the detection of power transmission towers in SAR images, and Parkpoom et al. [27] used machine learning methods such as Canny and Hough to achieve the detection of power transmission towers in aerial images. Wang et al. [28] established an aerial photography dataset and used deep learning to realize the detection of power transmission towers in aerial images. Tian et al. [29] used deep learning to realize the detection of transmission towers in satellite remote sensing images. These studies did not combine the prior information such as the characteristics of targets in remote sensing images and imaging parameters, and did not fully utilize the advantages of remote sensing. Huang et al. [30] and Huang et al. [31] analyzed the problem of slender targets in optical satellite images, and used the shadows to make up for the lack of features in the imaging process, effectively alleviating the impact of satellite perspective on imaging. However, the perspective of solar still greatly affects the imaging results of optical satellite images. At different solar azimuth angles, the distribution of targets and shadows is different, and the size of shadow is also directly determined by the solar elevation angle. To use a data-driven method to eliminate the influence of solar perspective, a large amount of data containing different solar perspectives is required, which is obviously unrealistic in the field of satellite remote sensing.

According to the imaging geometric relationship of optical satellite images, after knowing the satellite perspective and the solar perspective, we can obtain the mapping from the target to the umbra and the target to the shadow, and then calculate the size and relative position of the umbra and the shadow, and this information, as known prior knowledge, is brought into the neural network to make up for the lack of data. Due to the different satellite perspectives and solar perspectives for each image, different satellite perspectives and solar perspectives result in different relative positions of the umbra and shadow. In detection, we need to match the umbra and shadow, which, in disguise, treats the umbra and shadow as a whole. In the absence of imaging parameters such as satellite perspectives and solar perspectives, we need a large amount of data containing different relative positions of umbra and shadow, which is unrealistic in the field of remote sensing. After introducing these imaging parameters, we can directly calculate the approximate relative positions of the umbra and shadow based on the imaging parameters of each image, further reducing the data requirements and the influence of satellite perspectives and solar perspectives on detection.

Based on the above analysis, we redesigned the detection scheme. In data processing, we use L1 data as the new data source, and introduce imaging parameters such as satellite azimuth, satellite elevation, solar azimuth, and solar elevation. Then, the relative positions of the umbra and the shadow are calculated according to these imaging parameters, and these data are passed into the network as prior information. The umbra is greatly affected by the satellite perspective, while the shadow is greatly affected by the solar perspective. Detecting umbra and shadows separately can reduce the interaction between satellite and solar perspectives, thereby reducing the cost of detection and the amount of data required. In the network design, we use a two-stage OBB detector. In the first stage, the umbra and the shadow are completely detected into two categories, and then the umbra and the shadow are matched using the prior information calculated by the imaging parameters, which reduces the influence of the satellite and solar perspectives. In the second stage, the oriented prediction boxes containing the targets are regressed, and the prediction results are also given using the features extracted in the first stage. The contributions of the paper are as follows:

• Imaging parameters such as satellite perspectives and solar perspectives are introduced as prior information, which makes up for the data volume of optical satellite images and reduces the influence of imaging parameters on detection.
• The regression and classification of the network have been redesigned. The dual-head structure is adopted, conv-head is used for regression, fFC-head is used for classification, and channel attention is introduced before classification to improve feature utilization.
• A complete set of data processing procedures and detection schemes are designed to improve the detection accuracy of slender targets in optical satellite images.

2. Materials and Methods

In this part, we first introduce the optical satellite geometric imaging model and its application in this paper, and then describe our proposed IPC-Det and its innovative modules (MRPN and TowerHead) in detail.

2.1. The Imaging Geometry Model of Optical Satellite Images

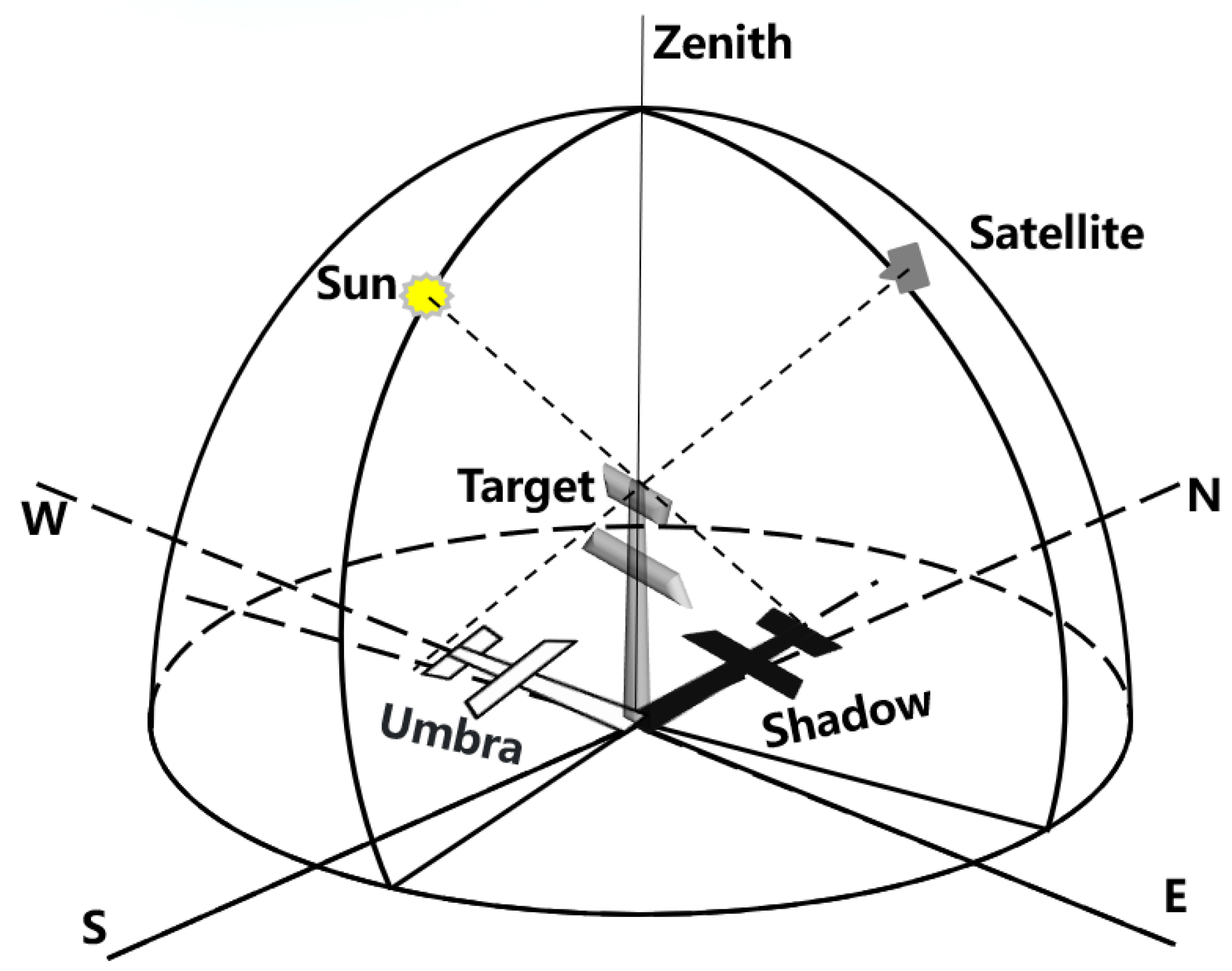

The imaging geometric model of optical satellite remote sensing is shown in Figure 1. The height of slender targets, such as high-voltage transmission towers, are much greater than their length and width. According to the imaging geometry, the umbra of a slender target is greatly affected by the satellite perspectives, but is basically not affected by the solar perspectives. The shadow of slender targets is created by the sun. When the ground is flat, the shadow is a flat target. The satellite perspective has little effect on the shadows of slender targets. Conversely, the perspective of solar has a big effect on the setting shadows. In the image, the reflectivity of the umbra is strong, the reflectivity of the shadow is low, and the difference in reflectivity between the two is obvious.

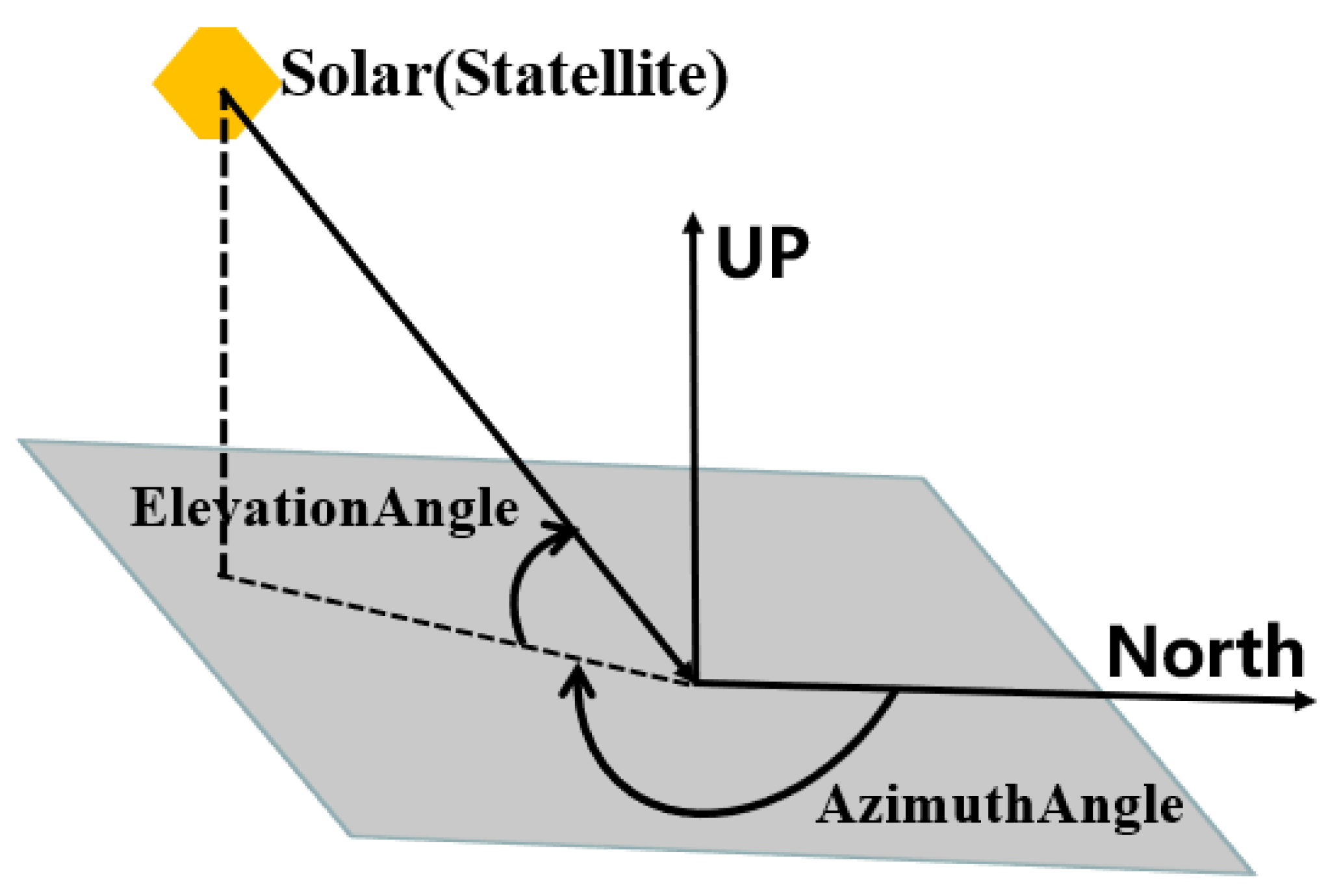

Among the imaging parameters, the elevation and azimuth of solar (satellite) have the greatest impact on imaging, and the imaging geometry is shown in Figure 2. The solar (satellite) azimuth represents the angle of rotation when rotated clockwise from north to the projection of the solar (satellite) on the ground. The solar (satellite) elevation angle represents the angle between the incident direction of the solar (satellite) light (electromagnetic wave) and the ground plane. In order to facilitate the subsequent description, solar azimuth angle is defined as ${\theta }_1$, solar elevation angle is ${\theta }_2$, satellite azimuth angle is ${\theta }_3$, and satellite elevation angle is ${\theta }_4$.

The altitude angle of satellite and solar determines the length of the umbra and the shadow. The larger the altitude angle, the smaller the image. The height of the target is marked as $High$. According to the satellite imaging geometric model shown in Figure 1, the relationship between the umbra length $L_{umbra}$ and the satellite elevation angle and the shadow length $L_{shadow}$ and the solar elevation angle can be obtained:

$$L_{umbra}={\displaystyle \frac{High}{tan{\theta }_4}}$$

(1)

$$L_{shadow}={\displaystyle \frac{High}{tan{\theta }_2}}$$

(2)

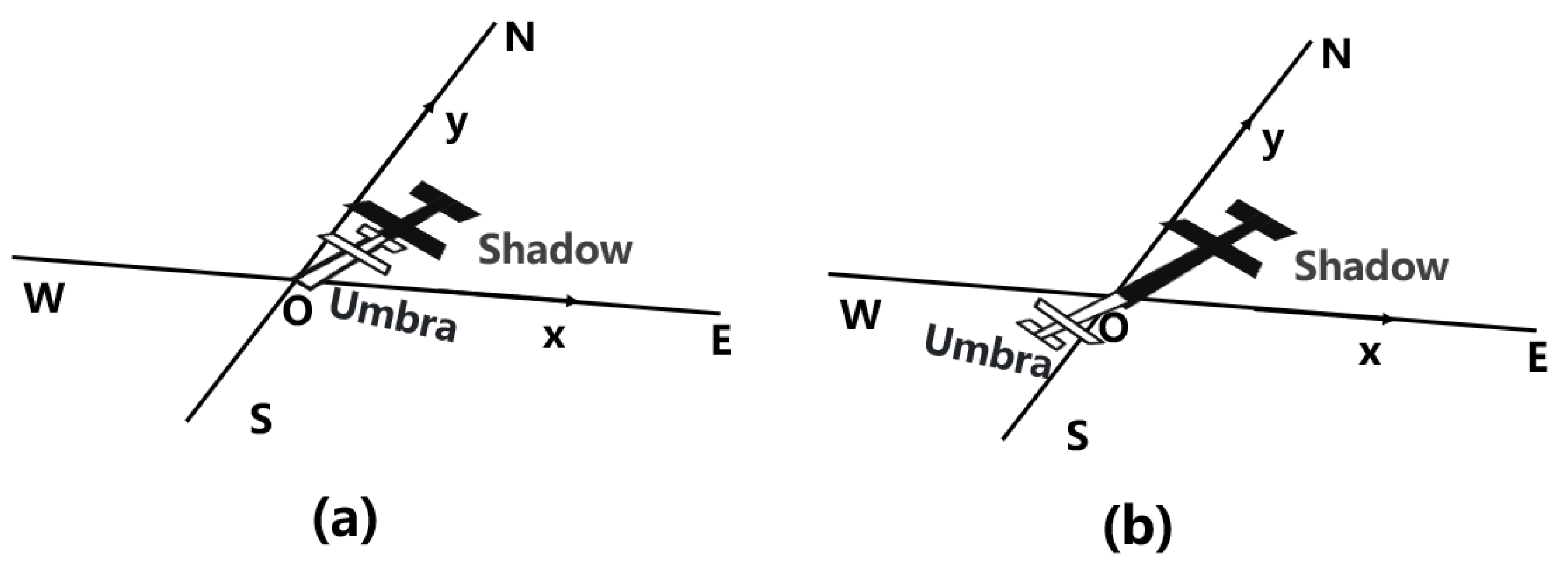

The satellite azimuth and solar azimuth determine the orientation of the umbra and the shadow. Generally, the umbra and shadow are distributed at an angle and partially intersect, but there are two extreme cases. When the satellite azimuth and solar azimuth are similar in size, the umbra and shadow parts in the image overlap each other, and the shadow candidate region almost wraps the umbra candidate region when the solar elevation angle is small, as shown in Figure 3a. At this time, the umbra will cover part of the shadow information. When the satellite azimuth and solar azimuth differ by about ${180}^{\circ }$, the umbra and shadow in the image are almost opposite, and the two parts hardly overlap.

From the imaging geometry and the analysis above, it is possible to calculate the relative offset $L_{oc}$ of the umbra and shadow given the imaging parameters (satellite azimuth angle, satellite elevation angle, solar azimuth angle, and solar elevation angle) and the height of target. In order to obtain the offset from the umbra of the target to the shadow, we take the bottom of the target as the origin to establish a plane coordinate system. The positive direction of the x-axis is east, and the positive direction of the y-axis is north, as shown in Figure 4.

Then, the shadow vertex coordinates $P_s$ and the target vertex coordinates $P_t$ under the satellite projection can be obtained:

$$P_s=(L_{shadow}·cos(270-{\theta }_1),L_{shadow}·sin(270-{\theta }_1))$$

(3)

$$P_t=(L_{umbra}·cos(270-{\theta }_3),L_{umbra}·sin(270-{\theta }_3))$$

(4)

The offset $Loc$ from the target vertex to the shadow vertex under satellite projection is

$$Loc=P_s-P_t$$

(5)

Since the positive direction of the y-axis of the coordinate system set in Figure 4 is exactly opposite to the positive direction of the y-axis of the image coordinate system of the image (since only the relative values of satellite azimuth and solar azimuth are used in the formula, the effect of geometric correction can be ignored), the ground resolution of the data is R, and the offset $L_{oc}$ from the shadow center to the umbra center is

$$L_{oc}=({\displaystyle \frac{Lo{c}_x}{2R}},-{\displaystyle \frac{Lo{c}_y}{2R}})$$

(6)

where $L_{oc}$ is the mapping from the center of umbra to the center of shadow, which represents the change of the relative position of the shadow to the umbra in the image under imaging parameter.

2.2. IPC-Det

IPC-Det takes the imaging parameters as prior information to combine the umbra and shadow of the target, so that the detector avoids the steps of learning the location of the umbra and the shadow. Doing so optimizes the detection process and reduces the amount of data. At the same time, IPC-Det improves the classification and regression modules of faster R-CNN, improving feature utilization and detection accuracy.

By analyzing the characteristics of slender targets in optical satellite images such as high-voltage transmission towers, it is found that the umbra of slender targets is greatly affected by satellite perspective, while the shadow of slender targets is greatly affected by solar perspective. In view of the special relationship between umbra and shadow (the structures can be complementary under different imaging parameters, and the position is also affected by the imaging parameters and can be calculated from the data), we improved on the basis of faster R-CNN [8] and proposed IPC-Det, as shown in Figure 5a. IPC-Det is a two-stage detector; the first stage generates paired umbra and shadow candidate regions, and the second stage uses the umbra and shadow candidate boxes for classification and regresses the targets by OBB.

The backbone of IPC-Det is consistent with that of faster R-CNN, which is used to extract multi-scale features $f=f_1,f_2,f_3,f_4,f_5$. We improve the region proposal network (RPN) of the original faster R-CNN and design MRPN. The structure of MRPN is shown in Figure 5b. It contains two RPN channels for extracting the proposals of umbra and shadow by HBB, respectively. The extraction process of these two candidate regions is irrelevant. The extracted umbra candidate regions and shadow candidate regions are input to the target matching module for umbra and shadow matching, then the paired candidate regions are output.

The parameter settings of RoIAlign are the same as those of faster R-CNN, except that RoIAlign needs to be used to extract features three times. For the first time, the umbra candidate regions are extracted after enlargement by 1.2 times, and the extracted features are directly input into the regression branch of TowerHead. Next, the features corresponding to the umbra candidate regions and the shadow candidate regions are directly extracted, and the obtained features are input into the classification branch of TowerHead to detect the category of the corresponding candidate regions.

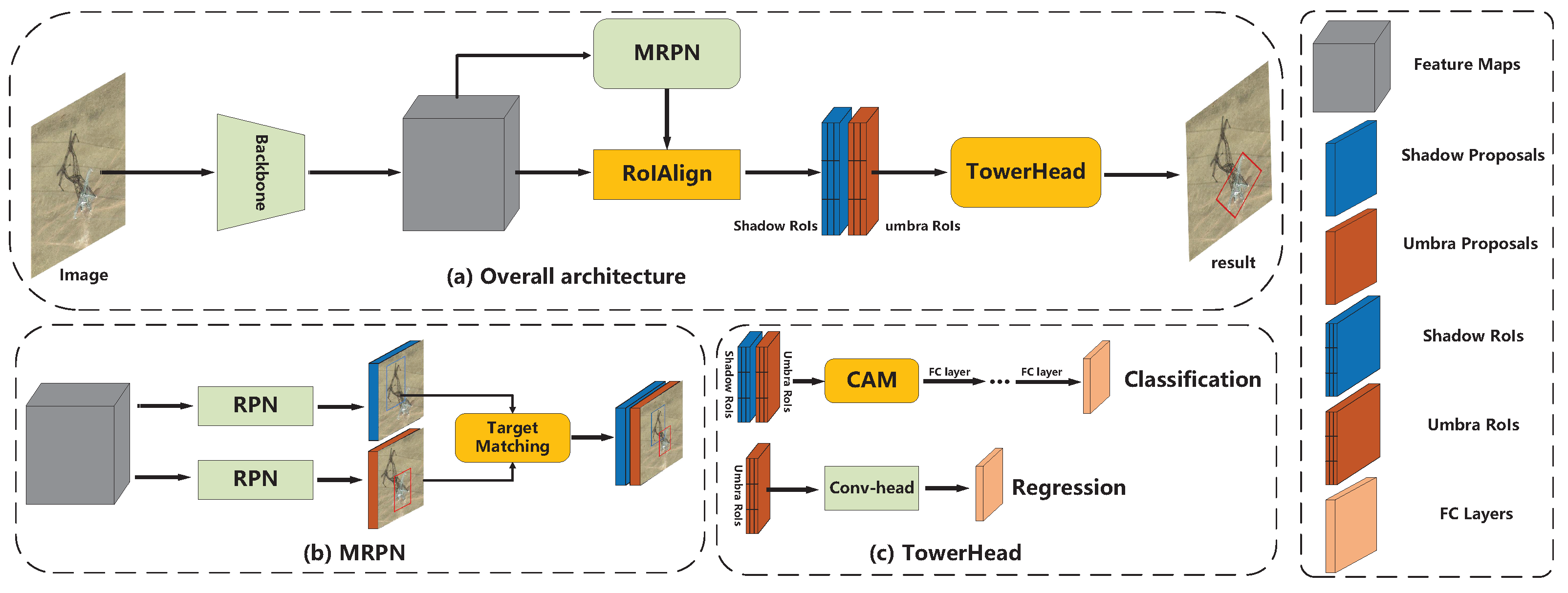

The TowerHead adopts a double-head structure, and its specific structure is shown in Figure 5c. The regression branch uses the branch of the two-head network [15], replacing the FC-head in the faster R-CNN with conv-head, which pays more attention to the edge. As for the classification branch, we improved the classification branch of the original faster R-CNN. The inputs to the classification branch are the features of umbra and shadow. In order to extract the effective information of both, we add a channel attention module (CBM) in front of the original FC-head, which greatly improves the utilization of umbra information and shadow information.

The loss of the network is calculated as follows:

$$Loss=L_{MRPN}+2\times L_{TowerHead}$$

(7)

The loss of the network mainly comes from two parts: MRPN loss and TowerHead loss. Among them, MRPN is used to generate paired shadow and umbra proposals, and TowerHead uses the extracted proposals for classification and regression. The detailed calculation of the two-part loss is shown in Formulas (10)–(13) and (15).

Below, we mainly introduce the two innovative modules, MRPN and TowerHead.

2.3. MRPN

The structure of MRPN is shown in Figure 5b, which is mainly used to extract pairs of umbra and shadow proposals. Extraction is divided into two steps. First, the proposals of umbra and shadow are extracted, respectively, by RPN, then the umbra candidate regions and the shadow candidate regions are matched by prior information such as imaging parameters.

2.3.1. Extract the Proposals of Umbra and Fading Shadow

MRPN contains two parallel RPN modules to extract the proposals of umbra and shadow, respectively. Each RPN consists of a $3\times 3$ convolutional layer and two $1\times 1$ convolutional layers. The five-layer multi-scale features generated by Backbone are input into two RPNs respectively, and each layer of features shares the convolution parameters in the two RPNs. Finally, through two RPN modules, we obtain the umbra proposals $B_t=(b_{tx}^i,b_{ty}^i,b_{tw}^i,b_{th}^i),i=1,2,\dots ,N_t$, and the shadow proposals $B_s=(b_{sx}^i,b_{sy}^i,b_{sw}^i,b_{sh}^i),$$i=1,2,\dots ,N_s$, where $(b_{tx},b_{ty})$ and $(b_{sx},b_{sy})$ represent the center point coordinates of proposals, $b_{tw}$ and $b_{sw}$ represent the width of proposals, and $b_{th}$ and $b_{sh}$ represent the height of proposals.

2.3.2. Target Matching

The target matching block follows the parallel RPN blocks. It matches the extracted umbra proposals with the shadow proposals, and finally outputs the paired proposals $B=(b_t^i,b_s^i),i=1,2,\dots ,N$, where $b_t^i$ and $b_s^i$ are pairs of umbral proposals and shadow proposals.

Analyzing the optical satellite imaging geometry and target structure features to obtain the offset $L_{oc}=(F_x(hig,{\theta }_1,{\theta }_2,{\theta }_3,{\theta }_4),F_y(hig,{\theta }_1,{\theta }_2,{\theta }_3,{\theta }_4))$, where $hig$ represents the height of the target, ${\theta }_1$, ${\theta }_2$, ${\theta }_3$ and ${\theta }_4$ represent solar elevation, solar azimuth, satellite elevation and satellite azimuth, respectively. In a scene image, the solar elevation, solar azimuth, satellite elevation, and satellite azimuth are fixed and can be used as prior information, but the height of the tower in the image is variable and unknown. High-voltage transmission towers are sparsely distributed, widely distributed, and have complex backgrounds. Its general height is concentrated between 20–100 m. After testing, assuming a height of 80 m is the best.

Through the umbra candidate region $B_t$ and the shadow candidate region $B_s$, we can obtain the position of the umbra in the image ($P_{umbra}$) and the position of the shadow in the image ($P_{shadow}$), and then obtain the position vector of the umbra ($P_t$). The theoretical position of the shadow $P_{shadow}^{{}^{\prime }}$ corresponding to the umbra can be obtained by Formula (8) (convert $P_s$ from the local coordinate system to the image coordinate system).

$$P_s=P_t+Loc$$

(8)

After obtaining $P_{shadow}^{{}^{\prime }}$, we compare the theoretical position of the shadow ($P_{shadow}^{{}^{\prime }}$) with the actual position of the shadow ($P_{shadow}$), and the shadow that is consistent with the theoretical value is the selected proposal. However, since the height of the tower is assumed, and both $P_{umbra}$ and $P_{shadow}$ are predicted by the network, there will always be errors between theoretical and actual values. In order to achieve a better matching result, we give $P_{shadow}^{{}^{\prime }}$ a certain active range a ($a>0$), and obtain a new shadow prediction position $P_{shadow}^{{}^{″}}$:

$$P_{shadow}^{{}^{″}}=P_{shadow}^{{}^{\prime }}+a$$

(9)

We use $P_{shadow}^{{}^{″}}$ to match $P_{shadow}$. When $P_{shadow}$ is within the range of $P_{shadow}^{{}^{″}}$, it can be considered as a candidate proposal. Finally, among all candidate proposals, we select the one with the highest confidence as the target.

2.3.3. Loss Function

During training, the main task of the RPN module is to extract the proposals of umbra and fading shadow, without matching umbra and fading shadows. We assign a binary label $b=\{0,1\}$ to each anchor. When the IoU of the anchor and each ground truth is less than 0.3, the label of the anchor is 0. When the IoU of the anchor and one or more ground-truth is greater than 0.7, the label of the anchor is 1, and other labels are discarded. Then, the loss of MRPN $L_{MRON}$ is

$$L_{MRPN}=L_{UMBRA}+L_{SHADOW}$$

(10)

$$L_{UMBRA}(t_t,a_t)=\frac{1}{N_t}\sum _i{F}_{cls}(t_{ti},t_{ti}^{{}^{\prime }})+\frac{1}{N_t}\sum _i{t}_{ti}{F}_{reg}(a_{ti},a_{ti}^{{}^{\prime }})$$

(11)

$$L_{SHADOW}(t_s,a_s)=\frac{1}{N_s}\sum _i{F}_{cls}(t_{si},t_{si}^{{}^{\prime }})+\frac{1}{N_s}\sum _i{t}_{si}{F}_{reg}(a_{si},a_{si}^{{}^{\prime }})$$

(12)

where $L_{UMBRA}$ represents the loss of the RPN that extracts the umbral proposals, $L_{SHADOW}$ represents the loss of the RPN that extracts the shadow proposals, $t_i$ represents the label of the anchor, $t_i^{{}^{\prime }}$ represents the category predicted by RPN, $a_i$ represents the deviation of anchor and ground truth, $a_i^{{}^{\prime }}$ represents the regression of RPN, and $N_t$ and $N_s$ are the number of anchors for the umbra and the shadow, respectively. $F_{cls}$ represents the cross-entropy loss, which is used to calculate the classification loss, and $F_{reg}$ represents the smooth L1 loss (as shown in Formula (13)), which is used to calculate the regression loss. The weight of each part of the loss is 1.

$$SmoothL1Loss(x,y)=\left\{\begin{array}{c}0.5{(x-y)}^2,if|x-y|<1\hfill \\ |x-y|-0.5,otherwise\hfill \end{array}\right.$$

(13)

2.4. TowerHead

The double-head structure is widely used in R-CNN part for classification and regression. Ref. [14] shows that classification tasks and regression tasks have different focuses. Classification tasks typically require translational invariance, while regression tasks require translational variability. The double-head structure can satisfy both of these points at the same time. Ref. [15] shows that FC-head is more spatially sensitive than conv-head; FC-head is suitable for classification and conv-head is more suitable for regression. In this paper, we extract features of umbra and shadow, we use the features of umbra in regression, and in classification, using both umbra features and shadows features significantly improves the classification performance. Therefore, this paper retains the conv-head branch of [15] to complete the regression task. In the classification branch, we add a channel attention module based on [15] to improve the utilization of umbras and shadows.

2.4.1. CAM

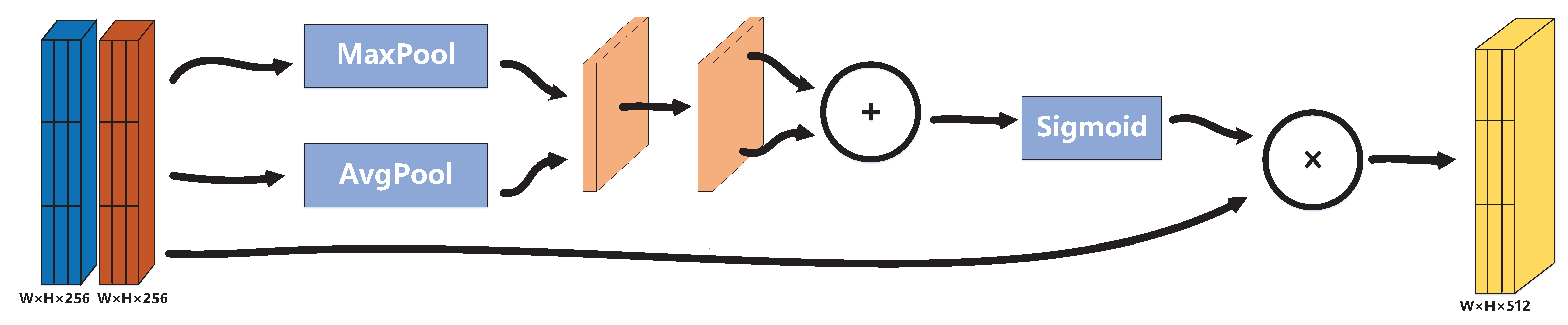

A channel attention module (CAM) is added to the classification channel, as shown in Figure 6. This module is similar to the attention module proposed in [32], except that only the front channel attention is used, and the latter spatial attention is discarded, because the size of our feature is only $7\times 7$, so it does not need to be used for spatial attention.

The input of the CAM is the umbra features and shadow features extracted by RoIAlign. This block has two channels; one performs the MaxPool operation on the feature and the other performs the AvgPool operation. The results are then fed into a two-layer convolutional network, with both channels sharing the parameters of the convolutional network. The final results of the two channels are then summed and weighted by a sigmoid activation function. Finally, the weights are multiplied by the input features to obtain the final channel attention processing result.

The calculation process of CAM is

$$\begin{array}{cc}\hfill F_{cls}=& Concat(F_{umbra},F_{shadow})\times Sigmoid(MLP\left(MaxPool\left(Concat(F_{umbra},F_{shadow})\right)\right)\hfill \\ & +MLP\left(AvgPool\left(Concat(F_{umbra},F_{shadow})\right)\right))\hfill \end{array}$$

(14)

2.4.2. The Design of Conv-Head

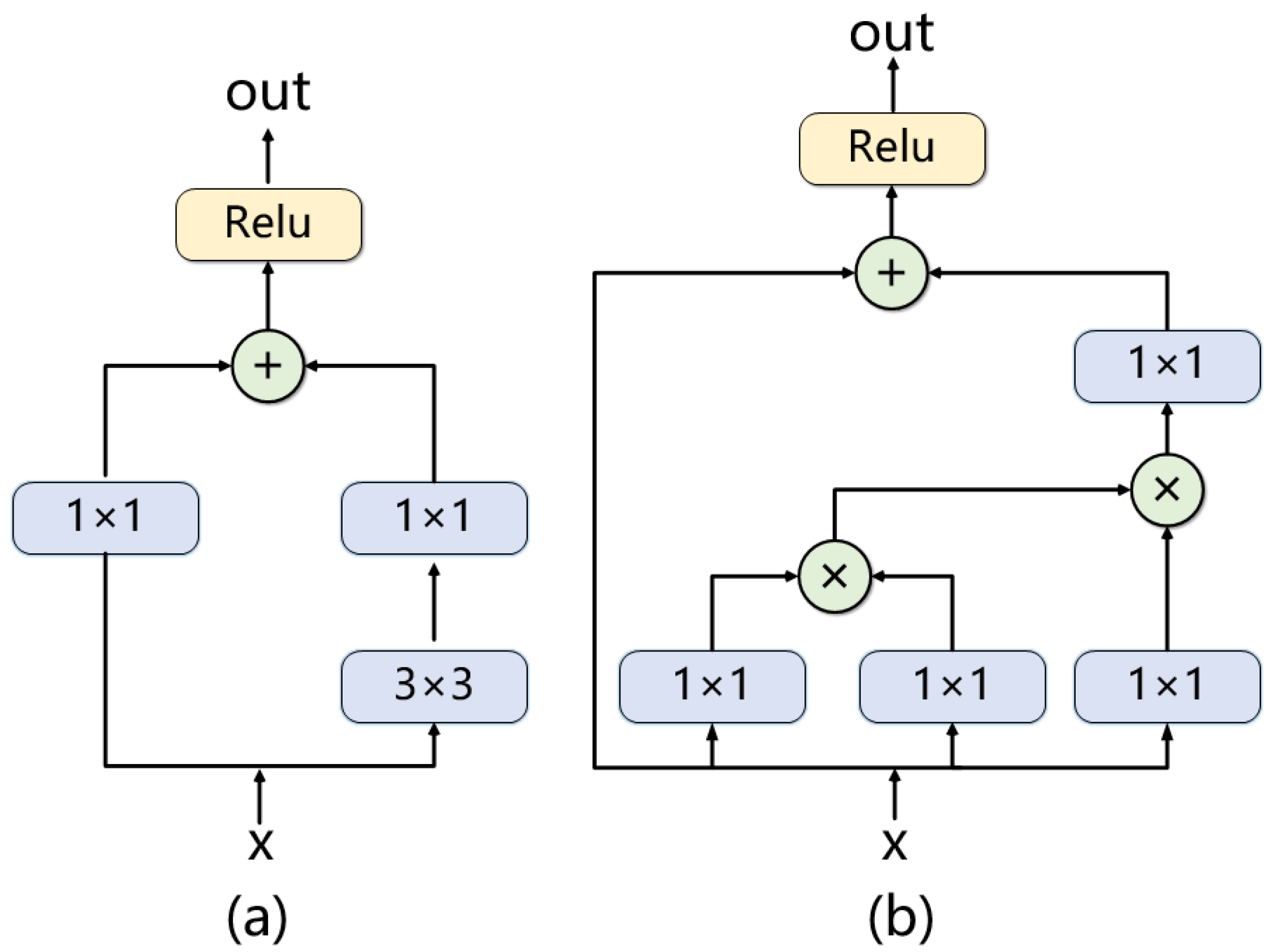

In regression, we still use the regression branch designed by [15]. This branch includes six residual modules. The first two residual modules (as shown in Figure 7a) increase the dimension of features from 256 to 1024 dimensions, and the last four residual modules are non-local blocks (as shown in Figure 7b). Finally, a series of oriented bounding boxes $B=\{(x_i,y_i,w_i,h_i,{\theta }_i),i=1,2,3...N\}$ are obtained, where $(x_i,y_i)$ represents the center coordinates of the prediction boxes, $w_i$ represents the width of the prediction boxes, $h_i$ represents the height of the prediction boxes, and ${\theta }_i$ represents the rotation angle of the prediction boxes.

2.4.3. Loss Function

The loss in the TowerHead part consists of two parts: regression loss and classification loss. TowerHead contains two channels for computing classification and regression. The input of the channel during classification is a pair of umbral features and shadow features, and the input of the channel during regression is only the umbra feature. The loss of TowerHead is shown in Formula (15).

$$L_{TowerHead}(C,B)=\frac{1}{N}\sum _i{L}_{cls}(C_i,C_i^{{}^{\prime }})+\frac{1}{N}\sum _i{p}_{ti}^{{}^{\prime }}{L}_{reg}(B_i,B_i^{{}^{\prime }})$$

(15)

where B represents the regression result of the network, and C represents the classification result of the network. $L_{cls}$ represents regression loss, using cross-entropy loss, and $L_{reg}$ represents regression loss, using smooth L1 loss (as shown in Formula (13)).

3. Experiment

3.1. Datasets

The experiment takes high-voltage transmission towers as experimental targets, the data is taken from the L1 level data of JL-2 and GF-2, and the data resolution is 0.8 m. The image sizes in this dataset range from $406\times 358$ to $1119\times 837$, with 2584 pieces of data in the training set and 915 pieces of data in the test set. The dataset contains three types of transmission towers, namely, the wine-glass tower, the dry-type tower, and cat-head tower, and the ratio of each type of tower is basically 1:1:1.

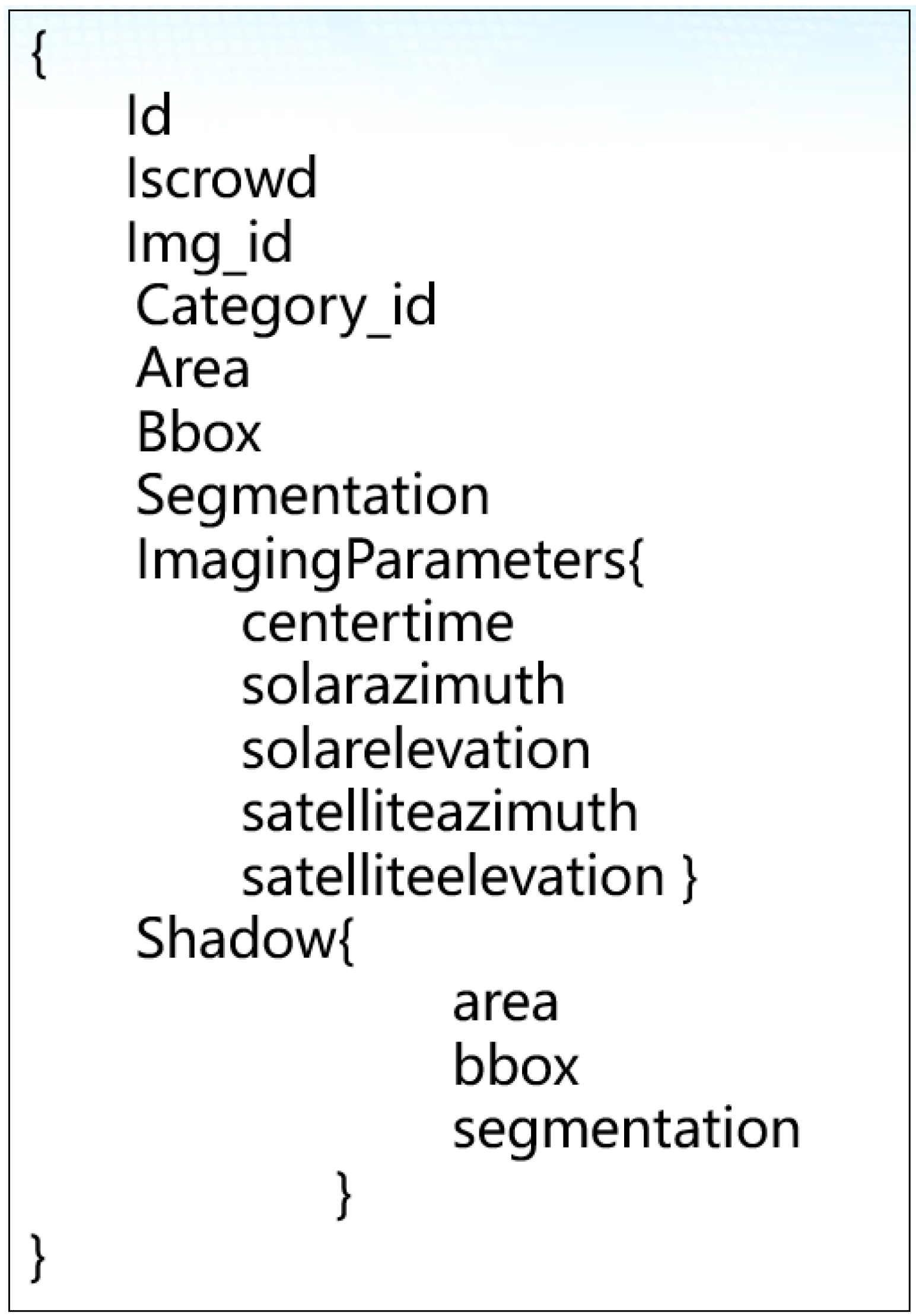

Since IPC-Det needs to introduce additional imaging parameters as prior information, existing annotation design schemes are not applicable here. On the basis of original COCO annotation [33], we added imaging parameters (“ImagingParameters” in Figure 8) and the corresponding shadow box annotation (“Shadow” in Figure 8), as shown in Figure 8. Our new annotation satisfies the requirements of IPC-Det without compromising its applicability in other networks.

3.2. Training Configurations

All experiments in the paper are performed in the pytorch environment. The experimental platform is two RTX 2080Ti, and the batch size is set to 4. In the experiment, the long side of the image is uniformly adjusted to 800. The experiment contains a total of 12 epochs, and the initial learning rate is set to $5\times {10}^{-6}$. During the next 500 steps, the learning rate is uniformly increased to 0.005. From the 8th to the 11th epoch, the learning rate is reduced to $5\times {10}^{-4}$. Finally, at epoch 12, the learning rate is $5\times {10}^{-5}$. In the MRPN part, the anchor size of umbra and shadow are both set to 8, and the aspect ratio is [0.5, 1, 2]. When calculating the offset from the umbra to the shadow using the imaging parameters, the height of the tower is assumed to be 80 m. In TowerHead, when using conv-head to regress the umbral, we enlarge the RoI of the umbral extracted by MRPN by a factor of 1.2, and then extract the corresponding features. Conv-head uses six residual modules, where the first two residual modules are used for increasing the channel dimension and the last four residual modules are non-local blocks. The details of the two modules are shown in Figure 7. In CAM, we use a total of two convolutional layers; the first convolutional layer halves the input feature channels and the second restores the channel dimension.

3.3. Ablation Experiment

In order to verify the influence of different detection heads and shadow features on detection results, we use different detection heads in our experiments (shown in Figure 9) and experiment with only umbra features and with both umbra features and shadow features. A comparative experiment was carried out, and the experimental results are shown in

Table 1. Experiments with different inputs and structures of TowerHead. This table shows the experimental results of the multiple detector head structure shown in Figure 9. In the experiment, TowerHead has two kinds of inputs: “$Umbra$” and “$Umbra+Shadow$”, which represent using only umbra features as input, and using umbra features and shadow features as input, respectively. Five different TowerHead structures are used, as shown in Figure 9.

Inputs of TowerHead		Structures of TowerHead					mAP	AR
Umbra	Umbra + Shadow	SFCHead	DFCHead	CHead	CAHead	TowerHead
√		√					0.834	0.920
	√	√					0.838	0.915
√			√				0.839	0.922
	√		√				0.844	0.922
√				√			0.833	0.921
	√			√			0.834	0.916
√					√		0.838	0.920
	√				√		0.847	0.932
√						√	0.862	0.926
	√					√	0.875	0.931

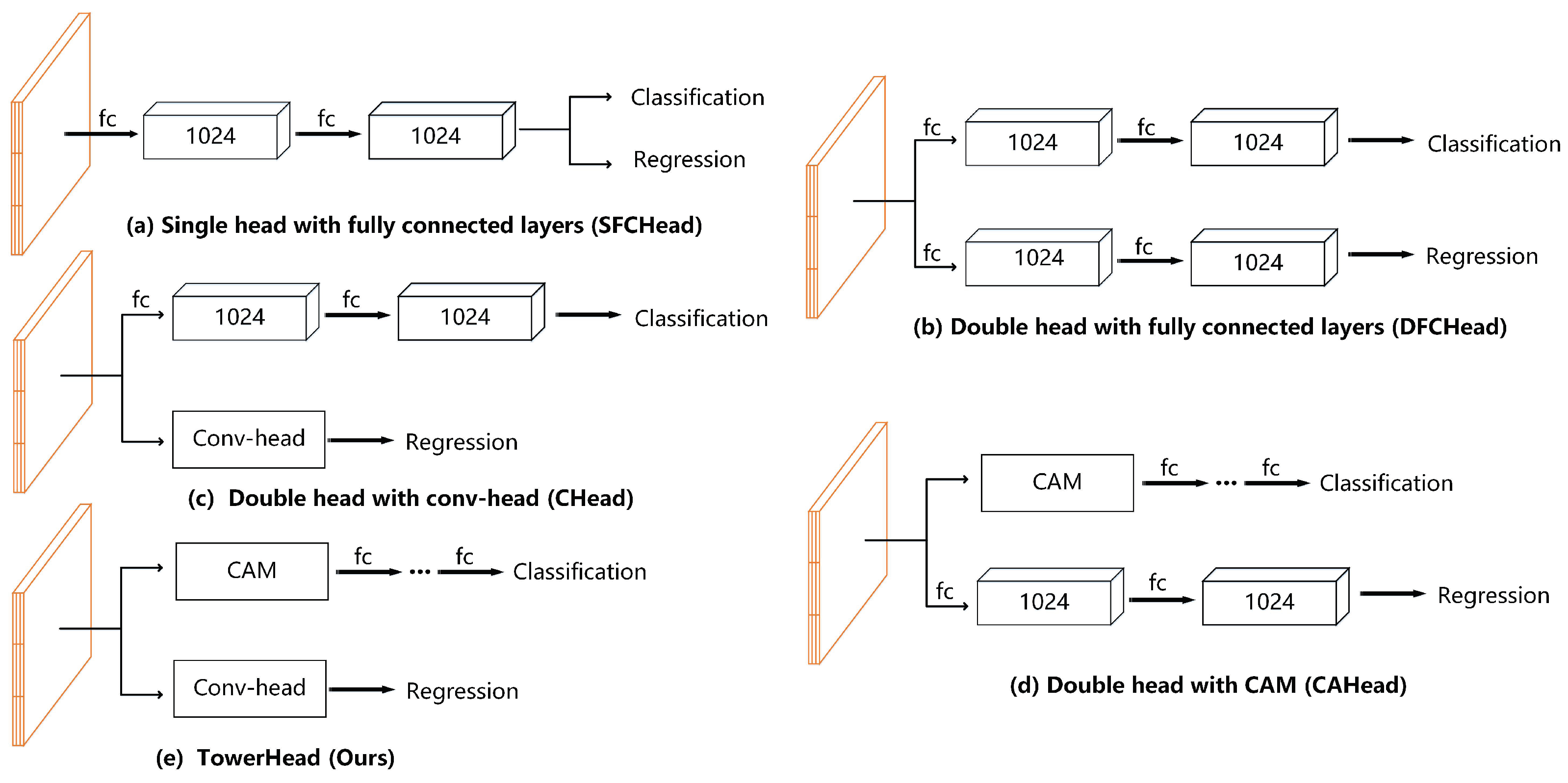

. Figure 9 shows several detection heads used in the ablation experiments. Among them, only (a) is a single-head structure, and the rest are double-head structures. Both detection branches of (b) are fully connected structures. The regression branch of (c) is conv-head, and the classification branch is a fully connected structure. The regression branch of (d) is a fully connected structure, and the classification branch adopts a CAM structure, and (e) is the detection head of IPC-Det (ours).

It can be seen from Table 1 that when using the same detection head, the accuracy of using both umbra features and shadow features is higher than that of using only umbra features, indicating that the shadow features matched by imaging parameters can indeed be used to improve detection accuracy. Overall, the experimental accuracy of SFHead and CHead is the lowest, the experimental accuracy of DFHead and CAHead is second, and the accuracy of TowerHead is the highest. This shows that the dual-channel structure is indeed better than the single-channel structure, and the FC layer structure using dual-channel is more suitable for this task than the single-channel FC structure. The experimental accuracy of CHead is similar to that of SFHead, indicating that, in this case, it is difficult to use conv-head alone to exert its advantages, and only improving the regression strength cannot improve the final accuracy. Compared with DFHead, the experimental accuracy of CAHead is not much improved, which indicates that the improvement of using CAM alone is still insignificant, and increasing the classification strength alone cannot greatly improve the final accuracy. TowerHead achieves the highest precision. TowerHead not only uses conv-head to improve the regression strength of the network, but also uses CAM to improve the classification strength of the network, indicating that the highest experimental accuracy can be obtained by improving the regression strength and classification strength at the same time.

The analysis of different network inputs under the same detection head structure in Table 1 shows that there is little difference on SFHead and CHead between using only the umbra feature and using both the umbra feature and the shadow feature. Neither SFHead nor CHead change the classification branch much, which is also consistent with the experimental results. In CAHead and TowerHead, the experimental accuracy of inputting umbra features and shadow features at the same time is much higher than that of only inputting umbra features, indicating that CAM can indeed improve the utilization of umbra features and shadow features.

3.4. Comparision with Other Networks

In the experiment part, there are six comparison networks, namely faster R-CNN [8], oriented R-CNN [16], ReDet [25], RoITransformer [17], double-head [15], and IPC-Det (ours). There are four experimental indicators: “$mAP$”, “$AP$”, “$AR$”, “$Params$”, “$FPS$”. “$AP$” represents the precision of networks. “$AR$” represents the average recall of networks. “$Params$” represents the number of network parameters, in millions (M) in the experimental results. “$FPS$” represents the network’s ability to process data per second. The calculations of “precision” and “recall” are shown in Formulas (16) and (17), and the calculation method of the above six parameters is consistent with the MS COCO dataset [33]. The performance of experimental networks on the dataset are shown in

Table 2. Experimental results on the dataset. Each column represents an experimental indicator, and each row represents an experimental network. A, B, and C represent the three types of tower in the dataset, respectively.

Model	A		B		C		mAP	AR	FPS (Task/s)	Params (M)
	AP	AR	AP	AR	AP	AR
Faster R-CNN	0.890	0.944	0.808	0.890	0.808	0.930	0.836	0.922	30.5	41.13
Oriented R-CNN	0.875	0.936	0.774	0.897	0.778	0.914	0.809	0.916	30.4	41.13
RoITransformer	0.876	0.944	0.802	0.876	0.810	0.937	0.830	0.919	26.1	55.05
Double-Head	0.890	0.946	0.808	0.897	0.812	0.921	0.837	0.921	7.9	46.72
ReDet	0.842	0.931	0.758	0.944	0.719	0.967	0.773	0.947	19.5	31.56
IPC-Det(ours)	0.892	0.958	0.887	0.911	0.846	0.923	0.875	0.931	4.6	59.83

.

$$Precision={\displaystyle \frac{TruePositives}{TruePositives+FalsePositives}}$$

(16)

$$Recall={\displaystyle \frac{TruePositives}{TruePositives+FalseNegatives}}$$

(17)

As can be seen from Table 2, IPC-Det achieves the highest precision among several networks, and its recall rate is also second only to ReDet, which shows that our proposed method is effective. Compared with faster R-CNN, the precision of IPC-Det is increased by 3.9%, the recall rate is increased by 0.9%, and the detection accuracy of three types of targets is higher than that of faster R-CNN. The detection speed of double-head and IPC-Det is the lowest among six networks, and the detection accuracy of double-head is slightly higher than that of IPC-Det. This is because double-head uses conv-head for regression, and conv-head contains a multi-layer residual network. These convolutional networks greatly slow down the overall detection speed. IPC-Det not only uses conv-head for regression, but also uses umbra features and shadow features for classification, and adds a channel attention layer before the original fully connected layer, which further reduces the detection accuracy of the network. The detection results of the six networks are shown in Figure 10. In this case, the six networks can basically complete the detection task.

4. Conclusions

Imaging parameters such as satellite perspective and solar perspective have a great influence on optical satellite images. Imaging parameters are variable, and the same target has different umbra and shadow under different Imaging parameters. Unlike the field of computer vision, it is difficult to obtain high-quality data in the field of remote sensing, and data-driven methods are severely limited. By analyzing the imaging geometric model of optical satellite images, we found that the size and relative position of umbra and shadow can be roughly predicted when the Imaging parameters are known. This can avoid directly learning the relative positions of umbras and shadows, thereby separating the influence of satellite perspectives and solar perspectives on the image, and indirectly reducing their influence on the image. In this paper, the data processing flow and network are redesigned, and imaging parameters are introduced as prior information. Under the action of imaging parameters, the influence of imaging parameters on detection is greatly reduced, thereby reducing the demand for data volume and improving detection accuracy.

This work is an initial attempt to introduce imaging parameters to extract slender targets in optical satellite images. Experiments show that this direction is correct and deserves follow-up research. At present, the sample difficulty is not too big. In the future, the dataset can be expanded and some difficult samples can be added. Second, the detection speed of the existing model needs to be improved, and the model needs to be refined.
