Cumulative Rainfall Radar Recalibration with Rain Gauge Data Using the Colour Pattern Regression Algorithm QGIS Plugin

Abstract

Climate change is a major issue in wastewater management at local and regional levels, as it affects the frequency of flooding and therefore the need to update infrastructure and design regulations. To this end, rainfall data are the main input to hydraulic models used for the design of drainage systems and, in advanced contexts, for their real-time monitoring. Field observations are of great interest and water authorities are increasing the number of existing rain gauges, but at present they are scarce and require maintenance, so their number needs to be considered with their O&M costs. Remote sensors, including both the existing satellite rain products (SRPs) and radar imagery (RI), can complete the spatial distribution of rainfall and optimise the cost of observations. While most SRPs are based on re-analysis and have a lag in availability, RI can be obtained in near real time and is becoming increasingly popular in weather forecasting applications. Unfortunately, actual rainfall forecasts from RI observations are not accurate enough for real-time monitoring of drainage systems. In this paper, the Colour Pattern Regression (CPR) algorithm is used to recalibrate the 6 h rainfall values from RI provided by the Agencia Estatal de Meteorología (AEMET) with the observed rain gauge data, using as a case study the metropolitan area of Palma (Spain).

1. Introduction

The specific and local outcomes of climate change are uncertain and lead to impacts on the hydrological cycle by altering the frequency, intensity, spatial extent, or duration of weather and climate extremes, such as heavy precipitation events or droughts [1]. However, in the context of global warming and climate change, it is generally accepted that both temperature and precipitation patterns will change on a planetary scale [2] and, in this sense, the latest report of the Intergovernmental Panel on Climate Change (IPCC) [3] states that the frequency and intensity of heavy precipitation events have increased since the 1950s over most land areas for which observational data are sufficient for trend analysis, and that anthropogenic climate change is likely to be the main driver. An increase in the intensity of rainfall in urban contexts, together with an increase in urbanisation activities, leads to the need to increase the capacity of urban drainage systems.

Rainfall is characterised by a high spatio-temporal variability, which in turn complicates its quantitative description [4]. On one hand, rain gauges can be considered as a very precise measurement estimation of the actual rainfall, but cannot reproduce its spatial distribution [5]; and, on the other hand, meteorological radar presents a good spatial distribution of the rainfall, but a poorer quantitative estimation.

The combination of meteorological radar and distributed hydrological models results in a fundamental tool for flood risk management [4], but also the application of rainfall prediction techniques, or nowcasting, based on weather radar is ideal for this purpose due to its good spatial coverage (around a km²) and temporal resolution (less than 15 min) [6,7,8]. The benefit of using radar-based nowcasts as inputs to hydrological models has also been shown in urban catchments and flood forecasting [8,9,10]. Regardless, urban catchments are usually smaller than rural watersheds, the runoff transformation of the catchments is higher, and their reactive capacity is lower because natural retention is much less, so the immediacy and accuracy of rainfall information is of paramount interest.

However, the use of meteorological radar for operational applications in urban hydrology has been rare so far, either because of the more complex error characterisation of radar data compared to direct observations in rain gauges, or because of the actual expansion and development of the technical infrastructure—i.e., radar networks are not available everywhere. In addition, it is also a feature of radar measurements that the uncertainty of the measurement increases with higher rain intensities, which is of primary interest in urban hydrology, especially in high-intensity contexts [7]. Both measurement devices—i.e., meteorological radar and rain gauges—are complementary and thus the simultaneous use of both can provide the best spatial estimate of rainfall as required for urban hydrological applications.

This paper applies the Colour Pattern Regression (CPR) algorithm [11] to re-calibrate the 6 h rainfall images coming from the meteorological radar provided by [12]. In order to verify the suitability of the methodology, a case study was selected in Palma de Mallorca (Spain), where rainfall patterns and the capacity of the sewerage system affect the number of discharges into the Mediterranean Sea, which in turn affects water quality and the possibility of beach closures, ultimately affecting the tourism sector [13]. Only in the period 2015–2021 is there an average of 45 days per year when more than one discharge body is flowing—see Figure 1. In this context, the present study aims not only to quantify the spatio-temporal distribution of rainfall, coupling the spatial distribution of the meteorological radar with the observed rainfall of the rain gauges, while questioning the quantification of the radar, but also to improve the capabilities of a prospective digital twin of the sewerage system, facilitating the future infrastructure planning and maintenance of the EMAYA system.

2. Materials and Methods

2.1. Case Study

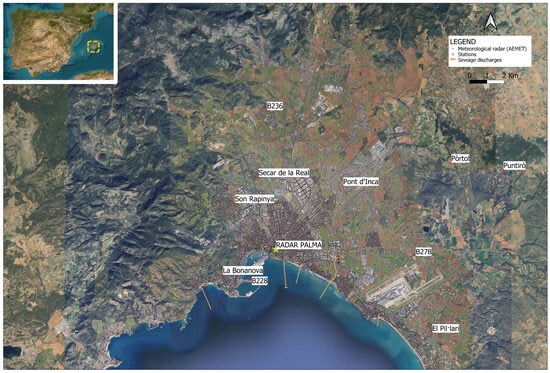

The city of Palma is located in the south of the island of Mallorca and is the capital of the Balearic Islands region of Spain, with an area of around 210 km² and elevations ranging from 0 m, on the coast, to around 400 m in the municipality, but with heights of over 1000 m in the Tramuntana mountains, around 20 km north of the city centre (Figure 2).

Since 1943, the Empresa Municipal de Agua y Alcantarillado, S.A. (EMAYA) has been responsible for both water and waste management in the city of Palma, which has a population of 420,000 [14]. The tributary basins of the city have a Mediterranean climate, with a high seasonality of rainfall, experiencing bigger registers in autumn, which include records of more than 100 mm/day [15]. The rainwater is collected in either the storm or mixed sewer system, which ends up in the Palma II wastewater treatment plant, and both the treatment discharges and the overflows from the collection system end up in the Mediterranean Sea. Likewise, tourist activities are also affected by these discharges, as they affect the quality of bathing water and cause beach closures, so minimising the occurrence of such events is a priority for the EMAYA. In this sense, the recent update of the national regulation by means of Royal Decree 665/2023 [16] and the proposal for the adaptation of the Urban Wastewater Treatment Directive [17] establish criteria for the design of infrastructures that limit the discharge of wastewater into the sea.

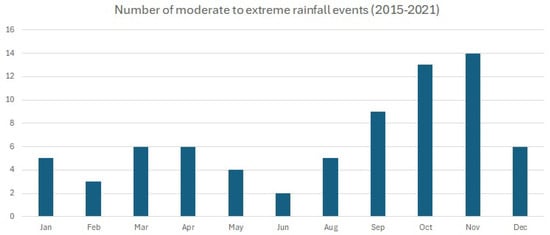

Annual rainfall in this area ranges from 201.3 to 702.2 mm/year, with an annual average of 449 mm over the period 1980–2010 [18]. The rainy season from September to November accounts for 52.2% of the annual rainfall, while the dry season in summer (from June to August) accounts for 10% [19].

2.2. Conceptual Model

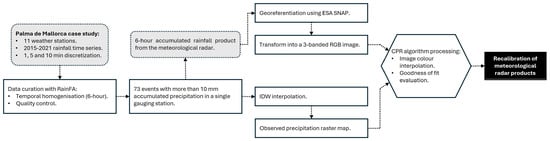

The aim of this study is to calibrate the meteorological radar with observed precipitation at rain gauging stations in the context of the Palma city drainage system. The 6 h cumulative rainfall product from the meteorological radar of [12] was used to verify the agreement of the Marshall–Palmer relationship between the observed reflectivity and the calculated rainfall and the observed rainfall in the existing rain gauges. The methodology used in this study is shown in Figure 3. It includes the following steps: (1) data homogenisation and quality control using the RainFA software [13]; (2) identification of 73 daily events with more than 10 mm accumulated rainfall in a single gauging station used for both spatial interpolation (3) and meteorological radar data acquisition (5); (3) spatial interpolation of the rainfall data at the gauging stations using the Inverse Distance Weighting (IDW) method; (4) as a result of the spatial interpolation (3), raster maps of observed precipitation were obtained and used for GIS calculations in QGIS, using the CPR algorithm plugin (7); (5) 6 h accumulated rainfall product from the meteorological radar [12] data acquisition and geo-referencing using the European Space Agency (ESA) SeNtinel Applications Platform (SNAP) software; (6) transforming the geo-referenced meteorological radar maps into a 3-band RGB image using the colour legend provided by [12]; (7) applying the Colour Pattern Regression (CPR) algorithm [11] to obtain simulated raster maps of precipitation, minimising the differences between the spatially distributed IDW observed precipitation from (4) and the colour ramp from the radar images computed in (6)—converting the 1-band product provided by [12] to 3-band RGB images; (7) this procedure is generalised to recalibrate satellite precipitation meteorological radar products for Palma de Mallorca (Spain) in the period 2015–2021.

2.3. Rainfall Stations Data

Precipitation data were collected from 11 different rain gauges operated by AEMET—i.e., B228, B236, and B278—and the non-profit regional meteorological association Balears Meteo [20]—i.e., El Pil·lari, La Bonanova, Pòrtol, Son Rapinya, Pont d’Inca, Puntiró, Secar de la Real, and Son Ferriol. The data sets were collected from 2015 to 2021 and are recorded at different frequencies—i.e., 1, 5, and 10 min. A data quality control software called RainFA [21] was used to detect outliers and temporal homogenisation. First, the various time series were adjusted to a 10 min time step, summing 2 or 10 registers where appropriate, and then four different data quality controls were applied: (1) user-defined thresholds, using the standard procedure of converting to Nan the negative numbers and the records greater than 40 mm in 10 min; (2) box and whisker and bivariate Highest Density Region (HDR) boxplots, using the summary statistics of the distribution to obtain the quartiles and the potential outliers, comparing stations in pairs with the HDR boxplots and looking for the correspondence of common values densities; (3) double-mass curves, comparing the cumulative rainfall of a single station with the average records of all stations and looking for trend anomalies; and (4) trend analysis, looking for non-stationary series with the Mann–Kendall test. As a result, the Son Ferriol station data set was removed from the study as it had less than two years of data and its registers did not agree with the rest of the stations in the bivariate HDR boxplots and double-mass curve analysis. In addition, 4 discrete values were discarded from the rest of the time series.

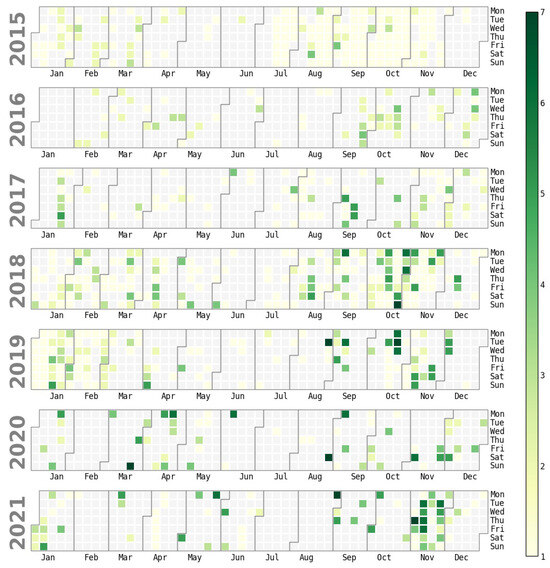

Following this data regularisation, daily precipitation events were discretised and those with cumulative registers greater than 10 mm were selected for calibration of the radar imagery. Storm dates were used to request meteorological radar data from AEMET and, where available, to accumulate precipitation into four daily 6 h values in accordance with the radar products described in Section 2.4.

The 6 h accumulated rainfall was represented as a point-vector shapefile in QGIS and spatially distributed using the Inverse Distance Weighting (IDW) method to produce raster maps of the observed rainfall, which were compared with the different radar images using the CPR algorithm QGIS plugin.

2.4. Meteorological Radar

The meteorological data come from the 6 h accumulated precipitation product provided by the Spanish Meteorological Service (AEMET, [12]). The instrument is equipped with Doppler capability and operates in the 5.6 GHz band [22]. It currently provides raster images for a circle of 240 km radius (long-range mode) reprojected to EPSG:4326 (World Geodetic System 1984, WGS84) centred on the Illes Balears radar (39.57ºN, 2.65ºE). Each image has 494 × 536 pixels and a spatial resolution of 1 × 1 km² in the long-range mode.

The 6 h accumulated precipitation product in mm is the sum of the hourly precipitation products of the period, calculated using the Marshall–Palmer precipitation relation [23], shown in Equation (1).

$$Z=a·R^b,$$

(1)

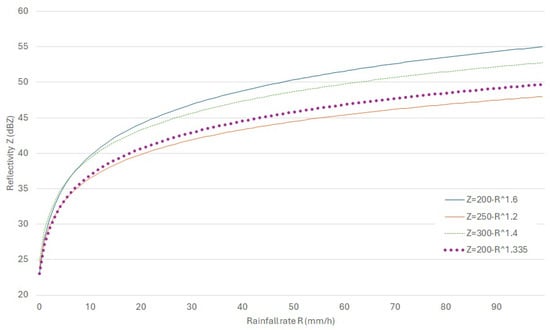

where Z is the reflectivity factor, R is the rain rate (in mm/h), and a and b are constant variables that depend on the type of precipitation. According to [4,5,7,12], for rainfall precipitation they take the following values: a = 200 and b = 1.6.

However, the same source [12] states that there is no clear relationship between reflectivity and rain water content, nor between reflectivity and rain rate, as the latter is also affected by the velocity at which rain falls. They conclude by suggesting the use of reflectivity raster maps—as detected by radar—instead of rain rates.

Ref. [24] studied the variation of these coefficients with the raindrop size distribution associated with different types of rainfall—e.g., ‘orographic’, ‘thunderstorm’, ‘stratiform’, or ‘showers’. They concluded that (1) for a given rainfall rate, ‘orographic’ rainfall presents smaller raindrop sizes and larger concentrations than ‘thunderstorms’, as would be expected for these types of rainfall, and this explains the smaller prefactors—i.e., a coefficients—and larger exponents—i.e., b coefficients—of the exponential Z-R relationships of the ‘orographic’ rainfall when compared to ‘thunderstorms’; (2) it has been difficult to obtain clear conclusions for the other types of rainfall; and (3) the coefficients adopted in [12] are used in many parts of the world because they are close to the mean power law of different authors [24,25,26] for rain rates between 1 and 50 mm/h.

The 6 h radar data acquired was manually geo-referenced using the tool Ground Control Points (GCP) Manager of the ESA SNAP [27] software and then transformed into a 3-banded RGB raster image by means of a colour classification algorithm using the rasterio [28] Python library.

2.5. CPR Algorithm

The CPR algorithm is an add-on module to the open-source QGIS software implemented as a raster interpolation method to determine the relationship between 3-band colour raster products and raster maps [11]. It was developed to fill the gap of establishing correlations between raster maps and aerial colour patterns, using a linear regression between the observed (O) values of the raster maps and the RGB bands of the aerial images—referred to as simulated, S, values.

After (1) normalizing the pixel sizes and (2) clipping with a mask, both layers can be treated as matrices of size m × n and the objective function can be written as follows—Equation (2):

$$min\sum _{j=1}^n\sum _{i=1}^m{\left(O_{ij}-S_{ij}\right)}^2,$$

(2)

where the observed values (O) are represented in Equation (3) and the simulated values (S) are represented as a matrix polynomial equation—i.e., Equation (4)—using three parameters—i.e., R, G, and B—which are minimised in the calculation process.

$$\left[\begin{array}{ccc}{O}_{11}& \cdots & O_{1n}\\ ⋮& \ddots & ⋮\\ O_{m1}& \cdots & O_{mn}\end{array}\right],$$

(3)

$$\left[\begin{array}{ccc}{S}_{11}& \cdots & S_{1n}\\ ⋮& \ddots & ⋮\\ S_{m1}& \cdots & S_{mn}\end{array}\right]=R·\left[\begin{array}{ccc}{R}_{11}& \cdots & R_{1n}\\ ⋮& \ddots & ⋮\\ R_{m1}& \cdots & R_{mn}\end{array}\right]+G·\left[\begin{array}{ccc}{G}_{11}& \cdots & G_{1n}\\ ⋮& \ddots & ⋮\\ G_{m1}& \cdots & G_{mn}\end{array}\right]+B·\left[\begin{array}{ccc}{B}_{11}& \cdots & B_{1n}\\ ⋮& \ddots & ⋮\\ B_{m1}& \cdots & B_{mn}\end{array}\right],$$

(4)

The QGIS CPR algorithm plugin also implements three goodness-of-fit metrics, (1) the Normalised Nash–Sutcliffe Efficiency Coefficient (NNSE), (2) Kling–Gupta Efficiency (KGE), and (3) the Percent Bias Index (PBIAS), which ultimately establish four categories of performance metrics: Very good, Good, Satisfactory, and Unsatisfactory. In the present case, the pixel size of both products—i.e., the IDW-interpolated rainfall raster map and the 3-band coloured radar image—is the same, so there is no spatially distributed metric, but a single performance number of each date–time evaluation.

Refs. [29,30], among others, defined values of the goodness-of-fit metrics for hydrological modelling of streamflow and suspended sediment for different time steps, but there is no reference of the corresponding values for rainfall data from radar observations at the 6 h time step. However, the QGIS CPR algorithm allows the user to adjust the thresholds to suit the needs of the problem.

2.6. Evaluation Procedure

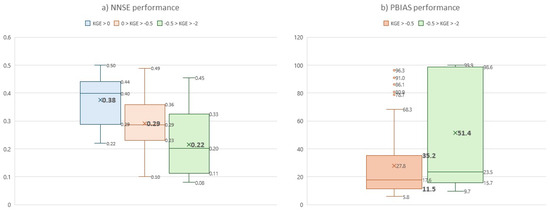

In line with the goodness-of-fit evaluation measurements of the CPR algorithm, three quantitative performance metrics were used to measure, in this case, the accuracy of the meteorological radar predictions with respect to the observed raster maps. The statistics used are (see

Table 1. Evaluation performance metrics.

Statistic	Equation	Value Range
RMSE	$\sqrt{{\displaystyle \frac{{\sum }_{i=1}^n{(O_i-S_i)}^2}{n}}}$	[0,$+\infty$)
NSE	$1-{\displaystyle \frac{{\sum }_{i=1}^n{(O_i-S_i)}^2}{{\sum }_{i=1}^n{(O_i-\overline{O})}^2}}$	($-\infty$,1]
PBIAS	${\displaystyle \frac{{\sum }_{i=1}^n(O_i-S_i)·100}{{\sum }_{i=1}^n{O}_i}}$	($-\infty$,$+\infty$)

): (1) root mean square error (RMSE); (2) the Nash–Sutcliffe efficiency coefficient (NSE); and (3) percent bias (PBIAS). The RMSE explains the deviation between two sets of values, which in this case correspond to the difference between the inferred value from the colour pattern of the CPR process—i.e., observed data—and the corresponding value that was assigned in the colour legend of the meteorological radar product—i.e., simulated data. NSE indicates how well the correlation of observed and simulated data fits the 1:1 line when plotted together, while PBIAS indicates the degree of over- or under-estimation of the observed value as a percentage.

Where $O_i$ and $S_i$ are, respectively, observed and simulated data, i is the data index and n is the total number of measurements, and $\overline{O}$ is the average value of observed data.

3. Results

As mentioned in Section 2.3, rainfall data were curated and homogenised to a 10 min time step using the RainFA software [21]. Daily rainfall values were then detected and those with a cumulative rainfall greater than 10 mm and their preceding and following days were used to obtain the meteorological radar products from [12]. Up to four daily meteorological radar images—i.e., 6 h radar images at 00:00, 06:00, 12:00, and 18:00—were obtained from 73 different dates, resulting in the following findings: (1) there are 54 days with a gauged rainfall greater than 10 mm and available radar inputs; (2) there are 19 images (out of 161) with observed rainfall—i.e., records greater than 0.0 mm and up to 17.8 mm—where the available meteorological radar image was not able to detect rainfall in the area of interest; and (3) during these days, a total of 21 (out of 42) meteorological radar images represent rainfall while there are no records of observed rainfall at the gauging stations. This means that in the case study and in the situation of moderate to extreme rainfall [31], the radar products are able to detect 88.2% of the 6 h time slots with rainfall, but the radar also detects rainfall in the 50.0% of cases where there is no register at the gauging stations.

The rainfall records were then accumulated in accordance with the meteorological radar images and spatially distributed using the IDW interpolation method. The monthly distribution of the selected storm events is shown in Figure 4 and is in line with the values referred to in [19] and presented in Section 2.1, indicating that the most frequent period of moderate to extreme rainfall in the 2015–2021 period is September to November, accounting for 49.3% of the total events, while the period from June to August accounts for only 9.6%. Although the percentages are very similar, the reference values—i.e., annual rainfall vs. number of moderate to extreme rainfall events—are completely different, suggesting a direct relationship between monthly rainfall and the distribution of storms throughout the year, which should be studied in detail.

As mentioned in the Section 2.4, the radar images were manually georeferenced using the GCP Manager tool of the ESA SNAP software [27] and then transformed into a three-band RGB raster image using two different colour label dictionaries for dates before and after 1 January 2016. The following

Table 2. Colour coding of cumulative rainfall values from meteorological radar for storm events before and after 1 January 2016.

6 h Rainfall (mm)	Before 2016	2016–Onwards *
0.5–1	Various	[0,0,250]
1–2	[254,254,254]	[0,0,205]
2–4	[254,254,128]	[0,0,155]
4–8	[254,128,128]	[0,0,105]
8–16	[0,0,254]	[0,100,0]
16–32	[0,128,254]	[0,250,0]
32–64	[128,254,254]	[250,250,0]
64–128	[192,0,0]	[250,165,0]
128–256	[155,187,89]	[250,0,0]

* Note that blueish colours explain cumulative values less than 8 mm, greenish colours cover the range of values between 8 and 32 mm, and a combination of red and green colours is used for values between 32 and 128 mm. The resulting colours are graphically represented as follows:

shows the three-band RGB value dictionary for both periods.

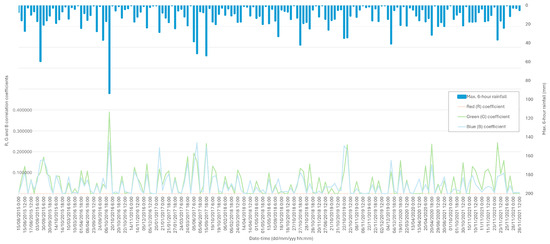

The corresponding date–time pairs of (1) the three-band RGB meteorological radar image and (2) the 6 h cumulative rainfall IDW interpolated raster maps were used to apply the CPR algorithm to assess the validity of the meteorological radar cumulative rainfall values while improving the spatial distribution of the on-site weather stations. The results of the application of the CPR algorithm are presented in Figure 5 and

Table A1. CPR algorithm results including, for each date and time evaluated, the calculated R, G, and B correlation coefficients; the goodness-of-fit performance metrics NNSE, KGE, and PBIAS; and the maximum 6 h cumulative rainfall value observed at any of the existing gauging stations.

Date (dd.mm.yyyy)	Time	R	G	B	NNSE	KGE	PBIAS	Max. 6 h Rainfall (mm)
15.08.2015	00:00	0.00000	0.00000	0.00000				7.2
	06:00	0.00000	0.07215	0.04543	0.2356	−0.0955	17.34	16.0
	12:00	0.00000	0.13040	0.10193	0.2358	−0.4239	17.37	27.3
	18:00	0.00000	0.00000	0.00000				2.4
17.08.2015	00:00	0.00000	0.00000	0.00000				0.0
	12:00	0.00000	0.06695	0.06369	0.1681	−0.4435	11.01	10.0
	18:00	0.00000	0.00000	0.02048	0.1376	−0.4658	21.99	6.4
03.09.2015	00:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.07827	0.05904	0.0821	−1.0190	24.18	16.8
	18:00	0.00000	0.00000	0.00000				0.0
04.09.2015	00:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.00000	0.00000				0.0
	12:00	0.00000	0.10180	0.15863	0.3607	−0.2188	20.91	59.4
30.09.2015	06:00	0.00000	0.17489	0.16232	0.0182	−4.9178	10.55	20.8
	12:00	0.00000	0.09469	0.12309	0.0220	−4.3269	14.91	16.0
	18:00	0.00000	0.08330	0.03743	0.2351	0.0246	22.89	11.0
14.10.2015	00:00	0.00000	0.00000	0.00000				2.6
	06:00	0.00000	0.08402	0.08700	0.2648	−0.2994	8.52	18.9
	12:00	0.00000	0.08306	0.04668	0.2149	−0.1749	12.48	15.0
	18:00	0.00000	0.00000	0.00000				6.6
10.03.2016	00:00	0.00000	0.00000	0.00336	0.2374	−0.5855	99.45	1.4
	06:00	0.00125	0.05175	0.08024	0.2333	−0.0440	15.05	14.2
	12:00	0.00000	0.00000	0.00239	0.3860	−0.1869	25.44	2.0
	18:00	0.00000	0.02299	0.00595	0.3177	−0.3048	17.78	3.8
01.04.2016	00:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.00000	0.00047	0.4022	0.2410	46.83	0.2
	18:00	0.00000	0.10986	0.07559	0.2154	−0.2947	14.35	24.2
08.04.2016	00:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.00000	0.00000				0.0
	12:00	0.00000	0.03800	0.03575	0.2859	−0.0751	9.96	8.4
	18:00	0.00000	0.10770	0.06489	0.2355	−0.1122	10.85	15.6
20.09.2016	00:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.00000	0.00000				0.0
	18:00	0.00000	0.00000	0.01405	0.4421	−0.0589	9.04	10.4
23.09.2016	00:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.00000	0.00000				0.0
	12:00	0.00000	0.00022	0.00057	0.4691	−0.0067	61.73	0.4
	18:00	0.00000	0.04947	0.04101	0.3805	−0.1296	27.37	27.6
24.09.2016	06:00	0.00000	0.00000	0.00179	0.2736	−0.3238	91.18	0.8
	12:00	0.00000	0.00000	0.00000				0.0
	18:00	0.00000	0.04508	0.07379	0.0828	−0.7453	93.85	36.8
06.10.2016	00:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.00000	0.00000				0.0
	18:00	0.00000	0.02568	0.02218	0.4651	0.1650	28.74	16.8
20.10.2016	00:00	0.00000	0.39039	0.24741	0.4444	0.1087	8.11	93.4
	06:00	0.00000	0.00000	0.00000				0.4
	12:00	0.00000	0.00000	0.00893	0.2981	−0.0525	30.25	5.6
	18:00	0.00000	0.00000	0.00000				1.0
22.10.2016	00:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.08369	0.06124	0.1820	−0.3293	11.51	13.2
	12:00	0.00000	0.00000	0.00955	0.1035	−0.3691	58.08	4.2
	18:00	0.00000	0.00553	0.00608	0.4221	0.0685	65.81	3.2
14.11.2016	00:00	0.00000	0.00000	0.00019	0.2941	−0.6089	96.53	0.2
	06:00	0.00000	0.12595	0.10495	0.1063	−0.8459	10.07	17.4
	12:00	0.00000	0.07472	0.07435	0.0793	−1.2213	13.68	12.2
	18:00	0.00000	0.04710	0.01978	0.1239	−0.5720	20.78	6.8
05.12.2016	00:00	0.00000	0.00000	0.00000				0.8
	06:00	0.00000	0.14227	0.09337	0.2800	−0.0774	10.91	23.6
	12:00	0.00000	0.00000	0.00407	0.1001	−0.1867	80.88	1.8
	18:00	0.00000	0.00000	0.00000				0.4
20.01.2017	00:00	0.00000	0.00028	0.00039	0.3807	−0.1015	24.46	0.2
	12:00	0.00000	0.11805	0.21976	0.0113	−6.6076	19.89	28.4
21.01.2017	00:00	0.00000	0.04255	0.01485	0.4328	0.0494	10.25	7.8
	06:00	0.00000	0.09288	0.06763	0.3744	0.3401	5.82	13.2
	18:00	0.00000	0.10836	0.09454	0.2368	−0.0259	11.34	18.0
27.01.2017	00:00	0.00000	0.00011	0.00025	0.4884	−0.1857	14.78	0.2
	06:00	0.00000	0.00000	0.00000				0.0
	12:00	0.00000	0.00000	0.00000				0.0
	18:00	0.00000	0.07822	0.06495	0.3207	0.0997	21.44	24.5
24.03.2017	00:00	0.00000	0.00929	0.00474	0.4543	−0.5686	22.93	5.7
	06:00	0.00000	0.00000	0.00316	0.2479	−0.4220	68.34	3.8
	12:00	0.00000	0.06980	0.05400	0.2533	−0.3400	9.68	12.0
	18:00	0.00000	0.17729	0.14679	0.0423	−2.6738	6.47	21.4
05.06.2017	00:00	0.00000	0.00000	0.00000				0.2
	06:00	0.00000	0.19373	0.13172	0.3190	−0.2191	11.40	38.4
	12:00	0.00000	0.15269	0.24340	0.1852	−0.2550	17.51	51.0
	18:00	0.00000	0.00000	0.00970	0.2031	−0.6666	99.71	6.4
15.09.2017	00:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.00000	0.00000				0.0
	12:00	0.00000	0.03276	0.00816	0.4757	0.2122	36.01	7.4
	18:00	0.00000	0.23895	0.22310	0.1300	−0.5430	18.21	53.4
19.10.2017	00:00	0.00000	0.00000	0.00000				3.0
	06:00	0.00000	0.13118	0.08103	0.0879	−1.1058	11.55	17.4
	12:00	0.00000	0.10523	0.08516	0.3308	−0.3131	9.57	20.1
	18:00	0.00000	0.00000	0.01224	0.1166	−0.6815	99.79	9.2
06.02.2018	00:00	0.00000	0.00000	0.00592	0.3361	−0.1933	24.24	2.6
	06:00	0.00000	0.08240	0.05643	0.2170	−0.2045	10.25	10.2
	12:00	0.00000	0.02353	0.01287	0.1926	−0.3882	16.71	3.4
	18:00	0.00000	0.03915	0.04833	0.2194	−0.2970	16.43	10.9
24.03.2018	00:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.00000	0.01617	0.3350	−0.5376	15.75	8.6
	12:00	0.00000	0.11271	0.08759	0.1488	−0.4621	10.96	17.8
	18:00	0.00000	0.07926	0.01915	0.4287	0.2006	25.10	17.4
14.04.2018	00:00	0.00000	0.00000	0.00049	0.4229	−0.5057	86.38	0.8
	06:00	0.00000	0.00000	0.00319	0.1126	−0.5187	51.59	1.6
	12:00	0.00000	0.00000	0.06276	0.1274	−0.7198	12.38	11.0
	18:00	0.00000	0.00000	0.00233	0.2930	0.1242	67.58	1.2
01.05.2018	00:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.05953	0.03050	0.3111	−0.1460	20.20	13.6
	12:00	0.00000	0.01665	0.00620	0.4207	−0.2361	39.47	11.3
	18:00	0.00000	0.00000	0.01888	0.3354	−0.2971	46.07	20.0
13.05.2018	00:00	0.00000	0.00000	0.00000				0.8
	06:00	0.00000	0.09960	0.06807	0.2157	−0.1736	10.65	19.2
	12:00	0.00000	0.00000	0.00087	0.3859	−0.7393	99.81	3.8
	18:00	0.00000	0.00000	0.00000				0.0
10.09.2018	00:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.04152	0.02772	0.4184	0.0128	17.39	16.4
	12:00	0.00000	0.00000	0.07143	0.1713	−0.2488	87.10	33.0
	18:00	0.00000	0.00000	0.00000				0.0
18.10.2018	00:00	0.00000	0.01173	0.00556	0.4698	−0.1350	12.38	4.6
	06:00	0.00000	0.00000	0.01046	0.3471	−0.0280	58.97	6.0
	12:00	0.00000	0.00000	0.00856	0.3937	0.0805	22.62	6.8
	18:00	0.00000	0.04283	0.02574	0.3943	−0.3513	16.30	14.7
27.10.2018	00:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.00000	0.00000				0.2
	12:00	0.00000	0.03770	0.04636	0.3741	−0.1232	17.01	13.2
	18:00	0.00000	0.12069	0.10040	0.4276	0.0497	8.52	42.0
28.10.2018	00:00	0.00000	0.10680	0.07288	0.2799	−0.0575	10.16	19.0
	06:00	0.00000	0.00000	0.00000				17.8
	12:00	0.00000	0.14157	0.04913	0.3249	−0.2707	26.34	24.8
	18:00	0.00000	0.00465	0.00962	0.4130	0.3374	50.92	4.6
20.11.2018	00:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.00000	0.00064	0.2869	−0.4719	96.26	0.4
	12:00	0.00000	0.07763	0.01208	0.4994	0.3678	16.11	12.0
	18:00	0.00000	0.00000	0.00057	0.2448	−0.1070	78.67	0.2
27.08.2019	00:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.00000	0.00000				0.0
	12:00	0.00000	0.05519	0.03457	0.3435	−0.2175	12.21	14.5
	18:00	0.00000	0.00000	0.03086	0.3576	−0.0165	25.81	26.0
21.10.2019	00:00	0.00000	0.02466	0.03156	0.4677	−0.1902	11.82	15.8
	06:00	0.00000	0.00000	0.04910	0.2771	0.0332	9.74	14.4
	12:00	0.00000	0.00000	0.01786	0.2474	−0.2132	10.99	5.1
	18:00	0.00000	0.03262	0.01347	0.2389	−0.0012	15.15	4.4
22.10.2019	00:00	0.00000	0.10469	0.22899	0.1012	−0.7995	20.79	34.8
	06:00	0.00000	0.23423	0.20588	0.2094	−0.2307	7.15	34.2
	12:00	0.00000	0.00000	0.00185	0.3723	−0.7435	99.94	11.2
	18:00	0.00000	0.00000	0.00077	0.3272	0.0168	43.17	0.6
08.11.2019	00:00	0.00000	0.05782	0.02405	0.2880	−0.2068	24.35	12.4
	06:00	0.00000	0.00000	0.00516	0.3753	−0.2356	17.00	4.6
	12:00	0.00000	0.00000	0.00029	0.3174	−0.6104	98.56	0.2
	18:00	0.00000	0.00000	0.00045	0.4147	−0.7258	99.45	2.0
22.11.2019	00:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.00000	0.00339	0.2201	0.0332	45.39	1.4
	12:00	0.00000	0.07973	0.04286	0.2222	−0.1929	25.22	16.2
	18:00	0.00000	0.00000	0.00273	0.4851	0.1760	20.68	3.4
02.12.2019	00:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.06222	0.03772	0.3141	−0.3692	24.47	16.8
	12:00	0.00000	0.00000	0.00107	0.2720	0.1651	68.15	0.4
	18:00	0.00000	0.00000	0.00000				0.2
04.12.2019	00:00	0.00000	0.00000	0.00000				14.6
	12:00	0.00000	0.10460	0.15849	0.2332	−0.1179	17.44	40.8
	18:00	0.00000	0.00000	0.01396	0.2982	−0.1009	12.56	5.2
19.01.2020	00:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.00000	0.00310	0.1425	−0.3678	44.53	1.6
	18:00	0.00000	0.15813	0.11034	0.3567	0.2541	5.89	21.0
22.03.2020	00:00	0.00000	0.00093	0.00036	0.3250	−0.9038	88.16	1.0
	06:00	0.00000	0.00000	0.00000				0.0
	12:00	0.00000	0.06516	0.05396	0.3103	−0.4007	23.37	21.7
	18:00	0.00000	0.00439	0.00470	0.3867	−0.3081	79.32	2.4
13.04.2020	00:00	0.00000	0.00000	0.00000				4.6
	06:00	0.00000	0.00000	0.03392	0.2056	−0.5397	13.42	11.1
	12:00	0.00000	0.00000	0.07010	0.2372	−0.0397	6.40	16.0
	18:00	0.00000	0.00000	0.00000				0.0
20.04.2020	00:00	0.00000	0.00000	0.00867	0.4431	0.1717	6.80	4.3
	06:00	0.00000	0.13323	0.04410	0.2566	0.0114	30.80	17.2
	12:00	0.00000	0.00000	0.01009	0.3816	−0.3378	31.09	13.7
	18:00	0.00000	0.23645	0.13889	0.3362	−0.1299	11.68	31.4
29.08.2020	0:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.00000	0.00000				0.4
	12:00	0.00000	0.04537	0.03412	0.3928	−0.2837	21.97	22.2
	18:00	0.00000	0.00000	0.04043	0.0846	−0.5687	99.05	18.0
30.08.2021	0:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.00000	0.00000				0.0
	12:00	0.00000	0.06166	0.07989	0.2982	−0.4465	14.54	22.2
	18:00	0.00000	0.00000	0.00000				3.8
01.10.2021	0:00	0.00000	0.00000	0.00000				0.2
	06:00	0.00000	0.00000	0.00000				0.0
	12:00	0.00000	0.08098	0.02229	0.3358	−0.6754	23.51	14.6
	18:00	0.00000	0.00000	0.01700	0.1630	−0.3035	86.12	10.0
30.10.2021	0:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.00000	0.01168	0.4004	−0.4089	14.25	7.3
	12:00	0.00000	0.14804	0.07711	0.2142	−0.1048	9.75	21.4
	18:00	0.00000	0.00000	0.00092	0.2177	−0.6203	95.64	1.0
10.11.2021	0:00	0.00000	0.00000	0.05640	0.0326	−2.8578	26.87	17.4
	06:00	0.00000	0.12993	0.08696	0.1337	−0.5915	9.68	17.6
	12:00	0.00000	0.10863	0.04335	0.2869	−0.3597	15.72	17.2
	18:00	0.00000	0.05921	0.02528	0.1956	−0.5300	15.94	7.4
11.11.2021	0:00	0.00000	0.01903	0.00740	0.3762	−0.1392	14.80	3.6
	06:00	0.00000	0.10492	0.02616	0.3295	−0.4307	18.84	17.0
	12:00	0.00000	0.11718	0.03424	0.2605	−0.6268	22.02	16.3
	18:00	0.00000	0.07882	0.02975	0.2020	−0.6140	20.55	10.4
23.11.2021	0:00	0.00000	0.00665	0.00285	0.2659	−0.1517	34.97	1.5
	06:00	0.00000	0.24326	0.08213	0.3929	0.0298	18.78	36.5
	12:00	0.00000	0.09404	0.08781	0.1373	−0.5594	10.69	16.4
	18:00	0.00000	0.15801	0.09698	0.2743	0.0039	9.00	24.0
25.11.2021	0:00	0.00000	0.00000	0.00000				0.0
	06:00	0.00000	0.00000	0.00023	0.4554	−0.4072	91.03	0.2
	12:00	0.00000	0.08443	0.03864	0.2621	−0.3625	15.06	11.5
	18:00	0.00000	0.00000	0.00000				0.0
28.11.2021	0:00	0.00000	0.00000	0.00364	0.2483	−0.0208	43.75	2.6
	06:00	0.00000	0.00000	0.00540	0.2860	0.0646	60.55	3.0
	12:00	0.00000	0.00000	0.00558	0.4726	0.2432	44.82	5.2
	18:00	0.00000	0.00000	0.00000				0.0

, including the following: (a–b) date–time of the rainfall event; (c–e) R-G-B calculated parameters; (f–h) goodness-of-fit statistics—i.e., NNSE, KGE, and PBIAS—of the performance of the algorithm; and (i) maximum observed 6 h cumulative rainfall value.

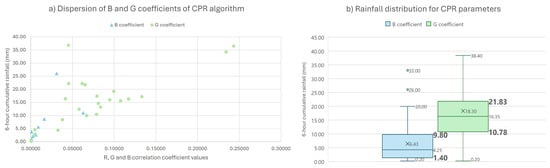

The model parameters of the CPR algorithm take on coherent values with the colour ranges shown in Table 2, generally showing larger values with increasing rainfall and including Green shades for higher amounts of rainfall. In this sense, there is a correspondence between the maximum values of rainfall accumulated in rain gauges within 6 h slots and the colour thresholds identified in the meteorological radar legend mentioned above. Figure 6 shows the distribution values of rainfall associated with only Blue tones and including Green tones: (a) shows the dispersion of the results for both coefficients, showing a direct proportionality between their values and the maximum amount of rainfall registered, and, as expected, greater Green coefficient values than the Blue ones for higher rainfall and (b) highlights the Q1 and Q3 quartiles—which account for 50% of the values—in the graph, resulting in a remarkable similarity with the Blue and Green rainfall thresholds of the meteorological radar legend. However, despite the promising general results, a more detailed study is carried out in Section 4 for the different thresholds.

Regarding the CPR algorithm performance statistics, using the KGE values proposed in [11] as a reference—i.e., values between 0 and 1 indicate Very good performance, between −0.5 and 0 are considered Good, and values greater than −2 are considered Satisfactory—137 out of 142 radar images that were able to detect precipitation have at least a Satisfactory performance that explains the spatial distribution of precipitation according to its colour pattern, 106 have a Good performance, while only 28 have a Very Good performance. In terms of NNSE, the thresholds proposed in [11] cannot be considered as a reference, in line with the final conclusion and future work of the referenced publication. Consistent with the KGE statistic performance ranking, the variation in NNSE values suggests the use of the following thresholds: (1) NNSE > 0.40 for Very good performance, (2) 0.40 > NNSE > 0.30 for Good performance, and (3) 0.30 > NNSE > 0.20 for Satisfactory performance, resulting in NNSE < 0.20 as Unsatisfactory models, see Figure 7a. Finally, PBIAS is positive in all cases, indicating that the IDW spatially distributed gauged values are overestimating the simulated values from the colour patterns of the meteorological radar. In addition, using the same KGE classification, PBIAS results are also in agreement with performance ratings established in [11], concentrating both Very good and Good performance within the range of [11.5; 35.2]% and obtaining an average of 51.4% for Satisfactory models, as presented in Figure 7b.

4. Discussion

As seen in the previous Section 3, the results of the CPR algorithm in terms of the KGE statistic are at least Satisfactory in practically all cases, and Good in most of them—i.e., 96.5% and 74.6%, respectively. This means that the colour patterns of the meteorological radar products are a good indicator of the rainfall observed in the rain gauges. However, this does not mean that there is a unique relationship between radar observations (which ultimately quantify reflectivity [7,12]), referred to as Z in Equation (1), and rain rate, referred to as R. In this sense, Einfalt et al. [7], among others, highlight the difficulties in the transformation between Z and R and the considerable deviations in their results [7,32,33]. In particular, by applying different equations [23,34,35], can be seen that the most important differences exist for higher rainfall intensities [7], but in the present case, data on these ranges are missing and so it is only possible to assess the results for rainfall intensities below 32 mm.

In order to assess the ability of the meteorological radar to match the observations of rain gauges, the following procedure was applied for every date–time: (1) create a mask of the different colour categories of the meteorological radar; (2) apply the masks to the IDW-interpolated rainfall raster map and calculate its basic statistics—i.e., minimum, maximum, and average; (3) construct an observed array with the increasing colour categories’ minimum and maximum values; (4) compare the observed array with the simulated array, generated from the meteorological radar legend as [0.5, 1; 1, 2; 2, 4; 4, 8; 8, 16; 16, 32; 32, 64; 64, 128; 128, 256]; and (5) evaluate their goodness of fit using the performance metrics described in Section 2.6. First, an evaluation was performed using the RMSE, discarding the date–time registers that exceeded the maximum observed rainfall at the rain gauges, and found that 114 out of 142 (i.e., 80.3%) did not exceed this condition.

Table A2. Goodness-of-fit RMSE, NSE, and PBIAS performance statistics of the observed—i.e., IDW-interpolated rainfall raster map—and simulated—i.e., radar legend—thresholds taking into account the different colour patterns of the meteorological radar legend.

Date (dd.mm.yyyy)	Time	Max. 6 h Rainfall (mm)	RMSE	NSE	PBIAS
15.08.2015	06:00	16.0	9.23	−0.5913	5.34
	12:00	27.3	9.45	0.7722	31.60
17.08.2015	12:00	10.0	9.99	−0.7789	−81.19
	18:00	6.4	2.85	0.6621	29.64
03.09.2015	06:00	16.8	9.58	−0.0695	36.11
04.09.2015	12:00	59.4	41.40	−2.2250	−22.79
30.09.2015	06:00	20.8	9.24	0.8715	23.05
	12:00	16.0	9.27	0.6088	14.63
	18:00	11.0	4.74	0.5797	37.66
14.10.2015	06:00	18.9	5.15	0.8460	17.87
	12:00	15.0	5.86	0.4344	39.38
10.03.2016	00:00	1.4	0.27	0.9875	10.74
01.04.2016	00:00	24.2	8.96	0.6436	53.91
08.04.2016	12:00	8.4	5.47	0.1734	−86.58
	18:00	15.6	6.93	0.4540	52.20
20.09.2016	18:00	10.4	4.34	0.3055	19.50
23.09.2016	18:00	27.6	16.98	−0.9877	−5.11
24.09.2016	06:00	0.8	0.75	0.4110	−123.65
	18:00	36.8	19.09	−6.0217	−15.04
20.10.2016	00:00	93.4	42.35	0.3597	86.39
	12:00	5.6	2.50	0.6456	15.59
22.10.2016	06:00	13.2	5.00	0.7227	29.52
	12:00	4.2	1.38	0.8849	36.53
14.11.2016	06:00	17.4	10.54	−0.0971	42.08
	12:00	12.2	8.64	0.2936	−24.03
	18:00	6.8	4.16	−0.0462	−10.10
05.12.2016	06:00	23.6	8.99	0.7362	22.95
	12:00	1.8	1.44	−0.1816	−93.84
20.01.2017	12:00	28.4	17.52	0.5718	5.63
21.01.2017	00:00	7.8	3.79	0.0680	−38.67
	06:00	13.2	2.78	0.9410	9.52
	18:00	18.0	7.56	0.7016	5.54
27.01.2017	18:00	24.5	14.35	−1.5837	−15.46
24.03.2017	06:00	3.8	0.82	0.8335	−11.65
	12:00	12.0	3.77	0.8652	0.76
	18:00	21.4	11.17	0.7997	60.22
05.06.2017	06:00	38.4	15.99	0.7309	64.99
	12:00	51.0	19.95	0.7926	52.22
	18:00	6.4	1.69	0.9390	69.07
15.09.2017	12:00	7.4	4.65	−1.6078	−80.89
	18:00	53.4	26.20	0.3097	71.38
19.10.2017	06:00	17.4	9.33	0.4002	63.78
	12:00	20.1	6.63	0.8291	34.45
	18:00	9.2	2.32	0.9279	75.49
06.02.2018	06:00	10.2	3.72	0.8709	1.13
	18:00	10.9	9.97	−1.6244	−46.31
24.03.2018	06:00	8.6	2.21	0.7689	20.83
	12:00	17.8	8.86	0.6369	11.37
	18:00	17.4	6.79	0.1904	−7.45
14.04.2018	06:00	1.6	1.54	−0.6957	−120.78
	12:00	11.0	5.74	0.7878	59.80
	18:00	1.2	0.71	0.6839	−73.59
01.05.2018	06:00	13.6	7.94	−0.5120	−4.61
	12:00	11.3	10.04	−5.6762	−145.24
	18:00	20.0	7.22	0.4642	60.94
13.05.2018	06:00	19.2	7.64	0.6772	48.25
	12:00	3.8	0.58	0.0968	−244.89
10.09.2018	06:00	16.4	8.14	−0.1452	−6.57
	12:00	33.0	18.90	0.6923	93.54
18.10.2018	06:00	6.0	2.73	0.4035	−6.27
	12:00	6.8	3.01	0.7267	51.87
	18:00	14.7	5.60	0.3686	23.13
27.10.2018	12:00	13.2	10.21	−0.6154	−107.91
	18:00	42.0	16.67	0.1749	70.63
28.10.2018	00:00	19.0	7.85	0.7816	36.96
	12:00	24.8	7.29	0.5871	30.00
20.11.2018	12:00	12.0	3.17	0.6958	−2.35
27.08.2019	12:00	14.5	4.71	0.5455	−10.51
	18:00	26.0	11.16	0.4794	80.78
21.10.2019	00:00	15.8	12.23	−0.8259	−85.84
	06:00	14.4	6.62	0.5615	66.65
	12:00	5.1	2.01	0.7679	20.71
22.10.2019	00:00	34.8	19.79	0.4640	2.46
	06:00	34.2	16.79	0.8677	62.81
	12:00	11.2	1.23	−0.3087	−295.49
08.11.2019	00:00	12.4	5.57	0.4514	29.06
	06:00	4.6	2.05	0.3953	−48.81
	18:00	2.0	0.68	−3.5196	−569.22
22.11.2019	12:00	16.2	9.18	−0.2618	17.01
	18:00	3.4	1.22	0.8331	21.61
02.12.2019	06:00	16.8	5.73	0.5225	29.25
04.12.2019	12:00	40.8	18.91	0.2574	2.67
	18:00	5.2	2.79	−0.0720	−41.81
19.01.2020	06:00	1.6	1.11	0.5882	−49.47
	18:00	21.0	5.90	0.9492	33.90
22.03.2020	12:00	21.7	10.24	0.2119	32.67
13.04.2020	06:00	11.1	2.60	0.8930	35.14
	12:00	16.0	9.36	0.8015	79.60
20.04.2020	00:00	4.3	1.76	0.7482	17.41
	06:00	17.2	9.04	0.4237	60.34
	12:00	13.7	3.78	0.4156	15.91
	18:00	31.4	14.65	0.5662	67.41
29.08.2020	12:00	22.2	7.96	0.2838	32.47
	18:00	18.0	6.88	0.8178	78.23
30.08.2021	12:00	22.2	7.62	0.7229	21.23
01.10.2021	12:00	14.6	4.43	0.5907	25.26
	18:00	10.0	5.10	0.7766	79.70
30.10.2021	06:00	7.3	2.19	0.5441	−23.15
	12:00	21.4	8.08	0.5341	61.97
	18:00	1.0	0.44	0.7635	−143.45
10.11.2021	00:00	17.4	11.39	0.6121	86.23
	06:00	17.6	7.03	0.7300	51.50
	12:00	17.2	6.15	0.5433	47.45
	18:00	7.4	4.09	0.2967	7.21
11.11.2021	06:00	17.0	6.05	0.5533	44.87
	12:00	16.3	4.92	0.6556	42.23
	18:00	10.4	4.25	0.5489	26.02
23.11.2021	06:00	36.5	12.25	0.3974	54.68
	12:00	16.4	8.72	0.4762	−10.23
	18:00	24.0	10.90	0.7974	57.30
25.11.2021	12:00	11.5	3.12	0.7256	13.63
28.11.2021	00:00	2.6	1.61	0.1114	−72.87
	06:00	3.0	0.87	0.8947	1.95
	12:00	5.2	1.89	0.6879	−10.62

shows the corresponding performance statistics for the selected dates.

Using the recommended values in [29] for the NSE statistic, only 28 of the models have a performance rating of Very good and a total of 44 have a performance rating of at least Good, corresponding to 19.7% and 31.0%, respectively. In addition, most of the models (i.e., 39 out of 44) have a positive PBIAS, meaning that the observed values in the rain gauge exceed the simulated values in the meteorological radar legend. Even for at least Satisfactory models, 63 out of 142 (only 44.4%), PBIAS is positive in 55 cases—i.e., 87.3%. Such results invite reconsideration of the Marshall–Palmer relation (Equation (1)) coefficients for the transformation of radar reflectivity into rain rate (Z-R), as it is clearly underestimating the rainfall results.

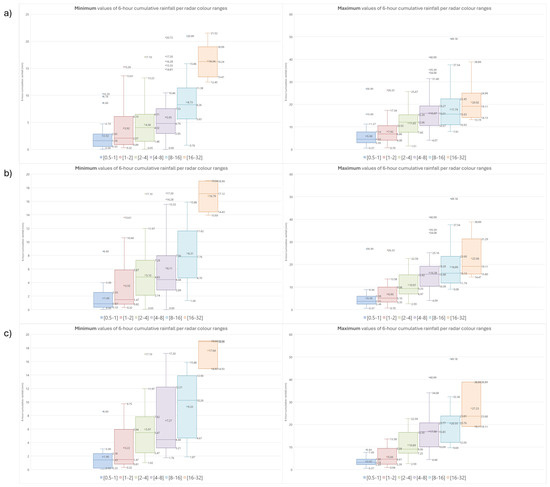

The minimum and maximum values were then presented in ranges and their evolution studied for the Satisfactory, Good, and Very good performance models, in order to identify appropriate thresholds that take into account the rainfall variability in the context of Palma de Mallorca. Only the ranges with a minimum number of registers greater than five were considered, and so corresponded to [0.5, 1]; [1, 2]; [2, 4]; [4, 8]; [8, 16]; [16, 32]. Figure 8 shows the distribution boxplots of the corresponding combinations.

As a result of the analysis, the following thresholds were defined: [0.5, 2.5]; [2.5, 4.5]; [4.5, 6.5]; [6.5, 12]; [12, 16]; [16, 28]. Comparing them with the original ones used by AEMET [12], it is noticeable that below 16 mm of accumulated rainfall, the simulated values used in the meteorological radar legend underestimate the observed rainfall in the rain gauges. This result is consistent with the PBIAS statistics result mentioned above.

Next, the evaluation procedure to assess the ability of the meteorological radar to match the observations of rain gauges, was adapted to assess its capacity of being matched by the CPR-interpolated raster map. In this case, the procedure was repeated from step (2) and the masks were applied to the CPR-interpolated raster map instead of being applied to the IDW-interpolated rainfall raster map, and, as the map was constructed from the colour patterns, a single value corresponded to every colour instead of a series of them. The observed array was compared with the same simulated array (4) and the performance metrics were calculated (5).

The results were then evaluated for the at least Satisfactory models in NSE of the previous evaluation procedure—i.e., the IDW-interpolated rainfall raster map—and showed that 42 out of 63 of the cases (66.7%) could also be considered as Satisfactory, 30 out of 44 (68.2%) could also be considered as Good, and 17 out of 28 (60.7%) could also be considered as Very good. Using the same distribution evaluation as for the IDW-interpolated raster map—i.e., see Figure 8—the defined thresholds were also appropriate, thus validating both the new proposed ranges and the use of the CPR algorithm to recalibrate the meteorological radar estimates.

Finally, the Marshall–Palmer precipitation relationship (Equation (1)) was recalculated for the new rainfall thresholds, first changing the units of the reflectivity factor from Z (in mm⁶/m³) to Z (in dBZ) using the following relationship, $Z\left(dBZ\right)=10·log\left(Z\right)$ [4,12], and then minimising the distance between the calculated values of Z (dBZ) and the reference thresholds of the equivalent 6 h meteorological radar product in [12]—i.e., [12, 18]; [18, 24]; [24, 30]; [30, 36]; [36, 42]; [42, 48]. The coefficient a was fixed at 200 after warming up the results and comparing them with the bibliographical references [7,32,33,34,35], and the b calculation resulted in 1.335. Figure 9 shows the resulting Z-R curve compared with three other existing curves: (a) the Marshall–Palmer relationship, $Z=200·R^{1.6}$; (b) the tropical climate relationship, $Z=250·R^{1.2}$; and (c) the convective storm relationship, $Z=300·R^{1.4}$.

For the period 2015–2021 and the analysis of moderate to extreme events—i.e., rainfall rates up to 28 mm/h—the Z-R relationship is very similar to that for tropical climates and significantly different from the standard Marshall–Palmer coefficients.

5. Conclusions

The EMAYA is developing a digital twin of the urban drainage system of the city of Palma in Mallorca (Spain), whose main input data for being operational is rainfall, both for nowcasting and forecasting solutions. On-site observations with rain gauges are of utmost interest due to their estimation precision, but their network needs to be increased in density to improve their spatial resolution, thus increasing the O&M costs. A trade-off between cost and precision is needed and remote sensors, such as satellite observation products, represent an alternative to optimise the cost of the rain gauge network, but their measurements should be calibrated to improve their precision. The present manuscript uses the CPR algorithm to recalibrate the meteorological radar information and validates its results by calculating the new thresholds from the IDW-interpolated rainfall raster map. The meteorological radar has demonstrated its ability to detect rainfall, with up to 88.2% of the 6 h time slots containing rainfall. Results from the application of the CPR algorithm suggest that the colour patterns of the meteorological radar products are a good indicator of the rainfall observed at the rain gauges. New thresholds for the meteorological radar colour patterns were calculated from the IDW-interpolated raster map. When the new ranges were applied to the CPR-calculated raster map, the same values were obtained, validating the use of the CPR algorithm to recalibrate the meteorological radar estimates.

Finally, in terms of methodology, the CPR algorithm should be adapted to the QGIS plugin if it is to be used for this particular purpose, with the following performance rating values for NNSE: Very good > 0.40 > Good > 0.30 > Satisfactory > 0.20 > Unsatisfactory, in accordance with the reference paper [11].
