1. Introduction
Boreal forest covers a large part of the northern hemisphere, stretching from Canada over to Northern Europe and Siberia. With nearly 12.2 million km
2, boreal forests are one third of the global forest cover [
1]. Boreal forests play a crucial role in the global carbon sequestration cycle, containing almost 30% of the world’s carbon stock. Thus, assessing forest productivity [
2,
3,
4] is important for monitoring change in forest carbon stock. The cost-effective acquisition of spatial data on large forest areas can only be achieved using remote sensing instruments. Fortunately, with the advent of recent satellite instruments with higher spatial and spectral resolution, such as Sentinel 2 [
5] and the upcoming ESA’s FLEX mission [
6], the quantification of biochemical processes can be currently achieved on a large scale.
Photosynthetic light use efficiency (LUE), the efficiency at which the plant converts light into fixed carbon, is one of the indicators used in the field of remote sensing of vegetation productivity [
7]. LUE is defined as the ratio of gross primary production (GPP) to photosynthetically active radiation absorbed by vegetation (APAR) [
7,
8,
9]. The LUE of plants can show significant variation at all scales, with structural scales ranging from within-leaf to ecosystems, and temporal scales ranging from near-instantaneous to annual, due to plant seasonal cycles [
10,
11].
The LUE of plants is driven on a daily basis by changes in light, water, and temperature. Under excessive incident radiation, plants activate their defense mechanisms, de-epoxidate their xanthophyll cycle pigments, and downregulate photosynthesis. Excess light is then discarded as heat [
12]. Measuring photosynthetic activity using remote sensing has significantly increased in popularity over the last two decades. At the moment, one of the most promising proxies for measuring LUE remotely is the xanthophyll-sensitive photochemical reflectance index (PRI) [
13], one of the few vegetation indices that have proven to be effective in estimating LUE and pigment composition at both the leaf and canopy scales [
13,
14]. PRI is a narrow-band spectral index used to detect light-induced change in the epoxidation state of the xanthophyll cycle [
15], and is used as a proxy for vegetation stress detection on a diurnal timescale [
13]. PRI is defined as:
where
is the reflectance factor at the wavelength
in nanometers of either a plant leaf or canopy. The downregulation associated with a change in the epoxidation state of xanthophylls is visible at 531 nm. The 570 nm-band is insensitive to short-term changes in the xanthophyll cycle, and is used as a reference. The usability of PRI has been extensively validated at the leaf level [
16]. PRI theoretically ranges from −1 to 1, with high PRI values indicating a lack of downregulation [
17]. Under natural conditions, the range of PRI is substantially reduced, with most values being between −0.2 and 0.2 [
18,
19].
Contrary to the scale of a leaf, at canopy level, PRI is ambiguously related to LUE. It is affected by factors such as understory reflection, viewing direction, and different illumination conditions [
19,
20,
21]. Barton and North [
18] showed that LUE derived from canopy PRI values can vary significantly due to variations in the observation angle, soil background, and leaf area index (LAI). The narrow crown dimensions of trees in boreal forests create strong shadows and allow for easy penetration of understory reflectance [
22,
23,
24]. In addition to changes in the xanthophyll cycle, morphological changes in plants during the seasonal cycle, water stress, drought, and air temperature all have direct effects on the leaf PRI–LUE relationship [
25,
26].
The crowns of single trees, especially in high northern latitudes where the solar angle is low, are always partly shaded due to neighboring crowns. Additionally, leaves inside a crown can be shaded by other leaves in the same crown. The amount of shading in a pixel can be quantified using the sunlit fraction (
), which is defined as the fraction of sunlit leaves in the field of view of the sensor. Alternatively, the shadow fraction
can be used [
20]. The brightest backscattering direction, known as the hot spot, is where no internally shaded elements are visible to the sensor, and hence
. In other directions,
. Clearly, sunlit fraction is one of the key drivers of scattering directionality, and thus is a central variable in investigating multi-angular imaging spectroscopy data.
Conventionally, optical remote sensing target reflectance measurements are measured from the vertically downward looking angle, nadir. However, measurements of 3D structures such as vegetation can provide interesting information when made from an oblique angle [
22]. Multi-angular measurements have shown to be beneficial in detecting a PRI–LUE relationship with a spectrophotometer [
27,
28]. A similar investigation on the variability of the PRI with shadow fractions can be performed using airborne high spatial resolution data [
20,
29]. Combining these two approaches, multi-angular high spatial resolution imaging spectroscopy data will thus enable the explicit investigation of the role of sunlit fractions on the measured signal. It includes two independent sources of variation in
. First, at sufficiently high spatial resolution, each view angle enables studying the variation of canopy appearance with sunlit fraction (sunlit and shaded crown sides) at a fixed observation geometry (illumination and view directions). Second, pixels with similar sunlit fractions can be extracted from data recorded at different view angles, thus quantifying the effect of observation geometry on the relationships of interest.
Through the novel combination of angular and high spatial resolution spectroscopy, we aim to quantify the extent to which sunlit fraction alone can describe variations in PRI. To achieve this, we first determined top of canopy (TOC) spectral reflectance variation and the canopy PRI–canopy sunlit fraction relationship. The unique dataset allowed us to identify other possible factors affecting the relationship in a boreal forest stand.
2. Materials and Methods
2.1. Study Site
The study area is located near the Hyytiälä forest field station in central Finland (61°50′N, 24°17′E) managed by the University of Helsinki. The area is covered primarily with managed boreal forest, wetlands, and agricultural plots. The forest is dominated by three tree species: evergreen deciduous Norway spruce (Picea abies (L) Karst) and Scots pine (Pinus sylvestris L), and deciduous silver birch (Betula pendula). Most of the tree stands in this area are mixed. The forest understory consists of bryophyte, shrubs, and lichen species. The growing season lasts from May until late August. The terrain is hilly, and has an average ground elevation of 160 m.
The airborne flight campaign was flown in the morning of 3 July 2015 between 10:29 and 10:57 AM (GMT+3) under clear sky conditions. The average solar zenith angle during the flights was 48°. The flying altitude was approximately 980 m above ground level with a planned airspeed of 70 knots. According to Hyytiälä SMEAR TOC measurements, the average wind speed during the measurements was 5 m·s‒1. The flight directions were co-aligned with the solar principal plane to minimize bidirectional reflectance function (BRDF) effects. All three flight lines were flown consecutively in northeast and southwest directions.
We obtained imagery with an Aisa Eagle II hyperspectral scanner (AHS) (Specim-Spectral Imaging Ltd., Oulu, Finland) mounted on a tilting platform at the rear end of a Short SC.7 Skyvan research aircraft (

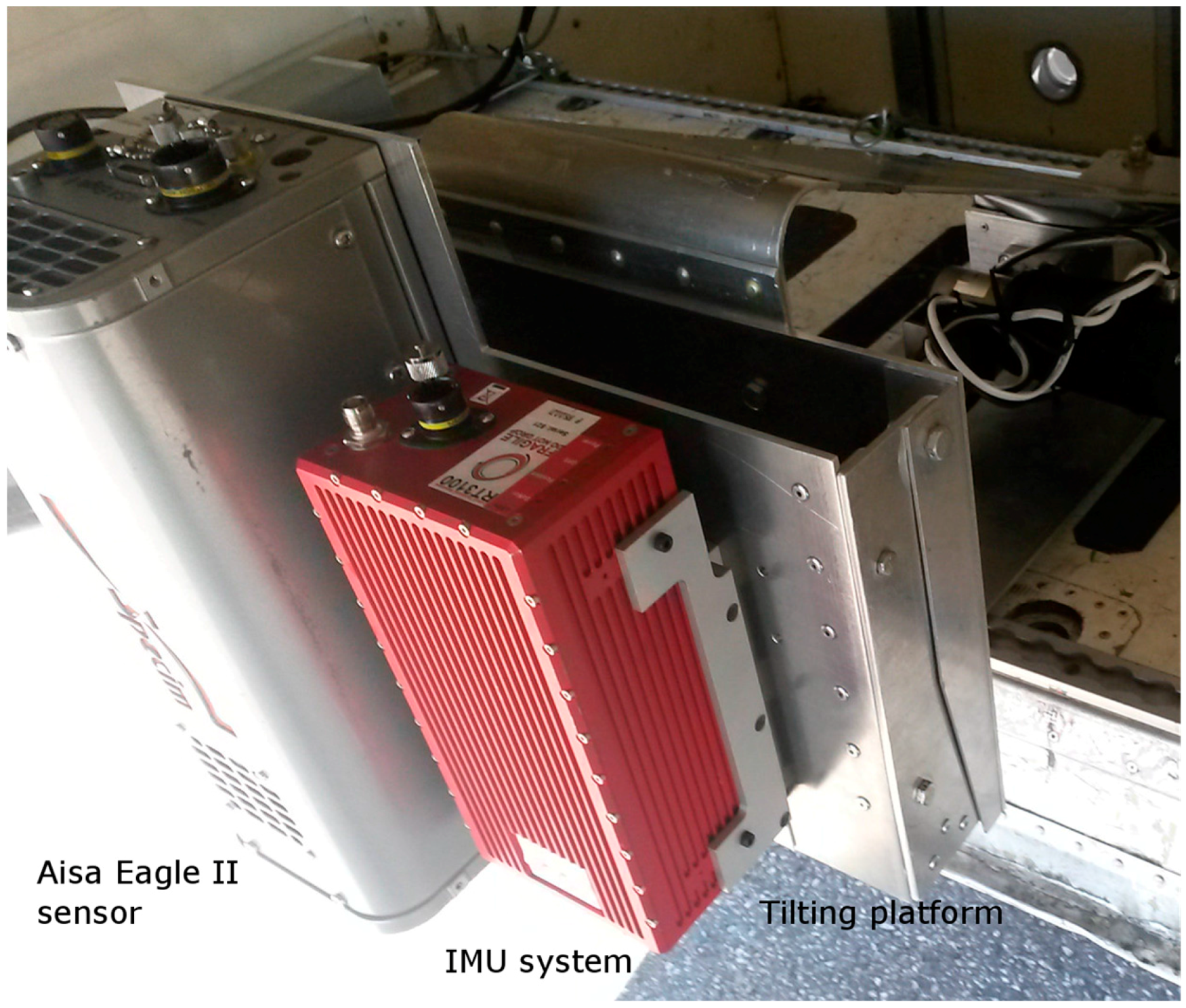

Figure 1). AISA Eagle II AHS is a pushbroom scanner that is sensitive in the 400–970 nm spectral region. The nominal spectral resolution of the sensor is 3.3 nm at full width half maximum (FWHM) and nominal channel width is 1.2 nm. Spectral binning was used during the campaign to increase the signal level at low light conditions (low sun), leading to 128 contiguous spectral bands with a decreased spectral resolution of 4.7 nm. The AHS has a field of view (FOV) of 37.7° divided between 1024 pixels.
We changed the sensor angle during the flight using a spindle motor-operated platform. We used an Oxford RT3100 IMU for post-correction of progressive and angular movements. The IMU and AHS data were temporally co-registered using a synchronization signal in the hardware. We flew the first and second flight line with the sensor tilted approximately 30° off-nadir, whereas line three was measured close to the nadir direction. The area covered by all three flight lines was approximately 8.5 km long and 614 m wide.
We used the view and solar directions to calculate the average scatter angle for each line, which was defined as the angle between the directions from target to sun, and target to sensor (thus, for exact backscatter, hot spot, ).
2.2. Image Data Calibration and Processing
We calibrated the raw AHS images using the Caligeo pre-processing tool (version 4.9.7, Specim OY, Oulu, Finland) to convert digital numbers (DN) to at-sensor radiance values. The radiometric calibration settings were derived from laboratory measurements by the instrument manufacturer in spring 2015.
We used the atmospheric correction software ATCOR-4.7 (ReSe applications Schläpfer, Wil, Switzerland) to convert at-sensor radiances to TOC hemispherical-directional reflectance factors (HDRFs). The atmospheric condition was described with the maritime aerosol model (based on a seven-day air pressure trajectory coming from the Atlantic ocean). Aerosol optical thickness (AOT) was retrieved from the AERONET sun photometer measurement at the Hyytiälä site for the time of image acquisition. The measured AOT value of 0.06 at 500 nm corresponds to a visibility value of 120 km in Atcor (Daniel Schläpfer, pers. comm.). Water vapor column height was calculated from the 840 nm absorption feature, and pixel adjacency correction distance was set to 0.10 km.
Georegistration and orthorectification were done with the Parge image rectification tool, version 3.1 (ReSe applications Schläpfer, Wil, Switzerland). We used a digital elevation model with 2 m spatial resolution provided by Finnish National Land Survey. We selected 15 road intersections as ground control points from atmospherically corrected AHS images, and aerial photographs with 0.5 m spatial resolution (Finnish National Land Survey) to determine the boresight angles describing the alignment between the IMU axes and the optical axis of the sensor.
For orthorectification of the atmospherically-corrected TOC reflectance images, we downloaded a 3D LiDAR point cloud dataset from the National land survey of Finland (2010, Paikkatietoikkuna) with a point density of 0.5 points per m2. We used the LAStools package (version: 140615, Rapidlasso GmbH, Gilching, Germany) to separate ground and canopy returns. Canopy returns were filtered for outliers (more than 30 m above ground) and gridded to 10 m to create a digital surface model (DSM). Spikes in the DSM were removed using a focal statistics filter in Arcmap 10 (Esri, Redlands, CA, USA), where a 3 × 3 grid was used to calculate the mean cell value within its direct neighboring cells. This smoothing process was performed twice to smooth the spikes between tree canopy pixels. We used the resulting DSM, which was assumed to correspond to the TOC surface, and IMU data, to georectify the AHS data with nearest neighbor resampling onto a 0.6 m pixel grid in the WGS1984 UTM zone 35 coordinate system. The final orthorectified AHS images had a geometric accuracy of approximately 2 m.
2.3. Study Plot

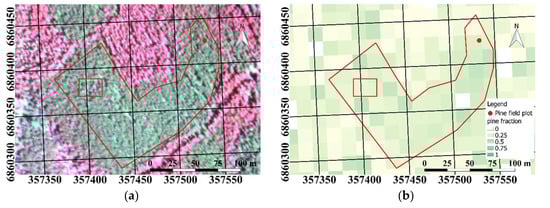

We manually selected the study plot (

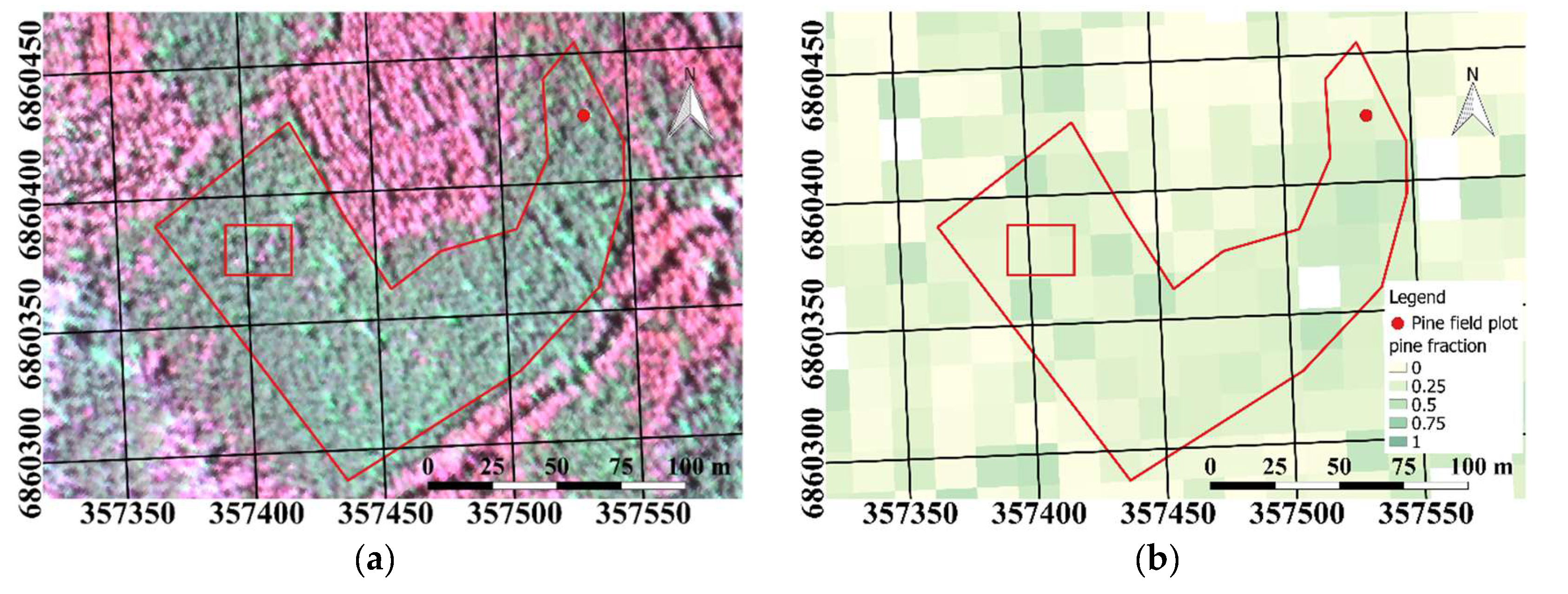

Figure 2a) using raster maps of biomass by tree species (Pine:

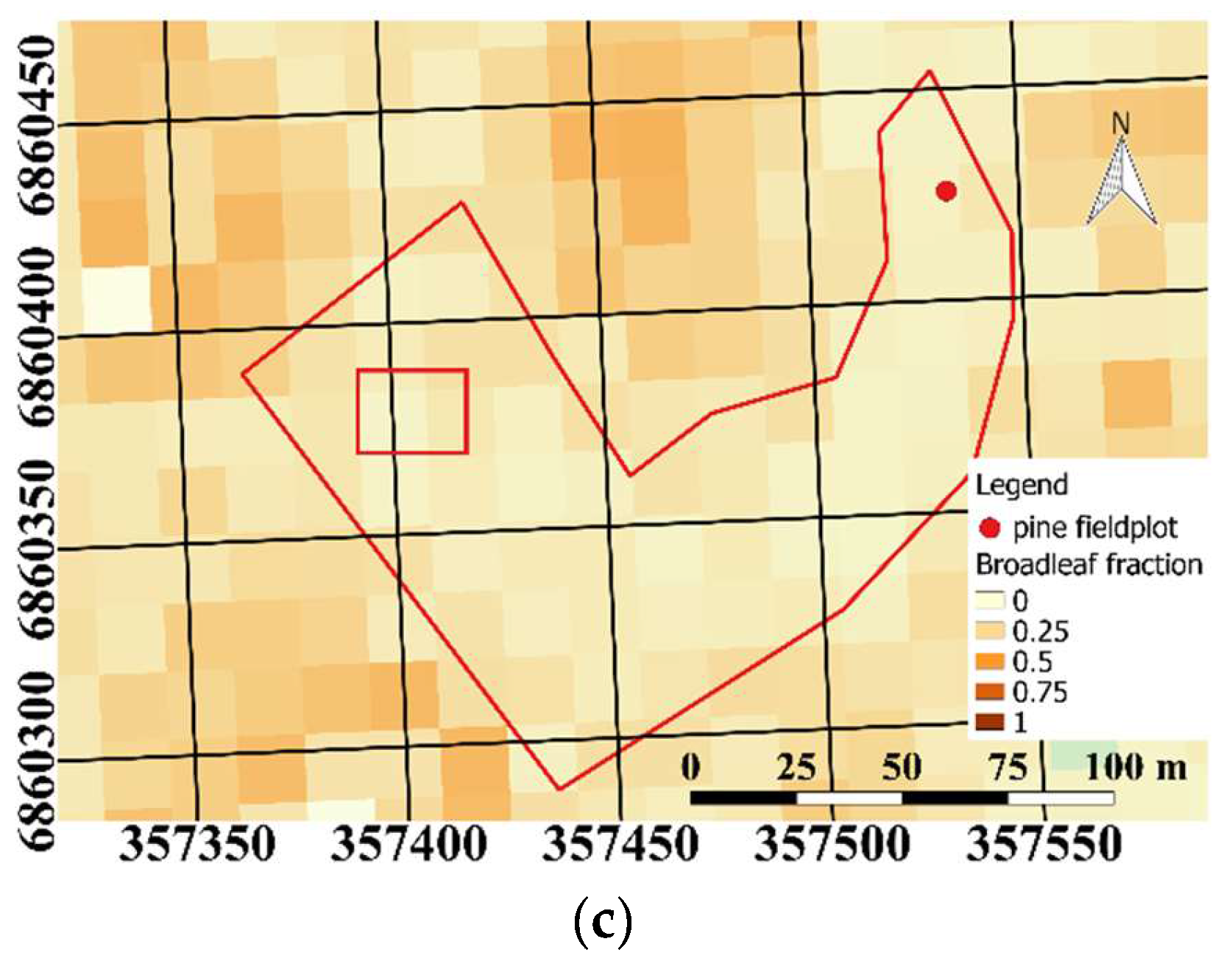

Figure 2b and broadleaf:
Figure 2c) from the National Forest Inventory for 2013 (MS-NFI, © Natural Resources Institute Finland, Helsinki, Finland, 2015). We selected a visually homogeneous polygon in the AHS imagery where we had a Scots pine biomass fraction of at least 50%; no spruce was present in the study plot. Scots pine and silver birch can easily be visually distinguished from
Figure 2a, as broadleaf trees have a considerably higher near infrared (NIR) reflectance than Scots pine, and hence look red in the false color figure. The study plot covered 1.2 hectares, and included approximately 35,690 AHS pixels. During field measurements in 2011, the plot had been classified as a young mesic pure Scots pine stand with 84% canopy cover and effective LAI = 2.7 (
Figure 2a). The study site had not been subjected to any harvesting or other abrupt changes. Considering the slow growth of forests in this region, the measured LAI value can be used to characterize the plot with reasonable accuracy still in 2015.
We then masked out all non-vegetative pixels, such as bare soil, in ENVI (Harris Geospatial Solutions, Broomfield, CO, USA) using a normalized difference vegetation index (NDVI) threshold of 0.8 (
Table 3). This threshold successfully retained most of the vegetative pixels while removing only clearly non-vegetated ones. The number of pixels masked out was less than 8% in the nadir direction, and less than 1% for the off-nadir directions (
Table 3).
2.4. Spectral Similarity Metrics
To test the spectral similarity between Scots pine canopy sunlit fraction pixels observed from different view angles, we used the spectral information divergence measure (SID) [
30]. SID is the discrepancy of the probability distribution between two spectral vectors. Van der Meer [
31] has tested several common spectral similarity algorithms using synthetic and measured Airborne Visible/Infrared Imaging Spectrometer (AVIRIS) data. They concluded that SID is more effective in mapping and detecting targets, and is less sensitive to spectral noise compared with other tested spectral metrics.
2.5. Calculation of Canopy PRI
We calculated the Scots pine canopy PRI for each scatter angle using the spectral central wavelengths at 533 nm and 569 nm closest to the PRI wavelengths 531 nm and 570 nm. We used a standard t-test to determine whether the mean PRI for each flight line was statistically significantly different to each other.
2.6. Scots Pine Canopy Sunlit Fraction Retrieval
First, we fitted the equation:
to the AHS data with band centers between 711 nm to 787 nm, where
and
p are two constants [
32,
33] known as the directional escape and recollision probabilities, respectively. For the leaf albedo
, we used the synthetic leaf reference albedo
calculated with the PROSPECT-4 leaf optical properties model [
34], with the parameters set to the optimal values for the method as prescribed by Knyazikhin et al. [
32,
33]: leaf dry matter content
, chlorophyll a and b content
, leaf water content
. The parameter
is related to the sunlit fraction
described by Hernández-Clemente et al. [
35]:
where
is the solar zenith angle. However, the sunlit fraction depends on the scale of the scattering element (e.g., shoot, needle, or a within-needle structure [
36]) that the single-scattering albedo
belongs to. The transformed albedos of green foliage of different structural levels
follow a simple scaling rule:
or
where the recollision probability
quantifies the probability of the event that a photon scattered by the object
residing in
(e.g., needle in the shoot) will interact within
again (e.g., hit another needle within the same shoot) (Equation (2) by Knyazikhin et al. in [
33], originally derived by Smolander and Stenberg [
37]). More generally, Equation (3) can be used to connect any two leaf albedos [
32]. We used the Scots pine needle albedo
measured in Hyytiälä [
36] transformed to correct for gap fractions and specular reflectance. By setting
and
in Equation (3), and applying a linear regression, we found that
is related to
as:
or,
.
As both
and
in Equation (3) can be used to form a relationship with BRDF identical to Equation (1), we obtain the following scaling equations for the parameters
p and
:
Now, we can write Hence, we could convert the sunlit fraction obtained with the reference albedo in Equation (2), to the fraction of sunlit Scots pine needles , hereafter denoted as , by dividing by 0.648.
We used the IDL programming language and ENVI (Harris Geospatial Solutions, USA) software to fit Equation (1) to AHS data and to create maps for all three flight lines. In the place of BRDF, we used the AHS-measured HDRF values. In the red edge spectral region, and especially on a clear day, the difference between HDRF and BRDF is very small.
Under the assumption of the sunlit fraction
being the main driver of the spectral shape of BRDF, we extracted Scots pine canopy BRDF in seven
ranges and evaluated the similarity of the BRDFs using the SID algorithm. We inspected sunlit fraction histograms to find the smallest sunlit fraction value ranges with more than 80 pixels for each view angle. We selected the following intervals:
,
,
,
,
,
,
. (
Table 4). We averaged the spectra in each interval to obtain 16 Scots pine canopy reflectance spectra, specific to each view angle and
interval. Note that the data for each
interval were not always available due to the natural range of
(
Table 4).
2.7. Dependence of PRI on Sunlit Fraction
The dependence of the remotely measured PRI on the sunlit fraction
(assuming all other factors, including leaf optical properties, constant) is given by Equation (9) by Barton and North [
18] as:
where
is the spectral irradiance on leaf surface at the wavelength
, and
is the TOC spectral irradiance on a horizontal surface. We can divide the spectral irradiance into the diffuse and direct components denoted with the superscripts dif and dir, respectively, i.e.,
. We used the approximation of the direct and diffuse irradiances on needle surfaces proposed by Mõttus et al. [
29] (Equation (11)):
where
is the ratio of average projected area of the element in the direction given by the solar zenith angle
, and
is the average fraction of diffuse sky radiation reaching the visible leaves. For broadleaves,
; for an isotropic distribution of leaf (or needle) normals,
. Hence, we get:
According to Equation (8), the remotely measured PRI thus consists of a part determined by leaf optical properties and incident illumination conditions:
and a part depending on
. For completely shaded leaves (
),
. The range of PRI variation with
is thus determined as:
where
is the value of PRI at
. Mõttus et al. [
29] assumed
, as this parameter cannot be measured directly. Hence, we bundled the various coefficients into parameters that we retrieved from remotely sensed data.
We used the non-linear regression line fitting function prediction in the R statistical software environment (version 1.0.136), to make a prediction between the Scots pine canopy sunlit fraction and the Scots pine canopy PRI for each scatter angle. We used the equation:
where
is the value of PRI at
; and
and
are curve parameters that depend on the irradiance ratios,
, and the solar angle.
3. Results

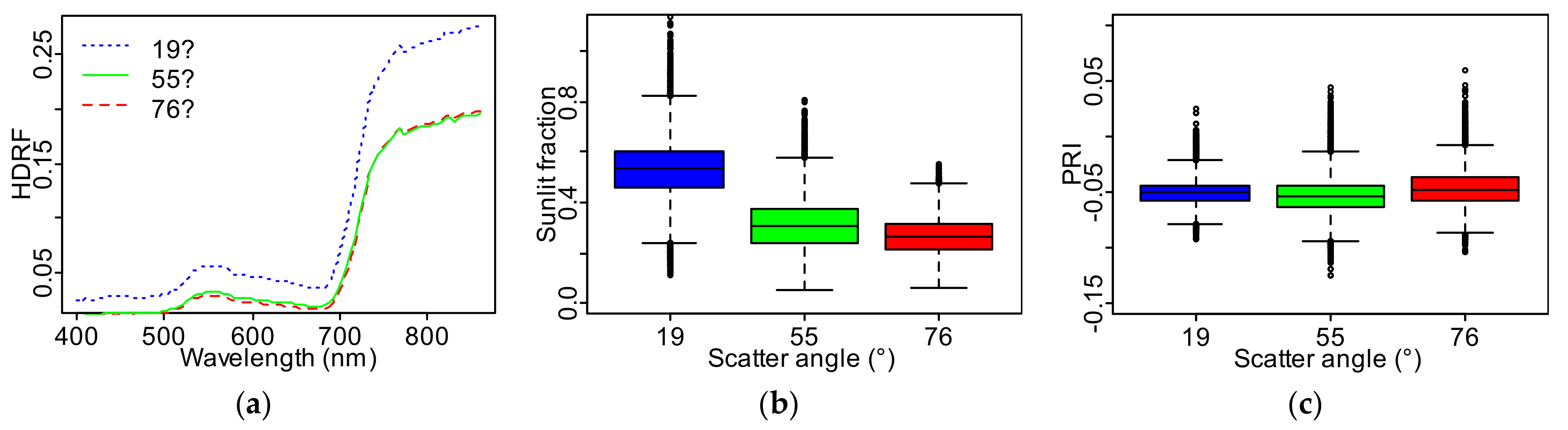

The average Scots pine TOC reflectance was approximately the same for the scatter angles
° and 90°, with significantly higher values produced across the spectrum at
°, the direction closest to hot spot (

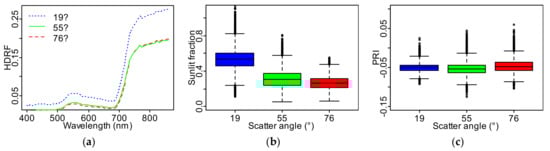

Figure 3a). This trend is mirrored in the fraction of sunlit needles for the three view angles (
Figure 3b): the average sunlit fraction decreased as the scatter angle increased, but the difference in
(0.04) between scatter angles 55° and 76° was smaller than between 19° and 55° (0.21), although all
differences in scatter angles were significant (
p << 0.01). Mean PRI, on the other hand, did not change monotonically with the scatter angle
(
Figure 3c). The smallest PRI value of −0.052 was measured for near-nadir direction (
°) with near-similar values of −0.049 and −0.046 for the scatter angles
° and
°, respectively. Despite the overlapping ranges in
Figure 3c,
t-tests indicated a significant difference (
p < 0.01) between the PRI values for three lines. The range of the within-view angle in PRI varied with the scatter angle from 0.117 at
°, to 0.169 at
°, and 0.163 at
°. The standard deviation in PRI was 0.011 at
°, 0.162 at
°, and 0.158 at

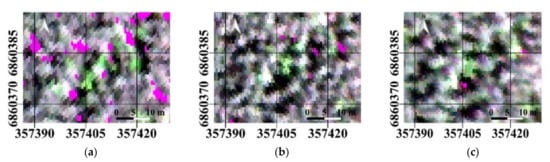

°. A true color image of the focus area highlights the spatial variation in Scots pine canopy brightness for all three scatter angles (

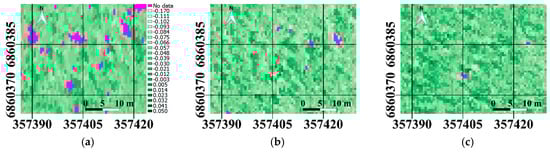

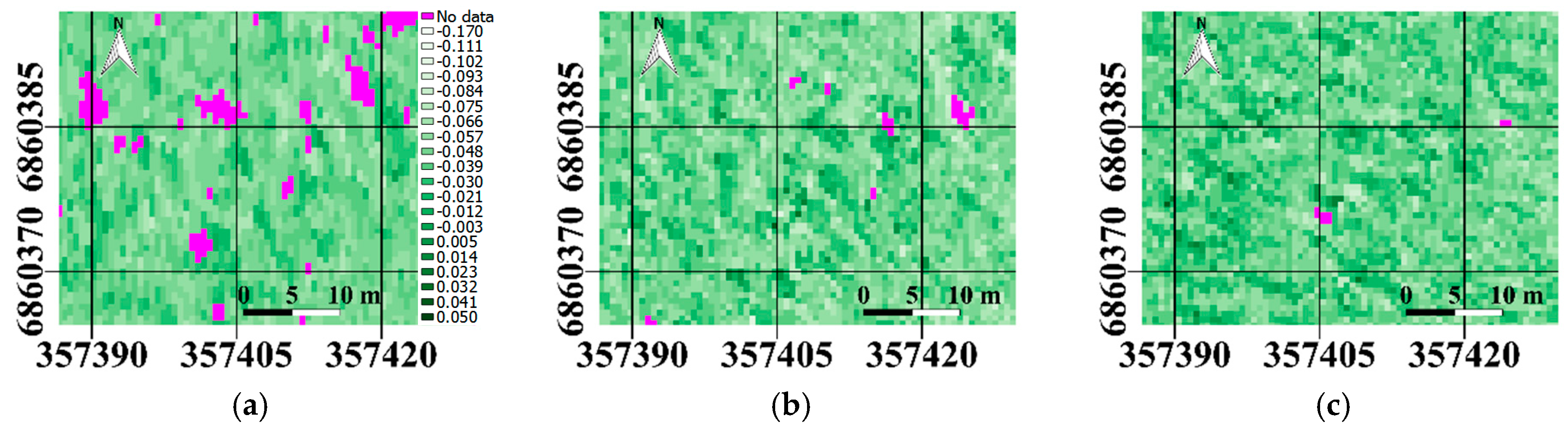

Figure 4). The spatial variation in PRI (

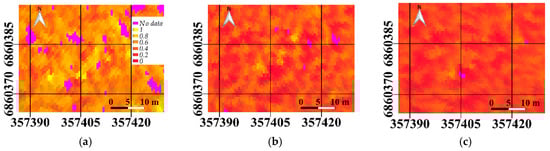

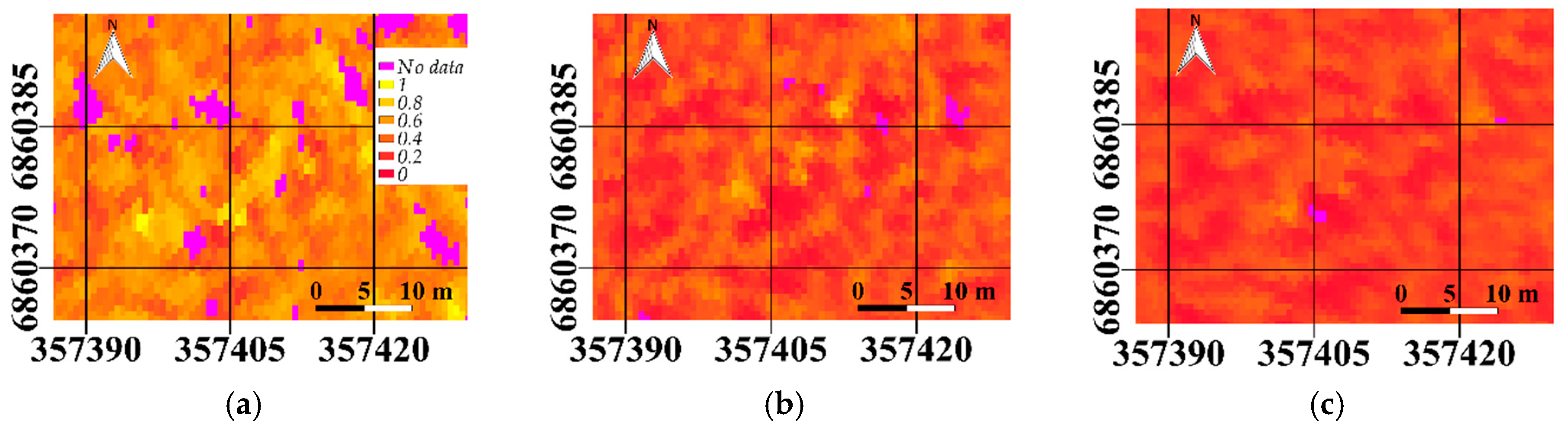

Figure 5) and sunlit fraction (
Figure 6) were also visually compared for all three scatter angles.
The scatter angle closest to the hot spot (

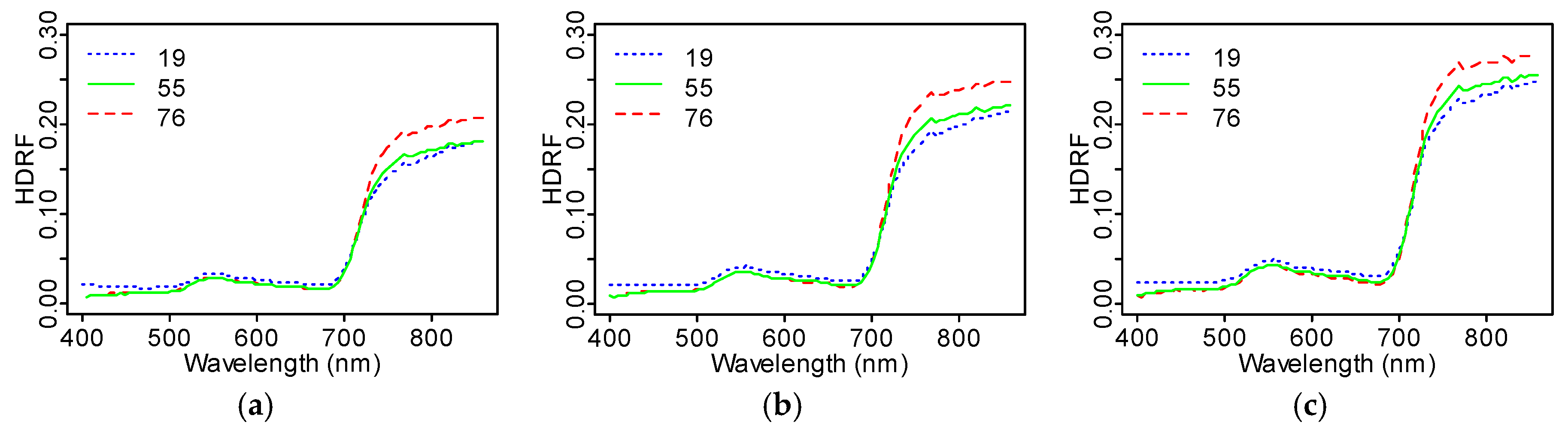

β = 19°) produced higher average TOC HDRF values than scatter angles 55° and 76° in the visible region (400–700 nm), but less reflectance in the near-infrared region (700–870 nm) (
Figure 7) for any fixed interval of the sunlit fraction
. To investigate this, we divided the average TOC HDRF reflectance at the oblique angles (
° and
°) by the reflectance close to nadir (

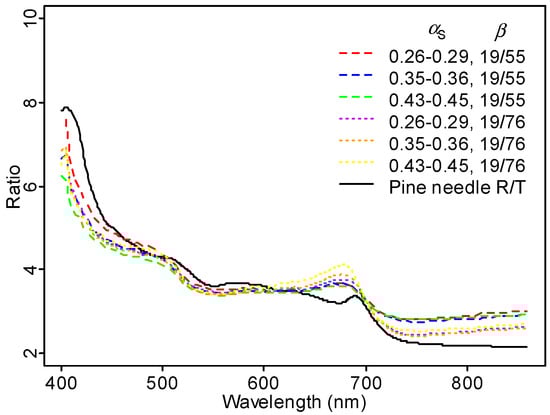

°). We observed a general decrease in the HDRF (19°)/HDRF (55°) ratio with
, with especially strong dependence in the visible wavelengths. The ratio HDRF (76°)/HDRF (55°) remained more constant and was close to unity across the whole measured spectrum (

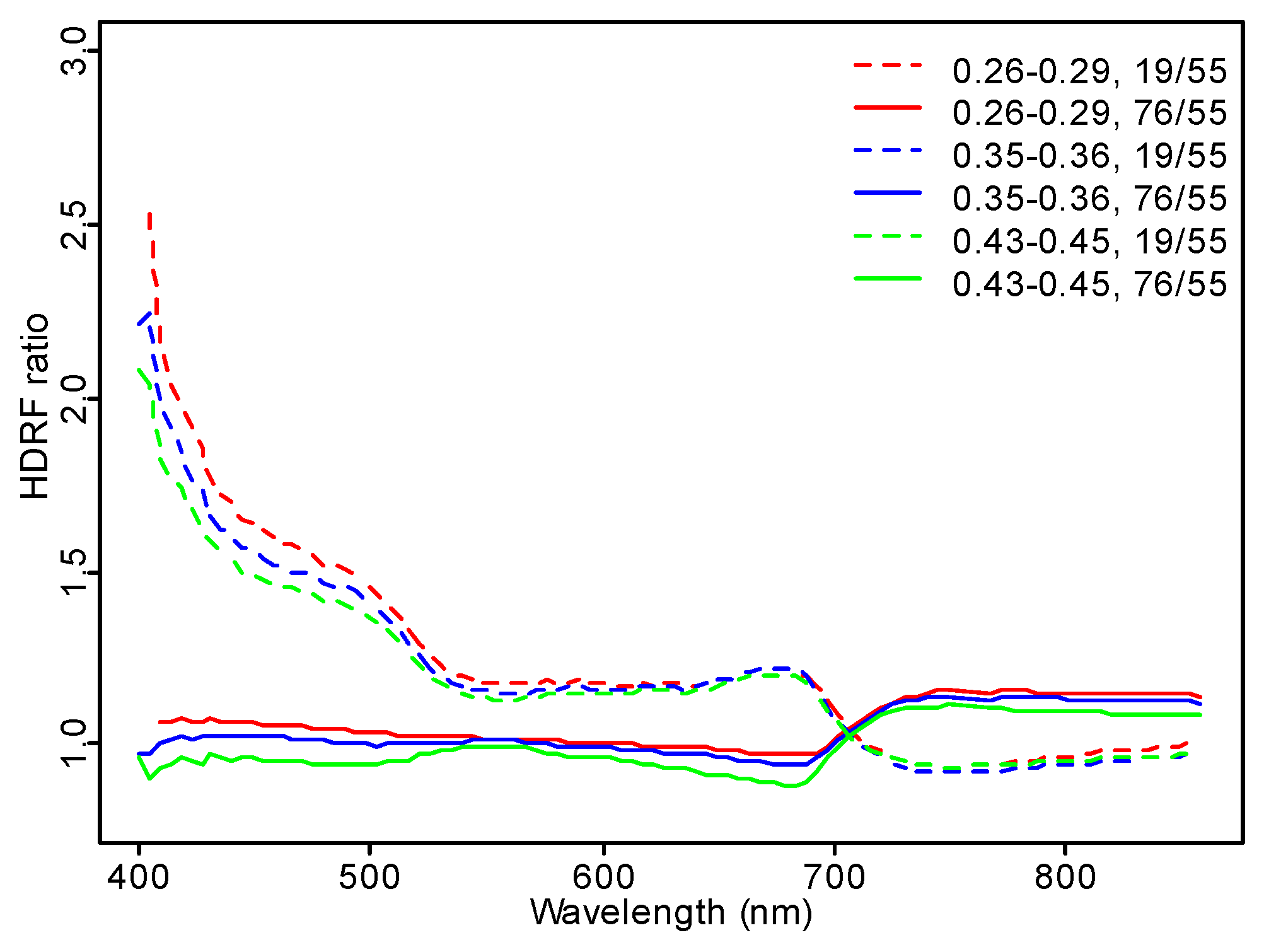

Figure 8). In both cases (HDRF (19°)/HDRF (55°) and HDRF (76°)/HDRF (55°)), the highest HDRF ratio values were obtained for
between 0.43 and 0.45.
We compared spectral divergence for all
sunlit fraction ranges given in

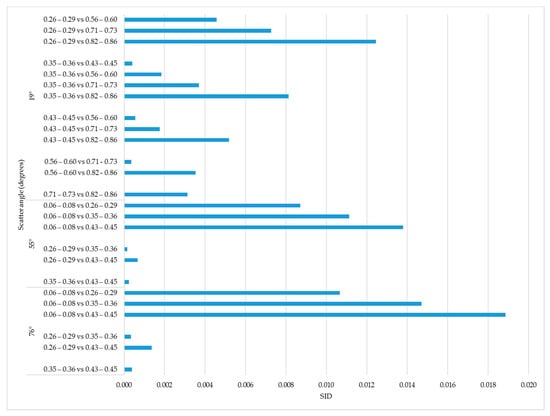

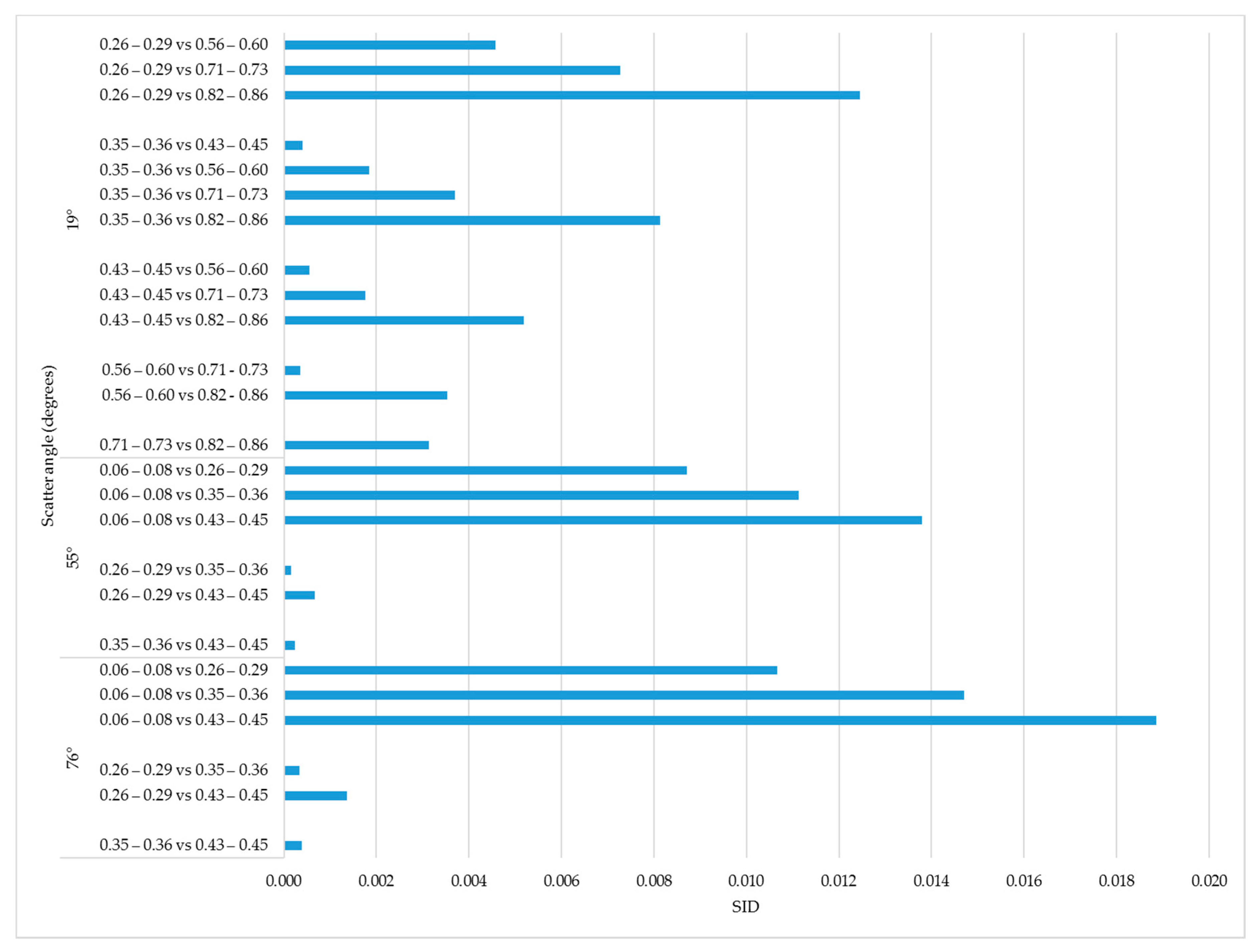

Table 4. The largest SID (0.019) for within flight line was observed when the distance between two sunlit fraction ranges
0.06–0.08 vs.
0.43–0.45 (
Figure 9). We observed this pattern for each flight line, with somewhat smaller average SID values across the whole range of
observed for
19° (
Figure 9).
We also compared the SID of HDRFs for all sunlit fraction intervals in
Table 4 between the three scatter angles. We observed the largest spectral divergence (SID = 0.037) between
and 76° for
(
Table 5). The smallest SID (0.001) was observed between
55° and 76°. Scatter angles 55° and 76° produced the lowest SID values for all of the sunlit fraction ranges, with 0.003 the highest SID value for
. In contrast, the lowest SID value for 19° vs. 55° and 19° vs. 76° were 0.017 and 0.033, respectively. The SID values for all of the sunlit fractions were the smallest for 55° vs. 76°.

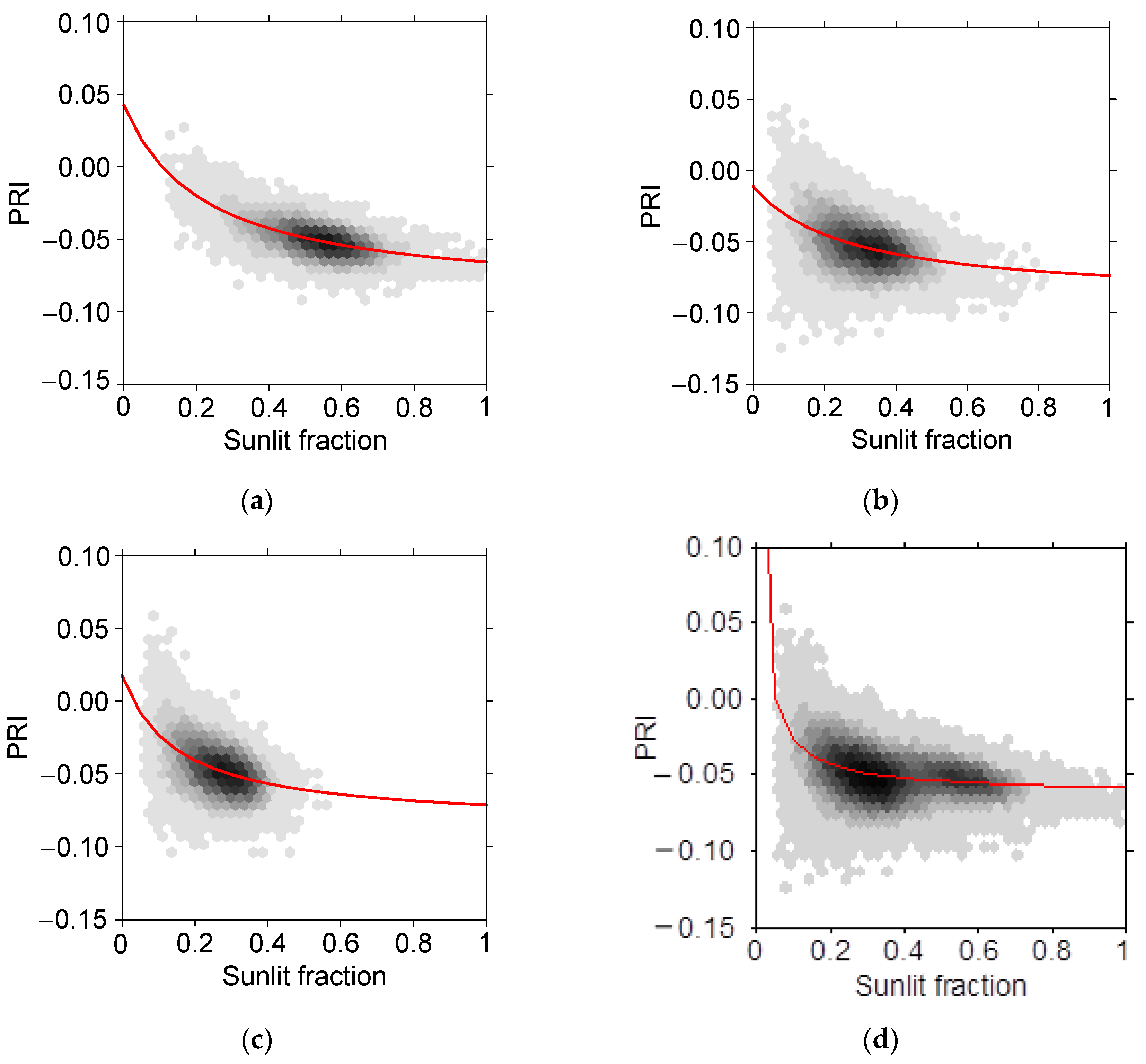

The parameters of the non-linear regression model (
Figure 10) of PRI as a function of sunlit fraction are given in
Table 6. The dependence of PRI on sunlit fraction becomes stronger as the scatter angle increases. This dependence is visible when all of the data is combined, and results in a steeper curve for small sunlit fraction values (
) (

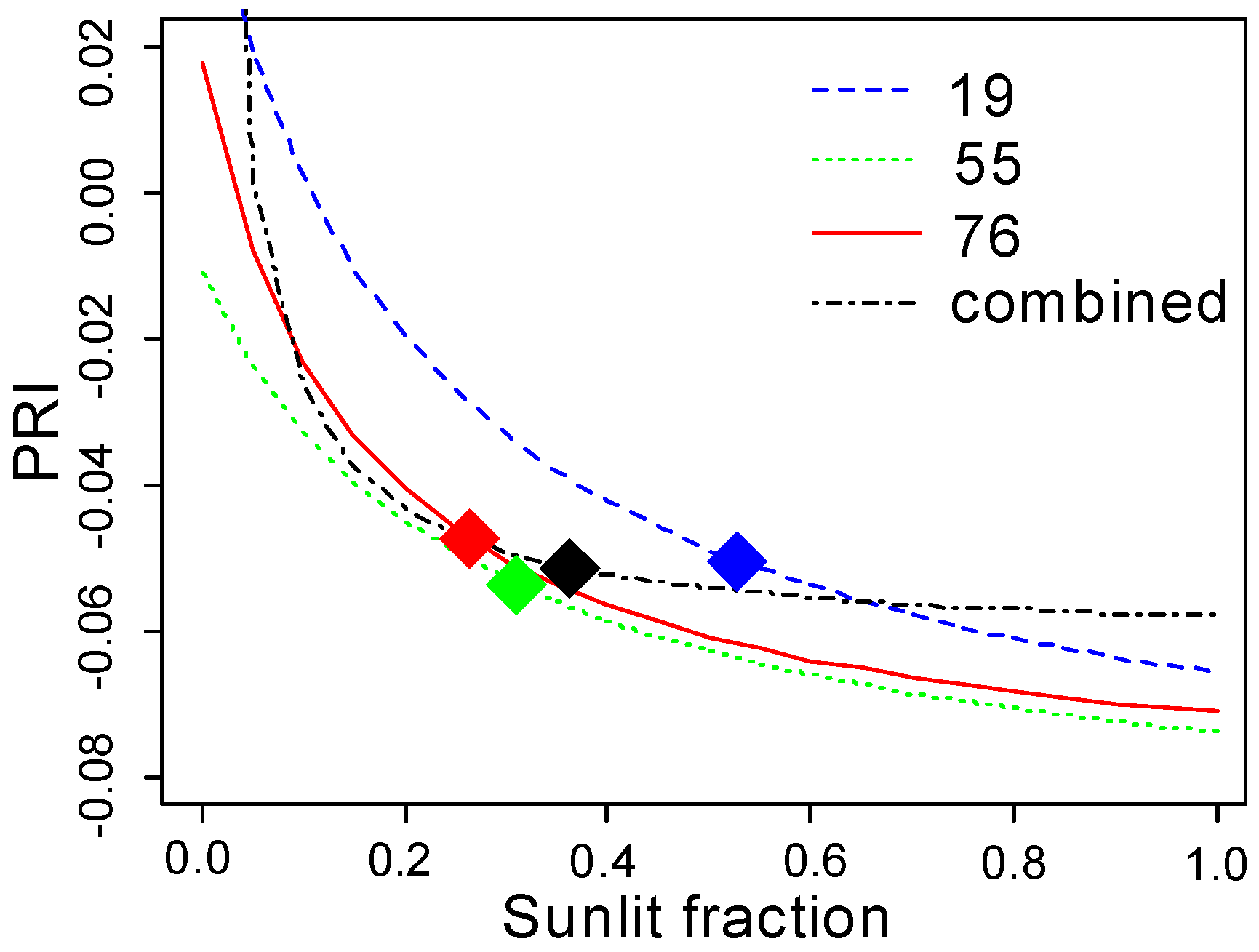

Figure 10d). A comparison of the four fitted lines in
Figure 11 shows that the curves for the three scatter angles are quasi-parallel, and are intersected by the curve fitted to all data.
4. Discussion
Kuusk et al. [
38] have measured canopy reflectance in Järvselja at two wavelengths (660 nm and 850 nm) at a solar zenith angle of 52° at 660 nm, and a solar zenith angle of 46° at 850 nm. In the 660 nm wavelength band, they reported HDRF values of 0.03, 0.02, and 0.02 for
,
, and
, respectively. Our values, measured in Hyytiälä, were 0.03, 0.02, and 0.02, respectively. In the 850 nm wavelength band, the HDRF values in Järvselja were 0.18, 0.15, and 0.12 [
38] for scatter angles of 19°, 55°, and 76°, respectively. The corresponding values obtained by us in Hyytiälä were 0.27, 0.19, and 0.19. The values are remarkably similar in the red band. The difference in canopy HDRF in the NIR region (850 nm) is likely due to different canopy structures and illumination angles. The dark spot (lowest HDRF) observed by Kuusk et al. [
38] was approximately 25° off-nadir, which is close to the observation geometry used in the study: with good approximation, we can consider
to represent the dark spot of the canopy.
We found a strong non-linear relationship between canopy PRI and sunlit fraction for each view angle separately. The relationships could be modeled with the equations provided by Mõttus et al. [
29]. Our empirical findings support that the observed fraction of canopy shadow in the field of view of the sensor is an important driver for spectral BRDF. Further, the dependence between sunlit (or shadow) fraction and PRI is strongly non-linear, and the linear model that has been used by many authors [
20,
27,
39] should be used with care. However,
is not the only, or not necessarily even the key driver in scattering directionality. The observed maximum spectral divergence among the vegetated pixels caused by
for any fixed scatter angle was 0.02 (
Figure 9). At a constant
, we observed much larger spectral divergence values (
Table 5). While the two darkest view angles (
and
) were relatively similar (maximum divergence 0.03), the angle closest to the hot spot (
) differed from the other two, with maximum SID values close to 0.04.
The relationship between
and the PRI was the strongest at
, and flattened out when sunlit fraction increased. The mean
values for the three view angles were close to or above this threshold. Despite the strong relationship between
and the PRI for each view angle separately, the stand mean PRI did not change systematically with the scatter angle. As the PRI—
curves for the three view angles were quasi-parallel with similar parameters (
Table 6), the location of
on the flat part of the curve made the PRI sensitive to other potential interfering factors. The difference between the curves for the three view angles, caused by an unspecified factor, was systematic and apparently independent from
(
Figure 11). When we combined all of the PRI and sunlit fraction values for all of the scatter angles (
Figure 11), the curve was not parallel to the other curves. Further, the curve did not approach a meaningful
value at
Unrealistic values were also retrieved for other model parameters (
Table 6). These results indicate the existence of another factor besides
that depends on scatter angle and affects PRI systematically and across all
values.
When canopy reflectance would be averaged over all vegetation pixels (e.g., to simulate the signal of a medium spatial resolution sensor over a closed canopy), this unspecified factor would dominate over
by eliminating the dependence of PRI on the sunlit fraction
. Although the masks that were used to exclude non-vegetated pixels were different for each scatter angle, not applying a mask (i.e., a true simulation of large-footprint sensor) would not alter the dependence of PRI on
in
Figure 3 (data not shown). The masks did not differentiate between the tree species growing in the test site. According to the raster maps from the National Forest Inventory, a small fraction of birch trees were expected at the site. However, based on visual inspection of the AHS images (
Figure 2), the presence of broadleaf was small, and the effect on the PRI–shadow fraction analysis can be neglected.
When we compared the ratio of Scots pine TOC reflectance between the direction closest to hot spot (
) and nadir (
) for different sunlit fractions, we observed a high value, especially in the blue region (
Figure 8). We hypothesize that this is caused by needle wax [
40]. In the visible wavelengths where leaf pigments are highly absorbing, leaf scattering is dominated by specular reflectance at the surface [
41]. Specular reflectance, directed mostly in backward directions, increases strongly with decreasing wavelength in the visible spectral region. To test this, we plotted the ratio of Scots pine needle reflectance to transmittance measured in Hyytiälä in 2013 [
42], and observed a pattern similar with our observed ratio between TOC reflectance for two scatter angles (
Figure 12).
The variation in leaf reflectance to transmittance ratio in
Figure 12 explains the unexpectedly large PRI close to hot spot well. When calculated from laboratory-measured needle transmittance, Scots pine needle PRI in midsummer 2012 was −0.008; when calculated from reflectance, PRI was 0.014. In the hot spot direction, canopy reflectance in the visible part of the spectrum (where multiple scattering can be ignored to a reasonable accuracy) is contributed by reflectance only, while in the dark spot, both needle reflectance and transmittance contribute. The two measurements (laboratory measurements of needle spectra and AHS data) cannot be compared directly, as laboratory-measured data are directional–hemispherical, and airborne data hemispherical–directional. However, the two curves show similar features: a local minimum at 550 nm and a local maximum close to 680 nm. The importance of specular scattering in Scots pine canopies is not unexpected. In the laboratory, Mõttus and Rautiainen [
43] have shown that shoot scattering directionality needs to be accounted for when interpreting multi-angular PRI measurements, and that the directionality is likely caused by specular scattering. Obviously, this statement is not only valid for the relatively exotic airborne multi-angular imaging spectroscopy data, but also whenever angular information is applied on spectral remote sensing data, e.g., fitting BRDF models or correcting for angular effects in instruments with wide swaths, and analysis of tower-based PRI measurements. Moreover, the specific structural effects described here need to be accounted for when comparing nadir measurements made at different solar angles, such as for example when analyzing the time series of data from a single location measured from a sun-synchronous satellite.
We have demonstrated the applicability of a simple PRI— model for constant view geometry and the dependence of this relationship on the scattering directionality of leaves (needles). This model can be used to eliminate the non-physiological effects in the measured PRI signal, and connect observed PRI variations with shadow fraction—either in multi-angular or high spatial resolution data—to variations in photosynthetic activity. More work is required to quantify these relationships and relate stand scattering characteristics with atmospheric variables and leaf structural information. Without a physical model, canopy level spectral information cannot be robustly linked to the physiological processes taking place in leaves.
