Impacts of Thermal Time on Land Surface Phenology in Urban Areas

Abstract

Urban areas alter local atmospheric conditions by modifying surface albedo and consequently the surface radiation and energy balances, releasing waste heat from anthropogenic uses, and increasing atmospheric aerosols, all of which combine to increase temperatures in cities, especially overnight, compared with surrounding rural areas, resulting in a phenomenon called the “urban heat island” effect. Recent rapid urbanization of the planet has generated calls for remote sensing research related to the impacts of urban areas and urbanization on the natural environment. Spatially extensive, high spatial resolution data products are needed to capture phenological patterns in regions with heterogeneous land cover and external drivers such as cities, which are comprised of a mixture of land cover/land uses and experience microclimatic influences. Here we use the 30 m normalized difference vegetation index (NDVI) product from the Web-Enabled Landsat Data (WELD) project to analyze the impacts of urban areas and their surface heat islands on the seasonal development of the vegetated land surface along an urban–rural gradient for 19 cities located in the Upper Midwest of the United States. We fit NDVI observations from 2003–2012 as a quadratic function of thermal time as accumulated growing degree-days (AGDD) calculated from the Moderate-resolution Imaging Spectroradiometer (MODIS) 1 km land surface temperature product to model decadal land surface phenology metrics at 30 m spatial resolution. In general, duration of growing season (measured in AGDD) in green core areas is equivalent to duration of growing season in urban extent areas, but significantly longer than duration of growing season in areas outside of the urban extent. We found an exponential relationship in the difference of duration of growing season between urban and surrounding rural areas as a function of distance from urban core areas for perennial vegetation, with an average magnitude of 669 AGDD (base 0 °C) and the influence of urban areas extending greater than 11 km from urban core areas. At the regional scale, relative change in duration of growing season does not appear to be significantly related to total area of urban extent, population, or latitude. The distance and magnitude that urban areas exert influence on vegetation in and near cities is relatively uniform.

1. Introduction

Recent increases in population have largely been concentrated in urban areas, increasing from only 13% of total global population in 1900 to 54% by 2014 [1,2]. Urban land expansion has irreversible impacts on the natural environment, including the loss of agricultural lands, fragmentation of ecosystems, reduction of biodiversity, and alteration of local climate [3]. Urban land cover/land use and change can potentially alter local to regional climate on daily, seasonal, and even annual scales [4]. Possibly the clearest example of urban climate modification is the phenomenon where urban temperatures are generally higher than the surrounding countryside, or the urban heat island (UHI) effect [5]. UHI intensity is related to patterns of land use/land cover changes, including the composition of water, vegetation, and built-up areas [6]. The effects of the UHI and land use/land cover change are linked to modified surfaces that affect the transfer and storage of airflow, water, and heat [7].

Future climate change and urbanization is projected to increase UHI temperatures by around 1 °C per decade [8]. The combination of urban population growth, urbanization, and climate change warrants the need for enhanced remote sensing research on the environmental impacts of urban areas and urbanization on the natural environment [9,10]. Specifically, there have been calls for urban remote sensing research of small to medium sized cities and their associated impacts on vegetation [11].

Urban land surface phenology (LSP) observes the spatiotemporal development of the vegetated land surface as revealed by satellite sensors [12] in and nearby cities. The majority of urban LSP studies have used surface observation networks [13] or coarse spatial but high temporal resolution satellite data from sensors including the Advanced Very High Resolution Radiometer (AVHRR) [14] and more recently, the Moderate Resolution Imaging Spectroradiometer (MODIS) [15,16,17]. Jochner et al. [18] provide an overview of observational studies from European, North American, and Asian cities that all found earlier vegetation development in urban areas [18], beginning with a study in Hamburg, Germany in 1955 [19]. Additional studies have used species composition [20] and plant specific phenology [21] in order to characterize the influence of UHIs on vegetation development in cities.

Satellite data based studies that use land surface temperature (LST) data in place of air temperature measurements observe the surface urban heat island (SUHI). One major difference between air temperature studies of UHIs and satellite remote sensing based studies of SUHIs is that SUHI intensity is related to land cover/land use and SUHI intensity is greater during the daytime compared to at night [22]. Studies using coarse resolution satellite data have found that, on average, urban areas expanded the growing season of vegetation by 7.6 days in the eastern United States using time series of the NDVI derived from AVHRR data [14]. Coarse resolution studies have used a combination of LST and Enhanced Vegetation Index (EVI) data time series derived from MODIS to analyze the effects of the UHI on vegetation phenology [15,16]. Important findings from these studies include: (1) the length of growing season for forests is strongly related to mean annual LST [15]; (2) earlier green-up and later dormancy occurs in urban areas [15,16]; and (3) urban climate influences on vegetation phenology extend up to 10 km beyond the urban land cover extent of cities in eastern North America [15]. The UHI effects were found to be stronger in North America than in Asia or Europe [16].

While surface observation networks and high temporal/coarse spatial resolution remote sensing studies are useful, there exists a need for more spatially extensive, higher spatial resolution data products to capture phenological patterns in areas with heterogeneous land cover and external drivers such as urban areas that are a mixture of land cover/land uses and experience microclimatic influences, namely the UHI effect [23,24]. Using Landsat data for phenology studies allows for local to regional scale analyses, offering a spatial resolution that is useful for exploring factors that influence phenology including land use and urban heat islands [24]. One study used Landsat 5 Thematic Mapper (TM) and Landsat 7 Enhanced Thematic Mapper Plus (ETM+) time series to model phenology in eastern United States deciduous forests and found a significant relationship between distance from urban core and green-up onset, suggesting that UHI impacts are reflected in the phenological characteristics of surrounding vegetation [23]. Another study modeled Web-Enabled Landsat Data (WELD) NDVI data as a quadratic function of thermal time derived from MODIS LST data and derived LSP metrics to observe the response of vegetation to UHIs for two cities (Minneapolis-St. Paul, MN and Omaha, NE) in the Upper Midwest region of the United States and found that proximity to the center of both cities was positively associated with increased duration of growing season for perennial vegetation [25]. Even more recently, a study fused MODIS and Landsat reflectance data in addition to LST derived from Landsat thermal data and found that in general, Ogden, UT experienced earlier start of season, later end of season, and consequently longer length of season than the surrounding exurban areas [26].

There are multiple reasons why the Upper Midwest is an ideal location for studying the impacts of urban areas on LSP within and surrounding cities. The region is a relatively flat, continental, temperate plain that is distant from confounding meteorological influences such as major mountain ranges or large water bodies. Cities in the region are relatively isolated and embedded in a vegetated landscape (Figure 1a). The cities span size (area and population) and latitudinal gradients, but precipitation is relatively uniform over the region. The combination of WELD-derived NDVI, MODIS LST-derived accumulated growing degree-days (AGDD), and National Land Cover Database (NLCD) Land Cover Type (LCT) and Impervious Surface Area (ISA) data, all freely available, spanning at least a decade, at a spatial resolution that is appropriate for urban areas, provides an opportunity to investigate the UHI-related impacts on LSP at the local to regional scale at 30 m spatial resolution.

In this study, we analyzed the impacts of urban areas and UHIs on the seasonal development of vegetation on an urban–rural gradient at the local to regional scale for 19 small to medium sized cities located in the Upper Midwest region of the United States. We used satellite remote sensing time series data to investigate the impacts of urban areas on the seasonal development of vegetation using model-derived LSP metrics. We explored the spatial arrangement of urban areas in order to understand the influence of subregions of highly concentrated impervious surfaces and large areas of urban vegetation on microclimatic conditions within cities. We analyzed the distance and magnitude of urban alteration of local atmospheric conditions in and around cities. We compared the results from all 19 cities in order to analyze the influences of city size, land cover, spatial arrangement, and latitude on the seasonal development of vegetation.

2. Materials and Methods

2.1. Study Region

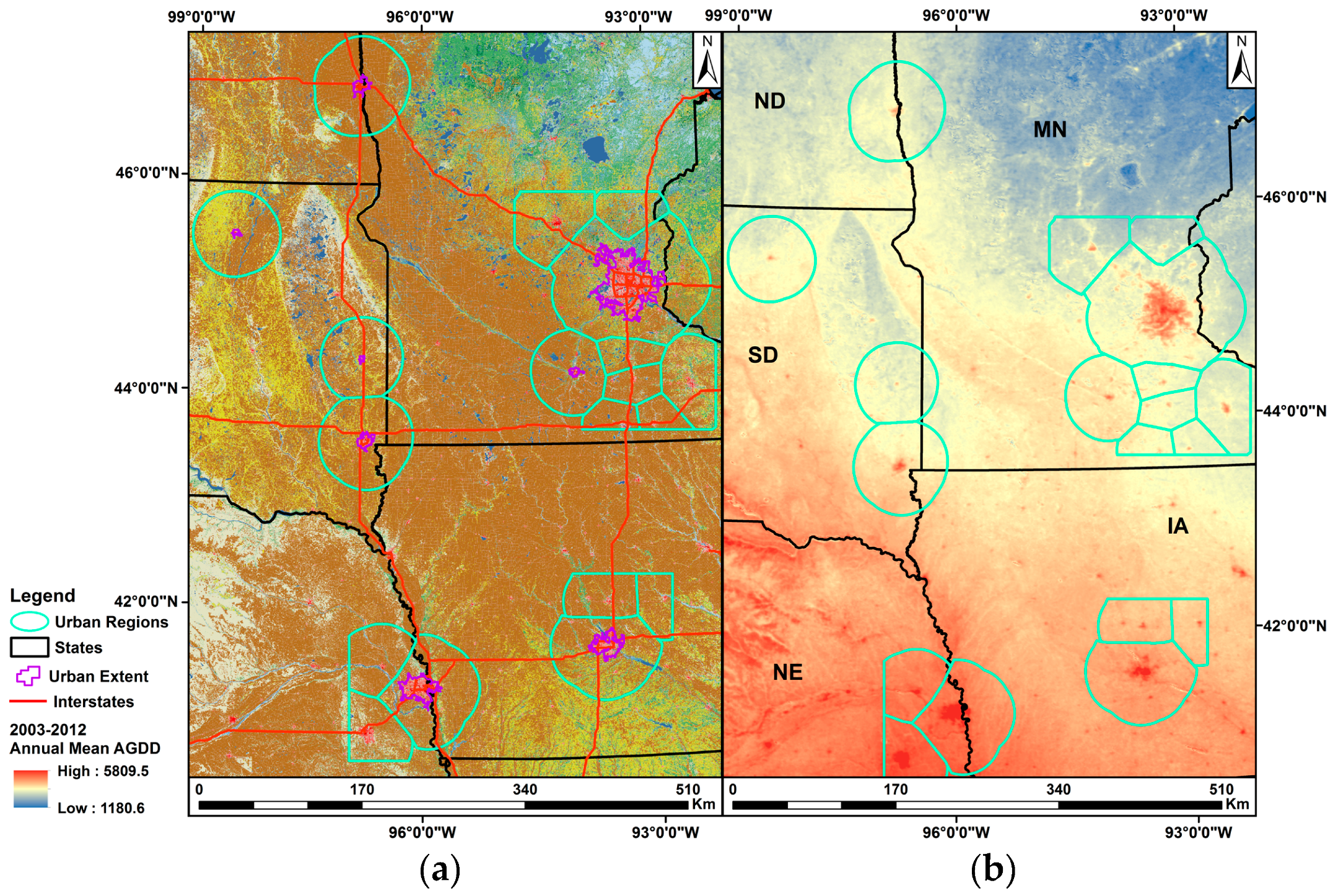

We analyzed remotely sensed vegetation dynamics for 19 cities in the Upper Midwest of the United States. Our region of interest is between 47.5°N, 99°W and 40.5°N, 92°W (Figure 1a,b). An early study of urban climate characterized the nature of UHIs under “ideal” conditions, described as a city situated on flat terrain with population greater than 100,000 and a temperate climate [27]. We chose the Upper Midwest and 19 cities for multiple reasons, including that: (1) there are a number of useful, relatively high resolution (spatial and temporal) remote sensing datasets freely available for the Contiguous United States (CONUS) [28,29,30]; (2) the region is characterized as a temperate plain with relatively isolated urban areas situated within a largely vegetated landscape that experiences distinct annual seasonality; and (3) the cities capture multiple gradients in population size, urban area, land cover type, thermal regime, and latitude. Figure 1b demonstrates the southwest to northeast gradient in annual accumulated growing degree-days, a measure of thermal time that influences the growing season of perennial vegetation.

We selected 19 cities as defined by the United States Census Bureau “Urban Areas” [31] located within the Upper Midwest. These 19 cities span three orders of magnitude in population size, from ~15,000 in Cambridge, MN to 3.4 million in the Minneapolis-St. Paul metropolitan statistical area [32]. The cities also cover three orders of magnitude in terms of urban extent, ranging from ~25 km² in Brookings, SD to 2773 km² in Minneapolis-St. Paul, MN in 2010 [33]. Total urban extent for the 19 cities increased by almost 40,000 hectares (18.2%) from 2001 to 2011 [29].

Table 1. Characteristics of the 19 study cities: 2011 population [32], area of the urban extent [33], latitude, longitude, decadal mean annual accumulated growing degree-days (AGDD) calculated from the MODIS Land Surface Temperature-derived AGDD product, and percentage of pixels with land surface phenology model fit (R²) > 0.5 in each of the 19 cities.

City	2011 Pop.	2010 UE (km2)	Lat	Lon	2003–2012 AGDD	LSP Model (%)
MSP, MN	3,388,716	2773.3	44.98	−93.28	4318	66.2
Omaha, NE	876,836	702.4	41.23	−96.03	5129	72.2
Des Moines, IA	580,779	519.5	41.62	−93.66	4889	88.4
Lincoln, NE	306,443	229.1	40.81	−96.68	5161	62.9
Sioux Falls, SD	232,553	166.2	43.53	−96.74	4428	56.5
Fargo, ND	212,695	182.1	46.86	−96.82	3819	28.6
Rochester, MN	208,446	131.0	44.02	−92.48	4157	75.9
St. Cloud, MN	189,980	130.1	45.57	−94.19	3918	63.8
Mankato, MN	97,280	68.3	44.17	−93.99	3867	73.6
Ames, IA	90,834	59.8	42.03	−93.63	4435	80.4
Faribault, MN	64,908	29.5	44.29	−93.28	3996	82.7
Marshalltown, IA	40,967	29.7	42.04	−92.91	4576	77.6
Aberdeen, SD	40,902	33.1	45.46	−98.47	3780	37.8
Austin, MN	39,320	31.7	43.67	−92.98	3920	83.2
Fremont, NE	36,943	28.2	41.44	−96.49	4804	73.1
Owatonna, MN	36,551	33.0	44.09	−93.22	4035	81.2
Brookings, SD	32,109	24.6	44.30	−96.78	4008	58.3
Albert Lea, MN	31,111	25.5	43.65	−93.37	3898	67.1
Cambridge, MN	15,155	25.7	45.54	−93.23	3833	76.3

provides the information on size, location, and thermal regime for each of the 19 cities included in the analysis. The study time period spans 2001–2012, which covers the 2001, 2006, and 2011 NLCD LCT and ISA archives [29,30], as well as the ten-year (2003–2012) time series available from the CONUS WELD project [28].

2.2. Data

2.2.1. MODIS Land Surface Temperature and Snow Cover Extent

MODIS is a sensor aboard the Aqua and Terra satellites [34]. Aqua and Terra are NASA Earth Science satellites that operate as a part of the Earth Observing System [35]. We used the MODIS-Aqua (MYD11A2) and MODIS-Terra (MOD11A2) products, which are the level-3 global Land Surface Temperature and Emissivity 8-day composites with 1 km resolution, and are provided in Sinusoidal grid format as the mean clear-sky LST values during an 8-day time frame [36]. The specific Scientific Datasets (SDs) extracted from the product included “LST_Day_1km” and “LST_Night_1km” for MODIS tiles h10v04 and h11v04 [36]. We also downloaded the MODIS Aqua (MYD10A2) and Terra (MOD10A2) Snow Cover products, which contain level-3 global “Maximum Snow Extent” 8-day composites at 500 m resolution [37]. Both MODIS products were downloaded for the time period of 2003 to 2012. MODIS 8-day composite products contain 46 annual observations. We used four MODIS 8-day composite products for two MODIS tiles for ten years, resulting in 3680 total MODIS files used in the study.

2.2.2. Web-Enabled Landsat Data

Web-Enabled Landsat Data (WELD) is a NASA-funded project that generated 30 m composited mosaics of the conterminous United States and Alaska using Landsat 7 ETM+ scan line corrector-off data from 2003–2012 [28]. WELD was designed to make consistent Landsat data readily available to develop land cover, biophysical, and geophysical products in order to study Earth system science and regional land-cover dynamics [28]. One advantage of WELD is that the weekly composites include a pre-calculated NDVI band as well as additional quality control flags (saturation, clouds) [28]. We selected all WELD tiles within 40 km of the urban extent (UE) for each of the 19 cities. We filtered out saturated and cloudy observations using the “Saturation_Flag”, “DT_Cloud_State”, and “ACCA_State” bands [28], as well as a filter based on a threshold value of NDVI > 0.2 to exclude non-vegetated observations.

2.2.3. National Land Cover Database

The National Land Cover Database (NLCD) provides 30 m resolution land surface characteristics over the United States that can be used for applications including assessment of ecosystem health and ecosystem status [38]. We used the Percent Developed Imperviousness [29] and Land Cover Type [30] products from 2001, 2006, and 2011. The Impervious Surface Area product was determined using IKONOS and Landsat 7 ETM+ data and estimated the percentage of each 30 m pixel covered by anthropogenic (concrete, asphalt, etc.) surfaces [39]. The Land Cover Type product was derived from unsupervised classification of Landsat 5 TM and Landsat 7 ETM+ at a spatial resolution of 30 m [30]. The datasets are freely available for download from the Multi-Resolution Land Characteristics Consortium website [29,30].

2.3. Methods

2.3.1. Spatial Arrangement of Urban Areas

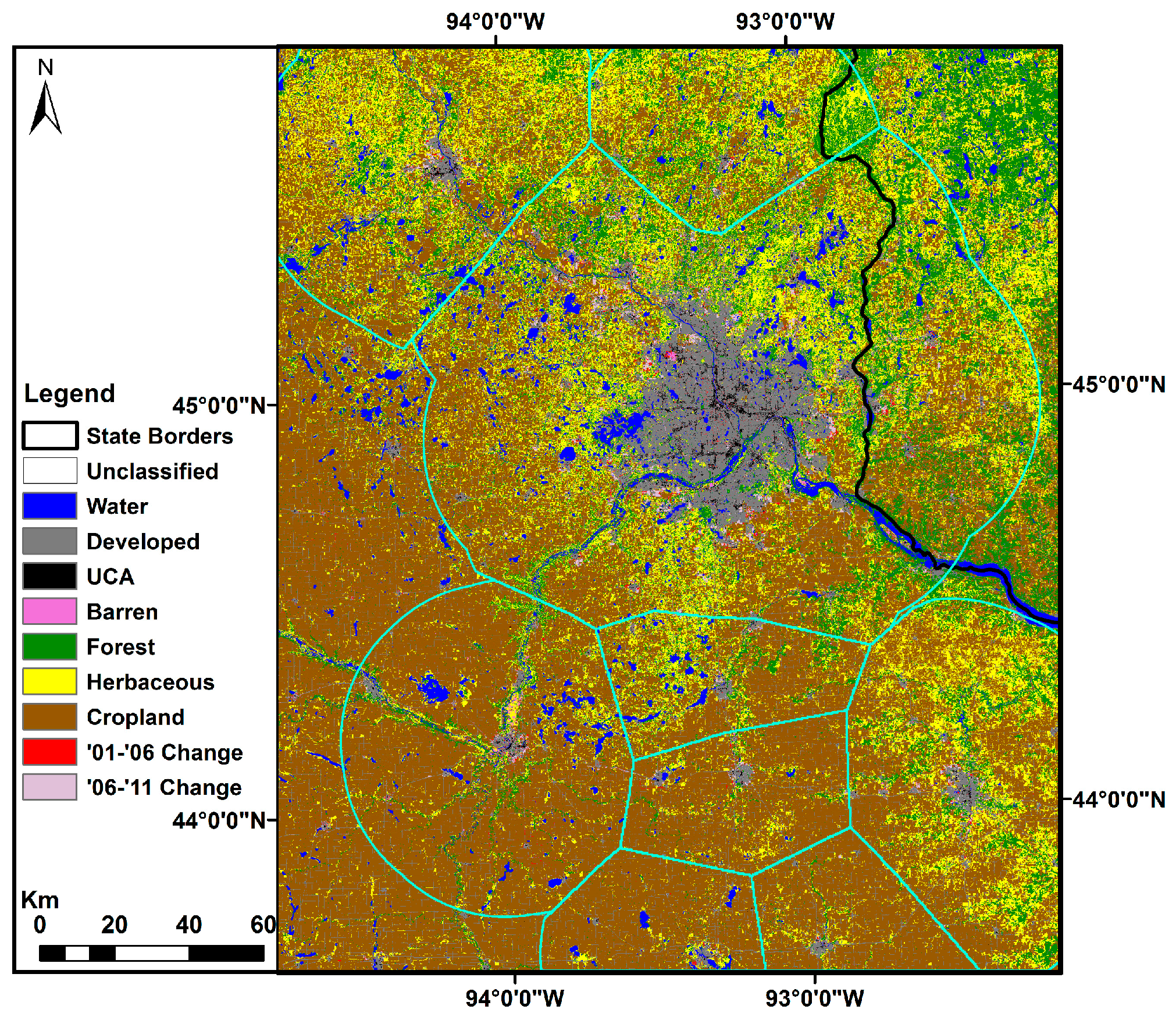

We defined the region of interest for each city as the area within 40 km of the urban extent for each of the 19 cities. We characterized the region of interest for each city based on the 2001, 2006, and 2011 LCT and ISA datasets by identifying the LCT and ISA for each corresponding 30 m WELD pixel located in each region. We used a decision tree classification scheme to aggregate the 16-class LCT data into nine classes.

Table 2. Summary of land cover type groupings used for classification of pixels in the study.

National Land Cover Database Class	ID	Study Class
Open Water, Perennial Ice/Snow	1	Water
Developed: Open Space, Low/Medium Intensity	2	Developed
Developed: High Intensity	3	Urban Core Area
Barren Land (Rock/Sand/Clay)	4	Barren Land
Deciduous, Evergreen, Mixed Forest, Woody Wetlands	5	Forest
Shrub/Scrub, Grassland/Herbaceous, Pasture/Hay, Emergent Herbaceous Wetlands	6	Herbaceous
Cultivated Crops	7	Cropland
Change in Impervious Surface Area: 2001–2006	8	2001–2006 Change
Change in Impervious Surface Area: 2006–2011	9	2006–2011 Change

shows the class groupings used. We also performed change detection from 2001 to and from 2006 to 2011 to identify pixels that experienced a change in LCT, ISA, or both and classified pixels with ISA change into two classifications based on time period: (1) “2001–2006” change; and (2) “2006–2011” change (Table 2). Pixels classified as “Water”, “Barren”, “2001–2006 Change” and “2006–2011 Change” were excluded from the analysis. Figure 2a illustrates the LCT classification over Sioux Falls, SD.

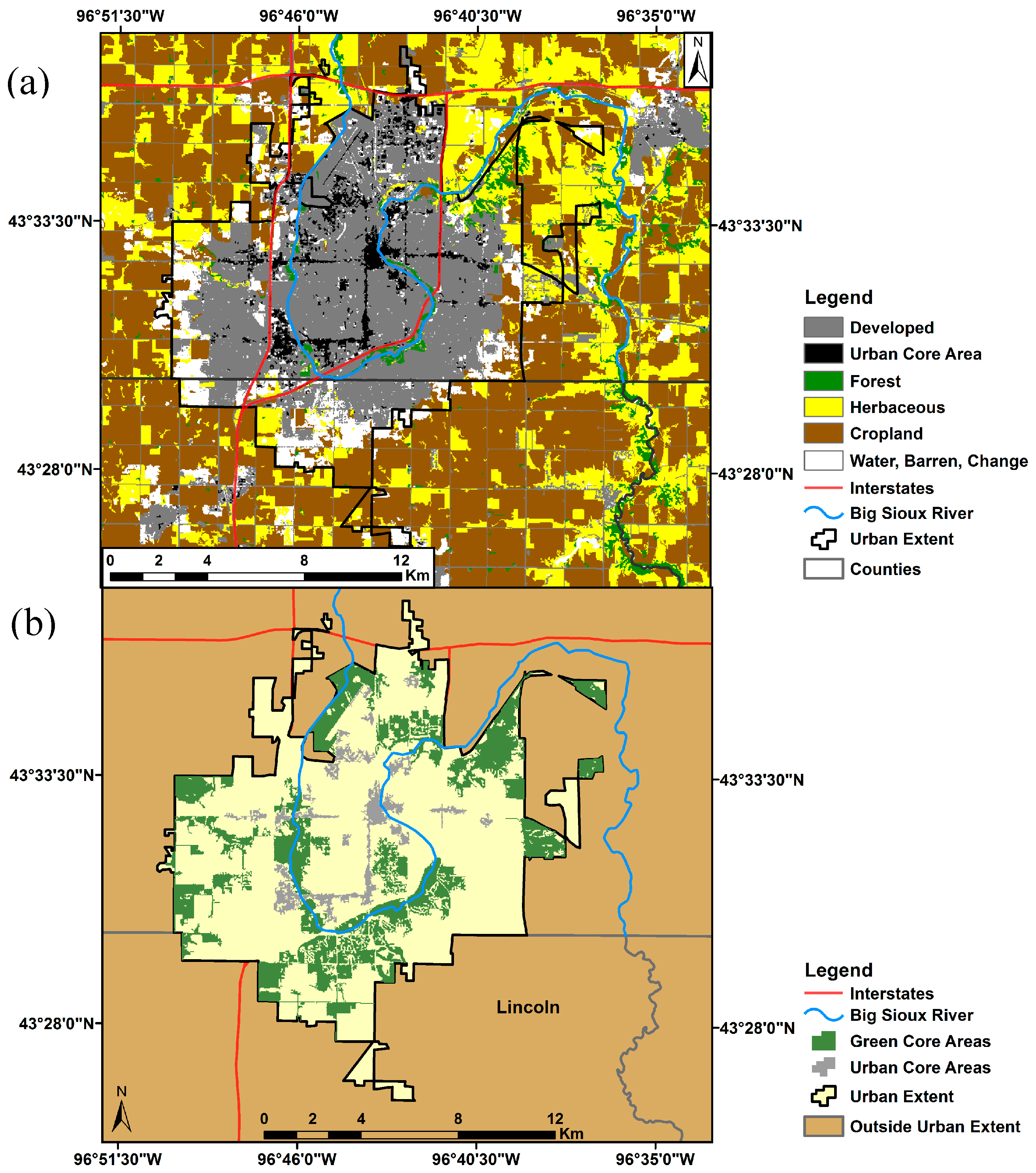

In order to characterize the spatial arrangement of heterogeneous urban landscapes, we defined four specific urban spatial subregions of interest. We used the 2010 U. S. Census Bureau delineated “urban areas” cartographic boundary shape files to define Urban Extent (UE) for each urban area [33]. We identified Urban Core Area (UCA), which we defined as a spatially contiguous area of pixels (>10 hectares) located within the UE of each city and classified as “Developed, High Intensity” based on the 2011 LCT dataset. Green Core Area (GCA) is defined as a spatially contiguous area of pixels (>60 hectares) located within the UE of each city and classified as “Developed, Open Space”, “Forest”, “Shrub/Scrub”, “Grassland/Herbaceous”, “Pasture/Hay”, or “Wetlands” based on the 2011 LCT dataset. The UCA and GCA size thresholds were determined so that each city contained at least one of each urban spatial subregion. Pixels located outside of the UE but within the 40 km region of interest are simply classified as “Outside of the Urban Extent”.

After identifying the boundaries for: (1) UE; (2) UCAs; (3) GCAs; and (4) areas outside of the UE, we calculated Euclidean distance from each pixel to the nearest UCA. Distance is rounded to the nearest kilometer. To control for the compounding factor of nearby cities influencing vegetation, Each individual cities’ 40 km region of interest was reconfigured after Euclidean distance calculation to group pixels by distance to nearest UCA by city, rather than simply the nearest urban extent. This means that while a pixel may be closer to the boundary of one city, it may actually be closer to the core area of a different city.

2.3.2. Thermal Time

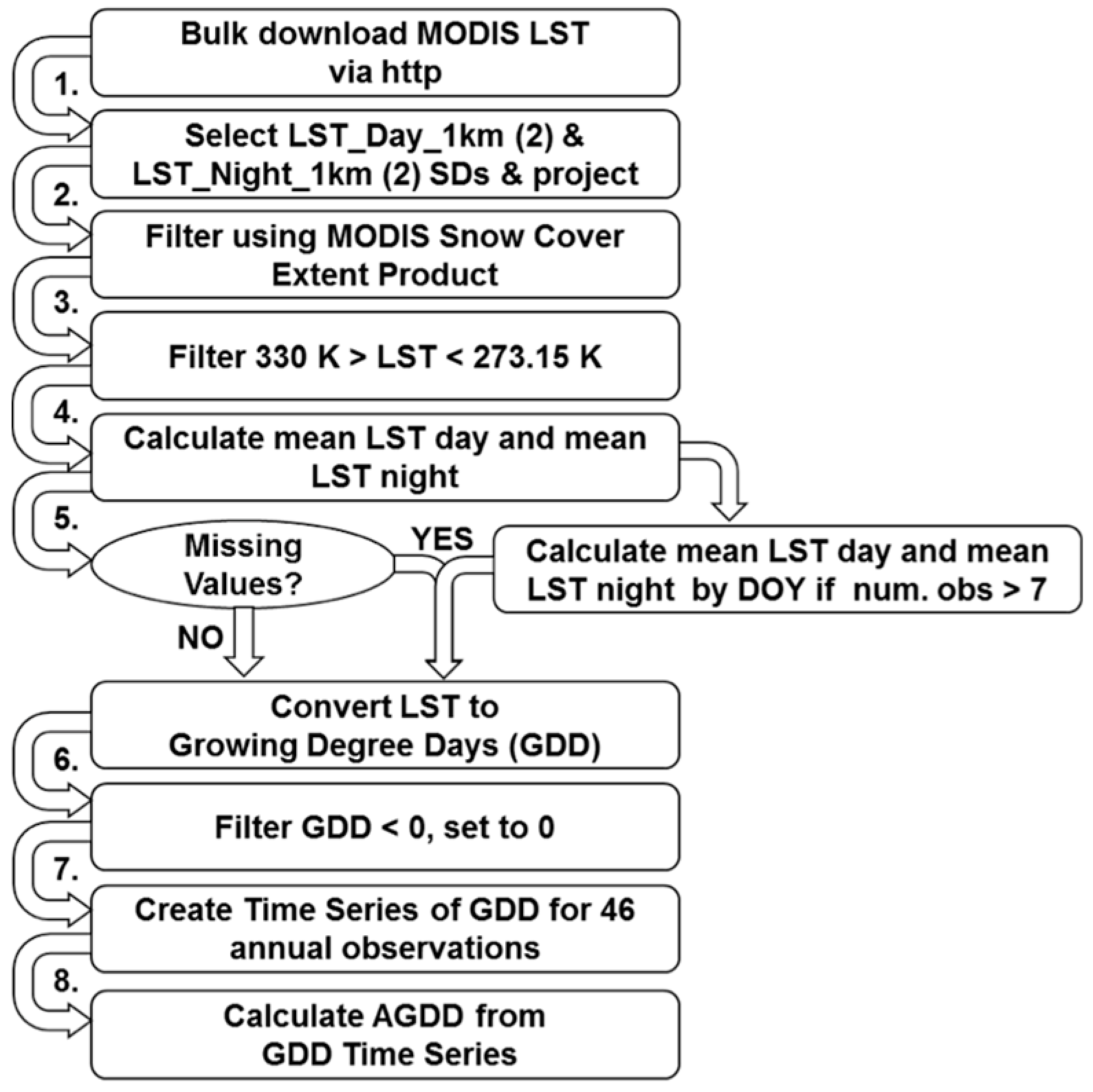

We used the maximum snow extent product to exclude MODIS LST observations when snow cover was present. The MODIS LST observations were additionally filtered to exclude observations that were below freezing (273.15 K), or unreasonably high (330 K). We revised an algorithm developed in [40] that converts the two daytime and two nighttime LST observations into growing degree-days (GDD), and ultimately into an annual accumulated growing degree-day (AGDD) product. The algorithm was used to calculate a climatology of thermal time, the average daytime and nighttime LST for each day of year (DOY) (using the ten years available for each date), which was later used to fill gaps arising from missing or excluded data. However, the mean LST by DOY is only calculated when eight or more years have available data. The algorithm also calculated GDD. The traditional calculation of GDD takes the mean of the daily maximum and minimum temperature and subtracts a base temperature threshold. The GDD calculation used the mean of the mean daily and mean nightly LST values and a base of 0 °C:

$$\mathrm{GDD}=max\left\{\left[\frac{\left(\mathrm{mean}\left({\mathrm{LST}}_{1030}+{\mathrm{LST}}_{1330}\right)+\mathrm{mean}\left({\mathrm{LST}}_{2230}+{\mathrm{LST}}_{0130}\right)\right)}{2}\right]-T_{base},0\right\}$$

(1)

When GDD < 0, the daily value was mapped to zero, meaning no increment of thermal time occurred during that compositing period. Then the annual time series of GDD composites was multiplied by 8 to account for the 8-day compositing period of the MODIS products and accumulated each observation (GDD in °C) across the year. The final product is a ten-year time series of accumulated growing degree-days (AGDD in °C) by year. Figure 3 shows the workflow for the MODIS LST to AGDD conversion process.

2.3.3. Land Surface Phenology Modeling

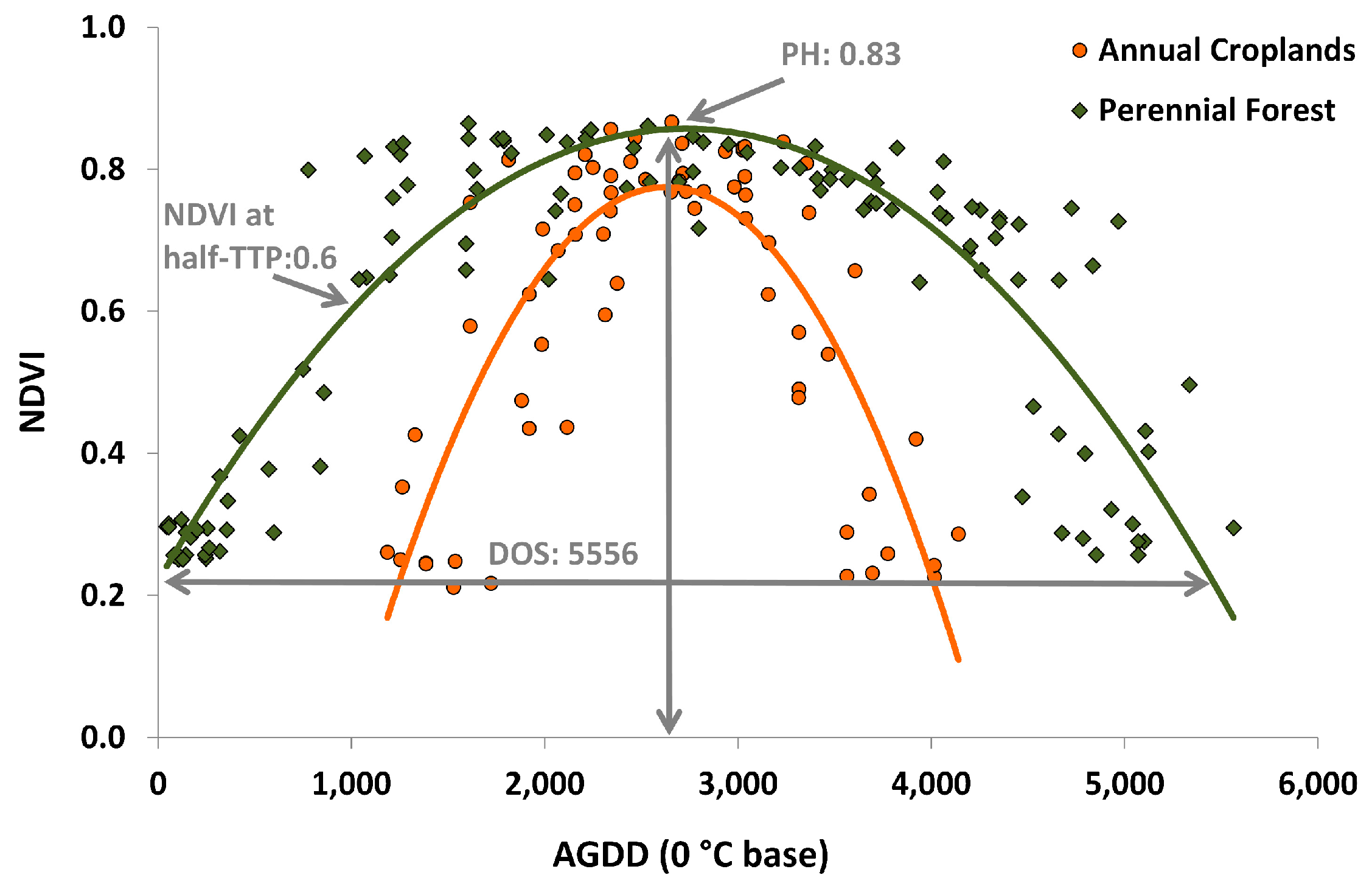

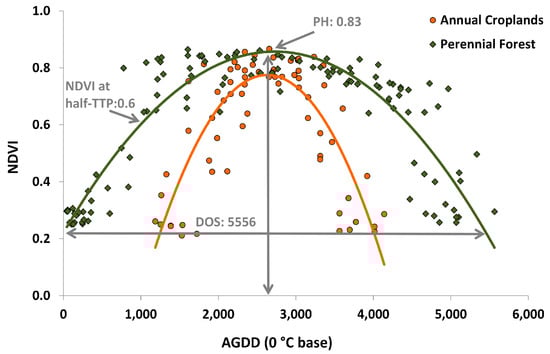

LSP metrics are often calculated from time series data of vegetation indices [41]. There are four main methods used to calculate LSP metrics, including: (1) thresholds; (2) derivatives; (3) smoothing functions; and (4) fitting models [41]. We used a quadratic regression model to link the WELD normalized difference vegetation index (NDVI) to MODIS LST-derived AGDD. This model has been used successfully to analyze LSP dynamics in temperate regions [12,17]. The quadratic LSP (Q LSP) model is defined as:

$$\mathrm{NDVI}={\mathsf{\gamma }\mathrm{AGDD}}^2+\mathsf{\beta }\mathrm{AGDD}+\mathsf{\alpha }$$

(2)

where NDVI contains all NDVI values (unitless; −1 to 1) for a specific period and AGDD (°C) contains all AGDD values for the corresponding period [42]. The Q LSP model requires only three model parameter coefficient estimates with relevant ecological interpretations [42,43]. The significance of the model is dictated by its ability to explain the variance in NDVI, expressed as the coefficient of determination (R²). We applied the Q LSP model to the decadal time series of NDVI and AGDD observations for each pixel and derived the following LSP metrics:

$$\mathrm{Peak}\mathrm{Height}\mathrm{in}\mathrm{NDVI}\left({\mathrm{PH}}_{NDVI}\right)=\mathsf{\alpha }-\frac{{\mathsf{\beta }}^2}{4\mathsf{\gamma }}$$

(3)

$$\mathrm{Thermal}\mathrm{Time}\mathrm{to}\mathrm{Peak}\mathrm{NDVI}\left(\mathrm{TTP}\right)=-\frac{\mathsf{\beta }}{2\mathsf{\gamma }}$$

(4)

We derived NDVI at half-thermal time to peak (half-TTP_NDVI) from PH_NDVI and TTP. We used a threshold of NDVI = 0.3 to determine Start of Season (SOS) and End of Season (EOS) for a given pixel. This threshold was chosen because all NDVI values are filtered to select observations where NDVI > 0.2, and thus once NDVI = 0.3, vegetation has increased in NDVI. NDVI is then input and solved for in Equation (2) for both sides of the quadratic parabola (i.e., SOS and EOS). This provides AGDD at SOS and EOS, from which the difference of (EOS-SOS) determines the Duration of Growing Season (DGS_AGDD). We used a coefficient of determination threshold of R² < 0.5 to exclude ill-fitting models. Figure 4 demonstrates the fitting of the Q LSP model to a decade of NDVI vs. AGDD observations and the associated LSP metrics derived from the model.

2.3.4. Equivalence Testing

In order to determine if significant differences exist in DGS_AGDD between GCAs, UE areas, and areas outside of the UE, we performed a statistical analysis known as equivalence testing. We used the two one-sided tests (TOST) approach to test for equivalence between group means [44]. Tests of equivalence evaluate the similarity between two groups rather than the more commonly used tests of difference or inequality [45]. There are multiple reasons why equivalence tests are more appropriate for our study than more traditional tests of significant differences between two groups. First, when sample size n is extremely large (~10 M pixels in the Minneapolis-St. Paul region), difference tests may prove statistically significant for any non-zero difference in group means [45,46]. Moreover, remote sensing data suffer from high positive spatial autocorrelation and it is difficult to correct for positive spatial autocorrelation in difference testing [47]. Another benefit of equivalence testing is that it allows for interpretation of the magnitude of differences between two groups [45,48]. Contrary to tests of difference, the null hypothesis in an equivalence test is that two groups are significantly different [45]. In order to test for equivalency, a zone of indifference is specified which identifies the upper and lower bounds to test for a difference in means between two groups.

We performed equivalence tests on the difference between group means of LSP metrics for GCAs, UE areas, and areas outside of the UE, adjusting for multiple comparisons using the Bonferroni correction method [49]. The LSP metrics tested include TTP and DGS_AGDD. To objectively determine the zone of indifference, or δ, we used 10% of the mean for each LSP metric for each of the 19 study cities. When testing for equivalence between group means of LSP metrics between GCAs, UE areas, and areas outside of the UE, four conditions were possible: (1) all three groups to be statistically equivalent; (2) all groups to be different; (3) one pair of group means to be equivalent, and two pairs different; or (4) two pairs of group means equivalent, and one pair different. In the analysis, the letters were ranked in descending order; same letters indicate the groups were equivalent.

2.3.5. Exponential Trend Model

A study on urban climates in 70 cities in eastern North America found the ecological footprint of cities to be 2.4 times greater than the extent of urban land use, which was determined as the distance where 95% of asymptotic values were reached in the exponential model of differences in green-up onset and dormancy onset as a function of distance from the urban perimeter [15]. Here we used a similar method to calculate the difference in duration of growing season between urban and surrounding rural areas and to determine the magnitude and extent of urban influence on the seasonal development of vegetation.

We calculated the mean DGS_AGDD for all pixels with R² > 0.6 within each cities’ UE. Next, we calculated the mean DGS_AGDD grouped by distance from nearest UCA at 1 km intervals, and took the difference between mean UE DGS_AGDD and the mean DGS_AGDD for each 1 km distance grouping. We plotted the mean difference in DGS_AGDD (ΔDGS_AGDD) as a function of distance from UCA for each city (Figure 5). From there, we fitted an exponential function (Equation (5)), where a is the horizontal asymptote, u is the relative amount the curve increases from the origin to the horizontal asymptote, and b is a scaling parameter for distance.

$${\Delta \mathrm{DGS}}_{AGDD}=\mathrm{a}\left(1-{\mathrm{ue}}^{-\mathrm{b}\times \mathrm{distance}}\right)$$

(5)

We assumed that the distance from UCAs where impacts on DGS_AGDD become insignificant is the distance where each exponential model reaches 95% of its asymptotic values [15]. This approach provided two values: (1) the extent (distance) of urban influence on LSP; and (2) the magnitude of differences in DGS_AGDD between urban and surrounding rural environments.

We limited this analysis to all pixels within 20 km of UCAs, the same distance used in [15]. The analysis was split into two parts. The first was limited to perennial vegetation LCTs, whose DGS_AGDD is driven largely by local atmospheric conditions and thus allows for conclusions to be made on the impacts of UHIs on DGS_AGDD. Second, we performed the same analysis but included annual croplands. It would be inappropriate to draw conclusions on the influence of urban areas (via the UHI effect) on the DGS_AGDD of croplands, because cropland LSP is driven largely by management practices, including the timing of tillage and harvest [25]. However, including croplands allowed us to draw conclusions on the difference in the duration of the “green-on” season. That is, the annual time period when the land surface is covered in green vegetation. At the regional level, we compared results from each urban region to draw conclusions on the influence of city size and latitude in regards to the impacts on the surrounding environment.

3. Results

3.1. Equivalence Testing

Duration of Growing Season

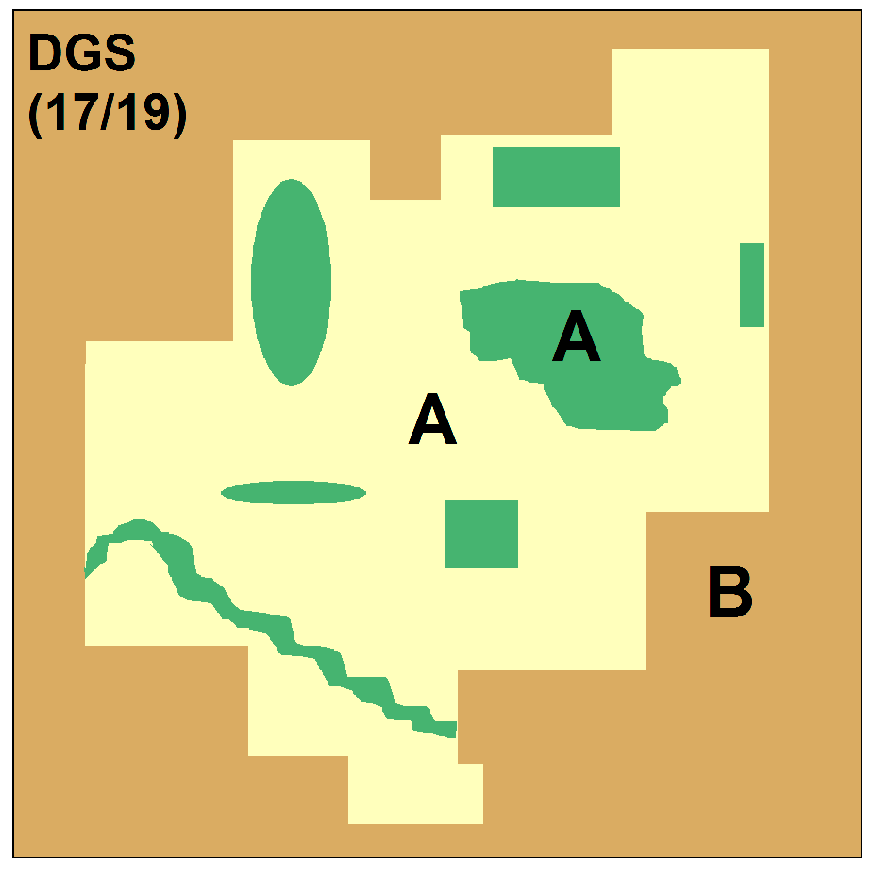

We expected to find that DGS_AGDD in GCAs was shorter than in UE areas, but longer than in areas outside of the UE, based on the premise that vast expanses of urban vegetation could potentially experience shorter growing seasons due to the cooling effects of vegetation. However, only one out of the 19 cities exhibits this pattern based on the equivalence testing analysis (Lincoln, NE). We found that DGS_AGDD was equivalent between GCAs and UE areas and higher than areas outside of the UE for 17 out of the 19 cities (Figure 6). We concluded that, in general, DGS_AGDD was longer in both GCAs and UE areas than in areas outside of the UE, but there was not a significant difference between DGS_AGDD in GCAs compared to UE areas. This dominant spatial pattern demonstrated the influence of urban areas and UHIs on the seasonal development of perennial vegetation, where vegetation within cities experienced growing seasons that were at least 10% longer than vegetation in the surrounding rural areas.

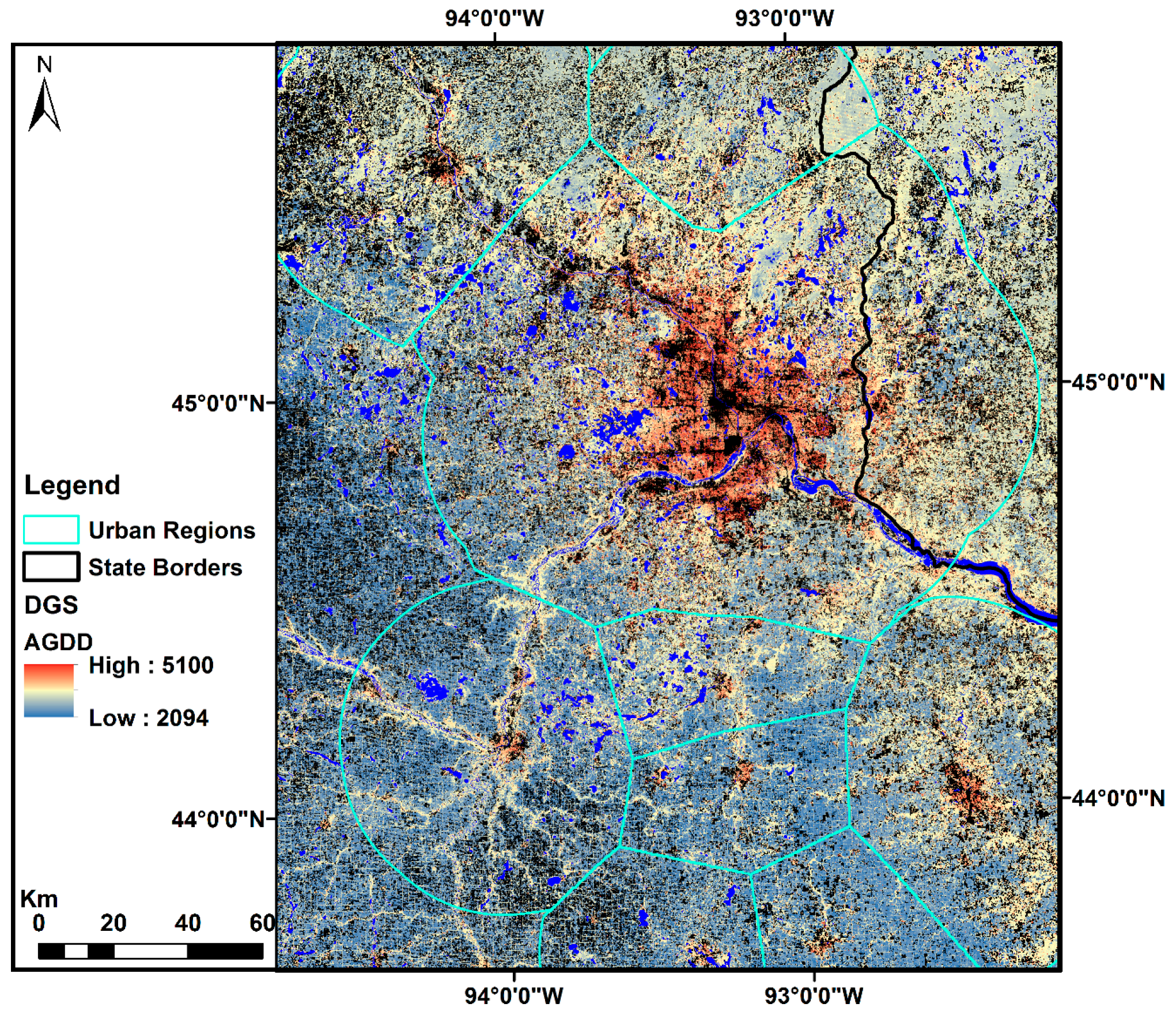

Figure 7 shows DGS_AGDD over the Minneapolis-St. Paul, MN region. Darker shades of red relate to longer DGS_AGDD, clustered near the densely impervious UCAs of each city. Figure 8 shows the corresponding LCT over the greater Minneapolis-St. Paul region. Notice the higher DGS_AGDD in the perennial LCTs (developed, forest, herbaceous) located within the cities compared to annual croplands outside of the urban areas. This spatial pattern demonstrates why croplands were omitted from the DGS_AGDD analysis: (1) there are little to no cropland areas inside of cities from which to compare; and (2) the seasonal development of annual croplands is dictated by management factors (i.e., field accessibility, timing of tillage, and irrigation) rather than by local environmental and atmospheric conditions (i.e., thermal time and the UHI effect).

3.2. Exponential Trend Model

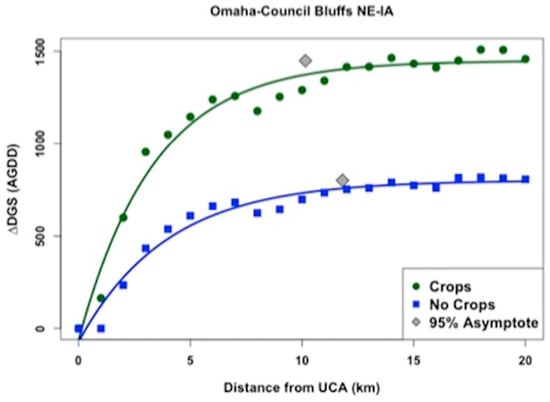

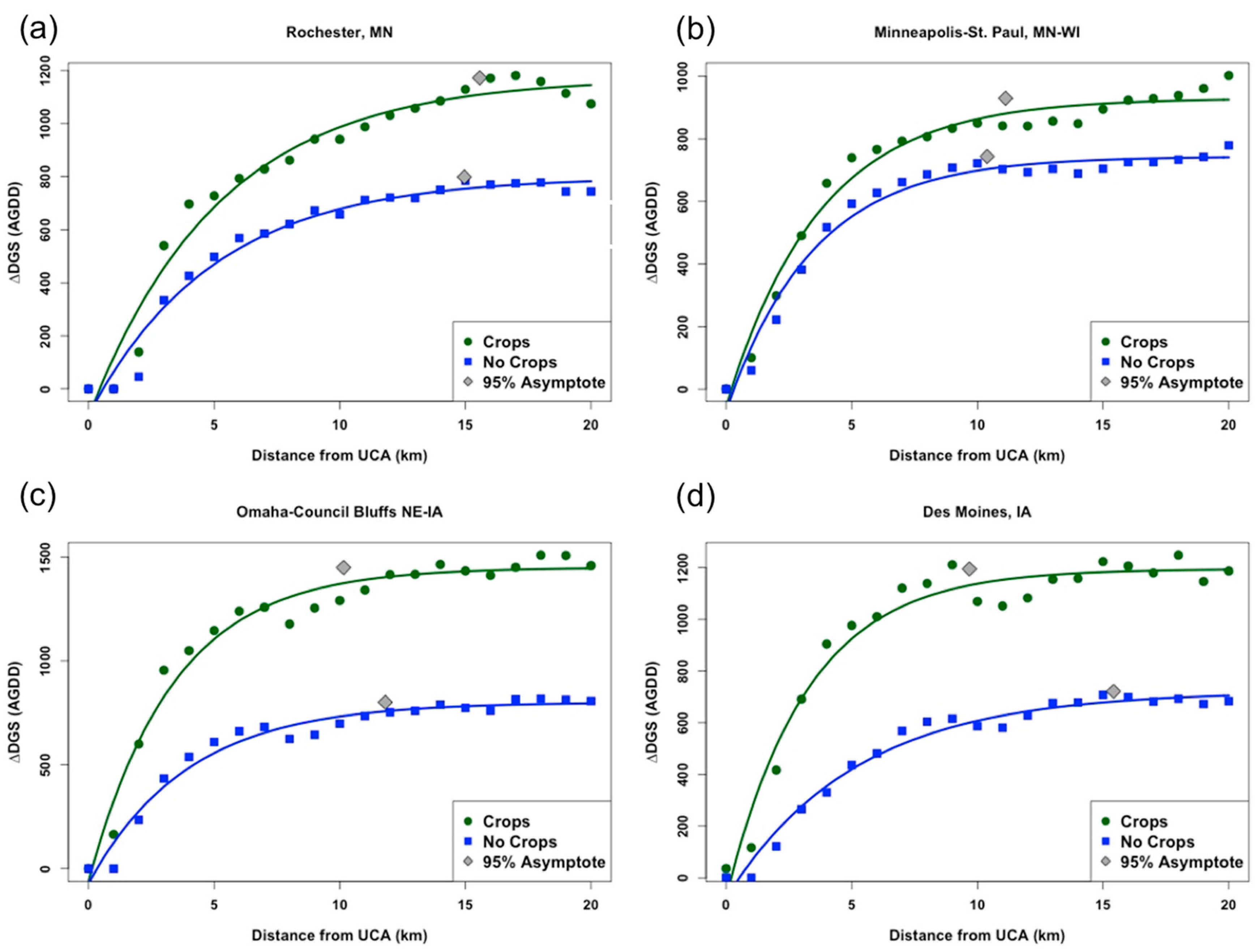

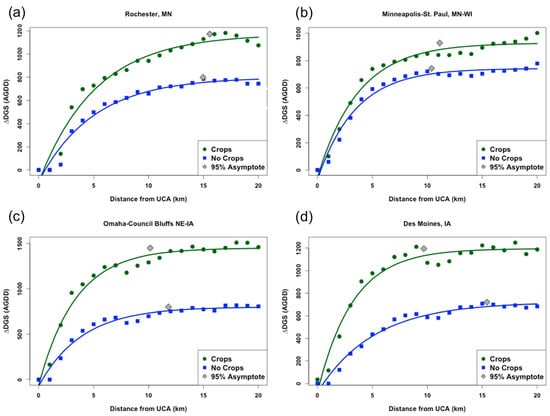

To test whether DGS_AGDD decreased with distance from UCAs, we analyzed the difference in DGS_AGDD between UE areas and areas grouped by increasing distance from UCAs. ΔDGS_AGDD followed an increasing negative exponential trend function of distance from UCAs for all of the 19 study cities. However, the Fargo, ND, region exhibited unreasonable results, likely due to the low R² in the study region (28.6% Q LSP model fit). Thus, we excluded the Fargo, ND, region from the exponential trend model analysis. We fitted the exponential model twice: once for ΔDGS_AGDD calculated only from perennial LCTs (developed, forest, and herbaceous) (Figure 9; blue) and once incorporating croplands (Figure 9; green). In general, ΔDGS_AGDD increases exponentially with distance from nearest UCA (Figure 9). The magnitude of ΔDGS_AGDD ranges from 393 AGDD in Mankato, MN, to 855 in Lincoln, NE. The distance at which urban effects are detectable and significant extends from 5.6 km in St. Cloud, MN, to 15.4 km in Des Moines, IA. The results for each individual city are found in

Table 3. Scaling parameters of exponential trend model for difference in duration of growing season (ΔDGS_AGDD) fit with croplands included (“C”) and with croplands excluded (“NC”) as well as the magnitude of ΔDGS_AGDD (“a”, in accumulated growing degree-days) and distance where urban influence on the surrounding environment becomes insignificant, measured from nearest urban core area.

City	NC b	C b	C u	NC u	C R2	NC R2	NC a	C a	∆a	NC Dist (km)	C Dist (km)
Aberdeen, SD	0.233	0.204	0.887	0.848	0.904	0.857	528	836	309	12.9	14.7
Albert Lea, MN	0.243	0.251	1.151	1.174	0.934	0.879	652	1135	482	12.3	12.0
Ames, IA	0.217	0.264	1.097	1.154	0.963	0.899	662	1400	738	13.8	11.4
Austin, MN	0.258	0.374	0.974	0.991	0.953	0.878	689	1203	514	11.6	8.0
Brookings, SD	0.399	0.369	1.069	1.050	0.952	0.964	605	1084	480	7.5	8.1
Cambridge, MN	0.275	0.396	1.003	0.984	0.910	0.951	422	482	60	10.9	7.6
Des Moines, IA	0.195	0.310	1.065	1.109	0.961	0.975	721	1195	474	15.4	9.7
Faribault, MN	0.388	0.419	1.004	1.145	0.966	0.920	545	970	426	7.7	7.2
Fremont, NE	0.253	0.373	0.777	0.970	0.970	0.933	735	1467	732	11.8	8.0
Lincoln, NE	0.276	0.317	0.792	0.900	0.944	0.968	855	1303	448	10.9	9.5
Mankato, MN	0.238	0.312	1.032	1.068	0.946	0.963	393	931	538	12.6	9.6
Marshalltown, IA	0.221	0.178	0.896	1.007	0.987	0.970	804	1428	623	13.6	16.8
MSP, MN	0.289	0.270	1.058	1.094	0.975	0.975	743	929	186	10.4	11.1
Omaha, NE	0.254	0.296	1.042	1.089	0.972	0.963	800	1449	649	11.8	10.2
Owatonna, MN	0.357	0.451	1.101	1.089	0.937	0.937	754	1276	522	8.4	6.6
Rochester, MN	0.201	0.193	1.090	1.124	0.966	0.966	799	1172	374	15.0	15.6
Sioux Falls, SD	0.238	0.340	1.097	1.109	0.960	0.956	832	1375	543	12.6	8.8
St. Cloud, MN	0.532	0.527	1.065	1.085	0.924	0.940	497	611	115	5.6	5.7
Minimum	0.195	0.178	0.777	0.848	0.904	0.857	393	482	60	5.6	5.7
Maximum	0.532	0.527	1.151	1.174	0.987	0.975	855	1467	738	15.4	16.8
Mean	0.281	0.325	1.011	1.055	0.951	0.939	669	1125	456	11.4	10.0

. On average, the 18 urban areas experience growing seasons that are 669 AGDD longer than the surrounding rural areas, and the effects of urban areas on the growing season extend 11.4 km into the urban periphery. It is evident that urban areas impact the duration of growing season in perennial LCTs, and that urban effects (namely UHIs) extend beyond the boundaries of cities themselves.

Analysis of DGS_AGDD restricted to perennial vegetation LCTs allowed for conclusions on the impacts of UHIs on the seasonal development of vegetation. However, including croplands offered a comparison of the difference between urban and rural duration of green-on season, or the annual period where the land surface is covered in green vegetation. Figure 9 demonstrates the dramatic difference in ΔDGS_AGDD calculated with (green) and without (blue) annual croplands. Notice that the difference in ΔDGS_AGDD was greater in cities that are surrounded predominantly by intensive agriculture (Figure 9; Omaha, NE, and Des Moines, IA) compared to areas where there was a greater portion of forest and herbaceous land cover surrounding the city (Figure 9; Rochester and Minneapolis-St. Paul, MN). Including croplands into the calculation of ΔDGS_AGDD led to a mean difference between urban and rural DGS_AGDD of 1125 AGDD. To reiterate, this result is not demonstrating the influence of urban areas on local atmospheric conditions, but rather highlights the large difference in the duration of green-on season between perennial vegetation LCTs and annual croplands. This difference has major implications for the representation of urban versus rural vegetation in land surface modeling.

3.3. Regional Comparison

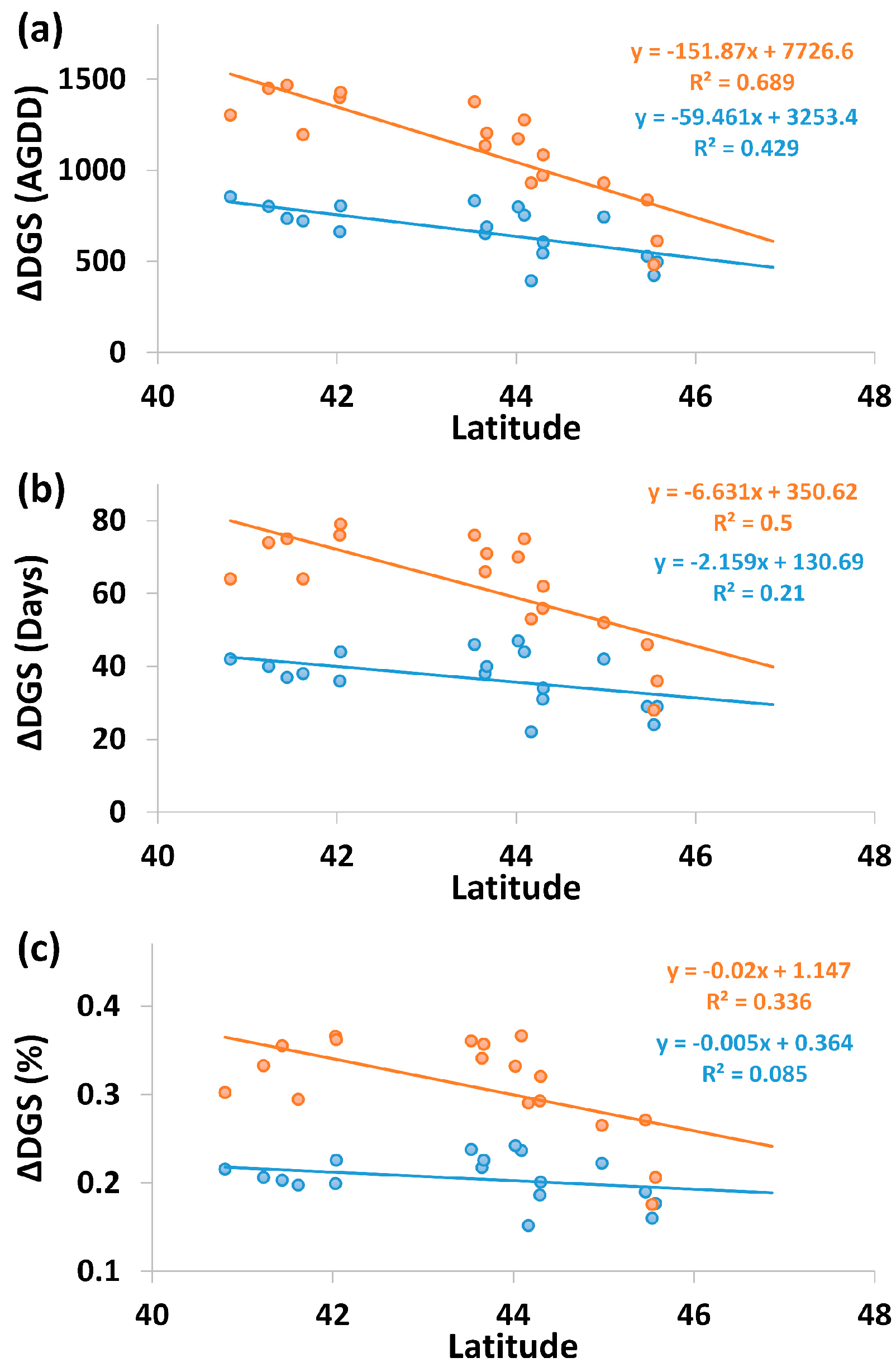

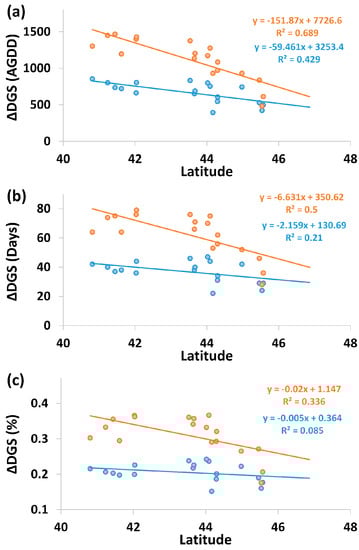

The impacts of urban areas and UHIs on the seasonal development of vegetation were independent of population size. However, the total area influenced by urban areas was larger in cities with greater total area. Figure 10 shows the relationship between latitude and ΔDGS_AGDD. In orange are ΔDGS_AGDD for each city calculated with croplands, and in blue are ΔDGS_AGDD calculated without croplands. It appears that ΔDGS_AGDD decreased with increasing latitude in Figure 10a; however, if we converted ΔDGS_AGDD into ΔDGS_days (by dividing ΔDGS_AGDD by the average daily GDD for each city) the relationship appeared less significant (Figure 10b). If we normalized ΔDGS_AGDD as a percentage of the total mean DGS_AGDD by city, the relationship appeared even less significant (Figure 10c), and the slope was not significantly different from zero for ΔDGS_AGDD with croplands excluded (Figure 10c, blue). The trend in the relationship between ΔDGS_AGDD as a function of latitude for the analysis including croplands is likely demonstrating the greater presence of agriculture in the cities located farther south than in the more heavily forested and herbaceous regions surrounding the northern cities (Figure 1a). This pattern suggests that urban influence on local atmospheric conditions is relatively uniform and proportionally not influenced by latitude in our study region. Stated in another way, the exponential trends in ΔDGS_AGDD found in this study were not caused by differences in latitude, but rather by urban areas and their associated UHIs.

Based on the results from the equivalence tests between DGS_AGDD in urban areas and surrounding rural regions, and the aforementioned differences in DGS_AGDD found with increasing distance from urban core areas, we concluded that duration of growing season for perennial vegetation LCTs decreases with distance from urban core areas. We found growing season length to differ by as much as one month between urban areas and their surrounding rural regions. We found the effects of urban alteration of local atmospheric conditions to extend around 11 km from UCAs.

4. Discussion

We had expected to find that the duration of growing season in green core areas would be shorter than in urban extent areas, but longer than areas outside of the urban extent. Duration of growing season was significantly longer in urban extent areas compared to areas outside of the urban extent for all of the 19 cities analyzed. However, duration of growing season was not significantly longer in urban extent areas compared to green core areas, as anticipated. We posited that duration of growing season would be lower in green core areas due to the cooling effects of green vegetation. For example, one study reported that urban parks help control urban temperatures due to 300% higher evaporation rates than the surrounding urbanized area [50]. Another study found that green areas and parks reduce cooling load by 10% [51]. An experiment found that a 600 m² park was able to decrease temperatures by 1.5 °C [52]. However, one limitation of this study was the relatively coarse spatial resolution (1,000,000 m²) of the MODIS LST product that was used to calculate the accumulated growing degree-days. Although this study did not find significant differences between duration of growing season in green core areas versus urban extent areas, Figure 7 demonstrates that duration of growing season is not spatially uniform throughout cities. It is evident that duration of growing season was longer near urban core areas than in other subregions of the city. Future studies should explore other strategies for subdividing cities into spatial subregions, perhaps using Local Climate Zones (LCZs) [53] as outlined by the recently launched World Urban Database and Portal Tool project [54].

The finding that both green core areas and urban extent areas had significantly higher duration of growing season than areas outside of the urban extent can be attributed to urban areas modulating local atmospheric conditions, namely via increased temperatures and consequently longer growing seasons as a result of the UHI effect. However, there are other factors that may also have contributed to the difference in duration of growing season between urban and rural areas, including decreased wind speed, increased water availability as a result of urban irrigation, and differences in urban–rural species composition. However, the finding that maximum NDVI was significantly lower in urban areas than surrounding rural areas suggests that water availability was likely not the main limiting factor in the Upper Midwest, a region that experiences relatively stable precipitation patterns and quantities, although it is also susceptible to dry extremes [55]. If urban irrigation were the main factor contributing to increased duration of growing season, then we would expect maximum NDVI to be lower in areas outside of the urban extent, which was not found in this study.

The analysis of ΔDGS_AGDD demonstrated that urban areas and UHIs influenced the local thermal conditions inside of cities and extended into the urban periphery. On average, this study found that UHIs lengthened the growing season by >600 AGDD and the effects extended around 11 km from the highly impervious, densely urbanized urban core areas. This finding has major implications for land surface phenology in urban to peri-urban environments. To illustrate: if we say that an average growing season day accumulates 20 growing degree-days, and then divide 600 AGDD by 20, this equates to a difference in the duration of growing season by approximately one month between urban areas and surrounding rural areas that are not significantly influenced by local urban atmospheric modification (mainly UHI effects). A previous study found that LST is significantly higher than corresponding air temperatures during the daytime, although similar temperatures were found between LST and corresponding air temperatures at night [40]. Future studies should explore the use of nighttime LST alone in order to exploit the benefits of spatially exhaustive temperature readings that closely correspond with air temperatures in order to remove the bias of higher daytime LST temperatures observed over cities.

Note that these results are from the analysis of only perennial vegetation land covers (developed, forest, and herbaceous). Perennial vegetation land cover types in this study exhibited a linear trend between peak height in NDVI and NDVI at half-thermal time to peak, suggesting that the seasonal development of perennial vegetation was driven by local atmospheric conditions, namely thermal time. This observation aligns with plant development theory, or the idea that higher temperatures prompt earlier growth in heat-sensitive species [56]. Controlling the analysis to perennial vegetation land cover types provided a higher level of confidence that the results were indeed due to the influence of UHI effects rather than differences in land cover type, specifically between annual croplands and perennial vegetation.

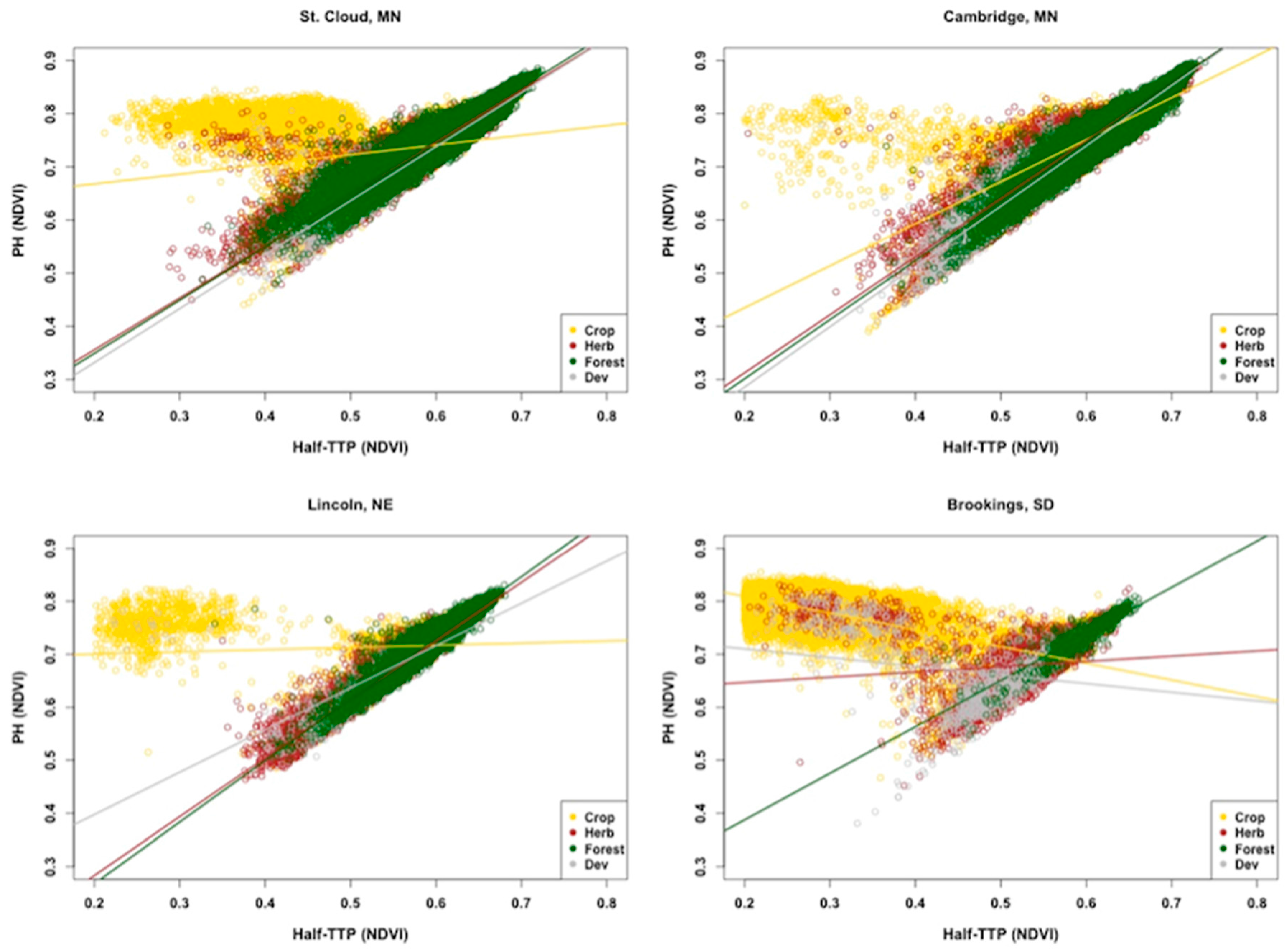

To illustrate the linear trend between peak height in NDVI and NDVI at half-thermal time to peak, we performed linear regression analyses on the relationship between PH_NDVI and half-TTP_NDVI by land cover type. Due to the high volume of observations, we limited this portion of the analysis to pixels with R² ≥ 0.8. In order to determine if the linear model (fit to all pixels with R² ≥ 0.8 from the Q LSP model) was significant, we also used an R² threshold of 0.8 in addition to the more traditionally used p-values, again due to extremely large n values. We then compared the observed differences between various LCTs. In particular, we were interested in whether a significant linear relationship existed for perennial vegetation LCTs but not for annual croplands. Figure 11 shows an example of the linear relationship between PH_NDVI and half-TTP_NDVI for perennial vegetation in four of the selected cities.

Incorporating croplands is, however, useful because it demonstrates the differences in green-on season between urban and rural areas, or the time period of the year where the land surface is covered in green vegetation. The addition of annual croplands into the calculation of change in duration of growing season increased the mean difference between urban and rural duration of growing season to around 1100 AGDD, that translates into about two months difference in the period when the land surface has green vegetation. At first, this may sound like an erroneous result; however, the major crops grown in the Upper Midwest, namely maize and soybean, do not begin to develop as soon as the growing season has commenced for perennial vegetation. Rather, the seasonal development of commodity crops, such as maize and soybean, is driven largely by external, non-atmospheric factors including crop management, field accessibility, timing of planting and harvest, or the use of irrigation. This phenomenon is confirmed by the high variation in the rate of vegetation green-up illustrated in cropland pixels in Figure 11. It is not unusual for maize and soybean fields in the Upper Midwest to be mostly bare soil in April–May and either dried-out crops or crop harvest residue in September–October. Meanwhile, perennial vegetation generally begins developing shortly after snow melt and ends after the first hard freeze; these times are undoubtedly much earlier and later, respectively, than the duration of green-on season for maize, soybean, and other summer crops.

The major difference in duration of green-on season between perennial vegetation and annual croplands has major implications for urban–rural differences in heat storage and release during different periods of the year. During the summer months when the crop canopy is fully developed, green vegetation redistributes energy absorbed during the day through evapotranspiration, leading to cooler temperatures in the rural regions surrounding cities [57]. At the regional scale, relative change in duration of growing season does not appear to be significantly related to urban extent, population, or latitude. This finding suggests that the distance and magnitude that urban areas influence vegetation in and near cities is relatively uniform independent of city size. However, larger urban areas have a greater impact on local atmospheric conditions in terms of area.

The positive linear relationship found in the rate of vegetation green-up versus the maximum NDVI in land cover types with perennial vegetation and the high variation in the rate of green-up for annual croplands suggests that studies of UHI impacts on urban land surface phenology need to account for differences in urban/rural land cover types. Because annual cropland phenology is driven largely by agricultural planting schedules, it is not appropriate to use annual cropland land surface phenology metrics in order to draw conclusions on the magnitude and extent of urban heat island effects on land surface phenology in and around cities. Vegetation cover/types that exhibit a perennial vegetation response, i.e., a positive linear relationship between Half-TTP_NDVI and maximum NDVI, are more appropriate for research aimed at measuring and monitoring the urban heat island effects on land surface phenology.

5. Conclusions

There are multiple remote sensing issues that must be considered in order to draw conclusions related to the study of UHI impacts on LSP in and around cities. Past studies of UHI effects on urban LSP have centered on surface observation networks and high temporal/coarse spatial resolution remote sensing datasets. Studies of UHIs using air temperature readings from local meteorological stations have higher spatial resolution, but are limited by sparse spatial coverage. Moreover, a recent study on the thermal environment of grasses found that the plants respond more closely to the land surface temperature than to air temperature at two meters [58]. Studies of UHIs using coarse spatial resolution data for analyzing urban LSP suffer from the mixed pixel problem that make it extremely difficult to account for differences in LSP as a function of LCT. There exists a need for more spatially extensive, higher spatial resolution data products to capture phenological patterns in areas with heterogeneous land cover and external drivers, because urban areas are a mixture of land cover/land uses and exhibit microclimatic variation [23,24,25]. Using Landsat data for phenological studies allows for local to regional scale analyses, offering a spatial resolution that is useful for exploring factors that influence phenology including land use and urban heat islands [23,24,25,59].

As a caveat, it is difficult to draw conclusions on maximum NDVI in cities due to the heterogeneous nature of the urban land surface; pixels that are a mixture of an urban lawn and a rooftop, for example, will exhibit lower maximum NDVI values due to the proportion of impervious surface being sensed. Another caveat is that we focused on the surface UHI and thus used AGDD derived from land surface rather than air temperature data.

This regional study leverages multiple datasets from multiple sensors at relatively high spatial resolutions in order to resolve the tradeoff between high spatial and temporal resolution, enabling research to be conducted while controlling for LCT and enabling full spatial coverage in and around cities. Fitting the Q LSP model to a decade of available observations provides a strategy for dealing with the low number of observations that often restrict Landsat studies. This research provides a framework for studying the impacts of urban areas and UHIs on the seasonal development of vegetation at a spatial resolution that is useful and necessary in highly complex, heterogeneous urban areas. The results found in this study highlight the need for future research of UHI-related impacts on urban LSP in order to account for differences in LSP between annual croplands and perennial vegetation covers. In addition, DGS_AGDD was found to increase with proximity to densely impervious, urban core areas, demonstrating the need to identify local “hotspots” within urban areas that may disproportionately produce warmer atmospheric conditions. These results that demonstrate the drastic difference in the DGS_AGDD and the extent of urban influence on DGS_AGDD highlights the need for urban land surface models to accurately represent the seasonal development of vegetation in and nearby cities. Future urbanization will only increase the amount of Earth’s land surface that is significantly impacted by urban areas and associated UHI effects. Future studies will model LSP metrics before and after land cover changes as urbanization occurs along the urban periphery. This step should reduce the number of pixels within cities that were excluded from the analysis due to poor Q LSP model fit, and increase our understanding of the impacts of urbanization on LSP.

This study provides much needed and currently lacking information on: (1) the differences in the seasonal development of vegetation between urban and rural areas of the Upper Midwest of the United States; (2) the magnitude and extent of UHI effects on the seasonal development of vegetation in small to medium sized cities; and (3) the differences in land surface phenology between annual croplands and perennial urban vegetation. More importantly, this study provides a framework for alleviating the resolution problems that have restricted studies of UHI effects on urban LSP in the past. This information should prove useful to inform a variety of interests, including scientists interested in urban thermal climate analyses, as well as urban climate modelers, urban ecologists, urban and regional planners policy-makers, meteorologists, and climatologists.
