Article

Therapeutic Effects of Live Lactobacillus plantarum GKD7 in a Rat Model of Knee Osteoarthritis

by
Yen-You Lin
1,†,
Sunny Li-Yun Chang
2,3,†,
Shan-Chi Liu
4,
David Achudhan
2,
You-Shan Tsai
5,
Shih-Wei Lin
5,
Yen-Lien Chen
5,
Chin-Chu Chen
6,7,8,
Jun-Way Chang
9,
Yi-Chin Fong
10,11,
Sung-Lin Hu
3,12,* and
Chih-Hsin Tang
1,2,3,13,14,*
1
Department of Pharmacology, School of Medicine, China Medical University, Taichung 404333, Taiwan
2
Graduate Institute of Biomedical Science, China Medical University, Taichung 404333, Taiwan
3
School of Medicine, China Medical University, Taichung 404333, Taiwan
4
Department of Medical Education and Research, China Medical University Beigang Hospital, Yunlin 651012, Taiwan
5
Biotech Research Institute, Grape King Bio Ltd., Taoyuan 325002, Taiwan
6
Institute of Food Science and Technology, National Taiwan University, Taipei 106617, Taiwan
7
Department of Food Science, Nutrition and Nutraceutical Biotechnology, Shih Chien University, Taipei 104336, Taiwan
8
Department of Bioscience Technology, Chung Yuan Christian University, Taoyuan 320314, Taiwan
9
The Ph.D. Program of Biotechnology and Biomedical Industry, China Medical University, Taichung 404333, Taiwan
10
Department of Sports Medicine, College of Health Care, China Medical University, Taichung 404333, Taiwan
11
Department of Orthopaedic Surgery, China Medical University Beigang Hospital, Yunlin 651012, Taiwan
12
Department of Family Medicine, China Medical University Hsinchu Hospital, Hsinchu 302056, Taiwan
13
Chinese Medicine Research Center, China Medical University, Taichung 404333, Taiwan
14
Department of Medical Laboratory Science and Biotechnology, Asia University, Taichung 413305, Taiwan

add Show full affiliation list

remove Hide full affiliation list
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Nutrients 2022, 14(15), 3170; https://doi.org/10.3390/nu14153170
Submission received: 22 June 2022 / Revised: 27 July 2022 / Accepted: 28 July 2022 / Published: 1 August 2022
(This article belongs to the Section Prebiotics and Probiotics)
Browse Figures
Versions Notes

Abstract

:
Osteoarthritis (OA) is a painful, progressive chronic inflammatory disease marked by cartilage destruction. Certain synovial inflammatory cytokines, such as IL-1β and TNF-α, promote OA inflammation and pain. Lactobacillus spp. is a well-known probiotic with anti-inflammatory, analgesic, antioxidant, and antiosteoporotic properties. This study evaluated the therapeutic effects of a live L. plantarum strain (GKD7) in the anterior cruciate ligament transection (ACLT)-induced OA rat model. The results show that oral administration of live L. plantarum GKD7 improved weight-bearing asymmetry after ACLT surgery. Moreover, micro-computed tomography images and histopathological analysis show that oral live L. plantarum GKD7 improved subchondral bone architecture, protected articular cartilage against ACLT-induced damage, and reduced synovial inflammation. L. plantarum GKD7 also reduced IL-1β and TNF-α production in OA cartilage and synovium. Thus, orally administered live L. plantarum GKD7 appears to effectively slow the progression of OA.

1. Introduction

Osteoarthritis (OA) is a chronic inflammatory and degenerative joint disease accompanied by often debilitating pain [1]. MRI and micro-CT scans provide vital objective evidence for clinical diagnosis or experimental research of OA-related damage in synovial tissue, cartilage, and subchondral bone [2,3]. NSAIDs and corticosteroids are the mainstays of OA treatment for reducing OA pain, joint swelling, and stiffness [4,5], while joint replacement is considered to be the last therapeutic option for patients with severe joint pain or dysfunction that cannot be treated with pharmacotherapy [4,6]. Importantly, NSAIDs and corticosteroids have undesirable side effect profiles, some of which can be extremely serious [7]. Thus, safer and more efficient treatment strategies are needed for OA.
Reducing proinflammatory cytokine production (e.g., IL-1β and TNF-α are some of the most important therapeutic aims in OA [5], as these inflammatory mediators play important roles in the destructive changes in cartilage and modification to subchondral bone structural changes in OA [8,9]. The secretion of IL-1β and TNF-α from OA synovial fibroblasts and chondrocytes promote the synthesis of proteolytic enzymes that degrade joint extracellular matrices and thus drive OA, worsening the disease-related synovial inflammation, cartilage degeneration, and subchondral bone lesions [9,10,11]. In experimental OA, inhibiting or reducing pro-inflammatory expression suppresses joint degradation, highlighting the importance of such strategies for OA treatment [12,13].
Probiotic Lactobacillus spp. strains exhibit a wide variety of beneficial activities in human hosts, including reductions in inflammatory activity [14]. This study investigated the ways in which the L. plantarum GKD7 strain affects knee OA in rats subjected to ACLT surgery. Probiotics are considered safe for consumption due to their presence in many foods and their gut defense mechanism [15]. Proinflammatory cytokines such as IL-1β can be reduced by heat-killed L. plantarum L-137 in cardiac and adipose tissue in a rat model of metabolic syndrome, while L. rhamnosus GG can decrease TNF-α expression in lipopolysaccharide-activated murine macrophages [16,17]. L. salivarius UCC118 and L. plantarum WCFS1 have shown anti-arthritic activity in mice with collagen-induced arthritis, with evidence of reduced joint destruction and less proinflammatory cytokine activity [18]. Similarly, diverse Lactobacillus spp., including L. rhamnosus GG and L. rhamnosus LR-2, slow the progression of OA by reducing joint pain and inflammation [19,20]. Moreover, much clinical evidence attests to probiotics reducing intestinal damage and inflammation associated with OA disease and probiotics lessen pain severity and cartilage destruction in animal models of OA [19,21,22]. In our previous study, L. plantarum GKD7 reduced inflammatory cell infiltration in mice with aspirin-induced gastric injury [23]. We, therefore, speculated that L. plantarum GKD7 may slow OA progression by reducing disease-related inflammatory activity. This study examined the effects of orally administered live L. plantarum GKD7 upon joint inflammation, pain, swelling, and function in rats with ACLT-induced OA.

2. Materials and Methods

2.1. Materials

IL-1β antibody (MAB601; final dilution of 1:200) was bought from R&D Systems, Inc. (Minneapolis, MN, USA). TNF-α antibody (A11534; final dilution of 1:200) was bought from ABclonal. Inc. (Woburn, MA, USA). All other chemicals not mentioned above were purchased from Sigma-Aldrich.

2.2. Preparation of L. plantarum GKD7

L. plantarum GKD7 isolated from Taiwanese pickles was cultured in de Man-Rogosa-Sharpe (MRS) medium for lactobacilli (Merck, Darmstadt, Germany) at 37 °C for 16 h. To prepare the L. plantarum GKD7 freeze-dried powder, 0.03% of seed culture was scaled-up in a 15-ton bioreactor with a 12-ton working volume in a culture medium containing 5% glucose, 2% yeast extract, 0.05% MgSO4, 0.1% K2HPO4, and 0.1% Tween 80. After 16 h of incubation at 37 °C, pellets of fermented bacteria were harvested by centrifugation, washed twice with reverse osmosis (RO) water then lyophilized with skim milk. The freeze-dried L. plantarum GKD7 powder contained approximately 5 × 1011 CFU/g live bacteria, according to the plate count method.

2.3. OA Protocol

Eight-week-old male Sprague Dawley rats were supplied by LASCo Inc. (Taipei, Taiwan) and maintained in an animal center under the Institutional Animal Care and Use Committee (IACUC) Guidelines issued by China Medical University (CMU). The rats were randomly assigned to arthrotomy only (controls; n = 6), ACLT alone (n = 6), or ACLT + L. plantarum GKD7 treatment (n = 8). ACLT surgery followed the procedures described in previous studies [24,25]. Briefly, the rats were anesthetized with Zoletil 50® (Virbac, Carros, France) before undergoing an arthrotomy to expose the right knee joint, in which the ACL was cut by micro-scissors using surgical loupes. ACLT success was confirmed by the anterior drawer test. Starting from two days after surgery, the daily diet was supplemented with 1 mL RO water in all 3 study groups. L. plantarum GKD7 powder was suspended evenly in RO water and administered daily to each individual rat as an oral 100 mg/kg (5 × 1010 CFU/kg) dose for 6 weeks in the ACLT + L. plantarum GKD7 group; the ACLT-only group and controls were each dosed daily with RO water alone. All rats were sacrificed by CO2 on day 49 and the right hind knee samples were collected for micro-CT and pathological analysis, as well as immunohistochemistry (IHC) staining. All experimental procedures were approved by the IACUC of CMU (approval number: CMUIACUC-2021-291).

2.4. Weight-Bearing Testing of Hind Paws

The static weight-bearing incapacitance test (Bioseb, Paris, France) was performed every week to assess spontaneous pain and postural deficits. Each rat was placed in an angled plastic chamber and the hind paws were placed on separate sensors to measure between-limb differences in dynamic weight bearing (expressed as g) over a 10-s period [26]. The force value was calculated by the following equation: [Force = weight on left limb − weight on right limb]. Each experiment was repeated 3 times and the mean was recorded for each rat.

2.5. Micro-CT Analysis

The right knee joints were collected from the rats after sacrificing with CO2 and fixed with 4% paraformaldehyde for micro-CT imaging and analysis [27]. Samples were imaged by a high-resolution micro-CT scanner (Skyscan 2211; Bruker, Kontich, Belgium) under the conditions selected in previous studies [28,29], and InstaRecon® software (Version v.1.3.9.2, Bruker micro-CT, Kontich, Belgium) was used for image reconstruction. Reconstructed cross-sections were reorientated and 59 slices (0.5 mm) were selected, then manual regions of interest (ROI) were drawn following our previous studies [28,29]. The analysis of bone microarchitectural parameters, including BMD (bone mineral density), BMC (bone mineral content), BV/TV (bone volume/tissue volume), BS/TV (bone surface/tissue volume), trabecular thickness (Tb.Th), trabecular separation (Tb.Sp), and trabecular number (Tb.N) were performed by CTAn software (Version 1.18.4, Bruker micro-CT, Kontich, Belgium) following our previous studies [28,29].

2.6. Histopathological Analysis

After undergoing micro-CT scanning, the right knee joints were prepared for hamatoxylin and eosin (H&E) staining, Safranin-O/Fast-green staining, or immunohistochemistry (IHC) staining. Briefly, the right knee joints were decalcified by 10% EDTA in phosphate-buffered saline and embedded into paraffin blocks for histology slices with H&E, Safranin-O/Fast-green, and IHC staining. Histopathological changes using an optical microscope, following our previously published procedures [27,30,31,32]. The Osteoarthritis Research Society International (OARSI) histopathology grading system evaluated changes in structural cartilage from the medial tibial plateau (the weight-bearing area) [33,34], defining the grade of damage from 0 to 6 as the depth of OA progression into the cartilage and the stage of damage as the horizontal extent of cartilage damage from 0 to 4. The final score (grade × stage) ranges from 0 (normal cartilage) to 24 points (most advanced grade and most extensive stage) as in previous studies [33,34]. Cartilage degeneration was scored as ‘none’ to ‘severe’ (numerical values 0 to 5) [33,34], and surgery-induced inflammation in the synovial membrane was graded from 0 to 4 as described in our previous studies [35,36].

2.7. Statistical Analysis

All data are shown as the mean ± SD and analyzed by using Sigma Plot 12.0 software (Systat Software Inc., Berlin, Germany). The significant difference between the three groups was analyzed by using the unpaired two-tailed Student’s t-test and one-way analysis of variance followed by Student-Newman-Keuls post hoc testing. A p-value of <0.05 was considered to be statistically significant.

3. Results

3.1. Oral Live L. plantarum GKD7 Reduces Pain-Related Behavior without Affecting Body Weight

By week 6, all 3 study groups had steadily gained body weight from baseline, without any significant between-group differences (Figure 1). At week 1, measurements of asymmetry in weight-bearing posture did not differ significantly between the ACLT-only and ACLT + L. plantarum GKD7 groups (52.0 ± 3.7 g vs. 46.1 ± 6.0; p = 0.06). From week 1 onwards, ACLT-only rats exhibited severe asymmetry in weight-bearing posture, whereas pain-related behavior in the ACLT + L. plantarum GKD7 group was markedly improved from the second week onwards; by week 6, the asymmetry in weight-bearing behavior was approximately half that of the ACLT-only group (22.4 ± 5.0 g vs. 58.1  ±  6.7 g; p ≤ 0.05) and close to that of the control group (7.7 ± 2.8 g; p < 0.05) (Figure 2).

3.2. Micro-CT Analysis Revealed Protective Effects of L. plantarum GKD7 in OA Bone

Coronal and transverse micro-CT images revealed marked subchondral bone loss in the ACLT-only group compared with controls, whereas minimal loss was evident in the ACLT + L. plantarum GKD7-treated rats (Figure 3A). BMD, BMC, BV/TV, BS/TV, Tb.Th, and Tb.N measurements were all significantly smaller, while Tb.Sp measurements were significantly larger, in the ACLT-only group compared with controls (Figure 3B–H). In contrast, daily oral administration of live L. plantarum GKD7 was associated with significant improvements in changes to subchondral bone induced by ACLT surgery (Figure 3B–H). Thus, L. plantarum GKD7 appears to reduce deleterious changes to knee joint structure induced by ACLT.

3.3. Histopathological Analysis of L. plantarum GKD7 in OA Rats

Staining by H&E and Safranin-O/Fast Green revealed less injury (imaged were more intact) in articular cartilage samples from the controls and ACLT + L. plantarum GKD7 group compared with the minimal cartilage in the ACLT-only samples (Figure 4A). ACLT-induced synovial inflammation (marked by arrowheads) and cartilage damage (arrows) were minimal in the ACLT + L. plantarum GKD7 samples, but very apparent in the ACLT-only samples (Figure 4A). OARSI, cartilage, and synovium scores were significantly superior in the ACLT + L. plantarum GKD7 group compared with scores in the ACLT-only group, while the ACLT-only scores were significantly superior compared with the control group (Figure 4B–D).

3.4. IHC Analysis of Proinflammatory Markers

As shown in Figure 5A and Figure 6A, IL-1β and TNF-α levels were markedly upregulated in ACLT-only cartilage and synovium compared with control and L. plantarum GKD7 cartilage and synovium. The ACLT-only group had significantly higher IHC scores of cartilage and synovium compared with both the controls and the L. plantarum GKD7 group; these values were significantly decreased by L. plantarum GKD7 when compared with ACLT-only (Figure 5B,C and Figure 6B,C).

4. Discussion

Proinflammatory cytokines have an important role in OA joint destruction [8,37], promoting damage in joint extracellular matrices and stimulating the progression of OA [9,10]. High IL-1β and TNF-α levels upregulate proteolytic enzymes, such as MMPs and ADAMTS family, which degrade the extracellular matrix [9,11]. Probiotics are well recognized for their anti-inflammatory properties [38,39] and previous research has highlighted the IL-1β and TNF-α cytokines as important targets in probiotic treatment strategies for arthritic diseases [19,40]. In particular, consumption of Lactobacillus spp. reduces proinflammatory cytokine production in experimental OA [19,41,42]. This was supported by our study results, as IL-1β and TNF-α levels in rat cartilage and synovium were markedly reduced by daily oral administration of live L. plantarum GKD7.
Coronal and transverse micro-CT imaging revealed minimal changes in subchondral bone architecture in the ACLT + L. plantarum GKD7 group, whereas there was marked subchondral bone loss in the ACLT-only group compared with controls. Subchondral bone lesions, including bone marrow edema and angiogenesis, are known to contribute to OA joint destruction [43,44], while IL-1β and TNF-α stimulate MMPs and ADAMTSs activity that subsequently worsens bone architecture, reflected by reductions in BMD, BMC and BV values, which promote OA disease progression [9,45]. The recent studies also indicated that subchondral bone lesions, including bone marrow edema and angiogenesis, also contribute to the OA joint destruction. Our micro-CT images revealed significant improvements in bone microarchitectural parameters of rats treated with live L. plantarum GKD7 following ACLT surgery compared with ACLT-only rats. In the L. plantarum GKD7 group, we observed significantly lower cartilage and synovium IHC scores, and also significantly reduced IL-1β and TNF-α levels, compared with the ACLT-only group. We, therefore, speculate that L. plantarum GKD7 ameliorates OA-induced changes in bone microarchitectural parameters by inhibiting proinflammatory levels in cartilage and synovial tissue. Thus, our data suggest that daily oral administration of live L. plantarum GKD7 can effectively reduce synovial inflammation and damage to bone architecture induced by ACLT surgery.
OA disease is accompanied by often severe pain [46]. In OA, the upregulation of TNF-α and IL-1β expression in the injured joint induces mechanical pain hypersensitivity by increasing the expression of nerve growth factor, which in turn increases the phosphorylation state of transient receptor potential vanilloid receptor 1 (TRPV1) [46,47,48], critical mediators of inflammatory pain signaling. Moreover, OA-induced disturbance of subchondral bone and cartilage destruction results in abnormal load-bearing in the joints and is an important contributor to chronic pain during non-weight-bearing activities [44,49]. This abnormal load-bearing causes the release of multiple signaling mediators such as nerve growth factor, neuropeptide substance P, and neurokinin-1 in the osteochondral area, resulting in persistent nociception stimulation and the characteristic OA pain [44]. Thus, reducing the expression of TNF-α and IL-1β and improving the cartilage destruction and “abnormal” loading within the subchondral bone are important targets of OA treatment [1,43,45]. In our results, ACLT surgery significantly increased levels of TNF-α and IL-1β expression, led to the development of weight-bearing deficits in rat hind legs, and structural damage in articular cartilage, compared with changes observed in the sham-operated group. Daily oral administration of live L. plantarum GKD7 significantly reduced these ACLT-induced effects, which suggests that this probiotic strain can effectively ameliorate OA pain.

5. Conclusions

Consumption of live L. plantarum GKD7 may improve OA disease progression and associated joint pain by reducing levels of IL-1β and TNF-α in OA joints and by improving weight-bearing asymmetry. We suggest that L. plantarum GKD7 may be a useful strategy for improving the signs and symptoms of OA.

Author Contributions

Data curation, Y.-Y.L., S.L.-Y.C., S.-C.L., D.A. and J.-W.C.; Investigation, Y.-Y.L., S.L.-Y.C. and S.-C.L.; Methodology, Y.-Y.L., S.L.-Y.C., D.A. and C.-H.T.; Conceptualization, S.L.-Y.C., S.-C.L., C.-C.C. and C.-H.T.; Supervision, C.-C.C., S.-L.H. and C.-H.T.; Resources, Y.-S.T. and C.-H.T.; Project administration, S.-W.L., Y.-L.C., Y.-C.F., S.-L.H. and C.-H.T.; Writing-review & editing. Y.-Y.L., S.L.-Y.C., S.-L.H. and C.-H.T. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by grants from CMU Hospital (DMR-111-108; DMR-111-229), and CMU Hsinchu Hospital (CMUHCH-DMR-111-010).

Institutional Review Board Statement

All experimental procedures were approved by the IACUC of CMU (approval number: CMUIACUC-2021-291).

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw data for this study are available from the corresponding authors.

Acknowledgments

We thank Iona J. MacDonald (China Medical University) for her English language revision of this article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Conaghan, P.G.; Cook, A.D.; Hamilton, J.A.; Tak, P.P. Therapeutic options for targeting inflammatory osteoarthritis pain. Nat. Rev. Rheumatol. 2019, 15, 355–363. [Google Scholar] [CrossRef] [PubMed]
  2. Keen, H.I.; Hensor, E.; Wakefield, R.J.; Mease, P.J.; Bingham, C.O.; Conaghan, P.G. Ultrasound assessment of response to intra-articular therapy in osteoarthritis of the knee. Rheumatology 2015, 54, 1385–1391. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Drevet, S.; Favier, B.; Lardy, B.; Gavazzi, G.; Brun, E. New imaging tools for mouse models of osteoarthritis. GeroScience 2022, 44, 639–650. [Google Scholar] [CrossRef] [PubMed]
  4. Thomson, A.; Hilkens, C.M.U. Synovial Macrophages in Osteoarthritis: The Key to Understanding Pathogenesis? Front. Immunol. 2021, 12, 678575. [Google Scholar] [CrossRef] [PubMed]
  5. Cho, H.; Walker, A.; Williams, J.; Hasty, K.A. Study of Osteoarthritis Treatment with Anti-Inflammatory Drugs: Cyclooxygenase-2 Inhibitor and Steroids. BioMed Res. Int. 2015, 2015, 595273. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Hunter, D.J.; Bierma-Zeinstra, S. Osteoarthritis. Lancet 2019, 393, 1745–1759. [Google Scholar] [CrossRef]
  7. Bindu, S.; Mazumder, S.; Bandyopadhyay, U. Non-steroidal anti-inflammatory drugs (NSAIDs) and organ damage: A current perspective. Biochem. Pharmacol. 2020, 180, 114147. [Google Scholar] [CrossRef]
  8. Wojdasiewicz, P.; Poniatowski, L.A.; Szukiewicz, D. The Role of Inflammatory and Anti-Inflammatory Cytokines in the Pathogenesis of Osteoarthritis. Mediat. Inflamm. 2014, 2014, 561459. [Google Scholar] [CrossRef] [Green Version]
  9. Molnar, V.; Matišić, V.; Kodvanj, I.; Bjelica, R.; Jeleč, Z.; Hudetz, D.; Rod, E.; Čukelj, F.; Vrdoljak, T.; Vidović, D.; et al. Cytokines and Chemokines Involved in Osteoarthritis Pathogenesis. Int. J. Mol. Sci. 2021, 22, 9208. [Google Scholar] [CrossRef]
  10. Razak, H.R.B.A.; Chew, D.; Kazezian, Z.; Bull, A.M.J. Autologous protein solution: A promising solution for osteoarthritis? EFORT Open Rev. 2021, 6, 716–726. [Google Scholar] [CrossRef]
  11. Musumeci, G.; Aiello, F.C.; Szychlinska, M.A.; Di Rosa, M.; Castrogiovanni, P.; Mobasheri, A. Osteoarthritis in the XXIst Century: Risk Factors and Behaviours that Influence Disease Onset and Progression. Int. J. Mol. Sci. 2015, 16, 6093–6112. [Google Scholar] [CrossRef] [PubMed]
  12. Jotanovic, Z.; Mihelic, R.; Sestan, B.; Dembic, Z. Role of interleukin-1 inhibitors in osteoarthritis: An evidence-based review. Drugs Aging 2012, 29, 343–358. [Google Scholar] [CrossRef]
  13. Li, H.; Xie, S.; Qi, Y.; Li, H.; Zhang, R.; Lian, Y. TNF-α increases the expression of inflammatory factors in synovial fibroblasts by inhibiting the PI3K/AKT pathway in a rat model of monosodium iodoacetate-induced osteoarthritis. Exp. Ther. Med. 2018, 16, 4737–4744. [Google Scholar] [CrossRef] [Green Version]
  14. Lee, C.S.; Kim, S.H. Anti-inflammatory and Anti-osteoporotic Potential of Lactobacillus plantarum A41 and L. fermentum SRK414 as Probiotics. Probiotics Antimicrob. Proteins 2020, 12, 623–634. [Google Scholar] [CrossRef]
  15. Arasu, M.V.; Al-Dhabi, N.A.; Ilavenil, S.; Choi, K.C.; Srigopalram, S. In vitro importance of probiotic Lactobacillus plantarum related to medical field. Saudi J. Biol. Sci. 2016, 23, S6–S10. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Uchinaka, A.; Azuma, N.; Mizumoto, H.; Nakano, S.; Minamiya, M.; Yoneda, M.; Aoyama, K.; Komatsu, Y.; Yamada, Y.; Murohara, T.; et al. Anti-inflammatory effects of heat-killed Lactobacillus plantarum L-137 on cardiac and adipose tissue in rats with metabolic syndrome. Sci. Rep. 2018, 8, 8156. [Google Scholar] [CrossRef]
  17. Pena, J.A.; Versalovic, J. Lactobacillus rhamnosus GG decreases TNF-alpha production in lipopolysaccharide-activated murine macrophages by a contact-independent mechanism. Cell. Microbiol. 2003, 5, 277–285. [Google Scholar] [CrossRef] [PubMed]
  18. Liu, X.; Zhang, J.; Zou, Q.; Zhong, B.; Wang, H.; Mou, F.; Wu, L.; Fang, Y. Lactobacillus salivarius Isolated from Patients with Rheumatoid Arthritis Suppresses Collagen-Induced Arthritis and Increases Treg Frequency in Mice. J. Interferon Cytokine Res. Off. J. Int. Soc. Interferon Cytokine Res. 2016, 36, 706–712. [Google Scholar] [CrossRef] [PubMed]
  19. Jhun, J.; Cho, K.H.; Lee, D.H.; Kwon, J.Y.; Woo, J.S.; Kim, J.; Na, H.S.; Park, S.H.; Kim, S.J.; Cho, M.L. Oral Administration of Lactobacillus rhamnosus Ameliorates the Progression of Osteoarthritis by Inhibiting Joint Pain and Inflammation. Cells 2021, 10, 1057. [Google Scholar] [CrossRef] [PubMed]
  20. Wei, Z.; Li, F.; Pi, G. Association Between Gut Microbiota and Osteoarthritis: A Review of Evidence for Potential Mechanisms and Therapeutics. Front. Cell. Infect. Microbiol. 2022, 12, 812596. [Google Scholar] [CrossRef]
  21. Korotkyia, O.K.; Kobyliakb, Y.; Falalyeyevaa, T.; Ostapchenkoa, L. Crosstalk between gut microbiota and osteoarthritis: A critical view. J. Funct. Foods 2020, 68, 14. [Google Scholar]
  22. Lin, Y.-Y.; Chen, N.-F.; Yang, S.-N.; Jean, Y.-H.; Kuo, H.-M.; Chen, P.-C.; Feng, C.-W.; Liu, Y.-W.; Lai, Y.-C.; Wen, Z.-H. Effects of Streptococcus thermophilus on anterior cruciate ligament transection-induced early osteoarthritis in rats. Exp. Ther. Med. 2021, 21, 222. [Google Scholar] [CrossRef] [PubMed]
  23. Shih-Yang, T.; You-Shan, T.; Shih-Wei, L.; Wen-Shin, W.; Yen-Lien, C.; Chin-Chu, C. A Screening of Complex Probiotics for Reducing Aspirin-Induced Gastric Injury in Mice. Hans J. Food Nutr. Sci. 2022, 11, 9. [Google Scholar] [CrossRef]
  24. Lin, Y.Y.; Ko, C.Y.; Liu, S.C.; Wang, Y.H.; Hsu, C.J.; Tsai, C.H.; Wu, T.J.; Tang, C.H. miR-144-3p ameliorates the progression of osteoarthritis by targeting IL-1beta: Potential therapeutic implications. J. Cell Physiol. 2021, 236, 6988–7000. [Google Scholar] [CrossRef]
  25. Lee, K.T.; Su, C.H.; Liu, S.C.; Chen, B.C.; Chang, J.W.; Tsai, C.H.; Huang, W.C.; Hsu, C.J.; Chen, W.C.; Wu, Y.C.; et al. Cordycerebroside A inhibits ICAM-1-dependent M1 monocyte adhesion to osteoarthritis synovial fibroblasts. J. Food Biochem. 2022, 46, e14108. [Google Scholar] [CrossRef]
  26. Hou, P.-W.; Liu, S.-C.; Tsay, G.J.; Tang, C.-H.; Chang, H.-H. The Traditional Chinese Medicine “Hu-Qian-Wan” Attenuates Osteoarthritis-Induced Signs and Symptoms in an Experimental Rat Model of Knee Osteoarthritis. Evid. Based Complement. Altern. Med. 2022, 2022, 5367494. [Google Scholar] [CrossRef]
  27. Wang, Y.-H.; Kuo, S.-J.; Liu, S.-C.; Wang, S.-W.; Tsai, C.-H.; Fong, Y.-C.; Tang, C.-H. Apelin Affects the Progression of Osteoarthritis by Regulating VEGF-Dependent Angiogenesis and miR-150-5p Expression in Human Synovial Fibroblasts. Cells 2020, 9, 594. [Google Scholar] [CrossRef] [Green Version]
  28. Chen, W.-C.; Lin, C.-Y.; Kuo, S.-J.; Liu, S.-C.; Lu, Y.-C.; Chen, Y.-L.; Wang, S.-W.; Tang, C.-H. Resistin Enhances VCAM-1 Expression and Monocyte Adhesion in Human Osteoarthritis Synovial Fibroblasts by Inhibiting MiR-381 Expression through the PKC, p38, and JNK Signaling Pathways. Cells 2020, 9, 1369. [Google Scholar] [CrossRef]
  29. Liu, S.-C.; Tsai, C.-H.; Wang, Y.-H.; Su, C.-M.; Wu, H.-C.; Fong, Y.-C.; Yang, S.-F.; Tang, C.-H. Melatonin abolished proinflammatory factor expression and antagonized osteoarthritis progression in vivo. Cell Death Dis. 2022, 13, 215. [Google Scholar] [CrossRef]
  30. Chang, T.-K.; Wang, Y.-H.; Kuo, S.-J.; Wang, S.-W.; Tsai, C.-H.; Fong, Y.-C.; Wu, N.-L.; Liu, S.-C.; Tang, C.-H. Apelin enhances IL-1β expression in human synovial fibroblasts by inhibiting miR-144-3p through the PI3K and ERK pathways. Aging 2020, 12, 9224–9239. [Google Scholar] [CrossRef]
  31. Lee, H.-P.; Liu, S.-C.; Wang, Y.-H.; Chen, B.-C.; Chen, H.-T.; Li, T.-M.; Huang, W.-C.; Hsu, C.-J.; Wu, Y.-C.; Tang, C.-H. Cordycerebroside A suppresses VCAM-dependent monocyte adhesion in osteoarthritis synovial fibroblasts by inhibiting MEK/ERK/AP-1 signaling. J. Funct. Foods 2021, 86, 104712. [Google Scholar] [CrossRef]
  32. Achudhan, D.; Liu, S.-C.; Lin, Y.-Y.; Lee, H.-P.; Wang, S.-W.; Huang, W.-C.; Wu, Y.-C.; Kuo, Y.-H.; Tang, C.-H. Antcin K inhibits VEGF-dependent angiogenesis in human rheumatoid arthritis synovial fibroblasts. J. Food Biochem. 2021, 46, e14022. [Google Scholar] [CrossRef] [PubMed]
  33. Pritzker, K.P.; Gay, S.; Jimenez, S.A.; Ostergaard, K.; Pelletier, J.P.; Revell, P.A.; Salter, D.; van den Berg, W.B. Osteoarthritis cartilage histopathology: Grading and staging. Osteoarthr. Cartil. 2006, 14, 13–29. [Google Scholar] [CrossRef] [Green Version]
  34. Gerwin, N.; Bendele, A.M.; Glasson, S.; Carlson, C.S. The OARSI histopathology initiative–recommendations for histological assessments of osteoarthritis in the rat. Osteoarthr. Cartil. 2010, 18, S24–S34. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Wirth, M.; Jira, D.; Ott, A.; Piontek, G.; Pickhard, A. High NOTCH1 mRNA Expression Is Associated with Better Survival in HNSCC. Int. J. Mol. Sci. 2018, 19, 830. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Lee, H.-P.; Wu, Y.-C.; Chen, B.-C.; Liu, S.-C.; Li, T.-M.; Huang, W.-C.; Hsu, C.-J.; Tang, C.-H. Soya-cerebroside reduces interleukin production in human rheumatoid arthritis synovial fibroblasts by inhibiting the ERK, NF-κB and AP-1 signalling pathways. Food Agric. Immunol. 2020, 31, 740–750. [Google Scholar] [CrossRef]
  37. Sanchez-Lopez, E.; Coras, R.; Torres, A.; Lane, N.E.; Guma, M. Synovial inflammation in osteoarthritis progression. Nat. Rev. Rheumatol. 2022, 18, 258–275. [Google Scholar] [CrossRef]
  38. Hao, X.; Shang, X.; Liu, J.; Chi, R.; Zhang, J.; Xu, T. The gut microbiota in osteoarthritis: Where do we stand and what can we do? Arthritis Res. Ther. 2021, 23, 42. [Google Scholar] [CrossRef]
  39. Warman, D.J.; Jia, H.; Kato, H. The Potential Roles of Probiotics, Resistant Starch, and Resistant Proteins in Ameliorating Inflammation during Aging (Inflammaging). Nutrients 2022, 14, 747. [Google Scholar] [CrossRef] [PubMed]
  40. Su, C.; Lin, C.; Tsai, C.; Lee, H.; Lo, L.; Huang, W.; YC, W.; Hsieh, C.; Tang, C. Betulin suppresses TNF-α and IL-1β production in osteoarthritis synovial fibroblasts by inhibiting the MEK/ERK/NF-κB pathway. J. Funct. Foods 2021, 86, 104729. [Google Scholar] [CrossRef]
  41. Lee, S.H.; Kwon, J.Y.; Jhun, J.; Jung, K.; Park, S.-H.; Yang, C.W.; Cho, Y.; Kim, S.J.; Cho, M.-L. Lactobacillus acidophilus ameliorates pain and cartilage degradation in experimental osteoarthritis. Immunol. Lett. 2018, 203, 6–14. [Google Scholar] [CrossRef] [PubMed]
  42. Song, W.; Liu, Y.; Dong, X.; Song, C.; Bai, Y.; Hu, P.; Li, L.; Wang, T. Lactobacillus M5 prevents osteoarthritis induced by a high-fat diet in mice. J. Funct. Foods 2020, 72, 104039. [Google Scholar] [CrossRef]
  43. Hu, W.; Chen, Y.; Dou, C.; Dong, S. Microenvironment in subchondral bone: Predominant regulator for the treatment of osteoarthritis. Ann. Rheum. Dis. 2020, 80, 413–422. [Google Scholar] [CrossRef] [PubMed]
  44. Hu, Y.; Chen, X.; Wang, S.; Jing, Y.; Su, J. Subchondral bone microenvironment in osteoarthritis and pain. Bone Res. 2021, 9, 20. [Google Scholar] [CrossRef]
  45. Calich, A.L.G.; Domiciano, D.S.; Fuller, R. Osteoarthritis: Can anti-cytokine therapy play a role in treatment? Clin. Rheumatol. 2010, 29, 451–455. [Google Scholar] [CrossRef] [PubMed]
  46. Miller, R.E.; Miller, R.J.; Malfait, A.-M. Osteoarthritis joint pain: The cytokine connection. Cytokine 2014, 70, 185–193. [Google Scholar] [CrossRef] [Green Version]
  47. Shang, X.; Wang, Z.; Tao, H. Mechanism and therapeutic effectiveness of nerve growth factor in osteoarthritis pain. Ther. Clin. Risk Manag. 2017, 13, 951–956. [Google Scholar] [CrossRef] [Green Version]
  48. Takano, S.; Uchida, K.; Miyagi, M.; Inoue, G.; Fujimaki, H.; Aikawa, J.; Iwase, D.; Minatani, A.; Iwabuchi, K.; Takaso, M. Nerve Growth Factor Regulation by TNF-αand IL-1βin Synovial Macrophages and Fibroblasts in Osteoarthritic Mice. J. Immunol. Res. 2016, 2016, 570639. [Google Scholar] [CrossRef] [Green Version]
  49. Burnett, W.D.; Kontulainen, S.A.; McLennan, C.E.; Hazel, D.; Talmo, C.; Hunter, D.J.; Wilson, D.R.; Johnston, J.D. Knee osteoarthritis patients with severe nocturnal pain have altered proximal tibial subchondral bone mineral density. Osteoarthr. Cartil. 2015, 23, 1483–1490. [Google Scholar] [CrossRef] [Green Version]
Nutrients 14 03170 g001 550

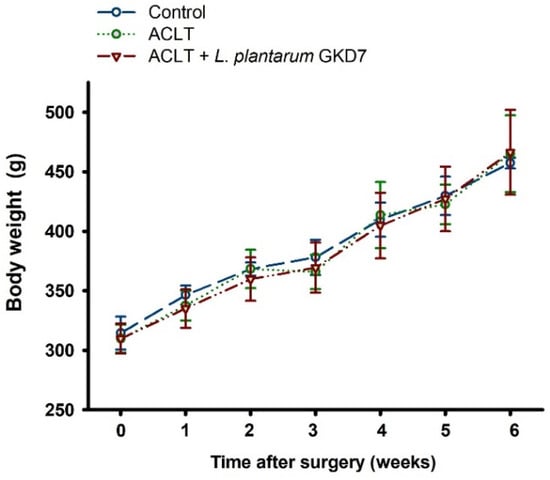

Figure 1. Oral live L. plantarum GKD7 did not affect body weight in the OA rat model. Body weights of ACLT rats that did or did not receive oral live administration of live L. plantarum GKD7 were not significantly different from those of controls.
Figure 1. Oral live L. plantarum GKD7 did not affect body weight in the OA rat model. Body weights of ACLT rats that did or did not receive oral live administration of live L. plantarum GKD7 were not significantly different from those of controls.
Nutrients 14 03170 g001
Nutrients 14 03170 g002 550

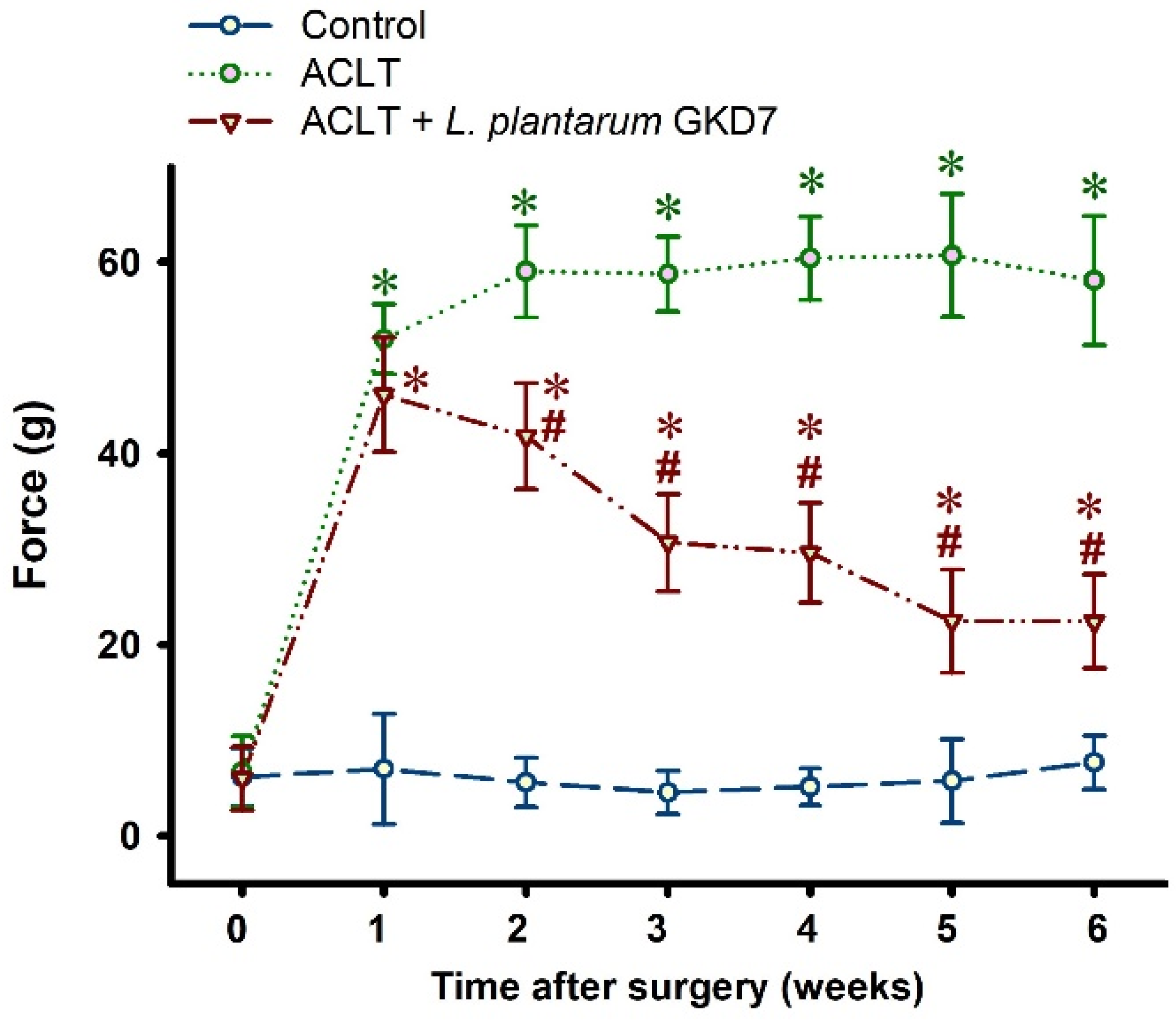

Figure 2. Oral live L. plantarum GKD7 improved weight-bearing deficits after ACLT surgery. Daily oral administration of live L. plantarum GKD7 was associated with significantly less weight-bearing asymmetry after ACLT surgery compared with ACLT-only rats. * p < 0.05 vs. controls; # p < 0.05 vs. the ACLT-only group.
Figure 2. Oral live L. plantarum GKD7 improved weight-bearing deficits after ACLT surgery. Daily oral administration of live L. plantarum GKD7 was associated with significantly less weight-bearing asymmetry after ACLT surgery compared with ACLT-only rats. * p < 0.05 vs. controls; # p < 0.05 vs. the ACLT-only group.
Nutrients 14 03170 g002
Nutrients 14 03170 g003 550

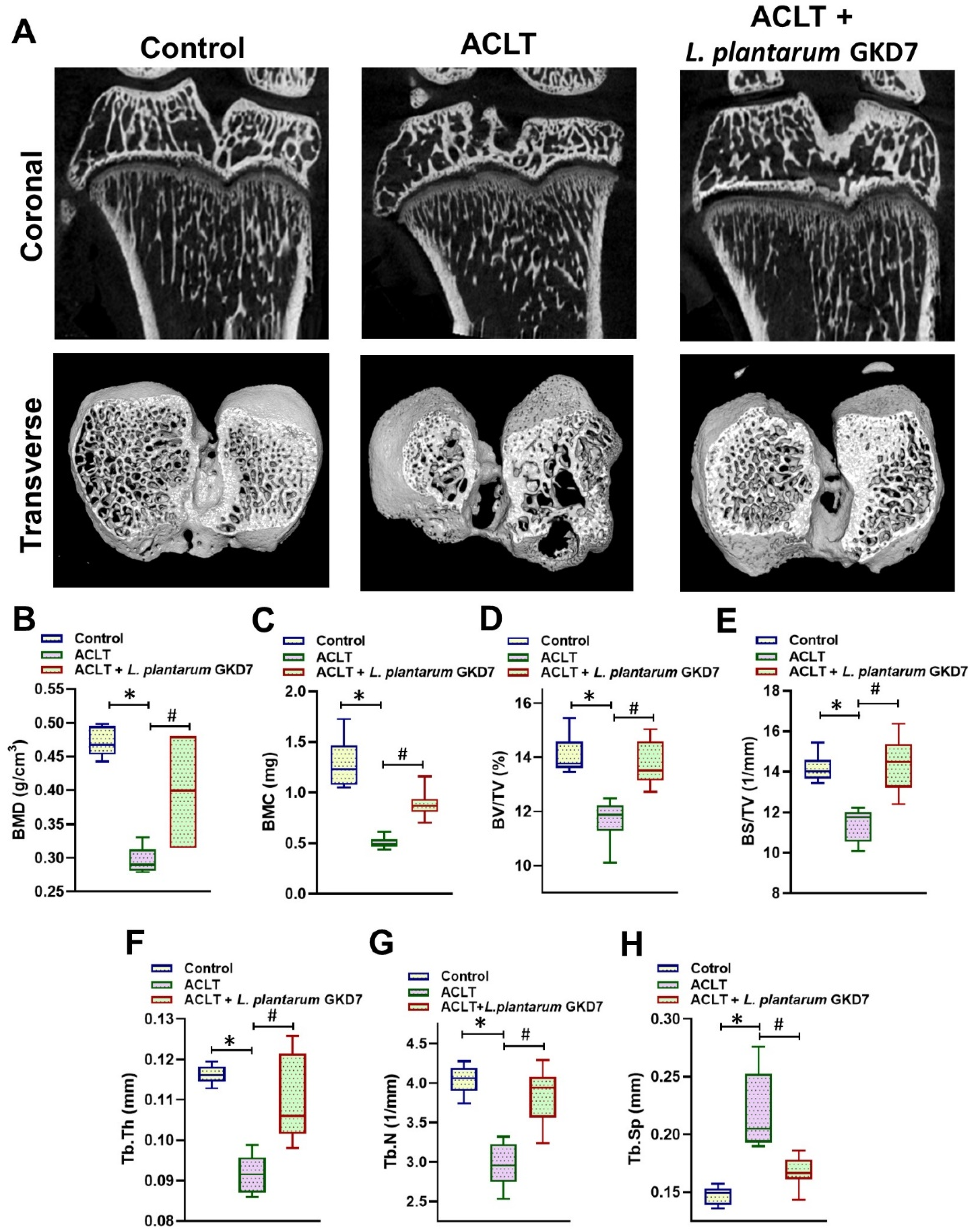

Figure 3. Representative micro-CT images of the right knee joint from rats in the sham-operated group, the ACLT-only group, and the ACLT + L. plantarum GKD7 group. (A) Representative coronal and transverse micro-CT images of rat knees in each study group. Quantitative analyses of (B) BMD, (C) BMC, (D) BV/TV, (E) BS/TV, (F) Tb.Th, (G) Tb.N, and (H) Tb.Sp. * p < 0.05 vs. controls; # p < 0.05 vs. the ACLT-only group.
Figure 3. Representative micro-CT images of the right knee joint from rats in the sham-operated group, the ACLT-only group, and the ACLT + L. plantarum GKD7 group. (A) Representative coronal and transverse micro-CT images of rat knees in each study group. Quantitative analyses of (B) BMD, (C) BMC, (D) BV/TV, (E) BS/TV, (F) Tb.Th, (G) Tb.N, and (H) Tb.Sp. * p < 0.05 vs. controls; # p < 0.05 vs. the ACLT-only group.
Nutrients 14 03170 g003
Nutrients 14 03170 g004 550

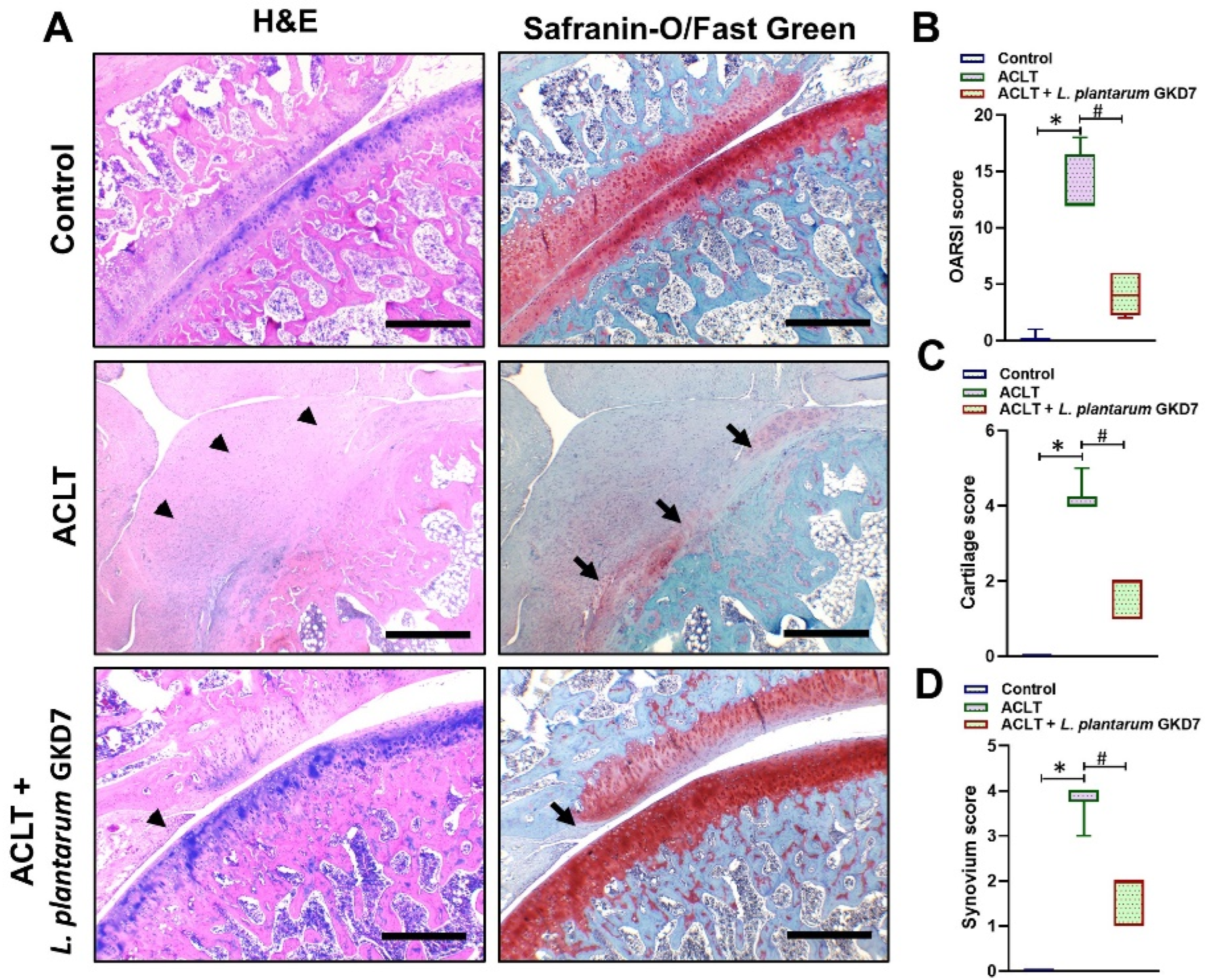

Figure 4. Histological evidence. (A) The images show representative knee joints from each group, consisting of coronal sections of articular cartilage stained with H&E and Safranin-O/Fast Green (magnification 5×). The arrowheads denote synovial hyperplasia and the arrows denote cartilage damage. Quantitative analyses of (B) OARSI scores, (C) cartilage scores, and (D) synovium scores. Scale bar = 500 µm. * p < 0.05 vs. controls; # p < 0.05 vs. the ACLT-only group.
Figure 4. Histological evidence. (A) The images show representative knee joints from each group, consisting of coronal sections of articular cartilage stained with H&E and Safranin-O/Fast Green (magnification 5×). The arrowheads denote synovial hyperplasia and the arrows denote cartilage damage. Quantitative analyses of (B) OARSI scores, (C) cartilage scores, and (D) synovium scores. Scale bar = 500 µm. * p < 0.05 vs. controls; # p < 0.05 vs. the ACLT-only group.
Nutrients 14 03170 g004
Nutrients 14 03170 g005 550

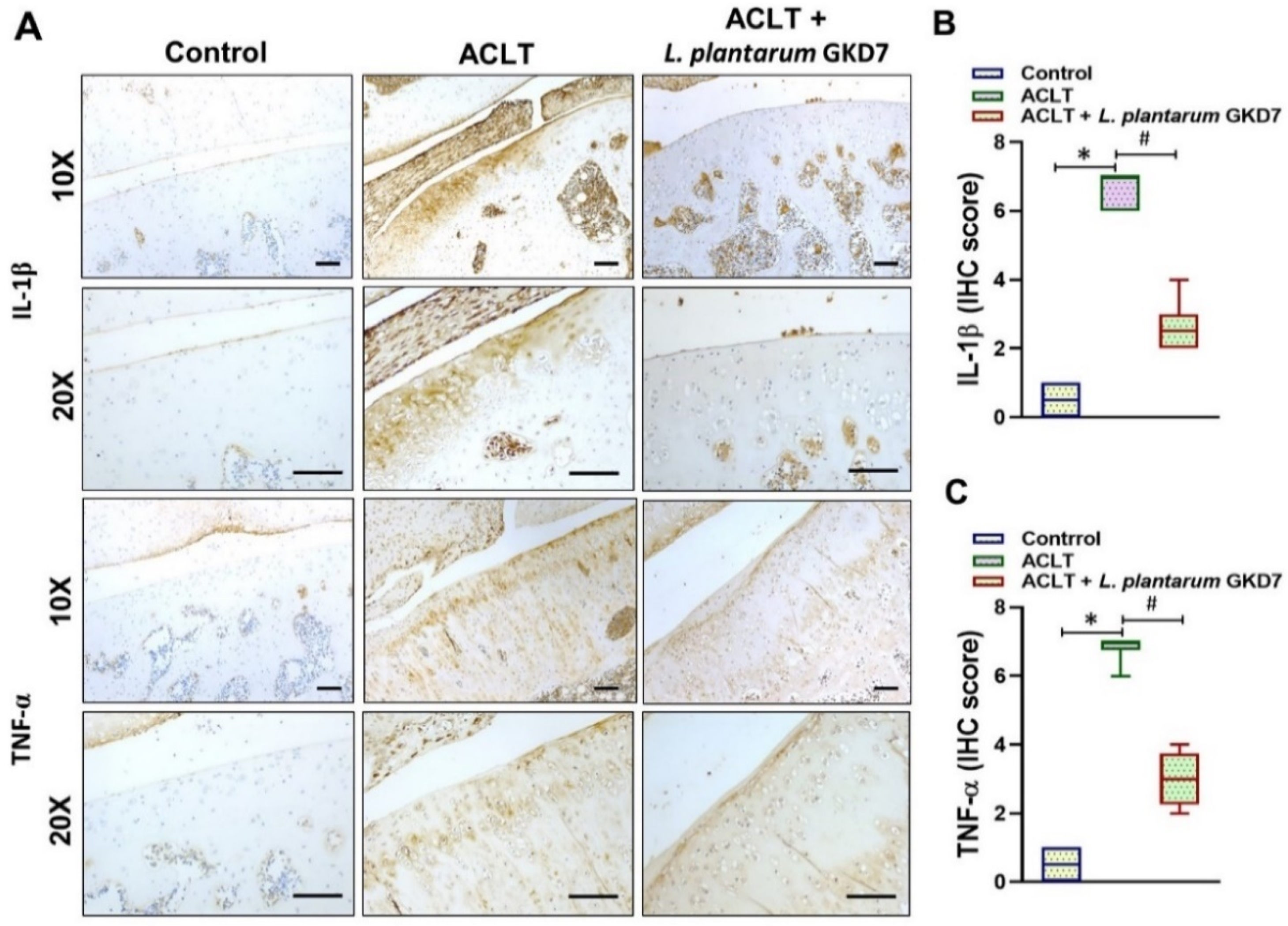

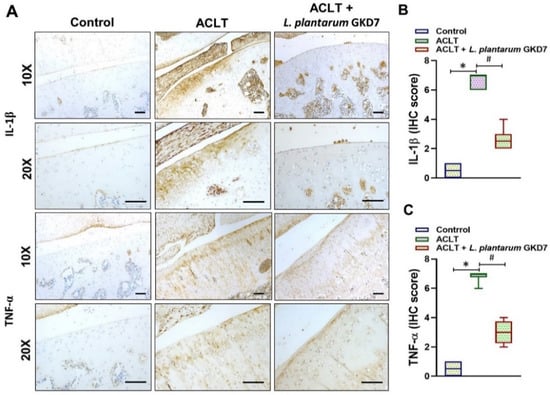

Figure 5. Oral live L. plantarum GKD7 reduced key proinflammatory cytokines in OA cartilage. (A) IHC staining of IL-1β and TNF-α expression in representative cartilage from controls, ACLT-only rats, and ACLT + L. plantarum GKD7 rats. Quantitative analyses of (B) IL-1β and (C) TNF-α in cartilage. Scale bar = 100 µm. * p < 0.05 vs. controls; # p < 0.05 vs. the ACLT-only group.
Figure 5. Oral live L. plantarum GKD7 reduced key proinflammatory cytokines in OA cartilage. (A) IHC staining of IL-1β and TNF-α expression in representative cartilage from controls, ACLT-only rats, and ACLT + L. plantarum GKD7 rats. Quantitative analyses of (B) IL-1β and (C) TNF-α in cartilage. Scale bar = 100 µm. * p < 0.05 vs. controls; # p < 0.05 vs. the ACLT-only group.
Nutrients 14 03170 g005
Nutrients 14 03170 g006 550

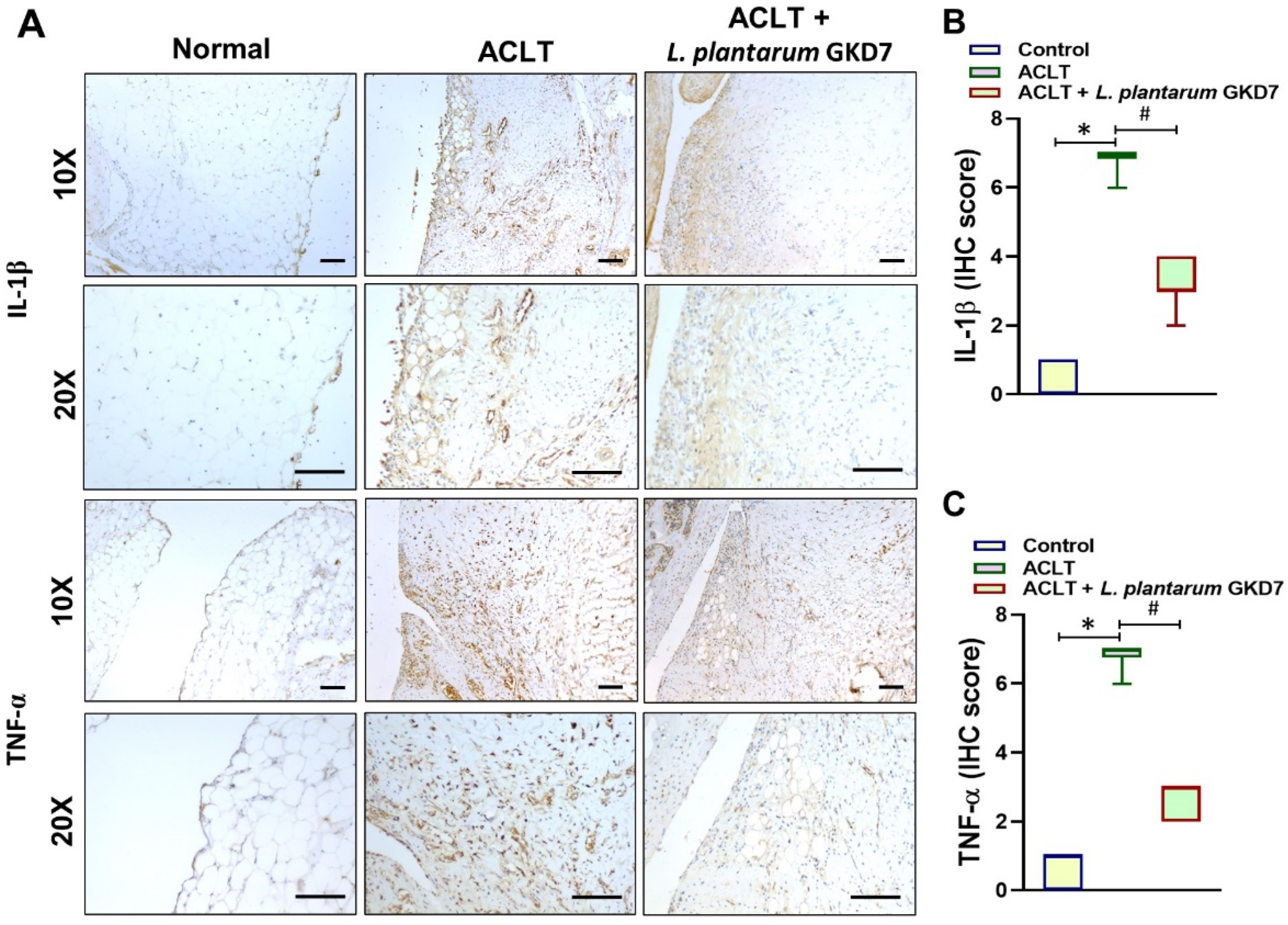

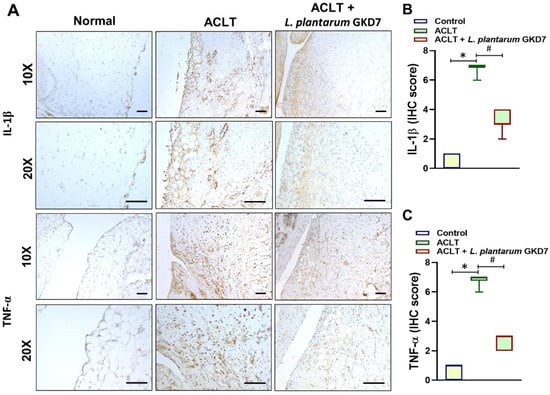

Figure 6. Oral live L. plantarum GKD7 reduced levels of TNF-α and IL-1β expression in OA synovium. (A) IHC staining of IL-1β and TNF-α in representative synovium from controls, ACLT-only rats, and ACLT + L. plantarum GKD7 rats. Quantitative analyses of (B) IL-1β and (C) TNF-α in synovium. Scale bar = 100 µm. * p < 0.05 vs. controls; # p < 0.05 vs. the ACLT-only group.
Figure 6. Oral live L. plantarum GKD7 reduced levels of TNF-α and IL-1β expression in OA synovium. (A) IHC staining of IL-1β and TNF-α in representative synovium from controls, ACLT-only rats, and ACLT + L. plantarum GKD7 rats. Quantitative analyses of (B) IL-1β and (C) TNF-α in synovium. Scale bar = 100 µm. * p < 0.05 vs. controls; # p < 0.05 vs. the ACLT-only group.
Nutrients 14 03170 g006
