Walnut Polyphenol Extract Attenuates Immunotoxicity Induced by 4-Pentylphenol and 3-methyl-4-nitrophenol in Murine Splenic Lymphocyte

1
Collage of Biological Science and Technology, Beijing Forestry University, Beijing 100083, China
2
Beijing Key Laboratory of Forest Food Processing and Safety, Beijing Forestry University, Beijing 100083, China
3
College of Basic Medicine, Changchun University of Traditional Chinese Medicine, Changchun 130117, China
*
Author to whom correspondence should be addressed.
Nutrients 2016, 8(5), 287; https://doi.org/10.3390/nu8050287
Submission received: 23 February 2016 / Revised: 15 April 2016 / Accepted: 21 April 2016 / Published: 12 May 2016
(This article belongs to the Special Issue Health-Promoting Components of Fruits and Vegetables in Human Health)

Abstract

:
4-pentylphenol (PP) and 3-methyl-4-nitrophenol (PNMC), two important components of vehicle emissions, have been shown to confer toxicity in splenocytes. Certain natural products, such as those derived from walnuts, exhibit a range of antioxidative, antitumor, and anti-inflammatory properties. Here, we investigated the effects of walnut polyphenol extract (WPE) on immunotoxicity induced by PP and PNMC in murine splenic lymphocytes. Treatment with WPE was shown to significantly enhance proliferation of splenocytes exposed to PP or PNMC, characterized by increases in the percentages of splenic T lymphocytes (CD3+ T cells) and T cell subsets (CD4+ and CD8+ T cells), as well as the production of T cell-related cytokines and granzymes (interleukin-2, interleukin-4, and granzyme-B) in cells exposed to PP or PNMC. These effects were associated with a decrease in oxidative stress, as evidenced by changes in OH, SOD, GSH-Px, and MDA levels. The total phenolic content of WPE was 34,800 ± 200 mg gallic acid equivalents/100 g, consisting of at least 16 unique phenols, including ellagitannins, quercetin, valoneic acid dilactone, and gallic acid. Taken together, these results suggest that walnut polyphenols significantly attenuated PP and PNMC-mediated immunotoxicity and improved immune function by inhibiting oxidative stress.

1. Introduction

Vehicle emissions have been shown to significantly inhibit endocrine [1,2,3], reproductive [4,5,6,7], and immune system [8,9] function through a variety of different mechanisms. Diesel exhaust particles confer toxicity in human neutrophil granulocytes, rat alveolar macrophages, and murine RAW 264.7 macrophages [10,11], and suppress cytokine release [12], significantly diminishing immune function [13,14], while gasoline exhaust particles have also been shown to inhibit T-cell proliferation [15]. Among the bioactive compounds found in vehicle emissions, two chemicals, 4-pentylphenol (PP) and 3-methyl-4-nitrophenol (PNMC), have been shown to significantly inhibit splenocyte viability and cytokine production, indicating immunotoxicity of the two vehicle exhaust [16,17,18].
Dietary polyphenols have been shown to confer protective activity against a variety of toxins. One such polyphenol, proanthocyanidin, significantly attenuated cadmium-induced renal damage in mice [19], inhibited neurological impairments caused by lead exposure in rats [20], and prevented nodularin-mediated lymphocyte toxicity in Carassius auratus [21]. Similarly, another polyphenol, quercetin, protected against male reproductive toxicity caused by PNMC in germ cells of embryonic chickens and mice [22,23,24], as well as inhibited atrazine-induced damage in the liver, kidney, brain, and heart of adult Wistar rats [25]. However, despite these preliminary observations, little is known about the role of these compounds in preventing the immunotoxicity caused by PP or PNMC.
Walnuts (Juglans regia L.) are not only an excellent source of essential unsaturated fatty acids (linoleic and α-linolenic acids) but are also rich in polyphenols [26], ranking second in antioxidant content among 1113 different foods evaluated [27]. Beneficial properties associated with walnut extracts include antibacterial, anticancer, hepatoprotective, antidiabetic, anti-inflammatory, anti-depressive, and antioxidative activities [28]. Walnut polyphenols were shown to protect against CCl4-induced oxidative damage in rat liver, inflammation and cellular dysfunction in rat primary hippocampal neurons, amyloid beta protein-induced oxidative stress and cell death [29,30,31], and cisplatin-induced disruptions in motor and cognitive function [32]. However, despite these well-documented activities, the effect of walnut polyphenols on immune toxicity is unknown. Here, we investigated the potential protective effects of walnut polyphenol extract (WPE) on PP- and PNMC-induced immunotoxicity and evaluated the relationship between immunotoxicity and oxidative stress. Finally, we sought to identify the individual phenolic constituents contained within WPE.

2. Materials and Methods

2.1. Materials

Walnuts were obtained from the Jingpin Fruit Industry Co., Ltd (Hebei, China). Quercetin (purity ≥ 98%) was purchased from Tauto Biotech Co., Ltd. (Shanghai, China), and proanthocyanidin (purity ≥ 95%) from Jianfeng Natural Product R and D Co., Ltd. (Tianjin, China). PP was purchased from Sigma (St. Louis, MO, USA) and PNMC from TCI Chemicals (Tokyo, Japan). RPMI 1640 medium and phosphate-buffered saline (PBS, pH 7.4) were obtained from Mediatech (Manassas, VA, USA). Pharmingen Stain Buffer (BSA) was obtained from BD (Becton Dickinson, San Diego, CA, USA). 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide (MTT) was purchased from Sigma. ELISA kits for IL-2, IL-4, and Granzyme B were purchased from Cusabio Biotech (Wuhan, China). Assay kits of hydroxyl free radical (·OH), superoxide dismutase (SOD), glutathione peroxidase (GSH-Px), and malondialdehyde (MDA) were bought from the Nanjing Jiancheng Bioengineering Institute (Nanjing, China). LC–MS grade solvents were obtained from Honeywell Burdick and Jackson (Muskegon, MI, USA). All other commercial reagents were of analytical grade and were purchased from local commercial firms.
The following antibodies purchased from Biogen (San Diego, CA, USA) were used in the phenotypic analysis studies: fluorescein isothiocyanate (FITC)-labeled anti-mouse CD3 (IgG2b) to stain T-cells, FITC-anti-mouse CD4 (IgG2b) and FITC-anti-mouse CD8 (IgG2b) to stain T-cell subsets, and FITC-anti-mouse CD19 (IgG2a) to stain B-cells. FITC-labeled rat IgG2a and IgG2b were used as negative isotype controls.

2.2. Experimental Animals

Specific-pathogen-free Kunming mice (male, eight weeks of age) were purchased from the Military Academy of Medical Sciences Laboratory Animal Center (Beijing, China) to serve as the source of cells for use in all assays herein. The mice were housed in a pathogen-free facility maintained at a temperature of 23–25 °C and a relative humidity at 57%–60% with a 12-h light-dark cycle. All mice had ad libitum access to standard sterilized rodent chow and filtered water. All procedures here were carried out in accordance with the Policy on the Care and Use of Animals established by the Ethical Committee of the Beijing Forestry University and approved by the Department of Agriculture of Hebei Province, China (JNZF11/2007).

2.3. Preparation of WPE

The WPE was prepared by the method of Muthaiyah et al. [31]. In brief, walnuts (30 g) were frozen for 24 h; the shelled kernels were ground with a mechanical grinder and then immersed in 240 mL of 100 mM acetate buffer, pH 4.8/acetone (30:70, v/v) at 4 °C for 24 h. This process was repeated. The two extracts were combined and concentrated using a rotary evaporator under reduced pressure at 37 °C until the organic solvent was completely evaporated. The concentrated solution was extracted three times with 75 mL ethyl acetate. The three ethyl acetate extracts were combined and then evaporated to remove ethyl acetate. Powder of WPE was obtained by lyophilizing.

2.4. Preparation of Splenocytes

Based on the protocols of Benencia et al. [33], naïve mice were euthanized by cervical dislocation and its spleen was removed. Single cell suspensions were prepared by mincing and tapping spleen fragments on a stainless 200-mesh held in RPMI 1640 medium. Thereafter, erythrocytes present were lysed by incubating the cells in ammonium chloride (0.8%, w/v) solution on ice for 2 min. After centrifugation (380× g, 5 min), the pelleted cells were washed three times with RPMI-1640 and finally re-suspended in RPMI-1640 supplemented with 10% fetal bovine serum, 2 mM l-glutamine, 100 U penicillin/mL, and 100 μg streptomycin/mL (all products from Mediatech). Cell number and viability were determined using a hemocytometer and trypan blue dye. Cell viability always exceeded 95%.

2.5. Cell Viability Assay

Measurement of cell survival was assayed as previously described [34]. In brief, one hundred microliters of splenocyte suspension (5 × 106 cell/mL) was aliquoted into each well of a 96-well flat-bottom microtiter plates. After 4 h incubation, 100 µL PP/PNMC (10−4 M final concentration in well, optimal dose as determined by preliminary experiments) alone or in combinations with WPE (0.01, 0.1, 1.0, 2.0, 3.0, 4.0, 5.0, and 10.0 μg/mL final concentration in well), Que (1.0 μg/mL final concentration in well), or PC (1.0 μg/mL final concentration in well) was added to designated wells. Cells treated with RPMI 1640 medium were used as positive control. The cells were then incubated at 37 °C in a humidified atmosphere with 5% CO2 for another 48 h. At the end of the exposure, 20 μL MTT solution (5 mg/mL) were then added into each well. The samples were incubated a further 4 h. The culture supernatant was carefully removed, and 200 μL DMSO was added to each well. The plate was shaken slightly for 20 min and the absorbance was determined at 570 nm using an ELISA plate reader (BioRad, Hercules, CA, USA). Cell viability (%) = (the absorbance of experiment group/the absorbance of control group) × 100%.

2.6. Cell Staining/Flow Cytometry for Phenotypic Analysis

Cell staining for phenotypic analysis was carried out as described previously [9,35]. In short, the treated spleen cells were harvested, washed with PBS, then diluted to 2.5 × 107 cells/mL in PBS. Re-centrifuged the cells and then re-suspended in 50 µL Ab Block (BD Pharmingen Stain Buffer (BSA)) for 5 min at 4 °C. After blocking, the cells were added a given specific FITC-labeled antibody at 1 µg/mL (optimal dose as determined by preliminary experiments), then incubated for 30 min at 4 °C in the dark. After staining, the cells were washed three times with PBS and centrifugation. After the final washing, the cells were transferred to FACS tubes (in PBS) for phenotypic analysis using a BD FACS Calibur flow cytometer (Becton Dickinson, San Diego, CA, USA) equipped with FloJo software (Emerald Biotech, Hangzhou, China) for data analysis. Cells were excited with a 488 nm argon laser line and the fluorescence of FITC was analyzed on FL1 (530 nm), counting 10,000 events per sample. Splenocytes were electronically gated to exclude any residual platelets, red cells, or dead cell debris. The results were indicated as the percentage positive cells within a gate which was the same for both exposed and control splenocytes.

2.7. Measurement of Cytokine/Granzyme Production and Determination of ·OH, SOD, GSH-Px, and MDA Levels

For assessment of IL-2, IL-4, granzyme-B, SOD, GSH-Px, ·OH, and MDA levels, splenocytes was treated with the test reagents for 48 h at a density of 5 × 106 cells/mL in 96-well plates. Culture supernatant was then collected and quantified following procedures by commercial ELISA kits. The lower detection limit of the kits was 3.9 pg IL-2/mL, 0.4 pg IL-4/mL, 3.1 pg Granzyme B/mL, 0.5 U SOD/mL, 0.5 U GSH-Px/mL, 0.04 U ·OH/mL, and 0.01 mmol MDA/mL.

2.8. Determination of the Total Phenolic Content

The total phenolic content was determined by the Folin–Ciocalteu phenol reagent method prescribed by Wang et al. [36]. 200 μL of WPE was transferred to a 10 mL volumetric flask, to which 0.5 mL of Folin–Ciocalteu reagent was added. After 1 min, 1.5 mL of 20% (w/v) Na2CO3 was added and the volume was made up to 10 mL with distilled water. After 2 h incubation at 40 °C, the absorbance was measured at 760 nm in a 722 UV-VIS Spectrum Spectrophotometer (ShunYu Constant Scientific Instrument co., Ltd., Shanghai, China). The total phenolic content was calculated on the basis of the standard curve for gallic acid solutions and expressed as g of gallic acid equivalents (GAE)/100 g of sample.

2.9. LC-MS Analyses (HPLC-ESI-IT-TOF-MS)

LC–MS analysis was conducted as described previously [37,38] and with some modifications. LC–MS analysis was performed using a Shimadzu ESI-IT-TOF-MS instrument (Shimadzu, Tokyo, Japan) equipped with a HPLC system (SIL-20A HT autosampler, LC-20AD pump system, SDP-M20A photo diode array detector). The LC separation was performed using a C18 reverse-phase column (Shimpack XR-ODS column, 50 mm × 3.0 mm id × 2.2 μm; Shimadzu Scientific Instruments Inc., Columbia, MD, USA) and maintained at 30 °C with a solvent system comprising of 0.1% formic acid in H2O (A) and 0.1% formic acid in acetonitrile (B). Prior to the injection, the column was equilibrated for 5 min at initial conditions (5% B). Compounds were eluted into the ion source at a flow rate of 1 mL/min with a step gradient of 5%–95% B over 30 min, isocratic at 95% B over 2 min, and return to 5% B over 1 min. The injection volume was set to 10 μL. The heat block and curved desolvation line of were maintained at 200 °C. Nitrogen gas was used as nebulizer and drying gas with the flow rate set at 1.5 L/min. The ESI source voltage was set at 4.5 kV and the detector was set at 1.5 V. Ionization was performed using a conventional ESI source in negative ionization mode. Data was acquired from m/z 100–1000. Shimadzu’s LC-MS Solution software (Shimadzu Scientific Instruments Inc.) was used for system control and data analysis. Each compound was identified by comparison between retention time, compound spectra, as well as mass (m/z), with their counterparts in previous studies (please see reference in Table 1).

2.10. Statistical Analysis

All data were expressed as means ± SD. Statistical analyses were performed using one-way analysis of variance (ANOVA) followed by a post hoc test, Tukey’s test (as part of SPSS software package (IBM, Armonk, NY, USA)). Significance was accepted at a p-value < 0.05.

3. Results

3.1. WPE Attenuates Cytotoxicity in Splenocytes

Splenocyte cells exposed to PP or PNMC were examined by MTT assay to assess the effect of WPE on cell viability. PP and PNMC significantly decreased cell viability to 66% and 88%, respectively, relative to controls. These effects were significantly attenuated in cells treated with WPE (Figure 1A,B), which limited cytotoxicity in a concentration-dependent manner at concentrations of 0.01–1.0 μg/mL. Treatment of splenocytes with 1.0 μg/mL WPE increased cell viability from 66% to 100% and from 88% to 102% in PP- and PNMC-treated cells, respectively, relative to controls. As no additional benefits were seen at concentrations > 1.0 µg/mL WPE, this concentration was chosen for use in all subsequent experiments. Treatment with quercetin or proanthocyanidin (1 µg/mL) increased cell viability (Figure 1C,D), but the protective effects of the two compounds were weaker than those of WPE. These data showed that WPE protected against PP- and PNMC-induced cytotoxicity in splenocytes.

3.2. WPE Inhibited Decreases in Splenic T Cell Sub-Populations

To determine the effects of WPE on splenic T cell populations exposed to PP and PNMC, splenocytes were stained with FITC-labeled antibodies for 48 h and evaluated by flow cytometry. The percentages of CD3+ T and CD8+ T cells were significantly lower in splenocytes exposed to PP relative to controls (Figure 2A,C). Although PP did not have a significant effect on CD4+ T cells, and decreased the cells populations (Figure 2B), with similar results seen for all CD3+, CD4+, and CD8+ T cells exposed to PNMC (Figure 3A–C). However, neither compound appeared to affect the levels of CD19+ B cells (Figure 2D and Figure 3D). Treatment with WPE resulted in higher proportions of CD3+, CD4+, and CD8+ T cells among splenocytes exposed to PP and PNMC (Figure 2 and Figure 3), with overall T cell population numbers similar to those of controls. These results suggest that WPE may restore T cell sub-populations in splenic cells exposed to PP or PNMC.

3.3. Treatment with WPE Prevents the Loss of Splenic T Cell Activity

To determine the effect of WPE on T cell activation, cells were exposed to PP or PNMC for 48 h in the presence or absence of WPE and analyzed for cytokine and granzyme production by ELISA: interleukin (IL)-2, IL-4, and granzyme B were chosen as markers for CD4+ TH1 cells, CD4+ TH2 cells, and CD8+ T cells, respectively. Both PP and PNMC inhibited secretion of IL-2, IL-4, and granzyme B relative to controls (Figure 4 and Figure 5). These effects were significantly attenuated in cells treated with WPE: IL-2 increased from 58% to 99% and 36% to 80% in cells exposed to PP and PNMC, respectively; IL-4 increased from 52% to 80% and 77% to 93%, respectively; and granzyme B increased from 27% to 90% and 52% to 93%, respectively, relative to controls (Figure 4 and Figure 5). These results clearly showed that WPE protected splenocytes from the loss of cytokine/granzyme production in cells exposed to PP and PNMC.

3.4. WPE Attenuates PP- and PNMC-Induced Oxidative Damage in Splenocytes

To examine whether WPE can inhibit PP- and PNMC-induced oxidative stress in splenocytes, we examined SOD, GSH-Px, OH, and MDA levels following treatment with PP and PNMC. PP significantly enhanced ·OH and MDA levels in treated cells (Figure 6A,D), while PNMC induced significant increases in ·OH content relative to controls (Figure 7A,D). These levels were significantly attenuated in cells treated with WPE, with decreases in ·OH contents from 923 U/mL to 736 U/mL and 852 U/mL to 761 U/mL in cells treated with PP and PNMC, respectively (Figure 6A and Figure 7A); MDA levels were reduced from 0.63 to 0.53 mmol/mL and 0.60 to 0.48 mmol/mL, respectively (Figure 6D and Figure 7D). In contrast, there were marked decreases in SOD and GSH-Px activity in cells exposed to PP and PNMC. These data are consistent with previous studies that established the effect of PNMC on oxidative stress parameters in several models [22,24]. Treatment with WPE restored SOD activity levels from 76% to 91% and 84% to 90%, relative to controls, in cells exposed to PP and PNMC, respectively (Figure 6B and Figure 7B). Similarly, GSH-Px activity was also increased in WPE-treated cells exposed to PP or PNMC, from 54% or 72% to 125% or 106% of control levels, respectively (Figure 6C and Figure 7C).
Finally, we compared the effects of WPE to those of the polyphenol proanthocyanidin, as this compound has been shown to exhibit strong antioxidant activity [41]. As seen with WPE, proanthocyanidin treatment reduced both ·OH and MDA levels and increased SOD and GSH-Px activities in splenocytes exposed to PP and PNMC; however, the protective effects were lower than those of WPE (Figure 6C and Figure 7C). Taken together, these results indicate that WPE can inhibit both PP- and PNMC-mediated oxidative stress in splenocytes at levels greater than those by proanthocyanidin.

3.5. Quantification and Characterization of Phenolic Compounds in WPE

Given the strong antioxidant effects of WPE in splenocytes, we next examined the phenolic constituents of WPE. Total phenolic content was quantified using the Folin–Ciocalteu phenol assay, revealing an average content of 34,800 ± 200 mg gallic acid equivalents (GAE)/100 g. Individual compounds were then identified by LC-MS analyses, with the names and m/z scores of each compound listed in Table 1. These results are considered tentative. A total of 16 individual phenolic compounds were identified, including ellagitannins (1,2,4,5,7,10–16), quercetin (3,9), valoneic acid dilactone (6), and gallic acid (8). In-depth studies should be performed to further clarify and characterize the phenolic compounds in WPE, and to determine the specific role of each constituent in the protective effect of WPE.

4. Discussion

The data presented here show that WPE attenuated PP- and PNMC-mediated toxicity in murine splenocytes, characterized by significant increases in cell viability following treatment with WPE, as well as increases in the proportions of splenic CD3+, CD4+, and CD8+ T cells following exposure to the agents. These increases in T cell populations were accompanied by strong increases in the secretion of IL-2, IL-4, and granzyme B in WPE-treated cells, relative to those exposed to PP or PNMC alone. Examination of ·OH, SOD, GSH-Px, and MDA levels showed that WPE administration significantly inhibited oxidative damage in treated cells. Finally, we determined the total phenolic content of WPE to be 34,800 ± 200 mg GAE/100 g, consisting of at least 16 phenolic compounds based on LC-MS analyses. Taken together, these findings suggest that WPE may provide protection against PP- and PNMC-mediated immunotoxicity in splenocytes by inhibiting oxidative stress.
In recent years, the ability of natural products to both treat and prevent diseases has gained significant attention. Polyphenols have been shown to protect against certain toxicities caused by vehicle emissions. Two compounds, a polyphenol extract of Ginkgo biloba and quercetin were shown to protect against endocrine disruptions caused by diesel exhaust [1], while rosmarinic acid significantly attenuated lung injury caused by diesel exhaust [42]. Similarly, in vitro treatment of rat primary neurons with partridgeberry polyphenols significantly attenuated β amyloid-induced cell death and membrane damage [43]. Preliminary studies of walnut polyphenols revealed significant anti-oxidative properties [27], limiting oxidative damage induced by CCl4 and β amyloid protein [29,31]. In this study, WPE significantly attenuated cytotoxicity caused by PP and PNMC in splenocytes. Furthermore, this protective effect was greater than that seen with two other polyphenols, proanthocyanidin, and quercetin (Figure 1C,D).
Polyphenols may also help maintain proper T cell function. Treatment of normal human peripheral blood lymphocytes with cacao liquor polyphenol in vitro regulated T cell proliferation in a concentration-dependent manner [44]. Similarly, the phenolic compounds in P. glaucum grains modulated splenic T cell growth in rats [45], while L. guyonianum polyphenols are capable of inducing both T and B cell proliferation [46]. In contrast, oligomeric proanthocyanidins from blueberry leaves inhibited the growth of human T cell lymphotropic virus type 1-associated cell lines by inducing apoptosis and cell cycle arrest [47], indicating a more complex regulatory effect for these compounds. Similarly, icariin flavonoid glucoside has been shown to ameliorate autoimmune encephalomyelitis by suppressing the proliferation of T cells and the differentiation of Th1 and Th17 cells among splenocytes and lymph node cells [48]. The results presented here showed that WPE restored the proportion of T cell sub-populations to a level at or near that of controls. This observation is in general agreement with many previous studies suggesting that polyphenols may be useful for maintaining proper T cell function.
Cytokines are essential regulators of both innate and adaptive immune responses, which can be influenced by a variety of dietary antioxidants [49,50,51]. Supplementation of sea bass fed with polyphenols extracted from red grapes increased their production of interferon (IFN)-γ, which may protect against loss of immune function in animals exposed to continuous antigenic pressure by microbes and environmental agents [50]. Ellagic acid and polyphenols present in walnut kernels increased the secretion of IL-2 in peripheral blood mononuclear cells [51], while the expression of IL-3, IL-4, IL-1R2, IL-6R, and IL-7R2 were all upregulated in response to tea polyphenols following alcohol-induced liver injury in rats [52]. Similarly, green tea polyphenols regulated both IFN-γ and TNF-α secretion in colon and lamina propria lymphocytes in a murine model of inflammatory bowel disease [53]. In the present study, treatment of splenic lymphocytes with WPE led to increases in the production of T cell-related effector molecules in cells exposed to PP and PNMC, consistent with previous studies.
In this study, the total phenolic content of WPE was 34,800 ± 200 mg GAE/100 g, which was greater than that seen in other studies (2464–11,500 mg GAE/100 g) [38,54,55]. In total, 16 polyphenolic compounds, including ellagitannins, quercetin, valoneic acid dilactone, and gallic acid, were identified in the extract [37,38,39,40]. Ellagitannins have been reported to stimulate the immune system by activating macrophages and promoting the release of Il-1β [56]. Quercetin has been shown to have a protective effect on immune function by decreasing lymphocyte DNA damage in vivo [57]. Gallic acid may inhibit murine leukemia WEHI-3 cells in vivo and promote macrophage phagocytosis [58]. In this study, the polyphenolic compounds extracted from WPE, including ellagitannins, quercetin, and gallic acid, had a protective effect against immunotoxicity induced by PP and PNMC in murine splenic lymphocytes.
In recent years, several lines of evidence have shown that dietary polyphenols can protect against oxidative damage caused by a variety of substances. The polyphenolic compounds found in raspberry seeds prevented damage to human peripheral blood lymphocytes by reactive oxygen species [59], while green tea polyphenols protected against nicotine-induced oxidative stress by significantly elevating plasma catalase and SOD activities in male rats [60]. Supplementation with quercetin (1.0 μg/mL) attenuated the toxicity of three nitrophenol components of diesel exhaust by limiting the production of ·OH and MDA, while simultaneously increasing GSH-Px and SOD activities in embryonic chicken testicular cells in vitro [22,61,62]. Similar effects on MDA levels and SOD activity were also seen in brain tissue following administration of walnut polyphenols, leading to improvements in both learning and memory functions [63].
The data presented here showed that WPE was able to increase SOD and GSH-Px activities, while decreasing the levels of both ·OH and MDA in splenocytes after exposure to PP and PNMC. SOD and GSHPX activities are associated with cellular enzymatic defense against free radical attacks. The ·OH radical is one of the most toxic and harmful ROS, and MDA is an end-product of lipid peroxidation in cells. Although there was no direct evidence in this study that the protective effect of WPE against PP- or PNMC-induced immunotoxicity was due to its activity against oxidative damage, past findings indicate that certain WPE phenolic compounds are able to protect immune cells from oxidative damage by inhibiting the formation of excessive free radicals.

5. Conclusions

Here, we showed that WPE protected against PP- and PNMC-mediated toxicity in splenic lymphocytes, limiting the damaging effects of these compounds on both cell viability and cytokine/granzyme production in vitro. The data also support the idea that the protective effect of WPE may at least be partly due to the attenuation of oxidative damage. Further studies will be necessary to identify the active phenolic compounds in WPE and to determine the mechanisms underlying these protective effects.

Acknowledgments

This study was supported by the Beijing Natural Science Foundation (8142029).

Author Contribution

Meiyu Xu and Qiang Weng conceived the study; Lubing Yang, Sihui Ma, Yu Han, Yan Guo worked on experiments performing and data analysis; Lubing Yang, Yan Guo, Qiang Weng and Meiyu Xu wrote the paper. All authors approved the final version.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Furuta, C.; Suzuki, A.K.; Taneda, S.; Kamata, K.; Hayashi, H.; Mori, Y.; Li, C.; Watanabe, G.; Taya, K. Estrogenic activities of nitrophenols in diesel exhaust particles. Biol. Reprod. 2004, 70, 1527–1533. [Google Scholar] [CrossRef] [PubMed]
  2. Furuta, C.; Li, C.; Taneda, S.; Suzuki, A.K.; Kamata, K.; Watanabe, G.; Taya, K. Immunohistological study for estrogenic activities of nitrophenols in diesel exhaust particles. Endocrine 2005, 27, 33–36. [Google Scholar] [CrossRef]
  3. Satoh, K.; Nonaka, R.; Ohyama, K.; Nagai, F. Androgenic and anti-androgenic effects of alkylphenols and parabens assessed using the reporter gene assay with stably transfected CHO-K1 Cells (AR-EcoScreen System). J. Health Sci. 2005, 51, 557–568. [Google Scholar] [CrossRef]
  4. Li, C.M.; Takahashi, S.; Taneda, S.; Furuta, C.; Watanabe, G.; Suzuki, A.K.; Taya, K. Impairment of testicular function in adult male Japanese quail (Coturnix japonica) after a single administration of 3-methyl-4-nitrophenol in diesel exhaust particles. J. Endocrinol. 2006, 189, 555–564. [Google Scholar] [CrossRef] [PubMed]
  5. Li, C.M.; Takahashi, S.; Taneda, S.; Furuta, C.; Watanabe, G.; Suzuki, A.K.; Taya, K. Effects of 3-methyl-4-nitrophenol in diesel exhaust particles on the regulation of testicular function in immature male rats. J. Androl. 2007, 28, 252–258. [Google Scholar] [CrossRef] [PubMed]
  6. Meier, S.; Morton, H.C.; Andersson, E.; Geffen, A.J.; Taranger, G.L.; Larsen, M.; Petersen, M.; Djurhuus, R.; Klungsøyr, J.; Svardal, A. Low-dose exposure to alkylphenols adversely affects sexual development of Atlantic cod (Gadus morhua): Acceleration of onset of puberty and delayed seasonal gonad development in mature female cod. Aquat. Toxicol. 2011, 105, 136–150. [Google Scholar] [CrossRef] [PubMed]
  7. Yue, Z.; She, R.P.; Bao, H.H.; Li, W.G.; Wang, D.C.; Zhu, J.F.; Chang, L.L.; Yu, P. Exposure to 3-methyl-4-nitrophenol affects testicular morphology and induces spermatogenic cell apoptosis in immature male rats. Res. Vet. Sci. 2011, 91, 261–268. [Google Scholar] [CrossRef] [PubMed]
  8. Che, W.J.; Liu, G.M.; Qiu, H.; Zhang, H.; Ran, Y.; Zeng, X.G.; Wen, W.H.; Shu, Y. Comparison of immunotoxic effects induced by the extracts from methanol and gasoline engine exhausts in vitro. Toxicol. Vitro 2010, 24, 1119–1125. [Google Scholar] [CrossRef] [PubMed]
  9. Li, Q.; Kobayashi, M.; Inagaki, H.; Hirata, Y.; Sato, S.; Ishizaki, M.; Okamura, A.; Wang, D.; Nakajima, T.; Kamijima, M.; Kawada, T. Effect of oral exposure to fenitrothion and 3-methyl-4-nitrophenol on splenic cell populations and histopathological alterations in spleen in Wistar rats. Hum. Exp. Toxicol. 2010, 30, 665–674. [Google Scholar] [CrossRef] [PubMed]
  10. Aam, B.B.; Fonnum, F. ROS scavenging effects of organic extract of diesel exhaust particles on human neutrophil granulocytes and rat alveolar macrophages. Toxicology 2007, 230, 207–218. [Google Scholar] [CrossRef] [PubMed]
  11. Durga, M.; Nathiya, S.; Rajasekar, A.; Devasena, T. Effects of ultrafine petrol exhaust particles on cytotoxicity, oxidative stress generation, DNA damage and inflammation in human A549 lung cells and murine RAW 264.7 macrophages. Environ. Toxicol. Pharmacol. 2014, 38, 518–530. [Google Scholar] [CrossRef] [PubMed]
  12. Amakawa, K.; Terashima, T.; Matsuzaki, T.; Matsumaru, A.; Sagai, M.; Yamaguchi, K. Suppressive effects of diesel exhaust particles on cytokine release from human and murine alveolar macrophages. Exp. Lung Res. 2003, 29, 149–164. [Google Scholar] [CrossRef] [PubMed]
  13. Chiang, D.; Sanjanwala, B.; Nadeau, K.C. Diesel exhaust particles impair regulatory T- cell function. In Proceedings of the International Conference on American Thoracic Society, San Diego, CA, USA, 15–20 May 2009. Abstract 4295.
  14. Sasaki, Y.; Ohtani, T.; Ito, Y.; Mizuashi, M.; Nakagawa, S.; Furukawa, T.; Horii, A.; Aiba, S. Molecular events in human T-cells treated with diesel exhaust particles or formaldehyde that underlie their diminished Interferon-γ and Interleukin-10 production. Int. Arch. Allergy Immunol. 2009, 148, 239–250. [Google Scholar] [CrossRef] [PubMed]
  15. Karakaya, A.; Ates, I.; Yucesoy, B. Effects of occupational polycyclic aromatic hydro-carbon exposure on T-lymphocyte functions and natural killer cell activity in asphalt and coke oven workers. Hum. Exp. Toxicol. 2004, 23, 317–322. [Google Scholar] [CrossRef] [PubMed]
  16. Mori, Y.; Kamata, K.; Toda, N.; Hayashi, H.; Seki, K.; Taneda, S.; Yoshino, S.; Sakushima, A.; Sakata, M.; Suzuki, A.K. Isolation of nitrophenols from diesel exhaust particles (DEP) as vasodilatation compounds. Biol. Pharm. Bull. 2003, 26, 394–395. [Google Scholar] [CrossRef] [PubMed]
  17. Murahashi, T.; Sasaki, S.; Nakajima, T. Determination of endocrine disruptors in automobile exhaust particulate matter. J. Health Sci. 2003, 49, 72–75. [Google Scholar] [CrossRef]
  18. Yang, L.B.; Ma, S.H.; Wan, Y.F.; Duan, S.Q.; Ye, S.Y.; Du, S.J.; Ruan, X.W.; Sheng, X.; Xu, M.Y.; Weng, Q.; Taya, K. In vitro effect of 4-pentylphenol and 3-methyl-4-nitrophenol on murine splenic lymphocyte populations and cytokine/granzyme production. J. Immunotoxicol. 2016, 31, 1–9. [Google Scholar] [CrossRef] [PubMed]
  19. Chen, Q.; Zhang, R.; Li, W.M.; Niu, Y.J.; Guo, H.C.; Liu, X.H.; Hou, Y.C.; Zhao, L.J. The protective effect of grape seed procyanidin extract against cadmium-induced renal oxidative damage in mice. Environ. Toxicol Pharmcol. 2013, 36, 759–768. [Google Scholar] [CrossRef] [PubMed]
  20. Liu, C.M.; Ma, J.Q.; Liu, S.S.; Zheng, G.H.; Feng, Z.J.; Sun, J.M. Proanthocyanidins improves lead-induced cognitive impairments by blocking endoplasmic reticulum stress and nuclear factor-κB-mediated inflammatory pathways in rats. Food Chem. Toxicol. 2014, 72, 295–302. [Google Scholar] [CrossRef] [PubMed]
  21. Zhang, H.J.; Fang, W.D.; Xiao, W.F.; Lu, L.P.; Jia, X.Y. Protective role of oligomeric proanthocyanidin complex against hazardous nodularin-induced oxidative toxicity in Carassius auratus lymphocytes. J. Hazard. Mater. 2014, 274, 247–257. [Google Scholar] [CrossRef] [PubMed]
  22. Mi, Y.L.; Zhang, C.Q.; Li, C.M.; Taneda, S.; Watanabe, G.; Suzuki, A.K.; Taya, K. Quercetin protects embryonic chicken spermatogonial cells from oxidative damage intoxicated with 3-methyl-4-nitrophenol in primary culture. Toxicol. Lett. 2009, 190, 61–65. [Google Scholar] [CrossRef] [PubMed]
  23. Bu, T.L.; Mi, Y.L.; Zeng, W.D.; Zhang, C.Q. Protective effect of quercetin on cadmium-induced oxidative toxicity on germ cells in male mice. Anat. Rec. 2011, 294, 520–526. [Google Scholar] [CrossRef] [PubMed]
  24. Bu, T.L.; Jia, Y.D.; Lin, J.X.; Mi, Y.L.; Zhang, C.Q. Alleviative effect of quercetin on germ cells intoxicated by 3-methyl-4-nitrophenol from diesel exhaust particles. J. Zhejiang Univ. Sci. B 2012, 13, 318–326. [Google Scholar] [CrossRef] [PubMed]
  25. Abarikwu, S.O. Protective effect of quercetin on atrazine-induced oxidative stress in the liver, kidney, brain, and heart of adult Wistar rats. Int. Toxicol. 2014, 21, 148–155. [Google Scholar] [CrossRef] [PubMed]
  26. Kornsteiner, M.; Wagner, K.H.; Elmadfa, I. Tocopherols and total phenolics in 10 different nut types. Food Chem. 2006, 98, 381–387. [Google Scholar] [CrossRef]
  27. Halvorsen, B.L.; Carlsen, M.H.; Phillips, K.M.; Bøhn, S.K.; Holte, K.; Jacobs, D.R.; Blomhoff, R. Content of redox-active compounds (ie, antioxidants) in foods consumed in the United States. A. J. Clin. Nutr. 2006, 84, 95–135. [Google Scholar]
  28. Taha, N.A. Utility and importance of walnut, Juglans regia Linn: A review. Afr. J. Microbiol. Res. 2011, 5, 5796–5805. [Google Scholar]
  29. Eidi, A.; Moghadam, J.Z.; Mortazavi, P.; Rezazadeh, S.; Olamafar, S. Hepatoprotective effects of Juglans regia extract against CCl4-induced oxidative damage in rats. Pharm. Biol. 2013, 51, 558–565. [Google Scholar] [CrossRef] [PubMed]
  30. Carey, A.N.; Fisher, D.R.; Joseph, J.A.; Shukitt, H.B. The ability of walnut extract and fatty acids to protect against the deleterious effects of oxidative stress and inflammation in hippocampal cells. Nutr. Neurosci. 2013, 16, 13–20. [Google Scholar] [CrossRef] [PubMed]
  31. Muthaiyah, B.; Essa, M.; Chauhan, V.; Chauhan, A. Protective effects of walnut extract against amyloid beta peptide-induced cell death and oxidative stress in PC12 cells. Neurochem. Res. 2011, 36, 2096–2103. [Google Scholar] [CrossRef] [PubMed]
  32. Shabani, M.; Nazeri, M.; Parsania, S.; Razavinasab, M.; Zangiabadi, N.; Esmaeilpour, K.; Abareghi, F. Walnut consumption protects rats against cisplatin-induced neurotoxicity. NeuroToxicol 2012, 33, 1314–1321. [Google Scholar] [CrossRef] [PubMed]
  33. Benencia, F.; Courrèges, M.C.; Coulombié, F.C. In vivo and in vitro immunomodu-latory activities of Trichilia glabra aqueous leaf extracts. J. Ethnopharmacol. 2000, 69, 199–205. [Google Scholar] [CrossRef]
  34. Sun, H.X.; Qin, F.; Pan, Y.J. In vitro and in vivo immunosuppressive activity of Spica Prunellae ethanol extract on the immune responses in mice. J. Ethnopharmacol. 2005, 101, 31–36. [Google Scholar] [CrossRef] [PubMed]
  35. Li, Q.; Hirata, Y.; Piao, S.; Minami, M. Immunotoxicity of N,N-diethylaniline in mice: Effect on natural killer activity, cytotoxic T-lymphocyte activity, lymphocyte proliferation response, and cellular components of the spleen. Toxicology 2000, 150, 179–189. [Google Scholar] [CrossRef]
  36. Wang, X.; Zhao, M.M.; Su, G.W.; Cai, M.S.; Zhou, C.M.; Huang, J.Y.; Lin, L.Z. The antioxidant activities and the xanthine oxidase inhibition effects of walnut (Juglans regia L.) fruit, stem and leaf. Int. J. Food Sci. Tech. 2015, 50, 233–239. [Google Scholar] [CrossRef]
  37. Grace, M.H.; Warlick, C.W.; Neff, S.A.; Lila, M.A. Efficient preparative isolation and identification of walnut bioactive components using high-speed counter-current chromatography and LC-ESI-IT-TOF-MS. Food Chem. 2014, 158, 229–238. [Google Scholar] [CrossRef] [PubMed]
  38. Regueiro, J.; Sánchez-González, C.; Vallverdú-Queralt, A.; Simal-Gándara, J.; Lamuela-Raventós, R.; Izquierdo-Pulido, M. Comprehensive identification of walnut polyphenols by liquid chromatography coupled to linear ion trap–Orbitrap mass spectrometry. Food Chem. 2014, 152, 340–348. [Google Scholar] [CrossRef] [PubMed]
  39. Slatnar, A.; Mikulic-Petkovsek, M.; Stampar, F.; Veberic, R.; Solar, A. Identification and quantification of phenolic compounds in kernels, oil and bagasse pellets of common walnut (Juglans regia L.). Food Res. Int. 2015, 67, 255–263. [Google Scholar] [CrossRef]
  40. Van der Hooft, J.J.; Akermi, M.; Unlu, F.Y.; Mihaleva, V.; Roldan, V.G.; Bino, R.J.; de Vos, R.C.; Vervoort, J. Structural annotation and elucidation of conjugated phenolic compounds in black, green, and white tea extracts. J. Agric. Food Chem. 2012, 60, 8841–8850. [Google Scholar] [CrossRef] [PubMed]
  41. Ou, K.; Gu, L. Absorption and metabolism of proanthocyanidins. J. Funct. Foods 2014, 7, 43–53. [Google Scholar] [CrossRef]
  42. Sanbongi, C.; Takano, H.; Osakabe, N.; Sasa, N.; Natsume, M.; Yanagisawa, R.; Inoue, K.; Kato, Y.; Osawa, T.; Yoshikawa, T. Rosmarinic acid inhibits lung injury induced by diesel exhaust particles. Free Radical. Biol. Med. 2003, 34, 1060–1069. [Google Scholar] [CrossRef]
  43. Bhullar, K.S.; Rupasinghe, H.P.V. Partridgeberry polyphenols protect primary cortical and hippocampal neurons against β-amyloid toxicity. Food Res. Int. 2015, 74, 237–249. [Google Scholar] [CrossRef]
  44. Sanbongi, C.; Suzuki, N.; Sakane, T. Polyphenols in chocolate, which have antioxidant activity, modulate immune functions in humansin vitro. Cell. Immunol. 1997, 177, 129–136. [Google Scholar] [CrossRef] [PubMed]
  45. Nani, A.; Belarbi, M.; Ksouri-Megdiche, W.; Abdoul-Azize, S.; Benammar, C.; Ghiringhelli, F.; Hichami, A.; Khan, N.A. Effects of polyphenols and lipids from Pennisetum glaucum grains on T-cell activation: Modulation of Ca2+ and ERK1/ERK2 signaling. BMC Complement. Altern. Med. 2015, 15, 1–11. [Google Scholar] [CrossRef] [PubMed]
  46. Krifa, M.; Bouhlel, I.; Ghedira-Chekir, L.; Ghedira, K. Immunomodulatory and cellular anti-oxidant activities of an aqueous extract of Limoniastrum guyonianum gall. J. Ethnopharmacol. 2013, 146, 243–249. [Google Scholar] [CrossRef] [PubMed]
  47. Nagahama, K.; Eto, N.; Sakakibara, Y.; Matsusita, Y.; Sugamoto, K.; Morishita, K.; Suiko, M. Oligomeric proanthocyanidins from rabbiteye blueberry leaves inhibits the proliferation of human T-cell lymphotropic virus type 1-associated cell lines via apoptosis and cell cycle arrest. J. Funct. Foods 2014, 6, 356–366. [Google Scholar] [CrossRef]
  48. Shen, R.; Deng, W.; Li, C.; Zeng, G. A natural flavonoid glucoside icariin inhibits Th1 and Th17 cell differentiation and ameliorates experimental autoimmune encephalomyelitis. Int. Immunopharmacol. 2015, 24, 224–231. [Google Scholar] [CrossRef] [PubMed]
  49. Edfeldt, K.; Liu, P.T.; Chun, R.; Fabri, M.; Schenk, M.; Wheelwright, M.; Keegan, C.; Krutzik, S.R.; Adams, J.S.; Hewison, M.; et al. T-cell cytokines differentially control human monocyte antimicrobial responses by regulating vitamin D metabolism. Proc. Natl. Acad. Sci. USA 2010, 107, 22593–22598. [Google Scholar] [CrossRef] [PubMed]
  50. Magrone, T.; Fontana, S.; Laforgia, F.; Dragone, T.; Jirillo, E.; Passantino, L. Administration of a polyphenol-enriched feed to farmed sea bass (Dicentrarchus labrax L.) modulates intestinal and spleen immune responses. Oxid. Med. Cell. Longev. 2016, 2016, 1–11. [Google Scholar] [CrossRef] [PubMed]
  51. Anderson, K.C.; Teuber, S.S. Ellagic acid and polyphenolics present in walnut kernels inhibit in vitro human peripheral blood mononuclear cell proliferation and alter cytokine production. Ann. N. Y. Acad. Sci. 2010, 1190, 86–96. [Google Scholar] [CrossRef] [PubMed]
  52. Zhang, X.G.; Xu, P.; Liu, Q.; Yu, C.H.; Zhang, Y.; Chen, S.H.; Li, Y.M. Effect of tea polyphenol on cytokine gene expression in rats with alcoholic liver disease. HBPD Int. 2006, 5, 268–272. [Google Scholar] [PubMed]
  53. Varilek, G.W.; Yang, F.; Lee, E.Y.; deVilliers, W.J.; Zhong, J.; Oz, H.S.; Westberry, K.F.; McClain, C.J. Green tea polyphenol extract attenuates inflammation in interleukin-2-deficient mice, a model of autoimmunity. J. Nutr. 2001, 131, 2034–2039. [Google Scholar] [PubMed]
  54. Pereira, J.A.; Oliveira, I.; Sousa, A.; Ferreira, I.C.F.R.; Bento, A.; Estevinho, L. Bioactive properties and chemical composition of six walnut (Juglans regia L.) cultivars. Food Chem. Toxicol. 2008, 46, 2103–2111. [Google Scholar] [CrossRef] [PubMed]
  55. Vinson, J.A.; Cai, Y. Nuts, especially walnuts, have both antioxidant quantity and efficacy and exhibit significant potential health benefits. Food Funct. 2012, 3, 134–140. [Google Scholar] [CrossRef] [PubMed]
  56. Clifford, M.N.; Scalbert, A. Ellagitannins—Nature, occurrence and dietary burden. J. Sci. Food Agric. 2000, 80, 1118–1125. [Google Scholar] [CrossRef]
  57. Chan, S.T.; Lin, Y.C.; Chuang, C.H.; Shiau, R.J.; Liao, J.W.; Yeh, S.L. Oral and intraperitoneal administration of quercetin decreased lymphocyte DNA damage and plasma lipid peroxidation induced by TSA in vivo. Biomed. Res. Int. 2009, 15, 197–243. [Google Scholar] [CrossRef] [PubMed]
  58. Ho, C.C.; Lin, S.Y.; Yang, J.S.; Liu, K.C.; Tang, Y.J.; Yang, M.D.; Chiang, J.H.; Lu, C.C.; Wu, C.L.; Chiu, T.H. Gallic acid inhibits murine leukemia WEHI-3 cells in vivo and promotes macrophage phagocytosis. Vivo 2009, 23, 409–413. [Google Scholar]
  59. Gođevac, D.; Tešević, V.; Vajs, V.; Milosavljević, S.; Stanković, M. Antioxidant properties of raspberry seed extracts on micronucleus distribution in peripheral blood lymphocytes. Food Chem. Toxicology 2009, 47, 2853–2859. [Google Scholar]
  60. Mosbah, R.; Yousef, M.I.; Mantovani, A. Nicotine-induced reproductive toxicity, oxidative damage, histological changes and haematotoxicity in male rats: The protective effects of green tea extract. Exp. Toxicol. Pathol. 2015, 67, 253–259. [Google Scholar] [CrossRef] [PubMed]
  61. Mi, Y.L.; Zhang, C.Q.; Li, C.M.; Taneda, S.; Watanabe, G.; Suzuki, A.K.; Taya, K. Quercetin attenuates oxidative damage induced by treatment of embryonic chicken spermatogonial cells with 4-nitro-3-phenylphenol in diesel exhaust particles. Biosci. Biotechnol. Biochem. 2010, 74, 934–938. [Google Scholar] [CrossRef] [PubMed]
  62. Mi, Y.L.; Zhang, C.Q.; Li, C.M.; Taneda, S.; Watanabe, G.; Suzuki, A.K.; Taya, K. Protective effect of quercetin on the reproductive toxicity of 4-nitrophenol in diesel exhaust particles on male embryonic chickens. J. Reprod. Dev. 2010, 56, 195–199. [Google Scholar] [CrossRef] [PubMed]
  63. Shi, D.D.; Chen, C.Y.; Zhao, S.L.; Ge, F.; Liu, D.Q.; Hao, S. Effects of walnut polyphenol on learning and memory functions in hypercholesterolemia mice. J. Food Nutr. Res. 2014, 2, 450–456. [Google Scholar] [CrossRef]

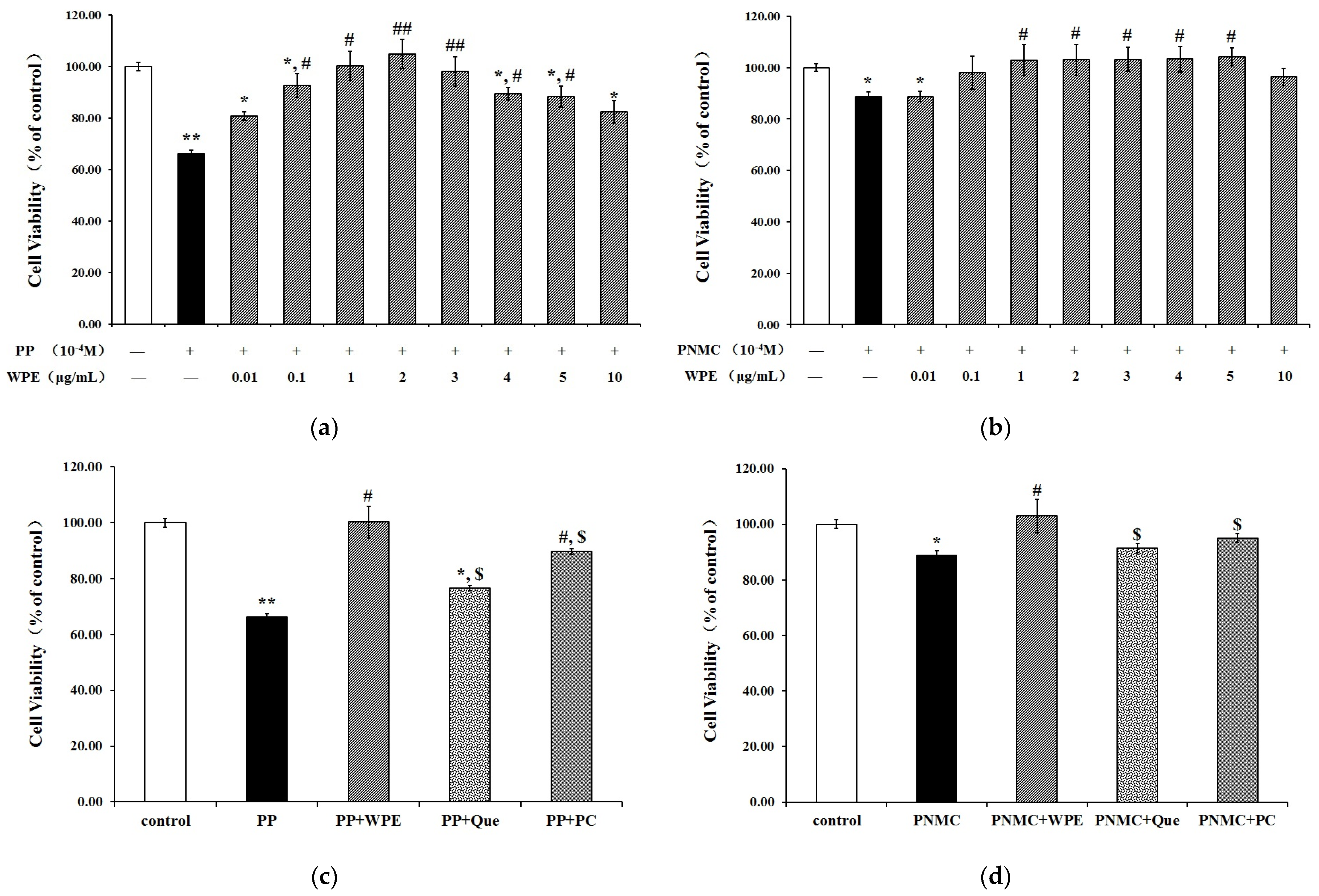

Figure 1. Effect of WPE on cytotoxicity in splenocytes exposed to PP/PNMC. Splenocytes were treated with (A) PP (10−4 M) or different concentrations (0.01, 0.1, 1.0, 2.0, 3.0, 4.0, 5.0, and 10.0 μg/mL) of WPE together with PP; (B) PNMC (10−4 M) or different concentrations (0.01, 0.1, 1.0, 2.0, 3.0, 4.0, 5.0, and 10.0 μg/mL) of WPE together with PNMC; (C) PP (10−4 M) or WPE (1.0 μg/mL), Que (1.0 μg/mL), PC (1.0 μg/mL) together with PP (D) PNMC (10−4 M) or WPE (1.0 μg/mL), Que (1.0 μg/mL), PC (1.0 μg/mL) together with PNMC for 48 h. Que, quercetin; PC, proanthocyanidin. Results shown are means ± SD of three separate experiments. * p < 0.05 or ** p < 0.01 vs. untreated control; # p < 0.05 or ## p < 0.01 vs. PP or PNMC treatment; $ p < 0.05 vs. WPE (1.0 μg/mL), together with PP (10−4 M) or PNMC (10−4 M) treatment.
Figure 1. Effect of WPE on cytotoxicity in splenocytes exposed to PP/PNMC. Splenocytes were treated with (A) PP (10−4 M) or different concentrations (0.01, 0.1, 1.0, 2.0, 3.0, 4.0, 5.0, and 10.0 μg/mL) of WPE together with PP; (B) PNMC (10−4 M) or different concentrations (0.01, 0.1, 1.0, 2.0, 3.0, 4.0, 5.0, and 10.0 μg/mL) of WPE together with PNMC; (C) PP (10−4 M) or WPE (1.0 μg/mL), Que (1.0 μg/mL), PC (1.0 μg/mL) together with PP (D) PNMC (10−4 M) or WPE (1.0 μg/mL), Que (1.0 μg/mL), PC (1.0 μg/mL) together with PNMC for 48 h. Que, quercetin; PC, proanthocyanidin. Results shown are means ± SD of three separate experiments. * p < 0.05 or ** p < 0.01 vs. untreated control; # p < 0.05 or ## p < 0.01 vs. PP or PNMC treatment; $ p < 0.05 vs. WPE (1.0 μg/mL), together with PP (10−4 M) or PNMC (10−4 M) treatment.
Nutrients 08 00287 g001
Figure 2. Percentages of various lymphocyte cell types as determined using flow cytometric analysis. (A) CD3+ T-cells; (B) CD4+ T-cells; (C) CD8+ T-cells; and (D) B-cells in cells exposed to medium only (control), PP (10−4 M), or WPE (1.0 μg/mL), together with PP for 48 h. Results shown are means ± SD of three separate experiments. * p < 0.05 vs. untreated control; # p < 0.05 vs. PP treatment.
Figure 2. Percentages of various lymphocyte cell types as determined using flow cytometric analysis. (A) CD3+ T-cells; (B) CD4+ T-cells; (C) CD8+ T-cells; and (D) B-cells in cells exposed to medium only (control), PP (10−4 M), or WPE (1.0 μg/mL), together with PP for 48 h. Results shown are means ± SD of three separate experiments. * p < 0.05 vs. untreated control; # p < 0.05 vs. PP treatment.
Nutrients 08 00287 g002

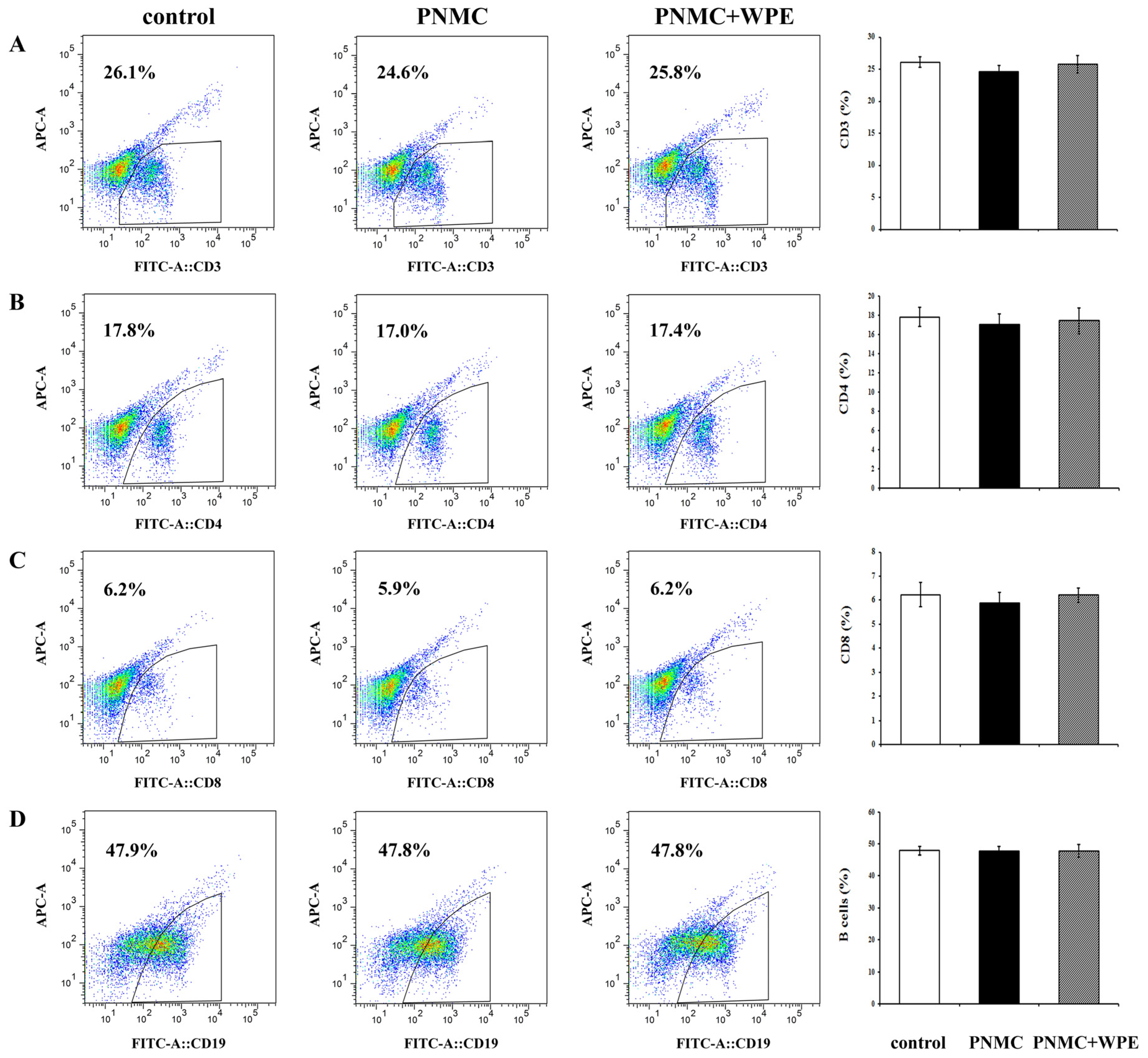

Figure 3. Percentages of various lymphocyte cell types as determined using flow cytometric analysis. (A) CD3+ T-cells; (B) CD4+ T-cells; (C) CD8+ T-cells; and (D) B-cells in cells exposed to medium only (control), PNMC (10−4 M), or WPE (1.0 μg/mL), together with PNMC for 48 h. Results shown are means ± SD of three separate experiments.
Figure 3. Percentages of various lymphocyte cell types as determined using flow cytometric analysis. (A) CD3+ T-cells; (B) CD4+ T-cells; (C) CD8+ T-cells; and (D) B-cells in cells exposed to medium only (control), PNMC (10−4 M), or WPE (1.0 μg/mL), together with PNMC for 48 h. Results shown are means ± SD of three separate experiments.
Nutrients 08 00287 g003
Figure 4. Effect of WPE on select cytokine/granzyme production in splenocytes exposed to PP. Splenocytes were cultured for 48 h in the presence of PP (10−4 M) or WPE (1.0 μg/mL) together with PP. Levels of (A) IL-2; (B) IL-4; and (C) granzyme B released into culture media were then measured by ELISA. Results shown are means ± SD of three separate experiments. * p < 0.05 or ** p < 0.01 vs. untreated control; # p < 0.05 or ## p < 0.01 vs. PP treatment.
Figure 4. Effect of WPE on select cytokine/granzyme production in splenocytes exposed to PP. Splenocytes were cultured for 48 h in the presence of PP (10−4 M) or WPE (1.0 μg/mL) together with PP. Levels of (A) IL-2; (B) IL-4; and (C) granzyme B released into culture media were then measured by ELISA. Results shown are means ± SD of three separate experiments. * p < 0.05 or ** p < 0.01 vs. untreated control; # p < 0.05 or ## p < 0.01 vs. PP treatment.
Nutrients 08 00287 g004

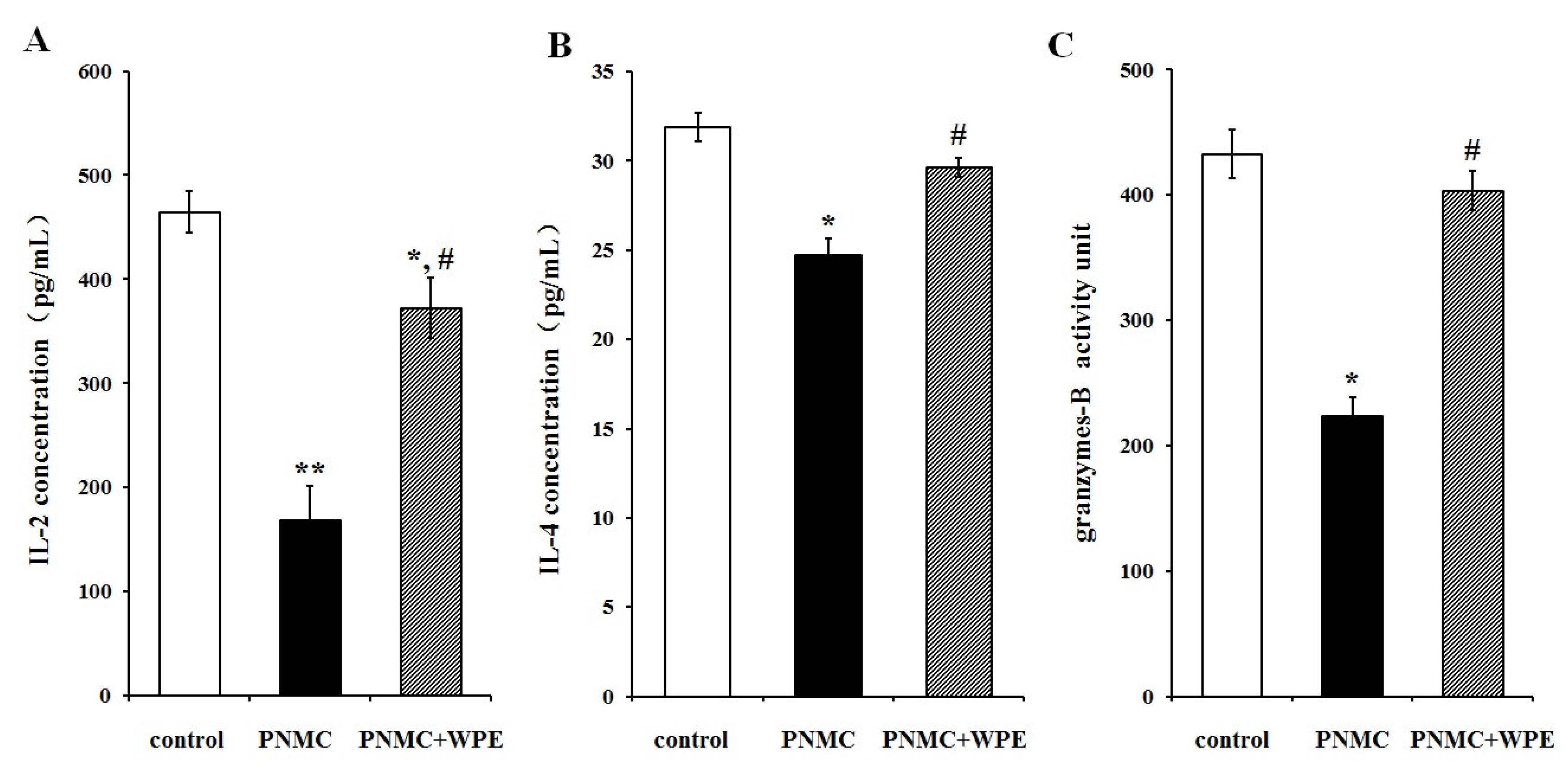

Figure 5. Effects of WPE on select cytokine/granzyme production in splenocytes exposed to PNMC. Splenocytes were cultured for 48 h in the presence of PNMC (10−4 M) or WPE (1.0 μg/mL) together with PNMC. Levels of (A) IL-2; (B) IL-4; and (C) granzyme B released into culture media were then measured by ELISA. Results shown are means ± SD of three separate experiments. * p < 0.05 or ** p < 0.01 vs. untreated control; # p < 0.05 vs. PNMC treatment.
Figure 5. Effects of WPE on select cytokine/granzyme production in splenocytes exposed to PNMC. Splenocytes were cultured for 48 h in the presence of PNMC (10−4 M) or WPE (1.0 μg/mL) together with PNMC. Levels of (A) IL-2; (B) IL-4; and (C) granzyme B released into culture media were then measured by ELISA. Results shown are means ± SD of three separate experiments. * p < 0.05 or ** p < 0.01 vs. untreated control; # p < 0.05 vs. PNMC treatment.
Nutrients 08 00287 g005

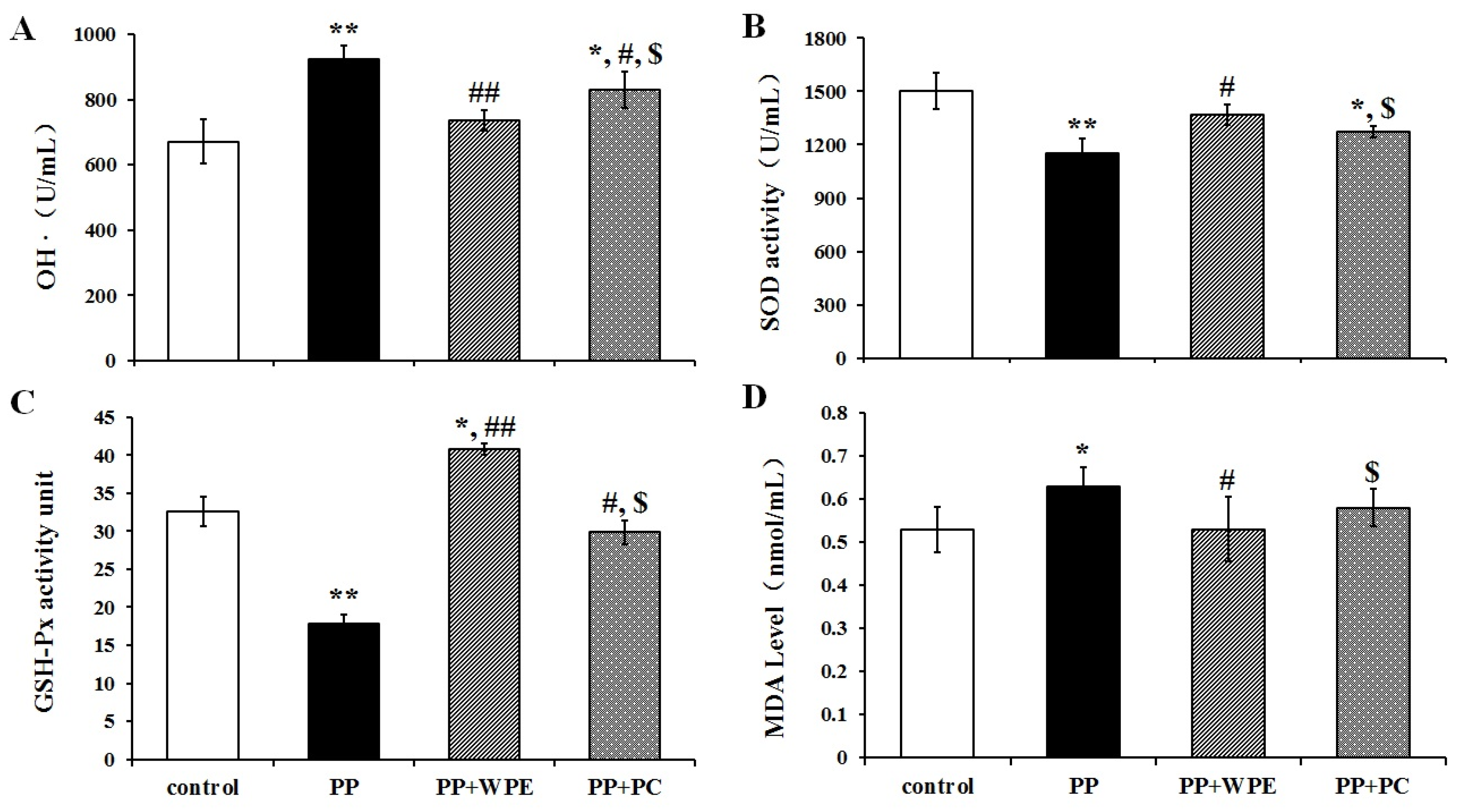

Figure 6. Effects of WPE on levels of ·OH, SOD, GSH-Px, and MDA in splenocytes exposed to PP. Splenocytes were cultured in the presence of PP (10−4 M) or WPE (1.0 μg/mL), PC (1.0 μg/mL, together with PP for 48 h. Changes in (A) hydroxyl free radical (·OH) activity; (B) superoxide dismutase (SOD) activity; (C) glutathione peroxidase (GSH-Px) activity; and (D) malonaldehyde (MDA) content in the cells were measured using specific assay kits. Results shown are means ± SD of three separate experiments. * p < 0.05 or ** p < 0.01 vs. untreated control; # p < 0.05 or ## p < 0.01 vs. PP treatment; $ p < 0.05 vs. WPE (1.0 μg/mL) together with PP (10−4 M) treatment.
Figure 6. Effects of WPE on levels of ·OH, SOD, GSH-Px, and MDA in splenocytes exposed to PP. Splenocytes were cultured in the presence of PP (10−4 M) or WPE (1.0 μg/mL), PC (1.0 μg/mL, together with PP for 48 h. Changes in (A) hydroxyl free radical (·OH) activity; (B) superoxide dismutase (SOD) activity; (C) glutathione peroxidase (GSH-Px) activity; and (D) malonaldehyde (MDA) content in the cells were measured using specific assay kits. Results shown are means ± SD of three separate experiments. * p < 0.05 or ** p < 0.01 vs. untreated control; # p < 0.05 or ## p < 0.01 vs. PP treatment; $ p < 0.05 vs. WPE (1.0 μg/mL) together with PP (10−4 M) treatment.
Nutrients 08 00287 g006
Figure 7. Effects of WPE on levels of ·OH, SOD, GSH-Px, and MDA in splenocytes exposed to PNMC. Splenocytes were cultured in the presence of PNMC (10−4 M) or WPE(1.0 μg/mL), PC (1.0 μg/mL) together with PNMC for 48 hr. Changes in (A) hydroxyl free radical (·OH) activity; (B) superoxide dismutase (SOD) activity; (C) glutathione peroxidase (GSH-Px) activity; and (D) malonaldehyde (MDA) content in the cells were measured using specific assay kits. Results shown are means ± SD of three separate experiments. * p < 0.05 vs. untreated control; # p < 0.05 or ## p < 0.01 vs. PNMC treatment; $ p < 0.05 vs. WPE (1.0 μg/mL), together with PNMC (10−4 M) treatment.
Figure 7. Effects of WPE on levels of ·OH, SOD, GSH-Px, and MDA in splenocytes exposed to PNMC. Splenocytes were cultured in the presence of PNMC (10−4 M) or WPE(1.0 μg/mL), PC (1.0 μg/mL) together with PNMC for 48 hr. Changes in (A) hydroxyl free radical (·OH) activity; (B) superoxide dismutase (SOD) activity; (C) glutathione peroxidase (GSH-Px) activity; and (D) malonaldehyde (MDA) content in the cells were measured using specific assay kits. Results shown are means ± SD of three separate experiments. * p < 0.05 vs. untreated control; # p < 0.05 or ## p < 0.01 vs. PNMC treatment; $ p < 0.05 vs. WPE (1.0 μg/mL), together with PNMC (10−4 M) treatment.
Nutrients 08 00287 g007
Table 1. Identification of phenolic compounds in WPE using HPLC-ESI-IT-TOF-MS in the negative ion mode.
Table 1. Identification of phenolic compounds in WPE using HPLC-ESI-IT-TOF-MS in the negative ion mode.
No.tR (min)Measured [M − H](m/z)Predicted [M − H] (m/z)λ (nm)Molecular FormulaIdentificationExpressed asReference
112.663, 12.906300.9993300.9990280C14H6O8Ellagic aciEllagitannins[37,38,39]
211.946433.0432433.0412280C19H14O12Ellagic acid 4-O-xylosideEllagitannins[37,38,39]
312.507433.1119433.0772280C20H18O11Quercetin pentoside isomerQuercetin[38]
411.946456.0383457.0781280C22H17O11Epigallocatechin-3-O-gallateEllagitannins[40]
513.74447.0831447.0938280C21H19O11Kaempferol-3-O-glucosideEllagitannins[40]
612.507, 12.663, 12.906469.0492469.0049280C21H10O13Valoneic acid dilactoneValoneic acid dilactone[38]
711.946481.5355481.0620280C20H18O142,3-O-HHDP-d-glucosideEllagitannins[38]
89.828, 10.020, 10.512, 10.784483.5192483.0777280C20H20O14Digalloyl-glucose isomerGallic acid[38,39]
912.25615.5905615.0986280C28H24O16Quercetin galloylhexoside isomerQuercetin[38]
108.382, 8.751, 9.624633.0720633.0720280C27H22O18Strictinin (galloyl-HHDP-glucose)Ellagitannins[37,38,39]
1110.784, 11.136635.0876635.0877280C27H24O18Trigalloyl-glucose isomerEllagitannins[38]
128.382, 8.751, 9.003783.0685783.0681280C34H24O22Pedunculagin (bis-HHDP-glucose)Ellagitannins[37,38,39]
1310.020, 10.236785.0808785.0840280C34H26O22Tellimagrandin I isomer(digalloyl-HHDP-glucose)Ellagitannins[37,38,39]
1411.946, 12.250787.1144787.0996280C34H28O22Tetragalloyl-glucoseEllagitannins[38]
1510.784, 11.488933.0316933.0630280C41H26O26Praecoxin DEllagitannins[37,38,39]
1611.136935.0746935.0786280C41H28O26Casuarinin(Galloyl bis HHDP glucose)Ellagitannins[37,38,39]

Share and Cite

MDPI and ACS Style

Yang, L.; Ma, S.; Han, Y.; Wang, Y.; Guo, Y.; Weng, Q.; Xu, M. Walnut Polyphenol Extract Attenuates Immunotoxicity Induced by 4-Pentylphenol and 3-methyl-4-nitrophenol in Murine Splenic Lymphocyte. Nutrients 2016, 8, 287. https://doi.org/10.3390/nu8050287

AMA Style

Yang L, Ma S, Han Y, Wang Y, Guo Y, Weng Q, Xu M. Walnut Polyphenol Extract Attenuates Immunotoxicity Induced by 4-Pentylphenol and 3-methyl-4-nitrophenol in Murine Splenic Lymphocyte. Nutrients. 2016; 8(5):287. https://doi.org/10.3390/nu8050287

Chicago/Turabian Style

Yang, Lubing, Sihui Ma, Yu Han, Yuhan Wang, Yan Guo, Qiang Weng, and Meiyu Xu. 2016. "Walnut Polyphenol Extract Attenuates Immunotoxicity Induced by 4-Pentylphenol and 3-methyl-4-nitrophenol in Murine Splenic Lymphocyte" Nutrients 8, no. 5: 287. https://doi.org/10.3390/nu8050287

APA Style

Yang, L., Ma, S., Han, Y., Wang, Y., Guo, Y., Weng, Q., & Xu, M. (2016). Walnut Polyphenol Extract Attenuates Immunotoxicity Induced by 4-Pentylphenol and 3-methyl-4-nitrophenol in Murine Splenic Lymphocyte. Nutrients, 8(5), 287. https://doi.org/10.3390/nu8050287

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
