Modeling of Statistical Variation Effects on DRAM Sense Amplifier Offset Voltage

Abstract

With the downscaling in device sizes, process-induced parameter variation has emerged as one of the most serious problems. In particular, the parameter fluctuation of the dynamic random access memory (DRAM) sense amplifiers causes an offset voltage, leading to sensing failure. Previous studies indicate that the threshold voltage mismatch between the paired transistors of a sense amplifier is the most critical factor. In this study, virtual wafers were generated, including statistical V_T variation. Then, we numerically investigate the prediction accuracy and reliability of the offset voltage of DRAM wafers using test point measurement for the first time. We expect that this study will be helpful in strengthening the in-line controllability of wafers to secure the DRAM sensing margin.

1. Introduction

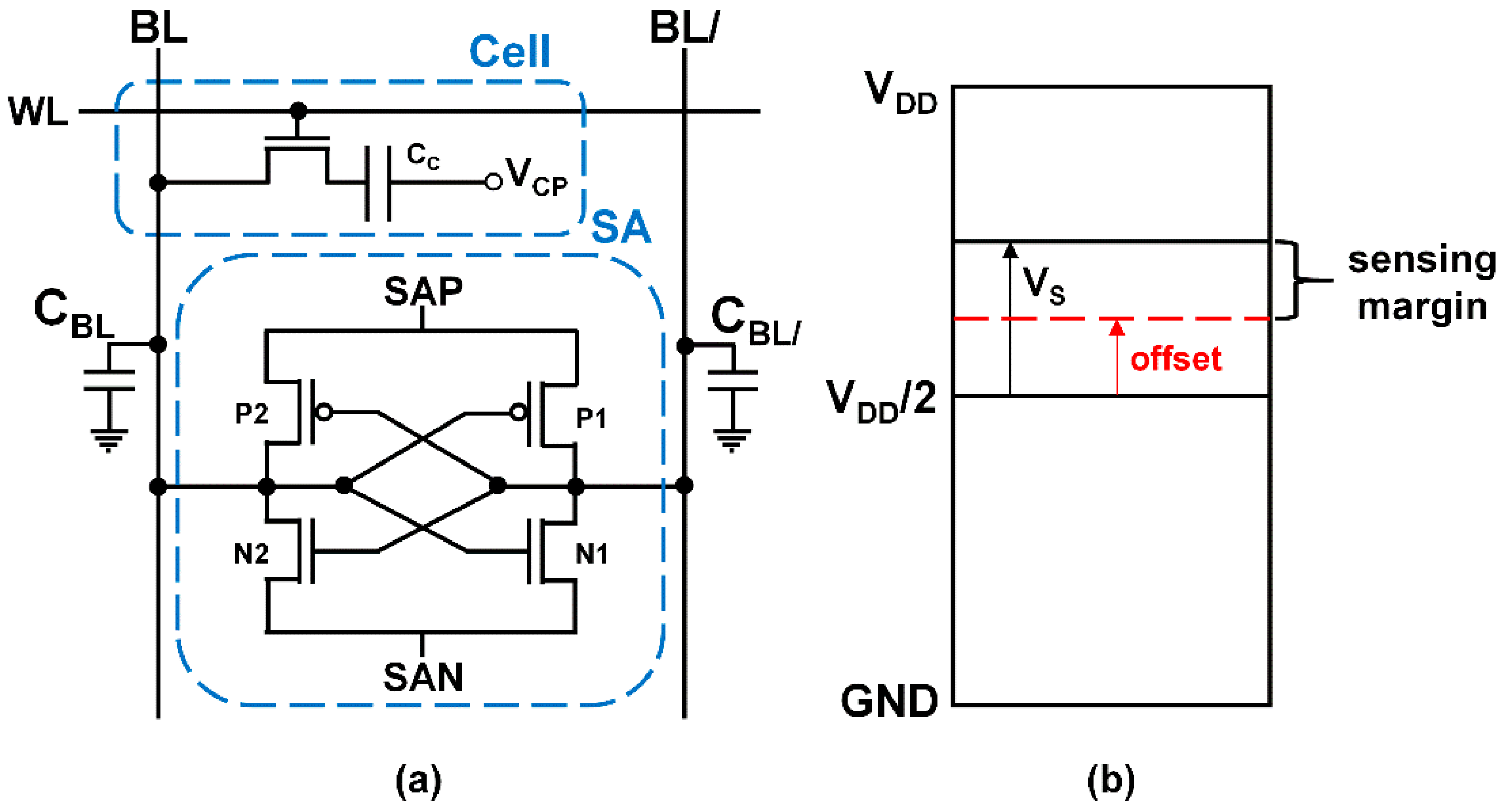

Artificial intelligence (AI) and 5G networks are emerging as major topics in information technology (IT). These applications require high-density and low-power memory. Dynamic random access memory (DRAM) can play an important role, owing to its fast switching speed, low bit cost, and high memory density [1]. Figure 1a shows a schematic of a DRAM cell connected to a sense amplifier (SA). The cell part consists of a cell transistor acting as a switch and a cell capacitor storing charge. The cell plate voltage (V_CP) is connected to half-V_DD to optimize the leakage current of the cell capacitor. An SA is a complementary metal-oxide-semiconductor (CMOS) latch using the half-V_DD precharge-sensing method [2]. The basic operating mechanism of read ‘1’ is as follows: In the standby mode, the bit-line (BL) pair voltage is precharged to half-V_DD. When the word-line (WL) voltage is raised to the ‘high’ level, the charge stored in the cell capacitors is transferred to the BLs. Then, the BL voltage deviates from half-V_DD, and a small voltage difference (V_S) between BL and BL/ is generated as follows:

$$V_S=\frac{V_{DD}/2}{1+C_{BL}/C_C}$$

(1)

where C_BL and C_C are the BL capacitance and the cell capacitance, respectively. With SA activation, the BL voltage is amplified up to V_DD by the positive feedback of the latched inverters of the SA, and data ‘1’ is read. However, accurate data sensing is feasible only when V_S exceeds the SA offset voltage, as shown in Figure 1b. Therefore, if V_S becomes lower than the SA offset voltage, the sensed data read inaccurately.

With advances in DRAM generation, both V_DD and C_C are being scaled down [3,4], thereby reducing the V_S. This reduction in cell transistor size also increases the threshold voltage (V_T) variation [5], resulting in a larger offset voltage. Thus, the offset voltage characterization becomes more important in SA sensitivity improvement.

R. Kraus et al. derived the offset voltage theoretically by using differential equations, confirming that simultaneous sensing was more advantageous than one-delayed sensing [6]. R. Sarpeshkar et al. derived a rigorous formula considering various parameter mismatches and showed a good agreement compared with HSPICE simulation results [7]. Among the various sources of offset voltage, including parasitic capacitance and β and V_T variation, V_T mismatch (ΔV_T) of the SA transistors has been considered as the most dominant factor [7,8,9]. At the chip (die) level, offset voltage is calculated by statistically measuring many SAs in a die. S. M. Kim et al. [10] investigated the SA sensing failure percentage in a die according to the V_DD, the V_T variation, and the channel width ratio of NMOS and PMOS using a Monte Carlo simulation. Because the V_T in a die follows the Gaussian distribution [11], the offset voltage also is assumed to follow the same distribution. Thus, the V_T standard deviation can be a good indicator of estimating the die offset voltage. S. H. Woo et al. [12] proposed an offset voltage variance estimation model considering the secondary effects such as drain-induced barrier lowering (DIBL), differential charge injection (DCI), and stack effects. Y. Li et al. [13] investigated the DRAM-SA mismatch analytically using small-signal analysis and optimized the result to obtain the minimum offset voltage variance. Then, they derived a linear model considering the sensing delay of SAs and confirmed that simultaneous sensing minimized the die level offset voltage. However, to the best of our knowledge, no study has been attempted to cover the offset voltage at a wafer level.

In this study, virtual wafers are generated based on the global and local variation theory, and the statistical simulation results of the offset voltage distribution at the die and wafer levels are obtained using test point measurement, which is widely used for wafer property identification. Finally, we numerically analyze the offset voltage prediction accuracy and probability of DRAM wafers for the first time. We expect that this study can be used as important information in the DRAM process line and consequently help secure the sensing margin of the DRAM.

The remainder of this study is organized as follows: in Section 2, the V_T variation theory is explained. Then, the assumption of generating virtual wafers and the methodology of extracting data is described in Section 3. Finally, the results are discussed in Section 4.

2. V_T Variation

With the reduction in device sizes, the device parameter fluctuations and short-channel effects need a thorough investigation [14]. It is widely known that the process variations, including random dopant fluctuation (RDF), line edge roughness (LER), and work function variation (WFV), affect nonuniform V_T distribution [5,15,16,17]. Especially, process variation was classified into two categories: global and local variations [18].

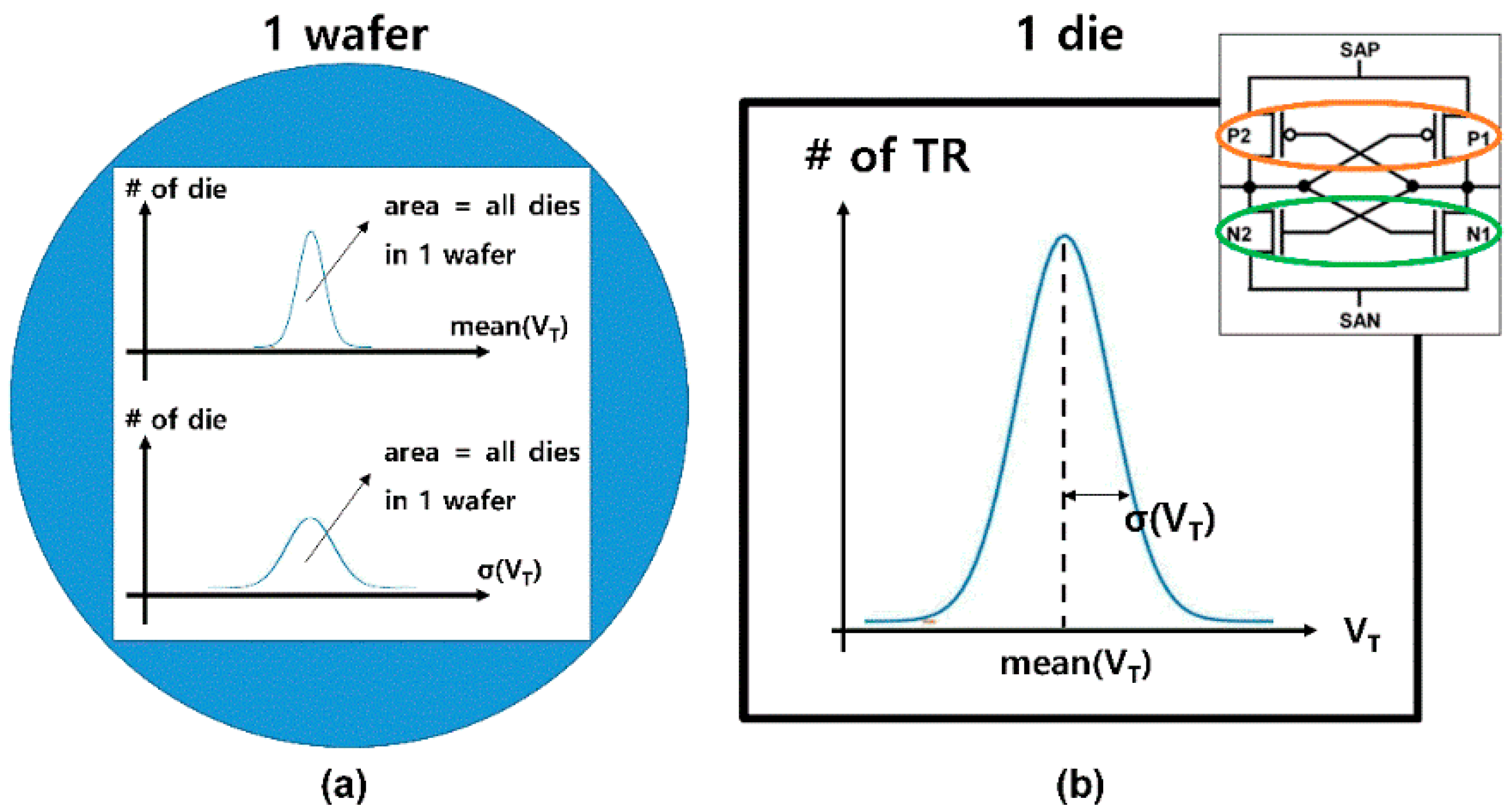

First, the global variation includes lot-to-lot variation (LTLV, Figure 2a), wafer-to-wafer variation (WTWV, Figure 2b), and die-to-die variation (DTDV, Figure 2c). Because global variation is location-dependent, it can be characterized by wafer maps. For a simple and concise discussion, a Gaussian distribution was applied to global variation, as shown in Figure 3a.

Second, the local variation includes the within-die variation (WIDV) shown in Figure 2d. Within a die, V_T follows a Gaussian distribution with a certain mean (mean(V_T)) and standard deviation (σ(V_T)) independent of location (random distribution). In this study, V_T of the SA’s transistors is assumed to follow a Gaussian distribution and the V_Ts of the transistor pair sharing the same SA follow the same Gaussian distribution, as shown in Figure 3b.

3. Simulation Methodology

First, we modeled the offset voltage distribution of one die by referring to [13], which statistically investigated the offset voltage using small-signal analysis and showed good agreement with simulation results. According to [13], the variance of offset voltage of simultaneously latched CMOS SAs in one die is expressed as follows:

$${\mathsf{\sigma }}^2\left(V_{OS}\right)=\frac{2{\mathsf{\sigma }}^2\left(\Delta V_{TP}\right){\mathsf{\sigma }}^2\left(\Delta V_{TN}\right)}{{\mathsf{\sigma }}^2\left(\Delta V_{TP}\right)+m{\mathsf{\sigma }}^2\left(\Delta V_{TN}\right)}$$

(2)

where V_OS is the offset voltage of one SA in a die. Moreover, ΔV_TN and ΔV_TP represent the V_T mismatch of paired NMOS and PMOS in a SA, respectively. The constant m is expressed as follows:

$$m=\frac{V_{DD}-\left(2+(1/\alpha )\right)V_{TN}+\left(1/\alpha \right)\left|V_{TP}\right|}{V_{DD}-\left|V_{TP}\right|-V_{TN}}$$

(3)

where α is expressed in terms of V_DD and V_T:

$$\alpha =\frac{V_{DD}-2\left|V_{TP}\right|}{V_{DD}-2V_{TN}}$$

(4)

In this article, V_DD is assumed to be 1.2 V. In addition, the average V_TN and V_TP are assumed to be 0.423 V and −0.365 V, respectively. Accordingly, α and m are calculated as 1.328 and 0.7534, respectively.

As the offset voltage of a die (V_OS,die) is statistically defined, we choose the 4σ value of the single SA offset voltage distribution, which is calculated by using Equation (5):

$$V_{OS,die}=4\mathsf{\sigma }\left(V_{OS}\right)$$

(5)

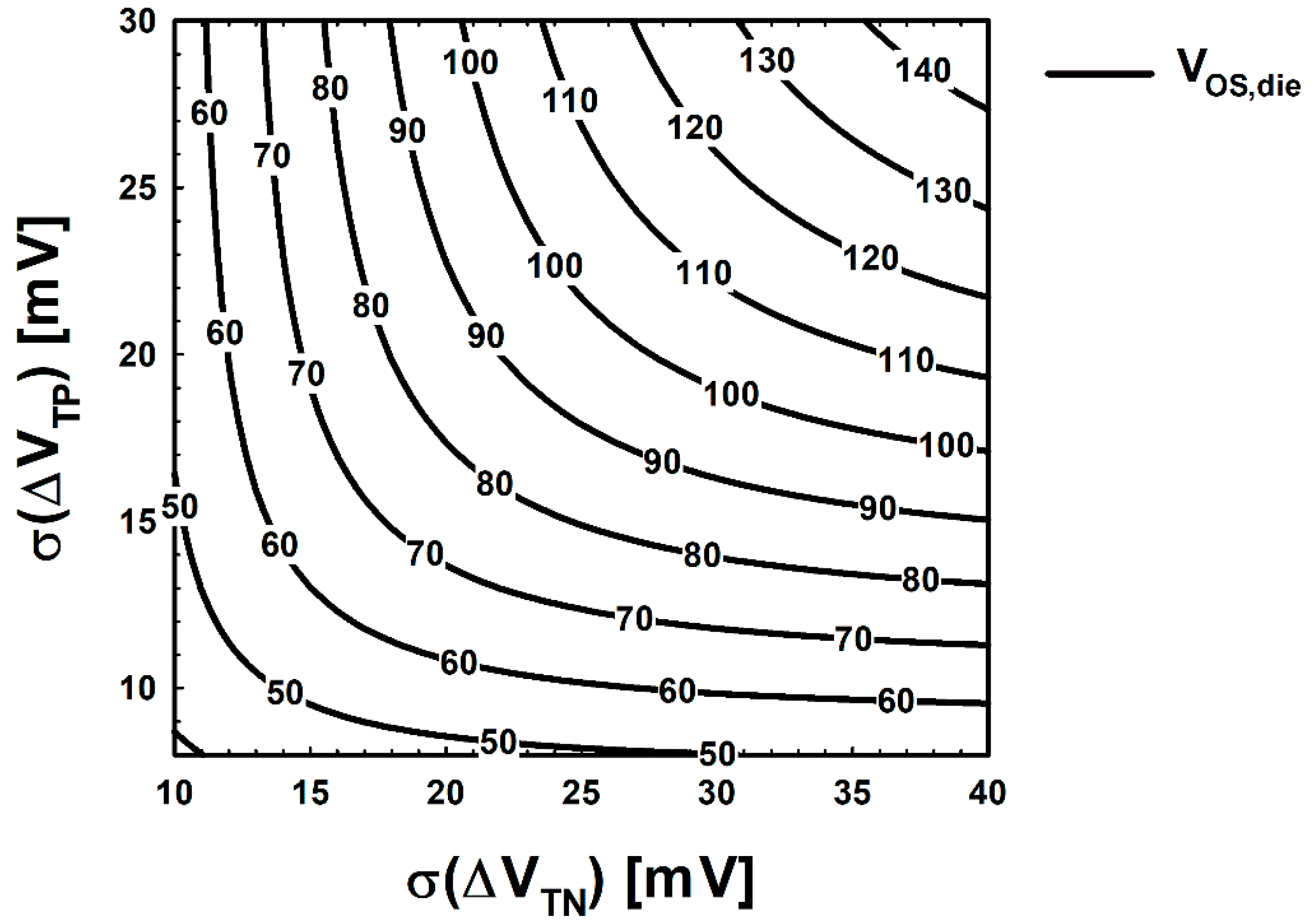

Then, the offset voltage map according to σ(ΔV_TN) and σ(ΔV_TP) is plotted as shown in Figure 4. It is observed that V_OS,die increases as σ(ΔV_TN) or σ(ΔV_TP) increases.

Next, we made a virtual wafer including 1000 DRAM dies. Additionally, for a simple and concise discussion, we assumed that each DRAM die had 10,000 SAs, since a desirable Gaussian distribution can be formed with just that number. As a result, the V_Ts of SAs in a die follow a Gaussian distribution. Because it has been proven by previous studies that the major factor that affects the offset voltage is ΔV_T, we considered only σ(V_T) and σ(ΔV_T) for the concise discussion. Thus, the average values of σ(V_TN) and σ(V_TP) of dies in a virtual wafer are assumed to be 19.7 mV and 12.8 mV, respectively [11], which is shown in Figure 5. Then, to calculate the average offset voltage of dies in a wafer, we can apply a simple statistical equation to derive σ(ΔV_T) from σ(V_T). Since we assume WIDV as a random variation, the V_T of each SA transistor pair is independent of each other. Therefore, the relationship between the variance of ΔV_T (σ²(ΔV_T)) and that of V_T (σ²(V_T)) is given by the following equation [14]:

$${\mathsf{\sigma }}^2\left(V_{T1}-V_{T2}\right)={\mathsf{\sigma }}^2\left(\Delta V_T\right)=2{\mathsf{\sigma }}^2\left(V_T\right)$$

(6)

Accordingly, the σ(ΔV_T) can be expressed as follows:

$$\mathsf{\sigma }\left(\Delta V_T\right)=\sqrt{2}\mathsf{\sigma }\left(V_T\right)$$

(7)

As a consequence, when σ(V_TN) is 19.7 mV, σ(ΔV_TN) is calculated as 27.86 mV, and when σ(V_TP) is 12.8 mV, σ(ΔV_TP) is calculated as 18.01 mV, respectively. From σ(ΔV_TN), σ(ΔV_TP) and Equation (2), the average offset voltage of dies in a wafer is analytically calculated as 94.44 mV.

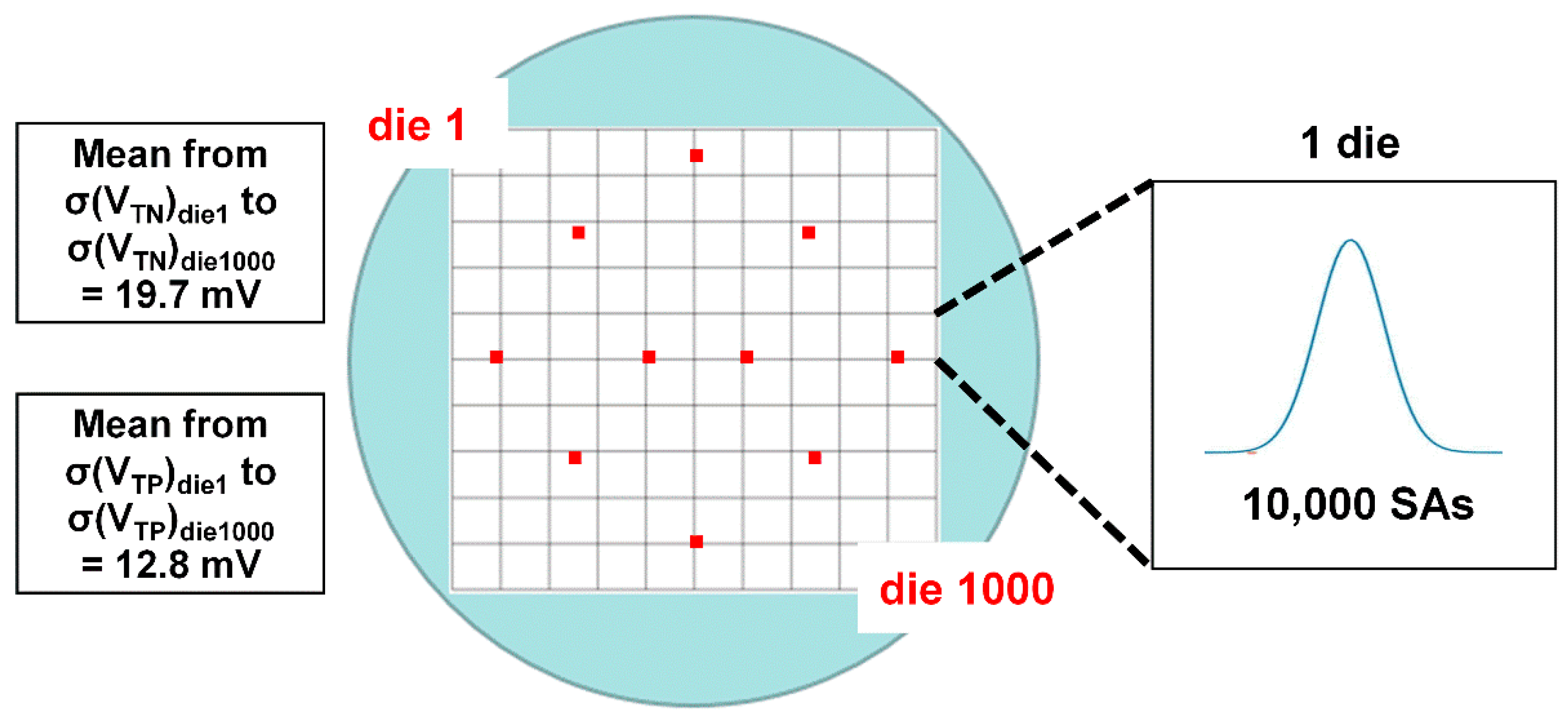

Here, we explain the offset voltage prediction method. The average offset voltage of dies in a wafer is predicted as follows. First, 10 test points that can represent the whole wafer are selected, as shown in Figure 5. Then, ΔV_TN and ΔV_TP are extracted from that point. Afterward, σ(ΔV_TN) and σ(ΔV_TP) are calculated from these 10 ΔV_TN and ΔV_TP. Then, these values would be used to predict the offset voltage. The results of prediction and analysis of accuracy will be discussed in the latter part of this paper.

4. Results and Discussion

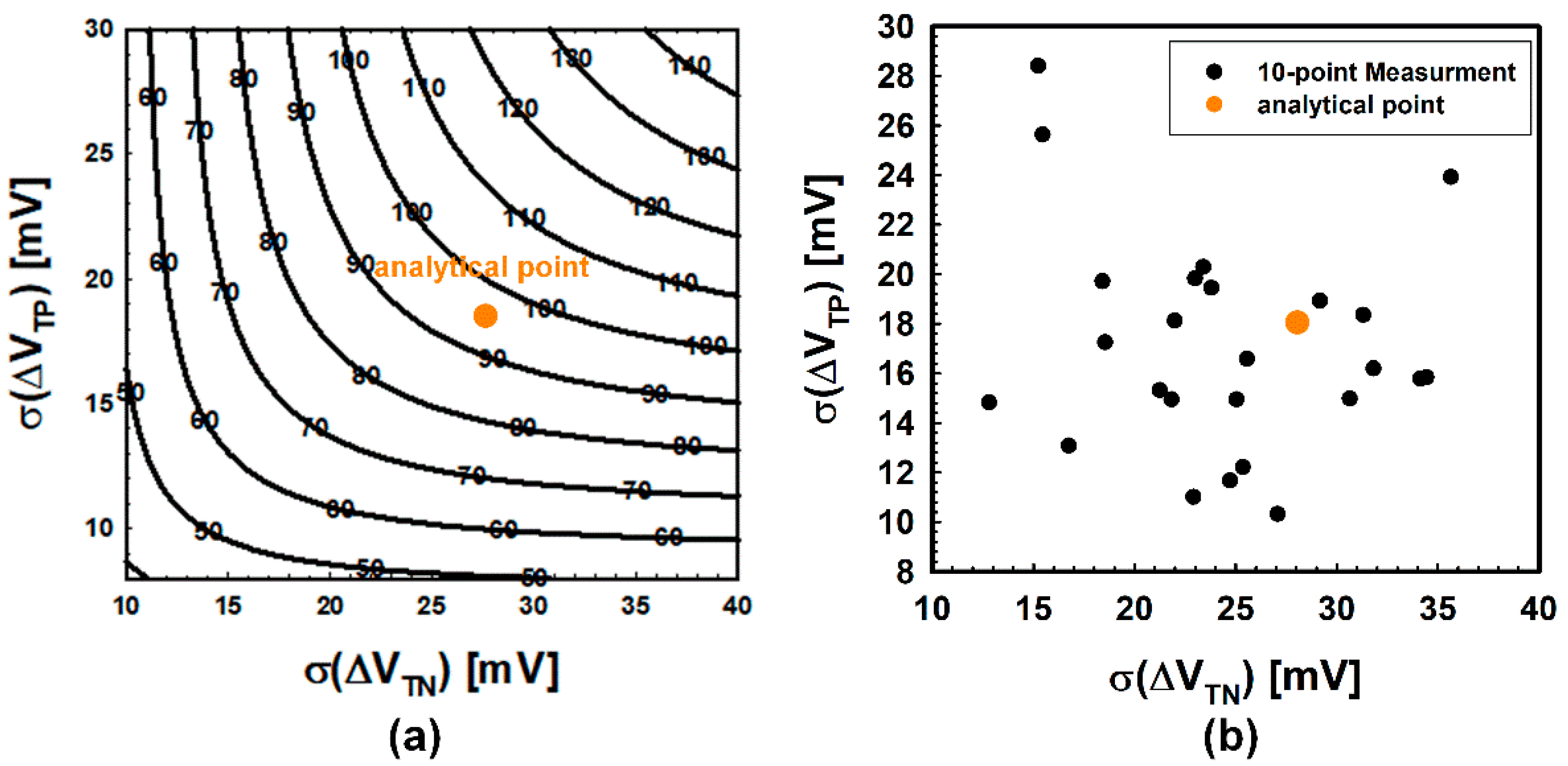

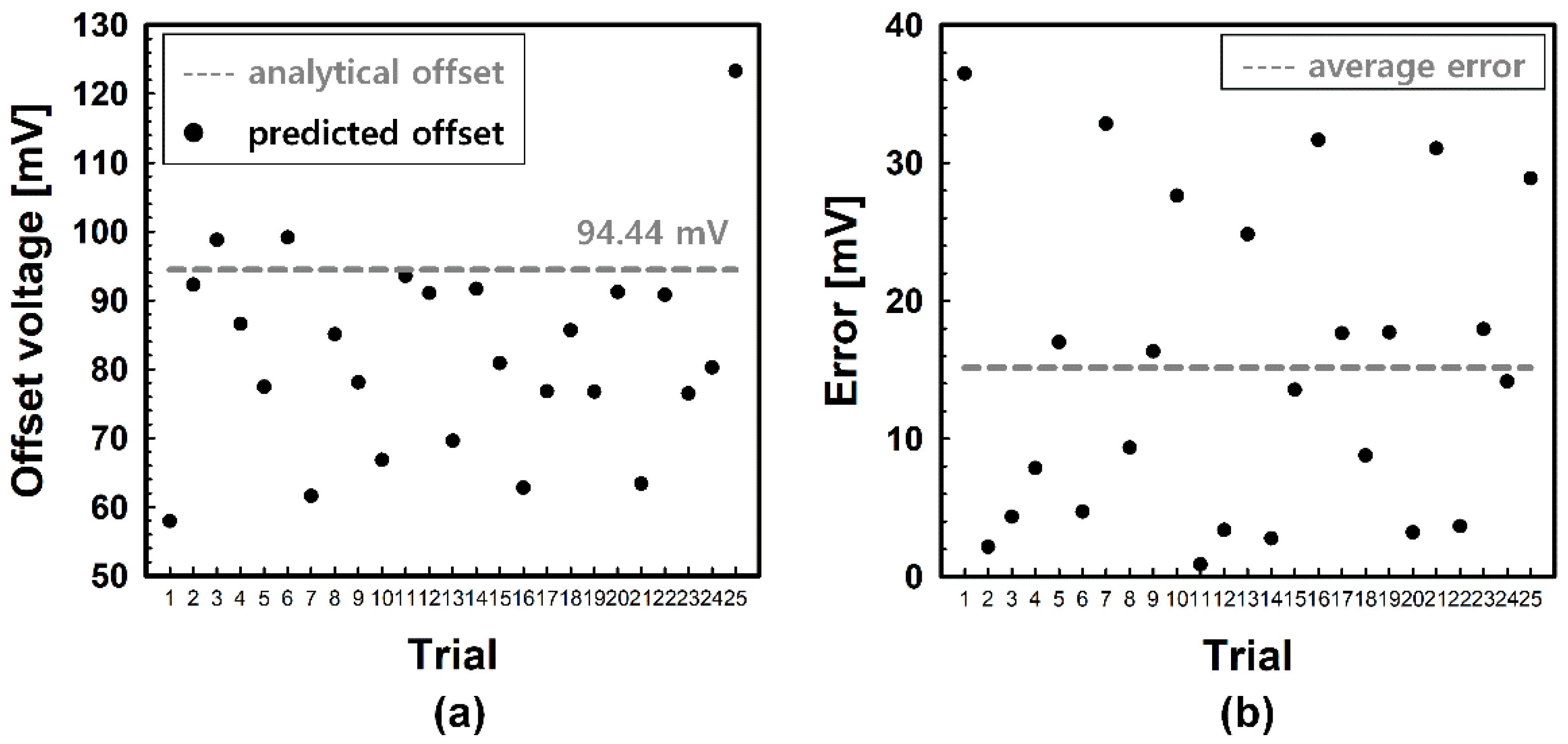

For intuitive comparison, simulation results are pointed with an analytical point which is shown in Figure 6. The orange point in Figure 6a,b indicates the analytical point (27.86 mV, 18.01 mV), and the offset voltage at this analytical point is 94.44 mV. Black points in Figure 6b indicate the predicted points using the 10-point measurement. Each black point in Figure 6b was extracted from one of the 25 identical wafers. As shown in Figure 6b, the 10-point prediction is not trending and has a wide distribution, which is estimated to be an insufficient number of samples, which were not enough to accurately predict the offset voltage of a wafer. Furthermore, the maximum distance in Figure 6b between the analytical point and predicted a point is calculated as 24.58. However, since the distance from the analytical point does not have a linear correlation with the error (see Figure 6a), we calculate the error between the offset voltage at the analytical point and at the predicted point to clarify the accuracy of the prediction. Figure 7 shows the predicted offset voltage (Figure 7a) and error (Figure 7b) of the 25 wafers. As shown in Figure 7, the overall predicted offset voltage is distributed far from the analytical value, and the maximum error and the average error are estimated to be 38 mV and 15 mV, respectively. The ratio of the average error, 15 mV, to the analytical offset voltage is a somewhat large value, which is equivalent to 16% and needs to be decreased for more accurate prediction.

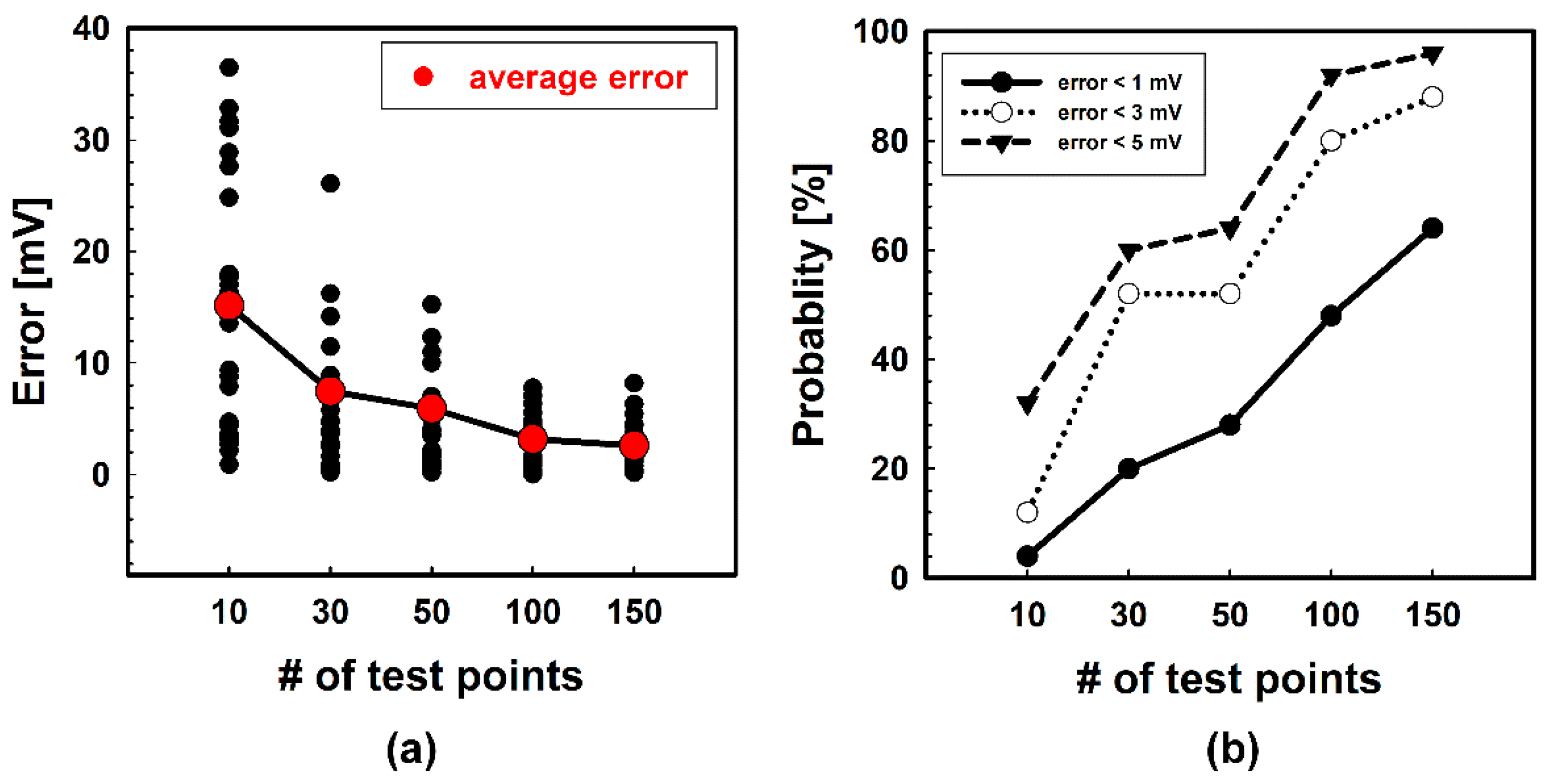

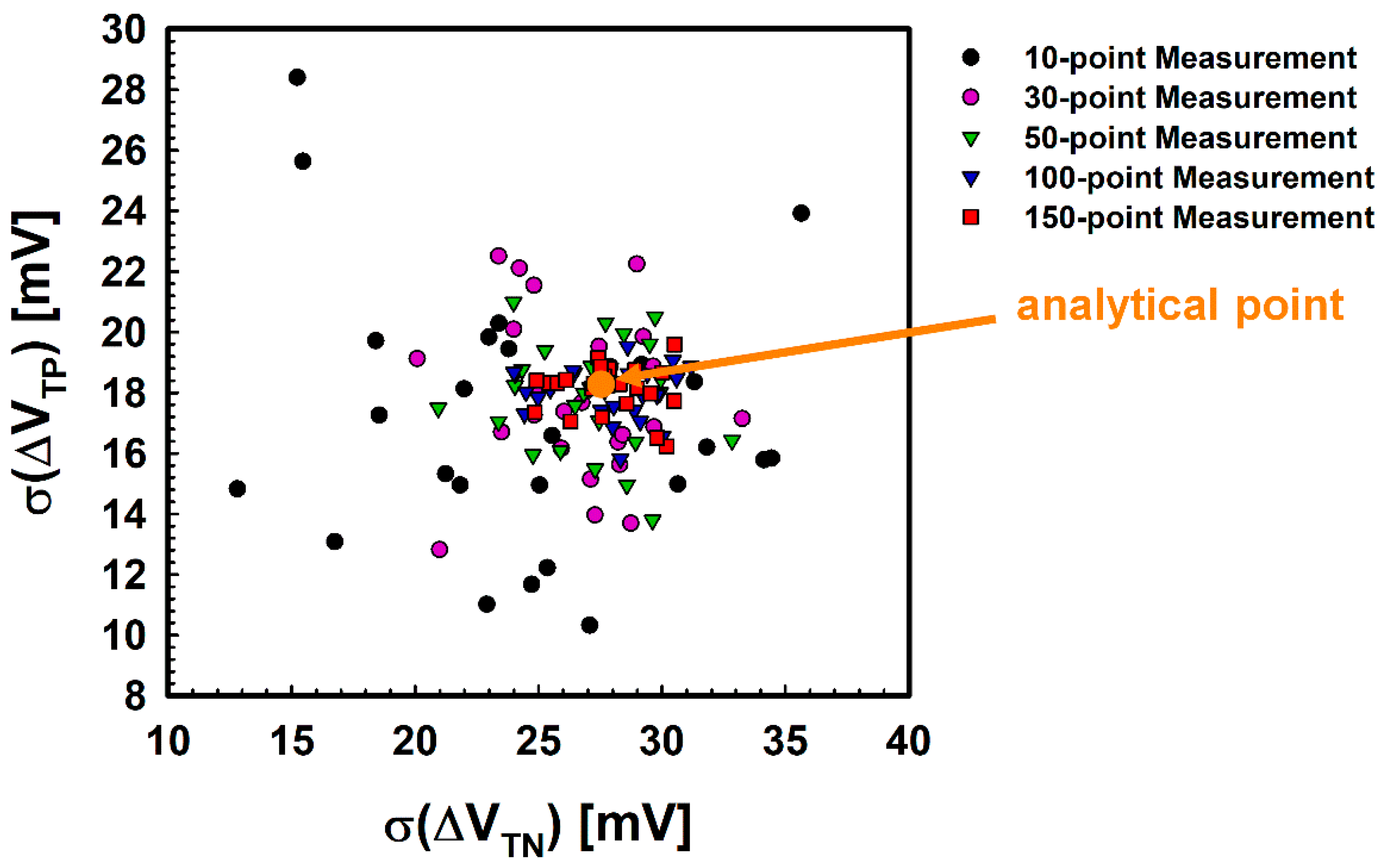

Hence, we increased the number of test points to strengthen the prediction accuracy and verify how much the accuracy is improved according to the number of test points. Besides 10-points measurements, 30, 50, 100, and 150 points were selected, and data were extracted in the same way. Figure 8 shows the results with various numbers of test points. As expected, it appears that the predicted points are moving toward the analytical point as the number of test points increases to 100 points. However, there seems to be little difference between the prediction results of 100-points measurements and 150-points measurements. To further analyze the improvement in prediction accuracy, the error and the corresponding probability plot were also calculated. As the number of test points increases, the distribution of error is diminished, and the average error is reduced, as shown in Figure 9a. Notably, the average error is reduced below 3 mV when the number of test points is 100, and further improvement is minimal when the number grows from 100 points to 150 points. Likewise, the prediction probability is also enhanced as the number of test points increases, which is described in Figure 9b. Of course, the smaller the allowable error, the lower this probability is. However, when the allowable error is 5 mV, it is confirmed that the 100-point measurements show more than 90% reliability. Given these facts, it is estimated that at least 100-point measurements will be needed to reliably predict the overall offset voltage of the wafer by measuring the test points.

Then, we made other types of virtual wafers to examine how the prediction accuracy changes with regard to variation properties. The aforementioned wafer was named ‘w0’, and the rest of the wafers (from ‘w1’ to ‘w6’) were set by increasing and decreasing the average value of σ(V_TN) and σ(V_TP) of dies in wafer ‘w0’ by 20%, respectively. The variation properties and analytical offset voltages of wafers are summarized in

Table 1. Variation characteristics and analytical offset voltages of each wafer.

Wafer	w0	w1	w2	w3	w4	w5	w6
Average σ(VTN) of dies (mV)	19.7	23.64	15.76	19.7	19.7	23.64	15.76
Average σ(VTP) of dies (mV)	12.8	12.8	12.8	15.36	10.24	15.36	10.24
Analytical offset voltage (mV)	94.44	100.1	86.14	105.3	80.96	113.33	75.55

. For an accurate comparison, the number of test points is chosen as 100, and the simulation was performed in the same way.

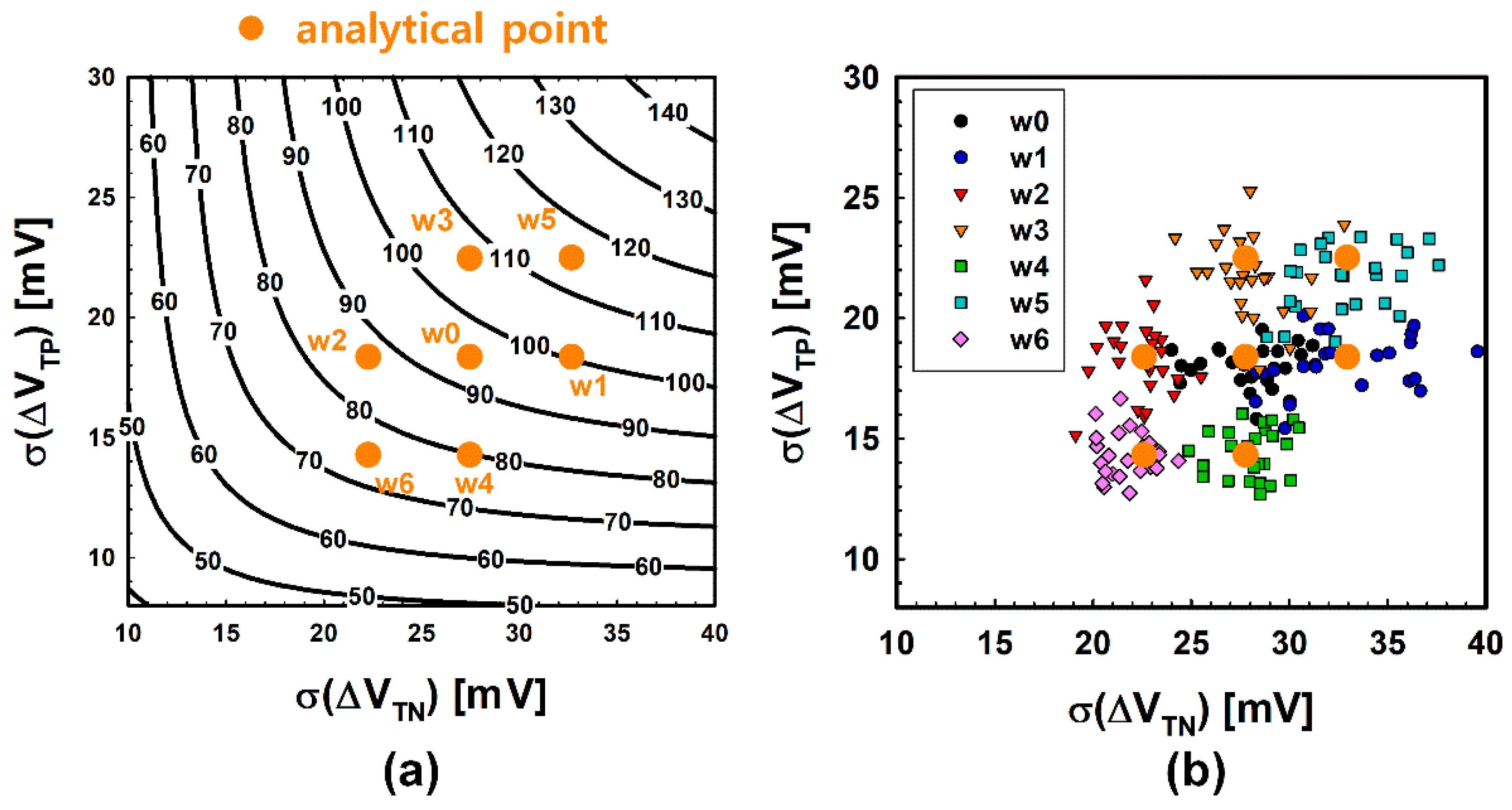

Figure 10 shows the result of the simulation. In Figure 10a, analytical points of each wafer are marked on the offset voltage contours. Since 100 points were measured to investigate the desirable accuracy, a number of relevant predicted points are placed near each analytical point, as shown in Figure 10b. Then, a quantitative analysis of the error is described in Figure 11. Interestingly, it is confirmed that the average error has a positive correlation with the analytical offset voltage (see Figure 11a). In other words, the wafer with the largest variation has a larger prediction error. This is because the greater the population variance is, the more the consistency of the sample variances decreases. For this reason, regarding the prediction probability, the wafer with the largest variation is more likely to make a poor prediction. Specifically, as shown in Figure 11b, when the allowable error is 3 mV, the prediction probability falls to around 50% at wafer ‘w5′, which has the greatest variation.

5. Conclusions

Owing to the increase in demand for DRAM and the scaling of device technology nodes, the offset voltage characteristics of the DRAM SA are becoming increasingly important to design a sensitive SA. In this study, we numerically analyzed the prediction accuracy and reliability of the offset voltage of DRAM wafers using test point measurement for the first time. We created a virtual wafer and then compared the analytical offset voltage of the wafer with the predicted value obtained through ΔV_T measurement at the test points. With regard to the number of test points, 100-point measurements show more than 90% reliability when the allowable error is 5 mV. Additionally, it is confirmed that the predictive reliability of wafers with small variations is higher. We expect that this study can be used as important information in the DRAM process line, and it will be helpful in strengthening the in-line controllability of wafers to secure the DRAM sensing margin.
