Article

Flow Characteristics of Heat and Mass for Nanofluid under Different Operating Temperatures over Wedge and Plate

by
Muhammad Rizwan
1,
Mohsan Hassan
1,
Muhammad Imran Asjad
2,* and
ElSayed M. Tag-ElDin
3
1
Department of Mathematics, COMSATS University Islamabad, Lahore 54000, Pakistan
2
Department of Mathematics, University of Management and Technology, Lahore 54770, Pakistan
3
Faculty of Engineering and Technology, Future University in Egypt, New Cairo 11835, Egypt
*
Author to whom correspondence should be addressed.
Micromachines 2022, 13(12), 2080; https://doi.org/10.3390/mi13122080
Submission received: 28 October 2022 / Revised: 18 November 2022 / Accepted: 23 November 2022 / Published: 26 November 2022
(This article belongs to the Special Issue Heat and Mass Transfer in Micro/Nanoscale)

Abstract

:
Background and Purpose: Nanofluids are a new class of heat transfer fluids that are used for different heat transfer applications. The transport characteristics of these fluids not only depend upon flow conditions but also strongly depend on operating temperature. In respect of these facts, the properties of these fluids are modified to measure the temperature effects and used in the governing equations to see the heat and mass flow behavior. Design of Model: Consider the nanofluids which are synthesized by dispersing metallic oxides (SiO2, Al2O3), carbon nanostructures (PEG-TGr, PEG-GnP), and nanoparticles in deionized water (DIW), with (0.025–0.1%) particle concentration over (30–50 °C) temperature range. The thermophysical properties of these fluids are modeled theoretically with the help of experimental data as a function of a temperature and volume fraction. These models are further used in transport equations for fluid flow over both wedge and plate. To get the solution, the equations are simplified in the shape of ordinary differential equations by applying the boundary layer and similarity transformations and then solved by the RK method. Results: The solution of the governing equation is found in the form of velocity and temperature expressions for both geometries and displayed graphically for discussion. Moreover, momentum and thermal boundary layer thicknesses, displacement, momentum thicknesses, the coefficient of skin friction, and Nusselt number are calculated numerically in tabular form. Finding: The maximum reduction and enhancement in velocity and temperature profile is found in the case of flow over the plate as compared to the wedge. The boundary layer parameters are increased in the case of flow over the plate than the wedge.

1. Introduction

The nanofluids are engineered colloidal suspensions of nano-sized particles in conventional fluids (water, EG, or oil) [1,2,3,4,5,6,7,8,9,10]. Mostly, nanoparticles of carbides, oxides, and metals are used to synthesize the nanofluids. The nanofluids are usually used as coolants in various heat transfer equipment, such as electronic cooling systems, heat exchangers, radiation, etc., due to their improved thermophysical properties [11,12,13,14,15,16,17,18].
Many investigations have been carried out to see the behavior of thermophysical properties of nanofluids for different applications by using different types of nanoparticles [19,20,21,22,23]. In the list of thermophysical properties, viscosity plays an important role in the transport of mass and convective heat transfer. The viscosity of nanofluid is affected not only by shear rate but also by operating temperature, nanoparticle concentration, type of nanoparticles and their sizes, etc. Numerous studies have been conducted on the behavior of viscosity of nanofluids. Moghaddam et al. [24] studied the viscosity of graphene/glycerol nanofluids at a 6.32 shear rate, 20 °C temperature, and different particle concentrations. It increases by increasing nanoparticle concentration and decreases by enhancing temperature. Chen et al. [25] described the rheological properties of TiO2/EG nanofluids. The results exhibit the Newtonian at a 0.5–104 shear rate and found that viscosity is independent of the temperature. Rashin and Hemalatha [26] investigated the viscosity of CuO/coconut oil nanofluids. Their experiments showed the non-Newtonian behavior at a low shear rate (0–2.5%) concentration under different temperatures. Khedkar et al. [27] studied the viscosity of Fe3O4/paraffin at 0.01–0.1% concentration. Their experimental results showed that the viscosity is enhanced by increasing nanoparticle concentration whereas it shows Newtonian behavior at a high shear rate and non-Newtonian at a lower. Halelfadl et al. [28] studied the viscosity of CNT/water nanofluids at a high shear rate under different temperature conditions. The results showed that the nanofluids performed a non-Newtonian behavior at high nanoparticle concentration and Newtonian at lower nanoparticle concentration. Later, Chen et al. [29] studied the rheological properties of TiO2/EG nanofluids at different nanoparticle concentrations and temperatures. The nanofluids show a non-Newtonian property at 2% particle concentration under different temperatures. Numburu et al. [30] investigated the rhetorical property of SiO2/EG and SiO2/water nanofluids at −35–50 °C temperature. It is found that the nanofluid exhibited Newtonian properties at high temperatures and non-Newtonian properties at low temperatures. Kulkarni et al. [31] reported the viscosity of Al2O3/EG, CuO/EG, and SiO2/EG nanofluids under −35–50 °C temperature ranges. It is reported that viscosity reduces exponentially by increasing temperature. Yu et al. [32] observed the effects of the viscosity of ZnO/EG nanofluids. The results detected Newtonian behaviors at low particle concentrations and non-Newtonian behaviors at higher particle concentrations under different temperature conditions.
In the literature related to nanofluids, the behavior of thermal conductivity is investigated widely due to heat transfer’s applications, and found that the behavior of conduction depends on various factors such as temperature, nanoparticle shape, size, and type [33,34]. Teng et al. [35] investigated the impact of a particle’s size and temperature on the thermal conductivity of Al2O3/H2O nanofluids. The results exhibit that the thermal conductivity is increased with increasing nanoparticles concentration and temperature. Chandrasekar et al. [36] observed that the thermal conductivity of Al2O3/water nanofluids increased by increasing nanoparticle concentration under room temperature. Sundar et al. [37] predicted the behavior of thermal conductivity and viscosity of Al2O3/EG-Water nanofluids on different particle concentrations (0.3–1.5%) at temperatures range (20–60 °C). The results specified that the thermal conductivity of nanofluids improves with increasing nanoparticle concentrations and temperatures. Mahbubul et al. [38] studied the behavior of the thermal conductivity of Al2O3/R141b nano-refrigerant and found an enhancement in thermal conduction by increasing nanoparticle concentration and temperature. Mostafizur et al. [39] investigated the thermal conductivities of SiO2/methanol, Al2O3/methanol, and TiO2/methanol nanofluids. It was concluded that the thermal conductivity is increased for all nanofluids but found higher for Al2O3/methanol nanofluids as compared to the other two nanofluids. Das et al. [40] studied the thermal conductivity in different ranges of temperature for five distinct nanofluids which are prepared by dispersion of SiO2, Al2O3, TiO2, CuO, and ZnO nanoparticles in propylene glycol-water. The improvement in thermal conductivity of all nanofluids by enhancing temperature and nanoparticle concentration is found. Murshed et al. [41] investigated the thermal conductivity of TiO2/DI H2O nanofluids. Their experiments show the enhancement in thermal conductivity by increasing particle concentration (0.5–5%) at room temperature. Duangthongsuk and Wong wises [42] detected the behavior of thermal conductivity of TiO2/H2O nanofluids. The thermal conductivity of nanofluids increased by nanoparticle concentration as well as increased temperature.
In the above studies, it is found that the nature of fluid whether it is Newtonian or non-Newtonian depends on the behavior of viscosity. The behavior of viscosity is not only changed by nanoparticles but also depends on operating temperature. Similarly, the thermal conductivity of the nanofluid not only increased by nanoparticle concentration but also increased by increasing temperature. Keeping in mind these facts, the rheological properties of four different nanofluids such as SiO2/DIW, Al2O3/DIW, PEG-TGr/DIW, and PEG-GnP/DIW are modeled as a function of nanoparticle concentration and operating temperature in the current study. For modeling, experimental data is picked at 0.025%, 0.05%, 0.075%, and 0.1% nanoparticle concentration under 30 °C, 40 °C, and 50 °C temperature range [1]. Further, these models are used in transport equations to see the boundary layer flow over two different geometries such as wedge and plate. The whole investigation is divided into different sections. After introductions in Section 1, the mathematical models are established based on experimental data to discuss the thermophysical properties and parameters of schematic nanofluids in the form of graphs and tables respectively in Section 2. In Section 3, the mathematical problem for flow is developed by using continuity, momentum, and energy equations. In Section 4, physical parameters such as momentum and thermal boundary layers thickness, momentum and displacement thicknesses, coefficient of skin friction, and Nusselt number are modeled. The numerical solution of the problem is obtained using the RK method and gets the solutions in the form of velocity and temperature functions. In next Section 6, attained results are displayed in graphical and tabular form for discussion. In last Section 7, the significant outcomes are concluded.

2. Nanofluid Modeling

2.1. Viscosity Model

Consider the following viscosity model as
μ T , γ ˙ = μ 1 T μ 2 γ ˙ ,
Here, T is the temperature, γ ˙ is the shear rate, μ 1 T and μ 2 γ ˙ are temperature and shear rate depended functions. The μ 1 T is taken as exponential form whereas power law model is taken for μ 2 γ ˙ which are defined as
μ = μ n f γ ˙ n 1 e C 1 T T .
Here n ,   μ n f and C 1 are curve fitting parameters. The numerical values of these parameters are obtained by fitting the Equation (2) to experimental data [1]. The best-fitting results are presented in Figure 1, Figure 2, Figure 3 and Figure 4. In these figures, dots represent the experimental data [1] and graph illustrates the Equation (2).
In respect of Figure 1, Figure 2, Figure 3 and Figure 4, the values of curve fitting parameters μ n f , n and C 1 are listed in Table 1.
Furthermore, the above values are fitted into a second-degree polynomial Equation (3) as expressed as
P ϕ = a + b ϕ   + c ϕ 2 .
The results of curve fitting are displayed in Figure 5, Figure 6, Figure 7 and Figure 8 and the values of coefficients of Equation (3) are written in Table 2.

2.2. Thermal Conductivity Model

Consider the thermal conductivity model on the pattern of Equation (1) as
k n f = k e C 2 T T ,

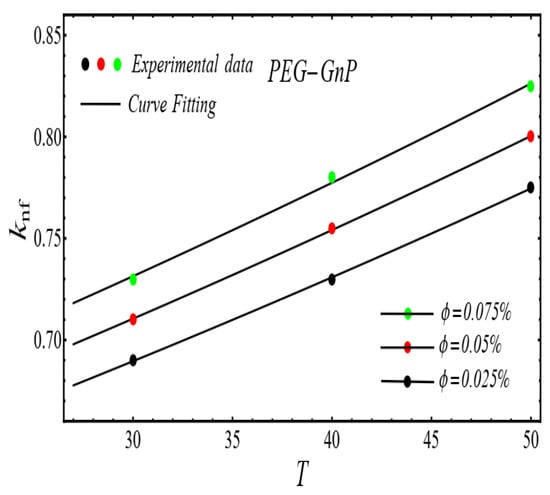

where, k and C 2 are curve fitting parameters. The values of these parameters are obtained by fitting the Equation (4) for experimental data [1]. The results of curving fitting are displayed in Figure 9, Figure 10, Figure 11 and Figure 12 and the values of curve fitting parameters are displayed in Table 3.

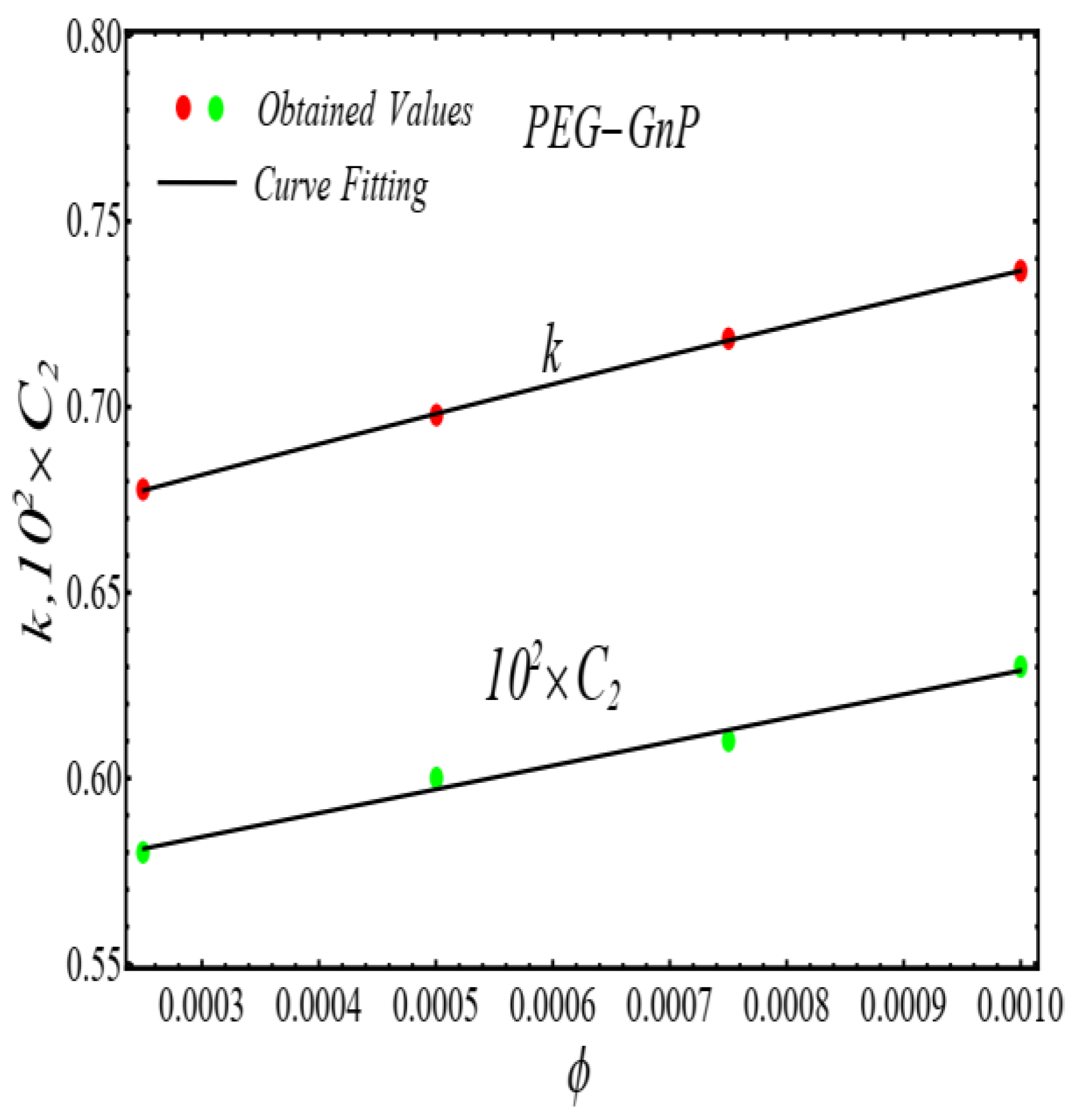

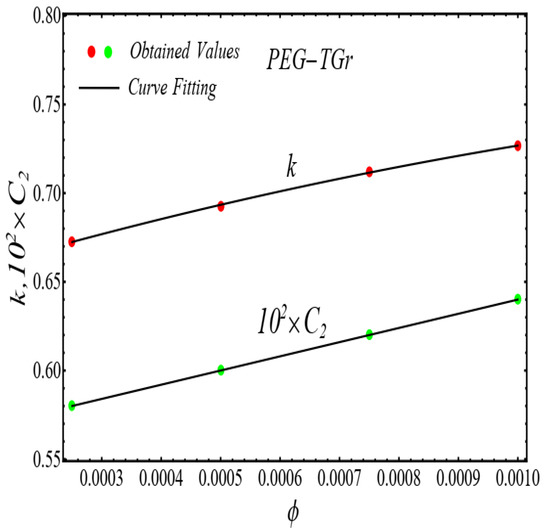

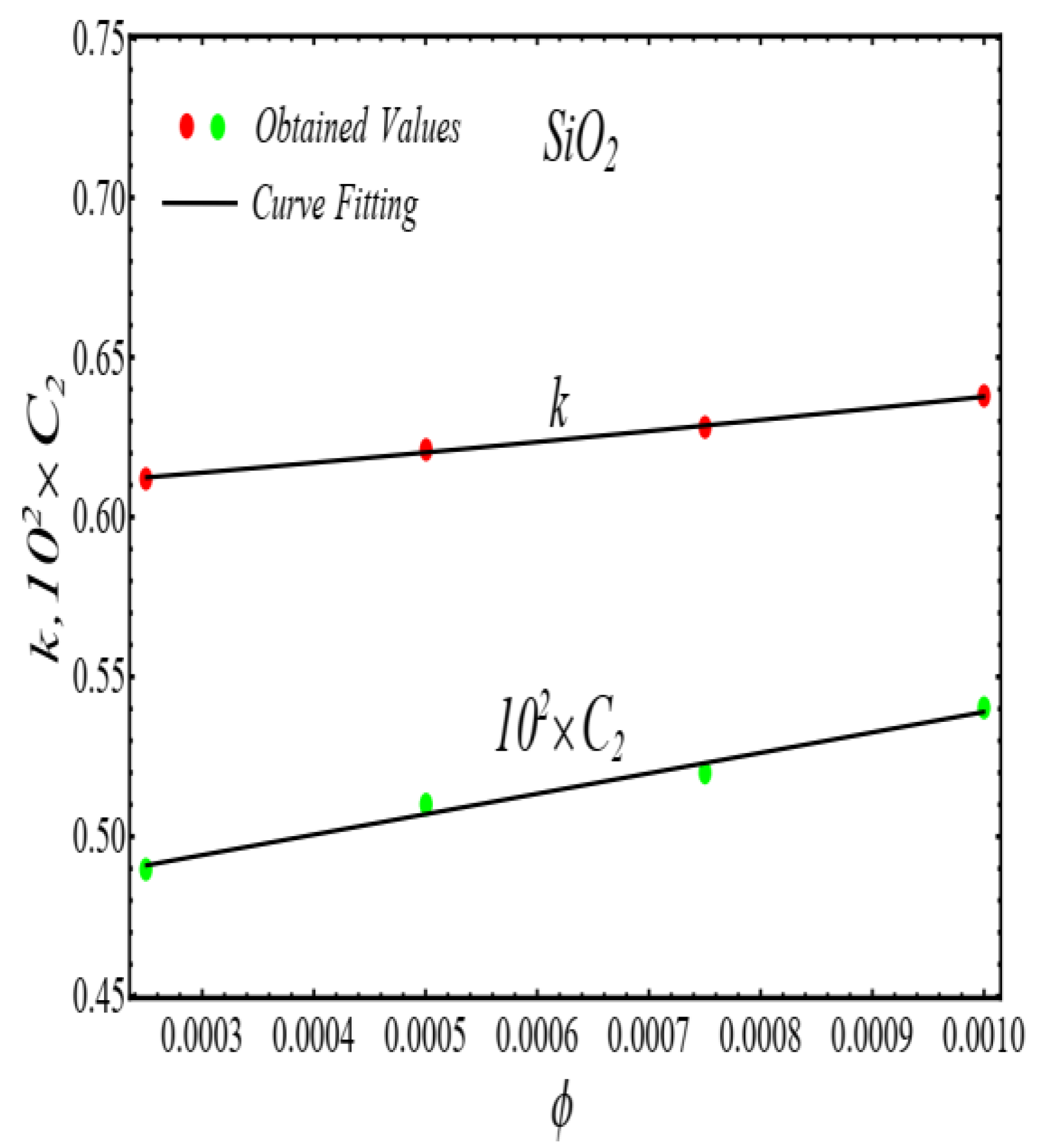

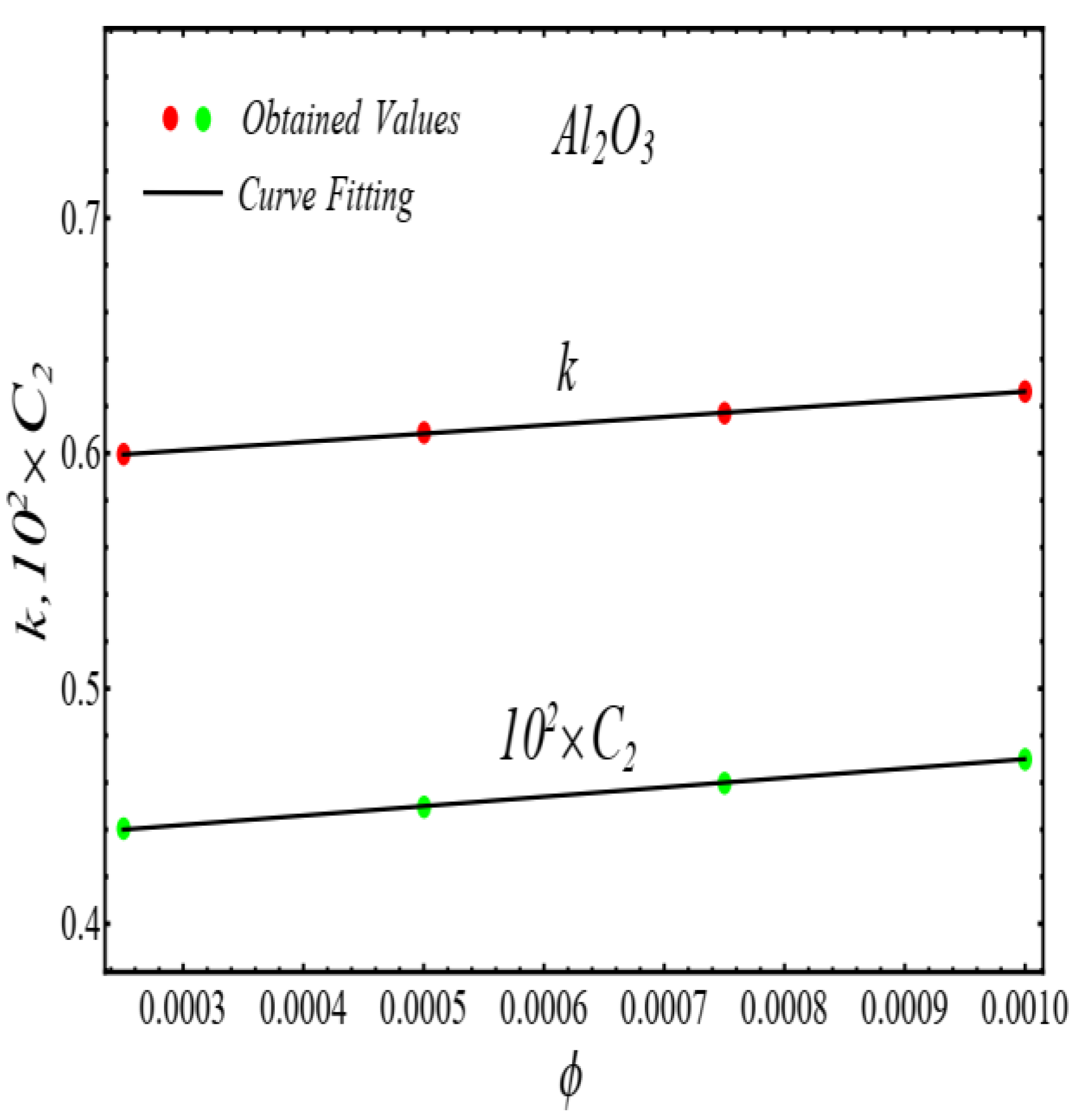

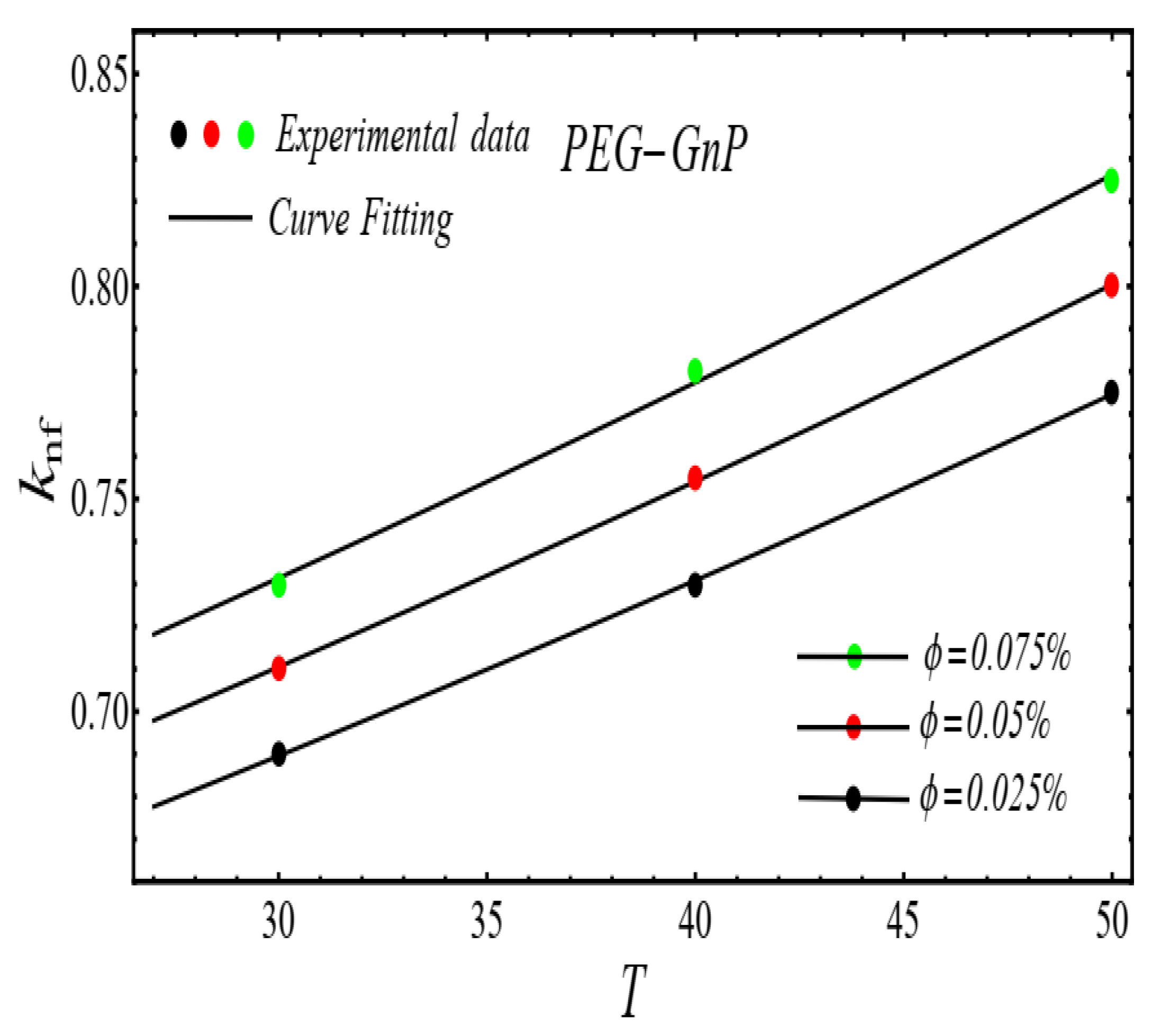

Moreover, the values of the parameters in Table 3 are fitted into Equation (3) and their results are presented in Figure 13, Figure 14, Figure 15 and Figure 16.

2.3. Density and Heat Capacity Models

The co-relation models for density ρ n f and heat capacity C p n f are developed by fitting the polynomial of 1st-degree Equation (5) for experimental data [1]
P ϕ = a + b ϕ

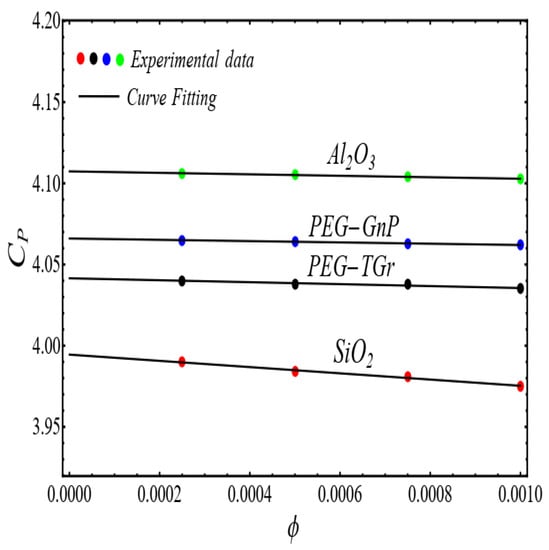

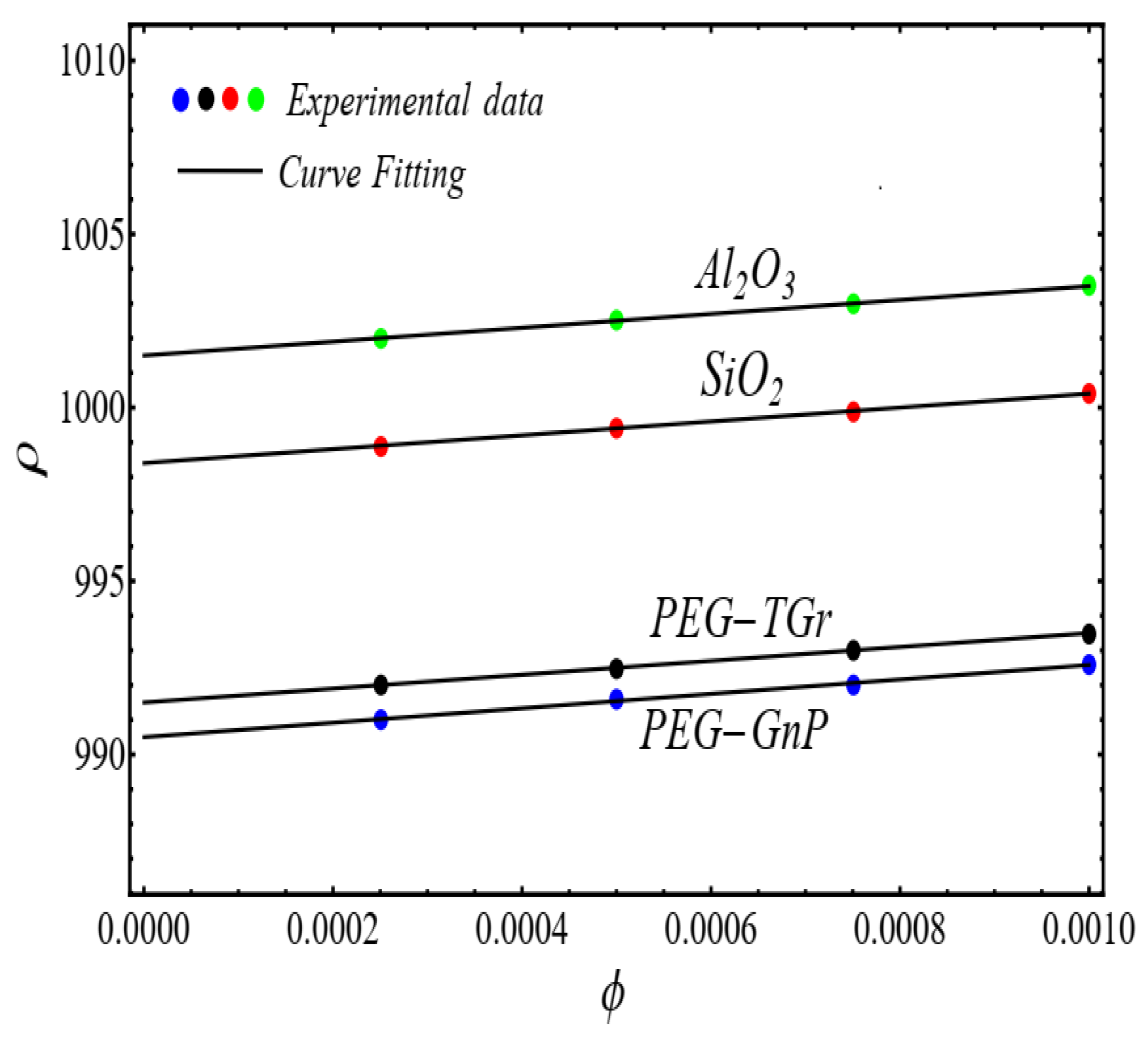

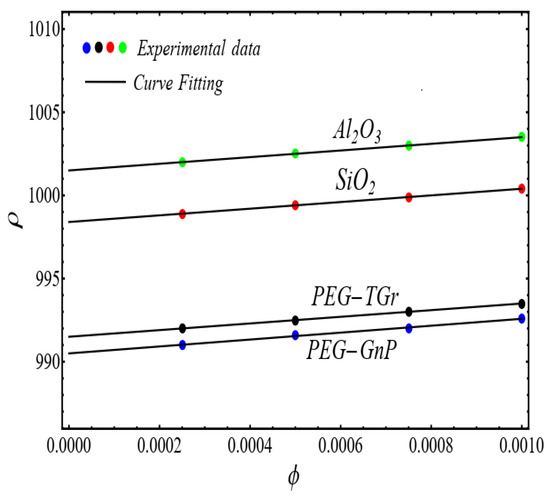

The results of curve fitting are displayed in Figure 17 and Figure 18.
In view of Figure 17 and Figure 18, the values of the co-efficient of Equation (5) are displayed in Table 4.

3. Heat and Mass Flow Modeling

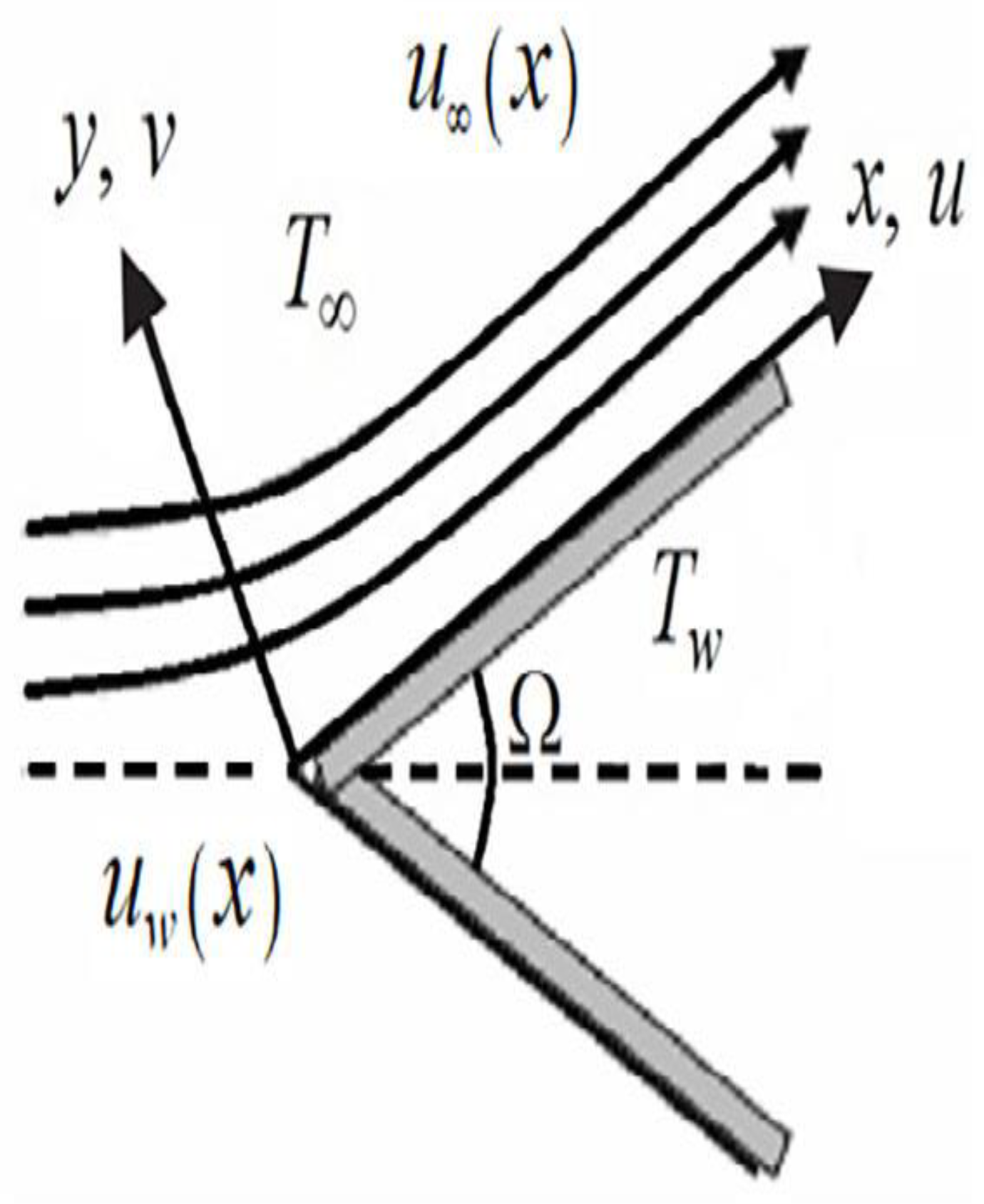

Consider the steady state and an incompressible boundary layer fluid flow propagating over two different geometries (Plate and Wedge). The fluid at the wall flowed with u w x = b x m velocity and flowed with u e x = c x m velocity in the free stream region as seen in Figure 19. The relationship between the Falkner-Skan power law parameter m and the wedge’s angle β = Ω / π is stated as
β = 2 m m + 1
Geometry exhibited plate-shaped when m = 0 and wedge when m > 0 . The temperature at the wall and away from the wall is maintained with constant T w and T i.e., T w > T respectively.
Under the boundary layer approximation, the continuity, momentum, and energy equations can be written as
u x + v y = 0
ρ n f u   u x + v   u y = ρ f u e x u e + y μ   u y ρ β n f g sin Ω 2 T w T
ρ C p n f u   T x + v   T y = y ( k   T y ) + μ n f u y 2
with the boundary conditions
u x , 0 = u w x ,     v x , 0 = 0 ,   T x , 0 = T w   u x , = u e x ,   T x , = T
For simplicity, introduced the similarity transformations [43] as
η = y x Re x 1 2 ,   ψ = u e x Re x 1 2 f η ,   θ η = T T T w T , u = ψ y , v = ψ x .
After the substitution of Equation (11) into Equation (6)–(8), we obtain the following non-dimensional equations
μ n f μ f f A f θ e A T + ρ n f ρ f m + 1 2 f f m f 2 + m + ω ρ β n f ρ β f sin Ω 2 θ = 0
k n f k f B θ 2 + θ e B T + Pr ρ C p n f ρ C p f m + 1 2 f θ + Pr . E c . μ n f μ f f 2 = 0
f 0 =   0 ,   f 0 = λ ,   θ 0 = 1 ,   θ = 0 ,   f = 1 ,
Here, Pr = μ f c p k f is Prandtl Number, Re x = ρ f u e x μ f is Reynold number, ω = G r x Re x 2 is the mixed convection parameter, G r x = β f g ρ f 2 T w T x 3 μ f 2 is the local Grashof number, and E c = u e 2 C p T w T is the Eckert number.

4. Physical Parameters

4.1. Displacement Thickness

The displacement thickness is written as
δ = 0 1 u u d y
By using Equation (11), it is written as
δ = x Re x 1 2 0 1 f d η

4.2. Momentum Thickness

Momentum thickness is described as
δ = 0 u u 1 u u d y
By using Equation (11), it is illustrated as
δ = x Re x 1 2 0 f 1 f d η

4.3. Skin Friction Coefficient

The skin friction coefficient is defined as
C f = 2 τ w ρ u e 2
After applying Equation (11), we get
C f = 2 Re x ¯ 1 2 μ n f μ f f 0 e A θ 0

4.4. Nusselt Number

Nusselt number is written in the following form
N u x = h x k
Here h is a convective heat transfer coefficient. In view of Equation (11), Equation (21) is shaped as
N u x = Re x ¯ 1 2 k n f k f θ 0 e B θ 0

5. Solution Technique

The solution of Equations (12) and (13), with respect to Equation (14), is obtained by using the RK method. The method is executed in the following manner:
Let f = F 1 , θ = G 1 and convert Equations (14) and (15) into the system of first-order differential equations as
F 1 = F 2 F 2 = F 3 F 3 = A F 3 G 2 + ρ n f ρ f m F 2 2 m + 1 2 F 1 F 3 m ω ρ β n f ρ β f sin Ω 2 G 1 μ n f μ b f e A G 1 G 1 = G 2 G 2 = B G 2 2 Pr ρ C p n f ρ C p b f m + 1 2 F 1 G 2 + Pr . E c . μ n f μ b f F 3 2 k n f k f e B G 1
along boundary conditions
F 1 0 = 0 , F 2 0 = λ , F 3 0 = Ω 1 G 1 0 = 1 G 2 0 = Ω 2
Here Ω 1 and Ω 2 are unknown boundary conditions.
To evaluate the accuracy of the results, the values of f 0 and θ 0 against parameters β and Pr are compared with existing limited results [44,45] in Table 5 and Table 6.
The velocity and temperature distribution in the numeric form are displayed in Table 7 at ϕ = 0.025 % .

6. Result and Discussion

In this portion, obtained results in the form of velocity and temperature profiles, boundary layers parameters, skin friction, and Nusselt number for the flow of four different nanofluids: SiO2/DIW, Al2O3/DIW, PEG-GnP/DIW and PEG-TGr/DIW over wedge and plate are presented graphically. To view the influences of different nanoparticle volume fractions on a variety of results, fixed the values of mainstream velocity u w = 0.01 , free stream velocity u = 0.04 angle Ω = π / 6 , local Reynold number Re x = 47615.9 x , local Grashof G r x = 7.085 × 10 8 x 3 and Prandtl Number Pr = 5.59576 , and Eckert number E c = 1.914 × 10 8 . Other parameters are varied according to different nanoparticle volume fractions and are listed in Table 8.

6.1. Velocity Profiles

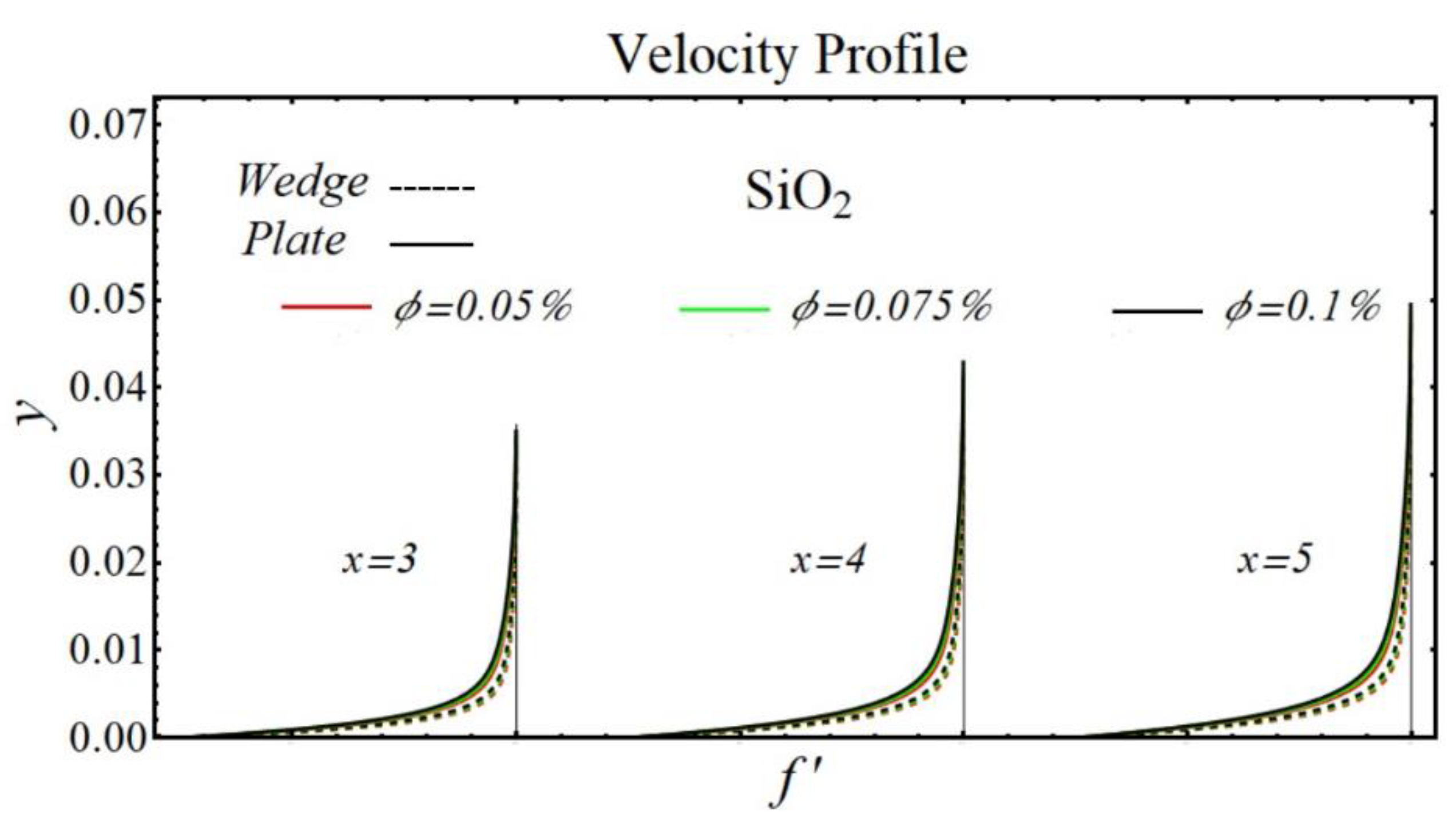

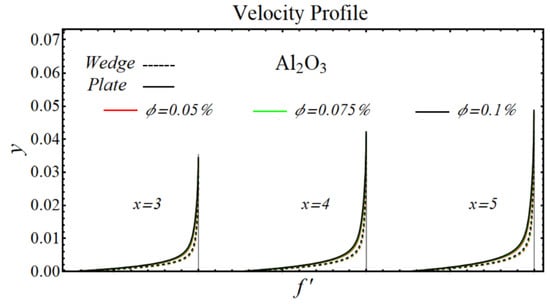

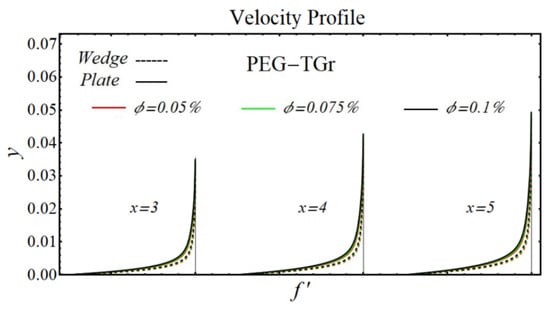

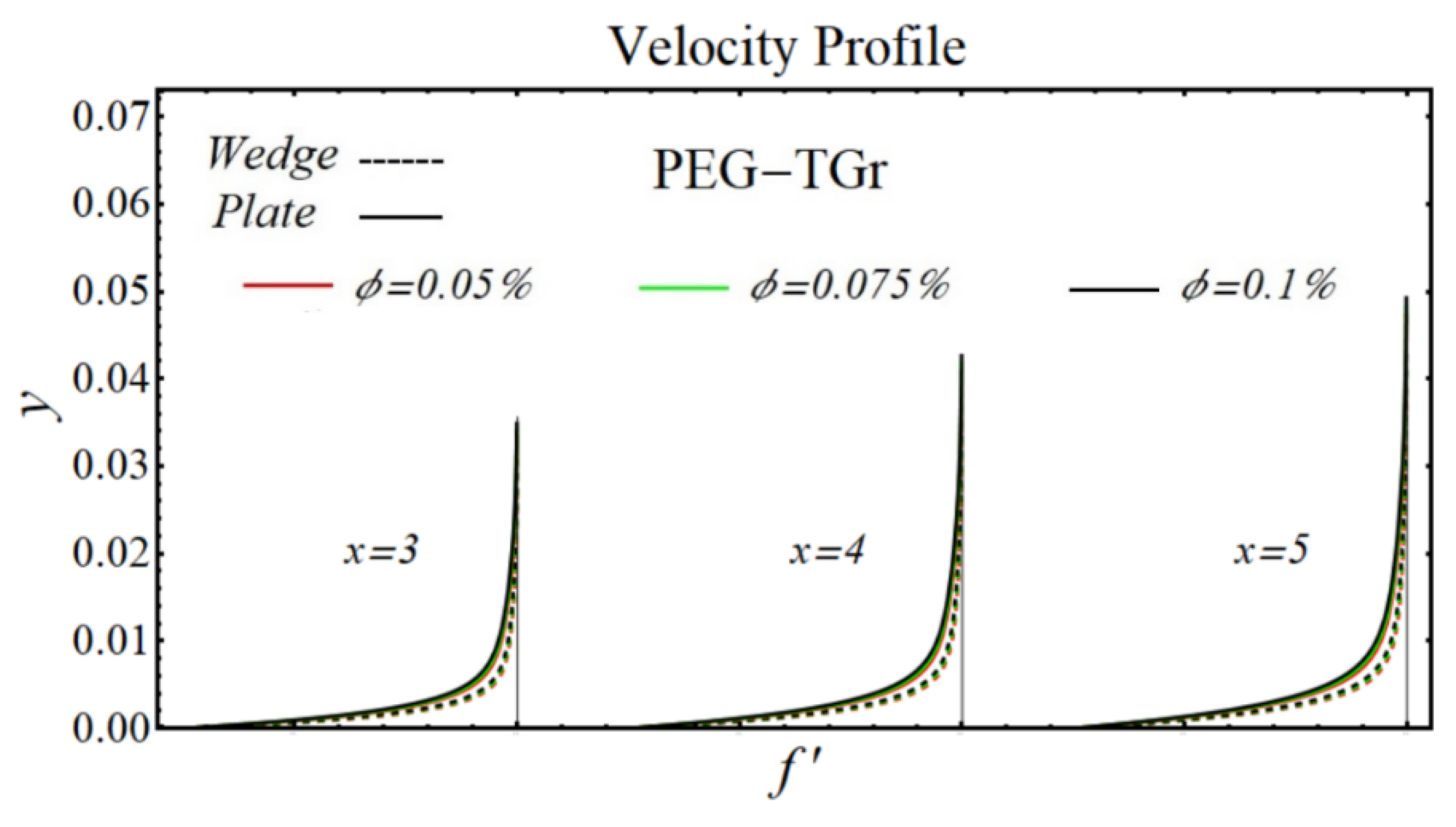

Figure 20, Figure 21, Figure 22 and Figure 23 illustrate the graphs of velocity profiles for SiO2/DIW, Al2O3/DIW, PEG-GnP/DIW, and PEG-TGr/DIW nanofluids under the influence of different nanoparticle volume fractions for both moving wedge and plate. It is seen that the values of viscosity of schematic nanofluids are amplified due to increasing the nanoparticle concentration. Given this evidence, the velocity profile of all schematic nanofluids over both geometries is decreased by raising the nanoparticle volume fraction. It is also observed that the profile of velocity is slowed down over a moving plate as compared to a moving wedge.

6.2. Temperature Profiles

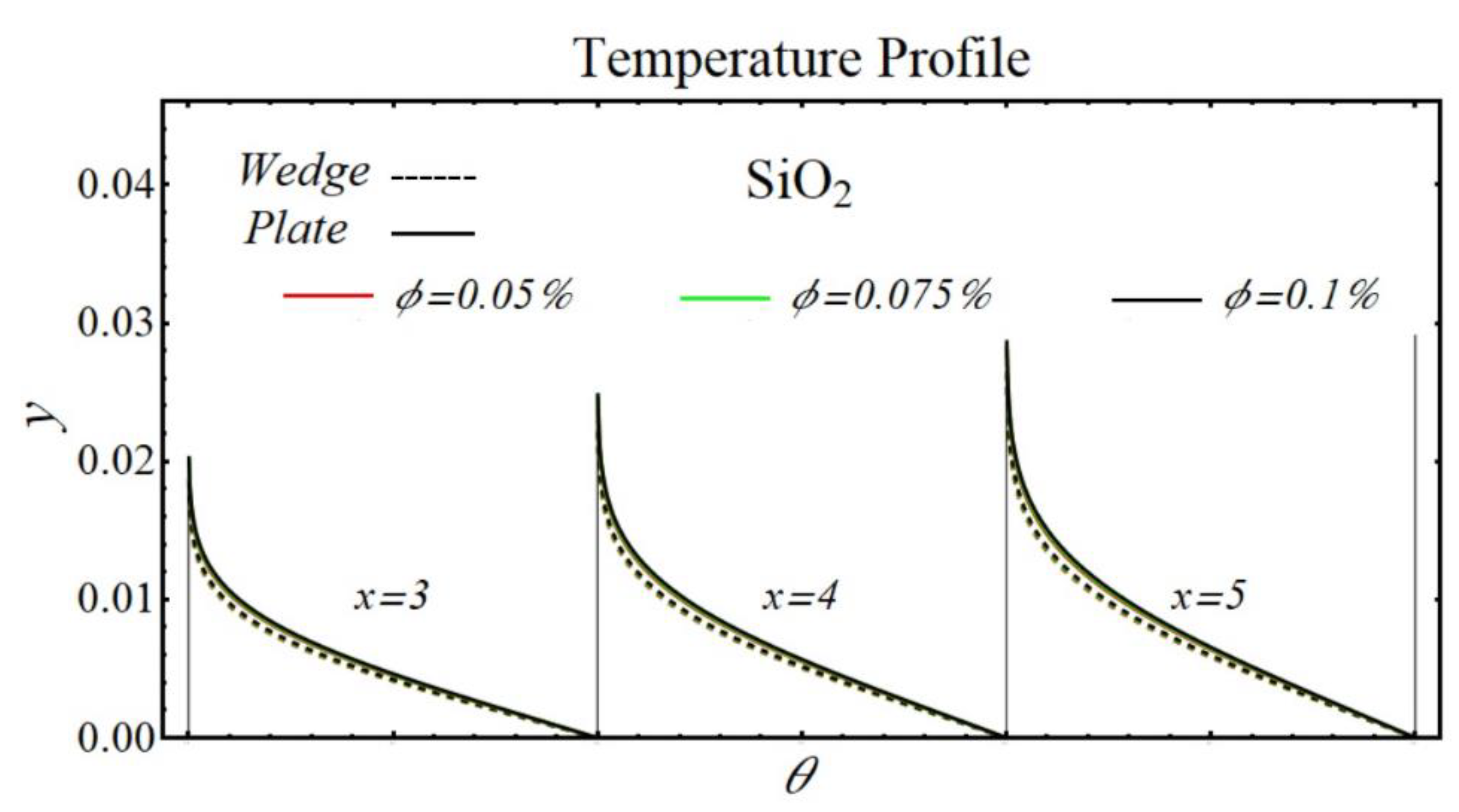

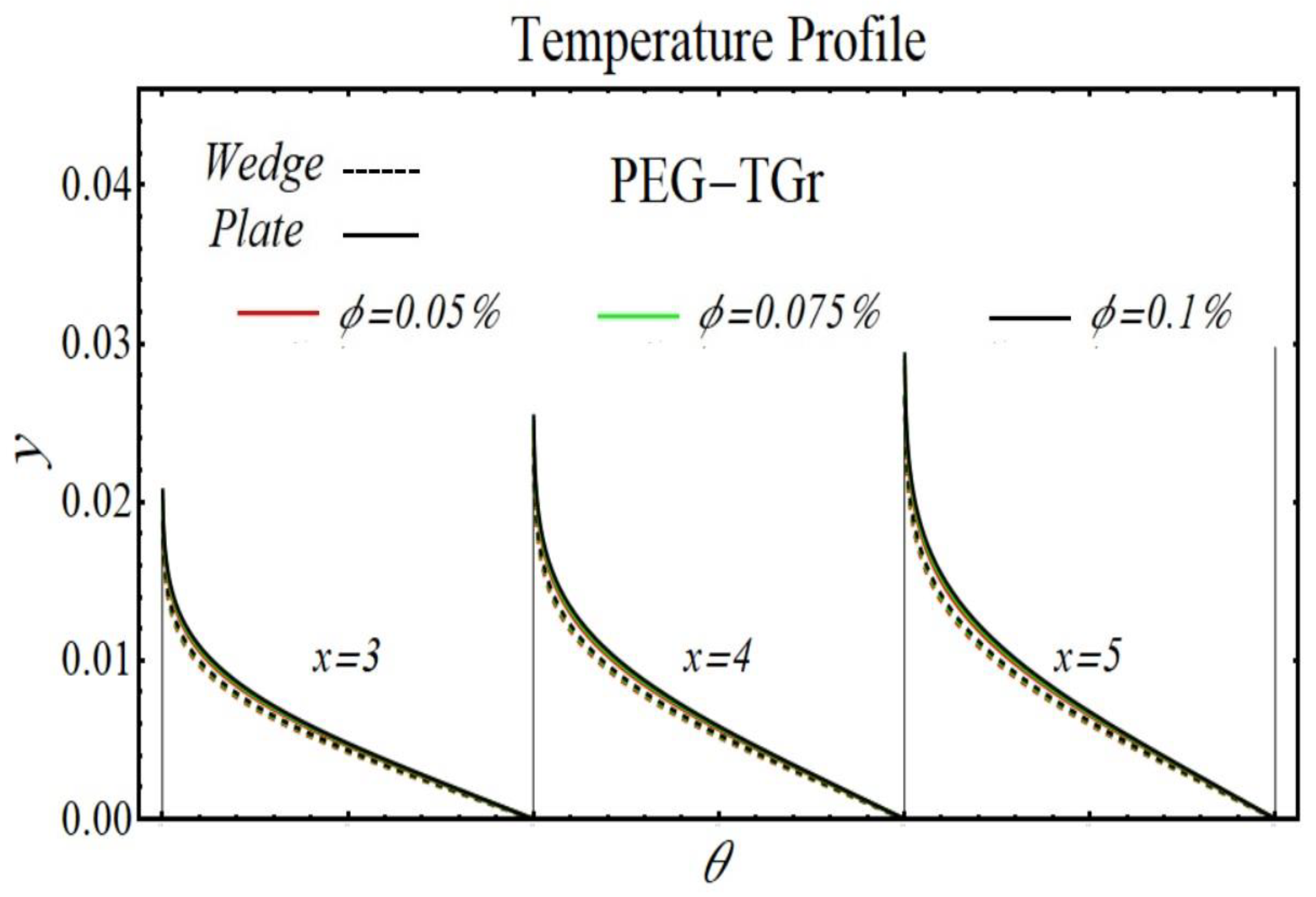

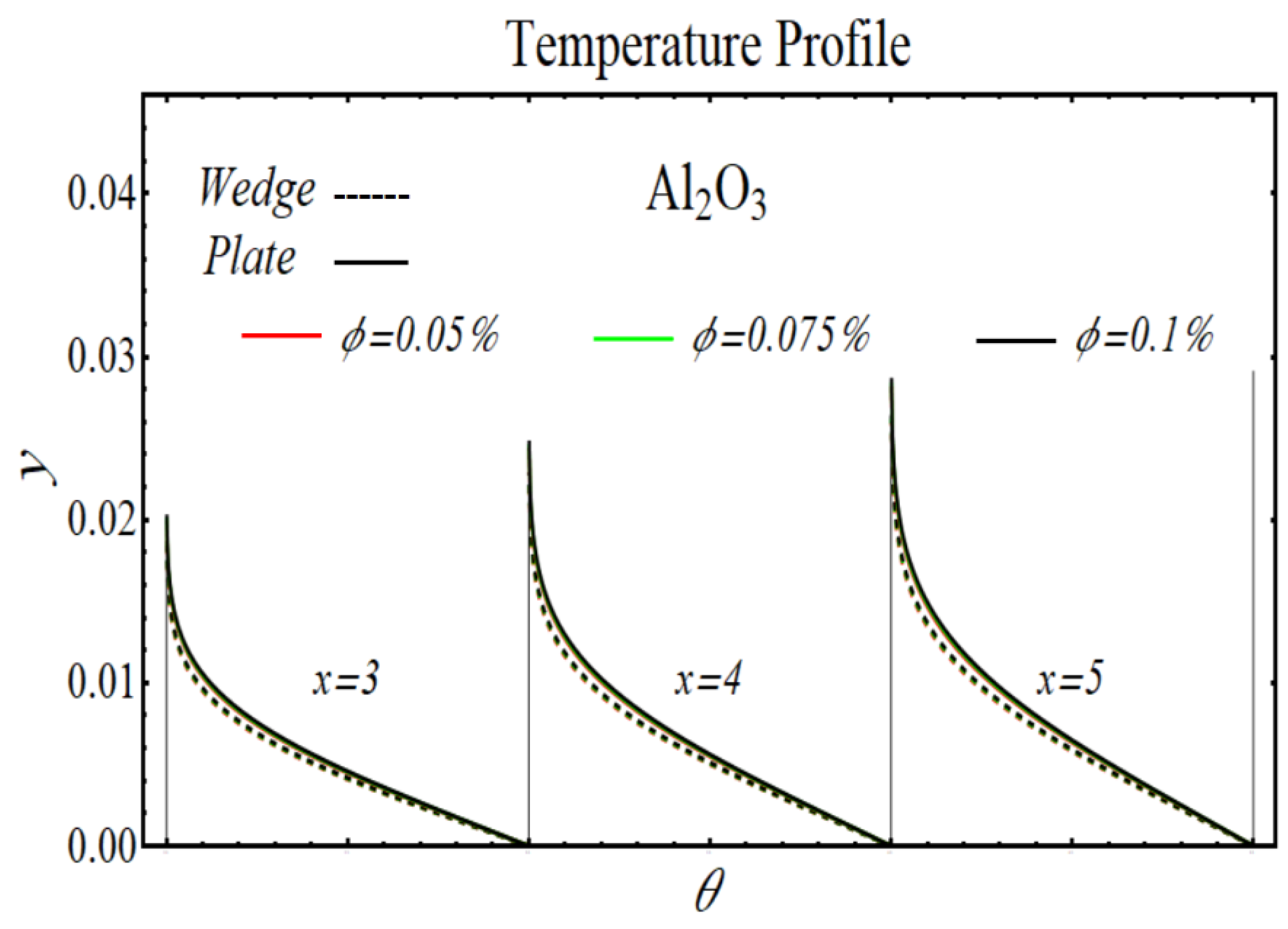

Figure 24, Figure 25, Figure 26 and Figure 27 display the results of temperature profiles for all schematic nanofluids under the impact of different nanoparticle volume fractions over both geometries. It is detected from Figs. that the thermal conductivity is increased while specific heat is declined by increasing the nanoparticles concentration. In respect of changes in these properties, the distribution of temperature is increased. The prominent effects on temperature profile are found for PEG-GnP/DIW as compared to other nanofluids. Additionally, it is also seen that the temperature distribution is more raised in the case of a moving plate as compared to a moving wedge.

6.3. Physical Parameters

Table 9, Table 10, Table 11 and Table 12 dictate the results of boundary layer parameters such as momentum and thermal boundary region’s thicknesses, displacement thickness, and momentum thickness whereas the values of coefficient of skin friction and Nusselt number are illustrated in Table 13 and Table 14 for both geometries.
The results of momentum and thermal boundary region’s thicknesses of schematic nanofluids are computed numerically at a distinct location on the x a x i s under the impact of nanoparticle volume fraction are listed in Table 9 and Table 10. It is seen that the thicknesses of momentum and thermal boundary region are enlarged by increasing the nanoparticle concentration and further increased along the parallel distance of the geometry’s wall. It is also seen that the momentum boundary layer thickness is greater than the thermal boundary layer thickness due to the dominant effects of viscosity as thermal diffusion. In addition, the boundary layer phenomena are produced more effectively on a plate as compared to a wedge.
In Table 11 and Table 12, the values of displacement and momentum thicknesses of schematic nanofluids are obtained under the impact of nanoparticle concentration at distinct positions on the x a x i s . The value of displacement thickness shows the reduction in mass flow rate whereas the value of momentum thickness illustrates the reduction in momentum flow rate in the boundary layer region. The value of displacement thickness is raised by enhancing nanoparticle concentration and also increased along the parallel distance of the wall. It is also seen that the values of displacement thickness for flow over the plate are found greater than the values for flow over the wedge. Similarly, the momentum thickness is increased by raising of nanoparticle volume fraction as seen in Table 12. Moreover, it is observed that momentum thickness is found higher in the case of flow over the plate as compared to wedge.
Table 13 and Table 14 dictate the results of Nusselt number and coefficient of Skin friction for said nanofluids under the impact of nanoparticle concentration at a distinct location on the x a x i s . The results demonstrate that the values of Nusselt number are enhanced by raising nanoparticle concentration due to the enhancement of thermal conductivity. Furthermore, the values of Nusselt number are also enhanced away from the origin along the x a x i s . The values of Nusselt number are found higher when fluid flow over a wedge as compared to a plate. The coefficient of Skin friction is increased by raising nanoparticle concentration due to enhancement of viscous effects and is decreased along x a x i s . The values of the coefficient of Skin friction are found larger in the case of flow over wedge as compared to the plate.

7. Conclusions

In the current investigation, the mathematical model for thermophysical properties of nanofluids is developed with help of experimental data and then used in transport equations to explore the boundary layer flow over plate and wedge. The results are obtained in the form of velocity and temperature and are further used to obtain the values of physical parameters. From the results, the following conclusions are exposed:
  • The velocity is reduced whereas the temperature is enlarged due to amplifying viscosity and thermal conductivity respectively by variation of nanoparticle volume fraction for both wedge and plate.
  • The velocity and temperature are more reduced and raised respectively in the case of flow over the plate as compared to a wedge.
  • The momentum and thermal boundary layers are increased by enhancing nanoparticle volume but are found maximum in case of flow over a plate.
  • The displacement and momentum thicknesses have followed the pattern of boundary layer thicknesses and are enhanced by variations in nanoparticle volume fraction.
  • The skin friction coefficient and Nusselt number are raised with an enhancement in nanoparticles volume fraction but the maximum is found in the case of a wedge as compared to a plate.

Author Contributions

Writing—original draft, M.R.; Conceptualization and formal analysis, M.H., methodology, M.I.A. funding acquisition and investigation E.M.T.-E. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Muhammad Rizwan is a PhD scholar under Supervision of Mohsan Hassan in CUI, Lahore Campus. This work is a part of his thesis.

Conflicts of Interest

There is no conflict of interest.

References

  1. Alawi, O.A.; Mallah, A.R.; Kazi, S.N.; Sidik, N.A.C.; Najafi, G. Thermophysical properties and stability of carbon nanostructures and metallic oxides nanofluids. J. Therm. Anal. Calorim. 2019, 135, 1545–1562. [Google Scholar] [CrossRef]
  2. Mangrulkar, C.K.; Vilayatrai, M.K. Nanofluid heat transfer-a review. Int. J. Eng. Technol. 2013, 3, 136–142. [Google Scholar]
  3. Aberoumand, S.; Hossein, A.; Kourosh, J. Improve heat transfer by using nanofluids: A review. Am. J. Adv. Sci. Res. 2013, 1. [Google Scholar]
  4. Maxwell, J.C. A Treatise on Electricity and Magnetism; Clarendon Press: Oxford, UK, 1873; Volume 1, pp. 375–386. [Google Scholar]
  5. Esfe, M.H.; Saeed, E.; Mousa, R. Modeling of thermal conductivity of MWCNT-SiO2 (30:70%)/EG hybrid nanofluid, sensitivity analyzing and cost performance for industrial applications. J. Therm. Anal. Calorim. 2018, 131, 1437–1447. [Google Scholar] [CrossRef]
  6. Bashirnezhad, K.; Mohammad, M.R.; Zhigang, Y.; Shahab, B.; Wei-Mon, Y. A comprehensive review of last experimental studies on thermal conductivity of nanofluids. J. Therm. Anal. Calorim. 2015, 122, 863–884. [Google Scholar] [CrossRef]
  7. Shanbedi, M.; Amiri, A.; Zeinali Heris, S.; Eshghi, H.; Yarmand, H. Effect of magnetic field on thermo-physical and hydrodynamic properties of different metals-decorated multi-walled carbon nanotubes-based water coolants in a closed conduit. J. Therm. Anal. Calorim. 2018, 131, 1089–1106. [Google Scholar] [CrossRef]
  8. Razali, A.A.; Sadikin, A.; Ayop, S.S. Structural analysis and morphological study of Al2O3 nanofluids in microchannel heat sink. J. Adv. Res. Fluid Mech. Therm. Sci. 2018, 46, 139–146. [Google Scholar]
  9. Sun, X.; Chen, Y.; Cao, Y.; Wu, G.; Zheng, Z.; Huang, D. Research on the aerodynamic characteristics of a lift drag hybrid vertical axis wind turbine. Adv. Mech. Eng. 2016, 8, 1687814016629349. [Google Scholar] [CrossRef]
  10. Choi, S.U.S.; Jeffrey, A. Eastman. Enhancing Thermal Conductivity of Fluids with Nanoparticles; No. ANL/MSD/CP-84938; CONF-951135-29; Argonne National Laboratory: Lemont, IL, USA, 1995.
  11. Baglioni, M.; Raudino, M.; Berti, D.; Keiderling, U.; Bordes, R.; Holmberg, K. Nanostructured fluids from degradable nonionic surfactants for the cleaning of works of art from polymer contaminants. Soft Matter 2014, 10, 6798–6809. [Google Scholar] [CrossRef]
  12. Rawat, S.K.; Negi, S.; Upreti, H.; Kumar, M. A Non-Fourier’s and Non-Fick’s Approach to Study MHD Mixed Convective Copper Water Nanofluid Flow over Flat Plate Subjected to Convective Heating and Zero Wall Mass Flux Condition. Int. J. Appl. Comput. Math. 2021, 7, 1–27. [Google Scholar] [CrossRef]
  13. Upreti, H.; Rawat, S.K.; Kumar, M. Radiation and non-uniform heat sink/source effects on 2D MHD flow of CNTs-H2O nanofluid over a flat porous plate. Multidiscip. Model. Mater. Struct. 2019, 16, 791–809. [Google Scholar] [CrossRef]
  14. Shima, P.D.; Philip, J. Role of Thermal Conductivity of Dispersed Nanoparticles on Heat Transfer Properties of Nanofluid. Ind. Eng. Chem. Res. 2014, 53, 980–988. [Google Scholar] [CrossRef]
  15. Kole, M.; Dey, T. Viscosity of alumina nanoparticles dispersed in car engine coolant. Exp. Therm. Fluid Sci. 2010, 34, 677–683. [Google Scholar] [CrossRef]
  16. Wen, D.; Lin, G.; Vafaei, S.; Zhang, K. Review of nanofluids for heat transfer applications. Particuology 2009, 7, 141–150. [Google Scholar] [CrossRef]
  17. Rao, Y. Nanofluids: Stability, phase diagram, rheology and applications. Particuology 2010, 8, 549–555. [Google Scholar] [CrossRef]
  18. Cheng, L.; Dapeng, C. Designing a thermo-switchable channel for nanofluidic controllable transportation. ACS Nano 2011, 5, 1102–1108. [Google Scholar] [CrossRef]
  19. Ambreen, T.; Kim, M.H. Heat transfer and pressure drop correlations of nanofluids: A state of art review. Renew. Sustain. Energy Rev. 2018, 91, 564–583. [Google Scholar]
  20. Yang, L.; Xu, J.; Du, K.; Zhang, X. Recent developments on viscosity and thermal conductivity of nanofluids. Powder Technol. 2017, 317, 348–369. [Google Scholar] [CrossRef]
  21. Pandey, A.K.; Himanshu, U.; Navneet, J.; Ziya, U. Effect of natural convection on 3D MHD flow of MoS2–GO/H2O via porous surface due to multiple slip mechanisms. J. Taibah Univ. Sci. 2022, 16, 749–762. [Google Scholar] [CrossRef]
  22. Estellé, P.; Halelfadl, S.; Maré, T. Thermophysical properties and heat transfer performance of carbon nanotubes water-based nanofluids. J. Therm. Anal. 2016, 127, 2075–2081. [Google Scholar] [CrossRef]
  23. Jabbari, F.; Rajabpour, A.; Saedodin, S. Thermal conductivity and viscosity of nanofluids: A review of recent molecular dynamics studies. Chem. Eng. Sci. 2017, 174, 67–81. [Google Scholar] [CrossRef]
  24. Moghaddam, M.B.; Goharshadi, E.K.; Entezari, M.H.; Nancarrow, P. Preparation, characterization, and rheological properties of graphene–glycerol nanofluids. Chem. Eng. J. 2013, 231, 365–372. [Google Scholar] [CrossRef]
  25. Chen, H.; Ding, Y.; Tan, C. Rheological behaviour of nanofluids. New J. Phys. 2007, 9, 367. [Google Scholar] [CrossRef]
  26. Rashin, M.N.; Hemalatha, J. Viscosity studies on novel copper oxide–coconut oil nanofluid. Exp. Therm. Fluid Sci. 2013, 48, 67–72. [Google Scholar] [CrossRef]
  27. Khedkar, R.S.; Kiran, A.S.; Sonawane, S.S.; Wasewar, K.; Umre, S.S. Thermo–physical characterization of paraffin based Fe3O4 nanofluids. Procedia Eng. 2013, 51, 342–346. [Google Scholar] [CrossRef] [Green Version]
  28. Halelfadl, S.; Estellé, P.; Aladag, B.; Doner, N.; Maré, T. Viscosity of carbon nanotubes water-based nanofluids: Influence of concentration and temperature. Int. J. Therm. Sci. 2013, 71, 111–117. [Google Scholar] [CrossRef] [Green Version]
  29. Chen, H.; Ding, Y.; Lapkin, A.; Fan, X. Rheological behaviour of ethylene glycol-titanate nanotube nanofluids. J. Nanoparticle Res. 2009, 11, 1513–1520. [Google Scholar] [CrossRef]
  30. Namburu, P.; Kulkarni, D.; Dandekar, A.; Das, D. Experimental investigation of viscosity and specific heat of silicon dioxide nanofluids. Micro Nano Lett. 2007, 2, 67–71. [Google Scholar] [CrossRef]
  31. Kulkarni, D.P.; Das, D.K.; Vajjha, R.S. Application of nanofluids in heating buildings and reducing pollution. Appl. Energy 2009, 86, 2566–2573. [Google Scholar] [CrossRef]
  32. Yu, W.; Xie, H.; Chen, L.; Li, Y. Investigation of thermal conductivity and viscosity of ethylene glycol based ZnO nanofluid. Thermochim. Acta 2009, 491, 92–96. [Google Scholar] [CrossRef]
  33. Ganesh Ranakoti, I.; Dewangan, S.; Kosti, S.; Nemade, R. Heat transfer enhancement by nano fluids. ME642-Convect. Heat Mass Transf. 2012, 1–9. Available online: https://www.researchgate.net/publication/317357832_Heat_Transfer_Enhancement_by_Nano_Fluids (accessed on 20 October 2022).
  34. Pastoriza-Gallego, M.; Lugo, L.; Cabaleiro, D.; Legido, J.; Piñeiro, M. Thermophysical profile of ethylene glycol-based ZnO nanofluids. J. Chem. Thermodyn. 2014, 73, 23–30. [Google Scholar] [CrossRef]
  35. Teng, T.-P.; Hung, Y.-H.; Mo, H.-E.; Hsu, H.-G. The effect of alumina/water nanofluid particle size on thermal conductivity. Appl. Therm. Eng. 2010, 30, 2213–2218. [Google Scholar] [CrossRef]
  36. Chandrasekar, M.; Suresh, S.; Bose, A.C. Experimental investigations and theoretical determination of thermal conductivity and viscosity of Al2O3/water nanofluid. Exp. Therm. Fluid Sci. 2010, 34, 210–216. [Google Scholar] [CrossRef]
  37. Sundar, L.S.; Ramana, E.V.; Singh, M.K.; Sousa, A.C. Thermal conductivity and viscosity of stabilized ethylene glycol and water mixture Al2O3 nanofluids for heat transfer applications: An experimental study. Int. Commun. Heat Mass Transf. 2014, 56, 86–95. [Google Scholar] [CrossRef]
  38. Mahbubul, I.; Saidur, R.; Amalina, M. Thermal Conductivity, Viscosity and Density of R141b Refrigerant based Nanofluid. Procedia Eng. 2013, 56, 310–315. [Google Scholar] [CrossRef] [Green Version]
  39. Mostafizur, R.M.; Bhuiyan, M.H.U.; Saidur, R.; Aziz, A.A. Thermal conductivity variation for methanol based nanofluids. Int. J. Heat Mass Transf. 2014, 76, 350–356. [Google Scholar] [CrossRef]
  40. Satti, J.R.; Das, D.K.; Ray, D. Investigation of the thermal conductivity of propylene glycol nanofluids and comparison with correlations. Int. J. Heat Mass Transf. 2017, 107, 871–881. [Google Scholar] [CrossRef]
  41. Murshed, S.M.S.; Leong, K.C.; Yang, C. Enhanced thermal conductivity of TiO2—Water based nanofluids. Int. J. Therm. Sci. 2005, 44, 367–373. [Google Scholar] [CrossRef]
  42. Duangthongsuk, W.; Wongwises, S. Measurement of temperature-dependent thermal conductivity and viscosity of TiO2-water nanofluids. Exp. Therm. Fluid Sci. 2009, 33, 706–714. [Google Scholar] [CrossRef]
  43. Kim, Y.J. Convection heat transfer of power-law fluids past a wedge embedded in a porous medium. WIT Trans. Eng. Sci. 2000, 27, 1–10. [Google Scholar]
  44. Yacob, N.A.; Ishak, A.; Pop, I. Falkner–Skan problem for a static or moving wedge in nanofluids. Int. J. Therm. Sci. 2011, 50, 133–139. [Google Scholar] [CrossRef]
  45. Kuo, B.-L. Heat transfer analysis for the Falkner–Skan wedge flow by the differential transformation method. Int. J. Heat Mass Transf. 2005, 48, 5036–5046. [Google Scholar] [CrossRef]

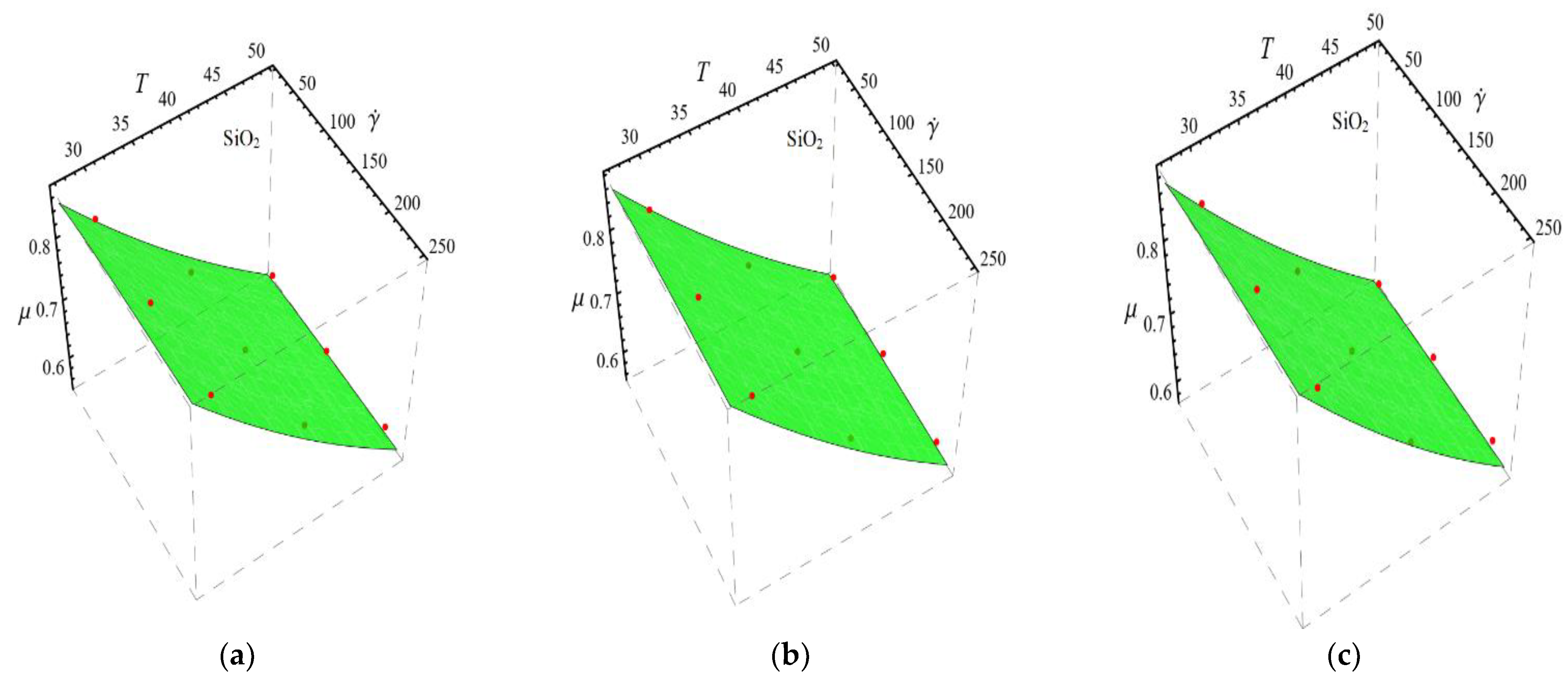

Figure 1. Fitting the Equation (2) for experimental data of SiO2/DIW nanofluid at different nanoparticle volume fractions (a) ϕ = 0.025 % , (b) ϕ = 0.05 % and (c) ϕ = 0.075 % .
Figure 1. Fitting the Equation (2) for experimental data of SiO2/DIW nanofluid at different nanoparticle volume fractions (a) ϕ = 0.025 % , (b) ϕ = 0.05 % and (c) ϕ = 0.075 % .
Micromachines 13 02080 g001

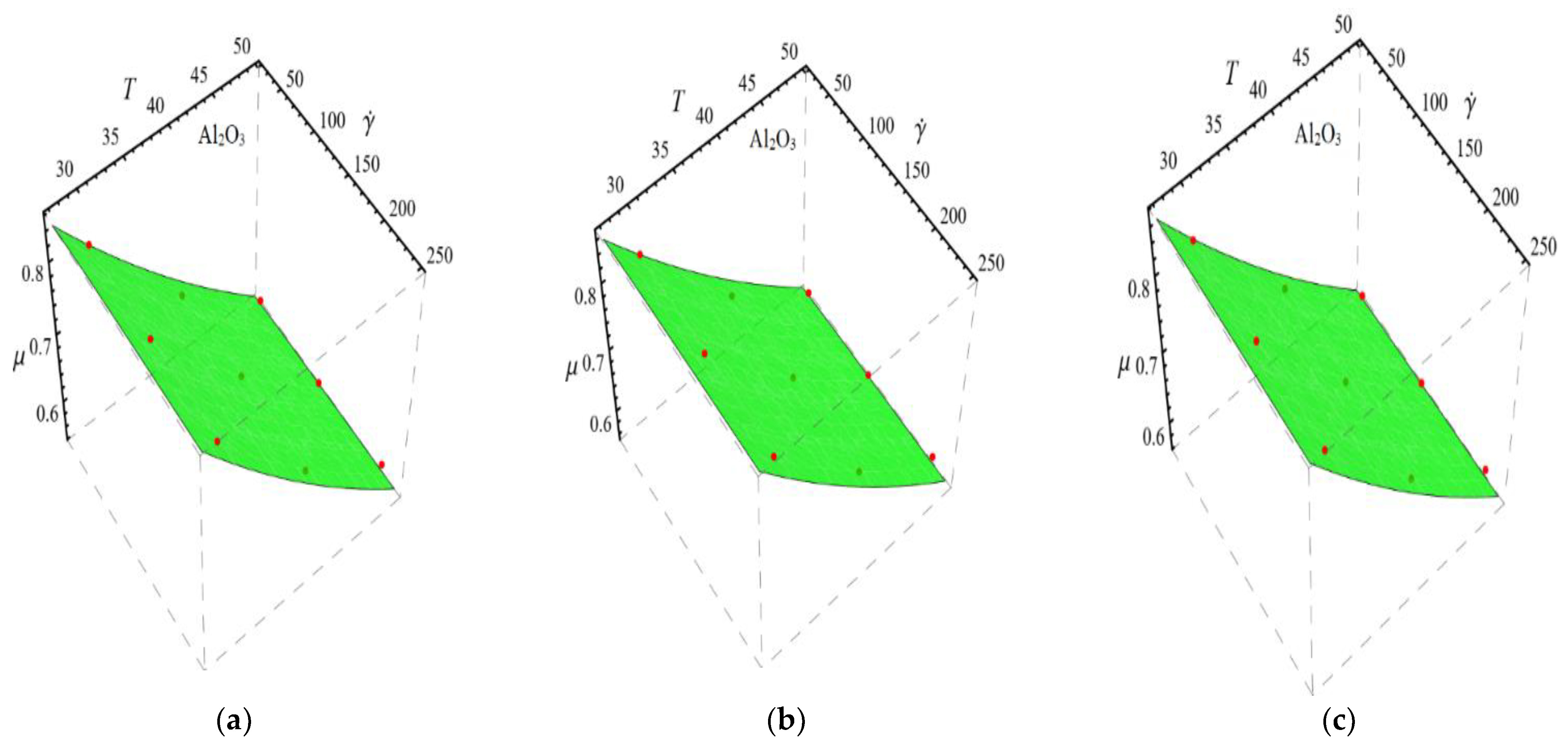

Figure 2. Fitting the Equation (2) for experimental data of Al2O3/DIW nanofluid at different nanoparticle volume fractions (a) ϕ = 0.025 % , (b) ϕ = 0.05 % and (c) ϕ = 0.075 % .
Figure 2. Fitting the Equation (2) for experimental data of Al2O3/DIW nanofluid at different nanoparticle volume fractions (a) ϕ = 0.025 % , (b) ϕ = 0.05 % and (c) ϕ = 0.075 % .
Micromachines 13 02080 g002

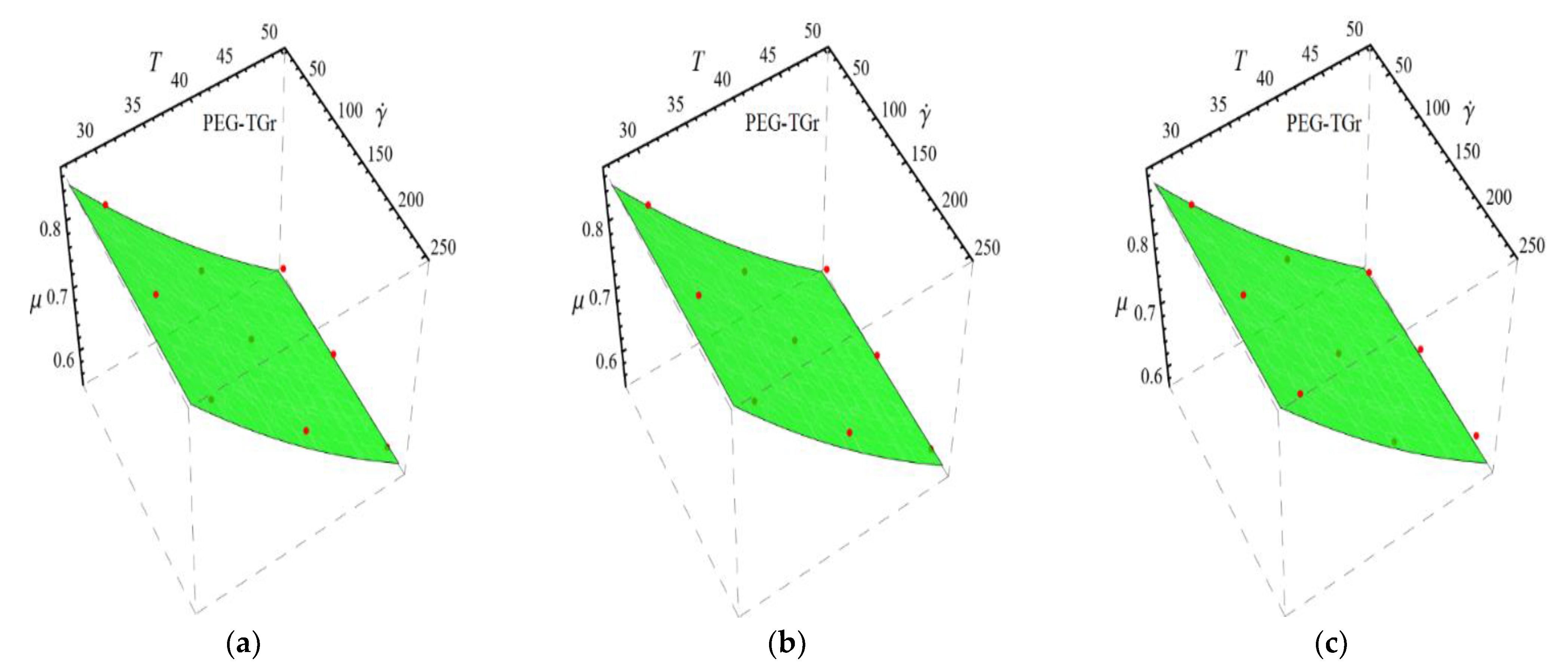

Figure 3. Fitting the Equation (2) for experimental data of PEG-TGr/DIW nanofluid at different nanoparticle volume fractions (a) ϕ = 0.025 % , (b) ϕ = 0.05 % and (c) ϕ = 0.075 % .
Figure 3. Fitting the Equation (2) for experimental data of PEG-TGr/DIW nanofluid at different nanoparticle volume fractions (a) ϕ = 0.025 % , (b) ϕ = 0.05 % and (c) ϕ = 0.075 % .
Micromachines 13 02080 g003

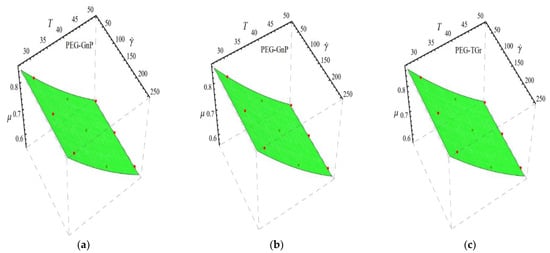

Figure 4. Fitting the Equation (2) for experimental data of PEG-GnP/DIW nanofluid at different nanoparticle volume fractions (a) ϕ = 0.025 % , (b) ϕ = 0.05 % and (c) ϕ = 0.075 % .
Figure 4. Fitting the Equation (2) for experimental data of PEG-GnP/DIW nanofluid at different nanoparticle volume fractions (a) ϕ = 0.025 % , (b) ϕ = 0.05 % and (c) ϕ = 0.075 % .
Micromachines 13 02080 g004
Figure 5. Fitting the Equation (3) for data in Table 1.
Figure 5. Fitting the Equation (3) for data in Table 1.
Micromachines 13 02080 g005

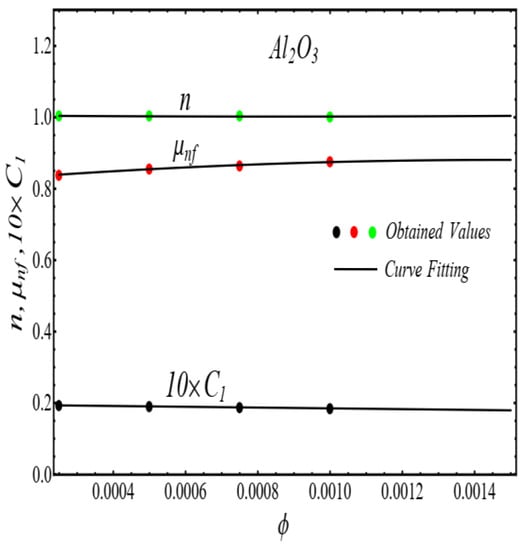

Figure 6. Fitting the Equation (3) for data in Table 1.
Figure 6. Fitting the Equation (3) for data in Table 1.
Micromachines 13 02080 g006
Figure 7. Curve fitting the Equation (3) for data in Table 1.
Figure 7. Curve fitting the Equation (3) for data in Table 1.
Micromachines 13 02080 g007

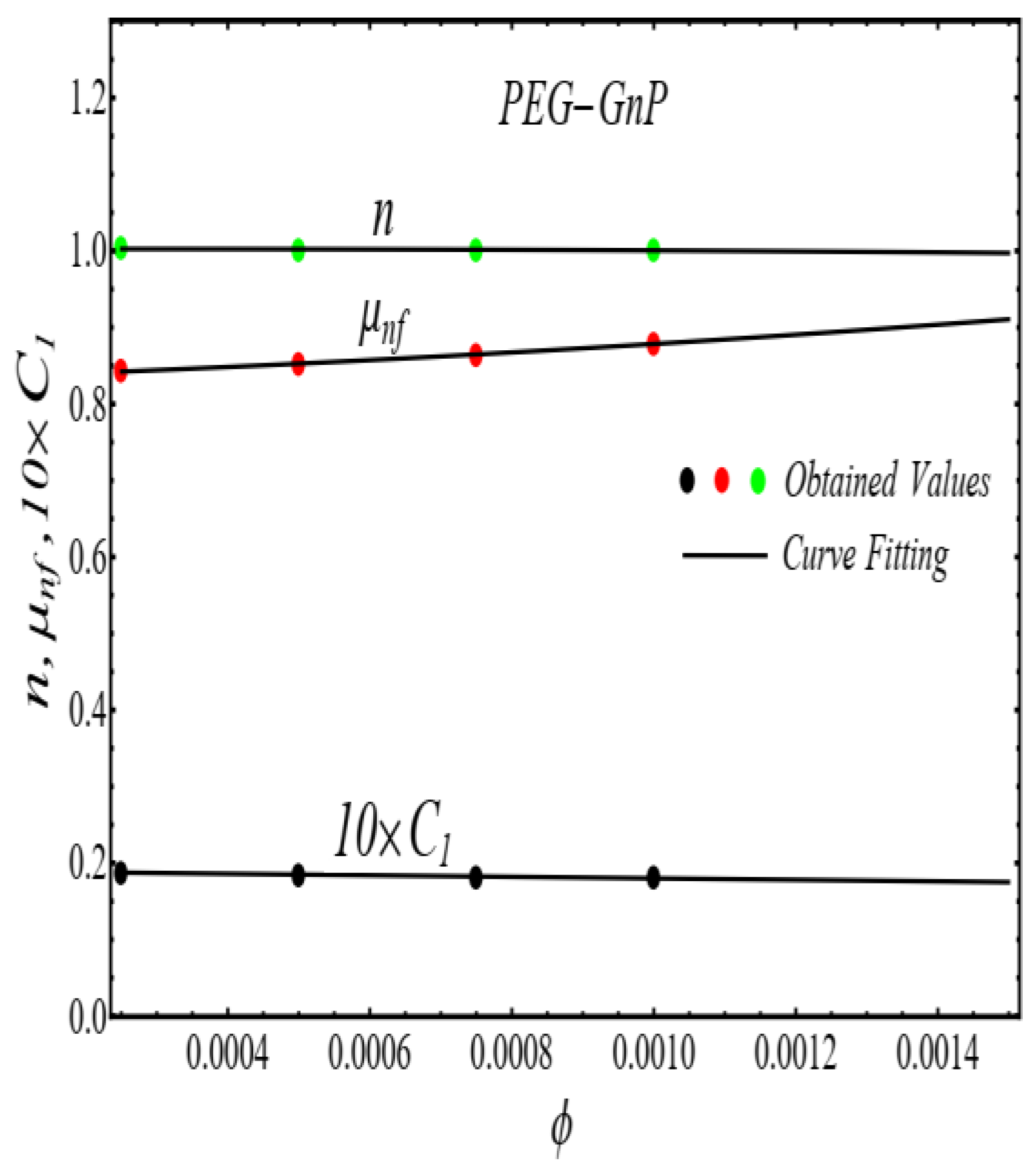

Figure 8. Curve fitting the Equation (4) for specified data in Table 1.
Figure 8. Curve fitting the Equation (4) for specified data in Table 1.
Micromachines 13 02080 g008

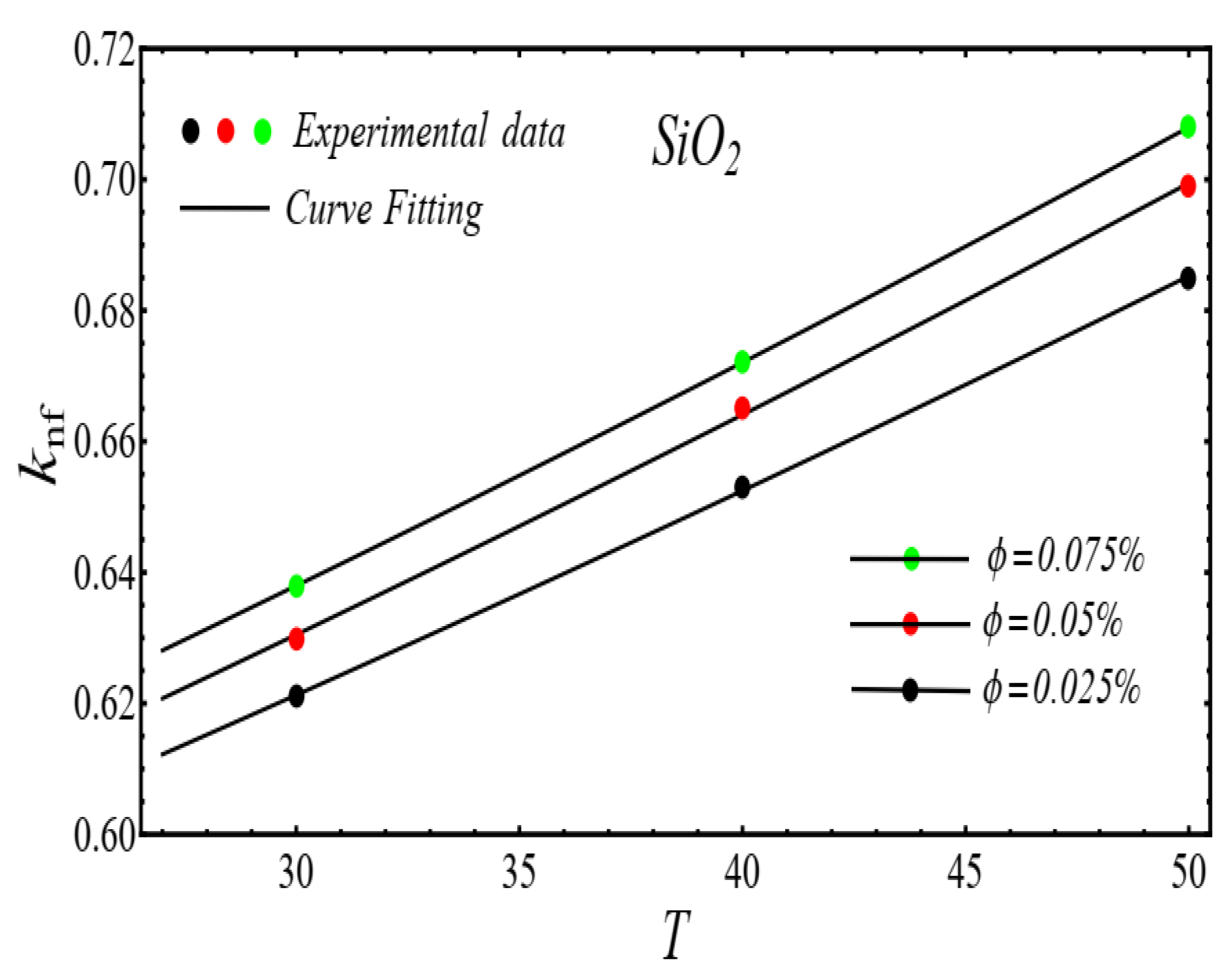

Figure 9. Fitting the Equation (4) for experimental data of SiO2/DIW nanofluid at different nanoparticle volume fractions.
Figure 9. Fitting the Equation (4) for experimental data of SiO2/DIW nanofluid at different nanoparticle volume fractions.
Micromachines 13 02080 g009

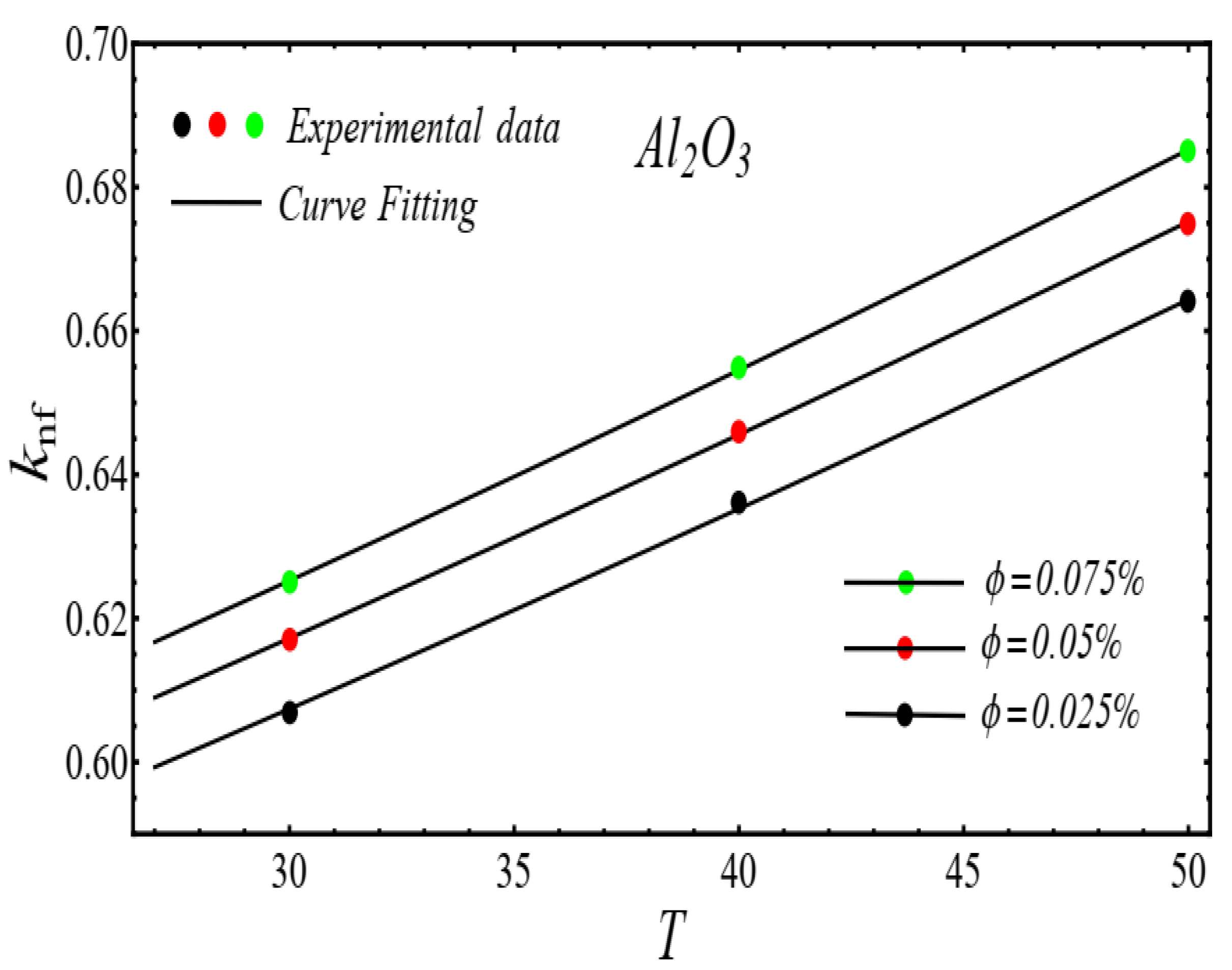

Figure 10. Fitting the Equation (4) for experimental data of Al2O3/DIW nanofluid at different nanoparticle volume fractions.
Figure 10. Fitting the Equation (4) for experimental data of Al2O3/DIW nanofluid at different nanoparticle volume fractions.
Micromachines 13 02080 g010

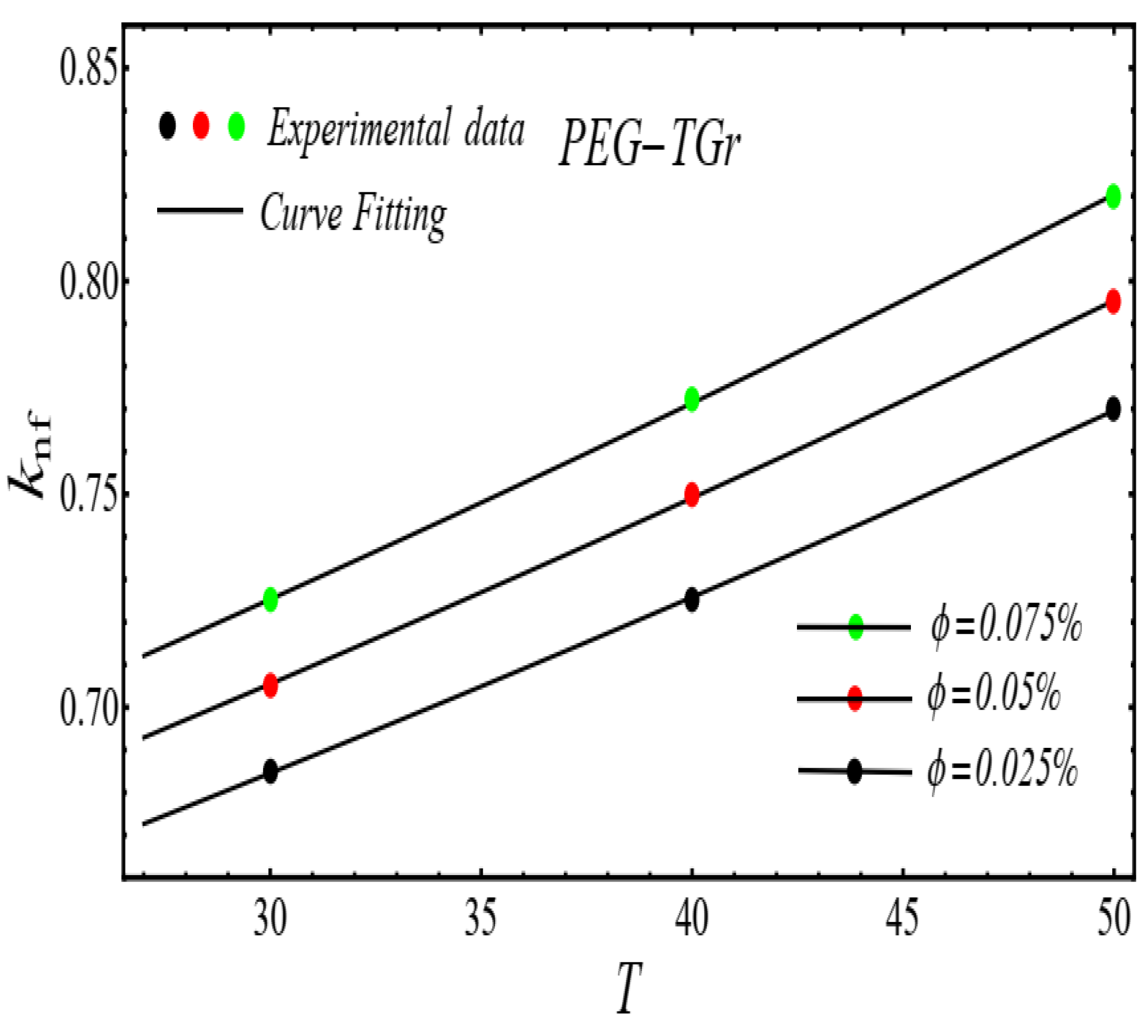

Figure 11. Fitting the Equation (4) for experimental data of PEG-TGr/DIW nanofluid at different nanoparticle volume fractions.
Figure 11. Fitting the Equation (4) for experimental data of PEG-TGr/DIW nanofluid at different nanoparticle volume fractions.
Micromachines 13 02080 g011
Figure 12. Fitting the Equation (4) for experimental data of PEG-GnP/DIW nanofluid at different nanoparticle volume fractions.
Figure 12. Fitting the Equation (4) for experimental data of PEG-GnP/DIW nanofluid at different nanoparticle volume fractions.
Micromachines 13 02080 g012
Figure 13. Fitting of the Equation (4) for parameters listed in Table 3.
Figure 13. Fitting of the Equation (4) for parameters listed in Table 3.
Micromachines 13 02080 g013
Figure 14. Fitting of the Equation (4) for parameters listed in Table 3.
Figure 14. Fitting of the Equation (4) for parameters listed in Table 3.
Micromachines 13 02080 g014
Figure 15. Fitting of the Equation (4) for parameters listed in Table 3.
Figure 15. Fitting of the Equation (4) for parameters listed in Table 3.
Micromachines 13 02080 g015
Figure 16. Fitting of the Equation (4) for parameters listed in Table 3.
Figure 16. Fitting of the Equation (4) for parameters listed in Table 3.
Micromachines 13 02080 g016
Figure 17. Fitting the Equation (5) for experimental data of schematic nanofluids.
Figure 17. Fitting the Equation (5) for experimental data of schematic nanofluids.
Micromachines 13 02080 g017
Figure 18. Fitting the Equation (5) for experimental data of schematic nanofluids.
Figure 18. Fitting the Equation (5) for experimental data of schematic nanofluids.
Micromachines 13 02080 g018
Figure 19. Flow Structure over geometry.
Figure 19. Flow Structure over geometry.
Micromachines 13 02080 g019
Figure 20. Velocity profile of SiO2/DIW nanofluids over the wedge and plate under the impact of nanoparticle volume fraction.
Figure 20. Velocity profile of SiO2/DIW nanofluids over the wedge and plate under the impact of nanoparticle volume fraction.
Micromachines 13 02080 g020
Figure 21. Velocity profile of Al2O3/DIW nanofluids over the wedge and plate under the impact of nanoparticle volume fraction.
Figure 21. Velocity profile of Al2O3/DIW nanofluids over the wedge and plate under the impact of nanoparticle volume fraction.
Micromachines 13 02080 g021
Figure 22. Velocity profile of PEG-TGr/DIW -nanofluids over the wedge and plate under the impact of nanoparticle volume fraction.
Figure 22. Velocity profile of PEG-TGr/DIW -nanofluids over the wedge and plate under the impact of nanoparticle volume fraction.
Micromachines 13 02080 g022
Figure 23. Velocity profile of PEG-GnP/DIW -nanofluids over the wedge and plate under the impact of nanoparticle volume fraction.
Figure 23. Velocity profile of PEG-GnP/DIW -nanofluids over the wedge and plate under the impact of nanoparticle volume fraction.
Micromachines 13 02080 g023
Figure 24. The temperature profile of SiO2/DIW nanofluids over the wedge and plate under the impact of nanoparticle volume fraction.
Figure 24. The temperature profile of SiO2/DIW nanofluids over the wedge and plate under the impact of nanoparticle volume fraction.
Micromachines 13 02080 g024
Figure 25. The temperature profile of Al2O3/DIW nanofluids over the wedge and plate under the impact of nanoparticle volume fraction.
Figure 25. The temperature profile of Al2O3/DIW nanofluids over the wedge and plate under the impact of nanoparticle volume fraction.
Micromachines 13 02080 g025
Figure 26. The temperature profile of PEG-TGr/DIW nanofluids over the wedge and plate under the impact of nanoparticle volume fraction.
Figure 26. The temperature profile of PEG-TGr/DIW nanofluids over the wedge and plate under the impact of nanoparticle volume fraction.
Micromachines 13 02080 g026
Figure 27. The temperature profile of PEG-GnP/DIW nanofluids over the wedge and plate under the impact of nanoparticle volume fraction.
Figure 27. The temperature profile of PEG-GnP/DIW nanofluids over the wedge and plate under the impact of nanoparticle volume fraction.
Micromachines 13 02080 g027
Table 1. The values of curve fitting parameters of Equation (2).
Table 1. The values of curve fitting parameters of Equation (2).
ϕ % SiO2/DIWAl2O3/DIWPEG-TGr/DIWPEG-GnP/DIW
0.0250.0500.0250.0500.0250.0500.02500.050
μ n f 0.83620.84570.83880.85640.83490.84960.84230.8521
n 1.0076 1.0070 1.00401.00251.00671.00671.00251.0024
C 1 0.019310.019020.01920.01910.01910.01860.01870.0184
Table 2. The values of coefficients of Equation (4).
Table 2. The values of coefficients of Equation (4).
SiO2Al2O3PEG-TGrPEG-GnP
a b c a b c a b c a b c
μ n f 0.8327.818,6080.8281.4−27,6360.8335.019,2600.8332.212,840
n 1.00001.00001.00001.0000
C 1 0.10−18.10.0990.10−11.10.100.10−14.60.100.909.920.09
Table 3. The values of curve fitting parameters in Equation (4).
Table 3. The values of curve fitting parameters in Equation (4).
ϕ % SiO2Al2O3PEG-TGrPEG-GnP
0.0250.0500.0750.0250.0500.0750.0250.0500.0750.0250.0500.075
k n f 0.6120.6210.6280.5990.6090.6170.6730.6930.7120.6780.6980.718
10 × C 2 0.0490.0510.0520.0440.0450.0460.0580.0060.0620.0580.0590.061
Table 4. The values of coefficients of Equation (5) for density and heat capacity.
Table 4. The values of coefficients of Equation (5) for density and heat capacity.
SiO2Al2O3PEG-TGrPEG-GnP
ρ C p ρ C p ρ C p ρ C p
a 998.43.99451001.54.10735991.54.066991.44.066
b 2000−19.22000−4.522000−42000−4
Table 5. Comparison of results for f 0 with numerical results in [44] when ϕ = 0 and n = 1 .
Table 5. Comparison of results for f 0 with numerical results in [44] when ϕ = 0 and n = 1 .
β Present[44]
00.469610.4696
10.927730.9277
21.232621.2326
Table 6. Comparison of results for θ 0 with numerical results in [45] when ϕ = 0 and β = 1 .
Table 6. Comparison of results for θ 0 with numerical results in [45] when ϕ = 0 and β = 1 .
Pr Present[45]
10.570520.5705
20.743700.7437
61.114711.1147
Table 7. Numeric values of velocity and temperature distribution at ϕ = 0.025 % .
Table 7. Numeric values of velocity and temperature distribution at ϕ = 0.025 % .
SiO2/DIWAl2O3/DIWPEG-TGr/DIWPEG-GnP/DIW
η f θ f θ f θ f θ
00.2510.2510.2510.251
0.30.86140.65600.86240.65580.85690.66440.85220.6646
0.60.95620.35730.95650.35780.94500.36900.95260.3693
10.98110.11220.98120.11330.98090.12020.97980.1204
20.99530.00090.99520.00100.99520.00110.99500.0011
40.999700.999700.999700.99970
60.999900.999900.999900.99990
810101010
Table 8. The values of parameters A and B at different nanoparticle volume fractions.
Table 8. The values of parameters A and B at different nanoparticle volume fractions.
ϕ % SiO2/DIWAl2O3/DIWPEG-TGr/DIWPEG-GnP/DIW
0.0250.0500.0750.0250.0500.0750.0250.0500.0750.0250.0500.075
A 3.873.783.693.873.813.753.823.753.673.753.703.65
B 0.0980.1010.1050.0880.0900.0920.1160.1200.1240.1160.1190.123
Table 9. Momentum boundary layer thickness 10 × δ M of schematic nanofluids over the wedge and plate at different nanoparticle volume fractions.
Table 9. Momentum boundary layer thickness 10 × δ M of schematic nanofluids over the wedge and plate at different nanoparticle volume fractions.
SiO2/DIWAl2O3/DIWPEG-TGr/DIWPEG-GnP/DIW
ϕ % x 0.0500.0750.1000.0500.0750.1000.0500.0750.1000.0500.0750.100
20.2770.2920.3080.2770.2900.3020.2770.2910.3060.2810.2920.305
Wedge30.3390.3580.3770.3400.3550.3700.3390.3560.3740.3440.3580.373
40.3920.4130.4350.3920.4100.4270.3920.4110.4330.3980.4140.431
20.3340.3420.3490.3340.3400.3440.3340.3410.3480.3380.3420.347
Plate30.4090.4180.4290.4100.4160.4220.4090.4170.4260.4140.4190.426
40.4720.4830.4950.4730.4800.4870.4720.4820.4930.4780.4840.491
Table 10. The thermal boundary layer thickness 10 × δ T of schematic nanofluids over the wedge and plate at different nanoparticle volume fractions.
Table 10. The thermal boundary layer thickness 10 × δ T of schematic nanofluids over the wedge and plate at different nanoparticle volume fractions.
SiO2/DIWAl2O3/DIWPEG-TGr/DIWPEG-GnP/DIW
ϕ % x 0.0500.0750.1000.0500.0750.1000.0500.0750.1000.0500.0750.100
20.1820.1840.1860.1820.1840.1850.1850.1880.1910.1860.1890.192
Wedge30.2230.2250.2280.2230.2260.2280.2270.2310.2330.2280.2320.235
40.2580.2610.2630.2580.2600.2630.2620.2660.2690.2630.2680.271
20.1980.2000.2020.1980.2000.2020.2010.2000.2070.2020.2060.208
Plate30.2430.2450.2480.2430.2450.2470.2420.2470.2530.2480.2520.255
40.1820.1840.1860.1820.1840.1850.1850.1880.1910.1860.1890.192
Table 11. Displacement thickness 10 × δ * of schematic nanofluids over the wedge and plate at different nanoparticle volume fractions.
Table 11. Displacement thickness 10 × δ * of schematic nanofluids over the wedge and plate at different nanoparticle volume fractions.
SiO2/DIWAl2O3/DIWPEG-TGr/DIWPEG-GnP/DIW
ϕ % x 0.0500.0750.1000.0500.0750.1000.0500.0750.1000.0500.0750.100
20.0140.0150.0160.0140.0150.0160.0140.0150.0160.0140.0150.016
Wedge30.0170.0180.0200.0170.0180.0190.0170.0180.0200.0180.0190.019
40.0200.0210.0230.0200.0210.0220.0200.0210.0230.0200.0210.022
20.0200.0210.0230.0200.0210.0230.0200.0210.0230.0210.0220.023
Plate30.0250.0260.0280.0240.0250.0260.0250.0260.0280.0260.0270.027
40.0280.0300.0320.0280.0290.0300.0290.0300.0320.0300.0310.032
Table 12. Momentum thickness 10 × δ * * of schematic nanofluids over the wedge and plate at different nanoparticle volume fractions.
Table 12. Momentum thickness 10 × δ * * of schematic nanofluids over the wedge and plate at different nanoparticle volume fractions.
SiO2/DIWAl2O3/DIWPEG-TGr/DIWPEG-GnP/DIW
ϕ % x 0.0500.0750.1000.0500.0750.1000.0500.0750.1000.0500.0750.100
20.0090.0100.0110.0090.0100.0110.0090.0100.0110.0010.0100.011
Wedge30.0120.0130.0140.0110.0120.0130.0120.0130.0140.0120.0130.013
40.0140.0150.0160.0130.0140.0150.0130.0140.0150.0140.0140.015
20.0140.0150.0160.0130.0140.0150.0140.0150.0160.0140.0150.016
Plate30.0170.0180.0190.0160.0170.0180.0170.0180.0190.0170.0180.019
40.0090.0100.0110.0090.0100.0110.0090.0100.0110.010.0100.011
Table 13. Nusselt number N u x of schematic nanofluids over the wedge and plate at different nanoparticle volume fractions and distinct locations.
Table 13. Nusselt number N u x of schematic nanofluids over the wedge and plate at different nanoparticle volume fractions and distinct locations.
SiO2/DIWAl2O3/DIWPEG-TGr/DIWPEG-GnP/DIW
ϕ % x 0.0500.0750.1000.0500.0750.1000.0500.0750.1000.0500.0750.100
2282.8283.5284.3282.2283.7285.2285.9289.9293.1286.0290.2294.0
Wedge3346.3347.2348.2345.6347.4349.3350.2355.1359.0350.3355.4360.1
4399.9401.0402.1399.1401.2403.3404.3410.0414.5404.5410.4415.8
2254.4258.5259.1254.4258.7260.0260.7264.3267.1260.7264.4267.9
Plate3311.6316.6317.3311.6316.8317.4319.3323.7328.1319.3323.9328.1
4359.8365.6366.4359.8365.8366.7368.7374.7378.8368.7374.0378.9
Table 14. Coefficient of Skin friction 10 3 × C f of schematic nanofluids over the wedge and plate at different nanoparticle volume fractions and distinct locations.
Table 14. Coefficient of Skin friction 10 3 × C f of schematic nanofluids over the wedge and plate at different nanoparticle volume fractions and distinct locations.
SiO2/DIWAl2O3/DIWPEG-TGr/DIWPEG-GnP/DIW
ϕ % x 0.050 0.0750.1000.0500.0750.1000.0500.0750.1000.0500.0750.100
20.9050.95710.010.9130.950.9860.9280.971.020.9680.991.03
Wedge30.7390.7810.8270.7450.7760.8050.7580.7920.8290.790.8140.84
40.6390.6770.7160.6460.6720.6970.6560.6850.7190.6840.7050.73
20.6310.6990.7410.6670.6950.7220.6770.7070.7420.7070.7280.751
Plate30.5150.5710.6040.5450.5680.5890.5530.5780.6060.5770.5940.613
40.4460.4940.5240.4720.4920.5110.4780.5000.5240.4990.5150.531
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Rizwan, M.; Hassan, M.; Asjad, M.I.; Tag-ElDin, E.M. Flow Characteristics of Heat and Mass for Nanofluid under Different Operating Temperatures over Wedge and Plate. Micromachines 2022, 13, 2080. https://doi.org/10.3390/mi13122080

AMA Style

Rizwan M, Hassan M, Asjad MI, Tag-ElDin EM. Flow Characteristics of Heat and Mass for Nanofluid under Different Operating Temperatures over Wedge and Plate. Micromachines. 2022; 13(12):2080. https://doi.org/10.3390/mi13122080

Chicago/Turabian Style

Rizwan, Muhammad, Mohsan Hassan, Muhammad Imran Asjad, and ElSayed M. Tag-ElDin. 2022. "Flow Characteristics of Heat and Mass for Nanofluid under Different Operating Temperatures over Wedge and Plate" Micromachines 13, no. 12: 2080. https://doi.org/10.3390/mi13122080

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
