Article

Green Synthesis of NiO Nanoflakes Using Bitter Gourd Peel, and Their Electrochemical Urea Sensing Application

by
Irum Naz
1,
Aneela Tahira
1,2,
Aqeel Ahmed Shah
3,
Muhammad Ali Bhatti
4,
Ihsan Ali Mahar
1,
Mehnaz Parveen Markhand
2,
Ghulam Murtaza Mastoi
1,
Ayman Nafady
5,
Shymaa S. Medany
6,
Elmuez A. Dawi
7,*,
Lama M. Saleem
8,
Brigitte Vigolo
9 and
Zafar Hussain Ibupoto
1,*
1
Dr. M.A Kazi Institute of Chemistry, University of Sindh, Jamshoro 76080, Pakistan
2
Institute of Chemistry, Shah Abdul Latif University, Khairpur Mirs 66111, Pakistan
3
Wet Chemistry Laboratory, Department of Metallurgical Engineering, NED University of Engineering and Technology, University Road, Karachi 75270, Pakistan
4
Centre for Environmental Sciences, University of Sindh, Jamshoro 76080, Pakistan
5
Department of Chemistry, College of Science, King Saud University, Riyadh 11451, Saudi Arabia
6
Department of Chemistry, Faculty of Science, Cairo University, Cairo 12613, Egypt
7
Nonlinear Dynamics Research Centre (NDRC), Ajman University, Ajman P.O. Box 346, United Arab Emirates
8
Biomolecular Science, Earth and Life Science, Amsterdam University, De Boelelaan 1 105, 1081 HV Amsterdam, The Netherlands
9
Institut Jean Lamour, CNRS-Université de Lorraine, F-54000 Nancy, France
*
Authors to whom correspondence should be addressed.
Micromachines 2023, 14(3), 677; https://doi.org/10.3390/mi14030677
Submission received: 8 March 2023 / Revised: 13 March 2023 / Accepted: 16 March 2023 / Published: 19 March 2023
(This article belongs to the Special Issue Advances in Voltammetric Sensors)
Browse Figures
Review Reports Versions Notes

Abstract

:
To determine urea accurately in clinical samples, food samples, dairy products, and agricultural samples, a new analytical method is required, and non-enzymatic methods are preferred due to their low cost and ease of use. In this study, bitter gourd peel biomass waste is utilized to modify and structurally transform nickel oxide (NiO) nanostructures during the low-temperature aqueous chemical growth method. As a result of the high concentration of phytochemicals, the surface was highly sensitive to urea oxidation under alkaline conditions of 0.1 M NaOH. We investigated the structure and shape of NiO nanostructures using powder X-ray diffraction (XRD) and scanning electron microscopy (SEM). In spite of their flake-like morphology and excellent crystal quality, NiO nanostructures exhibited cubic phases. An investigation of the effects of bitter gourd juice demonstrated that a large volume of juice produced thin flakes measuring 100 to 200 nanometers in diameter. We are able to detect urea concentrations between 1–9 mM with a detection limit of 0.02 mM using our urea sensor. Additionally, the stability, reproducibility, repeatability, and selectivity of the sensor were examined. A variety of real samples, including milk, blood, urine, wheat flour, and curd, were used to test the non-enzymatic urea sensors. These real samples demonstrated the potential of the electrode device for measuring urea in a routine manner. It is noteworthy that bitter gourd contains phytochemicals that are capable of altering surfaces and activating catalytic reactions. In this way, new materials can be developed for a wide range of applications, including biomedicine, energy production, and environmental protection.

1. Introduction

Urea is a major component of nitrogen sources used in fertilizers and chemical industry applications [1]. Various industrial products contain urea, including soaps, detergents, cleaning agents, and supplementary feed for animals [2]. As a result of its intensive use as a spray agent on crops, urea can easily pollute the environment, causing harm to both life and the environment. The metabolism of proteins can lead to the production of urea in biological systems [3]. Approximately 2.6 to 6.5 mM of urea molecules are dissolved in the fluids of our bodies [4,5], whereas 490 to 2690 mL of urea are dissolved in human urine [6]. Due to the fact that urea is one of the major adulterants in milk, the dairy industry requires highly sensitive and selective methods of detecting urea. Proteins, minerals, and vitamins are among the many nutrients found in milk. According to statistics, milk contains an average of 3.4% protein. Generally, milk contains between 3.1 and 6.6 mM urea, but Indian food safety standards define urea levels at 11.6 mM [7]. To increase the nitrogen content of diluted milk, an additional amount of urea is added [8,9]. Therefore, it is imperative that the exact amount of urea adulteration in milk be regulated in order to prevent the harmful effects of urea on humans. Furthermore, high urea levels in the body fluids can result in kidney failure, urinary tract infections, and obstructions, whereas low urea levels are associated with liver dysfunction, renal dysfunction, and cachexia [10]. There is therefore a need to determine urea with precision and accuracy in a wide variety of applications, including agriculture, biological fluids, food, pharmaceuticals, and environmental regulation [11]. Consequently, a number of analytical methods have been developed to detect urea, including near-infrared spectroscopy [12], chromatography [13], nuclear magnetic resonance [5], flow injection [14], and electrochemical techniques [15,16,17,18]. Recently, electrochemical and electroanalytical techniques have been extensively studied due to their simplicity, low limit of detection, on-site analysis, low cost, rapidity, sensitivity, and selectivity [19]. An enzymatic [20] and a non-enzymatic [21,22] electrochemical approach has been used to quantify urea. The enzymatic urea biosensor has certain limitations, such as the process of enzyme immobilization, and the stability issues associated with the urease enzyme under experimental conditions such as pH, temperature, and humidity [7]. On the other hand, non-enzymatic urea sensing is performed by oxidation/reduction of appropriately modified electrodes [23]. To develop an electrochemical urea sensor that is highly efficient and selective without the use of enzymes, new and surface-tunable materials are required. Consequently, a variety of materials have been investigated for application to the development of electrochemical urea sensors, such as noble and nonprecious metals, metal oxides, and metal hydroxides [24,25,26,27,28,29]. As a result of their tunable surface properties, significant stability under electrolytic conditions, and the potential of growing many nanostructured morphologies, metal oxides are being extensively researched as sensing materials [15,17,18,21]. Among those commonly used to detect urea are nickel-based catalysts due to their less hazardous effects, their cost effectiveness, and their large tunable catalytic sites [30]. K. Boggs et al. [31] have investigated the direct electrochemical urea oxidation mechanism on nickel-based materials by establishing a large number of intermediate species of nickel oxyhydroxide (NiOOH). Although nickel-based materials have been developed extensively for the determination of urea, non-enzymatic methods are still capable of producing wide linear ranges and low defection limits. The chemical routes used for the synthesis of nanostructured materials involve costly chemicals and physical methodologies that are associated with high levels of toxicity, cytotoxicity, and carcinogenicity [32]. However, green methods have been utilized to produce nanostructured materials with enhanced functionality, low cost, and limited toxic effects [33,34,35,36,37,38]. Thus, green chemical synthesis of nanostructured materials is referred to as an environmentally friendly and eco-friendly process. A variety of favorable components are included in the plant biomass waste of plant extract, including capping agents, stabilizing agents, and reducing agents, which play a crucial role in preparing nanostructured compounds that are well controlled in terms of morphology, size, and surface properties [39,40,41,42,43,44].
Since NiO nanostructures were green synthesized for nonenzymatic urea determination, no studies have been conducted to assess their catalytic effect, their dimensions, and their shapes, or the nonenzymatic determination of urea, particularly for large samples and real samples, where the matrix effect should be considered as a significant indicator. In our research on practical non-enzymatic urea sensors made of NiO materials, as well as a green chemical approach to NiO nanostructure synthesis, we examined various phytochemicals found in bitter gourd peel extract that are capable of acting as reduction and capping agents for surface modification [45,46,47,48]. Recently, various NiO-based urea sensors have been reported [22,49,50,51]. However, there is still room to fabricate highly efficient enzyme-free urea sensors. Generally, the bitter gourd extract contains a variety of natural reducing agents, capping agents, and stabilizing agents such as proteins, carbohydrates, amino acids, strolls, terpenoids, flavonoids, cardiac glycosides, etc. These various reducing agents and stabilizing agents can provide well-controlled NiO nanostructures with significant surface modifications that are highly desirable for electrocatalytic reactions. In the absence of studies, bitter gourd peel extract has not been used to modify the surface of NiO nanostructures or to develop non-enzymatic urea sensors for various real-world applications. Our study investigated the phytochemical synthesis of NiO nanostructures from bitter gourd peel extract and their application to catalytic urea oxidation under alkaline conditions.

2. Experimental Section

2.1. Chemicals Used

All chemicals were purchased from Sigma-Aldrich Karachi, Sindh Pakistan. These samples were all of high analytical quality and were used as received. Nickel chloride hexahydrate, sodium hydroxide, ammonia (33%), urea, Nafion (5%), magnesium chloride, ascorbic acid, glucose, and uric acid. Prior to the experiment, the glassware was cleaned and rinsed with deionized water. All of the glassware was dried in an oven at 60 °C for 30 min. A 0.1 M sodium hydroxide solution was used as a supporting electrolyte. All the solutions for electrochemical measurements were completed in aqueous 0.1 M sodium hydroxide. Deionized water was used as a solvent.

2.2. Phytochemical Synthesis of NiO Nanostructures Using Low-Temperature Aqueous Chemical Growth Method

NiO nanostructures were prepared by low-temperature aqueous chemical growth method followed by thermal annealing in the air. A pristine NiO sample was prepared by dissolving nickel chloride hexahydrate (0.1 M) in 200 mL of deionized water. Following this, 10 mL of an aqueous solution of ammonia at a concentration of 33% was added. In addition, 10 and 15 mL of bitter gourd peel extract were added separately to two other beakers containing nickel chloride hexahydrate and aqueous ammonia. There were two samples, referred to as sample 1 and sample 2. During low-temperature aqueous chemical growth method at 95 °C for five hours, growth solutions were tightly covered with aluminum sheets. It resulted in the formation of a light green nickel hydroxide product on the filter paper, after which it was washed several times with deionized water and allowed to dry overnight. Air calcination at 500 °C was then carried out for five hours. Similarly, pristine NiO was synthesized without the use of bitter gourd peel extract. A schematic illustration of the phytochemical synthesis is provided in Scheme 1.

2.3. Structural Characterization of NiO Nanostructures

For analyzing the crystal quality of NiO nanostructures, powder X-ray diffraction was used at 45 kV, 45 mA, with X-rays emitted from a Cu anode as the source of diffraction patterns. The X-rays were scanned at an angle of 10–85° two-theta. We investigated the shape and orientation of nanostructured NiO, by depositing a few amounts of NiO sample on the conducting carbon tape, using low-resolution scanning electron microscopy at an accelerating potential of 20 kV.

2.4. Electrochemical Oxidation of Urea in Alkaline Media Using Modified Glassy Carbon Electrode (GCE)

We prepared a suspension of NiO nanostructures by dispersing 10 mg of each sample in 3 mL of deionized water. In a subsequent step, 30 μL of 5% Nafion was poured into NiO suspension in an ultrasonic bath and stirred for 20 min. Prior to the modification of GCE, the surface was cleaned with silicon paper and alumina paste, followed by washing with deionized water and drying at room temperature with air. A suspension of 10 µL with a loading mass of (0.2 mg) was then applied to the surface of GCE and dried at 50 °C in an electric oven for five minutes. In the electrochemical cell system, NiO-modified GCE served as the working electrode, silver–silver chloride (Ag/AgCl) filled with (3.0 M KCl) served as the reference electrode, and platinum wire served as the counter electrode. The working of GCE was exhibiting an area of 3 mm and it was used to deposit the catalytic material. The urea stock solution was prepared using a solution of 0.1 M NaOH. Various electrochemical methods were used to analyze the results, including cyclic voltammetry, electrochemical impedance spectroscopy, and chronoamperometry. As part of the scan rate study, CVs were measured at various scan rates. The purpose of this study was to examine electrochemical impedance spectroscopy (EIS) at 100 kHz to 0.1 Hz, a sinusoidal potential of 10 mV, and a biasing potential of 0.5 V. The raw EIS data were simulated using Z-view software, and well-fitting results were obtained. In order to determine the interference pattern and stability of the modified electrode, chronoamperometry was used. We conducted all measurements at room temperature. In order to determine the urea concentration in the real samples, 1:10 dilutions of the real samples into 0.1 M NaOH were made before the spiking for direct measurement of urea in curd, milk, wheat flour, blood, and urine. Blood and urine samples were collected from human subjects represented by laboratory personnel with their consent for use in our research.

3. Results and Discussion

3.1. The Structural Characterization of NiO Nanostructures Prepared with Bitter Gourd Peel Extract

As shown in Figure 1a,b, powder XRD was used to examine the crystal quality of NiO nanostructures prepared with bitter gourd. The diffraction patterns of NiO were primarily characterized by the cubic phase, which is supported by the standard JCPDS card no. 01-073-1523. A number of reflection peaks have been identified, which correspond to typical crystal planes in NiO, including 111, 200, 220, 311, and 222. The intense peak observed in the direction patterns at the crystal planes 111 and 200 are well matched with the reported work [52], and the reference (JCPDS card No. 00-001-1258). It was confirmed that all bitter gourd NiO samples were free of other impurities. Phytochemicals in bitter gourd juice have induced two theta shifts to higher angles on NiO crystals, as shown in Figure 1b. The shift in angle may be attributed to the expansion of the crystal size caused by the biopolymers in bitter gourd juice. This could have resulted in defects in the prepared material. An image of the morphology of NiO nanostructures synthesized with bitter gourd is shown in Figure 1. The pristine NiO sample is depicted in Figure 1c as having a sheet-like morphology. As shown in Figure 1d, NiO nanostructures prepared using 10 mL bitter gourd peel extract also showed thin NiO flakes oriented as flowers. Figure 1e shows that NiO nanostructures exhibited a floral appearance after being treated with 15 mL of bitter gourd peel extract. The bitter gourd contains a variety of phytochemicals, such as reducing agents and capping agents, which together shape the surface features of NiO nanostructures. The thickness of the NiO flakes with flower-like morphology could range from 100 to 200 nanometers, indicating remarkable nanoscale features, and such dimensions are associated with high surface areas, resulting in efficient catalytic performance.

3.2. Non-Enzymatic Urea Sensor Characterization Based on the Bitter Gourd Peel Extract Assisted NiO Nanostructures

As shown in Figure 2, preliminary electrochemical characterization was conducted using cyclic voltammetry in alkaline conditions with 0.1 M NaOH on the bare glassy carbon electrode (GCE) and the modified glassy carbon electrode. Two samples of NiO were obtained with 10 and 15 mL of biomass waste from a bitter gourd by modifying the GCE with pristine NiO nanostructures. As can be seen, GCE did not possess any redox properties at its simplest level. Despite this, NiO samples have been found to exhibit redox characteristics under alkaline conditions of 0.1 M NaOH. As part of the development of non-enzymatic sensors, NiO nanostructures were tested on a wide range of biomolecules, including glucose, uric acid, ascorbic acid, dopamine, and urea. However, NiO nanostructures were found to be active only in the nonenzymatic oxidation of urea. As a result, we are mainly reporting non-enzymatic characterizations of the urea biomolecule. The addition of 0.1 mM of urea significantly enhanced the redox properties of sample 1 of NiO nanostructures prepared from bitter gourd peel extract. Figure 2b illustrates this concept. Figure 2b illustrates how the phytochemicals present in 10 mL of bitter gourd have significantly modified the surface properties of NiO nanostructures.
The catalytic activity of NiO nanostructures was further decreased by the addition of bitter gourd. The adverse effects are due to the presence of a high concentration of phytochemicals in 15 mL of bitter gourd juice. The increased oxidation peak current in sample 1 indicates better electron transfer in the recently designed architecture with tailored surface properties. In Figure 2a, CV curves are shown for the different materials in the presence of an electrolyte of urea in order to understand their electrochemical performance. Different materials exhibit apparent redox behavior when electrochemically treated in an electrolytic solution. Furthermore, it was estimated that the peak current for sample 1 in 0.1 M NaOH was approximately 1.08 µA, whereas the peak current for sample 1 in 0.1 M urea was approximately 1.27 µA. A difference of around 0.19 µA was observed between sample 1 in 0.1 M NaOH and sample 1 in the absence of urea, indicating sample 1 has significant catalytic properties for the oxidation of urea. A comparison of CV curves of different materials in the presence of 0.1 mM urea is shown in Figure 2b. The peak current enhancement for sample 1 in the presence of urea is higher than the peak current for the pristine sample, suggesting that sample 1 has experienced favorable urea oxidation on its surface. Under alkaline conditions, the sensing mechanism of urea on the surface of NiO nanostructures can be illustrated as shown below. Based on a forward scan of the CV curve (Equation (1)), the applied potential results in the oxidation of Ni(II) species present on the nanostructured surface of NiO to Ni(III). The reverse scanning of CV (Equation (2)) [53,54,55,56,57,58] shows that Ni(III) species are highly active towards urea oxidation and then become Ni(II) species as a result of electron transfer.
Ni(OH)2 + OH- → NiOOH + H2O+ e-
CO(NH2)2 + 6Ni(OOH) + H2O → N2 + 6Ni(OH)2 + CO2 + 6e-
In light of the CV studies, it is evident that bitter gourd phytochemicals are highly effective for surface modification of nanostructured materials for a specific application. Consequently, bitter gourd could be used for surface modification of other materials for catalytic applications. In addition to these preliminary electrochemical tests, we have also performed comprehensive measurements of the non-enzymatic urea sensor in terms of kinetics, linear range, repeatability, reproducibility, selectivity, charge transfer kinetics, and real sample analysis using a variety of electrochemical methods.
For the study of diffusion-controlled behavior of modified electrodes, a variety of scan rates ranging from 10–390 mV/s were used to assess the behavior of sample 1 of NiO electrodes during the electrochemical process in 0.1 mM urea. An illustration of this can be found in Figure 3a. Increasing sweep scan rates produced successive linear peak currents for oxidation and reduction, as shown in Figure 3a. As can be seen in Figure 3b, a linear fit was made by plotting anodic and cathodic peak currents against the square root of the scan rate [19].
Furthermore, we have added a table describing the peak current ratio and peak separation potential for better understanding as given in Table 1. This verifies that the scan rate analysis describes the oxidation/reduction of urea involving the semi-reversible mechanism [59]. This is due to the fact weak urea adsorption onto the NiO nanostructures before it goes to the oxidation process on the process of NiO nanostructures produced with bitter gourd.
The working range of the presented non-enzymatic urea sensor was determined by measuring CV curves at a scan rate of 50 mV/s for various urea concentrations as shown in Figure 4a. As the concentration of urea increased in the electrochemical cell containing 0.1 M NaOH, the oxidation peak current of the CV curve was enhanced. Nevertheless, the proposed NiO nanostructures did not affect the reduction peak of the CV curve, suggesting that they were only oxidizing urea in alkaline environments. Moreover, the increase in urea concentration showed the shift in oxidation peak current to more positive potential increment and it may be connected to the electrode fouling at higher urea concentration. As shown in Figure 4b, a linear plot was produced by extracting the oxidation peak current against the corresponding concentrations of urea. The linear range of 1–9 mM for NiO’s urea sensor, along with a regression coefficient of 0.99, confirms NiO’s excellent analytical capabilities in developing non-enzymatic methods for the determination of urea.
Under the given equations [60,61,62], the limit of detection (LOD) and the limit of quantification (LOQ) were calculated.
LOD = 3 S/M
LOQ = 10 S/M
Herein, M shows the slope and S is the standard deviation. The measured LOD and LOQ were about 0.02 mM and 0.09 mM, respectively. The results presented in Figure 4 were repeated three times, hence the error bars are provided in Figure 4b. The obtained non-enzymatic urea sensor results were compared with the recently reported enzyme-activated and non-enzymatic urea biosensors, as shown in Table 2. According to Table 2, the previous studies mainly employed chemical routes for the synthesis, involving complicated steps and a large number of hazardous chemicals. While the presented nanostructured NiO material is obtained by the green chemical route with the use of minimum chemicals. This suggests low-cost fabrication, eco-friendly, environment-friendly, and scale-up synthesis. Another point about the published works on the enzymatic method is limited by the high cost of urease enzyme, multistep immobilization, and denaturation of urease enzyme. This reduces the storage life of urea-based biosensors. Based on this study, it is evident that the presented non-enzymatic urea sensor is highly sensitive, exhibits a broad linear range compared to non-enzymatic urea sensors, has a low limit of detection, and is inexpensive to manufacture. According to the comparative study, the previously reported non-enzymatic sensor [63] has a wide linear range, but it lacks the required analytical features. This can be seen from the fact that R2 = 0.96, which suggests doubts about the performance of the sensor. Our case, however, demonstrates excellent analytical features and well-described performance. Additionally, the presented urea sensor offered real-time urea quantification from a variety of real samples. It is evident that NiO nanostructures are economical, facile, and environmentally friendly with a linear range of 1.0 mM to 9 mM and a low limit of detection of 0.02 mM. Therefore, the proposed method is a potential and alternative method for quantifying urea in real biological fluids. We have measured the chronoamperometric response for various urea concentrations ranging from 0.1 mM to 5 mM and have observed that the current increases linearly with increasing urea concentration, as shown in Figure 5a. An excellent linear plot was obtained with the measured chronoamperometric current of each response time curve at 250 sec against urea concentrations ranging from 0.1 mM to 5 mM as shown in Figure 5b. Furthermore, we have used the chronoamperometric response of NaOH without adding urea and it was possible to conclude that the proposed configuration is capable of detecting urea very sensitively at 0.1 mM urea concentrations. Since amperometry is an electrochemical mode that is highly sensitive, it has supported the linear range in the CV mode; therefore, NiO nanostructures (sample 1) have a high potential to be investigated and tested for the analysis of real samples of urea. Additionally, the change in CV oxidation peak current was examined by adding the common interfering species, and the measured response is shown in Figure 5c. Clearly, the sequential addition of interfering agents did not result in any substantial change in peak current as shown in the inset of Figure 5c, confirming that sample 1 is extremely selective and sensitive only to urea in the presence of the same concentration of interfering agents. From zoom in view of the inset of CV curves shown in Figure 5c for each interfering suggests that the change in peak current is very negligible after the addition of interfering species compare to the peak current of urea. Hence high selectivity by sample 1 towards urea detection was demonstrated. NiO nanostructures have been reported to be used in many sensor applications, however, we have tested our material for many of the competing interferences of interests. A non-enzymatic sensor’s selectivity is primarily determined by its surface properties. The present study reports that bitter gourd extract was utilized to modify the surface of NiO material in order to achieve selective detection of urea. Furthermore, several CV cycles were measured for the same electrode in 0.1 mM urea concentration typically 25 cycles for the illustration of the excellent stability of the working electrode as shown in Figure 5d. There is negligible change in the peak current even after 25 cycles which could be assigned to the activation of the electrode.
Chronoamperometry was used to further investigate the stability of sample 1 in 0.1 mM urea during the time period of 300 s. The results indicated that NiO nanostructures displayed a high degree of compatibility with GCE. It is because they were able to detect the presence of urea without any fluctuation in current for the time period of 300 s, as shown in Figure 6a. The presented urea sensor exhibits a wide linear range as demonstrated by electrochemical impedance spectroscopy (EIS) conducted in 0.1 mM urea with bare GCE and pristine NiO. Figure 6b presents the Nyquist plots of NiO nanostructures assisted by bitter gourds in 10 and 15 mL. As a result of the experimental conditions, the frequency was swept from 100 kHz to 0.1 Hz, the sinusoidal potential was 10 mV, and the biasing potential was 0.5 V in 0.1 M NaOH. According to Figure 5b, the EIS data were fitted by equivalent circuits with well-defined circuit elements such as solution resistance (R1), charge transfer resistance (R2), and constant phase element (CPE). When an electrocatalytic interface is established between two phases, the charge transfer resistance between the two phases must be considered as a parameter to support the electrochemical reaction. The CPE is used to illustrate the behavior of the double layer, indicating that the fitted equivalent circuit of EIS data contains an imperfect capacitor. According to the Nyquist plot arc, charge transfer is relatively easy between electrodes during electrochemical reactions. We determined that the charge transfer resistance (Rct) for bare GCE, pristine NiO, and 10 and 15 mL of bitter gourd-assisted NiO nanostructure was 650 kΩ, 78 Ω, and 324 Ω, respectively. Due to its high conductivity and favorable charge transfer during urea oxidation, sample 1 displayed low charge transfer resistance and demonstrated rapid kinetics.
We also examined the repeatability, reproducibility, and stability of sample 1 in 1 mM urea solution by means of cyclic voltammetry at a scan rate of 50 mV/s. The repeatability was studied for the concentration range of 1 mM to 9 mM using sample 1 for three alternative days as given in Table 3. It can be seen that the non-enzymatic urea sensor demonstrated high capability to measure urea several times without losing linear range and LOD.
In order to obtain a deeper understanding of the performance evaluation, the electrochemically active surface areas of each sample were also evaluated with curves in the non-Faradic region at various scan rates as displayed in Figure 7a–c. In order to accomplish this, three samples were used, namely pure NiO, sample 1, and sample 2, prepared from bitter gourd peel extract in 0.1 mM urea. The electrochemical active surface area was estimated by dividing the difference in current density between the anodic and cathodic sides by 2. Then, we plotted that against the scan rate, the slope of which corresponds to the ESCA values of each sample as shown in Figure 7d. Clearly, sample 1 revealed a significant active surface area, which is probably responsible for its enhanced performance along with its low charge transfer resistance.
The practical aspects of the non-enzymatic urea sensor were studied using various real-life samples, such as blood, urine, dairy milk, curd, and wheat leaves. The results are presented in Table 4, Table 5, Table 6 and Table 7. It has been demonstrated that urea can be quantified in a wide range of actual samples, including clinical, dairy, and agricultural samples. This was completed using a NiO nanostructure prepared from 10 mL of bitter gourd juice. Moreover, excellent recovery rates of approximately 100% were observed in each sample, indicating the effectiveness of the non-enzymatic urea sensor when applied in real time.

4. Conclusions

To summarize, we have used green chemistry to synthesize NiO nanostructures using bitter gourd peel extract by low-temperature aqueous chemical growth method. An investigation of NiO nanostructures revealed the presence of a thin, flake-shaped cubic phase using bitter gourd extract. The XRD study has revealed a cubic phase and high purity of prepared NiO samples with bitter gourd extract. The electrochemical properties of different NiO samples prepared with 10 mL and 15 mL of bitter extract and pure NiO were studied for the non-enzymatic quantification of urea in the alkaline 0.1 M NaOH aqueous solution. We observed that the NiO sample 1 prepared with 10 mL of bitter gourd extract was found highly active for the oxidation of urea. The non-enzymatic urea sensor based on sample 1 was capable of detecting urea concentrations over a wide range of 1 to 9 mM with a detection limit of 0.02 mM when using CV mode. Chronoamperometric measurements have shown a linear range of 0.1 to 5 mM. The wide linear range and low limit of detection of urea on the surface of sample 1 were supported by the high amount of active surface area and the fast charge transfer rate. Our newly developed urea sensor has also demonstrated a high degree of sensitivity, selectivity, stability, and repeatability. The proposed non-enzymatic sensor configuration has been successfully applied to the determination of urea from various real samples, such as agricultural, clinical, dairy, and food samples and the obtained performance was found highly satisfactory. Compared with conventional methods for urea quantification, the fabricated sensor is low-cost, simple, highly sensitive, and selective. Biomass waste from bitter gourds could potentially be utilized for a new class of materials for tuning the catalytic properties and obtaining favorable surfaces for a wide range of applications such as energy conversion and storage systems.

Author Contributions

Conceptualization, Z.H.I.; Methodology, I.N. and B.V.; Validation, L.M.S.; Formal analysis, A.T., G.M.M., A.N., S.S.M. and E.A.D.; Investigation, A.A.S., I.A.M. and M.P.M.; Resources, E.A.D.; Data curation, M.A.B.; Writing––review & editing, A.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

There was no animal study presented in the paper and the real samples were taken from the authors list and they were agreed to use their samples.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

Authors acknowledge the higher education commission Pakistan for partial support under the project (NRPU/8350). The authors extend their sincere appreciation to Researchers Supporting Project number (RSP2023R79), King Saud University, Riyadh, Saudi Arabia, for partial funding of this work. We also acknowledge partial funding from Ajman University, Grant ID: 2022-IRG-HBS-5, 2022-RTG-HBS-02. Brigitte Vigolog would like to also thank the platform “Microscopies, Microprobes and Metallography (3M)” at the Institut Jean Lamour (IJL, Nancy, France) for TEM and SEM facilities.

Conflicts of Interest

Authors have no conflict of interest in the presented research work.

References

  1. Parsaee, Z. Synthesis of novel amperometric urea-sensor using hybrid synthesized NiO-NPs/GO modified GCE in aqueous solution of cetrimonium bromide. Ultrason. Sonochemistry 2018, 44, 120–128. [Google Scholar] [CrossRef]
  2. Li, L.; Long, Y.; Gao, J.M.; Song, K.; Yang, G. Label-free and pHsensitive colourimetric materials for the sensing of urea. Nanoscale 2016, 8, 4458–4462. [Google Scholar] [CrossRef]
  3. Ahuja, T.; Mir, I.A.; Kumar, D. Potentiometric urea biosensor based on BSA embedded surface modified polypyrrole film. Sens. Actuators B 2008, 134, 140–145. [Google Scholar] [CrossRef]
  4. Dutta, D.; Chandra, S.; Swain, A.K.; Bahadur, D. SnO2 quantum dots-reduced graphene oxide composite for enzyme-free ultrasensitive electrochemical detection of urea. Anal. Chem. 2014, 86, 5914–5921. [Google Scholar] [CrossRef] [PubMed]
  5. Liu, L.; Mo, H.; Wei, S.; Raftery, D. Quantitative analysis of urea in human urine and serum by 1H nuclear magnetic resonance. Analyst 2012, 137, 595. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Singh, M.; Verma, N.; Garg, A.K.; Redhu, N. Urea biosensors. Sens. Actuators B Chem. 2008, 134, 345–351. [Google Scholar] [CrossRef]
  7. Ezhilan, M.; Gumpu, M.B.; Ramachandra, B.L.; Nesakumar, N.; Babu, K.J.; Krishnan, U.M.; Rayappan, J.B.B. Design and development of electrochemical biosensor for the simultaneous detection of melamine and urea in adulterated milk samples. Sens. Actuators B Chem. 2017, 238, 1283–1292. [Google Scholar] [CrossRef]
  8. Rahmanian, R.; Mozaffari, S.A. Electrochemical fabrication of ZnO-polyvinyl alcohol nanostructured hybrid film for application to urea biosensor. Sens. Actuators B Chem. 2015, 207, 772–781. [Google Scholar] [CrossRef]
  9. Srivastava, R.K.; Srivastava, S.; Narayanan, T.N.; Mahlotra, B.D.; Vajtai, R.; Ajayan, P.M.; Srivastava, A. Functionalized multilayered graphene platform for urea sensor. ACS Nano 2011, 6, 168–175. [Google Scholar] [CrossRef]
  10. Sharma, A.; Rawat, K.; Bohidar, H.B.; Solanki, P.R. Studies on claygelatin nanocomposite as urea sensor. Appl. Clay Sci. 2017, 146, 297–305. [Google Scholar] [CrossRef]
  11. Alizadeh, T.; Ganjali, M.R.; Rafiei, F. Trace level and highly selective determination of urea in various real samples based upon voltammetric analysis of diacetylmonoxime-urea reaction product on the carbon nanotube/carbon paste electrode. Anal. Chim. Acta 2017, 974, 54–62. [Google Scholar] [CrossRef]
  12. Khan, K.M.; Krishna, H.; Majumder, S.K.; Gupta, P.K. Gupta, Detection of urea adulteration in milk using near-infrared Raman spectroscopy. Food Anal. Methods 2015, 8, 93–102. [Google Scholar] [CrossRef]
  13. Clark, S.; Francis, P.S.; Conlan, X.A.; Barnett, N.W. Determination of urea using highperformance liquid chromatography with fluorescence detection after automated derivatisation with xanthydrol. J. Chromatogr. A 2007, 1161, 207–213. [Google Scholar] [CrossRef] [PubMed]
  14. Hu, X.; Takenaka, N.; Kitano, M.; Bandow, H.; Maeda, Y.; Hattori, M. Determination of trace amounts of urea by using flow injection with chemiluminescence detection. Analyst 1994, 119, 1829–1833. [Google Scholar] [CrossRef]
  15. Tyagi, M.; Tomar, M.; Gupta, V. NiO nanoparticle-based urea biosensor. Biosens. Bioelectron. 2013, 41, 110–115. [Google Scholar] [CrossRef] [PubMed]
  16. Ramesh, R.; Puhazhendi, P.; Kumar, J.; Gowthaman, M.K.; D’Souza, S.F.; Kamini, N.R. Potentiometric biensor for determination of urea in milk using immobilized Arthrobacter creatinolyticus urease. Mater. Sci. Eng. C 2015, 49, 786–792. [Google Scholar] [CrossRef]
  17. Pan, T.M.; Huang, M.D.; Lin, W.Y.; Wu, M.H. A urea biosensor based on pH-sensitive Sm2TiO5 electrolyte–insulator–semiconductor. Anal. Chim. Acta 2010, 669, 68–74. [Google Scholar] [CrossRef] [PubMed]
  18. Ahmad, R.; Tripathy, N.; Hahn, Y.B. Highly stable urea sensor based on ZnO nanorods directly grown on Ag/glass electrodes. Sens. Actuators B 2014, 194, 290–295. [Google Scholar] [CrossRef]
  19. Yan, W.; Wang, D.; Botte, G. Electrochemical decomposition of urea with Ni-based catalysts. Appl. Catal. B 2012, 127, 221–226. [Google Scholar] [CrossRef]
  20. Buron, C.C.; Quinart, M.; Vrlinic, T.; Yunus, S.; Glinel, K.; Jonas, A.M.; Lakard, B. Application of original assemblies of polyelectrolytes, urease and electrodeposited polyaniline as sensitive films of potentiometric urea biosensors. Electrochim. Acta 2014, 148, 53–61. [Google Scholar] [CrossRef]
  21. Arain, M.; Nafady, A.; Ibupoto, Z.H.; Sherazi, S.T.H.; Shaikh, T.; Khan, H.; Alsalme, A.; Niaz, A.; Willander, M. Simpler and highly sensitive enzyme-free sensing of urea via NiO nanostructures modified electrode. RSC Adv. 2016, 6, 39001–39006. [Google Scholar] [CrossRef] [Green Version]
  22. Nguyen, N.S.; Das, G.; Yoon, H.H. Nickel/cobalt oxide-decorated 3D graphene nanocomposite electrode for enhanced electrochemical detection of urea. Biosens. Bioelectron. 2016, 77, 372–377. [Google Scholar] [CrossRef] [PubMed]
  23. Sha, R.; Komori, K.; Badhulika, S. Graphene–Polyaniline composite based ultra-sensitive electrochemical sensor for non-enzymatic detection of urea. Electrochim. Acta 2017, 233, 44–51. [Google Scholar] [CrossRef]
  24. Yan, W.; Wang, D.; Botte, G.G. Nickel and cobalt bimetallic hydroxide catalysts for urea electro-oxidation. Electrochim. Acta 2012, 61, 25–30. [Google Scholar] [CrossRef]
  25. Xu, W.; Zhang, H.; Li, G.; Wu, Z. Nickel-cobalt bimetallic anode catalysts for direct urea fuel cell. Sci. Rep. 2014, 4, 5863. [Google Scholar] [CrossRef] [Green Version]
  26. Guo, F.; Cao, D.; Du, M.; Ye, K.; Wang, G.; Zhang, W.; Gao, Y.; Cheng, K. Enhancement of direct urea-hydrogen peroxide fuel cell performance by three-dimensional porous nickel-cobalt anode. J. Power Sources 2016, 307, 697–704. [Google Scholar] [CrossRef]
  27. Guo, F.; Cheng, K.; Ye, K.; Wang, G.; Cao, D. Preparation of nickel-cobalt nanowire arrays anode electro-catalyst and its application in direct urea/hydrogen peroxide fuel cell. Electrochim. Acta 2016, 199, 290–296. [Google Scholar] [CrossRef]
  28. Ye, K.; Zhang, H.; Zhao, L.; Huang, X.; Cheng, K.; Wang, G.; Cao, D. Facile preparation of three-dimensional Ni(OH)2/Ni foam anode with low cost and its application in a direct urea fuel cell. New J. Chem. 2016, 40, 8673–8680. [Google Scholar] [CrossRef]
  29. Wang, L.; Du, T.; Cheng, J.; Xie, X.; Yang, B.; Li, M. Enhanced activity of urea electro oxidation on nickel catalysts supported on tungsten carbides/carbon nanotubes. J. Power Sources 2015, 280, 550–554. [Google Scholar] [CrossRef]
  30. Nguyen, N.S.; Yoon, H.H. Nickel oxide-deposited cellulose/CNT composite electrode for non-enzymatic urea detection. Sens. Actuators B 2016, 236, 304–310. [Google Scholar] [CrossRef]
  31. Boggs, B.K.; King, R.L.; Botte, G.G. Urea electrolysis: Direct hydrogen production from urine. Chem. Commun. 2009, 32, 4859–4861. [Google Scholar] [CrossRef] [PubMed]
  32. Shah, M.; Fawcett, D.; Sharma, S.; Tripathy, S.K.; Poinern, G.E.J. Green synthesis of metallic nanoparticles via biological entities. Materials 2015, 8, 7278–7308. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Singh, J.; Dutta, T.; Kim, K.H.; Rawat, M.; Samddar, P.; Kumar, P. ‘Green’ synthesis of metals and their oxide nanoparticles: Applications for environmental remediation. J. Nanobiotechnol. 2018, 16, 84. [Google Scholar] [CrossRef] [PubMed]
  34. Koduru, J.R.; Kailasa, S.K.; Bhamore, J.R.; Kim, K.H.; Dutta, T.; Vellingiri, K. Phytochemical-assisted synthetic approaches for silver nanoparticles antimicrobial applications: A review. Adv. Colloid Interface Sci. 2018, 256, 326–339. [Google Scholar] [CrossRef]
  35. Ahmed, S.; Ahmad, M.; Swami, B.L.; Ikram, S. Green synthesis of silver nanoparticles using Azadirachta indica aqueous leaf extract. J. Radiat. Res. Appl. Sci. 2016, 9, 1–7. [Google Scholar] [CrossRef] [Green Version]
  36. Ibrahim, H.M. Green synthesis and characterization of silver nanoparticles using banana peel extract and their antimicrobial activity against representative microorganisms. J. Radiat. Res. Appl. Sci. 2015, 8, 265–275. [Google Scholar] [CrossRef] [Green Version]
  37. López-Naranjo, E.; Hernández-Rosales, I.; Bueno-Durán, A.; Martínez-Aguilar, M.; González-Ortiz, L.; Pérez-Fonseca, A.; Robledo-Ortiz, J.; Sánchez-Peña, M.; Manzano-Ramírez, A. Biosynthesis of silver nanoparticles using a natural extract obtained from an agroindustrial residue of the tequila industry. Mater. Lett. 2018, 213, 278–281. [Google Scholar] [CrossRef]
  38. Lustosa, A.K.M.F.; de Jesus Oliveira, A.C.; Quelemes, P.V.; Plácido, A.; Da Silva, F.V.; Oliveira, I.S.; De Almeida, M.P.; Amorim, A.D.G.N.; Delerue-Matos, C.; De Oliveira, R.D.C.M.; et al. In situ synthesis of silver nanoparticles in a hydrogel of carboxymethyl cellulose with phthalated-cashew gum as a promising antibacterial and healing agent. Int. J. Mol. Sci. 2017, 18, 2399. [Google Scholar] [CrossRef] [Green Version]
  39. Govindaraju, K.; Basha, S.K.; Kumar, V.G.; Singaravelu, G. Silver, gold and bimetallic nanoparticles production using single-cell protein (Spirulina platensis) Geitler. J. Mater. Sci. 2008, 43, 5115–5122. [Google Scholar] [CrossRef]
  40. Scarano, G.; Morelli, E. Properties of phytochelatin-coated CdS nanocrystallites formed in a marine phytoplanktonic alga (Phaeodactylum tricornutum, Bohlin) in response to Cd. Plant Sci. 2003, 165, 803–810. [Google Scholar] [CrossRef]
  41. Lengke, M.F.; Fleet, M.E.; Southam, G. Biosynthesis of silver nanoparticles by filamentous cyanobacteria from a silver (I) nitrate complex. Langmuir 2007, 23, 2694–2699. [Google Scholar] [CrossRef]
  42. Muthuvel, A.; Jothibas, M.; Manoharan, C.; Jayakumar, S.J. Synthesis of CeO2-NPs by chemical and biological methods and their photocatalytic, antibacterial and in vitro antioxidant activity. Res. Chem. Intermed. 2020, 46, 2705–2729. [Google Scholar] [CrossRef]
  43. Mathew, S.; Mathew, B. Biomass Derived Carbon Dot as Nanoswitch, Logic Gate Operation, and Electrochemical Sensor for Flavonoids. New J. Chem. 2023, 47, 2383–2395. [Google Scholar] [CrossRef]
  44. Ferlazzo, A.; Bressi, V.; Espro, C.; Iannazzo, D.; Piperopoulos, E.; Neri, G. Electrochemical determination of nitrites and sulfites by using waste-derived nanobiochar. J. Electroanal. Chem. 2023, 928, 117071. [Google Scholar] [CrossRef]
  45. Palanikumar, L.; Ramasamy, S.N.; Balachandran, C. Size-dependent antimicrobial response of zinc oxide nanoparticles. IET Nanobiotechnology 2014, 8, 111–117. [Google Scholar] [CrossRef] [PubMed]
  46. Dandawate, P.R.; Subramaniam, D.; Jensen, R.A.; Anant, S. Targeting cancer stem cells and signaling pathways by phytochemicals: Novel approach for breast cancer therapy. Semin. Cancer Biol. 2016, 40, 192–208. [Google Scholar] [CrossRef] [Green Version]
  47. Raina, K.; Kumar, D.; Agarwal, R. October. Promise of bitter melon (Momordica charantia) bioactives in cancer prevention and therapy. Semin. Cancer Biol. 2016, 40, 116–129. [Google Scholar] [CrossRef] [Green Version]
  48. Sur, S.; Steele, R.; Aurora, R.; Varvares, M.; Schwetye, K.E.; Ray, R.B. Bitter Melon Prevents the Development of 4-NQO–Induced Oral Squamous Cell Carcinoma in an Immunocompetent Mouse Model by Modulating Immune SignalingBME Prevents Oral Cancer. Cancer Prev. Res. 2018, 11, 191–202. [Google Scholar] [CrossRef] [Green Version]
  49. Madhura, T.R.; Kumar, G.G.; Ramaraj, R. Reduced graphene oxide supported 2D-NiO nanosheets modified electrode for urea detection. J. Solid State Electrochem. 2020, 24, 3073–3081. [Google Scholar] [CrossRef]
  50. Abd El-Lateef, H.M.; Khalaf, M.M.; Al-Omair, M.A.; Dao, V.D.; Mohamed, I.M. Chemical synthesis of NiO nanostructure by surfactant-assisted sol–gel methodology for urea electrocatalytic oxidation. Mater. Lett. 2020, 276, 128192. [Google Scholar] [CrossRef]
  51. Tyagi, M.; Tomar, M.; Gupta, V. Enhanced electron transfer properties of NiO thin film for the efficient detection of urea. Mater. Sci. Eng. B 2019, 240, 147–155. [Google Scholar] [CrossRef]
  52. Narwade, S.S.; Mali, S.M.; Digraskar, R.V.; Sapner, V.S.; Sathe, B.R. Ni/NiO@ rGO as an efficient bifunctional electrocatalyst for enhanced overall water splitting reactions. Int. J. Hydrog. Energy 2019, 44, 27001–27009. [Google Scholar] [CrossRef]
  53. Vedharathinam, V.; Botte, G.G. Direct evidence of the mechanism for the electro oxidation of urea on Ni(OH)2 catalyst in alkaline medium. Electrochim. Acta. 2013, 108, 660–665. [Google Scholar] [CrossRef]
  54. Guo, F.; Ye, K.; Du, M.; Huang, X.; Cheng, K.; Wang, G.; Cao, D. Electrochemical impedance analysis of urea electro-oxidation mechanism on nickel catalyst in alkaline medium. Electrochim. Acta. 2016, 210, 474–482. [Google Scholar] [CrossRef]
  55. Vedharathinam, V.; Botte, G.G. Understanding the electro-catalytic oxidation mechanism of urea on nickel electrodes in alkaline medium. Electrochim. Acta. 2012, 8, 292–300. [Google Scholar] [CrossRef]
  56. Daramola, D.A.; Singh, D.; Botte, G.G. Dissociation rates of urea in the presence of niooh catalyst: A DFT analysis. J. Phys. Chem. 2010, 114, 11513–11521. [Google Scholar] [CrossRef]
  57. Yang, Z.; Zhang, C. Single-enzyme nanoparticles based urea biosensor. Sens. Actuators B 2013, 188, 313–317. [Google Scholar] [CrossRef]
  58. Yang, Z.; Qin, T.; Niu, Y.; Zhang, Y.; Zhang, C.; Li, P.; Zhu, M.; Jia, Y.; Li, Q. Flexible visible-light-driven photoelectrochemical biosensor based on molecularly imprinted nanoparticle intercalation-modulated graphene fiber for ultrasensitive urea detection. Carbon 2020, 157, 457–465. [Google Scholar] [CrossRef]
  59. Yang, Y.; Yoon, S.G.; Shin, C.; Jin, H.; Lee, W.H.; Park, J.; Kim, Y.S. Ionovoltaic urea sensor. Nano Energy 2019, 57, 195–201. [Google Scholar] [CrossRef]
  60. Yang, Z.; Zhu, M.; Niu, Y.; Kozliak, E.; Yao, B.; Zhang, Y.; Zhang, C.; Qin, T.; Jia, Y.; Li, Q. A graphene-based coaxial fibrous photo fuel cell powered by mine gas. Adv. Funct. Mater. 2019, 29, 1906813. [Google Scholar] [CrossRef]
  61. Amin, S.; Tahira, A.; Solangi, A.; Beni, V.; Morante, J.R.; Liu, X.; Falhman, M.; Mazzaro, R.; Ibupoto, Z.H.; Vomiero, A. A practical non-enzymatic urea sensor based on NiCo2O4 nanoneedles. RSC Adv. 2019, 9, 14443–14451. [Google Scholar] [CrossRef] [Green Version]
  62. Amin, S.; Tahira, A.; Solangi, A.R.; Mazzaro, R.; Ibupoto, Z.H.; Fatima, A.; Vomiero, A. Functional Nickel Oxide Nanostructures for Ethanol Oxidation in Alkaline Media. Electroanalysis 2020, 32, 1052–1059. [Google Scholar] [CrossRef]
  63. Naik, T.S.K.; Mwaurah, M.M.; Swamy, B.K. Fabrication of poly (Sudan III) modified carbon paste electrode sensor for dopamine: A voltammetric study. J. Electroanal. Chem. 2019, 834, 71–78. [Google Scholar] [CrossRef]
  64. Kannan, P.K.; Rout, C.S. High performance non-enzymatic glucose sensor based on one-step electrodeposited nickel sulfide. Chem. Eur. J. 2015, 21, 9355–9359. [Google Scholar] [CrossRef] [PubMed]
  65. Kumar, T.V.; Sundramoorthy, A.K. Non-enzymatic electrochemical detection of urea on silver nanoparticles anchored nitrogen-doped single-walled carbon nanotube modified electrode. J. Electrochem. Soc. 2018, 165, B3006. [Google Scholar] [CrossRef] [Green Version]
  66. Salarizadeh, N.; Habibi-Rezaei, M.; Zargar, S.J. NiO–MoO3 nanocomposite: A sensitive non-enzymatic sensor for glucose and urea monitoring. Mater. Chem. Phys. 2022, 281, 125870. [Google Scholar] [CrossRef]
  67. Naik, T.S.K.; Saravanan, S.; Saravana, K.S.; Pratiush, U.; Ramamurthy, P.C. A non-enzymatic urea sensor based on the nickel sulfide/graphene oxide modified glassy carbon electrode. Mater. Chem. Phys. 2020, 245, 122798. [Google Scholar] [CrossRef]
  68. Ibrahim, A.A.; Ahmad, R.; Umar, A.; Al-Assiri, M.S.; Al-Salami, A.E.; Kumar, R.; Ansari, S.G.; Baskoutas, S. Two-dimensional ytterbium oxide nanodisks based biosensor for selective detection of urea. Biosens. Bioelectron. 2017, 98, 254–260. [Google Scholar] [CrossRef] [PubMed]
  69. Dervisevic, M.; Dervisevic, E.; Şenel, M. Design of amperometric urea biosensor based on self-assembled monolayer of cystamine/PAMAM-grafted MWCNT/Urease. Sens. Actuators B Chem. 2018, 254, 93–101. [Google Scholar] [CrossRef]
  70. Carbone, M.; Aneggi, E.; Figueredo, F.; Susmel, S. NiO-nanoflowers decorating a plastic electrode for the non-enzymatic amperometric detection of H2O2 in milk: Old issue, new challenge. Food Control. 2022, 132, 108549. [Google Scholar] [CrossRef]
  71. Tyagi, M.; Tomar, M.; Gupta, V. Glad assisted synthesis of NiO nanorods for realization of enzymatic reagentless urea biosensor. Biosens. Bioelectron. 2014, 52, 196–201. [Google Scholar] [CrossRef] [PubMed]
  72. Yoon, J.; Yoon, Y.S.; Kim, D.J. Silver-nanoparticle-decorated NiOOH nanorods for electrocatalytic urea sensing. ACS Appl. Nano Mater. 2020, 3, 7651–7658. [Google Scholar] [CrossRef]
  73. Farithkhan, A.; John, S.A. Three-Dimensional Coral-Like NiFe-Layered Double Hydroxides on Biomass-Derived Nitrogen-Doped Carbonized Wood as a Sensitive Probe for Nonenzymatic Urea Determination. ACS Sustain. Chem. Eng. 2022, 10, 6952–6962. [Google Scholar] [CrossRef]
  74. Zhybak, M.T.; Fayura, L.Y.; Boretsky, Y.R.; Gonchar, M.V.; Sibirny, A.A.; Dempsey, E.; Turner, A.P.; Korpan, Y.I. Amperometric L-arginine biosensor based on a novel recombinant arginine deiminase. Microchim. Acta 2017, 184, 2679–2686. [Google Scholar] [CrossRef] [Green Version]
  75. Soni, A.; Surana, R.K.; Jha, S.K. Smartphone based optical biosensor for the detection of urea in saliva. Sens. Actuators B Chem. 2018, 269, 346–353. [Google Scholar] [CrossRef]
Micromachines 14 00677 sch001 550

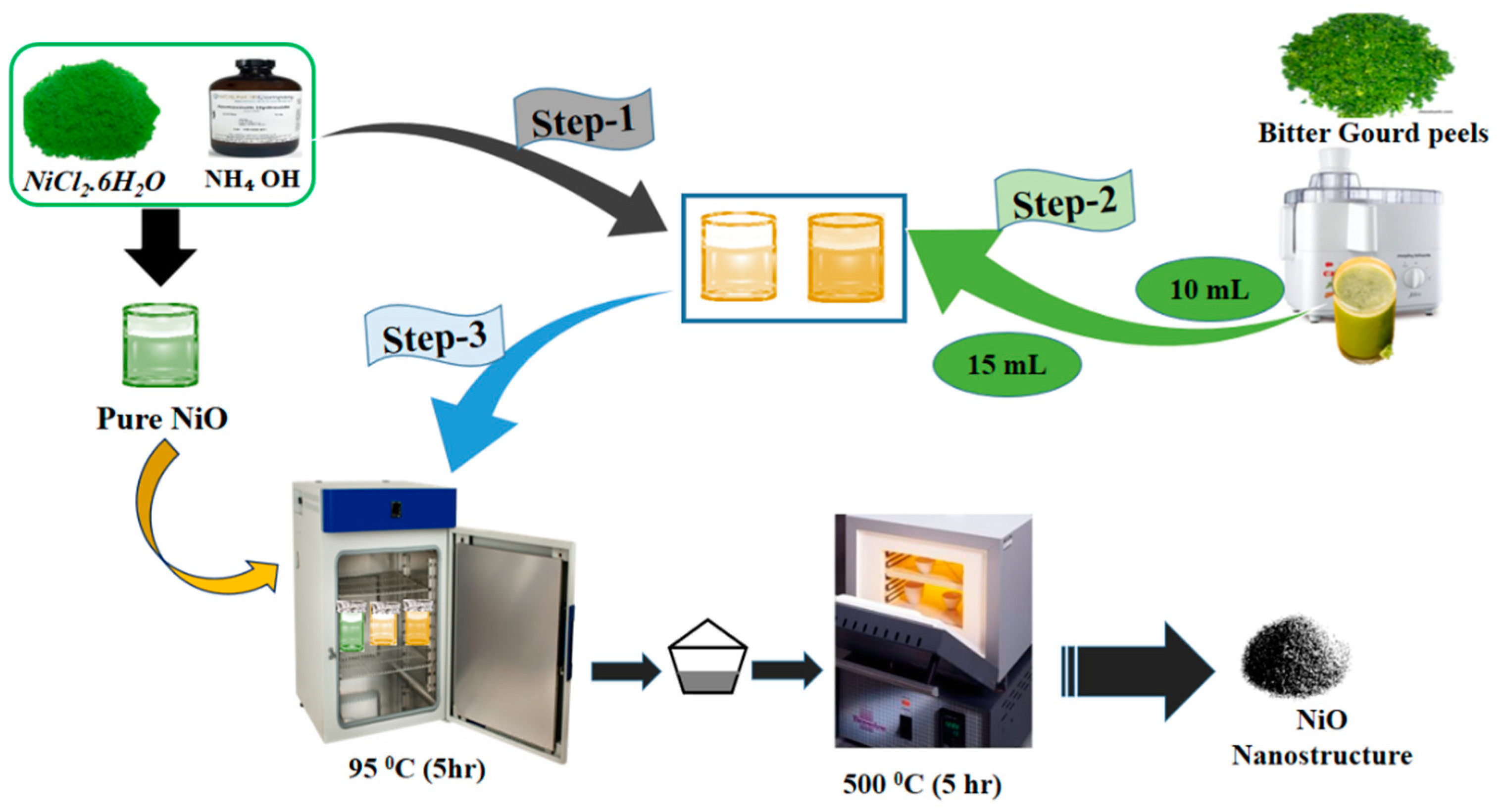

Scheme 1. Representation of phytochemical synthesis of NiO nanostructures using bitter gourd peel extract.
Scheme 1. Representation of phytochemical synthesis of NiO nanostructures using bitter gourd peel extract.
Micromachines 14 00677 sch001
Micromachines 14 00677 g001 550

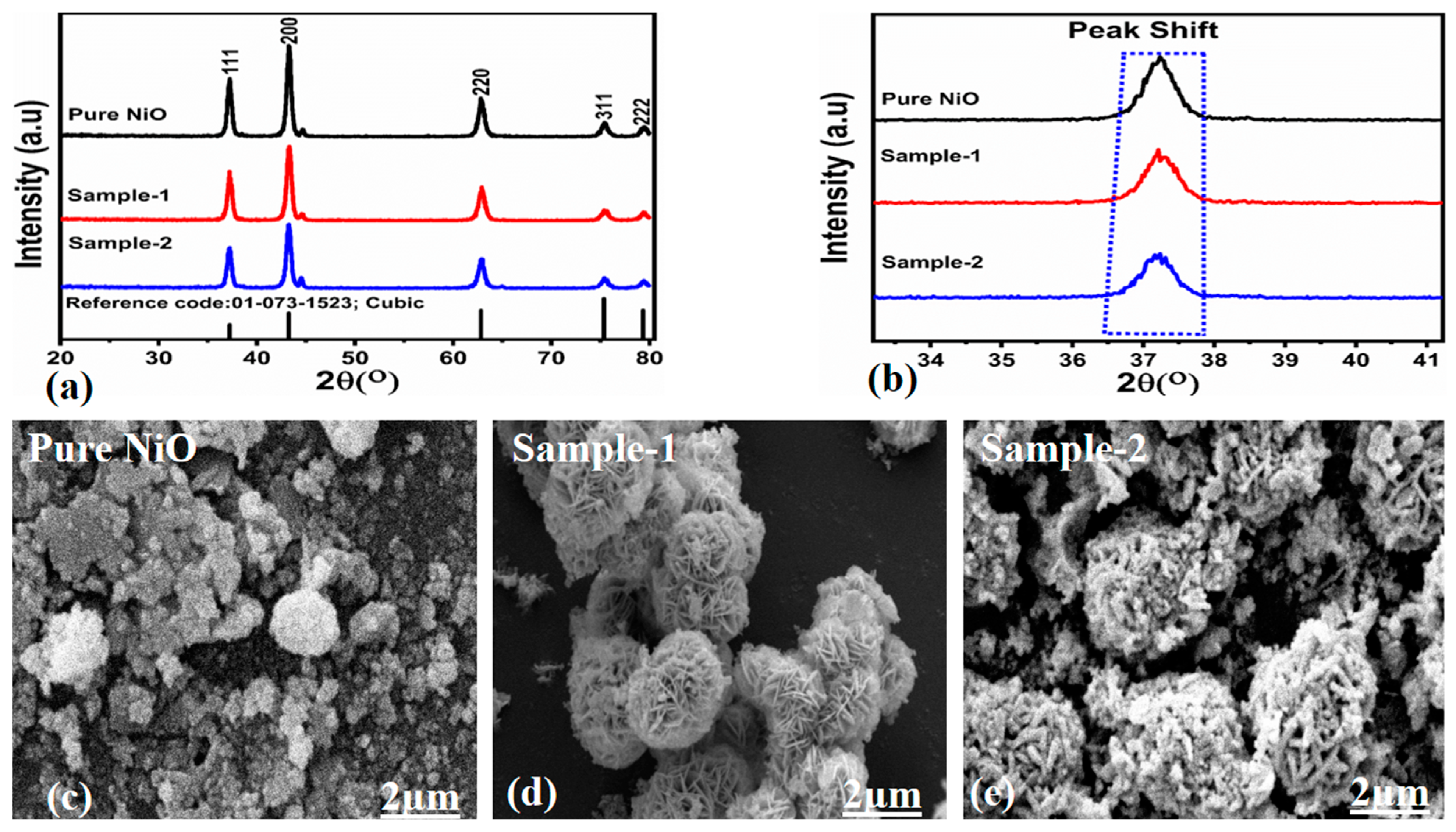

Figure 1. (a) X-rays fiffraction patterns of NiO nanostructures prepared with 10 mL, 15 mL, and without the bitter gourd peel extract, (b) the shift in the two-theta angle, (c) SEM image of pure NiO, (d) SEM image of NiO nanostructures prepared with 10 mL of bitter gourd peel extract, (e) SEM image of NiO nanostructures with 15 mL of bitter gourd peel extract.
Figure 1. (a) X-rays fiffraction patterns of NiO nanostructures prepared with 10 mL, 15 mL, and without the bitter gourd peel extract, (b) the shift in the two-theta angle, (c) SEM image of pure NiO, (d) SEM image of NiO nanostructures prepared with 10 mL of bitter gourd peel extract, (e) SEM image of NiO nanostructures with 15 mL of bitter gourd peel extract.
Micromachines 14 00677 g001
Micromachines 14 00677 g002 550
Figure 2. (a) Cyclic voltammogram of bare GCE and MGCE with pristine NiO and sample 1 and sample 2 of NiO nanostructures prepared with 10 mL and 15 mL of bitter gourd peel extract at 50 mV/s in 0.1 M NaOH, (b) cyclic voltammogram of bare GCE and MGCE with pristine NiO and sample 1 and sample 2 of NiO nanostructures prepared with 10 mL and 15 mL of bitter gourd peel extract at 50 mV/s in 0.1 mM urea.
Figure 2. (a) Cyclic voltammogram of bare GCE and MGCE with pristine NiO and sample 1 and sample 2 of NiO nanostructures prepared with 10 mL and 15 mL of bitter gourd peel extract at 50 mV/s in 0.1 M NaOH, (b) cyclic voltammogram of bare GCE and MGCE with pristine NiO and sample 1 and sample 2 of NiO nanostructures prepared with 10 mL and 15 mL of bitter gourd peel extract at 50 mV/s in 0.1 mM urea.
Micromachines 14 00677 g002
Micromachines 14 00677 g003 550

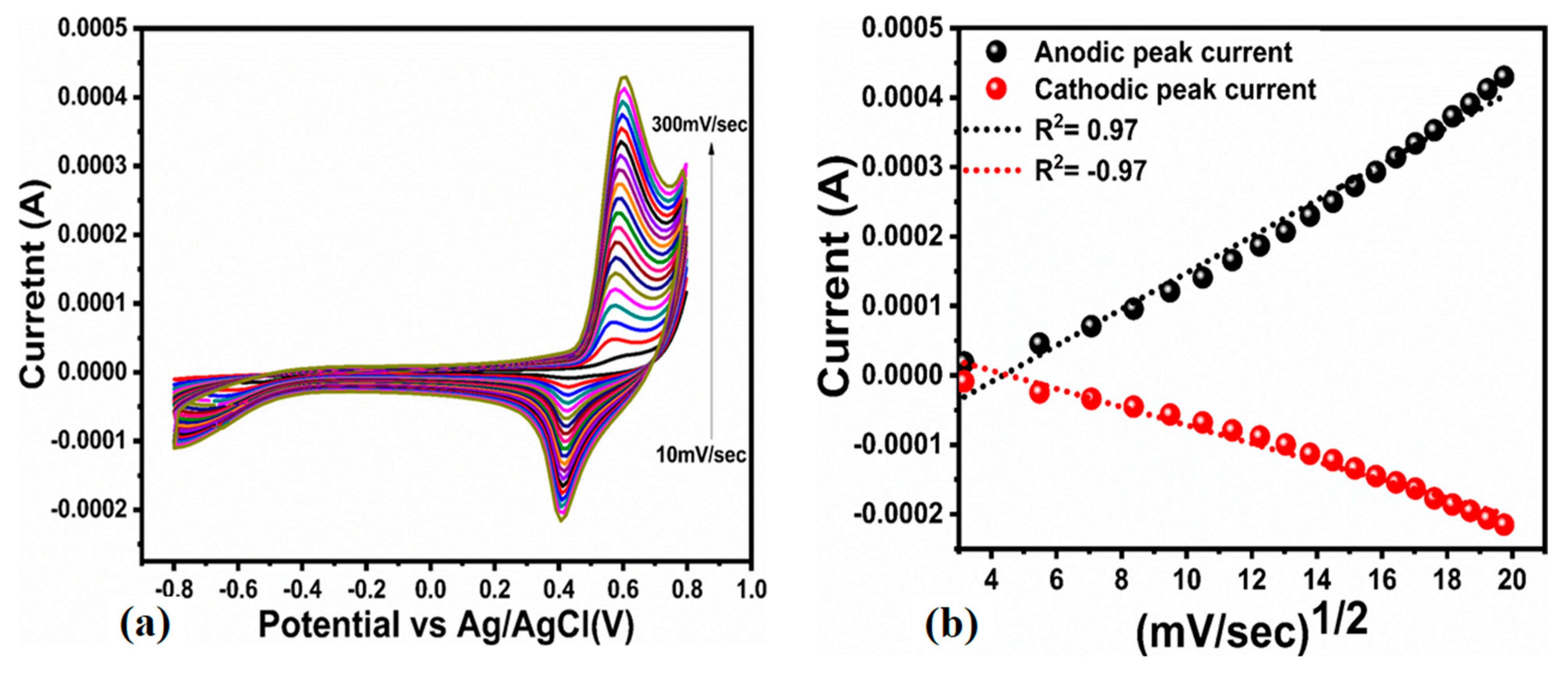

Figure 3. (a) Cyclic voltammogram of sample 1 prepared with 10 mL of bitter gourd peel extract at various scan rates in 0.1 mM urea, (b) linear plot of anodic and cathodic peak current against square root of scan rate.
Figure 3. (a) Cyclic voltammogram of sample 1 prepared with 10 mL of bitter gourd peel extract at various scan rates in 0.1 mM urea, (b) linear plot of anodic and cathodic peak current against square root of scan rate.
Micromachines 14 00677 g003
Micromachines 14 00677 g004 550

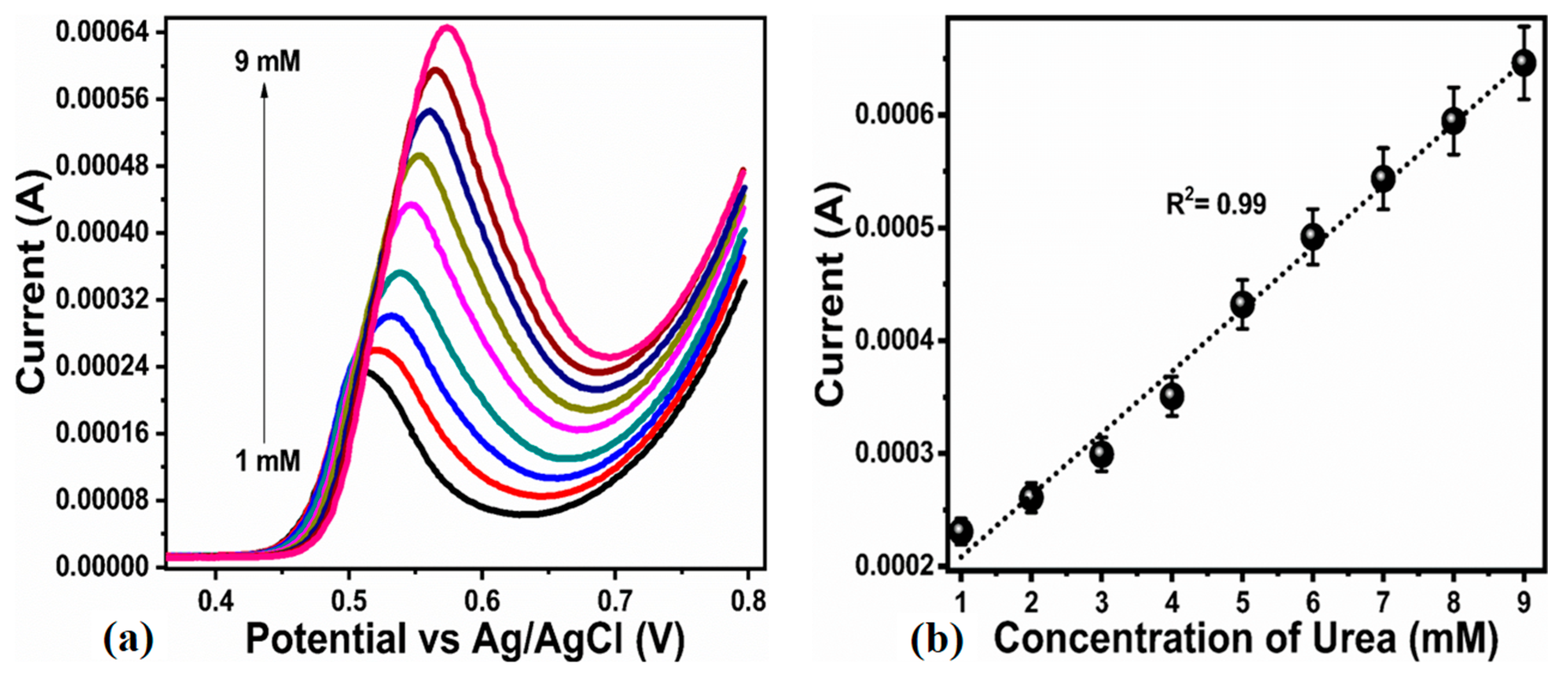

Figure 4. (a) Cyclic voltammogram of sample 1 prepared with 10 mL of bitter gourd peel extract at v50 mV/s in various urea concentrations ranging from 1–9 mM, (b) linear plot of peak current versus urea concentrations.
Figure 4. (a) Cyclic voltammogram of sample 1 prepared with 10 mL of bitter gourd peel extract at v50 mV/s in various urea concentrations ranging from 1–9 mM, (b) linear plot of peak current versus urea concentrations.
Micromachines 14 00677 g004
Micromachines 14 00677 g005 550

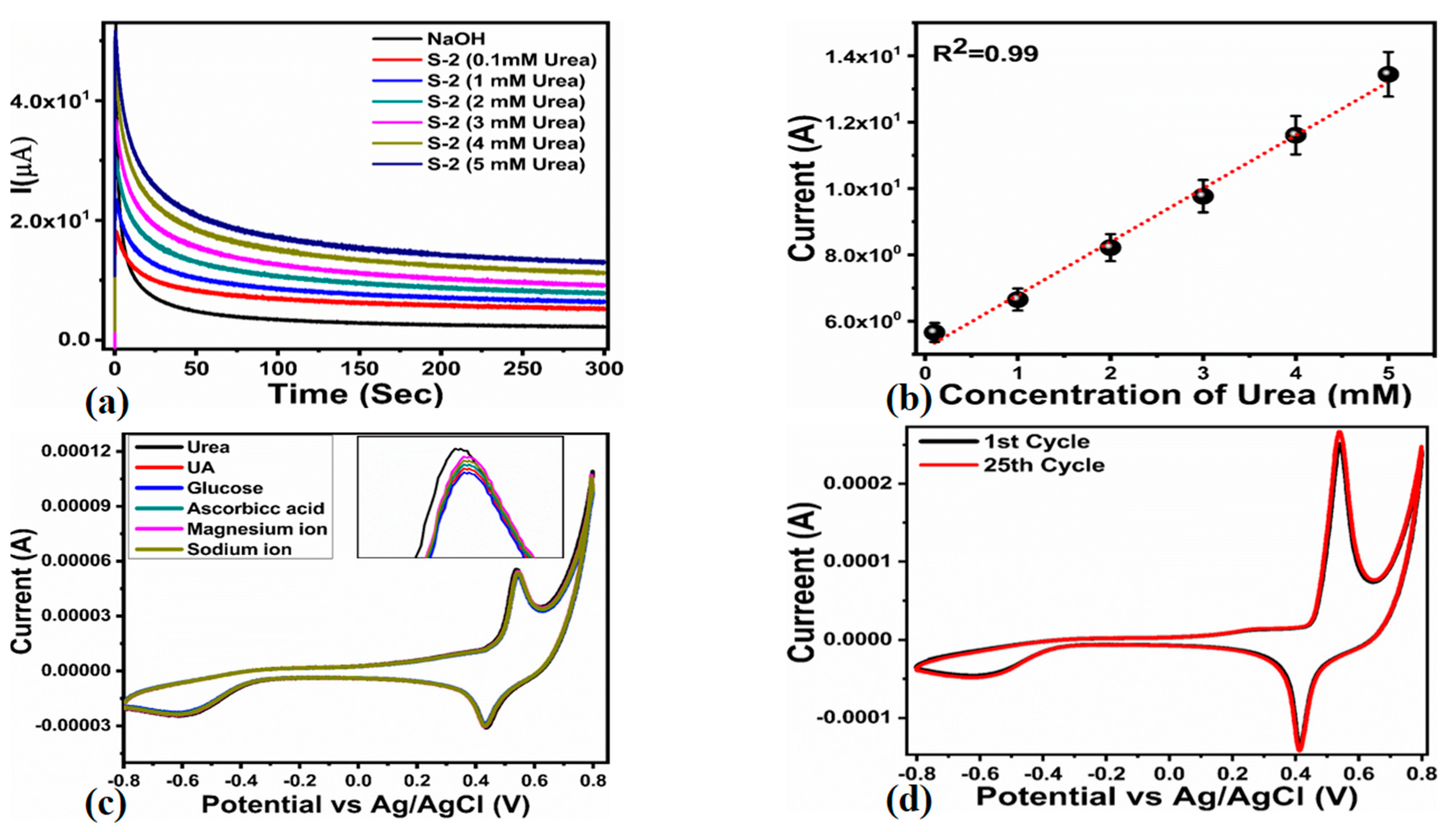

Figure 5. (a) Chronoamperometric response of sample 1 against various concentrations of urea, (b) linear plot of chronoamperometric current measured at 250 sec for each response time curve against urea concentration ranging from 0.1 mM to 5 mM, (c) cyclic voltammogram at 50 mV/s of sample 1 sequencing addition of 0.1 mM of common interfering agents in the presence of 0.1 mM urea, inset shows the drift in the peak current for addition of each interfering agent for better understanding, (d) CV curves measured for 25 repeatable cycles of same electrode for measuring the stability in 0.1 mM urea.
Figure 5. (a) Chronoamperometric response of sample 1 against various concentrations of urea, (b) linear plot of chronoamperometric current measured at 250 sec for each response time curve against urea concentration ranging from 0.1 mM to 5 mM, (c) cyclic voltammogram at 50 mV/s of sample 1 sequencing addition of 0.1 mM of common interfering agents in the presence of 0.1 mM urea, inset shows the drift in the peak current for addition of each interfering agent for better understanding, (d) CV curves measured for 25 repeatable cycles of same electrode for measuring the stability in 0.1 mM urea.
Micromachines 14 00677 g005
Micromachines 14 00677 g006 550

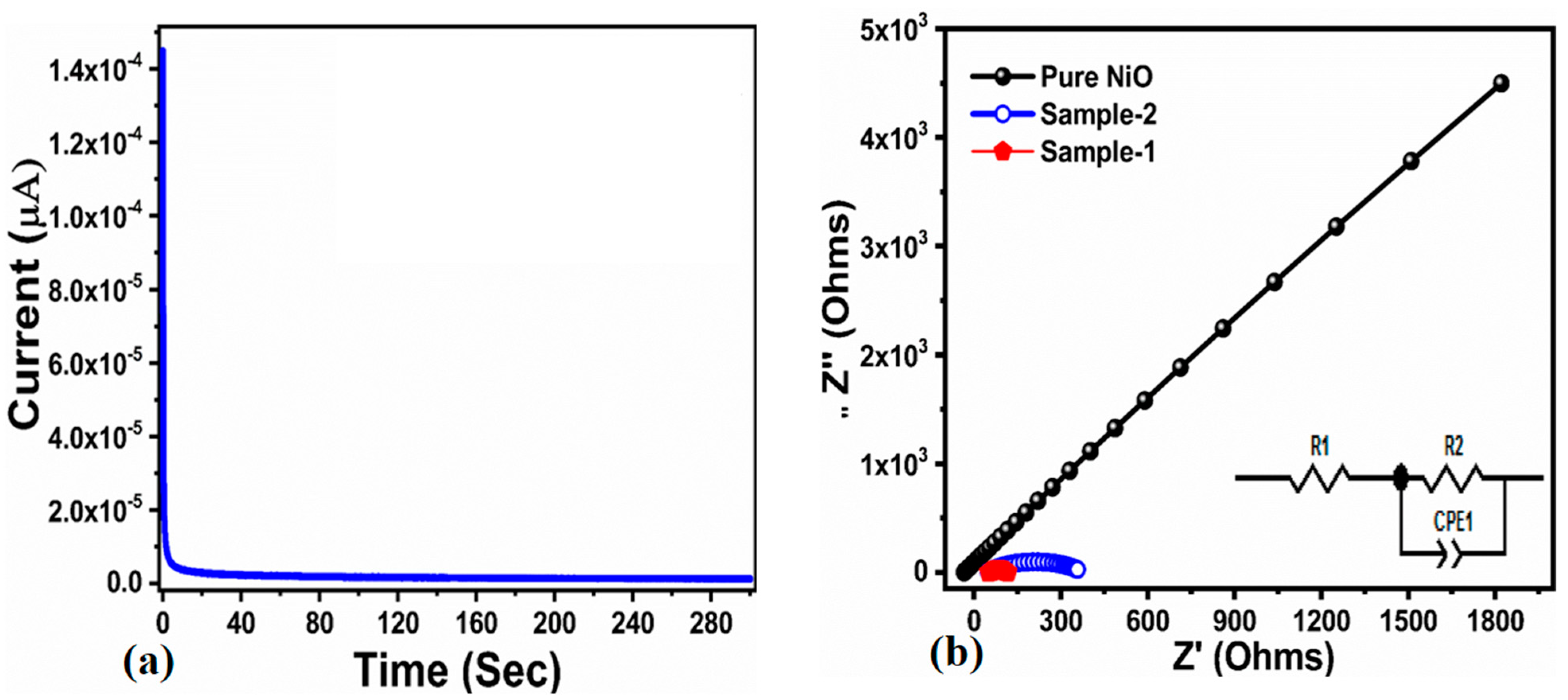

Figure 6. (a) Stability measurement using chronoamperometry at 0.5 V for 300 s in the presence of 0.1 mM urea, (b) fitted Nyquist plots for pure NiO and sample 1 and sample 2 measured at 100 kHz to 0.1 Hz, sinusoidal potential of 10 mV and biasing potential of 0.5 V in 0.1 mM urea.
Figure 6. (a) Stability measurement using chronoamperometry at 0.5 V for 300 s in the presence of 0.1 mM urea, (b) fitted Nyquist plots for pure NiO and sample 1 and sample 2 measured at 100 kHz to 0.1 Hz, sinusoidal potential of 10 mV and biasing potential of 0.5 V in 0.1 mM urea.
Micromachines 14 00677 g006
Micromachines 14 00677 g007 550

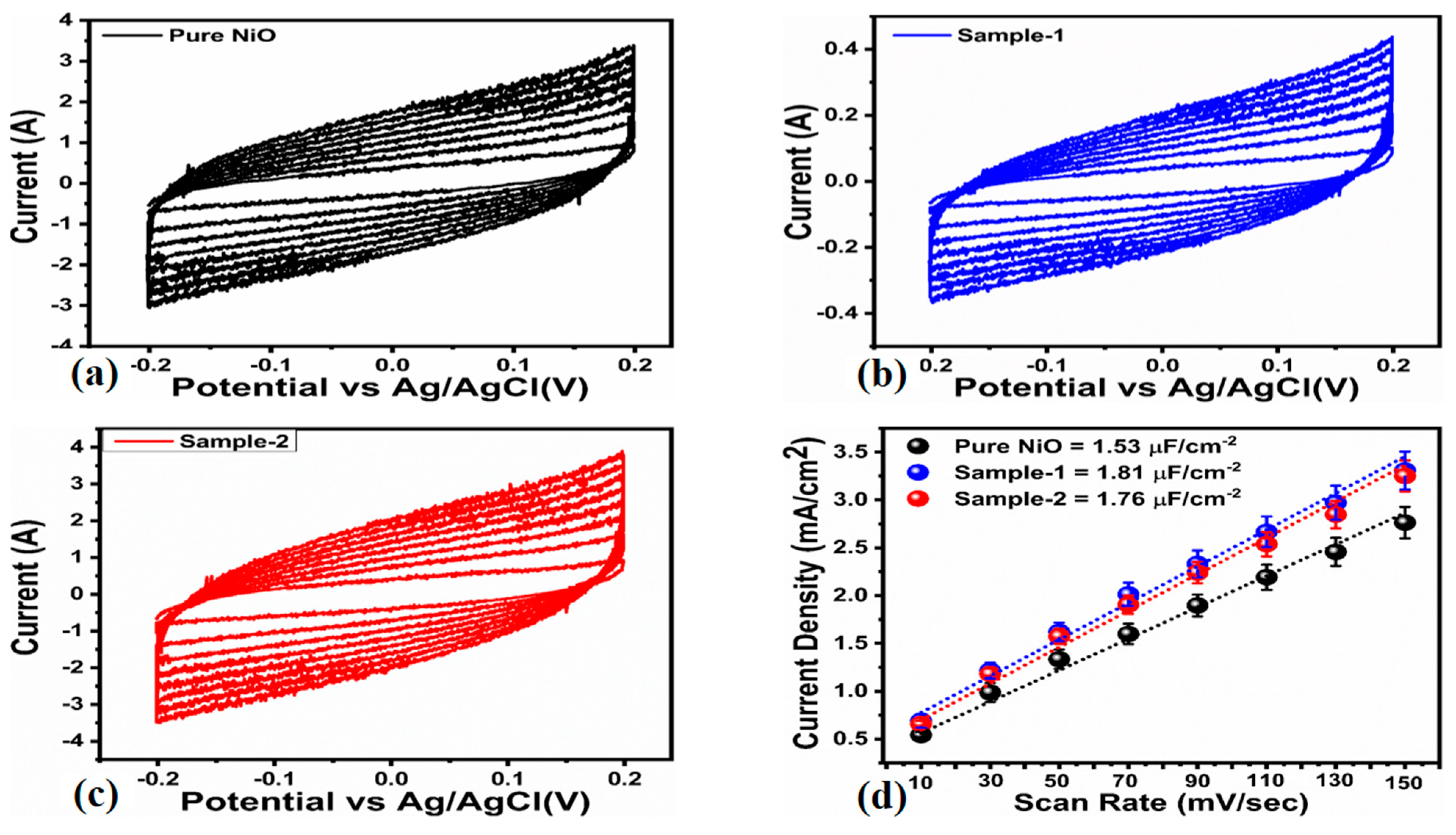

Figure 7. (a–c) CV curves measured at non-Faradic region at various scan rates such as 10, 30, 50, 70, 90, 110, 130, and 150 mV/s in 0.1 mM urea for pure NiO and sample 1 and sample 2, (d) linear plot of current density against different scan rates for the calculation of ECSA.
Figure 7. (a–c) CV curves measured at non-Faradic region at various scan rates such as 10, 30, 50, 70, 90, 110, 130, and 150 mV/s in 0.1 mM urea for pure NiO and sample 1 and sample 2, (d) linear plot of current density against different scan rates for the calculation of ECSA.
Micromachines 14 00677 g007
Table
Table 1. The estimated separation potential and peak current ratio at different scan rates.
Table 1. The estimated separation potential and peak current ratio at different scan rates.
Scan Rate (mV/S)Peak Separation Potential (mV)Peak Current Ratio
101432.5210631
301362.1818611
501402.1720295
701422.1576472
901492.1611629
1101532.1153078
1301572.1042438
1501592.1252675
1701652.1040786
1901682.0843702
2101702.0709691
2301682.0379324
2501702.0389048
2701792.0315545
2901822.0172478
3101862.0193316
3301882.0142131
3501922.0170487
3701902.0202359
3901981.984715
Table
Table 2. Comparison of proposed non-enzymatic urea sensor performance with the reported works.
Table 2. Comparison of proposed non-enzymatic urea sensor performance with the reported works.
Sensing MaterialLinear Range (mM)Limit of
Detection 		Method of
Detection		Reference
NiO–MoO30.2–10.86–0.85 μMNon-enzymatic[64]
NiCo2O40.01–51.0 μMNon-enzymatic[65]
NiS/GO/MGCE0.1–1.03.79–12.6 μMNon-enzymatic sensor[66]
NF/Ag-N-SWCNTs/GCE66 nM–20.6 mM4.7 nMNon-enzymatic[67]
NF/urease/Yb2O3/ GCE0.05–19 mM2 μMEnzymatic[68]
Au/MWCNT-PAMAM (G5)/Urease1–20 mM0.4 mMEnzymatic[69]
NiO-PE(A4)Up to 4 mM5 μMNon-enzymatic[70]
Ur/Nr- NiO/ITO/glass0.83–16.65 mM0.47 mMEnzymatic [71]
Ag/NiOOH/C nanorod electrode0.2 to 26.0 mM5.0 μMNon-enzymatic[72]
NF-LDH0.5 to 8 mM0.114 mMNon-enzymatic[73]
ZnO NRs0.001–24.0 mM10 μMEnzymatic[19]
Nafion®(urease)/
PANI-Nafion®		3–30 mM1 μMEnzymatic[74]
nano-PANI:PSS0.2–0.9 mM10.4 mgdL−1Enzymatic[75]
NiO nanoflakes1–9 mM0.02 mMNon-enzymaticThis work
Table
Table 3. Repeatability of proposed NiO nanostructures prepared with 10 mL of bitter gourd peel extract.
Table 3. Repeatability of proposed NiO nanostructures prepared with 10 mL of bitter gourd peel extract.
ExperimentLinear Range (mM)Limit of Detection (mM)Limit of
Quantification (mM)
10.98–9.02 ± 0.0010.021 ± 0.0050.088 ± 0.006
21–9.01 ± 0.0030.009 ± 0.0030.086 ± 0.008
30.99–9.03 ± 0.0040.022 ± 0.0020.091 ± 0.005
Table
Table 4. Urine sample analysis using % recovery method for the detection of urea.
Table 4. Urine sample analysis using % recovery method for the detection of urea.
SampleAdded (mM)Found (mM)(%) Recovery
1-3 ± 0.001-
-0.53.48 ± 0.00399%
-14.01 ± 0.001100%
2-3.5 ± 0.001-
-0.54.02 ± 0.001100%
-14.49 ± 0.0010.99%
Table
Table 5. Blood serum sample analysis using % recovery method for the detection of urea.
Table 5. Blood serum sample analysis using % recovery method for the detection of urea.
SampleAdded(mM)Found (mM)(%) Recovery
1-1 ± 0.002-
-0.31.31 ± 0.003100
-0.61.88 ± 0.00398
2-3 ± 0.003-
-14.05 ± 0.001101.25
-1.54.52 ± 0.002100.44
Table
Table 6. Wheat sample analysis using % recovery method for the detection of urea.
Table 6. Wheat sample analysis using % recovery method for the detection of urea.
SampleAdded (mM)Found (mM)(%) Recovery
1-3.5 ± 0.002-
-0.54.06 ± 0.003101.50
-14.53 ± 0.001100.60
2-1.5 ± 0.001-
-12.51 ± 0.003100.40
-23.53 ± 0.002100.85
Table
Table 7. Milk real sample analysis using % recovery method for the detection of urea.
Table 7. Milk real sample analysis using % recovery method for the detection of urea.
SampleAdded (mM)Found (mM)% Recovery
1-2 ± 0.004-
-0.52.49 ± 0.00399
-1.53.54 ± 0.002101.11
2-2.4 ± 0.001-
-13.43 ± 0.002100.8
-1.53.9 ± 0.004100
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Naz, I.; Tahira, A.; Shah, A.A.; Bhatti, M.A.; Mahar, I.A.; Markhand, M.P.; Mastoi, G.M.; Nafady, A.; Medany, S.S.; Dawi, E.A.; et al. Green Synthesis of NiO Nanoflakes Using Bitter Gourd Peel, and Their Electrochemical Urea Sensing Application. Micromachines 2023, 14, 677. https://doi.org/10.3390/mi14030677

AMA Style

Naz I, Tahira A, Shah AA, Bhatti MA, Mahar IA, Markhand MP, Mastoi GM, Nafady A, Medany SS, Dawi EA, et al. Green Synthesis of NiO Nanoflakes Using Bitter Gourd Peel, and Their Electrochemical Urea Sensing Application. Micromachines. 2023; 14(3):677. https://doi.org/10.3390/mi14030677

Chicago/Turabian Style

Naz, Irum, Aneela Tahira, Aqeel Ahmed Shah, Muhammad Ali Bhatti, Ihsan Ali Mahar, Mehnaz Parveen Markhand, Ghulam Murtaza Mastoi, Ayman Nafady, Shymaa S. Medany, Elmuez A. Dawi, and et al. 2023. "Green Synthesis of NiO Nanoflakes Using Bitter Gourd Peel, and Their Electrochemical Urea Sensing Application" Micromachines 14, no. 3: 677. https://doi.org/10.3390/mi14030677

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
