Article

Development of Fluorescent Sensors for Biorelevant Anions in Aqueous Media Using Positively Charged Quantum Dots

by
Hitalo J. B. Silva
1,
Claudete F. Pereira
1,
Goreti Pereira
1,2,* and
Giovannia A. L. Pereira
1,*
1
Departamento de Química Fundamental, Universidade Federal de Pernambuco, Recife 50740-560, PE, Brazil
2
Departamento de Química & CESAM, Universidade de Aveiro, 3810-193 Aveiro, Portugal
*
Authors to whom correspondence should be addressed.
Micromachines 2024, 15(3), 373; https://doi.org/10.3390/mi15030373
Submission received: 26 January 2024 / Revised: 22 February 2024 / Accepted: 7 March 2024 / Published: 9 March 2024
(This article belongs to the Special Issue Nanoparticle (Bio)sensing Platform)

Abstract

:
Quantum dots (QDs) have captured the attention of the scientific community due to their unique optical and electronic properties, leading to extensive research for different applications. They have also been employed as sensors for ionic species owing to their sensing properties. Detecting anionic species in an aqueous medium is a challenge because the polar nature of water weakens the interactions between sensors and ions. The anions bicarbonate (HCO3), carbonate (CO32−), sulfate (SO42−), and bisulfate (HSO4) play a crucial role in various physiological, environmental, and industrial processes, influencing the regulation of biological fluids, ocean acidification, and corrosion processes. Therefore, it is necessary to develop approaches capable of detecting these anions with high sensitivity. This study utilized CdTe QDs stabilized with cysteamine (CdTe-CYA) as a fluorescent sensor for these anions. The QDs exhibited favorable optical properties and high photostability. The results revealed a gradual increase in the QDs’ emission intensity with successive anion additions, indicating the sensitivity of CdTe-CYA to the anions. The sensor also exhibited selectivity toward the target ions, with good limits of detection (LODs) and quantification (LOQs). Thus, CdTe-CYA QDs show potential as fluorescent sensors for monitoring the target anions in water sources.

1. Introduction

Sensing methodologies have been advancing with the evolution of scientific knowledge. Nevertheless, there is still a substantial interest in analytical detection systems with rapid responses, high precision, excellent sensitivity, and economical manufacturing. In this context, optical fluorescent sensors have emerged as promising sensing platforms, mainly the ones based on nanomaterials [1,2]. In general, nanoparticles enhance the sensor’s surface area, facilitating more effective interaction with the analyte and improving detection sensitivity [3,4,5].
Among the fluorescent nanomaterials, quantum dots (QDs) have gained prominence in sensor development. These fluorescent semiconductor nanocrystals, ranging from 1 to 10 nm, exhibit a broad absorption spectrum, a narrow emission band, and exceptional photostability. Notably, QDs possess a chemically active surface, facilitating their functionalization and enhancing their affinity with the analyte [6]. QDs have emerged as luminescent probes in analytical chemistry to develop various sensor types, including optical, electrochemical, and colorimetric [2,7,8].
The presence of ligands on the surface plays a critical role in conferring selectivity to nanosensors. These ligands are essential for stabilizing quantum dots (QDs) and significantly impacting their optical properties [9,10]. Additionally, the surface functionalization of QDs with specific ligands is crucial for imparting selectivity to the nanosensor, increasing the affinity between the probe and the analyte, and further enhancing the sensitivity and selectivity of the sensor [11]. Typically, ligands feature a thiol group attached to the nanoparticle surface and a terminal group such as carboxylic acid (-COOH) or amine (-NH2). The charge carried by these groups depends on the surrounding pH with electrostatic phenomena regulating interactions between QD surface ligands and ions, as well as hydrogen bonds or van der Waals forces [12,13].
For this reason, regarding studies in aqueous media, controlling the pH of the reaction medium is crucial as it directly influences the ionization of the stabilizer functional groups. pH values higher or lower than the acid dissociation constants (pKa) of these groups dictate their protonation state, affecting electrostatic interactions with species in the medium. Consequently, the acid–base equilibrium is dynamic and reliant on the chemical environment and pH conditions of the reaction medium [14].
On the other hand, the phenomenon of fluorescence has been widely employed as the main detection mechanism in optical sensors. In the presence of the analyte, the emission intensity of quantum dots (QDs) may undergo either an increase or suppression, depending on the specific interaction between the nanosensor and the analyte [15]. Notably, studies exhibiting emission intensity suppression have been more prevalent in the literature, mainly due to the fluorescence resonance energy transfer (FRET) phenomenon. However, approaches showing an enhancement in the fluorescence can also occur and usually offer more challenges to comprehend and explain [15,16].
The current literature on ion detection in aqueous media predominantly focuses on metallic cations, taking advantage of the coordination bonding between some organic molecules and metals [17,18]. Although the detection of anionic species in organic media has been explored, investigations in aqueous environments remain limited. Challenges persist in aqueous detection due to water’s polar nature, which weakens interactions between recognition substances and anions. Recent sensor developments for anionic species in aqueous media are based on macrocycles, such as calix[n]arenes, polyamides, cyclodextrins, and urea derivatives [19,20,21].
The chalcogenide QDs developed to detect anions in an aqueous medium required the surface modification of the nanocrystals with polymers, metal complexes, or other nanoparticles, introducing additional complexity to the sensor preparation and the sensing mechanism. For example, Pengpumkiat et al. [22] developed a fluorescent sensor for CN using CdTe QDs coated with chitosan and Cu2+ ions. In the presence of the copper ions, the QDs’ emission was quenched, and it was restored upon the addition of CN. To detect fluoride, Zhang et al. [23] prepared silica nanospheres containing two QDs (a green- and a red-emitting QD) and mixed them with 2-(tert-butyldiphenylsilyloxy)phenol (2-TBDPSP). According to these authors, the addition of F promoted the Si–O bond cleavage, releasing a quinone derivative that was then linked to the QD-silica nanospheres, provoking a decrease in the fluorescence signal. In another example, Jindal and Kaur [24] coated ZnO QDs with a benzimidazole derivative, synthesized by them in an organic medium, to detect bisulfide anions.
Monitoring some anions is crucial due to their abundance and significant roles in aquatic environments. Imbalances in ionic composition present severe consequences for the environment and ecosystems [19,20,21]. However, highly sensitive and selective fluorescent sensors designed specifically for the recognition of bicarbonate (HCO3), carbonate (CO32−), sulfate (SO42−), and bisulfate (HSO4) ions remain scarce. In freshwater, CO32− and HCO3 ions, along with CO2, are the predominant carbonate compounds arising from various sources. In oceans, these anions play a vital role in regulating CO2 balance and preventing marine acidification, mitigating adverse effects from CO2 absorption [25,26,27].
Similarly, detecting anions such as HSO4 and SO42− is essential, given their broad implications in both industrial and environmental contexts. HSO4 is present in nuclear fuel, industrial waste, and agricultural fertilizers, with severe environmental impacts. Sulfate ions result from SO2 emissions into the atmosphere due to the combustion of fossil fuels, leading to concrete corrosion and water contamination. Thus, a fast and sensitive detection of sulfate ions is crucial for environmental monitoring, particularly in saline waste with high sulfate content, where excessive sulfate can promote the growth of sulfate-reducing bacteria, producing toxic sulfite [28,29,30].
In this work, we evaluated the application of positively charged QDs as sensors for anions in aqueous media. Specifically, QDs functionalized with cysteamine were prepared and utilized to develop analytical nanoplatforms for anion detection.

2. Materials and Methods

2.1. Materials

All analytical-grade materials were used as received without any further purification, and all solutions were prepared with ultrapure water (resistivity of 18.2 MΩcm at room temperature): cadmium chloride (CdCl2, 99.99%, Sigma-Aldrich, St. Louis, MO, USA), sodium tellurite (Na2TeO3, 99%, Sigma-Aldrich), sodium borohydride (NaBH4, 99.99%, Sigma-Aldrich), sodium hydroxide (NaOH, 98%, Sigma-Aldrich), cysteamine hydrochloride (CYA, 98.0%, Sigma-Aldrich), 3-mercaptosuccinic acid (MSA, 97%, Sigma-Aldrich), L-glutathione reduced (GSH, 98.0%, Sigma-Aldrich), anhydrous sodium carbonate (Na2CO3, 99.7%, NEON, Suzano, SP, Brazil), sodium bicarbonate (NaHCO3, 100.0%, NEON), potassium sulfate (K2SO4, 99.0%, Química Moderna, Barueri, SP, Brazil), potassium bisulfate (KHSO4, P.A., Vetec, Duque de Caxias, RJ, Brazil), Sodium chloride (NaCl, 99.0%, Química Moderna), sodium nitrate (NaNO3, 99.0%, Vetec), potassium chloride (KCl, 99.0%, Vetec), potassium bromide (KBr, 99.0%, Dinâmica, Indaiatuba, SP, Brazil), potassium iodide (KI, 99.0%, Vetec), sodium acetate (CH3COONa, 99.0%, Vetec), disodium hydrogen phosphate dihydrate (Na2HPO4·2H2O, 99.0%, NEON, Suzano, SP, Brazil), monopotassium phosphate (KH2PO4, 99.0%, NEON, Suzano, SP, Brazil).

2.2. Preparation of CdTe Quantum Dots

The synthesis protocol employed in this study was based on the one-pot preparation method described by Viegas et al. (2019) [31], with modifications. To prepare CdTe quantum dots stabilized with cysteamine (CdTe-CYA), the synthesis was carried out with a fixed Cd:Te:CYA molar ratio of 10:1:12 [32]. Initially, 0.862 g (4.7 mmol) of CdCl2 was weighed and dissolved in 125 mL of ultrapure water in a two-neck round-bottom flask. Subsequently, 0.648 g (5.7 mmol) of cysteamine hydrochloride was added under magnetic stirring, and the pH of the solution was adjusted to 5.8 using a 2 M NaOH solution. The mixture was heated at 90 °C under a nitrogen atmosphere with constant magnetic stirring for 30 min. Then, a solution containing 0.0946 g (2.5 mmol) of NaBH4 in 1 mL of ultrapure water was prepared and injected into the reaction flask using a syringe, followed by the addition of 25 mL of a Na2TeO3 solution (0.02 M). The closed system was then heated at 90 °C and stirred continuously for 5 h, under an inert atmosphere. To prevent QD precipitation, the system pH was readjusted to 5.8 by adding additional cysteamine. After cooling, the quantum dots were stored under refrigeration.
CdTe QDs stabilized with MSA and GSH were prepared using a similar procedure, and using the Cd/Te/stabilizer molar ratio of 2:1:2.4.

2.3. Optical Characterization

The QD optical features were evaluated by UV–Vis absorption spectroscopy (Evaluation 600 Spectrophotometer, Thermo Scientific, Waltham, MA, USA) and emission spectroscopy (FluoroMax Plus, Horiba Scientific, Piscataway, NJ, USA). The sample was diluted in a QD/water ratio of 3:100 (v/v), and absorption and emission measurements were acquired with excitation at 405 nm. Consequently, parameters such as average particle size (nm), concentration (μmol·L1) estimated, and full width at half maximum (FWHM) were determined. The average size or diameter of the nanoparticles, correlated with the first absorption peak, was calculated using the equation proposed by Dagtepe et al. (2007) [33] (Equation (1)). This methodological approach provides a systematic means of quantifying nanoparticle dimensions based on a spectral analysis.
r = 1.38435 0.00066 λ 1 0.00121 λ
where r is the average diameter of the nanoparticles and λ corresponds to the wavelength of the first maximum of the absorption spectrum.
The estimation of the extinction coefficient (ε) was calculated using the approximations proposed by Yu et al. (2003) [34] (Equation (2)), and the molar concentration of CdTe quantum dots (QDs) in suspension was estimated through Lambert–Beer’s law (Equation (3)).
ε = 10,043 ( r ) 2.12
A = ε C l
where A is the absorbance corresponding to the absorption maximum, ε is the molar extinction coefficient, C is the molar concentration of the sample (mol·L1), and l is the optical path length (cm) through which the radiation beam will pass for recording the absorption spectrum.

2.4. Evaluation of the Optical Response of CdTe-CYA QDs in the Presence of Different Anions

The optical properties (absorption and emission) of CdTe-CYA QDs were evaluated in the presence of specific anions (CO32−, HCO3, SO42−, and HSO4). Briefly, stock solutions of Na2CO3, NaHCO3, K2SO4, and KHSO4 salts were prepared at a concentration of 10 mmol·L1. Subsequently, 60 µL of quantum dots was added to a quartz cuvette of a 10 mm path length, and the volume was adjusted to 2 mL with ultrapure water. Finally, the anionic analyte was gradually introduced into the suspension, ensuring a controlled addition process to observe the sensor’s response accurately. After each addition, the system underwent manual homogenization for a few seconds, guaranteeing thorough mixing and a consistent distribution of the analyte within the suspension. Following this step, absorption and emission spectra were acquired at room temperature, providing detailed insights into the interaction between the analyte and the CdTe-CYA QDs. To account for any effects of dilution, corrections were applied to the acquired spectra. This meticulous procedure was repeated three times to ensure the reliability and reproducibility of the obtained results.

2.5. Determination of Detection Parameters

From the titration-acquired data, calibration curves were generated for each anion. These curves were established by systematically analyzing the spectral profiles of the developed optical nanoprobes, using different known concentrations of anions to construct the response curves. Considering a univariate model, analytical curves were plotted to evaluate the linear range of the (F − F0)/F0 as a function of the analyte concentration (μM), where F0 and F are the fluorescence intensities in the absence and presence of the analyte, respectively. These studies were performed in triplicate. Calibration curves were statistically validated through an analysis of variance (ANOVA) at a 95% confidence level. This statistical analysis examined the data points for consistency and accuracy across the entire calibration range, aiming to provide reliability in measurements and ensure confidence in the sensor’s performance.
For analytical method validation, the limits of detection (LODs) and quantification (LOQs) were estimated based on the criteria established by the International Union of Pure and Applied Chemistry (IUPAC) [24]. This involved a systematic approach to assess the sensitivity and reliability of the method by establishing thresholds for the minimum detectable and quantifiable levels of analytes. By adhering to internationally recognized standards set by IUPAC, the validation process aimed to ensure robustness and accuracy in analytical measurements. Thus, LODs and LOQs were calculated using Equations (4) and (5):
L O D = 3 σ k .
L O Q = 10 σ k .
where σ corresponds to the standard deviation of the intercept, and k is the slope of the fitted curve. The linearity of the calibration curves was assessed using their respective determination coefficients (R2).

2.6. Selectivity

The sensor’s selectivity for target anions was assessed by testing solutions of various anions (10 mmol·L1, including HPO42−, H2PO4, Cl, I, Br, NO3, SO3, and CH3COO) under identical controlled conditions. The anion solutions (243.9 µmol·L1) were added to the diluted suspension of CdTe-CYA QDs, and after brief mixing, emission spectra were recorded at room temperature to analyze the response of the sensor to each specific anion. This systematic approach allowed for a comprehensive evaluation of the sensor’s selectivity and its capability to distinguish between different anions in a solution.

3. Results and Discussion

3.1. Characterization of CdTe-CYA QDs

According to the optical parameters of the CdTe-CYA QDs (Figure 1), we can observe that the nanomaterial exhibits a small Stokes shift, as well as an intense emission band, presenting an average diameter of 3.0 nm and a concentration of 28.9 mmol·L−1. In addition, other studies have reported the preparation of CdTe-CYA QDs with FWHM values ranging from 30 to 85 nm and sizes around 3.0 nm, consistent with the results obtained in the current study [32,35].

3.2. Fluorescent Detection of Anions Using CdTe-CYA QDs

To evaluate the sensing ability of CdTe-CYA QDs toward the target anions (CO32−, HCO3, SO42−, and HSO4), increasing concentrations of the analyte were added to the QDs, and absorbance and emission spectra were acquired. Firstly, this study was conducted by absorption spectroscopy to assess whether the core of the QDs would be affected by the presence of the target anions. It was observed that the position or width of the absorption spectra showed little or no variation, and there was no significant change in intensity, suggesting that the addition of anions did not cause changes in the core of the QDs, maintaining their composition and mean size (Figure S1).
On the other hand, the addition of these anions to CdTe-CYA caused significant changes in the fluorescence profile (Figure 2). From the emission spectra of all systems, a consistent signal enhancement could be observed with increasing analyte concentrations.
The analysis performed allowed the estimation of the analytical parameters for the four sensor/analyte systems: CdTe-CYA/CO32−, CdTe-CYA/HCO3, CdTe-CYA/SO42−, and CdTe-CYA/HSO4.
As observed in Figure 2, the optical sensor exhibited a good correlation between the added CO32− concentration and the corresponding emission intensity, with a linear range between 43.1 and 123.5 μM (Figure 2b), a LOD and LOQ of 12.9 and 43.1 μM, respectively. For this anion, with a further addition of CO32−, the emission intensity reached a plateau of around 291 μM, remaining relatively constant after that concentration. For the HCO3 anion, the fluorescent sensor presented a linear range around higher values, between 107.33 and 430.62 μM (Figure 2d), without reaching a fluorescence plateau in this concentration range. Nevertheless, the LOD and the LOQ found were 32.20 μM and 107.33 μM, respectively. Regarding the SO32− anion, it was observed that the analytical parameters also showed good linearity between 35.04 and 147.78 μM (Figure 2f), with a LOD and LOQ of 10.51 and 35.04 μM, respectively. Finally, analytical parameters were also evaluated for the determination of the HSO4 anion from CdTe-CYA QDs, obtaining a linear range between 6.51 and 123.46 μM (Figure 2h), with LOD and LOQ equal to 1.95 and 6.51 μM, respectively. Increasing further the anion concentrations, a plateau in the emission intensity was observed at 196 and 172 μM for SO42− and HSO4, respectively. Furthermore, the statistical analysis indicated that the respective regression models are statistically significant, providing statistical evidence to confirm the relationship between the variables of analyte concentration and emission intensity at a 95% confidence level (Table S1).
ANOVA and the F-test for the statistical significance of the regression (F value) were the criteria used to assess the analytical performance of the proposed models (Table S1). The F value was obtained by dividing the regression mean squares (MSs) by the residual mean squares for each target anion. Thus, the calculated F values were approximately 357.2 (CO32−), 1031.3 (HCO3), 747.3 (SO42−), and 979.1 (HSO4), which were much higher than the F-critical values at a significance level of 5%, namely, 10.13 (CO32−), 5.59 (HCO3), 7.71 (SO42−), and 10.13 (HSO4).
The performance detection parameter values for CdTe-CYA QDs concerning the target anions are summarized in Table 1, along with examples from the literature.
The few examples found in the literature, for fluorometric sensors for the target anions, present lower LOD values compared to those determined in this study. However, in the literature, the detection studies of these anions do not typically provide a specific value for the LOQ. Regarding the estimated LOD value, it is worth noting that the LOQ values for SO42− and HSO4 anions showed values below the maximum levels allowed by the United States Environmental Protection Agency [43] and the World Health Organization (WHO) [44], which are 500 mg·L−1 and 250 mg·L−1, respectively, whereas there is no established standard for CO32− and HCO3 set by regulatory agencies. Thus, the values determined in this study for the quantification of the target anions are well below the established maximum concentrations allowed. Furthermore, some of these reported fluorescent probes are based on organic molecules that require a laborious synthetic procedure. This underscores the intricacies involved in their preparation and the importance of considering practicality alongside analytical sensitivity when selecting suitable detection methods for real-world applications.

3.3. Analysis of the QDs’ Emission Profile after the Addition of the Anions

As observed, the fluorescence intensity of CdTe-CYA QDs increased considerably with increasing anion concentration. Simultaneously, with each addition, a slight redshift (<7 nm) and broadening of the emission band (<8 nm) were observed (Figure 3, Table S2). This behavior was more expressive for CO32−, followed by HCO3, and for SO42− and HSO4, there were no significant changes in both the spectral position and the FWHM of the emission band.
Furthermore, it was observed that the variation in FWHM values occurred between 0.1 and 7.3 nm, considering the four studied anions, with CO32− and HCO3 being the most expressive. However, it is emphasized that a slight redshift (<7 nm) along with a slight broadening of the emission band (<8 nm) only indicates that changes are occurring on the surface of the QD due to interactions with the anions, while the QD core remains unchanged [45].

3.4. Selectivity of the Nanoprobe for Target Anions

The sensor’s selectivity toward the anions CO32−, HCO3, SO42−, and HSO4 was evaluated by adding other anions at the same concentration. Figure 4 illustrates the change in the fluorescence (F − F0)/F0 ratio of the nanosensor in response to different tested anions. It is evident that the sensor’s fluorescence exhibited a much more pronounced increase for CO32−, followed in this order by HCO3, SO42−, and HSO4. On the other hand, HPO42− and Cl also showed a more discreet increase in the fluorescence intensity. Additionally, I and Br, in contrast, led to a decrease in fluorescence intensity, with I causing a more significant reduction, indicating that this QD could also be a sensor for these halide ions. The remaining tested anions did not induce significant changes in the fluorescence intensity of the nanosensor.

3.5. Detection Mechanism of CdTe-CYA QDs

Surface ligands play a crucial role in the interaction between QDs and analytes, strongly affecting the detection mechanisms [46,47]. The stabilizing ligands typically used in aqueous synthesis have a thiol group at one end, which remains attached to the nanoparticle’s surface, and another terminal group such as carboxylic (-COOH) or amino (-NH2) ones, which can impart different electrical charges to the QDs depending on the pH. Amino and carboxylic groups can have positive and negative charges, respectively, allowing for electrostatic phenomena to regulate the interaction between the QD surface ligand and anions, in addition to interactions due to hydrogen bonding or van der Waals forces [19,47].
Quantum dots stabilized with CYA may present a strong positive surface charge due to the presence of amino groups that are protonated at pH values around 6 [32]. Thus, it is expected that the CdTe-CYA QDs show electrostatic attraction to anions based on their surface charge, resulting in a change in the spectral profile of the nanoprobes.
There are few cases described in the literature regarding the mechanisms of photoluminescence enhancement in sensors based on QDs [48,49,50], with the quenching mechanism being much more widely observed. Nevertheless, it is known that these interaction mechanisms depend on a series of factors, such as the reactive species involved, electrostatic interaction between the analyte and surface ligands, electron transfer from the QDs’ conduction band to the molecular orbitals of the analyte, and adsorption of the analyte on the nanoparticle surface, among others [51]. In some cases, these interactions can enable an efficient excitonic electron–hole recombination by reducing potential trap density, which are intermediate energy levels between the energy bands of the QD, which are a consequence of both intrinsic and surface defects, thereby increasing radiative recombination and leading to enhanced photoluminescence [52].
Therefore, the detection mechanism between CdTe-CYA QDs and the target anions should be mainly regulated by electrostatic interactions, between the positively charged amino groups anchored on the QDs’ surface and the respective anion. The -NH3+ group can act as an electron-withdrawing group through an inductive effect, potentially weakening the thiol–QD bond and altering the charge density of the nanoparticle, consequently affecting the emission of the QDs. With the interaction with the anions, the positive charge of the stabilizer is compensated by the negative charge of the analyte, reducing its electron-withdrawing character, favoring more efficient radiative decay processes, and consequently enhancing the emission intensity. Alternatively, as a consequence of this withdrawing character, there may be a change in the flow of charges in the nanoparticle, which, in turn, reduces the charge density in the conduction band, affecting the emission intensity by decreasing the number of possible radiative decays.

4. Conclusions

In summary, we prepared and employed CdTe-CYA QDs as analytical nanoplatforms for anion detection (CO32−, HCO3, SO42−, and HSO4 ions). The QDs exhibited good linearity, likely due to interactions between the positively charged amino groups of the CdTe-CYA and the respective anion, indicating that the probable detection mechanism is by electrostatic attraction. Analytical parameters, including linear range, LOD, and LOQ, were determined for each CdTe-CYA/anion system, and the obtained values are within acceptable limits. Notably, for SO42− and HSO4, the values are below the levels permitted by environmental guidelines. The assessment of analytical performance through an analysis of variance (ANOVA) confirmed the statistical significance (95% confidence level) of the proposed models for detecting CO32−, HCO3, SO42−, and HSO4 ions using CdTe-CYA QDs. The selectivity study indicated that the proposed sensor, despite its nonspecific nature, exhibits selectivity to some extent toward the target ions, notably for CO32−, for which it showed the best analytical response. Therefore, based on the obtained results, CdTe-CYA QDs can be considered promising nanosensors for the detection of target anions in aqueous media.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/mi15030373/s1, Figure S1: Absorption spectra of CdTe-CYA QDs in the presence of different anion concentrations: (a) CO32−, (b) HCO3, (c) SO42−, and (d) HSO4. Table S1: ANOVA and validation of the analytical curve models. Table S2: Results obtained for the interaction of CdTe-CYA and the target anions.

Author Contributions

Conceptualization, G.P. and G.A.L.P.; Methodology, H.J.B.S., G.P., and G.A.L.P.; Formal Analysis, H.J.B.S.; Investigation, H.J.B.S.; Resources, C.F.P., G.P., and G.A.L.P.; Writing—Original Draft Preparation, H.J.B.S., G.P., and G.A.L.P.; Writing—Review and Editing, H.J.B.S., C.F.P., G.P., and G.A.L.P.; Supervision, G.P. and G.A.L.P.; Project Administration, G.P. and G.A.L.P.; Funding Acquisition, C.F.P., G.P., and G.A.L.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by CESAM by FCT/MCTES (UIDP/50017/2020+UIDB/50017/2020+LA/P/0094/2020) through national funds, CNPq (Universal/CNPq-2021, 409319/2021-0), INCTAA (CNPq-465768/2014-8; FAPESP-2014/50951-4), and FACEPE (APQ-1351-1.06/22 and IBPG-1528-3.00/21 scholarship).

Data Availability Statement

Data are contained within the article or Supplementary Materials.

Acknowledgments

The authors acknowledge the support of Central Analítica DQF-UFPE and National Institute of Photonics (INFo).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Sobhanan, J.; Rival, J.V.; Anas, A.; Sidharth Shibu, E.; Takano, Y.; Biju, V. Luminescent quantum dots: Synthesis, optical properties, bioimaging and toxicity. Adv. Drug Deliv. Rev. 2023, 197, 114830. [Google Scholar] [CrossRef]
  2. Xiong, H.; Wang, B.; Wen, W.; Zhang, X.; Wang, S. Fluorometric determination of copper(II) by using 3-aminophenylboronic acid-functionalized CdTe quantum dot probes. Microchim. Acta 2019, 186, 392. [Google Scholar] [CrossRef]
  3. Gan, Z.; Zhang, T.; Hu, Y.; Zhen, S.; Hu, X. A simple fluorescence-scattering ratiometric sensor for biothiols based on CdTe quantum dots. Sens. Actuators B Chem. 2023, 378, 133168. [Google Scholar] [CrossRef]
  4. Kailasa, S.K.; Vajubhai, G.N.; Koduru, J.R.; Park, T.J. Recent progress of nanomaterials for colorimetric and fluorescence sensing of reactive oxygen species in biological and environmental samples. Trends Environ. Anal. Chem. 2023, 37, e00196. [Google Scholar] [CrossRef]
  5. Li, G.; Liu, Z.; Gao, W.; Tang, B. Recent advancement in graphene quantum dots based fluorescent sensor: Design, construction and bio-medical applications. Coord. Chem. Rev. 2023, 478, 214966. [Google Scholar] [CrossRef]
  6. Pereira, G.; Monteiro, C.A.P.; Albuquerque, G.M.; Pereira, M.I.A.; Cabrera, M.P.; Cabral Filho, P.E.; Pereira, G.A.L.; Fontesa, A.; Santos, B.S. (Bio)conjugation Strategies Applied to Fluorescent Semiconductor Quantum Dots. J. Braz. Chem. Soc. 2019, 30, 2536–2561. [Google Scholar] [CrossRef]
  7. Ribeiro, J.F.F.; Pereira, M.I.A.; Assis, L.G.; Cabral Filho, P.E.; Santos, B.S.; Pereira, G.A.L.; Chaves, C.R.; Campos, G.S.; Sardi, S.I.; Pereira, G.; et al. Quantum dots-based fluoroimmunoassay for anti-Zika virus IgG antibodies detection. J. Photochem. Photobiol. B Biol. 2019, 194, 135–139. [Google Scholar] [CrossRef]
  8. Ribeiro, J.F.F.; Melo, J.R.S.; Santos, C.d.L.; Chaves, C.R.; Cabral Filho, P.E.; Pereira, G.; Santos, B.S.; Pereira, G.A.L.; Rosa, D.S.; Ribeiro, R.T.; et al. Sensitive Zika biomarker detection assisted by quantum dot-modified electrochemical immunosensing platform. Colloids Surf. B Biointerfaces 2023, 221, 112984. [Google Scholar] [CrossRef]
  9. Silva, F.O.; Carvalho, M.S.; Mendonça, R.; Macedo, W.A.A.; Balzuweit, K.; Reiss, P.; Schiavon, M.A. Effect of surface ligands on the optical properties of aqueous soluble CdTe quantum dots. Nanoscale Res. Lett. 2012, 7, 536. [Google Scholar] [CrossRef]
  10. Devi, B.L.; Chaitra, U.; Hathwara, S.; Kompa, A. Influence of starch capping effect on optical absorption and photoluminescence behaviour of ZnS nanoparticles. Inorg. Chem. Commun. 2023, 149, 110374. [Google Scholar] [CrossRef]
  11. Ebrahim, S.; Labeb, M.; Abdel-Fattah, T.; Soliman, M. CdTe quantum dots capped with different stabilizing agents for sensing of ochratoxin A. J. Lumin. 2017, 182, 154–159. [Google Scholar] [CrossRef]
  12. Snee, P.T. The Role of Colloidal Stability and Charge in Functionalization of Aqueous Quantum Dots. Acc. Chem. Res. 2018, 51, 2949–2956. [Google Scholar] [CrossRef] [PubMed]
  13. Barbosa, L.S.V.; Teixeira, L.S.G.; Korn, M.G.A.; Santana, R.M.M. Evaluation of the Direct Interaction between Amino Acids and Glutathione-Coated CdTe Quantum Dots and Application in Urinalysis for Histidine Determination. J. Braz. Chem. Soc. 2021, 32, 588–598. [Google Scholar] [CrossRef]
  14. Albuquerque, G.M.; Souza-Sobrinha, I.; Coiado, S.D.; Santos, B.S.; Fontes, A.; Pereira, G.A.L.; Pereira, G. Quantum Dots and Gd3+ Chelates: Advances and Challenges Towards Bimodal Nanoprobes for Magnetic Resonance and Optical Imaging. Top. Curr. Chem. 2021, 379, 12. [Google Scholar] [CrossRef] [PubMed]
  15. Castro, R.C.; Ribeiro, D.S.M.; Santos, J.L.M. Visual detection using quantum dots sensing platforms. Coord. Chem. Rev. 2021, 429, 213637. [Google Scholar] [CrossRef]
  16. Silvi, S.; Credi, A. Luminescent sensors based on quantum dot–molecule conjugates. Chem. Soc. Rev. 2015, 44, 4275–4289. [Google Scholar] [CrossRef]
  17. Anas, N.A.A.; Fen, Y.W.; Omar, N.A.S.; Daniyal, W.M.E.M.M.; Ramdzan, N.S.M.; Saleviter, S. Development of Graphene Quantum Dots-Based Optical Sensor for Toxic Metal Ion Detection. Sensors 2019, 19, 3850. [Google Scholar] [CrossRef]
  18. Yin, H.; Truskewycz, A.; Cole, I.S. Quantum dot (QD)-based probes for multiplexed determination of heavy metal ions. Microchim. Acta 2020, 187, 336. [Google Scholar] [CrossRef]
  19. Tay, H.M.; Beer, P. Optical sensing of anions by macrocyclic and interlocked hosts. Org. Biomol. Chem. 2021, 19, 4652–4677. [Google Scholar] [CrossRef]
  20. Hein, R.; Beer, P.D.; Davis, J.J. Electrochemical Anion Sensing: Supramolecular Approaches. Chem. Rev. 2020, 120, 1888–1935. [Google Scholar] [CrossRef] [PubMed]
  21. Chua, M.H.; Shah, K.W.; Zhou, H.; Xu, J. Recent Advances in Aggregation-Induced Emission Chemosensors for Anion Sensing. Molecules 2019, 24, 2711. [Google Scholar] [CrossRef] [PubMed]
  22. Pengpumkiat, S.; Wu, Y.; Sumantakul, S.; Remcho, V.T. A Membrane-based Disposable Well-Plate for Cyanide Detection Incorporating a Fluorescent Chitosan-CdTe Quantum Dot. Anal. Sci. 2020, 36, 193–197. [Google Scholar] [CrossRef] [PubMed]
  23. Zhang, J.; Qian, J.; Mei, Q.; Yang, L.; He, L.; Liu, S.; Zhang, C.; Zhang, K. Imaging-based fluorescent sensing platform for quantitative monitoring and visualizing of fluoride ions with dual-emission quantum dots hybrid. Biosens. Bioelectron. 2019, 128, 61–67. [Google Scholar] [CrossRef] [PubMed]
  24. Jindal, G.; Kaur, N. Fluorescent water-stable quantum dots possessing benzimidazole for the recognition of bisulfate in edible materials, soap, and medicine. J. Photochem. Photobiol. A Chem. 2022, 424, 113652. [Google Scholar] [CrossRef]
  25. Zhan, N.; Huang, Y.; Rao, Z.; Zhao, X.-L. Fast Detection of Carbonate and Bicarbonate in Groundwater and Lake Water by Coupled Ion Selective Electrode. Chin. J. Anal. Chem. 2016, 44, 355–360. [Google Scholar] [CrossRef]
  26. Bushinsky, S.M.; Takeshita, Y.; Williams, N.L. Observing Changes in Ocean Carbonate Chemistry: Our Autonomous Future. Curr. Clim. Chang. Rep. 2019, 5, 207–220. [Google Scholar] [CrossRef] [PubMed]
  27. Verma, S.; Ravichandiran, V.; Ranjan, N. Selective, pH sensitive, “turn on” fluorescence sensing of carbonate ions by a benzimidazole. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2021, 255, 119624. [Google Scholar] [CrossRef]
  28. Salem, J.K.; Draz, M.A. Synthesis and application of silver nanorods for the colorimetric detection of sulfate in water. Inorg. Chem. Commun. 2020, 116, 107900. [Google Scholar] [CrossRef]
  29. Sethupathi, M.; Muthusankar, G.; Thamilarasan, V.; Sengottuvelan, N.; Gopu, G.; Vinita, N.M.; Kumar, P.; Perdih, F. Macrocyclic “tet a” derived colorimetric sensor for the detection of mercury cations and hydrogen sulphate anions and its bio-imaging in living cells. J. Photochem. Photobiol. B Biol. 2020, 203, 111739. [Google Scholar] [CrossRef]
  30. Feng, L.; Wu, G.; Zhang, Z.; Tian, Z.; Li, B.; Cheng, J.; Yang, G. Improving denitrification performance of biofilm technology with salt-tolerant denitrifying bacteria agent for treating high-strength nitrate and sulfate wastewater from lab-scale to pilot-scale. Bioresour. Technol 2023, 387, 129696. [Google Scholar] [CrossRef]
  31. Viegas, I.M.A.; Santos, B.S.; Fontes, A.; Pereira, G.A.d.L.; Pereira, C.F. Multivariate optimization of optical properties of CdSe quantum dots obtained by a facile one-pot aqueous synthesis. Inorg. Chem. Front. 2019, 6, 1350–1360. [Google Scholar] [CrossRef]
  32. Matos, A.L.L.; Pereira, G.; Cabral Filho, P.E.; Santos, B.S.; Fontes, A. Delivery of cationic quantum dots using fusogenic liposomes in living cells. J. Photochem. Photobiol. B Biol. 2017, 171, 43–49. [Google Scholar] [CrossRef] [PubMed]
  33. Dagtepe, P.; Chikan, V.; Jasinski, J.; Leppert, V.J. Quantized Growth of CdTe Quantum Dots; Observation of Magic-Sized CdTe Quantum Dots. J. Phys. Chem. C 2007, 111, 14977–14983. [Google Scholar] [CrossRef]
  34. Yu, W.W.; Qu, L.; Guo, W.; Peng, X. Experimental Determination of the Extinction Coefficient of CdTe, CdSe, and CdS Nanocrystals. Chem. Mater. 2003, 15, 2854–2860. [Google Scholar] [CrossRef]
  35. Ramírez-Herrera, D.E.; Reyes-Cruzaley, A.P.; Dominguez, G.; Paraguay-Delgado, F.; Tirado-Guízar, A.; Pina-Luis, G. CdTe Quantum Dots Modified with Cysteamine: A New Efficient Nanosensor for the Determination of Folic Acid. Sensors 2019, 19, 4548. [Google Scholar] [CrossRef]
  36. Peng, L.; Guo, H.; Wu, N.; Liu, Y.; Wang, M.; Liu, B.; Tian, J.; Wei, X.; Yang, W. Ratiometric fluorescent sensor based on metal–organic framework for selective and sensitive detection of CO32−. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2023, 299, 122844. [Google Scholar] [CrossRef]
  37. Adusumalli, V.N.K.B.; Koppisetti, H.V.S.R.M.; Madhukar, N.; Mondal, A.; Mahalingam, V. Gallic acid capped Tb3+-doped CaF2 nanocrystals: An efficient optical probe for the detection of carbonate and bicarbonate ions. J. Mater. Chem. C 2021, 9, 4267–4274. [Google Scholar] [CrossRef]
  38. Han, C.; Cui, Z.; Zou, Z.; Sabahaiti; Tian, D.; Li, H. Urea-type ligand-modified CdSe quantum dots as a fluorescence “turn-on” sensor for CO32− anions. Photochem. Photobiol. Sci. 2010, 9, 1269–1273. [Google Scholar] [CrossRef]
  39. Muniyasamy, H.; Chinnadurai, C.; Nelson, M.; Chinnamadhaiyan, M.; Ayyanar, S. Triazole-naphthalene based fluorescent chemosensor for highly selective naked eye detection of carbonate ion and real sample analyses. Inorg. Chem. Commun. 2021, 133, 108883. [Google Scholar] [CrossRef]
  40. Pacheco-Liñán, P.J.; Alonso-Moreno, C.; Carrillo-Hermosilla, F.; Garzón-Ruiz, A.; Martín, C.; Sáez, C.; Albaladejo, J.; Bravo, I. Novel Fluorescence Guanidine Molecules for Selective Sulfate Anion Detection in Water Complex Samples over a Wide pH Range. ACS Sens. 2021, 6, 3224–3233. [Google Scholar] [CrossRef] [PubMed]
  41. Bąk, K.M.; Masłowska, K.; Chmielewski, M.J. Selective turn-on fluorescence sensing of sulfate in aqueous–organic mixtures by an uncharged bis(diamidocarbazole) receptor. Org. Biomol. Chem. 2017, 15, 5968–5975. [Google Scholar] [CrossRef] [PubMed]
  42. Sen, B.; Mukherjee, M.; Pal, S.; Sen, S.; Chattopadhyay, P. A water soluble copper(ii) complex as a HSO4 ion selective turn-on fluorescent sensor applicable in living cell imaging. RSC Adv. 2015, 5, 50532–50539. [Google Scholar] [CrossRef]
  43. Phapale, D.; Kushwaha, A.; Das, D. A simple benzimidazole styryl-based colorimetric chemosensor for dual sensing application. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2019, 214, 111–118. [Google Scholar] [CrossRef]
  44. WHO Guidelines Approved by the Guidelines Review Committee. Guidelines for Drinking-Water Quality: Fourth Edition Incorporating the First Addendum; World Health Organization: Geneva, Switzerland, 2017. [Google Scholar]
  45. Noipa, T.; Tuntulani, T.; Ngeontae, W. Cu2+-modulated cysteamine-capped CdS quantum dots as a turn-on fluorescence sensor for cyanide recognition. Talanta 2013, 105, 320–326. [Google Scholar] [CrossRef]
  46. Tall, A.; da Costa, K.R.; de Oliveira, M.J.; Tapsoba, I.; Rocha, U.; Sales, T.O.; Goulart, M.O.F.; Santos, J.C.C. Photoluminescent nanoprobes based on thiols capped CdTe quantum dots for direct determination of thimerosal in vaccines. Talanta 2021, 221, 121545. [Google Scholar] [CrossRef] [PubMed]
  47. Krämer, J.; Kang, R.; Grimm, L.M.; De Cola, L.; Picchetti, P.; Biedermann, F. Molecular Probes, Chemosensors, and Nanosensors for Optical Detection of Biorelevant Molecules and Ions in Aqueous Media and Biofluids. Chem. Rev. 2022, 122, 3459–3636. [Google Scholar] [CrossRef]
  48. Xia, Y.-S.; Cao, C.; Zhu, C.-Q. Two distinct photoluminescence responses of CdTe quantum dots to Ag (I). J. Lumin. 2008, 128, 166–172. [Google Scholar] [CrossRef]
  49. Wang, G.-L.; Jiao, H.-J.; Zhu, X.-Y.; Dong, Y.-M.; Li, Z.-J. Novel switchable sensor for phosphate based on the distance-dependant fluorescence coupling of cysteine-capped cadmium sulfide quantum dots and silver nanoparticles. Analyst 2013, 138, 2000–2006. [Google Scholar] [CrossRef]
  50. Dhar, S.; Sen, B.; Mukhopadhyay, S.K.; Mukherjee, T.; Chattopadhyay, A.P.; Pramanik, S. CdS quantum dots embedded in PVP: Inorganic phosphate ion sensing in real sample and its antimicrobial activity. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2020, 234, 118256. [Google Scholar] [CrossRef]
  51. Llano-Suárez, P.; Bouzas-Ramos, D.; Costa-Fernández, J.M.; Soldado, A.; Fernández-Argüelles, M.T. Near-infrared fluorescent nanoprobes for highly sensitive cyanide quantification in natural waters. Talanta 2019, 192, 463–470. [Google Scholar] [CrossRef]
  52. Rodrigues, S.S.M.; Ribeiro, D.S.M.; Soares, J.X.; Passos, M.L.C.; Saraiva, M.L.M.F.S.; Santos, J.L.M. Application of nanocrystalline CdTe quantum dots in chemical analysis: Implementation of chemo-sensing schemes based on analyte-triggered photoluminescence modulation. Coord. Chem. Rev. 2017, 330, 127–143. [Google Scholar] [CrossRef]

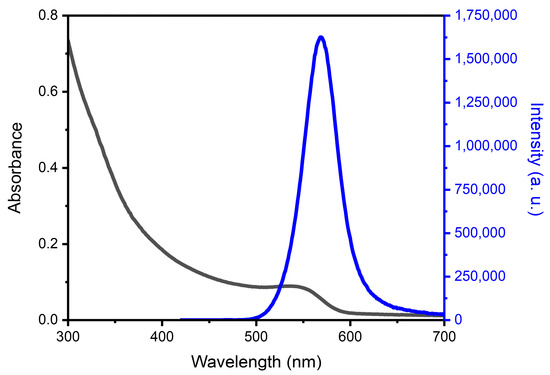

Figure 1. Absorption (black) and emission (blue) spectra of CdTe-CYA QDs (λexc = 405 nm).
Figure 1. Absorption (black) and emission (blue) spectra of CdTe-CYA QDs (λexc = 405 nm).
Micromachines 15 00373 g001

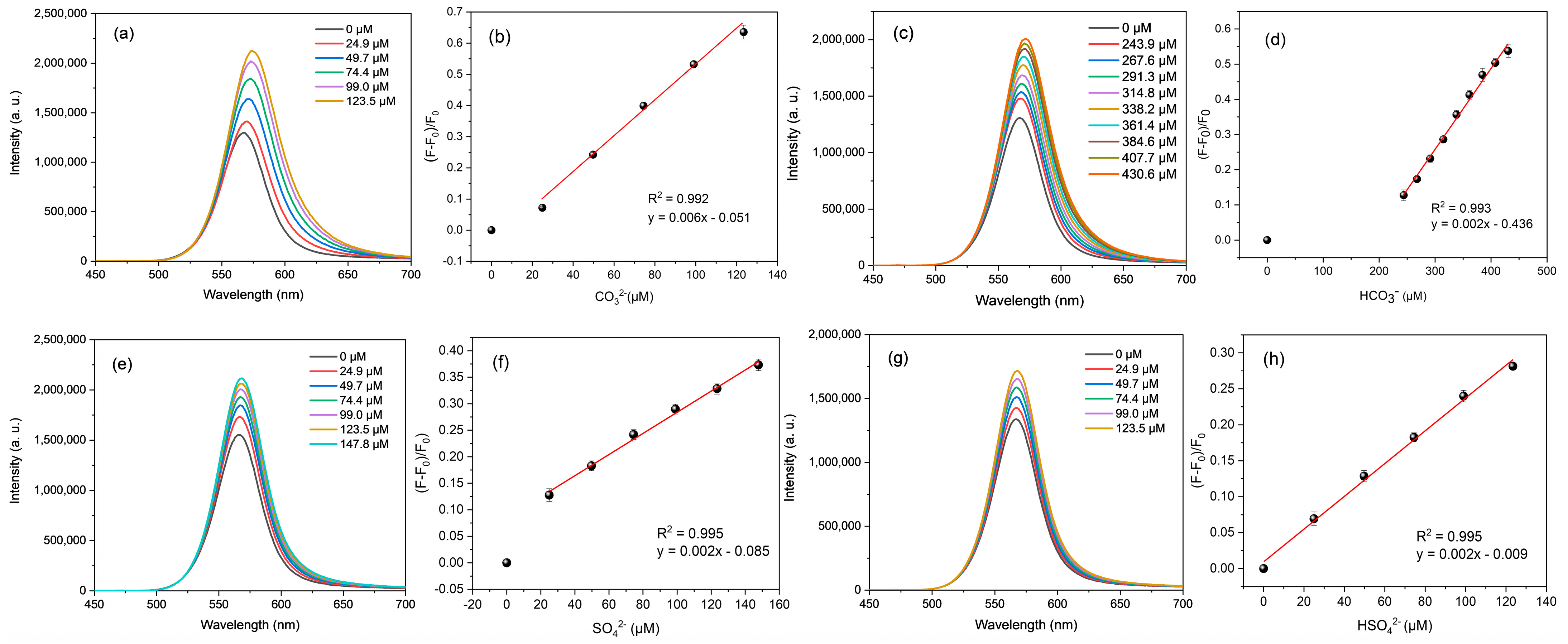

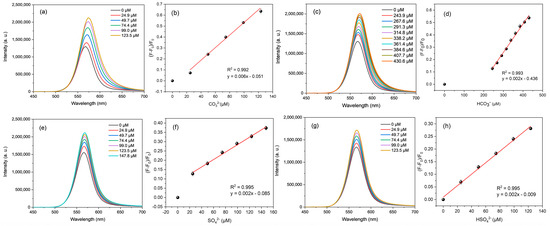

Figure 2. Fluorescence spectra of CdTe-CYA QDs (λexc = 405 nm) with different concentrations of CO32− (a), HCO3 (c), SO42− (e), and HSO4 (g), and calibration curves of (F − F0)/F0 versus analyte concentration: CO32− (b), HCO3 (d), SO42− (f), and HSO4 (h) concentration.
Figure 2. Fluorescence spectra of CdTe-CYA QDs (λexc = 405 nm) with different concentrations of CO32− (a), HCO3 (c), SO42− (e), and HSO4 (g), and calibration curves of (F − F0)/F0 versus analyte concentration: CO32− (b), HCO3 (d), SO42− (f), and HSO4 (h) concentration.
Micromachines 15 00373 g002

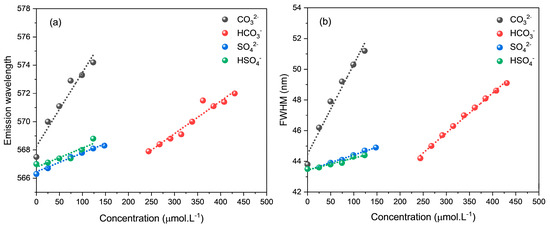

Figure 3. Variation of the emission band spectral position (a) and the respective FWHM (b) for CdTe-CYA as a function of increasing concentration of the anions (λexc = 405 nm).
Figure 3. Variation of the emission band spectral position (a) and the respective FWHM (b) for CdTe-CYA as a function of increasing concentration of the anions (λexc = 405 nm).
Micromachines 15 00373 g003

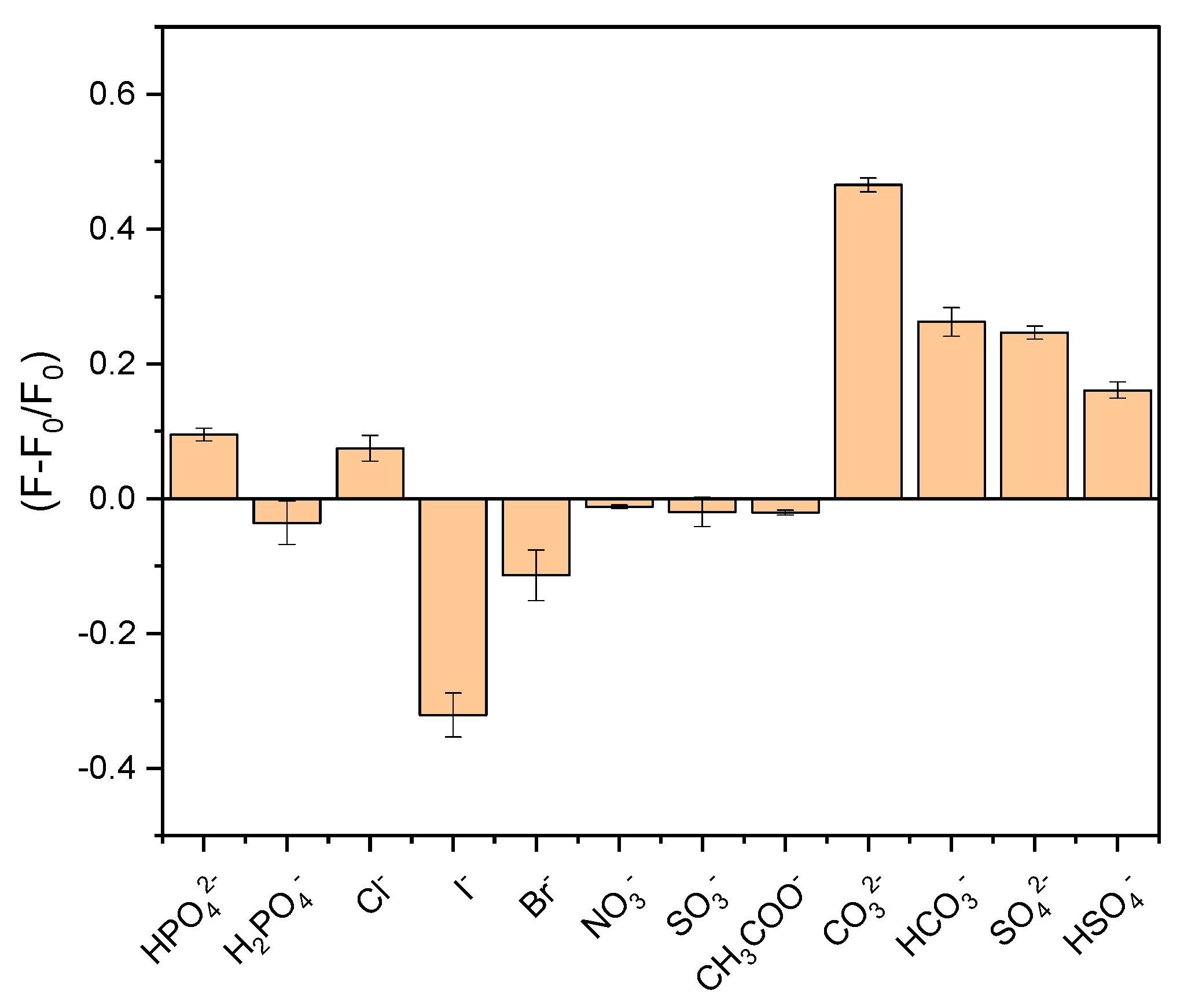

Figure 4. Fluorescence intensity of CdTe-CYA QDs (λexc = 405 nm) in presence of different anions: HPO42−, H2PO4−, Cl, I, Br, NO3, SO3, CH3COO, CO32−, HCO3, SO32−, HSO4.
Figure 4. Fluorescence intensity of CdTe-CYA QDs (λexc = 405 nm) in presence of different anions: HPO42−, H2PO4−, Cl, I, Br, NO3, SO3, CH3COO, CO32−, HCO3, SO32−, HSO4.
Micromachines 15 00373 g004
Table 1. Comparison of various fluorescent probes for the determination of target anions.
Table 1. Comparison of various fluorescent probes for the determination of target anions.
AnionSensorLinear Range (μM)LOD (μM)LOQ (μM)Reference
CO32−Eu/CDs@UiO-66-(COOH)20–3501.08-[36]
CaF-Tb3+20–1000.99-[37]
Ureia derivative-CdSe0.1–1000.023-[38]
CdTe-CYA QDs43.0–123.512.943.0This work
HCO3−CaF-Tb3+20–1002.15-[37]
Triazole-naphthalene2.5–32.51.8-[39]
CdTe-CYA QDs107.3–430.632.2107.3This work
SO42−Guanidine dyes2.5–100.10-[40]
Bis(diamidocarbazole)-1.0-[41]
CdTe-CYA QDs35.0–147.810.535.0This work
HSO4ZnO QDs-benzimidazole-0.0032-[24]
Quinazoline-based Co3+ complex0.32–12.50.32-[42]
CdTe-CYA QDs6.5–123.52.06.5This work
