Resonant MEMS Accelerometer with Low Cross-Axis Sensitivity—Optimized Based on BP and NSGA-II Algorithms
Abstract
:1. Introduction

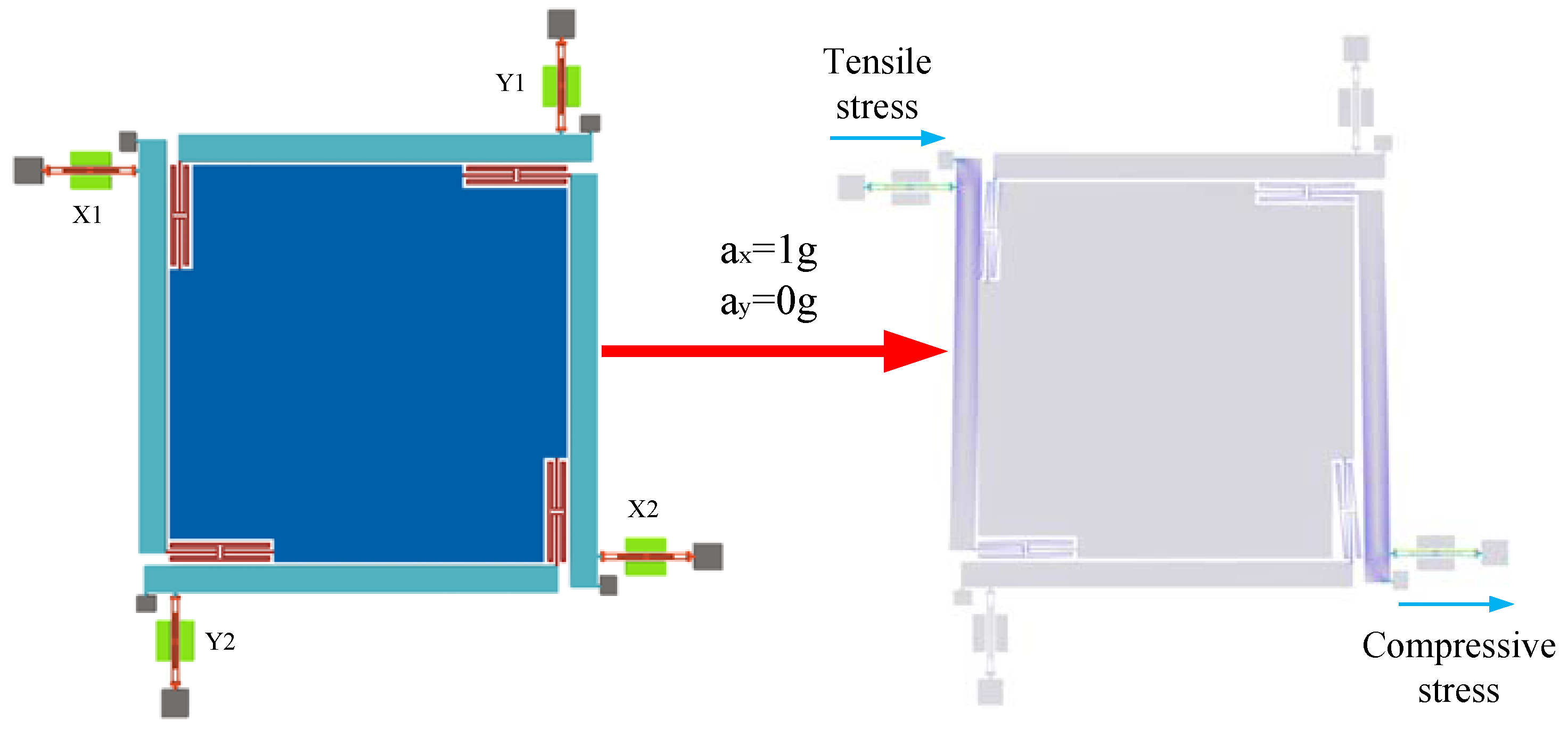

2. Principle and Design of SRAs with Coupled Structure

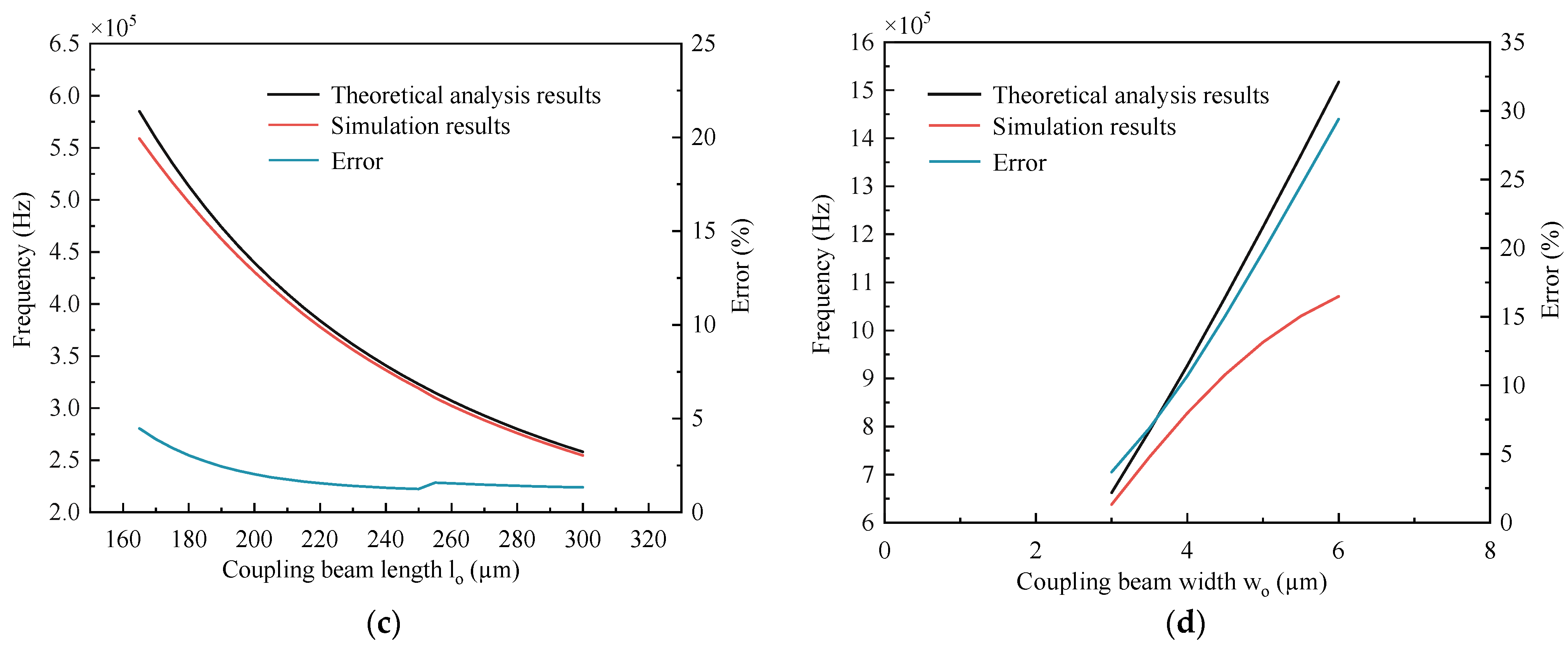

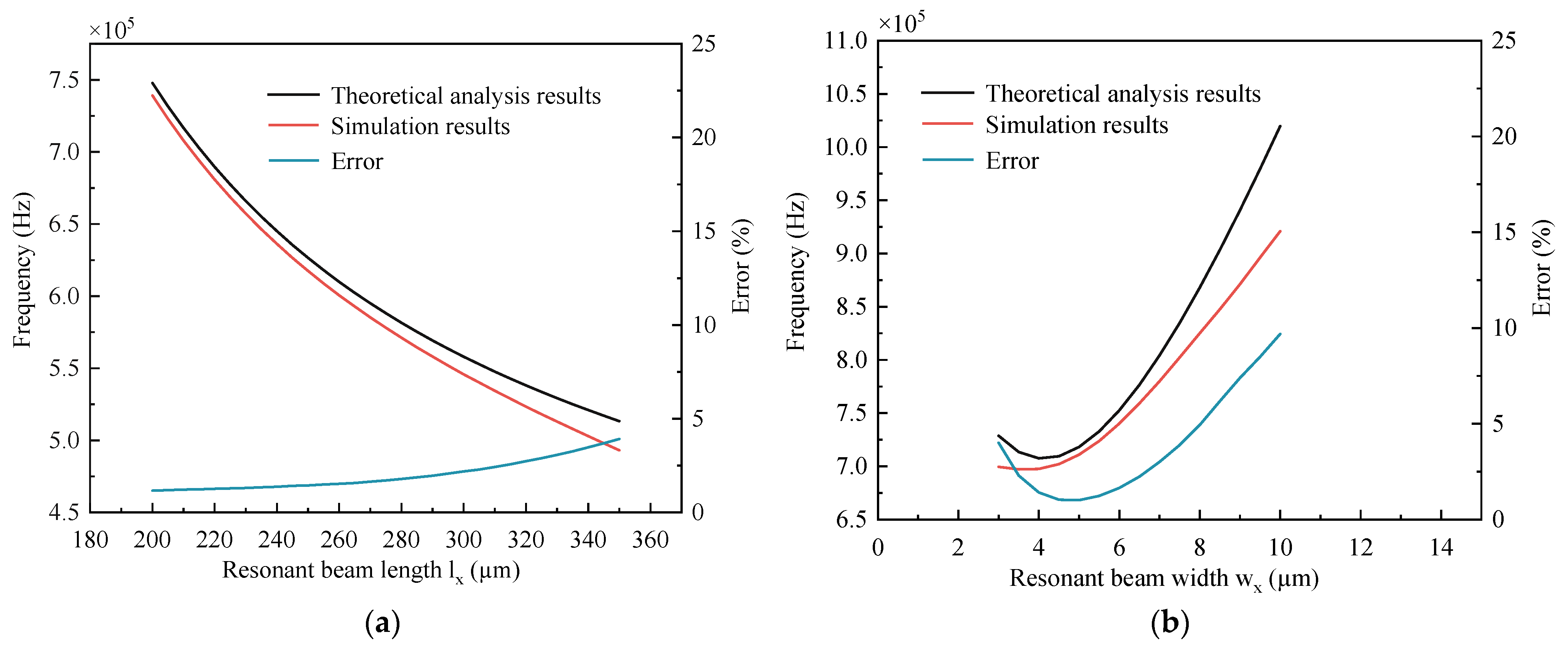

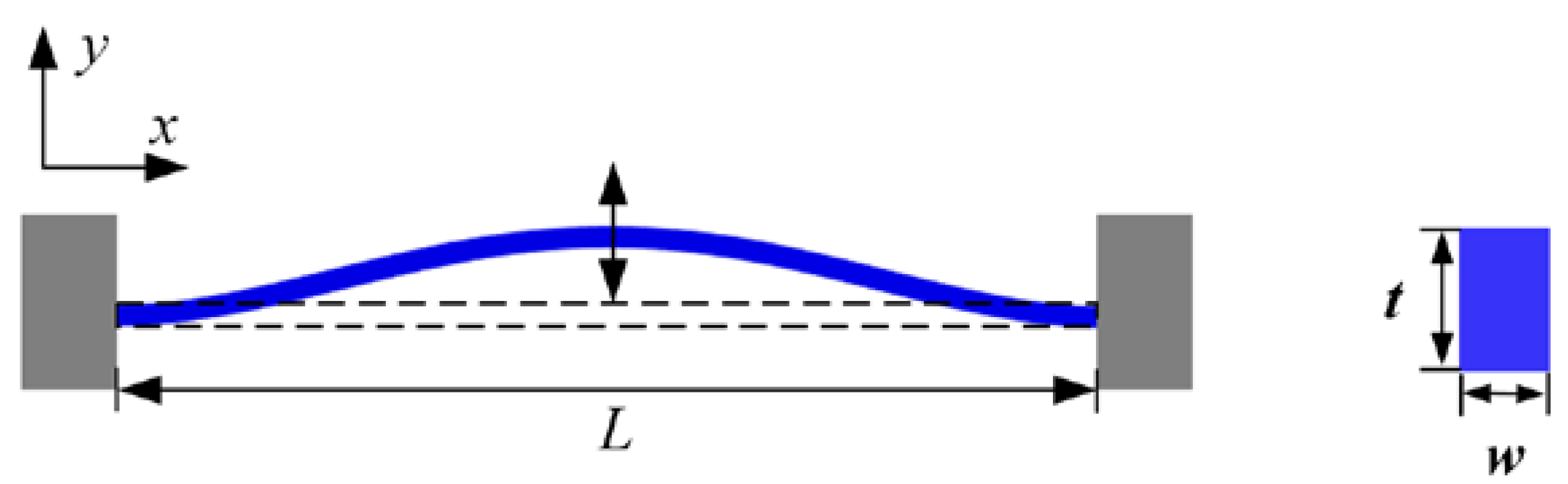

2.1. Design of DETF Resonator with Coupled Structure
2.2. Design of Decoupled Structures
2.3. Design of Single-Stage Microlever Mechanism

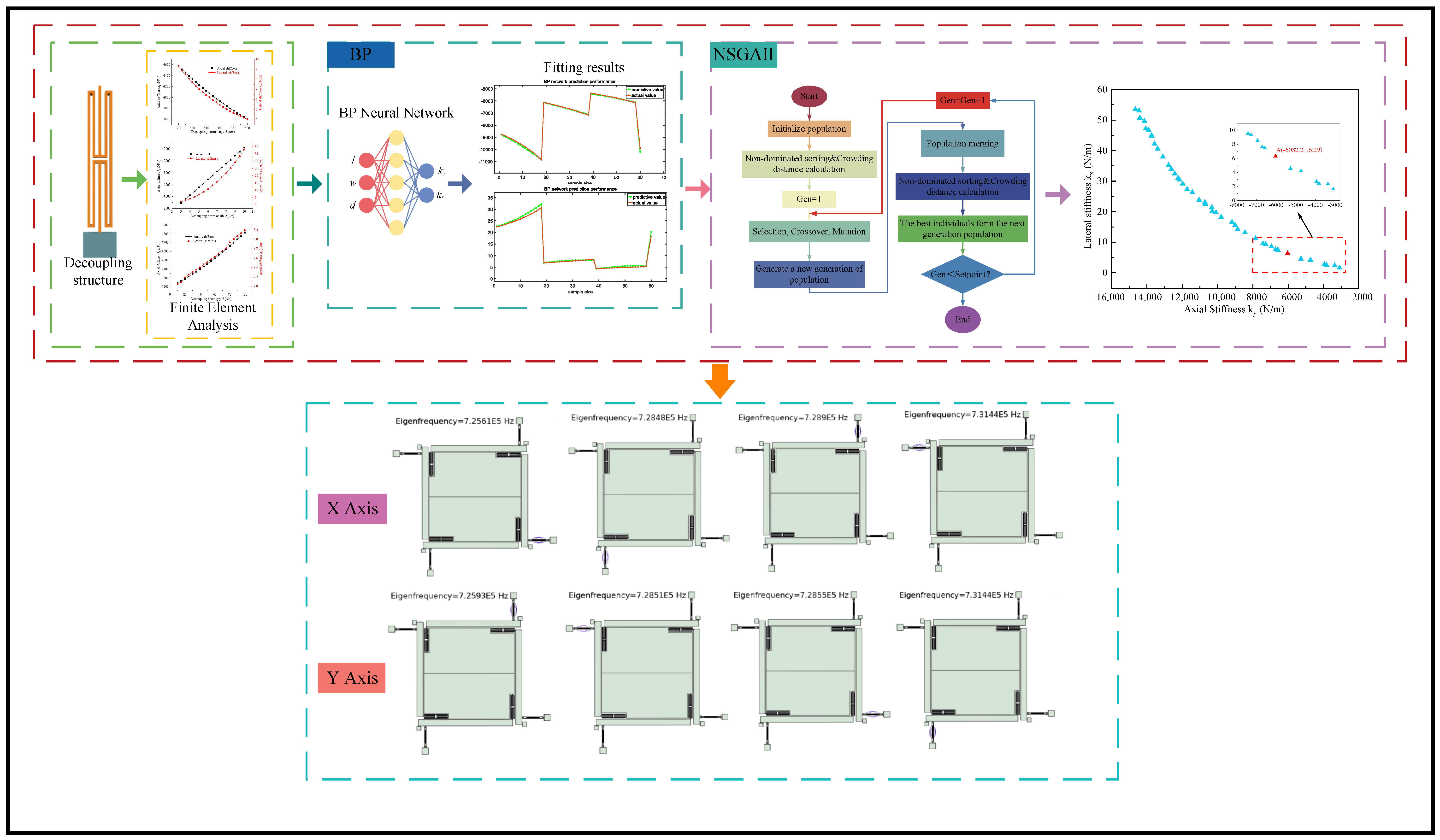

3. BP and NSGA-II Algorithm to Optimize Decoupled Structures
3.1. Optimization Principles and Processes
3.2. Optimization Results
4. Overall Performance Analysis of Accelerometer

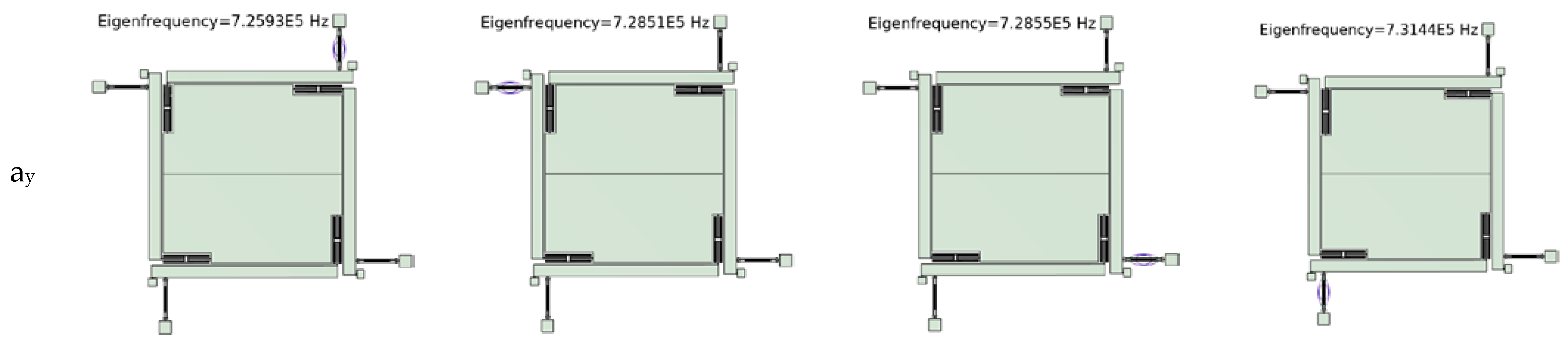

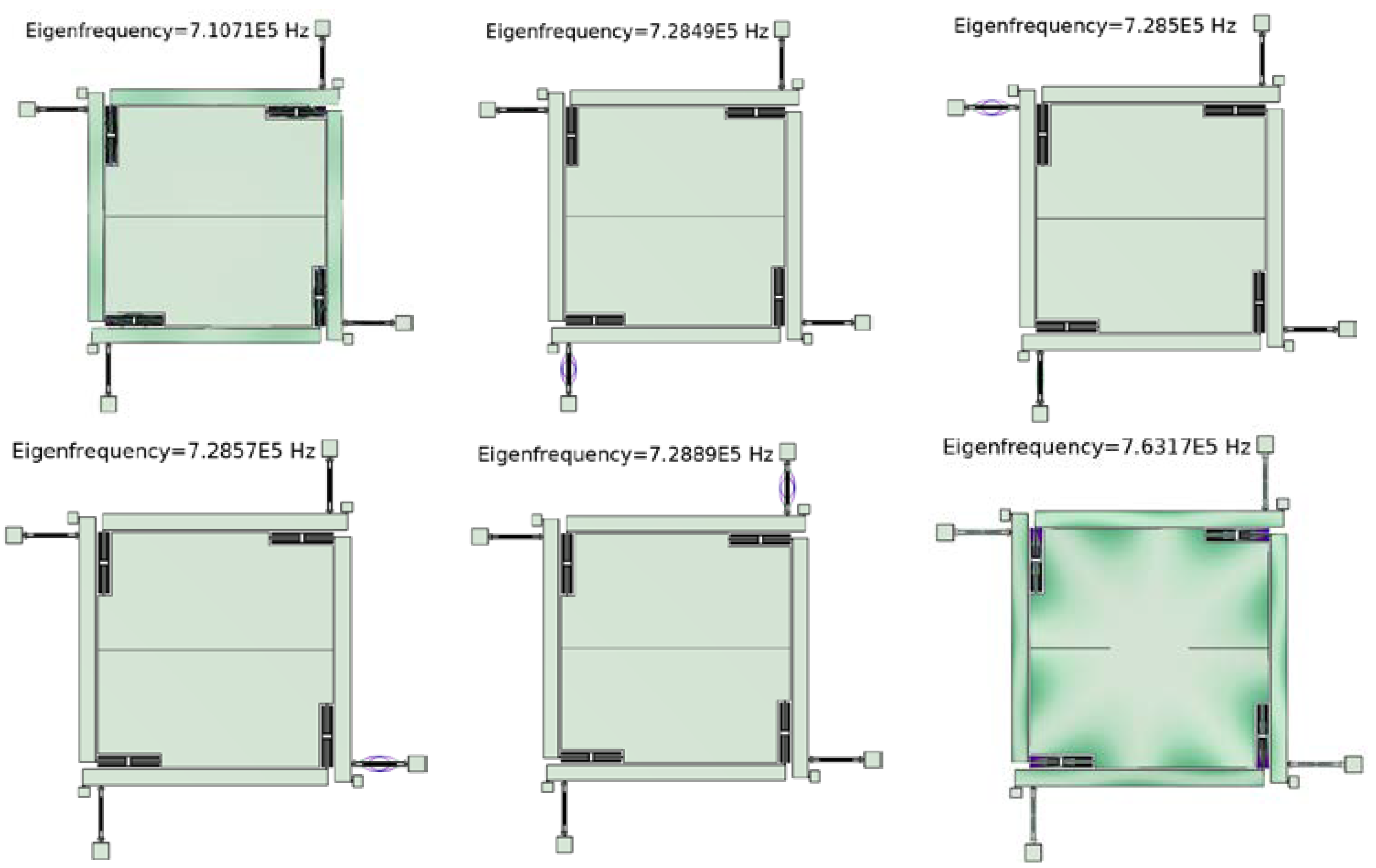

4.1. Modal Analysis

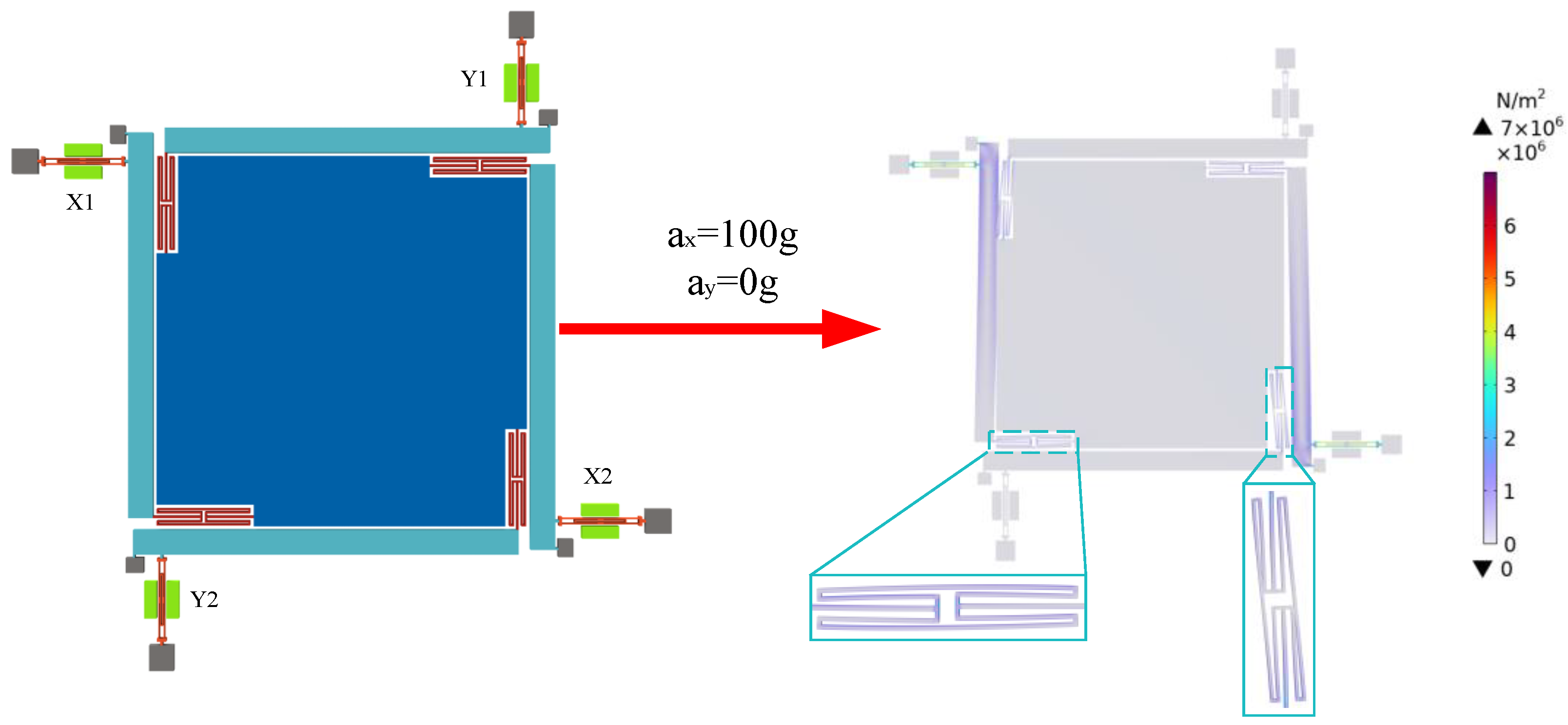

4.2. Impact Resistance Analysis
4.3. The Impact of Environmental Factors
4.4. Sensitivity and Cross-Axis Sensitivity Analysis
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Yazdi, N.; Najafi, K.; Salian, A. A high-sensitivity silicon accelerometer with a folded-electrode structure. J. Microelectromech. Syst. 2003, 12, 479–486. [Google Scholar] [CrossRef]
- Ayazi, F.; Najafi, K. A HARPSS polysilicon vibrating ring gyroscope. J. Microelectromech. Syst. 2001, 10, 169–179. [Google Scholar] [CrossRef]
- Yang, H.H.; Myung, N.V.; Yee, J.; Park, D.-Y.; Yoo, B.-Y.; Schwartz, M.; Nobe, K.; Judy, J.W. Feeromagnetic micromechanical magnetometer. Sens. Actuators A Phys. 2002, 97, 88–97. [Google Scholar] [CrossRef]
- Lee, J.-D. A thermal inkjet printhead with a monolithically fabricated nozzle plate and self-aligned ink feed hole. J. Microelectromech. Syst. 1999, 8, 229–236. [Google Scholar]
- Rebello, K. Applications of MEMS in Surgery. Proc. IEEE 2004, 92, 43–55. [Google Scholar] [CrossRef]
- Kotzar, G.; Freas, M.; Abel, P.; Fleischman, A.; Roy, S.; Zorman, C.; Moran, J.M.; Melzak, J. Evaluation of MEMS materials of construction for implantable medical devices. Biomaterials 2002, 23, 2737–2750. [Google Scholar] [CrossRef]
- Liu, R.; Nilchi, J.N.; Li, W.C.; Nguyen, C.T.C. Soft-impacting micromechanical resoswitch zero-quiescent power AM receiver. In Proceedings of the 2016 IEEE 29th Interational Conference on Micro Electro Mechanical Systems (MEMS), Shanghai, China, 24–28 January 2016; pp. 51–54. [Google Scholar]
- Seshia, A.; Palaniapan, M.; Roessig, T.; Howe, R.; Gooch, R.; Schimert, T.; Montague, S. A vacuum packaged surface micromachined resonant accelerometer. J. Microelectromech. Syst. 2002, 11, 784–793. [Google Scholar] [CrossRef]
- Aikele, M.; Bauer, K.; Ficker, W.; Neubauer, F.; Prechtel, U.; Schalk, J.; Seidel, H. Resonant accelerometer with self-test. Sens. Actuators A Phys. 2001, 92, 161–167. [Google Scholar] [CrossRef]
- Zou, X.; Thiruvenkatanathan, P.; Seshia, A.A. A high-resolution micro-electro-mechanical resonant tilt sensor. Sens. Actuators A Phys. 2014, 220, 168–177. [Google Scholar] [CrossRef]
- Mustafazade, A.; Pandit, M.; Zhao, C.; Sobreviela, G.; Du, Z.; Steinmann, P.; Zou, X.; Howe, R.T.; Seshia, A.A. A vibrating beam MEMS accelerometer for gravity and seismic measurements. Sci. Rep. 2020, 10, 10415. [Google Scholar] [CrossRef] [PubMed]
- Farahani, H.; Mills, J.K.; Cleghorn, W.L. Design, fabrication and analysis of micromachined high sensitivity and 0% cross-axis sensitivity capacitive accelerometers. Microsyst. Technol. 2009, 15, 1815–1826. [Google Scholar] [CrossRef]
- Han, X.; Mao, Q.; Zhao, L.; Li, X.; Wang, L.; Yang, P.; Lu, D.; Wang, Y.; Yan, X.; Wang, S.; et al. Novel resonant pressure sensor based on piezoresistive detection and symmetrical in-plane mode vibration. Microsyst. Nanoeng. 2020, 6, 95. [Google Scholar] [CrossRef] [PubMed]
- Liu, X.; Wang, Y.; Le, X.; Xu, Z.; Wu, C.; Xie, J. A dual-driving piezoelectric DETF resonator with high quality factor and low multimode effect. J. Micromech. Microeng. 2018, 28, 105006. [Google Scholar] [CrossRef]
- Yang, B.; Zhao, H.; Dai, B.; Liu, X. A new silicon biaxial decoupled resonant micro-accelerometer. Microsyst. Technol. 2015, 21, 109–115. [Google Scholar] [CrossRef]
- Ding, H.; Zhao, J.; Ju, B.-F.; Xie, J. A high-sensitivity biaxial resonant accelerometer with two-stage microleverage mechanisms. J. Micromech. Microeng. 2015, 26, 015011. [Google Scholar] [CrossRef]
- Ma, H.; Zhang, Y.; Sun, S.; Liu, T.; Shan, Y. A comprehensive survey on NSGA-II for multi-objective optimization and applications. Artif. Intell. Rev. 2023, 56, 15217–15270. [Google Scholar] [CrossRef]
- Lv, M.; Li, P.; Miao, J.; Qiao, Q.; Liang, R.; Li, G.; Zhuang, X. Design and Optimization of MEMS Resonant Pressure Sensors with Wide Range and High Sensitivity Based on BP and NSGA-II. Micromachines 2024, 15, 509. [Google Scholar] [CrossRef] [PubMed]
- Zhang, L.; Li, P.; Liu, J.; Zhuang, X. Design and optimization of a runway resonator sensor based on BP-NSGA II for anaemic disease. Opt. Rev. 2024, 31, 54–64. [Google Scholar]
- Ding, H.; Ma, Y.; Guan, Y.; Ju, B.-F.; Xie, J. Duplex mode tilt measurements based on a MEMS biaxial resonant accelerometer. Sens. Actuators A Phys. 2019, 296, 222–234. [Google Scholar] [CrossRef]
- Ding, H.; Zhao, J.; Ju, B.F.; Xie, J. A new analytical model of single-stage microleverage mechanism in resonant accelerometer. Microsyst. Technol. 2016, 22, 757–766. [Google Scholar] [CrossRef]
- Chen, J.; Liu, Z.; Yin, Z.; Liu, X.; Li, X.; Yin, L.; Zheng, W. Predict the effect of meteorological factors on haze using BP neural network. Urban Clim. 2023, 51, 101630. [Google Scholar] [CrossRef]
- Liu, H. Optimal selection of control parameters for automatic machining based on BP neural network. Energy Rep. 2022, 8, 7016–7024. [Google Scholar] [CrossRef]
- Wang, G.; Ma, H.; Qin, L.; Wu, S.; Ren, B. Optimal Power Flow of Low Carbon Power System Based on NSGA2 Algorithm and Carbon Flow Theory. In Proceedings of the 2022 IEEE 2nd International Conference on Digital Twins and Parallel Intelligence (DTPI), Boston, MA, USA, 24–28 October 2022; pp. 1–6. [Google Scholar]
- Niu, W.; Huang, R.; Han, J.; Dong, L. A Dual-Axis Bulk Micromachined Resonant Accelerometer with Low Cross-Axis Sensitivity Fabricated with Masked–Maskless Etching. IEEE Sens. J. 2019, 19, 78–87. [Google Scholar] [CrossRef]
- Huang, H.; Fang, W.; Wang, C.; Bai, J.; Wang, K.; Lu, Q. Investigation of the Influence of Temperature and Humidity on the Bandwidth of an Accelerometer. Micromachines 2021, 12, 860. [Google Scholar] [CrossRef] [PubMed]
- Tang, Y.; Zhu, F.; Cheng, Y. For Safer High-Speed Trains: A Comprehensive Research Method of Electromagnetic Interference on Speed Sensors. IEEE Instrum. Meas. Mag. 2021, 24, 96–103. [Google Scholar] [CrossRef]
- Yin, Y.; Fang, Z.; Liu, Y.; Han, F. Temperature-Insensitive Structure Design of Micromachined Resonant Accelerometers. Sensors 2019, 19, 1544. [Google Scholar] [CrossRef]
- Wang, S.; Wei, X.; Zhao, Y.; Jiang, Z.; Shen, Y. A MEMS resonant accelerometer for low-frequency vibration detection. Sens. Actuators A Phys. 2018, 283, 151–158. [Google Scholar] [CrossRef]
l/µm | w/µm | d/µm | ky/N·m−1 | kx/N·m−1 |
---|---|---|---|---|
255 | 5 | 10 | 7090.187181 | 11.07419712 |
260 | 5 | 10 | 6973.500697 | 10.47120419 |
330 | 5 | 10 | 5681.172594 | 5.291005291 |
335 | 5 | 10 | 5604.75283 | 5.050505051 |
245 | 4 | 10 | 5543.237251 | 7.092198582 |
250 | 4 | 10 | 5452.562704 | 6.711409396 |
285 | 6 | 10 | 7977.026165 | 12.80409731 |
290 | 6 | 10 | 7857.92865 | 12.18026797 |
300 | 5 | 35 | 6397.952655 | 7.299270073 |
300 | 5 | 40 | 6447.453256 | 7.352941176 |
250 | 5 | 35 | 7515.971439 | 12.40694789 |
250 | 5 | 40 | 7584.951456 | 12.56281407 |
350 | 5 | 25 | 5495.109353 | 4.566210046 |
350 | 5 | 30 | 5533.115697 | 4.587155963 |
350 | 5 | 35 | 5568.548836 | 4.62962963 |
… | … | … | … | … |
Parametric | Notation | Value |
---|---|---|
Proof of mass area | Sproof | 1.25 × 10−6 m2 |
Thicknesses | t | 35 µm |
Decoupling beam length | l | 313 µm |
Decoupling beam width | w | 5 µm |
Decoupling gap | d | 20 µm |
Lever beam length | lg | 1250 µm |
Lever beam width | wg | 80 µm |
Resonant beam length | lx | 250 µm |
Coupling beam length | lo | 160 µm |
Material | Young’s Modulus (Pa) | Poisson’s Ratio | Density (kg/m3) | CTE (1/K) | Thermal Conductivity (W/(m·K)) |
---|---|---|---|---|---|
monocrystalline silicon | 170 × 109 | 0.28 | 2329 | 2.6 × 10−6 | 130 |
Reference | Weight of the Mass (kg) | Thickness (µm) | Resonant Frequency (kHz) | Sensitivity (Hz/g) | Cross-Axis Sensitivity | Source of Results |
---|---|---|---|---|---|---|
This work | 1.019 × 10−7 | 35 | 744 | 59.1 Hz/g (Y-axis) 59 Hz/g (X-axis) | 0.508% (Y-axis) 0.339% (X-axis) | Simulation |
Yang et al. [15] | 3.76 × 10−8 | \ | 24 (Y-axis) 27 (X-axis) | 51.64 Hz/g (Y-axis) 52.57 Hz/g (X-axis) | 1.33% (Y-axis) 1.08% (X-axis) | Experiment |
Ding et al. [16] | 5.825 × 10−8 | 25 | 290 | 275 Hz/g | 3.4% | Experiment |
Niu et al. [25] | 1.24 × 10−6 | \ | 62 | 12.24 Hz/g (Y-axis) 21.30 Hz/g (X-axis) | 1.55% (Y-axis) 1.92% (X-axis) | Experiment |
Wang et al. [29] | 1.84 × 10−7 | \ | \ | 1153.3 Hz/g | 1.33% | Experiment |
