Bioinspired Design and Computational Prediction of SCS Nickel Pincer Complexes for Hydrogenation of Carbon Dioxide

by
Xiaoyun Liu
1,2,3,
Bing Qiu
1,2,3 and
Xinzheng Yang
1,2,3,*
1
State Key Laboratory for Structural Chemistry of Unstable and Stable Species, Institute of Chemistry Chinese Academy of Sciences, Beijing 100190, China
2
School of Chemical Sciences, University of Chinese Academy of Sciences, Beijing 100049, China
3
Beijing National Laboratory for Molecular Sciences, CAS Research/Education Center for Excellence in Molecular Sciences, Beijing 100190, China
*
Author to whom correspondence should be addressed.
Catalysts 2020, 10(3), 319; https://doi.org/10.3390/catal10030319
Submission received: 25 February 2020 / Revised: 6 March 2020 / Accepted: 6 March 2020 / Published: 11 March 2020
(This article belongs to the Special Issue Feature Papers to Celebrate "Computational Catalysis"—Trends and Outlook)
Browse Figures
Versions Notes

Abstract

:
Inspired by the structures of the active site of lactate racemase and H2 activation mechanism of mono-iron hydrogenase, we proposed a series of sulphur–carbon–sulphur (SCS) nickel complexes and computationally predicted their potentials for catalytic hydrogenation of CO2. Density functional theory calculations reveal a metal–ligand cooperated mechanism with the participation of a sulfur atom in the SCS pincer ligand as a proton receiver for the heterolytic cleavage of H2. For all newly proposed complexes containing functional groups with different electron-donating and withdrawing abilities in the SCS ligand, the predicted free energy barriers for the hydrogenation of CO2 to formic acid are in a range of 22.2–25.5 kcal/mol in water. Such a small difference in energy barriers indicates limited contributions of those functional groups to the charge density of the metal center. We further explored the catalytic mechanism of the simplest model complex for hydrogenation of formic acid to formaldehyde and obtained a total free energy barrier of 34.6 kcal/mol for the hydrogenation of CO2 to methanol.

Graphical Abstract

1. Introduction

Increasingly severe climate change is driving people to look for effective ways to reduce the concentration of greenhouse gases, especially carbon dioxide, in the atmosphere [1,2,3]. Transition metal-catalyzed CO2 reduction has attracted increasing attention because it provides a promising way to use CO2 as an abundant and non-toxic carbon source for the synthesis of valuable chemicals and fuels [4,5,6]. With the proposal of the “methanol economy” by Olah and co-workers [7,8,9], catalytic hydrogenation of CO2 to methanol (CO2 + 3H2 → CH3OH + H2O) has become one of the most attractive strategies for the utilization of CO2 as C1 building block and potential hydrogen storage material [10,11,12,13,14]. The above reaction usually contains three cascade catalytic cycles, CO2 + H2 → HCOOH, HCOOH + H2 → CH2O + H2O, and CH2O + H2 → CH3OH.
Although people have achieved some progresses in homogeneous catalytic hydrogenation of CO2 with the development of base metal iron [15,16,17], cobalt [18], and manganese [19] catalysts in recent years, most of the experimentally reported efficient CO2 hydrogenation catalysts contain noble metals and air- and moisture-sensitive phosphine ligands [6,20,21,22,23,24,25,26,27,28,29,30,31,32]. For the catalytic hydrogenation of CO2 to methanol reaction, only a few base metal catalysts are reported so far. For example, Beller and co-workers [18] recently reported a homogeneous cobalt/triphos-based catalyst for the reduction of CO2 at 70 bar of H2 and 10 bar of CO2 under 100 °C and production of methanol with turnover numbers (TONs) up to 78. Pombeiro and co-workers [16] reported direct synthesis of methanol from CO2 and H2 catalyzed by an Fe(II) scorpionate complex achieved 44% yield of methanol with TONs and turnover frequencies (TOFs) up to 2387 and 167 h−1, respectively, at 80 °C and 75 pressure. Bernskoetter and co-workers [17] reported an Fe(II) pincer complex for homogeneously catalytic conversion of H2 and CO2 to methanol with 250 psi of CO2 and 1150 psi of H2 at 100 °C with a TON of 590. Prakash and co-workers [19] investigated phosphorus–nitrogen–phosphorus (PNP) manganese pincer complexes for homogeneous hydrogenation of CO2 to methanol at 80 bar and 150 °C with TONs up to 36. We can see those experimentally reported base metal catalysts relied on rigid reaction conditions and have rather low activities or methanol selectivity. The rational design of cost-effective non-noble metal catalysts for efficient conversion of H2 and CO2 to methanol under mild conditions (<100 °C) is still highly desirable and challenging. In addition to the above experimental studies, Yang and co-workers [33,34,35,36,37] computationally designed several Mn, Fe, and Co complexes as potential catalysts for the production of methanol from H2 and CO2. Those bio-inspired design and computational predictions indicate that metal–ligand cooperation (MLC) is essential for the formation of metal hydride complexes by heterolytic cleavage of H2 for the reductions of CO2 and formic acid. However, the application of nickel complexes for catalytic hydrogenation of CO2 to methanol is still insufficiently investigated.
In our recent study, we computationally predicted a series of scorpion-like sulphur–carbon–sulphur (SCS) nickel complexes as a mimic of the active site of lactate racemase [38] for lactate racemization [39] and dehydrocoupling of ammonia–borane for transfer hydrogenation of ketones and imines [40]. However, those scorpion-like (SCS)Ni complexes are not good candidates for hydrogenation reactions because of their high barriers for H2 activation. In Yang and Hall’s computational study of monoiron hydrogenase catalysis [41], they found the heterolytic cleavage of H2 by Fe and sulfide ligand has a rather low free energy barrier of 6.6 kcal/mol. Such results indicate that the metal center and sulfide ligand may cooperate as an intramolecular frustrated Lewis pair (FLP) for H2 activation. Inspired by the above findings, we would like to explore the potentials of SCS nickel pincer structures for catalytic H2 activation and (de)hydrogenation reactions.
As shown in Figure 1, we proposed an SCS nickel hydride complex (1) by removing the imidazole tail, replacing the substituent group coordinated to Ni with a hydride, and adding a proton to the sulfur atom (S1) in the amine side arm of the SCS ligand. 1′ is an isomer of 1 with the proton on the other sulfur atom (S2) in the SCS ligand. A is an anionic complex with deprotonated sulfur. Our density functional theory (DFT) calculations indicate that A and 1′ are 10.3 and 13.2 kcal/mol less stable than 1, respectively, in water.
Hu and co-workers [42] recently reported three SCS nickel pincer complexes with symmetric C=O group in the arms of the pincer ligand as functional models of lactate racemase and studied their catalytic properties. Their DFT calculations suggest that the pyridinium carbon atom coordinated to Ni act as a hydride acceptor for lactate racemization, and the β-hydrogen elimination for the formation of Ni–H structure is energetically prohibitive. Figure 1 also lists a Ni hydride complex B with symmetric SCS pincer ligand and its protonated structure C, which is 7.3 kcal/mol less stable than B in water. Such results indicate that the C(H)(NH2) group in the SCS ligand significantly increased the nucleophilicity of its connecting sulfur atom and is likely to facility H2 activation. We also calculated the transition state for C to CO2 hydride transfer and obtained a free energy barrier of 36.3 kcal/mol. Therefore, the symmetric Ni complexes with two C=O groups in the SCS ligand are unlikely to catalyze the hydrogenation of CO2.
With the above initial analysis, we believe 1 is a relatively stable nickel hydride complex and could potentially be a catalyst or intermediate for H2 activation and (de)hydrogenation reactions. We further investigated the detailed reaction mechanism of 1 catalyzed hydrogenation of CO2 to formic acid, analyzed the influence of various substitutes in the SCS pincer ligand to energy barriers, and examined the catalytic activity of 1 for hydrogenation of formic acid to methanol.

2. Results and Discussion

2.1. Predicted Catalytic Cycles for the Hydrogenation of CO2 to Formic Acid

Using 1 as the starting point of the reaction, we proposed a plausible catalytic cycle (Cycle 1, Scheme 1) for the hydrogenation of CO2 to formic acid based on DFT calculations. The corresponding relative free energies in the reaction pathway and optimized key structures in Cycle 1 are displayed in Figure 2 and Figure 3, respectively.
At the beginning of the reaction, a formate anion was formed with a CO2 molecule attacking 1 and taking the hydride on Ni through TS1,2 (Figure 3). The free energy barrier for hydride transfer from Ni to C was 10.2 kcal/mol. The formate anion in 2 could easily dissociate and come back for the formation of a much more stable intermediates 4, which was 12.9 kcal/mol more stable than 1 because of the formation of a strong Ni−O bond (1.917Å) in it. Then the proton on S1 transferred to the O atom bonding to Ni through TS4,5 and formed a formic acid molecule with a free energy barrier of 20.5 kcal/mol. The Ni⋯O distance in 5 was slightly elongated to 2.04 Å, which indicates a weaker interaction between Ni and O after the formation of the O−H bond. The HCOOH/H2 exchange in 5 happened quickly and formed a 2.1 kcal/mol more stable dihydrogen complex 7. The intramolecular H2 cleavage in 7 for the regeneration of 1 with the assistance of a S1 atom in the SCS ligand had a free energy barrier of 20.8 kcal/mol (7 → TS7,1). We also examined the stability of an isomer of 4 with a proton on S2, which could be formed by transferring the hydroxyl proton nearby the Ni in 5 to S2 through TS5,6 with a free energy barrier of 29.3 kcal/mol, and found 6 was 9.1 less stable than 4. The relative energies in Figure 2 show 4 and TS1,2 were the rate-determining states in Cycle 1 with a total free energy barrier of 23.2 kcal/mol (4 → TS1,2), which indicates the reaction could easily happen at room temperature for a quick formation of formic acid.

2.2. Influence of Substituents in the SCS Ligand

To understand the influence of various functional groups in the SCS pincer ligand to the catalytic activity and find out potential nickel complexes with better catalytic performance, we built ten SCS nickel complexes (1a–1j, Figure 4) by replacing the amino hydrogens (R) and the methyl group in the pyridinium ring (R′) in 1 with various substituents. Considering the difficulties in synthesizing asymmetric SCS pincer ligand, we also proposed five complexes with symmetrical amine groups in the SCS pincer ligand (1′k–1′o, Figure 4). Similar nickel complexes with symmetrical amine groups in SCS ligand were recently reported by Hu and co-workers [43]. Since the free energy profile in Figure 2 indicates that 4 and TS1,2 were the rate-determining states in Cycle 1, and TS7,1 was very close to TS1,2 in relative energy, we calculated the relative free energies of 4 → TS1,2 and 4 → TS7,1 with different functional groups (Table 1).
Comparing the calculated relative free energies listed in Table 1, we can see complex 1c with R = Br and R′ = CH3 had the lowest total free energy barrier of 22.2 kcal/mol, while 1′o had the highest barrier of 25.5 kcal/mol. Such a 3.3 kcal/mol difference in free energy barriers indicates that the substituents at R and R′ in the SCS ligand have moderate influences on catalytic activity because those functional groups are far away from the reaction center and have limited contributions to the electron density on nickel.

2.3. Hydrogenation of Formic Acid to Formaldehyde and Water

The relative free energies listed in Table 1 indicate 1 and its derivatives were promising candidates for catalytic hydrogenation of CO2 to formic acid under mild conditions. We further investigated the catalytic activity of 1 for hydrogenation of formic acid. Scheme 2 and Figure 5 are a predicted mechanism for the hydrogenation of HCOOH to CH2O and H2O catalyzed by 1 (Cycle 2), and the corresponding reaction coordinate with relative free energies. The optimized structures of stable intermediates, 8′ and 12, and transition states for hydride transfer (TS1,8), proton transfers (TS9,10 and TS11,12), and C−O bond cleavages (TS10,11 and TS13,14) are displayed in Figure 6.
When a formic acid molecule approaches 1, it can take the hydride on Ni and forms an anionic group HOCH2O− through an 18.5 kcal/mol barrier transition state TS1,8. HOCH2O− in 8 could easily reorient and form an 18.4 kcal/mol more stable isomer 8′ with a strong Ni−O bond (1.893 Å). Then the proton on S1 transferred to the oxygen atom bonding to Ni and formed a methanediol molecule through TS8′,9. After the formation of methanediol in 9, there are two possible ways for the formation of formaldehyde, intramolecular proton transfer, and deprotonation to solvent. In the intramolecular proton transfer pathway, the hydroxyl proton far away from Ni transfers to S1 and forms intermediate 10. Then a CH2O molecule can easily be released with C−O bond cleavage through TS10,11, which was only 0.8 kcal/mol higher than 10. The hydroxyl group left on Ni then takes the proton on S1 and forms a water molecule in intermediate 12. Instead of intramolecular proton transfer, the hydroxyl proton far away from Ni could be deprotonated in the solvent and form an anionic intermediate 13 with a free energy barrier of 31.5 kcal/mol. The following transition state (TS13,14) for the release of formaldehyde with a C−O bond cleavage was only 1.7 kcal/mol higher than 13. The hydroxyl anion in 14 can easily recapture a proton in the solvent and form a water molecule. The H2O/H2 exchange in 12 for the formation of 7 was an only 2.9 kcal/mol uphill step.
It is worth noting that the relative free energies of 13 and TS13,14 were calculated based on an experimental value of −262.5 kcal/mol for the solvent-free energy of the proton in water [44]. The solvent environment will strongly influence the free energy barriers of this reaction pathway and may lead to a lower total free energy barrier or even a different mechanism for hydrogenation of CO2 and formic acid [45].

2.4. Hydrogenation of Formaldehyde to Methanol

Scheme 3 is the mechanism for the hydrogenation of formaldehyde to methanol (Cycle 3). The corresponding free energy profile and optimized key structures in Cycle 3 are displayed in Figure 7 and Figure 8, respectively. When a formaldehyde molecule approaches 1, the hydride on Ni can easily be transferred to its carbon atom for the formation of a methoxy anion through transition state TS1,15 (Figure 8), which was only 7.3 kcal/mol higher than 1 in free energy. The rotation of methoxy anion in 15 formed a 22.5 kcal/mol more stable isomer 15′ with a strong Ni‒O bond (1.881 Å). Then a methanol molecule was formed with the transfer of the proton on S1 to the oxygen in methoxy through TS15′,16. The CH3OH/H2 exchange in 16 for the regeneration of 7 was a 6.0 kcal/mol uphill step. The total free energy barrier of Cycle 3 was 25.8 kcal/mol (16 → TS7,1).

3. Computational Details

Gaussian 09 suite of programs (Revision E.01, Gaussion, Inc., Wallingford, CT, USA, 2009) [46] were used for all DFT calculations with the M06 functional [47]. The all-electron 6-31++G(d,p) basis set [48,49,50] was used for H, C, N, O, and S atoms, while the Stuttgart relativistic effective core potential basis set (ECP10MDF) was used for Ni [51]. Numerical integrations were at the ultrafine grid level (99, 590). The reliability of M06 functional for this Ni catalytic system was evaluated by comparing the relative free energies between rate-determining states 4 and TS1, 2 using different density functionals, which are listed in Table S1. The ground states of key intermediates were confirmed as singlets through comparison with their optimized high-spin analogs (Table S2). All structures were fully optimized with the solvent effect corrections using the integral equation formalism polarizable continuum model (IEFPCM) [52] and the solvation model based on density (SMD) radii [53] for water, which could be an environmentally benign, low-cost, and universal solvent for future experimental study. For thermal corrections on optimized structures, 298.15 K temperature, 1 atm pressure, and harmonic potential approximation were used. The experimental value of −262.5 kcal/mol for the free energy of the proton in water [44] was used to calculate deprotonation free energies. Intermediates and transition states were validated through the number of imaginary vibrational modes shown in frequency calculation results. Intrinsic reaction coordinate (IRC) calculations confirmed all transition states were connecting proper reactants and products. The JIMP2 molecular visualizing and manipulating program (version 0.091, Texas A&M University, College Station, TX, USA, 2006) [54] was used to draw 3D molecular structure figures displayed in the text.

4. Conclusions

In summary, our computational study predicted a series of (SCS)Ni(II) pincer complexes as promising candidates for catalytic hydrogenation of CO2 to formic acid with free energy barriers in a range of 22.2–25.5 kcal/mol in an aqueous solvent. Our DFT calculations reveal a metal–ligand cooperative mechanism with the participation of a sulfur atom in the SCS pincer ligand for the heterolytic cleavage of H2. In general, the complexes with electron-donating groups have lower barriers for CO2 reduction. The free energy barrier differences for the formation of formic acid catalyzed by proposed nickel complexes with various functional groups at R and R′ positions were less than 3.3 kcal/mol, which indicates a moderate substituent effect for the catalytic activities. The above findings not only provide well-defined prototypical base metal complexes as promising candidates for catalytic hydrogenation of CO2 to formic acid but also point to a way to design efficient catalysts for hydrogenation and dehydrogenation reaction, in which the ligand sulfide group may play an essential role for H2 activation or formation through MLC.
Our further investigation of the catalytic activities of model complex 1 for hydrogenation of formic acid obtained a free energy barrier of 32.5 kcal/mol (12 → 8) for the formation of formaldehyde. The free energy barrier for hydrogenation of formaldehyde to methanol catalyzed by 1 was 25.8 kcal/mol (16 → TS7,1). It is worth noting that although 1 was described as the starting point of the catalytic cycle, it was actually an unstable intermediate in the reaction. The dihydrogen complex 7, which was a 10.9 kcal/mol more stable isomer of 1, should be considered as the real catalyst. By comparing all relative free energies in the above three catalytic cycles, we can conclude that the formation of HOCH2O− anion groups via hydride transfer from Ni to formic acid is the rate-determining step in the whole catalytic hydrogenation of CO2 to methanol reaction with a total free energy barrier of 34.6 kcal/mol (16 → 8). Although such a barrier is slightly too high for a reaction under mild conditions, it is a good starting point for further design of SCS nickel pincer complexes with improved catalytic activities for CO2 reduction and various (de)hydrogenation reactions.
Moreover, it is worth noting that the pH value of the solvent could impact the catalytic activities and the stability of proposed SCS nickel pincer complexes. Some CO2 will form hydrogen carbonate in water and make the solvent slightly acidic with the equilibria among dissolved CO2 gas, carbonic acid, and hydrogen carbonate. In a weak acidic environment, the solvent free energy of proton is slightly higher, which will lead to higher barriers for the deprotonation pathways in Cycle 1 and 2, and make the proposed Ni complexes less likely to be deprotonated, but will not strongly impact the overall barriers of the catalytic cycles.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/10/3/319/s1, Table S1: Absolute and relative free energies of rate-determining states 4 and TS1,2 calculated by using different density functionals, Table S2: Absolute and relative electronic energies of singlet and triplet states.

Author Contributions

Conceptualization, X.L. and X.Y.; Methodology, X.L. and B.Q.; Writing – original draft, X.L.; Writing—review and editing, B.Q. and X.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (21673250, 21703256, and 21873107).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sakakura, T.; Choi, J.C.; Yasuda, H. Transformation of Carbon Dioxide. Chem. Rev. 2007, 107, 2365–2387. [Google Scholar] [CrossRef] [PubMed]
  2. Cokoja, M.; Bruckmeier, C.; Rieger, B.; Herrmann, W.A.; Kuhn, F.E. Transformation of Carbon Dioxide with Homogeneous Transition-Metal Catalysts: A Molecular Solution to a Global Challenge? Angew. Chem. Int. Ed. Engl. 2011, 50, 8510–8537. [Google Scholar] [CrossRef] [PubMed]
  3. Eby, M.; Zickfeld, K.; Montenegro, A.; Archer, D.; Meissner, K.J.; Weaver, A.J. Lifetime of Anthropogenic Climate Change: Millennial Time Scales of Potential CO2 and Surface Temperature Perturbations. J. Clim. 2009, 22, 2501–2511. [Google Scholar] [CrossRef]
  4. Aresta, M. Carbon Dioxide as a Chemical Feedstock; Wiley-VCH: Weinheim, Germany, 2010. [Google Scholar]
  5. He, M.; Sun, Y.; Han, B. Green Carbon Science: Scientific Basis for Integrating Carbon Resource Processing, Utilization, and Recycling. Angew. Chem. Int. Ed. 2013, 52, 9620–9633. [Google Scholar] [CrossRef]
  6. Jessop, P.G.; Ikariya, T.; Noyori, R. Homogeneous Hydrogenation of Carbon Dioxide. Chem. Rev. 1995, 95, 259–272. [Google Scholar] [CrossRef]
  7. Olah, G.A. Beyond Oil and Gas: The Methanol Economy. Angew. Chem. Int. Ed. 2005, 44, 2636–2639. [Google Scholar] [CrossRef]
  8. Olah, G.A. The Methanol Economy. Chem. Eng. News 2003, 81, 5. [Google Scholar] [CrossRef]
  9. Olah, G.A.; Goeppert, A.; Surya Prakash, G.K. Chemical Recycling of Carbon Dioxide to Methanol and Dimethyl Ether: From Greenhouse Gas to Renewable, Environmentally Carbon Neutral Fuels and Synthetic Hydrocarbons. J. Org. Chem. 2009, 74, 487–498. [Google Scholar] [CrossRef]
  10. Nielsen, M.; Alberico, E.; Baumann, W.; Drexler, H.J.; Junge, H.; Gladiali, S.; Beller, M. Low-Temperature Aqueous-Phase Methanol Dehydrogenation to Hydrogen and Carbon Dioxide. Nature 2013, 495, 85–89. [Google Scholar] [CrossRef]
  11. Natte, K.; Neumann, H.; Beller, M.; Jagadeesh, R.V. Transition-Metal-Catalyzed Utilization of Methanol as a C1 Source in Organic Synthesis. Angew. Chem. Int. Ed. 2017, 56, 6384–6394. [Google Scholar] [CrossRef]
  12. Rodríguez-Lugo, R.E.; Trincado, M.; Vogt, M.; Tewes, F.; Santiso-Quinones, G.; Grützmacher, H. A Homogeneous Transition Metal Complex for Clean Hydrogen Production from Methanol-Water Mixtures. Nat. Chem. 2013, 5, 342–347. [Google Scholar] [CrossRef] [PubMed]
  13. Onishi, N.; Laurenczy, G.; Beller, M.; Himeda, Y. Recent Progress for Reversible Homogeneous Catalytic Hydrogen Storage in Formic Acid and in Methanol. Coordin. Chem. Rev. 2018, 373, 317–332. [Google Scholar] [CrossRef]
  14. Goeppert, A.; Czaun, M.; Jones, J.P.; Prakash, G.K.S.; Olah, G.A. Recycling of Carbon Dioxide to Methanol and Derived Products-Closing the Loop. Chem. Soc. Rev. 2014, 43, 7995–8048. [Google Scholar] [CrossRef] [PubMed]
  15. Bernskoetter, W.H.; Hazari, N. Reversible Hydrogenation of Carbon Dioxide to Formic Acid and Methanol: Lewis Acid Enhancement of Base Metal Catalysts. Acc. Chem. Res. 2017, 50, 1049–1058. [Google Scholar] [CrossRef] [PubMed]
  16. Ribeiro, A.P.C.; Martins, L.M.D.R.S.; Pombeiro, A.J.L. Carbon Dioxide-to-Methanol Single-Pot Conversion using a C-scorpionate Iron (II) Catalyst. Green Chem. 2017, 19, 4811–4815. [Google Scholar] [CrossRef]
  17. Lane, E.M.; Zhang, Y.; Hazari, N.; Bernskoetter, W.H. Sequential Hydrogenation of CO2 to Methanol Using a Pincer Iron Catalyst. Organometallics 2019, 38, 15, 3084–3091. [Google Scholar] [CrossRef]
  18. Schneidewind, J.; Adam, R.; Baumann, W.; Jackstell, R.; Beller, M. Low-Temperature Hydrogenation of Carbon Dioxide to Methanol with a Homogeneous Cobalt Catalyst. Angew. Chem. Int. Ed. 2017, 56, 1890–1893. [Google Scholar] [CrossRef]
  19. Kar, S.; Goppert, A.; Kothandaraman, J.; Prakash, G.K.S. Manganese-Catalyzed Sequential Hydrogenation of CO2 to Methanol via Formamide. ACS Catal. 2017, 7, 9, 6347–6351. [Google Scholar] [CrossRef]
  20. Artz, J.; Müller, T.E.; Thenert, K.; Kleinekorte, J.; Meys, R.; Sternberg, A.; Bardow, A.; Leitner, W. Sustainable Conversion of Carbon Dioxide: An Integrated Review of Catalysis and Life Cycle Assessment. Chem. Rev. 2018, 118, 434–504. [Google Scholar] [CrossRef]
  21. Kar, S.; Kothandaraman, J.; Goeppert, A.; Surya Prakash, G.K. Advances in Catalytic Homogeneous Hydrogenation of Carbon Dioxide to Methanol. J. CO2 Util. 2018, 23, 212–218. [Google Scholar] [CrossRef]
  22. Schmeier, T.J.; Dobereiner, G.E.; Crabtree, R.H.; Hazari, N. Secondary Coordination Sphere Interactions Facilitate the Insertion Step in an Iridium (III) CO2 Reduction Catalyst. J. Am. Chem. Soc. 2011, 133, 9274–9277. [Google Scholar] [CrossRef] [PubMed]
  23. Tominaga, K.; Sasaki, Y.; Watanabe, T.; Saito, M. Homogeneous Hydrogenation of Carbon Dioxide to Methanol Catalyzed by Ruthenium Cluster Anions in the Presence of Halide Anions. Bull. Chem. Soc. Jpn. 1995, 68, 2837–2842. [Google Scholar] [CrossRef]
  24. Kar, S.; Sen, R.; Goeppert, A.; Prakash, G.K.S. Integrative CO2 Capture and Hydrogenation to Methanol with Reusable Catalyst and Amine: Toward a Carbon Neutral Methanol Economy. J. Am. Chem. Soc. 2018, 140, 1580–1583. [Google Scholar] [CrossRef] [PubMed]
  25. Huff, C.A.; Sanford, M.S. Cascade Catalysis for the Homogeneous Hydrogenation of CO2 to Methanol. J. Am. Chem. Soc. 2011, 133, 18122–18125. [Google Scholar] [CrossRef] [PubMed]
  26. Rezayee, N.M.; Huff, C.A.; Sanford, M.S. Tandem Amine and Ruthenium Catalyzed Hydrogenation of CO2 to Methanol. J. Am. Chem. Soc. 2015, 137, 1028–1031. [Google Scholar] [CrossRef] [PubMed]
  27. Tominaga, K.-I.; Sasaki, Y.; Kawai, M.; Watanabe, T.; Saito, M. Ruthenium Complex Catalysed Hydrogenation of Carbon Dioxide to Carbon Monoxide, Methanol and Methane. J. Chem. Soc. Chem. Commun. 1993, 629–631. [Google Scholar] [CrossRef]
  28. Kothandaraman, J.; Goeppert, A.; Czaun, M.; Olah, G.A.; Prakash, G.K.S. Conversion of CO2 from Air into Methanol Using a Polyamine and a Homogeneous Ruthenium Catalyst. J. Am. Chem. Soc. 2016, 138, 778–781. [Google Scholar] [CrossRef]
  29. Wesselbaum, S.; Moha, V.; Meuresch, M.; Brosinski, S.; Thenert, K.M.; Kothe, J.; vom Stein, T.; Englert, U.; Hölscher, M.; Klankermayer, J.; et al. Hydrogenation of Carbon Dioxide to Methanol using a Homogeneous Ruthenium−Triphos Catalyst: From Mechanistic Investigations to Multiphase Catalysis. Chem. Sci. 2015, 6, 693–704. [Google Scholar] [CrossRef] [Green Version]
  30. Wesselbaum, S.; vom Stein, T.; Klankermayer, J.; Leitner, W. Hydrogenation of Carbon Dioxide to Methanol by Using a Homogeneous Ruthenium Phosphine Catalyst. Angew. Chem. Int. Ed. 2012, 51, 7499–7502. [Google Scholar] [CrossRef] [Green Version]
  31. Kar, S.; Sen, R.; Kothandaraman, J.; Goeppert, A.; Chowdhury, R.; Munoz, S.B.; Haiges, R.; Prakash, G.K.S. Mechanistic Insights into Ruthenium-Pincer-Catalyzed Amine-Assisted Homogeneous Hydrogenation of CO2 to Methanol. J. Am. Chem. Soc. 2019, 141, 7, 3160–3170. [Google Scholar] [CrossRef]
  32. Tsurusaki, A.; Murata, K.; Onishi, N.; Sordakis, K.; Laurenczy, G.; Himeda, Y. Investigation of Hydrogenation of Formic Acid to Methanol using H2 or Formic Acid as a Hydrogen Source. ACS Catal. 2017, 7, 1123–1131. [Google Scholar] [CrossRef]
  33. Wang, W.; Qiu, B.; Yang, X. Computational Prediction of Pentadentate Iron and Cobalt Complexes as a Mimic of Mono-iron Hydrogenase for the Hydrogenation of Carbon Dioxide to Methanol. Dalton Trans. 2019, 48, 8034–8038. [Google Scholar] [CrossRef] [PubMed]
  34. Yan, X.; Ge, H.; Yang, X. Hydrogenation of CO2 to Methanol Catalyzed by Cp*Co Complexes: Mechanistic Insights and Ligand Design. Inorg. Chem. 2019, 58, 5494–5502. [Google Scholar] [CrossRef] [PubMed]
  35. Ge, H.; Chen, X.; Yang, X. Hydrogenation of carbon dioxide to methanol catalyzed by iron, cobalt, and manganese cyclopentadienone complexes: Mechanistic insights and computational design. Chem. Eur. J. 2017, 23, 8850–8856. [Google Scholar] [CrossRef]
  36. Chen, X.; Ge, H.; Yang, X. Newly designed manganese and cobalt complexes with pendant amines for the hydrogenation of CO2 to methanol: A DFT study. Catal. Sci. Technol. 2017, 7, 348–355. [Google Scholar] [CrossRef]
  37. Chen, X.; Yang, X. Bioinspired Design and Computational Prediction of Iron Complexes with Pendant Amines for the Production of Methanol from CO2 and H2. J. Phys. Chem. Lett. 2016, 7, 1035–1041. [Google Scholar] [CrossRef]
  38. Desguin, B.; Zhang, T.; Soumillion, P.; Hols, P.; Hu, J.; Hausinger, R.P. A Tethered Niacin-Derived Pincer Complex with a Nickel-Carbon Bond in Lactate Racemase. Science 2015, 349, 66–69. [Google Scholar] [CrossRef]
  39. Qiu, B.; Yang, X. A Bio-inspired Design and Computational Prediction of Scorpion-Like SCS Nickel Pincer Complexes for Lactate Racemization. Chem. Commun. 2017, 53, 11410–11413. [Google Scholar] [CrossRef]
  40. Qiu, B.; Wang, W.; Yang, X. Computational Prediction of Ammonia-Borane Dehydrocoupling and Transfer Hydrogenation of Ketones and Imines Catalyzed by SCS Nickel Pincer Complexes. Front. Chem. 2019, 7, 627. [Google Scholar] [CrossRef] [Green Version]
  41. Yang, X.; Hall, M.B. Monoiron Hydrogenase Catalysis: Hydrogen Activation with the Formation of a Dihydrogen, Fe−Hδ−⋯Hδ+−O, Bond and Methenyl-H4MPT+ Triggered Hydride Transfer. J. Am. Chem. Soc. 2009, 131, 10901–10908. [Google Scholar] [CrossRef]
  42. Shi, R.; Wodrich, M.D.; Pan, H.; Tirani, F.F.; Hu, X. Functional Models of the Nickel Pincer Nucleotide Cofactor of Lactate Racemase. Angew. Chem. Int. Ed. 2019, 58, 16869–16872. [Google Scholar] [CrossRef] [PubMed]
  43. Xu, T.; Wodrich, M.D.; Scopelliti, R.; Corminboeuf, C.; Hu, X. Nickel Pincer Model of the Active Site of Lactate Racemase Involves Ligand Participation in Hydride Transfer. Proc. Natl. Acad. Sci. USA 2017, 114, 1242–1245. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Topol, I.A.; Tawa, G.J.; Burt, S.K.; Rashin, A.A. Calculation of Absolute and Relative Acidities of Substituted Imidazoles in Aqueous Solvent. J. Phys. Chem. A. 1997, 101, 10075–10081. [Google Scholar] [CrossRef]
  45. Wiedner, E.S.; Linehan, J.C. Making a Splash in Homogeneous CO2 Hydrogenation: Elucidating the Impact of Solvent on Catalytic Mechanisms. Chem. Eur. J. 2018, 24, 16964–16971. [Google Scholar] [CrossRef]
  46. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision E.01; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  47. Zhao, Y.; Truhlar, D.G. The M06 Suite of Density Functionals for Main Group Thermochemistry, Thermochemical Kinetics, Noncovalent Interactions, Excited States, and Transition Elements: Two New Functionals and Systematic Testing of Four M06-Class Functionals and 12 Other Functionals. Theor. Chem. Acc. 2008, 120, 215–241. [Google Scholar]
  48. Krishnan, R.; Binkley, J.S.; Seeger, R.; Pople, J.A. Self-Consistent Molecular Orbital Methods. XX. A Basis Set for Correlated Wave Functions. J. Chem. Phys. 1980, 72, 650–654. [Google Scholar] [CrossRef]
  49. Hariharan, P.C.; Pople, J.A. The Influence of Polarization Functions on Molecular Orbital Hydrogenation Energies. Theor. Chim. Acta 1973, 28, 213–222. [Google Scholar] [CrossRef]
  50. Hehre, W.J.; Ditchfield, R.; Pople, J.A. Self-Consistent Molecular Orbital Methods. XII. Further Extensions of Gaussian-Type Basis Sets for Use in Molecular Orbital Studies of Organic Molecules. J. Chem. Phys. 1972, 56, 2257–2261. [Google Scholar] [CrossRef]
  51. Martin, J.M.L.; Sundermann, A. Correlation Consistent Valence Basis Sets for Use with the Stuttgart-Dresden-Bonn Relativistic Effective Core Potentials: The Atoms Ga-Kr and In-Xe. J. Chem. Phys. 2001, 114, 3408–3420. [Google Scholar] [CrossRef] [Green Version]
  52. Tomasi, J.; Mennucci, B.; Cammi, R. Quantum Mechanical Continuum Solvation Models. Chem. Rev. 2005, 105, 2999–3093. [Google Scholar] [CrossRef]
  53. Marenich, A.V.; Cramer, C.J.; Truhlar, D.G. Universal Solvation Model Based on Solute Electron Density and on a Continuum Model of the Solvent Defined by the Bulk Dielectric Constant and Atomic Surface Tensions. J. Phys. Chem. B 2009, 113, 6378–6396. [Google Scholar] [CrossRef] [PubMed]
  54. Manson, J.; Webster, C.E.; Hall, M.B. JIMP2, version 0.091, A Free Program for Visualizing and Manipulating Molecules; Texas A&M University: College Station, TX, USA, 2006. [Google Scholar]
Catalysts 10 00319 g001 550
Figure 1. Proposed Ni pincer complex in this work (1) and its isomer with the proton on the other sulfur atom (1′), deprotonated structure of 1 (A), Ni hydride complex with Hu and co-workers’ symmetric SCS pincer ligand (B), and B with a proton on sulfur (C).
Figure 1. Proposed Ni pincer complex in this work (1) and its isomer with the proton on the other sulfur atom (1′), deprotonated structure of 1 (A), Ni hydride complex with Hu and co-workers’ symmetric SCS pincer ligand (B), and B with a proton on sulfur (C).
Catalysts 10 00319 g001
Catalysts 10 00319 sch001 550

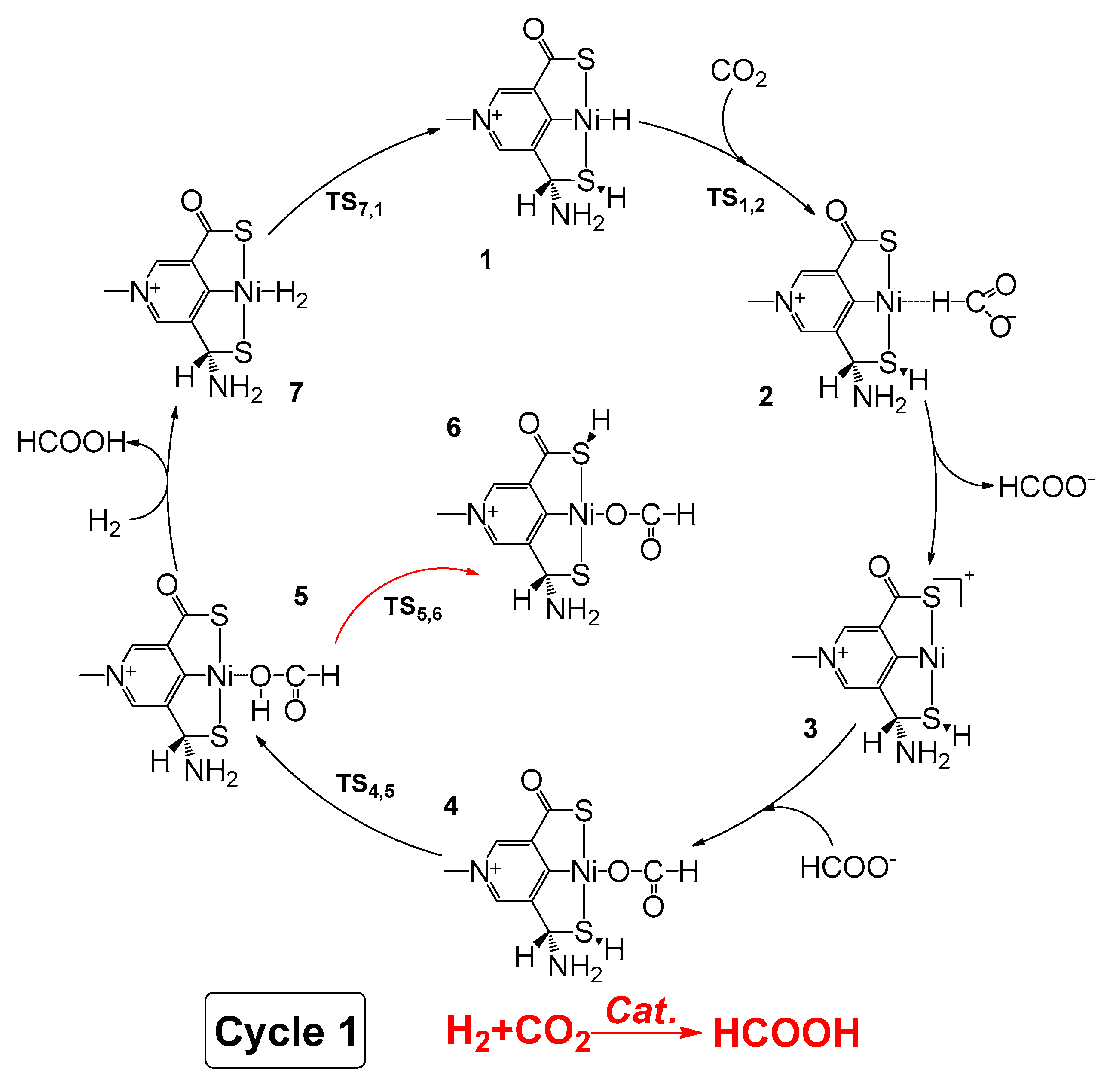

Scheme 1. Predicted catalytic cycle for hydrogenation of CO2 to formic acid (Cycle 1).
Scheme 1. Predicted catalytic cycle for hydrogenation of CO2 to formic acid (Cycle 1).
Catalysts 10 00319 sch001
Catalysts 10 00319 g002 550

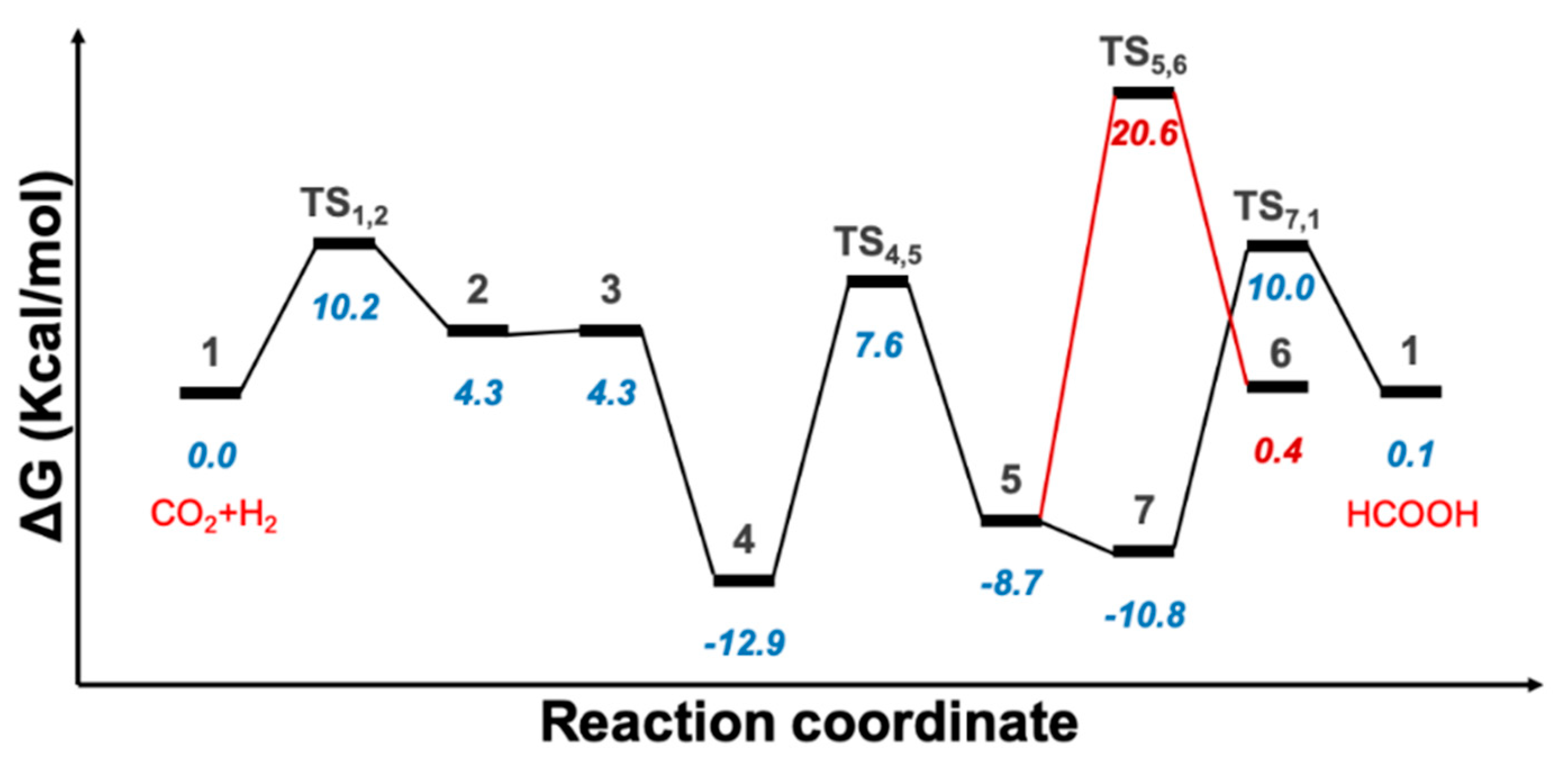

Figure 2. Free energy profile for the hydrogenation of CO2 to formic acid catalyzed by 1. Solvent corrected relative free energies are shown in italic with blue color.
Figure 2. Free energy profile for the hydrogenation of CO2 to formic acid catalyzed by 1. Solvent corrected relative free energies are shown in italic with blue color.
Catalysts 10 00319 g002
Catalysts 10 00319 g003 550

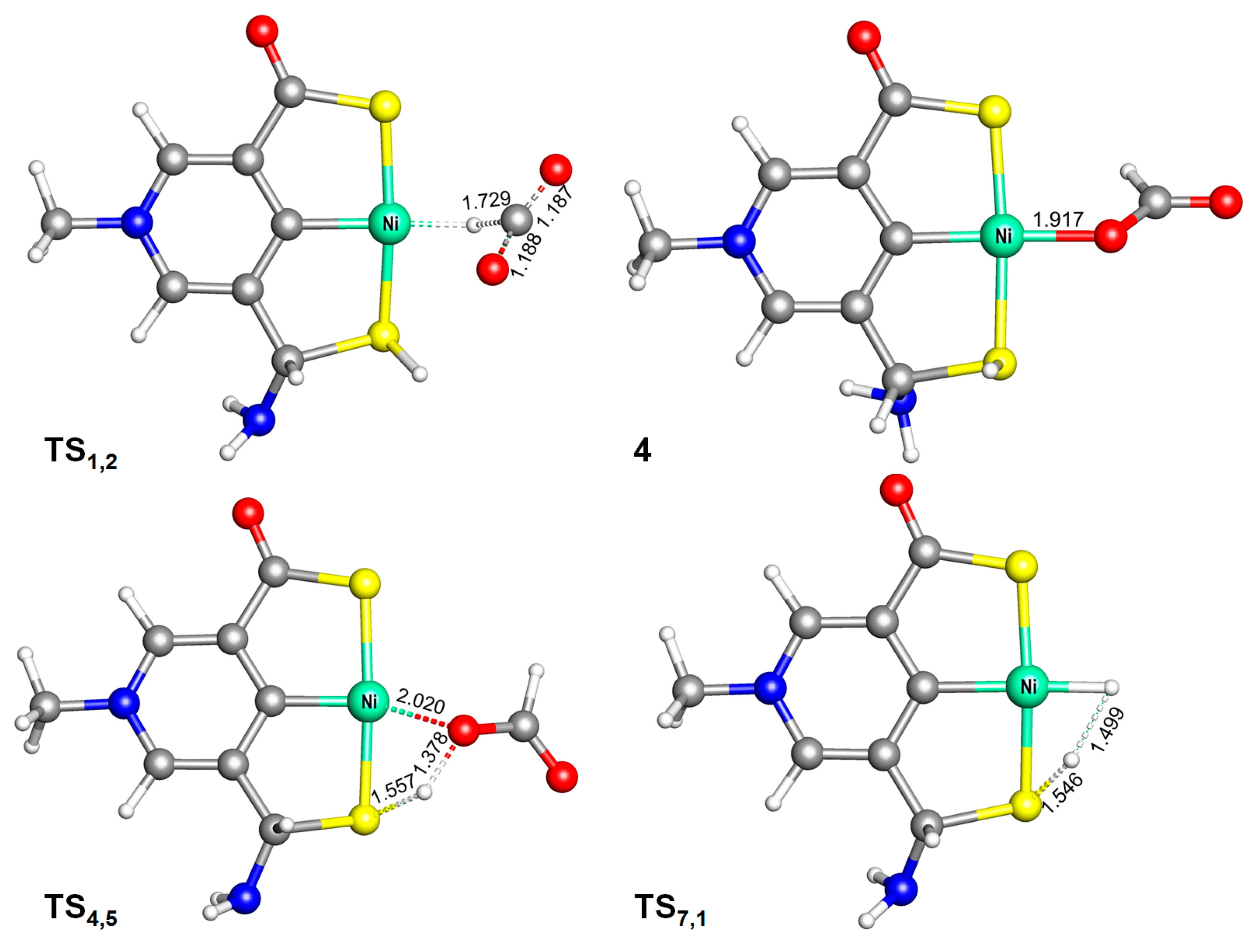

Figure 3. Optimized structures of TS1,2 (673.2i cm−1), 4, TS4,5 (1614.2i cm−1), and TS7,1 (1013.6i cm−1) in Cycle 1. Bond lengths are in Å.
Figure 3. Optimized structures of TS1,2 (673.2i cm−1), 4, TS4,5 (1614.2i cm−1), and TS7,1 (1013.6i cm−1) in Cycle 1. Bond lengths are in Å.
Catalysts 10 00319 g003
Catalysts 10 00319 g004 550

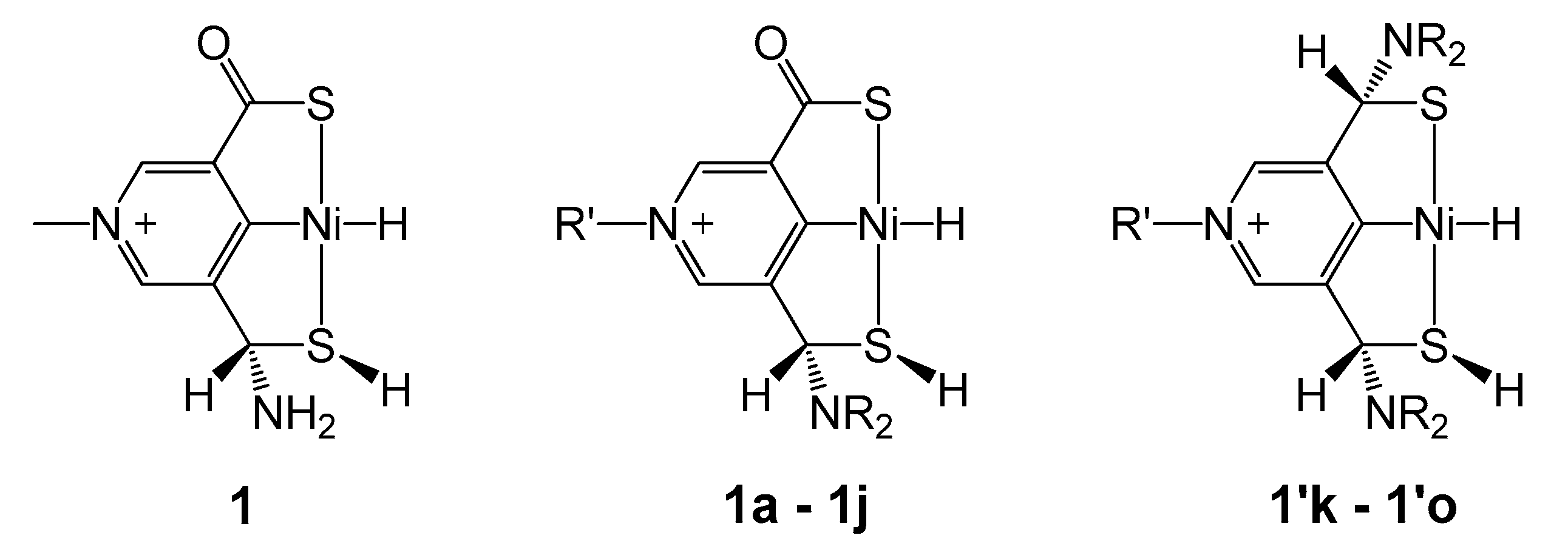

Figure 4. Proposed SCS nickel pincer complexes with different substituents at R and R′.
Figure 4. Proposed SCS nickel pincer complexes with different substituents at R and R′.
Catalysts 10 00319 g004
Catalysts 10 00319 sch002 550
Scheme 2. Predicted mechanism for the hydrogenation of formic acid to formaldehyde and water catalyzed by 1 (Cycle 2). The deprotonation pathway is shown with red arrows.
Scheme 2. Predicted mechanism for the hydrogenation of formic acid to formaldehyde and water catalyzed by 1 (Cycle 2). The deprotonation pathway is shown with red arrows.
Catalysts 10 00319 sch002
Catalysts 10 00319 g005 550

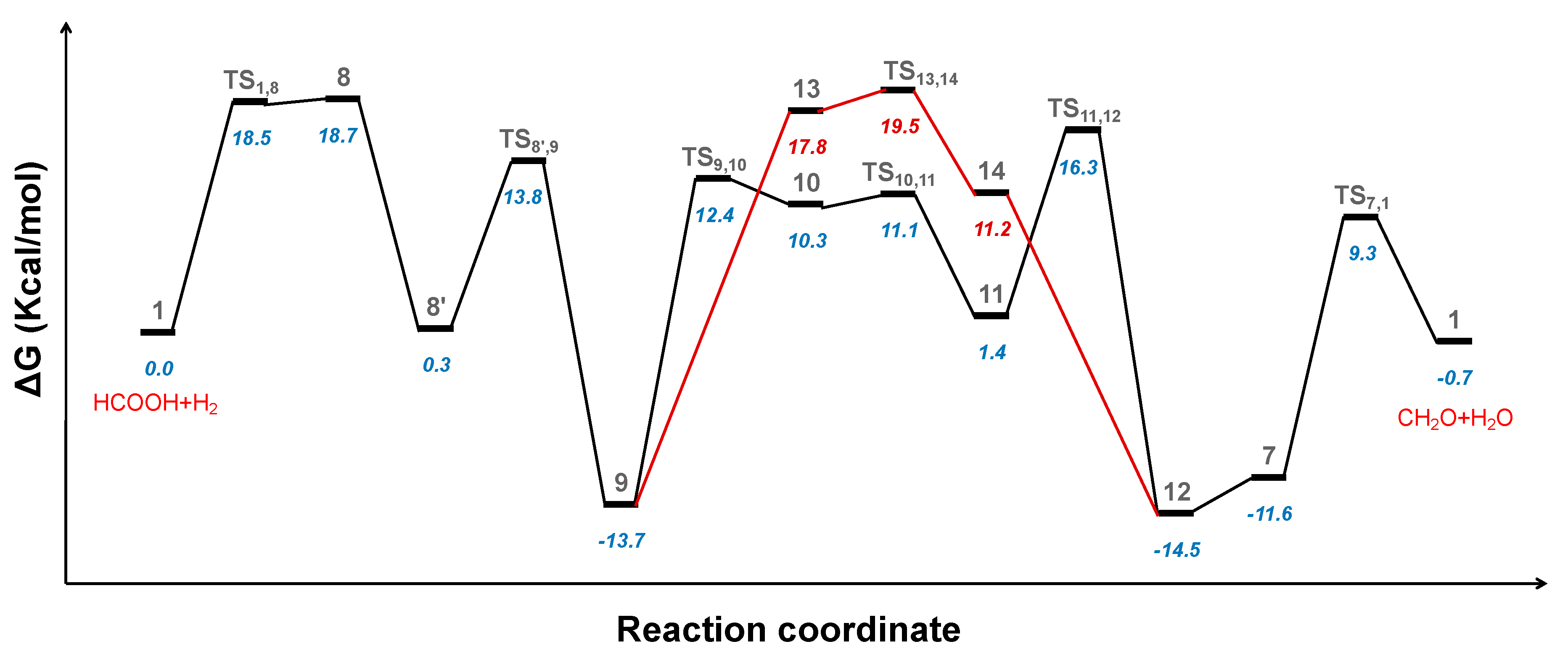

Figure 5. Free energy profile for the hydrogenation of formic acid to formaldehyde and water catalyzed by 1 (Cycle 2). Solvent corrected relative free energies are shown in italic. The deprotonation pathway is shown in red.
Figure 5. Free energy profile for the hydrogenation of formic acid to formaldehyde and water catalyzed by 1 (Cycle 2). Solvent corrected relative free energies are shown in italic. The deprotonation pathway is shown in red.
Catalysts 10 00319 g005
Catalysts 10 00319 g006 550
Figure 6. Optimized structures of TS1,8 (508.7i cm−1), 8′, TS10,11 (262.4i cm−1), TS11,12 (1352.3i cm−1), 12, and TS13,14 (189.9i cm−1). Bond lengths are in Å.
Figure 6. Optimized structures of TS1,8 (508.7i cm−1), 8′, TS10,11 (262.4i cm−1), TS11,12 (1352.3i cm−1), 12, and TS13,14 (189.9i cm−1). Bond lengths are in Å.
Catalysts 10 00319 g006
Catalysts 10 00319 sch003 550
Scheme 3. Predicted mechanism for hydrogenation of formaldehyde.
Scheme 3. Predicted mechanism for hydrogenation of formaldehyde.
Catalysts 10 00319 sch003
Catalysts 10 00319 g007 550

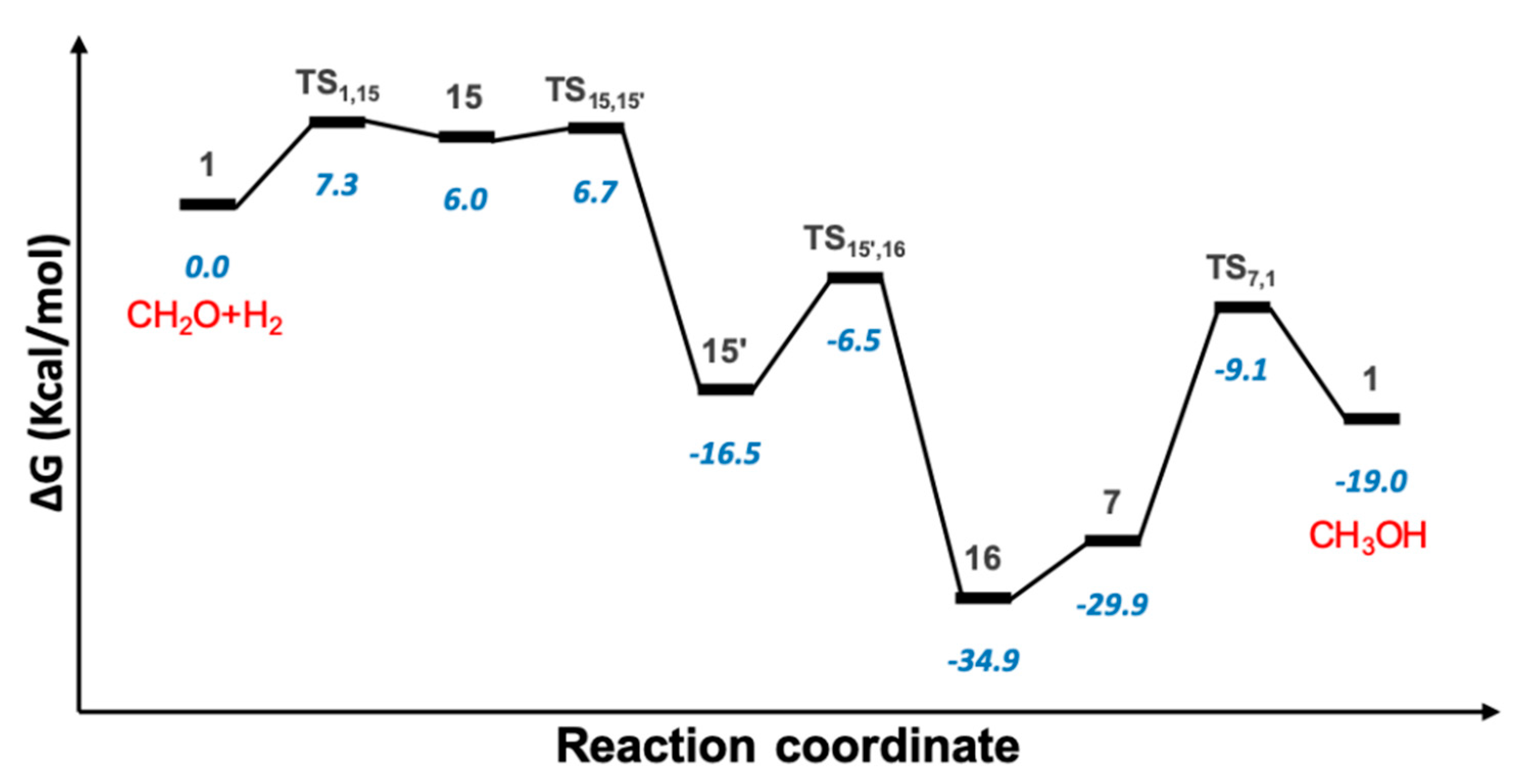

Figure 7. Free energy profile for the hydrogenation of formaldehyde to methanol catalyzed by 1 (Cycle 3). Solvent corrected relative free energies are shown in italic.
Figure 7. Free energy profile for the hydrogenation of formaldehyde to methanol catalyzed by 1 (Cycle 3). Solvent corrected relative free energies are shown in italic.
Catalysts 10 00319 g007
Catalysts 10 00319 g008 550
Figure 8. Optimized structures of 15′, TS1,15 (532.2i cm−1), TS15,15′ (191.8i cm−1), and TS15′,16 (1347.0i cm−1). Bond lengths are in Å.
Figure 8. Optimized structures of 15′, TS1,15 (532.2i cm−1), TS15,15′ (191.8i cm−1), and TS15′,16 (1347.0i cm−1). Bond lengths are in Å.
Catalysts 10 00319 g008
Table
Table 1. Relative free energies of 4 → TS1,2 and 4 → TS7,1 with different functional groups at R and R′ in the SCS nickel pincer complexes.
Table 1. Relative free energies of 4 → TS1,2 and 4 → TS7,1 with different functional groups at R and R′ in the SCS nickel pincer complexes.
RR′4 → TS1,24 → TS7,1
(kcal/mol)
1HCH323.223.0
1aFCH323.923.7
1bClCH322.922.5
1cBrCH322.221.3
1dCH3CH322.623.0
1eHH23.623.5
1fHCOOH23.421.0
1gHNH222.923.3
1hHF23.322.5
1iHCl23.320.9
1jHCN23.222.0
1′kHCH324.625.2
1′lFCH325.324.5
1′mClCH322.922.2
1′nBrCH322.520.8
1′oCH3CH324.425.5
