Greener Synthesis of Nitrogen-Containing Heterocycles in Water, PEG, and Bio-Based Solvents

Abstract

The solvents used in chemistry are a fundamental element of the environmental performance of processes in corporate and academic laboratories. Their influence on costs, health safety, and nature cannot be neglected. Quantitatively, solvents are the most abundant constituents of chemical transformations; therefore, acting on solvents and replacing standard solvents with safer products can have a great ecological impact. However, not all green solvents are suitable for the wide scope of organic chemistry reactions. A second point to consider is that 50% of pharmaceutical drugs are nitrogen heterocycles compounds. It therefore appeared important to provide an overview of the more ecological methodologies for synthesizing this class of compounds. In this review, all publications since 2000 that describe green reactions leading to the formation of nitrogen heterocycles using safe solvents were considered. We chose water, PEG, and bio-based solvents for their negligible toxicity. The synthesis of five-, six-, and seven-membered aromatic nitrogen heterocycles using green reactions reported in the literature to date is described.

1. Introduction

Even if the chemistry community has made significant efforts towards identifying greener processes by minimizing the quantity of catalysts or using multicomponent reactions and one-pot processes, solvents remain a major portion of the environmental performance of a process, and may have a significant influence on safety and health issues. Green solvents such as water, Poly(ethylene glycol) (PEG) and bio-based solvents hold considerable additional promise to reduce the environmental impact of organic chemistry. The study and search for greener synthetic methods have gained importance over the past two decades (Figure 1).

Background and Methodology

After some time dedicated to the search for Green Reactions Leading to the Formation of N-Heterocycles, the excellent review entitled “More Sustainable Approaches for the Synthesis of N-Based Heterocycles”, published by Candeias et al., in 2009 [1] was identified. More recently, other teams also presented well-documented work on green chemistry [2,3,4,5] and about the synthesis of heterocyclic compounds [6,7,8,9,10,11,12,13,14,15,16]. The instant review discusses the use of green reactions leading to the formation of nitrogen heterocycles by means of safe solvents, namely water, PEG and various bio-based systems, since 2000. Methyl-THF, which is one of the bio-sourced green solvents widely used today to replace THF, will not be discussed in this review because we did not find any work reporting its use for the synthesis of nitrogen containing heterocycles. Similarly, we will not discuss the use of ionic liquids here since many reviews were already devoted to them. Herein, each of the synthetic strategies and examples are briefly described. We trust this review will be helpful to a broad community of scientists working in medicinal chemistry.

2. Sustainable Chemistry

Greener routes are required in the synthesis of N-heterocycles, due to the remarkable importance of these compounds in medicinal chemistry [17,18]. Solvents play an important role in the chemical industry and their effectiveness in acting along with reagents and products within chemical processes is a crucial factor. The choice of a solvent will influence the chemical reactivity, selectivity, and yield of the synthesis process. One way to try to minimize safety, toxicity, and emission problems is to find or develop new solvents to replace those commonly used [19,20]. In recent years, valid proposals for green solvents have been reported such as water [21,22,23], and polyethylene glycol for its low price and its low acute toxicity [24,25,26]. More recently, research teams have demonstrated that the use of bio-based solvents is also a relevant choice [27,28,29,30]. All these results in the quest for safer solvents are the best evidence that the concepts of green chemistry have made remarkable progress.

2.1. Water as Solvent

The use of water as solvent in reactions is a positive choice from the environmental and economic point of view as it is an inexpensive, nonflammable and widely available resource [31,32,33,34]. A report of water used as solvent for the synthesis of heterocycles was published in 1931 for the cycloaddition reaction of furan and maleic anhydride by Diels and Alder [35]. Later, an important example was disclosed by Breslow [36,37], who demonstrated that hydrophobic effects could strongly enhance the rate of several organic reactions. Water has many advantages as reaction solvent for organic synthesis, but the poor solubility of many organic compounds in water limits its use under standard conditions. However, when applied at high temperatures and pressures, it undergoes changes in its properties and can become a good solvent for organic synthesis [16].

2.2. PEG as Solvent

In recent years, polyethylene glycols (PEGs) have attracted special attention as green solvents in various chemical transformations [38]. These low-cost compounds are available in a wide range of molecular weights [39]. PEG 400 is presented as a viscous liquid soluble in water and many organic solvents. It has the advantage of being biodegradable, non-toxic, odorless, neutral, non-volatile, and non-irritating, which has allowed its use in a variety of drugs and medications [40,41,42].

2.3. Bio-Based Solvents

Recently, in response to increased concerns about sustainability, emphasis has been placed on biologically based solvents and the need to find alternative solutions to conventional organic solvents. At the moment, the commercial availability supply of this type of solvents is limited because there are some initial barriers, such as their cost of production. Consequently, their market price of bio-based solvents is not competitive [43]. We believe that in the near future, and with the progressive increase in the investment of research teams in the study of alternative solvents, these obstacles will be overcome. In this review, we describe biologically based solvents that have been reported as valid alternatives in the synthesis of N-heterocycles, which are; Meglumine, Gluconic acid, Ethyl lactate and Lactic acid. Bio-based solvents or bio-sourced solvents are understood as mean solvents which come from renewable sources, such as for example, vegetable sources which may be agricultural crops rich in carbohydrates, such as corn, wheat, beets, forestry, or aquatic products. Additionally, our last study is described in the present document. This study established for the first time the use of eucalyptol as the new solvent for organic transformations [44].

3. Five-Membered Aromatic Nitrogen Heterocycles

3.1. Formation of the Pyrrole ring

3.1.1. Reactions in Water

In 2013, Reddy et al., developed an effective method to generate 6-substituted-6,6a-dihydroisoindolo[2,1-a]quinazoline-5,11-diones by the reaction of isatoic anhydride, amine and 2-formylbenzoic acid 1, 2 and 3; in this case, the authors showed that since the multicomponent reaction is less efficient in the absence of β-CD (beta-cyclodextrin), the catalyst appears to play an important role in increasing the efficiency of the reaction especially by activating the anhydride carbonyl group of 1 in addition to increasing the water solubility of all the reactants. A subsequent nucleophilic attack by the amine 2 on the activated carbonyl carbon was also facilitated by β-CD leading to the generation of the 2-amino-N-arylbenzamide intermediate. This was then reacted with 2-formylbenzoic acid; intramolecular concurrent cyclization involving the carboxylic acid, and the amide group gave the desired product (Scheme 1) [45].

Suresh et al., obtained polysubstituted pyrroles in good yields from α-azido chalcones and 1,3-dicarbonyl compounds in water. Their study showed that InCl₃ was an efficient catalyst for this regioselective transformation (Scheme 2) [46].

The group of Karamthulla reported a direct method for the synthesis of new spiro[indoline-3,7,9-pyrrolo[1–c]imidazole]-6,9-carbonitrile derivatives 11 via a three-components reaction. The reaction proceeded in good yields using isatin, malononitrile, and hydantoin or thiohydantoin in the presence of Et₃N as base (Scheme 3) [47].

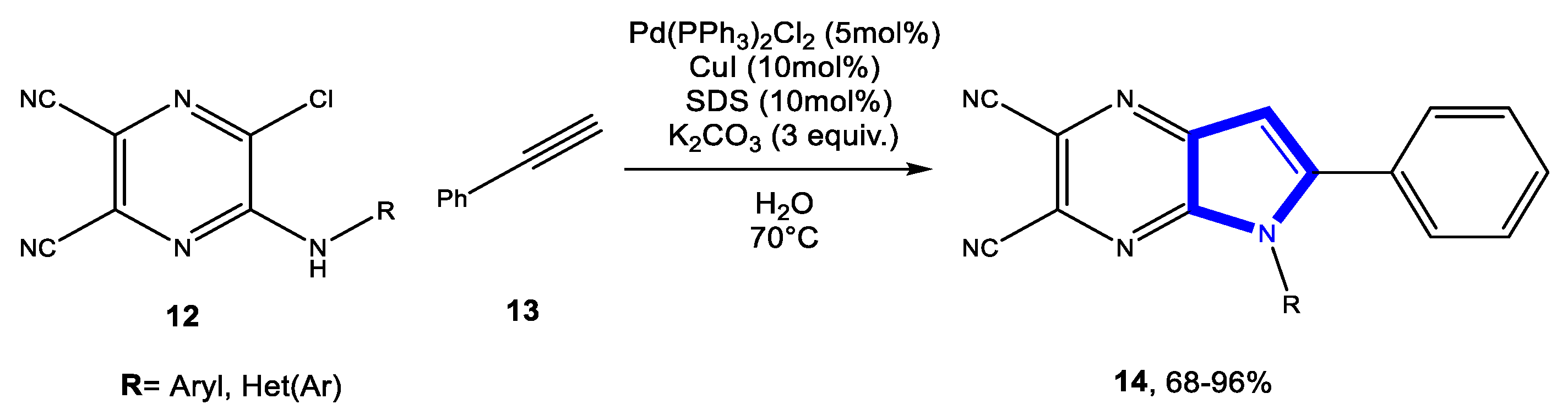

Keivanloo et al., synthesized pyrrolo[2–b]pyrazines by treating 5-(alkyl-arylamino)-6-chloropyrazine-2,3-dicarbonitriles 12 with phenylacetylene. This coupling reaction/cyclization is a variant of the Larock indole synthesis and was performed in water using Pd(Ph₃P)₂Cl₂ and CuI as catalytic system, sodium lauryl sulfate and K₂CO₃ at 70 °C for 24 h (Scheme 4) [48].

Gogoi et al., described a convenient and fast procedure for the synthesis of cycl[3.2.2]azines through a three-component reaction of 2-picoline, α-bromoacetophenone and alkyne in aqueous medium under microwave irradiation (Scheme 5) [49].

Yu et al., studied a procedure for the alkynylation coupling of aryl iodides with terminal alkynes catalyzed by a water-soluble copper complex (sulfonato–Cu(salen)). This reaction was stirred using 2-iodoaniline and aryl acetylene to obtain 2-arylindoles in excellent yields. As expected by the authors, aryl iodides with electron-withdrawing groups afforded much higher isolated yields than those with electron-donating groups (Scheme 6) [50].

Das et al., developed an efficient approach for the synthesis of polysubstituted pyrrolidin-1,2-diones. The construction of these compounds was achieved by a one-pot three component reaction of nitroarenes, formaldehyde, and dialkyl acetylenedicarboxylates using indium in dilute aqueous HCl at room temperature (Scheme 7) [51].

Barnard et al., adopted greener N-heterocyclizations with water as solvent and no transition metal catalysts and showed good yields in a fraction of the time needed for the conventional synthesis of isoindolines (Scheme 8) [52].

The Demir group successfully employed a catalyzed amination–annulation strategy for the synthesis of 2-aminopyrrole-4-carboxylates. This work developed a Zn(ClO₄)₂ catalyzed protocol to generate pyrrole ring-formation in high yields via α-cyanomethyl-ketoesters (Scheme 9) [53].

3.1.2. Reactions in PEG

The group of Yedukondalu performed the synthesis of substituted tetrahydrocarbazoles. By heating phenyl hydrazine hydrochlorides or 4-piperidone hydrochloride with substituted cyclohexanones or piperidone in PEG, the team was able to synthesize several derivatives, as shown in Scheme 10 [54].

Mishra et al., employed a one-pot synthesis protocol for the preparation of aminoindolizine. The results were achieved using pyridine- or quinoline-2-carboxaldehydes with secondary amines and terminal alkynes via tandem C–H activation, coupling, and cyclization reactions using copper chloride (Scheme 11) [55].

3.1.3. Reactions in Bio-Based Solvents

Dandia et al., reported the first ever 1,3-dipolar cycloaddition synthetic protocol for the synthesis of spirooxindole derivatives using ethyl lactate as bio-based solvent. The reaction proceeded in high yield with the 1,3-dipolar cycloaddition reaction of substituted isatin and proline with napthaquinone (Scheme 12) [56].

In 2015, Wang et al., reported an efficient novel and scalable process for the synthesis of pyrrole derivatives in lactic acid under ultrasonic irradiation. The synthesis, which gave excellent yields, consisting of several pyrrole derivatives, was achieved from the Knorr condensation reaction. The authors demonstrated that the condensation reaction in lactic acid under ultrasonication avoids the shortcomings of causticity, volatility, and recycling difficulties, when compared with traditional Knorr condensation using acetic acid as solvent (Scheme 13) [57].

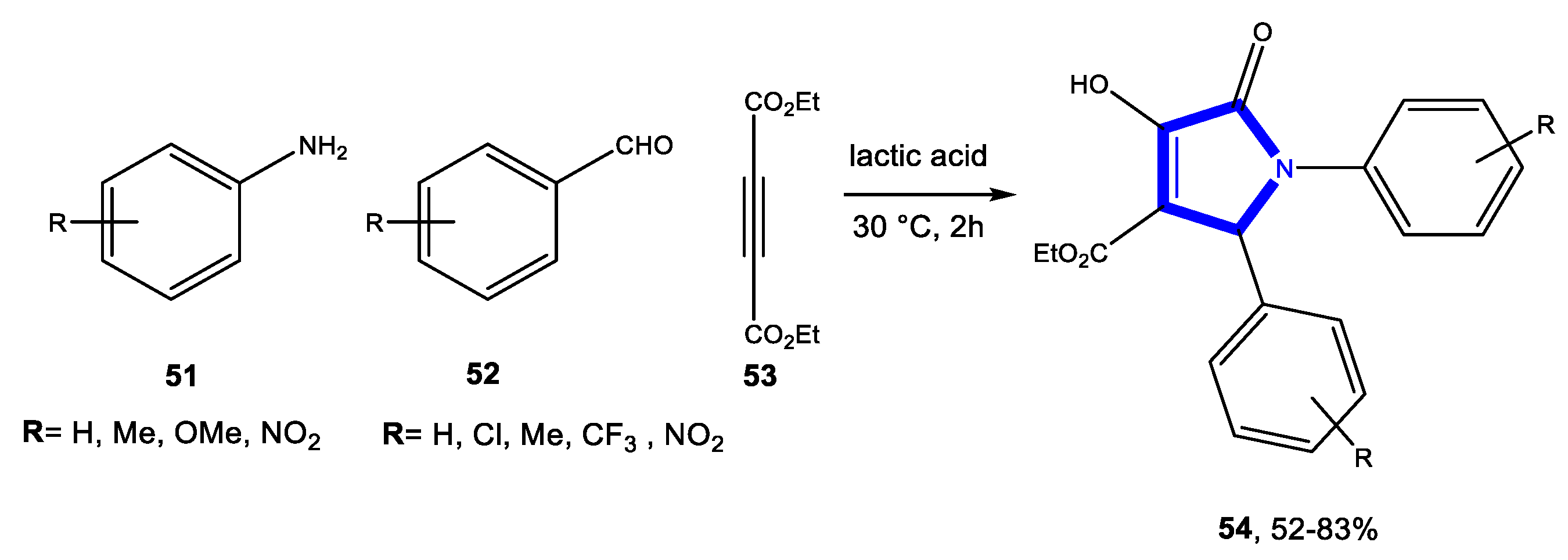

Yang et al., investigated the use of lactic acid in three-component condensation of benzaldehydes, anilines and diethyl acetylene dicarboxylate to obtain polysubstituted pyrrolidinones. This team showed that the application of this bio-based solvent resulted in several improvements; the products were isolated in good yields using a single step and in a shorter time (Scheme 14) [58].

Li et al., employed a four-component coupling of amines, aldehydes, 1,3-dicarbonyl compounds, and nitromethane to obtain pyrrole derivatives. Compounds were prepared using a gluconic acid aqueous solution as an efficient and reusable promoting medium. This methodology demonstrated excellent functional group tolerance, short reaction time, and high yield of products (Scheme 15) [59].

3.2. Formation of the Pyrazole Ring

3.2.1. Reactions in Water

Recently, Muthusamy and Gangadurai published the synthesis of benzopyranopyrazoles through a 1,3-dipolar cycloaddition approach involving an in situ generated aryl diazomethane from propargylated salicyl aldehydes and their intramolecular [3+2]-cycloaddition reaction with a suitably placed terminal alkyne/alkene. Aryl diazomethanes were generated by base-mediated decomposition of the corresponding aryl sulfonyl hydrazones; in addition, hydrazones were readily accessed from the corresponding aldehydes (Scheme 16) [60].

The group of Eswararao achieved the rapid synthesis of 1H-pyrazolo[1–b]phthalazine-5,10-diones using InCl₃ catalyzed reaction of phthalic anhydride, hydrazine hydrate, benzaldehydes and malononitrile/ethyl cynoacetate at reflux in good yields (Scheme 17) [61].

Sagir et al., achieved a one-pot four-component reaction catalyzed by iodine in water. This reaction protocol involved the formation of pyrazolo-pyrido-pyrimidines and their spiro analogues from hydrazine, ethylacetoacetate, 6-amino-1-methyluracil, and isatin or aldehyde and iodine as catalyst (Scheme 18) [62].

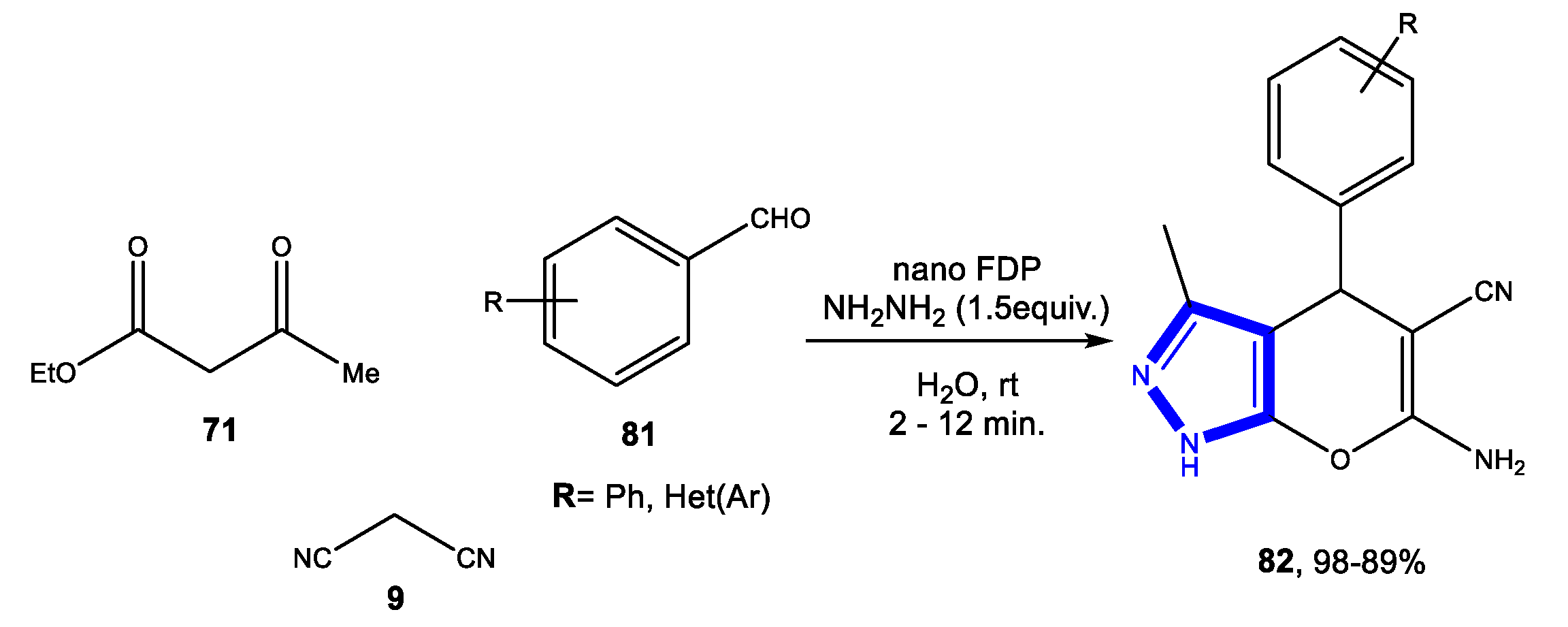

Maleki et al., worked on the preparation of pyrano[2,3-c]pyrazoles. These reactions were conducted with a one-pot, four-component synthesis process catalyzed by nano-structured diphosphate in water. The library of pyrano[2,3-c]pyrazoles was successfully synthesized with this method, which proved to be effective for aromatic aldehydes bearing either electron-donating or electron-withdrawing substituents as well as for the heterocyclic aldehyde (Scheme 19) [63].

Bakherad et al., demonstrated a reaction protocol using magnetized water as solvent. The water was prepared using a static magnetic system of 6000 G field strength with a flow rate of 500 mL s-1 at different magnetization times. The generation of pyrano[2,3-c]pyrazoles and pyrano[4’,3’:5,6]pyrazolo[2,3-d]pyrimidines proceeded through a one-pot four-component catalyst-free protocol (Scheme 20) [64].

Marković and Joksović reported a methodology for the construction of the ethyl 5-aryl-1H-pyrazole-3-carboxylate ring system from 4-aryl(hetaryl,alkyl)-2,4-diketoesters and 1,3-diketones with semicarbazide hydrochloride. This approach did not require toxic hydrazine and product purification, eliminating the use of toxic liquid chemicals (Scheme 21) [65].

Dam et al., achieved a super-paramagnetic nanoparticle supported L-proline catalyst (nano-FDP) for the construction of the pyrazole ring. The strategy adopted was under ultrasonic irradiation. The various derivatives were prepared in excellent yields at room temperature (Scheme 22) [66].

The team of Srivastava reported an iodine-catalyzed sequential process to access pyrazole series from phenyl hydrazine, malanonitrile, and a diverse range of aldehydes. The strategy was performed using water as solvent and no purification by column chromatography was required (Scheme 23) [67].

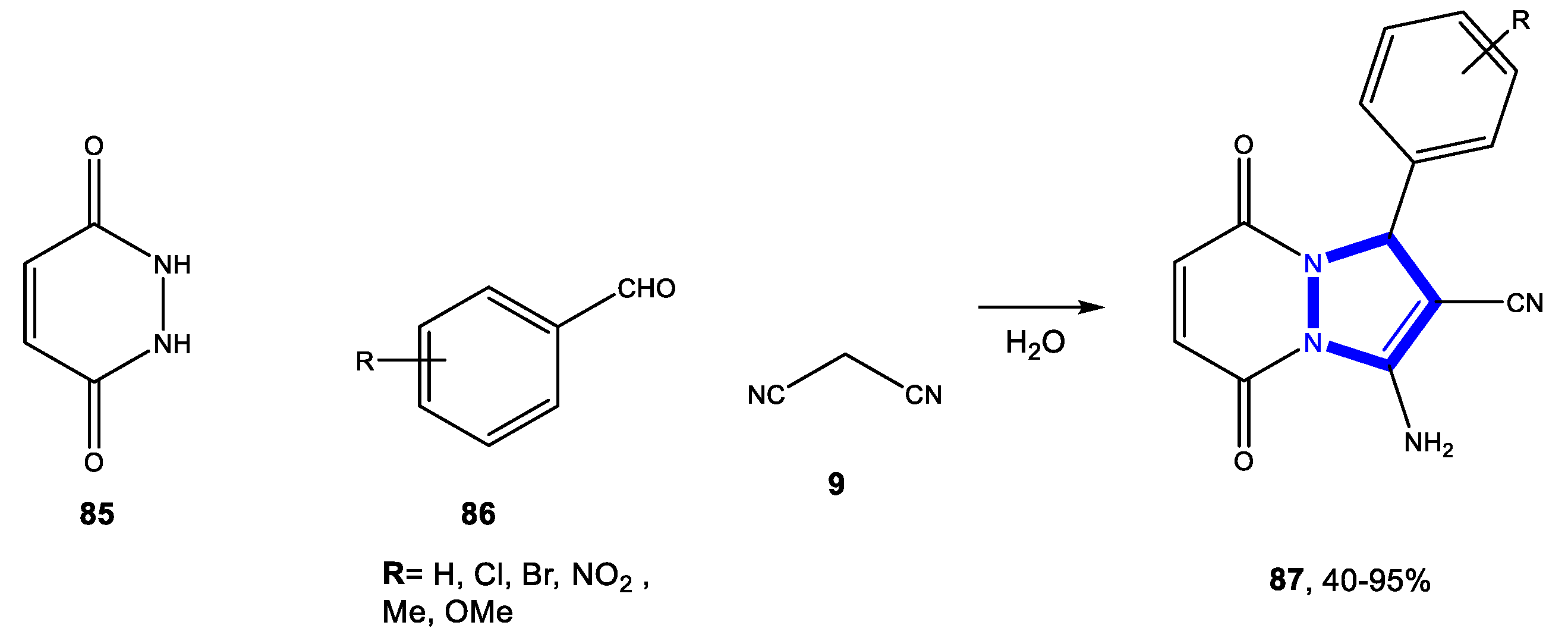

Khoraamabadizad et al., designed the synthesis of pyrazolo[1,2-a]pyridazine under ultrasonication in water using triethanolamine as catalyst. This approach involved a one-pot reaction of maleic hydrazide, with aromatic aldehydes and malononitrile. The catalyst applied participated both in the Knoevenagel condensation of malononitrile with substituted benzaldehydes and in the reaction of the condensation product with maleic hydrazide (Scheme 24) [68].

In 2014, Heravi et al., published the synthetic protocol to obtain pyrazolopyranopyrimidines. They reported access to the derivatives via a one-pot, four-component reaction from ethyl acetoacetate, hydrazine hydrate, benzaldehydes, and barbituric acid catalyzed by DABCO in water (Scheme 25) [69].

Sachdeva and Rekha studied a catalytic protocol to obtain pyranopyrazoles using ZnO nanoparticles. This procedure comprised the reaction of hydrazine hydrate, methylacetoacetate, substituted aromatic aldehydes, and ethylcyano acetate in the presence of a catalytic amount of ZnO nanoparticle as catalyst under stirring at room temperature in the presence of water (Scheme 26) [70].

Wu et al., reported a synthetic approach for the synthesis of pyranopyrazole using cetyltrimethylammonium chloride (CTACl) as catalyst. The catalyst applied showed high activity, high stability and the desired products were obtained in good to excellent yields from ethyl acetoacetate, hydrazine hydrate/phenylhydrazine, aromatic aldehydes, and malononitrile, using water as solvent at 90 °C (Scheme 27) [71].

Zonouz et al., presented a catalyst-free methodology for the synthesis of methyl 6-amino-5-cyano-4-aryl-2,4-dihydropyrano[2,3-c]pyrazole-3-carboxylates in water using a one-pot, four-component reaction. The key steps in the synthesis were the formation of benzylidine malononitrile via Knoevenagel condensation between aldehyde and malononitrile; then the formation of pyrazolone by reaction of hydrazine hydrate with dimethyl acetylenedicarboxylate; and lastly, the Michael addition of the formed intermediates, followed by cyclization and tautomerization (Scheme 28) [72].

Madje et al., accomplished the synthesis of 2H-indazolo[2,1-b]phthalazinetrione derivatives in good yields by three-component condensation reaction of phthalhydrazide, dimedone, and aromatic aldehydes using alum [KAl(SO₄)₂.12H₂O] as catalyst in water (Scheme 29) [73].

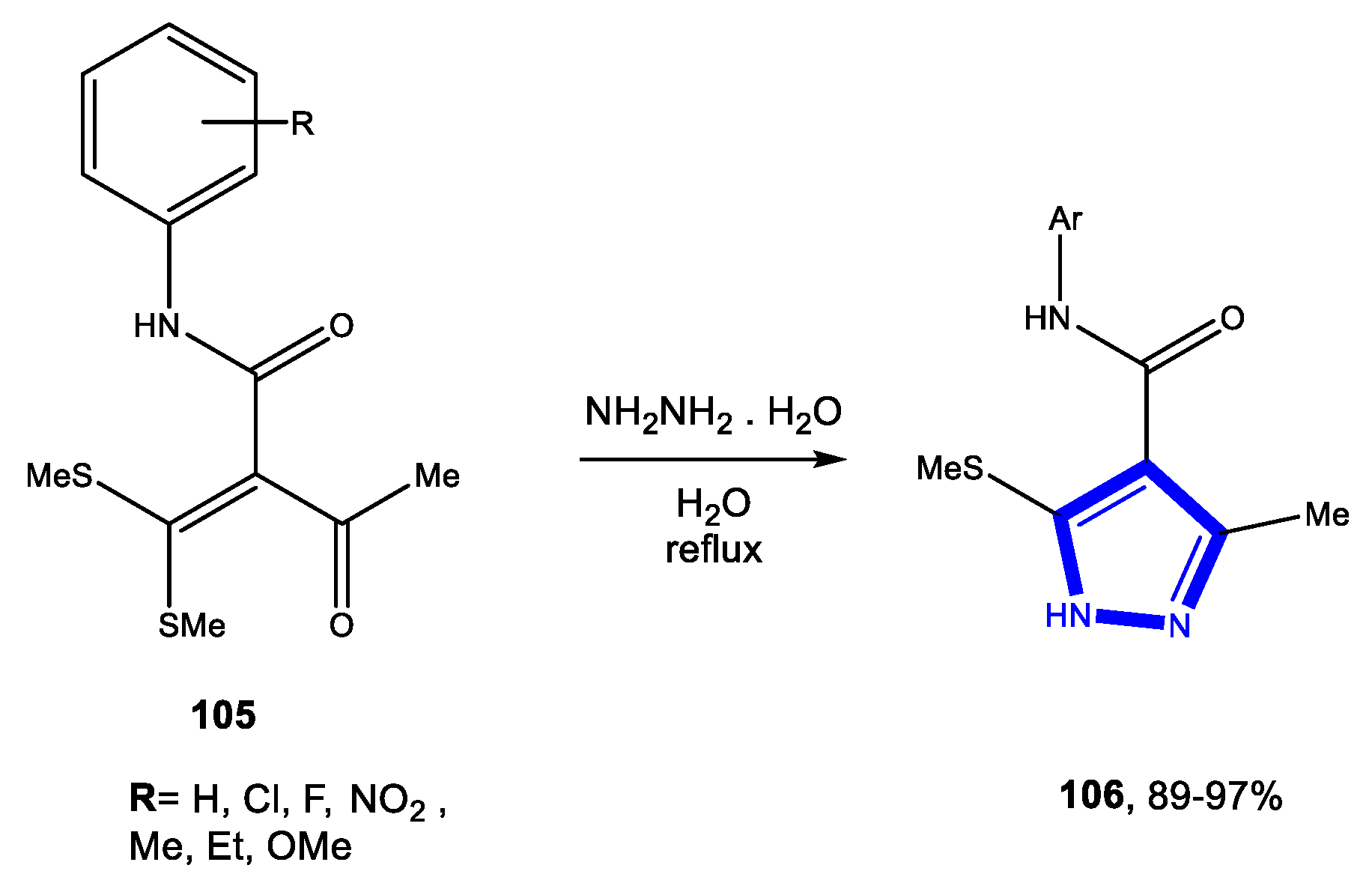

Savant et al., obtained trisubstituted pyrazoles via a sequential condensation of various R-acylketene dithioacetals with hydrazine hydrate, followed by the oxidation of sulfide to sulfone using water as solvent. The derivatives were successfully achieved using water as solvent and with a short reaction time. (Scheme 30) [74].

The team of Mali performed a condensation of 2-chloro-3-formyl quinolines and hydrazine hydrate/phenyl hydrazine for the synthesis of pyrazolo[3,4-b]quinolines. This protocol was carried out in aqueous medium and using thermal/microwave energy resources (Scheme 31) [75].

3.2.2. Reactions in PEG

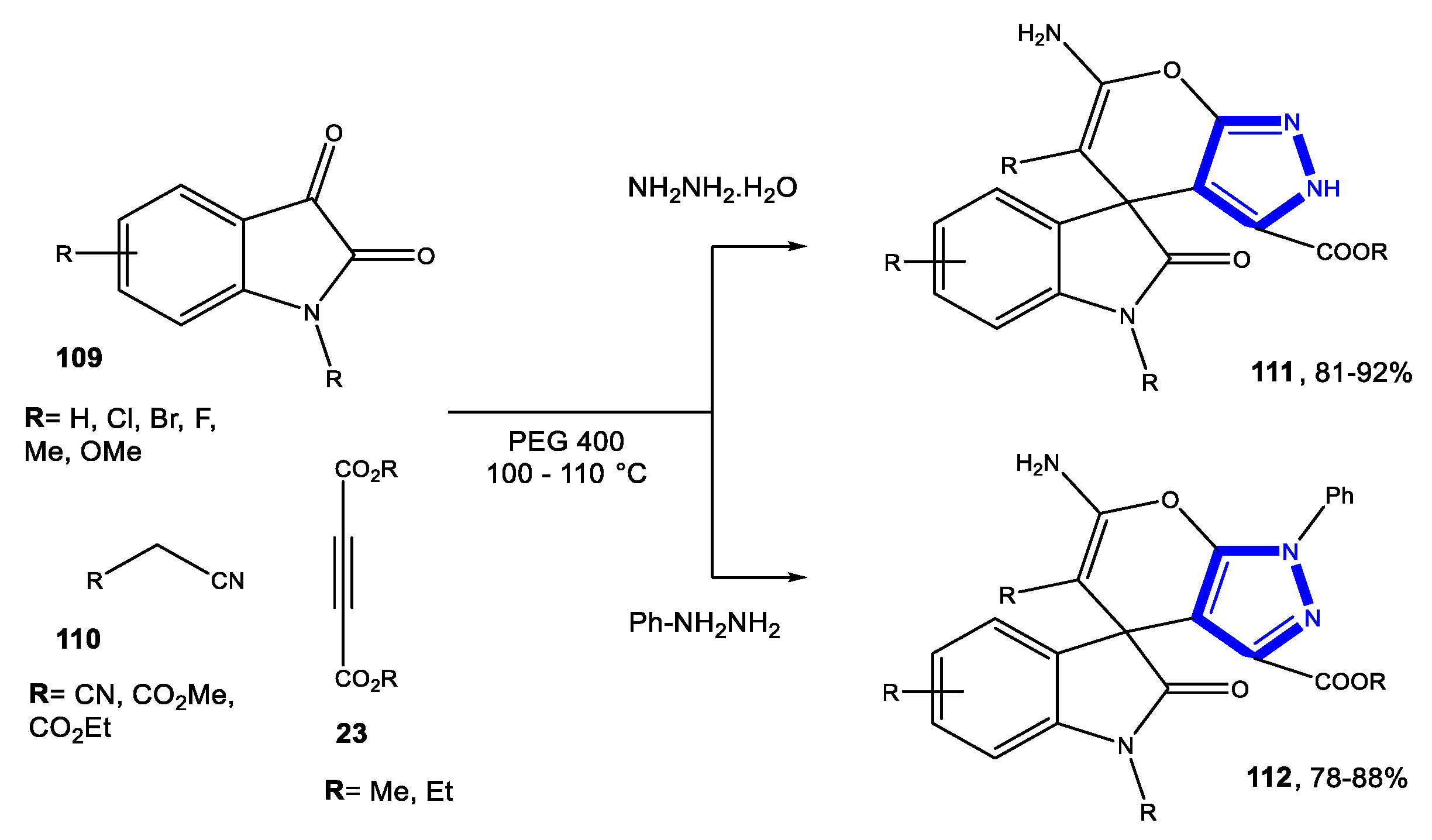

Karnakar et al., synthesized spiro pyranopyrazole derivatives in good to excellent yields using PEG as solvent. This one-pot four-component reaction promoted by a Knoevenagel condensation occurred between isatin and malononitrile, which reacted with the pyrazolone intermediate formed by the condensation of dialkyl acetylene dicarboxylate and hydrazine hydrate. The sequential strategy was finalized with the Michael addition, followed by enolization and ring closure to provide the desired product (Scheme 32) [76].

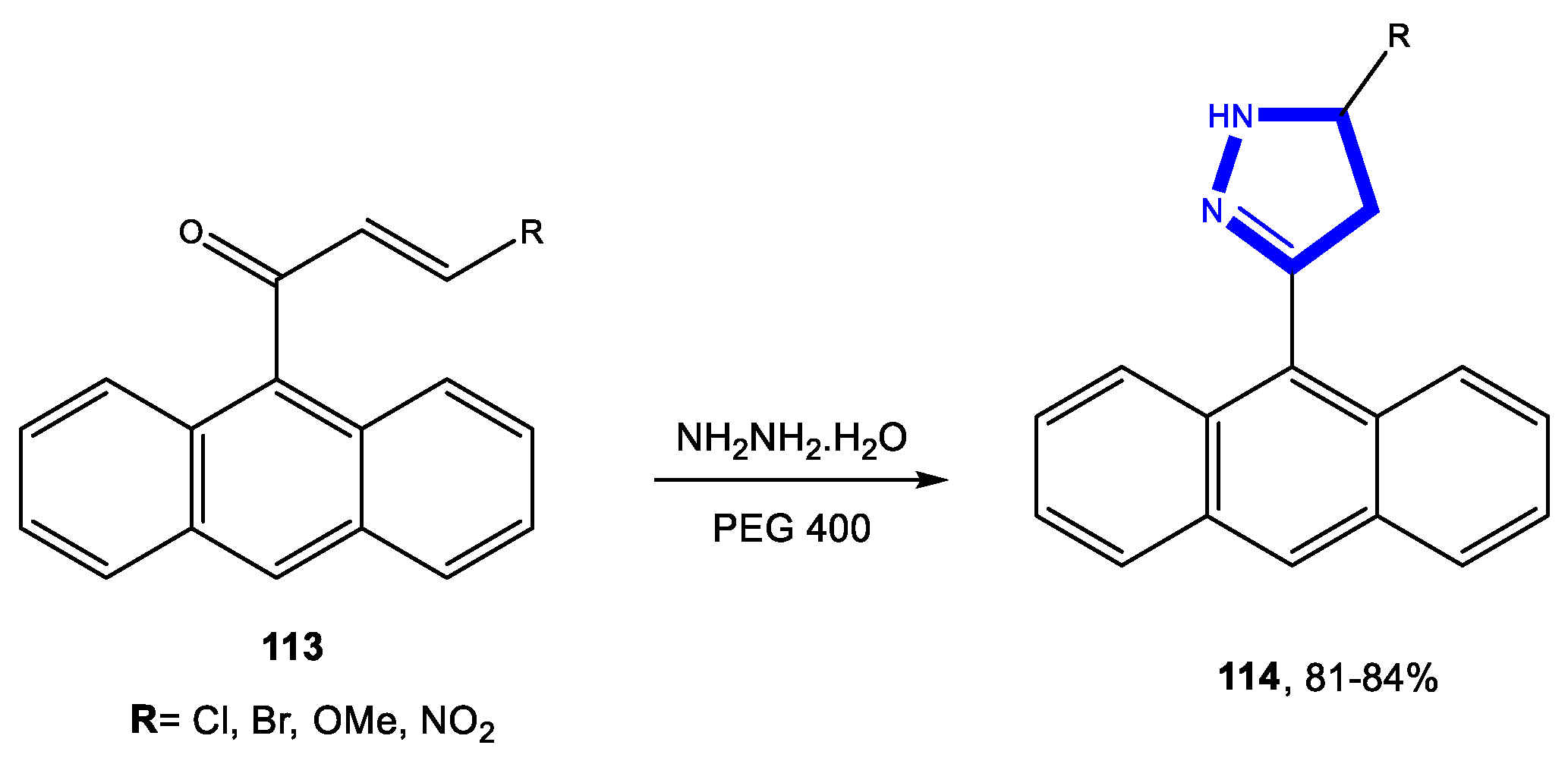

The group of Lavania performed the synthesis of 2-pyrazolines by their condensation with hydrazine hydrate in PEG. The strategy was applied to the preparation of pyrazolines in good to excellent yields (Scheme 33) [77].

Kidwai et al., prepared 1H-indazolo[1,2-b]-phthalazine-1,6,11-triones using ceric ammonium nitrate (CAN) as catalyst. The library was obtained from a one-pot reaction of phthalhydrazide, cyclic-β-diketone and an aldehyde in polyethylene glycol (Scheme 34) [78].

3.2.3. Reactions in Bio-Based Solvents

Bhat et al., achieved the synthesis of 2-pyrazoline derivatives by applying a reaction approach catalyzed by cerium chloride heptahydrate (CeCl₃ · 7H₂O) and ethyl lactate as solvent. The team was able to successfully prepare 1,3,5-triaryl-2-pyrazoline from the condensation reaction between chalcones and phenyl hydrazine (Scheme 35) [79].

3.3. Formation of the Imidazole Ring

3.3.1. Reactions in Water

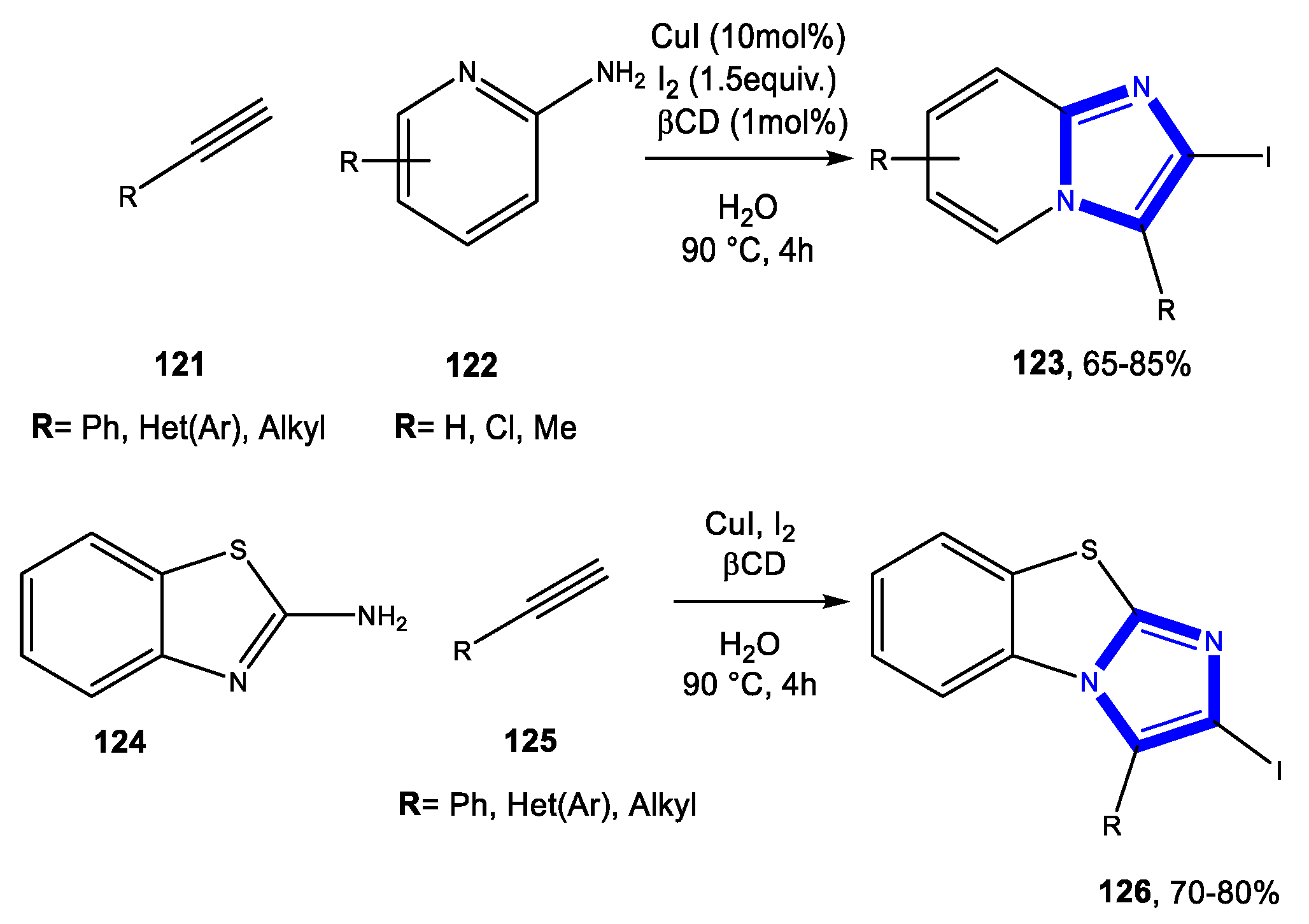

Dheer et al., studied the regioselective synthesis of 2-iodo-imidazo[1,2-a]pyridines and 2-iodobenzoimidazo[2,1-b]thiazoles catalyzed by CuI/β-CD. This methodology showed efficient synthesis of imidazo derivatives in good yields using water as solvent (Scheme 36) [80].

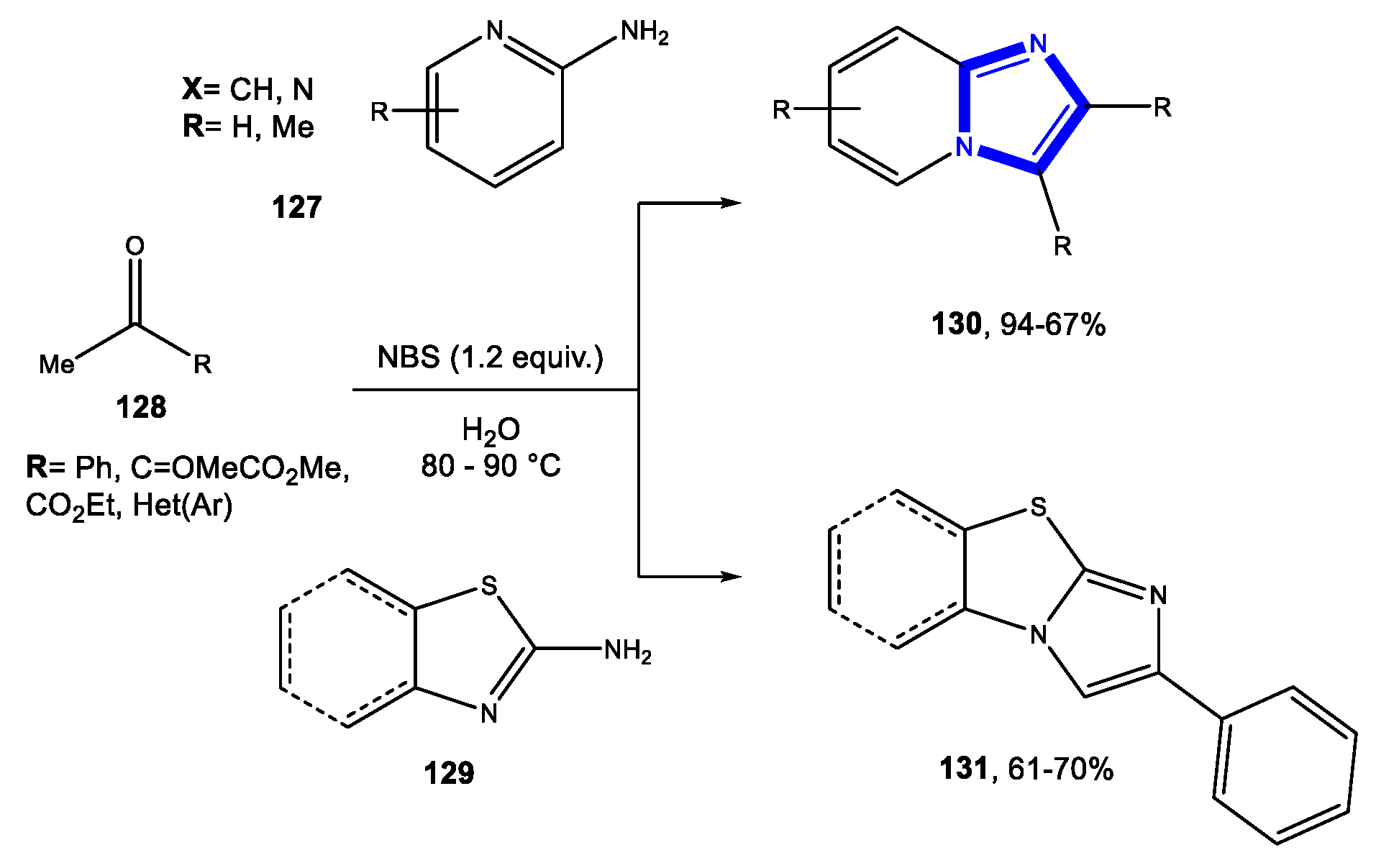

Bhagat and Telvekar described the synthesis of imidazo[1–a]pyridines, imidazo[1,2-a]pyrimidines, and imidazo[2,1-b]thiazole using NBS in aqueous medium. The series were accomplished with 2-aminopyridines, or 2-aminopyrimidines, or 2-aminothiazole, with β-keto esters, or 1,3-diones, or aryl ketones (Scheme 37) [81].

Wagare et al., developed an efficient microwave-assisted one-pot process for the synthesis of azaindolizines in PEG 400 and water. The construction of these compounds was achieved from 2-aminopyridines and in-situ generated phenacyl bromides. This protocol avoided the use of lachrymatory α-haloketones as well as volatile toxic organic solvents and reduced the reaction time to obtain excellent yield (Scheme 38) [82].

Nikoofar et al., reported a catalytic system to be used for the synthesis of 2,4,5-triaryl-1H-imidazoles in water under reflux conditions. The use of ZnO nanorods (ZnO NRs) as catalyst was developed. The authors showed that they were mild, benign, and effective catalysts for the preparation of tri-substituted imidazoles in high yield from a one-pot, three-component protocol (Scheme 39) [83].

Chanu et al., employed a one-pot, three-component reaction approach with α-oxoketenedithioacetals, diamines and DMAD to prepare tetrahydroimidazo[1,2-a]pyridines. The various derivatives were achieved under aqueous reaction conditions. The reaction involved SNAr intramolecular cyclization (Scheme 40) [84].

Siddiqui et al., carried out the preparation of imidazo[1,2-a]pyridine through the three-component conversion of 2-aminopyridine, aldehyde, and alkyne, in imidazo[1,2-a]pyridine by employing iodine as catalyst under aqueous conditions. The synthesis involved the in-situ formation of imines followed by the addition of alkyne to give the desired products in excellent yield (Scheme 41) [85].

Peshkov et al., prepared imidazo[1,2-a]azine derivatives via the three-component reaction of 2-aminoazine, 2-oxoaldehyde, and cyclic 1,3-dicarbonyl. The synthetic route studied was successfully achieved via a Biginelli-type multicomponent process in water (Scheme 42) [86].

Bangade et al., succeeded in preparing 3-aryl imidazo[1,2-a]pyridines, 5-aryl imidazo[2,1-b]thiazoles and 3-aryl benzo[d]imidazo[2,1-b][1,3]thiazoles from the reaction of phenacyl bromide with heterocyclic amine in presence of DABCO in aqueous medium (Scheme 43) [87].

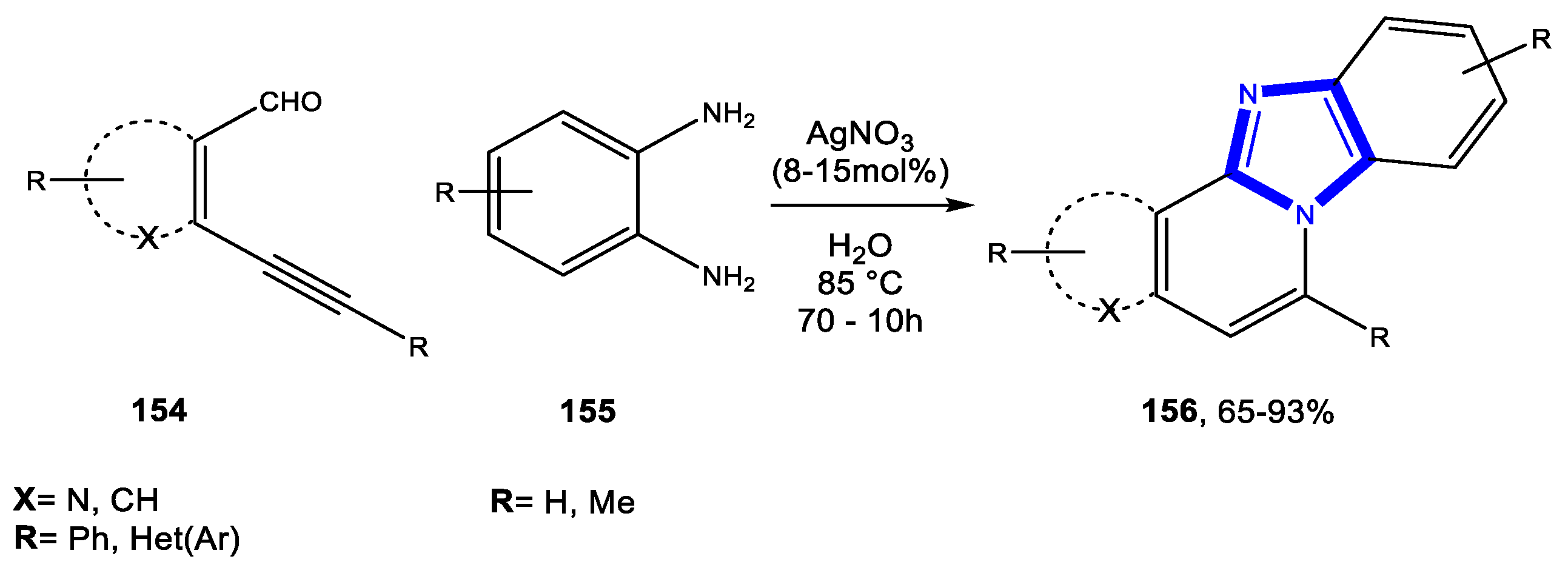

Rustagi et al., obtained various fused benzimidazo[2,1-a]isoquinolines performing a one-pot approach to the regioselective tandem from o-alkynylaldehydes and arylamines with tethered nucleophiles using AgI as catalyst in water. This protocol was shown to have a broad substrate scope, good functional group tolerance, and high efficiency (Scheme 44) [88].

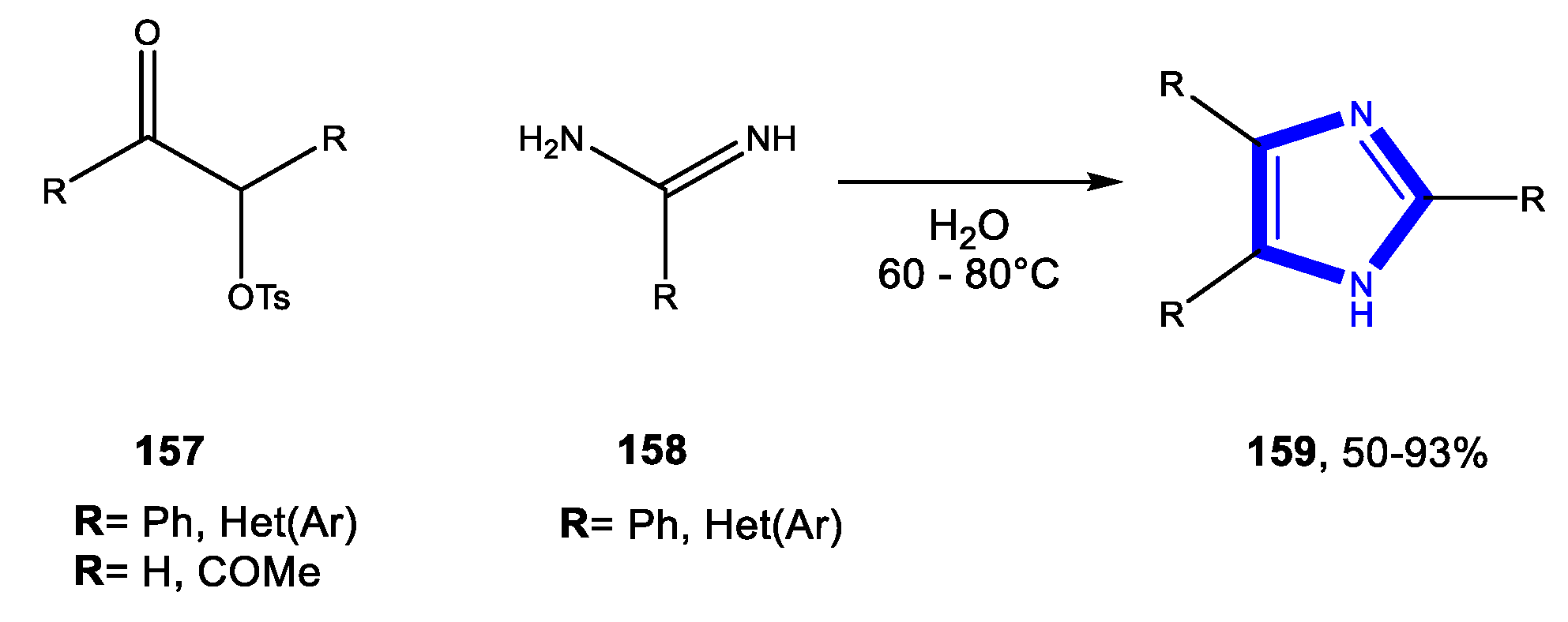

Kumar et al., accomplished the synthesis of diarylimidazoles using water as solvent by reacting α-tosyloxy ketones with a variety of amidines. This methodology demonstrated several advantages such as good yields, no metal reagents, avoidance of toxic, volatile, and corrosive organic solvents (Scheme 45) [89].

Rustagi et al., adopted a tandem reaction for the synthesis of substituted benzimidazoles. This protocol was conducted in aqueous media from o-alkynyl aldehydes and amines having an N-tethered nucleophile using Ag(I) as the catalyst. The sequential strategy involved the formation of two new carbon–nitrogen bonds and one new carbon–carbon bond, thereby leading to the formation of two heterocyclic rings in a one-pot reaction giving fused polycyclic heterocycles (Scheme 46) [90].

Peng et al., reported a study to obtain benzimidazole in water. For this process, they developed a Cu₂O/DMEDA system to achieve intramolecular C-N Bond formation and consequently the benzimidazole ring system in high yields (Scheme 47) [91].

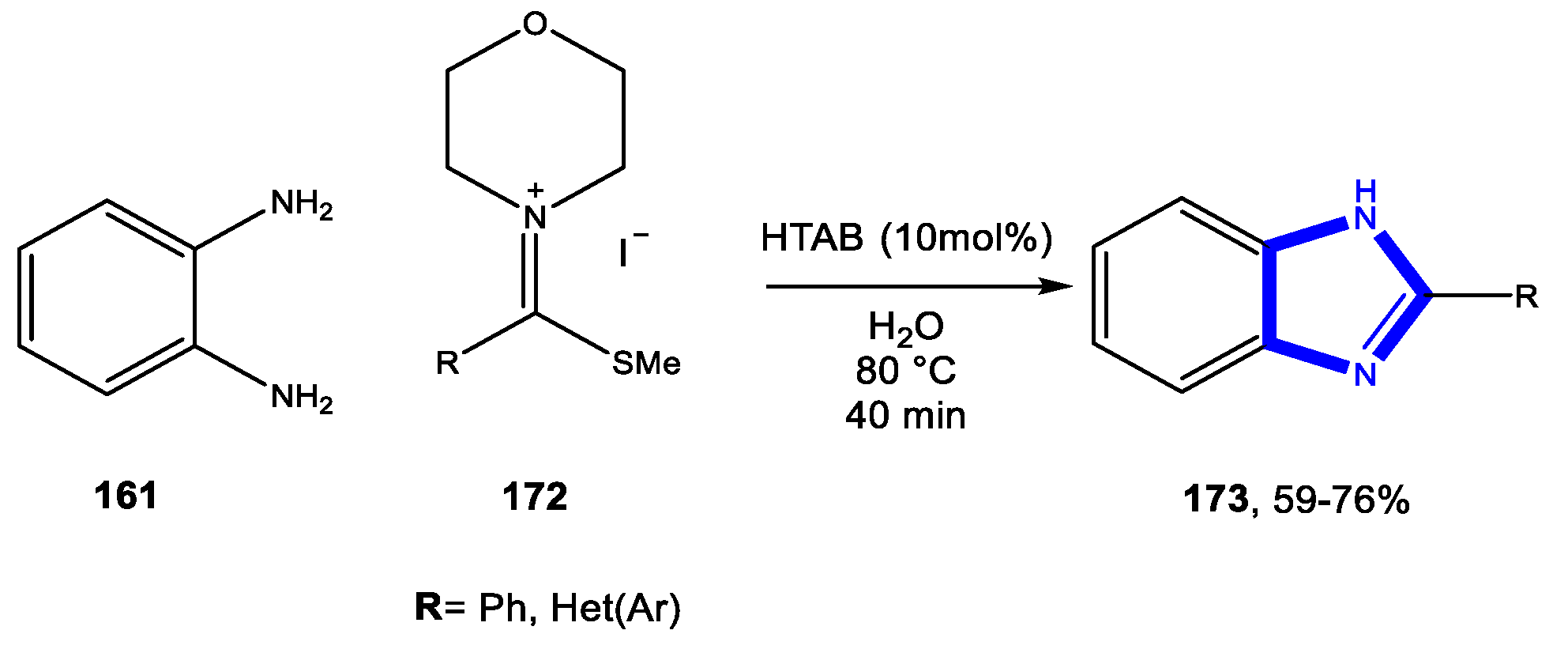

Chanu et al., reported a synthesis of heterocyclic N,N-acetals in water. The compound was synthesized efficiently from ketene dithioacetal with ethane-1,2-diamine in the absence of any acid/base catalyst (Scheme 48) [92].

Boeini and Najafabadi prepared benzimidazole through 1,2-diaminobenzene and a suitable S-methylthioamidinium salt in the presence of a catalytic amount of hexadecyl trimethylammonium bromide (HTAB) (Scheme 49) [93].

Barbero et al., employed a copper-catalyzed intramolecular N-arylation of 2-bromoarylureas for the preparation of benzoimidazolones. The synthesis of several derivatives was achieved by using CuI and TMEDA acting both as the ligand and as the base in a water solution. In addition, the authors related that although CuI provides the best results in this novel protocol, other copper salts (CuCl, CuBr, Cu(OAc)₂.H₂O, Cu(OTf)₂ and Cu(ClO₄)₂.6H₂O) could be used with similar efficiency (Scheme 50) [94].

3.3.2. Reactions in PEG

Mekala et al., carried out an efficient procedure for the synthesis of 1,2-disubstituted benzimidazoles. The construction of these compounds was achieved by the nucleophilic attack of the phenylenediamine on the carbonyl carbon. The electrophilicity of the carbonyl carbon was enhanced in the PEG 400 medium compared to the other solvents, and hence accelerated the reaction by removing the liberated water, which was soluble in PEG 400. It enabled its conversion to the corresponding benzimidazole (Scheme 51) [95].

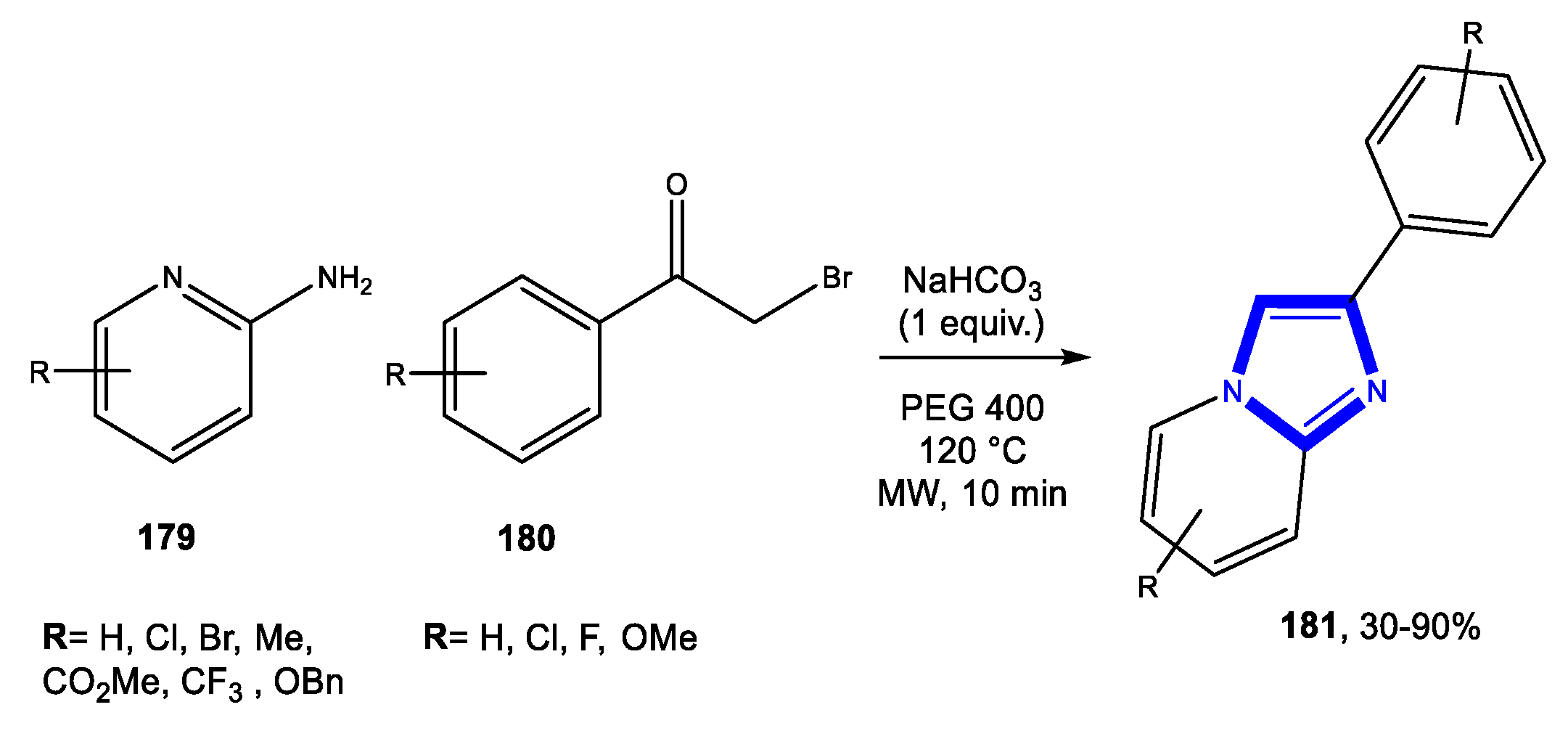

In 2014, Berteina-Raboin et al., generated 2-arylimidazo[1,2-a]pyridines in good yields within 10 minutes from readily available 2-amino pyridines and α-bromo ketones. A one-pot procedure was engineered to achieve 2,3-diarylimidazo[1,2-a]pyridines using a reduced amount of palladium catalyst without ligand for the C–H arylation step in the same environmentally sound medium (Scheme 52) [96].

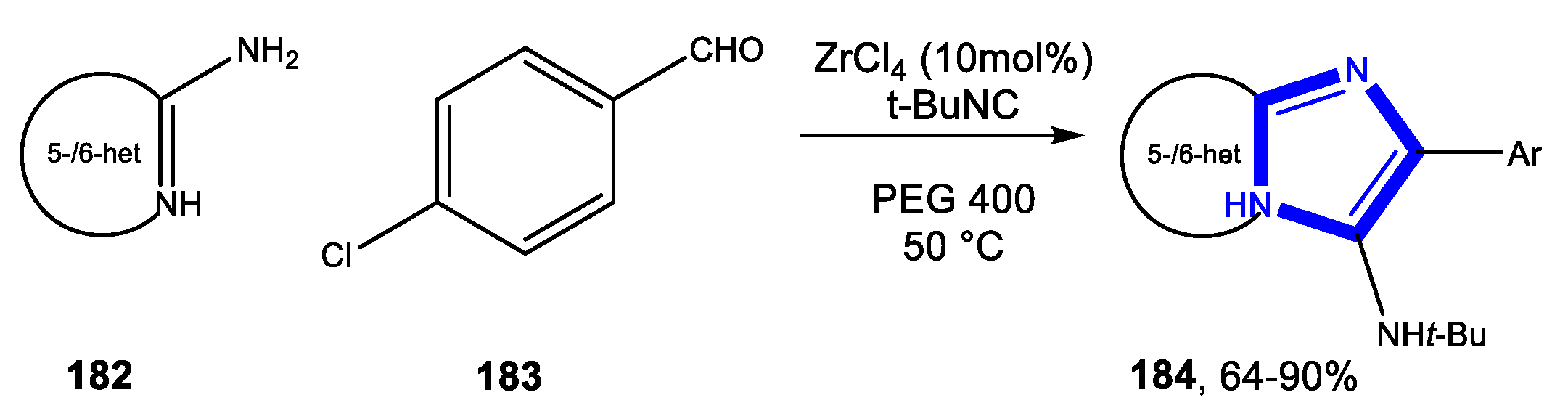

Guchhait and Madaan studied the scope and limitations of an Ugi-Type Multicomponent Reaction mediated by Zirconium(IV) Chloride in PEG. The construction of these compounds was carried out using reaction of heterocyclic amidines with aldehydes and isocyanides. The team reported that the combination of catalyst and solvent was crucial for the regioselectivity and versatility of the method (Scheme 53) [97].

3.3.3. Reactions in Bio-Based Solvents

Berteina-Raboin et al., demonstrated, for the first time, that eucalyptol could be used as solvent for organic synthesis. They have shown that it could be an interesting alternative to conventional solvents for the one-pot synthesis of 2,3-diarylimidazol[1,2-a]pyridines involving a condensation between 2-aminopyridine and bromoacetophenones, followed by a C-H activation at C-3. This solvent, derived from biomass and recyclable, was also effective for various transformations of heteroatom-containing heterocycles such as oxygen, sulfur, or nitrogen (Scheme 54) [44].

3.4. Formation of the Triazole Ring

3.4.1. Reactions in Water

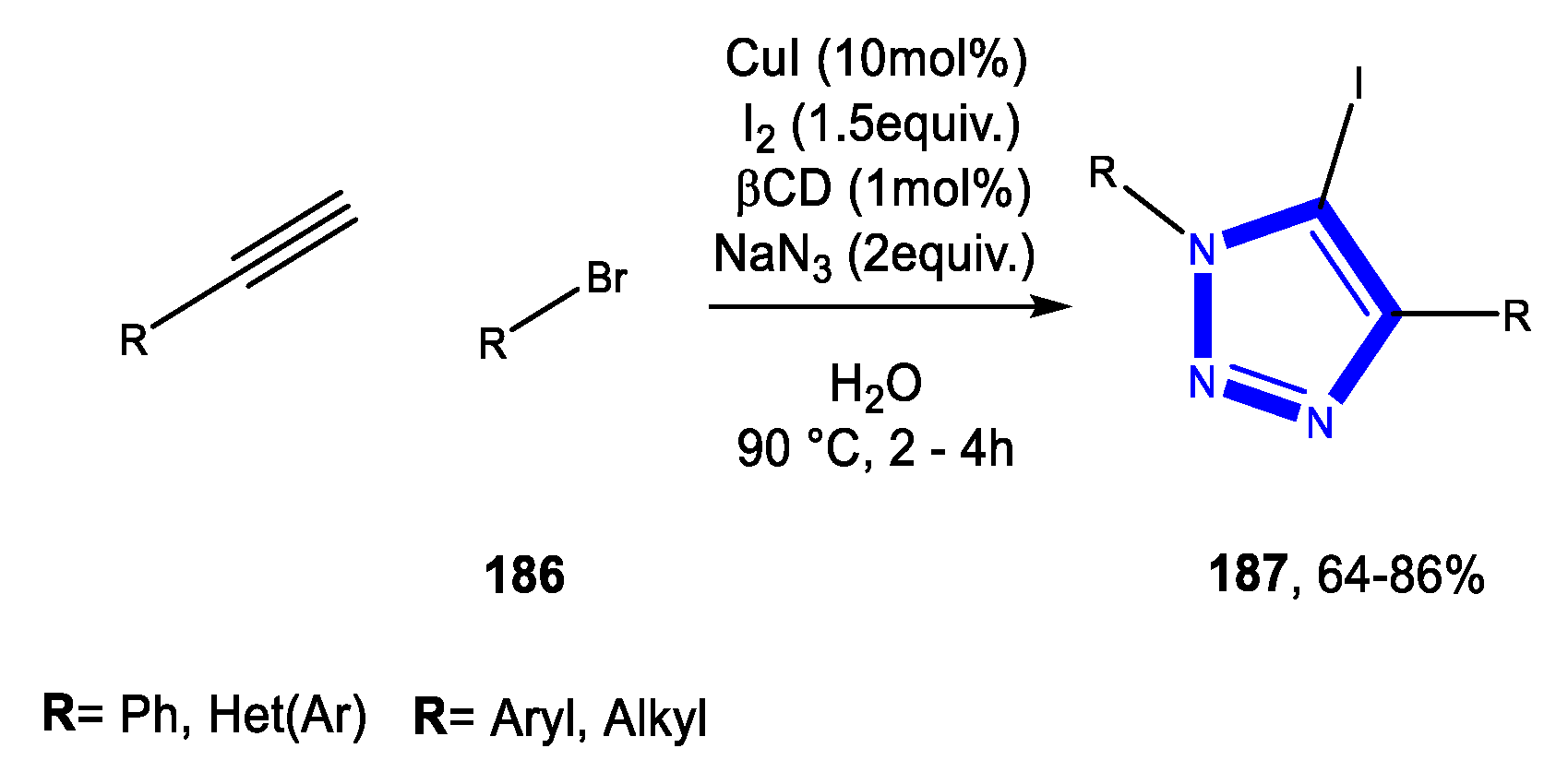

In 2017, Dheer et al., reported the synthesis of iodo substituted 1,2,3-triazoles. The scope of the reaction was explored by using substituted benzyl bromides and acetylenes in water at 90 °C. The desired products, 5-iodo-1,4-disubstituted-1,2,3-triazoles were obtained in major quantity with 1,4-disubstituted-1,2,3-triazoles as minor product. In general, substituted phenylacetylene reacted smoothly with in-situ synthesized benzyl azide to furnish the triazole derivatives. It was observed that aliphatic halides were moderately reactive as compared to benzyl halides and furnished the products in moderate to lower yields (Scheme 55) [80].

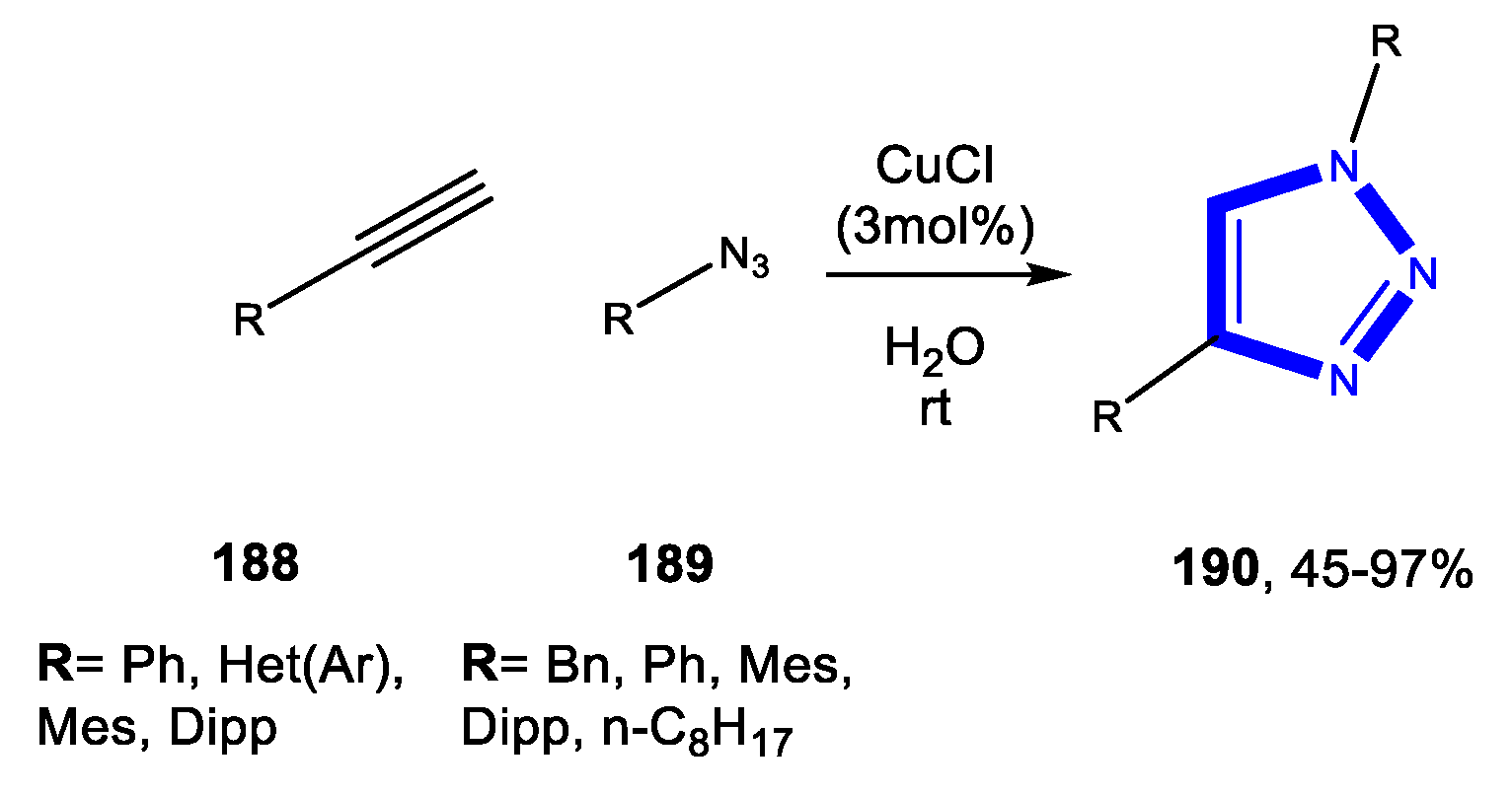

Hiroki et al., adopted a copper(I) chloride catalyzed reaction using 2-ethynylpyridine as catalyst, and were able to synthesize 1,4-disubstituted 1,2,3-triazoles in good yields from azides and alkynes at room temperature (Scheme 56) [98].

Kshirsagar et al., performed a multicomponent reaction to obtain a library of triazole substituted trans-beta-lactams from the copper-catalyzed three-component click reaction of 4-acetoxy beta-lactam, sodium azide, and alkynes without isolation of the azide intermediates (Scheme 57) [99].

Kumar et al., employed an Intramolecular Huisgen [3+2] cycloaddition in water for the preparation of pyrrolidine–triazole derivatives. Compounds were prepared with complete 1,5-regioselectivity and no metal catalyst. Azido-alkynes derived from amino acid/tartaric acid were used, and an alkyne attached to an electron withdrawing group provided the final product with a better yield and stability (Scheme 58) [100].

Anil et al., prepared 1,4-disubstituted 1,2,3-triazoles through magnetically separable and reusable copper ferrite nanoparticles in a one-pot reaction, in tap water. This protocol was successfully achieved from the initial substitution of benzyl halides with sodium azide to generate in situ benzyl azides, followed by copper ferrite catalyzed cycloaddition reaction with alkynes in water at 70 °C (Scheme 59) [101].

3.4.2. Reactions in PEG

Reddy’s group reported the synthesis of triazolo-1,2,4-benzothiadiazine-1,1-dioxides via a copper-catalyzed tandem cyclisation of ynamides. This approach was crucial because fused triazolo ring system could be prepared through an intermolecular C–N bond formation followed by subsequent cycloaddition between ynamide and azide. Thus, three new C–N bonds were formed in a single step (Scheme 60) [102].

3.5. Formation of the Tetrazole Ring

Reactions in Water

Saiprathima et al., reported a direct method for the synthesis of tetrazole derivatives via a metal-free azide-nitrile [2+3] cycloaddition. 3-(1H-tetrazol-5-yl)indolin-2-ones were produced easily with excellent yields at room temperature (Scheme 61) [103].

Khalili et al., developed an effective method to obtain 5-amino-1-aryl-1H-tetrazoles using secondary arylcyanamides. With this greener approach, the team successfully achieved the desired products in most cases, avoiding the generation of unwanted products (Scheme 62) [104].

Habibi et al., described a convenient procedure for the synthesis of arylaminotetrazoles in water. The construction of these compounds was carried out using reaction of arylcyanamides and sodium azide in the presence of ZnCl₂. The method was shown to have various advantages such as high yields and no need for purification (Scheme 63) [105].

3.6. Formation of the Isothiazole Ring

Reactions in Water

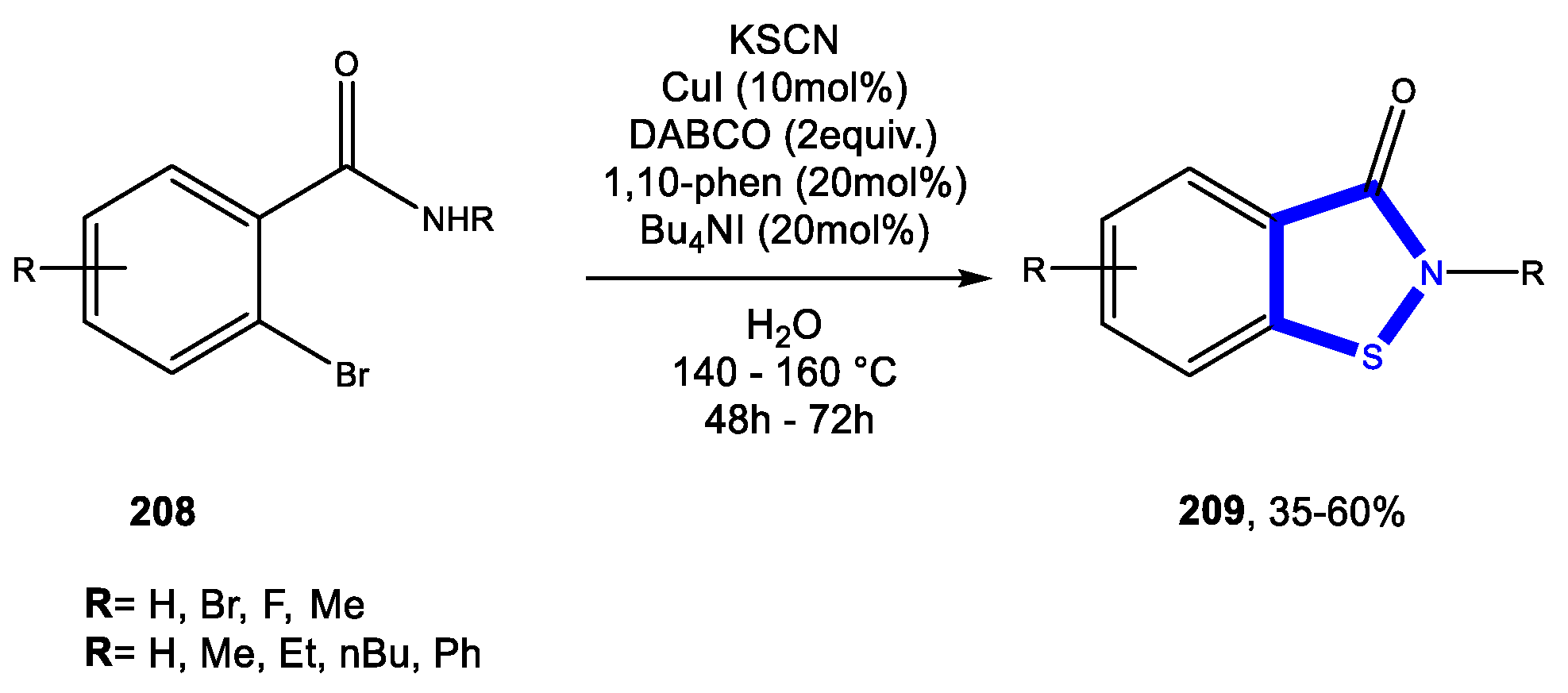

Wang et al., investigated a Cu catalyzed tandem reaction of o-bromobenzamide derivatives with potassium thiocyanate in water. The reaction involved a tandem protocol with S−C bond and S−N bond formation (Scheme 64) [106].

3.7. Formation of the Thiazole Ring

3.7.1. Reactions in Water

Nagaraju et al., obtained thiazoloquinolines via a one-pot four-component cascade procedure. The derivatives were synthesized in water–PEG 400 from α-enolic dithioesters, cysteamine, aldehydes, and cyclic 1,3-diketones. Besides the high efficiency and atom economy as a domino process, this reaction is an environmentally benign transformation as the isolation and purification of compounds was achieved by simple filtration and water washing, avoiding conventional chromatographic separation (Scheme 65) [107].

Sengoden et al., disclosed an efficient process for the (3+2)-cycloaddition of aziridines from isothiocyanates, isoselenocyanates, and carbon disulfide with pyrrolidine as catalyst in water (Scheme 66) [108].

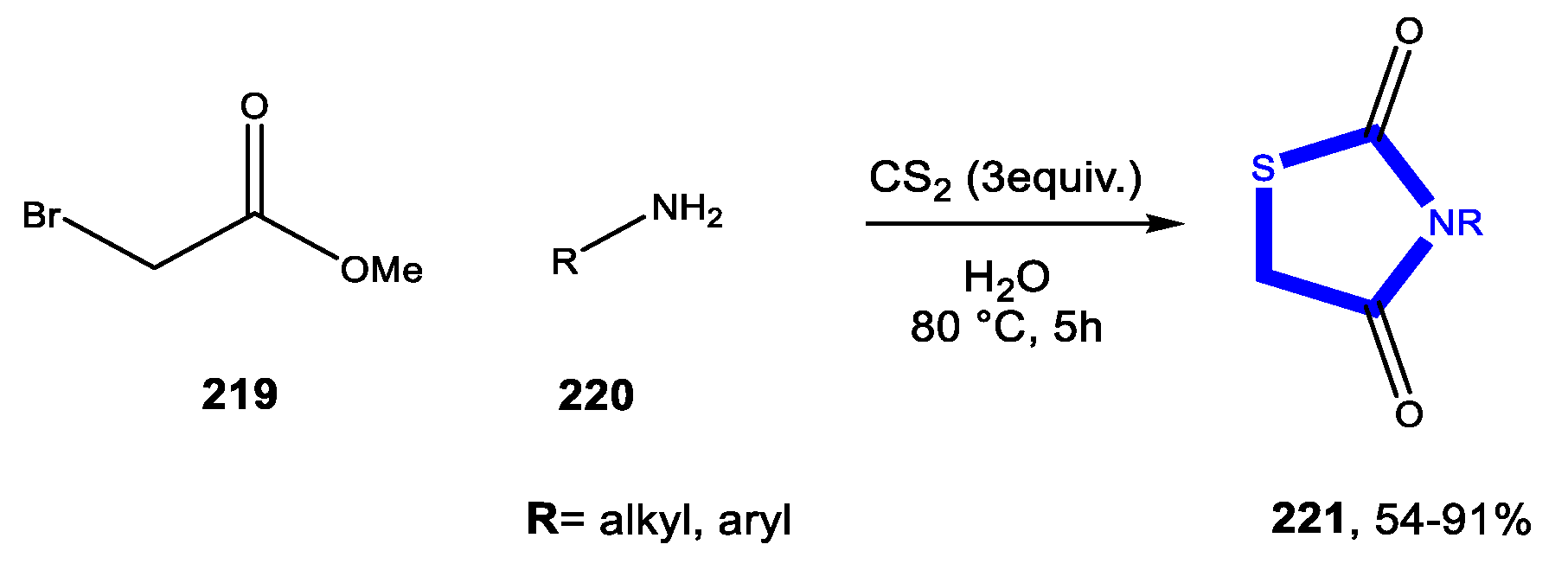

Aryanasab et al., published the synthesis of thiazolidine-2,4-diones through the reaction of aliphatic primary amines, carbon disulfide, and methyl 2-bromoacetate in aqueous medium. The authors related that when the reaction occurred with aliphatic primary amines the corresponding heterocyclic compounds were successfully obtained; the hindered primary amines such as 1-phenylethylenamine and cyclohexylamine underwent efficient addition with methyl 2-bromoacetate to give the dithiocarbamate acyclic intermediate in good yields, but only trace amounts of the pertinent heterocycle products were obtained. The experimental procedures for aliphatic amines (prepared by a one-pot three-component reaction) were different from those of aromatic amines (the dithiocarbamate salts were prepared with Et3N in diethyl ether before being used in following step) (Scheme 67) [109].

Zhang et al., reported the synthesis of 2-aminobenzothiazoles in water by a 10-phenanthroline-catalyzed tandem reaction using 2-iodoaniline and isothiocyanate. The strategy adopted led to construction of the desired product in the absence of transition metals and phase-transfer catalysts (Scheme 68) [110].

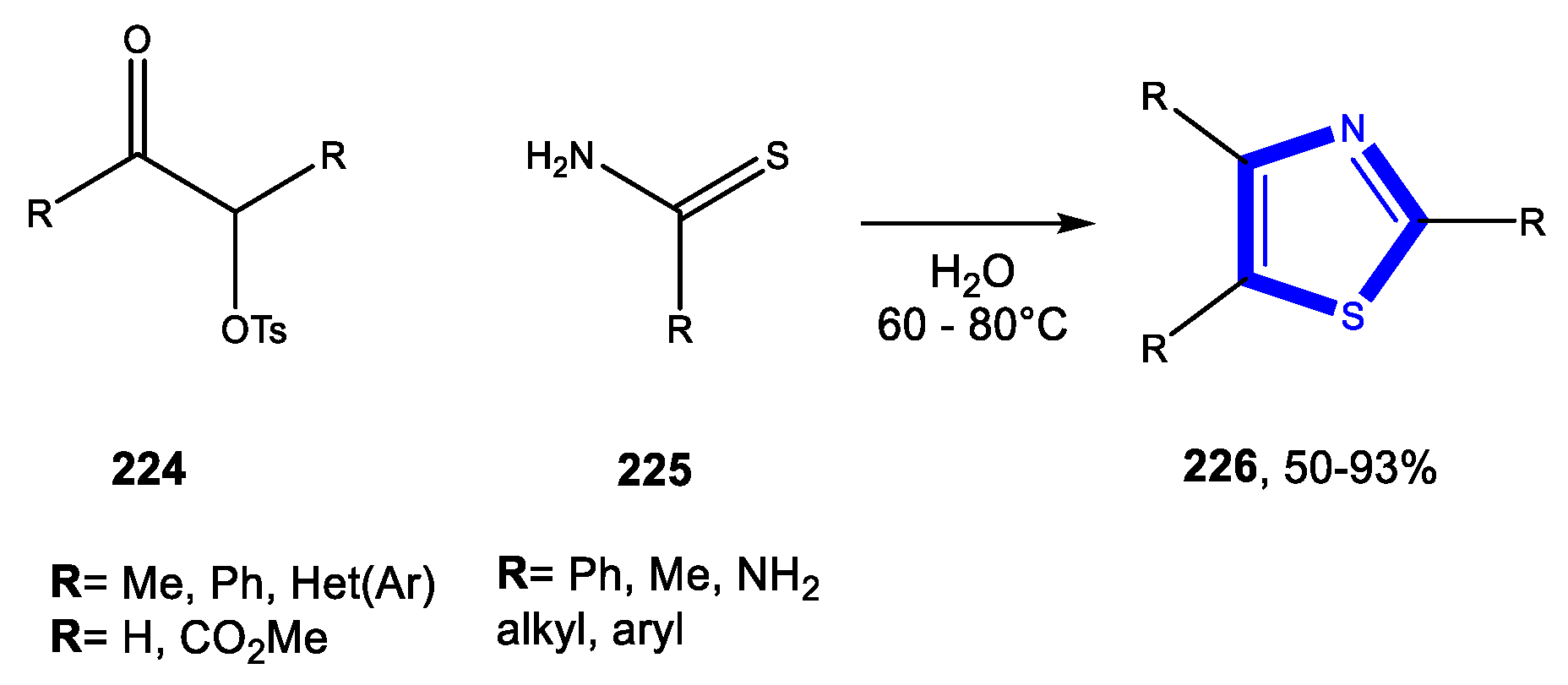

In 2011, Kumar’s team also presented the preparation of thiazoles. The library was achieved from readily available α-tosyloxy ketones with several thioamides using water as solvent in good yields (Scheme 69) [89].

Pathak et al., successfully developed a water assisted tandem S-alkylation-cyclodeamination reaction of thioamides/haloamines. This approach involved the formation of an imidothiolinium species via S-alkylation; as the Imine nitrogen of imidothiolic ester is mildly basic, it was unable to hold the proton strongly in the presence of water and underwent reversible protonation. The free iminium nitrogen attacked the electrophilic carbon attached to the ammonium ion, leading to the formation of thiazoline. The presence of water also suppressed the dehydration of thioamide. Moreover, the use of a protonated aminohalide inhibited undesired side reactions (transamidation and self-condensation), leaving S-alkylation and subsequent cyclisation the only available reaction pathway (Scheme 70) [111].

Yavari et al., reported a one-pot procedure to achieve N-alkylthiazoline-2-thiones. The strategy adopted was a catalyst-free reaction system that started by the formation of an alkylammonium dithiocarbamate salt, followed by addition to 2-chloro-1,3-dicarbonyl compounds to generate the acyclic dithiocarbamate derivatives; then cyclization (and closure of the ring) and elimination of water in the presence of alkylammonium chloride led to the desired product. The various derivatives were prepared from primary amines, carbon disulfide, and 2-chloro-1,3-dicarbonyl compounds in water (Scheme 71) [112].

In 2008, Tu et al., demonstrated a microwave-assisted multi-component approach for the preparation of thiazolidinones. In aqueous medium, a three-component reaction with various aromatic aldehydes, aniline, and mercaptoacetic acid afforded the desired products in excellent yields (Scheme 72) [113].

In 2009, Boeini and Najafabadi also accomplished the construction of the thiazole ring using 2-aminthiophenol and S-methylthioamidinium salt with HTAB as catalyst system (Scheme 73) [93].

Potewar et al., reported a direct method for the synthesis of 2-aminothiazoles under catalyst-free conditions and aqueous medium at room temperature. During evaluation of the scope and generality of the strategy, the team was able to verify that the phenacyl bromide with both an electron-rich and an electron-poor functionality underwent a condensation reaction with thioureas equally well to afford the corresponding 2-aminothiazoles in excellent isolated yields. Furthermore, α-bromo-2-acetonaphthone smoothly reacted with thiourea and substituted thiourea, affording the corresponding products in excellent yields (Scheme 74) [114].

Chakraborti et al., generated benzothiazoles and benzothiazolines in excellent yields from various aldehydes and 2-aminothiophenol. The team applied a chemoselective protocol with no competitive thia-Michael addition, O-dealkylation/debenzoylation, reduction of the nitro or the unsaturated carbonyl groups, and substitution of the halogen atom or the nitro group (Scheme 75) [115].

3.7.2. Reactions in PEG

In 2016, Berteina-Raboin et al., managed to obtain substituted 2-aminobenzothiazole from isocyanides and 2-aminothiophenol as the starting materials in respectable yield. The results were achieved using iodine as a catalyst and hydrogen peroxide as an oxidant in PEG 400 (Scheme 76) [116].

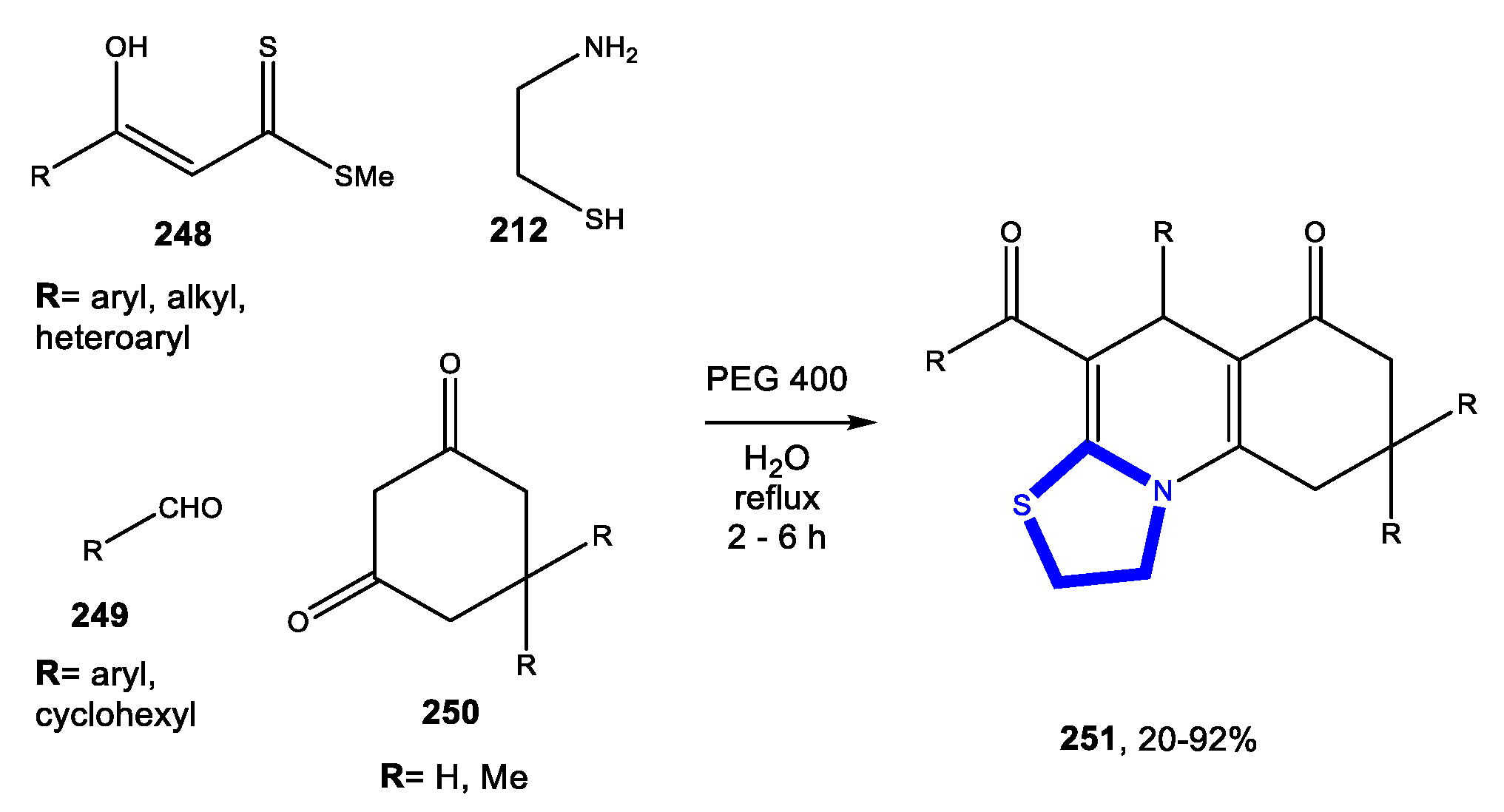

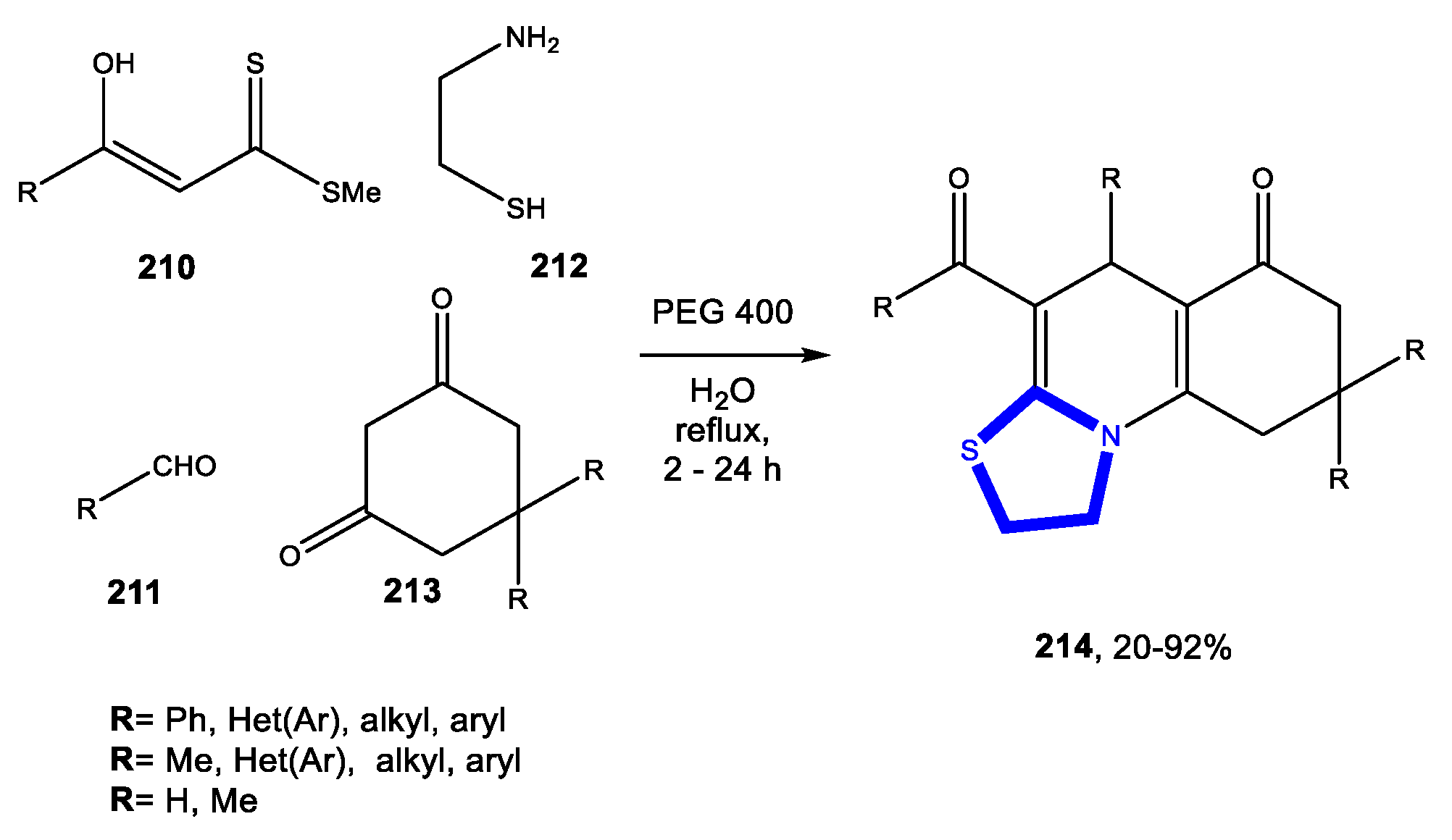

In 2015, Nagaraju et al., adopted a one-pot four-component cascade reaction to synthesize thiazoloquinoline derivatives from α-enolic dithioesters, cysteamine, aldehydes, and cyclic 1,3-diketones. This result was achieved by first optimizing the sequential protocol that generated two rings by concomitant formation of C=C, C=N, and C–S multiple bonds (Scheme 77) [107].

Jin et al., successfully performed a condensation reaction of 2-aminothiophenol with aldehydes. This work developed an approach catalyzed by ceric ammonium nitrate in PEG to afford benzothiazoles in good yields in 5 h at room temperature. Additionally, the team was able to recover and reuse the catalyst system without any noticeable loss in activity (Scheme 78) [117].

A year earlier (2010), Deligeorgiev et al., presented a synthetic strategy with similar starting reagents using p-toluenesulfonic acid as the catalyst system. In this case, they successfully monitored the reaction of 2,2’-diaminodiphenyldisulfides or 2-aminothiophenols and aldehydes in PEG 200/400 under microwave irradiation (Scheme 79) [118].

Zhu et al., published the synthesis of thiazoles through a catalyst-free protocol involving solvent reuse. This procedure, which produced the library in excellent yields, was based on the reaction of α-haloketones with thioureas/thioamides at room temperature (Scheme 80) [119].

3.7.3. Reactions in Bio-Based Solvents

Yu et al., succeeded in preparing 2-arylbenzothiazoles using proline-based ionic liquids as a catalyst prepared previously. The methodology proceeded in air and gave a high yield. The authors also reported the successful reuse of the catalytic system (Scheme 81) [120].

3.8. Formation of the Thiadiazole Ring

Reactions in Water

Halimehjani et al., studied the scope and limitations of the preparation of substituted 2,5-diamino-1,3,4-thiadiazoles via the reaction of dithiocarbamates prepared with aromatic amines and hydrazine sulfate in water. This strategy involved key steps: a pyridine–water mixture gave a mild basic medium in which the hydrazine sulfate was converted to hydrazine; then cyclization via the nucleophilic attack of sulfur on the thiocarbonyl group produced the anion, which after absorbing a proton from water and aromatization followed by elimination of H₂S, resulted in the desired final product (Scheme 82) [121].

3.9. Formation of the Isoxazole Ring

3.9.1. Reactions in Water

Recently, Ahmadzadeh et al., carried out a practical strategy to obtain methyl-4-(hetero)arylmethylene isoxazole-5(4H)-ones. The construction of these compounds was achieved by one-pot multicomponent cyclocondensation of hydroxylamine hydrochloride, ethyl acetoacetate and benzaldehyde derivatives in water under ultrasound irradiation. The process applied was catalyzed by SnII-Mont K10, which was prepared previously by ion exchange between SnCl₂ and montmorillonite K10 (Scheme 83) [122].

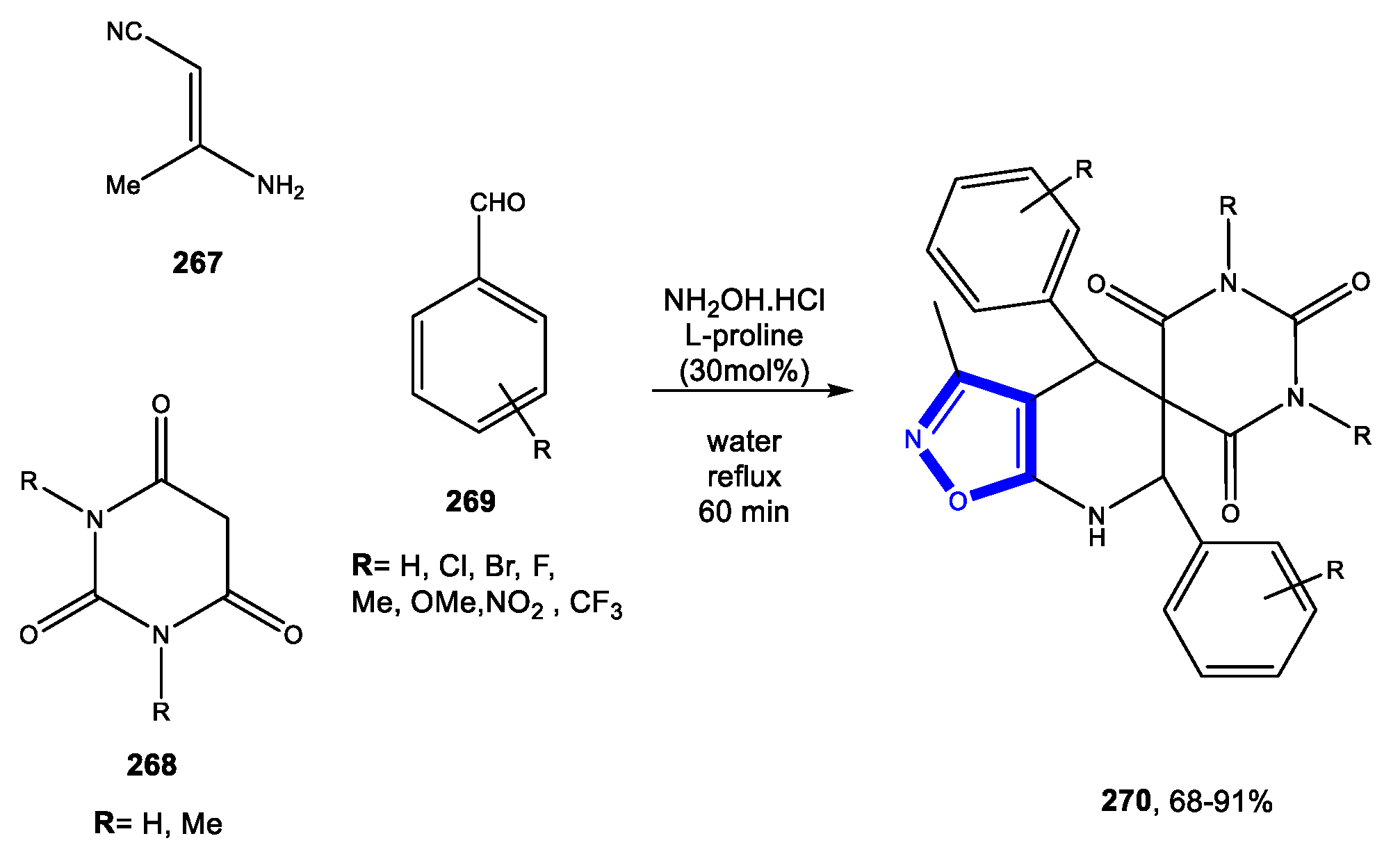

Using a one-pot Aza-Diels–Alder reaction, Dommaraju et al., succeeded in synthesising spiro(isoxazolo[5,4-b]pyridine-5,5-pyrimidine) using L-proline as catalyst in aqueous medium. The final products were prepared from 3-amino crotanonitrile, hydroxylamine hydrochloride, aromatic aldehydes, and barbituric acids in high yields (Scheme 84) [123].

Kiyani and Ghorbani investigated the synthesis of isoxazole derivatives using potassium hydrogen phthalate as catalyst and demonstrated a synthetic route to obtain 3,4-disubstituted isoxazol-5(4H)-ones in aqueous conditions at room temperature. A library of functionalized isoxazoles was synthesized from the reaction of hydroxylamine hydrochloride, aryl aldehydes and β-ketoesters (Scheme 85) [124].

Chary et al., worked on the preparation of isoxazoles and isoxazolines. These reactions were conducted with a 1,3-dipolar cycloaddition in aqueous polyethylene glycol. The series were efficiently synthesized from benzoylnitromethane/ethyl 2-nitroacetate and terminal alkynes or alkenes without the use of any base, catalyst, dehydrating agent, or hazardous solvent (Scheme 86) [125].

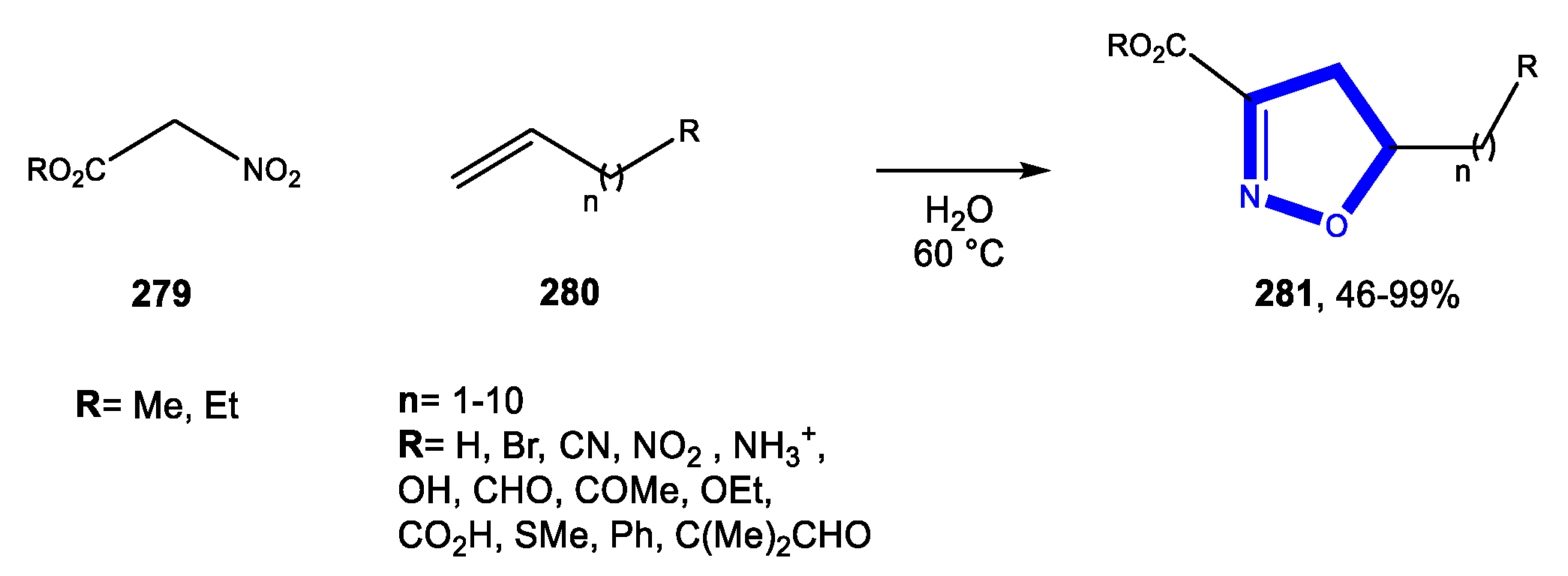

Trogu et al., successfully developed an acid–base-catalyzed condensation reaction to access the isoxazole series from nitroacetic esters and dipolarophiles. The team assumed that the reaction most likely involved reversible addition to a dipolarophile which was followed by acid-catalyzed irreversible dehydration of the cycloadduct (Scheme 87) [126].

In 2010, Savant et al., also described the generation of trisubstituted isoxazoles via condensation of various R-acylketene dithioacetals with hydroxylamine hydrochloride followed by oxidation of sulfide to sulfone using water as solvent (Scheme 88) [74].

Tan et al., demonstrated a protocol for the synthesis of tetrahydronaphthalenes fused with an oxazolidine by a tandem approach. The route reported allowed for the formation of the desired product through tandem Michael/nitrone formation/intramolecular [3+2] nitrone–olefin cycloaddition in aqueous media (Scheme 89) [127].

3.9.2. Reactions in PEG

In 2013, Lavania et al., designed a route to synthesize 2-isoxazoline containing an anthracene moiety. The protocol involved the condensation of substituted chalcones with hydroxylamine hydrochloride in good yields (Scheme 90) [77].

3.9.3. Reactions in Bio-Based Solvents

Vaidya et al., adopted a reaction catalyzed by cerium chloride heptahydrate in ethyl lactate as bio-based solvent to achieve isoxazolone derivatives. The methodology was carried out at room temperature; the catalyst and solvent were reused (Scheme 91) [128].

3.10. Formation of the Oxazole Ring

3.10.1. Reactions in Water

Boeini and Najafabadi, in the work reported in 2009, related the synthesis of benzoxazoles. The derivatives were obtained by reaction of the corresponding thioamidinium salts and 2-aminophenol (Scheme 92) [93]

Wallace et al., described a regioselective conversion of an aziridine to an oxazolidinone using only an iodide salt and CO₂ in water. The group started with the known assumption, namely the fact that aziridines undergo ring opening in water using PBu3 as the nucleophile. Thus, they developed the synthesis strategy using a halide salt as the nucleophile and water as the solvent (Scheme 93) [129].

3.10.2. Reactions in Bio-Based Solvents

Balijapalli et al., applied lactic acid as solvent to investigate its utility in the synthesis of oxazolonaphthoimidazo[1,2-a]pyridines. The synthetic strategy adopted was highly compatible with various functionalities. The reactions using derivatives containing electron donating and withdrawing analogues were achieved in good yields (Scheme 94) [130].

4. Six-Membered Aromatic Nitrogen Heterocycles

4.1. Formation of the Pyridine Ring

4.1.1. Reactions in Water

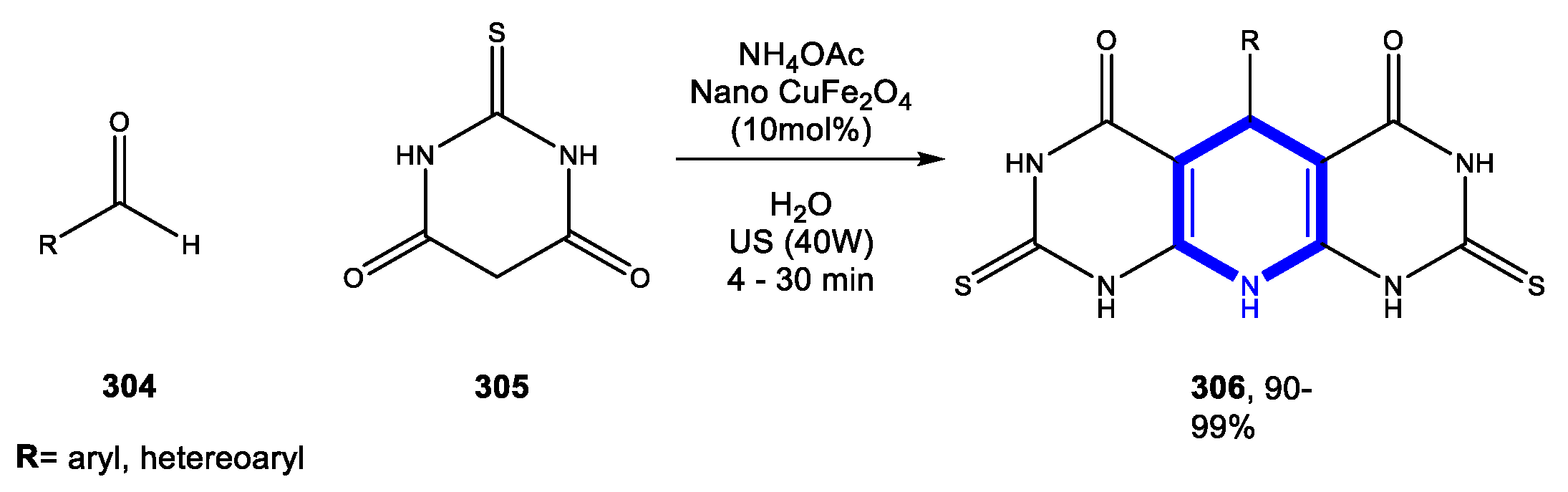

Naeimi and Didar developed a method to generate pyrido[2,3-d:6,5-d]dipyrimidines in high yields by reaction of aldehyde, 2-thiobarbituric acid and ammonium acetate. This approach was performed under water using a magnetically recyclable nanocatalyst (CuFe₂O₄) (Scheme 95) [131].

As previously described, in 2017, Sagir et al., achieved a one-pot four-component reaction catalyzed by iodine in water. This reaction from hydrazine, ethylacetoacetate, 6-amino-1-methyluracil, and isatin or aldehyde and iodine as catalyst also resulted in the formation of a pyridine ring (Scheme 96) [62].

Lezana et al., obtained tetrahydropyridines via an intramolecular imino-Diels–Alder reaction in water. The derivatives were synthesized under microwave irradiation and with no catalyst between the 2-amino pyrrole and 2-aminopyrazole to construct chiraltetracyclic dihydrochromeno-pyrrolo- and dihydrochromenopyrazolo-tetrahydropyridines (Scheme 97) [132].

Abdelmoniem et al., described a convenient procedure for the synthesis of spiro cyclic derivatives that included the formation of a pyridine ring. The process was catalyzed by p-toluenesulfonic acid in aqueous medium (Scheme 98) [133].

Yaragorla et al., designed a methodology to access the construction of dihydropyridine and acridine scaffolds. After optimization, they monitored a one-pot multicomponent reaction with Ca(OTf)₂ as catalyst using water as solvent (Scheme 99) [134].

By adopting a series of cascade cyclization reactions initiated by aza- or oxa-michael addition in water, Zhao et al., were able to synthesize Michael adduct 324 from nitroolefin and 2-aminobenzaldehyde as Michael donor. When nitroolefin was replaced by α,β-unsaturated aldehyde as Michael acceptor, the result was compound 324 (Scheme 100) [135].

Mosslemin et al., employed a one-pot, three-component approach for the preparation of 5-aryl-(1H,3H,5H,10H)-pyrimido[4,5-b]quinoline-2,4-diones. The synthesis of several derivatives in high yields was achieved from anilines, aldehydes, and barbituric acids using 1,4-diaza-bicyclo[2.2.2]octane as catalyst system in water (Scheme 101) [136].

As previously mentioned, Chanu et al., published the synthesis of imidazo[1,2-a]pyridines and pyrido[1,2-a]pyrimidines. In this study, it was also possible to observe the construction of the pyridine ring (Scheme 102) [84].

Siddiqui et al., prepared fused pyridines through electron-rich amino heterocycles and Knoevenagel products derived from aldehyde and malononitrile in water with thiamine hydrochloride as a reusable catalyst. This protocol was successfully achieved from an addition on an activated olefinic bond formed in situ by Knoevenagel condensation between an aromatic aldehyde and an active methylene compound. The Michael product on subsequent cyclo-condensation yielded fused pyridine in high yield (Scheme 103) [137].

Nasseri et al., succeeded in achieving the rapid synthesis of quinoline derivatives in high yields by PEG-SO₃H catalyzed reaction of o-aminoaryl ketones with various carbonyls in water (Scheme 104) [138].

Makone and Niwadange investigated the synthesis of 1,4-dihydropyridines in aqueous media. The various derivatives were prepared from the condensation of aldehyde, β-dicarbonyl compounds, and liquid ammonia in good yields (Scheme 105) [139].

Khurana et al., demonstrated a three-component condensation of aldehydes, 1,3-dicarbonyl compounds and electron-rich amino heterocycles catalyzed by indium trichloride in water under reflux. This protocol afforded several skeletons containing the pyridine ring in good yields [140]. Scheme 106 shows an example of constructing one of the pyridine-containing compounds reported by Khurana et al.

Kumar et al., on the preparation of polyhydroquinolines. These reactions catalyzed by Thiourea dioxide in water were conducted via Hantzsch multicomponent coupling. The library was synthesized efficiently from aldehyde, dimedone, acetoacetate, and ammonium acetate (Scheme 107) [141].

Rahmati and Khalesi successfully developed a catalyst-free one-pot, three-component condensation reaction to access pyrido[2,3-d]pyrimidines and pyrazolo[3,4-b]pyridines series in water. Several derivatives were obtained from aldehydes, benzoyl acetonitriles and 6-amino-1,3-dimethylpyrimidine-2,4(1H,3H)-dione or 3-methyl-1-phenyl-1H-pyrazol-5-amine (Scheme 108) [142].

Shen et al., reported a synthesis of quinolines from 2-aminobenzaldehyde with various ketones or malononitrile in water without using any catalyst by Friedländer reaction (Scheme 109) [143].

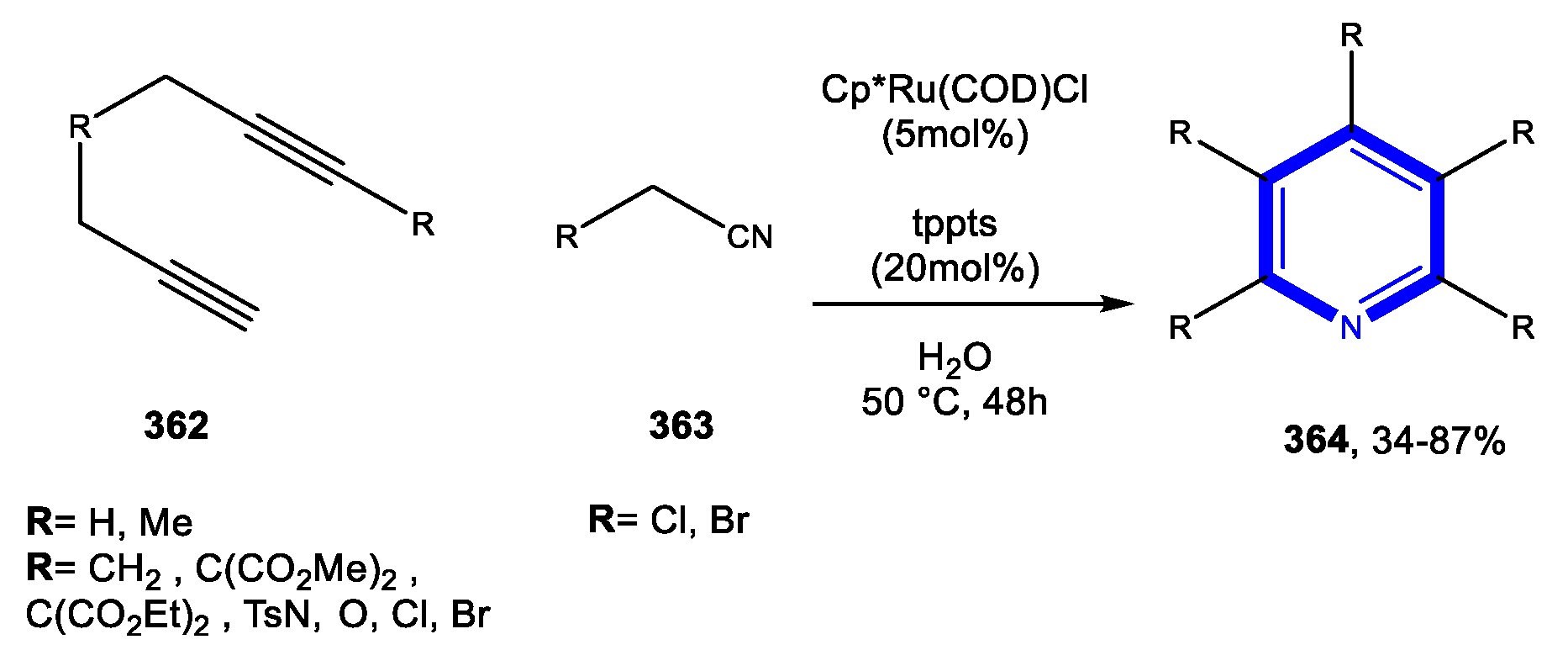

Xu et al., described a generation of substituted pyridines via [2+2+2] cycloaddition of diynes with nitriles in aqueous medium. This ruthenium-catalyzed approach gave efficient access to highly functionalized pyridines (Scheme 110) [144].

Mukhopadhyay et al., demonstrated the protocol for the synthesis of [1,6]-naphthyridines by a one-pot, catalyst-free, pseudo-five-component approach. In water methyl ketones reacted with amines and malononitrile to afford the corresponding 1,2-dihydro[1,6]naphthyridines in good yields. The reported protocol allows the formation of two pyridine rings in a one-pot reaction through the synthetic route without starting from any nitrogen-containing heterocycle moiety (Scheme 111) [145].

Paul et al., designed sequential ring closure methodologies to synthesize bisquinoline derivatives. The process involved a double Friedlander reaction in water between 2-[(2-oxo-2-arylethyl)sulfanyl]-1-aryl-1-ethanones/2-[(2-oxo-2-arylethyl)disulfanyl]-1-aryl-1-ethanones and 2-aminobenzophenone with p-toluenesulfonic acid as catalyst (Scheme 112) [146].

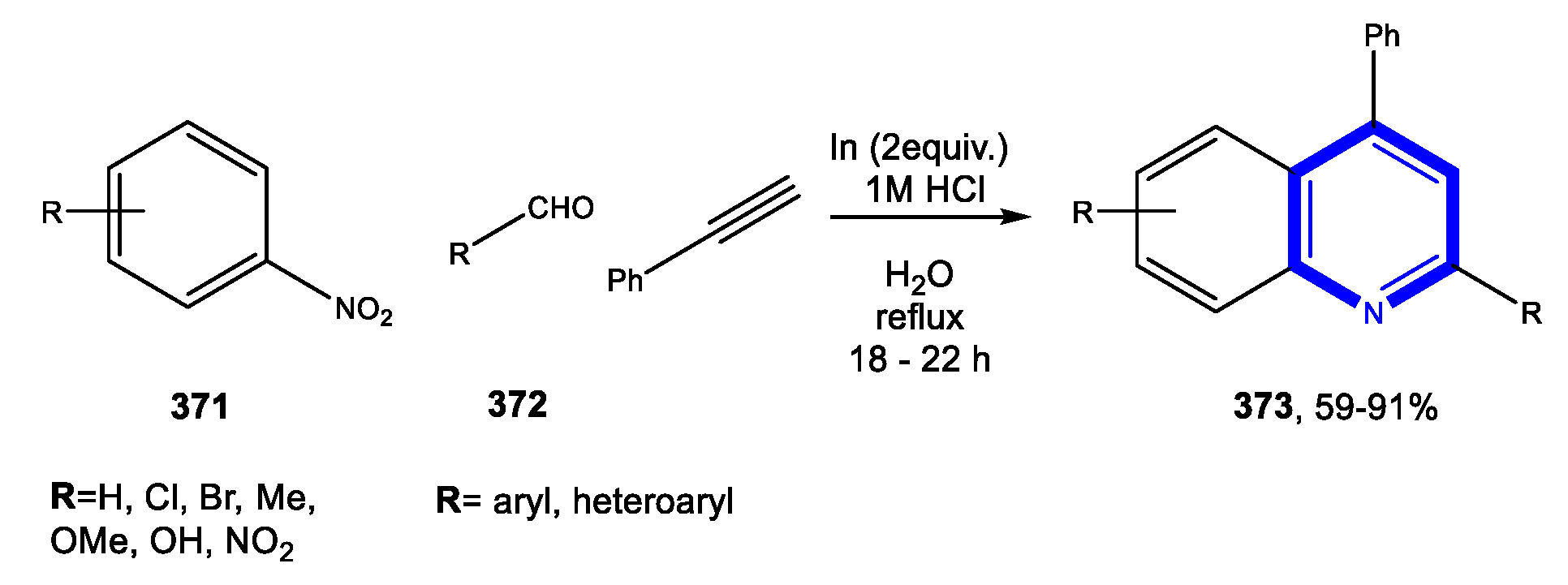

Das et al., adopted a three-component reaction in water to achieve quinolone derivatives. A key step in the synthesis was the reaction system between nitroarenes, aldehydes, and phenylacetylene in the presence of indium in dilute HCl. This conversion involved reduction of the nitroarenes to anilines followed by coupling of the anilines, aldehydes, and phenylacetylene, concluding with cyclization of the resulting species, and dehydrogenation of the cyclic intermediates (Scheme 113) [147].

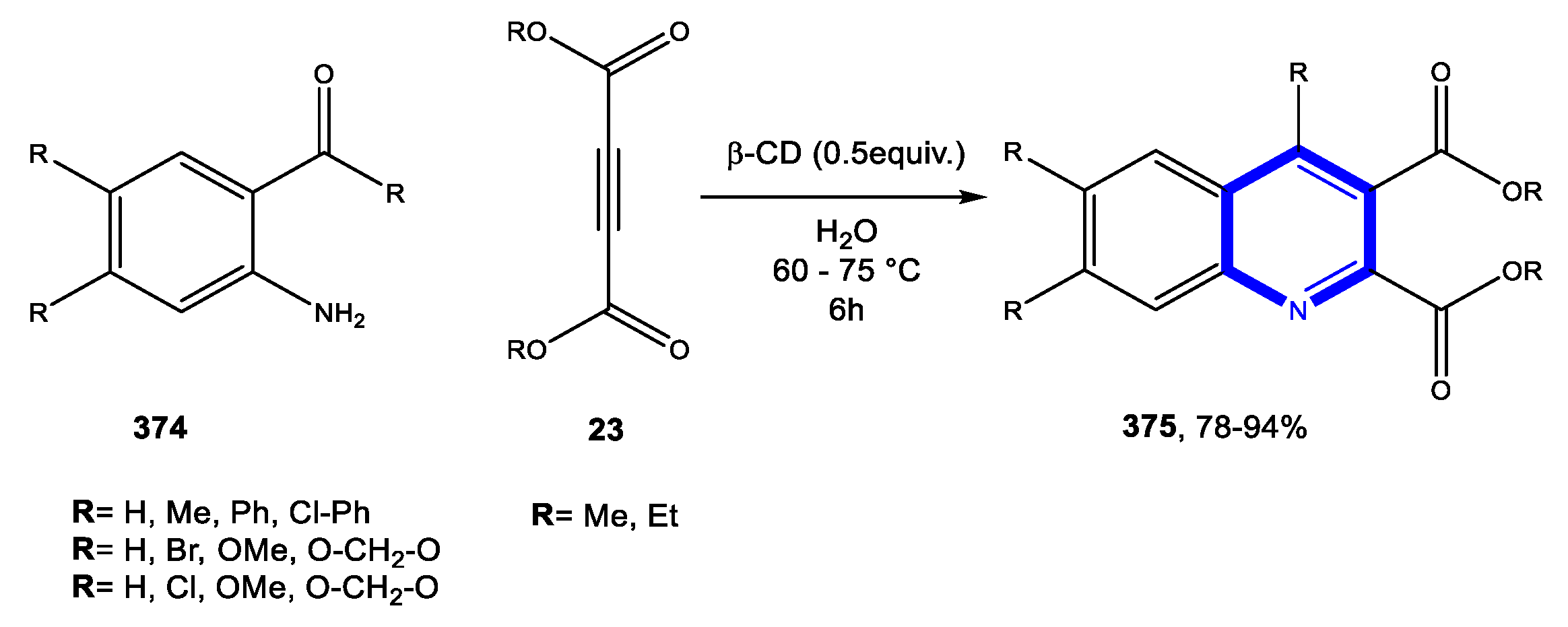

Madhav et al., studied the synthesis of quinoline-2,3-dicarboxylates using water as solvent in neutral conditions. The optimized conditions were found with β-cyclodextrin as catalyst at low temperature for a short time (Scheme 114) [148].

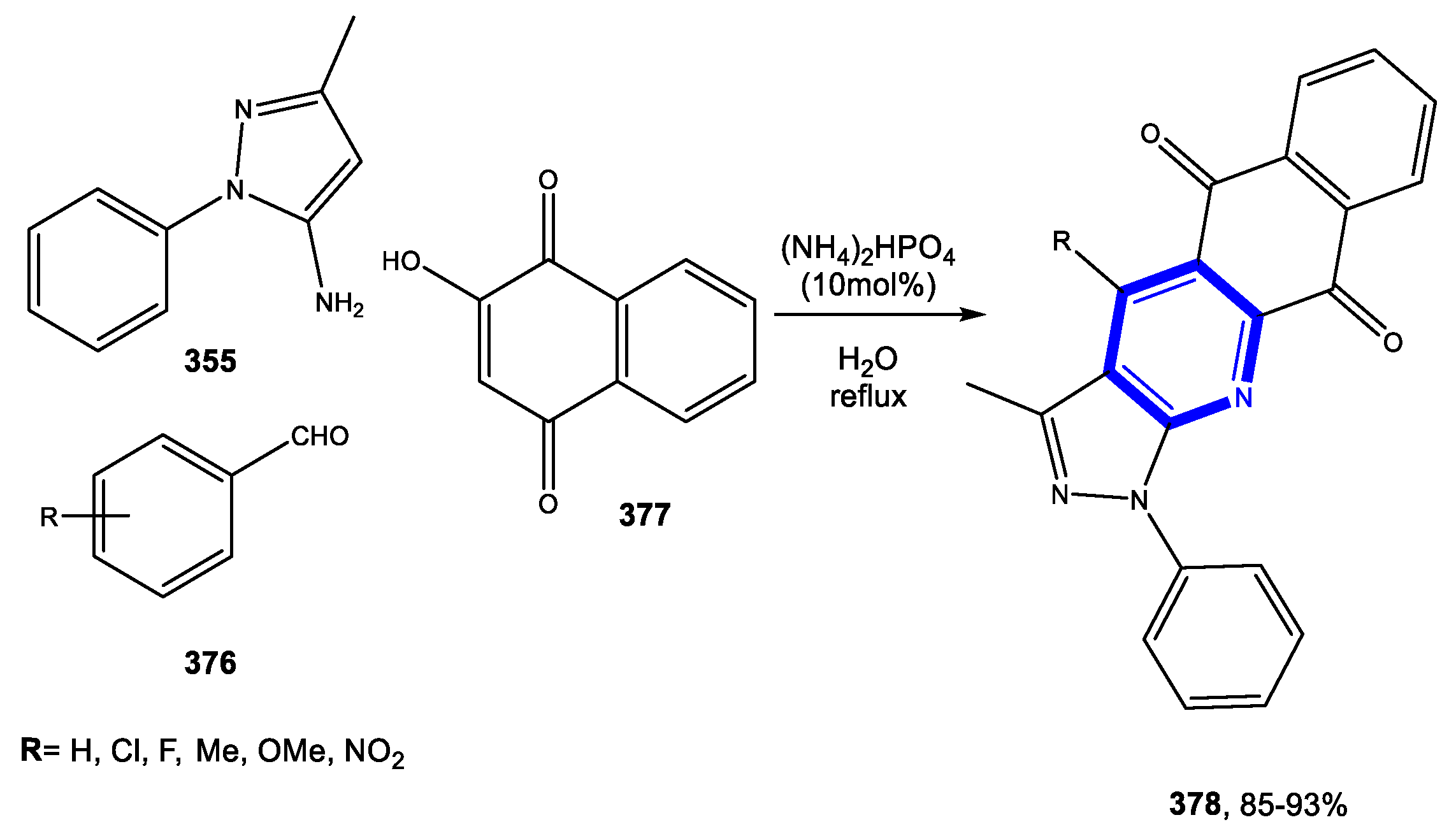

Wu et al., synthesized Benzo[h]pyrazolo[3,4-b]quinolines from 3-methyl-1-phenyl-1H-pyrazol-5-amine, aldehydes and 2-hydroxynaphthalene-1,4-dione in water. This one-pot condensation strategy was catalyzed by diammonium hydrogen phosphate (Scheme 115) [149].

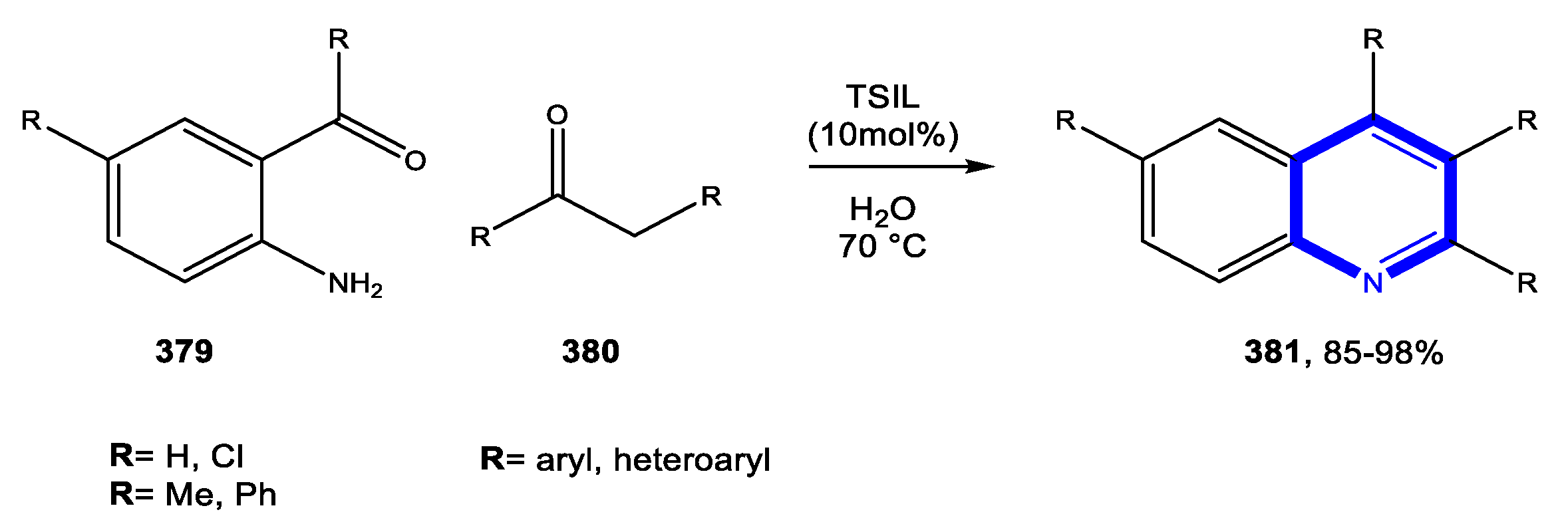

Akbari et al., adopted a one-pot Friedlander reaction for a domino approach to quinoline synthesis in aqueous medium. The series were accomplished from 2-aminoaryl ketones and β-ketoesters/ketones using the catalytic system of SO₃H-functionalized ionic liquid. With this strategy, it was possible to recover and reuse the catalytic system (Scheme 116) [150].

Shi and Yao synthesized furopyridine derivatives by three-component reaction of an aldehyde, with tetronic acid and 6-amino-1,3-dimethyl-pyrimidine-2,4-dione in aqueous media without using a catalyst. The team suggested that the reaction proceeded via three key steps: condensation, addition, and cyclization (Scheme 117) [151].

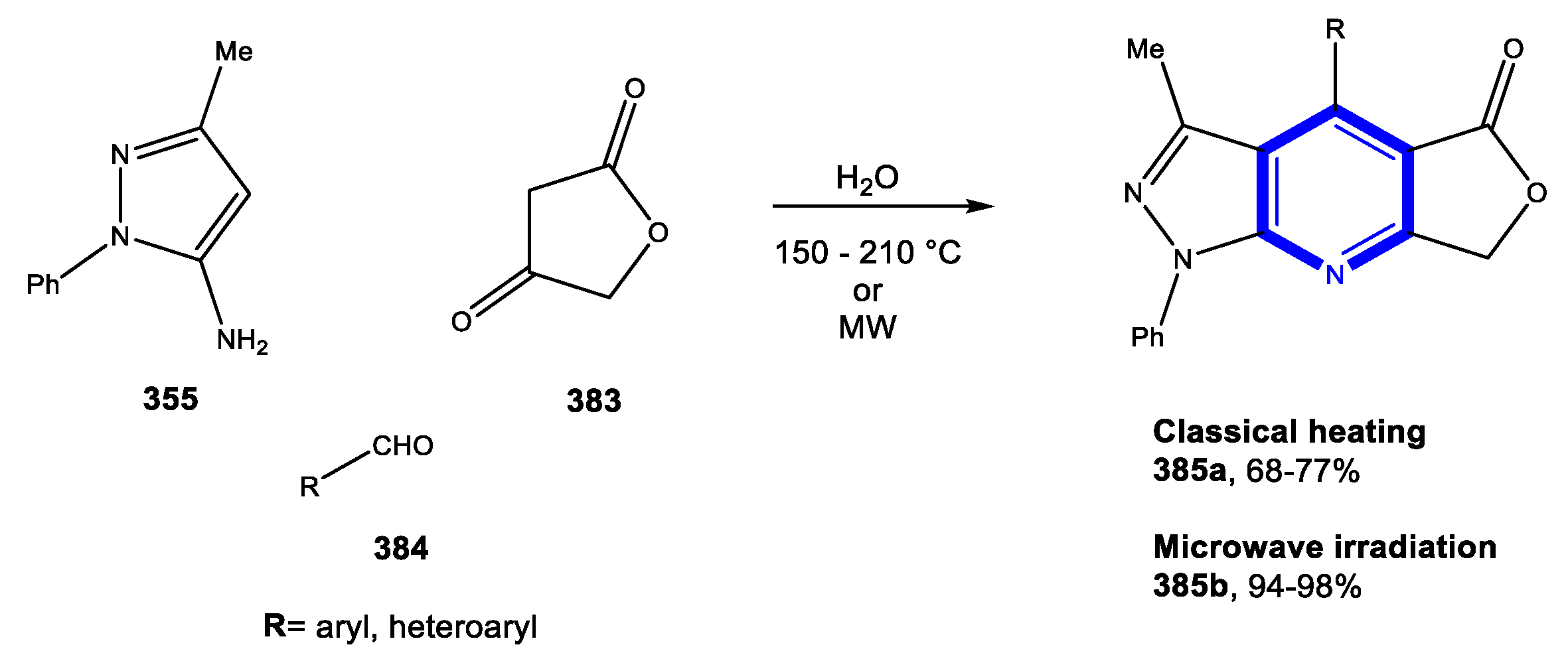

Shi et al., attained furo[3,4-e]pyrazolo[3,4-b]pyridines via microwave irradiation without any catalyst. The group successfully performed a three-component reaction using aldehydes, 3-methyl-1-phenyl-1H-pyrazol-5-amine and tetronic acid in water (Scheme 118) [152].

In the same year, Shi et al., described the reaction of aromatic aldehydes, 6-aminoquinoline and either tetronic acid or 1,3-indanedione in water using similar conditions for the preparation of furo[3,4-b][4,7]phenanthroline and indeno[2,1-b][4,7]phenanthroline derivatives (Scheme 119) [153].

In 2008, Shi et al., also presented the synthesis of pyrazolo[4’,3’:5,6]pyrido[2,3-d]pyrimidine derivatives. The protocol was assisted by p-toluene sulfonic acid in water under microwave heating (Scheme 120) [154].

Additionally, the same team, Shi et al., reported a multi-component catalyst-free reaction of aldehyde, 3-methyl-1-phenyl-1H-pyrazol-5-amine and 1,3-indanedione in water under microwave irradiation to successfully achieve a library of indeno[2,1-e]pyrazolo[5,4-b]pyridines (Scheme 121) [155].

Kumar and Maurya prepared polyhydroquinolines using an unsymmetric Hantzsch catalyzed method. The library was obtained at room temperature from aldehydes, dimedones, acetoacetate ester or acetyl acetone, and ammonium acetate in good yields (Scheme 122) [156].

As described above, in 2006, Barnard et al., achieved N-heterocyclizations with water as the solvent. The team was also able to prepare azacycloalkane in good yields (Scheme 123) [52].

Wang et al., studied the Friedlander reaction of 2-aminoarylketone or 2-aminoarylaldehyde with carbonyl compounds in the presence of hydrochloric acid using water as the solvent. The methodology proved to be a highly efficient synthesis of quinolines (Scheme 124) [157].

Tu et al., published a three-component approach to synthesize poly-substituted indeno[1,2-b]quinolines. The method involved reactions between aldehydes, 1,3-indanedione, enaminones and p-toluene sulfonic acid (p-TsOH) as catalyst. The reactions were performed at high-temperature, using water under microwave irradiation (Scheme 125) [158].

Loncaric et al., attained dihydro-4-pyridones in high yields using AgOTf as catalyst. The reaction protocol was carried out by Aza-Diels-Alder reactions of Danishefsky’s diene with imines in water. Additionally, the team accomplished silver triflate-catalyzed three-component reactions starting from aldehydes, amines, and Danishefsky’s diene (Scheme 126) [159].

4.1.2. Reactions in PEG

Zhang et al., monitored a one-pot tandem aldol condensation/aza-addition reaction. Several pyrrolo[3,2-c]pyridinone products were successfully synthesized by heating 2-methyl-3-carbamoylpyrroles and aldehydes using PEG as solvent to afford 2,3,6,7-tetrahydro-1H-pyrrolo[3,2-c]pyridin-4(5H)-ones in high yields (Scheme 127) [160].

Maryamabadi et al., prepared spiro-dihydropyridines by one-pot multi-component reaction of isatin or acenaphthoquinone derivatives with malononitrile and N,N,0-substituted-2-nitroethene-1,1-diamines in PEG 400 under catalyst-free conditions (Scheme 128) [161].

Using the strategy mentioned by us earlier, Nagaraju et al., also generated the construction of the pyridine ring on synthesis of thiazoloquinolines (Scheme 129) [107].

Pal et al., described a synthesis of functionalized dihydropyridines via multicomponent reactions, at room temperature under catalyst free conditions in good yields. This methodology involved the reaction between different aromatic aldehydes, anilines, malononitrile derivatives, and dimethyl acetylenedicarboxylate (Scheme 130) [162].

Paidepala et al., reported the successful construction of several polyhydroquinolines by performing a four-component coupling of aldehydes, dimedone, ethylacetoacetate, and ammonium acetate using polyethylene glycol as solvent at room temperature for a short time (Scheme 131) [163].

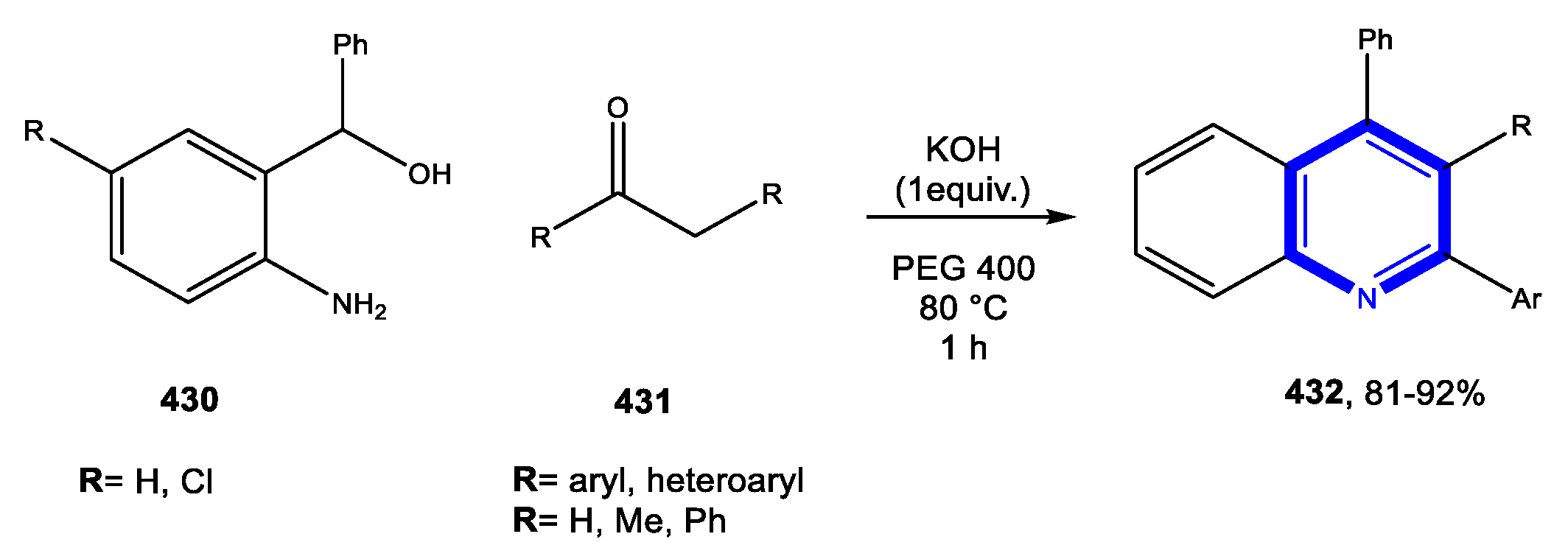

Wu et al., obtained various substituted quinolines by performing an indirect Friedländer reaction between the corresponding aminoalcohols and ketones using PEG 400 as reaction medium in the presence of a base, without any transition-metal catalyst (Scheme 132) [164].

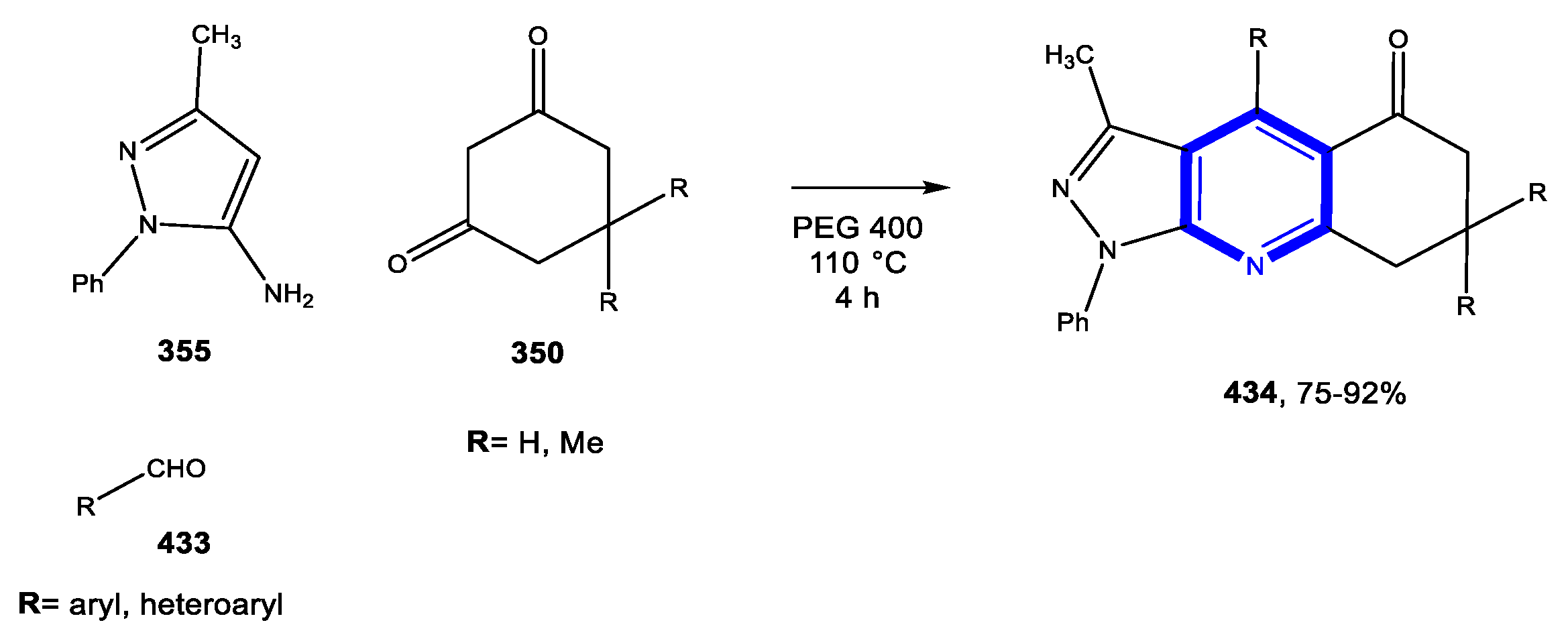

Karnakar et al., generated pyrazolo[3,4-b]quinolines in good yields through a one-pot three-component protocol. After optimizing the experimental conditions, 3,4,5-trimethoxy benzaldehyde, 5,5-dimethyl-1,3-cyclohexanedione, and 5-amino-3-methyl-1-phenyl-pyrazole were reacted in the presence of recyclable polyethylene glycol PEG 400, resulting in the formation of the desired pyrazolo[3,4-b]quinoline derivatives (Scheme 133) [165].

Nalage et al., attained 4, 6-disubstituted 3-cyano-2-pyridones using PEG as solvent via a one-pot four-component approach. The series of compounds were synthesized from a catalyst-free reaction of ketones, aldehydes, ethyl cyanoacetate, and ammonium acetate (Scheme 134) [166].

Manvar et al., developed a three-component coupling between aldehyde, 1,3-diketone or ketoester and ammonia for the preparation of 1,4-dihydropyridines without using any catalyst. The protocol was performed at high temperature using microwave irradiation for 1 to 5 minutes (Scheme 135) [167].

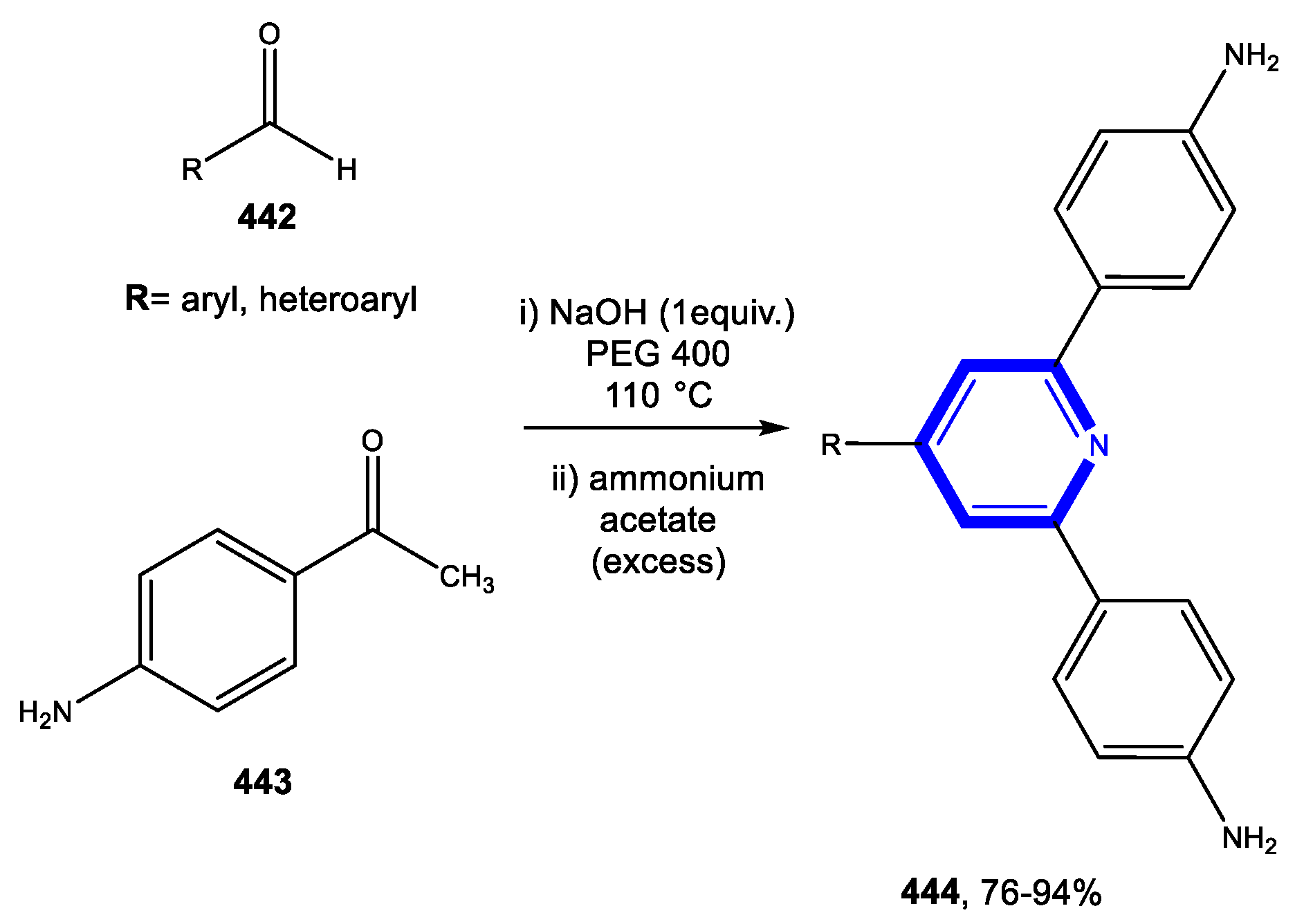

Smith et al., studied the scope and limitations of a synthetic route to achieve amino-functionalised 2,4,6-triarylpyridines. The preparation of triaryl pyridine derivatives was obtained in good yields from p-aminoacetophenone and aryl aldehydes by treatment with ammonium acetate (Scheme 136) [168].

4.1.3. Reactions in Bio-Based Solvents

In the article presented in 2012 by Yang et al., among the set of reactions that occurred in lactic acid, pyridine ring formation was contemplated. The construction of these compounds was achieved without the use of any catalyst through Friedländer annulation between 2-aminoacetophenone and 1,3-dicarbonyl compounds (Scheme 137) [58].

Paul and Das managed to obtain hydropyridyl derivatives using ethyl-L-lactate as solvent. The results were achieved from a one-pot three-component coupling of 4-aminocoumarin, aromatic aldehyde, and indane-1,3-dione or dimedone catalyzed by (±)lactic acid (Scheme 138) [169].

4.2. Formation of the Pyridazine Ring

Reactions in Water

Rimaz and Khalafy reported the synthesis of a series of alkyl 6-aryl-3-methylpyridazine-4-carboxylates in water. The reaction protocol involved a condensation reaction of β-ketoesters with arylglyoxals in the presence of hydrazine hydrate at room temperature (Scheme 139) [170].

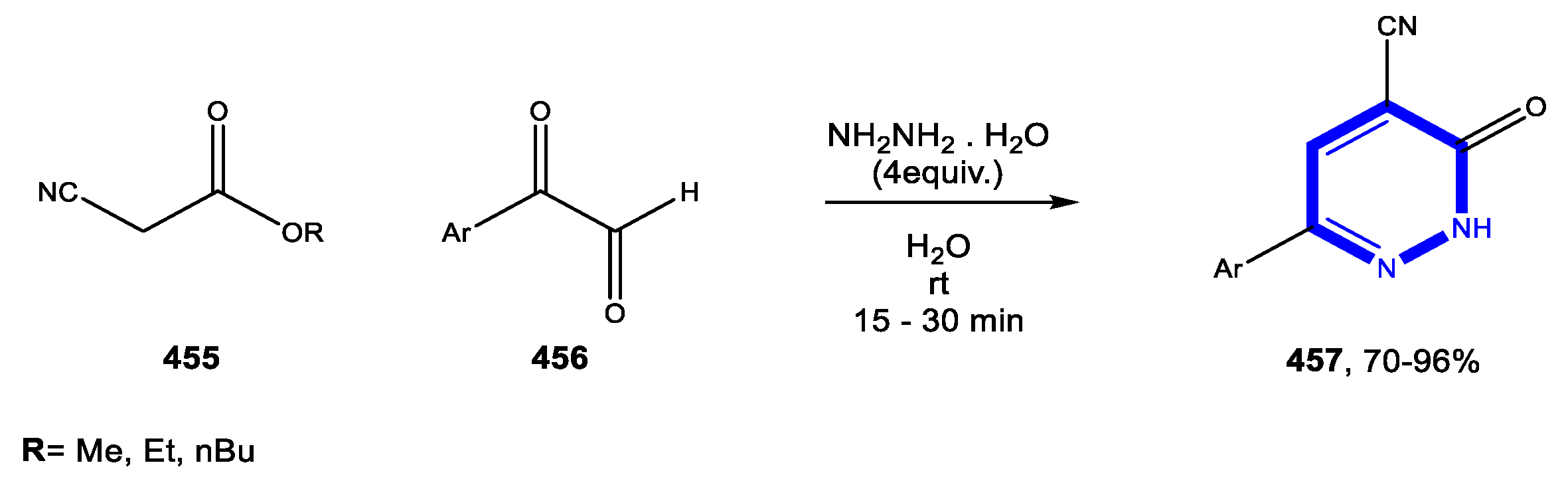

Earlier, the same authors, Rimaz et al., employed a one-pot three-component approach to prepare pyridazinones. The various 4-cyano-3(2H)-pyridazinones were obtained by reaction of alkyl 2-cyanoacetates with aryl glyoxals in the presence of hydrazine hydrate in aqueous medium (Scheme 140) [171].

4.3. Formation of the Pyrimidine Ring

4.3.1. Reactions in Water

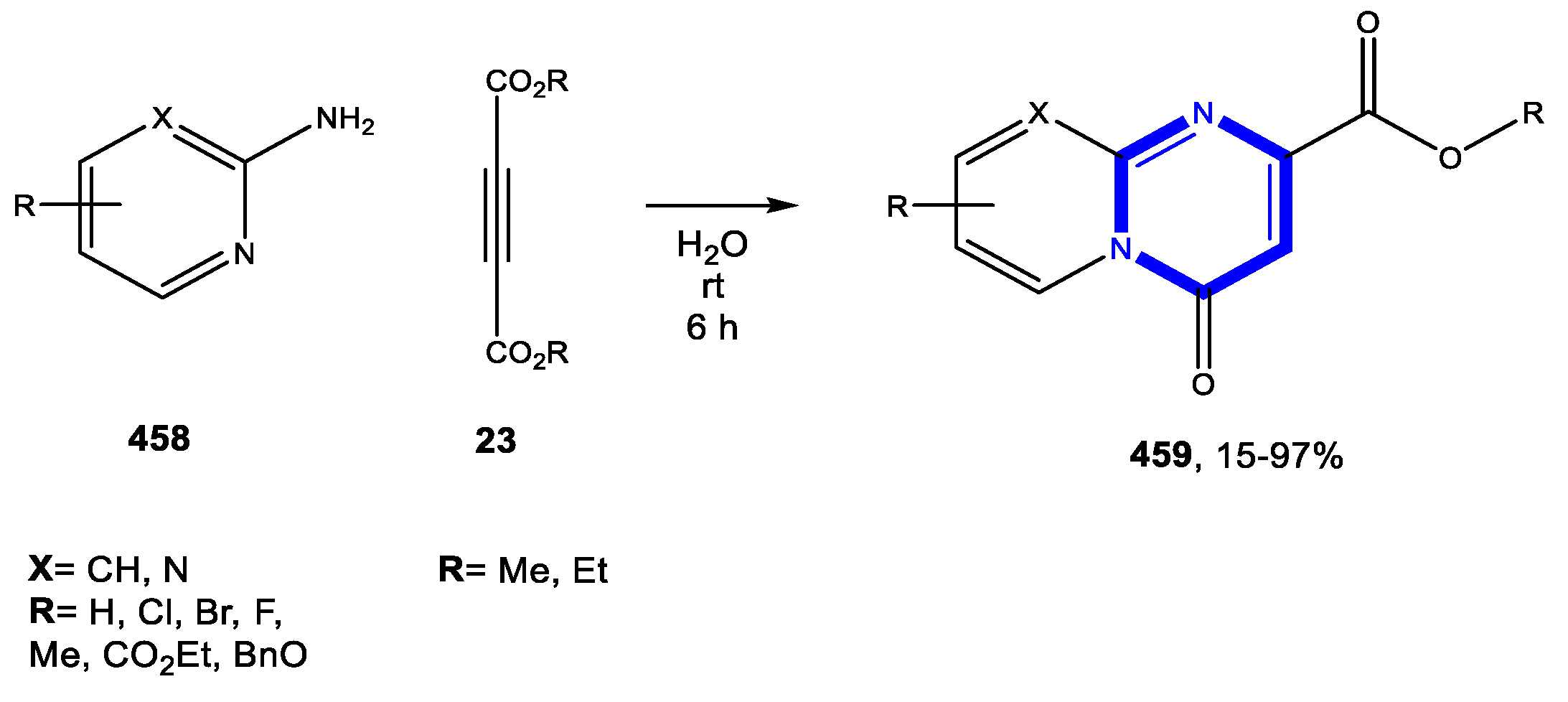

Yan et al., described the synthesis of alkyl 4-oxo-4H-pyrido[1,2-a]pyrimidine-2-carboxylate derivatives in water, using a catalyst-free approach with 2-aminopyridines and dialkyl ethylenedicarboxylates (Scheme 141) [172].

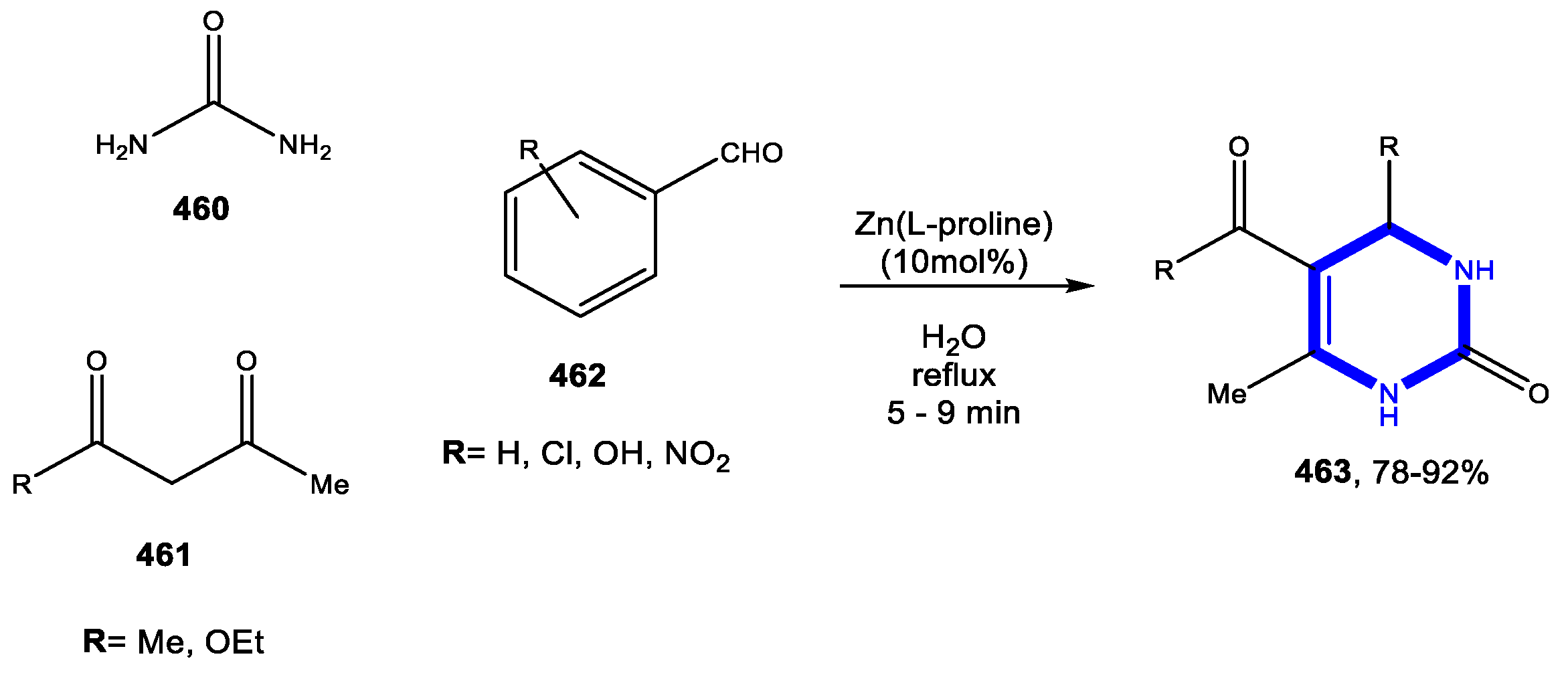

Siddiqui demonstrated a catalyzed Biginelli reaction to access 3,4-dihydropyrimidin-2 (1H)-ones. The reaction involved a Lewis acid catalyst in water, bis[(L)prolinato-N,O]Zn and stirred with methylene compounds, urea, and various aldehydes. The catalyst was recyclable up to five cycles (Scheme 142) [173].

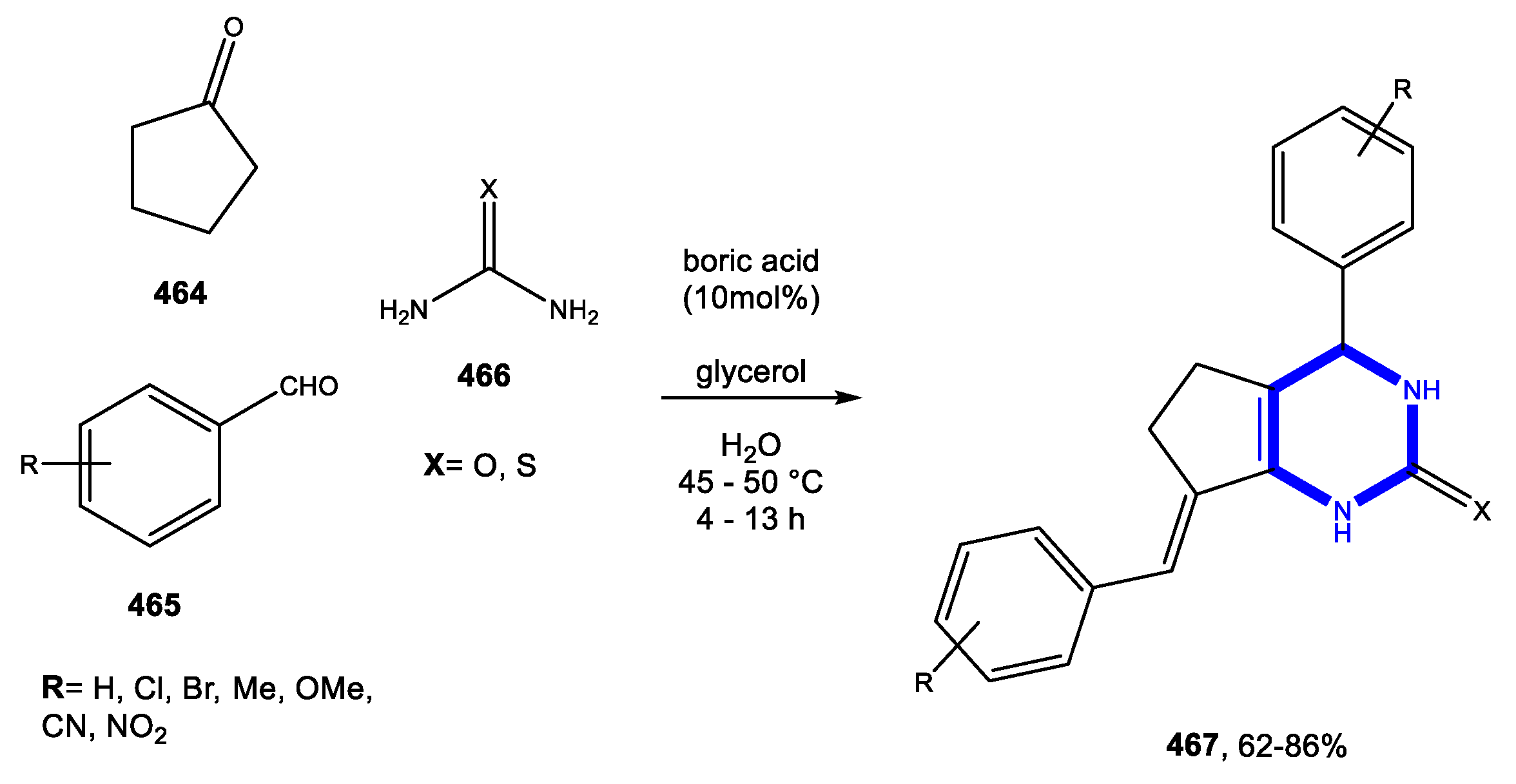

Mukhopadhyay and Datta investigated an approach catalyzed by boric acid and glycerol in aqueous medium. The various substituted pyrimidinones were achieved from aromatic aldehydes, cyclopentanone and ureas (or thiourea). The team observed that aromatic aldehydes with electron-donating groups required a longer reaction time to produce the substituted pyrimidinones; aldehydes with stronger electron-withdrawing groups provided the products in greater yields compared to ortho-substituted ones; and thiourea required more time for completion of the reaction than urea (Scheme 143) [174].

Ramesh et al., acquired a library of 2-phenyl-2,3-dihydroquinazolin-4(1H)-ones via a cyclodextrin catalyzed strategy in high yields. The synthetic route studied was based on the reaction between aldehydes and anthranilamides in water (Scheme 144) [175].

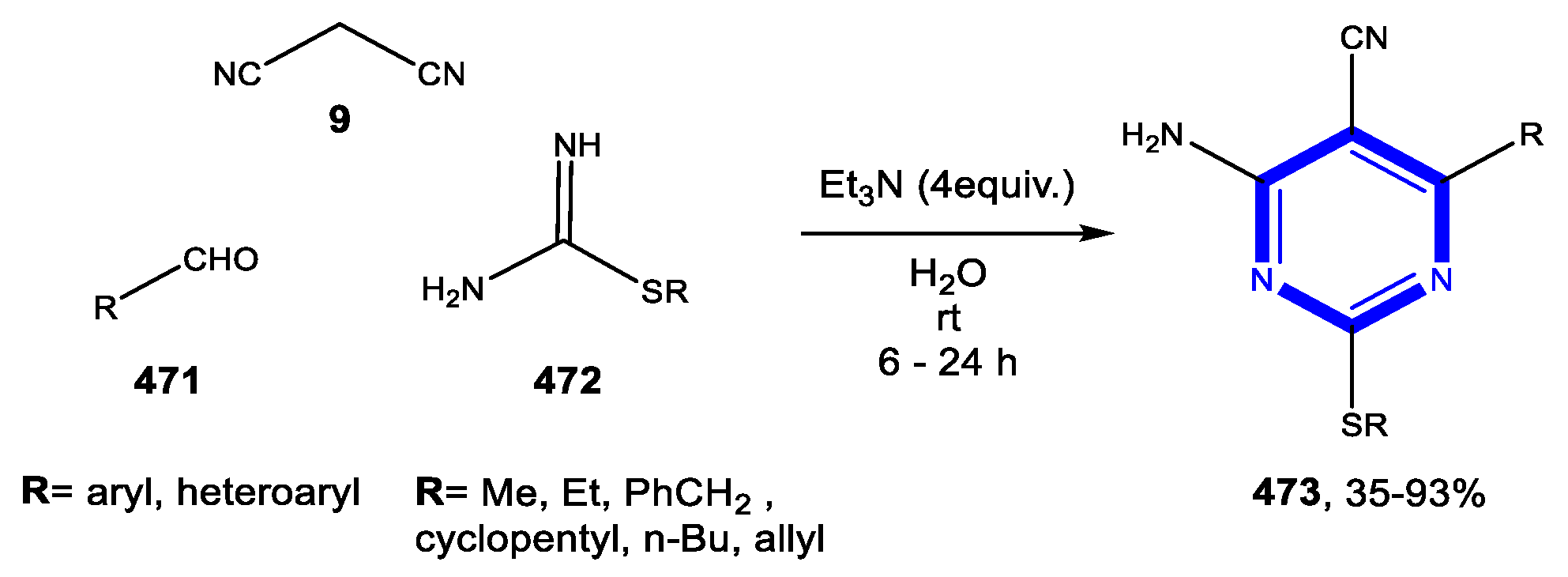

Li et al., carried out the preparation of 2-alkylthio-4-amino-5-cyano-6-aryl(alkyl)pyrimidines in water through three-component, one-pot synthesis. The methodology applied was the reaction of aldehydes with malononitrile and S-alkylisothiouronium salts at room temperature (Scheme 145) [176].

Das et al., disclosed an efficient approach for the synthesis of tetrahydropyrimidines. The construction of these compounds was achieved using the same procedure as that described previously—except for the ratio applied to the starting material: in this case, the molar ratios of these substrates were 2:1:4 (Scheme 146) [51].

Zhang et al., were able to prepare quinazolinone derivatives via iron-catalyzed C–N coupling using water as solvent. The reaction proceeded successfully from substituted 2-halobenzoic acids and amidines under microwave irradiation (Scheme 147) [177].

Xu et al., managed a route to the construction of 3,4-Dihydropyrimidin-2(1H)-ones by Biginelli reaction. This procedure embraced a micellar system according to the Biginelli reaction using ketoester, urea, and an appropriate aromatic aldehyde in the presence of CuCl₂. H₂O as catalyst. The reactions were successfully carried out in water without any organic solvent and gave high yields (Scheme 148) [178].

4.3.2. Reactions in PEG

Hese et al., implemented a one-pot three-component approach for the synthesis of pyrido[1,2-a]pyrimidine-3-carbonitrile derivatives. The construction of these compounds was achieved from the corresponding 2-aminopyridines, substituted aldehydes, malononitrile, and using bleaching earth clay as catalyst (Scheme 149) [179].

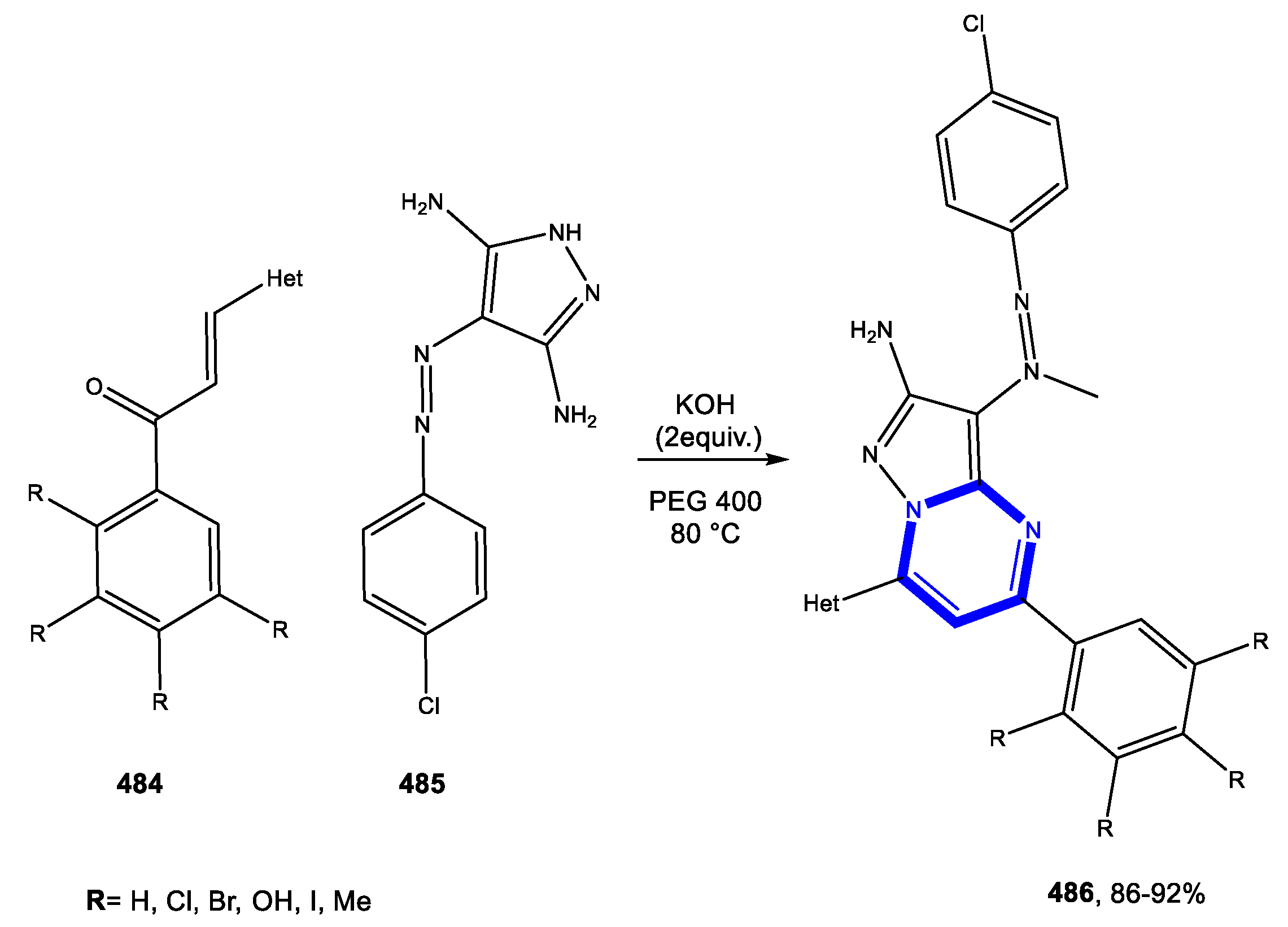

Konda succeeded in obtaining pyrazolo[1,5-a]pyrimidines in PEG as reaction medium from 4-(4’-chloro-phenylazo)-5-aminopyrazole with α,β-unsaturated carbonyl compounds. The advantages of this protocol are the simplicity of operation, the high yields of products, and the recyclability of the solvent (Scheme 150) [180].

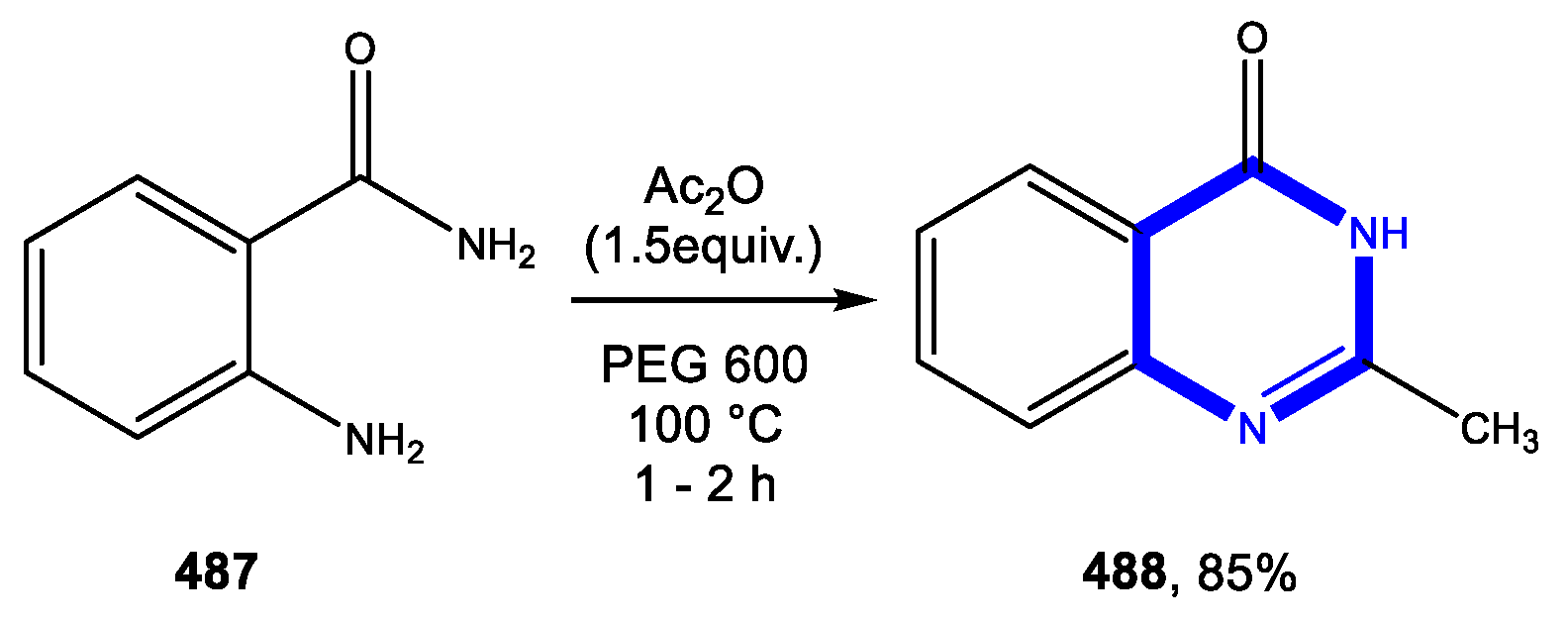

Using a tandem reaction mediated by PEG 600, Reddy et al., developed an approach to the synthesis of 2-methyl-3H-quinazoline-4-one by a thermal condensation of anthranilamide with acetic anhydride for a short time (Scheme 151) [181].

Maddila et al., monitored the catalyst-free condensation reaction of aromatic aldehydes, ethyl propionate and guanidine hydrochloride in PEG to access successfully a series of 2-amino-6-(substitutedphenyl)-5-methylpyrimidin-4-ol compounds (Scheme 152) [182].

Mahnaz and Nikpour reported a one-pot synthesis of 2,4(1H,3H)-quinazolinediones by cyclization reaction of anthranilic acid derivatives with potassium cyanate and acetic acid in PEG. These results were achieved using short reaction times and without any catalyst (Scheme 153) [183].

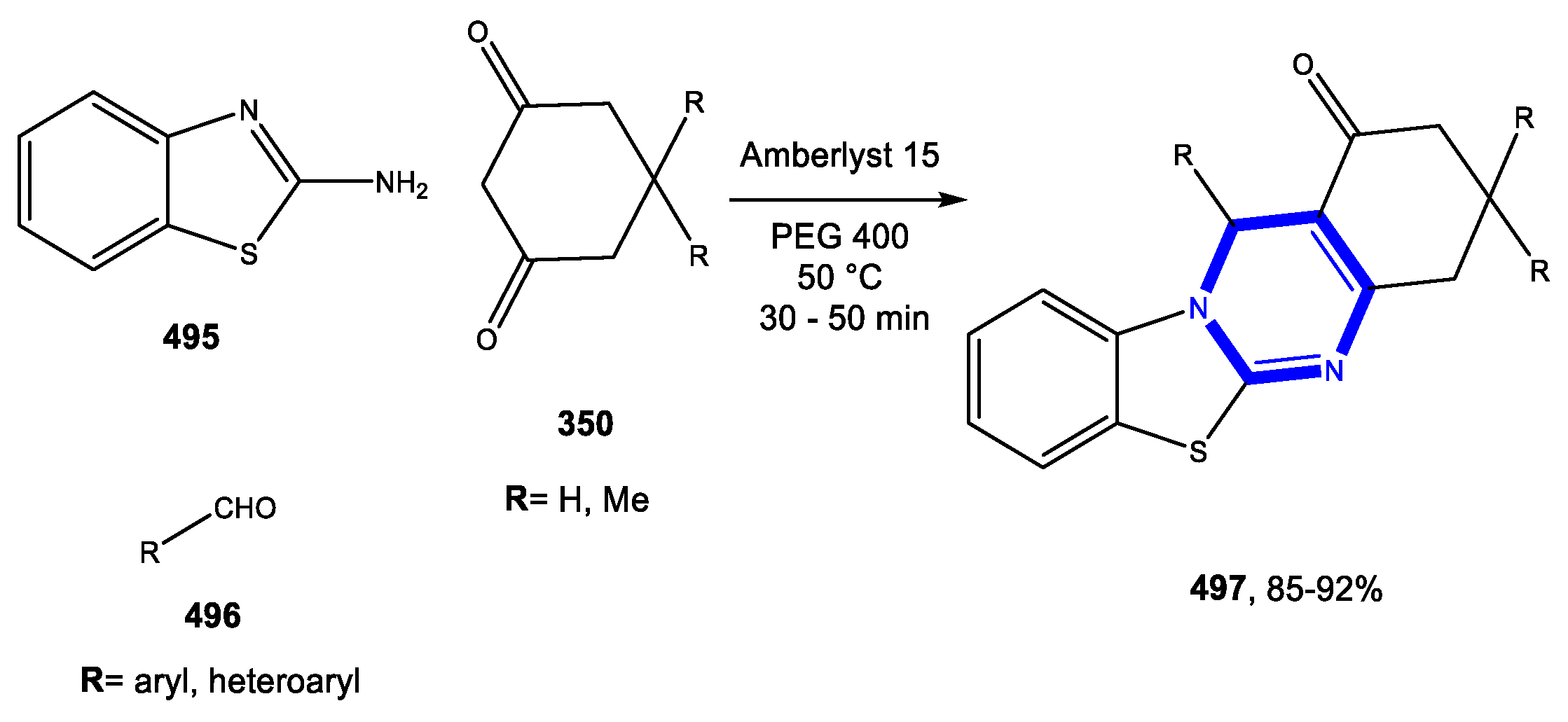

Kidwai et al., successfully adopted a one-pot process catalyzed by Amberlyst-15® in PEG 400 to accomplish a library of benzothiazolo-[2,3-b]-quinazolinones. For that, the team monitored and optimized a condensation of 2-aminobenzothiazole, cyclic β-diketones and various aldehydes. (Scheme 154) [184].

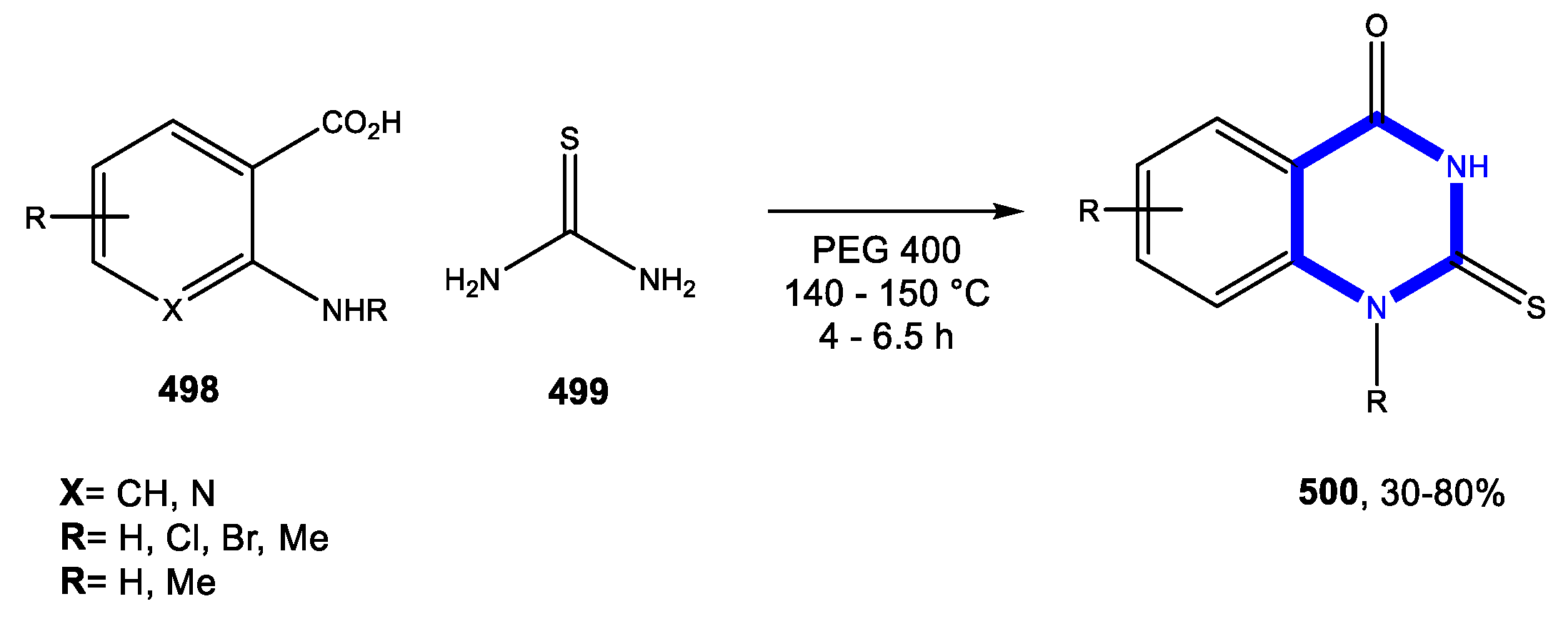

Through a one-pot catalyst-free reaction Nikpour et al., achieved the synthesis of 2-mercapto-4(3H)-quinazolinones in good yields using direct cyclo-condensation of anthranilic acid derivatives with thiourea in PEG (Scheme 155) [185].

Wang et al., employed a tandem Michael addition and intramolecular cyclization to prepare 5H,6H-[1,3,4]thiadiazolo[1,2-a]pyrimidine-7-ones. The synthesis of several derivatives was achieved in the presence of K₂CO₃ as the catalyst on a reaction system between 2-amino-5-aryloxymethyl-1,3,4-thiadiazoles and methyl acrylate (Scheme 156) [186].

4.3.3. Reactions in Bio-Based Solvents

Khandelwal et al., published the preparation of spiroquinazolines using gluconic acid aqueous solution as bio-based catalytic solvent system. This procedure was based on the three-component reaction of isatoic anhydride, aromatic amines, and substituted isatins (Scheme 157) [187].

The same group adopted a similar strategy to obtain 2,3-dihydroquinazolin-4(1H)-one derivatives. In a one-pot procedure and using three components (isatoic anhydride, anilines and aromatic aldehydes) the desired products were successfully achieved (Scheme 158) [188]

The group of Xu adopted the Biginelli reaction for the preparation of dihydropyrimidinthione derivatives using ethyl lactate as solvent. A short and efficient route to obtain the library from aldehydes, thioureas, 1,3-dicarbonyl, and trimethylsilyl chloride as catalyst was achieved (Scheme 159) [189].

4.4. Formation of the Pyrazine Ring

4.4.1. Reactions in Water

Rashidi et al., performed the synthesis of quinoxalines using acidic supported ionic liquid ([PPy]HSO₄@nSiO₂) as catalyst, which was previously prepared. Optimization of the conditions was achieved and the final products resulted from 1-(2-aminophenyl)pyrrole with acetophenone derivatives in aqueous medium (Scheme 160) [190].

Liu et al., successfully employed a B₂(OH)₄-mediated one-pot reaction for the preparation of tetrahydroquinoxalines. An approach was designed to obtain the library via the reaction between 2-amino(nitro)anilines and 1,2-dicarbonyl using water as solvent and hydrogen donor under metal-free conditions (Scheme 161) [191].

Afshin et al., adopted a one-pot four-component condensation between 2-hydroxynaphthalene-1,4-dione, benzene-1,2-diamines, aromatic aldehyde and pyridinium ylide, to synthesize trans-1,2-dihydrobenzo[a]furo[2,3-c]phenazines in good yields. The reaction catalyzed by theophylline was performed in water (Scheme 162) [192].

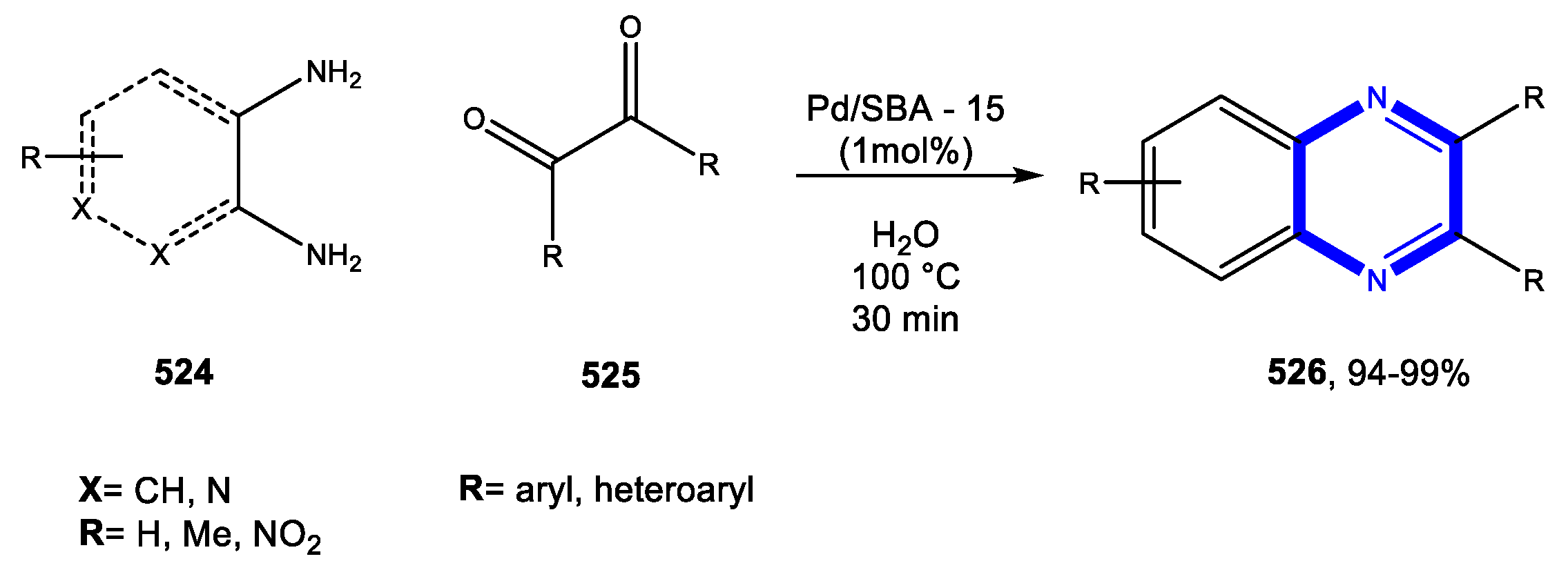

Bardajee et al., attained 2,3-disubstituted quinoxaline and pyridopyrazine derivatives using an SBA-15-supported palladium catalyst containing N–O chelating Schiff-base ligand. The series of derivatives containing the pyrazine ring were synthesized through cyclo-condensation of various 1,2-diamines and 1,2-diketones using a nanocatalyst complex in aqueous solution and water as solvent (Scheme 163) [193].

Alinezhad et al., generated quinoxaline derivatives in high yields from o-phenylenediamine and 1,2-diketone through a 2-Methylpyridinium trifluoromethanesulfonate ([2-MPyH]OTf) catalyzed reaction. The catalytic complex system was prepared previously and was reusable (Scheme 164) [194].

In 2013 Bardajee reported another strategy to achieve quinoxaline and pyrazine derivatives using water as solvent. In this case the reaction was catalyzed by Zirconium(IV) oxide chloride. Various pyridopyrazine and 2,3-disubstituted quinoxaline derivatives were readily prepared in high yields under green conditions by cyclo-condensation of the desired 1,2-diamine and 1,2-diketone (Scheme 165) [195].

In a report published in 2012, Rustagi et al., demonstrated the versatility of the optimized methodology catalyzed by AgI applied to the formation of the pyrazine ring [88]. This work arose following the continuation of the study of these procedures by this team (Scheme 166) [90].

Feng et al., performed a gold-catalyzed tandem reaction to access fused polycyclic indole derivatives. Synthesis of the final products was achieved from substituted 2-(1H-indol-1-yl) alkylamines and alkynoic acids in water under microwave irradiation by formation of one new C–C bond and two new C–N bonds in a single operation (Scheme 167) [196].

Zhang and collaborators disclosed a synthetic approach to obtain quinoxaline using water as solvent without any catalyst. The construction of benzoxazine was achieved using 539 as starting material (Scheme 168) [197].

Srinivas et al., accomplished the synthesis of quinoxaline derivatives in Water by reacting various 1,2-dicarbonyls and 1,2-diamines. All substrates produced the corresponding desired products in good yields using a reusable polyaniline catalyst or polyaniline and sodium laurylsulfate in the reaction system (Scheme 169) [198].

4.4.2. Reactions in PEG

Khurana et al., explored a one-pot two-step domino protocol for the preparation of benzo[a]-phenazine. The team monitored the reaction of 2-hydroxynaphthalene-1,4-dione, ortho-phenylenediamines, aromatic aldehydes and cyclic 1,3-dicarbonyl compounds with p-TSA as in PEG 400 (Scheme 170) [199].

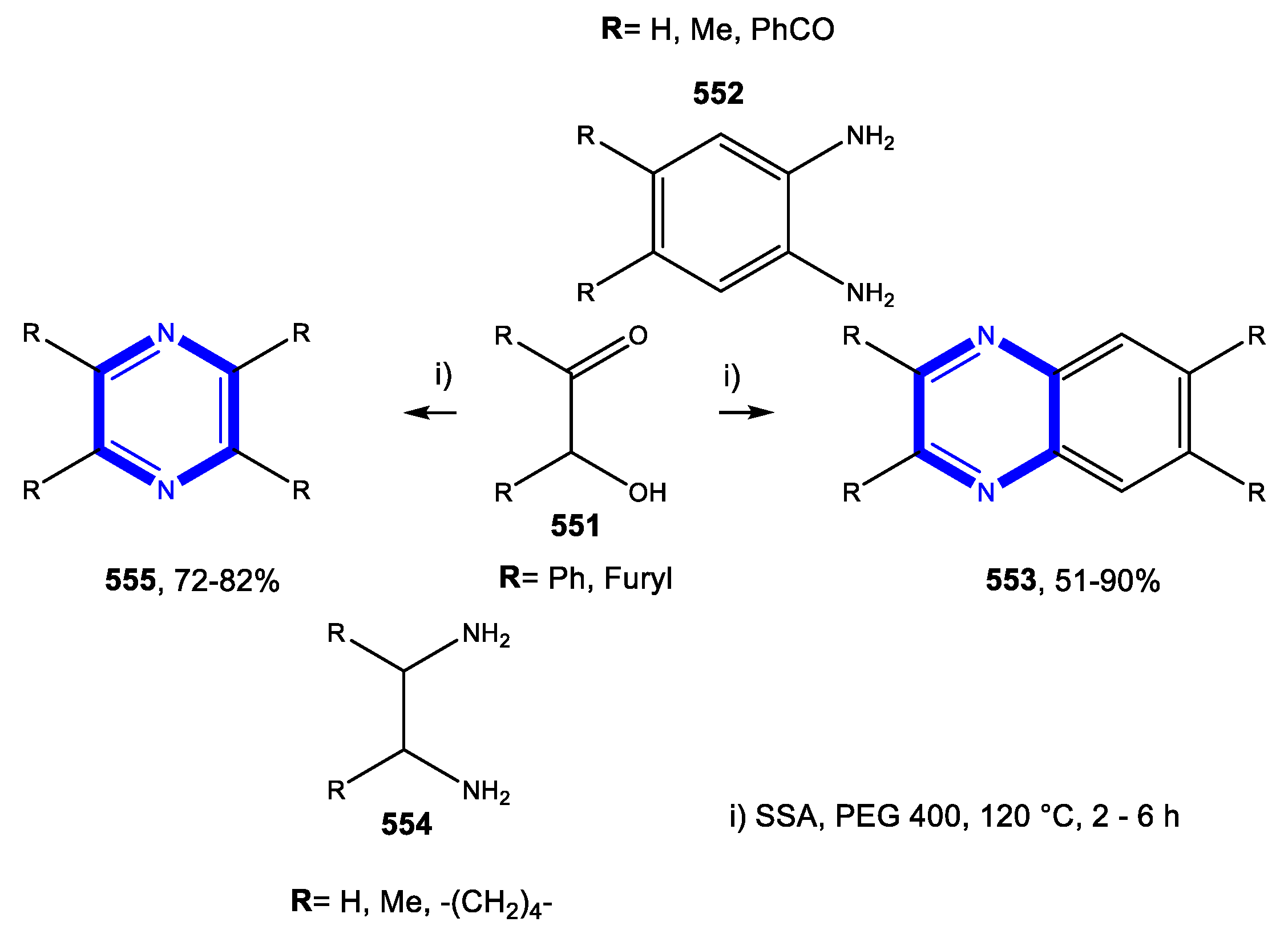

Huang et al., reported the preparation of pyrazines in the presence of silica sulfuric acid with good yields. The team was able to synthesize quinoxaline and pyrazine derivatives applying the condensation of 1,2-diamines with α-hydroxyketones (Scheme 171) [200].

In 2010, Nagarapu et al., employed a protocol for the synthesis of quinoxaline derivatives from various orthophenylenediamines with ketones under catalyst-free conditions using PEG as recyclable medium (Scheme 172) [201].

4.5. Formation of the Oxazine Ring

4.5.1. Reactions in Water

Allahbakhsh and Hassanabadi developed a method for the formation of oxazine derivatives. The 4-aryl-7-methyl-3,4-dihydropyrano[3,4-e][1,3]oxazine-2,5-dione were synthesized through an acyclocondensation reaction between 4-hydroxy-6-methyl-2H-pyran-2-one, aromatic aldehydes and methyl carbamate using p-toluene sulfonic acid in aqueous media (Scheme 173) [202].

Faramarz et al., generated oxazine derivatives within 10 hours using a one-pot three-component approach. The reaction of benzoyl cyanide and activated acetylenic compounds was stirred in water at room temperature in the presence of N-nucleophiles such as isoquinoline, quinoline, or N-methylimidazole (Scheme 174) [203].

Paira et al., in a one-pot sequence using the ion exchange resin Amberlite IRA 402(OH) were able to synthesize fused tricyclic oxaza quinolinium salts. The authors demonstrated the plausible pathway of the reaction: it was presumed that the reaction was initiated by amberlite resin converting the hydroxyquinoline to the quinoxide ion and thus promoting it towards the organic layer (dibromoalkane) by acting as phase-transfer catalyst. Then, the resin bound quinoxide ion reacted with dibromoalkane to furnish the desired quinolinium through O,N-dialkylation. The methodology was also applied to obtain compounds 569 (Scheme 175) [204].

In 2008, Zhang et al., carried out a protocol for the synthesis of benzo-fused N,O-heterocycles in water without using any catalyst. The construction of benzoxazine was achieved using 2-aminophenol as starting material (Scheme 176) [197].

4.5.2. Reactions in PEG

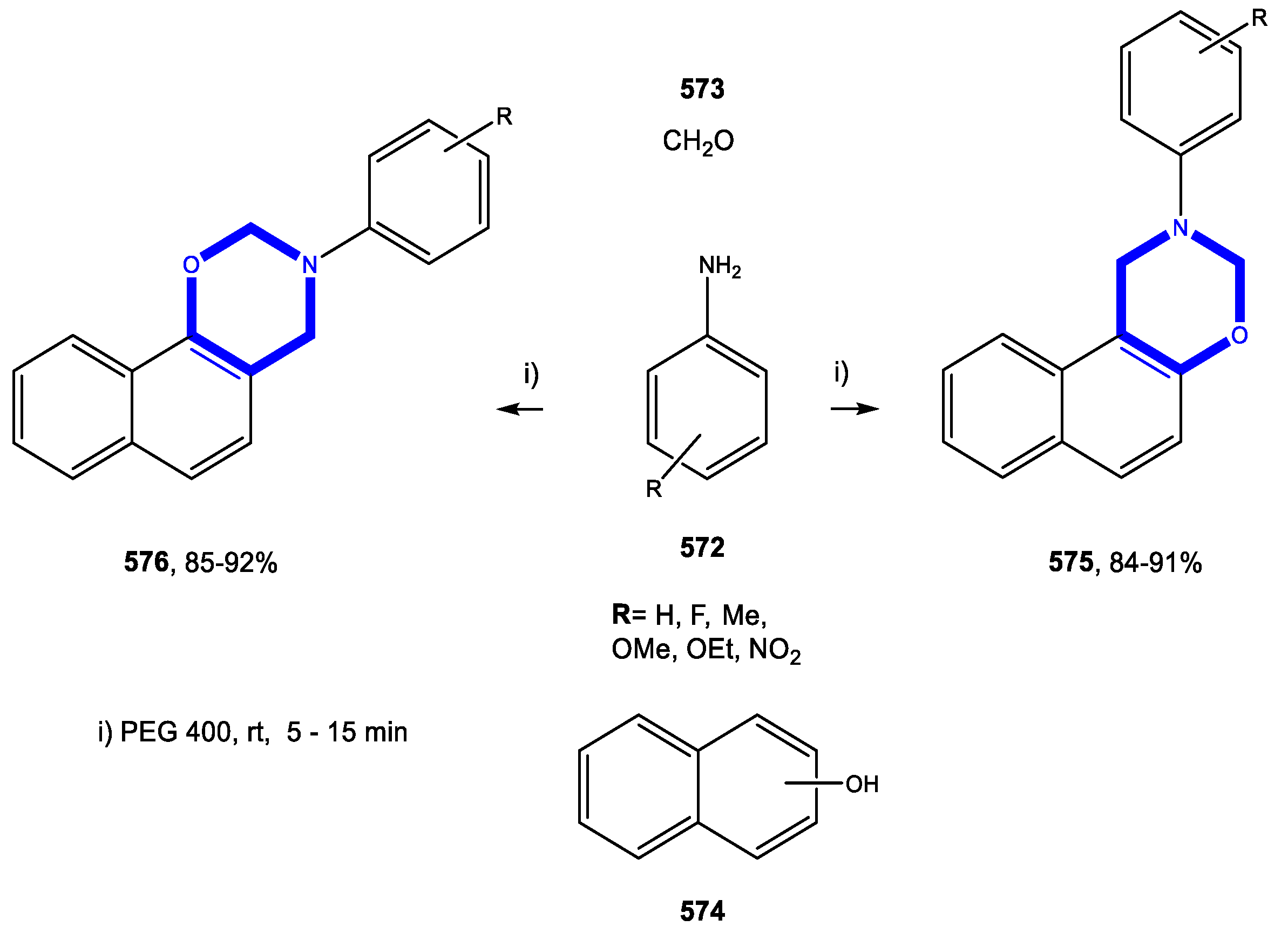

Shinde et al., achieved the synthesis of 1,3-oxazine derivatives in PEG medium. They reported access to the library by reaction between aromatic amines naphthol as well as naphthol and formaldehyde solution (Scheme 177) [205].

4.6. Formation of the Triazine and Thiadiazine Rings

Reactions in PEG

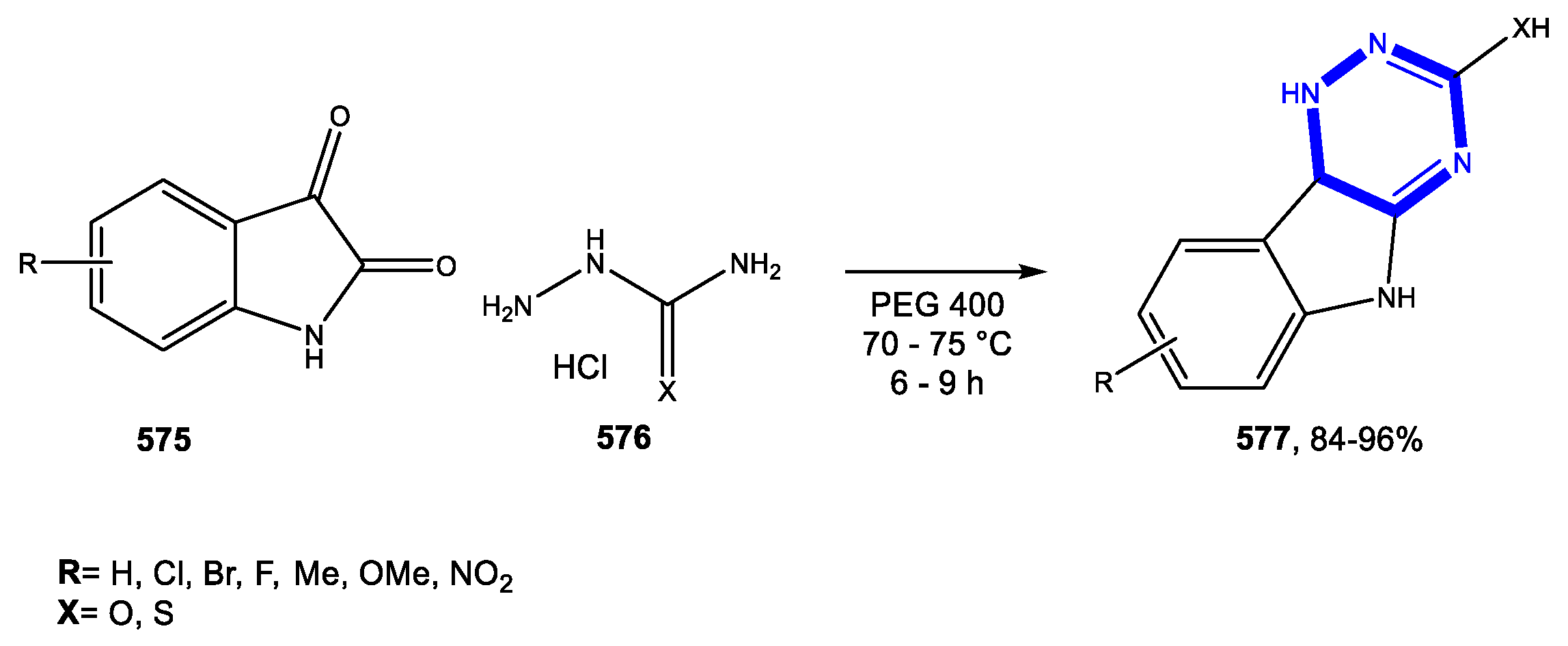

Sridhar et al., monitored the reaction of isatin, and semicarbazide/thiosemicarbazide in PEG 400 under catalyst-free conditions. The team developed a tandem approach to obtain 5,9b-dihydro-1H-[1,2,4]triazino[5,6-b]indole-3-ols/thiols at 70–75 °C in 6–9 h in good yields (Scheme 178) [206].

As mentioned earlier in this review, in 2014, Reddy et al., reported the synthesis of triazolo-1,2,4-benzothiadiazine-1,1-dioxides via a copper-catalyzed tandem cyclisation of ynamides in PEG 400. This approach also afforded the construction of the thiadiazine ring (Scheme 179) [102].

5. Seven-Membered Aromatic Nitrogen Heterocycles

5.1. Formation of the Azepine Ring

5.1.1. Reactions in Water

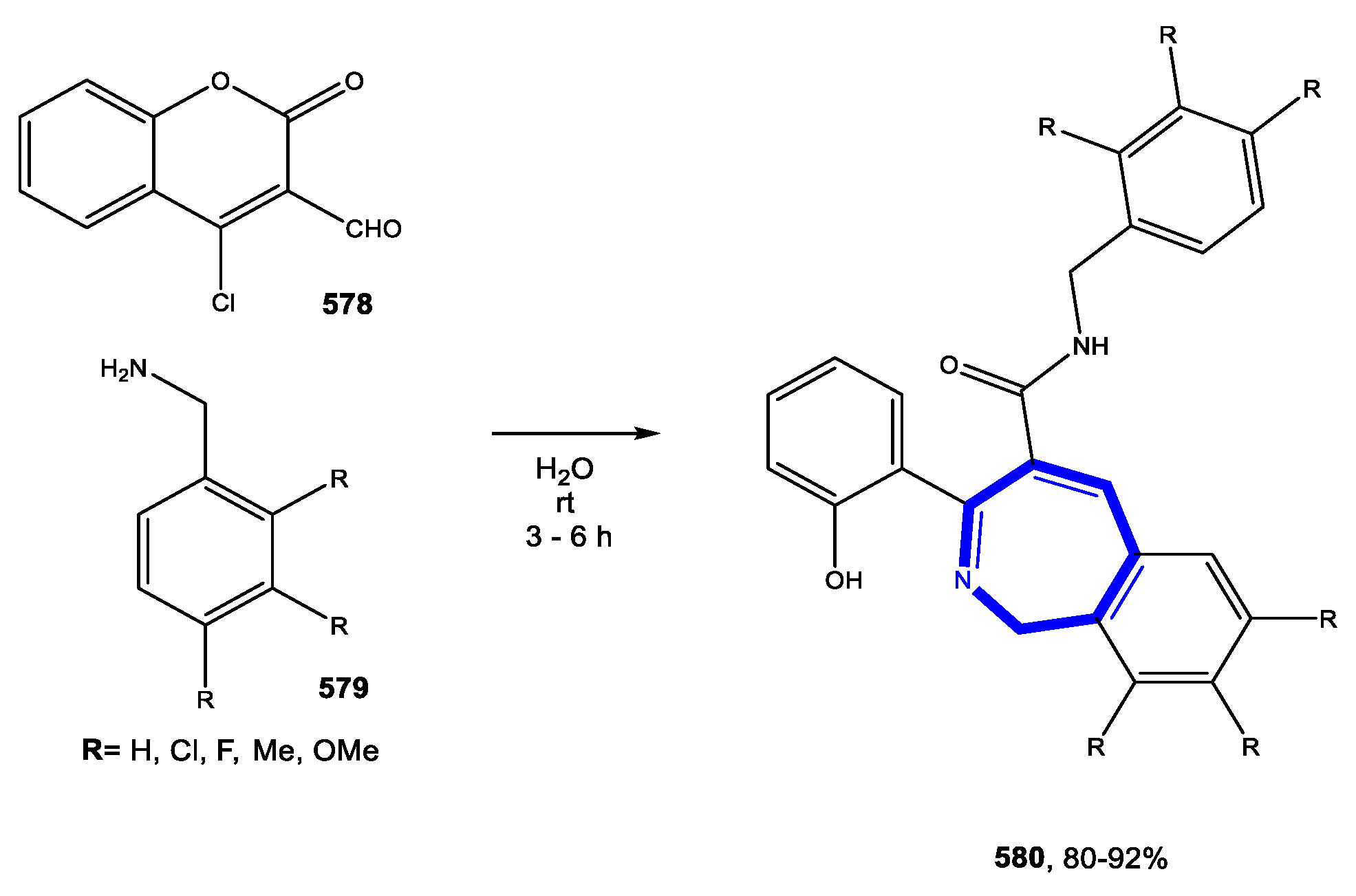

Prasad et al., employed a domino approach for the synthesis of azepines in water. They reported access to 2-benzazepine derivatives from the reaction of 4-chloro-3-formyl coumarin with benzyl amines under catalyst-free conditions in excellent yields (Scheme 180) [207].

5.1.2. Reactions in PEG

Mallepalli et al., developed a one-pot synthesis of N-substituted azepines without the use of any catalyst system. This protocol was conducted smoothly in PEG, and the desired products were obtained from the three-component condensation of 2,5-dimethoxyfuran with actylenedicarboxylate, and amines (Scheme 181) [208].

5.2. Formation of the Diazepine Ring

Reactions in Water

The group of Alinezhad accomplished the synthesis of diazepines in aqueous medium using 2-methylpyridinium trifluoromethanesulfonate as catalyst. The 1,5-benzodiazepine were produced in good yields by reacting o-phenylenediamine with ketone. The methodology presented relevant advantages, such as short reaction time and reusable catalyst system (Scheme 182) [194].

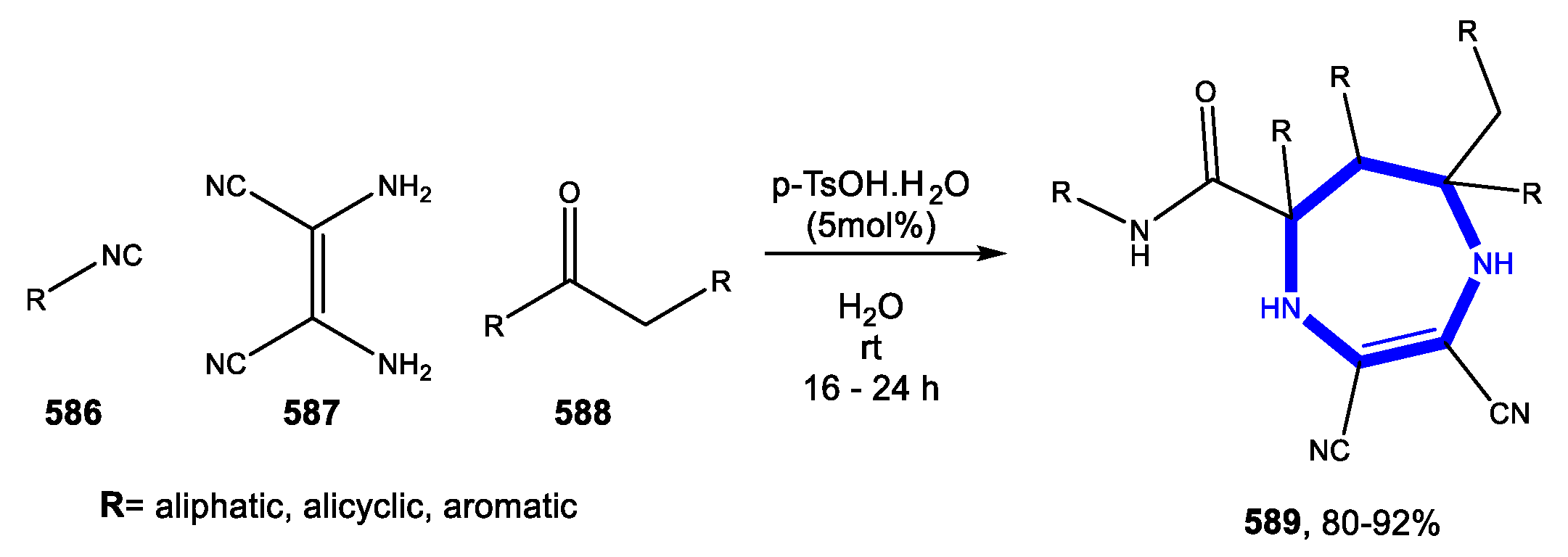

The Shaabani team carried out a one-pot pseudo-five-component synthesis of 4,5,6,7-tetrahydro-1H-1,4-diazepine-5-carboxamide derivatives. The derivatives were successfully achieved from 2,3-diaminomaleonitrile, a cyclic or acyclic ketone, an isocyanide, and water in the presence of a catalytic amount of p-toluenesulfonic acid in aqueous medium at room temperature in high yields (Scheme 183) [209].

5.3. Formation of the Thiazepine Ring

5.3.1. Reactions in Water

Dandia et al., attempted and achieved a three-component reaction of aldehydes, 5-amino-3-methylpyrazole, and α-mercaptocarboxylic acids in water under sonication to obtain pyrazolo[3,4-e][1,4]thiazepines. The authors noted that the formation of benzothiazepines instead of thiazolidinones was surprising. The chemoselectivity can be explained by the nucleophilic addition reaction of 5-amino-3-methylpyrazole on the carbonyl carbon atom of aldehyde to afford the Baylis–Hillman product; which subsequently reacted with α-mercaptoacetic acid to give a substituted pyrazolo[3,4-e][1,4]thiazepine (Scheme 184) [210].

Yan et al., reported the synthesis of thiazepines using tetrabutylammonium tribromide as catalyst. Various derivatives were prepared via a one-pot condensation reaction of 2-aminothiophenol with 1,3-diaryl-2-propenones in water (Scheme 185) [211].

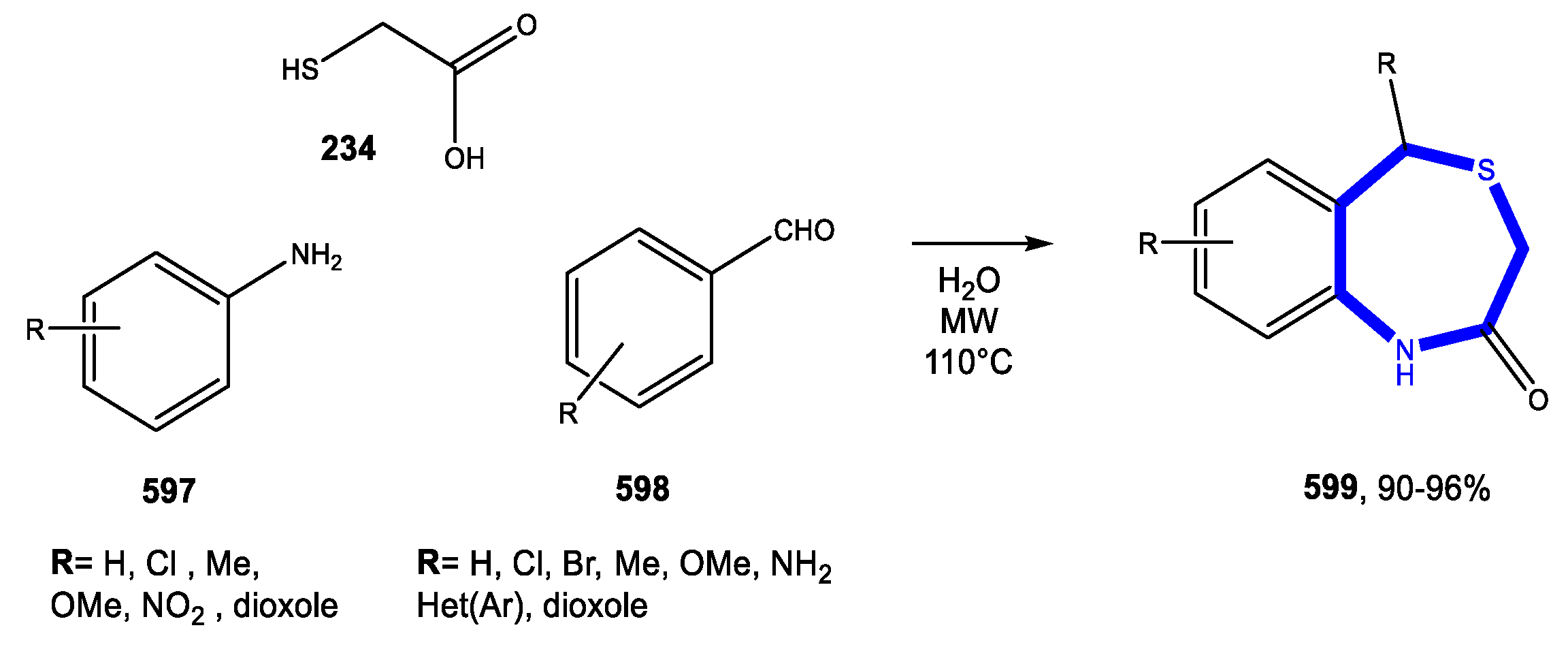

In 2008 Tu et al., also obtained benzo[e][1,4]thiazepin-2-(1H,3H,5H)-ones by performing a microwave-assisted multi-component reaction in aqueous media. The construction was prepared from aromatic aldehyde, aniline and mercaptoacetic acid (Scheme 186) [113].

5.3.2. Reactions in PEG

Lingampalle et al., synthesized 1,5-benzothiazepines employing a one-pot protocol by condensing 2-propen-1-ones with 2-aminothiopheol in polyethylene glycol PEG 400 as solvent and catalyst. Additionally, in this case, the team was able to reuse the PEG 400 (Scheme 187) [212].

6. Conclusions

In this review, we listed the reactions reporting with green methodologies for the synthesis of 5, 6 or 7-membered nitrogen or poly-nitrogen heterocyclic compounds. These molecules often have interesting biological activities and are structures often generated in medicinal chemistry. We hope that gathering information will enable the scientific community to implement syntheses that respect our environment a little better in order to reduce our impact as organic chemists on the state of the planet.
