Article

Synergy Effects of Cobalt Oxides on Ni/Co-Embedded Al2O3 for Hydrogen-Rich Syngas Production by Steam Reforming of Propane

by
Kyung Soo Park
,
Min Hye Jeong
and
Jong Wook Bae
*
School of Chemical Engineering, Sungkyunkwan University (SKKU), 2066 Seobu-ro, Jangan-gu, Suwon 16419, Korea
*
Author to whom correspondence should be addressed.
Catalysts 2020, 10(4), 461; https://doi.org/10.3390/catal10040461
Submission received: 29 March 2020 / Revised: 16 April 2020 / Accepted: 22 April 2020 / Published: 24 April 2020
(This article belongs to the Special Issue Catalytic Steam Reforming)
Browse Figures
Review Reports Versions Notes

Abstract

:
The synergetic effects of Co oxides on the Ni/CoAl (NCA) catalysts were observed at an optimal molar ratio of Al/Co = 2 (NCA(2)) due to the partial formations of thermally stable spinel CoAl2O4 phases for the steam reforming of propane (SRP). The optimal content of the spinel CoAl2O4 phases on the NCA(2) was responsible for the formation of the relatively active oxophilic metallic Co nanoparticles with a smaller amount of less active NiAl2O4 on the surfaces by preserving the relative amount of metallic Co of 68% and 52% in the reduced and used catalysts, which enhanced the catalytic activity and stability with the largest specific rate of 1.37 C3H8/(Ni + Co)h−1 among the tested NCA catalysts. The larger or smaller amounts of Co metal on the less active NCA mainly caused the preferential formation of larger aggregated Ni nanoparticles ~16 nm in size due to their weaker interactions, or induced the smaller formations of active metal phases by selectively forming the spinel NiAl2O4 phases with ~60% in the NCA(4), resulting in a fast deactivation.

1. Introduction

Hydrogen has been remarkably spotlighted recently as clean energy due to its high efficiency with low emissions of greenhouse gases through a fuel cell application compared to conventional fossil fuel-based energies [1]. Moreover, since the emission regulations are getting stricter in regard to not only power generation but also vehicles, the needs of clean fueled vehicles, such as electric or fuel cell vehicles, are more attractive compared to the conventional fossil fuel combusting vehicles. For the fuel cell applications, hydrogen can be generally produced from a fuel processing technology composed of the following units; desulfurization, steam reforming, water-gas shift and preferential oxidation of carbon monoxide, which could convert hydrocarbons to hydrogen-rich gas with sparse CO concentration. Among those hydrocarbons, propane can be one of the promising feedstocks for the fuel processor since it can be easily liquified at room temperature, resulting in easy shipping and transportation compared to other gaseous feedstocks [2]. Therefore, the existing infrastructures can be directly utilized to supply the feedstock for the fuel processor applications. The steam reforming of light alkanes, which is the most economical way to produce the industrially applicable hydrogen, typically takes about 60% market share among overall hydrogen production plants due to its relatively stable syngas production as well as high H2/CO ratio compared to other various reforming processes [3]. Steam reforming of propane (SRP) is mainly composed of the reactions as listed below.
Steam reforming of propane (SRP): C3H8 + 3H2O → 3CO + 7H2 (ΔH° = 497.7 kJ/mol)
Water-gas shift reaction (WGS): CO + H2O ↔ CO2 + H2 (ΔH° = −41.1 kJ/mol)
Steam reforming of methane (SRM): CH4 + H2O ↔ CO + 3H2 (ΔH° = 205.9 kJ/mol)
Boudouard reaction: 2CO ↔ CO2 + C (ΔH° = −172.4 kJ/mol)
For the production of hydrogen-rich syngas, it is essential to promote WGS and SRM to boost H2 production and to suppress CO formation simultaneously [4]. Although propane can be easily decomposed in the operation temperatures of 500–800 °C due to its highly endothermic and irreversible natures in thermodynamics with their faster rates, there are not only the reforming reaction but also thermolysis at high temperature, which largely generating solid carbons under the reaction conditions compared to the SRM reaction [5]. Furthermore, since carbon depositions generally originate from Boudouard reactions and thermal hydrocarbon decompositions during the processes, more delicate efforts should be endeavored to maintain the stable catalytic activity [6,7,8].
The group VIII noble metals such as Rh, Pt, Ru, Pd and Ir-based reforming catalysts have been widely used due to their remarkable catalytic activities for hydrocarbon reforming processes with insignificant coke formations [7,9,10,11]. However, their costs are relatively high, therefore they are scarcely allowed in industries compared to Ni-based reforming catalysts, which have comparable catalytic activities to the noble metal-based ones. One of the critical disadvantages of the Ni-based catalysts is their thermal instability which induces severe aggregations of the active Ni nanoparticles during the high temperature reforming reaction. In addition, the solid carbons are easily deposited, causing the significant catalyst deactivation. Moreover, the facile aggregations of Ni metals, which lead to their transformations to the less active solid-solutions such as nickel aluminates, induce lower stability of the Ni-based catalysts [12,13]. The Ni-based reforming catalysts can be modified to lessen these problems by following general methodologies: to keep the small sizes of nickel nanoparticles [14,15,16,17] for better dispersion and less aggregation, to modify the supports via addition of alkali metals, lanthanides and rare earth metals [5,18,19,20,21,22], to decrease carbon deposition with a help of basicity of those promoters and to add a small amount of noble metals such as Ru and Rh to promote the in-situ reducibility of the Ni species through various synthetic methods [9,23]. Interestingly, compared to the monometallic Ni or Co-based catalysts, bimetallic catalysts using Ni and Co species simultaneously were reported to enhance the catalytic performances as well as produce less coke formations in various reforming processes [12,24,25,26]. These synergetic effects generally originated from the formations of the Ni-Co alloy which made the higher electron density in metallic Ni, enhancing the reforming activity and the resistances to sintering and coking as well [25]. It was also reported that the oxophilic Ni-Co clusters can activate the oxidants of CO2 and H2O, which are able to gasify the solid surface carbon easily [26]. However, it is still under debate whether the synergetic effects came from a bimetal alloy or independent metallic clusters with their enhanced dispersions affected by the impurities during the reduction process [27]. Many hypotheses have been proposed based on the density functional theory (DFT) calculations, since Ni and Co are hardly differentiated by the X-ray techniques due to their similar crystal structures with similar atomic sizes [26].
In the present study, the surface distributions and capacity to form solid solutions was controlled on the sol-gel synthesized Co3O4-Al2O3 (CA) supports with different Al/Co ratio to figure out the synergetic effects of Ni-Co combination on the Ni/Co-embedded Al2O3 (NCA) catalysts for the superior catalytic performances during the SRP reaction. The relative amounts of metal (oxide) phases and their distributions were characterized to figure out an optimal Al/Co ratio to balance the crystallite sizes of the metallic Co species with its natures, to form thermally stable spinel CoAl2O4 and NiAl2O4 phases by maximizing the synergetic effects through the different formations of those solid solutions.

2. Results

2.1. Physicochemical Properties of NCA Catalysts

The physicochemical properties of the as-prepared NCA catalysts are summarized in Table 1 by explaining the elemental compositions, textural properties, crystalline sizes and dispersion of active metals. The intended nominal amount of active Ni species was successfully impregnated on the NCA catalysts, where the NiO contents were found to be in the range of 10 wt–12 wt% from X-ray fluorescence (XRF) analysis. Relative amounts of Co3O4 and Al2O3 were changed from 64.3 wt–22.6 wt% and 24.8 wt–66.2 wt% in accordance with the molar ratios of Al/Co from 0.5 to 4. Accordingly, the specific surface areas and pore volumes were increased from 32 to 111 m2/g and 0.24 to 0.48 cm3/g as displayed in Table 1 and Figure S1A due to the increased mesopore structures of Al2O3 with typical type IV isotherms [28]. Average pore diameters of the NCA catalysts were found to be larger than 10 nm, which suggests that most of the mesopore structures originate from their inter-particular pores of the Co-Al mixed oxide grains, and the average pore diameters were decreased with an increase of the Al/Co ratio due to larger contributions of Co3O4-Al2O3 porosity (Figure S1B).
The increased amounts of cobalt metal on the NCA catalysts caused the decreased surface area due to the increased crystallite sizes and small contributions of mesoporous Al2O3, which were calculated by using the main diffraction peaks detected in the range of 44.2° for Co (111)–44.5° for Ni (111) with the help of the Scherrer equation as shown in Figure 1 and Figure S2. The metallic Ni crystallite sizes were found to be 6.5 nm on NCA(4) and 14.6 nm on NCA(0.5), which were decreased with an increase of the Al/Co ratio. It is worth noting that NCA(3) and NCA(4) had the smallest crystallite sizes of 6.3–6.5 nm (dispersion of 3.0–3.6%) among the reduced NCA catalysts. In addition, the characteristic diffraction peaks assigned to the spinel-type NiAl2O4, Co3O4 and CoAl2O4 phases were observed at 31°, 37°, 45°, 56°, 59° and 65°, which are scarcely classified due to their overlapped positions with the same crystal structures of AB2O4 [7,22,29,30,31,32]. Diffraction peaks assigned to the γ-Al2O3 phases were also observed, with their smaller peaks at 38°, 46° and 67°, which also suggests that the Al2O3 seems to exist mainly in the spinel-types such as NiAl2O4 and CoAl2O4 in the NCA catalysts [12,33]. Interestingly, the peaks of the main diffraction at 44.2°–44.5° were shifted to the higher two theta values and broadened with a decrease of cobalt contents, especially on the NCA(3) and NCA(4), due to the smaller crystallite formations corresponding to larger surface areas. Even though those peaks were hard to be assigned to the different crystalline phases, the transformations of those major crystallite structures were observed from the metallic Co and Ni to the spinel-type NiAl2O4 and CoAl2O4 phases at higher Al/Co ratios on the reduced NCA catalysts (Figure 1A). After the SRP reaction at 650 °C, the used NCA catalysts showed increased metallic crystallite sizes (Figure 1B) due to the aggregations of those nanoparticles with their sizes of 7.3–16.2 nm from 6.3–14.6 nm, as summarized in Table 1. The extents of the aggregations were not significant on the NCA catalysts with a Al/Co ratio ≥2, such as the NCA(3) and NCA(4), while the much bigger crystallites were formed on the used NCA(1) and NCA(0.5) to 12.9 and 16.2 nm in size, respectively. The moderate aggregations of Ni nanoparticles on the NCA(2) (from 6.9 to 8.7 nm with dispersion of 2.5%) were mainly attributed to the formations of strongly interacted Co3O4-Al2O3 particles with a moderate surface area (64 m2/g), which can be more beneficial for increasing the catalytic activity and stability.

2.2. Reduction Properties of NCA Catalysts and Catalytic Activities of CA Supports Themselves

As shown in Figure 2A, the reduction behaviors of the NCA catalysts were measured by temperature programmed reduction (TPR) analysis. With lower contents of cobalt species on the NCA(3) and NCA(4), one reduction peak at the respective temperatures of 842 and 854 °C was clearly observed. In general, cobalt-promoted Ni-based catalysts show the lower temperature shifts of those reduction peaks by facilitating an easy reduction of Ni/Al2O3 [12] as observed in Figure 2A from 854 °C on the NCA(4) to 833 °C on the NCA(0.5). In case of the Al/Co ≥ 3, the higher temperature reduction peaks above 800 °C were mainly attributed to the reduction of solid solutions, such as the spinel CoAl2O4 and NiAl2O4 (or strongly interacted NiO species), which were scarcely reduced below 700 °C to metallic Co and Ni due to their stronger metal–support interactions [3,12,25]. With the decreases of Al/Co ratios below two, many additional reduction peaks were observed with broader reduction patterns below 800 °C, which originated from the stepwise reductions of spinel-type oxides [12,13,19,31] such as CoAl2O4, Co3O4 and NiAl2O4. In detail, the apparent reduction peaks of cobalt oxides through stepwise reductions (Co3O4 → CoO → Co) were clearly observed below 700 °C, which suggests the preferential segregations of the active cobalt species were on the outer surfaces of the NCA(0.5) and NCA(1) compared to the supports themselves (CA(0.5) and CA(1)) which have lower activity for SRP reactions as well. Interestingly, on the NCA(2), the smaller segregated cobalt species (below ~700 °C) as well as spinel-type metal oxides (at ~839 °C) were observed, which were responsible for an enhanced catalytic activity and stability through the formation of thermally stable mixed metal interfaces.
The catalytic activity of the CA supports and NCA(1) with an impregnated Ni/Al2O3 and CoAl2O4 reference catalysts were preliminarily measured at a lower SV = 100,800 L/(kgcat∙h), and the results are displayed in Figure 2B and summarized in Table S1. The CA supports themselves were active for the SRP reaction without any Ni species, which suggests that the cobalt nanoparticles were active for the reaction [3,25,34]. It was clear that the CA supports with the molar ratio of Al/Co ≤ 2 were also active for SRP reaction, and their higher and stable activities were characterized compared to the reference catalysts of Ni/Al2O3 and CoAl2O4. In addition, the CA supports were highly stable compared to the Ni/Al2O3, which was gradually deactivated for five hours at 550 °C from 51.4% to 42.8% due to possible coke depositions at a relatively low temperature [35,36]. With an increased Co content, the catalytic activity was still higher on the CA(1) and CA(0.5) with the C3H8 conversion of 57.4 and 57.2%, while the CA(1) was more active than the CA(0.5) above 650 °C (respective values of 79.6% and 86.9% at 650 °C), which was attributed to the preferential aggregations of Co particles on the CA(0.5). Interestingly, an impregnation of Ni metal on the NCA(1) catalyst revealed a 100% conversion of C3H8 at all temperatures from 550 to 750 °C without any deactivation phenomena. This observation revealed an extraordinary activity compared to the reference Ni/Al2O3, owing to the synergetic effects of Ni and Co [3,12,25]. However, the CA supports with Al/Co ≥ 3 and commercially available spinel CoAl2O4 were not active below 650 °C since there could be little metallic Co nanoparticles even after reduction step due to their stronger metal–support interactions [37].

2.3. Catalytic Activities of NCA Catalysts with Coke Analysis

The SRP reaction was carried out again on the NCA catalysts at a slightly higher space velocity of 170,000 mL/gcat∙h with the mixed gas composition of C3H8/N2/H2O = 1/4/9 at a fixed temperature of 650 °C, and the results of C3H8 conversion and its specific rate (C3H8 converted/(moles of (Ni + Co)·h)) are respectively displayed in Figure 3A,B. As summarized in Table 2, the conversions of C3H8 were steadily increased with the decrease of Al/Co ratio, such as 49.5% on the NCA(4) and 78.1% on to NCA(1), except for the structurally unstable NCA(0.5). Based on the preliminary tests of the CA supports, the metallic Co species on the CA supports with a lower Al/Co ratio such as NCA(1) and NCA(2) seem to promote the reforming activity through the synergetic effects of Ni nanoparticles due to its own catalytic activity of the surface metallic Co nanoparticles. However, the NCA(0.5) with the largest amount of Co metal showed a continuous activity decrease from an initial conversion of 83.0% to 73.2% and larger deactivation rate of 0.89%/h due to the severe aggregations of the active Ni and Co nanoparticles with the variations of Ni size from 14.6 to 16.2 nm during SRP reaction measured by X-ray diffraction (XRD) analysis (Table 1). The optimal NCA(1) and NCA(2) showed the moderate propane conversions of 72.6–78.1% with smaller deactivation rates of 0.27–0.31%/h while the NCA(4) showed the lowest conversion (49.5%) due to the small amount of active cobalt metal content with its less synergetic effects, which was confirmed by TPR analysis of the CA supports (Figure 2). However, the specific rates, defined as [converted mols of C3H8 divided by the moles of Ni and Co metals per hour], revealed the lower rate of 0.96 on the NCA(0.5) (largest metal content) with larger metal aggregates with smaller active sites [20] and higher rate of 1.37 on the NCA(2) even though the metal particles on the NCA(2) were aggregated during the SRP reaction. This suggests that the Ni and Co metals have some additional synergy effects through the proper distributions of the active metallic Co nanoparticles on the NCA surfaces as well as optimal formations of the thermally stable spinel CoAl2O4 and NiAl2O3 phases on the bulk CA(2) support [12,32,33,37], as explained in the following section. In addition, the highly reduced NCA(0.5) and NCA(1) revealed a slightly lower H2 selectivity of 70.1–71.2% and higher CH4 selectivity of 4.4–5.2% compared to the less reduced NCA(2) with those values of 73.2% and 2.0%, which can be possibly attributed to the more preferential methanation activity as well as coke depositions by possibly inducing the smaller contributions of SRM activity on the metallic Co and Ni surfaces [4,5,6,7,8,33].
The surface coke types and their relative amounts on the used NCA catalysts were characterized by temperature programmed surface reaction (TPSR), and TPSR patterns monitored with a mass spectrometer (CH4 fragment, m/z = 15) are displayed in Figure 3C, including their relative intensity ratio based on that of NCA(0.5). There were insignificant amounts of soft coke precursors formed on the NCA catalysts, which can be hydrogenated to CH4 at low temperature of ~300 °C, however, hard coke precursors detected at the temperature regions of 550–800 °C [38] were mainly observed on all the used NCA catalysts. The hydrogenation peak positions at ~600 °C shifted to higher temperatures with an increase of the Al/Co ratio, which was possibly attributed to the formations of much stronger interacting, harder cokes on the Al2O3-rich surfaces [32,33]. In addition, the relative amounts of those hard coke precursors were found to be decreased with an increase of Al/Co ratios, being especially smaller on the NCA(2) and NCA(3), owing to the smaller crystallites, which can be responsible for less formation of cokes since the larger metallic Ni and Co nanoparticles act as active sites for coke depositions [39].

2.4. Relative Compositions of Active Metal (Oxides) Measured by X-ray Absorption Fine Structure (XAFS) Analysis

The X-ray absorption fine structure was further carried out to quantify the compositions of crystalline phases with their oxidation states of Ni and Co metals on the reduced and used NCA catalysts by observing the absorption energy of Ni K-edge (8333 eV) and Co K-edge (7709 eV). The spectra of X-ray absorption near-edge structures (XANES) and their phase compositions are summarized in Table 3 and displayed in Figure 4 and Figure 5. The XANES spectra and their first derivatives were fitted to quantify the crystalline phases through linear combination fitting (LCF) by comparing them with various reference samples. With a decrease of the Al/Co ratio, the amounts of metallic Ni were found to be dominant with the ratio of 0.78 and 0.55 on the reduced and used NCA(0.5) with the respective composition of the NiAl2O4 phases of 0.11 and 0.28, since the smaller amount of Al2O3 can suppress the formations of the spinel NiAl2O4 phases with much bigger Ni nanoparticles due to their weak metal–support interaction. With an increase of Al content, the composition of NiAl2O4 phases was significantly increased up to 0.57 and 0.60 on the reduced and used NCA(4). In addition, the observed larger compositions of the NiO and NiAl2O4 phases on the used NCA catalysts compared to that of the reduced ones can be attributed to a high temperature SRP reaction condition with excess oxidative water vapor [33].
The relative composition of Co species also clearly showed the oxidation states as well as their distributions on the NCA catalysts according to Al/Co ratios. The distributions of Co phases were found to be similar with that of the Ni nanoparticles, where the metallic Co species was decreased with the increasing Al/Co ratio from 0.82 on the reduced NCA(0.5) to 0.40 on the reduced NCA(4) and the content of metallic Co was decreased to 0.69 on the used NCA(0.5) to 0.13 on the used NCA(4) due to an in-situ oxidation during the SRP reaction under an excess water environment. On the contrary, the content of spinel CoAl2O4 was increased with the same trends as the NiAl2O4 phases. Interestingly, the oxidation phenomena of the metallic Co to CoO and CoAl2O4 phases were possibly attributed to its facile oxidation–reduction characteristics of the oxophilic Co species [12]. Furthermore, the stable preservation of the metallic Co phases with small changes of the CoAl2O4 formation on the reduced and used NCA(2) was observed, with their changes from 0.68 to 0.52 and 0.22 and 0.37, respectively, which suggests the preservation of more stable metal phases caused the increased specific rate with less deactivation by maintaining active metallic Co and Ni phases with less coke depositions in the redox reaction condition during the SRP reaction. This was in line with the results of the TPR analysis and preliminary tests, as the amount of metallic Co was dramatically increased at lower ratios of Al/Co ≤ 2. The additional reduction peaks appearing at T ≤ 700 °C were responsible for the active surface metallic Co and Ni phases for an enhanced activity for SRP reaction, which are unlike the commercially available bulk CoAl2O4 phases due to the contribution of the Co3O4-Al2O3 porosity, especially for the NCA catalysts with higher ratios of Al/Co ≥ 3. Therefore, the higher specific rate on the NCA(2) with a small deactivation rate, even though its little lower conversion of C3H8 compared to the NCA(1), can be attributed to the small aggregations of Ni nanoparticles on the porous Co3O4-Al2O3 surfaces due to its stronger metal–support interactions as well as small formations of less active spinel Co3O4 phases by robustly preserving the active metallic Co nanoparticles on the NCA(2) surfaces, even under an excess water environment.

3. Discussion and Conclusions

The synergetic effects of the oxophilic Co nanoparticles for the Ni-based reforming catalysts were largely investigated in terms of the metal–support interactions and coke resistance [6,25]. In the case of catalytic reforming reaction of hydrocarbons, it was well reported that those interactions not only enhanced the metal dispersion to promote the catalytic activity, but also lessened the coke deposition to enhance the catalytic durability. However, a lot of research was focused on simultaneously using the expensive noble metal promoters such as Rh, Ru and Pt with much cheaper Ni metal, which changed the dispersion of metal clusters, reducibility and heat of adsorption through hydrogen spillover. Those promoters can keep the Ni nanoparticles in more active metallic states by preventing the coke depositions compared to the easily deactivated monometallic Ni-based catalysts [9,23]. The bimetallic Ni-Co-based reforming catalysts were reported to possess similar promoting effects to enhance the metal dispersion and reducibility. The more interesting points of the Ni-Co-based catalysts are the oxophilic natures of the Co species, which can help increase the adsorption natures of the oxidants, such as H2O and CO2, by effectively preventing the coke depositions [12,26]. However, the synergetic effects of the spinel-type CoAl2O4 and NiAl2O4 formation on the Ni-impregnated Co3O4-Al2O3 (CA) support prepared at different Al/Co ratios were not well considered till now, therefore, the surface compositions of the bimetal clusters as well as contributions of spinel-type CoAl2O4 formations are briefly discussed to verify the activity variations of the home-made Ni/Co3O4-Al2O3 (NCA) catalysts for the SRP reaction.
In the present study, the synergetic effects of the Ni (fixed at ~10 wt%)and Co metal (oxides) on the CA supports, prepared by a sol-gel method with different Al/Co ratios, were verified by the characterization of the surface and bulk properties of NCA catalysts to explain the reasons for the enhanced activity and stability with their higher coke resistances on the optimal NCA(1) and NCA(2). The bulk compositions of the CA supports affected the catalytic performances largely by changing the active Ni and Co metal distributions on the porous Co3O4-Al2O3 structures and by generating the different amounts of the thermally stable spinel CoAl2O4 phases. The Co phases on the NCA catalysts were found to be mainly the metallic Co species at a lower Al/Co ratio ≤ 2 with small amounts of less active spinel CoAl2O4 phases formed under SRP reaction conditions. Those metallic Co phases were also found to be active for the SRP reaction as confirmed by preliminary tests of the CA supports by displaying better catalytic activity than the reference Ni/Al2O3 under the temperature of 650 °C, which was in line with the TPR results. It suggests that the cobalt oxides can be reduced to selectively form the more active metallic Co phases on the NCA(1) and NCA(2) surfaces. However, the less active CoAl2O4 phases were mainly formed on the NCA(3) and NCA(4) under an excess water environment due to their higher Al/Co ratios. Based on the XANES analysis, the partially formed bulk spinel CoAl2O4 and NiAl2O4 structures on the NCA(1) and NCA(2) can effectively enhance the thermal stability of the strongly interacted metallic Ni and Co nanoparticles with their smaller aggregation natures compared to the NCA(0.5), which was also responsible for suppressing the depositions of coke precursors. The higher specific rate of the NCA(2), with proper amounts the surface metallic Ni and Co phases with the bulk spinel CoAl2O4 phases, was attributed to the synergetic effects of the surface Ni and Co metals, as well as thermally stable bulk spinel structures.

4. Materials and Methods

4.1. Catalyst Preparation and Activity Measurement

The Co3O4-Al2O3 (CA) supports were prepared by a well-known sol-gel method by using a gelation agent of propylene oxide according to the references [12,40]. For more details, desired amounts of Al(NO3)3∙9H2O (Daejung, 98% purity) and Co(NO3)2∙6H2O (Samchun, 97% purity) were dissolved in 100 mL of anhydrous ethanol (Daejung, 99.9% purity) at fixed molar ratios of Al/Co = 0.5, 1, 2, 3 and 4 under vigorous stirring. After all the metal precursors were dissolved and well mixed, 35 mL of propylene oxide (Samchun, 99.0%) was added to the above solution as a gelation agent. The mixture was transformed into gel after 10 min under stirring followed by aging it at room temperature for 6 h. After drying at 80 °C for 60 h, the xerogel was further calcined at T = 700 °C for 3 h in an air atmosphere. The collected powder was crushed and named as CA(x), where x represents the molar ratio of Al/Co. The Ni metal precursor was further introduced to the CA supports by a wet impregnation method at a fixed 10 wt% Ni based on the CA support. In further detail, 1.12 g of Ni(NO3)2∙6H2O (Samchun, above 98% purity) was dissolved in 100 mL ethanol to prepare the precursor solution. An amount of 2 g of the CA support was added to the above solution then stirred vigorously for 1 h. The solvent was evaporated at 50 °C by using a vacuum evaporator (NE-2001, EYELA). The mixture was further dried at 80 °C overnight, followed by the calcination at 700 °C for 3 h in an air atmosphere. As-prepared catalysts were denoted as NCA(x), where the x represents the molar ratio of Al/Co. For the preparation of reference catalysts, a typical Ni/Al2O3 catalyst was prepared by using an impregnation method with commercially available γ-Al2O3 (Puralox SCCa-5/170, Sasol, Sg = 165 m2/g) support, which was further calcined at 800 °C for 2 h. The spinel CoAl2O4 was purchased from Sigma-Aldrich (cobalt aluminum oxide nano-powder with particle size < 50 nm) for the comparative activity measurement as well.
The activity measurements for steam reforming of propane (SRP) on the as-prepared NCA catalysts were performed using an Inconel fixed-bed tubular reactor with 3/8 inch of an outer diameter. An amount of 0.15 g of the NCA catalyst was placed and it was brought into contact with a thermocouple to measure the temperature gradients in the catalyst bed at a controlled furnace temperature. Prior to the SRP reaction, the catalyst was reduced at 700 °C under a flow of 50 mL/min of 5 vol% H2/N2 for 3 h. As the reactor was cooled down to the reaction temperature of 550 and 650 °C and stabilized, steam was fed to the reactor prior to propane feed. The SRP reaction was carried out with feed gas compositions of C3H8/N2/H2O = 1/4/9 at a space velocity of 108,000–170,000 mL/gcat∙h in the temperature range of 550–650–750 °C. After the SRP reaction, high purity N2 was fed to the reactor to prevent the unintended coke formation while it is cooled to room temperature. The effluent gases were passed over a cold trap for dehydration, and analyzed by using a gas chromatography (Young Lin Instrument Co, Anyang, Republic of Korea, YL6100 GC) equipped with a Carboxen 1000 packed column to quantify the gaseous components such as H2, N2, CO, CO2, and CH4 using a thermal conductivity detector (TCD), and GS-GasPro capillary column used to quantify the light hydrocarbons containing C1–C3 species. The catalytic activity was compared with conversion of C3H8 and product distribution, which was calculated based on the changes in effluent gas concentrations with an internal standard of N2. Catalytic performances were calculated by the following equations based on the carbon balance in a dry mole basis as described below:
C3H8 conversion (mol%) = [1 − (number of carbon of propane in products)/(Sum of carbon in gas phase products)] × 100
Specific rate (h−1) = (converted moles of C3H8/(mols of Ni and Co)·h)
Product distribution (mol%) = (mols of the product)/(Sum of product mols in a gas phase) × 100

4.2. Characterization of the CA Supports as Well as NCA Catalysts

Powder X-ray diffraction (XRD) patterns of the NCA catalysts were analyzed to validate the crystalline phases and crystallite sizes of the Ni and Co species by using a X’Pert3 Powder (PANalytical) instrument operated with radiation of Cu-Kα of 0.15406 nm at 40 kV and 100 mA in the 2θ range of 10°–80° at a scanning rate of 4°/min. The full width at half maximum (FWHM) values of the metallic Ni-Co peaks at Bragg angles of 2θ = 44°–44.5° were used for the crystallite size calculations with the help of Scherrer’s equation by using a Scherrer constant of 0.9 with an assumption of spherical crystals. N2 adsorption-desorption analysis was performed on a constant volume sorption instrument (Tristar II, Micromeritics) at a temperature of −196 °C after the sample was degassed at the temperature of 350 °C for 4 h in a vacuum condition. The textural properties, such as surface area, pore volume and average pore size of the fresh NCA catalysts were calculated by Brunauer–Emmett–Teller (BET) equation and Barrett–Joyner–Halenda (BJH) model using the desorption branch of N2 isotherms.
CO chemisorption was carried out to verify the dispersions of the active metals on the NCA catalysts by using an ASAP2020C (Micromeritics) instrument. Initially, 0.2 g of the sample was loaded in a u-shaped quartz reactor followed by reduction under a flow of 30 mL/min of H2 at the temperature of 700 °C for 3 h. The reactor was evacuated while it was cooled from 700 °C to the 35 °C for 1 h and kept for an additional 1 h at 35 °C to maintain the vacuum level of 0.02 mmHg. After the leak test, the reduced sample was evacuated for 20 min then analyzed with CO as a probe molecule. CO uptakes were determined by the introduction of CO pulses until the pressure increments of the sample cell were measured. For the calculation of CO chemisorption, the adsorption stoichiometry of H2 to metals was assumed as one CO molecule per one molecule of the surface metals (Ni and Co).
Temperature programmed reduction with H2 (TPR) was performed to clarify the reduction behaviors of the fresh NCA catalysts by measuring the consumed amount of H2 by using a BELCAT-M (MicrotracBEL) instrument. An amount of 30 mg of the sample was loaded in a quartz tube reactor and heated at 500 °C for 1 h under an inert flow of Ar to eliminate contaminants and to clean the catalyst surfaces. After being cooled to 100 °C, 30 mL/min of 10 vol% H2/Ar was fed to the reactor. After the TCD signal was stabilized after 30 m, the sample was heated up to 1000 °C at a ramping rate of 10 °C/min and H2 uptakes were measured by TCD after the effluent gases were dehydrated by passing over a molecular sieve 3A trap. Temperature programmed surface reaction (TPSR) of the used NCA catalysts was performed to verify the relative amounts of coke formation on the catalyst surfaces using a BELCAT-M instrument connected with a mass spectrometer (QMS-200, Pfeiffer vacuum, Yong-in, Republic of Korea). 15 mg of the used NCA catalyst was loaded and pretreated under a flow of 30 mL/min of Ar at 500 °C for 1 h in a quartz reactor. After the above pretreatment, the sample tube was cooled down to 50 °C and 10 vol% H2/Ar was introduced at a flow rate of 30 mL/min. The temperature was increased up to 700 °C at a ramping rate of 10 °C/min to hydrogenate the deposited coke precursors to CH4, which was detected by collecting a MS signal by measuring the specific fragments such as m/z = 15, which are assigned to the major fragment of CH4.
To observe the crystalline phases and oxidation states of the Ni and Co species on the reduced and used NCA catalysts, X-ray absorption fine structure (XAFS) analysis with Ni K-edge (8333 eV) and Co K-edge (7709 eV) was performed at 7D beamline located at a Pohang Light Source (PLS). The beamline was equipped with a Si(111) monochromator and ionization chambers to measure the transmitted beam intensity. The powder sample was previously loaded in the reactor, which was positioned between two Ohken ionization chambers filled with N2 gas for the measurement of incidents and transmitted X-ray intensity. The absorption spectra of the samples, including the NCA catalysts as well as references of NiO, NiAl2O4, CoO, Co3O4 and CoAl2O4, were recorded with a spectrum of metallic foil. Normalization and XAFS analysis were carried out by using an Athena graphical interface program [41]. Linear combination fitting (LCF) was also performed in the regions of X-ray absorption near-edge structures (XANES) to quantify the crystalline structures of the reduced and fresh NCA catalysts as well.

Supplementary Materials

The followings are available online at https://www.mdpi.com/2073-4344/10/4/461/s1; Figure S1. Textural properties of the fresh NCA catalysts measured by N2 adsorption-desorption analysis of the (A) adsorption-desorption isotherms and (B) pore size distributions; Figure S2. Wide-angle X-ray diffraction (XRD) patterns of the (A) reduced and (B) used NCA catalysts; Table S1. Catalytic activities of the CA supports with some reference materials.

Author Contributions

K.S.P. and M.H.J. contributed equally. J.W.B. supervised the work, reviewed and edited in writing this manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the C1 Gas Refinery Program through the National Research Foundation (NRF) grants funded by South Korea (NRF-2020R1A2C2006052 and NRF-2018M3D3A1A01018009).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Song, C. Introduction to Hydrogen and Syngas Production and Purification Technologies in Hydrogen and Syngas Production and Purification Technologies; Liu, K., Song, C., Subramani, V., Eds.; Wiley: Hoboken, NJ, USA, 2009; pp. 1–13. [Google Scholar]
  2. Ghenciu, A.F. Review of fuel processing catalysts for hydrogen production in PEM fuel cell systems. Curr. Opin. Solid State Mater. Sci. 2002, 6, 389–399. [Google Scholar] [CrossRef]
  3. Hardiman, K.M.; Ying, T.T.; Adesina, A.A.; Kennedy, E.M.; Dlugogorski, B.Z. Performance of a Co-Ni catalyst for propane reforming under low steam-to-carbon ratios. Chem. Eng. J. 2004, 102, 119–130. [Google Scholar] [CrossRef]
  4. Moon, D.J. Hydrogen production by catalytic reforming of gaseous hydrocarbons (Methane & LPG). Catal. Surv. Asia 2008, 12, 188–202. [Google Scholar]
  5. Tan, M.; Wang, X.; Hu, Y.; Shang, X.; Zhang, L.; Zou, X.; Ding, W.; Lu, X. Influence of nickel content on structural and surface properties, reducibility and catalytic behavior of mesoporous γ-alumina-supported Ni–Mg oxides for pre-reforming of liquefied petroleum gas. Catal. Sci. Technol. 2016, 6, 3049–3063. [Google Scholar] [CrossRef]
  6. Ávila-Neto, C.N.; Oliveira, K.D.; Oliveira, K.F.; Arouca, A.M.M.; Ferreira, R.A.R.; Hori, C.E. Interconnection between feed composition and Ni/Co ratio in (La-Ni-Co-O)-based perovskites and its effects on the stability of LPG steam reforming. Appl. Catal. A Gen. 2018, 550, 184–197. [Google Scholar] [CrossRef]
  7. Li, Y.; Wang, X.; Song, C. Spectroscopic characterization and catalytic activity of Rh supported on CeO2-modified Al2O3 for low-temperature steam reforming of propane. Catal. Today 2016, 263, 22–34. [Google Scholar] [CrossRef] [Green Version]
  8. Han, J.W.; Kim, C.; Park, J.S.; Lee, H. Highly coke-resistant ni nanoparticle catalysts with minimal sintering in dry reforming of methane. ChemSusChem 2014, 7, 451–456. [Google Scholar] [CrossRef]
  9. Jóźwiak, W.K.; Nowosielska, M.; Rynkowski, J. Reforming of methane with carbon dioxide over supported bimetallic catalysts containing Ni and noble metal: I. Characterization and activity of SiO2 supported Ni–Rh catalysts. Appl. Catal. A Gen. 2005, 280, 233–244. [Google Scholar] [CrossRef]
  10. Lucrédio, A.F.; Assaf, J.M.; Assaf, E.M. Methane conversion reactions on Ni catalysts promoted with Rh: Influence of support. Appl. Catal. A Gen. 2011, 400, 156–165. [Google Scholar] [CrossRef]
  11. García-Diéguez, M.; Pieta, I.S.; Herrera, M.C.; Larrubia, M.A.; Alemany, L.J. RhNi nanocatalysts for the CO2 and CO2+H2O reforming of methane. Catal. Today 2011, 172, 136–142. [Google Scholar] [CrossRef]
  12. Park, K.S.; Son, M.; Park, M.-J.; Kim, D.H.; Kim, J.H.; Park, S.H.; Choi, J.-H.; Bae, J.W. Adjusted interactions of nickel nanoparticles with cobalt-modified MgAl2O4-SiC for an enhanced catalytic stability during steam reforming of propane. Appl. Catal. A Gen. 2018, 549, 117–133. [Google Scholar] [CrossRef]
  13. Szijjártó, G.P.; Pászti, Z.; Sajó, I.; Erdőhelyi, A.; Radnóczi, G.; Tompos, A. Nature of the active sites in Ni/MgAl2O4-based catalysts designed for steam reforming of ethanol. J. Catal. 2013, 305, 290–306. [Google Scholar] [CrossRef]
  14. Han, J.W.; Park, J.S.; Choi, M.S.; Lee, H. Uncoupling the size and support effects of Ni catalysts for dry reforming of methane. Appl. Catal. B Environ. 2017, 203, 625–632. [Google Scholar] [CrossRef]
  15. Zhang, J.; Li, F. Coke-resistant Ni@SiO2 catalyst for dry reforming of methane. Appl. Catal. B Environ. 2015, 176–177, 513–521. [Google Scholar] [CrossRef]
  16. Bian, Z.; Kawi, S. Sandwich-Like Silica@Ni@Silica multicore-shell catalyst for the low-temperature dry reforming of methane: Confinement effect against carbon formation. ChemCatChem 2018, 10, 320–328. [Google Scholar] [CrossRef]
  17. Li, Z.; Wang, Z.; Kawi, S. Sintering and Coke Resistant Core/Yolk Shell Catalyst for Hydrocarbon Reforming. ChemCatChem 2018, 11, 202–224. [Google Scholar] [CrossRef]
  18. Wang, C.; Sun, N.; Zhao, N.; Wei, W.; Zhang, J.; Zhao, T.; Sun, Y.; Sun, C.; Liu, H.; Snape, C.E. The properties of individual carbon residuals and their influence on the deactivation of Ni-CaO-ZrO2 catalysts in CH4 dry reforming. ChemCatChem 2014, 6, 640–648. [Google Scholar] [CrossRef]
  19. Kathiraser, Y.; Thitsartarn, W.; Sutthiumporn, K.; Kawi, S. Inverse NiAl2O4 on LaAlO3–Al2O3: Unique catalytic structure for stable CO2 reforming of methane. J. Phys. Chem. C 2013, 117, 8120–8130. [Google Scholar] [CrossRef]
  20. Keshavarz, A.R.; Soleimani, M. Optimization of nano-sized Ni/MgAl2O4 catalyst synthesis by the surfactant-assisted deposition precipitation method for steam pre-reforming of natural gas. RSC Adv. 2016, 6, 61536–61543. [Google Scholar] [CrossRef]
  21. Zou, X.; Tian, Z.; Wang, X.; Tan, M.; Ding, W.; Lu, X. Formation of magnesium silicate on surface of silica for steam reforming of liquefied petroleum gas. Catal. Commun. 2015, 68, 116–119. [Google Scholar] [CrossRef]
  22. Park, J.H.; Lee, D.; Lee, H.C.; Park, E.D. Steam reforming of liquid petroleum gas over Mn-promoted Ni/γ-Al2O3 catalysts. Korean J. Chem. Eng. 2010, 27, 1132–1138. [Google Scholar] [CrossRef]
  23. Crisafulli, C.; Scirè, S.; Minicò, S.; Solarino, L. Ni–Ru bimetallic catalysts for the CO2 reforming of methane. Appl. Catal. A Gen. 2002, 225, 1–9. [Google Scholar] [CrossRef]
  24. Misture, S.T.; McDevitt, K.M.; Glass, K.C.; Edwards, D.D.; Howe, J.Y.; Rector, K.D.; He, H.; Vogel, S.C. Sulfur-resistant and regenerable Ni/Co spinel-based catalysts for methane dry reforming. Catal. Sci. Technol. 2015, 5, 4565–4574. [Google Scholar] [CrossRef]
  25. Gao, X.; Tan, Z.; Hidajat, K.; Kawi, S. Highly reactive Ni-Co/SiO2 bimetallic catalyst via complexation with oleylamine/oleic acid organic pair for dry reforming of methane. Catal. Today 2017, 281, 250–258. [Google Scholar] [CrossRef]
  26. Tu, W.; Ghoussoub, M.; Singh, C.V.; Chin, Y.-H.C. Consequences of surface oxophilicity of Ni, Ni-Co, and Co clusters on methane activation. J. Am. Chem. Soc. 2017, 139, 6928–6945. [Google Scholar] [CrossRef] [PubMed]
  27. Kubota, N. Effect of impurities on the growth kinetics of crystals. Cryst. Res. Technol. 2001, 36, 749–769. [Google Scholar] [CrossRef]
  28. Yuan, Q.; Yin, A.-X.; Luo, C.; Sun, L.-D.; Zhang, Y.-W.; Duan, W.-T.; Liu, H.-C.; Yan, C.-H. Facile synthesis for ordered mesoporous γ-aluminas with high thermal stability. J. Am. Chem. Soc. 2008, 130, 3465–3472. [Google Scholar] [CrossRef]
  29. Cheng, Z.; Wu, Q.; Li, J.; Zhu, Q. Effects of promoters and preparation procedures on reforming of methane with carbon dioxide over Ni/Al2O3 catalyst. Catal. Today 1996, 30, 147–155. [Google Scholar] [CrossRef]
  30. Natesakhawat, S.; Watson, R.; Wang, X.; Ozkan, U. Deactivation characteristics of lanthanide-promoted sol–gel Ni/Al2O3 catalysts in propane steam reforming. J. Catal. 2005, 234, 496–508. [Google Scholar] [CrossRef]
  31. Natesakhawat, S.; Oktar, O.; Ozkan, U.S. Effect of lanthanide promotion on catalytic performance of sol–gel Ni/Al2O3 catalysts in steam reforming of propane. J. Mol. Catal. A Chem. 2005, 241, 133–146. [Google Scholar] [CrossRef]
  32. Kim, A.R.; Lee, H.Y.; Cho, J.M.; Choi, J.-H.; Bae, J.W. Ni/M-Al2O3 (M = Sm, Ce or Mg) for combined steam and CO2 reforming of CH4 from coke oven gas. J. CO2 Util. 2017, 21, 211–218. [Google Scholar] [CrossRef]
  33. Lee, H.Y.; Kim, A.R.; Park, M.-J.; Jo, J.M.; Lee, D.H.; Bae, J.W. Combined steam and CO2 reforming of CH4 using coke oven gas on nickel-based catalyst: Effects of organic acids to nickel dispersion and activity. Chem. Eng. J. 2015, 280, 771–781. [Google Scholar] [CrossRef]
  34. Ewbank, J.L.; Kovarik, L.; Kenvin, C.C.; Sievers, C. Effect of preparation methods on the performance of Co/Al2O3 catalysts for dry reforming of methane. Green Chem. 2014, 16, 885–896. [Google Scholar] [CrossRef]
  35. Shen, K.; Wang, X.; Zou, X.; Wang, X.; Lu, X.; Ding, W. Pre-reforming of liquefied petroleum gas over nickel catalysts supported on magnesium aluminum mixed oxides. Int. J. Hydrogen Energy 2011, 36, 4908–4916. [Google Scholar] [CrossRef]
  36. Huang, Z.; Wang, X.; Wang, Z.; Zou, X.; Ding, W.; Lu, X. High catalytic performance and sustainability of the Ni/La2O3 catalyst for daily pre-reforming of liquefied petroleum gas under a low steam/carbon molar ratio. RSC Adv. 2014, 4, 14829–14832. [Google Scholar] [CrossRef]
  37. Xu, L.; Zhang, J.; Wang, F.; Yuan, K.; Wang, L.; Wu, K.; Xu, G.; Chen, W. One-step synthesis of ordered mesoporous CoAl2O4 spinel-based metal oxides for CO2 reforming of CH4. RSC Adv. 2015, 5, 48256–48268. [Google Scholar] [CrossRef]
  38. Han, Y.K.; Ahn, C.-I.; Bae, J.W.; Kim, A.R.; Han, G.Y. Effects of Carbon Formation on Catalytic performance for CO2 reforming with methane on Ni/Al2O3 catalyst: Comparison of fixed-bed with fluidized-bed reactors. Ind. Eng. Chem. Res. 2013, 52, 13288–13296. [Google Scholar] [CrossRef]
  39. Lobo, L.S.; Figueiredo, J.L.; Bernardo, C.A. Carbon formation and gasification on metals. Bulk diffusion mechanism: A reassessment. Catal. Today 2011, 178, 110–116. [Google Scholar] [CrossRef]
  40. Amini, E.; Rezaei, M.; Nematollahi, B. Synthesis of mesoporous magnesium aluminate (MgAl2O4) nanopowder with high surface area with a novel and simple sol–gel method. J. Porous Mater. 2015, 22, 481–485. [Google Scholar] [CrossRef]
  41. Ravel, B.; Newville, M. ATHENA, ARTEMIS, HEPHAESTUS: Data analysis for X-ray absorption spectroscopy using IFEFFIT. J. Synchrotron Radiat. 2005, 12, 537–541. [Google Scholar] [CrossRef] [Green Version]
Catalysts 10 00461 g001 550

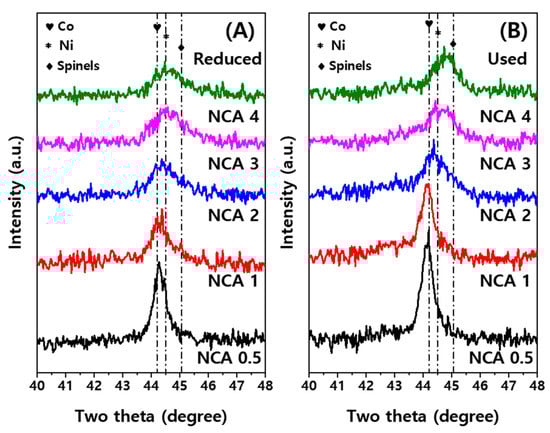

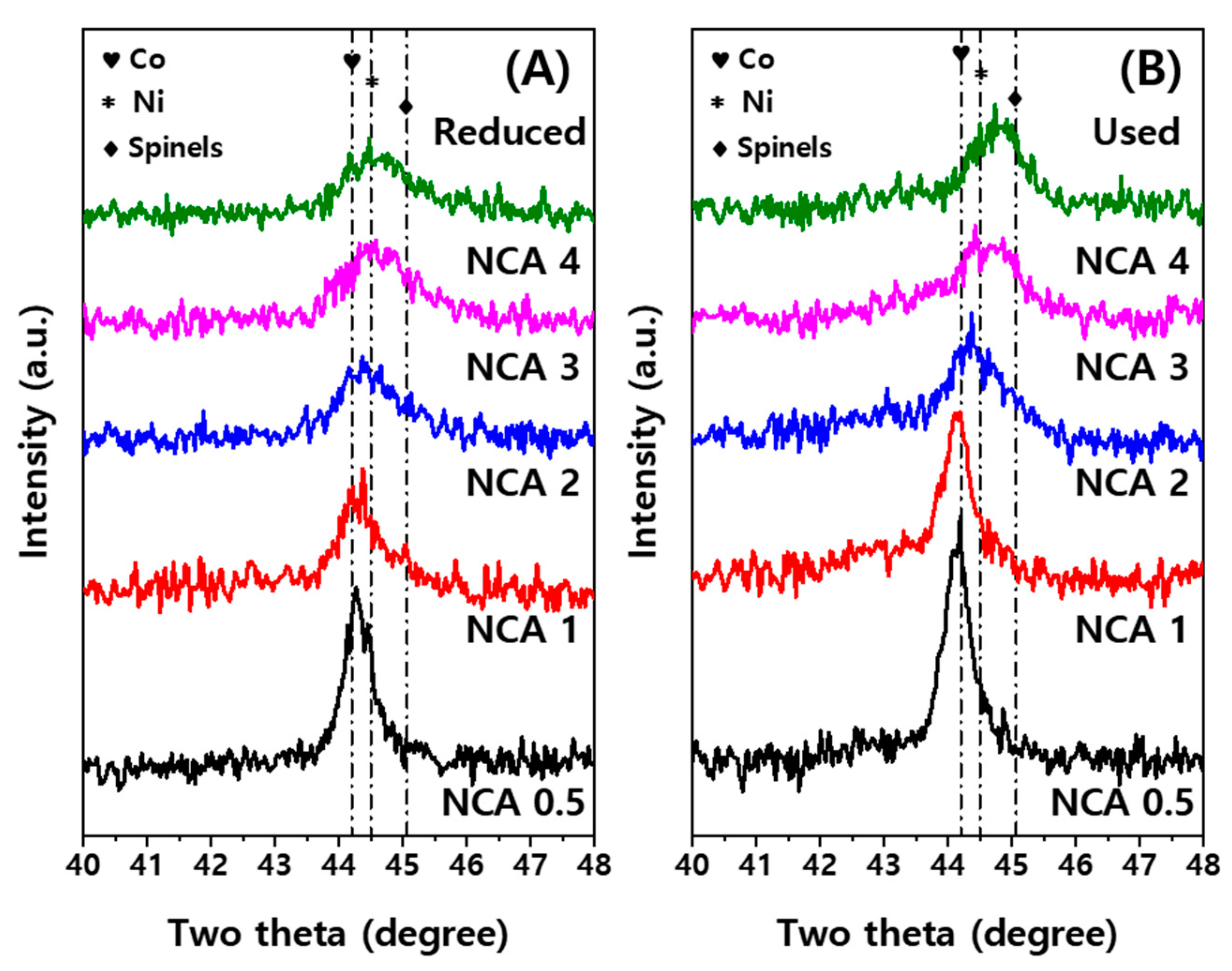

Figure 1. X-ray diffraction patterns of the (A) reduced and (B) used NCA catalysts.
Figure 1. X-ray diffraction patterns of the (A) reduced and (B) used NCA catalysts.
Catalysts 10 00461 g001
Catalysts 10 00461 g002 550

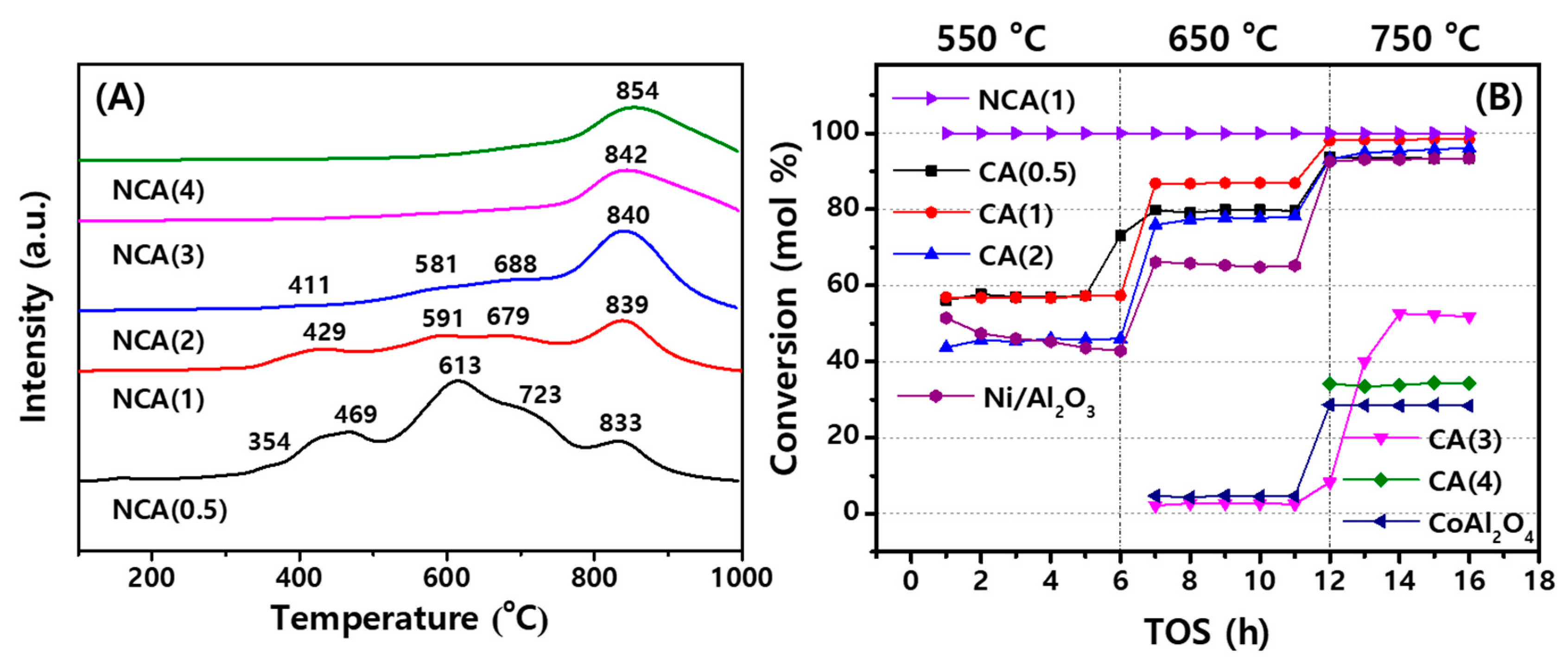

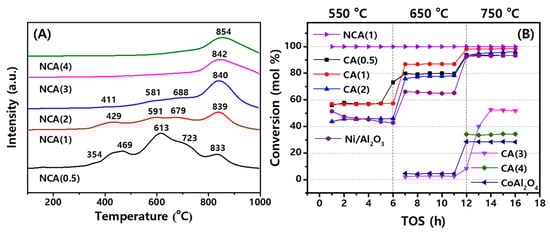

Figure 2. (A) Reduction behaviors of the NCA catalysts measured by temperature programmed reduction (TPR) analysis, (B) Results of preliminary activity measurement of the Co3O4-Al2O3 (CA) supports with reference samples such as Ni/Al2O3 and CoAl2O4 for C3H8 conversion with time on stream (h) at the reaction condition of T = 550–650–750 °C, P = 0.1 MPa and SV = 100,800 L/(kgcat∙h) by using a feed gas composition of C3H8/N2/H2O = 1:4:9.
Figure 2. (A) Reduction behaviors of the NCA catalysts measured by temperature programmed reduction (TPR) analysis, (B) Results of preliminary activity measurement of the Co3O4-Al2O3 (CA) supports with reference samples such as Ni/Al2O3 and CoAl2O4 for C3H8 conversion with time on stream (h) at the reaction condition of T = 550–650–750 °C, P = 0.1 MPa and SV = 100,800 L/(kgcat∙h) by using a feed gas composition of C3H8/N2/H2O = 1:4:9.
Catalysts 10 00461 g002
Catalysts 10 00461 g003 550

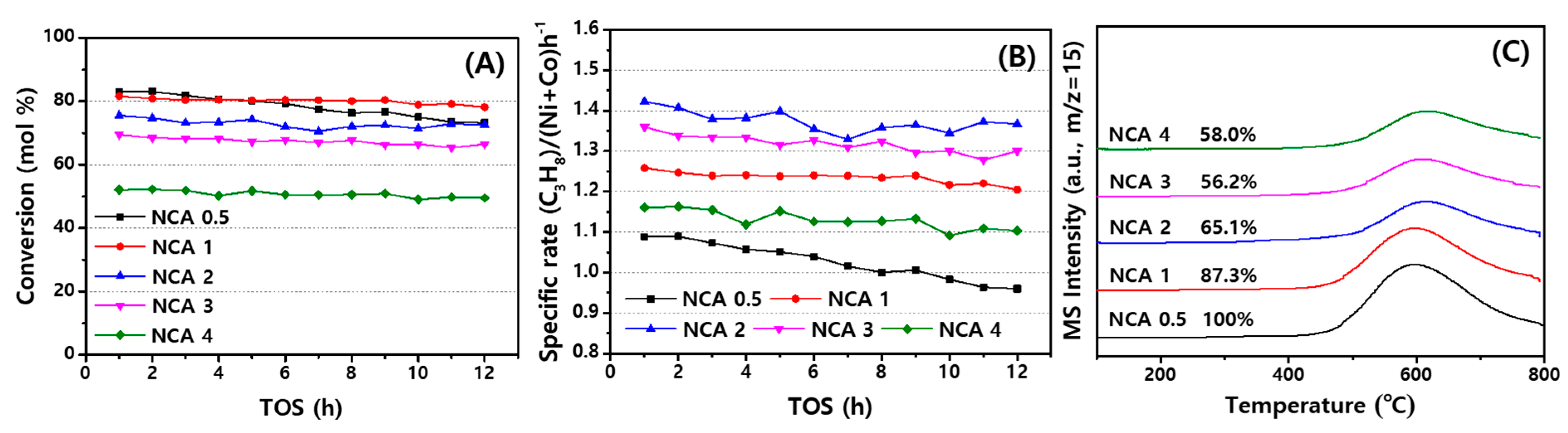

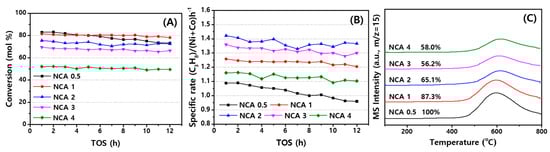

Figure 3. Catalytic activities of the NCA catalysts for (A) C3H8 conversion, (B) specific rate of C3H8 conversion (C3H8 converted/(moles of (Ni + Co)·h)) with time on stream (h) and (C) Temperature programmed surface reaction (TPSR) patterns of the used NCA catalysts at the reaction conditions of T = 650 °C, P = 0.1 MPa and SV = 170,000 L/(kgcat∙h) by using a feed gas composition of C3H8/N2/H2O = 1:4:9.
Figure 3. Catalytic activities of the NCA catalysts for (A) C3H8 conversion, (B) specific rate of C3H8 conversion (C3H8 converted/(moles of (Ni + Co)·h)) with time on stream (h) and (C) Temperature programmed surface reaction (TPSR) patterns of the used NCA catalysts at the reaction conditions of T = 650 °C, P = 0.1 MPa and SV = 170,000 L/(kgcat∙h) by using a feed gas composition of C3H8/N2/H2O = 1:4:9.
Catalysts 10 00461 g003
Catalysts 10 00461 g004 550

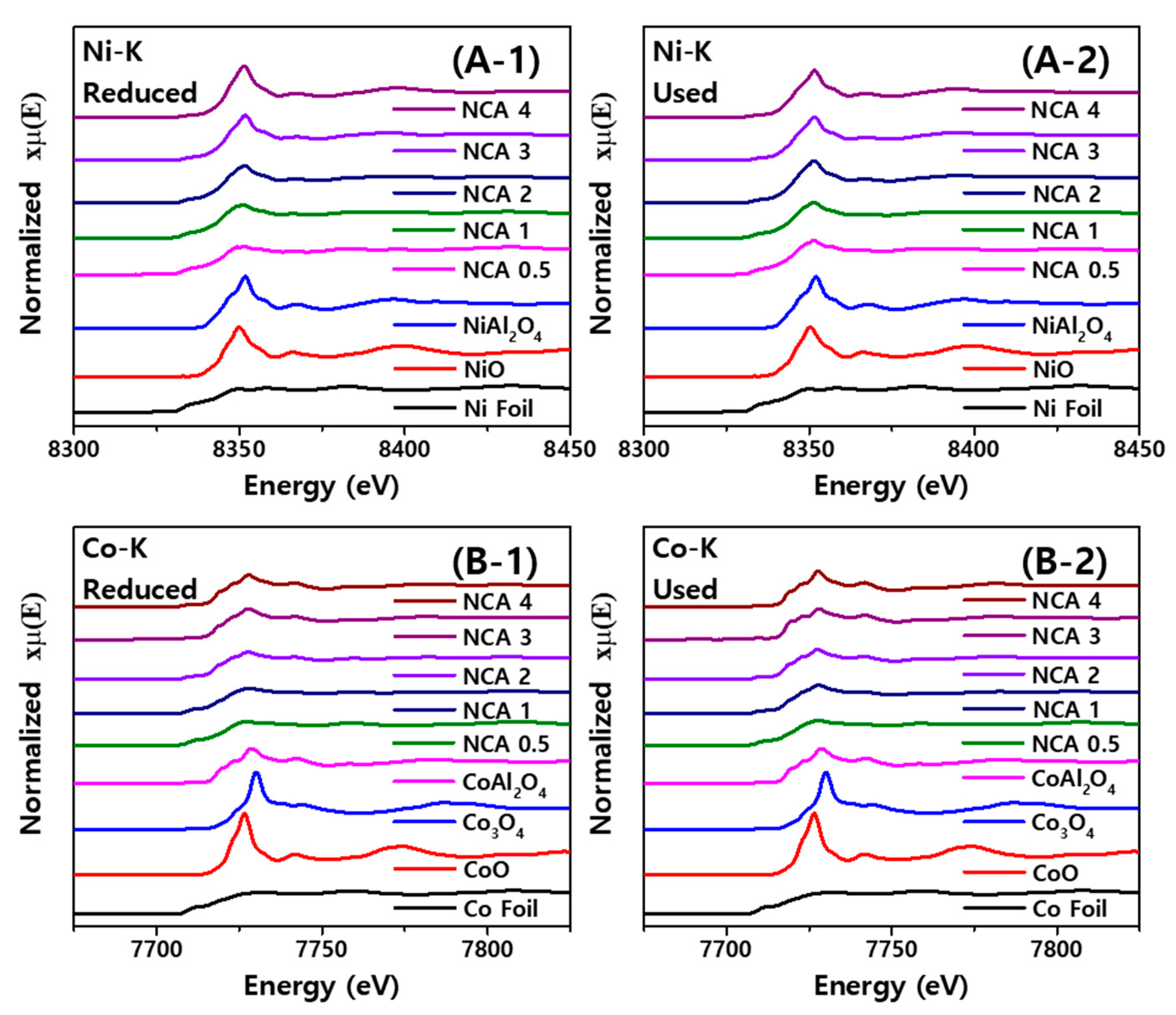

Figure 4. X-ray absorption near-edge structure (XANES) spectra of (A) Ni K-edge and (B) Co K-edge on the (1) reduced, (2) used NCA catalysts with reference materials.
Figure 4. X-ray absorption near-edge structure (XANES) spectra of (A) Ni K-edge and (B) Co K-edge on the (1) reduced, (2) used NCA catalysts with reference materials.
Catalysts 10 00461 g004
Catalysts 10 00461 g005 550

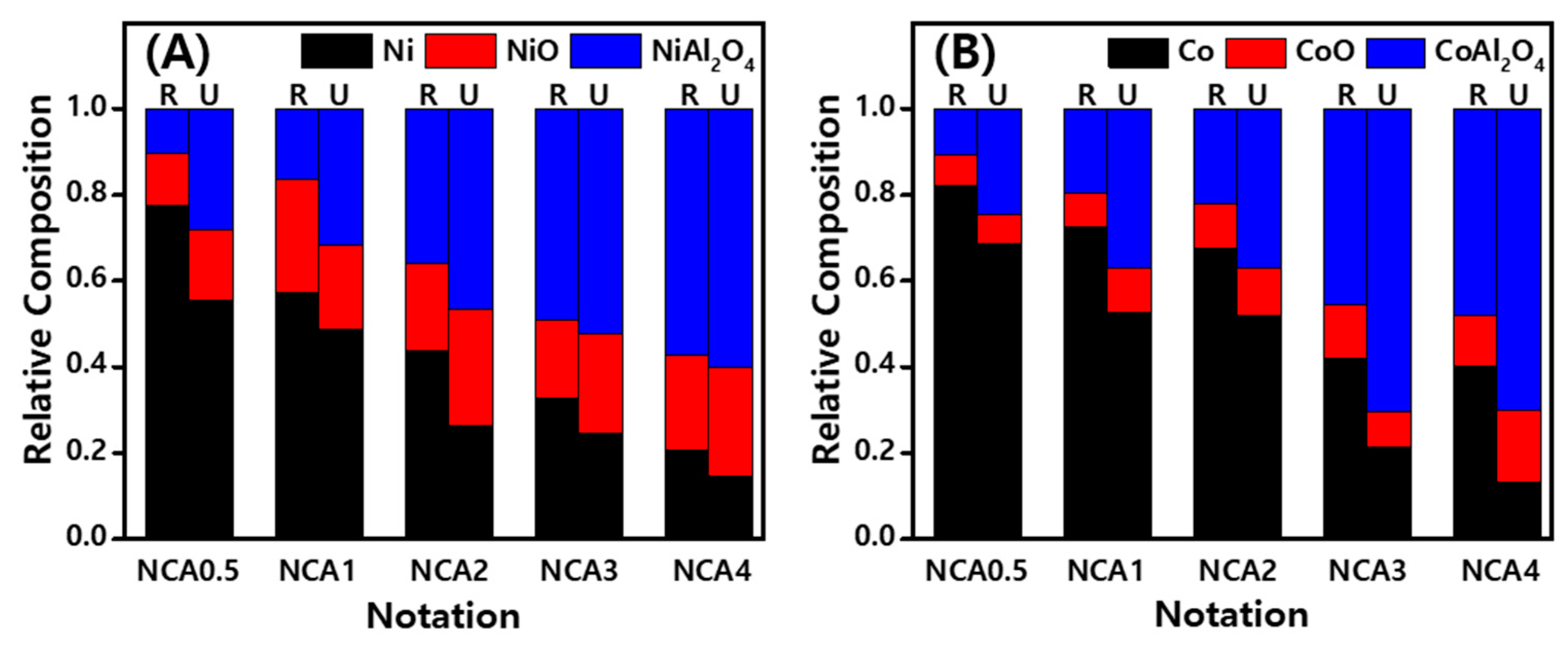

Figure 5. Relative crystalline compositions of the (A) reduced and (B) used NCA catalysts derived from the linear combination fitting (LCF) by comparing them with reference materials.
Figure 5. Relative crystalline compositions of the (A) reduced and (B) used NCA catalysts derived from the linear combination fitting (LCF) by comparing them with reference materials.
Catalysts 10 00461 g005
Table
Table 1. Bulk and surface properties of the Ni/CoAl (NCA) catalysts prepared at different Al/Co ratios.
Table 1. Bulk and surface properties of the Ni/CoAl (NCA) catalysts prepared at different Al/Co ratios.
NotationXRF (wt%)N2-Sorption 1XRDCO Chemi.
NiOCo3O4Al2O3Sg (m2/g)Pv (cm3/g)Pd (nm)Crystallite Size of Ni0 (Reduced/Used) (nm)Dispersion (%)
NCA(0.5)10.964.324.8320.2425.214.6/16.21.0
NCA(1)10.650.638.8460.3627.69.2/12.92.4
NCA(2)10.336.153.6640.3920.56.9/8.72.5
NCA(3)11.928.459.7780.4315.36.3/7.43.6
NCA(4)11.222.666.21110.4812.96.5/7.33.0
1 Sg, Pv and Pd represent the specific surface area (m2/g), pore volume (cm3/g) and average pore diameter (nm) measured by N2 adsorption-desorption analysis on the fresh NCA catalysts, respectively.
Table
Table 2. Summarized results of the catalytic performances on the NCA catalysts.
Table 2. Summarized results of the catalytic performances on the NCA catalysts.
NotationCatalytic Performances 1
Conversion (mol%)Specific Rate [Moles of C3H8 Converted/(Moles of (Ni + Co)·h)]Deactivation Rate (%/h)Product Distribution (H2/CO/CO2/CH4)
NCA(0.5)73.20.960.8971.2/8.6/15.8/4.4
NCA(1)78.11.200.3170.1/9.0/15.7/5.2
NCA(2)72.61.370.2773.2/8.5/16.3/2.0
NCA(3)66.51.300.2872.5/7.6/16.8/3.1
NCA(4)49.51.100.2373.4/10.6/14.1/1.9
1 SRP reaction was performed at the reaction conditions of T = 650 °C, P = 0.1 MPa and SV = 170,000 L/(kgcat∙h) by using a feed gas composition of C3H8/N2/H2O = 1:4:9 for 12 h on stream. The extent of deactivation (%/h) was the difference between the initial and final conversion of C3H8 divided by 11 h, and all values such as conversion, specific rate and product distribution were included by using the final catalytic activity at 12 h.
Table
Table 3. Crystalline compositions of the Ni and Co species on the reduced and used NCA catalysts 1.
Table 3. Crystalline compositions of the Ni and Co species on the reduced and used NCA catalysts 1.
NotationStatusLinear Combination Fitting (LCF) Results by Using XANES Spectra
NiNiONiAl2O4R-Factor (%)CoCoOCoAl2O4R-Factor (%)
NCA(0.5)Reduced0.780.120.110.20.820.070.110.3
Used0.550.170.280.90.690.070.250.2
NCA(1)Reduced0.570.260.161.00.730.080.200.1
Used0.490.200.320.20.530.100.370.2
NCA(2)Reduced0.440.200.360.30.680.100.220.6
Used0.270.270.470.20.520.110.370.8
NCA(3)Reduced0.330.180.490.60.420.130.450.4
Used0.250.230.520.10.210.080.701.4
NCA(4)Reduced0.210.220.570.40.400.120.480.5
Used0.150.250.600.20.130.170.701.0
1 X-ray adsorption fine structure (XAFS) experiment were performed at the 7D1 beam line of the Pohang Light Source (PLS) by measuring at the Ni K-edge (8333 eV) and Co K-edge (7709 eV), and the linear combination fittings (LCF) from the X-ray absorption near-edge structure (XANES) regions on the reduced and used NCA catalysts were carried out by comparing them with various reference materials. The Co3O4 phases was not observed on the NCA catalysts.
