Bimetallic Cu/Pt Oxygen Reduction Reaction Catalyst for Fuel Cells Cathode Materials

by
Elena Alekseeva
1,
Tatyana Stelmashuk
1,
Stepan Danilov
1,
Peixia Yang
2 and
Oleg Levin
1,*
1
Institute of Chemistry, St. Petersburg State University, 199034 Saint Petersburg, Russia
2
MIIT Key Laboratory of Critical Materials Technology for New Energy Conversion and Storage, School of Chemistry and Chemical Engineering, Harbin Institute of Technology, Harbin 150001, Heilongjiang, China
*
Author to whom correspondence should be addressed.
Catalysts 2020, 10(6), 667; https://doi.org/10.3390/catal10060667
Submission received: 20 May 2020 / Revised: 10 June 2020 / Accepted: 11 June 2020 / Published: 13 June 2020
(This article belongs to the Special Issue Catalysts in Energy Applications)
Browse Figures
Versions Notes

Abstract

:
The oxygen reduction reaction (ORR) is a key process for the operation of fuel cells. To accelerate the sluggish kinetics of ORR, a wide range of catalysts have been proposed and tested. In this work, a nano-dispersed copper-impregnated platinum catalyst prepared by electrodeposition of platinum on a poly[Cu(Salen)] template followed by polymer destruction is described. In addition to the high activity of the thus prepared catalyst in the oxygen reduction reaction surpassing that of both polycrystalline platinum catalyst and the commercial carbon-platinum catalyst (“E-TEK”), it showed remarkable tolerance to the presence of methanol in solution.

Graphical Abstract

1. Introduction

The oxygen reduction reaction (ORR) plays a crucial role in the operation of a variety of electrochemical systems, such as metal–air batteries, fuel cells, and electrochemical sensors [1,2,3,4,5]. The performance of these devices often suffers from sluggish kinetics of ORR at the electrode–solution interface. To overcome this issue, much effort on preparation of a proper catalyst has been made. Most of commercial ORR catalysts use noble metals on carbon support (Pt/C, Ru/C, Ir/C) [6,7,8,9,10,11] or their alloys (Pt/Ru) [12,13]. Unfortunately, noble metal catalysts are quickly poisoned by various impurities, which are always present in practical systems [14]. The catalyst tolerance to the presence of poisoning impurities can be enhanced by combination of noble and transition metals [15]. In such mixed catalysts, various transition metals and their oxides are used, including Pt–TiO2 [16], Pt–Co [17,18,19,20], Pt–Pb [21], Pt–W [22], and Pt–Ni [23,24]. The activity, efficiency and lifetime of the catalysts are significantly influenced by their chemical composition as well as by the morphology of the catalytic layer. The catalytic activity is enhanced in highly porous systems and systems composed of meso- and nano-sized active particles due to increase in the catalyst surface area and the surface energy of such systems [25,26]. One of the most common methods of preparation of nano-structured mixed systems is the template synthesis [1,27,28,29,30], where an active component of the catalyst is deposited on a porous material used as a template. An example of such porous template are polymer films of metal complexes with Schiff bases formed on a conductive substrate [31]. The polymer template can be easily destroyed by thermolysis [32] or alkaline hydrolysis [33,34], resulting in removal of the organic ligand matrix and formation of metal oxide with high surface area. The metal atoms are uniformly distributed in the initial polymer films, so the resulting material has a uniform structure composed of nano-particles of metal hydroxides or oxides [32,33,34]. In this work, we report a template synthesis of a novel bimetallic Pt/Cu catalyst by electrodeposition of platinum particles on poly[Cu(Salen)] films used as a template, followed by hydrolytic decomposition of the polymer matrix. The efficiency, stability, and methanol tolerance of the Pt/Cu catalyst were studied, and the catalyst composition and preparation method were optimized.

2. Results and Discussion

2.1. Catalyst Synthesis and Characterization

The bimetallic catalyst Pt/Cu was prepared by reduction of K2PtCl6 on the pre-polymerized [Cu(Salen)] template matrix (see Supplementary Information) followed by the template removal from the resulting poly[Cu(Salen)]/Pt.
According to previous reports, similar nickel-based polymer, poly[Ni(salen)], undergoes destruction of organic part upon electrochemical oxidation of the polymer film in alkaline solutions [33]. However, the copper complex was proved to be more stable according to EQCM/CV study. Unlike poly[Ni(salen)], which swelling during the first cycle of potential sweep was followed by the polymer degradation [35], cycling of poly[Cu(salen)]/Pt in the same potential range (1–1.8 V (vs. reversible hydrogen electrode (RHE)) (Figure 1a) resulted in electroactivity drop accompanied by mass stabilization (Figure 1c) after the initial mass increase due to the polymer swelling. Therefore, the hydrolysis of poly[Cu(salen)]/Pt by preliminary reported procedure resulted only in the decrease of the polymer electroactivity with no physical destruction of the polymer template (Figure 1a).
Extension of the potential sweep window from 1–1.8 V to 0.2–1.8 V (vs. RHE) (Figure 1c) produces an ORR wave at around 0.7 V (vs. RHE). In the first three voltammetry cycles a sharp increase of the film mass is observed, followed by the weight decrease, indicating the destruction of the polymer film in alkaline solution (Figure 1d). While the organic template is dissolved in the solution, Cu atoms remain partially on the surface of the platinum particles in the form of copper oxide (see text below). The resulting bimetallic catalyst is denoted as Pt/Cu.
The activity of the metallic catalysts is influenced by their composition as well as the size, shape, and distribution of their particles on the surface and in the active layer volume [36]. The composition and the morphology of the bimetallic catalyst Pt/Cu were optimized to reduce the platinum loading while maintaining the catalyst activity for ORR in alkaline medium at the proper level. Eight different compositions were tested with the platinum loading controlled by the charge of electrodeposition (Table S1, Figure S3). The morphology of the catalyst depends on the morphology and porosity of the polymer template, which in turn is determined by the properties of the solvent in which the polymer was synthesized [37]. As salen complexes are known to undergo electrochemical polymerization in weak or non-coordinating solvents, acetonitrile (AN) and propylene carbonate (PC) were explored as the solvents for the synthesis of the template, resulting in two series of bimetallic catalysts, Pt/Cu (AN) and Pt/Cu (PC) respectively (see Table S1 for the complete list of the samples).
The activity of Pt/Cu (AN) catalyst, assessed as the half-wave potential of ORR, becomes equal to the commercial E-TEK-based catalyst, prepared by the standard method, with two times higher Pt loading (Figure 2, Table 1). Though larger Pt loading significantly increases the activity of the catalyst by shifting the half-wave potential for ORR by 70 mV, this also increases the catalyst cost. Much better performance showed Pt/Cu(PC), which has activity surpassing that of commercial E-TEK catalyst at lower Pt loading: the positive shift of the half-wave for ORR by 20 mV was observed at 100 times lesser platinum loading (Table S1, Figure 2, sample 4 vs. sample 1 and E-TEK). In addition, synergistic effect of platinum and copper deposited from the polymer template was confirmed by the comparison of the electrocatalytic activity of Pt/Cu (PC) with poly[Cu(Salen)] and Pt deposited on an electrode without a polymer template (see Supplementary Information, Table S2, for detailed description of loading optimization and comparison of the performance with model systems and literature data).
To explain the observed difference between Pt/Cu (AN) and Pt/Cu (PC), a morphological study of the catalysts was performed by means of the scanning electron microscopy (SEM). Similar to the electropolymerized films of nickel salen complexes [38], the surface of poly[Cu(Salen)](AN) polymer complex (Figure 3a,b) is smooth and has no visible porosity. On the contrary, the poly[Cu(Salen)](PC) film (Figure 3b) is porous with pore diameters of 100 nm or less. When K2[PtCl6] is reduced at poly[Cu(Salen)](PC) polymer matrix, the reduction occurs first on the sites with the highest surface energy, the nano-sized pores, and thus the metal nanoparticles (average diameter is 31 ± 10 nm) are formed. Due to the high porosity of the template (hence the large number of the nucleation sites for metal deposition), the nanoparticles of platinum are evenly distributed throughout the polymer surface (Figure 3g), as can be evidenced from the SEM images of Pt/Cu (PC) bimetallic catalyst (Figure 3d). Unlike poly[Cu(Salen)](PC), the smooth surface of poly[Cu(Salen)](AN) template results in occasional (and more rare) formation of the seeds of the reduced metal resulting in larger diameter of the metal particles (60 ± 20 nm) and their lesser number per unit area (Figure 3h). Energy Dispersive X-ray (EDX) analysis results confirmed the presence of Pt and Cu in the samples.
According to the XPS data, the alkaline hydrolysis led to a significant change in the composition of the catalyst surface compared to the template polymer film. The Pt:Cu:O:N ratio on the surface of the Pt/Cu (PC) mixed catalyst was found to comprise 9:1:3:0.3, indicating removal of almost all organic backbone of the polymer. The XPS Cu spectrum of the mixed catalyst did not contain any peaks at 943.5 eV and 936.4 eV characteristic for [Cu(Salen)] complex [39]. On the contrary, the spectrum (Figure 4a) consisted of two peaks of Cu0 with binding energies characteristic for the metallic copper (931.7 eV, Cu 2p/3 and 951.5 eV, Cu 2p1/2 [40]) and Cu2+ peak, typical for the copper hydroxide (933.8 eV, Cu 2p3/2 [41]).
The oxygen spectrum (Figure 4c) contains the main peak with a binding energy of 530.7 eV corresponding to O2− in copper hydroxide [41]. The second peak on the spectrum at 531.8 eV may be assigned to O2− in platinum dioxide [42]. The amount of platinum on the surface of the catalyst significantly exceeds both the amount of copper and the amount of oxygen (Figure 4b). The first pair of peaks (70.9 eV and 74.2 eV) on the Pt spectrum corresponded to Pt0 in the metallic platinum [43], and the second pair (72.3 eV and 75.2 eV) had binding energies similar with Pt2+ in the CuPt alloy at the mixed catalyst surface [44] (Figure 4b). The peak at 75.6 eV possibly corresponds to Pt4+ in PtO2 [45]. Presence of the platinum hydroxide at the catalyst surface was additionally proved by the presence of the platinum hydroxide peak on the oxygen spectrum (Figure 4c). The characteristic Pt peaks of bare Pt metal are located at 71.9 eV [46], while the characteristic peaks of Pt–Cu nanoparticles appear at 70.9 eV [44,47]. The negative shift of the peaks in Cu–Pt catalysts compared to Pt should be attributed to the electron transfer from Cu to Pt by their intimate contact [44]. As the result, obtained data match well to the literature data for other mixed Cu–Pt catalysts [48,49,50] and the observed Pt spectrum is close to the spectrum of the Pt/Cu catalyst reported in [43,44]. Thus, XPS data confirm that during the hydrolysys of poly[Cu(Salen)] copper is not washed out of the film, but remains in several forms in the composition of the mixed Pt/Cu (PC) catalyst.

2.2. Kinetics of the ORR

The kinetics of the ORR on the Pt/Cu (PC) mixed catalyst was studied on the rotating disk electrode. The four-electron character of the redox process was found from the slope of the j−1(ω−1/2) dependence by means of the Koutecký–Levich equation according to the standard procedure [51] (Figure 5 and Figure S4). The number of electrons n close to four is indicative of oxygen to water reduction rather than oxygen to hydrogen peroxide reduction. This is typical for Pt catalysts [52,53], but not for transition metals catalysts, which show mixed two-electron and four-electron reductions with n between 2 and 4 [54]. The observed four-electron pathway of the ORR shows that copper does not block or change the electrochemical behavior of platinum in Pt/Cu (PC). The transferred electron number is typical for other Pt/Cu catalysts [55,56,57].

2.3. Stability of the Mixed Catalyst

The stability of the catalytic response of Pt/Cu (PC), as the best from the synthesized catalysts, was estimated from the catalytic ORR current in a potentiostatic mode on Pt/Cu (PC) modified electrode in an oxygen saturated alkaline solution. Pt/Cu (PC) catalyst activity shows gradual decrease and the catalytic current reaches 50% of the initial level after 3 h of continuous operation (Figure 6). The observed half-life of the catalyst is thus at the same level or better than the stability of commercial platinum catalysts [58,59]. Washing of the Pt/Cu (PC) catalyst by deionized water after 75% loss of the initial activity recovers its activity by 37% (Figure 6). This suggests that the decrease in activity is caused by the adsorption of impurities on the surface of the catalyst rather than by the mechanical destruction of the catalytic layer.

2.4. Stability of the Mixed Catalyst in the Presence of Methanol in the Electrolyte

The leakage of the catholite to the anode space is a major problem of fuel cells. As a result, the catalyst is poisoned by a mixture of the fuel and the oxidant formed in the anodic space. This problem is particularly important for methanol fuel cells, as Pt-based ORR catalysts can promote methanol oxidation, which leads to a decrease of the cathodic current. The contact of methanol with a platinum catalyst may also lead to surface poisoning by aldehydes and other organic impurities that are formed during the oxidation of methanol. Therefore, a practically important parameter of a catalyst for a fuel cell is its tolerance to methanol admixtures.
The CV and chronoamperometry study of the tolerance of Pt/Cu (PC) catalyst to methanol was carried out in a solution of 0.2 M NaOH containing methanol additives. A methanol oxidation wave can be observed on the CV of 0.5 M methanol solution in 0.2 M aqueous NaOH (Figure 7a) at Pt/Cu (PC) modified electrode. However, the oxidation of methanol becomes possible only for positive direction potential sweep, though the methanol oxidation potential (ca. 0.8 V vs. RHE) is passed already on negative direction potential sweep. This implies that the significant polarization of the electrode surface is required to enable methanol sorption prior to oxidation. Taking into account that Pt/Cu (PC) has half-wave potential of 0.9 V and potential of 0.7 V for diffusion-limited current of ORR in 0.2 M NaOH, effective oxygen reduction without interference from methanol oxidation becomes possible.
Indeed, addition of methanol had little effect on the current of oxygen reduction during chronoamperometry study (E = 0.7 V vs. RHE) (Figure 7b), which indicates a good tolerance to the presence of methanol in the solution. After 2000 seconds of continuous operation, the current value comprised 65% of the initial value, which is a good indicator, since under similar conditions the current drop for the E-TEK catalyst was 50% [60]. Compared to other analogues published in [61,62], the stability of the mixed Pt/Cu catalyst in the presence of methanol is also higher.
The high methanol tolerance of the Pt/Cu electrocatalyst can be explained by combination of particle size and surface inhomogeneity effects. Maillard et al. [63] found that ORR electrocatalysts with smaller metal particle sizes demonstrate enhanced methanol tolerance. It is established that at least three adjacent Pt sites in the proper crystallographic arrangement are necessary to activate the chemisorption of methanol for the methanol oxidation [64,65,66,67], while only two adjacent Pt sites are necessary for the competing process of the oxygen adsorption. For the Pt/Cu electrocatalyst, where Pt surface is partially covered by methanol-tolerant Cu, the probability of finding three neighboring Pt atoms on the surface is lower compared to the pure Pt surface. It could hinder methanol adsorption on the catalyst and thus ensure little methanol effect on the current of oxygen reduction reaction.

3. Materials and Methods

3.1. General Remarks

In all electrochemical studies, a three-electrode electrochemical cell was used. The electropolymerization of [Cu(Salen)] was performed using the rotating disk glassy carbon electrode (RDE) with an area of 0.07 cm2 as a working electrode and a platinum plate (1 cm2) as an auxiliary electrode. For experiments in aqueous solutions, a silver chloride reference electrode (SSCE) (Ag|AgCl(KCl sat.) was used; while in non-aqueous solutions, a silver nitrate reference electrode (Ag|AgNO3 (0.01 M, CH3CN)) (0.35 V vs. SSCE) was used. The potential of SSCE reference electrode vs. reversible hydrogen electrode (RHE) potential in 0.2 M NaOH solutions used in the study comprises 0.890 V. All electrochemical studies were performed on Metrohm Autolab PGSTAT12 with Autolab Rotating Disk Electrode (Eco-Chemie, Utrecht, The Netherlands).
Morphology and elemental composition of the polymer and mixed catalyst were studied by the SEM/EDX method on the SUPRA 40VP (Carl Zeiss, Oberkochen, Germany) and Zeiss Merlin (Carl Zeiss, Germany) scanning electron microscopes. The X-ray photoelectron spectroscopy (XPS) of the materials was carried out on the Thermo Fischer Scientific Escalab 250Xi Spectrometer with nonmonochromatic AlKα radiation (photon energy 1486.6 eV). A total energy resolution of the experiment was about 0.3 eV. Spectra of the samples were recorded in the constant pass energy mode at 20 eV, using a 650 mm diameter analysis area. Investigations were carried out at room temperature in an ultrahigh vacuum of the order of 1–10−9 mbar.
Commercial salicylaldehyde (Sigma-Aldrich, >97%), ethylenediamine (Sigma-Aldrich, purum p.a.) and copper(II) acetate tetrahydrate (Sigma-Aldrich, purum p.a.), K2PtCl6 (Sigma-Aldrich), propylene carbonate (99.7%, Sigma-Aldrich), acetonitrile (Cryochrome, cryogenically purified, water content <0.05%), CH3OH (99%, Vekton), conc. HCl (reagent grade, NevaReactiv), and NaOH (extra pure, Vecton) were used without further purification. The commercially available Pt catalyst E-TEK used as a benchmark was prepared according to [36].

3.2. Catalyst Preparation

[Cu(Salen)] (Figure 8) complex was synthesized according to the known procedure by condensation of salicylaldehyde with ethylenediamine followed by metalation with copper(II) acetate tetrahydrate [68].
Electropolymerization of [Cu(Salen)] from a monomer solution of 10−3 M [Cu(Salen)] and 0.1 M Et4NBF4 in acetonitrile or propylene carbonate was carried out by cyclic voltammetry in the potential range of 0–0.9 V (vs. Ag|AgNO3) for four cycles at a potential sweep rate of 20 mV/s.
To incorporate Pt particles into the poly[Cu(SalEn)] film, the electrodes were cycled in a nitrogen saturated solution of 6.4 mM K2PtCl6 in 0.6 M aq. HCl from the open circuit potential to −0.3 V (vs. SSCE) with a potential sweep rate of 50 mV s−1, and then the film was kept in a potentiostatic mode for the desired time at the potential of −0.3 V (vs. SSCE). The Pt loading was calculated according to Faraday’s law from the charge passed during the Pt electrodeposition.
Finally, the modified polymer was oxidatively hydrolyzed according to Kuznetsov et al. [33] in an oxygen saturated 0.2 M aq. NaOH by 150 cycles of potential sweep in the range of 2.1–0 V (vs. RHE) with sweep rate of 50 mV s−1. Optimization of platinum loading in the mixed catalyst was carried out by varying the time of potentiostatic deposition step, with automatic termination of the experiment after reaching the desired charge value, which was chosen within the range from 72 µC to 1 µC.
E-TEK based catalyst was prepared as a Nafion-based ink and cast onto the GC electrode surface according to the method, described in [36]. Pt loading in the E-TEK based catalyst was determined from the ink volume, and E-TEK supplier specification.

3.3. Electrochemical Measurements

3.3.1. Cyclic Voltammetry

To confirm the activity of the mixed catalyst in the oxygen reduction reaction, cyclic voltammograms for oxygen reduction at the catalyst were registered at RDE in the potential range of 1.2–1.8 V (vs. RHE) at a set of rotation speeds (0, 500, 831, 1000, 1247, 1747, 2331, 2500, 3000, 3500, 4000 (rpm)) and a sweep rate of 20 mV s−1 in a 0.2 M solution of NaOH saturated with either argon or oxygen.
The number of electrons participating in the oxygen reduction reaction was calculated by the Koutecký–Levich equation as follows [51]
1 j = 1 j L + 1 j k = 1 B ω 1 / 2 + 1 j k
B = 0.62 n F D 2 / 3 ϑ − 1 / 6 C O ;   j k = n F k C O
where j is the overall current density, jL is the diffusion-limiting current density, jk is the kinetic-limiting current, and ω is the electrode rotation rate (rpm), F is the Faraday constant (96,485 C mol−1), n is the transferred electron numbers in the ORR, CO, D and υ are the oxygen concentration, the oxygen diffusion coefficient and the kinematic viscosity for the solution, which for 0.2 M NaOH solution comprise 1.2 × 10−6 mol cm−3, 222 × 10−7 cm2 s−1 [69], and 0.016 cm2 s−1 respectively.

3.3.2. Electrochemical Quartz Microbalance

Electrochemical quartz microbalance (EQCM) was used to find the optimum potentials for Pt deposition at poly[Cu(Salen)] and the polymer matrix hydrolysis. All measurements were carried out with in situ weight control during electrochemical experiment using a QCM200 Quartz Crystal Microbalance Analog Controller with QCM25 Crystal Oscillator (Stanford Research Systems, Sunnyvale, CA, USA). A platinum crystal with an area of 1.37 cm2 was used as a working electrode. The mass changes were calculated from the crystal resonant frequency according to the Sauerbray equation [70]. The rigidity or the coating, necessary for Sauerbray equation application, was controlled by monitoring the crystal motional resistance.

3.4. Stability

3.4.1. Study of a Catalyst Stability

Stability was studied in an oxygen saturated aq. solution of 0.2 M NaOH in a potentiostatic mode at a potential of 0.7 V (vs. RHE) for 60,000 s. After the experiment, the catalyst was washed with deionized water and immersed in the alkali solution again. The second part of the experiment was carried out under the same conditions for 65,000 s.

3.4.2. Study of the Tolerance of the Catalyst to the Presence of Methanol

Methanol tolerance was studied with two additions of CH3OH, each of them increased methanol concentration in the solution by 0.25 M. Measurements were carried in an aqueous solution of 0.2 M NaOH in the potentiostatic mode at a potential of −0.3 V for 2300 s.

4. Conclusions

In summary, an efficient Cu/Pt ORR catalyst for application in fuel cells has been developed. The catalyst shows high tolerance towards methanol poisoning and catalytic efficiency exceeding that of the commercial Pt/C catalyst (see Table S2 for details). The high durability of the catalyst is attained by homogenous distribution of copper domains across Pt surface, which decreases the number of active sites available for methanol sorption. This is achieved by the deposition of Pt on a poly[Cu(Salen)] polymer matrix used as a template. The highly developed surface attained during this process secures the high efficiency of the catalyst.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/10/6/667/s1: Figure S1: (a,b) electrodeposition of poly[Cu(Salen)], 10-3 M [Cu(Salen)] in acetonitrile or propylene carbonate, 0–0.9 V (vs. Ag|AgNO3), 20 mV/s (d, e) electrodeposition of Pt particles, 6.4 mM K2PtCl6 in 0.6 M aq. HCl, −0.3 V (vs. SSCE), 50 mVs-1; Table S1: Load of Pt and monomer solvent solution; Figure S2: (a,b) SEM images of Pt particles, (c) distribution of Pt particles in the Pt/Cu(PC) catalyst; Figure S3: CV curves of poly[Cu(Salen)], Pt/Cu (PC), E-TEK and Pt catalyst modified RDE electrode in oxygen-saturated 0.2 M NaOH electrolyte, 1000 rpm; Figure S4: Koutecky–Levich plot at different potentials in oxygen-saturated 0.2 M NaOH electrolyte, (a) Pt/Cu(AN) catalyst, (b) E-TEK catalyst; Table S2: Electron transfer number calculated from slopes of Koutecky-Levich plots for different catalyst.

Author Contributions

Conceptualization E.A., T.S., S.D., P.Y., and O.L.; Investigation E.A. and T.S.; Resources, O.L.; Data curation, S.D. and P.Y.; Writing—original draft preparation, E.A. and T.S.; Writing—review and editing, O.L., and E.A.; Supervision, O.L. All authors have read and agreed to the published version of the manuscript.

Funding

We are much obliged to the Russian Foundation for Basic Research for supporting of our studies devoted to synthetic approaches to metal complexes and investigation the complexes reactivity and electrochemistry of metal-involving systems (grant no. 19-29-08026).

Acknowledgments

Physicochemical studies were performed at the Interdisciplinary Resource Center in Nanotechnology, Centre for Applied Aerodynamics, Computing Centre, Centre for Optical and Laser Materials Research, Chemistry Educational Centre, and Centre for Physical Methods of Surface Investigation (all belonging to Saint Petersburg State University). The authors thank A.S. Konev for fruitful discussion.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Xia, Z.; Fang, J.; Zhang, X.; Fan, L.; Barlow, A.J.; Lin, T.; Wang, S.; Wallace, G.G.; Sun, G.; Wang, X. Pt nanoparticles embedded metal-organic framework nanosheets: A synergistic strategy towards bifunctional oxygen electrocatalysis. Appl. Catal. B Environ. 2019, 245, 389–398. [Google Scholar] [CrossRef]
  2. Meng, Z.; Cai, S.; Wang, R.; Tang, H.; Song, S.; Tsiakaras, P. Bimetallic−organic framework-derived hierarchically porous Co-Zn-N-C as efficient catalyst for acidic oxygen reduction reaction. Appl. Catal. B Environ. 2019, 120–127. [Google Scholar] [CrossRef]
  3. Surya, K.; Michael, M.S.; Prabaharan, S.R.S. A review on advancement in non-noble metal based oxides as bifunctional catalysts for rechargeable non-aqueous Li/air battery. Solid State Ion. 2018, 317, 89–96. [Google Scholar] [CrossRef]
  4. Jiang, Z.; Yu, J.; Huang, T.; Sun, M. Recent advance on polyaniline or polypyrrole-derived electrocatalysts for oxygen reduction reaction. Polymers 2018, 10, 1397. [Google Scholar] [CrossRef] [Green Version]
  5. Escudero-Escribano, M.; Jensen, K.D.; Jensen, A.W. Recent advances in bimetallic electrocatalysts for oxygen reduction: Design principles, structure-function relations and active phase elucidation. Curr. Opin. Electrochem. 2018, 8, 135–146. [Google Scholar] [CrossRef]
  6. McNeary, W.W.; Zaccarine, S.F.; Lai, A.; Linico, A.E.; Pylypenko, S.; Weimer, A.W. Improved durability and activity of Pt/C catalysts through atomic layer deposition of tungsten nitride and subsequent thermal treatment. Appl. Catal. B Environ. 2019, 254, 587–593. [Google Scholar] [CrossRef]
  7. Zhuang, S.; Nunna, B.B.; Mandal, D.; Lee, E.S. A review of nitrogen-doped graphene catalysts for proton exchange membrane fuel cells-synthesis, characterization, and improvement. Nano-Struct. Nano-Objects 2018, 15, 140–152. [Google Scholar] [CrossRef]
  8. Jia, N.; Weng, Q.; Shi, Y.; Shi, X.; Chen, X.; Chen, P.; An, Z.; Chen, Y. N-doped carbon nanocages: Bifunctional electrocatalysts for the oxygen reduction and evolution reactions. Nano Res. 2018, 11, 1905–1916. [Google Scholar] [CrossRef]
  9. Jackson, A.; Strickler, A.; Higgins, D.; Jaramillo, T.F. Engineering Ru@Pt core-shell catalysts for enhanced electrochemical oxygen reduction mass activity and stability. Nanomaterials 2018, 8, 38. [Google Scholar] [CrossRef] [Green Version]
  10. Zhang, C.; Sha, J.; Fei, H.; Liu, M.; Yazdi, S.; Zhang, J.; Zhong, Q.; Zou, X.; Zhao, N.; Yu, H.; et al. Single-Atomic Ruthenium Catalytic Sites on Nitrogen-Doped Graphene for Oxygen Reduction Reaction in Acidic Medium. ACS Nano 2017, 11, 6930–6941. [Google Scholar] [CrossRef] [Green Version]
  11. Tang, Y.; Gao, F.; Mu, S.; Yu, S.; Zhao, Y. Investigation of oxygen reduction reaction and methanol tolerance on the carbon supported Pt-Pd catalysts. Russ. J. Electrochem. 2015, 51, 345–352. [Google Scholar] [CrossRef]
  12. Heider, E.A.; Jacob, T.; Kibler, L.A. Platinum overlayers on PtxRu1−x(111) electrodes: Tailoring the ORR activity by lateral strain and ligand effects. J. Electroanal. Chem. 2018, 819, 289–295. [Google Scholar] [CrossRef]
  13. Yang, G.; Sun, Y.; Lv, P.; Zhen, F.; Cao, X.; Chen, X.; Wang, Z.; Yuan, Z.; Kong, X. Preparation of Pt–Ru/C as an oxygen-reduction electrocatalyst in microbial fuel cells for wastewater treatment. Catalysts 2016, 6, 150. [Google Scholar] [CrossRef] [Green Version]
  14. Lambert, T.N.; Vigil, J.A.; White, S.E.; Davis, D.J.; Limmer, S.J.; Burton, P.D.; Coker, E.N.; Beechem, T.E.; Brumbach, M.T. Electrodeposited NixCo3-xO4 nanostructured films as bifunctional oxygen electrocatalysts. Chem. Commun. 2015, 51, 9511–9514. [Google Scholar] [CrossRef]
  15. Shao, M.; Chang, Q.; Dodelet, J.-P.; Chenitz, R. Recent Advances in Electrocatalysts for Oxygen Reduction Reaction. Chem. Rev. 2016, 116, 3594–3657. [Google Scholar] [CrossRef] [Green Version]
  16. Prabu, M.; Ketpang, K.; Shanmugam, S. Hierarchical nanostructured NiCo2O4 as an efficient bifunctional non-precious metal catalyst for rechargeable zinc–air batteries. Nanoscale 2014, 6, 3173–3181. [Google Scholar] [CrossRef]
  17. Wang, L.; Zeng, Z.; Ma, C.; Xu, F.; Giroux, M.; Chi, M.; Greeley, J.; Wang, C. Migration of cobalt species within mixed platinum-cobalt oxide bifunctional electrocatalysts in alkaline electrolytes. J. Elchem. Soc. 2019, 166, F3093–F3097. [Google Scholar] [CrossRef]
  18. Kepeniene, V.; Stagniunaite, R.; Tamašauskaite-Tamašiunaite, L.; Pakštas, V.; Norkus, E. PtCoNb2O5/graphene as electrocatalyst towards oxygen reduction reaction in alkaline and acidic media. Chemija 2018, 29, 41–48. [Google Scholar] [CrossRef] [Green Version]
  19. Huang, L.; Jiang, Z.; Gong, W.; Shen, P.K. Facile Fabrication of Radial PtCo Nanodendrites for Enhanced Methanol Oxidation Electrocatalysis. ACS Appl. Nano Mater. 2018, 1, 5019–5026. [Google Scholar] [CrossRef]
  20. Huang, X.; Li, Y.; Li, Y.; Zhou, H.; Duan, X.; Huang, Y. Synthesis of PtPd Bimetal Nanocrystals with Controllable Shape, Composition, and Their Tunable Catalytic Properties. Nano Lett. 2012, 12, 4265–4270. [Google Scholar] [CrossRef]
  21. Qu, X.; Cao, Z.; Zhang, B.; Tian, X.; Zhu, F.; Zhang, Z.; Jiang, Y.; Sun, S. One-pot synthesis of single-crystalline PtPb nanodendrites with enhanced activity for electrooxidation of formic acid. Chem. Commun. 2016, 52, 4493–4496. [Google Scholar] [CrossRef] [PubMed]
  22. Rutkowska, I.A.; Wadas, A.; Zoladek, S.; Skunik-Nuckowska, M.; Miecznikowski, K.; Negro, E.; Noto, V.D.; Zlotorowicz, A.; Zelenay, P.; Kulesza, P.J. Activation of reduced-graphene-oxide supported Pt nanoparticles by aligning with WO3-nanowires toward oxygen reduction in acid medium: Diagnosis with rotating-ring-disk voltammetry and double-potential-step chronocoulometry. J. Electrochem. Soc. 2018, 165, J3384–J3391. [Google Scholar] [CrossRef]
  23. Huang, X.; Zhu, E.; Chen, Y.; Li, Y.; Chiu, C.-Y.; Xu, Y.; Lin, Z.; Duan, X.; Huang, Y. A Facile Strategy to Pt3Ni Nanocrystals with Highly Porous Features as an Enhanced Oxygen Reduction Reaction Catalyst. Adv. Mater. 2013, 25, 2974–2979. [Google Scholar] [CrossRef] [PubMed]
  24. Oh, A.; Baik, H.; Choi, D.S.; Cheon, J.Y.; Kim, B.; Kim, H.; Kwon, S.J.; Joo, S.H.; Jung, Y.; Lee, K. Skeletal Octahedral Nanoframe with Cartesian Coordinates via Geometrically Precise Nanoscale Phase Segregation in a Pt@Ni Core–Shell Nanocrystal. ACS Nano 2015, 9, 2856–2867. [Google Scholar] [CrossRef]
  25. Jin, H.; Guo, C.; Liu, X.; Liu, J.; Vasileff, A.; Jiao, Y.; Zheng, Y.; Qiao, S.-Z. Emerging Two-Dimensional Nanomaterials for Electrocatalysis. Chem. Rev. 2018, 118, 6337–6408. [Google Scholar] [CrossRef]
  26. Chen, Y.; Fan, Z.; Zhang, Z.; Niu, W.; Li, C.; Yang, N.; Chen, B.; Zhang, H. Two-Dimensional Metal Nanomaterials: Synthesis, Properties, and Applications. Chem. Rev. 2018, 118, 6409–6455. [Google Scholar] [CrossRef] [PubMed]
  27. Rameshkumar, P.; Ramaraj, R. Electrodeposited gold nanostructures at Nafion-poly (o-phenylenediamine) modified electrode and its electrocatalytic application. J. Electroanal. Chem. 2015, 741, 64–70. [Google Scholar] [CrossRef]
  28. Yavuz, E.; Ozdokur, K.V.; Cakar, I.; Kocak, S.; Ertas, F.N. Electrochemical Preparation, Characterization of Molybdenum-Oxide/Platinum Binary Catalysts and Its Application to Oxygen Reduction Reaction in Weakly Acidic Medium. Electrochim. Acta 2015, 151, 72–80. [Google Scholar] [CrossRef]
  29. Yin, X.; Chung, H.T.; Martinez, U.; Lin, L.; Artyushkova, K.; Zelenay, P. PGM-free ORR catalysts designed by templating Pani-type polymers containing functional groups with high affinity to iron. J. Electrochem. Soc. 2019, 166, F3240–F3245. [Google Scholar] [CrossRef]
  30. Martinez, U.; Holby, E.F.; Babu, S.K.; Artyushkova, K.; Lin, L.; Choudhury, S.; Purdy, G.M.; Zelenay, P. Experimental and theoretical trends of PGM-free electrocatalysts for the oxygen reduction reaction with different transition metals. J. Electrochem. Soc. 2019, 166, F3136–F3142. [Google Scholar] [CrossRef]
  31. Smirnova, E.A.; Karushev, M.P.; Timonov, A.M.; Alekseeva, E.V.; Levin, O.V.; Malev, V.V. New functional materials based on conductive polymer—Metal complexes modified with metallic nanoelectrodes. Russ. Chem. Bull. 2015, 64, 1919–1925. [Google Scholar] [CrossRef]
  32. Novozhilova, M.V.; Smirnova, E.A.; Karushev, M.P.; Timonov, A.M.; Malev, V.V.; Levin, O.V. Synthesis and study of catalysts of electrochemical oxygen reduction reaction based on polymer complexes of nickel and cobalt with Schiff bases. Russ. J. Electrochem. 2016, 52, 1183–1190. [Google Scholar] [CrossRef]
  33. Kuznetsov, N.; Yang, P.; Gorislov, G.; Zhukov, Y.; Bocharov, V.; Malev, V.; Levin, O. Electrochemical transformations of polymers formed from nickel (II) complexes with salen-type ligands in aqueous alkaline electrolytes. Electrochim. Acta 2018, 271, 190–202. [Google Scholar] [CrossRef]
  34. Lu, X.Y.; Du, L.; Wang, D.; Yang, P.X.; Liu, L.L.; Zhang, J.Q.; An, M.Z.; Levin, O.; Wang, J.P.; Ge, L.P. Highly Dispersed Cu-N-X Moieties Embedded in Graphene: A Promising Electrocatalyst towards the Oxygen Reduction Reaction. ChemElectroChem 2018, 5, 3323–3329. [Google Scholar] [CrossRef]
  35. Alekseeva, E.; Ershov, V.; Konev, A.; Levin, O. Dependence of Stability of the Polymerizesd Nickel Complexes with Schiff Bases on the Structure of the Ligand Diimine Bridge. ECS Trans. 2018, 87, 167–177. [Google Scholar] [CrossRef]
  36. Schmidt, T.J.; Gasteiger, H.A.; Stäb, G.D.; Urban, P.M.; Kolb, D.M.; Behm, R.J. Characterization of high-surface-area electrocatalysts using a rotating disk electrode configuration. J. Elchem. Soc. 1998, 145, 2354–2358. [Google Scholar] [CrossRef]
  37. Snook, G.A.; Kao, P.; Best, A.S. Conducting-polymer-based supercapacitor devices and electrodes. J. Power Sources 2011, 196, 1–12. [Google Scholar] [CrossRef]
  38. Alekseeva, E.V.; Chepurnaya, I.A.; Malev, V.V.; Timonov, A.M.; Levin, O.V. Polymeric nickel complexes with salen-type ligands for modification of supercapacitor electrodes: Impedance studies of charge transfer and storage properties. Electrochim. Acta 2017, 225, 378–391. [Google Scholar] [CrossRef]
  39. Shagisultanova, G.A.; Shchukarev, A.V.; Semenistaya, T.V. Possibilities of X-ray photoelectron spectroscopy in studying the structure and properties of polymers based on transition metal complexes with Schiff bases. Russ. J. Inorg. Chem. 2005, 50, 912–924. [Google Scholar]
  40. Gómez, L.E.; Sollier, B.M.; Lacoste, A.M.; Miró, E.E.; Boix, A.V. Hydrogen purification for fuel cells through CO preferential oxidation using PtCu/Al2O3 structured catalysts. J. Environ. Chem. Eng. 2019, 7, 103376. [Google Scholar] [CrossRef]
  41. McIntyre, N.S.; Cook, M.G. X-ray photoelectron studies on some oxides and hydroxides of cobalt, nickel, and copper. Anal. Chem. 1975, 47, 2208–2213. [Google Scholar] [CrossRef]
  42. Fierro, J.L.G.; Palacios, J.M.; Tomas, F. An analytical SEM and XPS study of platinum–rhodium gauzes used in high pressure ammonia burners. Surf. Interface Anal. 1988, 13, 25–32. [Google Scholar] [CrossRef]
  43. Videla, A.H.A.M.; Esfahani, R.A.M.; Peter, I.; Specchia, S. Influence of the preparation method on Pt 3 Cu/C electrocatalysts for the oxygen reduction reaction. Electrochim. Acta 2015, 177, 51–56. [Google Scholar] [CrossRef]
  44. Wang, D.; Zhu, Y. An Effective Pt-Cu/SiO2 Catalyst for the Selective Hydrogenation of Cinnamaldehyde. J. Chem. 2018, 2018, 7. [Google Scholar] [CrossRef] [Green Version]
  45. Jackson, S.D.; Willis, J.; McLellan, G.D.; Webb, G.; Keegan, M.B.T.; Moyes, R.B.; Simpson, S.; Wells, P.B.; Whyman, R. Supported Metal Catalysts: Preparation, Characterization, and Function: I. Preparation and Physical Characterization of Platinum Catalysts. J. Catal. 1993, 139, 191–206. [Google Scholar] [CrossRef]
  46. Fu, W.; Han, C.; Li, D.; Chen, W.; Ji, J.; Qian, G.; Yuan, W.; Duan, X.; Zhou, X. Polyoxometalates-engineered hydrogen generation rate and durability of Pt/CNT catalysts from ammonia borane. J. Energy Chem. 2020, 41, 142–148. [Google Scholar] [CrossRef] [Green Version]
  47. Papa, F.; Negrila, C.; Dobrescu, G.; Miyazaki, A.; Balint, I. Preparation, characterization and catalytic behavior of Pt-Cu nanoparticles in methane combustion. J. Nat. Gas Chem. 2011, 20, 537–542. [Google Scholar] [CrossRef]
  48. Xu, Z.; Zhang, H.; Liu, S.; Zhang, B.; Zhong, H.; Su, D.S. Facile synthesis of supported Pt–Cu nanoparticles with surface enriched Pt as highly active cathode catalyst for proton exchange membrane fuel cells. Int. J. Hydrog. Energy 2012, 37, 17978–17983. [Google Scholar] [CrossRef]
  49. Geboes, B.; Mintsouli, I.; Wouters, B.; Georgieva, J.; Kakaroglou, A.; Sotiropoulos, S.; Valova, E.; Armyanov, S.; Hubin, A.; Breugelmans, T. Surface and electrochemical characterisation of a Pt-Cu/C nano-structured electrocatalyst, prepared by galvanic displacement. Appl. Catal. B Environ. 2014, 150–151, 249–256. [Google Scholar] [CrossRef]
  50. Chen, G.; Yang, X.; Xie, Z.; Zhao, F.; Zhou, Z.; Yuan, Q. Hollow PtCu octahedral nanoalloys: Efficient bifunctional electrocatalysts towards oxygen reduction reaction and methanol oxidation reaction by regulating near-surface composition. J. Colloid Interface Sci. 2020, 562, 244–251. [Google Scholar] [CrossRef]
  51. Mayrhofer, K.J.J.; Strmcnik, D.; Blizanac, B.B.; Stamenkovic, V.; Arenz, M.; Markovic, N.M. Measurement of oxygen reduction activities via the rotating disc electrode method: From Pt model surfaces to carbon-supported high surface area catalysts. Electrochim. Acta 2008, 53, 3181–3188. [Google Scholar] [CrossRef]
  52. Li, H.; Liu, H.; Jong, Z.; Qu, W.; Geng, D.; Sun, X.; Wang, H. Nitrogen-doped carbon nanotubes with high activity for oxygen reduction in alkaline media. Int. J. Hydrog. Energy 2011, 36, 2258–2265. [Google Scholar] [CrossRef]
  53. Liang, Y.; Li, Y.; Wang, H.; Zhou, J.; Wang, J.; Regier, T.; Dai, H. Co3O4 nanocrystals on graphene as a synergistic catalyst for oxygen reduction reaction. Nat. Mater. 2011, 10, 780–786. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Lang, P.; Yuan, N.; Jiang, Q.; Zhang, Y.; Tang, J. Recent Advances and Prospects of Metal-Based Catalysts for Oxygen Reduction Reaction. Energy Technol. 2019, 8. [Google Scholar] [CrossRef]
  55. Flores-Rojas, E.; Guerrero-Gutierrez, O.X.; Solorza-Feria, O. Versatile synthesis of CuPt nanocatalysts for oxygen reduction reaction. Mater. Lett. 2019, 239, 98–101. [Google Scholar] [CrossRef]
  56. Illathvalappil, R.; Dhavale, V.M.; Bhange, S.N.; Kurungot, S. Nitrogen-doped graphene anchored with mixed growth patterns of CuPt alloy nanoparticles as a highly efficient and durable electrocatalyst for the oxygen reduction reaction in an alkaline medium. Nanoscale 2017, 9, 9009–9017. [Google Scholar] [CrossRef] [PubMed]
  57. Guo, H.; Liu, X.; Bai, C.; Chen, Y.; Wang, L.; Zheng, M.; Dong, Q.; Peng, D.L. Effect of component distribution and nanoporosity in CuPt nanotubes on electrocatalysis of the oxygen reduction reaction. ChemSusChem 2015, 8, 486–494. [Google Scholar] [CrossRef]
  58. Tong, J.; Li, Y.; Bo, L.; Wang, W.; Li, T.; Zhang, Q. Core-Shell Fe3O4@NCS-Mn Derived from Chitosan-Schiff Based Mn Complex with Enhanced Catalytic Activity for Oxygen Reduction Reaction. Catalysts 2019, 9, 692. [Google Scholar] [CrossRef] [Green Version]
  59. Audebert, P.; Sadki, S.; Miomandre, F.; Clavier, G.; Vernieres, M.C.; Saoud, M.; Hapiot, P. Synthesis of new substituted tetrazines: Electrochemical and spectroscopic properties. New J. Chem. 2004, 28, 387–392. [Google Scholar] [CrossRef]
  60. Qin, Y.; Chao, L.; He, J.J.; Liu, Y.; Chu, F.; Cao, J.; Kong, Y.; Tao, Y. Pt nanoparticle and Fe,N-codoped 3D graphene as synergistic electrocatalyst for oxygen reduction reaction. J. Power Sources 2016, 335, 31–37. [Google Scholar] [CrossRef]
  61. Zhang, Z.; Luo, Z.; Chen, B.; Wei, C.; Zhao, J.; Chen, J.; Zhang, X.; Lai, Z.; Fan, Z.; Tan, C.; et al. One-Pot Synthesis of Highly Anisotropic Five-Fold-Twinned PtCu Nanoframes Used as a Bifunctional Electrocatalyst for Oxygen Reduction and Methanol Oxidation. Adv. Mater. 2016, 28, 8712–8717. [Google Scholar] [CrossRef] [PubMed]
  62. Jia, H.X.; Sun, Z.J.; Jiang, D.C.; Yang, S.F.; Du, P.W. An iron porphyrin-based conjugated network wrapped around carbon nanotubes as a noble-metal-free electrocatalyst for efficient oxygen reduction reaction. Inorg. Chem. Front. 2016, 3, 821–827. [Google Scholar] [CrossRef]
  63. Maillard, F.; Martin, M.; Gloaguen, F.; Léger, J.M. Oxygen electroreduction on carbon-supported platinum catalysts. Particle-size effect on the tolerance to methanol competition. Electrochim. Acta 2002, 47, 3431–3440. [Google Scholar] [CrossRef]
  64. Markovic, N. Surface science studies of model fuel cell electrocatalysts. Surf. Sci. Rep. 2002, 45, 117–229. [Google Scholar] [CrossRef]
  65. Gasteiger, H.A.; Marković, N.; Ross, P.N.; Cairns, E.J. Electro-oxidation of small organic molecules on well-characterized Pt Ru alloys. Electrochim. Acta 1994, 39, 1825–1832. [Google Scholar] [CrossRef]
  66. Lamy, C.; Lima, A.; LeRhun, V.; Delime, F.; Coutanceau, C.; Léger, J.-M. Recent advances in the development of direct alcohol fuel cells (DAFC). J. Power Sources 2002, 105, 283–296. [Google Scholar] [CrossRef]
  67. Gasteiger, H.A. Temperature-Dependent Methanol Electro-Oxidation on Well-Characterized Pt-Ru Alloys. J. Electrochem. Soc. 1994, 141, 1795. [Google Scholar] [CrossRef]
  68. Holm, R.H.; Everett, G.W., Jr.; Chakravorty, A. Metal Complexes of Schiff Bases and β-Ketoamines. Prog. Inorg. Chem. 1966. [Google Scholar] [CrossRef]
  69. Xing, W.; Yin, M.; Lv, Q.; Hu, Y.; Liu, C.; Zhang, J. 1-Oxygen Solubility, Diffusion Coefficient, and Solution Viscosity. In Rotating Electrode Methods and Oxygen Reduction Electrocatalysts; Xing, W., Yin, G., Zhang, J., Eds.; Elsevier: Amsterdam, The Netherlands, 2014; pp. 1–31. [Google Scholar] [CrossRef]
  70. Sauerbray, G. The use of quartz oscillators for weighing thin layers and for microweighing. Z. Phys. 1959, 155, 206. [Google Scholar]
Catalysts 10 00667 g001 550

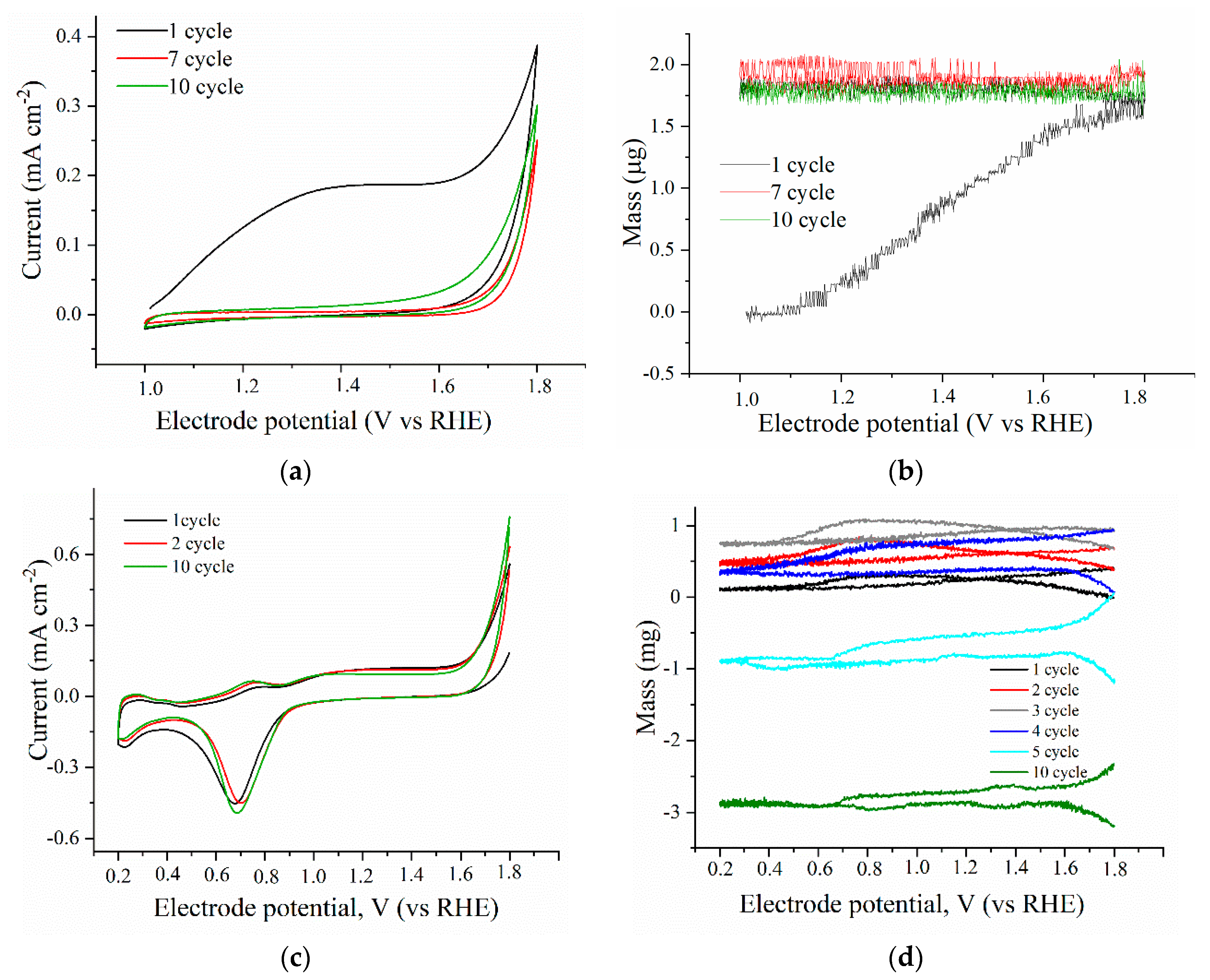

Figure 1. Alkaline hydrolysis of the Pt modified poly[Cu(Salen)] film in the oxygen-saturated 0.2 M NaOH solution with mass control by EQCM (a) cyclic voltammograms and (b) the polymer mass change in the potential range of 1–1.8 V (vs. RHE); (c) cyclic voltammograms and (d) the polymer mass change in the wide potential range of 0.2–1.8 V (vs. RHE).
Figure 1. Alkaline hydrolysis of the Pt modified poly[Cu(Salen)] film in the oxygen-saturated 0.2 M NaOH solution with mass control by EQCM (a) cyclic voltammograms and (b) the polymer mass change in the potential range of 1–1.8 V (vs. RHE); (c) cyclic voltammograms and (d) the polymer mass change in the wide potential range of 0.2–1.8 V (vs. RHE).
Catalysts 10 00667 g001
Catalysts 10 00667 g002 550

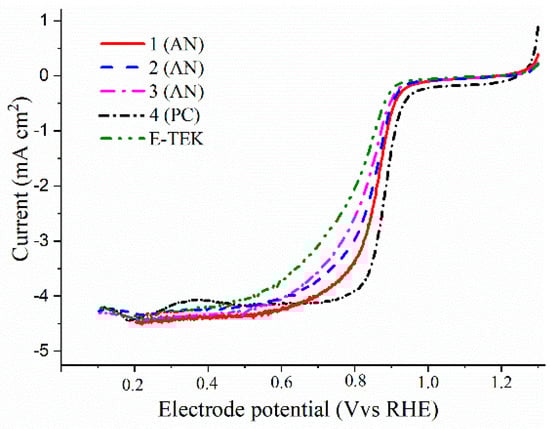

Figure 2. CV curves of Pt/Cu and Pt catalyst modified RDE electrode in oxygen-saturated 0.2 M NaOH electrolyte, 1000 rpm (catalyst samples differs by platinum loading and template preparation solvent; description of the samples is given in Table 1).
Figure 2. CV curves of Pt/Cu and Pt catalyst modified RDE electrode in oxygen-saturated 0.2 M NaOH electrolyte, 1000 rpm (catalyst samples differs by platinum loading and template preparation solvent; description of the samples is given in Table 1).
Catalysts 10 00667 g002
Catalysts 10 00667 g003a 550Catalysts 10 00667 g003b 550

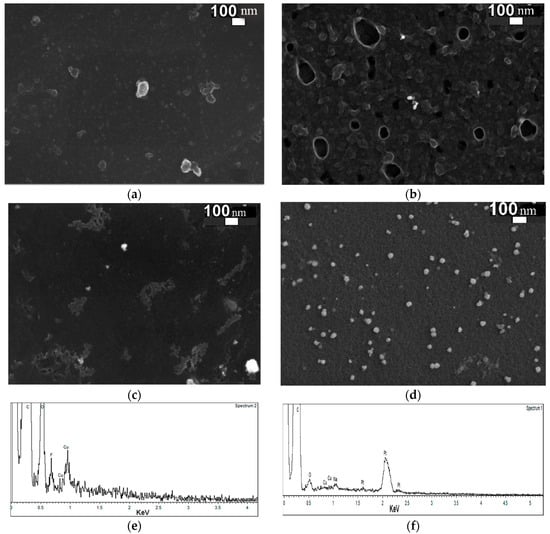

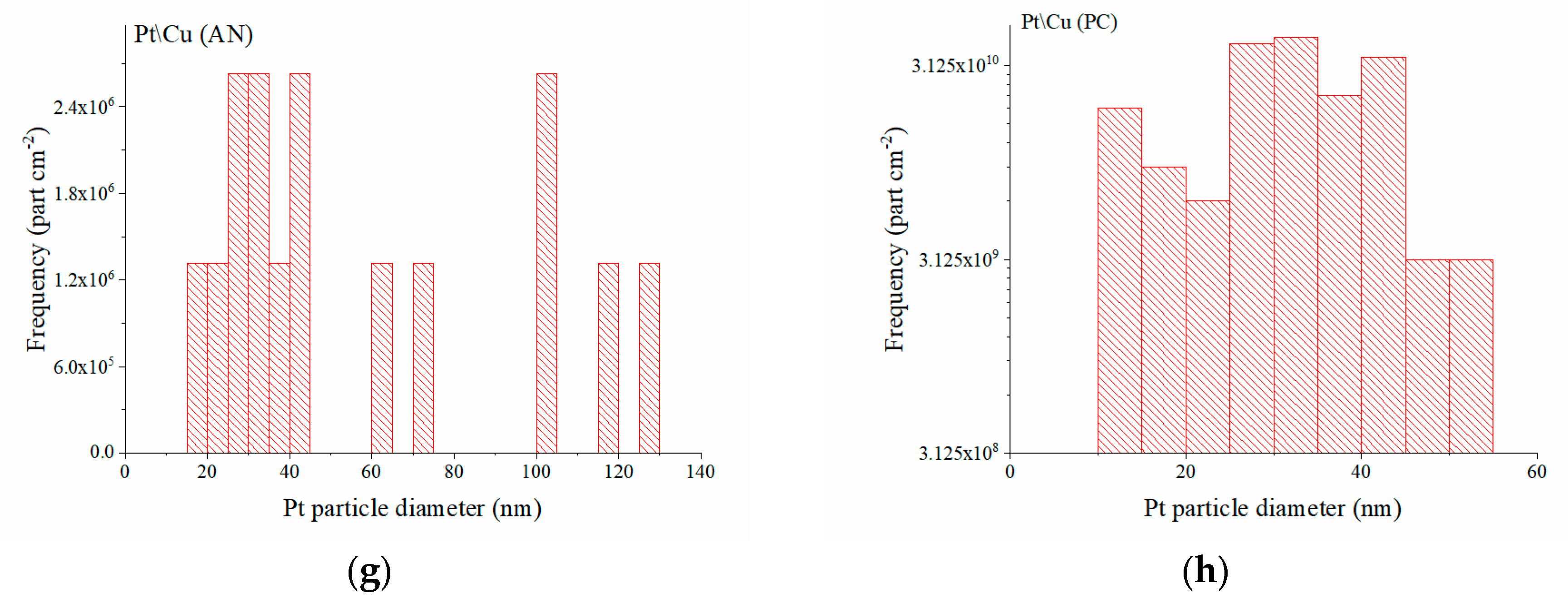

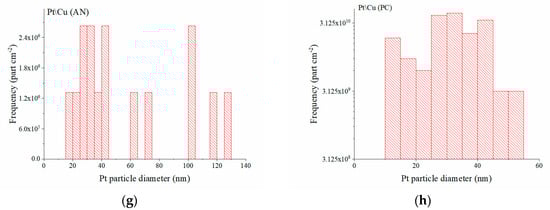

Figure 3. SEM images of the poly[Cu(Salen)](AN) (a) and poly[Cu(Salen)](PC) (b) polymer films, the mixed catalysts Pt/Cu (AN) (c) and Pt/Cu (PC) (d); EDX elemental analysis of the poly[Cu(Salen)] polymer film (e) and Pt/Cu (PC) mixed catalyst (f); distribution of the Pt particles sizes in the Pt/Cu (AN) (g) and Pt/Cu (PC) (h) catalysts.
Figure 3. SEM images of the poly[Cu(Salen)](AN) (a) and poly[Cu(Salen)](PC) (b) polymer films, the mixed catalysts Pt/Cu (AN) (c) and Pt/Cu (PC) (d); EDX elemental analysis of the poly[Cu(Salen)] polymer film (e) and Pt/Cu (PC) mixed catalyst (f); distribution of the Pt particles sizes in the Pt/Cu (AN) (g) and Pt/Cu (PC) (h) catalysts.
Catalysts 10 00667 g003aCatalysts 10 00667 g003b
Catalysts 10 00667 g004 550

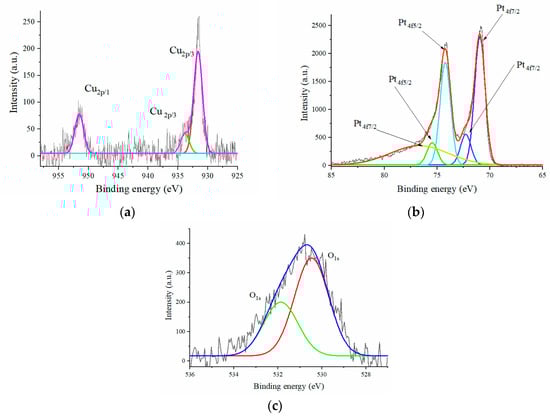

Figure 4. XPS spectra of the mixed Pt/Cu catalyst: (a) Cu spectrum, (b) Pt spectrum, (c) O spectrum.
Figure 4. XPS spectra of the mixed Pt/Cu catalyst: (a) Cu spectrum, (b) Pt spectrum, (c) O spectrum.
Catalysts 10 00667 g004
Catalysts 10 00667 g005 550

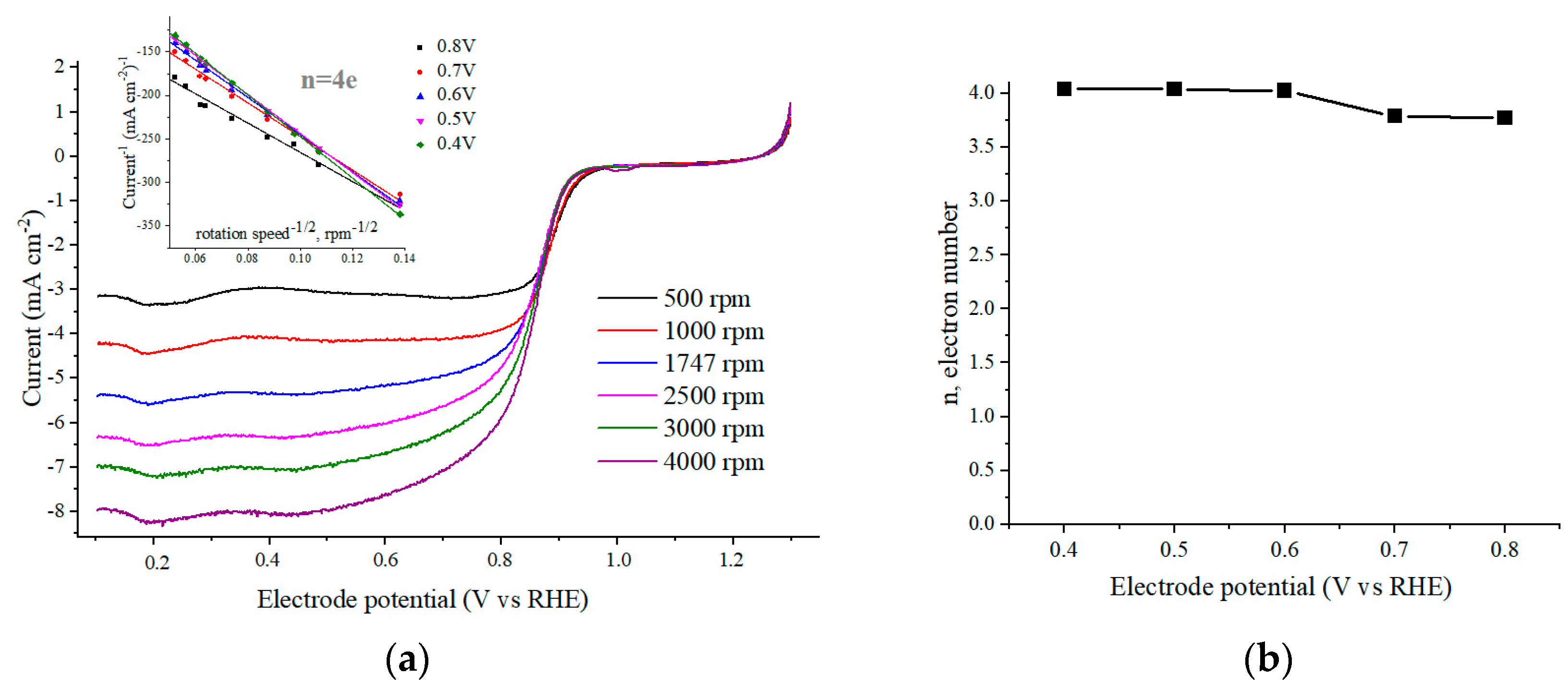

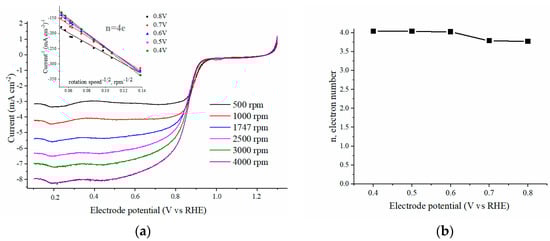

Figure 5. (a) Rotating disc voltammograms and (insert) Koutecký–Levich plots for the oxygen reduction on the Pt/Cu (PC) (sample 4 from Table 1) electrode at different potentials in O2-saturated 0.2 M NaOH solutions, (b) electron transfer number profile obtained from Koutecký–Levich plot.
Figure 5. (a) Rotating disc voltammograms and (insert) Koutecký–Levich plots for the oxygen reduction on the Pt/Cu (PC) (sample 4 from Table 1) electrode at different potentials in O2-saturated 0.2 M NaOH solutions, (b) electron transfer number profile obtained from Koutecký–Levich plot.
Catalysts 10 00667 g005
Catalysts 10 00667 g006 550

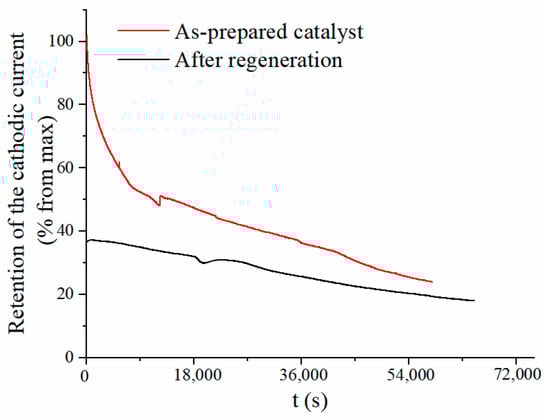

Figure 6. Stability of the Pt/Cu (PC) catalyst in O2-saturated 0.2 M NaOH electrolyte in potentiostatic mode at 0.7 V (vs. RHE) and 1000 rpm.
Figure 6. Stability of the Pt/Cu (PC) catalyst in O2-saturated 0.2 M NaOH electrolyte in potentiostatic mode at 0.7 V (vs. RHE) and 1000 rpm.
Catalysts 10 00667 g006
Catalysts 10 00667 g007 550

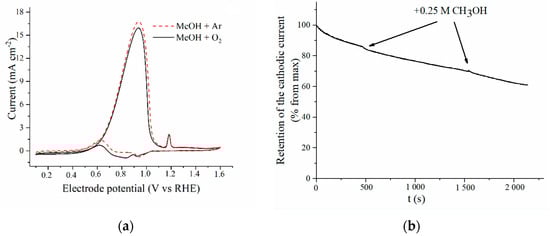

Figure 7. Stability of the mixed catalyst in the presence methanol in the electrolyte (a) CV curve of methanol oxidation on Pt/Cu (PC) mixed catalyst in Ar-saturated (dash line) and then O2-saturated (solid line) 0.2 M NaOH electrolyte with addition of 0.5 M CH3OH, (b) chronoamperogramm of Pt/Cu (PC) mixed catalyst in O2-saturated 0.2 M NaOH electrolyte with additions of 0.25 M CH3OH (at time, indicated by arrows), E = 0.7 V vs. RHE.
Figure 7. Stability of the mixed catalyst in the presence methanol in the electrolyte (a) CV curve of methanol oxidation on Pt/Cu (PC) mixed catalyst in Ar-saturated (dash line) and then O2-saturated (solid line) 0.2 M NaOH electrolyte with addition of 0.5 M CH3OH, (b) chronoamperogramm of Pt/Cu (PC) mixed catalyst in O2-saturated 0.2 M NaOH electrolyte with additions of 0.25 M CH3OH (at time, indicated by arrows), E = 0.7 V vs. RHE.
Catalysts 10 00667 g007
Catalysts 10 00667 g008 550

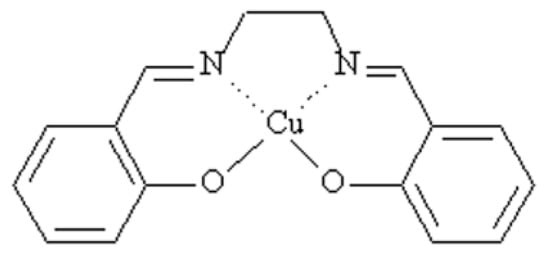

Figure 8. Monomer [Cu(Salen)].
Figure 8. Monomer [Cu(Salen)].
Catalysts 10 00667 g008
Table
Table 1. Description of the samples, presented on Figure 2.
Table 1. Description of the samples, presented on Figure 2.
Sample Number, SolventPt Deposition Charge, Q, mCPt Loading, gPt Loading, g cm−2E1/2, V
1, acetonitrile 733.69 × 10−55.3 × 10−40.87
2, acetonitrile199.70 × 10−61.4 × 10−40.85
3, acetonitrile73.38 × 10−64.83 × 10−50.82
4, propylene carbonate1.15.6 × 10−78.0 × 10−60.89
E-TEK (prepared according to [36])1.97 × 10−62.8 × 10−50.78

Share and Cite

MDPI and ACS Style

Alekseeva, E.; Stelmashuk, T.; Danilov, S.; Yang, P.; Levin, O. Bimetallic Cu/Pt Oxygen Reduction Reaction Catalyst for Fuel Cells Cathode Materials. Catalysts 2020, 10, 667. https://doi.org/10.3390/catal10060667

AMA Style

Alekseeva E, Stelmashuk T, Danilov S, Yang P, Levin O. Bimetallic Cu/Pt Oxygen Reduction Reaction Catalyst for Fuel Cells Cathode Materials. Catalysts. 2020; 10(6):667. https://doi.org/10.3390/catal10060667

Chicago/Turabian Style

Alekseeva, Elena, Tatyana Stelmashuk, Stepan Danilov, Peixia Yang, and Oleg Levin. 2020. "Bimetallic Cu/Pt Oxygen Reduction Reaction Catalyst for Fuel Cells Cathode Materials" Catalysts 10, no. 6: 667. https://doi.org/10.3390/catal10060667

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
