Ru-Catalyzed Repetitive Batch Borylative Coupling of Olefins in Ionic Liquids or Ionic Liquids/scCO2 Systems

by
Jakub Szyling
1,2,*,
Tomasz Sokolnicki
1,2,
Adrian Franczyk
1 and
Jędrzej Walkowiak
1,*
1
Center for Advanced Technology, Adam Mickiewicz University in Poznań, Uniwersytetu Poznańskiego 10, 61-614 Poznań, Poland
2
Faculty of Chemistry, Adam Mickiewicz University in Poznań, Uniwersytetu Poznańskiego 8, 61-614 Poznań, Poland
*
Authors to whom correspondence should be addressed.
Catalysts 2020, 10(7), 762; https://doi.org/10.3390/catal10070762
Submission received: 8 June 2020 / Revised: 26 June 2020 / Accepted: 5 July 2020 / Published: 8 July 2020
(This article belongs to the Special Issue Ionic Liquids in Catalysis)
Browse Figures
Versions Notes

Abstract

:
The first, recyclable protocol for the selective synthesis of (E)-alkenyl boronates via borylative coupling of olefins with vinylboronic acid pinacol ester in monophasic (cat@IL) or biphasic (cat@IL/scCO2) systems is reported in this article. The efficient immobilization of [Ru(CO)Cl(H)(PCy3)2] (1 mol%) in [EMPyr][NTf2] and [BMIm][OTf] with the subsequent extraction of products with n-heptane permitted multiple reuses of the catalyst without a significant decrease in its activity and stability (up to 7 runs). Utilization of scCO2 as an extractant enabled a significant reduction in the amount of catalyst leaching during the separation process, compared to extraction with n-heptane. Such efficient catalyst immobilization allowed an intensification of the processes in terms of its productivity, which was indicated by high cumulative TON values (up to 956) in contrast to the traditional approach of applying volatile organic solvents (TON = ~50–100). The reaction was versatile to styrenes with electron-donating and withdrawing substituents and vinylcyclohexane, generating unsaturated organoboron compounds, of which synthetic utility was shown by the direct transformation of extracted products in iododeborylation and Suzuki coupling processes. All synthesized compounds were characterized using 1H, 13C NMR and GC-MS, while leaching of the catalyst was detected with ICP-MS.

Graphical Abstract

1. Introduction

Homogeneous catalysis has remained a key part of chemistry for several decades and is a powerful tool in the synthesis of valuable compounds. The high activity and selectivity of molecular catalysts under mild reaction conditions, the lack of diffusion barriers in comparison to heterogeneous systems, and the variability of their electronic and steric properties tuned by the proper design and choice of ligands and metal centers lead to their application in the chemical industry in the production of advanced polymers and fine chemicals [1,2]. On the other hand, homogeneous conditions generate notable problems in recovery and reuse of catalysts, which are mostly based on expensive noble transition metals (TM), for example, rhodium, iridium, platinum, palladium, or ruthenium. To obtain high TON values and the proper process selectivity, this precious catalyst is often sacrificed within the separation process. Moreover, homogeneous conditions require a considerable amount of volatile organic solvent to dissolve all reaction components: reagents and catalysts. Such an approach generates problems with the process economy resulting from the high solvent consumption within the process and separation but also influences toxicological and environmental aspects. As a consequence of these drawbacks, new more sustainable methods for the synthesis of advanced organic and organometallic molecules by the application of environmentally benign solvents and/or catalyst immobilization and recycling are continuously being developed in academia and industry [3,4,5,6,7,8].
Ionic liquids (ILs) constitute an interesting green alternative to typical organic solvents because of their unique properties, such as incombustibility, negligible vapor pressure and abilities for the dissolution of many inorganic, organic and organometallic compounds. As a result of their physicochemical properties, ILs have immense structural variability which results in a wide range of their applications, for example, lubricants [9,10], solar cells [11,12], biomass processing [13,14] and solvents in chemical syntheses [15,16,17]. Their affinity to TM-complexes, as well as their high polarity, mean that ILs are frequently used in catalysis as a typical solvent, ligand source or even the catalyst itself. Moreover, ILs can also be used for catalyst immobilization, very often without any interference in its structure, and therefore without affecting its initial activity.
An efficient immobilization of the catalyst in IL and a properly designed product separation strategy significantly reduce metal leaching into the final product and allow for the recycling of the expensive TM-complex. This can be achieved by the extraction of products from the ionic phase through organic solvents or more preferably, supercritical CO2 (scCO2) [18]. Combining ILs and scCO2 permits the development of an approach benefitting from the advantages of both homogeneous and heterogeneous catalysis, i.e., (i) high catalyst activity, selectivity, and stability, (ii) solvent (IL) and catalyst recyclability (iii) enhanced productivity and (iv) product separation simplicity. Moreover, the presence of scCO2 significantly reduces the viscosity of ILs facilitating mass transfer, increasing the reaction rate and allows for effective extraction of the products by compressed CO2 from ILs [19].
There are a lot of examples of ILs and scCO2 being used as benign, eco-friendly alternative solvents in many catalytic processes such as hydrogenations [20,21], oxidations [22], hydroformylations [23], Pd-catalyzed C–C bond-forming couplings [24], hydrometallations [25,26,27] or silylative coupling [28]. These solvents permit catalyst immobilization in liquid or solid-state, and processes to be carried out under repetitive batch and continuous flow methods. Our group also has experience in the application of green solvents (ILs, scCO2, PEGs) in designing sustainable protocols for the synthesis of organoboron and organosilicon compounds by the immobilization of the molecular catalyst and their recycling [29,30,31,32,33,34,35].
Due to their low toxicity, high reactivity under specified reaction conditions, and ease of handling, these organometallic compounds are valuable synthons in many chemical transformations, for example, Suzuki or Hiyama couplings [36,37] or halodemetalations [34,38]. Most of the organosilicon and organoboron compounds are produced under homogeneous conditions, with the use of TM-complexes as catalysts, thus searching for efficient and more sustainable protocols for their preparation is of great importance.
The utilization of ILs and/or scCO2 for the synthesis of unsaturated organoboron compounds is poorly explored. Up to date, only three reports focusing on the catalytic hydroboration of alkynes in these solvents have been described [30,31,39]. Because of the challenging regio- and stereoselectivity control of the catalytic hydroboration of alkynes, the exclusive formation of one isomer was difficult to achieve, despite the good or very good recyclability and stability of catalytic systems. In contrast to the catalytic hydroboration of alkynes, borylative coupling (trans-borylation) of vinyl boronates with olefins, especially styrene derivatives, in the presence of ruthenium hydride catalysts, smoothly leads to the exclusive formation of (E)-alkenyl boronates [40].
In continuation of our studies on the application of green solvents in the synthesis of unsaturated organoboron compounds, herein, we would like to report the first application of ILs and the Ru-H catalyst [Ru(CO)Cl(H)(PCy3)2] in the monophasic ([Ru(CO)Cl(H)(PCy3)2]@ILs) or biphasic ([Ru(CO)Cl(H)(PCy3)2]@ILs/scCO2) recyclable borylative coupling of vinylboronic acid pinacol ester with olefins (Scheme 1). The presented method is an interesting variant of traditional protocols through (i) the ability of catalysts and ILs to recycle, (ii) product separation simplicity, (iii) the high productivity and stability of the systems.

2. Results and Discussion

2.1. Reaction and Extraction Conditions Screening

The studies were initiated by an investigation of the borylative coupling of vinylboronic acid pinacol ester (1) with styrene (2a) as a model reaction performed in several ILs based on pyrrolidinium ([EMPyr]+) or 1-butyl-3-methylimidazolium ([BMIm]+) cations and various inorganic and organic anions (Figure 1). Most of them were successfully applied in TM-catalyzed transformations [16]. Borylative coupling is a catalytic reaction which occurs in the presence of Ru-H catalysts with the activation of the C–B bond in vinyl boronates and the C–H bond in olefins or O–H bond in alcohols, silanols or boronic acids furnishing boryl-substituted olefins, boronic esters, borasiloxanes or boroxanes respectively, with the simultaneous evolution of ethylene [29,40,41,42,43].
For the initial ionic liquids screening, we applied slightly more rigorous reaction conditions if compared to the traditional approach of utilizing volatile organic solvents (a higher process temperature to ensure good homogeneity of the reaction mixture). [Ru(CO)Cl(H)(PCy3)2] was used as a catalyst, which was previously described as the most effective in this transformation. In all pyrrolidinium-based ionic liquids, a conversion of 1 was over 90% (Table 1, entry 1–4). The complete conversion of 1 was observed only for [EMPyr][NTf2]. In general, a higher conversion of 1 was observed for pyrrolidinium cations with ethyl substituents. When butyl groups were attached to the pyrrolidinium cation, the product yield was slightly lower. Simultaneously, the application of trifluoromethanesulfonate anion ([OTf]−) resulted in the lower conversion of substrates than for bis(trifluoromethylsulfonyl)imide anion ([NTf2]−).
Borylative coupling of 1 with 2a in 1-butyl-3-methylimidazolium-based ionic liquids with [OTf]− or [NTf2]− anions occurred smoothly with very high yields with the formation of the desired product 3a and excellent selectivity (Table 1, entry 5–6). In contrast to pyrrolidinium cation, the quantitative conversion of 1 was observed for [OTf]− anion. Lower yields were observed when moisture-sensitive anions such as hexafluorophosphate ([PF6])− or tetrafluoroborate ([BF4])− were used (Table 1, entry 7–8). The presence of traces of water in those ILs probably caused partial deactivation of the moisture-sensitive catalyst. When [BMIm]Cl was used as a solvent and immobilization medium, no conversion of 1 was noticed. This can be explained by the strong coordination ability of chloride anion to the metal center of the catalyst, and inhibition of its activity. This observation is in agreement with previous reports [28,30].
[EMPyr][NTf2] and [BMIm][OTf], which ensured the complete conversion of 1 (Table 1, entry 2 and 6), were chosen for further reaction conditions screening. We optimized parameters crucial for obtaining the highest reaction yield, i.e., temperature, time, the molar ratio of substrates, as well as catalyst loading (Table 2). Initially, for [EMPyr][NTf2], the high catalyst loading of [Ru(CO)Cl(H)(PCy3)2] (3 mol%) was maintained while the other parameters were tuned. The quantitative yields of 3a were observed above 110 °C. The same results were noticed when the time of the reaction was reduced from 24 to 6 h. Moreover, only a 1.5-fold excess of 2a towards 1 was necessary to get a full conversion of 1. In the final stage of optimization studies in [EMPyr][NTf2], the influence of catalyst loading on reaction efficiency was determined. It was found that 1 mol% of [Ru(CO)Cl(H)(PCy3)2] is essential for achieving a very high reaction yield (Table 2, entry 12). Although the application of the equimolar ratio of substrates resulted in a complete conversion of 1, the presence of a homocoupling product of 1 was observed (Table 2, entry 14). Therefore, a small excess of olefin is essential for the elimination of the side-homocoupling reaction of vinyl boronate. Replacement of ruthenium hydride catalyst with coordinated PCy3 ligand to [Ru(CO)Cl(H)(PPh3)3] leads to a lower conversion of 1 and the formation of undefined by-products (Table 2, entry 15).
Based on the most effective reaction conditions in [EMPyr][NTf2], borylative coupling of 1 with 2a in [BMIm][OTf] was determined. Similar to pyrrolidinium-based IL, the reaction in [BMIm][OTf] should be performed at least at 110 °C for 6 h with a slight excess of 2a towards 1 and 1 mol% of [Ru(CO)Cl(H)(PCy3)2], to achieve the best process efficiency (Table 2, entry 16). It is worth emphasizing that the application of ILs as a solvent enhances reaction rate compared to an analogous reaction performed in poly (ethylene glycol), another green solvent with similar properties to ILs [29] The same phenomenon has already been observed by us during studies on the catalytic hydroboration of alkynes in Ru(CO)Cl(H)(PPh3)3@ILs systems [30].
Among many possibilities for the separation of products from the homogeneous reaction mixture, extraction seems to be a fast and efficient method. The extractant should dissolve the reaction products well, not mix with an ionic liquid to prevent leaching of the catalyst, as well as not inhibiting or deactivating the catalyst. The right choice is crucial for the ability to reuse the catalytic system. To find the most appropriate medium for product extraction, we examined several organic solvents and scCO2 (Table 3). Non-polar aliphatic hydrocarbons (n-hexane or n-heptane) are completely immiscible with [EMPyr][NTf2] and [BMIm][OTf], and during the extraction, the two phases were observed. The extractant (upper) phase was transparent or pale yellow. Application of more polar solvents such as toluene, dichloromethane or tetrahydrofuran resulted in partial or complete dissolution of the catalytic systems regardless of the ionic liquid used.
Similar to aliphatic hydrocarbons, ScCO2 creates a biphasic solvent system with [EMPyr][NTf2] and [BMIm][OTf]. Additionally, it is known that scCO2 is partially soluble in ILs, lowering their viscosity, while ILs are not soluble in this supercritical fluid. Therefore, such a biphasic system is suitable for carrying out the reaction/extraction process [44]. Based on extractant screening for further experiments, n-heptane (lower neurotoxicity than n-hexane) and scCO2 were chosen as solvents for product extraction from the post-reaction mixtures.

2.2. Scope of Substrates Investigations

Having optimized the reaction and extraction conditions in hand, we have studied a scope of olefins, mainly electron-deficient, neutral or donating styrenes, in borylative coupling with 1 in [BMIm][OTf] (Table 4). The reaction of 1 with bromo-(2b) or fluoro-substitued (2c) styrenes in para position led to (E)-alkenyl boronates with high yields (Table 4, entry 2–3). Application of electron-withdrawing groups such as –CF3 (2d–e) also gave an excellent conversion of 1. Trans-borylation of 1 with a weakly donating –CH3 groups in meta (2f) or para (2g) positions resulted in the desired products 3f and 3g with very good isolation yields (Table 4, entry 6–7). However, the utilization of the sterically hindered alkyl group –C(CH3)3 (2h) gave a lower conversion of 1. A similar result was noticeable when the electron-donating –OCH3 group (2i) was applied. We also examined the reactivity of vinylcyclohexane (2j) in borylative coupling with 1. After 6 h, 3j was observed with a very high yield (Table 4, entry 10).
Simultaneously, the efficiency of extraction for different products of 3 was investigated. n-Heptane (3 × 5 mL at 60 °C) or scCO2 (160–180 bar of CO2 at 40 °C, 8 mL/min, 45 min) were applied as extractants. Very high extraction yields (over 90%) using n-heptane were obtained for most of the products (3a–f, 3j). Similar results were achieved for the product extraction with scCO2. It is worth noticing that when CO2-philic groups such as –F or –CF3 were attached to the phenyl rings (3c–e), the extraction yields in scCO2 were slightly higher (Table 4, entry 3–5). The extraction of product 3j with a cyclohexyl ring was almost quantitative due to its good affinity to both extractants.

2.3. Repetitive Batch Borylative Coupling in the Monophasic Solvent System—[Ru(CO)Cl(H)(PCy3)2]@ILs

A key objective of our research was to develop an efficient and more sustainable protocol for the synthesis of (E)-alkenyl boronates via borylative coupling of vinyl boronates with olefins in ILs. Having optimized the process (reaction and extraction) conditions, as well as the information on the reactivity of olefins (2a–j), we verified the possibility of catalytic system recycling after each run using [BMIm][OTf] and [EMPyr][NTf2] as solvents. For repetitive batch borylative coupling of 1 with olefins, 2a, and 2d were chosen as reagents due to their excellent reaction and extraction yields. Trans-borylation of 1 with 2a in [BMIm][OTf] and [EMPyr][NTf2] (Figure 2a,b) gave a final product 3a with very high yields up to the sixth run. For both ionic liquids, a gradual decrease in the reaction yield in the seventh up to the 10th cycle was observed. A higher extraction yield for extractant-soluble components (3a and excess or unreacted substrate) was noticed when n-heptane was used. Moreover, the cumulative turnover number (cTON) was several times higher than in the classical approach, utilizing volatile organic solvents (930–948 vs. approx. 50–100).
Repetitive batch borylative coupling of 1 with 2d containing a CO2-phlilic trifluoromethyl group gave a very high product yield (over 90%) up to the seventh cycle for [BMIm][OTf] and [EMPyr][NTf2] (Figure 2c,d), respectively). The last three cycles resulted in a slight decrease in the reaction efficiency, but it was still at an acceptable level. Nevertheless, high values of cTON were obtained (941–956), showing good system activity.
To investigate the possible cause of the gradual decrease in catalyst activity during the subsequent runs, extracts after the first, second, fifth and eighth runs were analyzed by inductively coupled plasma–mass spectrometry (ICP-MS). The highest ruthenium content was observed for extracts after the first and second runs (7.1–6.6 ppm) if n-heptane was applied regardless of the IL used. A pale yellow color was visible in both extracts. Although extracts analyzed after the fifth and eighth cycles were colorless, the ruthenium content was only a bit lower (6.4–4.8 ppm). Clearly better results were observed when scCO2 was used as an extractant. For all ILs, ruthenium content in the analyzed extracts was comparable and lower than < 1 ppm. It should be pointed out that, despite significantly lower catalyst leaching in scCO2, the activity of catalytic systems was the same as for processes that used n-heptane for extraction. Thus, a gradual decrease in catalyst activity is rather caused by the formation of inactive catalyst species or non-coordinative cyclohexylphosphine oxide than catalyst leaching. Similar observations were made by us during recyclable hydroboration of alkynes in [Ru(CO)Cl(H)(PPh3)3]@[EMPyr][NTf2] or [Ru(CO)Cl(H)(PPh3)3]@[EMPyr][OTf]/scCO2 systems [30].

2.4. Repetitive Batch Borylative Coupling in the Biphasic Solvent System—[Ru(CO)Cl(H)(PCy3)2]@ILs/scCO2

In the final stage of our study we performed a repetitive borylative coupling of 1 with 2a, 2d and 2j in the biphasic catalytic system [Ru(CO)Cl(H)(PCy3)2]@[BMIm][OTf]/scCO2 (Figure 3a–c), respectively). The reactions were performed in 10-mL autoclaves equipped with sapphire windows under optimized reaction and extraction conditions at 180–190 bar of scCO2 (Figure 3d). Similar to the repetitive trans-borylation of 1 with 2a in [Ru(CO)Cl(H)(PCy3)2]@[BMIm][OTf], very high reaction and extraction yields of 3a in the biphasic solvent system, were observed. Cumulative TON values were comparable to those obtained for the monophasic system (930 vs. 924).
For 4-(trifluoromethyl)styrene (2d) and vinylcyclohexane (2j), very high reaction and extraction yields of products were observed up to the sixth run, whereupon a gradual decrease in reaction yields was noticed. Extraction yields remained at a very high level regardless of the run. Additionally, the negligible amount of metal in all analyzed extracts (0.88–0.54 ppm) clearly suggested that [Ru(CO)Cl(H)(PCy3)2] was strongly immobilized in [BMIm][OTf] under applied reaction conditions. The satisfactory stability and activity of the [Ru(CO)Cl(H)(PCy3)2]@[BMIm][OTf]/scCO2 system creates an opportunity for its application in continuous-flow borylative coupling reactions in the future.
At the end of our investigation on repetitive batch borylative coupling in the biphasic system, we verified the possibility of direct use of extracts in deborylation protocols, i.e., Suzuki coupling and iododeborylation (Scheme 2).
Suzuki coupling of 3a with bromobenzene in the presence of [Pd(PPh3)4] occurred with a complete conversion of 3a and with a very high isolation yield of (E)-1,2-diphenylethene (4) (87%). Similarly, iododeborylation of 3a with molecular iodine in the presence of sodium hydroxide resulted in a high isolation yield of (E)-(2-iodovinyl)benzene (5) (81%). The possibility of applying deborylation protocols with the use of crude extract is an attractive approach from the synthetical point of view because of the lack of necessity of carrying out time- and cost-consuming purification steps, for example, column chromatography or distillation.

3. Materials and Methods

3.1. Materials

Vinylboronic acid pinacol ester (95%, Sigma-Aldrich), styrene (97%, Sigma-Aldrich, Poznań, Poland), 4-bromostyrene (97%, Sigma-Aldrich), 4-fluorostyrene (99%, Sigma-Aldrich), 4-(trifluoromethyl)styrene (98%, Sigma-Aldrich), 3,5-bis(trifluoromethyl)styrene (98%, Alfa Aesar, Kandel, Germany), 4-methylstyrene (96%, Sigma-Aldrich), 2-methylstyrene (95%, Sigma-Aldrich), 4-t-butylstyrene (93%, Sigma-Aldrich), 4-methoxystyrene (97%, Sigma-Aldrich), vinylcyclohexane (99%, Sigma-Aldrich) were applied as reagents in borylative coupling reactions. Sodium hydroxide (99%, POCH Basic, Gliwice, Poland), iodine (99.8%, Sigma-Aldrich), diethyl ether (99%, POCH Basic), potassium carbonate (99%, Sigma-Aldrich), bromobenzene (99%, Sigma-Aldrich), tetrakis (triphenylphosphine)palladium (0) (99%, Sigma-Aldrich) were applied as received. 1-Ethyl-1-methylpyrrolidinium trifluoromethanesulfonate (99%, IoLiTec, Heilbronn, Germany), 1-ethyl-1-methylpyrrolidinium bis(trifluoromethylsulfonyl)imide (98%, Sigma-Aldrich), 1-butyl-1-methylpyrrolidinium trifluoromethanesulfonate (95%, Sigma-Aldrich), 1-butyl-1-methylpyrrolidinium bis(trifluoromethylsulfonyl)imide (98%, Sigma-Aldrich), 1-butyl-3-methylimidazolium bis(trifluoromethylsulfonyl)imide (98%, Sigma-Aldrich), 1-butyl-3-methylimidazolium trifluoromethanesulfonate (97%, Sigma-Aldrich), 1-butyl-3-methylimidazolium hexafluorophosphate (97%, Sigma-Aldrich), 1-butyl-3-methylimidazolium tetrafluoroborate (98%, Sigma-Aldrich), 1-butyl-3-methylimidazolium chloride (99%, Sigma-Aldrich) were dried in a vacuum before use (70 °C, 18 h). Styrene, 4-methoxystyrene, and 4-tert-butylstyrene were purified by the bulb to bulb distillation before use. The carbon dioxide (99.995%, Messer Polska, Chorzów, Poland) was used as a solvent and extractant in the reactions carried out in scCO2. The ruthenium catalysts [Ru(CO)Cl(H)(PCy3)2] [45] and [Ru(CO)Cl(H)(PPh3)3] [46] were prepared according to literature procedures. Deuterium solvents were obtained from Dr. Glaser AG Basel. The n-hexane (99%, POCH Basic), n-heptane (99%, Sigma-Aldrich), toluene (99%, POCH Basic), dichloromethane (99%, POCH Basic), tetrahydrofurane (99%, POCH Basic) used in the extractions were distilled and dried prior use.

3.2. General Procedures

All manipulations were performed under an argon atmosphere using standard Schlenk’s techniques or in high-pressure autoclaves equipped with sapphire windows for the solubility tests of reagents and catalyst, when scCO2 was used (For detailed analysis descriptions and NMR spectra of obtained products please see the Supplementary Materials).

3.2.1. Borylative Coupling in the [Ru(CO)Cl(H)(PCy3)2]@ILs System under Optimized Reaction/Extraction Conditions with Subsequent n-Heptane Extraction

A 50 mL Schlenk’s vessel was charged with dried IL (1 g) and [Ru(CO)Cl(H)(PCy3)2] (0.01 mmol) in an argon atmosphere. Subsequently, vinylboronic acid pinacol ester (0.5 mmol) and olefin (0.75 mmol) were added. The reaction was carried out for 6 h at 110 °C. The reaction mixture was cooled down and the extractant soluble components were extracted at 60 °C with n-heptane (3 × 5 mL). After evaporation, the extracts were weighed and characterized by GC–MS and 1H NMR analyses. The products (3a–i) were purified on silica by flash chromatography (Biotage IsoleraOne chromatograph) with a UV detector (λ1 = 255 nm, λ2 = 280 nm). Purification details: cartridge 10 g, flow rate: 12 mL/min, length: 12 CV (CV = column volume), phase: hexane/ethyl acetate (step 1: hexane 100% by 5 CV, step 2: gradient 10%/CV by 5 CV, step 3: hexane 50% by 2 CV). The non-aromatic 3j was purified on silica using standard column chromatography using n-hexane/ethyl acetate (95/5–7/3) as eluents. The products were characterized by GC-MS, 1H and 13C NMR analyses.

3.2.2. Borylative Coupling in the [Ru(CO)Cl(H)(PCy3)2]@ILs/scCO2 System with Subsequent scCO2 Extraction

A high-pressure stainless steel autoclave reactor (10 mL) equipped with sapphire windows and connected to a Schlenk line, was charged with dried IL (1 g) and [Ru(CO)Cl(H)(PCy3)2] (0.01 mmol) in an argon atmosphere. Subsequently, vinylboronic acid pinacol ester (0.5 mmol) and olefin (0.75 mmol) were added and the reactor was pressurized with CO2 to 55 bar, heated up to 110 °C and pressurized to the required pressure (approx. 170–190 bar). After 6 h, the reactor was cooled to 40 °C and the products were extracted in a CO2 stream (160–180 bar of CO2, 8 mL/min, 45 min) into a small amount (10–15 mL) of n-heptane (previously cooled down in dry ice/i-propanol bath) to avoid product loss during extraction. Then the extracts were evaporated, weighed and characterized by GC-MS and 1H NMR analyses.

3.2.3. Repetitive Batch Borylative Coupling in [Ru(CO)Cl(H)(PCy3)2]@ILs with Subsequent Organic Solvent Extraction

After the extraction process, the Schlenk’s vessel was dried under vacuum for 20 min at 60 °C. Then a new portion of substrates was added in an argon atmosphere and subsequent batches, and extractions were carried out according to the procedure described in Section 3.2.1 without the isolation step.

3.2.4. Repetitive Batch Borylative Coupling in [Ru(CO)Cl(H)(PCy3)2]@ILs/scCO2 with Subsequent scCO2 Extraction

After the extraction process, the autoclave was dried in a vacuum for 20 min at 60 °C. Then a new portion of substrates was added in an argon atmosphere and subsequent batches, and extractions were carried out according to the procedure described in Section 3.2.2.

3.2.5. Suzuki Coupling of 3a with Bromobenzene

A 100 mL Schlenk vessel equipped with a stirring bar was charged with [Pd(PPh3)4] (5 mol%). Subsequently, THF (10 mL), 3a after scCO2 extraction (0.5 mmol in 10 mL of n-heptane), bromobenzene (0.5 mmol) and 2 M aqueous solution of K2CO3 (20 mL) were added. The reaction was carried out for 24 h at 50 °C. Then, the organic phase was separated, and the product was purified on silica by flash chromatography with a UV detector (λ1 = 255 nm, λ2 = 280 nm) using the purification conditions described in Section 3.2.1 in 87% yield. The product was characterized by GC-MS, 1H and 13C NMR analyses.

3.2.6. Iododeborylation of 3a with Molecular Iodine

To a 100 mL, round-bottom flask equipped with a stirring bar 3a after scCO2 extraction, 10 mL of n-heptane and 5 mL of diethyl ether were added. Then 2 mL of the aqueous solution of NaOH (3 M) was dosed dropwise at 0 °C. Afterward, I2 (0.85 mmol) in diethyl ether (5 mL) was slowly added. The reaction mixture was stirred for 2 h and then the excess of iodine was quenched with a saturated solution of sodium thiosulfate. The organic solution was separated, and the aqueous solution was washed with diethyl ether. The volatile organic fractions were evaporated, and the crude product was purified on silica by flash chromatography with a UV detector (λ1 = 255 nm, λ2 = 280 nm) using the purification conditions described in Section 3.2.1 in 81% yield. The product was characterized by GC-MS, 1H and 13C NMR analyses.

3.3. Product Characterization

(E)-4,4,5,5-Tetramethyl-2-styryl-1,3,2-dioxaborolane (3a), 1H NMR (300 MHz, CDCl3, 25 °C): δ = 7.49−7.10 (m, 6H, Ph, =CH(Ph)), 6.09 (d, JH-H = 18.4 Hz, 1H, =CH(Bpin)), 1.22 (s, 12H, CCH3) ppm. 13C NMR (75 MHz, CDCl3, 25 °C): δ = 149.6, 137.5, 129.0, 128.6, 127.1, 83.4 (CCH3), 24.9 (CCH3) ppm. Cα to boron atom was not observed. MS (EI) [m/z (%)]: 230(M+, 29), 215(21), 187(11), 173(8), 157(14), 144(83), 129(100), 118(14), 105(33), 77(19). Isolated yield: 81%. NMR and GC-MS data are in agreement with the literature [29].
(E)-2-(4’-Bromostyryl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (3b), 1H NMR (300 MHz, acetone-d6, 25 °C): δ = 7.66–7.45 (m, 4H, Ph), 7.31 (d, JH-H = 18.4 Hz, 1H, =CH(Ph)), 6.19 (d, JH-H = 18.4 Hz, 1H, =CH(Bpin)), 1.28 (s, 12H, CCH3) ppm. 13C NMR (75 MHz, acetone- d6, 25 °C): δ = 148.8, 137.7, 132.8, 129.9, 123.5, 84.2 (CCH3), 25.3 (CCH3) ppm. Cα to boron atom was not observed. MS (EI) [m/z (%)]: 310((M + 2)+, 21), 308(M+, 19), 293(17), 222(6), 209(44), 208(41), 143(100), 129(81), 77(59). Isolated yield: 77%. NMR and GC-MS data are in agreement with the literature [29].
(E)-2-(4′-Fluorostyryl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (3c), 1H NMR (300 MHz, acetone-d6, 25 °C): δ = 7.71–7.55 (m, 2H, Ph), 7.33 (d, JH-H = 18.4 Hz, 1H, =CH(Ph)), 7.213–7.09 (m, 2H, Ph), 6.10 (d, JH-H = 18.4 Hz, 1H, =CH(Bpin)), 1.27 (s, 12H, CCH3) ppm. 13C NMR (75 MHz, acetone-d6, 25 °C): δ = 165.7, 162.5, 148.8, 135.0, 130.0, 129.9, 116.5, 116.3, 84.0 (CCH3), 25.2 (CCH3) ppm. Cα to boron atom was not observed. MS (EI) [m/z (%)]: 248(M+, 23), 233(19), 191(9), 175(11), 162(73), 148(100), 136(21), 123(23), 102(13), 85(19), 57(14). Isolated yield: 78%. NMR and GC-MS data are in agreement with the literature [29].
(E)-2-(4′-(Trifluoromethyl)styryl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (3d), 1H NMR (300 MHz, CDCl3, 25 °C): δ = 7.67–7.49 (m, 4H, Ph), 7.41 (d, JH-H = 18.4 Hz, 1H, =CH(Ph)), 6.26 (d, JH-H = 18.4 Hz, 1H, =CH(Bpin)), 1.32 (s, 12H, CCH3) ppm. 13C NMR (75 MHz, CDCl3, 25 °C): δ = 147.8, 140.9, 130.8, 130.4, 127.3, 125.8, 125.7, 83.7 (CCH3), 25.0 (CCH3) ppm. Cα to boron atom was not observed. MS (EI) [m/z (%)]: 298(M+, (33), 283(27), 241(19), 212(100), 197(77), 179(93), 151(34), 143(50), 85(41), 77(11), 57(30). Isolated yield: 83%. NMR and GC-MS data are in agreement with the literature [29].
(E)-2-(3′,5′-Bis(trifluoromethyl)styryl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (3e), 1H NMR (300 MHz, CDCl3, 25 °C): δ = 7.88 (s, 2H, Ph), 7.78 (s, 1H, Ph), 7.41 (d, JH-H = 18.4 Hz, 1H, =CH(Ph)), 6.31 (d, JH-H = 18.4 Hz, 1H, =CH(Bpin)), 1.32 (s, 12H, CCH3) ppm. 13C NMR (75 MHz, CDCl3, 25 °C): δ = 146.0, 139.6, 132.2 (q, JC-F = 22.3 Hz, –CF3), 126.9, 124.8, 122.2, 122.0, 83.9 (CCH3), 25.0 (CCH3) ppm. Cα to boron atom was not observed. MS (EI) [m/z (%)]: 366(M+, 44), 351(39), 347(22), 309(27), 280(100), 267(31), 247(77), 211(51), 169(19), 151(25), 97(24), 85(70), 59(77). Isolated yield: 81%.NMR and GC-MS data are in agreement with the literature [29].
(E)-4,4,5,5-Tetramethyl-2-(4′-methylstyryl)-1,3,2-dioxaborolane (3f), 1H NMR (300 MHz, acetone-d6, 25 °C): δ = 7.46 (d, JH-H = 8.1 Hz, 2H, Ph), 7.33 (d, JH-H = 18.4 Hz, 1H, =CH(Ph)), 7.18 (d, JH-H = 8.0 Hz, 2H, Ph), 6.09 (d, JH-H = 18.4 Hz, 1H, =CH(Bpin)), 2.32 (s, 3H, 4-CH3Ph), 1.27 (s, 12H, CCH3) ppm. 13C NMR (75 MHz, CDCl3, 25 °C): δ = 149.6, 139.0, 134.8, 129.4, 127.1, 83.3 (CCH3), 24.9 (CCH3), 21.5 (PhCH3) ppm. Cα to boron atom was not observed. MS (EI) [m/z (%)]: 244(M+, 27), 229(9), 171(7), 158(51), 143(100), 128(41), 117(51), 105(12), 91(19), 77(8), 57(7). Isolated yield: 79%. NMR and GC-MS data are in agreement with the literature [29].
(E)-4,4,5,5-Tetramethyl-2-(2′-methylstyryl)-1,3,2-dioxaborolane (3g), 1H NMR (300 MHz, acetone-d6, 25 °C): δ = 7.44–7.09 (m, 5H, Ph, =CH(Ph)), 6.14 (d, JH-H = 18.4 Hz, 1H, =CH(Bpin)), 2.34 (s, 3H, 2-CH3Ph), 1.28 (s, 12H, CCH3) ppm. 13C NMR (75 MHz, CDCl3, 25 °C): δ = 149.8, 138.2, 137.5, 129.9, 128.5, 127.9, 124.3, 83.4 (CCH3), 24.9 (CCH3), 21.5 (PhCH3) ppm. Cα to boron atom was not observed. MS (EI) [m/z (%)]: 244(M+, 32), 229(12), 171(13), 158(45), 143(100), 128(31), 117(49), 105(11), 91(112), 77(8), 57(10). Isolated yield: 69%. NMR and GC-MS data are in agreement with the literature [29].
(E)-2-(4′-(Tert-butyl)styryl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (3h), 1H NMR (300 MHz, acetone-d6, 25 °C): δ = 7.49 (d, JH-H = 8.4 Hz, 2H, Ph), 7.41 (d, JH-H = 8.5 Hz, 2H, Ph), 7.34 (d, JH-H = 18.4 Hz, 1H, =CH(Ph)), 6.11 (d, JH-H = 18.4 Hz, 1H, =CH(Bpin)), 1.31 (s, 9H, 4-t-BuPh), 1.28 (s, 12H, CCH3) ppm. 13C NMR (75 MHz, acetone-d6, 25 °C): δ = 153.1, 150.2, 135.8, 127.8, 126.5, 83.9 (CCH3), 35.4, 31.6, 25.3 (CCH3) ppm. Cα to boron atom was not observed. MS (EI) [m/z (%)]: 286(M+, 219), 271(100), 186(11), 171(19), 155(15), 143(23), 129(9), 83(10), 57(13). Isolated yield: 73%. NMR and GC-MS data are in agreement with the literature [29].
(E)-2-(4′-Methoxystyryl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (3i), 1H NMR (300 MHz, CDCl3, 25 °C): δ = 7.44 (d, JH-H = 8.7 Hz, 2H, Ph), 7.35 (d, JH-H = 18.4 Hz, 1H, =CH(Ph)), 6.86 (d, JH-H = 8.7 Hz, 2H, Ph), 6.01 (d, JH-H = 18.4 Hz, 1H, =CH(Bpin)), 3.81 (s, 3H, 4-OCH3Ph), 1.31 (s, 12H, CCH3) ppm. 13C NMR (75 MHz, CDCl3, 25 °C): δ = 160.4, 149.2, 130.5, 128.6, 114.1, 83.3 (CCH3), 55.4, 25.0 (CCH3) ppm. Cα to boron atom was not observed. MS (EI) [m/z (%)]: 260(M+, 39), 245(10), 187(9), 174(25), 160(64), 144(100), 129(17), 117(31), 91(19), 77(31), 57(16). Isolated yield: 71%.NMR and GC-MS data are in agreement with the literature [29].
(E)-2-(2-Cyclohexylvinyl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (3j), 1H NMR (300 MHz, CDCl3, 25 °C): δ = 6.57 (dd, JH-H = 18.2, 6.2 Hz, 1H, =CH(c-hexyl)), 5.37 (d, JH-H = 18.2 Hz, 1H, =CH(Bpin)), 1.83–1.55 (m, 7H), 1.26 (s, 12H, CCH3), 1.22–1.00 (m, 4H) ppm. 13C NMR (75 MHz, CDCl3, 25 °C): δ = 160.1, 83.1 (CCH3), 43.4, 32.0, 26.3, 26.1, 24.9 (CCH3) ppm. Cα to boron atom was not observed. MS (EI) [m/z (%)]: 236(M+, 4), 221(7), 178(9), 153(15), 135(21), 123(24), 108(58), 84(100), 69(16), 55(14). Isolated yield: 87%. NMR and GC-MS data are in agreement with the literature [29].
(E)-1,2-Diphenylethene (4), 1H NMR (300 MHz, CDCl3, 25 °C): δ = 7.57 (d, JH-H = 8.0 Hz, 4H), 7.47–7.27 (m, 6H), 7.17 (s, 2H, =CHPh) ppm. 13C NMR (75 MHz, CDCl3, 25 °C): δ = 137.5 (=CHPh), 128.8, 127.8, 126.6 ppm. MS (EI) [m/z (%)]: 180(M+, 100), 165(22), 152(12), 102(11), 89(15), 77(11). Isolated yield: 87%. NMR and GC-MS data are in agreement with the literature [32].
(E)-(2-Iodovinyl)benzene (5), 1H NMR (300 MHz, CDCl3, 25 °C) δ = 7.42 (d, JH-H = 14.9 Hz, 1H, =CH), 7.28–7.08 (m, 5H), 6.77 (d, JH-H = 14.9 Hz, 1H, =CH). 13C NMR (75 MHz, CDCl3, 25 °C) δ 144.95, 138.48, 135.15, 129.51, 126.02, 75.49. MS (EI) [m/z (%)]: 230(M+, 100), 127(13), 103(85), 77(53). Isolated yield: 81%. NMR and GC-MS data are in agreement with the literature [34].

4. Conclusions

The new, effective and highly regio- and stereoselective catalytic systems based on the immobilization of [Ru(CO)Cl(H)(PCy3)2] in ionic liquids for the borylative coupling of vinylboronic pinacol ester with olefins was presented for the first time within these studies. The best results, characterized by excellent product yields, were obtained when [BMIm][OTf] and [EMPyr][NTf2] were used as solvents and catalyst immobilization media. The system permitted a transformation of various vinyl-substituted olefins (styrene (2a), functionalized styrenes (2b–i) and vinylcyclohexane (2j)) into useful borylsubstituted unsaturated products, which can be used in deborylation or Suzuki coupling reactions. The application of ILs permitted catalyst reuse and the carrying out of repetitive batch borylative coupling in monophasic [Ru(CO)Cl(H)(PCy3)2]@ILs or biphasic [Ru(CO)Cl(H)(PCy3)2]@[BMIm][OTf]/scCO2 systems with product extraction with non-polar n-heptane or scCO2. These new protocols, under optimized reaction ([Ru-H]:1:2 = 0.01:1:1.5, 110 °C, 6 h, 1g IL, inert atmosphere conditions) and extraction (3 × 5 mL of the n-heptane at 60 °C or 160–180 bar of CO2 at 40 °C, 8 mL/min, 45 min) conditions, allowed of the catalyst to be reused 5–7 times without any significant loss of activity or stability. The application of scCO2 as an extractant in monophasic or biphasic solvent systems significantly reduced catalyst leaching during the separation process (<1 ppm in each batch), compared to the extraction with n-heptane. Moreover, the good solubility of the reagents and products in scCO2 and the high catalyst stability creates future possibilities for carrying out this process under a continuous flow method. In addition, it was found that the application of ILs as reaction media has a positive impact on the reaction rate, shortening the process from 24 h to 6 h. Such an approach based on multiple catalyst use enabled an intensification of the cumulative TON values (up to 956) in comparison to the single batch (~50–100), showing the potential of the system reported within this research, which was developed according to the sustainable development rules. The catalyst reuse, simplification of the separation process, increased process productivity and possibilities to carry out the reaction in repetitive batch borylative coupling of olefins are in agreement with green chemistry paradigms.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/10/7/762/s1, Procedure description of GC-MS, NMR and ICP-MS analyses, NMR spectra for all isolated products (3a–j, 4, 5).

Author Contributions

Conceptualization, J.S. and J.W.; methodology, J.S. and J.W.; investigation, J.S. and T.S.; resources, J.S., T.S., A.F. and J.W.; writing—original draft preparation, J.S.; writing—review and editing, J.W., A.F., T.S. and J.S.; supervision, J.W.; funding acquisition, T.S. All authors have read and agreed to the published version of the manuscript.

Funding

The APC was funded by grant No. POWR.03.02.00-00-I026/16 co-financed by the EU through the European Social Fund under the Operational Program Knowledge Education Development.

Acknowledgments

This work was supported by The National Centre for Research and Development in Poland, Lider Programme No. LIDER/26/527/L-5/13/NCBR/2014 and The National Science Centre No. UMO-2019/32/C/ST4/00235 and The National Centre for Research and Development in Poland, Lider Programme No. LIDER/6/0017/L-9/17/NCBR/2018 and grant No. POWR.03.02.00-00-I026/16 co-financed by the EU through the European Social Fund under the Operational Program Knowledge Education Development.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bhaduri, S.; Mukesh, D. Chemical industry and homogeneous catalysis. In Homogeneous Catalysis; Bhaduri, S., Mukesh, D., Eds.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2014; pp. 1–21. [Google Scholar]
  2. Joshi, S.S.; Bhatnagar, A.; Ranade, V.V. Chapter 8—Catalysis for fine and specialty chemicals. In Industrial Catalytic Processes for Fine and Specialty Chemicals; Joshi, S.S., Ranade, V.V., Eds.; Elsevier: Amsterdam, The Netherlands, 2016; pp. 317–392. [Google Scholar]
  3. Cole-Hamilton, D.J.; Tooze, R.P. Catalyst Separation, Recovery and Recycling: Chemistry and Process Design; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2006; Volume 30, pp. 1–247. [Google Scholar]
  4. Centi, G.; Perathoner, S. Methods and tools of sustainable industrial chemistry: Catalysis. Sustain. Ind. Chem. 2009, 73–198. [Google Scholar] [CrossRef]
  5. Shende, V.S.; Saptal, V.B.; Bhanage, B.M. Recent advances utilized in the recycling of homogeneous catalysis. Chem. Rec. 2019, 19, 2022–2043. [Google Scholar] [CrossRef] [PubMed]
  6. Cole-Hamilton, D.J. Homogeneous catalysis—New approaches to catalyst separation, recovery, and recycling. Science 2003, 299, 1702–1706. [Google Scholar] [CrossRef] [PubMed]
  7. Clarke, C.J.; Tu, W.-C.; Levers, O.; Bröhl, A.; Hallett, J.P. Green and sustainable solvents in chemical processes. Chem. Rev. 2018, 118, 747–800. [Google Scholar] [CrossRef] [PubMed]
  8. Walkowiak, J.; Franciò, G.; Leitner, W. Supercritical fluids as advanced media for reaction and separation in homogeneous catalysis. In Applied Homogeneous Catalysis with Organometallic Compounds: A Comprehensive Handbook in Four Volumes; Wiley-VCH Verlag GmbH & Co. KGaA.: Weinheim, Germany, 2018; pp. 1221–1258. [Google Scholar]
  9. Bermúdez, M.-D.; Jiménez, A.-E.; Sanes, J.; Carrión, F.-J. Ionic liquids as advanced lubricant fluids. Molecules 2009, 14, 2888–2908. [Google Scholar] [CrossRef]
  10. Zhou, F.; Liang, Y.; Liu, W. Ionic liquid lubricants: Designed chemistry for engineering applications. Chem. Soc. Rev. 2009, 38, 2590–2599. [Google Scholar] [CrossRef] [PubMed]
  11. Zhao, Y.; Bostrom, T. Application of ionic liquids in solar cells and batteries: A review. Curr. Org. Chem. 2015, 19, 556–566. [Google Scholar] [CrossRef]
  12. MacFarlane, D.R.; Tachikawa, N.; Forsyth, M.; Pringle, J.M.; Howlett, P.C.; Elliott, G.D.; Davis, J.H.; Watanabe, M.; Simon, P.; Angell, C.A. Energy applications of ionic liquids. Energy Environ. Sci. 2014, 7, 232–250. [Google Scholar] [CrossRef] [Green Version]
  13. Tan, S.S.Y.; MacFarlane, D.R. Ionic liquids in biomass processing. In Ionic Liquids; Springer: Berlin/Heidelberg, Germany, 2009; pp. 311–339. [Google Scholar]
  14. Tadesse, H.; Luque, R. Advances on biomass pretreatment using ionic liquids: An overview. Energy Environ. Sci. 2011, 4, 3913–3929. [Google Scholar] [CrossRef]
  15. Vekariya, R.L. A review of ionic liquids: Applications towards catalytic organic transformations. J. Mol. Liq. 2017, 227, 44–60. [Google Scholar] [CrossRef]
  16. Welton, T. Ionic liquids in catalysis. Coord. Chem. Rev. 2004, 248, 2459–2477. [Google Scholar] [CrossRef]
  17. Pârvulescu, V.I.; Hardacre, C. Catalysis in ionic liquids. Chem. Rev. 2007, 107, 2615–2665. [Google Scholar] [CrossRef]
  18. Blanchard, L.A.; Brennecke, J.F. Recovery of organic products from ionic liquids using supercritical carbon dioxide. Ind. Eng. Chem. Res. 2001, 40, 287–292. [Google Scholar] [CrossRef]
  19. Jutz, F.; Andanson, J.-M.; Baiker, A. Ionic liquids and dense carbon dioxide: A beneficial biphasic system for catalysis. Chem. Rev. 2011, 111, 322–353. [Google Scholar] [CrossRef] [PubMed]
  20. Jessop, P.G.; Stanley, R.R.; Brown, R.A.; Eckert, C.A.; Liotta, C.L.; Ngo, T.T.; Pollet, P. Neoteric solvents for asymmetric hydrogenation: Supercritical fluids, ionic liquids, and expanded ionic liquids. Green Chem. 2003, 5, 123–128. [Google Scholar] [CrossRef]
  21. Geier, D.; Schmitz, P.; Walkowiak, J.; Leitner, W.; Franciò, G. Continuous flow asymmetric hydrogenation with supported ionic liquid phase catalysts using modified co2 as the mobile phase: From model substrate to an active pharmaceutical ingredient. ACS Catal. 2018, 8, 3297–3303. [Google Scholar] [CrossRef]
  22. Muzart, J. Ionic liquids as solvents for catalyzed oxidations of organic compounds. Adv. Synth. Catal. 2006, 348, 275–295. [Google Scholar] [CrossRef]
  23. Rieger, B.; Plikhta, A.; Castillo-Molina, D.A. Ionic liquids in transition metal-catalyzed hydroformylation reactions. In Ionic Liquids (ILs) in Organometallic Catalysis; Dupont, J., Kollár, L., Eds.; Springer: Berlin/Heidelberg, Germany, 2015; pp. 95–144. [Google Scholar]
  24. Li, J.; Yang, S.; Wu, W.; Jiang, H. Recent advances in Pd-catalyzed cross-coupling reaction in ionic liquids. Eur. J. Org. Chem. 2018, 2018, 1284–1306. [Google Scholar] [CrossRef]
  25. Maciejewski, H.; Szubert, K.; Marciniec, B.; Pernak, J. Hydrosilylation of functionalised olefins catalysed by rhodium siloxide complexes in ionic liquids. Green Chem. 2009, 11, 1045–1051. [Google Scholar] [CrossRef]
  26. Maciejewski, H.; Szubert, K.; Marciniec, B. New approach to synthesis of functionalised silsesquioxanes via hydrosilylation. Catal. Commun. 2012, 24, 1–4. [Google Scholar] [CrossRef]
  27. Maciejewski, H.; Szubert, K.; Fiedorow, R.; Giszter, R.; Niemczak, M.; Pernak, J.; Klimas, W. Diallyldimethylammonium and trimethylvinylammonium ionic liquids—Synthesis and application to catalysis. Appl. Catal. A 2013, 451, 168–175. [Google Scholar] [CrossRef]
  28. Rogalski, S.; Żak, P.; Miętkiewski, M.; Dutkiewicz, M.; Fiedorow, R.; Maciejewski, H.; Pietraszuk, C.; Śmiglak, M.; Schubert, T.J. Efficient synthesis of E-1, 2-bis (silyl) ethenes via ruthenium-catalyzed homocoupling of vinylsilanes carried out in ionic liquids. Appl. Catal. A 2012, 445, 261–268. [Google Scholar] [CrossRef]
  29. Szyling, J.; Walkowiak, J.; Sokolnicki, T.; Franczyk, A.; Stefanowska, K.; Klarek, M. PEG-mediated recyclable borylative coupling of vinyl boronates with olefins. J. Catal. 2019, 376, 219–227. [Google Scholar] [CrossRef]
  30. Szyling, J.; Franczyk, A.; Stefanowska, K.; Maciejewski, H.; Walkowiak, J.d. Recyclable hydroboration of alkynes using RuH@ IL and RuH@ IL/scCO2 catalytic systems. ACS Sustain. Chem. Eng. 2018, 6, 10980–10988. [Google Scholar] [CrossRef]
  31. Szyling, J.; Franczyk, A.; Stefanowska, K.; Klarek, M.; Maciejewski, H.; Walkowiak, J. An effective catalytic hydroboration of alkynes in supercritical CO2 under repetitive batch mode. ChemCatChem 2018, 10, 531–539. [Google Scholar] [CrossRef]
  32. Szyling, J.; Franczyk, A.; Stefanowska, K.; Walkowiak, J. A recyclable Ru (CO) Cl (H)(PPh3) 3/PEG catalytic system for regio-and stereoselective hydroboration of terminal and internal alkynes. Adv. Synth. Catal. 2018, 360, 2966–2974. [Google Scholar] [CrossRef]
  33. Stefanowska, K.; Franczyk, A.; Szyling, J.; Salamon, K.; Marciniec, B.; Walkowiak, J. An effective hydrosilylation of alkynes in supercritical CO2–A green approach to alkenyl silanes. J. Catal. 2017, 356, 206–213. [Google Scholar] [CrossRef]
  34. Szyling, J.; Franczyk, A.; Pawluć, P.; Marciniec, B.; Walkowiak, J. A stereoselective synthesis of (E)-or (Z)-β-arylvinyl halides via a borylative coupling/halodeborylation protocol. Org. Biomol. Chem. 2017, 15, 3207–3215. [Google Scholar] [CrossRef] [Green Version]
  35. Szyling, J.; Walkowiak, J. Effective one-pot synthesis of (E)-poly (vinyl arylenes) via trans-borylation/Suzuki coupling protocol. Green Proc. Synth. 2017, 6, 301–310. [Google Scholar] [CrossRef]
  36. Denmark, S.E.; Tymonko, S.A. Sequential cross-coupling of 1, 4-bissilylbutadienes: Synthesis of unsymmetrical 1, 4-disubstituted 1, 3-butadienes. J. Am. Chem. Soc. 2005, 127, 8004–8005. [Google Scholar] [CrossRef]
  37. Carreras, J.; Caballero, A.; Pérez, P.J. Alkenyl boronates: Synthesis and applications. Chem. Asian J. 2019, 14, 329–343. [Google Scholar] [CrossRef] [Green Version]
  38. Pawluć, P.; Franczyk, A.; Walkowiak, J.; Hreczycho, G.; Kubicki, M.; Marciniec, B. (E)-9-(2-Iodovinyl)-9H-carbazole: A new coupling reagent for the synthesis of π-conjugated carbazoles. Org. Lett. 2011, 13, 1976–1979. [Google Scholar] [CrossRef]
  39. Aubin, S.; Le Floch, F.; Carrié, D.; Guegan, J.P.; Vaultier, M. Transition-metal-catalyzed hydrosilylation and hydroboration of terminal alkynes in ionic liquids. In Ionic Liquids; ACS Symposium Series; American Chemical Society: Washington, DC, USA, 2002; Volume 818, pp. 334–346. [Google Scholar]
  40. Marciniec, B.; Jankowska, M.; Pietraszuk, C. New catalytic route to functionalized vinylboronates. Chem. Commun. 2005, 663–665. [Google Scholar] [CrossRef] [PubMed]
  41. Marciniec, B.; Walkowiak, J. Ruthenium (II) complex catalyzed O-borylation of alcohols with vinylboronates. Synlett 2009, 2009, 2433–2436. [Google Scholar] [CrossRef]
  42. Marciniec, B.; Walkowiak, J. New catalytic route to borasiloxanes. Chem. Commun. 2008, 2695–2697. [Google Scholar] [CrossRef] [PubMed]
  43. Walkowiak, J.; Marciniec, B. A new catalytic method for the synthesis of boroxanes. Tetrahedron Lett. 2010, 51, 6177–6180. [Google Scholar] [CrossRef]
  44. Blanchard, L.A.; Gu, Z.; Brennecke, J.F. High-pressure phase behavior of ionic liquid/CO2 systems. J. Phys. Chem. B 2001, 105, 2437–2444. [Google Scholar] [CrossRef] [Green Version]
  45. Yi, C.S.; Lee, D.W.; Chen, Y. Hydrovinylation and [2 + 2] cycloaddition reactions of alkynes and alkenes catalyzed by a well-defined cationic ruthenium—Alkylidene complex. Organometallics 1999, 18, 2043–2045. [Google Scholar] [CrossRef]
  46. Ahmad, N.; Levison, J.J.; Robinson, S.; Uttley, M.; Wonchoba, E.; Parshall, G. Complexes of ruthenium, osmium, rhodium, and iridium containing hydride carbonyl, or nitrosyl ligands. Inorg. Synth. 1974, 15, 45–64. [Google Scholar]
Catalysts 10 00762 sch001 550

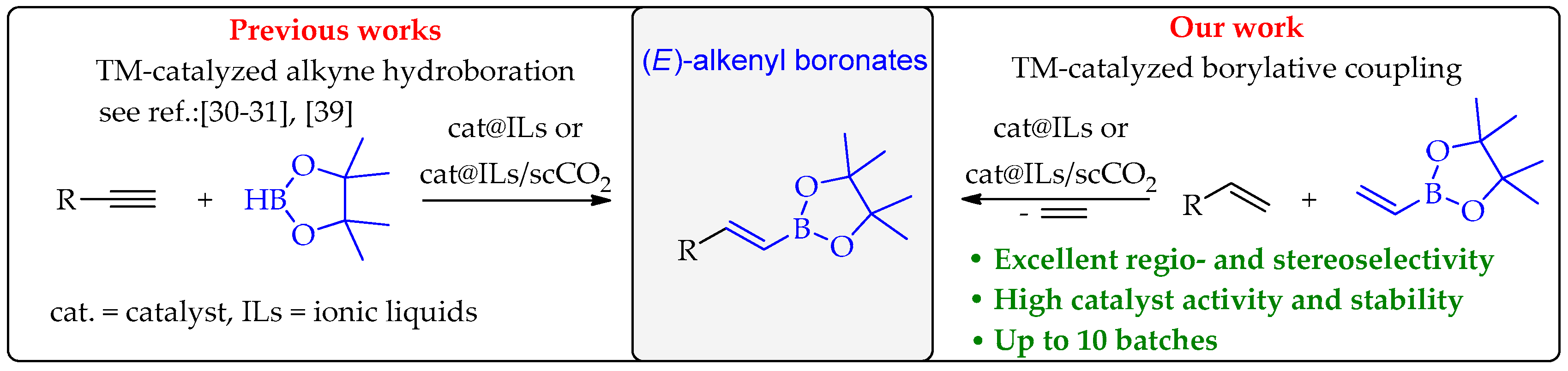

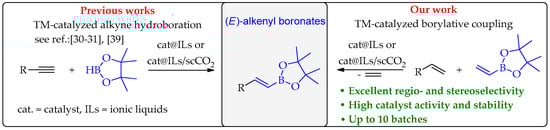

Scheme 1. Ionic liquids-based recyclable protocols for the synthesis of unsaturated organoboron compounds.
Scheme 1. Ionic liquids-based recyclable protocols for the synthesis of unsaturated organoboron compounds.
Catalysts 10 00762 sch001
Catalysts 10 00762 g001 550

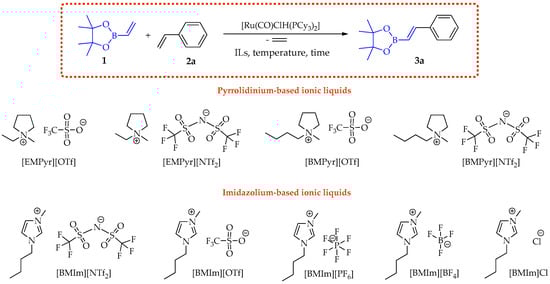

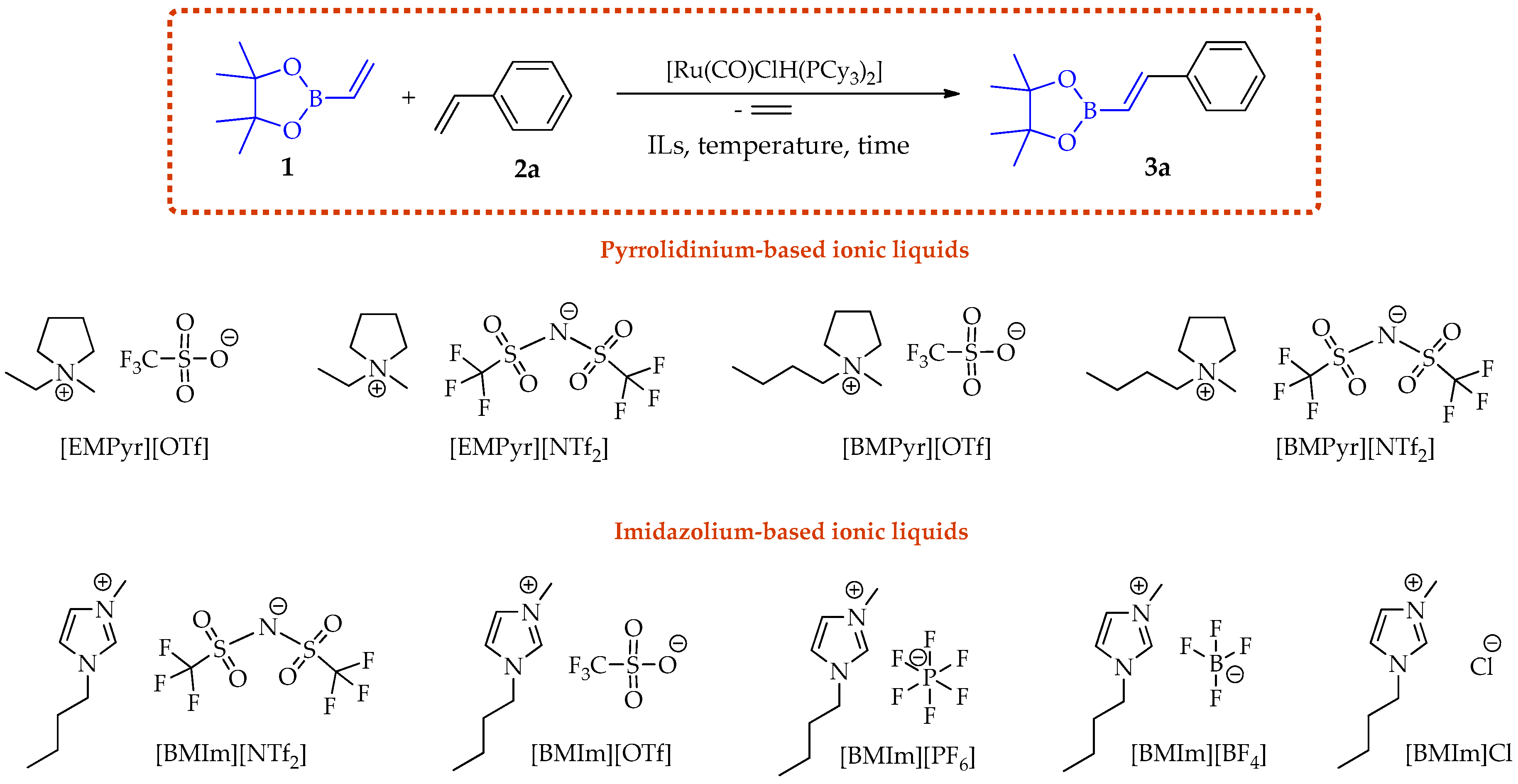

Figure 1. Model reaction of 1 with 2a used for the conditions screening. Pyrrolidinium and imidazolium-based ionic liquids used as solvents and catalyst immobilization media.
Figure 1. Model reaction of 1 with 2a used for the conditions screening. Pyrrolidinium and imidazolium-based ionic liquids used as solvents and catalyst immobilization media.
Catalysts 10 00762 g001
Catalysts 10 00762 g002 550

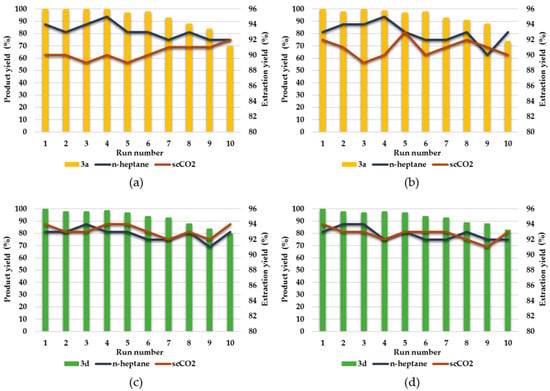

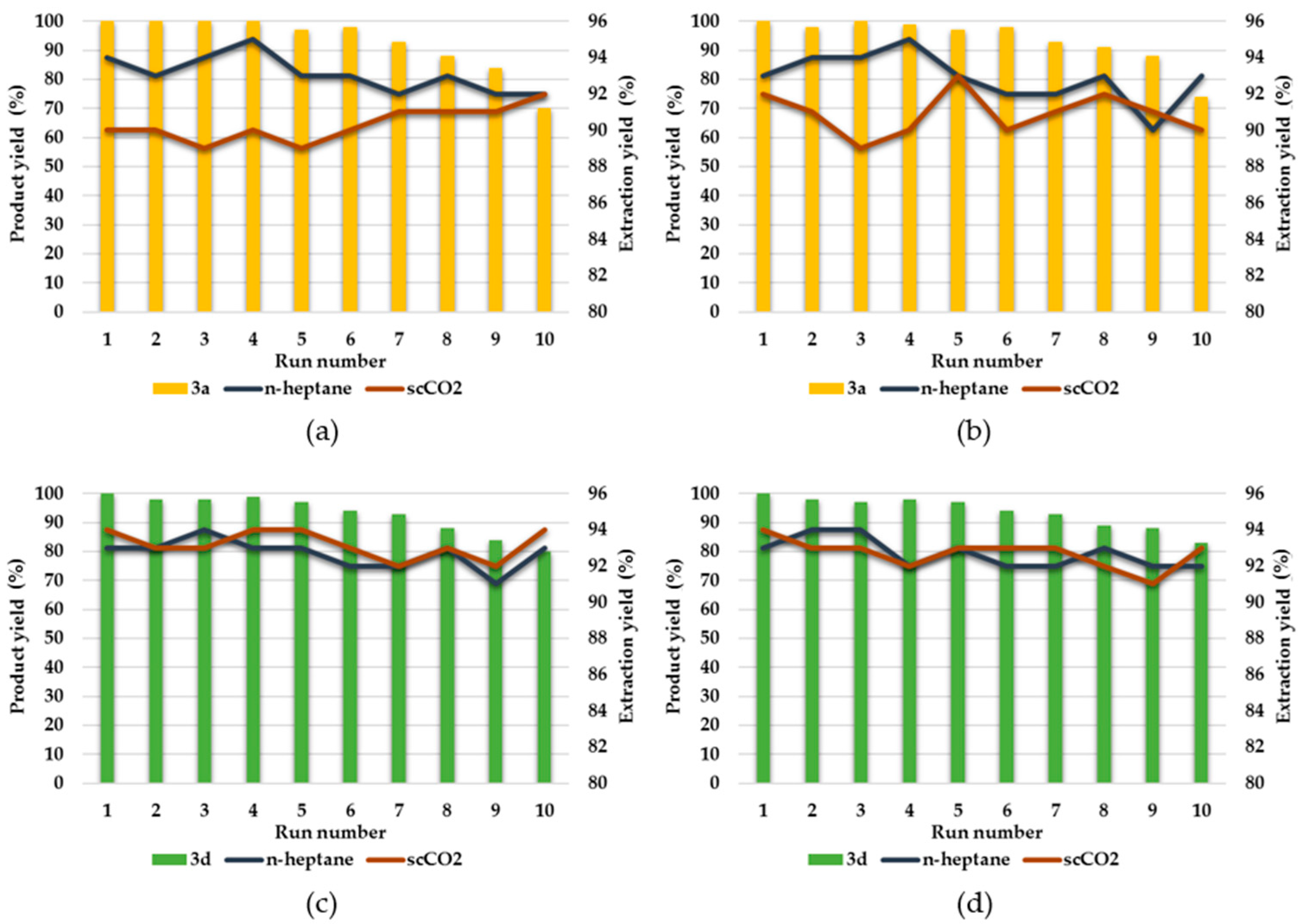

Figure 2. Repetitive batch borylative coupling of 1 with 2a in [BMIm][OTf] (a) and [EMPyr][NTf2] (b) or 1 with 2d in [BMIm][OTf] (c) and [EMPyr][NTf2] (d) under optimized reaction ([Ru-H]:1:2a or 2d = 0.01:1:1.5, 110 °C, 6 h, 1 g of IL, inert atmosphere conditions) and extraction (3 × 5 mL of n-heptane at 60 °C or 160–180 bar of CO2 at 40 °C, 8 mL/min, 45 min) conditions. The product yields were determined by GC-MS. The extraction yields refer to the mass of products and reactants.
Figure 2. Repetitive batch borylative coupling of 1 with 2a in [BMIm][OTf] (a) and [EMPyr][NTf2] (b) or 1 with 2d in [BMIm][OTf] (c) and [EMPyr][NTf2] (d) under optimized reaction ([Ru-H]:1:2a or 2d = 0.01:1:1.5, 110 °C, 6 h, 1 g of IL, inert atmosphere conditions) and extraction (3 × 5 mL of n-heptane at 60 °C or 160–180 bar of CO2 at 40 °C, 8 mL/min, 45 min) conditions. The product yields were determined by GC-MS. The extraction yields refer to the mass of products and reactants.
Catalysts 10 00762 g002
Catalysts 10 00762 g003 550

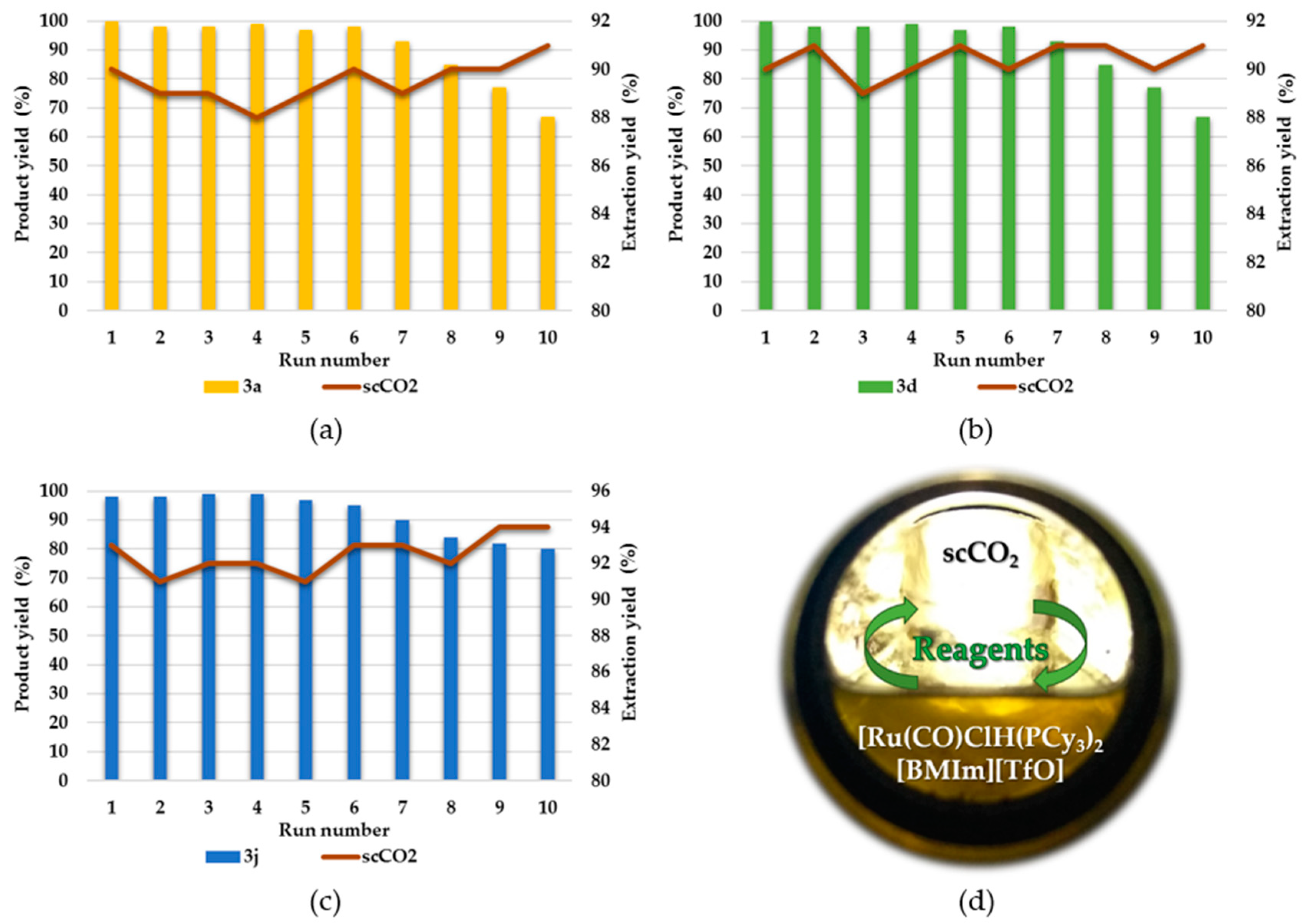

Figure 3. Repetitive batch borylative coupling of 1 with 2a (a), 2d (b) and 2j (c) in [Ru(CO)Cl(H)(PCy3)2]@[BMIm][OTf]/scCO2 biphasic solvent systems under optimized reaction ([Ru-H]:1:2a, 2d or 2j = 0.01:1:1.5, 110 °C, 6 h, 1 g of [BMIm][OTf], inert atmosphere conditions) and extraction (160–180 bar of CO2 at 40 °C, 8 mL/min, 45 min) conditions. Visualization of the reaction mixture through the sapphire window of high-pressure autoclave’s (d). The product yields were determined by GC-MS. The extraction yields refer to the mass of products and reactants.
Figure 3. Repetitive batch borylative coupling of 1 with 2a (a), 2d (b) and 2j (c) in [Ru(CO)Cl(H)(PCy3)2]@[BMIm][OTf]/scCO2 biphasic solvent systems under optimized reaction ([Ru-H]:1:2a, 2d or 2j = 0.01:1:1.5, 110 °C, 6 h, 1 g of [BMIm][OTf], inert atmosphere conditions) and extraction (160–180 bar of CO2 at 40 °C, 8 mL/min, 45 min) conditions. Visualization of the reaction mixture through the sapphire window of high-pressure autoclave’s (d). The product yields were determined by GC-MS. The extraction yields refer to the mass of products and reactants.
Catalysts 10 00762 g003
Catalysts 10 00762 sch002 550

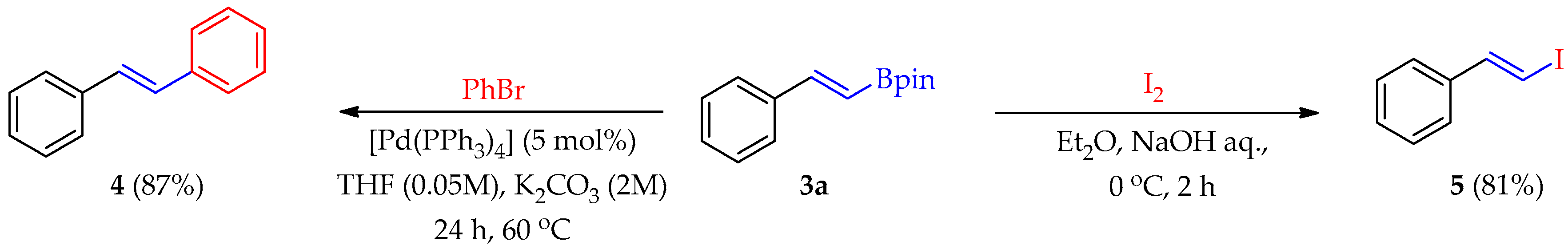

Scheme 2. Transformations of 3a via Suzuki coupling and iododeborylation reactions.
Scheme 2. Transformations of 3a via Suzuki coupling and iododeborylation reactions.
Catalysts 10 00762 sch002
Table
Table 1. Borylative coupling of vinylboronic acid pinacol ester (1) with styrene (2a) in the presence of [Ru(CO)Cl(H)(PCy3)2]@IL—IL screening. IL—Ionic liquids.
Table 1. Borylative coupling of vinylboronic acid pinacol ester (1) with styrene (2a) in the presence of [Ru(CO)Cl(H)(PCy3)2]@IL—IL screening. IL—Ionic liquids.
EntryIonic LiquidConversion of 1 [%] aYield of 3a [%] b
1[EMPyr][OTf]9595
2[EMPyr][NTf2]100100
3[BMPyr][OTf]9191
4[BMPyr][NTf2]9393
5[BMIm][NTf2]9797
6[BMIm][OTf]100100
7[BMIm][PF6]8888
8[BMIm][BF4]5454
9[BMIm]Cltracen.d
Reaction conditions: [Ru-H]:1:2a = 0.03:1:4, 130 °C, ionic liquid (1 g), inert atmosphere. a Determined by GC-MS. b Determined by GC-MS and 1H NMR.
Table
Table 2. Reaction conditions screening for borylative coupling of 1 with 2a in the presence of immobilized [Ru(CO)Cl(H)(PCy3)2]@[EMPyr][NTf2] or @[BMIm][OTf].
Table 2. Reaction conditions screening for borylative coupling of 1 with 2a in the presence of immobilized [Ru(CO)Cl(H)(PCy3)2]@[EMPyr][NTf2] or @[BMIm][OTf].
EntryIonic LiquidTemperature
[°C]		Time
[h]		1:2a
[mol]		Catalyst Loading
[mol%]		Conversion of 1 [%] aYield of 3a [%] b
1[EMPyr][NTf2]120 1:43100100
2[EMPyr][NTf2]110241:43100100
3[EMPyr][NTf2]100241:439696
4[EMPyr][NTf2]80241:438888
5[EMPyr][NTf2]110181:43100100
6[EMPyr][NTf2]11061:43100100
7[EMPyr][NTf2]11031:439494
8[EMPyr][NTf2]11061:33100100
9[EMPyr][NTf2]11061:23100100
10[EMPyr][NTf2]11061:22100100
11[EMPyr][NTf2]11061:1.52100100
12[EMPyr][NTf2]11061:1.51100100
13[EMPyr][NTf2]11061:1.50.59393
14[EMPyr][NTf2]11061:1110083 c
15 d[EMPyr][NTf2]11061:1.514637 e
16[BMIm][OTf]11061:1.51100100
17[BMIm][OTf]8061:1.515353
18[BMIm][OTf]11031: 1.519191
19[BMIm][OTf]11061:1110088 c
20 d[BMIm][OTf]11061: 1.514133 e
21[BMIm][OTf]11061: 1.50.58989
a Determined by GC-MS analysis. b Determined by GC-MS and 1H NMR analyses. c Homocoupling of 1 was observed. d 1 mol% of [Ru(CO)Cl(H)(PPh3)3] was used as a catalyst. e Undefined side products were observed.
Table
Table 3. Extractant screening.
Table 3. Extractant screening.
EntrySolvent[EMPyr][NTf2][BMIm][OTf]
1 an-Hexane−−
2 an-Heptane−−
3 aToluene++
4 bDichloromethane++
5 aTetrahydrofuran++
6 cSupercritical CO2−−
Extraction conditions: 3 × 5 mL of the solvent at a 60 or b 40 °C. c 160–180 bar of CO2 at 40 °C, 8 mL/min, 45 min).(−) Biphasic system. (+) Monophasic system or catalyst leaching from IL.
Table
Table 4. Borylative coupling of 1 with a various olefins 2a–j in Ru(CO)Cl(H)(PCy3)2@[BMIm][OTf] in optimized reaction and extraction conditions.
Table 4. Borylative coupling of 1 with a various olefins 2a–j in Ru(CO)Cl(H)(PCy3)2@[BMIm][OTf] in optimized reaction and extraction conditions.
Catalysts 10 00762 i001
EntryOlefin2Product3Conversion of 1 [%] aExtraction Yield [%] bIsolation Yield [%] c
1 Catalysts 10 00762 i002a Catalysts 10 00762 i003a10094 d
90 e		81
2 Catalysts 10 00762 i004b Catalysts 10 00762 i005b9991 d
88 e		77
3 Catalysts 10 00762 i006c Catalysts 10 00762 i007c9990 d
91 e		78
4 Catalysts 10 00762 i008d Catalysts 10 00762 i009d10093 d
94 e		83
5 Catalysts 10 00762 i010e Catalysts 10 00762 i011e9990 d
92 e		81
6 Catalysts 10 00762 i012f Catalysts 10 00762 i013f10093 d
91 e		79
7 Catalysts 10 00762 i014g Catalysts 10 00762 i015g9884 d
81 e		69
8 Catalysts 10 00762 i016h Catalysts 10 00762 i017h9381 d
77 e		73
9 Catalysts 10 00762 i018i Catalysts 10 00762 i019i8974 d
75 e		71
10 Catalysts 10 00762 i020j Catalysts 10 00762 i021j10095 d
96 e		87
Reaction conditions: [Ru-H]:1:2a–j = 0.01:1:1.5, 110 °C, 6 h, 1g [BMIm][OTf], inert atmosphere. Extraction conditions: 3 × 5 mL of the n-heptane at 60 °C or 160–180 bar of CO2 at 40 °C, 8 mL/min, 45 min. a Determined by GC-MS. b Calculated on total amount of reagents. c After n-heptane extraction; calculated on a theoretical mass of the product. d n-Heptane extraction. e Supercritical CO2 extraction.

Share and Cite

MDPI and ACS Style

Szyling, J.; Sokolnicki, T.; Franczyk, A.; Walkowiak, J. Ru-Catalyzed Repetitive Batch Borylative Coupling of Olefins in Ionic Liquids or Ionic Liquids/scCO2 Systems. Catalysts 2020, 10, 762. https://doi.org/10.3390/catal10070762

AMA Style

Szyling J, Sokolnicki T, Franczyk A, Walkowiak J. Ru-Catalyzed Repetitive Batch Borylative Coupling of Olefins in Ionic Liquids or Ionic Liquids/scCO2 Systems. Catalysts. 2020; 10(7):762. https://doi.org/10.3390/catal10070762

Chicago/Turabian Style

Szyling, Jakub, Tomasz Sokolnicki, Adrian Franczyk, and Jędrzej Walkowiak. 2020. "Ru-Catalyzed Repetitive Batch Borylative Coupling of Olefins in Ionic Liquids or Ionic Liquids/scCO2 Systems" Catalysts 10, no. 7: 762. https://doi.org/10.3390/catal10070762

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
