Renewable Butene Production through Dehydration Reactions over Nano-HZSM-5/γ-Al2O3 Hybrid Catalysts

by
Arno de Reviere
1,2,†,
Tom Vandevyvere
1,2,†,
Maarten K. Sabbe
1,2 and
An Verberckmoes
1,*
1
Industrial Catalysis and Adsorption Technology (INCAT), Department of Materials, Textiles and Chemical Engineering (MaTCh), Faculty of Engineering and Architecture, Ghent University, Valentin Vaerwyckweg 1, 9000 Ghent, Belgium
2
Laboratory for Chemical Technology (LCT), Department of Materials, Textiles and Chemical Engineering (MaTCh), Faculty of Engineering and Architecture, Ghent University, Technologiepark 125, 9052 Ghent, Belgium
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Catalysts 2020, 10(8), 879; https://doi.org/10.3390/catal10080879
Submission received: 15 July 2020 / Revised: 30 July 2020 / Accepted: 31 July 2020 / Published: 4 August 2020
(This article belongs to the Special Issue Advanced Nanomaterials - Synthesis and Applications in Catalysis)
Browse Figures
Versions Notes

Abstract

:
The development of new, improved zeolitic materials is of prime importance to progress heterogeneous catalysis and adsorption technologies. The zeolite HZSM-5 and metal oxide γ-Al2O3 are key materials for processing bio-alcohols, but both have some limitations, i.e., HZSM-5 has a high activity but low catalytic stability, and vice versa for γ-Al2O3. To combine their advantages and suppress their disadvantages, this study reports the synthesis, characterization, and catalytic results of a hybrid nano-HZSM-5/γ-Al2O3 catalyst for the dehydration of n-butanol to butenes. The hybrid catalyst is prepared by the in-situ hydrothermal synthesis of nano-HZSM-5 onto γ-Al2O3. This catalyst combines mesoporosity, related to the γ-Al2O3 support, and microporosity due to the nano-HZSM-5 crystals dispersed on the γ-Al2O3. HZSM-5 and γ-Al2O3 being in one hybrid catalyst leads to a different acid strength distribution and outperforms both single materials as it shows increased activity (compared to γ-Al2O3) and a high selectivity to olefins, even at low conversion and a higher stability (compared to HZSM-5). The hybrid catalyst also outperforms a physical mixture of nano-HZSM-5 and γ-Al2O3, indicating a truly synergistic effect in the hybrid catalyst.

Graphical Abstract

1. Introduction

Due to increasing environmental awareness, there has been a shift toward bio-based products and the design of sustainable, renewable technologies [1,2,3]. In light of a transition to a more sustainable chemical industry, there has been a lot of interest in the production and use of bio-alcohols [4,5]. Bio-alcohols can be used as additives to fuels [6,7], as solvents, or even as feedstock for chemical processing [8,9]. Alcohols can undergo dehydration to olefins, which are of the most extensively used building blocks in the chemical industry [10,11].
Zeolites and γ-Al2O3 could play a key role in the transition from a fossil-based industry into a renewable industry as they are of the most important materials used in traditional oil processing and heterogeneous catalysis [12,13,14,15]. Zeolites, and, more specifically, HZSM-5, are essential materials in mature technologies such as fluid catalytic cracking (FCC) [16,17] and alkylation reactions [18,19], but also in more recent technologies such as methanol-to-olefins (MTO) [20,21]. HZSM-5 is known for its shape selectivity, strong intrinsic acidity [19], and thermal stability, but is also prone to coking [22,23]. Alumina materials, on the other hand, are of the most important catalyst supports, for example, γ-Al2O3 is used in reforming reactions [24], hydrotreating, and hydroconversion [25,26,27]. Alumina materials are widely used due to their low cost, thermal stability, fairly high surface area, and pore volume [25,28,29].
To convert alcohols, e.g., ethanol or butanol, to olefins, two catalysts, (i) HZSM-5 and (ii) γ-Al2O3, are the most investigated materials [30,31,32,33,34,35], and are already used at an industrial scale for ethanol dehydration [32,36]. Although HZSM-5 and γ-Al2O3 are extensively used, they have their limits. For the dehydration of bio-alcohols, HZSM-5 typically has a very high activity and selectivity to the corresponding olefins; however, the stability is poor due to coking [37]. Furthermore, beyond full conversion, secondary reactions are also catalyzed [38]. For γ-Al2O3, it is the opposite: It has a low activity, requiring higher temperatures; moreover, a high selectivity toward olefins also requires sufficiently high temperatures [32]. On the other hand, the catalyst has a high stability under dehydration reaction conditions. Their performance is somewhat the opposite and can be related to their very different properties, summarized in Table 1.
To avoid these shortcomings, there have been studies on modifying these catalysts. Decreasing the HZSM-5 crystal size to nanocrystals has shown an increase in the catalyst life time [41] and is often associated with an increase in activity [42]. This increase in stability and activity is often related to the decrease in diffusion pathlength inside the micropores and/or lowered deactivation due to coking. Other strategies include inducing mesoporosity [43] and modification of the acid sites by post-synthesis treatments [44], e.g., phosphorus-modifications decrease the strength of the acid sites and thereby attenuate coke formation [45]. Instead of creating mesopores inside the zeolite particle, it is also possible to synthesize the zeolite on a mesoporous material (such as MCM-41) [46]: This can enhance the performance by suppressing zeolite crystal aggregation, inducing dilution of the zeolitic Brønsted acid centers, and creating mesoporosity, which leads to a lower acid density and can attenuate diffusional restrictions [47,48].
For γ-Al2O3, the modifications typically aim to increase the activity and allow lower reaction temperatures [32]. By modifying the γ-Al2O3 with TiO2, the acidity increased, resulting in a higher activity. Modification of the γ-Al2O3 surface with Zn-Mn-Co increases the acid strength and crystallinity, which results in an increased activity [49,50].
He et al. found that the combination of γ-Al2O3 and HZSM-5 into one catalyst leads to an increased selectivity toward light olefins for the pyrolysis of waste tires [51]. Due to their interesting findings, and the fact that HZSM-5 and γ-Al2O3 are two widely used catalytically active materials for the dehydration of alcohols, the objective of this work is to develop a hybrid catalyst that is a combination of HZSM-5 and γ-Al2O3. The combination is aimed to be in such a manner that the advantages of both catalysts are combined, namely (i) a high activity and selectivity to olefins related to HZSM-5 nanocrystals, i.e., no high temperatures are needed for bio-alcohol dehydration, and (ii) a strong resistance to deactivation related to the presence of γ-Al2O3. To achieve these synergistic effects, the nano-HZSM-5 is synthesized upon γ-Al2O3, which acts as a catalytically active support and leads to mesopores with mildly active sites in the vicinity of the active sites of HZSM-5. To this end, a hybrid catalyst, composed of in-situ-synthesized nano-HZSM-5 crystals dispersed on a γ-Al2O3 active support, was manufactured. To the best of our knowledge, this is the first report where the synergistic effects of combining both catalysts in one hybrid material is exploited for the dehydration of bio-alcohols to olefins. The dehydration of n-butanol at 513 K is used as a test reaction to compare the hybrid catalyst to HZSM-5, γ-Al2O3, and a physical mixture of both. The catalytic performance (activity/selectivity/stability) is then related to the properties of the studied materials.

2. Results and Discussion

2.1. Catalyst Characterization

The XRD patterns of the commercially available HZSM-5 (c-HZSM-5), the synthesized nano-HZSM-5 (n-HZSM-5), the physical mixture of nano-HZSM-5 and γ-Al2O3 (PM-50/50), the hybrid catalyst (Hybrid-50/50), and commercially available γ-Al2O3 are presented in Figure 1.
The diffraction patterns between 7.5 and 9° and between 22.5° and 26° are attributed to the ZSM-5 structure. The intensity in these ranges of 2θ is the highest for c-HZSM-5 and n-HZSM-5, which is as expected as these are pure zeolite phases, while PM-50/50 and Hybrid-50/50 are mixtures of zeolite phases and γ-Al2O3. Albeit a lower intensity, the diffraction pattern at these angles is identical, which indicates that the Hybrid-50/50 synthesis is successful and the ZSM-5 crystals can be synthesized alongside γ-Al2O3. The peaks related to the HZSM-5 phase are for all catalysts sharp, and have a high intensity, which is typical for highly crystalline HZSM-5 [52]. In the pattern of PM-50/50 and Hybrid-50/50, broader diffraction peaks due to the γ-Al2O3 phases are also present, indicating that both catalysts consist of both HZSM-5 and γ-Al2O3. The mean HZSM-5 crystal size determined by the Scherrer equation, Equation (1), is 160 nm for c-HZSM-5, 118 nm for n-HZSM-5, and 114 nm for Hybrid-50/50. As the HZSM-5 particles in PM-50/50 are the n-HZSM-5 ones, their mean crystal size should also be 118 nm.
N2-sorption isotherms of the various materials are displayed in Figure 2. From the isotherms, it is clear that c-HZSM-5 and n-HZSM-5 are highly microporous and show a type Ia isotherm according to the Brunauer–Deming–Deming–Teller classification. This type of isotherm corresponds to microporous solids with narrow micropores (width < 1 nm) [8]. Where n-HZSM-5 is almost completely microporous, there is some mesoporosity in c-HZSM-5 noticeable. The isotherm of c-HZSM-5 has a hysteresis of type H4, which can be ascribed to the capillary condensation of N2 in interparticles or in crystal agglomerates [53]. The γ-Al2O3, PM-50/50, and Hybrid-50/50 clearly display strong mesoporosity, although there is also microporosity noticeable in the latter two due to the presence of HZSM-5 crystals. The isotherm of γ-Al2O3 is of type IV, while for PM-50/50 and Hybrid-50/50, the isotherm starts off as a type I but evolves into a type IV.
From these isotherms, it is possible to gain insights into how the synthesis of the catalysts influences their textural properties: Specific surface area, specific pore volume, and pore size distribution analysis are performed (see Figure 3 and Table 2). The specific surface area of c-HZSM-5 is the highest, followed by n-HZSM-5. PM-50/50 and Hybrid-50/50 have intermediate surface areas, whereas γ-Al2O3 has the lowest surface area. The obtained pore sizes of c-HZSM-5 and n-HZSM-5 (Figure 3a) show good agreement with the pore diameter of approximately 0.5 nm for the MFI framework. Furthermore, there are some small mesopores measured (dp about 2–2.5 nm). Analyzing the pore structures (Figure 3b) shows that the mesopore volume is largest for γ-Al2O3. The mesoporosity measured for PM-50/50 is attributed to the γ-Al2O3, which is present in the mixture, and the pore dimensions of the mesopores are unaltered for PM-50/50, although the mesopore volume has dropped as expected. For the Hybrid-50/50, a much stronger decrease in mesopore volume is noticeable, although the pore diameter of the mesopores is unaltered, meaning that, most likely, there are no HZSM-5 crystals inside the mesopores of the γ-Al2O3 support, but they are instead formed on the external surface.
The results extracted from the NH3-TPD are summarized in Table 3. The spectra at a ramp rate of 10 K min−1 are shown in Figures S2 and S3. From these results, it is clear that the Hybrid-50/50 catalyst, its density of strong acid sites, and its total amount of acid sites are substantially lower than those for the other catalysts. This can be partially explained by the synthesis method: During the synthesis, the γ-Al2O3 is added to the zeolite precursor mixture, which is at a pH of about 12. The hydroxyl groups (originating from tetrapropylammonium hydroxide (TPAOH)) in this mixture can interact with the acid sites on the γ-Al2O3 and even partially dissolve the alumina [54], thereby decreasing the number of acid sites. Furthermore, the HZSM-5 crystals being on the γ-Al2O3 surface can block some of the previously available acid sites. Not only has the amount of acid sites changed, but so has the distribution of the acid strength, where n-HZSM-5 and γ-Al2O3 primarily have “strong” acid sites, and the Hybrid-50/50 has more “medium” acidic active sites than “strongly” acidic. Based on the NH3-desorption energy, the NH3 is adsorbed the strongest on n-HZSM-5 and the weakest on γ-Al2O3. Both PM-50/50 and Hybrid-50/50 have intermediate NH3-desorption energies, although for Hybrid-50/50, which consists of nano-HZSM-5 crystals and γ-Al2O3, the Ed is almost the same as for c-HZSM-5.
Through SEM, the morphological details of the catalysts are studied, Figure 4, and further magnified images are shown in Figure S4. The c-HZSM-5 has irregularly shaped, aggregated crystals, confirming the possibility of intercrystalline mesoporosity, which was deducted from N2-sorption. The crystal size ranges from about 80 to 600 nm. The n-HZSM-5 has far more regularly hexagonal or coffin-shaped nanocrystals (see Figure S4) and a much smaller range of crystal sizes (about 80–180 nm). For PM-50/50, both separate n-HZSM-5 and γ-Al2O3 phases are noticeable. From the SEM images, no interaction between both phases is observable. For the Hybrid-50/50, on the other hand, it is clearly noticeable that the n-HZSM-5 crystals are dispersed on the surface of the γ-Al2O3, rather than having two separate phases. Therefore, it seems likely that the in-situ synthesis of HZSM-5 in the presence of γ-Al2O3 leads to an interaction between the HZSM-5 nanocrystals and the γ-Al2O3 support. The γ-Al2O3 particles are regularly shaped spheres with a diameter between 100 and 150 µm.

2.2. Catatalytic Performance for the Dehydration of n-Butanol

2.2.1. Activity Analysis

To compare the activity of the catalysts, the n-butanol dehydration was performed at a single temperature of 513 K, as γ-Al2O3 and HZSM-5 display some activity for the dehydration of n-butanol at this temperature [38], see Figure 5. For the dehydration of n-butanol, the order of activity is c-HZSM-5 > n-HZSM-5 > Hybrid-50/50 > PM-50/50 >> γ-Al2O3.
As expected, the c-HZSM-5 and n-HZSM-5 show the highest activity, most likely related to their strong acidity and relatively small pore sizes, which increases the interaction with the reactant [55]. The slightly higher activity of c-HZSM-5 compared to n-HZSM-5 can be attributed to the high ratio of strong acid sites over medium acid sites. The activity, expressed as site time yield (STY, defined in Equation (5), comprising both medium and strong acid sites) is linearly related to this ratio for every catalyst except for Hybrid-50/50 (see Figure 6), showing that the catalyst is acting non-linear compared to its constituents.

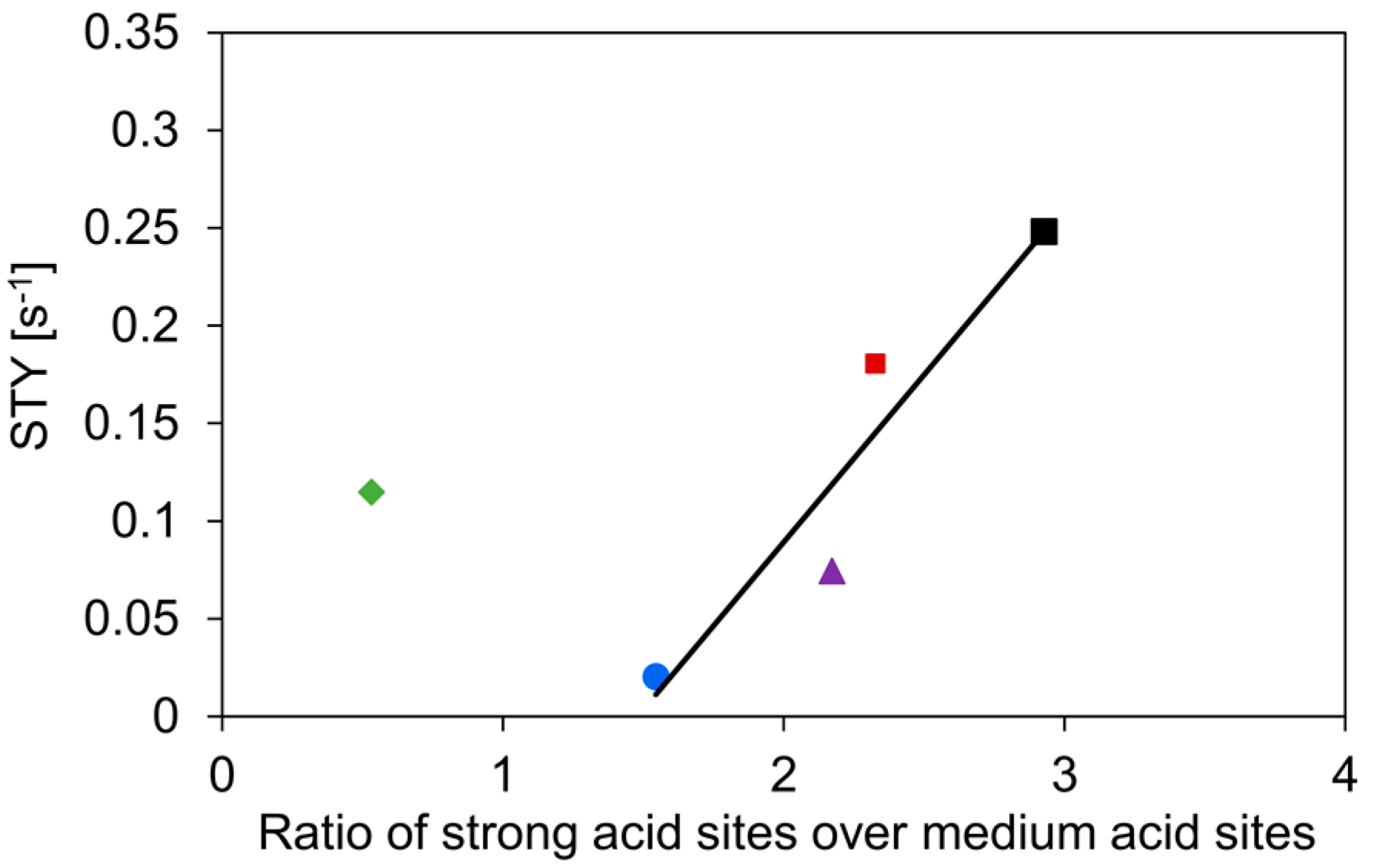

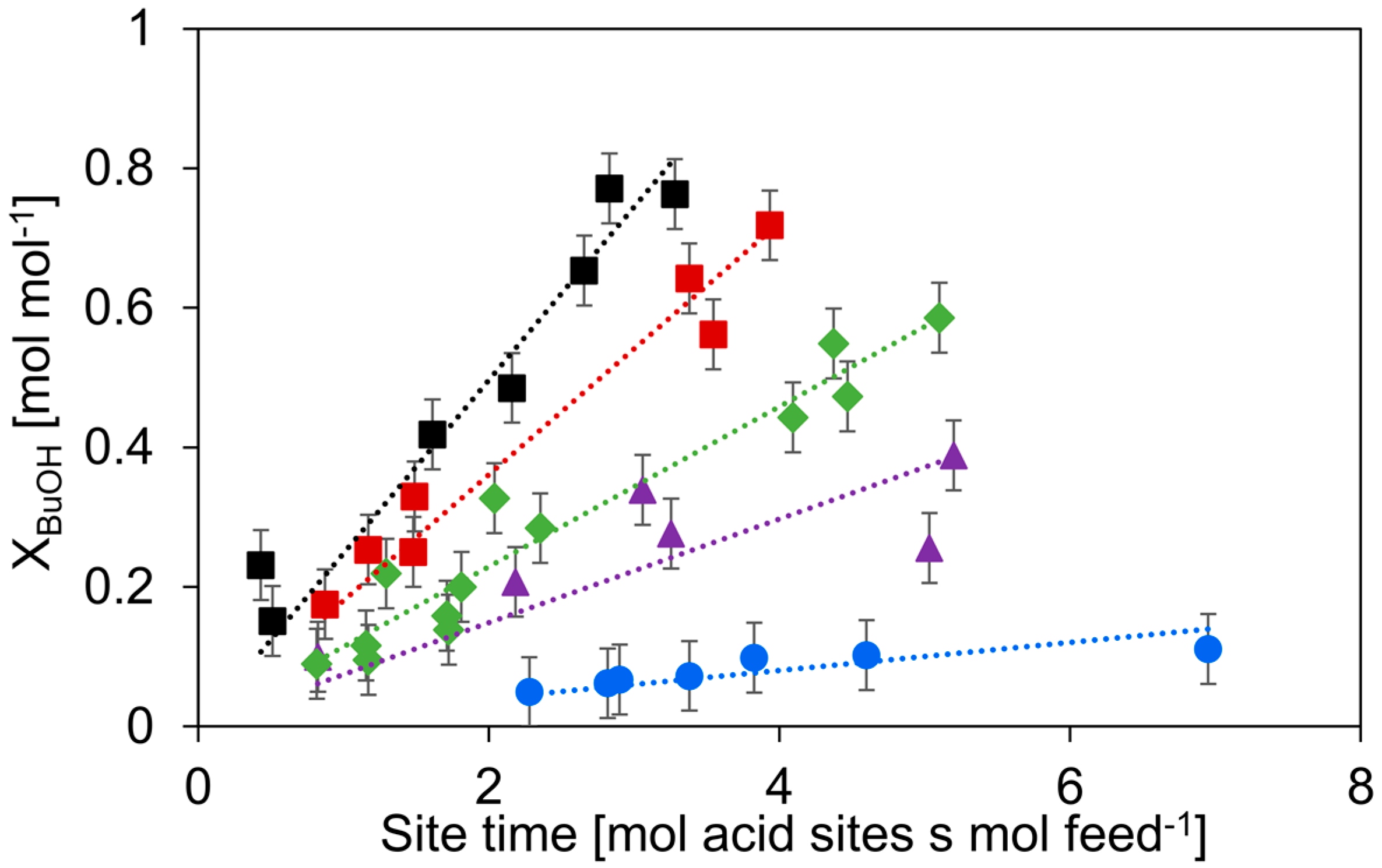

As can be seen in Figure 6, the activity generally increases linearly with increasing ratio of the densities of the strong acid sites over medium acid sites. The only catalyst strongly deviating from this trend is Hybrid-50/50. We expect that this is due to a synergistic interaction between γ-Al2O3 and the nano-HZSM-5 crystals in the hybrid catalyst. Furthermore, the nano-HZSM-5 crystals being dispersed on the alumina surface increases the accessibility of the zeolitic or Brønsted acid sites, leading to a possibly more efficient active site. Furthermore, Wang et al. found that if there are Lewis acid sites introduced in the vicinity of Brønsted acid sites in HZSM-5, the dehydration of ethanol is facilitated [56]. Although the acid sites of Hybrid-50/50 are more active than what would be expected, they are still less active than HZSM-5.
The Hybrid-50/50 has a higher activity than PM-50/50, which could be related to the interaction between the nano-HZSM-5 crystals and the γ-Al2O3 support, which leads to a more efficient conversion of the alcohol. The high activity of Hybrid-50/50 and PM-50/50 compared to γ-Al2O3 is related to the presence of HZSM-5 nanocrystals. Another aspect that influences the catalyst activity is the reaction pathways that are followed. In the work of Gunst et al. it was shown that a stable dibutyl ether surface species can occupy over 95% of the available acid sites in HZSM-5 during the dehydration of n-butanol [31]. The high surface coverage by dibutyl ether decreases the activity as the alternative reaction pathways (e.g., direct dehydration from n-butanol to 1-butene) are suppressed. In our previous work, we showed that dibutyl ether is the main product over γ-Al2O3 below conversions of 0.6 mol mol−1 [38]. This can implicate that if the γ-Al2O3 significantly contributes during the dehydration reaction and mainly forms dibutyl ether, the activity of the nano-HZSM-5 is lowered because of the poisoning by dibutyl ether. To gain more insights into the behavior of Hybrid-50/50 and PM-50/50 and validate our assumption, a selectivity analysis is performed.

2.2.2. Selectivity Analysis

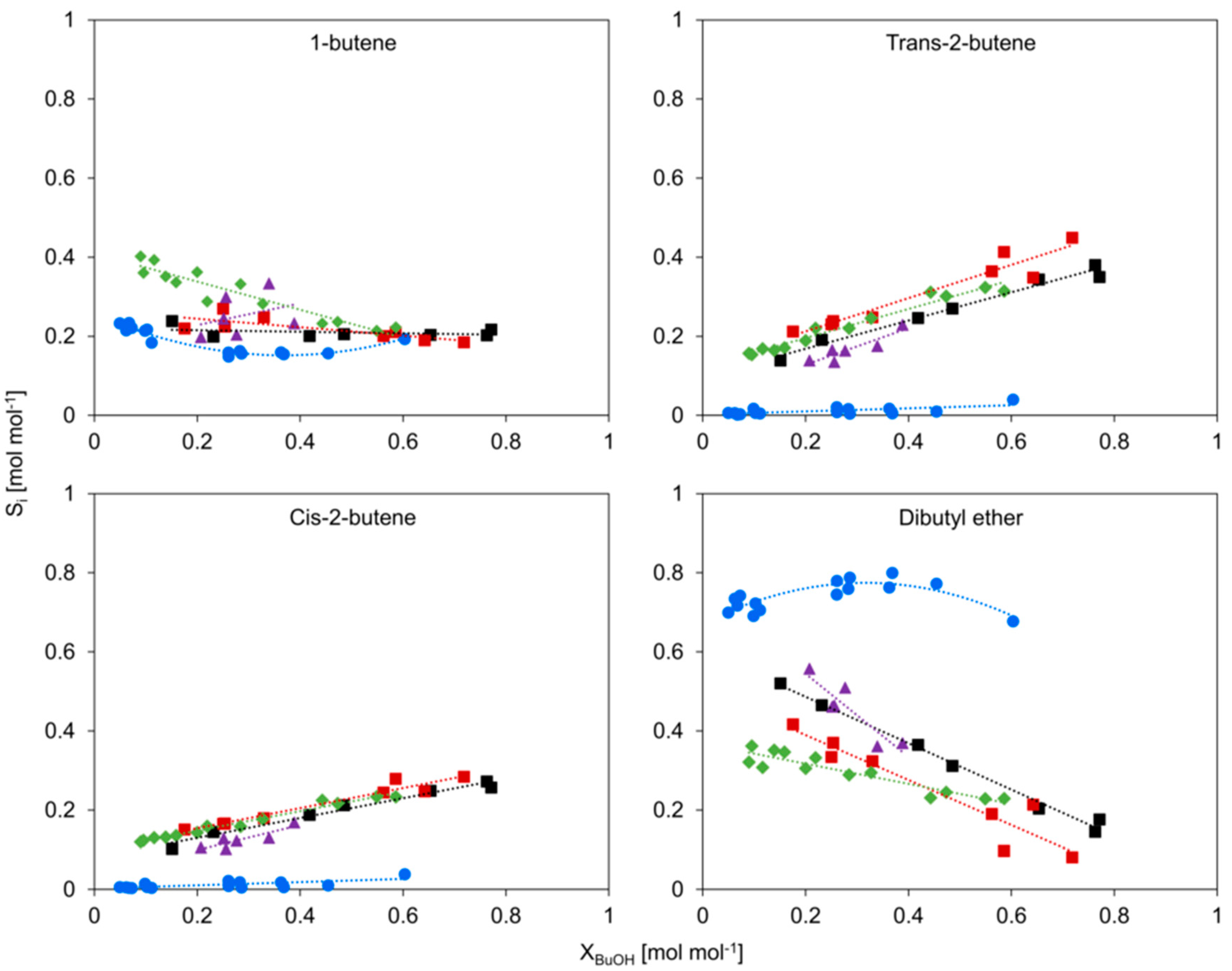

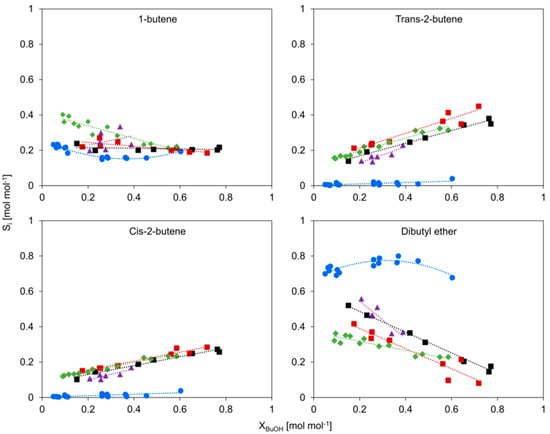

The selectivity toward the dehydration products of the catalysts is compared in Figure 7 (and Figure S6 with error bars). Of all studied catalysts, only γ-Al2O3 does not actively catalyze the isomerization of the butenes. In earlier work, it is reported that both the butenes and dibutyl ether (DBE) are primary products over HZSM-5, whilst for γ-Al2O3, only 1-butene and dibutyl ether are directly formed [31,38].
For most catalysts, the selectivity toward 1-butene is relatively stable at approximately 0.2 mol mol−1. Hybrid-50/50 starts at a slightly higher 1-butene selectivity, but with increasing conversion, it approaches a similar value as the other catalysts. The higher initial 1-butene selectivity is most likely related to (i) the presence of γ-Al2O3, which catalyzes the formation of 1-butene but does not catalyze the isomerization reactions of 1-butene, and (ii) because, at low conversion, the surface of the HZSM-5 crystals is saturated with adsorbed alcohol and ether [30], thereby suppressing butene isomerization reactions. At higher conversion, the partial pressure of n-butanol decreases, allowing isomerization of the butenes, leading to a lower 1-butene selectivity. For n-HZSM-5 and c-HZSM-5, the selectivity toward 1-butene is identical and corresponds well with the literature [30,31,38].
The selectivity toward cis- and trans-2-butene is very similar for all studied materials except for γ-Al2O3. Not only the trends in the selectivity profile but also the absolute values of the selectivity agree well for every material containing HZSM-5 crystals. The selectivity toward trans-2-butene is slightly higher for n-HZSM-5 than for c-HZSM-5 and, correspondingly, the selectivity toward dibutyl ether is slightly higher for c-HZSM-5. This is attributed to the lack of mesopores in n-HZSM-5, and the formation of the bulkier dibutyl ether preferentially occurs at the largest voids inside the zeolite. As c-HZSM-5 has some mesoporosity, it has larger voids where dibutyl ether is preferentially formed.
γ-Al2O3 has the highest and PM-50/50 has the second highest selectivity toward dibutyl ether, which is most likely related to the high amount of γ-Al2O3 present in PM-50/50. Therefore, both γ-Al2O3 and HZSM-5 are important contributors to the activity and selectivity over PM-50/50. On the contrary, instead of having an intermediate selectivity toward dibutyl ether, Hybrid-50/50 has the lowest selectivity to it of all studied catalysts at low conversion. With increasing conversion, the selectivity toward DBE over Hybrid-50/50 approaches the values obtained over HZSM-5. The low selectivity toward dibutyl ether could explain why the activity of Hybrid-50/50 is higher than the activity of PM-50/50. We propose that the low selectivity of dibutyl ether over Hybrid-50/50 is related to the synthesis procedure, where the γ-Al2O3 is intensely mixed in the zeolite precursor solution at high pH. As mentioned in Section 2.1, we assume that during the synthesis, the basic hydroxyl groups originating from TPAOH interact with the surface of γ-Al2O3 and deactivate some of the strong Lewis acid sites. It is possible that the decrease in strong acid sites during synthesis is reflected in a lowered selectivity toward DBE and a shift in dominant reaction pathways to allow more butene formation, which consequently leads to a higher activity than expected.

2.2.3. Catalyst Stability

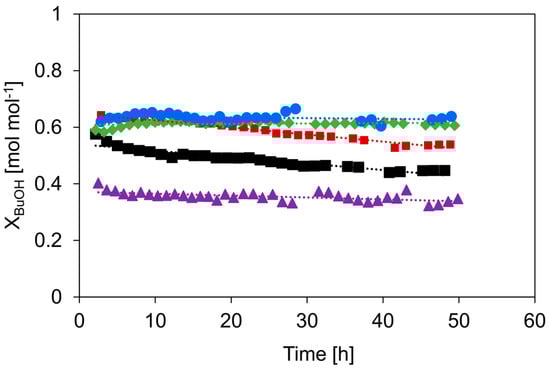

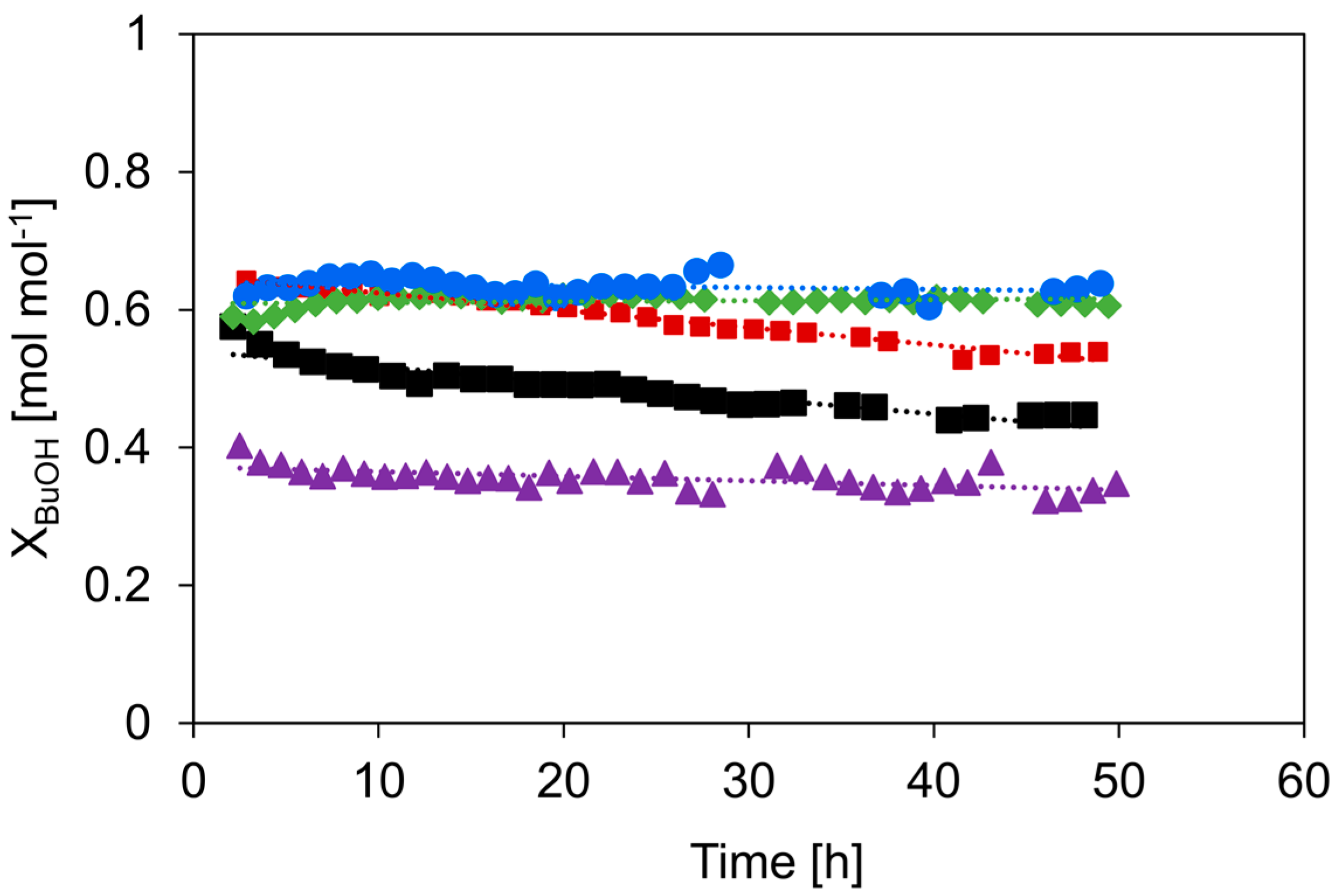

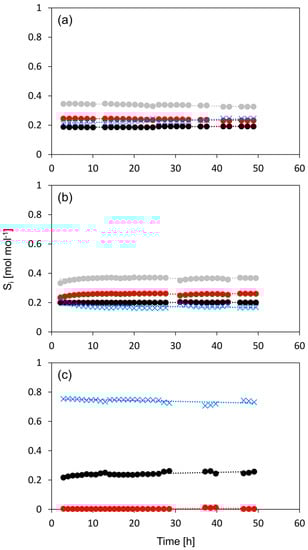

Next to activity and selectivity, stability is an important parameter to assess the catalyst performance. To this end, a deactivation study was performed, and the results are shown in Figure 8. The reaction was performed at 513 K and at site times where the conversion was similar for every catalyst.
Although all catalysts are relatively stable, the strongest deactivation over time is noticeable for c-HZSM-5, for which the conversion decreases from 0.58 to 0.45 mol mol−1 in 48 h. The self-synthesized n-HZSM-5 is more resistant to deactivation: The conversion decreases from 0.64 to 0.54 mol mol−1 in 48 h. Where the deactivation of c-HZSM-5 is the most severe in the first 15 h and then slows down, the n-HZSM-5 has an overall more gradual deactivation. The increased resistance to deactivation of n-HZSM-5 is most likely related to the, on average, smaller crystal size and the narrower crystal size distribution, resulting in a shorter microporous diffusion pathlength compared to c-HZSM-5. As the zeolite nanocrystals easily aggregate, there can be localized higher densities of strong acid sites prone to coke formation, and, therefore, the n-HZSM-5 can still deactivate significantly over time. On the other side of the spectrum, there is γ-Al2O3, for which no measurable deactivation is observed over 48 h. This is as expected as γ-Al2O3 is known for its high stability under alcohol dehydration conditions [36,57].
PM-50/50 also has a slightly stronger deactivation during the first hours, but then becomes more stable. The initial deactivation is attributed to the presence of nano-HZSM-5, but over time, the catalyst keeps most of its activity due to the presence of γ-Al2O3. Hybrid-50/50 seems, similar to γ-Al2O3, to be very stable and shows no measurable deactivation during 48 h on stream. This is quite peculiar because, based on the relatively high activity and the observed selectivity profile, a deactivation behavior somewhere between γ-Al2O3 and HZSM-5 would be expected. While the deactivation behavior is very similar to that of γ-Al2O3, the selectivity toward the products is very similar to that of HZSM-5 during the deactivation study (see Figure 9). This is quite remarkable as the selectivity versus time on the stream profile implies that the nano-HZSM-5 crystals of Hybrid-50/50 must be dominantly contributing during the complete run. However, there is no measurable deactivation, while there is definitely deactivation noticeable for the pure n-HZSM-5. We assume that this strong increase in resistance to deactivation for Hybrid-50/50 is related to the decrease in aggregation of the HZSM-5 nanocrystals due to the dispersion and interaction with the γ-Al2O3 surface. A similar observation is reported by Castaño et al. where the coke formation during the methanol-to-hydrocarbon conversion was significantly reduced by decreasing the aggregation of HZSM-5 crystals inside catalyst extrudates consisting of HZSM-5, a pseudo-boehmite binder, and α-Al2O3 filler [58]. Next to the decrease in crystal aggregation, the mesopores of γ-Al2O3 in the vicinity of the nano-HZSM-5 crystals allow more efficient transport of the products (i.e., product removal) and could avoid coke formation.
The intermediate activity of Hybrid-50/50, combined with the high selectivity toward olefins and the high stability during the conversion of bio-butanol, indicates a beneficial effect that is possibly related to the close proximity of active sites of HZSM-5 and those of γ-Al2O3, because of the high dispersion of the HZSM-5 nanocrystals on the γ-Al2O3.

3. Materials and Methods

3.1. Catalyst Synthesis

In this work, both commercially available as well as self-synthesized catalysts were used: HZSM-5 (Zeolyst, CBV 5524 G, referred to as c-HZSM-5, Si/Al ratio = 25 according to the manufacturer) and γ-Al2O3 (Sasol, Puralox SCCa-150-200) were bought; all the other catalysts were synthesized. The self-synthesized materials were: (1) A nano-sized HZSM-5 (n-HZSM-5, aimed at a Si/Al ratio of 25), (2) a hybrid catalyst consisting of 50 mass% in-situ-synthesized nano-HZSM-5 crystals dispersed on a γ-Al2O3 surface (Hybrid-50/50), and (3) a physical mixture of 50 mass% nano-HZSM-5 and 50 mass% γ-Al2O3 (PM-50/50), for which no molecular interaction between the two phases is expected.
The synthesis of the nano-HZSM-5 material was based upon the method reported by Song et al. [59], but was slightly adjusted. First, aluminum isopropoxide (≥98%, Merck) was dissolved in tetrapropylammonium hydroxide (TPAOH, 1 M in water, Merck) under continuous stirring to obtain a clear solution, and this was followed by addition of H2O, then NaOH (≥98%, Merck), and finally tetraethyl orthosilicate (TEOS, ≥99%, ChemLab) to obtain a synthesis solution, which was hydrolyzed at room temperature for 24 h. The obtained mixture was transferred into a Teflon-lined stainless-steel autoclave, where the solution underwent hydrothermal reaction at 165 °C for 96 h. The molar composition of the synthesis mixture was 1 Al/25 Si/9 TPAOH/495 H2O/0.16 NaOH/100 Ethanol. Following the hydrothermal reaction, the solid product was recovered, filtered, washed with deionized water until the pH of the washing water was neutral, dried at 120 °C overnight, and calcined in air at 823 K for 8 h to remove the TPAOH and structure directing agent, and obtain nano-ZSM-5.
The nano-ZSM-5 was then ion-exchanged in a 1 M solution of NH4NO3 (Merck) dissolved in water. The ion exchange took place under continuous stirring at 323 K for 2 h and was repeated three times to obtain nano-NH4ZSM-5. The nano-NH4ZSM-5 was calcined at 823 K for 4 h, with a temperature ramp of 1 K min−1, which resulted in nano-HZSM-5 (n-HZSM-5).
For the nano-HZSM-5/γ-Al2O3 (Hybrid-50/50) catalyst, the synthesis route was identical to the synthesis of n-HZSM-5, but γ-Al2O3 was added under continuous stirring 30 min prior to the hydrothermal reaction. The addition of γ-Al2O3 prior to the crystallization of HZSM-5 has also been reported in the work of He et al. [51], but their nano-HZSM-5 synthesis differs from the method reported in this work. The addition of γ-Al2O3 resulted in a synthesis mixture aimed at 50 mass% nano-HZSM-5 and 50 mass% γ-Al2O3. The introduction of γ-Al2O3 prior to the crystallization allows the in-situ formation of nano-HZSM-5 crystals on the γ-Al2O3 surface, see Figure S1 for a schematic representation of the synthesis route of Hybrid-50/50. The subsequent crystallization and ion-exchange procedures were identical as for the n-HZSM-5.

3.2. Catalyst Characterization

Catalyst particles within the 100–150 µm range were prepared by pressing the catalyst powders, followed by sieving. X-ray diffraction (XRD, Diffractometer Kristalloflex D5000 with Cu Kα radiation) was performed to identify the materials after synthesis. All powder diffraction patterns were collected for 2θ between 5° and 70°, with a step of 0.02° and 30 s counting time for each angle. The mean crystal sizes were estimated by application of the Scherrer equation:
d = K λ β   c o s θ
with d the mean crystal size (nm), K a dimensionless shape factor with a value of 1 [59], λ the wavelength of the X-rays, β the full-width at half-maximum (corrected for the instrumental error), and θ Bragg’s angle.
The surface area and pore volume of the catalysts were determined by N2-sorption at 77 K (Micromeritics Tristar). Before the measurements, the samples were degassed at 573 K for 4 h under a continuous N2 flow. The BET-method was used to obtain the surface area SBET, the t-plot method for micropore area and micropore volume (Vmicro), and the single-point adsorption for the total pore volume (Vt). The external surface area of the self-synthesized catalysts was determined by performing the N2-sorption prior to calcining the materials. To increase the accuracy of the SBET of the materials containing micropores (HZSM-5, Hybrid-50/50, and the PM-50/50), Rouquerol’s criteria were applied [60]. The pore size distribution (PSD) was determined by analyzing the adsorption branch of the isotherm, by applying the Barrett, Joyner, and Halenda (BJH) method for the mesoporous materials, and by a non-local density functional theory (NLDFT) method, assuming cylindrical pore geometries for ZSM-5 [39,61]. The measurements of the c-HZSM-5 and n-HZSM-5 were initiated at low relative pressure.
NH3-TPD (Micromeritics Autochem) was used for the determination of the number of acid sites, assuming that each medium and strongly adsorbed NH3 leads to one catalytically active acid site [62]. Then, 0.1 g catalyst was dried at 573 K under a continuous helium flow during 1 h to remove any surface-bound gases or moisture. Subsequently, the sample was saturated with NH3 by flowing a 4 mol% NH3/He flow for 1 h over the catalyst, and any unbound NH3 molecules were flushed from the sample by helium at a temperature of 423 K. Desorption of NH3 was achieved by increasing the temperature to 873 K at a rate of 10 K min−1 and was monitored using a thermal conductivity detector (TCD) and a mass spectrometer (MS), which were calibrated prior to every run. The obtained spectra were deconvoluted into three peaks, attributed to: Weak, medium, and strong acid sites. Integration of the peaks associated with the medium and strongly bound ammonia was assumed to result in the number of catalytically active acid sites (Ca) for each catalyst. To assess the strength of the bonding between the catalyst surface and the NH3, the NH3-desorption energy was determined through measuring the NH3-TPD profiles at different heating rates and then solving the Kissinger equation [63].
2 l n T M − l n β = l n E d R A d + E d R   1 T M
where TM is the maximum desorption temperature of the highest temperature peak (typically around 673 K), β is the heating ramp (K min−1), Ed the NH3-desorption energy (J mol−1), R the universal gas constant (J mol−1 K−1), and Ad the pre-exponential factor for the desorption. The calculated Ed does not take into account the amount of acid sites, but is solely dependent on the change in the peak position with the change in the heating ramp, similar to how activation energy is calculated.
Scanning electron microscopy (SEM, FEI Quanta 200F) was used to study the shape and size of the catalysts. Where XRD gives an average crystal size, SEM can give insights into the range of the crystal sizes. By SEM, it is also possible to qualitatively study the dispersion of the ZSM-5 crystals on the γ-Al2O3 surface for the Hybrid-50/50 catalyst and compare it to the PM-50/50.
Energy-dispersive X-ray spectroscopy (EDX) was used to determine the Si/Al ratio of the c-HZSM-5 and n-HZSM-5, where for c-HZSM-5, this was 28.1, close to the reported 25 by the manufacturer, and, for n-HZSM-5, the determined Si/Al ratio was 25.3, very close to the aimed ratio of 25. For Hybrid-50/50, we could not accurately determine the Si/Al ratio of the zeolite nanocrystals, due to the presence of γ -Al2O3 near the crystals.

3.3. Catalytic Testing

The catalytic experiments were performed on an identical setup as previous work [30,31,38]: The reactions were performed in a set of tubular reactors with a length of 0.85 m and an inner diameter of 0.0022 m. The catalyst was loaded in the reactor and diluted with inert α-alumina until 10 mass% of catalyst to avoid temperature deviations across the catalyst bed. The catalyst weight range was limited to between 0.005 and 0.2 g. Liquid n-butanol (Merck, >99.5%) was fed through a Coriolis mass flow controller. The inlet partial pressure of n-butanol in the reactors was regulated to 29 kPa by adding N2 (Air Liquide) as a carrier gas. Prior to reaction, the reactors and catalyst bed were heated to the reaction temperature under a N2 flow for 1 h, to ensure the complete reactor tubes were at reaction temperature and remained stable. All downstream lining was heated to 443 K to avoid condensation. To achieve a working pressure of 5 bar, a back pressure regulator was used. Online analysis of the reactor effluent was performed with a GC-FID (with a 100 m PONA column), with CH4 (Air Liquide) as an internal standard. The only detected species were n-butanol (the feed), dibutyl ether, butenes, and the internal standard. No other (oxygenated) hydrocarbons were detected; therefore, based on reaction stoichiometry, the amount of water being formed was calculated. The resulting material balance of the results shown in this work closed within 5%. To ensure intrinsic kinetics were measured, literature correlations were utilized [64]. The different acid site densities of each catalyst were compensated for by comparing the catalysts based on site time:
site   time = W   C a F BuOH 0
with W (kg) the mass of the catalyst, Ca (mol kg−1) the acid site density, and F0BuOH (mol s−1) the molar flow rate of n-butanol at the inlet.
The activity of the catalysts is based on the conversion of n-butanol (XBuOH) and is defined as:
X BuOH = F BuOH 0 − F BuOH F BuOH 0
where FBuOH (mol s−1) is the molar flow rate of n-butanol at the outlet of the reactor as determined by GC analysis. The activity can also be expressed as site time yield (STY, in s−1):
STY = X BuOH τ
The STY is similar to a turnover frequency but is averaged over the complete reactor. The carbon selectivity (Si) toward the product is expressed as:
S i = c i F i 4 ( F BuOH 0 − F BuOH )
with Fi the outlet flow rate of product i, and ci the number of carbon atoms per molecule of product i.

4. Conclusions

HZSM-5 and γ-Al2O3 are widely used materials in heterogeneous catalysis and they could be key materials to process bio-derived compounds. To attenuate their disadvantages and combine their advantages, a hybrid catalyst composed of nano-HZSM-5 crystals dispersed on a γ-Al2O3 surface was in-situ hydrothermally synthesized. The hybrid catalyst’s performance for the dehydration of n-butanol was compared with commercially available HZSM-5 and γ-Al2O3, and with synthesized nano-HZSM-5 and a physical mixture of nano-HZSM-5 and γ-Al2O3.
Through characterization of the materials, it was found that for the hybrid catalyst, the nanozeolite crystals were dispersed on the alumina surface, while in the physical mixture, there were domains of HZSM-5 and domains of γ-Al2O3. The synthesis procedure led to a different acid strength distribution compared to nano-HZSM-5 and pristine γ-Al2O3, where there was a shift toward more mildly acidic sites. The commercially available HZSM-5 had irregular, aggregated crystals with a size ranging from 80 to 600 nm, whilst the synthesized nano-HZSM-5 had a hexagonal shape, with a small crystal size distribution of 80−180 nm. The activity of the commercially available HZSM-5 was the highest, related to its high amount of strong acid sites. The activity of the hybrid catalyst was higher than that of the physical mixture, and both were intermediate between HZSM-5 and γ-Al2O3.
The selectivity toward dibutyl ether at low conversion was the lowest for the hybrid catalyst, which was related to the synthesis procedure and, consequently, altered the strongest acid sites on γ-Al2O3, leading to a decrease in ether formation. The selectivity was significantly different from the physical mixture, indicating an interaction between γ-Al2O3 and the nano-HZSM-5 crystals. The lower selectivity to dibutyl ether over the hybrid catalyst could explain the higher activity compared to the physical mixture.
The order of catalytic stability under n-butanol dehydration conditions was: γ-Al2O3 = the hybrid catalyst >> the physical mixture > nano-HZSM-5 > commercial HZSM-5. Whilst the hybrid catalyst was as stable as γ-Al2O3, it showed much higher selectivity toward butenes. In fact, the selectivity over the hybrid catalyst during the deactivation experiment was very similar to that of the nano-HZSM-5.
The combination of a relatively high activity, a high selectivity toward olefins, and very high stability indicate that the hybrid catalyst’s performance benefits from the nano-HZSM-5 crystals being in the vicinity of γ-Al2O3 and being well-dispersed on it. The hybrid catalyst outperformed every tested material when aiming for long-term olefin production under mild conditions. Future work could focus on the finetuning of the acid strength and degree of micropores/mesopores through changing the ratio of nano-HZSM-5/γ-Al2O3.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/10/8/879/s1. Figure S1: Schematic representation of hybrid catalyst synthesis (SDA = structure directing agent, in our case tetrapropyl ammonium hydroxide, TEOS = tetraethyl orthosilicate), Figure S2. NH3-TPD spectra for c-HZSM-5 (black), n-HZSM-5 (red), PM-50/50 (grey), Hybrid-50/50 (green) and γ-Al2O3 (blue). Starting temperature = 150 °C, heating ramp = 10 K min−1, the intensities are weight-normalized, Figure S3. NH3-TPD profiles with deconvolution of c-HZSM-5 (a), n-HZSM-5 (b), PM-50/50 (c), Hybrid-50/50 (d) and γ-Al2O3 (e). The weak acid site contribution to the spectrum is depicted as (---), the medium acid sites as (-.-) and the strong acid sites as (…), Figure S4. SEM-images of c-HZSM-5 (a) n-HZSM-5, with crystal size bars (b) and Hybrid-50/50 (c,d), Figure S5. Selectivity of products versus conversion, c-HZSM-5 (■, black), n-HZSM-5 (■, red), PM-50/50 (▲, purple), Hybrid-50/50 (◆, green) and γ-Al2O3 (●, blue). Temperature = 513 K, inlet pressure of n-butanol = 29 kPa, total pressure = 5 bar. Error bars indicate the 95% confidence interval.

Author Contributions

Conceptualization, A.d.R., M.K.S. and A.V.; methodology, A.d.R. and T.V.; formal analysis, A.d.R. and T.V.; investigation, A.d.R. and T.V.; data curation, A.d.R. and T.V.; writing—original draft preparation, A.d.R. and T.V.; writing—review and editing, A.d.R., T.V., M.K.S. and A.V.; supervision, M.K.S. and A.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

T.V. acknowledges financial support from a doctoral fellowship (1SA7520N) from the Research-Foundation Flanders (FWO).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Baeyens, J.; Kang, Q.; Appels, L.; Dewil, R.; Lv, Y.Q.; Tan, T.W. Challenges and opportunities in improving the production of bio-ethanol. Prog. Energy Combust. Sci. 2015, 47, 60–88. [Google Scholar] [CrossRef]
  2. Ni, Y.; Sun, Z.H. Recent progress on industrial fermentative production of acetone-butanol-ethanol by Clostridium acetobutylicum in China. Appl. Microbiol. Biotechnol. 2009, 83, 415–423. [Google Scholar] [CrossRef] [PubMed]
  3. Lee, D.-H. Bio-based economies in Asia: Economic analysis of development of bio-based industry in China, India, Japan, Korea, Malaysia and Taiwan. Int. J. Hydrog. Energy 2016, 41, 4333–4346. [Google Scholar] [CrossRef]
  4. Waldron, K.W. Bioalcohol Production: Biochemical Conversion of Lignocellulosic Biomass; Elsevier: Amsterdam, The Netherlands, 2010. [Google Scholar]
  5. Weber, C.; Farwick, A.; Benisch, F.; Brat, D.; Dietz, H.; Subtil, T.; Boles, E. Trends and challenges in the microbial production of lignocellulosic bioalcohol fuels. Appl. Microbiol. Biotechnol. 2010, 87, 1303–1315. [Google Scholar] [CrossRef] [PubMed]
  6. Enguídanos, M.; Soria, A.; Kavalov, B.; Jensen, P. Techno-economic analysis of bio-alcohol production in the eu: A short summary for decision-makers. Eur. Comm. Rep. EUR 2002, 20280. [Google Scholar]
  7. Hergueta, C.; Tsolakis, A.; Herreros, J.M.; Bogarra, M.; Price, E.; Simmance, K.; York, A.P.E.; Thompsett, D. Impact of bio-alcohol fuels combustion on particulate matter morphology from efficient gasoline direct injection engines. Appl. Energy 2018, 230, 794–802. [Google Scholar] [CrossRef]
  8. He, Z.; Yang, M.; Wang, X.; Zhao, Z.; Duan, A. Effect of the transition metal oxide supports on hydrogen production from bio-ethanol reforming. Catal. Today 2012, 194, 2–8. [Google Scholar] [CrossRef]
  9. Shylesh, S.; Kim, D.; Ho, C.R.; Johnson, G.R.; Wu, J.; Bell, A.T. Non-Oxidative Dehydrogenation Pathways for the Conversion of C2–C4 Alcohols to Carbonyl Compounds. ChemSusChem 2015, 8, 3959–3962. [Google Scholar] [CrossRef] [Green Version]
  10. Zimmermann, H. Propene. In Ullmann’s Encyclopedia of Industrial Chemistry; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, BW, Germany, 2013. [Google Scholar]
  11. Zimmermann, H.; Walzl, R. Ethylene. In Ullmann’s Encyclopedia of Industrial Chemistry; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, BW, Germany, 2000. [Google Scholar]
  12. Cundy, C.S.; Cox, P.A. The Hydrothermal Synthesis of Zeolites:  History and Development from the Earliest Days to the Present Time. Chem. Rev. 2003, 103, 663–702. [Google Scholar] [CrossRef]
  13. Jacobs, P.A.; Dusselier, M.; Sels, B.F. Will Zeolite-Based Catalysis be as Relevant in Future Biorefineries as in Crude Oil Refineries? Angew. Chem. Int. Ed. 2014, 53, 8621–8626. [Google Scholar] [CrossRef]
  14. Kasztelan, S.; Payen, E.; Toulhoat, H.; Grimblot, J.; Bonnelle, J.P. Industrial MoO3-promoter oxide-γ-Al2O3 hydrotreating catalysts: Genesis and architecture description. Polyhedron 1986, 5, 157–167. [Google Scholar] [CrossRef]
  15. Wang, J.; Dong, L.; Hu, Y.; Zheng, G.; Hu, Z.; Chen, Y. Dispersion of NiO supported on γ-Al2O3 and TiO2/γ-Al2O3 supports. J. Solid State Chem. 2001, 157, 274–282. [Google Scholar] [CrossRef]
  16. Akah, A.; Al-Ghrami, M. Maximizing propylene production via FCC technology. Appl. Petrochem. Res. 2015, 5, 377–392. [Google Scholar] [CrossRef] [Green Version]
  17. Adewuyi, Y.G.; Klocke, D.J.; Buchanan, J.S. Effects of high-level additions of ZSM-5 to a fluid catalytic cracking (FCC) RE-USY catalyst. Appl. Catal. A Gen. 1995, 131, 121–133. [Google Scholar] [CrossRef]
  18. Hu, H.; Lyu, J.; Rui, J.; Cen, J.; Zhang, Q.; Wang, Q.; Han, W.; Li, X. The effect of Si/Al ratio on the catalytic performance of hierarchical porous ZSM-5 for catalyzing benzene alkylation with methanol. Catal. Sci. Technol. 2016, 6, 2647–2652. [Google Scholar] [CrossRef]
  19. Odedairo, T.; Balasamy, R.J.; Al-Khattaf, S. Influence of mesoporous materials containing ZSM-5 on alkylation and cracking reactions. J. Mol. Catal. A Chem. 2011, 345, 21–36. [Google Scholar] [CrossRef]
  20. Weckhuysen, B.M.; Yu, J. Recent advances in zeolite chemistry and catalysis. Chem. Soc. Rev. 2015, 44, 7022–7024. [Google Scholar] [CrossRef]
  21. Müller, S.; Liu, Y.; Vishnuvarthan, M.; Sun, X.; van Veen, A.C.; Haller, G.L.; Sanchez-Sanchez, M.; Lercher, J.A. Coke formation and deactivation pathways on H-ZSM-5 in the conversion of methanol to olefins. J. Catal. 2015, 325, 48–59. [Google Scholar] [CrossRef]
  22. Sheng, Q.; Ling, K.; Li, Z.; Zhao, L. Effect of steam treatment on catalytic performance of HZSM-5 catalyst for ethanol dehydration to ethylene. Fuel Process. Technol. 2013, 110, 73–78. [Google Scholar] [CrossRef]
  23. Ji, Y.; Yang, H.; Yan, W. Strategies to Enhance the Catalytic Performance of ZSM-5 Zeolite in Hydrocarbon Cracking: A Review. Catalysts 2017, 7, 367. [Google Scholar] [CrossRef] [Green Version]
  24. Ni, M.; Leung, D.Y.C.; Leung, M.K.H. A review on reforming bio-ethanol for hydrogen production. Int. J. Hydrog. Energy 2007, 32, 3238–3247. [Google Scholar] [CrossRef]
  25. Euzen, P.; Raybaud, P.; Krokidis, X.; Toulhoat, H.; Le Loarer, J.-L.; Jolivet, J.-P.; Froidefond, C. Alumina. In Handbook of Porous Solids; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, BW, Germany, 2008. [Google Scholar]
  26. Coulier, L.; Kishan, G.; van Veen, J.A.R.; Niemantsverdriet, J.W. Influence of Support-Interaction on the Sulfidation Behavior and Hydrodesulfurization Activity of Al2O3-Supported W, CoW, and NiW Model Catalysts. J. Phys. Chem. B 2002, 106, 5897–5906. [Google Scholar] [CrossRef]
  27. López Cordero, R.; López Agudo, A. Effect of water extraction on the surface properties of Mo/Al2O3 and NiMo/Al2O3 hydrotreating catalysts. Appl. Catal. A Gen. 2000, 202, 23–35. [Google Scholar] [CrossRef]
  28. Samain, L.; Jaworski, A.; Edén, M.; Ladd, D.M.; Seo, D.-K.; Javier Garcia-Garcia, F.; Häussermann, U. Structural analysis of highly porous γ-Al2O3. J. Solid State Chem. 2014, 217, 1–8. [Google Scholar] [CrossRef]
  29. Ghamsari, M.S.; Mahzar, Z.A.S.; Radiman, S.; Hamid, A.M.A.; Khalilabad, S.R. Facile route for preparation of highly crystalline γ-Al2O3 nanopowder. Mater. Lett. 2012, 72, 32–35. [Google Scholar] [CrossRef]
  30. Gunst, D.; Alexopoulos, K.; Van Der Borght, K.; John, M.; Galvita, V.; Reyniers, M.-F.; Verberckmoes, A. Study of butanol conversion to butenes over H-ZSM-5: Effect of chemical structure on activity, selectivity and reaction pathways. Appl. Catal. A Gen. 2017, 539, 1–12. [Google Scholar] [CrossRef]
  31. Gunst, D.; Sabbe, M.; Reyniers, M.-F.; Verberckmoes, A. Study of n-butanol conversion to butenes: Effect of Si/Al ratio on activity, selectivity and kinetics. Appl. Catal. A Gen. 2019, 582, 117101. [Google Scholar] [CrossRef]
  32. Fan, D.; Dai, D.J.; Wu, H.S. Ethylene Formation by Catalytic Dehydration of Ethanol with Industrial Considerations. Materials 2013, 6, 101–115. [Google Scholar] [CrossRef] [Green Version]
  33. Kang, M.; DeWilde, J.F.; Bhan, A. Kinetics and Mechanism of Alcohol Dehydration on γ-Al2O3: Effects of Carbon Chain Length and Substitution. ACS Catal. 2015, 5, 602–612. [Google Scholar] [CrossRef]
  34. Roy, S.; Mpourmpakis, G.; Hong, D.Y.; Vlachos, D.G.; Bhan, A.; Gorte, R.J. Mechanistic Study of Alcohol Dehydration on γ-Al2O3. ACS Catal. 2012, 2, 1846–1853. [Google Scholar] [CrossRef]
  35. Chiang, H.; Bhan, A. Catalytic consequences of hydroxyl group location on the rate and mechanism of parallel dehydration reactions of ethanol over acidic zeolites. J. Catal. 2010, 271, 251–261. [Google Scholar] [CrossRef]
  36. Yakovleva, I.S.; Banzaraktsaeva, S.P.; Ovchinnikova, E.V.; Chumachenko, V.A.; Isupova, L.A. Catalytic Dehydration of Bioethanol to Ethylene. Catal. Ind. 2016, 8, 152–167. [Google Scholar] [CrossRef]
  37. Zhang, M.H.; Yu, Y.Z. Dehydration of Ethanol to Ethylene. Ind. Eng. Chem. Res. 2013, 52, 9505–9514. [Google Scholar] [CrossRef]
  38. de Reviere, A.; Gunst, D.; Sabbe, M.; Verberckmoes, A. Sustainable short-chain olefin production through simultaneous dehydration of mixtures of 1-butanol and ethanol over HZSM-5 and γ-Al2O3. J. Ind. Eng. Chem. 2020, 89, 257–272. [Google Scholar] [CrossRef]
  39. Al-Dughaither, A.S.; de Lasa, H. HZSM-5 zeolites with different SiO2/Al2O3 ratios. Characterization and NH3 desorption kinetics. Ind. Eng. Chem. Res. 2014, 53, 15303–15316. [Google Scholar] [CrossRef]
  40. Trueba, M.; Trasatti, S.P. Γ-alumina as a support for catalysts: A review of fundamental aspects. Eur. J. Inorg. Chem. 2005, 2005, 3393–3403. [Google Scholar] [CrossRef]
  41. Shao, J.; Fu, T.; Ma, Q.; Ma, Z.; Zhang, C.; Li, Z. Controllable synthesis of nano-ZSM-5 catalysts with large amount and high strength of acid sites for conversion of methanol to hydrocarbons. Microporous Mesoporous Mater. 2019, 273, 122–132. [Google Scholar] [CrossRef]
  42. Qureshi, B.A.; Lan, X.; Arslan, M.T.; Wang, T. Highly Active and Selective Nano H-ZSM-5 Catalyst with Short Channels along b-axis for Glycerol Dehydration to Acrolein. Ind. Eng. Chem. Res. 2019, 58, 12611–12622. [Google Scholar] [CrossRef]
  43. Fu, T.; Chang, J.; Shao, J.; Li, Z. Fabrication of a nano-sized ZSM-5 zeolite with intercrystalline mesopores for conversion of methanol to gasoline. J. Energy Chem. 2017, 26, 139–146. [Google Scholar] [CrossRef] [Green Version]
  44. Huangfu, J.J.; Mao, D.S.; Zhai, X.L.; Guo, Q.S. Remarkably enhanced stability of HZSM-5 zeolite co-modified with alkaline and phosphorous for the selective conversion of bio-ethanol to propylene. Appl. Catal. A Gen. 2016, 520, 99–104. [Google Scholar] [CrossRef]
  45. Takahashi, A.; Xia, W.; Nakamura, I.; Shimada, H.; Fujitani, T. Effects of added phosphorus on conversion of ethanol to propylene over ZSM-5 catalysts. Appl. Catal. A Gen. 2012, 423–424, 162–167. [Google Scholar] [CrossRef]
  46. Stein, A. Advances in Microporous and Mesoporous Solids—Highlights of Recent Progress. Adv. Mater. 2003, 15, 763–775. [Google Scholar] [CrossRef]
  47. Karlsson, A.; Stöcker, M.; Schäfer, K. In situ Synthesis of Micro- and Mesoporous Al-MFI/MCM-41 like Phases with High Hydrothermal Stability. In Studies in Surface Science and Catalysis; Sayari, A., Jaroniec, M., Eds.; Elsevier: Amsterdam, The Netherlands, 2000; Volume 129, pp. 99–106. [Google Scholar]
  48. Habib, S.; Launay, F.; Laforge, S.; Comparot, J.-D.; Faust, A.-C.; Millot, Y.; Onfroy, T.; Montouillout, V.; Magnoux, P.; Paillaud, J.-L.; et al. High catalytic cracking activity of Al-MCM-41 type materials prepared from ZSM-5 zeolite crystals and fumed silica. Appl. Catal. A Gen. 2008, 344, 61–69. [Google Scholar] [CrossRef]
  49. Chen, G.W.; Li, S.L.; Jiao, F.J.; Yuan, Q. Catalytic dehydration of bioethanol to ethylene over TiO2/γ-Al2O3 catalysts in microchannel reactors. Catal. Today 2007, 125, 111–119. [Google Scholar] [CrossRef]
  50. Wu, J.; Liu, H.-J.; Yan, X.; Zhou, Y.-J.; Lin, Z.-N.; Mi, S.; Cheng, K.-K.; Zhang, J.-A. Efficient Catalytic Dehydration of High-Concentration 1-butanol with Zn-Mn-Co modified γ-Al2O3 in Jet Fuel Production. Catalysts 2019, 9, 93. [Google Scholar] [CrossRef] [Green Version]
  51. He, Z.; Jiao, Q.; Fang, Z.; Li, T.; Feng, C.; Li, H.; Zhao, Y. Light olefin production from catalytic pyrolysis of waste tires using nano-HZSM-5/γ-Al2O3 catalysts. J. Anal. Appl. Pyrolysis 2018, 129, 66–71. [Google Scholar] [CrossRef]
  52. Qin, Z.; Pinard, L.; Benghalem, M.A.; Daou, T.J.; Melinte, G.; Ersen, O.; Asahina, S.; Gilson, J.-P.; Valtchev, V. Preparation of Single-Crystal “House-of-Cards”-like ZSM-5 and Their Performance in Ethanol-to-Hydrocarbon Conversion. Chem. Mater. 2019, 31, 4639–4648. [Google Scholar] [CrossRef]
  53. van Steen, E.; Claeys, I.M.; Callanan, L.H. (Eds.) Recent Advances in the Science and Technology of Zeolites and Related materials. In Studies in Surface Science and Catalysis; Elsevier: Amsterdam, The Netherlands, 2004; Volume 154. [Google Scholar]
  54. Huang, S.; Zhao, Z.; Chen, X.; Li, F. Alkali extraction of valuable metals from spent Mo–Ni/Al2O3 catalyst. Int. J. Refract. Met. Hard Mater. 2014, 46, 109–116. [Google Scholar] [CrossRef]
  55. Eder, F.; Stockenhuber, M.; Lercher, J.A. Brønsted Acid Site and Pore Controlled Siting of Alkane Sorption in Acidic Molecular Sieves. J. Phys. Chem. B 1997, 101, 5414–5419. [Google Scholar] [CrossRef]
  56. Wang, Z.; O’Dell, L.A.; Zeng, X.; Liu, C.; Zhao, S.; Zhang, W.; Gaborieau, M.; Jiang, Y.; Huang, J. Insight into Three-Coordinate Aluminum Species on Ethanol-to-Olefin Conversion over ZSM-5 Zeolites. Angew. Chem. Int. Ed. 2019, 58, 18061–18068. [Google Scholar] [CrossRef]
  57. Larmier, K.; Chizallet, C.; Cadran, N.; Maury, S.; Abboud, J.; Lamic-Humblot, A.-F.; Marceau, E.; Lauron-Pernot, H. Mechanistic Investigation of Isopropanol Conversion on Alumina Catalysts: Location of Active Sites for Alkene/Ether Production. ACS Catal. 2015, 5, 4423–4437. [Google Scholar] [CrossRef]
  58. Castaño, P.; Ruiz-Martínez, J.; Epelde, E.; Gayubo, A.G.; Weckhuysen, B.M. Spatial Distribution of Zeolite ZSM-5 within Catalyst Bodies Affects Selectivity and Stability of Methanol-to-Hydrocarbons Conversion. ChemCatChem 2013, 5, 2827–2831. [Google Scholar] [CrossRef]
  59. Song, W.; Justice, R.E.; Jones, C.A.; Grassian, V.H.; Larsen, S.C. Synthesis, Characterization, and Adsorption Properties of Nanocrystalline ZSM-5. Langmuir 2004, 20, 8301–8306. [Google Scholar] [CrossRef] [PubMed]
  60. Rouquerol, J.; Llewellyn, P.; Rouquerol, F. Is the BET equation applicable to microporous adsorbents? In Studies in Surface Science and Catalysis; Llewellyn, P.L., Rodriquez-Reinoso, F., Rouqerol, J., Seaton, N., Eds.; Elsevier: Amsterdam, The Netherlands, 2007; Volume 160, pp. 49–56. [Google Scholar]
  61. Groen, J.C.; Peffer, L.A.A.; Pérez-Ramírez, J. Pore size determination in modified micro- and mesoporous materials. Pitfalls and limitations in gas adsorption data analysis. Microporous Mesoporous Mater. 2003, 60, 1–17. [Google Scholar] [CrossRef]
  62. Van der Borght, K.; Galvita, V.V.; Marin, G.B. Ethanol to higher hydrocarbons over Ni, Ga, Fe-modified ZSM-5: Effect of metal content. Appl. Catal. A Gen. 2015, 492, 117–126. [Google Scholar] [CrossRef]
  63. Kissinger, H.E. Variation of Peak Temperature with Heating Rate in Differential Thermal Analysis. J. Res. Natl. Bur. Stand. 1956, 57, 217–221. [Google Scholar] [CrossRef]
  64. Berger, R.J.; Stitt, E.H.; Marin, G.B.; Kapteijn, F.; Moulijn, J.A. Eurokin-Chemical Reaction Kinetics in Practice. Cattech 2001, 5, 30–60. [Google Scholar] [CrossRef]
Catalysts 10 00879 g001 550

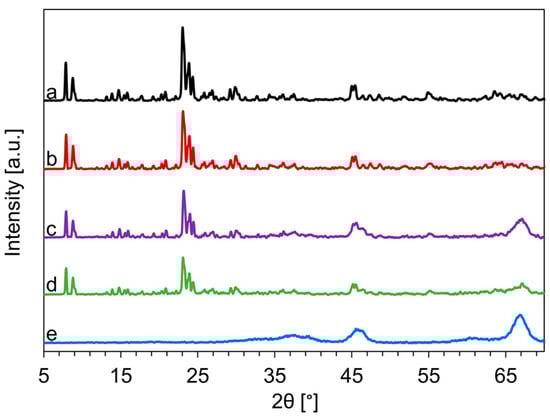

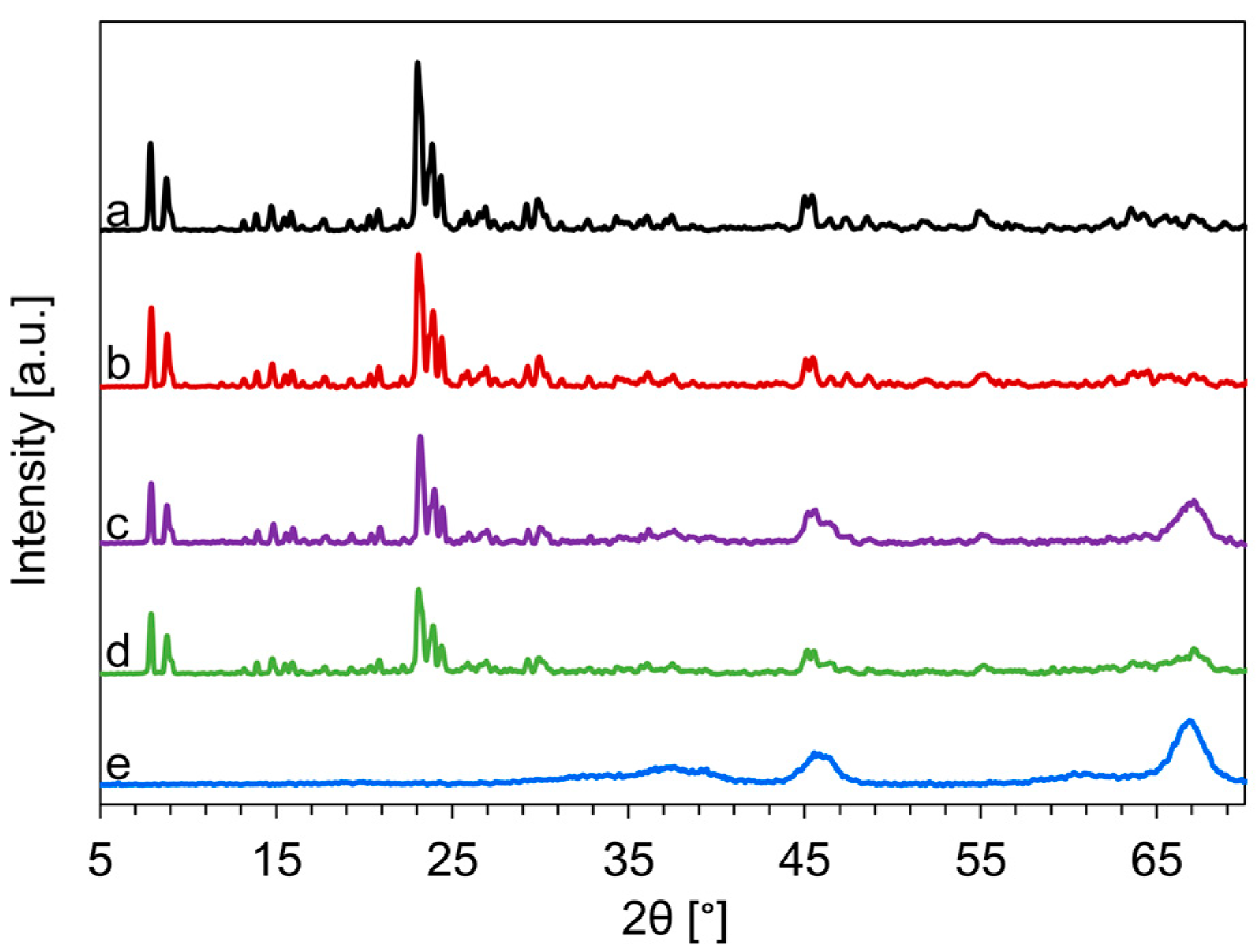

Figure 1. XRD-pattern of commercially available (c)-HZSM-5 (a), nano (n)-HZSM-5 (b), physical mixture of nano-HZSM-5 and γ-Al2O3 (PM-50/50) (c), the hybrid catalyst (Hybrid-50/50) (d), and γ-Al2O3 (e).
Figure 1. XRD-pattern of commercially available (c)-HZSM-5 (a), nano (n)-HZSM-5 (b), physical mixture of nano-HZSM-5 and γ-Al2O3 (PM-50/50) (c), the hybrid catalyst (Hybrid-50/50) (d), and γ-Al2O3 (e).
Catalysts 10 00879 g001
Catalysts 10 00879 g002 550

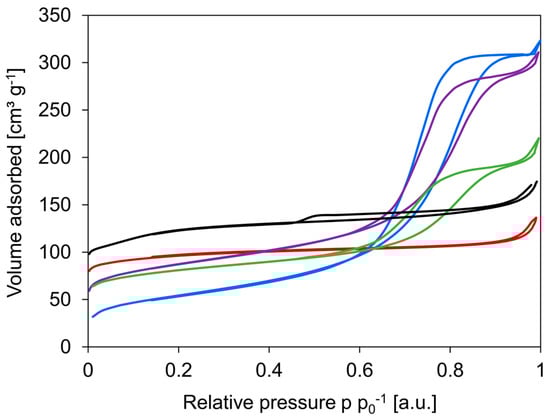

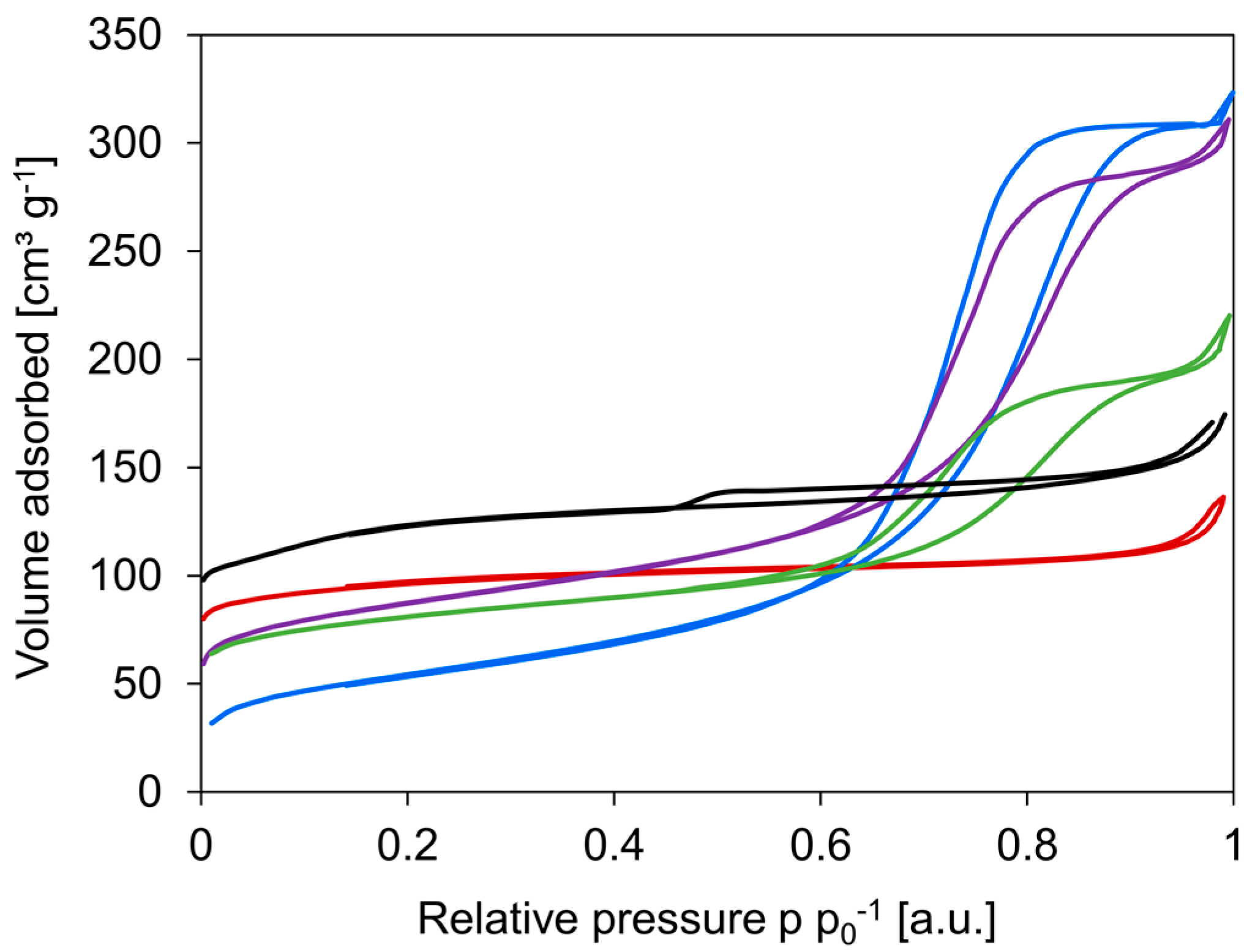

Figure 2. Nitrogen sorption isotherms for c-HZSM-5 (black), n-HZSM-5 (red), γ-Al2O3 (blue), PM-50/50 (purple), and Hybrid-50/50 (green).
Figure 2. Nitrogen sorption isotherms for c-HZSM-5 (black), n-HZSM-5 (red), γ-Al2O3 (blue), PM-50/50 (purple), and Hybrid-50/50 (green).
Catalysts 10 00879 g002
Catalysts 10 00879 g003 550

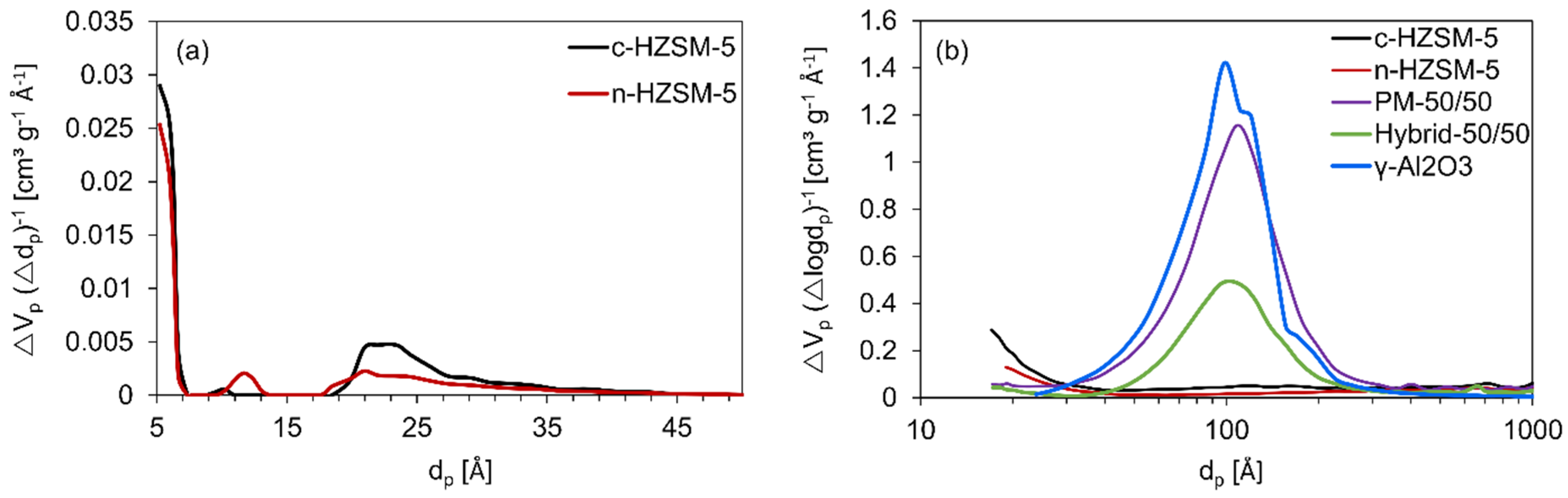

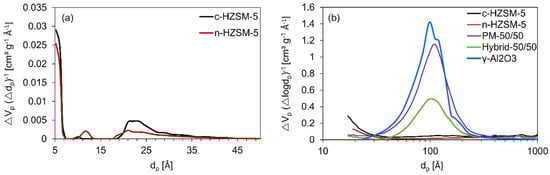

Figure 3. Non-local density functional theory (NLDFT) pore size distribution of c-HZSM-5 and n-HZSM-5 (a), and Barrett, Joyner, and Halenda (BJH) pore size distribution of the catalysts studied in this work (b).
Figure 3. Non-local density functional theory (NLDFT) pore size distribution of c-HZSM-5 and n-HZSM-5 (a), and Barrett, Joyner, and Halenda (BJH) pore size distribution of the catalysts studied in this work (b).
Catalysts 10 00879 g003
Catalysts 10 00879 g004 550

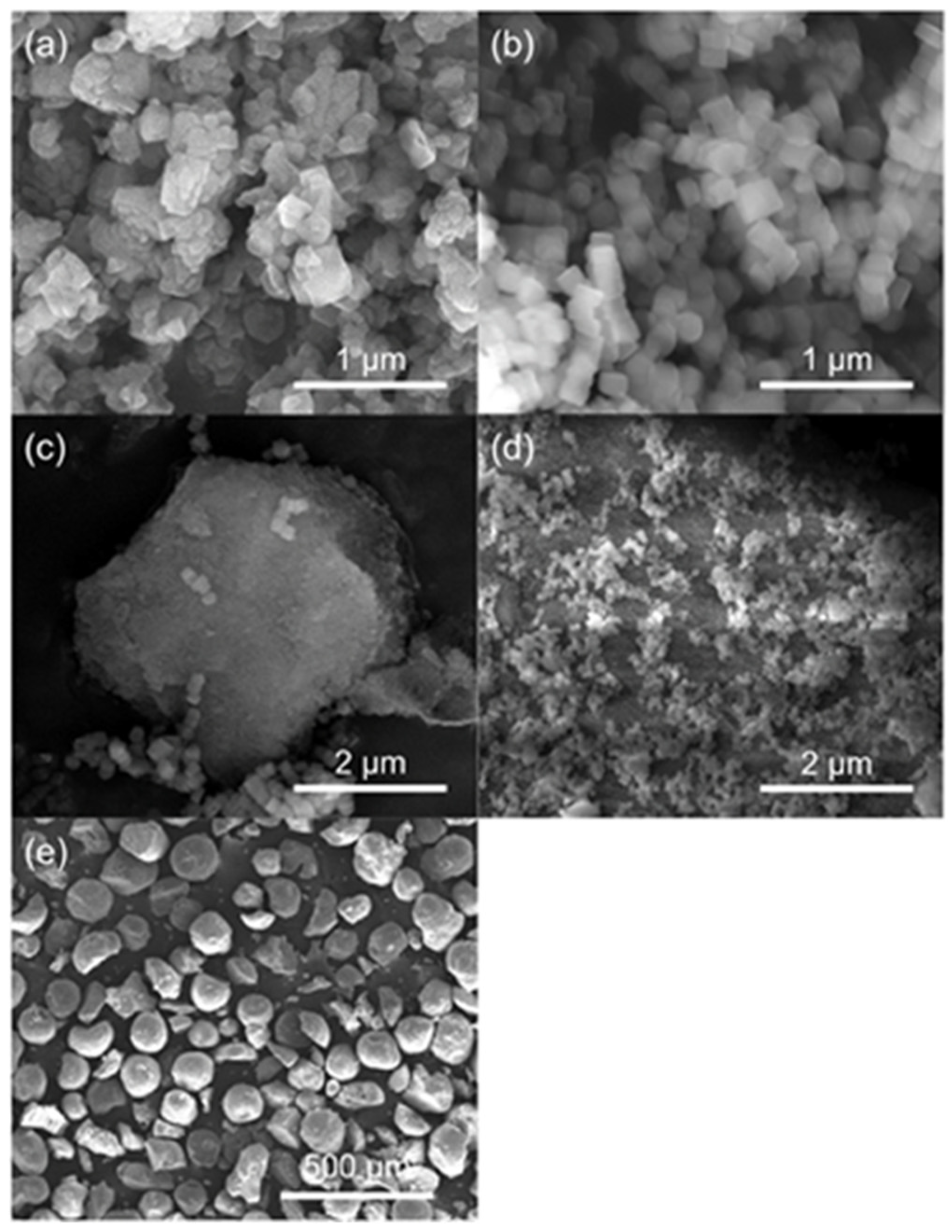

Figure 4. SEM images of c-HZSM-5 (a), n-HZSM-5 (b), PM-50/50 (c), Hybrid-50/50 (d), and γ-Al2O3 (e).
Figure 4. SEM images of c-HZSM-5 (a), n-HZSM-5 (b), PM-50/50 (c), Hybrid-50/50 (d), and γ-Al2O3 (e).
Catalysts 10 00879 g004
Catalysts 10 00879 g005 550
Figure 5. Conversion of n-butanol versus site time for c-HZSM-5 (■, black), n-HZSM-5 (■, red), PM-50/50 (▲, purple), Hybrid-50/50 (◆, green), and γ-Al2O3 (●, blue). Temperature = 513 K, inlet pressure of n-butanol = 29 kPa, total pressure = 5 bar. Error bars indicate the 95% confidence interval.
Figure 5. Conversion of n-butanol versus site time for c-HZSM-5 (■, black), n-HZSM-5 (■, red), PM-50/50 (▲, purple), Hybrid-50/50 (◆, green), and γ-Al2O3 (●, blue). Temperature = 513 K, inlet pressure of n-butanol = 29 kPa, total pressure = 5 bar. Error bars indicate the 95% confidence interval.
Catalysts 10 00879 g005
Catalysts 10 00879 g006 550
Figure 6. Site time yield (STY) as a function of the ratio of the amount of strong acid sites over medium acid sites. Symbols: c-HZSM-5 (■, black), n-HZSM-5 (■, red), PM-50/50 (▲, purple), Hybrid-50/50 (◆, green), and γ-Al2O3 (●, blue). Temperature = 513 K, inlet pressure of n-butanol = 29 kPa, total pressure = 5 bar.
Figure 6. Site time yield (STY) as a function of the ratio of the amount of strong acid sites over medium acid sites. Symbols: c-HZSM-5 (■, black), n-HZSM-5 (■, red), PM-50/50 (▲, purple), Hybrid-50/50 (◆, green), and γ-Al2O3 (●, blue). Temperature = 513 K, inlet pressure of n-butanol = 29 kPa, total pressure = 5 bar.
Catalysts 10 00879 g006
Catalysts 10 00879 g007 550
Figure 7. Selectivity of products versus conversion, c-HZSM-5 (■, black), n-HZSM-5 (■, red), PM-50/50 (▲, purple), Hybrid-50/50 (◆, green), and γ-Al2O3 (●, blue). Temperature = 513 K, inlet pressure of n-butanol = 29 kPa, total pressure = 5 bar.
Figure 7. Selectivity of products versus conversion, c-HZSM-5 (■, black), n-HZSM-5 (■, red), PM-50/50 (▲, purple), Hybrid-50/50 (◆, green), and γ-Al2O3 (●, blue). Temperature = 513 K, inlet pressure of n-butanol = 29 kPa, total pressure = 5 bar.
Catalysts 10 00879 g007
Catalysts 10 00879 g008 550
Figure 8. XBuOH as a function of time on stream: c-HZSM-5 (■, black), n-HZSM-5 (■, red), PM-50/50 (▲, purple), Hybrid-50/50 (◆, green), and γ-Al2O3 (●, blue). Temperature = 513 K, inlet pressure of n-butanol = 29 kPa, total pressure = 5 bar.
Figure 8. XBuOH as a function of time on stream: c-HZSM-5 (■, black), n-HZSM-5 (■, red), PM-50/50 (▲, purple), Hybrid-50/50 (◆, green), and γ-Al2O3 (●, blue). Temperature = 513 K, inlet pressure of n-butanol = 29 kPa, total pressure = 5 bar.
Catalysts 10 00879 g008
Catalysts 10 00879 g009 550
Figure 9. Selectivity to the dehydration products of n-butanol versus time on stream, for n-HZSM-5 (a) Hybrid-50/50 (b) and γ-Al2O3 (c). 1-butene (●, black), cis-2-butene (●, red), trans-2-butene (●, grey), dibutyl ether (✕, blue). Temperature = 513 K, inlet pressure of n-butanol = 29 kPa, total pressure = 5 bar.
Figure 9. Selectivity to the dehydration products of n-butanol versus time on stream, for n-HZSM-5 (a) Hybrid-50/50 (b) and γ-Al2O3 (c). 1-butene (●, black), cis-2-butene (●, red), trans-2-butene (●, grey), dibutyl ether (✕, blue). Temperature = 513 K, inlet pressure of n-butanol = 29 kPa, total pressure = 5 bar.
Catalysts 10 00879 g009
Table
Table 1. Characteristic properties of HZSM-5 and γ-Al2O3 [39,40].
Table 1. Characteristic properties of HZSM-5 and γ-Al2O3 [39,40].
MaterialPorosityAcid TypeAcid StrengthCrystallinity
HZSM-5microporousmostly Brønstedstronghigh
γ-Al2O3mesoporousLewismediumlow to semi
Table
Table 2. Textural properties of the catalysts used in this work.
Table 2. Textural properties of the catalysts used in this work.
CatalystSBET (m2 g−1)Smicro (m2 g−1)Smeso (m2 g−1) aVmicro (cm3 g−1)Vt (cm3 g−1)
c-HZSM-54102301800.110.24
n-HZSM-5370280900.110.16
PM-50/503101301800.0630.45
Hybrid-50/503031721310.0840.26
γ-Al2O319521930.000.49
a Smeso = SBET − Smicro.
Table
Table 3. NH3-TPD results for the catalysts used in this work.
Table 3. NH3-TPD results for the catalysts used in this work.
CatalystAmount of Acid Sites (µmol g−1)Ed (kJ mol−1) a
WeakMediumStrongTotal
c-HZSM-515668199422130
n-HZSM-511883193394150
PM-50/5015470152376115
Hybrid-50/501299450273128
γ-Al2O313712319045092
a Calculated for the highest-temperature peak, based on Equation (2).

Share and Cite

MDPI and ACS Style

de Reviere, A.; Vandevyvere, T.; Sabbe, M.K.; Verberckmoes, A. Renewable Butene Production through Dehydration Reactions over Nano-HZSM-5/γ-Al2O3 Hybrid Catalysts. Catalysts 2020, 10, 879. https://doi.org/10.3390/catal10080879

AMA Style

de Reviere A, Vandevyvere T, Sabbe MK, Verberckmoes A. Renewable Butene Production through Dehydration Reactions over Nano-HZSM-5/γ-Al2O3 Hybrid Catalysts. Catalysts. 2020; 10(8):879. https://doi.org/10.3390/catal10080879

Chicago/Turabian Style

de Reviere, Arno, Tom Vandevyvere, Maarten K. Sabbe, and An Verberckmoes. 2020. "Renewable Butene Production through Dehydration Reactions over Nano-HZSM-5/γ-Al2O3 Hybrid Catalysts" Catalysts 10, no. 8: 879. https://doi.org/10.3390/catal10080879

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
