Abstract

The emission of untreated environmental harmful gases such as sulfur and nitrogen oxide (SOx and NOx) emissions is considered old fashioned, since industries are compelled by governments and legislations to meet the minimum threshold before emitting such substances into the atmosphere. Numerous research has been done and is ongoing to come up with both cost-effective equipment and regenerable catalysts that are adsorbent—or with enhanced sorption capacity—and with safer disposal methods. This work presents the general idea of a monolith/catalyst for environmental application and the technicality for improving the surface area for fast and efficient adsorption–desorption reactions. The chemical reactions, adsorption kinetics, and other properties, including deactivation, regeneration, and the disposal of a catalyst in view of environmental application, are extensively discussed.

1. Introduction

Atmospheric pollutants include acid gases such as carbon dioxide (CO₂), sulfur oxides (SOx), nitrogen oxides (NOx), volatile organic compounds (VOCs), heavy metals, fly ash, and particulate matter [1,2,3]. The emitted pollutants are as a result of industrial activities from coating industries, fluid catalytic cracking units (FCCU), circulating fluidized bed combustors (CFBC), combustion behaviors of incinerators, coal fuel, automotives, plastic, and power plants which give rise to deleterious health and environmental effects [4,5,6,7,8,9]. For example, the world consumption of about 5–6 billion metric tons of coal is reported annually, and by 2040, it is expected to reach 12,500 Mt [10]. Coal is the dominant fossil fuel currently in use that accounted for 38% of electricity generated in 2000, 17.5% hydropower, 17.3% natural gas, 16.8% nuclear, 9% oil, and 1.6% non-hydropower, yet coal is expected to remain the dominant fuel for power generation by 2020 [11].

Adsorption is a simple and cheap method for extracting process gases and vapors from the atmosphere, and the adsorption of contaminants by regenerable catalysts is becoming common in reducing the menace of air pollution [12]. Recently, the multipollutant simultaneous removal techniques used to include carbon-based material adsorption and nonthermal plasma (NTP) technologies [13]. In addition, attention has been paid to the chemical reaction of acid gases with a metal oxide (chemical adsorbent) or the actual sorption of solids (atomic adsorbent) [14]. The solid adsorbents commonly used in controlling flue gas pollutants are the non-regenerative (CaO and MgO) and regenerative (zeolites, silica gel, charcoal, etc.) adsorbents [15]. The final disposal of the exhausted catalyst is a paramount topic of research. Commonly, a layer of sealant, such as bitumen, polyethylene or concrete, is used to encapsulate catalyst residues that may cause environmental problems [16]. In terms of economy, the regeneration of the exhausted catalyst is preferred over the adsorbent replacement [17].

Numerous research has been done and is ongoing to come up with cost-effective equipment and regenerable catalysts that are adsorbent—or with enhanced sorption capacity—and with safer disposal methods. For example, some literatures [18,19,20,21,22,23,24], worked on the development of catalysts but have not considered the regeneration aspects. Other work has reported the regenerations of catalysts [3,25,26,27,28] but failed to give good performance after few regeneration cycles due to poor understanding of the catalyst development. Besides, most of the studies does not give attention to the acid gases as the adsorbates, meanwhile activated carbon (AC) is mostly used as the catalyst support [29,30,31,32]. However, Kiman et al. [33] recommended the support of metal oxides catalysts with monolith due to issues with AC, such as low adsorptivity, plugging, and difficulty in mass transport processes, which can be overcome with the monolith adsorbent. Therefore, there is a growing need for the review of studies of catalysts with support and regeneration for environmental protection and cost effectiveness.

This study reviewed the potential of monolith as a metal oxide catalyst support. Furthermore, the industrial application specifically in the SOx/NOx abatement from flue gas and the background of laboratory adsorptive equipment, basic chemistry of catalysis, application, and regeneration are discussed.

2. Monolith Structure

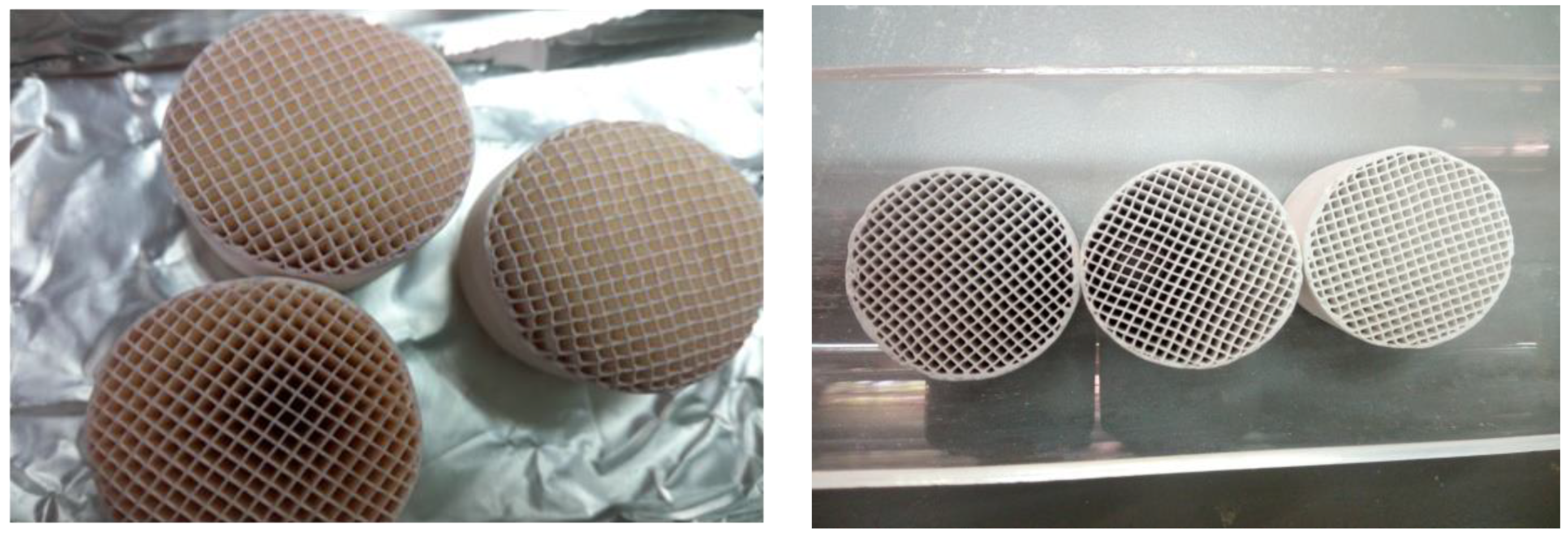

Monolith could be a metal, plastic, or ceramic structure with continuous unitary open structures without bends that hardly obstructs flow; it has parallel channels that extrude in various geometry (circular, square, rectangle, hexagonal etc.) [34,35,36,37]. A vehicle monolithic exhaust converter is reported to have the diameter of D + 0.1 m, while the monolith sections for treating flue gas of power plants has a large-diameter of D’2 m [36]. The structure is defined by width, wall thickness, void fraction (varies between 0.5 and 0.9 and is commonly expressed as the open front region, OFA), channel openings (dh), and cell density (ranges between 100 and 1200 channels per square inch cpsi) [38,39]. Silas et al. [3] gave the specification of a bare monolith (cordierite) they used in their study of flue gas cleaning as follow in

Table 1. Specification of bare monolith.

Monolith	Cells	Chemical Compositions
Cross section circular	Channel square	SiO2 50.9 ± 1.0%
Surface area 1 cm2/g	Wall thickness 0.25 ± 0.02 mm	Al2O3 35.2 ± 1.0%
Length 2.50 ± 0.02 mm	Width 1.02 ± 0.02 mm	MgO 13.9 ± 0.5%
Diameter 2.50 ± 0.02 mm	Cells 400 (cpsi)	Others < 1%

:

Cordierite can be used as a catalyst support; however, it has a low specific surface area and weak catalyst-support interaction [40]. The specific surface area of cordierite is less than 1 m² g⁻¹, meanwhile coating can increase the specific surface area (to about 15–30 m² g⁻¹) and improve the dispersion of active components. Moreover, acidic treatment increases the surface area up to 200 m² g⁻¹ [35,40,41]. Washcoat (provides high surface area), substrate (gives the shape and mechanical properties), and active phase (the catalytic element) are considered as the three components of modified structured catalysts [42,43]. Lei et al. [41] found that metal oxide may be used as the active phase, γ-Al₂O₃ as the washcoat and cordierite as support in the application where dust and carbon are avoided while handling a large volume of flue gases. The impregnation and calcinations of catalyst/support are significant processes in the catalyst development.

The term calcination is referred to the heat-treatment beyond drying and without the formation of a liquid phase, it can be carried out in different atmospheres (N₂, vacuum, etc.) and at temperatures higher than those used in the catalytic reaction or catalyst regeneration [43]. The process converts the impregnated metal precursor (i.e., Cu(NO₃)₂·3H₂O to CuO) to the formation of finished metal oxide catalysts [14]. At a high calcination temperature, the activity of the catalyst will be low because some redundant oxides occupy the active sites and its dispersion on the support [44]. Figure 1 is the structure of the monolith.

Recent studies have focused on the use of monolithic adsorbents as catalyst support.

Table 2. The recent application of monoliths as catalysts.

Adsorbent/s	Catalyst/s Supported	Method of Doping	Application	Ref.

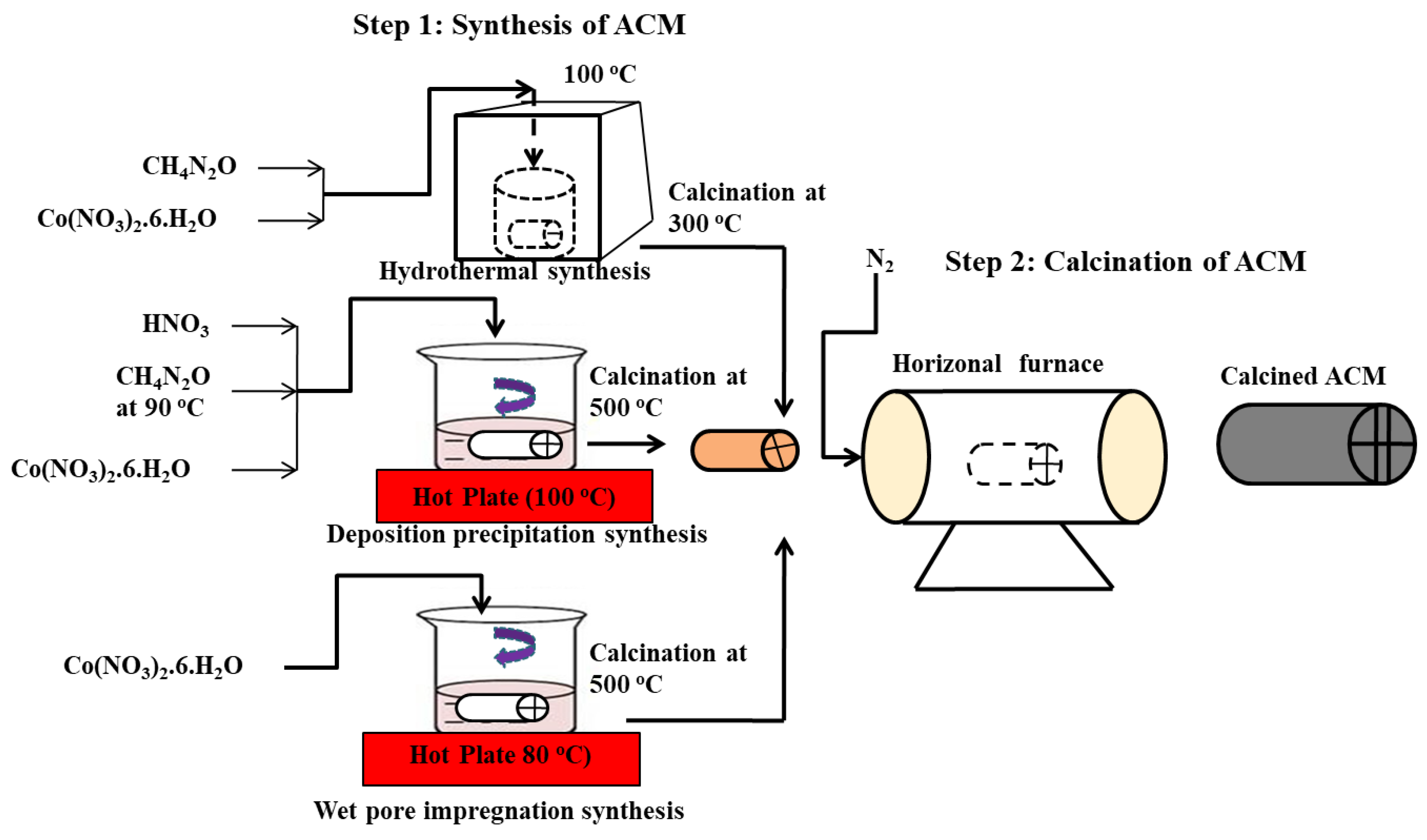

Monolith	Co3O4	Pore impregnation, deposition precipitation, hydrothermal methods	Simultaneous SO2/NOx removal from flue gas	[3]
Monolith	TiO2, Fe2O3	One-pot self-assembly method	Low-temperature SO2-tolerant monolithic selective catalytic reduction SCR catalysts with high N2 selectivity	[45]
Zeolite-based cordierite monoliths	Pd−Ce−Zeolite powder catalyst	Impregnation	NOx CH4 selective catalytic reduction	[46]
Cordierite	Mn–Ce/Al2O3	Impregnation, deposition precipitation, modified deposition precipitation,	SO2 and NO conversion	[47]
Cordierite	MnOx/TiO2	Sol-gel-impregnation method,	Low-temperature selective catalytic reduction (SCR) of NOx with NH3	[48]

depicts the recent monoliths used in the literature.

3. Catalysts

Industrial catalysts are either heterogeneous (catalysts and reactants in distinct physical phases) or homogeneous (catalysts and reactants in the same phase) [49]. A heterogeneous catalyst is a material that has a relative amount of different components characterized by active species, surface area, physical and/or chemical promoters, size, supports, shape, and pore volume distribution, which give rise to an optimum catalyst with good selectivity, activity, lifetime, ease of regeneration, and low cost [43]. According to Teoh et al. [50], if the adsorption process occurs on a carbon-coated monolith’s surface, it is heterogeneous. Most of the industries prefer heterogeneous catalysts because of the advantages they offer, such as potential reusability, economic and environmental friendliness, stability, low toxicity, and ease of recovery from the reaction system [51,52,53,54,55,56,57,58].

Approximately 80% of the chemical products generated are manufactured through heterogeneous catalytic processes and generate global annual sales of around USD 1500 billion [51,52,53,54,55,56,57,58,59]. Furthermore, catalysis is used in the production of polymers, pharmaceuticals, cosmetics, foods, in new processes for the generation of clean energy and abating environmental pollutants [51]. Meanwhile, the homogeneous catalysts exhibit difficulty to recycle, complicated processes of post treatment, and enormous amounts of waste-water generation [53,54,55,60]. Supported metal oxides are known for unstable activity in the industrial applications due to H₂O, hydrocarbons, O₂, temperature, and acid gases deactivation; therefore, the development of catalytic materials that can be used for eliminating atmospheric pollutants is required [61,62].

3.1. Metal-Oxide-Supported Catalysts

Catalysts without support are easier to be deactivated than supported catalysts; therefore, the synthesis and supporting of nanophase metal oxides with small particle size and high surface area may provide the improvements needed for industrial catalysts [63,64], since low metal oxide loading on the support can tremendously enhance the catalyst’s performance [65]. Already, the technology of impregnating metal oxides (Mn₂, O₃, NiO, Co₃O₄, V₂O₅, CuO, etc.) and noble metals (Pt, Pd, and Rh) on structural adsorbents for application in stationary and automotive pollutants removal is established [14]. It is proven that the catalyst coating on monoliths enhances the structural properties like resistance to thermal shock and convenient separation from media [66].

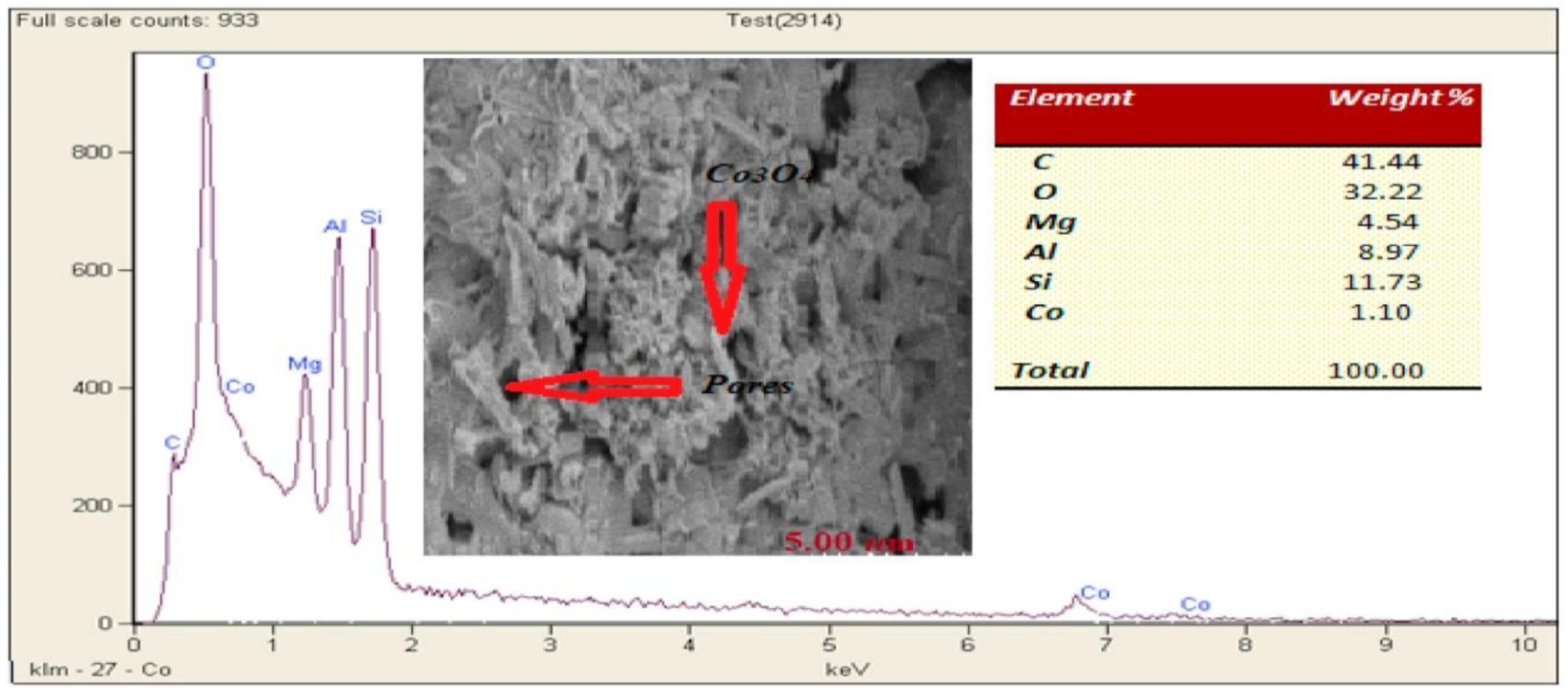

Figure 2 shows the scanning electron microscopy and energy dispersed X-ray (SEM/EDX) spectra of monolith Co₃O₄ supported adsorbents. The energy dispersed X-ray (EDX) spectra showed the presence of Co₃O₄ of about 1.1% in the activated carbon monolith, while the presence of carbon (41.44%) is seen from the carbonization process development. The SEM image disclosed abundant pores with dispersed Co₃O₄ catalysts.

The catalytic activity and selectivity of a metal oxide is correlated with certain characteristics, such as oxygen non-stoichiometry, composition, surface area, volume, shape, reducibility, and pore structure [4,68]. In addition, the key considerations in preparation include the choice of active chemical composition, promotion of catalysts, active phase deposition methods, and oxidative and reductive treatments [4]. Furthermore, the support should have the following properties: high surface area and acidity, pore volume, thermal conductivity, and reactivity [69]. Figure 3 shows the procedure for monolith/Co₃O₄-based catalysts by impregnation of pore volume, precipitation of deposition, and methods of hydrothermal synthesis [70].

A good approach of developing the adsorbent surface is to manufacture a metal oxide material as an ordered porous structure [68]. An example is a monolithic cordierite-based catalyst (CuO/Al₂O₃) developed to remove SO₂ and NO from flue gas at 350–400 °C simultaneously, but high reaction temperature and energy consumption were reported [44]. Boyano et al. [71] found that for adsorbent/catalyst to be economically competitive then it must perform at a low-temperature range of 100–300 °C.

3.2. Catalyst Loading

The good understanding of catalyst loading on the support is imperative because higher loading can result in active site blockage, metal sintering, and/or reduction in catalytic activity, and also, lower loading may lead to fewer active sites with low activity ascribed to incomplete coverage of the internal surface area [72,73,74].

Table 3. Reviewed catalyst loading on supports.

Adsorbent	Catalyst	Catalyst Loading	Synthesis Method	Application	Ref.
AC	Fe(NO3)3.9H2O Mn(NO3)2 Co(NO3)2.6H2O Ce(NO3)3.6H2O (V,NH4VO3H2C2O4) Cu(NO3)2.3H2O	1.79 × 10−2 1.82 × 10−2 1.70 × 10−2 7.3 × 10−3 1.96 × 10−2 1.57 × 10−2 Mmol	Pore volume wetness impregnation	Oxidation of H2S to elemental sulfur.	[75]
Monolith	Ni(NO3)2	1 wt%	Deposition precipitation	Comparison of monolith and a trickle-bed catalyst system	[76]
AC	V2O5	1 wt%.	Pore volume impregnation	Desulfurization and regeneration	[7]
Cordierite	Cu/Cu(NO3)2.3H2O	1.5%	Incipient impregnation	Modelling of monolithic SCR reactor	[41]

shows former catalyst loading on supports.

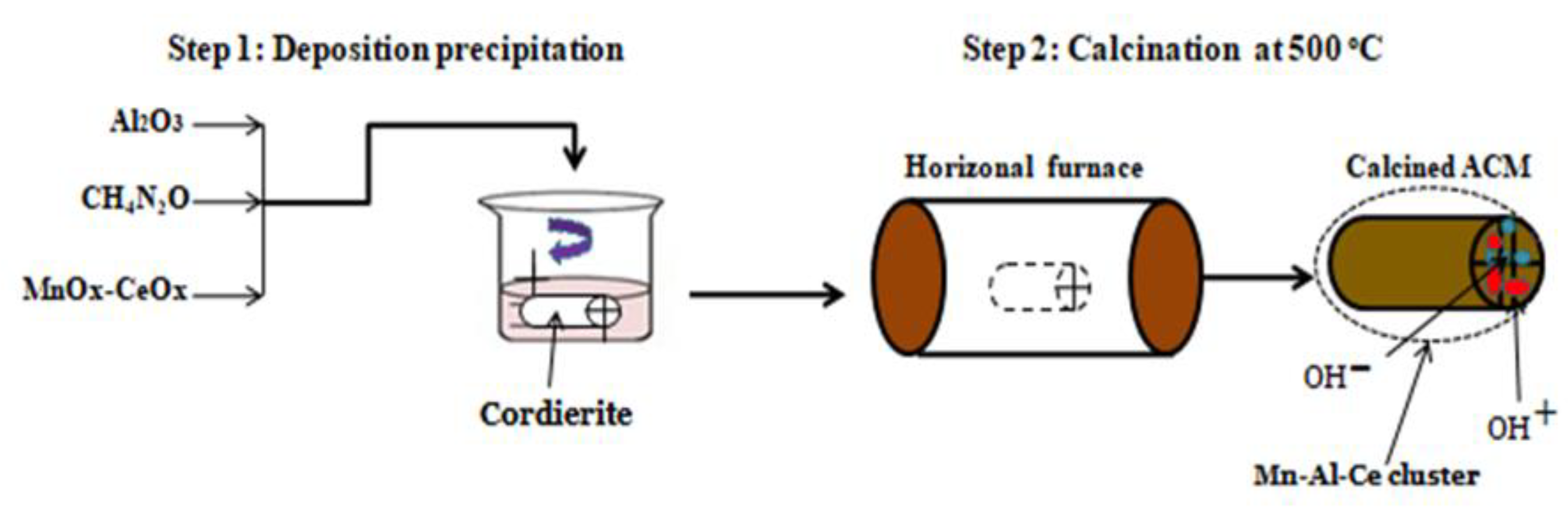

Figure 4 shows the alumina deposition using urea method, which illustrates the deposition precipitation technique. The pores in the monolith support were attached with the mixed metal oxides by the deposition precipitation technique, which acts as catalyst. Furthermore, the calcinations process ensured the consolidation of the support and the catalyst resulting into a unique composite for convenient application.

3.3. Catalyst Deactivation

Catalyst loss of activity with time is inevitable, and deactivation may occur in the case of cracking catalysts in seconds but may last for 5–10 years in iron catalyst synthesis or several years in human metabolism [16,77,78]. Common reasons for deactivation of the catalyst include: evaporation, carbonaceous deposit formation (coking), poisoning (phosphorous, presence of the SO₂ in the flue gas), washout, reduction, accidental temperature rise, corrosion plugging of pores, and metal crystallite encapsulation; whereas, deactivation are classified as: poisoning, coking or fouling, sintering, and phase transformation [51,69,77,79]. Moulijn et al. [80], addresses how deactivation affects the rate of reaction since catalytic activity is proportional to the number of active sites as shown in the following equation:

$$K_{\mathrm{O}}=N_{\mathrm{T}}{K}_{\mathrm{i}}\mathsf{\eta }$$

(1)

where, Ko and $K$_i are the observed and intrinsic rate constants for the reactions per active site, N_T is the total number of active sites, and η is the effectiveness factor.

Catalyst deactivation can be caused by the decreased in the number of active sites (N_T decreases), decrease in the quality of the active sites ($K$_i decreases), and degradation in accessibility of the pore space (η decreases). Poisoning can cause a decrease in the number of active sites according to the following relation:

$$N_{\mathrm{T}}=N_{\mathrm{T}}(1-\mathsf{\alpha })$$

(2)

where, α is the fraction of the sites poisoned. The relative loss of activity is given as:

$$\Delta \mathrm{x}=\frac{\left(\mathrm{xo}-\mathrm{xt}\right)}{\mathrm{xo}}100\%$$

(3)

where, $\Delta \mathrm{x}$ is the relative loss of activity, $\mathrm{x}$ the conversion, and indices 0 and t stand for times of exposure [81]. The blockage of active sites as a result of poisoning are discussed in detail elsewhere [62,79,80,81,82,83].

Table 4. Types and causes of catalyst deactivation.

Deactivation Type	Cause of Deactivation	Prevention/Treatment	Ref.
Chemical poisoning	Sulfur, chlorine, heavy metals, halogens, silicones, phosphorus, acid catalysts are poisoned by basic materials, oxide catalysts are poisoned by Pb, Hg, As, Cd.	Metal oxide-based catalysts exhibit good resistant to deactivation by poisoning, oxidation can reduce the effect of some poisons/regeneration.	[16,79,83]
Thermal sintering	Catalyst exposure to high temperature, high partial pressure of water, crystallite growth on the catalytic phase resulting in loss of catalytic surface area, calcinations process, reduction (fresh or passivated catalyst), reaction (hot spots, maldistribution), or regeneration.	Stabilizers are used to fill vacancies in the lattice, employing chemical vapor deposition (CVD)-type treatment to restore the active sites/it is better to avoid sintering from occurring.	[16,77,80,83]
Fouling	Carbon deposit, ash, soot, rust, and scale	Regeneration/rejuvenation	[16,80]

shows the types, treatment, and causes of catalyst deactivation.

3.4. Surface Area and Mechanism

The surface area value is a variable factor depending on how the isothermic adsorption is calculated and perceived. The model process of adsorption mechanisms is formulated for suitable equations, which predicts required parameters, such as surface area whose predicted values are used to validate adsorption equations and general behavior [84]. The porosity of materials is classed based on the basis of vapor adsorption behavior of each pore: [85,86,87,88,89]

• micropores (d < 2 nm).
• mesopores (2 nm < d < 50 nm).
• macropores (50 nm < d < 200 nm).

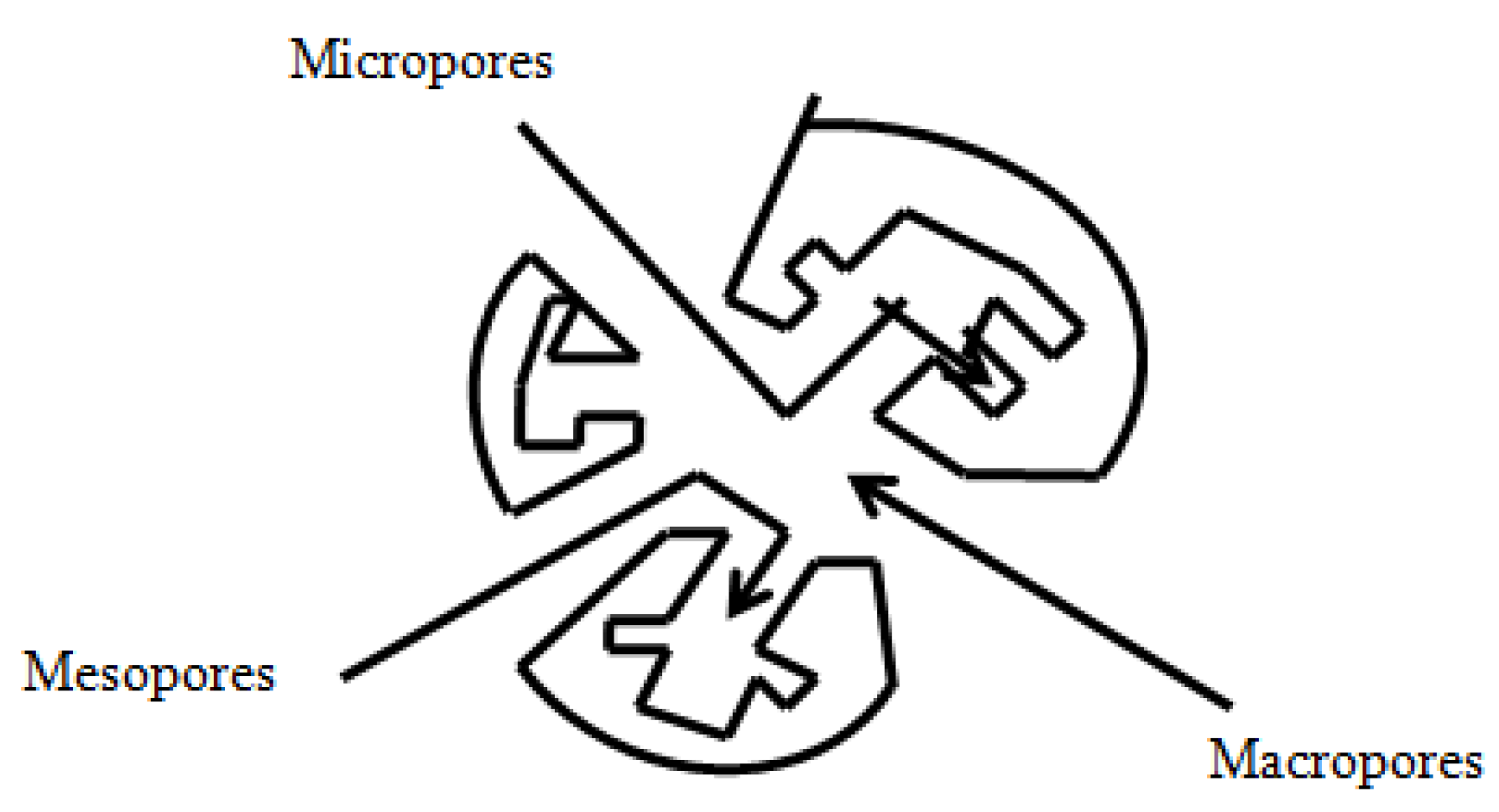

Figure 5 shows the positioning of micro, meso, and macropores on a catalyst.

Monoliths are mainly mesoporous [3,85,90,91,92]. Previously, Hu et al. [93], found that mesopore volumes and surface area lie between the limits 0.1–0.5 cm/g and the range of 20–100 m/g and serves as the main transport arteries for the adsorbate. Because of their large specific surface area, highly ordered mesoporous structure and interconnected channels, mesoporous materials attract more attention [94]. It should be noticed that meso and macropores act as a passage to the micropores for adsorbing [95].

The high surface area and pore volume in a material are imparted by mesopores and micropores through numerous active sites and size selectivity for molecules, while macropores improve mass transfer in order to overcome diffusion difficulties found in the mesopores and micropores pores [68]. Furthermore, over the relative pressure range of about 0.05–0.35, the BET and Langmuir equations describe the adsorption process, whereas the Dubinin–Astakhov (DA) and Dubinin–Radushkevich (DR) equations interpret adsorption phenomena at much lower relative pressures [84].

Activation is a process of improving the adsorption capabilities of an adsorbent by various processes resulting in pore structure enhancement and a decrease in the weight of the substrate, referred to as burn-off [96]. The work of Lázaro et al. [91] specified that the use of CO₂ as an activating agent can increase microporosity, mesoporosity, and macroporosity. The purpose of activation is to enlarge the diameters of the fine pores and create new pores [85]. Moreno-Castilla and Pérez-Cadenas [37] suggested activation with CO₂ at 700–900 °C.

One of the most popular methods for studying the mechanism of a reaction is to investigate the influence of electronic factors on the rate of the reaction. Figure 6 shows the CO oxidation reaction on a CuMnOx catalyst surface.

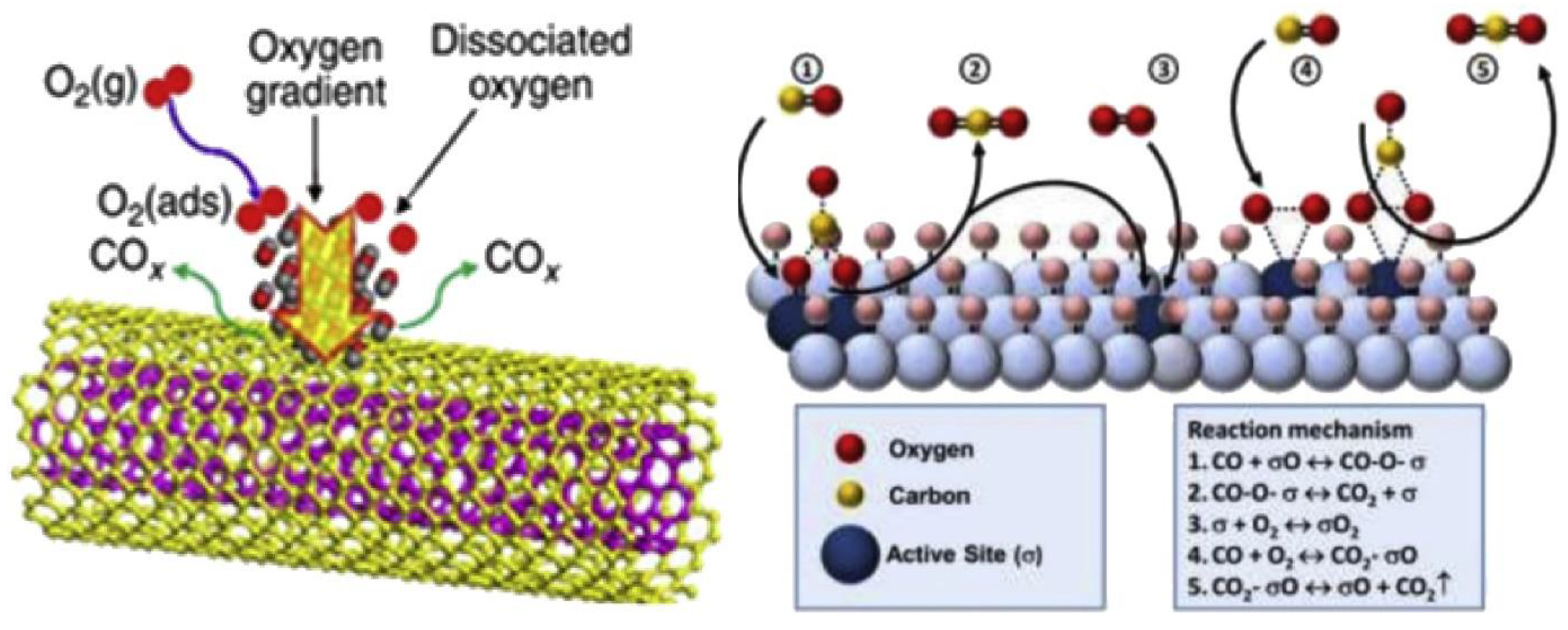

The mechanism involves O₂ adsorption to form O₂* precursors, which split on a vicinal vacancy, while in the second mechanism, the O₂ activation occurs via the kinetically applicable CO*-assisted O₂ dissociation step without the specific concern of stable O₂* precursors [97].

4. Adsorption Kinetics

Catalysis is based on changes in the kinetics of chemical reactions, while kinetics defines the relative rates of numerous competitive pathways available to reactants, while thermodynamics acts as a gateway to the most stable products [51]. Useful information on the behavior of adsorption could be obtained from thermodynamics parameters, such as entropy (DS), the free energy (DG), and enthalpy change (DH) [98]. Desorption is the reverse adsorption process by which adsorbed molecules removed from the adsorbent with about equal energy released during adsorption are supplied for desorption; such an energy requirement dominates the operating costs for some separations processes [99].

Adsorption refers to the change in the concentration of a substance at the interface compared to the adjacent phases, and the time dependence of adsorption on sorption surfaces is called the kinetics of adsorption [84,100]. The enrichment of ions, atoms, and molecules on the surface area of an interface occurs during the adsorption process. Adsorption kinetic studies provide useful information about the mechanism involved in the adsorbent–adsorbent reaction and the time required to complete the adsorption process, which is one of the requirements for choosing solid adsorbents for a particular application [101].

According to Rezaei and Webley [102], the volumetric working capacity, pressure drop, mass transfer, and thermal management governs the adsorbent performance of adsorptive gas separation processes for an adsorption isotherm. The adsorption kinetics is determined by the following steps: [100]

• External diffusion; molecules diffuses towards the interface space from the bulk phase.
• Internal diffusion; molecules diffuses inside the pores.
• Surface diffusion; molecules diffuses in the surface phase.
• Adsorption-desorption elementary processes.

Catalyst absorptivity is described by adsorption isotherms, which are characterized by constants that express the surface properties with models such as the Lagergren, Langmuir, and Freundlich used to fit the isotherms [98,103]. The important sorbent characteristics, including pore volume, pore size, specific surface area, and energy distribution, are described by the adsorption isotherm equations that deal with the physical adsorption of gases and vapor, whereas the interpretation of specific curves of the adsorption mechanism describes the efficiency of the sorbent in utilitarian processes, purification and separation [100]. The adsorption capacity of the catalyst on the adsorbent surface at the equilibrium state is given as: [50,104]

$${\mathrm{q}}_{\mathrm{e}}=\frac{\left({\mathrm{C}}_{\mathrm{o}}-{\mathrm{C}}_{\mathrm{e}}\right)\mathrm{V}}{\mathrm{W}}$$

(4)

where q_e is the adsorbed amount (mg/g), ${\mathrm{C}}_{\mathrm{o}}$ is the initial concentration (mg/L) and C_e is the equilibrium concentration (mg/L). V is the volume of the solution (L) and W is the mass of adsorbent used (mg), respectively. The adsorption capacity at predetermined time intervals is calculated by using following equation: [50,105]

$${\mathrm{q}}_{\mathrm{e}}=\frac{\left({\mathrm{C}}_{\mathrm{o}}-{\mathrm{C}}_{\mathrm{t}}\right)\mathrm{V}}{\mathrm{w}}$$

(5)

where ${\mathrm{C}}_{\mathrm{t}}$ is the adsorbate concentration (mg/L) at time t(s). According to Chaudhary and Balomajumder [106], the removal efficiency (RE) can be calculated from:

$$\mathrm{RE}=\frac{\left({\mathrm{C}}_{\mathrm{o}}-{\mathrm{C}}_{\mathrm{t}}\right)100\%}{{\mathrm{C}}_{\mathrm{o}}}$$

(6)

Adsorption occurs in gas–solid systems at the outside and vicinity of solid surface structure while in absorption, so the molecules penetrate the surface layer and enter the bulk solid [107]. To calculate the adsorption capacity of a catalyst, Equation (6) is uniquely used in a liquid–solid interface while for a gas–solid interface the following equation is used:

$$q=\frac{y·F}{M}\underset{0}{\overset{tb}{{\displaystyle \int }}}\left(1-\frac{{\mathrm{C}}_{\mathrm{t}}}{{\mathrm{C}}_{\mathrm{o}}}\right) dt$$

(7)

where C_t is the effluent concentration, C_o is the influent concentration, and y_, M, F, and t_b are the mole fraction in the feed, amount of the catalyst (g), volumetric flow rate (mL/min), and breakthrough time (min), respectively. Several studies demonstrated the application of Equation (7) in calculating adsorption capacity. [3,92,98,108,109]. Adsorption capacity can have units of mg g^−l or mmol g^−l or cm³ g⁻¹.

4.1. The Freundlich Isotherm Model

The Freundlich isotherm model was the earliest known empirical equation used for nonideal sorption that involves heterogeneous adsorption through a multilayer adsorption mechanism. The following postulations were considered in formulating the Freundlich model: [104]

(a) the adsorption layer is energetically heterogeneous and (b) the density of the adsorbed quantity increases. Freundlich model is defined as: [98]

$${\mathrm{q}}_{\mathrm{e}}={\mathrm{K}}_{\mathrm{f}}{{\mathrm{C}}_{\mathrm{e}}}^{1/\mathrm{n}}$$

(8)

where, $\mathrm{k}$_f and n are Freundlich constants, 1/n is the heterogeneity factor and an indicator of adsorption capacity, becoming more heterogeneous as its value gets farther to one. The linearized form of Equation (9):

$${\mathrm{logq}}_{\mathrm{e}}={\mathrm{logk}}_{\mathrm{f}}+1/{\mathrm{nC}}_{\mathrm{e}}$$

(9)

where k_f and n could be determined from the slope and intercept of the linearized plot [50]. The correlation coefficient (r²) can be evaluated by plotting ln(q_e) versus ln(C_e) [104].

4.2. The Langmuir Model

The Langmuir adsorption isotherm model was originally used to explain the chemistry of a pure gas on a nonporous surface and the physisorption of a pure gas or a gas mixture on micro and mesoporous adsorbents [110]. Langmuir experimental isotherm suggested an adsorption theory on a flat surface based on kinetic considerations, where there was a continuous process of molecular bombardment on the surface and subsequent desorption to maintain zero accumulation frequency on the surface in equilibrium [50]. It is also a model for the adsorption of gases onto solids using the following assumptions: [50,98,104]

(a) Only a monolayer of adsorbed material is formed at peak adsorption. Adsorbed molecules do not deposit on each other and the adsorption sites were the same. (b) The adsorbed molecules did not interact at constant temperature (c) The adsorbent layer was consistent with the same adsorption sites. (d) All adsorption by the same process occurred. The Langmuir is formulated as follows:

$${\mathrm{q}}_{\mathrm{e}}=\frac{\left({\mathrm{q}}_{\mathrm{m}}\mathrm{KL}{\mathrm{C}}_{\mathrm{e}}\right)}{\left(1+\mathrm{KL}{\mathrm{C}}_{\mathrm{e}}\right)}$$

(10)

where, ${\mathrm{q}}_{\mathrm{e}}$ is the equilibrium adsorption capacity (mg/g),${\mathrm{q}}_{\mathrm{m}}$ and $\mathrm{KL}$ are the maximum adsorption capacity to form a complete monolayer on the surface (mg/g), and the Langmuir constant related to the energy of adsorption (bonding energy of sorption in L/g), respectively. The linearized form of Langmuir equation is:

$$\frac{{\mathrm{C}}_{\mathrm{e}}}{{\mathrm{q}}_{\mathrm{e}}}=\frac{1}{{\mathrm{q}}_{\mathrm{m}}\mathrm{KL}}+\frac{{\mathrm{C}}_{\mathrm{e}}}{{\mathrm{q}}_{\mathrm{m}}}$$

(11)

where ${\mathrm{q}}_{\mathrm{m}} \mathrm{and} \mathrm{KL}$ could be determined from the slope and intercept of linearized equation plot ($\frac{{\mathrm{C}}_{\mathrm{e}}}{{\mathrm{q}}_{\mathrm{e}}}$ against $\mathrm{C}$_e). [50,111]

The dimensionless characteristic of Langmuir isotherm referring to the separation factor (R_L) is useful in predicting the adsorption efficiency of the adsorption process. It is an indicator of Langmuir isotherm suitability as either unfavorable (R_L > 1), linear (R_L = 1), favorable (0 < R_L< 1), or irreversible (R_L = 0); R_L can be express as: [3,112]

$${\mathrm{R}}_{\mathrm{L}}=\frac{1}{1+{\mathrm{K}}_{\mathrm{L}}·{\mathrm{C}}_{\mathrm{o}}}$$

(12)

where C_o is the highest initial concentration of the adsorbate (mg/L), and K_L (L/mg) is the Langmuir constant.

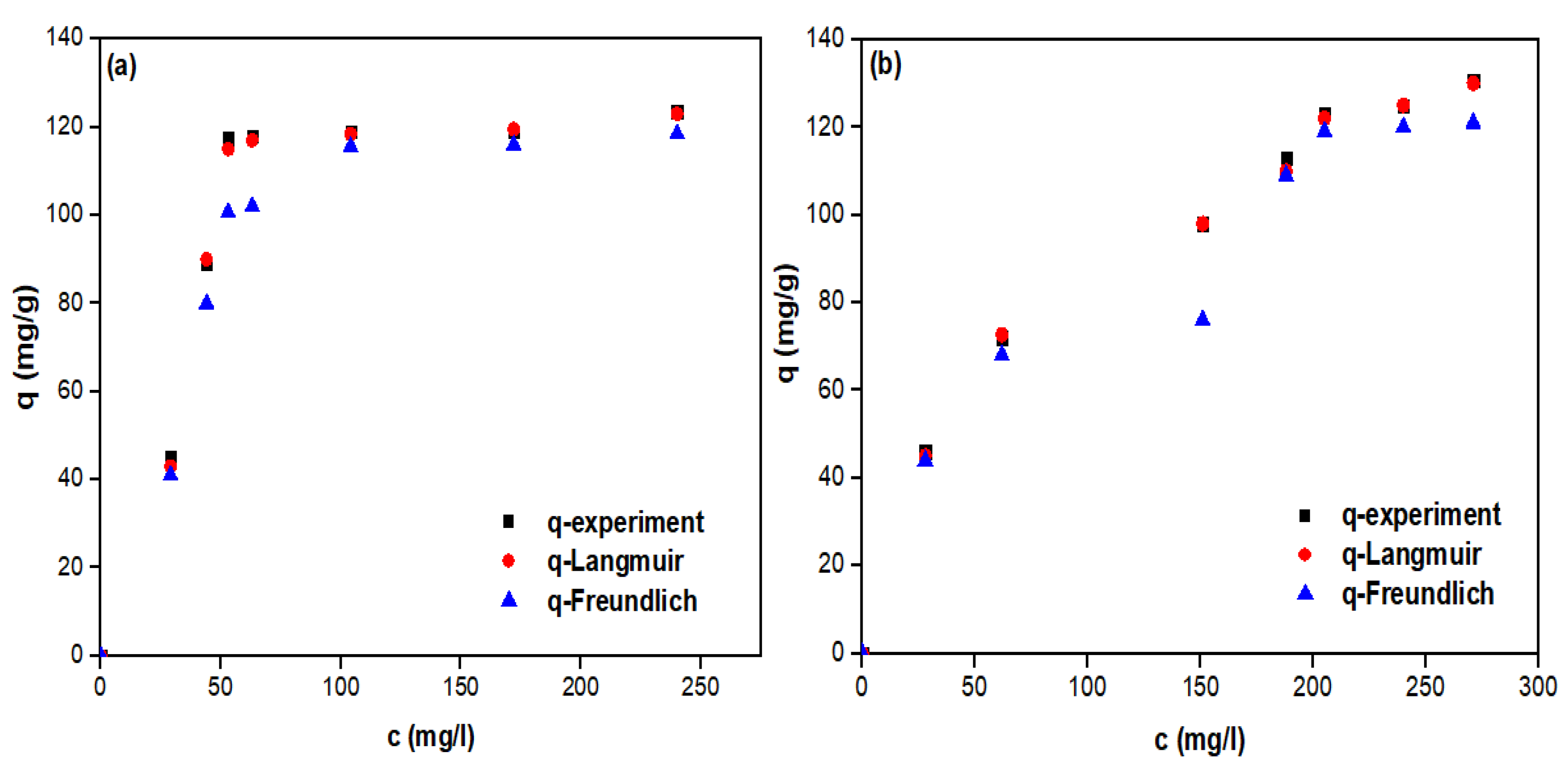

To justify the appropriateness of a model that best describes the process, the correlation coefficient (r²) and nonlinear isotherm plots can be used. Previously, it was demonstrated that the Langmuir isotherm can best describe a developed activated carbon monolith/Co₃O₄ adsorbent in the simultaneous SO₂ and NOx removal from flue gas [3]. Based on the study, the Langmuir isotherm suitability was shown by the favorable R_L values of 0.3277 and 0.0097, and r² of 0.9759 and 0.9995 for SO₂ and NOx; further evidence was shown by the nonlinear isotherm plots as illustrated in Figure 7. The Langmuir isotherm described the experimental data best according to the alignment of the experimental adsorption capacity (q-experiment) with the q-Langmuir when compared to q-Freundlich. Other studies on Pseudo-first order and Pseudo-second order adsorption kinetic models are reported elsewhere [101,111,113].

4.3. Pressure Drop, Mass Transfer and Heat Transfer in Monolith

Pressure drop is defined as the energy dissipated as a result of fluid flow through a reactor bed. Due to wall friction, orifice effect in the entry region and between the monolith stacks, gas phase acceleration and pressure fall as a result of the gas–liquid distributor, and pressure drops may occur in the monolith [39]. The monolith has the advantages of a large surface area and uniform flow distribution, hence it overcome the pressure-drop concern, which can mitigate investment and operation costs.

Mass transfer studies are rather scarce and incomplete concerning monolith structures [82]. In general, molecules diffuse to the interior of the adsorbent by radial concentration gradient and the molecular diffusion occurs in two ways: [114,115]

• Pore diffusion occurs as ordinary diffusion when the pore diameter of the adsorbent is large compared to the mean free path of the adsorbed molecule or as Knudsen diffusion when the pores are much smaller than the mean free path of the gas. The diffusion can also occur in the adsorption process as both ordinary and Knudsen diffusions.
• Surface diffusion: molecules are adsorbed and transported from one site to another along the pore wall in the direction of decreasing concentration, however surface diffusion may be ignored as it contributes little to the overall transportation.

The structural form of a porous catalytic pellet consists of a large number of irregularly shaped pores interconnected [115]. When the catalyst temperature goes higher, the amount adsorbed decreases but for a constant temperature and fixed adsorbate concentration; an equation for the rate of adsorption is given as: [116]

$$\frac{d\alpha }{d\tau }=k{\left(1-\alpha \right)}^n={Ae}^{-E/RT}{\left(1-\alpha \right)}^n$$

(13)

where, $k$, α, n, $A$, $E$, $R$, $T$, are rate constant of the adsorption, fractional weight at time τ, reaction order, activation energy, gas constant, absolute temperature respectively. In addition,

$$\alpha =\frac{w_f-w}{w_f-w_o}$$

(14)

where, $w_o$ is initial weight, $w$ is actual weight, and $w_f$ final weight, finally, integrating Equation (16) for n = 1 and n ≠ 1 yield Equations (15) and (16):

$$-\ln \left(1-\alpha \right)=k\tau$$

(15)

$$\frac{\left[1-\left(1-\alpha \right)\right]}{\left(1-n\right)}exp1-n=k\tau$$

(16)

The feed gas flows axially, while mass and energy are transferred through the monolith stream in both axial and radial directions [117]. Accordingly, the convective heat transfer prevails, while conduction is negligible due to point contacts between pellets in pellet catalysts, however conduction heat transfer dominates in the parallel channels of the monolith catalyst as an alternative mechanism by radial and axial heat transport [118,119]. Therefore, radial heat exchange between the monolithic channels is not possible, no convective heat transfer takes place in this direction [113]. An estimated axial heat conductivity is established for the monolith and presented as: [118,120]

$$k\mathrm{e},\mathrm{a}=k_{\mathrm{s}}\left(1-\epsilon \right)$$

(17)

where, $k\mathrm{e},\mathrm{a}$ is the effective axial heat conductivity of monolith substrates, $k$_s is the intrinsic thermal conductivity of the support material and $\epsilon$ is the monolith void fraction (or open frontal area, OFA). The radial conductivity $k\mathrm{e},\mathrm{r}$ is given as:

$$k\mathrm{e},\mathrm{r}=k_{\mathrm{s}}\frac{\left(1-\epsilon \right)}{\left(1+\epsilon \right)}$$

(18)

A highly conductive material enhances radial heat transfer (i.e., monolith structure) and in return reduces thermal runaway risk with the improvement of thermal stability in catalyst [119]. Theoretical analysis showed low heat transfer efficiency of commercial monolithic structures made of corrugated metal sheets due to their structural characteristics depending on the heat transfer properties of the substrate [121]. Yashnik et al. [122] expressed the Nusselt number inside monolith channels as:

$$h\mathrm{GS}=\frac{NU\mathrm{C}K\mathrm{G}}{d\mathrm{h},\mathrm{c}}$$

(19)

where, $\mathrm{c}=0.571(R\mathrm{ec}\frac{d\mathrm{h},\mathrm{c}}{L}$) ^2/3.

5. Catalyst Application

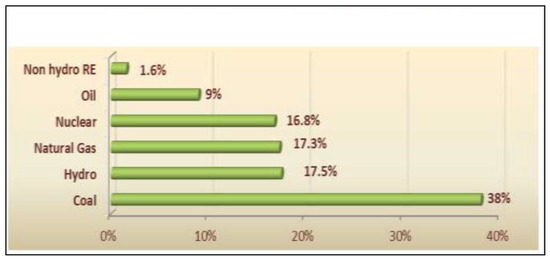

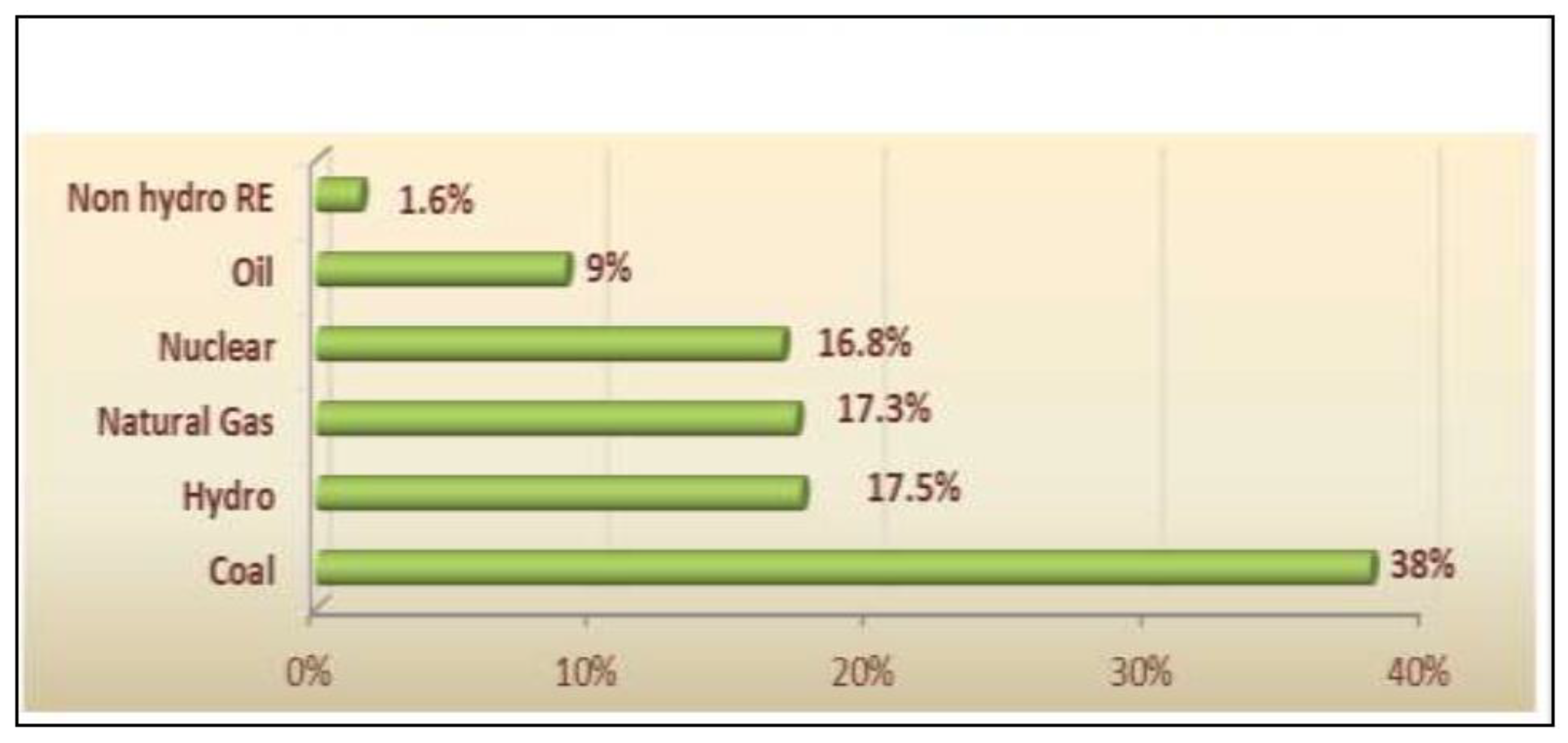

The most toxic gases emitted into the atmosphere in the process of fossil fuel combustion are SO₂ and NOx [9]. The secondary pollutants from SO₂ and NOx include H₂SO₄, O₃, HNO₃ and fine particles (PM2.5); they are harmful to humans and to the natural environment [1]. In the field of air pollution control, the recent priority research areas are in the design of desulfurization and denitrification technologies [123]. Figure 8 is showing the global share (%) of fuel for electricity generation.

5.1. SO₂ Removal from Flue Gas

SO₂ is a colorless and toxic gas that can be oxidized to form sulfuric acid when mixed with water and is one of the main contaminants in the composition of flue gas [124]. The combustion of fossil fuel in manufacturing and power plants accounts for 13.6% and 69.7%, respectively, of global SO₂ emissions [10]. Furthermore, SO₂ generates aerosols and is the main cause of acid rain which caused considerable damages to properties and the global environment [1]. The convectional technology for SO₂ removal from flue gas is the wet flue gas desulfurization (WFGD). Furthermore, the use of liquid–gas reactions and gas–solid reactions with calcites or dolomites as solvents are reported in the literature [125]. Figure 9 shows a typical flue gas desulfurization (FGD) system.

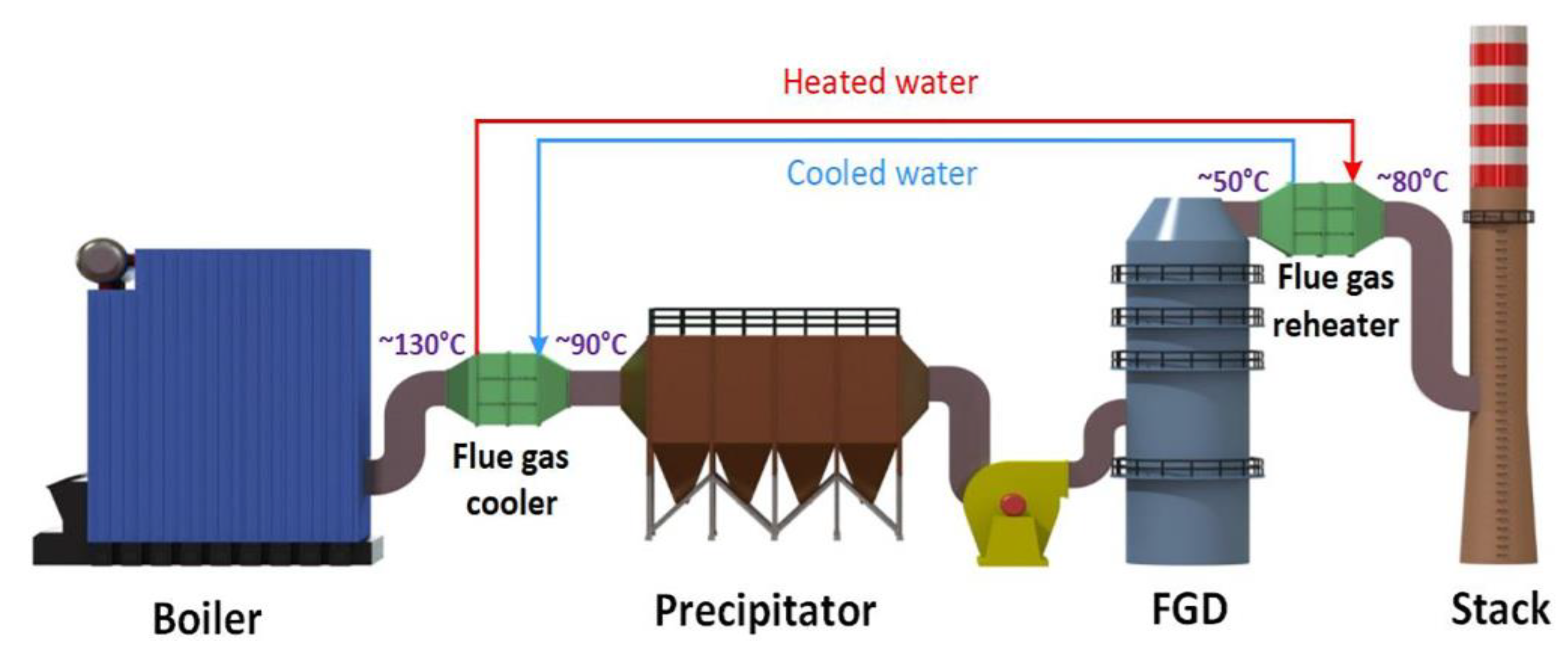

The SO₂ adsorption at stack temperature may lead to the low removal rates. Wet FGD is associated with the production of wastewater in coal-fired power plants and the liquid–solid droplets caused by FGD desulfurized flue gas may be deposited on the corrosion samples [127]. The byproducts from the wet FGD process, such as gypsum, ammonia sulfate or magnesium sulfate, are considered as a burden being secondary pollutants [1]. The FGD process is also non-regenerable, so it could be assumed as turning the problem of air pollution into a problem of solid or liquid pollution [14,128,129].

5.2. NOx Removal from Flue Gas

The term NOx is referred to as the oxides of nitrogen (NO, NO₂, NO₃, N₂O₃, N₂O₄, N₂O₅, NO, and NO₂) [10]. NO₂ comprises of 95% of NOx produced as a result of combustion processes and is stated to contribute to air emissions by several researchers [81,124,130]. NO₂ is a red-brown gas that can readily form nitric acid when it is reacted with H₂O. Among others, photochemical smog and formation of acid rain are the problems caused as a result of NO oxidation to NO₂ in air [1].

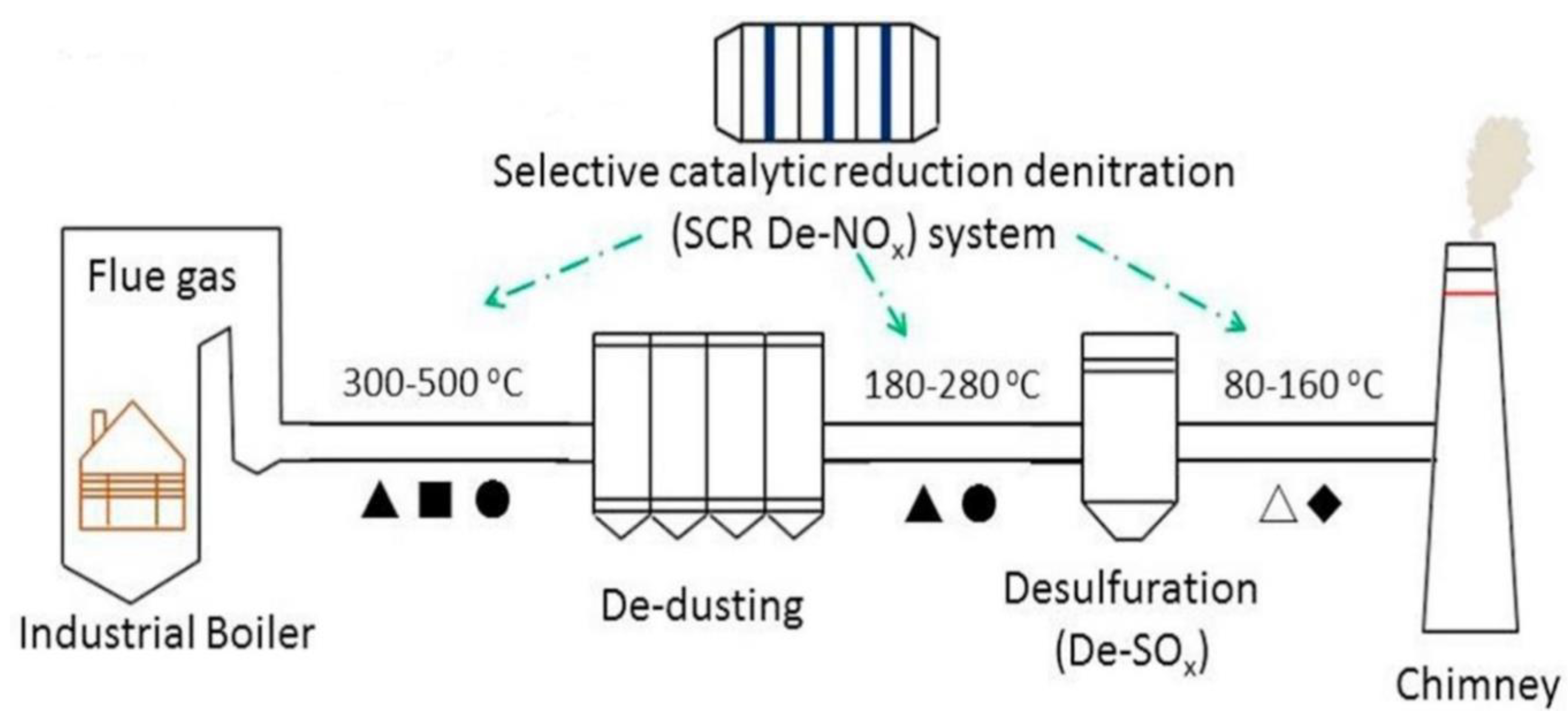

The selective catalytic reduction (SCR) technology is matured and widely favored among other technologies used in the NOx removal process [1,64]. In a typical denitrification process, urea (CO(NH₂)₂) or ammonia (NH₃) is injected into flue gas stream to reacts with NOx at about 350 °C to produce nitrogen (N₂) and water [131]. However, at temperatures <350 °C, ammonium sulfates such as NH₄SO₄ can be formed due to SO₂ reaction with NH₃ in the presence of H₂O and O₂, while its accumulation on the catalyst active site can lead to catalyst deactivation [132].

Kasaoka et al. [133] demonstrated the reduction of NOx in flue gas to N₂ with NH₃ by a dry process at 350 °C and in a wet process where SO was absorbed at around 50 °C with wastewater byproduct. According to the following expressions, the NO removal efficiency can be achieved in the presence of oxygen [134].

4NO + 4NH₃ + O₂ → 8N + 6H₂O

(20)

6NO₂ + 8NH₃ → 7N₂ + 12H₂O

(21)

NO + NO₂ + 2NH₃ → 2N₂ + 3H₂O

(22)

SO₂ reacts with the water in the flue gas and urea to form sulfuric acid.

SO₃ + H₂O → H₂SO₄

(23)

NH₃ + SO₃ + H₂O → (NH₄).HSO₄

(24)

2NH₃ + SO₃ + H₂O → (NH₄)₂SO₄

(25)

The denitrification technique by the SCR system is associated with poor catalyst durability, ammonia slip, low NOx reduction, and a high temperature requirement [10]. Figure 10 is showing conventional selective catalytic reduction technology.

The WFGD and SCR for SO₂ and NOx reduction are the most widely used technology for desulfurization/denitrification, however they are expensive [1,136]. It is therefore necessary to develop cost-effective methods that can simultaneously capture the pollutants.

5.3. Simultaneous SO₂/NOx Removal from Flue Gas

The requirement of emission standards for SO₂ and NOx in thermal power plants recently is rigorous (35 mg/m³) [137]. Dry carbon-based desulfurization does not emit secondary pollutants, with benefits through the production of elemental sulfur, feasible simultaneous SO₂, and NOx removal, cheaper investment than wet scrubbing that requires a wastewater treatment system and poor extraction efficiency of dry scrubbing [7,8,114]. Due to high efficiency in operation, the wet process is used more commonly where calcareous or lime-based scrubbing is utilized, but these approaches are non-regenerational with the transformation of air pollution problem into a problem of solid or liquid emissions [8,14,138].

The multistep reduction is particularly complex with high capital cost, solvent losses, undesired foaming, flooding, fouling of equipment, and corrosion [9]. Therefore, it is better to integrate two or more separation processes into a simultaneous removal of SO₂, and NOx from flue gas in order to increase efficiency and address the stated concerns.

Ye et al. [44] reported the simultaneous removal of SO₂ and NO from flue gases at 350–400 °C with the space velocity (GHSV) of 2800 h⁻¹ and inlet gas containing 1960 ppm SO₂ and 500 ppm NO. Previous study showed that 5% NH₃ at 400 °C can directly convert SO₂ that is regenerated from catalyst into solid ammonium sulfur salts [139]. The removal efficiencies of SO₂ and NO, respectively, were defined as: [8]

$${\mathrm{SO}}_2=\frac{{\mathrm{SO}}_{2_{\mathrm{in}}}-{\mathrm{SO}}_{2_{\mathrm{out}}}}{{\mathrm{SO}}_{2_{\mathrm{in}}}} 100,$$

(26)

$${\mathrm{NO}}_2=\frac{{\mathrm{NO}}_{\mathrm{in}}-{\mathrm{NO}}_{\mathrm{out}}}{{\mathrm{NO}}_{\mathrm{in}}} 100\%$$

(27)

Much of the literature gave detailed descriptions on the issues of SO₂ and NOx removal [139,140,141,142,143,144,145,146].

Table 5. Previous works on simultaneous SO₂/NOx removal.

Objective/Comment	Catalytic Activity	Ref.
Simultaneous removal of NO and SO2 from flue gas catalysts/uses simulated flue gas.	0.8 g of catalyst was used with reaction gas flow rate of 500 cm3 min−1 corresponding to gas hourly space velocity (GHSV) of 30,000 h−1. N2-based gas mixture containing 500 ppm NO, 600 ppm NH3, and 1000 ppm SO2 and 0–5% O2.	[44]
Vanadia based SCR catalyst study/uses simulated flue gas.	The reactive gas flow, containing 1000 ppm of NOx (100 ppm NO2 and 900 ppm NO), 1000 ppm of NH3, 15% of O2, and 8% of H2O at flow rate of GHSV = 55,000 h−1.	[147]
Ammonium sulfate salt deactivation in SCR study/uses simulated flue gas.	A simulated flue gas of 620 ppm NO, 620 ppm NH3, 3 vol% H2O, 5.5 vol% O2, and balance Ar.	[54]
Simultaneous removal of SO2/NO2 from simulated flue gas.	Simulated flue gas of 2000 ppm for SO2, 200 ppm for NO2, and about 5% for O2. The flow rate was controlled at 0.15 m3h−1 with a rotameter.	[148]

shows some experimental work available in literature on the simultaneous NOx/SOx removal studies.

6. Regeneration

The regeneration process eliminates the contaminants that are stored on the surfaces of the sorbents without altering the porosity or causing adsorbent mass losses and restores the adsorptive power. A major problem with the non-regenerative system is the creation of large quantities of waste sludge to be disposed of, and this has become an obstacle. Saturated sorbents are burned or disposed of in landfills, however this choice is an environmental and economic setback. Regenerative processes are carried out to avoid problems associated with the solid waste disposal and to reduce the cost of adsorbent replacement. The spent catalyst may be a source of ultra-fine material to partially substitute cement or be used as a sand replacement [90]. Regeneration is classified into microbiological, chemical, thermal and regeneration with water [140].

The stability of the catalyst and subsequent activity is affected by the regeneration method [7]. Piotrowski et al. [141] found that little information on regeneration kinetics were available. The reversible physical adsorption can be regenerated by reducing the pressure or increasing the adsorbent temperature, while the reduction gas can regenerate an irreversible water–solid reaction mechanism, such as sulfation on a chemical adsorbent [14].

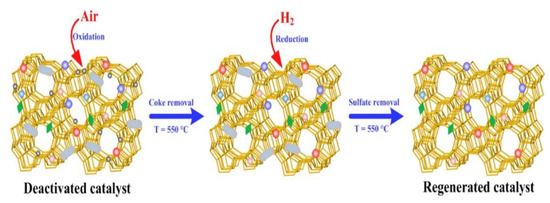

Previous studies have shown that sulfuric deactivated activated carbon can be heated to above 350 °C, and sulfuric acid is reduced to produce concentrated SO₂ under inert gases or by heating in a reductive gas flow (NH₃, urea, CO, CH₄, H₂) [7,42]. NH₃ is a favorable reductant for Al₂(SO₄)₃ in contrast to H₂ and CH₄, due to its regeneration potential on the catalyst at the temperatures of the SO₂ removal (400 °C) [142].

It is possible to further transform the off-gas regenerator into sulphuric acid or elemental sulphur [10,143]. Desulfation of CuO/γ-Al₂O₃ adsorbent can be carried out through the Claus process, under reduced flow of H₂, CH₄, and NH₃, while desorbed SO₂ is converted into sulfuric acid by further oxidation or elemental sulfur [144]. Regeneration has been found to serve three functions in SO₂ and NO removal by NH₃; desorption of the adsorbed sulfur particles, surface alteration (chemical effect), and NH₃ preservation on the surface (physical effect) that promotes significant removal of NO at lower temperatures [139].

Air as a regenerating agent is cheap and requires simpler regeneration systems than using ozone (O₃); however, O₃ can remove pollutants at ambient temperature [140], where temperature is reported to be probably the most critical parameter in regeneration [145]. Previously, Jia et al. [146] described the removal of coke from zeolites at low temperatures.

The pretreatment of catalyst before regeneration is recommended with deionized water and sulfuric acid (pH = 2) washing followed by drying at 60 °C for 10 h [149]. Poisoned catalysts can hardly be regenerated; therefore, poisoned content of the feed must be decreased to acceptable levels [79]. The regeneration efficiency is the measurement and comparison of the amounts of adsorbate retained by the regenerated and the original adsorbent after adsorptions under the same conditions.

$$RE=\frac{q_{\mathrm{reg}}}{q_{\mathrm{orig}}} 100\%$$

(28)

where, $q_{\mathrm{reg}}$ and $q_{\mathrm{orig}}$ are the adsorption capacities per unit of mass of the regenerated and the original adsorbent, respectively [140].

Dey and Dhal [97] found that the regeneration can restore the catalyst’s active sites and brings the catalyst to its original state or one of even higher activity. The illustration of the regeneration of hopcalite catalysts after CO oxidation is presented in Figure 11.

The reaction activity of hopcalite is presented as:

CO + Mn⁴⁺ → CO⁺_ads + Mn³⁺

(29)

The promotion of Cu has further been associated to the reduction of O₂:

1/2O₂ + Cu¹⁺ → CO₂

(30)

The oxidation occurs by the process:

O^̶ _ads + CO⁺_ads → CO₂

(31)

The resonance reaction system brings the catalyst back to the active state:

Cu¹⁺+ Mn³⁺ ⇄ Cu¹⁺ + Mn⁴⁺

(32)

The catalyst V/AC was used for SO₂ capture, and the experiment was terminated when the SO₂ removal efficiency decreased to 80% and the workers performed thermal regeneration at 300–400 °C for 1 h under N₂ (400 mL/min) then further conducted CO regeneration at 300–400 °C in a furnace for 1 h under 0.15% CO [7]. The thermal swing adsorption (TSA) is a process where desorption is achieved by increasing the system temperature while decreasing the pressure; the process is called pressure swing adsorption (PSA) [86].

Contaminants are desorbed in the reverse order or countercurrent to which they adsorbed in a co-current method in monolith, the post regeneration activity follows: drying at 60 °C for 2 h and then at 120 °C for 2 h [150]. Several studies demonstrated the regeneration of catalysts [7,41,151,152,153].

Overview on Fluidized-Bed/Fixed-Bed Reactors for Activity Test

When the fluid carrying channel(s) has size below 1 mm, the reactors are regarded as being micro-structured [154], and a good example is the monolith. Experimental data in the laboratory (i.e., kinetics, adsorption capacity) using fluidized or fixed-bed reactors can help in understanding best how the system works [115]. Most of the two mainly used reactor types for flue gas cleaning laboratory research are the fluidized-bed and fixed-bed reactors.

Table 6. Comparison of the fluidized-bed reactors and fixed-bed reactors.

Fluidized-Bed Reactors (+Merit, -Demerit)	Fixed-Bed Reactors (+Merit, -Demerit)	Ref.
(+) Fly ash passes through the reactor without plugging	(-) Plugging can occur (monolith adsorbent/catalyst reactor remedy)	[5,80,155,156,157]
(-) Higher pressure drop	(+) Simple and robust construction
(+) Shutdown for replacement of catalyst is not needed.	(-) Process must be shut down for reloading the reactor with fresh catalyst
(-) Possible attrition of the bed material	(+) Pressure drop is low
(+) Continuous operation and regeneration	(-) Bad temperature distribution, Low specific capacity
	(+) Lots of processes for different applications in operation
(+) High thermal/mass transfer coefficient, high gas/solid, and solid/solid contact areas are continuous	(-) Long period to heat-up
(+) No valve problems	(-) Valves are required to isolate the regenerator’s absorber
(+) Less space requirement because of great scale-up	(+) Can operate at partial load (20 ± 110%)

showed the merits and demerits of each reactor.

7. Conclusions

The development of a catalyst that can clean up large volumes of flue gases with valuable byproducts such as sulfuric acid with environmental consideration through the elimination of the waste materials and proper disposal have gained a lot of attention. Such a catalyst should be compatible and easily retrofitted to the existing power plants, fired boilers, incinerators, and other chemical process industries with more than 90% efficiency regeneration. Moreover, high surface area with abundant active site and chemical nature are stringent characteristics of any catalyst to perform effectively. In this study, the basis of developing a monolithic supported metal-oxide-based catalyst for environmental application was explored. The possibilities of catalyst deactivation, regeneration, and practical environmental application in SOx and NOx removal from flue gas were discussed.
