Synthesis and Characterization of Zinc Peroxide Nanoparticles for the Photodegradation of Nitrobenzene Assisted by UV-Light

Abstract

The contamination of both soil and water by nitrobenzene (NB) is a problem that has been studied, where several reactive agents have been developed for the degradation of this compound as well as different methods. Nanoparticles with semiconductive properties have been studied for organic compounds photodegradation due to their assistance in optimizing the degradation processes. Two of the most promising photocatalysts are ZnO and TiO₂ because of their optimal results. In the present work the performance of the zinc peroxide (ZnO₂) nanoparticles was evaluated. ZnO₂ nanoparticles were synthesized from zinc acetate and hydrogen peroxide using the Sol-Gel method under ultrasound assistance. The characterization was carried out by UV–Vis spectroscopy, infrared Fourier transform total reflectance (ATR-FT-IR) spectroscopy, Raman spectroscopy, X-ray diffraction (XRD), Zeta potential, dynamic light scattering (DLS), field emission scanning electron microscopy (FE-SEM), and Energy Dispersive X-ray spectroscopy (EDX). The experiments for the degradation of NB were carried out in a photoreactor with UV lamps of 254 nm at 25 °C, using a solution of nitrobenzene with the nanoparticles. The best conditions for NB photodegradation were 30 ppm (ZnO₂) and 15 ppm (NB) at pH 2, reaching up to 90% degradation in 2 h. The intermediates formed during the photodegradation of NB were identified by gas chromatography mass spectrometry.

1. Introduction

Nitrobenzene (NB) is an aromatic molecule that causes toxicity in living organisms. Exposure can lead to absorption through different routes, such as dermal, inhalation or orally. When NB is absorbed into the systemic circulation, it causes methemoglobinemia, hepatoxicity, neurotoxicity, inhibition of liver enzymes, conjectured carcinogenicity and also has been found to cause genotoxicity in Drosophila [1,2,3]. This carcinogenic pollutant is widely used for the fabrication of different types of products, such as dyes, explosives, and pesticides [4]. NB has become a potential contaminant and of greater interest for its investigation due to the effects it can have on human beings [5,6,7,8]. The United States Environmental Protection Agency has listed NB as one of the most important pollutants. Nitrobenzene is a toxic agent that even at low concentrations can be a pollutant for the environment and living organisms [9]. Some agencies (National Institute of Environmental Health Sciences and Environmental Protection Agency) have focused their attention on NB, due to possible carcinogenic effects and water contamination, which is limited to 17 ppm in lakes and streams to prevent ingestion of fish and water that could cause health problems [10].

In this regard, several treatment processes were reported for effective nitrobenzene removal, which can be achieved by physical and chemical methods such as electrochemical reduction, catalysis, ozonation, biodegradation, adsorption, and photocatalysis [11,12,13,14,15,16,17]. This last method is one of the most promising for the following reasons: (1) complete mineralization, (2) no waste disposal problem, (3) low cost and (4) only mild temperature and pressure conditions are necessary [18].

The successful use of H₂O₂ as a source of active oxygen for environmental decontamination and disinfection, as well as an oxygen source for biodegradation of organic pollutants, has been amply reported [19]. In the photocatalysis field, semiconductors are of great interest, especially when they are combined with H₂O₂ [20,21]. When a semiconductor through the effects of electromagnetic radiation generates an electron/hole pair, their redox potential needs to be sufficiently positive and negative for the hole and electron, respectively, to generate free radicals that could subsequently degrade an organic contaminant [18]. These free radicals could be generated from environmental O₂ instead of H₂O₂ if the needed redox potential is reached.

A technique involving a semiconductor photocatalyst and a contaminant has been used for the purification of air and water, which consists of the production of an electron/hole pair after illuminating the semiconductor with energetic enough photons [22]. It has also been seen that irradiation of a nano photocatalyst activity is enhanced through two synergistic mechanisms: the effect of plasmonic hot electrons and photothermal collective heating [23]. Titanium dioxide, TiO₂, is the most common semiconductor photocatalyst and has been used for the degradation of energetic compounds like NB when exposed to ultraviolet irradiation thanks to their large bandgap (e.g., 3.0–3.2 eV) [24,25,26]. In the field of photocatalysis, several materials have been investigated. One of the most promising candidates is ZnO due to its potential as a green environmental management system. The properties that stand out in this material are direct and wide bandgap in the spectral region near the UV rays, strong oxidation capacity, good photocatalytic property and large energy of free exciton binding. There is evidence that in some cases the coupling of a semiconductor can reduce the recombination of the electron–hole pair, increasing the charge carrier’s lifetime by effects of charge separation. Lee et al. (2016) demonstrated a 25% improvement in the photodegradation efficiency of ZnO by coupling it with ZnO₂ [22].

ZnO₂ is also a semiconductor with a bandgap greater than that of ZnO. Nanocrystalline ZnO₂ material is an indirect semiconductor with an energy gap near 4.5 eV [27], although its real value has been reported to be between 3.3–4.6 eV [28]. ZnO/ZnO₂ composite has shown a superior photocatalytic activity as compared with either of its constituents (ZnO or ZnO₂). A trend was found to be correlated with the amount of ZnO₂ granules present on ZnO crystallites, at a higher concentration of ZnO₂ on the surface a higher specific surface activity was observed, suggesting that ZnO₂ alone could possess good photcalytic activity. However, an experiment using this ZnO₂ powder alone presented a low photocatalytic activity regardless of its synthesis process (hydrothermally treated or untreated). This was expected since the absorption wavelength of the material (300 nm) and the light used in the irradiation had the same maximum-intensity wavelength, reducing the efficiency of electron/hole pair generation. Also, a reduction of the excitons lifetime is expected since the material exhibited a poor crystallinity [29]. Despite the fact that peroxide materials are stable at low temperatures, and that the conduction band of ZnO₂ is higher than that of other catalysts, such as TiO₂, it has been proved that ZnO₂ continues to preserve its crystalline structure at high temperatures (below 120) [30], and its facile synthesis and non-toxic nature [31] give rise to considering it as a candidate. In addition, the conversion of ZnO₂ to ZnO that takes place through the photoreaction releases O²⁻ and ZnO [30], which is a material with a small bandgap [22]. These factors can favor degradation since the two materials (ZnO₂/ZnO) will be coexisting in the system [30], increasing the photon absorption range. This phase transition does not compromise its recycling and reusability since it has been shown that ZnO₂ is a material that is easy, quick and has a low cost to regenerate, conserving its efficient catalytic activity [28].

Due to the observations stated above, in this study we synthesized and tested a highly crystalline powder of ZnO₂ with a light source with a wavelength of 254 nm which could generate electrons and holes more efficiently than a light source of 300 nm. The sol-gel/sonochemical route was used to obtain ZnO₂ with certain characteristics (highly crystalline and in the nanoscale) to evaluate its performance as a photocatalyst. It has been observed that this method has been useful to synthesize particles with a consistent size and crystallinity, hence that is why this method was selected [31]. In addition, the material that we synthesized contains crystals of a size smaller than 10 nm, which can support to enhance the adsorption of NB molecules because of their high surface/volume ratio and in this way benefiting the degradation of NB. Another property of the manufactured nanoparticles is that having O₂ available can help create more reactive species that play a role in the photodegradation reaction. Hence, we selected the ZnO₂ catalyst as a model for studying the degradation profiles and its mechanism in nitrobenzene photodegradation.

2. Results and Discussion

2.1. Synthesis of ZnO₂ Nanoparticles

The Following reaction (Equation (1)) takes place in the preparation of nanoparticles of zinc peroxide [31]:

$$\mathrm{Zn}{({\mathrm{O}}_2{\mathrm{CCH}}_3)}_2+{ \mathrm{H}}_2{\mathrm{O}}_2 \stackrel{}{\to }{\mathrm{ZnO}}_2+2{\mathrm{HO}}_2{\mathrm{CCH}}_3$$

(1)

The formation of ZnO₂ nanoparticles was confirmed through visual assessment due to the white color and further confirmed throughout the characterization.

2.2. Characterization of ZnO₂ Nanoparticles

2.2.1. UV-Vis Spectroscopy

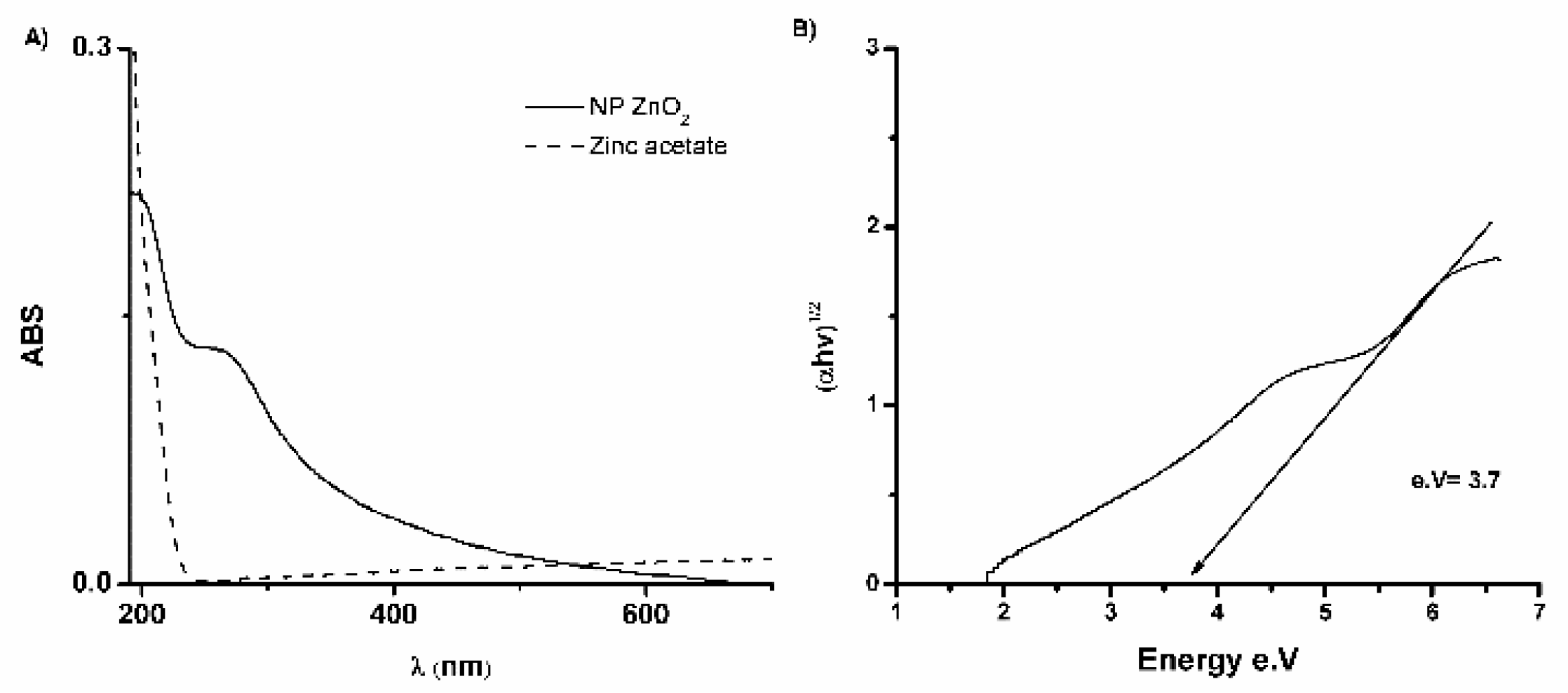

Figure 1A shows the UV-Vis spectra of ZnO₂ with a maximum excitation band at 285 nm is in agreement with the data found in the literature, perceiving a slight shift which can be due to the size of the nanoparticle [32]. The comparison of this maximum with that of Drmosh et al. (2010), where a nanoparticle with a size of 3.7 nm exhibits an absorption band at 280 nm, supports the statement that the shifts of the maximum absorption are due to the quantum confinement effects that appear in the nanoscale. When the particle size decreases enough to present properties due to quantum confinement the bandgap of the particle increases, and its absorption shifts to a lower wavelength [33]. Additionally, in Figure 1A it is seen that the spectrum of the reactant (dotted line) has no characteristic absorption, unlike the product, where it is observed that the spectrum changes after the reaction, with a noticeable change in the UV-Vis spectrum. These properties indicate that a ZnO₂ phase is probably present.

As we know, the UV-Vis spectrum gives us information not only about the optical properties but also about the bandgap (Figure 1B). It is known that there is a strong hybridization between the states Zn-d and O-p. ZnO₂ is an indirect semiconductor with the upper part of the valence band located in Γ and the lower part of the conductance band located between Γ and R. For ZnO₂ the bandgap is 2.3 eV, however, it is generally underestimated by approximately 50–100% using density functional theory. Hence, the real value of the energy gap for ZnO₂ could be in the range of 3.3–4.6 eV, in agreement with the value calculated from spectrum [27]. The energy calculation of the bandgap (Equation (2)) can be calculated from the UV-vis absorption spectrum. The band interval energy was calculated using the Tauc method as seen below:

$$\mathsf{\alpha }\mathrm{h}\mathsf{\vartheta }=\mathrm{C}(\mathrm{h}\mathsf{\vartheta }-{\mathrm{E}}_{\mathrm{g} }{)}^{\mathrm{n}}$$

(2)

where α is the absorption coefficient, $\mathrm{h}\mathsf{\vartheta }$ is the incident energy, n = 2, C is a constant and E_g the optical bandgap. The graph was plotted with the values of ${\left(\mathsf{\alpha }\mathrm{h}\mathsf{\vartheta }\right)}^{1/2} \mathrm{vs} \mathrm{h}\mathsf{\vartheta } ({\mathrm{E}}_{\mathrm{g}}$) for the calculation of the indirect band energy the linear part is extrapolated to zero with the abscissa $(\mathrm{h}\mathsf{\vartheta } \mathrm{eV}$) [34,35]. The bandgap calculated was 3.7 eV (Figure 1B), which is within the range consulted in the literature [27].

2.2.2. Infrared Fourier Transform (FT-IR)

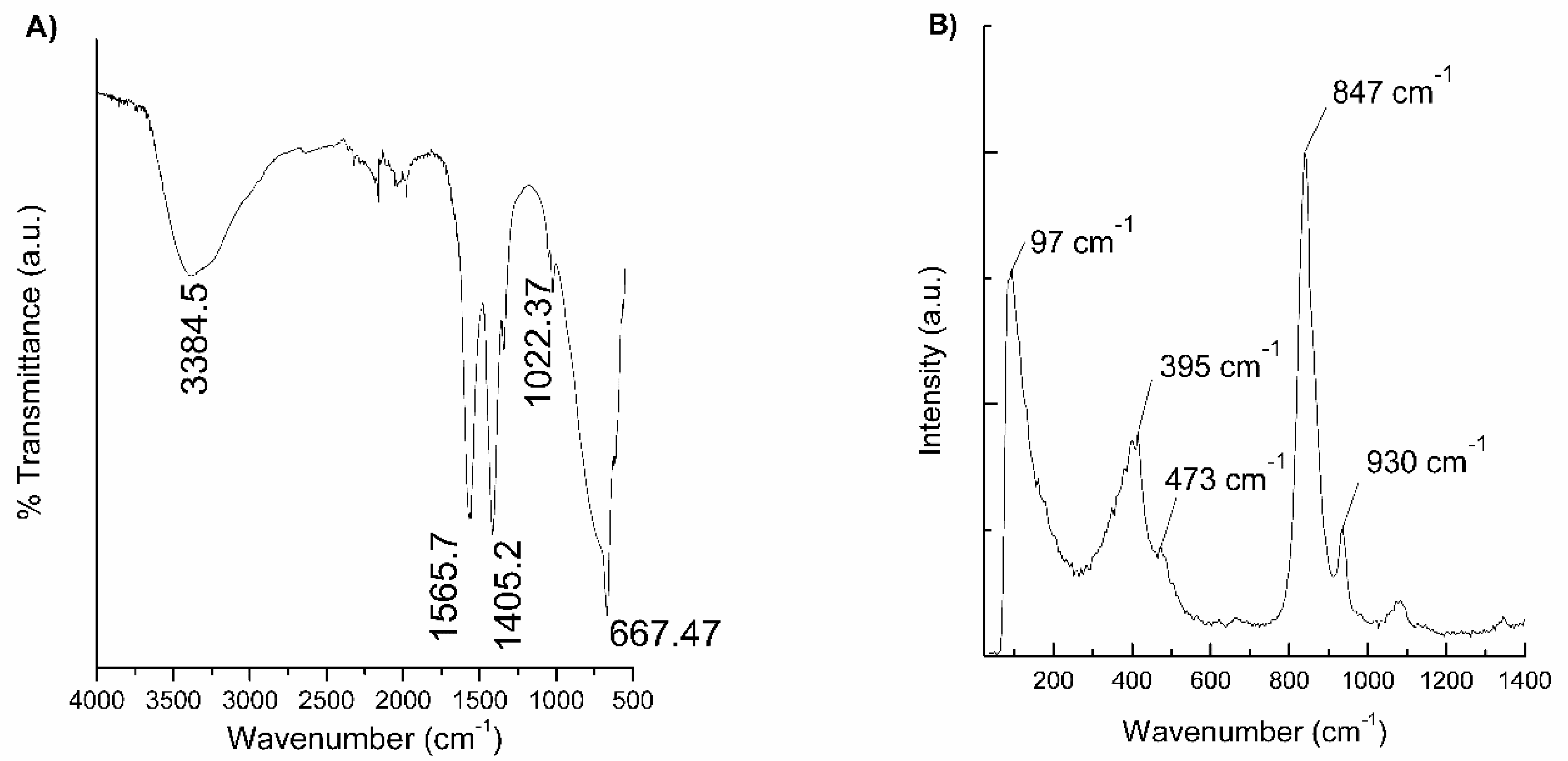

The FT-IR spectra of the ZnO₂ nanoparticles are shown in Figure 2A, with characteristic peaks at 667 cm⁻¹, 1022 cm⁻¹, 1405 cm⁻¹ and 1565 cm⁻¹. The peak positions centered at 667 cm⁻¹, 1022 cm⁻¹ and 1405 cm⁻¹ may be due to the O–O bands corresponding to the peroxide (${\mathrm{O}}_2^{-2}$) ions of ZnO₂ nanoparticles. Another sharp absorption band of the ZnO₂ is observed located at 667 cm⁻¹, which corresponds to Zn–O vibration. As Verma et al. (2014) observed for ZnO₂ nanoparticles (average crystallite size of 151 nm) characteristic vibrations cause peaks at a wavenumber of 436 cm⁻¹ for Zn–O bond, and 1040, 1334, and 1450 cm⁻¹ for O–O bond [28]. The shifts of the wavenumbers could be due to the particle size, since there is evidence that suggest that the characteristic Zn–O vibration has a redshift as the particle size increases [32,36]. The difference of the crystallite size from those synthesized by Verma et al. (2014) and ours are 145 nm, with ours having an average of approximately 6 nm, supporting this evidence. In addition, the broad peak in the wavelength of 3384 cm⁻¹ and the band 1565 cm⁻¹ corresponds to characteristic stretches of the water molecule [37]. On the other hand, the bands shown in 1536 cm⁻¹ and 1405 cm⁻¹ may correspond to the vibrations of the reactant (zinc acetate) since they are characteristic of vibrations of C–O and C–C bonds [38]. This could be part of the reactant that did not react. It may sound logical that these are still present in the sample since the sample did not undergo any heat treatment, or could be arising from the absorption of atmospheric CO₂ on the surface of the nanoparticles [32]. In contrast, the % proportions of the atoms from the EDX analysis (Figure 3B) correlate with ZnO₂, with no extra oxygen coming from the acetate.

2.2.3. Raman Spectroscopy

The Raman spectra of ZnO₂ nanoparticles are shown in Figure 2B where 5 signals are present, at the positions of 97, 395, 473, 847 and 930 cm⁻¹ respectively. These peaks are assigned to ZnO₂ according to the single phase observed in the XRD results. For instance, some peaks display low intensity and have been found in other peroxides [30] and the peaks at 847 and 930 cm⁻¹ are in agreement with the Raman spectra of nanocrystalline ZnO₂ [39]. As for the most intense peak, a stretch mode of a O–O vibration that is not well resolved in the infrared spectrum is centered at approx. 840 cm⁻¹ [30], suggesting that this mode could be ascribed to the band at 847 cm⁻¹.

2.2.4. X-ray Diffraction

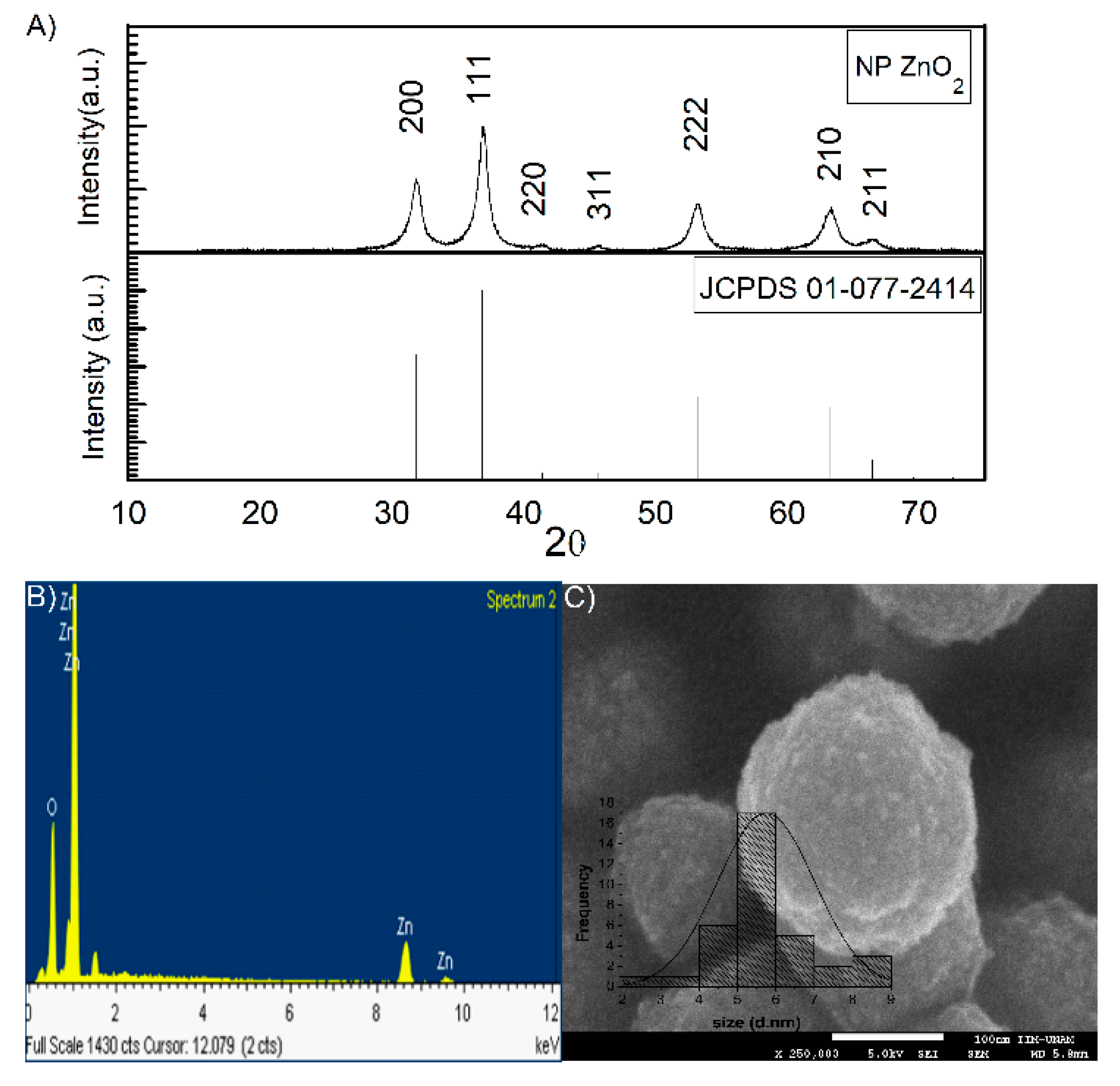

To study the crystalline structure of the ZnO₂ nanoparticles, the powder was subjected to an X-ray diffraction analysis, obtaining the diffractogram shown in Figure 3A.

Where it is observed that all the peaks fit perfectly to the data found in the JCPDS reference (01-077-2414) that belongs to a cubic structure of ZnO₂. For the calculations of lattice parameter, cell volume and atomic radius the following formula (Equation (3)) was used:

$${\mathrm{d}}_{\mathrm{hkl}}= \frac{\mathrm{a}}{\sqrt{{\mathrm{h}}^2{\mathrm{k}}^2{\mathrm{l}}^2}}= \frac{\mathrm{n} \mathsf{\lambda }}{2 \sin \mathsf{\theta }}$$

(3)

where hkl are the miller indices of the plane, n the diffraction order (commonly given as 1), λ is the wavelength (1541 A. CuKα) and θ is the Bragg diffraction angle of the plane [40]. These calculations are shown in

Table 1. X-ray diffraction calculated ZnO₂ crystal structure parameters.

2θ	HKL JCPDS			Lattice Parameter (Å)	Atomic Radius (Å)	Cell Volume (Å3)
37	2	0	0	4.86	2.43	115
31	1	1	1	4.91	2.45	118
53	2	2	0	4.87	2.43	115
63	3	1	1	4.87	2.43	115
66	2	2	2	4.87	2.43	115
41	2	1	0	4.89	2.44	117
45	2	1	1	4.88	2.44	116

where we calculated, the typical characteristics of the cubic structures. For the crystal size, the Scherrer equation was used [41,42] obtaining a crystal size of approximately 6 nm.

2.2.5. Scanning Electronic Microscope (SEM) and Dynamic Light Scattering (DLS)

In Figure 3B the typical EDX spectrum of ZnO₂ is shown. This indicates the composition of the sample which is formed by Zn and O (the atomic ratio Zn/O is 1:1.54), approaching that of the consulted bibliography [43], supporting the approximated chemical composition that could be estimated for ZnO₂ according to the obtained XRD results. As mentioned above the size of the crystals calculated by the Scherrer equation was about 6 nm, in Figure 3C we can observe a micrograph of a ZnO₂ nanoparticle where it can be seen that the particle (~100 nm) is made of small crystals which were measured to be of about 6 nm.

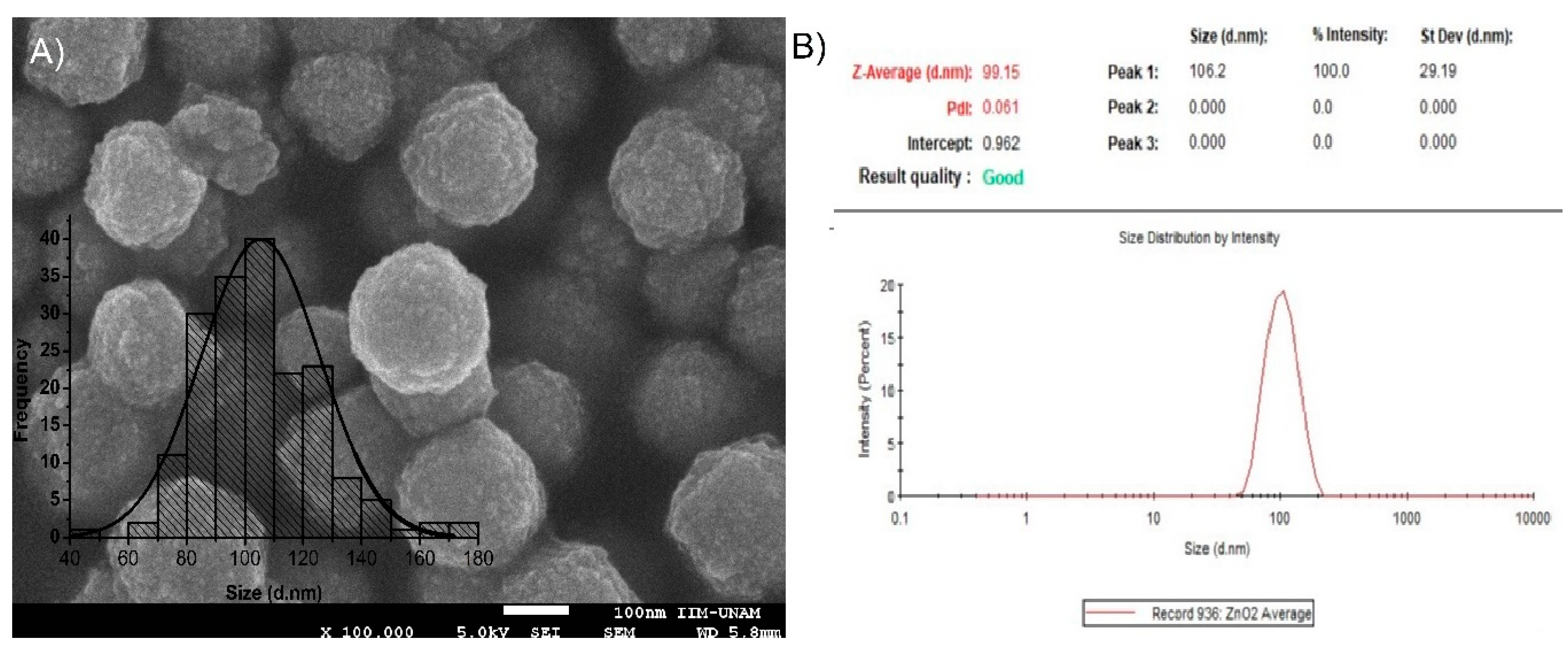

Figure 4A shows a photo taken with an accelerating voltage of 5 KeV and subjected to image analysis with the help of J-image software for the measurement of the particle diameter distribution, obtaining an average diameter of approximately 100 nm with a normal distribution. This confirms the DLS analysis (Figure 4B) from which we obtained a D_h of ~100 nm, meaning that we synthesized nanoparticle clusters of about 100 nm with a normal distribution made from small crystals of ~6 nm.

2.2.6. Zeta Potential

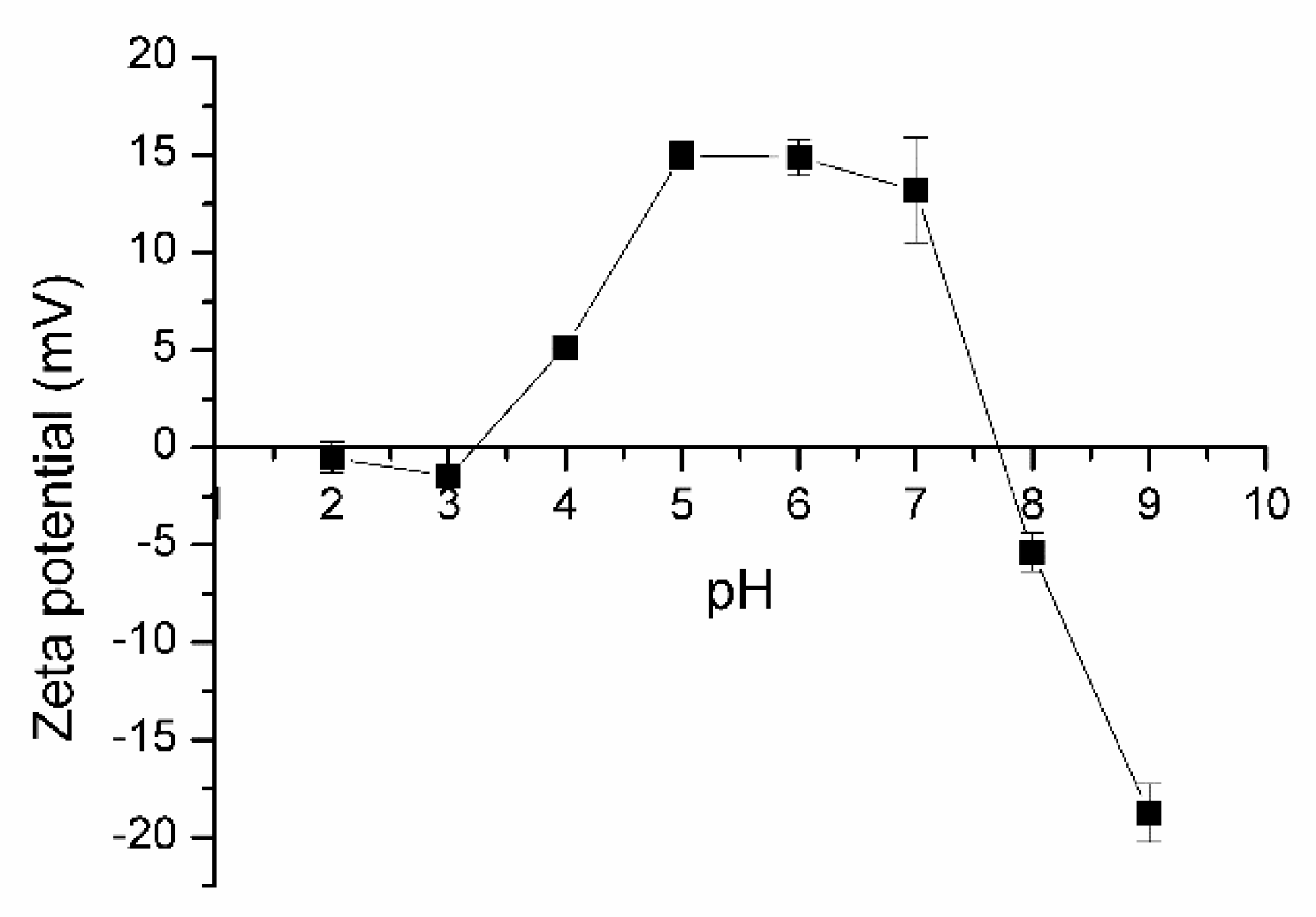

Figure 5 presents the mean zeta potential profile at varying pH of ZnO₂ suspensions. This was calculated between a pH of 3 and 9 and the initial pH of the solutions was at pH 6.3, having an average zeta potential of +15 mV. As the pH increased, the zeta potential was found to decline gradually to a point of zero charges (PZC), which was measured between pH 7.5–8.0. After this point the solution showed an agglomeration. When reaching an alkaline pH of 9 the nanoparticles presented a charge of −18 mV ± 2. At alkaline pH, the dominant species are Zn(OH)₂ (aq), which could precipitate giving a new solid phase, Zn(OH)₂ (s). However, if the pH keeps rising, the global charge is mediated by the prevalence of negative species such as Zn(OH)⁻₃ (aq) and Zn(OH)²⁻₄ (aq), exhibiting a negative surface [44]. By decreasing the pH of the solution below pH 7 it showed a dispersion region by increasing the zeta potential, thus having a dissolution region and agglomeration region agreeing with the consulted reference [45]. An isoelectric point (IEP) was observed at pH 3.2 (Figure 4), however two points at zero were detected, IEP at an acid pH and a PZC at an alkaline pH matching the reference [46].

2.3. Photocatalytic Degradation of Nitrobenzene

2.3.1. Effect of Photocatalyst Concentration

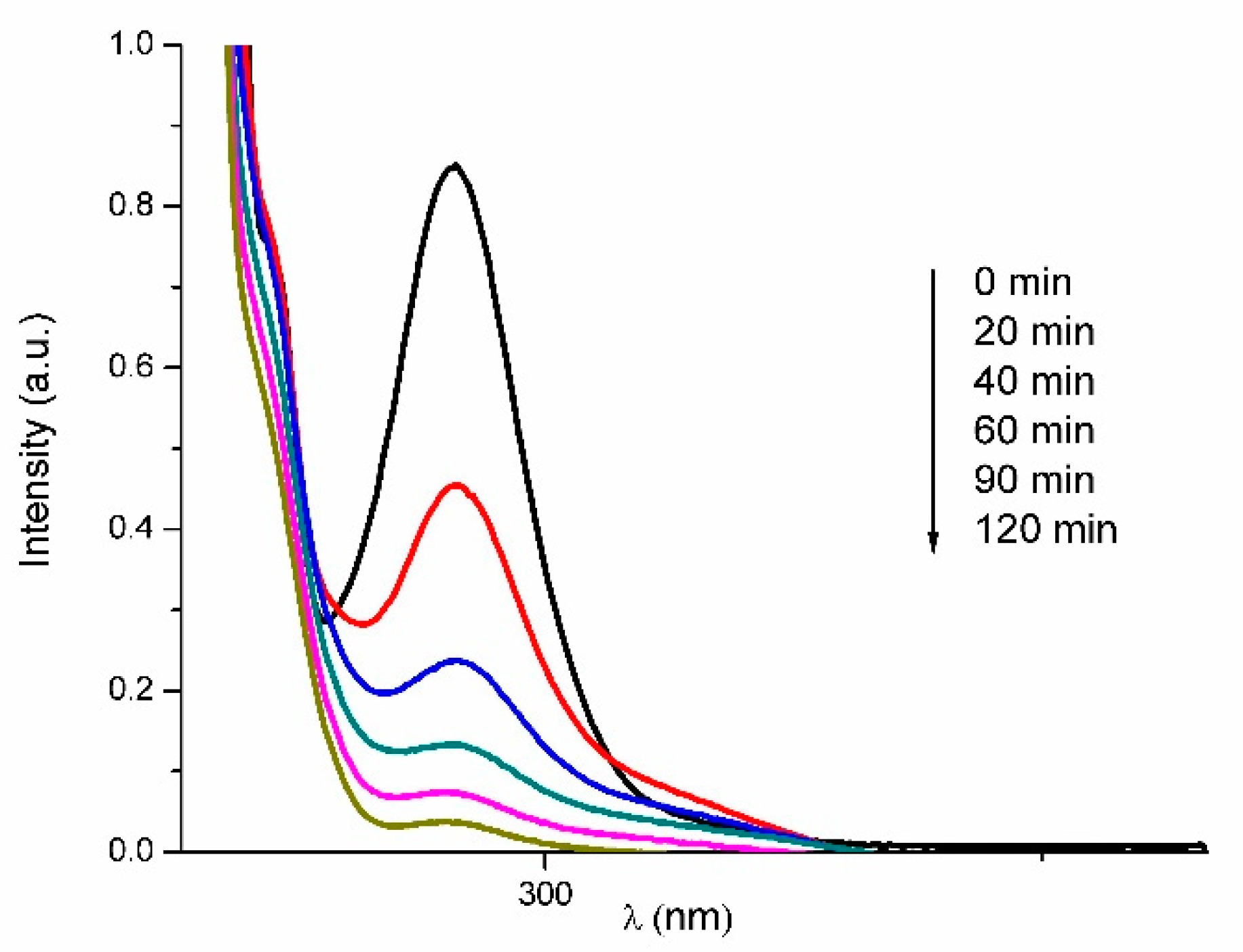

Figure 6 presents the UV−vis absorption spectra of NB solution samples after photoreaction for different times. The typical spectrum of NB shows an absorption peak between 250 nm and 268 nm [47]. NB shows an absorption peak at 265, which decreased greatly in intensity as the UV exposure time increased in the presence of the ZnO₂ semiconductor. When an electron/hole pair is generated at a surface, several events can occur. They can recombine, irradiating the input energy as heat, cause collective plasmonic heating, produce hot electrons [23], enter in a metastable state or react with electron donors and acceptors adsorbed or near the surface of the particle [48,49,50]. These two last reasons are the main cause of the decrease in NB concentration. The following formula (Equation (4)) was used to obtain the percentage of degradation:

$$\mathrm{Degradation} (\%)=\left[\left(\mathrm{Co}-\mathrm{Ct}/\mathrm{Co}\right)\right]\mathrm{x}100$$

(4)

where Co is the initial concentration or the initial absorbance of NB and Ct is the concentration or the absorbance of NB at a certain time ‘t’ in minutes [51].

NB absorbs at a wavelength close to the intensity of the lamps, which could suggest that the NB would degrade in the absence of the catalyst. However, the control experiment (Data not shown) with no photocatalyst was run and this event was discarded due to the low NB removal from solution, which was less than 10%.

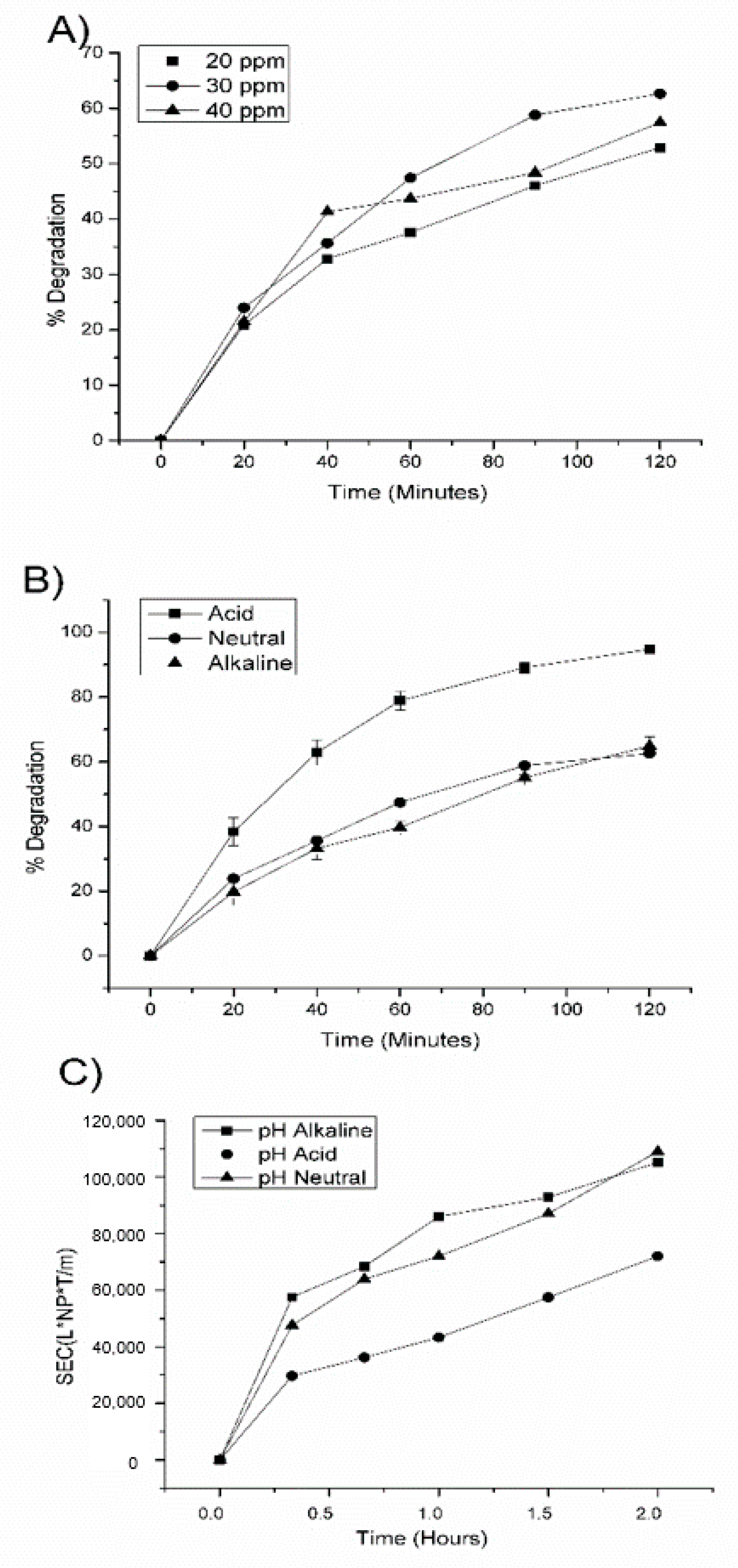

Figure 7A shows the percentage of NB photodegradation at different ZnO₂ nanoparticle concentrations, being 20, 30 and 40 ppm with a NB% degradation of 53%, 63% and 57% respectively. It can be seen that increasing the concentration from 20 ppm to 30 ppm the NB degradation increased, confirming the positive influence of the increased number of ZnO₂ active sites on the process [52]. Therefore, the efficiency could be enhanced with the increase of ZnO₂ concentration because the total surface area available for nitrobenzene adsorption increased [53].

On the contrary, increasing the concentration to 40 ppm had a repercussion on the degradation, the photocatalytic reaction decreases due to the decrease of light penetration and the increase of UV light scattering [54]. This decrease could also be attributed to a blocking effect taking place on the surface of the photocatalyst decreasing the efficiency of decomposition, as consequence of excessive O₂ ions acting as scavengers for OH radicals [55].

2.3.2. Effect of pH

The effect of pH on the photocatalytic activity (Figure 7B) was clear. The nanoparticles of ZnO₂ degraded 63%, 65%, and 98% for pH 7, 10 and 2 respectively, with pH 2 being the most effective. The reason may be that when the pH is 2.0, there is a strong Coulomb force between the surface of ZnO₂ nanoparticle and nitrobenzene, which is favorable for the adsorption of nitrobenzene on the surface of the photocatalyst [53]. The ZnO₂ colloid nanoparticles between a pH of 2 and 3 would, therefore, have a negative surface charge (Figure 5) and would be expected to experience a significant attraction to surfaces with a positive surface charge. The pKa of the NB is 3.98, where the anionic form dominates upon increasing the pH of the solution [56].

Therefore, at a pH between 2 and 3 ZnO₂ has a negative zeta potential and NB a positive charge under these conditions, which would boost attractions between nanoparticles and NB. Additionally, below pH 2 ZnO₂ nanoparticles release O₂ ions [57,58]. In the holes bridging O⁻ atoms with unit formal charge O⁻ are powerful oxidizing agents, which are capable of pulling electrons from adsorbed H₂O to yield H₂O⁺, which can dissociate to yield a proton and the hydroxyl surface radical [49], as expressed in the following Equations (5)–(10):

$${\mathrm{ZnO}}_2+\mathrm{hv}\to {\mathrm{e}}_{\mathrm{cb}}^{-}+{\mathrm{h}}_{\mathrm{vb}}^{+}$$

(5)

$${\mathrm{e}}_{\mathrm{cb}}^{-}+{\mathrm{O}}_2\to {\mathrm{O}}_2^{·-}$$

(6)

$${\mathrm{h}}_{\mathrm{vb}}^{+}+{ \mathrm{OH}}^{-}\to {\mathrm{OH}}^{•}$$

(7)

$${\mathrm{h}}_{\mathrm{vb}}^{+}+{ \mathrm{H}}_2\mathrm{O}\to {\mathrm{H}}_2{\mathrm{O}}^{+}$$

(8)

$${\mathrm{H}}_2{\mathrm{O}}^{+}\to {\mathrm{OH}}^{•}+{ \mathrm{H}}^{+}$$

(9)

$${\mathrm{OH}}^{•}+ \mathrm{NB}\to \mathrm{Hydroxyl} \mathrm{intermediates}+{ \mathrm{CO}}_2+{ \mathrm{H}}_2\mathrm{O}$$

(10)

Also photogenerated are electrons in the conduction band (${\mathrm{e}}_{\mathrm{cb}}^{-}$) and holes within the valence band (${\mathrm{h}}_{\mathrm{vb}}^{+}$), which can either recombine or reside in a trapped state or within the respective band. O₂ is an effective electron scavenger, forming either O₂⁻ or O₂ ⁻² [48]. Newly formed superoxide radical anion (${\mathrm{O}}_2^{-}$) further reacts with water to generate hydrogen peroxide anions and increase the number of hydroxyl radicals, increasing the performance of the reaction [59]. In this manner, it improves the availability of contact and the amount of surface OH^• generated (Equations (5) and (7)) and increasing % degradation. These equations could be supported if the hydroxyl intermediates are identified.

Frequently, in both the literature and international standards, SEC is used as an energy performance indicator to evaluate or measure the performance of energy efficiency [60]. Figure 7C shows the energy efficiency of the effect of pH on the photocatalytic activity. At the optimal parameters (pH 2 and 30 ppm ZnO₂) and after 120 min of treatment, 97.7% of NB was degraded with a corresponding SEC of approx. 60,000 kWh/kg.

The photocatalytic activity of the prepared nanoparticles, compared with the most relevant reported photocatalysts for the degradation of NB (

Table 2. Comparison of photocatalytic activity of ZnO₂ with the reported various catalysts for NB degradation.

Material	[Material]	[NB]	Time (h)	Type of Irradiation	NB Degradation (%)	Principal Intermediates	Reference
TiO2 Nanotubes	50 mg/50 mL	40 ppm	4	Sun light	100.00%	No report	[61]
SrFeO3−δ	1000 ppm	50 ppm	6	125 W, Mercury Vapor Lamp	99.00%	No report	[62]
TiO **	0.3% w/v	300 ppm	4	Sun light	98.50%	3-nitrophenol and 4-nitrophenol	[63]
TiO2	50 mg	50 ppm	8	125 W, Mercury Vapor Lamp	98.00%	No report	[10]
G-ZnO-Au NCs	4 ppm	5 mM	2.3	500 W, <420 nm	97.80%	Aniline	[64]
(0.50%) Zn doped TiO2		15 ppm	2	254 nm	97.00%	No report	[65]
GT-1	200 ppm	50 ppm	4	200 W	96.00%	No report	[66]
				Mercury Vapor Lamp
Ag-h-TiO2 ***	0.5 g/L	61.5 ppm	3.5	435.8 nm	95.50%	n-butanol, di-ethyl ether, furan, orthoformic acid, propanol and acetic acid.	[67]
TiFe0.5 ***	4 glass plates	2.51 × 10−4 M	4	320–500 nm	88.45%	No report	[22]
ZnO2 *	30 ppm	15 ppm	2	254 nm	97.55%	2-NPhs, 3-NPhs and 4-NPhs	This work

Note: G–ZnO–Au NCs = Graphene–ZnO–Au Nanocomposites, GT-1 = Graphitic Carbon (1%)-TiO₂ Composites, Ag–h–TiO₂ = Ag Doped Hollow TiO₂ Nanospheres, TiFe0.5 = 0.5 wt.% Fe-doped TiO₂ deposited as thin film on glass plates (19.5 cm2 irradiation area), Nitrophenol = NPhs, 2-nitrophenol = 2-NPhs, 3-nitrophenol = 3-NPhs and 4-nitrophenol = 4-NPhs.2.4 Degradation Products Identification by High-Resolution Mass Spectrometry. * Acid ** Alkaline *** Neutral (the reactions where the pH is not specified, are assumed to be aqueous solution).

), had a high 98% removal. As shown in Table 2 our percentage of degradation (98%) is achieved in half or, in some cases, even at one quarter of the time (2 h) compared to the obtained degradation by other catalyst such as: TiO₂ nanotubes (50 mg) [61], SrFeO_3−δ (1000 ppm) [62], TiO (0.3% w/v) [63] and TiO₂ (50 mg) [10], which degraded the NB in solution with an efficiency of 100%, 99%, 98.5% and 98% in 4, 6, 4, 8 h respectively. Moreover, G–ZnO–Au NCs, see Table 2 [64], and (0.50%) Zn doped TiO₂ had a 98 and 97 percentage of degradation in 2.3 and 2 h respectively, having very similar results as our synthesized nanoparticles. In short, we have synthesized ZnO₂ nanoparticles by a facile method capable of acting as a photocatalyst for the mineralization of NB as good as the catalyst reported in the literature or better. These novel findings contribute another option for the removal of this contaminant. The sol-gel/sonochemical method has proven to be useful for the synthesis of ZnO₂ nanoparticles as a photocatalyst, however it is necessary to study in more detail the synthesis factors that could indirectly influence the photocatalysis reaction efficiency, such as reactant ratios, sonication time, temperature, and drying methods, which could have an effect on the size and crystallization of the particles.

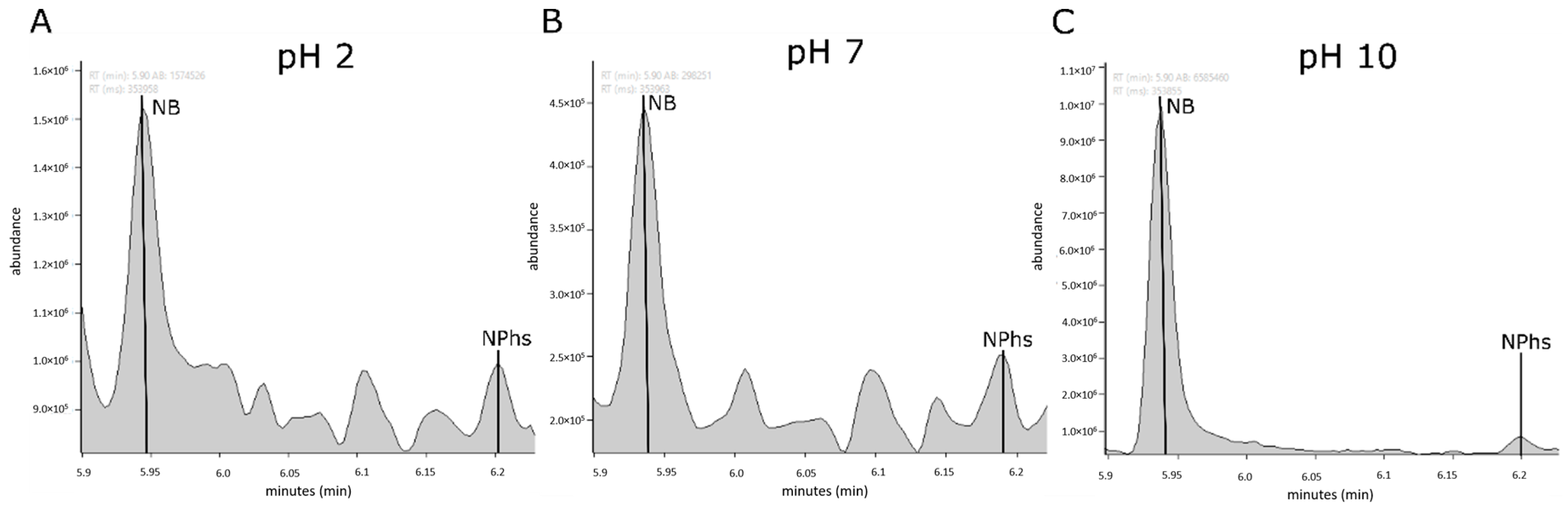

To explore the mechanism of NB photodegradation by ZnO₂ nanoparticles, the possible intermediates formed during the reaction were identified by GC-MS, where 2-nitrophenol (2-NPhs), 3-nitrophenol(3-NPhs) and 4-nitrophenol(4-NPhs) were detected to be the major products from our nitrobenzene degradation. The NB peak appeared in the GC chromatogram for pH 2 (Figure 8A), 7 (Figure 8B) and 10 (Figure 8C) at a retention time near 5.9 min, whereas the peaks corresponding to the intermediates appeared at retention times near 6.2 min (same retention time for all three pHs). Figure 9 shows the mass spectrum result of the mentioned peaks, which were assigned to NB (A), 2-NPhs (B), 3-NPhs (C) and 4-NPhs (D), respectively. The concentration of the intermediates was measured by calculating the area under the curve from the chromatogram peaks in proportion to the known NB concentration. The reaction intermediates detected for the pH 2 (Figure 8A), 7 (Figure 8B) and 10 (Figure 8C) were 0.51%, 6.3% and 1.2% respectively.

Rendering these products, it is proposed that nitrobenzene could be oxidized through one pathway, and hydroxyl radicals could be added onto the aromatic ring of nitrobenzene and form hydroxy cyclohexadienyl radicals [68,69].

The hydroxy cyclohexadienyl radicals by oxidation or disproportionation could produce 2-nitrophenol, 3-nitrophenol, and 4-nitrophenol, depending on the position (ortho, meta, para) of the aromatic ring of NB it was added on to. However, the nitrophenol distribution does not correlate with the deactivating characteristics of the nitro group [70].

This result confirms the role of the hydroxyl radical as an initiator of the oxidative reaction, supporting a mineralization and the mechanism stated at Equations (6)–(11). However, further experiments should be made to completely elucidate the mineralization mechanism of NB’s photodegradation by ZnO₂ nanoparticles.

3. Materials and Methods

3.1. Synthesis of ZnO₂ Nanoparticles

The ZnO₂ nanoparticles were synthesized by a sol-gel/sonochemical route; for this purpose, a precursor solution of 50 mL was prepared using 5 mL of 30% peroxide with HPLC grade water from J.T Baker, the solution was sonicated (TPC Advance Technology UC-450 Model) in 2 min. Then, 1 g of zinc acetate (99.9%) from TSA reagents was dissolved in the precursor solution by ultrasonication for 5 min until a homogeneous solution is obtained. Subsequently it was sonicated for half an hour at a temperature of 60 ± 5 °C. Once this time elapsed a white suspension was obtained [31]. This solution was placed in a Petri dish and allowed to dry at 36 °C for 24 h. A white powder was obtained which was washed twice with excess distilled water for the synthesis of ZnO₂ nanoparticles.

3.2. Characterization of ZnO₂ Nanoparticles

3.2.1. UV-VIS Spectroscopy

To evaluate the optical properties of the nanoparticles and try to understand the electronic structure that the nanoparticles could have, a HACH UV-VIS DR 6000 spectrophotometer (Dusseldorf, Germany) was used and a 30 ppm solution of ZnO₂ nanoparticles dissolved in water was read. The obtained spectrum was made in a sweeping range and 1 cm quartz cells were used.

3.2.2. FT-IR Analysis

To study the binding vibrations of ZnO₂, FT-IR analysis was employed. The spectrum was obtained by Nicolet IS10 Thermo Scientific FT-IR equipment (Waltham, MA, USA), with the ATR method in a sweep of 500 cm⁻¹ to 4000 cm⁻¹ (100 scans were performed per reading and 3 readings were carried out). Usually approximately 100 mg of powder sample was used.

3.2.3. Raman Analysis

The Raman spectrum was recorded using a Raman WITec Confocal Raman Microscope System (alpha300R, Witec Inc., Ulm, German) using an Nd: YVO4 laser with an excitation wavelength of 532 nm. The typical resolution used was achieved using a 100x objective with a grid of 672 lines/mm (4 cm⁻¹) and a grid of 1800 lines/mm (1 cm⁻¹). The rate of acquisition of point spectra was ≤10 μs, using a lamp power of 14.4 mW (118 µm). Considering the effects of laser temperature on the sample the spectra were corrected using a linear function.

3.2.4. X-ray Diffraction (XRD)

X-ray powder diffraction experiments were performed on a Brucker D8 Advance diffractometer (Bruker Co., Billerica, MA, USA) in the range of 15–75° (2θ) in step sizes of 0.02, with a scanning speed of 0.02°/1.2004 s. The radiation tube of Cu Kα (1.5406 Å) was operated at 30 kV and 30 mA.

3.2.5. Scanning Electronic Microscope (SEM)

The sample was analyzed with a gold coating to improve the resolution of the image. For the coating the sputtering method was followed (JFC−110 ion sputter, JEOL). The samples images were obtained in a scanning electron microscope (JEOL JSM7600F Tokyo, Japan) with an accelerating voltage of 5 keV. The size distribution and average grain and crystal diameter size were determined by counting the grains and crystals with an image processing and analysis software ImageJ for counting and the software for graphics and data analysis origin pro 8 for size distribution. The average diameter of each particle and crystal was determined by the measurement of at least 180–200 particles or crystals per image from 5 images. Besides, an energy dispersion spectroscopy analysis (EDS) was carried out for the chemical composition of the material using the same electron microscope (JEOL JSM7600F) with a range of operating voltage from 0–12 keV.

3.2.6. DLS Analysis and Zeta Potential

The dynamic light scattering (DLS) measurements to obtain the hydrodynamic diameter (D_h) were carried out at room temperature (25 °C) using a Zetasizer nano-ZS from Malvern Instruments (ZEN3500, Worcestershire, UK). The same equipment was used to measure the zeta potential (ζ) at different pH values adjusted with HCl and NaOH. Both the D_h and ζ measurements were evaluated at room temperature using a 300 ppm ZnO₂ nanoparticle suspension.

3.3. Photocatalytic Degradation of Nitrobenzene

The reaction conditions to measure the photocatalytic activity of the ZnO₂ nanoparticles for NB degradation are specified by Reynoso-Soto et al. (2013) [65]. Briefly, for the photocatalysis reactions the solution prepared was 250 mL of NB at 15 ppm and ZnO₂ nanoparticles at 20, 30 and 40 ppm at a neutral pH unless specified. The samples were centrifuged in a microcentrifuge (Thermo Espresso Personal Microcentrifuge, Thermo Fisher Scientific Inc., MA, USA) for 10 min at 15 rpm to remove the nanoparticles from the solution. For the pH modifications, HCl and NaOH were used. All the photocatalysis experiments were done in duplicate. The specific energy consumption (SEC) was estimated and the following expression (Equation (11)) was used:

SEC = L × NP × t/m

(11)

where L = number of lamps, NP = nominal power of lamps (KW), t = time for maximum percentage of degradation (h) and m = mass of NB degraded (kg), which was calculated from the initial concentration of NB and the concentration of NB at “t” [71].

To identify the degradation intermediates of the NB photocatalysis degradation, gas chromatography–mass spectrometry (GC-MS) was applied. GC-MS were recorded on a Thermo Scientific TRACE 1310 (GC) and Thermo Scientific single quadrupole ISQ LT (MS), with a column model TG-SQC (30 m × 0.25 mm inner diameter, 0.25 µm film thickness). The detector temperature was 240 °C, the injector temperature was 250 °C, and transfer line temperature was 250 °C; oven temperature started at 70 °C for 3 min, increased at a 40 °C/min rate until 280 °C, with a hold time of 7 min. Helium was employed as a carrier gas, at 1 mL/min flow. Samples of 50 mL were extracted with 5 mL dichloromethane (duplicate), at a 10:1 ratio between sample and solvent. The organic extract was dried with anhydrous Na₂SO₄. One milliliter of the extract was placed in a 2 mL vial and then it was manually injected to GC.

The percentage of the degradation products detected was calculated using the area under the curve of the chromatogram peaks corresponding to NB and the nitrophenols (NPhs) in proportion to the NB% detected by UV-Vis spectroscopy. The percentage of reaction intermediates corresponds to the sum of these.

4. Conclusions

In this study we synthesized ZnO₂ nanoparticles by a sol-gel/sonochemical route and its photocatalytic activity was evaluated by NB degradation. The synthesized nanoparticles have a crystal size of ~6 nm which cluster to form particles of 100 nm, with good dispersion in water having a positive ζ (+15 mV) at pH = 6.3 and an IEP (pH = 3–3.5) and PZC (pH = 7.5–8). ZnO₂ nanoparticles presented great results as a photocatalyst, being more effective at a pH = 2 and a concentration ratio of 2:1 (nanoparticle: NB), with a SEC of approx. 60,000 kWh/kg. The combination of the electron–hole formed in the nanoparticle and an unpaired electron is highly active, which is this the key to start a hydroxylation reaction. This guides us to propose a further investigation of these aspects that will help us have a better understanding of the mechanism of reaction due to the intermediates detected by GC-MS. The GC-MS analysis shows that 2-nitrophenol, 3-nitrophenol, and 4-nitrophenol were the principal hydroxylated intermediates detected. The observed catalyst potential of ZnO₂ nanoparticles opens exciting possibilities for exploring this synthesis route and optimizes the activity of this catalyst.
