Article

Pre-Coking Strategy Strengthening Stability Performance of Supported Nickel Catalysts in Chloronitrobenzene Hydrogenation

1
Hangzhou Institute of Advanced Studies, Zhejiang Normal University, 1108 Gengwen Road, Hangzhou 311231, China
2
Dalian National Laboratory for Clean Energy, Dalian Institute of Chemical Physics, Chinese Academy of Sciences, 457 Zhongshan Road, Dalian 116023, China
3
The State Key Laboratory of Catalysis, Dalian Institute of Chemical Physics, Chinese Academy of Sciences, 457 Zhongshan Road, Dalian 116023, China
*
Authors to whom correspondence should be addressed.
Catalysts 2021, 11(10), 1156; https://doi.org/10.3390/catal11101156
Submission received: 1 September 2021 / Revised: 17 September 2021 / Accepted: 19 September 2021 / Published: 26 September 2021
(This article belongs to the Special Issue State-of-the-Art of Catalytical Technology in China)

Abstract

:
Supported nickel catalysts represent a class of important catalytic materials in selective hydrogenations, but applications are frequently limited by metal agglomeration or active-site blocking induced by the presence of hydrogen halides. Herein, we report a novel pre-coking strategy, exposing the nickel nanoparticles under methane dry reforming conditions to manipulate performance in the continuous-flow hydrogenation of 1,2-dichloro-4-nitrobenzene. Compared with the pristine nickel catalyst, the nanotube-like coke-modified nickel catalyst showed weakened hydrogenating ability, but much improved stability and slightly better selectivity to the target product, 3,4-dichloroaniline. Characterization results revealed that the strengthened stability performance can be mainly linked to the reduced propensity to retain chlorine species, which seems to block the access of the substrate molecules to the active sites, and thus is a major cause of catalyst deactivation on the pristine nickel catalyst. Coke deposition can occur on the pre-coked nickel catalyst but not on the pristine analog; however, the impact on the stability performance is much milder compared with that on chlorine uptake. In addition, the presence of coke is also beneficial in restraining the growth of the nickel nanoparticles. Generally, the developed method might provide an alternative perspective on the design of novel transition-metal-based catalytic materials for other hydrogenation applications under harsh conditions.

1. Introduction

Halogenated anilines and their derivatives, such as chloroanilines and dichloroanilines, represent a class of important high-value intermediates for the synthesis of pharmaceutical ingredients, synthetic rubber, dyes, pesticides, etc. [1,2,3] Typical synthetic routes for these highly functionalized molecules are based on a two-step approach, i.e., the nitration of chlorobenzenes or dichlorobenzenes followed by the chemoselective hydrogenation of the nitro group. The hydrogenation process is traditionally realized by the use of stoichiometric reducing agents, including Fe, Zn, Sn, or hydride reagents [4], which unfortunately is environmentally unsustainable due to the generation of substantial amounts of harmful chemical wastes. For this reason, the development of replacing heterogeneous catalysts is necessary to overcome this drawback. In this context, different catalytic systems have been reported, including precious metals (Pt [5,6,7,8,9,10], Pd [11,12,13], Ru [14,15], Ir [16], Au [17]), non-precious metals (Co [18,19,20], Ni [21,22], Fe [22,23,24]), and metal-free catalysts [25,26]. Among these, Pt-based precious metal catalysts have been widely studied, mainly owing to their superb hydrogenating ability and extremely high chemoselectivity, the latter representing one of the main challenges in this field [1]. However, the establishment of a new catalytic route based on abundant transition metals should be economically more advantageous, given that high hydrogenation performance can be achieved under stable operation. Both liquid-phase batch mode [13,27,28] and vapor-phase continuous-flow [1,29] processes have been proposed in the earlier literature. Fixed-bed continuous-flow operation is more favorable in terms of ease of operation and lack of necessity for catalyst separation. As a compromise, higher temperatures are frequently adopted compared to those in the batch system. Under such reaction conditions, additional issues might arise, such as the coke deposition that has been observed over the Co/C-SiO2 catalyst in the hydrogenation of nitrobenzene at 498 K [30]. Furthermore, HCl vapor can be generated by the hydrodechlorination reaction, and this by-product may represent an additional challenge to catalyst stability, particularly for non-precious-metal-based catalysts. Unfortunately, this aspect has not received enough attention from scientists. Thus, the lack of knowledge regarding the impact of HCl on catalyst stability might hinder the further development of a vapor-phase continuous-flow chloronitrobenzene hydrogenation process based on cheap metal catalysts.
Herein, we report a vapor-phase continuous-flow process for the chemoselective hydrogenation of 1,2-dichloro-4-nitrobenzene (DCNB) to the target product, 3,4-dichloroaniline (DCAni) over supported nickel catalysts at ambient pressure. Owing to the complex reaction network comprising hydrogenation and multiple hydrodechlorination paths (Figure 1), this reaction can serve as an ideal model reaction to assess both the chemoselectivity and stability of the catalysts. We found that the accumulation of substantial amounts of chlorine on the catalyst surface might block the access of the reactant molecules to the active metal sites, which was the main reason leading to fast catalyst deactivation. An effective strategy based on pre-coking the nickel catalyst under methane dry reforming ambient conditions was further developed to ease the site blocking caused by the HCl. As a result, the catalyst presented much improved stability performance in the selective hydrogenation reaction.

2. Results and Discussion

2.1. Synthesis and Characterization of Fresh Catalysts

The ZrO2-supported nickel catalyst was prepared by the incipient impregnation method, using a nickel nitrate aqueous solution with self-prepared ZrO2 synthesized by co-precipitation. Calcination of the dried sample at 400 °C yielded the expected precursor NiO/ZrO2, as verified by the X-ray diffraction technique (XRD, Figure S1). Transmission electron microscopic (TEM, Figure S2) analysis revealed the relatively homogeneous morphology of the catalyst granules of 10–20 nm in size and also confirmed the different crystallographic natures of the multiple components (NiO, and monoclinic (m) and tetragonal (m) ZrO2). Reduction of the sample in a fixed-bed reactor in situ at 500 °C led to the formation of metallic nickel particles, reflected by the appearance of a small diffraction peak at 44° 2θ in XRD (Figure 2a). To introduce carbon onto the nickel particles, the reduced Ni/ZrO2 catalyst was further exposed to a mixture of CH4/CO2 with a molar ratio of 1:1 at 750 °C for 30 min, and then cooled naturally to room temperature in a nitrogen stream. The derived sample was denoted as Ni/ZrO2@C. The dry reforming reaction treatment induced an apparent alteration of the ZrO2 support, i.e., the XRD reflection lines corresponding to the tetrahedral phase became more prominent than those of the monoclinic phase. Furthermore, the diffraction peaks associated with Ni0 were sharpened after the treatment (Figure 2a). The surface species of the catalysts before and after the pre-coking treatment were probed using X-ray photoelectron spectroscopy (XPS, Figure 2b,c, and Table 1). The C 1s spectrum of Ni/ZrO2 showed an asymmetric peak around 284.8 eV, accompanied by an envelope between 288 and 290 eV. The latter can be assigned to the C=O groups, which might be due to the formation of carbonates during the synthesis or post synthesis. Furthermore, the broad peak disappeared on Ni/ZrO2@C. A possible reason is the decomposition of the carbonates during the high-temperature reforming reaction. The Ni 2p3/2 spectra of the two catalysts were then compared. While both samples presented a major contribution around 852–859 eV accompanied by a satellite peak at 860–868 eV, surprisingly, the spectrum of Ni/ZrO2@C showed a significant shift of about 1.5 eV to the high binding energy, compared with that of Ni/ZrO2. This implies that the surface nickel species were likely to be more positively charged or that electron transfer might occur from Ni to the newly formed protective carbon materials.
The two catalysts were further examined by combined electron microscopic analysis (Figure 3 and Figure 4). Scanning electron microscopic (SEM) analysis combined with electron dispersive spectroscopy (EDS) revealed a striking difference between the two catalysts. The surface of the coked sample became much rougher compared with that of Ni/ZrO2.
Furthermore, the color mapping analysis showed that the carbon element was homogeneously distributed on Ni/ZrO2, thus confirming that it indeed originated from the sample, which was consistent with the above XPS observation. On the other hand, the carbon distribution was not as homogeneous as Ni or Zr on Ni/ZrO2@C. The C intensity was stronger on the rough surfaces, suggesting that these rough ensembles were likely the carbonaceous materials newly formed by the reforming reaction. Indeed, a close examination of the SEM images confirmed the fragmentation of the samples, as well as the presence of some tube-like carbon deposits. These clear morphology differences were further confirmed by TEM (Figure 4). Small nickel nanoparticles deposited on ZrO2 were found on Ni/ZrO2. In contrast, hollow carbon nanotubes were evidenced on Ni/ZrO2@C. High-resolution TEM revealed that these nanotubes were composed of multi-walled graphite growing along the metallic nickel nanoparticles. This phenomenon is typically observed in the dry reforming of methane over Ni-based catalysts, owing to the strong methane-splitting ability of the metal, and is a major cause of catalyst deactivation [31,32]. Since the nickel particles were covered by the protective carbon layers in this case, one can expect that the resulting catalysts might find applications in fields where the unique structure will bring additional benefits.

2.2. Catalytic Performance in 1,2-Dichloro-4-nitrobenzene Hydrogenation

The gas-phase selective hydrogenation of 1,2-dichloro-4-nitrobenzene (DCNB) to 3,4-dichloroaniline (DCAni) was selected as a model reaction to assess the benefit of the carbon protective layer. We noted that although many different solid catalysts have been reported for the selective hydrogenation of different functionalized nitrobenzenes in the literature [1,2,5,11], there are no widely recognized benchmark systems. In particular, studies on the continuous-flow hydrogenation of DCNB were scarce, though there exists a very recent paper by Duan and co-workers [33]. For these reasons, pristine Ni/ZrO2 was used as the reference to assess the effectiveness of the carbon deposits. Firstly, the catalytic activity was evaluated using temperature-ramping experiments from 50 to 300 °C over both catalysts. The pristine Ni/ZrO2 was quite active, delivering ca. 50% conversion value at 50 °C and approaching full conversion at 150 °C (Figure 5a). The high activity was maintained up to 250 °C and then dropped at even higher temperatures. A similar trend was observed for the yield of the target product, DCAni. Detailed product distribution revealed that DCAni was the major product, accompanied by the other hydrodechlorinated by-products of m- and p-chloranilines and aniline (abbreviated as m- and p-CAni and Ani, respectively, as shown in Figure 5b). The best selectivity of DCAni was achieved between 125 and 175 °C, and elevated temperatures led to the formation of more hydrodechlorinated products. On the other hand, Ni/ZrO2@C did not show apparent catalytic activity until the temperature was above 100 °C. Afterwards, the activity quickly built up and even surpassed that of the pristine catalyst. Interestingly, the activity was maintained even up to 300 °C, thus apparently outperforming Ni/ZrO2 at high temperatures. In addition, the yield of DCAni presented a similar trend as for the conversion of DCNB. Notably, the yield was always higher over Ni/ZrO2@C than Ni/ZrO2 above 125 °C. These results suggested that the hydrogenation ability of Ni/ZrO2@C was weakened, compared to that of Ni/ZrO2. The carbon protective layers on Ni/ZrO2@C are one of the suspected reasons for this. However, the particle size of the nickel might also play a role here, as the estimated crystallite sizes of Ni by XRD were 8 and 19 nm (Table 1), respectively, for Ni/ZrO2 and Ni/ZrO2@C. A striking feature of Ni/ZrO2@C is the high selectivity for DCAni, as was reflected by the product distribution. Unlike Ni/ZrO2, Ni/ZrO2@C almost exclusively gave DCAni below 100 °C. The selectivity for DCAni was generally much higher at higher temperatures (except at 300 °C). Under these conditions, more by-product m-CAni was formed on Ni/ZrO2, while more p-CAni was observed on Ni/ZrO2@C. The high selectivity for the target product over Ni/ZrO2@C might be owing to the weakened hydrogenation ability restricting over-hydrogenation, and the manipulation of product selectivity between p- and m-CAni suggests an additional steric effect, probably caused by the carbonaceous deposits. The stability was then evaluated under even harsher conditions of 200 °C and four-fold liquid weight hourly space velocity (LWHSV) of 4 h−1, to better compare the performance between the two catalysts (Figure 5c). Ni/ZrO2 underwent a fast deactivation within 5 h and the activity dropped to 46%. In stark contrast, Ni/ZrO2@C was much more durable: the activity only dropped to 62%, even after 20 h. This demonstrated the significantly enhanced stability performance of Ni/ZrO2@C with the pre-deposited coke. In addition, the selectivity of DCAni (ca. 94–96%) was not much influenced during the course of the reaction over either catalyst.

2.3. Interpretation of the Deactivation Mechanisms

To explain the superior catalytic performance of Ni/ZrO2@C over Ni/ZrO2 in the hydrogenation of DCNB, the catalysts were thoroughly characterized by different techniques after the stability tests. N2 sorption revealed no significant alteration of the specific surface area (SBET) for Ni/ZrO2 (94 and 98 m2 g−1, respectively, before and after the test) but the SBET slightly increased from 41 to 60 m2 g−1 for Ni/ZrO2@C (Table 1). In addition, XRD showed that the diffraction intensity associated with Ni0 increased for both the used catalysts (Figure 6a). Estimation of the crystallite size via the Scherrer equation (using the Ni(111) facet) indicated 12 and 23 nm, respectively, for Ni/ZrO2 and Ni/ZrO2@C (Table 1). Despite the different durations of the tests (5 and 20 h), the growth of the particle size was more pronounced for Ni/ZrO2 (150%) than for Ni/ZrO2@C (121%). This suggests that the agglomeration of the nickel nanoparticles was greatly retarded by the covered carbon shells. Furthermore, some small diffraction peaks related to carbon were also visualized on the used Ni/ZrO2@C via XRD. Since coke deposition was disclosed in the hydrogenation of nitrobenzene in a previous study [30], it was necessary to verify whether this was one of the reasons for the catalyst deactivation. The used catalysts were then checked by SEM and TEM (Figure 6b). Both techniques revealed that the catalyst morphologies were essentially the same before and after the catalytic tests. HRTEM confirmed the clean edge of metallic nickel on Ni/ZrO2 and the multiple-carbon-shell-covered Ni0 on Ni/ZrO2@C. These results were corroborated by SEM. No obvious carbonaceous deposits were found on the used Ni/ZrO2. However, the proportion of carbon nanotubes seemed to be increased on the used Ni/ZrO2@C, based on SEM.
To further corroborate the electron microscopic results, Raman spectroscopic analyses were performed (Figure 7a). Distinct features at 1340 and 1580 cm−1, which can be assigned to the D and G bands, respectively, of carbon materials, were present for the fresh and used Ni/ZrO2@C. The intensities of these bands were strengthened, compared to those of the fresh catalyst, and the relative band intensity also showed a difference (ID:IG = 0.94 and 0.84, respectively, before and after the test). In contrast, no clear Raman peaks could be observed on the fresh and used Ni/ZrO2 catalysts. Therefore, carbon deposition probably occurred on Ni/ZrO2@C but not on Ni/ZrO2, agreeing well with the above electron microscopic analyses (Figure 6b). Thermogravimetric analyses (TG) were conducted on the catalysts to quantify the organic and inorganic species (Figure 7b). The used Ni/ZrO2 catalyst showed three-stage weight loss. The first stage occurred below 150 °C with a weight loss of 6.5%, which can be assigned to the removal of moisture. The second and third stages occurred below 484 and 980 °C with weight losses of 6.2 and 3.9%, respectively, which might be related to surface chlorinated compounds, as is discussed later. The pre-coked Ni/ZrO2@C presented two-stage weight loss: the low-temperature weight loss of 2.0% was related to moisture and the high-temperature (400–600 °C) loss of 5.7% was due to the removal of pre-deposited carbon nanotubes. The weight loss behavior of the used Ni/ZrO2@C was much more complicated. It consisted of a low-temperature weight loss of 1.2% below 300 °C and three consecutive weight losses of 4.3, 7.6, and 2.5% below 480, 612, and 980 °C, respectively. The latter three weight losses might be due to the combined removal of carbon deposits and chlorinated compounds. The final product of this sample after TG analysis was checked by XRD (Figure S3), and the presence of NiO and ZrO2 was confirmed. By excluding the weight loss caused by moisture (the first-stage weight loss) and the pre-deposited coke (5.7%), the calculated weight losses caused by chlorinated compounds and the newly deposited coke were 10.1 and 8.7%, respectively, for the used Ni/ZrO2 and Ni/ZrO2@C catalysts. Considering the much-shortened reaction time over Ni/ZrO2, the result hinted that the accumulation of chlorine was much faster on this sample.
To support the above conclusion, the content of chlorine and carbon on the catalysts was semi-quantified by EDS (Figure 7c) and XPS (Table 1). Although the data were not fully consistent for both techniques owing to the different penetration depths (XPS is more surface sensitive and EDS is more related to the bulk), similar trends can still be generated from Table 1. By comparing the content of C and Cl for the catalysts before and after the tests, one can see that the carbon content only increased moderately for the used Ni/ZrO2 but built up prominently for the used Ni/ZrO2@C. Therefore, this finding supported the conclusion that coke deposition might be absent on Ni/ZrO2 but occurred on Ni/ZrO2@C, which is consistent with the Raman and SEM results. In contrast, the Cl content was almost three times higher on the used Ni/ZrO2 than on the used Ni/ZrO2@C, confirming the much more pronounced uptake of chlorine, and thus supporting the TG analysis.
Taking account of the above characterization results, we speculate that the deactivation mechanisms were different over Ni/ZrO2 and Ni/ZrO2@C. The accumulation of chlorine was the major cause over Ni/ZrO2, and additional accompanying coke deposition over Ni/ZrO2@C. Considering that the deactivation was much faster over Ni/ZrO2, the chlorine accumulation should play a key role in the deactivation process. To verify this point, we prepared an additional pre-coked catalyst reference (Ni/ZrO2@C-ref) with more deposited coke, by extending the treatment time to 2 h (instead of half an hour) during the methane dry reforming reaction. This reference catalyst, despite containing even more coke (20.7 wt.% according to TG, as shown in Figure S4) than the used Ni/ZrO2@C, still delivered full conversion of DCNB at the beginning, then gradually deactivated. Although it showed poorer stability performance compared to Ni/ZrO2@C, it was still better than Ni/ZrO2. Thus, these results convincingly suggest that the chlorine-induced catalyst deactivation mechanism prevailed. We expect that thermal activation in protective gases or hydrogen treatment might be effective in removing the chlorine on the catalyst, at least partly restoring the activity. However, repetitive catalyst regeneration can also be tedious and energy consuming. Nanostructuring of the supported metal catalysts with new compositions and structures to restrict chlorine uptake might lead to a more promising technology for continuous-flow hydrogenation of these specially functionalized substrates.

3. Materials and Methods

3.1. Catalyst Preparation

The ZrO2 support was prepared by a co-precipitation method. Typically, an aqueous metal nitrate (Zr(NO3)4·5H2O, AR, Macklin, Shanghai, China) and another aqueous solution of NaOH (2 mol L−1, ≥96.0%, Shanghai, China) were prepared. Both solutions were co-added at a speed of 2 mL min−1 into a rounded flask, kept at 30 °C, with vigorous stirring. The final pH of the solution was kept at 9. The solid precipitate was then aged at 90 °C for another 4 h, washed extensively with deionized water, filtered off, dried at 110 °C for 16 h, and finally calcined at 450 °C for 4 h to yield ZrO2 oxides. The supported nickel catalyst was prepared by an incipient wetness impregnation method using the above derived oxides as the carriers. To a calculated weight of the carriers, an aqueous solution of Ni(NO3)2.6H2O (≥98.0%, Shanghai, China) was added with mild mixing. The solids were then dried at 110 °C for 16 h and calcined at 400 °C for 4 h to yield the supported catalyst with a nominal Ni loading of 10 wt.%.

3.2. Pre-Coking Strategy for Supported Nickel Catalysts in Dry Reforming of Methane

To introduce carbon onto the nickel particles, the reduced Ni/ZrO2 catalyst was further exposed to a mixture of CH4/CO2 with a molar ratio of 1:1 at 750 °C for 30 min. Firstly, the NiO/ZrO2 catalyst (20–40 mesh, 500 mg) was placed between two quartz wool plugs in the center of the quartz tube reactor. Before the pre-coking, the catalyst was reduced at 500 °C for 3 h in H2 (30 cm3 min−1). Secondly, it was heated to 750 °C in a nitrogen stream (30 cm3 min−1). Thirdly, a concentrated feed with a molar CH4:CO2 ratio of 1:1 was admitted into the reactor at a gas hourly space velocity (GHSV) of 72,000 mL g−1 h−1 for 30 min and then cooled naturally to room temperature in a nitrogen stream. The derived sample was denoted as Ni/ZrO2@C. An additional reference catalyst, Ni/ZrO2@C-ref, was prepared following similar procedures to Ni/ZrO2@C but a treatment time of 2 h was applied in the dry reforming reaction to deposit more coke.

3.3. Catalyst Characterization

Nitrogen sorption was measured at 77 K on a Quantachrome NT3LX-2 instrument (USA) after degassing the samples at 573 K for 3 h. The specific surface area was calculated using the Brunauer–Emmett–Teller (BET) method. X-ray diffraction (XRD) patterns were obtained using an X’Pert3 Panalytical X-ray diffractometer (PANalytical, Almelo, The Netherlands) using Cu Kα radiation with a scanning angle (2θ) range of 10–90° at a speed of 2 °C min−1. The tube voltage and the current were 40 kV and 40 mA, respectively. The samples were tightly pressed onto a glass holder for the analysis. Thermogravimetric analyses (TG) were carried out on a NETZSCH STA 449 F3 (Selb, Germany) system with a heating rate of 10 °C min−1 (from room temperature to 1000 °C) under flowing air. The samples were placed in a crucible made of α-Al2O3 for the analysis. Raman spectra were acquired on a confocal laser micro-Raman spectrometer (HORIBA, LabRAM HR Evolution, Longjumeau, France) under the following conditions: a wavelength of 532 nm, a transit of 10 s per sample, and spectral resolution of 1 cm−1. The sample powders were dispersed in ethanol by ultrasonication and then the specimen was obtained by dropping a droplet suspension onto a carbon film supported on a copper grid for TEM analysis. Scanning electron microscopy (SEM) was performed on a Hitachi S-5500 scanning electron microscope (Japan) operating at an acceleration voltage of 30 kV. X-ray photoelectron spectroscopic (XPS) analyses of the catalysts were carried out on a Thermo ESCALAB 250Xi spectrometer (Shanghai, China) using a 15 kV Al Kα X-ray source as a radiation source. The binding energy was calibrated using the C 1s peak (284.8 eV) as the reference.

3.4. Catalyst Evaluation in Chloronitrobenzene Hydrogenation

The selective hydrogenation of 1,2-dichloro-4-nitrobenzene (DCNB) and 3,4-dichloroaniline (DCAni) was carried out in a fixed-bed down-flow reactor at atmospheric pressure. The catalysts were diluted with quartz sand of the same particle sizes. After being mixed homogeneously, they were placed between two quartz wool plugs in the center of the quartz tube reactor. The catalytic performance was evaluated by temperature ramping between 50 and 300 °C. A concentrated feed of 5 wt.% DCNB in toluene was admitted into the reactor at a liquid weight hourly space velocity (LWHSV) of 1 h−1. The stability tests were performed at 200 °C at a LWHSV of 4 h−1. The reaction products were analyzed using a gas chromatograph (Agilent 7890B, Shanghai, China) fitted with an FID detector using a HP-5 column.

4. Conclusions

We demonstrated a new pre-coking strategy to manipulate the catalytic performance of supported nickel catalysts for the selective continuous flow hydrogenation of 1,2-dichloro-4-nitrobenzene to 3,4-dichloroaniline. By introducing controlled tube-like coke along the nickel particles through a methane dry reforming reaction, we demonstrated that the pre-coked catalyst showed weakened hydrogenating ability that could be offset by increasing the reaction temperature. In addition, pre-coking significantly improved the thermal stability of the nickel particles compared to the pristine analog, probably due to the physical restraining effect of the coke. Different deactivation mechanisms were disclosed for the pristine and pre-coked catalysts. While significant chlorine uptake occurred on the pristine Ni/ZrO2, this effect was much milder on Ni/ZrO2@C, over which additional coke deposition was found in the hydrogenation. Compared to the coke deposition, the accumulation of chlorine was found to be more crucial in accelerating catalyst deactivation. The enhanced stability performance of Ni/ZrO2@C in the hydrogenation can be thus ascribed to the retarded uptake of chlorine from the hydrodechlorination reactions. Therefore, these fundamental findings are expected to stimulate new interest in specific hydrogenation applications where halides are involved.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/catal11101156/s1, Figure S1: the XRD patterns of as-prepared ZrO2 and NiO/ZrO2, Figure S2: the TEM image of NiO/ZrO2, revealing the presence of nanoparticles of NiO on the ZrO2 carrier, Figure S3: the TG profiles of Ni/ZrO2@C and Ni/ZrO2@C-ref. The numbers indicate the weight losses of the carbon deposits.

Author Contributions

Conceptualization, X.M. and Y.D.; methodology, X.M.; investigation, P.W. and S.W.; writing—original draft preparation, P.W.; writing—review and editing, R.L., X.M., and Y.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Loos, P.; Alex, H.; Hassfeld, J.; Lovis, K.; Platzek, J.; Steinfeldt, N.; Huebner, S. Selective hydrogenation of halogenated nitroaromatics to haloanilines in batch and flow. Org. Process Res. Dev. 2016, 20, 452–464. [Google Scholar] [CrossRef]
  2. Jaf, Z.N.; Altarawneh, M.; Miran, H.A.; Almatarneh, M.H.; Jiang, Z.-T.; Dlugogorski, B.Z. Catalytic hydrogenation of p-chloronitrobenzene to p-chloroaniline mediated by gamma-Mo2N. ACS Omega 2018, 3, 14380–14391. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Liu, Y.-Y.; Zhan, G.-P.; Wu, C.-D. In situ creation of multi-metallic species inside porous silicate materials with tunable catalytic roperties. Chem. Commun. 2021, 57, 6185–6188. [Google Scholar] [CrossRef] [PubMed]
  4. Tumma, M.; Srivastava, R. Transition metal nanoparticles supported on mesoporous polyaniline catalyzed reduction of nitroaromatics. Catal. Commun. 2013, 37, 64–68. [Google Scholar] [CrossRef]
  5. Zhang, B.; Asakura, H.; Zhang, J.; Zhang, J.; De, S.; Yan, N. Stabilizing a platinum (1) single-atom catalyst on supported phosphomolybdic acid without compromising hydrogenation activity. Angew Chem. Int. Ed. 2016, 55, 8319–8323. [Google Scholar] [CrossRef]
  6. Nie, S.; Yang, S.; Zhang, P. Solvent-free synthesis of mesoporous platinum-aluminum oxide via mechanochemistry: Toward selective hydrogenation of nitrobenzene to aniline. Chem. Eng. Sci. 2020, 220, 115619–115626. [Google Scholar] [CrossRef]
  7. Sun, Z.; Zhao, Y.; Xie, Y.; Tao, R.; Zhang, H.; Huang, C.; Liu, Z. The solvent-free selective hydrogenation of nitrobenzene to aniline: An unexpected catalytic activity of ultrafine Pt nanoparticles deposited on carbon nanotubes. Green Chem. 2010, 12, 1007–1011. [Google Scholar] [CrossRef]
  8. Li, J.; Li, X.; Ding, Y.; Wu, P. Pt nanoparticles entrapped in ordered mesoporous carbons: An efficient catalyst for the liquid phase hydrogenation of nitrobenzene and its derivatives. Chin. J. Catal. 2015, 36, 1995–2003. [Google Scholar] [CrossRef]
  9. Zhang, Q.; Bu, J.; Wang, J.; Sun, C.; Zhao, D.; Sheng, G.; Xie, X.; Sun, M.; Yu, L. Highly efficient hydrogenation of nitrobenzene to aniline over Pt/CeO2 catalysts: The shape effect of the support and key role of additional Ce3+ sites. ACS Catal. 2020, 10, 10350–10363. [Google Scholar] [CrossRef]
  10. Lin, L.; Yao, S.; Gao, R.; Liang, X.; Yu, Q.; Deng, Y.; Liu, J.; Peng, M.; Jiang, Z.; Li, S.; et al. A highly CO-tolerant atomically dispersed Pt catalyst for chemoselective hydrogenation. Nat. Nanotechnol. 2019, 14, 354–362. [Google Scholar] [CrossRef]
  11. Pietrobon, L.; Ronchin, L.; Sadraoui, C.; Pontello, R.; Tosetto, C.; Vavasori, A. Pd/C catalyzed selective hydrogenation of nitrobenzene to cyclohexanone oxime in the presence of NH2OH center dot HCl: Influence of the operative variables and insights on the reaction mechanism. Appl. Catal. A-Gen. 2020, 598, 117570–117582. [Google Scholar] [CrossRef]
  12. Sangeetha, P.; Shanthi, K.; Rao, K.S.R.; Viswanathan, B.; Selvam, P. Hydrogenation of nitrobenzene over palladium-supported catalysts-effect of support. Appl. Catal. A-Gen. 2009, 353, 160–165. [Google Scholar] [CrossRef]
  13. Zhao, M.; Feng, B.; Qiao, X.; Zhong, N.; Ge, X.; Ji, Y. Electronic modulation of palladium in metal phosphide nanoparticles for chemoselective reduction of halogenated nitrobenzenes. Chem.-Asian J. 2019, 14, 407–410. [Google Scholar] [CrossRef]
  14. Leng, F.; Gerber, I.C.; Lecante, P.; Moldovan, S.; Girleanu, M.; Axet, M.R.; Serp, P. Controlled and chemoselective hydrogenation of ntrobenzene over Ru@C-60 catalysts. ACS Catal. 2016, 6, 6018–6024. [Google Scholar] [CrossRef]
  15. Tomkins, P.; Gebauer-Henke, E.; Leitner, W.; Mueller, T.E. Concurrent hydrogenation of aromatic and nitro groups over carbon-supported ruthenium catalysts. ACS Catal. 2015, 5, 203–209. [Google Scholar] [CrossRef]
  16. Ma, L.; Wang, J.; Wang, H.; Zhang, Q.; Lu, C.; He, X.; Li, X. High halogenated nitrobenzene hydrogenation selectivity over nano Ir particles. Chin. J. Chem. Eng. 2017, 25, 306–312. [Google Scholar] [CrossRef]
  17. Kartusch, C.; Makosch, M.; Sa, J.; Hungerbuehler, K.; van Bokhoven, J.A. The dynamic structure of gold supported on ceria in the liquid phase hydrogenation of nitrobenzene. ChemCatChem 2012, 4, 236–242. [Google Scholar] [CrossRef]
  18. Cao, Y.; Liu, K.; Wu, C.; Zhang, H.; Zhang, Q. In situ-formed cobalt embedded into N-doped carbon as highly efficient and selective catalysts for the hydrogenation of halogenated nitrobenzenes under mild conditions. Appl. Catal. A-Gen. 2020, 592, 117434–117442. [Google Scholar] [CrossRef]
  19. Sheng, Y.; Wang, X.; Yue, S.; Cheng, G.; Zou, X.; Lu, X. In situ synthesized silica-supported Co@N-doped carbon as highly efficient and reusable catalysts for selective reduction of halogenated nitroaromatics. ChemCatChem 2020, 12, 4632–4641. [Google Scholar] [CrossRef]
  20. Zhang, W.; Wu, W.; Long, Y.; Wang, F.; Ma, J. Co-Ag alloy protected by nitrogen doped carbon as highly efficient and chemoselective catalysts for the hydrogenation of halogenated nitrobenzenes. J. Colloid Interf. Sci. 2018, 522, 217–227. [Google Scholar] [CrossRef]
  21. Zhang, X.; Li, P.; Xu, B.; Wang, J.; Fan, G.; Zhang, X.; Liu, X.; Zhang, K.; Jiang, W. In situ hydrogen activation inspiring efficient one-pot hydrogenation of halogenated nitrobenzenes over Ni-Co-based composites. Ind. Eng. Chem. Res. 2021, 60, 8312–8323. [Google Scholar] [CrossRef]
  22. Wu, W.; Zhang, W.; Long, Y.; Qin, J.; Ma, J. Different transfer hydrogenation pathways of halogenated nitrobenzenes catalyzed by Fe-, Co- or Ni-based species confined in nitrogen doped carbon. Mol. Catal. 2020, 497, 111226–111235. [Google Scholar] [CrossRef]
  23. Tian, M.; Cui, X.; Yuan, M.; Yang, J.; Ma, J.; Dong, Z. Efficient chemoselective hydrogenation of halogenated nitrobenzenes over an easily prepared gamma-Fe2O3-modified mesoporous carbon catalyst. Green Chem. 2017, 19, 1548–1554. [Google Scholar] [CrossRef]
  24. Tian, S.; Hu, M.; Xu, Q.; Gong, W.; Chen, W.; Yang, J.; Zhu, Y.; Chen, C.; He, J.; Liu, Q.; et al. Single-atom Fe with Fe1N3 structure showing superior performances for both hydrogenation and transfer hydrogenation of nitrobenzene. Sci. China Mater. 2021, 64, 642–650. [Google Scholar] [CrossRef]
  25. Xiong, W.; Wang, Z.; He, S.; Hao, F.; Yang, Y.; Lv, Y.; Zhang, W.; Liu, P.; Luo, H. Nitrogen-doped carbon nanotubes as a highly active metal-free catalyst for nitrobenzene hydrogenation. Appl. Catal. B-Environ. 2020, 260, 118105–118115. [Google Scholar] [CrossRef]
  26. Lv, J.; Zheng, Y.; Zhu, Y.; Yuan, M.; Chang, Y.; Dong, Z. Renewable soybean pulpderived N-doped carbon materials for efficient chemoselective hydrogenation of halogenated nitrobenzenes. ChemistrySelect 2019, 4, 4083–4091. [Google Scholar] [CrossRef]
  27. Sheng, Y.; Wang, X.; Xing, Z.; Chen, X.; Zou, X.; Lu, X. Highly active and chemoselective reduction of halogenated nitroarenes catalyzed by ordered mesoporous carbon supported platinum nanoparticles. ACS Sustain. Chem. Eng. 2019, 7, 8908–8916. [Google Scholar] [CrossRef]
  28. Ichikawa, S.; Tada, M.; Iwasawea, Y.; Ikariya, T. The role of carbon dioxide in chemoselective hydrogenation of halonitroaromatics over supported noble metal catalysts in supercritical carbon dioxide. Chem. Commun. 2005, 36, 924–926. [Google Scholar] [CrossRef] [PubMed]
  29. Zhou, L.; Gu, H.; Yan, X. A novel transfer hydrogenation with high hydrogen utilization for the hydrogenation of halogenated nitrobenzene without hydrodehalogenation. Catal. Lett. 2009, 132, 16–21. [Google Scholar] [CrossRef]
  30. Kondeboina, M.; Enumula, S.S.; Muppala, A.R.; Madduluri, V.R.; Burri, D.R.; Kamaraju, S.R.R. Carbon coating on SiO2 in Co/C-SiO2 catalysts for high and stable activity in nitrobenzene hydrogenation. ChemistrySelect 2017, 2, 5716–5722. [Google Scholar] [CrossRef]
  31. Qin, Z.; Chen, J.; Xie, X.; Luo, X.; Su, T.; Ji, H. CO2 reforming of CH4 to syngas over nickel-based catalysts. Environ. Chem. Lett. 2020, 18, 997–1017. [Google Scholar] [CrossRef]
  32. Wang, C.; Wang, Y.; Chen, M.; Liang, D.; Yang, Z.; Cheng, W.; Tang, Z.; Wang, J.; Zhang, H. Recent advances during CH4 dry reforming for syngas production: A mini review. Int. J. Hydrogen Energy 2021, 46, 5852–5874. [Google Scholar] [CrossRef]
  33. Duan, X.; Yin, J.; Feng, A.; Huang, M.; Fu, W.; Xu, W.; Huang, Z.; Zhang, J. Continuous hydrogenation of halogenated nitroaromatic compounds in a micropacked bed reactor. J. Flow Chem. 2021. [Google Scholar] [CrossRef]

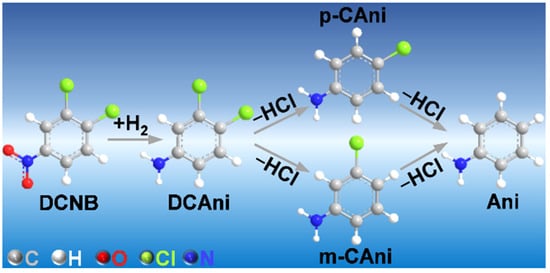

Figure 1. The reaction pathways for the hydrogenation of 1,2-dichloro-4-nitrobenzene (DCNB) to 3,4-dichloroaniline (DCAni). Other hydrodechlorinated by-products (m- and p-chloranilines and aniline, abbreviated as m- and p-CAni and Ani, respectively) can be formed by deep hydrogenation.
Figure 1. The reaction pathways for the hydrogenation of 1,2-dichloro-4-nitrobenzene (DCNB) to 3,4-dichloroaniline (DCAni). Other hydrodechlorinated by-products (m- and p-chloranilines and aniline, abbreviated as m- and p-CAni and Ani, respectively) can be formed by deep hydrogenation.
Catalysts 11 01156 g001

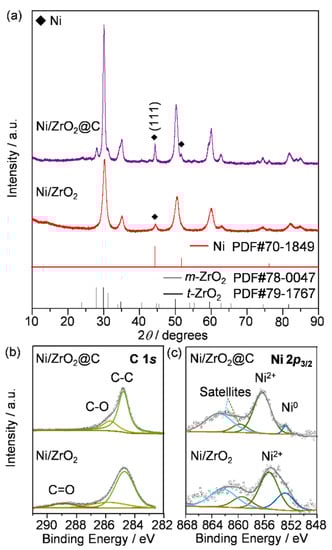

Figure 2. (a) XRD patterns, and (b) the C 1s and (c) Ni 2p3/2 XPS spectra of Ni/ZrO2 and Ni/ZrO2@C.
Figure 2. (a) XRD patterns, and (b) the C 1s and (c) Ni 2p3/2 XPS spectra of Ni/ZrO2 and Ni/ZrO2@C.
Catalysts 11 01156 g002

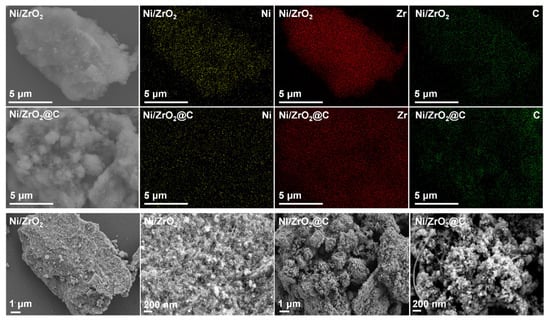

Figure 3. SEM images with elemental color mapping of Ni/ZrO2 and Ni/ZrO2@C.
Figure 3. SEM images with elemental color mapping of Ni/ZrO2 and Ni/ZrO2@C.
Catalysts 11 01156 g003

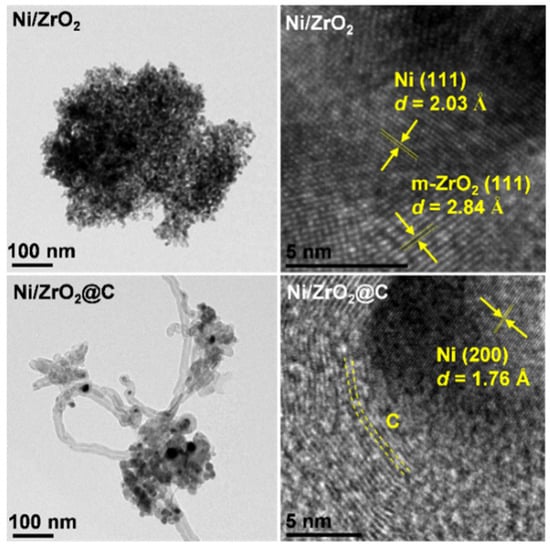

Figure 4. TEM images of Ni/ZrO2 and Ni/ZrO2@C.
Figure 4. TEM images of Ni/ZrO2 and Ni/ZrO2@C.
Catalysts 11 01156 g004

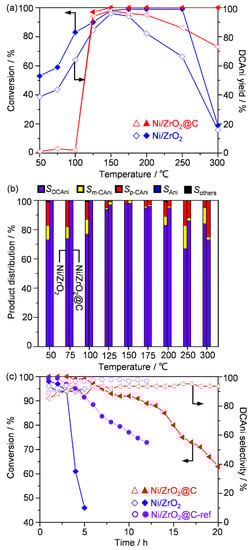

Figure 5. Catalytic performance in the continuous-flow hydrogenation of DCNB over different nickel catalysts. (a) The conversion and DCAni yield, and (b) product distribution as a function of the bed temperature. (c) Stability performance. Reaction conditions: P = 1 bar, (a,b) FH2 = 10 mL min−1 and Fliquid = 1 mL min−1, (c) FH2 = 40 mL h−1 and Fliquid = 4 mL h−1, and T = 200 °C. The same weight of nickel was ensured in the hydrogenation by mixing the pristine (500 mg) and pre-coked catalysts with quartz sand of similar particle size, and the total weight was fixed at 1.0 g. The liquid was 5 wt.% DCNB in toluene.
Figure 5. Catalytic performance in the continuous-flow hydrogenation of DCNB over different nickel catalysts. (a) The conversion and DCAni yield, and (b) product distribution as a function of the bed temperature. (c) Stability performance. Reaction conditions: P = 1 bar, (a,b) FH2 = 10 mL min−1 and Fliquid = 1 mL min−1, (c) FH2 = 40 mL h−1 and Fliquid = 4 mL h−1, and T = 200 °C. The same weight of nickel was ensured in the hydrogenation by mixing the pristine (500 mg) and pre-coked catalysts with quartz sand of similar particle size, and the total weight was fixed at 1.0 g. The liquid was 5 wt.% DCNB in toluene.
Catalysts 11 01156 g005

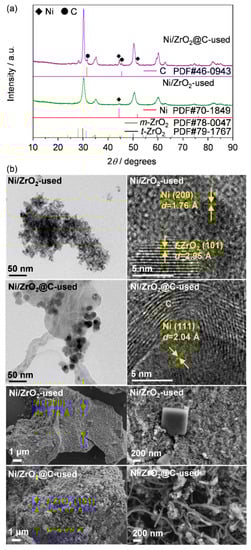

Figure 6. (a) XRD, (b) TEM and SEM images of Ni/ZrO2 and Ni/ZrO2@C after the stability tests.
Figure 6. (a) XRD, (b) TEM and SEM images of Ni/ZrO2 and Ni/ZrO2@C after the stability tests.
Catalysts 11 01156 g006

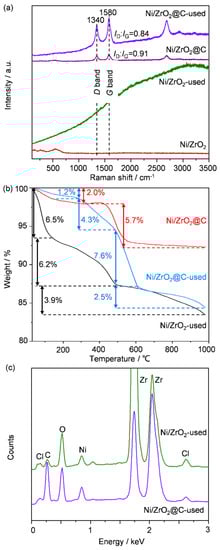

Figure 7. (a) Raman, (b) TG, and (c) EDS analyses of Ni/ZrO2 and Ni/ZrO2@C after the stability tests.
Figure 7. (a) Raman, (b) TG, and (c) EDS analyses of Ni/ZrO2 and Ni/ZrO2@C after the stability tests.
Catalysts 11 01156 g007
Table 1. Characterization data of the fresh and used catalysts.
Table 1. Characterization data of the fresh and used catalysts.
dNi(111)aSBETbVpcC d,eNi d,eZr d,eCl d,eO d,e
Catalysts/nm/m2 g−1/cm3 g−1/at.%/at.%/at.%/at.%/at.%
NiO/ZrO2-740.2522.242.6518.08057.03
Ni/ZrO28940.2025.37 (22.14)1.74 (7.45)19.38 (23.37)0 (0.05)53.51 (47.00)
Ni/ZrO2-used12980.2530.70 (24.78)4.00 (5.71)12.28 (19.46)15.78 (3.33)37.24 (46.72)
Ni/ZrO2@C19410.2355.45 (40.76)1.58 (6.02)10.61 (17.46)0 (0.01)32.36 (35.57)
Ni/ZrO2@C-used23600.2567.10 (63.11)1.97 (3.58)5.36 (9.86)6.40 (0.96)19.16 (22.49)
a The crystallite size of Ni in the catalysts estimated by the Scherrer equation using the Ni (111) facet. b Specific surface areas of the catalysts calculated from N2 sorption. c The total pore volume of the catalysts determined from the amount of N2 adsorbed at p/p0 = 0.97. d The atomic concentration of the catalysts estimated by XPS. e The atomic concentration of the catalysts estimated by EDS, in parentheses.
