Direct Dimethyl Carbonates Synthesis over CeO₂ and Evaluation of Catalyst Morphology Role in Catalytic Performance

Abstract

In recent years, direct synthesis of dimethyl carbonate (DMC) from carbon dioxide (CO₂) has received considerable attention due to green and sustainable technology. Here, we report a production of DMC from major greenhouse gases and CO₂ using various morphologies of cerium oxide (CeO₂). Time-dependent synthesis of CeO₂, with controlled morphology having various shapes including sphere, nanorods and spindle shape, along with its formation mechanism is proposed. The experimental results indicate the morphology of CeO₂ was mostly dependent on the reaction time where crystal growth occurred through Ostwald ripening. The morphology, size and shape of CeO₂ were observed using transmission electron microscopy (TEM) and field emission scanning electron microscopy (FESEM).The crystallographic analysis using X-ray diffraction (XRD) shows cubic fluorite phase of CeO₂ with crystallite size ~72.0 nm using the Debye–Scherrer equation. The nitrogen adsorption desorption technique suggested the formation of the highly mesoporous framework of CeO₂ and the excellent surface area around 104.5 m²/g obtained for CeO₂ spindles by Brunauer–Emmett–Teller (BET) method. The DMC synthesis reactions were studied over CeO₂ catalyst with different morphologies. The results of catalytic reactions specify that the morphology of catalyst plays an important role in their catalytic performances, where spindle shape CeO₂ was the most active catalyst producing of up to13.04 mmol of DMC. Furthermore, various dehydrating agents were used to improve the DMC production at optimized reaction parameters. The overall results reveal that the higher surface area and spindle shape of CeO₂ makes it a useful, reusable catalyst for one-pot DMC synthesis.

1. Introduction

Single-step synthesis of dimethyl carbonate (DMC) has paid considerable attention to the research community in past two decades because of the utilization of CO₂, which is a chief offender of the greenhouse effect [1,2,3]. Although various routes have been reported for the conversion of CO₂ to valuable chemicals, DMC was found to be a priority due to its remarkable properties and numerous applications [4,5]. The important feature of DMC is its utilization of CO₂ as a building block for useful organic chemicals by replacing conventional fossil fuels. Additionally, DMC has been widely used as additive in fuel, due to its good blending properties, higher oxygen content and most importantly, it shows a favorable water/fuel partition coefficient along with an insignificant effect on environment. Furthermore, it was explored for its application and use in pharmaceuticals, polycarbonate, agrochemicals, antioxidants, adhesives, electrolytes, and as budding solvents in lithium ion batteries [5,6,7,8]. Although direct DMC synthesis was considered a green and sustainable route, it suffers from thermodynamic and kinetic limitations [9]. Therefore, the designing of novel catalyst materials and efficiently taking water away from the reaction system are the challenges for researchers.

In general, metal oxides possess both redox and acid/base properties, which are essential for absorption and catalysis reactions [10,11]. Interestingly the literature reveals that especially CeO₂ and zirconium oxide (ZrO₂) are highly active catalysts for direct DMC synthesis from CO₂ and methanol [12,13,14,15]. Several studies have reported on CeO₂/ZrO₂ catalysts for kinetics and elaborated equilibrium model [16,17]. Recently, a group of researchers achieved the highest results (i.e., >95% methanol conversion and >99% of DMC selectivity) for CeO₂ catalyst in combination with 2-cyanopyridine dehydrating agent in a continuous system [18]. Based on the literature review, it can be concluded that CeO₂ is a best heterogeneous catalyst for direct DMC synthesis and their catalytic activity is mostly dependent on the structural, morphological and acidic/basic properties [19]. Additionally, CeO₂ has gained tremendous interest for its wide range of applications in recent days owing to their excellent acid/base properties and oxygen storage capacities. However, the morphology and DMC formation mechanism over CeO₂ must be addressed to achieve modified catalyst properties and improved its catalytic performance [20].

At the nanoscale, CeO₂ catalysts are much more efficient as a result of their improved surface areas and/or surface properties, formation of oxygen vacancies in high number and better oxygen storage ability [21]. The enhanced catalytic activity can be achieved even at low temperatures and can be further boosted by tailoring novel morphology at the nanoscale level, attributing to exposure of highly reactive crystal planes such as 111, 100 and 110 to achieve improved catalytic activity [22]. Therefore, the finding of suitable synthesis approach for the morphological control over nanometer size CeO_2, that can act as an active catalyst even at a lower temperature is still a major landmark. Interestingly some researchers have reported that the morphologies of CeO₂ directly affect the catalytic activity for DMC synthesis. A collective synergistic effect of defect sites, acid-base sites and exposed 111 plane are crucial for achieving high DMC conversion [23,24]. Spindle-shaped CeO₂ shows highest DMC production than nanorods, nanocubes and nano-octahedrons.

Despite several reports available in the literature on direct DMC synthesis over CeO₂,the activity, morphology, surface area and reaction mechanism are still challenging aspects for the researchers and must be addressed. Inspired by the above facts, we take this opportunity to synthesize CeO₂ catalysts with novel morphology and excellent surface area, and acid/base and redox properties using a simple and cost-effective synthesis method [25]. Therefore, in this work, we propose a stepwise DMC formation mechanism, which would be a great achievement in the catalytic development.

The objectives of this study are: (i) To synthesize a highly efficient CeO₂ catalyst with a different morphology using a cost-effective method; (ii) Investigate the formation mechanism of CeO₂ using a time-dependent material synthesis experiments; (iii) Use of synthesized CeO₂ materials as catalysts for conversion of CO₂ and methanol into DMC; and (iv) Evaluate the effect of catalyst morphology on the catalytic performance and role of dehydrating agents. An attempt was also made to investigate the reaction mechanism using experimental results and Fourier-transform infrared spectroscopy (FTIR) studies of the catalyst material before and after the reaction.

2. Results and Discussion

2.1. Characterization of CeO₂

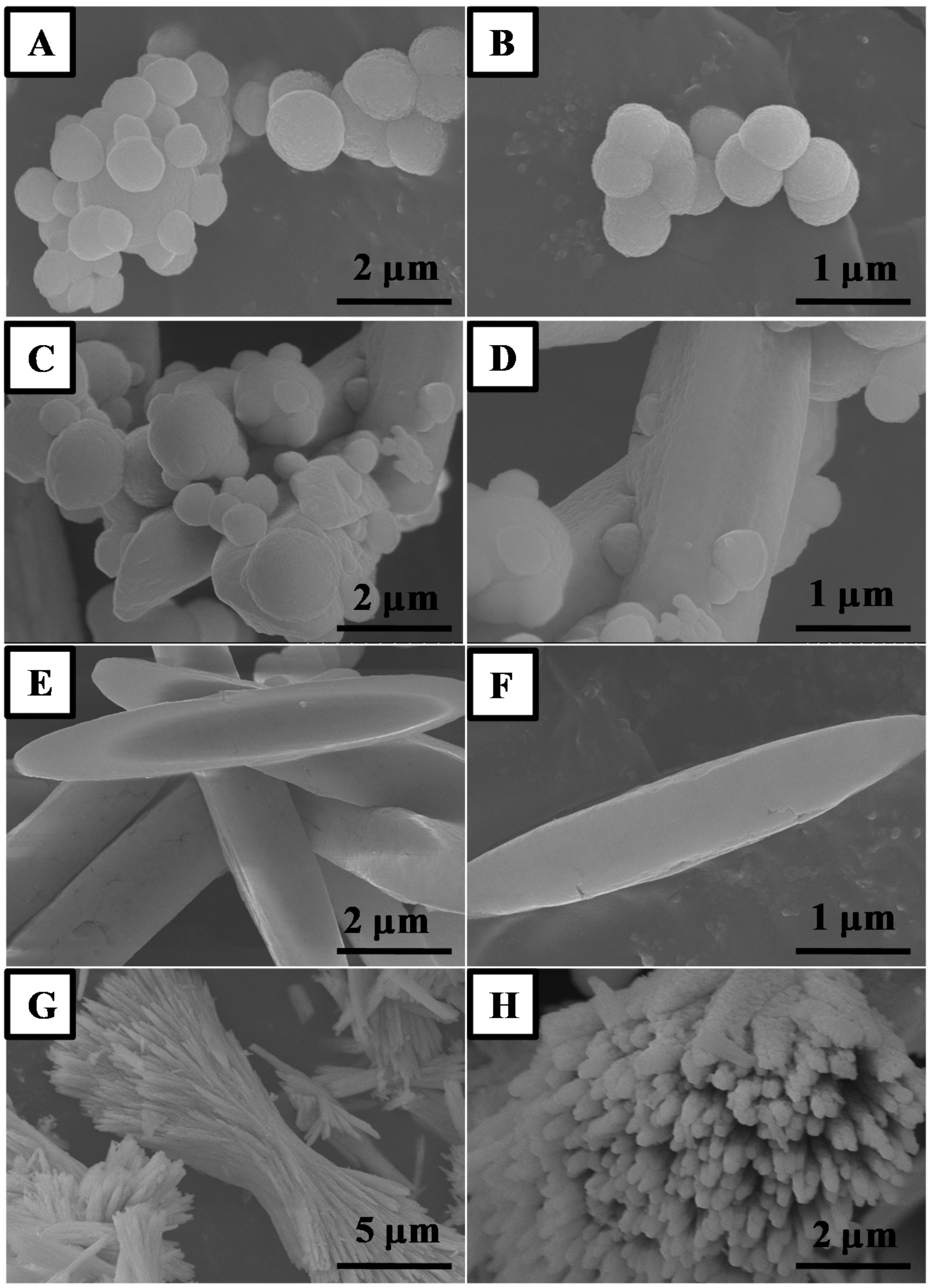

The CeO₂ formation mechanism is proposed with the help of microscopic results, where the samples (with time intervals 8, 10, 12 and 16 h) were analyzed using SEM. These experiments suggest that synthesis time is very important in the evolution of morphologies of CeO₂ in ambient conditions. Figure 1A–H shows SEM analysis results of the calcined CeO₂ nanostructure. As can be seen, minor CeO₂ particles are formed first, which further develop to become a bigger particles due to Ostwald ripening. This means the solid solutions formed into the reaction medium, which described the growth mechanism of inhomogeneous or dissimilar structure over time. The process begins by phase precipitation of CeO₂ solid with a well-defined spherical shape; the energetic factors will move towards forming better precipitates to develop through attaching minor CeO₂ precipitates (sphere) on the bigger particle surface [26]. Thermodynamic factors could also be accountable for the amount of this effect where smaller CeO₂ sphere are stable than bigger particles (sphere with bigger particles) and reverse relative internal pressure to radius of the particle [27]. The main factor for the above cause could be the occurrence of less stable particles on CeO₂ particles surface than finely arranged in the framework (Figure 1A,B).

The lower surface energy of large CeO₂ particles (mixed shapes) is due to the lower surface to volume ratio of precipitation. The particles from the surface of energetically unstable small CeO₂ sphere evade and diffuse through the solution and get attached to the surface of larger particles during the lowering of overall energy of a system [28]. Smaller CeO₂ sphere goes on disappearing with the synchronized progress in the growth of bigger CeO₂ particles. This mechanism can be explained by the fact that the highest probability of molecules concentration in the environs of smaller CeO₂ sphere than the average number in total solution. These tiny CeO₂ spheres along with bigger particles move towards less concentrated from more concentrated solution phase by diminishing total amount of tiny sphere particles. In contrast, lower concentration in the closeness of bigger CeO₂ particles than normal concentration in entire solution enable diffusion of particles to the bigger CeO₂ particles from solution phase (Figure 1C,D). Hence, both the particle size and concentration gradient around the particle are responsible for rate of Ostwald ripening. Interestingly further increase in reaction time resulted into distinct spindle-like morphology of CeO₂ nanostructure (Figure 1E,F). Nevertheless, high reaction time leads to the formation of long rods by merging of CeO₂ spindles (Figure 1G,H). The results suggest that well-defined CeO₂ spindle morphology can be achieved by 12 h synthesis time and annealing CeO₂ at 500 °C.

The possible growth mechanism of CeO₂ is proposed even though the real formation mechanism is still uncertain. The precipitation process involves a number of chemical reactions using urea as precipitating agent. Process begins with the hydrolysis of urea by formation of NH₄⁺ and OH⁻ ions. The OH⁻ ion then reacts with Ce ion to get Ce(OH)₃ solid precipitate. The basic pH can be achieve by the existence of NH₄⁺ ions in the reaction medium, which is required for the precipitation process. Finally, the obtained precipitate was separated by simple filtration with thorough distilled water and ethanol washing and annealed at high temperatures to manage various CeO₂ morphologies such as sphere, spindle and nanorods. In the whole precipitation process, urea concentration and reaction temperature apparently come into play [29,30,31].

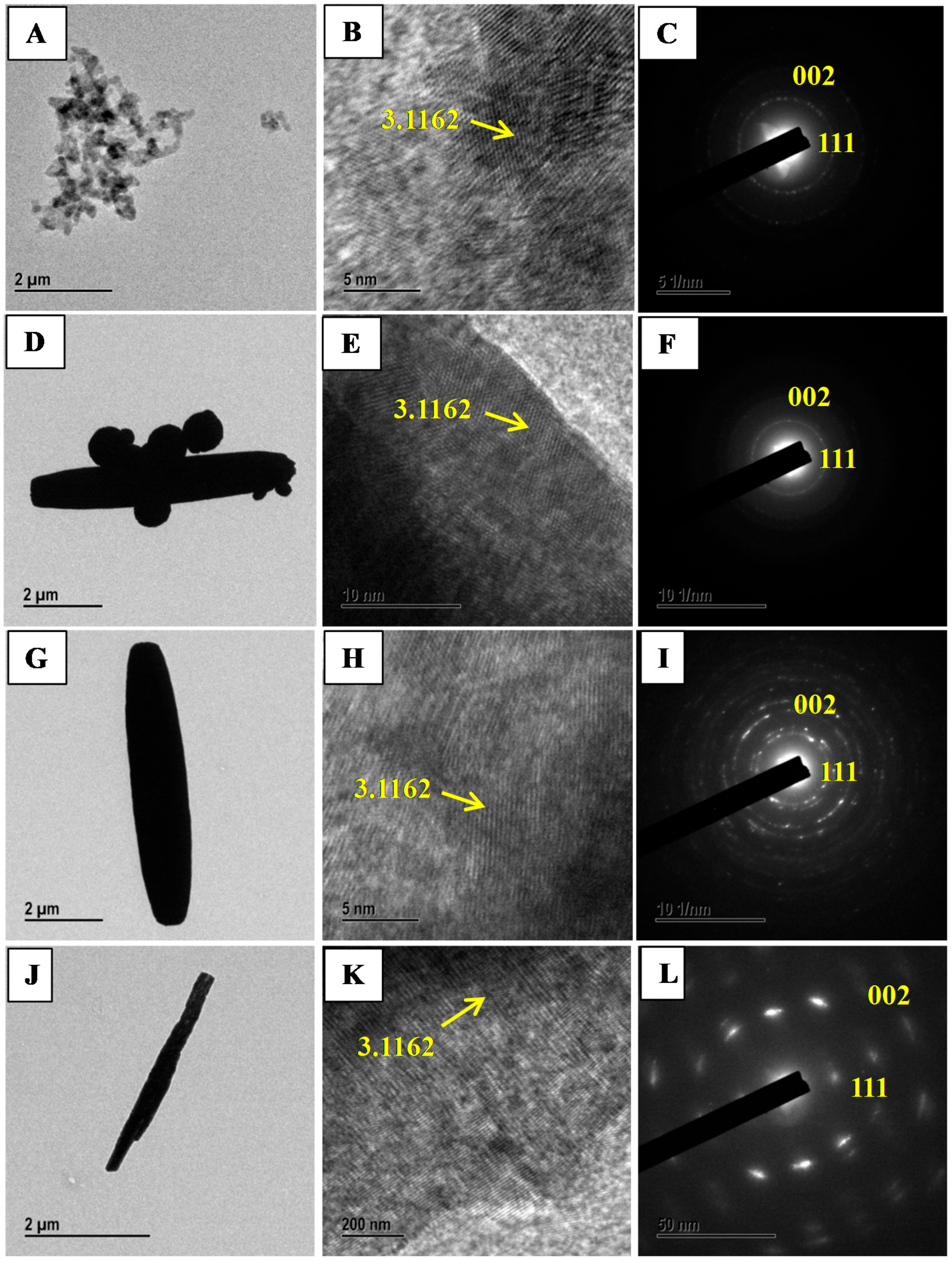

The morphology studies of CeO₂ samples investigated using TEM and HRTEM analysis techniques. Figure 2A–L displays the characteristic TEM, HRTEM and SAED images of the CeO₂ morphologies i.e., sphere, mixed shape, spindle and nanorods. These observations are well in agreement with SEM analysis results. The morphology of CeO₂ spindle composed of several small particles attached in a row.

The average diameter of CeO₂ spindles is roughly 103 nm and 1467 ± 91 nm in length suggesting shrinking of spindles by decreasing its size after calcinations. The SAED patterns of Spheres (8h-CeO₂), mixed shape (10h-CeO₂), spindles (12h-CeO₂) and nanorods (12h-CeO₂) are in agreement with XRD results. Furthermore, HRTEM images of prepared CeO₂ samples reveals dotted lines and rod axis are parallel to each other. The dotted line spacing is 3.11 Å that is concurred accurately with the (111) plane.

Metal oxides are invaluable and tunable materials with improved morphology surface area or porosity at molecular level having wide range of applications in organic synthesis, catalysis, electrochemistry, etc., fields. The structural properties of CeO₂ were investigated by the nitrogen adsorption/desorption method. In Figure 3A, H₂ hysteresis loop of relative pressure range through 0.50< P/P0 < 0.97 suggest presence of type IV isotherm for sphere-shaped CeO₂ prepared at 8 h reaction time.

For the mixed shape morphology of CeO₂ synthesized for 10 h, the hysteresis circle of type IV-type isotherm was witnessed with a relative pressure of 0.44< P/P0 < 0.96. Furthermore, spindle-shaped CeO₂ displays a typical type IV isotherm following H₂ type hysteresis curve in relative pressure range of 0.30< P/P0 < 0.97. Usually they are cage-like pore structures and numerous mesopores accompanied by narrow channel linkages. On the other hand, nanorods synthesized in 16 h gives H₂ type hysteresis loop in relative pressure range of 0.48 < P/P0 < 0.83.The gases get condensed in minor capillary pores of sample at pressure lower than the saturation pressure of gas, i.e., formation of monolayer followed by multilayer in type-IV isotherm [32].

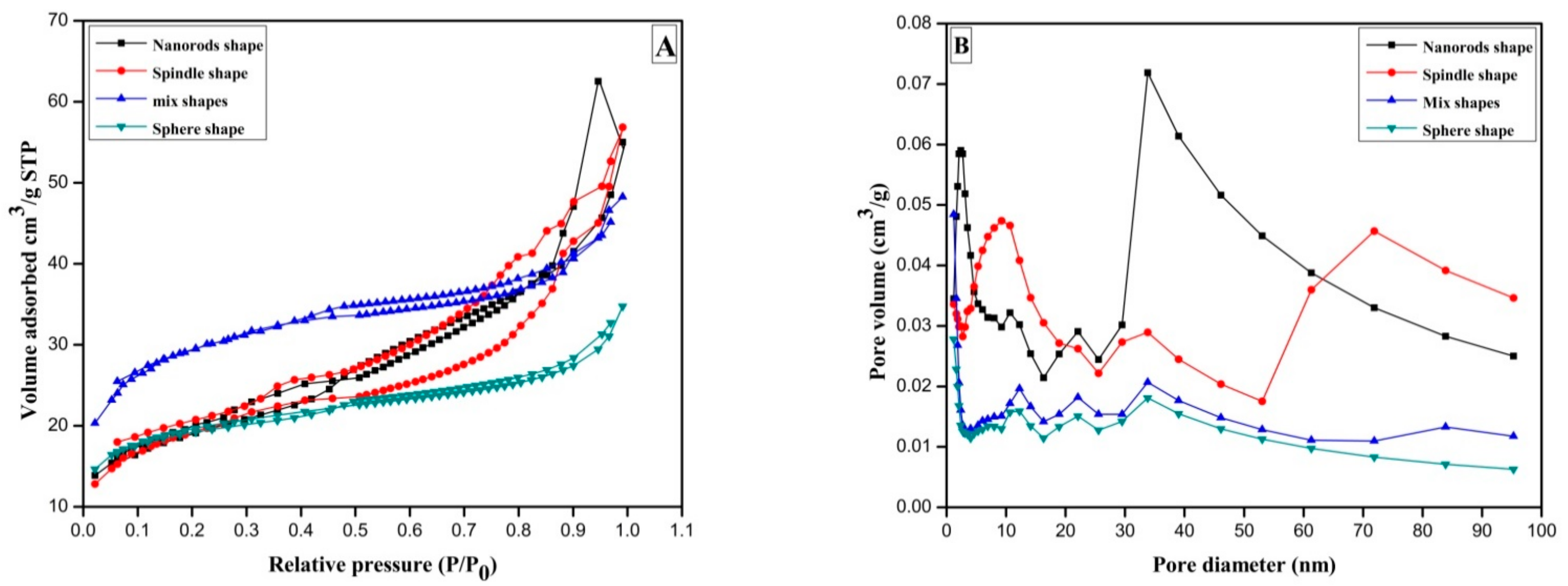

Moreover, pore size distribution analysis of CeO₂ was performed by nonlocal density functional theory (NLDFT) algorithm method. As shown in Figure 3B, microsopores pointed at 1.19 nm and three mesopores distribution by 12.12, 22.11 and 33.85 nm can be seen for sphere shaped samples. Whereas, mixed shapes possessing sphere and spindle-shaped sample illustrated number of mesopores at 2.26, 10.52, 21.99 and a large peak just about 33.86 nm. The spindle-shaped CeO₂ sample exhibits single mesopores centered at 1.19 nm and many mesopores near 12.26, 21.90, 33.85 nm, correspondingly. That means sphere and spindle-shape CeO₂ samples consist of doubly hierarchical porous mesopores and micropores framework. Besides, the CeO₂ nanorods exhibited single micropores signal close to 1.19 nm whereas two 9.19 and 33.85 nm mesopores and a broad macropores centers at 71.92. The outcomes point out that the CeO₂ nano rods own triply hierarchical micropores, mesopores, and macropores framework. Additionally, the Brunauer–Emmett–Teller (BET) surface areas of Sphere CeO₂, mixed shape CeO₂, spindle CeO₂ and nanorod CeO₂ samples are 71, 66.8, 104.5 and 66.4 m²/g, respectively (

Table 1. Brunauer–Emmett–Teller surface area CeO₂ samples and characteristic FTIR bands of DMC formation on the surface of CeO₂.

Sr. No.	Catalyst	Surface Area (m2g−1)	Pore Volume (cm3g−1)	Pore Size (nm)
1	CeO2 sphere	71	0.053	3.0
2	CeO2 mixed shapes	68	0.094	5.4
3	CeO2 spindles	104	0.073	2.8
4	CeO2 nanorods	66	0.085	5.1

All surface values obtained from N₂ adsorption-desorption study and BET analysis.

; entries 1–4). The conclusion has been drawn from BET analysis results that increase of synthesis time starting at 8 h to 10 h considerably boosts surface area whereas additional increase of synthesis time to 12 h causes negative consequence on surface areas. In other words, spindle-shape CeO₂ exhibited highest surface area compared to other morphologies. As stated previously, initially formed sphere particles follow Ostwald ripening to grow until 12 h synthesis time resulting into highly mesopores mixed structures of CeO₂ spindles. Subsequent increase in synthesis time on the other hand leads to the development of long nanorods connecting nanoparticles to each other by decreasing surface to volume ratio. Furthermore, when synthesis time increased from 8 h to 12 h total pore diameter decreased from 3.0193 to 2.8157 nm which later reached at 5.1280, while further increase in synthesis time of up to 16 h (Table 1; entries 1–4). The hydroxyl groups of initially formed precipitate decompose into various CeO₂ structures (sphere, spindle, nanorods, etc.) after heat treatment at 500 °C.

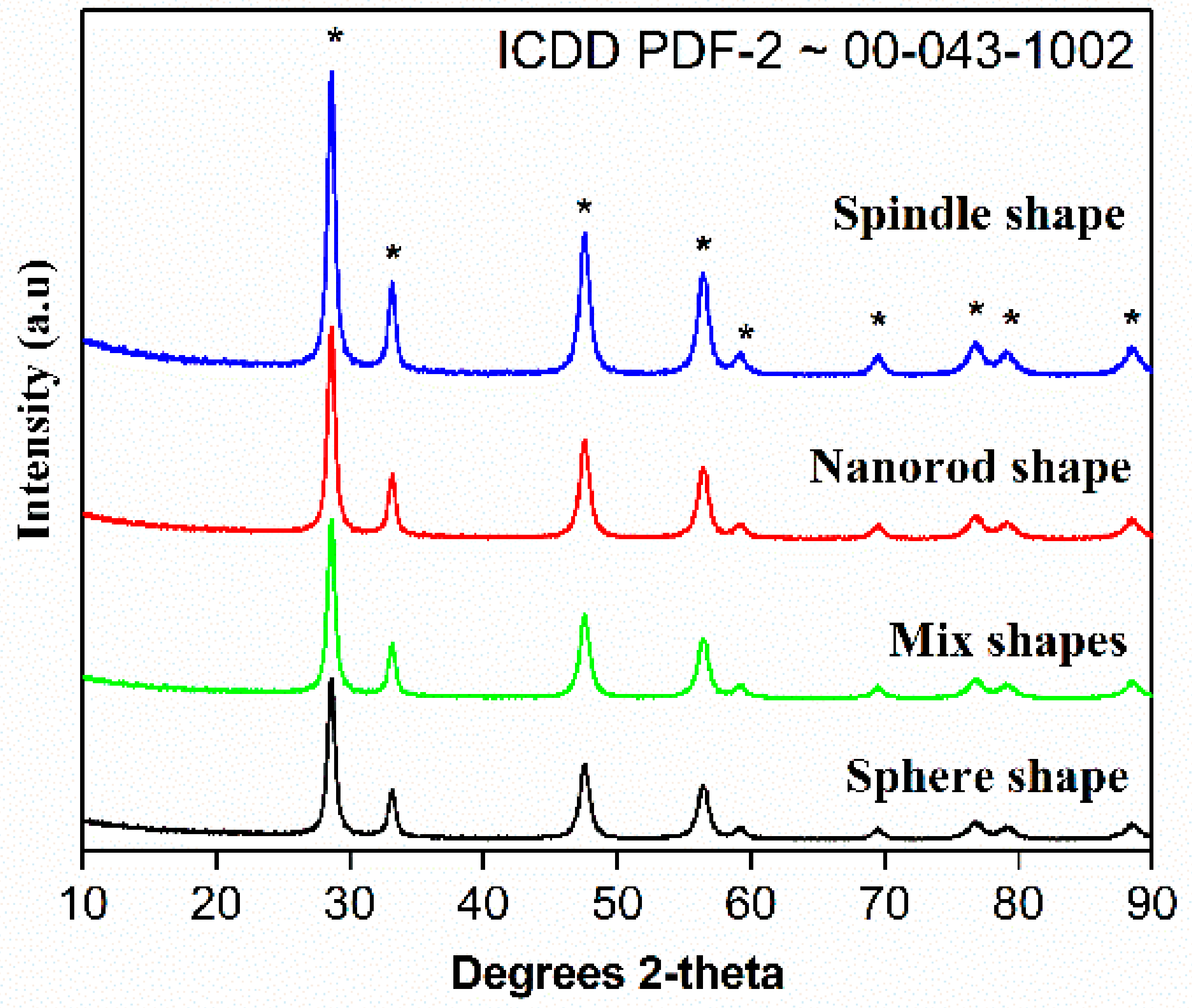

The XRD patterns of CeO₂ calcined at 500 °C is presented in Figure 4. The cubic phase of CeO₂ was confirmed by the occurrence of most intense peak in the diffraction patterns. In brief, 2θ = 28.6, 33.1, 47.6 and 56.4 diffraction peaks are assigned to (111), (200), (220) and (311), etc., planes of CeO₂ cubic fluorite phases.

These peaks grew in its intensity as the crystallization. These results obey ICDD PDF-2 ~00-043-1002 standard data along with the earlier studies. The absence of additional diffraction pattern suggests high purity of as-prepared CeO₂ and the phases confirm the formation of cubic fluorite phase of CeO₂ structures. It is important to note that 12 h-CeO₂ (spindle shape) shows highly intense peaks. The values of full width at half maxima of intense peaks used to calculate crystallite size d_Scherrerwith the help of Scherrer equation. The calculated crystal size of CeO₂ using 111 plane Scherrer’s equation calculated to be around 103 nm.

2.2. Catalytic Performance of CeO₂

Catalytic activities of various CeO₂ catalysts are shown in

Table 2. Catalytic results for various catalysts and parameters used for DMC synthesis from CO₂ and methanol.

Sr. No.	b Catalyst	c Catalyst wt. (g)	a Dehydrating Agent	c Pressure (MPa)	c Temperature (°C)	d TON (M. s−1)	d TOF (h−1)
1	Sphere CeO2	1	−	7.5	140	1.18	0.395
2	Mixed shape CeO2	1	−	7.5	140	1.69	0.566
3	Spindle CeO2	1	−	7.5	140	2.24	0.748
4	Nanorod CeO2	1	−	7.5	140	1.76	0.588
5	Spindle CeO2	1	−	6.5	140	1.52	0.507
6	Spindle CeO2	1	−	7	140	1.76	0.589
7	Spindle CeO2	1	−	8	140	2.38	0.794
8	Spindle CeO2	1	−	7.5	100	1.65	0.553
9	Spindle CeO2	1	−	7.5	120	2.20	0.736
10	Spindle CeO2	1	−	7.5	160	2.25	0.751
11	Spindle CeO2	0.5	−	7.5	140	3.59	1.199
12	Spindle CeO2	1.5	−	7.5	140	1.68	0.561
13	Spindle CeO2	2	−	7.5	140	1.35	0.452
14	Spindle CeO2	1	Molecular sieve 4A	7.5	140	3.33	1.110
15	Spindle CeO2	1	DMP	7.5	140	4.31	1.439
16	Spindle CeO2	1	Acetonitrile	7.5	140	3.41	1.138
17	Spindle CeO2	1	Cyclohexene oxide	7.5	140	4.25	1.419
18	Spindle CeO2	1	Styrene oxide	7.5	140	4.29	1.433

^a Reactions were carried out on 1 g of the dehydratingagent, and 618 mmol of methanol, ^b Catalyst, ^c Amount of catalyst, pressure, and temperature used for experiments, ^d TON M. s⁻¹ and TOF’s h-1 were determined by GC analysis. The products were analyzed by GC, GCMS, and FTIR.

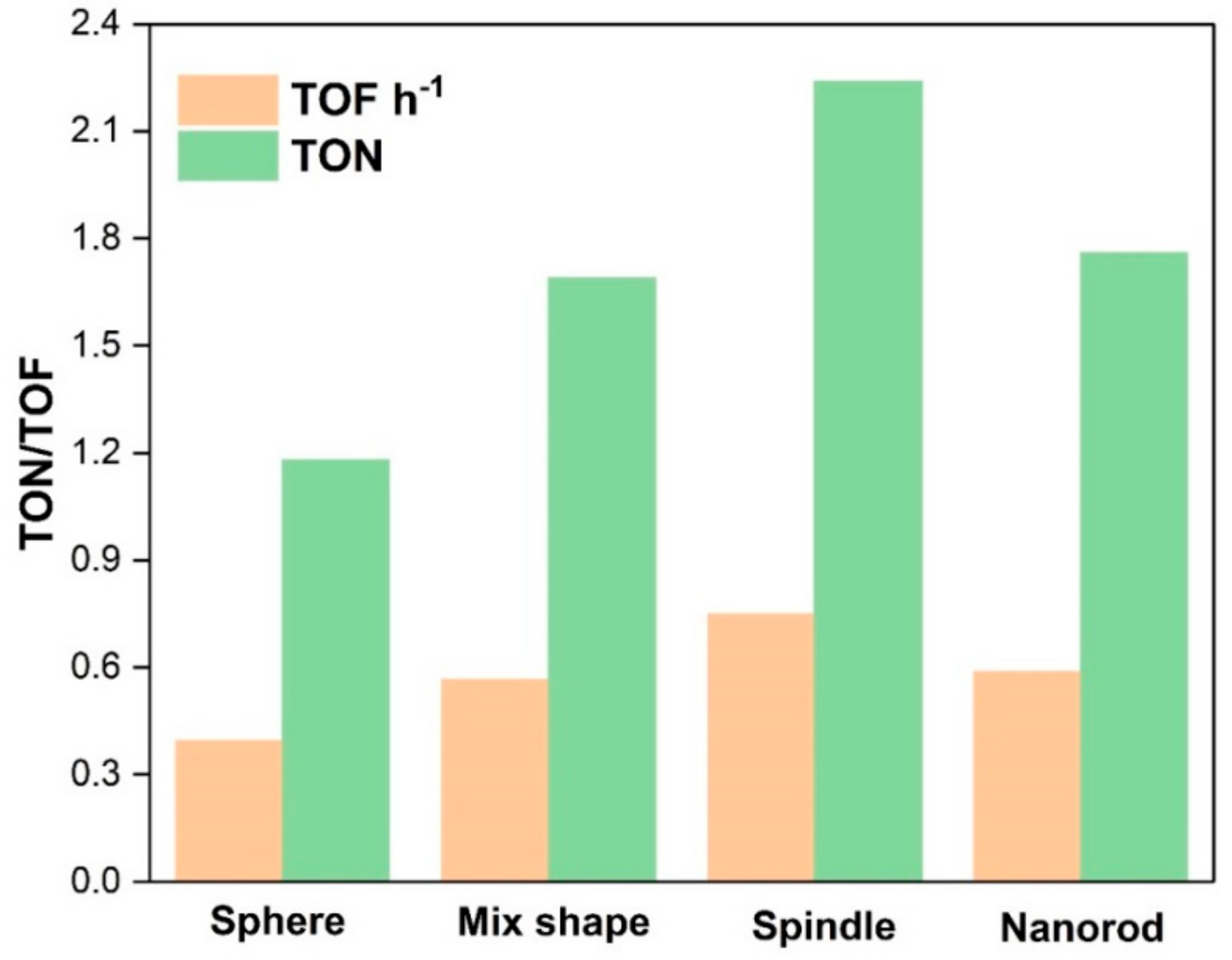

. Only DMC was obtained as a product in the experiments. 12 h-CeO₂ catalyst (spindle shape) demonstrated the best catalytic activity (Table 2; entry 3), whose TOFh⁻¹ was almost double than that of the 8 h-CeO₂ (sphere shape) catalyst (Table 2; entry 1) and much higher than 10 h-CeO₂ (mix shape) and 16 h-CeO₂ (nanorod shape) (Table 2; entries2 and 4), respectively. It indicates that the catalytic performances of all catalysts are mostly correlated to the morphology and proportional to CeO₂ synthesis time. The spindle-shape CeO₂ catalysts exhibited higher TOFh⁻¹(0.748) than sphere (0.395) and CeO₂ nanorods (0.588). On the other hand, the CeO₂ catalyst with a mixed morphology of sphere and spindle produces 0.566 TOF h⁻¹ in 3 h. These results are in agreement with the stated literature that the higher the acid/basic sites in catalysts higher will be the catalytic activity. Therefore, surface area, morphology and acidity/basicity of catalysts enhance the catalytic activity for DMC synthesis. The catalytic activity and morphologies have been compared in this work and the superior surface area to volume ratio, surface oxygen vacancies, and redox properties of CeO₂ makes it even more attractive. These properties enable 111 CeO₂ crystal plane exposed to the interaction with reactants and enhance catalytic activity. Various studies supported this argument regarding the relation of 111 crystal plane of CeO₂ and catalytic activity [14,23]. Hence, spindle-shaped CeO₂ essentially have 111 crystal planes further open, resulting in the excellent catalytic activity for DMC production and these experimental results are supported by BET and XRD interpretations. As shown in Figure 5, spindle-type morphology produces highest TOFh⁻¹ than nanorods followed by mixed structures of sphere plus spindles and then spherical nanoparticles. Besides, to optimize reaction conditions, DMC synthesis reactions have been carried out by varying parameters such as catalyst amount, temperature and pressure. The best catalyst found in the catalyst screening, i.e., spindle-shape CeO₂ selected for the parametric study. The catalytic activity of spindle-shape CeO₂ investigated to know the effect of pressure on the TOF h⁻¹ by changing the pressure from 6.5 MPa to 8.0 MPa, 140 °C temperature and 1 g catalyst amount (Table 2).

It was observed in these experiments that the pressure shows obvious role in DMC synthesis reaction where TOF h⁻¹ continuously improved with the CO₂ pressure. The results are in agreement with the previous studies in the literature regarding the relationship between catalyst activity and CO₂ pressure. For 6.5 MPa pressure at 140 °C after 3 h reaction 0.507 TOF h⁻¹ was attained over spindle-shape CeO₂ (Table 2; entry 5). Furthermore, 0.589 TOF h⁻¹ obtained to 7 MPa pressure and 140 °C, with the latter increasing at 7.5 MPa (See Table 2; entries 3 and 6). Spindle-shape CeO₂ yields enhanced TOF, i.e., 0.794 h⁻¹ at the 8 MPa higher pressure (Table 2; entry 7). These results indicate that higher will be the DMC production at higher reaction pressure. Yet, CO₂ manages an intermediate phase of gas and liquid at 7.39 MPa supercritical pressure of CO₂ and it is obvious that liquid reactions are more reactive than gases. The catalyst activity enhanced when the pressure was increased 7 MPa to 7.5 MPa and the activity remains intact, although there is more of an increase. Therefore, the pressure near theCO₂ supercritical pressure, i.e., 7.5 MPa seems good for direct conversion of CO₂ and methanol to DMC synthesis.

The catalytic activity of spindle-shaped CeO₂ was assessed using constant amount (1 gm) of catalyst and 7.5 MPa CO₂ pressure, with variable reaction temperature ranging from 100 to 160 °C (See Table 2). As expected, the TOF h⁻¹ improved with increase in temperature with the exception of CeO₂ spindles. The TOF increased from 0.553 h⁻¹ to 0.736 h⁻¹ over CeO₂ spindle catalyst after 3 h when the temperature hiked from 100 to 120 °C, which later reaches to 0.748 h⁻¹ at 140 °C (Table 2; entries 8, 9 and 3). Conversely, no significant effect of 160 °C was witnessed on catalyst activity and remained at 0.751 h⁻¹ (See Table 2; entry 10). These results indicate that, reaction temperature only improves the TOF however the figures are not noteworthy. Overall, investigations suggested that, 140 °C is suitable and optimize temperature, for the conversion of CO₂ and methanol into DMC, using spindle-shape CeO₂.

In order to investigate the effect of catalyst amount on the catalyst activity, systematic studies were carried out by varying amount of spindle-shape CeO₂ catalyst from 0.5 to 2 g at constant 140 °C temperature and 7.5 MPa pressure. Table 2 reveals that the TOFs decrease with an increase in catalyst amount. The 0.5 g spindle-shape CeO₂ catalyst turns out 1.119 TOFh⁻¹ following 3 h of reaction (Table 2; entry 11). As soon as the catalyst amount augmented to 1 g the TOF attained 0.748 h⁻¹ at 7.5 MPa pressure and 140 °C after 3 h of reaction (Table 2; entry 3). However, a value of more increase in catalyst quantity didn’t have significant effect on catalyst activity and resulted into 0.561 h⁻¹ and 0.452 h⁻¹ of TOF for 1.5 and 2 g of catalyst, respectively (Table 2; entries 12 and 13). We can conclude from these experiments that even though there is a direct effect of the catalyst amount on the yield or catalytic performance by providing high number of catalysts active sites to the reaction, an excess catalyst amount is ineffective. Furthermore, these results were compared with the previously reported CeO₂ for the title reaction and it was found that our catalyst displayed excellent catalytic performance (

Table 3. Comparative results of cerium oxide catalysts for the direct synthesis of DMC from CO₂ and methanol.

Catalysts	Dehydrating Agent	Temp. (°C)	Pressure (MPa)	DMC (mmol)	TOF (h−1)	References
CeO2	−	170	5	0.66	−	[33]
CeO2	CH3CN	150	0.5	1.52	−	[34]
Spindle-like CeO2	-	140	5	4.10	−	[35]
CeO2	−	140	5	5.34	−	[36]
CeO2	3 A MS	120	15	2.04	−	[37]
CeO2-4A	−	120	0.6	3.23	−	[38]
CeO2 Spindle	−	140	8	13.84	0.794	[This study]
CeO2 Spindle	Molecular sieve 4A	140	7.5	19.35	1.110	[This study]
CeO2 Spindle	DMP	140	7.5	25.09	1.439	[This study]
CeO2 Spindle	Acetonitrile	140	7.5	19.84	1.1380.	[This study]
CeO2 Spindle	Cyclohexene oxide	140	7.5	24.75	1.419	[This study]
CeO2 Spindle	Styrene oxide	140	7.5	24.98	1.433	[This study]
Molecular sieve 4A	-	140	7.5	0.09	−	[This study]

).

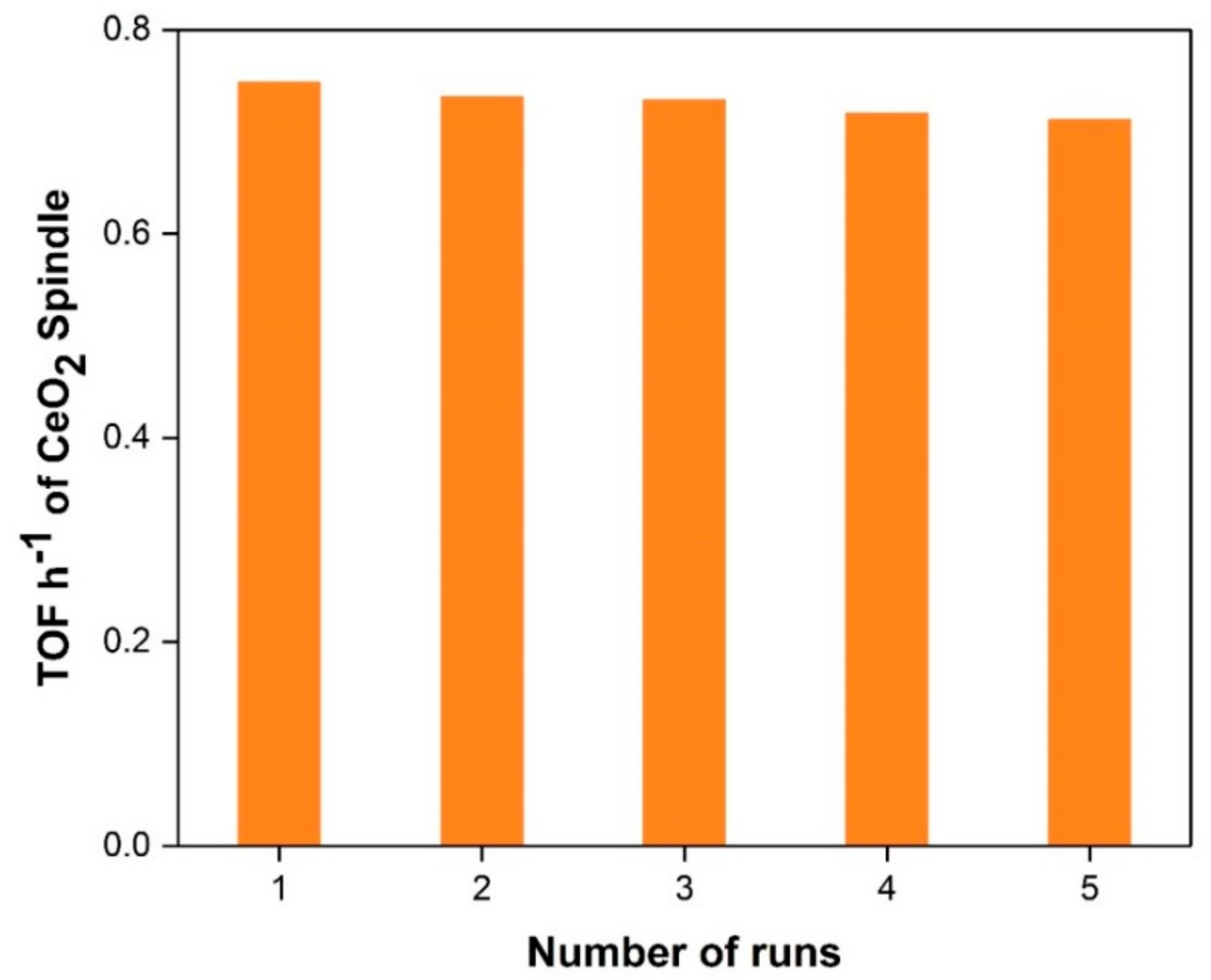

In the development of catalyst systems for industrial applications, catalyst reusability studies are very important. Controlled experiments were performed for reusability of spindle-shape CeO₂ catalyst, under best optimized reaction conditions i.e., 7.5 pressures, 140 °C, 1 g catalyst for five successive runs. After the completion of the reaction, the catalysts were recollected by simple filtration with thorough washing with distilled water followed by ethanol and then dried/stored for its reuse. It was observed from the reusability test results that the catalyst showed very good activity with a small decrease in the trend for subsequent runs (Figure 6). Typically, following the first run, the activity decreases minimally, remains almost constant after the fifth run, but the difference in catalytic activity is small. For this reason, spindle-shape CeO₂ would be potential catalyst for direct synthesis of DMC path with exceptional reusability.

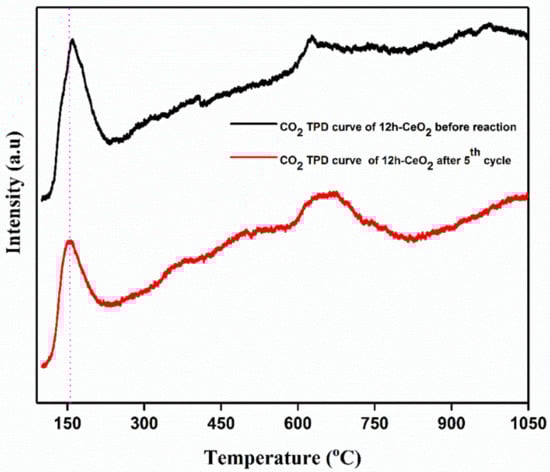

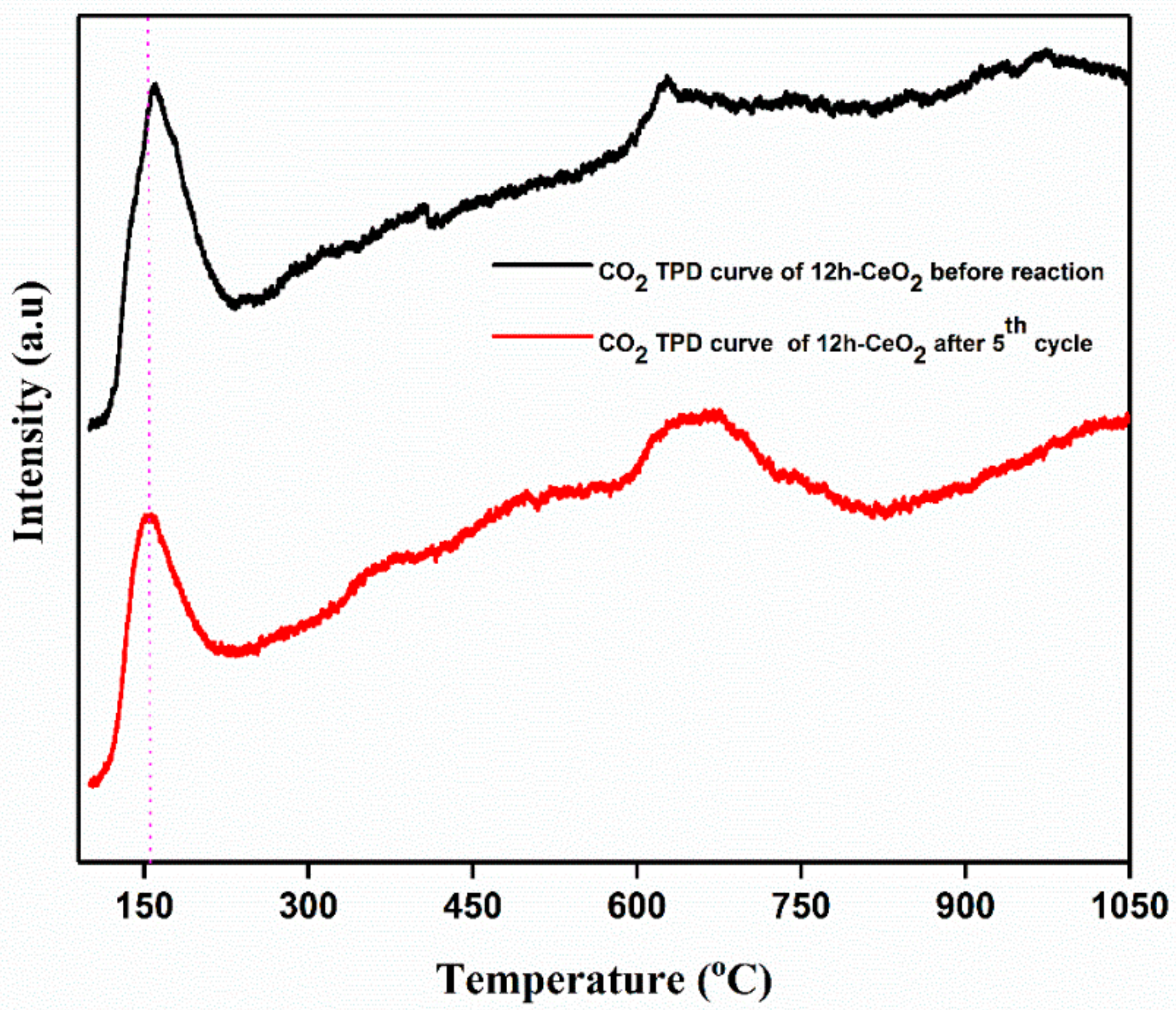

In order to analyze CO₂ desorption properties on CeO₂; 12 h-CeO₂ was used as a representative of CeO₂-based CO₂ adsorbent assuming that other CeO₂ with similar surface condition would exhibit the similar desorption properties. Figure 7 shows CO₂ TPD curve of CeO₂ from 50 °C to 1050 °C. Each dot represents the amount of CO₂ desorbed during each 10 °C increment in temperature. For example, the dot at 50 °C represents the amount of CO₂ desorbed from 50 °C to 60 °C. CO₂ on CeO₂ desorbed mainly from 50 °C to 200 °C, and the desorption peak was observed at 170 °C. Relatively less amount of CO₂ desorption continues from 600 °C to 750 °C. Basic properties of any catalysts depend on the temperature response in the strong region of >450 °C, moderate region between 200–450 °C and weak region of <200 °C. The strong basic sites are because of the formation of unidentate carbonate and low coordination O²⁻ ions. The moderate basic sites are due to the formation of bridged and bidentate carbonates the sites M^x+-O²⁻ pairs; weak basic sites are corresponds to the bicarbonate formed by the interactions between OH groups and the surface. The TPD curve indicates that CeO₂ has several CO₂ adsorption sites which resulted in difference between steep CO₂ desorption at lower temperature and broad CO₂ desorption at higher temperature.

2.3. Dehydrating Agents and DMC Production

In addition, a set of DMC synthesis reactions have been performed using various dehydrating agent to understand and establish their role in catalyst activity. The best-optimized reaction conditions were used for these experiments i.e., 7.5 MPa pressure, 1 g catalyst and 140 °C temperatures. The results for molecular sieve 4A, 2,2-Dimethoxypropane (DMP), acetonitrile, cyclohexene oxide, styrene oxide etc. dehydrating agents are shown in Table 2. Amongst all, DMP presented best producing 1.439 TOF h⁻¹ molecular sieve 4A produces least 1.110 TOF h⁻¹ (Table 2; entries 14 and 15). Interestingly, epoxides such as cyclohexene oxide and styrene oxide exhibited excellent 1.419 and 1.433 TOFs h⁻¹, respectively (Table 2; entries 17 and 18). These results indicate that dehydrating agents play an important role in direct DMC synthesis from CO₂ and have a positive effect on DMC synthesis.

2.4. Reaction Mechanism Study Using FTIR Method

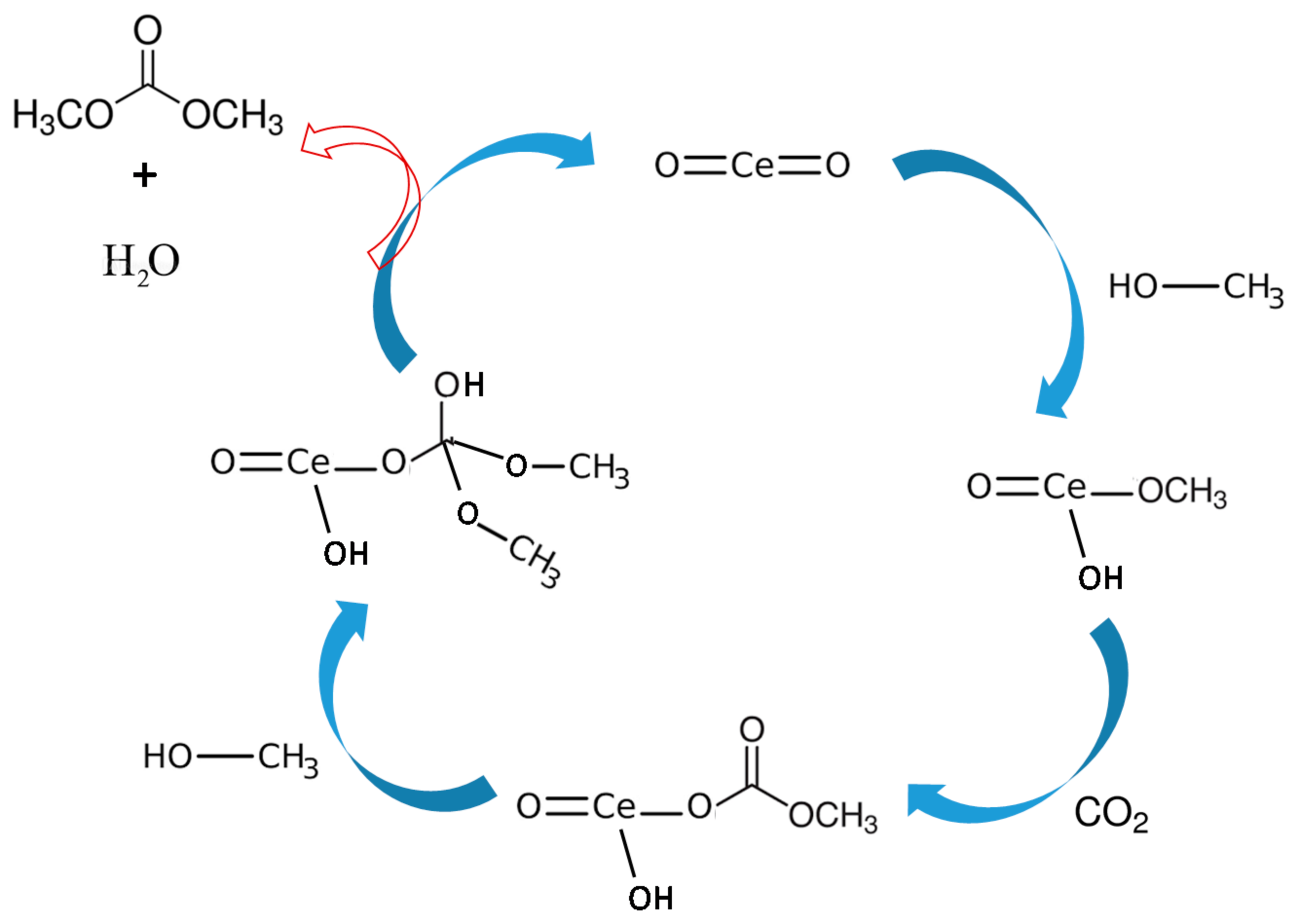

Based on the literature review and experimental results, DMC formation mechanism from CO₂ and methanol over CeO₂ has been proposed [33]. As shown in Figure 8, first methanol gets adsorbed at the CeO₂ surface by chemical absorption forming methoxyl moiety through the oxygen atom.

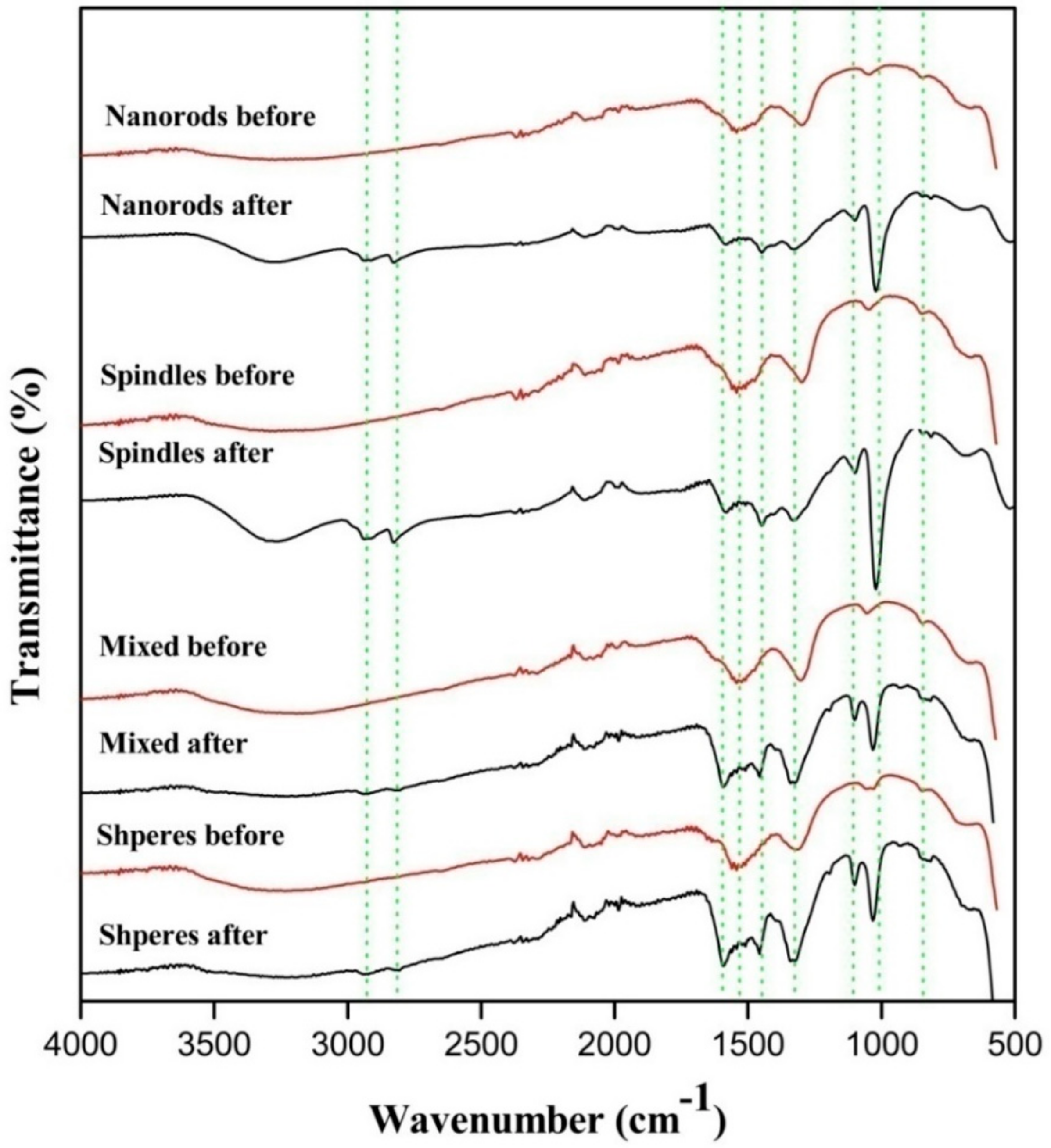

This theoretical hypothesis is supported by FTIR analysis of CeO₂ after exposing to methanol and CO₂ atmosphere. The stretching frequencies of methoxyl group appeared close to 1027 and 1097 cm⁻¹ which correspond to three coordinate methoxyl groups and on-top methoxylgroup in Figure 9 [34].

Also, the asymmetric and symmetric -(CH₃) vibration mode of physically adsorbed methanol was observed at about 2935 and 2821 cm⁻¹ [35]. The monodentate methyl carbonates group form in next step by the addition insertion reaction of CO₂ and methoxyl gets adsorbed on the surface of CeO₂. The FTIR stretching frequencies observed in the region of 1592, 1453 and 1338 cm⁻¹ were ascribed to monodentate methyl carbonate (MMC) [37,39]. Interestingly the MMC has considered as DMC formation intermediate over CeO₂ in the previous studies. In addition, the bands appeared around 1027 and 1592 cm⁻¹ are the characteristic of -(CO₃) from bidentate carbonate [36,37,39]. The bands at 1453 and 1598 cm⁻¹ are assigned for stretching frequencies of hydrogen carbonate whereas 1104, 1350 and 1453 cm⁻¹ correspond to -(CO₃) group of MMC [38,39,40]. Formation of DMC is the final step by the reaction of activated methanol and methyl carbonate group.

3. Experimental Apparatus and Procedures

3.1. Materials and Methods

The highly pure anhydrous DMC (≥99% for gas chromatography (GC) calibration), anhydrous urea (≥98%) and cerium (III) chloride heptahydrate (99.9%) were obtained from Sigma-Aldrich, Yongin, South Korea. Potassium bromide (FTIR-grade) and anhydrous methanol (99%) were purchased from Alfa Aesar, Tewksbury, MA, USA.

A number of analytical techniques were utilized for characterization of physico-chemical properties of as-synthesized metal oxide. The morphology and microstructure of CeO₂ samples were investigated on a Scanning Electron Microscope (SEM, Hitachi-S-3500N, Tokyo, Japan). The samples were prepared by uniform dispersion of CeO₂ on carbon tape, fixed on aluminum stubs, and then sputter coated with gold-palladium for 120 s at 45 mA.An X’pertMPD diffractometer was used for XRD analysis where the diffraction angle scan was 10° (2θ) to 90° (2θ). The infrared spectra was recorded using FTIR, Varian 2000, in the range of 400–4000 cm⁻¹ having 8 cm⁻¹ resolution. Moreover, the pore diameter, pore volume and surface area of the synthesized metal oxide were determined by nitrogen adsorption-desorption using BET MODEL (BELSORP-Max [MP] from BEL Japan. Inc., Osaka, Japan). These measurements were carried out at −196 °C through the Micrometitics static volumetric analyzer. All the data regarding the porosity of the ready cerium oxides, together with the BET surface area, pore-size distribution and pore volume resulted from different models are calculated by the computer unit of BELSORP-Max [MP] analyzer. Then, Non-Local Density Functional Theory (NLDFT) was used to check the pore size distribution using through adsorption branch and isotherms were calculated using a combination of statistical thermodynamic NLDFT calculations. The transmission electron microscope (TEM) 160 kV (JEM-200CX), JEOL JEM-2010F (JEOL, Tokyo, Japan) high-resolution transmission electron microscope (HRTEM) and selected area electron diffraction (SAED) were employed to know the size, morphology and crystalline nature.

3.2. Synthesis of Catalyst

The CeO₂ were synthesized using our earlier reported method [41]. In brief, 3.7 gm of cerium (III) chloride heptahydrate (0.01 mol) and 3 gm of urea (in a 1:5 molar ratio i.e., 0.05 mol) were taken in 250 mL closed borosil glass bottle (SCHOTT DURAN-00336343) having adequate water, maintaining 0.1 M concentration of metal salt. The ultrafine sonication were applied to reaction mixture in order to make it uniform and then heated in heating oven at 120 °C for 3 h. Then the reaction mixture was suction filtered with thorough distilled water and anhydrous ethanol wash to check the adsorbed byproducts on the surface of precipitate. Finally, the obtained product dried at 60 °C for 12 h and annealed at 500 °C for 3 h to obtaincerium oxide. Depending on their synthesis time (heating in oven) i.e., 8 h, 10 h, 12 h and 16 h, CeO₂ samples were named as sphere CeO₂, mixed shape CeO₂, spindle CeO_2, and nanorod CeO₂, respectively.

3.3. Conversion of CO₂ and Methanol into DMC in Batch Reactor over CeO₂ Catalyst

In brief, 25 mL of methanol (618 mmol) and 0.5 to 2 g of CeO₂ catalyst (2.9 to 11.62 mmol) were added into 100 mL (SPG Co., Ltd., Incheon, South Korea) stainless steel reactor secured with PID temperature controller (Hanwoul Engineering Company, Incheon, South Korea). Then, the reactor was heated to 120 to 160 °C with stirring rate of ~900 rpm after pressurizing to the desired CO₂ gas. After respective reaction time, the reactor cooled down to room temperature, depressurized slowly and the catalyst was separated by simple filtration. Finally, the reaction mixture was injected in gas chromatography-mass spectroscopy (Agilent 19091J-433 GC-MS; capillary column; EI model at 70 eV) and gas chromatography (Shimadzu GC 17A; stabilwax column; flame ionization detector) for product analysis.

4. Conclusions

We have successfully demonstrated the effect of CeO₂ morphology on product yield and catalytic activity for DMC synthesis from CO₂ and the study suggests that excellent DMC production can be achievable by modifying the morphology of a CeO₂ catalyst. We have proposed a modified cost-effective and facile precipitation method for synthesizing different morphologies of CeO₂ at ambient synthesis conditions. The formation mechanism of CeO₂ is being proposed with the help of time-dependent experiments and SEM analysis. The results showed that spindle shape of CeO₂ along, with higher surface area, is the most active catalyst for CO₂ and methanol conversion reaction. A number of experiments are carried out to determine the role of dehydrating agents. Furthermore, a DMC formation reaction mechanism over CeO₂ is proposed based on the stretching vibrations of CO₂ and methanol experiential in the FTIR spectra. The bands at 1592, 1453 and 1338 cm⁻¹ are characteristic frequencies of MMC, which indicates that MMC would be the intermediate in the DMC formation over CeO₂ catalyst. We believe that aside from DMC production, the spindle-shape CeO₂ catalyst can also work in various CO₂ fixation reactions, as their catalytic properties may not belimited to DMC synthesis.
