Article

Synthesis of an Ag3PO4/Nb2O5 Photocatalyst for the Degradation of Dye

by
Nur Syazwani Osman
1,
Siti Norhasimah Sulaiman
1,
Ernee Noryana Muhamad
1,
Hayati Mukhair
2,
Sin Tee Tan
3 and
Abdul Halim Abdullah
1,2,*
1
Department of Chemistry, Faculty Science, Universiti Putra Malaysia, Serdang 43400, Malaysia
2
Materials Synthesis and Characterization Laboratory, Institute of Advanced Technology, Serdang 43400, Malaysia
3
Department of Physics, Faculty Science, Universiti Putra Malaysia, Serdang 43400, Malaysia
*
Author to whom correspondence should be addressed.
Catalysts 2021, 11(4), 458; https://doi.org/10.3390/catal11040458
Submission received: 16 February 2021 / Revised: 26 March 2021 / Accepted: 26 March 2021 / Published: 1 April 2021

Abstract

:
In this work, the photocatalytic performance of Ag3PO4, Nb2O5 and Ag3PO4/Nb2O5 hybrid photocatalysts to degrade methyl orange dye, MO, in an aqueous solution under visible light irradiation was evaluated. The Ag3PO4 and Ag3PO4/Nb2O5 photocatalysts, with various Ag to Nb molar ratios, were prepared using a facile precipitation method. The photocatalysts were characterized by X-ray diffraction, UV–Visible, X-ray Photoelectron, and Photoluminescence spectroscopies. Upon the addition of Ag3PO4, the band gap energy of Nb2O5 decreased from 3.0 eV to 2.7 eV, indicating the possible use of the Ag3PO4/Nb2O5 hybrid photocatalysts under visible light irradiation. All of the prepared Ag3PO4/Nb2O5 catalysts exhibited higher photocatalytic performance than Ag3PO4 in degrading methyl orange dye under 23-watt visible light irradiation. The Ag3PO4/Nb2O5 catalyst, with a mole ratio of 2:1, exhibited the fastest MO degradation rate of 7.3 × 10−2 min−1, which is twice faster than that of Ag3PO4. The catalyst also shows better stability, as it is reusable for up to six experimental cycles while maintaining its photocatalytic activity above 60%.

1. Introduction

Dyes, widely used in the textile, paint, ink, and paper industries, are the most significant chemical contaminants that cause water pollution [1]. Up to 200,000 tons of dyes are lost to effluents in textile industries every year during dyeing and finishing operations. The release of colored water in the effluents causes hazards and environmental problems. Since its discovery by Fujishima and Honda in 1972, heterogeneous photocatalysis has been widely explored as a water decontamination method [1]. Through heterogeneous photocatalysis, the complete mineralization of parents and their intermediate compounds is possible at ambient operating temperatures and pressures, and at low operational costs [2]. Nowadays, visible-light-driven photocatalysis has gained research interest, with Ag3PO4 being reported as a promising photocatalyst for the photodegradation of the aqueous dye solution. Its ability to utilize visible light irradiation is due to its narrow band gap energy. Unfortunately, self-photo corrosion is a significant problem, which means that the stability of Ag3PO4 remains an issue [3]. One of the initiatives to enhance the photocatalytic activity and the stability of the Ag3PO4 photocatalyst is by coupling it with other semiconductors, such as TiO2 [4,5,6], ZnO [7], and CeO2 [8]. This coupling method decreased the recombination probability of the electron-hole pairs, and enhanced the photocatalytic efficiency.
Niobium (V) oxide, Nb2O5, which has a band gap energy (3.4 eV), which is similar to TiO2, is one of the promising photocatalysts, as it exhibits excellent photocatalytic performance in the photodegradation of dyes [9]. Although Souza et al. (2016) reported similar catalytic activity between Nb2O5 and TiO2-P25 in the degradation of textile wastewater [10], Prado and his co-workers (2008) showed that Nb2O5 is a more stable photocatalyst as it successfully maintained its 85% catalytic activity in indigo carmine degradation after ten reaction cycles [11].
This work aimed to produce a stable visible-light-driven photocatalyst by coupling Ag3PO4 with Nb2O5. There are very few works on Ag3PO4/Nb2O5 photocatalysts available in the literature [3]. To the best of our knowledge, using a fluorescence lamp (23 W) as a source of light irradiation to degrade a dye over Ag3PO4/Nb2O5 photocatalysts has not been reported. Previously, the degradation of rhodamine B over Ag3PO4/Nb2O5 under simulated sunlight irradiation (Xe, 600 W) was reported [3]. In this work, Ag3PO4/Nb2O5 photocatalysts were synthesized via the deposition–precipitation method, and their photocatalytic activity was evaluated by the photodegradation of methyl orange (MO) under fluorescent light (23 W) irradiation. The experiments were performed under various parameters in order to determine the best-suited conditions for the degradation of MO. The effect of scavengers and a reusability test were conducted in order to determine the active species responsible for the degradation, and to evaluate the stability of the catalysts, respectively

2. Results

2.1. Characteristics of the Photocatalysts

Figure 1 shows the XRD patterns of the Ag3PO4, Nb2O5, and Ag3PO4/Nb2O5 catalysts. All of the diffraction peaks of pure Ag3PO4 and Nb2O5 were in good agreement with those of the cubic phase of Ag3PO4 (JCPDS No. 010840510) and the orthorhombic phase of Nb2O5 (JCPDS No. 000271003), respectively. The XRD pattern of the Ag3PO4/Nb2O5 catalysts clearly shows peaks of Ag3PO4 and Nb2O5, confirming the presence of these materials in their pristine form in the Ag3PO4/Nb2O5 composite. The peak intensity of Ag3PO4 also increased corresponding to the increase in the content of Ag3PO4 in the catalyst.
The optical response of the catalysts in the visible light region was determined using the UV–Vis DRS spectrum. The data collected was transformed using the Kubelka-Munk function, and the band gap energy was extrapolated from the intercept of the x-axis of the Tauc plot (Figure 2). The band gap energy of Nb2O5 (3.3 eV) and Ag3PO4 (2.3 eV) is similar to the values reported in the literature [3,12]. Upon the addition of Ag3PO4, the band gap energy of Nb2O5 slightly decreased to 3.2 eV.
The optical properties and band structure of the samples were further evaluated using steady-state photoluminescence analysis. The results are presented in Figure 3. For the Nb2O5, two broad peaks ranged from (i) the UV region: 350 nm to 400 nm, and (ii) the visible region: 400 nm to 550 nm. From Figure 3b, the first deconvoluted peak (blue) can be ascribed to the near band edge emission of the bulk Nb2O5 samples, whereas the second peak (green) can be referred to as the defect-assisted band alignment transition [13]. The Ag3PO4 sample also showed a broad emission peak from 400 nm to 600 nm, which can be deconvoluted into four peaks via Gaussian function analysis. The peaks were located at the wavelength 425 nm (violet), 480 nm (blue), 525 (green), and 575 nm (green). This result is consistent with the literature, stating that the carrier recombination arose from the shallow defect between the [PO4] and highly distorted tetrahedral [AgO4] clusters [14]. Upon the incorporation of Ag3PO4 into the Nb2O5 at a 1:1 molar ratio, it was found that the PL emission at the visible region from 400 nm to 600 nm (shallow defect) was quenched. This phenomenon signifies that the carrier recombination becomes more dominant in the heterojunction structure than the direct band edge at UV region of Nb2O5 (blue region in Figure 3b). In order to further evalutate the peak quenching, a normalised peak with respect to the direct band edge of Nb2O5 (382 nm) was conducted for all of the Ag3PO4/Nb2O5 and Nb2O5 samples. The result is presented in Figure 3d. It can be observed that the further increases of the Ag content in Nb2O5 have proved to suppress the PL intensity further in the shallow defcet states, as compared to the Ag3PO4 sample. None of the defect states were observed in the Nb2O5 semiconductor material. This observation may be atttributed to the agglomeration of the Ag3PO4 cluster, which contributed to the bulk trapping states. It is also worth mentioning that the increased Ag concentration can alter the charged polarization between the distorted Ag cluster, and could eventually promote intrinsic and extrinsic defect trapping states in the electronic structure of the Nb2O5 semiconductor materials. The plausible charge transfer mechanism is illustarted in Figure 3e. For the Nb2O5 sample, a charge trasfer only occured between the valance band and the conduction band of the semiconductor material. For the Ag3PO4/Nb2O5 sample, a charge carrier was photoexcited from the valance band to the conduction band of Nb2O5 under the simulated sunlight. The charge carrier was later transferred to the conduction band of Ag3PO4 before it further underwent the reduction process with the analyte during the photodegradation process. Therefore, it is believed that the Ag3PO4/Nb2O5 semiconductor materials served as better photocatalysts than Nb2O5, owing to its two charge transfer pathways, which lower the direct carrier recombination in the Nb2O5 semiconductor.
The XPS spectrum of the 2:1 Ag:Nb photocatalyst (Figure 4)—which shows the presence of Ag, P, O, and Nb—verified the coexistence of Ag3PO4 and Nb2O5 in the composite. The peaks at 284.8 eV and 286.3 eV for C 1s belong to contaminant carbon C–C or C–O (Figure 4b). The peaks with the binding energy of 370.4 eV and 376.4 eV in the high-resolution XPS spectrum of Ag 3d (Figure 4c) are assigned to Ag 3d5/2 and Ag 3d3/2, indicating the existence of Ag+ in the composite [15]. The peak of P 2p, observed at 132.6 eV (Figure 4d), is due to the P5+ of the phosphate. The deconvolution of the O 1s spectrum (Figure 4e) resulted in two peaks at 531.0 eV and 532.8 eV. The former corresponds to a crystal lattice oxygen of Ag3PO4 [16,17] and Nb2O5 [18,19]; the latter could be derived from the hydroxyl group on the surface of the catalyst. The high resolution of Nb 3d (Figure 4f) peaked for Nb 3d5/2 at 207.3 eV, and Nb 3d3/2 at 210.0 eV corresponds to Nb5+, in good agreement with the binding energy of Nb2O5 [20].
The morphology of Ag3PO4, Nb2O5, and Ag3PO4/Nb2O5 was illustrated in Figure 5. All of the samples exhibit similar morphology, being irregular spherical shapes. The image of Ag3PO4/Nb2O5 showed the severe agglomeration of the particles. EDX was employed in order to detect the elemental composition in the Ag3PO4/Nb2O5 composite photocatalyst, and the data are listed in Table 1. The as prepared catalyst different atomic percentage of Ag, Nb, P, and O. Based on the atomic percentage of Nb2O5 and Ag3PO4, the compositions of the catalysts were closely correlated with the mole ratio used in the preparation of the samples.
The BET surface area and particle size determination of the Ag3PO4, Nb2O5, and Ag3PO4/Nb2O5 composite photocatalysts were analyzed by N2 adsorption/desorption and Zetasizer; the data are summarized in Table 2. Based on the results, as the Ag3PO4 loading increased in the composites, a larger aggregate particle size was clearly observed compared to pristine Ag3PO4 and Nb2O5.
The incorporation of Ag3PO4 into Nb2O5 resulted in the reduction of the surface area, which is attributed to the method of preparation. When contacted with the Nb2O5, the Ag+ ions would be adsorbed onto the Nb2O5 surface, possibly near the mouth of the pore or in the pore of Nb2O5. When the phosphate solution was added into the solution mixture, Ag+ would react to precipitate Ag3PO4 on the Nb2O5. The formation of Ag3PO4 in the pore or on the mouth of the pore of Nb2O5 would block the pore, hence reducing the accessibility of the N2 gas to the adsorption sites. Consequently, the prepared catalysts exhibited a lower surface area compared to pristine Nb2O5 and Ag3PO4.

2.2. Photocatalytic Activity

The photocatalytic activity of the prepared photocatalysts was evaluated by the photodegradation of methyl orange, and the results are as shown in Figure 6. The degradation of MO by Nb2O5 was insignificant because it is inactive under visible light irradiation due to its wide band gap energy. The Ag3PO4 and Ag3PO4/Nb2O5 photocatalysts, however, exhibited a similar percentage of MO degradation, ranging from 91 to 96%. The experiment data was then fitted to the pseudo-first-order kinetic in order to determine the rate constant for the reaction. The MO degradation rate was faster when using Ag3PO4/Nb2O5 catalysts. The reaction rate initially increased with increasing Ag3PO4 loading up to a ratio of 2:1 before it decreased at a higher loading (3:1), which could be due to the agglomeration of Ag3PO4 particles on the surface of the Nb2O5. Because of its highest MO degradation rate (rate constant = 0.073 min−1), the Ag:Nb = 2:1 was the suitable photocatalyst for this study.
Several factors influence photocatalytic efficiency, including the mass of the photocatalyst and the concentration of the pollutant. Figure 7 shows the photodegradation activity using a various amount of Ag:Nb = 2:1 photocatalyst and the initial concentration of MO. The MO degradation rate increases with increasing catalyst mass, up to 0.5 g, before it decreases at a higher catalyst mass (Figure 7a). The use of an excessive amount of catalyst loading reduces the degradation activity by increasing the light scattering effect and the opacity of the solution [21]. It also leads to the aggregation of the catalyst and reduces the interfacial area between the reaction solution and the photocatalyst. The fastest rate of degradation (Figure 7b) was observed when degrading 5 ppm of MO. The MO degradation rate, however, decreased with the increasing MO initial concentration. This decrement may occur due to the light screening effect, which reduces the photon’s path length and the number of photons that arrive on the surface of the catalyst. Thus, it reduces the generation of electron-hole pairs, and consequently the photocatalytic activity of the photocatalyst [22].
In order to determine the species responsible for the photodegradation, 10 mL of a scavenger solution—such as ethylene diamine tetraacetic acid (EDTA), tert-butanol, or benzoquinone (BQ)—was added to the MO solution. These solutions scavenge the h+, •OH, and • O 2 - radicals, respectively. In the absence of the scavengers, the photocatalytic degradation of MO was 96% (Figure 8). Upon the addition of the EDTA and BQ solutions, the photodegradation decreased significantly to 1% and 32%, respectively. However, there was no significant effect on the photodegradation efficiency observed with the addition of tert-butanol. These results demonstrate that the h+ and • O 2 - species are responsible for the photodegradation of MO.

2.3. Reusability of the Ag3PO4/Nb2O5 Photocatalyst

The catalyst’s lifetime is an essential parameter of the photocatalytic degradation process, so it is crucial to evaluate the catalyst’s reusability for practical applications. As shown in Figure 9, the decrease in the photocatalytic efficiency of the Ag:Nb = 2:1 photocatalyst was gradual, but remained above 60% up to the fifth cycle of the photodegradation experiment. This gradual loss might be due to the self-photo corrosion of Ag3PO4. The enhanced photocatalytic activity and stability of the Ag:Nb = 2:1 photocatalyst may be due to the insoluble Nb2O5 layer, which can effectively protect the dissolution of Ag3PO4 to Ag+ ions, thus improving the structural stability of the photocatalyst.

3. Materials and Methods

3.1. The Synthesis of the Ag3PO4/Nb2O5 Photocatalyst

Ag3PO4/Nb2O5 photocatalysts with different Ag3PO4 to Nb2O5 mole ratios were prepared via a facile deposition–precipitation method. In a typical experiment, a fixed amount of Nb2O5 (Merck, Darmstadt, Germany) was dispersed in 150 mL deionized water and sonicated for 30 min. Various amounts of AgNO3 salt (Merck, Germany) were added into the solution mixture and magnetically stirred for 30 min. In total, 150 mL of disodium hydrogen phosphate and Na2HPO4 (Fisher Scientific, Shah Alam, Malaysia) solution were added dropwise into the solution mixture with continuous stirring. The mole ratio of AgNO3 to Na2HPO4 was kept constant at 3:1 in order to produce the Ag3PO4 catalyst. The yellow precipitate formed was collected by filtration, washed several times with distilled water and ethanol, and dried in an oven at 80 °C overnight. The final product was ground and characterized before being used in the photodegradation studies. A similar procedure, without the addition of Nb2O5, was employed to produce a pure Ag3PO4 photocatalyst.

3.2. Characterization of the Catalyst

The crystalline phase of the catalysts was analyzed using an XRD 6000 (Shimadzu, Kyoto, Japan) with Cu-Kα radiation, operated at λ = 1.54 nm, 30 kV, and 40 mA. The morphology and elemental composition of the catalysts were determined using a FESEM Nova Nanosem 230 (Fei, Eindhoven, The Netherlands) integrated with an energy dispersive X-ray detector. A fluorescence spectrophotometer (Perkin Elmer LS55, Waltham, MA, USA) with a wavelength excitation of 290 nm was used to record the photoluminescence spectra of the samples. The UV–vis diffuse reflectance spectra were recorded by a Shimadzu UV 3101 spectrophotometer at a wavelength between 220 and 800 nm. The chemical state of the elements was analysed using Auger Electron Spectroscopy with an X-Ray Photoelectron Spectrometer (Axis Ultra DLD, Kratos, Manchester, UK). The BET surface area was obtained by the application of BET modelling, conducting in TriStar II Plus (Micromeritics, Norcross, GA, USA). The particle size measurement was determined by Zetasizer, (Malvern Instruments, Worcestershire, UK).

3.3. Photoactivity of the Ag3PO4/Nb2O5 Photocatalyst

The photodegradation of methyl orange dye (MO) was performed in a glass photoreactor, as shown in Figure 10. A fixed amount of photocatalyst was added into 0.5 L of 10 ppm MO solution and stirred in the dark for 30 min. Air was bubbled into the solution throughout the experiment in order to ensure a constant supply of oxygen. During irradiation with a compact fluorescent lamp (23 W, Phillips, 1600 Lumens), an aliquot of the sample was withdrawn from the bulk solution at predetermined time intervals and filtered to remove catalyst particles. The samples were analyzed using UV–vis Perkin-Elmer Lambda 30 spectrophotometer at λmax of 464.4 nm in order to determine the MO dye’s residual concentration. The percentage of degradation and the amount of MO degraded are calculated using Equations (1) and (2), respectively:
%   Degradation   =   C 0   -   C t C 0   ×   100 %
Amount   of   degraded   ( mg / g )   =   C 0   C t   ( mg L ) mass   of   catalyst   ( g )   ×   V   ( L )
where C0 is the initial MO concentration, Ct is the MO concentration at a time ‘t’, and V is the volume of the MO solution used in the reaction.

3.4. Reusability Test

The reusability of the catalyst was evaluated by performing several cycles of MO photodegradation in the the best-suited conditions. Once the first experiment ended, the treated MO solution was removed by decantation after the catalyst had settled at the bottom of the photoreactor. A fresh MO solution was then added to the reactor in order to start the next cycle.

4. Conclusions

The Ag3PO4/Nb2O5 photocatalysts, synthesized via the deposition–precipitation method, exhibited irregular and spherical shapes with a surface area of 0.89–1.70 m2/g. The catalysts also showed a faster MO degradation rate than Ag3PO4. Ag3PO4/Nb2O5, and a molar ratio of 2:1 showed the highest photocatalytic degradation of 10 ppm MO (96%) with a catalyst loading of 0.5 g. The incorporation of Nb2O5 in Ag3PO4 enhanced the catalysts’ photocatalytic performance and stability, and thus can be used effectively under visible light irradiation for up to five cycles. h+ and O 2 - are the main active species for the degradation.

Author Contributions

Conceptualization, A.H.A., N.S.O., and E.N.M.; methodology, A.H.A., N.S.O., S.T.T., and E.N.M.; validation, A.H.A., N.S.O., S.T.T. and H.M.; formal analysis, A.H.A., N.S.O., S.N.S., and H.M.; investigation, N.S.O., S.N.S., and H.M.; writing—original draft preparation, N.S.O., S.N.S., and H.M.; writing—review and editing, A.H.A., S.T.T., and E.N.M.; supervision, A.H.A. and E.N.M.; project administration, A.H.A.; funding acquisition, A.H.A., N.S.O., and E.N.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Universiti Putra Malaysia, grant number GPB-9629300.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors would like to acknowledge Universiti Kebangsaan Malaysia and Universiti Teknologi MARA for the services and technical support provided for the research works.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mandal, S.; Natarajan, S.; Tamilselvi, A.; Mayadevi, S. Photocatalytic and antimicrobial activities of zinc ferrite nanoparticles synthesized through soft chemical route: A magnetically recyclable catalyst for water/wastewater treatment. J. Environ. Chem. Eng. 2016, 4, 2706–2712. [Google Scholar] [CrossRef]
  2. Chong, M.N.; Jin, B.; Chow, C.W.K.; Saint, C. Recent developments in photocatalytic water treatment technology: A review. Water Res. 2010, 44, 2997–3027. [Google Scholar] [CrossRef] [PubMed]
  3. Shao, R.; Zeng, X.; Cao, Z.; Dong, H.; Wang, L.; Wang, F.; Liu, J.; Li, Z.; Liang, Q. A novel Ag3PO4/Nb2O5 fiber composite with enhanced photocatalytic performance and stability. RSC Adv. 2015, 5, 102101–102107. [Google Scholar] [CrossRef]
  4. Cai, L.; Long, Q.; Yin, C. Synthesis and characterization of high photocatalytic activity and stable Ag3PO4/TiO2 fibers for photocatalytic degradation of black liquor. Appl. Surf. Sci. 2014, 319, 60–67. [Google Scholar] [CrossRef]
  5. Zhao, F.M.; Pan, L.; Wang, S.; Deng, Q.; Zou, J.J.; Wang, L.; Zhang, X. Ag3PO4/TiO2 composite for efficient photodegradation of organic pollutants under visible light. Appl. Surf. Sci. 2014, 317, 833–838. [Google Scholar] [CrossRef]
  6. Yao, W.; Zhang, B.; Huang, C.; Ma, C.; Song, X.; Xu, Q. Synthesis and characterization of high efficiency and stable Ag3PO4/TiO2 visible light photocatalyst for the degradation of methylene blue and rhodamine B solutions. J. Mater. Chem. 2012, 22, 4050–4055. [Google Scholar] [CrossRef]
  7. Dong, C.; Wu, K.L.; Li, M.R.; Liu, L.; Wei, X.W. Synthesis of Ag3PO4-ZnO nanorod composites with high visible-light photocatalytic activity. Catal. Commun. 2014, 46, 32–35. [Google Scholar] [CrossRef]
  8. Zhang, W.; Hu, C.; Zhai, W.; Wang, Z.; Sun, Y.; Chi, F.; Ran, S.; Liu, X.; Lv, Y. Novel Ag3PO4/CeO2 p-n Hierarchical Heterojunction with Enhanced Photocatalytic Performance. Mater. Res. 2016, 19, 673–679. [Google Scholar] [CrossRef]
  9. Chen, J.; Wang, H.; Huang, G.; Zhang, Z.; Han, L.; Song, W.; Li, M.; Zhang, Y. Facile synthesis of urchin-like hierarchical Nb2O5 nanospheres with enhanced visible light photocatalytic activity. J. Alloys Compd. 2017, 9, 19–28. [Google Scholar] [CrossRef]
  10. Souza, R.P.; Freitas, T.K.F.S.; Domingues, F.S.; Pezoti, O.; Ambrosio, E.; Ferrari-Lima, A.M.; Garcia, J.C. Photocatalytic activity of TiO2, ZnO and Nb2O5 applied to degradation of textile wastewater. J. Photochem. Photobiol. A Chem. 2016, 329, 9–17. [Google Scholar] [CrossRef]
  11. Prado, A.G.S.; Bolzon, L.B.; Pedroso, C.P.; Moura, A.O.; Costa, L.L. Nb2O5 as efficient and recyclable photocatalyst for indigo carmine degradation. Appl. Catal. B Environ. 2008, 82, 219–224. [Google Scholar] [CrossRef]
  12. Morais, L.A.; Adán, C.; Araujo, A.S.; Guedes, A.P.M.A.; Marugán, J. Synthesis, Characterization, and Photonic Efficiency of Novel Photocatalytic Niobium Oxide Materials. Glob. Chall. 2017, 1, 1700066. [Google Scholar] [CrossRef]
  13. He, J.; Hu, Y.; Wang, Z.; Lu, W.; Yang, S.; Wu, G.; Wang, Y.; Wang, S.; Gu, H.; Wang, J. Hydrothermal growth and optical properties of Nb2O5 nanorod arrays. J. Mater. Chem. C 2014, 2, 8185–8190. [Google Scholar] [CrossRef]
  14. Botelho, G.; Andres, J.; Gracia, L.; Matos, L.S.; Longo, E. Photoluminescence and Photocatalytic Properties of Ag3PO4 Microcrystals: An Experimental and Theoretical Investigation. ChemPlusChem 2016, 81, 202–212. [Google Scholar] [CrossRef] [PubMed]
  15. Cui, X.; Zheng, Y.F.; Zhou, H.; Yin, H.Y.; Song, X.C. The effect of synthesis temperature on the morphologies and visible light photocatalytic performance of Ag3PO4. J. Taiwan Inst. Chem. Eng. 2016, 60, 328–334. [Google Scholar] [CrossRef]
  16. Katsumata, H.; Sakai, T.; Suzuki, T.; Kaneco, S. Highly Efficient Photocatalytic Activity of g-C3N4/Ag3PO4 Hybrid Photocatalysts through Z-Scheme Photocatalytic Mechanism under Visible Light. Ind. Eng. Chem. Res. 2014, 53, 8018–8025. [Google Scholar] [CrossRef]
  17. Li, Y.; Yu, L.; Li, N.; Yan, W.; Li, X. Heterostructures of Ag3PO4/TiO2 mesoporous spheres with highly efficient visible light photocatalytic activity. J. Colloid Interface Sci. 2015, 450, 246–253. [Google Scholar] [CrossRef]
  18. Qamar, M.; Abdalwadoud, M.; Ahmed, M.I.; Azad, A.M.; Merzougui, B.; Bukola, S.; Yamani, Z.H.; Siddiqui, M.N. Single-Pot Synthesis of 001-Faceted N-Doped Nb2O5/Reduced Graphene Oxide Nanocomposite for Efficient Photoelectrochemical Water Splitting. ACS Appl. Mater. Interfaces 2015, 7, 17954–17962. [Google Scholar] [CrossRef] [PubMed]
  19. Xue, J.; Wang, R.; Zhang, Z.; Qiu, S. Facile preparation of C, N co-modified Nb2O5 nanoneedles with enhanced visible light photocatalytic activity. Dalton Trans. 2016, 45, 16519–16525. [Google Scholar] [CrossRef]
  20. Kong, L.; Zhang, C.; Wang, J.; Qiao, W.; Ling, L.; Long, D. Nanoarchitectured Nb2O5 hollow, Nb2O5@carbon and NbO2@carbon Core-Shell Microspheres for Ultrahigh-Rate Intercalation Pseudocapacitors. Sci. Rep. 2016, 6, 1–10. [Google Scholar] [CrossRef] [Green Version]
  21. Li, R.; Song, X.; Huang, Y.; Fang, Y.; Jia, M.; Ma, W. Visible-light photocatalytic degradation of azo dyes in water by Ag3PO4: An unusual dependency between adsorption and the degradation rate on pH value. J. Mol. Catal. A Chem. 2016, 421, 57–65. [Google Scholar] [CrossRef]
  22. Gnanaprakasam, A.; Sivakumar, V.M.; Thirumarimurugan, M. Influencing Parameters in the Photocatalytic Degradation of Organic Effluent via Nanometal Oxide Catalyst: A Review. Indian J. Mater. Sci. 2015, 2015, 601827. [Google Scholar] [CrossRef]

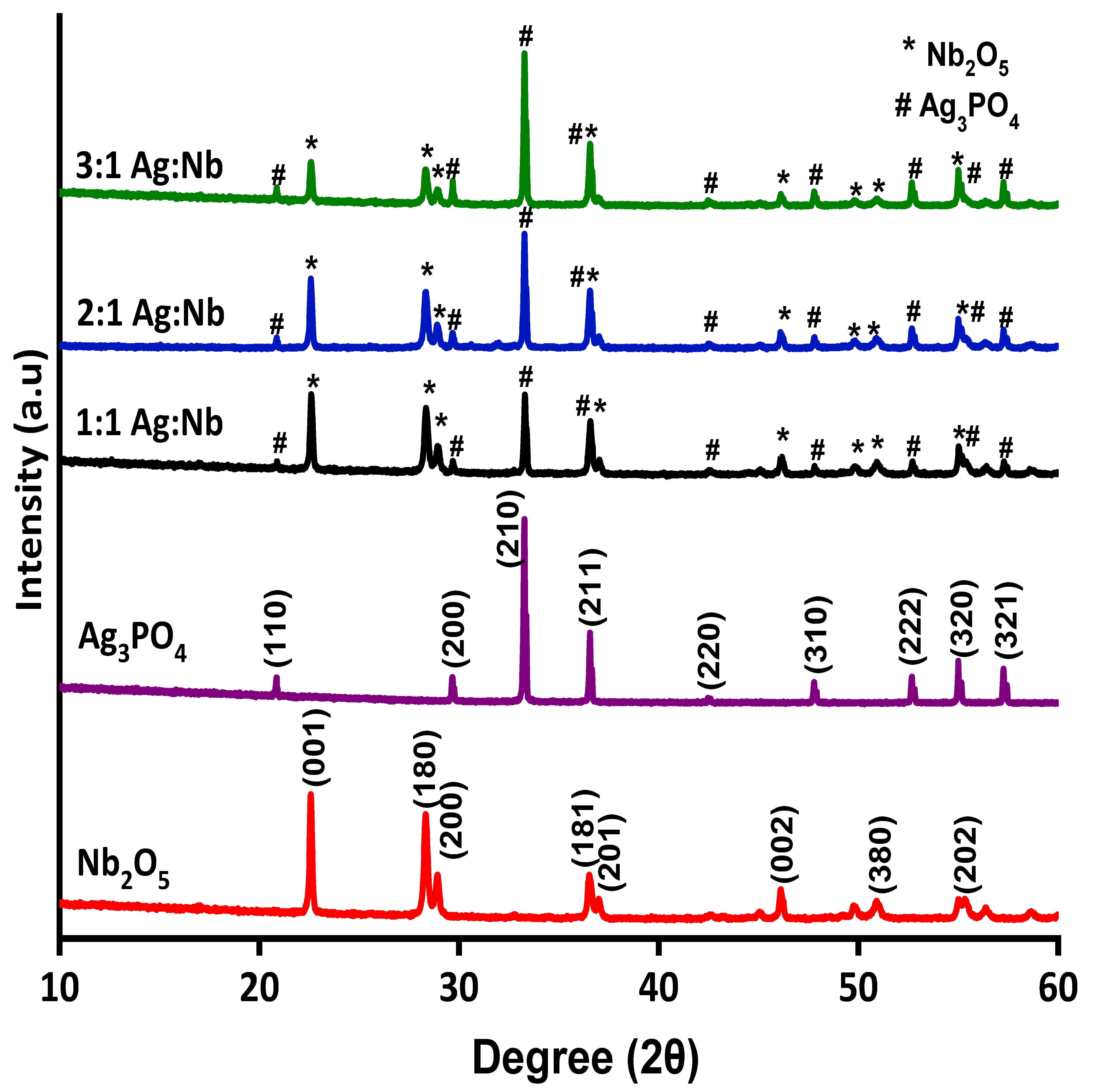

Figure 1. XRD patterns of the pure Nb2O5, pure Ag3PO4, and the prepared Ag3PO4/Nb2O5 photocatalysts.
Figure 1. XRD patterns of the pure Nb2O5, pure Ag3PO4, and the prepared Ag3PO4/Nb2O5 photocatalysts.
Catalysts 11 00458 g001

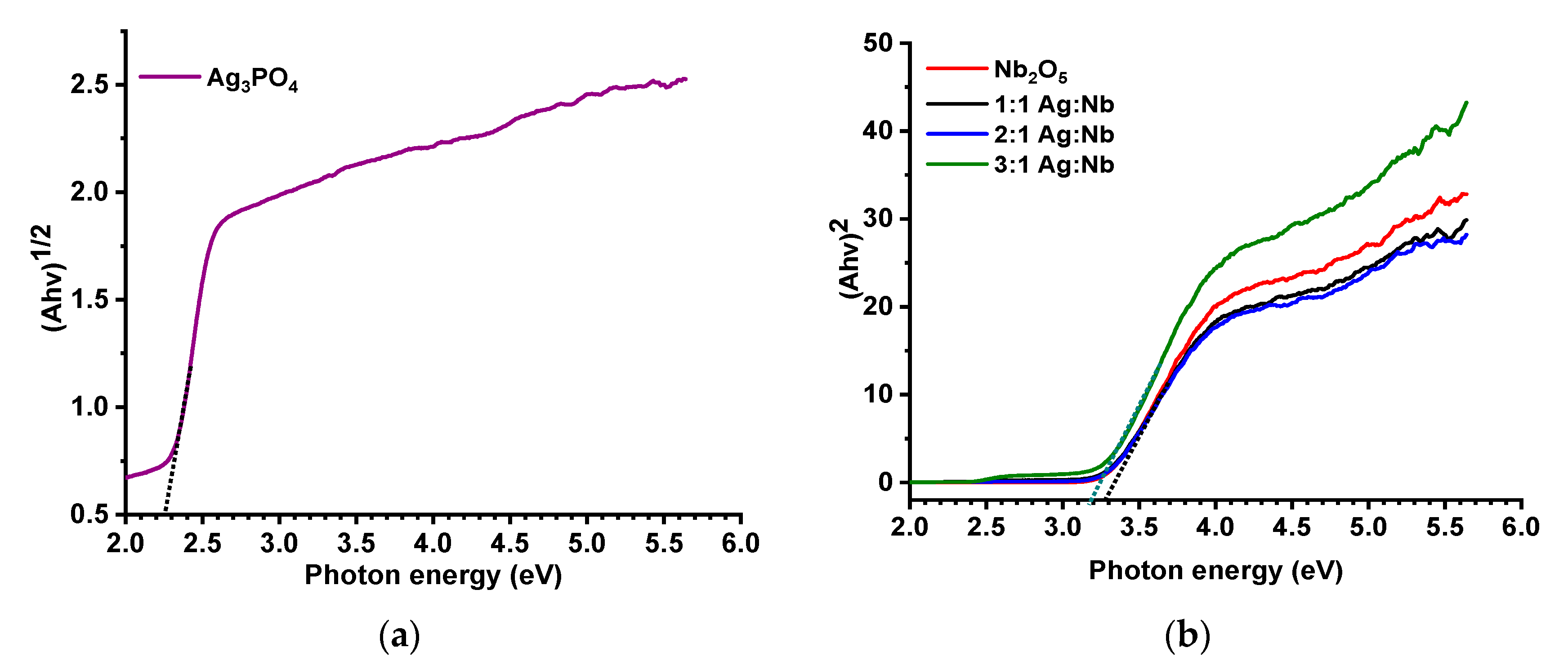

Figure 2. Plot of (αhv)1/2 against the eV of (a) pure Ag3PO4, and (b) pure Nb2O5, Ag:Nb = 1:1, Ag:Nb = 2:1, and Ag:Nb = 3:1 photocatalysts.
Figure 2. Plot of (αhv)1/2 against the eV of (a) pure Ag3PO4, and (b) pure Nb2O5, Ag:Nb = 1:1, Ag:Nb = 2:1, and Ag:Nb = 3:1 photocatalysts.
Catalysts 11 00458 g002

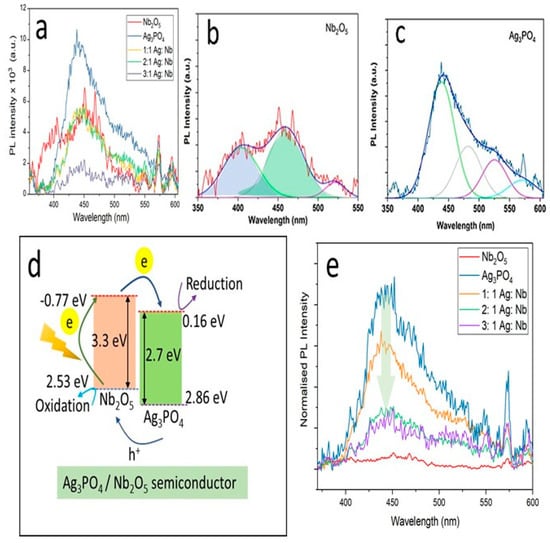

Figure 3. (a) Photoluminescence spectra of Nb2O5, Ag3PO4, and Ag:Nb nanocomposite with different molar ratios, and the deconvoluted sample for (b) Nb2O5 and (c) Ag3PO4.; (d) the normalized peaks for all of the samples with respect to 382 nm of the direct band edge emission of Nb2O5; (e) the plausible charge transfer mechanism in Nb2O5 and Ag3PO4/Nb2O5 semiconductor materials.
Figure 3. (a) Photoluminescence spectra of Nb2O5, Ag3PO4, and Ag:Nb nanocomposite with different molar ratios, and the deconvoluted sample for (b) Nb2O5 and (c) Ag3PO4.; (d) the normalized peaks for all of the samples with respect to 382 nm of the direct band edge emission of Nb2O5; (e) the plausible charge transfer mechanism in Nb2O5 and Ag3PO4/Nb2O5 semiconductor materials.
Catalysts 11 00458 g003

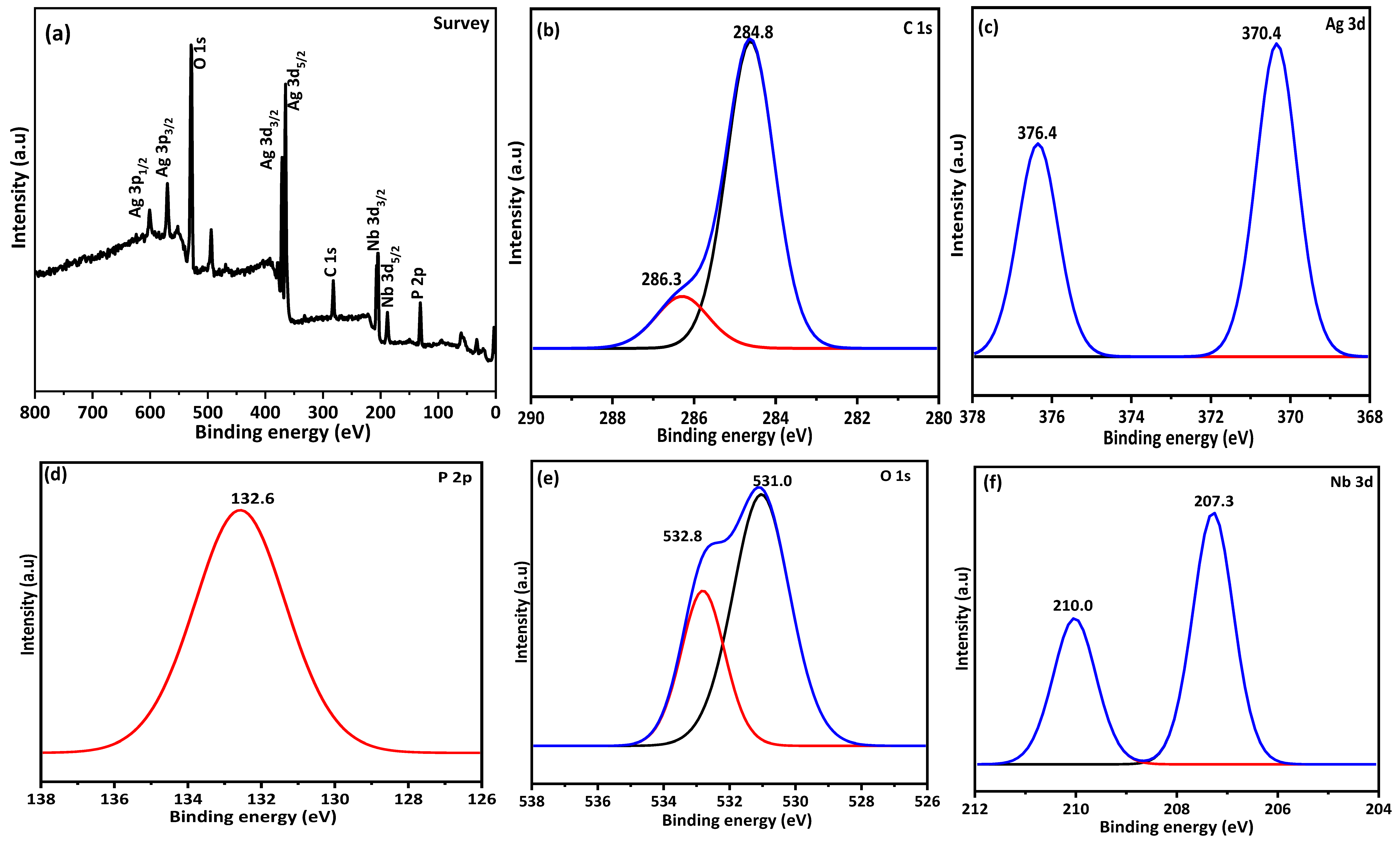

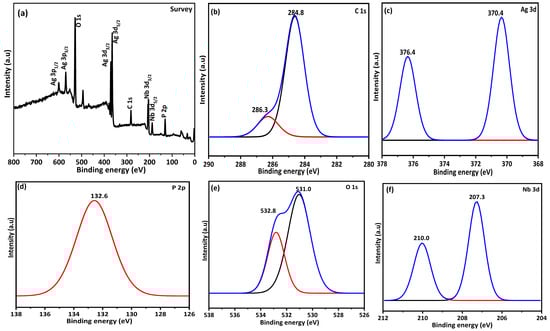

Figure 4. (a) XPS survey spectrum and high resolution spectra of (b) C 1s, (c) Ag 3d, (d) P 2p, (e) O 1s, and (f) Nb 3d of 2:1 Ag:Nb.
Figure 4. (a) XPS survey spectrum and high resolution spectra of (b) C 1s, (c) Ag 3d, (d) P 2p, (e) O 1s, and (f) Nb 3d of 2:1 Ag:Nb.
Catalysts 11 00458 g004
Figure 5. The morphology of the (a) Ag3PO4, (b) Nb2O5, and (c) Ag3PO4/Nb2O5 (Ag:Nb = 2:1).
Figure 5. The morphology of the (a) Ag3PO4, (b) Nb2O5, and (c) Ag3PO4/Nb2O5 (Ag:Nb = 2:1).
Catalysts 11 00458 g005

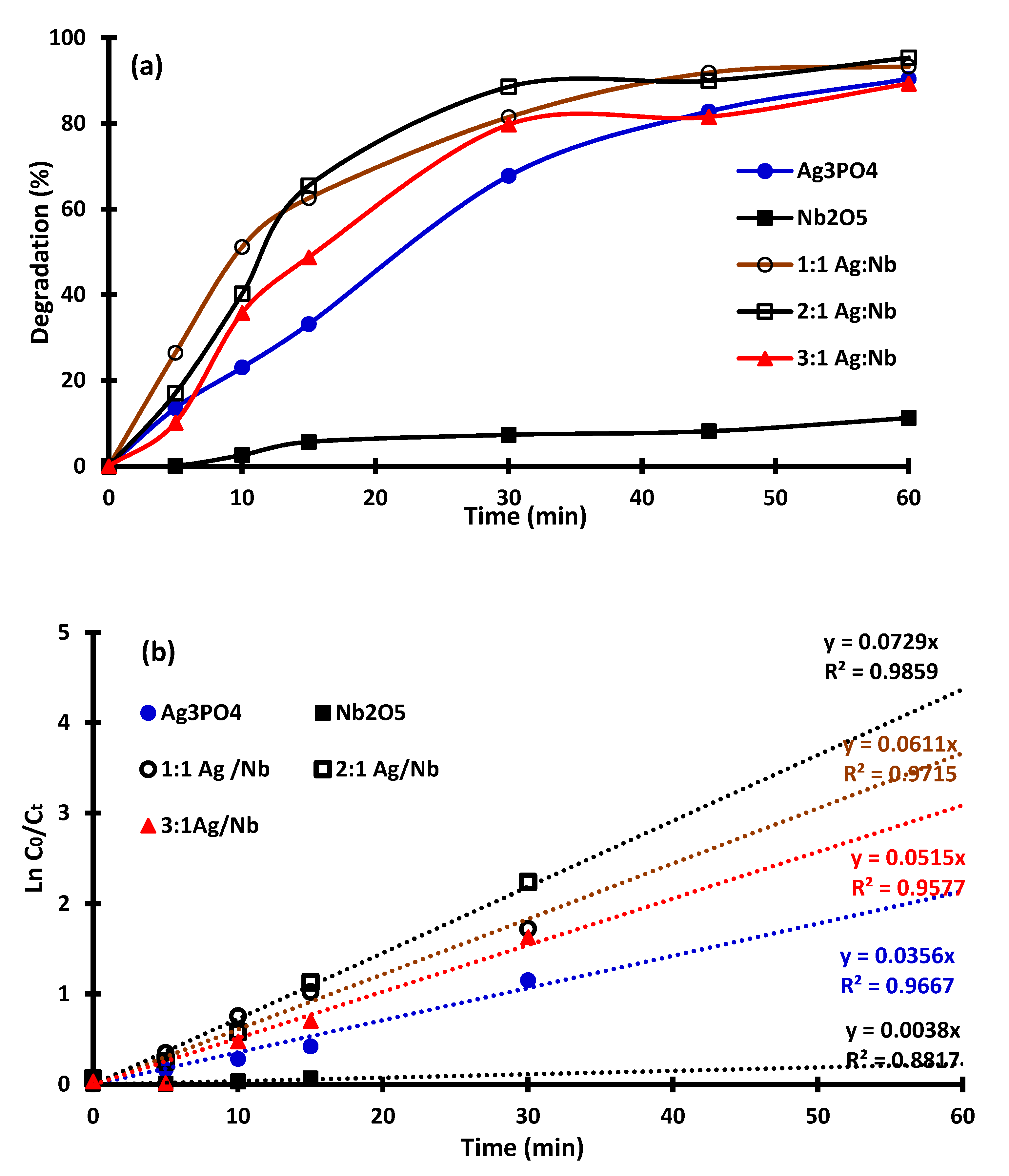

Figure 6. Plot of (a) the percentage degradation and (b) ln C0/C against the irradiation time for the pure Ag3PO4, pure Nb2O5, and Ag:Nb = 1:1, Ag:Nb = 2:1 and Ag:Nb = 3:1 photocatalysts.
Figure 6. Plot of (a) the percentage degradation and (b) ln C0/C against the irradiation time for the pure Ag3PO4, pure Nb2O5, and Ag:Nb = 1:1, Ag:Nb = 2:1 and Ag:Nb = 3:1 photocatalysts.
Catalysts 11 00458 g006

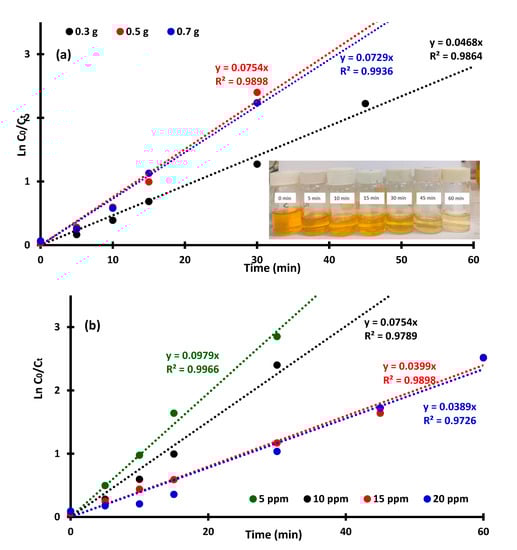

Figure 7. The rate of MO degradation at different (a) masses of catalyst (10 ppm MO) and (b) initial MO concentrations (0.5 g catalyst). The inset shows the progress of MO degradation (10 ppm) MO by 0.5 g Ag:Nb = 2:1 photocatalyst.
Figure 7. The rate of MO degradation at different (a) masses of catalyst (10 ppm MO) and (b) initial MO concentrations (0.5 g catalyst). The inset shows the progress of MO degradation (10 ppm) MO by 0.5 g Ag:Nb = 2:1 photocatalyst.
Catalysts 11 00458 g007

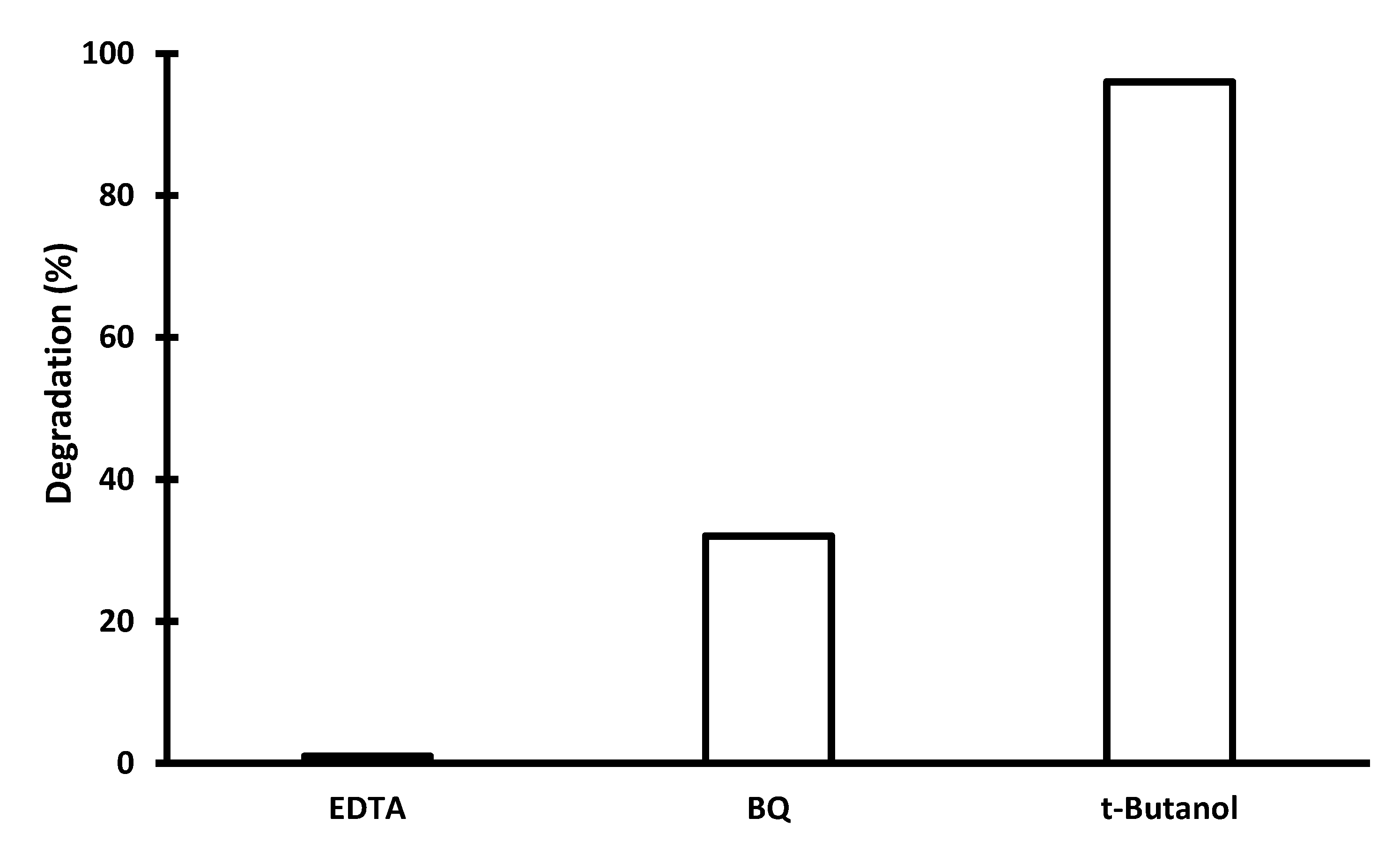

Figure 8. Comparison of the photocatalytic activities of the Ag:Nb = 2:1 photocatalyst with different scavengers during the photocatalytic reaction under 60 min visible light irradiation.
Figure 8. Comparison of the photocatalytic activities of the Ag:Nb = 2:1 photocatalyst with different scavengers during the photocatalytic reaction under 60 min visible light irradiation.
Catalysts 11 00458 g008

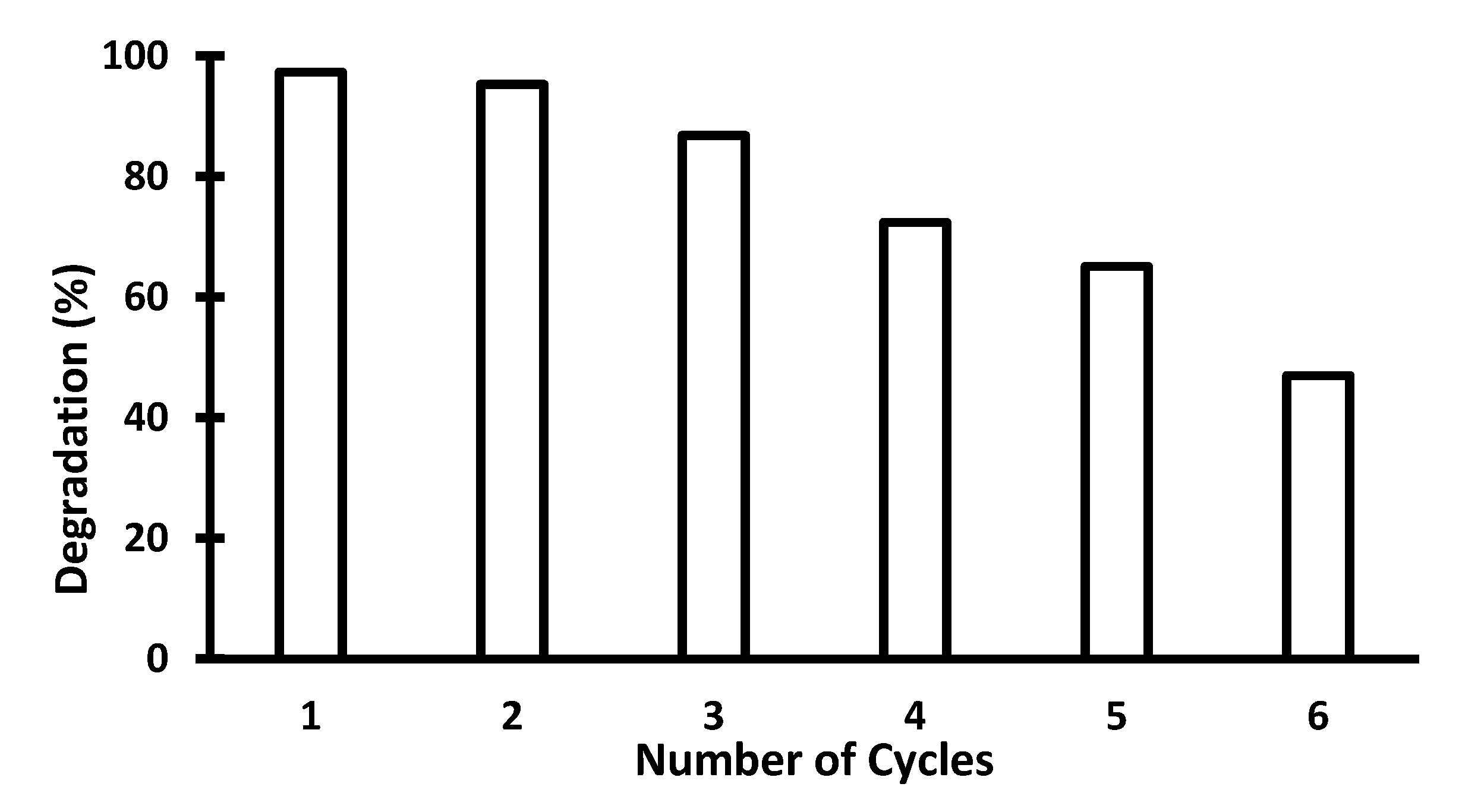

Figure 9. Reusability of the Ag:Nb = 2:1 photocatalyst in MO degradation.
Figure 9. Reusability of the Ag:Nb = 2:1 photocatalyst in MO degradation.
Catalysts 11 00458 g009

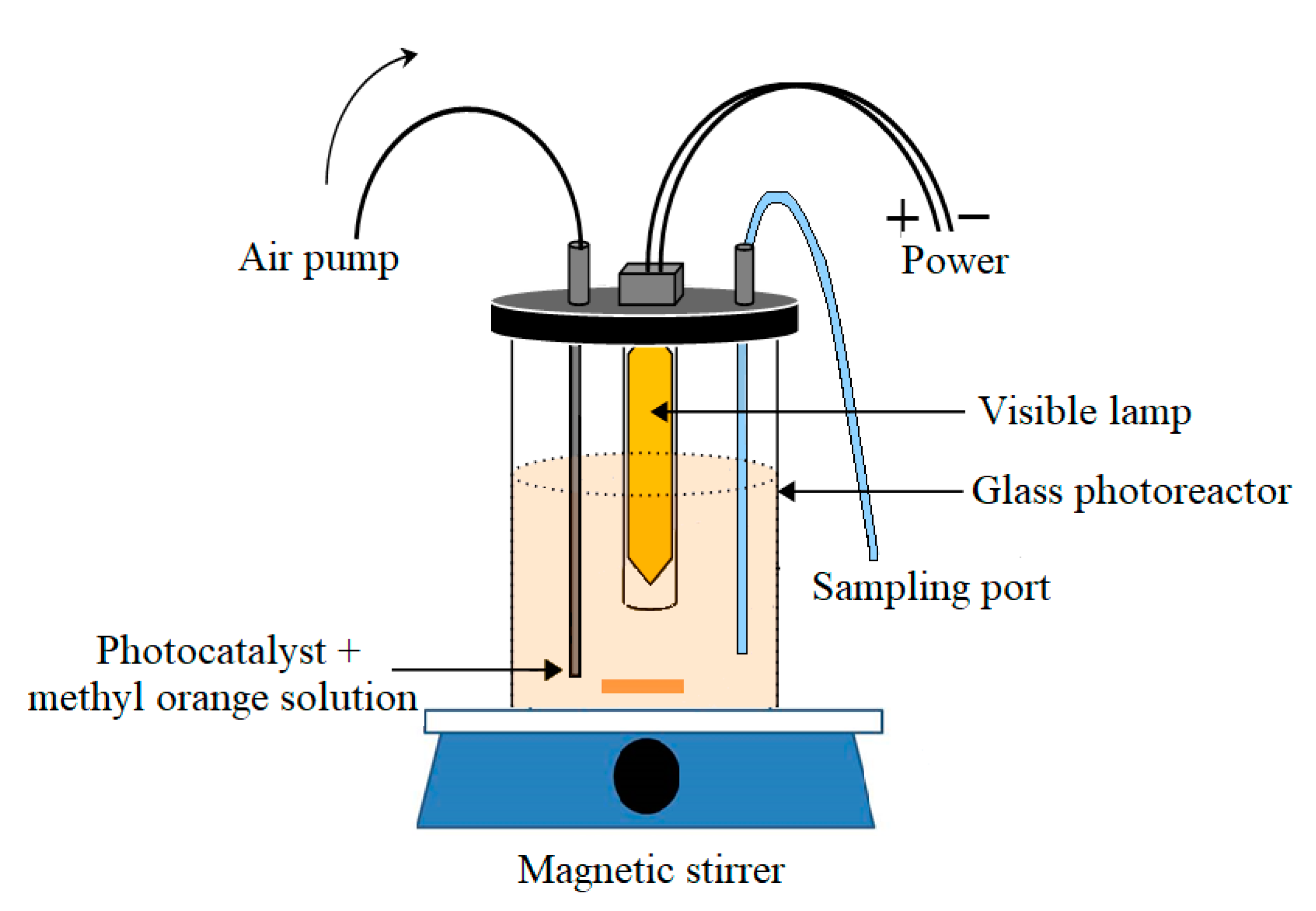

Figure 10. Schematic representation of the photocatalytic reactor for the photodegradation of methyl orange.
Figure 10. Schematic representation of the photocatalytic reactor for the photodegradation of methyl orange.
Catalysts 11 00458 g010
Table 1. The elemental composition of the Ag3PO4/Nb2O5 catalyst, as detected by EDX.
Table 1. The elemental composition of the Ag3PO4/Nb2O5 catalyst, as detected by EDX.
SampleElemental Composition (Atom %)Ag:Nb
3Ag2NbPO
Ag:Nb (1:1)13.377.834.1474.664.4:4.0
Ag:Nb (2:1)21.936.976.4364.677.3:3.5
Ag:Nb (3:1)30.186.738.8654.2310.1:3.3
Table 2. Particle size and BET surface area of the prepared catalysts.
Table 2. Particle size and BET surface area of the prepared catalysts.
SampleParticle SizeBET Surface Area
(µm)(m2g−1)
Ag3PO40.89 ± 0.111.63
Nb2O50.68 ± 0.066.92
Ag:Nb (1:1)1.02 ± 0.111.70
Ag:Nb (2:1)1.17 ± 0.090.89
Ag:Nb (3:1)1.31 ± 0.121.07
