Review

Recent Advances in the Synthesis of Isothiocyanates Using Elemental Sulfur

by
András Gy. Németh
and
Péter Ábrányi-Balogh
*
Medicinal Chemistry Research Group, Research Centre for Natural Sciences, Magyar Tudósok Krt. 2, 1117 Budapest, Hungary
*
Author to whom correspondence should be addressed.
Catalysts 2021, 11(9), 1081; https://doi.org/10.3390/catal11091081
Submission received: 18 August 2021 / Revised: 2 September 2021 / Accepted: 6 September 2021 / Published: 8 September 2021
(This article belongs to the Special Issue Synthesis and Catalytic Applications of S-, Se- and Te-Containing Compounds: Recent Advances in Organic Synthesis)
Browse Figures
Versions Notes

Abstract

:
Isothiocyanates (ITCs) are biologically active molecules found in several natural products and pharmaceutical ingredients. Moreover, due to their high and versatile reactivity, they are widely used as intermediates in organic synthesis. This review considers the best practices for the synthesis of ITCs using elemental sulfur, highlighting recent developments. First, we summarize the in situ generation of thiocarbonyl surrogates followed by their transformation in the presence of primary amines leading to ITCs. Second, carbenes and amines afford isocyanides, and the further reaction of this species with sulfur readily generates ITCs under thermal, catalytic or basic conditions. Additionally, we also reveal that in the catalyst-free reaction of isocyanides and sulfur, two—until this time overlooked and not investigated—different mechanistic pathways exist.

Graphical Abstract

1. Introduction

Isothiocyanates (ITCs) are biologically active molecules occurring in cruciferous vegetables such as broccoli, watercress, cabbage and cauliflower suggested to have anti-tumour activity [1,2,3]. They are represented among natural products and pharmaceutical ingredients by the biologically relevant welwitindolinone and hapalindole alkaloids isolated from various algae species [4]. Notably, glucosinolates, found as secondary metabolites in almost all plants, contain the –S-C=N- functional group and act as a precursor for various ITCs [5,6]. Tissue damage of the plant promotes myrosinase enzyme activity as a defence mechanism, triggering the degradation of glucosinolates, and releasing, e.g., allyl, benzyl or phenethyl ITC or sulforaphane [7]. Sulforaphane, in particular, showed neuroprotective activity in the treatment of the neurodegenerative Alzheimer’s and Parkinson’s diseases [2,8]. Moreover, ITCs express significant antiproliferative activity as well [3,9], and the anti-microbial nature of certain ITCs makes them useful in food preservation [10]. Recently, they have also been applied as covalent warheads for labelling cysteine or lysine residues in medicinal chemistry and chemical biology applications [11,12,13,14]. Notably, due to their high and versatile reactivity, they are widely used as intermediates in organic synthesis [15,16]. ITCs readily react with nucleophiles, participate in cycloadditions leading to diverse heterocycles or are used in polymer chemistry [17].
The synthesis of ITCs generally relies on the reaction between thiophosgene or CS2 and amines and thus involves the use of highly toxic reagents with narrow functional group compatibility [18,19,20,21,22]. Various thiocarbonyl transfer reagents appeared in recent decades to overcome these drawbacks, such as thiocarbonyl-diimidazole or dipyridin-2-yloxymethanethione [23,24]. Decomposition of thiocarbamates or dithiocarbamate salts with various reagents offers a good alternative as well; however, this approach first requires the synthesis of the appropriate precursors [25,26,27,28,29,30]. Nitrile oxides react with thiourea to afford ITCs and harmless urea, but one should note that the instability of nitrile oxides leads to many by-products, rendering this approach less attractive [31]. The reaction of isocyanides with disulfides in the presence of thallium (I)-salts as catalysts also leads to the formation of ITCs [32]. This area has been reviewed recently [33]; thus, in this review, we focus solely on sulfur-based synthetic methods, which greatly emerged in recent years (Scheme 1). Elemental sulfur acts as the most atom-efficient surrogate to integrate the sulfur atom into the product [34,35,36]. The process is based on the nucleophilic attack of in situ generated carbene functionalities (1) on sulfur that behaves as an electrophile due to its empty d-orbitals [37]. This approach leads to thiocarbonyl surrogates (2), usually dihalogenides, reacting with primary amines (3) to provide ITCs (4). Otherwise, isocyanides (5), where the terminal carbon atom is able to act as a carbene, also undergo reaction with sulfur under thermal conditions or in the presence of external additives to yield ITCs. Notably, the addition of sulfur to formaldimines was also reported to generate ITCs, but this method is barely used nowadays [38,39]. The convenient activation of sulfur by nucleophilic additives, such as aliphatic amines and hydroxyl, sulfide and cyanide anions [40], and the corresponding significantly milder conditions compared to thermal activation support the notion that a switched mechanism also exists, involving a nucleophilic sulfur anion (Sx−) and the carbene of the isocyanide (5) acting as an electrophile (Scheme 2). The experimental findings from the research of Al-Mourabit et al. and Meier et al. and those found by our research group also support this latter presumption [41,42,43,44,45,46]. The exact number or the distribution of sulfur atoms in the forming anions was investigated experimentally and theoretically as well, suggesting that it depends on the reaction conditions and reactants [47].

2. Synthesis of ITCs through Thiocarbonyl Surrogates

Thiocarbonyls such as thiophosgene or thiocarbonyl fluoride are typical precursors for the synthesis of ITCs [33,48]. However, due their extremely reactive, volatile and toxic nature (bp. 70–75 °C and ~(–60) °C, respectively), they are inconvenient to store and handle. The in situ preparation of thiocarbonyl surrogates from carbenes and sulfur is the most significant approach considering the focus of this review on sulfur-based ITC synthesis. Besides the well-known trapping of (hetero)cyclic carbenes with sulfur, the transformation of di- or trihalogenated compounds to halocarbenes and the following reaction with sulfur are considered as a convenient process [49,50,51]. Common halogenated reagents are chloroform (6), trimethyl(trifluoromethyl)silane (F3CSiMe3, 7) and the sodium and potassium salts of chlorodifluoroacetic acid (e.g., ClF2CCO2Na, 8) and bromodifluoroacetic acid (e.g., BrF2CCO2K, 9, Scheme 3) [52]. Notably, (triphenylphosphonio)difluoroacetate (PDFA, 10), prepared from BrF2CCO2K with triphenylphosphine, is a more efficient precursor of difluorocarbene based on the research work of Xiao and co-workers [53,54]. In EtOAc or nitromethane at reflux temperature, PDFA (10) decomposes to difluorocarbene (11), which is rapidly consumed by sulfur [55]. DFT calculations revealed that the reaction of sulfur and difluorocarbene is exothermic, with a high thermodynamic driving force (ΔG = −207.1 kJ mol−1) and low activation energy barriers (ΔG# = 33 − 42 kJ mol−1). Eventually, Xiao and co-workers discovered the three-component reaction of 10, sulfur and primary amines (12) resulting in ITCs (13) in 5 min at 80 °C in DME (Scheme 4A) [56]. The reaction tolerated a wide range of functional groups, including nitrile groups, halogens and heteroaromatic nitrogen atoms. In particular, unsaturated C=C double and C≡C triple bonds remained intact, which demonstrates the preferable reaction of difluorocarbene (11) with sulfur over other optional scavengers under the applied reaction conditions [52]. They proved the formation of thiocarbonyl fluoride (14) directly using HRMS and indirectly by trapping it in a Diels–Alder cycloaddition (Scheme 4C,D). In their three-component ITC synthesis, Jiang and co-authors introduced F3CSiMe3 (7) as a difluorocarbene source (Scheme 4B) [57]. Here, KF is responsible for the initiation of the reaction under ambient conditions in THF. Although they failed to capture difluorocarbene (11) in control experiments with prop-1-en-2-ylbenzene (15) under standard reaction conditions (Scheme 4E), the F3CS– anion (16) could be detected by HRMS. Based on literature data, they suspected the formation of thiocarbonyl fluoride (14) by the reversible decomposition of 16 (Scheme 4F) [58,59,60,61].
Zhang and Feng carried out the synthesis of ITCs starting from BrF2CCO2Na (20, Scheme 5) [62]. The reaction conditions were harsh compared to the PDFA- and F3CSiMe3-based methods, resulting in the formation of ITCs (21) after 12 h at 100 °C in the presence of a copper catalyst and an excess of the base. Presumably, the role of the base is to promote the HBr elimination from 20 and to react with the acid, while the copper catalyst is assumed to play a role in the formation of difluorocarbene (11), and it might also stabilize the reactive intermediate [63,64]. The authors suggested two mechanistic pathways: through thiocarbonyl fluoride 14 or through the formation of an isocyanide intermediate 22. Under standard reaction conditions, in the absence of sulfur, they isolated naphthalene-2-isocyanide (24) in 55% yield, which they transformed to 25 with sulfur in 83% yield (Scheme 6A). On the other hand, ortho-phenylenediamine (26) did not provide the expected cyclic thiourea (27) but rather 1-difluoromethyl benzimidazole (28) under standard reaction conditions, suggesting a fast attack on the carbene by the neighbouring amine. Similarly, the incorporation of sulfur was unsuccessful in the case of ortho-hydroxy aniline (29), where the standard conditions led to the formation of benzoxazole 30 (Scheme 6B). Interestingly, contrary to the latter result, Weng and co-workers showed that ortho-hydroxy anilines provide N-substituted benzoxazole-2-thiones (31) if difluorocarbene is generated in the reaction (Scheme 6C) under different conditions [59]. Consequently, in the case of the preparation of ITCs 21 (Scheme 5), the relatively harsh conditions, long reaction times and the control experiments do not support the in situ generation of thiocarbonyl fluoride. In fact, the generation of difluorocarbene from bromodifluoroacetate or the less reactive chlorodifluoroacetate readily happens under 100 °C [63,64,65]. In conclusion, a more likely mechanism for the copper-catalysed ITC formation might rather be the transformation of the primary amine (23) into an isocyanide (22), which directly reacts with sulfur, resulting in ITC (21, Scheme 5).
Interestingly, dichlorocarbene is less prone to react with sulfur, forming thiophosgene as Tan and co-workers suggested in their study in the multicomponent synthesis of thioureas [66]. Starting from chloroform (6) and KOtBu at 55 °C, they trapped dichlorocarbene with the activated cyclohexene 32 (Scheme 7A). Nonetheless, the combination of sulfur with dichlorocarbene and sequentially with 4-toluidine (33) did not result in the formation of the corresponding ITC (34, Scheme 7B). On the contrary, in a sequential approach used on 33, they generated the isocyanide 35 with dichlorocarbene, which was further transformed to 34 with sulfur under standard reaction conditions (Scheme 7C). This latter experiment suggests that isocyanide may be the key intermediate in the reaction.

3. Synthesis of ITCs from Isocyanides

The sulfuration of isocyanides directly leads to ITCs (Scheme 1). Aromatic isocyanides and sulfur afford ITCs refluxing in benzene for 3 days, resulting in moderate yields [34]. On the other hand, aliphatic isocyanides practically do not undergo any reaction at all [32]. This led researchers to the revelation that catalysis or other types of activation, particularly nucleophilic additives, are necessary for an efficient, useful and comprehensive methodology.

3.1. Catalysis

The application of chalcogens or transition metal catalysts, such as selenium [67], tellurium [68], molybdenum [69,70] or rhodium [71], greatly facilitates the generation of ITCs offering excellent yields. These results have already been discussed in previous excellent reviews; thus, we provide only a focused overview of this field [72,73]. In contrast to sulfur, in the presence of a base, selenium readily reacts with isocyanides (37) in refluxing THF, resulting in isoselenocyanates (38), which may turn into ITCs (39) with sulfur in only a few hours (Scheme 8) [67]. Fujiwara and co-workers showed that selenium is, indeed, a necessary additive in the reaction, but only in a catalytic amount of 5 mol%. Later, they revealed the enhanced catalytic activity of the analogous tellurium on aliphatic derivatives, providing better yields using a significantly lower catalyst loading of 0.02 mol% [68].
To circumvent the toxicity of chalcogens, Stalke and co-workers introduced a base-free approach using a molybdenum catalyst, which they already applied in the episulfidation of alkenes and allenes with sulfur [69,74,75]. The reaction of isocyanides (41) and sulfur in the presence of catalyst 42 required 3 days in refluxing acetone, resulting in ITCs (43) in good to excellent yields (Scheme 9A) [69]. The first step of the reaction might be the sulfuration of 42 providing the molybdenum disulfur complex 44, which acts as the active sulfur-transferring agent. The application of 44 in stoichiometric amounts leads to 43 in only 2.5 h, supporting its involvement in the reaction (Scheme 9B). The work of Sita and co-workers also supports the participation of the catalyst in the sulfur-to-isocyanide addition. They prepared bis(isocyanide)-Mo complexes 45 through ligand exchange, which they further transformed to κ-(S,C)-ITC-molybdenum complexes (46) with sulfur (Scheme 9C) [70]. Presumably, 46 is a key intermediate of the reaction, characterized by X-ray crystallography. Starting from 47 in the presence of isocyanide and sulfur afforded ITCs in 16 h of reaction time indicated by 1H-NMR experiments at 50 °C in benzene-d6 with a catalyst loading of 5%.
Next to molybdenum, the catalytic activity of rhodium in reactions with sulfur was demonstrated in the synthesis of 1,4-dithiins from cyclic alkenes, in the synthesis of diaryl sulfides and in the episulfidation of alkenes [76,77,78]. Yamaguchi and co-workers applied 1% RhH (PPh3)4 and Rh (acac) (CH2=CH2)2 in the transformation of isocyanides (48) to ITCs (49) in refluxing acetone (Scheme 10) [71]. Notably, they observed shorter reaction times if they refluxed sulfur in acetone for 1.5 h prior to use. The activation period for sulfur probably involves the thermal generation of polysulfides, followed by sulfur atom exchange promoted by the catalyst [79]. In particular, the application of organic tri- and tetrasulfides in the reaction with the isocyanide also led to the formation of ITC.

3.2. Nucleophile-Induced Transformation of Isocyanide to ITC

The most common activation of sulfur is the cleavage of the octasulfur ring by nucleophiles [42,43,44,45,80,81,82]. Generally, cyanide, hydroxyl and sulfide ions may homolytically (Scheme 11A) or heterolytically (Scheme 11B) cleave sulfur–sulfur bonds under mild conditions, generating reactive linear polysulfide anion chains of different lengths (50) and radical anions (51) [83,84]. Notably, nucleophilic aliphatic amines (52) are very effective in activating sulfur, while (hetero)aromatic amines are generally not nucleophilic enough [85]. Primary and secondary amines can perform under ambient conditions; however, their use is limited as they necessarily react with in situ generated ITCs. Tertiary amines need harsher conditions to activate sulfur and possibly the presence of a proton source to be able to stabilize the linear polysulfide chains [86]. Al-Mourabit and co-workers established a three-component protocol for the synthesis of thioureas (55) starting from isocyanides (56), aliphatic amines (57) and sulfur [46]. They proposed two mechanistic pathways, with one through an intermediate containing a nitrilium structural element (58) resulting from the nucleophilic attack of 56 on sulfur (Scheme 12A). The electrophilic adduct 58 then reacts with 57, affording the thioureas 55. On the other hand, the aliphatic amines 57 might generate nucleophilic polysulfide anions (59) from sulfur at first (Scheme 12B), thus switching the reactivity, the isocyanide 56 being the electrophile and sulfur the nucleophile. The in situ generated ITCs (60) then might react with 57 in a simple addition, providing 55. The mild conditions support equation B, as in the absence of external additives, the reaction would require significantly higher thermal activation [32,34].
Our research towards the multicomponent synthesis of thio- and dithiocarbamates from isocyanides revealed that a diverse set of nucleophilic additives, such as NaH, NaOEt, Cs2CO3, DIPEA or DBU, are able to activate sulfur. In addition, we isolated the ITC intermediate 61 from the reaction in 85% yield at 40 °C, after 2 h (Scheme 13) [42]. The mild conditions and the observation that, in the absence of additives, no reaction occurred also support the need for the activation of sulfur. This suggests the existence of the second mechanism above (Scheme 12B) involving the formation of a nucleophilic reactive intermediate (62) attacking the electrophilic carbene (63). Benefiting from this new, convenient synthesis of ITCs, we established the improved, chromatography-free multicomponent synthesis of thioureas using tertiary amines as external activators that are resistant to acylation [43,44]. For this purpose, we prepared aqueous solutions of polysulfide anions, generated from sulfur and tertiary amines. We proved the existence of polysulfide anions in the reaction, on one hand, by the preparation of aqueous solutions in high concentrations (up to 0.4 M with respect to sulfur) and, on the other hand, by investigation of the solutions by NMR. Consequently, we proposed a switched mechanism towards the formation of ITCs from isocyanides and sulfur, where the nucleophile-activated sulfur attacks the electrophilic carbene. Most importantly, this transformation has proven to be more efficient, requiring shorter reaction times and milder conditions and featuring excellent functional group tolerance, validated in the synthesis of a diversely substituted set of thioureas, 2-iminothiazolines and 2-aminothiazoles [43,44,45]. Finally, Meier and co-authors recently published their improved method for the synthesis of ITCs (65) from isocyanides (66) and sulfur in the presence of only a 2–5 mol% base in renewable solvents (Scheme 14) [41]. They probed several tertiary amines, including DMAP, NMI, Et3N, DABCO, DBU and TBD, in the reaction and found that, generally, higher basicity led to better conversions. Eventually, they applied the developed method in the synthesis of a small library of ITCs, showing the wide applicability of the method. They proposed the same mechanistic suggestions, involving sulfur as a nucleophilic partner in the reaction with the electrophilic isocyanide (66).

4. Overview and Practical Considerations of the Discussed Methods

Table 1 provides a comparison between the discussed synthetic approaches starting from amines or isocyanides with sulfur. When designing a multistep synthesis plan, depending on the stability of the substrate, one should consider the nature of additives, solvent, temperature and inert conditions if necessary. Generally, reactions involving difluorocarbene or thiocarbonyl fluoride require inert conditions, while isocyanide can be transformed to ITC under less strict conditions. The modification of amines is most effective using PDFA, but in the case of sensible compounds, one may turn to the room temperature approach involving F3CSiMe3 as a carbene source (Table 1, entry 2). The presence of potassium fluoride, however, may result in the removal of silyl groups on a complex structure, and a copper catalyst might lead to side coupling reactions and waste containing transition metals. Selenium and tellurium should be handled with care due to toxicity, while Mo or Rh catalysts increase the price and, again, transition metals in the waste. ITC formation from isocyanides, on the other hand, is very effective in the presence of bases. This approach can be performed in a relatively short reaction time compared to the transition metal-catalysed pathways, even under aqueous conditions. Based on the scope of substrates in the reported methods, one may note that all approaches provide ITCs in good to excellent yields. Challenging derivatives might be trityl ITC, generally obtained in lower yields, presumably because of steric hindrance, and low-molecular weight aliphatic ITCs, such as tert-butyl ITC due to its volatile nature.

5. Conclusions and Outlook

ITCs are a biologically and synthetically relevant functional group, being present in important metabolites, natural products and synthetic intermediates. Their efficient and clean synthesis is of high interest, leading to the appearance of several recent methods. In particular, there are two strategies involving elemental sulfur for the incorporation of the sulfur atom, offering practical and modern approaches. The in situ generation of thiocarbonyl fluoride from difluorocarbene and sulfur provides ITCs with primary amines, or sulfuration of isocyanides may directly lead to ITCs under thermal-, catalytic- or nucleophile-induced conditions. Based on previous literature data and our recent results, we highlighted mechanistic insights into the latter transformation. Besides the conventional nucleophilic carbene and electrophilic sulfur setup, a switched mechanism is also proposed, where the polysulfide anions activated by a nucleophile are able to transform the isocyanide to ITC. This approach offers an efficient, mild and green synthesis of ITCs. We expect that this spotlight on ITC synthesis revealing different mechanistic pathways will inspire further research in the field and open up novel synthetic methodologies due to a deeper understanding.

Author Contributions

Conceptualization, writing—original draft preparation, writing—review and editing, A.G.N. and P.Á.-B.; supervision, project administration, P.Á.-B. Both authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

All data is available in the references cited.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wu, X.; Zhou, Q.H.; Xu, K. Are isothiocyanates potential anti-cancer drugs? Acta Pharmacol. Sin. 2009, 30, 501–512. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Choudhari, A.S.; Mandave, P.C.; Deshpande, M.; Ranjekar, P.; Prakash, O. Phytochemicals in cancer treatment: From preclinical studies to clinical practice. Front. Pharmacol. 2020, 10, 1614. [Google Scholar] [CrossRef] [Green Version]
  3. Gupta, P.; Kim, B.; Kim, S.H.; Srivastava, S.K. Molecular targets of isothiocyanates in cancer: Recent advances. Mol. Nutr. Food Res. 2014, 58, 1685–1707. [Google Scholar] [CrossRef] [Green Version]
  4. Wang, N.; Saidhareddy, P.; Jiang, X. Construction of sulfur-containing moieties in the total synthesis of natural products. Nat. Prod. Rep. 2020, 37, 246–275. [Google Scholar] [CrossRef]
  5. Hanschen, F.S.; Lamy, E.; Schreiner, M.; Rohn, S. Reactivity and Stability of Glucosinolates and Their Breakdown Products in Foods. Angew. Chem. Int. Ed. 2014, 53, 11430–11450. [Google Scholar] [CrossRef]
  6. Kala, C.; Ali, S.S.; Ahmad, N.; Gilani, S.J.; Khan, N.A. Isothiocyanates: A Review Chandra. Res. J. Pharmacogn. 2018, 5, 71–89. [Google Scholar] [CrossRef]
  7. Sugiyama, R.; Li, R.; Kuwahara, A.; Nakabayashi, R.; Sotta, N.; Mori, T. Retrograde sulfur flow from glucosinolates to cysteine in Arabidopsis thaliana. Proc. Natl. Acad. Sci. USA 2021, 118, e2017890118. [Google Scholar] [CrossRef]
  8. Tarozzi, A.; Angeloni, C.; Malaguti, M.; Morroni, F.; Hrelia, S.; Hrelia, P. Sulforaphane as a Potential protective phytochemical against neurodegenerative diseases. Oxid. Med. Cell. Longev. 2013, 2013, 415078. [Google Scholar] [CrossRef] [PubMed]
  9. Lawson, A.P.; Long, M.J.C.; Coffey, R.T.; Qian, Y.; Weerapana, E.; El Oualid, F.; Hedstrom, L. Naturally occurring isothiocyanates exert anticancer effects by inhibiting deubiquitinating enzymes. Cancer Res. 2015, 75, 5130–5142. [Google Scholar] [CrossRef] [Green Version]
  10. Dufour, V.; Stahl, M.; Baysse, C. The antibacterial properties of isothiocyanates. Microbiology 2015, 161, 229–243. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Petri, L.; Szijj, P.A.; Kelemen, Á.; Imre, T.; Gömöry, Á.; Lee, M.T.W.; Hegedus, K.; Ábrányi-Balogh, P.; Chudasama, V.; Keseru, G.M. Cysteine specific bioconjugation with benzyl isothiocyanates. RSC Adv. 2020, 10, 14928–14936. [Google Scholar] [CrossRef]
  12. Abdeldayem, A.; Raouf, Y.S.; Constantinescu, S.N.; Moriggl, R.; Gunning, P.T. Advances in covalent kinase inhibitors. Chem. Soc. Rev. 2020, 49, 2617–2687. [Google Scholar] [CrossRef]
  13. Kulkarni, P.M.; Kulkarni, A.R.; Korde, A.; Tichkule, R.B.; Laprairie, R.B.; Denovan-Wright, E.M.; Zhou, H.; Janero, D.R.; Zvonok, N.; Makriyannis, A.; et al. Novel Electrophilic and Photoaffinity Covalent Probes for Mapping the Cannabinoid 1 Receptor Allosteric Site(s). J. Med. Chem. 2016, 59, 44–60. [Google Scholar] [CrossRef] [Green Version]
  14. Tamura, T.; Hamachi, I. Chemistry for Covalent Modification of Endogenous/Native Proteins: From Test Tubes to Complex Biological Systems. J. Am. Chem. Soc. 2019, 141, 2782–2799. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Allen, A.D.; Tidwell, T.T. Ketenes and other cumulenes as reactive intermediates. Chem. Rev. 2013, 113, 7287–7342. [Google Scholar] [CrossRef]
  16. Mukerjee, A.K.; Ashare, R. Isothiocyanates in the Chemistry of Heterocycles. Chem. Rev. 1991, 91, 1–24. [Google Scholar] [CrossRef]
  17. Norris, B.C.; Bielawski, C.W. Structurally dynamic materials based on bis(N-heterocyclic carbene)s and bis(isothiocyanate)s: Toward reversible, conjugated polymers. Macromolecules 2010, 43, 3591–3593. [Google Scholar] [CrossRef]
  18. Janczewski, Ł.; Gajda, A.; Gajda, T. Direct, Microwave-Assisted Synthesis of Isothiocyanates. Eur. J. Org. Chem. 2019, 2019, 2528–2532. [Google Scholar] [CrossRef]
  19. Munch, H.; Hansen, J.S.; Pittelkow, M.; Christensen, J.B.; Boas, U. A new efficient synthesis of isothiocyanates from amines using di-tert-butyl dicarbonate. Tetrahedron Lett. 2008, 49, 3117–3119. [Google Scholar] [CrossRef]
  20. Sun, N.; Li, B.; Shao, J.; Mo, W.; Hu, B.; Shen, Z.; Hu, X. A general and facile one-pot process of isothiocyanates from amines under aqueous conditions. Beilstein J. Org. Chem. 2012, 8, 61–70. [Google Scholar] [CrossRef] [PubMed]
  21. Fu, Z.; Yuan, W.; Chen, N.; Yang, Z.; Xu, J. Na2S2O8-mediated efficient synthesis of isothiocyanates from primary amines in water. Green Chem. 2018, 20, 4484–4491. [Google Scholar] [CrossRef]
  22. Bassetto, M.; Ferla, S.; Pertusati, F.; Kandil, S.; Westwell, A.D.; Brancale, A.; Mcguigan, C. Design and synthesis of novel bicalutamide and enzalutamide derivatives as antiproliferative agents for the treatment of prostate cancer. Eur. J. Med. Chem. 2016, 118, 230–243. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Kim, S.; Yi, K.Y. Di-2-pyridyl thionocarbonate. A new reagent for the preparation of isothiocyanates and carbodiimides. Tetrahedron Lett. 1985, 26, 1661–1664. [Google Scholar] [CrossRef]
  24. Larsen, C.; Steliou, K.; Harpp, D.N. Thiocarbonyl Transfer Reagents. J. Org. Chem. 1978, 43, 337–339. [Google Scholar] [CrossRef]
  25. Wong, R.; Dolman, S.J. Isothiocyanates from Tosyl Chloride Mediated Decomposition of in Situ Generated Dithiocarbamic Acid Salts. J. Org. Chem. 2007, 72, 3969–3971. [Google Scholar] [CrossRef] [PubMed]
  26. Nath, J.; Ghosh, H.; Yella, R.; Patel, B.K. Molecular Iodine Mediated Preparation of Isothiocyanates from Dithiocarbamic Acid Salts. Eur. J. Org. Chem. 2009, 1849–1851. [Google Scholar] [CrossRef]
  27. Zhang, X.; Lee, Y.K.; Kelley, J.A.; Burke, T.R. Preparation of Aryl Isothiocyanates via Protected Phenylthiocarbamates and Application to the Synthesis of Caffeic Acid (4-Isothiocyanato) phenyl Ester Isothiocyanates have been widely used in organic thetic isothiocyanates have been reported to exhibit. J. Org. Chem. 2000, 65, 6237–6240. [Google Scholar] [CrossRef] [PubMed]
  28. Li, Z.; Ma, H.; Han, C.; Xi, H.; Meng, Q.; Chen, X.; Sun, X. Synthesis of Isothiocyanates by Reaction of Amines with Phenyl Chlorothiono- formate via One-Pot or Two-Step Process. Synthesis 2013, 45, 1667–1674. [Google Scholar] [CrossRef]
  29. Rong, H.J.; Chen, T.; Xu, Z.G.; Su, T.D.; Shang, Y.; Wang, Y.Q.; Yang, C.F. 4-Dimethylaminopyridine-catalyzed synthesis of isothiocyanates from amines and carbon disulfide. Tetrahedron Lett. 2021, 68, 152868. [Google Scholar] [CrossRef]
  30. Reagent, D.; Janczewski, Ł.; Kreigel, D. Synthesis of Isothiocyanates Using DMT/NMM/TsO—As a New Desulfurization Reagent. Molecules 2021, 26, 2740. [Google Scholar] [CrossRef]
  31. Baumann, M.; Baxendale, I.R. The rapid generation of isothiocyanates in flow. Beilstein J. Org. Chem. 2013, 9, 1613–1619. [Google Scholar] [CrossRef] [Green Version]
  32. Tanaka, S.; Uemura, S.; Okano, M. The Thallium(I) Salt-catalyzed Formation of Isothiocyanates form Isocyanides and Disulfides. Bull. Chem. Soc. Jpn. 1977, 50, 2785–2788. [Google Scholar] [CrossRef] [Green Version]
  33. Eschliman, K.; Bossmann, S.H. Synthesis of Isothiocyanates: An Update. Synthesis 2019, 51, 1746–1752. [Google Scholar] [CrossRef]
  34. Boyer, J.H.; Ramakrishnan, V.T. Sulfurization of Isocyanides. J. Org. Chem. 1972, 37, 1360–1364. [Google Scholar] [CrossRef]
  35. Reisfen, M. Zur Reaktion von Amidacetalen rnit Heterocumulenen. Chem. Ber. 1977, 110, 37–48. [Google Scholar] [CrossRef]
  36. Cunico, R.F.; Maity, B.C. Direct Carbamoylation of Alkenyl Halides. Org. Lett. 2003, 5, 4947–4949. [Google Scholar] [CrossRef] [PubMed]
  37. Huang, J.; Schanz, H.J.; Stevens, E.D.; Nolan, S.P.; Capps, K.B.; Bauer, A.; Hoff, C.D. Structural and solution calorimetric studies of sulfur binding to nucleophilic carbenes. Inorg. Chem. 2000, 39, 1042–1045. [Google Scholar] [CrossRef]
  38. Sharma, S. Isothiocyanates in Heterocyclic Synthesis. Sulf. Rep. 1989, 8, 327–454. [Google Scholar] [CrossRef]
  39. Kowaoka, Y. Studies of Rubber Vulcanization Accelerators, V. J. Soc. Chem. Ind. Jpn. Suppl. 1940, 43, 53–57. [Google Scholar] [CrossRef] [Green Version]
  40. Davis, R.E. Nucleophilic Displacement Reactions at the Sulfur-Sulfur Bond. In Survey of Progress in Chemistry: Volume 2; Scott, A.F., Ed.; Academic Press Inc.: Cambridge, MA, USA, 1964; Volume 2, pp. 189–238. [Google Scholar]
  41. Nickisch, R.; Conen, P.; Gabrielsen, S.M.; Meier, M.A.R. A more sustainable isothiocyanate synthesis by amine catalyzed sulfurization of isocyanides with elemental sulfur. RSC Adv. 2021, 11, 3134–3142. [Google Scholar] [CrossRef]
  42. Németh, A.G.; Keserű, G.M.; Ábrányi-Balogh, P. A novel three-component reaction between isocyanides, alcohols or thiols and elemental sulfur: A mild, catalyst-free approach towards O -thiocarbamates and dithiocarbamates. Beilstein J. Org. Chem. 2019, 15, 1523–1533. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Németh, A.G.; Szabó, R.; Domján, A.; Keserű, G.M.; Ábrányi-Balogh, P. Chromatography-free multicomponent synthesis of thioureas enabled by aqueous solution of elemental sulfur. ChemistryOpen 2020, 10, 16–27. [Google Scholar] [CrossRef]
  44. Németh, A.G.; Szabó, R.; Orsy, G.; Mándity, I.M.; Keserű, G.M.; Ábrányi-Balogh, P. Continuous-Flow Synthesis of Thioureas, Enabled by Aqueous Polysulfide Solution. Molecules 2021, 26, 303. [Google Scholar] [CrossRef]
  45. Németh, A.G.; Marlok, B.; Domján, A.; Gao, Q.; Han, X.; Keserű, G.M.; Ábrányi-Balogh, P. Convenient multicomponent one-pot synthesis of 2-iminothiazolines and 2-aminothiazoles using elemental sulfur under aqueous conditions. Eur. J. Org. Chem. 2021, 28–33. [Google Scholar] [CrossRef]
  46. Nguyen, T.B.; Ermolenko, L.; Al-Mourabit, A. Three-component reaction between isocyanides, aliphatic amines and elemental sulfur: Preparation of thioureas under mild conditions with complete atom economy. Synthesis 2014, 46, 3172–3179. [Google Scholar] [CrossRef]
  47. Steudel, R.; Chivers, T. The role of polysulfide dianions and radical anions in the chemical, physical and biological sciences, including sulfur-based batteries. Chem. Soc. Rev. 2019, 48, 3279–3319. [Google Scholar] [CrossRef]
  48. Srivastava, K.; Bhatt, A.; Singh, N.; Khare, R.; Shukla, R.; Chaturvedi, D.; Kant, R. Synthesis of Isothiocyanates: A Review. Chem. Biol. 2014, 4, 1–22. [Google Scholar]
  49. Nesterov, V.; Reiter, D.; Bag, P.; Frisch, P.; Holzner, R.; Porzelt, A.; Inoue, S. NHCs in Main Group Chemistry. Chem. Rev. 2018, 118, 9678–9842. [Google Scholar] [CrossRef]
  50. Wang, Y.; Hickox, H.P.; Xie, Y.; Wei, P.; Blair, S.A.; Johnson, M.K.; Schaefer, H.F.; Robinson, G.H. A Stable Anionic Dithiolene Radical. J. Am. Chem. Soc. 2017, 139, 6859–6862. [Google Scholar] [CrossRef] [Green Version]
  51. Melaimi, M.; Soleilhavoup, M.; Bertrand, G. Stable Cyclic Carbenes and Related Species beyond Diaminocarbenes. Angew. Chem. Int. Ed. Engl. 2010, 49, 8810–8849. [Google Scholar] [CrossRef] [Green Version]
  52. Ni, C.; Hu, J. Recent advances in the synthetic application of difluorocarbene. Synthesis 2014, 46, 842–863. [Google Scholar] [CrossRef] [Green Version]
  53. Zheng, J.; Cai, J.; Lin, J.H.; Guo, Y.; Xiao, J.C. Synthesis and decarboxylative Wittig reaction of difluoromethylene phosphobetaine. Chem. Commun. 2013, 49, 7513–7515. [Google Scholar] [CrossRef] [PubMed]
  54. Zheng, J.; Lin, J.H.; Cai, J.; Xiao, J.C. Conversion between difluorocarbene and difluoromethylene ylide. Chem. Eur. J. 2013, 19, 15261–15266. [Google Scholar] [CrossRef]
  55. Zheng, J.; Cheng, R.; Lin, J.-H.; Yu, D.-H.; Ma, L.; Jia, L.; Zhang, L.; Wang, L.; Xiao, J.-C.; Liang, S.H. An Unconventional Mechanistic Insight into SCF3 Formation from Difluorocarbene: Preparation of 18F-Labeled α-SCF3 Carbonyl Compounds. Angew. Chem. Int. Ed. 2017, 56, 3196–3200. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Yu, J.; Lin, J.H.; Xiao, J.C. Reaction of Thiocarbonyl Fluoride Generated from Difluorocarbene with Amines. Angew. Chem. Int. Ed. 2017, 56, 16669–16673. [Google Scholar] [CrossRef]
  57. Zhen, L.; Fan, H.; Wang, X.; Jiang, L. Synthesis of thiocarbamoyl fluorides and isothiocyanates using CF3SiMe3 and elemental sulfur or AgSCF3 and KBr with amines. Org. Lett. 2019, 21, 2106–2110. [Google Scholar] [CrossRef]
  58. Tavener, S.J.; Adams, D.J.; Clark, J.H. Trifluoromethylthiolation of aromatic substrates using thiophosgene—fluoride salt reagents, and formation of byproducts with multi-carbon chains. J. Fluor. Chem. 1999, 95, 171–176. [Google Scholar] [CrossRef]
  59. Li, Z.; Dong, J.; Yuan, Z.; Yang, D.-Y.; Weng, Z. One-Pot Synthesis of 3-Difluoromethyl Benzoxazole-2-thiones. Org. Lett. 2018, 20, 6407–6410. [Google Scholar] [CrossRef]
  60. Chen, C.; Xie, Y.; Chu, L.; Wang, R.W.; Zhang, X.; Qing, F.L. Copper-catalyzed oxidative trifluoromethylthiolation of aryl boronic acids with TMSCF3 and elemental sulfur. Angew. Chem. Int. Ed. 2012, 51, 2492–2495. [Google Scholar] [CrossRef]
  61. Liu, J.B.; Xu, X.H.; Chen, Z.H.; Qing, F.L. Direct dehydroxytrifluoromethylthiolation of alcohols using silver(I) trifluoromethanethiolate and tetra-n-butylammonium iodide. Angew. Chem. Int. Ed. 2015, 54, 897–900. [Google Scholar] [CrossRef]
  62. Feng, W.; Zhang, X.G. Organophosphine-free copper-catalyzed isothiocyanation of amines with sodium bromodifluoroacetate and sulfur. Chem. Commun. 2019, 55, 1144–1147. [Google Scholar] [CrossRef]
  63. Baars, H.; Engel, J.; Mertens, L.; Meister, D.; Bolm, C. The Reactivity of Difluorocarbene with Hydroxylamines: Synthesis of Carbamoyl Fluorides. Adv. Synth. Catal. 2016, 358, 2293–2299. [Google Scholar] [CrossRef]
  64. Fuchibe, K.; Aono, T.; Hu, J.; Ichikawa, J. Copper(I)-Catalyzed [4 + 1] Cycloaddition of Silyl Dienol Ethers with Sodium Bromodifluoroacetate: Access to β,β-Difluorocyclopentanone Derivatives. Org. Lett. 2016, 18, 4502–4505. [Google Scholar] [CrossRef] [PubMed]
  65. Mehta, V.P.; Greaney, M.F. S-, N-, and Se-difluoromethylation using sodium chlorodifluoroacetate. Org. Lett. 2013, 15, 5036–5039. [Google Scholar] [CrossRef] [PubMed]
  66. Tan, W.; Wei, J.; Jiang, X. Thiocarbonyl Surrogate via Combination of Sulfur and Chloroform for Thiocarbamide and Oxazolidinethione Construction. Org. Lett. 2017, 19, 2166–2169. [Google Scholar] [CrossRef] [PubMed]
  67. Fujiwara, S.; Shin-Ike, T.; Sonoda, N.; Aoki, M.; Okada, K.; Miyoshi, N.; Kambe, N. Novel selenium catalyzed synthesis of isothiocyanates from isocyanides and elemental sulfur. Tetrahedron Lett. 1991, 32, 3503–3506. [Google Scholar] [CrossRef]
  68. Fujiwara, S.; Shin-Ike, T.; Okada, K.; Aoki, M.; Kambe, N.; Sonoda, N. A marvelous catalysis of tellurium in the formation of isothiocyanates from isocyanides and sulfur. Tetrahedron Lett. 1992, 33, 7021–7024. [Google Scholar] [CrossRef]
  69. Adam, W.; Bargon, R.M.; Bosio, S.G.; Schenk, W.A.; Stalke, D. Direct Synthesis of Isothiocyanates from Isonitriles by Molybdenum-Catalyzed Sulfur Transfer with Elemental Sulfur. J. Org. Chem. 2002, 67, 7037–7041. [Google Scholar] [CrossRef]
  70. Farrell, W.S.; Zavalij, P.Y.; Sita, L.R. Catalytic Production of Isothiocyanates via a Mo(II)/Mo(IV) Cycle for the “Soft” Sulfur Oxidation of Isonitriles. Organometallics 2016, 35, 2361–2366. [Google Scholar] [CrossRef]
  71. Arisawa, M.; Ashikawa, M.; Suwa, A.; Yamaguchi, M. Rhodium-catalyzed synthesis of isothiocyanate from isonitrile and sulfur. Tetrahedron Lett. 2005, 46, 1727–1729. [Google Scholar] [CrossRef]
  72. Chakrabarty, S.; Choudhary, S.; Doshi, A.; Liu, F.-Q.; Mohan, R.; Ravindra, M.P.; Shah, D.; Yang, X.; Fleming, F.F. Catalytic Isonitrile Insertions and Condensations Initiated by RNC-X Complexation. Adv. Synth. Catal. 2014, 356, 2135–2196. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Boyarskiy, V.P.; Bokach, N.A.; Luzyanin, K.V.; Kukushkin, V.Y. Metal-mediated and metal-catalyzed reactions of isocyanides. Chem. Rev. 2015, 115, 2698–2779. [Google Scholar] [CrossRef]
  74. Adam, W.; Bargon, R.M. Molybdenum-catalyzed episulfidation of (E)-cycloalkenes with elemental sulfur. Chem. Commun. 2001, 1, 1910–1911. [Google Scholar] [CrossRef]
  75. Adam, W.; Bargon, R.M.; Schenk, W.A. Direct episulfidation of alkenes and allenes with elemental sulfur and thiiranes as sulfur sources, catalyzed by molybdenum oxo complexes. J. Am. Chem. Soc. 2003, 125, 3871–3876. [Google Scholar] [CrossRef]
  76. Arisawa, M.; Ichikawa, T.; Yamaguchi, M. Rhodium-catalyzed synthesis of diaryl sulfides using aryl fluorides and sulfur/organopolysulfides. Org. Lett. 2012, 14, 5318–5321. [Google Scholar] [CrossRef] [PubMed]
  77. Arisawa, M.; Ichikawa, T.; Yamaguchi, M. Synthesis of thiiranes by rhodium-catalyzed sulfur addition reaction to reactive alkenes. Chem. Commun. 2015, 51, 8821–8824. [Google Scholar] [CrossRef] [PubMed]
  78. Arisawa, M.; Ichikawa, T.; Tanii, S.; Yamaguchi, M. Synthesis of Symmetrical and Unsymmetrical 1,4-Dithiins by Rhodium-Catalyzed Sulfur Addition Reaction to Alkynes. Synthesis 2016, 48, 3107–3119. [Google Scholar] [CrossRef] [Green Version]
  79. Arisawa, M.; Tanaka, K.; Yamaguchi, M. Rhodium-catalyzed sulfur atom exchange reaction between organic polysulfides and sulfur. Tetrahedron Lett. 2005, 46, 4797–4800. [Google Scholar] [CrossRef]
  80. Nguyen, T.B. Recent Advances in Organic Reactions Involving Elemental Sulfur. Adv. Synth. Catal. 2017, 359, 1066–1130. [Google Scholar] [CrossRef]
  81. Nguyen, T.B. Recent Advances in the Synthesis of Heterocycles via Reactions Involving Elemental Sulfur. Adv. Synth. Catal. 2020, 362, 3448–3484. [Google Scholar] [CrossRef]
  82. Liu, S.; Deng, G.J.; Huang, H. Recent Advances in Sulfur-Containing Heterocycle Formation via Direct C-H Sulfuration with Elemental Sulfur. Synlett 2021, 32, 142–158. [Google Scholar] [CrossRef]
  83. Davis, R.E.; Nakshbendi, H.F. Sulfur in Amine Solvents. J. Am. Chem. Soc. 1962, 84, 2085–2090. [Google Scholar] [CrossRef]
  84. Chivers, T.; Elder, P.J.W. Ubiquitous trisulfur radical anion: Fundamentals and applications in materials science, electrochemistry, analytical chemistry and geochemistry. Chem. Soc. Rev. 2013, 42, 5996–6005. [Google Scholar] [CrossRef] [PubMed]
  85. Thomson, J.W.; Nagashima, K.; Macdonald, P.M.; Ozin, G.A. From Sulfur−Amine Solutions to Metal Sulfide Nanocrystals: Peering into the Oleylamine−Sulfur Black Box. J. Am. Chem. Soc. 2011, 133, 5036–5041. [Google Scholar] [CrossRef] [PubMed]
  86. Bartlett, P.D.; Cox, E.F.; Davis, R.E. Reactions of Elemental Sulfur. IV. Catalytic Effects in the Reaction of Sulfur with Triphenylphosphine. J. Am. Chem. Soc. 1961, 83, 103–109. [Google Scholar] [CrossRef]
Catalysts 11 01081 sch001 550

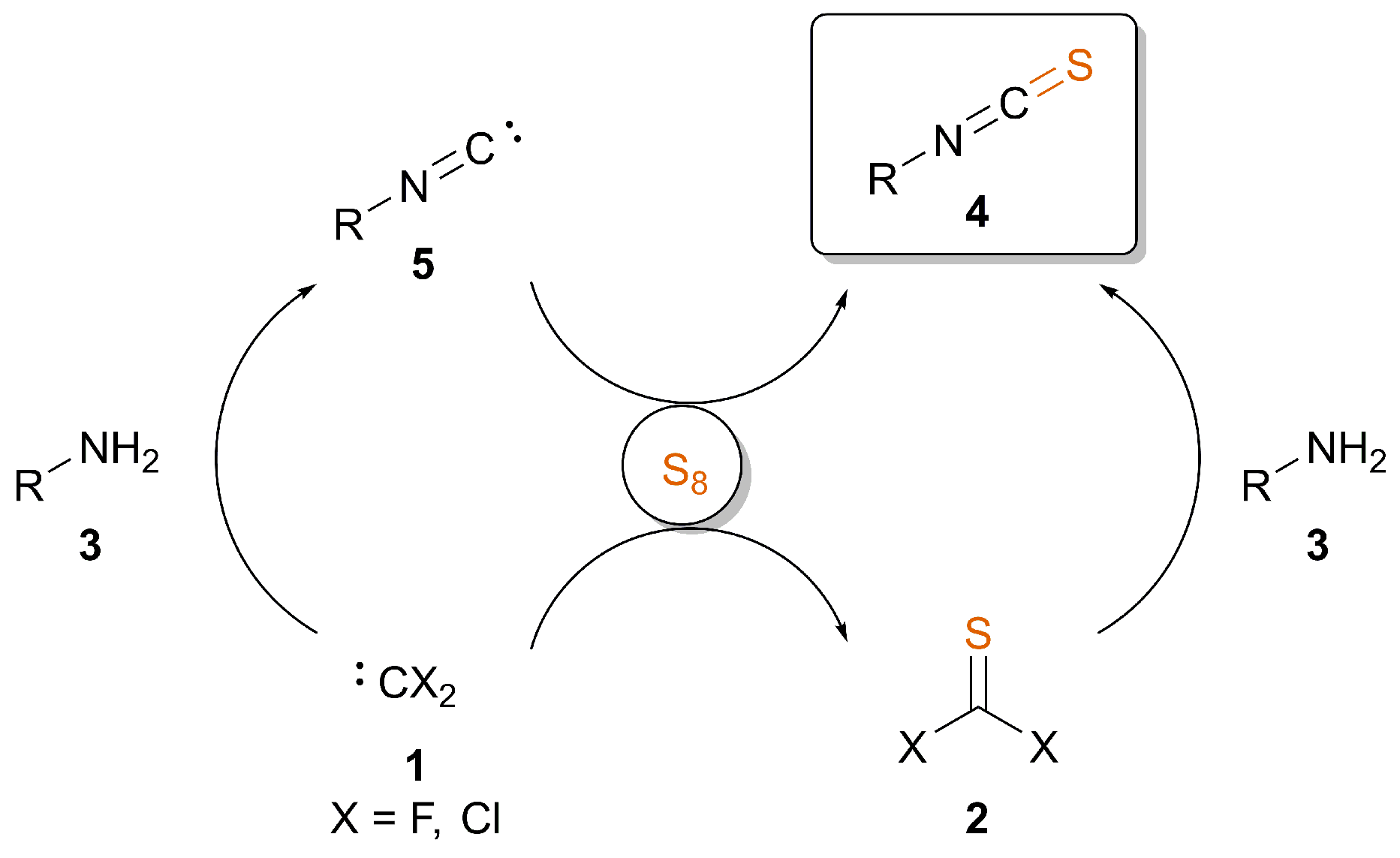

Scheme 1. The most popular reaction pathways to ITCs (4) involving elemental sulfur.
Scheme 1. The most popular reaction pathways to ITCs (4) involving elemental sulfur.
Catalysts 11 01081 sch001
Catalysts 11 01081 sch002 550

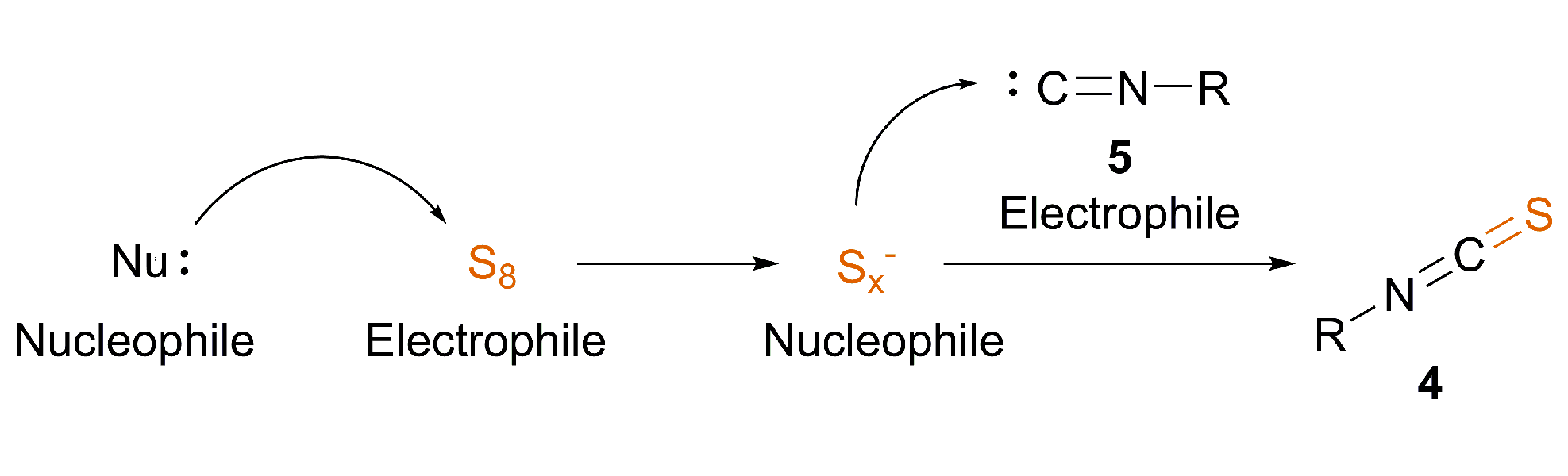

Scheme 2. Nucleophilic activation of sulfur, inducing the transformation of isocyanide (5) to ITC (4).
Scheme 2. Nucleophilic activation of sulfur, inducing the transformation of isocyanide (5) to ITC (4).
Catalysts 11 01081 sch002
Catalysts 11 01081 sch003 550
Scheme 3. Methods for dihalocarbene generation.
Scheme 3. Methods for dihalocarbene generation.
Catalysts 11 01081 sch003
Catalysts 11 01081 sch004 550
Scheme 4. Approaches for ITC formation through thiocarbonyl difluoride by Xiao ([56], (A)) and Jiang ([57], (B)) with selected examples. Experiments to prove mechanistic assumptions (C–F). The scheme is based on Scheme 4 from [56] and Scheme 4 from [57].
Scheme 4. Approaches for ITC formation through thiocarbonyl difluoride by Xiao ([56], (A)) and Jiang ([57], (B)) with selected examples. Experiments to prove mechanistic assumptions (C–F). The scheme is based on Scheme 4 from [56] and Scheme 4 from [57].
Catalysts 11 01081 sch004
Catalysts 11 01081 sch005 550
Scheme 5. Method and proposed mechanistic pathways for the copper-catalyzed synthesis of ITCs (21) through difluorocarbene (11, [62]) with selected examples.
Scheme 5. Method and proposed mechanistic pathways for the copper-catalyzed synthesis of ITCs (21) through difluorocarbene (11, [62]) with selected examples.
Catalysts 11 01081 sch005
Catalysts 11 01081 sch006 550
Scheme 6. Control reactions for the proposed mechanistic pathways of the Zhang and Feng ([62]) synthesis (A,B). Reaction of ortho-hydroxy anilines with sulfur and difluorocarbene by Weng ([52], (C)). (A,B) are based on Scheme 2 and Scheme 4 from [62].
Scheme 6. Control reactions for the proposed mechanistic pathways of the Zhang and Feng ([62]) synthesis (A,B). Reaction of ortho-hydroxy anilines with sulfur and difluorocarbene by Weng ([52], (C)). (A,B) are based on Scheme 2 and Scheme 4 from [62].
Catalysts 11 01081 sch006
Catalysts 11 01081 sch007 550

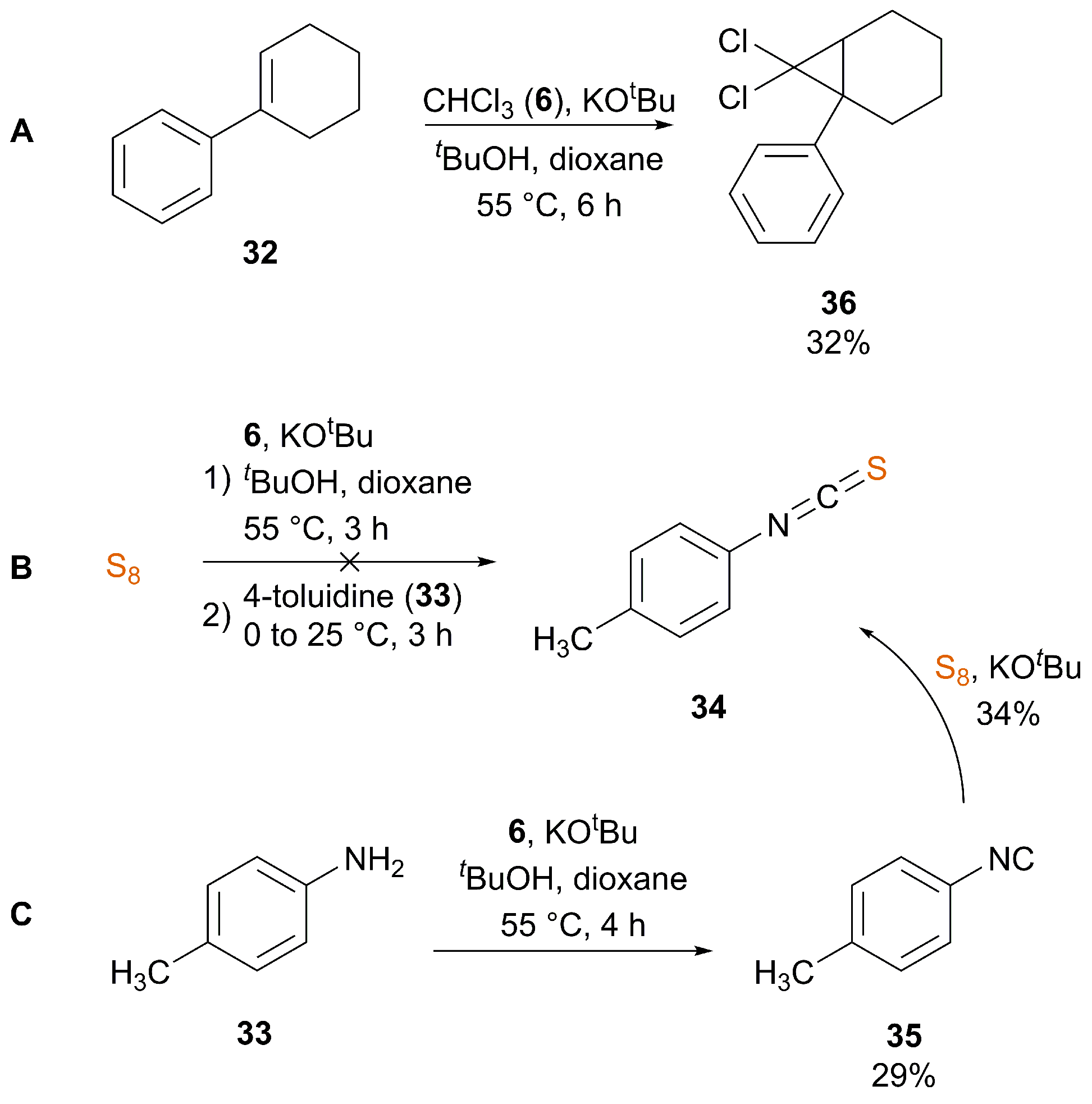

Scheme 7. Control reaction for the generation of dichlorocarbene (A). Method for the synthesis of ITC 34 using chloroform (6) by Tan and co-workers ([66], (B,C)). The scheme is based on Scheme 3 from [66].
Scheme 7. Control reaction for the generation of dichlorocarbene (A). Method for the synthesis of ITC 34 using chloroform (6) by Tan and co-workers ([66], (B,C)). The scheme is based on Scheme 3 from [66].
Catalysts 11 01081 sch007
Catalysts 11 01081 sch008 550
Scheme 8. Selenium- and tellurium-catalyzed transformation of isocyanides (37) leading to ITCs (39, [67,68]) and selected examples.
Scheme 8. Selenium- and tellurium-catalyzed transformation of isocyanides (37) leading to ITCs (39, [67,68]) and selected examples.
Catalysts 11 01081 sch008
Catalysts 11 01081 sch009 550
Scheme 9. Molybdenum-catalyzed transformation of isocyanides (41) to ITCs (43) with selected examples and mechanistic insights ([69,70]). (A,B) are based on Scheme 1 from [71]. (C) is based on Scheme 1 and Scheme 2 from [70].
Scheme 9. Molybdenum-catalyzed transformation of isocyanides (41) to ITCs (43) with selected examples and mechanistic insights ([69,70]). (A,B) are based on Scheme 1 from [71]. (C) is based on Scheme 1 and Scheme 2 from [70].
Catalysts 11 01081 sch009
Catalysts 11 01081 sch010 550

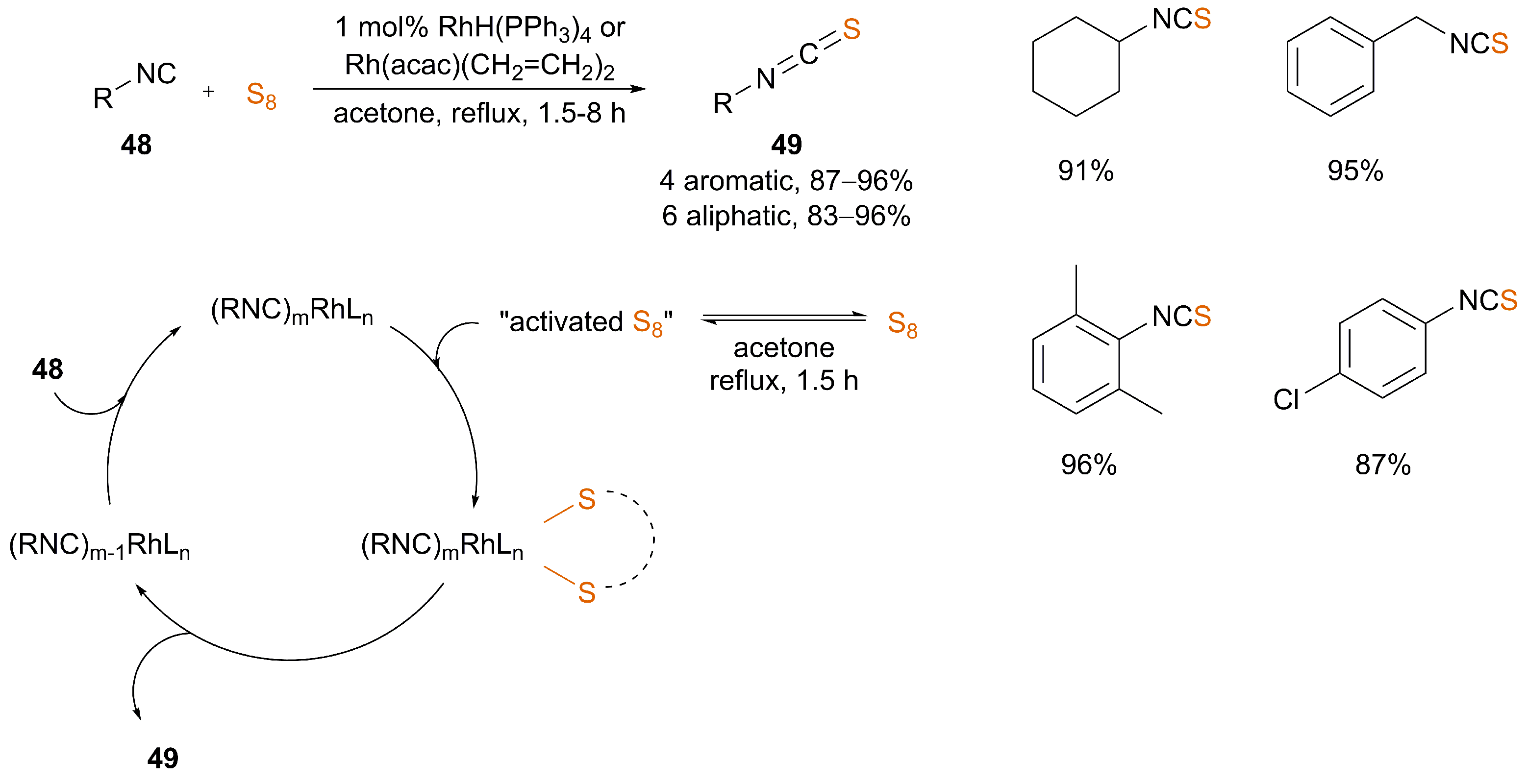

Scheme 10. Rhodium-catalyzed transformation of isocyanides (48) to ITCs (49) with selected examples and mechanistic insights ([71]). Scheme is based on Scheme 1 from [71].
Scheme 10. Rhodium-catalyzed transformation of isocyanides (48) to ITCs (49) with selected examples and mechanistic insights ([71]). Scheme is based on Scheme 1 from [71].
Catalysts 11 01081 sch010
Catalysts 11 01081 sch011 550

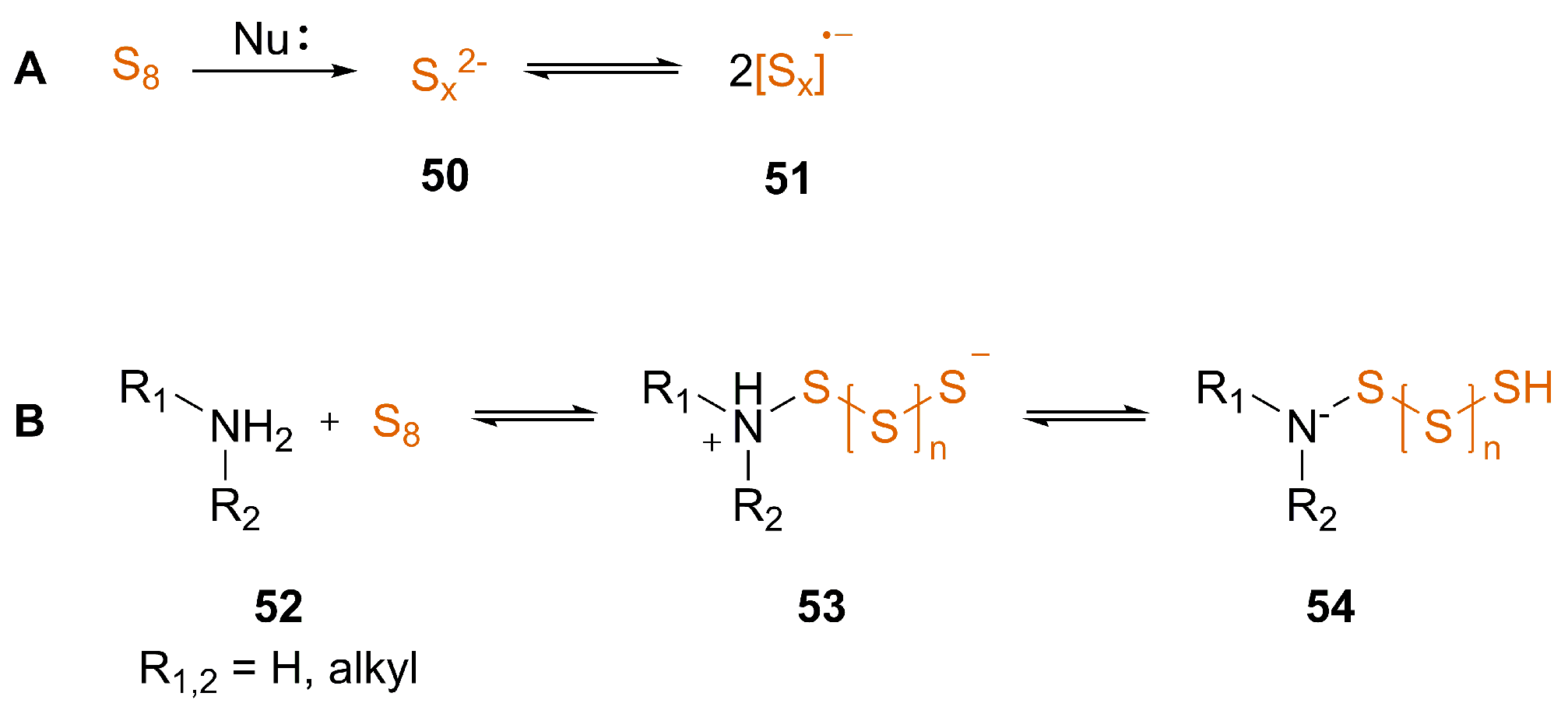

Scheme 11. Nucleophilic activation of sulfur leading to reactive polysulfide anions (50) and radical anions (51, (A)), and the mechanism of sulfur activation by nucleophilic aliphatic amines (52, (B)).
Scheme 11. Nucleophilic activation of sulfur leading to reactive polysulfide anions (50) and radical anions (51, (A)), and the mechanism of sulfur activation by nucleophilic aliphatic amines (52, (B)).
Catalysts 11 01081 sch011
Catalysts 11 01081 sch012 550
Scheme 12. Proposed mechanistic pathways for the synthesis of thioureas (55) from isocyanides (56) and amines (57). Isocyanides acting as nucleophiles through nitrilim cation pathway (A) or activated sulfur as nucleophile reagent leading to the formation of ITC intermediates ((B), 60, [46]). Scheme is based on Scheme 3 from [46].
Scheme 12. Proposed mechanistic pathways for the synthesis of thioureas (55) from isocyanides (56) and amines (57). Isocyanides acting as nucleophiles through nitrilim cation pathway (A) or activated sulfur as nucleophile reagent leading to the formation of ITC intermediates ((B), 60, [46]). Scheme is based on Scheme 3 from [46].
Catalysts 11 01081 sch012
Catalysts 11 01081 sch013 550
Scheme 13. Base-promoted transformation of isocyanides to ITCs with mechanistic insights ([42]).
Scheme 13. Base-promoted transformation of isocyanides to ITCs with mechanistic insights ([42]).
Catalysts 11 01081 sch013
Catalysts 11 01081 sch014 550
Scheme 14. Base-promoted transformation of isocyanides (66) to ITCs (65) and selected examples by Meier and co-workers ([41]). Scheme is based on Scheme 3 from [41].
Scheme 14. Base-promoted transformation of isocyanides (66) to ITCs (65) and selected examples by Meier and co-workers ([41]). Scheme is based on Scheme 3 from [41].
Catalysts 11 01081 sch014
Table
Table 1. Summary of methods for ITC synthesis with the application of elemental sulfur.
Table 1. Summary of methods for ITC synthesis with the application of elemental sulfur.
Ref.Starting
Material		AdditiveInert
Atmosphere		SolventT
(°C)		T
(h)		Yield
(%)
[56]AminePDFAYesDME800.08321–97
[57]F3CSiMe3 + KFYesTHFrt1–1231–96
[62]BrF2CCOOK + 5 mol% CuI, K3PO4NoMeCN1001238–87
[67,68]Isocyanide5 mol% Se or 0.02 mol% TeNoTHFreflux0.5–853–99
[69,70]“Mo” (X)Noacetonereflux7261–93
[71]“Rh” (X)Yesacetonereflux1.5–883–96
[42]2 eq. NaHYesTHF40285
[41]2–5 mol% DBUNoCyreneTM
or GBL		404–2434–95
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Németh, A.G.; Ábrányi-Balogh, P. Recent Advances in the Synthesis of Isothiocyanates Using Elemental Sulfur. Catalysts 2021, 11, 1081. https://doi.org/10.3390/catal11091081

AMA Style

Németh AG, Ábrányi-Balogh P. Recent Advances in the Synthesis of Isothiocyanates Using Elemental Sulfur. Catalysts. 2021; 11(9):1081. https://doi.org/10.3390/catal11091081

Chicago/Turabian Style

Németh, András Gy., and Péter Ábrányi-Balogh. 2021. "Recent Advances in the Synthesis of Isothiocyanates Using Elemental Sulfur" Catalysts 11, no. 9: 1081. https://doi.org/10.3390/catal11091081

APA Style

Németh, A. G., & Ábrányi-Balogh, P. (2021). Recent Advances in the Synthesis of Isothiocyanates Using Elemental Sulfur. Catalysts, 11(9), 1081. https://doi.org/10.3390/catal11091081

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
