Article

A Nickel Coated Copper Substrate as a Hydrogen Evolution Catalyst

by
Poshan Kumar Reddy Kuppam
1,
K. M. M. D. K. Kimbulapitiya
2,3,
Srikanth Vuppala
4,*,
Kuangye Wang
3,
G. Phaneendra Reddy
5,
Krishna P. Pande
6,*,
Po-Tsung Lee
1,* and
Yun-Lun Chueh
3
1
UST-IPP, College of Electrical and Computer Engineering, National Yang Ming Chiao Tung University, Hsinchu 30010, Taiwan
2
Department of Physics, National Sun Yat-sen University, Kaohsiung 80424, Taiwan
3
Department of Materials Science and Engineering, National Tsing Hua University, Hsinchu 30010, Taiwan
4
Department of Civil and Environmental Engineering, Politecnico di Milano, Piazza Leonardo da Vinci, 32, 20133 Milan, Italy
5
Department of Physics, Sri Venkateswara Vedic University, Tirupati 517 502, India
6
International College of Semiconductor Technology, National Yang Ming Chiao Tung University, Hsinchu 30010, Taiwan
*
Authors to whom correspondence should be addressed.
Catalysts 2022, 12(1), 58; https://doi.org/10.3390/catal12010058
Submission received: 30 November 2021 / Revised: 29 December 2021 / Accepted: 31 December 2021 / Published: 5 January 2022
(This article belongs to the Special Issue Transition Metal Catalysis)
Browse Figures
Versions Notes

Abstract

:
Replacing precious metals with low-cost metals is the best solution for large scale production. Copper is known for its excellent conductivity and thermal management applications. When it comes to hydrogen evolution reaction, it is highly unstable, especially in KOH solution. In this paper, we approached a simple method to reduce corrosion and improve the performance by depositing nickel-molybdenum oxide and nickel on copper substrates and the achieved tafel slopes of 115 mV/dec and 117 mV/dec at 10 mA/cm2. While at first, molybdenum oxide coated samples showed better performance after 100 cycles of stability tests, the onset potential rapidly changed. Cu-Ni, which was deposited using the electron gun evaporation (e-gun), has shown better performance with 0.28 V at 10 mA/cm2 and led to stability after 100 cycles. Our results show that when copper is alloyed with nickel, it acts as a promising hydrogen evolution reaction (HER) catalyst.

1. Introduction

Water electrolysis is one of the best alternative methods to solve future energy storage problems in green industries [1]. Over the past decade, many alternative materials for hydrogen evolution reaction (HER) have been proposed to replace platinum and gold metals, due to scarcity and high-cost for large scale production. Among the earth-abundant and inexpensive oxides [2,3], sulphides [4,5], selenides [6,7], phosphide [8], carbide-based [9,10] semiconductors have been identified for stable HER. To verify the electrocatalytic performance, a good metal is preferred. Among these, transition metals have raised great interest, due to their vast availability in nature [11]. Moreover, durability-wise, these metals showed better performance in the case of HER.
Copper (Cu) substrate is known to be highly conductive and the best thermal management metal in transition metals [12], but in the case of electrolysis, it is unstable in solution, due to the formation of oxide on the surface [13]. However, researchers try to resolve this problem by alloying with other transition metals for oxygen evolution reactions (OER) and HER electrocatalytic activity [14,15,16]. Especially when copper has alloyed with nickel, in most cases it has been shown to be more stable and higher electrocatalytic activity, when compared to nickel electrodes [14,17]. This may be due to the synergistic effect of the change in nickel composition on copper, which can enhance catalytic activity [18,19]. Similar reports have been reported when nickel is alloyed with molybdenum (Mo) metal, which enhances the performance of HER [20,21,22,23,24,25,26,27,28]. In general, nickel is known to have the best HER, due to hydrogen adsorption energy on its surface, but it suffers from lower resistance during electrolysis. This can be reduced by alloying with other transition metals [29]. In this case, alloying with molybdenum or molybdenum oxide is one of the best choices, due to its higher resistance and more surface area [30,31]. When these ternary Cu-Ni-MoO3 composite materials are used for HER, it leads to better performance, due to mostly unpaired d-electrons in metals, which can donate electrons and adsorb hydrogen atoms, which is more advantageous for electrocatalytic activity [28].
The preceding reports inspired us to investigate the influence of Ni and Ni-MoO3 on copper foil, and we present a simple method to reduce fabrication costs by using electron gun evaporation (e-gun), and the prepared samples have shown higher catalytic activity for HER application than OER. In both cases, initially, the Ni-MoO3 has shown tremendous performance, while in the long run (100 cycles), Cu-Ni has shown better performance with 0.28 V and leads to stability. Our results show that when copper is alloyed with nickel, it acts as a promising HER catalyst and can be applied for electrolysis in large scale production.

2. Results and Discussion

Figure 1 shows the X-ray diffraction patterns of the Cu/Ni bi-layer substrate and Cu/Ni/MoO3 stack. The XRD patterns revealed the polycrystalline nature for all sulfurized films. From the XRD pattern, it is perceived that all the profile peaks were positioned at 43.33, 50.46, and 74.15 degrees and were indexed with Miller indices (1 1 1), (2 0 0), and (2 2 0). All these XRD peaks were well matched with JCPDS: 003-1005 cubic crystal structure of Cu. The lattice parameters a = b = c = 3.6077 (Å), α = β = γ = 90°. The average crystallite size was calculated by using Debye-Scherrer’s formula, and it was found to be 51.5 and 65 nm for Cu/Ni substrate and Cu/Ni (100 nm)/MoO3 (50 nm) stack, respectively. From XRD patterns, the Cu/Ni/MoO3 stack showed a wide peak at 89.20 degrees, which corresponded to the (361) plane of the orthorhombic structure of MoO3 and closely matched with the JCPDS card num: 005-0507.
The vibrational Raman spectrum of Cu/Ni/MoO3 stack is shown in Figure 2. This can be clearly observed from the Cu/Ni Raman spectrum, as it consists of the only single strong absorption peak, at 933 cm−1 and it belongs to the B1g symmetry of vO = Mo stretching vibrational modes [32]. No more absorption peaks were observed in the sample, due to Cu and Ni. The Raman spectrum contracts the XRD spectra, in XRD studies Cu was only presented but remaining coated elements were not identified, but in Raman studies Cu and Ni were not detected. This is due to the Cu and Ni being lower layers and MoO3 is the upper layer of the thin film.
The chemical composition and valance start of Ni-MoO3 films on Cu substrates were analyzed using X-ray photoelectron spectroscopy (XPS), through this analysis analyzed the oxidization state of the transition metal ion. The shift of the binding energy, due to relative surface charging, was corrected using the C 1 s level at 284.8 eV as an internal standard (Figure 3a). The XPS spectra of Cu, Ni, Mo, and O elements in the films are shown in Figure 3b–e. Figure 3b shows the Cu 2p3/2 and Cu 2p1/2 binding energy peaks at 932.7 eV and 953.45 eV [33]. There is no shoulder peak observed in the spectrum, which indicates, Cu is not bonding with oxygen. In the Ni 2p spectrum, (Figure 3c) the peaks at 855.5 eV and 872.1 eV are assigned to Ni 2p3/2, and Ni 2p1/2 binding energy levels indicate Ni2+. The distinct peaks at 232.68 and 235.88 eV are assigned to 3d5/2 and 3d3/2 of Mo6+ (Figure 3d), the spectra of O 1 s region (Figure 3e) shows a peak at 531.2 eV, corresponding to the lattice oxide ions on the surface. In order to check whether the formation oxide takes place on Ni thin film, we check with EDS in Figure 5a and find no evidence of oxidation on nickel film.
Microstructural analysis of Cu, Cu-Ni bi-layer, and Cu/Ni/MoO3 stacks of prepared layers were analyzed using SEM analysis. Figure 4a,c,e shows a slightly smooth surface view of Cu, Cu-Ni, and Cu/Ni/MoO3. When this is used for HER, irregularly shaped grains are observed on the substrate surface, due to corrosion, especially in the case of Cu, where it is higher, as shown in Figure 4b. In Figure 4d, the Cu/Ni stack has a lower impact than Cu. While the MoO3 on the surface of the Cu-Ni substrate has been etched away, due to this layer in Figure 4f, the nickel suffers less damage than other substrates. SEM images clearly show the presence of MoO3 leads to less damage for the HER application.
Figure 5a shows the EDS spectrum of the Cu-Ni bi-layer, which clearly describes the presence of Cu, Ni elements in the layer; no other peaks were observed, due to surface etching of the layer. Figure 5b clearly represents the presence of Cu, Ni, Mo, and Oxygen elements in the Cu/Ni/MoO3 stack.
In order to check OER, a standard three-electrode system with a Pt counter electrode and Ag/AgCl reference electrodes was used with the Cu, Cu/Ni, and Cu/Ni/MoO3 as working electrodes. All the linear sweep voltammetry (LSV) was carried out in the potential region of 0–1.75 V vs RHE at a scan rate of 5 mV/sec, as shown in Figure 6. O.1 M KOH was used as an electrolyte solution for OER. Ni and MoO3 were deposited at a deposition rate of 0.2 A0/s by an e-beam evaporation system.
The Cu-Ni-MoO3 showed the best performance with a potential of 1.37 followed by Cu-Ni with 1.46 V, as shown in Figure 6a. We comparatively check the OER Over potential of all samples at 5 mA/cm2. Cu-Ni-MoO3, Cu-Ni has shown less Tafel slope 73 mV and 126 mV, as shown in Figure 6b but, after a while, Cu-Ni-MoO3 was affected due to the corrosion and leads to slight stable at 1.44 V. While Cu-Ni is quite opposite to Cu-Ni-MoO3 sample at beginning it starts with 1.46 V after 100 cycles of stability its onset potential is improved slightly to 1.44 V, as shown in Figure 6c. We expect that nickel, when reacting with electrolytes, may lead to form oxide known to be nickel oxide, which is effectively stable in KOH solution.
As shown in Figure 7a Electrocatalytic results inform that Cu-Ni-MoO3 and Cu-Ni are more favourable to HER. The potential at 10 mA/cm2 is 0.36 V for Cu-Ni-MoO3 and 0.41 for Cu-Ni. The acquired Tafel slope values, as shown in Figure 7b, are almost near for both Cu-Ni-MoO3 and Cu-Ni is 117 mV and 115 mV. We notice after 100 cycles, as shown in Figure 7c. The catalytic activity has been gradually increased in both potential values Cu-Ni-MoO3, Cu-Ni cases with 0.31 V and 0.28 V. Normally in MoO3 oxygen vacancies (Vo) create Mo dangling bonds (DB), these generate defects near to conduction band [34,35]. The existence of DB in oxygen inefficient molybdenum oxides makes them highly responsive for HER [36]. Many theoretical reports suggest that surface defects like Vo can lead to emerging of gap states that act as shallow donors in metal oxides which may increase free charge carrier concentration [37,38]. As we deposited the MoO3, using the e-gun, the probability of formation the of Vo and surface defects was higher; this may be one of the reasons for initial higher performance. As e-gun deposited samples especially in the case of metal oxides are highly corrosive due to the amorphous nature and also lack of strong bonding between Ni-MoO3 interface. In order to check this, we perform electrical characterization and notice there is no response from Cu-Ni-MoO3 and conclude the film grown is amorphous. The electrical characterization of the Cu and Cu/Ni was also performed. I-V scans taken from two different samples show the obvious Ohmic behaviour of both Cu and Cu/Ni up to 100 mV. The resistance of Cu and Cu/Ni was measured to be 48.5 Ω and 10.0 Ω, respectively, indicating that the heterostructure of Cu and Ni is more conductive than pristine Cu, as shown in Figure 8. In Table 1, we compared the results with other researchers’ results.

3. Materials and Methods

3.1. Raw Materials and Preparation of Catalysts

Experimental Method: The pure copper substrate is cleaned with acetic acid at 70 °C to remove the residuals on the surface. Nickel is first deposited on copper at 0.2 A0/s for about 100 nm, followed by an e-gun deposit of 40–50 nm of molybdenum oxide at room temperature.
Technique: In order to deposit the nickel and molybdenum oxide, we use the ferrotec temescal FC-2800 model e-beam evaporation deposition system (e-gun), which was installed at National Tsing Hua University. We procured nickel pellets and a lump of molybdenum oxide was ordered from Gredmann Company (Taipei, Taiwan). The deposition starts at a high vacuum of 5 × 10−6 mbar at 0.2 A0/S. The thickness monitor is based on a quartz crystal oscillator connected to a deposition controller module. The quartz crystal sensor is mounted in such a manner that it is kept close to the substrate with the proper tooling factor. The deposition controller provides the final thickness of the film and also the deposition rate.

3.2. Characterization of Composition and Structure of Catalysts

In order to check the crystalline of prepared samples, X-ray diffraction (XRD) patterns were recorded using the AERIS diffractometer PANalytical, Model AERIS (40 KV, 7.5 mA, Almelo, the Netherlands). The average crystallite size was calculated by using Debye-Scherrer’s formula. The chemical states of different elements present in the films were investigated by an X-ray photoelectron spectrometer (XPS, Thermo Scientific, Model: K-ALPHA surface analysis, Waltham, MA, USA). The XPS spectra were recorded in the binding energy range, 0–1300 eV using the Al Kα source and calibrated using the C1s line. SEM images and energy-dispersive X-ray spectroscopy (EDS) were found using the field emission scanning electron microscope Joel JSM-6700F (Tokyo, Japan). Micro-Raman spectroscopy (Model: Lab RAM: HR800, Manufacturer: HORIBA Scientific SAS, Palaiseau, France), equipped with a 514 nm laser was used to examine Cu-Ni-MoO3.

3.3. Electrochemical Measurement

Electrochemical measurements were performed in a three-electrode system using a Bio-Logic VSP potentiostat in a cylindrical cell made of Teflon with an O-ring in the bottom with a working electrode area of 0.264 cm2. The Cu, Cu/Ni and Cu/Ni/MoO3 samples were contacted with double-sided Cu tape (3M) as working electrodes with a platinum wire counter electrode and Ag/AgCl (3M NaCl) reference electrode; 0.1 KOH were used as the electrolyte solution for HER and OER, respectively, during the measurements. All the experiments were conducted without magnetically stirring the solution, as shown in Figure 9. All the potentials were converted to RHE, using the equation given by ERHE = EAg/AgCl + 0.0591 × pH + 0.194 [42], resulting in a shift of −0.2117 V versus RHE. Note all potentials in linear sweep voltammetry (LSV) were collected after applying 3–5 potential sweeps in order to avoid the redeposition of Pt on the working electrode after several cycles. LSV data was recorded at a scan rate of 5 mV/s for the first few cycles and long-term stability was assessed at an accelerated scan rate of 100 mV/s for 100 times. Cyclic voltammograms of Cu/Ni and Cu/Ni/MoO3 were acquired at different scan rates of 20–200 mV/s in the voltage between −0.2–0 V (vs RHE), as shown in Supplementary Data Figure S1.

4. Conclusions

In summary, XRD has proved that the average crystallite size of the catalyst produced was found to be 51.5 nm and 65 nm for the Cu/Ni substrate and Cu/Ni (100 nm)/MoO3 (50 nm) stacks, respectively; the chemical state and composition of elements was recorded using XPS and EDS. Copper substrates are highly corrosive in nature for HER and OER application. Fabrication cost has been reduced by depositing the Ni and Ni-MoO3 thin film on Cu, using the e-gun method, which is a cost-effective method. The prepared samples have shown higher catalytic activity for HER application than OER. The Ni-MoO3 has shown tremendous performance, while in the long run (100 cycles) and Cu-Ni have shown better performance with 0.28 V and leads to stability. The copper is alloyed with nickel, acts as a promising HER catalyst, and can be applied for photo-electrolysis in large scale production and reduce the cost.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/catal12010058/s1, Figure S1. Cyclic voltammograms at different scan rates in the potential range of 20–200 mV/s in 0.1 M KOH solution with (a) Cu/Ni and (b) Cu/Ni/MoO3 (c) measured Capacitive currents.

Author Contributions

Conceptualization, P.K.R.K.; methodology, P.K.R.K. and K.M.M.D.K.K.; software, P.K.R.K. and G.P.R.; validation P.K.R.K. and K.M.M.D.K.K.; formal analysis, P.K.R.K., K.W., G.P.R. and K.M.M.D.K.K.; investigation, P.K.R.K. and K.M.M.D.K.K.; resources, Y.-L.C. and P.-T.L.; data curation, P.K.R.K. and K.M.M.D.K.K.; writing—original draft preparation, P.K.R.K., K.P.P. and P.-T.L.; writing—review and editing, S.V., K.P.P., G.P.R. and P.-T.L.; supervision, K.P.P. and P.-T.L.; project administration, K.P.P. All authors have read and agreed to the published version of the manuscript.

Funding

This work did not receive any external funding.

Data Availability Statement

Not applicable.

Acknowledgments

K.P.K.R. thanks the National Yang Ming Chiao Tung University for providing PhD fellowship. The authors thank Srikrishna Tummala for X-ray photoelectron spectroscopy (XPS) characterization.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Staffell, I.; Scamman, D.; Velazquez Abad, A.; Balcombe, P.; Dodds, P.E.; Ekins, P.; Shah, N.; Ward, K.R. The role of hydrogen and fuel cells in the global energy system. Energy Environ. Sci. 2019, 12, 463–491. [Google Scholar] [CrossRef] [Green Version]
  2. Cheng, J.; Liu, P.; Peng, T.; Liu, Q.; Chen, W.; Liu, B.; Yuan, Y.; Zhang, W.; Song, F.; Gu, J.; et al. Mechanically alloyed NiTiO3/transition metal heterostructures: Introducing oxygen vacancies for exceptionally enhanced hydrogen evolution reaction activity. J. Mater. Chem. A 2020, 8, 14908–14914. [Google Scholar] [CrossRef]
  3. Datta, R.S.; Haque, F.; Mohiuddin, M.; Carey, B.J.; Syed, N.; Zavabeti, A.; Zhang, B.; Khan, H.; Berean, K.J.; Ou, J.Z.; et al. Highly active two dimensional α-MoO3-X for the electrocatalytic hydrogen evolution reaction. J. Mater. Chem. A 2017, 5, 24223–24231. [Google Scholar] [CrossRef]
  4. Kibsgaard, J.; Chen, Z.; Reinecke, B.N.; Jaramillo, T.F. Engineering the surface structure of MoS2 to preferentially expose active edge sites for electrocatalysis. Nat. Mater. 2012, 11, 963–969. [Google Scholar] [CrossRef]
  5. Miao, J.; Xiao, F.X.; Bin Yang, H.; Khoo, S.Y.; Chen, J.; Fan, Z.; Hsu, Y.Y.; Ming Chen, H.; Zhang, H.; Liu, B. Hierarchical Ni-Mo-S nanosheets on carbon fiber cloth: A flexible electrode for efficient hydrogen generation in neutral electrolyte. Sci. Adv. 2015, 1, e1500259. [Google Scholar] [CrossRef] [Green Version]
  6. Gao, M.R.; Liang, J.X.; Zheng, Y.R.; Xu, Y.F.; Jiang, J.; Gao, Q.; Li, J.; Yu, S.H. An efficient molybdenum disulfide/cobalt diselenide hybrid catalyst for electrochemical hydrogen generation. Nat. Commun. 2015, 6, 6982. [Google Scholar] [CrossRef]
  7. Zhou, X.; Liu, Y.; Ju, H.; Pan, B.; Zhu, J.; Ding, T.; Wang, C.; Yang, Q. Design and Epitaxial Growth of MoSe2-NiSe Vertical Heteronanostructures with Electronic Modulation for Enhanced Hydrogen Evolution Reaction. Chem. Mater. 2016, 28, 1838–1846. [Google Scholar] [CrossRef]
  8. Kim, M.; Anjum, M.A.R.; Lee, M.; Lee, B.J.; Lee, J.S. Activating MoS2 Basal Plane with Ni2P Nanoparticles for Pt-Like Hydrogen Evolution Reaction in Acidic Media. Adv. Funct. Mater. 2019, 29, 1809151. [Google Scholar] [CrossRef]
  9. Gong, Q.; Wang, Y.; Hu, Q.; Zhou, J.; Feng, R.; Duchesne, P.N.; Zhang, P.; Chen, F.; Han, N.; Li, Y.; et al. Ultrasmall and phase-pure W2C nanoparticles for efficient electrocatalytic and photoelectrochemical hydrogen evolution. Nat. Commun. 2016, 7, 13216. [Google Scholar] [CrossRef] [Green Version]
  10. Wu, H.B.; Xia, B.Y.; Yu, L.; Yu, X.Y.; Lou, X.W. Porous molybdenum carbide nano-octahedrons synthesized via confined carburization in metal-organic frameworks for efficient hydrogen production. Nat. Commun. 2015, 6, 6512. [Google Scholar] [CrossRef]
  11. Zhu, J.; Hu, L.; Zhao, P.; Lee, L.Y.S.; Wong, K.Y. Recent Advances in Electrocatalytic Hydrogen Evolution Using Nanoparticles. Chem. Rev. 2020, 120, 851–918. [Google Scholar] [CrossRef]
  12. Shin, Y.; Kim, S.E.; Kim, S. Thermal assessment of copper through silicon via in 3D IC. Microelectron. Eng. 2016, 156, 2–5. [Google Scholar] [CrossRef]
  13. Hamidah, I.; Solehudin, A.; Hamdani, A.; Hasanah, L.; Khairurrijal, K.; Kurniawan, T.; Mamat, R.; Maryanti, R.; Nandiyanto, A.B.D.; Hammouti, B. Corrosion of copper alloys in KOH, NaOH, NaCl, and HCl electrolyte solutions and its impact to the mechanical properties. Alex. Eng. J. 2021, 60, 2235–2243. [Google Scholar] [CrossRef]
  14. Zhao, S.; Huang, J.; Liu, Y.; Shen, J.; Wang, H.; Yang, X.; Zhu, Y.; Li, C. Multimetallic Ni-Mo/Cu nanowires as nonprecious and efficient full water splitting catalyst. J. Mater. Chem. A 2017, 5, 4207–4214. [Google Scholar] [CrossRef]
  15. Sivasakthi, P.; Sangaranarayanan, M.V.; Gurumallesh Prabu, H. Micro-nanoarchitectures of electrodeposited Ni-ITO nanocomposites on copper foil as electrocatalysts for the oxygen evolution reaction. New J. Chem. 2021, 45, 5146–5153. [Google Scholar] [CrossRef]
  16. Li, C.; Zhang, B.; Li, Y.; Hao, S.; Cao, X.; Yang, G.; Wu, J.; Huang, Y. Self-assembled Cu-Ni bimetal oxide 3D in-plane epitaxial structures for highly efficient oxygen evolution reaction. Appl. Catal. B: Environ. 2019, 244, 56–62. [Google Scholar] [CrossRef]
  17. Ngamlerdpokin, K.; Tantavichet, N. Electrodeposition of nickel-copper alloys to use as a cathode for hydrogen evolution in an alkaline media. Int. J. Hydrog. Energy 2014, 39, 2505–2515. [Google Scholar] [CrossRef]
  18. Solmaz, R.; Döner, A.; Kardaş, G. Electrochemical deposition and characterization of NiCu coatings as cathode materials for hydrogen evolution reaction. Electrochem. Commun. 2008, 10, 1909–1911. [Google Scholar] [CrossRef]
  19. Solmaz, R.; Döner, A.; Kardaş, G. The stability of hydrogen evolution activity and corrosion behavior of NiCu coatings with long-term electrolysis in alkaline solution. Int. J. Hydrog. Energy 2009, 34, 2089–2094. [Google Scholar] [CrossRef]
  20. Damian, A.; Omanovic, S. Ni and Ni-Mo hydrogen evolution electrocatalysts electrodeposited in a polyaniline matrix. J. Power Sources 2006, 158, 464–476. [Google Scholar] [CrossRef]
  21. Gomez Vidales, A.; Omanovic, S. Evaluation of nickel-molybdenum-oxides as cathodes for hydrogen evolution by water electrolysis in acidic, alkaline, and neutral media. Electrochim. Acta 2018, 262, 115–123. [Google Scholar] [CrossRef]
  22. Navarro-Flores, E.; Chong, Z.; Omanovic, S. Characterization of Ni, NiMo, NiW and NiFe electroactive coatings as electrocatalysts for hydrogen evolution in an acidic medium. J. Mol. Catal. A: Chem. 2005, 226, 179–197. [Google Scholar] [CrossRef]
  23. Kawashima, A.; Akiyama, E.; Habazaki, H.; Hashimoto, K. Characterization of sputter-deposited Ni-Mo and Ni-W alloy electrocatalysts for hydrogen evolution in alkaline solution. Mater. Sci. Eng. A 1997, 226–228, 905–909. [Google Scholar] [CrossRef]
  24. Highfield, J.G.; Claude, E.; Oguro, K. Electrocatalytic synergism in Ni/Mo cathodes for hydrogen evolution in acid medium: A new model. Electrochim. Acta 1999, 44, 2805–2814. [Google Scholar] [CrossRef]
  25. Jakšić, J.M.; Vojnović, M.V.; Krstajić, N.V. Kinetic analysis of hydrogen evolution at Ni-Mo alloy electrodes. Electrochim. Acta 2000, 45, 4151–4158. [Google Scholar] [CrossRef]
  26. Krstajić, N.V.; Gajić-Krstajić, L.; Lačnjevac, U.; Jović, B.M.; Mora, S.; Jović, V.D. Non-noble metal composite cathodes for hydrogen evolution. Part I: The Ni-MoOx coatings electrodeposited from Watt’s type bath containing MoO3 powder particles. Int. J. Hydrog. Energy 2011, 36, 6441–6449. [Google Scholar] [CrossRef]
  27. Krstajić, N.V.; Lačnjevac, U.; Jović, B.M.; Mora, S.; Jović, V.D. Non-noble metal composite cathodes for hydrogen evolution. Part II: The Ni-MoO2 coatings electrodeposited from nickel chloride-ammonium chloride bath containing MoO2 powder particles. Int. J. Hydrog. Energy 2011, 36, 6450–6461. [Google Scholar] [CrossRef]
  28. Harinipriya, S.; Sangaranarayanan, M.V. Influence of the work function on electron transfer processes at metals: Application to the hydrogen evolution reaction. Langmuir 2002, 18, 5572–5578. [Google Scholar] [CrossRef]
  29. Tilak, B.V. High Performance Electrode Materials for the Hydrogen Evolution Reaction From Alkaline Media. Electrochem. Soc. Ext. Abstr. 1983, 97, 359–393. [Google Scholar] [CrossRef]
  30. Mckone, J.R.; Sadtler, B.F.; Werlang, C.A.; Lewis, N.S.; Gray, H.B. Ni−Mo Nanopowders for Efficient Electrochemical Hydrogen Evolution. ACS Catal. 2013, 3, 166–169. [Google Scholar] [CrossRef]
  31. Sharma, L.; Khushwaha, H.S.; Mathur, A.; Halder, A. Role of molybdenum in Ni-MoO2 catalysts supported on reduced graphene oxide for temperature dependent hydrogen evolution reaction. J. Solid State Chem. 2018, 265, 208–217. [Google Scholar] [CrossRef]
  32. Xu, Y.; Lai, K.; Gu, C.; Jiang, T.; Shen, X.; Zeng, S.; Ho, A.H.P.; Ang, D.S.; Zhou, J. Electrical Tuning of MoOx/Ag Hybrids and Investigation of their Surface-Enhanced Raman Scattering Performance. Phys. Status Solidi-Rapid Res. Lett. 2021, 15, 2000499. [Google Scholar] [CrossRef]
  33. Crist, B. A Review of XPS Data-Banks. XPS Int. 2007, 1, 1–52. [Google Scholar]
  34. Santosh, K.C.; Longo, R.C.; Addou, R.; Wallace, R.M.; Cho, K. Electronic properties of MoS2/MoOx interfaces: Implications in Tunnel Field Effect Transistors and Hole Contacts. Sci. Rep. 2016, 6, 33562. [Google Scholar] [CrossRef] [Green Version]
  35. Chen, M.; Friend, C.M.; Kaxiras, E. The chemical nature of surface point defects on MoO3(010): Adsorption of hydrogen and methyl. J. Am. Chem. Soc. 2001, 123, 2224–2230. [Google Scholar] [CrossRef]
  36. Sun, Y.; Gao, S.; Lei, F.; Xie, Y. Atomically-thin two-dimensional sheets for understanding active sites in catalysis. Chem. Soc. Rev. 2015, 44, 623–636. [Google Scholar] [CrossRef]
  37. Kim, H.S.; Cook, J.B.; Lin, H.; Ko, J.S.; Tolbert, S.H.; Ozolins, V.; Dunn, B. Oxygen vacancies enhance pseudocapacitive charge storage properties of MoO3-x. Nat. Mater. 2017, 16, 454–462. [Google Scholar] [CrossRef]
  38. Zhuiykov, S.; Kats, E.; Carey, B.; Balendhran, S. Proton intercalated two-dimensional WO3 nano-flakes with enhanced charge-carrier mobility at room temperature. Nanoscale 2014, 6, 15029–15036. [Google Scholar] [CrossRef]
  39. Liang, H.; Li, L.; Meng, F.; Dang, L.; Zhuo, J.; Forticaux, A.; Wang, Z.; Jin, S. Porous Two-Dimensional Nanosheets Converted from Layered Double Hydroxides and Their Applications in Electrocatalytic Water Splitting. Chem. Mater. 2015, 27, 5702–5711. [Google Scholar] [CrossRef]
  40. Wang, J.; Zhong, H.X.; Wang, Z.L.; Meng, F.L.; Zhang, X.B. Integrated Three-Dimensional Carbon Paper/Carbon Tubes/Cobalt-Sulfide Sheets as an Efficient Electrode for Overall Water Splitting. ACS Nano 2016, 10, 2342–2348. [Google Scholar] [CrossRef]
  41. Zheng, Y.; Jiao, Y.; Li, L.H.; Xing, T.; Chen, Y.; Jaroniec, M.; Qiao, S.Z. Toward design of synergistically active carbon-based catalysts for electrocatalytic hydrogen evolution. ACS Nano 2014, 8, 5290–5296. [Google Scholar] [CrossRef] [Green Version]
  42. Wang, L.; Lee, C.Y.; Schmuki, P. Solar water splitting: Preserving the beneficial small feature size in porous α-Fe2O3 photoelectrodes during annealing. J. Mater. Chem. A 2013, 1, 212–215. [Google Scholar] [CrossRef]
Catalysts 12 00058 g001 550

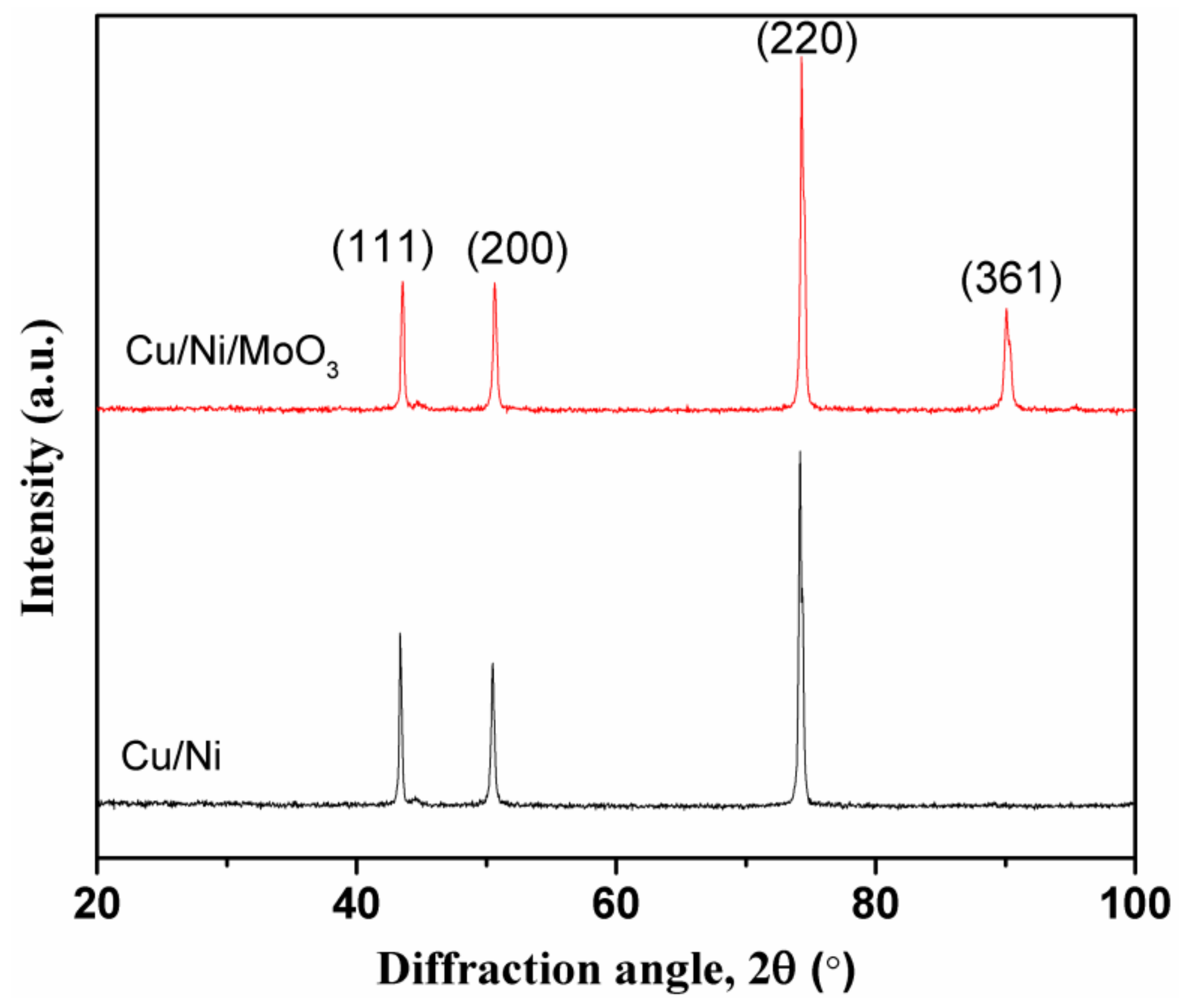

Figure 1. XRD peaks of Cu/Ni and Cu/Ni/MoO3 stack.
Figure 1. XRD peaks of Cu/Ni and Cu/Ni/MoO3 stack.
Catalysts 12 00058 g001
Catalysts 12 00058 g002 550

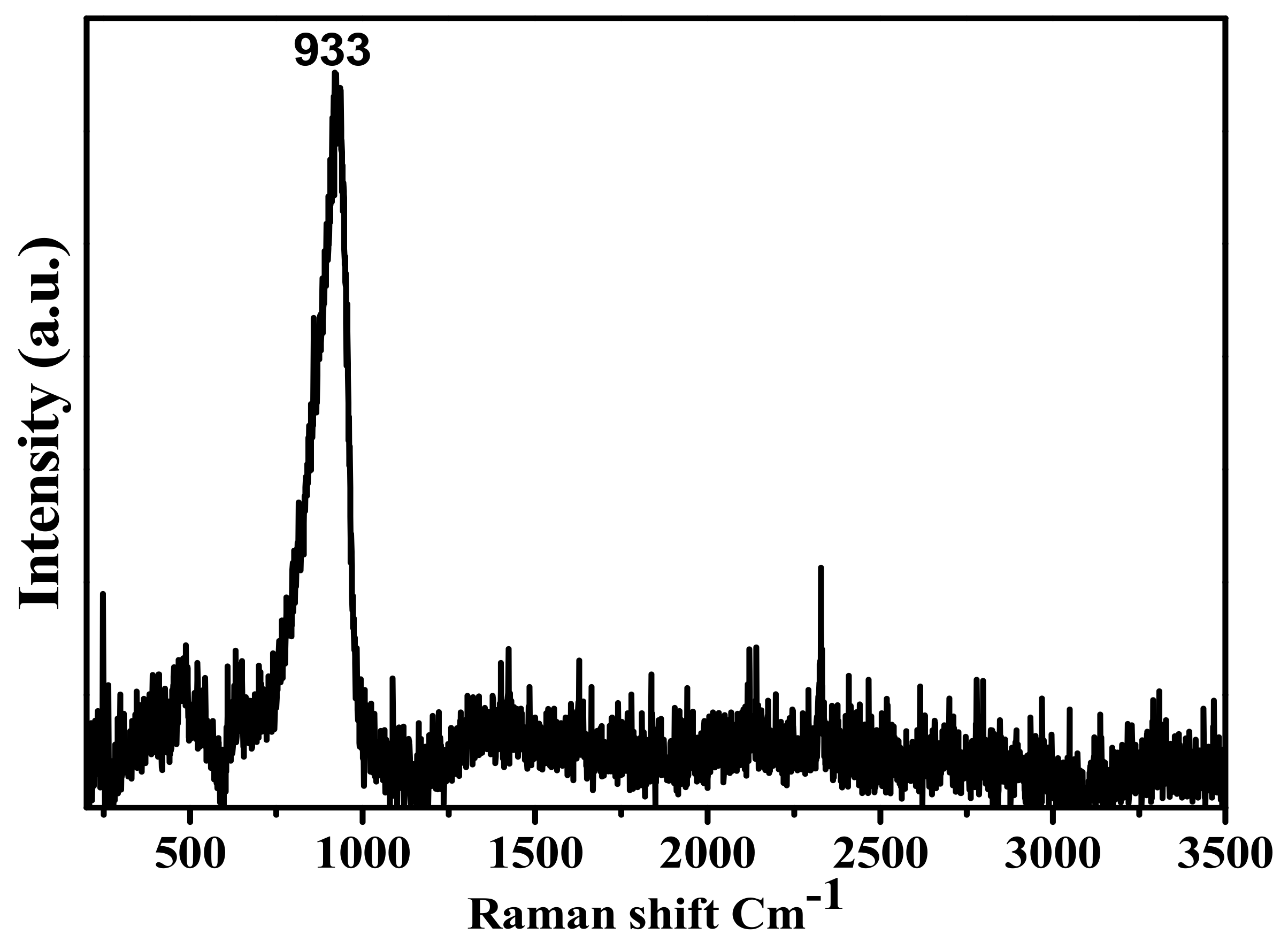

Figure 2. Raman analysis of MoO3 thin film.
Figure 2. Raman analysis of MoO3 thin film.
Catalysts 12 00058 g002
Catalysts 12 00058 g003 550

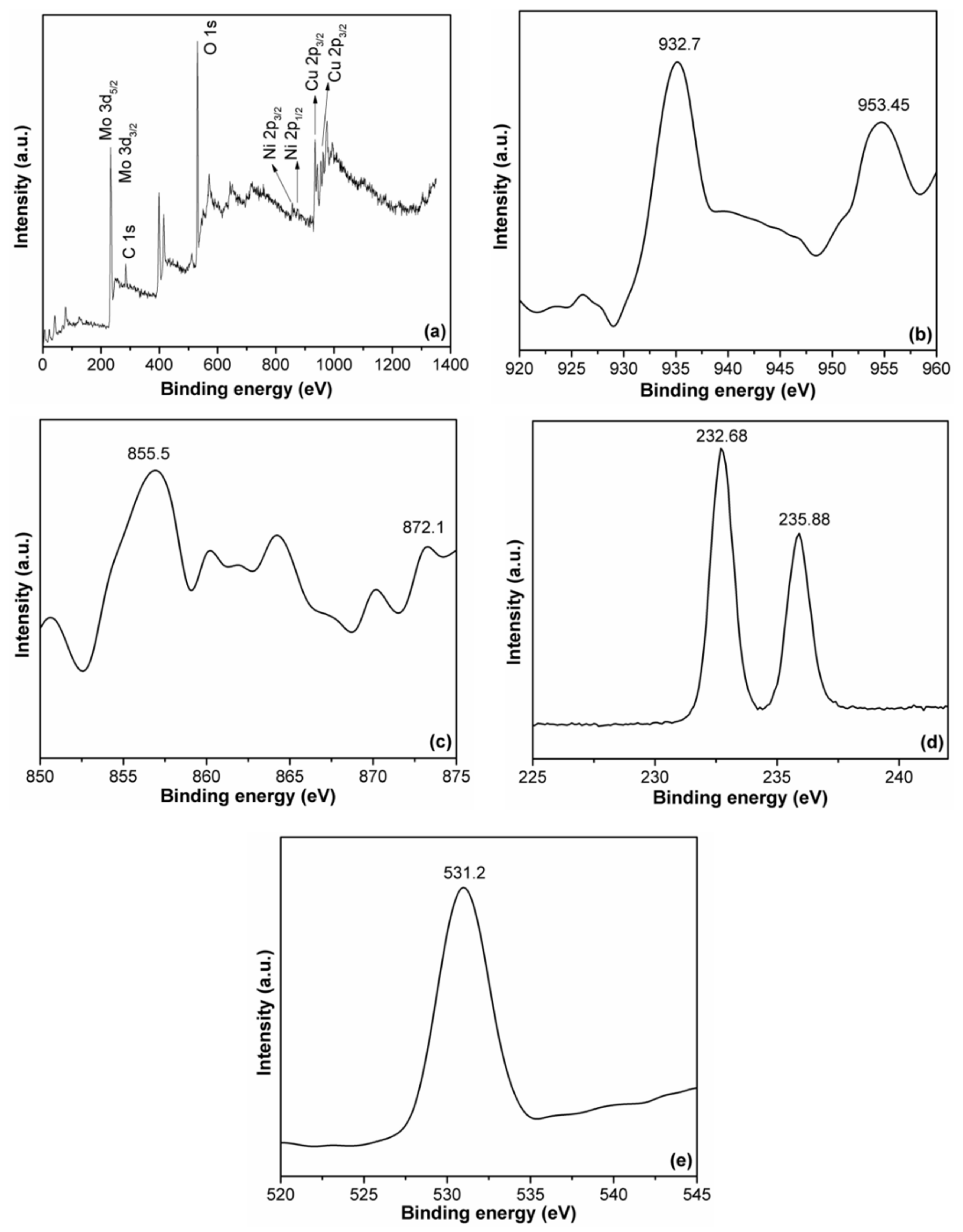

Figure 3. (a) Typical wide scan and core level (b) Cu 2p, (c) Ni 2p, (d) Mo 3d, and (e) O 1 s XPS spectra of Cu/Ni/MoO3 stack.
Figure 3. (a) Typical wide scan and core level (b) Cu 2p, (c) Ni 2p, (d) Mo 3d, and (e) O 1 s XPS spectra of Cu/Ni/MoO3 stack.
Catalysts 12 00058 g003
Catalysts 12 00058 g004 550

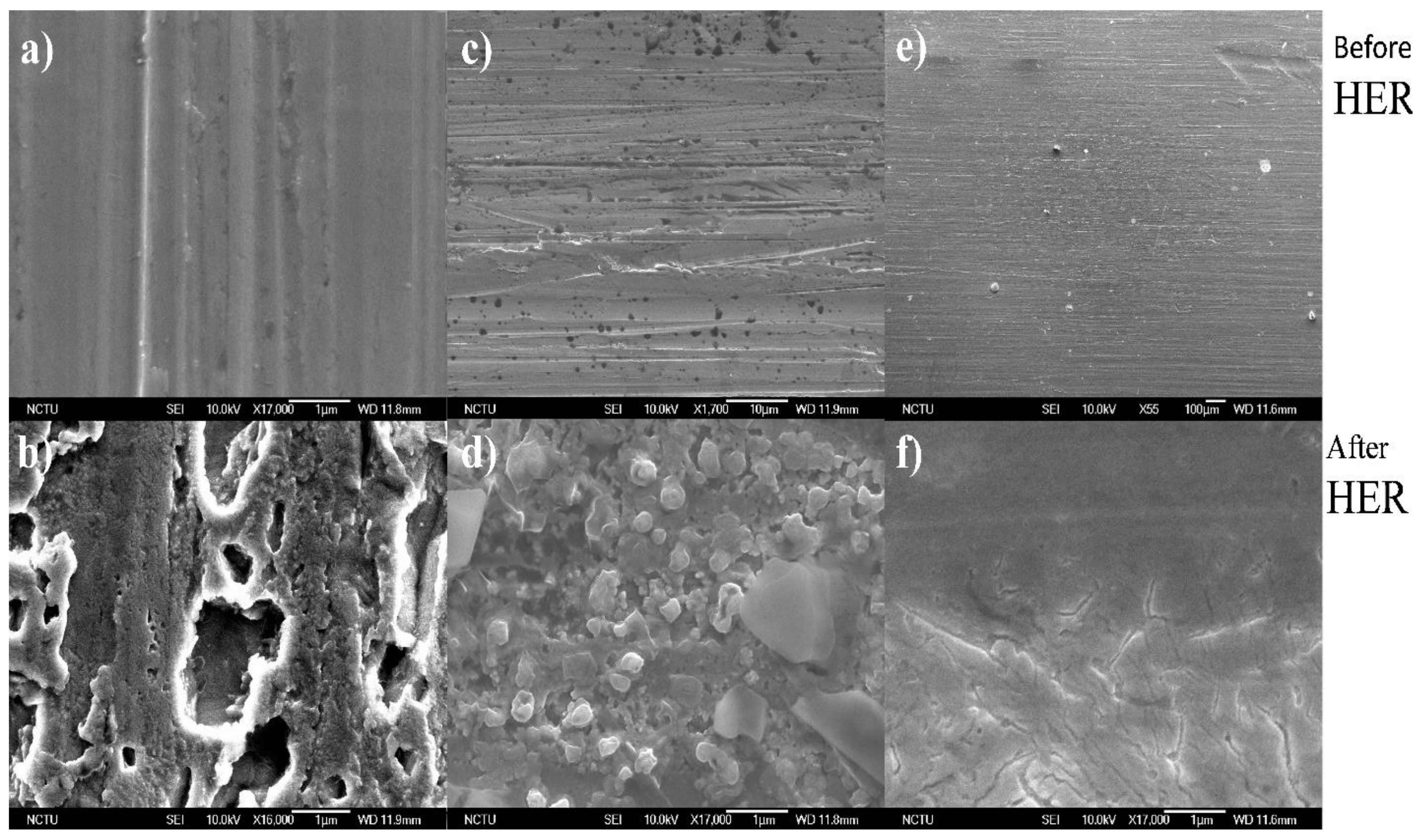

Figure 4. SEM micrographs of Cu, Cu-Ni, and Cu-Ni-MoO3(a,c,e), before the experiment and (b,d,f) after the experiment.
Figure 4. SEM micrographs of Cu, Cu-Ni, and Cu-Ni-MoO3(a,c,e), before the experiment and (b,d,f) after the experiment.
Catalysts 12 00058 g004
Catalysts 12 00058 g005 550
Figure 5. EDS spectra of (a) Cu-Ni bi-layer substrate and (b) Cu/Ni/MoO3 stack.
Figure 5. EDS spectra of (a) Cu-Ni bi-layer substrate and (b) Cu/Ni/MoO3 stack.
Catalysts 12 00058 g005
Catalysts 12 00058 g006 550

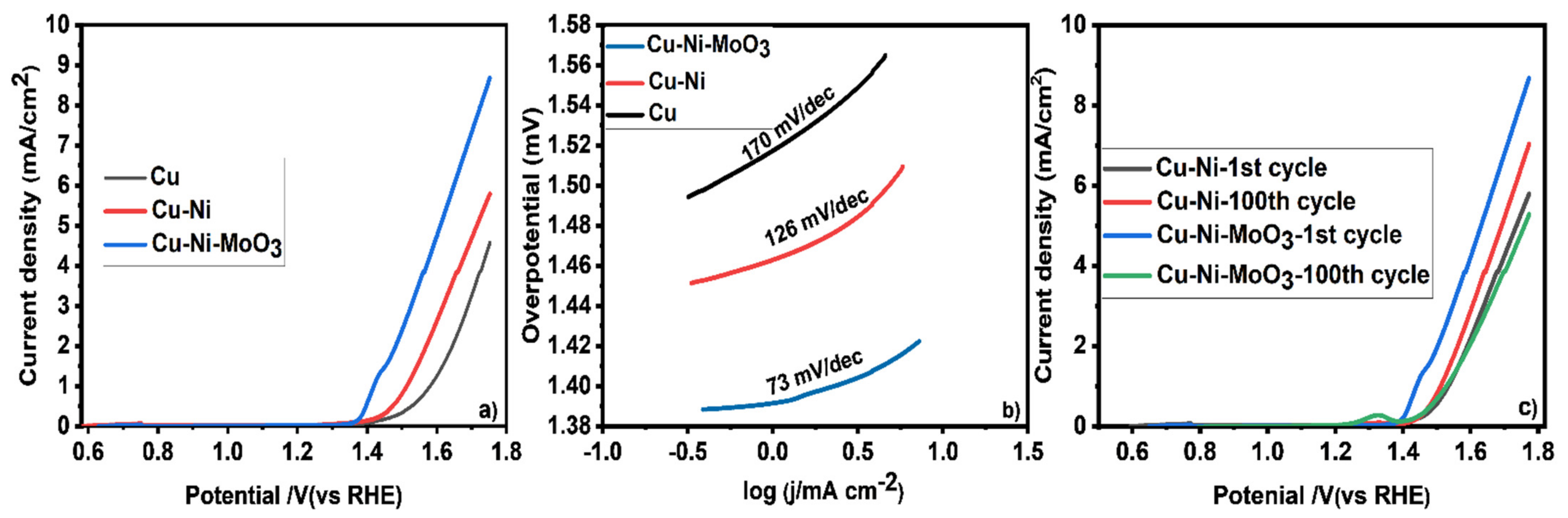

Figure 6. OER catalytic performances of three different electrodes in 0.1 M KOH electrolyte (a); Over potential of different electrodes (b); results of OER before and after 100 cycles (c).
Figure 6. OER catalytic performances of three different electrodes in 0.1 M KOH electrolyte (a); Over potential of different electrodes (b); results of OER before and after 100 cycles (c).
Catalysts 12 00058 g006
Catalysts 12 00058 g007 550

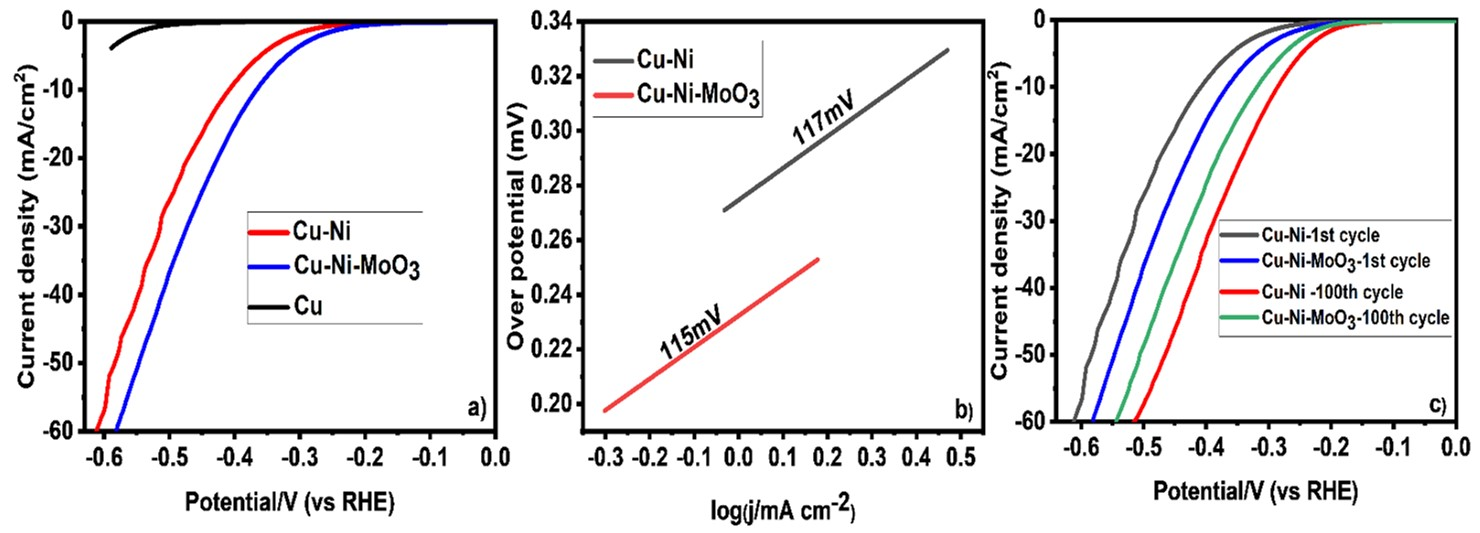

Figure 7. HER catalytic performances of three different electrodes in 0.1 M KOH electrolyte (a); Tafel plot of different electrodes (b); results of OER before and after 100 cycles (c).
Figure 7. HER catalytic performances of three different electrodes in 0.1 M KOH electrolyte (a); Tafel plot of different electrodes (b); results of OER before and after 100 cycles (c).
Catalysts 12 00058 g007
Catalysts 12 00058 g008 550

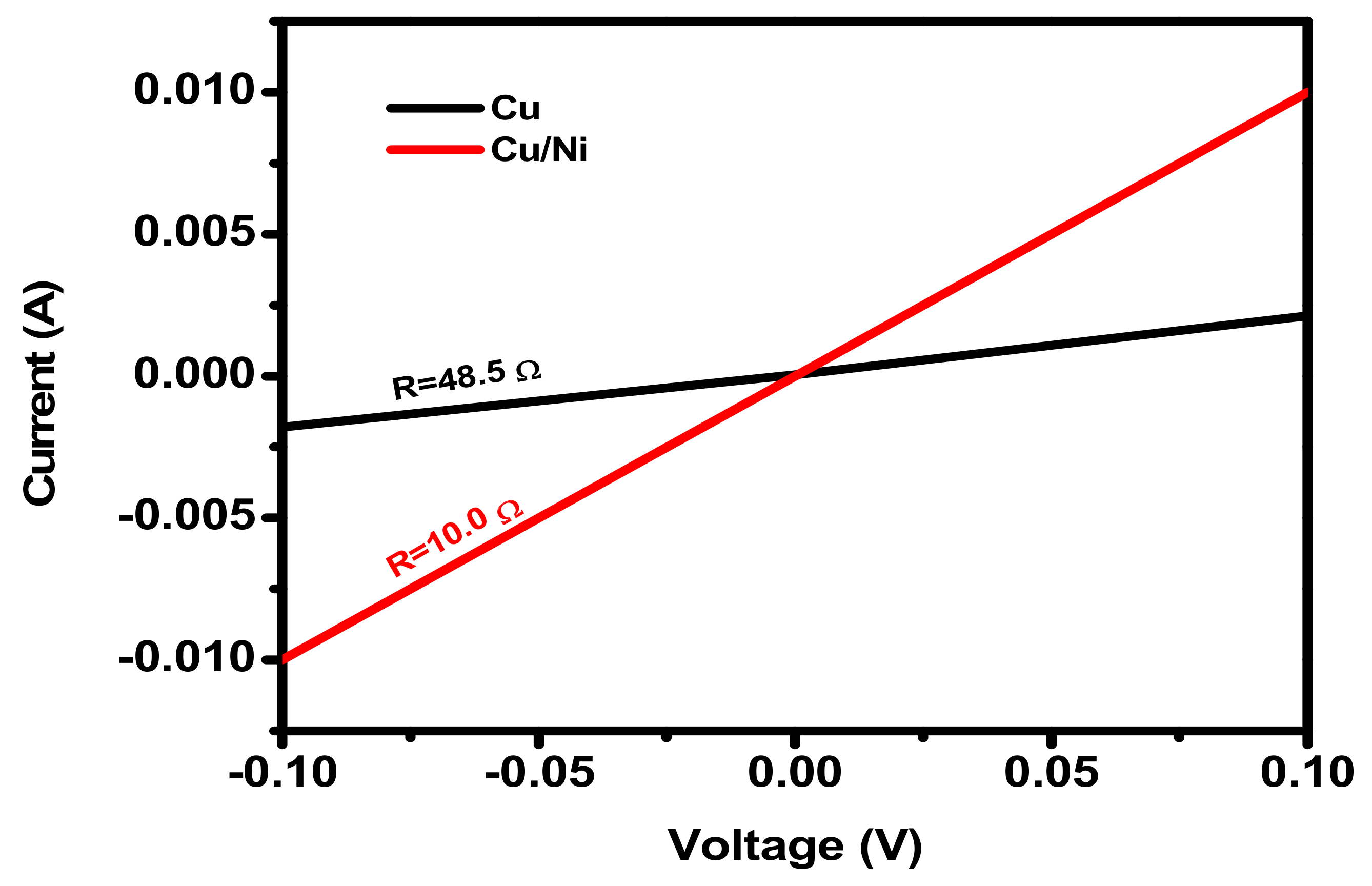

Figure 8. Electrical characterization of Cu-Ni.
Figure 8. Electrical characterization of Cu-Ni.
Catalysts 12 00058 g008
Catalysts 12 00058 g009 550

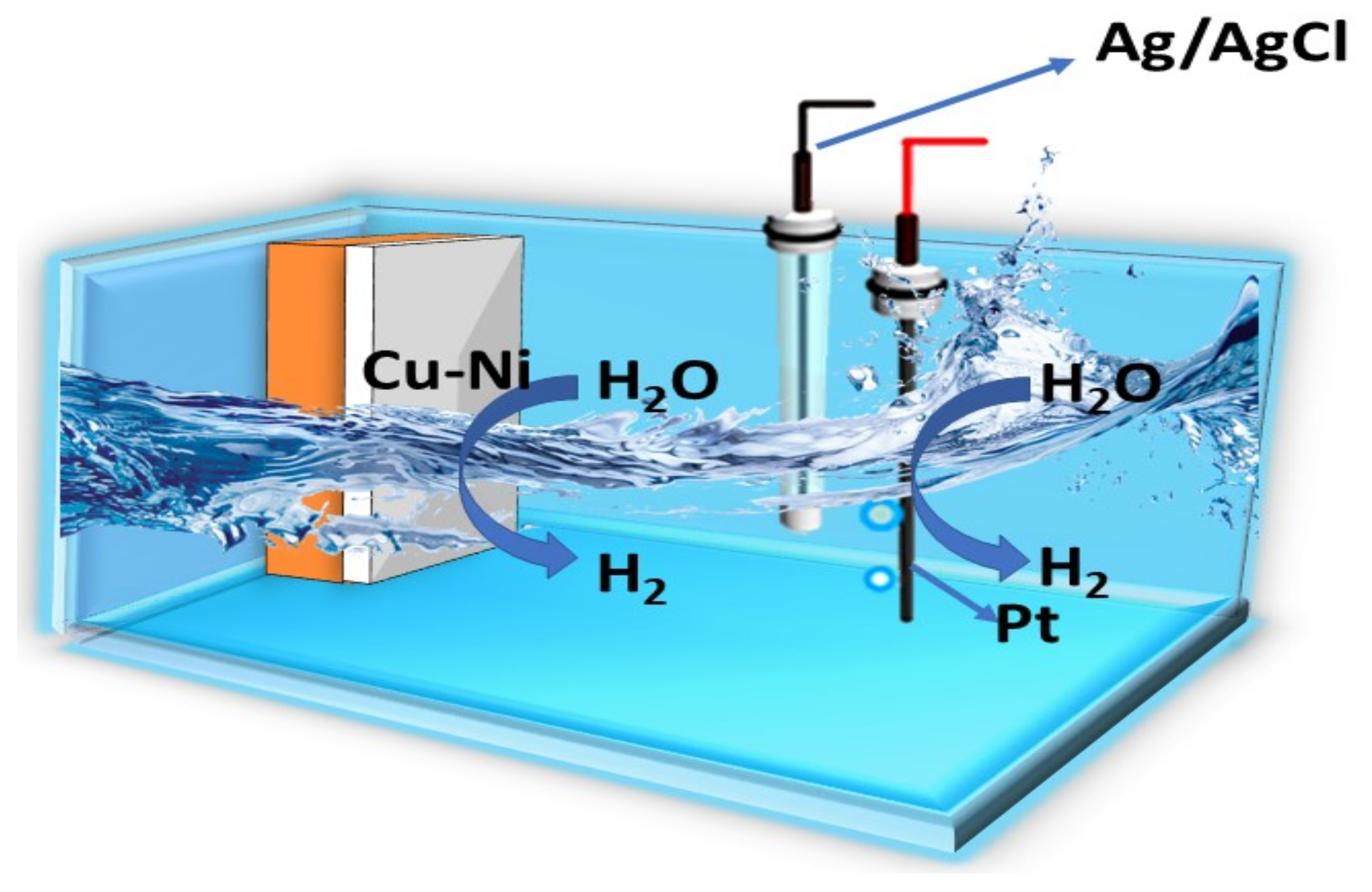

Figure 9. Schematic image of the experiment.
Figure 9. Schematic image of the experiment.
Catalysts 12 00058 g009
Table
Table 1. Comparison of the HER performance of Cu-Ni with other reports.
Table 1. Comparison of the HER performance of Cu-Ni with other reports.
Catalyst Tafel Slope (mV dec-1)Reference
NiSe2 Nano sheets184[39]
Carbon paper/carbon tubes/Co-S131[40]
N, P, Co-doped graphene145[41]
Cu/Ni/MoO3115This work
