Polyacrylonitrile Derived Robust and Flexible Poly(ionic liquid)s Nanofiber Membrane as Catalyst Supporter

by
Yue Gao
1,2,
Qing-Bo Meng
1,*,
Bao-Xin Wang
1,
Yu Zhang
1,
Hui Mao
1,
Da-Wei Fang
1 and
Xi-Ming Song
1,*
1
Liaoning Key Laboratory for Green Synthesis and Preparative Chemistry of Advanced Materials, College of Chemistry, Liaoning University, Shenyang 110036, China
2
International School, Shenyang Polytechnic College, Shenyang 110045, China
*
Authors to whom correspondence should be addressed.
Catalysts 2022, 12(3), 266; https://doi.org/10.3390/catal12030266
Submission received: 5 February 2022 / Revised: 21 February 2022 / Accepted: 24 February 2022 / Published: 26 February 2022
(This article belongs to the Topic State-of-the-Art Photochemical Technology for Water and Wastewater Treatment)
Browse Figures
Versions Notes

Abstract

:
Poly(ionic liquid)s nanofiber (PIL NF) membrane was derived from polyacrylonitrile by converting its cyano groups to imidazoline moieties via cyclization with ethylenediamine, followed by quaternization with 1-bromobutane. The novel PIL NF is further decorated with photocatalyst phosphotungstic acid PW12 via anion exchanging to give PW-PIL. The degradation rate of the novel supported photocatalyst towards methyl orange irradiated under visible light was found to be 98%. In addition, the nanofiber membrane morphology is beneficial for easy recycling, and 98% of original degradation rate was maintained after 5 cycles of photocatalysis degradation. This robust, efficient, and recyclable material offers a new approach for serving as catalyst supporter. The photocatalyst PW-PIL is reported for the first time. The inexpensive functional membrane is used to exploit the sun as a cheap and clean source of light.

1. Introduction

Polyacrylonitrile nanofiber (PAN NF) membrane has quite a few advantages including low density, good flexibility, low cost, and is applied in various areas such as the textile industry, construction materials and precursor of carbon fiber [1,2,3,4]. Besides, application of PAN could also be extended to other fields including adsorption of metal-ions, catalysis or catalyst supporter, by converting chemically active cyano groups in PAN into other kinds of functional groups such as amino [5], carboxyl [6], and imidazoline [7]. These achievements inspire us to further develop novel functional materials from PAN NF membrane, by utilization of their abundant cyano groups [8].
Poly(ionic liquid)s (PILs) have gained great interest in material research due to their favorable properties of both ionic liquid and conventional polyelectrolyte, especially for serving as a supporter of functional materials via simple anion exchanging. PILs are traditionally prepared via classic free radical polymerization of ionic liquid monomers with vinyl groups [9]. This method is widely employed and easy to handle, but its applicability is often limited by the lower degree of polymerization [10]. Another way to obtain PILs is by modifying the nitrogen-containing side groups (e.g., imidazole, pyridine) existing in synthesized polymer. Since PAN could be converted to poly(2-vinylimidazoline) via cyclization reaction with ethylenediamine, we can expect that the PAN-based PILs can be derived via ionization of the imidazoline groups while maintaining the degree of polymerization and nanofiber membrane morphology of PAN.
Recently, handling wastewater containing organic dyes has been an emerging topic for researchers [11]. At present, several methods such as membrane separation, adsorption and biochemical degradation technology have been developed [12], but their applications are limited by their relatively low removal rate of pollutants, production of secondary pollution or harmful intermediates and so forth [13,14,15,16]. Recently, the photocatalytic degradation of organic dyes in wastewater, especially by irradiation with visible light, has attracted much attention from scientists [17,18,19], because photocatalysis is an effective way to consume renewable energy, which is more environmentally friendly than other catalytic systems. Polyoxometalates (POMs) are a class of stable transition metal oxides with excellent photochemical properties similar to semiconductors [20,21], but the separation and recycling of water-soluble POMs is still a challenge. Loading POMs on supporters is considered to be an effective method to solve the problem [22,23,24], and developing inexpensive, accessible and stable supporters with high immobilization capacity are required.
Table 1 shows the development of photocatalytic membrane materials in recent years. We compare and analyze the research status of photocatalysts from the following aspects: the raw materials, preparation method, degradation materials, preparation cost, reusability, and visible light response. The conclusion being that the preparation of a visible light responsive, low cost, easy recovery, good flexibility, insoluble in water, simple preparation method of polymer catalyst is an effective way to degrade dye wastewater.
In the present work, low-cost and flexible PAN NF membranes are modified to PILs and furthermore decorated with photocatalytic active POM phosphotungstic acid (PW12). The photocatalytic properties of the as-obtained PW-PIL composite membrane were investigated for degradation of methyl orange (MO) under visible light, and this kind of composite photocatalytic material with high molecular weight and nanofiber membrane morphology exhibited good catalytic ability and recyclability.

2. Results and Discussion

2.1. Characterization of PW-PIL NF Membrane

The PAN, PVIm, Br-PIL, PW-PIL NF membranes and PW12 were characterized by FT-IR, and the spectra were collected in Figure 1a. The peak at 1451 cm−1 in the spectrum of PAN represents the in-plane vibrations of C-H. The peaks at 2246 and 1074 cm−1 are appointed as the stretching and bending vibrations of C≡N [40,41,42]. In the spectrum of PVIm, the characteristic peak at 2246 cm−1 associated with C≡N disappears, while the new peaks at 1673 and 1389 cm−1 are assigned to the stretching vibration of C=N and C-N in imidazoline ring, suggesting the successful conversion of the C≡N group to imidazoline unit via cyclization with ethylenediamine [43,44]. Furthermore, in the PW12 spectrum, the peaks at 1074, 998, 892 and 813 cm−1 are assigned as the vibration of P-O, W-O, W-O-Wcorner and W-O-Wedge, respectively. In the (PW-PIL) IR spectrum, the peaks at 1074 and 998 cm−1 related to the vibration of the P-O group and the W-O resonance appeared, while the peaks at 1673 and 1074 cm−1 related to imidazoline can be seen [45], implying successful production of desired PW-PIL composite.
Figure 1b shows the SEM images of PAN and PW-PIL NF membranes. Compared to the PAN, the surface of PW-PIL is rougher, which is mostly attributed to uniformly distributed POM on the PW-PIL. In addition, honeycomb like cavity can be observed on the surface of PW-PIL NF, which may increase surface area of the membrane as well as adsorption capacity [46] and could be anticipated as an ideal polymer-supporter.
XPS analysis is conducted to investigate the chemical composition of the surface and the elemental chemical states of the as-prepared samples. The elements of C, O and N can be detected on the surface of PAN. The C and N elements result from PAN molecules, while the elements of P and W are assigned to PW12 (Figure 2a). The W content is 5.14%, suggesting that the anion exchange process was successful. High-resolution XPS was employed to monitor the N element Binding Energy (Figure 2b). The N1S peak at 400.7 eV (N1) and 402.3 eV (N2) belong to the imidazolinium. In Figure 2c, the XPS spectrum indicates that the intensity ratio of C1S. C-C has the highest peak, and the remaining two peaks were from C-N and C=N, respectively.
In order to inspect the light absorption features of the raw and modified materials, UV-visible diffuse reflectance spectra (DRS) of the PAN, PW12, PVIm, Br-PIL and PW-PIL NF membranes were measured, and the results are shown in Figure 3a. As expected, no significant absorption could be observed for PAN in both the UV and visible region. Similarly, pure PW12 exhibited little absorption in the visible area (>400 nm). Nevertheless, PW-PIL exhibits significant absorption in the UV and visible area, indicating that visible-light absorption of PW12 photocatalyst could be effectively improved by the charge mobility of the PIL [47]. The bandgap energy between energy bands of PW-PIL is 3.09 eV (Kubelka–Munk theory) according to the UV-vis diffuse reflectance spectra.
X-ray diffraction measurements on the sample PAN, PW12, PVIm, Br-PIL and PW-PIL were performed for confirming their crystal structure, and the relevant results were collected in the Figure 3b. For PAN NF membrane, a diffraction peak could be observed at the range of 16 to 17 of 2θ, which should be attributed to the hexagonal (100) crystal plane [48]. Another weaker crystal diffraction peak (110) is present at a 2θ value of about 28 to 29. In the Figure 3a of PVIm, the decrease in the 2θ value of 17 and the change of others in the (100) diffraction peak can be attributed to the production of an imidazoline group. In the sample of PW12, the 2θ values are at 10, 20, 23, 25, 28, and 31 corresponding to the (110, 200, 220, 310, 222, 400) crystal form of PW12, respectively, as reported in the reference [49]. This assignment is advocated by correlation with the XRD pattern of PW12, in which all peaks are observed on the JCPDS number 50-0657 card. In the case of Br-PIL, the 2θ value of 17 is equal to that in the PVIm, and the 2θ value of 29 is significantly weakened [50]. The comparison of the Br-PIL and PVIm patterns demonstrate that the ionization does not significantly the crystal form of PVIm. In the diffraction pattern of PW-PIL, no impurity peaks can be observed, and comparing with PAN, the peaks associated with 2θ values of 17, 29 disappear, while the two novel peaks appear at the 2θ values of 8, 23 correspond to the PW12 (200) and (001) crystal form, further suggesting successful synthesis of PW-PIL.

2.2. Photodegradation of Methyl Orange under Visible Light

The visible light-based photocatalytic degradation reaction of MO was carried out in water. Methyl orange is an azo dye whose chromophores are mainly azo fragments. The main degradation method of azo dyes is chemical oxidation, in the presence of oxidants such as POM or ozone, azo fragments can be oxidized. Thus, degrading MO is used to verify the experiment. The results are shown in Figure 4a [51]. In comparison, control experiments were also performed by conducting the photocatalytic degradation in the absence of PW-PIL or simply blending PAN with PW12 under the same experimental condition. The concentration change of MO during catalysis process was monitored by measuring UV-visible spectra of samples separated from the solution at a given interval. The results demonstrate the degradation rate under dark conditions is only 1%, but 98% of MO is rapidly degraded in the presence of PW-PIL after the equal period under visible light irradiation, and the colour change of MO aqueous solution in the course of the photocatalytic degradation process is shown in Figure 4c. These results indicate that PW-PIL is an efficient photocatalyst for the degradation of MO [52,53]. In addition, from Figure 4a. B we can find that simply blending the PAN and the PW12 can only obtain c.a. 20% photocatalytic degradation under the same conditions.
For investigating the recyclability of the supported catalyst, PW-PIL NF membrane was separated from the photocatalytic reaction system and subsequently washed with deionized water and ethanol three times, respectively, followed by drying in a vacuum oven at 60 °C for 8 h to perform the new cycle of photocatalysis experiments under the identical condition. The results shown in Figure 4b indicate that after five cycles, 98% of the initial degradation rate of MO could be maintained, suggesting that PW-PIL NF membrane is an effective photocatalyst and convenient for recyclization since the membrane morphology can avoid the additional centrifugation process which is usually necessary for recovery of the powder like catalyst supports, and the strong Coulombic force between the negative charged PW12 and the positive charged imidazolinium group allows higher immobilization stability of the photocatalyst PW12.
A potential mechanism from aspects of molecule energy and structure is given in Figure 5 and Figure 6. The bandgap energy between energy bands of PW-PIL is 3.09 eV (Kubelka–Munk theory) according to the UV-vis diffuse reflectance spectra, indicating that PW-PIL can effectively absorb visible light [54]. As the imidazolinium groups with the positive charge can seize the negatively charged PW12 via coulombic interaction, a built-in field could be formed between PW12 and PIL chain, which would enhance the transfer of photo generated electrons. It is known that POM can be considered as a low dimensional semiconductor structure [55]. Under visible light irradiation, electrons of PW12 excite from valence band (VB) energy level to conduction band (CB) energy level, and the photogenerated electrons entering CB energy level react with O2 on surface to form O2−, while the photogenerated holes of VB level react with OH− to form ·OH, which further degrades MO. H2O2 acts as an initiator to form ·OH with O2− [56,57,58].

3. Experimental

3.1. Materials and Methods

Polyacrylonitrile nanofiber (PAN NF, Mw = 150,000) electrospinning membrane was purchased from Fushun Petrochemical Company. N, N-dimethylformamide (DMF), hydrogen peroxide, ethylene diamine, toluene, ethanol, phosphotungstic acid, 1-bromobutane, methyl orange, ethylene glycol and acetone were purchased from Aladdin Reagent co. as analytical pure agents and used without further purification. All the reagents used in the article are analytical pure.

3.2. Synthesis of Imidazolin Group-Containing Polymers

PAN NFs membrane (200 mg) was cut and immersed in a mixture of ethylene glycol (2 mL), ethylenediamine (2 mL) and DMF (20 mL) in H2O (20 mL) and the mixture was heated to 80 °C and maintained for 4 h under N2 atmosphere. After the mixture was naturally cooled down the modified membrane was washed with deionized water and acetone for three times, respectively, and then dried in vacuum oven at 60 °C for 8 h, to obtain an imidazoline group-containing poly(2-vinylimidazolinium) membrane, which was designated as PVIm [7].

3.3. Synthesis of Br-Based Poly(ionic liquid)s NF Membrane

The PVIm NFs membrane (100 mg) and 1-bromobutane (1 mL) were added in DMF (40 mL) and then the temperature was elevated to 80 °C to conduct the quaternization reaction for 24 h. After cooling down, the obtained light-yellow membrane was washed with water and ethanol for three times, respectively, and then dried in vacuum oven at 60 °C for 8 h, to obtain a PIL membrane containing Br- anion, poly(1-butyl-2-vinylimidazolinium) bromide, which was designated as Br-PIL.

3.4. Synthesis of PW12O403− Based Poly(ionic liquid)s NF Membrane

Phosphotungstic acid (100 mg) and Br-PIL (20 mg) were added in water (40 mL) and stirred at 60 °C for 4 h to perform ion exchange reaction. The obtained greyish-green membrane was washed with deionized water for three times, and then dried in a vacuum oven at 60 °C for 8 h to obtain a PIL membrane with PW12O403− as counter anion, poly(1-butyl-2-vinylimidazolinium) phosphotungstate, which was designated as PW-PIL (Scheme 1).

3.5. Preparation of PW-PIL NF Membranes

The synthetic route of PW-PIL NF membrane is shown in Scheme 1. Briefly, the PAN NF membrane was fabricated using an electrospinning method, and their cyano groups were converted to imidazoline moieties via cyclization with ethylenediamine. The obtained poly(2-vinylimidazoline) (denominated as PVIm) was subsequently ionized by 1-bromobutane to give Br-based poly(ionic liquid) (Br-PIL), which was further anion exchanged with phosphotungstate acid PW12 to obtain the PW-PIL NF membrane.

3.6. Photocatalytic Degradation of Methyl Orange (MO) and Recyclization

The photocatalytic performance of the sample was determined using a 500-watt xenon lamp (CHFXQ500W, Beijing Integrity Technology Co., Ltd. (Beijing, China)) as the light source to control the wavelength of light with a 400 nm filter plate. The radiation intensity was 100 mW/cm2. The visible light-based photocatalytic degradation reaction of MO was carried out in water. Briefly, PW-PIL (20 mg) and hydrogen peroxide (10 μL) were added to a 50 ppm aqueous solution (20 mL) of MO, and the mixture was initially stirred (with magneton for magnetic stirring) in dark for 120 min. Afterwards photocatalytic degradation of MO was conducted under irradiation of a 500 W xenon lamp (using a 400 nm optical filter to filter off ultraviolet light) for 2 h at room temperature. For comparison, control experiments were also performed by conducting the photocatalytic degradation without photocatalyst or in the presence of blending of PAN with PW12 under the same experimental condition. The concentration change of MO during catalysis process was monitored by measuring UV- visible spectra of samples separated from the solution at an interval of 20 min. For investigating the recyclability of the supported catalyst, PW-PIL NF membrane was separated from the photocatalytic reaction system and subsequently washed with deionized water and ethanol for three times, respectively, followed by drying in a vacuum oven at 60 °C for 8 h to perform the new cycle of photocatalysis experiments under the identical condition.

3.7. Characterization

The morphology of the sample was observed by scanning electron microscopy (SEM) (Hitachi S-4800, operating at 15 kV). The UV-visible spectra of liquid samples were measured with an ultraviolet spectrophotometer (TU 1901). UV-visible diffuse reflectance spectra (DRS) of solid samples were performed using a Shimadzu-2550 UV system with a reference to BaSO4 in the range of 200–800 nm. Fourier transferred Infrared (FT-IR) spectra were recorded using a Perkin Elmer 1600 infrared spectrophotometer. X-ray diffraction spectra of the samples in the range of 5–90° were characterized using a Rigaku D/max-2500 diffractometer operating at 40 kV and 150 mA (λ = 0.15406 nm). The degree of anion exchange was determined using X-ray photoelectron spectroscopy (XPS) (ESCALAB MK II). Photoluminescence of a 150 W ozone-free Xe source was recorded on a fluorescence spectrophotometer (FS5-TCSPC Edinburgh Instruments, Livingston, UK).

4. Conclusions

In conclusion, a robust, flexible, and recyclable PIL NF membrane decorated with photocatalyst POM is prepared by modification of low-cost raw material PAN NF membrane through cyclization reaction, ionization and anion exchanging process, and then employed for photo degradation of MO under irradiation of visible light. The degradation rate was found to be around 98% and can be well maintained after 5 cycles. From the perspective of economic benefit, the market price of PILs is c.a. $150 thousand dollars per kg, while the price of PAN is only one million of PILs. In addition, the photocatalyst is mostly in powder form, meaning that the additional centrifugation process is required for recycling, while the membrane photocatalyst is much easier to recycle. The photocatalyst PW-PIL is reported for the first time. The inexpensive functional PIL NF membrane could be in principle produced on a large scale and give rise to more economical photodegradation approaches. A sustainable process can be obtained when a photocatalytic membrane utilises the sun as a cheap and clean source of light. On this aspect, the development of new photocatalysts with high activity under visible light and their application in the various research fields is a mandatory task.

Author Contributions

Material preparation, catalytic experiments and writing—original draft, Y.G.; writing—review & editing, Q.-B.M.; data analysis, Q.-B.M., Y.Z., H.M. and D.-W.F.; theoretical investigation, B.-X.W.; original idea and supervision, X.-M.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work is supported by the National Natural Science Foundation of China (No.51773085 and 51803084).

Data Availability Statement

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bode-Aluko, C.A.; Pereao, O.; Ndayambaje, G.; Petrik, L. Adsorption of toxic metals on modified polyacrylonitrile nanofibers: A review. Water Air Soil Pollut. 2017, 228, 1–11. [Google Scholar] [CrossRef]
  2. Geller, B.E. Polyacrylonitrile fibres. Prospects for development of production. A review. Fiber Chem. 1997, 29, 341–345. [Google Scholar] [CrossRef]
  3. Geller, B.E. Status and prospects for development of polyacrylonitrile fiber production. A review. Fiber Chem. 2002, 34, 151–161. [Google Scholar] [CrossRef]
  4. Li, L.; Wang, X.-F.; Zhong, J.-J.; Qian, X.; Song, S.-L.; Zhang, Y.-G.; Li, D.-H. Nitrogen-Enriched Porous Polyacrylonitrile-Based Carbon Fibers for CO2 Capture. Ind. Eng. Chem. Res. 2018, 57, 11608–11616. [Google Scholar] [CrossRef]
  5. Morcali, M.H.; Zeytuncu, B. Investigation of adsorption parameters for platinum and palladium onto a modified polyacrylonitrile-based sorbent. Int. J. Miner. Process. 2015, 137, 52–58. [Google Scholar] [CrossRef]
  6. Li, Y.; Wang, H.; Lu, J.; Chu, A.; Zhang, L.; Ding, Z.; Xu, S.; Gu, Z.; Shi, G. Preparation of immobilized lipase by modified polyacrylonitrile hollow membrane using nitrile-click chemistry. Bioresour. Technol. 2018, 274, 9–17. [Google Scholar] [CrossRef]
  7. Lin, K.; Song, M.; Cai, D.; Hao, X.; Wu, Y. Polymer (fiber)-supported palladium catalyst containing imidazolinyl rings and its application to the Heck reaction. Tetrahedron Lett. 2003, 44, 3955–3957. [Google Scholar] [CrossRef]
  8. Almasian, A.; Jalali, M.; Fard, G.C.; Maleknia, L. Surfactant grafted PDA-PAN nanofiber: Optimization of synthesis, characterization and oil absorption property. Chem. Eng. J. 2017, 326, 1232–1241. [Google Scholar] [CrossRef]
  9. Miao, L.; Liu, G.; Wang, J. Ag-nanoparticle-bearing poly(vinylidene fluoride) nanofiber mats as Janus filters for catalysis and separation. ACS Appl. Mater. Interfaces 2019, 11, 7397–7404. [Google Scholar] [CrossRef]
  10. Lu, J.; Yan, F.; Texter, J. Advanced applications of ionic liquids in polymer science. Prog. Polym. Sci. 2009, 34, 431–448. [Google Scholar] [CrossRef]
  11. Baldez, E.E.; Robaina, N.F.; Cassella, R.J. Employment of polyurethane foam for the adsorption of Methylene Blue in aqueous medium. J. Hazard. Mater. 2008, 159, 580–586. [Google Scholar] [CrossRef]
  12. Hu, F.; Fang, C.; Wang, Z.; Liu, C.; Zhu, B.; Zhu, L. Poly(N-vinyl imidazole) gel composite porous membranes for rapid separation of dyes through permeating adsorption. Sep. Purif. Technol. 2017, 188, 1–10. [Google Scholar] [CrossRef]
  13. Esther, F.; Tibor, C.; Gyula, O. Removal of synthetic dyes from wastewaters: A review. Environ. Int. 2004, 30, 953–971. [Google Scholar]
  14. Yu, S.; Wang, X.; Ai, Y.; Liang, Y.; Ji, Y.; Li, J.; Hayat, T.; Alsaedi, A.; Wang, X. Spectroscopic and theoretical studies on the counterion effect of Cu(ii) ion and graphene oxide interaction with titanium dioxide. Environ. Sci. Nano 2016, 3, 1361–1368. [Google Scholar] [CrossRef]
  15. Yuan, Y.J.; Ye, Z.J.; Lu, H.W.; Hu, B.; Li, Y.H.; Chen, D.Q.; Zhong, J.S.; Yu, Z.T.; Zou, Z.G. Constructing anatase TiO2 nanosheets with exposed (001) facets/layered MoS2 two-dimensional nanojunctions for enhanced solar hydrogen generation. ACS Catal. 2016, 6, 532–541. [Google Scholar] [CrossRef]
  16. Molinari, R.; Lavorato, C.; Argurio, P.; Szyma´nski, K.; Darowna, D.; Mozia, S. Overview of Photocatalytic Membrane Reactors in Organic Synthesis, Energy Storage and Environmental Applications. Catalysts 2019, 9, 239. [Google Scholar] [CrossRef] [Green Version]
  17. Han, X.; Han, Z.; Li, J.; Zhao, J.; Zhao, X. Coordinative integration of copper (II) and iron (II) phthalocyanine into amidoximated PAN fiber for enhanced photocatalytic activity under visible light irradiation. J. Colloid Interface Sci. 2018, 533, 333–343. [Google Scholar] [CrossRef]
  18. Sun, W.; Li, X.; Shao, C.; Li, X.; Zhao, L.; Lu, N.; Liu, Y. Controllable preparation of three-dimensional porous WO3 with enhanced visible light photocatalytic activity via a freeze-drying method. J. Mater. Sci. Mater. Electron. 2018, 29, 9605–9612. [Google Scholar] [CrossRef]
  19. Li, X.; Yin, R.; Liu, Y.; Luo, Q.; An, J.; Wang, D.; Liu, S.; Dai, B. Enhanced visible light photocatalytic activity of zno nanoparticles modified by cyclized polyacrynitrile. Environ. Prog. Sustain. Energy 2018, 38, 336–344. [Google Scholar] [CrossRef]
  20. Keita, B.; Nadjo, L. Polyoxometalate-based homogeneous catalysis of electrode reactions: Recent achievements. J. Mol. Catal. A Chem. 2007, 262, 190–215. [Google Scholar] [CrossRef]
  21. Zhang, G.; Keita, B.; Biboum, R.N.; Miserque, F.; Berthet, P.; Dolbecq, A.; Mialane, P.; Catala, L.; Nadjo, L. Synthesis of various crystalline gold nanostructures in water: The polyoxometalate β-[H4PMo12O40]3− as the reducing and stabilizing agent. J. Mater. Chem. 2009, 19, 8639–8644. [Google Scholar] [CrossRef]
  22. Ji, X.; Zhang, Q.; Qu, X.; Wang, Q.; Song, X.-M.; Liang, F.; Yang, Z. Poly(ionic liquid) Janus nanosheets towards dye degradation. RSC Adv. 2015, 5, 21877–21880. [Google Scholar] [CrossRef]
  23. Tang, X.; Hou, Y.; Meng, Q.B.; Zhang, G.; Liang, F.; Song, X.M. Heteropoly acids-functionalized Janus particles as catalytic emulsifier for heterogeneous acylation in flow ionic liquid-in-oil Pickering emulsion. Colloids Surf. A. Physicochem. Eng. Asp. 2019, 570, 191–198. [Google Scholar] [CrossRef]
  24. Li, Q.; Guo, J.; Chen, Y.; Kim, H. Preparation and characterization of polyacrylonitrile doped PVDF/heteropoly acid composite membranes. High Perform. Polym. 2012, 24, 282–288. [Google Scholar] [CrossRef]
  25. Horovitz, I.; Avisar, D.; Baker, M.A.; Grilli, R.; Lozzi, L.; Di Camillo, D.; Mamane, H. Carbamazepine degradation using a N-doped TiO2 coated photocatalytic membrane reactor: Influence of physical parameters. J. Hazard. Mater. 2016, 310, 98–107. [Google Scholar] [CrossRef] [Green Version]
  26. Wang, W.-Y.; Irawan, A.; Ku, Y. Photocatalytic degradation of Acid Red 4 using a titanium dioxide membrane supported on a porous ceramic tube. Water Res. 2008, 42, 4725–4732. [Google Scholar] [CrossRef]
  27. Dzinun, H.; Othman MH, D.; Ismail, A.F.; Puteh, M.H.; Rahman, M.A.; Jaafar, J. Stability study of PVDF/TiO2 dual layer hollow fibre membranes under long-term UV irradiation exposure. J. Water Process Eng. 2017, 15, 78–82. [Google Scholar] [CrossRef]
  28. Kim, J.H.; Joshi, M.K.; Lee, J.; Park, C.H.; Kim, C.S. Polydopamine-assisted immobilization of hierarchical zinc oxide nanostructures on electrospun nanofibrous membrane for photocatalysis and antimicrobial activity. J. Colloid Interface Sci. 2018, 513, 566–574. [Google Scholar] [CrossRef]
  29. Feng, J.; Xiong, S.; Wang, Y. Atomic layer deposition of hybrid metal oxides on carbon nanotube membranes for photodegradation of dyes. Compos. Commun. 2018, 12, 39–46. [Google Scholar] [CrossRef]
  30. De Filpo, G.; Pantuso, E.; Armentano, K.; Formoso, P.; Di Profio, G.; Poerio, T.; Fontananova, E.; Meringolo, C.; Mashin, A.I.; Nicoletta, F.P. Chemical Vapor Deposition of Photocatalyst Nanoparticles on PVDF Membranes for Advanced Oxidation Processes. Membranes 2018, 8, 35. [Google Scholar] [CrossRef] [Green Version]
  31. Singh, R.; Yadav, V.; Purkait, M.K. Cu2O photocatalyst modified antifouling polysulfone mixed matrix membrane for ultrafiltration of protein and visible light driven photocatalytic pharmaceutical removal. Sep. Purif. Technol. 2018, 212, 191–204. [Google Scholar] [CrossRef]
  32. Rao, G.; Zhang, Q.; Zhao, H.; Chen, J.; Li, Y. Novel titanium dioxide/iron (III) oxide/graphene oxide photocatalytic membrane for enhanced humic acid removal from water. Chem. Eng. J. 2016, 302, 633–640. [Google Scholar] [CrossRef]
  33. Gao, B.; Chen, W.; Liu, J.; An, J.; Wang, L.; Zhu, Y.; Sillanpää, M. Continuous removal of tetracycline in a photocatalytic membrane reactor (PMR) with ZnIn2S4 as adsorption and photocatalytic coating layer on PVDF membrane. J. Photochem. Photobiol. A: Chem. 2018, 364, 732–739. [Google Scholar] [CrossRef]
  34. Li, Y.; Zhu, L. Evaluation of the antifouling and photocatalytic properties of novel poly(vinylidene fluoride) membranes with a reduced graphene oxide-Bi2WO6 active layer. J. Appl. Polym. Sci. 2017, 134. [Google Scholar] [CrossRef]
  35. Yu, Z.; Min, X.; Li, F.; Yin, D.; Peng, Y.; Zeng, G. A mussel-inspired method to fabricate a novel reduced graphene oxide/Bi12O17Cl2 composites membrane for catalytic degradation and oil/water separation. Polym. Adv. Technol. 2018, 30, 101–109. [Google Scholar] [CrossRef] [Green Version]
  36. Baig, U.; Matin, A.; Gondal, M.; Zubair, S. Facile fabrication of superhydrophobic, superoleophilic photocatalytic membrane for efficient oil-water separation and removal of hazardous organic pollutants. J. Clean. Prod. 2018, 208, 904–915. [Google Scholar] [CrossRef]
  37. Alias, S.S.; Harun, Z.; Latif, I.S.A. Characterization and performance of porous photocatalytic ceramic membranes coated with TiO2 via different dip-coating routes. J. Mater. Sci. 2018, 53, 11534–11552. [Google Scholar] [CrossRef]
  38. Dong, P.; Huang, Z.; Nie, X.; Cheng, X.; Jin, Z.; Zhang, X. Plasma enhanced decoration of nc-TiO2 on electrospun PVDF fibers for photocatalytic application. Mater. Res. Bull. 2019, 111, 102–112. [Google Scholar] [CrossRef]
  39. Kovács, I.; Beszédes, S.; Kertész, S.; Veréb, G.; Hodúr, C.; Papp, I.Z.; Kukovecz, A.; László, Z. Investigation of Titanium-Dioxide Coatings on Membrane Filtration Properties. Studia Univ. Babes-Bolyai Chem. 2017, 62, 249–259. [Google Scholar] [CrossRef]
  40. Sampathkumar, R.; Sabesan, R.; Krishnan, S. Dipole moment studies of the structure of 2,6-diaryl-4-piperidones. J. Mol. Liq. 2006, 130, 2–6. [Google Scholar] [CrossRef]
  41. Zhang, Z.; Liao, Z.; Zhang, G. Degradation performance of a Keggin type Zn–Mo–Zr catalyst for acidic green B with ultrasonic waves. RSC Adv. 2015, 5, 63104–63110. [Google Scholar] [CrossRef]
  42. Wang, H.; Huang, X.; Li, W.; Gao, J.; Xue, H.; Li, R.K.; Mai, Y.-W. TiO2 nanoparticle decorated carbon nanofibers for removal of organic dyes. Colloids Surf. A Physicochem. Eng. Asp. 2018, 549, 205–211. [Google Scholar] [CrossRef]
  43. Cheng, H.; Huang, B.; Yang, K.; Wang, Z.; Qin, X.; Zhang, X.; Dai, Y. Facile Template-Free Synthesis of Bi2O2CO3 Hierarchical Microflowers and Their Associated Photocatalytic Activity. ChemPhysChem 2010, 11, 2167–2173. [Google Scholar] [CrossRef] [PubMed]
  44. Yang, J.; Chu, S.; Guo, Y.; Luo, L.; Kong, F.; Wang, Y.; Zou, Z. Hyperbranched polymeric N-oxide: A novel kind of metal-free photocatalyst. Chem. Commun. 2012, 48, 3533–3535. [Google Scholar] [CrossRef]
  45. Huang, Y.; Yuan, Z.; Zhao, D.; Wang, F.; Zhang, K.; Li, Y.; Wen, Y.; Wang, C. Polymyxin B immobilized nanofiber sponge for endotoxin adsorption. Eur. Polym. J. 2018, 110, 69–75. [Google Scholar] [CrossRef]
  46. Luo, Q.; Yang, X.; Zhao, X.; Wang, D.; Yin, R.; Li, X.; An, J. Facile preparation of well-dispersed, Z.nO/cyclized polyacrylonitrile nanocomposites with highly enhanced visible-light photocatalytic activity. Appl. Catal. B Environ. 2017, 204, 304–315. [Google Scholar] [CrossRef]
  47. Xue, G.; Dai, Q.; Jiang, S. Chemical reactions of imidazole with metallic silver studied by the use of SERS and XPS techniques. J. Am. Chem. Soc. 1988, 110, 2393–2395. [Google Scholar] [CrossRef]
  48. Zhou, M.; Yu, J. Preparation and enhanced daylight-induced photocatalytic activity of C,N,S-tridoped titanium dioxide powders. J. Hazard. Mater. 2008, 152, 1229–1236. [Google Scholar] [CrossRef]
  49. Zhou, Q.; Li, L.; Zhang, X.; Yang, H.; Cheng, Y.; Che, H.; Wang, L.; Cao, Y. Construction of heterojunction and homojunction to improve the photocatalytic performance of ZnO quantum dots sensitization three-dimensional ordered hollow sphere ZrO2–TiO2 arrays. Int. J. Hydrogen Energy 2020, 45, 31812–31824. [Google Scholar] [CrossRef]
  50. Ndlwana, L.; Raleie, N.; Dimpe, M.; Ogutu, H.; Motsa, M.M.; Mamba, B.B. Sustainable Hydrothermal and Solvothermal, Synthetic Approaches for Advanced Carbon Materials in Multidimensional Applications: A Review. Preprints 2021. [Google Scholar] [CrossRef]
  51. Taghavi, M.; Ehrampoush, M.H.; Ghaneian, M.T.; Tabatabaee, M.; Fakhri, Y. Application of a Keggin-type heteropoly acid on supporting nanoparticles in photocatalytic degradation of organic pollutants in aqueous solutions. J. Clean. Prod. 2018, 197, 1447–1453. [Google Scholar] [CrossRef]
  52. Zhong, J.B. Photocatalytic decolorization of methyl orange solution with phosphotungstic acid. Iran. J. Chem. Chem. Eng. 2013, 32, 57–65. [Google Scholar]
  53. Maeda, K.; Teramura, K.; Saito, N.; Inoue, Y.; Kobayashi, H.; Domen, K. Overall water splitting using (oxy)nitride photocatalysts. Pure Appl. Chem. 2006, 78, 2267–2276. [Google Scholar] [CrossRef]
  54. Rauf, M.; Ashraf, S. Fundamental principles and application of heterogeneous photocatalytic degradation of dyes in solution. Chem. Eng. J. 2009, 151, 10–18. [Google Scholar] [CrossRef]
  55. Chen, G.; Sun, M.; Wei, Q.; Zhang, Y.; Zhu, B.; Du, B. Ag3PO4/graphene-oxide composite with remarkably enhanced visible-light-driven photocatalytic activity toward dyes in water. J. Hazard. Mater. 2013, 244, 86–93. [Google Scholar] [CrossRef] [PubMed]
  56. Ge, H.; Tian, H.; Zhou, Y.; Wu, S.; Liu, D.; Fu, X.; Song, X.-M.; Shi, X.; Wang, X.; Li, N. Influence of Surface States on the Evaluation of the Flat Band Potential of TiO2. ACS Appl. Mater. Interfaces 2014, 6, 2401–2406. [Google Scholar] [CrossRef] [PubMed]
  57. Song, X.; Zhou, X.; Yuan, C.; Zhang, Y.; Tong, Q.; Li, Y.; Cui, L.; Liu, D.; Zhang, W. One-dimensional Fe2O3/TiO2 photoelectrode and investigation of its photoelectric properties in photoelectrochemical cell. Appl. Surf. Sci. 2017, 397, 112–118. [Google Scholar] [CrossRef]
  58. Mendes-Felipe, C.; Veloso-Fernández, A.; Vilas-Vilela, J.L.; Ruiz-Rubio, L. Hybrid Organic–Inorganic Membranes for Photocatalytic Water Remediation. Catalysts 2022, 12, 180. [Google Scholar] [CrossRef]
Catalysts 12 00266 g001 550

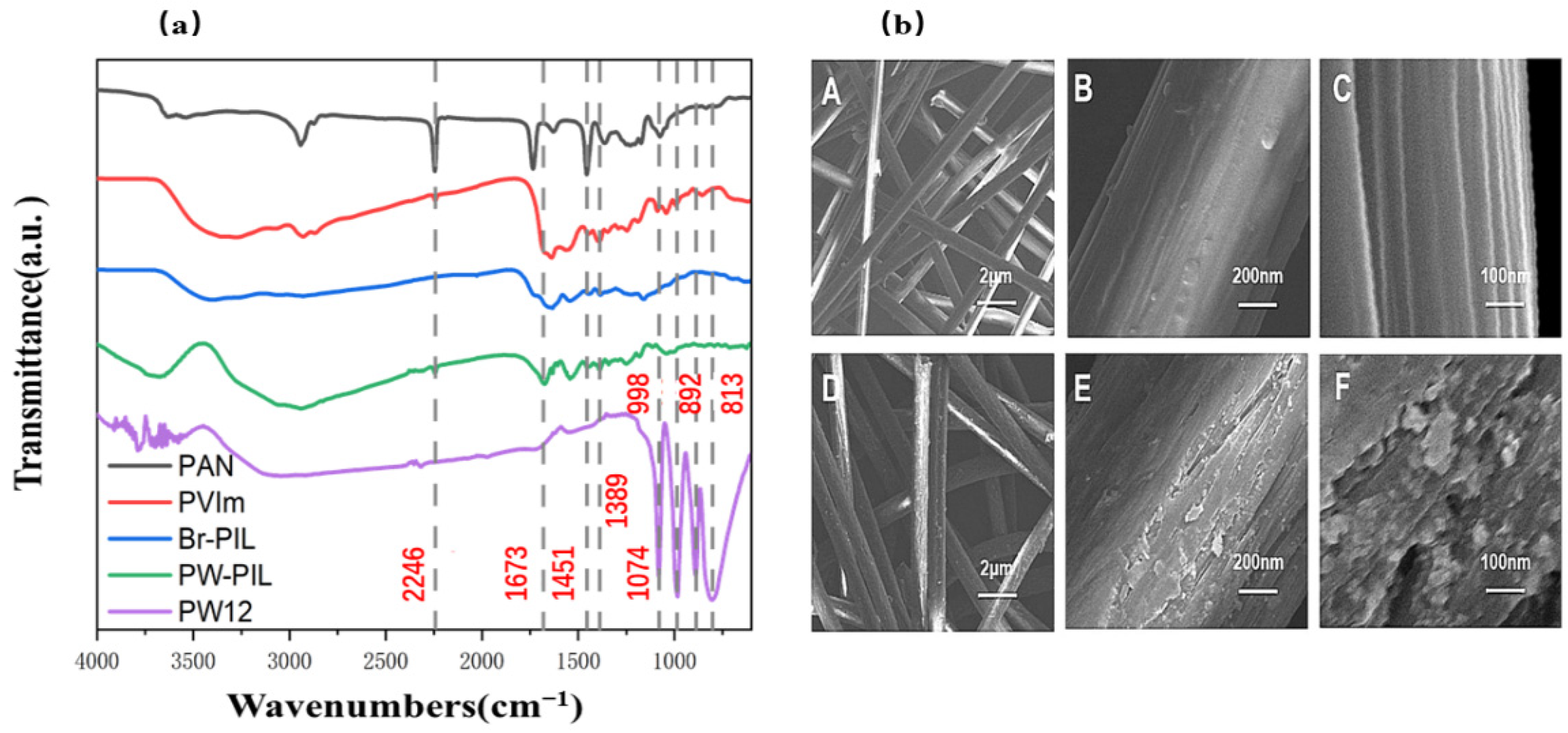

Figure 1. (a) FT-IR spectra of PAN, PVIm, Br-PIL, PW-PIL and PW12. (b) SEM images of PAN NF membrane (A–C) and PW-PIL NF membrane (D–F) with 2 μm, 200 nm and 100 nm magnification.
Figure 1. (a) FT-IR spectra of PAN, PVIm, Br-PIL, PW-PIL and PW12. (b) SEM images of PAN NF membrane (A–C) and PW-PIL NF membrane (D–F) with 2 μm, 200 nm and 100 nm magnification.
Catalysts 12 00266 g001
Catalysts 12 00266 g002 550

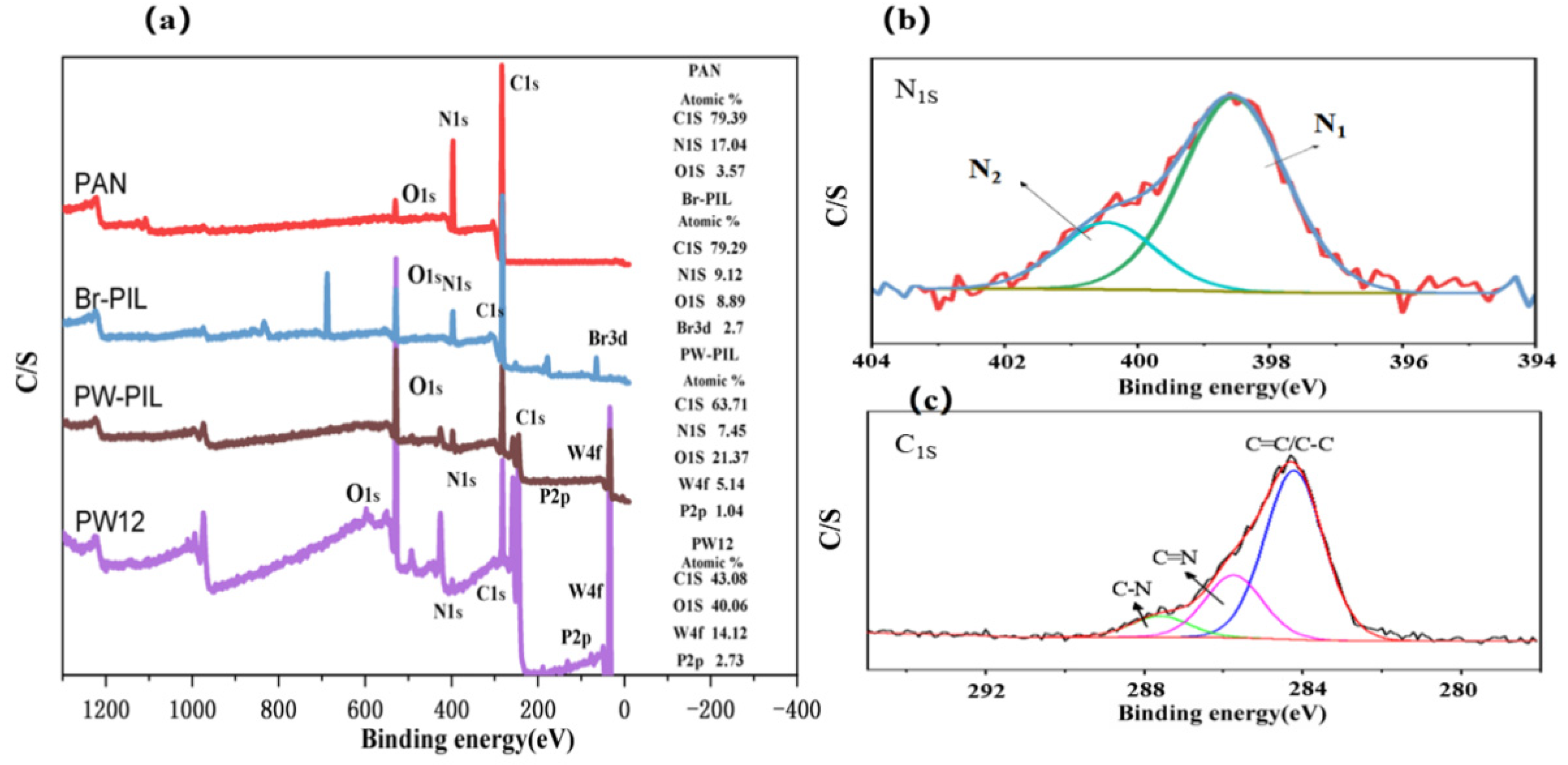

Figure 2. (a) XPS survey spectra of PAN, Br-PIL, PW-PIL and PW12; (b) high-resolution XPS spectra of N1s in PW-PIL; (c) high-resolution XPS spectra of C1s in PW-PIL.
Figure 2. (a) XPS survey spectra of PAN, Br-PIL, PW-PIL and PW12; (b) high-resolution XPS spectra of N1s in PW-PIL; (c) high-resolution XPS spectra of C1s in PW-PIL.
Catalysts 12 00266 g002
Catalysts 12 00266 g003 550

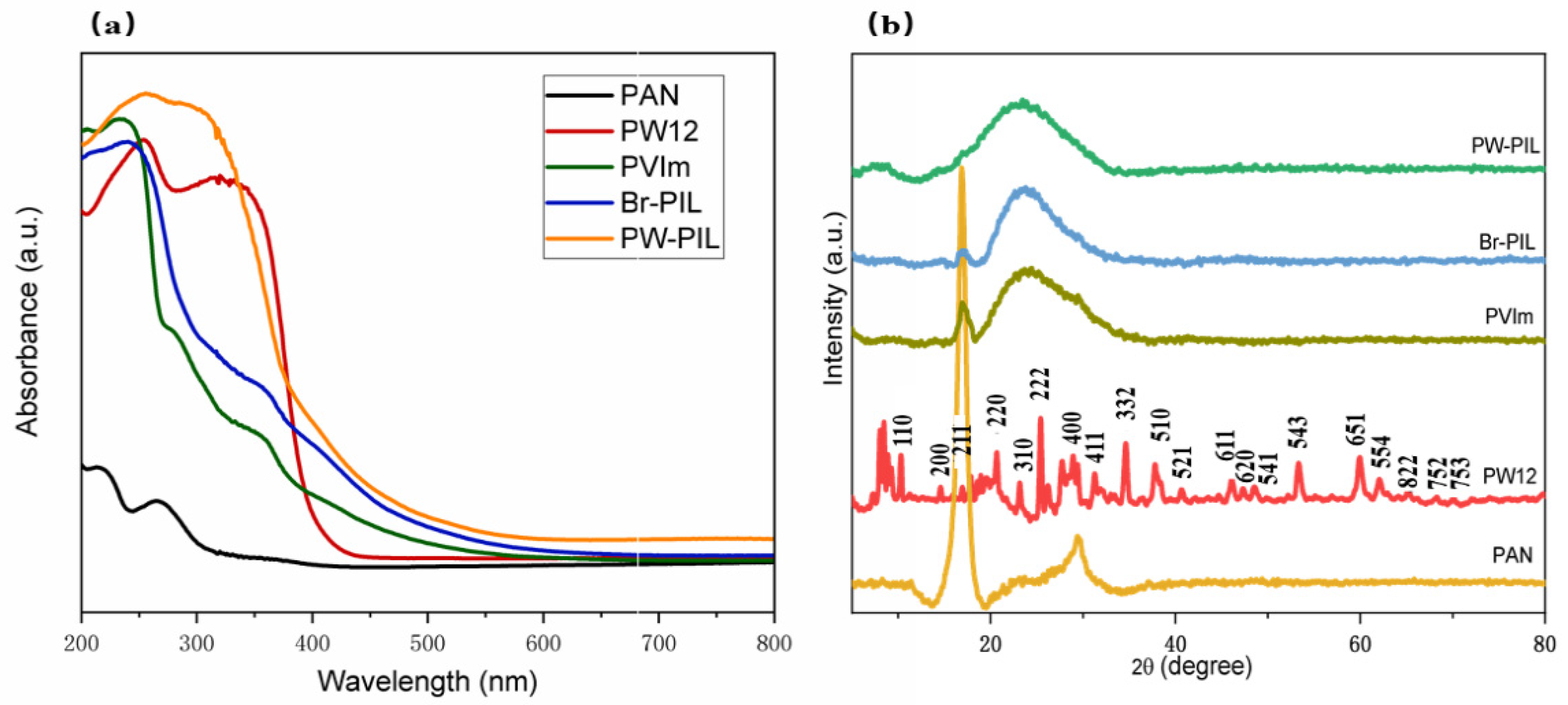

Figure 3. (a) The UV-vis diffuse reflectance spectra of PAN, Br-PIL and PW-PIL, PW12. (b) XRD patterns of PAN, PW12, PVIm, Br-PIL and PW-PIL.
Figure 3. (a) The UV-vis diffuse reflectance spectra of PAN, Br-PIL and PW-PIL, PW12. (b) XRD patterns of PAN, PW12, PVIm, Br-PIL and PW-PIL.
Catalysts 12 00266 g003
Catalysts 12 00266 g004 550

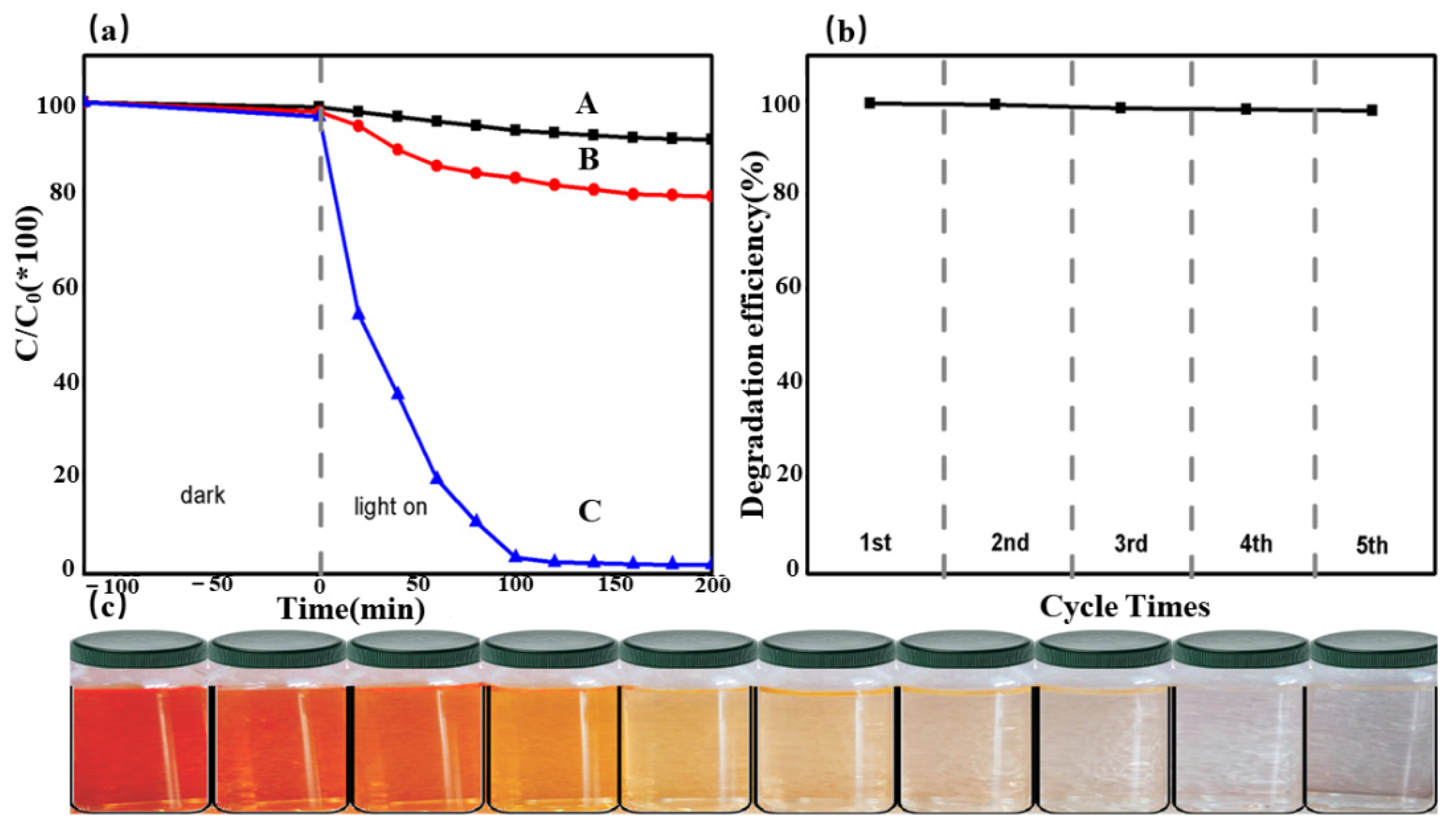

Figure 4. (a) Absorption of Methyl orange in the dark and consequent photocatalytic degradation without photocatalyst (A), with the blending of PAN and PW12 (B), in the presence of PW-PIL (C) under visible light irradiation; (b) Recyclability of the supported photocatalyst PW-PIL. Concentration of the photocatalyst is 1 mg mL−1 (20 mg in 20 mL aqueous solution); concentration of MO is 50 ppm; on average, five samples are taken in 100 min; (c) Appearance of methyl orange aqueous solution during the photocatalytic degradation process at an interval of 10 min.
Figure 4. (a) Absorption of Methyl orange in the dark and consequent photocatalytic degradation without photocatalyst (A), with the blending of PAN and PW12 (B), in the presence of PW-PIL (C) under visible light irradiation; (b) Recyclability of the supported photocatalyst PW-PIL. Concentration of the photocatalyst is 1 mg mL−1 (20 mg in 20 mL aqueous solution); concentration of MO is 50 ppm; on average, five samples are taken in 100 min; (c) Appearance of methyl orange aqueous solution during the photocatalytic degradation process at an interval of 10 min.
Catalysts 12 00266 g004
Catalysts 12 00266 g005 550

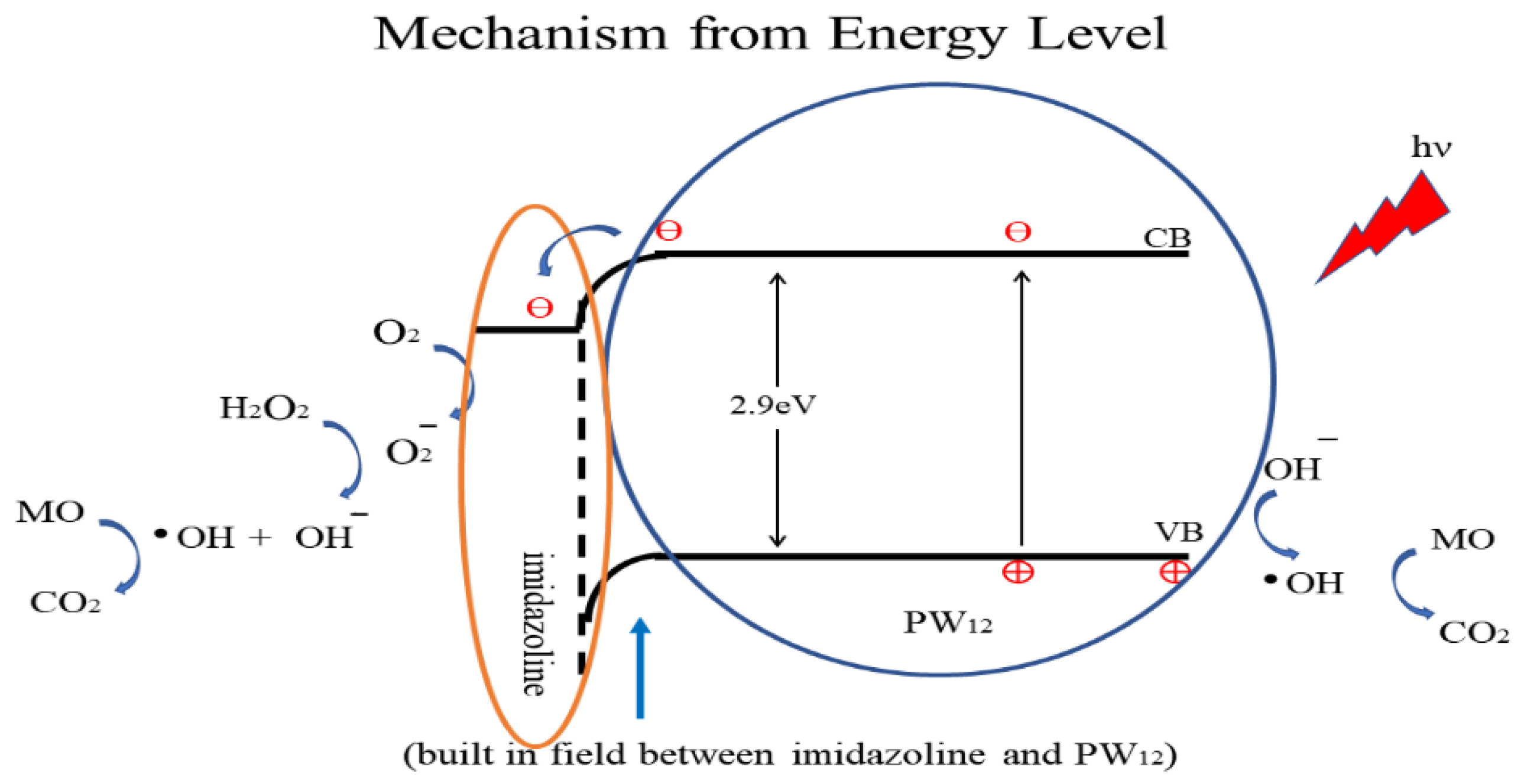

Figure 5. Energy-band diagrams for PW-PIL structure, and the separation of charge carriers under irradiation.
Figure 5. Energy-band diagrams for PW-PIL structure, and the separation of charge carriers under irradiation.
Catalysts 12 00266 g005
Catalysts 12 00266 g006 550

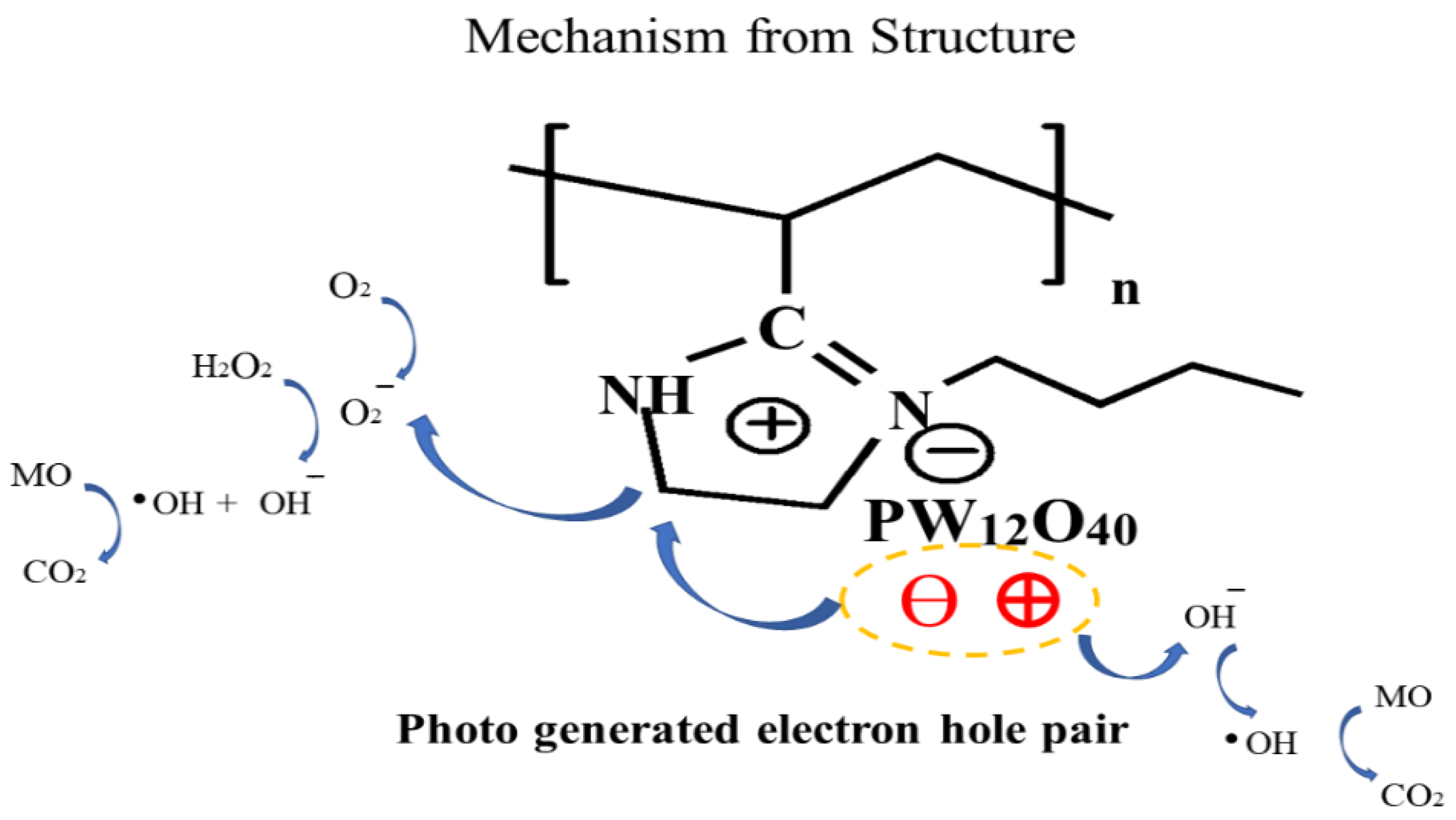

Figure 6. Mechanism diagrams for PW-PIL structure.
Figure 6. Mechanism diagrams for PW-PIL structure.
Catalysts 12 00266 g006
Catalysts 12 00266 sch001 550

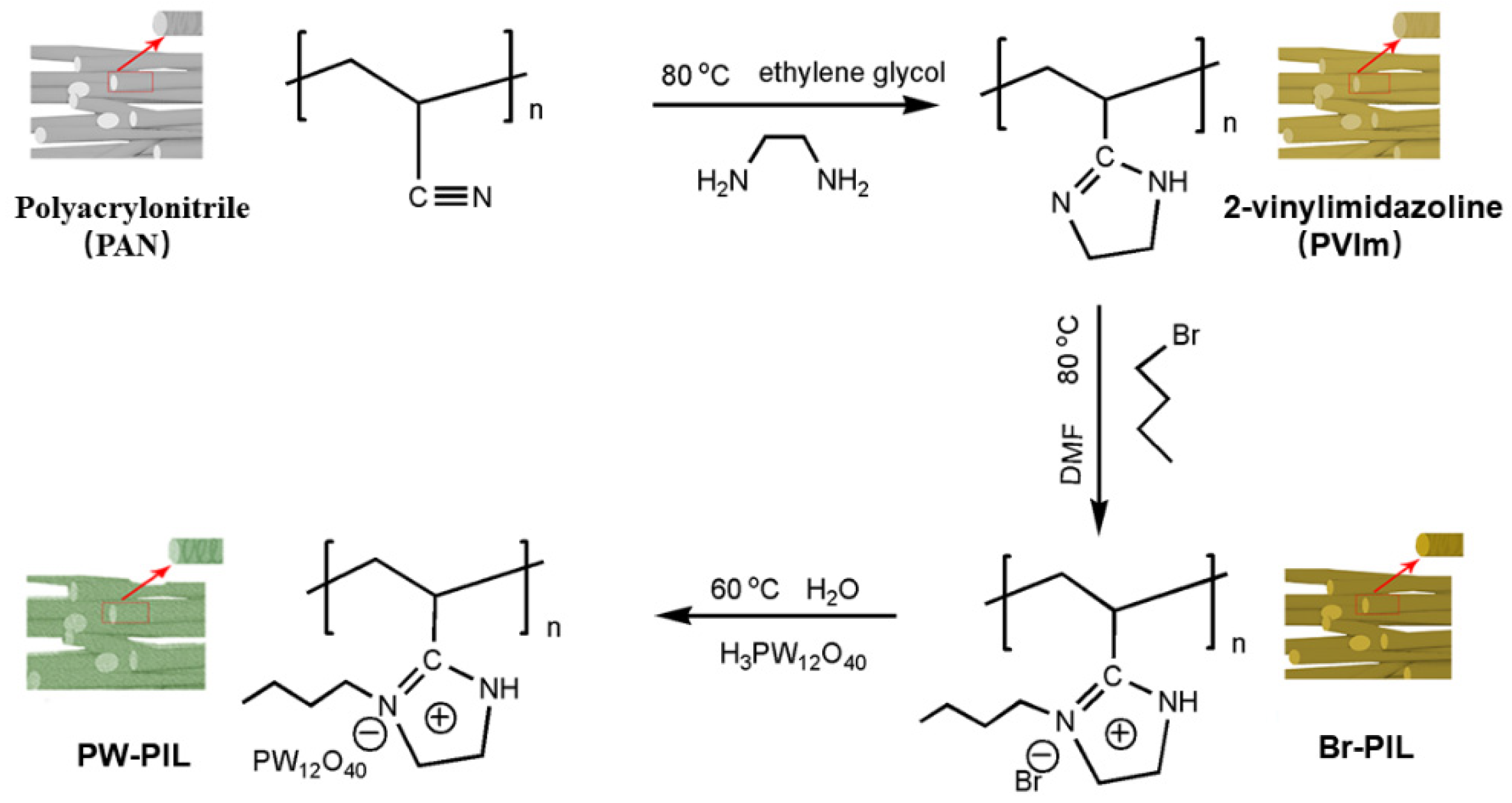

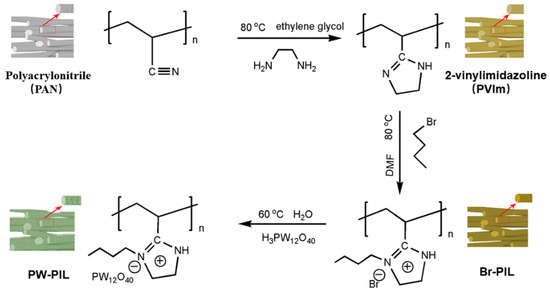

Scheme 1. Synthetic route of PVIm, Br-PIL and PW-PIL.

Scheme 1. Synthetic route of PVIm, Br-PIL and PW-PIL.
Catalysts 12 00266 sch001
Table
Table 1. The development of photocatalytic membrane materials.
Table 1. The development of photocatalytic membrane materials.
Photocatalytic MembraneMembrane Preparation MethodDegradation MaterialCostRecyclabilityVisible LightReference
PW-PIL membraneFree-standing
   photocatalytic membrane		MO wastewater degradationEconomic PANInsoluble
   Easy
   Flexibility		Response
Al2O3/TiO2 Coated on the photocatalytic membraneCarbamazepine degradationExpensive
   TiO2, Al2O3		Soluble
   Difficult
   Rigidity		No response[25]
Ceramic/TiO2 Coated on the photocatalytic membraneAcid Red 4 degradationExpensive
   TiO2 		Soluble
   Difficult
   Rigidity		No response[26]
PVDF/TiO2Blended into the membrane matrixWastewater degradationExpensive
   TiO2		Insoluble
   Difficult
   Flexibility		No response[27]
PU/ZnODip-coating on the membraneMB degradation, antimicrobial
   activity		Expensive
   ZnO		Insoluble
   Difficult
   Flexibility		No response[28]
CNT/ZnO-TiO2Dip-coating on the membraneMB degradationExpensive
   TiO2, ZnO		Soluble
   Difficult
   Rigidity		No response[29]
PVDF/ZnO-TiO2Chemical vapor deposition on the membraneMB degradationExpensive
   TiO2, ZnO		Soluble
   Difficult
   Flexibility		No response[30]
PSF/Cu2OHydrothermal synthesis on the membraneRemoval of IBPExpensive
   Cu2O		Insoluble
   Easy
   Flexibility		Response[31]
GO/Fe2O3-TiO2Dip-coating on the membraneHumic Acid Removal from WaterExpensive
   TiO2, Fe2O3		Soluble
   Difficult
   Rigidity		No response[32]
PVDF/ZnIn2S4Dip-coating on the membraneRemoval of tetracyclineExpensive
   ZnIn2S4		Insoluble
   Easy
   Flexibility		Response[33]
RGO/Bi2WO6Dip-coating on the membraneRemoval of CIPExpensive
   Bi2WO6		Soluble
   Difficult
   Rigidity		Response[34]
RGO/PDA/Bi12O17Cl2Dip-coating on the membraneDegradation MB and oil/water separationExpensive
   Bi12O17Cl2		Soluble
   Easy
   Rigidity		Response[35]
Steel/CeO2Dip-coating on the membraneRemoval of MB pollutantsExpensive
   CeO2		Soluble
   Difficult
   Rigidity		No response[36]
Ceramic/TiO2Dip-coating on the membraneRemoval of HAExpensive
   TiO2		Soluble
   Difficult
   Rigidity		No response[37]
PVDF/TiO2Electrospinning and hydrothermal reactionCO2 photoreductionExpensive
   TiO2		Soluble
   Easy
   Flexibility		No response[38]
PES/TiO2Physical depositionAcid Red1 degradationExpensive
   TiO2		Soluble
   Difficult
   Rigidity		No response[39]
