Electrocatalysis of 2,6-Dinitrophenol Based on Wet-Chemically Synthesized PbO-ZnO Microstructures

by
Mohammed M. Rahman
1,2,*,
Md M. Alam
2,
Abdullah M. Asiri
1,2,
Mohammad Asaduzzaman Chowdhury
3 and
Jamal Uddin
4
1
Department of Chemistry, Faculty of Science, King Abdulaziz University, P.O. Box 80203, Jeddah 21589, Saudi Arabia
2
Center of Excellence for Advanced Materials Research (CEAMR), King Abdulaziz University, P.O. Box 80203, Jeddah 21589, Saudi Arabia
3
Department of Mechanical Engineering, Dhaka University of Engineering and Technology (DUET), Gazipur 1707, Bangladesh
4
Center for Nanotechnology, Department of Natural Sciences, Coppin State University, 2500 W. North Ave., Baltimore, MD 21216, USA
*
Author to whom correspondence should be addressed.
Catalysts 2022, 12(7), 727; https://doi.org/10.3390/catal12070727
Submission received: 23 May 2022 / Revised: 15 June 2022 / Accepted: 26 June 2022 / Published: 30 June 2022
(This article belongs to the Section Electrocatalysis)
Browse Figures
Versions Notes

Abstract

:
In this approach, a reliable 2,6-dinitrophenol (2,6-DNP) sensor probe was developed by applying differential pulse voltammetry (DPV) using a glassy carbon electrode (GCE) decorated with a wet-chemically prepared PbO-doped ZnO microstructures’ (MSs) electro-catalyst. The nanomaterial characterizing tools such as FESEM, XPS, XRD, UV-vis., and FTIR were used for the synthesized PbO-doped ZnO MSs to evaluate in detail of their optical, structural, morphological, functional, and elemental properties. The peak currents obtained in DPV analysis of 2,6-DNP using PbO-doped ZnO MSs/GCE were plotted against the applied potential to result the calibration of 2,6-DNP sensor expressed by ip(µA) = 1.0171C(µM) + 22.312 (R2 = 0.9951; regression co-efficient). The sensitivity of the proposed 2,6-DNP sensor probe obtained from the slope of the calibration curve as well as dynamic range for 2,6-DNP detection were found as 32.1867 µAµM−1cm−2 and 3.23~16.67 µM, respectively. Besides this, the lower limit of 2,6-DNP detection was calculated by using signal/noise (S/N = 3) ratio and found as good lowest limit (2.95 ± 0.15 µM). As known from the perspective of environment and healthcare sectors, the existence of phenol and their derivatives are significantly carcinogenic and harmful which released from various industrial sources. Therefore, it is urgently required to detect by electrochemical method with doped nanostructure materials. The reproducibility as well as stability of the working electrode duration, response-time, and the analysis of real environmental-samples by applying the recovery method were measured, and found outstanding results in this investigation. A new electrochemical research approach is familiarized to the development of chemical sensor probe by using nanostructured materials as an electron sensing substrate for the environmental safety (ecological system).

1. Introduction

For economic development, the industrialization is substantial approach to ensure the quality of life and it should be sustainable to conserve our environment free from toxic contaminations. Water is the most significant element of the environment and it is continuously polluted by toxic industrial wastes, especially phenolic compounds and its derivatives such as 2,6-dinitrophenol (2,6-DNP) from dyes, herbicides, photographic developers, pesticides, pharmaceuticals and explosives industries [1,2,3,4]. Our food chain is directly dependent on the environmental water and it is the major source of human exposures to toxic-like phenols. Therefore, 2,6-DNP can easily be absorbed by the gastrointestinal and respiratory tract of human, which is led to cause the acute and chronic toxicity in humans. It has been reported that the acute toxicities of 2,6-DNP enhanced the basal metabolic rate, vomiting, nausea, headache, sweating, dizziness, and weight loss. Besides this, the chronic exposure of it might be caused the syndromes such as skin-lesions and effects on the central nervous system (CNS), bone marrow and cardiovascular system [5,6]. Moreover, 2,6-DNP has toxic effects in human such as mutagenesis, carcinogenesis, and teratogenesis and therefore, it is enlisted as hazardous toxic for human, and microorganisms by U.S.-Environmental Protection Agency (EPA) [7,8]. As a consequence, the early detection of this toxic substrate in the environmental water system can save thousands of lives from suffering and death. Up to date, some uncomfortable and traditional chromatographic methods with various drawbacks such as costly instrumentations, complicated samples preparation, long-analyzing time and un-portable for in situ detection are existed for this purpose [9,10,11].
Recently, the nano-metal oxides/hybrid nanocomposites as electrons mediator on sensing working electrode are coming popular to the researchers due to its potential applications as sensors. Applying the fluoresce technique, the novel functional polymer [12], thiazol-substituted pyrazoline nanoparticles [13], and metal-organic frameworks [14] have been used as fluorescent substrates to the development of 2,6-dinitrophenol sensors and exhibited wider detection range with a lower detection limit of 2,6-dinitrophenol reliably, which are appreciable. Besides this, the metal-organic framework [15] and graphene quantum dots [16] have been used as luminescent nanomaterials for the detection of 2,6-dinitrophenol. The cyclic voltammetry is another reliable method for researchers for sensor development. The cathodically pretreated boron-doped diamond [17] and polycongo red decorated glassy carbon electrode [18] have been tested as potential 2,6-DNP sensors and exhibited a dynamic range of 0.0312 µM~3.12 mM and 0.5 μM~65 μM with a lower limit of 9.16 nM and 0.1 μM, respectively, for 2,6-DNP detection. Moreover, Bismuth Bulk Electrode [19] and silver solid amalgam electrode [20] have implemented to construct 2,6-DNP differential pulse voltametric electrochemical sensor and exhibited reliable outcomes.
Generally, ZnO and PbO are well-known as sensing substrates individually for the development of sensor. As a gas sensor, ZnO as single/composites has been reported to sense ethanol [21], oxygen [22], H2S [23], NO2 [24], CO [25], and NH3 [26], respectively. ZnO is an n-type semi-conductive metal-oxide with direct and wider optical bandgap and having the unique piezo-electric characteristic. These physio-electrochemical properties of ZnO are well suited as electrons sensing substrates to develop the electrochemical sensors of various bio-chemicals and chemicals [27,28,29,30,31,32], as reported previously. On the other hand, the PbO has wider optical bandgap and attractive electro-chemical properties and used potentially to develop of sensors such as humidity [33], ethanol [34], and methanol [35]. Therefore, ZnO and PbO have already applied as sensing substrates separately to the development of sensors. On the other hand, the synergic electro-catalytic characteristic of individual metal oxide in the binary nanocomposites can be promoted in the detection performance of analytes [36]. Here, PbO-doped ZnO MSs have employed a great deal of consideration owing to their chemical, structural, physical, and optical properties in terms of large-active surface area, high-stability, high porosity, high activity, and permeability, which directly dependent on the structural morphology prepared by reactant precursors in these doped materials in basic medium at low-temperature. Here, the MS materials were wet-chemically synthesized by using reducing agents at ambient conditions. This technique has several advantages including facile preparation, accurate control of the reactant temperature, easy to handle, one-step reaction, and high surface area as well as high porosity. Optical, morphological, electrical, and chemical properties of PbO-doped ZnO MSs are of huge significance from the scientific aspect, compared to their undoped counter parts. Non-stoichiometry, mostly oxygen vacancies, conduct nature in the doped nanostructure materials. The formation energy of oxygen vacancies and metal interstitials in the semiconductor is very low, and thus these defects form eagerly, resulting in the experimentally elevated conductivity of PbO-doped ZnO MS materials compared to other PbO and ZnO nanomaterials. PbO-doped ZnO MSs have also attracted considerable interest due to their potential applications in fabricating opto-electronics, electro-analytical, selective detection of assays, sensor devices, hybrid-composites, electron-field emission sources for emission exhibits, biochemical detections, and surface-enhanced Raman properties, etc. PbO-doped ZnO MSs material offers improved performance due to the large-active surface area which increased conductivity and current responses of PbO-doped ZnO MSs/Nafion/GCE assembly during electrochemical investigation. This fabricated doped PbO-doped ZnO MSs/Nafion/GCE is very active and electro-oxidized the 2,6-DNP in respect of current against applied potential compared to other chemicals. In addition, the doped nanomaterials have lower optical band-gap energy and higher reactive surface area compared to the single metal oxides, which might be influenced by the electrochemical sensing performances [37,38,39].For this reason, PbO-doped ZnO MSs have been prepared applying the wet-chemical method to enhance the electrochemical sensing of target 2,6-DNP in phosphate-buffered solution.

2. Results and Discussion

2.1. Binding Energy and Ionization States of PbO-Doped ZnO MSs

Figure 1 represents the XPS analysis report of PbO-doped ZnO MSs consisting of O1s, Zn2p, and Pb4f orbitals of existing elements only. As shown in Figure 1a, the Zn2p orbital is split in two spin-orbitals such as Zn2p3/2 and Zn2p1/2 located at 1022 and 1045 eV detached with 23.0 eV, which is characteristic value for 2+ ionization state of Zn2+ in PbO-doped ZnO MSs [40,41]. The O1s orbital as revealed in Figure 1b presents a peak located at 531 eV indicating O2− ion associated with the Zn-O bond in the PbO-doped ZnO MSs [42,43]. Besides this, Pb4f orbital shows two spin orbitals of Pb4f7/2 and Pb4f5/2 located at 138.6 and 143.2, respectively, and separated by 4.2 eV, which is recognized for oxidation of Pb2+ in PbO-doped ZnO MSs [44,45].

2.2. Crystallinity, Functional Groups and Optical Bandgap of PbO-Doped ZnO MSs

The XRD analysis of PbO-doped ZnO MSs performed at 2θ = 20~80° as perceived in Figure 2a. As appearing in Figure 2a, the resultant X-ray pattern is shown the crystalline phases of ZnO and identified plans are (100), (002), (101), (102), (110), (103), and (200), respectively, which are recognized by JCPSD no 01-007-2551 and reported articles on ZnO [46,47]. The PbO is another imported metal oxide existing in PbO-doped ZnO MSs and X-ray pattern as in Figure 2a is illustrated (001), (101), (110), (002), (112), (211), (103), and (310) plans of PbO approved by JCPSD no. 0038-1477 and previously authors [48,49]. The grain size of PbO-doped ZnO MSs is calculated by applying the Scherrer equation [D = 0.89λ/(βCosθ)] and the produced particle size is equal to 28.53 nm.
Here, λ = wavelength (Cu Kα), β = full width at the half- maximum (FWHM) of the PbO (110) line and θ is the diffraction angle.
As illustrated in Figure 2b, the peaks due to photo-absorption positioned at 400 and 590 cm−1 are acquired for transverse optical stretching-modes of Zn-O and Pb-O individually in PbO-doped ZnO MSs and confirmed the existence of ZnO and PbO in the prepared MSs sample [50,51]. The appeared peak at 680 cm−1 which is assigned for Pb−O−Pb results from the asymmetric bending vibrations [52]. The absorption peaks perceived at 1120 and 1450 cm−1 are recognized for C-O and H-O bonds, respectively [53,54]. Besides this, the optical bandgap energy of PbO-doped ZnO MSs is calculated from optical absorbance of ultra-violet visible light (UV-vis) as shown in Figure 2c. The bandgap energy is calculated from Tauc relation [αhν = A(hν − Eg)n] and obtained value is 3.4 eV [55].
Here, α = absorption coefficient, hν = photon energy (eV).

2.3. FESEM and EDS Analysis of PbO-Doped ZnO MSs

The structural configuration (shape, size and arrangement) of PbO/ZnO was investigated by FESEM analysis as shown in Figure 3a,b. As seeming in Figure 3a,b, the low and high magnifying images are illustrated that the PbO/ZnO are aggregated each other to form a flower-like shape but not a complete flower, and it is really difficult to identify its morphological shape. Therefore, the synthesized PbO/ZnO can be considered as PbO/ZnO microstructures (MSs) in shape. The similar observation is perceived from Figure 3c. The perceived elemental compositions of PbO/ZnO (MSs) as in Figure 3d obtained from EDS analysis consist of O 27.2%, Zn 63.14%, and Pb 9.67% as weight. Assuming the elemental composition of PbO/ZnO (MSs), it looks similar to PbO-doped ZnO MSs.

2.4. Elecrochemical Characterizationof PbO-Doped ZnO MSs as Sensing Substrates on GCE

The electrons movement ability on PbO-doped ZnO MSs/GCE was evaluated by cyclic voltammetric study of 0.1 mM [Fe(CN)63−]/[Fe(CN)64−] couple in 7 pH phosphate buffer as shown in Figure 4a. The sharp peaks located +0.3 V and +0.2 V are identified for the oxidation and reduction in ferrocyanide, respectively, on the coated GCE by PbO-doped ZnO MSs. On the other hand, the bare GCE is exhibited a broad peaks separation potential (+0.3 V) for oxidation to reduction in ferrocyanide compared to coated GCE (+0.10 V). Therefore, the high oxidation and reduction current obtained from coated GCE having smaller (∆Ep) potential for oxidation to reduction peaks separation is confirmed the advanced electron movement of the modified GCE with PbO-doped ZnO MSs. This observation has been demonstrated previously in the toxin detection by electrochemical approach elsewhere [55]. The conductance of a modified GCE with PbO-doped ZnO MSs is an important observation, which is assessed its capability to the oxidation/reduction in an analyte. Therefore, the electrochemical impedance spectroscopy (EIS) was performed by using 0.1 mM solution of Fe(CN)63−/4− in phosphate buffer of pH 7 based on PbO-doped ZnO MSs/GCE, which is illustrated in Figure 4b. From the resultant EIS as in Figure 4b, the semi-circle diameter representing the resistance of charge transfer (Rct; 205.0 Ω) is smaller for PbO-doped ZnO MSs/GCE compared to bare GCE (Rct; 521.0 Ω). Thus, it is observed that the GCE modified PbO-doped ZnO MSs has improved the charge-transfer capacity in electrochemical reaction. This concept has been demonstrated from the previous study [56,57]. Therefore, there is significance changed in redox system with GCE and without MSs/GCE in identical conditions.
As perceived in Figure 5a, the assembled sensor based on PbO-doped ZnO MSs/GCE is explored the scan rate (SR) of electrochemical (cyclic voltametric) analysis of 0.1 mM solution of Fe(CN)63−/4− in 7 pH buffer. As shown in Figure 5a, the oxidation and reduction peaks positioned at +0.3 V and +0.2 V, respectively, are increased/decreased linearly at a range of SR of 25~325 mVs−1. The peak points current (ip) of oxidation and reduction were plotted as square roots of SR1/2 versus ip shown in Figure 5b and expressed by ip = 7.58 (SR)0.5 − 15.646 (R2 = 0.9908) and ip = −5.4739(SR)0.5 + 15.162 (R2 = 0.9905) corresponding to oxidation and reduction process. As presented in Figure 5b, the linearity is perceived for both plots (oxidation/reduction), and suggested for a good diffusion control in oxidation and reduction reactions of Fe(CN)63−/4− (0.1 mM) in 7 pH phosphate buffer phase.

2.5. Detection of 2,6-DNP Applying DPV Method

Among the various voltammetric electrochemical analysis, the DPV for the detection of toxins is well-known and reliable. In this study, the DPV was applied to analyze 2,6-DNP in a buffer medium of distinct pH values in a range of 5.7~8.0 at 9.09 µM 2,6-DNP shown in Figure 6a,b, and the highest peak-current is obtained at pH 7 for the reduction in 2,6-DNP as demonstrated. Due to the doping of PbO, the resultant current is improved for PbO-doped ZnO MSs compared to undoped materials. Thus, the buffer solution of pH 7 is denoted as optimum to the detection of 2,6-DNP using differential pulse voltammetric method. Next, a wide range of 2,6-DNP (3.23~21.05 µM) was subjected to analysis electrochemically using this method as the obtained results are explored in Figure 6c. The peak point currents are decreased at increasing 2,6-DNP concentration in the 7 pH of buffer solution. As observed in Figure 6c, the current-density is reduced at the increasing of 2,6-DNP concentration and it can predict that the electrochemical reduction in the analyte occurs. To establish the calibration of 2,6-DNP sensor, the obtained peak-currents of 2,6-DNP reduction as in Figure 6c are plotted as current versus concentration of 2,6-DNP as explored in Figure 6d, which known as calibration curve. The resulting calibration curve in the range of concentration of 3.23~16.67µM is expressed by an equation of line as ip(µA) = 1.0171 C(µM) + 22.312 fitted with the regression co-efficient of R2 = 0.9951. Therefore, the concentration range (3.23~16.67 µM), in which the proposed 2,6-DNP sensor responses linearly, defines as a detection range (LDR) of 2,6-DNP. Obviously, it is a wider detection range. The sensor parameter sensitivity is calculated from the slope of LDR as in Figure 6d and active surface area of GCE (0.0316 cm2) and it is found to be 32.1867 µAµM−1cm−2, which might be considered to be good sensitivity. The low limit of detection (LOD) is obtained considering signal/noise = 3 and an appreciable LOD at 2.00 ± 0.10 µM is perceived.
The steadiness of 2,6-DNP DPV sensor in the performance is necessary to establish the reliability of this method. The analyzed results with repeating values is known as reproducibility and this test was performed with PbO-doped ZnO MSs/GCE sensor using 9.09 µM concentration of 2,6-DNP in buffer medium of pH 7 shown in Figure 7a,b and this experiments were conducted in the consecutive seven hours. As perceived, the seven replicated analyzed data points are undistinguished and not possible to identify separately. Therefore, the outcomes of this test convey the information regarding the reliability of 2,6-DNP sensor. The sensor-performing stability for longer duration is important for this study. This stability test of this 2,6-DNP sensor was executed by analyzing 0.1 mM solution of Fe(CN)63−/4− in pH 7 buffer applying cyclic voltametric electrochemical approach at 20 cycles as illustrated in Figure 7c and resultant outcome confirms the long-term stability of 2,6-DNP in buffer phase. The performing efficiency of the sensor is calculated by response time, and this performance was tested at 9.09 µM 2,6-DNP as shown in Figure 7d. The resulting 20 s response time of the 2,6-DNP sensor is confirmed to have good efficiency.
A controlled experiment was executed with GCE modified by PbO-doped ZnO MSs, ZnO NPs and PbO NPs in differential pulse voltametric analysis of 2,6-DNP (9.09 µM) perceived in Figure 8 with identical conditions. It is shown that PbO-doped ZnO MSs/GCE electrodes are performed and exhibited the highest peak current at potential +1.10 V compared with their single oxide. This happened for the large reactive surface-area of binary oxides as well as higher conductivity (higher electrochemical activity) compared to their single oxides (ZnO and PbO). As it is shown in Figure 3d, the elemental analysis of prepared MSs is consist of around 10% Pb (wt%), whereas the dominating element is Zn with 63% (wt%). Therefore, it can be assumed that PbO is doped into the dominating ZnO. As known, the reactive surface area is increased due to doping in nanomaterials. Therefore, the surface area of PbO-doped ZnO MSs is higher that the pure ZnO. As shown in Figure 8, the reduction peak current of 2,6-DNP has little higher for pure ZnO compared to pure PbO modified GCE. When, ZnO is doped with PbO (around 10%), its reactivity is increased very high. Thus, it can be concluded that doping is increased the reactive surface area of ZnO. PbO-doped ZnO MSs material offers improved performance due to the large-active surface area which increased of conductivity and current responses of PbO-doped ZnO MSs/Nafion/GCE assembly during electrochemical investigation. This fabricated doped PbO-doped ZnO MSs/Nafion/GCE is very active and electro-oxidized the 2,6-DNP in respect of current against applied potential compared with other chemicals. Therefore, PbO doped-ZnO MS has exhibited the highest electrochemical performance compared with the undoped counterpart.
The GCE modification process is illustrated in the Scheme 1a and as perceived in Scheme 1b, the molecules of 2,6-DNP are contracted on the modified GCE surface. Due to the applied potential through assembled sensor, 2,6-DAP molecules are reduced to 2,6-diaminophenol (2,6-DAP). In this reduction process of 2,6-DNP, the data are recorded as decreasing the peak point current with increasing the concentration of 2,6-DNP as in Scheme 1c. The similar 2,6-DNP reduction has been described by previous authors [58,59].
To establish the reliability of this study, comparison of similar work has been presented in Table 1 [1,7,16] by considering the reliability measuring parameters including LOD, LDR, and sensitivity. As shown, parameters obtained from this study are satisfactory.

2.6. The Recovery Method to Real Samples Analysis

For the validity of PbO-doped ZnO MSs/GCE sensor probe, the real environmental samples such as mineral water, sea water, and tap water were analysed by electrochemical approach. After collecting the real samples, they were filtered with filter paper and directly injected in the electrochemical cell for analysis. The concentration of the spike sample was taken at 2.09 µM. Applying the DPV method, the environmental samples were analyzed using the recovery method as presented in Table 2, which shows the satisfactory outcomes.

3. Experimental

3.1. Materials and Methods

The PbO-doped ZnO MSs was synthesized by old co-precipitation technique from analytical grade ZnCl2 and PbCl2 obtained from Merck Germany. Besides this, Nafion 5% in ethanol, concentrated ammonia, 2,6-dinitrophenol (2,6-DNP), mono and disodium phosphate were acquired from Sigma-Aldrich (Boston, MA, USA). The XPS instrument of Thermo-Scientific was implemented using A1-k-ɑ1 radiation sources with size of 300 functioned at applied potential of 200 eV, and pressure of 10−8 Torre on the microstructure materials to investigate the oxidation states and binding energy of the atoms in synthesized PbO-doped ZnO MSs. The structural morphology (shape, sizes and arrangements) and atomic mass were evaluated by FESEM and EDS analysis by JEOL (JSM-7600F, Tokyo, Japan). Moreover, the Thermo-scientific FTIR was used to evaluate the metal-oxygen bonds as well as other functional groups presented in the prepared nanostructure materials. The nanoparticles size and crystallinity of prepared MSs were evaluated by X-ray diffraction (XRD) analysis. Furthermore, UV-vis spectrometer was applied to identify the average optical bandgap of PbO-doped ZnO MSs. The potentiostats/galvanostats (Metrohm Autolab Modules) was used as the source of constant potential supply.

3.2. Synthesis of PbO-Doped ZnO MSs

The co-precipitation technique has extensive used to prepare doped nanomaterials of metal oxides with distinct structural morphology in the form of doped/un-doped materials. The analytical grades of reactant precursors (ZnCl2 and PbCl2) were used for this co-precipitation preparation. 0.1 M solutions of ZnCl2 and PbCl2 were prepared using di-deionized water separately in two 100.0 mL conical-flask in this typical synthesis process. Then, another 200 mL beaker, the solution was taken as 50.0 mL of prepared each salt solution. To accomplish the co-precipitation of metal ions as metal-hydroxides, the beaker was kept heating at 80 °C using a hot-plat heating facilitated by continuous mechanical stirring system and added 0.1 M NH4OH drop-wisely. For alkaline solution addition, the pH of solution was raised, and it was assumed that all the soluble metal ions were precipitated out as white metal-hydroxides quantitatively at pH around 10.5. Then, the resultant co-precipitated mass of Zn(OH)2.Pb(OH)2 nanocrystals were filtrated to separate from aqueous alkaline medium and successively washed with di-ionized water to remove impurities (unreacted metal-ions) as much as possible. The possible reaction mechanisms are shown as follows:
NH4OH (s) → NH4+(aq) + OH−(aq)
ZnCl2(s) → Zn2+(aq) + 2Cl−(aq)
PbCl2(s) → Pb2+(aq) + 2Cl−(aq)
Zn2+(aq) + Pb2+(aq) + 4OH−(aq) + nH2O → Zn(OH)2/Pb(OH)2/nH2O ↓
The separated nanocrystals were kept at 120 °C in oven overnight to dry. After that, the dried nano-crystals of Zn(OH)2/Pb(OH)2/nH2O was subjected into muffle furnace at 500 °C around 6 h to calcine in presence of air-flow. At this high temperature, all the meal-hydroxides were oxidized to metal-oxides as shown in the reaction (5).
Zn(OH)2.Pb(OH)2 → ZnO/PbO + 2H2O

3.3. GCE Modification by PbO-Doped ZnO MSs

The working electrode (WE) of proposed sensor was obtained by the modification of a GCE which was the most important and sensitive task of this study. To deposit a layer of prepared PbO-doped ZnO MSs on GCE, an ethanoic slurry (1.0 mL) of MSs was used to coat on GCE and followed by drying at the laboratory ambient conditions. As the necessary requirement for this investigation, 5% Nafion-suspension (5.0 µL) was added on the modified dry GCE-surface and followed drying again by keeping inside an oven at 35 °C for an 1 h to execute the drying completely. Then, the working electrode (PbO-doped ZnO MSs/GCE), reference electrode (Ag-AgCl column electrode), and Pt-wire (performed as counter electrode) were joined with Metrohm-Autolab to fulfill sensor assembly. The 2,6-DNP was dissolved in deionized water to result 2,6-DNP solutions with a range of concentration (3.23 to 21.05 µM), which were applied for the electrochemical characterization of the assembled sensor probe. Sodium phosphates (mono and di form) were used to dilute in deionized water for the formation of the buffer having the distinct pH value of 5.7 to 8.0. For electrochemical analysis, 30.0 mL of buffer was used from 2,6-DNP having a range of 3.23–21.05 µM.

4. Conclusions

Here, binary PbO-doped ZnO MS is wet-chemically prepared in alkaline medium and then fully characterized by conventional method for the optical, structural, functional and morphological analyses. The 2,6-DNP electrochemical sensor probe was fabricated by using prepared PbO-doped ZnO MSs coated onto GCE. The assembled 2,6-DNP sensor probe was subjected to the detection of 2,6-DNP in 7.0 pH by applying DPV method. The sensor probe was perceived as reliable in-terms of LOD, LDR, reproducibility, selectivity, sensitivity, response time, and long-time stability in a room condition. Additionally, a satisfactory result was found in analyzing real samples for the sensor validation. Thus, this process to the development of sensor would a reliable method for the detection of carcinogenic chemicals by using doped microstructure materials for the safety of environmental ecology, as well as the healthcare sector.

Author Contributions

Conceptualization, M.M.R. and A.M.A.; methodology, M.M.R. and M.M.A.; validation, M.M.A. and M.M.R.; formal analysis, M.M.A.; investigation, M.A.C.; resources, A.M.A. and J.U.; data curation, M.M.R. and M.M.A.; writing—original draft preparation, M.M.A.; writing—review and editing, M.M.R., A.M.A., M.A.C. and J.U.; visualization, M.M.R.; supervision, A.M.A.; project administration, M.M.R.; funding acquisition, M.M.R. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Deanship of Scientific Research (DSR), King Abdulaziz University, Jeddah, under grant No. D-29-130-1443.

Data Availability Statement

Data will be available upon reasonable request.

Acknowledgments

This work was funded by the Deanship of Scientific Research (DSR), King Abdulaziz University, Jeddah, under grant No. D-29-130-1443. The authors, therefore, acknowledge with thanks DSR technical and financial support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Asiri, A.M.; Adeosun, W.A.; Marwani, H.M. Electrocatalytic reduction of 2, 6-dinitrophenol on polycongo red decorated glassy carbon electrode for sensing application. J. Environ. Chem. Eng. 2020, 8, 104378. [Google Scholar] [CrossRef]
  2. Zaharia, M.; Tudorachi, L.; Pintilie, O.; Drochioi, C.; Gradinaru, R.; Murariu, M. Banned dinitrophenols still trigger both legal and forensic issues. Environ. Forensics 2016, 17, 120–130. [Google Scholar] [CrossRef]
  3. Gemini, V.L.; Gallego, A.; Tripodi, V.; Corach, D.; Planes, E.I.; Korol, S.E. Microbial degradation and detoxification of 2,4-dinitrophenol in aerobic and anoxic processes. Int. Biodeterior. Biodegrad. 2007, 60, 226–230. [Google Scholar] [CrossRef]
  4. She, Z.; Gao, M.; Jin, C.; Chen, Y.; Yu, J. Toxicity and biodegradation of 2,4-dinitrophenol and 3-nitrophenol in anaerobic systems. Process Biochem. 2005, 40, 3017–3024. [Google Scholar] [CrossRef]
  5. Wahid, A.; Asiri, A.M.; Rahman, M.M. One-step facile synthesis of Nd2O3/ZnO nanostructures for an efficient selective 2,4-dinitrophenol sensor probe. Appl. Surf. Sci. 2019, 487, 1253–1261. [Google Scholar] [CrossRef]
  6. Kamour, A.; George, N.; Gwynnette, D.; Cooper, G.; Lupton, D.; Eddleston, M.; Thompson, J.P.; Vale, J.A.; Thanacoody, H.K.R.; Hill, S. Increasing frequency of severe clinical toxicity after use of 2,4-dinitrophenol in the UK: A report from the National Poisons Information Service. Emerg. Med. J. 2014, 32, 383–386. [Google Scholar] [CrossRef]
  7. Wang, X.; Zeng, H.; Zhao, L.; Lin, J.M. A selective optical chemical sensor for 2,6-dinitrophenol based on fluorescence quenching of a novel functional polymer. Talanta 2006, 70, 160–168. [Google Scholar] [CrossRef]
  8. National Recommended Water Quality Criteria; Environmental Protection Agency (EPA): Washington, WA, USA, 2004.
  9. Belloli, R.; Barletta, B.; Bolzacchini, E.; Meinardi, S.; Orlandi, M.; Rindone, B. Determination of toxic nitrophenols in the atmosphere by high-performance liquid chromatography. J. Chromatogr. A 1999, 846, 277–281. [Google Scholar] [CrossRef]
  10. Kaniansky, D.; Krcmova, E.; Madajova, V.; Mas’ar, M.; Mar’ak, J.; Onuska, F.I. Determination of nitrophenols by capillary zone electrophoresis in a hydrodynamically closed separation compartment. J. Chromatogr. A 1997, 772, 327–337. [Google Scholar] [CrossRef]
  11. Roseboom, H.; Berkhoff, C.J.; Wammes, J.I.J.; Wegman, R.C.C. Reversed-phase ion-pair high-performance liquid chromatography of nitrophenols. J. Chromatogr. 1981, 208, 331–337. [Google Scholar] [CrossRef]
  12. Rahman, M.M.; Alfaifi, S.Y. Fabrication of novel and potential selective 4-Cyanophenol chemical sensor probe based on Cu-doped Gd2O3 nanofiber materials modified PEDOT:PSS polymer mixtures with Au/μ-Chip for effective monitoring of environmental contaminants from various water samples. Polymers 2021, 13, 3379. [Google Scholar] [PubMed]
  13. Ahmed, M.; Hameed, S.; Ihsan, A.; Naseer, M.M. Fluorescent thiazol-substituted pyrazoline nanoparticles for sensitive and highly selective sensing of explosive 2,4,6-trinitrophenol in aqueous medium. Sens. Actuators B Chem. 2017, 248, 57–62. [Google Scholar] [CrossRef]
  14. Nagarkar, S.S.; Desai, A.V.; Ghosh, S.K. Engineering metal–organic frameworks for aqueous phase 2,4,6-trinitrophenol (TNP) sensing. CrystEngComm 2016, 18, 2994–3007. [Google Scholar] [CrossRef]
  15. Nagarkar, S.S.; Joarder, B.; Chaudhari, A.K.; Mukherjee, S.; Ghosh, S.K. Highly Selective Detection of Nitro Explosives by a Luminescent Metal–Organic Framework. Angew. Chem. 2013, 125, 2953–2957. [Google Scholar] [CrossRef]
  16. Li, Z.; Wang, Y.; Ni, Y.; Kokot, S. A sensor based on blue luminescent graphene quantum dots for analysis of a common explosive substance and an industrial intermediate, 2,4,6-trinitrophenol. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2015, 137, 1213–1221. [Google Scholar] [CrossRef]
  17. Pınar, P.T.; Allahverdiyev, S.; Yardım, Y.; Şentürk, Z. Voltammetric sensing of dinitrophenolic herbicide dinoterb on cathodically pretreated boron-doped diamond electrode in the presence of cationic surfactant. Microchem. J. 2020, 155, 104772. [Google Scholar] [CrossRef]
  18. Rahman, M.M.; Alam, M.M.; Alfaifi, S.Y.; Asiri, A.M.; Ali, M.M. Sensitive detection of thiourea hazardous unsafe toxin with sandwich type Nafion/CuO/ZnO nanospikes/Glassy carbon composite electrodes. Polymers 2021, 13, 3998. [Google Scholar] [CrossRef]
  19. Majidian, M.; Raoof, J.B.; Fischer, J.; Barek, J. Differential Pulse Voltammetric Determination of 2-Methyl-4,6-Dinitrophenol using Bismuth Bulk Electrode. Electroanalysis 2020, 32, 317–322. [Google Scholar] [CrossRef]
  20. Jiranek, I.; Peckova, K.; Kralova, Z.; Moreir, J.C.; Barek, J. The use of silver solid amalgam electrode for voltammetric and amperometric determination of nitroquinolines. Electrochim. Acta 2009, 54, 1939–1947. [Google Scholar] [CrossRef]
  21. Wan, Q.; Li, Q.H.; Chen, Y.J.; Wang, T.H. Fabrication and ethanol sensing characteristics of ZnO nanowire gas sensors. Appl. Phys. Lett. 2004, 84, 18. [Google Scholar] [CrossRef] [Green Version]
  22. Al-Hardan, N.; Abdullah, M.J.; Aziz, A.A. Impedance spectroscopy of undoped and Cr-doped ZnO gas sensors under different oxygen concentrations. Appl. Surf. Sci. 2011, 257, 8993–8997. [Google Scholar] [CrossRef]
  23. Hung, C.M.; Phuong, H.V.; Duy, N.V.; Hoa, N.D.; Hieu, N.D. Comparative effects of synthesis parameters on the NO2 gas-sensing performance of on-chip grown ZnO and Zn2SnO4 nanowire sensors. J. Alloys Compd. 2018, 765, 1237–1242. [Google Scholar] [CrossRef]
  24. Carotta, M.C.; Cervi, A.; di Natale, V.; Gherardi, S.; Giberti, A.; Guidi, V.; Puzzovio, D.; Vendemiati, B.; Martinelli, G.; Sacerdoti, M.; et al. ZnO gas sensors: A comparison between nanoparticles and nanotetrapods-based thick films. Sens. Actuators B Chem. 2009, 137, 164–169. [Google Scholar] [CrossRef]
  25. Hjiri, M.; El Mir, L.; Leonardi, S.G.; Pistone, A.; Mavili, L.; Neri, G. Al-doped ZnO for highly sensitive CO gas sensors. Sens. Actuators B Chem. 2014, 196, 413–420. [Google Scholar] [CrossRef]
  26. Law, J.B.K.; Thong, J.T.L. Improving the NH3 gas sensitivity of ZnO nanowire sensors by reducing the carrier concentration. Nanotechnology 2008, 19, 205502. [Google Scholar] [CrossRef] [Green Version]
  27. Alam, M.M.; Asiri, A.M.; Hasnat, M.A.; Rahman, M.M. Detection of L-Aspartic Acid with Ag-Doped ZnO Nanosheets Using Differential Pulse Voltammetry. Biosensors 2022, 12, 379. [Google Scholar] [CrossRef]
  28. Alam, M.M.; Asiri, M.A.; Rahman, M.M. Fabrication of phenylhydrazine sensor with V2O5 doped ZnO nanocomposites. Mater. Chem. Phys. 2020, 243, 122658. [Google Scholar] [CrossRef]
  29. Alam, M.M.; Asiri, A.M.; Uddin, J.; Rahman, M.M. Selective 1,4-dioxane chemical sensor development with doped ZnO/GO nanocomposites by electrochemical approach. J. Mater Sci. Mater. Electron. 2022, 33, 4360–4374. [Google Scholar] [CrossRef]
  30. Li, C.; Lin, H.; Jing, M.; Zhang, L.Y.; Yuan, W.; Li, C.M. ZnO nanowire arrays with in situ sequentially self-assembled vertically oriented CdS nanosheets as superior photoanodes for photoelectrochemical water splitting. Sustain. Energy Fuels 2022, 6, 3240–3248. [Google Scholar] [CrossRef]
  31. Zhong, X.; Yuan, W.; Kang, Y.; Xie, J.; Hu, F.; Li, C.M. Biomass-Derived Hierarchical Nanoporous Carbon with Rich Functional Groups for Direct-Electron-Transfer-Based Glucose Sensing. ChemElectroChem 2016, 3, 144–151. [Google Scholar] [CrossRef]
  32. Yuan, W.; Lu, Z.; Li, C.M. Self-assembling microsized materials to fabricate multifunctional hierarchical nanostructures on macroscale substrate. J. Mater. Chem. A 2013, 1, 6416–6424. [Google Scholar] [CrossRef]
  33. Pasha, S.K.; Chidambaram, K.; Kennedy, L.J.; Vijaya, J.J. Lead Oxide—PbO Humidity Sensor. Sens. Transducers. J. 2010, 122, 113–119. [Google Scholar]
  34. Hyun, S.K.; Sun, G.J.; Lee, J.K.; Lee, C.; Lee, W.I.; Kim, H.W. Ethanol gas sensing using a networked PbO-decorated SnO2 nanowires. Thin Solid Films 2017, 637, 21–26. [Google Scholar] [CrossRef]
  35. Srivastava, J.K.; Pandey, P.; Mishra, V.N.; Dwivedi, R. Structural and micro structural studies of PbO-doped SnO2 sensor for detection of methanol, propanol and acetone. J. Nat. Gas Chem. 2011, 20, 179–183. [Google Scholar] [CrossRef]
  36. Ding, Y.; Wang, Y.; Su, L.; Bellagamba, M.; Zhang, H.; Lei, Y. Electrospun Co3O4 nanofibers for sensitive and selective glucose detection. Biosens. Bioelectron. 2010, 26, 542–548. [Google Scholar] [CrossRef]
  37. Ibrahim, Y.; Meslam, M.; Eid, K.; Salah, B.; Abdullah, A.M.; Ozoemena, K.I.; Elzatahry, A.; Sharaf, M.A.; Sillanpä, M. A review of MXenes as emergent materials for dye removal from wastewater. Sep. Purif. Technol. 2022, 282, 120083. [Google Scholar] [CrossRef]
  38. Eid, K.; Sliem, M.H.; Abdullah, A.M. Tailoring the defects of sub-100 nm multipodal titanium nitride/oxynitride nanotubes for efficient water splitting performance. Nanoscale Adv. 2021, 3, 5016–5026. [Google Scholar] [CrossRef]
  39. Sheng, X.; Xu, X.; Wu, Y.; Zhang, X.; Lin, P.; Eid, K.; Abdullah, A.M.; Li, Z.; Yang, T.; Nanjundan, A.K.; et al. Nitrogenization of Biomass-Derived Porous Carbon Microtubes Promotes Capacitive Deionization Performance. Bull. Chem. Soc. Jpn. 2022, 95, 774–795. [Google Scholar] [CrossRef]
  40. Li, S.S.; Su, Y.K. Improvement of the performance in Cr-doped ZnO memory devices via control of oxygen defects. RSC Adv. 2019, 9, 2941–2947. [Google Scholar] [CrossRef] [Green Version]
  41. Xu, D.; Fan, D.; Shen, W. Catalyst-free direct vapor-phase growth of Zn1−xCuxO micro-cross structures and their optical properties. Nanoscale Res. Lett. 2013, 8, 46. [Google Scholar] [CrossRef] [Green Version]
  42. Claros, M.; Setka, M.; Jimenez, Y.P.; Vallejos, S. AACVD Synthesis and Characterization of Iron and Copper Oxides Modified ZnO Structured Films. Nanomaterials 2020, 10, 471. [Google Scholar] [CrossRef] [Green Version]
  43. Panchariya, D.K.; Rai, R.K.; Kumar, E.A.; Singh, S.K. Core-Shell Zeolitic Imidazolate Frameworks for Enhanced Hydrogen Storage. ACS Omega 2018, 3, 167–175. [Google Scholar] [CrossRef] [PubMed]
  44. Li, H.; Mu, S.; Weng, X.; Zhao, Y.; Song, S. Rutile flotation with Pb2+ ions as activator: Adsorption of Pb2+ atrutile/water interface. Colloids Surf. A Physicochem. Eng. Asp. 2016, 506, 431–437. [Google Scholar] [CrossRef]
  45. Szafraniak, I.; Połomska, M.; Hilczer, B.; Talik, E.; Kepiński, L. Characterization of PbTiO3 Nanopowders Obtained by Room Temperature Synthesis. Ferroelectrics 2006, 336, 279–287. [Google Scholar] [CrossRef]
  46. Muhammad, W.; Ullah, N.; Haroon, M.; Abbasi, B.H. Optical, morphological and biological analysis of zinc oxide nanoparticles (ZnO NPs) using Papaver somniferum L. RSC Adv. 2019, 9, 29541–29548. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Akhtar, M.J.; Ahamed, M.; Kumar, S.; Khan, M.M.; Ahmad, J.; Alrokayan, S.A. Zinc oxide nanoparticles selectively induce apoptosis in human cancer cells through reactive oxygen species. Int. J. Nanomed. 2012, 7, 845–857. [Google Scholar]
  48. Arulmozhi, K.T.; Mythili, N. Studies on the chemical synthesis and characterization of lead oxide nanoparticles with different organic capping agents. AIP Adv. 2013, 3, 122122. [Google Scholar] [CrossRef]
  49. Ranjbar, M.; Yousefi, M. Sonochemical Synthesis and Characterization of a Nano-Sized Lead (II) Coordination Polymer; A New Precursor for the Preparation of PbO Nanoparticles. Int. J. Nanosci. Nanotechnol. 2016, 12, 109–118. [Google Scholar]
  50. Anzlovar, A.; Orel, Z.C.; Kogej, K.; Zigon, M. Polyol-Mediated Synthesis of Zinc Oxide Nanorods and Nanocomposites with Poly(methyl methacrylate). J. Nanomater. 2012, 2022, 760872. [Google Scholar] [CrossRef] [Green Version]
  51. Rezvani, M.A.; Khandan, S.; Sabahi, N. Oxidative Desulfurization of Gas Oil Catalyzed by (TBA) 4PW11Fe@PbO as an Efficient and Recoverable Heterogeneous Phase-Transfer Nanocatalyst. Energy Fuels 2017, 31, 5472–5481. [Google Scholar] [CrossRef]
  52. Yu, L.; He, R.; Zhang, Y.; Gao, J. Effect of Surface Treatment on Flexural and Tribological Properties of Poly (p-phenylene Benzobisoxazole)/Polyimide Composites under Normal and Elevated Temperature. Materials 2018, 11, 2131. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Nagaraju, G.; Udayabhanu; Shivaraj; Prashanth, S.A.; Shastri, M.; Yathish, K.V.; Anupama, C.; Rangappa, D. Electrochemical heavy metal detection, photocatalytic, photoluminescence, biodiesel production and antibacterial activities of Ag–ZnO nanomaterial. Mater. Res. Bull. 2017, 94, 54–63. [Google Scholar] [CrossRef]
  54. Naeem, R.; Yahya, R.; Pandikumar, A.; Ming, H.N.; Mazhar, M. Optical and optoelectronic properties of morphology and structure controlled ZnO, CdO and PbO thin films deposited by electric field directed aerosol assisted CVD. J. Mater. Sci. Mater. Electron. 2017, 28, 868–877. [Google Scholar] [CrossRef]
  55. Asiri, A.M.; Adeosun, W.A.; Marwani, H.M.; Rahman, M.M. Homopolymerization of 3-aminobenzoic acid for enzyme-free electrocatalytic assay of nitrite ions. New J. Chem. 2020, 44, 2022–2032. [Google Scholar] [CrossRef]
  56. Alizadeh, T.; Azizi, S. Graphene/graphite paste electrode incorporated with molecularly imprinted polymer nanoparticles as a novel sensor for differential pulse voltammetry determination of fluoxetine. Biosens. Bioelectron. 2016, 81, 198–206. [Google Scholar] [CrossRef]
  57. Ahmed, J.; Rakib, R.H.; Rahman, M.M.; Asiri, A.M.; Siddiquey, I.A.; Islam, S.S.; Hasnat, M.A. Electrocatalytic Oxidation of 4-Aminophenol Molecules at the Surface of an FeS2/Carbon Nanotube Modified Glassy Carbon Electrode in Aqueous Medium. ChemPlusChem 2019, 84, 175–182. [Google Scholar] [CrossRef]
  58. Lenke, H.; Knackmuss, H.J. Initial Hydrogenation and Extensive Reduction of Substituted 2,4-Dinitrophenols. Appl. Environ. Microbiol. 1996, 62, 784–790. [Google Scholar] [CrossRef] [Green Version]
  59. Reinado, E.P.; Roldán, M.D.; Castillo, F.; Vivián, C.M. The NprA nitroreductase required for 2,4-dinitrophenol reduction in Rhodobacter capsulatus is a dihydropteridine reductase. Environ. Microbiol. 2008, 10, 3174–3183. [Google Scholar] [CrossRef]
Catalysts 12 00727 g001 550

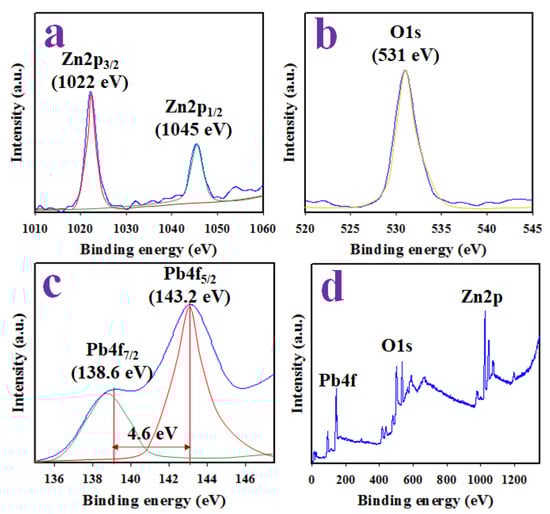

Figure 1. XPS spectrum of synthesized PbO-doped ZnO MSs. (a) The spin orbitals of Zn2p level, (b) O1s level, (c) Pb4f orbital, and (d) full spectrum.
Figure 1. XPS spectrum of synthesized PbO-doped ZnO MSs. (a) The spin orbitals of Zn2p level, (b) O1s level, (c) Pb4f orbital, and (d) full spectrum.
Catalysts 12 00727 g001
Catalysts 12 00727 g002 550

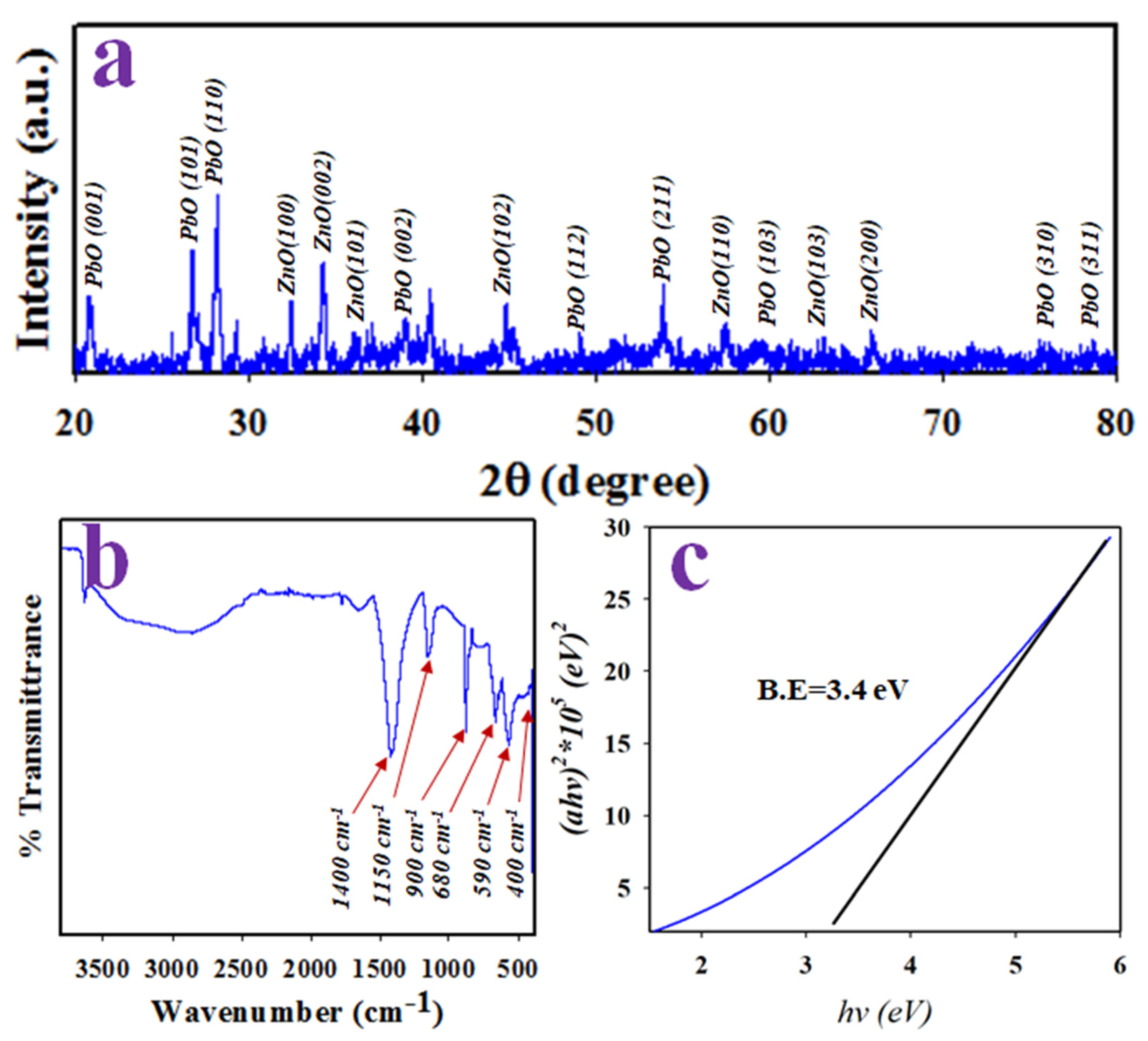

Figure 2. Structural, functional and optical analyses of PbO-doped ZnO MSs. (a) X-ray diffraction analysis of PbO-doped ZnO MSs, (b) FTIR and (c) UV-vis. spectrums.
Figure 2. Structural, functional and optical analyses of PbO-doped ZnO MSs. (a) X-ray diffraction analysis of PbO-doped ZnO MSs, (b) FTIR and (c) UV-vis. spectrums.
Catalysts 12 00727 g002
Catalysts 12 00727 g003 550

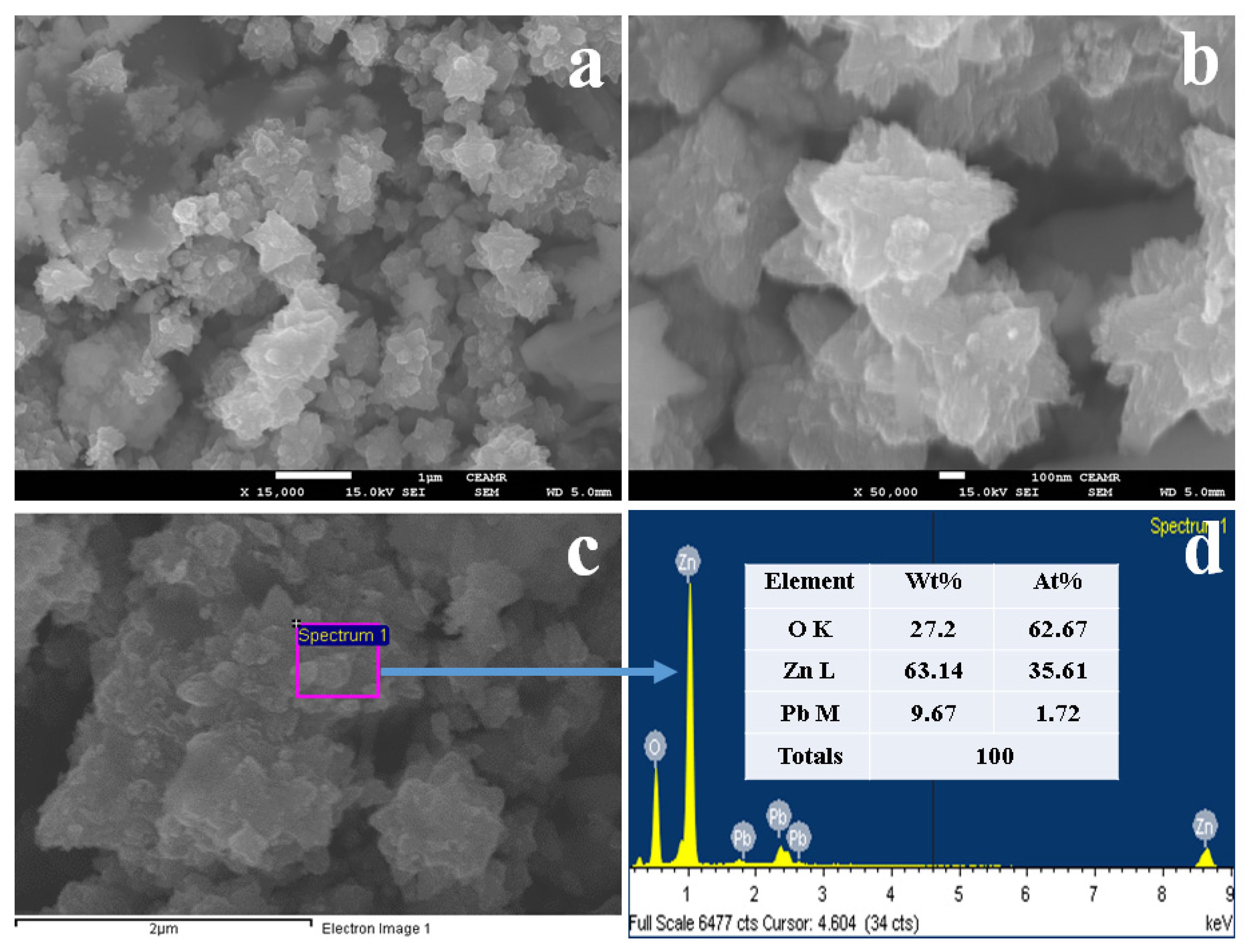

Figure 3. FESEM analysis of PbO-doped ZnO MSs (a,b) low and high magnifying images, (c) EDS image, and (d) EDS elemental compositions of existing atoms as wt% and At%.
Figure 3. FESEM analysis of PbO-doped ZnO MSs (a,b) low and high magnifying images, (c) EDS image, and (d) EDS elemental compositions of existing atoms as wt% and At%.
Catalysts 12 00727 g003
Catalysts 12 00727 g004 550

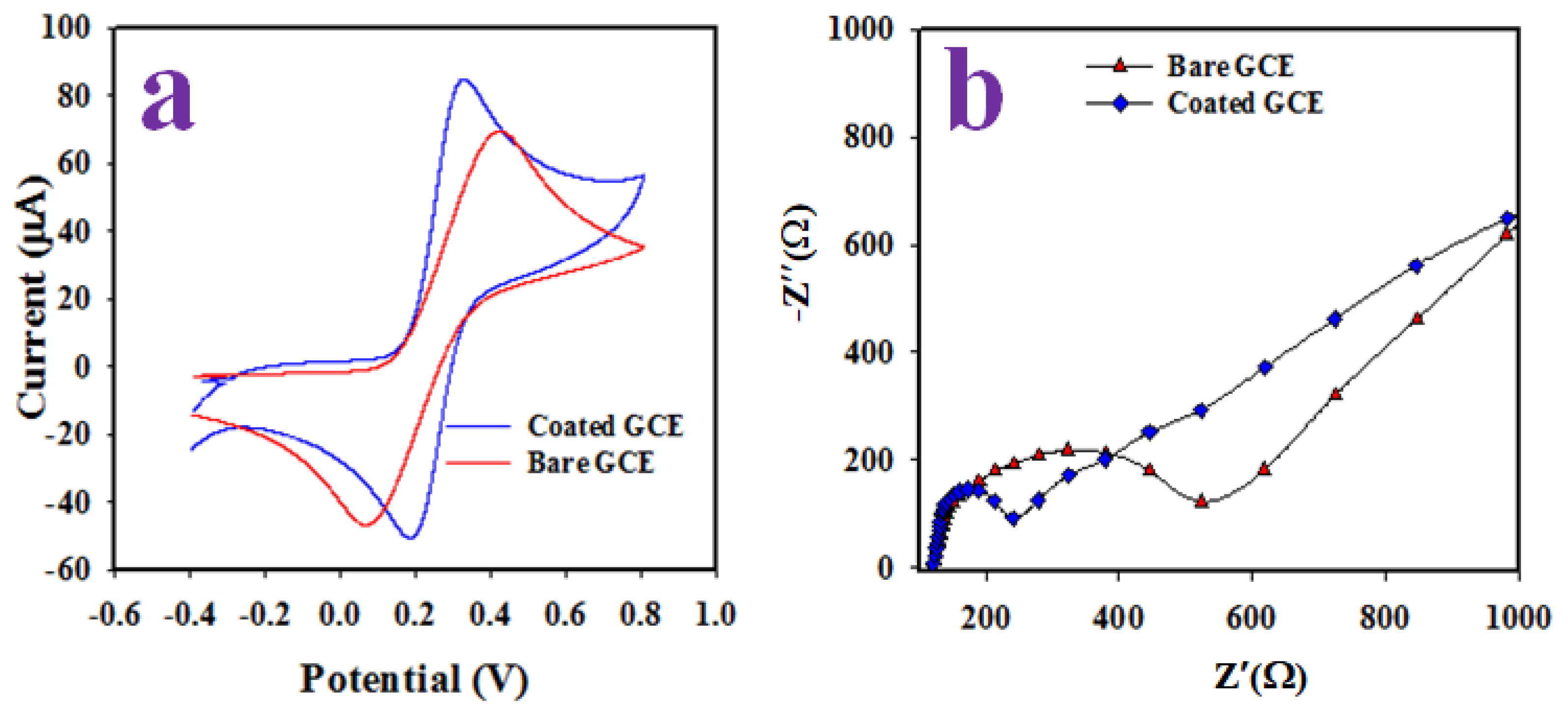

Figure 4. Electrochemical analysis of PbO-doped ZnO MSs fabricated GCE electrode. (a) The cyclic voltammetry of Bare and PbO-doped ZnO MSs modified GCE in 0.1 mM solution of Fe(CN)63−/4− in 7 pH buffer phase, and (b) Electrochemical impedance spectroscopy (EIS) for bare and PbO-doped ZnO MSs modified GCE using 0.1 mM solution of Fe(CN)63−/4− in 7 pH buffer phase.
Figure 4. Electrochemical analysis of PbO-doped ZnO MSs fabricated GCE electrode. (a) The cyclic voltammetry of Bare and PbO-doped ZnO MSs modified GCE in 0.1 mM solution of Fe(CN)63−/4− in 7 pH buffer phase, and (b) Electrochemical impedance spectroscopy (EIS) for bare and PbO-doped ZnO MSs modified GCE using 0.1 mM solution of Fe(CN)63−/4− in 7 pH buffer phase.
Catalysts 12 00727 g004
Catalysts 12 00727 g005 550

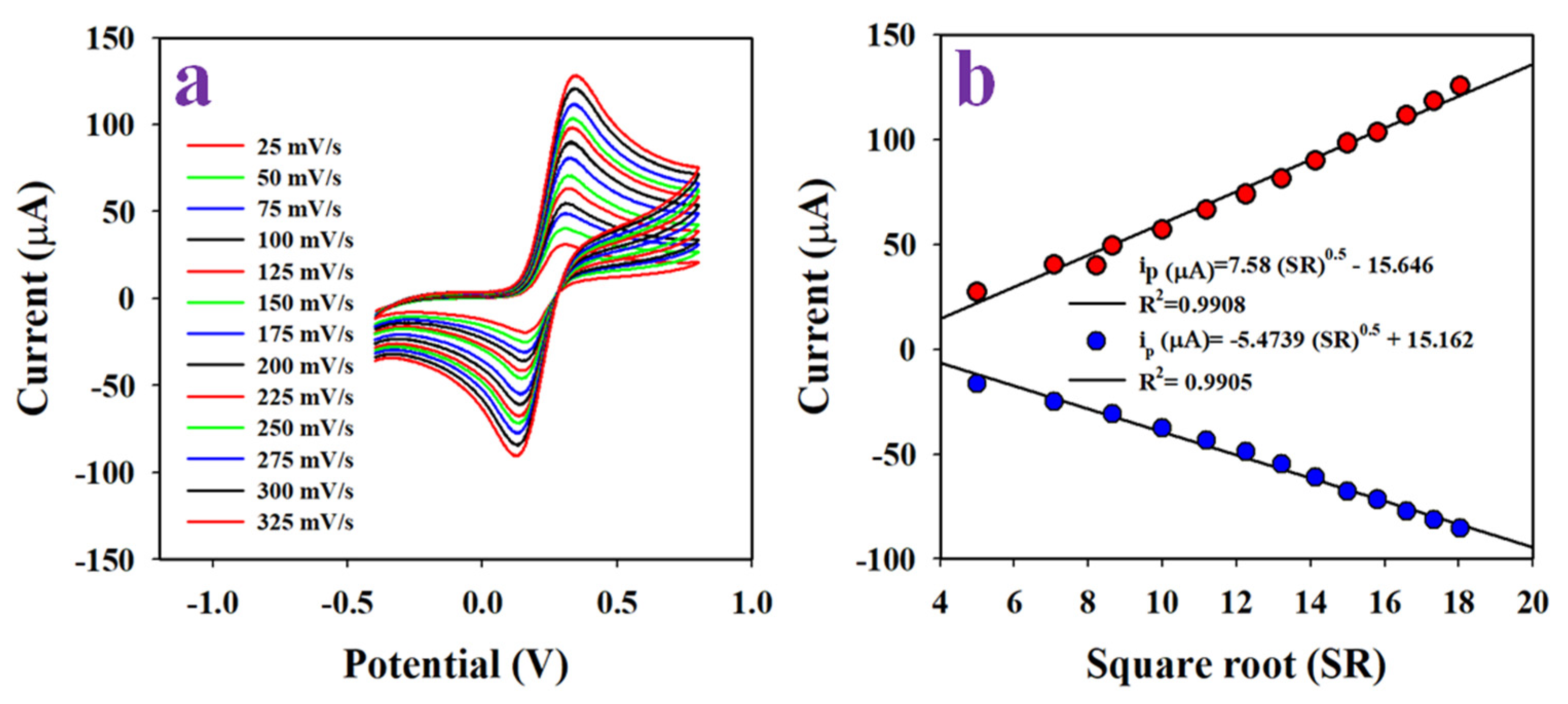

Figure 5. Electrochemical characterization. (a) Scan rate of assembled working electrode based on PbO-doped ZnO MSs/GCE subjected to analyze of 0.1 mM solution of Fe(CN)63−/4− in buffer medium of pH = 7, and (b) V0.5 versus ip (oxidation/reduction).
Figure 5. Electrochemical characterization. (a) Scan rate of assembled working electrode based on PbO-doped ZnO MSs/GCE subjected to analyze of 0.1 mM solution of Fe(CN)63−/4− in buffer medium of pH = 7, and (b) V0.5 versus ip (oxidation/reduction).
Catalysts 12 00727 g005
Catalysts 12 00727 g006 550

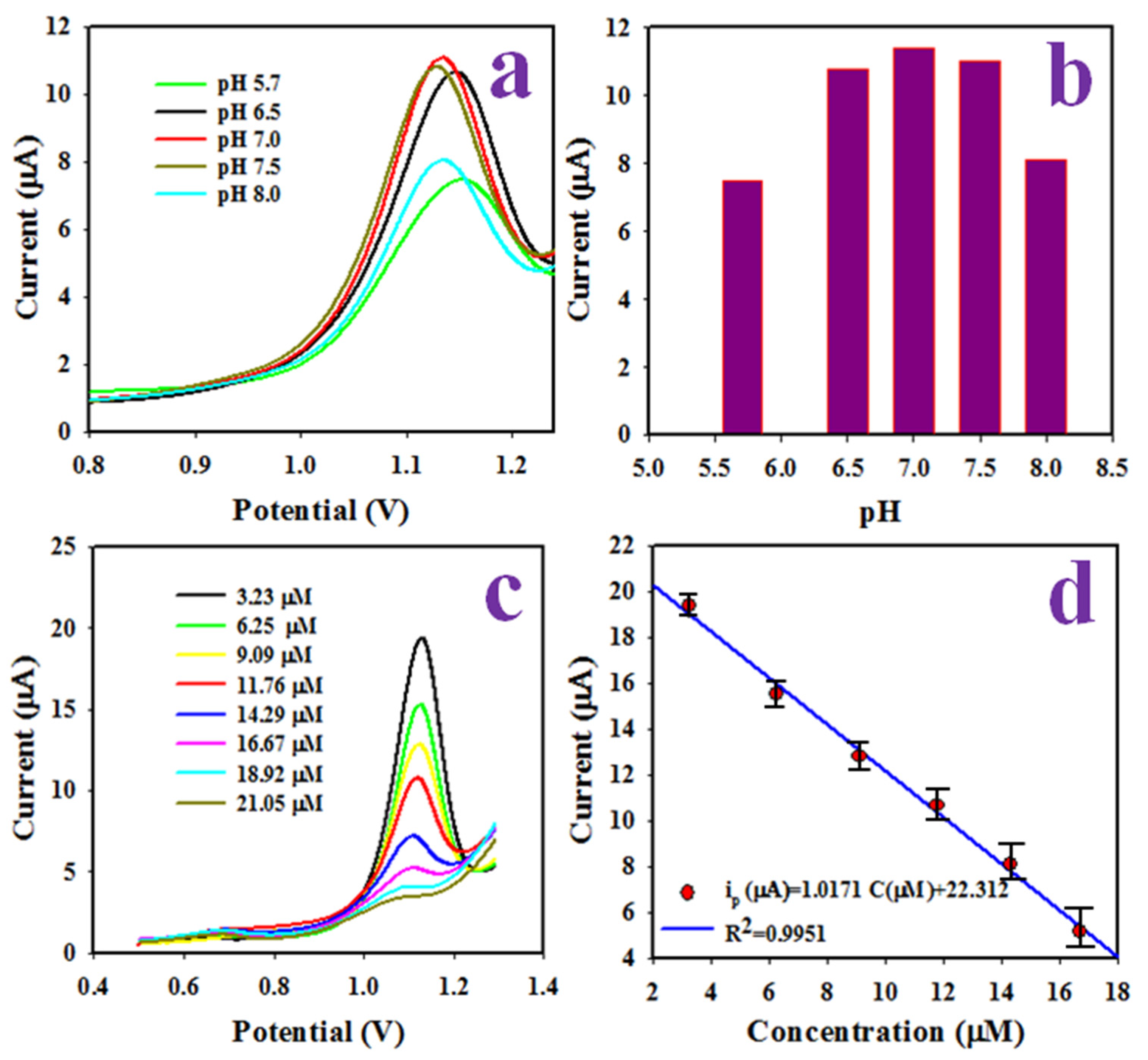

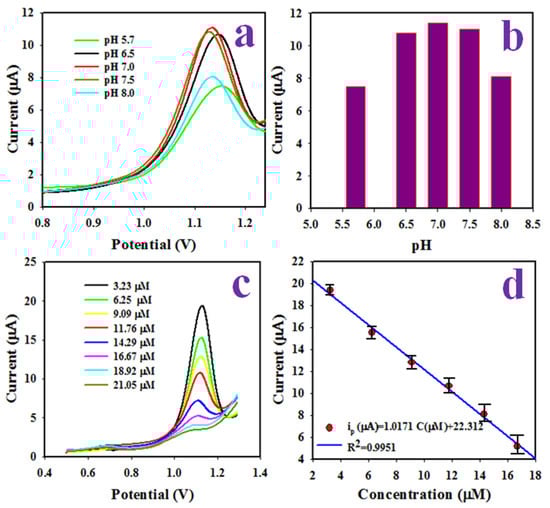

Figure 6. Analysis of sensor performance for the detection of target analyte. (a) The pH effects on the DPV analysis of 2,6-DNP, (b) the bar diagram of pH effect in electrochemical analysis of 2,6-DNP, (c) the DPV analysis of 2,6-DNP in pH 7.0 based on the concentration variation from low to high, and (d) the calibration of 2,6-DNP sensors.
Figure 6. Analysis of sensor performance for the detection of target analyte. (a) The pH effects on the DPV analysis of 2,6-DNP, (b) the bar diagram of pH effect in electrochemical analysis of 2,6-DNP, (c) the DPV analysis of 2,6-DNP in pH 7.0 based on the concentration variation from low to high, and (d) the calibration of 2,6-DNP sensors.
Catalysts 12 00727 g006
Catalysts 12 00727 g007 550

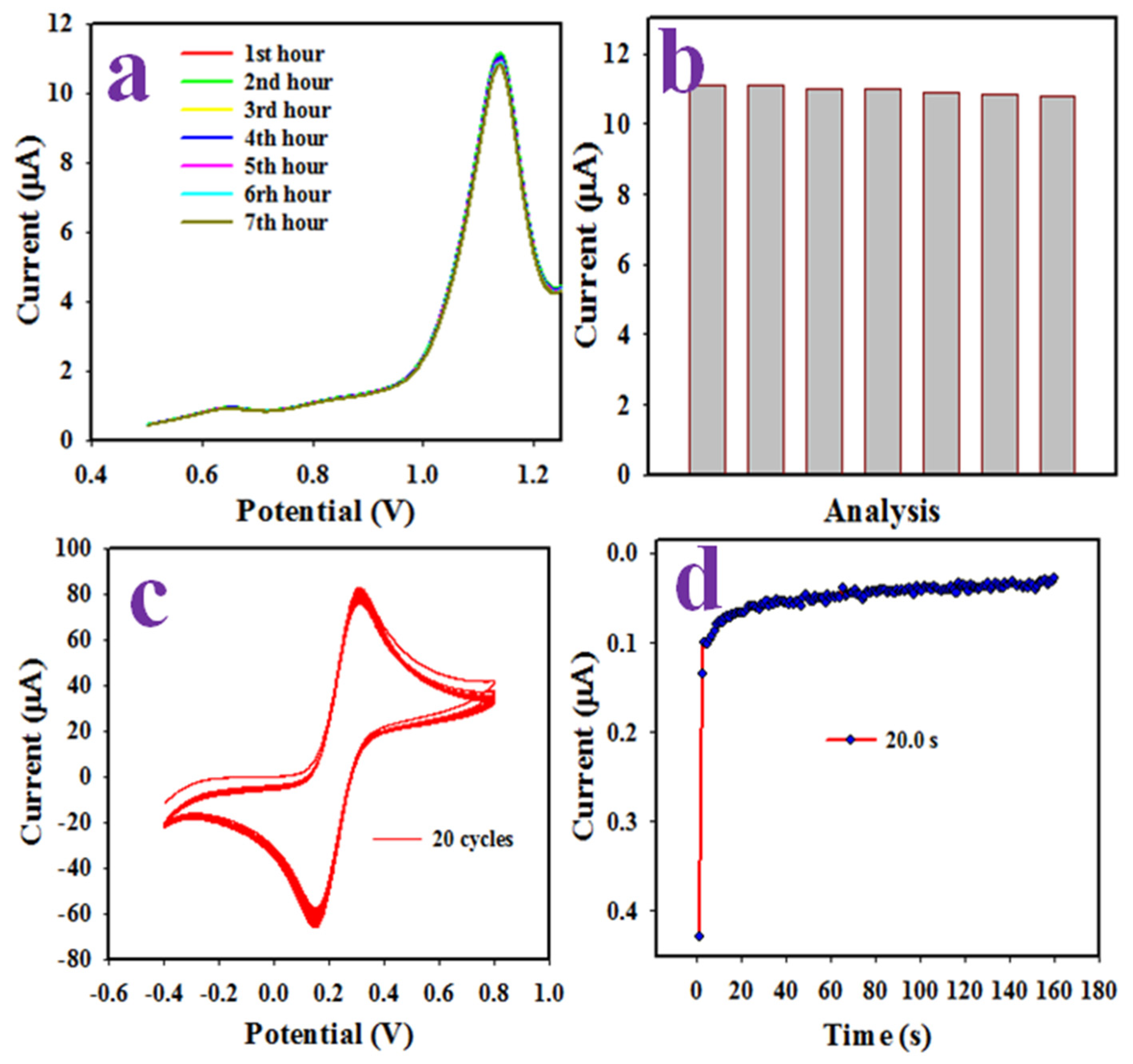

Figure 7. PbO-doped ZnO MSs/GCE sensor reliability. (a) Reproducibility of 2,6-DNP sensor, (b) reproducibility in bar-diagram, (c) the stability of 2,6-DNP sensor and (d) response time.
Figure 7. PbO-doped ZnO MSs/GCE sensor reliability. (a) Reproducibility of 2,6-DNP sensor, (b) reproducibility in bar-diagram, (c) the stability of 2,6-DNP sensor and (d) response time.
Catalysts 12 00727 g007
Catalysts 12 00727 g008 550

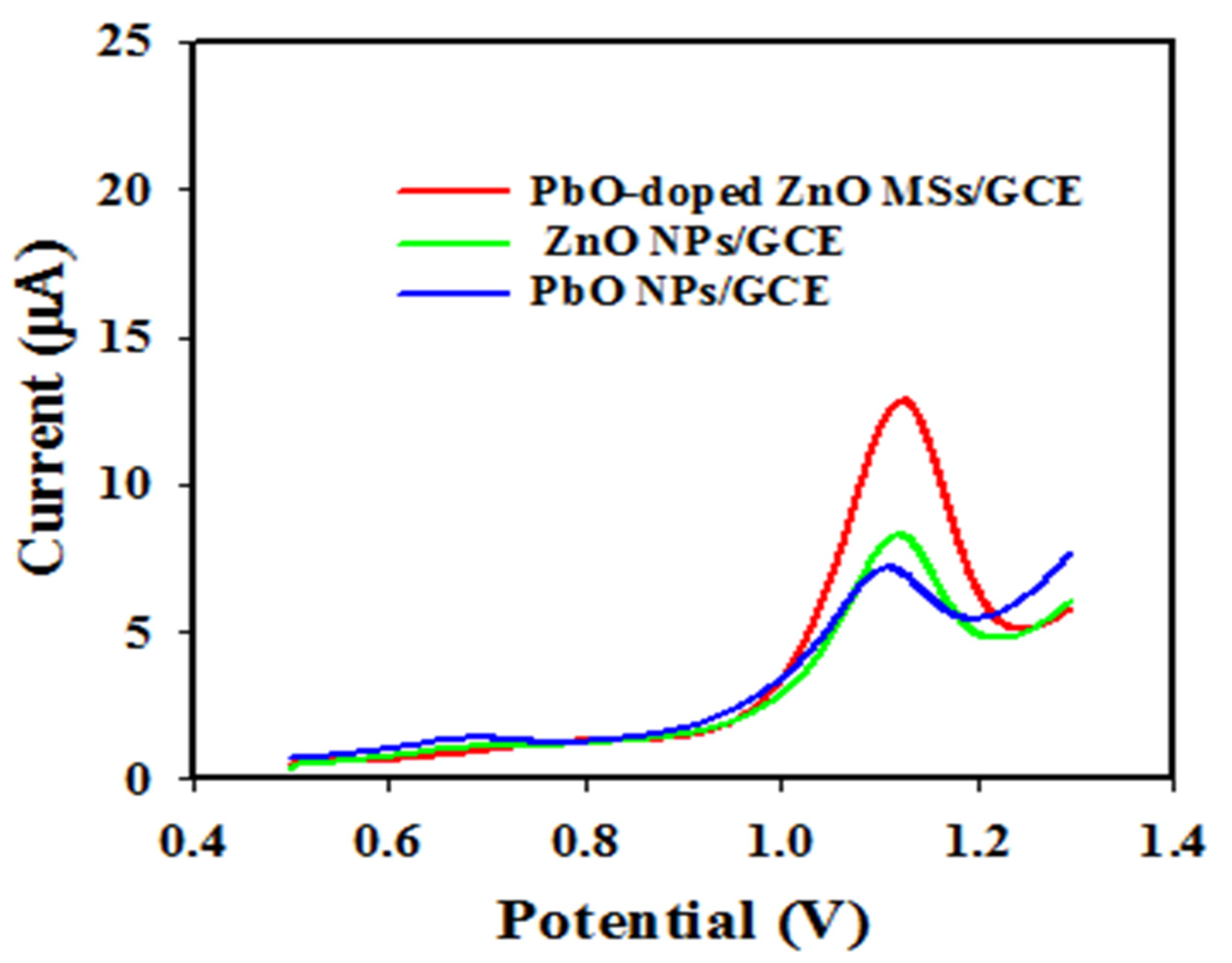

Figure 8. Control experiment is performed by DPV analysis of 2,6-DNP detection in 9.09 µM based on various binary or single metal oxides modified GCE.
Figure 8. Control experiment is performed by DPV analysis of 2,6-DNP detection in 9.09 µM based on various binary or single metal oxides modified GCE.
Catalysts 12 00727 g008
Catalysts 12 00727 sch001 550

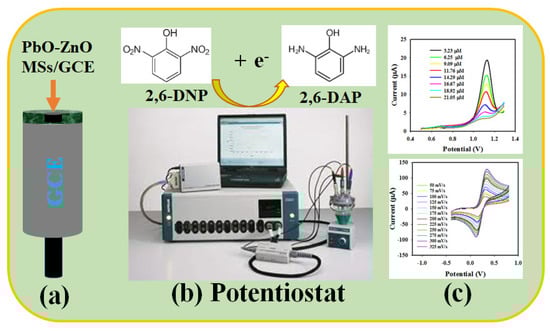

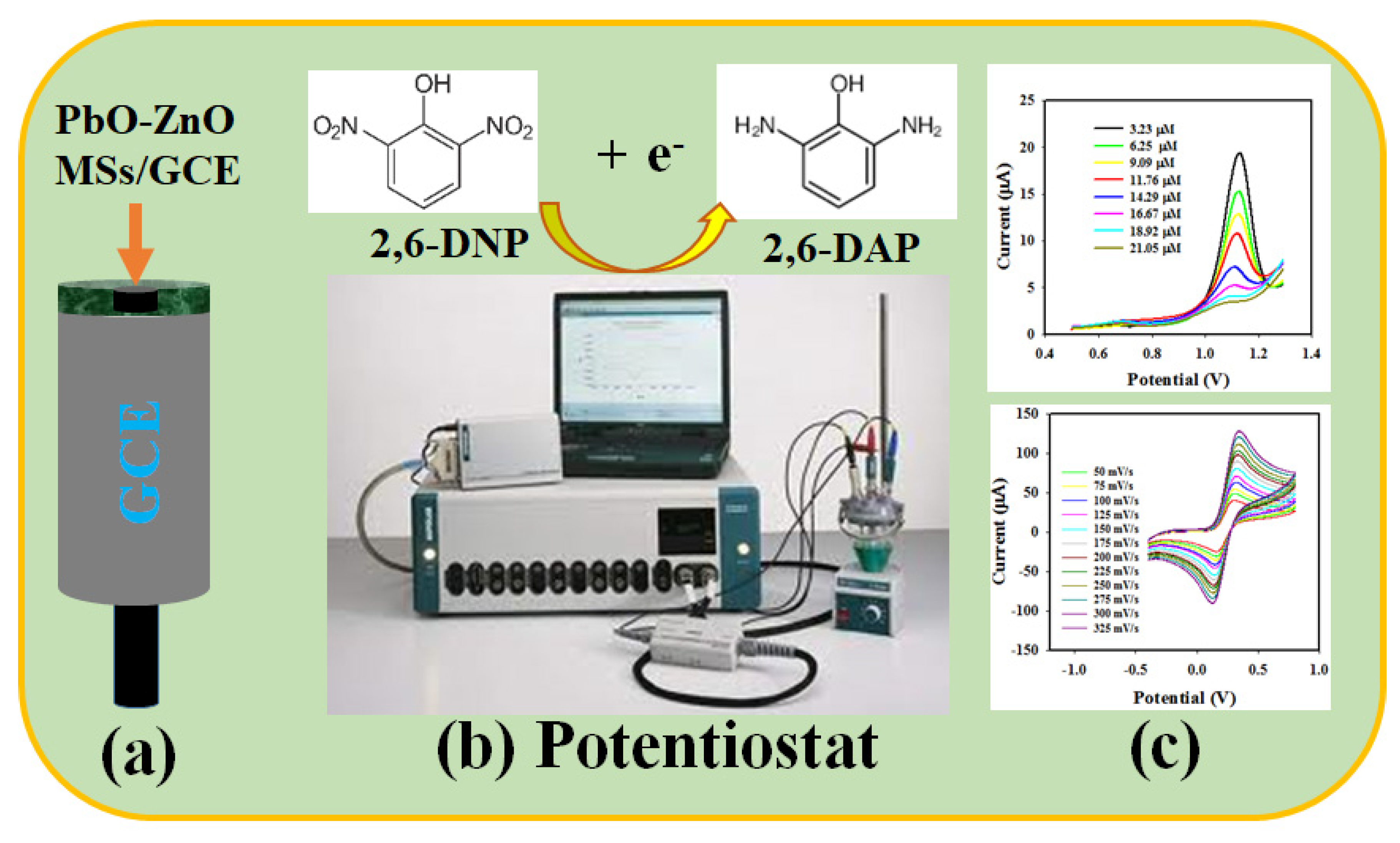

Scheme 1. Schematic representation of sensor. (a) GCE modification by PbO-doped ZnO MSs, (b) Assembled of instrument for differential pulse voltametric analysis of 2,6-DNP to 2,6-DAP, (c) Analyzed data in instrument.
Scheme 1. Schematic representation of sensor. (a) GCE modification by PbO-doped ZnO MSs, (b) Assembled of instrument for differential pulse voltametric analysis of 2,6-DNP to 2,6-DAP, (c) Analyzed data in instrument.
Catalysts 12 00727 sch001
Table
Table 1. The analytical parameters of 2,6-DNP for various modified electrode.
Table 1. The analytical parameters of 2,6-DNP for various modified electrode.
Modified GCE*LOD#LDRSensitivityRef.
PCR/GCE0.1 µM0.5~65 μM---[1]
Functional PVC23.0 nM2.5 µM~mM---[7]
GQDs0.091 µM0.1~15 µM---[16]
PbO/ZnO MSs/GCE2.0 µM3.23~16.67 μM32.1867 µAµM−1cm−2This work
*LOD (detection limit), #LDR (linear dynamic range), µM (micromole), mM (millimole).
Table
Table 2. The collected real samples analyzed by PbO-doped ZnO MSs/GCE electrochemical sensor.
Table 2. The collected real samples analyzed by PbO-doped ZnO MSs/GCE electrochemical sensor.
Real
Samples		Added 2,6-DNP Conc. (µM)Measured 2,6-DNP Conc.a by PbO-ZnO MSs /GCE (µM)Average Recovery b (%)RSD c (%)
(n = 3)
R1R2R3
Mineral water2.092.972.992.9598.68
Sea water2.092.942.962.9898.53
Tap water2.092.972.002.9398.64
a Mean of three repeated determination (signal to noise ratio 3) with PbO-doped ZnO MSs/GCE. b Concentration of 2,6-DNP determined/Concentration taken. (Unit: µM). c Relative standard deviation value indicates precision among three repeated measurements (R1, R2, and R3).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Rahman, M.M.; Alam, M.M.; Asiri, A.M.; Chowdhury, M.A.; Uddin, J. Electrocatalysis of 2,6-Dinitrophenol Based on Wet-Chemically Synthesized PbO-ZnO Microstructures. Catalysts 2022, 12, 727. https://doi.org/10.3390/catal12070727

AMA Style

Rahman MM, Alam MM, Asiri AM, Chowdhury MA, Uddin J. Electrocatalysis of 2,6-Dinitrophenol Based on Wet-Chemically Synthesized PbO-ZnO Microstructures. Catalysts. 2022; 12(7):727. https://doi.org/10.3390/catal12070727

Chicago/Turabian Style

Rahman, Mohammed M., Md M. Alam, Abdullah M. Asiri, Mohammad Asaduzzaman Chowdhury, and Jamal Uddin. 2022. "Electrocatalysis of 2,6-Dinitrophenol Based on Wet-Chemically Synthesized PbO-ZnO Microstructures" Catalysts 12, no. 7: 727. https://doi.org/10.3390/catal12070727

APA Style

Rahman, M. M., Alam, M. M., Asiri, A. M., Chowdhury, M. A., & Uddin, J. (2022). Electrocatalysis of 2,6-Dinitrophenol Based on Wet-Chemically Synthesized PbO-ZnO Microstructures. Catalysts, 12(7), 727. https://doi.org/10.3390/catal12070727

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
