Ru/Al₂O₃ on Polymer-Derived SiC Foams as Structured Catalysts for CO₂ Methanation

Abstract

The catalytic methanation of CO₂ via the strongly exothermic equilibrium Sabatier reaction requires the development of structured catalysts with enhanced mass- and heat-transfer features to limit hot-spot formation, avoid catalyst deactivation, and control process selectivity. In this work, we investigated the use of polymer-derived SiC open-cell foams as structured carriers onto which γ-Al₂O₃ was applied by either dip-coating or pore-filling methods; eventually, Ru was dispersed by impregnation. The formation of an undesired insulating SiO₂ layer on the surface of the SiC struts was prevented by a pyrolysis treatment under an inert atmosphere at temperatures varying from 800 up to 1800 °C. SiC foam substrates and their corresponding structured catalysts were characterized by SEM, XRD, N₂ physisorption, and compressive strength measurements, and their CO₂ methanation activity was tested at atmospheric pressure in a fixed bed flow reactor operated in the temperature range from 200 to 450 °C. SiC foams obtained at intermediate pyrolysis temperatures (1000–1200 °C) showed good mechanical strength and high compatibility with the Ru/Al₂O₃ active catalytic overlayer.

1. Introduction

The increasing levels of CO₂ in the atmosphere and the consequential global warming effect demand the development of novel techniques for CO₂ capture. At the same time, the increasing use of intermittent renewable energy sources involves the physical or chemical storage of H₂, which is over-produced in some conditions. To this end, the conversion of captured CO₂ into fuels such as methane (Power-to-Gas) through its hydrogenation represents a carbon-neutral and green solution producing a synthetic substitute of natural gas (SNG) which can be transported using the existing infrastructure for methane distribution.

The hydrogenation of CO₂ to produce methane, the Sabatier reaction, is an exothermic equilibrium process (ΔH = −165 kJ mol⁻¹). Catalysts such as Ru, Ni, Fe, Co, or Rh, dispersed on oxide supports, are necessary to achieve satisfactory reaction rates and selectivity to CH₄ at low temperature. A common drawback of the Sabatier reaction is related to the formation of hot spots on the catalyst surface. These hot spots are responsible for lower performance due to the displacement of the thermodynamic equilibrium, which decreases selectivity related to the more favorable conditions for the occurrence of the endothermic Reverse Water Gas Shift. In addition, especially for Ni-based catalysts, irreversible deactivation due to Ni sintering can take place. To prevent significant catalyst overheating, highly thermoconductive supports can be used to promote easy heat dissipation, thus allowing suitable management of the exothermal effects.

Conventional ceramic supports such as alumina, silica, titania, etc. cannot assure an effective heat transfer, whereas silicon carbide (SiC) is reported to show high heat conductivity and superior thermal stability [1,2,3,4]. To demonstrate the positive effect of SiC with respect to more insulating supports, Zhang et al. [2] compared the performance of nickel supported on SiC and Al₂O₃ in CO methanation. They observed the sintering of Ni particles over Al₂O₃ support and an increased carbon formation on the surface, which they attributed to the lower thermo-conductive properties of alumina with respect to SiC.

The rather low surface area of SiC and its chemical inertness represent features that strongly limit the direct dispersion of the active metal [1,4], and for this reason, the deposition of an intermediate high surface area mesoporous support is highly recommended. On the other hand, the deposition method of the support on the substrate represents a critical issue. Sun et al. [1] compared the performance in CO methanation of Ni/Al₂O₃ catalysts deposited on SiC by EISA (evaporation-induced self-assembly), a method starting from aluminum isopropoxide, and DP (deposition-precipitation), a more traditional method starting from aluminum nitrate. The former technique provided a uniform and homogeneous alumina coating on SiC particles in contrast with the DP method, which generated Al₂O₃ islands. This led to higher activity and selectivity to CH₄ in CO methanation of the catalyst prepared by the EISA method, also avoiding metal sintering and carbon deposition. Le et al. [3] also highlighted the importance of the preparation technique for Ni/SiC catalyst for the methanation of CO and CO₂. They reported that the DP method, leading to good nickel dispersion, coupled with the high thermal conductivity of the support, gave better performance for both reactions. The DP method was also proposed by Jin et al. [4] for the preparation of Ni/Al₂O₃/SiC catalyst for CO methanation which led to a uniform dispersion of alumina on SiC and a good dispersion of Ni nanoparticles. The authors identified an optimal Al₂O₃ loading providing the best catalytic performance.

All the above works were carried out in fixed bed reactors with particle catalysts; however, these show intrinsic limitations regarding radial heat transfer [5]. Therefore, structured catalysts have also been proposed, including ceramic or metal open-cell foams that offer distinctive advantages related to their high surface/volume ratio, low-pressure drops, radial mixing, and specifically outstanding mass and heat transfer [6,7]. In particular, highly conductive foams can improve the radial heat transport for non-adiabatic processes, e.g., for the CO₂ methanation on composite nickel foam catalysts [8]. Since the struts typically contain voids, the effective thermal conductivity is, however, below that of the pure solid material [5]. Frey et al. [9] compared three open-cell foams with the same morphology (consisting of SiC, alumina, and aluminum) and different intrinsic thermal conductivity to show the effect of heat transfer on the methanation reaction. The open-cell foams were coated with a ceria-zirconia layer followed by impregnation with Ni/Ru. Despite the highest thermal conductivity of aluminum, catalysts supported on this material showed a bad adhesion of the active phase. Consequently, SiC open-cell foams were the best compromise between the mechanical stability of the active layer and the thermal conductivity of the foamy substrate.

Similarly, Ricca et al. [10] investigated two structured substrates, made of SiC and aluminum, and shaped as honeycomb monolith and open-cell foam, respectively, whereby they deposited a washcoat layer of ceria-zirconia followed by Ni dispersion. The comparison with powder catalysts of the same composition highlighted that the better thermal distribution of the structured catalysts determined a flatter thermal profile. They found that this effect was more evident in the SiC monolith and also confirmed the bad adhesion of the active washcoat to the aluminum substrate already reported by Frey et al. [9]. In both works [9,10], a SiO₂ layer was generated on SiC substrate to better anchor the active phase. This is generally achieved by performing the thermal treatment of SiC under air. The oxidation of the SiC scaffold was used by Petersen et al. [11] to modify the thermal conductivity of β-SiC through the formation of an outer SiO₂ layer with a much lower thermal conductivity with an increasing thickness. The authors investigated Ru-based catalysts, showing a much higher activity at low temperature than their cheaper nickel counterparts, which is related to the easier reducibility of Ru [12]. The maximum fraction of SiO₂ explored caused a drop in the thermal conductivity of SiC/SiO₂ grains. As expected, the selectivity to CH₄ decreased with increasing the thickness of the SiO₂ layer due to the worse heat transfer. As discussed, the quality of both dispersion and adhesion of the support to the structured substrate represents a critical matter, and the compromise between the formation of an oxide layer on the SiC surface decreasing the thermal conductivity but enhancing the adhesion of support must be carefully evaluated.

Santhosh et al. [13] produced polymer-derived (PD) β-SiC open-cell foams by impregnating polyurethane foam with a preceramic polymer and subsequent pyrolysis in an inert atmosphere (Ar) at 1200, 1500, and 1800 °C. They found that at 1200 °C, the foam struts consisted of a dense, non-stoichiometric, amorphous silicon carbide with oxygen impurities. Increasing the temperature to 1500 °C, oxygen was removed from the structure as CO, resulting in the formation of porous amorphous silicon carbide with excess carbon. Finally, pyrolysis at 1800 °C led to the crystallization of β-SiC and a corresponding increase in the thermal conductivity. It should be noted that these SiC foams, due to the inert atmosphere used in their processing, do not have any insulating SiO₂ film at the surface. On one hand, this feature should be beneficial, since SiO₂ limits the thermal exchange; on the other hand, it could result in a poorly bonded alumina washcoat.

In this work, polymer-derived SiC foams pyrolyzed at different temperatures were investigated as the substrate for a 3%Ru/Al₂O₃ catalyst for CO₂ hydrogenation to methane. Special attention was devoted to the deposition of the alumina-supported catalysts directly on the SiC foam substrates avoiding the formation of a further less conductive Si-oxide layer in between.

2. Results and Discussion

2.1. Characterization of Catalysts

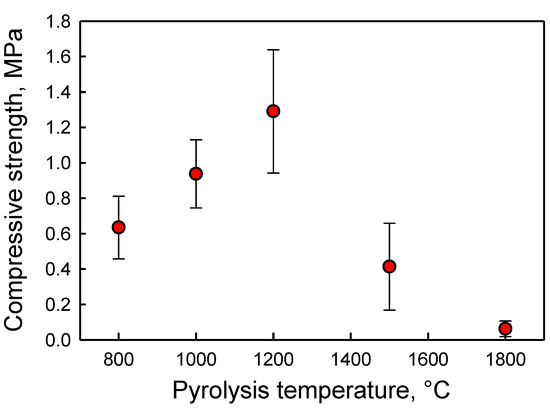

The mechanical resistance of SiC foam disks prepared in this work is reported in Figure 1 in terms of the compressive strength as a function of the pyrolysis temperature. The compressive strength linearly increases up to a maximum of ca 1.3 MPa for a pyrolysis temperature of 1200 °C, and then it rapidly declines to reach a value below 0.1 MPa for those SiC foams treated at a temperature of 1800 °C.

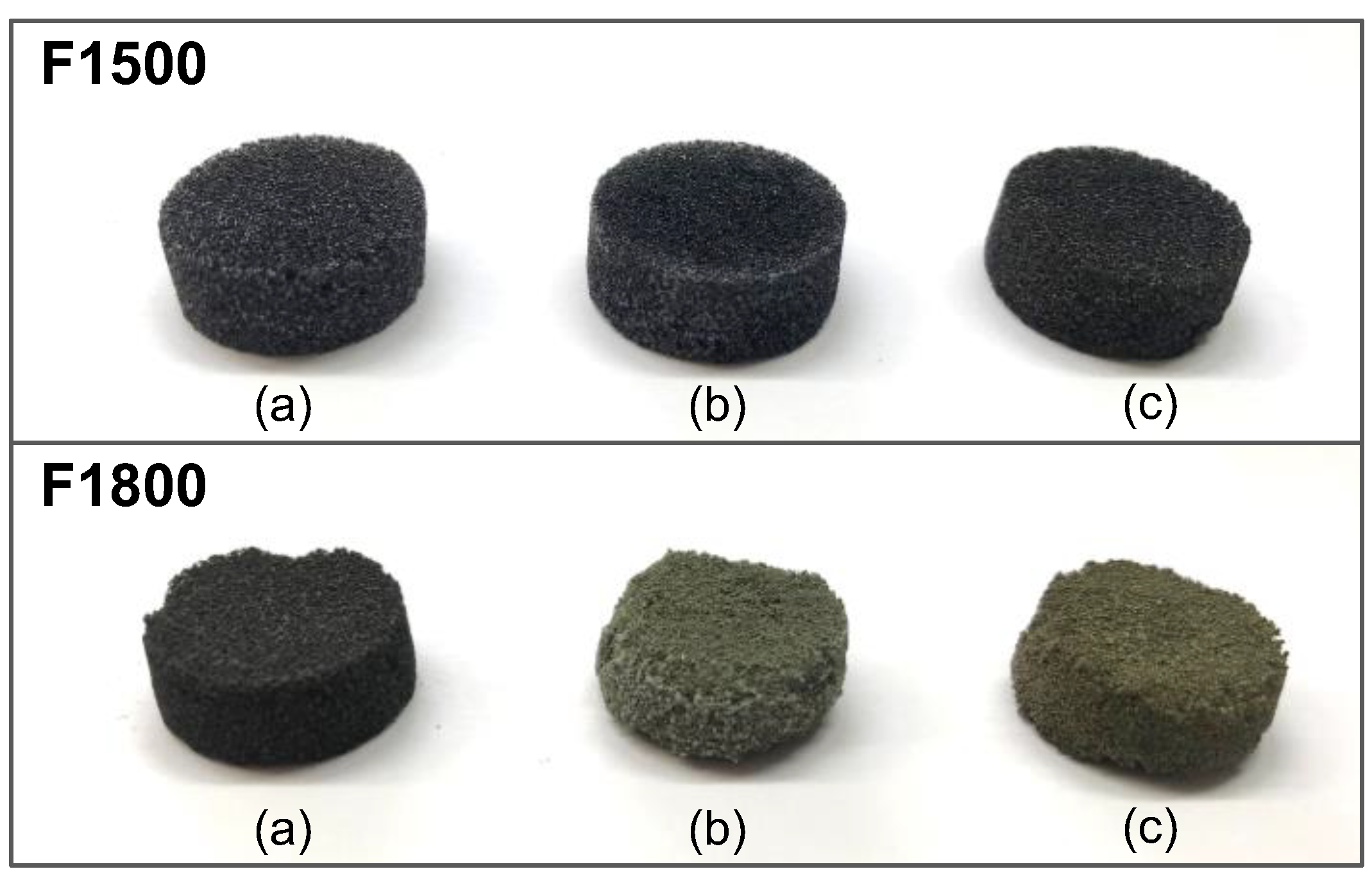

Due to the brittleness of the F1800 disks, these samples easily lose fragments, especially during handling, deposition of the active catalytic layer as well as during loading into the quartz tube reactor for testing. This clearly appears when comparing images of the F1500- and F1800-based catalysts taken at different stages of preparation (Figure 2).

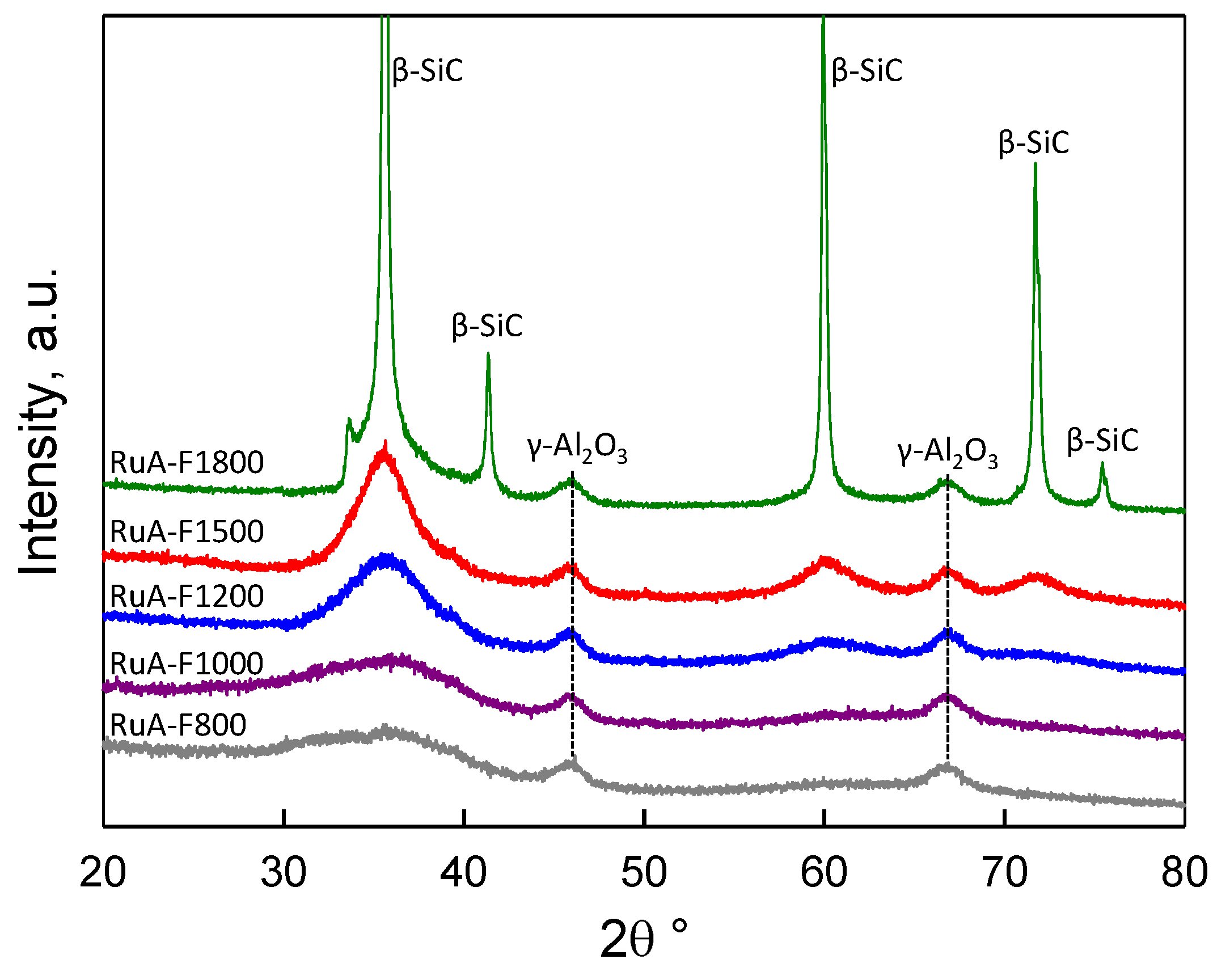

Figure 3 presents XRD results for the foam catalysts with the Ru/Al₂O₃ active layer deposited on various SiC substrates. No significant modification of the XRD patterns was detected between Ru-impregnated and H₂-reduced catalysts; accordingly, data in Figure 3 generally refer to reduced catalysts but for RuA-F800 and RuA-F1000 samples that were only dried after impregnation with the Ru precursor. It was observed that the F800 and F1000 SiC substrates were mainly amorphous, whereas characteristic signals at 2θ angles around 35.6, 60, and 71.7 °, which are typical of the β-SiC phase, started to appear when the pyrolysis temperature reached 1200 °C to eventually become very intense for the sample treated at 1800 °C. Accordingly, the characteristic size of the β-SiC crystallites estimated by the Scherrer equation increased along with the pyrolysis temperature, passing from ca 16 to 25 Å and up ca 580 Å for samples based on F1200, F1500, and F1800 foams, respectively. The loss of mechanical strength occurring after pyrolysis at 1500 °C seems to correlate with the porosity development [13], while the further drastic decrease of compressive strength at 1800 °C seems to be due to the formation of large β-SiC crystallites.

The formation of a γ-Al₂O₃ overlayer deposited on the foams by dip-coating and calcination of the pseudo-boehmite precursor was demonstrated by the characteristic broad signals at 2θ angles around 45.9 and 66.7°, from which a characteristic size of alumina crystallites was estimated constantly around 60 Å, regardless of the specific type of SiC substrate. At variance, no evidence was found of the undesired formation of crystalline SiO₂ due to the relatively low temperature of calcination which prevented SiC oxidation. This was also confirmed by the thermogravimetric analysis of the bare SiC substrates performed in air (not shown), excluding any significant weight change due to SiC oxidation up to 550 °C. Generally, no signals were detected in the XRD patterns of the structured catalysts relevant to Ru, which was due to the low loading of the noble metal and to its effective dispersion in the pores of the γ-alumina overlayer.

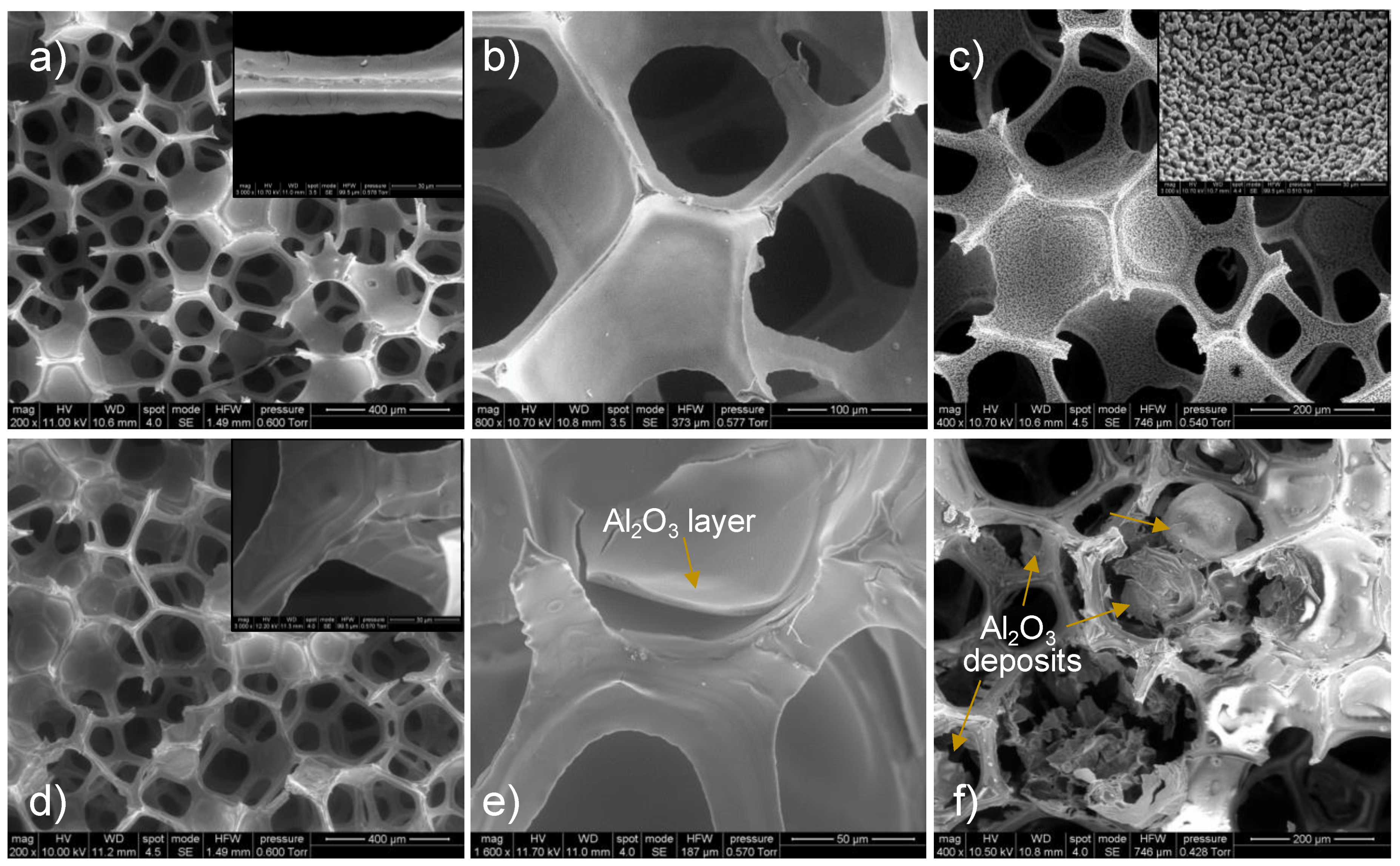

The SiC foams treated at increasing pyrolysis temperatures displayed similar geometrical features deriving from the PU template with open interconnected pores/cages of 400–500 μm and dense triangular struts with a characteristic size of ca. 25 μm (Figure 4). However, SEM analysis of bare foams showed a significant change in surface morphology, passing from a dense structure with a smooth texture characteristic of all samples treated up to 1500 °C (Figure 4a and its inset, Figure 4b), to a structure with some cracks and pores and a rough surface, covered with SiC crystals, typical of the sample treated at 1800 °C (Figure 4c and its inset).

As described in the Materials and Methods section, SiC foam disks were dip-coated with alumina starting from a pseudo-boehmite suspension representing the most conventional technique to washcoat honeycomb or foam monoliths. SEM micrographs of the final “activated” foam catalysts after H₂- reduction and catalytic methanation tests (Figure 4d and its inset; Figure 4e) showed that the dip-coating method produced a thin (2–3 μm) Al₂O₃ washcoat covering the SiC struts and cells rather uniformly so that the original morphology of the foams was preserved.

This suggests a good adhesion of alumina to the surface of SiC struts despite the absence of an intermediate SiO₂ layer. Nevertheless, in some specific areas (i.e., closed windows), the alumina washcoat presented some cracks and/or was partially detached from the SiC substrate (Figure 4e). A good dispersion of alumina was observed also for F1800, which was the only foam with a rough surface; SiC grains characterizing the surface of F1800 were still visible in the RuA-F1800 sample, though they were partially embedded in the alumina washcoat (not-shown).

At variance, the catalyst prepared by macropore filling of the SiC foam with aluminum nitrate solution showed (Figure 4f) a less uniform deposition of the resulting alumina loading, which mostly formed large grains entrapped in the cages and poorly anchored to the SiC struts.

Herein it is worth mentioning that the presence of a thin alumina overlayer (just few microns) applied on the SiC foam struts favors an easy penetration and uniform distribution of Ru throughout its whole depth. This is a significant advantage to avoid the common drawback of eggshell distribution and agglomeration of Ru nanoparticles that is often encountered in the preparation of supported catalysts using millimeter-sized alumina pellets or spheres [14,15]. This effect is due to the strong interaction of the Ru metal with the alumina inducing a fast precipitation of insoluble Ru-hydroxides that strongly limits the penetration depth of the precursor inside thick porous supports.

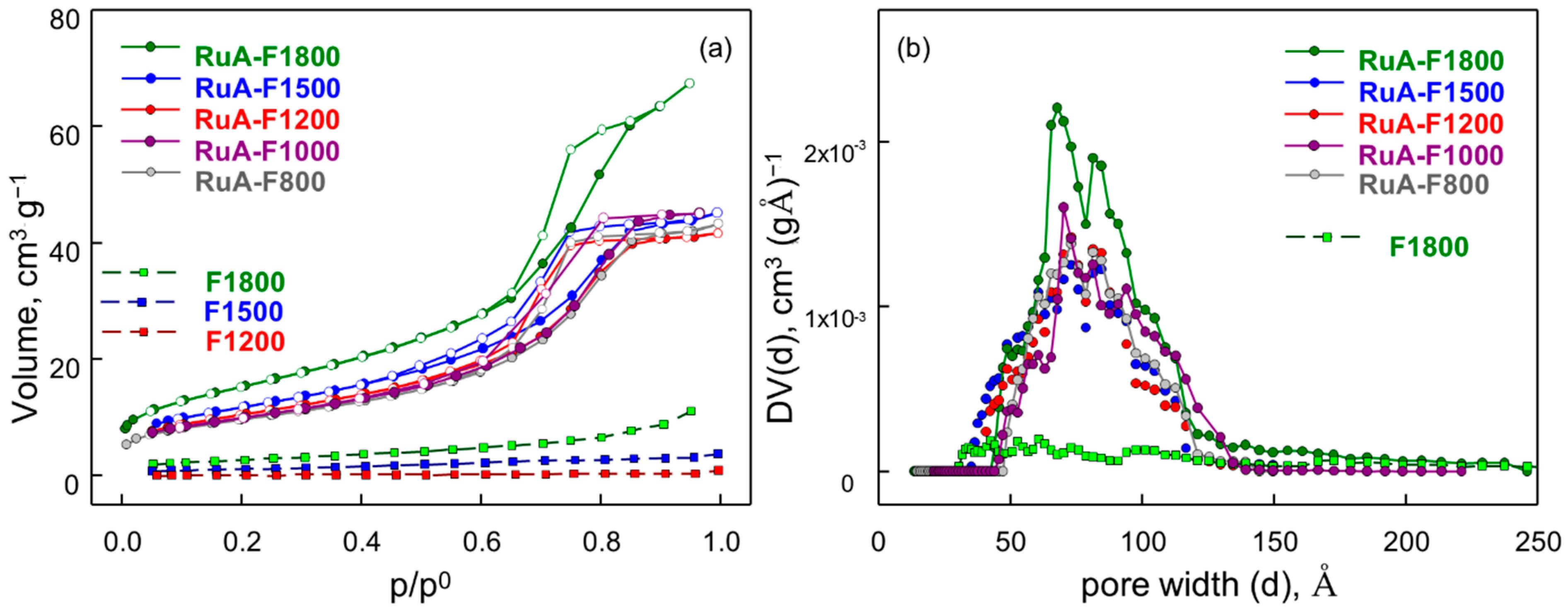

The N₂ physisorption isotherms at 77K are presented in Figure 5 for RuA-F catalysts as well as for their corresponding SiC foam substrates. In agreement with previous results on similar SiC foams [13], the substrates obtained at temperatures up to 1200 °C showed flat isotherms with negligible adsorption volumes, typical of dense materials, which is also confirmed by SEM observations. As the pyrolysis temperature was further increased to 1500 °C and 1800 °C, the SiC foams progressively developed some (limited) mesoporosity, characterized by a wide distribution of pore sizes (Figure 5b), extending from ca 35 and up to 250 Å. Accordingly, the corresponding values of the BET specific surface area (

Table 1. Geometric, compositional, and textural features of SiC foams and their corresponding RuA-Fxxxx catalysts after reduction.

Substrate	Apparent Density	Disk Volume	BET SiC	Al2O3 Loading		Ru Loading	Ru on Al2O3	BET Catalyst	Pore Size (Mean)
	g cm−3	cm3	m2 g−1	mg	% wt.	mg	%	m2 g−1	Å
F800	0.16 ± 0.01	1.94	<0.5	82	20.9	2.8	3.4	34.2	72
F1000	0.17± 0.01	1.96	<0.5	86	20.5	2.8	3.3	35.3	72
F1200	0.17± 0.01	1.83	0.7	100	24.2	3.6	3.6	38.0	72
F1200	0.17± 0.01	1.83	0.7	100	24.2 *	2.7	2.7	8.7 *	50 *
F1500	0.15± 0.01	1.88	4.3	80	21.7	2.2	2.7	42.4	72
F1800	0.15± 0.01	1.58	9.8	77	26.5	2.3	3.0	55.4	69

* Al₂O₃ by macropore filling impregnation with an aqueous aluminum nitrate solution

) increased along with the temperature of pyrolysis up to ca 10 m²/g for the F1800 SiC foam sample.

The deposition of the alumina overlayer resulted in a significant increase in the adsorbed volumes and BET surface areas of the foam catalysts (Figure 5a, Table 1), which in turn depended on the actual loading of the oxide phase. In particular, regardless of the specific type of SiC foam substrate, the alumina washcoat was characterized by a relatively narrow pore size distribution in the range from 35 to 115 Å, with the highest frequency at ca. 70 and 80 Å.

Considering the nominal Al₂O₃ loading on each foam sample, it was estimated that the BET specific surface area of the γ-alumina overlayer was constantly equal to 170 ± 10 m²/g. The accuracy of this estimation was somehow limited by the error involved in the measurement of the actual Al₂O₃ content for those samples having foam substrates with poor mechanical stability (F1500 and F1800).

Regarding the sample RuA(N)-F1200 prepared by the pore filling impregnation method, Table 1 shows that for an identical nominal oxide loading, the resulting BET surface area was only 8.7 m² g⁻¹, indicating a much lower mesoporosity of the resulting alumina which was characterized by an average pore size around 50 Å and an estimated BET as low as 36 m² g⁻¹. Accordingly, the XRD analysis of RuA(N)-F1200 (not shown) barely detected any characteristic signal γ-Al₂O₃ suggesting an amorphous nature of the deposit obtained by this preparation method.

2.2. Catalytic CO₂ Methanation Tests

Given their superior mechanical features and relatively low processing temperatures, those RuA structured catalysts supported on SiC foams obtained at 1000 °C and 1200 °C were selected for testing in the catalytic methanation of CO₂. Results are presented in Figure 6 in terms of the CO₂ conversion and CH₄ selectivity measured at the exit of the reactor as a function of the reaction temperature.

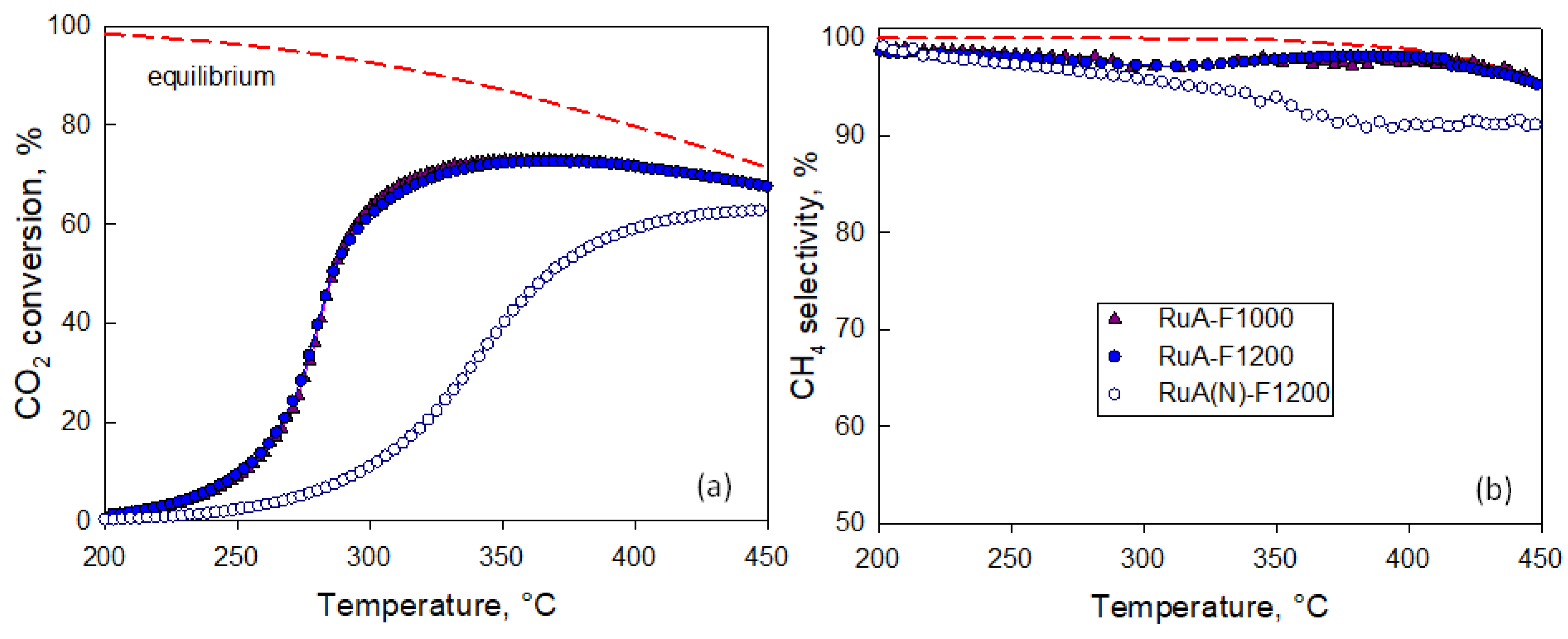

The characteristic conversion plots for RuA catalysts supported on either F1000 or F1200 SiC foams were superimposed, showing a typical S-shaped profile with an initial slow rise followed by a steep increase above ca. 260 °C due to the light-off of the strong exothermic methanation reaction causing a significant temperature increase of the catalyst above the pre-heating level (up to ca 95 °C). Thereafter, beyond 400 °C, the CO₂ conversion started to approach the corresponding equilibrium values, slightly decreasing along with the reaction temperature. Both RuA-F catalysts converted CO₂ into methane with almost identical high selectivity values (constantly above 97%) once again approaching equilibrium for T >380 °C and following the decreasing trend predicted by thermodynamic calculations due to the progressively larger formation of CO via the Reverse Water Gas Shift reaction which is favored at higher temperatures.

The RuA(N)-F1200 catalyst showed a qualitatively similar CO₂ conversion plot; however, this was shifted to higher temperatures by roughly 30 °C in the pre-ignition region, thus suggesting a lower overall intrinsic activity with respect to its RuA-F1200 counterpart. The process selectivity to methane was roughly unaffected in the low-to-mid conversion range up to 300 °C, i.e., where it is expected to be closely related to the intrinsic activity of the catalytic phase due to the prevailing of a kinetic regime. Beyond this point, CH₄ selectivity over RuA(N)-F1200 was slightly lower than that over the RuA-F1200 counterpart, which possibly suggests a worse heat management with the formation of localized hot-spot regions inside the catalytic disk at high conversion levels. In particular, the poor distribution of the active phase in the RuA(N)-F1200 sample, which was mostly trapped in the cells of the SiC foam, resulted in a poor contact with the conductive SiC struts (Figure 4f), thus favoring a local overheating and, in turn, promoting the undesired weakly endothermic Reverse Water Gas Shift reaction leading to the production of larger amounts of CO.

Additional methanation tests (not shown) were run over RuA-F1000 at fixed preheating (350 °C); the structured catalyst showed stable performance over a total of ca 7 h on stream while operating with a constant, self-sustained temperature as high as 440 °C recorded at its front (inlet) face. In turn, this confirmed the stability of the RuA active phase that was firmly anchored to the SiC foam support.

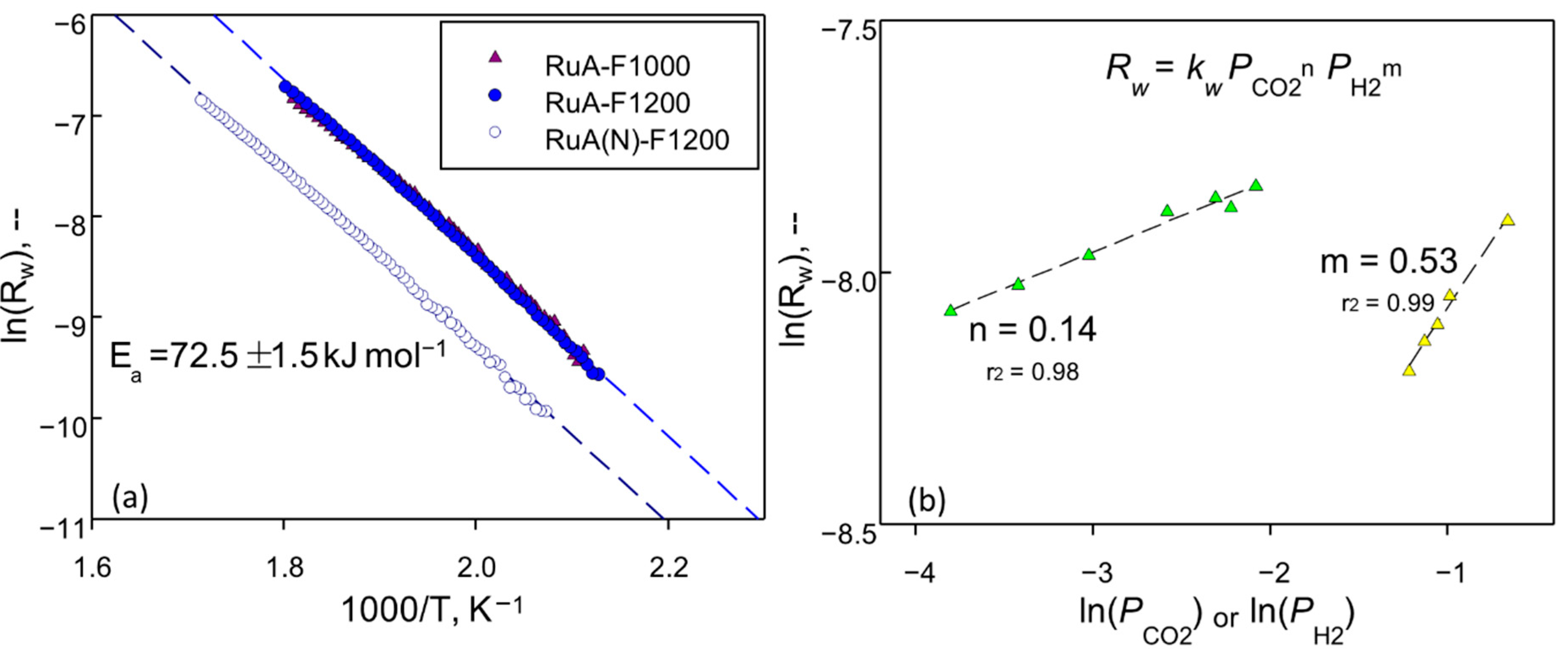

Figure 7a presents the Arrhenius plots derived from low-conversion data in Figure 6a which were acquired under pseudo-isothermal conditions and are representative of a pure kinetic regime. Coherently, all data points for each one of the tested catalysts follow a linear trend. The values of the apparent activation energy for the hydrogenation of CO₂ estimated by the slopes of the corresponding lines are very close to each other and equal to 72.5 ± 1.5 kJ mol⁻¹. This is consistent with previously reported data over Ru/Al₂O₃ [16,17,18,19] and suggests that all foam catalysts activate the same reaction mechanism regardless of the alumina deposition method as well as the type of the SiC support. Such a result was further confirmed by some additional tests (not shown) with RuA foam catalysts deposited over F1500 and F1800 SiC foams, always returning the same value of the apparent activation energy. Moreover, Figure 7a shows that the normalization of the CO₂ hydrogenation rate per unit mass of Ru in the catalysts’ returned superimposed values for RuA-F1000 and RuA-F1200 samples. At variance, the RuA(N)-F1200 sample was characterized by a lower specific CO₂ hydrogenation activity, reduced by a factor of as much as 2.6. This is most probably due to the lower BET surface area and mesoporosity of the alumina layer causing a worse dispersion of the Ru metal nanoparticles.

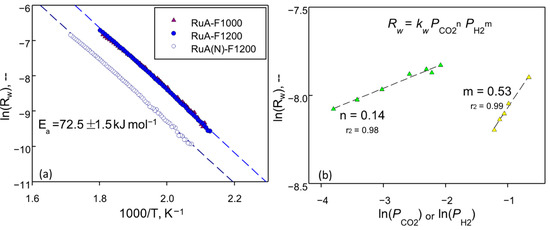

Eventually, Figure 7b presents the results of the preliminary kinetic study on the apparent reaction order of the CO₂ hydrogenation (power law expression not accounting for the approach to equilibrium: $R_w=k_w·P_{\mathrm{C}\mathrm{O}2}^n·P_{\mathrm{H}2}^m$) which was conducted over the RuA-F1000 foam catalyst at fixed temperature and low conversion by varying the partial pressures of CO₂ and H₂ in the feed while keeping constant P_H2 and P_CO2, respectively. In good agreement with previous literature reports on similar Ru/Al₂O₃ catalysts [16,19], it was found that at low CO₂ conversion values the reaction rate has a dependence on H₂ partial pressure of ca 0.53 which is roughly 4 times stronger than on CO₂ (reaction order 0.14).

3. Materials and Methods

3.1. Preparation of SiC Foam Substrates

SiC foam disks (17–18 mm diameter, 7–7.8 mm height) were obtained by the replica method using flexible polyurethane (PU) PPI90 open cell foam (ARE- S.r.l, Rosate, Milan, Italy) following a published procedure [20]. PU templates were impregnated with polycarbosilane (SMP-10, Starfire Systems, Schenectady, USA) in acetone/hexane solution using a Pt catalyst (Platinum–divinyltetramethyldisiloxane complex in xylene, with Pt content of ~2%, Sigma–Aldrich, Saint Louis, MO, USA) and an SMP-10/PU weight ratio of 3. After drying at room temperature overnight, the impregnated foam samples were pyrolyzed under Ar (400 cc min⁻¹) using a tubular alumina furnace (GERO, Neuhausen, Germany) within the temperature range of 800 °C–1500 °C. The samples were heated up to the maximum temperature at 5 °C min⁻¹ and were held for 1.5 h. The process also included an intermediate dwell of 0.5 h at 600 °C.

The samples processed at 1800 °C were pyrolyzed with the same conditions but using a graphite furnace (Astro Thermal Technology, Santa Barbara, CA, USA).

3.2. Preparation of Catalysts

Catalysts were prepared by dip-coating the SiC substrates by immersion in a suspension of acid dispersible boehmite (Disperal–Sasol: 6.5 g in 43.2 mL of H₂O and 0.3 g of HNO₃, 65 wt%) followed by removal of excess suspension (by air-blowing). An alternative method of dispersion of the alumina support (macropore filling) was also implemented consisting of the immersion of the foam disks (pyrolyzed at 1200 °C) in an aqueous solution of Al(NO₃)₃∙9H₂O. Thereafter, all samples were dried at 120 °C and eventually calcined in air at 550 °C for 2 h. The deposition process was repeated to reach the final desired alumina loading on the foams (ca. 21–26% by weight).

Ruthenium was deposited by the incipient wetness impregnation method using a 1.4% wt. Ru(III) nitrosyl nitrate acidic solution (Merck, Darmstadt, Germany). The actual metal loading in the catalysts was estimated by the weight gain of the foam samples following impregnation and removal of the excess precursor solution with compressed air. The catalysts were then dried at 120 °C for 12 h and were finally reduced and activated in-situ at 450 °C under H₂/N₂ flow before catalytic tests.

Foam catalysts were labeled as RuA-Fxxxx, where xxxx represents the pyrolysis temperature of the SiC substrate; the suffix (N) was added to the sample prepared by pore-filling with aluminum nitrate solution.

3.3. Characterization of Catalysts

The characterization of catalysts was generally performed on reduced samples unless otherwise stated.

The mechanical resistance of the foams pyrolyzed at different temperatures was evaluated by measuring their compressive strength with an MTS 810 (Material Test System, MTS system corp., Eden Prairie, Minnesota, USA) using a 5 kN load cell and cubic samples ~ (1.5 × 1.5 × 1.5) cm³ at a displacement rate of 1 mm min⁻¹. At least four samples were measured for each pyrolysis temperature.

The morphology of the bare SiC foam substrates and their corresponding catalysts was inspected by scanning electron microscopy (SEM) with an FEI Inspect instrument (Thermo Fischer, Waltham, MA, USA).

X-ray diffraction (XRD) analysis of powdered samples was performed using a X’Pert PRO apparatus (Philips, Amsterdam, the Netherlands) with working radiation CuKα, anti-scatter silt width: 7.5 mm, collecting patterns in the 2θ range 20–80°, scanning with a step size of 0.013° at 0.156° s⁻¹.

Thermogravimetric analysis (TGA) of bare SiC foams was performed using a Netzsch STA 409 equipment (Netzsch Geraetebau GmbH, Selb, Germany). The 50 mg sample was loaded into an alumina crucible and heated in air flow (100 mL min⁻¹) at 10 °C min⁻¹ up to 550 °C with 2 h holding at the maximum temperature.

N₂ adsorption measurements at 77 K were performed in an Autosorb 1-C (Quantachrome Instruments, Boynton Beach, FL, USA) after degassing samples at 150 °C for 3 h. The Brunauer, Emmett and Teller (BET) method and the Non-Linear Density Function Theory (NLDFT, cylindrical pore model) method were used to evaluate the specific surface area and the pore size distribution of the catalysts, respectively.

3.4. Catalytic CO₂ Methanation Tests

The catalytic methanation of gaseous CO₂ was investigated in a fixed-bed quartz reactor with circular section (d_in = 20mm, d_out = 25 mm) loaded with the foam disk. The reaction tests were run at atmospheric pressure in the temperature-programmed mode by heating up the catalysts from 200 to 450 °C with a rate of 3 °C min⁻¹ under a flow of CO₂/H₂/N₂ = 1/4/5 (20 SL/h). Reaction temperatures were measured by K-type thermocouples placed in contact with the front and back faces of the catalytic foam disk. Before testing, the catalysts were pre-reduced in situ at 450 °C under a flow of 20% vol. H₂/N₂.

The molar fractions of CO, CO₂, CH₄, and H₂ in the product gas were measured by a continuous gas analyzer (Optima Advance, ABB, Zurich, Switzerland). Thereafter, the conversion of CO₂ and the process selectivity to CH₄ ($s_{\mathrm{C}\mathrm{H}4}$) were calculated according to the definitions:

$$x_{\mathrm{C}\mathrm{O}2}=100\left(1-\frac{\mathrm{C}{\mathrm{O}}_2^{out}}{\mathrm{C}{\mathrm{O}}_2{}^{out}+\mathrm{C}{\mathrm{H}}_{\mathrm{4}}^{out}+\mathrm{C}{\mathrm{O}}^{out}}\right)$$

(1)

$$s_{\mathrm{C}\mathrm{H}4}=100\left(\frac{\mathrm{C}{\mathrm{H}}_4{}^{out}}{\mathrm{C}{\mathrm{H}}_4^{out}+\mathrm{C}{\mathrm{O}}^{out}}\right)$$

(2)

Gaseq software was used to calculate the equilibrium composition in the product gas at constant temperature and pressure. The rate of CO₂ consumption per unit mass of Ru in the catalyst (R_w) was estimated from low conversion data (<10%, ΔT_out-in < 5 °C) by assuming an isothermal plug flow reactor operating under differential conditions with a constant molar flow rate according to the equation:

$$R_w\cong \frac{F_{\mathrm{C}\mathrm{O}\mathrm{2}}·x_{\mathrm{C}\mathrm{O}\mathrm{2}}}{W_{\mathrm{R}\mathrm{u}}}\left[\mathrm{mol}{{\mathrm{g}}_{\mathrm{R}\mathrm{u}}}^{-1}{\mathrm{s}}^{-1}\right]$$

(3)

where $F_{\mathrm{C}{\mathrm{O}}_2}$ is the inlet molar flow of CO₂ and W_Ru is the mass of Ru in the foam catalyst. The apparent activation energy of the catalytic CO₂ hydrogenation was estimated by Arrhenius plots of $R_w$. The orders of reaction with respect to the partial pressure of CO₂ and H₂ were estimated by plots of lnR_w, at a fixed temperature, vs. lnP_CO2 and lnP_H2, respectively: the inlet molar ratio H₂/CO₂ was varied in the range 2.9–4.9 for those experiments at constant $P_{\mathrm{C}\mathrm{O}2}=0.1 \mathrm{atm}$, and 3.1–15.7 for tests at constant $P_{\mathrm{H}2}=0.4 \mathrm{atm}$.

4. Conclusions

Polymer-derived SiC foam disks were prepared by a replica method using PPU open-cell foams (90 PPI) and were used as conductive, light-weight, structured substrates for a Ru/Al₂O₃ catalyst for the hydrogenation of CO₂ to methane. The formation of an insulating SiO₂ layer on the surface of the SiC struts was prevented by a pyrolysis treatment under an inert atmosphere at temperatures varying from 800 to 1800 °C.

SiC foams obtained at 1000–1200 °C displaying an amorphous structure, a compact texture, and a compressive strength as high as 1.3 MPa were selected as viable substrates for the structured catalyst. Pyrolysis temperatures ≥ 1500 °C caused a significant loss of mechanical properties correlated with the porosity development and eventually, the formation of large β-SiC crystallites was observed at 1800 °C.

A quite uniform, well-anchored, thin γ-Al₂O₃ overlayer was formed on all SiC foam substrates by the dip-coating method with a pseudo-boehmite suspension. At variance, an alternative macro-pore filling method with an aqueous solution of aluminum nitrate precursor produced a poor dispersion of the resulting alumina, forming large deposits trapped in the foam cages. Eventually, the Ru active metal was dispersed on the γ-Al₂O₃ modified SiC foams by incipient wetness impregnation.

Catalytic methanation tests, performed in the temperature range from 200 to 450 °C in a fixed bed reactor, showed highly repeatable performance in terms of CO₂ conversion as a function of temperature and, regardless of the specific type of SiC foam substrate, with high process selectivity to CH₄ closely approaching equilibrium values in the whole temperature range explored.

Conversion data acquired under a pure kinetic-control regime suggested all Ru/Al₂O₃-SiC foam catalysts activated the same reaction mechanism regardless of the alumina deposition method. However, the catalyst prepared by the macropore-filling method provided worse catalytic performance due to the lower surface area of the alumina deposits reducing the dispersion of the active Ru metal. Moreover, the poor contact of the alumina with the conductive SiC foam substrate was also responsible for the larger formation of CO at high temperatures, related to the occurrence of localized hot spots in the structured catalyst favoring the undesired Reverse Water Gas Shift reaction.
