Alternating Ring-Opening Metathesis Polymerization Promoted by Ruthenium Catalysts Bearing Unsymmetrical NHC Ligands

by
Rubina Troiano
,
Chiara Costabile
and
Fabia Grisi
*
Dipartimento di Chimica e Biologia “Adolfo Zambelli”, University of Salerno, Via Giovanni Paolo II, 132, 84084 Fisciano, SA, Italy
*
Author to whom correspondence should be addressed.
Catalysts 2023, 13(1), 34; https://doi.org/10.3390/catal13010034
Submission received: 16 November 2022 / Revised: 17 December 2022 / Accepted: 21 December 2022 / Published: 24 December 2022
(This article belongs to the Special Issue Late Transition Metal Complexes: Catalytic and/or Biological Activities)
Browse Figures
Review Reports Versions Notes

Abstract

:
In this paper, Grubbs- and Hoveyda–Grubbs-type olefin metathesis catalysts featuring N-cyclopentyl/N’-mesityl backbone-substituted N-heterocyclic carbene (NHC) ligands were synthesized. Their propensity to promote the alternating ring-opening metathesis copolymerization (ROMP) of norbornene (NBE) with cyclooctene (COE) or cyclopentene (CPE) was evaluated and compared to that shown by analogous N-cyclohexyl complexes. High degrees of chemoselectivity were achieved in both copolymerizations. The presence of the N-cyclopentyl substituent allowed for the achievement of up to 98% and 97% of alternating diads for NBE-COE and NBE-CPE copolymers, respectively, at low comonomer ratios. Density functional theory (DFT) studies showed that both the sterical and electronic effects of NHC ligands influence catalyst selectivity.

1. Introduction

Since their introduction by Arduengo in 1991 [1], N-heterocyclic carbenes (NHCs) have gained increasing attention, becoming one of the most important classes of ligands in transition metal coordination chemistry [2,3,4]. Their strong σ-donating and adaptable π-accepting abilities make them suitable for providing stable metal–ligand frameworks with several transition metals [5,6,7]. The great success of NHCs is also related to the easy tunability of their steric properties, which has led to the synthesis of a plethora of different NHC architectures [8]. Accordingly, an enormous number of NHC–transition metal complexes for various catalytic applications have been reported to date [9,10,11,12,13,14,15,16,17,18,19,20].
Among them, NHC–ruthenium alkylidene complexes have been extensively studied as olefin metathesis catalysts [21,22]. These complexes have become ever more popular for their distinctive features, such as their robustness toward air and moisture, outstanding tolerance to functional groups, good thermal stability, ease of handling and high selectivity [21,22,23,24].
Many research efforts have been devoted to further enhancing the catalytic performances of this class of complexes. A successful strategy to directly influence catalyst stability, activity and selectivity involves the manipulation of the steric and electronic properties of the NHC ligand by changing substituents on the nitrogen atoms and/or the backbone of the NHC ring [25,26].
In particular, unsymmetrical substitution on the nitrogen atoms has led to the development of efficient catalysts for several specific metathesis transformations where symmetrically substituted NHC complexes fail or are scarcely efficient [26,27,28,29,30]. An example is the challenging synthesis of alternating copolymers via ring-opening polymerization (ROMP) of two cyclic olefins with the same olefinic double-bond polarity, such as norbornene (NBE) with cycloctene (COE) or cyclopentene (CPE) [29,31,32,33,34,35,36]. Exceptional levels of alternation for NBE-COE (97% of alternating diads) and NBE-CPE copolymers (91% of alternating diads) were achieved in the presence of ruthenium catalysts featuring unsymmetrically N,N′-substituted NHC (uNHC) introduced by Blechert and Buchmeiser. In both cases, the control over alternating copolymerization was facilitated by using high comonomer ratios (NBE:COE 1:50 and NBE:CPE 1:7). The selectivity in the copolymerization was correlated with the steric interaction between the 2-phenylethyl group on the nitrogen and the growing polymer chain [37,38,39]. The same content of alternating units (97%) in NBE-COE copolymers was obtained by Togni, who employed ruthenium complexes supported by uNHC ligands with an N-trifluoromethyl group. Moreover, a large excess of the less reactive monomer (COE) was required [40]. Alternating copolymers of NBE with COE, containing up to 98% of alternating diads, were synthesized at a lower NBE:COE ratio (1:10) by Plenio, using unsymmetrical N-alkyl,N′-pentiptycenyl NHC ruthenium catalysts. The better control of chemoselectivity seems to be related to the high level of dissymmetry created around the metal by the highly steric encumbered pentiptycenyl group. However, these catalysts are prepared by using a multi-step synthesis, and the obtained alternating copolymers have a high dispersity value and a low molecular weight [41] (Figure 1).
Over the last few years, we have reported on easily accessible ruthenium catalysts bearing uNHCs with anti and syn phenyl groups on the backbone [42,43]. Among them, complex 1, possessing a syn backbone-substituted N-cyclohexyl, N′-mesityl NHC ligand (Figure 2), was found to be able to produce copolymers of NBE with COE or CPE with a high chemoselectivity (up to 98% or 95% of alternating diads, respectively) at low comonomer ratios (NBE:COE 1:10 and NBE:CPE 1:6), emerging as the most selective catalyst for these ROMP copolymerizations to date [44]. To further improve selectivity, we considered increasing the steric differences between the N-cycloalkyl and N’-aryl substituents of the NHC ligand, replacing the cyclohexyl group with a smaller, less flexible cyclopentyl group. Indeed, it is well-known that even a subtle change in the NHC ligand architecture can influence catalyst efficiency [25,26. 30, 44]. Therefore, in this study, we describe two new complexes, bearing uNHCs with N-cyclopentyl, N′-mesityl substituents and syn phenyl groups on the backbone (2 and 4, Figure 2), which are suitable for the synthesis of highly alternating NBE-COE and NBE-CPE copolymers. Their catalytic behavior is also compared with that of analogous N-cyclohexyl complexes 1 and 3 (Figure 2). DFT investigations are performed in order to rationalize the experimental findings.

2. Results and Discussion

2.1. Synthesis of Complexes

Ruthenium complexes 1 and 3 were prepared as previously described [44,45]. The synthesis of novel complexes 2 and 4 was easily accomplished in four synthetic steps, as depicted in Scheme 1. Diamine A was achieved with a yield of 69% from commercial meso-1,2-diphenylethylenediamine via a Pd-catalyzed cross-coupling reaction with 2-bromomesytilene. The reductive amination of cyclopentanone with A in the presence of sodium borohydride led to unsymmetrically substituted diamine B (64% yield). The cyclization of this compound with triethyl orthoformate in the presence of ammonium tetrafluoroborate furnished NHC ligand precursor C with a high yield (79%). The product was characterized using NMR spectroscopy and mass spectrometry (ESI-MS). The 1H and 13C NMR spectra of C showed the diagnostic resonances for the proton and for the carbon of the precarbenic position of the imidazolium salt at 8.50 ppm (NCHN) and 157.9 ppm (NCHN), respectively. NHC proligand C was deprotonated in situ with potassium tert-amylate and then reacted with RuCl2(=CHPh)(PCy3)2 (GI) or RuCl2(=CH-o-iPrO-Ph)(PCy3) (HGI) to produce the desired complexes 2 and 4 as air- and moisture-stable solids (26% and 43%, respectively). Both complexes were characterized using NMR spectroscopy and an ESI-FT-ICR analysis (see SI). The formation of the complexes was indicated by the disappearance of the characteristic carbocationic proton of C in the 1H NMR spectra of both 2 and 4, along with the appearance of diagnostic peaks for the benzylidene protons at 19.68 ppm and 16.53 ppm for 2 and 4, respectively. Consistently, the benzylidene carbon of 2 (Ru=CHPh) was observed at 297.3 ppm, whereas the benzylidene carbon of 4 (Ru=CH-o-iPrO-Ph) was observed at 293.1 ppm. The NHC coordination with ruthenium was also confirmed by the 13C NMR signals for the carbenic carbon (iNCN) at 222.2 ppm for the phosphine-containing complex 2 and at 212.0 ppm for the phosphine-free complex 4.
The 1H and 31P NMR solution spectra of 2, recorded in C6D6 at room temperature, revealed the presence of only one rotational isomer corresponding to the one with the benzylidene unit located underneath the mesityl group (anti rotamer), as deduced from the 2D 1H NMR NOESY experiments. Analogously, the solution-state structure of complex 4, determined in the NMR studies, revealed the presence of only a single isomer, identified as the anti rotamer.

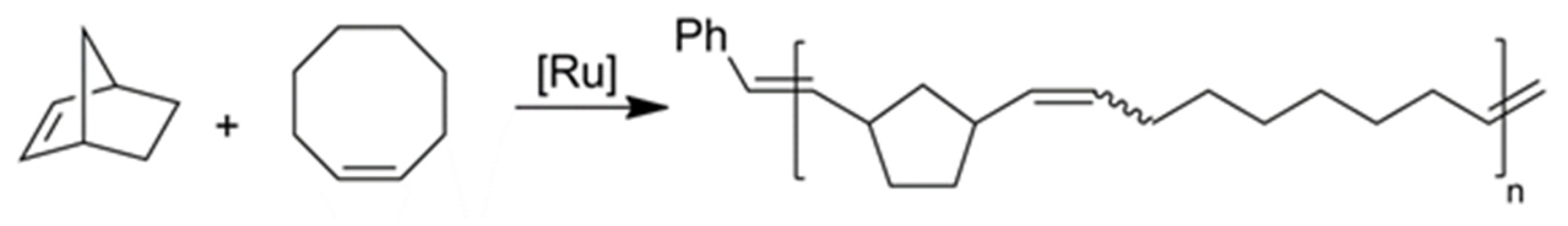

2.2. Alternating ROMP of Norbornene and Cyclooctene

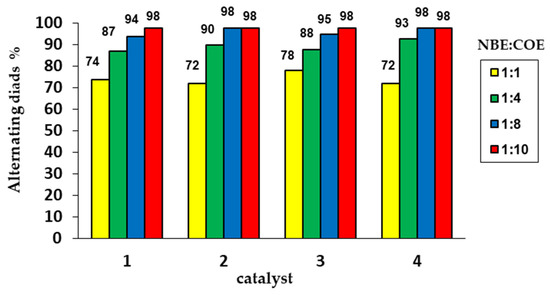

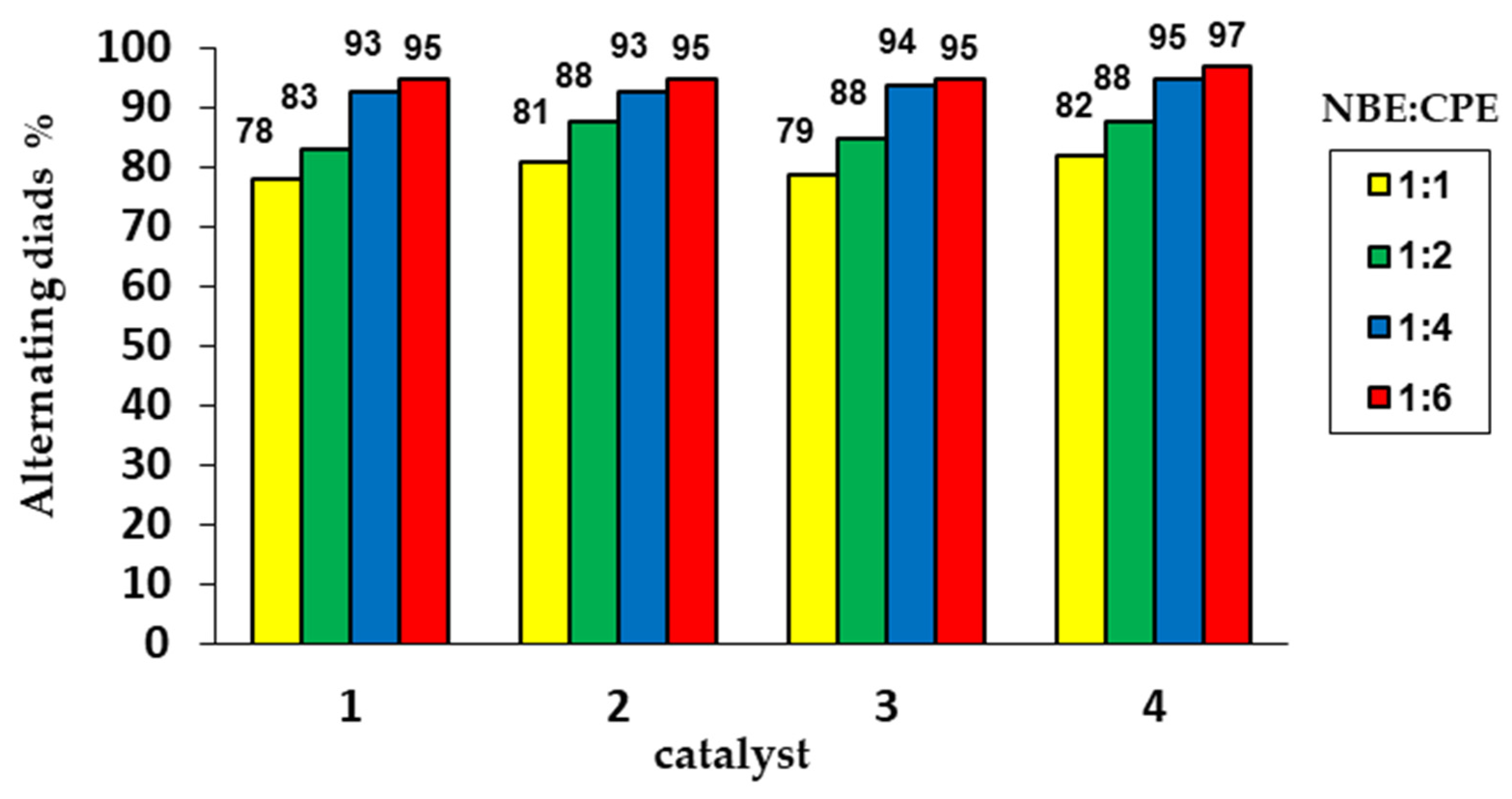

Ruthenium complexes 1-4 were first compared in the ROMP copolymerization of NBE with COE (Scheme 2).
The ROMP reactions were carried out under nitrogen in CH2Cl2, at 30 °C, employing different comonomer ratios. The results are summarized in Table 1 and Figure 3 (only for a visual aid). In all the experiments, the immediate formation of a highly viscous solution was observed upon the addition of the catalyst. After two minutes, the polymerizations were terminated with ethyl vinyl ether, and the polymers precipitated into methanol.

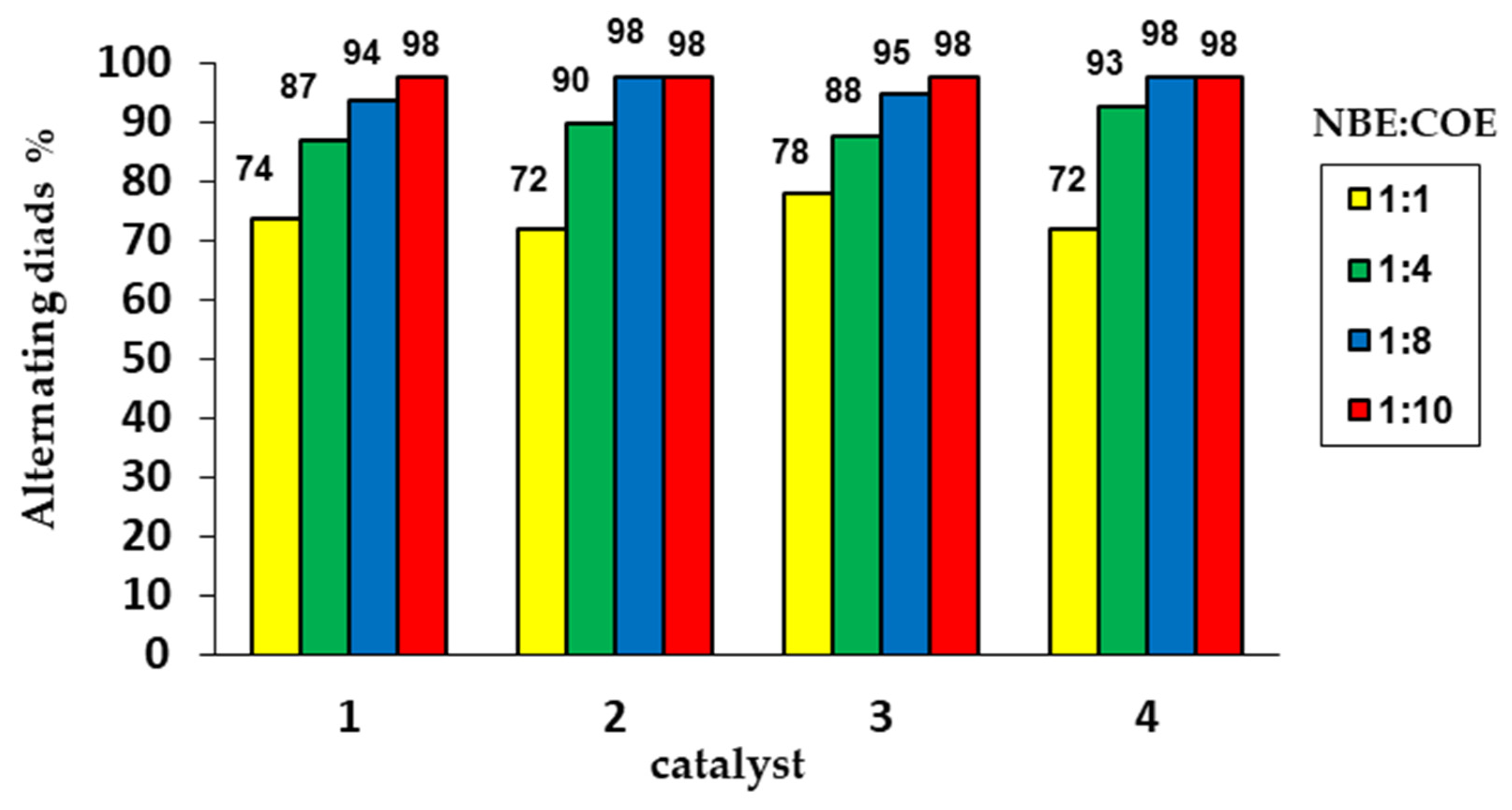

The content of alternating diads along the copolymer chain was determined using 13C NMR spectroscopy. The resonances relative to NBE-COE diads are observed in the ranges of 128.5–129.0 ppm and 134.8–135.5 ppm. The signals for NBE-NBE are found at 132.9–133.4 ppm and 133.8–134.3 ppm, while the peaks attributable to COE-COE diads are found at 130.0 and 130.5 ppm. In all the examined copolymers, only NBE-NBE diads were detected. Signals for COE-COE diads could barely be found. The representative 13C NMR spectra (olefinic region) of the copolymers prepared by action 4 are shown in Figure 4, while those relative to copolymers obtained in the presence of 2 are reported in the Supplementary Materials (Figure S8).
The marked propensity of 1–4 to promote the formation of alternating sequences of NBE-COE appeared evident when an equimolar mixture of NBE and COE was employed. Indeed, a content of alternating units varying from 72 to 78% was obtained (entries 1, 5, 9 and 13 in Table 1). At the highest NBE:COE ratio (1:10), all the catalysts were able to produce an almost perfectly alternating copolymer (98% of alternating diads; see entries 4, 8, 12 and 16 and Figure 5). However, the nature of the cycloalkyl group seemed to have an effect on the chemoselectivity of the polymerization reaction. Indeed, complexes 2 and 4, with the smaller and less flexible N-cyclopentyl group, showed a slightly stronger tendency to copolymerize NBE and COE in an alternating fashion with respect to the N-cyclohexyl catalysts 1 and 3 at an NBE:COE ratio of 1:8 (cf. entries 3 and 7 or 11 and 15). This is the lowest comonomer ratio used to date for synthesis via the ROMP of alternating NBE-COE copolymers. As a general remark, with the same N-cycloalkyl substituent, both the Grubbs and Hoveyda–Grubbs complexes produced copolymers with an almost identical composition. As for the stereochemistry of the carbon–carbon double bonds in the alternating copolymers, the amount of cis double bonds (60–63%) is consistent with that previously reported for copolymers obtained with similar catalysts.
Gel permeation chromatography (GPC) measurements of alternating copolymers (entries 4, 7,8, 12, 15 and 16) showed number-average molecular weights in the range of 230,000 < Mn < 1,000,000 g/mol. All these copolymers had a monomodal distribution with moderately narrow dispersities (1.61 < Ð < 1.86). The experimental Mn values were higher than the theoretical ones (e.g., Mn = 184,000 g/mol for copolymer of entry 8 calculated by considering that the conversion of NBE (and COE) was 90%), suggesting that incomplete catalyst initiation or slow initiation over propagation occurred. When Hoveyda–Grubbs-type catalysts 3 and 4 were employed, Mn values higher than those observed in the presence of Grubbs complexes 1 and 2 were obtained. This finding could be related to the different initiation mechanism involved in the two families of catalysts [46,47,48,49,50,51,52].
Differential scanning calorimetric (DCS) measurements of the alternating copolymers showed only the glass transition temperature (Tg) for each polymer sample. The Tg values were observed in the range from −46.08 to −52.70 °C (Figures S10, S12, S14, S16 in the Supplemetary Materials), in line with the Tg values reported for similar copolymers [38].

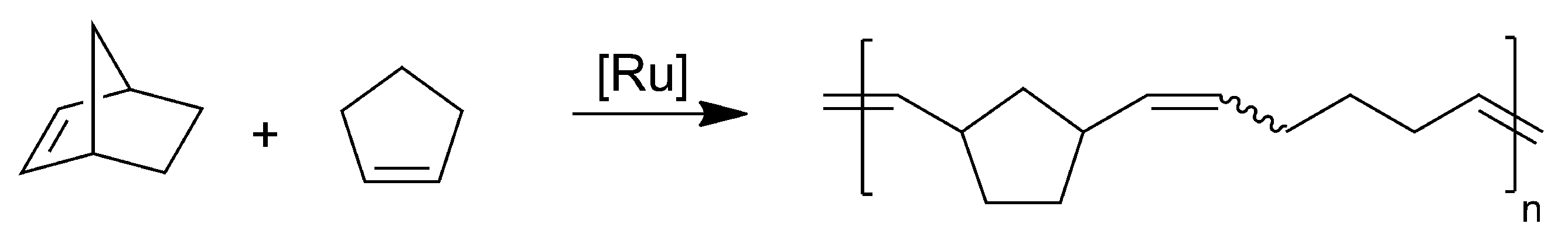

2.3. Alternating ROMP of Norbornene and Cyclopentene

Ruthenium complexes 1–4 were then investigated in the alternating copolymerization of NBE with CPE (Scheme 3), under the same experimental conditions used for the NBE-COE copolymerization experiments. A prolonged reaction time (15 min) was used, as CPE has a lower propensity than COE to undergo ROMP [53]. The results are displayed in Table 2 and Figure 5 (only for a visual aid).
The amount of alternating diads in the obtained copolymers was determined using 13C-NMR spectroscopy. The resonances relative to NBE-CPE diads are found in the range of 128.1–128.7 ppm and 135.0–135.8 ppm. The signals for NBE-NBE are observed at 132.9–133.4 ppm and 133.8–134.3 ppm, while the peaks attributable to CPE-CPE diads are observed at 130.0 and 130.5 ppm. Besides NBE-NBE homosequences, signals for CPE-CPE diads are detectable in some 13C-NMR spectra of the copolymers.

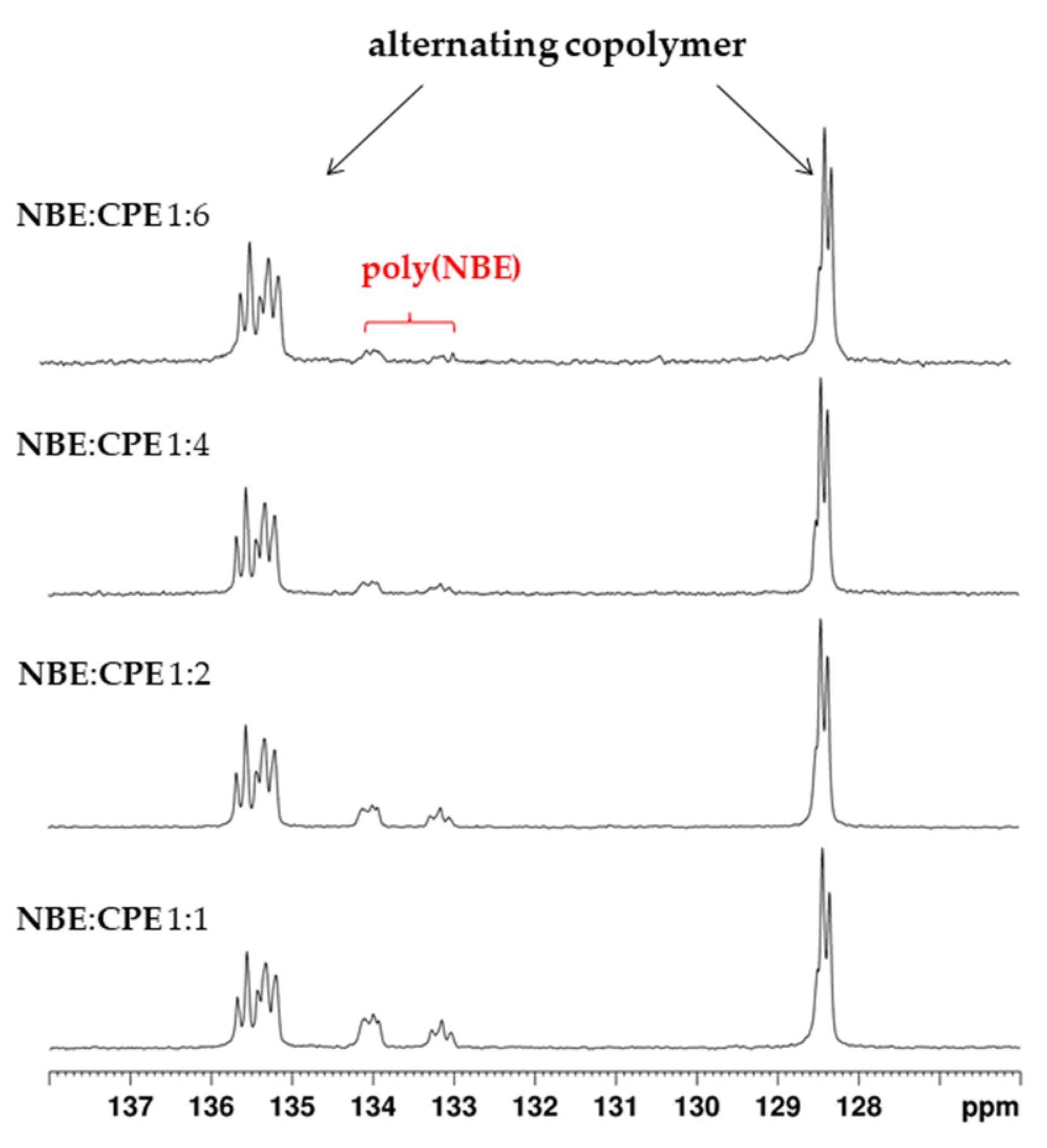

As an example, the olefinic region of the 13C-NMR spectra for the copolymers obtained with 4 is shown in Figure 6. The 13C NMR spectra of copolymers obtained with 2 are shown in the Supplementary Materials (Figure S9). As previously observed, all the catalysts were able to promote the copolymerization of NBE and CPE in an alternating fashion. Elevated levels of alternation (78–82%) were achieved, even at a 1:1 comonomer ratio (Figure 5). Moreover, by using an NBE:CPE ratio of only 1:4, copolymers containing 93–95 % of alternating diads were obtained. In the presence of N-cyclopentyl catalyst 4, at the highest comonomer ratio (1:6), a nearly perfectly alternating NBE-CPE copolymer was formed (97% of alternating units; entry 16 in Table 2). This percentage of alternating units is the highest value found to date for NBE-CPE copolymers.
The alternating copolymers (entries 4, 8, 12 and 16 in Table 2) were characterized by relatively high molecular weights (110,000 < Mn < 330,000 g/mol) and unimodal molecular weight distributions (1.87 < Ð < 2.28). DSC thermograms of the alternating copolymers showed only one single Tg for each copolymer in the range of −29.8 < Tg < −31.7 °C (Figures S11, S13, S15, S17 in the Supplementary Materials). Again, these Tg values are comparable to those reported for previously obtained alternating NBE-CPE copolymers [37,38].

2.4. Molecular Modeling Studies

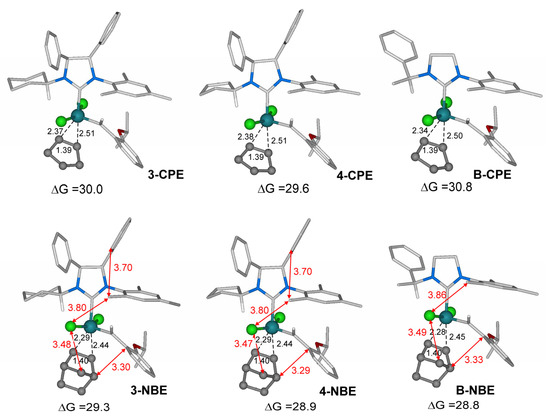

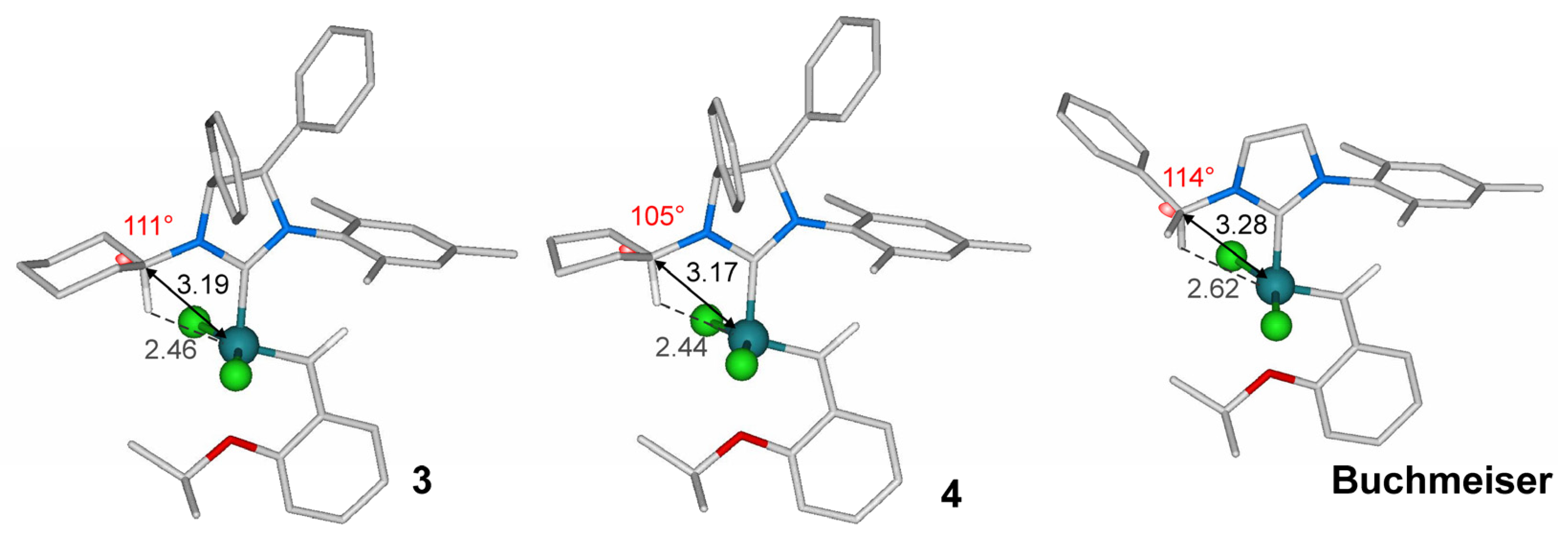

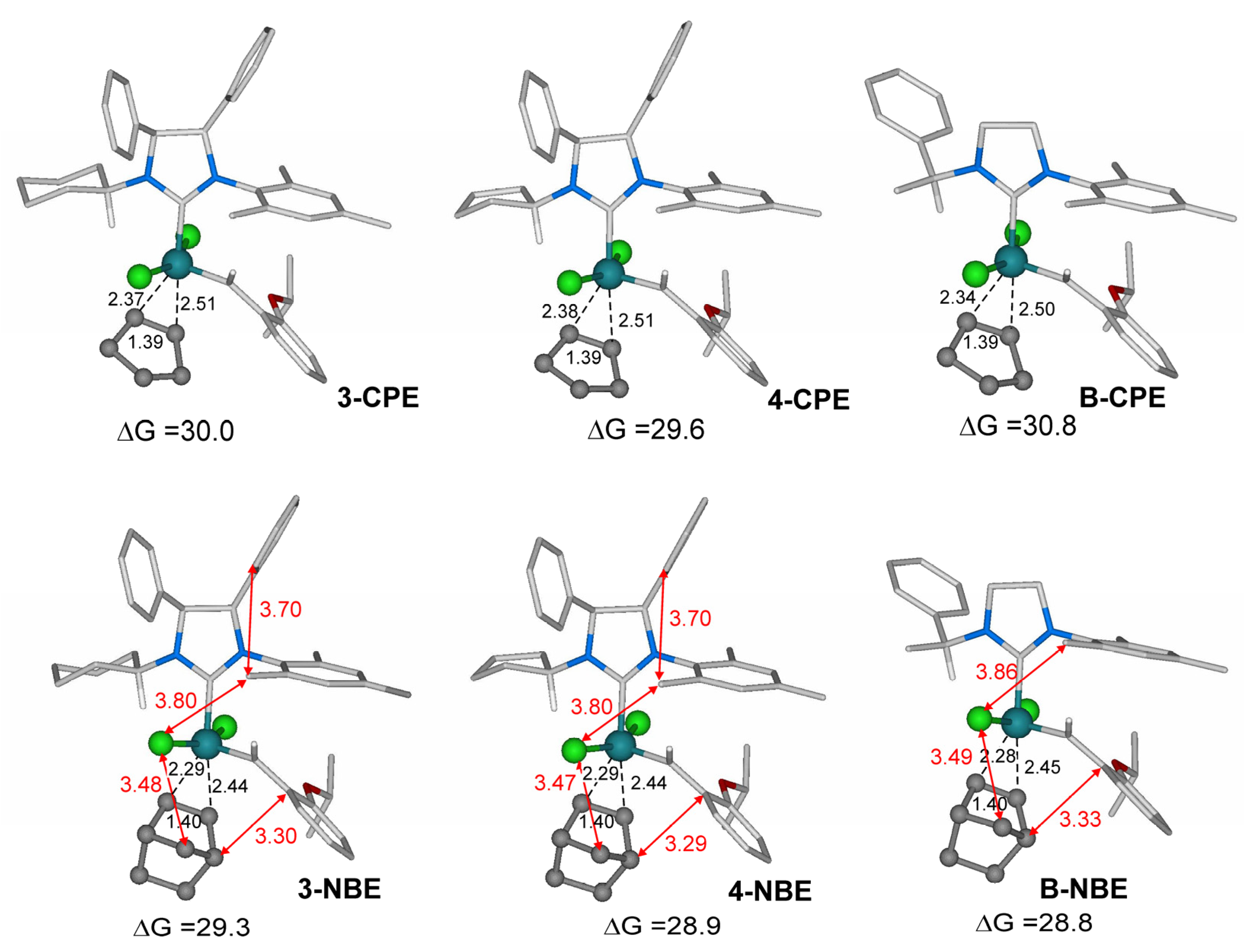

The exceptional selectivity of catalysts 1–4 toward alternating NBE-COE and NBE-CPE copolymerization, obtained even at a 1:1 comonomer ratio (72–78% of alternation NBE-COE/78–82% of alternation NBE-CPE), encouraged us to perform molecular modeling studies to gain additional information on the catalyst structures. In more detail, we optimized the geometries of catalysts 3 and 4 via DFT calculations (see SI for computational details) and compared the minimum energy structures with those obtained via the optimization of the Buchmeiser catalyst (5a in Ref. [38], the Hoveyda–Grubbs version of the Blechert and Buchmeiser catalyst in Figure 1) (Figure 7). This catalyst showed good but not excellent selectivities in alternating copolymerization (for a 1:1 comonomer ratio, 40% of alternation NBE-COE/55% of alternation NBE-CPE), although the catalyst structure is very similar to that of 3 and 4. The minimum energy geometries and relevant parameters are reported in Figure 4. According to the computational results, complexes 3 and 4 exhibit a more pronounced proximity of the N-alkyl substituent to the metal with respect to the Buchmeiser catalyst. This is evidenced by the shorter Ru--C distances for N-alkyl carbon (~3.18 Å) and by the stronger Ru-H interactions of the N-alkyl group (Ru-H distance ~2.45 Å). Complexes 3 and 4 also showed a smaller C-C-C bond angle of the N-cycloalkyl carbon.
Quantitative information on the catalytic pocket of optimized structures has previously been obtained by modeling topographic steric maps [54,55] and by calculating the percent buried volumes (%VBur). %VBur is a parameter that quantifies the steric hindrance of ligands and is defined as the fraction of the total volume of a sphere centered on the metal occupied by a given ligand [56,57].

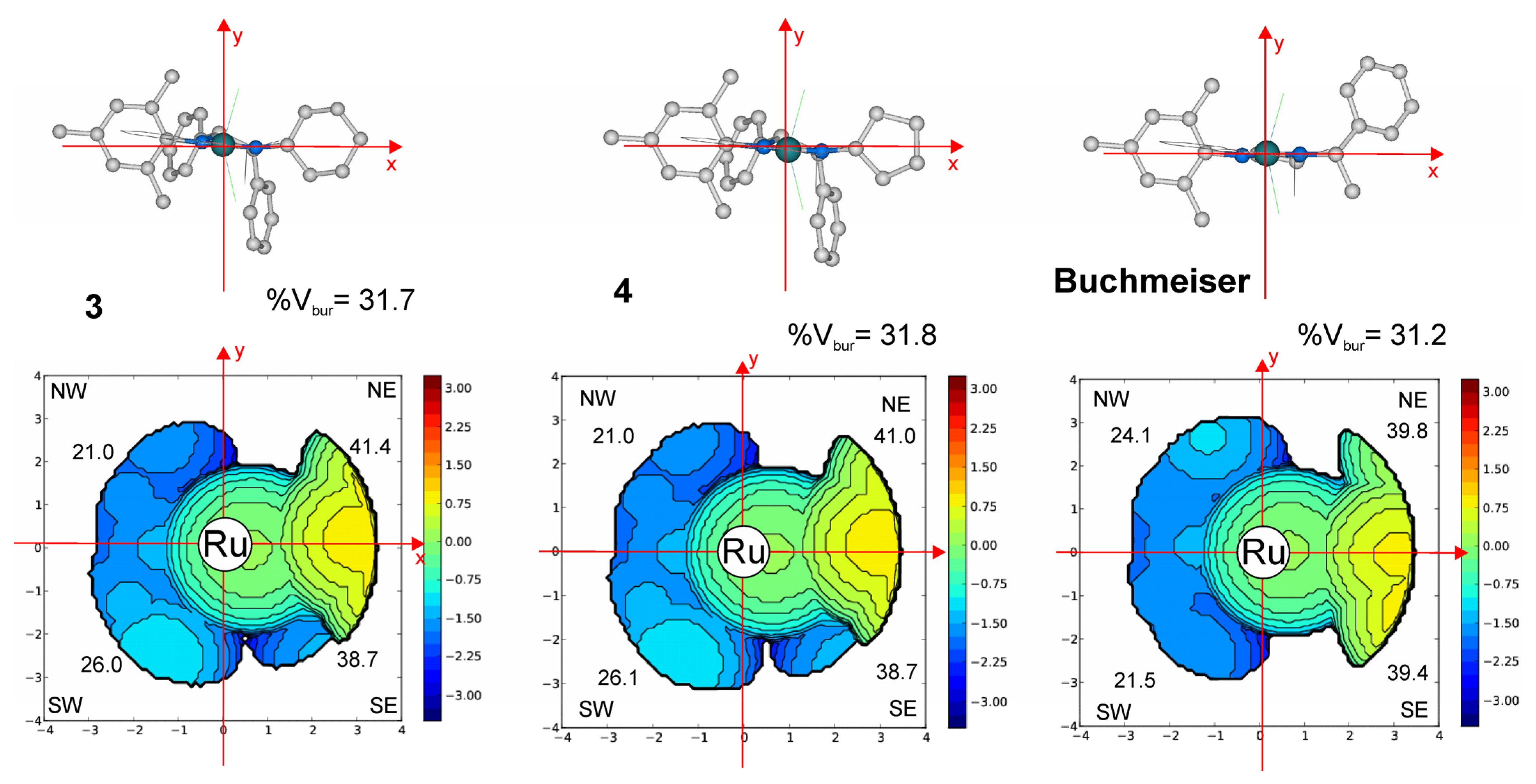

Topographic steric maps, shown in Figure 8, were obtained (with a program on the SambVca web server) [54,55] starting from the optimized minimum energy structures of the complexes in Figure 7. The complexes are oriented according to the structure on the top of the map. The NHC ligand is located behind the xy plane, and the iso-contour curves indicate how deeply the NHC ligands protrude out of the xy plane occupying the space around the metal. More intense green-yellow lines indicate a stronger steric pressure of the ligand in that area. For every map in Figure 8, the overall %VBur and %VBur values for each quadrant are reported.
According to the topographic steric maps, the overall %VBur is slightly higher for complexes 3 and 4 (31.8 and 31.7, respectively) with respect to the Buchmeiser catalyst (31.2). Not surprisingly, all complexes show a dissymmetry of steric hindrance, with respect to the plane perpendicular to the NHC plane, due to the unsymmetrical N-substitution and the presence of alkydene on one side of the catalyst (NW-SW vs. NE-SE quadrants). More interesting is the dissymmetry in the %VBur value of the NE and SE quadrants for catalysts 3 and 4, which is flattened in the Buchmeiser catalyst. This dissymmetry is mainly due to the presence of the syn Ph groups on the NHC backbone of complexes 3 and 4, as it induces a dissymmetry of the catalytic pocket with respect to the plane of the NHC.
To investigate the influence of the catalytic pocket shape on alternating copolymerization, the CPE and NBE minimum energy coordination structures were located. The geometries and free coordination energies in CH2Cl2 (see SI for computational details) are depicted in Figure 9. For all structures, the π interaction between olefin and metal results in a stretching of the C=C double bond (for coordinated CPE, the C=C distance is 1.39 Å vs. 1.35 Å for free CPE; for coordinated NBE, the C=C distance is 1.40 Å vs. 1.35 Å for free NBE). According to the computational results, all catalysts exhibit lower coordination energies for NBE with respect to CPE. This finding is in agreement with the higher reactivity of norbornene in the copolymerization. Nevertheless, the ΔΔG of the CPE coordination is significantly lower for 3 and 4, with respect to the Buchmeiser catalyst (see Table 3). Indeed, 3 and 4 show a coordination energy for CPE that is only 0.7 kcal/mol higher than that for NBE, whereas the energy gap is 2.0 kcal/mol for the Buchmeiser catalyst. As shown in Figure 9, comparing the NBE minimum energy coordination structures, slightly shorter NBE-Cl and NBE-alkylidene distances are observed for 3 and 4, as a possible effect of phenyls on the NHC backbone. This suggests the presence of sterical interactions slightly penalizing NBE coordination with 3 and 4 with respect to the Buchmeiser catalyst.
Finally, to gain information on the electronic effects of the different NHC ligands on the catalyst behavior, we calculated the Ru charge for all catalysts by carrying out a natural bond orbital (NBO) analysis. As shown in Table 3, the absolute value of the negative charges of Ru decreases in the order 4 > 3 > Buchmeiser. The lower coordination free energy observed for the Buchmeiser catalyst for the more electron-donating NBE could partially be a consequence of the less negative Ru charge.
In summary, according to the DFT studies, 3 and 4 present higher %VBur for NHC moiety, which also entails a dissymmetrical distribution of the catalytic pocket due to the syn phenyls on the backbone. The coordination of NBE with CPE is more favored for the Buchmeiser catalyst with respect to 3 and 4, which is in agreement with the lower percentage of alternating copolymers produced by this catalyst. This difference may be caused by both sterical and electronic effects.

3. Materials and Methods

3.1. General Information

All the operations of synthesis and handling involving sensitive chemicals were performed under a nitrogen atmosphere in a glovebox or by using standard Schlenk techniques. The glassware and vials used were dried in an oven at 120 °C overnight and exposed to a vacuum–nitrogen cycle three times. Commercially available starting materials and solvents were purchased from Merck Italy (Milan, Italy). Toluene and methylene chloride were purchased from Merck, suitably dried (over sodium and lithium aluminum hydride, respectively) and distilled before use. Deuterated solvents were dried over activated 4 Å molecular sieves prior to use. Organic molecules and organometallic compounds were purified through flash column chromatography using silica gel 60 (230–400 mesh) purchased from Merck Italy (Milan, Italy) and TSI Scientific (Cambridge, Massachusetts, United States), respectively. Thin-layer chromatography (TLC) was performed using silica gel 60 aluminum foils with an F254 fluorescence indicator.
Complexes [1-cyclohexyl-3-mesityl-4,5-diphenyl-2-imidazolidinylidene](dichloro) (benzilydene)(tricyclohexylphosphine) (1), [1-cyclohexyl-3-mesityl-4,5-diphenyl imidazolidinylidene]dichloro(2-isopropoxyphenylmethylene)ruthenium (3) and N1-mesityl-1,2-diphenylethane-1,2-diamine (A) were synthesized according to procedures detailed in the literature [44,45].
NMR experiments were carried out on a Bruker AM 300 (Bruker, Germany) (300 MHz for 1H; 75 MHz for 13C), Bruker AVANCE 400 ((Bruker, Germany) 400 MHz for 1H; 100 MHz for 13C; 161.97 MHz for 31P) and Bruker ASCEND 600 (Bruker, Germany) (600 MHz for 1H; 150 MHz for 13C). Chemical shifts in the spectra were reported as follows: chemical shift (ppm), multiplicity and integration. Multiplicity was abbreviated as follows: singlet (s), doublet (d), triplet (t), multiplet (m), broad (br) and overlapped (o). 1H and 13C-NMR chemical shifts are listed in parts per million (ppm) downfield from tetramethyl silane (TMS) as the internal standard. 31P chemical shifts are referenced using H3PO4 as the external standard.
An ESI-MS analysis was performed on a Waters spectrometer (Waters Corporation, Milford, Massacchussets, United States) with an electrospray source. An ESI-FT-ICR analysis of ruthenium complexes was carried on a Bruker Solarix XR spectrometer ((Bruker Daltonik GmbH, Bremen, Germany). GPC measurements were performed on a Waters 1525 binary equipped with a Waters 2414 RI detector using four Styragel columns (range 1,000-1,000,000 Å) (Waters Corporation, Milford, Massacchussets, United States).
DSC measurements were carried out on a DSC Q20 apparatus, manufactured by TA Instruments Waters/TA instruments, New Castle, Delaware, United States), in flowing N2 with a cooling and heating rate of 10°C /min.

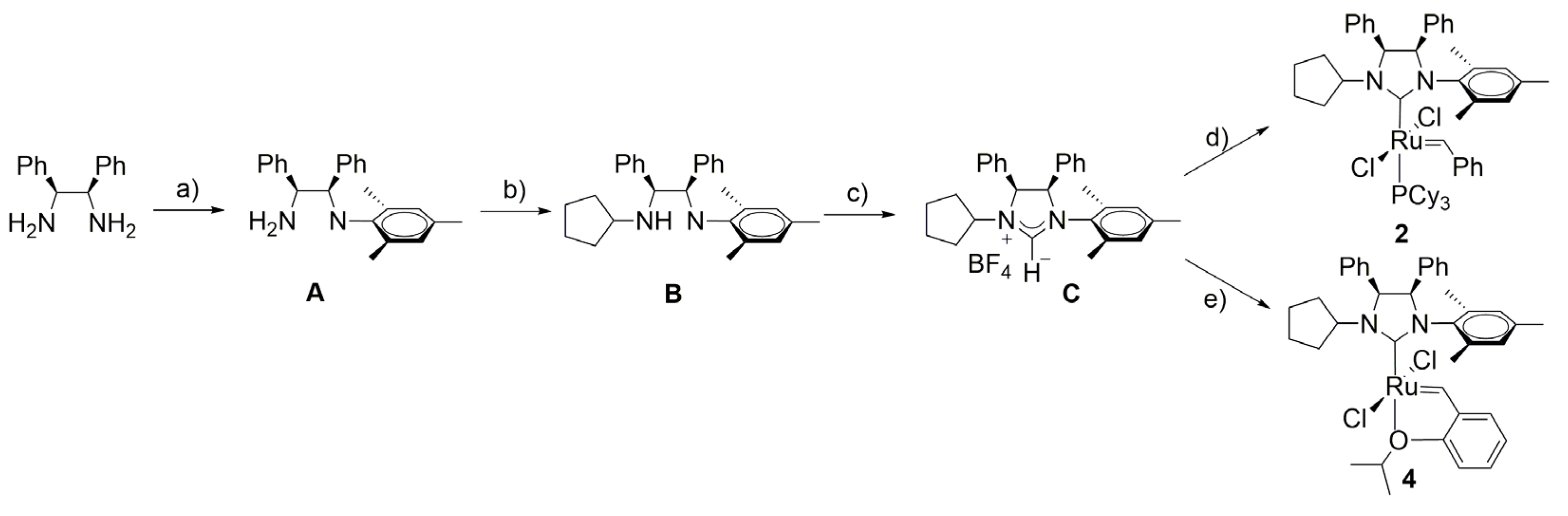

3.2. Synthesis of N1-Cyclopentyl-N2-Mesityl-1,2-Diphenylethane-1,2-Diamine (B)

Diamine A (1 equiv.), cyclopentanone (7 equiv.) and dry methylene chloride (C = 0.1 M) were introduced into a round-bottom flask. The reaction mixture was stirred at room temperature over activated molecular sieves 4 Å for three days and then filtered. Afterward, the solvent was removed under vacuum, the crude reaction product was diluted with dry methanol (C = 0.1 M), and NaBH4 (7 equiv.) was added in three portions.
The reaction mixture was stirred for 4 h, diluted with methylene chloride and extracted with water. The organic phase was dried over Na2SO4 and filtered, and then the solvent was removed under reduced pressure. The product was obtained as an oil, which was purified using flash column chromatography on silica gel (hexane: ethyl acetate 9:1) to produce a white solid (yield 64%).
1H-NMR (CDCl3, 400 MHz): δ 7.27–7.23 (o m, 3H); 7.16–7.10 (o m, 3H); 6.93–6.90 (o m, 2H); 6.83–6.81 (o m, 2H); 6.68 (br s, 2H); 4.50 (d, J = 4.8, 1H); 4.24 (d, J = 4.7, 2H); 2.89 (m, 1H); 2.15 (s, 9H); 1.70 (o m, 3H); 1.48 (o m, 3H), 1.28 (o m, 2H) (Figure S1 (top) in the Supplementary Materials).
13C-NMR (CDCl3, 100 MHz): δ 142.51; 141.02; 139.52; 129.66; 129.07; 128.31; 127.94; 127.87; 127.52; 127.03; 127.01; 126.90; 66.51; 65.32; 56.38; 35.60; 34.38; 32.43; 23.85; 20.45; 19.63 (Figure S1 (bottom) in the Supplementary Materials).
ESI+MS: m/z = 399.3 (MH+).

3.3. Synthesis of 1-Cyclohexyl-3-Mesityl-4,5-Diphenyl-4,5-Dihydro-1H-Imidazol-3-Ium Tetrafluoroborate (C)

Diamine B (1 equiv.) and triethyl orthoformate (8 equiv.) were introduced into a round-bottom flask, equipped with a magnetic stirrer and a condenser. The mixture was stirred at room temperature for five minutes. After that, ammonium tetrafluoroborate (1.2 equiv.) was added, and the mixture was heated at 130 °C for 2 h. Subsequently, the condenser was removed to facilitate the evaporation of the ethanol produced during the reaction. A crude brownish oil was obtained, which was then washed with diethyl ether and purified using flash column chromatography on silica gel (hexane: ethyl acetate 9:1 to 1:1) to produce a white solid (yield 85%).
1. H-NMR (CDCl3, 400 MHz): δ 8.50 (s, 1H); 7.22 (br s, 3H); 7.01 (m, 3H); 6.93 (t, J = 7.7 Hz, J = 7.6, 2H); 6.83 (br s, 1H); 6.78 (d, J = 11.6 Hz, 1H); 5.89 (dd, J = 11.8 Hz, J = 3.2 Hz, 1H); 4.13 m, 1H); 2.48 (s, 3H); 2.32 (s, 3H); 2.28 (br m, 1H); 2.14 (s 3H); 2-06-1.52 (overlapping signals, 9H) (Figure S2 (top) in the Supplementary Materials).
13C-NMR (CDCl3, 100 MHz): δ 157.89,139.40; 135.07; 134.36; 131.70; 130.94; 130.34; 129.81; 129.27; 129.02; 128.22; 127.51; 72.70; 68.91; 60.26; 31.47; 31.42; 22.99; 22.86; 20.90; 19.63; 19.42 (Figure S2 (bottom) in the Supplementary Materials).
ESI+MS: m/z = 409.3 [M+(-BF4−)]

3.4. Synthesis of [1-Cyclopentyl-3-Mesityl-4,5-Diphenyl-2-Imidazolidinylidene](Dichloro) (Benzilydene)(Tricyclohexylphosphine)Ruthenium (2)

In a glovebox, under a nitrogen atmosphere, a Schlenk tube was charged with tetrafluoroborate salt C (1 equiv.) and dry toluene (C = 0.026 M). Potassium tert-amylate (1 equiv.) was then added to the resulting suspension, and the reaction mixture was stirred for five minutes at room temperature. After that, GI (1 equiv.) was added. The flask was removed from the glovebox and kept under stirring at room temperature for 0.5 h. The crude reaction mixture was purified using flash column chromatography on silica gel (hexane: diethyl ether 9:1 to 1:1) to produce the desired complex as a pink brownish solid (yield 26%).
1H-NMR (C6D6, 400 MHz): δ 19.68 (br s, 1H) (Ru = CHPh); 9.01 (br s, 1H); 7.50 (br s, 1H); 7.14 (overlapping signals, 4H); 7.06 (m, 4H); 6.88 (o m, 3H); 6.59 (m, 2H); 6.48 (br m, 2H); 6.03 (overlapping signals, 3H); 5.79 (m, 1H); 5.03, d, J = 9,1 Hz, 1H); 3.27 (m, 1H); 2.69–1.88 (overlapping signals, 41H) (Figure S3 (top) in the Supplementary Materials).
13C-NMR (C6D6, 150 MHz):) 297.26 (br s, Ru = CHPh); 222.22 (iNCN) (2JC−P = 77.90 Hz); 151.82; 138.33; 136.86; 136.74; 136.04; 133.17; 133.15; 129.63; 127.49; 75.42; 64.98; 64.02; 32.54; 32.45; 30.92; 29.94; 28.25; 26.94; 24.68; 23.76; 21.03; 20.72 (Figure S3 (bottom) in the Supplementary Materials).
31P-NMR (C6D6, 161.97 MHz): δ 29.32 (Figure S4 in the Supplementary Materials).
ESI-FT-ICR (2-Cl): m/z calcd 915.4093, found 915.4093 (Figure S6 in the Supplementary Materials).

3.5. Synthesis of 1-Cyclopentyl-3-Mesityl-4,5-Diphenyl-2-Imidazolidinylidene](Dichloro) (Benzily-Dene)(2-Isopropoxyphenylmethylene)Ruthenium (4)

In a glovebox, under a nitrogen atmosphere, a Schlenk tube was charged with tetrafluoroborate salt C (1 equiv.) and dry toluene (C = 0.026 M). Potassium tert-amylate (1 equiv.) was then added to the resulting suspension, and the reaction mixture was stirred for five minutes at room temperature. After that, HGI (1 equiv.) was added, and the flask was removed from the glovebox and kept under stirring at room temperature for 0.5 h. The crude reaction mixture was purified using flash column chromatography on silica gel (hexane: diethyl ether 9:1 to 1:1) to produce the desired complex as a green solid (yield 43%).
1H-NMR (C6D6, 600 MHz): δ 16.53 (s, 1H) (Ru=CH-o-iPrOPh); 8.80 (br s, 1H); 7.39-7.06 (o m, 7H); 6.67–6.56 (o m; 7H); 6.47 (d, 1H, J = 7.7); 6.14 (m, 1H), 6.03 (d, 1H, J = 8.2 Hz), 4.98 (d, 1H, J = 8.3 Hz); 4.69 (m, 1H); 3.14 (br m, 1H), 2.61–2.1 (overlapping signals, 7H); 1.95 (s, 3H); 1.81–1.75 (overlapping signals, 8H), 1.62 (br m, 2H); 1.62 (br m, 3H), 1.46–1.31 overlapping signals, 2H) (Figure S5 (top) in the Supplementary Materials).
13C-NMR (CD2Cl2, 75MHz): 293.13 (Ru=CH-o-iPrO-Ph); 211.99 (iNCN); 152.26; 144.22; 139.49; 138.19; 137.63; 136.60; 136.00; 132.48; 130.12; 129.69; 129.39; 129.16; 128.16; 128.02; 127.74; 127.48; 122.57; 122.43; 112.94; 75.02; 65.57; 64.35; 30.90; 30.43; 23.42; 22.35; 21.72; 21.63; 20.67; 19.66; 19.58 (Figure S5 (bottom) in the Supplementary Materials).
ESI-FT-ICR (4-Cl): m/z calcd 693.2210, found 693.2188 (Figure S7 in the Supplementary Materials).

3.6. General Polymerization Procedure

Norborn-2-ene (1.3 mmol, 1 equiv.) and an appropriate amount of cis-cyclooctene or cyclopentene were dissolved in methylene chloride and warmed to 30 °C. A methylene chloride solution of catalysts (1.3 μmol) was then injected. The polymerization was quenched by adding ethyl vinyl ether, and the polymer formed was coagulated in methanol, recovered via filtration and dried under vacuum.

4. Conclusions

In this study, new Grubbs- and Hoveyda–Grubbs-type complexes possessing an unsymmetrical N-cyclopentyl, N’-mesityl NHC ligand, with syn phenyl groups on the backbone, were synthesized. Their catalytic behavior was investigated in the alternating ROMP of NBE with COE or CPE and compared to that of corresponding N-cyclohexyl complexes. All the complexes were found to be able to produce copolymers with exceptional levels of alternation, and no difference in chemoselectivity between the two families of catalysts was observed. As for the N-cycloalkyl substituent, the replacement of the cyclohexyl group with the less sterically encumbered and less flexible cyclopentyl group led to an almost perfectly alternating polymer, NBE-COE, at the lowest comonomer ratio (1:8) reported to date. Moreover, N-cyclopentyl catalyst 4 was identified as the most selective in the alternating copolymerization of NBE-CPE, producing 97% of alternating units at a comonomer ratio of 1:6. Moreover, in this case, to the best of our knowledge, this represents the highest value achieved to date. Notably, all the alternating copolymers obtained possessed relatively high molecular weights and moderately narrow dispersities.
According to the DFT studies, 3 and 4 presented a dissymmetrical shape of the catalytic pocket due to the syn phenyls on the backbone. The coordination of NBE was only slightly favored with respect to CPE, which is in agreement with the high percentage of alternating copolymers produced by these catalysts. A comparison with similar unsymmetrical NHC-Ru catalysts indicated that both sterical and electronic effects of the NHC ligands in 3 and 4 may be involved in determining the selectivity in copolymerization.
A deeper investigation into possible combinations of N-alkyl and N′-aryl substituents of different bulkiness to further improve chemoselectivity in the alternating ROMP copolymerization is currently underway.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/catal13010034/s1, Figures S1–S5: NMR spectra of B, C, 2 and 4; Figures S6 and S7: ESI-FT-ICR spectra of 2 and 4; Figures S8 and S9: olefinic regions of 13C NMR spectra of copolymers obtained via 2; Figures S10–S17: DSC thermograms of alternating copolymers; computational details. References [58,59,60,61,62,63,64,65,66,67] are cited in the Supplementary Materials

Author Contributions

Investigation and validation, R.T.; conceptualization, data curation and writing—original draft preparation, C.C.; conceptualization, resources, formal analysis, writing—original draft, writing—review and editing, supervision and project administration, F.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Acknowledgments

Financial support was provided by the University of Salerno (FARB) and by the INNOLUBE project 2017–2020. We thank Patrizia Oliva (University of Salerno), Mariagrazia Napoli (University of Salerno) and Patrizia Iannece (University of Salerno) for technical assistance. F.G. thanks Simone Pappalardo for some experimental work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Arduengo, A.J.; Harlow, R.L.; Kline, M. A Stable Crystalline Carbene. J. Am. Chem. Soc. 1991, 113, 361–363. [Google Scholar] [CrossRef]
  2. Nolan, S.P. (Ed.) N-Heterocyclic Carbenes in Synthesis, 1st ed.; WileyWILEY-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2006; ISBN 978-3-527-31400-3. [Google Scholar]
  3. Glorius, F. N-Heterocyclic Carbenes in Transition Metal Catalysis; Topics in Organometallic Chemistry; Springer Berlin Heidelberg: Berlin/Heidelberg, Germany, 2007; Volume 21, ISBN 978-3-540-36929-5. [Google Scholar]
  4. Hopkinson, M.N.; Richter, C.; Schedler, M.; Glorius, F. An Overview of N-Heterocyclic Carbenes. Nature 2014, 510, 485–496. [Google Scholar] [CrossRef] [PubMed]
  5. Nelson, D.J.; Nolan, S.P. Quantifying and Understanding the Electronic Properties of N-Heterocyclic Carbenes. Chem. Soc. Rev. 2013, 42, 6723. [Google Scholar] [CrossRef] [PubMed]
  6. Dröge, T.; Glorius, F. The Measure of All Rings-N-Heterocyclic Carbenes. Angew. Chem. Int. Ed. 2010, 49, 6940–6952. [Google Scholar] [CrossRef] [PubMed]
  7. Jacobsen, H.; Correa, A.; Poater, A.; Costabile, C.; Cavallo, L. Understanding the M-(NHC) (NHC = N-Heterocyclic Carbene) Bond” Coordin. Chem. Rev. 2009, 253, 687–703. [Google Scholar] [CrossRef]
  8. Nolan, S.P. N-Heterocyclic Carbenes: Effective Tools for Organometallic Synthesis; John Wiley & Sons: Hoboken, NJ, USA, 2014; ISBN 978-3-527-67124-3. [Google Scholar]
  9. Lin, J.C.Y.; Huang, R.T.W.; Lee, C.S.; Bhattacharyya, A.; Hwang, W.S.; Lin, I.J.B. Coinage Metal-N-Heterocyclic Carbene Complexes. Chem. Rev. 2009, 109, 3561–3598. [Google Scholar] [CrossRef]
  10. Visbal, R.; Gimeno, M.C. N-Heterocyclic Carbene Metal Complexes: Photoluminescence and Applications. Chem. Soc. Rev. 2014, 43, 3551–3574. [Google Scholar] [CrossRef]
  11. Zhang, D.; Zi, G. N-Heterocyclic Carbene (NHC) Complexes of Group 4 Transition Metals. Chem. Soc. Rev. 2015, 44, 1898–1921. [Google Scholar] [CrossRef] [Green Version]
  12. Bellemin-Laponnaz, S.; Dagorne, S. Group 1 and 2 and Early Transition Metal Complexes Bearing N-Heterocyclic Carbene Ligands: Coordination Chemistry, Reactivity, and Applications. Chem. Rev. 2014, 114, 8747–8774. [Google Scholar] [CrossRef]
  13. Lee, J.; Hahm, H.; Kwak, J.; Kim, M. New Aspects of Recently Developed Rhodium(N-Heterocyclic Carbene)-Catalyzed Organic Transformations. Adv. Synth. Catal. 2019, 361, 1479–1499. [Google Scholar] [CrossRef]
  14. Peris, E. Smart N-Heterocyclic Carbene Ligands in Catalysis. Chem. Rev. 2018, 118, 9988–10031. [Google Scholar] [CrossRef] [PubMed]
  15. Zhao, Q.; Meng, G.; Nolan, S.P.; Szostak, M. N-Heterocyclic Carbene Complexes in C–H Activation Reactions. Chem. Rev. 2020, 120, 1981–2048. [Google Scholar] [CrossRef] [PubMed]
  16. Pan, Y.; Jiang, X.; So, Y.-M.; To, C.T.; He, G. Recent Advances in Rare Earth Complexes Containing N-Heterocyclic Carbenes: Synthesis, Reactivity, and Applications in Polymerization. Catalysts 2020, 10, 71. [Google Scholar] [CrossRef] [Green Version]
  17. César, V.; Bellemin-Laponnaz, S.; Gade, L.H. Chiral N-Heterocyclic Carbenes as Stereodirecting Ligands in Asymmetric Catalysis. Chem. Soc. Rev. 2004, 33, 619–636. [Google Scholar] [CrossRef] [PubMed]
  18. Janssen-Müller, D.; Schlepphorst, C.; Glorius, F. Privileged Chiral N-Heterocyclic Carbene Ligands for Asymmetric Transition-Metal Catalysis. Chem. Soc. Rev. 2017, 46, 4845–4854. [Google Scholar] [CrossRef]
  19. Foster, D.; Borhanuddin, S.M.; Dorta, R. Designing Successful Monodentate N-Heterocyclic Carbene Ligands for Asymmetric Metal Catalysis. Dalton Trans. 2021, 50, 17467–17477. [Google Scholar] [CrossRef]
  20. Costabile, C.; Pragliola, S.; Grisi, F. C2-Symmetric N-Heterocyclic Carbenes in Asymmetric Transition-Metal Catalysis. Symmetry 2022, 14, 1615. [Google Scholar] [CrossRef]
  21. Samojłowicz, C.; Bieniek, M.; Grela, K. Ruthenium-Based Olefin Metathesis Catalysts Bearing N -Heterocyclic Carbene Ligands. Chem. Rev. 2009, 109, 3708–3742. [Google Scholar] [CrossRef]
  22. Vougioukalakis, G.C.; Grubbs, R.H. Ruthenium-Based Heterocyclic Carbene-Coordinated Olefin Metathesis Catalysts. Chem. Rev. 2010, 110, 1746–1787. [Google Scholar] [CrossRef]
  23. Bieniek, M.; Michrowska, A.; Usanov, D.L.; Grela, K. In an Attempt to Provide a User’s Guide to the Galaxy of Benzylidene, Alkoxybenzylidene, and Indenylidene Ruthenium Olefin Metathesis Catalysts. Chem. Eur. J. 2008, 14, 806–818. [Google Scholar] [CrossRef]
  24. Ogba, O.M.; Warner, N.C.; O’Leary, D.J.; Grubbs, R.H. Recent Advances in Ruthenium-Based Olefin Metathesis. Chem. Soc. Rev. 2018, 47, 4510–4544. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Paradiso, V.; Costabile, C.; Grisi, F. NHC Backbone Configuration in Ruthenium-Catalyzed Olefin Metathesis. Molecules 2016, 21, 117. [Google Scholar] [CrossRef] [Green Version]
  26. Paradiso, V.; Costabile, C.; Grisi, F. Ruthenium-Based Olefin Metathesis Catalysts with Monodentate Unsymmetrical NHC Ligands. Beilstein J. Org. Chem. 2018, 14, 3122–3149. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Montgomery, T.P.; Johns, A.M.; Grubbs, R.H. Recent Advancements in Stereoselective Olefin Metathesis Using Ruthenium Catalysts. Catalysts 2017, 7, 87. [Google Scholar] [CrossRef] [Green Version]
  28. Hamad, F.B.; Sun, T.; Xiao, S.; Verpoort, F. Olefin Metathesis Ruthenium Catalysts Bearing Unsymmetrical Heterocylic Carbenes. Coord. Chem. Rev. 2013, 257, 2274–2292. [Google Scholar] [CrossRef]
  29. Tornatzky, J.; Kannenberg, A.; Blechert, S. New Catalysts with Unsymmetrical N-Heterocyclic Carbene Ligands. Dalton Trans. 2012, 41, 8215. [Google Scholar] [CrossRef] [Green Version]
  30. Monsigny, L.; Kajetanowicz, A.; Grela, K. Ruthenium Complexes Featuring Unsymmetrical N-Heterocyclic Carbene Ligands–Useful Olefin Metathesis Catalysts for Special Tasks. Chem. Rec. 2021, 21, 3648–3661. [Google Scholar] [CrossRef]
  31. Al Samak, B.; Carvill, A.G.; Rooney, J.J.; Thompson, J.M. Alternating Ring-Opening Metathesis Copolymerization of Bicyclo[2.2.1]Hept-2-Ene and Cyclopentene. Chem. Commun. 1997, 21, 2057–2058. [Google Scholar] [CrossRef]
  32. Ilker, M.F.; Coughlin, E.B. Alternating Copolymerizations of Polar and Nonpolar Cyclic Olefins by Ring-Opening Metathesis Polymerization. Macromolecules 2002, 35, 54–58. [Google Scholar] [CrossRef]
  33. Bornand, M.; Chen, P. Mechanism-Based Design of a ROMP Catalyst for Sequence-Selective Copolymerization. Angew. Chem. Int. Ed. 2005, 44, 7909–7911. [Google Scholar] [CrossRef]
  34. Bornand, M.; Torker, S.; Chen, P. Mechanistically Designed Dual-Site Catalysts for the Alternating ROMP of Norbornene and Cyclooctene. Organometallics 2007, 26, 3585–3596. [Google Scholar] [CrossRef]
  35. Torker, S.; Müller, A.; Sigrist, R.; Chen, P. Tuning the Steric Properties of a Metathesis Catalyst for Copolymerization of Norbornene and Cyclooctene toward Complete Alternation. Organometallics 2010, 29, 2735–2751. [Google Scholar] [CrossRef]
  36. Torker, S.; Müller, A.; Chen, P. Building Stereoselectivity into a Chemoselective Ring-Opening Metathesis Polymerization Catalyst for Alternating Copolymerization. Angew. Chem. 2010, 122, 3850–3854. [Google Scholar] [CrossRef]
  37. Vehlow, K.; Wang, D.; Buchmeiser, M.R.; Blechert, S. Alternating Copolymerizations Using a Grubbs-Type Initiator with an Unsymmetrical, Chiral N-Heterocyclic Carbene Ligand. Angew. Chem. Int. Ed. 2008, 47, 2615–2618. [Google Scholar] [CrossRef]
  38. Lichtenheldt, M.; Wang, D.; Vehlow, K.; Reinhardt, I.; Kühnel, C.; Decker, U.; Blechert, S.; Buchmeiser, M. Alternating Ring-Opening Metathesis Copolymerization by Grubbs-Type Initiators with Unsymmetrical N-Heterocyclic Carbenes. Chem. Eur. J. 2009, 15, 9451–9457. [Google Scholar] [CrossRef] [PubMed]
  39. Buchmeiser, M.R.; Ahmad, I.; Gurram, V.; Kumar, P.S. Pseudo-Halide and Nitrate Derivatives of Grubbs and Grubbs–Hoveyda Initiators: Some Structural Features Related to the Alternating Ring-Opening Metathesis Copolymerization of Norborn-2-Ene with Cyclic Olefins. Macromolecules 2011, 44, 4098–4106. [Google Scholar] [CrossRef]
  40. Engl, P.S.; Fedorov, A.; Copéret, C.; Togni, A. N-Trifluoromethyl NHC Ligands Provide Selective Ruthenium Metathesis Catalysts. Organometallics 2016, 35, 887–893. [Google Scholar] [CrossRef]
  41. Vasiuta, R.; Stockert, A.; Plenio, H. Alternating Ring-Opening Metathesis Polymerization by Grubbs-Type Catalysts with N -Pentiptycenyl, N -Alkyl-NHC Ligands. Chem. Commun. 2018, 54, 1706–1709. [Google Scholar] [CrossRef] [PubMed]
  42. Paradiso, V.; Bertolasi, V.; Grisi, F. Novel Olefin Metathesis Ruthenium Catalysts Bearing Backbone-Substituted Unsymmetrical NHC Ligands. Organometallics 2014, 33, 5932–5935. [Google Scholar] [CrossRef]
  43. Paradiso, V.; Bertolasi, V.; Costabile, C.; Grisi, F. Ruthenium Olefin Metathesis Catalysts Featuring Unsymmetrical N-Heterocyclic Carbenes. Dalton Trans. 2016, 45, 561–571. [Google Scholar] [CrossRef]
  44. Paradiso, V.; Grisi, F. Ruthenium-Catalyzed Alternating Ring-Opening Metathesis Copolymerization of Norborn-2-ene with Cyclic Olefins. Adv. Synth. Catal. 2019, 361, 4133–4139. [Google Scholar] [CrossRef]
  45. Paradiso, V.; Bertolasi, V.; Costabile, C.; Caruso, T.; Dąbrowski, M.; Grela, K.; Grisi, F. Expanding the Family of Hoveyda–Grubbs Catalysts Containing Unsymmetrical NHC Ligands. Organometallics 2017, 36, 3692–3708. [Google Scholar] [CrossRef]
  46. Sanford, M.S.; Ulman, M.; Grubbs, R.H. New Insights into the Mechanism of Ruthenium-Catalyzed Olefin Metathesis Reactions. J. Am. Chem. Soc. 2001, 123, 749–750. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Sanford, M.S.; Love, J.A.; Grubbs, R.H. Mechanism and Activity of Ruthenium Olefin Metathesis Catalysts. J. Am. Chem. Soc. 2001, 123, 6543–6554. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Love, J.A.; Sanford, M.S.; Day, M.W.; Grubbs, R.H. Synthesis, Structure, and Activity of Enhanced Initiators for Olefin Metathesis. J. Am. Chem. Soc. 2003, 125, 10103–10109. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Vougioukalakis, G.C.; Grubbs, R.H. Ruthenium-Based Olefin Metathesis Catalysts Coordinated with Unsymmetrical N-Heterocyclic Carbene Ligands: Synthesis, Structure, and Catalytic Activity. Chem. Eur. J. 2008, 14, 7545–7556. [Google Scholar] [CrossRef] [PubMed]
  50. Vorfalt, T.; Wannowius, K.-J.; Plenio, H. Probing the Mechanism of Olefin Metathesis in Grubbs-Hoveyda and Grela Type Complexes. Angew. Chem. Int. Ed. 2010, 49, 5533–5536. [Google Scholar] [CrossRef]
  51. Thiel, V.; Hendann, M.; Wannowius, K.-J.; Plenio, H. On the Mechanism of the Initiation Reaction in Grubbs–Hoveyda Complexes. J. Am. Chem. Soc. 2012, 134, 1104–1114. [Google Scholar] [CrossRef]
  52. Nuñez-Zarur, F.; Solans-Monfort, X.; Rodríguez-Santiago, L.; Sodupe, M. Differences in the Activation Processes of Phosphine-Containing and Grubbs–Hoveyda-Type Alkene Metathesis Catalysts. Organometallics 2012, 31, 4203–4215. [Google Scholar] [CrossRef]
  53. Piers, W.E. Olefin Metathesis and Metathesis Polymerization By K. J. Ivin (The Queen’s University of Belfast) and J. C. Mol (University of Amsterdam). Academic Press: San Diego. 1997. Xvi + 472 Pp. $70.00. ISBN 0-12-377045-9. J. Am. Chem. Soc. 1997, 119, 8396. [Google Scholar] [CrossRef]
  54. Falivene, L.; Credendino, R.; Poater, A.; Petta, A.; Serra, L.; Oliva, R.; Scarano, V.; Cavallo, L. SambVca 2. A Web Tool for Analyzing Catalytic Pockets with Topographic Steric Maps. Organometallics 2016, 35, 2286–2293. [Google Scholar] [CrossRef] [Green Version]
  55. Falivene, L.; Cao, Z.; Petta, A.; Serra, L.; Poater, A.; Oliva, R.; Scarano, V.; Cavallo, L. Towards the Online Computer-Aided Design of Catalytic Pockets. Nat. Chem. 2019, 11, 872–879. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Dorta, R.; Stevens, E.D.; Scott, N.M.; Costabile, C.; Cavallo, L.; Hoff, C.D.; Nolan, S.P. Steric and Electronic Properties of N-Heterocyclic Carbenes (NHC): A Detailed Study on Their Interaction with Ni(CO)4. J. Am. Chem. Soc. 2005, 127, 2485–2495. [Google Scholar] [CrossRef] [PubMed]
  57. Cavallo, L.; Correa, A.; Costabile, C.; Jacobsen, H. Steric and Electronic Effects in the Bonding of N-Heterocyclic Ligands to Transition Metals. J. Organomet. Chem. 2005, 690, 5407–5413. [Google Scholar] [CrossRef]
  58. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision A.02; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  59. Becke, A. D. Density-functional exchange-energy approximation with correct asymptotic behavior. Phys. Rev. A 1988, 38, 3098–3100. [Google Scholar] [CrossRef] [PubMed]
  60. Perdew, J. P. Density-functional approximation for the correlation energy of the inhomogeneous electron gas. Phys. Rev. B 1986, 33, 8822–8824, Erratum in Phys. Rev. B 1986, 34, 7406–7406. [Google Scholar] [CrossRef]
  61. Schaefer, A.; Horn, H.; Ahlrichs, R. Fully optimized contracted Gaussian basis sets for atoms Li to Kr. J. Chem. Phys. 1992, 97, 2571–2577. [Google Scholar] [CrossRef] [Green Version]
  62. Haeusermann, U.; Dolg, M.; Stoll, H.; Preuss, H.; Schwerdtfeger, P.; Pitzer, R.M. Accuracy of energy-adjusted quasirelativistic ab initio pseudopotentials. Mol. Phys. 1993, 78, 1211–1224. [Google Scholar] [CrossRef]
  63. Kuechle, W.; Dolg, M.; Stoll, H.; Preuss, H. Energy—Adjusted pseudopotentials for the actinides. Parameter sets and test calculations for thorium and thorium monoxide. J. Chem. Phys. 1994, 100, 7535–7542. [Google Scholar] [CrossRef]
  64. Leininger, T.; Nicklass, A.; Stoll, H.; Dolg, M.; Schwerdtfeger, P. The accuracy of the pseudopotential approximation. II. A comparison of various core sizes for indium pseudopotentials in calculations for spectroscopic constants of InH, InF, and InCl. J. Chem. Phys. 1996, 105, 1052–1059. [Google Scholar] [CrossRef]
  65. Clark, T.; Chandrasekhar, J.; Spitznagel, G.W.; Schleyer, P.v.R. Efficient diffuse function-augmented basis-sets for anion calculations. 3. The 3-21+G basis set for 1st-row elements, Li-F. J. Comp. Chem. 1983, 4, 294–301. [Google Scholar] [CrossRef]
  66. Barone, V.; Cossi, M. Quantum Calculation of Molecular Energies and Energy Gradients in Solution by a Conductor Solvent Model. J. Phys. Chem. A 1998, 102, 1995–2001. [Google Scholar] [CrossRef]
  67. Tomasi, J.; Persico, M. Molecular Interactions in Solution: An Overview of Methods Based on Continuous Distributions of the Solvent. Chem. Rev. 1994, 94, 2027–2094. [Google Scholar] [CrossRef]
Catalysts 13 00034 g001 550

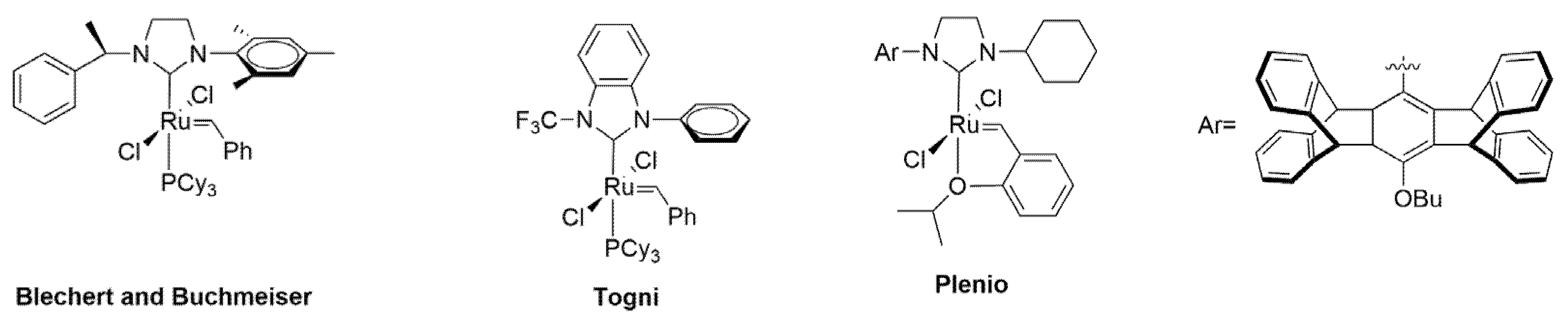

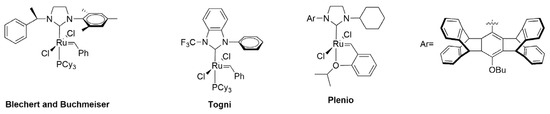

Figure 1. Grubbs- and Hoveyda–Grubbs-type catalysts with uNHCs for alternating ROMP copolymerization.
Figure 1. Grubbs- and Hoveyda–Grubbs-type catalysts with uNHCs for alternating ROMP copolymerization.
Catalysts 13 00034 g001
Catalysts 13 00034 g002 550

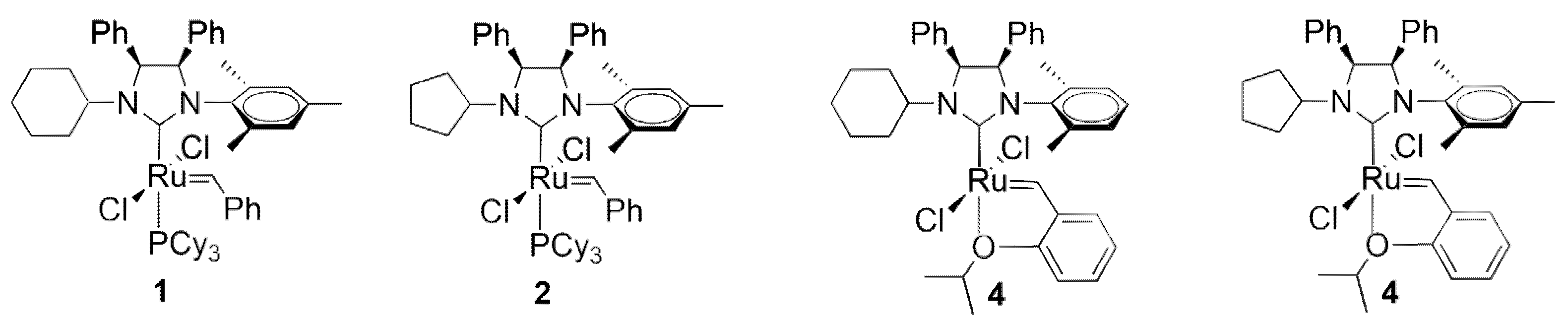

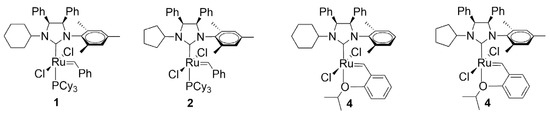

Figure 2. Ruthenium catalysts bearing N-cycloalkyl, N′-mesityl NHC ligands used in this study.
Figure 2. Ruthenium catalysts bearing N-cycloalkyl, N′-mesityl NHC ligands used in this study.
Catalysts 13 00034 g002

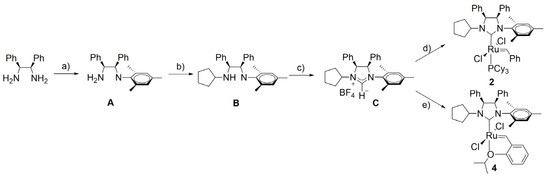

Catalysts 13 00034 sch001 550
Scheme 1. Synthesis of novel uNHC ruthenium complexes 2 and 4.
Scheme 1. Synthesis of novel uNHC ruthenium complexes 2 and 4.
Catalysts 13 00034 sch001
Catalysts 13 00034 sch002 550
Scheme 2. Alternating ROMP of NBE and COE (ring-opening metathesis copolymerization of norbornene with cyclooctene.
Scheme 2. Alternating ROMP of NBE and COE (ring-opening metathesis copolymerization of norbornene with cyclooctene.
Catalysts 13 00034 sch002
Catalysts 13 00034 g003 550
Figure 3. Content of alternating diads in the copolymers obtained at different ratios of NBE:COE (norbornene:cyclooctene).
Figure 3. Content of alternating diads in the copolymers obtained at different ratios of NBE:COE (norbornene:cyclooctene).
Catalysts 13 00034 g003
Catalysts 13 00034 g004 550

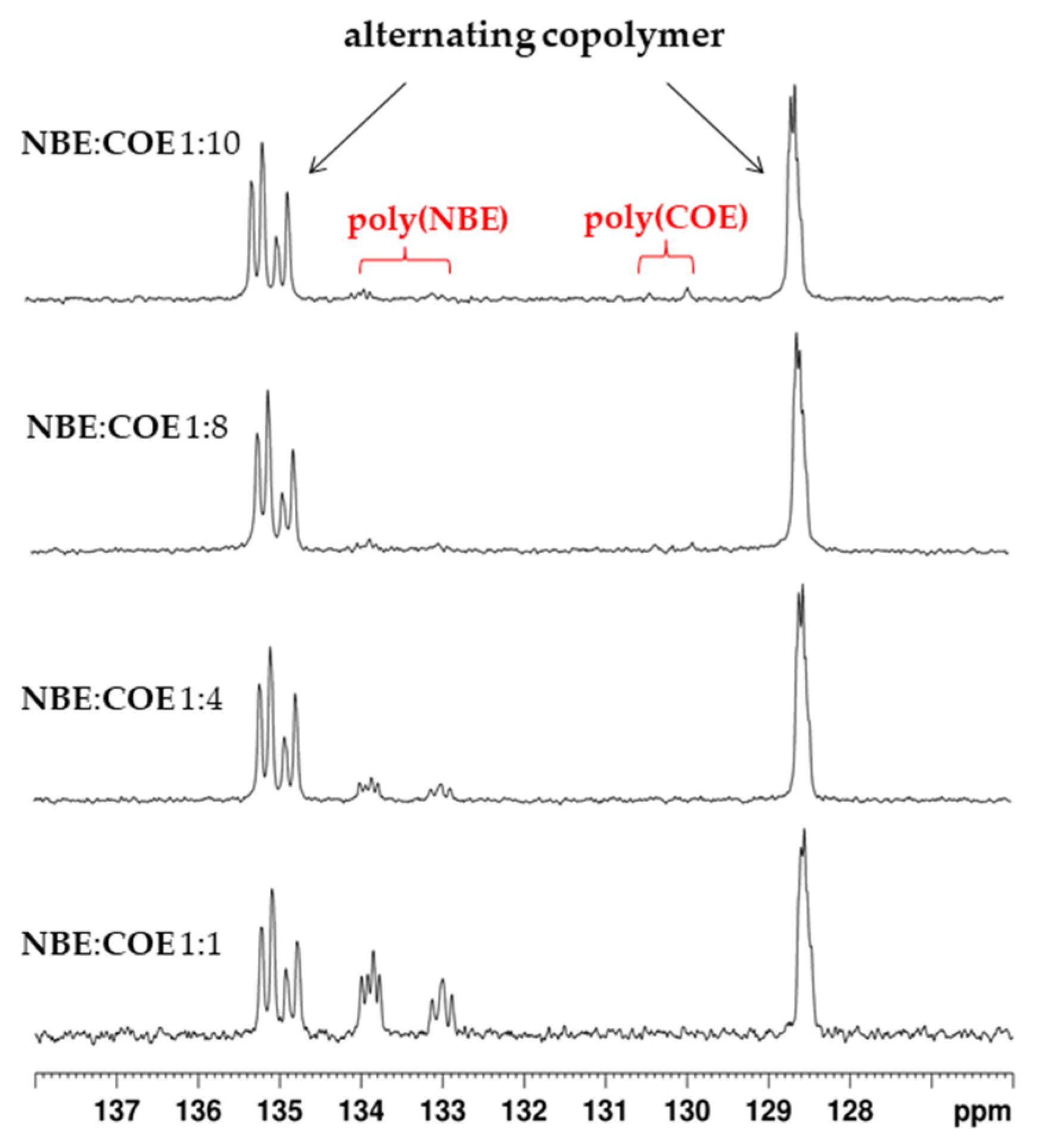

Figure 4. Olefinic region of 13C NMR (150 MHz) spectra of alternating NBE-COE obtained via catalyst 4.
Figure 4. Olefinic region of 13C NMR (150 MHz) spectra of alternating NBE-COE obtained via catalyst 4.
Catalysts 13 00034 g004
Catalysts 13 00034 g005 550

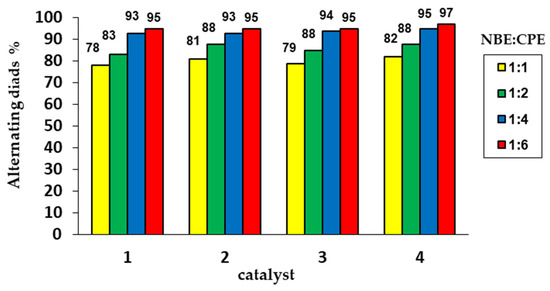

Figure 5. Content of alternating diads in the copolymers obtained at different ratios of NBE:CPE (norbornene:cyclopentene).
Figure 5. Content of alternating diads in the copolymers obtained at different ratios of NBE:CPE (norbornene:cyclopentene).
Catalysts 13 00034 g005
Catalysts 13 00034 sch003 550
Scheme 3. Alternating ROMP of NBE and CPE (ring-opening metathesis copolymerization of norbornene with cyclopentene).
Scheme 3. Alternating ROMP of NBE and CPE (ring-opening metathesis copolymerization of norbornene with cyclopentene).
Catalysts 13 00034 sch003
Catalysts 13 00034 g006 550
Figure 6. Olefinic region of 13C-NMR (150 MHz) spectra of alternating NBE-CPE (norbornene cyclopentene) copolymers obtained via catalyst 4.
Figure 6. Olefinic region of 13C-NMR (150 MHz) spectra of alternating NBE-CPE (norbornene cyclopentene) copolymers obtained via catalyst 4.
Catalysts 13 00034 g006
Catalysts 13 00034 g007 550
Figure 7. Minimum energy structures of catalysts 3 [45] and 4, as well as the Buchmeiser catalyst. Most hydrogens were omitted for clarity. Distances are in Å.
Figure 7. Minimum energy structures of catalysts 3 [45] and 4, as well as the Buchmeiser catalyst. Most hydrogens were omitted for clarity. Distances are in Å.
Catalysts 13 00034 g007
Catalysts 13 00034 g008 550
Figure 8. Topographic steric maps of 3 [45], 4 and Buchmeiser catalyst. The iso-contour curves of steric maps are in Å. The maps were constructed starting from the minimum energy structures of complexes optimized via DFT calculations. The complexes are oriented according to the structure on the top of the map. Overall %VBur and %VBur representative of each single quadrant are reported for each map. %VBur is a parameter that quantifies the steric hindrance of ligands and is defined as the fraction of the total volume of a sphere centered on the metal occupied by a given ligand [56,57]. Quadrants in topographic steric maps are identified as NW, NE, SW and SE, according to their position on the map.
Figure 8. Topographic steric maps of 3 [45], 4 and Buchmeiser catalyst. The iso-contour curves of steric maps are in Å. The maps were constructed starting from the minimum energy structures of complexes optimized via DFT calculations. The complexes are oriented according to the structure on the top of the map. Overall %VBur and %VBur representative of each single quadrant are reported for each map. %VBur is a parameter that quantifies the steric hindrance of ligands and is defined as the fraction of the total volume of a sphere centered on the metal occupied by a given ligand [56,57]. Quadrants in topographic steric maps are identified as NW, NE, SW and SE, according to their position on the map.
Catalysts 13 00034 g008
Catalysts 13 00034 g009 550
Figure 9. CPE and NBE minimum energy coordination structures for catalyst 3 (3-CPE and 3-NBE), catalyst 4 (4-CPE and 4-NBE) and Buchmeiser catalyst (B-CPE and B-NBE). Free energies of CPE and NBE coordination in CH2Cl2 are in kcal/mol.
Figure 9. CPE and NBE minimum energy coordination structures for catalyst 3 (3-CPE and 3-NBE), catalyst 4 (4-CPE and 4-NBE) and Buchmeiser catalyst (B-CPE and B-NBE). Free energies of CPE and NBE coordination in CH2Cl2 are in kcal/mol.
Catalysts 13 00034 g009
Table
Table 1. ROMP copolymerization of NBE and COE in the presence of catalysts 1–4.
Table 1. ROMP copolymerization of NBE and COE in the presence of catalysts 1–4.
Entry 1CatalystNBE/COEPoly(NBE)
[%] 2,3		Poly(COE)
[%] 2,3		Alternating
Diads [%] 3		Mn4
(g/mol)		Đ4Yield
(mg)
1 511:126<174 (62)9.2 × 1051.86167
2 511:413<187 (63)4.2 × 1052.07220
3 511:85194 (63)6.6 × 1051.93235
4 511:101198 (63)8.0 × 1051.84244
521:128-72 (61)2.3 × 1051.92161
621:49-90 (60)3.6 × 1051.90200
721:82-98 (61)4.0 × 1051.77238
821:102-98 (63)2.8 × 1051.86234
931:122-78 (62)1.1 × 1061.73159
1031:412-88 (63)1.7 × 1061.49228
1131:85<195 (63)1.1 × 1061.79230
1231:102<198 (63)1.3 × 1061.61244
1341:128-72 (61)1.7 × 1061.60171
1441:47-93 (62)1.3 × 1061.66203
1541:82-98 (63)1.0 × 1061.86196
1641:101198 (62)9.6 × 1051.85224
1 Reaction conditions: CH2Cl2 (2.5 mL), catalyst (1.3 μmol), [NBE]/[cat] = 1000, temperature 30 °C, time 2 min. 2 Fractions of homopolymer sequences in the copolymer. 3 Determined using 13C-NMR. The value in parenthesis is the percentage of cis double bonds. 4 Determined using THF size-exclusion chromatography (SEC) calibrated utilizing polystyrene standards. 5 See Ref. [44].
Table
Table 2. ROMP copolymerization of NBE and CPE in the presence of catalysts 1–4.
Table 2. ROMP copolymerization of NBE and CPE in the presence of catalysts 1–4.
Entry 1CatalystNBE/CPEPoly(NBE)
[%] 2,3		Poly(CPE)
[%] 2,3		Alternating
Diads [%] 3		Mn4
(g/mol)		Đ4Yield
(mg)
1 511:122<1788.7 × 1041.59163
2 511:217<1837.1 × 1041.63115
3 511:47<1931.0 × 1051.78135
4 511:65<1951.1 × 1051.87165
521:119-811.8 × 1052.10163
621:212<1881.6 × 1051.95172
721:461931.5 × 1052.18186
821:632951.5 × 1052.28200
931:121-793.1 × 1051.98157
1031:215-851.8 × 1051.96165
1131:46<1942.0 × 1052.01179
1231:641951.3 × 1051.70171
1341:118-823.2 × 1051.64151
1441:212-882.0 × 1051.85176
1541:45-953.3 × 1051.97168
1641:63 <1972.1 × 1051.95172
1 Reaction conditions: CH2Cl2 (2.5 mL), catalyst (1.3 μmol), [NBE]/[cat] = 1000, temperature 30 °C, time 15 min. 2 Fractions of homopolymer sequences in the copolymer. 3 Determined using 13C-NMR. 4 Determined using THF size-exclusion chromatography (SEC) calibrated using polystyrene standards. 5 See Ref. [44].
Table
Table 3. %VBur, ΔΔG monomer coordination and Ru charge of 3, 4 and Buchmeiser catalyst.
Table 3. %VBur, ΔΔG monomer coordination and Ru charge of 3, 4 and Buchmeiser catalyst.
Catalyst%VBur 1ΔΔG 2Ru Charge 3
331.70.7−0.30214
431.80.7−0.30677
Buchmeiser31.22.0−0.29546
1 %VBur of topographic maps reported in Figure 8. 2 ΔΔG represents the energy difference between the coordination energy of CPE and the coordination energy of NBE (ΔΔG = ΔGCPE − ΔGNBE). 3 Ru charges were obtained from NBO analysis.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Troiano, R.; Costabile, C.; Grisi, F. Alternating Ring-Opening Metathesis Polymerization Promoted by Ruthenium Catalysts Bearing Unsymmetrical NHC Ligands. Catalysts 2023, 13, 34. https://doi.org/10.3390/catal13010034

AMA Style

Troiano R, Costabile C, Grisi F. Alternating Ring-Opening Metathesis Polymerization Promoted by Ruthenium Catalysts Bearing Unsymmetrical NHC Ligands. Catalysts. 2023; 13(1):34. https://doi.org/10.3390/catal13010034

Chicago/Turabian Style

Troiano, Rubina, Chiara Costabile, and Fabia Grisi. 2023. "Alternating Ring-Opening Metathesis Polymerization Promoted by Ruthenium Catalysts Bearing Unsymmetrical NHC Ligands" Catalysts 13, no. 1: 34. https://doi.org/10.3390/catal13010034

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
