Highly Resistant LaCo_1−xFe_xO₃ Perovskites Used in Chlorobenzene Catalytic Combustion

Abstract

The stability of LaCo_1−xFe_xO₃ perovskite structures (x = 0; 0.25; 0.5; 0.75; 1) was studied in the combustion of chlorobenzene. This family of catalysts was synthesized by the citrate method obtaining pure structures. The Fe doping in the original structure induces electronic environments capable of generating the Co²⁺/Co³⁺ redox couple. The characteristics observed in bulk are perfectly reflected on the surface, favoring a high resistance of the solids to chlorine poisoning. Superior stability under reaction conditions was observed in the phase with the lowest Fe content (x = 0.25), remaining stable at 100% combustion of chlorobenzene during 100 h, not observing intermediate reaction products. These results open up a new avenue for designing and fabricating high-performance catalysts in the environmental field

1. Introduction

The removal of atmospheric pollutants is currently one of the pillars of international scientific research. The specific case of chlorinated volatile organic compounds (VOCs-Cl) has become very important in recent years due to their persistence and toxicity in the atmosphere [1]. The removal routes have been multiple, from the most conventional to the most promising [2,3]. One of the most effective ways to remove gaseous atmospheric pollutants in recent years has been by catalytic combustion, and within it, the use of inorganic structures of mixed oxides, specifically perovskites [4]. The combustion of chlorobenzene (CB) has been studied with similar structures, such as La_1−xCa_xFeO₃, LaMnO₃, LaCoO₃, and YCoO₃ [5,6]. In a previous publication, the use of a LaCoO₃ structure substituted with Ce in the A position of the perovskite was studied in the combustion of chlorobenzene. These catalysts presented good stability that was correlated with the redox characteristics and great oxygen mobility due to the insertion of Ce into the structure, and it was found that there is a permissible limit of incorporation of Ce in the A position of the perovskite structure [7]. Mn and Fe cations have also been studied, giving promising results in this type of reaction [8,9]. The substitution of lanthanides in the A position (La, Ce) and the influence of different transition metals, such as Co, Mn, Fe, Ni, and many others, in the B position, have been studied. It can be inferred that the cations redox couple in a structure induces oxygen mobility that favors an exchange between the crystalline structure and the surface. These are the advantages desired from Fe in this type of reaction, as well as the easy insertion within the structure, providing pure phases in accordance with the orthorhombic geometry of the structures [10]. Additionally, due to the high availability and low price of iron precursors, the interest in ferrites has continued to grow over time, seeking strategies to stabilize iron in oxidation states (III) and (IV) in these cubic systems, and considered as a prerequisite for the good catalytic activity of the material [11]. In addition, a structure combined with Fe in the perovskite B position could stabilize the system and provide greater stability in the reaction under study, as Fe can occupy active sites that originate electronic environments that lead to the generation of Co²⁺, which is one of the main factors responsible for the good perovskite activity in this reaction [12]. In addition, Fe can also generate oxygen mobility from the lattice to the surface providing stability in the structure. In the search for catalysts with a high resistance to Cl poisoning in Cl-VOCs combustion, there has been much effort. However, there is still the need to design structures with high stability during long time periods. The aim of this work is to validate the hypotheses regarding the effect of the substitution of the B site by Fe in different proportions in LaCoO₃ perovskites, seeking improvements in the catalytic activity and stability of these substituted structures in the chlorobenzene combustion reaction.

2. Results and Discussion

2.1. Catalytic Activity

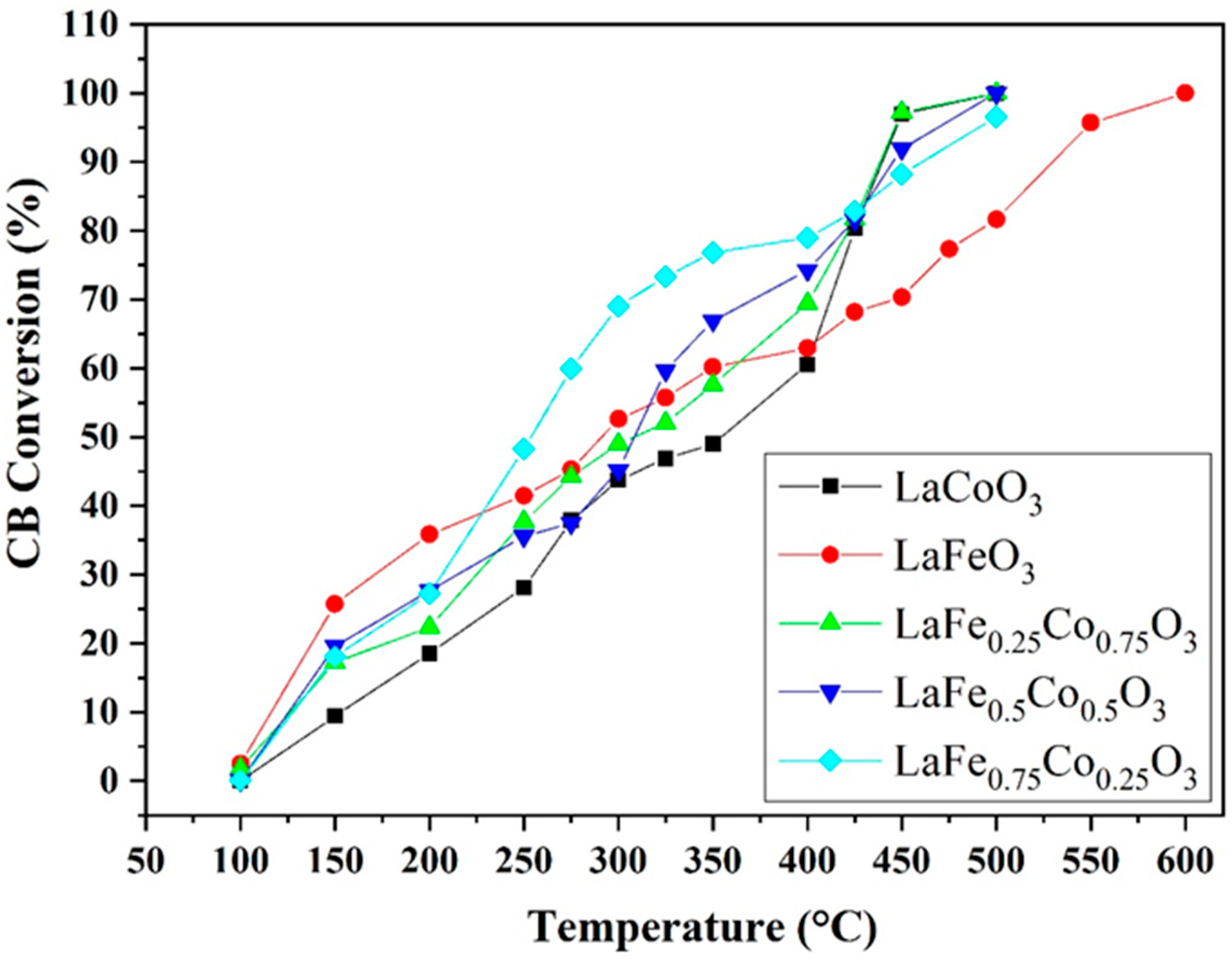

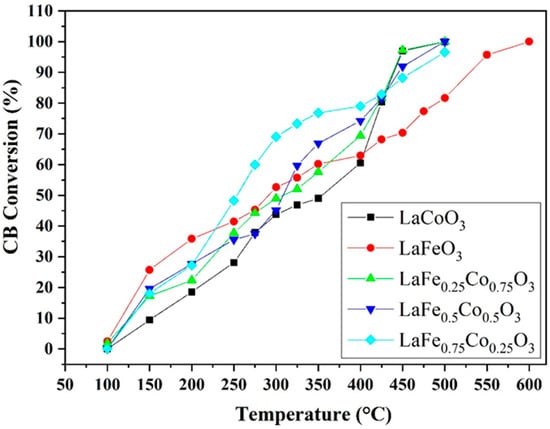

The prepared catalysts were studied in the combustion reaction of chlorobenzene (CB). The results of the catalytic activity are shown in Figure 1 and

Table 1. T₅₀, T₉₀, carbon, and Cl₂ balances for the synthesized catalysts.

Catalyst	T50	T90	Carbon Balance (%)	Cl2 Moles of the Reaction Products
LaCoO3	350.5	444.7	0.2	1.05 × 10−3
LaCo0.75Fe0.25O3	313.8	437.3	0.1	1.11 × 10−3
LaCo0.5Fe0.5O3	307.9	446.2	0.3	1.07 × 10−3
LaCo0.25Fe0.75O3	251.9	449.1	0.2	1.12 × 10−3
LaFeO3	288.7	528.6	0.3	1.14 × 10−3

, the temperature values corresponding to the 50% conversion of CB (T₅₀), the 90% conversion of CB (T₉₀), and the balances of carbon and moles of Cl₂ produced after reaction are reported.

The small differences observed in the T90 values do not present a linear relationship with the increase or decrease in Fe content in the perovskite. However, T50 values decrease with the increase in Fe content. The catalyst that presented the lowest T₅₀ was LaCo_0.25Fe_0.75O₃, whereas the lowest T₉₀ was determined with LaCo_0.75Fe_0.25O₃. At low temperatures, the structures with the highest Fe content resulted in more activity, whereas at high temperatures (from 400 °C), the most active structures were those with the lowest content of this cation.

To corroborate that the catalysts completely convert the CB to its complete combustion products, the total carbon balances were carried out by the indirect method through the valuation of carbonates retained in a trap solution placed at the outlet of the reactor. The carbon balance closed between 0.1 and 0.3%, values that are considered within the error allowed in the calculation of this magnitude (Table 1). In the same way, the analysis of Cl₂(g) was carried out as an oxidation product of this type of Cl-VOC. Considering that 1.18 × 10⁻³ moles of this compound should be obtained as a product under the reaction conditions, the number of moles of Cl₂(g) obtained from this measurement correlated perfectly with the moles of this oxidation product considering a CB complete oxidation (Table 1).

Kamal et al. reported the CB combustion using mixed oxide-type catalysts (Co₃O₄/Alumina and SnO/MnO/TiO/CrO). They observed that the main cause of deactivation was the saturation of chlorine on the surface and the subsequent formation of intermediates such as organic acids and oxychlorides of the corresponding metals. As was explained in this work, these intermediaries could become more dangerous than the Cl-VOCs to be eliminated [13]. Rochard et al. detected the formation of intermediates such as benzyl alcohol and toluene during the CB combustion using spinel and perovskite-type catalysts (Mn_0.75Co_2.25O₃ and La_0.9Sr_0.1CoO₃). These intermediates caused the loss of the catalysts’ activity and were the subject of further study due to their high persistence and toxicity compared to that of the VOCs under study [14]. In the present work, although some minimal differences can be distinguished in the balances of total carbon and Cl₂ that could be associated with the adsorption of Cl on the surface of the catalyst once the reaction has finished, the balances and the total conversion indicated that there was no formation of intermediates or oxychlorides at the end of the reaction test, unlike previously published works. It is worth mentioning that the formation of intermediates at low reaction temperatures cannot be discarded as in situ spectroscopy techniques should be necessary to corroborate it. In addition, the stability of the catalysts was studied under the same reaction conditions but at a fixed temperature, corresponding to the 100% conversion of CB. Figure 2 shows the variation of the chlorobenzene conversion as a function of time.

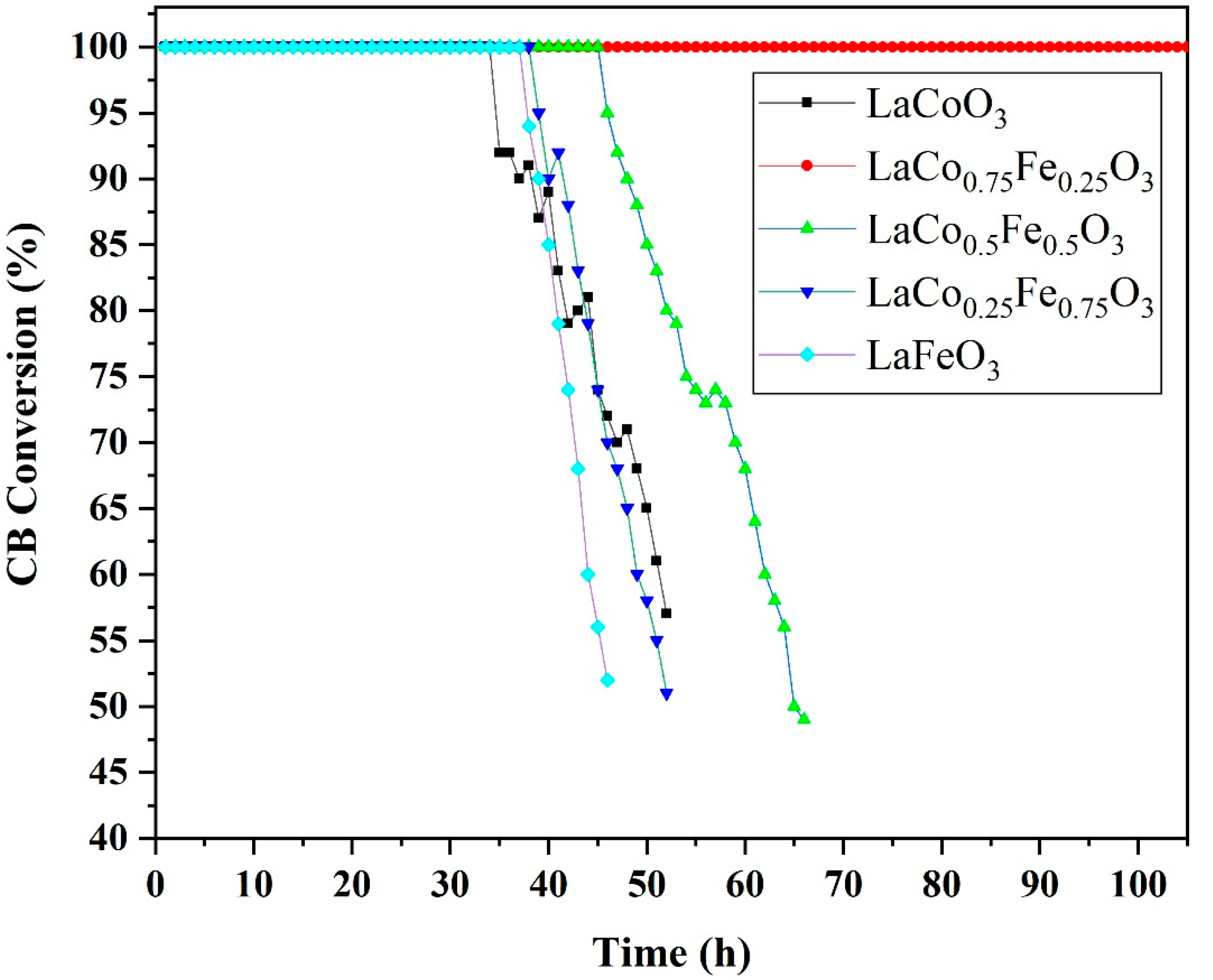

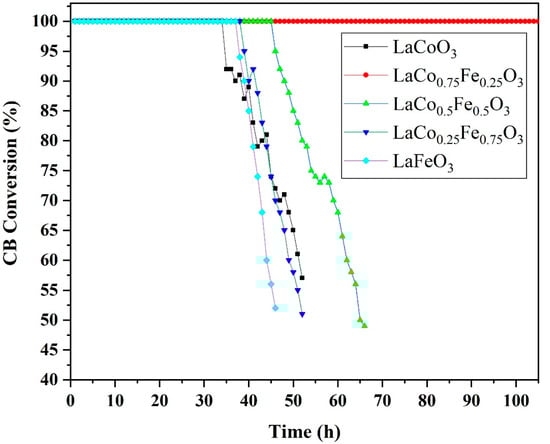

As can be seen, the catalyst that began to deactivate in the shortest time was LaCoO₃, showing a conversion below 50% after approximately 54 h, while the one that deactivated more quickly (around 45 h) was the catalyst that does not have cobalt in its structure, LaFeO₃. On the other hand, the most stable catalysts were those with the lowest Fe content (25% and 50%, respectively). The LaCo_0.5Fe_0.5O₃ catalyst began to deactivate after 50 h, reaching a value of 50% conversion at 65 h. On the other hand, the LaCo_0.75Fe_0.25O₃ catalyst presented excellent stability, maintaining the CB conversion at 100% during the 100 h of reaction without presenting deactivation over time.

A similar study carried out by Wang et al. showed CB conversion to 100% during 9–10 h using Fe-mixed oxide-type catalysts doped with Ni. In this case, despite the excellent results reported, they associated the low stability with the accumulation of Cl in the active sites [15]. Liu et al. reported a stability of 100% CB conversion for 20 h using perovskite-type catalysts (SmMnO₃) in different proportions of the cations. In this work, these authors informed that a higher proportion of acid sites improved the catalytic capacity, and they also observed that the deactivation of this type of catalyst occurred due to surface poisoning by residual Cl as a product of the combustion reaction [16]. Effectively, these recently published results evidence the excellent stability of the catalysts presented in our work. In general, the catalysts’ stability increased in the following order: LaFeO₃ ˂ LaCoO₃ ˂ LaCo_0.25Fe_0.75O₃ ˂ LaCo_0.5Fe_0.5O₃ ˂ LaCo_0.75Fe_0.25O₃. In order to find the reason for this catalyst stability order, an exhaustive characterization was created and discussed in the following sections.

2.2. Physicochemical Characterization of the Catalysts

The results of the S_BET analysis are presented in

Table 2. Results of the BET isotherm analysis and H₂ consumption from the TPR study.

Catalysts	Surface Area (m2/g)		H2 Consumption	Porous Volume (cm3/g)		Porous Diameter (Å)
	Fresh	Used	(Moles H2/g Co)	Fresh	Used	Fresh	Used
LaCoO3	8.9	6.6	6.3 × 10−6	0.058	0.031	261.12	188.62
LaCo0.75Fe0.25O3	9.8	7.6	2.8 × 10−6	0.073	0.041	295.95	213.89
LaCo0.5Fe0.5O3	7.4	6.9	2.7 × 10−6	0.037	0.030	200.02	174.91
LaCo0.25Fe0.75O3	7.7	6.7	2.4 × 10−6	0.061	0.024	317.24	144.57
LaFeO3	6.5	6.1	--	0.052	0.074	319.87	486.78

. The isotherms could be classified according to the IUPAC as type 3 at low pressures and type 5 at high pressures, being in all cases mesoporous materials, since all the isotherms presented H3-type hysteresis.

The partial substitution of the B position by 25% of Fe slightly increased the original surface area of the LaCoO₃ catalyst. At higher substitution percentages, the surface areas decreased due to the change in geometry that occurs in the structure, although the variations do not reflect a linear relationship. The largest surface area was reported for the catalyst with 25% Fe, corresponding to the catalyst that presented the best activity in the catalytic reaction. Although the reaction under study is a surface reaction, it is clear that the little variation in the surface areas in the fresh and pos-reaction structures (Table 2) indicates that the catalytic activity cannot be fully attributed to surface area variations.

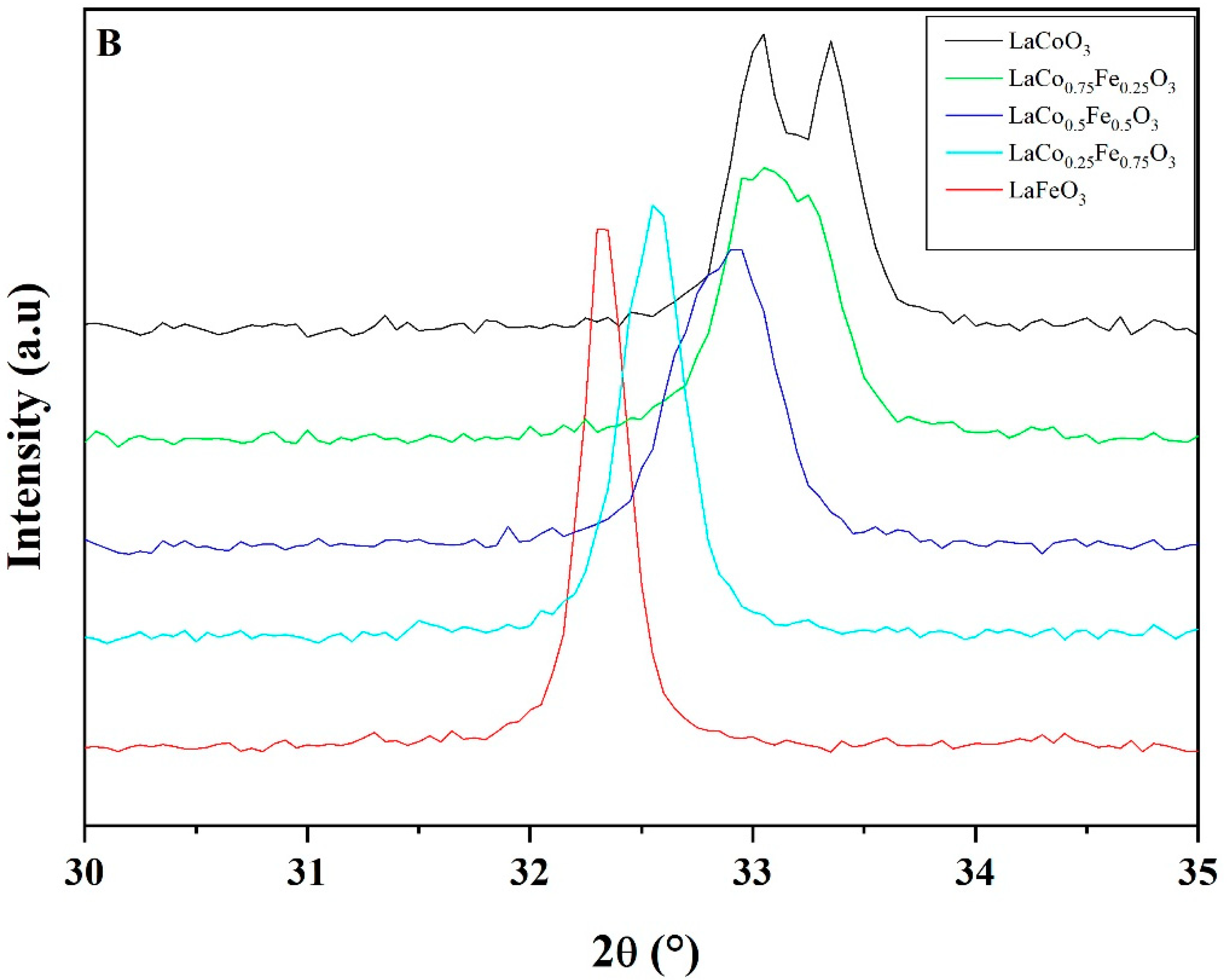

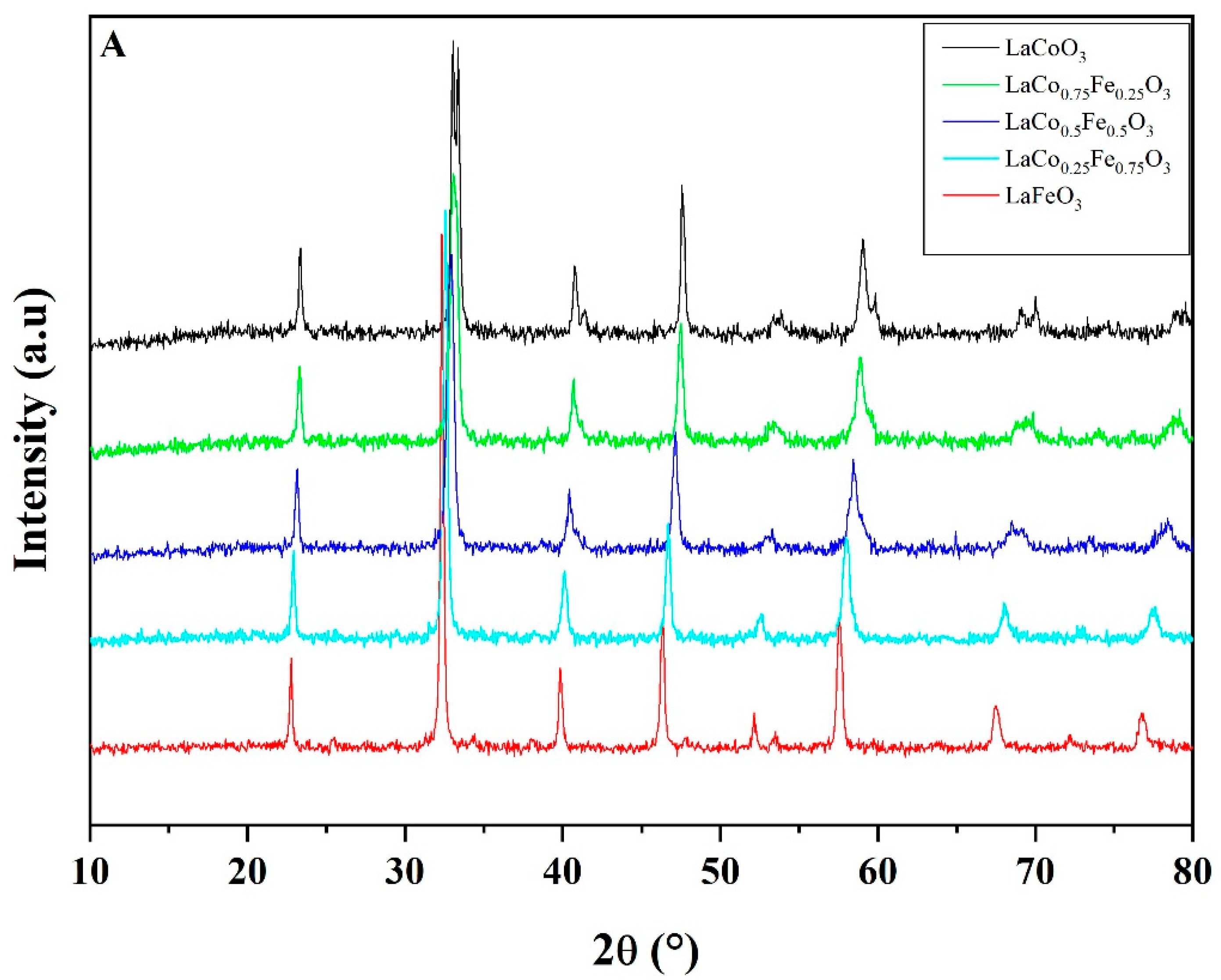

Figure 3A shows the XRD pattern of the LaCo_1−xFe_xO₃ phases from x = 0 to x = 1. The end members of the family match with the trigonal (R$\overline{3}$c) and orthorhombic (Pbnm) structures for LaCoO₃ and LaFeO₃, respectively. The mixed Co/Fe phases in these symmetries display that for x = 0.25 and 0.50, it remained as trigonal (R$\overline{3}$c), whereas, for x = 0.75, it stabilized as orthorhombic (Pbnm). This tendency can be observed in Figure 3B, where an enlargement of the main peak area can be observed. To confirm these observations, all patterns were refined with the Rietveld method using the Fullprof software. The Rietveld refinements are illustrated in Figure S1 (Supplementary Materials). The unit-cell parameters obtained from Rietveld refinements are listed in

Table 3. Cell parameters of the synthesized structures.

Catalyst	a (Å)	b (Å)	c (Å)	V (Å3)
LaCoO3	5.438375	5.438375	13.118483	336.047
LaCo0.75Fe0.25O3	5.455091	5.455091	13.191200	339.953
LaCo0.5Fe0.5O3	5.489794	5.489794	13.278933	346.582
LaCo0.25Fe0.75O3	5.528147	7.799392	5.494007	236.881
LaFeO3	5.553705	5.568998	7.850435	242.803

, and the volumes normalized with Z are plotted in Figure S2.

It can be seen that as the substituted Fe content increased (0 ≤ x ≤ 0.5), the lattice parameters increased, as did the cell volume, which was expected due to the difference in ionic radii (Ri) between Co and Fe: Ri (Co²⁺) = 0.74 Å, Ri (Co³⁺) = 0.63 Å, Ri (Fe²⁺) = 0.76 Å, Ri (Fe³⁺) = 0.64 Å, and then decreased with a higher degree of substitution (x = 0.75) approaching the LaFeO₃ value.

The best deactivation resistance of these solids was observed in the LaCo_0.75Fe_0.25O₃ perovskite, which would indicate that the rhombohedral geometries showed greater stability, maintaining the crystallinity of the solid that only differs from the orthorhombic one due to the coordination distortion of Fe compared to Co [17]. Given that the reducibility of perovskites depends on the crystalline structure, temperature programmed reduction (TPR) tests were also performed to obtain information about the oxidation state of the cations present in the structure. Figure 3 shows the TPR curves of the synthesized perovskites:

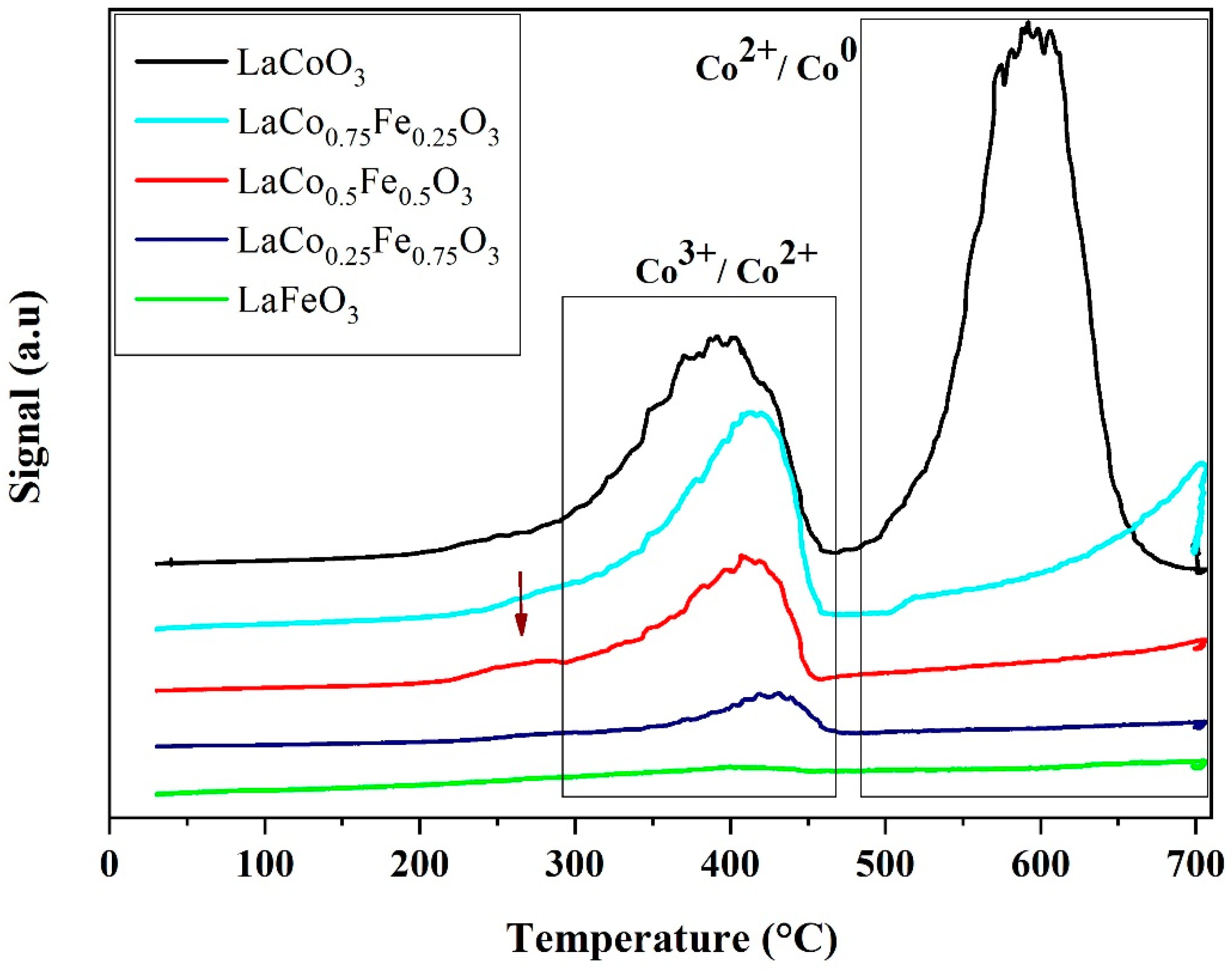

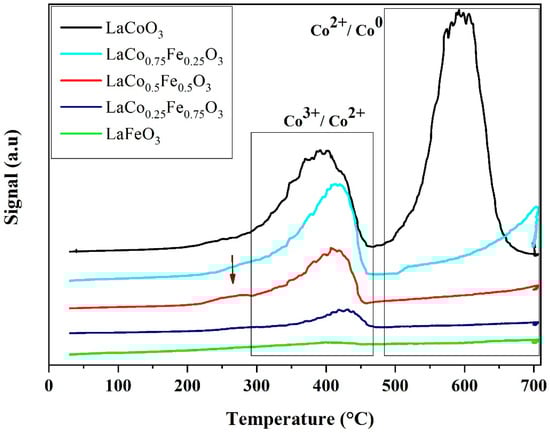

The LaCoO₃ catalyst presented a reduction profile similar to those reported in the literature for the same phase [18]. The curve presented two main reduction zones, one from 200 °C to 450 °C and the other from 500 °C to 700 °C. The first corresponds to the reduction of Co³⁺ to Co²⁺, whereas the second is attributed to the reduction of Co²⁺ to Co⁰ [19]. As mentioned by Ciambelli et al. [20] and Barbero et al. [21], Fe³⁺ would not be reduced under the experimental conditions of the TPR measurement. In agreement with these results, the green curve in Figure 4 is observed to be completely flattened. Only the reduction of Fe⁴⁺ to Fe³⁺ would be expected if Fe⁴⁺ were present.

In general, the reduction temperatures shifted to higher temperatures as the Fe content increased, being the displacement more significant in the reduction of Co³⁺/Co²⁺ than in the case of Co²⁺/Co⁰, where it is practically observed that the peak of reduction disappears, indicating that the insertion of Fe stabilizes cobalt in its Co³⁺/Co²⁺ states. This fact could explain the better behavior of the structures containing Fe in the catalytic reaction. The peak at low temperatures could also be assigned to the transition from Fe⁴⁺ to Fe⁴⁺/Fe³⁺; the second, to Fe⁴⁺/Fe³⁺ towards Fe³⁺. As there is Co in the samples, both peaks would be masked by the reduction of Co³⁺ to Co²⁺, which also appears in the temperature range from 150 °C to ∼450 °C [19]. One peak at ∼240 °C is distinguishable in the perovskite with 50% Fe and could indicate the existence of Fe⁴⁺ for this degree of Co substitution, being masked in the rest of the samples by the greater intensity of the reduction of Co³⁺ to Co²⁺. The incorporation of Fe affects the first reduction stage, modifying the splitting of the first peak of LaCoO₃ perovskite and showing only one peak, probably avoiding an intermediate reduction state. It is also observed that the second reduction peak was displaced at ∼600 °C when the Fe content was increased. This peak, which was assigned to the reduction of Co²⁺ to Co⁰, decreased in intensity with increasing amounts of Fe and disappeared when the substitution level reached 50%. Furthermore, this peak could also be attributed to the reduction of Feⁿ⁺ to Fe⁰ as it was described by Merino et al. [19], where it was found that this happened when iron was present as free iron oxide outside the perovskite structure. However, the presence of free Fe₂O₃ was ruled out, as pure diffractograms were observed for the perovskite phases obtained. Therefore, only the reduction of Co and a decrease in hydrogen consumption were observed with the increase in iron content, which could indicate the presence of Co²⁺ together with Co³⁺, as shown in Table 2 (H₂ consumption). Goldwasser et al. [22] stated that perovskite structures are more easily reduced when Fe is replaced by Co. However, in our reaction, the opposite effect was observed. This could explain the fact that the extremes (pure Fe and Co perovskites) did not lead to greater stability in the reaction but that a combined composition of cations gave greater resistance effects that were evidenced in the catalytic stability results. In spite of these partial results, a deeper study of the oxidation states of iron and cobalt is essential to know the physicochemical reasons for the high stability of the catalyst. Therefore, Mössbauer and X-ray photoelectronic spectroscopies were used to analyze the redox behavior. Figure 5 shows the Mössbauer spectra at 298 K and 12 K of the four perovskites with iron. The spectrum corresponding to LaFeO₃ presents a sextet with narrow absorption peaks and a horizontal baseline. These aspects are typical of a solid with magnetic ordering; LaFeO₃ is antiferromagnetically ordered below ≅ 477 °C, without magnetic relaxation and with environments of Fe ions very similar to each other. The hyperfine parameters obtained from the fitting are presented in

Table 4. Hyperfine Mössbauer parameters of LaFeO₃, LaCo_0.25Fe_0.75O₃, LaCo_0.5Fe_0.5O₃, and LaCo_0.75Fe_0.25O₃ at 298 K.

Species	Parameters	LaFeO3	LaCo0.25Fe0.75O3	LaCo0.5Fe0.5O3	LaCo0.75Fe0.25O3
Psite(0) (blue Interaction)	H (kOe)	520.4 ± 0.1	486.1 ± 0.9	------	------
	δ (mm/s)	0.36 ± 0.01	0.36 ± 0.01	------	------
	2ε (mm/s)	−0.07 ± 0.01	−0.09 ± 0.01	------	------
	%	99 ± 1	33 ± 2	------	------
Psite(1) (red Interaction)	H (kOe)	------	454 ± 3	------	------
	δ (mm/s)	------	0.35 ± 0.01	------	------
	2ε (mm/s)	------	−0.08 ± 0.02	------	------
	%	------	41 ± 3	------	------
Psite(2) (green Interaction)	H (kOe)	------	403 ± 8	------	------
	δ (mm/s)	------	0.37 ± 0.03	------	------
	2ε (mm/s)	------	−0.05 ± 0.06	------	------
	%	------	26 ± 3	------	------
Magnetic relaxing (violet Interaction)	∆ (mm/s)	------	------	0.43 ± 0.01	0.38 ± 0.01
	δ (mm/s)	------	------	0.35 ± 0.01	0.34 ± 0.01
	%	------	------	100	100
Paramagnetic contaminant (black Interaction)	δ (mm/s)	0.3 *	------	------	------
	%	1 ± 1	------	------	------

P_site(i): probability to have Fe³⁺ ions with “i” Co ions as neighbors. H: hyperfine magnetic field; δ: isomer shift (all the isomer shifts are referred to α-Fe at 298 K); 2ε: quadrupole shift; ∆: quadrupole splitting. (*): parameter held fixed in fitting.

and

Table 5. Hyperfine Mössbauer parameters of LaFeO₃, LaCo_0.25Fe_0.75O₃, LaCo_0.5Fe_0.5O₃, and LaCo_0.75Fe_0.25O₃ at 12 K.

Species	Parameters	LaCo0.25Fe0.75O3	LaCo0.5Fe0.5O3	LaCo0.75Fe0.25O3
Psite(0) (blue Interaction)	H (kOe)	556 ± 1	------	------
	δ (mm/s)	0.47 ± 0.01	------	------
	2ε (mm/s)	−0.08 ± 0.02	------	------
	%	33 ± 3	------	------
Psite(1) (red Interaction)	H (kOe)	538 ± 1	517 ± 2	------
	δ (mm/s)	0.47 ± 0.01	0.45 ± 0.02	------
	2ε (mm/s)	−0.08 ± 0.01	−0.10 ± 0.03	------
	%	42 ± 3	36 ± 3	------
Psite(2) (green Interaction)	H (kOe)	515 ± 2	484 ± 3	------
	δ (mm/s)	0.46 ± 0.01	0.46 ± 0.02	------
	2ε (mm/s)	−0.08 ± 0.03	−0.08 ± 0.03	------
	%	23 ± 2	38 ± 3	------
Psite(3) (magenta Interaction)	H (kOe)	------	425 ± 7	------
	δ (mm/s)	------	0.49 ± 0.05	------
	2ε (mm/s)	------	−0.1 ± 0.1	------
	%	------	24 ± 2	------
Magnetic relaxing (violet interaction)	H (kOe)	------	------	399 ± 14
	δ (mm/s)	------	------	0.41 ± 0.02
	2ε (mm/s)	------	------	−0.06 ± 0.04
	%	------	------	100
Paramagnetic contaminant (black interaction)	δ (mm/s)	0.3 *	0.3 *	------
	%	2 ± 1	3 ± 1	------

P_site(i): probability to have Fe³⁺ ions with “i” Co ions as neighbors. H: hyperfine magnetic field; δ: isomer shift (all the isomer shifts are referred to α-Fe at 298 K); 2ε: quadrupole shift. (*): parameter held fixed in fitting.

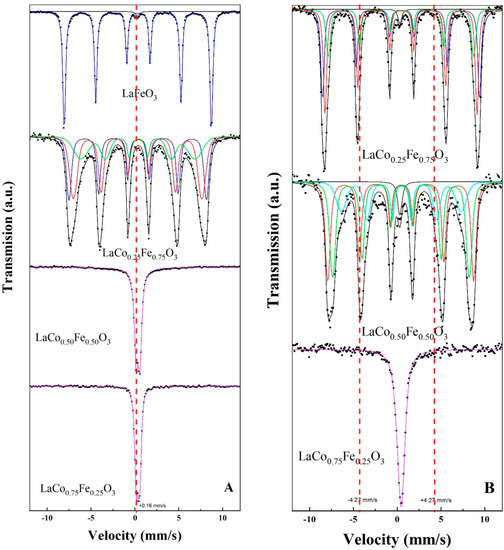

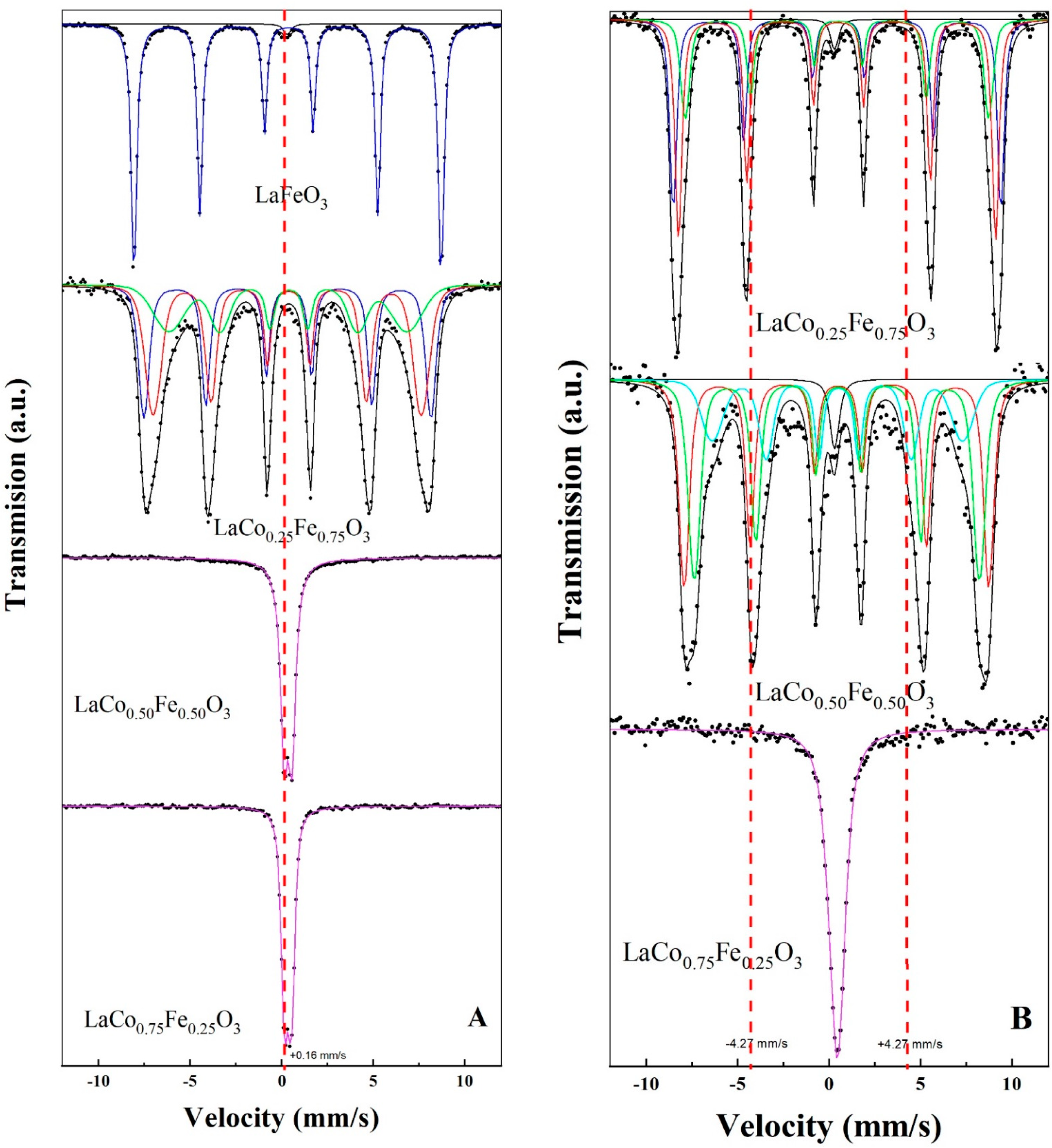

. These correspond to Fe³⁺ ions octahedrally coordinated with a high spin configuration, and they are very similar to those previously reported by other authors for LaFeO₃ [23,24]. The value of the quadrupole shift (2ε), nearly equal to zero, indicates that the octahedral environment is highly symmetric. In addition, a central signal (δ = 0.3 mm/s) with a contribution of 1–2% is detected, which could be assigned to a Fe³⁺ paramagnetic impurity not detected by XRD due to its low concentration.

Replacing 25% Fe with Co produces a significant change in the spectrum: the peaks broaden considerably and the baseline curves. This behavior indicates that the Fe³⁺ ions have different environments and that the system undergoes magnetic relaxation phenomena. The change is drastic for the other two compositions, where a complete collapse of the magnetic ordering occurs. Magnetic relaxation can occur by superparamagnetism phenomena or by spin–spin or spin–lattice relaxation. Superparamagnetism manifests itself when the size of the particles is very small, in the nanometer range. In these samples, this effect could be neglected taking into account that they have been calcined at 750 °C and that the XRD diagrams show narrow lines. For this reason, the results can be attributed to modifications in the spin–spin or spin–lattice relaxation modes caused by the replacement of Fe by Co.

The spectra were measured again at 12 K to go below the temperature region where spin dynamics occur and thus to obtain more information. In Figure 5B, it can be seen that LaCo_0.25Fe_0.75O₃ presents a complete magnetic blocking at this temperature; LaCo_0.5Fe_0.5O₃ still undergoes relaxation phenomena (curved background), whereas LaCo_0.75Fe_0.25O₃ starts to experience the beginning of a magnetic blocking. A similar qualitative effect was reported by Berry et al. for LaCo_0.5Fe_0.5O₃ and LaCo_0.90Fe_0.10O₃ [25] and by Troyanchuk et al. for LaCo_0.9Fe_0.1O₃ and LaCo_0.6Fe_0.4O₃ [26]. In both cases, the mixed perovskites were obtained by the ceramic method.

In principle, three sextets could be detected in each mixed perovskite. However, in the case of LaCo_0.75Fe_0.25O₃, the magnetic relaxation phenomena prevent this detection even at a temperature as low as 12 K. Another aspect to mention is that the tendency in the structures with lower Fe concentrations causes the hyperfine magnetic field to strongly decrease, and the width of the distribution of this parameter increases, indicating the presence of an increasing number of environments with slightly different symmetries.

The LaFeO₃ perovskite has a relatively high antiferromagnetic ordering temperature (T_Neel ≅ 477 °C), which shows very strong exchange interactions between the high-spin Fe³⁺ ions. This is reflected in the narrow line sextet of the Mössbauer spectrum obtained at 298 K and shown in Figure 5A. The changes described as a consequence of the increasing substitution of Fe ions by Co ions (appearance of magnetic relaxation phenomena that culminate in the total collapse of the ordering when the substitution reaches 75%, even at a temperature as low as 12 K) indicate that Co causes a very strong dilution of the magnetic interactions among Fe³⁺ ions.

Co is found as Co³⁺ and/or Co²⁺ and is located in highly symmetrical octahedral sites surrounded by six oxygen anions. Under these conditions, the possible electronic configurations that it could adopt are:

Co³⁺:

- high spin: t_2g⁴e_g²

- intermediate spin: t_2g⁵e_g¹

- low spin: t_2g⁶e_g⁰

Co²⁺:

- high spin: t_2g³e_g²

- intermediate spin: t_2g⁴e_g¹

- low spin: t_2g⁵e_g⁰

If for each configuration the corresponding magnetic moment is calculated assuming, in a first approximation, that only the spin magnetic moment is considered: μ_s = (n(n + 2))^0.5μ_B, (where n is the number of unpaired electrons), the following values are obtained:

Based on this analysis, the drastic effect on the magnetic order produced by the substitution of Fe³⁺ by Co would be justified if the latter were found as Co³⁺ in a low-spin configuration. Other authors have reached similar conclusions for the LaCo_1–xFe_xO_3–d system ³⁰. Recently, a similar effect has been reported when substituting high-spin Fe³⁺ for low-spin Co³⁺ on the magnetic properties of α-Fe₂O₃, which also presents an antiferromagnetic ordering [27].

From these results, it can be inferred that if small amounts of Co²⁺ are present surely these ions would have a low spin configuration, as it is the one with the lowest magnetic moment. Due to the existence of Co²⁺, the electroneutrality of the system can be preserved by the appearance of oxygen vacancies or by the emergence of abnormally high oxidation states of Fe (Fe⁴⁺). It is now accepted that if Fe⁴⁺ is present in the sample when the temperature is lowered, it undergoes the following disproportionation reaction [28].

2Fe⁴⁺ → Fe³⁺+ Fe⁵⁺

Fe⁵⁺ produces a sextuplet whose hyperfine parameters are: H = 265 kG, δ ≅ 0 mm/s, and ε ≅ 0 mm/s [29]. This implies that the two most intense peaks of the sextet (peaks 1 and 6) should appear at −4.27 and +4.27 mm/s, respectively (their position is indicated in the 12 K spectra with a red dotted line). Evidently, for LaFe_0.75Co_0.25O₃, the line at +4.27 mm/s is not recorded (a “valley” appears in the spectrum in this region). The line at −4.27 mm/s could be hidden by the line “2” of the Fe³⁺ signals. However, if this was the case, the envelope corresponding to those lines should be more intense than the envelope of line “5”, which is not the case. Therefore, the presence of Fe⁵⁺ can be ruled out in this sample. Corroborating this conclusion, the characteristic Fe⁴⁺ singlet at δ ≅ 0.16 mm/s is not recorded in the spectrum at room temperature (its position is indicated by a red dotted line in the spectrum at 298 K).

In the case of LaFe_0.5Co_0.5O₃, although the situation is not as clear as with the previous sample, once again, the presence of the −4.27 mm/s line should generate an asymmetry in the envelope of line “2” with respect to line “5” that is not recorded. Similarly, at 298 K, the existence of an Fe⁴⁺ singlet would produce an asymmetry in the central doublet, with the peak on the left being more intense than the one on the right. Therefore, it could also be concluded that there is no charge compensation due to an increase in the oxidation state of Fe ions. In the case of LaFe_0.25Co_0.75O₃, magnetic relaxation phenomena prevent obtaining this type of conclusion. With this technique, it is possible to study the oxidation states in the bulk, which is why XPS was also carried out to identify the oxidation states on the catalysts’ surface. Figure 6, Figure 7 and Figure 8 show the results for Co2p, Fe2p, and O1s, and

Table 6. Co³⁺/Co²⁺ magnetic moments.

Oxidation State	Magnetic Moment, μB
	High Spin	Intermediate Spin	Low Spin
Co3+	4.90	2.83	0
Co2+	5.92	3.87	1.73

shows the main data extracted from these graphs.

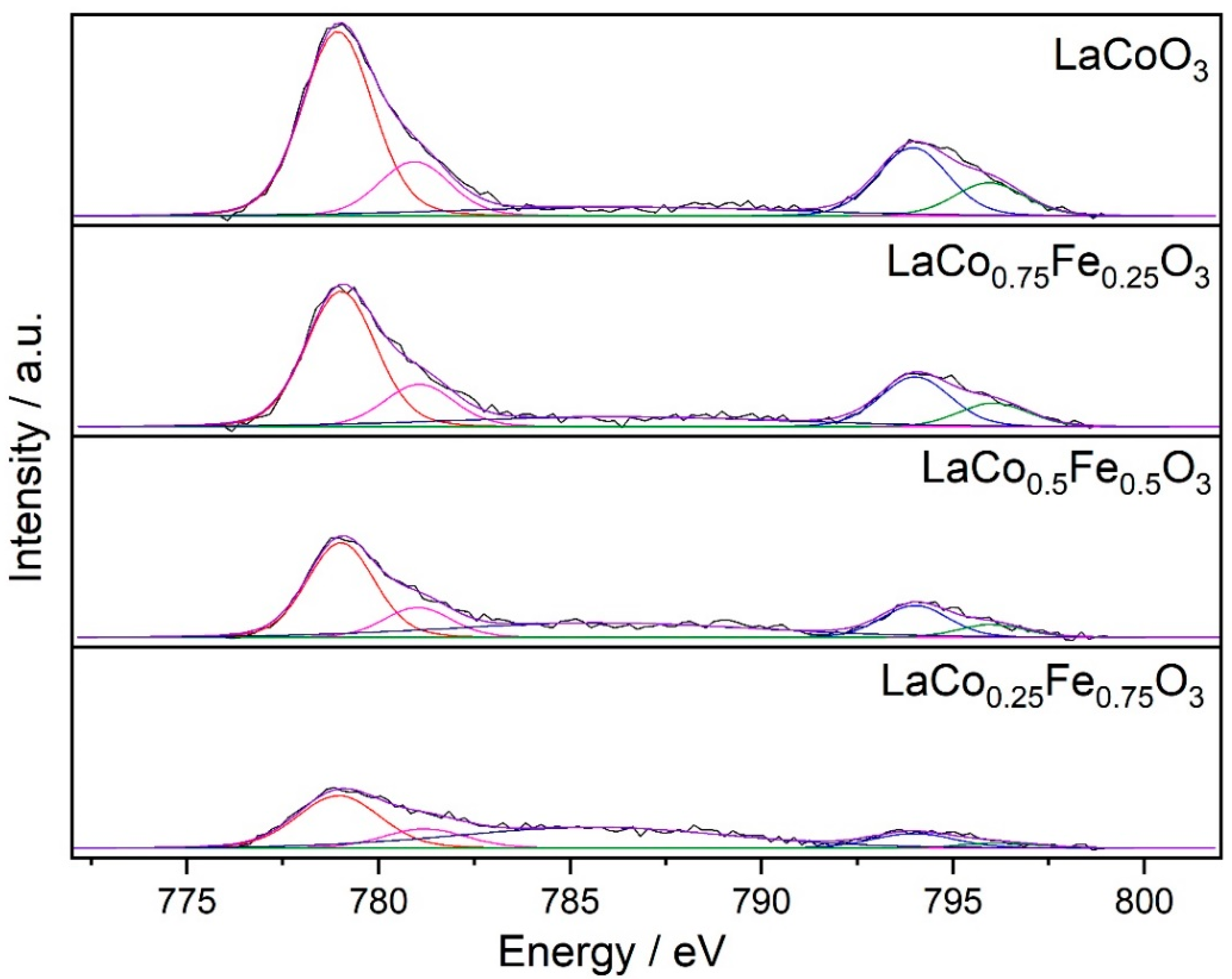

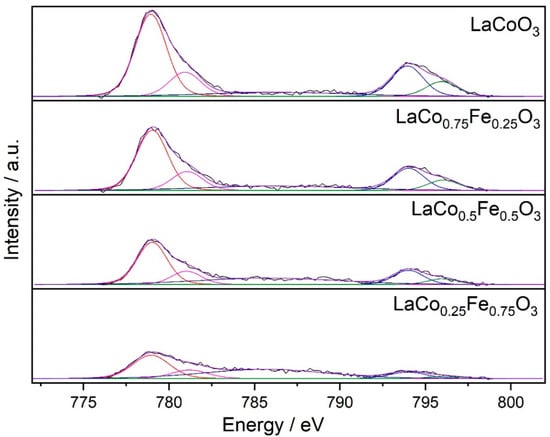

Figure 6 shows the XPS spectrum of the Co2p signal. The Co2p_3/2 peak can be deconvoluted into two components, at 778 and 781 eV, assignable to the Co2p and Co3p surface species, respectively, whereas the peak around 793.5 eV, which corresponds to Co2p_1/2, can also be deconvoluted into two peaks due to the existence of these two cobalt species. Between 785–790 eV it is possible to appreciate that as Fe substitution increased, the intensity of a satellite peak in that region increased, showing that the structure is ordered in such a way that both Co species and Fe species coexist. Specifically, in the case of the XPS spectra of Co, this peak indicates the existence of Co²⁺ as it was described by Wang et al. [30]. The analysis of the results shows, as expected, a decrease in the Co signals as the Fe content increases. In addition, from Figure 6, it can be observed how the relative intensity of the satellite peak around 785–790 eV increases with respect to the other Co signals. As already discussed, this positively influences the catalytic reaction considering that this decrease could interfere in the oxidation-reduction process and would cause greater durability of the structure. In addition, the presence of the species that are detected by this technique promotes active oxygen vacancies during the reaction, accelerating the combustion process [31].

The highest Co²⁺/Co³⁺ ratio occurs with the lowest and highest percentages of Fe substitution, while the highest Fe³⁺/Fe²⁺ atomic ratios were obtained in structures with 50% and 100% substitution. However, analyzing

Table 7. XPS results.

Catalyst	Oads/Olatt	Co2+/Co3+	Fe3+/Fe2+	Energy Difference (eV) between Co2p(1/2) and Co2p(3/2) XPS Signals
LaCoO3	0.93	0.31	-----	15.18
LaCo0.75Fe0.25O3	0.87	0.36	0.81	15.29
LaCo0.5Fe0.5O3	0.60	0.34	1.06	15.08
LaCo0.5Fe0.5O3	0.48	0.36	0.72	14.76
LaFeO3	0.39	-----	1.16	-----

as a whole, it is possible to conclude that an intermediate percentage of substitution yields a greater energy difference between the Co2p(1/2) and Co2p(3/2) peaks, evidencing the presence of both Co species. These species would present greater participation in the catalytic activity [18,30]. Figure 7 shows an intense peak around 710.5 eV, corresponding to Fe2p_3/2 that deconvolves into two possible peaks attributed to Fe³⁺ and Fe²⁺, which are the most stable states in which this metal can be found in the structure. At higher binding energies, an intense peak around 722.9 eV is also observed, which corresponds to Fe2p_1/2, which also deconvolves into two possible peaks that are masked by its width and which, like the first peak, can be attributed to the coexistence of Fe³⁺ and Fe²⁺. In the region between 715–721 eV, satellite peaks are observed that correspond to the coexistence of both Fe oxidation states, and also to the possible appearance of metallic Fe in the structure [32]. The presence of metallic Fe is unlikely in these working conditions. However, it is not possible to rule out the existence of this species that could justify the deactivation of the catalysts by the inactivation of the cations of this metal. As described, the coexistence of different Fe cations is inferred from these results due to the reduction of this species in the perovskite structure, which can influence the catalytic reaction depending on the effect on the rest of the cations that play a fundamental role in the reaction under study.

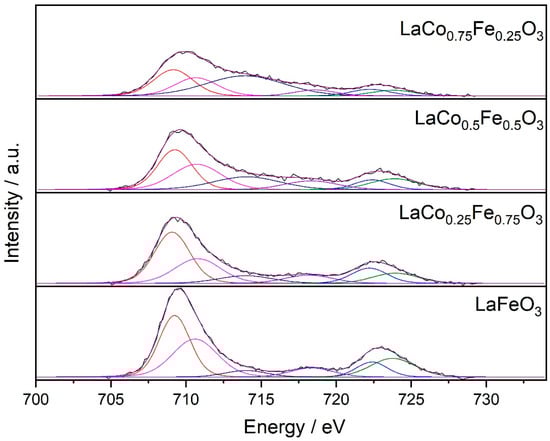

As noted above, as Fe is incorporated into the structure, surface sites of Co2p are replaced by Fe, and the relative intensity of the satellite peak between 785–790 eV increases with respect to the other Co signals, indicating the presence of Co²⁺. This is in correspondence with what was observed for Fe, where the analysis of the results shows an increase in the Fe signals as the Fe content increases. In addition, Figure 7 shows that the relative intensity of the satellite peak (715–720 eV) increases with Fe content, indicating the coexistence of iron in its 2+ and 3+ states.

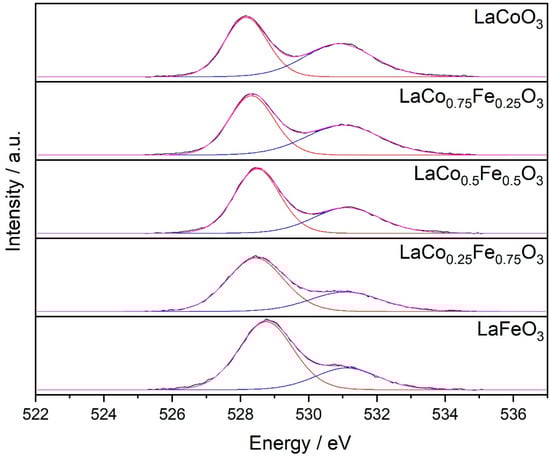

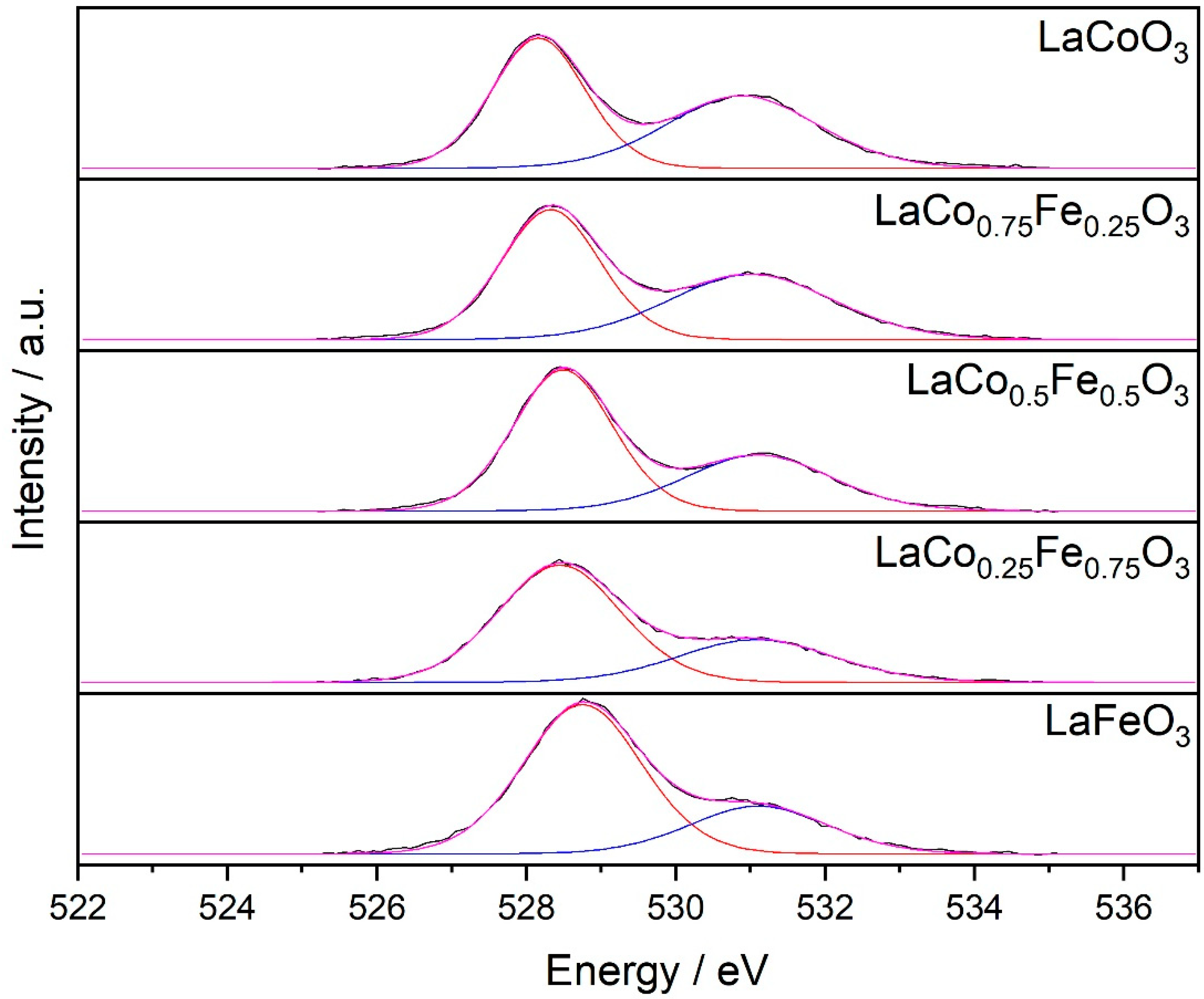

The XPS spectra of O1s shown in Figure 8 reflect two intense peaks between 528–533 eV, clearly demonstrating the existence of two oxygen species on the surface. The peak with the highest binding energy (530.9–531.2 eV) corresponds to surface oxygens (O_ads) such as $O_2^{2-}$ or O⁻ and (OH)⁻ hydroxyl anion, while the peak at low binding energies (528.1–528.8 eV) is attributed to O²⁻, oxygens of the lattice (O_latt) [33].

As the amount of Fe in the structure increases, it can be observed that the most intense peak of O1s spectra shifts to higher energies, whereas the less intense one undergoes practically imperceptible changes. Modifications were also observed in the O_ads/O_latt ratio (Table 6), which decreased while the Fe content in the structure increased.

This decrease can also be explained by the cationic ordering on the surface that competes with the different oxygen species that occupy these sites. The O_ads/O_latt ratio is a measure of surface oxygen vacancies that has a marked influence on the oxidation reactions. The highest ratio is not in line with the increase in Fe in the structure, but with an amount of 25% Fe, the O_ads/O_latt ratio is the highest in the mixed perovskites, and therefore this could also explain the higher catalytic activity of this catalyst.

Mössbauer spectroscopy and XPS results confirmed that to the extent of the greater substitution of Fe, the cationic environment of Co increased to a point where the presence of Fe became more significant, that is, up to 25% of the insertion of Fe. With a greater percentage of substitution, the structure collapsed its magnetic ordering. The different environments of Fe³⁺ varied with increasing substitution and produced changes that influenced the stability of the material in the combustion reaction. With a 25% substitution of Fe, the structure is magnetically and electronically balanced, causing greater resistance during the oxidation process. Based on the redox mechanisms discussed, it is important to analyze the capacity and possible mobility of oxygen in the structure. Thus, an O₂-TPD study was carried out, and the results are shown in Figure 9.

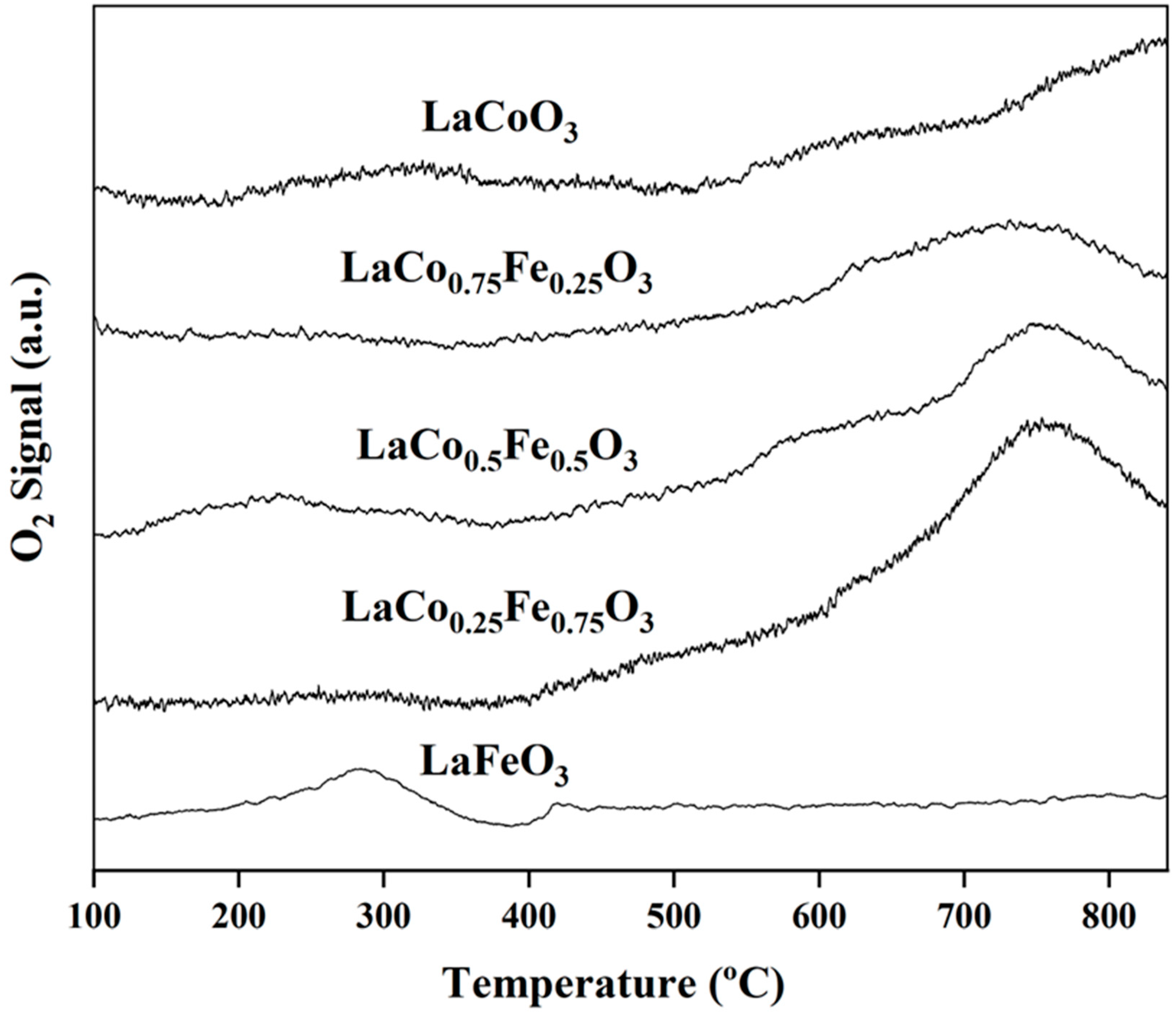

As shown in Figure 9, it is possible to differentiate two species of oxygen in the structure: α or surface oxygens that desorb between 200 °C and 400 °C, and β or lattice oxygens that desorb between 500 °C and 800 °C [34]. The limited amount of surface oxygen is noticeable except in the LaFeO₃ sample. This can be explained assuming that the vacancies on the surface are occupied by the combination of the Fe³⁺/Co³⁺ cations, leaving the possibility of dynamic exchange between O_ads/O_latt, which is observed and corroborated by the atomic relationships determined by XPS (Table 7). The lowest O_ads/O_latt ratio is obtained for the LaFeO₃ perovskite, whereas the highest ratios are obtained for the LaCoO₃ and LaCo_0.75Fe_0.25O₃ structures. It is well known that the catalytic combustion process of CVOCs mainly includes breaking the C–C bond (346 kJ mol⁻¹), C–H bond (411 kJ mol⁻¹), and C–Cl bond (327 kJ mol⁻¹). Thermodynamically, the bond energy of the C–Cl bond is lower, so it is easier to break. Chlorobenzene is generally adsorbed and dissociated on surface active sites via a nucleophilic attack on C–Cl bond. Then, the adsorbed species react with active oxygen species to produce CO₂ and H₂O. Simultaneously, the dissociative Cl^– species adsorbed are oxidized into Cl₂ by the surface reactive oxygen species through the Deacon reaction (2HCl + O₂ → Cl₂ + H₂O). Finally, the consumed oxygen species are replenished by the gas-phase oxygen adsorbed on the oxygen vacancies [35,36]. Thus, the lattice oxygens play a fundamental role, and that is why the best catalytic behavior corresponds to the highest O_ads/O_latt ratio that occurs in the LaFe_0.25Co_0.75O₃ structure. There is a correspondence between what is observed in Figure 8 with this O_ads/O_latt ratio, which is why it is justified that the occupancy of the active sites and the amounts of Co ions, which are affected by the insertion of Fe, have important roles in the activity and stability of the catalyst.

2.3. Pos-Reaction Analysis

To determine the possible causes of catalyst deactivation, pos-reaction samples were characterized by XRD, XPS, and S_BET after being evaluated in the chlorobenzene oxidation reaction. Figure 10 shows the diffractograms of the used catalysts.

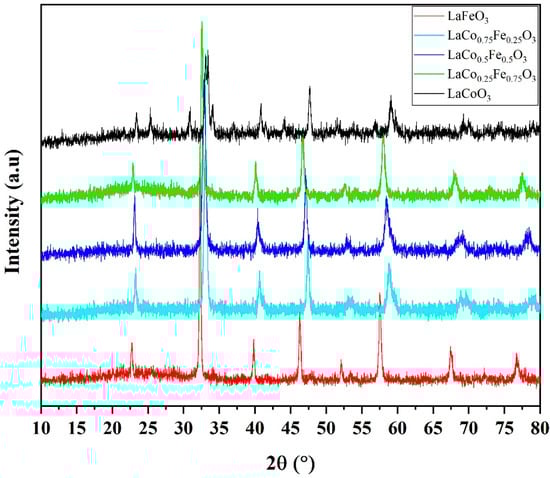

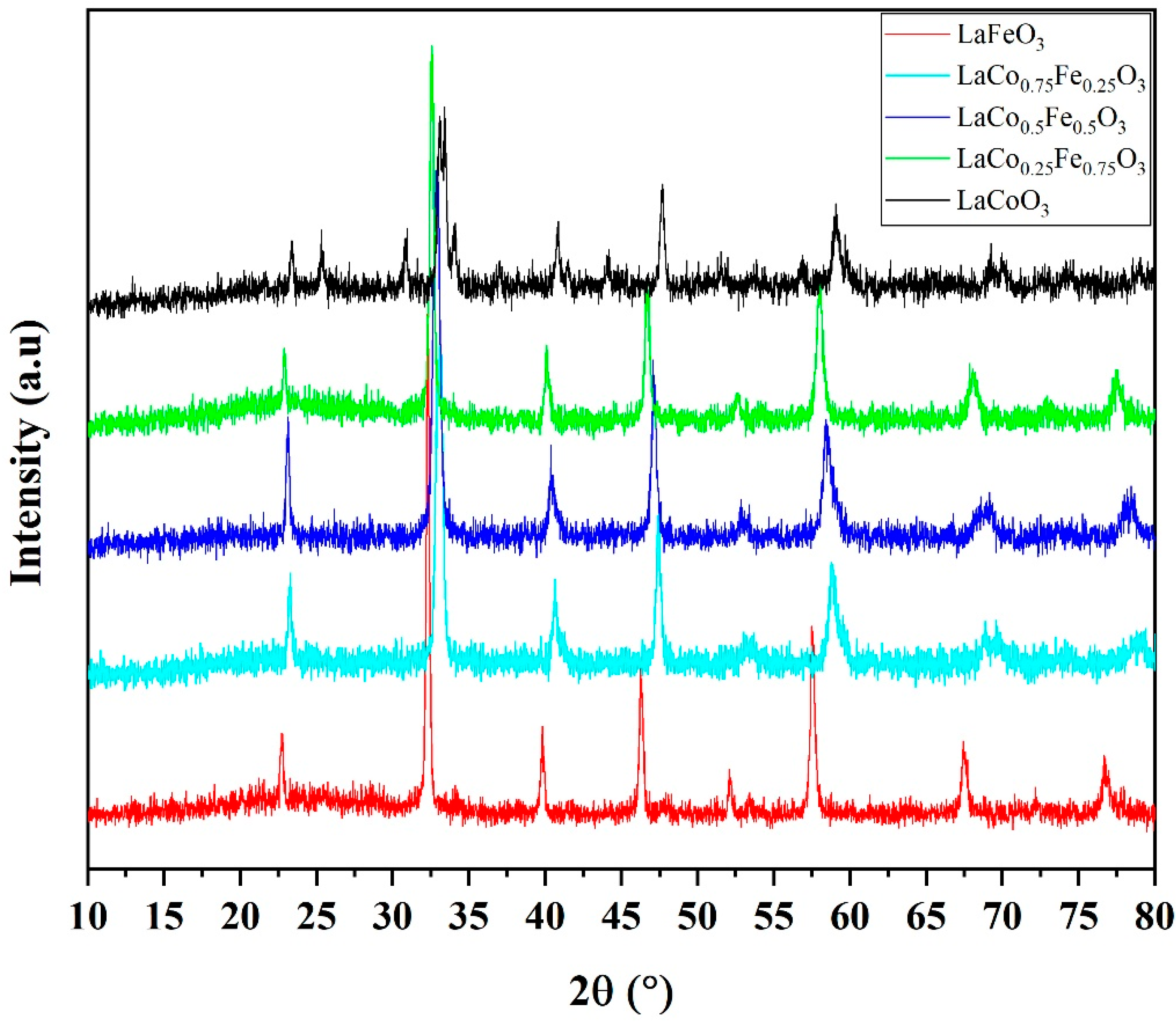

No modifications of the structure were detected by XRD. The samples maintained the main peaks of the structures before the reaction, with the exception of the LaCoO₃ catalyst, where a destruction of the structure is observed as the main peak of the perovskite is modified. There are three additional peaks that correspond to the appearance of the LaOCl phase (PDF 96-900-9171), a modification that has been discussed in previous works [12] and attributed to the absorption of Cl species on the catalyst surface, a situation that in the case of the Fe-containing catalysts did not happen. Table 2 presents specific surface areas of fresh and used catalysts. It can be highlighted that there are no marked differences between values. In the case of LaCoO₃ and LaCo_0.75Fe_0.25O₃, a small surface area difference of about two units was observed. However, marked differences in pore size and volume can be seen, in all cases attributable to the surface reaction. As was previously mentioned, the LaCoO₃ catalyst is the one that formed the least amount of Cl₂ after the catalytic reaction (see Table 1) in line with what is observed in Figure 10. Part of the Cl₂ reaction product remained adsorbed on the catalyst surface, destroying the perovskite structure to form LaOCl.

XPS studies of pos-reaction samples evidenced the presence of Cl on the surface of all catalysts. In the case of perovskites with Fe, the variations in the stability time of the structures and their deactivation could also be associated with the adsorption of Cl on the surface. Although this was not perceptible by XRD due to the low concentration of this species, it was possible to identify the presence of this product as it is shown in Figure 11.

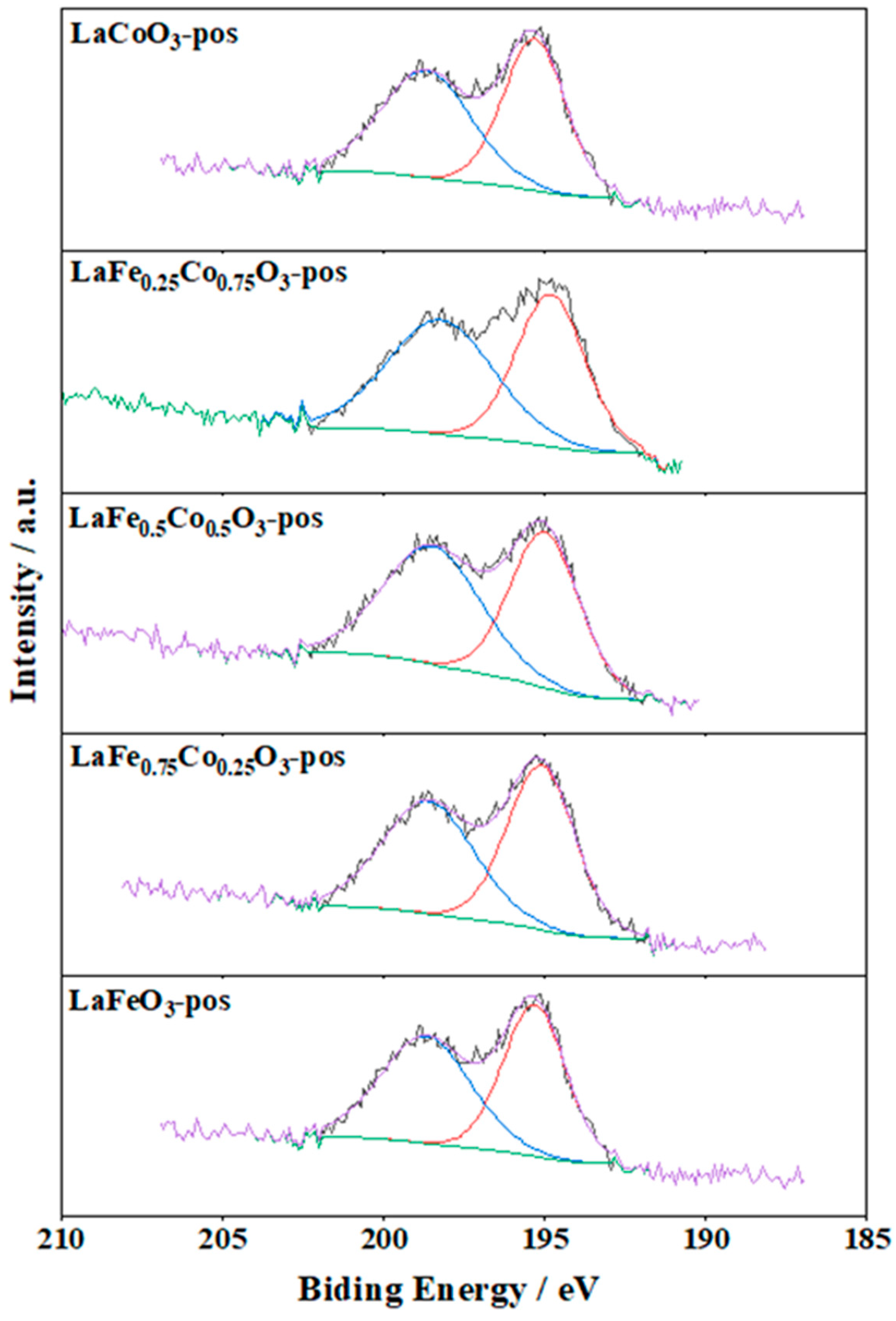

Two signals can be observed in Figure 11, one corresponding to Cl2p_1/2 around 195 eV and the other around 199 eV corresponding to Cl2p_3/2. Both signals suggest the presence of the Cl⁻ ion related to the structure in different ways. As described by Bello et al. [37], one of the ways in which this ion can be found is bounded to oxygen bounded to one of the metals of the solid (Metal–O–Cl), which is in line with the results observed in the present work. Atomic ratios determined by XPS of the used samples (

Table 8. XPS pos-reaction results.

Catalyst	Oads/Olatt	Co2+/Co3+	Fe3+/Fe2+	Cl/(Co + Fe + O)
LaCoO3	0.43	0.28	-----	0.23
LaCo0.75Fe0.25O3	0.69	0.31	0.77	0.16
LaCo0.5Fe0.5O3	0.46	0.40	0.95	0.21
LaCo0.25Fe0.75O3	0.40	0.42	0.69	0.20
LaFeO3	0.31	-----	0.98	0.20

) showed that the highest proportion of Cl appears in the LaCoO₃ catalyst, a structure that is destroyed by the formation of LaOCl, as was observed by the XRD diffractograms. Another way in which this ion can be associated with the structure is directly linked to a metal (Metal–Cl), a relationship that was not found as the formation of any metal chloride was not detected by the techniques used, maybe because the thermodynamic conditions are not favorable for the appearance of these structures or due to the low concentration of this species. From these results, it can be ensured that the deactivation of the catalysts happened due to the surface adsorption of Cl, which can occur both in oxygen vacancies or in some active sites on the surface, in both cases causing lower stability of the catalyst [38].

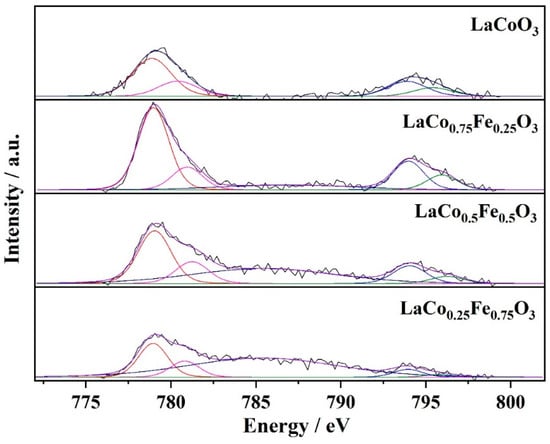

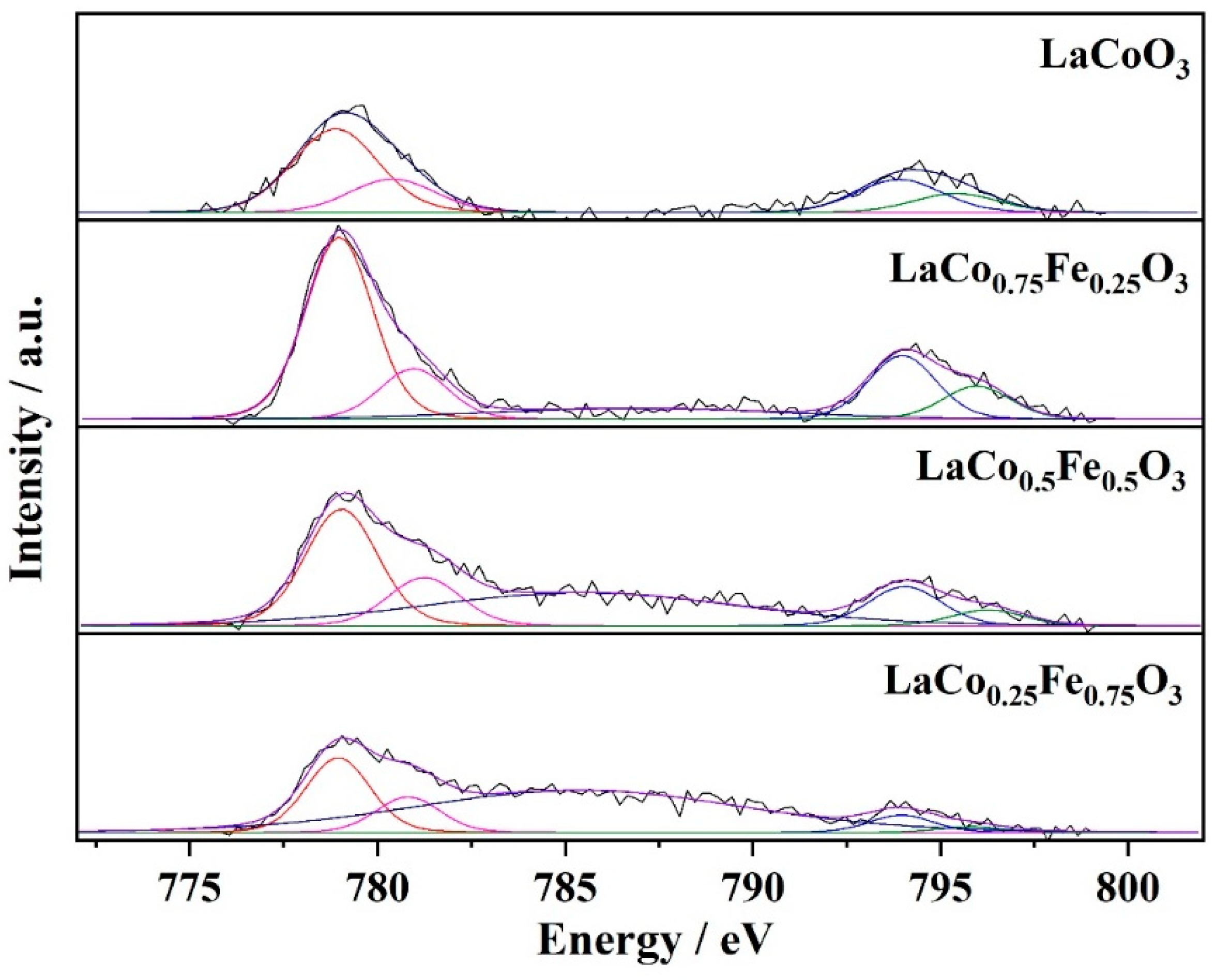

Comparing Figure 6 and Figure 12, it can be concluded that the Co^2+/Co³⁺ ratio decreases once the catalyst is used, with the exception of the LaCo_0.75Fe_0.25O₃ catalyst, which presented the same intensity peak. There were no notable changes for the LaCoO₃ and LaCo_0.75Fe_0.25O₃ catalysts in the case of the satellite peak between 785–790 eV. On the contrary, for LaCo_0.25Fe_0.75O₃ and LaCo_0.5Fe_0.5O₃, an increase in intensity is observed, evidencing a greater presence of Co²⁺. The modification in the intensity of this peak suggests a change in the oxidation state that can be related to chlorine adsorption on the surface. These variations can be observed by comparing Figure 6 with data in Table 7 and Table 8.

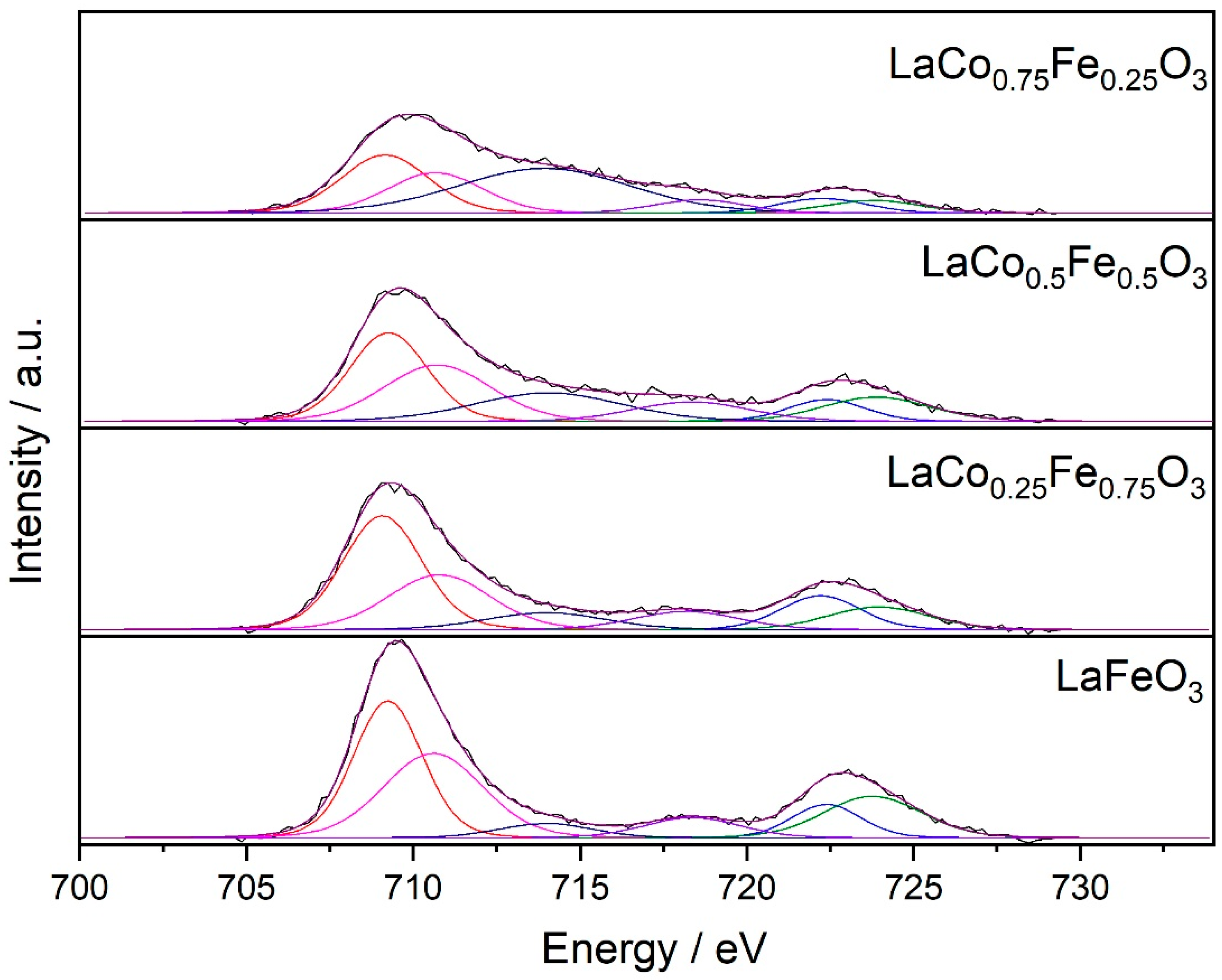

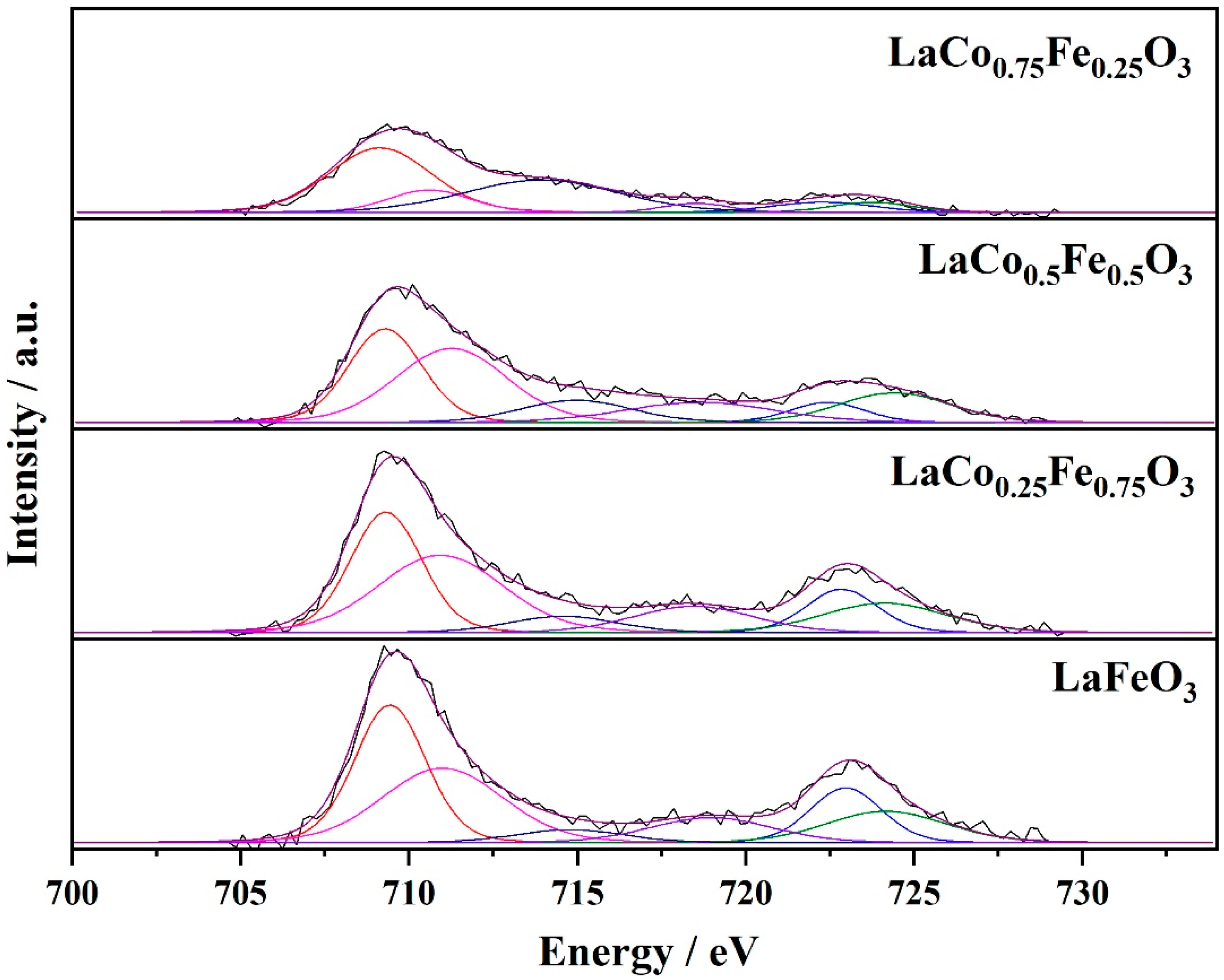

If Figure 7 and Figure 13 are compared, it can be observed that the Fe³⁺/Fe²⁺ ratio decreases for the used catalysts. It is possible that the behavior of the redox couple and the disposition of the cations were modified when the Cl occupied sites on the surface that were interchangeable in the case of the fresh catalyst. Once the Cl adsorbs to the surface, the states and dispositions of the cations suffer alterations in terms of oxidation state and spatial arrangement, which are clearly reflected in Table 7.

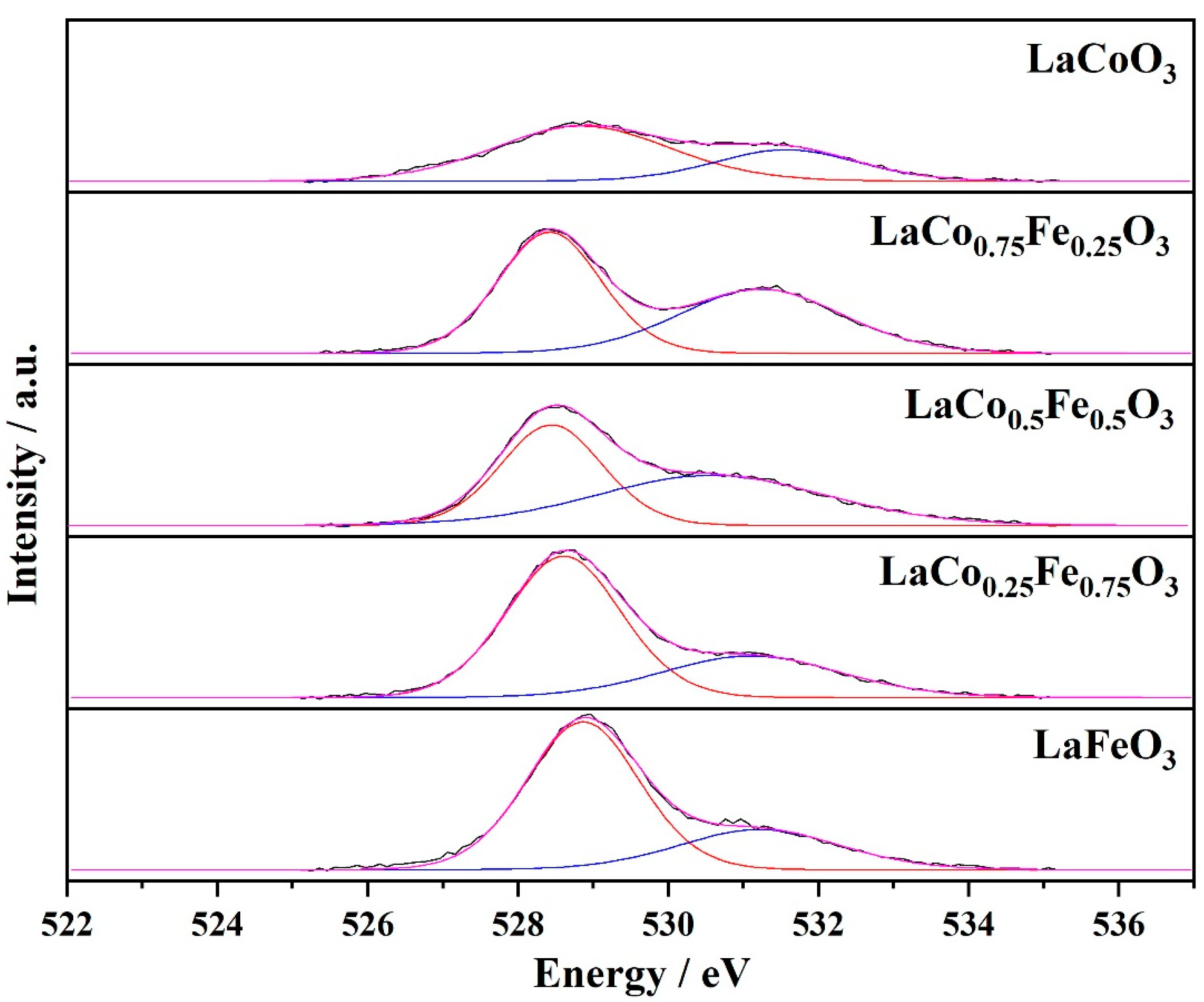

In the region of 528–533 eV (Figure 13), an intense peak that corresponds to the oxygens of the lattice is observed. Comparing Figure 8 and Figure 14, it is observed that the Oads/Olatt ratio decreases in all cases. This result is consistent with that obtained in the catalytic reaction, considering that combustion requires a constant exchange of different oxygen species. The bonding of chlorine on the surface affects the occupancy of oxygen on the surface, and it avoids the exchange between the oxygens of the lattice and the superficial ones, inhibiting the catalytic activity, which is why the greatest stability is seen in the catalyst with the highest Oads/Olatt ratio.

Based on the previous analyses, it could be concluded that in mixed perovskites, at least in LaCo_0.75Fe_0.25O₃, charge compensation is produced by the generation of oxygen vacancies, attributable to the existence of Co²⁺ facilitated by the different Fe cations in the structure. The analysis of the magnetic environments, the possible oxidation states of Fe, and the pos-reaction results is in perfect agreement with the best behavior of this catalyst in the catalytic reaction, supporting up to 100 h of time on stream without modifying its original structure. This demonstrates the high stability that Fe in low concentrations provides to the LaCoO₃ perovskite.

3. Experimental

3.1. Catalyst Synthesis

A LaCo_1−xFe_xO₃ (x = 0; 0.25; 0.5; 0.75; 1) series was synthesized by the citrate method, using stoichiometric quantities of La(NO₃)₃, Co(NO₃)₂, and Fe(NO₃)₃, and 10% citric acid as a binder, (Merck, Burlington, Canada). The nitrates were dissolved separately in the minimum quantity of distilled water, stirring for approximately 5 min. Once translucent solutions were obtained, it was mixed with the citric acid solution. This mixture was kept stirring for 10 min. Afterwards, the resulting solution was concentrated, and the water evaporated under vacuum in a rotary evaporator at 75 °C until a translucent and viscous gel was obtained. This gel was transferred to a crystallizer to dry in a vacuum oven at an initial temperature of 75 °C and gradually increased until reaching 100 °C, the temperature at which it was kept drying between 12–15 h in order to obtain an amorphous solid precursor. The resulting solid was ground until obtaining a very fine powder that was then calcined in an air atmosphere with a temperature ramp of 2.5 °C/min from 30 °C to 400 °C, the temperature at which was kept for half an hour, and then increased up to 700 °C for 2 h. In all cases, the stoichiometric amounts were calculated to obtain 4 g of catalysts.

3.2. X-ray Diffraction (XRD)

X-ray diffraction (XRD) was performed in continuous mode with 2θ angles between 10 and 80° at a rate of 3°/min with a step of 0.02. The analysis was performed in a Rigaku Ultima IV model equipment (Rigaku Company, Tokyo, Shibuya, Japón) with a Cu lamp (λ_CuKα1 = 1.54056 Å, λ_CuKα2 = 1.54440 Å). The patterns obtained were refined by applying the Rietveld method [39] using the Fullprof program [40].

3.3. BET Surface Area

The specific surface area (S_BET) of the synthesized catalysts was analyzed in a GEMINI V2.00 Micrometrics Instrument equipment (Norcross, GA, United States) the adsorption isotherm with nitrogen at 77 K. Initially, the samples were degassed for 12 h at 250 °C, and between 250 mg and 500 mg of catalyst were used in all cases.

3.4. Temperature Programmed Reduction (TPR)

Temperature programmed reduction (TPR) analyses were performed in a homemade U-shaped quartz tubular reactor using a TCD detector and a catalyst mass between 100 and 250 mg. A 5% H₂/N₂ mixture with a total flow of 30 mL min⁻¹ was used as a reducing gas. The temperature was increased from room temperature at a rate of 10 °C min⁻¹ up to 700 °C.

3.5. Temperature Programmed Desorption of Oxygen (O₂-TPD)

Temperature programmed desorption of oxygen (O₂-TPD) experiments were performed using the same equipment as for TPR, this time coupled to an Ametek Dycor Dymaxion mass spectrometer (PerkinElmer company from Cleveland, OH, USA). First, cleaning of the sample surface of the catalyst (150 mg) was carried out in Ar flow, from room temperature to 700 °C at a rate of 10 °C min⁻¹. The sample was then cooled to 400 °C, at which point, a 20% O₂/Ar current was fed. The adsorption was reached at 400 °C for 30 min. Then, the reactor temperature was decreased, subsequently purged with pure Ar for 30 min, and finally heated to 950 °C with a ramp of 10 °C min⁻¹, where it was maintained for 30 min. Simultaneously, the desorbed oxygen signal at m/z = 32 was recorded by the mass spectrometer.

3.6. X-ray Photoelectron Spectrometry (XPS)

X-ray photoelectron spectra were collected using a VG Microtech ESCA 2000 spectrometer (Halifax, Nueva Escocia, Canadá) with a non-monochromatic Al Kα radiation source (300 W, 15 kV, hν = 1486.6 eV), combined with a 100-AX VG-hemispherical analyzer, operating at a step energy of 25 eV. The resolution of the instrument was 0.1 eV. All binding energies (BE) were referred to the C1s peak at 284.8 eV, to correct for possible spectral shifts due to charging effects. The chamber pressure was maintained at < 10⁻⁹ Torr during all the measurements.

3.7. Mössbauer Spectrometry

Mössbauer spectra were obtained in transmission geometry using a 512-channel constant-acceleration spectrometer (WissEl, Starnberg, Germany), equipped with a ⁵⁷Co source in a nominal 50 mCi Rh matrix. The ideal thickness of the sample was evaluated considering the weight percentages of the different elements of each catalyst (approximately 100 mg of powder were used in a sample holder of about 1.8 cm in diameter). The reference used for velocity calibration was a 12 μm-thick α-Fe foil. The spectra were collected at 12 and 298 K. Measurements at low temperatures were performed using a closed-cycle cryogenic system (Model DE-202, ARS, Macungie, PA, USA). Each spectrum was folded to minimize geometric effects, and the experimental data were fitted using Recoil [41].

3.8. Catalytic Activity

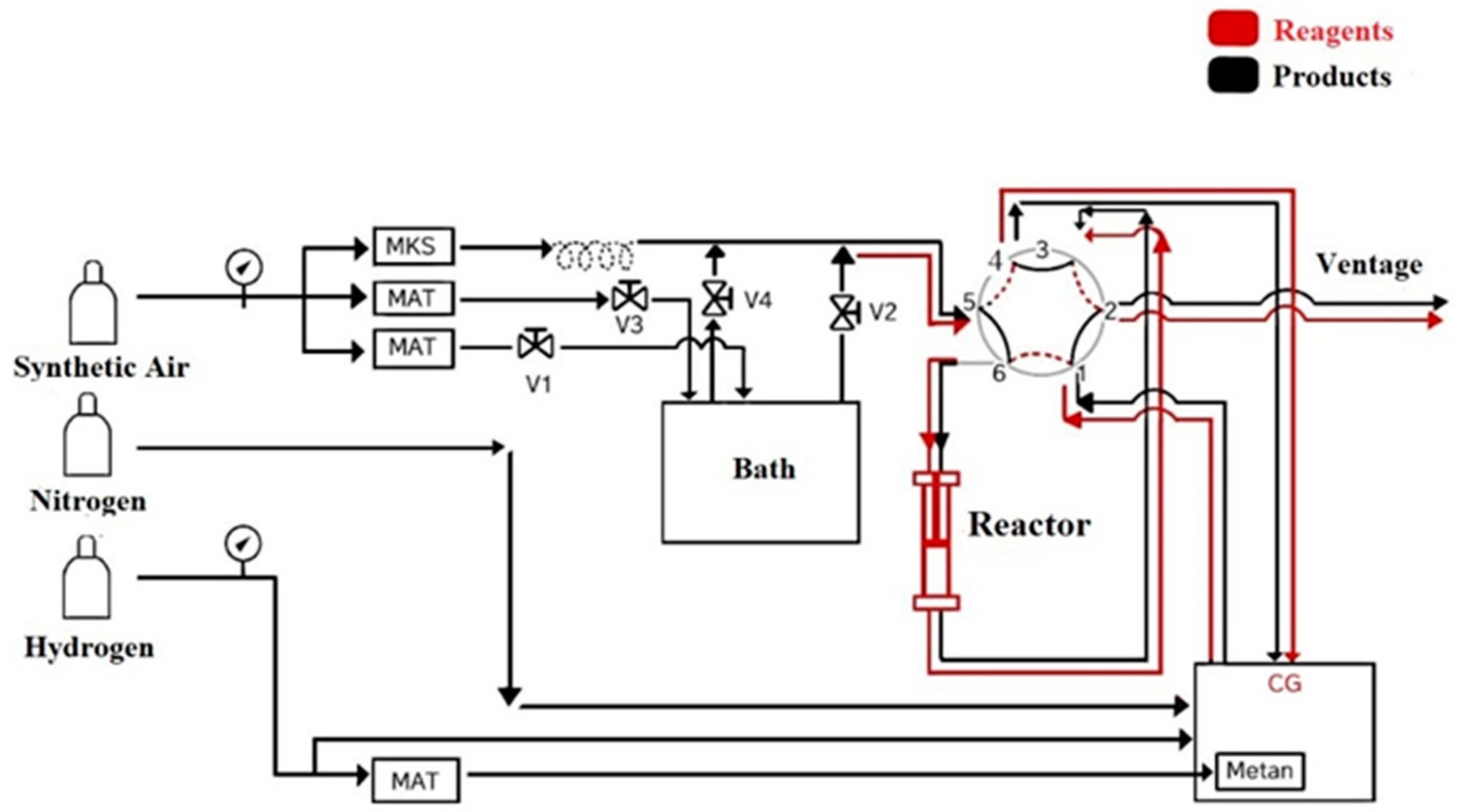

For the catalytic evaluation, 200 mg of catalyst diluted in 1.5 g of ground and sieved quartz were used in each test, with the aim of obtaining homogeneity in the catalytic bed, which was placed in the center of a tubular quartz reactor of 12 mm in diameter. The reactor was placed inside an INDEF model T-150 furnace with a temperature controller. The reaction temperature was varied between 100 and 600 °C. A flow of 1000 ppm chlorobenzene diluted in synthetic air was bubbled from a thermostatic bath at −10 °C with a total feed rate of 200 mL/min. The reactants and products were analyzed online by gas chromatography using a Hewlett-Packard 5790A chromatograph equipped with a Carbowax 20 M/Chromosorb W column and a flame ionization detector (FID). (Figure 15) The total carbon balance was attained through the expression $\frac{CBin-CBout}{CBin}$. A bubbler was placed at the outlet of the reactor with 20 mL of a NaOH solution at 10% wt., which was used as a chlorine trap to prevent chlorine from passing to the chromatographic column, and to be able to carry out the determinations of the chlorinated products of the combustion reaction. This determination was found by bubbling a known volume of chlorinated effluent into a solution of known KI concentration, followed by the titration of the released iodine with a solution of known Na₂S₂O₃ concentration, according to the procedure followed by Skoog DA et al. [42].

4. Conclusions

In this work, a series of Fe-doped LaCoO₃ catalysts have been synthesized by the citrate method. In all cases, pure structures with orthorhombic and rhombohedral geometries were obtained according to the degree of substitution. For all the materials synthesized during the chlorobenzene combustion reaction, the total oxidation products were obtained at temperatures close to 500 °C. The most stable catalyst was the one with the lowest Fe substitution (x = 0.25), maintaining its invariable structure and activity after 100 h of time on stream. The insertion of Fe in small quantities favors the stability of the structure, not because of the existence of an unusually high oxidation state of Fe but due to the charge compensation produced by the existence of Co²⁺ that generates oxygen vacancies. All the results presented here confirm the potential properties of the LaCo_1−xFe_xO₃ catalysts (x = 0.25) to remove chlorinated volatile organic compounds from industrial waste.
