Hydrogen Production by N-Heterocycle Dehydrogenation over Pd Supported on Aerogel-Prepared Mg-Al Oxides

by
Danil M. Shivtsov
,
Anton P. Koskin
*,
Sergey A. Stepanenko
,
Ekaterina V. Ilyina
,
Artem B. Ayupov
,
Alexander F. Bedilo
and
Vadim A. Yakovlev
Federal Research Center, Boreskov Institute of Catalysis SB RAS, Lavrentyev Av. 5, Novosibirsk 630090, Russia
*
Author to whom correspondence should be addressed.
Catalysts 2023, 13(2), 334; https://doi.org/10.3390/catal13020334
Submission received: 4 December 2022 / Revised: 25 January 2023 / Accepted: 28 January 2023 / Published: 2 February 2023
(This article belongs to the Special Issue Transition-Metal-Containing Bifunctional Catalysts: Design and Catalytic Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
Tetradecahydrophenazine (14HP) is a nitrogen-containing heterocycle compound with a high content of hydrogen that can be released during its dehydrogenation to phenazine (P). The high stability of the 14HP/P pair and relatively low dehydrogenation temperature make 14HP a promising organic hydrogen carrier. This manuscript is devoted to the investigation of hydrogen production by 14HP dehydrogenation over Pd supported on a series of magnesium-aluminum oxides prepared by the aerogel method. This technique made it possible to synthesize catalyst supports characterized by a high surface area and high concentration of surface active sites where active transition metals could be stabilized in a finely dispersed state. The synthesized aerogels had high specific surface areas and pore volumes. A surface area as high as 600 m2/g after calcination at 500 °C was observed for the mixed aerogel with an Mg:Al ratio of 1:4. An increase in the concentration of acidic electron-acceptor sites determined by EPR on the surface of the mixed magnesium-aluminum oxide supports with a high surface area prepared by the aerogel method was found to result in higher hydrogen production due to the faster dehydrogenation of sterically hindered nitrogen-containing tetradecahydrophenazine heterocycles.

1. Introduction

The widespread use of fossil and other carbon-containing fuels has led to a significant increase in the content of greenhouse gases in the atmosphere [1]. Today, hydrogen, which is an environmentally friendly and renewable energy source, is considered to be a promising alternative fuel. Hydrogen has the highest known gravimetric energy density (143 MJ/kg, which is three times higher than that of gasoline). However, its volumetric energy density is very low (0.0108 MJ/L, which is 3000 times lower than that of gasoline) [2,3]. This is the main aspect hindering the widespread introduction of hydrogen energy. The development of methods for its energy-efficient storage and transportation is an important step in the progress of hydrogen energy implementation [4].
In the last decade, various methods of H2 accumulation and storage have been studied. It has been suggested that hydrogen should be stored in compressed [5], cryo-compressed [6], liquefied [7], and adsorbed states [8], as well as in the form of metal hydrides [9], complex hydrides [10], and organic hydrogen carriers [2,3,11]. According to a number of feasibility studies [12,13], the storage and transportation of hydrogen using organic carriers is currently considered to be one of the most promising technologies.
Since the 2000s, an intensive search for optimal pairs of substrate molecules acting as organic H2 carriers has been carried out, which would allow one to carry out reversible catalytic hydrogenation/dehydrogenation reactions with high selectivity at moderate temperatures [14,15,16]. In this regard, the optimization of the hydrogen evolution process (the selection of reaction conditions for dehydrogenation, catalytic systems, and organic substrates) is very important, since this high-temperature endothermic process could be associated with the decomposition of an organic H2 carrier. It has been repeatedly shown that H2-rich nitrogen-containing heterocyclic molecules are characterized by low dehydrogenation temperatures (140–250 °C) in comparison with those of cycloalkanes (300–400 °C). This fact accounts for the decrease in the decomposition rate of the H2-rich substrate. In addition, heterocycles are less volatile, ensuring the production of high-purity hydrogen [17,18]. One of the most promising N-heterocyclic compounds for hydrogen production is tetradecahydrophenazine (perhydrophenazine, 14HP) [19]. Tetradecahydrophenazine is characterized by a high gravimetric hydrogen capacity, good thermal stability, and a high purity of the hydrogenation process, and 14HP precursors can be obtained from the degradation products of lignocellulose [19]. In our recent study, it was shown that the acceptorless dehydrogenation of 14HP made it possible to achieve higher rates of hydrogen evolution compared to decahydroquinoline [20]. In that study, and in the literature on the acceptorless dehydrogenation of N-heterocyclic compounds in general, Pd-containing systems were shown to be the most efficient catalysts [15,21,22]. Using the dehydrogenation of 12H-NEC as an example, it was shown that the catalytic activity of Pd was much higher than that of Pt, Ru, and Rh [23]. This result was confirmed by the study of catalysts containing these metals under identical reaction conditions.
An equally important aspect during the selection of an effective catalyst for the dehydrogenation of N-heterocycles is the choice of a support for the dispersed metal particles. One of the most promising approaches for improving the properties of the supports is the use of the aerogel method for their synthesis [24,25,26,27]. The aerogel method was successfully used for the preparation of V-Mg-containing catalysts for the oxidative dehydrogenation of propane. This method made it possible to obtain nanocrystalline samples characterized by a layered structure, high specific surface area, and uniform distribution of vanadium in the magnesium oxide matrix [28,29]. The aerogel-prepared two-component catalyst exhibited a high catalytic activity that exceeded the activity of catalysts previously described in the literature [28]. In addition to their bifunctionality, an important advantage of aerogel supports is their ability to reduce the active component loading. It was shown that the use of an aerogel support for Pd/Al2O3 and Rh/Al2O3 made it possible to significantly reduce the loading of noble metals in three-way catalysts due to the uniform distribution of the metals on the surface [30].
Recent studies have shown that the use of MgAl2O4 as a support improves the properties of dehydrogenation catalysts. For example, Pd/MgAl2O4 was shown to have high catalytic activity in the dehydrogenation of dodecahydro-N-ethylcarbazole [31]. This activity was explained by the strong interaction between Pd and MgAl2O4, leading to the stabilization of small particles. It was also noted that the MgAl2O4 spinel suppressed the sintering of PdO particles during the low-temperature combustion of methane due to the strong interaction of PdO with the support [32,33]. It was shown that the presence of a positive charge on the Pd atom promoted the rapid desorption of dehydrogenation products and made the active sites more accessible [34].
In summary, the development of Pd catalysts supported on mixed Mg-Al-Ox aerogels for the dehydrogenation of nitrogen-containing heterocycles seems to be promising. In this case, the aerogel structure of the support provides advanced characteristics of a porous structure, whereas the MgO addition contributes to the stabilization of the Pd nanoparticles in the ultrafine state and changes their charge. In the present study, several Mg-Al-Ox aerogel supports with different compositions were synthesized. The structure of the prepared materials was investigated by various physical methods. The influence of the surface properties of the mixed aerogel supports on the catalytic properties of these Pd-containing systems in the dehydrogenation of a potential hydrogen carrier, tetradecahydrophenazine, was observed.

2. Results and Discussion

2.1. Characterization of MgAlOx Aerogel Supports and Pd Catalysts Based on Them

Aerogels are porous materials based on gels, wherein the solvent is substituted by a gas. Typical methods for the synthesis of aerogels are based on a sol–gel process followed by the drying of the gel under supercritical conditions. Conventional drying results in the substantial deformation of the gel structure due to the capillary hydrostatic pressure of the solvent evaporating from the gel pores caused by the surface tension. Under supercritical conditions, the distinction between the liquid and the gas phases vanishes, resulting in the almost complete disappearance of the surface tension. As a result, the use of supercritical conditions during the synthesis of aerogels makes it possible to preserve the original developed structure of the gel almost intact and synthesize materials with high surface areas and pore volumes [35,36,37,38].
In the first step, one-component Al2O3 and MgO and mixed Mg-Al-Ox supports with different Mg/Al molar ratios (4:1, 2:1, 1:1, 1:2, and 1:4) were synthesized by the aerogel method. Pd was deposited on the surface of the synthesized supports using a previously reported technique [20], which was adapted taking into account the specific features of the aerogel supports. Absolute ethanol was used as the solvent during the noble metal deposition to avoid the substantial deterioration of the textural characteristics of the aerogels in water. Additionally, reduction in hydrogen at 500 °C was used instead of reduction with sodium borohydride, as it secured the complete removal of chloride ions [39].
The porous structure of the aerogels before and after palladium supporting was studied by nitrogen adsorption–desorption at 77 K (Figure 1 and Table 1). One can see that the porous structure depended on both the chemical composition of the initial gel and the subsequent post-synthetic modification. Indeed, the isotherms of nitrogen adsorption on the MgO and Pd/MgO samples showed virtually no hysteresis loop formed due to capillary condensation. On the samples M1A1, M1A2, Pd/M1A1, and Pd/M1A2, this loop was very narrow (for example, see Figure 1c). Interestingly, on the samples M1A4 and Al2O3, this loop also was very narrow, while after palladium supporting the form of the loop changed and became typical of mesoporous samples with cylindrical pores (see Figure 1e). On the samples M4A1, M2A1, Pd/M4A1, and Pd/M2A1, the hysteresis loop formed due to capillary condensation was large and visible, as expected for mesoporous materials. The observed difference in the appearance of hysteresis loops suggested that the pores in the studied samples had different forms. Slit-like or wedge-like pores should show no hysteresis loop, whereas cylindrical pores usually demonstrate hysteresis loops of different forms [40]. Thus, we used the slit-like pore model for the samples that demonstrated a narrow loop or no hysteresis loop at all. The cylindrical model was used for the samples that showed a hysteresis loop.
The highest surface area and total pore volume among the synthesized aerogels were observed on the sample M1A4 (Table 1). This sample also showed the highest total pore volume among the supports. However, the porous structure of this sample changed after supporting Pd. The initial wedge-like or slit-like geometry became closer to a cylindrical geometry. Palladium deposition changed the porous structure of all the samples. Both the surface area and the total pore volume were reduced, and the maximum pore size distribution shifted to a larger value. The extent of these changes depended on the chemical composition of the aerogel sample. The MgO and Pd/MgO samples showed the most drastic transformation: the surface area decreased from 220 m2/g to 70 m2/g, and the maximum pore size distribution increased from 9.4 nm to 34 nm. The pore structure comprised different wedge-like and slit-like pores (Figure 1b). Most probably, these pores appeared between parallel or almost parallel platelets and crystals in this oxide. As one can see from the cumulative pore volume curves, after Pd deposition involving the dispersion of the precursor materials in liquid ethanol followed by calcination, the smallest pores disappeared due to the cohesion and sintering of the platelets after capillary contraction in solution. Larger pores could be retained after such treatment.
Samples M4A1 and M2A1 showed a large hysteresis loop that could be attributed to the fact that the pores in these materials were formed by contact between particles of mixed oxides with large cavities and channels. After Pd deposition, the pore structure was mostly preserved, with the disappearance of the smallest pores to some extent. In the mixed oxides with a higher aluminum content close to that of spinel MgAl2O4, the pores were almost wedge-like or slit-like. The smallest pore size estimated as the maximum of the pore size distribution among the supports and catalysts was obtained for the samples M1A1 and Pd/M1A1, respectively. One could suggest that the cohesion and sintering capability after calcination was lower for this sample than for the others. The increase in the aluminum content made it possible to produce materials with a higher surface area (see samples M1A2 and M1A4, Table 1) and different pore structures, which became mostly cylindrical after supporting Pd (sample M1A4). In agreement with our expectations, the higher aluminum content brought the properties of the sample closer to those of pure alumina, which showed slit-like pores in its pristine form and the cylindrical pores after supporting Pd (sample Al2O3, Table 1).
To determine the phase composition of the synthesized systems, we performed an XRD analysis of the Pd/MgO, Pd/Al2O3, and Pd/M1A2 catalysts. According to the XRD data, only the pure MgO system was well-crystallized (Figure 2, 111, 200, 220). Aerogel-prepared MgO samples calcined at 500 °C are known to consist of MgO nanoparticles with average dimensions of 4–5 nm [41]. In the mixed oxide, the peaks were shifted to larger angles in comparison with MgO. This meant that the lattice parameter was smaller than in pure MgO, due to the smaller radius of Al3+ cations compared to Mg2+. Furthermore, the mixed oxide contained cationic vacancies to compensate for the extra charge of the Al3+ cations. No peaks attributable to the MgAl2O4 spinel phase were observed in the XRD pattern of M1A2.
The Pd/MgO, Pd/Al2O3, and Pd/M1A2 catalysts were studied by transmission electron microscopy. The TEM micrographs and EDX mapping of the studied catalysts are presented in Figure 3. According to the obtained data, the Pd/Al2O3 structure consisted of particles with a flake morphology forming a network. The catalyst-supported magnesium oxide aerogel (Pd/MgO) had a lamellar structure, which was presumably formed as a result of heat treatment during the support preparation step.
Clusters of palladium nanoparticles about 1 nm in size and particles in the range of 2 to 26 nm with a maximum size of about 10 nm were observed on the MgO surface. The particle size of the palladium on the surface of Al2O3 was in the range of 2–20, with a maximum of about 6 nm. The diameter of the Pd nanoparticles on the mixed oxide M1A2 varied from 2 to 16 nm, with a maximum distribution of about 4 nm. According to the mapping data, Pd was deposited evenly on the surface of the support, whereas Al2O3 and MgO were uniformly mixed with each other.

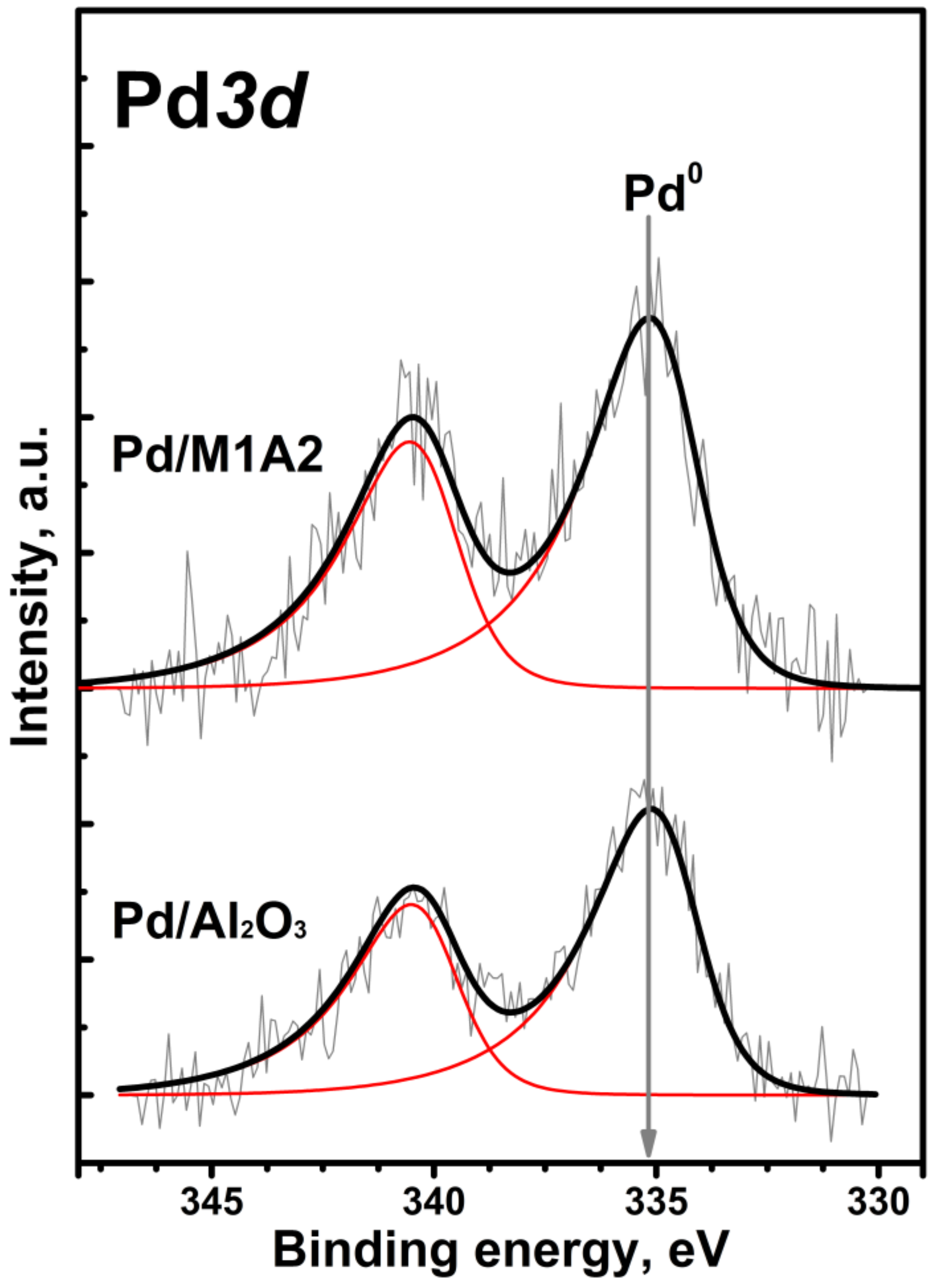

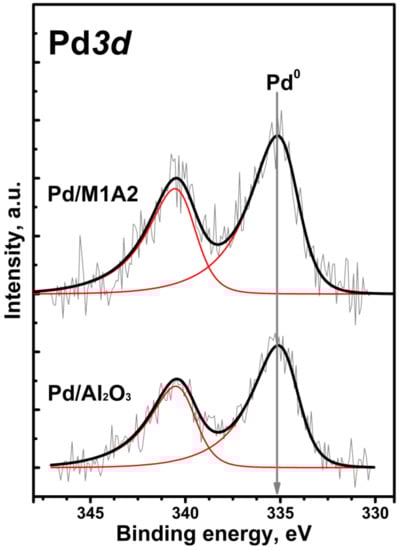

To determine the possible effect of the support composition on the electronic properties of the supported palladium, the Pd/Al2O3 and Pd/M1A2 catalysts were studied by XPS. Core-level photoelectron peaks corresponding to Pd3d5/2 (335.1 eV), O1s (531.3 eV), C1s (284.6 eV), and Al2p (74.5 eV) were observed in the survey spectra of both catalysts. In addition, a peak at 50.9 eV corresponding to Mg2p was observed for Pd/M1A2. The Pd3d core-level spectra of the studied samples are shown in Figure 4. The spectra are described well by the Pd3d5/2-Pd3d3/2 doublet with a 3:2 intensity ratio. The binding energy of the Pd3d5/2 peak was 335.1 eV for both samples. This value is in an excellent agreement with the literature data for palladium in the metal state (335.0–335.2 eV) [42,43]. Thus, it was demonstrated that palladium was in the Pd0 state on the surface of both catalysts, and the presence of basic sites associated with Mg did not have a significant effect on the electronic state of Pd. The ratios of the atomic concentrations of Pd/Al and Pd/(Al+Mg) in the near-surface catalyst layer were similar for both samples and equal to 0.0038 and 0.0035 for Pd/Al2O3 and Pd/M1A2, respectively. These values were close to the theoretical value of 0.005 corresponding to 1 wt.% Pd.
A series of palladium-containing catalysts were studied by CO pulse chemisorption. This method provided information on the average size of the supported metal species in terms of dispersity determined from CO adsorption data (DCO, %; Table 2). According to the obtained results, the presence of Mg in the support favored the preservation of good Pd dispersity after reduction at 500 °C. Presumably, this resulted from the stabilization of the palladium nanoparticles on basic surface sites of the Mg-Al-Ox supports, in good agreement with the literature data [31,32,33].

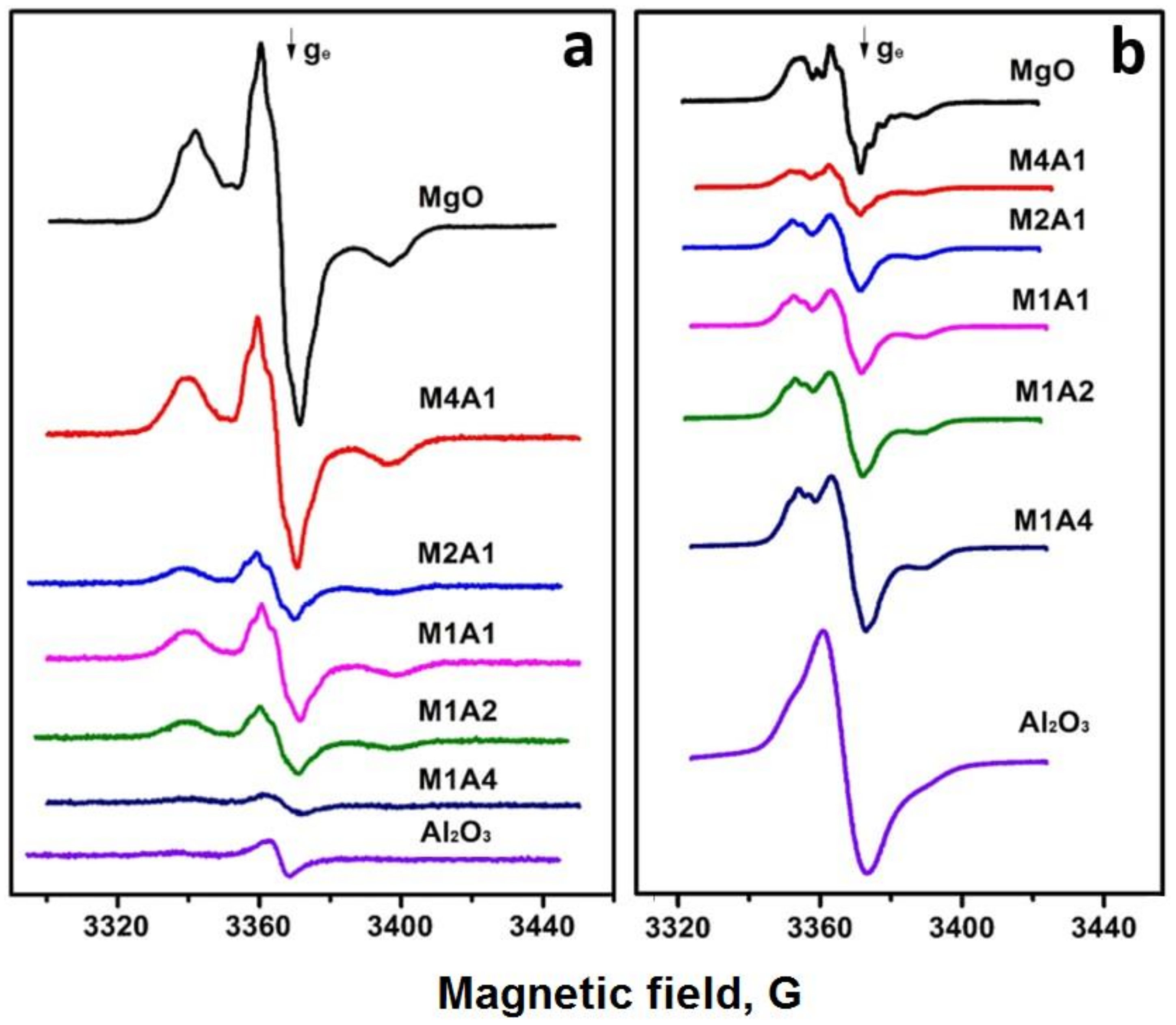

Electron paramagnetic resonance (EPR) spectroscopy with the use of spin probes makes it possible to study various active sites on the surface of catalysts and sorbents and their role in chemical and catalytic reactions. This method was successfully used for the characterization of electron-acceptor sites, which are capable of abstracting electrons from aromatic probe molecules, and electron-donor sites, which are capable of donating electrons to aromatic nitro compounds [44,45,46,47,48,49]. As discussed in detail in the cited publications, electron-acceptor sites on metal oxides accounting for the formation of radical cations are associated with strong acid sites, most likely Bronsted. The presence of various metal cations has little or no positive effect. Meanwhile, the electron-donor sites responsible for the opposite process seem to be related to basic sites.
Both probe molecules had one nitrogen atom. Thus, the EPR spectra of the ion radicals formed after their adsorption on the active sites were characterized as three-component spectra with hyperfine splitting on the nitrogen atom (Figure 5). The spectra observed after the adsorption of 1,3,5-trinitrobenzene (TNB) on the aerogel supports (Figure 5a) were similar to the previously reported spectra of TNB radical anions on the Al2O3 surface [42]. They were characterized by a triplet EPR signal with frozen rotation with g = 2.005 and a hyperfine splitting constant AZZ of about 28 G, which did not depend much on the Mg:Al ratio. This result indicates that electron-donor sites donating a single electron to the TNB molecule, similar to those present on the Al2O3 surface, existed on the surface of all studied aerogel samples. Previously, such sites were shown to stabilize palladium deposited on the Al2O3 surface in a finely dispersed state with high CO oxidation activity [50]. The concentration of strong electron-donor sites revealed immediately after the probe adsorption generally grew with the increase in the Mg concentration in the sample (Table 2). This was quite natural because the increase in the Mg:Al ratio was expected to lead to an increase in the sample basicity. The highest concentration (2.4 × 1018 g−1) was observed on M4A1 and on pure MgO, which had a substantially lower surface area. The concentration of such sites on the Al2O3 aerogel was approximately four times lower.
The ionization potential of phenothiazine is 6.8 eV, making it a good probe for the investigation of weak electron-acceptor sites capable of abstracting an electron from phenothiazine and stabilizing its radical cation on the surface [48,49,51]. A triplet EPR signal with hyperfine splitting on the nitrogen atom AZZ of about 18 G was observed after phenothiazine adsorption on all the studied samples. This corresponded to adsorbed phenothiazine radical cations. The concentration of such acidic sites decreased with an increase in the Mg:Al ratio, which made the sample more basic and less acidic. The highest concentration of electron-acceptor sites was observed on the Al2O3 aerogel: 16.8 × 1018 g−1 (Table 2). The M4A1 sample was characterized by the lowest concentration of such sites 2.4 × 1018 g−1, which was even lower than on the MgO surface.
Thus, electron-donor and electron-acceptor sites were present on the surface of all the studied aerogel supports. The observed trends were in a good agreement with the expected increase in the material basicity with the growth of the Mg:Al ratio. Its growth led to an increase in the concentration of basic electron-donor sites and a decrease in the concentration of acidic electron-acceptor sites.
Overall, it was shown that the mixed oxide samples had a high surface area, a high concentration of electron-donor sites where Pd could be stabilized in a finely dispersed active state, and a low concentration of electron-acceptor sites that might lead to unwanted transformations of organic molecules initiated by their acid properties. In the next stage, the catalytic activity of the synthesized materials was studied to determine the optimal Mg:Al ratio.

2.2. Investigation of the Catalytic Activity of Aerogel-Supported Pd Catalysts

The catalytic activity of Pd/Mg-Al-Ox catalysts was studied in the dehydrogenation of tetradecahydrophenazine (14HP) using tetraglyme as the solvent. A solvent had to be used because both the reagent 14HP and the reaction product phenazine (P) are solid at the dehydrogenation temperature of 240 °C. In our previous publication [20], the effect of the solvent on 14HP dehydrogenation was studied for 1 wt% Pd/γ-Al2O3 catalyst. Polar tetraglyme with a high boiling temperature was shown to be the most preferable solvent. The main parameter characterizing the catalytic activity was the hydrogen yield relative to the maximum theoretically possible hydrogen release (YH2, %). This characterizes the depth of 14HP conversion to dehydrogenation products. In addition, the concentrations of side products 5-methyl-5,10-dihydrophenazine and 5,10-dimethyl-5,10- dihydrophenazine were determined using gas chromatography (YMP, %). The formation of these compounds is related to partial tetraglyme decomposition over the surface acid sites of the support followed by the methylation of the nitrogen atom in phenazine.

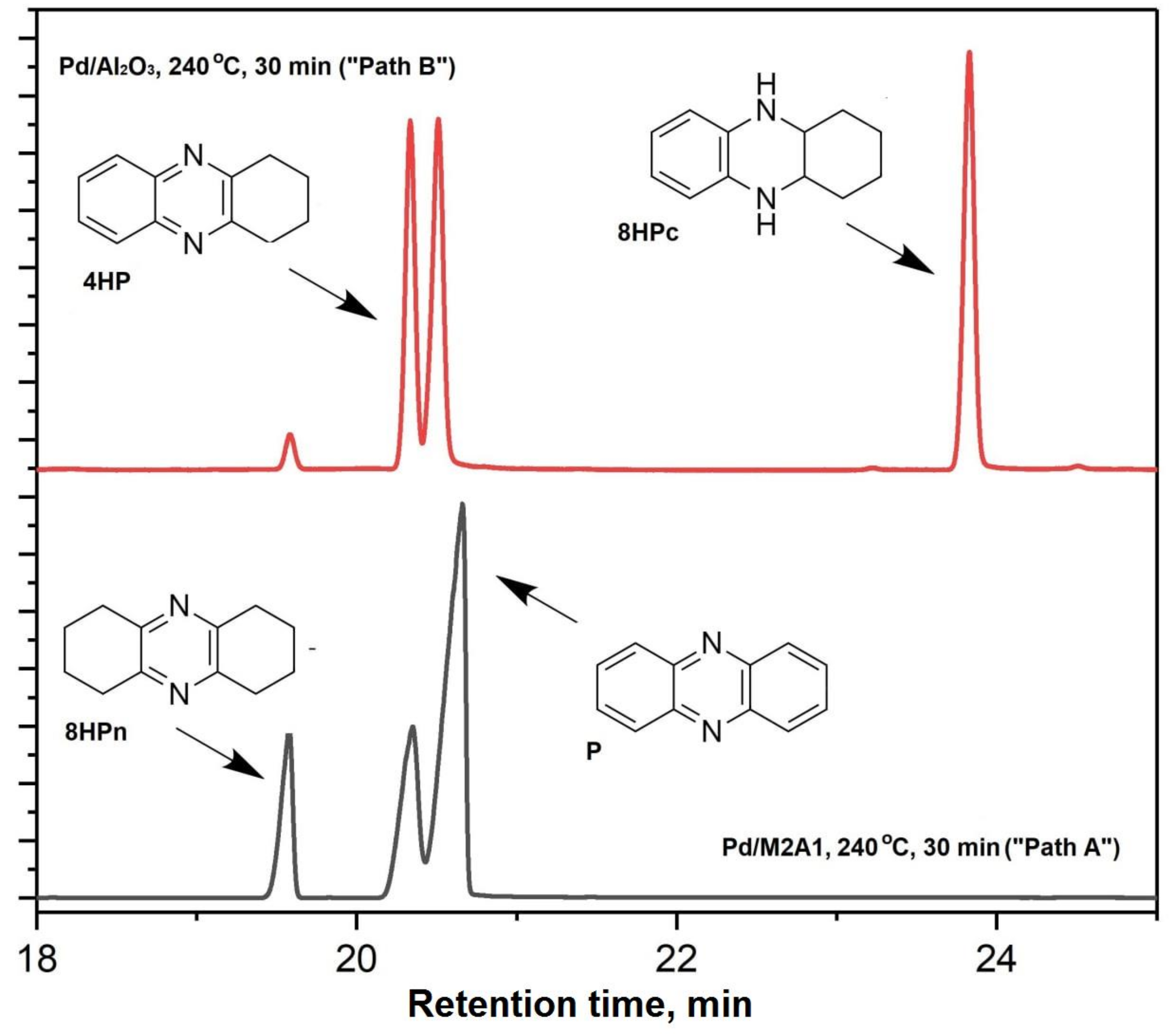

The analysis of the reaction mixture probes taken at intermediate dehydrogenation times (10, 20, and 30 min) revealed significant differences in the reaction routes of dehydrogenation between the catalysts containing MgO and the catalysts based on Al2O3. Typical chromatograms of the reaction mixture probes taken after 30 min of dehydrogenation over Pd/M1A2 and Pd/Al2O3 are shown in Figure 6. 1,2,3,4,4a,5,10,10a-octahydrophenazine (8HPc) was registered as an intermediate over Pd/M1A2, whereas the reaction mixture composition over Pd/Al2O3 was similar to that observed previously over Pd/Pural-550 prepared using a commercial Al2O3 support [20].
As was shown previously [20], hydrogen release over Pd/Al2O3 begins from the side ring, despite the fact that the dehydrogenation of the central ring in 14HP is more thermodynamically favorable. This reaction route is apparently related to sterical problems for hydrogen release from the central ring in 14HP. For catalysts containing MgO, the hydrogen release began from the dehydrogenation of the central ring (Figure 7). As was shown above, the electronic state of Pd was the same in Pd/Al2O3 and Pd/M1A2 and corresponded to palladium metal (Figure 4). The average Pd particle size was also very similar (Figure 3). Thus, the presence of basic sites in the supports containing Mg affected the reaction pathway. Apparently, basic sites related to Mg can relieve some of the sterical hindrance, opening up a more thermodynamically favorable pathway [20].
These observations were in a good agreement with previously obtained results showing that the basic sites of the support in addition to the noble metal play an important role in the hydrogenation and dehydrogenation of nitrogen-containing heterocycles [52,53,54,55,56]. When MgO was used as the support [54], the presence of strong basic sites (surface oxygen atoms) altered the mechanism of quinoline hydrogenation.
Based on the GC data and the previously reported results [50,51,52,53,54], the following reaction mechanisms were suggested for the first stage of 14HP dehydrogenation (Figure 7b,c). According to the proposed mechanisms, dehydrogenation over Pd/Al2O3 occurs in one stage via the abstraction of two hydrogen atoms by a Pd nanoparticle (Figure 7b). In this case, both hydrogen atoms must be oriented in roughly the same direction towards the Pd nanoparticle, which is apparently possible only for the side ring due to the sterical problems. Over supports containing Mg, strong basic sites can participate in the hydrogen abstraction (Figure 7c). In this case, one hydrogen atom is initially abstracted by a basic site, whereas the second atom is taken by a Pd nanoparticle in the following step. Thus, the sterical problems are removed, and the dehydrogenation process can follow the most energetically favorable pathway. In both cases, the eventual coupling of the hydrogen atoms yields molecular hydrogen.
Note that the reaction pathway “Path A” observed over mixed oxide supports is preferable, because 5,10-dihydrophenazine (2HP) is one of intermediates in “Path B”; 2HP is more stable in the desired dehydrogenation reaction and can be accumulated in the reaction mixture. Furthermore, it is easily methylated to form methylphenazines (MP) as side products.

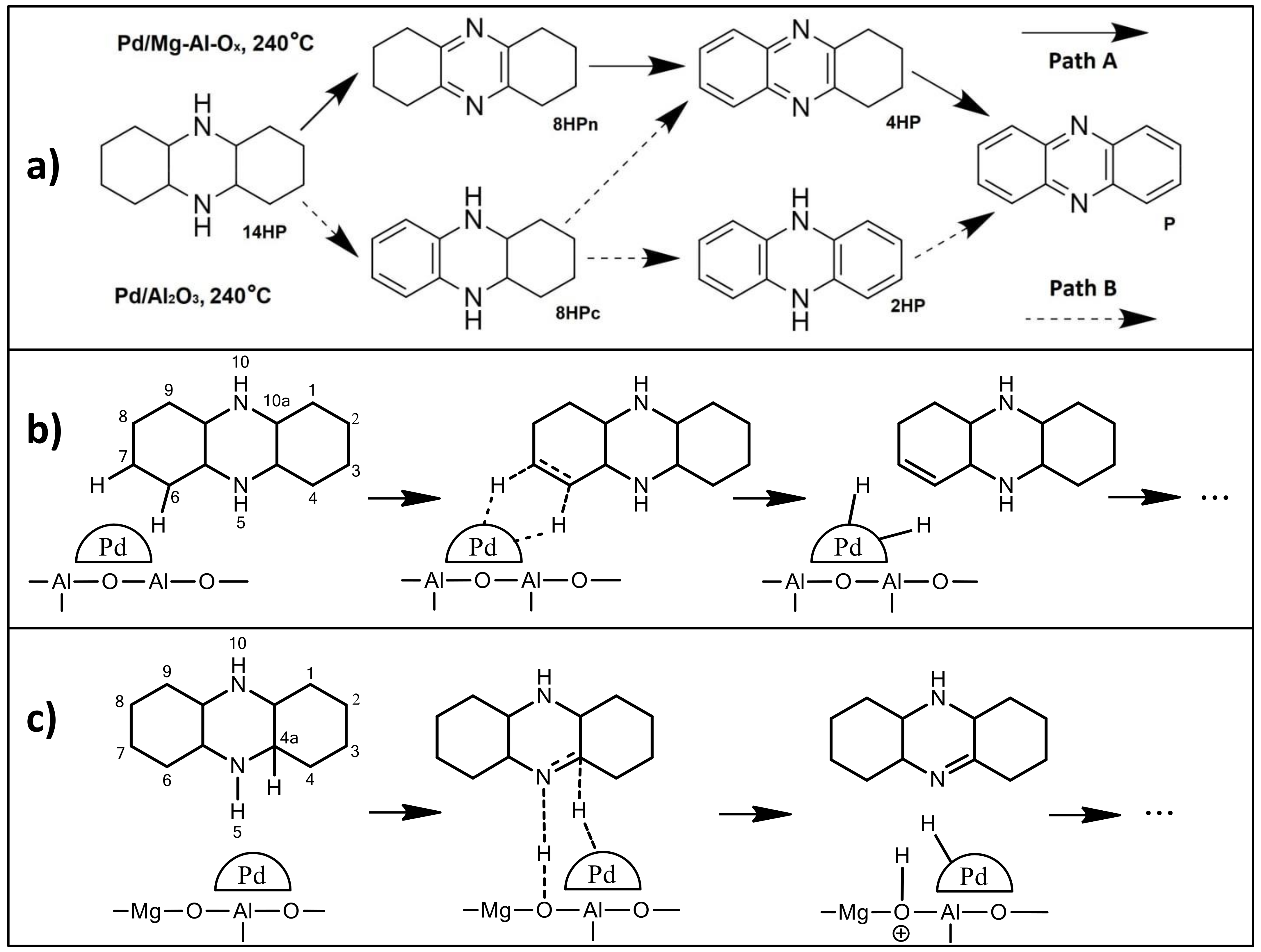

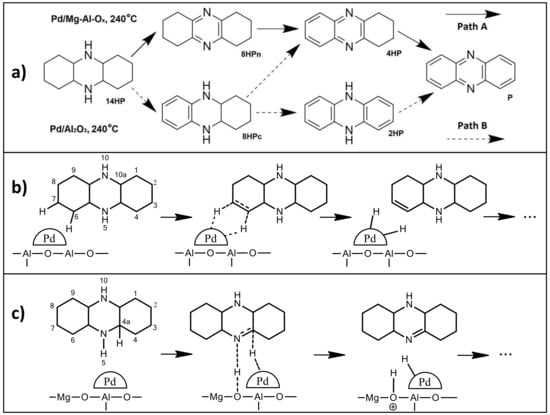

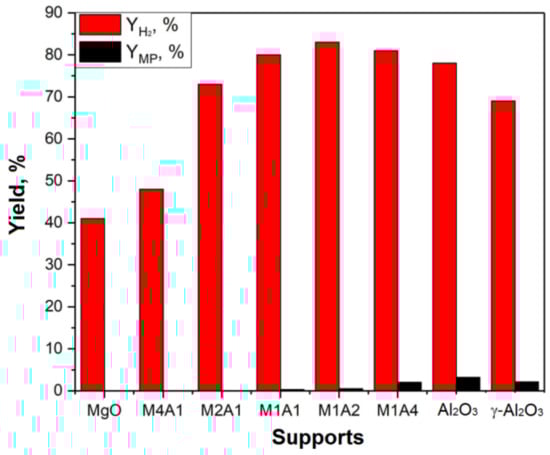

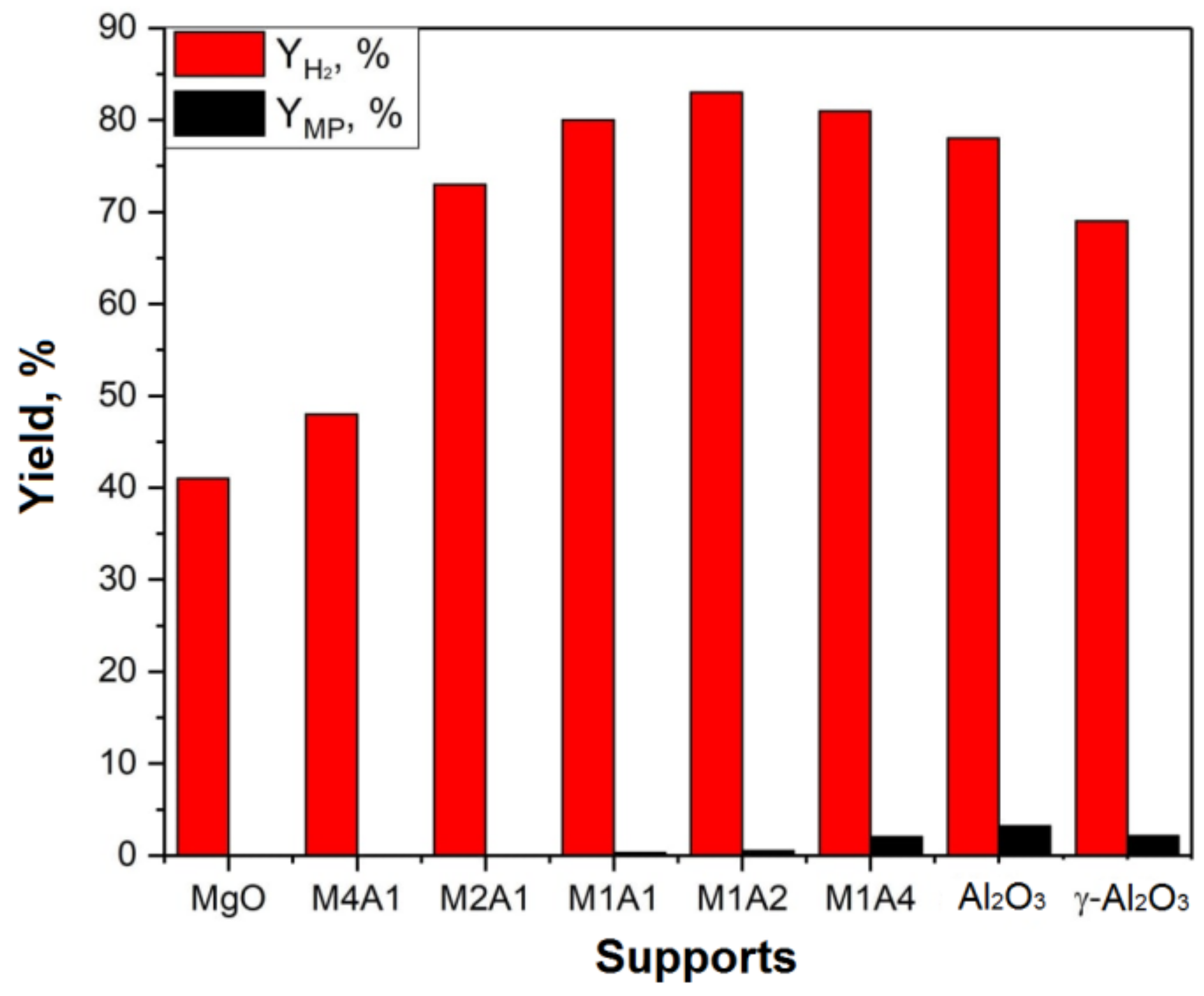

Figure 8 illustrates the effect of the support on the catalytic properties. Catalysts containing 1 wt% Pd deposited on aerogel-prepared MgO; Al2O3 oxide supports; mixed oxides (M4A1, M2A1, M1A1, M1A2, and M1A4); and a γ-Al2O3 support from commercial Pural SB were studied under identical conditions. Hydrogen was not released when the dehydrogenation experiment was carried out in the absence of the catalyst or when the reaction was performed using pristine supports without Pd. Despite the fact that slightly poorer Pd dispersion was observed according to the CO chemisorption data over the aerogel supports (DCO = 33–55%) in comparison with 1 wt% Pd/γ-Al2O3 (DCO = 59%), their activity in 14HP dehydrogenation was significantly higher (Figure 8). The highest hydrogen production yield (YH2 83%) was observed for the catalysts using the mixed aerogel M1A2 as the support.
The observed dependence of YH2 on the composition of the support was presumably determined by a number of factors. In addition to a high surface area, the most efficient supports (M1A1, M1A, and M1A4), which contained magnesium, were characterized by significant concentrations of basic electron-donor sites (0.7–1.2·1018 g−1, Table 2). These sites accounted for the efficient stabilization of the palladium nanoparticles. Additionally, their presence altered the mechanism of 14HP dehydrogenation, favoring the formation of 8HPn. Overall, this led to the higher efficiency of the dehydrogenation process and accelerated hydrogen production. Based on the catalytic activity data, Pd/M1A2 was characterized by an optimal combination of the surface area and concentration of basic sites. According to the XRF data, the Pd concentration in the Pd/M1A2 sample after the catalytic reaction was similar to that observed for the fresh catalyst. The recycled catalyst was studied again in the catalytic reaction. Its catalytic activity was preserved after recycling, remaining within the experimental error limits.
Meanwhile, the concentration of side products resulting from methylation (YMP) also substantially depended on the support used. An increase in the concentration of acidic electron-acceptor sites (Table 2) as well a surface area increase intensified the solvent decomposition reaction, resulting in an increased concentration of the methylation side products in the reaction mixture. Thus, the 1 wt% Pd/M2A1, Pd/M1A1, and Pd/M1A2 catalysts produced using aerogel-prepared mixed oxide supports were the most promising for 14HP dehydrogenation in the presence of tetraglyme, as they demonstrated both good tetraglyme stability and a high hydrogen production rate. The hydrogen evolution rate observed in this study was compared with the literature data (Table 3).
In the literature, there are very few examples of the catalytic dehydrogenation of perhydro-N-heterocycles consisting of six-membered rings. Meanwhile, this type of N-containing heterocycle is characterized by a high content of hydrogen that could be released. In addition, nitrogen-containing six-membered rings have higher stability with respect to ring opening due to hydrodenitrogenation compared to five-membered rings [63,64].

3. Materials and Methods

3.1. Catalyst Preparation

Aerogel-prepared magnesium oxide was synthesized according to a procedure adapted from the method pioneered by Klabunde et al. [65]. First, magnesium metal ribbon (1.2 g) was subjected to a reaction with methanol (75 mL). Then, 150 mL toluene was added to the reaction medium. The formed magnesium methoxide was hydrolyzed with a stoichiometric amount of distilled water (1.8 mL). The solvents (methanol and toluene) were purchased from J.T. Baker (Phillipsburg, NJ, USA) and Baza1R JSC (Staraya Kupavna, Russia), respectively. All the materials were used as received.
For the synthesis of aluminum oxide according to the earlier developed method [66], 6 g of aluminum isopropoxide (Alfa Aesar, Ward Hill, MA, USA) was dissolved in a mixture of 75 mL methanol and 150 mL toluene. Next, hydrolysis was carried out with 1.6 mL of distilled water.
For the synthesis of mixed oxide aerogels, first, magnesium metal ribbon was subjected to a reaction with methanol excess (75 mL). Then, aluminum isopropoxide and 150 mL toluene were added to the reaction mixture. The masses of magnesium metal and aluminum isopropoxide were chosen so that their molar ratios were 1:4; 1:2; 1:1; 2:1; and 4:1. After the mixture was stirred for 1 h, it was subjected to hydrolysis with a stoichiometric ratio of distilled water.
After the addition of water for hydrolysis, each resulting gel was stirred for 16 h. Then, it was placed in a 500 mL autoclave (Amar, Mumbai, India), in which it was heated for 3 h to 270 °C. The final pressure in the autoclave was 80–95 atm. Then, the gas from the autoclave was slowly released at 270 °C, and the autoclave was purged with argon for 5 min. Each synthesized aerogel sample was additionally calcined in air at 500 °C for 3 h at a heating rate of 100 °C/h. The synthesized samples of the mixed oxides were designated as MXAY, where X and Y are the amounts of Mg and Al corresponding to their molar ratio.
For the synthesis of 1 wt% Pd/Mg-Al-Ox catalysts, the adsorption precipitation technique was used with H2[PdCl4] as the precursor of the active component. Applying this method, 1 g of the support was dispersed in 20 mL of an EDTA solution (56 mg) in ethanol using a magnetic stirrer (600 rpm). Then, liquid H2[PdCl4] precursor at the required concentration was added dropwise and stirred for one hour (600 rpm). The resulting samples were filtered, washed with ethanol, dried at 120 °C, and calcined at 500 °C. Then, the obtained catalysts were reduced in the hydrogen flow at 500 °C for 1 h with a H2 flow rate of 100 mL/min.
In addition, 1 wt% Pd/γ-Al2O3 catalyst prepared using the commercial precursor Pural SB-1 (Sasol, Hamburg, Germany) according to a previously reported procedure [20] was used for comparison.

3.2. Catalyst Characterization

X-ray diffraction patterns of the samples were recorded in the range 2θ 15–75° with a step of 0.05° and an accumulation time of 3 s using a Bruker D8 diffractometer with CuKα radiation (λ = 1.5418 A) (Bruker AXS GmbH, Karlsruhe, Germany). The dispersion of metal particles and the microstructure of the catalysts were studied by transmission electron microscopy. The images were acquired with a JEM-2010 (JEOL Ltd., Tokyo, Japan) operating at an accelerating voltage of 200 kV and a resolution of 0.14 nm. The device was equipped with an energy dispersive X-ray (EDX) spectrometer XFlash (Bruker AXS GmbH, Karlsruhe, Germany) with an energy resolution of 130 eV.
The Pd concentration in the fresh and exhaust catalysts was determined using an ARL Advant’X 2247 X-ray fluorescence spectrometer (Thermo Fisher Scientific Inc., Waltham, MA, USA).
The porous structure was studied by nitrogen adsorption–desorption at 77 K. The isotherms were measured by means of an automatic adsorption analyzer ASAP-2400 (Micromeritics Corp., Norcross, GA, USA). Before the measurements, all samples were degassed in a vacuum of less than 1 Pa at 150 °C for 16 h. All calculations were performed using ASAP 2020 Plus ver. 2.00 software. The desorption branch of the isotherms was used for the calculation of pore size distributions.
The XPS measurements were carried out using a photoelectron spectrometer (SPECS Surface Nano Analysis GmbH, Germany) equipped with a PHOIBOS-150 hemispherical electron energy analyzer and an XR-50 X-ray source with a double Al/Mg anode. The core-level spectra were obtained using AlKα radiation (hν = 1486.6 eV) under ultrahigh vacuum conditions. The binding energy (Eb) of the photoemission peaks was corrected to the Al2p peak (Eb = 74.5 eV) of alumina [67,68]. The curve fitting was carried out using CasaXPS software [69].
Active sites on the surface of the obtained materials were studied by electron paramagnetic resonance using 1,3,5-trinitrobenzene (TNB) and phenothiazine as spin probes. Before the adsorption of the spin probes, the samples were activated by heating in air at 500 °C for 3 h. The probes were adsorbed from their 2 × 10−2 M solutions in toluene. EPR spectra were recorded at room temperature with an ERS-221 spectrometer (Center of Scientific Instruments Engineering, Leipzig, Germany).
CO chemisorption was measured in a pulsed mode using a Chemosorb analyzer (MBE, Novosibirsk, Russia) equipped with a thermal conductivity detector. The catalyst (50 mg) was loaded into a U-shaped quartz reactor and treated with an H2 flow (100 mL/min) at 20 and 100 °C with a heating rate of 10 °C/min. The reactor was kept at the final temperature for 20 min, then purged with argon and cooled to room temperature. After cooling, CO pulses (0.1 cm3) were injected into the reactor until the sample was saturated, and the amount of chemisorbed CO was estimated.

3.3. Tetradecahydrophenzine Dehydrogenation

Tetradecahydrophenazine was synthesized from a commercially available phenazine substrate (Sigma Aldrich, St. Louis, MO, USA) according to the previously described method [20]. The 1H-NMR and GC-MS methods were used to confirm the purity of the obtained heterocyclic substrate (higher than 99.7%).
To study tetradecahydrophenazine dehydrogenation, a reaction setup similar to that described previously [20] was used. In a standard test of the catalytic activity, the catalyst (50 mg) and a suspension of 1 mmol tetradecahydrophenazine in tetraglyme (3 mL) (Acros Organics, Geel, Belgium) were loaded into the reactor. The system was purged with argon (20 mL/min, 5 min, room temperature), and the reactor was sealed and connected to a weight analysis line. Next, the reaction mixture was heated to 240 °C with stirring (500 rpm) for 15 min (0–900 s), and the dehydrogenation reaction was carried out for 45 min (900–3600 s) before the reactor was removed from the heating zone. The error of the weighing system (i.e., comparison with data on the volume of released gas) was estimated as ±2 mL H2. When tetraglyme (3 mL) was used as a solvent, the increase in the gas volume in the reactor due to thermal expansion (up to 240 °C) was estimated as 19 ± 1 mL. Reaction mixture probes were taken at the end of the reaction and at intermediate dehydrogenation times (10, 20, and 30 min). Then, the selected aliquot of the reaction mixture was separated from the catalyst particles by centrifugation and analyzed by the GC method.
The GC analysis was performed using an Agilent-7890A gas chromatograph (Santa Clara, CA, USA) equipped with a ZB-5HT column. A catalytic experiment using a recycled catalyst was performed using the same procedure after washing the catalyst from the first experiment with acetone and drying in the argon flow at 50 °C for 1 h.
The hydrogen yield characterizing the depth of dehydrogenation was calculated as follows:
Y H 2 = Y P + 6 Y 2 HP 7 + 5 Y 4 HP 7 + 3 Y 8 HPc 7 + 3 Y 8 HPn 7
where Y is the molar fractions of the product (YP) and intermediates (Y2HP, Y4HP, Y8HPn, Y8HPc) obtained by gas chromatography. The dehydrogenation selectivity was estimated from the total yield of methylphenazines (YMP, %), i.e., the sum of the yields of 5-methyl-5,10-dihydrophenazine and 5,10-dimethyl-5,10-dihydrophenazine.

4. Conclusions

Mixed magnesium-aluminum oxide supports with different Mg:Al ratios (Mg:Al = 4:1, 2:1, 1:1, 1:2, 1:4) as well as pristine MgO and Al2O3 were synthesized by the aerogel method with high-temperature autoclave drying. The structure and properties of the synthesized aerogel samples were studied by a number of physical methods (nitrogen adsorption, XRD, HRTEM, EPR, and CO chemisorption). All the synthesized aerogels were characterized by high specific surface areas and pore volumes. Surface areas as high as 600 m2/g after calcination at 500 °C were observed for M1A4. Electron-donor and electron-acceptor sites were observed on the surface of all the studied aerogel supports. An increase in the Mg concentration in the aerogels led to an increase in the concentration of basic electron-donor sites and a decrease in the concentration of acidic electron-acceptor sites. Catalysts containing 1 wt% Pd were prepared by palladium deposition from ethanol solution on the synthesized aerogel supports. The presence of surface active sites provided for Pd stabilization in a finely dispersed state with a nanoparticle size of about 5 nm and a narrow particle size distribution. It was demonstrated that the high dispersity of the supported metal and the high surface area of the supports had a favorable effect on the catalytic activity in the acceptorless dehydrogenation of tetradecahydrophenazine, leading to a high reaction rate. The promotion of the basic properties by the addition of magnesium to alumina was shown to change the tetradecahydrophenazine dehydrogenation mechanism, making it possible to start the process from the central ring of the heterocycle. The application of tetradecahydrophenazine as the hydrogen source required the use of a solvent such as tetraglyme. The use of catalysts with a low concentration of acidic electron-acceptor sites made it possible to suppress tetraglyme decomposition to form side products (methylphenazines). Overall, 1wt% Pd/M2A1, Pd/M1A1, Pd/M1A2 catalysts prepared with mixed oxide aerogel supports were found to be the most efficient catalysts for the acceptorless dehydrogenation of tetradecahydrophenazine.

Author Contributions

Conceptualization, A.P.K.; data curation, A.P.K. and A.F.B.; formal analysis, A.P.K., S.A.S., D.M.S. and E.V.I.; funding acquisition, A.F.B.; investigation, D.M.S., A.P.K., S.A.S., E.V.I. and A.B.A.; methodology, D.M.S., A.P.K., E.V.I. and A.B.A.; project administration, A.P.K. and A.F.B.; resources, V.A.Y. and A.F.B.; supervision, A.P.K. and A.F.B.; validation, A.P.K. and A.F.B.; visualization, D.M.S., S.A.S., E.V.I. and A.B.A.; writing—original draft, A.P.K. and D.M.S.; writing—review and editing, A.P.K. and A.F.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Science and Higher Education of the Russian Federation within the governmental order for the Boreskov Institute of Catalysis (projects AAAA-A21-121011390007-7 and AAAA-A21-121011390054-1).

Data Availability Statement

All data included in this study are available upon request by contacting the corresponding author.

Acknowledgments

The characterization of the samples was performed using the equipment of the Center of Collective Use “National Center of Catalysts Research”. The authors are grateful to Dmitriy Y. Yermakov for CO chemisorption studies, Svetlana A. Cherepanova for XRD studies, Ekaterina I. Shuvarakova for assistance with EPR studies, Andrey A. Saraev for XPS studies and Evgeniy Y. Gerasimov for the HRTEM studies.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yan, J. The impact of climate policy on fossil fuel consumption: Evidence from the Regional Greenhouse Gas Initiative (RGGI). Energy Econ. 2021, 100, 105333. [Google Scholar] [CrossRef]
  2. Durbin, D.J.; Malardier-Jugroot, C. Review of hydrogen storage techniques for on board vehicle applications. Int. J. Hydrogen Energy 2013, 38, 14595–14617. [Google Scholar] [CrossRef]
  3. Usman, M.R. Hydrogen storage methods: Review and current status. Renew. Sustain. Energy Rev. 2022, 167, 112743. [Google Scholar] [CrossRef]
  4. Sharma, S.; Ghoshal, S.K. Hydrogen the future transportation fuel: From production to applications. Renew. Sustain. Energy Rev. 2015, 43, 1151–1158. [Google Scholar] [CrossRef]
  5. Teichmann, D.; Arlt, W.; Schlücker, E.; Wasserscheid, P. Transport and Storage of Hydrogen via Liquid Organic Hydrogen Carrier (LOHC) Systems. In Hydrogen Science and Engineering: Materials, Processes, Systems and Technology; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2016; pp. 811–830. [Google Scholar] [CrossRef]
  6. Sordakis, K.; Tang, C.; Vogt, L.K.; Junge, H.; Dyson, P.J.; Beller, M.; Laurenczy, G. Homogeneous Catalysis for Sustainable Hydrogen Storage in Formic Acid and Alcohols. Chem. Rev. 2017, 118, 372–433. [Google Scholar] [CrossRef]
  7. Dalebrook, A.F.; Gan, W.; Grasemann, M.; Moret, S.; Laurenczy, G. Hydrogen storage: Beyond conventional methods. Chem. Commun. 2013, 49, 8735–8751. [Google Scholar] [CrossRef]
  8. Egeland-Eriksen, T.; Hajizadeh, A.; Sartori, S. Hydrogen-based systems for integration of renewable energy in power systems: Achievements and perspectives. Int. J. Hydrogen Energy 2021, 46, 31963–31983. [Google Scholar] [CrossRef]
  9. Abdin, Z.; Khalilpour, K.R. Single and Polystorage Technologies for Renewable-Based Hybrid Energy Systems. In Polygeneration with Polystorage for Chemical and Energy Hubs; Academic Press: London, UK, 2019; pp. 77–131. [Google Scholar] [CrossRef]
  10. Andersson, J.; Grönkvist, S. Large-scale storage of hydrogen. Int. J. Hydrogen Energy 2019, 44, 11901–11919. [Google Scholar] [CrossRef]
  11. Kumar, A.; Muthukumar, P.; Sharma, P.; Kumar, E.A. Absorption based solid state hydrogen storage system: A review. Sustain. Energy Technol. Assess. 2022, 52, 102204. [Google Scholar] [CrossRef]
  12. Abdin, Z.; Tang, C.; Liu, Y.; Catchpole, K. Large-scale stationary hydrogen storage via liquid organic hydrogen carriers. iScience 2021, 24, 102966. [Google Scholar] [CrossRef]
  13. Niermann, M.; Drünert, S.; Kaltschmitt, M.; Bonhoff, K. Liquid organic hydrogen carriers (LOHCs)—Techno-economic analysis of LOHCs in a defined process chain. Energy Environ. Sci. 2019, 12, 290–307. [Google Scholar] [CrossRef]
  14. Byun, M.; Lee, A.; Cheon, S.; Kim, H.; Lim, H. Preliminary feasibility study for hydrogen storage using several promising liquid organic hydrogen carriers: Technical, economic, and environmental perspectives. Energy Convers. Manag. 2022, 268, 116001. [Google Scholar] [CrossRef]
  15. Aakko-Saksa, P.T.; Cook, C.; Kiviaho, J.; Repo, T. Liquid organic hydrogen carriers for transportation and storing of renewable energy—Review and discussion. J. Power Sources 2018, 396, 803–823. [Google Scholar] [CrossRef]
  16. Singh, R.; Singh, M.; Gautam, S. Hydrogen economy, energy, and liquid organic carriers for its mobility. Mater. Today Proc. 2021, 46, 5420–5427. [Google Scholar] [CrossRef]
  17. Zhu, Q.-L.; Xu, Q. Liquid organic and inorganic chemical hydrides for high-capacity hydrogen storage. Energy Environ. Sci. 2015, 8, 478–512. [Google Scholar] [CrossRef]
  18. Zubar, V.; Borghs, J.C.; Rueping, M. Hydrogenation or Dehydrogenation of N-Containing Heterocycles Catalyzed by a Single Manganese Complex. Org. Lett. 2020, 22, 3974–3978. [Google Scholar] [CrossRef]
  19. Forberg, D.; Schwob, T.; Zaheer, M.; Friedrich, M.; Miyajima, N.; Kempe, R. Single-catalyst high-weight% hydrogen storage in an N-heterocycle synthesized from lignin hydrogenolysis products and ammonia. Nat. Commun. 2016, 7, 13201. [Google Scholar] [CrossRef]
  20. Stepanenko, S.A.; Shivtsov, D.M.; Koskin, A.P.; Koskin, I.P.; Kukushkin, R.G.; Yeletsky, P.M.; Yakovlev, V.A. N-Heterocyclic Molecules as Potential Liquid Organic Hydrogen Carriers: Reaction Routes and Dehydrogenation Efficacy. Catalysts 2022, 12, 1260. [Google Scholar] [CrossRef]
  21. He, T.; Pei, Q.; Chen, P. Liquid organic hydrogen carriers. J. Energy Chem. 2015, 24, 587–594. [Google Scholar] [CrossRef]
  22. Wu, Y.; Liu, X.; Bai, X.; Wu, W. Ultrasonic-assisted preparation of ultrafine Pd nanocatalysts loaded on Cl−-intercalated MgAl layered double hydroxides for the catalytic dehydrogenation of dodecahydro-N-ethylcarbazole. Ultrason. Sonochemistry 2022, 88, 106097. [Google Scholar] [CrossRef]
  23. Yang, M.; Dong, Y.; Fei, S.; Ke, H.; Cheng, H. A comparative study of catalytic dehydrogenation of perhydro-N-ethylcarbazole over noble metal catalysts. Int. J. Hydrogen Energy 2014, 39, 18976–18983. [Google Scholar] [CrossRef]
  24. Koper, O.B.; Lagadic, I.; Volodin, A.; Klabunde, K.J. Alkaline-Earth Oxide Nanoparticles Obtained by Aerogel Methods. Characterization and Rational for Unexpectedly High Surface Chemical Reactivities. Chem. Mater. 1997, 9, 2468–2480. [Google Scholar] [CrossRef]
  25. Mishakov, I.; Heroux, D.; Chesnokov, V.; Koscheev, S.; Melgunov, M.; Bedilo, A.; Buyanov, R.; Klabunde, K. Reaction of nanocrystalline MgO with 1-iodobutane. J. Catal. 2005, 229, 344–351. [Google Scholar] [CrossRef]
  26. Ilyina, E.V.; Gerus, Y.Y.; Cherepanova, S.V.; Bedilo, A.F. Synthesis of C12A7 calcium aluminate aerogels. Mater. Lett. 2021, 293, 129699. [Google Scholar] [CrossRef]
  27. Ilyina, E.V.; Bedilo, A.F.; Veselov, G.B.; Gerus, Y.Y.; Shuvarakova, E.I.; Stoyanovskii, V.O.; Vedyagin, A.A. Comparative Study of Pd-Mayenite Catalysts Prepared via Aerogel Approaches. Gels 2022, 8, 809. [Google Scholar] [CrossRef]
  28. Vedyagin, A.A.; Mishakov, I.V.; Ilyina, E.V. A step forward in the preparation of V–Mg–O catalysts for oxidative dehydrogenation of propane. J. Sol-Gel Sci. Technol. 2020, 97, 117–125. [Google Scholar] [CrossRef]
  29. Ilyina, E.V.; Mishakov, I.V.; Vedyagin, A.A.; Cherepanova, S.V.; Nadeev, A.N.; Bedilo, A.F.; Klabunde, K.J. Synthesis and characterization of mesoporous VOx/MgO aerogels with high surface area. Microporous Mesoporous Mater. 2012, 160, 32–40. [Google Scholar] [CrossRef]
  30. Anderson, A.M.; Bruno, B.A.; Santos, J.; Barry, P.J.; Carroll, M.K. PGM nanoparticle-based alumina aerogels for three-way catalyst applications. Catal. Commun. 2022, 172, 106547. [Google Scholar] [CrossRef]
  31. Li, J.; Tong, F.; Li, Y.; Liu, X.; Guo, Y.; Wang, Y. Dehydrogenation of dodecahydro-N-ethylcarbazole over spinel supporting catalyst in a continuous flow fixed bed reactor. Fuel 2022, 321, 124034. [Google Scholar] [CrossRef]
  32. Song, J.; Wang, S.; Xu, Y.; Liu, Q.; Zhao, Y. LDH derived MgAl2O4 spinel supported Pd catalyst for the low-temperature methane combustion: Roles of interaction between spinel and PdO. Appl. Catal. A Gen. 2021, 621, 118211. [Google Scholar] [CrossRef]
  33. Liu, Y.; Wang, S.; Gao, D.; Sun, T.; Zhang, C.; Wang, S. Influence of metal oxides on the performance of Pd/Al2O3 catalysts for methane combustion under lean-fuel conditions. Fuel Process. Technol. 2013, 111, 55–61. [Google Scholar] [CrossRef]
  34. Tuo, Y.; Meng, Y.; Chen, C.; Lin, D.; Feng, X.; Pan, Y.; Li, P.; Chen, D.; Liu, Z.; Zhou, Y.; et al. Partial positively charged Pt in Pt/MgAl2O4 for enhanced dehydrogenation activity. Appl. Catal. B Environ. 2021, 288, 119996. [Google Scholar] [CrossRef]
  35. Schwarz, J.A.; Contescu, C.; Contescu, A. Methods for Preparation of Catalytic Materials. Chem. Rev. 1995, 95, 477–510. [Google Scholar] [CrossRef]
  36. Bedilo, A.F.; Klabunde, K.J. Synthesis of Catalytically Active Sulfated Zirconia Aerogels. J. Catal. 1998, 176, 448–458. [Google Scholar] [CrossRef]
  37. Rechberger, F.; Niederberger, M. Synthesis of aerogels: From molecular routes to 3-dimensional nanoparticle assembly. Nanoscale Horiz. 2017, 2, 6–30. [Google Scholar] [CrossRef]
  38. Yorov, K.E.; Baranchikov, A.E.; Kiskin, M.A.; Sidorov, A.A.; Ivanov, V.K. Functionalization of Aerogels with Coordination Compounds. Russ. J. Coord. Chem. 2022, 48, 89–117. [Google Scholar] [CrossRef]
  39. Lin, Q.; Ji, Y.; Jiang, Z.-D.; Xiao, W.-D. Effects of Precursors on Preparation of Pd/α-alumina Catalyst for Synthesis of Dimethyl Oxalate. Ind. Eng. Chem. Res. 2007, 46, 7950–7954. [Google Scholar] [CrossRef]
  40. Gregg, S.J.; Sing, K.S.W. Adsorption, Surface Area and Porosity, 2nd ed.; Academic Press: London, UK, 1982; pp. 126–132. [Google Scholar] [CrossRef]
  41. Mishakov, I.V.; Bedilo, A.F.; Richards, R.M.; Chesnokov, V.V.; Volodin, A.M.; Zaikovskii, V.I.; Buyanov, R.A.; Klabunde, K.J. Nanocrystalline MgO as a Dehydrogenation Catalyst. J. Catal. 2002, 206, 40–48. [Google Scholar] [CrossRef]
  42. Kaichev, V.V.; Saraev, A.A.; Matveev, A.V.; Dubinin, Y.V.; Knop-Gericke, A.; Bukhtiyarov, V.I. In Situ NAP-XPS and Mass Spectrometry Study of the Oxidation of Propylene over Palladium. J. Phys. Chem. C 2018, 122, 4315–4323. [Google Scholar] [CrossRef]
  43. Matveev, A.V.; Kaichev, V.V.; Saraev, A.A.; Gorodetskii, V.V.; Knop-Gericke, A.; Bukhtiyarov, V.I.; Nieuwenhuys, B.E. Oxidation of propylene over Pd(5 5 1): Temperature hysteresis induced by carbon deposition and oxygen adsorption. Catal. Today 2015, 244, 29–35. [Google Scholar] [CrossRef]
  44. Medvedev, D.A.; Rybinskaya, A.A.; Kenzhin, R.M.; Volodin, A.M.; Bedilo, A.F. Characterization of electron donor sites on Al2O3 surface. Phys. Chem. Chem. Phys. 2012, 14, 2587–2598. [Google Scholar] [CrossRef] [PubMed]
  45. Bedilo, A.F.; Shuvarakova, E.I.; Volodin, A.M.; Ilyina, E.V.; Mishakov, I.V.; Vedyagin, A.A.; Chesnokov, V.V.; Heroux, D.S.; Klabunde, K.J. Effect of Modification with Vanadium or Carbon on Destructive Sorption of Halocarbons over Nanocrystalline MgO: The Role of Active Sites in Initiation of the Solid-State Reaction. J. Phys. Chem. C 2014, 118, 13715–13725. [Google Scholar] [CrossRef]
  46. Bedilo, A.F.; Shuvarakova, E.I.; Rybinskaya, A.A.; Medvedev, D.A. Characterization of Electron-Donor and Electron-Acceptor Sites on the Surface of Sulfated Alumina Using Spin Probes. J. Phys. Chem. C 2014, 118, 15779–15794. [Google Scholar] [CrossRef]
  47. Koskin, A.P.; Andreev, R.V.; Primachenko, O.N.; Shuvarakova, E.I.; Bedilo, A.F. Perfluorosulfonic Acid Polymer Composites: Effect of the Support and Synthesis Method on the Acid and Catalytic Properties. Mol. Catal. 2020, 492, 111006. [Google Scholar] [CrossRef]
  48. Shuvarakova, E.I.; Bedilo, A.F.; Kenzhin, R.M.; Ilyina, E.V.; Gerus, Y.Y. Synthesis and Investigation of Finely Dispersed Calcium Aluminates and Catalysts Based on Them. Russ. J. Phys. Chem. B 2022, 16, 411–420. [Google Scholar] [CrossRef]
  49. Shuvarakova, E.I.; Ilyina, E.V.; Cherepanova, S.V.; Gerasimov, E.Y.; Bedilo, A.F.; Vedyagin, A.A. Synthesis of Vanadia-Mayenite Nanocomposites and Characterization of Their Structure, Morphology and Surface Sites. J. Compos. Sci. 2022, 6, 254. [Google Scholar] [CrossRef]
  50. Vedyagin, A.A.; Volodin, A.M.; Kenzhin, R.M.; Stoyanovskii, V.O.; Rogov, V.A.; Kriventsov, V.V.; Mishakov, I.V. The role of chemisorbed water in formation and stabilization of active sites on Pd/Alumina oxidation catalysts. Catal. Today 2018, 307, 102–110. [Google Scholar] [CrossRef]
  51. Ilyina, E.V.; Bedilo, A.F.; Cherepanova, S.V.; Gerus, Y.Y.; Shuvarakova, E.I.; Vedyagin, A.A. Aerogel synthesis of calcium aluminates with varied stoichiometry. J. Sol-Gel Sci. Technol. 2022, 104, 259–266. [Google Scholar] [CrossRef]
  52. Ye, T.-N.; Li, J.; Kitano, M.; Hosono, H. Unique nanocages of 12CaO·7Al2O3 boost heterolytic hydrogen activation and selective hydrogenation of heteroarenes over ruthenium catalyst. Green Chem. 2017, 19, 749–756. [Google Scholar] [CrossRef]
  53. Fang, M.; Machalaba, N.; Sánchez-Delgado, R.A. Hydrogenation of arenes and N-heteroaromatic compounds over ruthenium nanoparticles on poly(4-vinylpyridine): A versatile catalyst operating by a substrate-dependent dual site mechanism. Dalton Trans. 2011, 40, 10621–10632. [Google Scholar] [CrossRef]
  54. Fang, M.; Sánchez-Delgado, R.A. Ruthenium nanoparticles supported on magnesium oxide: A versatile and recyclable dual-site catalyst for hydrogenation of mono- and poly-cyclic arenes, N-heteroaromatics, and S-heteroaromatics. J. Catal. 2014, 311, 357–368. [Google Scholar] [CrossRef]
  55. Wei, Z.; Shao, F.; Wang, J. Recent advances in heterogeneous catalytic hydrogenation and dehydrogenation of N-heterocycles. Chin. J. Catal. 2019, 40, 980–1002. [Google Scholar] [CrossRef]
  56. Rahi, R.; Fang, M.; Ahmed, A.; Sánchez-Delgado, R.A. Hydrogenation of quinolines, alkenes, and biodiesel by palladium nanoparticles supported on magnesium oxide. Dalton Trans. 2012, 41, 14490. [Google Scholar] [CrossRef]
  57. Fujita, K.-I.; Tanaka, Y.; Kobayashi, M.; Yamaguchi, R. Homogeneous Perdehydrogenation and Perhydrogenation of Fused Bicyclic N-Heterocycles Catalyzed by Iridium Complexes Bearing a Functional Bipyridonate Ligand. J. Am. Chem. Soc. 2014, 136, 4829–4832. [Google Scholar] [CrossRef]
  58. Oh, J.; Bathula, H.B.; Park, J.H.; Suh, Y.-W. A sustainable mesoporous palladium-alumina catalyst for efficient hydrogen release from N-heterocyclic liquid organic hydrogen carriers. Commun. Chem. 2019, 2, 68. [Google Scholar] [CrossRef]
  59. Oh, J.; Jeong, K.; Kim, T.W.; Kwon, H.; Han, J.W.; Park, J.H.; Suh, Y.-W. 2-(N-Methylbenzyl)pyridine: A Potential Liquid Organic Hydrogen Carrier with Fast H2 Release and Stable Activity in Consecutive Cycles. ChemSusChem 2018, 11, 661–665. [Google Scholar] [CrossRef]
  60. Oh, J.; Kim, T.W.; Jeong, K.; Park, J.H.; Suh, Y.-W. Enhanced Activity and Stability of a Carbon-Coated Alumina-Supported Pd Catalyst in the Dehydrogenation of a Liquid Organic Hydrogen Carrier, Perhydro 2-(n-methylbenzyl)Pyridine. ChemCatChem 2018, 10, 3892–3900. [Google Scholar] [CrossRef]
  61. Kim, Y.; Song, Y.; Choi, Y.; Jeong, K.; Park, J.H.; Ko, K.C.; Na, K. Catalytic Consequences of Supported Pd Catalysts on Dehydrogenative H2 Evolution from 2-[(n-Methylcyclohexyl)methyl]piperidine as the Liquid Organic Hydrogen Carrier. ACS Sustain. Chem. Eng. 2020, 9, 809–821. [Google Scholar] [CrossRef]
  62. Bathula, H.B.; Oh, J.; Jo, Y.; Suh, Y.-W. Dehydrogenation of 2-[(n-Methylcyclohexyl)Methyl]Piperidine over Mesoporous Pd-Al2O3 Catalysts Prepared by Solvent Deficient Precipitation: Influence of Calcination Conditions. Catalysts 2019, 9, 719. [Google Scholar] [CrossRef]
  63. Guo, Y.; Liu, X.; Duan, P.; Xu, D.; Luque, R. Catalytic Hydrodenitrogenation of Pyridine under Hydrothermal Conditions: A Comprehensive Study. ACS Sustain. Chem. Eng. 2020, 9, 362–374. [Google Scholar] [CrossRef]
  64. Guo, Y.; He, H.; Liu, X.; Chen, Z.; Rioux, R.M.; Janik, M.J.; Savage, P.E. Ring-opening and hydrodenitrogenation of indole under hydrothermal conditions over Ni, Pt, Ru, and Ni-Ru bimetallic catalysts. Chem. Eng. J. 2021, 406, 126853. [Google Scholar] [CrossRef]
  65. Klabunde, K.J.; Stark, J.; Koper, O.; Mohs, C.; Park, D.G.; Decker, S.; Jiang, Y.; Lagadic, I.; Zhang, D.J. Nanocrystals as Stoichiometric Reagents with Unique Surface Chemistry. J. Phys. Chem. 1996, 100, 12142–12153. [Google Scholar] [CrossRef]
  66. Bedilo, A.F.; Ilyina, E.V.; Mishakov, I.V.; Vedyagin, A.A. Nanocrystalline Aerogels of Metal Oxides as Destructive Sorbents and Catalysts. Chem. Sustain. Dev. 2011, 19, 25–32. [Google Scholar]
  67. Scofield, J.H. Hartree-Slater subshell photoionization cross-sections at 1254 and 1487 eV. J. Electron Spectrosc. Relat. Phenom. 1976, 8, 129–137. [Google Scholar] [CrossRef]
  68. Shirley, D.A. High-Resolution X-Ray Photoemission Spectrum of the Valence Bands of Gold. Phys. Rev. B 1972, 5, 4709–4714. [Google Scholar] [CrossRef] [Green Version]
  69. Fairley, N. CasaXPS VAMAS Processing Software. 2010. Available online: http://www.casaxps.com (accessed on 20 January 2022).
Catalysts 13 00334 g001 550

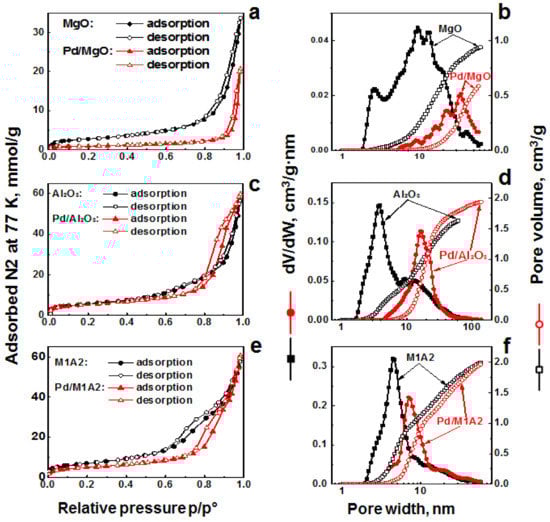

Figure 1. Nitrogen adsorption–desorption isotherms (a,c,e) and pore size distribution (b,d,f) on aerogel-prepared MgO (a,b), M1A2 (c,d), and Al2O3 (e,f) before and after supporting Pd. The differential pore size dV/dW distributions are given by closed symbols, the cumulative volume pore size distributions are given with open symbols. The Broekhoff–de Boer model was used for slit-like pores in MgO, Pd/MgO, M1A2, Pd/M1A2, and Al2O3 and for cylindrical pores in Pd/Al2O3; the regularization factor was 0.1.
Figure 1. Nitrogen adsorption–desorption isotherms (a,c,e) and pore size distribution (b,d,f) on aerogel-prepared MgO (a,b), M1A2 (c,d), and Al2O3 (e,f) before and after supporting Pd. The differential pore size dV/dW distributions are given by closed symbols, the cumulative volume pore size distributions are given with open symbols. The Broekhoff–de Boer model was used for slit-like pores in MgO, Pd/MgO, M1A2, Pd/M1A2, and Al2O3 and for cylindrical pores in Pd/Al2O3; the regularization factor was 0.1.
Catalysts 13 00334 g001
Catalysts 13 00334 g002 550
Figure 2. XRD diffractograms of MgO, M1A2, and Al2O3 aerogels.
Figure 2. XRD diffractograms of MgO, M1A2, and Al2O3 aerogels.
Catalysts 13 00334 g002
Catalysts 13 00334 g003 550

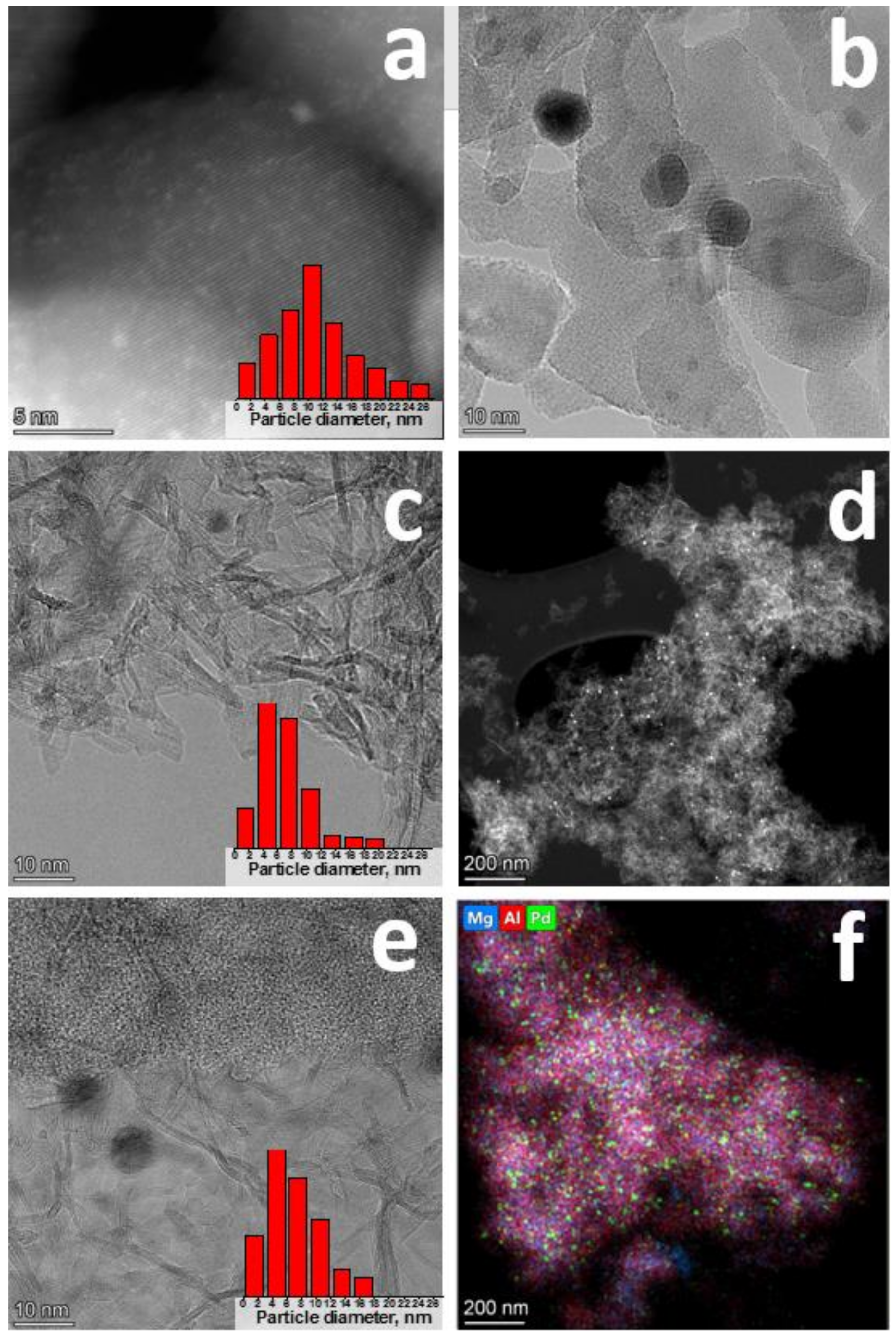

Figure 3. HR-TEM images of aerogel catalysts Pd/MgO (a,b), Pd/Al2O3 (c,d), Pd/M1A2 (e), and EDX of Pd/M1A2 (f).
Figure 3. HR-TEM images of aerogel catalysts Pd/MgO (a,b), Pd/Al2O3 (c,d), Pd/M1A2 (e), and EDX of Pd/M1A2 (f).
Catalysts 13 00334 g003
Catalysts 13 00334 g004 550
Figure 4. Core-level Pd3d XPS spectra of Pd/Al2O3 and Pd/M1A2 catalysts. The spectra were normalized to the integral intensity of the core-level Al2p peaks corresponding to the spectrum of Al2O3.
Figure 4. Core-level Pd3d XPS spectra of Pd/Al2O3 and Pd/M1A2 catalysts. The spectra were normalized to the integral intensity of the core-level Al2p peaks corresponding to the spectrum of Al2O3.
Catalysts 13 00334 g004
Catalysts 13 00334 g005 550
Figure 5. EPR spectra observed after adsorption on 1,3,5-trinitrobenzene (a) and phenothiazine (b) on the studied aerogel supports.
Figure 5. EPR spectra observed after adsorption on 1,3,5-trinitrobenzene (a) and phenothiazine (b) on the studied aerogel supports.
Catalysts 13 00334 g005
Catalysts 13 00334 g006 550
Figure 6. Typical chromatograms of the reaction mixture probes taken after 30 min of 14HP dehydrogenation over Pd/M1A2 and Pd/Al2O3.
Figure 6. Typical chromatograms of the reaction mixture probes taken after 30 min of 14HP dehydrogenation over Pd/M1A2 and Pd/Al2O3.
Catalysts 13 00334 g006
Catalysts 13 00334 g007 550
Figure 7. Differences in reaction routes of 14HP dehydrogenation over acidic and basic catalysts (a), and suggested reaction mechanisms over Pd/Al2O3 (b) and Pd/Mg-Al-Ox (c).
Figure 7. Differences in reaction routes of 14HP dehydrogenation over acidic and basic catalysts (a), and suggested reaction mechanisms over Pd/Al2O3 (b) and Pd/Mg-Al-Ox (c).
Catalysts 13 00334 g007
Catalysts 13 00334 g008 550
Figure 8. Effect of the support on the catalytic properties of catalysts containing 1 wt% Pd in 14HP dehydrogenation. YH2 is the hydrogen yield, % of the theoretical maximum; YMP is the yield of methylphenazines, %.
Figure 8. Effect of the support on the catalytic properties of catalysts containing 1 wt% Pd in 14HP dehydrogenation. YH2 is the hydrogen yield, % of the theoretical maximum; YMP is the yield of methylphenazines, %.
Catalysts 13 00334 g008
Table
Table 1. Characteristics of the porous structure in aerogel-prepared supports and catalysts determined by nitrogen adsorption.
Table 1. Characteristics of the porous structure in aerogel-prepared supports and catalysts determined by nitrogen adsorption.
SampleSSA, m2/gVpore, cm3/gPore Size 1, nmDav, nm
Supports
MgO2201.29.4 221
M4A14151.612 315
M2A14951.58.0 312
M1A15351.43.3 211
M1A25702.04.5 214
M1A46002.35.2 215
Al2O35452.33.8 217
Catalysts 1 wt% Pd
Pd/MgO700.734 240
Pd/M4A13101.616 320
Pd/M2A13451.29.6 314
Pd/M1A13401.45.1 217
Pd/M1A24102.17.1 221
Pd/M1A44451.914 317
Pd/Al2O34352.117 319
1 The maximum of the differential pore size distribution dV/dW, where V is the pore volume and W is the pore width for slit-like pores or the pore diameter for cylindrical pores. 2 Slit-like pores were assumed, and the pore size indicates the pore width. 3 Cylindrical pores were assumed, and the pore size indicates the pore diameter.
Table
Table 2. Dispersity of supported palladium determined by CO chemisorption and concentrations of electron-donor and electron-acceptor sites on the surface of the aerogel-prepared supports.
Table 2. Dispersity of supported palladium determined by CO chemisorption and concentrations of electron-donor and electron-acceptor sites on the surface of the aerogel-prepared supports.
Aerogel
Supports		Pd Dispersion by CO
Chemisorption (DCO), %		Active Site Concentration, 1018 g−1
1,3,5-Trinitrobenzene
(Electron-Donor Sites)		Phenothiazine
(Electron-Acceptor Sites)
MgO462.43.2
M4A1502.42.4
M2A1541.83.7
M1A1541.14.4
M1A2551.27.5
M1A4490.79.6
Al2O3330.616.8
Table
Table 3. Comparison of the hydrogen evolution rate observed in this study with the literature data.
Table 3. Comparison of the hydrogen evolution rate observed in this study with the literature data.
CatalystReactantReaction ConditionsH2 Evolution Rate (mmol gMet−1 min−1)Ref.
Pd2Ru@SiCN14HP2 mmol 14HP, 70 mg Pd2Ru@SiCN (0.36 mol. % active metal), 190 °C, 0.75 mL diglyme, 24 h.39.31[19]
Ir
complexes
(Homog.)		2,6-dimethyldecahydro-1,5-naphthyridine0.25 mmol of reactant and the catalyst under reflux in p-xylene for 20 h, 138 °C, 5 mol% of Ir.0.43[57]
1 wt%
Pd/γ-Al2O3		decahydroquinoline10.83 mmol of reactant, 230 °C, 4 h, M/R = 0.1 mol%.62[58]
1 wt%
Pd/C		2-[(n-methylcyclohexyl)-methyl]piperidine (MBP)7.732 mmol of H12-MBP, M/R = 0.1 mol%, 270 °C, 4 h.237[59]
Pd/3.3CCA7.732 mmol of H12-MBP, M/R = 0.1 mol%, 250 °C, 4 h.168[60]
3PdA7.732 mmol of H12-MBP, 270 °C, 4 h, M/R = 0.59 mol%.27.5[61]
MPdA600_5h7.3 mmol of reactant, M/R ratio of 0.1 mol%, and 250 °C for 4 h.16.69[62]
1 wt%
Pd/Mg-Al-Ox		14HP1 mmol 14HP in tetraglyme (3 mL), 240 °C, 45 min, 50 mg of catalyst.252This study
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Shivtsov, D.M.; Koskin, A.P.; Stepanenko, S.A.; Ilyina, E.V.; Ayupov, A.B.; Bedilo, A.F.; Yakovlev, V.A. Hydrogen Production by N-Heterocycle Dehydrogenation over Pd Supported on Aerogel-Prepared Mg-Al Oxides. Catalysts 2023, 13, 334. https://doi.org/10.3390/catal13020334

AMA Style

Shivtsov DM, Koskin AP, Stepanenko SA, Ilyina EV, Ayupov AB, Bedilo AF, Yakovlev VA. Hydrogen Production by N-Heterocycle Dehydrogenation over Pd Supported on Aerogel-Prepared Mg-Al Oxides. Catalysts. 2023; 13(2):334. https://doi.org/10.3390/catal13020334

Chicago/Turabian Style

Shivtsov, Danil M., Anton P. Koskin, Sergey A. Stepanenko, Ekaterina V. Ilyina, Artem B. Ayupov, Alexander F. Bedilo, and Vadim A. Yakovlev. 2023. "Hydrogen Production by N-Heterocycle Dehydrogenation over Pd Supported on Aerogel-Prepared Mg-Al Oxides" Catalysts 13, no. 2: 334. https://doi.org/10.3390/catal13020334

APA Style

Shivtsov, D. M., Koskin, A. P., Stepanenko, S. A., Ilyina, E. V., Ayupov, A. B., Bedilo, A. F., & Yakovlev, V. A. (2023). Hydrogen Production by N-Heterocycle Dehydrogenation over Pd Supported on Aerogel-Prepared Mg-Al Oxides. Catalysts, 13(2), 334. https://doi.org/10.3390/catal13020334

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
