Complete Elimination of the Ciprofloxacin Antibiotic from Water by the Combination of Adsorption–Photocatalysis Process Using Natural Hydroxyapatite and TiO₂

Abstract

The main objective of this work was to assess the performance of combined processes, adsorption/ photodegradation of the ciprofloxacin antibiotic (CIP). Adsorption was achieved on natural hydroxyapatite (nat-HA) in the batch mode. The effect of pH (3–12), initial ciprofloxacin concentration (C₀, 25–200 mg L⁻¹), adsorbent dose (m, 0.25–3 g L⁻¹), and temperature (T, 298–328 K) on the ciprofloxacin adsorption capacity was studied. At 298 K, the maximum uptake of 147.7 mg g⁻¹ was observed with pH close to 8, 1 g L⁻¹ nat-HA dose, and 150 mg L⁻¹ initial CIP concentration. Adsorption was effective, with a removal percentage of 82% within 90 minutes of contact time. For ciprofloxacin adsorption onto nat-HA, a pseudo-second-order kinetic model is well-suited. The Langmuir isotherm model successfully fit the experimental data and the process was spontaneous and exothermic. The coupling processes (adsorption/photocatalysis) were examined and found to be highly effective. For the remaining concentrations, the maximum degradation efficiency and mineralization yield were ~100% and 98.5%, respectively, for 1 mg L⁻¹ initial CIP. The combination of the strong adsorption capacity of natural hydroxyapatite and the high photocatalytic activity of TiO₂ can be an effective technique for removing fluoroquinolone antibiotics from wastewater.

1. Introduction

The presence of antibiotics in surface water and wastewater has been frequently observed [1,2,3] and is becoming an increasing issue due to their toxicological effect on aquatic species and the resistance they can cause in some bacterial strains, even at low concentrations [4]. Fluoroquinolones are the antibiotics most commonly used in human and veterinary medicine [5]. However, antibiotics are frequently detected in the final effluents of wastewater treatment plants (WWTPs) because of their extensive use [6].

Ciprofloxacin (CIP; C₁₇H₁₈O₃N₃F) is a zwitterionic antibiotic that is classified as a fluoroquinolone of the second generation that is in widespread use. It is effective against a wide variety of Gram-negative and Gram-positive bacteria [6,7]. As a result of its extensive use to treat a variety of human and animal ailments, CIP is regularly identified in groundwater and contaminated wastewater [8,9]. The transfer of the CIP antibiotic into aquatic habitats poses a major risk to human health and ecological systems due to the development of resistant strains via chromosomal alterations and chronic allergic reactions [10,11]. From the toxicological standpoint, CIP was identified as a newly developing genotoxic and mutagenic micropollutant [12]. Due to its bacteria-inhibiting properties, the CIP antibiotic demonstrates low biodegradability in ecosystems, which results in a higher tendency to survive and accumulate in the environment [13,14]. Before being discharged into waterbodies, effluents containing the CIP antibiotic must be adequately cleansed [15]. Consequently, removing CIP from water has become a task of increasing significance and urgency.

In order to treat CIP in contaminated water, several conventional techniques, such as adsorption, oxidation [16,17], oxidation by chlorination [18], ozonation [19], photolytic and photocatalytic treatment [20,21], and biological treatment [22,23] are commonly used. Among all the procedures listed, adsorption is the most effective method for removing antibiotics from pharmaceutical wastewater [24]. Due to its simplicity, quick recovery, high efficiency, and reusability of the adsorbent, it is the most promising technique [25]. The selection of adsorbents is crucial to achieving the highest removal efficiency by adsorption. Different adsorbents, such as clay minerals [26], graphene-based nanocomposites [27], activated carbon [28], biomass [29], and hydroxyapatites [30,31] have been recently exploited for the removal of antibiotics from water, as indicated in the pertinent literature.

Hydroxyapatite (HA, Ca₁₀(PO₄)₆(OH)₂) is a calcium phosphate-based substance with promising physicochemical qualities, such as high absorption capacity, low solubility, porous structure, non-toxicity, and good chemical stability [31]. Therefore, several technical applications involving HA-based materials have been studied, including gas detection, drug delivery and wastewater purification [32,33,34], tissue engineering [35].

Photocatalysis is a complimentary technique to conventional methods such as precipitation, electrocoagulation, flocculation, membrane or adsorption processes [36]. It is very effective at low concentrations and can be used at the end of the water treatment chain [37]. It aims for high mineralization of organic contaminants into CO₂, H₂O, and mineral compounds by OH^• and/or O₂ ^•− [38]. In environmental engineering, photocatalysis is a viable alternative that is now being used on industrial pilot stages [39]. However, its application is restricted to low effluent concentrations. In fact, high concentrations of antibiotics inhibit the process greatly by preventing light from reaching the catalyst powder [40].

The principal goals of this study were (i) to study the removal of CIP by combining adsorption (hydroxyapatite) and photocatalysis (TiO₂); (ii) in addition, the adsorption mechanism, kinetics, and thermodynamics were studied. Photocatalysis reduces the residual concentration to levels below the World Health Organization’s (WHO) regulations [41].

2. Results and Discussion

2.1. Characterization

The nature of the solid phase and purity of the derived nat-HA crystals were confirmed using XRD analysis. Figure 1 represents the different prominent XRD peaks, d-spacing, and relative intensity which correspond to the planes (2 1 1), (3 0 0), (1 1 2), (2 1 3), (2 2 2), (3 1 0), (0 0 2), and (2 0 2) of the annealed bone at 800 °C compared with the standard JCPDS data for stoichiometric HA [42].

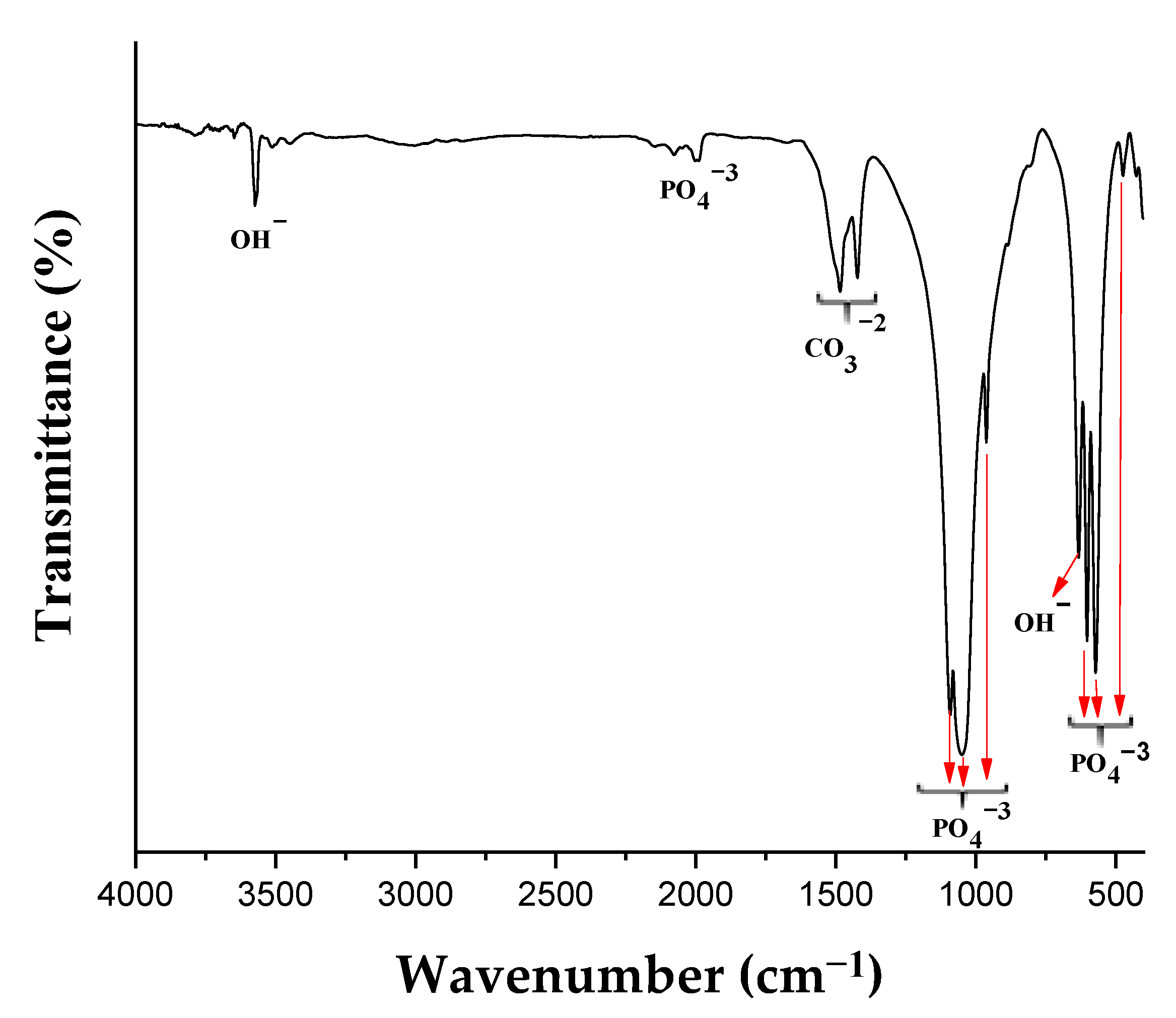

The FT-IR spectrum of the nat-HA (Figure 2) was well-defined, with peaks at 3592 and 655 cm^–1 corresponding to the stretching vibrations of OH⁻ groups. The peaks at 1090 and 962 cm^–1 were ascribed to the phosphate stretching vibration, and those observed at 605, 570, and 475 cm^–1 were assigned to the phosphate bending vibration. The peak at 1630 cm^–1 was ascribed to the adsorbed water molecules.

The low intensity peak of carbonate groups was identified in the FTIR spectra at 1482 cm^–1 due to asymmetric stretching of the CO₃⁻² group. The observed bands are in close accordance with nat-HA data reported in the literature [42,43].

The surface morphology and crystal size of the nat-HA were characterized by using SEM analysis. The SEM images of the bovine bone at 800 °C before and after ciprofloxacin adsorption are shown in Figure 3a–c, respectively. The nat-HA powder shows that the nanoparticles had irregular shapes. Although the morphology of the particles was observed to be very similar to irregular hexagons, they also contained small spheres and were agglomerated together in some parts. It may have occurred due to the interconnection of nat-HA particles [44]. The particle size is determined as approximately 0.1–1 µm. Surface morphological changes of the nat-HA after ciprofloxacin adsorption showed no significant modification on the surface (Figure 3c).

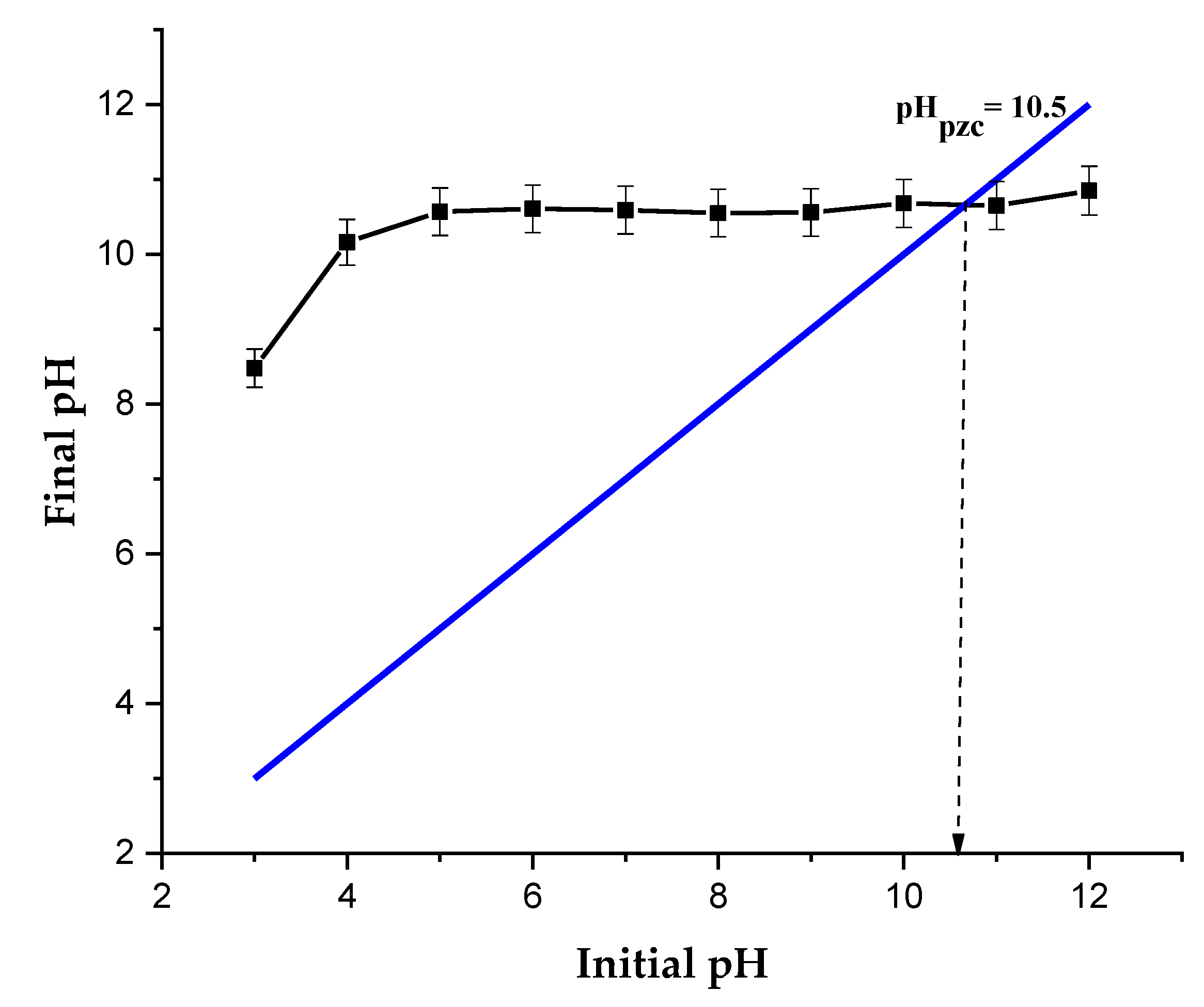

In Figure 4, pH_PZC is determined and reported. The result confirmed that the nat-HA surface is positively charged at pH levels less than 10.50, and vice versa.

2.2. Adsorption Experiments

The parametric analysis allows for the determination of the most important factors favorable for the removal of CIP by adsorption on nat-HA, namely the pH, initial CIP concentration, contact time, and adsorbent dose.

2.2.1. Effect of the Initial pH and the Binding Mechanism

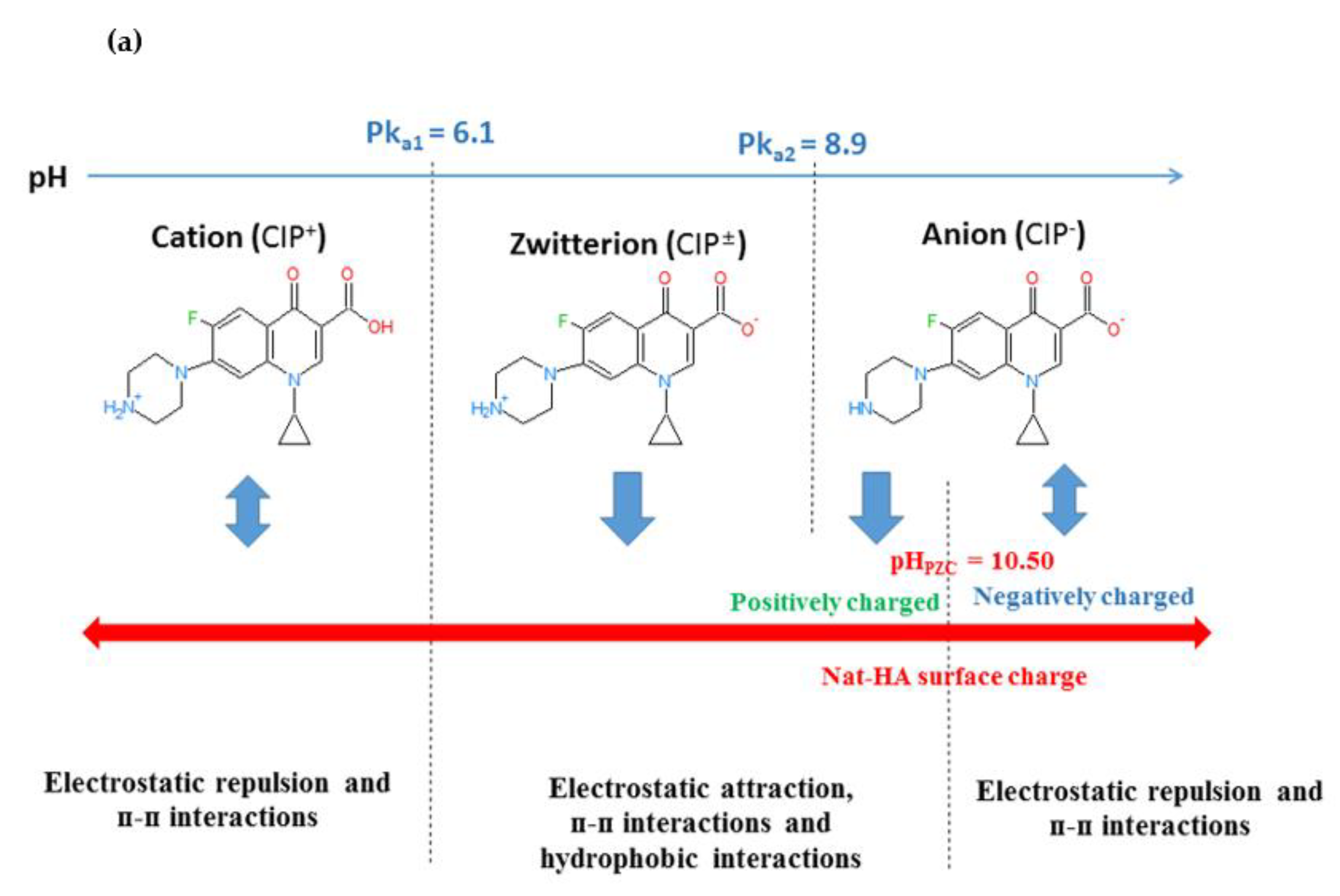

One of the most essential parameters affecting the adsorption process is the pH of a solution. Figure 5b illustrates the influence of pH (ranging from 3 to 12) on CIP adsorption onto nat-HA (at an initial CIP concentration of 150 mg L⁻¹, adsorbent dosage of 1 g L⁻¹, contact period of 3 h, and temperature of 25 °C). The pH is adjusted by adding HCl (0.1 M) and NaOH (0.1 M). After the equilibrium was achieved, samples were obtained for analysis. Solution pH is a crucial control parameter that influences the ionic speciation of adsorbate molecules as well as the surface charge of the adsorbent [15]. Figure 5a illustrates the distribution of CIP species at different pH levels. Consequently, CIP exists in three ionization states: cationic form (CIP⁺) at pH < 6.1, zwitterionic (CIP^±)—at pH between 6.1 and 8.9, and anionic (CIP^–)—at pH > 8.9 [42].

Over the broad pH range of 3–12, the surface charge of the nat-HA adsorbent was examined. Based on Figure 4, the pH_PZC of nat-HA was determined to be 10.5.

At pH < pH_PZC, the nat-HA surface is protonated by hydrogen ions and becomes positively charged (nat-HA–H⁺). At pH > pH_PZC, the hydroxyl groups on the surface of nat-HA are deprotonated, resulting in a negatively charged surface (nat-HA⁻). At pH values close to pH_PZC, the nat-HA surface balances cationic and anionic active sites. The following Equations (1)–(2) depict the protonation/deprotonation of nat-HA surface functional groups [45]:

$$\equiv Ca-O{H}_2^{+}\leftrightarrows \equiv Ca-OH+H^{+}$$

(1)

$$\equiv P-OH\leftrightarrows \equiv P-O^{-}+H^{+}$$

(2)

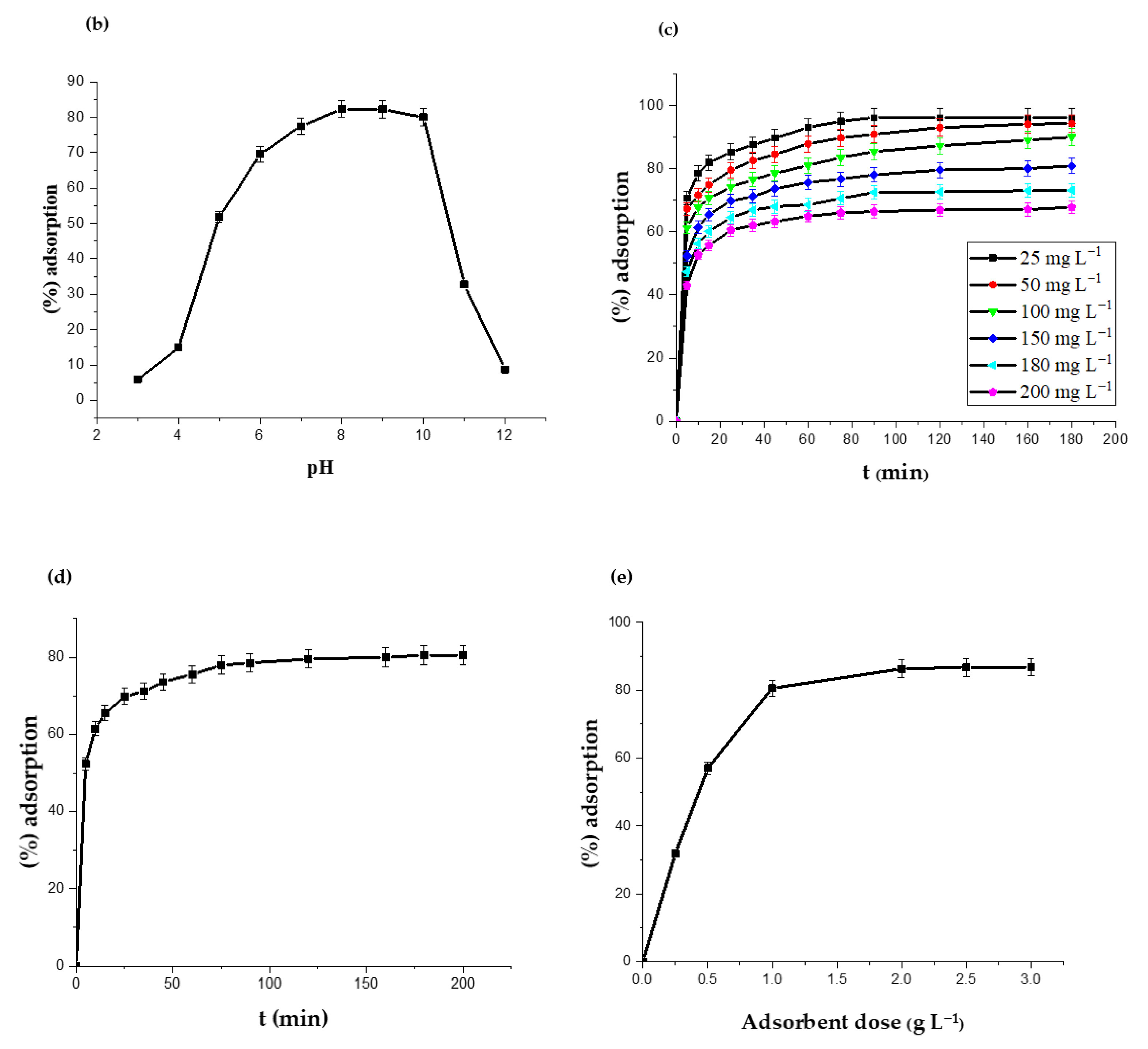

The effect of pH on CIP removal by nat-HA was investigated at pH levels between 3 and 12. As shown in Figure 5b, CIP elimination increased from 6.6% to 69.6% as the pH rose from 3.0 to 6.0. The observed trend in CIP adsorption can be attributed to the strong electrostatic repulsion between CIP+ and the positively charged surface of nat–HA (≡P–OH and ≡Ca-OH₂⁺). For CIP adsorption, pH ranges between 6 and 10.5 were more favorable (close to the pH_PZC value of nat-HA where ≡PO^– and ≡Ca–OH₂⁺ groups predominate) [46]. Within this pH range, the cationic CIP⁺ form transforms into the zwitterionic CIP^± form. Consequently, ≡PO^– and ≡Ca–OH₂⁺ surface sites of nat-HA are electrostatically attracted to the NH₂⁺ and –COO^– groups of CIP^±, respectively. In addition, zwitterionic CIP^± is more hydrophobic than its cationic and anionic counterparts [15]. Consequently, hydrophobic interactions may play a significant part in the binding interaction of CIP to nat-HA. As the pH increased beyond 10.5, the CIP removal effectiveness reduced considerably, possibly due to interactions between the negatively charged functional groups of nat-HA (≡PO^– and ≡Ca–OH) and anionic CIP⁻.

2.2.2. Effect of the Initial CIP Concentration

In adsorption studies, antibiotic concentration is an important variable to investigate, as most contaminated wastewaters contain varying quantities of pollutants. The initial CIP concentration in the test solution increased from 25 to 200 mg L^–1, while all other parameters remained constant (pH = 8, m = 1 g L^–1, t = 180 min, T = 298 K). The (%) adsorption of CIP decreased from 96.08 to 67.75% from 25 to 200 mg L⁻¹ (Figure 5c). This absorption at low C₀ can be attributed to the adsorbent’s active sites. Nonetheless, a rise in CIP concentration led to a quick saturation of active sites, causing a reduction in removal efficiency.

2.2.3. Effect of the Contact Time

Reaction time is another important factor which could significantly influence the adsorption kinetics and capacity. The economic benefits of determining the drug adsorption time in wastewater treatment have been demonstrated. Figure 5d illustrates the influence of contact time on the uptake of CIP onto nat-HA sample. All other parameters (pH = 8, C₀ = 150 mg L^–1, m = 1 g L^–1, and T = 298 K) were held constant during the adsorption tests with varying contact times. The kinetics of adsorption can be separated into two phases: rapid and slow; 69.8% of the CIP was adsorbed in the first 25 min; thereafter, the rate slowed until 90 minutes, which coincided with the pseudo-equilibrium time with a 78.5% yield. Then, the adsorption capacities remained practically constant, indicating that a pseudo-equilibrium had been reached between the adsorbent and the adsorbate. For following trials, the optimal contact time was determined to be 90 min. This result may be due to underutilized adsorption sites on the adsorbent’s surface. A large number of vacant sites on the nat-HA surface was available for adsorption during the initial stage of sorption. As contact duration increases, sorption sites on the surface of the nat-HA sample approach saturation. This causes CIP to be transported from the surface of the hydroxyapatite sample into its voids. After a particular period of time, the remaining unoccupied surface sites are occupied and so saturated. The initial high adsorption efficiency is undoubtedly attributable to the large number of available free surface sites, whereas the subsequent slowing is probably due to both a decrease in accessible sites and repulsive interactions between the adsorbed CIP molecules and those in the solution.

2.2.4. Effect of the Adsorbent Dosage

The effect of the adsorbent dosage (m) on the CIP removal was evaluated in the range of 0.25–3 g L^–1 adsorbent, maintaining all other variables constant (pH = 8, C₀ = 150 mg L^–1, t = 90 min, T = 298 K). As seen in Figure 5e, the CIP removal rate increased with increasing m, and the maximum q_e was attained with 1 g L^–1 of nat-HA. Because of the increase in number of active sites on nat-HA samples, CIP removal increased. In the following experiments, a 1 g L^–1 adsorbent dosage was therefore considered.

2.3. Adsorption Kinetics

It is essential to examine adsorption kinetics in the treatment of aqueous effluent because it gives significant information about the effectiveness and mechanism of the adsorption process. The pseudo-first-order and pseudo-second-order models [47,48] were applied to the experimental data. The nonlinear forms of pseudo-first and pseudo-second order models are given as follows (3)–(4):

$$\mathrm{Pseudo}-\mathrm{first}-\mathrm{order}:q_t=q_e\left(1-e^{-k_{1^t}}\right)$$

(3)

$$\mathrm{Pseudo}-\sec \mathrm{ond}-\mathrm{order}:q_t=\frac{q_t^2{k}_{2}t}{1+q_e{k}_{2}t}$$

(4)

where k₁ is the pseudo-first-order adsorption rate constant (min^–1), q_e is the equilibrium adsorption capacity (mg g^–1), q_t is the adsorption capacity at time t (mg g^–1), and k₂ is the pseudo-second-order adsorption rate constant (g mg^–1 min^–1).

The experimental data of CIP uptake, q_t vs. t, were fitted to the models and the results are displayed in Figure 6.

Table 1. Kinetic parameters of CIP adsorption onto nat-HA at different initial concentrations.

		Pseudo-First-Order Kinetic Model			Pseudo-Second-Order Kinetic Model
C0 (mg L–1)	qe,exp (mg g–1)	k1 (min–1)	qe.cal (mg g–1)	R2	k2 × 10–2 (g mg–1 min–1)	qe.cal (mg g–1)	R2
25	24.00	0.251	23.17	0.984	2.154	24.10	0.999
50	45.05	0.226	44.09	0.981	0.956	46.09	0.999
100	87.35	0.209	82.89	0.973	0.462	87.04	0.998
150	120.00	0.193	114.40	0.976	0.291	120.49	0.998
180	132.65	0.187	125.53	0.978	0.256	132.27	0.999
200	136.00	0.184	129.34	0.978	0.241	136.47	0.999

and Figure 6 present the rate constants. Table 1 reports rate constants (k₁ and k₂) and their accompanying regression correlation coefficients (R²). According to the R² values (Table 1), the pseudo-second-order kinetic model adequately explained the CIP adsorption, as confirmed by the high level of agreement between the experimental and calculated q_e values. Thus, the pseudo-second-order model was ideal for modeling the kinetics of CIP adsorption on nat-HA [15].

2.4. Adsorption Isotherms

The data were modeled with the three most common isotherm models, the Langmuir, Freundlich, and Temkin models, to describe the interaction of CIP molecules with the surfaces of nat-HA and examine the distribution type of CIP in the liquid and solid phases [49].

The non-linear relationships of those isotherm models can be represented by the expressions reported in Equations (5)–(7) [47,49]:

$$\mathrm{Langmuir}\mathrm{isotherm}:q_e=\frac{q_m{K}_L{C}_e}{1+K_L{C}_e}$$

(5)

$$\mathrm{Freundlich}\mathrm{isotherm}:q_e=K_F{C}_e^{1/n_F}$$

(6)

$$\mathrm{Temkin}\mathrm{isotherm}:q_e=BLn\left(A{C}_e\right)$$

(7)

where q_e is the equilibrium adsorption capacity (mg g^–1), q_m is the maximum adsorption capacity (mg g^–1), C_e is the equilibrium CIP concentration (mg L^–1), K_L is the Langmuir constant (mg L^–1), K_F is the Freundlich adsorbent capacity, n_F is the heterogeneity factor, B (mg g⁻¹) is the Temkin constant, and A is the Temkin equilibrium binding constant (L mg^–1).

Figure 7 shows the plots of these isotherm models, and

Table 2. Isotherm parameters of CIP adsorption on nat-HA.

Isotherm	Parameters	Values
Langmuir	qm (mg g−1)	147.70
	KL (L mg−1)	0.163
	R2	0.999
	RL	0.197
Freundlich	KF	36.50
	N	3.02
	R2	0.954
Temkin	A (L mg−1)	2.25
	B (mg g−1)	28.0
	R2	0.996

lists all of their coefficients.

The Langmuir isotherm can be defined in terms of the dimensionless constant separation factor, R_L, as demonstrated by the following Equation (8):

$$R_L=\frac{1}{1+K_L{C}_0}$$

(8)

The R_L parameter is thought to be a more trustworthy indicator of adsorption [47,50]. This determines whether the form of the isotherm is unfavorable (R_L > 1), linear (R_L = 1), favorable (0 < R_L < 1), or irreversible (R_L = 0).

The Langmuir adsorption isotherm model fit the experimental data best, with the highest regression coefficient (R² = 0.999) compared to other isotherm models; it indicated that adsorption was relatively high (q_m = 147.7 mg g⁻¹). These data suggest that the adsorption of CIP onto the surface of nat-HA is due to monolayer adsorption. The R_L value of 0.197 indicates a favorable adsorption process. The Temkin adsorption potential (B ln A) was 22.68 kJ mol⁻¹, indicating that the binding between CIP molecules and nat-HA was quite weak. The Temkin model’s high correlation coefficient (R² = 0.996) indicated good linearity.

2.5. Thermodynamic Study

The adsorption process can be characterized by thermodynamic parameters, such as Gibbs free energy change (ΔG°), enthalpy change (ΔH°), and entropy change (ΔS°). The ΔG° of adsorption is calculated as follows (9):

ΔG° = − RTLnKL°

(9)

where R represents the universal gas constant (8.314 J mol⁻¹K⁻¹), T represents the temperature (K), and K_L° is the “thermodynamic” Langmuir constant for the adsorption process (dimensionless). To obtain this value from the Langmuir Equation (5), K_L (L mg⁻¹), all concentrations must be converted to the molar form and the standard state temperature must be accounted for 1 mol L⁻¹ as follows (10) [51,52]:

K_L° = K_L (L mg⁻¹) × 1000 (mg g⁻¹) × M (g mol⁻¹) × C° (mol L⁻¹)

(10)

where M = 331.4 g mol⁻¹ is the molar mass of CIP. The classical relationships were used to determine the ΔH° and ΔS° parameters as follows (11)–(12):

Ln K_L° = (ΔS°/R) − (ΔH°/RT)

(11)

ΔG° = ΔH° − TΔS°

(12)

The plot of Ln K_L° vs. 1/T (not shown) resulted in a straight line, and from the intercept and slope of these Van ’t Hoff plots, the values of ΔH° (kJ mol⁻¹) and ΔS° (J mol⁻¹K⁻¹) may be derived, respectively; ΔG° values (kJ mol⁻¹) were computed using the ΔH° and ΔS° measurements.

Table 3. Thermodynamic parameters for adsorption of CIP onto nat-HA.

T (K)	KL (L mg−1 )	KL°(× 105) (Dimensionless)	Ln KL°	∆G° (kJ mol−1)	∆H° (kJ mol−1)	∆S° (J mol−1 K−1)
298	0.1004	3.3272	10.41	−25.77	–21.09	15.72
308	0.0742	2.4589	10.11	−25.93
318	0.0588	1.9486	9.87	–26.09
328	0.0457	1.5144	9.62	–26.24

displays the thermodynamic values calculated for C₀ = 150 mg L⁻¹ and m = 1 g L⁻¹ at a pH of 8.

The negative value of ΔH° confirmed the exothermic adsorption of CIP on nat-HA; the ΔH° is <40 kJ mol⁻¹, indicating that the interaction between CIP and nat-HA is weak (physisorption) [52]. This is consistent with the suggested adsorption mechanism. During the adsorption process, the positive value of ΔS° (15.72 J mol^–1 K^–1) showed an increase in disorder at the solution/nat-HA interphase, corresponded to an increase in randomness at the solid–solute interface, and implied that CIP has a strong affinity for nat-HA. Similarly significant results were also reported in [47,53]. The value of ΔG° was negative at all the temperatures investigated, indicating that the adsorption of CIP onto nat-HA occurred spontaneously [54]. In addition, the increase in the negative value of ΔG° with temperature showed that the removal process was more advantageous at lower temperatures.

2.6. Photodegradation of CIP on TiO₂

As noted in the introduction, adsorption considerably reduces antibiotic concentrations, but not enough to meet water quality criteria. To this end, TiO₂ PC500 was used as a photocatalyst; with a band gap of ~3.2 eV, TiO₂ was activated under ultraviolet light (9 W Philips lamp). To estimate the efficacy of photodegradation of CIP on TiO₂, it is necessary to investigate the fluctuation of two crucial parameters such as the catalyst dose and the pollutant concentration (C_0r).

2.6.1. Effect of the Catalyst Dose

Figure 8a illustrates the photodegradation rate of CIP (C_0r = 30 mg L^–1) in the presence of various dosages of TiO₂ (0.4–1.4 g L^–1). When the photocatalyst dose was increased from 0.4 to 1.2 g L^–1, the photodegradation efficiency of CIP increased from 84 to ~100%. Subsequently, a minor decline was noticed when an additional catalyst was introduced. This is because the number of photoactive sites for CIP oxidation increased, and the photocatalytic activity increased at 1.2 g L⁻¹. The decrease in photoactivity was due to the opacity of the suspension, turbidity, and light scattering of the catalyst particles. The shadowing effect and the blocking and dispersion of incident light by excess TiO₂ particles also contribute to the decreased performance [36]. All of these conditions would reduce the UV light intensity on the surface of the catalyst, hence decreasing the photodegradation efficiency.

2.6.2. Effect of the Initial CIP Concentration

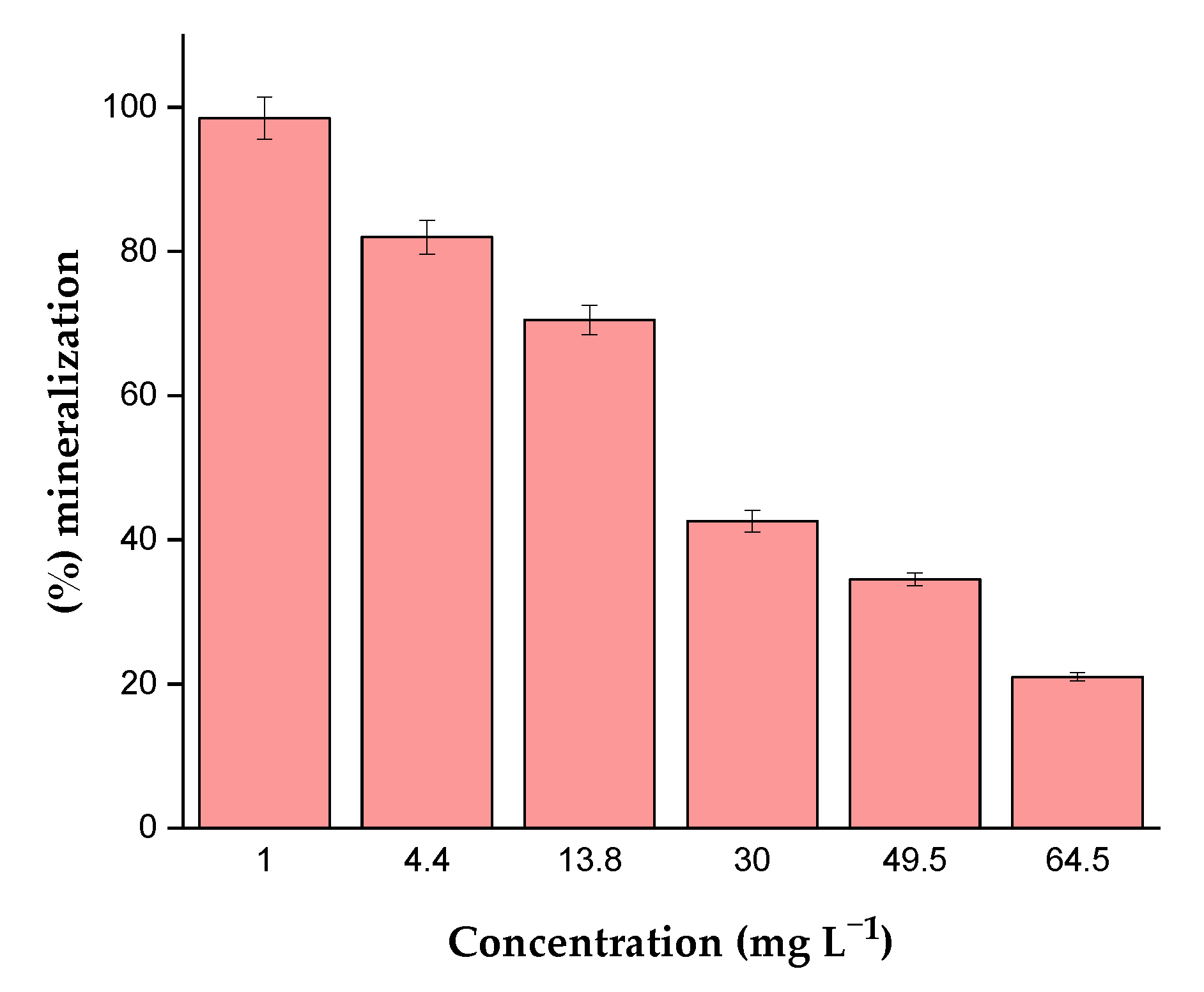

The influence of the initial concentration on photodegradation and mineralization was investigated with a fixed dose of TiO₂ (1 g L^–1) at room temperature and pH ~5 utilizing the residual concentrations after CIP adsorption C_0r (1, 4.95, 12.65, 30, 47.35, and 64.00 mg L^–1). The acquired data validated the observed trend of pollutant degradation (Figure 8b and Figure 9). Notably, as the initial CIP concentration increased, both the degradation efficiency and mineralization decreased. The highest degradation efficiency and mineralization yield were ~100% and 98.5%, respectively, for 1 mg L⁻¹ initial CIP. This can be explained by the fact that as the initial concentration of CIP increases, more molecules are adsorbed onto the photocatalyst surface. Therefore, the adsorption of O₂^•− and OH^•, which are responsible for the advanced oxidation process (AOP), is lowered on the photocatalyst. In addition, photons are prevented from reaching the photocatalyst surface and are therefore not absorbed. Consequently, elimination rates are diminished at high initial CIP concentrations [55,56]. Mineralization appears to be more responsive to variations in CIP concentration than CIP degradation. For instance, the 360 min TOC reduction is 21%, 34.5%, 42.6%, 70.5%, 82.3%, and 98.5% at 64, 47.35, 30, 12.65, 4.95, and 1 mg L⁻¹ CIP, respectively. Mineralization involves a series of processes including the oxidation of CIP photocatalytic transformation byproducts to CO₂ and water, which is less likely to occur than the partial oxidation of CIP [57,58,59,60,61,62,63].

2.6.3. Proposed Transformation Scheme of CIP Photodegradation

The photocatalytic mechanism of TiO₂ is activated by the absorption of photon hν h with energy equal to or greater than the band gap of TiO₂. This produces an electron-hole pair on the surface of the TiO₂ nanoparticle [57].

The proposed transformation scheme for the degradation of CIP over TiO₂ under UV light can be summarized as follows (13)–(23):

$$\mathrm{Photo}-\mathrm{excitation}:Ti{O}_2\stackrel{h\nu }{\to }{e}^{-}+h^{+}$$

(13)

$$\mathrm{Recombination}:e^{-}+h^{+}\to heat$$

(14)

$$\mathrm{Reduction}:O_2+e^{-}\to O_2^{•-}$$

(15)

$$O_2^{•-}+H{O}^{•}\to HO{O}^{•}$$

(16)

$$HO{O}^{•}+e^{-}\to H{O}_2^{-}$$

(17)

$$HO{O}^{-}+H^{+}\to H_2{O}_2\to H{O}^{•}$$

(18)

$$\mathrm{Photodegradation}:H{O}^{•}+CIP\to CI{P}^{•}+H_{2}O$$

(19)

$$\mathrm{Oxidation}:H_{2}O\to h^{+}+O{H}^{-}$$

(20)

$$O{H}^{-}+h^{+}\to H{O}^{•}$$

(21)

$$CIP+h^{+}\to CI{P}^{•}\to Degradationproducts$$

(22)

$$O{H}^{-}+O_2^{•-}+CIP\to C{O}_2+H_{2}O+inorganicmolecules$$

(23)

When photocatalysts absorb a photon with an energy greater than or equal to the band gap between the conduction band (CB) and the valence band (VB), an electron is promoted to the CB and a positive hole (represented by h⁺) is created in the VB. Electrons and holes that are excited can recombine and release their energy as heat, or they can become trapped in metastable surface states. In addition, they can also interact with electron donors and acceptors that have been adsorbed on the surface or in the electrical double layer of charged particles that surrounds them. Redox reactions initiated by these electron donors and acceptors could generate reactive oxygen species, including hydroxyl (OH^•) radicals and superoxide radical anions (O₂^•−). Depending on the specific conditions, these species are the main contributors towards the oxidation of organic contaminants and are significant in the photocatalytic reaction mechanism of CIP [58,59].

3. Materials and Methods

3.1. Chemicals and Materials

CIP was purchased from Sigma-Aldrich Chemical Company (Shanghai, China). The structure and the relevant physicochemical properties of CIP are shown in

Table 4. Chemical structure and physicochemical properties of CIP.

Molecular formula	C17H18O3N3F
Purity	≥98%
Molecular weight	331.4 g mol−1
pKa	pKa1 = 6.1 [60] pKa2 = 8.9 [60]
Chemical structure

. Using 0.1 mol L⁻¹ NaOH and 0.1 mol L⁻¹ HCl, pH was adjusted. In the photocatalytic experiment, TiO₂ Millennium PC500 (anatase, Sigma-Aldrich Chemical Company (Shanghai, China)) was utilized. All solutions were prepared using ultrapure water (ADRONA SIA Process and Laboratory Systems, Riga, Latvia) (Adrona, Millipore Milli-Q UV Plus, R = 18.25 Mcm).

3.2. Preparation of nat-HA

The sample of natural hydroxyapatite (nat-HA) used in this research was produced as follows. The cortical bone of mature bovines (2–3 years old) was procured from a Bouira slaughterhouse (Algeria) and washed to remove visible tissues and compounds from the surface of the bone. The material was then sliced into rectangular samples. The as-received bone samples were treated in an electric furnace (Nabertherm GmbH Lilienthal, Germany) at a temperature of 800 °C, with a heating/cooling rate of 5 °C/min and a holding time of 3 h. The sintered product was ground with a mortar and pestle and sieved through a No. 100 mesh screen.

3.3. Characterization of nat-HA

The nat-HA XRD pattern was acquired and recorded on a D8 Advance Bruker X-ray diffractometer (Karlsruhe, Germany) using Cu Kα radiation at a 2Ɵ angle ranging from 20° to 50°. With the aid of JCPDS files, the phases were identified. Fourier-transform infrared (FT-IR) spectra were recorded on a Perkin Elmer FT-IR-300 spectrometer (Japan) using the KBr pellet technique with a scan range of 400–4000 cm⁻¹. The morphology of the powder was examined with scanning electron microscopy SEM, Philips XL 30 (Eindhoven, The Netherlands). In order to better understand the adsorption mechanism of the CIP antibiotic, the point of zero charge (pH_PZC) of natural hydroxyapatite was determined [61].

3.4. Batch Adsorption and Photoactivity

3.4.1. Adsorption Study

Adsorption studies were carried out in the batch mode using 200 mL conical flasks containing a total of 100 mL of the ciprofloxacin antibiotic under pH 5 for 3 h, adding HCl or NaOH to adjust the pH of the working solution to the desired level. The solution was agitated at 300 rpm at 303 K to achieve the adsorption/desorption equilibrium. The samples were then retrieved at suitable intervals and centrifuged for 15 minutes at 3500 rpm. The residual CIP concentration was determined using a UV–Vis spectrophotometer (Agilent Technologies Cary 60 UV–Vis, Santa Clara, CA, USA) at fixed wavelength 275 nm. The influence of some key operational parameters including initial pH (3–12), C₀ (25–200 mg L⁻¹), t (1–200 min), and m (0.25–3 g L⁻¹) on the CIP adsorption capacity were studied. Under the identical conditions, each experiment was run in triplicate. The adsorption capacity (q_t) and the removal percentage (% adsorption) of CIP by nat-HA were calculated at any time (t) using the following mass balance Equations (24) and (25):

$$q_t=\left(\frac{C_0-C_t}{m}\right)\times V$$

(24)

$$\left(\%\right)adsorption=\left(\frac{C_0-C_t}{C_0}\right)\times 100$$

(25)

where C₀ and C_t (mg L⁻¹) are the CIP concentrations at time zero and time t, respectively, V (L) represents the volume of the solution, whereas m (g) represents the quantity of the nat-HA adsorbent employed.

3.4.2. Photocatalytic Experiments

The photocatalytic experiments for the remaining concentrations were carried out in a Pyrex vessel (7.5 cm height × 6 cm diameter) encircled by a thermostatically controlled water circulation system (25 ± 0.3 °C). One hundred milliliters of the remaining CIP solution and 1 g L⁻¹ of the TiO₂ PC500 photocatalyst were put into the reactor, and the solution was constantly stirred using a magnetic stirrer (200 rpm). Blank experiments were conducted under the dark condition and evidenced no CIP adsorption for 30 min. A UV lamp Philips PL-S 9W/10/2P (Amsterdam, The Netherlands) was placed inside of the cover. Before analysis, 2 mL of the aliquot were retrieved at various time intervals (1–360 min) and the solid was separated from the solution by filtration with PTFE Millipore (0.45 μm) syringe filters (Bedford, MA, USA). Under the identical conditions, each experiment was run in triplicate.

The photodegradation efficiency of CIP was calculated by applying the following Formula (26):

$$\left(\%\right)degradation=\left(\frac{C_{0r}-C_t}{C_{0r}}\right)\times 100$$

(26)

where C_0r and C_t are the remaining CIP concentration and its residual concentration at time t, respectively.

The Total Organic Carbon (TOC) was measured with a TOC analyzer (Shimadzu TOCVCSH) (Shimadzu TOC-VCSH, Japan), and the yield was obtained using the following Formula (27):

$$\left(\%\right)mineralization=\left(\frac{TO{C}_0-TO{C}_t}{TO{C}_0}\right)\times 100$$

(27)

where TOC₀ and TOC_t are the initial total organic carbon and the total organic carbon at time t, respectively.

4. Conclusions

The nat-HA employed in this study exhibited a better adsorption capacity for CIP. The Langmuir model was demonstrated to accurately fit the adsorption isotherm, indicating that adsorption happens via monolayer coverage. According to the kinetic calculations, adsorption followed the pseudo-second-order model. Adsorption is exothermic, as indicated by the negative enthalpy changes during the adsorption process. The increase in CIP concentration increased the adsorption capacity but decreased the adsorption kinetics. The value of ΔH° was <40 kJ mol⁻¹, showing that weak bonds (physisorption) were formed between CIP and nat-HA. This proposal was consistent with the hypothesized mechanism for adsorption. The positive value of ΔS° corresponded to an increase in the randomness at the solid–solute interface. The photodegradation of the remaining concentrations of CIP on TiO₂ under UV light resulted in a considerable increase in the elimination efficiency of the free radicals O₂^•− and OH^• via the conduction and valence bands, respectively. The increase in the TiO₂ dosage decreased the removal efficiency owing to the decrease in the UV intensity reaching the surface. It was demonstrated that natural hydroxyapatite could be used for pharmaceutical industrial effluent treatment.
