Highly Efficient Copper Doping LaFeO3 Perovskite for Bisphenol A Removal by Activating Peroxymonosulfate

by
Xin Zhong
1,2,*,
Junjie Liu
3,*,
Haonan Jie
2,
Wenting Wu
2 and
Fubin Jiang
1
1
Experiment and Practice Innovation Education Center, Beijing Normal University at Zhuhai, Zhuhai 519088, China
2
Department of Environmental Engineering and Science, Beijing Normal University, Zhuhai 519088, China
3
Zhuhai Xijiang Water Construction Management Co., Ltd., Zhuhai Water Environment Holdings Group Ltd., Zhuhai 519008, China
*
Authors to whom correspondence should be addressed.
Catalysts 2023, 13(3), 575; https://doi.org/10.3390/catal13030575
Submission received: 1 March 2023 / Revised: 7 March 2023 / Accepted: 7 March 2023 / Published: 12 March 2023
(This article belongs to the Topic Catalytic Applications of Transition Metals)
Browse Figures
Review Reports Versions Notes

Abstract

:
A series of copper doping LaFeO3 perovskite (LaCuxFe1−xO3, LCFO, x = 0.1, 0.4, 0.5, 0.6, 0.9) are successfully synthesized by the sol-gel method under mild conditions. In this study, it is applied for the activation of peroxymonosulfate (PMS) for bisphenol A (BPA) removal. More than 92.6% of BPA was degraded within 30 min at 0.7 g/L of LCFO and 10.0 mM of PMS over a wide pH range with limited leaching of copper and iron ions. The physical–chemical properties of the catalysts were demonstrated by using X-ray diffraction (XRD), N2 adsorption–desorption isotherms, scanning electron microscopy (SEM), and X-ray photoelectron spectroscopy (XPS). Furthermore, the effects of catalyst dosage, PMS concentration, initial pH value, and inorganic anions on the LCFO/PMS system were fully investigated. Quenching experiments were performed to verify the formation of reactive oxidant species, which showed that the radical reaction and mechanisms play a great role in the catalytic degradation of BPA. The perovskite LCFO is considered a stable, easy to synthesize, and efficient catalyst for the activation of PMS for wastewater treatment.

1. Introduction

In recent years, pharmaceuticals and personal care products (PPCPs) have been widely used and could be easily found and detected in various environmental compartments at trace concentrations [1,2,3,4,5,6]. Bisphenol A (BPA), which is used as a common chemical reagent in the production of plastics and epoxy resins, can induce endocrine dyscrasia and cancer [7,8,9]. It poses great threat to human health even at low concentrations, due to which it has attracted increasing attention in the environmental protection areas. However, the BPA removal efficiency by conventional treatment technologies is unsatisfactory due to its trace concentration and negligible removal by only a single removal technology [10]. It is important to obtain environmental-friendly treatment technology for the degradation of BPA.
On the other hand, sulfate radical-based advanced oxidation processes (SR-AOPs) have gone through a long developing process for the removal of recalcitrant organic contaminants in water [11,12,13,14]. In SR-AOPs systems, many researchers have proven that organic contaminants are mineralized by reactive oxygen species (ROS), such as sulfate radical (SO4•−), hydroxyl radical (•OH), and superoxide radical (O2•−) [15,16,17]. The sulfate radical possessed a higher standard oxidative potential (2.6–3.1 V vs. NHE) than hydroxyl radical (1.8–2.7 V vs. NHE), a longer half-life, and a wider pH range in the wastewater treatment. Moreover, sulfate radicals could be more efficient in the removal of many refractory contaminants, which also result in higher selectivity in these processes than hydroxyl radicals [18]. In general, both peroxydisulfate (PS) and peroxymonosulfate (PMS) can be activated by multiple catalysts to form sulfate radicals. However, due to its asymmetric structure, PMS has shown better decomposing efficiency than PS. Various transition metals, such as Fe [19,20,21], Cu [22,23,24], Mn [25,26,27], and Co [28,29,30,31], have been employed for the activation of PMS to generate ROS. Among the various catalysts, perovskites have been explored for use in dissociating PMS to remove organic contaminants from water to obtain high catalytic activity.
Perovskites have high thermal stability due to their ABO3 formula, which gives them a unique oxidation state of the lattice oxygen in the perovskite materials. The A site cations consist of alkaline or rare earth metals ions where the B site can be consisted of transition metal ions [32,33,34,35,36]. Compared with the metal oxides catalysts, the structure and physicochemical properties endowed perovskites with flexible tuned structure to perform ideal catalyst functions for PMS activation with good catalytic activity. Perovskites can be easily separated from water to avoid secondary pollution to the environment, which can also prevent the aggregation problem in the metal oxides, showing good process stability in the process. Many studies have shown that partial substitution of B sites by transition metals can generate a defective perovskite structure, which is beneficial for catalytic activity related to the improvement of oxygen mobility [37].
It is known that cobalt ions are the most effective activator for PMS [38]. However, the Fe-based perovskites have been paid more attention due to low cost and low toxicity in contrast to Co-based perovskites. On the other hand, Cu-based perovskites can also efficiently decompose PMS in order to generate reactive oxidant species. It is really interesting to introduce copper ions in the LaFeO3 perovskites for the degradation of pollutants [39]. The excellent catalytic properties of Cu-based and Fe-based perovskites, such as La2CuO4 [40], LaFeO3 [41], and LaFe1−xCoxO3 [42], can be attributed to the presence of foreign element maintained in the structure and modified physicochemical properties. The presence of foreign elements in the perovskites and transition metal species create excellent catalytic activity. The change in perovskites structure facilitate the electron transfers from the transition metals to PMS, producing more ROS in the process. The formed metal-O bonds can boost the electron transfer between the redox pairs of Fe(III)/Fe(II) and Cu(II)/Cu(I), leading to the improvement of catalytic activity. The perovskite LaAxB1−xO3 (A or B = Co, Fe, Cu) is expected to be an efficient catalytic material in SR-AOPs [43]. In perovskite, the cation at both A and B sites can be substituted by a foreign one, making it feasible to control the valance state of cations without detriment of original crystal structure [44]. The capability of electron transfer is influenced by the La site and Fe/Cu sites in the redox reactions, which would be enhanced by the presence of the A–O–M bond, further leading to better catalytic activity. In this case, the Cu-doped LaFeO3 perovskite catalyst would give an interesting insight into the synergistic strategy between bimetallic active ions in perovskite structure and the heterogeneous catalyst activating PMS to remove the refractory chemicals in water. To the best of our knowledge, studies focused on Cu-doped LaFeO3 perovskites for PMS activation for BPA removal are still rare.
In this study, Cu doping LaFeO3 perovskite oxide, LaCuxFe1−xO3 (LCFO), was fabricated via the sol-gel methods and used as a catalytic activator for PMS to remove BPA from water. The physicochemical properties and morphology of LCFO have been systematically characterized by many techniques. In addition, the effects of different experimental conditions on the BPA degradation efficiency and different water matrices, including pure water, lake water, and sea water, have been tested in order to find the utility in actual water treatment. Further experiments, such as reusability, kinetics, and reaction mechanism, have been carried out to evaluate the actual application potential of LCFO. This research offers creative ideas about the high catalytic activity of LCFO in the decomposition of PMS, which provides a new way to illustrate the mechanism of the LCFO/PMS process in actual wastewater.

2. Results

2.1. Physicochemical Characteristics of LCFO

For the LCFO catalysts, the actual content of metals followed the named content. The X-ray powder diffraction patterns of the LaCuxFe1−xO3 perovskites are shown in Figure 1a,c,d. It was observed that with Cu doping into the structure of LaFeO3, the perovskite phase is maintained without the diffraction peaks of copper oxides as the x = 0.1–0.5. While for x = 0.6 and 0.9 in the diffractograms, i.e., the copper content increased in the LaFeO3 perovskite, some impurity peaks assigned to La2CuO4 (PDF card: 80–0063) and CuOx could be formed, as has been previously reported [45]. Accordingly, the impurity peak intensity in the composites increased as the amount of copper content increased. However, the characteristic diffraction peak of LaFeO3 at 32.3° weakened as the copper content increased in LCFO-5. As shown in Figure 1c, the results show that the diffraction peaks corresponding to 121 planes shifted slightly toward the higher 2θ angle with the increase in x ratio. The results could be ascribed to the replacement of Fe by Cu element which aroused the increment of unit cell parameters due to the different ionic radii of copper and iron (Cu: 0.73 Å, Fe: 0.63 Å) [46,47,48]. The results confirmed the existence of copper and iron in the perovskite lattice. To estimate its catalytic stability, the XRD pattern of used LCFO-4 catalyst was also explored. No remarkable changes appeared in the XRD patterns of the used catalyst. However, it is observed that the intensity of peaks around ~29.2° and ~35.4° declined. The difference between fresh and used catalyst might be attributed to leaching metal ions which caused the loss of reactive sites in the original perovskite. The results demonstrate that the main perovskite structure remained during the reaction.
The FTIR spectra illustrate the surface functional groups in the LCFO catalyst and verified the doping Cu strategy in perovskite LaFeO3. As shown in Figure 1b, the low intensity band at 563 cm−1 and 439 cm−1 is considered to represent the stretching vibrations of Fe–O and O–Fe–O deformation vibrations. In addition, the peak was observed slightly shifted toward higher wavenumbers with increasing Cu doping in the LaFeO3 structure since the Fe was partially substituted by Cu [49,50,51,52]. For the used catalyst, the bands remained during the reaction with similar intensity.
The N2 adsorption/desorption isotherms of LCO-4 catalysts are also summarized and shown in Figure 2a. The BET surface area of LCFO-4 was found to be 10.8 m2/g, and the particle size was determined to be 40.4 nm. The type IV isotherm indicates the presence of mesopores in the catalyst, which could indicate good catalytic activity in the degradation of BPA.
The morphologies of the LCFO-4 catalyst were determined by SEM-EDS. As seen in Figure 2b–d, it was observed that the catalyst consists of a honeycomb-like structure with spheroidal particles in the size of 40–50 nm. An examination of the EDS spectra was also carried out to estimate the elemental composition of the nanoparticles. The La/Cu and La/Fe atomic ratios were calculated to be 0.6 and 0.4, respectively, which are very close to the stoichiometry atomic ratio of LCFO-4 (x = 0.6). Meanwhile, the atomic ratio O/Cu-Fe was determined to be 3.65, which is in good agreement with the stoichiometric ratio. The atomic mapping images also show that the four elements were highly dispersed over the as-prepared LCFO-4 sample [53].
The surface chemistry characteristics of the fresh LCFO-4 and used LCFO-4 were determined by examining the XPS spectra in Figure 3. In the XPS survey spectra, the characteristic peaks of four elements (La, Cu, Fe, O) were observed, which illustrate the chemical composition of the LCFO-4 sample. The XPS spectra of as-synthesized catalysts showed the reaction roles of the Cu and Fe species that act as an electron acceptor [50,51,52]. It was observed that the peaks centered at 834.6 eV and 851.5 eV with corresponding satellite peaks located at 838.1 and 854.9 eV could be attributed to La 3d. For C 1s XPS spectra (Figure 3c), the peak centered at 284.6 eV could be assigned to the variable carbon adsorbed on the surface or the C–C coordination in the sample. And the peak at 288.7 eV was attributed to the bonded C=N or C–N of CN. The high-resolution Cu 2p and Fe 3p XPS spectra are shown in Figure 3d,e. The peaks and corresponding satellite peaks at approximately 709.8 eV and 723.3 eV were assigned to Fe species. Meanwhile, the peaks located at 932.4 eV indicate the presence of Cu(I) with the molar content of 58.7%, and the other peaks centered at 934.2 eV with the molar content of 41.3% belonged to Cu(II). The quantified atomic ratios of Cu(I) and Fe(II) are quantified as 41.8% and 32.1% in the used catalyst after use, respectively, indicating that the redox reaction between Cu and Fe occurred in the reaction. Four deconvoluted peaks at 528.5 eV, 529.4 eV, 531.6 eV, and 532.8 eV are found in the high-resolution of O spectra, which could be attributed to lattice oxygen, surface oxygen species, hydroxyl groups, and absorbed water, respectively.

2.2. Catalytic Activity of Catalyst

To analyze the influence of the LCFO-4 activation for PMS on the degradation of BPA, the experiments were performed with the same experimental parameters previously used. As shown in Figure 4a, only a little removal of BPA (approximately 1.4%) was observed in the presence of LCFO-4 alone, which could be attributed to the low adsorption efficiency of BPA on the surface of LCFO-4. Moreover, the degradation efficiency was less than 8.3% in the 30 min reaction without the addition of the LCFO-4 catalyst by using PMS alone. The results indicated that BPA was hardly removed from the water by only PMS or only catalyst, indicating that the formation of reactive radicals played a great role in the SR-AOP processes [54,55,56]. With the increasing addition of copper element, the removal efficiency of BPA degradation performance of the samples increased first, but decreased with further addition of copper content. Compared to the other samples, LCFO-4 displayed the best performance. With the presence of pure La2CuO4 and pure LaFeO3, the removal efficiency of BPA was 89.1% and 67.3% in 30 min reaction. The presence of PMS and LCFO-4 showed a great decline in BPA concentration (92.7%). The synergy between the impurity phases in the original LCFO-4 catalyst might affect the catalytic activity. Meanwhile, the activation of PMS by homogeneous copper and iron ions was responsible for 31.2% degradation of BPA. Therefore, it is reasonably speculated that due to the presence of LCFO-4, LCFO-4 was responsible for the activation of the PMS to generate reactive species for the high degradation efficiency of BPA.

2.3. Effect of Catalyst Dosage

It is studied that the heterogeneous catalyst played a key role in the formation of reactive species for PMS activation [57]. In order to investigate the effect of catalyst dosage on the activation of PMS, a series of catalyst dosage were employed in the heterogeneous catalyst/PMS process. Figure 5 show the effect of catalyst dosage on BPA removal efficiency and kinetic rate. When the dosage of LCFO-4 was varied from 0.1 g/L to 0.7 g/L, the BPA removal efficiency increased from 29.2% to 92.7% and corresponding k values increased from 0.0104 min−1 to 0.0828 min−1 within 30 min. While the catalyst dosage increased from 0.7 g/L to 1.0 g/L, although the remove efficiency reached to 94.3%, the increase in reaction rate constant increasement slowed down, as the corresponding k value increased from 0.0828 min−1 to 0.0972 min−1. This might be attributed to the fact that more active sites were provided in the reaction due to the increase in catalyst dosage, enhanced PMS activation, and the increased free radicals formed by activation of PMS. Therefore, the BPA removal efficiency and rate were both accelerated with the increase in catalyst dosage; when the amount of catalyst was greater than 0.7 g/L, more active sites were exposed in the reaction with more free radicals, where the quenching experiments would appear, resulting in a reduced reaction rate. For the economic consideration, 0.7 g/L was chosen as the catalyst dosage for the sequenced experiments.
•OH + •OH → H2O2
SO4•− + SO4•− → S2O82−
SO4•− + •OH → HSO5−

2.4. Effect of PMS Concentration

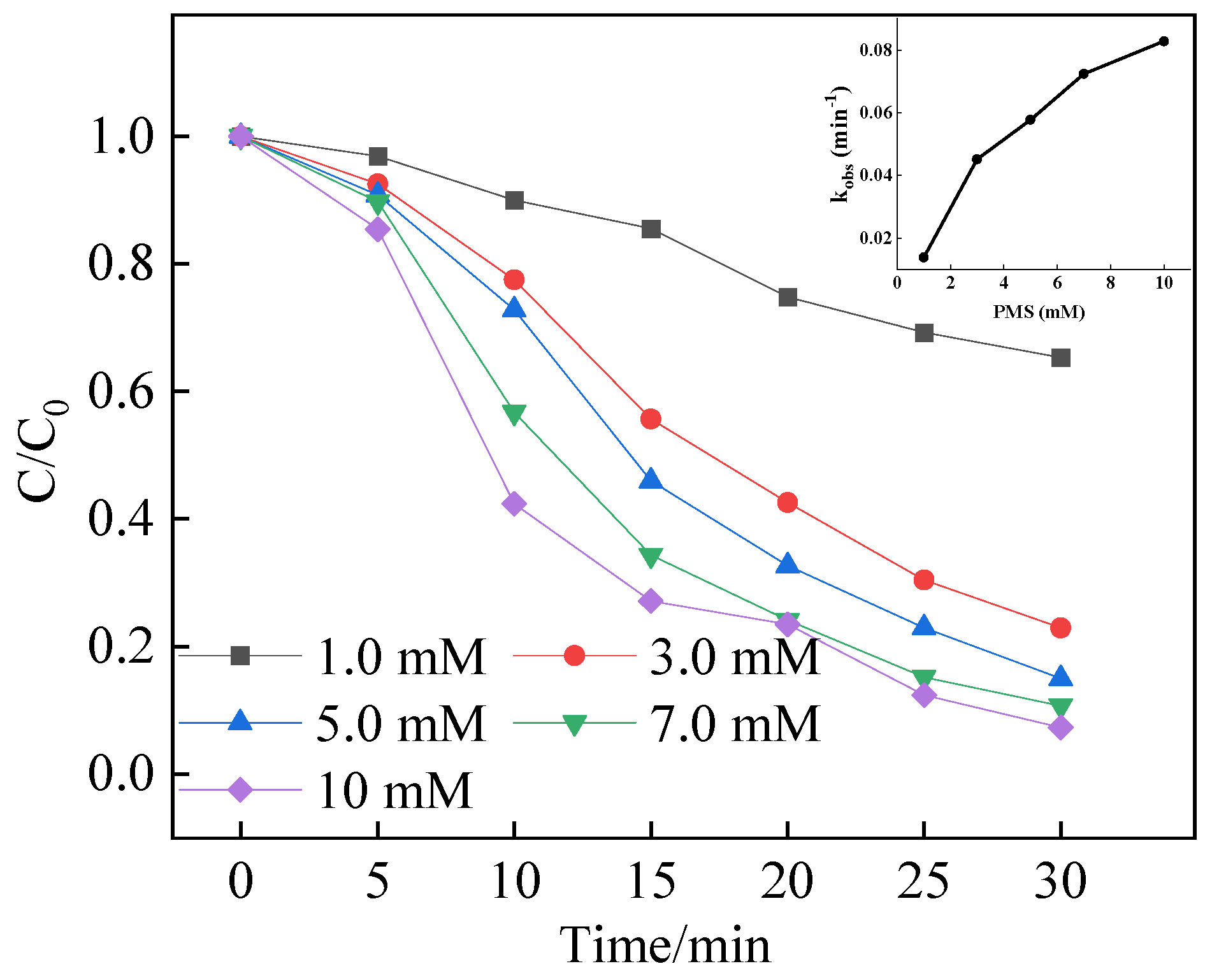

On the other hand, a variation in PMS concentration would also affect the removal efficiency as the reaction oxidant [58]. As shown in Figure 6, with the PMS concentration ranging from 1.0 mM to 10 mM, the removal of BPA was significantly improved from 34.7% to 92.7%, and the reaction rate constant changed from 0.0138 min−1 to 0.0828 min−1. These results illustrated the fact that the LCFO-4 catalyst is an effective activator for PMS decomposition, leading to more reactive oxygen species during the reaction.

2.5. Effect of pH Value

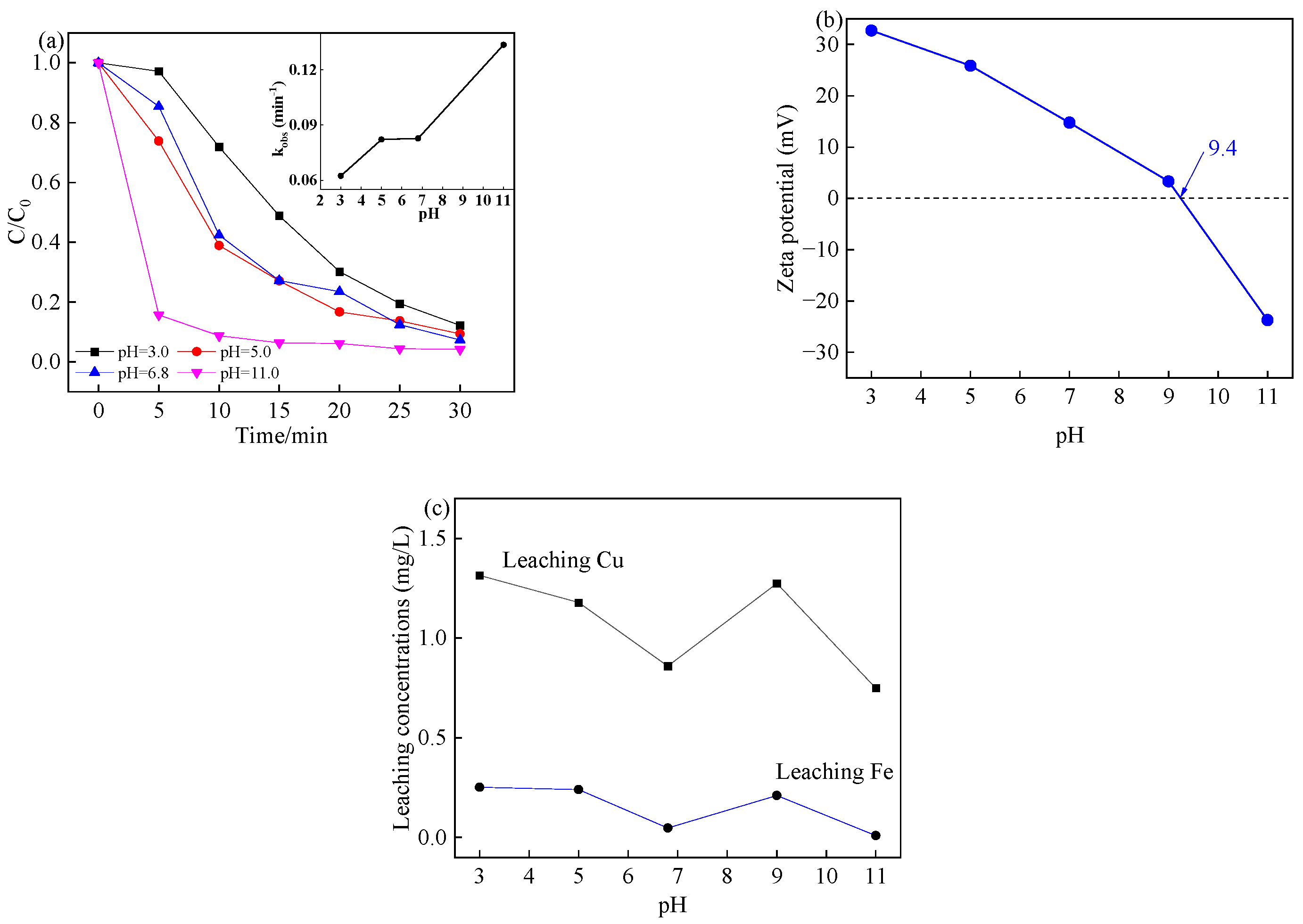

The effect of the initial pH was investigated and shown in Figure 7. As the solution pH changed from 3.0 to 6.8, the BPA elimination process was enhanced, while the removal efficiency increased from 87.1% to 92.7%, and the reaction rate constant ranged from 0.0624 min−1 to 0.0828 min−1. It was studied that the solution pH values were quickly changed to around 4.5 during the whole reaction time under these pH values. This could be responsible for the similar BPA removal efficiency. The zeta potential was investigated and shown in Figure 7b. The isoelectric point of LCFO-4 is around 9.4, indicating the catalyst surface was charged when the pH is lower than 9.4. In this case, contact between HSO5− and LCFO surfaces would be more feasible, which is the major PMS species under 9.4, favoring the following PMS activation. With the solution pH raised to 11.0, the degradation efficiency was further enhanced to the point where 100% removal efficiency was achieved in 30 min. These results show that the base activation conditions facilitated the decomposition of PMS, leading to the higher degradation efficiency, which is in good agreement with the previous studies [59,60,61,62]. On the other hand, the structure of the catalyst would be destroyed by the acidic conditions, leading to lower catalytic activity. The metal leaching was also tested under different pH values, as seen in Figure 7c. The results indicated that the LCFO-4 catalyst was stable in a wide range of pH, presenting good stability in the reaction.

2.6. Effect of Co-Existing Ions

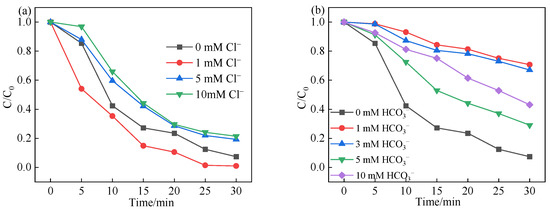

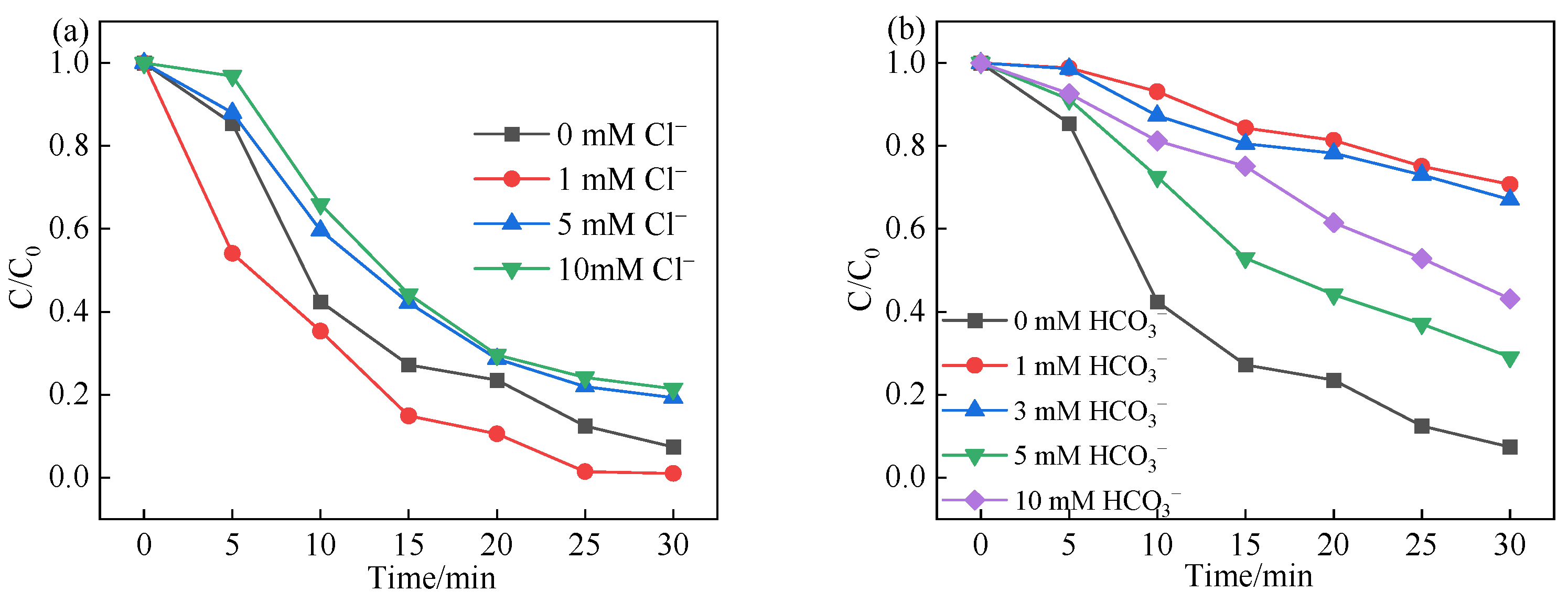

Inorganic anions are considered as a reactant that can also compete with the reactive species or react with them to form new reactive species. In this study, the effects of Cl− and HCO3− on BPA degradation were analyzed. As can be seen in Figure 8a, with the addition of chloride ions, the removal efficiency of BPA was approximately approached to 100% when the presence of 1.0 mM chloride ions was added in the systems. The reason could be ascribed to the reaction between Cl– and free radicals which caused the formation of •Cl and •ClOH, as shown in Equations (5)–(7) [63,64,65,66]. Despite the redox potential of these species is lower than that of hydroxyl radicals and sulfate radicals, the reaction rate constants were high which showed good attack ability against BPA. In conclusion, lower concentration of Cl− showed good BPA removal efficiency in this system which is in agreement with the other reports [67,68,69]. On the other hand, with the presence of 5.0 mM and 10.0 mM Cl−, it was observed that the BPA removal efficiency went through inhibition as the concentration of Cl− increased. The results could be ascribed to the side reaction between the Cl− and reactive species (HSO5−/•OH/SO4•−) to generate chlorine species, which have lower redox potential values than hydroxyl radical and sulfate radical and lead to the consumption of the oxidant reactant.
Cl− + HSO5− → SO42− + HClO
Cl− + SO4•− → •Cl + SO42−
Cl− + •OH → •ClOH
•ClOH + H+ → •Cl + H2O
•Cl + Cl− → •Cl2−
It has been reported that the presence of HCO3− can capture the hydroxyl radicals and sulfate radicals, leading to the formation of less reactive carbonate radicals [64]. The degradation efficiency of BPA decreased from 91.0% to 42.0% within 30 min with increasing HCO3− concentration from 0 to 5 mmol/L. The kobs values declined from 0.030 min−1 to 0.0170 min−1. The results could be ascribed to the fact that the solution pH value would change with the addition of HCO3−. When the addition of HCO3− was 1.0 mM, 3.0 mM, 5.0 mM, and 10.0 mM, the solution pH was 3.25, 3.65, 4.31 and 5.97, respectively. Unlike the effect of choline ions, in the presence of HCO3− anions, there is an obvious decrease in the catalytic activity of the system with the addition of HCO3− compared to Cl−. These results may be attributed to the rapid speed of bicarbonate anions with sulfate and hydroxyl radicals with the formation of lower redox potential (HCO3•−/CO3•−), leading to negative impact on BPA degradation. Based on the above reasons, HCO3− presented stronger influence on the catalytic degradation than that of Cl−.
•OH + HCO3− → CO3•− + H2O
SO4•− + HCO3− → CO3•− + SO42− + H+

2.7. Identification of Reactive Oxidant Species

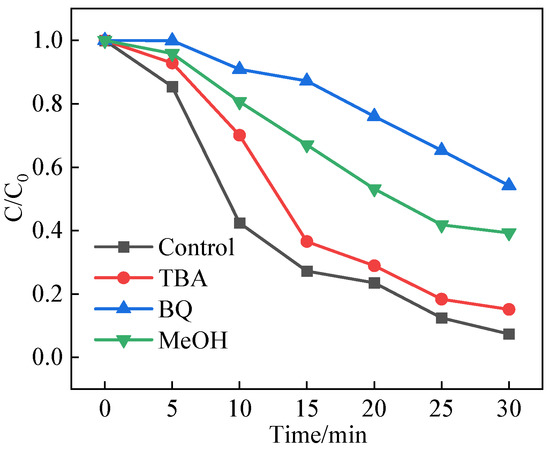

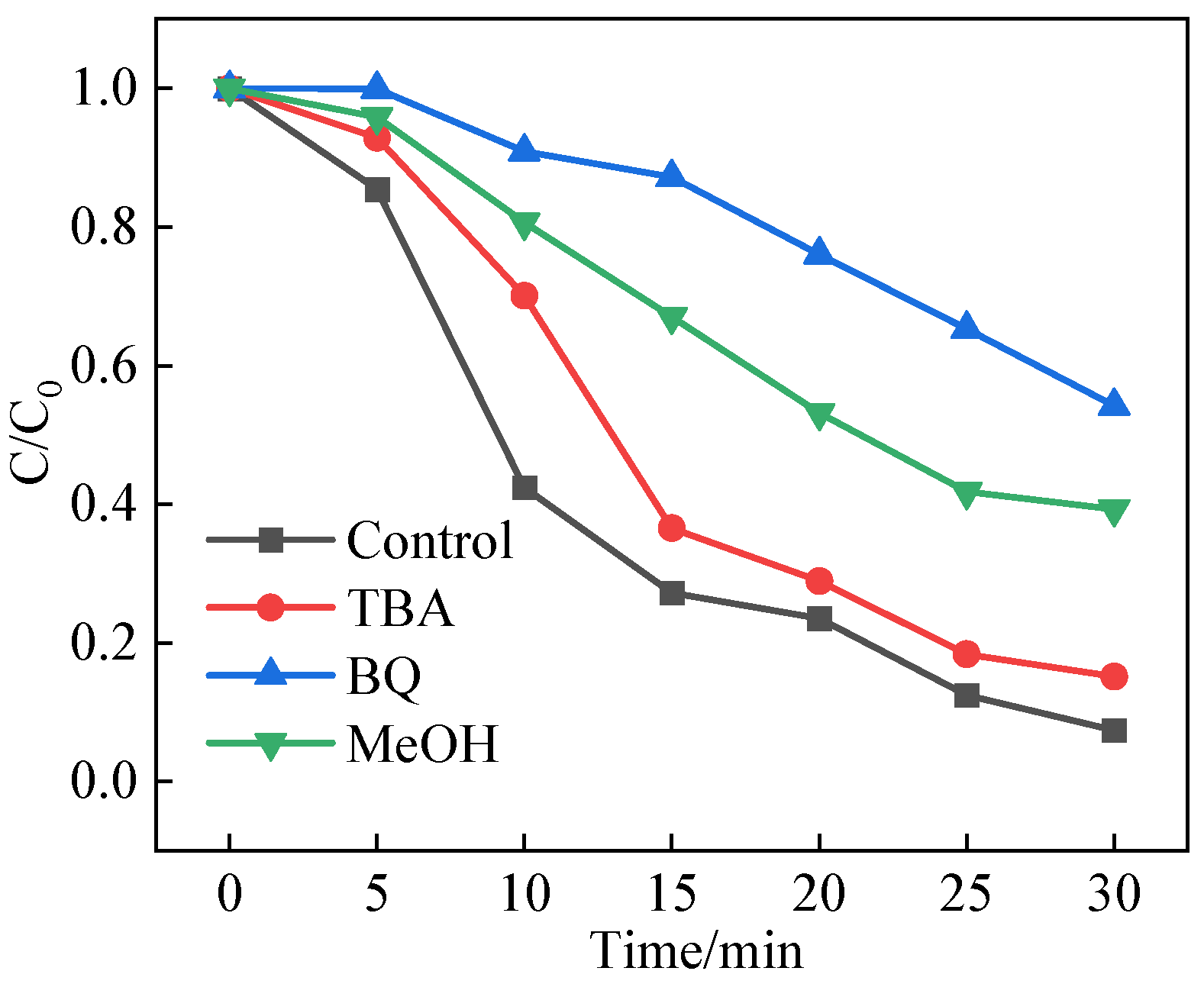

A series of quenching experiments were carried out to identify the dominant reactive radicals by using tert-butyl alcohol (TBA), p-benzoquinone (BQ), and methanol (MeOH) as scavenger of free radicals. It has been reported that TBA is an effective quenching chemical for •OH (k = 4–9 × 105 M−1s−1), whereas BQ is a scavenger for superoxide (k = 2.9 × 109 M−1s−1), and MeOH is used for both •OH (k = 1.2–1.8 × 109 M−1s−1) and SO4•−(k = 1.6–7.8 × 107 M−1s−1) [65,66,67]. As can be seen in Figure 9, the results showed that the addition of TBA decreased the removal efficiency of BPA to 84.9%, and the addition of MeOH decreased the removal efficiency of BPA to 60.7%, implying both the sulfate radical and hydroxyl radical played a great role in the degradation of BPA in the PMS/LCFO system. Thus, the degradation efficiency decreased from 92.7% to 45.8% with the addition of BQ within 10 min, indicating that the superoxide was generated in the PMS/LCFO-4 system. These results can be ascribed to the scavenging effect of hydroxyl radicals to BQ and the superoxide suffered shorter half-life than that of sulfate radicals and hydroxyl radicals. In addition, the above results proved that both hydroxyl radicals and sulfate radicals are the important reactive oxidants in the heterogenous catalysis system.

3. Mechanism of the PMS Activation on LCFO

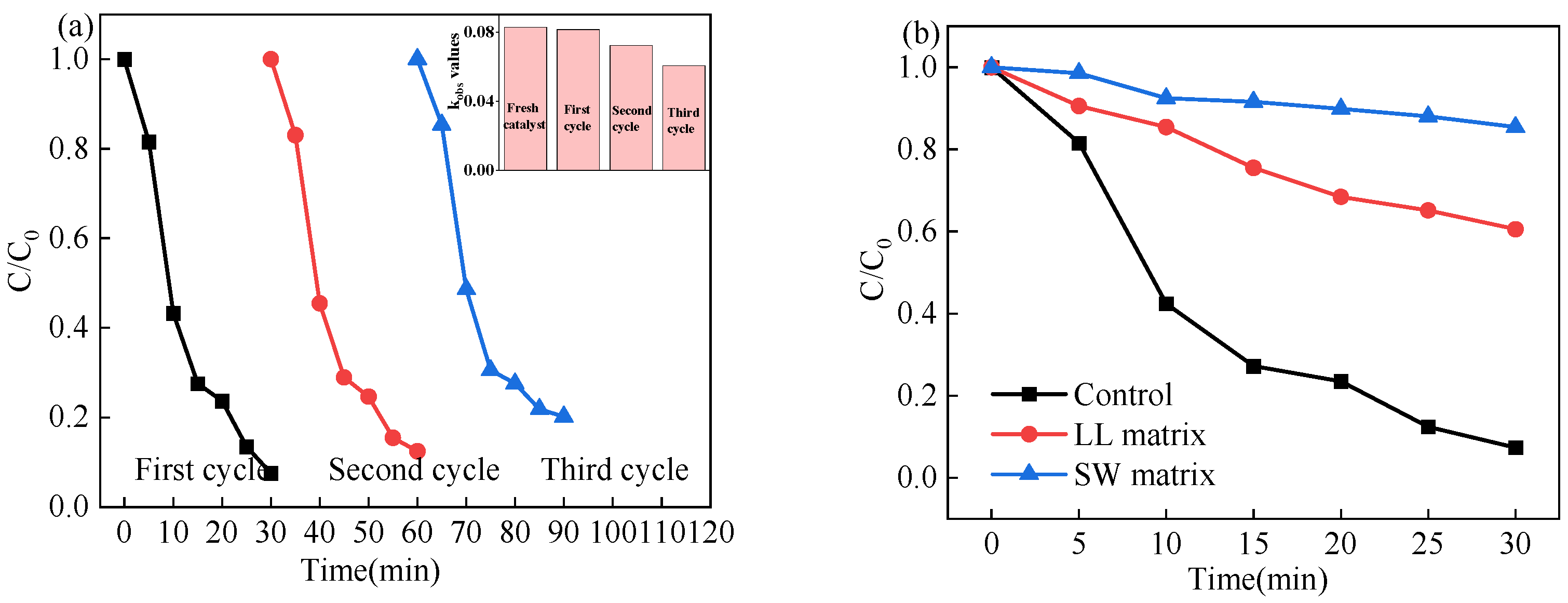

Reusability experiments were carried out to verify the stability of the LCFO catalyst. The degradation efficiencies were 92.5%, 87.6%, and 79.8% for three times, respectively, as shown in Figure 10a. Moreover, the kobs values are 0.0814 min−1, 0.0723 min−1, and 0.0605 min−1, respectively, which are lower than that of fresh catalyst. Although the degradation efficiency was maintained in the recycle experiments, the rate constant was declined during the experiments. This could be ascribed to the leaching metal ions after each reaction since the loss of reactive sites. On the other hand, the reactive sites could be occupied by the produced intermediates which could also affect the degradation efficiency and the rate of speed of reaction.
However, the typical degradation experiments were performed in pure water. In addition, the feasibility of using LCFO catalysts for practical applications was also carried out by investigating different water matrices, including Lake LiZe water (LL) and sea water (SW). As can be seen in Figure 10b, nearly 39.5% and 14.6% of BPA was removed from the LL and SW matrices, respectively. The removal efficiency was lower than that found in pure water, which is attributed to the coexisting ions, leading to the consumption of reactive species and oxidants. The LCFO-4/PMS system had showed high catalytic activity in different water matrices, demonstrating its feasibility and stability for use in various water matrices [68,69,70]. During the catalytic cycles, metal leaching was also explored to investigate the stability of LCFO catalyst. The leaching iron and copper ions were 0.048 and 0.859 mg/L after the catalytic reaction, which might be responsible for the reduced catalytic efficiency in the sequence usage. For investigating the contribution of homogeneous metal leaching, the experiment of leaching concentration of iron and copper ions was performed. An observed 31.2% degradation of BPA was obtained which is much lower than that in heterogeneous catalytic system. As a result, the contribution of homogeneous catalytic process was limited as the catalytic activation of PMS played a great role in the BPA removal.
TOC experiments were also used to investigate the mineralization of BPA under optimal reaction conditions. The TOC degradation was 56.8% in the LCFO-4/PMS system, showing good efficiency for the mineralization of BPA, which was in good agreement with the degradation efficiency of BPA. Moreover, the LCFO-4/PMS systems were also employed for the degradation of other organic contaminants, such as Orange II, Rhodamine B (RhB), and levofloxacin (LFX). The degradation efficiency values of Orange II and RhB were 100% in a 15 min reaction time, whereas the degradation efficiencies values of LFX were approximately 70.8%. The results showed that LCFO was an effective catalyst for many common organic pollutants, especially for the removal of dyes.
It has been reported that copper and iron elements are able to activate PMS to generate the sulfate radicals and hydroxyl radicals [69]. The La peak can be observed that there are two double peaks in the spectra. One peak was located at 834.6 eV with satellite peaks located at 838.1 eV, and the other peak was located at 851.5 eV with satellite peaks located at 854.9 eV. There is nearly no change in La valence of LCFO-4 before and after the catalytic reactions. The Cu 2p peaks can be divided into two peaks with binding energies of 932.4 eV and 934.2 eV, which indicate the presence of Cu(I) with the content of 58.7%. The peak observed at 709.8 eV with a satellite peak at 709.3 eV in the XPS spectra of Fe 2p was assigned to Fe 2p 1/2. The peak of Fe 2p 3/2 centered at 721.3 eV was considered to be Fe(III) species. In the used LCFO-4 catalysts, the relative Cu(I) and Fe(II) contents decreased after catalytic process, indicating the presence of electron transfer between the surface of the catalyst and the PMS. The O 1s XPS spectra of fresh and used LCFO-4 can be deconvoluted into four peaks located at 528.5, 529.4, 531.6, and 532.8 eV, which are responsible for the O2−, absorbed oxygen species, and the hydroxyl groups of the adsorbed H2O. The O2− peak content slightly decreased while the absorbed oxygen increased in the used catalyst, indicating that the O2− participated in the catalytic performance.
Based on these results and previous study, the mechanism of the LCFO-4 activation of PMS for BPA removal was inferred [70]. At first, PMS can be directly activated by Cu(II)/Cu(I) and Fe(III)/Fe(II) on the surface of LCFO catalyst, leading to the generation of sulfate radicals and hydroxyl radicals. In the meantime, the HSO5− could be converted to hydroxyl sites through the hydrogen bonds which formed by the reaction between copper/iron states and H2O molecules. The HSO5− was further reduced to sulfate radicals and combined to generate sulfate radicals. Moreover, the vacancies in the structure also played a great role in PMS activation, which led to the presence of redox reactions and facilitated the electron transfer with PMS on the surface of the LCFO catalyst. Moreover, non-radical mechanism was also detected in this process. Through the reaction between HSO5− absorbed on LCFO and vacancies, the Oo× was formed and participated in the reaction which represents the oxygen ions in a normal oxygen site. During the generation of Oo×, the singlet oxygen was formed. On the other hand, singlet oxygen (1O2) was also generated by the self-decomposition of PMS, which is very slow and not detect in this study due to its low concentration. These reactive species noted above, can participate in the conversion removal of BPA to intermediates or end with full mineralization.
Catalyst-Cu(I) + HSO5− → Catalyst-Cu(II)+ SO4•− + •OH
Catalyst-Cu(II) + HSO5− → Catalyst-Cu(I) + SO5− + H+
Catalyst-Fe(II) + HSO5− → Catalyst-Fe(III) + SO4•− + •OH
Catalyst-Fe(III) + HSO5− + H+ + O* → Catalyst-Fe(II) + SO5− + H2O
Catalyst-Fe(II)-OH− + HSO5− → Catalyst-Fe(III)-OH− + SO4•−
Catalyst-Cu(I)-OH− + HSO5− → Catalyst-Cu(II)-OH− + SO4•−
HSO5− + •OH → SO5•− + H2O
SO5•− + SO5•− → SO4•− + SO4•− + O2
HSO5− + O* → HSO4− + 1O2
HSO5− + SO52− → HSO4− + SO42− + 1O2
SO4•− + H2O → •OH + SO42− + H+

4. Materials and Methods

4.1. Chemicals

The chemical reagents were all analytical grade and used without further purification. The solutions were prepared with deionized water. Different water matrices, such as lake water (LiZe Lake in Zhuhai) and sea water (Zhuhai), were also introduced in the experiments for which only filtration of the floating impurities was done.

4.2. Preparation of LCFO

The sol-gel method was employed to synthesize LCFO particles. First, 10 mmol citric acid was dissolved in 5 mL deionized water. Then, 5 mmol La(NO3)3·6H2O was added into the solution with a certain amount of Cu(NO3)2·3H2O and Fe(NO3)3·9H2O. The homogenous solution was slowly heated to 80 °C to evaporate the water and continuously stirred for 2 h until the gel was found. The gel was dried at 110 °C in an oven, and calcined at 250 °C for 4 h to obtain a brown powder. The powder was secondarily calcined at 700 °C for 4 h. The serious LCFO catalyst was denoted as LCFO-1 (x = 0.1), LCFO-2 (x = 0.4), LCFO-3 (x = 0.5), LCFO-4 (x = 0.6), LCFO-5 (x = 0.9).

4.3. Experimental Procedures

In this study, a certain amount of PMS was added to a 250 mL glass beaker containing 100 mL of a 0.05 mM BPA solution at a neutral pH value. The pH of the solution was adjusted by 0.1 M H2SO4 and 0.1 M NaOH. The reaction was performed at room temperature (25 ± 2 °C) with magnetic stirring at 600 rpm. First, 0.5 g/L LCFO catalyst was added to the BPA solution under stirring. At time intervals of 5 min, 1 mL samples were collected by syringe and filtered through 0.22 μm membranes to remove the catalyst, and then the sample was mixed with 10 μL methanol (MeOH) to terminate the reactive radical reaction before analysis by high-performance liquid chromatography (HPLC, LC16, Shimadzu, Kyoto, Japan). The experiments were performed three times, and the average value was used.

4.4. Catalyst Characterization and Analytical Methods

The concentration of BPA was measured via a high-pressure liquid chromatography (HPLC) system (LC16, Shimadzu, Kyoto, Japan) equipped with a C18 (4.6 mm × 150 mm, 5 mm) column and a UV detector set at 280 nm. The mobile phase was 70% methanol and 30% ultrapure water, and the flow was set to 1.0 mL/min. To verify the reaction kinetics of BPA degradation in the LCFO/PMS process, a pseudo first-order kinetic model was employed. The degradation reaction rate constant of BPA was determined according to Equation (1):
ln(C0/Ct) = kobs × t
where C0 is the initial BPA concentration of 0.05 M, Ct is the BPA concentration during the degradation process, kobs represents the pseudo first-order reaction rate constant (min−1), and t is the reaction time.
X-ray diffraction (XRD) patterns were obtained using a Bruker D8 ADVANCE X-ray diffractometer (Bruker AXS, Karlsruhe, Germany) with graphite monochromatic Cu Kα radiation (λ = 1.54 Å) at an accelerating voltage of 40 kV and a current of 30 mA over a 2θ scanning range of 10–80°. Scanning electron microscopy (SEM) was performed on a Hitachi SU8220 (Hitachi Corporation, Tokyo, Japan) field emission X-ray energy dispersive spectra (EDS) instrument to determine the element distribution. X-ray photoelectron spectroscopy (XPS) was conducted to obtain surface chemical information with a Thermo Fisher ESCALAB250Xi (Thermo Fisher Scientific, Waltham, MA, USA). The diffuse reflectance spectra (DRS) were obtained using an ultraviolet-visible-near infrared spectrophotometer with Shimadzu UV-3600 Plus (Shimadzu, Kyoto, Japan). The textural properties of the samples were analyzed by N2 adsorption–desorption technology using an automatic Micromeritics Instrument Corporation TriStar II 3020 (Micromeritics Instrument Corporation, Norcross, GA, USA). The TOC analyzer (XPERT-TOC/TNb, Trace Elemental Instruments, Delft, The Netherlands) was introduced to determine the mineralization level of BPA. In the typical quenching experiments, methanol (MeOH) is employed to capture hydroxyl radicals (•OH) and sulfate radicals (SO4•−). Tert-butyl alcohol (TBA) is used for scavenging hydroxyl radicals (•OH), and benzoquinone (BQ) is used to scavenge superoxide radical (O2•−).

5. Conclusions

In this study, the perovskite LaCuxFe1−xO3 was successfully synthesized through the sol-gel method and showed excellent catalytic activity for the removal of BPA. The BPA removal efficiency was approximately 92.6% in 30 min with the addition of 10.0 mM PMS and 0.7 g/L CFO-4. The hydroxyl radical (•OH) and sulfate radicals (SO4•−) are considered as the main reactive species in this system. The stability and reusability of the catalytic performance were verified through three reaction cycles with limited amounts of copper and iron ions leaching into the solution. In summary, this study provides an efficient strategy to determine the catalytic potential of partial substitution of B site in perovskite for PMS activation toward the removal of refractory organic chemicals in wastewater treatment.

Author Contributions

Methodology, X.Z.; investigation, W.W., H.J. and X.Z.; resources, X.Z. and F.J.; writing—original draft preparation, X.Z.; writing—review and editing, X.Z.; project administration, X.Z., J.L. and F.J. All authors have read and agreed to the published version of the manuscript.

Funding

This work is financially supported by the Project of Innovative Foundation of Guangdong Province of China (Grant No. 2022KTSCX206), Project of Innovative Foundation of Guangdong Province of China (Grant No. 2020KTSCX177), Promotion Project Funds of Beijing Normal University, Zhuhai (Grant No. 201850001), Quality Engineering Project of Beijing Normal University, Zhuhai (Grant No. 201832) and Plan of Youth Teachers of Guangdong Higher Education Association (Grant No. 19GYB060).

Data Availability Statement

The authors confirm that the data supporting the findings of this study are available within the article.

Acknowledgments

We acknowledge the financial support from the Project of Youth Innovative Foundation of Guangdong Province of China, Science Promotion Project Funds of Beijing Normal University, Zhuhai, Quality Engineering Project of Beijing Normal University, Zhuhai and Plan of Youth Teachers of Guangdong Higher Education Association for help in XRD, SEM, TEM, and XPS analysis.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kumar, A.; Khan, M.; He, J.; Lo, I.M.C. Recent developments and challenges in practical application of visible-light-driven TiO2-based heterojunctions for PPCP degradation: A critical review. Water Res. 2020, 170, 115356. [Google Scholar] [CrossRef] [PubMed]
  2. He, M.J.; Wan, Z.H.; Tsang, D.C.W.; Sun, Y.Q.; Khan, E.; Hou, D.Y.; Graham, N.J.D. Performance indicators for a holistic evaluation of catalyst-based degradation—A case study of selected pharmaceuticals and personal care products (PPCPs). J. Hazard. Mater. 2021, 402, 123460. [Google Scholar] [CrossRef]
  3. Kujawska, A.; Kiełkowska, U.; Atisha, A.; Yanful, E.; Kujawski, W. Comparative analysis of separation methods used for the elimination of pharmaceuticals and personal care products (PPCPs) from water—A critical review. Sep. Purif. Technol. 2022, 290, 120797. [Google Scholar] [CrossRef]
  4. Peng, J.; Wang, Z.; Wang, S.; Liu, J.; Zhang, Y.; Wang, B.; Gong, Z.; Wang, M.; Dong, H.; Shi, J.; et al. Enhanced removal of methylparaben mediated by cobalt/carbon nanotubes (Co/CNTs) activated peroxymonosulfate in chloride-containing water: Reaction kinetics, mechanisms and pathways. Chem. Eng. J. 2021, 409, 128176. [Google Scholar] [CrossRef]
  5. Dai, Y.; Qi, C.; Cao, H.; Wen, Y.; Zhao, Y.; Xu, C.; Yang, S.; He, H. Enhanced degradation of sulfamethoxazole by microwave-activated peracetic acid under alkaline condition: Influencing factors and mechanism. Sep. Purif. Technol. 2022, 288, 120716. [Google Scholar] [CrossRef]
  6. Dai, Y.; Cao, H.; Qi, C.; Zhao, Y.; Wen, Y.; Xu, C.; Zhong, Q.; Sun, D.; Zhou, S.; Yang, B.; et al. L-cysteine boosted Fe(III)-activated peracetic acid system for sulfamethoxazole degradation: Role of L-cysteine and mechanism. Chem. Eng. J. 2023, 451, 138588. [Google Scholar] [CrossRef]
  7. Li, J.F.; Ding, Y.F.; Gao, J.; Yan, K.; Zhang, J.D. Laccase-coupled photoelectrocatalytic system for highly efficient degradation of bisphenol A. Chemosphere 2022, 308, 136245. [Google Scholar] [CrossRef]
  8. Latif, A.; Maqbool, A.; Sun, K.; Si, Y.B. Immobilization of Trametes Versicolor laccase on Cu-alginate beads for biocatalytic degradation of bisphenol A in water: Optimized immobilization, degradation and toxicity assessment. J. Environ. Chem. Eng. 2022, 10, 107089. [Google Scholar] [CrossRef]
  9. Zhu, X.T.; Zhang, Y.Y.; Zhang, S.X.; Yang, S.S.; Xu, Q. Synthesis of magnetic FeCo/BC composite by one-step pyrolysis for degradation of bisphenol A through peroxymonosulfate/peroxydisulfate activization. J. Alloy. Compd. 2022, 924, 166500. [Google Scholar] [CrossRef]
  10. Li, C.Q.; Yang, S.S.; Bian, R.Z.; Tan, Y.; Zhang, X.W.; Zheng, S.L.; Sun, Z.M. Efficient catalytic degradation of bisphenol A coordinated with peroxymonosulfate via anchoring monodispersed zero-valent iron on natural kaolinite. Chem. Eng. J. 2022, 448, 137746. [Google Scholar] [CrossRef]
  11. Qi, C.; Wen, Y.; Zhao, Y.; Dai, Y.; Li, Y.; Xu, C.; Yang, S.; He, H. Enhanced degradation of organic contaminants by Fe(III)/peroxymonosulfate process with l-cysteine. Chinese Chem. Lett. 2022, 33, 2125–2128. [Google Scholar] [CrossRef]
  12. Yu, C.X.; Xiong, Z.K.; Zhou, H.Y.; Zhou, P.; Zhang, H.; Huang, R.F.; Yao, G.; Lai, B. Marriage of membrane filtration and sulfate radical-advanced oxidation processes (SR-AOPs) for water purification: Current developments, challenges and prospects. Chem. Eng. J. 2022, 433, 133802. [Google Scholar] [CrossRef]
  13. Giannakis, S.; Lin, K.Y.A.; Ghanbari, F. A review of the recent advances on the treatment of industrial wastewaters by Sulfate Radical-based Advanced Oxidation Processes (SR-AOPs). Chem. Eng. J. 2021, 406, 127083. [Google Scholar] [CrossRef]
  14. Oyekunle, D.T.; Cai, J.Y.; Gendy, E.A.; Chen, Z.Q. Impact of chloride ions on activated persulfates based advanced oxidation process (AOPs): A mini review. Chemosphere 2021, 280, 130949. [Google Scholar] [CrossRef]
  15. Yi, X.H.; Ji, H.D.; Wang, C.C.; Li, Y.; Li, Y.H.; Zhao, C.; Wang, A.; Fu, H.F.; Wang, P.; Zhao, X.; et al. Photocatalysis-activated SR-AOP over PDINH/MIL-88A(Fe) composites for boosted chloroquine phosphate degradation: Performance, mechanism, pathway and DFT calculations. Appl. Catal. B-Environ. 2021, 293, 120229. [Google Scholar] [CrossRef]
  16. Chen, C.B.; Feng, H.; Deng, Y. Re-evaluation of sulfate radical based–advanced oxidation processes (SR-AOPs) for treatment of raw municipal landfill leachate. Water Res. 2019, 153, 100–107. [Google Scholar] [CrossRef]
  17. Fedorov, K.; Sun, X.; Boczkaj, G. Combination of hydrodynamic cavitation and SR-AOPs for simultaneous degradation of BTEX in water. Chem. Eng. J. 2021, 417, 128081. [Google Scholar] [CrossRef]
  18. Deng, Y.; Ezyske, C.M. Sulfate radical-advanced oxidation process (SR-AOP) for simultaneous removal of refractory organic contaminants and ammonia in landfill leachate. Water Res. 2011, 45, 6189–6194. [Google Scholar] [CrossRef]
  19. Zhang, X.J.; Zhu, X.B.; Li, H.; Wang, C.H.; Zhang, T.T. Combination of peroxymonosulfate and Fe(Ⅵ) for enhanced degradation of sulfamethoxazole: The overlooked roles of high-valent iron species. Chem. Eng. J. 2023, 453, 139742. [Google Scholar] [CrossRef]
  20. Du, C.Y.; Yang, S.J.; Ding, D.H.; Cai, T.M.; Chen, R.Z. Origin of synergistic effect between Fe/Mn minerals and biochar for peroxymonosulfate activation. Chem. Eng. J. 2023, 453, 139899. [Google Scholar] [CrossRef]
  21. Long, X.H.; Xiong, Z.K.; Huang, R.F.; Yu, Y.H.; Zhou, P.; Zhang, H.; Yao, G.; Lai, B. Sustainable Fe(III)/Fe(II) cycles triggered by co-catalyst of weak electrical current in Fe(III)/peroxymonosulfate system: Collaboration of radical and non-radical mechanisms. Appl. Catal. B-Environ. 2022, 317, 121716. [Google Scholar] [CrossRef]
  22. Zhang, L.Y.; Deng, J.W.; Ou, J.L.; Zhou, G.F.; Fu, Y.S.; Liu, Y.Q. Boric acid enhanced degradation of organic pollutant by Cu(II)/peroxymonosulfate: Performance and mechanism. Sep. Purif. Technol. 2022, 293, 121135. [Google Scholar] [CrossRef]
  23. Zhang, B.; Han, Z.W.; Xin, Y.J.; Zhang, Y.J.; Li, W.Q.; Li, B.D.; Ding, A.; Ma, J.; He, X. Peroxymonosulfate activation by vacuum ultraviolet and trace copper ions: A new way to boost Cu(II)/Cu(I) redox cycle. Chem. Eng. J. 2022, 450, 138097. [Google Scholar] [CrossRef]
  24. Chen, F.; Wu, X.L.; Yang, L.; Chen, C.F.; Lin, H.J.; Chen, J.R. Efficient degradation and mineralization of antibiotics via heterogeneous activation of peroxymonosulfate by using graphene supported single-atom Cu catalyst. Chem. Eng. J. 2020, 394, 124904. [Google Scholar] [CrossRef]
  25. Dong, Z.Y.; Lin, Y.L.; Zhang, T.Y.; Hu, C.Y.; Pan, Y.; Pan, R.J.; Tang, Y.L.; Xu, B.; Gao, N.Y. Enhanced coagulation and oxidation by the Mn(VII)-Fe(III)/peroxymonosulfate process: Performance and mechanisms. Water Res. 2022, 226, 119200. [Google Scholar] [CrossRef]
  26. Zhou, C.Y.; Liang, Y.T.; Xia, W.; Almatrafi, E.; Song, B.; Wang, Z.W.; Zeng, Y.X.; Yang, Y.; Shang, Y.; Wang, C.H.; et al. Single atom Mn anchored on N-doped porous carbon derived from spirulina for catalyzed peroxymonosulfate to degradation of emerging organic pollutants. J. Hazard. Mater. 2023, 441, 129871. [Google Scholar] [CrossRef] [PubMed]
  27. Zhao, Y.; Zhan, X.H.; Sun, Y.P.; Wang, H.; Chen, L.; Liu, J.Y.; Shi, H.X. MnOx@N-doped carbon nanosheets derived from Mn-MOFs and g-C3N4 for peroxymonosulfate activation: Electron-rich Mn center induced by N doping. Chemosphere 2023, 310, 136937. [Google Scholar] [CrossRef]
  28. Yao, M.Y.; Xie, M.; Zhang, S.Y.; Yuan, J.P.; Zhao, L.X.; Zhao, R.S. Co nanoparticles encapsulated in nitrogen-doped nanocarbon derived from cobalt-modified covalent organic framework as peroxymonosulfate activator for sulfamerazine degradation. Sep. Purif. Technol. 2022, 302, 122145. [Google Scholar] [CrossRef]
  29. Xu, C.; Liu, Q.Y.; Wei, M.; Guo, S.H.; Fang, Y.P.; Ni, Z.B.; Yang, X.A.; Zhang, S.S.; Qiu, R.L. Co@CoO encapsulated with N-doped carbon nanotubes activated peroxymonosulfate for efficient purification of organic wastewater. Sep. Purif. Technol. 2022, 295, 121347. [Google Scholar] [CrossRef]
  30. Lei, Y.; Guo, X.; Jiang, M.; Sun, W.; He, H.; Chen, Y.; Thummavichai, K.; Ola, O.; Zhu, Y.; Wang, N. Co-ZIF reinforced cow manure biochar (CMB) as an effective peroxymonosulfate activator for degradation of carbamazepine. Appl. Catal. B-Environ. 2022, 319, 121932. [Google Scholar] [CrossRef]
  31. Liu, L.; Han, C.J.; Ding, G.F.; Yu, M.Y.; Li, Y.F.; Liu, S.N.; Xie, Y.X.; Liu, J. Oxygen vacancies-enriched Cu/Co bimetallic oxides catalysts for high-efficiency peroxymonosulfate activation to degrade TC: Insight into the increase of Cu+ triggered by Co doping. Chem. Eng. J. 2022, 450, 138302. [Google Scholar] [CrossRef]
  32. Zhou, X.F.; Li, J.C.; Guo, H.C.; Zhang, Y.L.; Yang, L.B.; Chen, J.B. LaRuO3 perovskites as effective and reusable heterogeneous catalysts to activate peroxymonosulfate for carbamazepine degradation. Sep. Purif. Technol. 2023, 304, 122359. [Google Scholar] [CrossRef]
  33. Koo, P.L.; Jaafar, N.F.; Yap, P.S.; Oh, W.D. A review on the application of perovskite as peroxymonosulfate activator for organic pollutants removal. J. Environ. Chem. Eng 2022, 10, 107093. [Google Scholar] [CrossRef]
  34. Shen, Y.; Vidales, M.J.M.; Gorni, G.; Rivero, M.J.; Ortiz, I.; Dos santos-García, A.J. Enhanced peroxymonosulfate activation in the morphotropic phase boundary of molybdenum doped LaCoO3-δ perovskite. Chem. Eng. J. 2022, 446, 137352. [Google Scholar] [CrossRef]
  35. Jia, M.; Fan, Y.; Sun, Z.; Hu, X. ZrO2 supported perovskite activation of peroxymonosulfate for sulfamethoxazole removal from aqueous solution. Chemosphere 2022, 298, 134339. [Google Scholar] [CrossRef] [PubMed]
  36. Østergaard, M.B.; Strunck, A.B.; Boffa, V.; Jørgensen, M.K. Kinetics of Strontium Carbonate Formation on a Ce-Doped SrFeO3 Perovskite. Catalysts 2022, 12, 265. [Google Scholar] [CrossRef]
  37. Zhang, R.; Alamdari, H.; Kaliaguine, S. SO2 poisoning of LaFe0.8Cu0.2O3 perovskite prepared by reactive grinding during NO reduction by C3H6. Appl. Catal.A-Gen. 2008, 340, 140–151. [Google Scholar] [CrossRef]
  38. Xu, Z.; Wu, Y.; Wang, X.; Ji, Q.; Li, T.; He, H.; Song, H.; Yang, S.; Li, S.; Yan, S.; et al. Identifying the role of oxygen vacancy on cobalt-based perovskites towards peroxymonosulfate activation for efficient iohexol degradation. Appl. Catal. B-Environ. 2022, 319, 121901. [Google Scholar] [CrossRef]
  39. Wang, G.; Cheng, C.; Zhu, J.; Wang, L.; Gao, S.; Xia, X. Enhanced degradation of atrazine by nanoscale LaFe1-xCuxO3-δ perovskite activated peroxymonosulfate: Performance and mechanism. Sci. Total. Environ. 2019, 673, 565–575. [Google Scholar] [CrossRef]
  40. Chen, H.; Xu, Y.; Zhu, K.; Zhang, H. Understanding oxygen-deficient La2CuO4-δ perovskite activated peroxymonosulfate for bisphenol A degradation: The role of localized electron within oxygen vacancy. Appl. Catal. B-Environ. 2021, 284, 119732. [Google Scholar] [CrossRef]
  41. Hung, C.M.; Huang, C.P.; Chen, C.W.; Dong, C.D. Degradation of organic contaminants in marine sediments by peroxymonosulfate over LaFeO3 nanoparticles supported on water caltrop shell-derived biochar and the associated microbial community responses. J. Hazard. Mater. 2021, 420, 126553. [Google Scholar] [CrossRef]
  42. Zhang, L.; Zhang, Y.; Wei, J.; Liu, W. Perovskite LaFexCo1-xO3-λ deposited SiO2 catalytic membrane for deeply cleaning wastewater. Chem. Eng. J. 2021, 403, 126386. [Google Scholar] [CrossRef]
  43. Zhang, L.; Fan, L.; Fan, J.; Li, Y.; Sun, P.; Han, J.; Fan, Z. Synergistic effects of Vis/H2O2/LaFe1−xCuxO3 and Vis/PDS/LaFe1−xCuxO3 for quinoline degradation: Performance and mechanism. J. Environ. Chem. Eng. 2022, 10, 108322. [Google Scholar] [CrossRef]
  44. Margelloua, A.; Manos, D.; Petrakis, D.; Konstantinou, I. Activation of persulfate by LaFe1-xCoxO3 perovskite catalysts for the degradation of phenolics: Effect of synthetic method and metal substitution. Sci. Total. Environ. 2022, 832, 155063. [Google Scholar] [CrossRef] [PubMed]
  45. Caronna, T.; Fontana, F.; Sora, I.N.; Pelosato, R. Chemical synthesis and structural characterization of the substitution compound LaFe1−xCuxO3 (x = 0–0.40). Mater. Chem. Phys. 2009, 116, 645–648. [Google Scholar] [CrossRef]
  46. Mandal, R.; Mahton, Y.; Sowjanya, C.; Sanket, K.; Behera, S.K.; Pratihar, S.K. Electrocatalytic behaviour of Cu-substituted La0.5Sr0.5Co0.8Fe0.2-xCuxO3−δ (x = 0–0.2) perovskite oxides. J. Solid. State. Chem. 2023, 317, 123668. [Google Scholar] [CrossRef]
  47. Rao, Y.; Zhang, Y.; Fan, J.; Wei, G.; Wang, D.; Han, F.; Huang, Y.; Croue, J.-P. Enhanced peroxymonosulfate activation by Cu-doped LaFeO3 with rich oxygen vacancies: Compound-specific mechanisms. Chem. Eng. J. 2022, 435, 134882. [Google Scholar] [CrossRef]
  48. Lin, K.Y.A.; Chen, Y.C.; Lin, Y.F. LaMO3 perovskites (M=Co, Cu, Fe and Ni) as heterogeneous catalysts for activating peroxymonosulfate in water. Chem. Eng. J. 2017, 160, 96–105. [Google Scholar] [CrossRef]
  49. Ghorbani-Moghadam, T.; Kompany, A.; Golmohammad, M. The comparative study of doping Cu and Fe on the cathodic properties of La0.7Sr1.3CoO4 layered perovskite compound: To be used in IT-SOFC. J. Alloy. Compd. 2022, 926, 166928. [Google Scholar] [CrossRef]
  50. Yang, W.J.; Yang, L.H.; Peng, H.J.; Lv, S.H.; Sharif, H.M.A.; Sun, W.; Li, W.; Yang, C.; Lin, H. Perovskite oxide LaMO3−δ (M = Fe, Co, Ni and Cu) cathode for efficient electroreduction of nitrate. Sep. Purif. Technol. 2022, 295, 121278. [Google Scholar] [CrossRef]
  51. Haque, A.; Das, R.; Vasundhara, M.; Ghosh, D.; Gayen, A.; Mahata, P.; Kundu, A.K.; Seikh, M.M. Ambient pressure synthesis and magnetic properties of La[Cu3−xMnx][Mn4−yTiy]O12 (x = 0 & 1; y = 0.5 & 1) quadruple perovskite. J. Alloy. Compd. 2021, 875, 159984. [Google Scholar]
  52. Dokuchits, E.V.; Larina, T.V.; Gerasimov, E.Y.; Pochtar, A.A.; Minyukova, T.P. Syngas conversion over perovskite-like LaCuxTi1−xO3/KIT-6 catalysts. Appl. Catal. A-Gen. 2020, 608, 117834. [Google Scholar] [CrossRef]
  53. Pan, F.; Zhang, W.; Ferronato, C.; Valverde, J.L.; Giroir-Fendler, A. Boosting propene oxidation activity over LaFeO3 perovskite catalysts by cobalt substitution. Appl. Catal. A-Gen. 2022, 643, 118779. [Google Scholar] [CrossRef]
  54. Jing, J.; Pervez, M.N.; Sun, P.; Cao, C.; Li, B.; Naddeo, V.; Jin, W.; Zhao, Y. Highly efficient removal of bisphenol A by a novel Co-doped LaFeO3 perovskite/PMS system in salinity water. Sci. Total. Environ. 2021, 801, 149490. [Google Scholar] [CrossRef]
  55. Gao, P.; Yan, S.; Tian, X.; Nie, Y.; Wang, Y.; Deng, Y.; Tu, J. Identification and manipulation of active centers on perovskites to enhance catalysis of peroxymonosulfate for degradation of emerging pollutants in water. J. Hazard. Mater. 2022, 424, 127384. [Google Scholar] [CrossRef] [PubMed]
  56. Zhao, Y.; Huang, B.; An, H.; Dong, G.; Feng, J.; Wei, T.; Ren, Y.; Ma, J. Enhanced activation of peroxymonosulfate by Sr-doped LaFeO3 perovskite for Orange I degradation in the water. Sep. Purif. Technol. 2021, 256, 117838. [Google Scholar] [CrossRef]
  57. Kumar, A.; Prasad, B. Mechanistic approach of SO4•−/•OH radical toward target pollutants degradation simultaneously enhanced activity and stability of perovskite-like catalyst SrCuxNi1−xO3. Sep. Purif. Technol. 2021, 279, 119677. [Google Scholar] [CrossRef]
  58. Cheng, C.; Gao, S.; Zhu, J.; Wang, G.; Wang, L.; Xia, X. Enhanced performance of LaFeO3 perovskite for peroxymonosulfate activation through strontium doping towards 2,4-D degradation. Chem. Eng. J. 2020, 384, 123377. [Google Scholar] [CrossRef]
  59. Hu, H.; Zhang, Q.; Wang, C.; Chen, M.; Wang, Q. Facile synthesis of CaMn1−xFexO3 to incorporate Fe(IV) at high ratio in perovskite structure for efficient in situ adsorption-oxidation of As(III). Chem. Eng. J. 2022, 435, 134894. [Google Scholar] [CrossRef]
  60. Geng, G.; Cai, M.; Fang, R.; Luan, Q.; Zhang, Z.; Song, J.; Zhang, J. Metal-organic frameworks-derived perovskite catalysts for efficient degradation of 2, 4-dichlorophenol via peroxymonosulfate activation. Appl. Surf. Sci. 2020, 534, 147467. [Google Scholar] [CrossRef]
  61. Li, X.; Li, M.; Ma, X.; Miao, J.; Ran, R.; Zhou, W.; Wang, S.; Shao, Z. Nonstoichiometric perovskite for enhanced catalytic oxidation through excess A-site cation. Chem. Eng. J. 2020, 219, 115596. [Google Scholar] [CrossRef]
  62. Qi, C.; Liu, X.; Ma, J.; Lin, C.; Li, X.; Zhang, H. Activation of peroxymonosulfate by base: Implications for the degradation of organic pollutants. Chemosphere 2016, 151, 280–288. [Google Scholar] [CrossRef] [PubMed]
  63. Wang, D.; Luo, X.; Yang, S.; Xue, G. Tourmaline/Perovskite composite material as heterogeneous catalysts for activation peroxymonosulfate to remove organic dye in water. J. Environ. Chem. Eng. 2021, 9, 105221. [Google Scholar] [CrossRef]
  64. Lu, S.; Wang, G.; Chen, S.; Yu, H.; Ye, F.; Quan, X. Heterogeneous activation of peroxymonosulfate by LaCo1−xCuxO3 perovskites for degradation of organic pollutants. J. Hazard. Mater. 2018, 353, 401–409. [Google Scholar] [CrossRef]
  65. Gao, P.; Tian, X.; Nie, Y.; Yang, C.; Zhou, Z.; Wang, Y. Promoted peroxymonosulfate activation into singlet oxygen over perovskite for ofloxacin degradation by controlling the oxygen defect concentration. Chem. Eng. J. 2019, 359, 828–839. [Google Scholar] [CrossRef]
  66. Yang, Q.; Niu, X.; Zhu, Y.; Cui, Y.; Chao, Y.; Liang, P.; Zhang, C.; Wang, S. Modulating anion defect in La0.6Sr0.4Co0.8Fe0.2O3−δ for enhanced catalytic performance on peroxymonosulfate activation: Importance of hydrated electrons and metal-oxygen covalency. J. Hazard. Mater. 2022, 432, 128686. [Google Scholar] [CrossRef]
  67. Niu, B.; Wang, L.; Li, M.; Yao, W.; Zang, K.; Zhou, L.; Hu, X.; Zheng, Y. Lattice B-doping evolved ferromagnetic perovskite-like catalyst for enhancing persulfate-based degradation of norfloxacin. J. Hazard. Mater. 2022, 425, 127949. [Google Scholar] [CrossRef]
  68. Lin, N.; Gong, Y.; Wang, R.; Wang, Y.; Zhang, X. Critical review of perovskite-based materials in advanced oxidation system for wastewater treatment: Design, applications and mechanisms. J. Hazard. Mater. 2022, 424, 127637. [Google Scholar] [CrossRef]
  69. Wang, T.; Qian, X.; Yue, D.; Yan, X.; Yamashita, H.; Zhao, Y. CaMnO3 perovskite nanocrystals for efficient peroxydisulfate activation. Chem. Eng. J. 2020, 398, 125638. [Google Scholar] [CrossRef]
  70. Wang, Y.; Chi, Z.; Chen, C.; Su, C.; Liu, D.; Liu, Y.; Duan, X.; Wang, S. Facet- and defect-dependent activity of perovskites in catalytic evolution of sulfate radicals. Appl. Catal. B-Environ. 2020, 272, 118972. [Google Scholar] [CrossRef]
Catalysts 13 00575 g001 550

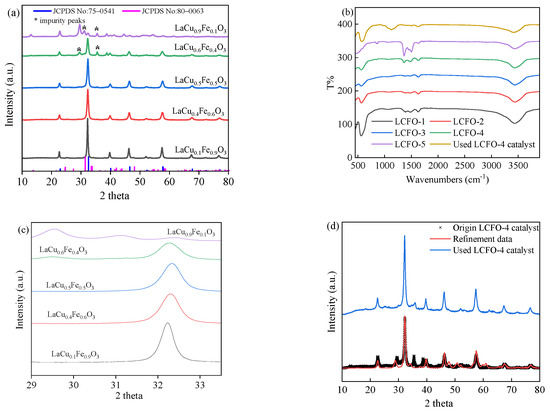

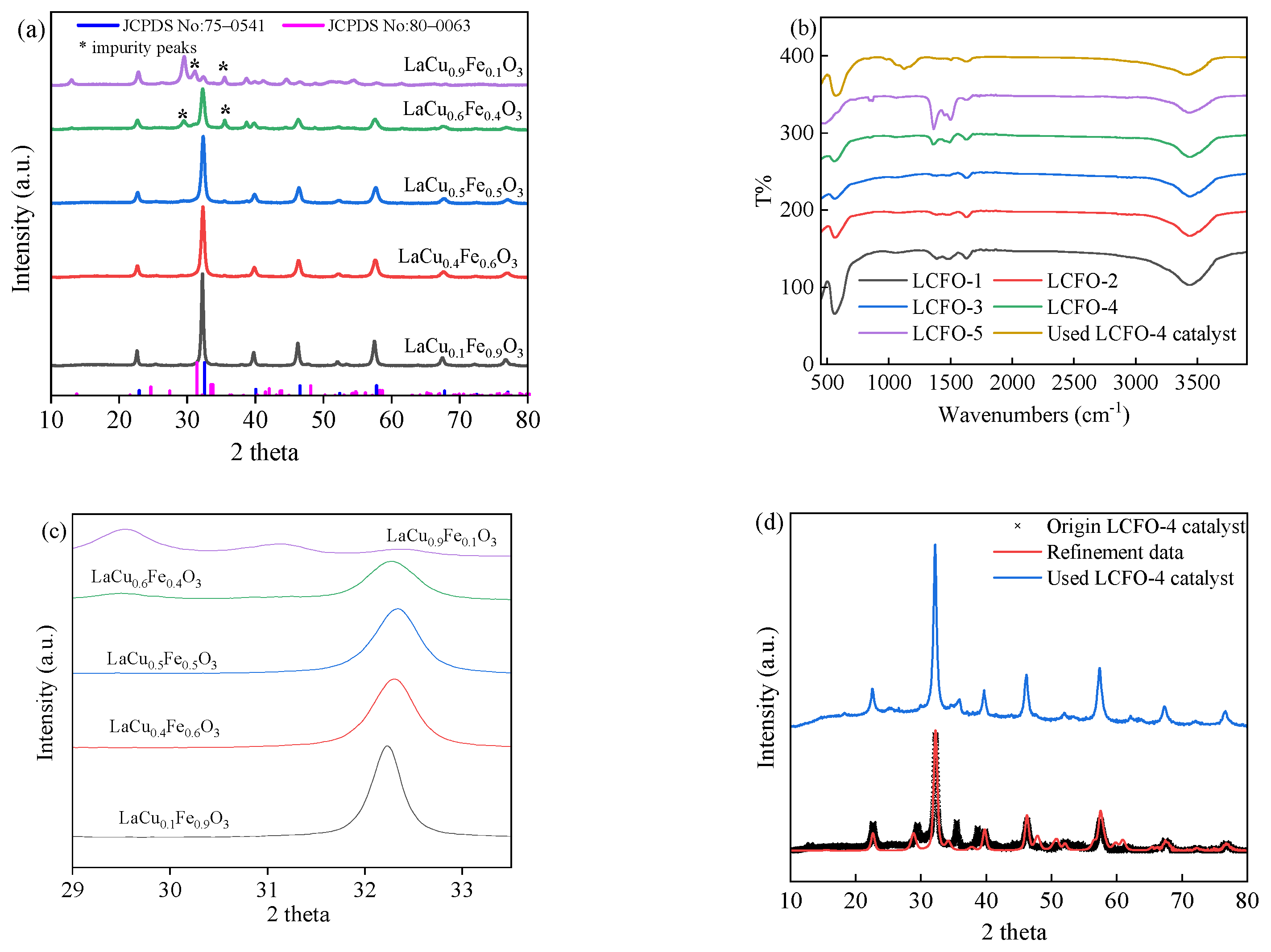

Figure 1. XRD patterns (a); and FTIR spectra (b) of LCFO catalyst, enlarged XRD patterns (c) and XRD patterns of refinement and used catalyst (d).
Figure 1. XRD patterns (a); and FTIR spectra (b) of LCFO catalyst, enlarged XRD patterns (c) and XRD patterns of refinement and used catalyst (d).
Catalysts 13 00575 g001
Catalysts 13 00575 g002 550

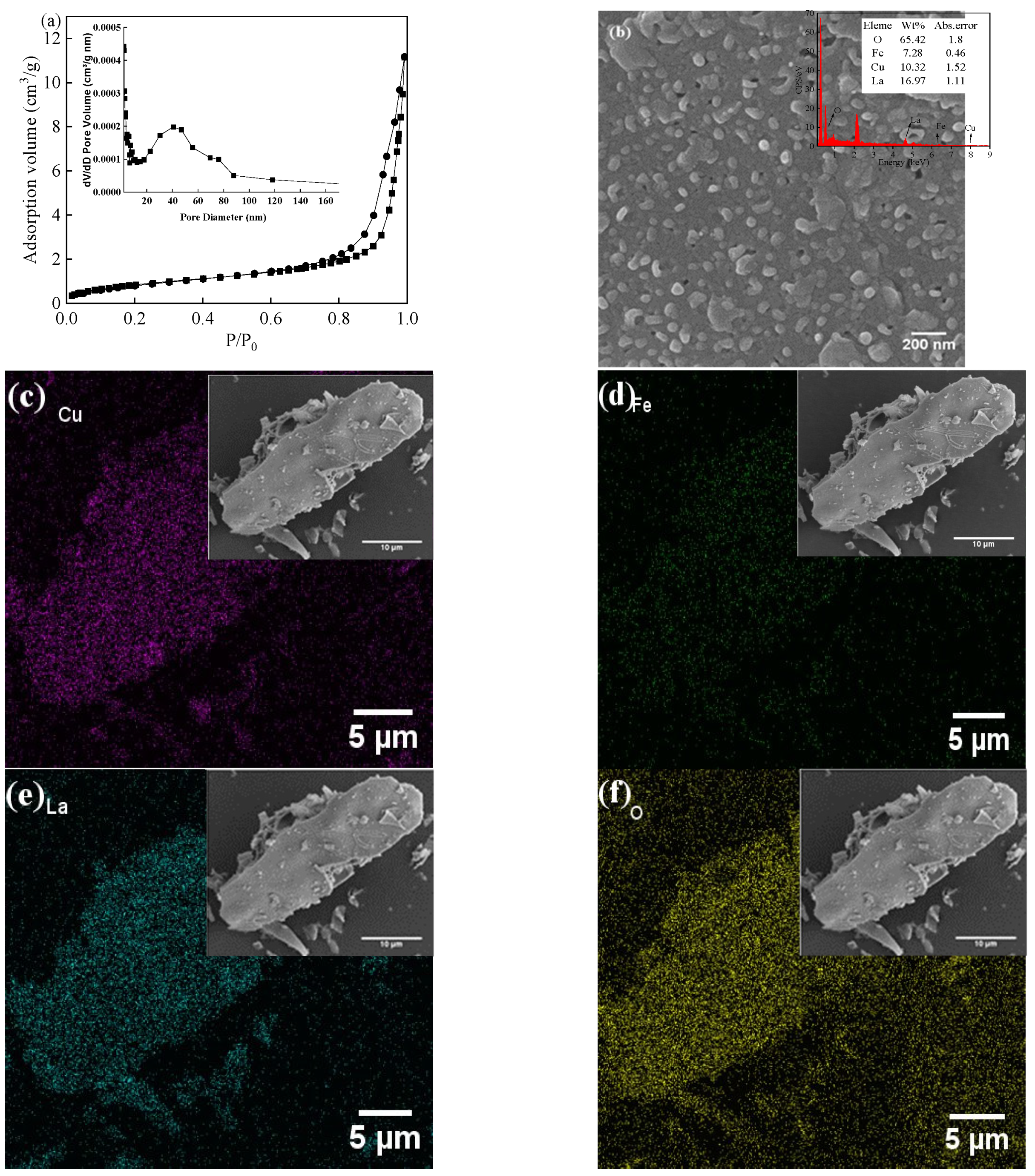

Figure 2. BET isotherm image (a) and SEM images and EDX spectra (b); Cu mapping (c); Fe mapping (d); La mapping (e); and O mapping (f) of LCFO-4.
Figure 2. BET isotherm image (a) and SEM images and EDX spectra (b); Cu mapping (c); Fe mapping (d); La mapping (e); and O mapping (f) of LCFO-4.
Catalysts 13 00575 g002
Catalysts 13 00575 g003 550

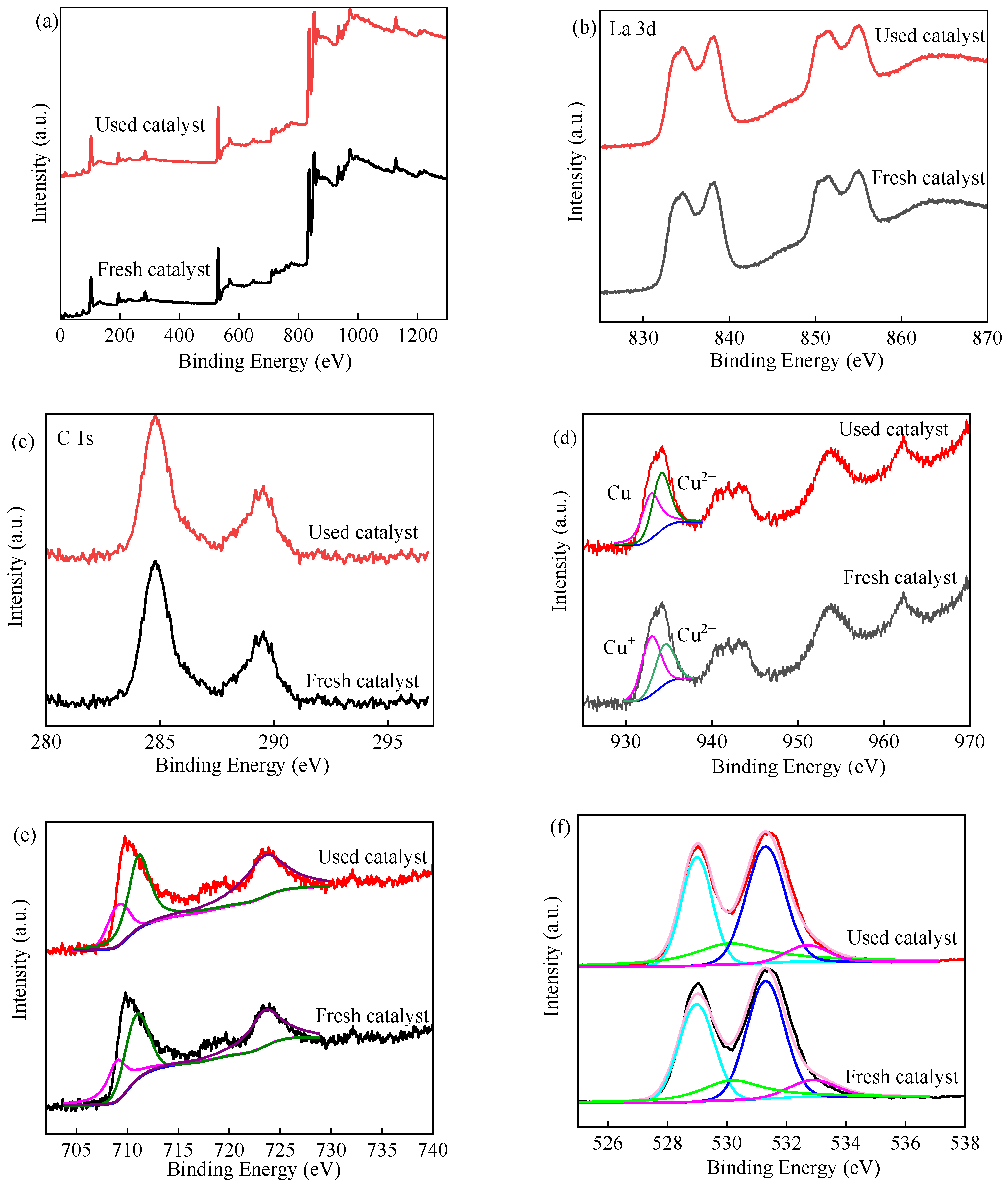

Figure 3. The deconvoluted XPS spectra of fresh and used LCFO-4: (a) survey spectra; (b) La 3d; (c) C 1s; (d) Cu 2p; (e) Fe 2p; (f) O 1s.
Figure 3. The deconvoluted XPS spectra of fresh and used LCFO-4: (a) survey spectra; (b) La 3d; (c) C 1s; (d) Cu 2p; (e) Fe 2p; (f) O 1s.
Catalysts 13 00575 g003
Catalysts 13 00575 g004 550

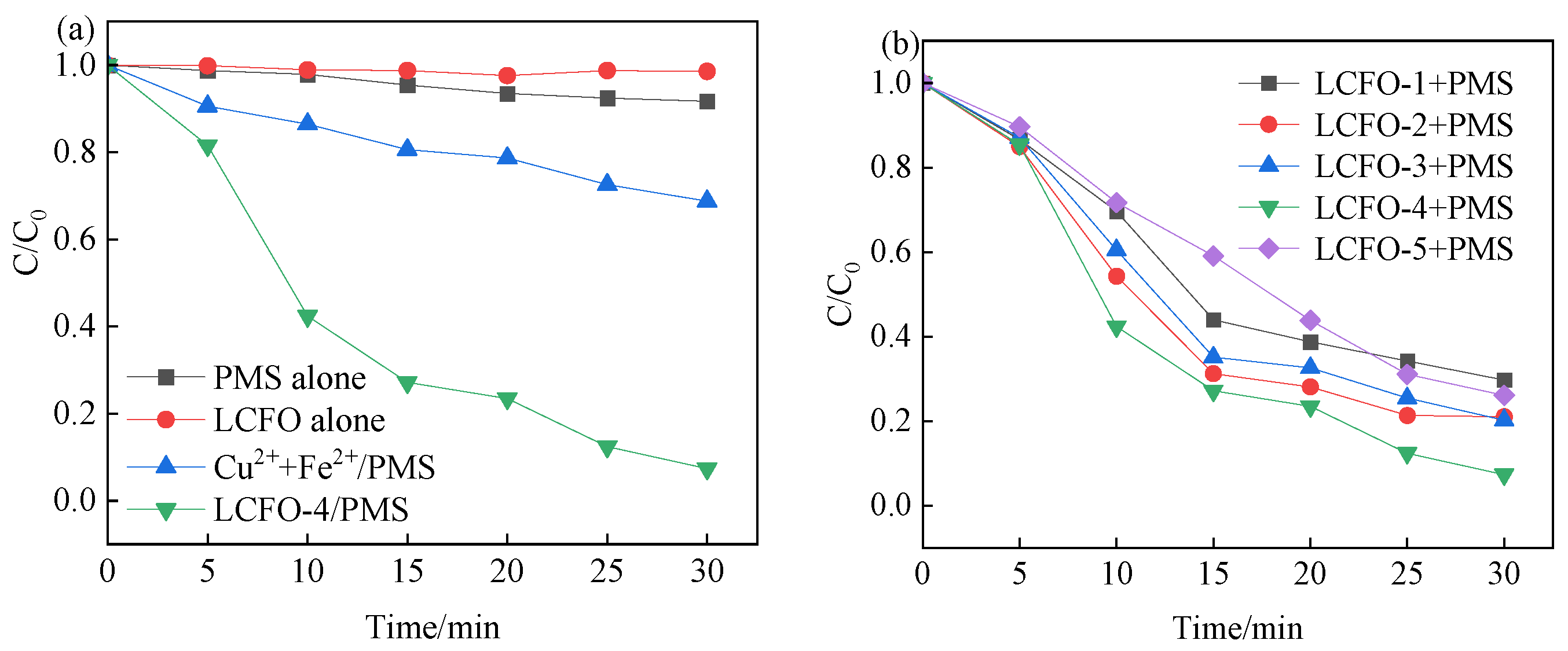

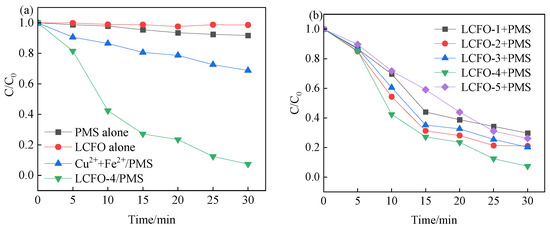

Figure 4. (a) The removal of BPA in different systems; (b) different Cu/Fe ratio contents. Conditions: C0 = 0.05 mM, [Cu2+] = 0.859 mg/L, [Fe3+] = 0.048 mg/L, [LCFO] = 0.7 g/L, [PMS] = 10 mM, pH0 6.8.
Figure 4. (a) The removal of BPA in different systems; (b) different Cu/Fe ratio contents. Conditions: C0 = 0.05 mM, [Cu2+] = 0.859 mg/L, [Fe3+] = 0.048 mg/L, [LCFO] = 0.7 g/L, [PMS] = 10 mM, pH0 6.8.
Catalysts 13 00575 g004
Catalysts 13 00575 g005 550

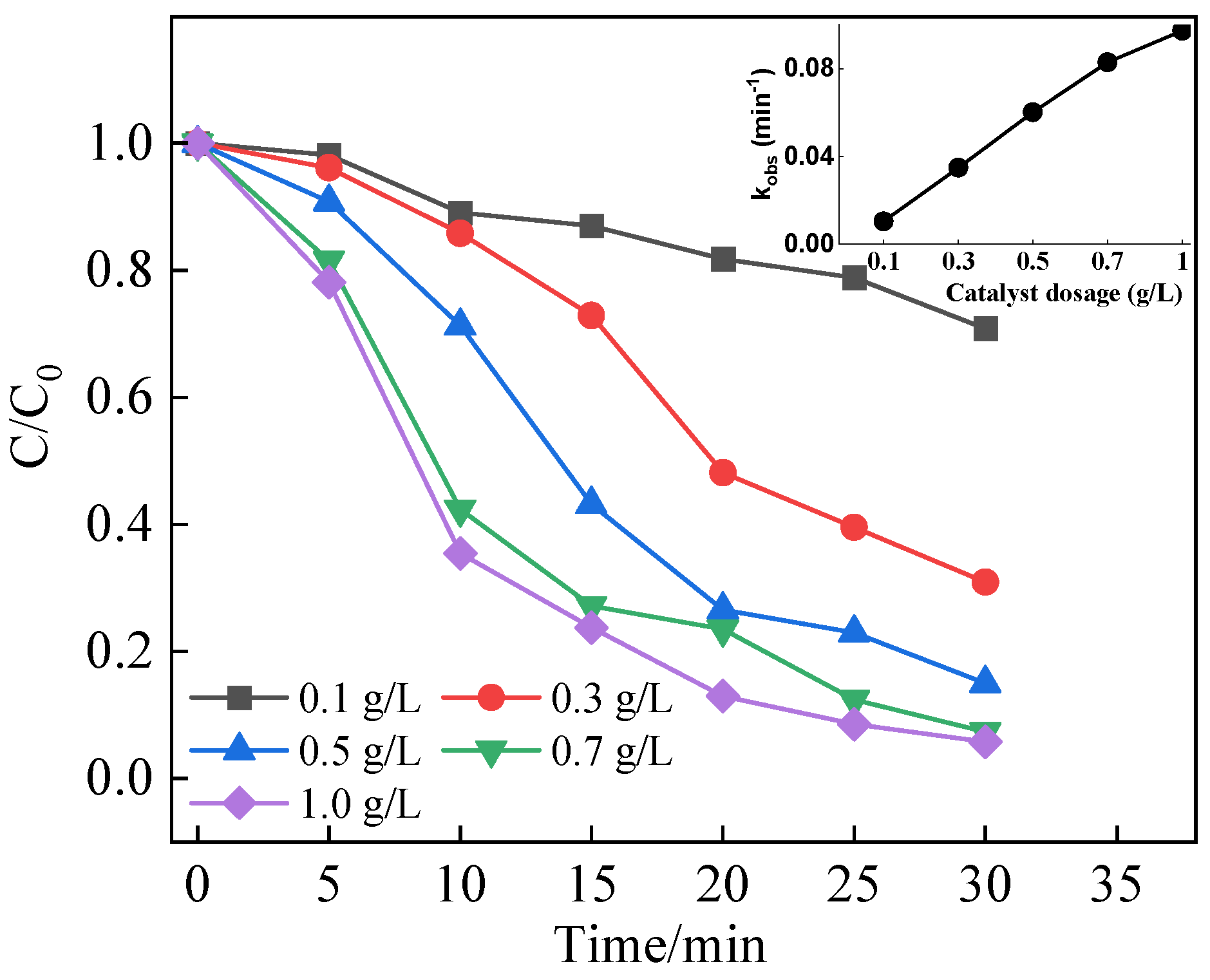

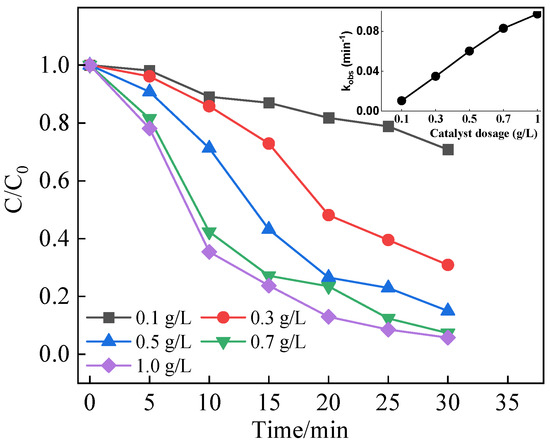

Figure 5. Effect of catalyst dosage on BPA removal. Conditions: C0 = 0.05 mM, [PMS] = 10 mM, pH0 6.8.
Figure 5. Effect of catalyst dosage on BPA removal. Conditions: C0 = 0.05 mM, [PMS] = 10 mM, pH0 6.8.
Catalysts 13 00575 g005
Catalysts 13 00575 g006 550
Figure 6. Effect of PMS concentration on BPA removal. Conditions: C0 = 0.05 mM, [LCFO-4] = 0.7 g/L, pH0 6.8.
Figure 6. Effect of PMS concentration on BPA removal. Conditions: C0 = 0.05 mM, [LCFO-4] = 0.7 g/L, pH0 6.8.
Catalysts 13 00575 g006
Catalysts 13 00575 g007 550
Figure 7. (a) Effect of pH value on BPA removal in LCFO-4/PMS systems; (b) zeta potential of LCFO-4; (c) metal leaching under different pH value. Conditions: C0 = 0.05 mM, [LCFO-4] = 0.7 g/L, [PMS] = 10.0 mM.
Figure 7. (a) Effect of pH value on BPA removal in LCFO-4/PMS systems; (b) zeta potential of LCFO-4; (c) metal leaching under different pH value. Conditions: C0 = 0.05 mM, [LCFO-4] = 0.7 g/L, [PMS] = 10.0 mM.
Catalysts 13 00575 g007
Catalysts 13 00575 g008 550
Figure 8. (a) Effect of Cl− on BPA removal; (b) effect of HCO3− on BPA removal. Conditions: C0 = 0.05 mM, [LCFO-4] = 0.7 g/L, [PMS] = 10.0 mM, pH0 6.8.
Figure 8. (a) Effect of Cl− on BPA removal; (b) effect of HCO3− on BPA removal. Conditions: C0 = 0.05 mM, [LCFO-4] = 0.7 g/L, [PMS] = 10.0 mM, pH0 6.8.
Catalysts 13 00575 g008
Catalysts 13 00575 g009 550
Figure 9. Effect of scavengers on BPA removal in the LCFO/PMS process. Conditions: C0 = 0.05 mM, [LCFO-4] = 0.7 g/L, [PMS] = 10.0 mM, [Scavenger] = 50 mM.
Figure 9. Effect of scavengers on BPA removal in the LCFO/PMS process. Conditions: C0 = 0.05 mM, [LCFO-4] = 0.7 g/L, [PMS] = 10.0 mM, [Scavenger] = 50 mM.
Catalysts 13 00575 g009
Catalysts 13 00575 g010 550
Figure 10. (a) Catalytic performance for three runs; (b) catalytic performance in different water matrix.
Figure 10. (a) Catalytic performance for three runs; (b) catalytic performance in different water matrix.
Catalysts 13 00575 g010
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhong, X.; Liu, J.; Jie, H.; Wu, W.; Jiang, F. Highly Efficient Copper Doping LaFeO3 Perovskite for Bisphenol A Removal by Activating Peroxymonosulfate. Catalysts 2023, 13, 575. https://doi.org/10.3390/catal13030575

AMA Style

Zhong X, Liu J, Jie H, Wu W, Jiang F. Highly Efficient Copper Doping LaFeO3 Perovskite for Bisphenol A Removal by Activating Peroxymonosulfate. Catalysts. 2023; 13(3):575. https://doi.org/10.3390/catal13030575

Chicago/Turabian Style

Zhong, Xin, Junjie Liu, Haonan Jie, Wenting Wu, and Fubin Jiang. 2023. "Highly Efficient Copper Doping LaFeO3 Perovskite for Bisphenol A Removal by Activating Peroxymonosulfate" Catalysts 13, no. 3: 575. https://doi.org/10.3390/catal13030575

APA Style

Zhong, X., Liu, J., Jie, H., Wu, W., & Jiang, F. (2023). Highly Efficient Copper Doping LaFeO3 Perovskite for Bisphenol A Removal by Activating Peroxymonosulfate. Catalysts, 13(3), 575. https://doi.org/10.3390/catal13030575

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
