Oxygen-Vacancy-Rich Fe@Fe3O4 Boosting Fenton Chemistry

by
Rongwei Zheng
1,†,
Ruifan Tan
2,†,
Yali Lv
2,
Xiaoling Mou
2,3,*,
Junqiao Qian
1,
Ronghe Lin
2,3,
Ping Fang
4,* and
Weidong Kan
5
1
Department of Hydraulic Engineering, Zhejiang Tongji Vocational College of Science and Technology, Hangzhou 311231, China
2
Hangzhou Institute of Advanced Studies, Zhejiang Normal University, 1108 Gengwen Road, Hangzhou 311231, China
3
Key Laboratory of the Ministry of Education for Advanced Catalysis Materials, Zhejiang Normal University, 688 Yingbin Road, Jinhua 321004, China
4
College of Chemistry and Chemical Engineering, Shaoxing University, Shaoxing 312000, China
5
Shandong Tsurumi Hongqi Environmental Technology Co., Ltd., Weifang 261108, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Catalysts 2023, 13(7), 1057; https://doi.org/10.3390/catal13071057
Submission received: 25 May 2023 / Revised: 19 June 2023 / Accepted: 20 June 2023 / Published: 30 June 2023
(This article belongs to the Section Catalytic Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
Iron-based materials are widely applied in Fenton chemistry, and they have promising prospects in the processing of wastewater. The composition complexity and rich chemistry of iron and/or oxides, however, hamper the precise understanding of the active sites and the working mechanism, which still remain highly controversial. Herein, iron oxides of four different model systems are designed through a conventional precipitation method plus H2 reduction treatment. These systems feature Fe@Fe3O4 with abundant oxygen vacancy, Fe0 and Fe3O4 particles with interface structures, and Fe3O4-dominated nanoparticles of different sizes. These materials are applied in the decomposition of methyl orange as a model reaction to assess the Fenton chemistry. The Fe@Fe3O4 with core–shell structures exhibits significantly higher decomposition activity than the other Fe3O4-rich nanoparticles. A thin Fe3O4 layer formed by auto-oxidation of iron particles when exposed to air can boost the activity as compared with the Fe0 and Fe3O4 particles with interface structures but poor oxygen vacancy. The unique hetero-structure with the co-existence of both metallic iron and oxygen vacancy displays excellent redox propensity, which might account for the superior Fenton activity. This finding provides a new perspective to understand and design highly efficient iron-based Fenton catalysts.

1. Introduction

The widespread pollution of wastewater due to the discharge of high-concentration chemical solutions containing diverse organic compounds from the industry has posed a formidable challenge to a sustainable society [1,2,3,4]. The conventional approaches to wastewater management relying on biodegradation or physiochemical methods (such as the combination of chlorination and adsorption) are still not optimal for handling industrial wastewater. In this context, advanced oxidation processes (AOPs) are catching great attention as one of the most promising alternative solutions [5,6,7,8]. Compared with the traditional biodegradation method, which might be subjected to biomass poisoning, AOPs are a non-selective technology that depends on the oxidation of organic compounds with the in situ generated radical species with a strong oxidizing ability. Therefore, it is extremely flexible in handling the diversity of organic pollutants from the different chemical sectors.
As one of the most cost-effective AOP technologies, the Fenton process has drawn great interest in wastewater treatment [5,6]. The classic Fenton chemistry is initiated by the formation of hydroxyl radicals (HO*) through the activation of H2O2 by Fe2+ ions. The as-formed HO*, together with other radicals with strong oxidizing potentials, can then convert the organic pollutants into smaller molecules or CO2 [6]. To further enhance the oxidation efficiency, similar Fenton-like processes, such as photo-Fenton [9,10,11], electro-Fenton [12], and sono-Fenton [13], have also been studied by different researchers. Despite the difference in various techniques, the development of highly active Fenton catalysts is of optimal importance. The classic Fenton reaction was performed by soluble iron salts as homogeneous catalysts conducted at an optimal pH of 3.0. In addition to the requirement of neutralization before the discharge, the precipitation and subsequent disposal of iron hydroxides are the major problems [8]. To overcome this disadvantage, different heterogeneous Fenton systems have been proposed, which can be roughly classified into two categories: (i) the iron-containing catalysts, including iron minerals, clay-based catalysts, and other iron-containing catalysts; and (ii) non-ferrous catalysts based on cerium [14], chromium [15], cobalt [16], copper [17], manganese [18], ruthenium [19], and polyoxometalates [20]. Despite extensive explorations, iron-based Fenton systems possess several advantages, such as the high reactivity of Fe2+/Fe3+ [21], the abundance and low cost of the metal, and low toxicity and environmental compatibility, rendering them highly appealing.
Iron minerals, including magnetite (Fe3O4) [22,23,24], hematite (α-Fe2O3) [25], maghemite (γ-Fe2O3) [26], goethite (α-FeOOH) [27], akaganèite (β-FeOOH) [28,29], lepidocrocite (γ-FeOOH), etc., are among the most extensively studied Fenton systems. In addition, zero-valence iron (ZVI) [30,31,32] and hybridized structures (e.g., Fe@Fe2O3 [33,34,35,36] and Fe2+/Fe@Fe2O3 [37,38]) are also widely explored. Despite the different compositions and structures of these catalytic materials, it is generally accepted that Fe2+ species are crucial for the generation of HO* [5,6,7,8]. However, highly controversial questions remain regarding the nature of the active sites for metallic iron and oxides. For instance, Yuan et al. [31] employed ZVI in methyl orange decomposition and found an activity drop in consecutive runs. Analysis of the recovered catalyst confirmed the formation of oxide layers that was suggested to be responsible for the activity degrading. On the contrary, recent studies showed that by combining ZVI with iron oxides such as Fe@Fe2O3 core–shell structures are able to achieve excellent Fenton activity [33]. It has been proposed that Fe0 can transfer two electrons to O2 to generate H2O2, which further reacts with generated Fe2+ to produce HO* under acidic to neutral pH conditions [36]. The above opposing opinions highlight the necessity of a more in-depth understanding of the Fe0 and iron oxide interfaces. Furthermore, ZVI is known to be susceptible to auto-oxidation when exposed to air. This means the outermost surfaces of the bulk metallic iron are likely covered by iron oxide layers. The nature of these layers and the impact on the Fenton activity are still not well understood.
In this contribution, we synthesized different iron oxide-based model systems through a conventional precipitation method in conjunction with H2 reduction treatment. These systems showed very different structural features: (1) Fe0-rich cores covered with Fe3O4 layers (Fe@Fe3O4), (2) Fe0 and Fe3O4 nanoparticles with interface structures, and (3) Fe3O4-dominated nanoparticles of different sizes. These materials were then applied as the Fenton catalysts in the decomposition of methyl orange, which was selected as the model reaction to assess the catalytic activity in the removal of azo-dye pollutants from aqueous solutions [39]. Our catalytic results showed that the first two systems with the co-existence of both Fe0 and Fe3O4 phases were significantly more active than the Fe3O4-dominated nanoparticles of different sizes, and the Fe@Fe3O4 with core–shell structures exhibited more than twice higher decomposition activity than the Fe0 and Fe3O4 nanoparticles with interface structures. We also demonstrated that a thin Fe3O4 layer up to tens of nanometers was formed by the auto-oxidation of iron particles when exposed to air, leading to similar core–shell structures of the Fe@Fe3O4 model system and, consequently, comparable Fenton activity. Furthermore, our results also indicated that the redox propensity might be a more critical activity descriptor than the contents of Fe2+ and oxygen vacancy in the Fenton chemistry, and the co-existence of both zero-valent iron and rich oxygen vacancy can boost the Fenton activity.

2. Results and Discussion

2.1. Synthesis and Characterization of the Iron Oxides

2.1.1. Synthesis of the Iron Oxides

Different iron oxides were prepared by the precipitation methods by varying the iron precursors and the surfactants (Figure 1). The resultant precipitates derived from Fe(NH4)2(SO4)2·6H2O, Fe(NO3)3·9H2O, and FeCl3·6H2O were denoted as Fe2O3–S–P, Fe2O3–N–E, and Fe2O3–Cl–P, respectively. These samples were further subject to H2 reduction before the application in MO decomposition. In addition, a commercial sample denoted as Fe3O4–C was purchased as the reference.

2.1.2. Compositional and Structural Analyses of the Iron Oxides

The compositions of the as-prepared iron oxides were first checked by powder X-ray diffraction patterns (PXRD, Figure 2). The representative diffraction lines corresponding to α-Fe2O3 (PDF # 33-0664) can be found for all the samples, confirming the successful synthesis of the targeted materials. In addition, these materials showed clear differences in the diffraction intensities with the order of Fe2O3–Cl–P ~ Fe2O3–N–E >> Fe2O3–S–P. The crystallite sizes of Fe2O3 were then estimated by using the Scherrer equation and the (104) facet. The sizes of Fe2O3–Cl–P, Fe2O3–N–E, and Fe2O3–S–P were determined to be 44, 33, and 15 nm, respectively. The morphologies of as-derived Fe2O3 were studied by combined electron microscopic techniques (Figure 3). Scanning electron microscopy (SEM) revealed the formation of condensed aggregates for Fe2O3–S–P and Fe2O3–N–E and the more homogeneous nanospheres for Fe2O3–Cl–P, which were likely resulting from the combined use of different iron precursors and surfactants. In line with the SEM observation, transmission electron microscopy (TEM) also confirmed the relatively smaller sizes of the irregular nanoparticles for Fe2O3–S–P and Fe2O3–N–E.

2.1.3. Compositional and Structural Analyses of the Reduced Iron Oxides

The PXRD patterns of the Fe2O3 and the commercial Fe3O4–C after H2 reduction at 350 °C were presented in Figure 4. The results can be grouped into two classes. Both Fe2O3–N–E and Fe2O3–S–P showed the predominant diffraction lines corresponding to the (110) facet of metallic iron (Fe0 PDF # 06-0696) with the coexistence of relatively weak diffractions related to the (311) and (220) facets of Fe3O4 (PDF # 19-0629). On the contrary, all the typical diffraction patterns of Fe3O4 were found for Fe2O3–Cl–P and Fe3O4–C, but with quite different intensities. The above results suggested the different redox abilities of these samples, which will be studied in detail in the next sections. Furthermore, it means Fe3O4 was probably the predominant phase with the coexisted Fe0 in Fe2O3–S–P and Fe2O3–N–E, while Fe3O4 was the main phase in Fe2O3–Cl–P and Fe3O4–C. Estimation of the crystallite sizes of Fe0 based on the (110) facet revealed comparable values between Fe2O3–S–P and Fe2O3–N–E (57 vs. 52 nm), while the sizes of Fe3O4 based on the (311) facet were determined to be 24, 53, 36, and 56 nm, respectively, for Fe2O3–S–P, Fe2O3–N–E, Fe2O3–Cl–P and Fe3O4–C.
The morphologies of the reduced samples were assessed by TEM (Figure 5). Fe2O3–S–P and Fe2O3–N–E showed irregular-shaped particles, while Fe2O3–Cl–P can still preserve the sphere-like morphology. As compared with un-reduced iron oxides, the particle sizes became much larger, hinting at the severe aggregation during the reduction treatments. Additionally, Fe3O4–C also showed big particles of irregular shapes. To further assess the structural differences, high-resolution TEM (HRTEM) analyses of the reduced samples were conducted (inset in Figure 5 and S1). Among all these materials, a clear core–shell structure was evidenced only in Fe2O3–S–P. Detailed analyses of this material revealed the continuous lattice fringes of Fe(111) with a distance of 2.0268 Å, and in the periphery, the lattice fringes of Fe3O4(111) with a distance of 2.5320 Å were found (Figure 6). These observations, therefore, ambiguously pointed to the formation of Fe0 as the core covered with a thin shell of Fe3O4. As in the case of Fe2O3–S–P, the lattice fringes of both Fe(110) and Fe3O4(220) facets were observed in Fe2O3–N–E. These two facets were also in close proximity, suggesting the presence of Fe–Fe3O4 interfaces. In contrast, lattice fringe analyses of Fe2O3–Cl–P and Fe3O4–C only found the presence of the Fe3O4 phase. In general, the TEM observations were highly consistent with the PXRD results.

2.1.4. Redox Properties of the Iron Oxides

The redox properties of a catalytic material play an important role in the Fenton chemistry. Therefore, different techniques were applied to assess the redox properties of the as-derived iron oxides. The phase transitions of different iron compositions in flowing H2 from room temperature to 700 °C were followed by in situ PXRD (Figure 7). Both Fe2O3–S–P and Fe2O3–N–E showed very similar phase transition patterns. Namely, the Fe3O4 phase in these two samples vanished at much lower temperatures as compared with Fe2O3–Cl–P (658–673 vs. 746 °C). Meanwhile, the appearance of Fe0 diffractions emerged at significantly lower temperatures (493–523 vs. 627 °C). Differing from the three as-prepared Fe2O3 materials, which showed the reduction to different degrees, the in situ PXRD patterns of Fe3O4–C indicated that this material was extremely difficult to reduce. The Fe3O4 phase predominated with only very weak diffractions related to Fe0. Overall, these results suggested the very different reduction propensities of the materials with the order of Fe2O3–S–P ~ Fe2O3–N–E > Fe2O3–Cl–P >> Fe3O4–C.

2.1.5. Surface Iron Species and Oxygen Vacancy

The different surface iron and oxygen species of the reduced iron oxides were studied by X-ray photoelectron spectroscopy (XPS, Figure 8), as they were suggested to have important influences on the redox and Fenton chemistry. The Fe 2p spectra of all the samples showed a doublet at 736–706 eV with a satellite around 718 eV. The spectra were analyzed by peak fitting with Fe2+ and Fe3+ species with known peak positions from the literature results. It was determined that the shares of Fe2+ were comparable for Fe2O3–S–P, Fe2O3–Cl–P, and Fe3O4–C (44–46%) and were much higher than that of Fe2O3–N–E (35%). The O 1s of these reduced samples were also analyzed by fitting the spectra. It was revealed that Fe2O3–S–P, Fe2O3–Cl–P, and Fe3O4–C possessed similar shares of oxygen vacancy (Ov, 30–36%), while it was the lowest for Fe2O3–N–E (14%).

2.2. Performance in MO Decomposition

The catalytic performance of the derived iron oxides was evaluated in the decomposition of methyl orange that was chosen as a model reaction to assess the Fenton chemistry. All the materials were reduced in H2 at 350 °C and stored in air at room temperature for more than 24 h prior to the tests. At first, the activity was evaluated at a lower MO concentration of 100 μg/mL (Figure 9a). The conversion steadily increased for Fe2O3–Cl–P and Fe3O4–C. While full conversion was already achieved at 60 min for Fe2O3–C, the conversion only slowly increased and stayed at about 22% at 120 min for Fe2O3–Cl–P. In stark contrast, full conversion was readily achieved upon the addition of H2O2 for both Fe2O3–S–P and Fe2O3–N–E. To further discriminate the activity difference, the decomposition activity was further evaluated at a higher MO concentration of 500 μg/mL (Figure 9b). Under such conditions, full conversion was still readily reached at 30 min for Fe2O3–S–P. In contrast, the conversions at 120 min were only 80% and 35%, respectively, for Fe2O3–N–E and Fe3O4–C. To quantitatively compare the Fenton activity of the four samples, the initial reaction rates were calculated by considering the linear parts of the conversion-time profiles (Figure 9c). Fe2O3–S–P exhibited the highest rate of 370 mgMO gcat−1 min−1, which is 2 times higher than that of Fe2O3–N–E and significantly outperforms Fe2O3–Cl–P and Fe3O4–C by 1–2 orders of magnitude. In order to confirm that the reaction proceeded in a heterogeneous manner, we conducted another test by replacing the iron oxides with trace Fe(NO3)3 so as to mimic the leaching of iron species into the solution. It turned out that the MO decomposition occurred roughly slowly in the first 30 min, and a low conversion of ca. 26% was reached for 120 min (Figure S2). The extremely slow kinetics, as compared with the highly active Fe2O3–S–P and Fe2O3–N–E, thus suggested the heterogeneous nature of the decomposition reaction on the latter. The cycling performance of Fe2O3–S–P was attempted. To fully recover the solid catalyst after use, the catalyst amount and the volume of wastewater were scaled up by four folds. Under such conditions, similar kinetics were achieved in the two consecutive cycles, although full removal of MO cannot be reached in 120 min (Figure S3). The relatively lower activity in the scale-up tests might be caused by the mass transfer effect. In addition, the dissolved iron in the solution after the first cycle was determined to be ca. 48 ppm by inductively coupled plasma optical emission spectroscopy (ICP-OES).

2.3. Origins of the Divergent Catalytic Performance

2.3.1. Structure–Performance Relationships

The Fenton activity of iron-based materials can be influenced by many factors, which makes it difficult to discriminate the key activity descriptors. Among the suspected properties, the Fe2+ species, the oxygen vacancy, and redox properties might play important roles in influencing the activity. Therefore, tentative correlations were made between the initial reaction rates with the shares of Fe2+ and Ov derived from the XPS fitting and the TFe (the temperature corresponding to the appearance of the Fe0 phase from in situ PXRD, Figure 10). We noted that TFe was adopted to roughly reflect the redox properties of the iron oxides. The results demonstrated that there was no clear dependence of the initial activity on either the shares of Fe2+ or Ov, whereas increasing activity as a function of decreasing TFe was evidenced. Therefore, it seems that the redox propensity might be a reasonable activity descriptor in the Fenton chemistry.

2.3.2. Importance of the Fe@Fe3O4 Interfaces

The detailed characterization of the iron oxides revealed that both Fe0 and Fe3O4 were formed on Fe2O3–S–P and Fe2O3–N–E, while only Fe3O4 existed on Fe2O3–Cl–P and Fe3O4–C. Thus, it is reasonable to speculate that the presence of Fe0 was crucial to the high Fenton activity. To further discriminate the MO decomposition performance of the different compositions of iron species, Fe2O3–S–P reduced in H2 at varying temperatures from 300 to 450 °C was conducted. The PXRD results confirmed that Fe2O3 was the major phase after 300 °C reduction (Figure 11). After reduction at 350 °C, Fe0 was the major phase with the coexistence of Fe3O4. After further increasing the temperature to 450 °C, Fe0 was the only phase.
Having derived different compositions of the iron-based materials from Fe2O3–S–P, their activity in MO decomposition was evaluated (Figure 12). The results showed that the samples reduced at 350 and 450 °C displayed basically the same activity, whereas no appreciable conversion can be observed for the unreduced sample and after 300 °C reduction. Combined with the activity evaluation, it can be concluded that Fe0 or Fe0/Fe3O4 were responsible for the catalytic activity, but both Fe3O4 and Fe2O3, when used alone, were completely inactive in Fenton chemistry.
Although the iron oxide in Fe2O3–S–P was completely converted into Fe0 after 450 °C reduction based on PXRD, the exposure to air should easily lead to the formation of a thin oxide layer. It means for this sample, both Fe0 and Fe3O4 might co-exist, like in the case of the sample reduced at 350 °C. To prove the speculation, XPS with depth profile analysis was performed on Fe2O3–S–P after 450 °C and exposure to air (Figure 13). The fitting of the Fe 2p XPS spectra evidently revealed the exclusive presence of both Fe3+ and Fe2+ species at the outer surfaces, while the contribution of Fe0 emerged up to a depth of 11.4 nm, and the share became larger, subject to further sputtering. The results thus confirmed the formation of an iron oxide layer of ca. 11–17 nm thickness owing to the auto-oxidation of metallic iron. In addition, the previous TEM and PXRD results of Fe2O3–S–P after 350 °C reduction also indicated the presence of the Fe@Fe3O4 core–shell structure and a thickness of Fe3O4 layer of <24 nm. Therefore, the similar activity of Fe2O3–S–P subject to 350–400 °C reduction can be attributed to the presence of similar Fe@Fe3O4 core–shell structures. On the other hand, Fe2O3–N–E with both Fe0 and Fe3O4 as the major phases without the apparent core–shell structures exhibited relatively lower activity as compared to Fe2O3–S–P. Albeit an interface between both phases was confirmed by HRTEM, no core–shell structures can be observed, plus the Fe3O4 particle sizes (ca. 54 nm) were much larger as compared with the layer thickness in Fe2O3–S–P. These factors might lead to a reduced number of interface structures and, thus, lower activity.

2.3.3. Discussions on the Origin of Superior Activity

The formation of radicals such as OH* and HO2* was generally acknowledged to be responsible for the MO decomposition in the Fenton chemistry. Indeed, the reaction was immediately jeopardized upon the addition of a radical trapper such as dimethyl sulfoxide (Figure S4), demonstrating the radical-induced nature of this reaction. Both Fe2O3–Cl–P and Fe3O4–C showed comparable rich surface Fe2+ species and Ov but without the presence of ZVI. In contrast, Fe2O3–N–E containing ZVI but with a lower number of Ov also displayed inferior activity. These results hinted that the superior Fenton activity of Fe2O3–S–P with the Fe@Fe3O4 core–shell structures might be attributed to the abundance of both Fe0 and Ov. The rate-limiting step in the heterogeneous Fenton reaction is viewed as the formation of Fe2+ species that are responsible for generating highly active OH* through Equation (1). Previous studies have proposed that Fe2+ species might be produced by the oxidation of ZVI by H2O2 or molecular oxygen in acidic conditions [40,41]. In addition, the studies on the Fe@Fe2O3 systems also suggested the excellent reducing properties of metallic iron to achieve a high Fe2+/Fe3+ redox cycling rate, wherein ZVI can directly inject two electrons to activate molecular oxygen [42,43]. On the other hand, the rich number of Ov has been demonstrated to be beneficial to the generation of OH* [44,45,46,47]. Li et al. [46] confirmed that H2O2 adsorbed on the electron-rich location readily underwent dissociation induced by Ov (Equation (2)). Chen et al. [44] reported the accelerated electron transfer process and threefold yield of OH* for the Ov-rich micro ZVI interface. The synergistic cooperation catalysis between ZVI and iron oxides was proposed in Equation (3). Following this equation, the surface-bonded Fe2+ species were generated between the iron oxides and Ov. The surface-bonded Fe2+ species were suggested to be more reactive than ferrous ions in activating H2O2, thus avoiding the rate-limiting step in the classic Fenton reaction.
H2O2 + Fe2+ → Fe3+ + OH* + OH−
H2O2 + Ov → OH* + OH−
FexOy + Ov → e− + Fe2+(sur)

3. Materials and Methods

3.1. Synthesis of the Iron Oxides

All the reagents were obtained from commercial suppliers and used without further purification. Fe(NH4)2(SO4)2·6H2O(99.5%), Fe(NO3)3·9H2O, and FeCl3·6H2O were purchased from Aladdin. Polyethylene glycol 400 (PEG-400), ethylene glycol (EG, ≥99.5%), and sodium carbonate (Na2CO3, ≥99.8%) were purchased from Sinopharm. Ammonium hydroxide solution (NH3·H2O,25–28%) and Fe3O4–C (99.5%) were purchased from Macklin.
The other three iron oxides were prepared by a precipitation method. A solution containing Fe(NH4)2(SO4)2·6H2O (0.02 mol/L) and polyethylene glycol 400 (200 mL) was gradually heated to 120 °C under mechanical stirring and maintained at 120 °C for 1 h. Then a Na2CO3 aqueous solution (200 mL, 0.2 mol/L) was added gradually dropwise through a syringe pump at a rate of 5.5 mL/min. The mixture was aged at 120 °C for 1 h. The precipitate was washed with water and ethanol, dried at 120 °C for 12 h, and calcined at 500 °C for 5 h. The solids obtained, which were denoted as Fe2O3–S–P, Fe2O3–N–E, and Fe2O3–Cl–P, were obtained following similar precipitation methods by using Fe(NO3)3·9H2O and FeCl3·6H2O as the precursors, EG and PEG-400 as the solvents, and sodium carbonate concentrations of 0.02 and 0.2 M, respectively.

3.2. Material Characterizations

The composition and crystalline structures of the catalysts were characterized by powder X-ray diffraction (PXRD) with an x’Pert3 Panalytical X-ray diffractometer (PANalytical, Almelo, The Netherlands) using Cu Kα radiation (λ = 0.154178 nm). The tube voltage and current were 40 kV and 40 mA, respectively. In situ PXRD patterns were recorded with Rigaku SmartLab-9 kW D/teX Ultra250 diffractometer using a Cu Kα radiation source operated at 40 kV and 200 mA. The powder samples were spread into a high-temperature chamber, and the diffraction patterns were recorded at 2θ of 30–90° with a scanning rate of 10° min−1 at room temperature. Then, the sample was heated to 823 K successively at a rate of 10 °C min−1 under 10% H2/He flow of 30 mL min−1.
Scanning electron microscopy (SEM) was conducted on a Quanta 200F instrument operating at 10 kV and 50 pA. The powder sample was dispersed in dry form onto fresh carbon paint deposited on an aluminum holder.
Transmission electron microscopy (TEM) images were taken on an FEI Tecnai G2F 20 microscopy operating at 120 kV. The specimen was prepared by ultrasonically dispersing the powder sample in ethanol, depositing droplets of the suspensions onto carbon-coated copper or gold grids, and drying in air.
X-ray photoelectron spectroscopy (XPS) analysis of the materials was performed on a Thermo ESCALAB 250Xi spectrometer using a 15 kV Al Kα X-ray source as a radiation source. The binding energy was calibrated using the C 1s peak (284.6 eV) as the reference. For the depth profile analysis, the samples were sputtered with Ar ions.
The iron content in the solution after the catalytic test was measured by inductively coupled plasma optical emission spectroscopy (ICP-OES) on a Perkin-Elmer Optima 7300DV.

3.3. Activity Evaluation of the Iron-Based Materials in Decomposition of Methyl Orange

The activity evaluation of the developed iron-based materials in the decomposition of methyl orange (MO) was performed in a 250 mL three-necked round flask equipped with a magnetic stirrer and a temperature thermometer. The temperature was controlled by a pre-heated water bath. For a typical reaction, 100 mL of aqueous MO solutions of 100 or 500 μg/mL were charged into the flask reactor. The pH of the solution was then adjusted to 3.0 by diluted HCl solution. After that, a certain amount of the solid catalysts was added, and the suspension was stirred for 30 min to reach the adsorption–desorption equilibrium. Finally, the reaction was initiated upon the addition of a diluted H2O2 solution, and the concentration of MO was continuously monitored by taking a small portion of the liquid samples for analysis on a UV–Vis spectrometer (TU-1810, Beijing Puxi General Motors Instrument Co.) at λmax = 464 nm (see Figure S5 for more details).

4. Conclusions

We have developed iron oxides of four different model systems through the conventional precipitation method by combining them with subsequent H2 reduction treatment. These materials possess very different compositions and structural features, including the Fe@Fe3O4 core–shell structures with rich oxygen vacancy (Fe2O3–S–P), the mixtures of Fe0 and Fe3O4 particles with interface structures but low oxygen vacancy (Fe2O3–N–E), and Fe3O4-dominated nanoparticles of different sizes and rich in oxygen vacancy (Fe2O3–Cl–P and Fe3O4–C). These materials, when used as Fenton catalysts in the methyl orange decomposition, displayed significantly different activity with the order of Fe2O3–S–P > Fe2O3–N–E > Fe3O4–C > Fe2O3–Cl–P. The passivating layer of metallic iron of up to ca. 24 nm can lead to similar Fe@Fe3O4 core–shell structures with excellent activity. This study further demonstrated that the numbers of Fe2+ or oxygen vacancy alone might not be the only activity descriptors for the iron-based materials, while the formation of metallic iron coupled with the rich oxygen vacancy can significantly boost the Fenton activity, thus highlighting the necessity of more in-depth analyses of the role of the hybrid Fe@FexOy.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/catal13071057/s1, Figure S1: The additional TEM images of the iron oxides after 350 °C reduction. Figure S2: The MO decomposition activity as a function of time in the presence of an Fe3+ solution. Reaction conditions: CMO = 100 μg/mL, pH = 3, 2.6 mg Fe(NO3)3•9H2O, and CH2O2= 20 mM. Figure S3: The kinetic profiles of MO decomposition on Fe2O3-S-P in two consecutive runs. Reaction conditions: wcat = 20 mg; pH = 3, V = 400 mL, CH2O2= 80 mM, CMO = 500 μg/mL. The catalyst after the use was recovered by centrifugation. Figure S4: The MO decomposition activity as a function of time on Fe2O3-N-E. DMSO was added at 5 min, and the conversion did not increase hereafter, thus demonstrating the radical induction nature of the reaction. Figure S5: (a) The absorbance of MO solutions of different concentrations as a function of the wavelength, and (b) the linear relationship between the MO concentration and the absorbance intensity at 464 nm.

Author Contributions

Conceptualization, X.M. and W.K.; investigation, R.Z., J.Q. and R.T.; XRD and XPS, Y.L.; TEM, R.L.; writing—review and editing, X.M., P.F. and W.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

All data are available from the authors upon request.

Acknowledgments

The authors would like to thank Deiyou Chen from Shiyanjia Lab (www.shiyanjia.com, accessed on 1 May 2023) for TEM measurements.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tran, N.H.; Reinhard, M.; Gin, K.Y.-H. Occurrence and fate of emerging contaminants in municipal wastewater treatment plants from different geographical regions-a review. Water Res. 2018, 133, 182–207. [Google Scholar] [CrossRef]
  2. Hodges, B.C.; Cates, E.L.; Kim, J.H. Challenges and prospects of advanced oxidation water treatment processes using catalytic nanomaterials. Nat. Nanotechnol. 2018, 13, 642–650. [Google Scholar] [CrossRef]
  3. Boczkaj, G.; Fernandes, A. Wastewater treatment by means of advanced oxidation processes at basic pH conditions: A review. Chem. Eng. J. 2017, 320, 608–633. [Google Scholar] [CrossRef]
  4. Altalhi, T.A.; Ibrahim, M.M.; Mersal, G.A.M.; Mahmoud, M.H.H.; Kumeria, T.; El-Desouky, M.G.; El-Bindary, A.A.; El-Bindary, M.A. Adsorption of doxorubicin hydrochloride onto thermally treated green adsorbent: Equilibrium, kinetic and thermodynamic studies. J. Mol. Struct. 2022, 1263, 133160. [Google Scholar] [CrossRef]
  5. Bokare, A.D.; Choi, W. Review of iron-free Fenton-like systems for activating H2O2 in advanced oxidation processes. J. Hazard. Mater. 2014, 275, 121–135. [Google Scholar] [CrossRef]
  6. Zhu, Y.; Zhu, R.; Xi, Y.; Zhu, J.; Zhu, G.; He, H. Strategies for enhancing the heterogeneous Fenton catalytic reactivity: A review. Appl. Catal. B 2019, 255, 117739. [Google Scholar] [CrossRef]
  7. He, J.; Yang, X.; Men, B.; Wang, D. Interfacial mechanisms of heterogeneous Fenton reactions catalyzed by iron-based materials: A review. J. Environ. Sci. 2016, 39, 97–109. [Google Scholar] [CrossRef]
  8. Rahim Pouran, S.; Abdul Raman, A.A.; Wan Daud, W.M.A. Review on the application of modified iron oxides as heterogeneous catalysts in Fenton reactions. J. Clean. Prod. 2014, 64, 24–35. [Google Scholar] [CrossRef] [Green Version]
  9. Zepp, R.G.; Faust, B.C.; Hoigne, J. Hydroxyl radical formation in aqueous reactions (pH 3–8) of iron (II) with hydrogen peroxide: The photo-Fenton reaction. Environ. Sci. Technol. 1992, 26, 313–319. [Google Scholar] [CrossRef]
  10. Oller, I.; Malato, S.; Sánchez-Pérez, J.; Gernjak, W.; Maldonado, M.; Pérez-Estrada, L.; Pulgarín, C. A combined solar photocatalytic-biological field system for the mineralization of an industrial pollutant at pilot scale. Catal. Today 2007, 122, 150–159. [Google Scholar] [CrossRef]
  11. Malato, S.; Fernández-Ibáñez, P.; Maldonado, M.I.; Blanco, J.; Gernjak, W. Decontamination and disinfection of water by solar photocatalysis: Recent overview and trends. Catal. Today 2009, 147, 1–59. [Google Scholar] [CrossRef]
  12. Brillas, E.; Sirés, I.; Oturan, M.A. Electro-Fenton process and related electrochemical technologies based on Fenton’s reaction chemistry. Chem. Rev. 2009, 109, 6570–6631. [Google Scholar] [CrossRef] [PubMed]
  13. Adewuyi, Y.G. Sonochemistry in environmental remediation. 1. Combinative and hybrid sonophotochemical oxidation processes for the treatment of pollutants in water. Environ. Sci. Technol. 2005, 39, 3409–3420. [Google Scholar] [CrossRef]
  14. Cai, W.; Chen, F.; Shen, X.; Chen, L.; Zhang, J. Enhanced catalytic degradation of AO7 in the CeO2–H2O2 system with Fe3+ doping. Appl. Catal. B 2010, 101, 160–168. [Google Scholar] [CrossRef]
  15. Bokare, A.D.; Choi, W. Advanced oxidation process based on the Cr (III)/Cr (VI) redox cycle. Environ. Sci. Technol. 2011, 45, 9332–9338. [Google Scholar] [CrossRef]
  16. Gabriel, J.; Baldrian, P.; Verma, P.; Cajthaml, T.; Merhautová, V.; Eichlerová, I.; Stoytchev, I.; Trnka, T.; Stopka, P.; Nerud, F. Degradation of BTEX and PAHs by Co (II) and Cu (II)-based radical-generating systems. Appl. Catal. B 2004, 51, 159–164. [Google Scholar] [CrossRef]
  17. Gabriel, J.; Shah, V.; Nesměrák, K.; Baldrian, P.; Nerud, F. Degradation of polycyclic aromatic hydrocarbons by the copper (II)-hydrogen peroxide system. Folia Microbiol. 2000, 45, 573–575. [Google Scholar] [CrossRef]
  18. Han, Y.-F.; Chen, F.; Zhong, Z.; Ramesh, K.; Chen, L.; Jian, D.; Ling, W.W. Complete oxidation of low concentration ethanol in aqueous solution with H2O2 on nanosized Mn3O4/SBA-15 catalyst. Chem. Eng. J. 2007, 134, 276–281. [Google Scholar] [CrossRef]
  19. Hu, Z.; Leung, C.-F.; Tsang, Y.-K.; Du, H.; Liang, H.; Qiu, Y.; Lau, T.-C. A recyclable polymer-supported ruthenium catalyst for the oxidative degradation of bisphenol A in water using hydrogen peroxide. New J. Chem. 2011, 35, 149–155. [Google Scholar] [CrossRef]
  20. Mizuno, N.; Yamaguchi, K.; Kamata, K. Epoxidation of olefins with hydrogen peroxide catalyzed by polyoxometalates. Coord. Chem. Rev. 2005, 249, 1944–1956. [Google Scholar] [CrossRef]
  21. Huang, J.; Jones, A.; Waite, T.D.; Chen, Y.; Huang, X.; Rosso, K.M.; Kappler, A.; Mansor, M.; Tratnyek, P.G.; Zhang, H. Fe(II) Redox chemistry in the environment. Chem. Rev. 2021, 121, 8161–8233. [Google Scholar] [CrossRef]
  22. Danielsen, K.M.; Hayes, K.F. pH Dependence of carbon tetrachloride reductive dechlorination by magnetite. Environ. Sci. Technol. 2004, 38, 4745–4752. [Google Scholar] [CrossRef]
  23. Gorski, C.A.; Nurmi, J.T.; Tratnyek, P.G.; Hofstetter, T.B.; Scherer, M.M. Redox behavior of magnetite: Implications for contaminant reduction. Environ. Sci. Technol. 2010, 44, 55–60. [Google Scholar] [CrossRef]
  24. Zhong, Y.; Yu, L.; Chen, Z.F.; He, H.; Ye, F.; Cheng, G.; Zhang, Q. Microwave-assisted synthesis of Fe3O4 nanocrystals with predominantly exposed facets and their heterogeneous UVA/Fenton catalytic activity. ACS Appl. Mater. Interface. 2017, 9, 29203–29212. [Google Scholar] [CrossRef]
  25. Jaramillo-Páez, C.; Navío, J.A.; Hidalgo, M.; Bouziani, A.; El Azzouzi, M. Mixed α-Fe2O3/Bi2WO6 oxides for photoassisted hetero-Fenton degradation of Methyl Orange and Phenol. J. Photochem. Photobiol. A 2017, 332, 521–533. [Google Scholar] [CrossRef]
  26. Ma, Y.; Wang, B.; Wang, Q.; Xing, S. Facile synthesis of α-FeOOH/γ-Fe2O3 by a pH gradient method and the role of γ-Fe2O3 in H2O2 activation under visible light irradiation. Chem. Eng. J. 2018, 354, 75–84. [Google Scholar] [CrossRef]
  27. Krumina, L.; Lyngsie, G.; Tunlid, A.; Persson, P. Oxidation of a dimethoxyhydroquinone by ferrihydrite and goethite nanoparticles: Iron reduction versus surface catalysis. Environ. Sci. Technol. 2017, 51, 9053–9061. [Google Scholar] [CrossRef]
  28. Su, S.; Liu, Y.; Liu, X.; Jin, W.; Zhao, Y. Transformation pathway and degradation mechanism of methylene blue through β-FeOOH@ GO catalyzed photo-Fenton-like system. Chemosphere 2019, 218, 83–92. [Google Scholar] [CrossRef]
  29. He, D.; Chen, Y.; Situ, Y.; Zhong, L.; Huang, H. Synthesis of ternary g-C3N4/Ag/γ-FeOOH photocatalyst: An integrated heterogeneous Fenton-like system for effectively degradation of azo dye methyl orange under visible light. Appl. Surf. Sci. 2017, 425, 862–872. [Google Scholar] [CrossRef]
  30. Chen, Z.X.; Jin, X.Y.; Chen, Z.; Megharaj, M.; Naidu, R. Removal of methyl orange from aqueous solution using bentonite-supported nanoscale zero-valent iron. J. Colloid Interface Sci. 2011, 363, 601–607. [Google Scholar] [CrossRef]
  31. Xie, S.; Huang, P.; Kruzic, J.J.; Zeng, X.; Qian, H. A highly efficient degradation mechanism of methyl orange using Fe-based metallic glass powders. Sci. Rep. 2016, 6, 21947. [Google Scholar] [CrossRef] [Green Version]
  32. Yuan, N.; Zhang, G.; Guo, S.; Wan, Z. Enhanced ultrasound-assisted degradation of methyl orange and metronidazole by rectorite-supported nanoscale zero-valent iron. Ultrason. Sonochem. 2016, 28, 62–68. [Google Scholar] [CrossRef]
  33. Zhu, L.; Ai, Z.; Ho, W.; Zhang, L. Core–shell Fe–Fe2O3 nanostructures as effective persulfate activator for degradation of methyl orange. Sep. Purif. Technol. 2013, 108, 159–165. [Google Scholar] [CrossRef]
  34. Huang, Q.; Cao, M.; Ai, Z.; Zhang, L. Reactive oxygen species dependent degradation pathway of 4-chlorophenol with Fe@Fe2O3 core–shell nanowires. Appl. Catal. B 2015, 162, 319–326. [Google Scholar] [CrossRef]
  35. Shen, W.; Lin, F.; Jiang, X.; Li, H.; Ai, Z.; Zhang, L. Efficient removal of bromate with core-shell Fe@Fe2O3 nanowires. Chem. Eng. J. 2017, 308, 880–888. [Google Scholar] [CrossRef] [Green Version]
  36. Shi, J.; Ai, Z.; Zhang, L. Fe@Fe2O3 core-shell nanowires enhanced Fenton oxidation by accelerating the Fe (III)/Fe(II) cycles. Wat. Res. 2014, 59, 145–153. [Google Scholar] [CrossRef] [PubMed]
  37. Liu, W.; Ai, Z.; Cao, M.; Zhang, L. Ferrous ions promoted aerobic simazine degradation with Fe@Fe2O3 core–shell nanowires. Appl. Catal. B 2014, 150, 1–11. [Google Scholar] [CrossRef]
  38. Ai, Z.; Gao, Z.; Zhang, L.; He, W.; Yin, J.J. Core–shell structure dependent reactivity of Fe@Fe2O3 nanowires on aerobic degradation of 4-chlorophenol. Environ. Sci. Technol. 2013, 47, 5344–5352. [Google Scholar] [CrossRef]
  39. Daliran, S.; Khajeh, M.; Oveisi, A.R. A porous Fe-based porphyrinic metal–organic framework for highly effective removal of organic azo-dye. Appl. Organomet. Chem. 2022, 36, e6830. [Google Scholar] [CrossRef]
  40. Costa, R.C.; Moura, F.C.; Ardisson, J.; Fabris, J.; Lago, R. Highly active heterogeneous Fenton-like systems based on Fe0/Fe3O4 composites prepared by controlled reduction of iron oxides. Appl. Catal. B 2008, 83, 131–139. [Google Scholar] [CrossRef]
  41. Leupin, O.X.; Hug, S.J. Oxidation and removal of arsenic (III) from aerated groundwater by filtration through sand and zero-valent iron. Water Res. 2005, 39, 1729–1740. [Google Scholar] [CrossRef]
  42. Wu, H.; Ai, Z.; Zhang, L. Anoxic and oxic removal of humic acids with Fe@Fe2O3 core–shell nanowires: A comparative study. Water Res. 2014, 52, 92–100. [Google Scholar] [CrossRef] [PubMed]
  43. Wang, L.; Cao, M.; Ai, Z.; Zhang, L. Dramatically enhanced aerobic atrazine degradation with Fe@Fe2O3 core–shell nanowires by tetrapolyphosphate. Environ. Sci. Technol. 2014, 48, 3354–3362. [Google Scholar] [CrossRef]
  44. Chen, X.; Su, J.; Meng, Y.; Yu, M.; Zheng, M.; Sun, Y.; Xi, B. Oxygen vacancy promoted heterogeneous Fenton-like degradation of sulfamethazine by chlorine-incorporated micro zero-valent iron. Chem. Eng. J. 2023, 463, 142360. [Google Scholar] [CrossRef]
  45. Deng, Y.; Tian, X.; Shen, G.; Gao, Y.; Lin, C.; Ling, L.; Cheng, F.; Liao, S.; Zhang, S. Coupling hollow Fe3O4 nanoparticles with oxygen vacancy on mesoporous carbon as a high-efficiency ORR electrocatalyst for Zn-air battery. J. Colloid Interface Sci. 2020, 567, 410–418. [Google Scholar] [CrossRef]
  46. Li, H.; Shang, J.; Yang, Z.; Shen, W.; Ai, Z.; Zhang, L. Oxygen vacancy associated surface Fenton chemistry: Surface structure dependent hydroxyl radicals generation and substrate dependent reactivity. Environ. Sci. Technol. 2017, 51, 5685–5694. [Google Scholar] [CrossRef] [PubMed]
  47. Ruiz Puigdollers, A.; Schlexer, P.; Tosoni, S.; Pacchioni, G. Increasing Oxide Reducibility: The role of metal/oxide Interfaces in the formation of oxygen vacancies. ACS Catal. 2017, 7, 6493–6513. [Google Scholar] [CrossRef] [Green Version]
Catalysts 13 01057 g001 550

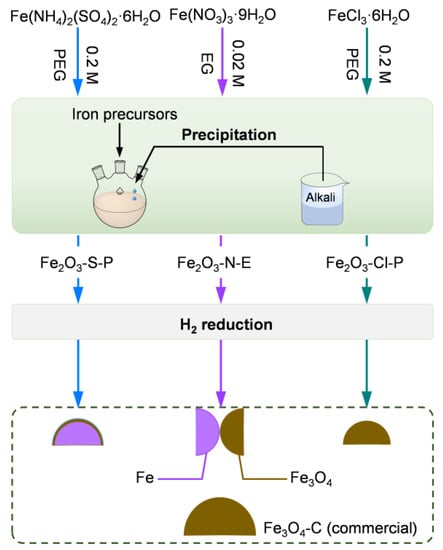

Figure 1. Schematic illustration of the synthetic procedures of the iron oxides, accompanied by the sample codes and structural characteristics.
Figure 1. Schematic illustration of the synthetic procedures of the iron oxides, accompanied by the sample codes and structural characteristics.
Catalysts 13 01057 g001
Catalysts 13 01057 g002 550

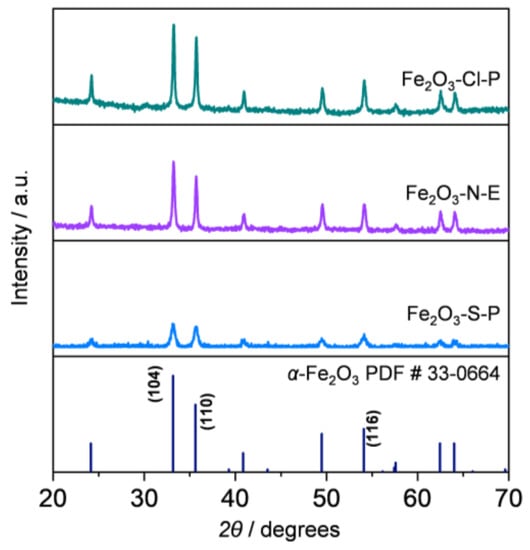

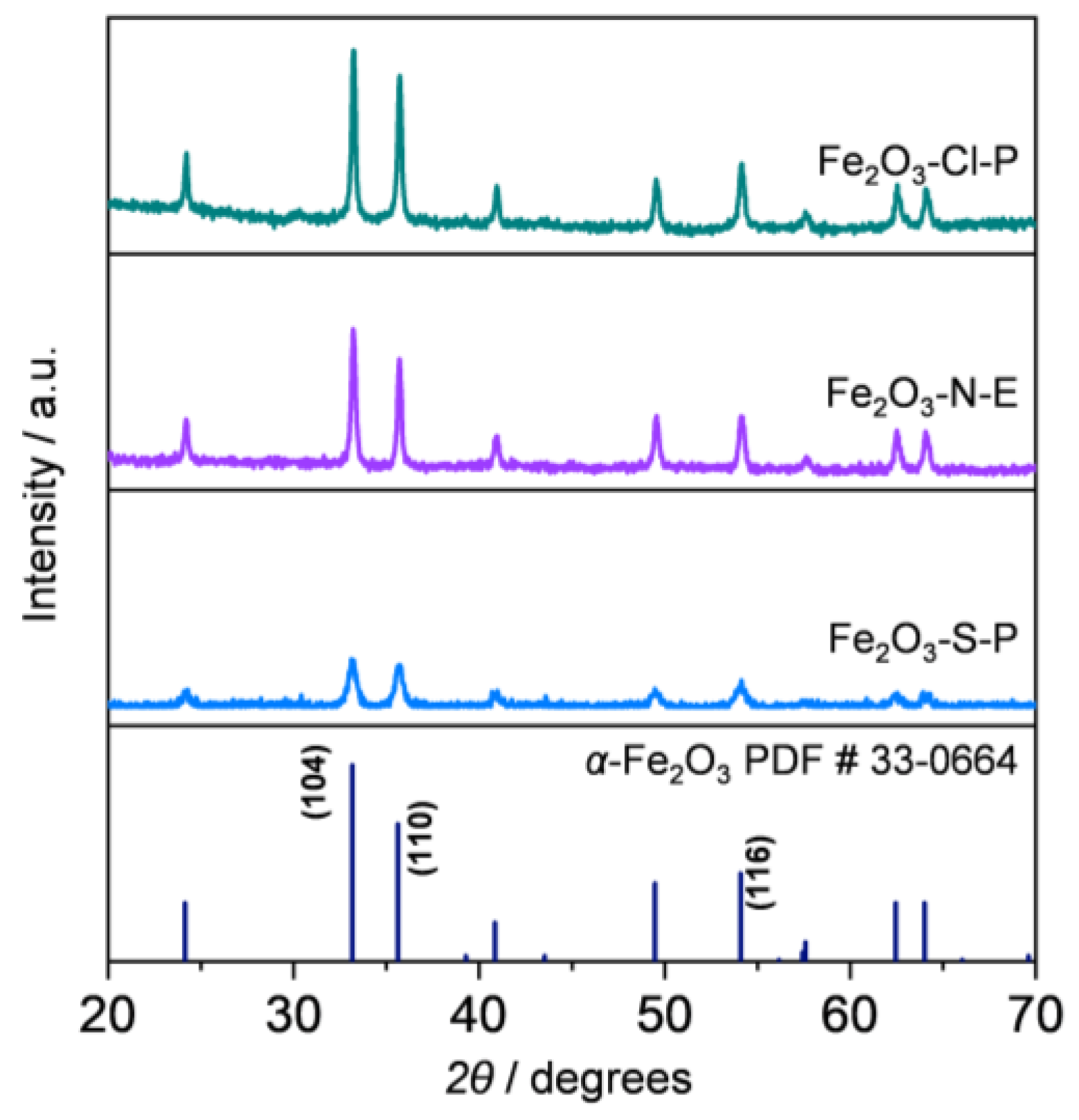

Figure 2. The PXRD patterns of the as-prepared iron oxides. Vertical lines are the reference standard.
Figure 2. The PXRD patterns of the as-prepared iron oxides. Vertical lines are the reference standard.
Catalysts 13 01057 g002
Catalysts 13 01057 g003 550

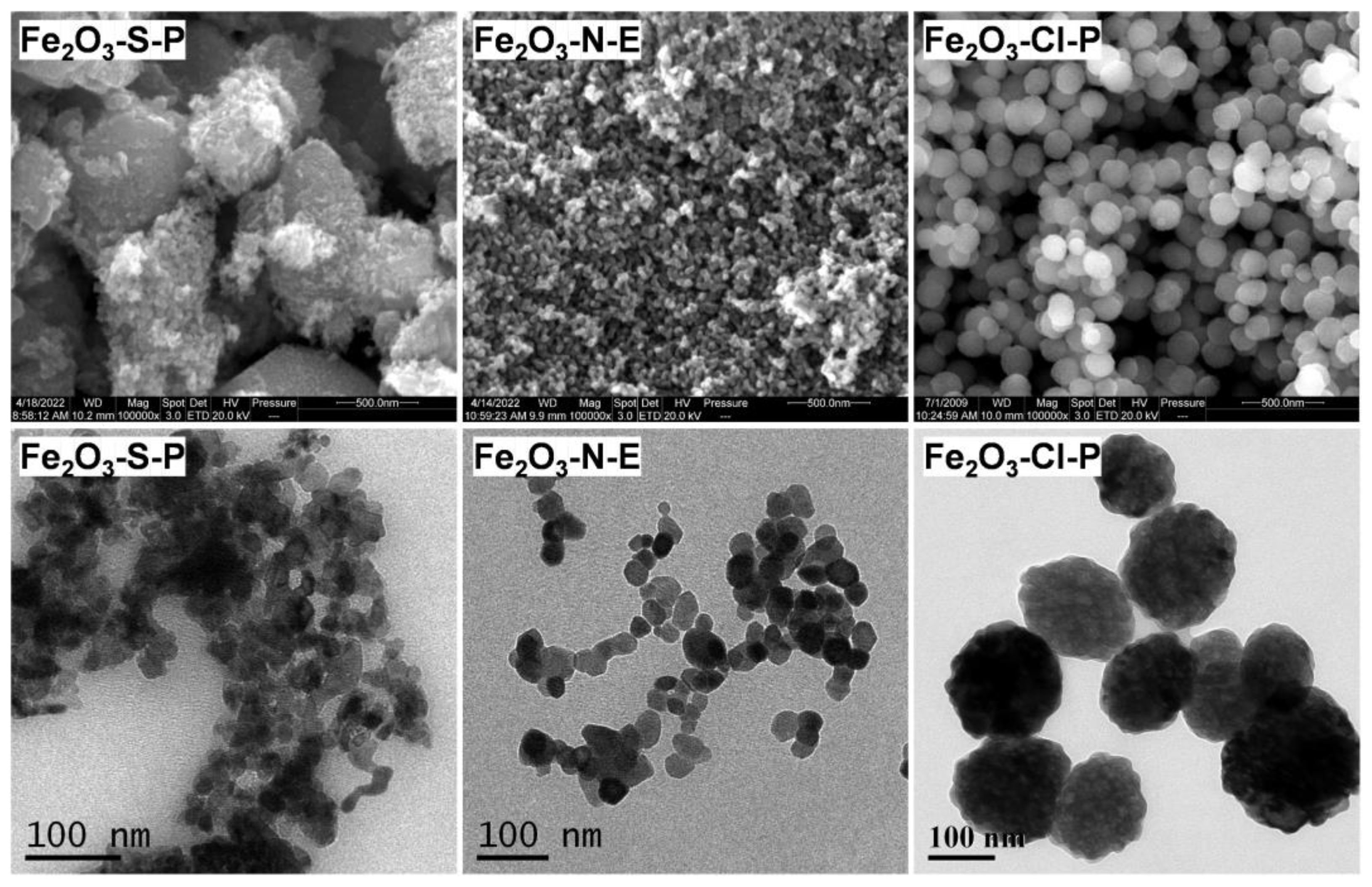

Figure 3. The SEM (top) and TEM (bottom) images of the as-prepared iron oxides.
Figure 3. The SEM (top) and TEM (bottom) images of the as-prepared iron oxides.
Catalysts 13 01057 g003
Catalysts 13 01057 g004 550

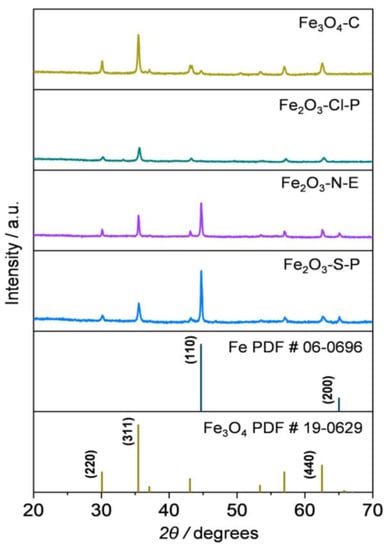

Figure 4. The PXRD patterns of the iron oxides after 350 °C reduction. Vertical lines are the reference standards.
Figure 4. The PXRD patterns of the iron oxides after 350 °C reduction. Vertical lines are the reference standards.
Catalysts 13 01057 g004
Catalysts 13 01057 g005 550

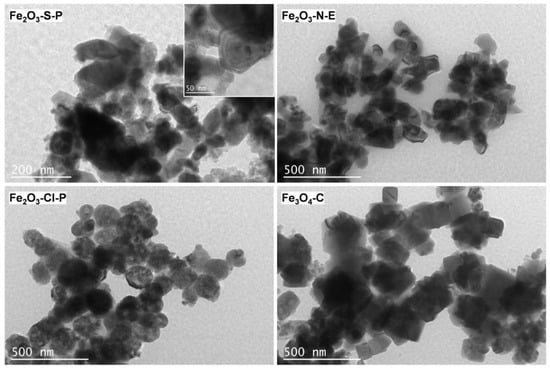

Figure 5. The TEM images of the iron oxides after 350 °C reduction. The inset in top-left shows the core–shell structures in Fe2O3–S–P.
Figure 5. The TEM images of the iron oxides after 350 °C reduction. The inset in top-left shows the core–shell structures in Fe2O3–S–P.
Catalysts 13 01057 g005
Catalysts 13 01057 g006 550

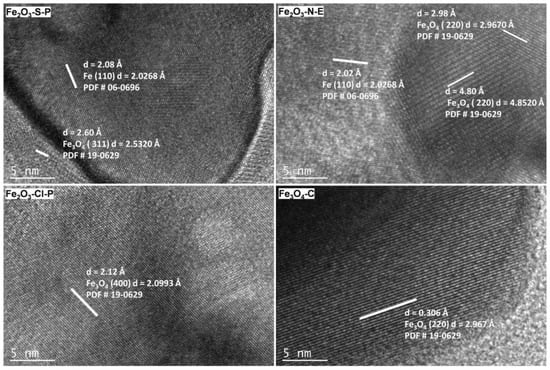

Figure 6. The HRTEM images of the iron oxides after 350 °C reduction.
Figure 6. The HRTEM images of the iron oxides after 350 °C reduction.
Catalysts 13 01057 g006
Catalysts 13 01057 g007 550

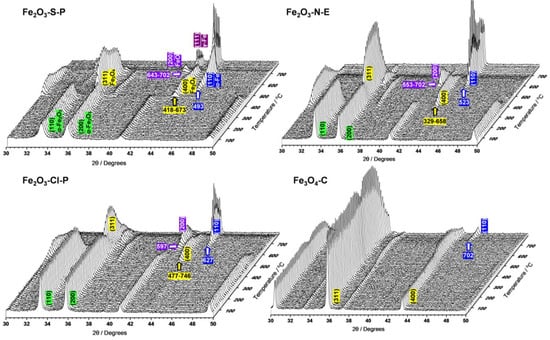

Figure 7. The in situ PXRD patterns of the iron oxides in flowing H2.
Figure 7. The in situ PXRD patterns of the iron oxides in flowing H2.
Catalysts 13 01057 g007
Catalysts 13 01057 g008 550

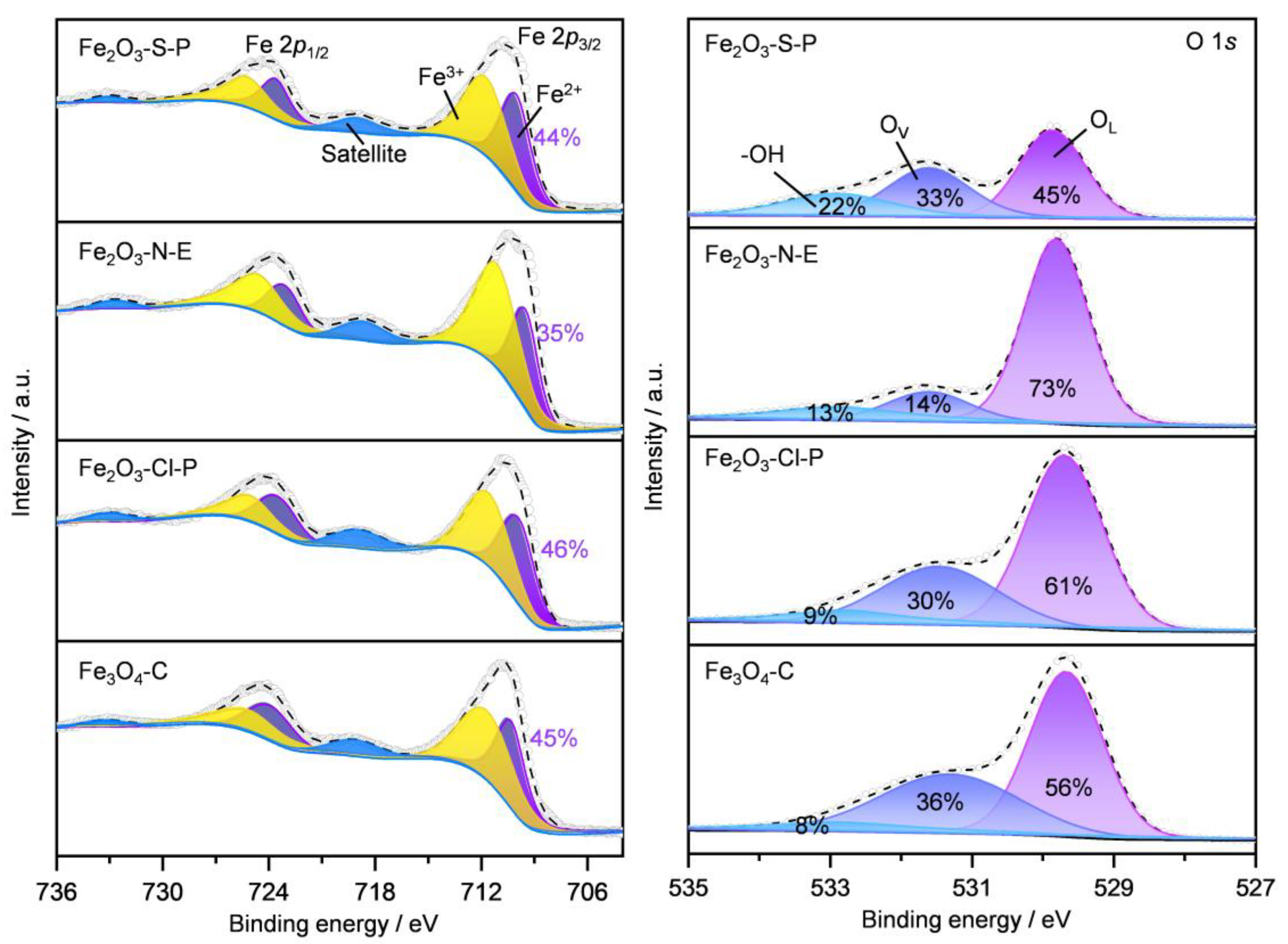

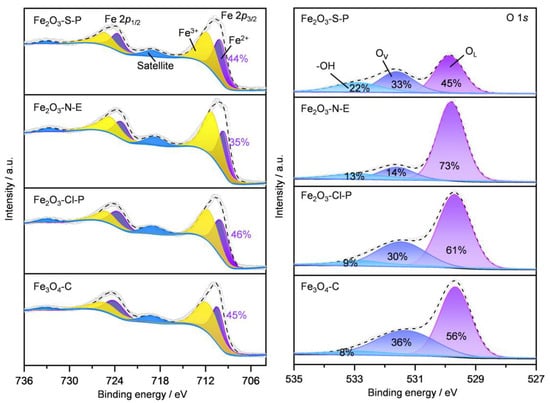

Figure 8. The Fe 2p and O 1s XPS profiles of the iron oxides after 350 °C reduction. Ov—oxygen vacancy; OL—lattice oxygen.
Figure 8. The Fe 2p and O 1s XPS profiles of the iron oxides after 350 °C reduction. Ov—oxygen vacancy; OL—lattice oxygen.
Catalysts 13 01057 g008
Catalysts 13 01057 g009 550

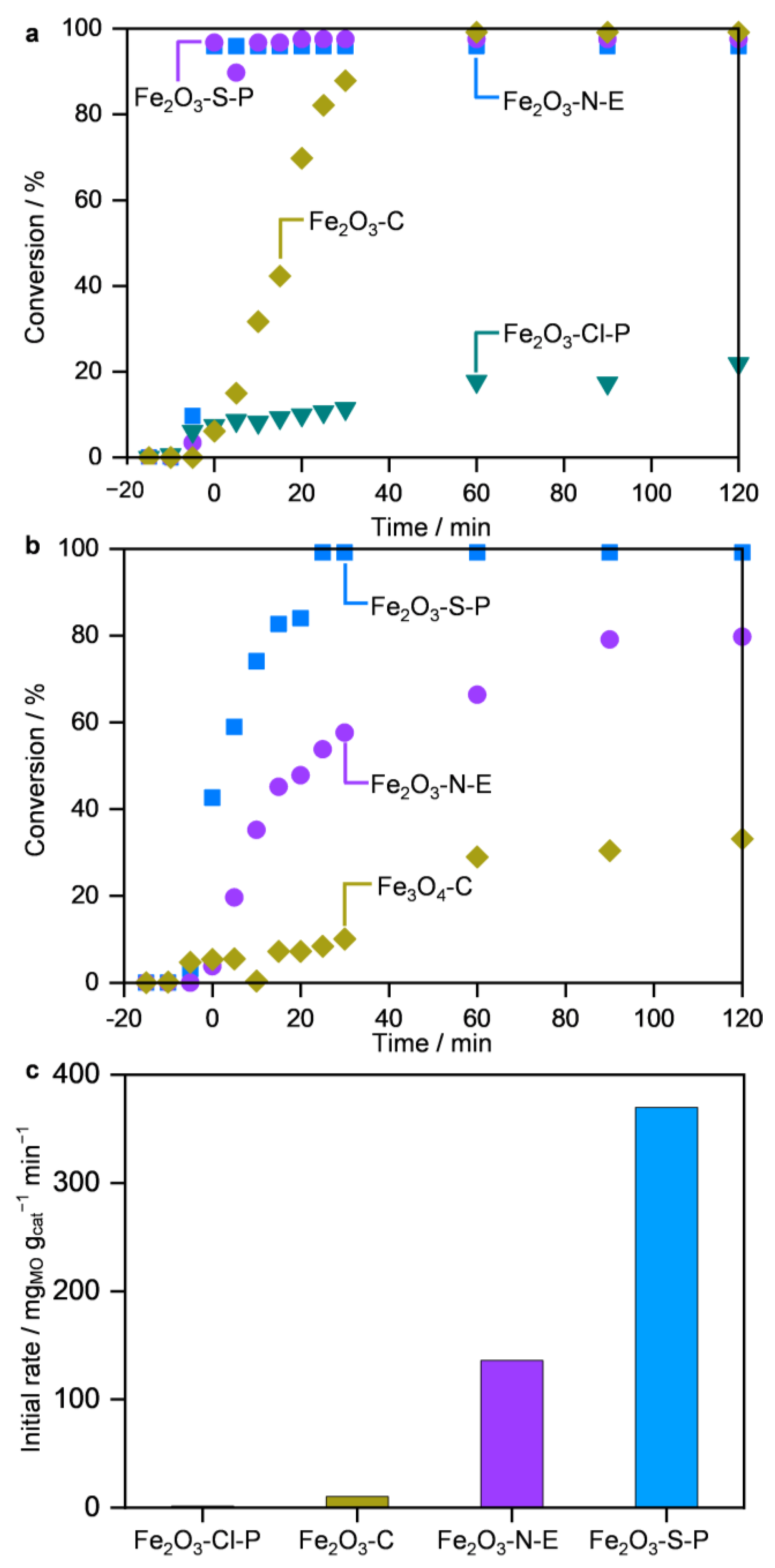

Figure 9. (a,b) The MO decomposition activity as a function of time on different iron oxides. (c) Comparison of the initial activity of different iron oxides. Reaction conditions: wcat = 5 mg (350 °C reduced); pH = 3, V = 100 mL, CH2O2 = 20 mM; (a) CMO = 100 μg/mL, (b) CMO = 500 μg/mL. The first three data points before the addition of H2O2 correspond to the freshly prepared solution, the solutions after the adjustment in pH, and after 30 min stirring, respectively.
Figure 9. (a,b) The MO decomposition activity as a function of time on different iron oxides. (c) Comparison of the initial activity of different iron oxides. Reaction conditions: wcat = 5 mg (350 °C reduced); pH = 3, V = 100 mL, CH2O2 = 20 mM; (a) CMO = 100 μg/mL, (b) CMO = 500 μg/mL. The first three data points before the addition of H2O2 correspond to the freshly prepared solution, the solutions after the adjustment in pH, and after 30 min stirring, respectively.
Catalysts 13 01057 g009
Catalysts 13 01057 g010 550

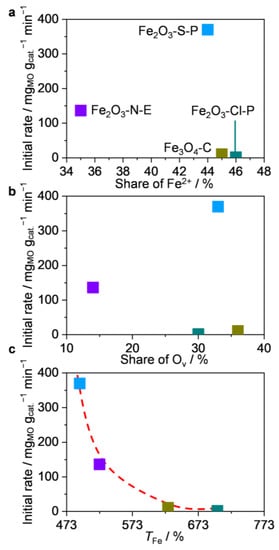

Figure 10. The initial reaction rates of different iron oxides as a function of (a) surface Fe2+ ratio, (b) oxygen vacancy, and (c) TFe (the temperature corresponding to the appearance of Fe0 phase from in situ PXRD). TFe can be viewed as an indicator of the redox properties of the respective catalysts.
Figure 10. The initial reaction rates of different iron oxides as a function of (a) surface Fe2+ ratio, (b) oxygen vacancy, and (c) TFe (the temperature corresponding to the appearance of Fe0 phase from in situ PXRD). TFe can be viewed as an indicator of the redox properties of the respective catalysts.
Catalysts 13 01057 g010
Catalysts 13 01057 g011 550

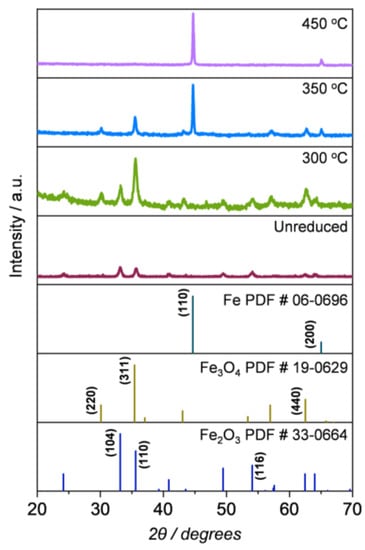

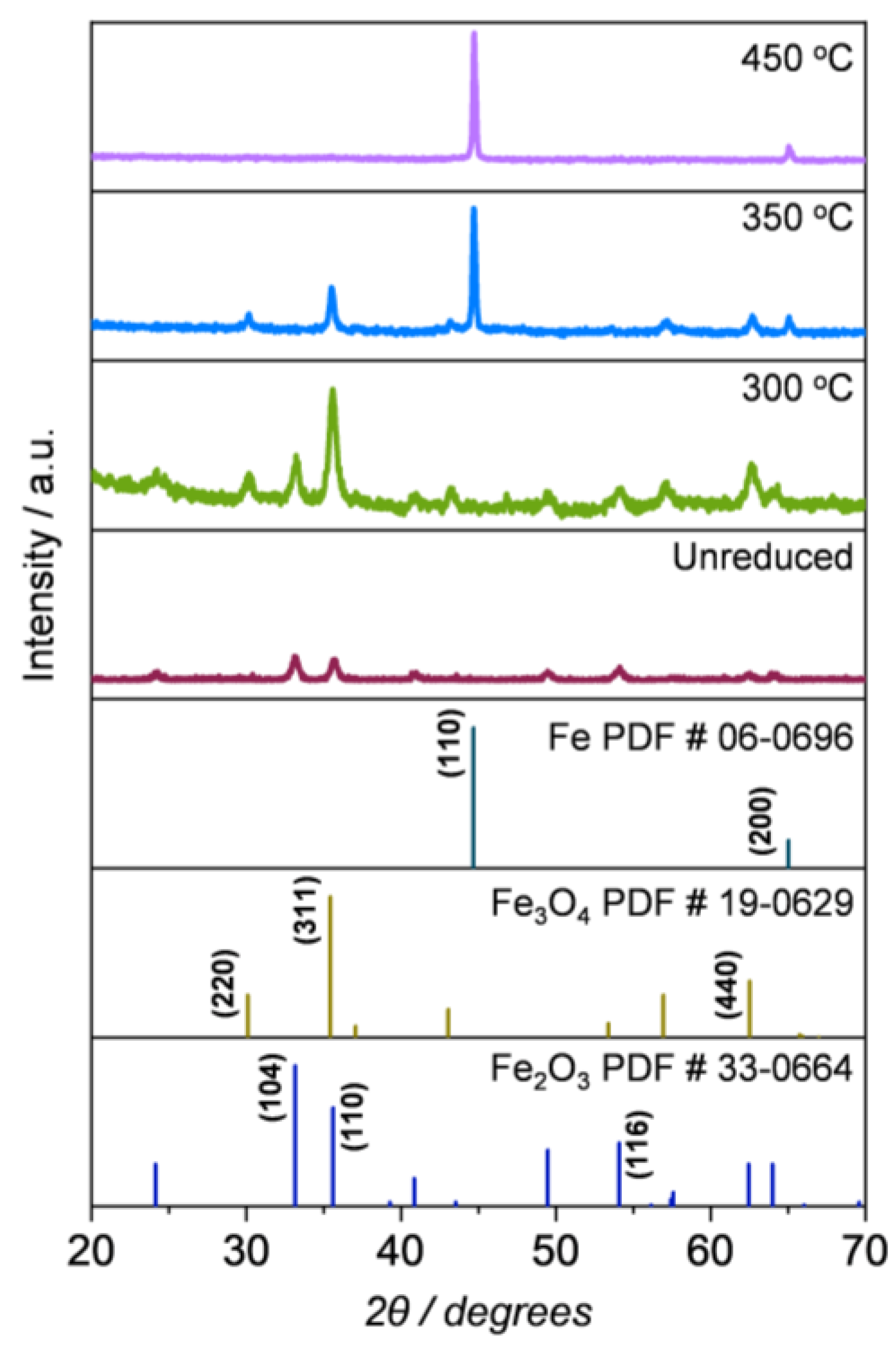

Figure 11. The PXRD patterns of Fe2O3–S–P after reduction in H2 at 300–450 °C. Vertical lines are the reference standards.
Figure 11. The PXRD patterns of Fe2O3–S–P after reduction in H2 at 300–450 °C. Vertical lines are the reference standards.
Catalysts 13 01057 g011
Catalysts 13 01057 g012 550

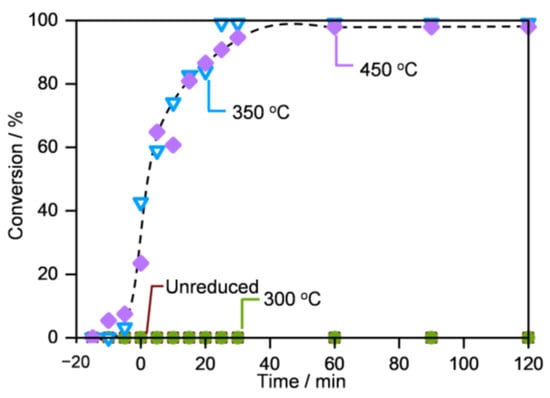

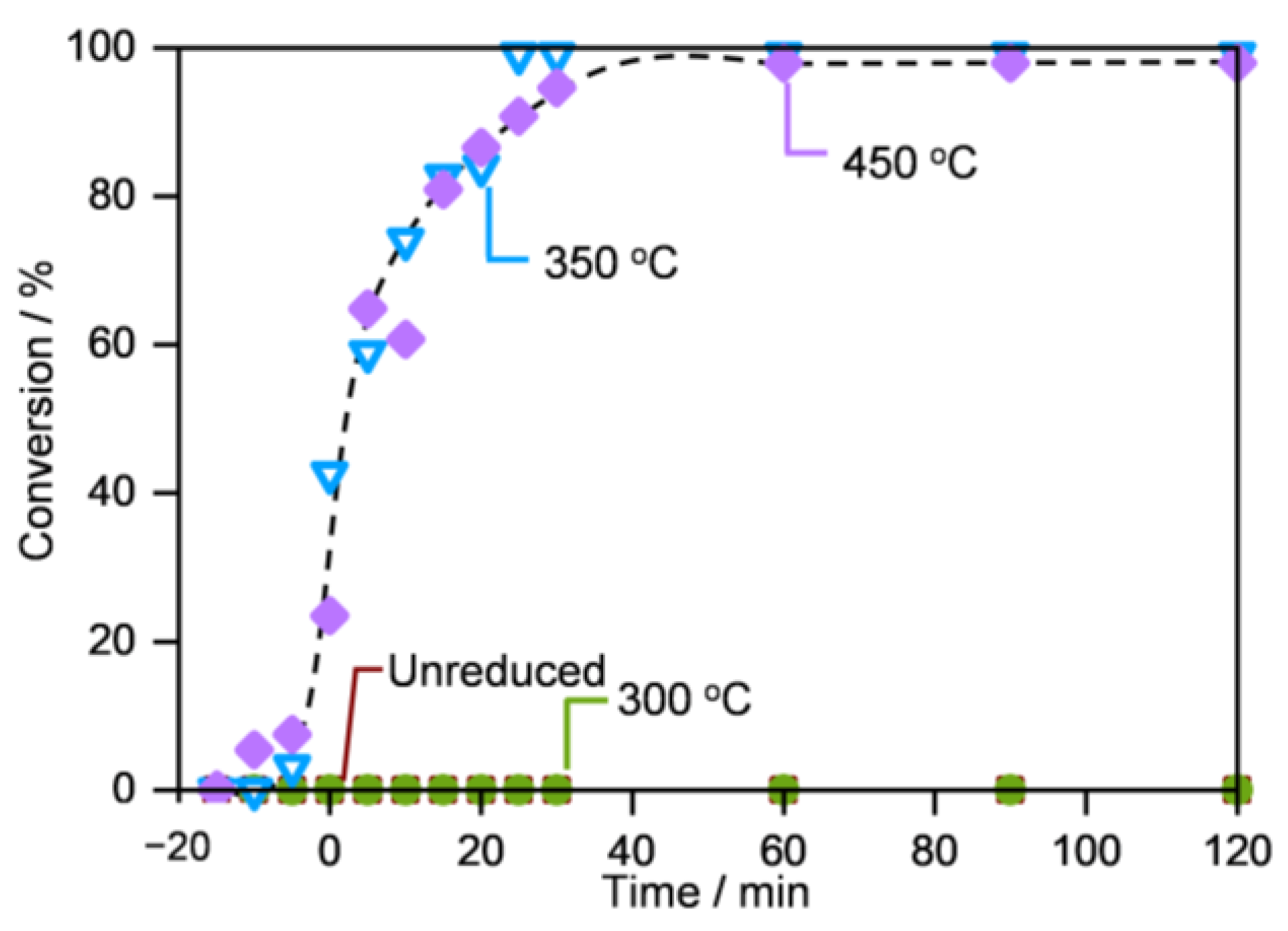

Figure 12. The MO decomposition activity as a function of time on Fe2O3–S–P subject to H2 reduction at different temperatures. Reaction conditions: wcat = 5 mg, pH = 3, V = 100 mL, CH2O2 = 20 mM, CMO = 500 μg/mL. The first three data points before the addition of H2O2 correspond to the freshly prepared solution, the solutions after the adjustment in pH, and after 30 min stirring, respectively.
Figure 12. The MO decomposition activity as a function of time on Fe2O3–S–P subject to H2 reduction at different temperatures. Reaction conditions: wcat = 5 mg, pH = 3, V = 100 mL, CH2O2 = 20 mM, CMO = 500 μg/mL. The first three data points before the addition of H2O2 correspond to the freshly prepared solution, the solutions after the adjustment in pH, and after 30 min stirring, respectively.
Catalysts 13 01057 g012
Catalysts 13 01057 g013 550

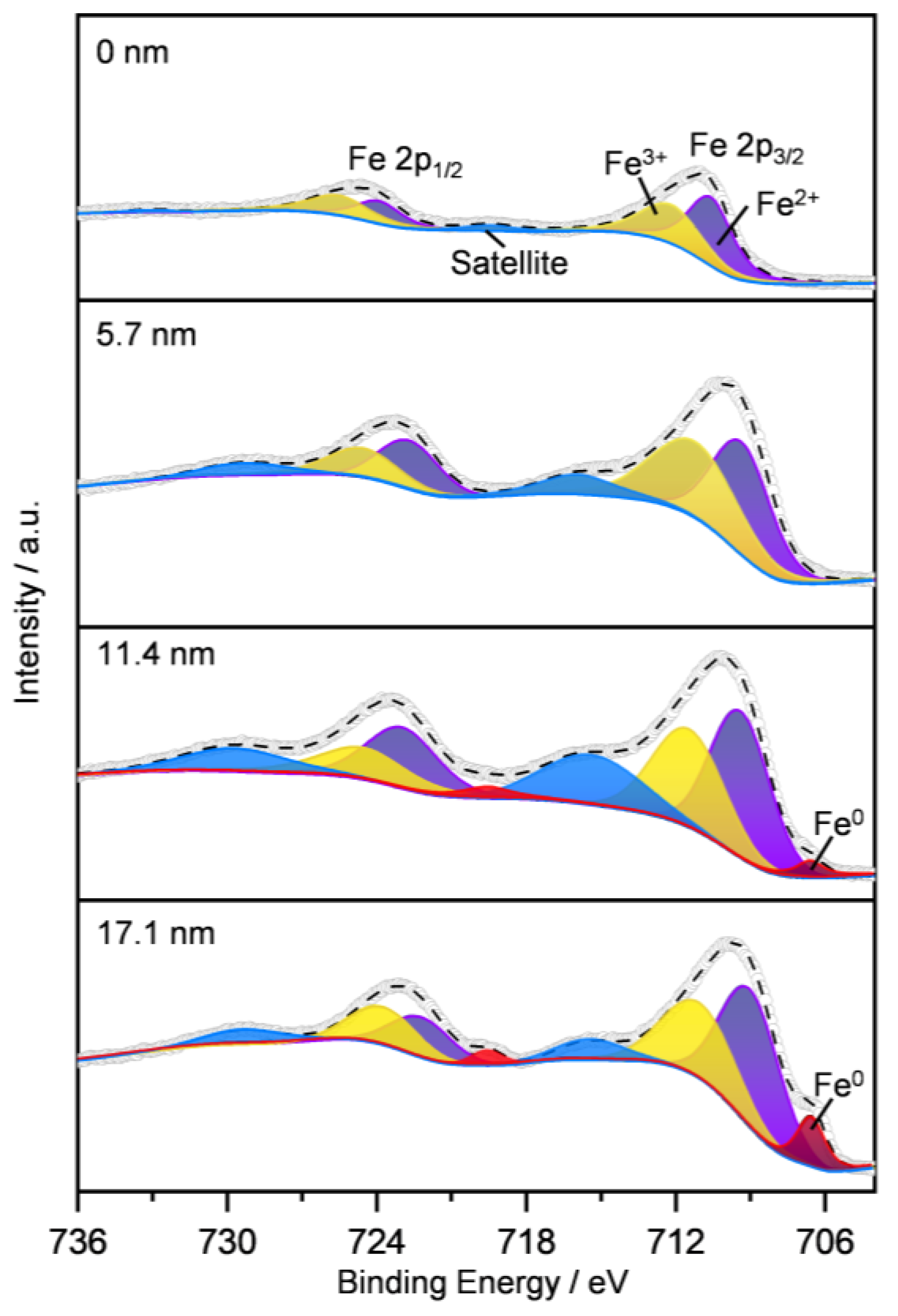

Figure 13. The Fe 2p XPS depth profiles of Fe2O3–S–P after 450 °C reduction. All the samples were stored in air at room temperature for more than 24 h.
Figure 13. The Fe 2p XPS depth profiles of Fe2O3–S–P after 450 °C reduction. All the samples were stored in air at room temperature for more than 24 h.
Catalysts 13 01057 g013
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zheng, R.; Tan, R.; Lv, Y.; Mou, X.; Qian, J.; Lin, R.; Fang, P.; Kan, W. Oxygen-Vacancy-Rich Fe@Fe3O4 Boosting Fenton Chemistry. Catalysts 2023, 13, 1057. https://doi.org/10.3390/catal13071057

AMA Style

Zheng R, Tan R, Lv Y, Mou X, Qian J, Lin R, Fang P, Kan W. Oxygen-Vacancy-Rich Fe@Fe3O4 Boosting Fenton Chemistry. Catalysts. 2023; 13(7):1057. https://doi.org/10.3390/catal13071057

Chicago/Turabian Style

Zheng, Rongwei, Ruifan Tan, Yali Lv, Xiaoling Mou, Junqiao Qian, Ronghe Lin, Ping Fang, and Weidong Kan. 2023. "Oxygen-Vacancy-Rich Fe@Fe3O4 Boosting Fenton Chemistry" Catalysts 13, no. 7: 1057. https://doi.org/10.3390/catal13071057

APA Style

Zheng, R., Tan, R., Lv, Y., Mou, X., Qian, J., Lin, R., Fang, P., & Kan, W. (2023). Oxygen-Vacancy-Rich Fe@Fe3O4 Boosting Fenton Chemistry. Catalysts, 13(7), 1057. https://doi.org/10.3390/catal13071057

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
