Recent Progress in Nickel and Silica Containing Catalysts for CO₂ Hydrogenation to CH₄

Abstract

The recent unusual weather changes occurring in different parts of the world are caused by global warming, a consequence of the release of extreme amounts of greenhouse gases into the atmosphere. Carbon dioxide (CO₂) is one of these greenhouse gasses, which can be captured and reused to generate fuel through the methanation process. Nickel- and silica-based catalysts have been recognized as promising catalysts due to their efficiency, availability, and low prices. However, these catalysts suffer from metal sintering at high temperatures. Researchers have achieved remarkable improvements through altering conventional synthesis methods, supports, metal loading amounts, and promoters. The modified routes have enhanced stability and activity while the supports offer large surface areas, dispersion, and strong metal–support interactions. Nickel loading affects the formed structure and catalytic activity, whereas doping causes CO₂ conversion at low temperatures and forms basic sites. This review aims to discuss the CO₂ methanation process over Ni- and SiO₂-based catalysts, in particular the silica-supported Ni metal in previously reported research works and point out directions for potential future work.

1. Introduction

Extended urban areas and industrial activities have led to a dramatic increase in greenhouse gases, such as CO₂, into the atmosphere and caused concerning climate changes. This requires an urgent solution to reduce CO₂ emission and create a clean environment. To achieve this goal, most of the existing research has focused on two methods, improving the validity of using renewable energy sources and implementing carbon capture utilization and storage (CCUS) techniques to preserve the planet [1]. CO₂ is used as a raw material for oxazolidinone formation. This compound is involved in the medicine and drug industry and is synthesized using a simple technique at room temperature [2]. Despite the thermal limitation of the CO₂ methanation reaction, significant improvements have been achieved in transforming CO₂ into valuable single carbon materials, such as carbon monoxide, methane, methanol, and formic acid. The reaction of the reverse water gas shift (RWGS) produces carbon monoxide (CO), while heterogeneous catalysis has been utilized to obtain methanol (CH₃OH) [3]. Thermodynamically, the methanation of CO₂ and CO is quicker than that of other reactions for hydrocarbon production. CO₂ gas is highly stable, and molecule separation is costly [4]. This stability has led to low production due to the low adsorption rate of CO₂ in the catalysts. Full understanding of the complexity of the mechanism of CO₂ conversion into hydrogen fuel requires gaining more information, such as from studying the micro mechanisms of the Sabatier reaction [5]. Mucsi et al. determined a method to quantify carbonyl conjugation by studying the calculated enthalpy of the hydrogenation (∆H_H2) of different compounds. The carbonyl attached to conjugative species shows a larger percentage of carbonylicity compared to those of the low- or non-conjugative groups. Compounds with small carbonylicity are more reactive during the addition reaction in comparison with the high carbonylicity compounds [6]. CO₂ conversion to methane requires efficient catalysts to be successful. Recently, this has been the aim of much research that has attempted using different catalyst designs [7]. Converting CO₂ into methane fuel has been explored via different reactor systems, such as the thermo-catalytic, thermo-catalytic membrane, plasma catalytic, and photocatalytic systems [4]. Metal–support catalysts are extensively used for CO₂ fixation reactions with a variety of metals and catalyst supports. Ni is the ideal metal to use, as it offers reasonably high hydrogenation activity and selectivity [8].

Although different transition metals are suitable for the methanation reaction, supported Ni catalysts are extensively used for CO₂ methanation due to their high catalytic activity and cost-effective nature [9], but Ni-based catalysts lose activity quickly during the methanation reaction due to their carbon deposition [7]. However, Ni-based catalysts are the most frequently used catalysts for CO₂ hydrogenation despite their lack of activity and stability [10]. The roles of the support, Ni loading, the preparation method, and additives have been investigated to enhance the performance of catalysts. According to the literature, the support might play a role in enhancing metal dispersion and tune the structure of the catalyst surface, which could improve CO₂ adsorption and influence the reaction mechanism [9]. Silica (SiO₂) is a well-studied support material that is thermally stable and provides a significantly high surface area [11]. It increases the stability of Ni-based catalysts by improving their interaction with the active metal [12]. The acidity of the silica support weakens the interaction with CO₂. To improve the interaction, the basicity of the Ni-silica catalyst is enhanced with promoters [8].

To the best of our knowledge, there is no review published in the literature that focuses specifically on Ni-SiO₂-based catalysts for the CO₂ methanation process. The published reviews discussing Ni-based catalysts in general have focused on Ni-supported catalysts and bimetallic Ni-based catalysts with different supports. In this review, our focus is on the efficacy of different Ni-silica catalysts for CO₂ methanation, and a detailed discussion is incorporated related to the influence of the synthesis method, modified supports, Ni-loading, and the dopant on the activity and stability of different Ni-based SiO₂ catalysts for CO₂ hydrogenation. We summarize the existing literature results by discussing and evaluating the current knowledge in the field of utilizing Ni-based SiO₂ catalysts for CO₂ methanation. From this, the critical gaps are identified for future work and included in the review.

2. CO₂ Capture Utilization Storage (CCUS)

The expanding of industrialization worldwide is accompanied by higher levels of greenhouse gases in the atmosphere. Concentrated CO₂ emissions in the atmosphere have resulted in lowering the ozone layer, which has caused global warming and climate change. This has affected global agriculture and led to water degradation, health, and economic issues [1]. To solve these problems, scientists have devoted their efforts towards developing existing and new renewable energy systems for carbon capture, storage, and utilization technologies. This is an effective solution for not only inhibiting CO₂ from being released into the atmosphere but also producing fuel and valuable chemicals [13].

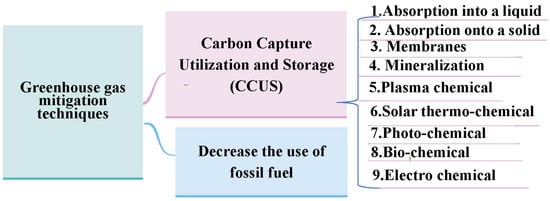

Figure 1 illustrates the possible ways to limit the release of greenhouse gases into the environment. The first step is to limit the use of fossil fuels by adapting the practical use of green energy sources. Simultaneously, technologies for carbon capture and storage (CCS) and carbon capture and utilization (CCU) should be activated. While CCS processes end with the storage of CO₂, which does not solve the main issue, CCU processes involve capturing CO₂ and converting it into valuable products [14]. This storage and conversion can be performed using a variety of methods, as shown in Figure 1. Absorption into liquid is a suitable storage strategy for CO₂, but it is limited by the high energy demands of regenerating of the solvent. The membrane technique has a variety of advantages over other CCS technologies, such as applicability in isolated areas, simplicity of maintenance, a low-cost installation, and less chemical and energy requirements [15,16]. Photo-catalytic reduction is initiated through direct sunlight, which is considered a renewable energy source, while electrochemical and plasma technology relies on electricity. The utilization of solar energy is widely acceptable in large-scale applications for generating electricity. The produced energy is effectively stored as fuel rather than battery power. Additionally, chemical storage can be implemented on the current line of infrastructure with a high capability [15]. The advanced technology of water electrolysis (power to gas, P2G) has contributed convenient enhancements in carbon dioxide hydrogenation as a source for green fuel [17]. CO₂ reduction, or what is named the Sabatier reaction, is considered an exothermic reaction, as shown in following the equation [8]:

CO₂ + 4H₂ → CH₄ + 2H₂O

(1)

∆H at 298 K = −165 kJ/mol

3. CO₂ to Valuable Products

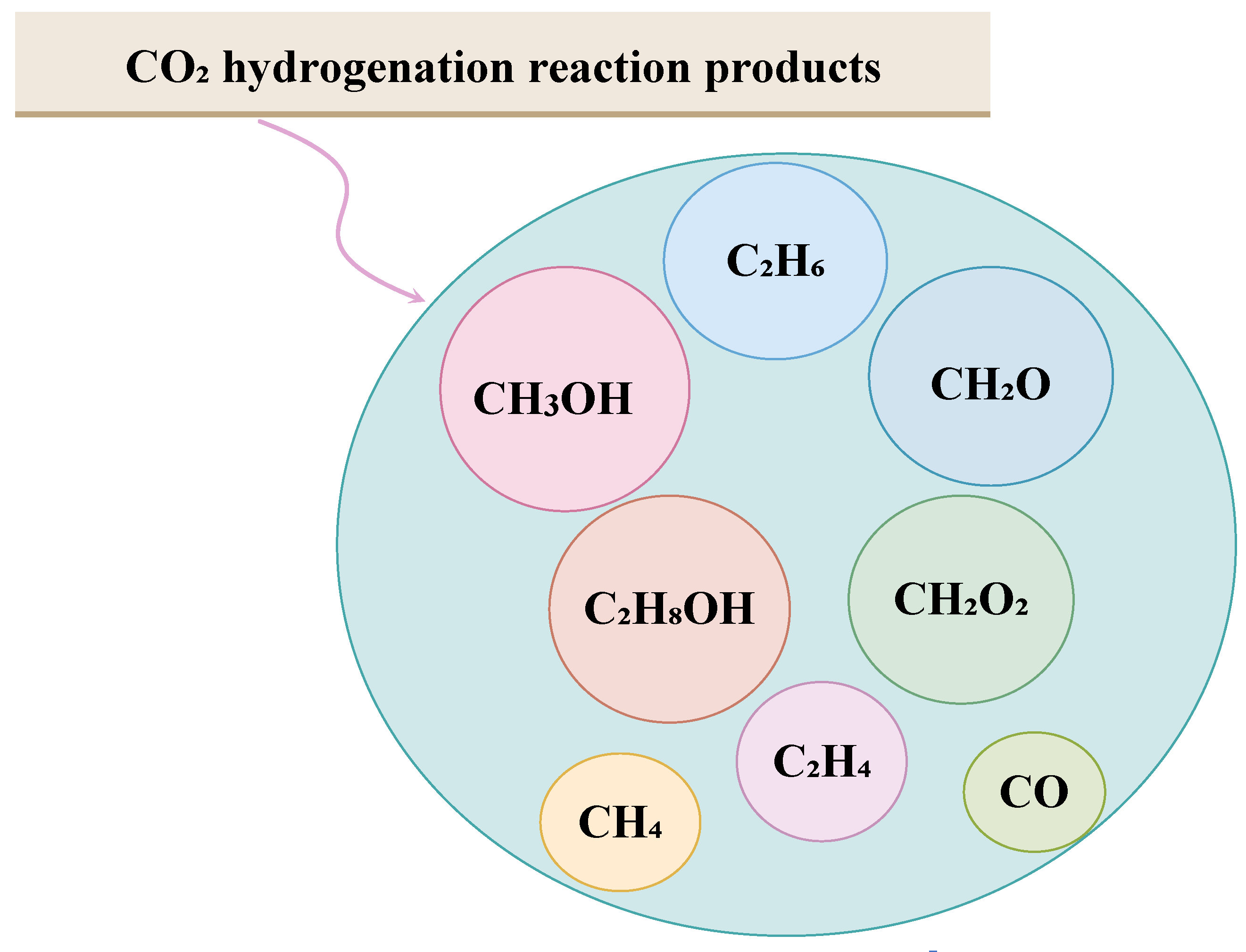

Modern heterogeneous catalysts have been developed to convert CO₂ into a variety of products with two or more carbon atoms, such as dimethyl ether (DME), olefins, liquid fuels, and higher alcohols. The difficulties of preparing products with multi-carbon atoms, in comparison to single-carbon products, are concentrated in a lack of high CO₂ activity and an obstacle in connecting the carbon–carbon bond (C-C) [3].

The introduction of cost-effective approaches has enabled the mitigation of concentrated CO₂ by transforming H₂ and CO₂ into industrially preferable raw materials for producing fuel, in which they are considered a sustainable energy source. Figure 2 presents the different chemicals that can be produced from the carbon dioxide hydrogenation process [15].

4. CO₂ Hydrogenation

The production of hydrogen fuel faces many obstacles, such as in its strategies for storage and transport and its extensive usage. Methane addresses these issues by providing safety for storage and transport in addition to the ability for the fuel to be liquefied as a natural gas and utilized in industrial energy products. The ability to reuse carbon dioxide and eliminate its harm and the vital importance of the additional methane in the industrial sector enlarge the feasibility of exploring this reaction [18]. Natural photosynthesis involves the transformation of carbon-hydrogenation into fossil fuels. As per this concept, CO₂ hydrogenation could be the optimum method for recycling the emissions produced from burning fuel. Figure 3 presents different stages of the methanation process. CO₂ is known as a thermodynamically stable compound that is unreactive under ambient conditions. However, significant improvements have been achieved in the transformation of CO₂ into a variety of products, such as formic acid, carbon monoxide (CO), methane, and methanol via direct or thermal hydrogen reductions [3]. The production rate of methane is affected by factors such as the reaction temperature, pressure, and presence of catalyst promoters [10].

Thermodynamic Efficiency

Thermodynamic studies have indicated the superior conditions of the Sabatier reaction. These studies have provided details about suitable reaction conditions such as temperature, pressure, and reactant (CO₂ and H₂) concentrations. At low temperatures, CO₂ conversion into CH₄ produces a high yield. According to the thermodynamic equilibrium, optimal operation conditions ensure the direction and reactivity of the reaction. By raising the temperature, the process of the reaction could go in reverse way toward the methane steam reformation reaction. Increasing the amount of H₂ and CO₂ gas in the reaction boosts CH₄ formation [19]. It is well known that hydrogenation of the CO₂ process suffers from many limitations, as shown in Figure 4. The major issues are related to economics and maintaining suitable reaction conditions to obtain stable process efficiency. The hydrogen gas produced from the splitting of water via photo or electrolysis processes becomes sustainable, as conventional H₂ production processes are energy consuming. The utilization of solar and wind energy to drive H₂ production lowers the cost of the overall CO₂ methanation process. Increasing reaction temperatures cause catalyst sintering, which leads to a minimization of the activity and the lifetime of the catalysts. Figure 5 shows the effect of high temperatures on catalysts, where Ni particles are agglomerated and enlarged in size. Additionally, the active sites on the catalyst surface are blocked by deposited species, such as coke. On the other hand, decreasing the reaction temperature results in insufficient thermal energy needed to initiate the CO₂ hydrogenation reaction; hence, the catalyst activity is reduced significantly. To tackle this issue, the operating reaction conditions for the process should be optimized [12].

5. Catalysis

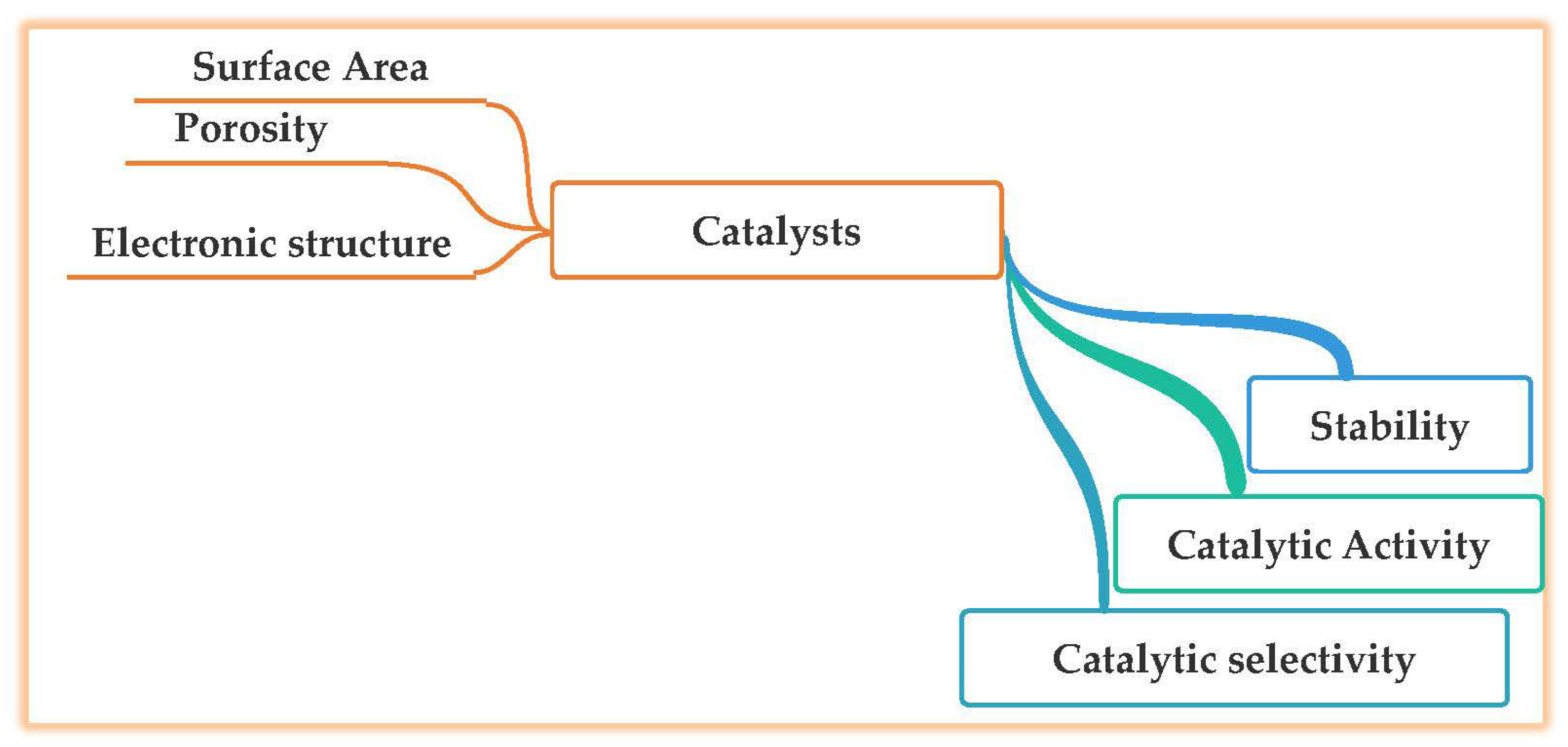

To achieve effective and efficient CO₂ conversion and productivity in valuable chemicals, the CO₂ conversion process should be improved using catalysts with high activity, selectivity, and stability [10]. The critical characteristics for designing the optimal catalysts is provided in Figure 6. The development of catalysts with higher intrinsic reaction rates and TOFs should be continued. Furthermore, the catalysts should be stable for a long time in terms of CO₂ conversion and CH₄ selectivity. However, to date, there are no general guidelines and no role models by which new improvements can be made in preparing catalysts. In this respect, to prepare catalysts with higher activity and to simultaneously prepare the guidelines to synthesize them, researchers have tested many combinations of metals and supports and evaluated their performances in terms CO₂ conversion, CH₄ selectivity, and catalytic stability. In this review, we have extracted important information regarding the choice of metal, the importance of SiO₂ as support, the desirable size of metal nanoparticles, the dimensionality of the metal nanoparticles, and SiO₂ support. Furthermore, electronic interactions between a solid support and metal particles very sensitively affect catalytic activity and product selectivity.

CO₂ hydrogenation has been performed using catalysts with a variety of metals and supports. The study stated that noble metals such as Ru, Rh, Pt, Pd and transition metals such as Fe, Co, and Ni have the capabilities for CO₂ conversion to CH₄. Supported materials include metal oxides and basic oxides, such as Al₂O₃, TiO₂, SiO₂, ZrO₂, and CeO₂, which is massively investigated for CO₂ methanation. Recently, research teams have tested the utilization of structured catalysts, such as metal organic frameworks (MOFs), nanosheets, foams, and fibrous materials. The metal used is the main criteria for determining the activity and selectivity of the prepared catalysts for the Sabatier reaction. The catalysts supported on carbide, nitride, and sulfide exhibited sufficient activity and selectivity for CO₂ methanation [12]. Different selections were used as catalytic materials for the methanation reaction, and the major advantages and disadvantages of both chosen elements in the catalyst’s synthesis are shown in Figure 7.

6. Noble Metal-Based Catalysts

The growth in the reaction is related to the metal oxidation state as it oxidized by CO₂. Noble metal catalysts improve the efficiency of CO₂ conversion to CH₄, but the high price limits their industrial applications [10]. The noble metals Ru and Rh provide high catalytic activity and stability for CO₂ methanation at low temperatures. Due to a lack of abundance and the expense, noble catalysts are unsuitable for large-scale implementation [20].

6.1. Rhodium (Rh)

Rhodium is the most studied metal for the CO₂ methanation reaction. TiO₂ is the most used support for Rh in low temperature hydrogenation reactions. Supported Rh catalysts have been proven to have high activity and chemical stability for CO₂ methanation at low temperatures, which is caused by their ability to separate hydrogen molecules from hydrogen atoms [10]. The highest achievements of Rh/TiO₂ catalysts are related to their excellent electronic metal–support interaction [21]. This eases the breakage of the bond between carbon and oxygen (C=O), resulting in superior catalytic activity. It has been found that loading different amounts of Rh leads to the formation of different metal particle sizes. The large particles have higher activity compared to the smaller sizes in low-temperature reactions ranging from 130 to 150 °C [10].

6.2. Ruthenium (Ru)

Ru has high catalytic activity in the methanation reaction. The support used, promoters, and metal dispersion affect the catalytic activity and selectivity [10]. The ability of supported rhodium catalysts to separate the two hydrogen atoms in a hydrogen molecule causes its distinguished catalytic activity and chemical stability for CO₂ hydrogenation at low temperatures [22]. Ru showed the highest catalytic activity, stability, and selectivity. The supported material, with the ability to be reduced as in (CeO₂, TiO₂, ZrO₂), exhibited significant activity with Ru compared to with other supports, such as (Al₂O₃, SiO₂). The Ru being supported on CeO₂ enhanced the reducibility and the availability of oxygen vacancies in comparison to the unpromoted CeO₂ [23]. It was found that using Ru with Ni in bimetallic catalysts highly increased the activity and stability. Ru and Rh inhibited deactivation by preventing the sintering and deposition of the carbon [24].

6.3. Palladium (Pd)

Pd-based catalysts have been proven to enhance catalytic activity through hydrogen dissociation, where they generate hydrogen atoms to facilitate the methanation reaction. These free hydrogen atoms bond to the carbonate species on the surface [10]. At low temperatures, the supported Pd catalysts are selective for CO₂ conversion to methane, while at high temperatures, the catalysts produce lower CH₄ compared to the nickel catalyst. This is due to the good water–gas shift catalyst of the Pd with a small formation of CO. Additionally, the Pd/SiO₂ catalysts with modifications formed a small amount of unwanted CO at high temperatures of 450 °C in the methanation reaction [25]. Metal oxides prevent the desorption of CO, which reduces the formation of CO. At 450 °C, the sites of Pd and Mg achieve a high methane selectivity of 95% and methane production of 59% [10].

7. Transition Metal-Based Catalysts

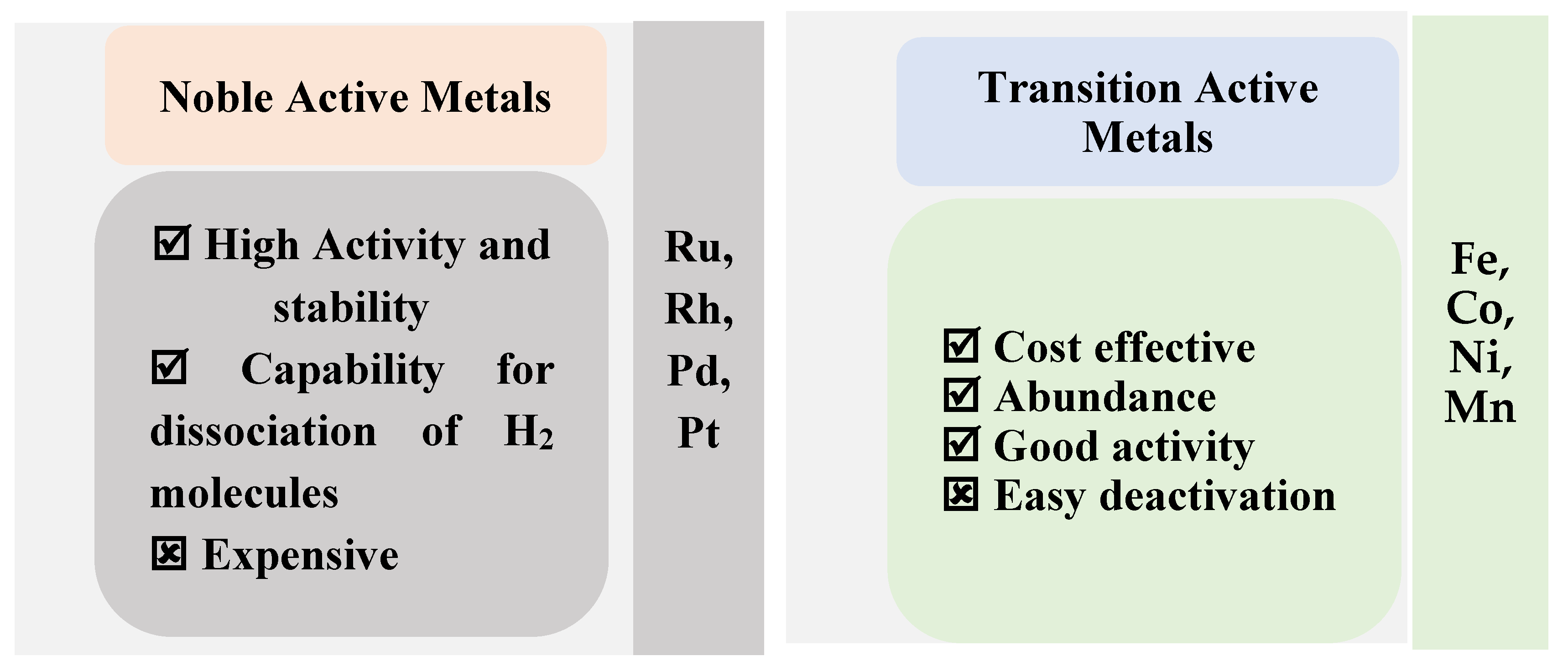

Transition metals such as iron, copper, cobalt, and nickel increase catalyst performance in the activation and reduction processes of CO₂ hydrogenation [10]. Transition metals (Fe, Co, and Cu) have promoted the performance of Ni-based catalysts. Their 3d shells increased the activity and anti-sintering properties during the reaction [7]. Kang et al. investigated the loading effect of Fe on a NiAl₂O₃ catalyst for methane production from CO₂ conversion and found that the superior performance was gained by the Ni₀.₇Fe₀.₃/Al₂O₃ catalyst. However, the high Fe loading amount resulted in the water–gas shift reaction. Due to this, optimizing the metals ratio of Ni and Fe formed a high quantity of methane [26]. Promoting the supported material with CO provided high activity and stability [27]. The strategy of Fe and Co bimetallic promotion of the Ni-based catalyst for CO₂ methanation produced significant CH₄ compared to the monometallic technique [28,29]. Mn was used with Ni/Al₂O₃ to improve the methanation of CO and CO₂ due to its ability to widely disperse Ni. Burger et al. prepared the NiMn/Al₂O₃ catalysts using the co-precipitation method, which provided high medium basic sites, a high CO₂ adsorption capacity, and high catalytic activity [30]. The addition of Fe provided a sufficient increase in the Ni/ZrO₂ catalyst performance in CO₂ hydrogenation at low temperatures in comparison to that of other additives such as Co and Cu. Fe enhances Ni dispersion and reduction and the partially reduced zirconia, which eases the adsorption and dissociation of molecules of H₂ and CO₂ [31].

8. Nickel-Based Catalysts

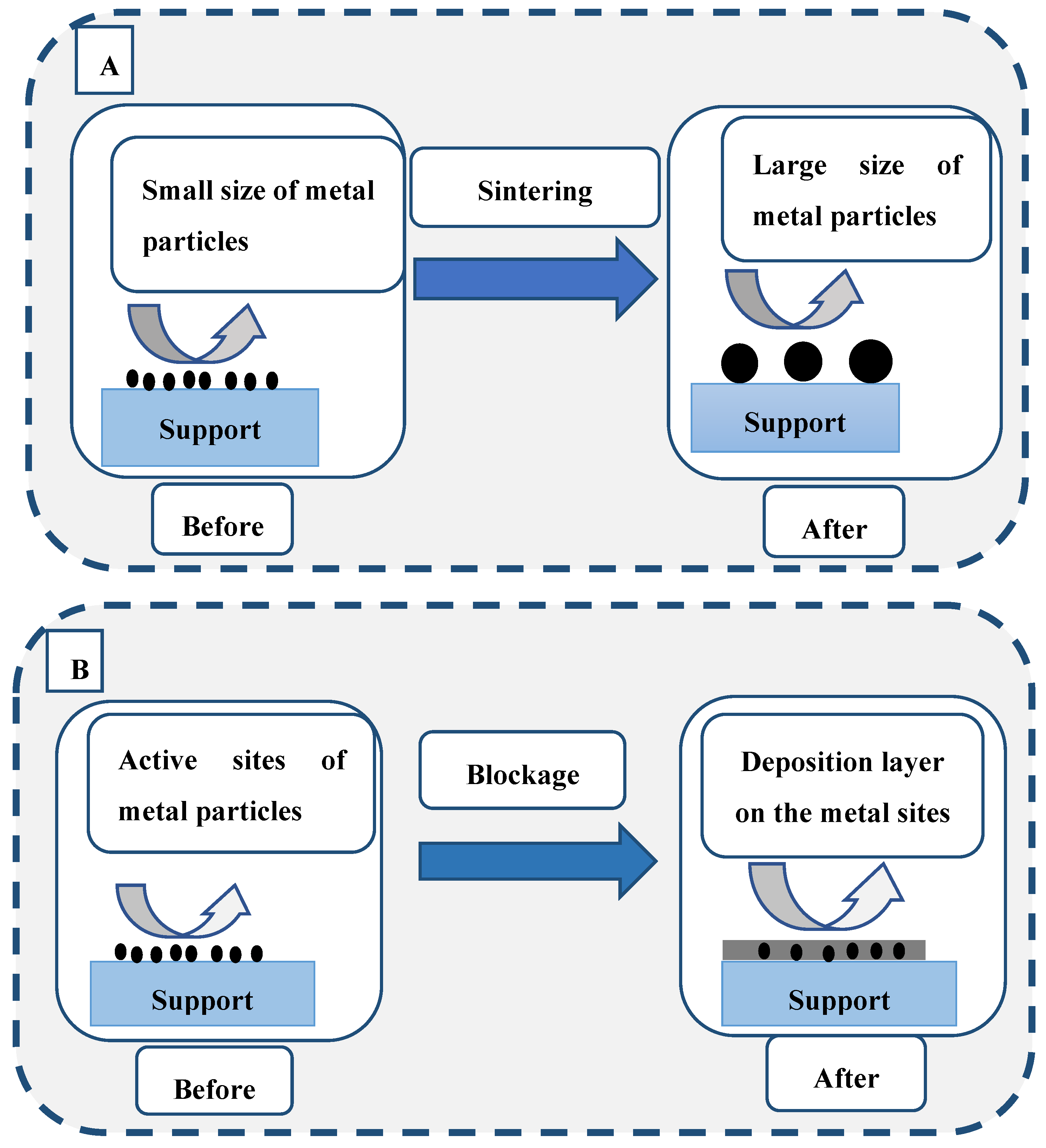

Nickel-based catalysts exhibit high performance in carbon dioxide hydrogenation with lower costs. Affective methanation catalysts have been detected to be Ni from the transition metals and Ru and Rh from the noble metals. Ni is commonly used in research for its affordable costs and high availability. The disadvantages of using Ni-based catalysts are the high temperature activity of the nickel, its lack of dispersion, and the reducibility and sintering of nanoparticles. These issues can be solved via the cooperation effect from the addition of a transition or noble metal that is bimetallic. The metal oxide shows a positive impact on the behavior of Ni-based catalysts [32]. To ensure sintering resistance and the active nickel-based catalysts at low temperatures, the structure, dispersion, and interaction between the metal and support should be taken into consideration during design preparation [33].

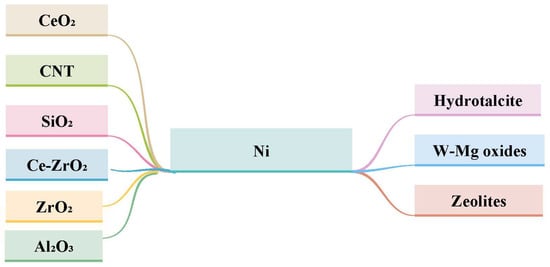

To improve the performance of Ni-based catalysts, the supported material and promoters need to be modified to optimize the CO₂ conversion and methane selectivity. Material with large surface areas, such as SiO₂, Al₂O₃ and ZrO₂, are commonly applied as support for Ni-based catalysts due to the significant abilities of Ni to be dispersed and achieve methane production [34]. Scientists have studied nickel catalytic activity using a variety of supported materials, such as Al₂O₃, zeolites, SiO₂, CeO₂, ZrO₂, and Ce–ZrO₂, and, more recently, explored the possibility of using hydrotalcite, carbon nanotubes, and W–Mg oxides, shown in Figure 8. Each one of these supports has strengths and weaknesses; for instance, alumina-supported nickel is well known as a high achiever, but it suffers from instability in the elevated temperature of the reaction. Additionally, the impact of the addition of a promoter has been examined [10]. Each type of support material provides the basic improved features of nickel-based catalysts as shown in Figure 9.

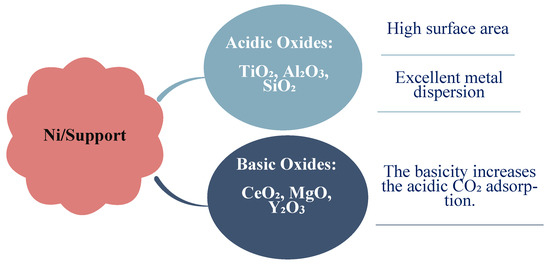

The supported material determines the form of the active sites, the adsorption, and the catalytic activity of the catalysts. This enlarges research into the synthesis of the high metal dispersion support. Vance and Bartholomew prepared a nickel catalyst with different support material to investigate the metal–support effect. The observed catalytic activity and methane selectivity increased in the sequential order of Ni/TiO₂ > Ni/Al₂O₃ > Ni/SiO₂ while increasing the electronic interaction between the metal and the support. This is according to the differences in the bonding and the activity of the formed chemisorbed intermediates [35].

8.1. Nickel Loading Effect

It has been found that using the proper loading amount of metal improved CO₂ methanation, resulting in better dispersion, resistance against metal sintering, and interaction between the metal and support [36]. The amount of metal content on the supported material significantly affected the characteristic and stability of the catalysts. Aziz et al. investigated the nickel content on Ni/MSN catalysts for a methanation reaction. According to the gained data, raising the Ni loading from 1 to 10 wt.% worked effectively with lowering the crystallinity, the surface area, and the basic sites on the surface of the catalysts. The reaction reactivity of the CO₂ conversion increased with increasing the Ni loading from 1 to 5% where there were no noticeable enhancements from 5 to 10%. This emphasizes the importance of adjusting the amount of the metal and the presence of basic sites to optimize methanation activity [37]. Liao’s research team observed improvements in the catalyst’s behavior when accompanied with boosts in the nickel loading [38].

The co-precipitation method was used to form the catalyst NiCeO_x with different amounts of Ni content ranging from 0.3 to 0.8 in CO and CO₂ methanation reactions. Increasing the Ni loading led to a large pore volume and pore diameter. The prepared catalyst with the highest Ni content, Ni₀.₈Ce₀.₂O_x, provided superior performance in the two reactions [39]. The hydrotalcite catalysts were prepared through co-precipitation, where a series of oxide samples were synthesized with a constant Mg\Al ration, and differing molar ratios of nickel ranged from 10.3 to 42.5 wt.% in CO₂ hydrogenation. The study indicated that, at low temperatures (250–300 °C), increasing the Ni concentration enhances the activity and selectivity of the reaction due to the lower interaction between the nickel and the supported material [40].

8.2. The Pretreatment Effect

8.2.1. Plasma Treatment

Plasma treatment technology is one modification of the preparation method that enhances catalytic activity by providing dispersed metals, strong interactions, and nanosized particle catalysts [18]. Guo et al. reported a high activity of 84.6% in a Ni-La/γ-Al₂O₃ catalyst synthesized via the plasma route for a CO₂ methanation reaction at 250 °C. The analysis results demonstrated the high surface area and metal dispersion, the small-scaled particles, and the abundance of Ni on the surface of the catalyst due to the plasma treatment [41].

8.2.2. Reduction Pretreatment

Transition metals with 3D unfilled shells, such as Ni and Co, can be integrated with the pore wall of MCM-41 by using reduction as a means for the pretreatment of the nanosized particles previously created, which exhibited outstanding stability during the reaction at high temperatures [42]. Du et al. formed a Ni catalyst with thermal stability and high dispersion through H₂ pretreatment. The study determined the effects of treating the samples with pure H₂ by varying the temperature on the activity of the catalysts. The reduction treatment performed on the Ni-MCM-41 samples at 973 K for 30 min resulted in significant activity and selectivity, which reduced the nickel to Ni⁰, attached to the surface with no aggregation [43].

8.2.3. The Calcination

The 50 wt.% Ni-50 wt.% (Zr-Sm oxide) catalyst with calcination at temperatures of 650 or 800 °C performed superior reactivity in the methanation reaction. Zr⁴⁺ ions of the tetragonal ZrO₂ supported the Ni catalysts exchanged by Sm³⁺ ions during the raising of the calcination temperature. The more embodiment in the Sm³⁺ ions led to more activity for methanation by creating oxygen vacancies, which interact highly with the oxygen in CO₂ and diminish the strength of the C–O. The calcination at high temperatures caused a shrink in the surface area and Ni dispersion due to growth in the size of the particles. This emphasizes the importance of optimizing the calcination temperature for the catalyst [44].

9. Silica (SiO₂) as a Support for CO₂ Methanation Catalysts

Out of the different silica-supported material, mesostructured silica nanoparticles (MSN) are massively implemented in a variety of applications, such as medical and catalysis. This is due to the attractive characterization of their structure, with a large area and pore volume and sizes ranging from 1.5 to 10 nm. Another widely studied supported material is amorphous pure silica, such as the MCM-41 or SBA-15, with a hexagonal texture or enormous pore and area, respectively [10]. Its large surface area, distinguishing stability, tuned pore diameter, and controlled morphology result in SBA-15 being commonly used to support catalysts. The structured channels of the SBA-15 material dominate the size of the particles and hinder the agglomeration, which causes enhanced stability. The absence of acidity on SBA-15 prohibits carbon deposition when the temperature increases [45]. One study stated that mesostructured silica nanoparticle (MSN) catalysts supported by different metal loadings, such as Rh, Ru, Ni, Fe, Ir, Cu, Zn, V, Cr, Mn, Al, and Zr, synthesize for methanation via the sol–gel and impregnation methods, enhancing the process. The basic site formed depends on the type of metal, where highly active metals are described as the following: Rh/MSN > Ru/MSN > Ni/MSN > Ir/MSN > Fe/MSN > Cu/MSN at 623 K or above. According to the areal basis, Ni/MSN has the highest catalytic activity and Ir/MSN has the lowest [46].

Phyllosilicate is a layered material integrated with metal ions such as Ni, Co, Cu, and Fe, the separation and adsorption applications of which, attributed to catalysis, make it a promising candidate with great adsorption capabilities and facilitated operationalizing [47]. Its mesoporous form enables the development of dispersed active sites, resulting in prominent catalytic activity. Its large surface area, stability, and structured channels provide the silica-structured pores with enormous dispersion and a strong hold of particles [48]. Shape-controlled Pd nanoparticles are supported on a mesoporous silica shell to form Pd@SiO₂ catalysts. A comparison of catalytic efficiency between the CO₂ methanation reaction and the impregnated Pd/SiO₂ catalyst, which caused deactivation, showed that the latter was more stable, with no particles sintering in the shell catalysts. Catalytic selectivity for CO₂ methanation is based on the mean coordination number, which indicates adsorption ability. The highly coordinated Pd (111) facets provide lower activity and CH₄ selectivity compared to Pd (100) [49].

10. Ni-SiO₂ Catalyst

Ni/SiO₂ catalysts suffer from a lack of interaction between Ni and the supported silica, which leads to metal sintering at elevated temperatures. This has driven scientists to attempt to enhance the metal–support interaction in Ni/SiO₂ catalysts [50]. Ni catalysts have been prepared using two different methods, the sol–gel and the impregnation routes, with mesostructured silica nanoparticles (MSN) and other supports, such as MCM-41, SiO₂, γ-Al₂O₃, and HY, for CO₂ hydrogenation. The catalysts have been estimated and listed according to the highest activity, where MSN comes at the top of the list and AL₂O₃ comes last (Ni/MSN > Ni/MCM-41 > Ni/HY > Ni/SiO₂ > Ni/γ-Al₂O₃). The particle porosity structure of the Ni/MSN catalyst promotes catalytic activity by allowing movement of the reactants and the products throughout the reaction. In comparison to Ni/MCM-41, the Ni/MSN’s performance is comprehensively high at an elevated temperature rate, as the basic sites enable the wide spread of CO₂ in the pores of the catalyst. In terms of the reaction mechanism, carbon species are generated in oxygen vacancies while hydrogen molecules are converted to hydrogen atoms on Ni sites, bonding to the carbon atom and producing synthetic natural gas. The Ni/MSN catalyst has been proven to have excellent stability and a deactivation resistance of up to 200 h [51].

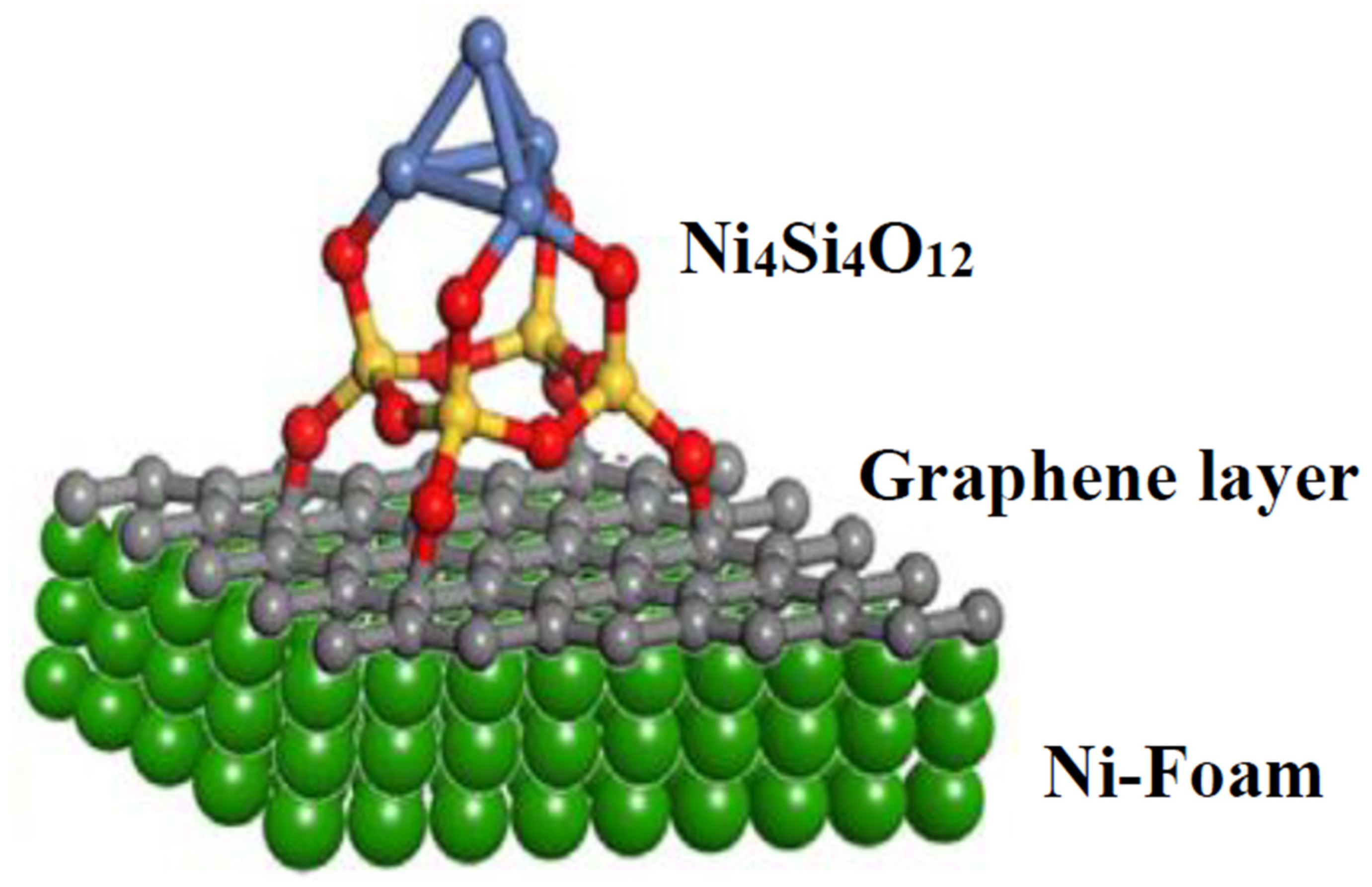

Recent research has explored the use of silica or ordered mesoporous silica (OMS) in supporting Ni catalysts for CO₂ methanation, which shows promising possibilities. Pure OMS supports different types of catalysts, such as Ni/SiO₂, Ni@SiO₂ core-shell, and Ni-SiO₂ microspheres. The supported silica suffers from acidity, which limits the CO₂ interaction. This can be solved through the addition of the basic oxides, which reduces the acid level on the surface and enhances the CO₂ interaction. Therefore, the ordered mesoporous form enriches the catalysts with massive Ni dispersion [8]. Different silica models can be used to form Ni-phyllosilicate, but the preparation of ordered mesoporous silica (OMS) is costly and difficult, which has driven scientists to look for a replacement. Absolute silica is gained from rice husks and is consumed on supporting Ni catalysts, such as the Ni-Ru/SiO₂ catalyst. Rice husks contain a huge amount of silicon, which has led to the spread of its usage to a variety of applications, such as in electronics, compositions, and adsorbents. Utilizing the extracted silica from rice husk ash to fabricate Si-MCM-41 is considered an environmentally friendly and cost-effective process. For these reasons, research on using rice husks as source for synthesizing Ni-phyllosilicate catalysts has increased [50].

10.1. Different Preparation Methods for Ni/SiO₂ Catalysts

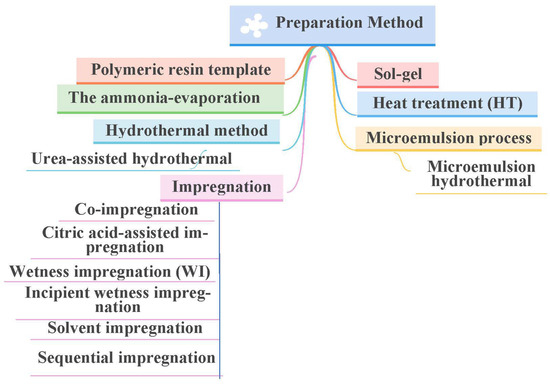

Catalyst preparation is a major important step in the manufacturing of catalysts. This is because the catalyst preparation stage is complex and consists of many details that must be known and clear to the catalyst manufacture. There are a large number of details in the preparation stage, which undoubtedly affect the final properties of the catalyst, especially the selectivity and catalytic efficiency of the prepared catalyst. The various techniques for synthesizing supported nickel catalysts are shown in Figure 10. In this part, we will discuss the most important preparation methods for synthesizing Ni/SiO₂ catalysts and the characteristics and problems of these methods.

10.2. Effect of Preparation Method

The utilization of the impregnation strategy to form unalloyed Ni/SiO₂ catalysts has lowered their catalytic activity and thermal stability for methane production, which emphasizes the importance of the customized frame. The ammonia-evaporation route for preparing Ni/SiO₂ catalysts has increased the efficiency and stability of the reaction while the methane selectivity reached 95% below 100% [52]. The ammonia-evaporation method (AEM) has been used to promote the stability of prepared Ni/SiO₂ catalysts for CO₂ methanation. This method led to a wide nickel dispersion with small-sized particles, down to 4.2 nm, and the layered structure of the silica support offering a large surface area of around 446.3 m²/g, which caused a strong interaction. As a result, the Ni/SiO₂-AEM catalyst exhibited an improved yield and outstanding stability for up to 100 h at 370 °C compared to the catalyst formed via the impregnation route [53].

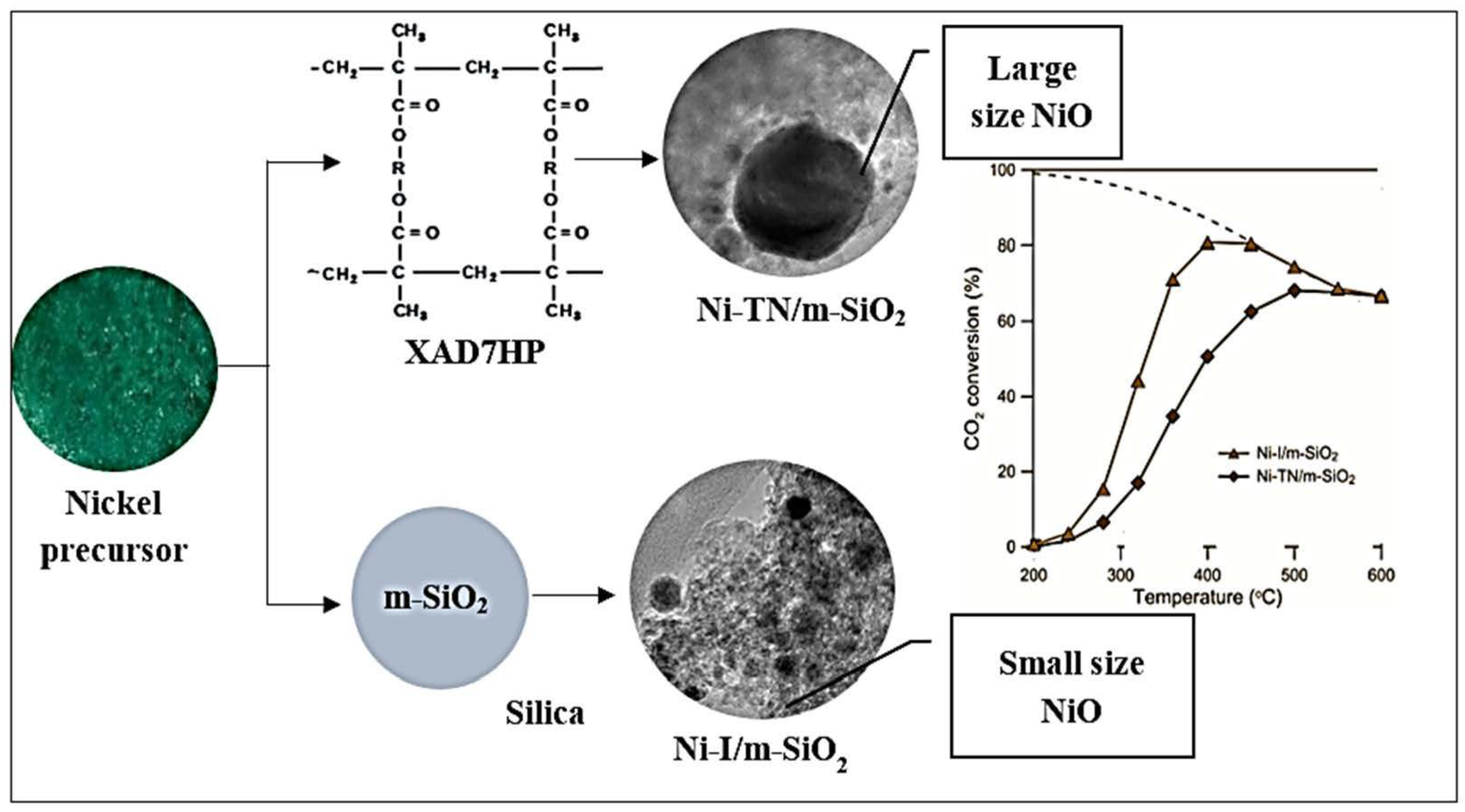

Hongmanorom et al. studied the impact of the synthesis method on catalytic performance. The comparison was between the wetness impregnation (WI) and the ammonia-evaporation (AE) method. Ni and Ni-Mg phyllosilicates prepared via the AE method were highly affected compared to the ones prepared via the WI method. Additionally, the impact of adopting Mg was examined, where the Ni-5Mg/SBA-15 AE catalyst exhibited a high CO₂ conversion rate at lower temperatures due to the high number of basic sites and high Ni dispersion. The structure of the phyllosilicate catalysts confirmed that the interaction between the metal and the support resulted in the avoidance of metal sintering [54]. Xu et al. reported a new preparation method for Ni-based catalysts, called the combustion impregnation method, which is a combined version of two methods, the solution combustion synthesis (SCS) method and the incipient wetness impregnation method. A Ni/SiO₂ catalyst with the fuel glycine achieved 94.1% selectivity for CH₄ production and 66.9% of CO₂ conversion at 350 °C, both of which are significantly higher compared to those of a Ni/SiO₂ catalyst synthesized using the conventional impregnation method [55].

A nickel phyllosilicate (Ni₃Si₂O₅(OH)₄) catalyst is the result of 3D SBA-15 reacting with nickel via the hydrothermal method. By altering the Ni amount in the range of 24.22 to 30.72 wt.%, its large surface area enables the Ni to disperse highly and form small-scale particles from a reaction with heating at 750 °C. This has been compared to the N/S catalyst with the same Ni content but prepared via the conventional incipient wetness impregnation method. The unique characteristics of 3D nickel phyllosilicate results in a small amount of Ni, superior H₂ and CO₂ adsorption abilities, and a lower activation energy [47]. The conventional Ni/SiO₂ has been used to prepare the structured embedment Ni@HZSM-5 catalyst using the hydrothermal method, which reached a 66.2% activity and a 99.8% selectivity at 673 K. The Ni@HZSM-5 exhibited superior activity and stability in the CO₂ methanation reaction for 40 h, without noticeable changes in its structure or nickel content, in comparison to the Ni/SiO₂ and Ni/HZSM-5 catalysts via the impregnation method. The metal phase of the Ni@HZSM-5 catalyst provided the zeolite with electrons, which raised the value of the BE and resulted in the avoidance of metal sintering [56].

Wang et al. compared two fabrication strategies, wet impregnation and the citrate complex method, and their findings indicated the influence of La addition on Ni/SBA-15 catalysts at low temperatures. The citrate complex method enables a wide Ni dispersion on the surface of the SBA-15, causing improved CO₂ adsorption and activation and overall CO₂ redaction via Ni-La₂O₃/SBA-15 [48]. The SBA-15 formations gained from the two different preparation methods (classical and microwave-assisted) have the same structure, which slightly differs from the addition of Ni and Ni-Ce. Due to the large pores of SBA-15, Ni particles are dispersed on the outer layer of the catalysts, whereas MCM-41, with small pores, contains Ni particles on the external layer that form huge particles. The MCM-41 Ni catalysts exhibit superior performance in anchoring the metal sintering and developing the metal and support interaction. Additive Ce facilitates CO₂ activation, resulting in high catalytic activity at low temperatures [57].

Ni/SiO₂-promoted catalysts with varying amounts of Mg that have been synthesized using co-impregnation exhibit superior, lifelong performance compared to the catalysts prepared using the sequential impregnation strategy. These improvements are related to the high adsorption and activation abilities of CO₂ and Ni, which limits the oxidation and the deactivation of nickel [58]. Wang et al. studied the influence of nickel particle size on the performance of Ni/SiO₂ catalysts in CO₂ methanation. The particle sizes varied from 3.5 to 7.5 nm, depending on the preparation method, with a constant Ni amount of 2 wt.%. It was found that the small Ni nanoparticle provides more catalytic activity than the large Ni particle on SiO₂ as a support. Lowering the size of the Ni particle forms adsorption and activation sites for CO₂, which enables the conversion of CO₂ into CH₄ without CO product [20].

Xu et al. compared two versions of Ni/SiO₂ catalysts, one prepared via the conventional impregnation method and the other prepared via the impregnation method using plasma technology, in terms of their adsorption, reduction, and catalytic activity in CO₂ hydrogenation. These dependent factors were positively affected in the case of plasma modifications [18]. Paviotti et al. developed a time- and cost-effective synthesis from wasted rice husk ashes to gain meso cellular silica foam (MCF) using the hydrothermal method via microwave irradiation. For Ni-based catalyst preparation, one-pot and incipient wetness impregnation methods were used to form MCM-41 and MCF using cyclohexane as a swelling agent for CO₂ reduction at the temperature range of 200 and 500 °C. The interaction between the metal and the support changed depending on the preparation method [58,59]. The results proved the high activity of the impregnation samples over the one-pot samples. Ni/MCF exhibits outstanding CO₂ conversion, stability, coke resistance, and CH₄ selectivity at temperatures between 350 and 500 °C due to the Ni distribution and the support structure [60]. Gac et al. discovered a new preparation method to form nickel-based catalysts supported by silica microspheres using polymeric resin (Amberlite XAD7HP) for CO₂ methanation. The addition of nickel and silica to the resin beads occurred during different stages of the reaction processes, as shown in Figure 11.

The Ni nanoparticles were generated as small with a hierarchical pore texture when the silica was impregnated prior to removing the template. It was found that the compatibility of the activity and selectivity in the Sabatier reaction corresponded with the broadened surface area and smaller size of the Ni particles. The selectivity and the rate of the reaction showed a distinctive rise as the particle size went down and the active surface sites increased at the temperature range of 220 to 350 °C [59]. Chen et al. revealed the pivotal effect of the fabrication strategy on the nature of the structure, the performance, and the stability of catalysts through the Sabatier reaction by using two different methods, as demonstrated in Figure 12. They used the conventional and the urea-assisted hydrothermal routes to form a Ni-phyllosilicate catalyst from nickel nitrate and silica from a rice husk. The Ni-phyllosilicate was prepared hydrothermally at 180 and 220 °C for the same time duration of 2 days, resulting in about 4.2 wt.% and 10.2 wt.% of Ni in the N₁₈₀/SR and N₂₂₀/SR catalysts, respectively, due to the lower silanol contents after calcination. By applying the modified method with urea and lowering the nucleation time (24 h), the authors synthesized Ni-phyllosilicate (N₁₈₀/SR-U-24) at 180 °C, which contained 22.6 wt.% of Ni. The decay of the urea throughout the reaction led to the consistency of the Ni (OH)₂ and SiO₂ leaching enabling the facile synthesis of Ni-phyllosilicate. N₁₈₀/SR-U-24 showed distinguishing activity and stability in the reaction of CO₂ hydrogenation because of its elevated Ni amounts and the excellent interaction between Ni and the supported material offered by the Ni-phyllosilicate. This proved the effectiveness of the denoted catalyst preparation method [50].

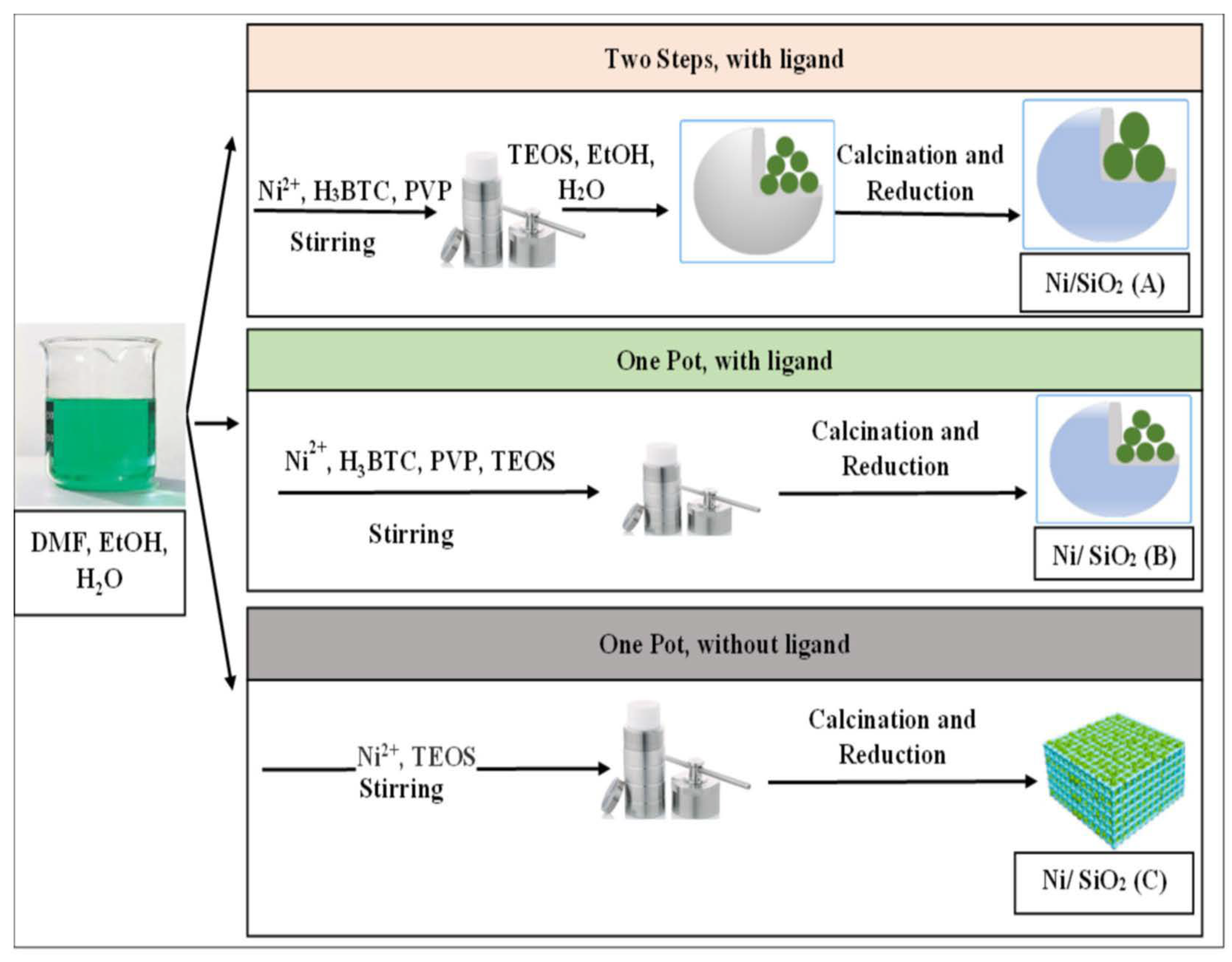

The metal-organic framework (MOF) has exhibited a remarkable catalytic capability for CO₂ methanation. Its expensive preparation method and the lack of stability in its derivatives has driven scientists to find an alternative synthesis route. Ye et al. modified the one-step sol–gel strategy to form a Ni/SiO₂ catalyst for the Sabatier reaction at low temperatures with outstanding performance, as illustrated in Figure 13 [52]. Comparing the developed one-pot method to the formal impregnation method, NiO/SBA-15-Op provides a larger surface area, a larger pore volume, and higher Ni dispersion than does the NiO/SBA-15-Im catalyst. Moreover, the broadly dispersed Ni in the channels of the mesostructured NiO/SBA-15-Op catalyst enhances the activity and stability of the reaction to a higher level than does the NiO/SBA-15-Im [45]. The synthesis method of the Ni catalyst affects its metal–support interaction, where the deposition–precipitation (DP) method achieves an important level of interaction in comparison to the wet impregnation (WI) method. Varying the Ni content from 10 to 20 wt.% in two catalysts, Ni/SiC and Ni/SiO₂, formed using WI, has been associated with raising the efficiency of the catalytic reaction. In comparison, the activity of a Ni/SiC catalyst with DP preparation has overcome that of the WI preparation sample for the hydrogenation of both CO and CO₂. The DP method, used for SiC formation, has allowed for the spread of dispersed Ni and thermal accessibility, which facilitates CO and CO₂ conversion reactions [11].

11. Effect of Support Modification

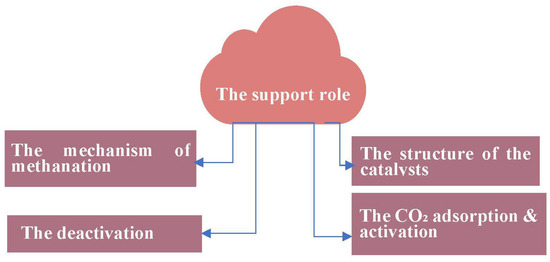

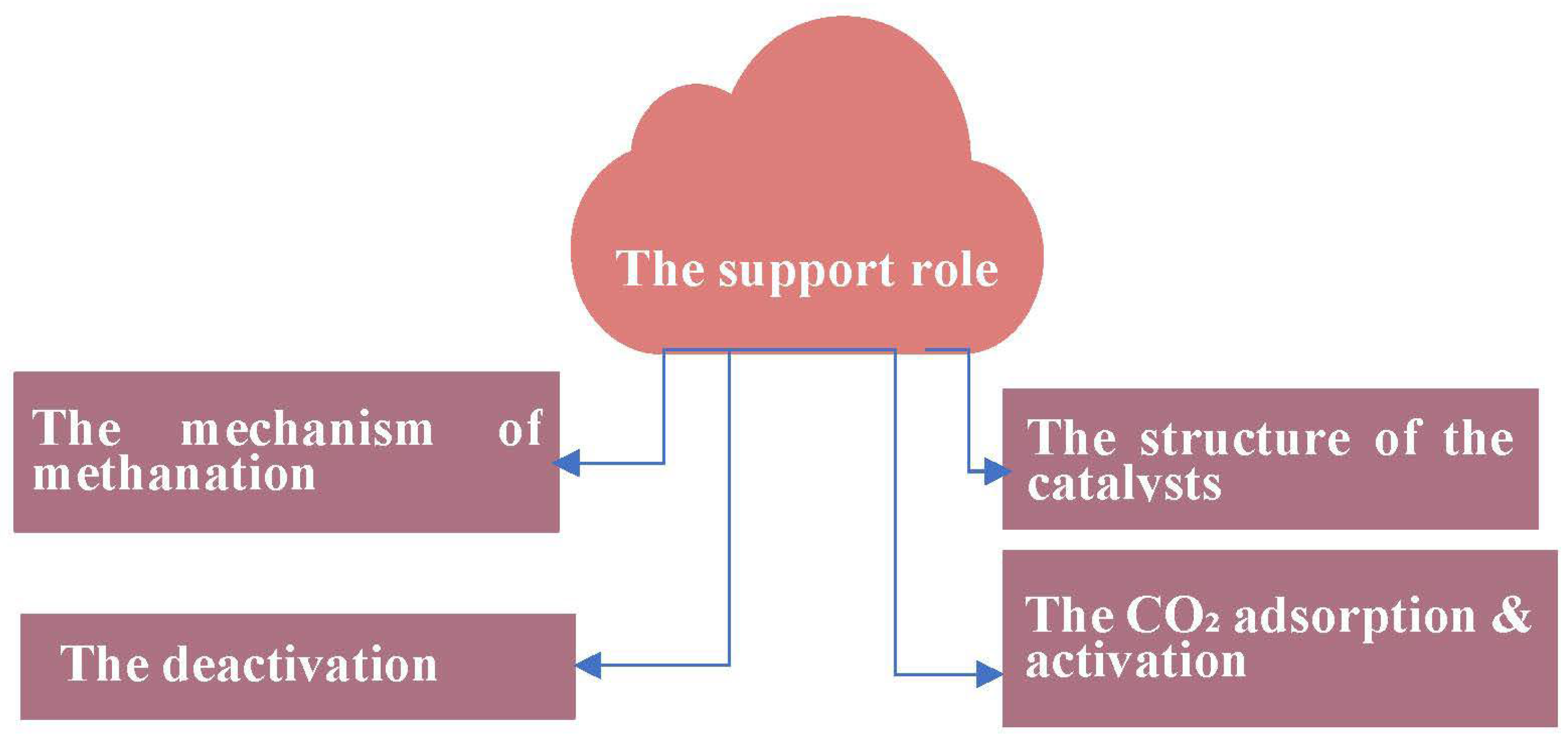

Figure 14 describes support multifunction, which could influence the overall catalytic CO₂ methanation activity. Zhu et al. reported the consequences of introducing SiO₂, Al₂O₃, and ZrO₂ to a support for the conversion of CO₂ to the methane. The additives provided a large surface area and facilitated CO₂ dissociation and an excellent interaction between Ni and the support, which separately improved the activity, selectivity, and stability of the reaction based on the nanoparticles applied at temperatures lower than 450 °C [34]. Nickel-based catalysts prepared with different mesoporous structures can support materials such as ZSM-5, SBA-15, MCM-41, Al₂O₃, and SiO₂ through use of the incipient wetness impregnation method for converting CO₂ to methane. The catalysts with the highest catalytic activity are ranked in the order of Ni/ZSM-5, Ni/SBA-15, Ni/Al₂O₃, Ni/SiO₂, and Ni/MCM-41. Its basicity and the combined impact of its metal and support cause the highest catalytic activity of the Ni/ZSM-5 catalyst. According to IR spectra, monodentate is a highly reactive molecule compared to the surface formational species in the Ni/ZSM-5 catalyst. Moreover, an Ni/ZSM-5 catalyst has lasted for 100 h without deactivation and exhibited anti-sintering characteristics [61].

Mihet et al. deposited 10 wt.%. Ni over different oxides (MgO, CeO₂, and La₂O₃) that were mixed with silica support. The presence of these oxides resulted in a significant improvement in Ni dispersion and many active centers activating H₂. The Ni/CeSi catalyst exhibited a high basicity and CO₂ activation ability in comparison to Ni/MgSi during a methanation reaction at temperatures varying from 30 to 350 °C. In terms of catalytic efficiency, Ni/LaSi proved to be the best catalyst, with 83% CO₂ transformation and 98% selectivity at 250 °C. This effectiveness is related to the development of an H₂ and CO₂ activation property. The examined catalysts kept their pore structures with no changes to either mesopores of small or medium size. No metal sintering or carbon deposition was detected on the catalysts, other than on Ni/CeSi [8].

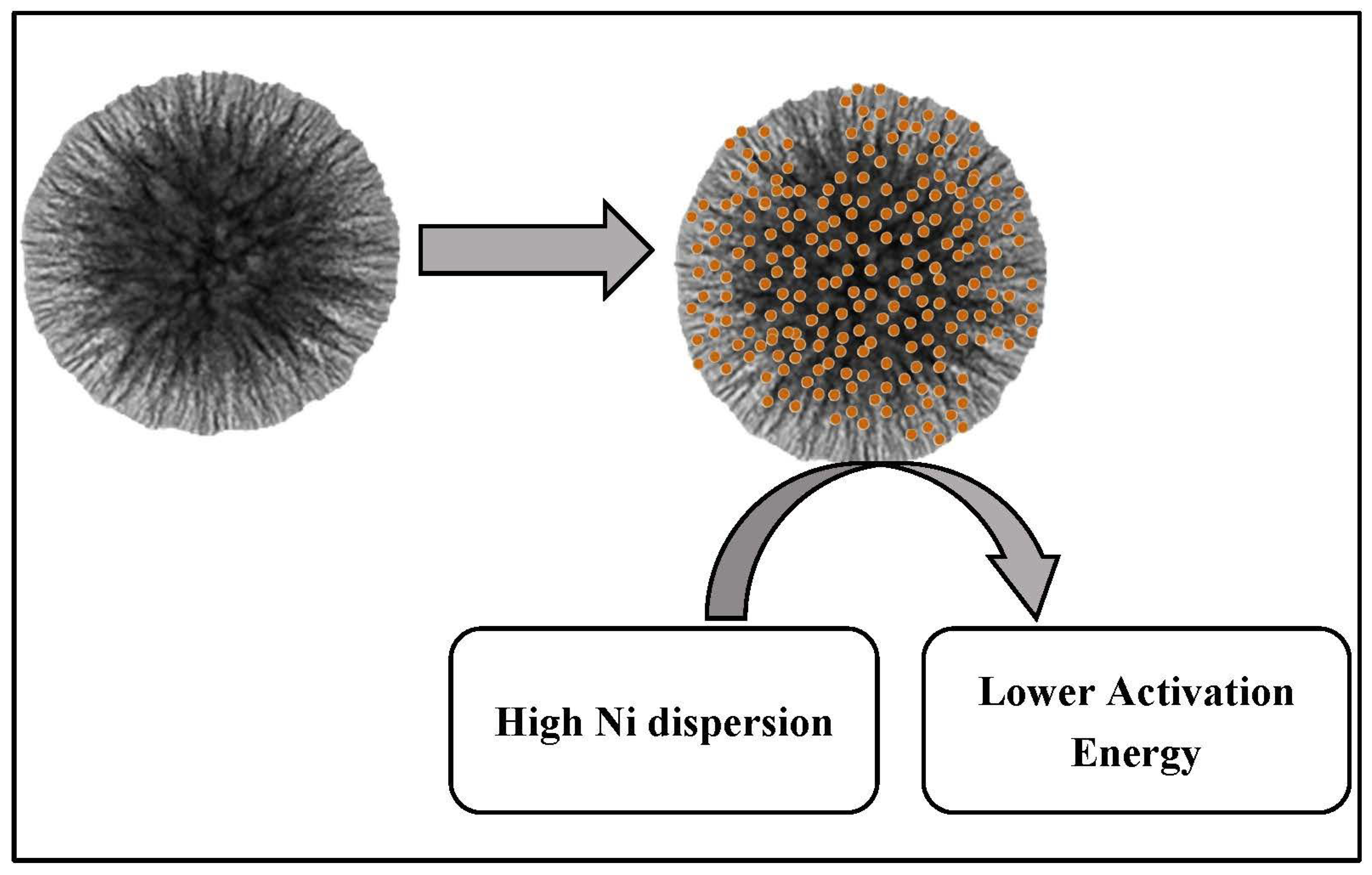

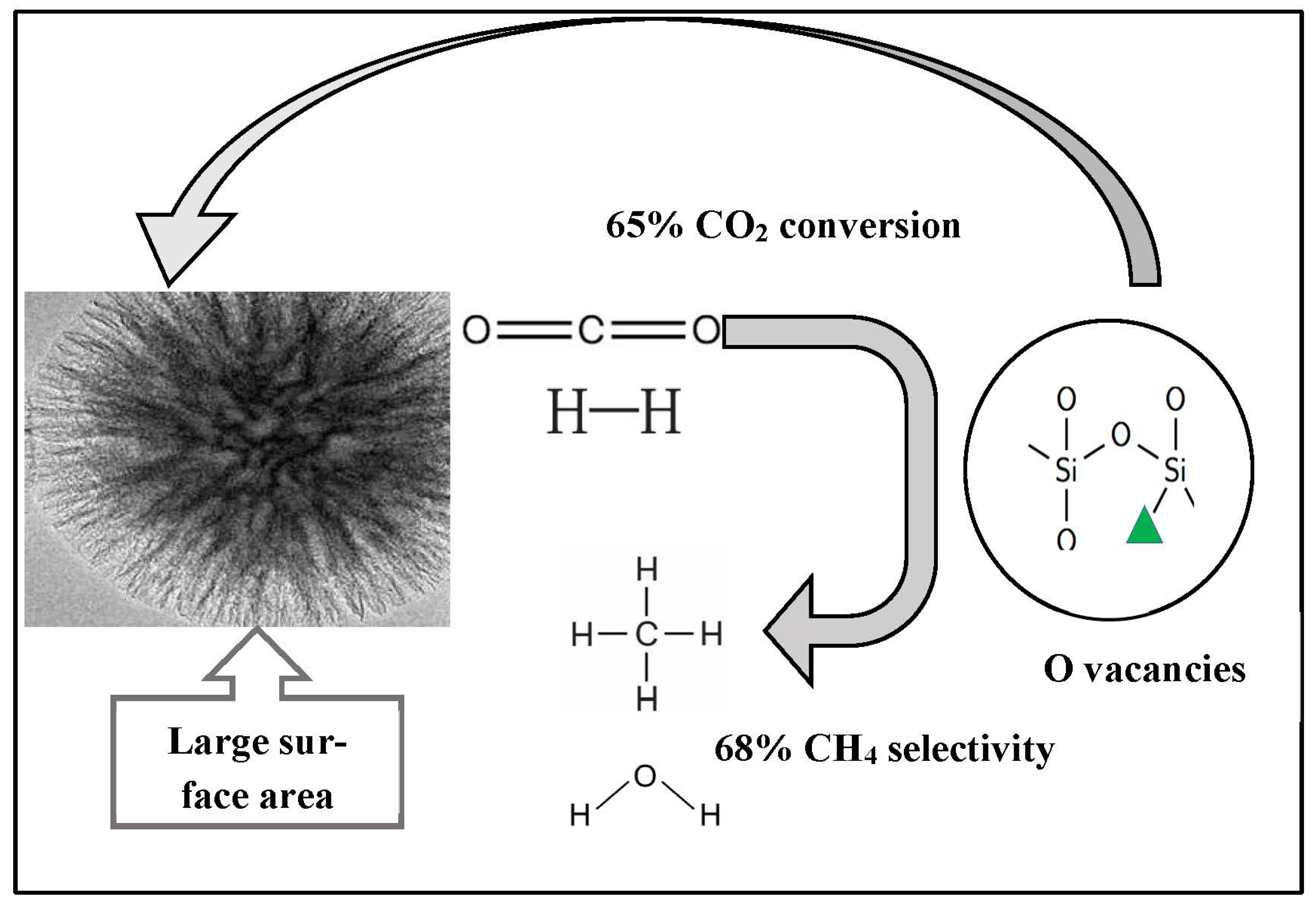

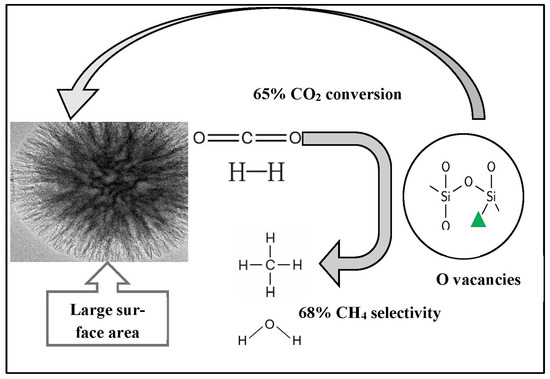

A microemulsion process has been used to synthesize fibrous silica-mordenite (FS@SiO₂-MOR), which achieved 65% CO₂ conversion and 68% CH₄ selectivity during CO₂ hydrogenation with thermal stability for 50 h in comparison to the commercial mordenite (MOR), as depicted in Figure 15. The unique fibrous morphology of FS@SiO₂-MOR, with large surfaces, massive oxygen vacancies, and basic sites, allows for CO₂ and H₂ adsorption. The oxygen vacancies enable the activation of each of the CO₂ and H₂ molecules in the CO₂ methanation reaction [62]. Ma et al. reported a layered catalyst in which Ni foam was covered with a graphene layer and nickel silicate was deposited on the surface, as shown in Figure 16. The presence of graphene oxide between the Ni-SiO₂ and Ni foam provided outstanding stability and reactivity for CO₂ hydrogenation at the high temperature of 470 °C due to the high interaction between metal and support, significant Ni dispersion, and low activation energy [63].

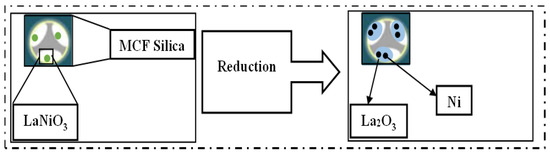

Zhang and Liu used the citric acid–assisted impregnation method to form a mesostructured cellular foam (MCF) silica as a support for LaNiO₃-based catalysts for a CO₂ conversion reaction. Calcinating LaNiO₃/MCF catalysts at 650 °C provided a strong interaction between and wide dispersion of both the La₂O₃ and Ni nanoparticles in the pores of the support, as shown in Figure 17. Due to this, the LaNiO₃/MCF (30LNOM-C-650) catalyst showed superior catalytic reactivity in comparison to the one (30LNOM-Im-650) synthesized using the co-impregnation method, which reached its highest CO₂ conversion and CH₄ selectivity at 76% and 97%, respectively, at 450 °C. Additionally, its stability was tested at the same temperature, and it was found to be stable for 100 h with high anti-sintering effects in regard to the high interaction between the metal and the support [64].

Lv et al. developed a microemulsion hydrothermal synthesis to prepare Ni catalysts supported by the fibrous KCC-1 nanosphere for CO₂ methanation, as shown in Figure 18. The unusual mesoporous structure of the fibrous KCC-1 support materials enlarged the dispersion of the Ni metal by widening the available area. In comparing this to the reference catalysts, the catalyst 20Ni/KCC-1 exhibited a higher activity than did the 20Ni/SiO₂ and 20Ni/MCM-41 at low temperatures. The dendrimeric mesoporous structure of 20Ni/KCC-1 led to its noticeable stability for 40 h at a temperature of 400 °C, an impact of the sinter-proof nature of the Ni sites. Kinetically, the high dispersion of Ni on the 20Ni/KCC-1 led to a lower activation energy than that of the reference catalysts [65].

Moghaddam et al. used the sol–gel method to prepare groups of mesoporous alumina-silica Ni-based catalysts with a variety of SiO₂/Al₂O₃ ratios employed for the conversion of CO₂ to CH₄. A high ratio of the Si/Al caused a reduction in the surface area of the supported samples from 254 to 163.3 m²/g and an increase in the Ni particle size from 3.53 to 5.14 nm. A TPR analysis identified the reducible capability of nickel in its conversion from nickel oxide to nickel metal at low temperatures. The authors optimized the catalyst with a 0.5 ratio of SiO₂/Al₂O₃, each with the highest stability, deactivation resistance, and catalytic activity, as well as a selectivity of 82.4% and 98.2%, respectively, at 350 °C [66].

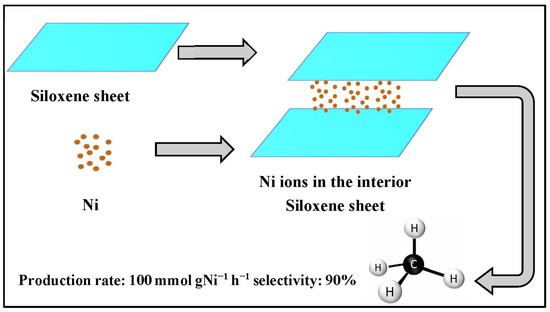

Yan et al. pointed out that nickel located on the internal layer of 2D siloxene nanosheets promoted activity, selectivity, and stability in a reaction, which can be gained by adjusting each terminal group of siloxene and the utilized solvent during formation. With the nickel in the center, the rate of CO₂ hydrogenation reached 100 mmolg⁻¹ h⁻¹ with 100% selectivity, as presented in Figure 19 [67]. Moghaddam et al. found that the optimal ratio for an Si/Al catalyst is 0.5, which can be prepared using one of the improved techniques for obtaining high catalytic productivity. Moreover, the optimized Si/Al ratio could be applied to different zeolitic structures.

12. Effect of the Ni Loading

NiO/SBA-15 has shown a high rate of CO₂ conversion to CH₄ and a selectivity reaching 100% when the loaded NiO amount is increased in two different preparation methods, a simple heat treatment (HT) and the conventional solvent impregnation (SI) method [68]. Liao et al. indicated the effects of Ni loading on both the structure and the catalytic activity of the reaction by using a thermal treatment to prepare a group of nickel silicate catalyst samples for CO₂ methanation. According to the study, a rising nickel content was associated with an improvement in activity. The highest achievement was for the NiPS catalyst with a mass of silica equal to 1.6 g and 34.3 wt.% of Ni loading, resulting in more than 80% of CO₂ conversion and about 100% of methane selectivity at 330 °C for 48 h. The distinctive nature of the layered silicate, with an abundance of nickel phyllosilicate and the availability of Lewis acid sites, provided high dispersion of Ni and an interaction between the carrier and the active sites [38].

Dias et al. estimated the influence of altering the Ni loading amount in a Ni-Cu/SiO₂ catalyst synthesis via wet impregnation for CO₂ methanation at varying temperatures from 200 to 400 °C. Increasing the Ni loading was accompanied with raising both the catalytic activity and the methane selectivity. The catalyst with Ni₁₅ exhibited a production and selectivity elevated by 55% and 96%, respectively, at a temperature equal to 350 °C. The addition of Cu shifted the selectivity toward CO instead of CO₂, which lowered the reaction rate. However, it promoted the catalyst’s resistance to deactivation. During the period of the reaction (5 h), the tested samples remained stable at the temperature of 400 °C [69]. Bukhari et al. revealed the effects of differing Ni loadings, between 1 and 10 wt.%, on the SBA-15 fibrous catalysts (F-SBA-15) in CO₂ methanation. Methane production increased with increases in the metal from 1 to 5 wt.% and then started to decrease. The improved activity and stability were related to the unique structure of the supported fiber, which provided more Ni dispersion, metal–support interactions, and basic sites. The combination of the texture and the optimized loading results in significant catalyst improvements and can be practiced in many fields [36].

13. CO₂ Methanation Reaction Mechanism over Ni/SiO₂-based Catalysts

The CO₂ methanation reaction mechanism is associated with the characteristics of Ni/SiO₂ catalysts. Ni/ZSM-5 and Ni/MCM-41 (Ni-supported zeolite) catalysts exhibit the desired high performance. CO₂ methanation occurs through two potential mechanisms, (i) formate or carbonate pathway and (ii) carbon monoxide pathway. Methanation reactions over Ni/ZSM-5 catalysts form formate species through the carbonate’s hydrogenation rather than the CO path. An IR analysis revealed that the Ni/ZSM-5 catalyst form two types of species, monodentate and bidentate formate, at 1340 and 1600 cm⁻¹, respectively (Figure 20). On the other hand, a catalyst of Ni/MCM-41 showed a peak at 1590 cm⁻¹ due to the formation of bidentate species. Thus, the high activity of Ni/ZSM-5 catalysts indicates the efficiency of the monodentate path of reaction compared to that of bidentate formate methanation [61].

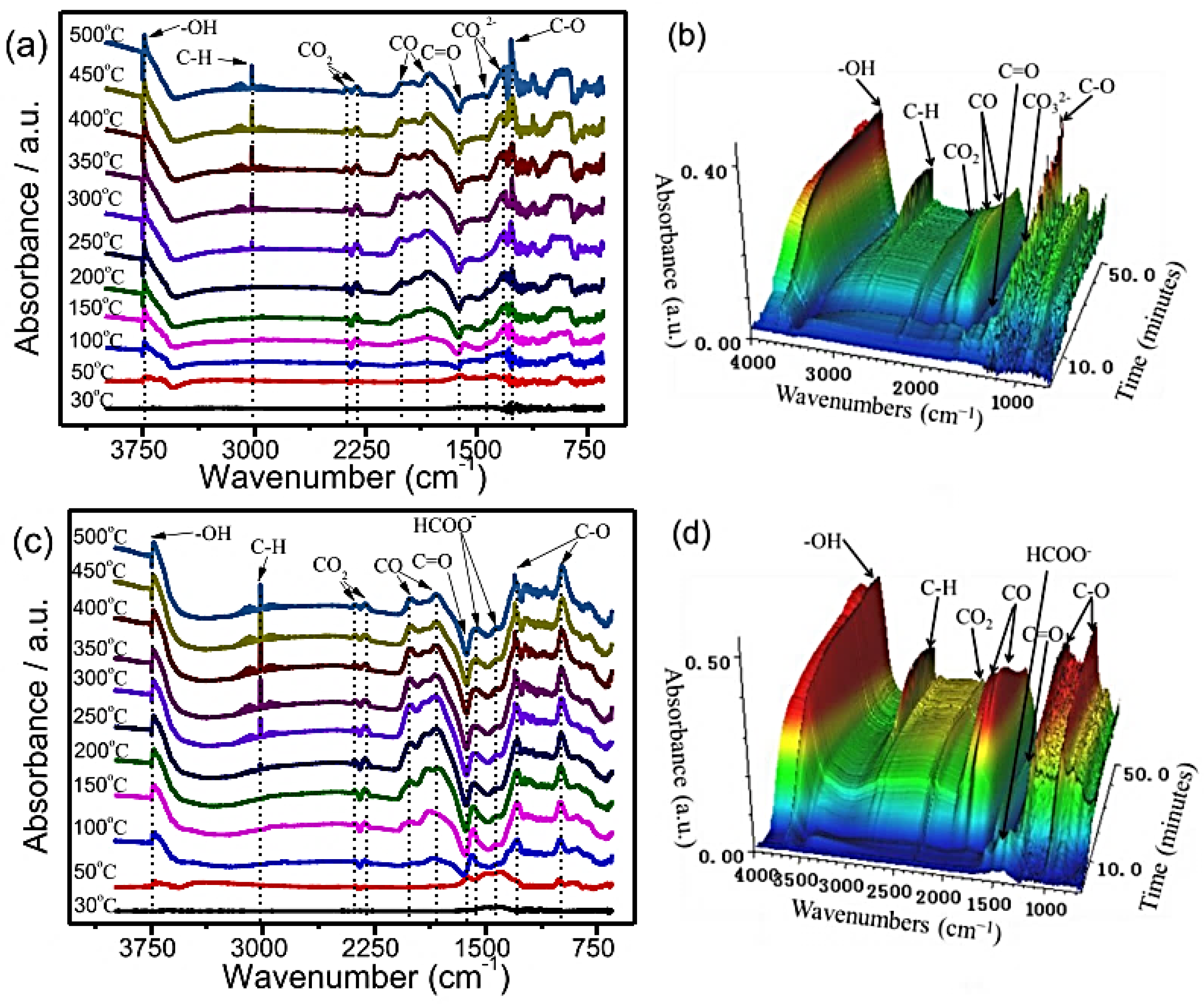

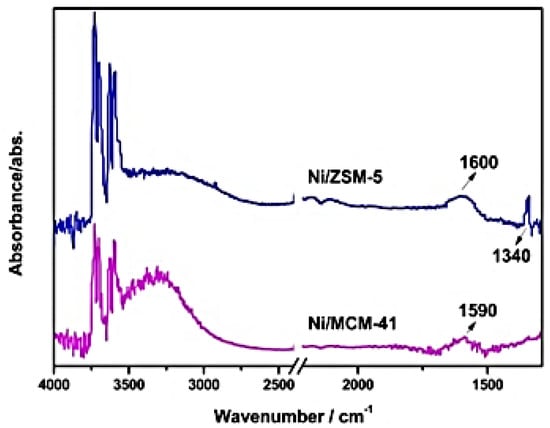

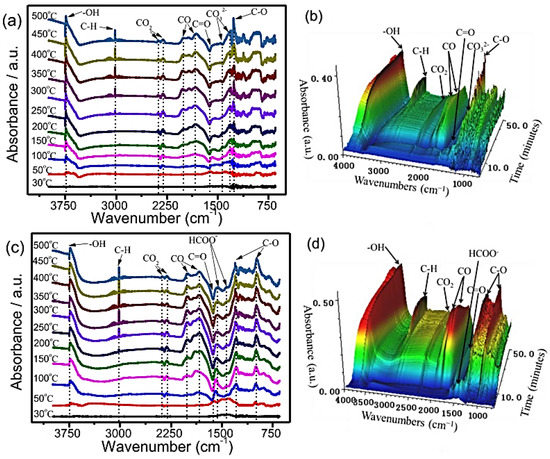

Diffuse reflectance infrared Fourier transform spectroscopy has been used to study the mechanisms of methanation reactions over Ni/ZSM−5 and Ni/MCM−41 catalysts (Figure 21). It was observed that N/S-24-Hy exhibited more catalytic activity in CO₂ hydrogenation than did N/S-Im catalysts in identical reaction conditions. The reaction pathway for hydrothermal treatment catalysts (N/S-24-Hy) exhibited a peak of methylene groups at low temperatures (250−500 °C), while the C-H peak of impregnation treatment (N/S−Im) catalysts appeared at above 300 °C. A high percentage of adsorbed CO₂ transformed into carbonate (1324 and 1432 cm⁻¹) species, as shown in Figure 21. In the case of the N/S−24Hy catalyst, the formation of formate species was observed due to a CO₂ reaction with hydrogen radicals, which is a critical intermediate for methane production [47].

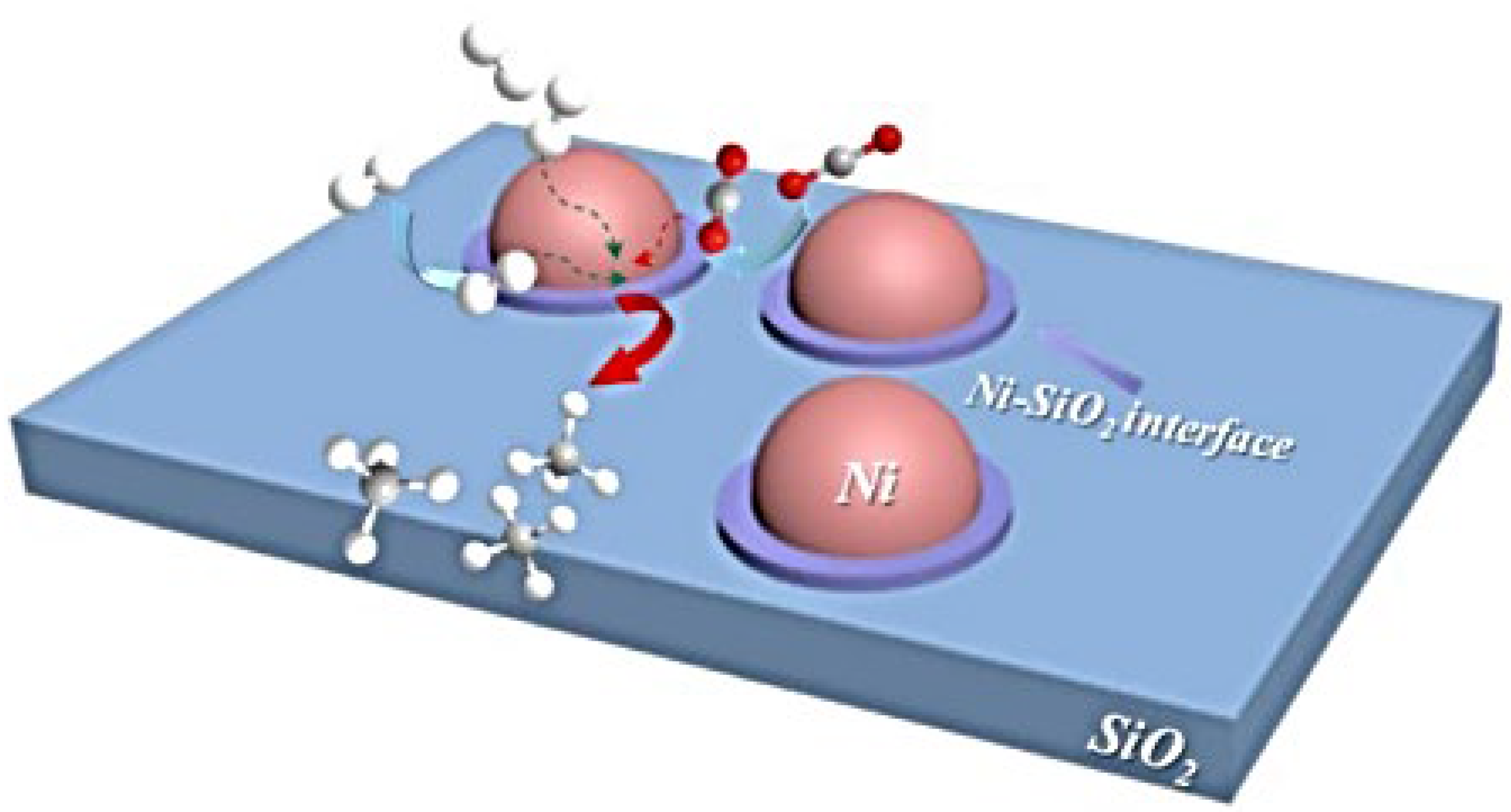

Another reported study proved that the Ni−SiO₂ interface is responsible for CO₂ adsorption and activation. The availability of hydrogen coverage on the metal determines the direction of the intermediates (carbonate and formate) conversion toward CH₄ formation. Their improved combustion technique achieved a remarkable reactivity at low temperatures due to its high Ni dispersion and the interface between the metal and the support, as shown in Figure 22 [55].

It has been observed that small metal particles lead to an increase in activity while big Ni particles produce CO as a secondary product. The generated defect site, which is associated with a lower Ni particle size, enhances the adsorption and activation of CO₂ and the overall process of CH₄ production. Additionally, small Ni particles prevent CO formation as secondary product. Pathway 1, as shown in Figure 23, involves the formation of monodentate carbonate and is considered the most effective route for CO₂ methanation [20]. However, when promoters such as CeO₂ surround Ni nanoparticles (Figure 24c), they cause excellent Ni dispersion by limiting agglomeration (Figure 24a) and increasing the amount of hydrogen activation sites on the Ni metal (Figure 24b). This phenomenon enhances catalytic methanation activity; however, increasing the CeO₂ concentration to 30 wt.% reduces the number of active sites and catalyst’s performance. The effects of these metals, supports, and additives result in excellent metal dispersion and CO₂ adsorption. It has been reported that 20 wt.% of CeO₂ is the optimum loading for high methanation activity [70].

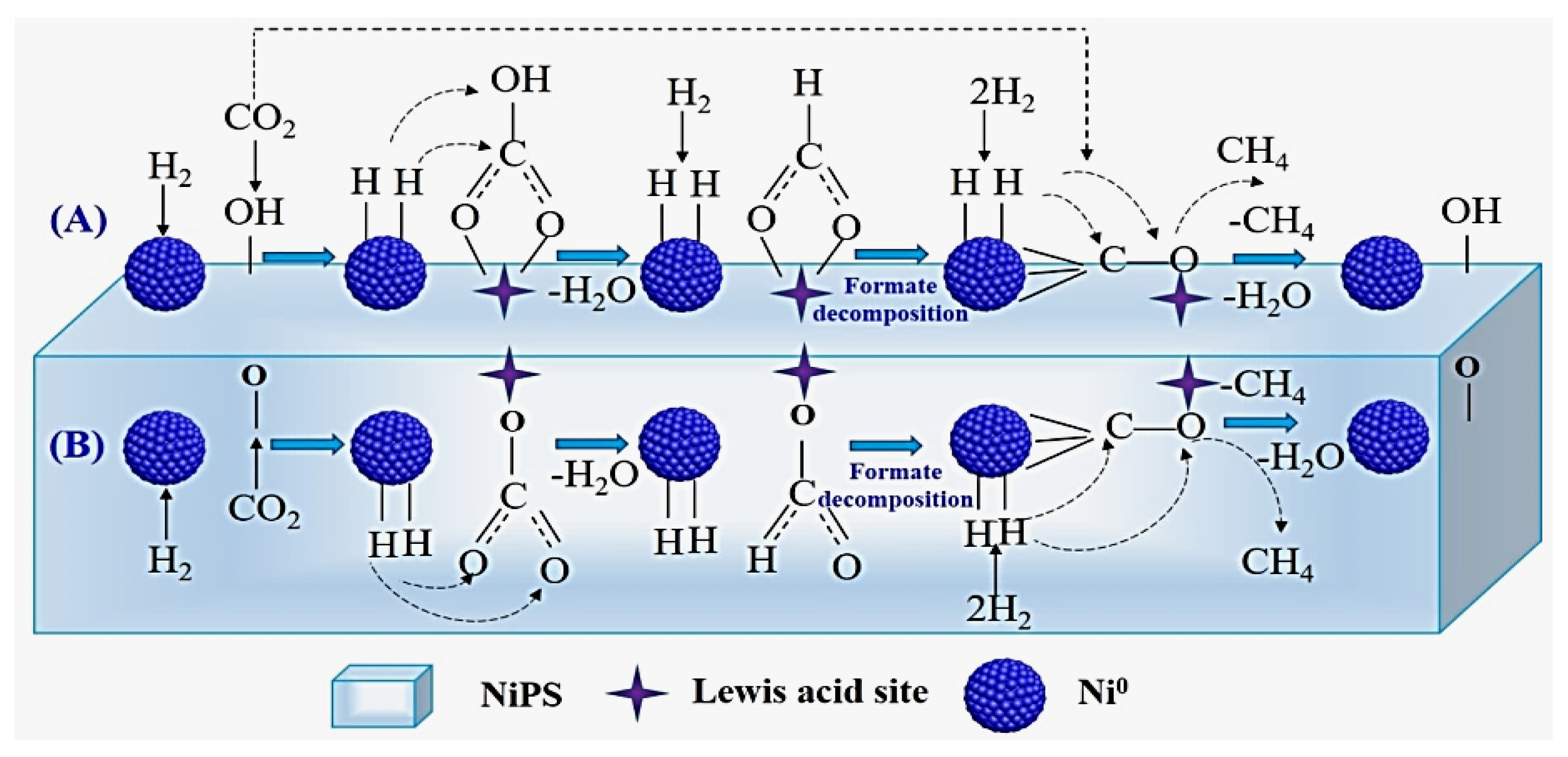

In another report, researchers proposed two possible paths for the CO₂ methanation process over nickel phyllosilicate (NiPs-x) catalysts (Figure 25). The CO₂ molecule interacts with the OH group and Lewis acid site on the NiPS surface to create intermediate carbonates (polydentate, monodentate, and bicarbonate). Then, the carbonates convert into formate species by reacting with the hydrogen that was spread on the Ni metal particles. Finally, the CO formed due to formate decomposition converts into methane. In the second path, the direct decomposition of CO₂ on the Ni metal is transformed into CH₄ by the hydrogen [38]. As shown in Figure 26, the Ni sites on the surface of an MSN support help decompose H₂ molecules into hydrogen atoms and assist in formation of oxygen vacancies (Figure 25 (A)). The formed oxygen vacancies activate CO₂ to form carbon species, which further react with hydrogen atoms to produce methane [71]. From these studies, it can be concluded that Ni is vital for the formation of the hydrogen radicals that are essential in the conversion of CO₂ into CH₄. Therefore, designers of catalysts should aim to create small particles of Ni to enhance reaction reactivity. This can be achieved using additives or reduction during pretreatment.

14. Effect of the Dopant

The development of Mn-promoted Ni catalysts has contributed to reaching elevated levels of metal dispersion and CO₂ adsorption and achieving superior performance in CO and CO₂ methanation [11]. Paviotti et al. used rice husks as a source for silica to form Ni-Ru supported by SiO₂ catalysts via the wet impregnation method for a CO₂ methanation reaction at temperatures ranging between 250 and 400 °C. The ratio of Ru/Ni was kept constant at 0.1 during the alteration of the metal loading. The optimum catalyst for the reaction of CO₂ conversion to methane, with improved stability, selectivity, and activity, was found to be a rice husk-derived silica with a ratio of 5 wt.% of Ni and 0.8 wt.% of Ru. The addition of a low amount of Ru resulted in a lower particle size and high ability to adsorb H₂ [72].

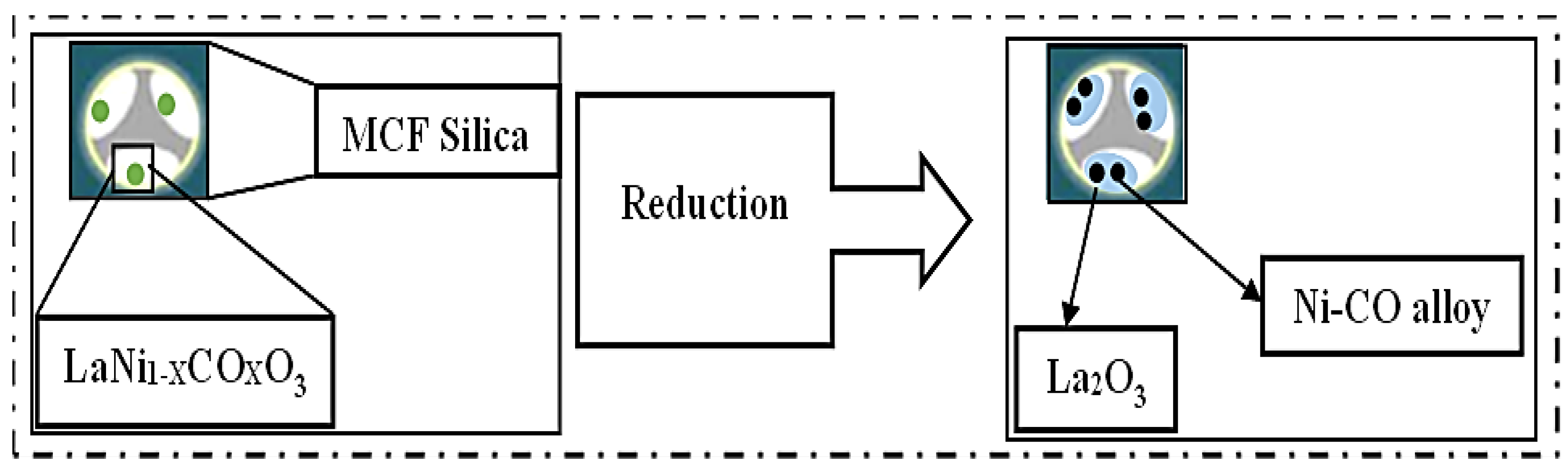

In another study, LaNiCo-based catalysts were tested to study the effects of bimetallic additives on catalytic activity at low temperatures and on stability at high temperatures. As shown in Figure 27, the LaNi_{1 − x}Co_xO₃ catalyst exhibited a more remarkable reactivity at lower temperatures than did the monometallic catalyst. The optimum percentage ratio of the Co/(Co + Ni) molar to increase activity was found to be (5%). The bimetallic active center led to a decrease in the activation energy of the H₂ and CO₂. Out of all the prepared catalysts, LaNi₀.₉₅Co₀.₀₅O₃/MCF showed significant activity as a result of its nanosized particles of Ni and Co and the combined characteristics of both metals. It proved to have stable abilities for 100 h with no noticeable sintering [73]. Riani et al. estimated the effects of introducing lanthanum and silica to Ni-based catalysts supported by alumina for CO₂ methanation. The introduction of the silica prevents the formation of a perovskite structure, protects the support form, and enables the elevation loading of the La₂O_3, leading to the monitoring of acid-base characteristics. However, introducing Si to the support material Al₂O₃ lowers the Ni catalytic activity in CO₂ methanation due to the lower CO₂ adsorption. The catalysts were synthesized with a constant amount of 13.5 wt.% of Ni and the La₂O₃ loadings varied, which improved the stability and achievement of a distinctive CO₂ adsorption. The optimum amount of lanthanum on the Ni/SiO₂-γ-Al₂O₃ catalyst was equal to 37 wt.%, which increased the methane production to 83% and the selectivity to around 100% at low temperatures of about 300 °C [74].

Taherian et al. investigated the addition of yttria to nickel-based catalysts supported on modified magnesia MCM-41 by preparing samples comprising differing yttria content in xY₂O₃−Ni/MgO−MCM-41 catalysts via the direct fabrication strategy for a Sabatier reaction. The authors concluded that the samples employing yttria gained significant activity compared to the unemployed samples. The greatest conversion of 65.55% and selectivity of 84.44% at 673 K (398 °C) were from a sample containing 2 wt.% of yttria due to the small size of the particles and the well dispersed Ni. Additionally, these rates lasted for the reaction duration of 30 h [75]. Guo and Lu reported the promotional impact of different alkaline-earth metal oxides on consistent Ni/MO/SiO₂ catalysts, where M refers to (MgO, CaO, SrO, and BaO) synthesized via the sequential impregnation route for CO₂ hydrogenation. Based on their analyses, the introduction of SrO to the catalyst increased its activity and stability. In terms of BaO promotion, while the activity was improved, the Ni/BaO/SiO₂ only lasted for 50 h due to destruction caused by Ni deactivation. Introducing CaO to the catalyst slightly influenced the efficiency of the Ni/CaO/SiO₂, and the addition of MgO remarkably obstructed its methanation productivity due to the diminished reducibility of Ni [76].

Vrijburg et al. studied the effects of a Mn promoter on Ni/SiO₂-Al₂O₃ catalysts in the Sabatier reaction, where the atomic ratios of Mn/Ni varied from 0 to 0.25. According to the reported results, the activity of the reaction can be enhanced by increasing the Mn/Ni ratio. At low temperatures, the catalysts show high stability, Ni dispersion, and methane selectivity. Based on IR spectroscopy results, the addition of Mn caused the adsorption and activation of carbon dioxide at low temperatures [77]. In another study, to investigate the effects of the CeO₂ promoter, a group of Ni_{1 − x}CeO₂/MCM-41 catalysts were prepared with 20 wt.% of nickel using the deposition precipitation method for a Sabatier reaction. The catalysts promoted with CeO₂ exhibited an increased reaction reactivity in comparison to the unpromoted Ni/MCM-41 catalyst. The 20 wt.% CeO₂ catalyst achieved a superior catalytic activity, with 85.6% CO₂ conversion and 99.8% methane selectivity at 380 °C. The addition of CeO₂ led to enhancements in the dispersed Ni, CO₂ adsorption, and overall efficiency of the reaction, which is the result of the combined characteristics of the metal, support, and promoter. Additionally, this catalyst remained stable for 30 h [70]. The catalytic activity of Ru nanoparticles on a nickel-based silica catalyst has been investigated during methanation. This preparation approach formed unalloyed metals on a layer of oxide passivation. This catalyst proved its validity by gaining 100% conversion at the low temperature of 200 °C with a 940 h⁻¹ TOF. Treatment with hydrogen can activate a catalyst again after coke formation during the reaction. By testing different nanoparticles such as Re, Rh, Ir, or Pd/Ni, the authors showed that the Re/Ni catalyst offers superior activity with high methane production at 460 °C and a TOF of 13,855 h⁻¹ [24].

The effects of adding rare earth metals (which have potential to replace noble metals) to nickel silica catalysts for a Sabatier reaction have been studied. Bimetallic catalysts were synthesized via the impregnation route using silica formed from electrospinning to enlarge the surface area. Among the additives of bimetallic lanthanide (La, Ce, Pr, Sm, Dy, and Yb), the bimetallic oxides praseodymium and cerium exhibited the most remarkable catalytic activity, increasing the activity of their catalysts to four times that of the NiO/CeO₂ catalyst and ten times that of the 5 wt.% Rh/Al₂O₃ catalyst. This activity is due to the synergic effect of the nickel and the 4f block of the rare earth elements that affects the base, reduces the size of the particles, and enhances the reaction’s lifetime [78]. A core of self-assembled nickel nanoparticles with ceria nanowires (Ni-CeO₂ NWs) in shelled, microporous SiO₂ was fabricated using the one-pot method. This designed Ni-CeO₂@SiO₂ catalyst with a diameter of 2.9 nm exhibited excellent performance and stability in the conversion of CO₂ to CH₄. This is due to several factors, such as its distinctive texture, its intensive interaction, and the combined influence of Ni nanoparticles and CeO₂ nanowires in the presence of oxygen vacancies [79]. Li et al. prepared Ni-MgO nanoparticles supported by a core-shell silica for a Sabatier reaction at low temperatures with differing ratios of Ni/Mg. The optimum performance, with 87% activity, 99% selectivity and 100 h of stability at 300 °C, was from the Ni/Mg ratio equal to 4/1. This is due to the separation of dispersed Ni nanoparticles preserved by the silica shell [80].

Additionally, Guo and Lu investigated the influence of varying ratios of Co/Ni, where a ratio of 0.4–1 exhibited an enhanced performance of the bimetallic catalysts in CO₂ methanation at temperatures between 250 and 350 °C [27]. In another study, an alloy Ni-Pd catalyst on SBA-15 as its support performed differently according to varying ratios of Ni-Pd. Bimetallic catalysts with a ratio of 3:1 gained the highest methane production, with 0.93 mol/CO₂ mole-formed methane at 430 °C [25]. The loading of boron on a fibrous-silica-nickel catalyst has been shown to increase catalyst efficiency in CO₂ methanation. The superior production rate was 84.3% in the reaction condition of 10,500 GHSV, 6 gas ratio H₂/CO₂, and 500 °C [81]. All the discussed scientific studies’ perspectives regarding a catalyst’s stability can be concluded in Figure 28.

Comparison of different Ni/pure-SiO₂ and Ni/modified-SiO₂ catalysts in CO₂ methanation are presented in

Table 1. Comparison of different Ni/pure-SiO₂ catalysts in CO₂ methanation.

Catalyst	Preparation Method	Reaction Conditions (GHSV (mL·g−1·h−1)) P (MPa)	Conv. CO2 (%)	Select. CH4 (%)	Stability (h)	Temp. (°C)	Rate (mol CH4·g Ni−1·h−1)	Ref.
10.4%Ni/SiO2-C	One-pot sol–gel	20,000, P 2.0	77.2	99.8	52	310	1.32	[52]
Ni-I/m-SiO2	Wet impregnation	23,100, P 0.19	~80	~100	-	400	1.65	[59]
40%Ni/SiO2-IM	Impregnation	30,000, P 0.1	~70	~95	60	370	0.15	[53]
40%Ni/SiO2-AEM	Facile ammonia-evaporation	30,000, P 0.1	82.4	95.5	60	370	0.27	[53]
Ni/SiO2	Impregnation	10,000, P 0.1	~55	~90	30	400	0.21	[34]
10 wt.%Ni-1 wt.%MgO/SiO2	Co-impregnation	15,000, P 0.1	~67.0	~98.0	50	350	0.88	[58]
10%Ni/SiO2	Impregnation	60,000	53.5	96	5	350	-	[69]
10%Ni/SiO2-Gly	Combustion–impregnation	30,000	66.9	94.1	50	350	-	[55]
10%Ni/SiO2-Cit	Combustion–impregnation	30,000	39.1	84.9	50	300	-	[55]
N/S-24-Hy	Incipient wetness impregnation	60,000, P 0.1	80.4	99.8	100	400	-	[47]
2 wt.% Ni/SiO2-ED	Impregnation with [Ni(EDTA)]2−	12,000	80	90	-	450	-	[20]
Ni5Ru/SiO2	Wet impregnation	6000	71.0	92	24	400	-	[72]
10Ni/SiO2	Sequential impregnation	15,000	73.2	98.7	50	400	-	[76]
Ni/Mg/Si	Sequential impregnation	15,000	61.9	92.1	50	400	-	[76]
Ni/Ca/Si	Sequential impregnation	15,000	73.3	98.9	50	400	-	[76]
Ni/Sr/Si	Sequential impregnation	15,000	76.3	99.0	50	400	-	[76]
Ni/Ba/Si	Sequential impregnation	15,000	74.9	98.9	50	400	-	[76]
5%Ni/SiO2	Wet impregnation	60,000	52.7	92.8	5	400	-	[69]
10%Ni/SiO2	Wet impregnation	60,000	53.5	96	5	350	-	[69]
15%Ni/SiO2	Wet impregnation	60,000	55	96.1	5	350	-	[69]
10%Ni-1%Cu/SiO2	Wet impregnation	60,000	39.5	44.4	5	400	-	[69]
10%Ni/SiO2	Impregnation	2400	68	66	100	400	-	[61]
34.3 wt.% NiPS-1.6	Hydrothermal	40,000	>80	~100	48	330	-	[38]
22.6%N180/SR-U-24	Hydrothermal reaction	60,000	67.5	-	100	450	-	[50]
Ni0.8Mg0.2O@SiO2	Chemical co-precipitation and modified Stöber synthesis	60,000	87.0	99.0	100	300	86.1	[80]
Co0.4Ni/SiO2	Wet co-impregnation	13,200	83.2	82.4	-	350	-	[27]

and

Table 2. Comparison of different Ni/modified-SiO₂ catalysts in CO₂ methanation.

Catalyst	Preparation Method	Reaction Conditions (GHSV (mL·g−1·h−1) P (MPa))	Conv. of CO2 (%)	Select. to CH4 (%)	Stability (h)	Temp. (°C)	Rate (mol CH4·g Ni−1·h−1)	Ref.
Ni/SiO2-ZrO2	Impregnation	10,000, P 0.1	~75	100	30	400	0.32	[34]
Ni/SiO2-Al2O3	Impregnation	10,000, P 0.1	~70	100	30	400	0.30	[34]
Ni-SiO2/GO-Ni-foam	Hydrothermal	500, P 0.1	~80	~91	72	470	-	[63]
10%Ni-La2O3/SBA-15	Impregnation	6000	54	99	160	320	-	[48]
10%Ni-La2O3/SBA-15(C)	Citrate complexation	6000	90.7	99.5	160	320	-	[48]
Ni/SBA-15-Op	Facile one-pot hydrothermal	10,000, P 0.1	~76	~97	50	420	-	[45]
Ni/LaSi	Successive impregnation	4650	83	98	6	250	-	[8]
5 wt % Ni/MSN	Wet impregnation	50,000	64.1	99.9	200	300	-	[51]
LaNi0.95Co0.05O3/MCF	Citric acid-assisted impregnation	60,000, P 0.1	75.4	~95	100	450	-	[73]
Ni@HZSM-5	Hydrothermal synthesis		66.2	99.8	40	400	-	[56]
Ni/ZSM-5	Impregnation	2400	76	99	100	400	-	[61]
Ni/MCM-41	Incipient wetness impregnation	48	60	90		360	-	[57]
Ni-MCM-41	One-pot synthesis	19,700	20	80		400	-	[43]
5%Ni/MCF_ch_iwi	Incipient wetness impregnation	8600	62	97	20	350	-	[60]
5%Ni/MCF_ch_iwi	Incipient wetness impregnation	8600	77	94	20	400	-	[60]
5% Ni/MCM_iwi	Incipient wetness impregnation	8600	44	78	20	350	-	[60]
5% Ni/MCM_iwi	Incipient wetness impregnation	8600	70	95	20	400	-	[60]
Ni-MCF	One-pot synthesis	8600	39	58	20	400	-	[60]
Ni-MCM	One-pot synthesis	8600	51	79	20	400	-	[60]
30Ni/Al2O3.0.5SiO2	Sol–gel synthesis	12,000	82.4	98.2	30	350	-	[66]
Ni/MSN	Impregnation	50,000	85.4	99.9	0.8	350	-	[46]
5%Ni/fibrous SBA-15	Incipient wetness impregnation	24,900	98.9	99.6	120	400	-	[36]
Ni0.75Pd0.25/SBA-15	One-pot wet chemical and impregnation	6000	96.1	93.7	-	430	0.93	[25]
0.5B-FSN	Wet impregnation	13,500	-	-	-	525	-	[81]
5wt.% Ni/MCM-41	Wet impregnation	50,000	56.5	98.3	200	300	-	[51]
20 wt.%Ni-CeO2/MCM-41	Deposition–precipitation	9000	85.6	99.8	30	380	-	[70]
Ni/MCM-41	Deposition–precipitation	9000	64	96	30	380	-	[70]
LaNiO3/MCF(30LMON-C-650)	Citric acid-assisted impregnation	60,000, P 0.1	76	97	100	450	-	[64]

respectively. The observations from the data indicate that Ni/modified SiO₂ catalysts show better performance compared to the Ni/pure SiO₂ catalysts due to the promoting effect of different promoters used to modify the support. Furthermore, the method of the preparation, morphology of SiO₂ and textural properties of the catalysts also shows significant impact on CO₂ conversion and selectivity to CH₄ production.

15. Theoretical Studies

It is widely approved that the combination of experimental and theoretical studies helps researchers understand the different pathways of CO₂ activation and how C–C coupling proceeds on a Ni particle surface. Theoretical studies allow researchers to not only tune the activity and selectivity of the CO₂ methanation process but also gain fundamental knowledge about some basic principles of heterogeneous catalysis on different metals, including Ni-based catalysts. Vogt et al. performed a systematic study to fully catalog and identify the experimental and theoretical activity and selectivity descriptors for catalytic CO₂ methanation processes over Ni catalysts. These authors used computational catalysis (density functional theory, DFT) to understand the basic concepts of CO₂ methanation over Ni-supported catalysts. Through calculations, for example, the application of microkinetic modeling, a detailed study of surface reactions at the molecular level was used [82].

Density functional theory enables the exploration of electronic and geometric characteristics of heterogenous catalysts. To control the production selectivity of CO₂ conversion, the design and fabrication of Ni/silica-based catalysts via theoretical methods is an effective approach [82]. According to DFT calculations, the movement of an electron between energy levels of the orbitals causes CO₂ activation along with other factors, such as oxygen vacancies and Lewis acid sites on the surfaces of catalysts [3]. It has been found that CO₂ hydrogenation over Ni catalysts can and does produce C₃H₈, and that activity and selectivity can be tuned by supporting different Ni particle sizes on various metal oxides, such as CeO₂ and TiO₂. Therefore, theoretical studies are not only useful for the highly selective production of CH₄, but they can also provide new insights for CO₂ activation and subsequent C–C coupling towards value-added products.

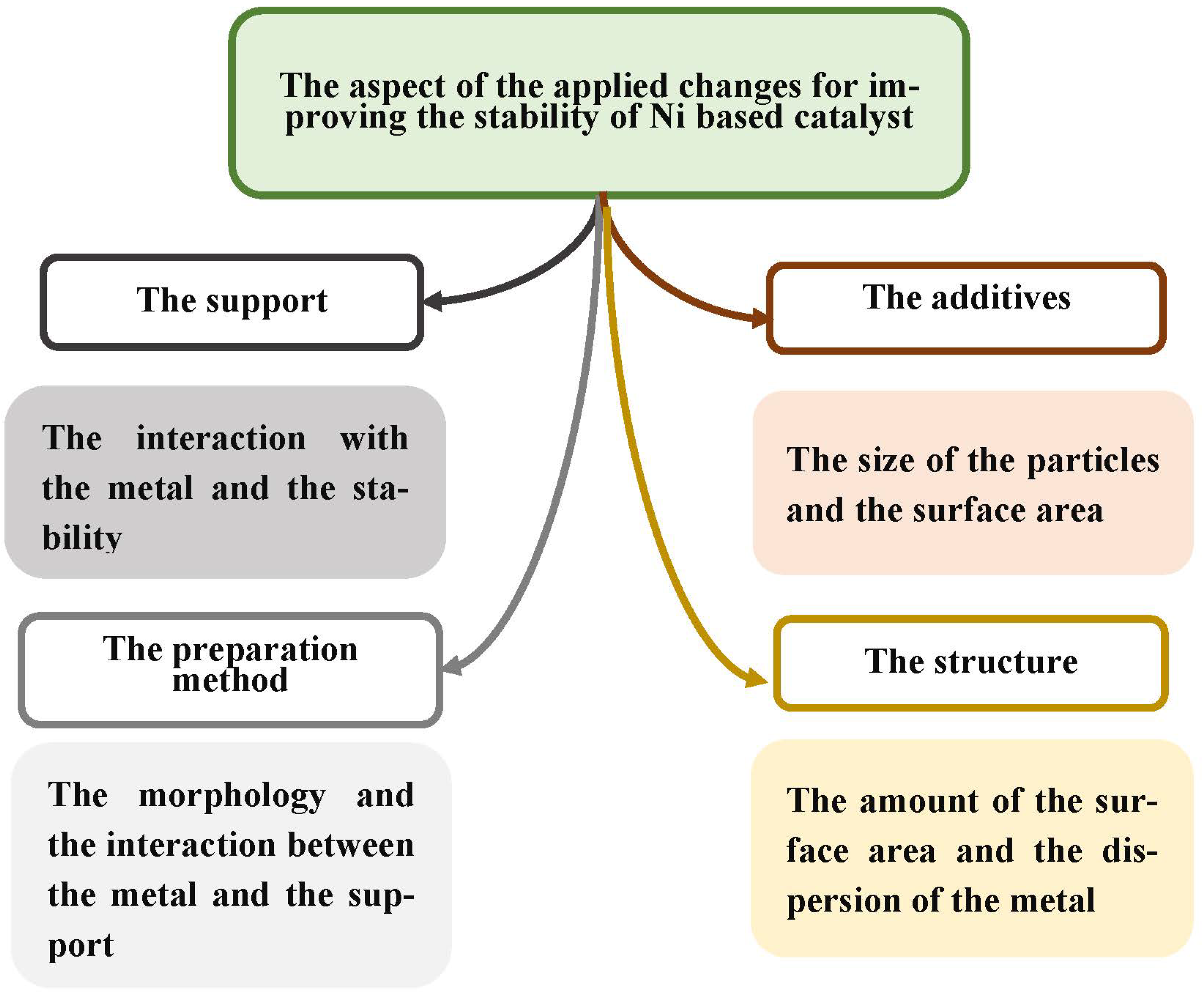

16. Conclusions

Producing energy from fossil fuel resources results in the earth’s atmosphere being filled with massive greenhouse gas emissions and air pollution. Converting CO₂ into value-added hydrocarbons via environmentally friendly processes is one the best alternatives to counter greenhouse gas emissions. Ni and SiO₂-based catalysts are commonly used materials due to their feasibility and functionality for the conversion of CO₂ to hydrocarbons. Catalyst modifications can be performed on different aspects of catalysts to overcome the thermal limitations of CO₂ methanation. To ensure nickel-based catalysts are sinter resistant and active at low temperatures, their structure, Ni metal particle size, dispersion, and interaction between the Ni and SiO₂ support should be taken into consideration during the design and fabrication of Ni-SiO₂-based methanation catalysts. In this review, we attempted to summarize recent developments in the preparation technology, pretreatment, reaction conditions, loading amount, and support nature of Ni-based catalysts, and the dopants used to increase the catalytic activity and stability of the methanation reaction were discussed. Novel preparation methods provide a higher performance compared to the traditional ones. Doping with rare earth metals and transition metals enhances Ni metal dispersion and the number of active centers via a catalyst’s basicity, resulting in better activity and stability. Modified SiO₂ supports improve a catalysts’ structure and its catalytic activity in CO₂ methanation reactions. The effects of experimental conditions and the mechanisms of Ni-based catalysts have been discovered for CO₂ methanation reactions. In addition, theoretical studies allow researchers to not only tune the activity and selectivity of the CO₂ methanation process but also gain fundamental knowledge about some basic principles of heterogeneous catalysis on different metals, including Ni-based catalysts.

17. Future Perspective

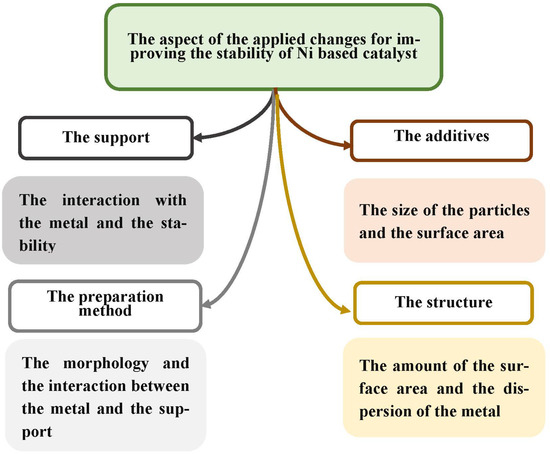

The design and fabrication of highly stable and low temperature-active Ni-SiO₂-based methanation catalysts could be a major potential improvement in the future. Additionally, the nature of a support material can be adjusted to optimize its interaction with active Ni metal nanoparticles and prevent metal sintering. Studying the reaction mechanisms of CO₂ conversion to methane or higher hydrocarbons in detail will enable advanced development. Finding a suitable, reproducible preparation method for the synthesis of Ni-SiO₂-based catalysts could be cost effective and a critical criterion for industry applications.
