A Review on Biolubricants Based on Vegetable Oils through Transesterification and the Role of Catalysts: Current Status and Future Trends
Abstract
:1. Introduction

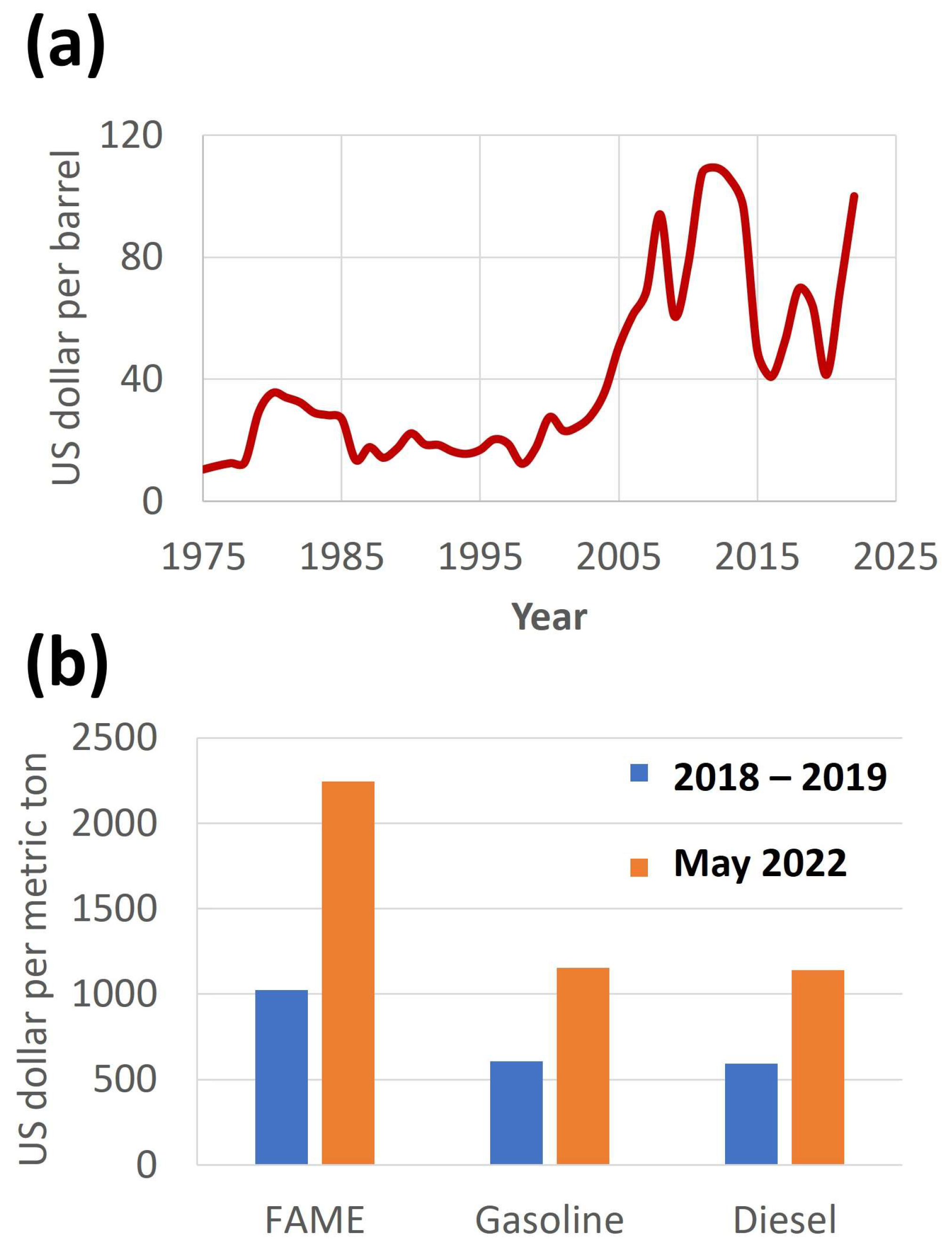

1.1. Global Energy and Materials Scenario: The Role of Biolubricants

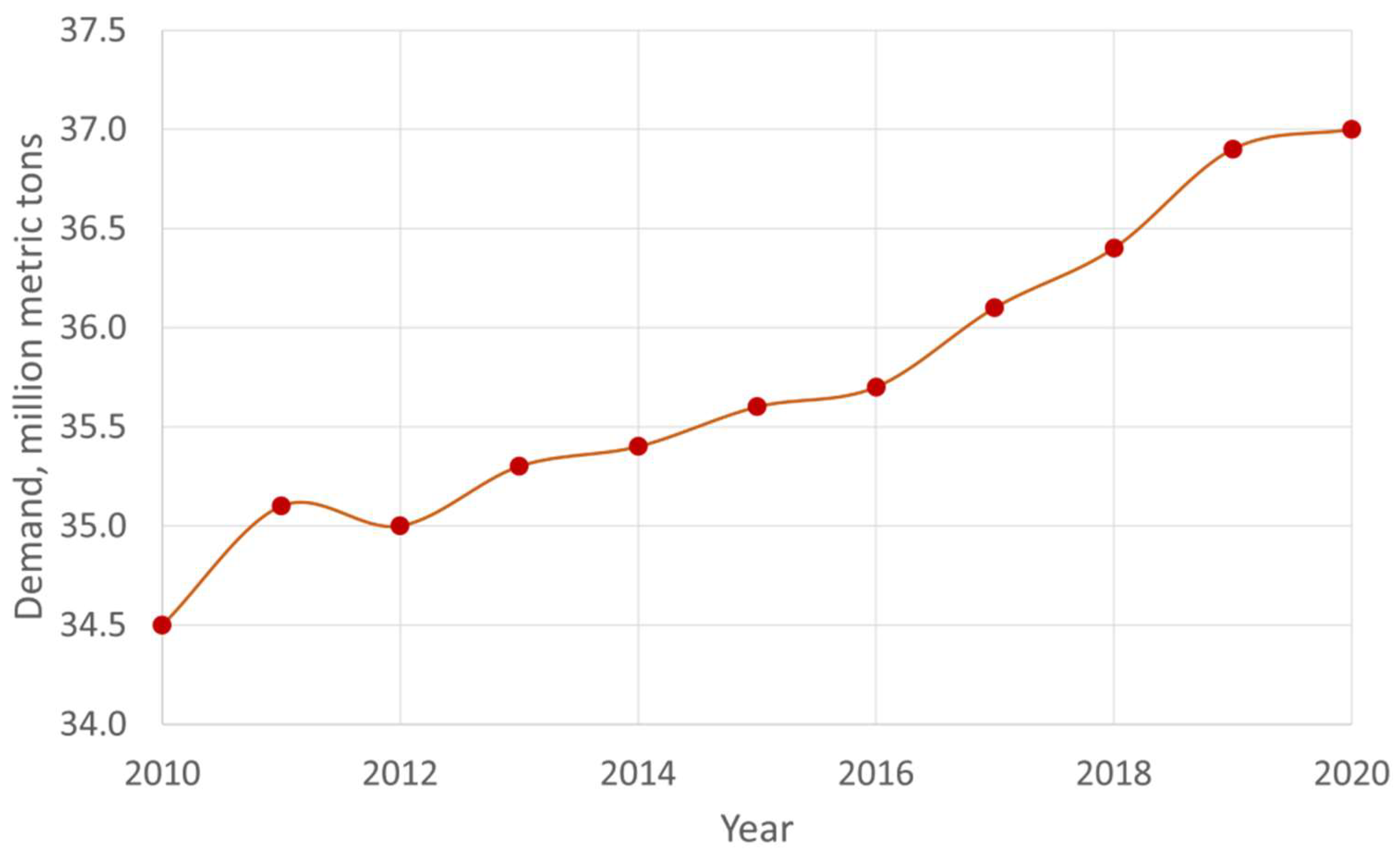

1.2. Industrial Activity, Lubricant Demand, and the Subsequent Opportunity for Biolubricants
- Its economic growth and industrial development are becoming more and more noticeable, with the subsequent risks if environmental measures are not suitably taken.
- There is a great opportunity for sustainable development according to the SDGs, with the subsequent decrease in economic dependence on traditional trade relations with some countries, especially in the case of former colonial powers.
- For this purpose, many sustainable processes can contribute to the industrial network of developing countries.
- On the one hand, considering the abovementioned concerns from international agencies and countries, the replacement for lubricants presents great potential in developed countries in Asia, Europe, and North America.
- On the other hand, considering the case of Africa, the use of biolubricants can meet the demands of developing countries, where the production of vegetable oils adapted to extreme climate conditions (such as cardoon or safflower) could contribute to an increase in industrial activity in a sustainable way, making these regions less dependent on energy or imported materials (like lubricants).
1.3. Waste Cooking Oil: A Real Challenge with Endless Opportunities (Such as Biolubricant Production)
1.4. Scientific Interest in Biolubricants
1.5. Aim of This Review
- Current use of vegetable oils in biolubricant production, especially concerning the possibilities related to the valorization of frying oil.
- Main biolubricant synthesis routes, paying special attention to transesterification processes, offer real potential for the implementation of biolubricant production in biorefineries based on vegetable oils.
- Use of catalysts, both homogeneous and heterogeneous, to make biolubricant production more competitive compared to the equivalent and traditional lubricant production.
- The main factors affecting quality during biolubricant production, with a special focus on viscosity and oxidative stability, are parameters that are vital to determining the use and service life of biolubricants. This way, the role of chemical conditions, as well as catalyst addition or additives such as antioxidants, will be especially enhanced.

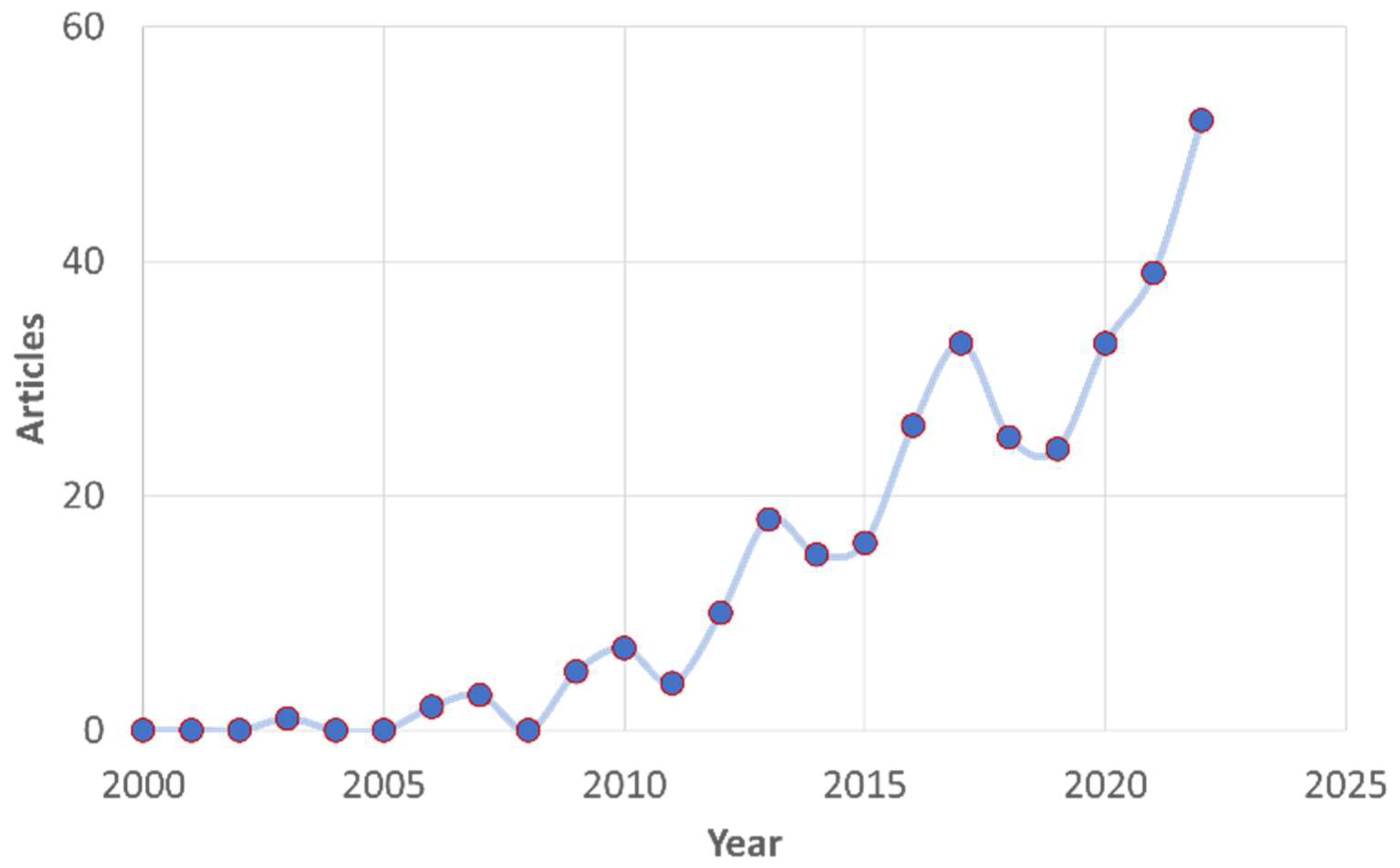

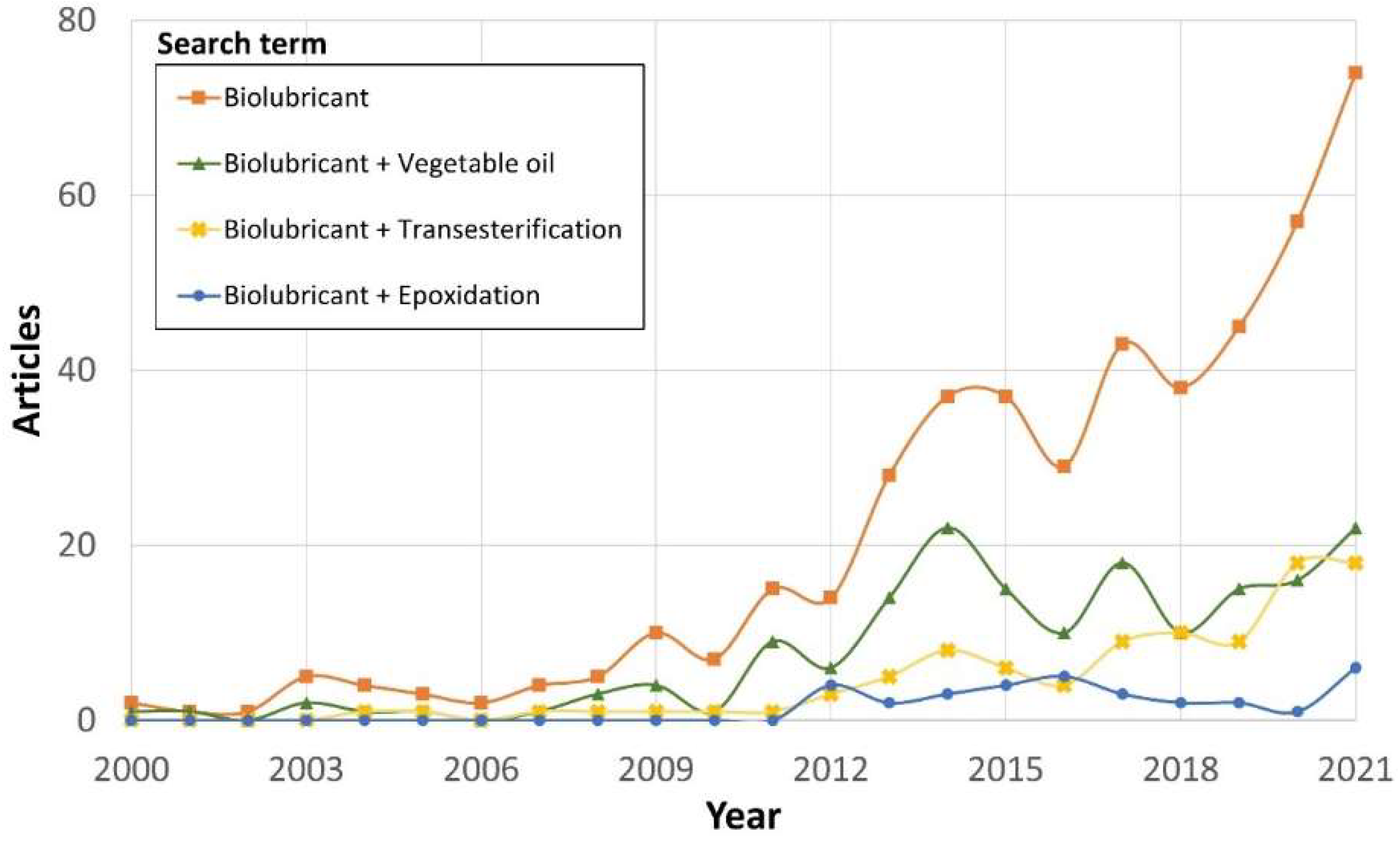

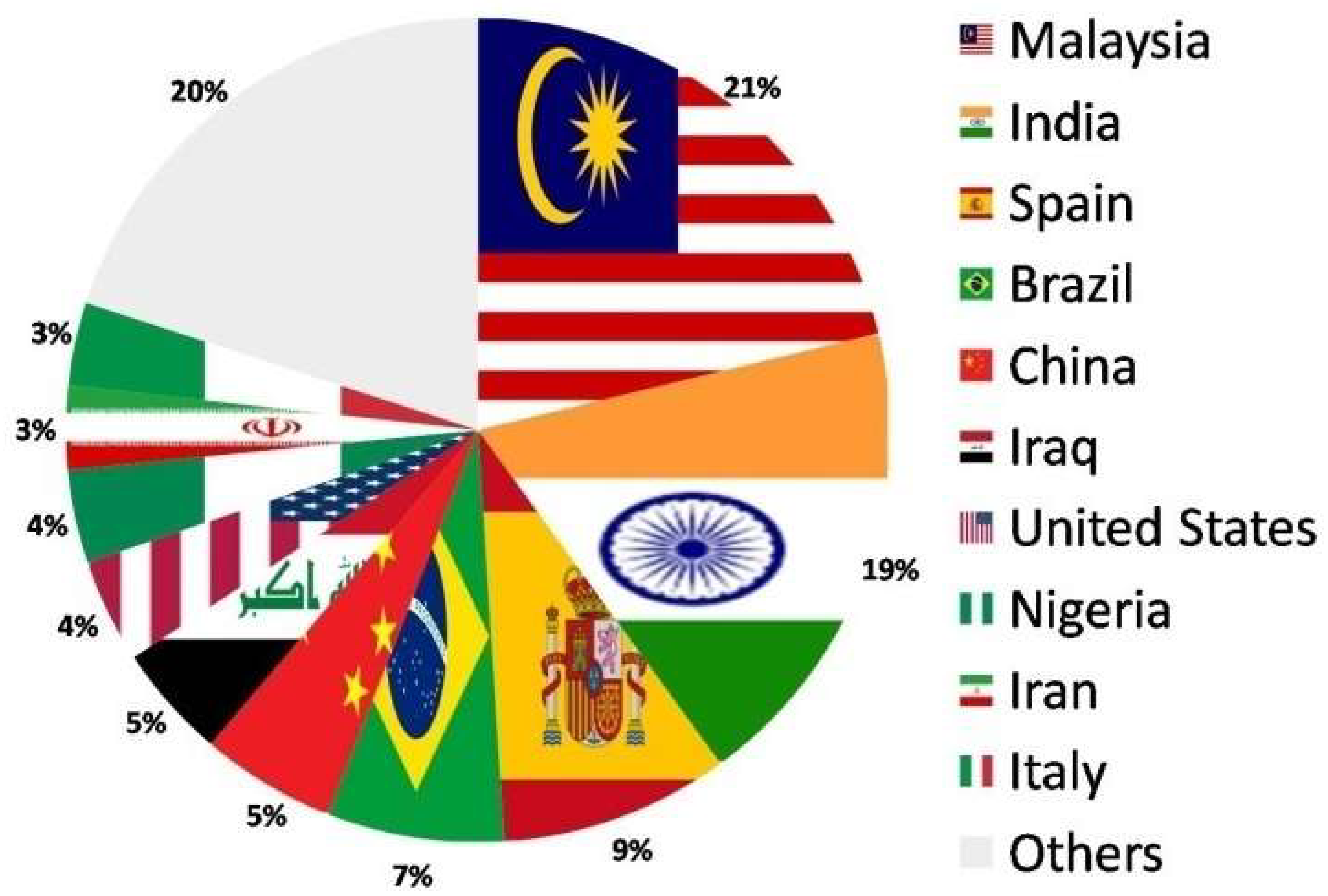

1.6. Scope and Bibliometric Analysis
2. Biolubricants Based on Vegetable Oils: Main Sources and Characteristics
2.1. Biolubricants: Definition and Raw Materials
- They are more sustainable and biodegradable, as raw materials are natural compared to oil. Also, there are no by-products with difficult management, as they can be used for other purposes or re-used in the same biolubricant production, as explained in further sections.
- Biolubricants usually have higher lubricity and viscosity index values (clearly exceeding 140–150, compared to the low values found for lubricants, at 90–100), which is important as it means that their viscosity is less dependent on temperature.
- They present, in general, higher flash and combustion points, which is a positive issue when it comes to safety during storage and shipping.
- Due to the presence of saturated fatty acids, biolubricants might present a poor performance at low temperatures, which limits their worldwide marketability.
- Hydrolysis can take place in contact with moisture, increasing the possibility of corrosion in facilities by increasing free fatty acid levels.
- They usually have a short oxidative stability, which could imply a change in their properties during storage or oxidation, which is undesirable.
- In general, palmitic, oleic, and linoleic acids are the majority of fatty acids found in most vegetable oils, which points out their vital role in some properties in the final biolubricant, as explained in further sections. In that sense, the presence of double bonds in their molecular structure (see Figure 9), which can be conserved in the molecular structure of the final biolubricant (especially in the case of double transesterification of fatty acids), could determine its oxidative stability. Thus, the knowledge of the ratio of some fatty acids (such as oleic/linoleic ratio) is usually interesting to understand oxidative stability in biodiesel or biolubricants.
- Nevertheless, there are some specific oils, such as castor oil, whose main fatty acid presents some special properties, as in the case of ricinoleic acid, with a hydroxyl group that can influence the properties of the final biolubricant regarding viscosity (as it promotes intermolecular interactions like hydrogen bonds, implying an increase in viscosity). In any case, there are other oils that present high quantities of other fatty acids, such as lauric and myristic acid in the case of coconut oil or icosenoic acid for rapeseed, which could imply changes in the properties of the corresponding biolubricants.
- The use of GM crops, as in the case of safflower, might vary the properties of the corresponding oil, with a considerable increase in oleic acid (exceeding 80%), improving some properties such as oxidative stability in the final biolubricant obtained [67]. Other studies point out the same aspect related to soybean oil, with a wide range of fatty acid contents depending on the gene technology used or the selection of soybean mutants [68]. Consequently, it is more interesting to consider FA profiles instead of kinds of vegetable oils, as it would give us a more exact idea about the raw material.
- The nature of WCO (and its subsequent fatty acid composition) might vary depending on the eating habits of the area where the research study was carried out. That is the reason why there was a wide range of oleic and linoleic acids in this table. In general, the main oils used for cooking are rapeseed, sunflower, soy, and olive oil, which can vary in the diet of some regions or areas. In any case, the fatty acid composition of this waste is relatively equivalent to the rest of vegetable oils, which supports the idea that its use as biodiesel and biolubricant source is feasible if a proper pre-treatment is carried out.
2.2. Main Characteristics of Biolubricants
- Viscosity: This is an essential parameter for a biolubricant, as it will determine its use for specific purposes. Thus, the resistance to the flow of a specific fluid (normally expressed in cSt) will influence many factors, such as the film thickness between the surfaces in contact or its permanence during lubrication (the higher the viscosity is, the thicker the film will be). Viscosity is influenced by factors such as temperature or pressure. It can be measured by dynamic or kinematic methods (by using Cannon-Fenske or Ostwald viscosimeters) at a specific temperature (normally 40 or 100 °C, which will be useful to determine VI) [70].
- Viscosity index (VI): This index indicates the changes in viscosity with temperature. Thus, a high viscosity index will imply a lower decrease in viscosity when temperature increases, which is a desirable effect as changes in temperature would not present a considerable influence on biolubricants [71,72]. High VI values will be obtained when the molecular structure of the final biolubricant is longer, and it will decrease with branching. That is the reason why the selection of a chemical route or specific reagents (like complex alcohols in double transesterification) will be vital to determine this parameter. It is calculated by measuring viscosity at 40 and 100 °C.
- Oxidative stability (OS): This parameter is related to the stability of biolubricants during oxidation processes, including storage. It is expressed in hours and determined through the induction point (IP) according to the Rancimat method [73,74]. This way, free radical generation (mainly due to the presence of double bonds in biolubricants) could start a chain reaction, where the propagation of free radicals could end up generating undesirable products such as free fatty acids (FFA) or polymers, among other decomposition compounds. The former could be related to the increase in acidity, which is an undesirable effect, especially when it comes to the maintenance of equipment and facilities. The latter is especially related to an increase in viscosity, as the polymerization of esters generates more complex molecules, which could imply an increase in molecular interactions such as Van der Waals or hydrogen bonds and, therefore, a higher resistance to the flow of biolubricants (that is, an increase in viscosity).
- Other parameters: in our opinion, the abovementioned properties are the most important ones to define the performance of a biolubricant, but there is a wide range of characteristics that should be considered, like pour point (the lowest temperature at which a biolubricant pours or flows, which is desirable to be as low as possible to be useful in cold climates), lubricity (that is, the reduction of friction between two surfaces in contact when the biolubricant is used), flash and combustion points (usually higher compared to traditional lubricants, which is a great advantage when it comes to safety during storage or shipping), hydrolytic stability (resistance of esters to hydrolyze, that is, to degrade in contact with water at high temperature) or biodegradability (which is considerably higher compared to petrol-based lubricants), among others.
- Viscosity values are mainly influenced by the alcohol used in the second transesterification, as it is the determining factor for the final molecular structure of the biolubricant. There are some exceptions where the raw material plays an important role, as in the case of castor oil, whose majority compound (ricinoleic acid) promotes a considerable increase in viscosity by itself. Thus, biolubricants obtained with complex alcohols usually present an increasing viscosity in that order: 2-ethyl-1-hexanol < NPG < TMP < PE.
- Another important factor is the conversion of the process. Thus, low conversions will imply a mixture with biodiesel (with a viscosity range between 3 and 6, in most cases). That is the reason why the role of catalysts is so important in order to obtain high conversion rates at mild reaction conditions.
- As previously explained, some properties of biolubricants are quite interesting, like high VI and flash points, which encourage the production of these compounds, as explained in the following section.
3. Biolubricant Production
3.1. Different Chemical Routes for Biolubricant Production
- Epoxidation: This chemical route is carried out by using hydrogen peroxide proxy acids like formic or acetic acids, and the final product is a peracid that epoxidates double bonds included in fatty acids. This way, unsaturations are removed, which can increase the oxidative stability of biolubricants obtained by this chemical route.
- Estolide formation: These compounds are usually produced by using strong acids (sulphuric acid, methanesulfonic acid, or perchloric acids) as catalysts to activate alkene groups to produce estolides. Thus, they are generated by the bonding of a fatty acid’s carboxylic acid functionality to an unsaturation of another fatty acid at relatively low temperatures (around 100 °C). This way, estolides usually have better cold flow properties and longer oxidative stability values compared to the original vegetable oil [43].
- Hydrolysis: It consists of the splitting of triglyceride molecules into fatty acids by using steam or water, implying an endothermic reaction. Some catalysts, such as metal oxides (ZnO), can be used to increase conversion and yield. Also, subcritical water is another interesting way to achieve hydrolysis of vegetable oils without catalyst addition [85].
- Hydrogenation: It normally implies the total or partial reaction with molecular hydrogen, taking place in an exothermic process. Partial hydrogenation can improve the oxidative and thermal stability of original vegetable oils or biolubricants, whereas other properties can be unaltered (such as low-temperature performance, viscosity, and VI, among others). It is usually carried out at relatively low temperatures (150–210 °C) and high pressures (21–35 bar), using some catalysts such as Ni, Pa, and Pt.

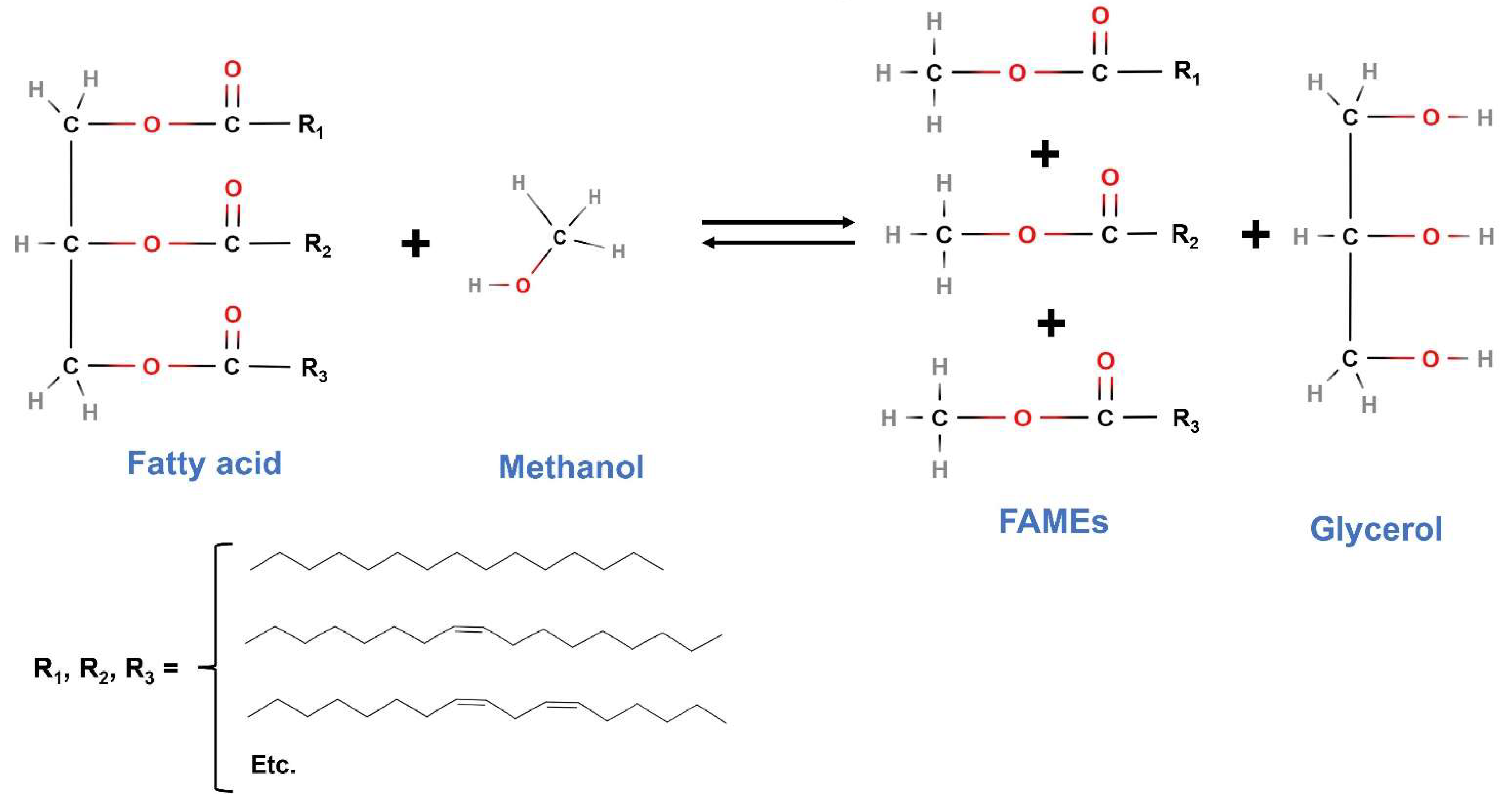

- Transesterification: This is the process generally used for biodiesel production from vegetable oils, removing glycerol from the triglyceride molecular structure. More details will be given later in this section.

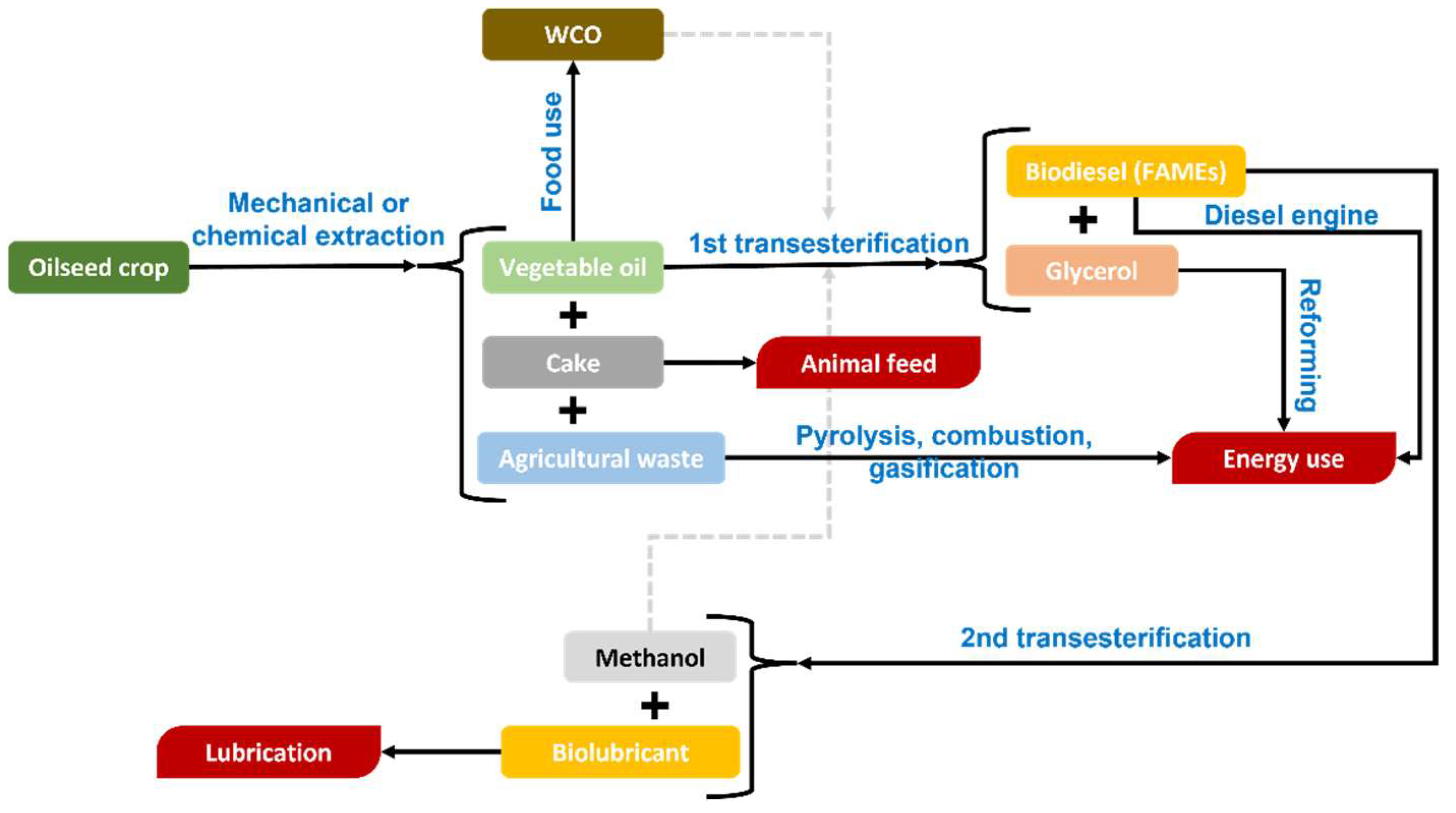

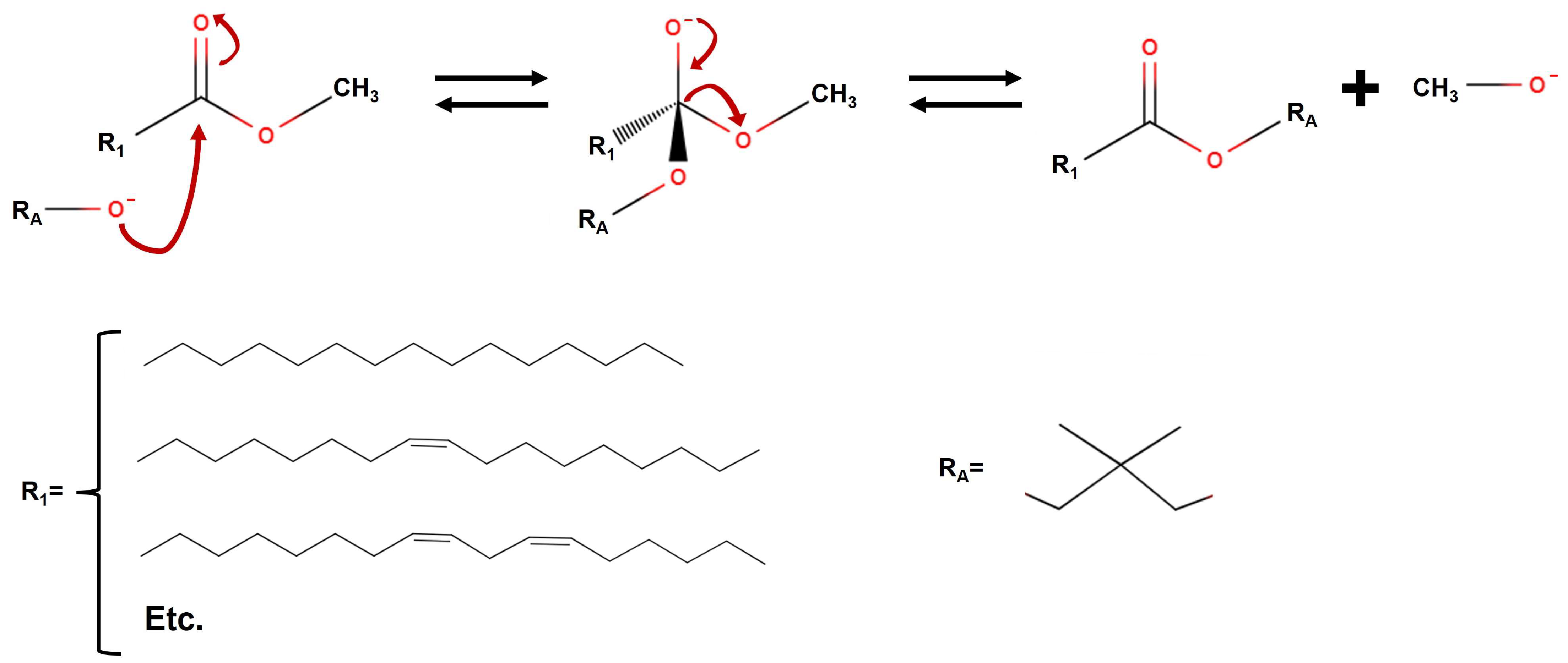

3.2. Double Transesterification as an Interesting Proposal for a Biorefinery Based on Vegetable Oils
- Fatty acid methyl esters: As a result of the first transesterification, FAMEs are obtained, which can be used as fuels in Diesel engines, being the perfect replacement for traditional fuels used for that purpose. In that sense, compared to the UNE-EN 14,214 standard [87], many of its requirements are clearly complied with by biodiesel, especially concerning key aspects such as viscosity or cold filter plugging point (CFPP), which are essential for the correct performance in a Diesel engine. However, in many cases, and due to the same factors affecting biolubricants, the oxidative stability of FAMEs is not high enough [88,89] (not reaching 8 h, which is the lower limit of the European standard, for instance), requiring the use of alternatives such as antioxidant addition (mainly TBHQ, PG or BHA) or genetically modified (GM) crops, among others [63,90,91]. In any case, it is a very important product obtained in this process, which can increase the valorization of the whole biorefinery [92].
- Glycerol: It has been one of the most abundant and versatile by-products obtained during biodiesel production. Comparing the similarities of biodiesel and biolubricant production (indeed, FAME production is the initial stage for further biolubricant synthesis), it is no wonder that glycerol could play an important role in this case. Depending on the degree of purity of glycerol, it can be used in different ways, such as an energy source (through dry or steam reforming) or the precursor of interesting products like acrolein, propanediols, or carboxylic acids, along with other products with a great interest in the pharmaceutical industry) obtained from routes such as hydrogenation, oxidation, or esterification [93,94,95,96]. If the recent trend in biodiesel generation, along with the possible incorporation of biolubricant production through double transesterification, glycerol production is expected to increase, with the subsequent opportunity for its valorization through the abovementioned chemical routes. This way, a feasible technology applied to glycerol could be synthesis gas generation (a mixture of hydrogen and carbon monoxide at different ratios), which could produce green fuels as glycerol is generally obtained from raw materials [97].
- Methanol: One of the byproducts generated during the second transesterification to produce biolubricants is equally interesting, as it can be reused in the first transesterification process, where it is one of the reagents used. Thus, the concept of circular economy is really connected to this process, which could make a biorefinery based on vegetable oils more efficient. However, some factors should be taken into account during this process, like the possibility of using a vacuum for a high biolubricant production yield, which could make the recovery of methanol more difficult or less economically feasible.
- Natural raw materials or wastes obtained in agricultural practices or food industries are normally used.
- Different products that are normally biodegradable are generated, as the raw materials are naturally obtained. The chemical transformations do not normally imply considerable changes in the molecular structure of the subsequent products (biodiesel and biolubricants), which makes these products (in case of spillage) easily assimilable by microorganisms.
- These products can be directly used for energy production or further synthesis, or they can be upgraded to different degrees. Thus, the versatility of this technology is a strong point to compete with traditional refineries.
- Some of the byproducts generated can be directly (or indirectly through purification processes) reused in the same process, which is one of the key points of the circular economy.
- With regard to these points, a biorefinery with these characteristics would perfectly fit the concept of green chemistry and circular economy, which is highly regarded by governments and society in general.
4. The Use of Catalysts in Biolubricant Production
- Concerning homogeneous catalysts, they are usually classified as acidic and alkaline catalysts, which are normally more effective and provide faster reaction rates. Some examples of acidic catalysts are hydrochloric, sulfonic, sulfuric acids, etc., whereas examples of alkaline catalysts are sodium and potassium hydroxide and methoxide, among others. In the case of the latter, low moisture and FFA content in biodiesel is recommended to avoid a decrease in yield or side reactions. Figure 14 shows the main mechanism taking place when basic homogeneous catalysts are used. This way, the role of the catalyst was to generate the corresponding alkoxide (from neopentyl glycol, for instance) to carry out a nucleophilic substitution in the carboxyl group, with the final generation of the biolubricant and the release of methoxide and, subsequently, methanol.
- As far as heterogeneous catalysts are concerned, there are also acid and base catalysis, such as metal complexes, metal oxides, zeolites, membranes, or resins [106]. In this case, mass transfer phenomena, along with some important properties of the heterogeneous catalyst (such as porosimetry or reusability), should be taken into account in industrial design.
- Regarding lipases, their natural function is the hydrolysis of oils and fats to produce glycerol and free fatty acids, being one of the most resourceful enzymes in biocatalysis, as they are present in all organisms and their variety can offer different characteristics. Lipases can be used for different purposes and chemical routes, such as esterification, transesterification, acidolysis, or amidations, among others, being stable in different solvents, such as aqueous, organic, or ionic [107,108,109]. In that sense, as explained in previous studies, transesterification with methanol to produce biodiesel has been successfully carried out, offering satisfactory results [64,110,111]. This way, considering the equivalence between this chemical route and double transesterification to produce biolubricants, its possible use for this purpose seems to be feasible, as explained later on.
- Regarding homogeneous catalysts, their removal from the final biolubricant might be complicated, as they are easily dissolved in the final product, increasing their level in some metal elements that could contribute to the acceleration of some degradation phenomena that can take place during storage (for instance, Na and K content due to catalyst addition could contribute to auto-oxidation acceleration). Thus, if a typical biodiesel purification (through successive washing steps) is considered an equivalent process to be carried out in this case, it should be noted that hydrolysis could take place, which is an undesirable effect. In that sense, some alternatives could be chosen, like the avoidance of catalyst removal by adding some additives to increase the oxidative stability of biolubricants or the use of more expensive alternatives, such as ion exchange columns.
- In the case of heterogeneous catalysts (see Table 6), the separation process is quite simple, mainly through filtration after biolubricant production. In that sense, porous catalysts could be an interesting starting point, as their interaction with raw materials is higher [60,112,113]. However, the use of these catalysts is usually related to some inconveniences, such as lower effectiveness compared to homogeneous catalysts or the low current reusability of these products, which presents considerable room for improvement in biodiesel and biolubricant synthesis.
Raw Material and Catalyst | Chemical Conditions 1 | Conversion, % | Reference |
---|---|---|---|
Rapeseed, corn, and sunflower mixture, and WCO with titanium isopropoxide | Transesterification with 2-ethyl-1-hexanol at 160 °C, 1.5% catalyst, and 1:1 molar ratio for 60 min | >96.5 | [33] |
Palm oil with H2SO4 | Esterification of palm oil fatty acids with NPG at 138 °C, 1.12% catalyst, and 1:2.26 molar ratio for 4.79 h | 87.6 | [114] |
Elaeis guineensis kernel oil with H2SO4 | Transesterification with di-TMP at 150 °C, 1.7% catalyst, and 1.6:1 molar ratio for 4.6 h | 79 | [115] |
Methyl oleate with K2CO3 | Transesterification with TMP at 120 °C, 1.5% catalyst, and 4:1 molar ratio for 240 min | 95.6 | [116] |
Babassu oil with sodium methoxide | Transesterification with TMP at 65 °C, 1.0% catalyst, and 3:1 molar ratio for 6 h at 700 mmHg | >90 | [117] |
Palm oil and sodium methoxide | Transesterification with pentaerythritol at 158 °C, 1.19% catalyst, and 4.5:1 molar ratio for 60 min | 40.13 | [77] |
High-oleic safflower and sodium methoxide | Transesterification with pentaerythritol at 160 °C, 1.0% catalyst, and 1:1/3 molar ratio for 120 min (working pressure 400 mmHg) | >94 | [67] |
WCO and sodium methoxide | Transesterification with pentaerythritol at 160 °C, 1.0% catalyst, and 1:1/3 molar ratio for 120 min (working pressure 260 mmHg) | 92.6 | [34] |
WCO and zinc acetate | Transesterification with different alcohols (1-heptanol, 2-ethyl hexanol, and neopentyl glycol) at 160 °C, 3.0% catalyst, and different molar ratio for 240 min | n.d. | [66] |
Cardoon oil and sodium methoxide | Transesterification with NG at 130 °C, 1.5% catalyst, and 1:1 molar ratio for 120 min | >95 | [76] |
High-oleic safflower and sodium methoxide | Transesterification with TMP at 140 °C, 1.0% catalyst, and 1:1 molar ratio for 90 min (working pressure 400 mmHg) | >92 | [118] |
Jatropha oil and sodium methoxide | Transesterification with TMP at 200 °C, 1.0% catalyst, and 3.9:1 molar ratio for 3 h (working pressure 10 mbar) | 47 | [119] |
Rapeseed and sodium methoxide | Transesterification with TMP at 120 °C, 1.5% catalyst, and 1:1 molar ratio for 90 min | >99 | [80] |
High-oleic safflower and sodium methoxide | Transesterification with TMP at 100 °C, 0.3% catalyst, and 1:1 molar ratio for 120 min and a working pressure of 210 mmHg | >94 | [79] |
Fish oil residue with sodium ethoxide | Transesterification with TMP at 100–140 °C under vacuum | 84 | [120] |
Litsea cubeba kernel oil with KOH | Transesterification with TMP at 130 °C, 1/4:1 molar ratio for 60 min, and different working pressures | 92 | [121] |
Cottonseed oil with sodium methoxide | Transesterification with TMP at 144 °C, 0.8% catalyst, and 1/4:1 molar ratio for 10 h at 25 mbar | >90 | [122] |
Jatropha oil with sodium hydroxide | Transesterification with ethylene glycol at 150 °C, 1.2% catalyst, and 2:1 molar ratio for 120 min and vacuum | 98 | [57] |
Mustard seed oil with KOH | Transesterification with 2-ethyl-1-hexanol at 70 °C, 2% catalyst, 2:1 molar ratio for 65 min at 0.05 bar | 93 | [75] |
Raw Material and Catalyst | Chemical Conditions 1 | Conversion, % | Reference |
---|---|---|---|
Castor oil and lipase | Transesterification with TMP at 40 °C, 0.4% catalyst, and atmospheric pressure, using a pervaporation membrane to remove CH4 | 59 | [123] |
Soybean oil and lipase | Esterification with NG and TMP at 45 °C, 4% catalyst, and 6 h | 90 | [124] |
Palm oil and solid acid catalyst | Esterification with NG at 180 °C, 2% catalyst, 0.5:1 molar ratio and 4 h | 85 | [125] |
Palm kernel oil with lipase | Transesterification with isoamyl alcohol at 45 °C, 4:1 molar ratio for 54 h | 99 | [83] |
Palm oil and lipase | Esterification with TMP at 130 °C, 3% w/w catalyst, 3.45:1 molar ratio, 15.25 mbar for 48 h | 82 | [126] |
WCO with CaO derived from waste cockle shell | Transesterification with TMP at 130 °C, 4% w/w catalyst, 3:1 molar ratio for 4 h | 97 | [82] |
WCO with CaO | Transesterification with ethylene glycol at 130 °C, 1.2% catalyst, 3.5:1 molar ratio for 1.5 h | 94 | [127] |
Palm oil with mixed oxides of Ca and Sr on CaO | Transesterification with TMP at 180 °C, 1% w/w mixed oxides of Ca and Sr catalyst with 5% w/w SrO on CaO, 2 mbar and 240 min | 88 | [128] |
Soybean oil with Zn Al hydrotalcites | Transesterification with TMP at 140 °C, 5% catalyst, 4:1 molar ratio for 2 h | 77 | [129] |
WCO with K2CO3-hydrotalcite | Transesterification with TMP at 160 °C, 2% catalyst, 3:1 molar ratio and 300 Pa for 2 h | 80.6 | [130] |

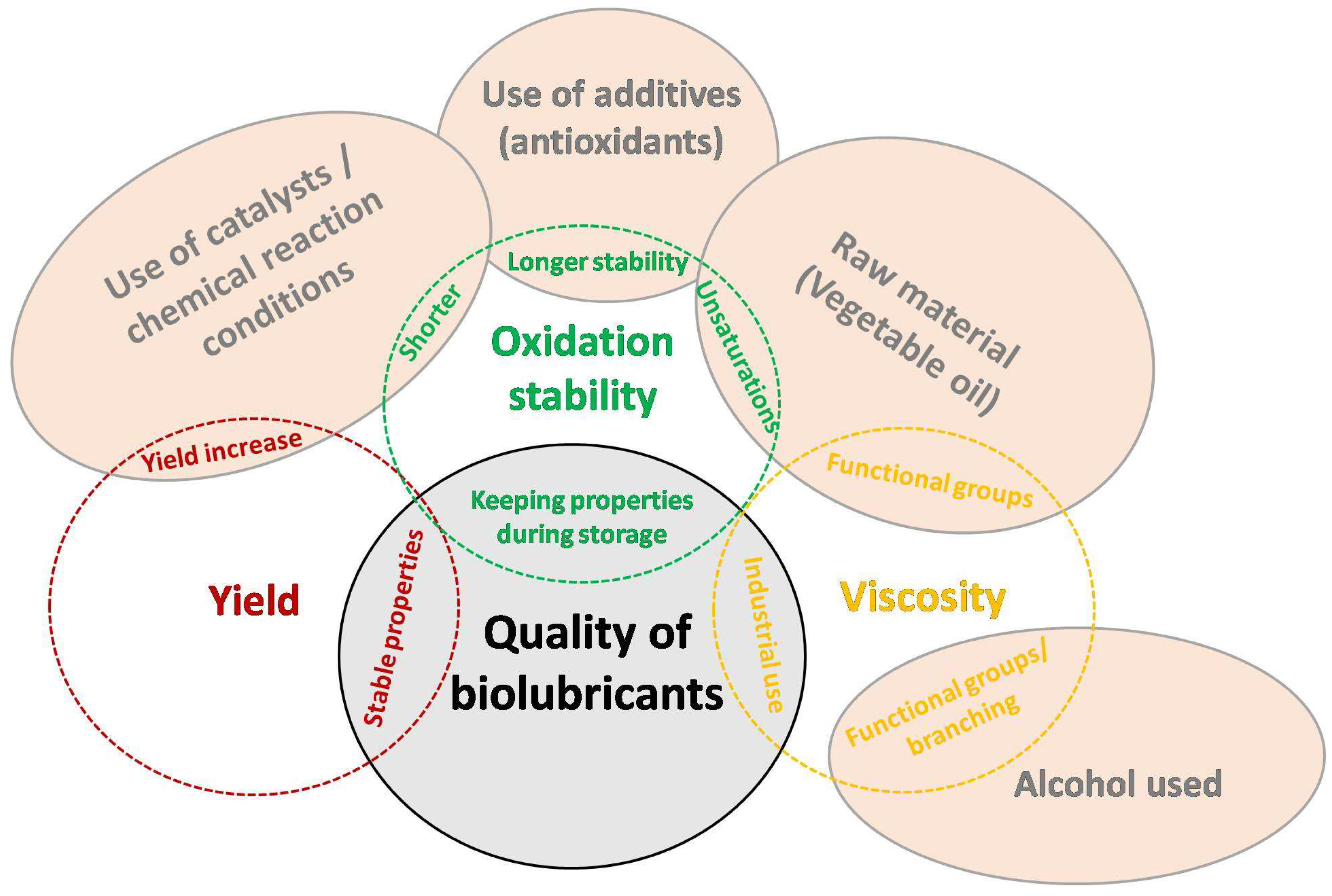

5. Influencing Factors on Quality Parameters of Biolubricants
5.1. Yield or Conversion
5.2. Oxidative Stability
5.3. Viscosity
5.4. Use of Catalysts/Chemical Reaction Conditions

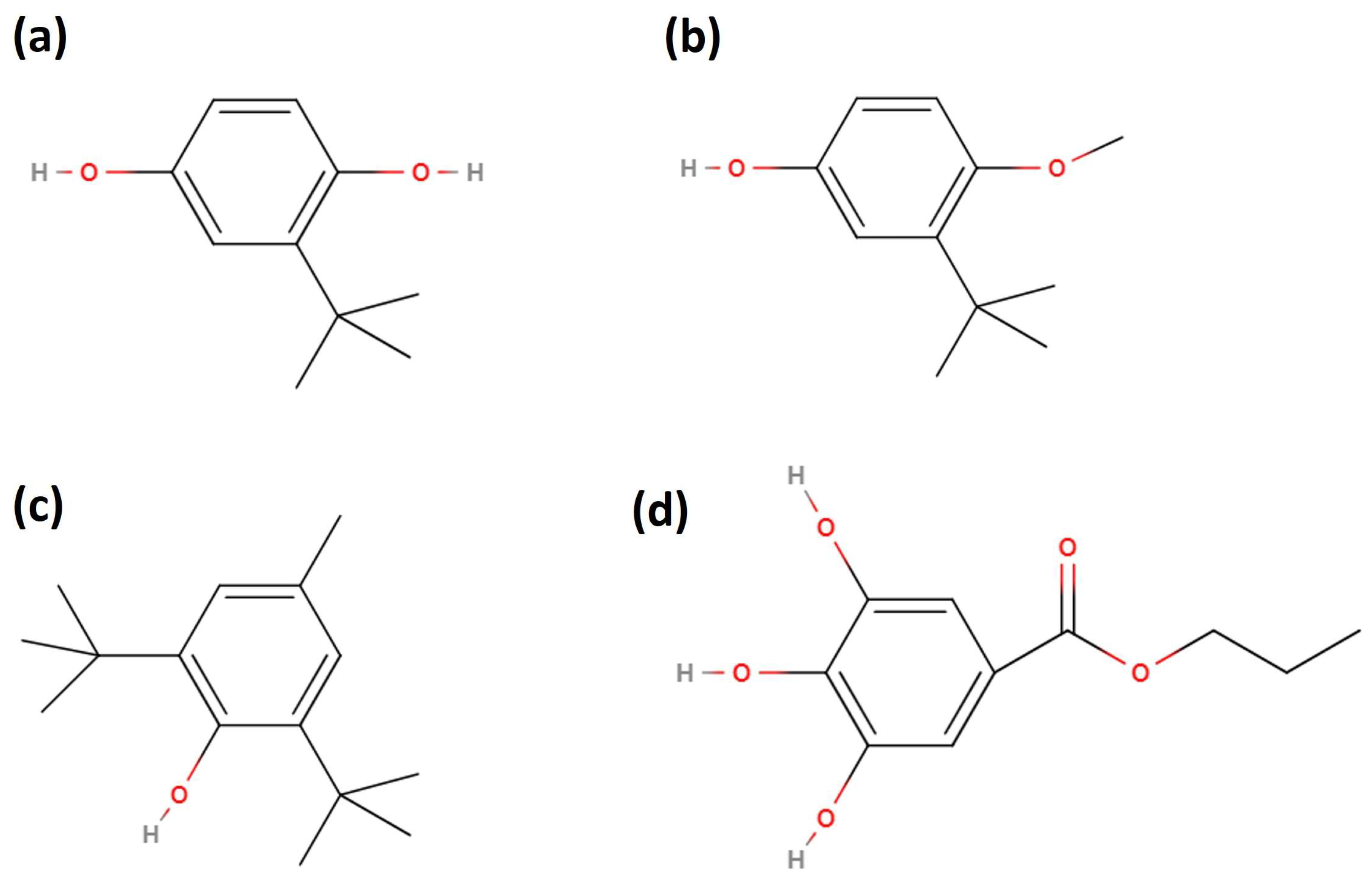

5.5. Use of Additives (Antioxidants)
5.6. Raw Material (Vegetable Oil)

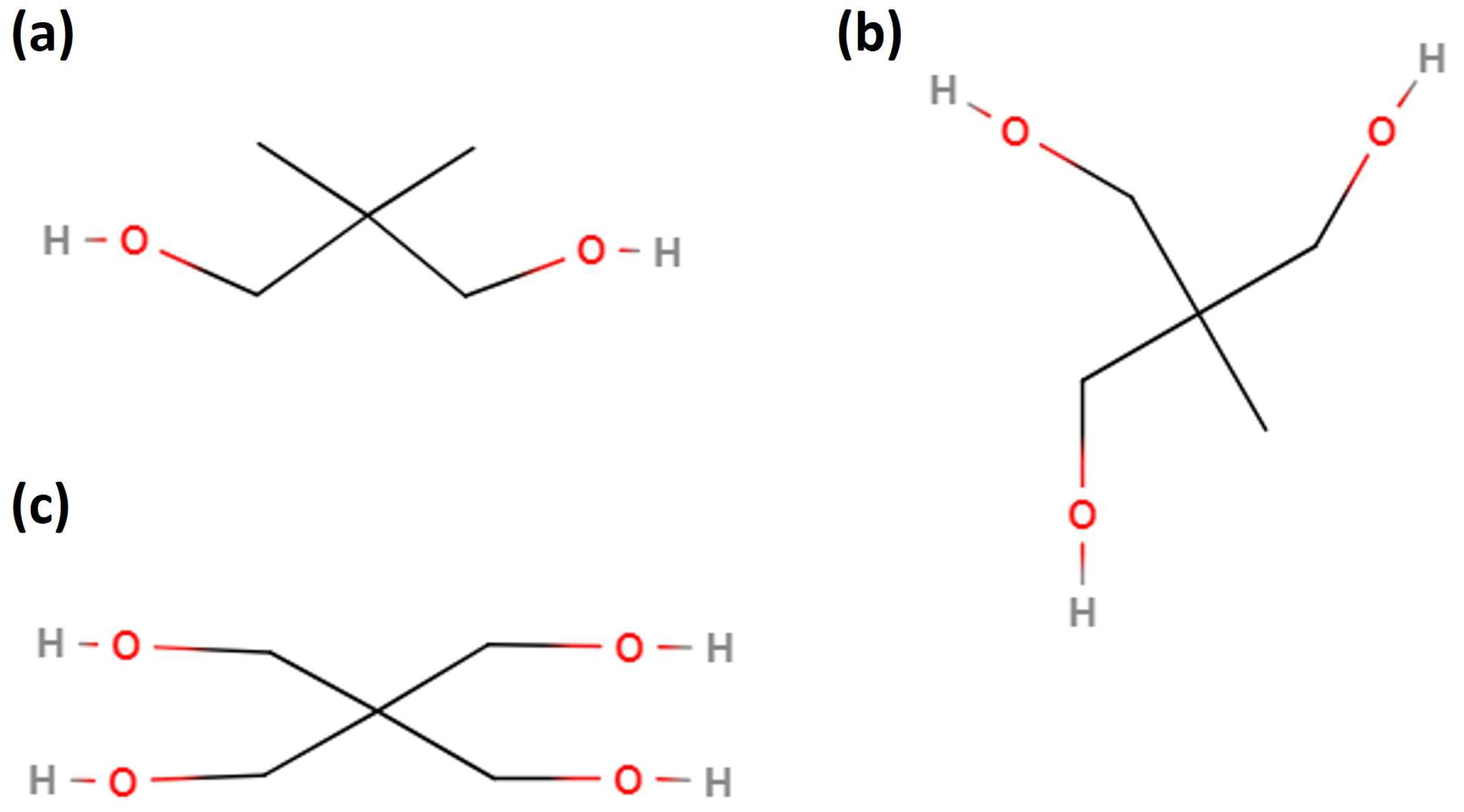

5.7. Alcohols Used
6. Techno-Economic Analyses Applied to Biolubricant Production in a Biorefinery Context and Patents
- The role of raw materials is essential to determine the marketability of biolubricants, as the costs related to agricultural practices (such as harvest), along with vegetable oil production and purification, usually imply a considerable percentage of fixed costs in a biorefinery based on vegetable oils. For instance, when it comes to estolide synthesis from oleic acid, the raw material implied 23.7% of total operating costs (around 6742·103 US$ to produce 1000 tons per year) [138], whereas, in the case of branched-chain glycerides production, this percentage was 18.2%, with total operating costs of 2247·103 US$ per year to produce 100 MT [139]. With this regard, again, the characteristics of WCO could be interesting, as many of the above-mentioned steps could be skipped, considerably reducing the costs related to the raw material.
- One of the main strong points of biolubricant production at an industrial scale is its integration in a biorefinery context, where multiple products can be obtained with the aim of adapting the performance of the biorefinery according to environmental policies or demand, among other factors.
- Another interesting aspect to consider is the reaction temperature (among other operating conditions), which usually takes a considerable percentage of energy consumption during biolubricant production and, therefore, is an important contribution to production costs. In that sense, a simple decrease of a few degrees could result in large savings. As proved in some abovementioned works (where the optimum reaction temperature was decreased at least 20 °C for biolubricant production from high-oleic safflower oil), reaction temperature can easily be reduced by using some improvements such as the vacuum (when this technique is possible, as in many cases it can remove some reagents in the reaction medium like complex alcohols that tend to sublimate due to their molecular structure, such as 2,2-dimethyl-1,3-propanediol for double transesterification) or the use of catalysts (both heterogeneous and, homogeneous, where a considerable decrease in reaction temperature was observed) [80].
- Indeed, the use of catalysts and their improvement related to their use in chemical routes to produce biolubricants has been widely studied in the literature. In that sense, their contribution to an increase in efficiency could be related to three aspects: First, the study of their optimum addition to avoiding extra costs; Second, the possibility of reuse (especially in the case of heterogeneous catalysts) or the purification process of biolubricants to remove homogeneous catalysts; Third, the effectiveness in reducing or improving chemical parameters that can contribute to energy or cost saving.
- Another interesting aspect to be considered is the possible real implementation of this technology by using pre-existing ones. Specifically, the use of double transesterification seems to be an interesting choice, as many of the facilities used for biodiesel production (that is, the first transesterification of fatty acids) could be perfectly adapted to the second transesterification process by adding some specific changes depending on the desired kind of biolubricant. Therefore, as similar facilities are required, the equipment acquisition would be easier and cheaper compared to other specific or customized facilities. Also, other chemical routes, such as epoxidation, could be easily adapted to this purpose, as explained to produce a biolubricant based on soybean oil [103].
- Finally, and even though some biolubricant productions could not be economically feasible at the industrial level, there is one interesting and favorable point to tilt the balance in favor of this green technology: the high environmental value and the favorable policies carried out by national and international agencies. Thus, the market value of these products could be higher compared to traditional lubricants, as there is an increasing demand for green products by customers in general. This fact could offset the initial and disadvantageous cost balance when these kinds of large-scale facilities are used.
7. Conclusions and Prospects
- A definition of biolubricants, apart from the main chemical routes for their production (paying attention to double transesterification), has been shown. According to the literature, it has been proved the feasibility of biolubricant production from vegetable oils, obtaining high yields of this product regardless of the chemical route selected, and presenting some properties that are even better compared to traditional lubricants obtained from oil.
- Specifically, biolubricants through double transesterification present, in general, a higher viscosity index, which makes them more suitable to keep viscosity values under temperature changes.
- However, these products also present some challenges, like the short oxidative stability, which could imply a change in very characteristic properties such as viscosity during storage or auto-oxidation processes. Nevertheless, there are accessible alternatives to avoid this problem, like the use of antioxidants such as TBHQ, BHA, or PG, widely used in the scientific literature to increase the service life of this product.
- Regarding the possibility of implementation of this technology, it should be noted the potential of some wastes derived from VO, such as WCO, whose management would be difficult otherwise. As a matter of fact, the properties observed for biolubricants based on WCO are equivalent to those obtained from vegetable oils, with a slight decrease in oxidative stability in some cases, which could be easily solved by antioxidant addition, as explained above. This fact points out the versatility of biolubricant synthesis, being able to compete with traditional lubricant production.
- Considering the above, the possible integration of biolubricant production in biorefineries, or even the implementation of a biorefinery based on vegetable oils, could be an interesting starting point for this technology, especially in the case of double transesterification from fatty acids, as many bioproducts and byproducts that are easily reusable can be obtained, implying a green process that should replace traditional ones.
- In that sense, the role of catalysts is becoming more and more important in biolubricant production, as their use contributes to the higher efficiency of the process, which is an essential part of the real implementation of this technology at an industrial scale. This way, plenty of studies have been focused on the use of new and innovative catalysts, mainly heterogeneous and porous catalysts with the possibility of re-use in several cycles, to make the process more attractive when it comes to techno-economic analyses, especially by reducing the purification process to obtain the final biolubricant.
- Consequently, apart from the use of catalysts, the chemical conditions to carry out double transesterification usually have a strong influence on the final quality of biolubricants. Thus, “every detail counts”, which should be pointed out especially in the case of temperature, catalyst addition, or reaction time, among other factors. Indeed, many studies addressed the use of milder reaction conditions, which will present a positive effect on techno-economic assessment, especially in biolubricant quality (especially concerning viscosity and oxidative stability). In other words, it would be the greatest exponent of sustainability, as it would be possible to obtain better products (in this case, biolubricants) under mild reaction conditions and the subsequent energy and material cost, implying a more attractive process for its implementation at an industrial scale.
- Finally, and according to the techno-economic assessments carried out by the scientific literature and recently published patents (where the role of catalysts is essential), the industrial scale implementation of biolubricant production is feasible, pointing out the high added-value product obtained, apart from other by-products equally interesting or reusable, and showing a promising starting point for the contribution to green chemistry and circular economy. In any case, due to the wide variety of processes, further studies would be advisable to cover this subject.
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
Abbreviations
Abbreviation | Term |
BHA | Butylated hydroxyanisole |
CFPP | Cold filter plugging point |
FA | Fatty acid |
FAE | Fatty acid esters |
FAME | Fatty acid methyl ester |
FFA | Free fatty acids |
FO | Frying oil |
GM | Genetically modified |
IP | Induction point |
NG | Neopentyl glycol |
NGE | Neopentyl glycol ester |
OPEC | Organization of the Petroleum Exporting Countries |
OS | Oxidative stability |
PE | Pentaerythritol |
PEE | Pentaerythritol ester |
PG | Propyl gallate |
PP | Pour point |
SDG | Sustainable development goal |
TBHQ | Tert-Butylhydroquinone |
TMP | Trimethylolpropane |
TMPE | Trimethylolpropane ester |
UN | United Nations |
VI | Viscosity index |
UVO | Used vegetable oil |
VI | Viscosity index |
VO | Vegetable oil |
WCO | Waste cooking oil |
