Boosting Solvent-Free Aerobic Oxidation of Benzylic Compounds into Ketones over Au-Pd Nanoparticles Supported by Porous Carbon

by
Shanshan Sun
1,
Xiaoyu Peng
1,
Xingcui Guo
2,
Xiufang Chen
1,* and
Di Liu
3,*
1
National & Local Joint Engineering Research Center for Textile Fiber Materials and Processing Technology (Zhejiang), College of Material Science and Engineering, Zhejiang Sci-Tech University, Hangzhou 310018, China
2
Key Laboratory of Bio-Based Materials, Qingdao Institute of Bioenergy and Bioprocess Technology, Chinese Academy of Sciences, Qingdao 266101, China
3
Laboratory of Advanced Materials, Fudan University, Shanghai 200438, China
*
Authors to whom correspondence should be addressed.
Catalysts 2024, 14(3), 158; https://doi.org/10.3390/catal14030158
Submission received: 15 January 2024 / Revised: 5 February 2024 / Accepted: 14 February 2024 / Published: 20 February 2024
(This article belongs to the Special Issue Advances in Heterogeneous Catalysis for Organic Transformations)
Browse Figures
Versions Notes

Abstract

:
The exploitation of highly efficient solvent-free catalytic systems for the selective aerobic oxidation of benzylic compounds to produce corresponding ketones with molecular oxygen under mild conditions remains a great challenge in the chemical industry. In this work, Au-Pd nanoparticles supported on porous carbon catalysts were fabricated by the borax-mediated hydrothermal carbonization method and the chemical reduction method. The physicochemical properties of Au-Pd bimetallic samples were examined by XRD, N2 sorption, SEM, TEM, and XPS techniques. The Au-Pd nanoparticles have successfully immobilized on the spherical carbon support with a porous structure and large surface area. A solvent-free catalytic oxidation system was constructed to selectively convert indane into indanone with Au-Pd nanocatalysts and O2. In contrast with a monometallic Au or Pd catalyst, the resulting bimetallic Au-Pd catalyst could effectively activate O2 and exhibit improved catalytic activity in the controlled oxidation of indane into indanone under 1 bar O2. A total of 78% conversion and >99% selectivity toward indanone can be achieved under optimized conditions. The synergistic effect of Au and Pd and porous carbon support contributed to the high catalytic activity for aerobic benzylic compound oxidation. This work offers a promising application prospect of efficient and recyclable Au-Pd nanocatalysts in functional benzylic ketone production.

Graphical Abstract

1. Introduction

The transformation of benzylic compounds into ketones is significant in producing value-added chemicals and intermediates in the chemical industry [1,2]. Traditionally, stoichiometric amounts of oxidants (e.g., Cr2O3, KMnO4, I(III), or Se(IV)) [3,4] and various homogeneous catalysts (e.g., cobalt(II) salts combined with N-hydroxyphthalimide (Co(II)-NHPI), Fe(NO3)3, Pd, Pt, Ir, or Ru complexes) have been employed for the oxidation of benzyl compounds [5]. Yet, these methods suffer from serious drawbacks, such as excessive use, difficult separation, and recovery, as well as a lack of reuse of these reagents or catalysts [6,7,8]. To overcome the above problems, substantial endeavors have been devoted to developing more environmentally heterogeneous catalytic systems for the selective oxidation of benzyl compounds [9,10,11,12,13]. Various catalysts, including MnO2@Fe3O4 nanoparticles [10], Cu3(PO4)2 [11], LaMO3 (M = Cr, Co, Fe, Mn, Ni) perovskites [12], and Cr/MCM-41 [13], have been explored for the oxidation of the C–H bonds of benzyl compounds by combining with oxidants. In general, these catalytic systems still required a large amount of toxic or volatile organic solvents (e.g., ethanol, acetonitrile, dichloromethane, and chlorobenzene) and various oxidants (e.g., alkyl hydroperoxide, hydrogen peroxide (H2O2), and iodosobenzene) [12,13,14,15,16]. This would result in difficulty in product separation and purification, increasing energy consumption, and generating lots of poisonous and harmful wastewater in the production processes. In contrast, utilizing air or molecular oxygen as a sustainable oxidant, the aerobic oxidation of benzyl compounds in a solvent-free system is an ideal alternative to the above systems, and it promises to be a cost-efficient, low-energy consuming, and green oxidation process for the production of benzylic ketones [17].
Because of the inertness of C–H bonds, it is difficult to activate molecular oxygen to oxidize benzyl compounds under mild conditions. Moreover, due to the higher reactivity of target products than benzyl compounds, it is also difficult to control the reaction process to avoid overoxidation and obtain a single ketone product [18]. Therefore, to overcome the great challenge in the activation of molecular oxygen at mild conditions, it is urgent to develop an efficient catalyst with high stability for benzylic C–H bond oxidation with O2. In the most reported aerobic oxidation systems, additional radical initiators (e.g., NHPI or tert-butyl hydroperoxide) [19] or harsh reaction conditions (e.g., high temperature, high O2 pressure) were needed to activate O2 and oxidize benzylic compounds [20]. Only a few catalysts, such as MnCeOx, Cu-Pd alloy nanoparticles, and Au@ZnO, were applied for the aerobic oxidation of benzylic compounds without additional radical initiators [21,22,23]. Nevertheless, the efficient transformation of benzyl compounds with high yields of ketones remains a great challenge.
Indane, as a representative benzylic compounds, is present in many vital biological and medicinal systems [24]. Indanone, as the main product of indane oxidation, is an important intermediate for a variety of fine chemicals, such as pharmaceuticals, agrochemicals, and dyes [25]. Monometallic Au or Pd nanoparticles supported catalysts that have exhibited good catalytic activity for the controlled indane oxidation. For instance, Dapurkar et al. [26] applied various supported gold nanoparticles for the selective indane oxidation at 1 atm O2 and attained a high selectivity (90%) at moderate conversion (46%) in the presence of Au/TiO2. Liu et al. [22] developed novel Au@mZnO catalysts for the aerobic oxidation of indane and displayed good catalytic activity with high conversion (88.5%) and moderate selectivity toward indanone (60%) under 120 °C, 1 bar O2, and 20 h. Zhang et al. [27] reported that indane could be oxidized by 4%Pd@C-GluA-550 with 98% selectivity toward 1-indanone at 31.2% conversion without the addition of other solvent and organic ligands under mild reaction conditions (120 °C, 1 atm air, 11 h). However, the catalytic efficiency for the selective oxidation of indane to indanone by single-loading Au or Pd nanoparticles needs to be further enhanced in the solvent-free system without the addition of any organic ligands or promoters. Herein, it is desirable to develop novel Au-based nanocatalysts with low metal loading to efficiently realize indane transformation into indanone with O2 under mild conditions.
It is known that the introduction of a second metal into Au catalysts is an effective strategy to ameliorate the O2 activation ability and the catalytic oxidation activity of single metal catalyst via enhancing the catalytically active sites [20,28,29]. Bimetallic Au-Pd catalysts have attracted great attention because of excellent catalytic activity in many oxidation reactions [28,30]. Yet, seldom works relating to supported Au-Pd nanocatalysts for the aerobic oxidation of benzylic compounds into ketones in solvent-free systems were reported. In this work, we developed a facile and environmentally friendly method for fabricating Au-Pd loading porous carbon catalysts (Au-Pd/MC) by combining the hydrothermal carbonization of glucose and a chemical reduction process. Borax (Na2B4O7) was used as a structure-directing agent to construct spherical carbon with a hierarchically porous structure, which would afford abundant oxygen-containing functional groups to anchor Au-Pd nanoparticles [27,31]. These catalysts were applied for the solvent-free catalytic oxidation of benzylic compounds into ketones with O2 under mild conditions. Indane was selected as a typical benzylic compound to evaluate the catalytic activity of Au-Pd bimetallic catalysts, with monometallic Au or Pd catalysts as a comparison. The influence of Au/Pd ratios, reaction time, and reaction temperature on the catalytic activity for the oxidation of indane were studied in detail. A total of 78% conversion of indane and >99% selectivity toward indanone could be achieved at the optimal conditions. A possible reaction pathway was proposed for the aerobic oxidation of indane into indanol and indanone over the Au-Pd catalyst. Overall, this work would contribute to the advancement of efficient catalyst design for aerobic oxidation to produce fine chemicals.

2. Results

2.1. Characterization of the Catalyst

The Au-Pd/MC catalysts were fabricated by a simple method containing borax-mediated hydrothermal carbonization and a chemical reduction process. Scheme 1 displays the preparation procedure of Au-Pd catalysts. The first step involved borax-mediated hydrothermal carbonization of glucose at 200 °C. Borax was added as a structure-directing agent to control the morphology and particle diameters of carbonaceous material [27]. Due to the buffer effect of the borax additive, borax would help rapid nucleation and slow the growth of carbonaceous particles. As a result, spherical hydrochars with a uniform size of about 20 nm were formed during the hydrothermal carbonization process (Figure S1). Then, the obtained hydrochars were further pyrolyzed at 550 °C under an N2 atmosphere to improve the graphitization degree and retain plentiful oxygen-containing functional groups [32,33]. Moreover, a large number of small molecular gases (e.g., CO, CO2, and H2O) were released to generate many pores during this carbonization process [34]. Therefore, spherical carbon with a porous structure and rich porosity was obtained. The second step involved the loading of Au-Pd nanoparticles on the surface of as-prepared porous carbon materials by a chemical reduction process. NaBH4 was used as a reducing agent to synthesize bimetallic Au-Pd/MC catalysts. Unless noted otherwise, the loading total metal content was 1% and the Au/Pd mass ratio was 1:3 in this work.
Figure 1 shows the XRD patterns of the Au-Pd/MC sample with Au/MC, Pd/MC, and MC as a comparison. All the samples had two broad peaks at 21.4 and 42.8°, which belonged to amorphous carbon [35,36]. The intensity of carbon peaks reduced after metal loading, which was caused by the partial coverage of the carbon surface by metal nanoparticles. Apart from the carbon peaks, the diffraction peaks at 38.2, 44.4, 64.6, and 77.6° in Au/MC can be indexed as (111), (200), (220), and (311) planes of metallic Au0 [37]. For the Pd/MC sample, the diffraction peaks at 40.1, 46.7, and 68.2° could be attributed to (111), (200), and (220) planes of Pd0, while the diffraction peaks at 27.3 and 31.7° could be assigned to (200) and (220) planes of PdO particles, respectively [38,39]. In contrast with monometallic Au/MC and Pd/MC catalysts, these peaks of metallic Au, metallic Pd, and PdO were all observed in bimetallic Au-Pd/MC. Upon careful observation, the intensity of Pd and PdO peaks in Au-Pd/MC were weaker and broader than those of the monometallic Pd/MC catalyst, revealing the smaller sizes of metal and metal oxide particles in the bimetallic catalyst [40]. These results implied the formation of Au-Pd nanocomposites.
Nitrogen sorption isotherms were conducted to analyze the porous structure of Au-Pd/MC and MC, and the results are shown in Figure 2. Typical type-IV isotherms were observed in both MC and Au-Pd/MC [41]. The presence of hysteresis loops at a relative pressure of 0.2–0.8 implied a mesoporous character in both samples [34]. Both Au-Pd/MC and MC displayed considerable N2 adsorption at a low pressure lower than 0.1, indicating rich microporosity. The N2 adsorption amount at both low pressure and medium pressure slightly decreased after metal loading, indicating the smaller surface area and porosity of Au-Pd/MC. This was possibly caused by the blockage of pores by the metal nanoparticles. The pore size distributions (Figure 2b), determined by the density functional theory (DFT) model, supported the well-defined micro-mesopore size distribution in both Au-Pd/MC and MC. Table 1 illustrates the calculated specific surface areas (SBET) and pore volumes. The SBET and total pore volume (Vtotal) of the MC sample were 485 m2 g−1 and 0.26 cm3 g−1, respectively. Wherein, the micropore volume (Vmicro) accounted for 64%. The high SBET and appropriate pore diameter of MC afforded promising support for catalysts. In contrast, SBET decreased slightly after loading metallic nanoparticles, and it remained at a considerable SBET value of >410 m2 g−1 and a high Vtotal of >0.18 cm3 g−1, suggesting that most of the pores were accessible. It was worth noting that the proportion of Vmicro increased to 78.9% in Au-Pd/MC, implying that Au-Pd nanoparticles preferred to anchor on the mesoporous surface of carbon material.
The morphology of the carbon-supported catalysts was characterized via scanning electron microscopy (SEM) and transmission electron microscopy (TEM). Figure S1 and Figure 3a illustrate the SEM images of the hydrochar and MC support. The morphological feature of the hydrochar was a spherical structure with a uniform size of about 20 nm. The spherical carbon particles retained well after carbonization at 550 °C. The TEM image of MC, shown in Figure 3b, supported well-dispersed spherules with a hierarchical porous structure, which was beneficial for heterogeneous catalytic reactions. Figure 3c exhibits the metal particle distributions in Au-Pd/MC. Au-Pd nanocomposites with particle sizes in the range of 5–35 nm dispersed on the carbon support. The HRTEM images, shown in Figure 3d, displayed that the lattice spacings at 0.275 nm and 0.282 nm related to AuOx and PdO particles, respectively [42]. The lattice spacings at 0.225 nm and 0.235 nm were also observed in Figure 3e, which were assigned to the (111) facet of metallic Pd0 and the (111) facet of metallic Au0, respectively [43]. The results confirmed the existence of bimetallic nanocomposites on the carbon support. The corresponding mapping of Au-Pd/MC further supported the good distribution of Au and Pd nanoparticles on the carbon support. The average sizes of Au0/AuOx and Pd0/PdO particles were about 15.9 and 6.9 nm, respectively (Figure S2), which were a bit smaller than the values predicted by XRD. It was inferred that the Au-Pd nanocomposites have successfully immobilized on the porous spherical carbon support.
XPS spectra were also measured to investigate the surface chemical composition and chemical state of Au-Pd/MC, with a monometallic catalyst as a comparison. Au-Pd/MC mainly had four elements: C, O, Au, and Pd. As shown in Figure 4a, there were four types of carbon in carbon-supported samples, including the C–C group at 284.6 eV, the C–O group at 286.3 eV, the C=O group at 288.1 eV, and the COOR group at 289.7 eV [44,45]. Compared to Au/MC, the C–O and C=O peaks of Pd/MC and Au-Pd/MC shifted 0.3–0.5 V toward higher binding energy. Due to the difference in electronegativity between Au and Pd, the shift of C–O and C=O peaks might relate to the reduction in the electron density of adjacent C atoms by the formation of Au–O or Pd–O bonds [34]. As displayed in Figure 4b, the O 1s XPS spectra of Au/MC catalysts can be grouped into three peaks at 532.3, 533.5, and 535.3 eV, assignable to lattice oxygen species (Olat), surface adsorbed oxygen species (Osur), and surface hydroxyl species (OOH), respectively [46,47]. Similarly, three peaks were observed in Pd/MC and Au-Pd/MC, except that the Osur peak shifted 0.1–0.2 eV toward higher binding energy, supporting the formation of Au–O or Pd–O bonds. As shown in Table S1, the concentrations of surface oxygen in the Au/MC, Pd/MC, and Au-Pd/MC samples, calculated by XPS, were 13.3 at%, 12.3 at%, and 13.8 at%, respectively. The result confirmed the presence of abundant oxygen-containing functional groups on the carbon surface. The component proportion of Olat, Osur, and OOH in the Au-Pd/MC was 18.8%, 34.2%, and 47.0% in the total O atoms, respectively. Osur might serve as the primary anchoring site to bond Au-Pd nanocomposites.
As shown in Figure 4c, the Au 4f XPS spectra could be fitted into four peaks, attributable to Au 4f 7/2 and Au 4f 5/2 core levels. The Au 4f 5/2 peaks in the Au/MC sample were around 87.8 and 89.3 eV, while the Au 4f 7/2 peaks were at around 84.1 and 85.6 eV. The double peaks at 84.1 and 87.8 eV related to metallic Au, while the other double peaks at 85.6 and 89.3 eV belonged to Au3+ [30]. The results indicated the presence of metallic Au and Au3+. As shown in Figure 4d, the Pd 3d XPS spectra consisted of four peaks, corresponding to Pd 3d 5/2 and Pd 3d 3/2. The double peaks at around 336.1 and 341.2 eV in Pd/MC were attributed to Pd0, while the other double peaks at around 337.7 and 342.5 eV were associated with Pd2+ [48]. Compared to monometallic Au/MC and Pd/MC samples, there was no shift in the Au0 and Pd0 peaks for Au-Pd/MC, while the Au3+ and Pd2+ peaks in Au-Pd@MC were shifted to higher binding energies by 0.2~0.6 eV. These shifts probably originated with the generation of Au-Pd bimetallic nanocomposites. Furthermore, the concentrations of surface Au and Pd in the Au-Pd/MC sample were 0.04 at%, and 0.24 at%, respectively. The component proportion of Au0 in the total Au atoms increased from 46.1% in Au/MC to 53.7% in Au-Pd/MC, while the component proportion of Pd0 in the total Pd atoms reduced from 62.4% in Pd/MC to 57.7%. These results supported the presence of Au0, Pd0, AuOx, and PdO nanocomposites in Au-Pd/MC.
The NH3–TPD measurement was performed to analyze the acid properties of the MC and Au-Pd/MC samples. Figure 5 displays the NH3-TPD profiles of various samples. The NH3 desorption profile of both MC and Au-Pd/MC exhibited a strong peak in the 100–400 °C range and a weak peak in the 400–600 °C range. The former peak was attributed to oxygen-containing groups, like C=O and OH, while the latter peak was assigned to medium to strong acid sites on the surface of carbon-based material. The loading of Au-Pd nanoparticles had little effect on the weak acid sites but slightly reduced the medium to strong acid sites, probably originating from the partial coverage of carbon by metal species. The abundant acid sites in Au-Pd/MC might be favorable to the contact between the catalyst and C–OH bond in the intermediates, thereby improving the yield of ketones.

2.2. Catalytic Performance of the Catalyst

The catalytic performances of bimetallic catalysts were evaluated for selective oxidation of indane with O2 as the oxidant. The aerobic oxidation of indane was conducted in a solvent-free system at 1 bar of O2. As shown in Table 2, there was little catalytic activity in the blank system or MC system for 4 h at 100 ℃ (Entries 1 and 2), indicating that indane could not undergo self-oxidation under 1 bar O2 or in the presence of MC support and 1 bar O2. Under similar reaction conditions, 1.5% and 1.9% of indane were converted with 1%Pd/MC and 1%Au/MC as the catalysts, suggesting that Pd and Au-based catalysts were capable of activating O2 and oxidized indane in the presence of atmospheric oxygen and low reaction temperature, even if catalytic efficiency was low (Entries 3 and 4). On a positive note, the activity was boosted with the introduction of Au-Pd nanocomposites. 3% of indane was transformed with the Au-Pd(1:3)/MC catalyst, accompanied by the formation of indanone and indanol (Entry 5). When the reaction proceeded at 120 °C and 4 h under the atmospheric pressure of O2, the conversion of Au-Pd(1:3)/MC enhanced to 65%, with 38% of indanol selectivity and 62% of indanone selectivity (Entry 11). Extending the reaction time to 8 h and 24 h, the residual indane could continue to be oxidized, and the indanol intermediate was completely converted into indanone. As a result, the highest activity with 76% conversion and >99% indanone selectivity could be obtained with Au-Pd(1:3)/MC (Entries 12 and 13). The result revealed that Au-Pd/MC was highly effective in activating O2 under atmospheric pressure to controllably transform benzylic compounds into ketones. It was also worth noting that Au-Pd/MC had a higher catalytic performance than those of most other types of catalysts for the solvent-free aerobic oxidation of indane into indanone at 1 bar O2 without the addition of any organic ligands or promoters (Table S2). To study the impact of carbon support on catalytic performance, the catalytic efficiency of 1%Pd/MC and 5%Pd/commercial C have been investigated and compared for the aerobic oxidation of indane. It was found that 1%Pd/MC had slightly higher activity than that of 5%Pd/commercial C (Entries 6 and 10), which suggested that micro/mesoporous carbon support could significantly reduce the usage of noble metal but maintain its high activity. The result testified that micro/mesoporous carbon could play a vital role in the aerobic oxidation of indane.
Under 120 °C and 1 bar of O2 for 8 h, the catalytic activity of Au-Pd/MC catalysts with different Au/Pd mass ratios (1:1, 1:2, 1:3, 1:4) was tested by the aerobic oxidation of indane. Figure 6 displayed that by elevating the Au/Pd mass ratio from 1:1 to 1:3, both the conversion and indanone selectivity gradually improved. The highest activity of Au-Pd/MC, with 71% conversion and 92% indanone selectivity, could be obtained when the Au/Pd mass ratio was 1:3. A negative effect on indanone yield appeared when the ratio was 1:4. It was concluded that the Au/Pd ratio had a great impact on the transformation of indane as well as indanone selectivity. These results supported the synergistic effect in the Au-Pd/MC catalyst. Hence, the Au/Pd mass ratio of Au-Pd/MC is decided as 1:3 in this work. The influence of reaction temperature on the catalytic activity was also studied using the optimized Au-Pd catalyst. As shown in Figure 7, when the reaction proceeded at 80 °C, indane was hard to convert. The indane conversion and indanone selectivity were remarkably enhanced by increasing the temperature up to 120 °C. Further, by increasing the reaction temperature to 140 °C, the indane conversion was slightly reduced. Therefore, the optimized reaction temperature for the catalytic oxidation system was 120 °C.
As the reusability of the catalyst is a vital factor for industrial application, the recycling test of Au-Pd/MC was examined to ensure that the bimetallic catalyst could be reused and maintain good activity. After each run of the reaction, Au-Pd/MC was separated, washed completely, dried, and reused in the next run. As shown in Figure 8, no apparent decrease in the catalytic activity was found during the five runs, confirming the good stability and reusability of the Au-Pd/MC catalyst in the aerobic oxidation of indane. The used catalyst after the reaction was also measured by XPS, and the results are shown in Figure S3. There was no obvious change in the Pd 3d spectra, while a higher Au3+/Au0 ratio was found in the Au 4f spectra for the used Au-Pd/MC, indicating that partial Au0 in the fresh sample was oxidized during the reaction. The slight decrease in catalytic activity after the fifth recycle might be attributed to the decreased Au0 in the used Au-Pd/MC.

2.3. Reaction Pathway

In view of these results, a possible reaction pathway was proposed for the aerobic oxidation of indane into indanol and indanone over the Au-Pd/MC catalyst. It is known that the catalytic oxidation of indane gives the initial product of indane hydroperoxide, which further decomposes into indanone and indanol [26]. As shown in Scheme 2, in Step I, the catalytic reaction started with the adsorption and activation of molecular oxygen on the Au-Pd active sites, resulting in the generation of the active oxygen species, like •O2− [30]. Then, the C–H bonds of adsorbed indane were attracted by the active oxygen species to form the intermediate indane hydroperoxide. Subsequently, the indane hydroperoxide was decomposed into indanone (Step II) and indanol (Step III) products on the surface of the Au-Pd nanocomposite. In Step IV, the obtained indanol could be further oxidized by active oxygen species to produce indanone. It can be seen in Table 2 that both indanol (38% of selectivity) and indanone (62% of selectivity) were formed when the reaction lasted for 4 h with Au-Pd/MC. Extending the reaction time to 8 h, indanol was further oxidized into indanone, and indanone selectivity was improved to 92%. Further extending the reaction time to 12 h, >99% of indanone selectivity could be obtained. This implies that the Au-Pd catalyst is not only effective for the decomposition of indane hydroperoxide into indanone and indanol but also for the dehydrogenative oxidation of indanol to indanone. Therefore, Au-Pd/MC is highly active and stable in the aerobic oxidation of indane into indanone.
From the above analysis, several factors might contribute to the excellent catalytic activity of Au-Pd/MC. Firstly, MC support possessed a unique spherical structure with a large surface area, rich micro/mesoporosity, and oxygen-containing functional groups, providing massive anchoring sites to immobilize Au-Pd nanoparticles. Moreover, spherical carbons with a micro/mesoporous structure might serve as nanoreactors during the aerobic oxidation process, which ensures the rapid diffusion of reactants and products. The pores in the spherical carbons would provide sufficient adsorption sites and space to allow access to the transportation of reactants and products, thereby boosting catalytic efficiency. Secondly, Au-Pd/MC offered abundant acid sites, which might favor the contact between the catalyst and C–OH bond in the intermediates, thereby improving the yield of ketones. Thirdly, the Au nanocatalyst was known to have high O2 activation ability and be effective in oxidizing various organic compounds with O2 as the oxidant [49]. The introduction of Pd species would favor the O2 activation to generate active oxygen species, leading to enhanced catalytic activity [30]. Overall, the cooperative effect of Au-Pd and porous carbon was responsible for the outstanding catalytic activity of Au-Pd/MC.

2.4. Solvent-Free Oxidation of Other Benzylic Compounds

The catalytic activity of the selective oxidation of various benzylic compounds was also examined to study the wider applicability of the bimetallic catalyst. The results are summarized in Table 3. Under 120 °C and 1 bar O2, Au-Pd/MC was capable of activating O2 to oxidize benzylic compounds (e.g., ethylbenzene, diphenylmethane, tetralin) to form their corresponding oxidation products (Entries 1–3). Au-Pd/MC gave a low conversion of ethylbenzene and diphenylmethane (Entry 1) but was active in the oxidation of tetralin with >50% conversion (Entry 2). The conversions would increase by prolonging the reaction time. The results confirmed that Au-Pd catalysts were active in the oxidation of C–H bonds in various benzylic compounds.

3. Experimental Section

3.1. Chemicals

Chemicals without special descriptions were obtained from commercial companies and used without further purification. D-glucose (C6H12O6), borax (Na2B4O7), gold chloride (HAuCl4), palladium(Ⅱ) chloride (PdCl2), sodium borohydride (NaBH4), and indane were purchased from Sigma-Aldrich (St. Louis, MO, USA).

3.2. Preparation of Porous Carbon (MC)

A total of 9 g of D-glucose and 0.75 g of borax were dissolved in 30 mL of deionized water at room temperature. The mixture solution was transferred into a 100 mL autoclave, followed by heating at 200 ℃ for 8 h. The resultant solid was filtered and washed with ethanol and deionized water several times. Then, the dark brown powder can be obtained by freeze-drying. Finally, the solid precursor was post-carbonized at 550 ℃ for 4 h under an N2 atmosphere. After cooling to room temperature, the black porous carbon material can be obtained, which is marked as MC.

3.3. Preparation of Metal-Supported MC Catalysts

Before use, HAuCl4 and PdCl2 were dissolved in a dilute HCl solution to prepare gold and palladium salt solutions, respectively. After 300 mg of as-prepared MC was dispersed in 20 mL of deionized water, a certain amount of salt solutions was sequentially added to the suspension. The total mass of Au and Pd was 3 mg, which was 1% of the carbon support. The mixture was stirred at 60 °C for 12 h and cooled to room temperature. The gold and palladium salts were reduced and loaded on MC by adding excess NaBH4 solution (5 mL, 0.1 mol L−1) drop by drop. Then, the mixture was ultrasonicated for 30 min. The precipitate was centrifuged and washed with deionized water until the ion concentration was less than 10 ppm. The resultant catalyst was dried in a vacuum drying oven at 70 °C overnight and named Au-Pd(1:3)/MC. For instance, Au-Pd/MC with an Au/Pd mass ratio of 1:3 (0.75 mg Au and 2.25 mg Pd) was named Au-Pd(1:3)/MC. Meanwhile, the other catalysts synthesized by the same method were named 1%Au/MC, Au-Pd(1:1)/MC, Au-Pd(1:2)/MC, Au-Pd(1:4)/MC, and 1%Pd/MC, depending on the different mass ratio of Au and Pd.

3.4. Characterization

Powder X-ray diffraction patterns of the samples were collected on a Bruker D8 Advance X-ray diffraction diffractometer equipped with CuKa radiation (λ = 1.5147 Å, Karlsruhe, Germany). N2 adsorption/desorption isotherms were obtained at 77 K on a Micromeritics ASAP 2020 instrument (Micromeritics, Norcross, GA, USA). Before the analysis, the samples were degassed at 150 °C overnight. The specific surface area of the samples was calculated by the Brunauer–Emmet–Teller (BET) method. The micropore volume was calculated by the t-plot method. The pore size distribution was determined by non-local density functional theory (DFT). The morphology of the samples was investigated using a field emission Hitachi S-4800 scanning electron microscope (SEM) (Hitachi, Tokyo, Japan) and a transmission electron microscope (TEM, JEOL, Tokyo, Japan, JEM-2010HR) with energy-dispersive X-ray spectroscopy (EDS) analysis. X-ray photoelectron spectroscopy (XPS) measurements were performed on a Kratos Axis Ultra DLD system (Kratos Analytical Ltd, Manchester, UK) with a base pressure of 10−9 Torr. All the binding energies were calibrated according to C 1s peak at 284.6 eV. NH3 temperature-programmed desorption (TPD) was conducted on a Micromeritics Autochem 2920 chemisorption analyzer (Norcross, GA, USA).

3.5. Catalytic Experiments

In a typical reaction, 4 mL of indane and 20 mg of catalyst were added into a 10 mL three-neck glass reactor, which was fitted with a magnetic stirrer and an O2 inlet tube. The reaction was carried out at a desired temperature with magnetic stirring. O2 was passed into the reaction mixture and controlled by a flow meter at a constant flow rate (5 mL min−1). After completion of the reaction, the liquid-phase solution of the reaction mixture was collected by filtration. Then, the reaction solution was diluted with acetone and measured by gas chromatography (GC, Shimadzu, Kyoto, Japan, 2010 plus). The oxidized product was confirmed by GC coupled with a mass spectrometer (GC–MS, Shimadzu, 2010 plus).

4. Conclusions

In conclusion, the bimetallic Au-Pd/MC catalysts were synthesized by a green successive borax-mediated hydrothermal carbonization of glucose, thermal pyrolysis, and chemical reduction process. The bimetallic Au-Pd nanocomposites were successfully supported on spherical porous carbon with a large surface area. The bimetallic catalysts were applied to the liquid-phase aerobic oxidation of benzylic compounds at 1 bar of O2, which were effective in oxidizing indane to indanone, as well as a variety of benzylic compounds, without any additive promoters and solvents. The Au-Pd-based catalysts presented an improvement in indane conversion over their monometallic catalysts, indicating a strong synergy of Au-Pd particles. Additionally, porous carbon support also was crucial to their outstanding activity. Furthermore, the Au-Pd bimetallic catalyst kept the high activity and selectivity of ketone during five cycles. These findings are important in the design of active catalysts for the aerobic oxidation of benzylic compounds to corresponding alcohols and ketones.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/catal14030158/s1, Figure S1: SEM images of the hydrochar; Figure S2: metal particle size distribution; Figure S3: XPS spectra for fresh and used Au-Pd/MC, Table S1: The quantitative chemical analysis of different samples by XPS, Table S2: The catalytic activity for the solvent-free aerobic oxidation of indane by various catalysts at 1 bar O2/air without the addition of any organic ligands or promoters. Reference [50] is cited in the supplementary materials.

Author Contributions

S.S. and D.L. were responsible for original draft preparation, investigation, and validation. X.P. and X.G. were responsible for data curation and validation. X.C. was responsible for review, editing, and funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Baima Lake Laboratory Joint Funds of the Zhejiang Provincial Natural Science Foundation of China (LBMHY24E060003), the Scientific Research Foundation of Zhejiang Sci-Tech University (19212450-Y), and the Fundamental Research Funds of Zhejiang Sci-Tech University (23212112-Y).

Data Availability Statement

The authors can confirm that all relevant data are included in the article.

Conflicts of Interest

The authors do not have any financial or non-financial interests that are directly or indirectly related to the work submitted for publication.

References

  1. Zhang, Q.; Chen, C.; Ma, H.; Miao, H.; Zhang, W.; Sun, Z.; Xu, J. Efficient Metal-free Aerobic Oxidation of Aromatic Hydrocarbons Utilizing Aryl-tetrahalogenated N-hydroxyphthalimides and 1,4-Diamino-2,3-dichloroanthraquinone. J. Chem. Technol. Biot. 2008, 83, 1364–1369. [Google Scholar] [CrossRef]
  2. Shen, H.M.; Hu, M.Y.; Liu, L.; Qi, B.; Ye, H.L.; She, Y.B. Efficient and Selective Oxidation of Tertiary Benzylic C–H Bonds with O2 Catalyzed by Metalloporphyrins under Mild and Solvent-free Conditions. Appl. Catal. A General 2020, 599, 117599. [Google Scholar] [CrossRef]
  3. Shi, H.; Cheng, L.; Pan, Y.; Mak, C.K.; Lau, K.C.; Lau, T.C. Synergistic Effects of CH3CO2H and Ca2+ on C−H bond activation by MnO4−. Chem. Sci. 2022, 13, 11600–11606. [Google Scholar] [CrossRef] [PubMed]
  4. Trammell, R.; D’Amore, L.; Cordova, A.; Polunin, P.; Xie, N.; Siegler, M.A.; Belanzoni, P.; Swart, M.; Garcia-Bosch, I. Directed Hydroxylation of sp2 and sp3 C–H Bonds Using Stoichiometric Amounts of Cu and H2O2. Inorg. Chem. 2019, 58, 7584–7592. [Google Scholar] [CrossRef]
  5. Urgoitia, G.; SanMartin, R.; Herrero, M.T.; Esther Domínguez, E. Recent Advances in Homogeneous Metal-Catalyzed Aerobic C–H Oxidation of Benzylic Compounds. Catalysts 2018, 8, 640. [Google Scholar] [CrossRef]
  6. Boller, T.M.; Murphy, J.M.; Hapke, M.; Ishiyama, T.; Miyaura, N.; Hartwig, J.F. Mechanism of the Mild Functionalization of Arenes by Diboron Reagents Catalyzed by Iridium Complexes. Intermediacy and Chemistry of Bipyridine-Ligated Iridium Trisboryl Complexes. J. Am. Chem. Soc. 2005, 127, 14263–14278. [Google Scholar] [CrossRef] [PubMed]
  7. Liu, D.; Chen, X.F.; Xu, G.Q.; Guan, J.; Cao, Q.; Dong, B.; Qi, Y.F.; Li, C.H.; Mu, X.D. Iridium Nanoparticles Supported on Hierarchical Porous N-doped Carbon: An Efficient Water-tolerant Catalyst for Bio-alcohol Condensation in Water. Sci. Rep. 2016, 6, 21365. [Google Scholar] [CrossRef]
  8. Ma, X.M.; Chen, F.F.; Zhang, X.; Wang, T.T.; Yuan, S.R.; Wang, X.S.; Li, T.J.; Gao, J.K. Hierarchical Co@C-N Synthesized by the Confined Pyrolysis of Ionic Liquid@ metal-organic Frameworks for the Aerobic Oxidation of Alcohols. New J. Chem. 2022, 46, 7528–7536. [Google Scholar] [CrossRef]
  9. Lounisa, Z.; Riahi, A.; Djafri, F.; Muzart, J. Chromium-exchanged Zeolite (CrE-ZSM-5) as Catalyst for Alcohol Oxidation and Benzylic Oxidation with t-BuOOH. Appl. Catal. A Gen. 2006, 309, 270–272. [Google Scholar] [CrossRef]
  10. Pandey, A.M.; Agalave, S.G.; Vinod, C.P.; Gnanaprakasam, B.G. MnO2@Fe3O4 Magnetic Nanoparticles as Efficient and Recyclable Heterogeneous Catalyst for Benzylic sp3 C−H Oxidation. Chem. Asian J. 2019, 14, 3414–3423. [Google Scholar] [CrossRef]
  11. Wu, H.; Song, J.; Xie, C.; Hu, Y.; Liu, S.; Han, B. Preparation of Copper Phosphate from Naturally Occurring Phytic Acid as an Advanced Catalyst for Oxidation of Aromatic Benzyl Compounds. ACS Sustain. Chem. Eng. 2018, 6, 13670–13675. [Google Scholar] [CrossRef]
  12. Singh, S.J.; Jayaram, R.V. Oxidation of Alkylaromatics to Benzylic Ketones using TBHP as an Oxidant over LaMO3 (M = Cr, Co, Fe, Mn, Ni) Perovskites. Catal. Commun. 2009, 10, 2004–2007. [Google Scholar] [CrossRef]
  13. Das, T.K.; Chaudhari, K.; Nandanan, E.; Chandwadkar, A.J.; Sudalai, A.; Ravindranathan, T.; Sivasanker, S. Cr-MCM-41-catalyzed Selective Oxidation of Alkylarenes with TBHP. Tetrahedron Lett. 1997, 38, 3631–3634. [Google Scholar] [CrossRef]
  14. Serra, S. MnO2/TBHP: A Versatile and User-Friendly Combination of Reagents for the Oxidation of Allylic and Benzylic Methylene Functional Groups. Eur. J. Org. Chem. 2015, 2015, 6472–6478. [Google Scholar] [CrossRef]
  15. Estrada, A.C.; Simões, M.M.Q.; Santos, I.C.M.S.; Neves, M.G.P.M.S.; Silva, A.M.S.; Cavaleiro, J.A.S.; Cavaleiro, A.M.V. Iron-substituted Polyoxotungstates as Catalysts in the Oxidation of Indane and Tetralin with Hydrogen Peroxide. Appl. Catal. A Gen. 2009, 366, 275–281. [Google Scholar] [CrossRef]
  16. Bo, C.B.; Li, M.; Chen, F.; Liu, J.C.; Dai, B.; Liu, N. Visible-Light-Initiated Air-Oxygenation of Alkylarenes to Carbonyls Mediated by Carbon Tetrabromide in Water. Chemsuschem 2023, 17, e202301015. [Google Scholar] [CrossRef] [PubMed]
  17. Song, J.L.; Hua, M.L.; Huang, X.; Ma, J.; Xie, C.; Han, B.X. Robust Bio-derived Polyoxometalate Hybrid for Selective Aerobic Oxidation of Benzylic C(sp3)-H Bonds. ACS Catal. 2023, 13, 4142–4154. [Google Scholar] [CrossRef]
  18. Fosshat, S.; Siddhiaratchi, S.D.M.; Baumberger, C.L.; Ortiz, V.R.; Fronczek, F.R.; Chambers, M.B. Light-Initiated C–H Activation via Net Hydrogen Atom Transfer to a Molybdenum(VI) Dioxo. J. Am. Chem. Soc. 2022, 144, 20472–20483. [Google Scholar] [CrossRef] [PubMed]
  19. Singha, A.; Kothari, A.C.; Bal, R.; Chowdhury, B. Dioxygen-triggered Oxidation of Benzylic C–H Bonds: Insight on the Synergistic Effect of Cu-Fe Bimetallic Oxide. React. Chem. Eng. 2023, 8, 2353–2364. [Google Scholar] [CrossRef]
  20. Guo, Z.; Liu, B.; Zhang, Q.; Deng, W.; Wang, Y.; Yang, Y. Recent Advances in Heterogeneous Selective Oxidation Catalysis for Sustainable Chemistry. Chem. Soc. Rev. 2014, 43, 3480–3524. [Google Scholar] [CrossRef]
  21. Zhang, P.; Lu, H.; Zhou, Y.; Zhang, L.; Wu, Z.; Yang, S.; Shi, H.; Zhu, Q.; Chen, Y.; Dai, S. Mesoporous MnCeOx Solid Solutions for Low Temperature and Selective Oxidation of Hydrocarbons. Nat. Commun. 2015, 6, 8446. [Google Scholar] [CrossRef] [PubMed]
  22. Liu, Y.; Gao, T.N.; Chen, X.; Li, K.Q.; Ma, Y.L.; Xiong, H.L.; Qiao, Z.A. Mesoporous Metal Oxide Encapsulated Gold Nanocatalysts: Enhanced Activity for Catalyst Application to Solvent-free Aerobic Oxidation of Hydrocarbons. Inorg. Chem. 2018, 57, 12953–12960. [Google Scholar] [CrossRef] [PubMed]
  23. Zhong, H.; Wang, Y.; Cui, C.; Zhou, F.; Hu, S.; Wang, R. Facile Fabrication of Cu-based Alloy Nanoparticles Encapsulated within Hollow Octahedral N-doped Porous Carbon for Selective Oxidation of Hydrocarbons. Chem. Sci. 2018, 9, 8703–8710. [Google Scholar] [CrossRef] [PubMed]
  24. Vallés-García, C.; Montero-Lanzuela, E.; Navalon, S.; Álvaro, M.; Dhakshinamoorthy, A.; Garcia, H. Tuning the Active Sites in Reduced Graphene Oxide by Hydroquinone Functionalization for the Aerobic Oxidations of Thiophenol and Indane. Mol. Catal. 2020, 493, 111093. [Google Scholar] [CrossRef]
  25. Mączka, W.; Wińska, K.; Grabarczyk, M.; Galek, R. Plant-Mediated Enantioselective Transformation of Indan-1-One and Indan-1-ol. Catalysts 2019, 9, 844. [Google Scholar] [CrossRef]
  26. Dapurkar, S.E.; Shervani, Z.; Yokoyama, T.; Ikushima, Y.; Kawanami, H. Supported Gold Nanoparticles Catalysts for Solvent-free Selective Oxidation of Benzylic Compounds into Ketones at 1 atm O2. Catal. Lett. 2009, 130, 42–47. [Google Scholar] [CrossRef]
  27. Zhang, P.; Gong, Y.; Li, H.; Chen, Z.; Wang, Y. Solvent-free Aerobic Oxidation of Hydrocarbons and Alcohols with Pd@N-doped Carbon from Glucose. Nat. Commun. 2013, 4, 1593. [Google Scholar] [CrossRef]
  28. Tosun, R.B.; Hamaloğlu, K.Ö.; Tuncel, A.J.C. Bimetallic Pd-Au Nanoparticles Supported Monodisperse Porous Silica Microspheres as an Efficient Heterogenous Catalyst for Fast Oxidation of Benzyl Alcohol. ChemistrySelect 2022, 7, e2022016. [Google Scholar] [CrossRef]
  29. Du, X.B.W.; Tan, M.W.; Wei, T.; Kobayashi, H.; Song, J.J.; Peng, Z.X.; Zhu, H.L.; Jin, Z.K.; Li, R.H.; Liu, W. Highly Efficient and Robust Nickel-iron Bifunctional Catalyst Coupling Selective Methanol Oxidation and Freshwater/seawater Hydrogen Evolution via CO-free Pathway. Chem. Eng. J. 2023, 452, 139404. [Google Scholar] [CrossRef]
  30. Long, J.L.; Liu, H.L.; Wu, S.J.; Liao, S.J.; Li, Y.W. Selective Oxidation of Saturated Hydrocarbons Using Au−Pd Alloy Nanoparticles Supported on Metal−Organic Frameworks. ACS Catal. 2013, 3, 647–654. [Google Scholar] [CrossRef]
  31. Liu, X.; Zhang, B.; Fei, B.; Chen, X.; Zhang, J.; Mu, X. Tunable and Selective Hydrogenation of Furfural to Furfuryl alcohol and Cyclopentanone over Pt Supported on Biomass-derived Porous Heteroatom Doped Carbon. Faraday Discuss. 2017, 202, 79–98. [Google Scholar] [CrossRef]
  32. Zhang, L.; Cheng, L.; Hu, Y.; Xiao, Q.; Chen, X.; Lu, W. Robust Co3O4 Nanocatalysts Supported on Biomass-derived Porous N-doped Carbon Toward Low-Pressure Hydrogenation of Furfural. Front. Mater. Sci. 2023, 17, 230645. [Google Scholar] [CrossRef]
  33. Tang, T.T.; Ren, G.Y.; Wen, Y.; Lu, M.X.; Yao, Z.J.; Liu, T.C.; Shen, S.H.; Xie, H.J.; Xia, X.H.; Yang, Y.F. Spatially Confined Fe7S8 Nanoparticles Anchored on a Porous Nitrogen-Doped Carbon Nanosheet Skeleton for High-Rate and Durable Sodium Storage. ACS Appl. Mater. Interfaces 2023, 15, 30249–30261. [Google Scholar] [CrossRef]
  34. Chen, X.; Cheng, L.L.; Yang, Y.G.; Chen, X.F.; Chen, F.T.; Lu, W.Y. Construction of High-Density Fe Clusters Embedded in a Porous Carbon Nitride Catalyst with Effectively Selective Transformation of Benzene. ACS Sustain. Chem. Eng. 2023, 11, 1518–1526. [Google Scholar] [CrossRef]
  35. Zhao, L.L.; Chen, X.F.; Liu, X.Y.; Xu, G.Q.; Guo, X.C.; Yang, Y. Highly Efficient Synthesis of C5/C6 Sugar Alcohols from Bamboo Enabled by Mechanocatalytic Depolymerization. ACS Sustain. Chem. Eng. 2021, 9, 6697–6706. [Google Scholar] [CrossRef]
  36. Pan, Y.D.; Gao, J.K.; Li, Y.W.; Lv, E.J.; Khan, U.; Yang, X.G.; Yao, J.M.; Nairan, A.; Zhang, Q.C. Constructing Nitrogen-Doped Carbon Hierarchy Structure Derived from Metal-Organic Framework as High-Performance ORR Cathode Material for Zn-Air Battery. Small 2023, 20, 2304594. [Google Scholar] [CrossRef]
  37. Ge, N.Q.; Hu, X.M.; Pan, Z.P.; Cai, S.J.; Fu, F.Y.; Wang, Z.Q.; Yao, Y.M.; Liu, X.D. Sustainable Fabrication of Cellulose Aerogel Embedded with ZnO@noble metal (Ag, Au, Ag-Au) NPs for Sensitive and Reusable SERS Application. Colloids Surf. A 2023, 671, 131650. [Google Scholar] [CrossRef]
  38. Huang, M.H.; Li, Z.; Du, L.L.; Jin, Z.K.; Li, R.H. CuPd/MgO for Efficient Catalytic Hydrogen Production from Formaldehyde Solution at Room Temperature. Chin. J. Org. Chem. 2022, 38, 2452–2458. [Google Scholar]
  39. Velinova, R.; Naydenov, A.; Kichukova, D.; Tumbalev, V.; Atanasova, G.; Kovacheva, D.; Spassova, I. Highly Efficient RGO-Supported Pd Catalyst for Low Temperature Hydrocarbon Oxidation. Catalysts 2023, 13, 1224. [Google Scholar] [CrossRef]
  40. Guo, X.; Dong, H.; Li, B.; Dong, L.; Mu, X.; Chen, X. Influence of the Functional Groups of Multiwalled Carbon Nanotubes on Performance of Ru Catalysts in Sorbitol Hydrogenolysis to Glycols. J. Mol. Catal. A Chem. 2017, 426, 79–87. [Google Scholar] [CrossRef]
  41. Zhao, Z.P.; Wang, J.H.; Yu, X.; Li, H.J.; Han, L.T.; Wang, Z.Q.; Qiao, D.; Zhong, M.Q.; Chen, X.F. Preparation of Three-dimensional Mesoporous Carbon Electrode Materials as Electrocatalysts for Hydrogen Evolution Reaction. Int. J. Electrochem. Sci. 2021, 16, 21043. [Google Scholar] [CrossRef]
  42. Tang, C.; He, Z.; Liu, Y.; He, X.; Chen, G.; Xie, C.; Huang, J. AuPd Nanoporous Dendrites: High Electrocatalytic Activity and Surface Plasmon-enhanced Stability for Ethanol Electrooxidation. Chem. Eng. J. 2023, 453, 139962. [Google Scholar] [CrossRef]
  43. Meduri, K.; Stauffer, C.; O’Brien Johnson, G. Unique Structural Characteristics of Catalytic Palladium/gold Nanoparticles on Graphene. Microsc. Microanal. 2019, 25, 80–91. [Google Scholar] [CrossRef]
  44. Wang, H.Y.; Zhang, D.X.; Zhang, R.Y.; Ma, H.; Zhang, H.M.; Yao, R.J.; Liang, M.M.; Zhao, Y.Z.; Miao, Z.C. Dealloying Synthesis of Bimetallic (Au−Pd)/CeO2 Catalysts for CO Oxidation. ACS Omega 2023, 8, 11889–11896. [Google Scholar] [CrossRef]
  45. Guan, J.B.; Fang, Y.N.; Zhang, T.; Wang, L.; Zhu, H.; Du, M.L.; Zhang, M. Kelp-Derived Activated Porous Carbon for the Detection of Heavy Metal Ions via Square Wave Anodic Stripping Voltammetry. Electrocatalysis 2020, 11, 59–67. [Google Scholar] [CrossRef]
  46. Cheng, L.; Sun, S.; Chen, X.; Chen, F.; Chen, X.; Lu, W. Convenient Fabrication of Ultrafine VOx Decorated on Porous g-C3N4 for Boosting Photocatalytic Degradation of Pharmaceuticals with Peroxymonosulfate. Surf. Interfaces 2023, 42, 103300. [Google Scholar] [CrossRef]
  47. Zhang, X.F.; Lin, X.Y.; Huang, X.Y.; Chen, Y.Q.; Lin, S.; Huang, X.; Xie, Z.L. The Role Identification of Nitrogen Dopant in Nanocarboncatalysis. Carbon Future 2024, 1, 9200008. [Google Scholar]
  48. Ji, G.J.; Duan, Y.N.; Zhang, S.C.; Fei, B.H.; Chen, X.F.; Yang, Y. Selective Semihydrogenation of Alkynes Catalyzed by Pd Nanoparticles Immobilized on Heteroatom-doped Hierarchical Porous Carbon Derived from Bamboo Shoots. ChemSusChem 2017, 10, 3427–3434. [Google Scholar] [CrossRef] [PubMed]
  49. Fajín, J.L.C.; Cordeiro, M.N.D.S.; Gomes, J.R.B. Catalytic Reactions on Model Gold Surfaces: Effect of Surface Steps and of Surface Doping. Catalysts 2011, 1, 40–51. [Google Scholar] [CrossRef]
  50. Santiago-Portillo, A.; Navalón, S.; Cirujano, F.G.; Xamena, F.X.L.; Alvaro, M.; Garcia, H. MIL-101 as Reusable Solid Catalyst for Autoxidation of Benzylic Hydrocarbons in the Absence of Additional Oxidizing Reagents. ACS Catal. 2015, 5, 3216–3224. [Google Scholar] [CrossRef]
Catalysts 14 00158 sch001

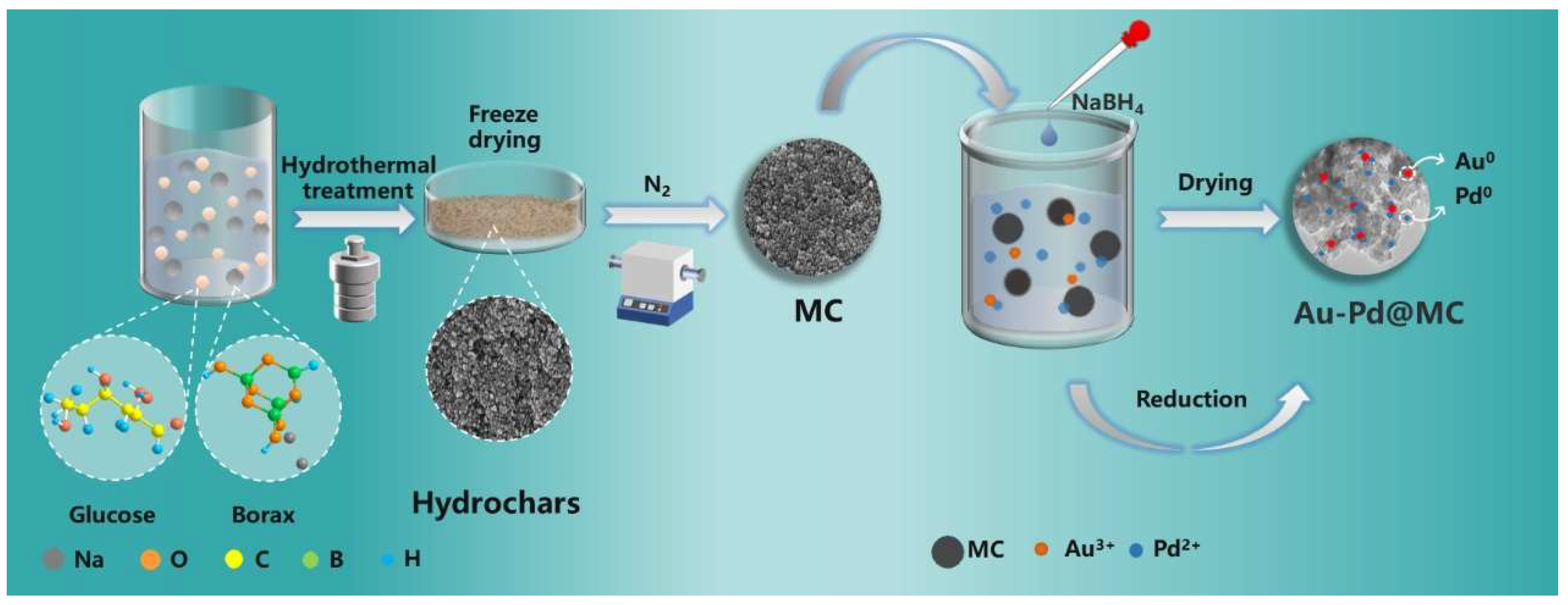

Scheme 1. Preparation procedure of the Au-Pd/MC catalyst.
Scheme 1. Preparation procedure of the Au-Pd/MC catalyst.
Catalysts 14 00158 sch001
Catalysts 14 00158 g001

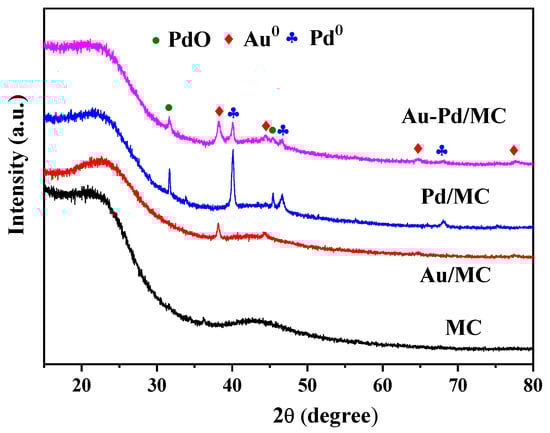

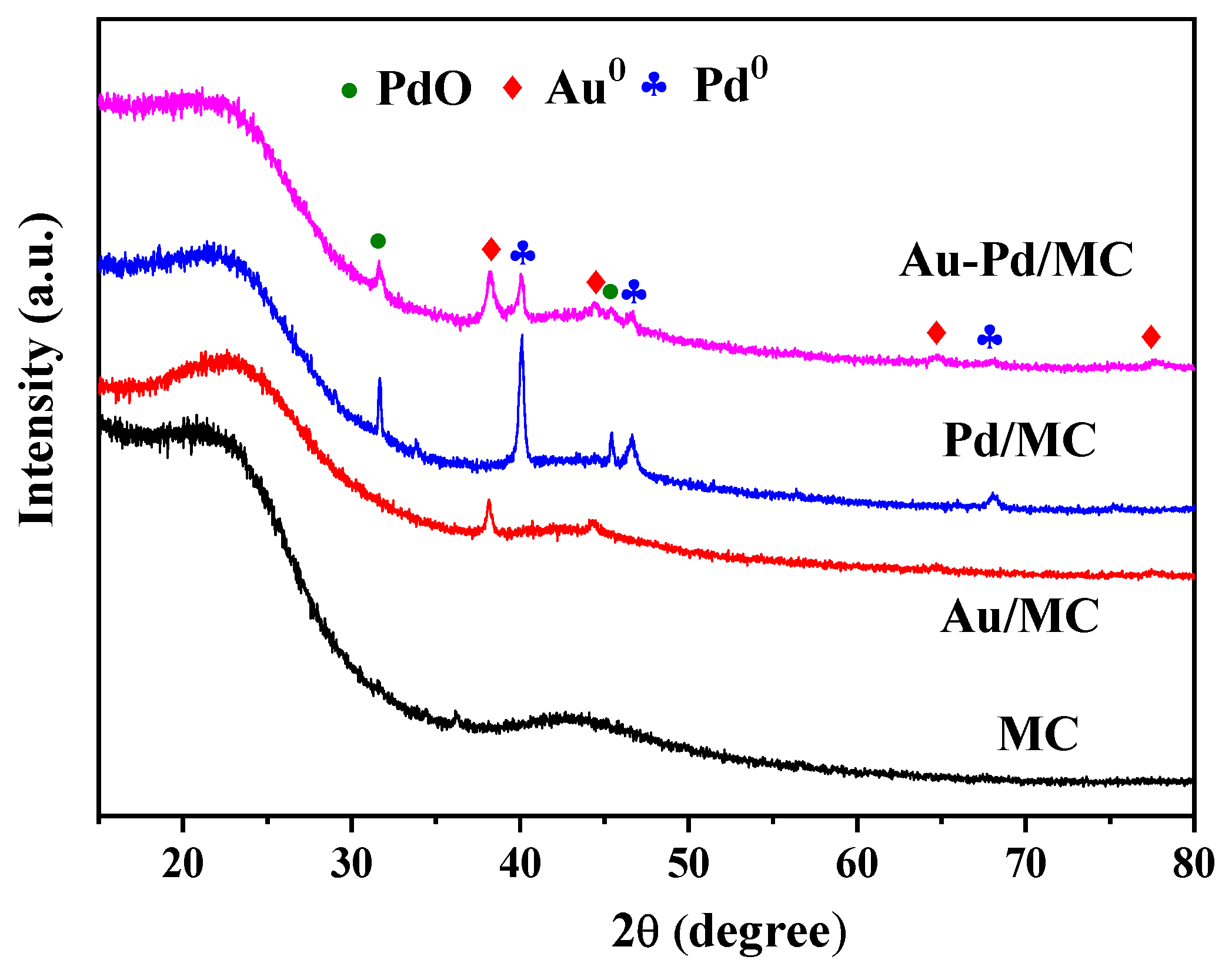

Figure 1. XRD patterns of various catalysts.
Figure 1. XRD patterns of various catalysts.
Catalysts 14 00158 g001
Catalysts 14 00158 g002

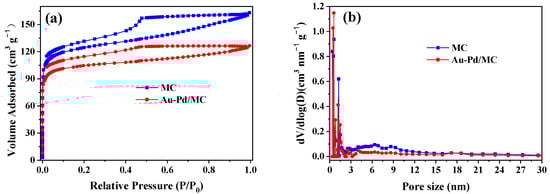

Figure 2. N2 sorption isotherms at 77 K (a) and pore size distributions (b) of MC and Au-Pd/MC.
Figure 2. N2 sorption isotherms at 77 K (a) and pore size distributions (b) of MC and Au-Pd/MC.
Catalysts 14 00158 g002
Catalysts 14 00158 g003
Figure 3. (a) SEM image of MC, TEM images (b) of MC and (c) Au-Pd(1:3)/MC, (d,e) HRTEM images of Au-Pd/MC, and (f–h) the corresponding mapping images of elemental Pd, Au and C.
Figure 3. (a) SEM image of MC, TEM images (b) of MC and (c) Au-Pd(1:3)/MC, (d,e) HRTEM images of Au-Pd/MC, and (f–h) the corresponding mapping images of elemental Pd, Au and C.
Catalysts 14 00158 g003
Catalysts 14 00158 g004

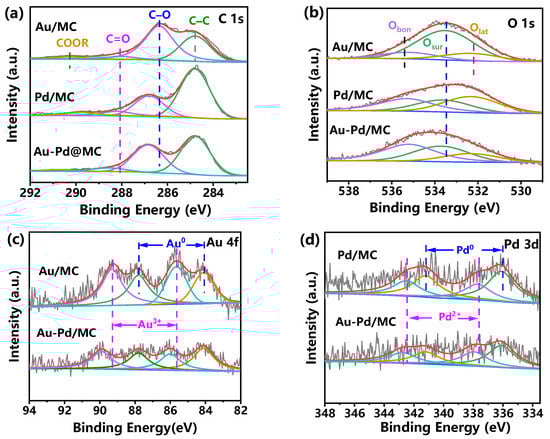

Figure 4. XPS spectra of (a) C 1s, (b) O 1s, (c) Au 4f, and (d) Pd 3d for various catalysts.
Figure 4. XPS spectra of (a) C 1s, (b) O 1s, (c) Au 4f, and (d) Pd 3d for various catalysts.
Catalysts 14 00158 g004
Catalysts 14 00158 g005

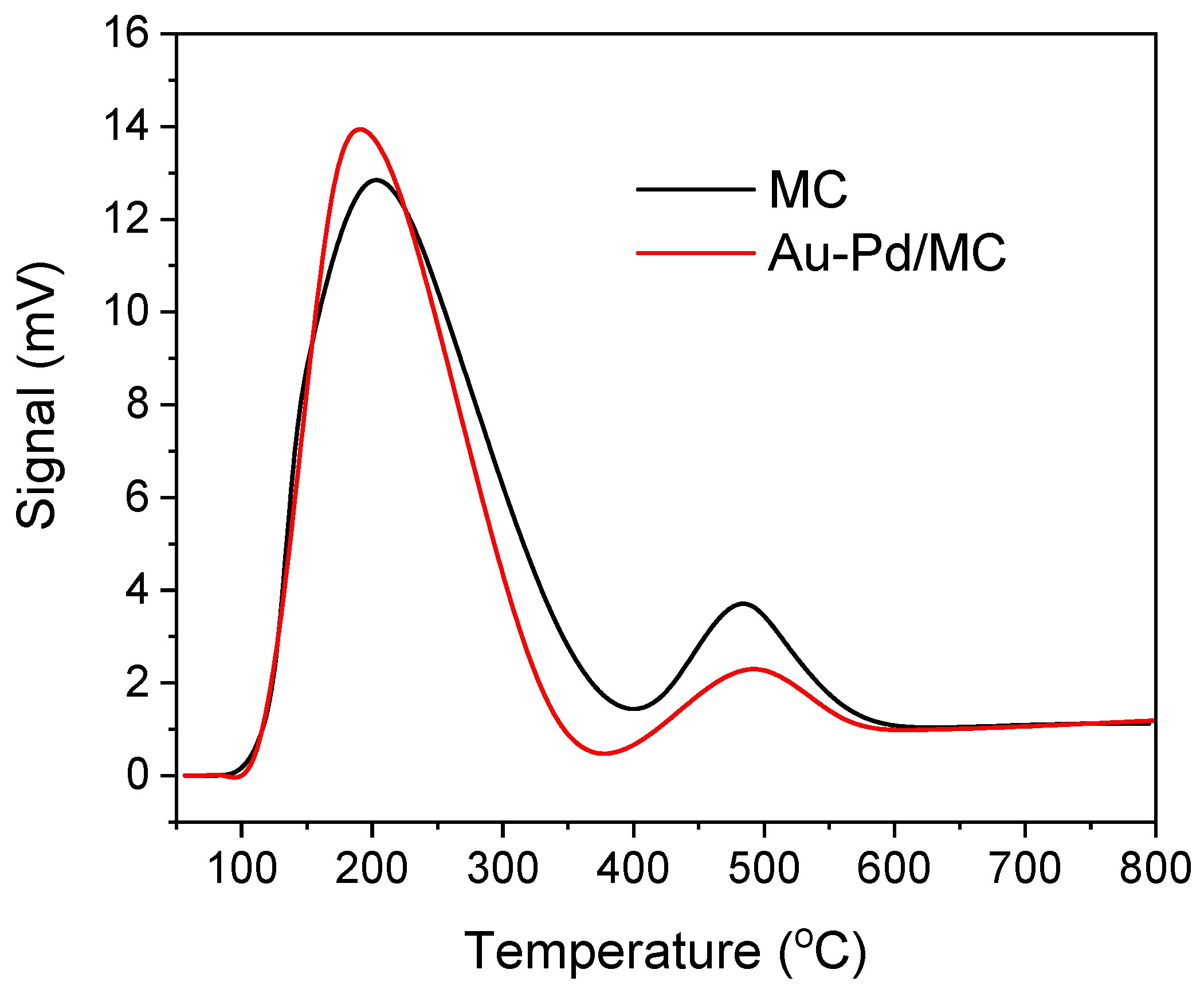

Figure 5. NH3-TPD profiles of MC and Au-Pd/MC.
Figure 5. NH3-TPD profiles of MC and Au-Pd/MC.
Catalysts 14 00158 g005
Catalysts 14 00158 g006

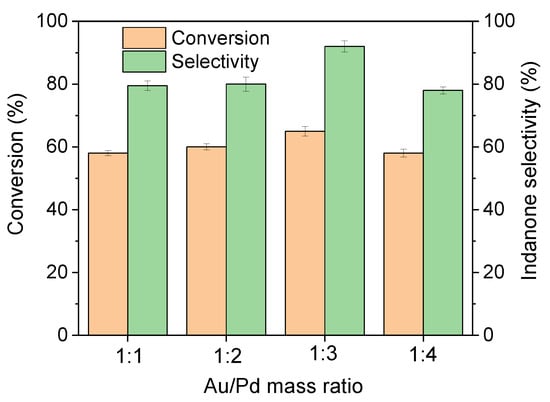

Figure 6. The catalytic activities of Au-Pd/MC samples with different Au/Pd mass ratios. Reaction conditions: 4 mL indane, 20 mg catalyst, 1 bar O2, 120 °C, 8 h.
Figure 6. The catalytic activities of Au-Pd/MC samples with different Au/Pd mass ratios. Reaction conditions: 4 mL indane, 20 mg catalyst, 1 bar O2, 120 °C, 8 h.
Catalysts 14 00158 g006
Catalysts 14 00158 g007

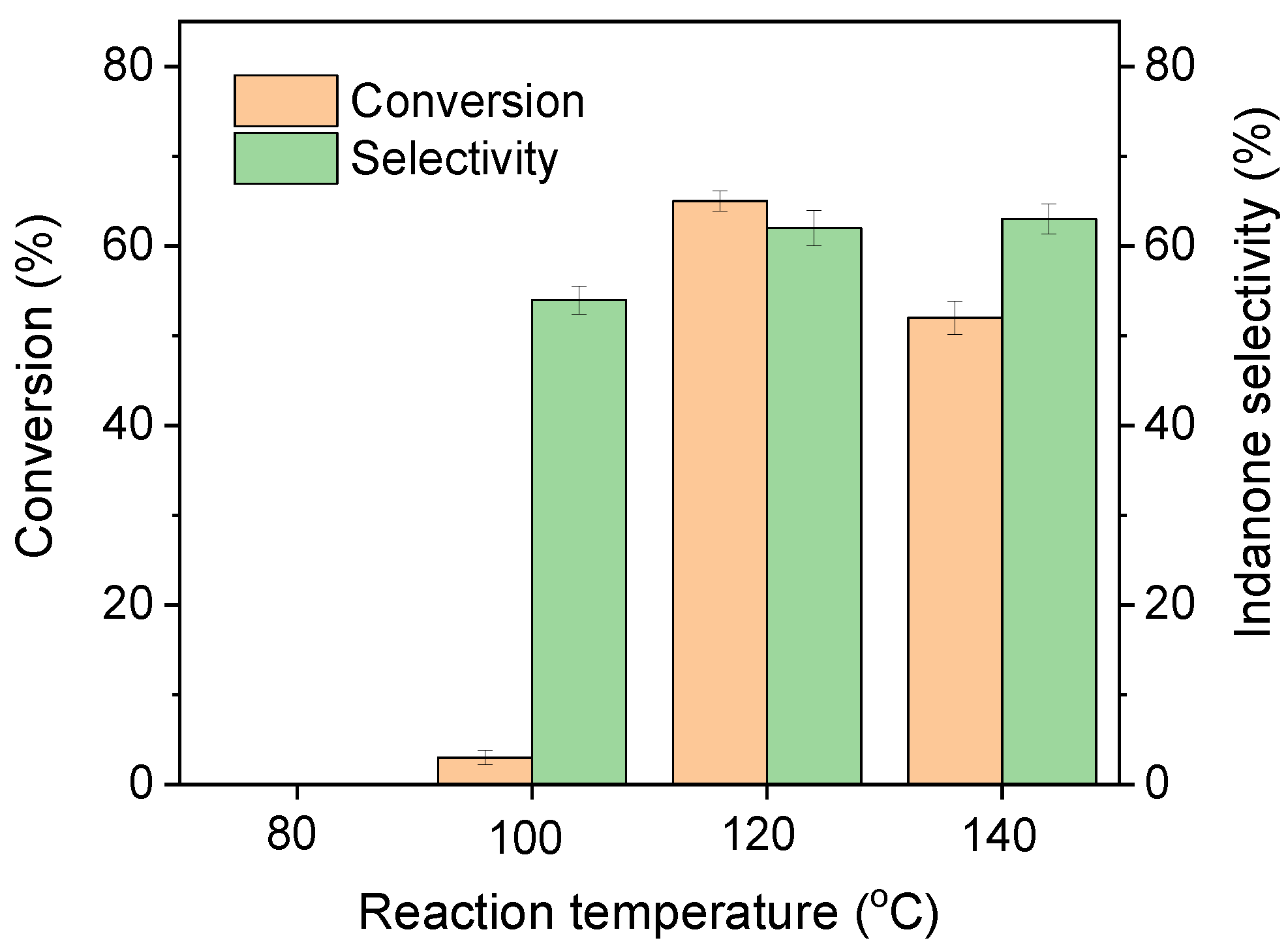

Figure 7. The catalytic activities of Au-Pd/MC samples at different reaction temperatures. Reaction conditions: 4 mL indane, 20 mg catalyst, 1 bar O2, 4 h.
Figure 7. The catalytic activities of Au-Pd/MC samples at different reaction temperatures. Reaction conditions: 4 mL indane, 20 mg catalyst, 1 bar O2, 4 h.
Catalysts 14 00158 g007
Catalysts 14 00158 g008

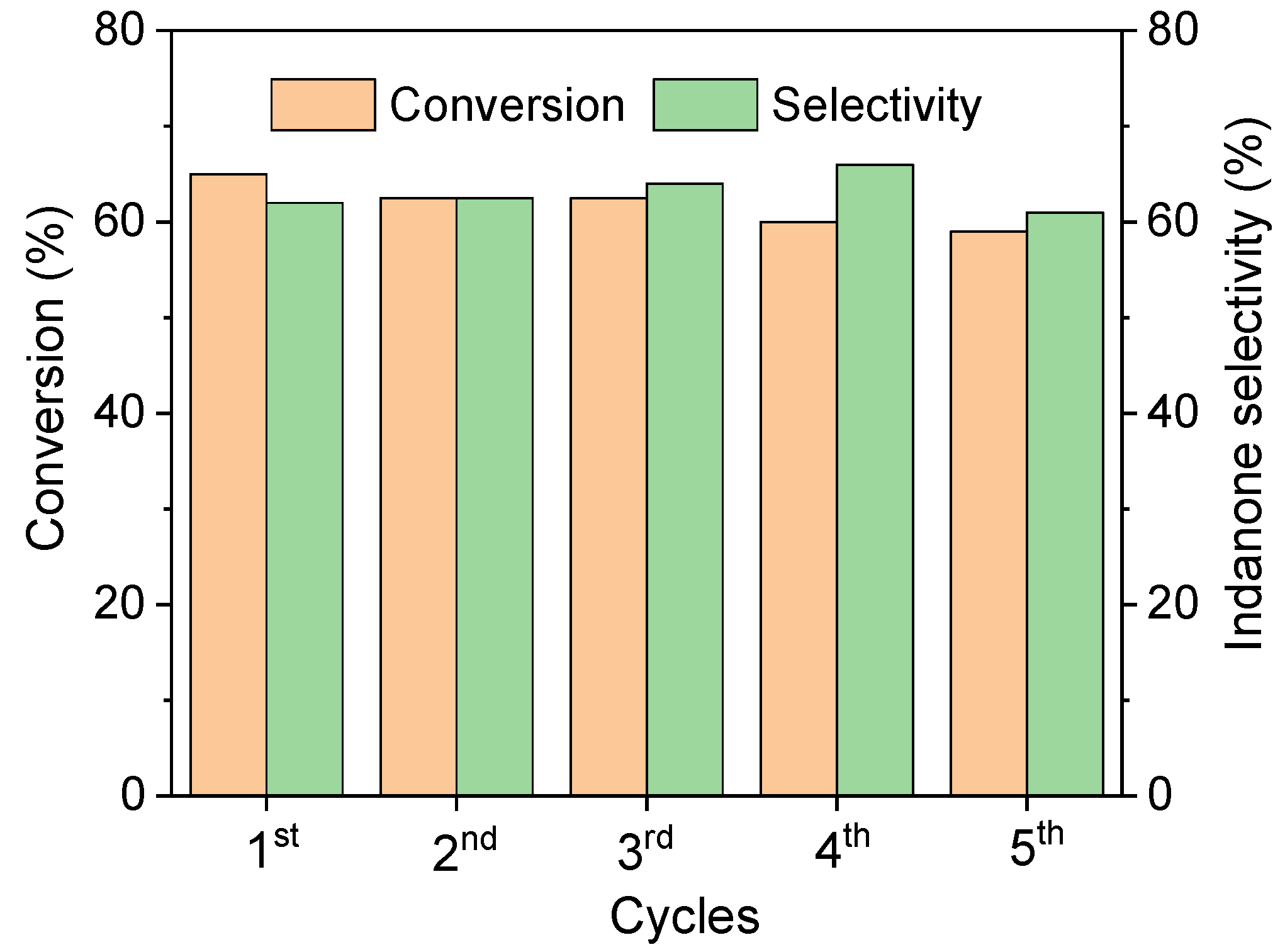

Figure 8. Reuses of the Au-Pd/MC catalyst in the solvent-free oxidation of indane. Reaction conditions: 4 mL indane, 20 mg catalyst, 1 bar O2, 120 °C, 4 h.
Figure 8. Reuses of the Au-Pd/MC catalyst in the solvent-free oxidation of indane. Reaction conditions: 4 mL indane, 20 mg catalyst, 1 bar O2, 120 °C, 4 h.
Catalysts 14 00158 g008
Catalysts 14 00158 sch002

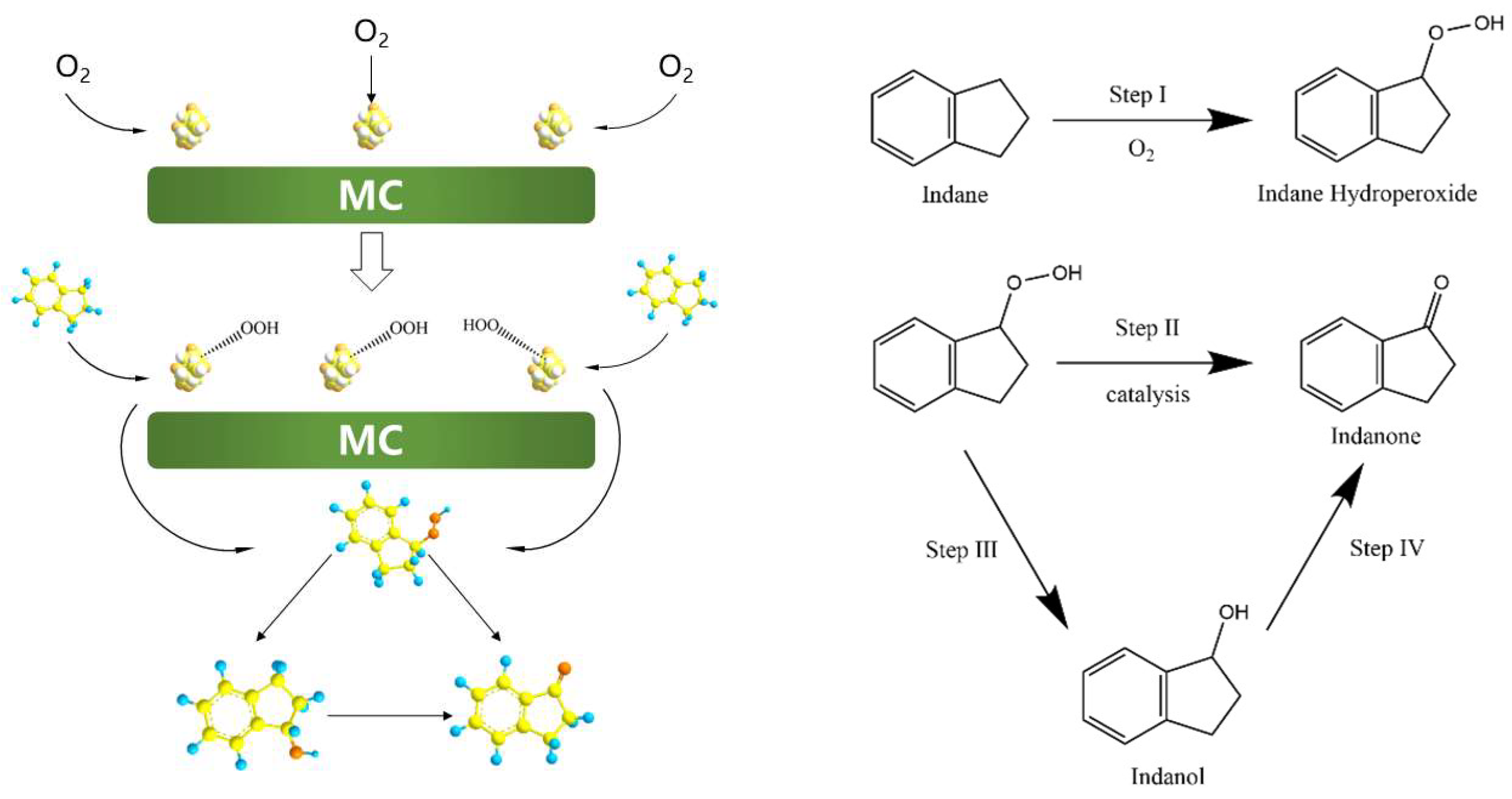

Scheme 2. Proposed mechanism for the aerobic oxidation of indane in a solvent-free system using the Au-Pd/MC catalyst.
Scheme 2. Proposed mechanism for the aerobic oxidation of indane in a solvent-free system using the Au-Pd/MC catalyst.
Catalysts 14 00158 sch002
Table 1. Porous properties of representative catalysts.
Table 1. Porous properties of representative catalysts.
SamplesSBET
(m2 g−1)		Vtotal
(cm3 g−1)		Vmicro
(cm3 g−1)		Vmeso
(cm3 g−1)
MC4850.250.160.07
1%Au/MC4150.200.140.04
1%Pd/MC4130.180.150.05
1%Au-Pd/MC4190.190.150.04
Table 2. Oxidation of indane catalyzed by various catalysts with O2.
Table 2. Oxidation of indane catalyzed by various catalysts with O2.
EntryCatalystt (h)T (℃)Conversion (%)Selectivity (%)
Catalysts 14 00158 i001Catalysts 14 00158 i002
1without catalyst41000--
2MC41000--
31%Pd/MC41001.56040
41%Au/MC41001.95545
5Au-Pd(1:3)/MC410034654
61%Pd/MC4120304654
71%Au/MC4120554258
81%Au/MC8120605941
91%Au/MC12120647228
105%Pd/C4120285644
11Au-Pd(1:3)/MC4120653862
12Au-Pd(1:3)/MC812071 892
13Au-Pd(1:3)/MC2412076 0>99
Reaction conditions: 4 mL indane, 20 mg catalyst, 1 bar O2.
Table 3. Solvent-free oxidation of benzylic compounds catalyzed by Au-Pd/MC with 1 bar O2.
Table 3. Solvent-free oxidation of benzylic compounds catalyzed by Au-Pd/MC with 1 bar O2.
EntrySubstratet (h)Conversion (%)Product Selectivity (%)
1Catalysts 14 00158 i003411Catalysts 14 00158 i004 77Catalysts 14 00158 i005 23
2Catalysts 14 00158 i006852Catalysts 14 00158 i007 72Catalysts 14 00158 i008 27
3Catalysts 14 00158 i009812Catalysts 14 00158 i010 >99
Reaction conditions: 4 mL substrate, 20 mg catalyst, 1 bar O2, 120 °C.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Sun, S.; Peng, X.; Guo, X.; Chen, X.; Liu, D. Boosting Solvent-Free Aerobic Oxidation of Benzylic Compounds into Ketones over Au-Pd Nanoparticles Supported by Porous Carbon. Catalysts 2024, 14, 158. https://doi.org/10.3390/catal14030158

AMA Style

Sun S, Peng X, Guo X, Chen X, Liu D. Boosting Solvent-Free Aerobic Oxidation of Benzylic Compounds into Ketones over Au-Pd Nanoparticles Supported by Porous Carbon. Catalysts. 2024; 14(3):158. https://doi.org/10.3390/catal14030158

Chicago/Turabian Style

Sun, Shanshan, Xiaoyu Peng, Xingcui Guo, Xiufang Chen, and Di Liu. 2024. "Boosting Solvent-Free Aerobic Oxidation of Benzylic Compounds into Ketones over Au-Pd Nanoparticles Supported by Porous Carbon" Catalysts 14, no. 3: 158. https://doi.org/10.3390/catal14030158

APA Style

Sun, S., Peng, X., Guo, X., Chen, X., & Liu, D. (2024). Boosting Solvent-Free Aerobic Oxidation of Benzylic Compounds into Ketones over Au-Pd Nanoparticles Supported by Porous Carbon. Catalysts, 14(3), 158. https://doi.org/10.3390/catal14030158

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
