Enhancement of Hydrogen Storage Behavior of Complex Hydrides via Bimetallic Nanocatalysts Doping

by
Sesha S. Srinivasan
* and
Prakash C. Sharma
Department of Physics, Tuskegee University, Tuskegee, AL 36088, USA
*
Author to whom correspondence should be addressed.
Catalysts 2012, 2(4), 434-446; https://doi.org/10.3390/catal2040434
Submission received: 3 July 2012 / Revised: 28 August 2012 / Accepted: 28 September 2012 / Published: 17 October 2012
(This article belongs to the Special Issue Bimetallic Catalysts—Application in Hydrogen Storage)
Browse Figures
Versions Notes

Abstract

:
Pristine complex quaternary hydride (LiBH4/2LiNH2) and its destabilized counterpart (LiBH4/2LiNH2/nanoMgH2) have recently shown promising reversible hydrogen storage capacity under moderate operating conditions. The destabilization of complex hydride via nanocrystalline MgH2 apparently lowers the thermodynamic heat values and thus enhances the reversible hydrogen storage behavior at moderate temperatures. However, the kinetics of these materials is rather low and needs to be improved for on-board vehicular applications. Nanocatalyst additives such as nano Ni, nano Fe, nano Co, nano Mn and nano Cu at low concentrations on the complex hydride host structures have demonstrated a reduction in the decomposition temperature and overall increase in the hydrogen desorption reaction rates. Bi-metallic nanocatalysts such as the combination of nano Fe and nano Ni have shown further pronounced kinetics enhancement in comparison to their individual counterparts. Additionally, the vital advantage of using bi-metallic nanocatalysts is to enable the synergistic effects and characteristics of the two transitional nanometal species on the host hydride matrix for the optimized hydrogen storage behavior.

1. Introduction

Complex hydrides composed of elements with less than an average molecular weight of 51.8 g/mol (Cr) provide a sufficient enough gravimetric hydrogen density to meet or exceed the Department of Energy (DOE) targets for a practical hydrogen storage system. Group I, II and III light metals, such as Li, K, Be, Na, Mg, B, Ca and Al are considered to be excellent candidates and they form a large variety of metal hydrogen complexes [1,2,3,4,5]. The most common of these metal hydrogen complexes consists of alanates (AlH4−), borohydride (BH4−), amide (NH2−) ions which are accompanied by cations such as Li+ or Na+. The hydrogen is generally stored in the corners of a tetrahedron within these systems.
Most alanates are extremely stable and often decompose in two- or three- step reactions, limiting the amount of hydrogen that can be released, since often a higher temperature is required for the release of hydrogen from the second step. Borohydrides are also extremely stable and therefore often require high temperatures for hydrogen release, but do so in one-step reactions, thereby eliminating the need for extremely high temperatures also increase the kinetics of hydrogen release.
Lithium borohydride (LiBH4) and lithium amide (LiNH2) were chosen as the two primary hydride materials for the preparation of novel complex quaternary hydride (LiBH4/2LiNH2) because of their high gravimetric hydrogen densities. LiBH4 has been studied extensively for its chemical properties as well as its hydrogen storage characteristics. It has been demonstrated that LiBH4 possesses an orthorhombic crystal structure [6]. The gravimetric hydrogen density of LiBH4 is 18.5 wt.%, significantly more than the material requirements set forth by the US DOE and FreedomCAR. While hydrogen is generally not released until above 470 °C [7], it was found that additives can reduce the hydrogen release temperature to as low as 200 °C, as is the case for SiO2 [8], butthe kinetics of the reaction is very slow, making this material impractical for hydrogen storage use in automobiles.
As early as 1910, it was found that Li3N reacts with hydrogen to form LiNH2 [9], though LiH is also formed as a by-product. LiNH2 has a theoretical hydrogen capacity of 8.1 wt.% and releases hydrogen after melting at a temperature of 380 °C. While the temperature is too high for hydrogen release, there has been significant improvement in the hydrogen storage behavior of LiNH2 by using either catalysts to reduce the hydrogen release temperature or by destabilizing LiNH2 with other compounds such as MgH2. Additionally, the release of ammonia (NH3) poses a large problem since NH3 can poison the fuel cells. However, the formation of ammonia can be suppressed through the addition of either catalysts or by destabilizing LiNH2 with other compounds. It was shown, for example, that the addition of LiH to LiNH2 can suppress any ammonia formation due to the LiH reacting with NH3, which is a very fast reaction [10]. Furthermore, the temperature of hydrogen release of LiNH2 has been reduced to approximately 150–250 °C through the addition of TiCl3 [11]. Many researchers have been reported complex hydrides for hydrogen storage, the most important and recent of which are summarized elsewhere [8,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37].
While it appears that there are several materials that would meet the DOE guidelines, the amidoborane compounds [33], such as LiNH2BH3 or NaNH2BH3 are non-reversible, thereby making the systems impractical for mobile use. On the other hand, Mg(NH2)2 + 2MgH2 was found to release 7.6 wt.% around room temperature during ball milling [15], but exhibited such a low enthalpy that a high pressure would be required to rehydrogenate the material, thereby also making the material impractical for use as a reversible hydrogen storage system. A promising system for hydrogen storage has been magnesium amide (Mg(NH2)2) with a capacity of between 5.6 wt.% and 9.2 wt.% [21,24,36], though all of these systems require temperatures of close to 200 °C with a reduction in capacity directly proportional to the reduction in temperature.
By combining the advantages of some of these systems, namely the borohydride family of materials with the magnesium amide systems, it is thought that a combinatorial effect can be achieved with a reduction in hydrogen sorption temperature, reversibility, as well as a high hydrogen capacity. The overall goal of the investigation of complex hydrides for hydrogen storage is to reduce the hydrogen release temperature, which can be accomplished by either reducing the particle size, as is the case for MgH2, or by destabilizing the material through the addition of catalysts or other additives. Ball milling is the chosen processing technique, as this combines both chemical and mechanical synthesis of the material. By ball milling, a homogeneous mixture with reduced particle size can be achieved. The parent compounds are combined in the ball mill container and through milling at high speeds, the materials grind each other down to smaller particle size and produce a homogeneous mixture, possibly with a new chemical composition.
Magnesium hydride, MgH2, has a theoretical hydrogen capacity of 7.6 wt.%, an ideal value for practical hydrogen storage applications. However, a temperature of 350 to 400 °C is required to release hydrogen from this material. Additionally, the kinetics of release and uptake of hydrogen are too slow for practical use [38]. It was found that hydrogen pressure change on MgH2 is the driving force for hydrogen absorption [39]. This means that a higher pressure leads to a higher rate of absorption of hydrogen by pure magnesium. However, a limiting factor in the rate of hydrogen, as well as the final capacity of hydrogen absorbed, is the formation of a surface shell of magnesium hydride, essentially a diffusion barrier layer which prevents any further hydrogen uptake. This is found to be the case especially for pressures above 30 bars, where the rate of hydrogen uptake is found to be a maximum [39]. The hydrogen absorption kinetics was found to be controlled by diffusion of hydrogen atoms [40], especially the diffusion of hydrogen in the hydride-metal interface. If the hydride layer exceeds 30 to 50 μm, hydrogen diffusion, and therefore uptake, is found to decrease due to the coalescence of the hydride nuclei on the magnesium surface which forms a compact hydride layer [41].
In order to prevent this passivation layer, which not only slows the uptake of hydrogen, but also prevents full hydrogenation of the magnesium, the particle size of MgH2 can be reduced so as to prevent the formation of this hydride layer. If the particles are smaller than 30 μm, the hydrogen diffusion should therefore be able to continue, allowing for more rapid and full hydrogen uptake of magnesium. As already mentioned, the use of ball milling allows for the reduction of particle sizes. Hence, we have investigated the correlation between particle size reduction and thermal properties of MgH2 that resulted from this purely physical aspect of mechano-chemical synthesis. In order to keep the MgH2 hydrogenated, the sample was purged using ultra high purity hydrogen gas for at least 15 min in between every 2 h of milling process.
Solid state synthesis pertaining to the destabilization of LiBH4 and LiBH4/LiNH2 [42] with MgH2 has been found to enhance the reversible hydrogen storage characteristics. The multinary complex hydride LiBH4/2LiNH2/MgH2 (Li-Mg-B-N-H) possesses a theoretical hydrogen capacity of approximately 8 to 10 wt.%. However, it has been reported that only about 3 wt.% of hydrogen was reversibly released between 160–200 °C [43,44]. It was reported that the MgH2 acts as a catalyst and assists in self-catalyzing the material to release hydrogen with three main reactions:
~ 175 °C: 2Li4BN3H10 + 3MgH2→3Li2Mg(NH)2 + 2LiBH4 + 6H2
~ 200 °C: Mg(NH2)2 + 2LiH→Li2Mg(NH)2 + 2H2
~ 300 °C: 3Li2Mg(NH)2 + 2LiBH4→2Li3BN2 + Mg3N2 + 2LiH + 6H2
Keeping these aspects in view, the current study aims to combine several materials, such as 3d transition elements/compounds as efficient catalysts and alkali/alkaline hydrides as destabilizers. The activation energy for hydrogen release or absorption can be altered and thus enhance the hydrogenation and dehydrogenation behavior of the multinary complex hydrides at low temperatures. When a material is destabilized, it can react with the additive during dehydrogenation to form a new compound, one that requires a lower energy. In this paper, various nano additives such as nano Ni, nano Fe, nano Co, nano Mn and nano Cu are investigated for the hydrogen sorption characteristics of multinary complex hydride LiBH4/2LiNH2/nanoMgH2 (LinMgBNH) system.

2. Results and Discussion

2.1. Structural and Chemical Characteristics of Multinary Complex Hydride LiBH4/2LiNH2/Nano MgH2 (XRD and FTIR Explorations)

Figure 1 shows the XRD pattern of the parent complex metal hydrides such as LiBH4, LiNH2 and MgH2, nano MgH2; the as-synthesized quaternary (LiBNH) and multinary (LinMgBNH) systems. The peak around 21° is from the Parafilm® used to protect the samples during XRD measurements. Neither LiBH4 nor LiNH2 peaks are observed in the as-prepared LiBNH and LinMgBNH complex hydrides. This confirms that these two materials are fully consumed during the milling process and actually form a new quaternary structure, referred to as LiBNH. The quaternary structure has been reported to be Li4BN3H10 [26]. When the nano sized MgH2 is added to the quaternary LiBNH, the MgH2 peaks are barely picked up by the XRD. This indicates that the small size of the MgH2 causes the material to intermix and fill voids of the quaternary structure, which results in a nanocrystalline particle distribution, while still preserving the quaternary structure formed by the LiNH2 and LiBH4. The as-synthesized multinary complex hydride is a physical rather than a chemical mixture of the quaternary structure LiBNH with nano MgH2.
The as-prepared quaternary (LiBNH) and multinary (LinMgBNH) complex hydrides have been characterized using FTIR to obtain information about the B-H and N-H stretches. The data clearly shows (see Figure 2) that the amide (NH2-), and borohydride (BH4-), anions remain intact, as observed previously for the quaternary LiBNH samples [45]. The peaks of the symmetric and asymmetric amide anions are shifted from the expected 3312 and 3259 cm−1 to 3302 and 3244 cm−1, respectively. Furthermore, the peak around 1560 cm−1 is characteristic of the amide ion (see Figure 2).
Catalysts 02 00434 g001 1024

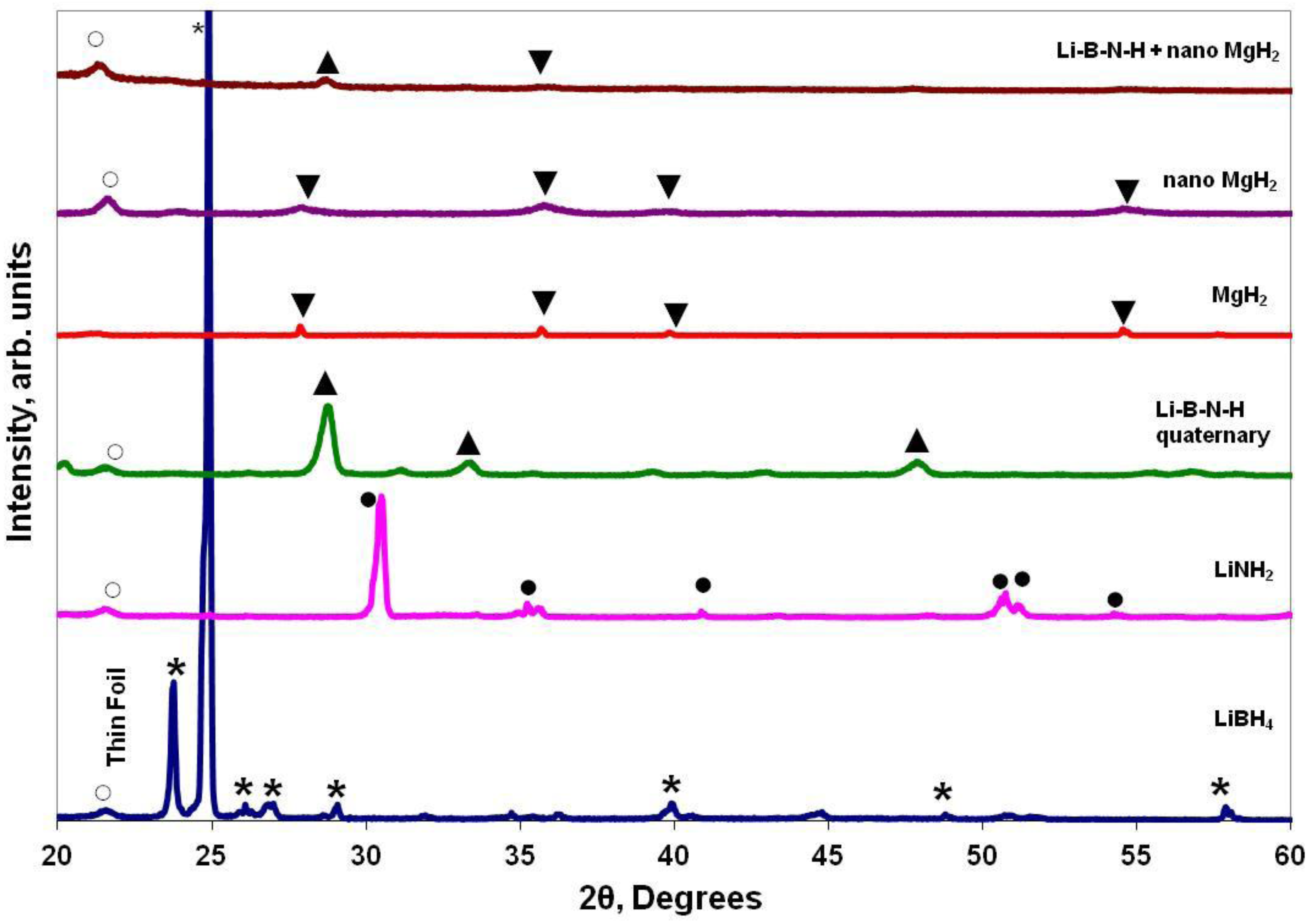

Figure 1. XRD Profiles of the plain LiBH4, plain LiNH2, LiBH4/2LiNH2 quaternary, commercial MgH2, nanoMgH2 and LiBH4/2LiNH2/nanoMgH2 multinary complex hydride.
Figure 1. XRD Profiles of the plain LiBH4, plain LiNH2, LiBH4/2LiNH2 quaternary, commercial MgH2, nanoMgH2 and LiBH4/2LiNH2/nanoMgH2 multinary complex hydride.
Catalysts 02 00434 g001
Catalysts 02 00434 g002 1024
Figure 2. FTIR spectra of the plain LiBH4, plain LiNH2, LiBH4/2LiNH2 quaternary and LiBH4/2LiNH2/nanoMgH2 multinary complex hydride.
Figure 2. FTIR spectra of the plain LiBH4, plain LiNH2, LiBH4/2LiNH2 quaternary and LiBH4/2LiNH2/nanoMgH2 multinary complex hydride.
Catalysts 02 00434 g002
The B-H stretches, usually found at 2225, 2237, 2293, and 2387 cm−1, overlap in the samples to form one large B-H stretch with a peak around 2320 cm-1. Finally, the BH2 deformation peaks found at 1120 and 1092 cm−1 in LiBH4 are observed at 1120 and 1082 cm−1, respectively, though the peak around 1120 cm−1 is extremely weak. However, there is no observable shift in any of the main stretches indicating that the chemical composition of the quaternary hydride is kept intact, and there is, in fact, no formation of a new compound other than the previously reported structure [45]. There is no evidence in the FTIR data indicating the reaction of MgH2 with either the amide or borohydride, further confirming the XRD data shown in Figure 1.

2.2. Thermal Desorption Characteristics of Undoped and Bimetallic Catalysts Doped Multinary Complex Hydrides (LiBnMgNH)

Thermal Programmed Desorption (TPD) was used to obtain information about changes in the parent material’s hydrogen characteristics. Specifically, the temperature of hydrogen release, as well as some general information about the kinetics of hydrogen release can be ascertained from this type of measurement. The peak temperature indicates the optimal hydrogen release temperature, whereas the width of the peak can be used to get insight into the rate at which hydrogen is released, at least qualitatively. A wide peak indicates a low rate of hydrogen release, whereas a narrow and sharp peak indicates rapid hydrogen release. As can be seen from Figure 3, it is clear that all of the additives allow for a lower hydrogen release temperature. It is clearly discernible that the as-synthesized multinary complex hydride, LiBNH + nMgH2, exhibits a three-step hydrogen release. While the TPD measurements are used for quick-screening the effect of the additives on the hydrogen performance of the material, it can be seen that each additive material either affects the rate of hydrogen release, as depicted by a sharp and narrow peak (especially nano iron), or significantly lowers the temperature required for hydrogen release.
Since the TPD measurements only give an indication of the hydrogen sorption results, ramping kinetic measurements, where approximately 0.1 g of sample are loaded into the Pressure-Composition-Temperature (PCT) and then ramped at a rate of 1 °C/min, are performed on all samples. Figure 4 shows the more detailed hydrogen performance of the standard sample, LiBNH + nMgH2 without any additives, as well as with 2 mol% of the previously mentioned additives. It becomes clear that while nano cobalt seems promising from the TPD data, it, in fact has such slow kinetics that nano cobalt is no longer of interest as an additive. The kinetics measurements confirms the TPD data in that nano manganese and nano iron have the fastest kinetics, as indicated by the slope of the desorption curves. Furthermore, the significant reduction in hydrogen release temperature of nano nickel is confirmed. It is also noteworthy to mention from Figure 4 that a faster desorption kinetics at lowest temperature was obtained for the multinary complex hydride (LinMgBNH) simultaneously doped with 2 mol% of both nanoFe and nanoNi. This may be due to the synergistic nature and characteristics of both the 3d transition metal nanocatalysts such as nano iron and nano nickel on the complex hydride system.
Figure 5 shows a comparison of the hydrogen release rate and hydrogen release temperature of the complex multinary hydride LiBNH + nMgH2 without and with 2 mol% of nano-sized additives. Since the nano-sized nickel showed the lowest hydrogen release temperature of just under 200 °C and nano-sized iron showed the highest release rate (0.2 wt.%/min) at a comparatively low temperature of 245 °C, these two additives were chosen to be optimized in terms of their concentration.
Catalysts 02 00434 g003 1024
Figure 3. TPD profiles comparison of LiBNH + nMgH2 without additive and with 2 mol% nano catalysts such as Ni, Cu, Mn, Co and Fe at a constant ramping rate of 1 °C/min.
Figure 3. TPD profiles comparison of LiBNH + nMgH2 without additive and with 2 mol% nano catalysts such as Ni, Cu, Mn, Co and Fe at a constant ramping rate of 1 °C/min.
Catalysts 02 00434 g003
Catalysts 02 00434 g004 1024

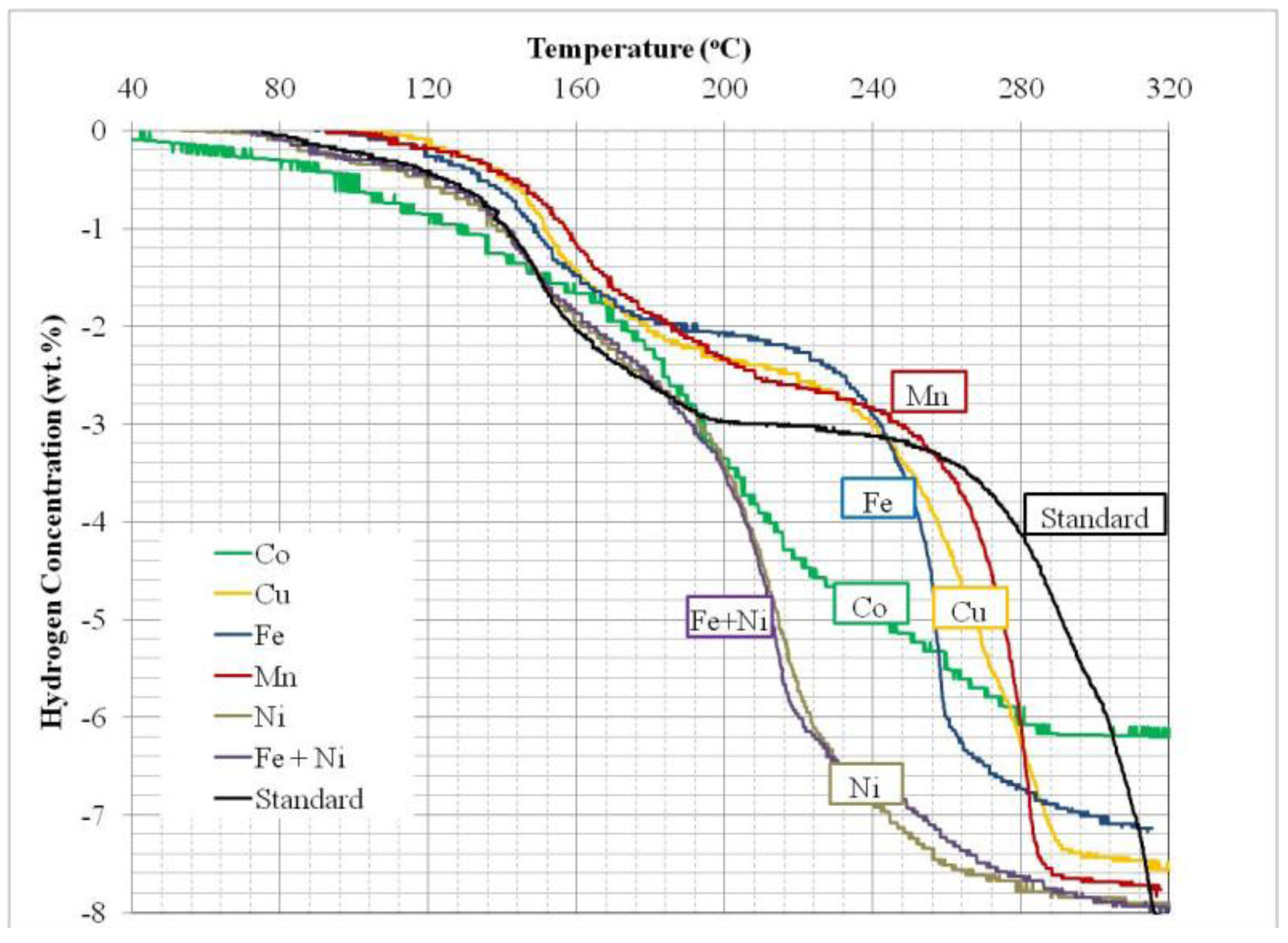

Figure 4. Ramping kinetic measurements of LiBNH + nMgH2 without and with 2 mol% nano catalysts such as Mn, Fe, Co, Cu, Ni and Fe + Ni.
Figure 4. Ramping kinetic measurements of LiBNH + nMgH2 without and with 2 mol% nano catalysts such as Mn, Fe, Co, Cu, Ni and Fe + Ni.
Catalysts 02 00434 g004
TPD measurements are used to obtain information about the effect of various concentrations of nano nickel and nano iron, but these are not shown here, as the optimum concentration of these additives was investigated for their hydrogen sorption properties. The effect of 2, 4, and 10 mol% of nano nickel on the complex hydride material (LinMgBNH) can be seen in Figure 6. While 2 mol% reduces the hydrogen release temperature as previously mentioned, any further amount of nickel does not further lower this temperature, but instead leads to much slower kinetics of hydrogen release, as is evident by the hydrogen desorption of the standard sample with 10 mol% nanoNi.
Catalysts 02 00434 g005 1024
Figure 5. Comparison of hydrogen release temperature and hydrogen release rate of the standard LiBNH + nMgH2 without and with 2 mol% of various nano additives.
Figure 5. Comparison of hydrogen release temperature and hydrogen release rate of the standard LiBNH + nMgH2 without and with 2 mol% of various nano additives.
Catalysts 02 00434 g005
Catalysts 02 00434 g006 1024

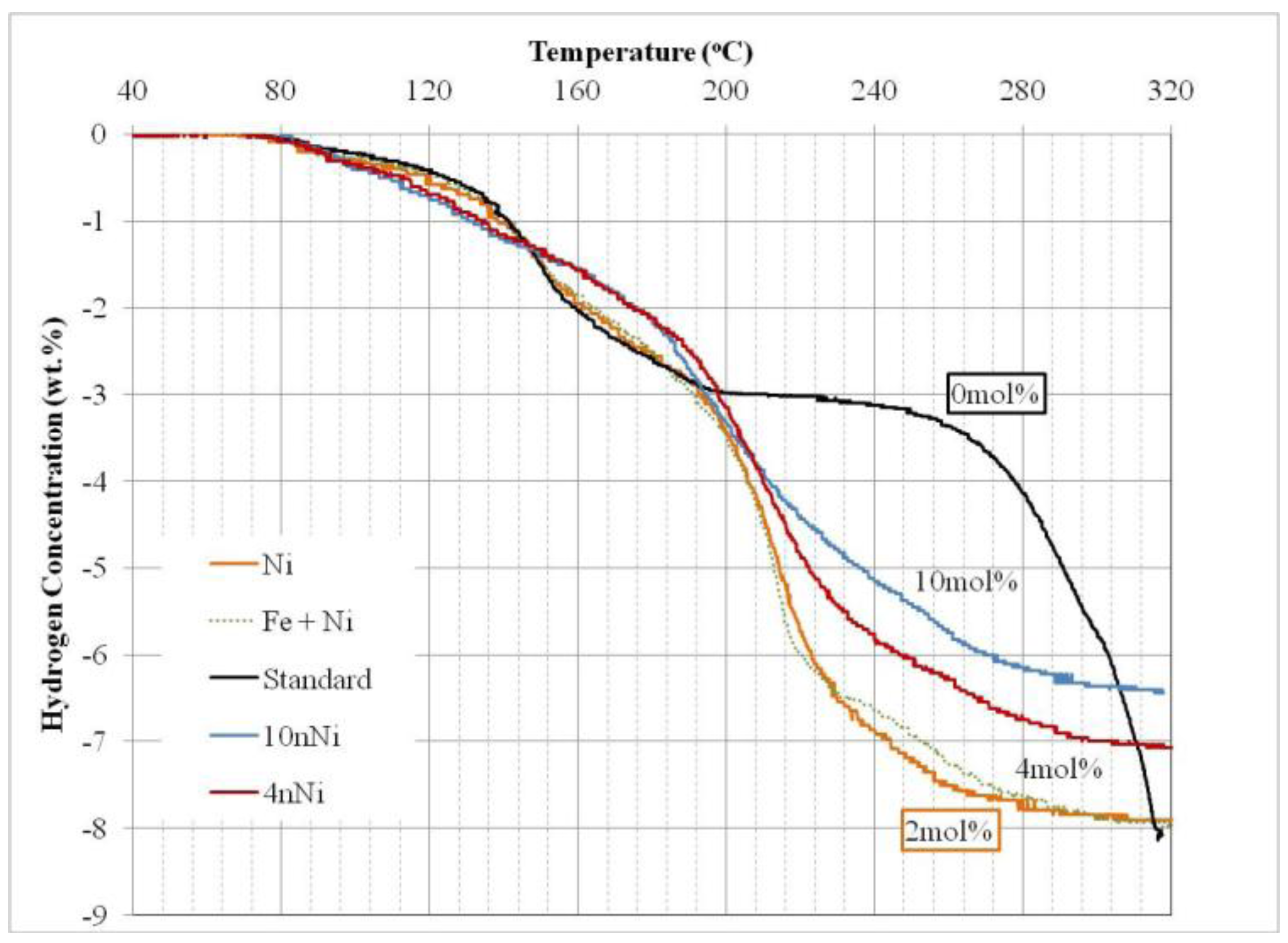

Figure 6. Ramping desorption kinetics of LiBNH + nMgH2 without and with 2 mol%, 4 mol% and 10 mol% nano nickel.
Figure 6. Ramping desorption kinetics of LiBNH + nMgH2 without and with 2 mol%, 4 mol% and 10 mol% nano nickel.
Catalysts 02 00434 g006
Nano sized iron, on the other hand, maintains its kinetic advantage, but the hydrogen release temperature is further reduced with increasing iron amounts, as seen in Figure 7. A capacity of 6 wt.% of hydrogen can be achieved with 0.2 wt.%/min at a temperature of around 200 °C for 10 mol% nano iron, as compared to 6 wt.% at 300 °C at a rate of 0.08 wt.%/min without any additive. This is a significant improvement and is most likely due the interaction of iron with magnesium which allows for a rapid hydrogen release at lower temperatures as the iron bonds with the magnesium, thereby forming a magnesium-iron alloy.
Catalysts 02 00434 g007 1024

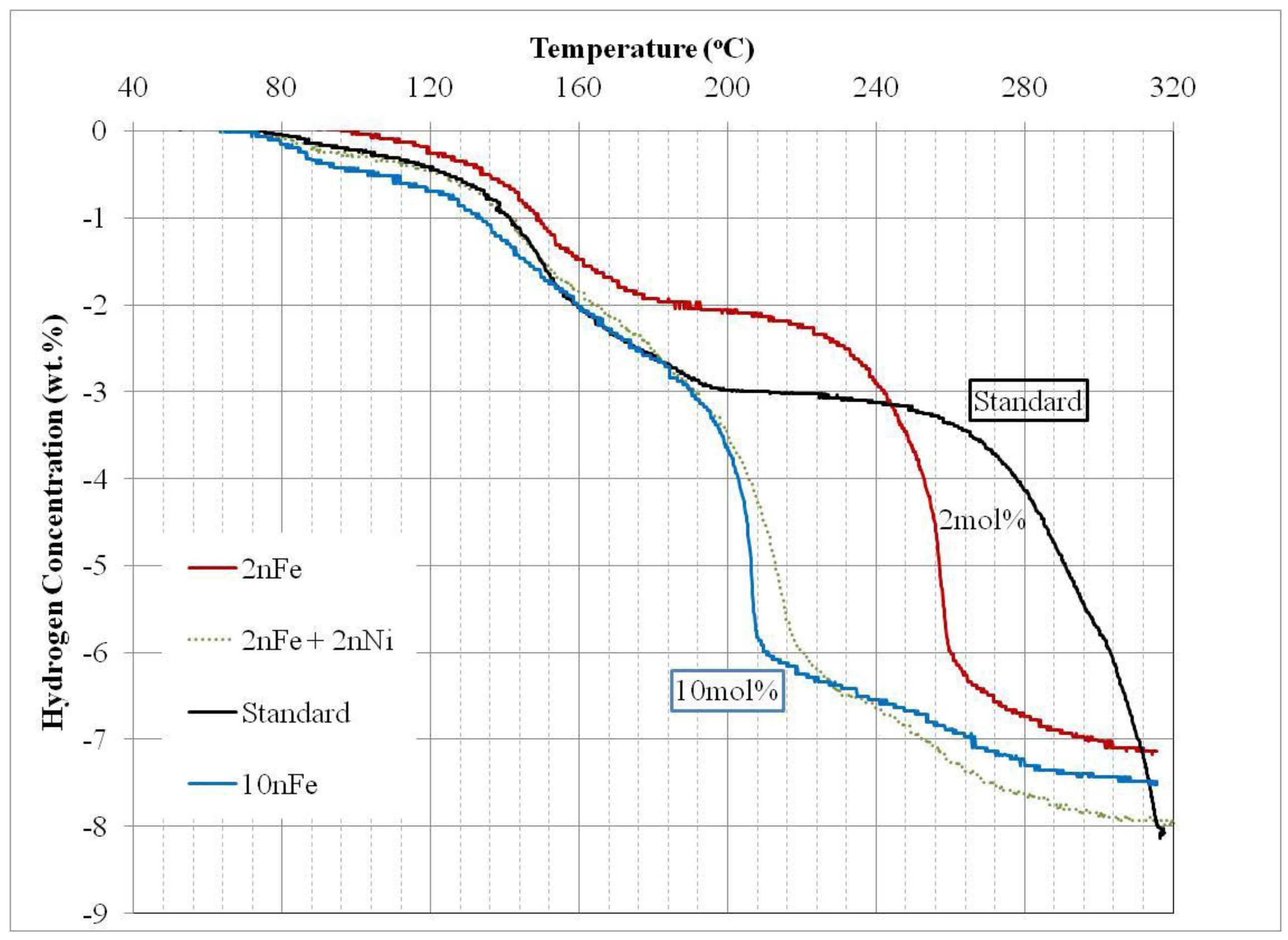

Figure 7. Ramping desorption kinetics comparing LiBNH + nMgH2 without and with 2 mol% and 10 mol% nano iron.
Figure 7. Ramping desorption kinetics comparing LiBNH + nMgH2 without and with 2 mol% and 10 mol% nano iron.
Catalysts 02 00434 g007

3. Experimental Section

3.1. Synthesis and Nanocatalyst Doping of Complex Multinary Hydrides (LinMgBNH)

The parent compounds, LiBH4 and LiNH2, were purchased from Sigma Aldrich with a purity of 95%, and MgH2 was obtained from Alfa Aesar with a purity of 98%. All materials were kept in the inert atmosphere of the glove box and used without further purification. The MgH2 was either added as received or was added as a nano MgH2. The nano MgH2 (nMgH2) was created by ball milling the commercial MgH2 (cMgH2) for 12 h with intermittent hydrogen/argon purges every 2 h. This ensured the reduction of particle size as well as the decrease in hydrogen release temperature, as previously reported [38]. The multinary complex hydride (LinMgBNH) was created in 4 g batch with a constant molar ratio of 2LiNH2:LiBH4:nMgH2, while taking into account the purity of the parent compounds, by employing high energy ball milling (Fritsch Pulverisette 6) for 5 h at 300 rpm with intermittent hydrogen/argon (5%/95%) purges for 20 min before milling and after 2 h and 4 h. This was done to ensure that as little hydrogen as possible was released during the milling process and to reduce the agglomeration of the hydride that occurs when pure hydrogen is used. The processing scheme adopted was to create the quaternary structure Li4BN3H10 (referred as LiBNH) by milling LiBH4 with 2LiNH2 for 5 h and then adding nano sized MgH2, after which the quaternary and the nano MgH2 were milled for an additional 5 h. All milling was carried out in an inert atmosphere and the samples were purged with the hydrogen/argon mixture every 2 h.
After the multinary complex hydride was synthesized as described above, various concentrations of nano additives were added to 0.4 g of sample. The samples were loaded in the glove box and the same stainless steel milling container was used to synthesize catalyst doped multinary complex hydrides. These samples were then purged with the same hydrogen/argon mixture, as previously described, for 15 min before being milled. Initially, the samples were milled at 300 rpm for 15 min to compare the effect of the nano additives on the multinary hydride. This milling duration allowed a thorough mixing of the parent compound with the nano additive without allowing the two to react and form a novel chemical structure. After a quick screening comparison of the various nano additives available, the samples showed an increase in kinetics and a decrease in hydrogen release temperature. Initially, 2 mol% of various nano-sized additives obtained from QunatumSphere Inc., was investigated. The materials available were nickel, copper, manganese, cobalt and iron.

3.2. Characterization and Hydrogen Sorption Measurements of Catalyzed Multinary Complex Hydrides

The powder X-ray diffraction of the samples have been carried out by Philips X’pert diffractometer with CuKα radiation of λ = 1.54060 Å. The as-milled sample, which shows peaks at the 2θ angles of 21° and 23°, are prepared inside the glove box and sealed with Parafilm® tape. Diffraction data are analyzed using PANalytical X’pert Highscore software version 1.0f. Perkin-Elmer Spectrum One Fourier transform infrared (FTIR) spectrometer was utilized to measure the bonding stretches of the complex hydride compound. The working range of the FTIR instrument was between 370–7800 cm−1 and a resolution of 0.5 cm−1. The thermal volumetric desorption (ramping kinetics) was performed using Setaram HyEnergy’s PCTPro 2000 and Quantachrome’s Autosorb 1C thermal programmed desorption (TPD) equipment to understand the hydrogen desorption characteristics of undoped and nanocatalysts doped multinary complex hydrides.

4. Conclusions

Through XRD measurements, it was found that a 2:1 molar ratio of LiNH2:LiBH4 formed a new quaternary compound after approximately 5 h of ball milling. The obtained quaternary complex hydride (LiBNH) was further mixed with nanoMgH2 and subjected to ball milling under Ar/H2 (95/5%) ambient for 5 h. XRD of the as-synthesized complex multinary hydride exhibited peaks from LiBNH and nanoMgH2; however, no signatures of the parent LiBH4 and LiNH2 compounds are observed. The Fourier Transform Infrared Spectroscopy (FTIR) results of the as-prepared complex multinary hydride (LinMgBNH) demonstrated the presence of symmetric and asymmetric NH2 stretches, wide B-H stretch and BH2 deformation bands. The thermal desorption profile of the undoped LinMgBNH showed three steps of hydrogen release at temperatures around 150, 200 and 300 °C respectively. However, much earlier on-set decomposition temperatures have been obtained for the nanocatalyst doped LinMgBNH. Nanocatalyst additives such as nanoNi, nanoFe, nanoCo, nanoMn and nanoCu at low concentrations (2 mol%) on the complex hydride host structure demonstrated a reduction in the decomposition temperature and overall increase in the hydrogen desorption reaction rates. Bi-metallic nanocatalysts such as the combination of nanoFe and nanoNi showed further pronounced kinetics enhancement in comparison to their individual counterparts. One important aspect of the fate of nanocrystalline behavior of both nanoMgH2 and nano additives after high temperature sorption treatment was not yet determined and are currently under investigation.

Acknowledgments

The authors are grateful to financial support provided by the NSF EAGER Grant # CBET-1233528. Financial support from the ONR-DURIP, Florida Hydrogen Initiative through University of South Florida, BP Oil Spill grant from Dauphin Island Sea Lab are acknowledged gratefully. The authors thank Adaku Ankumah for her comments. Authors wish to thankfully acknowledge Luther S. Williams and B. Bramwell, for their encouragement and support.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Schlesinger, H.I.; Brown, H.C. Metallo Borohydrides. III. Lithium Borohydride. J. Am. Chem. Soc. 1940, 62, 3429–3435. [Google Scholar] [CrossRef]
  2. Knacke, O.; Kubaschewski, O.; Hesselmann, K. Thermochemical Properties of Inorganic Substances, 2nd ed; Springer-Verlag: Berlin, Germany, 1991. [Google Scholar]
  3. Bogdanovic, B.; Brand, R.A.; Marjanovic, A.; Schwickardi, M.; Tölle, J. Metal-doped sodium aluminium hydrides as potential new hydrogen storage materials. J. Alloys Compd. 2000, 302, 36–58. [Google Scholar] [CrossRef]
  4. Sandrock, G.; Thomas, G. The IEA/DOE/SNL on-line hydride databases. Appl. Phys. A 2001, 72, 153–155. [Google Scholar] [CrossRef]
  5. Yvon, K. Complex transition-metal hydrides. Chimia 1998, 52, 613–619. [Google Scholar]
  6. Soulié, J.P.; Renaudin, G.; Cerný, R.; Yvon, K. Lithium boro-hydride LiBH4: I. Crystal structure. J. Alloys Compd. 2002, 346, 200–205. [Google Scholar] [CrossRef]
  7. Stasinevitch, D.S.; Egorenko, G.A. Russ. J. Inorg. Chem. 1968, 13, 341–343.
  8. Züttel, A.; Rentsch, S.; Fischer, P.; Wenger, P.; Sudan, P.; Mauron, P.; Emmenegger, C. Hydrogen storage properties of LiBH4. J. Alloys Compd. 2003, 356-357, 515–520. [Google Scholar] [CrossRef]
  9. Dafert, F.W.; Miklauz, R. über einige neue Verbindungen von Stickstoff und Wasserstoff mit Lithium. Diese Sitzungsberichte 1910, CXVIII, 981–996. [Google Scholar]
  10. Hu, Y.H.; Ruckenstein, E. Ultrafast Reaction between LiH and NH3 during H2 Storage in Li3N. J. Phys. Chem. A 2003, 107, 9737–9739. [Google Scholar] [CrossRef]
  11. Ichikawa, T.; Isobe, S.; Hanada, N.; Fujii, H. Lithium nitride for reversible hydrogen storage. J. Alloys Compd. 2004, 365, 271–276. [Google Scholar] [CrossRef]
  12. Aoki, M.; Miwa, K.; Noritake, T.; Kitahara, G.; Nakamori, Y.; Orimo, S.; Towata, S. Destabilization of LiBH4 by mixing with LiNH2. Appl. Phys. A 2005, 80, 1409–1412. [Google Scholar] [CrossRef]
  13. Chen, P.; Xiong, Z.; Luo, J.; Lin, J.; Tan, K.L. Interaction of hydrogen with metal nitrides and imides. Nature 2002, 420, 302–304. [Google Scholar] [CrossRef]
  14. Diyabalanage, H.V.K.; Shrestha, R.P.; Semelsberger, T.A.; Scott, B.L.; Bowden, M.E.; Davis, B.L.; Burrell, A.K. Calcium Amidotrihydroborate: A Hydrogen Storage Material. Angew. Chem. Int. Ed. 2007, 46, 8995–8997. [Google Scholar]
  15. Hu, J.; Wu, G.; Liu, Y.; Xiong, Z.; Chen, P.; Murata, K.; Sakata, K.; Wolf, G. Hydrogen Release from Mg(NH2)2-MgH2 through Mechanochemical Reaction. J. Phys. Chem. B 2006, 110, 14688–14692. [Google Scholar] [CrossRef]
  16. Jeon, E.; Cho, Y. Mechanochemical synthesis and thermal decomposition of zinc borohydride. J. Alloys Compd. 2006, 422, 273–275. [Google Scholar] [CrossRef]
  17. Yang, A.S.J.; Siegel, D.J.; Halliday, D.; Drews, A.; Carter, R.O., III; Wolverton, C.; Lewis, G.J.; Sachtler, J.W.A.; Low, J.J.; Faheem, S.A.; et al. A Self-Catalyzing Hydrogen-Storage Material. Angew. Chem. Int. Ed. 2008, 47, 882–887. [Google Scholar]
  18. Kim, J.-H.; Jin, S.-A.; Shim, J.-H.; Cho, Y.W. Thermal decomposition behavior of calcium borohydride Ca(BH4)2. J. Alloys Compd. 2008, 461, L20–L22. [Google Scholar] [CrossRef]
  19. Kim, J.-H.; Jin, S.-A.; Shim, J.-H.; Cho, Y.W. Reversible hydrogen storage in calcium borohydride Ca(BH4)2. Scr. Mater. 2008, 58, 481–483. [Google Scholar] [CrossRef]
  20. Kojima, Y.; Matsumoto, M.; Kawai, Y.; Haga, T.; Ohba, N.; Miwa, K.; Towata, S.-I.; Nakamori, Y.; Orimo, S.-I. Hydrogen Absorption and Desorption by the Li-Al-N-H System. J. Phys. Chem. B 2006, 110, 9632–9636. [Google Scholar]
  21. Leng, H.Y.; Ichikawa, T.; Hino, S.; Hanada, N.; Isobe, S.; Fujii, H. New Metal-N-H System Composed of Mg(NH2)2 and LiH for Hydrogen Storage. J. Phys. Chem. B 2004, 108, 8763–8765. [Google Scholar]
  22. Chen, Y.; Wang, P.; Liu, C.; Cheng, H.-M. Improved hydrogen storage performance of Li-Mg-N-H materials by optimizing composition and adding single-walled carbon nanotubes. Int. J. Hydrog. Energy 2007, 32, 1262–1268. [Google Scholar] [CrossRef]
  23. Nakamori, Y.; Li, H.; Miwa, K.; Towata, S.-I.; Orimo, S.-I. Syntheses and Hydrogen Desorption Properties of Metal-Borohydrides M(BH4)n (M = Mg, Sc, Zr, Ti, and Zn; n = 2-4) as Advanced Hydrogen Storage Materials. Mater. Trans. 2006, 47, 1898–1901. [Google Scholar] [CrossRef]
  24. Nakamori, Y.; Orimo, S.-I. Destabilization of Li-based complex hydrides. J. Alloys Compd. 2004, 370, 271–275. [Google Scholar] [CrossRef]
  25. Orimo, S.-I.; Nakamori, Y.; Eliseo, J.R.; Zuttel, A.; Jensen, C.M. Complex Hydrides for Hydrogen Storage. Chem. Rev. 2007, 107, 4111–4132. [Google Scholar] [CrossRef]
  26. Pinkerton, F.E.; Meisner, G.P.; Meyer, M.S.; Balogh, M.P.; Kundrat, M.D. Hydrogen Desorption Exceeding Ten Weight Percent from the New Quaternary Hydride Li3BN2H8. J. Phys. Chem. B 2005, 109, 6–8. [Google Scholar]
  27. Soloveichik, G.; Her, J.-H.; Stephens, P.W.; Gao, Y.; Rijssenbeek, J.; Andrus, M.; Zhao, J.-C. Ammine Magnesium Borohydride Complex as a New Material for Hydrogen Storage: Structure and Properties of Mg(BH4)2-NH3. Inorg. Chem. 2008, 47, 4290–4298. [Google Scholar] [CrossRef]
  28. Stasinevich, D.S.; Egorenko, G.A. Russ. J. Inorg. Chem. 1968, 13, 341.
  29. Stephens, F.H.; Pons, V.; Baker, R.T. Ammonia-borane: the hydrogen source par excellence? Dalton Trans 2007. [Google Scholar] [CrossRef]
  30. Marder, T.B. Will We Soon Be Fueling our Automobiles with Ammonia-Borane? Angew. Chem. Int. Ed. 2007, 46, 8116–8118. [Google Scholar] [CrossRef]
  31. Vajo, J.J.; Skeith, S.L.; Mertens, F. Reversible Storage of Hydrogen in Destabilized LiBH4. J. Phys. Chem. B 2005, 109, 3219. [Google Scholar]
  32. Wu, G.; Xiong, Z.; Liu, T.; Liu, Y.; Hu, J.; Chen, P.; Feng, Y.; Wee, A.T.S. Synthesis and Characterization of a New Ternary Imide Li2Ca(NH)2. Inorg. Chem. 2007, 46, 517–521. [Google Scholar] [CrossRef]
  33. Xiong, Z.; Yong, C.K.; Wu, G.; Chen, P.; Shaw, W.; Karkamkar, A.; Autrey, T.; Jones, M.O.; Johnson, S.R.; Edwards, P.P.; et al. High-capacity hydrogen storage in lithium and sodium amidoboranes. Nature Mater. 2008, 7, 138–141. [Google Scholar] [CrossRef]
  34. Xiong, Z.T.; Hu, J.J.; Wu, G.T.; Liu, Y.F.; Chen, P. Large amount of hydrogen desorption and stepwise phase transition in the chemical reaction of NaNH2 and LiAlH4. Catal. Today 2007, 120, 287–291. [Google Scholar]
  35. Liu, Y.; Liu, T.; Xiong, Z.; Hu, J.; Wu, G.; Chen, P.; Wee, A.T.S.; Yang, P.; Murata, K.; Sakata, K. Synthesis and Structural Characterization of a New Alkaline Earth Imide: MgCa(NH)2. Eur. J. Inorg. Chem. 2006, 2006, 4368–4373. [Google Scholar]
  36. Xiong, G.W.Z.; Hu, J.; Chen, P. Ternary Imides for Hydrogen Storage. Adv. Mater. 2004, 16, 1522–1525. [Google Scholar] [CrossRef]
  37. Xiong, G.W.Z.; Hu, J.; Liu, Y.; Chen, P.; Luo, W.; Wang, J. Reversible Hydrogen Storage by a Li-Al-N-H Complex. Adv. Funct. Mater. 2007, 17, 1137–1142. [Google Scholar] [CrossRef]
  38. Zaluska, A.; Zaluski, L.; Ström-Olsen, J.O. Nanocrystalline magnesium for hydrogen storage. J. Alloys Compd. 1999, 288, 217–225. [Google Scholar] [CrossRef]
  39. Vigeholm, B.; Jensen, K.; Larsen, B.; Pedersen, A.S. Elements of hydride formation mechanisms in nearly spherical magnesium powder particles. J. Less-Common Met. 1987, 131, 133–141. [Google Scholar] [CrossRef]
  40. Vigeholm, B.; Kjoller, J.; Larsen, B.; Pedersen, A.S. Formation and decomposition of magnesium hydride. J. Less-Common Met. 1983, 89, 135–144. [Google Scholar] [CrossRef]
  41. Ryden, J.; Hjorvarsson, T.; Ericsson, T.; Karlsson, E.; Krozer, A.; Kasemo, B. Unusual kinetics of hydride formation in magnesium-palladium sandwiches, studied by hydrogen profiling and quartz crystal microbalance measurements. Z. Phys. Chem. 1989, 164, 1259–1260. [Google Scholar] [CrossRef]
  42. Chater, P.A.; Anderson, P.A.; Prendergast, J.W.; Walton, A.; Mann, V.S.J.; Book, D.; David, W.I.F.; Johnson, S.R.; Edwards, P.P. Synthesis and characterization of amide-borohydrides: New complex light hydrides for potential hydrogen storage. J. Alloys Compd. 2007, 446-447, 350–354. [Google Scholar] [CrossRef]
  43. Lewis, G.J.; Sachtler, J.W.A.; Low, J.J.; Lesch, D.A.; Faheem, S.A.; Dosek, P.M.; Knight, L.M.; Halloran, L.; Jensen, C.M.; Yang, J.; et al. High throughput screening of the ternary LiNH2-MgH2-LiBH4 phase diagram. J. Alloys Compd. 2007, 446-447, 355–359. [Google Scholar] [CrossRef]
  44. Yang, J.; Sudik, A.; Siegel, D.J.; Halliday, D.; Drews, A.; Carter, R.O., III; Wolverton, C.; Lewis, G.J.; Sachtler, J.W.A.; Low, J.J.; et al. Hydrogen storage properties of 2LiNH2 + LiBH4 + MgH2. J. Alloys Compd. 2007, 446-447, 345–349. [Google Scholar] [CrossRef]
  45. Chater, P.A.; David, W.I.F.; Johnson, S.R.; Edwards, P.P.; Anderson, P.A. Synthesis and crystal structure of Li4BH4(NH2)3. Chem. Commun. 2006, 23, 2439–2441. [Google Scholar]
